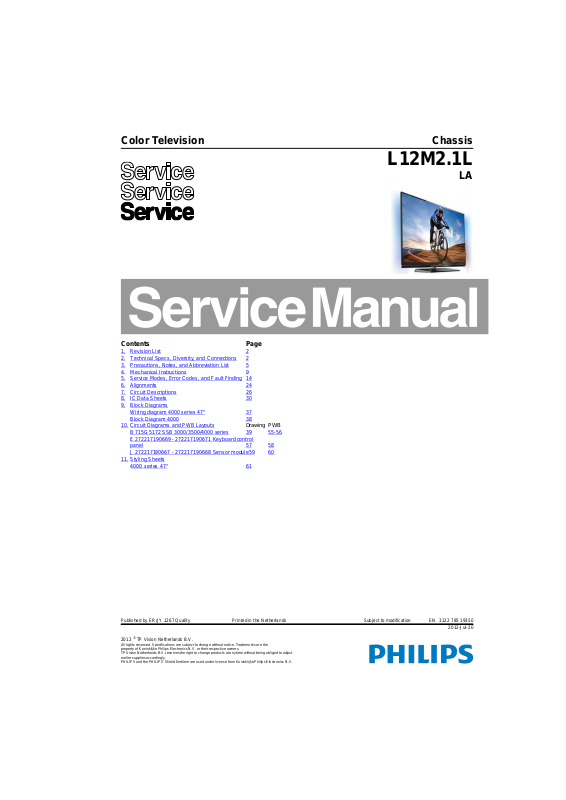

Philips 47PFL4007G Schematic

Color Television Chassis

L12M2.1L

LA

Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9

5. Service Modes, Error Codes, and Fault Finding 14

6. Alignments 24

7. Circuit Descriptions 26

8. IC Data Sheets 30

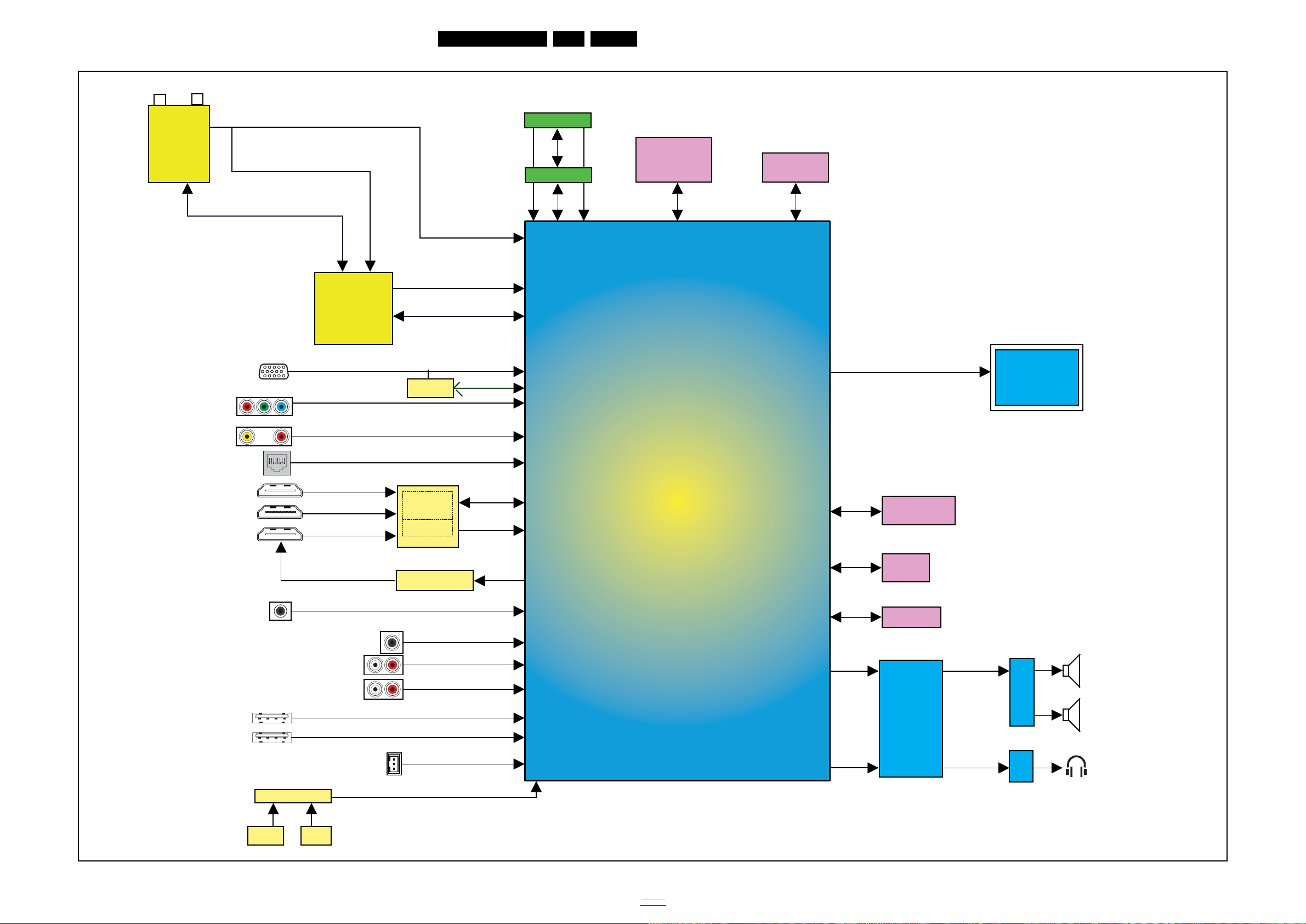

9. Block Diagrams Wiring diagram 4000 series 47" 37 Block Diagram 4000 38

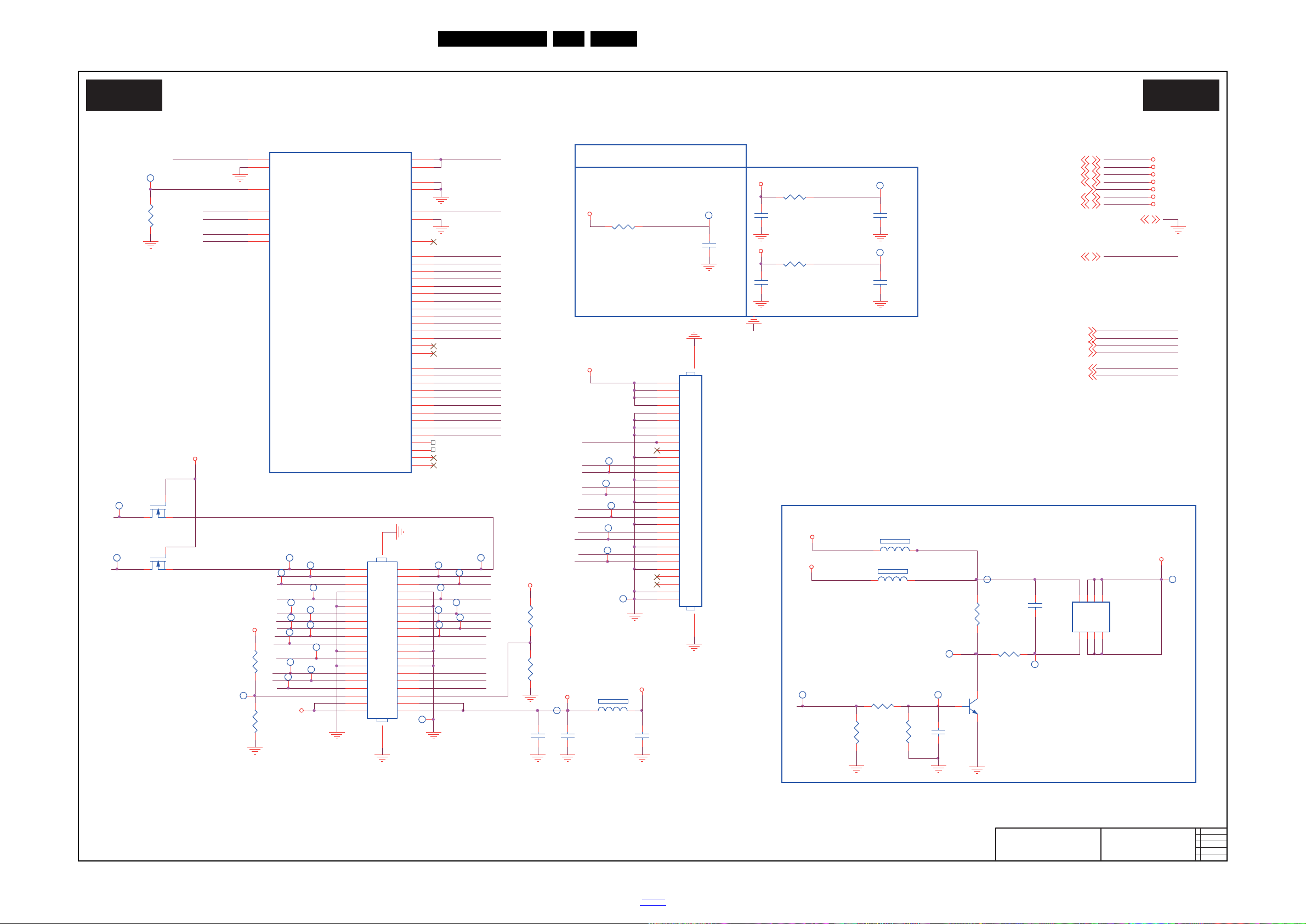

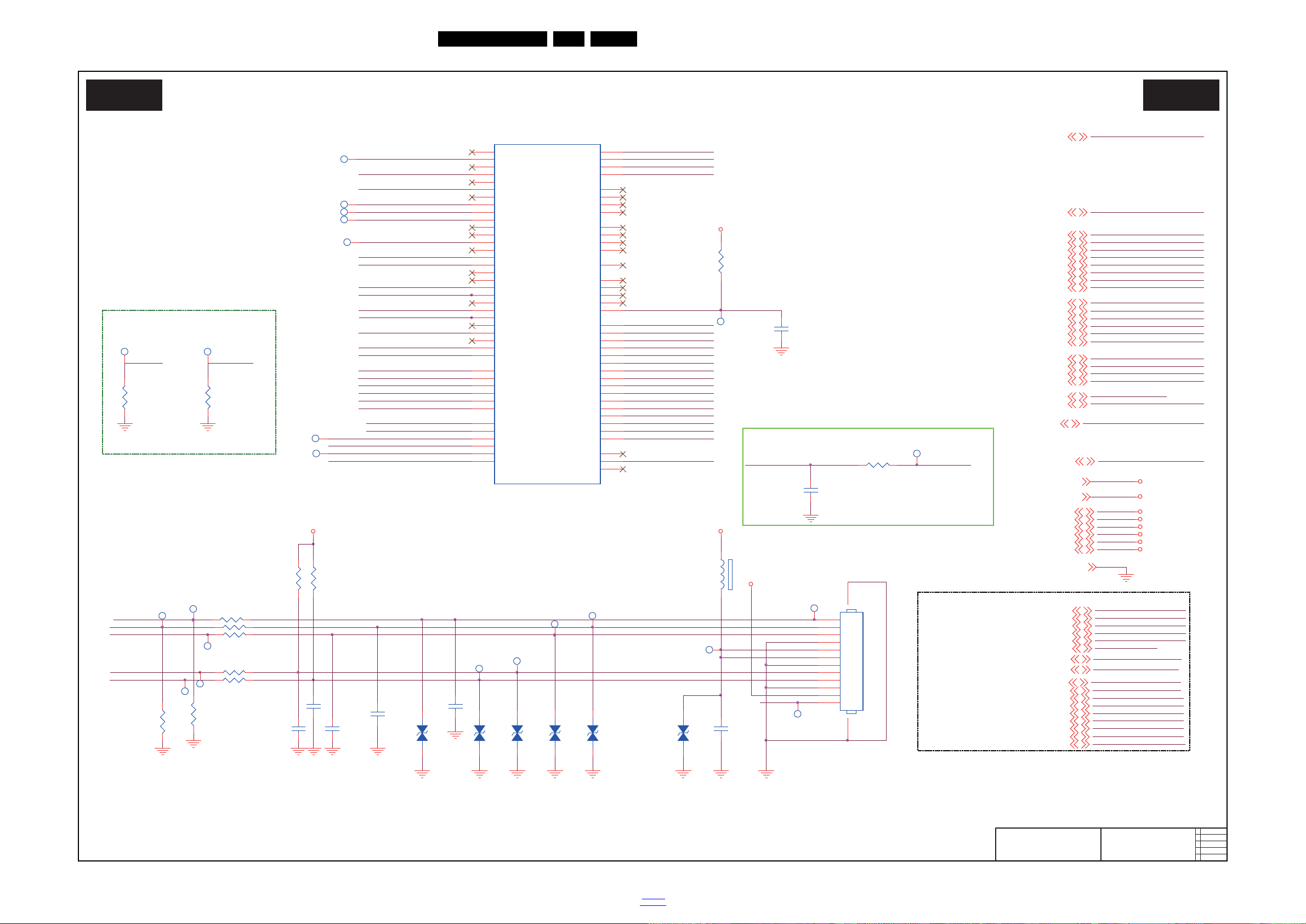

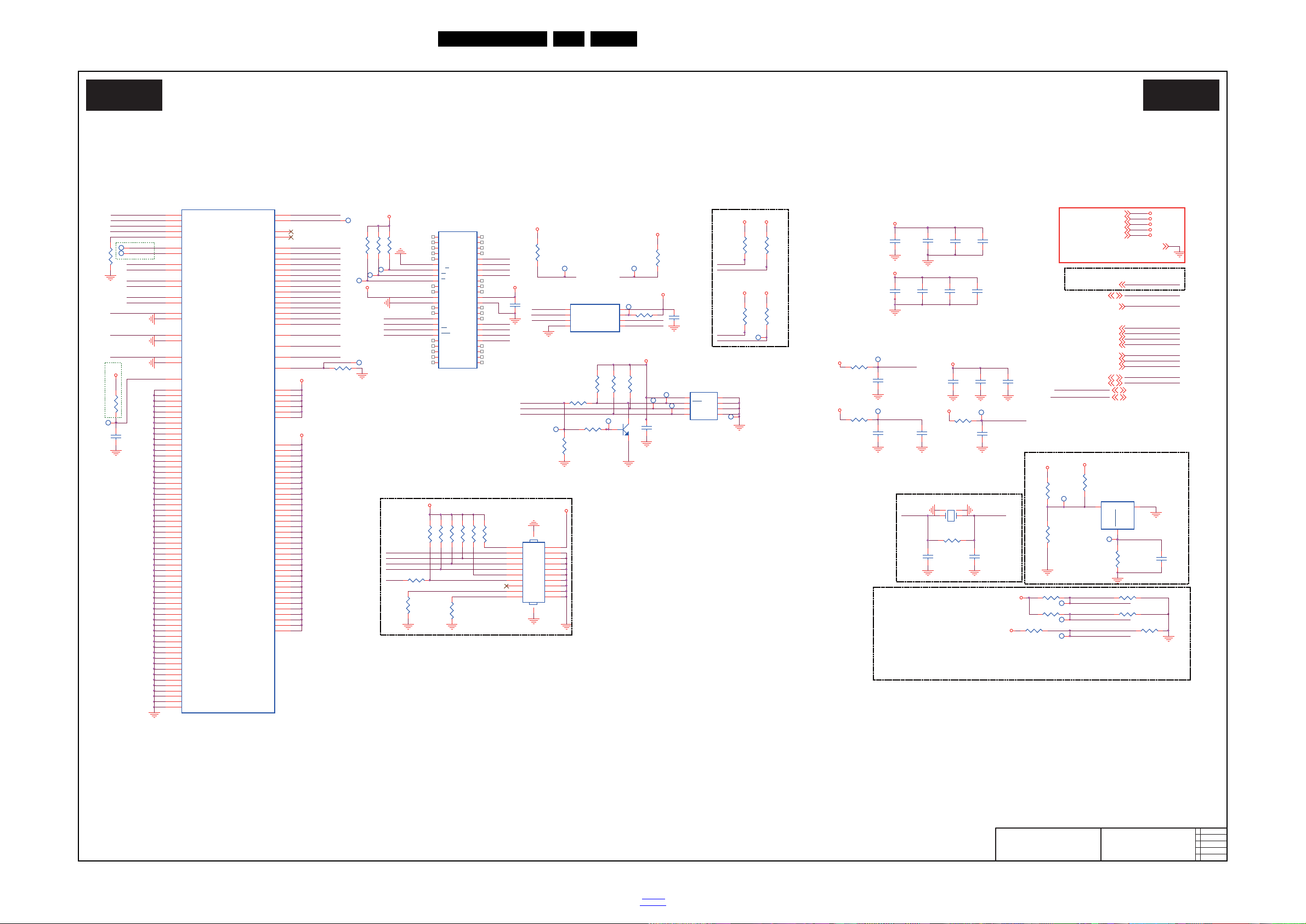

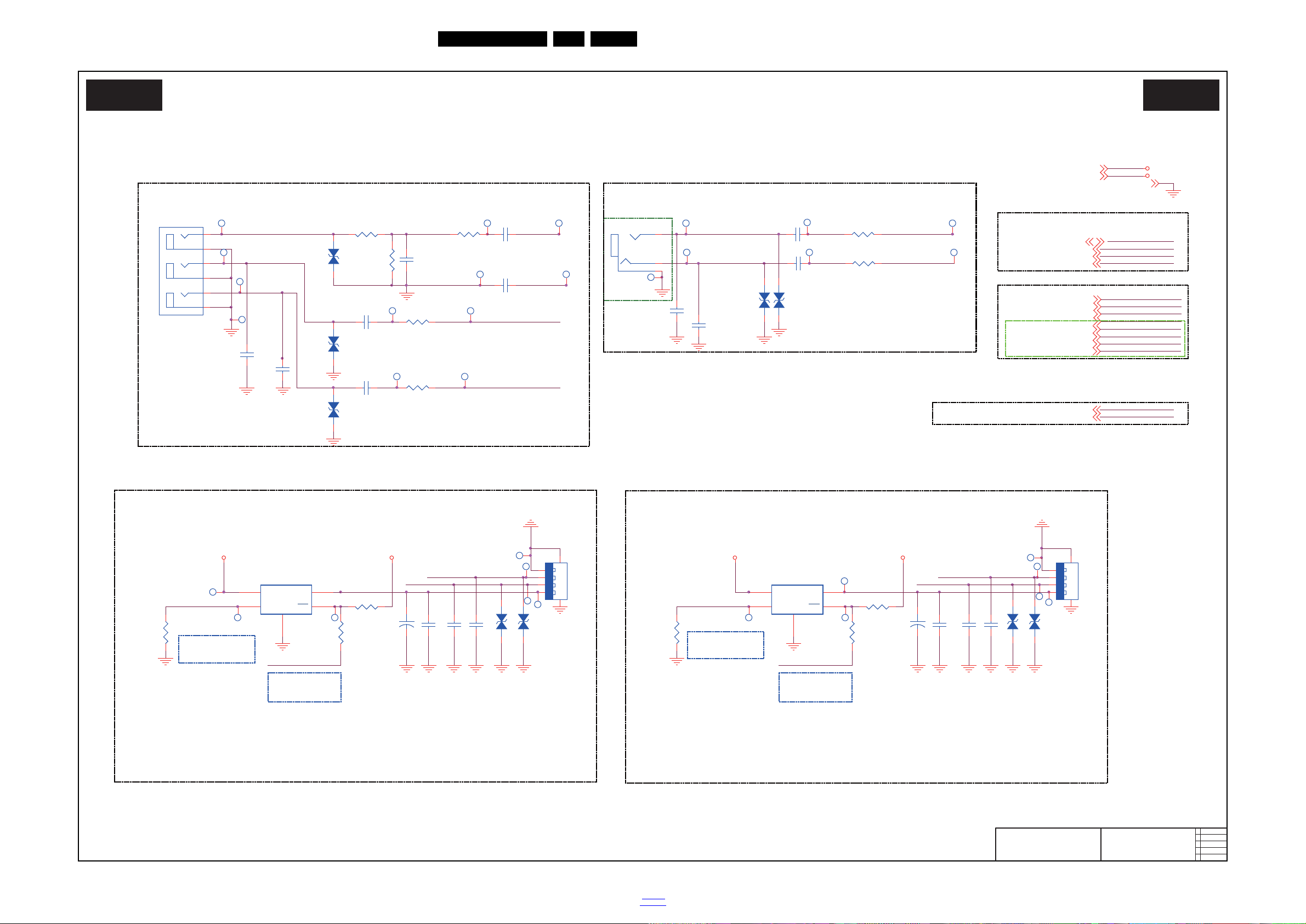

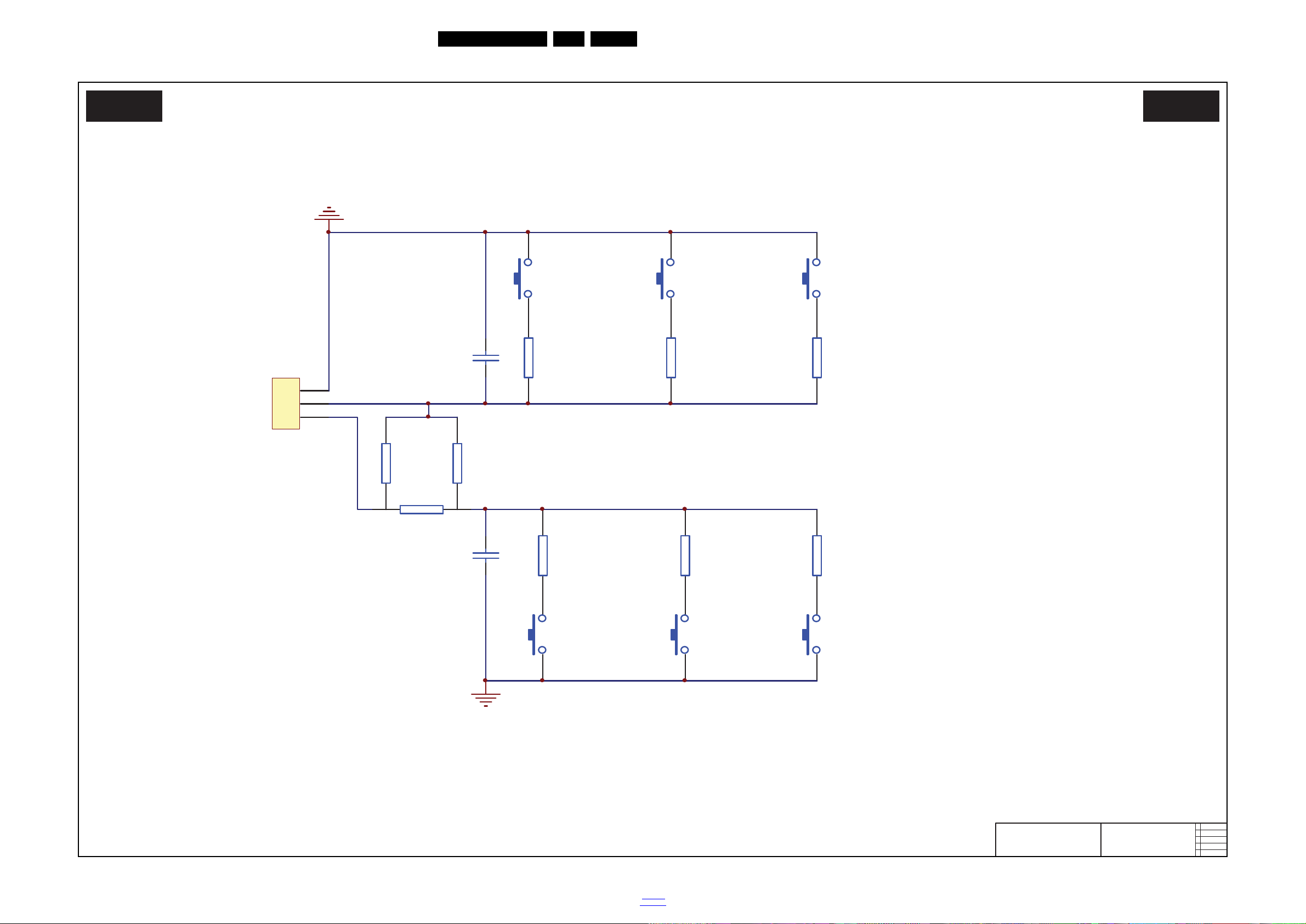

10. Circuit Diagrams and PWB Layouts Drawing PWB B 715G5172 SSB 3000/3500/4000 series E 272217190669 - 272217190671 Keyboard control panel 57 58 J 272217190667 - 272217190668 Sensor module59 60

11. Styling Sheets 4000 series 47" 61

39 55-56

Published by ER/JY 1267 Quality Printed in the Netherlands Subject to modification EN 3122 785 19350

2012-Jul-20

2012 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 L12M2.1L LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

Table 2-1 Described Model Numbers and Diversity

24 9 10 11

Mechanics Block Diagrams Schematics

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1. Here is product information available, as well as getting started, user manuals, frequently asked questions and software & drivers.

CTN

47PFL4007G/78 2-1 4-1 4-2

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

Connection Overview

Wire Dressing

4-3

Rear Cover Removal

4-4 9.1 9.2 10.1 10.3 10.2 11.1

SSB Removal

Wiring Diagram

Block Diagram

SSB

J (IR/LED)

E (Keyboard/Leading Edge)

Styling

2012-Jul-20

back to

div. table

2.3 Connections

VGA

SPDIF

OUT

LR

YPb

Pr

SERV.U

AUDIO IN

DVI/VGA

ARC

HDMI 3

ANTENNA

IN 2

(CABLE)

ANTENNA

IN 1

(AIR)

HDMI 1

HDMI 2

USB 1

USB 2

L

CVBS

R

NETWORK

19260_001_120317.eps

120323

Side connectorsRear connectors

11

10

9 8 7

151312

14

4

3

1

5

6

2

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3L12M2.1L LA 2.

Note: The following connector color abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

2.3.1 Side Connections

1 - Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

2 - Cinch: Video CVBS - In, Audio - In

Ye -Video CVBS 1 V Rd -Audio R 0.5 V Wh -Audio L 0.5 V

3 - USB2 2.0

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

4 - USB1 2.0

See 3 - USB2 2.0

/ 75  jq

PP

RMS RMS

Figure 2-2 USB (type A)

Figure 2-1 Connection overview

/ 10 k jq / 10 k jq

5, 6 - HDMI: Digital Video - In, Digital Audio - In/Out

Figure 2-3 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

2.3.2 Rear Connections

7 - TV ANTENNA - In

Signal input for cable signals.

8 - TV ANTENNA - In

back to

div. table

Signal input for air signals.

2012-Jul-20

EN 4 L12M2.1L LA2.

1

6

10

11

5

15

10000_002_090121.eps

090127

10000_025_090121.eps

120320

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

9 - PC IN:VGA

Figure 2-4 VGA connector

1 -Video Red 0.7 V 2 -Video Green 0.7 V 3 -Video Blue 0.7 V 4-n.c.

/ 75 W j

PP

/ 75 W j

PP

/ 75 W j

PP

5 -Ground Gnd H 6 -Ground Red Gnd H 7 -Ground Green Gnd H 8 -Ground Blue Gnd H 9-+5V 10 - Ground Sync Gnd H

DC

+5 V j

11 - Ground Red Gnd H 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j

10 - Audio - In: Left / Right, VGA

Bu - Audio L/R in 0.5 V

/ 10 k jq

RMS

11 - RJ45: Ethernet

Figure 2-5 Ethernet connector

1 -TD+ Transmit signal k 2 -TD- Transmit signal k 3 -RD+ Receive signal j 4 -CT Centre Tap: DC level fixation 5 -CT Centre Tap: DC level fixation 6 -RD- Receive signal j 7-GND Gnd H 8-GND Gnd H

12 - Service / UART

1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j

13 - EXT2: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V Bu - Video - Pb 0.7 V Rd -Video - Pr 0.7 V

Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 k jq

RMS

/ 10 k jq

RMS

14 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75  kq

PP

15 - HDMI 3: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-6 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2012-Jul-20

back to

div. table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

back to

div. table

-9

), or pico-farads (p 10

. Select

EN 5L12M2.1L LA 3.

-6

),

-12

).

2012-Jul-20

EN 6 L12M2.1L LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

2012-Jul-20

back to

div. table

Precautions, Notes, and Abbreviation List

EN 7L12M2.1L LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div. table

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

19350_006_120711.eps

120711

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assy/Panel Removal

4.4 Set Re-Assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

EN 9L12M2.1L LA 4.

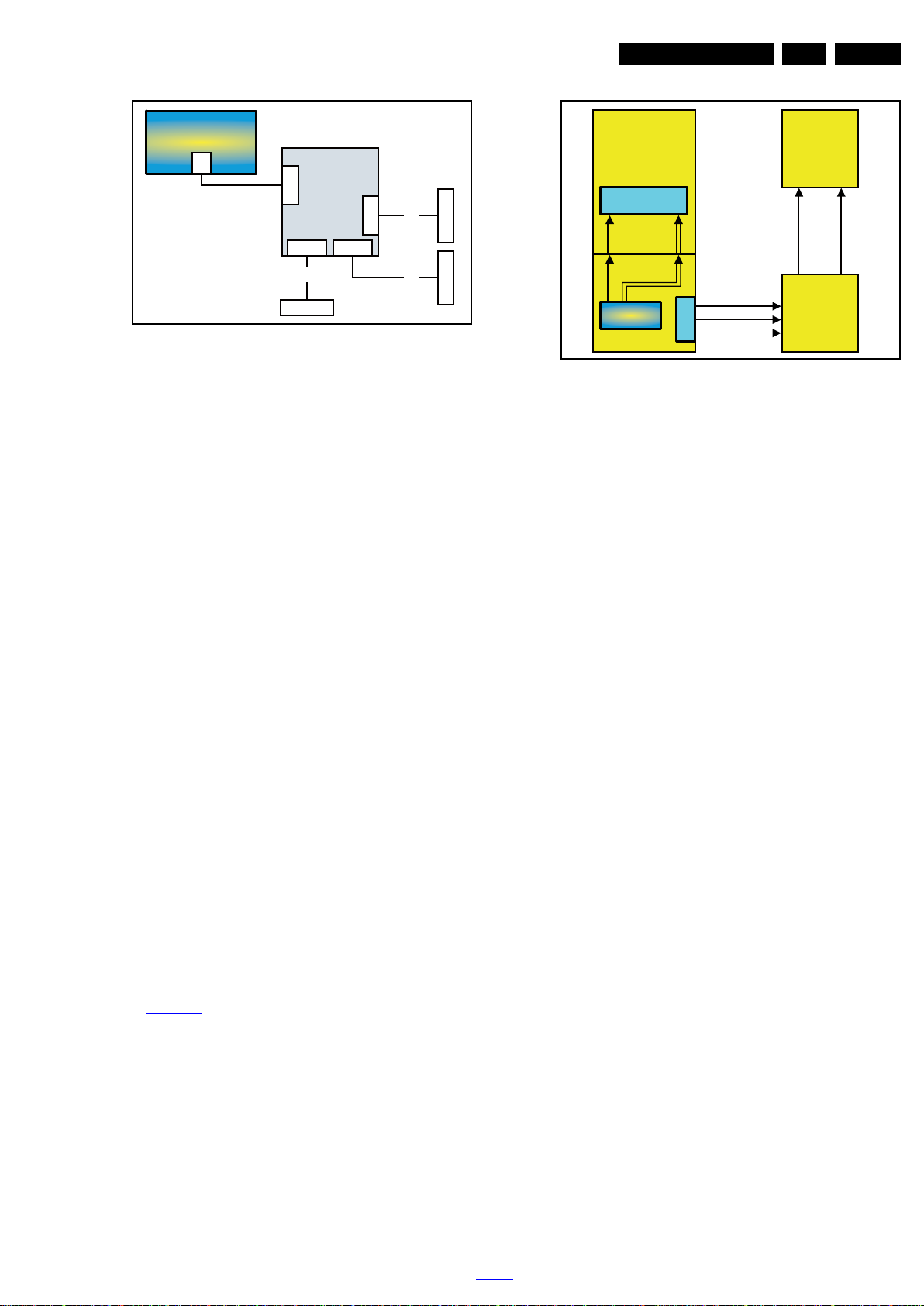

Figure 4-1 Cable dressing 47PFL4007G/78

back to

div. table

2012-Jul-20

EN 10 L12M2.1L LA4.

19350_008_120717.eps

120717

1

2

1

19350_009_120717.eps

120717

4

5

3

5

4.2 Se rvice Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

4.3 Assy/Panel Removal

4.3.1 Rear Cover

Warning: Disconnect the mains power cord before removing

the rear cover.

Attention: All sets are equipped with a hatch to disconnect the keyboard control panel.

This hatch is indicated on the rear cover with

SERVICE h. It is mandatory to open the hatch and disconnect the cable prior to removal of the rear cover!

See Figure 4-2

1. Remove the hatch that covers the keyboard control panel connector [1].

2. Remove the stand and swivel block [2].

3. Unplug the keyboard control panel connector [3].

4. Remove remaining fixation screws [metric, 4, and plastite, 5] that secure the rear cover.

5. Lift the rear cover from the TV. Make sure that wires and flat foils are not damaged while lifting the rear cover from the set.

and Figure 4-3 for details.

Mechanical Instructions

Figure 4-2 Rear cover removal -1-

Figure 4-3 Rear cover removal -2-

4.3.2 Small Signal Board (SSB)

2012-Jul-20

Refer to Figure 4-4

for details.

back to

div. table

Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

Mechanical Instructions

19260_103_120322.eps

120323

2

1

3

19350_010_120717.eps

120717

19

350_011_120717.eps

120717

19350_012_120717.eps

120717

19350_013_120717.eps

120717

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Release the clamps and unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted away from side connector cover and lifted from the set.

EN 11L12M2.1L LA 4.

Figure 4-6 Left & Right tweeter cable dressing -1-

4.4 Set Re-Assembly

4.4.1 Cable dressing & taping

IR cable dressing

The IR cable must be dressed along the recess as shown in

Figure 4-5

Figure 4-4 SSB removal

.

Figure 4-7 Left & Right tweeter cable dressing -2-

Back Cover cable dressing

Figure 4-8 Back cover cable dressing -1-

Figure 4-5 IR cable dressing

Left & Right tweeter cable dressing

The left & right tweeter plugs must be dressed within the recess on the LCD panel as shown in Figure 4-6

Figure 4-7

.

and

back to

div. table

2012-Jul-20

EN 12 L12M2.1L LA4.

19350_014_120717.eps

120717

19

350_015_120717.eps

120717

Figure 4-9 Back cover cable dressing -2-

Mechanical Instructions

Figure 4-10 Back cover cable dressing -3-

Thermal pad underneath SSB location

Underneath the SSB, three thermal pads are located as indicated in Figure 4-11

.

2012-Jul-20

back to

div. table

Mechanical Instructions

19350_016_120717.eps

120717

EN 13L12M2.1L LA 4.

Figure 4-11 Thermal pad underneath SSB location

back to

div. table

2012-Jul-20

EN 14 L12M2.1L LA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. However, several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Color bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into five parts:

• Service Default Mode (SDM).

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

SDM, SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• A pre-defined situation to ensure measurements can be made under uniform conditions (SDM).

• Activates the blinking LED procedure for error identification when no picture is available (SDM).

• Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).

• Display information (“SDM” or “SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

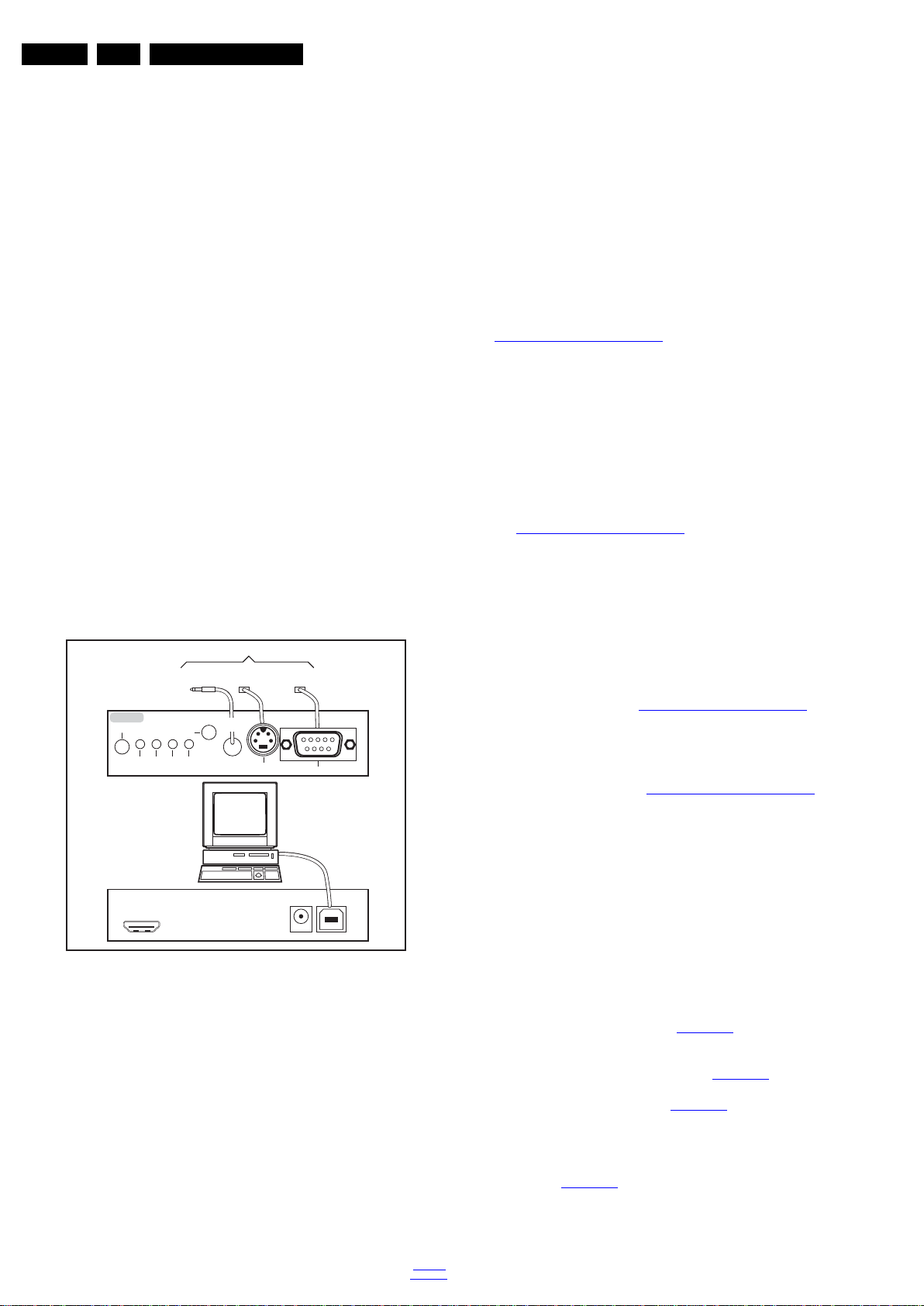

ComPair Mode is used for communication between a computer and a TV on I engineer to quickly diagnose the TV set by reading out error codes, read and write in NVMs, communicate with ICs and the micro processor (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I ComPair. To do this, ComPair has to be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

2

C /UART level and can be used by a Service

2

C with help of

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in SDM and SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SDM, SAM, and CSM. The screen will show: “AAAAB-X.YYY”, where:

• AAAA is the chassis name: T921L x.yyy for the D series and T922L x.yy for the G series.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

• X is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 1 - 99 and AA - ZZ.

- If the main version number changes, the new version number is written in the NVM.

- If the main version number changes, the default settings are loaded.

• YYY is the sub version number: this is updated with a minor change (backwards compatible with the previous versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version number is written in the NVM.

- If the NVM is refreshed, the software identification, version, and cluster will also be written to NVM.

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

5.2.2 Service Default Mode (SDM)

Purpose

Set the TV in SDM mode in order to be able to create a predefined setting for measurements to be made. In this platform, a simplified SDM is introduced (without protection override and without tuning to a predefined frequency).

Specifications

• Set linear video and audio settings to 50%, but volume to 25%. Stored user settings are not affected.

• All service-unfriendly modes (if present) are disabled, since they interfere with diagnosing/repairing a set. These service unfriendly modes are: – (Sleep) timer. – Blue mute/Wall paper. – Auto switch “off” (when there is no “ident” signal). – Hotel or hospital mode. – Child lock or parental lock (manual or via V-chip). – Skipping, blanking of “Not favorite”, “Skipped” or

“Locked” presets/channels.

– Automatic storing of Personal Preset or Last Status

settings.

. When the value is

2012-Jul-20

back to

div. table

Service Modes, Error Codes, and Fault Finding

EN 15L12M2.1L LA 5.

– Automatic user menu time-out (menu switches

back/OFF automatically.

– Auto Volume levelling (AVL).

How to Activate SDM

To activate SDM, use the following methods:

• Press the following key sequence on the RC transmitter: “062596”, directly followed by the “Home” button.

After activating this mode, “SDM” will appear in the upper left corner of the screen.

On Screen Menu

After activating SDM, the following items are displayed, with SDM in the upper right corner of the screen to indicate that the television is in Service Default Mode. Menu items and explanation:

• xxxxx Operating hours (in decimal).

• AAAAB-X.YYY See Software Identification, Version, and

Cluster for the software name definition.

• ERR Shows all errors detected since the last time the buffer was erased in format <xxx> <xxx> <xxx> <xxx> <xxx> (five errors possible).

• OP Used to read-out the option bytes. In this chassis two times eight option codes are used.

How to Navigate

As this mode is read only, there is nothing to navigate. To switch to other modes, use one of the following methods:

• Command MENU from the user remote will exit SDM.

• To prevent the OSD from interfering with measurements in SDM, use the command “Adjust” or “Options” (“STATUS” or “INFO” for NAFTA and LATAM) from the user remote. This will switch the OSD “off” while remaining in the SDM mode. The “SDM” OSD is remains visible in the upper right corner of the screen. To exit SDM switch to “Stand-by” mode.

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the OK button to switch to SAM (do not allow the display to time out between entries while keying the sequence). Remarks: new remote

controls will not have I+ button, but an “INFO” button instead.

How to Exit SDM

• Switch the set to Stand-by by pressing the standby button on the remote control transmitter or on the television set.

• Via a standard customer RC-transmitter: key in “00”-sequence. Note: If the TV is switched “off” by a power interrupt while in SDM, the TV will show up in the last status of SDM menu as soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO” button. Do not allow the display to time out between entries while keying the sequence.

• Or via ComPair.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour This represents the life timer. The timer counts normal operation hours, but does not

Main SW ID e.g. “T923L 1.033C” See paragraph Software Identification, Version, and Cluster

ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors

OP1 e.g. “012 007 208 002 184 032 007

OP2 e.g. “056 023 000 106 064 000 000

Clear Press [OK] to clean the Error Codes

RGB Align Warm R Gain To align the White Tone. See

NVM editor Address Select and fill the NVM address

Upload to USB Copy Channel List to USB To upload several settings from the TV to an USB stick

immediately

Normal R Gain

Cool R Gain

Store Store the RGB value

Value Select and fill the NVM value Store Store the value in the address

Copy NVM to USB Copy Readable Info to USB Copy EDID to USB

030”

122”

G Gain B Gain

count Stand-by hours.

definition.

possible. Used to read-out the option bytes. See section 6.4 Option Settings in the Alignments

section for a detailed description. Ten codes are possible.

Erases the contents of the error buffer. Select this menu item and press the MENU RIGHT key on the remote control. The content of the error buffer is cleared.

section 6.3 Software Alignments

in the Alignments section for a detailed description

for the software name

back to

div. table

2012-Jul-20

EN 16 L12M2.1L LA5.

Main Menu Sub-menu 1 Sub-menu 2 Description

Download from USB Copy Channel List from USB To download several settings from the USB stick to the TV

Initialize NVM Press [OK] to Initialize NVM

EDID Write Enable Press [OK] to enable EDID writable

Service Data Type Number Press [OK] use key pad edit type

Clear OAD Version Press [OK] to clean OAD Version

Reload_mac_addressPress [OK] to reload MAC address

Copy NVM from USB Copy Readable Info from USB Copy EDID from USB

immediately

Production Number Press [OK] use key pad edit

12NC SSB Press [OK] use key pad edit SSB

12NC PSU Press [OK] use key pad edit PSU

12NC Display Press [OK] use key pad edit display

immediately

from ECD immediately

Service Modes, Error Codes, and Fault Finding

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

Enable EDID for writing

number immediately

production number immediat ely

immediately

Edit and display the applicable service data by using the displayed key pad.

Clean OAD (Over Air Download, firmware update method) Version

If MAC address value in NVM is missing, you can trigger this item in SAM mode to reload MAC address from flash ECD key to NVM.

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background).

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Home” button to switch to SDM (do not allow the display to time out between entries while keying the sequence).

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence. Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.4 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: from the “Home screen” press “1999”, directly followed by the “Back” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, the following items are displayed,

Table 5-2 Factory mode overview

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture, BL Dimming, Source Meter, the

1 Panel_ID See table 6-3 Display code overview Displays and changes the Panel ID with the left and right cursor; be careful changing this, it can result in not

2 ERR Code: xxx xxx xxx xxx xxx 000 000 000 000 000 Values showing the last 5 errors during the last 50 hrs of operation, according to table 5-4 Error code table 3 CLEAR ERROR BUFFER Press OK Selecting this cle ar all current error codes. 4 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the data to the correct NVM address 5 NVM VALUE various Displays the value at the NVM address of item 5 6 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5 7 NVM COPY TV to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB memory stick. The TV will write

2012-Jul-20

Default value

Description32" 37" 42" 47"

Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, the MTK, MCU and OAD software versions.

correct displaying the screen!

two files in the REPAIR folder of the memory stick. It will create this folder if it does not exist. The items are “Channel list”, “Personal setting s”, “Option codes”, “Dis play-related alignment s” and “Hi story list”. In case t he download to the USB stick was not successful “Failure” will appear. In this case, check if the USB stick is connected properly. Now the settings are stored onto the USB stick and can be used to download onto another TV or other SSB. Uploading is of course only possible if the software is running and if a picture is available. This method is created to be able to save the customer’s TV set tings and to store t hem into another SSB.

back to

div. table

Service Modes, Error Codes, and Fault Finding

Default value

Item Item value

8 NVM READ USB to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The TV will save the two files which

9 CLR_TEMP_R 125 129 Red colour temperatu r e setting 10 CLR_TEMP_G 94 93 Green colour temperature setting 11 CLR_TEMP_B 118 113 Red colour temperature setting 12 AUTO_COLOR Press OK PC: any pattern that has black and white, YPbPr: SMPTE bar (colour bar), any timing. 13 ADC_GAIN_R 0 Red ADC gain 14 ADC_GAIN_G 0 Green ADC gain 15 ADC_GAIN_B 0 Blue ADC gain 16 ADC_OFFSET_R 128 Red ADC offset 17 ADC_OFFSET_G 128 Green ADC offset 18 ADC_OFFSET_B 128 Blue ADC off set 19 VIRGIN_MODE Off/On Use this to return the set to virgin mode. Depends whether the set has been used already. 20 E-F u se On E-fuse mode 21 ORT_MODE Off ORT mode 22 AGEING MODE Off Use this for ageing a new LCD panel 23 RESET_PBS_PWD Press OK Use this to reset the Child Lock 24 VIDEO_PWM_MEDIUM 128 25 VIDEO_PWM_MINIMUM 180 26 VIDEO_PWM_MAXIMUM 0 27 PWM_RATIO_BEST_PICTURE 100 28 PWM_RATIO_STD_TOP 85 29 PWM_RATIO_STD_BOTTOM 75 30 PWM_RATIO_BEST_POWER 68 31 VIDEO_STD_TH_HIGH 99 32 VIDEO_STD_TH_LOW 93 33 YPBPR_PHASE InValid YPbPr Phase setting 34 AUD_LIMITER_MODE 2 Three modes, 0: off, 1: adaptive mode, 2: fixed mode 35 AUD_THRESHOLD_BYTE1 0 Limit threshold 36 AUD_THRESHOLD_BYTE2 0 Limit threshold 37 AUD_THRESHOLD_BYTE3 7 Limit threshold 38 AUD_GAIN_LINEIN 2 Line-in audio gain 39 AUD_GA IN_HDMI 2 HDMI audio gain 40 AUD_GAIN_ATV 2 Analogue TV audio gain 41 AUD_GA IN_DTV 2 Digital TV audio gain 42 AUD_GAIN_USB 2 USB audio gain 43 ESTICKER NVM 1 15 Esticker data 44 ESTICKER NVM 2 0 Esticker data 45 ESTICKER NVM 3 64 Esticker data 46 ESTICKER NVM 4 124 Esticker data 47 ESTICKER NVM 5 91 Esticker data 48 ESTICKER NVM 6 0 Esticker data 49 ESTICKER NVM 7 0 Esticker data 50 ESTICKER NVM 8 0 Esticker data 51 ESTICKER NVM 9 0 Esticker data 52 ESTICKER NVM 10 0 Esticker data 53 ESTICKER NVM 11 16 Esticker data 54 ESTICKER NVM 12 31 Esticker data 55 ESTICKER NVM 13 17 Esticker data 56 ESTICKER NVM 14 7 Esticker data 57 ESTICKER NVM 15 0 Esticker data 58 ESTICKER NVM 16 0 Esticker data 59 ESTICKER NVM 17 0 Esticker data 60 ESTICKER NVM 18 0 Esticker data 61 ESTICKER NVM 19 0 Esticker data 62 ESTICKER NVM 20 0 Esticker data 63 ESTICKER RESET Press OK Reset the E-stickers 64 DIM_LIB_RESET Press OK Reset the Dimming 65 AQ_INDEX 0 1 2 3 Audio Quality index 66 Audio Test Mode Off Used for audio testing during production 67 Audio Channel Type 2.0 Defines the installed speaker system 68 Test Pattern Press OK With the “left” and “right” keys of the remote control various test patterns can be chosen 69 EDID UPDATE Press OK Used to enter a new EDID codes i nto the NVM 70 TCON_GAMMA_UPDATE Press OK 71 DUMP PQ FROM TV Press OK Saves the picture quality data to a file “pq.bin” to the root of a FAT formatted USB memory stick 72 LOAD PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV 73 DUMP AQ FROM TV Press OK Saves the audio quality data to a file “AQ.bin” to the root of a FAT formatted USB memory stick 74 LOAD AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 75 EXIT_FACTORY Press OK Exits the Factory mode

Description32" 37" 42" 47"

were created in item 8 to the NVM of the set. Use these options when replacing a SSB. When “USB to TV Success” is displayed remove the power and restart the TV

EN 17L12M2.1L LA 5.

How to Exit the Factory mode

Use one of the following methods:

back to

div. table

• Select EXIT_FACTORY from the menu and press the “OK” button.

2012-Jul-20

EN 18 L12M2.1L LA5.

Service Modes, Error Codes, and Fault Finding

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.5 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TV’s operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

• 3.2 Child lock Not active / active. This is a combined item for locks. If any lock (channel lock, parental lock) is active, it is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or HDCP keys). In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.

• 3.4 Ethernet MAC address A Media Access Control address (MAC address) is a unique identifier assigned to network interfaces for communications on the physical network segment.

• 3.5 Wireless MAC address Wireless Media Access Control address.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control transmitter.

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first installation of the TV. This date is acquired via time extraction.

• 1.4 Option Code 1 Gives the option codes of option group 1 as set in SAM.

• 1.5 Option Code 2 Gives the option codes of option group 2 as set in SAM.

• 1.6 SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 1.7 Display 12NC NVM read/write.

• 1.8 PSU 12NC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

• 2.3 Panel Code Displays the Display Code number.

• 2.4 NVM version Detects and displays NVM version.

• 2.5 Error Codes Detects and displays errors.

• 3.1 Sign

2012-Jul-20

al Quality Analog/digital signal strength.

back to

div. table

5.3 Stepwise Start-up

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

Service Modes, Error Codes, and Fault Finding

EN 19L12M2.1L LA 5.

Figure 5-1 Stepwise Start-up

back to

div. table

2012-Jul-20

EN 20 L12M2.1L LA5.

Service Modes, Error Codes, and Fault Finding

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore capable of accurately indicating problem areas. No knowledge on I because ComPair takes care of this.

3. ComPair speeds up the repair time since it can automatically communicate with the chassis (when the micro processor is working) and all repair information is directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s). The ComPair fault finding program is able to determine the problem of the defective television, by a combination of automatic diagnostics and an interactive question/answer procedure.

How to Connect

This is described in the chassis fault finding database in ComPair.

ComPair II

RC in

Optional

Switch

2

C or UART commands is necessary,

TO TV

TO

UART SERVICE

CONNECTOR

2

I

C

RS232 /UART

ComPair II Developed by Philips Brugge

Optional power

5V DC

Power ModeLink/

Activity

HDMI

2

I

C only

UART SERVICE

CONNECTOR

RC out

TO

I2C SERVICE CONNECTOR

Multi

function

PC

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

5.5.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy the “autorun.upg” to the root directory of the USB flash drive.

5.5.5 Update the TV software

web site.

, it is

.

10000_036_090121.eps

Figure 5-2 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs can be blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair UART interface cable for TPM9.1x xx. (using DB9 to 2mm pitch JST connector): 3122 785 90630.

Note: When you encounter problems, contact your local support desk.

2012-Jul-20

091118

back to

div. table

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-3

. Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-3

.

5. To proceed, In next menu select [Start] and press OK to start software updates. See Figure 5-4

.

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash drive, then select [Restart] and press OK to restart the TV.See Figure 5-5

.

Service Modes, Error Codes, and Fault Finding

19080_207_110324.eps

110324

19080_208_110324.eps

110324

19080_209_110324.eps

110324

Figure 5-3 Update the TV software [1/3]

Figure 5-4 Update the TV software [2/3]

• FUS_clustername_version.zip: Contains the “autorun.upg” which is needed to upgrade the TV main software and the software download application.

• NVM_clustername_version.zip: Default NVM content. Must be programmed via ComPair.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode Factory Mode Used for extended alignments SDM Service default Mode CSM 3-page compact CSM pages. There will be CSM dump to

USB SW upgradeable SW-upgrading of flash mem ories MTK-chips MT5366 can

NVM-Editor in SAM NVM-editor will function as in the past: Address and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC sequence “062598” + “Menu” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

be done via USB. The main SW can be upgraded via Autorun.upg

field is a decimal value via digit entry

programming with virtual key board Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

“Panel code”

EN 21L12M2.1L LA 5.

Figure 5-5 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

5.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs. See ComPair for further instructions.

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:

• Activated (SW) protection.

• Failing I

• General I The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED or via ComPair). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

5.6.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/SDM/CSM (if you have a picture).

2

C device.

2

C error.

Example: – ERROR: 000 000 000 000 000: No errors detected – ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

back to

div. table

2012-Jul-20

EN 22 L12M2.1L LA5.

Service Modes, Error Codes, and Fault Finding

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected (newest) error

• Via the blinking LED procedure (when you have no picture). See paragraph 5.7 The Blinking LED Procedure

•Via ComPair.

5.6.3 Error codes

In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking when CSM is activated. Only the following layer 2 errors are defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I2C bus error on the SSB 16 +12 V missi ng or low, PSU defective 27 Channel decoder error on the SSB 34 Tuner I2C bus error on the SSB 35 EEPROM I2C error on SSB, M24C64

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.

5.7 The Blinking LED Procedure

5.7.1 Introduction

The software is capable of identifying different kinds of errors. Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly. Errors can also be displayed by the blinking LED procedure. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated. Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color. Example (2): the content of the error buffer is “12 9 6 0 0” After entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.7.2 Displaying the Entire Error Buffer

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

.

• Before any fault finding actions, check if the correct options are set.

5.8.1 NVM Editor

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.8.2 Load Default NVM Values

It is possible to upload the default values to the NVM with ComPair in case the SW is changed, the NVM is replaced with a new (empty) one, or when the NVM content is corrupted. After replacing an EEPROM (or with a defective/no EEPROM), default settings should be used to enable the set to start-up and allow the Service Default Mode and Service Alignment Mode to be accessed.

5.8.3 No Picture

When you have no picture, first make sure you have entered the correct display code. See paragraph 6.4 Option Settings the instructions. See also Table 6-3

.

5.8.4 Unstable Picture via HDMI input

Check (via ComPair or factory mode) if HDMI EDID data is properly programmed.

5.8.5 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.8.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.8.7 Audio Amp lifier

The Class D-IC U6002 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class-D IC could get overheated in short time.

5.8.8 CSM

When CSM is activated and there is a USB memory stick connected to the TV, the software will dump the complete CSM content to the USB memory stick. The file (Csm.txt) will be saved in the root of the USB memory stick.

for

Additionally, the entire error buffer is displayed when Service Mode “SDM” is entered.

2012-Jul-20

5.8.9 Loudspeakers

back to

div. table

Make sure that the volume is set to minimum during disconnecting any of the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

Service Modes, Error Codes, and Fault Finding

5.8.10 Display option code

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

EN 23L12M2.1L LA 5.

back to

div. table

2012-Jul-20

EN 24 L12M2.1L LA6.

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 M, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform alignments.

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus. The alignments are explained below. The following items can be aligned:

• White point

To store the data:

• Press OK on the RC before the cursor is moved to the left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

, 50/ 60  3 Hz.

AC

Alignments

In case you have a color analyzer:

• Measure with a calibrated (phosphor- independent) color analyzer (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x, y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x, y coordinates (see Table 6-1 White D alignment

values).

• Repeat this step for the other color Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values

Tint Temperature in K duv x y

Cool 10500 +0.0059 0.274 0.291 Normal 8710 +0.0062 0.286 0.306 Warm 6500 +0.0112 0.311 0.343

• If you do not have a color analyzer, you can use the default values ad given in Table 6-2 White tone default settings This is the next best solution. The default values are average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average values coming from production.

• Enter SAM mode.

• Select a color temperature (e.g. COOL, NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according to the values in Table 6-2

.

• When finished press OK on the RC, then press STORE to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Colour temperature

Picture mode Screen size

Normal (8710K) 47PFL4007G/78 t.b.d. t.b.d. t.b.d. Cool (10500K) 47PFL4007G/78 t.b.d. t.b.d. t.b.d. Warm (6500K) 47PFL4007G/78 t.b.d. t.b.d. t.b.d.

Red Green Blue

.

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off Dynamic Contrast Off Color Enhancement Off Picture Format Unscaled Light Sensor Off Brightness 50 Color 0 Contrast 100

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

2012-Jul-20

back to

div. table

This group setting of color temperature will be applied automatically to the TV / VGA / HDMI / AV sources.

Alignments

EN 25L12M2.1L LA 6.

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these MT5366 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK button on the RC before the cursor is moved to the left, select STORE and press OK on the RC.

• The new option setting is only active after the TV is switched “off” / “stand-by” and “on” again with the mains switch (the NVM is then read again).

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could not be edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 Code, restart the set immediately.

. After resetting the Display

6.5.1 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

2

C

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code Make sure when replacing an SSB the SSB identification codes match the replacement board.

Table 6-3 Display code overview

CTN Panel Type Display Code

47PFL4007G/78 LC470EUE-SEM2 (LGPH) B 159

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. A repaired SSB in Service should get the service Set type “00PF0000000000” and Production code “00000000000000”. Also the virgin bit is to be set. To set all this, you can use the ComPair tool or use the “NVM editor” and “Dealer options” items in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair on board level), the type number (CTN) and production code of the TV has to be set according to the type plate of the set. For this, you can use the NVM editor in SAM. The loading of the CTN and production code can also be done via ComPair (Model number programming).

In case of a display replacement, reset the “Operation hours display” to “0”, or to the operation hours of the replacement display.

back to

div. table

2012-Jul-20

EN 26 L12M2.1L LA7.

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MT5366IVGG/B

7.7 Back-End

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

necessary, you will find a separate drawing for clarification.

• In this chassis, the cable position numbers can be defined via the rule that the number is always starting with an “E” followed by the connector number of the current sourcing board. For instance the position number of a PSU to SSB cable would be “ECN9302” since the connector at the PSU is numbered “CN9302”.

) and circuit diagrams (see chapter

). Where

Circuit Descriptions

7.1 Introduction

The L12M2.1L LA platform is covering the 4000 series styling. It uses the MT5366 main microprocessor. The 4000G series support ISDB, Ethernet and Ginga functionality.

7.1.1 Implementation

Key components of this chassis are:

• MT5366SVOG/B System-On-Chip (SOC) TV Processor

• SUT-RB211TV combined analogue, ISDB-T tuner

• CXD2828ER ISDB-T demodulator

• Sil9185ACTU HDMI Switch

• STA381BWTR Audio amplifier

• RTL8201EL-VB-CG ethernet media access controller.

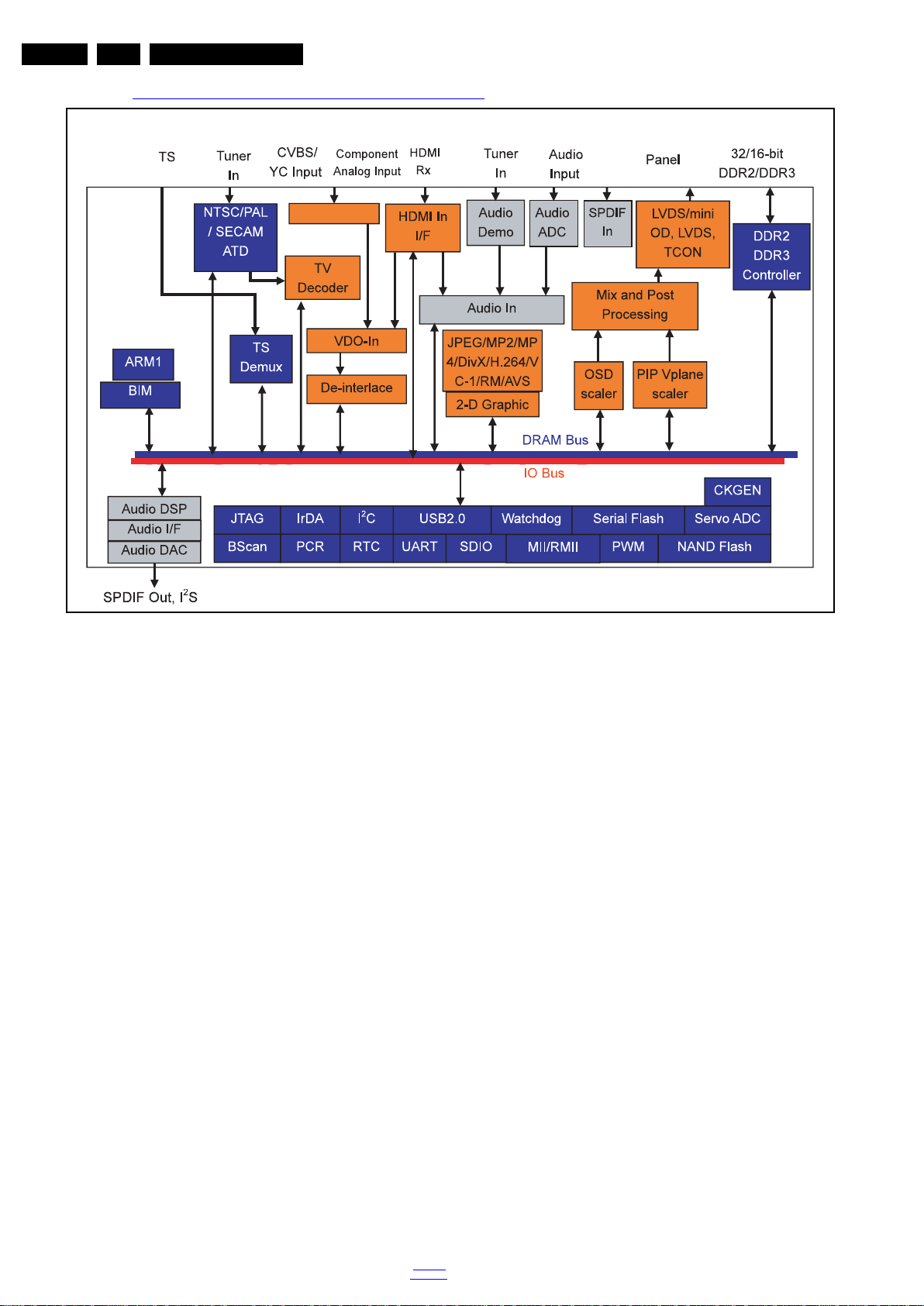

7.1.2 L12M2.1L Architecture Overview

For details about the chassis block diagrams refer to Figure 9.2 Block Diagram 4000

.

2012-Jul-20

back to

div. table

7.1.3 SSB Cell Layout

19260_200_120321.eps

120323

AUDIO AMP

DC/DC

ANALOG I/O

TUNER

USB

SERVICE

CONNECTOR

MT5366

HDMI SWITCH

HDMI

AV IN

AV OUT

DDR

Circuit Descriptions

EN 27L12M2.1L LA 7.

Figure 7-1 SSB layout cells (top view)

back to

div. table

2012-Jul-20

EN 28 L12M2.1L LA7.

19260_203_120327.eps

120328

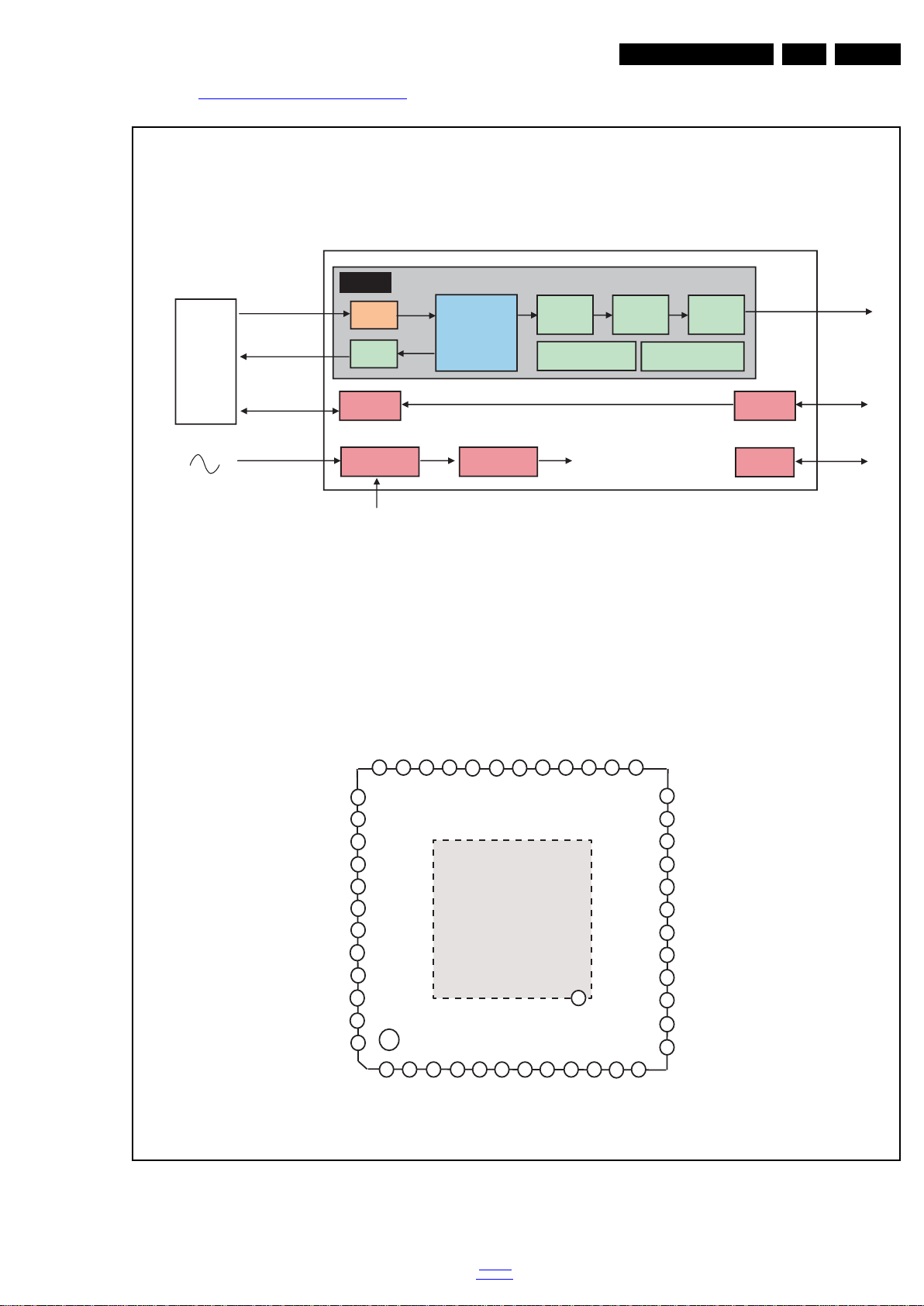

RF T uner for PAL/ISDB-T

IF for PAL/SECAM

IF for ISDB_T

I2C

IF AGC

SUT-RB211T

MT5366CVNG

CXD2828

ISDB_T

Demodulator

Standby

19260_204_120327.eps

120328

RF T uner for PAL/ISDB-T

IF for ISDB_T

I2C

I

2

C

IF AGC

SUT-RB211T

MT5366CVNG

CXD2828

On

ISDB_T

Demodulator

TS DATA

OUT(SERIAL)

TS DATA

OUT(SERIAL)

Circuit Descriptions

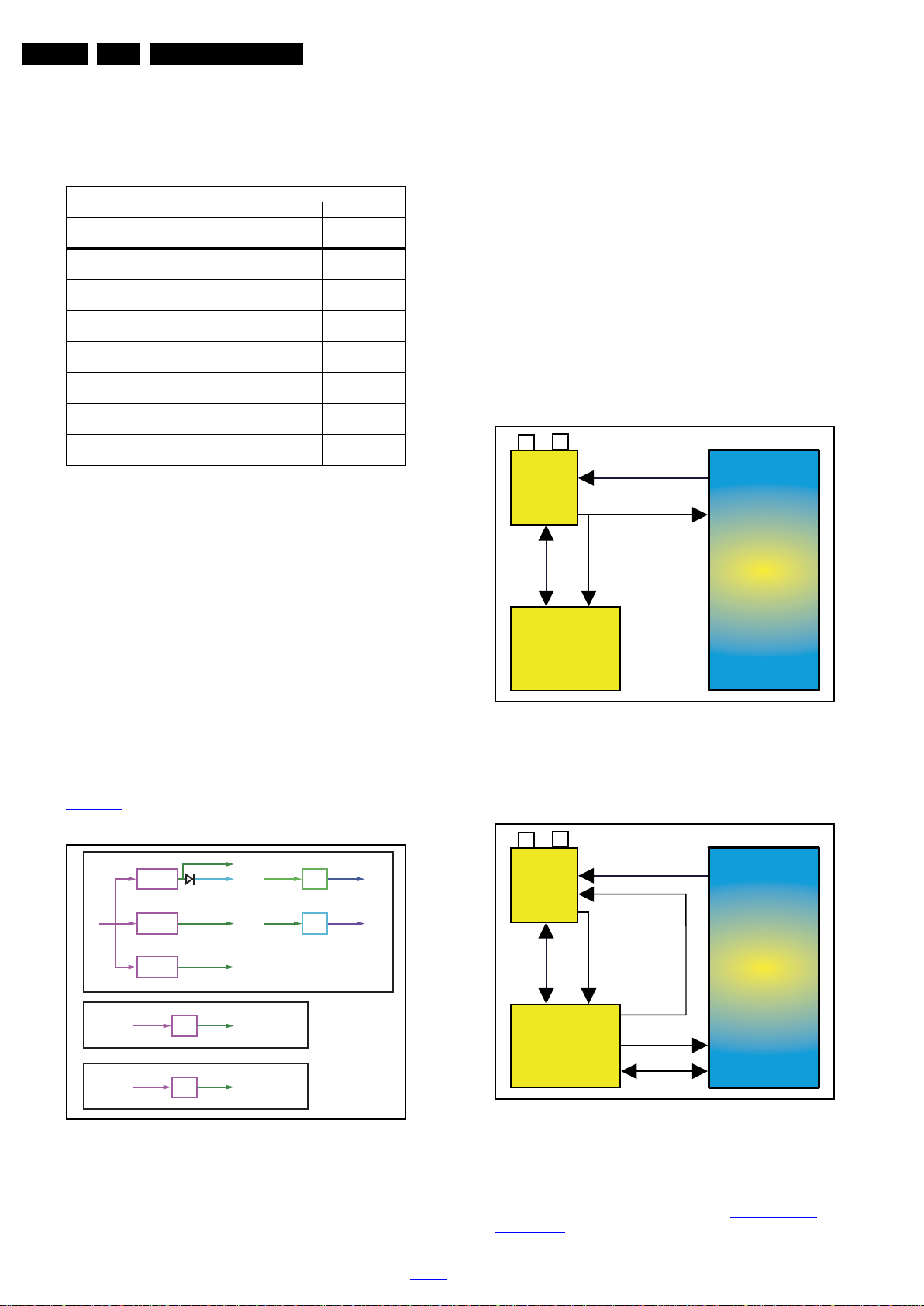

7.2 Power Supply

7.2.1 Power Supply Unit

Table 7-1 Connector overview

no. CN1 CN4 CN5 Descr. Mains input to SSB to SSB Pin 1308 1M95 1M99

1 N P_OK GND_AL 2L +5.2V+12V_AL 3 - +5.2V GND_AL 4 - Standby +12V_AL 5 - +24V GND1 6 - +24V +12V 7 - GND_SND GND1 8- GND1+12V 9- GND110 - +12V 11 - +12V 12 - BL-DIM (Vsync) 13 - BL-ON 14 - BL-I-CTRL -

Connector

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages (depending on set execution):

• +5V2-STANDBY, permanent voltage for the Stand-by controller, LED/IR receiver and controls; connector 1M95 pins 2 and 3

• +12V, input from the power supply for the panel common (active mode); connector 1M95 pins 10 and 11

• +24V, input from the power supply for audio amplifier, connector 1M95 pins 5 and 6

• +1V1, core voltage supply for MT5366; has to be started up first and switched “off” last (diagram B01)

• +1V2, supply voltage for power supply for the scaler IC MT5366

• +1V5, supply voltage for DDR3 (diagram B07)

• +3V3, general supply voltage (diagram B01)

• +5V-TUN, supply voltage for tuner (diagram B14)

• +5V-USB, input intermediate supply voltage for USB (diagram B04)

• +3V3 from the power supply for the scaler IC MT5366.

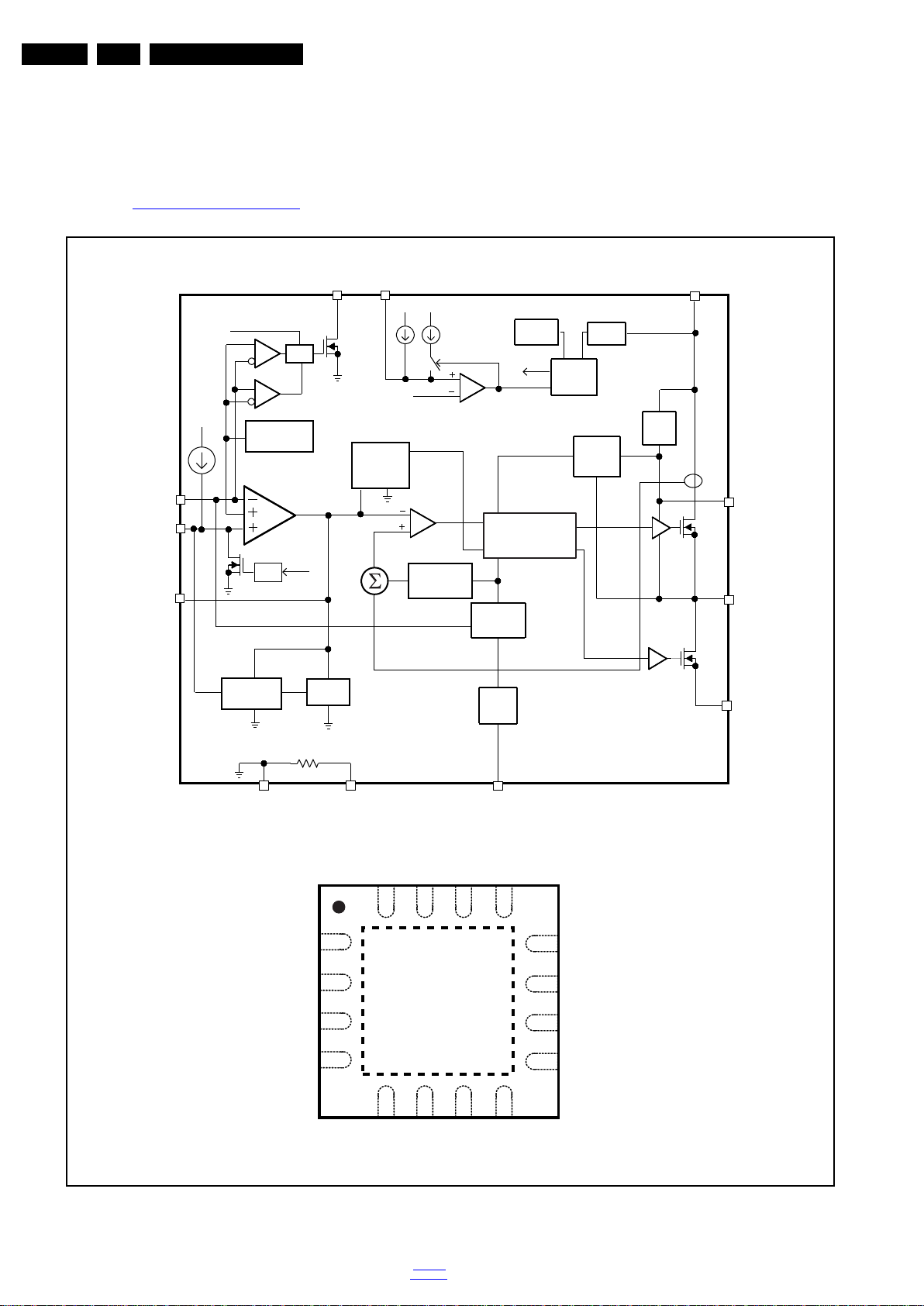

Figure 7-2

converters.

gives a graphical representation of the DC/DC

7.4 Front-End Analogue and ISDB-T reception

7.4.1 Front-End Analogue

The Front-End for the analogue tuner consist of the following key components:

• SUT RB211 Dual input Tuner

• CXD2828ER demodulator

The system makes use of the following features:

• 5 V power supply for antenna switching

• 2.5 V power supply for the built in PF IC

• IF AGC range from 0 to 1.8 V

• ISBD-T, IF frequency of 4.0 MHz

• RF IC system reset, (HIGH during normal running state)

Below a block diagram of the front-end application for SAW-less analogue TV reception is shown.

Figure 7-3 Front-End Saw-less analogue mode block diagram

Below a block diagram of the front-end application for DVB-T/C digital TV reception is shown.

2012-Jul-20

+5 V

Tuner

+5 V

+5V

DVDD3V3

AVDD3V3

+12V Panel

24V Amplifier

Figure 7-2 DC/DC converters xxPFL4xx7 series

+5 V

USB

12 V

24 V

DVDD3V3

1.5 V

DVDD3V3

1.2 V

19240_203_120224.eps

120628

back to

div. table

Figure 7-4 Front-End ISDB-T digital TV mode block diagram

7.5 HDMI

In this platform, the Silicon image Sil9185ACTU HDMI multiplexer is implemented. Refer to figure 7-5 HDMI input

configuration for the application.

Figure 7-5 HDMI input configuration

19260_206_120327.eps

120328

MT5366CVNG

SIL9185A

A

TX

R3X R2X

CN503

R1X

CN501CN502

CRX

ARXBRX

19240_210_120224.eps

120328

SSB

MT5366

ASIC

1M99

Integrated

Tcon

50/60 Hz

Backlight

LED

IPB

PSL

Lamp-ON

PWM

Current

Circuit Descriptions

EN 29L12M2.1L LA 7.

The Sil9185ACTU has the following specifications:

• +5V detection mechanism

• Stable clock detection mechanism

• Integrated EDID

• RT control

•HPD control

• Sync detection

• TMDS output control

•CEC control

7.6 Video and Audio Processing - MT5366IVGG/B

The MT5366IVGG/B is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

• Multi-standard digital video decoder (MPEG-2, H.264, MPEG-4)

• Integrated DVB-T/DVB-C/DVB-S channel decoder

• Integrated CI+

• Integrated motion accurate picture processing

• High definition ME/MC

• Extended color gamut and color booster

• Integrated USB2.0 host controller

• Improved MPEG artefact reduction

• Security for customers own code/settings (secure flash).

The MT5366IVGG/B combines front-end video processing functions, such as DVB-T channel decoding, MPEG-2/H.264 decoding, analog video decode and HDMI reception, with advanced back-end video picture improvements. High flat panel screen resolutions and refresh rates are supported with formats including 1366 × 768 @ 60 Hz and 1920 × 1080 @ 60 Hz. The combination of Ethernet, CI+ and H.264 supports new TV experiences with IPTV and VOD. On top of that, optional support is available for 2D dimming in combination with LED backlights for optimum contrast and power savings up to 50%.

Figure 7-6 LED back lit power scheme.

7.7 Back-End

For a functional diagram of the MT5366IVGG/B, refer to Figure 8-3

.

The back-end of this chassis is integrated in the main processor and is connected via LVDS to the 50 Hz LED back lit LCD panel.

back to

div. table

2012-Jul-20

EN 30 L12M2.1L LA8.

19080_310_110408.eps

120102

Block diagram

Pinning information

DGRWP

TOOB

PH

KLC/TR

NE

DNGA

VIN

ESNESV

PMOC

15 14 13

GND

12

11

10

9

8

765

16

GND

VIN

NIV

PH

1

2

3

4

SS/TR

PowerPAD

(17)

QFN16

RTE PACKAGE

(TOP VIEW)

TPS54319

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

8.1 Diagram 10-1-1 System Power 1 B12, TPS54319RTER (IC U703)

VSENSE

SS/TR

COMP

Shutdown

107%

Overload Recovery

93%

Voltage

Reference

ERROR

AMPLIFIER

Shutdown

Logic

PWRGD

Maximum

Clamp

EN

Minimum

COMP Clamp

i

1

Enable

Threshold

PWM

Comparator

Slope

Compensation

i

hys

Enable

Comparator

Frequency

Oscillator

with PLL

Thermal

Shutdown

Logic and PWM

Latch

Shift

Shutdown

Logic

Boot

UVLO

Boot

Charge

VIN

Current

Sense

BOOT

PH

GND

AD

POWERP

AGND

Figure 8-1 Internal block diagram and pin configuration

RT/CLK

2012-Jul-20

back to

div. table

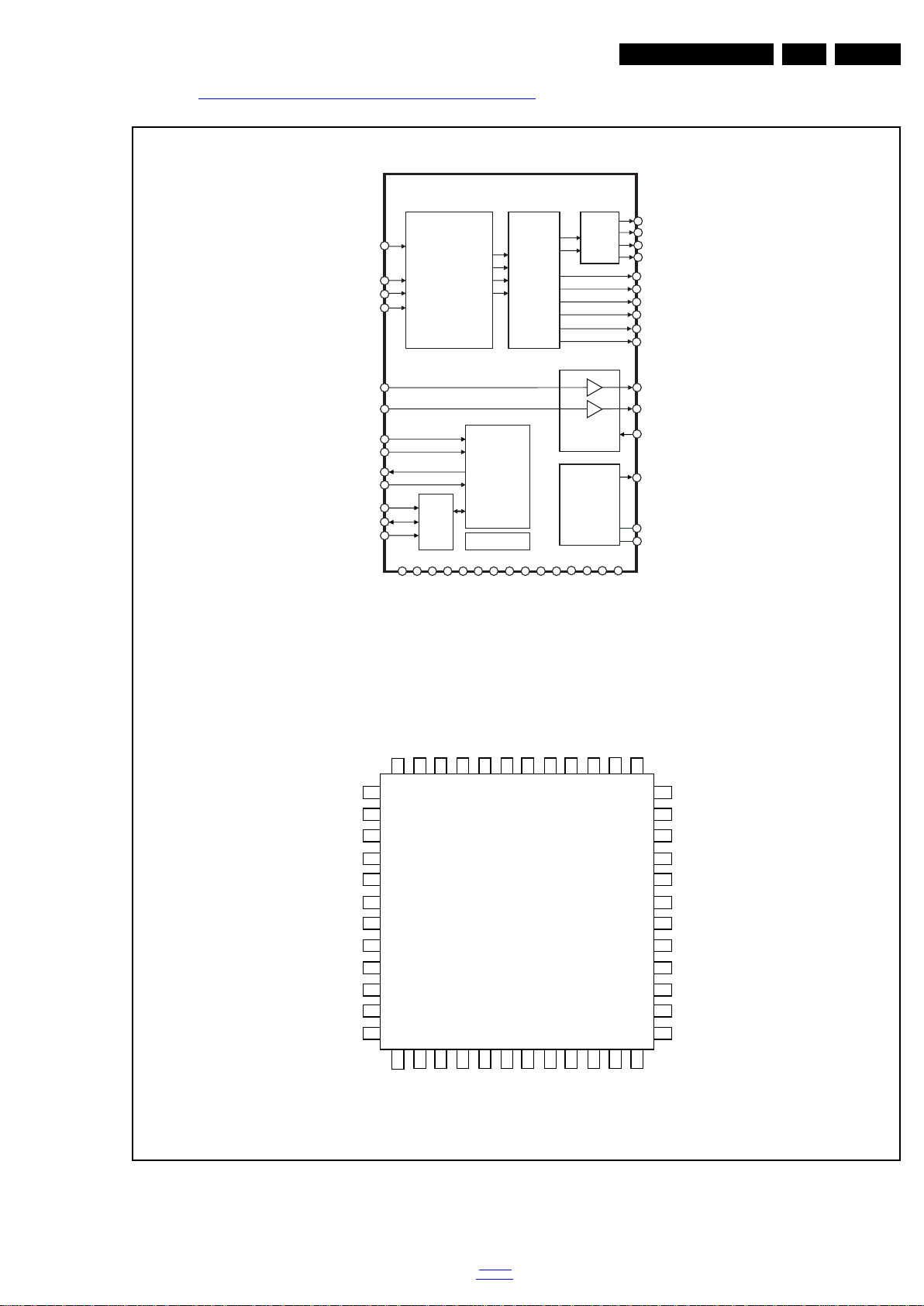

8.2 Diagram 10-1-9 Audio Amplifier/Headphone/Subwoofer B09, STA381BWTR (IC U603)

19240_300_120221.eps

120224

Block diagram

Pinning information

1

2

3

4

5

6

7

8

9

10

11

12

36

35

34

33

32

31

30

29

28

27

26

25

VCC_REG

VSS_REG

OUT2B

GND2

VCC2

OUT2A

OUT1B

VCC1

GND1

OUT1A

VDD_REG

GND_REG

MCLK

AGNDPLL

VREGFILT

TWARNEXT/FFX4B

EAPD/FFX4A

FFX3B

FFX3A

GNDDIG1

VDDDIG1

VDD3V3CHP

CPP

GNDPSUB

13

14

15

16

17

18

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

F3X_FILT

F3XL

F3XR

LINEINL

LINEINR

LINEHPOUT_L

LINEHPOUT_R

GNDA

SOFTMUTE

VDD3V3

CPVSS

CPM

VDDDIG2

GNDDIG2

TESTMODESASCL

SDA

INTLINE

PWDN

RESET

SDI

LRCKI

BICKI

STA381BW

PWDN

TESTMODE

LRCKI

BICKI

4

Half

Bridges

OUT 1A OUT 1B OUT 2A OUT 2B

FFX3A FFX3B

MCLK

SDI

LINEINL LINEINR

LINEHPOUT_L LINEHPOUT_R

SDA

SCL

IIC

CPVSS

CPP

FFX4A FFX4B

GND_REG

SOFT_MUTE

2 x GND

2 x VCC

VDD_REG

GNDPSUB

2 x VDDDIG

2 x GNDDIG

VREGFILT

AGNDPLL

VCC_REG

VSS_REG

CPM

2.1 Channel

Audio Processor

STAudioFx

TM

STSpeakerSafe

TM

Parametric E Q

Volume

Bass and Treble

Speaker Compensation

Stereo Widening

SA

RESET

INTLINE

GNDA

Headphone

(2Vrms)

PLL

Negative

Charge

Pump

-3.3V

Control logic

&

Protections

REG_M3

VDD3V3CHP

F3X_FILT

FFX

TM

Modulator

Binary

Ter nary

F3XL F3XR

STA381BW

IC Data Sheets

EN 31L12M2.1L LA 8.

Figure 8-2 Internal block diagram and pin configuration

div. table

back to

2012-Jul-20

EN 32 L12M2.1L LA8.

19080_300_110316.eps

120102

Block diagram

VADC × 4

MT5366CV

IC Data Sheets

8.3 Diagram 10-1-11 GPIO Interface & to IR/Keyboard control B13, MT5366SVOG/B PBGA-479 (IC U401)

Figure 8-3 Internal block diagram

2012-Jul-20

back to

div. table

IC Data Sheets

19080_301_110316.eps

120102

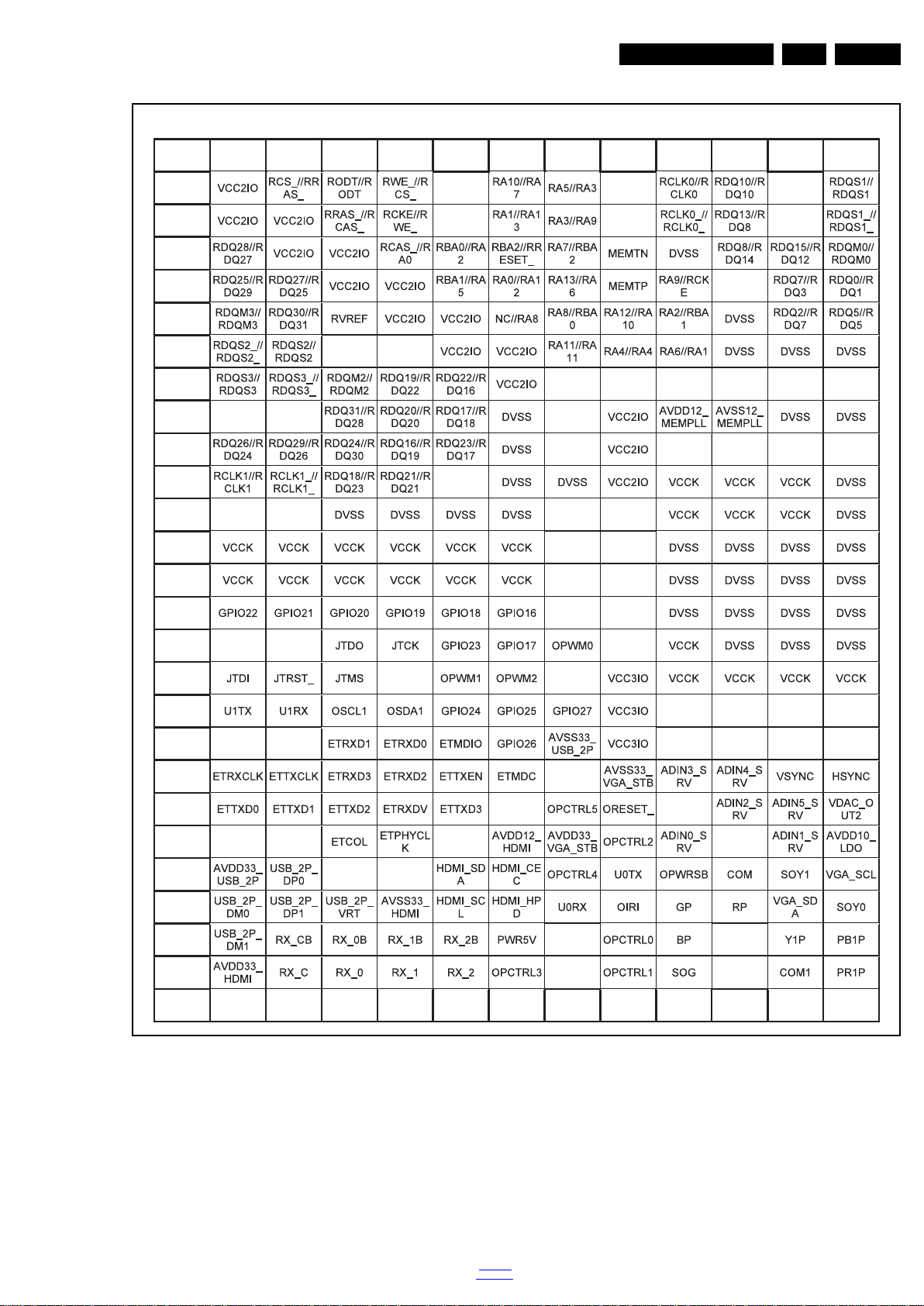

Pinning information MT5366CV [1/2]

479 123 4 5678 910 11 12

A

B

C

D

E

F

G

H

J

K

L

M

N

P

R

T

U

V

W

Y

AA

AB

AC

AD

AE

LB1 2 3 4 5 678 9101112

EN 33L12M2.1L LA 8.

Figure 8-4 Pin configuration [1/2]

back to

div. table

2012-Jul-20

EN 34 L12M2.1L LA8.

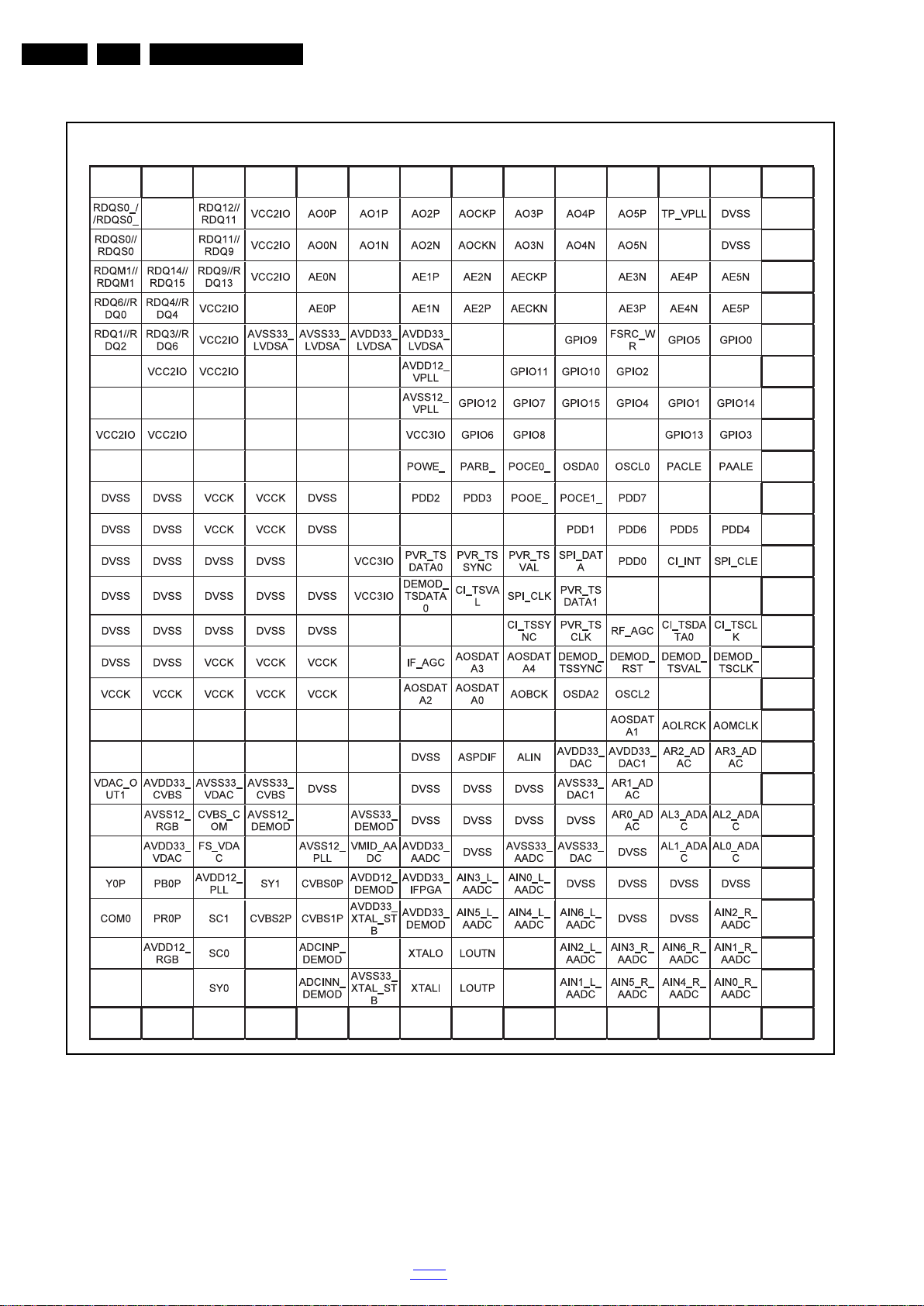

19080_302_110316.eps

120102

Pinning information MT5366CV [2/2]

1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3 2 4 2 5 R T

A

B

C

D

E

F

G

H

J

K

L

M

N

P

R

T

U

V

W

Y

A A

A B

A C

A D

A E

1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3 2 4 2 5 R B

IC Data Sheets

Figure 8-5 Pin configuration [2/2]

2012-Jul-20

back to

div. table

8.4 Diagram 10-1-15 ISDB-T Demodulator B15, CXD2828ER (IC U103)

19260_300_120320.eps

120323

Block diagram

Pinning information

3 4 5 6 7 8 9 11 12

XTALSEL

37

TTUSDA

38

TTUSCL

39

SLVADR1

40

CVDD

41

42

GPIO1

43

TIFAGC

44 45 46 47

2829

TSDATA4

TSDATA5

CXD2828ER-T4

OSCEN_X

RST_X

10

TSDATA3

3032333435

XTALI

31

XTALO

48

49

OSCMODE

25262736

XVSS

13

14

15

16

17

18

19

20

21

22

23

24

VSS

TSDATA7

DVDD

SCL

SDA

CVDD

TSDATA6

VSS

TESTMODE

SLVADR0

XVDD

PVDD

CVDD

VSS

PVSS

VSS

TAINM TAINP

TAVDD

21

GPIO0

GPIO2

TSSYNC

TSVALID

TSCLK

VSS

DVDD

TSDATA0

TSDATA1

CVDD

TSDATA2

TAVSS

Oscillator

Host I2C

GPIO

TTUSDA TTUSCL

Terrestrial

Tuner

TIFAGC

TAINP TAINM

TSCLK TSSYNC TSVALID TSDATA[7:0]

ADC

OFDM

Demodulator

AGC

TMCC

Status

Monitor

ISDB-T

Viterbi

decoder

RS

decoder

TSIF

Tuner I2C

SDA SCL

41/20.5MHz

XTALI

XTALO

GPIO0 (EWS) GPIO1 (PWM) GPIO2 (TSERR)

OSCEN_X XTALSEL

PLL Logic

CXD2828ER

IC Data Sheets

EN 35L12M2.1L LA 8.

Figure 8-6 Internal block diagram and pin configuration

back to

div. table

2012-Jul-20

EN 36 L12M2.1L LA8.

19240_302_120221.eps

120221

Block diagram

Pinning information

MDI+

[0]

MDI -

[0]

MDI+[1]

MDI -[1]

GND

NC

PMEB

MDC

CRS/

CRS_DV

DVDD 1 0

GND

TXD[2]

MDIO

INTB

LED0

/PHYAD[0]

LED1

/PHYAD[1]

NC

AV DD 33

NC

TXEN

PHYRSTB

TXER

TXD[3]

NC

RTL8201FL

IC Data Sheets

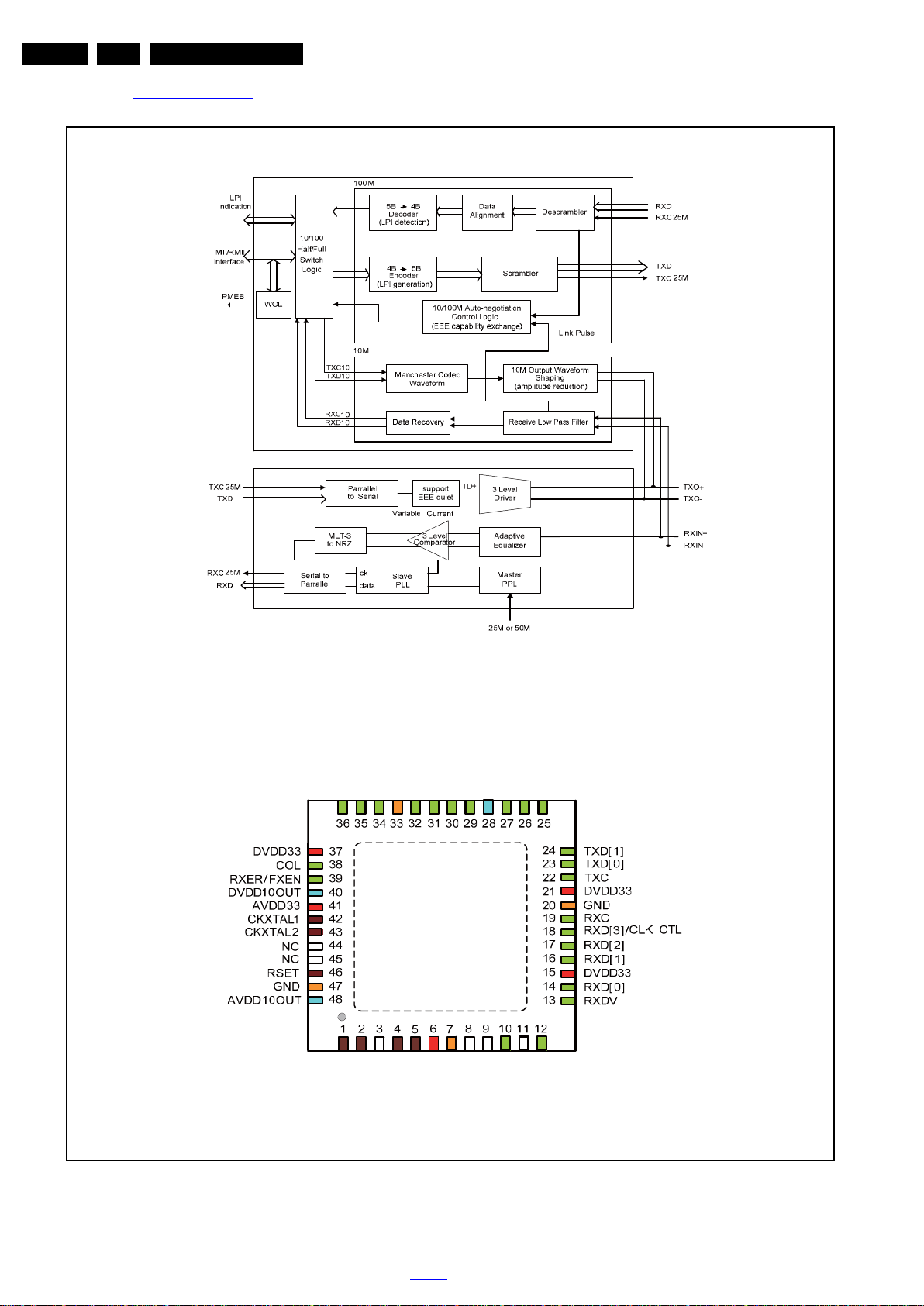

8.5 Diagram 10-1-16 Ethernet B16, RTL8201EL-VC-GR (IC U4010)

Figure 8-7 Internal block diagram and pin configuration

2012-Jul-20

back to

div. table

9. Block Diagrams

19350_007_120711.eps

Board Level Repair

Component Level Repair Only for authorized workshops

WIRING DIAGRAM 4000 series 47"

KEYBOARD CONTROL

(1057)

SSB

(1150)

LOUDSPEAKERLOUDSPEAKER

(5214)(5214)

B

MAIN POWER SUPPLY

(1005)

A

IR/LED BOARD (1056)

J

E

VGA

NETWORK

DIGITAL

AUDIO OUT

L R

CVBS/Y Pb

Pr

SERV.U

AUDIO I N

DVI/VGA

CN201

6P

CN016

3P

L

N

CN408

40P

ANTENNA

IN 2

(CABLE)

ANTENNA

IN 1 (AIR)

ARC

HDMI 3

HDMI 1

HDMI 2

USB 1

USB 2

L

CVBS

R

CN001

3P

TweeterTweeter

(5215)(5215)

CN3

Wh

CN2

Bk

to LCD panel

CN603

3P

CN4 14P

CN701

12P

LOUDSPEAKERLOUDSPEAKER

(5214)(5214)

Tweeter

(5215)

TweeterTweeter

(5215)(5215)

Tweeter

(5215)

CN1

2P

CN407

12P

CN601

4P

8701

8308

to LCD panel

8408

8601

8407

LOUDSPEAKER

(5214)

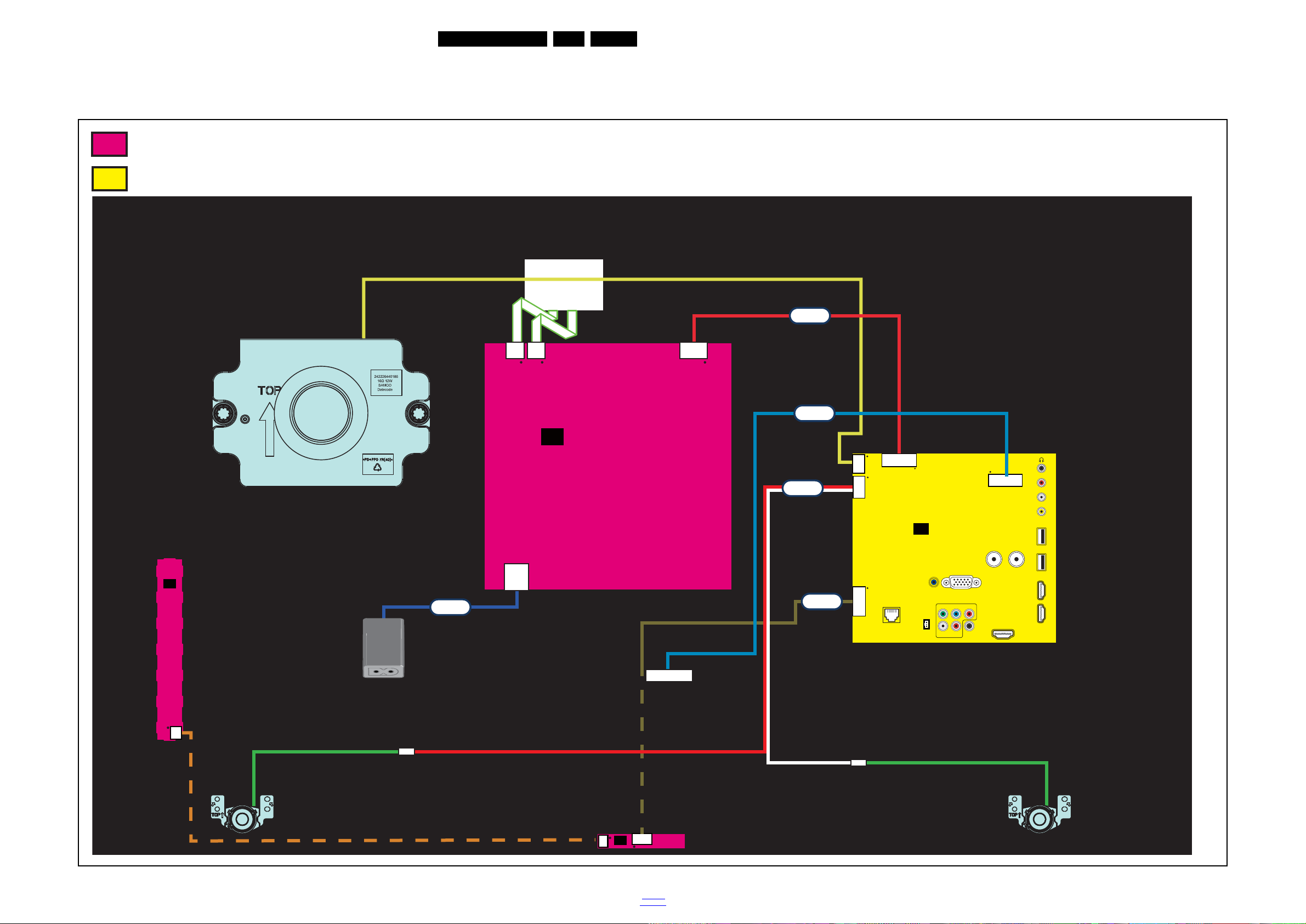

9.1 Wiring diagram 4000 series 47"

Block Diagrams

EN 37L12M2.1L LA 9.

2012-Jul-20

back to

div. table

9.2 Block Diagram 4000

19260_402_120322.eps

120322

RF Tuner for PAL/ISDB-T

HDMI DDC

IF(+/-) for PAL/SECAM

IF(+/-) for ISDB_T

VGA DDC

HDMI I2C

Switch

SN74LVC1G125DBVR

SPDIF

HY27UF082G2B

ARC(Audio Return Channel) for HDMI

H5TQ1G63DFR-H9C

Right Speaker

NAND FLASH 256 MB

× 2

Multimedia & debug, sw code download

USB(Multimedia)

Headphone

Headphone R/L

R/L PWM

Speaker R/L

RCA(AV)

RCA(AV R/L)

RCA(YPBPR R/L)

PHONE JACK(PC R/L)

SPDIF_OUT

R/L I2S

LCD panel T -CON CN409 FPC Connector CN408 for 26" to 40" WXGA, (Full HD) Panel

LVD S (50/60 Hz)

CN407

CN602

CN601

CN410

UART(TX/RX)

USB 2.0

Multimedia & debug, sw code download

USB(Multimedia)

SYSTEM EEPROM

M24C32

HDMI3

HDMI2

HDMI1

I2C

VGA EEPROM

M24C02

RJ45(MAC)

MAC

D-SUB(PC IN)

VGA

I2C

RESET Circuit

MAX809STRG

NC

NOR FLASH 64 MB

MX25L6445EM2I-10G

DC POWER

5V

+24V(16V)

12V

TMDS

HDMI switch

I2C

SPI

DDRIII/1 Gb/ 1333 MHz

SUT-RB211T

IR-LED

UART 3pin

USB 2.0

Keyboard

MT5366CVNG

AUDIO AMP

Left Speaker

STA381BW

Class-D amplifier

YPbPr

CVBS

RCA(YPBPR)

SII9185ACTU

[RX0 : RX3]

CXD2828

ISDB_T Demodulator

TS DATA OUT(SERIAL)

CN701

Block Diagrams

EN 38L12M2.1L LA 9.

2012-Jul-20

back to

div. table

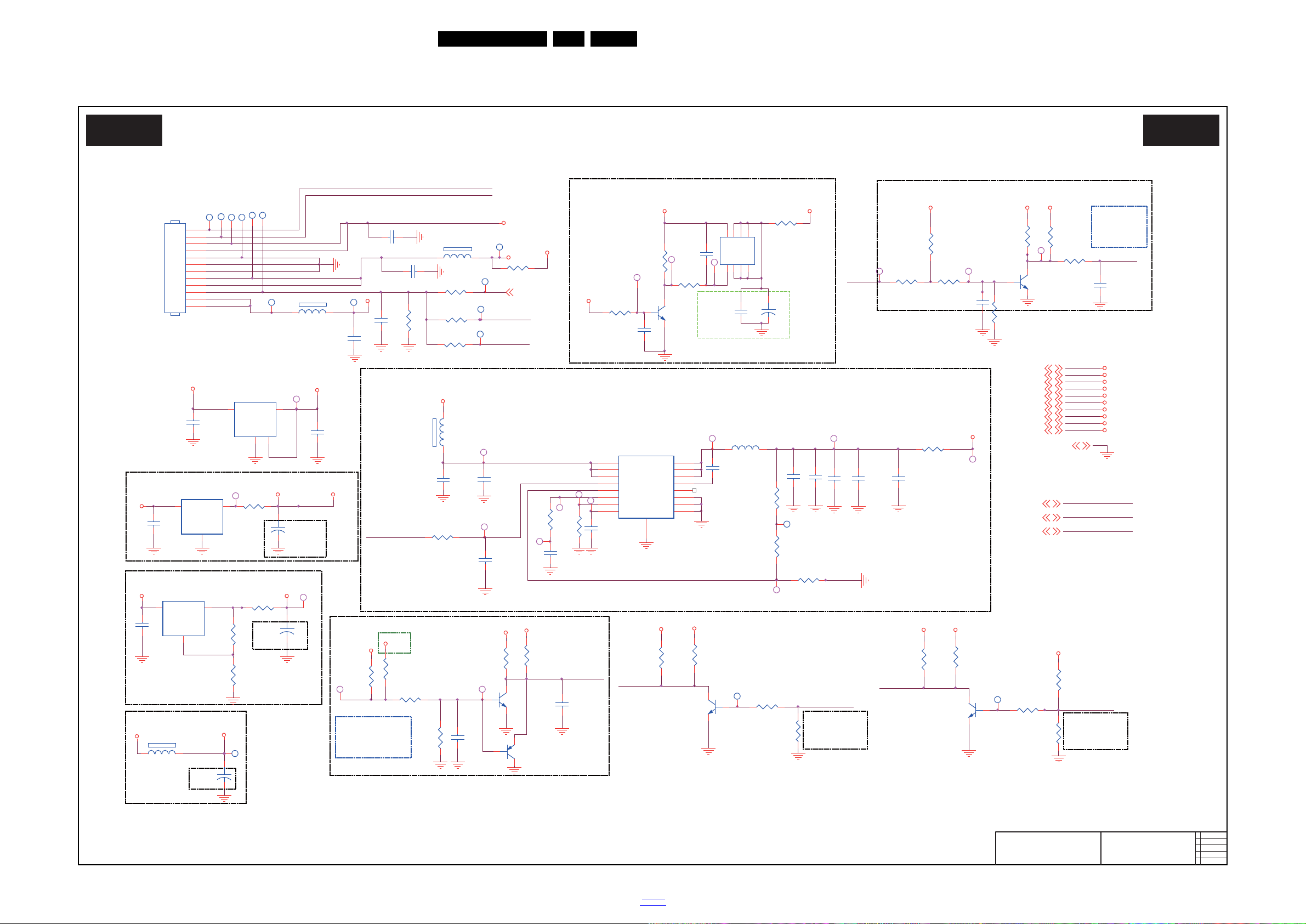

Circuit Diagrams and PWB Layouts

19260_501_120314.eps

120329

System Power

B01 B01

2011-12-14

A

715G5172

System Power

POWER_ON

+12VSB

+12V

TP452

1 2

FB702 120R/6000mA

+

C703

220UF 16V

R702

0R05 4A 1/4W

+12VSB

GND

+12VSB

TP005

TP010

1 2

3

4 5 6 7

8

9 10 11 12

CN701

CONN

VIN3VOUT

2

GND14

4

U702 G903T63UF

C711

1UF16V

3V3SB

C710

10uF 10V

+5VSB

TP014

TP027

R732

0R05 OHM

+

C728

220UF 16V

C727 1uF 25V

VI3VO

2

GND

1

U705 G912T63U

+5V_SW

DVDD3V3

R734 0R05 OHM

TP011

TP004

+

C719

220UF 16V

+24V(16V) +24V(16V)

POWER_ON

TP36

R717

TP009

+5V Switch

BRIGHT_ADJ

TP003

TP007

TP015

BL_ON/OFF

VIN3VOUT

2

GND

1

U701 G1084-33TU3Uf

BRIGHT ADJUST

R728

100R 1/10W 5%

Q705 MMBT3904

DVDD3V3

R701

0R05 OHM

R724

4.7K 1/10W

DVDD3V3

R725

4.7K 1/10W

R731

4.7K 1/10W

Bright_Adj Max:3.3V Min: 0V

BL_DIMMING

TP029

DVDD3V3

3V3SB

R730

4.7K 1/10W

TP031

INVERTER ON/OFF H: OFF L: ON

R722

TP030

Q704 MMBT3904

+5V_SW

BL_ON/OFF

R726

+5V_SW

TP032

INVERTER ON/OFF

C725 10uF 10V

TP034

STAND_BY

+

C704

NC/220UF 16V

C759

10uF 16V

TP012

STAND_BY

C716

10UF 10V

(0mVr)

R712

180K 1/10W 1%

C713

10N 50V

C707

100N 16V

TP025

R709

4K7 1/16W 5%

VIN

1

VIN

2

GND

3

GND

4

AGND

5

VSNS

6

COMP

7

RT/CLK

8

SS

9

PH

10

PH

11

PH

12

BOOT

13

PWRGD

14

EN

15

VIN

16

PwPd

17

U703 TPS54319RTER

C708

10UF 10V

C712

22NF25V

C714

10UF 10V

C721

100N 16V

R710

0R05 4A 1/4W

1 2

FB707

220R/2000mA

R735

4K7 1/10W 5%

C715

100N 16V

R713

1K5 1%

1 2

FB701

120R/6000mA

C709

1UF16V

C717

10UF 10V

+5VSB

INVERTER_ON_OFF

R714

11K 1/10W 1%

VCCK

(88mVr)

BRIGHT_ADJ

TP028

+12VSB

CORE POWER VCCK (1.12V/Max. 2.25A) form +5VSB by OPWRSB

+24V(16V)

TP020

L701

1.0uH

1 2

FB704

120R/6000mA

(0mVr)

TP023

TP017

R715

33K 1/10W 1%

TP453

+5VSB

TP018

TP022

3V3SB

TP454

TP021

+5V_SW

+5VSB

TP019

TP709

TP708

TP001

INVERTER_ON_OFF

R737

NC/4K7 1/10W

C722

NC/10UF 6.3V 20%

TP008

MAIN POWER

OPWRSB

3V3SB

OPWRSB: Normal: Low Stand_by: High

TP024

R719

22K 1/16W 5%

R740

10K 1/16W 5%

Q707

BC847C

OPWRSB

C705

1uF 25V

R739

10K 1/16W 5%

R727

22K 1/16W 5%

STAND_BY: Normal: Low Stand_by: High

TP037

DVDD3V3

R743

10K 1/16W 5%

R742

1K 1/16W 5%

STANDBY

Q708

BC847C

TP036

STAND_BY

TP035

D1D2D3G

4

S

5

D6D7D

8

Q702 AON4421

C723

R729

C1147

NC/1N 50V

C1148

NC/1N 50V

R704

51K 1/10W

C1149

R716

R705

TP006

R733 NC

R723

NC/4K7 1/10W

1

23

Q706

C726

NC/10UF 10V

C718

10UF 10V

R721

R766

R736

R738

NC/15K 1/16W 5%

R744

NC/10K 1/16W 5%

C706

NC/4U7 6V3

R741

NC/1K1/16W

R703

22K 1/10W

Q703 BC847C

C720 1uF 25V

R707

2.7K 1/10W

C702 1U 25V

+12V

+5VSB

+5V_SW

VCCK

DVDD3V3 AVDD3V3

+5VSB 3V3SB

+12V

VCCK

AVDD1V2

+5V_SW

BL_ON/OFF

BL_DIMMING

OPWRSB

DVDD3V3

VCCK

3V3SB

+5VSB

+12V

AVDD1V2

AVDD3V3

R711

0R05 4A 1/4W

OPWRSB

Control Interface

TP002

R706

100K 1/10W

+5V_SW

BL_DIMMING

10. Circuit Diagrams and PWB Layouts

10.1 B 715G5172 SSB 3000/3500/4000 series

10-1-1 System Power 1

EN 39L12M2.1L LA 10.

2012-Jul-20

back to

div. table

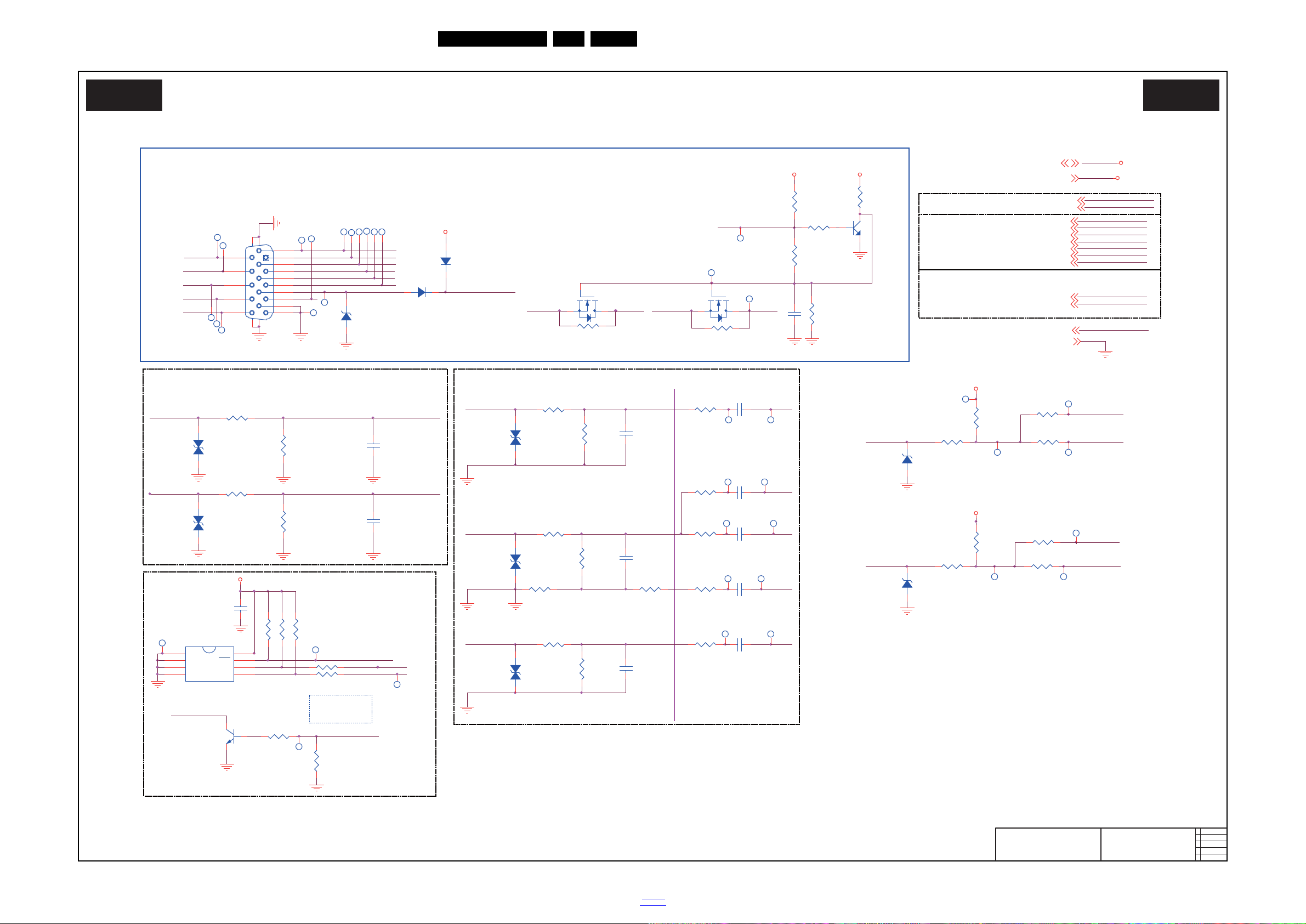

10-1-2 VGA

19260_502_120315.eps

120320

VGA

B02 B02

2011-12-14

A

715G5172

VGA

1 2

ZD1022

UDZSNP5.6B

I2C

TP073

TP077

GRN BLU_GND

TP038

TP044

TP039

HSYNC#

TP040

TP055

U0TX

TP05048

VSYNC#

VGA_RX

TP050

HSYNC#

TP051

TP052

TP049

VGASDA_IN

VGASCL_IN

R1207

0R05 1/16W

VGASDA

VGASCL

TP063

TP060

R1205

0R05 1/16W

TP074

VSYNC HSYNC

Q1012

NC/2N7002

Q1013

NC/2N7002

R1206

0R05 1/16W

R1208

0R05 1/16W

VGASCL_24C02

VGASDA_IN

----------><---------|

R1104

100R 1/16W 5%

----------><---------|

R1103 10K 1/16W 5%

1 2

ZD1029

UDZSNP5.6B

1 2

ZD1030

UDZSNP5.6B

VGA_PLUGPWR

R1099 10K 1/16W 5%

VGASCL_IN

R1101

100R 1/16W 5%

VGASDA_24C02

TP057

Video Input

Other Control Interface

RED_GND

VGA_UR_EN

GRN_GND

TP043

TP058

RED

1

6

2

7

3

8

4

9

5

11 12 13 14 15

10

1716

18 19

CN1001

D-SUB 15P

VGA_RX

R1167

100R 1/16W 5%

SOG

BP

VGACOM

GP RP

VGA_TX

R1165

100R 1/16W 5%

R188

0R05 1/16W

BLU_GND

C116

47P 50V

R189

0R05 1/16W

R122

100R 1/16W 5%

R133

100R 1/16W 5%

GRN

R190

0R05 1/16W

C121

47P 50V

C126

47P 50V

RED

GRN_GND

12

ZD109

VPORT0603100KV05

C118

1.5nF 50V

R141

100R 1/16W 5%

R127

0R05 1/16W

C120 10N 50V

R134

75R 1/10W 1%

C122 10N 50V

C115 10N 50V

R136

0R05 OHM

RED_GND

12

ZD113

VPORT0603100KV05

C124 10N 50V

R144

75R 1/10W 1%

12

ZD112

VPORT0603100KV05

R125

75R 1/10W 1%

R135 0R05 OHM

R137

100R 1/16W 5%

BLU

VGA_EEPROM_WP

TP059

VGA SYNC SLICER

HSYNC

VSYNCVSYNC#

12

ZD110 VPORT0603100KV05

12

ZD111 VPORT0603100KV05

TP061

TP076

VGADDCWP

U0RX

TP042

TP062

TP046

U0TX

----------><---------|

U0RX

D1008 BAS316RRG

+5V_SW

VGA_PLUGPWR

D1009 BAS316RRG

VGASCL_24C02

TP064

TP065

RP

VGA Input

TP066

TP041

3

2

1

Q1153

NC/BC847C

R1209

NC/100R 1/10W 5%

R1210

NC/4K7 1/10W 5%

R1229

NC/10K1/16W

C1197

NC/10uF 16V

R1234

NC/0R05 1/16W

+5V_SW

TP054

R191

0R05 1/16W

TP067

VGACOM

C119 NC/5PF 50V

R126 NC/2.2K 1/10W

C117 NC/5PF 50V

R131 NC/2.2K 1/10W

TP068

GP

TP079

TP045

VGA_TX

TP069

+5V_SW +5V_SW

VGASCL

VGASDA

VGASCL

VGASDA

R1211

NC/10K 1/10W

+5V_SW

TP053

TP450

TP070

SOG

TP071

C142

100N 16V

VGA_PLUGPWR

Q109

BC847C

+5VSB

R160

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

U407

M24C02-WDW6P

HSYNC

VSYNC

R168

GP

SOG

BP

R167

R170

2.2K 1/16W

VGA_EEPROM_WP

RP

VGACOM

VGADDCWP

R118

U0TX

U0RX

VGA_EEPROM_WP

R161

GND

+5VSB

R164

H = > Enable

VGASDA_24C02

L = > Protect

VGA EEPROM

R193

0R05 1/16W

TP072

BP

Circuit Diagrams and PWB Layouts

EN 40L12M2.1L LA 10.

2012-Jul-20

back to

div. table

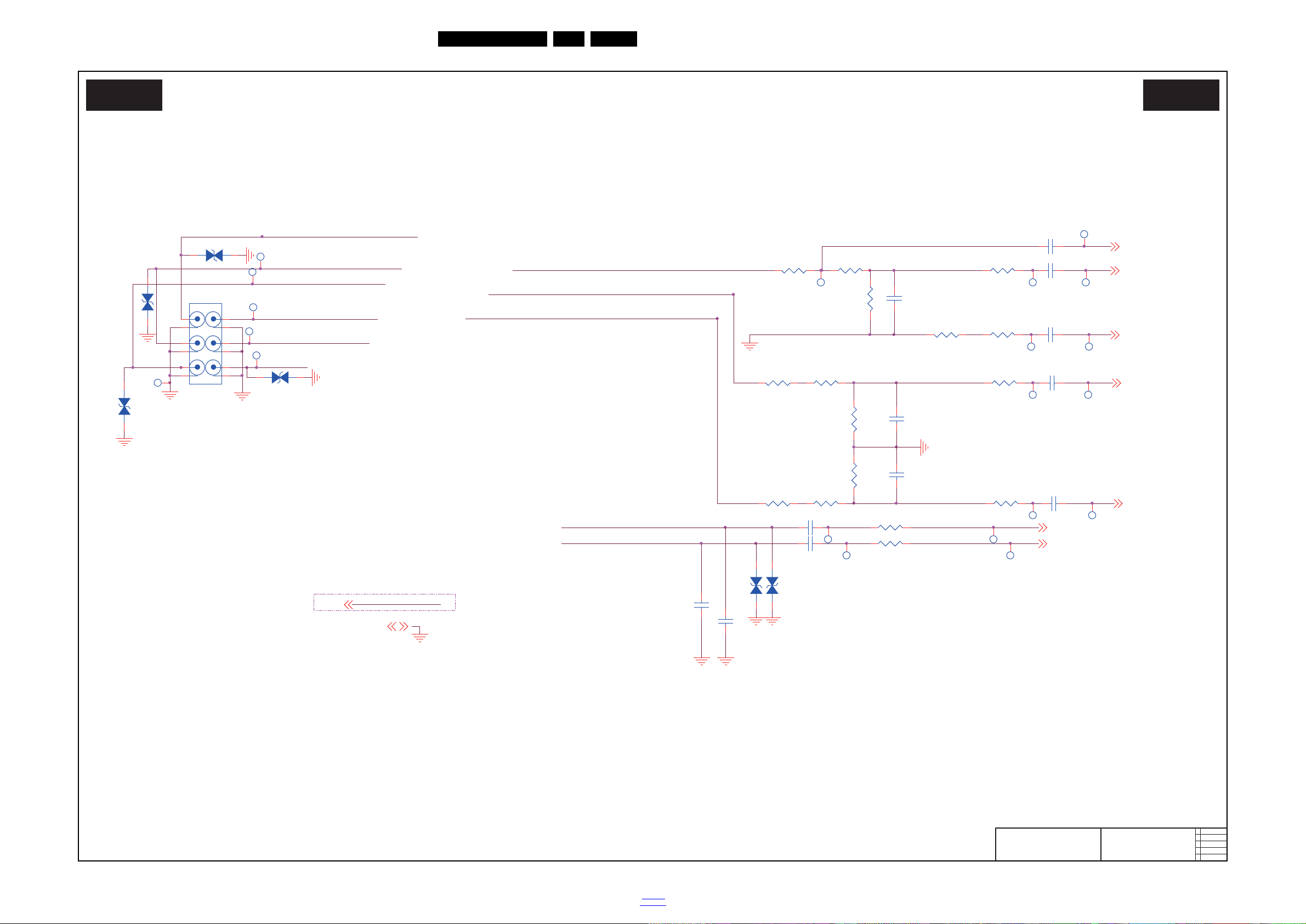

10-1-3 YPbPr

19260_503_120315.eps

120321

YPbPr

B03 B03

2011-12-14

A

715G5172

YPbPr

1 2

ZD117

VPORT0603100KV05

12

ZD120 VPORT0603100KV05

YPbPr1 Video Input

12

ZD118 VPORT0603100KV05

PB_IN_1

Y_IN_1

PR_IN_1

YPbPr1L_IN

SPDIF

YPbPr1R_IN

YPbPr & Audio IN

3

2

6 5

9

8

1 4

7 10

11

12

ABC

D

EF

CN111

RCA JACK

1 2

ZD136

VPORT0603100KV05

C138

47P 50V

C139

47P 50V

R195

0R05 1/16W

R169

30K 1/10W 5%

R149

18R 1/10W 5%

C143

10uF 10V

R153

56R 1/10W 1%

R162

56R 1/10W 1%

C136 10N 50V

PB0P

R163

56R 1/10W 1%

C129 10N 50V

R157 18R 1/10W 5%

C145

10uF 10V

R171

30K 1/10W 5%

Y0P

C135 10N 50V

R158

100R 1/16W 5%

YPbPr_L_In1

SOY0

COM0

R165 18R 1/10W 5%

C127

1.5nF 50V

PR0P

YPbPr_R_In1

C141 10N 50V

YPbPr1 Audio Input

R166

100R 1/16W 5%

R159 0R05 OHM

C131

47P 50V

R192

0R05 1/16W

R150

100R 1/16W 5%

C1142

1N 50V

C1141 1N 50V

R156

100R 1/16W 5%

R194

0R05 1/16W

12

ZD122

VPORT0603100KV05

12

ZD123 VPORT0603100KV05

PR_IN_1

PB_IN_1

Y_IN_1

YPbPr1L_IN

YPbPr1R_IN

SPDIF

GND

SPDIF

Circuit Diagrams and PWB Layouts

EN 41L12M2.1L LA 10.

2012-Jul-20

back to

div. table

10-1-4 Side AV/USB/PC Audio-in

19260_504_120315.eps

120321

Side AV/USB/PC Audio-in

B04 B04

2011-12-14

A

715G5172

Side AV/USB/PC Audio-in

LO=> OC

HI = > NORMAL

TP094

TP095

AV2_L_In

TP096

TP113

TP097

USB_DP0

USB_DM0

USB_PWR_EN0

USB_OC_COM

USB_DM0 USB_PWR_EN0 USB_OC_COM

USB 1

TP087

TP098

AV2_R_In

TP110

TP099

VGA_Audio_L_In

TP089

TP114

TP100

C125 10uF 10V

TP101

VGA_Audio_R_In

TP102

R180

4.7K 1/10W

12

ZD128 VPORT0603100KV05

12

ZD126

VPORT0603100KV05

12

ZD129

VPORT0603100KV05

R173

100OHM1/16W

C153 0.1uF 50V

C151

10uF 10V

C147 47N 16V

2 1 4

3

5

6

A

B

C

CN128

RCA JACK

12

ZD127 VPORT0603100KV05

R179

100R 1/10W 1%

R177

30K 1/16W

OUT

5

GND

2

IN

4

EN

1

OC

3

U112 G5250K1T1U

1

2

3

4

65

1234

CN103 USB CONN

C150

10uF 10V

R176

30K 1/16W

C149

47N 16V

12

ZD130

VPORT0603100KV05

C148

47pF 50V

R178

10K 1/10W

R174

75R 1/10W 1%

+5V_SW

DVDD3V3 +5V_SW

DVDD3V3

AV2_L_In

CVBS1P

AV2_R_In

USB_DP1

USB_DM1

USB_PWR_EN1

USB_OC_C1M

TP103

+5V_SW

GND

DVDD3V3

CVBS_COM

TP118

TP104

CVBS1P

LO=> OC

HI = > NORMAL

USB_DM1

R181

4.7K 1/10W

12

ZD131

VPORT0603100KV05

C157 0.1uF 50V

R182

100R 1/10W 1%

OUT

5

GND

2

IN

4

EN

1

OC

3

u114

G5250K1T1U

1

2

3

4

65

1234

CN104 USB CONN

12

ZD132

VPORT0603100KV05

R183

10K 1/10W

+5V_SW DVDD3V3

HI = > POWER ON

USB_PWR_EN1

USB_OC_C1M

USB PORT 2

LO = > POWER OFF

USB_DP1

+

C159

220UF 16V

CVBS_COM

C155 NC/10pF 50V

C154 NC/10pF 50V

USB_DM0

USB_DP0

TP435

AV2_R_In

CVBS1P AV2_L_In

TP111

CVBS_COM

TP108

R143

30K 1/10W 5%

HI = > POWER ON

USB PORT 1

Side AV(CVBS)Video & Audio input

LO = > POWER OFF

USB_DP1 USB_DM1

C156 NC/10pF 50V

C158 NC/10pF 50V

USB_PWR_EN0

USB_PWR_EN1

TP090

USB_OC_COM

TP119

USB_OC_C1M

TP115

TP105

C1145 1N 50V

VGA_R_In

TP107

VGA_L_In VGA_R_In

TP117

TP120

+

C152

220UF 16V

SIDE_CVBS_IN

12

ZD114

VPORT0603100KV05

VGA_L_In

VGA_Audio_R_InVGA_Audio_R_InVGA_Audio_R_InVGA_Audio_R_In

TP088

1

2

3

CN102

PHONE JACK

R202

0R05 1/16W

Side AV Video & Audio

C123 10uF 10V

12

ZD115 VPORT0603100KV05

C1144 1N 50V

C1143

1N 50V

SIDE_AudioRIN

SIDE_AudioLIN

TP112

R172

30K 1/10W 5%

TP109

VGA Audio Input

C1146

1N 50V

VGA_L_In

VGA_R_In

USB 2

Audio Input

TP091 TP092

TP093

Circuit Diagrams and PWB Layouts

EN 42L12M2.1L LA 10.

2012-Jul-20

back to

div. table

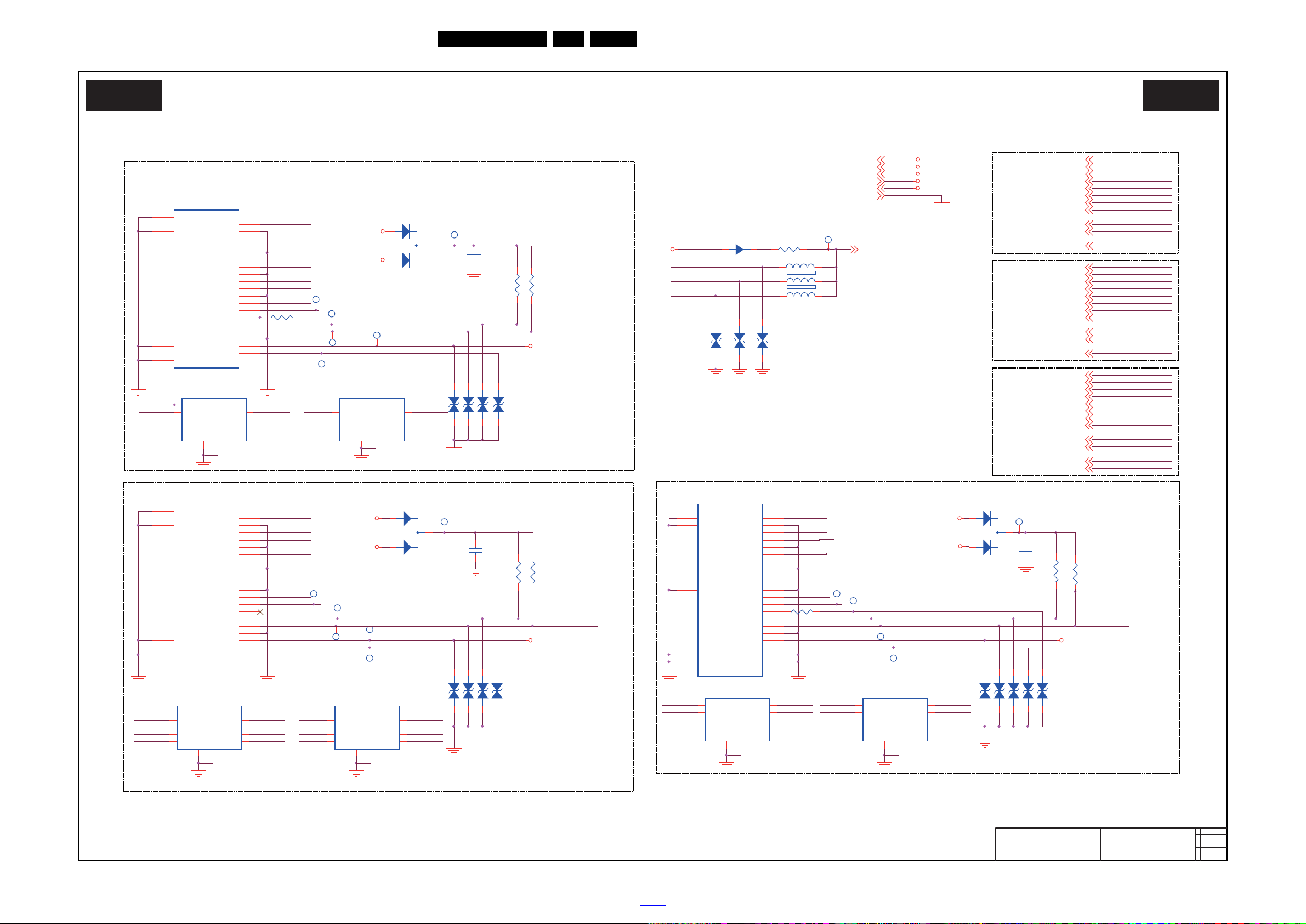

10-1-5 HDMI Connectors

19260_505_120315.eps

120321

HDMI Connectors

B05 B05

2011-12-14

A

715G5172

HDMI Connectors

RR2XC-

HPWR1

RR1XC-

RR1X1+

PORT 2

RR1X2+

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

SHELL6

25

SHELL7

26

CN503 HDMI

RR1X0-

RR1X1-

DDC_SDA1

RR1X0+

HEC+

RR1X2-

DDC_SCL1

RR1XC+

RR2X0+

RR1X2-

RR1XC-

RR1X2+

RR1X0-

RR1X0+

RR1X1-

RR1X2+

RR1X1+RR1XC+

RR1X0-

RR1XC-

RR1X2-

RR1XC+ RR1X1+

DDC_SCL2

RR1X1-

RR1X0+

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U505

NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U504

NC/RClamp0524P.TCT

RR2X1+ RR2X2+

DDC_SCL2

RR2X1-

RR2XC-

RR2X0+

HPD2

RR2X2-

DDC_SDA2

RR2XC+

RR2X0-

RR2X1-

DDC_SCL2

RR2XC+

RR2X2-

RR2X0+

HPD2

RR2X1+

RR2X0-

RR2XC-

DDC_SDA2

HDMI 1

RR2X2+

TP123

DDC_SCL2

TP138

CEC_A1

RR0XC+

HPD0

RR0X0-

RR0X2+

RR0X0+

HEC+R531

NC/0R05 1/16W

TP132

CEC_A0

RR0X2-

RR0XC-

RR0X1-

RR2X0-

RR0X1+

HPWR0

1 2

ZD514

NC/VPORT0603100KV05

1 2

ZD516

NC/VPORT0603100KV05

1 2

ZD515

NC/VPORT0603100KV05

1 2

ZD518

NC/VPORT0603100KV05

1 2

ZD517

NC/VPORT0603100KV05

PORT 3

DDC_SDA2

1 2

ZD502

NC/VPORT0603100KV05

12

ZD503

NC/VPORT0603100KV05

12

ZD504

NC/VPORT0603100KV05

OPWR2_5V

RR2XC+

R510

47K 1/16W 5%

C503

100N 16V

C502

100N 16V

R508

47K 1/16W 5%

3

1

2

D504

BAV70

TP124

R509 47K 1/16W 5%

R511

47K 1/16W 5%

OPWR0_5V

3

1

2

D503

BAV70

+5VSB

OPWR0_5V

+5VSB

OPWR0_5VOPWR1_5V

OPWR1_5V

RR1X1+ RR1X2+

DDC_SCL1

RR1X1-

RR1XC-

RR1X0+

HPD1

RR1X2-

DDC_SDA1

RR1XC+

RR1X0-

RR0XC-

RR0X1+ RR0X2+

HPD0

RR0X2-

DDC_SCL0

RR0X1-

DDC_SDA2

RR0XC+

RR0X0-

RR0X0+

DDC_SDA0

HEC+

CEC_A0

C513

100N 16V

OPWR2_5V

+5VSB

R518 47K 1/16W 5%

HPWR2

R517

47K 1/16W 5%

HDMI 3

3

1

2

D505

BAV70

CEC_A1

DDC_SDA0

RR2X2+

1 2

FB500

30R/700mA

CEC_A2

RR0X2+

RR0XC- RR0X1-RR0XC-

RR0X1+

RR0X1-

RR0X1+

RR0X0+ RR0X2+RR0X0+

RR0X0-RR0X0-

RR0XC+ RR0XC+

RR0X2- RR0X2-

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U507

NC/RClamp0524P.TCT

TP125

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U506

NC/RClamp0524P.TCT

TP130

DDC_SCL1

RR2X2-

HDMI 2

DDC_SCL0

1 2

FB501

30R/700mA

DDC_SDA0

TP133

HPD1

D501

BAS316

R501

27K 1/10W 5%

HD_CEC

3V3SB

TP139

RR2X1+

HPD1

RR1X1RR1X2-

RR1X0+

DDC_SCL1

RR1XC+

RR1X0-

RR1XC-

DDC_SDA1

RR1X1+ RR1X2+

RR0X1-

RR0X0+

HEC-

RR0X2-

DDC_SDA0

DDC_SCL0

RR0XC+

RR0X0-

RR0XC-

RR0X1+ RR0X2+

TP134

TP126

HEC+

TP135

HPD2

RR2XC- RR2X1-

RR2X0+

RR2X2-

RR2X1-

RR2X1+

RR2X0- RR2X2-

RR2XC+

RR2X2+

RR2X1+

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U509

NC/RClamp0524P.TCT

RR2X0+

RR2XC-

RR2X2+

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U510

NC/RClamp0524P.TCT

RR2XC+ RR2X0-

1 2

FB502

30R/700mA

TP127

TP136

OPWR0_5V

GND

+5VSB

OPWR1_5V 3V3SB

OPWR1_5V

3V3SB

OPWR0_5V

+5VSB

TP121

PORT 1

TP128

OPWR2_5V OPWR2_5V

1 2

ZD511

NC/VPORT0603100KV05

1 2

ZD512

NC/VPORT0603100KV05

1 2

ZD513

NC/VPORT0603100KV05

1 2

ZD510

NC/VPORT0603100KV05

1 2

ZD522

NC/VPORT0603100KV05

1 2

ZD519

NC/VPORT0603100KV05

1 2

ZD520

1 2

ZD521

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CN504

HDMI

TP131

DDC_SCL0

TP129

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CN502

HDMI

R532

0R05 1/16W

DDC_SDA1

RR2X1-

TP122

CEC_A2

Circuit Diagrams and PWB Layouts

EN 43L12M2.1L LA 10.

2012-Jul-20

back to

div. table

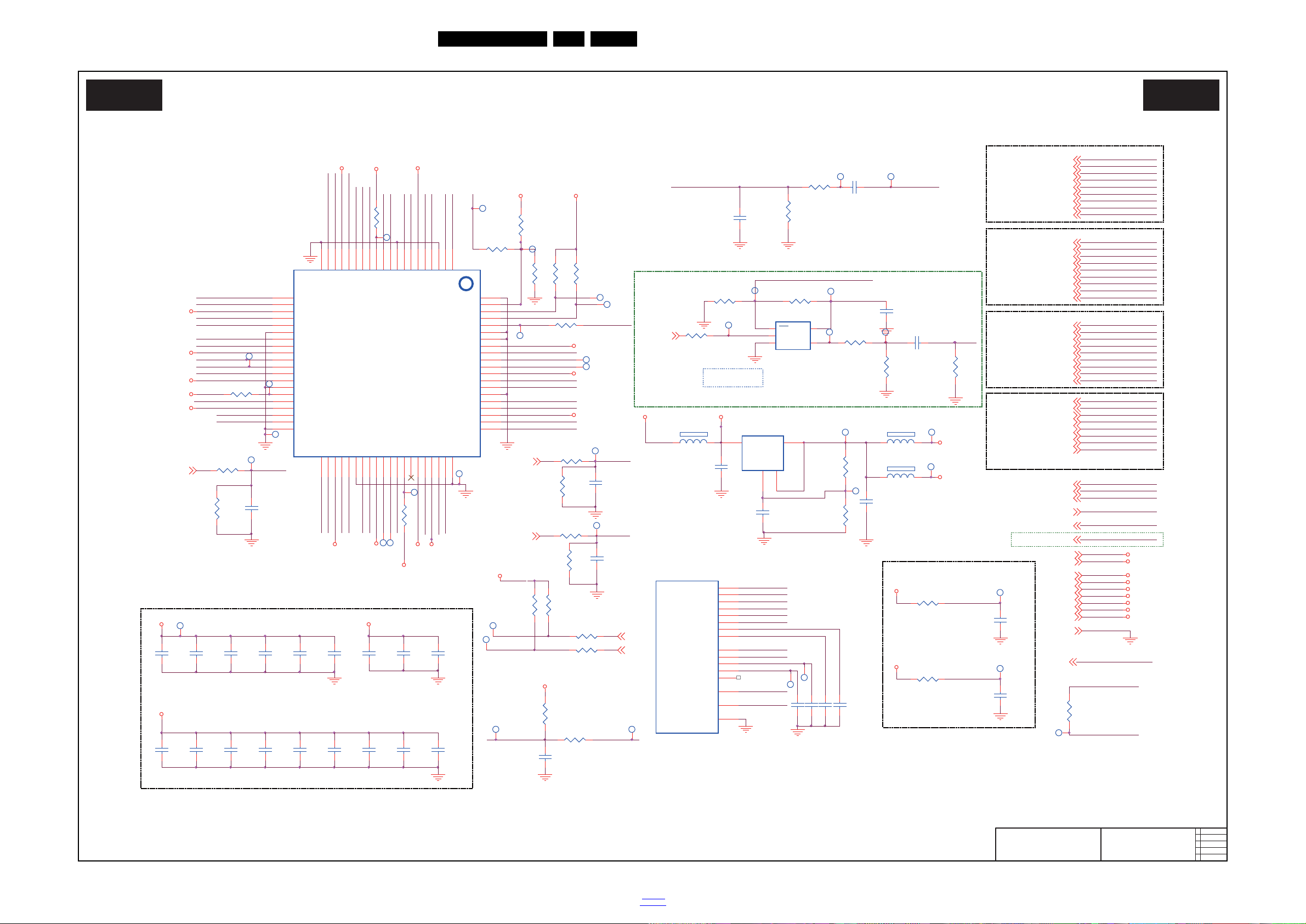

10-1-6 HDMI Switch

19260_506_120315.eps

120321

HDMI Switch

B06 B06

2011-12-14

A

715G5172

HDMI Switch

HEC+

TP143

R533

NC/10K 1/16W 5%

3V3SB_9185

DVDD3V3

TP432

RR2X1-

RR2X0+

HDMISW_RST#

RR1XC+

TP423

RR1XC-

TP433

R527 0R05 OHM

HDMI_HPD

TP424

TP144

RR2X0+

HPD2

RR2X1+

DDC_SDA2

TP434

HDMI_SW_RST

TP425

SPDIF

RR2X1-

TP426

TP148

DVDD3V3

TP145

TP149

R529 0R01 R530 0R01

R535 2K2 1/16W 5%

OSCL1 OSDA1

R536

2K2 1/16W 5%

HDMISW_SDA#

HDMISW_SCL#

RR2X1+

RR2X2-

RPWR0_5V

TP146

RR2X2-

RR2X2+

R526 0R05 OHM

OPWR2_5V

SPDIF_OUT

C1199

33P 50V

R1042

100 OHM 1/10W

C1198

100N 16V

SPDIF

SPDIF OUT

R1043

240R 1/10W 5%

DDC_SCL0

TP427

TP147

RR2XC-

RR0X0-

RR2X2+

RR0X0+

RR2X1-

RR2XC+

RR0X1-

RR2XC-

RR0X1+

HDMISW_SDA#

TP421

HDMISW_SCL#

RR0X2-

TP420

RR0X2+

RR0XC-

DDC_SCL2

HDMI 1

RR0XC+

HPD0

RPWR1_5V

HDMISW_RST#

TP150

R540

10K+-5%1/16W

RR2XC+

OE

1

A

2

GND3Y

4

VCC

5

U508

SN74LVC1G125DBVR

RR2XC-

R502

NC/0R05 1/16W

TPWR

TP141

RR2X1+

R541

180R 1/10W 1%

TP151

C520

1uF 25V

R542

82R 1/10W 1%

R544

100K1/16W

DDC_SDA0

R524

56R 1/10W 1%

1 2

FB507

220R/2000mA

R548

10K 1/10W

C505

10uF 10V

C556

100N 16V

C529

0.1uF 50V

R513 4.7K 1/10W

C506

0.1uF 50V

C501 1uF 25V

C530

0.1uF 50V

C510

10uF 10V

RR2X0-

1 2

FB505

220R/2000mA

C525

0.1uF 50V

C526

0.1uF 50V

C523

10uF 10V

R534

0R05 OHM

C511

0.1uF 50V

C509

0.1uF 50V

C527

0.1uF 50V

C512

0.1uF 50V

HD_CEC

OSCL1

RR1X1-

RR0X2+ RR0XC+

RR1XC+

RR0X1+

RR1X2-

RR0X2-

RR0X0-

RR1X0-

RR0X1-

RR1X0+

RR0X0+

RPWR0_5V

C516

1uF 16V

RR0XC-

RR1XC-

RR1X2+

HPD1

HPD0

RR1X1+

OSDA1

DDC_SCL1

DDC_SDA1

VIN

3

GND

1

VOUT

2

TH

4

U502 G1117T63Uf

TP152

HEC+

DDC_SCL0

DDC_SDA0

TP428

M_RX1_1B

M_RX1_2

TX2+

1

TX2-

2

AGND

3

TX1+

4

TX1-

5

AVCC18

6

TX0+

7

TX0-

8

AGND

9

TXC+

10

TXC-

11

ExtSWING

12

RESET#

13

LSDA/PSEL0

14

LSCL/PSEL1

15

HPD0

16

AVCC18

17

R0XC-

18

R0XC+

19

AGND

20

R0X0-

21

R0X0+

22

AVCC33

23

R0X1-

24

R0X1+

25

AGND

26

R0X2-

27

R0X2+

28

AVCC18

29

DSDA0

30

DSCL0

31

RPWR0

32

DVDD18

33

DGND

34

I2CSEL/INT

35

HPD1

36

AVCC18

37

R1XC-

38

R1XC+

39

AGND

40

R1X0-41R1X0+42AVCC3343R1X1-44R1X1+45AGND46R1X2-47R1X2+48AVCC1849DSDA150DSCL151RPWR152CEC_D53CEC_A54AVCC3355HPD256AVCC1857R2XC-58R2XC+59AGND

60

R2X0-

61

R2X0+

62

AVCC33

63

R2X1-

64

R2X1+

65

AGND

66

R2X2-

67

R2X2+

68

AVCC18

69

DSDA2

70

DSCL2

71

RPWR2

72

DVDD18

73

DGND

74

TEST

75

HPDIN

76

TSDA

77

TSCL

78

TPWR/I2CADDR

79

AGND

80

U501

SiI9185ACTU

C524

10uF 10V

3V3SB_9185

C504

10uF 10V

R519

0R05 OHM

M_RX1_0

M_RX1_0B

M_RX1_C

C507

0.1uF 50V

1 2

FB506

220R/2000mA

C555

100N 16V

RPWR1_5V

PWR5V

AD6

HDMI_CEC

AB6

HDMI_HPD

AC6

HDMI_SCL

AC5

HDMI_SDA

AB5

AVDD33_HDMI

AE1

AVDD12_HDMI

AA6

AVSS33_HDMI

AC4

RX_0

AE3

RX_0B

AD3

RX_1

AE4

RX_1B

AD4

RX_2

AE5

RX_2B

AD5

RX_C

AE2

RX_CB

AD2

MT5366QVOG

U401G

C531

0.1uF 50V

M_RX1_2B

M_RX1_1

M_RX1_CB

R556 0R05 OHM

R522

120R 1% 1/10W

R560 0R05 OHM

R515

10K 1/16W 5%

R514 10K 1/16W 5%

C528

0.1uF 50V

R512

1K 1/16W 5%

R516

10K 1/16W 5%

R523

0R05 OHM

R503 0R05 1/16W

C518

10uF 10V

C508

0.1uF 50V

AVDD1V2

SPDIF_OUT

AVDD3V3

AVCC1V8

TP153

3V3SB_9185

AVCC1V8

DVDD1V8

AVCC1V8

3V3SB_9185

HPD2

3V3SB_9185

AVCC1V8

3V3SB_9185

DVDD1V8

AVCC1V8

DVDD1V83V3SB_9185

R545

NC/10K+-5%1/16W

3V3SB_9185

DVDD3V3

+5V_SW

OSDA1

OSCL1

RR1XC+

RR1X0-

RR1X1+

RR0X1+

HPD0

RR0XC+

RR1XC-

RR1X2+

RR0XC-

RR0X2+

RR0X2-

RR2XC+

RR0X0+

RR0X1-

RR1X1-

OPWR2_5V

DVDD3V3

HPD1

RR0X0-

RR1X2-

RR1X0+

OPWR2_5V

DVDD3V3

OPWR1_5V OPWR0_5V

AVDD3V3

AVDD1V2

+5V_SW +5VSB 3V3SB

HD_CEC

DDC_SDA1

OPWR1_5V OPWR0_5V

AVDD3V3

AVDD1V2

DDC_SCL1 DDC_SCL0

DDC_SDA0

+5V_SW +5VSB

GND

3V3SB

HEC+

SPDIF_OUT

HPD0

OPWR1_5V

OPWR0_5V

HDMI_SW_RST

TP154

RPWR2_5V

HDMI 3

HDMI 2

HDMI_SDA

TP429

HDMI_SCL

C515

NC/1uF 25V

R525

NC/100K 1/10W

R520

NC/100K 1/10W

C514

NC/1uF 25V

TP155

HPDIN

R505

NC/0R05 1/16W

RR1X0+

RR1X0-

RR2X0-

HD_CEC

HDMI_CEC

R528 0R05 1/16W

TP157

C517

NC/10U 10V

R521

NC/100K 1/10W

C519 NC/1uF 25V

TP158

SPDIF_OUT

M_RX1_1B M_RX1_2B

M_RX1_2

HDMI_HPD

AVDD33_HDMI

M_RX1_1

AVDD33_HDMI

AVDD12_HDMI

M_RX1_C

AVDD12_HDMI

M_RX1_0

Analog Power

M_RX1_0B

M_RX1_CB

MT5366

HDMI_CEC

RR1X1-

RR1X1+

TP159

HPD2

DDC_SDA2 DDC_SCL2

C521 100N 16V

RR2X2-

HPD1

RR1X2-

RR1X2+

DDC_SCL1

DDC_SDA1

TP160

TP140

HDMI_SW_RST

TP430

RPWR2_5V

HEC-

TP161

ARC

RR2X2+

LO = > Enable

HI = > Disable

ARC_OE

TP162

TP431

HDMI_SDA

RR2X0+

HDMI_SCL

C522

NC/10PF 50V

C532

NC/10PF 50V

C533

NC/10PF 50V

C534

NC/10PF 50V

TP422

TP451

ARC_OE

HECC+

TP163

TP142

RR2X0-

Circuit Diagrams and PWB Layouts

EN 44L12M2.1L LA 10.

2012-Jul-20

back to

div. table

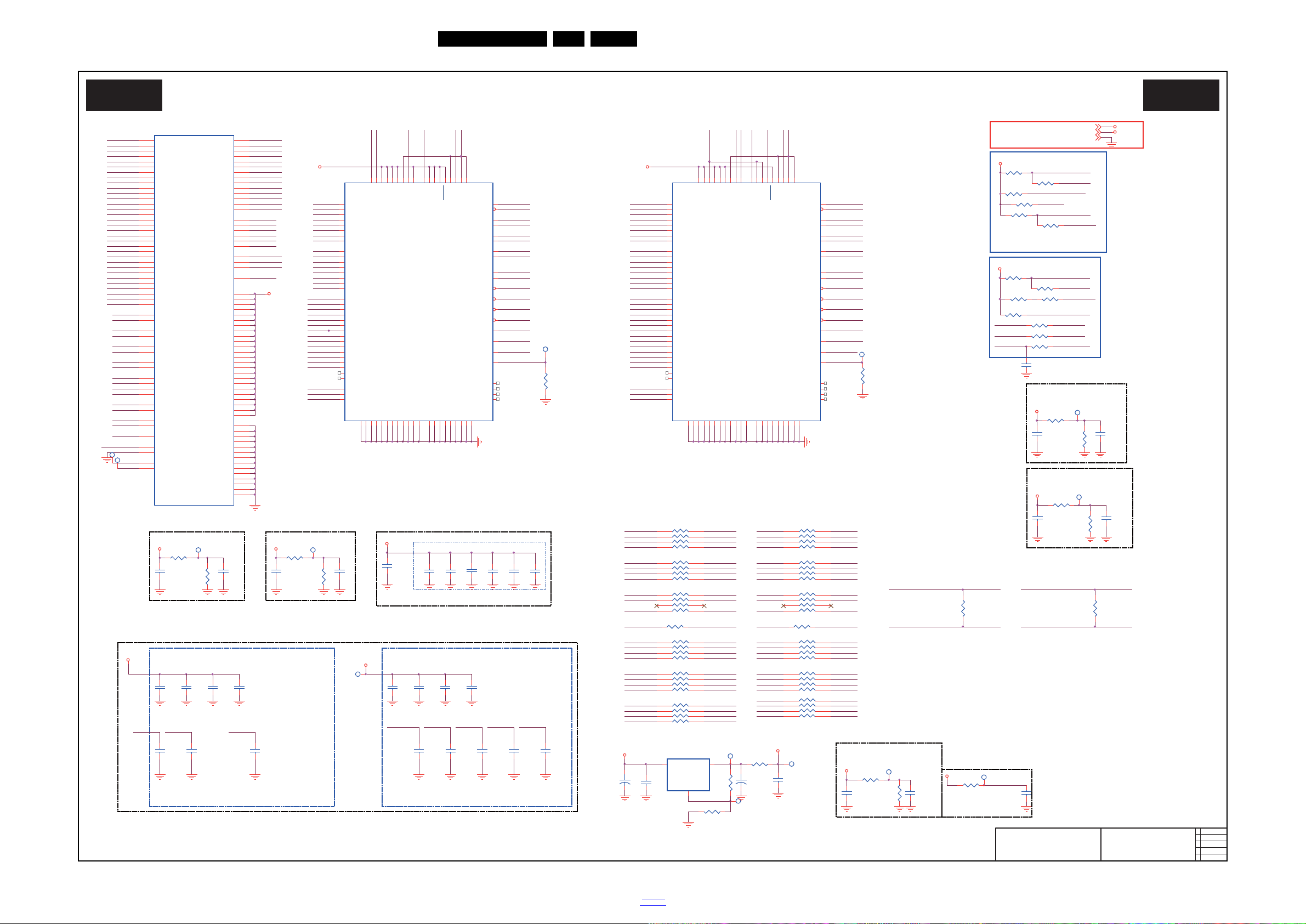

10-1-7 DDR3 DRAM

19260_507_120319.eps

120321

DDR3 DRAM

B07 B07

2011-12-14

C

715G5172

DDR3 DRAM

A_BA0 A_BA1 A_BA2

1_DDRV_C1

C404

100N 16V

R414

1K 1/16W 1%

R412

1K 1/16W 1%

C405

100N 16V

DDRV

RVREF5

DVDD3V3 DV DD3V3

AVDD1V2

AVDD12_MEMPLL

GND

AVDD1V2

RDQS2

RDQS3 RDQS3#

RDQS1#

RDQS0 RDQS0#

RDQS1

RVREF4

B_RAS#

RDQS2 RDQS2#

RDQM0

RDQM3

RDQM1 RDQM2

RCLK0 RCLK0#

RCLK1 RCLK1#

MEMTP MEMTN

RDQ3

RDQ0 RDQ2

RDQ7

RDQ5

RDQ1

RDQ6

RDQ4

RDQ1 RDQ3

RDQ2

RDQ7

RDQ6

RDQ5

RDQ4

RDQ15

RDQ0

RDQ13

RDQ9

RDQ14

RDQ12

RDQ8 RDQ10

RDQ11

RDQ16 RDQ17

RDQ19

RDQ31

RDQ21

RDQ30

RDQ18

+

C4010

220UF 16V

RDQ20

RDQ28

RDQ23

C403

100N 16V

RDQ22

RDQ29

RDQ27

RDQ25

RDQ24 RDQ26

1 2

3

4

8

7 6 5

RP405 100 OHM 1/16W

C401

100N 16V

1 2

3

4

8

7 6 5

RP411 100 OHM 1/16W

1 2

3

4

8

7 6 5

RP400 100 OHM 1/16W

R411

1K 1/16W 1%

1 2

3

4

8

7 6 5

RP410 100 OHM 1/16W

R410

1K 1/16W 1%

1 2

3

4

8

7 6 5

RP401 100 OHM 1/16W

R403

1K 1/16W 1%

1 2

3

4

8

7 6 5

RP406 100 OHM 1/16W

1 2

3

4

8

7 6 5

RP403 100 OHM 1/16W

R406 100R 1/16W 5%

DDRV

RDQS3

1 2

3

4

8

7 6 5

RP408 100 OHM 1/16W

1_DDRV_R1

1_DDRV_H9

1_DDRV_F1

C402

100N 16V

RVREF3

B_CKE

1 2

3

4

8

7 6 5

RP402 100 OHM 1/16W

1 2

3

4

8

7 6 5

RP404 100 OHM 1/16W

C400 100N 16V

RDQM0

R407 100R 1/16W 5%

R402

1K 1/16W 1%

1 2

3

4

8

7 6 5

RP407 100 OHM 1/16W

RDQ6//RDQ0

D13

RDQ0//RDQ1

D12

RDQ1//RDQ2

E13

RDQ7//RDQ3

D11

RDQ4//RDQ4

D14

RDQ5//RDQ5

E12

RDQ3//RDQ6

E14

RDQ2//RDQ7

E11

RDQ13//RDQ8

B10

RDQ11//RDQ9

B15

RDQ10//RDQ10

A10

RDQ12//RDQ11

A15

RDQ15//RDQ12

C11

RDQ9//RDQ13

C15

RDQ8//RDQ14

C10

RDQ14//RDQ15

C14

RDQ22//RDQ16

G5

RDQ23//RDQ17

J5

RDQ17//RDQ18

H5

RDQ16//RDQ19

J4

RDQ20//RDQ20

H4

RDQ21//RDQ21

K4

RDQ19//RDQ22

G4

RDQ18//RDQ23

K3

RDQ26//RDQ24

J1

RDQ27//RDQ25

D2

RDQ29//RDQ26

J2

RDQ28//RDQ27

C1

RDQ31//RDQ28

H3

RDQ25//RDQ29

D1

RDQ24//RDQ30

J3

RDQ30//RDQ31

E2

RDQS0//RDQS0

B13

RDQS0_//RDQS0_

A13

RDQS1//RDQS1

A12

RDQS1_//RDQS1_

B12

RDQS2//RDQS2

F2

RDQS2_//RDQS2_

F1

RDQS3//RDQS3

G1

RDQS3_//RDQS3_

G2

RDQM0//RDQM0

C12

RDQM1//RDQM1

C13

RDQM2//RDQM2

G3

RDQM3//RDQM3

E1

RCLK0//RCLK0

A9

RCLK0_//RCLK0_

B9

RCLK1//RCLK1

K1

RCLK1_//RCLK1_

K2

RBA2//RRESET_

C6

AVDD12_MEMPLL

H9

AVSS12_MEMPLL

H10

MEMTP

D8

MEMTN

C8

RCAS_//RA0

C4

RA6//RA1

F9

RBA0//RA2

C5

RA5//RA3

A7

RA4//RA4

F8

RBA1//RA5

D5

RA13//RA6

D7

RA10//RA7

A6

NC//RA8

E6

RA3//RA9

B7

RA12//RA10

E8

RA11//RA11

F7

RA0//RA12

D6

RA1//RA13

B6

RCKE//RWE_

B4

RODT//RODT

A3

RRAS_//RCAS_

B3

RWE_//RCS_

A4

RCS_//RRAS_

A2

RA9//RCKE

D9

RA8//RBA0

E7

RA2//RBA1

E9

RA7//RBA2

C7

RVREF

E3

VCC2IO

C16

VCC2IO

B16

VCC2IO

A16

VCC2IO

F15

VCC2IO

E15

VCC2IO

D15

VCC2IO

H14

VCC2IO

H13

VCC2IO

K8

VCC2IO

J8

VCC2IO

H8

VCC2IO

B1

VCC2IO

F6

DVSS

L5

VCC2IO

E5

DVSS

L4

VCC2IO

D4

DVSS

L3

VCC2IO

C3

VCC2IO

B2

VCC2IO

A1

DVSS

L6

DVSS

K6

DVSS

C9

DVSS

F11

DVSS

F12

DVSS

E10

DVSS

J6

DVSS

F10

DVSS

H11

DVSS

K7

DVSS

H12

VCC2IO

C2

VCC2IO

D3

VCC2IO

E4

VCC2IO

F5

VCC2IO

G6

VCC2IO

F14

U401B

2_DDRV_A8

C406

100N 16V

R415

1K 1/16W 1%

R413

1K 1/16W 1%

C407

100N 16V

DDRV

1 2

3

4

8

7 6 5

RP409 100 OHM 1/16W

1_BA2

1_A0

1_A13

1_WE#

1_BA1

1_A9

1_A8

1_CS#

1_A1

1_A12

1_CKE

1_A7

1_ODT

1_A3

1_A11

1_CAS#

1_A4

1_RAS#

1_BA0

1_A6

1_A2

1_A5

1_A10

1_RST#

DDRV

DDRV DDRV

RCLK1

RCLK0#RCLK1#

CLK1#

CLK1

RCLK0

1_DDRV_N9

1_DDRV_F1

DDRV

RDQ26 RDQ27

RDQ29

RDQ28

1_DDRV_H9

1_DDRV_C1

RDQ30

RDQ24

RDQ31

RDQ25

1_DDRV_R9

1_DDRV_R1

R4121

0R05 OHM

R4120

0R05 OHM

R4122

0R05 OHM

R4124

0R05 OHM

R4123

0R05

R4125

0R05 OHM

RDQ8 RDQ9

RDQ15

RDQ12 RDQ14

RDQ11 RDQ13

RDQ10

2_DDRV_C9

TP165

A_CKE

RDQS3#

TP174

RDQM1

A_A3

A_A7

A_A2

A_A5

A_A8

A_A0

A_A6

A_A4

A_A1

TP176

TP175

R4129

0R05 1/16W

R4130

0R05 1/16W

TP166

A_CAS#

RVREF2

A_WE#

DDRV

C4009 10uF 10V

2_DDRV_A8

R4113 0R05

2_DDRV_C1

2_DDRV_F1

2_DDRV_H9

DDRV

2_DDRV_H9

R4118

0R05

R4114 0R05

2_DDRV_C9

2_DDRV_N1

R4112

0R05 OHM

R4119

0R05 OHM

R4116

0R05 OHM

R4115 0R05 OHM

R4117

0R05

2_DDRV_R1

2_DDRV_N1

2_DDRV_C9

TP167

RDQS0#

CK

J7

CK#

K7

CKE

K9

UDQS#

B7

CS#

L2

RAS#

J3

CAS#

K3

WE#

L3

VSSQD1VSSQG1VSSQE2VSSQD8VSSQE8VSSQB9VSSQF9VSSQG9VSSE1VSSP1VSST1VSSJ2VSS

B3

VDDQA1VDDQC1VDDQF1VDDQD2VDDQH2VDDQA8VDDQC9VDDQE9VDDQ

H9

VDDR1VDDB2VDDK2VDD

G7

BA1

N8

BA0

M2

UDM

D3

LDM

E7

VDD

K8

A11

R7

A10_AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

UDQS

C7

LDQS#

G3

LDQS

F3

VSSQ

B1

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

VREF_DQ

H1

DQL0

E3

DQL1

F7

DQL2

F2

DQL3

F8

DQL4

H3

DQL5

H8

DQL6

G2

DQL7

H7

ODT

K1

VDD

N1

VSS

M1

A12

N7

VSS

G8

VREF_CA

M8

NC

T7

NC

T3

BA2

M3

VDDD9VDDN9VDD

R9

VSSJ8VSSA9VSSM9VSSP9VSS

T9

NC

M7

ZQ

L8

RESET#

T2

NC_J1

J1

NC_J9

J9

NC_L1

L1

NC_L9

L9

U403

K4B1G1646G-BCH9

RVREF2

2_DDRV_C1

A_A10

A_A9

A_A13

A_A11 A_A12

DDR3#1

VIN3VOUT

2

ADJ/GND

1

U415DVDD3V3

R416

0R05 4A 1/4W

DDRV

R405524R 1/10W 1%

C408 100N 16V

R4054

120R 1% 1/10W

2_DDRV_N1

C429

100N 16V

C430

100N 16V

C427

100N 16V

C426

100N 16V

C431

100N 16V

C428

100N 16V

+

C409

220UF 16V

C425

10uF

DDRV

MT5366 DE-CAP

A_RAS#

TP419

TP169

A_RST#

C410 NC/100N 16V

1_DDRV_N9

CLK1

1_DDRV_R9

B_ODT

CK

J7

CK#

K7

CKE

K9

UDQS#

B7

CS#

L2

RAS#

J3

CAS#

K3

WE#

L3

VSSQD1VSSQG1VSSQE2VSSQD8VSSQE8VSSQB9VSSQF9VSSQG9VSSE1VSSP1VSST1VSSJ2VSS

B3

VDDQA1VDDQC1VDDQF1VDDQD2VDDQH2VDDQA8VDDQC9VDDQE9VDDQ

H9

VDDR1VDDB2VDDK2VDD

G7

BA1

N8

BA0

M2

UDM

D3

LDM

E7

VDD

K8

A11

R7

A10_AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

UDQS

C7

LDQS#

G3

LDQS

F3

VSSQ

B1

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

VREF_DQ

H1

DQL0

E3

DQL1

F7

DQL2

F2

DQL3

F8

DQL4

H3

DQL5

H8

DQL6

G2

DQL7

H7

ODT

K1

VDD

N1

VSS

M1

A12

N7

VSS

G8

VREF_CA

M8

NC

T7

NC

T3

BA2

M3

VDDD9VDDN9VDD

R9

VSSJ8VSSA9VSSM9VSSP9VSS

T9

NC

M7

ZQ

L8

RESET#

T2

NC_J1

J1

NC_J9

J9

NC_L1

L1

NC_L9

L9

U402

K4B1G1646G-BCH9

RVREF1

RDQS0

1_DDRV_H91_DDRV_C11_DDRV_N9

C4006 10uF

C414

100N 16V

C419

100N 16V

C422

100N 16V

C415

100N 16V

C411 10uF

C413

100N 16V

C416

100N 16V

C423

100N 16V

C420

100N 16V

C418

100N 16V

C421

100N 16V

TP170

DDRV

C424

100N 16V

DDRV

2_DDRV_A82_DDRV_C12_DDRV_N1 2_DDRV_H9

DRAM DE-CAP

2_DDRV_C9

C4007

10uF

C4008

10uF

C4011

100N 16V

B_A0 B_A1

B_A10

B_A7

B_A3

B_A11

B_A5

B_A2

B_A13

B_A8

B_A4

B_A9

B_A12

1_CS#

1_A0

1_BA0

1_A11

1_A2

1_A5

TP168

ZQ2

1_BA1

A_A4

A_A3

A_A5

A_A1

A_A2

RVREF4

RVREF3

A_BA2

A_BA0

TP177

1_RAS#

1_A3

1_BA2

1_BA0

1_CKE

1_A8

1_A1

1_RAS#

ZQ1

1_RST#

1_A6

1_CAS#

1_A10 1_BA1

1_A1 1_A4

1_ODT

1_A4

1_CS#

1_A13

1_A0

1_A8

1_CAS# 1_A11

1_A6

1_A12

1_ODT

1_WE#

A_CKE 1_A12

1_A3

1_RST#

1_A7

1_WE#

1_A9

1_A7

1_A13

A_ODT

1_A5

1_A9

1_BA2

B_A0

B_A2

B_A1

1_A2

B_CKE

B_A5

B_A8

B_A7

B_A4

B_A6

B_A9

B_A12

B_A11

B_A10

B_A13

B_A3

B_ODT

B_BA0

B_CS#

B_WE#

B_BA1

TP171

B_CAS#

B_BA2

1_A10

B_RAS#

B_RST#

DRAM POWER DDRV

DDR3#2

RDQM3

RVREF5

B_CS#

AVDD12_MEMPLL

R417 1K 1/16W 1% C432 100N 16V

C434

100N 16V

AVDD1V2

RVREF5

R418

0R05 1/16W

R419

1K 1/16W 1%

DDRV

C433 100N 16V

RDQS1#

2_DDRV_F1

TP172

RVREF1

CLK0

CLK0#CLK1#

B_BA2

B_BA0 B_BA1

B_A6

2_DDRV_H9

TP173

2_DDRV_R1

U403

U402

U401B

MT5366

RDQM2

B_WE#

A_CS#

CLK0 CLK0#

RDQS1

A_WE#

B_RST#

A_ODT A_CAS# A_RAS#

A_A0

A_A9

A_CS#

A_A13

A_BA1

A_A7 A_RST#

A_A12

A_A10

A_A11

A_A6 A_A8

R401

240 OHM +-5% 1/16W

RDQ23

RDQ17 RDQ19

RDQ22

RDQ18

RDQS2#RDQ20

RDQ16

RDQ21

B_CAS#

R400

240 OHM +-5% 1/16W

Circuit Diagrams and PWB Layouts

EN 45L12M2.1L LA 10.

2012-Jul-20

div. table

back to

10-1-8 Flash/Xtal/JTAG/UART

19260_508_120319.eps

120321

Flash/Xtal/JTAG/UART

B08 B08

2011-12-14

C

715G5172

Flash/Xtal/JTAG/UART

R454 10K 1/16W

C453

100N 16V

R431

4.7K 1/10W C452

100N 16V

TP202

R430

4.7K 1/10W

TP183

JTCK

R4

JTDI

T1

JTDO

R3

JTMS

T3

JTRST_

T2

OSDA1

U4

OSCL1

U3

XTALI

AE19

XTALO

AD19

AVDD33_XTAL_STB

AC18

AVSS33_XTAL_STB

AE18

AVDD12_PLL

AB15

AVSS12_PLL

AA17

OPWRSB

AB9

ORESET_

Y8

OIRI

AC8

DVSS

H6

DVSS

M9

DVSS

W19

DVSS

Y19

DVSS

W20

DVSS

Y20

DVSS

N9

DVSS

L12

DVSS

L13

DVSS

L14

DVSS

P9

DVSS

R10

DVSS

M11

DVSS

M12

DVSS

M13

DVSS

M14

DVSS

M15

DVSS

M16

DVSS

N11

DVSS

N12

DVSS

N13

DVSS

N14

DVSS

N15

DVSS

N16

DVSS

P11

DVSS

P12

DVSS

P13

DVSS

P14

DVSS

P15

DVSS

P16

DVSS

R11

DVSS

R12

DVSS

R13

DVSS

R14

DVSS

K12

DVSS

K13

DVSS

M10

DVSS

N10

DVSS

P10

U0TX

AB8

U0RX

AC7

U1RX

U2

U1TX

U1

POWE_

J19

POOE_

K21

POCE1_

K22

POCE0_

J21

PDD7

K23

PDD6

L23

PDD5

L24

PDD4

L25

PDD3

K20

PDD2

K19

PDD1

L22

PDD0

M23

PARB_

J20

PACLE

J24

PAALE

J25

VCCK

M1

VCCK

M2

VCCK

M3

VCCK

M4

VCCK

M5

VCCK

M6

VCCK

N1

VCCK

N2

VCCK

N3

VCCK

N4

VCCK

N5

VCCK

N6

VCCK

K10

VCCK

K11

VCCK

K9

VCCK

L9

VCCK

R9

VCCK

K15

VCCK

K16

VCCK

L10

VCCK

T9

VCCK

T10

VCCK

T11

VCCK

T12

VCCK

T13

VCCK

T14

VCCK

T15

VCCK

T16

VCC3IO

T8

VCC3IO

M18

VCC3IO

H19

VCC3IO

V8

VCC3IO

U8

VCC3IO

N18

AVDD10_LDO

AA12

FSRC_WR

E23

OSDA0

J22

OSCL0

J23

DVSS

A25

DVSS

B25

DVSS

AA20

DVSS

W21

DVSS

Y21

DVSS

Y22

DVSS

AB22

DVSS

AA23

DVSS

AB23

DVSS

AC23

DVSS

AB24

AVDD33_VGA_STB

AA7

AVSS33_VGA_STB

W8

DVSS

AC24

DVSS

AB25

OSCL2

T23

OSDA2

T22

VCCK

L11

VCCK

L15

VCCK

R15

VCCK

L16

VCCK

R16

VCCK

R17

DVSS

K14

DVSS

K17

DVSS

L17

DVSS

N17

DVSS

P17

VCCK

T17

DVSS

W17

DVSS

V19

MT5366QVOG

U401A

R420 4.7K 1/16W

R423

4.7K 1/16W

R456 10K 1/10W

R462 0R05 OHM

C438

33pF 50V

R461 0R05 OHM

C445

100N 16V

R424

4.7K 1/16W

C439

10UF 10V

R433

4.7K 1/16W

C444

100N 16V

TP413

C441

100N 16V

AVDD1V2

3V3SB

VCCK

DVDD3V3

VCCK

DVDD3V3

3V3SB

+5VSB

DVDD3V3

AVDD1V2

VCCK

3V3SB

DVDD3V3

3V3SB

+5VSB

AVDD1V2

DVDD3V3

VCCK

GND

OPWRSB

OSCL1

OSDA1

TP184

OPCTRL4

OPCTRL5

SYS_EEPROM_WP

RC Signal

AOSDATA1

OSCL2

OSDA2

TP188

TP181

TP203

OSDA2 OSCL2

AVDD10_LDO

AVDD33_XTAL_STB

TP414

TP204

R421 NC/4.7K 1/10W

OPCTRL5 OPCTRL4 AOSDATA1

TP182

TP205

U0TX U0RX

TP179

R4104

1.3K 1%

PARB#

JTDO

POOE# POCE1#

U0TX

OSDA0

OSCL0

JTMS

C440

10uF 6.3V

OSDA1 OSCL1

OPCTRL4

SYS_EEPROM_WP

TP191

PACLE

R453 NC/10K 1/10W

R458 NC/10K 1/16W

R455 NC/10K 1/10W

TP192

AOSDATA1

TP418

TP180

R427

4.7K 1/10W

C436

NC/100N 16V

R4053 NC/4.7K 1/10W

CS#

1

SO/SIO1

2

WP#/SIO2

3

GND4SI/SIO0

5

SCLK

6

NC/SIO3

7

VCC

8

U404

NC/MX25L6445EM2I-10G

TP187

DVDD3V3

TP185

DVDD3V3

64Mb

Flash_WP#POCE0#

U404

PDD6

POOE#Flash_WP#

POCE0# PDD7

TP186

R425

NC/4.7K 1/10W

TP193

RC Signal

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

U409

M24128-BRMN6TP

3V3SB

MTK

3V3SB

AVDD12_PLL

PAALE POWE#

OXTAL_I

JTRST#

OSDA0

Flash_WP#

OPCTRL5

OSDA2

OSCL0

AVDD33_REG_STB

OSCL1

TP409

U0RX

R459 NC/100K 1/10W

OSDA2 OSCL2

JTDI

OXTAL_O

( 42 mA )

AVDD33_XTAL_STB

TP200

R4103

820R 1/10W 1%

( 13 mA )( 10 mA )

OSDA0

OSCL0

OSDA0

PDD7

PDD1

PDD2

PDD5

PDD6 PDD4

PDD0

PDD3

R443

NC/1K8 1/10W 1%

R447

NC/820R 1/10W 1%

+5VSB

U401A

U405

U409

R441

10K 1/10W

R442

1K 1/10W

R440

10K 1/10W

1

3

5 7

9 11 13 15 17 19

2 4 6

8

10 12 14 16 18 20

2122

CN406

NC/60947 20P 1.25MM

R439

10K 1/10W

R450 10K 1/10W

R446

33R 1/10W 5%

R437

10K 1/10W

OXTAL_I OXTAL_O

DVDD3V3DVDD3V3

CN406

JTAG_DBGACK

JTMS

JTAG_DBGRQ

TVTREF#1

JTDI

ORESET#

JTCK

JTRST#

JTDO

AVDD12_PLL

R451 10K 1/10W

TP201

TP190

TP189

R438

10K 1/10W

ORESET#

C4012 NC/100N 16V

PAALE

U0RX

PACLE

U0TX

POCE1#

PDD0 PARB#

POOE#

PDD2

POWE#

R4102

NC/10K 1/16W 5%

R4013

NC/4K7 1/16W 1%

PDD5 PDD4

PDD6

PDD7

PDD3 PDD1

3

2

1

Q4003

NC/BC847C

POCE0#

OPWRSB

RC Signal

JTCK

OSCL2

OSDA1 OSCL1

FSRC_WR

SYS_EEPROM_WP

R432

4.7K 1/16W

C446

100N 16V

R422 4.7K 1/16W

C451

4.7UF 10V

R452

100K 1/10W

OPWRSB

R457 10K 1/16W

C447 27P 50V

C454

10uF 10V

R460 0R05 OHM

C448 27P 50V

C455

100N 16V

C456

100N 16V

OSDA1

R426

10K 1/10W

R429

4.7K 1/10W

C450

100N 16V

123

4

X400

27MHz

R436

0R05 OHM

TP178

R434

4.7K 1/16W

GND

1

RESET

2

VCC

3

U408

MAX809STRG

C443

100N 16V

C442

100N 16V

C435

100N 16V

C437

4.7UF 10V

256MB

AVDD33_REG_STB

NC

1

NC

2

NC

3

NC

4

NC

5

NC

6

RB

7

R

8

E

9

NC

10

NC

11

VDD

12

VSS

13

NC

14

NC

15

CL

16

AL

17

W

18

WP

19

NC

20

NC

21

NC

22

NC

23

NC24NC

25

NC

26

NC

27

NC

28

I/O0

29

I/O1

30

I/O2

31

I/O3

32

NC

33

NC

34

NC

35

VSS

36

VDD

37

NC

38

NC

39

NC

40

I/O4

41

I/O5

42

I/O6

43

I/O7

44

NC

45

NC

46

NC

47

NC

48

U405

K9F2G08U0B-PIB0

Circuit Diagrams and PWB Layouts

EN 46L12M2.1L LA 10.

2012-Jul-20

back to

div. table

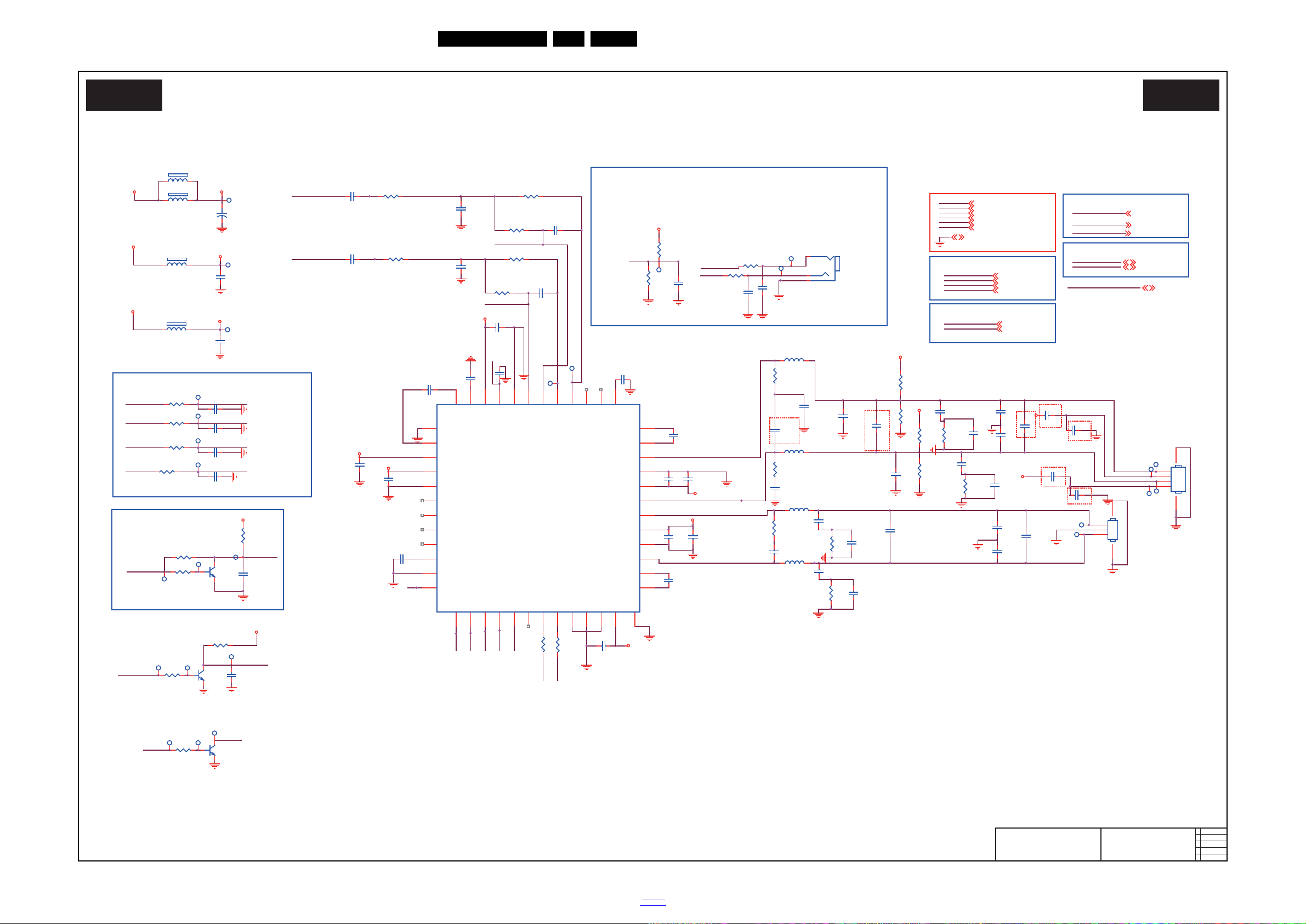

Circuit Diagrams and PWB Layouts

19260_509_120319.eps

120321

Audio Amplifier/Headphone/Subwoofer

B09 B09

2011-12-14

C

715G5172

Audio Amplifier/

Headphone/Subwoofer

C676

NC/220N 50V

C694 NC/10N 50V

TP211

C648

100N 16V

TP230

TP394

R691

4R7 1/4W 5%

C674 100N 50V

C677

100N 50V

AVDD

TP393

Q602

MMBT3904

C651

NC/1UF 10V

TP206

07/21 change Rout+/-

R692

4R7 1/4W 5%

C680

100N 50V

C678 100N 50V



C675

220N 50V

L652 47uH

ROUT+

L653 47uH

OUT2B

R693

4R7 1/4W 5%

C681 100N 50V

C688

100N 50V

C670

470NF 50V

OUT1A

C679

1N 50V

WSPK-

C684

1N 50V

WSPK+

PVDD

C632

100N 50V

C626

100N 50V

C636

100N 50V

C637 1UF 50V

C638 1UF 50V

C633

100N 50V

PVDD

R685

22 OHM 1/4W

C686

4.7uF 25V

R689

3.4K 1%

C682

330PF 50V

C669 330pF 50V

L651 22uH

R651

22 OHM 1/4W

C687

4.7uF 25V

C671

330pF 50V

C668

470NF 50V

C685

4.7uF 25V

R657

22 OHM 1/4W

R688

3.4K 1%

R687

3.4K 1%

L650 22uH

C683

4.7uF 25V

PVDD

R686

3.4K 1%

PVDD

1

2

3

4

5 6

CN601

CONN

C693 10N 50V

TP212

TP207

TP220

LOUT+

DVDD3V3

AMP_PWDN

R635

10K 1/16W 5%

TP225

LOUT-

MCLK

R633

10K 1/16W 5%

TP396

OUT2A

OUT1B

1 2

3

45

CN603

CONN

+

C616

NC/100UF 35V

TP213

TP208

R606

NC/4K7 1/16W 5%

DVDD3V3

TP214

TP397

+

Q603

MMBT3904

TP215

HP_SC_MUTE

HP

R634

10K 1/16W 5%

−

1

2

3

CN602

CONN

TP216

C610 1UF 10V

-

+

TP226

TP217

08/10 update 10R

HP_MUTE

+12V

AOMCLK

I2S audio input for SPK AMP

AR0O

OSCL0

3V3SB

HP_DET#

+24V(16V)

SPK_MUTE

DVDD3V3

Audio Control

OSDA0

AR0O

+5VSB

AOSDATA0

AOBCLK

+5V_SW

I2C for SPK AMP

OSCL0

OSDA0

AOLRCK

+5VSB

+12V

+24V(16V)

GND

AOMCLK

3V3SB

DVDD3V3

+5V_SW

PWM audio input for HP AMP

AOSDATA0

AOBCLK

AOLRCK

GPIO_12

OPCTRL2

HPOUTL

AL0O

OPCTRL3

HPOUTR

HP_SC_MUTE

R608

10R 1/16W 5%

R607

10R 1/16W 5%

GND_Sound

----><----

----------><----

------><----

Earphone R/L output

HP_DET#

R610

0R05 1/16W

C608

100N 50V

C607

100N 50V

AL0O

TP398

C689

1N 50V

R618

NC/0R05 1/16W

C673 100N 50V

R690

4R7 1/4W 5%

C672

100N 50V

OPCTRL0

HP_MUTE

C606

NC/10N 50V

TP218

TP399

TP227

ROUT-

C615 NC/330PF 50V

C692

1N 50V

TP219

TP228

AVDD_HP

DVDD3V3

C634

10uF 10V

1 2

FB606

220R/2000mA

HPOUTL

SDATA0

HPOUTR

C737

2.2U10V

AMP_RESET

F3X_FILT

13

F3XL

14

LINEINR

17

LINEHPOUT_L

18

LINEHPOUT_R

19

GNDA

20

SOFTMUTE

21

VDD3V3

22

CPVSS

23

CPM

24

GNDPSUB

25

CPP

26

GNDDIG1

29

FFX3A

30

FFX3B

31

EAPD/FFX4A

32

TWARNEXT/FFX4B

33

VREGFILT

34

AGNDPLL

35

BICKI37LRCKI38SDI39RESET40PWDN41INTLINE42SDA

43

SA45TESTMODE46GNDDIG247VDDDIG2

48

VSS_REG

2

OUT2B

3

GND2

4

VCC2

5

OUT2A

6

OUT1B

7

VCC1

8

GND1

9

OUT1A

10

VDD_REG

11

GND_REG

12

VCC_REG

1

LINEINL

16

F3XR

15

MCLK

36

VDD3V3CHP

27

VDDIG1

28

SCL

44

E-Pad

49

U603

STA381BWTR

AL0O

LRCLK

AVDD

TP401

AR0O

AMP_PWDN

SCLK

C613

1UF 10V

HP

C609

100N 16V

OSDA0

C631 22P 50V

AOMCLK

AVDD

AMP_RESET

I2S Input

Amplifier Mute

SCLK

LRCLKAOLRCK

AOBCLK

AOSDATA0 SDATA0

AVDD

MCLK

R617

10K 1/16W 5%

C649

100N 16V

SPK_MUTE

R632

10K 1/16W 5%

C628 22P 50V

Q601

MMBT3904

C629 22P 50V

C627 22P 50V

R611 33R 1/16W 5%

R612 33R 1/16W 5%

R600 20K 1/16W 5%

R61333R 1/16W 5%

C600 1UF 10V

R614 33R 1/16W 5%

C601 1UF 10V

OSCL0

C611

1UF 10V

R601 20K 1/16W 5%

R622

100R 1/16W 5%

C602 330PF 50V

R621

100R 1/16W 5%

C603 330PF 50V

C612 1UF 10V

R602 20K 1/16W 5%

AVDD_HP

R603 20K 1/16W 5%

AVDD

DVDD3V3

C625

10uF 10V

1 2

FB605

220R/2000mA

C635 100N 16V

C630 100N 16V

C604 47pF 50V

R604 43K 1%

C605 47pF 50V

PVDD

+24V(16V)

1 2

FB600

220R/2000mA

1 2

FB604

220R/2000mA

R605 43K 1%

TP210

TP221

10-1-9 Audio Amplifier/Headphone/Subwoofer

EN 47L12M2.1L LA 10.

2012-Jul-20

back to

div. table

10-1-10 A/V Interface

19260_510_120319.eps

120322

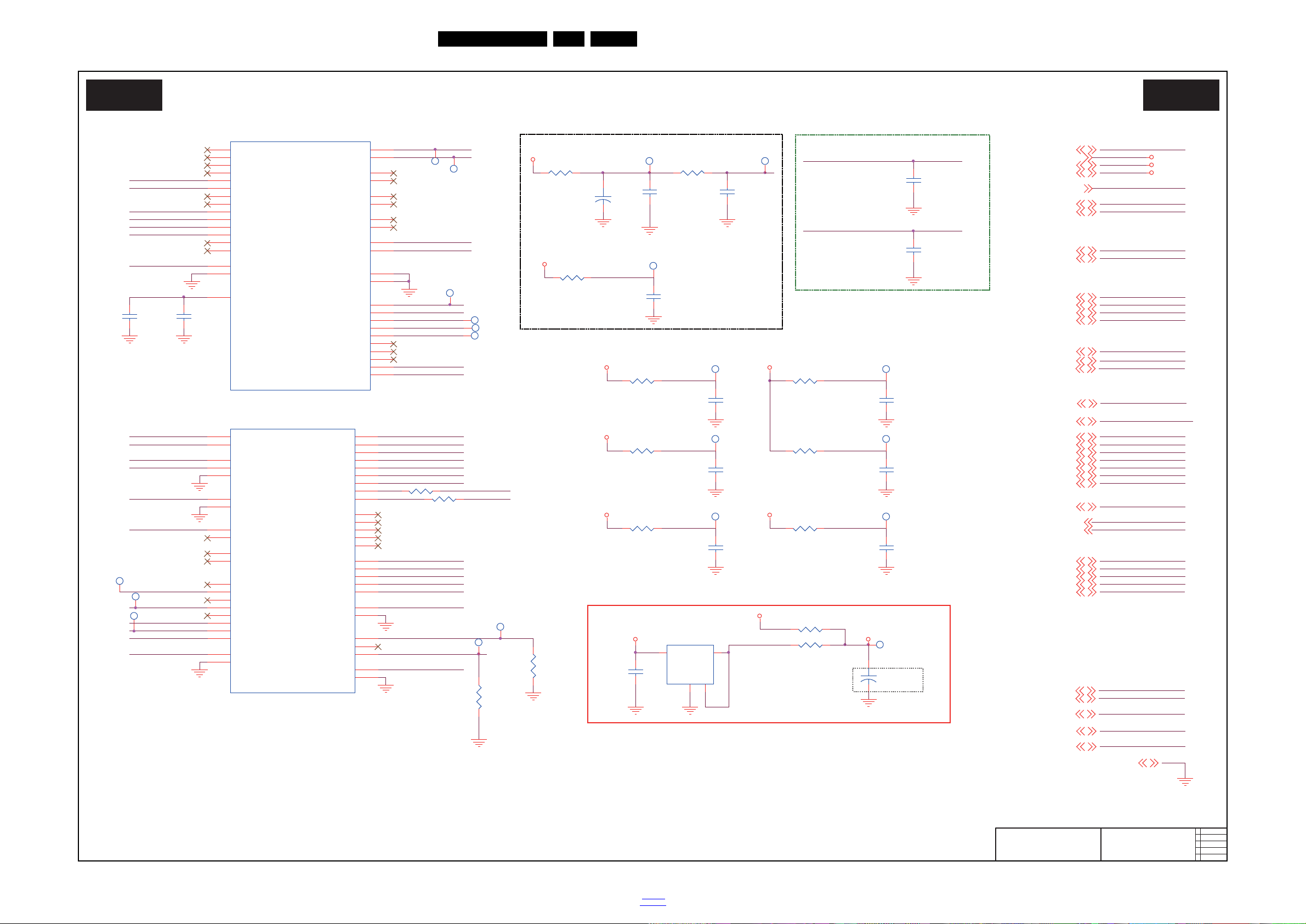

A/V Interface

B10 B10

2011-12-14

C

715G5172

A/V Interface

AR0O AL0O

AOSDAT A1

YPbPr_R_In1

VGA_R_In

AV2_R_In AV2_L_In

VGA_L_In

YPbPr_L_In1

BP

SOY0

Y0P

HSYNC RP

PB0P

VSYNC

SOG

VGACOM

PR0P

COM0

GP

FAT_IN+

FAT_IN-

IF_AGC

FAT_IN+

CVBS1P

TP231

TP232

SY1 AVDD12_RGB

PB0P

AVDD33_VDAC

Y0P

FAT_IN-

TP233

TP376

VMID_AADC TP234

TP377

C474 NC/10PF 50V

C473 NC/10PF 50V

AV2_R_In AV2_L_In

GP

SOG

BP

AVDD33_DEMOD AVDD33_IFPGA

AU_DIN

AOLRCK

AOBCLK AOMCLK

SPDIF_OUT

AOSDATA1 AOSDATA0

IF_AGC

TP378

AVDD33_DAC

AVDD33_DAC1

AL0O

AR0O

R475

0R05 OHM

C471

NC/1uF 16V

R479 NC/0R05 OHM

+

C470 220UF 16V

VI3VO

2

GND14

4

U411

G1117-33T63Uf

AVDD3V3

+5V_SW

ADAC_PWR

TP235

TP379

CVBS_COM

SPDIF_OUT

AVDD3V3

VSYNC

AOSDAT A0

AOBCLK

AVDD33_DAC

SC1

PR0P

COM0

VDAC_FS

SOY0

VGACOM

RP

VGA_EEPROM_WP

CVBS0P

AVDD33_DAC1

AOLRCK

AOMCLK

AOLRCK

AOLRCK_A

MONITOR_OUT

R467 0R05 OHM

C461

100N 16V

C462

1uF 10V

AIN0_R_AADC

AE25

AIN0_L_AADC

AB21

AIN1_R_AADC

AD25

AIN1_L_AADC

AE22

AIN2_R_AADC

AC25

AIN2_L_AADC

AD22

AIN3_R_AADC

AD23

AIN3_L_AADC

AB20

AIN4_R_AADC

AE24

AIN4_L_AADC

AC21

AIN5_R_AADC

AE23

AIN5_L_AADC

AC20

AVDD33_AADC

AA19

AVSS33_AADC

AA21

VMID_AADC

AA18

AR0_ADAC

Y23

AL0_ADAC

AA25

AR1_ADAC

W23

AL1_ADAC

AA24

AR2_ADAC

V24

AL2_ADAC

Y25

AR3_ADAC

V25

AL3_ADAC

Y24

AVDD33_DAC1

V23

AVSS33_DAC1

W22

AVDD33_DAC

V22

AVSS33_DAC

AA22

ALIN

V21

ASPDIF

V20

AOBCK

T21

AOLRCK

U24

AOMCLK

U25

AOSDATA4

R21

AOSDATA3

R20

AOSDATA2

T19

AOSDATA1

U23

AOSDATA0

T20

AIN6_R_AADC

AD24

AIN6_L_AADC

AC22

MT5366QVOG

U401F

R463

47ohm 1/10W +/-1%

C458 100N 16V

FS_VDAC

AA15

VDAC_OUT1

W13

VDAC_OUT2

Y12

AVDD33_VDAC

AA14

AVSS33_VDAC

W15

ADCINP_DEMOD

AD17

ADCINN_DEMOD

AE17

AVDD33_DEMOD

AC19

AVDD33_IFPGA

AB19

AVSS33_DEMOD

Y18

AVDD12_DEMOD

AB18

AVSS12_DEMOD

Y16

IF_AGC

R19

RF_AGC

P23

SC0

AD15

SC1

AC15

SY0

AE15

SY1

AB16

CVBS2P

AC16

CVBS1P

AC17

CVBS0P

AB17

CVBS_COM

Y15

AVDD33_CVBS

W14

AVSS33_CVBS

W16

HSYNC

W12

VSYNC

W11

RP

AC10

GP

AC9

BP

AD9

COM

AB10

SOG

AE9

COM1

AE11

PB1P

AD12

PR1P

AE12

Y1P

AD11

SOY1

AB11

COM0

AC13

PB0P

AB14

PR0P

AC14

Y0P

AB13

SOY0

AC12

AVDD12_RGB

AD14

AVSS12_RGB

Y14

VGA_SDA

AC11

VGA_SCL

AB12

LOUTN

AD20

LOUTP

AE20

U401C

R4020

75 OHM 1/16W

R474 560R

C460 100N 16V

R465 0R05 OHM

C463

100N 16V

AVDD3V3

+5V_SW

AVDD1V2

ADAC_PWR

AV2_L_In

AV2_R_In

VGA_L_In

VGA_R_In

AOSDAT A1

AL0O

GND

AR0O

VGACOM

BP

GP

RP

VSYNC

HSYNC

YPbPr_L_In1

YPbPr_R_In1

FAT_IN+

FAT_IN-

SOY0

Y0P

PR0P

PB0P

COM0

SOG

AOBCLK

+5V_SW

CVBS_COM

SPDIF_OUT

AVDD1V2

AVDD3V3

CVBS1P

IF_AGC

Analog Power

AOMCLK

AOLRCK

ADAC_PWR

VGA_EEPROM_WP

AOSDAT A0

U401C

U401F

EMI

VGASDA

R4127 0R05 1/16W

VGASCL

R4128 0R05 1/16W

AOMCLK

TP380

AVDD12_RGB

AVDD33_VDAC

R470 0R05 OHM

C469

100N 16V

R471 0R05 OHM

C468

100N 16V

C464

100N 16V

R468 0R05 OHM

C466

100N 16V

C467

100N 16V

C465

100N 16V

TP381

R473 0R05 OHM

R469 0R05 OHM

R472 0R05 OHM

AVDD1V2

AVDD3V3

AVDD3V3AVDD1V2

Analog Power

AVDD12_DEMOD

AVDD33_DEMOD

AVDD33_CVBS AVDD33_IFPGA

HSYNC

TP382

TP383

+

C457

220UF 16V

AVDD33_AADC

TP236

AVDD33_AADC

VGASDA

VGASCL

VGASCL VGASDA

YPbPr_R_In1 YPbPr_L_In1

TP384

AOMCLK_A

AVDD12_DEMOD

TP385

TP386 TP387

TP388 TP389

TP237

CVBS_COM

CVBS1P

VGA_R_In VGA_L_In

AVDD33_CVBS

Circuit Diagrams and PWB Layouts

EN 48L12M2.1L LA 10.

2012-Jul-20

back to

div. table

Circuit Diagrams and PWB Layouts

19260_511_120319.eps

120319

GPIO Interface & to IR/Keyboard control

B11 B11

2011-12-14

C

715G5172

GPIO Interface

& to IR/Keyboard control

SMD/0402

TP374

SMD/0402

Key1

USB_PWR_EN1

SMD/0402

PHYRST#

TO IR/KEY BOARD CONTROL

TP375

SMD/0402

Key2

SMD/0402

R478 100R 1/16W 5%

LED_R

BL_ON/OFF

ETTXEN

ETTXD0

ETMDIO

ETTXD0

ETTXD2 ETTXD1

MII Interface

ETMDIO

ETTXD3

ETTXD2

ETTXD3

ETMDC

ETTXEN

ETTXD1

ETCOL

12

FB125

220R/2000mA

TP239

ETTXEN

KEY_UP_DN_DCSW

ETTXD3

R477

3K9 1/10W 1%

ETTXD2

TP240

USB_OC_C1M

ETTXD1

USB_OC_C1M

ETTXD0

PHYRST#

STANDBY

TP241

ETTXCLK_REF_CLK

GPIO_12

ETRXDV

ETRXD3 ETRXD2 ETRXD1

12

ZD424

NC/VPORT0603100KV05

ETRXD0 ETRXCLK_C50M_O

SYS_EEPROM_WP

LED_G

USB_PWR_EN0

PHY_REFCLK_E ETMDIO

HDMI_SW_RST

ETMDC

BL_ON/OFF

LVDS_PWR_EN

C497 100N 16V

3V3SB

R476

3K9 1/10W 1%

TP242

LED_G

TP243

GPIO_12 OPCTRL5

OPCTRL0

GPIO_12

OPCTRL4

OPCTRL4 OPCTRL5

R491 100R 1/16W 5%

ETTXCLK_REF_CLK

R490 100R 1/16W 5%

VGA_EEPROM_WP

TP363

RC Signal

ARC_OE

GPIO9

TP364

TP245

TP365

OPCTRL4 OPCTRL5

GPIO_7

TP244

GPIO_8

ETCOL

KEY_MENU_L_R_SOURCE

KEY_UP_DN_DCSW

USB_OC_COM

USB_PWR_EN1

LIGHT_SENSOR

GPIO2

F23

GPIO12

G20

GPIO13

H24

GPIO14

G25

GPIO15

G22

GPIO16

P6

GPIO17

R6

GPIO18

P5

GPIO19

P4

GPIO20

P3

GPIO21

P2

GPIO22

P1

GPIO23

R5

GPIO24

U5

GPIO25

U6

GPIO26

V6

OPCTRL0

AD8

OPCTRL1

AE8

OPCTRL2

AA8

OPCTRL3

AE6

OPCTRL4

AB7

OPCTRL5

Y7

ADIN0_SRV

AA9

ADIN1_SRV

AA11

ADIN2_SRV

Y10

ADIN3_SRV

W9

ADIN4_SRV

W10

ADIN5_SRV

Y11

OPWM0

R7

OPWM1

T5

OPWM2

T6

DEMOD_TSCLK

R25

DEMOD_TSVAL

R24

DEMOD_TSSYNC

R22

DEMOD_TSDATA0

N19

CI_TSCLK

P25

CI_TSVAL

N20

CI_TSSYNC

P21

CI_TSDATA0

P24

PVR_TSCLK

P22

PVR_TSVAL

M21

PVR_TSSYNC

M20

PVR_TSDATA0

M19

SPI_CLK

N21

SPI_DATA

M22

SPI_CLE

M25

CI_INT

M24

DEMOD_RST

R23

ETCOL

AA3

ETTXEN

W5

ETTXD3

Y5

ETTXD2

Y3

ETTXD1

Y2

ETTXD0

Y1

ETTXCLK

W2

ETRXDV

Y4

ETRXD3

W3

ETRXD2

W4

ETRXD1

V3

ETRXD0

V4

ETRXCLK

W1

ETPHYCLK

AA4

ETMDIO

V5

ETMDC

W6

GPIO1

G24

GPIO0

E25

GPIO3

H25

GPIO4

G23

GPIO5

E24

GPIO6

H20

GPIO7

G21

GPIO8

H21

GPIO9

E22

GPIO27

U7

GPIO11

F21

GPIO10

F22

PVR_TSDATA1

N22

MT5366QVOG

U401E

3V3SB

TP366

DVDD3V3

+12VSB

+5V_SW VCCK

LVDSVDD

AVDD3V3 ADAC_PWR

3V3SB

LVDS_PWR_EN

SYS_EEPROM_WP

USB_PWR_EN0

OPCTRL2

DEMOD_TSCLK DEMOD_TSVAL

USB_OC_COM

DEMOD_TSSYNC DEMOD_TSDATA0

GND

RC Signal

DEMOD_RST

DVDD3V3

ETRXD0

ETRXD2

ETRXD3

ETRXDV

ETRXD1

+12VSB +5V_SW VCCK

ETCOL

PHYRST#

ETRXD0

ETRXD1

ETRXD2

AVDD3V3 LVDSVDD

PHY_REFCLK_E

ETRXCLK_C50M_O

ETTXCLK_REF_CLK

ETRXDV

ADAC_PWR

HDMI_SW_RST

OPCTRL0

1 2

3

4 5 6 7

8

9 10 11 12

1314

CN407

CONN

RC Signal

TP247

TP367

DEMOD_TSSYNC

DEMOD_TSVAL

DEMOD_TSCLK

DEMOD_TSDATA0

OPCTRL2

TP248

LIGHT_SENSOR

TP249

C4013

NC/10UF 10V

LIGHT_SENSOR_IN

R4010

NC/100R

SMD/0402

BL_DIMMING

TP368

ETRXCLK_C50M_O

HDMI_SW_RST

OPCTRL3

LVDS_PWR_EN

SYS_EEPROM_WP

USB_OC_COM

LIGHT SENSOR

USB_PWR_EN0

DEMOD_TSVAL DEMOD_TSDATA0

STANDBY

DEMOD_TSCLK

BL_DIMMING

DEMOD_TSSYNC

TP238

R493 100R 1/16W 5%

DVDD3V3

R4111

NC/10K 1/16W

C496 NC/100N 16V

R494 100R 1/16W 5%

LIGHT_SENSOR_IN

USB_OC_C1M

3V3SB

OPCTRL3

BL_DIMMING

DEMOD_RST

TP369

R4105

10K 1/16W

R4106

10K 1/16W

12

ZD422

VPORT0603100KV05

LED_R

R492

NC/10K 1/16W 5%

R500

NC/10K 1/16W 5%

12

ZD423

VPORT0603100KV05

ETMDC

12

ZD426

VPORT0603100KV05

12

ZD421

VPORT0603100KV05

DEMOD_RST

PHY_REFCLK_E

C493

100N 16V

KEY_MENU_L_R_SOURCE

TP370

ADIN0_SRV

ADIN1_SRV

ARC_OE

+5V_SW

C492

NC/10N 50V

C495 NC/100N 16V

OPCTRL2

TP371

12

ZD427

VPORT0603100KV05

TP372

C494 100N 16V

C491

100N 16V

10-1-11 GPIO Interface & to IR/Keyboard control

EN 49L12M2.1L LA 10.

2012-Jul-20

back to

div. table

10-1-12 LVDS Output

19260_512_120319.eps

120321

LVDS Output

B12 B12

2011-12-14

C

715G5172

LVDS Output

OSCL1

OSDA1

C477

10U 16V

AVDD33_LVDSTX

Analog Power

TP360

LVDS_format

TP361

TP362

TP282

TP283

AVDD33_LVDSTX

AVDD12_VPLL

AVDD33_USB_2P

LVDSVDD TP284

Panel_12V

E0P

E1N

E1P

E3P E4P

E4N

E0N

E3N

ECKP

E2N ECKN

E2P

USB_DM0

USB_DP0

O3P

OCKP

OCKN

O2P

O3N

O2N

O1P O1N

O0P O0N

O1N

DVDD3V3

TP264

TP265

TP267

Q404 NC/2N7002

TP250

TP268

Q403

NC/2N7002

OSCL1

DVDD3V3

LVDS_SDA

R4009

NC/0R05 1/16W

TP253

R4008

NC/0R05 1/16W

R4002

NC/0R05 1/16W

E4N

TP254

R4005

NC/0R05 1/16W

TP255

ECKN

E2N

C484

100N 16V

TP256

E1N

TP258

R4001

47K 1/10W 5%

TP257

R499 0R05 OHM

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

CN408

CONN

O4P

O2N

O3P

O0P

O3N

C488

0.1uF 50V

R4006

4.7K 1/10W

O1P

OCKP

O0N

O2P

LVDS_SCL

E2N

TP266

E3N

E0N

ECKP

E4P

E1P

TP271

E3P

TP272

C485

100N 16V

R496 0R05 OHM

TP251

TP252

E2P

R497

5.1K 1/16W

TP274

TP276

Panel_12V

TP278

O4N

TP259

E0P

AE0P

D17

AE0N

C17

AE1P

C19

AE1N

D19

AE2P

D20

AE2N

C20

AECKP

C21

AECKN

D21

AE3P

D23

AE3N

C23

AE4P

C24

AE4N

D24

AE5P

D25

AE5N

C25

AO0P

A17

AO0N

B17

AO1P

A18

AO1N

B18

AO2P

A19

AO2N

B19

AOCKP

A20

AOCKN

B20

AO3P

A21

AO3N

B21

AO4P

A22

AO4N

B22

AO5P

A23

AO5N

B23

TP_VPLL

A24

AVDD33_LVDSA

E18

AVDD33_LVDSA

E19

AVDD12_VPLL

F19

USB_2P_DP0

AB2

USB_2P_DM0

AC1

USB_2P_DP1

AC2

USB_2P_DM1

AD1

AVDD33_USB_2P

AB1

AVSS33_USB_2P

V7

USB_2P_VRT

AC3

AVSS33_LVDSA

E16

AVSS33_LVDSA

E17

AVSS12_VPLL

G19

MT5366QVOG

U401D

Q402 BC847C

TP260

TP280

R498 0R05 OHM

LVDS_format

C486

100N 16V

C487

0.22uF 50V

TP261

TP288

OCKN

C482

100N 16V

TP262

TP263

LVDS_PWR_EN

1 2

FB402 120R/6000mA

R4000

47K 1/10W 5%

D1D2D3G

4

S

5

D6D7D

8

Q400

Si5403DC-T1-GE3

R4004 20K 1/10W

+12V

TP270

C483

100N 16V

AVDD3V3 AVDD1V2

AVDD3V3

AVDD1V2

AVDD3V3

+5V_SW

LVDSVDD

+12V

AVDD1V2

LVDSVDD

DVDD3V3

AVDD3V3

AVDD1V2

GND

+12V

LVDS_PWR_EN

USB_DP0 USB_DM0

+5V_SW

AVDD1V2

LVDSVDD

DVDD3V3

OSCL1

LVDS POWER Control

USB_VRT

TP285

1 2

FB404

120R/6000mA

OSDA1

TP359

O3N

TP279

O3P

O0P

O2P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31 32

CN409

CONN

O1P

Panel_12V

OCKP

FPC Connector

TP281

O0N

TP273

O1N

O2N

TP275

OCKN

TP277

AVDD33_USB_2P

AVDD12_VPLL

R4007

NC/10K

1 2

FB401 NC/120R/6000mA

USB_DM1

USB_DP1

+5V_SW

LVDS_PWR_EN

C489

100N 16V

TP286

TP287

USB_DM0

USB_DP0

C490

10U 16V

USB_DM1

USB_DP1

USB_DP1 USB_DM1

Circuit Diagrams and PWB Layouts

EN 50L12M2.1L LA 10.

2012-Jul-20

back to

div. table

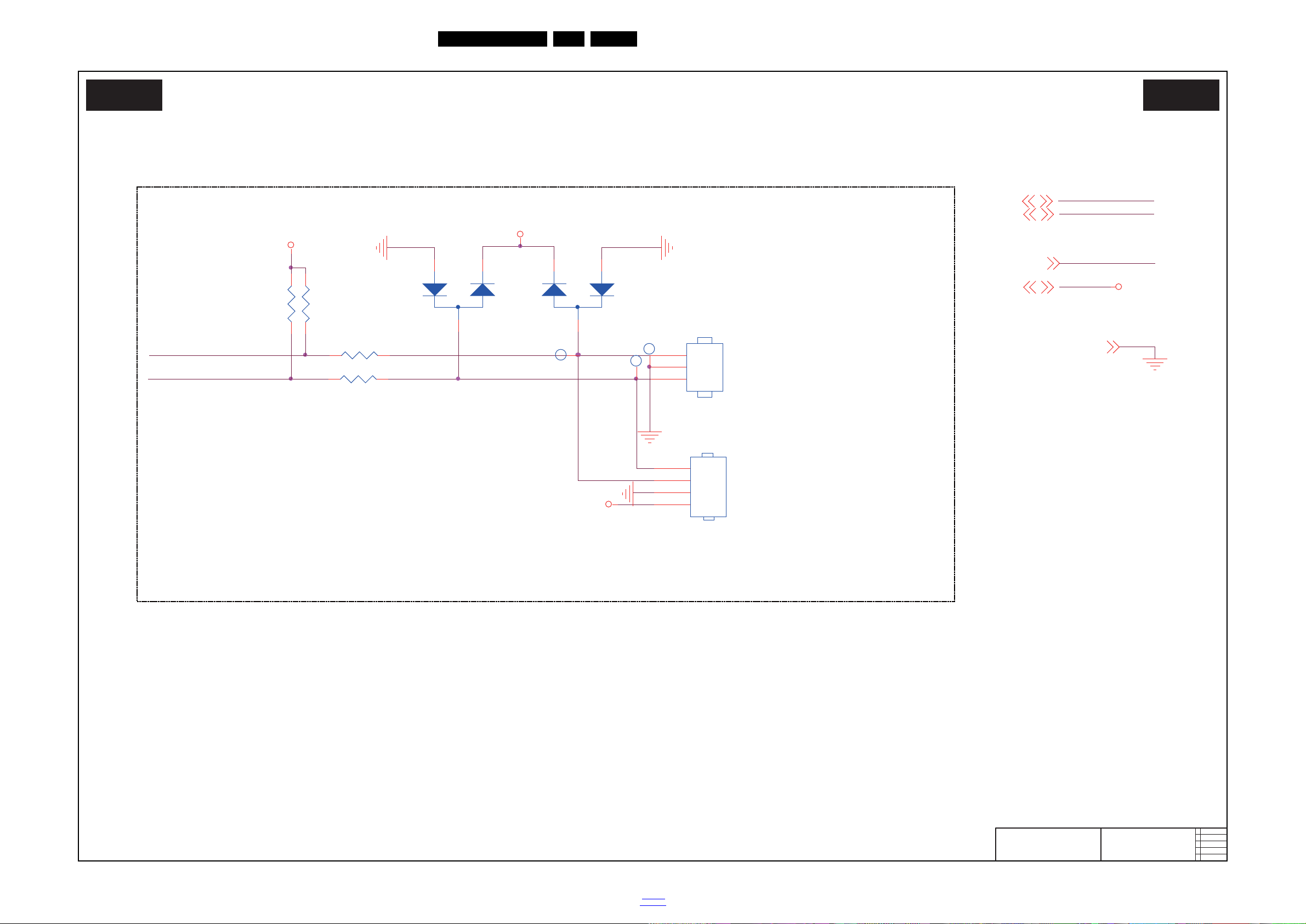

10-1-13 RS-232

19260_513_120319.eps

120321

RS-232

B13 B13

2011-12-14

C

715G5172

RS-232

U0RX

U0TX

U0RX

U0TX

---><---|>

U0RX

U0TX

R480

100 OHM 1/10W

1 2

3

CN410

CONN

R483

100 OHM 1/10W

TP290

3

1

2

D401

BAV99

TP289

3

1

2

D405

BAV99

R466

4.7K1/16W

1 2

3

4

CN411

NC/CONN

TP291

R464

4.7K1/16W

+5VSB

3V3SB

+5VSB

3V3SB

+5VSB

U0TX

U0RX

GND

3V3SB

Circuit Diagrams and PWB Layouts

EN 51L12M2.1L LA 10.

2012-Jul-20

back to

div. table

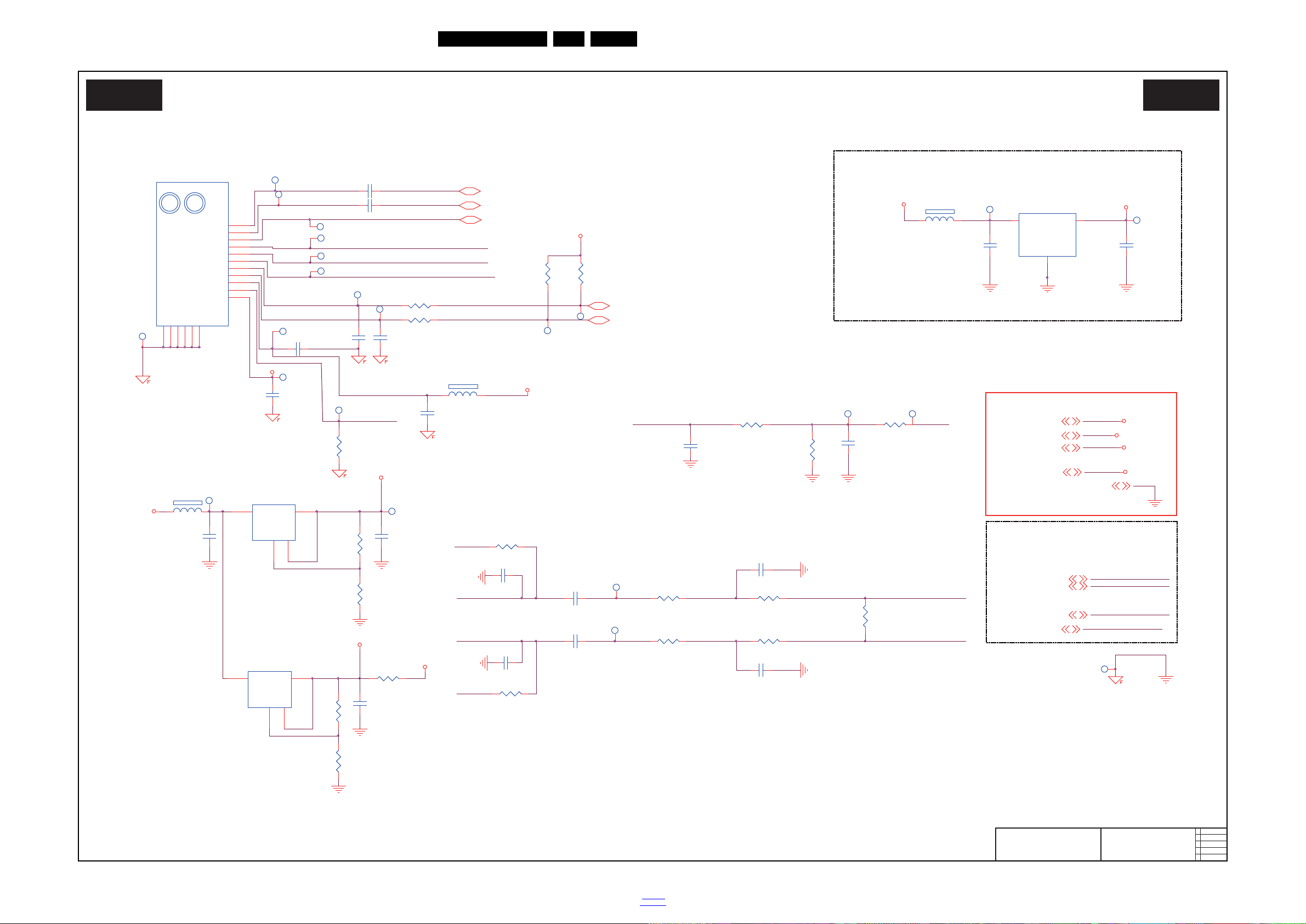

10-1-14 Tuner

19260_514_120319.eps

120321

Tuner

B14 B14

2011-12-14

C

715G5172

Tuner

FAT_IN+

R145

150OHM 1/16W +/-5%

FAT_IN-

IF_AGC

R155 22K 1/16W 5%

C102

10N 50V

R203

10K 1/16W 5%

C130 47NF 16V

IF_AGC

C202 47P 50V

R140

100R 1/16W 5%

C162 1uF 25V

R138

100R 1/16W 5%

C206 47P 50V

R139 0R05 1/16W

C211 1uF 25V

R152 4K7 1/16W 5%

TP305

R142 0R05 1/16W

+5V_SW

FAT_IN-

FAT_IN+

GND

+5V_SW

FAT_IN-

AVDD3V3AVDD3V3

FAT_IN+

Tuner I/O Interface

DEMOD_RST

TP306

TP302

IFOUT1N-

R132 200R 1/16W 5%

TP297

C204

39pF 50V

C205 1UF 6.3V

R123 200R 1/16W 5%

R154 10K 1/16W 5%

C207 39pF 50V

R128

3K3 1/16W 5%

R124

3K3 1/16W 5%

IFOUT1N

C208 1UF 6.3V

C212 100N 16V

TIFAGC

IFOUT1P

TUNER_SCL

AVDD3V3

TUNER_SDA

AGC2

DEMOD_RST

TU_FAT_IN2+

TU_FAT_IN2-

+5V_TUNER

TP300

IF1_P

1

IF1_N

2

AGC1

3

IF2_P

4

IF2_N

5

AGC2

6

I2C_SCL

7

I2C_SDA

8

2.5V

9

RESET

10

5V

11

TH112TH213TH314TH415TH516TH6

17

TU103

SUT-RB211TV

TP343

TP344

C209

10uF 6.3V

TP298

TP315

TP352

1 2

FB104

220R/2000mA

TP353

C203 100N 16V

TP299

A2.5V

T_SCL

T_SDA

TP294 TP295

IFOUT1P+

TP301

D_2V5

TP296

AGC2

1 2

FB712 220R/2000mA

TP309TP310

C213

NC/47pF 50V

IFOUT1P+

C214

NC/47pF 50V

IFOUT1N-

R185 NC/0R05 1/16W

TU_FAT_IN2+

R186 NC/0R05 1/16W

TU_FAT_IN2-

C771 10uF 6.3V

TP303

C197

1UF 10V

VIN

3

GND

1

VOUT

2

TH

4

U102 G1117T63Uf

TP304

R151

120R 1/16W 1%

R117

120R 1/16W 1%

1 2

FB106

220R/2000mA

D_2V5

C210

10uF 6.3V

+5V_SW

VIN

3

GND

1

VOUT

2

TH

4

U104 NC/G1117T63Uf

R175

NC/120R 1/16W 1%

R119

NC/120R 1/16W 1%

C218

NC/10uF 6.3V

A_2V5

D_2V5

R184 0R05 1/16W

TP354

TP355

TUNER POWER +5V_TUNER form +12V/+12V_TUN

+24V(16V)

GND

2

OUT

3

IN

1

U755

AS7805DTR-E1

C769

1uF 25V

+5V_TUNER

+12V

TP356

+12V+12V

Circuit Diagrams and PWB Layouts

EN 52L12M2.1L LA 10.

2012-Jul-20

back to

div. table

10-1-15 ISDB-T Demodulator

19260_515_120319.eps

120321

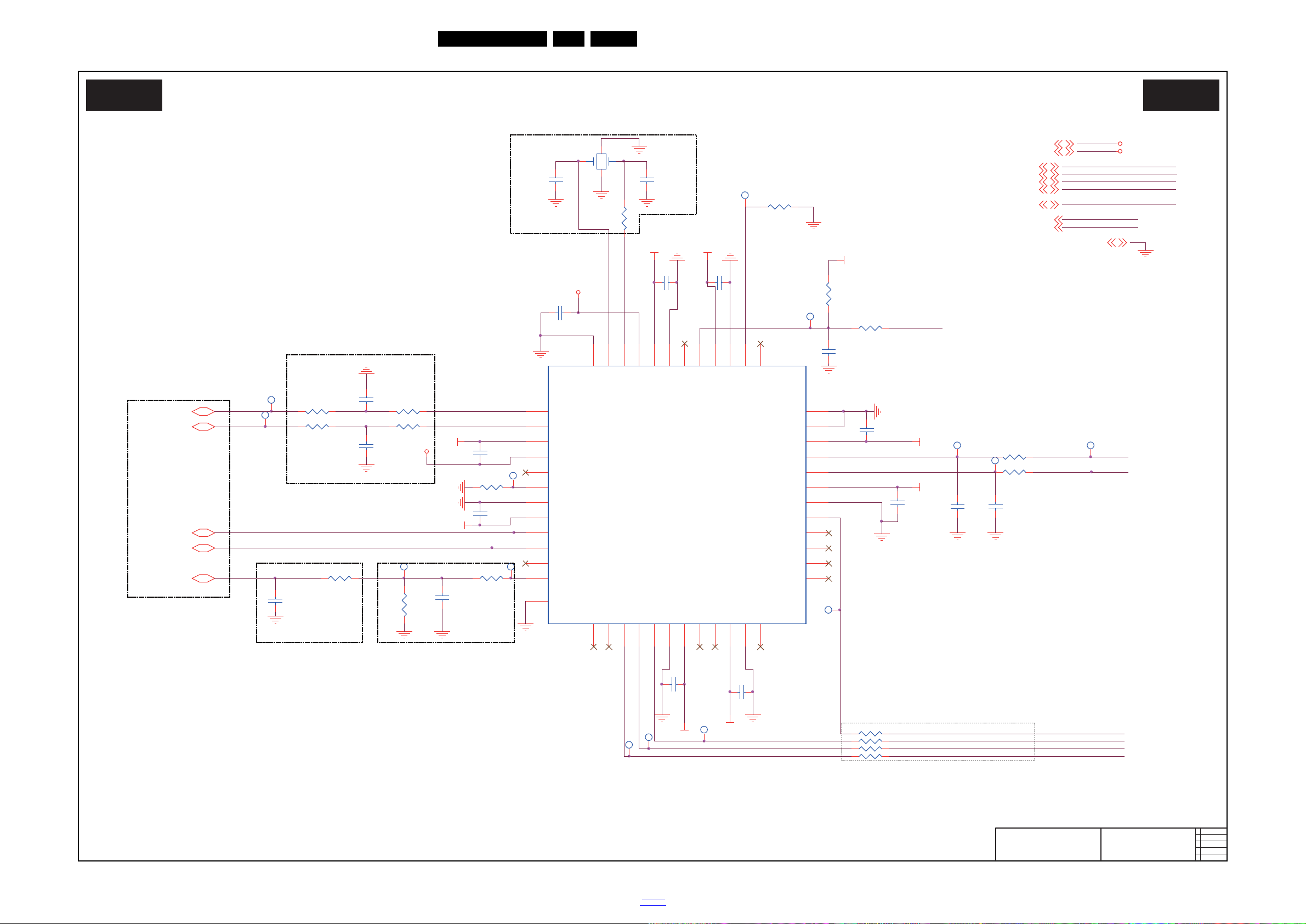

ISDB-T Demodulator

B15 B15

2011-12-14

C

715G5172

ISDB-T Demodulator

R113 22R 1/16W 5%

C128 10PF 50V

TP313

C111

100N 16V

TP314

TP345

C215

12P 50V

C133

10N 50V

TP342

R114 22R 1/16W 5%

R102 470R 1/16W 5%

R112

10K 1/16W 5%

R109

NC/47R 1/16W 5%

R103 47R 1/16W 5%

C106 82pF 50V

C104 100N 16V

C109 100N 16V

TP351

C137 47N 16V

R130 0R05 1/16W

R148

NC/10K 1/16W 5%

R204 22K 1/16W 5%

R105 47R 1/16W 5%

TP341

R110

4.7K1/16W

R104 47R 1/16W 5%

TP347

C108 82pF 50V

TP318

1

24

3

X101

41.0MHz

C134

100N 16V

C105

100N 16V

GPIO1

47

TSDATA4

14

TSVALID4TSCLK

5

TSDATA6

16

VSS2

18

CVSS2

23

RST_X

29

OSCEN_X

26

XTALSEL

42

SLVADR1

41

PVDD

32

XTALO

34

XVSS

36

VSS3

43

TTUSDA

45

PVSS

31

XVDD

33

SCL

20

SDA

21

TAVDD

40

TAINP

38

TAINM

37

CVDD4

44

TTUSCL

46

TSDATA5

15

TESTMODE

24

XTALI

35

TAVSS

39

TSDATA7

17

CVDD3

28

GPIO0

1

TSDATA3

13

TSDATA212CVSS111CVDD1

10

TSDATA19TSDATA08DVDD1

7

VSS1

6

TIFAGC

48

GPIO22TSSYNC

3

DVDD2

19

CVDD2

22

SLVADR0

25

CVSS3

27

OSCMODE

30

E-Pad

49

U103

CXD2828ER

TP349

TP319

R147

0R05 1/16W

TP350

R116 22R 1/16W 5%

C112 100N 16V

R115 22R 1/16W 5%

C107 100N 16V

TP346

R106 47R 1/16W 5%

C103 100N 16V

C216

100N 16V

R146 47R 1/16W 5%

TP348

TP317

R129 47R 1/16W 5%

C110 100N 16V

C217

12P 50V

C132 10PF 50V

TIFAGC

IFOUT1P IFOUT1N

TUNER_SDA TUNER_SCL

AVDD3V3 AVDD1V2

GND

AVDD3V3

AVDD1V2

AVDD3V3

AVDD1V2

D_2V5

AVDD3V3

AVDD1V2

GND

DEMOD_TSVAL

DEMOD_TSCLK

DEMOD_TSDATA0

DEMOD_TSSYNC

DEMOD_RST

OSCL2

OSDA2

DEMOD_TSDATA0

DEMOD_RST

DEMOD_TSCLK

DEMOD_TSCLK DEMOD_TSSYNC

DEMOD_TSDATA0

DEMOD_TSVAL

To RB211

DEMOD_RST

OSCL2

OSDA2

DEMOD_TSVAL DEMOD_TSSYNC

OSDA2

OSCL2

Circuit Diagrams and PWB Layouts

EN 53L12M2.1L LA 10.

2012-Jul-20

back to

div. table

10-1-16 Ethernet

19260_516_120319.eps

120321

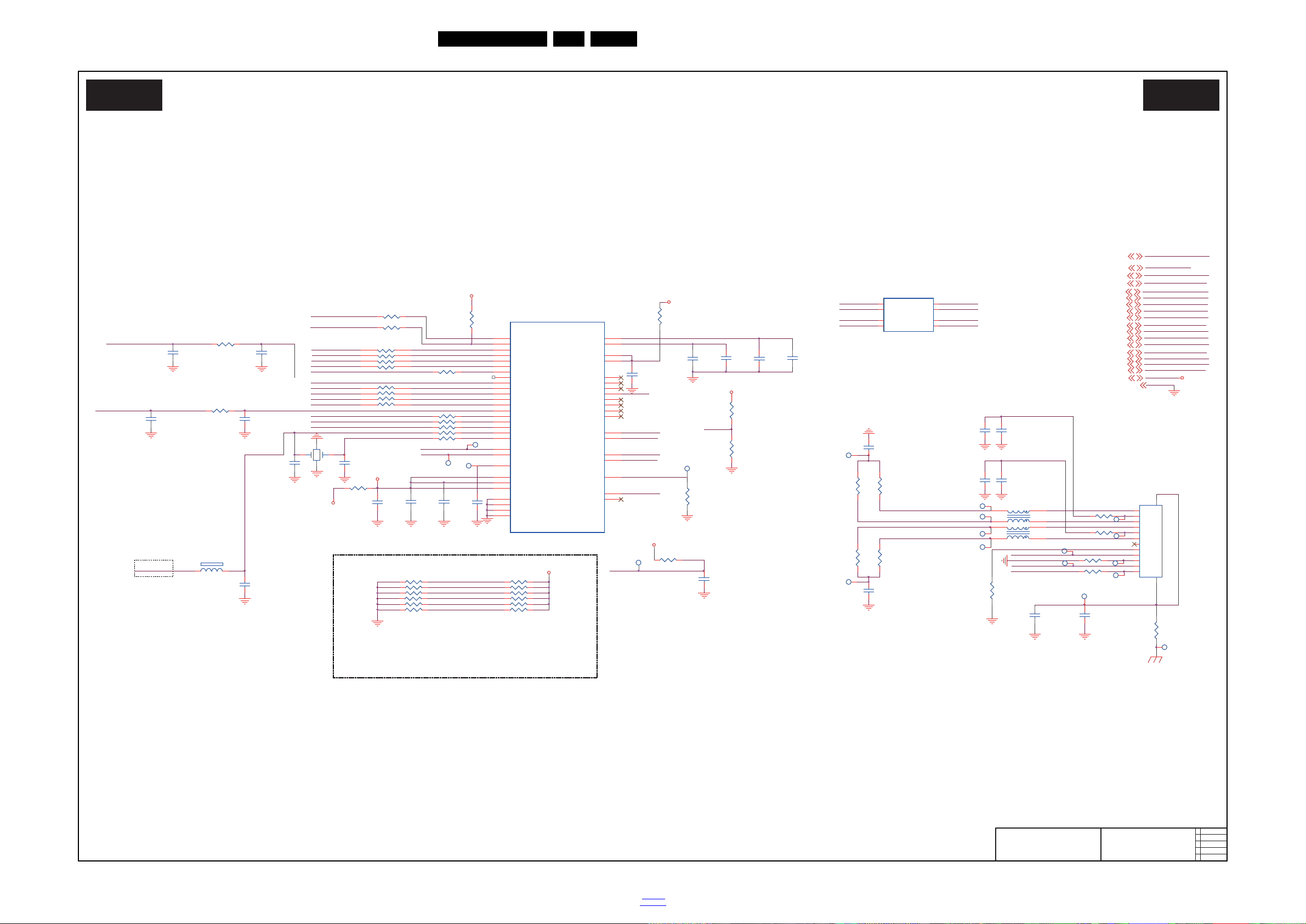

Ethernet

B16 B16

2011-12-14

C

715G5172

Ethernet

LED1_AD1

PHYRST#

DVDD3V3_MII

ETTXCLK_REF_CLK

ETRXD1

MDI_TN

MDI_TP

ETMDC

MDI_TP

ETRXD2

PHY_REFCLK_E

ETCOL

LED1_AD1

PMEB

ETRXD0

PHYRST#

ETRXD3

LED0_AD0

RJ45

SEPARATE GROUND

SMD/0402

SMD/0402 SMD/0402

SMD/0402

SMD/0402SMD/0402

PMEB

SMD/0402

ETCOL

LED0_AD0

PHY_REFCLK_E

ETRXCLK_C50M_O

ETTXD1

ETTXD0

ETTXD3

ETTXD2

ETMDC

MII_XTAL_IN

ETMDIO

CRS/RPTR

ETRXD0

ETTXEN

SMD/0402

RXER/FXEN

MDI_RP

ETTXCLK_REF_CLK

DVDD12

ETRXCLK_C50M_O

MDI_RN

SMD/0402

ETRXDV

SMD/0402

ETRXD2

MDI_TN

SMD/0402

MDI_TP

SMD/0402

ETRXDV

SMD/0402

ETCOL

CRS/RPTR

RXER/FXEN

SMD/0402

DVDD12

ETTXD2 ETTXD1

SMD/0402

ETTXD3

ETTXD0

SMD/0402

MII_XTAL_OUT

SMD/0402

LED1_AD1

RX_CLK

SMD/0402

SMD/0402SMD/0402

SMD/0402

ETRXD3

ETRXD1

PHYRST#

SMD/0402

MDI_RN

MDI_RP

MDI_RN

MDI_RP

ETTXEN

ETRXDV

R41884K7 1/16W 5%

C4141

100N 16V

P1

1

P2

2

P3

3

P4

4

P5

5

P6

6

P7 NC

7

P8

8

P9

9

P10

10

P11

11

P12

12

TH2

14

TH1

13

CN4011

RJ45 CONN+LED

R4180

0R05 1/16W

R41854K7 1/16W 5%

1

2

3

4

8

7

6

5 RP4019

22R

R4177 22R 1/16W 5%

C4134 10N 50V

ETMDIO

R4181NC/4K7 1/16W 5%

R41924K7 1/16W 5%

TP335

R4195

NC/4K7 1/16W 5%

R4154

22R 1/16W 5%

R4169

2.49K OHM 0.5%

TP325

C4133

100NF

1 2

3

4

8

7 6 5

RP4020

22R

C4155

NC/10PF 50V

TP330

TP308

TP327

R4163 NC/49.9 OHM +-1% 1/10W

R4194

NC/4K7 1/16W 5%

R4174 NC/49.9 OHM +-1% 1/10W

C4139

27P 50V

1

2

4

3

L512

NC/90R/400mA

MDI_TN

TP337

R4165 0R05 1/16W

TP322

TP324

R41894K7 1/16W 5%

TP329

TP340

R41914K7 1/16W 5%

C4142 NC/100N 16V

TP326

R4156 22R 1/16W 5%

1

24

3

X4001

25MHz

R4168510R 1/10W

TP320

R4167 0R05 1/16W

C4151

NC/10PF 50V

LED0_AD0

R4184NC/4K7 1/16W 5%

TP331

C4146

100N 16V

C4136

100NF

R4164

22R 1/16W 5%

C4156

NC/10PF 50V

R4182NC/4K7 1/16W 5%

R4170

0R05 1/10W

C4143 100N 16V

R41794K7 1/16W 5%

C4137 10N 50V

C4152

100N 16V

R4183NC/4K7 1/16W 5%

TP332

TP328

R4178

5.1K 1%

TP336

C4149

10N 50V

TP333

C4135

100N 16V

C4148

100N 16V

TP334

R4173

NC/49.9 OHM +-1% 1/10W

C4138

27P 50V

R4171510R 1/10W

C4140

10uF 16V

C4150

NC/47P 50V

MDC

30

MDIO

31

TXD0

23

TXD1

24

TXD2

25

TXD3

26

TXEN

27

TXC

22

RXDV

13

RXD0

14

RXD1

16

RXD2

17

RXD3

18

RXC

19

COL/SNI

38

CRS/RPTR

36

RXER/FXEN

39

CKXTAL1

42

CKXTAL2

43

LED0/PHYAD0

34

LED1/PHYAD1

35

PWOUT12A

48

PWOUT12D

40

DVDD33

15

DVDD33

21

DVDD33

37

DVDD12

28

GND

7

GND

20

GND

33

GND

47

AVDD33

6

AVDD33

41

NC

3

NC

8

NC

9

NC

10

NC

11

NC

12

NC

44

NC

45

MDI[1]+

4

MDI[1]-

5

MDI[0]+

1

MDI[0]-

2

RSET

46

PHYRSTB

29

INTB

32

U4010 RTL8201EL-VC-GR

TP323

C4147

10uF 16V

R4175 22R 1/16W 5%

C4153

100N 16V

R4166 22R 1/16W 5%

IN1

1

IN2

2

IN3

3

IN4

4

OUT4

5

OUT3

6

OUT2

7

OUT1

8

U4011

NC/uClamp2512T.TCT

R4155

1K5 1/16W 5%

R4157

0R05 1/10W

R4176

NC/0R05 1/16W

R4161

NC/49.9 OHM +-1% 1/10W

R4162

22R 1/16W 5%

R4186NC/4K7 1/16W 5%

1

2

4

3

L511

NC/90R/400mA

C4145

10uF 16V

R4187NC/4K7 1/16W 5%

C4144 10N 50V

R4160 0R05 1/16W

C4154

NC/10PF 50V

1 2

FB4007

60OHM

C4132 NC/100N 16V

R4190 0R05 1/10W

R4172 0R05 1/10W

DVDD3V3

DVDD3V3_MII

ETMDC

15

GND4,5,6,7,8,9,10,11,12,14,15,16,17,18,19

DVDD3V3_MII

MDI_TP

ETRXD1

15

ETRXD0

15

ETMDIO

15

MDI_RP

MDI_RN

MDI_RP

MDI_TP MDI_TN

ESD & Surge Protect

PHYRST#

15

ETCOL

15

ETRXD215

MDI_TN

MDI_RN

ETTXCLK_REF_CLK15

ETRXCLK_C50M_O

15

PHY_REFCLK_E

15

ETTXD215 ETTXD1

15

ETTXD0

15

ETRXD315

DVDD3V3

ETTXEN

15

ETTXD315

ETRXDV

15

Circuit Diagrams and PWB Layouts

EN 54L12M2.1L LA 10.

2012-Jul-20

back to

div. table

19260_517_120320.eps

120321

2011-12-14

C

715G5172

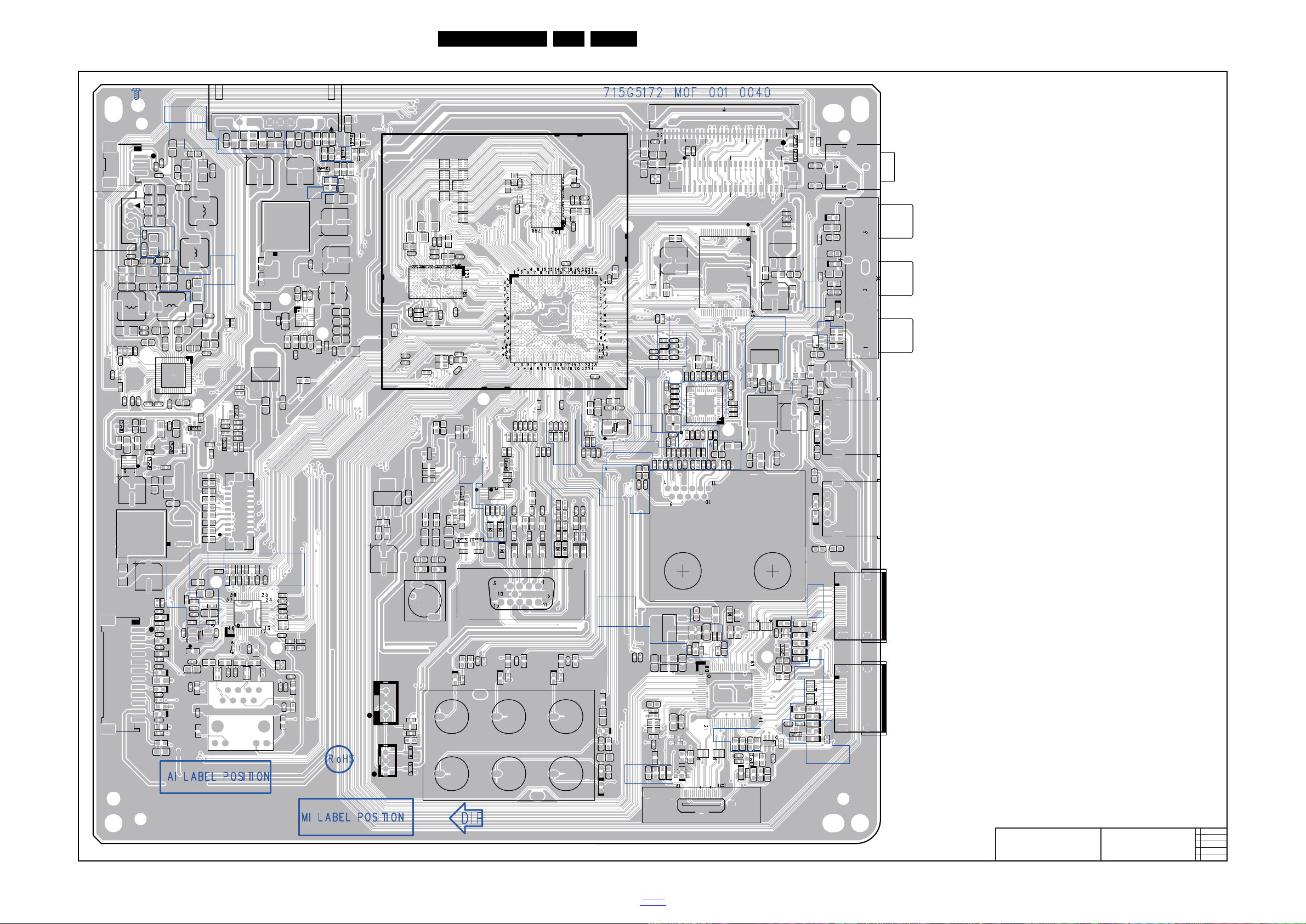

SSB Layout Top

TP177

TP176

C123

C125

C143

C145

C150

C151

C670

C454

C477

C490

C504

C510

C517

C518

C523

C702

C717 C718

C725

CN406

D501

D503

D504

FB106

FB125

FB401

FB404

FB500

FB502

FB505

FB506 FB507

FB701

FB702

FB704

L701

Q109

Q403 Q404

Q1153

Q702

Q703

Q704

Q705

Q706

R416

R702

R710

R711

RP407

RP403

RP400

RP405

RP402

RP411

RP409

RP406

U112

U102

U4010

U401

U402

U403

U408

U411

U415

U501

U502

U508

U701

U702

U705

X400

X4001

ZD109

ZD110

ZD111

ZD112

ZD113

ZD114

ZD115

ZD117

ZD122

ZD123

ZD126

ZD127

ZD128

ZD129

ZD130

ZD131ZD132

ZD504

ZD421

ZD422

ZD423

ZD424

ZD426

ZD502

ZD503

ZD510

ZD511

ZD512

ZD513

ZD514

ZD515

ZD516

ZD517

ZD518

C719

C728

C152

C470

RP401

RP404

R4113

R4114

C625

C638

C668

FB605

CN503

C637

ZD519

ZD520

ZD521

ZD522

C159

FB501

FB600 FB604

U114

D505

Q601

Q602

Q603

CN504

C4140

C4145

C4147

RP4020

U4011

C1197

CN410

CN411

ZD1022

ZD1029

ZD1030

D401

D405

Q1012

Q1013

L650

L651

R686 R687

R688 R689

R651

R657

R685

C704

C759

U405

CN102

U510

U504 U505

U506 U507

U509

C102

C106

C115

C116

C118

C120

C121

C122

C124

C126

C127

C129

C131

C133

C135

C136

C138

C139

C141

C142

C109

C112

C128

C202

C204

C4133

C4134

C4139

C4135

C4136

C4137

C400

C401

C402

C404

C405

C406

C407

C415

C416

C418

C421

C422

C424

C428

C447 C448

C455

C464

C473 C474

C483

C484

C489

C491

C492

C493

C494

C495

C496

C502

C503

C521

C555

C207

C408

C4011

C4146

C4148

C4149

C4150

C4153

C4142

C4138

C4141

C4151

C4154

C4155

C4156

C208

C205

C213

C628

C629

C630

C631

C648

C649

C651

C132

C134

C105

C103

C104

C107

C108

C110

C111

C197

C203

C206

C212

C214

C215

C216

C217

C513

C602

C603

C604

C605

C606

C609

C610

C611 C612

C627

C4132

C4143

C4144

C4152

C682

C669

C671

C689

C692

C137

C1141

C148

C153

C154

C155

C158

C438

C471

C501

C507

C515

C516

C520

C525

C626

C632

C633

C706

C711

C713

C720

C727

C519

C1142

C1143

C1144

C1145C1146

C1147

C1148

C1149

C210

C156

C157

C636

C737

C607

C608

CN409

FB4007

R483

R126

R131

R143

R149

R153

R157

R162

R163

R165

R169

R171

R172

R174

R178 R179 R180

R4054

R4055

R4103

R4112

R4115

R4116

R4119

R4120

R4121

R4122

R4124

R4125

R421

R425

R426

R429

R430

R437

R438 R439 R440

R441

R442

R443

R446

R447

R450

R451

R452

R455

R456

R459

R461

R463

R476

R477

R498

R501

R513

R522

R523

R524

R525

R529

R530

R534

R541

R542

R548

R556

R1210

R701

R703

R704

R707

R735

R714

R715

R729

R721

R722

R723

R724

R725

R726

R728

R730

R731

R733

R734

R712

R125

R134

R135

R136

R144

R475

R479

R732

R431

R181

R182

R183

R521

R526

R4157

R4161

R4163

R4168

R4169

R4170

R4171

R4172

R4173 R4174

R4190

R1209 R1211

R480

R102

R128

R124

R122

R127

R133

R137

R141

R150

R156

R158

R160

R161

R164

R166

R167

R168

R170

R4155

R4154

R4156

R4175

R4162

R4164

R4177

R1229

R4160

R4179R4181

R4183

R4185

R4186

R4189

R4191

R154

R4002

R4005

R4008

R4009

R401

R402

R403

R406

R407

R4106

R4111

R412

R4127

R4128

R413

R414

R415

R478

R490

R491

R492 R493

R502

R503

R505

R508

R509

R510

R511

R514

R515

R516

R528

R533

R540

R544

R545

R151

R112

R106

R105

R118

R140

R177

R176

R1165 R1167

R159

R138

R110

R103

R104

R117

R146

R145

R617

R635

R614

R612 R611

R109

R113

R114 R115

R116

R123

R129

R130

R132

R139

R142

R147

R148

R152

R188

R189

R190

R192

R202

R204

R517 R518

R602

R603

R604

R605

R606

R610

R613

R618

R632

R633

R1205

R4165

R4166

R4167

R4178

R4182

R4184

R4187

R4188

R4192

R466

R1206R1099R1101

R1103R1104 R1207

R1208

R1234

R464

R527

TU103

X101

CN4011

C1198

C1199

ZD120

ZD118

R195

R194

R1042

R1043

CN111

CN502

C117

C119

C679

C684

C672

C673

C674

C677

C678

C680

C681

C688

C676

R690

R691

R692

R693

C726

C497

C4013

ZD427

R494

R500

R4010

C613

R607

R608

C162

C211

R185

R186

ZD136

CN103

CN104

R191

R193

L652

L653

R719

C4010

C409

C457

C616

C703

CN407

C615

C635

C694

C522

C634

FB606

FB712

R621

R622

R634

R738

R739

R740

Q707

U755

CN1001

R4176

L511

L512

R4180

U603

CN701

R531

R532

C707

C708

C712

C716

C721

C683 C685 C686 C687

C709

C714

R743

FB707

C715

R709

R713

R717

R727

R741

R742

R744

Q708

D1008

D1009

C710

CN128

CN602

C675

C693

CN603

CN1

C532

C209

C769

C771

FB104

R766

R736

C722

C723

R737

CN408

U407

CN601

R536

R535

R4194

R4195

U103

U703

R481

10-1-17 SSB layout top

Circuit Diagrams and PWB Layouts

EN 55L12M2.1L LA 10.

2012-Jul-20

back to

div. table

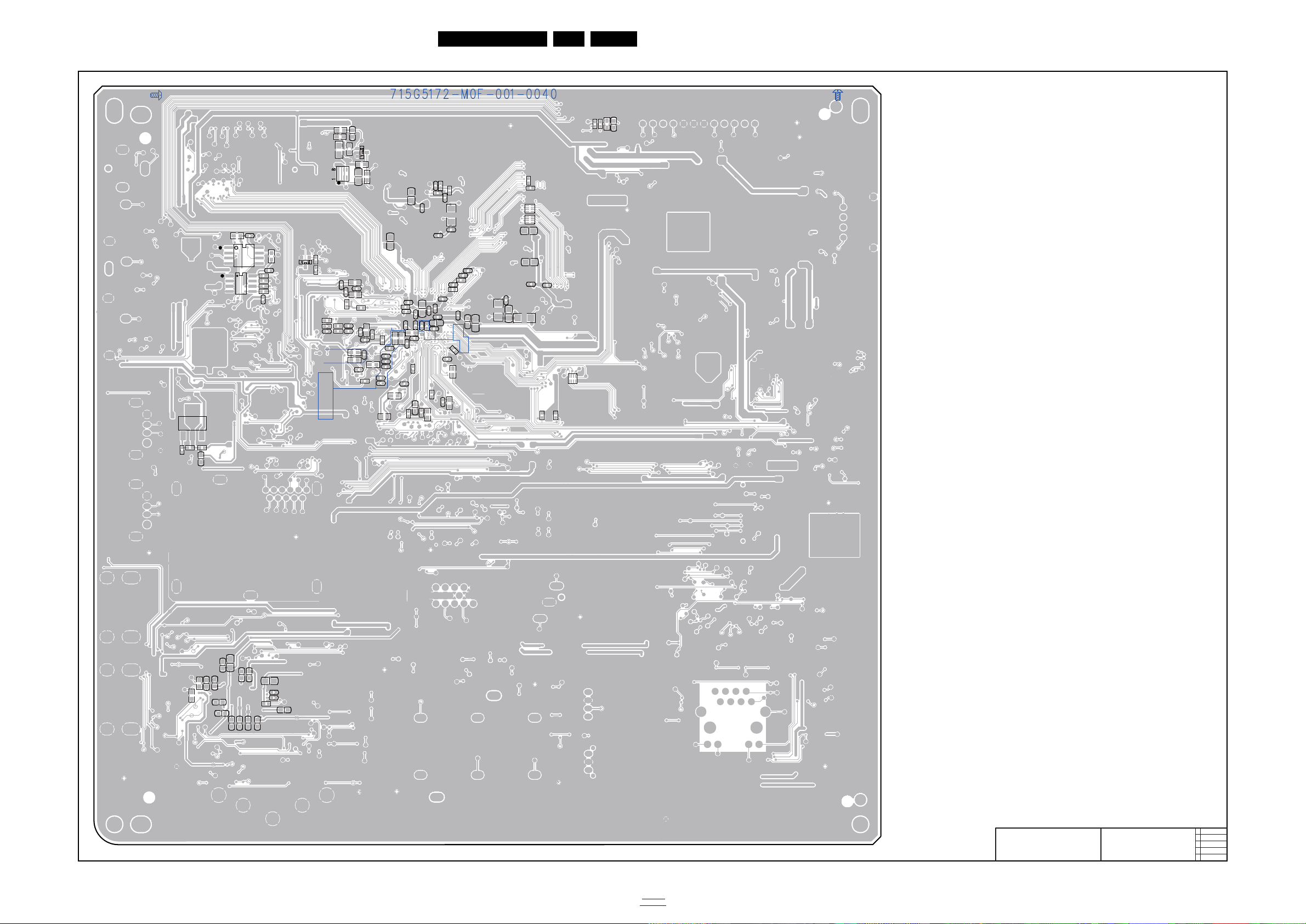

10-1-18 SSB layout bottom

19260_518_120320.eps

120321

2011-12-14

C

715G1572

SSB Layout Bottom

TP178

TP234

TP237

TP248

TP244

TP247

TP233

TP179

TP180

TP231

TP232

TP004

TP042

TP039

TP044

TP041

TP045

TP046

TP05048

TP049

TP050

TP051

TP052

TP053

TP054

TP055

TP057

TP058

TP059

TP060

TP061

TP062

TP063

TP064

TP065

TP066

TP067

TP068

TP069

TP070

TP071

TP072

TP073

TP074

TP076

TP077

TP079

TP087

TP089

TP090

TP088

TP091

TP092

TP093

TP094

TP095

TP096

TP097

TP098

TP099

TP100

TP101

TP102

TP103

TP104

TP105

TP107

TP108

TP109

TP110

TP111

TP112

TP113

TP114

TP115

TP117

TP118

TP119

TP120

TP121

TP122

TP123

TP124

TP125

TP126

TP127

TP128

TP129

TP130

TP131

TP132

TP133

TP134

TP135

TP136

TP138

TP139

TP001

TP002

TP003

TP005

TP006

TP007

TP008

TP010

TP011

TP012

TP014

TP015

TP028

TP017

TP019

TP023

TP021

TP454

TP022

TP037

TP025

TP027

TP159

TP029

TP030

TP031

TP032

TP034

TP036

TP043

TP081

TP082

TP083

TP

313

TP314

TP080

TP317

TP318

TP319

TP084

TP085

TP086

TP144

TP294

TP295

TP296

TP297

TP298

TP299

TP300

TP301

TP302

TP303

TP304

TP305

TP306

TP308

TP309

TP310

TP320

TP322

TP323

TP324

TP325

TP326

TP289

TP327

TP328

TP329

TP

330

TP331

TP332

TP333

TP334

TP335

TP336

TP249

TP174

TP175

TP337

TP191

TP291

TP250

TP251

TP252

TP253

TP254

TP255

TP256

TP257

TP258

TP259

TP260

TP269

TP270

TP267

TP265

TP273

TP264

TP275TP263

TP277

TP262

TP279

TP261

TP281

TP282

TP283

TP284

TP285

TP286

TP287

TP238

TP239

TP240

TP241

TP242

TP243

TP245

TP235

TP236

TP181

TP182

TP183

TP18

4

TP185

TP186

TP187

TP188

TP189

TP190

TP192

TP193

TP200

TP201

TP202

TP203

TP204

TP205

TP165

TP166

TP167

TP168

TP169

TP170

TP171

TP172

TP173

TP140

TP141

TP142

TP143

TP268

TP145

TP146

TP147

TP148

TP149

TP150

TP151

TP152

TP153

TP154

TP155

TP157

TP158

TP160

TP161

TP162

TP163

TP206

TP207

TP208

TP290

TP210

TP211

TP212

TP213

TP214

TP215

TP216

TP217

TP218

TP219

TP220

TP221

TP293

TP225

TP226

TP227

TP228

TP230

TP024

TP009

TP020

TP035

TP038

TP040

TP266

TP271

TP272

TP274

TP276

TP278

TP280

TP288

TP340

TP341

TP342

TP343

TP344

TP345

TP346

TP347

TP348

TP349

TP350

TP351

TP352

TP353

TP354

TP355

TP356

TP359

TP360

TP361

TP362

TP36

3

TP364

TP365

TP366

TP367

TP368

TP369

TP370

TP371

TP372

TP374

TP375

TP376

TP377

TP378

TP379

TP380

TP381

TP382

TP383

TP384

TP385

TP386

TP387

TP388

TP389

TP393

TP394

TP396

TP397

TP398

TP399

TP401

TP409

TP413

TP414

TP418

TP419

TP420

TP421

TP423

TP424

TP425

TP426

TP427

TP428

TP429

TP430

TP431

TP432

TP433

TP434

TP435

TP436

TP437

TP438

TP439

TP440

TP441

TP442

TP443

TP444

TP445

TP446

TP447

TP448

TP449

TP450

TP452

TP018

TP36

TP453

C4006

C4007

C4008

C4009

C411

C425

C439

C487

C505

C524

FB402

Q400

Q402

RP408

U404

RP410

R4117

R4123

R4118

RP4019

C147 C149

C403

C413

C414

C419

C420

C423

C426

C427

C429

C430

C431

C432

C433

C434

C435

C436

C441

C442

C443

C444

C445

C446

C450

C452

C453

C456

C458 C460

C461

C463

C465

C466

C467

C468

C469

C482

C485

C486

C556

C130

C462

C410

C4012

C600

C601

C488

C506

C508

C509

C511

C512

C514

C526

C527

C528

C529

C530

C531

C705

C451

C440

C437

R4000

R4001

R4004

R4006

R4007

R4053

R427

R453

R460

R462

R465

R467

R468

R469

R470

R471

R472

R473

R496

R499

R519

R520

R560

R706

R203

R173

R400

R410

R4104

R4105

R411

R417

R418

R419

R512

R4129

R4130

R423

R420

R422

R497

R424

R436

R433

R434

R432

R454

R457

R474

R4020

R458

R155

R600

R601

U409

R4013 R4102

Q4003

R705

R716

C533

C534

C218

R119

R175

R184

U104

Circuit Diagrams and PWB Layouts

EN 56L12M2.1L LA 10.

2012-Jul-20

back to

div. table

Circuit Diagrams and PWB Layouts

19350_001_120709.eps

120709

Keyboard control panel

E E

2012-03-22

1.0

2722 171 90669 2722 171 90671

Keyboard control panel

C2

0.01uF

C1

0.01uF

1

2

3

J2

VOL+(1.94V)

VOL-(1.19V)

SOURCE(0.35V)

POWER(0.35V)

CH-(1.19V)

CH+(1.94V)

R5

2.2K

R1 470

R2

2.2K

R3

5.6K

R4 470

R9

0R(RES)

R8

1K(RES)

R7

0R

R6

5.6K

RES

KEY1 KEY2

10.2 E 272217190669 - 272217190671 Keyboard control panel

10-2-1 Keyboard control panel

EN 57L12M2.1L LA 10.

2012-Jul-20

back to

div. table

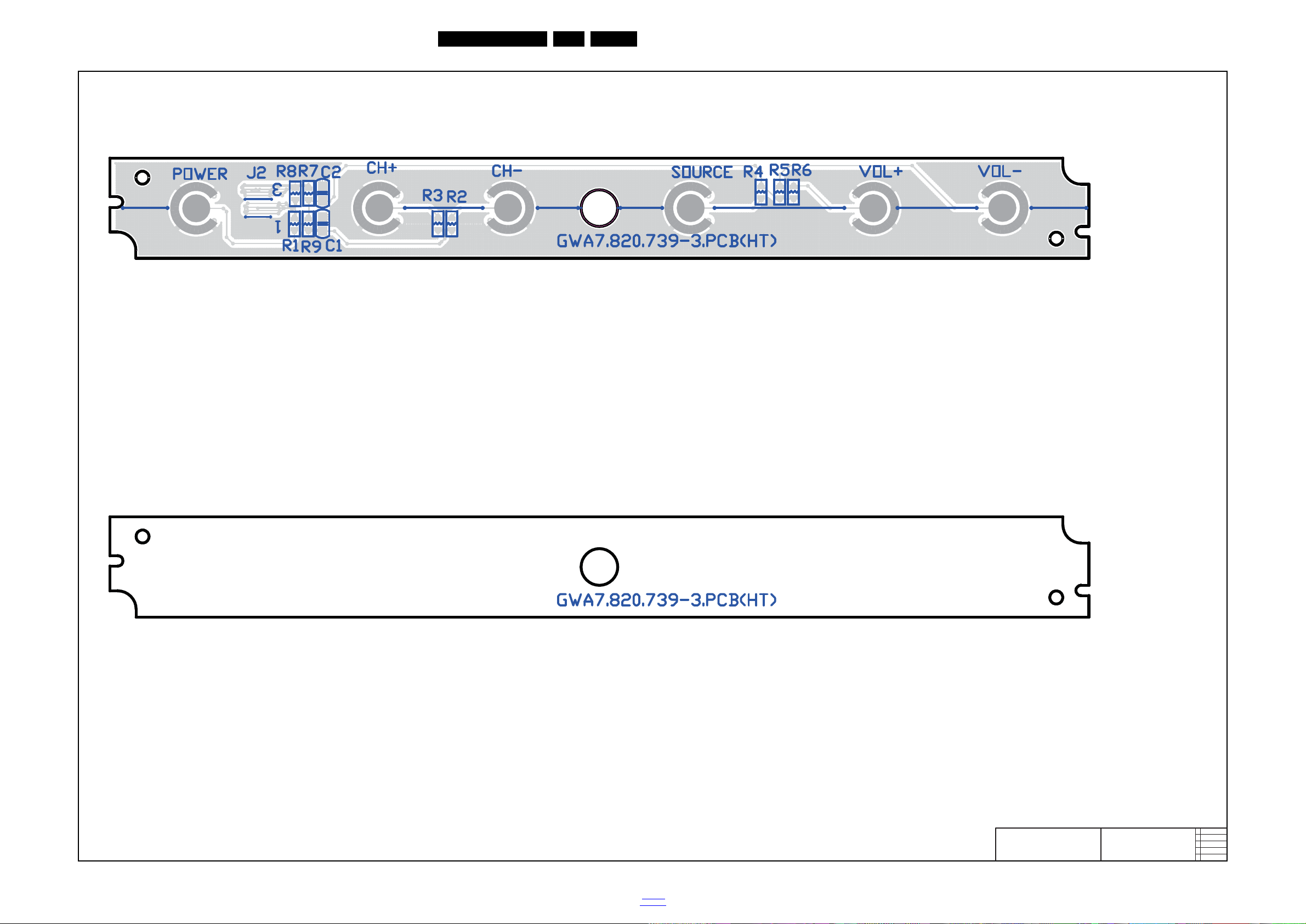

10-2-2 Layout

19350_002_120709.eps

120709

2012-03-22

1.0

2722 171 90669 2722 171 90671

Keyboard control panel

layout top/bottom

Keyboard control panel layout (bottom side)

Keyboard control panel layout (top side)

Circuit Diagrams and PWB Layouts

EN 58L12M2.1L LA 10.

2012-Jul-20

back to

div. table

Circuit Diagrams and PWB Layouts

19350_003_120710.eps

120710

Sensor module

J J

2012-03-22

1.0

2722 171 90667

Sensor module

+3.3V

R3 10k

R4 100R/4k7

VSS

R2

100R

R1

10R

VSS

+3.3V

C3

10uF/6.3V

B

2

C

3

E

1

Q1 BC857

R5

10k

VSS

+5V

R19 47k

R25

100k

R21

100k

R24 18k

G1 TEMT6200FX01

ZD1

3.3V

C12

0.1u

C110.1u C13 0.1u

R22 470R

R26 100R

3

2

1

8

4

U2A

LM358

5 6

7

U2B

LM358

VSSVSS

+5V

R23

15k

R20 22k

VSS VSS VSSVSS

D1

B

2

C

1

E

3

Q2

BC847

GND

1

VDD

2

OUT

3

GND

4

U1

TSOP75236

ZD3

5.6V

CONNECTORS

+5V

+3.3V

ZD2

5.6V

C1

2.2uF/16V

C2

2.2uF/16V

VSS VSS

SDA SCL

12

ESD

RED

LED

IR

LIGHT SENSOR

VSS

IR-IRQ-RF4CE Keyboard-IRQ-SRF LED2

3D-LED LIGHT SENSOR

VSS

LIGHT SENSOR

IR-IRQ-RF4CE

LED2

C10 100pF

VSS

C14 102

C50

100pF

VSS

RES RES

RES

+3.3V

IR-IRQ-RF4CE

LED2 VSS

VSS

KEY1

KEY2 VSS

VSS

KEY2

KEY1

+3.3V

VSS

VSS 001

2

3

4 5 6 7

8

9 10 11

J1

FH52-11S-0.5SH

0

1 2

3

0

P2

A1253WVA-S-03P

0

1 2

3

4 5 6

0

P1

A1253WVA-S-06P

VSS VSS

VSS

or 4.7uF/16V RES

RES

D2

RES

10.3 J 272217190667 - 272217190668 Sensor module

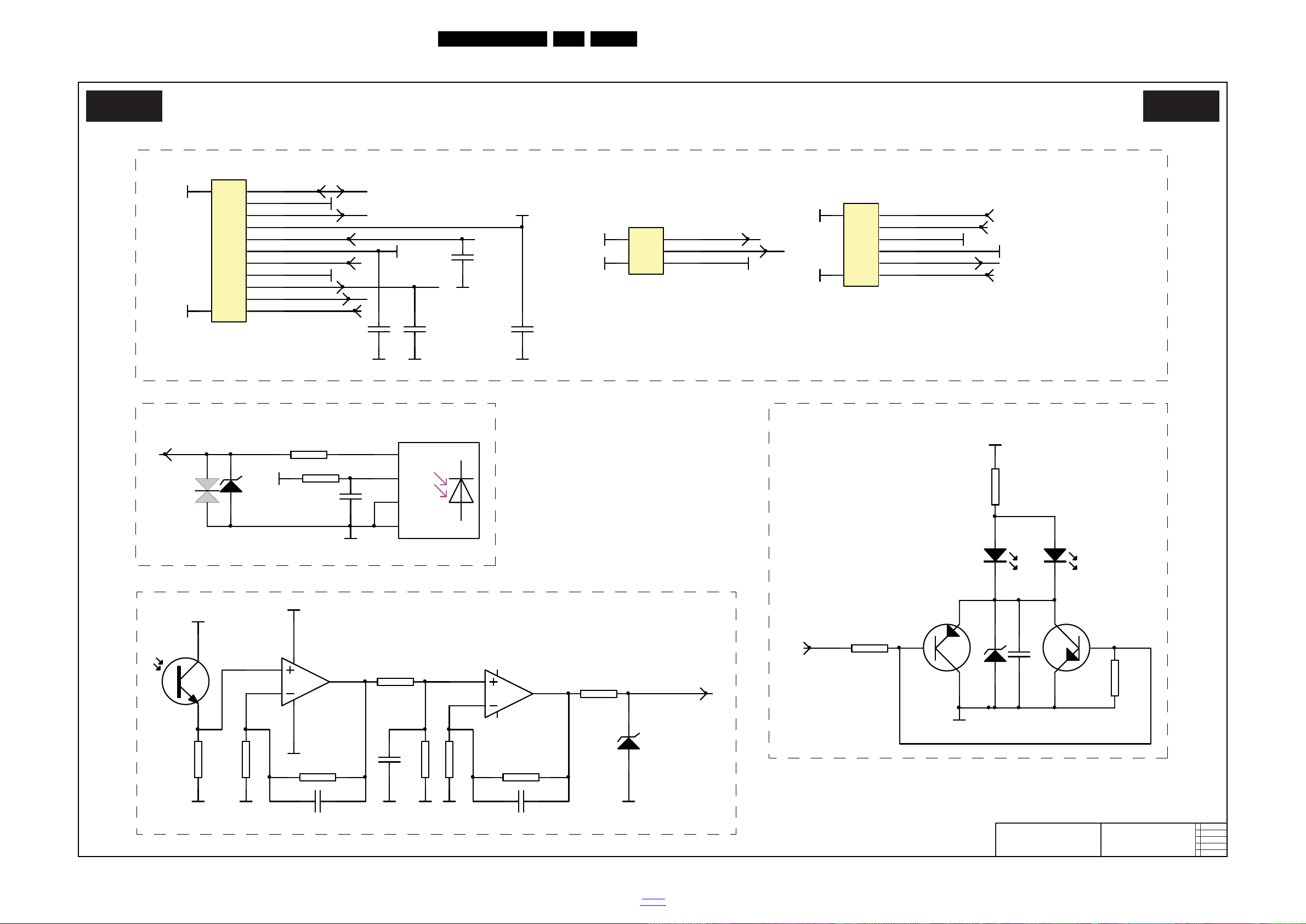

10-3-1 Sensor module

EN 59L12M2.1L LA 10.

2012-Jul-20

back to

div. table

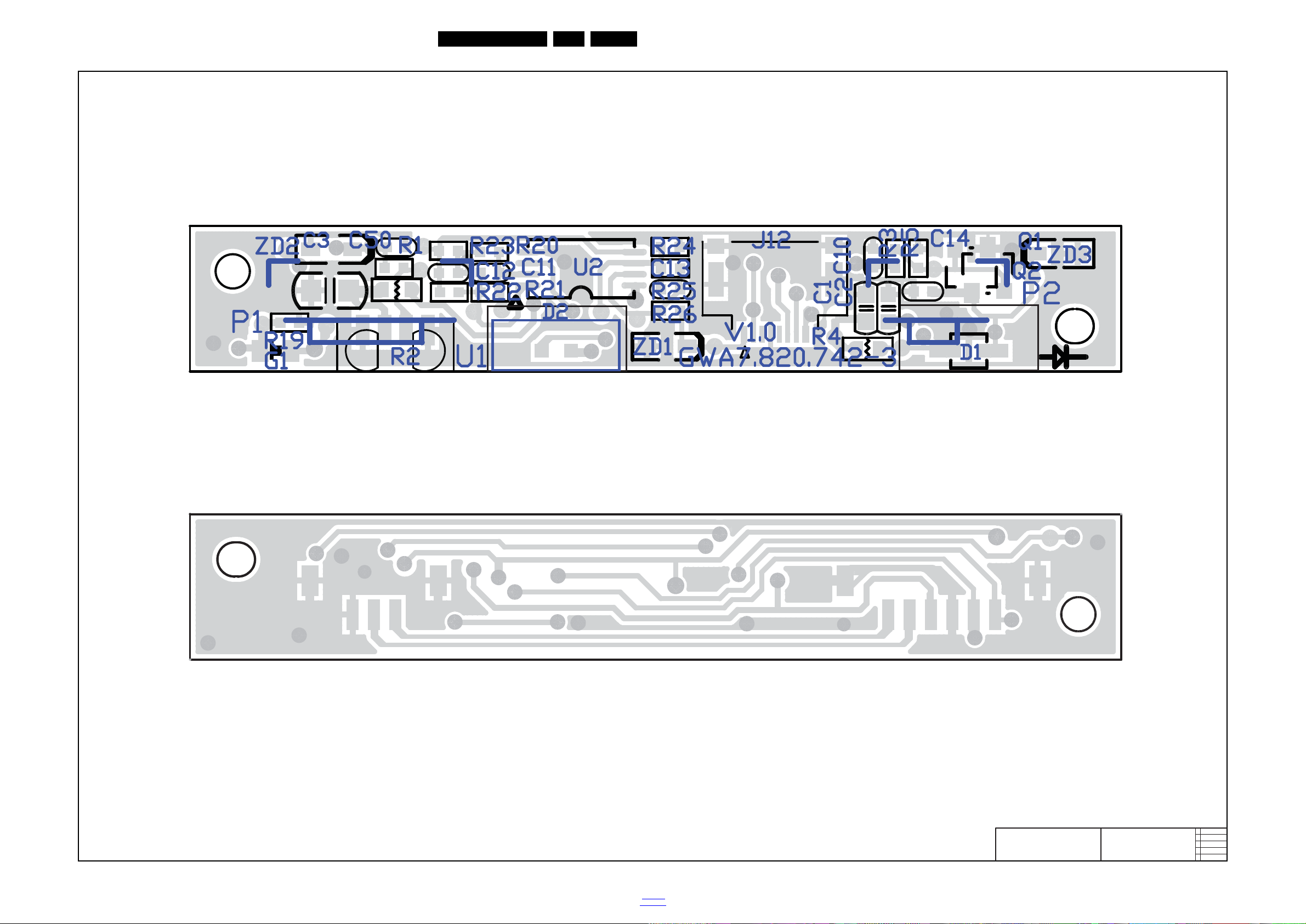

10-3-2 Layout

19350_004_120710.eps

120710

2011-10-07

1

715G5255

Layout

Layout IR/LED Board (Top Side)

Layout IR/LED Board (Bottom Side)

Circuit Diagrams and PWB Layouts

EN 60L12M2.1L LA 10.

2012-Jul-20

back to

div. table

11. Styling Sheets

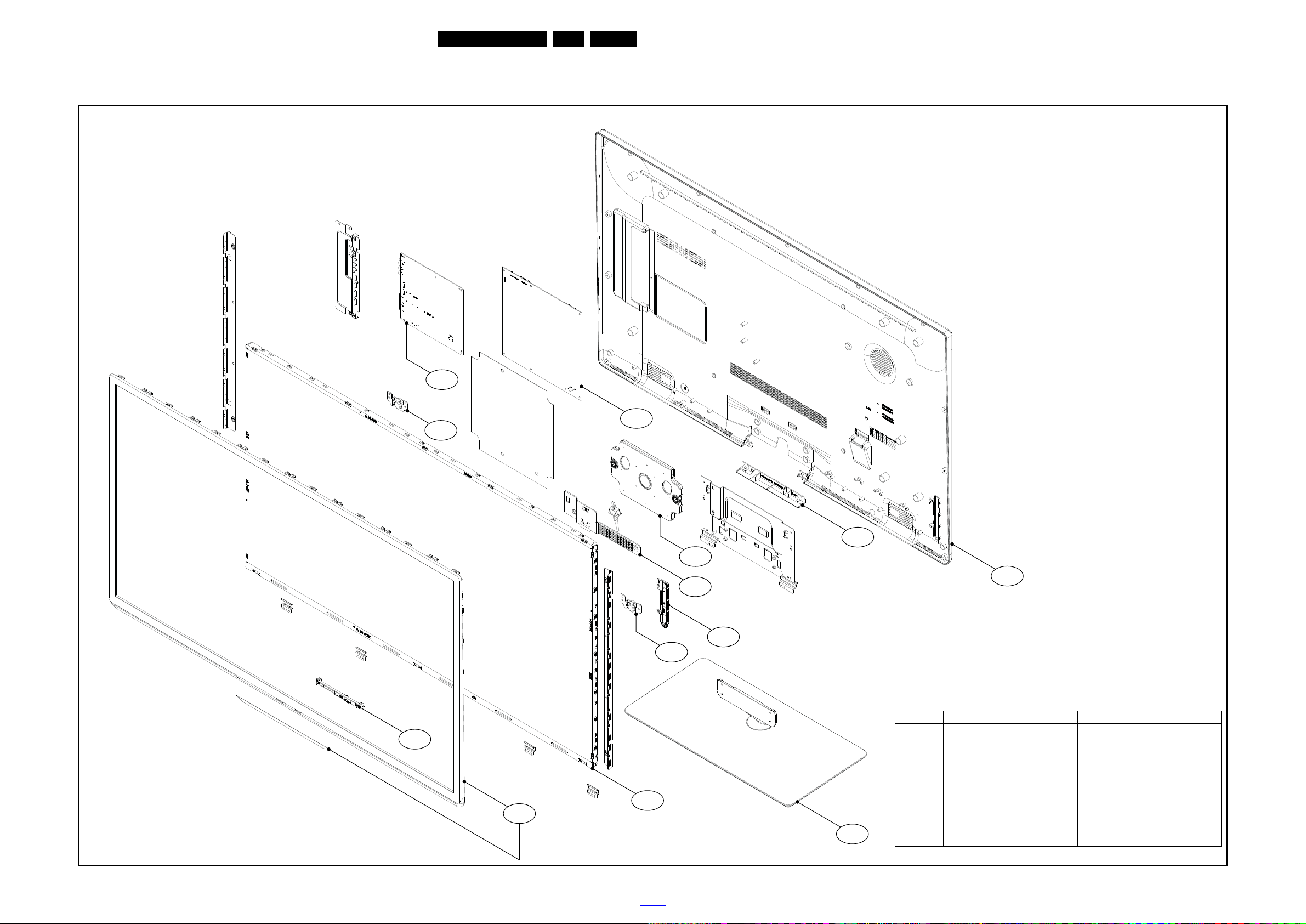

11.1 4000 series 47"

4000 series 47"

Styling Sheets

EN 61L12M2.1L LA 11.

1150

5215

1005

0032

5214

0012

0040

1114

5215

1122

0004

2012-Jul-20

1004

back to

div. table

0260

Pos No. Description Remarks

0004 Front cover assembly 0012 Rear cover 0032 IR cover 0040 Main inlet bracket 0260 Stand assembly 1004 Display panel 1005 PSU 1085 Remote control Not displayed 1114 Keyboard control 1122 IR assembly 1150 SSB panel 5214 Loudspeaker 5215 Tweeter

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

19350_005_120711.eps

120711
