Philips 47PFL3603D - 47"" LCD TV User Manual

Philips 3000 series
LCD TV with Pixel Plus
HD

47"

Full HD 1080p

47PFL3603D

Clearly the smart choice

Designed for ease of use, this Flat TV features modern design, 3 HDMI connections, a
powerful 1080p display and brilliant Pixel Plus HD engine. Making the smart choice in total
picture quality has never been easier.

See brilliant picture quality

• Pixel Plus HD for better details, depth and clarity

• Full HD LCD display, with a 1920x1080p resolution

Hear crisp and clear sound

• Incredible Surround for enhanced audio enjoyment

• Dolby Digital output for connection to a home theatre system

• 20 watt with BBE for powerful sound and great voice clarity

Easy to connect and enjoy

• 3 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

• Settings assistant for effortless personalized TV settings

Ready for digital

• ATSC & QAM tuner receives over the air and unscrambled cable

LCD TV with Pixel Plus HD

47" Full HD 1080p

Highlights

47PFL3603D/F7

Pixel Plus HD

Pixel Plus HD is a picture processing technology
that enables viewers to watch content that is
vivid, natural and real. The result are superbly
life-like pictures with incredible details and
depth from any HD source.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,

including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution. It
produces brilliant flicker-free progressive scan
pictures with superb brightness and colors.

Incredible Surround

Incredible Surround is an audio technology from
Philips that dramatically magnifies the sound field
to immerse you in the audio. Using state-of-the­art electronic phase shifting, Incredible
Surround mixes sounds from left and right in
such a way that it expands the virtual distance
between the two speakers. This wider spread
greatly enhances the stereo effect and creates a
more natural sound dimension. Incredible
Surround allows you to experience total
surround with greater depth and width of
sound, without the use of additional speakers.

Dolby Digital output

Dolby Digital output for connection to a home
theatre s

3 HDMI inputs

HDMI makes an uncompressed digital RGB
conne
the ultimate picture quality. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources and
includes digital audio. HDMI uses HDCP copy
protection. With 2 HDMI inputs on the back and
1 HDMI on the side of the TV you can connect
multiple HD sources, for instance an HD settop
box, a Blu-ray player, and game console or
digital Camcorder. Your TV is fully prepared for
the HD future.

EasyLink

EasyLink uses the HDMI CEC industry standard
pro
connected devices and the TV. With EasyLink
only one remote control is needed to operate
main functionalities on your TV and connected
devices. EasyLink uses the standard HDMI cable
to transfer system commands. It works between
all electronic devices equipped with HDMI CEC.

ystem

ction from the source to the screen for

tocol to share functionality between

LCD TV with Pixel Plus HD

47" Full HD 1080p

Specifications

47PFL3603D/F7

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 29000:1

• Response time (typical): 5 ms

• Viewing angle: 178º (H) / 178º (V)

• Diagonal screen size: 47 inch / 119 cm

• Visible screen diagonal (inch): 46.96 inch

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel Plus HD, 3/2 - 2/2
tion pull down, 3D Combfilter, Active Control,

mo
Digital Noise Reduction, Dynamic contrast
enhancement, Progressive scan

Supported Display Resolution

• Computer formats

Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1920 x 1080i 60Hz
1920 x 1080p 60Hz

deo formats

• Vi

Resolution Refresh rate
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
1080p 60Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 20W

• Sound Enhancement: Incredible Surround

• Sound System: Dolby Digital (AC-3), BBE

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: On main display, Sleep Timer

• Ease of Installation: Autostore

• Ease of Use: 4 favorite lists, Auto Volume Leveller
L), Channel list, Settings assistant Wizard, Side

(AV
Control

• Remote Control: TV

• Screen Format Adjustments: 4:3, Auto Format,

vie expand 14:9, Movie expand 16:9, Super

Mo
Zoom, Widescreen, unscaled (1080p dot by dot)

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: MP3, JPEG Still pictures

• Playback enhancement: Picture slideshow

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

• Video Playback: NTSC

• Cable: Unscrambled Digital Cable -QAM

• Tuner bands: Hyperband, S-Channel, UHF, VHF

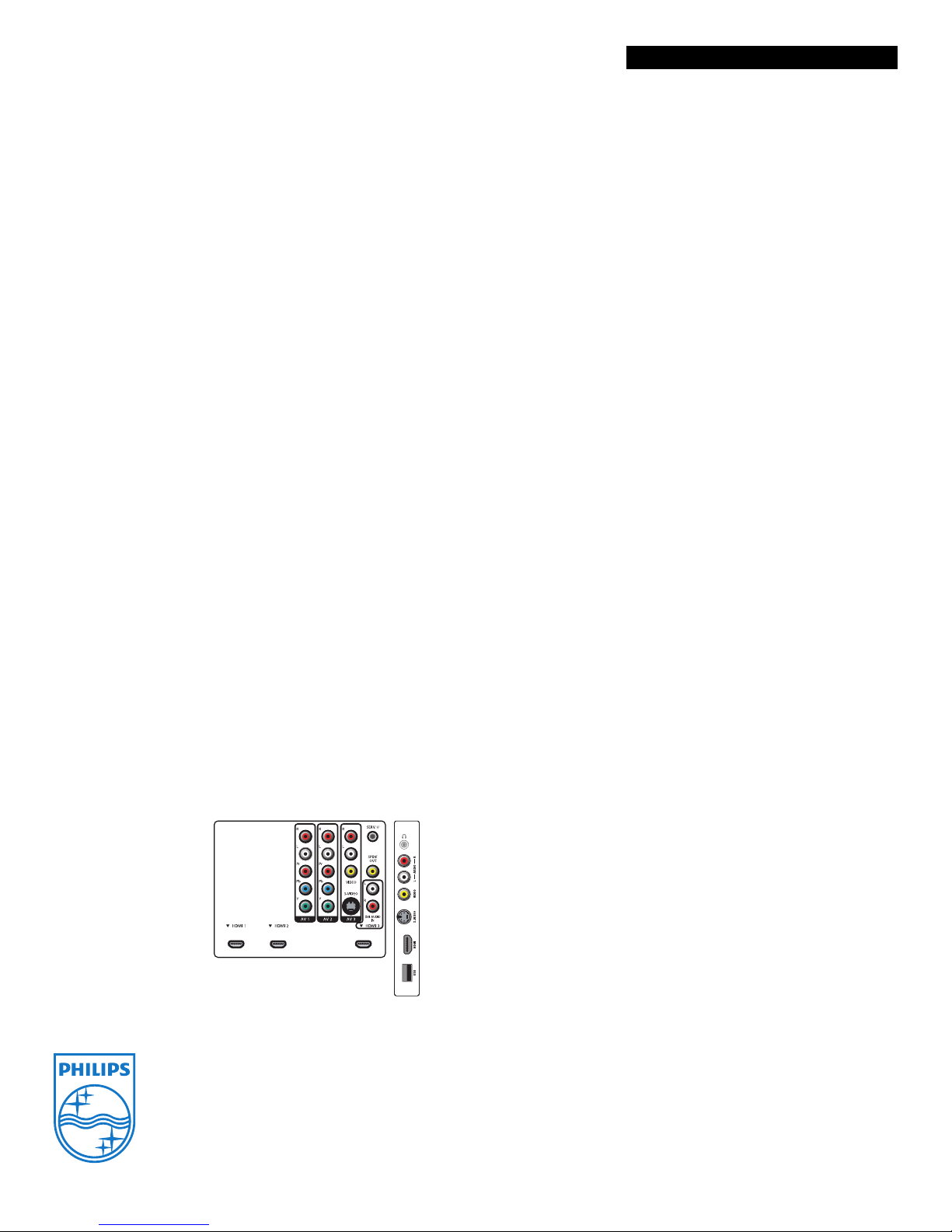

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: Audio L/R in, CVBS in, S-Video in

•HDMI 1: HDMI v1.3

•HDMI 2: HDMI v1.3

• HDMI 3: Analog audio L/R in, HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, Power

System info (menu language), System standby

status,

• Front / Side connections: HDMI, S-video in, CVBS in,

o L/R in, Headphone out, USB

Audi

• Audio Output - Digital: Coaxial (cinch)

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 110-240V, 50-60Hz

• Power consumption: 275 W

• Standby power consumption: < 1 W

Dimensions

• Set dimensions in inch (W x H x D):

45.28 x 28.87 x 4.10 inch

• Set dimensions with stand in inch (W x H x D):

45.28 x 31.40 x 12.20 inch

• Weight incl. Packaging (lb): 90.39

• Product weight (lb): 74.82 (with stand), 59.92
(without stand)

• Box dimensions in inch (W x H x D):

.55 x 32.87 x 15.04 inch

50

• VESA wall mount compatible: 400 x 400 mm

Accessories

• Included accessories: Table top stand, Power cord,
Quick start guide, User Manual, Registration card,
Remote Control

•

Issue date 2009-12-14

Version: 2.0.6

12 NC: 8670 000 47383
UPC: 6 09585 16230 3

© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com
