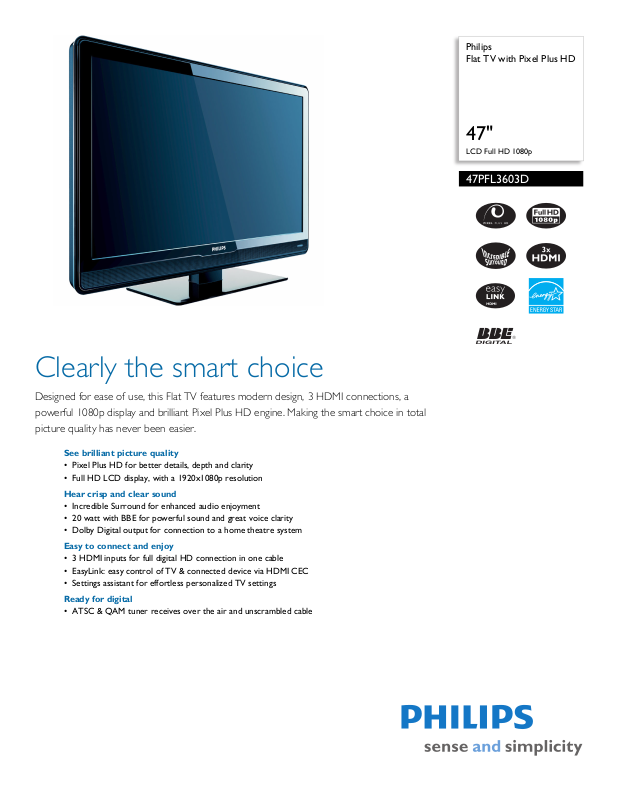

Philips
Flat TV with Pixel Plus HD

47"

LCD Full HD 1080p

47PFL3603D

Clearly the smart choice

Designed for ease of use, this Flat TV features modern design, 3 HDMI connections, a
powerful 1080p display and brilliant Pixel Plus HD engine. Making the smart choice in total
picture quality has never been easier.

See brilliant picture quality

• Pixel Plus HD for better details, depth and clarity

• Full HD LCD display, with a 1920x1080p resolution

Hear crisp and clear sound

• Incredible Surround for enhanced audio enjoyment

• 20 watt with BBE for powerful sound and great voice clarity

• Dolby Digital output for connection to a home theatre system

Easy to connect and enjoy

• 3 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

• Settings assistant for effortless personalized TV settings

Ready for digital

•ATSC & QAM tuner receives over the air and unscrambled cable

Flat TV with Pixel Plus HD

47" LCD Full HD 1080p

Specifications

47PFL3603D/F7

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 29000:1

• Response time (typical): 5 ms

• Viewing angle: 178º (H) / 178º (V)

• Diagonal screen size: 47 inch / 119 cm

• Visible screen diagonal (inch): 46.96 inch

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel Plus HD, 3/2 - 2/2
motion pull down, 3D Combfilter, Active Control,
Digital Noise Reduction, Dynamic contrast
enhancement, Progressive Scan

Supported Display Resolution

• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1920 x 1080i 60Hz
1920 x 1080p 60Hz

• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
1080p 60Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 20W

• Sound Enhancement: Incredible Surround

• Sound System: Dolby Digital (AC-3), BBE

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: On main display, Sleep Timer

• Ease of Installation: Autostore

• Ease of Use: 4 favorite lists, Auto Volume Leveller
(AVL), Channel list, Settings assistant Wizard, Side
Control

• Remote Control: TV

• Screen Format Adjustments: 4:3, Auto Format,

Movie expand 14:9, Movie expand 16:9, Super
Zoom, Widescreen, unscaled (1080p dot by dot)

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: MP3, Slideshow files (.alb), JPEG
Still pictures

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

• Video Playback: NTSC

• Cable: Unscrambled Digital Cable -QAM

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: Audio L/R in, CVBS in, S-Video in

• HDMI 1: HDMI v1.3

• HDMI 2: HDMI v1.3

• HDMI 3: Analog audio L/R in, HDMI v1.3

• HDMI-control (CEC features): One touch play,
Power status, System info (menu language), System
standby

• Front / Side connections: HDMI, S-video in, CVBS
in, Audio L/R in, Headphone out, USB

• Audio Output - Digital: Coaxial (cinch)

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 110-240V, 50-60Hz

• Power consumption: 275 W

• Standby power consumption: < 1 W

Dimensions

• Set dimensions in inch (W x H x D):

45.28

x 28.87 x 4.10 inch

• Set dimensions with stand in inch (W x H x D):

45.28

x 31.40 x 12.20 inch

• Weight incl. Packaging (lb): 90.39

• Product weight (lb): 74.82 (with stand), 59.92
(without stand)

• Box dimensions in inch (W x H x D):

50.55

x 32.87 x 15.04 inch

• VESA wall mount compatible: 400 x 400 mm

Accessories

• Included Accessories: Table top stand, Power cord,
Quick start guide, User Manual, Registration card,
Remote Control

•

Flat TV with Pixel Plus HD

47" LCD Full HD 1080p

47PFL3603D/F7

Product highlights

Pixel Plus HD

Pixel Plus HD is a picture processing technology that
enables viewer to watch contents that are vivid, natural and
real. The result is a superbly razor sharp pictures with
incredible details and depth from any HD source.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen resolution of 1920
x 1080p. This is the highest resolution of HD sources for
the best possible picture quality. It is fully future proof as it
supports 1080p signals from all sources, including the most
recent like Blu-ray and advanced HD game consoles. The
signal processing is extensively upgraded to support this
much higher signal quality and resolution. It produces
brilliant flicker-free progressive scan pictures with superb
brightness and colors.

Incredible Surround

Incredible Surround is an audio technology from Philips that
dramatically magnifies the sound field to immerse you in
the audio. Using state-of-the-art electronic phase shifting,
Incredible Surround mixes sounds from left and right in
su ch a wa y that it exp ands t he virt ual di stanc e betw een th e
two speakers. This wider spread greatly enhances the
stereo effect and creates a more natural sound dimension.
Incredible Surround allows you to experience total surround
with greater depth and width of sound, without the use of
additional speakers.

3 HDMI inputs

HDMI makes an uncompressed digital RGB connection
from the source to the screen for the ultimate picture
quality. HDMI intelligently communicates the highest
output resolution with the source device. The HDMI input
is fully backward compatible with DVI sources and includes
digital audio. HDMI uses HDCP copy protection. With 2
HDMI inputs on the back and 1 HDMI on the side of the
TV you can connect multiple HD sources, for instance an
HD settop box, a Blu-ray player, and game console or
digital Camcorder. Your TV is fully prepared for the HD
future.

EasyLink

EasyLink uses the HDMI CEC industry standard protocol to
share functionality between connected devices and the TV.
With EasyLink only one remote control is needed to
operate main functionalities on your TV and connected
devices. EasyLink uses the standard HDMI cable to
transfer system commands. It works between all electronic
devices equipped with HDMI CEC.

Dolby Digital output

Dolby Digital output for connection to a home theatre
system

Issue date 2008-08-06

Version: 1.0.3

12 NC: 8670 000 47383
UPC: 6 09585 16230 3

© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
