Philips 43PUT6801 Schematic

Colour Television Chassis

QM16.3A

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 6

4. Mechanical Instructions 10 Cable dressing (43" 6801 series) 10 Cable dressing (49" 6801 series) 11 Cable dressing (55" 6801 series) 11 Cable dressing (55" 7101 series) 12 Cable dressing (65" 7101 series) 12 Cable dressing (65" 7601 series) 13 Cable dressing (75" 7101 series) 13

5. Service Modes, Error Codes, and Fault Finding 26

6. Alignments 34

7. Circuit Descriptions 37

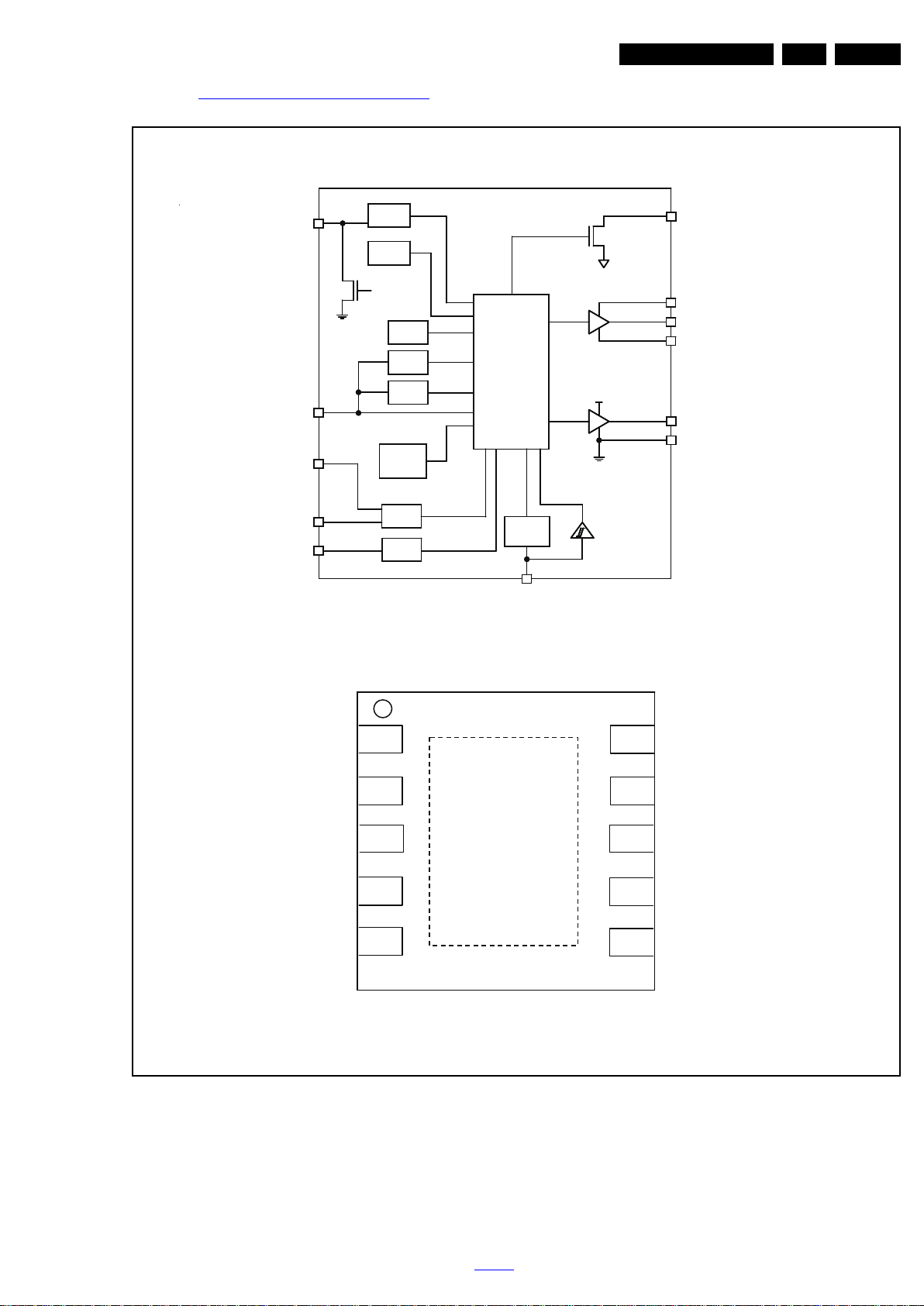

8. IC Data Sheets 46

9. Block Diagrams Block diagram 7101/7601 series 57 Block diagram 6801 series 58

10. Circuit Diagrams and PWB Layouts Drawing PWB A 715G7831 PSU A 715G7732 PSU 65 69-70 A 715G7854 PSU 71 73-74 A 715G6679 PSU 75 79-80 A 715G6677 PSU 81 85-86 A 715G6973 PSU 87 91-92 A 715G7720 PSU 93 97-98 A 715G8063 PSU 99 104-105 B 715G7772 SSB 106 130-131 B 715G7776 SSB 132 156-157 J 715G7788 IR/LED Panel 158 159 J 715G7074 IR/LED Panel 160 161 J 715G8045 IR/LED Panel 162 163 E 715G7065 Keyboard control panel 164 165 E 715G7088 Keyboard control panel 166 167 ALC 715G7789 LED board 168 169 AL 715G7004 Ambilight Board 170 172 AL 715G7006 Ambilight Board 173 175 AL 715G7007 Ambilight Board 176 178 AL 715G7008 Ambilight Board 179 183

59 63-64

11. Styling Sheets 6801 series 43" 184 6801 series 49" 185 6801 series 55" 186 7101 series 55" 187 7101 series 65" 188 7601 series 65" 189 7101 series 75" 190

Published by CQZ/SC 1623 Quality Printed in the Netherlands Subject to modification EN 3122 785 20152

2016-Jun-08

2016 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 QM16.3A LA1.

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Revision List

• Chapter 11: Added styling sheets 11.1 6801 series 43"

11.2 6801 series 49"

, and 11.3 6801 series 55".

,

Manual xxxx xxx xxxx.1

• Chapter 2: Updated table 2.1 Technical Specifications

.

• Chapter 4: Added figures 4-1 Cable dressing (43" 6801

series), 4-2 Cable dressing (49" 6801 series) and 4-3 Cable dressing (55" 6801 series), added section 4.4 Assembly/Panel Removal (for 6801 series).

• Chapter 5: Updated table 5-2 Factory mode overview

.

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

• Chapter 7: Updated figure 7-3 Power Architecture table 7-1 Connector overview

.

and

.

• Chapter 9: Added figure 9.2 Block diagram 6801 series

• Chapter 10: Added circuit diagrams 10.4 A 715G6679

PSU, 10.5 A 715G6677 PSU, 10.5 A 715G6677 PSU,

10.10 B 715G7776 SSB

and 10.15 E 715G7088 Keyboard control panel

, 10.12 J 715G7074 IR/LED Panel,

.

Manual xxxx xxx xxxx.2

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 4: Added figures 4-4 Cable dressing (55" 7101

series) and 4-6 Cable dressing (65" 7601 series), added

section 4.5 Assembly/Panel Removal (for 7601 series)

• Chapter 5: Updated table 5-2 Factory mode overview

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

• Chapter 7: Updated figure 7-3 Power Architecture table 7-1 Connector overview

• Chapter 10: Added circuit diagrams 10.7 A 715G7720

PSU, 10.8 A 715G8063 PSU, and 10.13 J 715G8045 IR/LED Panel.

• Chapter 11: Added styling sheets 11.4 7101 series 55" and 11.6 7601 series 65"

2. Technical Specs, Diversity, and Connections

Index of this chapter:

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1. Here is product information available, as well as getting started, user manuals, frequently asked questions and software & drivers.

.

and

.

,

.

Table 2-1 Described Model Numbers and Diversity

24 910 11

Mechanics

CTN

43PUT6801/98 2-1 4-1 4-15 4-16 4-17 4-18 4-19 &4-20 9.2 10.4 10.10 10.12 10.15 - - 11.1 43PUT6801/56 2-1 4-1 4-15 4-16 4-17 4-18 4-19 &4-20 9.2 10.4 10.10 10.12 10.15 - - 11.1 43PUT6801/79 2-1 4-1 4-15 4-16 4-17 4-18 4-19 &4-20 9.2 10.4 10.10 10.12 10.15 - - 11.1 49PUT6801/98 2-1 4-2 4-15 4-16 4-17 4-18 4-19 &4-20 9.2 10.5 10.10 10.12 10.15 - - 11.2 49PUT6801/56 2-1 4-2 4-15 4-16 4-17 4-18 4-19 &4-20 9.2 10.5 10.10 10.12 10.15 - - 11.2 49PUT6801/79 2-1 4-2 4-15 4-16 4-17 4-18 4-19 &4-20 9.2 10.5 10.10 10.12 10.15 - - 11.2 55PUT6801/98 2-1 4-3 4-15 4-16 4-17 4-18 4-19 &4-20 9.2 10.6 10.10 10.12 10.15 - - 11.3 55PUT6801/56 2-1 4-3 4-15 4-16 4-17 4-18 4-19 &4-20 9.2 10.6 10.10 10.12 10.15 - - 11.3 55PUT6801/79 2-1 4-3 4-15 4-16 4-17 4-18 4-19 &4-20 9.2 10.6 10.10 10.12 10.15 - - 11.3 55PUT7101/98 2-1 4-4 4-15 4-16 4-17 4-18 4-19 &4-20 9.1 10.7 10.10 10.12 10.14 - - 11.4 55PUT7101/79 2-1 4-4 4-15 4-16 4-17 4-18 4-19 &4-20 9.1 10.7 10.10 10.12 10.14 - - 11.4 55PUT7101/56 2-1 4-4 4-15 4-16 4-17 4-18 4-19 &4-20 9.1 10.7 10.10 10.12 10.14 - - 11.4 65PUT7101/79 2-1 4-5 4-8 4-9 & 4-10 4-11 4-12 4-13 9.1 10.1 10.9 10.11 10.14 10.16 10.17 & 10.18 & 10.20 11.5 65PUT7101/98 2-1 4-5 4-8 4-9 & 4-10 4-11 4-12 4-13 9.1 10.1 10.9 10.11 10.14 10.16 10.17 & 10.18 & 10.20 11.5 65PUT7101/56 2-1 4-5 4-8 4-9 & 4-10 4-11 4-12 4-13 9.1 10.1 10.9 10.11 10.14 10.16 10.17 & 10.18 & 10.20 11.5 65PUT7601/98 2-1 4-6 4-21 4-22 & 4-23 4-24 4-25 4-26 9.1 10.8 10.9 10.13 10.14 10.16 10.17 & 10.18 & 10.20 11.6 65PUT7601/79 2-1 4-6 4-21 4-22 & 4-23 4-24 4-25 4-26 9.1 10.8 10.9 10.13 10.14 10.16 10.17 & 10.18 & 10.20 11.6 65PUT7601/56 2-1 4-6 4-21 4-22 & 4-23 4-24 4-25 4-26 9.1 10.8 10.9 10.13 10.14 10.16 10.17 & 10.18 & 10.20 11.6 75PUT7101/79 2-1 4-7 4-8 4-9 & 4-10 4-11 4-12 4-13 9.1 10.2 & 10.3 10.9 10.11 10.14 10.16 10.18 & 10.19 & 10.20 11.7 75PUT7101/98 2-1 4-7 4-8 4-9 & 4-10 4-11 4-12 4-13 9.1 10.2 & 10.3 10.9 10.11 10.14 10.16 10.18 & 10.19 & 10.20 11.7 75PUT7101/56 2-1 4-7 4-8 4-9 & 4-10 4-11 4-12 4-13 9.1 10.2 & 10.3 10.9 10.11 10.14 10.16 10.18 & 10.19 & 10.20 11.7

Connection Overview

Wire Dressing

Stand Removal

Rear Cover Removal

Kyboard Control Removal

SSB Removal

Schematics

Block Diagram

IR/LED Board Removal

Power Supply

SSB

J (IR/LED)

E (Keyboard/Leading Edge)

ALC(LED LOGO Board)

AL(Ambilight Board)

Styling

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support

2016-Jun-08

http://www.p4c.philips.com

Table 2-1

2.3 Connections

HDMI 3 ARC

USB

3

USB

2

CI

NETWORK

TV ANTENNA

SERV.U

AUDIO IN

DVI

SCART

(RGB/CVBS)

(Optional)

R L

CVBS/Y Pb

Pr

DIGITAL

AUDIO OUT

SAT

HDMI 2

ARC

HDMI

1

ARC

HDMI 4 ARC/MHL

USB1

20030_001.eps

1

2

3

4

5

6

8

7

12

11

13

10

14

15

16

Side Connectors

Rear Connectors

9

1 2 3 4

10000_022_090121.eps

090121

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3QM16.3A LA 2.

2.3.1 Side Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75 W kq

PP

2 - USB3 2.0

Figure 2-2 USB (type A)

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

3 - USB2 2.0

Figure 2-3 USB (type A)

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

4- HDMI 4 ARC/MHL: Digital Video - In, Digital Audio with ARC - In/Out

Figure 2-4 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

Table 2-1

2016-Jun-08

EN 4 QM16.3A LA2.

10000_017_090121.eps

090428

19

1

18 2

21

20

1

2

10000_001_090121.eps

090121

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

5- HDMI3 ARC: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-5 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

6- Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW

ot

2.3.2 Rear Connections

8- Service / UART

1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j

9 - Cinch: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V Bu - Video - Pb 0.7 V Rd -Video - Pr 0.7 V Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

10 - RJ45: Ethernet

10000_025_090121.eps

120320

Figure 2-7 Ethernet connector

1 -TD+ Transmit signal k 2 -TD- Transmit signal k 3 -RD+ Receive signal j 4 -CT Centre Tap: DC level fixation 5 -CT Centre Tap: DC level fixation 6 -RD- Receive signal j 7 -GND Gnd H 8 -GND Gnd H

11 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75 W kq

PP

12 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

7 - SCART: Video RGB/YC - In, CVBS - In/Out, Audio In/Out

1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V 4 -Ground Audio Gnd H 5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue/C-out 0.7 V 8 -Function Select 0 - 2 V: INT

9 -Ground Green Gnd H 10 - n.c. 11 - Video Green 0.7 V 12 - n.c. 13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V 16 - Status/FBL 0 - 0.4 V: INT

17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V 21 - Shield Gnd H

2016-Jun-08

Figure 2-6 SCART connector

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j

1 - 3 V: EXT / 75  j

/ 1 k k

RMS

/ 10 k j

RMS

/ 1 k k

RMS

/ 10 k j

RMS

/ 75  jk

PP

/ 75  j

PP

/ 75  j

PP

/ 75  k

PP

/ 75  j

PP

13 - SAT - In

Signal input from an SAT.

14- USB1 2.0

Figure 2-8 USB (type A)

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

15 - HDMI1 : Digital Video - In, Digital Audio - In/Out

Figure 2-9 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j

Table 2-1

Technical Specs, Diversity, and Connections

10000_017_090121.eps

090428

19

1

18 2

EN 5QM16.3A LA 2.

13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

16 - HDMI2 : Digital Video - In, Digital Audio - In/Out

Figure 2-10 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

Table 2-1

2016-Jun-08

EN 6 QM16.3A LA3.

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

2016-Jun-08

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

Table 2-1

-9

), or pico-farads (p 10

. Select

-12

-6

),

).

Precautions, Notes, and Abbreviation List

10000_053_110228.eps

110228

EN 7QM16.3A LA 3.

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's ma nual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

Table 2-1

2016-Jun-08

EN 8 QM16.3A LA3.

Precautions, Notes, and Abbreviation List

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

2016-Jun-08

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal (for 7101 series)

4.4 Assembly/Panel Removal (for 6801 series)

4.6 Set Re-assembly

4.1 Cable Dressing

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

Figure 4-1 Cable dressing (43" 6801 series)

2016-Jun-08

Table 2-1

Mechanical Instructions

20151_101.eps

CN8101

CN9303

CN1190

CN1100

CN1108

CN1161

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN1161

ECN1100

ECN1106

ECN1161

ECN1106

ECN110

8

ECN1108

ECN1110

KEYBOARD CONTROL

(1057)

E

CN01

CN02

IR/LED BOARD (1056)

J

CN1110

ECN1100

CN201

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

WIFI MODULE

W

WiFi01

20151_102.eps

CN8101

CN9101

CN1190

CN1100

CN1108

CN1161

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN1190

ECN1100

ECN1110

ECN1100

ECN1161

ECN1110

ECN1108

KEYBOARD CONTROL

(1057)

E

CN01

CN02

IR/LED BOARD (1056)

J

CN1110

CN201

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

WIFI MODULE

W

WiFi01

EN 11QM16.3A LA 4.

Figure 4-2 Cable dressing (49" 6801 series)

Figure 4-3 Cable dressing (55" 6801 series)

Table 2-1

2016-Jun-08

EN 12 QM16.3A LA4.

20152_100.eps

CN8601

CN9101

CN1190

CN1106

CN1100

CN1101

CN1108

CN1160

CN1161

CN1162

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN1101

ECN02

ECN1110

ECN1160

ECN1162

ECN1161

ECN1100

ECN1190

ECN1108

KEYBOARD CONTROL

(1057)

E

CN01

CN02

IR/LED BOARD (1056)

J

CN1110

ECN1108

ECN1101

AmbiLight

AL

(1061)

AmbiLight

AL

(1061)

AMBI-LIGHT BOARD (1068)

ALC

CN201

EXA02

AmbiLight

AL

(1061)

AmbiLight

AL

(1062)

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

WIFI MODULE

W

WiFi01

ECN1106

EXA02

20150_100.eps

KEYBOARD CONTROL

(1057)

E

CN03

CN02

CN01

EXA04

CN8601

CN9101

CN1190

CN1106

CN1100

CN1101

CN1108

CN1160

CN1161

CN1162

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN1110

ECN1190

ECN1108

ECN1160

ECN1161

ECN1100

IR/LED BOARD (1056)

J

CN1110

ECN1108

ECN1101

ECN1106

AMBI-LIGHT BOARD (1068)

ALC

CN201

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

WIFI MODULE

W

WiFi01

AmbiLight

AL

(1061)

AmbiLight

AL

(1061)

AmbiLight

AL

(1063)

AmbiLight

AL

(1062)

AmbiLight

AL

(1063)

AmbiLight

AL

(1061)

AmbiLight

AL

(1061)

EXA02

EXA04

EXA02

ECN03

ECN02

Mechanical Instructions

2016-Jun-08

Figure 4-4 Cable dressing (55" 7101 series)

Figure 4-5 Cable dressing (65" 7101 series)

Table 2-1

Mechanical Instructions

20152_101.eps

KEYBOARD CONTROL

(1057)

E

CN03

CN02

CN01

EXA04

CN806

CN804

CN1190

CN1106

CN1156

CN1100

CN1108

CN1160

CN1161

MAIN POWER SUPPLY

(1054)

A

MAIN POWER SUPPLY

(1054)

A

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN1190

ECN1110

ECN1108

ECN1160

ECN1161

ECN1156

IR/LED BOARD (1056)

J

CN1110

ECN1108

AMBI-LIGHT BOARD (1068)

ALC

CN201

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

WIFI MODULE

W

WiFi01

AmbiLight

AL

(1062)

AmbiLight

AL

(1061)

AmbiLight

AL

(1063)

AmbiLight

AL

(1062)

AmbiLight

AL

(1063)

AmbiLight

AL

(1062)

AmbiLight

AL

(1061)

EXA02

EXA04

EXA02

ECN03

ECN02

20150_101.eps

KEYBOARD CONTROL

(1057)

E

CN03

CN02

CN01

EXA04

CN9205 CN9201

CN9101

CN1190

CN1106

CN1100

CN1101

CN1108

CN1160

CN1161

CN1162

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN1110

ECN1101

ECN1108

ECN1160

ECN1161

IR/LED BOARD (1056)

J

CN1110

ECN1108

ECN1101

ECN1190

ECN1100

AMBI-LIGHT BOARD (1068)

ALC

CN201

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

WIFI MODULE

W

WiFi01

AmbiLight

AL

(1061)

AmbiLight

AL

(1062)

AmbiLight

AL

(1063)

AmbiLight

AL

(1062)

AmbiLight

AL

(1063)

AmbiLight

AL

(1061)

AmbiLight

AL

(1062)

EXA02

EXA04

ECN03

EXA04

EXA02

LED DRIVER

(1055)

AD

ECN02

EN 13QM16.3A LA 4.

Figure 4-6 Cable dressing (65" 7601 series)

Figure 4-7 Cable dressing (75" 7101 series)

Table 2-1

2016-Jun-08

EN 14 QM16.3A LA4.

Mechanical Instructions

4.2 Se rvice Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

1

4.3 Assembly/Panel Removal (for 7101 series)

Instructions below apply to the 65PUT7101/98, but will be similar for other 55"65"/75"PUx7101 series models.

4.3.1 Stand

Refer to Figure 4-8

1. Remove the fixation screws [1] that secure the stand bracket. Refer to Figure 4-8

2. Take the stand bracket out from the set.

for details.

1

Figure 4-8 Stand removal

20150_102.eps

2016-Jun-08

Table 2-1

Mechanical Instructions

20030_112.eps

2

1

2

20150_103.eps

3

EN 15QM16.3A LA 4.

4.3.2 Rear Cover

Refer to Figure 4-9 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove the fixation screws [1] and [2] that secure the rear cover. Refer to Figure 4-9

& Figure 4-10 for details.

for details.

2. Unplug the connector [3] from SSB. Refer to Figure 4-10 for details.

3. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

Figure 4-9 Rear cover removal[1]

Figure 4-10 Rear cover removal[2]

Table 2-1

2016-Jun-08

EN 16 QM16.3A LA4.

20150_104.eps

3

2

3

4

55

1

5

20150_105.eps

1

3

2

Mechanical Instructions

4.3.3 AmbiLight Panel

Refer to Figure 4-11

1. Gently release the clamps and unplug the connectors [5] that secure the ambilight panels. Release the clips from the

for details.

FFC connector that connect with the Keyboard control panel [4].

2. Lift the AmbiLight panel from the rear cover. Make sure that wires and flat foils are not damaged while lifting the Ambilight panel from the rear cover.

Figure 4-11 Ambilight and Keyboard removal

4.3.4 Keyboard Control Unit

Refer to Figure 4-11

1. Release the connector [2] from the SSB Board, then release the connectors [3] from the Ambilight panel. Caution: be careful, as these are very fragile connectors!

2. Remove all the fixation screws from the keyboard control panel [1] and take it out from the Back cover.

When defective, replace the whole unit.

4.3.5 Small Signal Board (SSB)

Refer to Figure 4-12 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors! Unplug the cable/flat foils connector.

2. Unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. Take out the SSB with I/O bracket.

5. The SSB can now be shifted away from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-12

for details.

Figure 4-12 SSB removal

2016-Jun-08

Table 2-1

Mechanical Instructions

20030_116.eps

2

Step 1

Step 2

1

20030_117.eps

2

Step 1

Step 2

1

EN 17QM16.3A LA 4.

4.3.6 IR/LED Board

Refer to Figure 4-13

1. Remove the fixation screw [1] from the bracket, pull out the assy from the set.

2. Carefully Releas the cover secured by clips, then unplug the connector [2] from the IR/LED board. The IR/LED Board can now be lifted and taken out from the cover.

for details.

4.3.10 LED Logo Board

Refer to Figure 4-14

1. Remove the fixation screws [1] from the bracket, pull out the assy from the set.

2. Carefully Releas the cover secured by clips, then unplug the connector [2] from the LED Logo board. The LED Logo board can now be lifted and taken out from the cover.

for details.

Figure 4-13 IR/LED Board removal

4.3.7 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.8 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.3.9 WIFI module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the WIFI module, getntly remove the module from the set.

When defective, replace the whole unit.

Figure 4-14 LED Logo Board removal

4.3.11 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the WIFI module as earlier.

7. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

8. Remove all other metal parts not belonging to the panel.

9. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

Table 2-1

2016-Jun-08

EN 18 QM16.3A LA4.

Mechanical Instructions

4.4 Assembly/Panel Removal (for 6801 series)

Instructions below apply to the 49PUT6801/98, but will be similar for other 43"/49"/55"PUT6801 series models.

1

4.4.1 Stand

Refer to Figure 4-15

1. Remove the fixation screws [1] that secure the stand bracket. Refer to Figure 4-15

2. Take the stand bracket out from the set.

for details.

1

Figure 4-15 Stand removal

20151_103.eps

2016-Jun-08

Table 2-1

Mechanical Instructions

20151_104.eps

2

22

2

3

EN 19QM16.3A LA 4.

4.4.2 Rear Cover

Refer to Figure 4-16 Warning: Disconnect the mains power cord before removing the rear cover.

for details.

1. Remove the fixation screws [2] and [3] that secure the rear cover. Refer to Figure 4-16

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

Figure 4-16 Rear cover removal

4.4.3 Keyboard Control Unit

Refer to Figure 4-17

1. Release the connector [2] from the SSB Board. Caution: be careful, as these are very fragile connectors!

2. Remove all the fixation screws from the keyboard control panel [1] and take it out from the Back cover.

When defective, replace the whole unit.

for details.

Table 2-1

2016-Jun-08

EN 20 QM16.3A LA4.

20151_105.eps

2

1

20151_106.eps

1

3

2

Mechanical Instructions

4.4.4 Small Signal Board (SSB)

Refer to Figure 4-18 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors! Unplug the cable/flat foils connector.

2. Unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. Take out the SSB with I/O bracket.

5. The SSB can now be shifted away from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-18

for details.

Figure 4-17 Keyboard removal

Figure 4-18 SSB removal

2016-Jun-08

Table 2-1

Mechanical Instructions

20030_128.eps

1

20030_129.eps

2

EN 21QM16.3A LA 4.

4.4.5 IR/LED Board

Refer to Figure 4-19

1. Remove the fixation screws [1] from the stand bracket, pull out the assy from the set. Refer to Figure 4-19

2. Carefully Releas the cover secured by clips, then unplug the connector [2] from the IR/LED board. The IR/LED Board can now be lifted and taken out from the cover. Refer to Figure 4-20

and Figure 4-20 for details.

for details.

3. Take the speakers out. When defective, replace the both units.

4.4.8 WIFI module

for details.

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the WIFI module, getntly remove the module from the set.

When defective, replace the whole unit.

4.4.9 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the WIFI module as earlier.

7. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

8. Remove all other metal parts not belonging to the panel.

9. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

Figure 4-19 IR/LED Board removal[1]

Figure 4-20 IR/LED Board removal[2]

4.4.6 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.4.7 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

Table 2-1

2016-Jun-08

EN 22 QM16.3A LA4.

Mechanical Instructions

4.5 Assembly/Panel Removal (for 7601 series)

Instructions below apply to the 65PUT7601/98, but will be similar for other 65"PUT7601 series models.

1

4.5.1 Stand

Refer to Figure 4-21

1. Remove the fixation screws [1] that secure the stand bracket. Refer to Figure 4-21

2. Take the stand bracket out from the set.

1

for details.

1

Figure 4-21 Stand removal

20152_102.eps

2016-Jun-08

Table 2-1

Mechanical Instructions

20152_103.eps

2

1

2

20152_104.eps

3

EN 23QM16.3A LA 4.

4.5.2 Rear Cover

Refer to Figure 4-22 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove the fixation screws [1] and [2] that secure the rear cover. Refer to Figure 4-22

& Figure 4-23 for details.

for details.

2. Unplug the connector [3] from SSB. Refer to Figure 4-23 for details.

3. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

Figure 4-22 Rear cover removal[1]

Figure 4-23 Rear cover removal[2]

Table 2-1

2016-Jun-08

EN 24 QM16.3A LA4.

20152_105.eps

3

2

3

4

5

1

5

20152_106.eps

1

4

3

2

3

Mechanical Instructions

4.5.3 AmbiLight Panel

Refer to Figure 4-24

1. Gently release the clamps and unplug the connectors [5] that secure the ambilight panels. Release the clips from the

for details.

FFC connector that connect with the Keyboard control panel [4].

2. Lift the AmbiLight panel from the rear cover. Make sure that wires and flat foils are not damaged while lifting the Ambilight panel from the rear cover.

Figure 4-24 Ambilight and Keyboard removal

4.5.4 Keyboard Control Unit

Refer to Figure 4-24

1. Release the connector [2] from the SSB Board, then release the connectors [3] from the Ambilight panel. Caution: be careful, as these are very fragile connectors!

2. Remove all the fixation screws from the keyboard control panel [1] and take it out from the Back cover.

When defective, replace the whole unit.

4.5.5 Small Signal Board (SSB)

Refer to Figure 4-25 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect

2. Unplug the FFC cable[2] and other connectors [3].

3. Remove all the fixation screws from the SSB [4].

4. Take out the SSB with I/O bracket.

5. The SSB can now be shifted away from side connector

with the SSB [1]. Caution: be careful, as these are very fragile connectors! Unplug the cable/flat foils connector.

cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-25

for details.

Figure 4-25 SSB removal

2016-Jun-08

Table 2-1

Mechanical Instructions

20152_107.eps

2

Step 1

Step 2

Step 3

1

20152_108.eps

2

1

EN 25QM16.3A LA 4.

4.5.6 IR/LED Board

Refer to Figure 4-26

1. Remove the fixation screw [1] from the bracket, pull out the assy from the set.

2. Carefully Releas the cover secured by clips, then unplug the connector [2] from the IR/LED board. The IR/LED Board can now be lifted and taken out from the cover.

for details.

4.5.9 WIFI module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the WIFI module, getntly remove the module from the set.

When defective, replace the whole unit.

4.5.10 LED Logo Board

Refer to Figure 4-27

1. Remove from the fixation area[1] on the bracket, pull out the assy from the set.

2. Carefully Releas the cover secured by clips, then unplug the connector [2] from the LED Logo board. The LED Logo board can now be lifted and taken out from the cover.

for details.

Figure 4-26 IR/LED Board removal

4.5.7 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.5.8 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out. When defective, replace the both units.

Figure 4-27 LED Logo Board removal

4.5.11 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the WIFI module as earlier.

7. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

8. Remove all other metal parts not belonging to the panel.

9. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.6 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-1

Figure 4-7

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

.

to

Table 2-1

2016-Jun-08

EN 26 QM16.3A LA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Service Modes

5.2 Stepwise Start-up

5.3 Service Tools

5.4 Software Upgrading

5.5 Error Codes

5.6 The Blinking LED Procedure

5.7 Fault Finding and Repair Tips

5.1 Service Modes

The Service Mode feature is split into five parts:

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).

• Display information (“SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.1.1 General

Next items are applicable to all Service Modes or are general.

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SAM, and CSM. The screen will show: “AAAAAB-XXX.YYY.MMM.TTT”, where:

• AAAAA is the chassis name: QM163.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

• X is the main version number: this is updated with a major change of specification (incompatible with the previous

5.1.2 Service Alignment Mode (SAM)

software version). Numbering will go from 1 - 99 and AA - ZZ.

- If the main version number changes, the new version number is written in the NVM.

- If the main version number changes, the default settings are loaded.

• YYY is the sub version number: this is updated with a minor change (backwards compatible with the previous versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version number is written in the NVM.

- If the NVM is refreshed, the software identification, version, and cluster will also be written to NVM.

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO/OK” button. Do not allow the display to time out between entries while keying the sequence.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

. When the value is

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

Hardware info The information of Hardware Operation hours This represents the life timer. The timer counts normal operation hours, but does not

Shop operation hours This represents the life timer. The timer counts normal shop operation hours, but does

Errors Shows all errors detected since the last time the buffer was erased. Five errors

Reset error buffer Reset error buffer

2016-Jun-08

count Stand-by hours.

not count Stand-by hours.

possible.

Table 2-1

Service Modes, Error Codes, and Fault Finding

Main Menu Sub-menu 1 Sub-menu 2 Description

Alignments Warm R Gain To align the White Tone. See

G Gain B Gain

Normal R Gain

G Gain B Gain

Cool R Gain

G Gain B Gain

Ambilight Select module Ambilight select module

Brightness Brightness of Ambilight

Option numbers Group 1 Group 1 Option number

Group 2 Group 2 Option number

Store Store the Option number Store Store Software maintenance Software events Software events

Hardware events Hardware events Test setting Digital info Test setting BT Pairing tables Clear paired remote control Clear paired remote control Wi-Fi Direct settings Reset Wi-Fi Direct group Reset Wi-Fi Direct group Development 1 file versions Development 1 file versions Development 2 file versions Development 2 file versions Upload to USB To upload several settings from the TV to an USB stick Download from USB To download several settings from the USB stick to the TV NVM editor Type number NVM-editor will function as in the past: type number, production code, 18AC SSB,

Production code

18AC SSB

18AC display

18AC supply

paragraph 6-1 White D alignment values description

18AC display, 18AC supply is a decimal value via digit entry

in the Alignments section for a detailed

EN 27QM16.3A LA 5.

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background).

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Home/Menu” button to switch to (do not allow the display to time out between entries while keying the sequence).

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.1.3 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: from the “menu/home” press “1999”, directly followed by the “Back/Return” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, the following items are displayed,

Table 5-2 Factory mode overview

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture, BL Dimming,

1 PANEL_ID See table Table 6-3 Displays and changes the Panel ID wi th the l eft and right c ursor; be caref ul changi ng this, i t can

2DEMOD_TYPE 22223Choose demod type. 3 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the data to the correct NVM

Default value

Description43" 49" 55" 65" 75"

Source Meter, the Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, MCU and OAD software versions.

result in not correct displaying the screen!

address

Table 2-1

2016-Jun-08

EN 28 QM16.3A LA5.

Default value

Item Item value

4 NVM VALUE 0 Displays the value at the NVM address of item 5 5 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5 6 COPY NVM to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB memory stick. The

7 COPY NVM to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The TV will save the two

8 TV Settings Key 1 TV Settings Key 9 TV Settings VALUE 0 TV Settings VALUE 10 TV Settings STORE Press OK TV Settings STORE 11 COPY TV Settings to

USB 12 COPY TV Settings to TV Press OK COPY TV Settings to TV 13 VIRGIN_MODE Off Off Off Off Off Use this to return the set to virgin mode. Depends whether the set has been used already. 14 ORT_MODE Off Off On On On ORT mode 15 DRMWARNING On On On On On Warning the data rights management 16 AGEING MODE Off Off Off Off Off Use this for aging a new LCD panel 17 COLOR TEMP MODE Normal COLOR TEMP MODE 18CLR_TEMP_R 000127119Red colour temperature setting 19CLR_TEMP_G 000114123Green colour temperature setting 20CLR_TEMP_B 000117127Red colour temperature setting 21 ADC_GAIN_R 255 255 255 255 255 Red ADC gain 22 ADC_GAIN_G 255 255 255 255 255 Green ADC gain 23 ADC_GAIN_B 255 255 255 255 255 Blue ADC gain 24 ADC_OFFSET_R 127 127 127 127 127 Red ADC offset 25 ADC_OFFSET_G 127 127 127 127 127 Green ADC offset 26 ADC_OFFSET_B 127 127 127 127 127 Blue ADC offs et 27AUD_GAIN_HDMI00000HDMI audio gain 28 AUD_GAIN_ATV 12 12 12 12 12 Analogue TV audio gain 29AUD_GAIN_DTV00000Digital TV audio gain 30AUD_GAIN_USB00000USB audio gain 31AUD_GAIN_SPDIF00000SPDIF audio gain 32AUD_GAIN_LEN-IN00000LEN-IN audio gain 33AQ_INDEX 66688Audio Quality index 34 Copy PQ to USB Press OK Saves the picture quality data to a file “pq.bin” to the root of a FAT formatted USB memory stick 35 Copy PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV 36 Copy AQ to USB Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 37 Copy AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 38 COPY DB CHL to USB Press OK Copy the USB channel list to USB 39 COPY DB CHL to TV Press OK Copy the TV channel list to TV 40LIGHT SENSOR TYPE8881313Light sensor type 41TEMP SENSOR TYPE00000Tempreture sensor 42LED TYPE 00000The type of LED 43 AMBILIGHT TYPE Side Segments The type of Ambient light 44 AMBILIGHT TYPE

VALUE 453D 000003D on/off 46BLUETOOTH 11111BLUETOOTH 47 ARC TEST On On On On On ARC test 48 HDMI ARC OUTPUT

ORDER 49 UART ENABLE On On On On Off UART ENABLE 50 RESET MAC ADDRESS Press OK RESET MAC ADDRESS 51 EXIT_FACTORY Press OK Exits the Factory mode

Press OK COPY TV Settings to USB

00046The type value of Ambient light

EU HDMI ARC OUTPUT ORDER

Service Modes, Error Codes, and Fault Finding

Description43" 49" 55" 65" 75"

TV will write two files in the REPAIR folder of the memory stick. It will create this folder if it does not exist. The items are “Channel list”, “Personal settings”, “Option codes”, “Display-related alignments” and “History list”. In ca se the download to the USB stick was not successful “Failure” will appear. In this case, check if the USB stick is connected properly. Now the settings are stored onto the USB stick and can be used to download onto another TV or other SSB. Uploading is of course only possible if the software is running and if a picture is available. This method is created to be able to sa ve t he customer’s TV settings and to store them i n to ano th er SSB.

files which were created in item 8 to the NVM of the set. Use these options when replacing a SSB. When “USB to TV Success” is displayed remove the power and restart the TV

How to Exit the Factory mode

5.1.4 Customer Service Mode (CSM)

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK” button.

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

Purpose

The Customer Service Mode shows error codes and information on the TVs operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

Specifications • Ignore “Service unfriendly modes”.

2016-Jun-08

Table 2-1

Service Modes, Error Codes, and Fault Finding

EN 29QM16.3A LA 5.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.4 a Option Code 1 Gives the option codes of option group 1 as set in SAM.

• 1.4b Option Code 2 Gives the option codes of option group 2 as set in SAM.

• 1.5 18AC SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 1.6 18AC Display 18NC NVM read/write.

• 1.7 18AC Supply 18AC NVM read/write.

• 1.8 18AC sensor board 18AC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

• 2.2 Standby Software Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

• 2.3 e-UM version eDFU (help) version.

• 2.4 Strings database version Displays the version of strings database.

• 2.8 FRC-V software Software of FRC-V.

• 2.10 Channel package version version of channel package.

• 2.15 E-Sticker version version of E-Sticker.

• 2.16 DemoMe version version of Demo files.

• 3.1 Signal Quality Analog/digital signal strength.

• 3.4 Ethernet MAC address A Media Access Control address (MAC address) is a unique identifier assigned to

twork interfaces for communications on the physical

ne network segment.

• 3.5 Wireless MAC address Wireless Media Access Control address.

• 3.6 Netflix key Indicates the validity of the netflix key. In case this key are not valid and the customer wants to make use of the functionality, the SSB has to be replaced.

• 3.7 CI module Indicates the module of CI.

• 3.8 CI+ protected service The IC+ protectd service.

• 3.9 Event counter The counter of event.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control transmitter.

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

Table 2-1

2016-Jun-08

EN 30 QM16.3A LA5.

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

5.2 Stepwise Start-up

Service Modes, Error Codes, and Fault Finding

2016-Jun-08

Figure 5-1 Stepwise Start-up

Table 2-1

Service Modes, Error Codes, and Fault Finding

19080_207_110324.eps

110324

19080_208_110324.eps

110324

19080_209_110324.eps

110324

EN 31QM16.3A LA 5.

5.3 Service Tools

5.3.1 ComPair

The ComPair Tool is no longer supported here. Still, the interface box can be used as level shifter between the TV chassis and PC.

5.4 Software Upgrading

5.4.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.4.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash drive, then select [Restart] and press OK to restart the TV.See Figure 5-4

.

Figure 5-2 Update the TV software [1/3]

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

web site.

5.4.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

5.4.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy it to the root directory of the USB flash drive.

5.4.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-2

. Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-2

5. To proceed, In next menu select [Start] and press OK to start software updates. See Figure 5-3

.

Figure 5-3 Update the TV software [2/3]

, it is

.

Figure 5-4 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

.

Table 2-1

2016-Jun-08

EN 32 QM16.3A LA5.

Service Modes, Error Codes, and Fault Finding

5.4.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs.

• FUS_clustername_version.zip: Contains the file downloaded which is needed to upgrade the TV main software and the software download application.

• NVM_clustername_version.zip: Default NVM content.

5.4.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode Factory Mode Used for extended alignments CSM 3-page compact CSM pages. The re will b e CSM dump to

USB SW upgradeable SW-upgrading of flash memories MT5593UGIJ can be

NVM-Editor in SAM NVM-editor will function as in the past: Address and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in SAM

UART logging There will be printout available in UAR T. No specifications

Blind SAM RC sequence “062598” + “Menu” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

done via USB. The main SW can be upgraded via the ZIP file downloaded.

field is a decimal value via digit entry

programming with virtual keyboard Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

“Panel code”

Example: – ERROR: 000 000 000 000 000: No errors detected – ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected (newest) error

• Via the blinking LED procedure (when you have no picture). See paragraph 5.7 Fault Finding and Repair Tips

5.5.3 Error codes

In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking when CSM is activated. Only the following layer 2 errors are defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I2C bus error on the SSB 16 +12 V missing or low, PSU defective 27 Channel decoder error on the SSB 34 Tuner I2C bus error on the SSB 35 EEPROM I2C error on SSB, M24C64

5.5.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.

5.6 The Blinking LED Procedure

5.6.1 Introduction

.

5.5 Error Codes

5.5.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:

• Activated (SW) protection.

• Failing I

• General I The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

5.5.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/CSM (if you have a picture).

2

C device.

2

C error.

The software is capable of identifying different kinds of errors. Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly. Errors can also be displayed by the blinking LED procedure. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated. Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color. Example (2): the content of the error buffer is “12 9 6 0 0” After entering SAM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.6.2 How to Activate Blinking LED Procedurer

Use one of the following methods:

• Activate CSM.The blinking front LED will show the lay er 1 error(s), this works in “normal operation” mode or

2016-Jun-08

Table 2-1

Service Modes, Error Codes, and Fault Finding

EN 33QM16.3A LA 5.

automatically when the error/protection is monitored by the standby processor. In case no picture is shown and there is no LED blinking, read the logging to detect whether “error devices” are mentioned. (see section “5.7 Fault Finding and Repair

Tips, 5.7.4 Guidelines Uart logging”).

• Activate SAM. The blinking front LED will show the entire content of the LAYER 2 error buffer, this works in “normal operation” mode.

5.7 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options are set.

5.7.1 NVM Editor

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.7.6 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.7.7 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.7.8 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class D-IC could break down in short time.

5.7.9 Loudspeakers

Make sure that the volume is set to minimum during disconnecting the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

5.7.10 Display option code

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

5.7.2 CSM

When CSM is activated and there is an USB stick connected to the TV set, then the software will collect the complete CSM content in a file Csm.xml and dump the file in a folder “CSM” on the USB stick. When this mechanism works it can be concluded that a large part of the operating system is already working (SOC, USB ...).

5.7.3 No Picture

When you have no picture, first make sure you have entered the correct display code. See paragraph 6.4 Option Settings the instructions. See also Table 6-3

5.7.4 Guidelines Uart logging

Possible cases:

Uart loggings are displayed:

• We can conclude that the TV-set is starting up and thatcommunication with the flash RAM seems to be supported. The processor is able to read and write in the DRAMs.

• We can not yet conclude that flash RAM and DRAMs are fully operational/reliable.There still can be errors in the data transfers, DRAM errors, read/write speed and timing control.

Uart loggings report fault conditions, error messages, error codes and fatal errors:

• Some failures are indicated by error codes in the logging, check referring to Table 5-4.

2C bus errors.

•I

• Not all failures or error messages should be interpreted as fault. For instance the root cause can be wrong option codes settings.

.

for

5.7.5 Unstable Picture via HDMI input

Check if HDMI EDID data is properly programmed.

Table 2-1

2016-Jun-08

EN 34 QM16.3A LA6.

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 MW, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform alignments.

, 50/ 60 ± 3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color analyser (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x, y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx: ± 0.003, dy: ± 0.003.

• Repeat this step for the other colour Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values

Value Cool (11000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313 y 0.282 0.296 0.329

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus. The alignments are explained below. The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off Dynamic Contrast Off Color Enhancement Off Picture Format Unscaled Light Sensor Off Brightness 50 Color 0 Contrast 100

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

If you do not have a colour analyser, you can use the default values. This is the next best solution. The default values are average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according to the values in Table 6-2

.

• When finished press OK on the RC, then press STORE to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (9000K) 43PUT6801/98 112 121 116

43PUT6801/56 110 120 117 43PUT6801/79 112 122 116 49PUT6801/98 109 111 115 49PUT6801/56 108 112 114 49PUT6801/79 107 113 113 55PUT6801/98 105 108 106 55PUT6801/56 108 107 104 55PUT6801/79 106 105 106 55PUT7101/98 120 115 108 55PUT7101/79 121 114 107 55PUT7101/56 122 114 107 65PUT7101/79 117 119 118 65PUT7101/98 116 118 118 65PUT7101/56 115 117 116 65PUT7601/98 126 80 43 65PUT7601/79 125 82 45 65PUT7601/56 124 83 47 75PUT7101/79 116 120 121 75PUT7101/98 118 120 123 75PUT7101/56 117 121 122

Colour temperature

Red Green Blue

2016-Jun-08

Table 2-1

Alignments

EN 35QM16.3A LA 6.

Colour temperature

Picture mode Screen size

Cool (11 000K) 43PUT6801/98 108 92 122

43PUT6801/56 107 93 121 43PUT6801/79 107 92 120 49PUT6801/98 99 102 125 49PUT6801/56 98 101 126 49PUT6801/79 97 102 125 55PUT6801/98 104 97 118 55PUT6801/56 103 98 119 55PUT6801/79 101 99 117 55PUT7101/98 121 118 125 55PUT7101/79 122 119 123 55PUT7101/56 120 119 124 65PUT7101/79 100 92 127 65PUT7101/98 102 93 125 65PUT7101/56 101 94 123 65PUT7601/98 122 100 106 65PUT7601/79 123 101 104 65PUT7601/56 121 102 103 75PUT7101/79 105 108 116 75PUT7101/98 105 107 114 75PUT7101/56 103 106 115

Warm (6500K) 43PUT6801/98 119 111 112

43PUT6801/56 118 110 112 43PUT6801/79 119 109 111 49PUT6801/98 122 114 107 49PUT6801/56 121 115 106 49PUT6801/79 123 116 108 55PUT6801/98 120 111 101 55PUT6801/56 121 115 102 55PUT6801/79 123 116 101 55PUT7101/98 123 102 74 55PUT7101/79 122 103 74 55PUT7101/56 127 100 75 65PUT7101/79 126 111 100 65PUT7101/98 125 112 102 65PUT7101/56 124 113 101 65PUT7601/98 127 92 84 65PUT7601/79 127 93 85 65PUT7601/56 126 91 86 75PUT7101/79 122 115 106 75PUT7101/98 121 114 105 75PUT7101/56 120 112 104

Red Green Blue

This group setting of colour temperature will be applied automatically to the TV / VGA / HDMI / AV sources.

6.4 Option Settings

6.4.1 Introduction

6.4.3 Display Code Overview

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3

. After resetting the Display

Code, restart the set immediately.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code 43PUT6801/98 TPT430U3-EQYSHM.G S1J 230

43PUT6801/56 TPT430U3-EQYSHM.G S1J 230 43PUT6801/79 TPT430U3-EQYSHM.G S1J 230 49PUT6801/98 TPT490U2-EQYSHM.G SC1B 238 49PUT6801/56 TPT490U2-EQYSHM.G SC1B 238 49PUT6801/79 TPT490U2-EQYSHM.G SC1B 238 55PUT6801/98 TPT550J1-QUBN0.K S8850A 47 55PUT6801/56 TPT550J1-QUBN0.K S8850A 47 55PUT6801/79 TPT550J1-QUBN0.K S8850A 47 55PUT7101/98 TPT550U2-EQLSJA.G SC4A 132 55PUT7101/79 TPT550U2-EQLSJA.G SC4A 132 55PUT7101/56 TPT550U2-EQLSJA.G SC4A 132 65PUT7101/79 TPT650UA-QVN04.U S400A 129 65PUT7101/98 TPT650UA-QVN04.U S400A 129 65PUT7101/56 TPT650UA-QVN04.U S400A 129 65PUT7601/98 TPT650US-FF02.S SG01A 136 65PUT7601/79 TPT650US-FF02.S SG01A 136 65PUT7601/56 TPT650US-FF02.S SG01A 136 75PUT7101/79 LC750EQF-FJM2 KR LGD 130 75PUT7101/98 LC750EQF-FJM2 KR LGD 130 75PUT7101/56 LC750EQF-FJM2 KR LGD 130

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. A repaired SSB in Service should get the service Set type “00PF0000000000” and Production code “00000000000000”. Also the virgin bit is to be set. To set all this, you can use the “NVM editor” and “Dealer options” items in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair on board level), the type number (CTN) and production code of the TV has to be set according to the type plate of the set. For this, you can use the NVM editor in SAM.

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these MT5561 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK button on the RC before the cursor is moved to the left, select STORE and press OK on the RC.

• The new option setting is only active after the TV is switched “off” / “stand-by” and “on” again with the mains switch (the NVM is then read again).

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could be edited in the NVM.

2

C

In case of a display replacement, reset the “Operation hours display” to “0”, or to the operation hours of the replacement display. Remark:

- After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> (see figure 1*).

- Select the item and press <OK> on the RC.

6.5.1 Reset of Repaired SSB

Instruction

After NVM replacement, reload MAC address via SAM menu.This ensures the correct MAC address to be available in CSM for future repair actions.

Way of working:

• After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> .

• Select the item and press <OK> on the RC.

Notes:

Table 2-1

2016-Jun-08

EN 36 QM16.3A LA6.

• Only applicable to all related models that are “Smart TV level 0”enabled (only YouTube access). For models

without internet connection feature, no action is needed.

• HDCP keys are located in the NVM.

New NVM EEPROMs are shipped with pre-loaded HDCP keys.

6.5.2 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes match the replacement panel.

6.6 Cable position numbers

In this chassis, the cable position numbers can be defined via the rule that the number is always starting with an “E” followed by the connector number of the current sourcing board. The order is always seen from where the power initiates from. So from PSU to SSB, from SSB to IR/LED panel, from IR/LED panel to keyboard control panel. For example, a cable from the PSU connector CN902 to the SSB connector CN701, will have the position number ECN902.

Alignments

2016-Jun-08

Table 2-1

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MT5593UGIJ

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The QM16.3A LA is a new chassis launched in AP in 2016. The whole range is covered by MT5593UGIJ platform . The major deltas versus its predecessor support DVB-C; DVB-T2, with also USB3.0,WIFI/multi-media, Video out functionality.

The QM16.3A LA chassis comes with the following stylings:

• series xxPUx7101/xx

• series xxPUT6801/xx

• series xxPUT7601/xx

7.1.1 Implementation

Key components of this chassis are:

• SCALER NT72324BG-35 PBGA-1057

• SCALER NT72333TBG/C TFBGA_484

• SCALER MT5593UGIJ HSBGA-900

• DEMODULATOR Si2168-C50-GMR QFN-48

• FLASH MX25L1606EM2I-12G 16Mb SOP-8(200m)

• FLASH W25Q16DVSSIG 16Mb SO-8

• NAND FLASH THGBMBG7D2KBAIL 16G BGA-153

• AUDIO Amplifier. TAS5760LDDCAR 20W TSSOP-48

• TUNER EUROPE TDSY-G480D

• TUNER EUROPE TDQS-A701F

EN 37QM16.3A LA 7.

7.1.2 QM16.3A LA Architecture Overview

For details about the chassis block diagrams refer to 9. Block Diagrams

Figure 9.1

.

. An overview architecture can be found in

Table 2-1

2016-Jun-08

EN 38 QM16.3A LA7.

20030_201.eps

MT5593U

DDR

HDMI

TUNER

DC/DC

SAT

NETWORK

COMMON INTERFACE

USB

Headphone

SCART

SERVICE

CONNECTOR

ANALOG I/O

Digital Audio Out

7.1.3 SSB Cell Layout

Circuit Descriptions

Figure 7-1 SSB layout cells (top view)(For 71x1 series)

2016-Jun-08

Table 2-1

DDR

Circuit Descriptions

DC/DC

MT5593U

EN 39QM16.3A LA 7.

USB

NETWORK

SERVICE

Digital Audio Out

TUNER

ANALOG I/O

USB

Figure 7-2 SSB layout cells (top view) (For 6801 series)

CONNECTOR

HDMI

Headphone

20151_200.eps

Table 2-1

2016-Jun-08

EN 40 QM16.3A LA7.

20150_201.eps

Display power

Platform

MT5593U

PFC

Platform power

1 power- PCB

LVDS AMP

Low stby power

Ac-input + Mains filter

BL-ON/OFF

AC IN

CN9901

CN8601(FOR 715G7831/715G6679/715G7720)

CN8103(FOR 715G7854) CN8101(FOR 715G6677/715G6973)

DIM

12V_A

12V

PS_On

12V

CN1190

AMP

12V

7.2 Power Supply

Refer to figure Figure 7-3 for the power architecture of this platform.

Circuit Descriptions

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective, a new board must be ordered and the defective one must be returned, unless the main fuse of the board is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the boards.

Important delta’s with the QM16.3A LA classis platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

•PS-ON

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

The output voltages to the chassis are:

• +3.7V output for 715G7732P(standby mode)

• +3.5V output for 715G7831P(standby mode)

• +8.5V output for 715G7831P/715G7831P/715G6679P/715G6677P/715G6 973P(standby mode)

• 70V(Boost for backlight for 715G7720)

• +12 output (on-mode)

• +12V_audio (audio AMP power)

• Output to the display; in case of

2016-Jun-08

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

Figure 7-3 Power Architecture

7.2.2 Diversity

Table 2-1

The diversity in power supply units is mainly determined by the diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers. PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

Table 7-1 Connector overview

Circuit Descriptions

EN 41QM16.3A LA 7.

Connector

Number Description to SSB to panel to SSB to panel to SSB to panel to SSB to panel to SSB to panel to panel Pin 161216121612161216 1114

1 DIM +VLED DIM +VLED DIM +VLED DIM VLED DIM VLED- VLED2 BL_O/F nc BL_O/F nc BL_O/F nc BL_O/F VLED BL_O/F VLED- VLED3 PS_ON -VLED-1 PS_ON -VLED1 PS_ON -VLED1 PS_ON -VLED2 PS_ON VLED- VLED4 3D_ON -VLED-1 3D_ON -VLED1 3D_ON -VLED1 3D_ON -VLED2 Scan BL EN

5 GND -VLED-1 GND -VLED1 GND -VLED1 GND -VLED2 GND NG NG 6 GND nc GND nc GND nc GND -VLED2 GND +VLED- +VLED7 GND nc GND nc GND nc GND -VLED1 GND NG NG 8 GND -VLED-2 GND -VLED2 GND -VLED2 GND -VLED1 GND NG NG 9 +12VA -VLED-2 +12VA -VLED2 +12VA -VLED2 +12VA -VLED1 12V(Audio) +VLED- +VLED10 +12VA -VLED-2 +12VA -VLED2 +12VA -VLED2 +12VA -VLED1 12V(Audio) NG NG 11 +12V nc +12V nc +12V nc +12V +VLED 12V NG NG 12 +12V +VLED +12V +VLED +12V +VLED +12V +VLED 12V - VLED13 +12V - +12V - +12V - +12V - 12VA - VLED14 +12V - +12V - +12V - +12V - 12VA - VLED15 +5V - +5V - +3.5V - +5V - +3.5V/+5V - 16 +5V - +5V - +3.5V - +5V - +3.5V/+5V - -

43" 47" 55" 65" 75" CN9101 CN8601 CN9303 CN8101 CN9101 CN8101 CN9101 CN8601 CN9101 CN8103 CN8104

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages (depending on set execution):

• +3V5-SB, permanent voltage for the Stand-by Power system and WIFI

• +3V3-STANDBY,voltage for IR/Key board

• +12V, input from the power supply for the panel common(active mode)

• +12V, input from the power supply for LNB supply

• +3V3-EMMC, +V-EMMC-IO, voltage for EMMC when TV on

• +1V5-DDR, +VREF-A2-DQ,, +VREF-A2-CA, voltage for DDR

• TUNER_3V3, supply voltage for tuner

• +5V-SW, input intermediate supply voltage for USB Power

• +12V-AUDIO1 for the AUDIO AMP

• +3.3VA_T2, +1.2V_T2 voltage for Demodulator IC channel decoder

• +3V3-WIFI,voltage for WIFI

(A3D)

NG NG

Figures gives a graphical representation of the DC/DC converters with its current consumptions :

Table 2-1

2016-Jun-08

EN 42 QM16.3A LA7.

DDR-PWR-EN

+3v5V-SW

+5V-SW

FB4105

BE-PER-EN

+5V-SW

+12V U4400

+5V-SW

FB4400

+12V

U4301

+3V3_AVDD

FB4302

U4401Q704

+3V3

FB4301

U4305

FB4306

U4306

+1V0-VCCK

U4102Q4102

U4103

+1V1-NT

U4307

+3V3

DV12

+3V3-ADD U4300

+1V0-AD D

+3V3-ADD

FB4303

U4302

FB4304

+1V5-DDR

20150_202.eps

Circuit Descriptions

Figure 7-4 DC/DC converters

2016-Jun-08

Table 2-1

7.3.1 Power layout SSB

Circuit Descriptions

L4300,+3V3-AVDD

EN 43QM16.3A LA 7.

U4304 Pin1, +3V5SB

C4459,AMBI-Power

C4114(+), +1V1-NT

C4369(+),+1V0-VCCK

R4292,Tuner_LNB

L4101,+2V5-NT

C4419(+), +5V-SW

U8203 Pin4, +3V3-LAN

C4377(+), +1V5-DDR

U4300 Pin6, +1V0AVDD

U705,+3V3_TUNER

C4310(+), DV12

Figure 7-5 Power SSB Top View

20150_208.eps

Table 2-1

2016-Jun-08

EN 44 QM16.3A LA7.

20150_209.eps

TP4403,+3V3-WIFI

TP4400,+5V-SW

ZD4101,+3V3-NT

TP4314,+3V3

TP4321,+1V8EMMC

IF

IF_AGC

RF_AGC

MT5593U

IF_AGC

TDSY-G480D/TDQS-A701F

I2C

I

2

C

20150_203.eps

Circuit Descriptions

Figure 7-6 Power SSB Bottom View

7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

7.4.1 DVB-C part

The Front-End for analogue tuner consist of the following key components:

• TUNER EUROPE TDSY-G480D

• SCALER MT5593UGIJ HSBGA-900 Processor

Below find a block diagram of the front-end application for

• TUNER EUROPE TDQS-A701F

DVB-C part.

7.4.2 DTB-T2 part The Front-End for DVT part consist of the following key

2016-Jun-08

Table 2-1

Figure 7-7 Front-End DVB-C block diagram

components:

Circuit Descriptions

IF

IF-AGC

TS DATA

RF_AGC

MT5593

DECODER

Si2169

IF_AGC

TDSY-G408D/TDQS-A701F

I2C

I

2

C

I

2

C

20150_204.eps

20030_207.eps

MT5593U+

HDMI2

HDMI1

HDMI4

CN1304

CN1308

CN1305

RX

TX

RX

I2C

I

2

C

I

2

C

HDMI3

CN1307

RX

I2C

EN 45QM16.3A LA 7.

• TUNER EUROPE TDSY-G480D

• TUNER EUROPE TDQS-A701F

• SCALER MT5593UGIJ HSBGA-900 Processor

• DEMODULATOR Si2169-C50-GMR QFN-48

Below find a block diagram of the front-end application for DTV part.

Figure 7-8 Front-End DVB-T2 DTV block diagram

7.5 HDMI

Refer to figure 7-9 HDMI input configuration for the application.

• 3D graphic support OpenGL ES 1.1/2.0

• A muti-standard video decoder

• A transport de-multiplexer

• One HDMI 2.0 receiver with 3D support

• MHL2.0& Standby charging

• 2D/3D converter

• Rich format audio codec

• Local dimming (LED backlight)

• Ethernet MAC+PHY

•TCON

• Panel overdrive control

• Four-link LVDS, mini-LVDS,V-by-one, EPI

The MT5593UGIJ family consists of a DTV front-end demodulator, a backend decoder and a TV controller and offers high integration for advanced applications. It integrates a transport de-multiplexer, a high definition video decoder, an audio decoder, a four-link LVDS transmitter, a mini-LVDS transmitter, a V-by-one transmitter, an EPI transmitter, and an NTSC/PAL/SECAM TV decoder with 3D comb filter(NTSC/PAL). The MT5593UGIJ enables consumer electronics manufacturers to build high quality, low cost and feature-rich DTV. The MT5593UGIJ family supports Full-HD MPEG1/2/4/H.264/VC1/RM/AVS/ and H.264/HEVC video decoder standards, and JPEG. The MT5593UGIJ also supports Media Tek MDDi de-interlace solution which can reach very smooth picture quality for motions. A 3D comb filter added to the TV decoder recovers great details for still pictures. The special color processing technology provides a natural, deep colors and true studio quality video. Moreover, the MT5593 family has built-in high resolution and high-quality audio codec. The MT5593UGIJ family provides consumers with and Full-HD 120Hz experience. It integrates high-quality Full-HD ME/MC technology. The MT5593UGIJ family supports ASTC,DVB-T and DVB-C,DTMB demodulation functions. It reserves transport stream inputs for external demodulators for other countries or areas.TV maker can easily port the same UI to worldwide TV models. First-class adjacent and co-channel rejection capability grants excellent reception. Professional error-concealment provides stable, smooth and mosaic-free video quality

7.6 Video and Audio Processing -

Figure 7-9 HDMI input configuration

The following HDMI connector can be used:

• HDMI 1: HDMI input ( TV digital interface support HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC

• HDMI 2: HDMI input ( TV digital interface support HDCP) with digital audio/PC DVI input/ARC

• HDMI 3: HDMI input ( TV digital interface support HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC

• HDMI 4: HDMI input ( TV digital interface support HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC

• +5V detection mechanism

• Stable clock detection mechanism

• MHL 2.0 function only for HDMI4

• Audio return channel(ARC)

• TMDS output control

•HPD control

•CEC control

The MT5593UGIJ is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

• ATSC /DVB-T /DVB-C/DTMB demodulators

• Ture 120HZ Full HD MJC

• Power CPU core

MT5593UGIJ

Table 2-1

For a functional diagram of the MT5593UGIJ, refer to Figure 8-1

.

2016-Jun-08

EN 46 QM16.3A LA8.

20030_300.eps

Block diagram

MT5593UGIJ

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

8.1 Diagram 10-9-1 SOC-EMMC, B01, MT5593UGIJ (IC U9400)

Figure 8-1 Internal block diagram

2016-Jun-08

Table 2-1

IC Data Sheets

20030_301.eps

Pinning Information

MT5593UGIJ

123 45678 9 10111213 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

A

NC_A1 CI_A5 CI_A6 CI_A7 CI_A12 CI_MDI1 CI_MDI0 CI_INT

SPI_DATACI_TSVALDEMOD

_TSCLK

USB_DP

_P0

USB_DP

_P1

HDMI_0

_RX_2

HDMI_0

_RX_1

HDMI_0

_RX_0

HDMI_0

_RX_C

HDMI_1

_RX_2

HDMI_1 _RX_C

HDMI_2

_RX_0

HDMI_3

_RX_1

AVDD10

_HDMI

AVDD10 _SSUSB

SSUSB_

RXN

AVDD33 _SSUSB

SSUSB_

TXN

SSUSB_

VRT

AIN_R3 AIN_R1 NC_A38

A

B

CI_A2 CI_A4 GPIO47 CI_M DI7 CI_MD I4

CI_MIV

AL

CI_MDI2

CI_MISTRTCI_MDO6CI_MDO

5

SPI_CLK

PVR_TS

CLK

CI_TSSY

NC

IF_AGC

USB_VR

T_P0

USB_D

M_P0

USB_D

M_P1

HDMI_0 _RX_2B

HDMI_0

_RX_1B

HDMI_0 _RX_0B

HDMI_0 _RX_CB

HDMI_1 _RX_2B

HDMI_1 _RX_CB

HDMI_2 _RX_0B

HDMI_3 _RX_1B

AVDD10

_HDMI

DVSS

SSUSB_

RXP

DVSS

SSUSB_

TXP

AIN_L2 A IN_R0 DVSS AIN_R2

B

C

CI_A0 CI_A1 CI_A3

CI_MDO

2

CI_MDI6 GPIO64 CI_MDI3 CI_A14 CI_A13 CI_D6 SPI_CLE

SPI_CLK1CI_TSD

ATA0

CI_TSCL

K

RF_AGC DVSS DVSS DVSS

HDMI_1

_RX_1

HDMI_1

_RX_0

HDMI_2

_RX_2

HDMI_2

_RX_1

HDMI_2

_RX_C

HDMI_3

_RX_2

HDMI_3

_RX_0

HDMI_3

_RX_C

USB_DP

_P2

AL0_ADACAR2_AD

AC

AIN_L3 AIN_L1

C

D

SD_D0

SD_CM

D

GPIO42 CI_D2

CI_MDO

1

GPIO63 GPIO66

VCC3IO

_SD

CI_MDI5

CI_MCL

KI

CI_A11 CI_A10

CI_MDO7CI_MDO

3

GPIO44

PVR_TS

VAL

DEMOD

_TSDAT

A0

DEMOD _TSSYN

C

HDMI_1 _RX_1B

HDMI_1 _RX_0B

HDMI_2 _RX_2B

HDMI_2 _RX_1B

HDMI_2

_RX_CB

HDMI_3 _RX_2B

HDMI_3 _RX_0B

HDMI_3 _RX_CB

USB_D

M_P2

HDMI_3

_SDA

HDMI_3

_SCL

AR1_ADACAR0_AD

AC

AIN_L0

VMID_A

ADC

D

E

SD_D2 SD_D1 GPIO46 CI_D1

CI_MDO

0

GPIO65 GPIO62 GPIO61 CI_A8 CI_A 9 CI_D5 CI_D7 C I_D4

PVR_TS

SYNC

OSCL2

DEMOD

_RST

DVSS DVSS

HDMI_1 _PWR5V

HDMI_2 _PWR5V

ADIN3_

SRV

HDMI_3

_PWR5V

AL2_ADACAL1_AD

AC

XTALI XTALO

E

F

VCC3IO

_A

SD_D3SD_CLK GPIO48 GPIO45 CI_D0 DVSS DVSS

CI_MDO

4

CI_D3

PVR_TS DATA0

OSDA2

DEMOD _TSVAL

DEMOD _TSDAT

A1

DEMOD _TSDAT

A7

MHL_SE

NSE

DEMOD _TSDAT

A6

HDMI_0

_SCL

HDMI_0

_SDA

HDMI_0 _HPD_C

BUS

HDMI_1

_HPD

HDMI_2

_HPD

HDMI_2

_SDA

HDMI_3

_HPD

ADCIN N_DEM

OD

ADCINP _DEMO

D

F

G

AVDD33

_DDR

AVSS_D

DR

CRTP CRTN DVSS GPIO43

PVR_TS DATA1

FSRC_W

R

DEMOD _TSDAT

A2

DEMOD _TSDAT

A5

HDMI_CECHDMI_0

_PWR5V

ASPDIFO1HDMI_1

_SDA

HDMI_1

_SCL

HDMI_2

_SCL

AVDD33 _XTAL_

STB

AVDD33

_DEMO D_STB

G

H

DDRVR

EF_C1

CRDQ4 CRDQ6 CRA13

CRRESE

T#

CRA7 CRA9

DEMOD _TSDAT

A3

DEMOD _TSDAT

A4

SIF_CO

M

CVBS0P

H

J

CRDQ2 DVSS CRA3 CRA0 DVSS DVSS

ADIN6_

SRV

CVBS_C

OM

PR0P C VBS3P

J

K

CRDQ11 CRDQ0 CRDQ9 CRBA0 DVSS CRA2 CRA5 DVSS DDRV

VDACX

_OUT

CVBS1P CVBS2P PB0P COM0

K

L

CRDQ13 CRDQ15 CRCS#CRCSD# CRODT CRRAS#DVSS DDRV LOUTP LOUTN

AVDD33 _LVDSA

DVSS

ADIN4_

SRV

ADIN0_

SRV

ADIN2_

SRV

Y0P SOY0 PR1P

L

M

CRDQM

1

TN_AR

MPLL

DVSS DVSS DVSS DVSS

AVSS33

_CLN

AVSS33

_RGB

AVDD33

_AADC

AVDD33

_ADAC

AVDD33 _LVDSB

DVSS

ADIN5_

SRV

ORESET

B

AVDD33

_VIDEO

_STB

PB1P Y1P COM1

M

N

CRDQM0CRDQS0

#

CRDQS0DVSS DDRV

TP_ARM

PLL

DVSS DVSS DVSS DVSS DVSS

AVSS33 _DEMO

D

AVSS33

_XTAL

AVDD33

_USB

OPCTRL6ADIN9_

SRV

ADIN8_

SRV

SOY1 RP

N

P

CRDQS1

#

CRDQS1 CRDQ12 CRC LK0

CRCLK0

#

DVSS CRBA2 CRWE# CRCAS#

DDRV_

CKC

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

AVDD33

_HDMI

AVDD33

_HDMI

AVDD33

_ETH

ADIN1_

SRV

COM GP SOG

P

R

CRDQ14 CRDQ10 CRDQ8 CRA12 DVSS DV SS DV SS DV SS DVSS DVSS DVSS DVSS DVSS DVSS

OPCTRL2OPCTRL0OPCTRL8OPCTRL

1

HSYNC BP

R

T

CRDQ1 DVSS CRBA1 CRA10 CRCKE DVSS DVSS DDRV DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

OPCTRL

5

VSYNC

VGA_SC

L

T

U

CRDQ7 CRDQ3 DVSS CRA4 CRA1 CRA11 CRA14 CRA8 CRA6 DDRV DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DV SS DV SS VCCK DVSS CPC0

POR_OPTOPCTRL7VGA_SDAADIN7_

SRV

AVDD33 _RGB_S

TB

U

V

DDRVR

EF_A1

CRDQ5 DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS VCCK VCCK VCCK CPC1 CPC2

AVDD10

_LDO

AVDD10

_ELDO

REXT

V

W

ARDQ4 ARDQ6 DVSS DVSS DVSS ARTN DVSS DVSS DV SS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS VCCK VCCK VCCK

OPCTRL

3

TXVP_0 TXVN_0

W

Y

ARDQ2 ARDQ0 ARDQ11 ARCLK0

ARCLK0#DDRV_

CKA

DVSS DVSS ARTP DVSS DV SS DV SS DV SS DVSS DVSS DVSS DVSS DVSS DVSS DVSS VCCK VCCKVCCK

OPCTRL9OPCTRL

4

OIRI

AVDD33 _PLL_STBRXVP_1 RXVN _1

Y

AA

ARRAS# ARCAS#ARCKE DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DV SS DV SS VCCK VCCK VCCK

LED_PWM1LED_PWM0PHYLED

1

AVDD33 _REG_S

TB

USB_DP

_P3

USB_D

M_P3

AA

AB

ARDQ15 ARDQ13 ARDQ9 ARCSD# ARCS#ARODTARWE# DDRV DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS VCCK VCCK VCCK

ASPDIFO0PHYLED

0

DVSS

OPCTRL11OPWRS

B

AB

AC

ARDQS0

ARDQS0#ARDQM

1

DVSS DVSS DVSS DDRV DD RV DVSS DVSS DVSS DVSS DVSS DVSS VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK

OPCTRL12OPCTRL17OPCTRL

10

DVSS

STB_SCLSTB_SD

A

AC

AD

ARDQM

0

ARDQS1DVSS ARBA0 ARBA2 ARA10 DVSS DDRV DVSS DVSS DVSS DVSS DVSS VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK

OPCTRL16OPCTRL

15

OPCTRL20OPCTRL18OPCTRL

19

AD

AE

ARDQS1

#

ARBA1 ARA0 DVSS MEMTP

AVSS_DDRAVDD10

_DDR

VCCK VCCK VCCK VCC K VCCK VCCK VCCK VCCK

OPCTRL

14

PAALE U0TX U0RX

AE

AF

ARDQ8 ARDQ12 ARDQ14 ARA3 DVSS ARA12 ARA2 DVSS DVSS MEMTN

AVSS_DDRAVDD10

_DDR

PDD2 PDD1 DVSS

POCE1__BLED_PWM2POCE0_

_B

AF

AG

ARDQ10 ARDQ1 ARDQ3 DVSS ARA4 ARA1 ARA5 DVSS

OPCTRL

13

LED_PW

M3

PACLE

POWE__

B

AG

AH

ARDQ7 ARDQ5 ARA9 DVSS DDRV DDRV PDD3 PDD4

PARB__BPOOE__

B

AH

AJ

ARDQ20

DDRVR

EF_A2

ARDQ22 ARA7 ARA6 DVSS DDRV DDRV DDR V DDRV DS PDD7 PDD6 PDD5 DVSS PDD0

VCC3IO _EMMC

AJ

AK

ARDQ18 ARDQ16 ARDQ27

ARRESE

T#

ARA13 ARA11 DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV

TN_HPC

PLL

TP_HPC

PLL

DVSS GPIO49 DVSS DVSS OPWM8 OPWM7

EMMC_

RSTB

GPIO60

VCC3IO

_B

AK

AL

ARDQ25 ARDQ29 ARA8 DVSS DDRV DDRV DDRV DDRV DVSS DVSS BRTP BRTN TCON0 TCON5 TCON6 TCON7 TCON12 GPIO 50 GPIO55 O PWM1

AOSDA

TA2

OPWM6 OPWM4

EMMC_

CLK

AL

AM

ARDQM

3

ARDQ31ARDQS2 ARA14 D DRV DDRV DDRV DDRV DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS TCON1 TCON 3 TCO N4 TC ON8 TCON10 GPIO51 GPIO54

AOSDA

TA1

AOBCK

AOSDA

TA3

OPWM5 GPIO59 U1RX U1TX

AM

AN

ARDQS2#ARDQM

2

DVSS DDRV DDRV DDRV DVSS DVSS BRCKE BRA10 BRBA1 BRA2 BRA7 BRA6 BRA14 TCON2 TCON9 TCON11 GPIO52 GPIO53

AOLRCKAOSDA

TA0

AOSDA

TA4

OPWM3 GPIO58 OSCL1 OSDA1

AN

AP

ARDQS3

#

ARDQ28

DDRV_

CKB

DDRV BRCLK0 BRCAS# BR OD T BRWE# BRBA 0 BRBA2 BRA3 BRA5 BRA1 BRA9 BRA11 BRA8 DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

AOMCL

K

OPWM2 OPWM0

AP

AR

ARDQ24 ARDQ30ARDQ23 BRDQ11

BRCLK0

#

BRRAS#BRCS#BRCSD# DVSS BRA0 B RA12

BRDQM

3

BRA4 DVSS BRA13

BRRESE

T#

DVSS BE4N BE3N BE2N B E1N BO4N BO3NBO2NBO1NAE4N AE3NAE2NAE1NAO4NAO3NAO2NAO1NGPIO56ASPDIFI

AR

AT

ARDQ26 ARDQ17 BRDQ4 DVSS BRDQ15

BRDQS0

#

DVSS BRDQS1BRDQ8 BRDQ1 BRDQ7 BRDQ20 BRDQ16 BRDQ25

BRDQM2BRDQS3

#

BRDQ30 BRDQ19 BRDQ21 BE4P BE3PBE2PBE1PBO4PBO3PBO2PBO1PAE4PAE3PAE2PAE1P A O4P AO3PAO2PAO1POSDA0 OSCL0

AT

AU

ARDQ19 ARDQ21 BRDQ2 BRD Q0 BRDQ9 BRDQS0

BRDQM0BRDQS1

#

BRDQ10 BRDQ3 BRDQ5 BRDQ18 BRDQ27 BRDQ29

BRDQS2

#

BRDQS3 BRDQ28 BRDQ17 BRDQ23

AVSS_DDRAVDD10

_LVDS

BECKN BE0N B OCKN BO0N AECKN AE0N AOCKN AO0N GPIO57

AU

AV

NC_AV1

DDRVR

EF_B1

BRDQ6 BRDQ13

BRDQM

1

BRDQ12 BRDQ14

DDRVR

EF_B2

BRDQ22 BRDQ31BRDQS2 BRDQ24 BRDQ26

AVDD10

_DDR

REXT_V

PLL

BECKP BE0P BOCKP BO0P AECKP AE0P AOCKP AO0P

NC_AV3

8

AV

123 45678 9 10111213 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

EN 47QM16.3A LA 8.

Figure 8-2 Internal pin configuration

Table 2-1

2016-Jun-08

EN 48 QM16.3A LA8.

20030_304.eps

Block diagram

NT72324BG

AXI

AHB

Leon

DDR3 PHY

MAU

6-Port

LVDS RX

/

12-

Lane

Vx

1

RX

Mute

Detect

Dither

White

Balance

Gamma

Local

Dimming

PreCM

16-Lane Vx

1

TX/

FRC

TNR

SR-EX

IC Data Sheets

8.2 Diagram 10-9-6 BE-NT324a-Vx1-INPUT, B06, NT72324BG-35 (IC U3100)

Figure 8-3 Internal block diagram and pin configuration

2016-Jun-08

Table 2-1

8.3 Diagram 10-9-5 FE-TUNER-DEMOD-TPV, B05, SI2169-C50 (IC U201)

20030_302.eps

Block diagram

Pinning information

Si2169C

(GND_PAD)

QFN-48 7x7mm

343536

21

22

23

24

3 4 5

33

20

6327

28293031 27

8 9 10 11 12

15

16

17

18

19

40

39

38

37

41

46

45

44

43

42

MP_A

S_ADC_IP

S_ADC_IN S_ADC_QP S_ADC_QN

SDA_MAST SCL_MAST

NC

TC_ADC_P TC_ADC_N

DISEQC_OUT

MP_B

SCL_HOST

DISEQC_CMD

GND

SDA_HOST

TS_VAL

DISEQC_IN

TS_DATA[1]

TS_DATA[5]

TS_DATA[4] TS_DATA[3]

GND

VDD_VIO

TS_DATA[2]

TS_DATA[0]/TS_S TS_CLK

TS_SYNC

47

14

TS_DATA[7]

RESETB

XTAL_I/CLK_I

XTAL_O

GND

VDD_VCORE

VDD_VANA

ADDR

GND

GPIO_0

48

13

21

26 25

TS_DATA[6]

TS_ERR/GPIO

CLK_IN_OUT

GND

VDD_VCORE

VDD_VIO

VDD_VCORE

MP_D

MP_C

SI2169-C50

HDTV MPEG S.o.C.

Si2169C

HOST_SCL

HOST_SDA

FRONT

END

OSC

& PLL

x(A)PSK

QAM

DEMOD

S_ADC_IN

S_ADC_IP

S_ADC_QN

S_ADC_QP

ADC (I)

ADC (Q)

EQUAL-

IZER

I2C

SWITCH

TUN_SDA TUN_SCL

GPIOCTRL

MPEG TS

INTERFACE

I2C I/F

MP_C/_D (Sat.)

GPIO_0

RESETB1.2, 3.3V

DSP &

SYNCHRO

DVB-T2/T/C/S/S2

FEC MODULE

OFDM

DEMOD

EQUAL-

IZER

DiSEqC

TM

2.0

DISEQC_IN

DISEQC_OUT

TC_ADC_P

TC_ADC_N

AGCs

ADC

MP_A/_B (T & C)

Ext. Clk orXtal

QPSK/8PSK/xAPSK

Satellite

ZIF Tuner

Silicon Labs

(Si217x/5x/4x)

TV Tuner

CLK_IN_OUT

LDPC BCH

VITERBI RS

TS_ERR/ GPIO_1

TS_SYNC TS_VAL

8

TS_CLK TS_DATA

IC Data Sheets

EN 49QM16.3A LA 8.

Figure 8-4 Internal block diagram and pin configuration

Table 2-1

2016-Jun-08

EN 50 QM16.3A LA8.

20030_303.eps

Block diagram

Pinning information

IN

OUT

SET

SS

EN

5.5V

Gate Driver &

Slew Rate

Control

5V Linear

Regulator

Thermal

Shutdown

Current Limit

UVLO Comparator

AOZ1360

C1 1µF

C2

R1

84.5kΩ

1µF

C3 1nF

AOZI360DIL

IN

SS

EN

OUT

1

2

4

6

9

GND

3

OUT

8

SET

7

5

10

NC

OUT

GND

8.4 Diagram 10-9-15 DCDC-SYSTEM-POWER2, B15, AOZ1360DIL (IC U4405)

IC Data Sheets

2016-Jun-08

Figure 8-5 Internal block diagram and pin configuration

Table 2-1

8.5 Diagram 10-9-15 DCDC-SYSTEM-POWER2, B15, MP8124GD (IC U751)

20030_305.eps

Block diagram

Pinning information

MP8124

IC Data Sheets

EN 51QM16.3A LA 8.

Figure 8-6 Internal block diagram and pin configuration

Table 2-1

2016-Jun-08

EN 52 QM16.3A LA8.

20150_300.eps

Block diagram

NT72324BG

AXI

AHB

Leon

DDR3 PHY

MAU

6-Port

LVDS RX

/

12-

Lane

Vx

1

RX

Mute

Detect

Dither

White

Balance

Gamma

Local

Dimming

PreCM

16-Lane

Vx

1

TX/

FRC

TNR

SR-EX

IC Data Sheets

8.6 Diagram 10-9-6 BE-NT324a-Vx1-INPUT, B06, NT72324BG (IC U3100)

Figure 8-7 Internal block diagram and pin configuration

2016-Jun-08

Table 2-1

8.7 Diagram 10-9-12 DCDC-Novatek-POWER, B12, G5318RE1D (IC U4103)

20030_307.eps

Block diagram

Pinning information

TRIP

PGOOD

EN

FB

LX VCC

DH

BST

4

1

2

3

8

7

6

5

9

10

Thermal

Pad

RF

DL

11 GND

TRIP

PGOOD

EN

FB

LX VCC

DH

BST

4

1

2

3

8

7

6

5

9

10

Thermal

Pad

RF

DL

11 GND

G5318RE1D

PWM

controller

0.7V

Reference

PGOOD

BST DH LX

VCC

DL GND

LX

FB

EN

RF

Freq

Setting

POR

On-Time

Off-Time

DISCHG

VCC

OT

OVP

UVP

SKIP/force PWM

OCP

TRIP

PWM

controller

0.7V

Reference

PGOOD

BST DH LX

VCC

DL GND

LX

FB

EN

RF

Freq

Setting

POR

On-Time

Off-Time

DISCHG

VCC

OT

OVP

UVP

SKIP/force PWM

OCP

TRIP

IC Data Sheets

EN 53QM16.3A LA 8.

Figure 8-8 Internal block diagram and pin configuration

Table 2-1

2016-Jun-08

EN 54 QM16.3A LA8.

19880_304.eps

Block diagram

Pinning information

S

TAS5760LDDCAR

S

-

IC Data Sheets

8.8 Diagram 10-9-16 AUDIO-1st-CLASS-D-AMP, B16, TAS5760LDDCAR (IC U5100)

DDVAGER_ANADDVRDDDVD GVDD_REGPVDD

FT_CLIP

MCLK SCLK LRCK

SDIN

DR_INA+

DR_INA-

DR_INB+

DR_INB-

Internal

Voltage

Supplies

DirectPathTM Ground

Centered Headphone /

DR_OUTA DR_OUTB

Serial Audio

Port

Line Driver

DRVDD

Digital

Boost

& Volume Control

Clock Monitoring

SFT_CLIP

ANA_REG

ANA_REF

SPK_FAULT

FREQ/SDA

PBTL/SCL

SPK_GAIN0 SPK_GAIN1

PK_SLEEP/ADR

DR_OUTA

DR_MUTE

Clipper

DRVSS DR_CP

VCOM

SPK_SD

DVDD

MCLK

SCLK

SDIN

LRCK

DGND

DR_INA-

DR_INA+

DRGND

DRVSS DR_CN

Internal Reference

Regulators

Closed Loop Class D Amplifier

Digital to

PWM

Digital

Conversion

Analog

Gain

DRVDD

Charge Pump Internal Control Registers and State Machines

DR_CN

PBTL/

SCL

Soft

Clipper

SPK_GAIN0

SPK_GAIN1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

PowerPAD

20 21 22 23 24

Gate

Drives

Gate

Drives

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25

Internal Gate

Drive Regulator

Full Bridge

Power Stage

Full Bridge

Power Stage

SPK_FAULT

SPK_SD

GVDD_REG GGND AVDD PVDD PVDD BSTRPA+ SPK_OUTA+ PGND SPK_OUTABSTRPABSTRPBSPK_OUTBPGND SPK_OUTB+ BSTRPB+ PVDD PVDD DR_INBDR_INB+ DR_OUTB DR_UVE DRGND DRVDD DR_CP

A

B

Over-

Current

Protection

Die

Temp. Monitor

SPK_SLEEP/

ADR

FREQ/

SDA

SPK_OUTA+

SPK_OUTA

SPK_OUTB+

SPK_OUTB

2016-Jun-08

Figure 8-9 Internal block diagram and pin configuration

Table 2-1

IC Data Sheets

20030_306.eps

Block diagram

NT72333TBG

8.9 Diagram 10-10-6 BE-NT72333a-Vx1-INPUT, B06, NT72333TBG/C (IC U3100)

EN 55QM16.3A LA 8.

Figure 8-10 Internal block diagram and pin configuration

Table 2-1

2016-Jun-08

EN 56 QM16.3A LA8.

20030_307.eps

Block diagram

Pinning information

TRIP

PGOOD

EN

FB

LX VCC

DH

BST

4

1

2

3

8

7

6

5

9

10

Thermal

Pad

RF

DL

11 GND

TRIP

PGOOD

EN

FB

LX VCC

DH

BST

4

1

2

3

8

7

6

5

9

10

Thermal

Pad

RF

DL

11 GND

G5318RE1D

PWM

controller

0.7V

Reference

PGOOD

BST DH LX

VCC

DL GND

LX

FB

EN

RF

Freq

Setting

POR

On-Time

Off-Time

DISCHG

VCC

OT

OVP

UVP

SKIP/force PWM

OCP

TRIP

PWM

controller

0.7V

Reference

PGOOD

BST DH LX

VCC

DL GND

LX

FB

EN

RF

Freq

Setting

POR

On-Time

Off-Time

DISCHG

VCC

OT

OVP

UVP

SKIP/force PWM

OCP

TRIP

8.10 Diagram 10-10-14 DCDC-SYSTEM-POWER1, B14, G5318RE1D (IC U4306)

IC Data Sheets

2016-Jun-08

Figure 8-11 Internal block diagram and pin configuration

Table 2-1

9. Block Diagrams

20030_401.eps

EU/RU

32 32

2x DDR3

1833 4Gbit

2x DDR3

1833

4Gbit

eMMC

16GB

3xDDR3

1x DDR3

Wi-Fi 11AC

BT

16

1x DDR3

1833

4Gbit

EU#1 EU#3

T UHD100

EU#6 PQ BO

HTV RJ50

Connector

HTV 12V

8/16 Lane Vx1

1600

1Gbit

48

1600

1Gbit

16

USB 3.0

USB2.0

Eth

ernet

USB2.0 USB2.0

UHD50

UHD100

HTV Bathroom

Connector

(Video) 8 Lane Vx1

C

onnec

t

o

r

NT72324

UHD FRC

S

PI Flash

(Graphics)4Lane Vx1

LVDS/Vx1

Transmitter

Satellite

Tuner

PCMCIA

CIMaX+

Dual

CA

MT5593U+

BL-PWM (8x)

3D-Goggle 3D-LR-OUT

Disp-Ctrl (4x)

Analog Dim

3D-LR-MTK SplashScreenOn

S

as

2/4MB

Hybrid

Tuner

Optical

DVB

-

T2/T/C/

S2/S

Demod

TS

input

TS

input

IF

GLUE GLUE

AL

-

SPI-NVT

SPI

-

S

e

l

ec

t

SPI

Switch

AL-SPI-OUT

Audio

AMP

GLUE

AL-SPI-MTK

UART

I2S-1

SPI

flash

512kB

Bridge

SiI9777

GLUE

SPDIF

HDMI-ARC

Connector

YPbPr

GLUE

Audio L/R

RGB

CVBS

Analog I/O

I2S-0

Analog L/R

Audio

AMP

ADAC

KLEERNET DONGLE

I2S

SPDIF

Headphone detect For HTV

9.1 Block diagram 7101/7601 series

Block Diagrams

EN 57QM16.3A LA 9.

2016-Jun-08

back to

div.table

9.2 Block diagram 6801 series

20151_400.eps

GPA22

OPWM1

2 X (DDR2 512M b its )

1333 MHz

eMMC

8 GB

1 X DDR3

1833 4G bit

2 X DDR3

1833 4G bit

2 X DDR3

1833 4G bit

Ethernet

U S B 3 .0

U S B 2.0

P a r a llel TS [D0:D7]

U S B 3 .0

U S B 2.0

Analog

I/O

HDMI

Rx

IF inpu t

LVDS /Vx1

Transmitter

MT5593 U+

Dual CA17 + 2xCA7 1MB L2 CAche Mali T624 MP3

ME/MC HEVC UHD50/60

DVB-

T/T2/S/S2 DEMOD sI216X

RGB/CVBS

HDMI port3

HDMI port2

HDMI port1

HDMI port0 + MHL

YPb Pr

A u dio L/R

8-Lane V X 1

Audio AMP

TAS5760

NT72333

UHD50 FRC MEMC

UHD50

Tcon

Audio AMP

APA2010

PWM

I2S

Digital

ADAC

SPI Flash

16Mb

Wi-Fi 11AC

BT

Disp Control (X4)

IF

PWM

Bluetooth

Wi-Fi

RJ45

Speaker

Headphone

Bathroom SPK

(Mono)

8-Lane V X 1

DVB-C/T/T2

DVB S/S2

Hybrid

Tuner

Satelite

Tuner

SPI-select

SPI

switch

AMBI-SPI-OUT

Dp/Dn

Video

Audio

S CART

BACKLIGHT

BL-DIMMING

AMBI-LIGHT

AMBI-S PI-MTK(S t a tic)

AMBI-SPI-NVT

(Dynamic)

HDMI

TS input

TxRx-p/n

Dp/Dn + Dp/Dn_TxRx

Dp/Dn

FHD 50 Hz

For HTV only

Uart/RS232

RJ48 SXP

Uart & RS232

U0TxRx

UHD 50 Hz

Block Diagrams

EN 58QM16.3A LA 9.

2016-Jun-08

back to

div.table

Circuit Diagrams and PWB Layouts

20150_500.eps

AC input

A01 A01

2015-11-26

3

715G7831

AC input

CN9901

AC 2P

12

F9901

T6.3AH 250V

1 2 3 4

-

+

BD9902 TS10P06G-04

2

1

3

4

RV9901

680V

R9905

NC_3.9MOHM +-5% 1/2W

FB9902

BEAD

1 2

FB9901 BEAD

1 2

C9902 470NF 275V

L9901

8MH

1

4

2

3

L9902 8MH

1

4

2

3

GND

t

NR9901

1.5R

1 2

GND

SG9902 NC

-

+

BD9901 TS10P06G-04

2

1

3

4

Vsin

R9903 1MOHM +-5% 1/4W

R9904 1MOHM +-5% 1/4W

R9907 1MOHM +-5% 1/4W

R9908

1MOHM +-5% 1/4W

2

1

U9901 CAP004DG-TL

NC

1

D12D1

3

NC

4

NC5D26D27NC

8

L9905

0.25mH

1

2

4

3

C9916 1NF 250V

GND

HS9901 HEAT SINK

1 2

3

4

FB9916

NC_BEAD

1 2

CN9902 NC

L

1

N

2

t

NR9903

5R

12

t

NR9902

5R

12

C9911

22PF 250V

C9912

22PF 250V

C9915 1000pF 250V

C9903 47PF

SG9901

NC

DV5

2

1

BR_IN

FB9904

127R

1 2

C9917

680PF 250V

FB9917

127R

12

GND1

GND

1

C9913

220PF 250V

R9299 NC

SW9901

NC

3

4

1 2

L9904

NC

1

2

4

3

GND

C9901

470NF 275V

C9914

220PF 250V

L9903 NC

1

2

4

3

GND3

GND

1

GND2

GND

1

GND4

GND

1

10. Circuit Diagrams and PWB Layouts

10.1 A 715G7831 PSU

10-1-1 AC input

EN 59QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-1-2 PFC with LD7591T

20030_507.eps

PFC with LD7591T

A02 A02

2015-11-26

715G7831

PFC with LD7591T

ZD9801

BZT52-B18

1 2

FB9804

NC_BEAD

1 2

R9815

30K 1/8W 1%

R9819

0R05 1/ 4W

C9815

100N 50V

C9816

100N 50V

C9814

100P 50V

+VCC2

HVvcc

C9817 100PF

HVvcc

R9821 NC _2Mohm 1/ 4W +/-1%

R9824 NC _15K 1/ 8W 1%

R9823 NC _2Mohm 1/ 4W +/-1%

R9822 NC _2Mohm 1/ 4W +/-1%

C9819

NC_470PF 50V

C9818

NC _100N 50V

D9810

NC_1N4148W

GND GNDGND

D9805 SS1060FL

D9806

SS1060FL

U9802

NC_LD8105GL

ISEN

1

GND

2

VSEN3IREF

4

OUT

5

VCC

6

GND

PFC_OVP

+VCC1

R9825

NC _510R 1%

R9817

10K OHM +-5% 1/8W

R9802

27 OHM

R9818

NC _0R 05 1/ 4W

R9816 100K 1/8W

C9813

0.47U F 50V

C9809

100N 50V

R9813

30KOHM +-1% 1/8W

C9812 47N 50V

C9802 NC

R9812

470R 1%

+

C9808

22UF 50V

C9806 1UF 450V

HS9801

HEAT SINK

1 2

3

4

C9807 47P 50V

+

C9803 68uF 450V

+

C9804 68uF 450V

R9814

10K 1/8W

D9804

SS1060FL

D9801 IN5408G-04

R9805

10K 1/8W

R9809

0.082R

C9801 47PF

D9803

FMNS-1106S

U9801

LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

C9810 470PF 50V

R9808

0.082R

Q9801

IPA60R125P6

2

1

3

C9811

1NF

R9803

75 OHM

R9804

1M 1% 1/4W

+

C9805

68uF 450V

R9811 19K1 +-1% 1/8W

R9801 0R05

FB9801 127R

1 2

R9807

1.8KOHM +-1% 1/8W

L9801

170uH

1

6

3

4

FB9803 BEAD

1 2

R9806

1M 1% 1/4W

R9810 1M 1% 1/4W

D9802 IN5408G-04

GND

GND GND

GND

GND GN D

GND

Q9802 BSS127

3

1

2

Q9803

MMBT2907A

Vsin

Vbus

R9800

0.024R

GND

Circuit Diagrams and PWB Layouts

EN 60QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-1-3 Flyback with SSC3S121

20030_508.eps

Flyback with SSC3S121

A03 A03

2015-11-26

715G7831

Flyback with SSC3S121

R9138

620K 1/4W

+5V

R9136 620K 1/4W

R9119

1.5K OHM

12VS

R9118

4.7K 1/8W

BR_out

C9114

1uF

U9104

AS431AN-E1

+VCC1

R9153

3K

Q9102

BTC4672M3

+

C9110

2200uF 25V

+

C9111

2200uF 25V

C9149

10PF

+

C9146

22UF 50V

R9121

1K 1/8W 1%

C9121 220N 50V

+12V+12V

+VCC2

+12V

R9115

2K 1/8W 1%

R9116

1.6K 1%

ZD9103

BZT52-B39

1 2

R9154

20K 1/8W 1%

R9120

9K1 1/8W 1%

DV5

12VS

R9128

6.2KOHM +-1% 1/8W

R9113

5R1 1%

C9102

4.7uF 25V

Q9105

2N7002K

ZD9101

BZT52-B4V3

1 2

Q9111

TK32A12N1 32A

ZD9109

BZT52-B16

1 2

Vbus

C9142

0.1uF 50V

T9101

POWER X'FMR

1

2

3

4

5

7

8

6

10

11

12

R9129

10K OHM

R9130

330K 1% 1/8W

C9148

NC

U9301

SY8113BADC

BS

1

GND

2

FB3EN

4

IN

5

LX

6

ZD9102

BZT52-B39

1 2

D9104 NC_SK810C

12

DV5

GND

R9127

2.4 OHM

GND

R9150 39R

CN9102

NC_CONN

2

4

6

8

10

12

14

16

1

3

5

7

9

11

13

15

ZD9107

BZT52-B15

1 2

C9117NCC9123

2.2NF

R9141 75K

C9116

2.2NF

C9145

100PF

GND

R9303

1.96KOHM +-1% 1/8W

D9108

1N4148W

R9155 2Kohm 1/4W

GND

R9140 39R

D9106 NC_SK810C

12

R9156 3K 1%

U9101

SSC3S121A

FB/OLP

1

BR

2

ST4DRV

5

OCP

6

VCC

7

GND

8

R9114

2.4 OHM

D9101

SARS01-V1

D9109

SARS01-V1

R9304

2R2

R9157

10K OHM

R9106

NC

GND

R9158 1K5 +-1% 1/8W

Q9101

TK13A65U

R9142 100KOHM +-5% 1/8W

D9102

SS1060FL

C9141

0.1uF 50V

PFC_OVP

R9101

0.2R 2W

GND

Q9108

2N7002K

R9107

82 OHM

C9147

0.1uF 50V

R9108

10R 1%

C9119

NC

C9120

1uF

R9159

51 OHM 1/ 4W

R9160

510K 1% 1/8W

+

C9308 470UF 25V

R9109

10K 1/8W

BR_out

PS_ON

12VS

C9304

100NF 50V

GND

LLC_OVP

DV5

R9104

150 OHM 1/4W

U9112 NC

IN

3

OUT

1

GND

2

R9143

100K 1/8W

R9301

5K1

R9110

27 OHM

R9164 3K 1%

R9111

27 OHM 1/ 4W

R9112

27 OHM

R9131

27 OHM

C9104 470PF 50V

+

C9301 470UF 25V

R9132

27 OHM

R9133

27 OHM

C9122

0.1uF 50V

C9128

4.7uF 50V

R9145 510K 1% 1/8W

GND

ZD9301

BZT52-B5V1

12

D9107 NC_SR810-05

12

C9305

100PF 50V

C9307

10UF 16V

C9302

1uF

C9303

100NF 50V

12VS

L9301

4.7uH

C9139

2.2nF 50V

C9306

10UF 16V

R9302

10K 1/8W 1%

C9140

2.2nF 50V C9310

NC

R9122

10K 1/4W

R9123

5K1 +-5% 1/8W

+12V

U9111

SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj

4

GND

5

MOSG-C

6

Vdd

7

SYNC

8

+12V

D9103

PG1010R

Q9110 2N7002K

PS_ON

+5V

+

C9103

100UF 50V

C9143 1uF

12VS

C9144 NC

7812

+

C9109 470uF 25V

CN9101 CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

DIMON/OFF

3D

R9126

10 OHM 1/4W

PS_ON

+5V

+12V

ON/OFF

3D

R9117

5.1K 1/4W

DIM

+12V

Q9109 2SA1797

R9125

4.7 OHM

12VS

7812

C9309

1uF 50V

L9101 NC_1.1uH

FB9301 127R

1 2

L9102

1.1uH

C9124

4.7UF

+12V

+

C9115

470UF 25V

+12V

+VCC1

GND

D9105

SS1060FL

D9100 SR810-05

12

C9112

2.2nF 50V

C9136

47P 50V

C9135

0.1uF 50V C9134

100PF 50V

C9133

0.1uF 50V

BR_IN

HS9101

HEAT SINK

1 2

3

4

HS9102

HEAT SINK

1 2

3

4

R9124 33K +-1% 1/4W

GND

+VCC1

U9102

EL817M(X)

1

23

4

U9103

EL817M(X)

1

23

4

ZD9106

BZT52-B15

1 2

R9165

10M

R9162

56K 1/8W +/-1%

R9163

13K 1%

Q9104 PZ0703ETF

R9137

620K 1/4W

Circuit Diagrams and PWB Layouts

EN 61QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-1-4 LLC with TPV101

20030_509.eps

LLC with TPV101

A04 A04

2015-11-26

715G7831

LLC with TPV101

R8691

NC_0R05 1/ 4W

C8649 NC

C8647

NC

C8648

NC

HS8603

NC_HEAT SINK

1 2

HS8604

HEAT SINK

1 2

FB8602

BEAD

1 2

HS8605

NC_HEAT SINK

1 2

C8602 10NF 1KV

3D_VCC

R8682 0R05 1/4W

R8683 0R05 1/4W

C8646

100PF

R8684 0R05 1/4W

R8685 0R05 1/4W

R8689

1K OHM +-5% 1/8W

C8690 100P 50V

R8690 10K OHM +-5% 1/8W

U8602

TPV101AD

DIM

1

SLP

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8686 0R05 1/4W

R8622

2K2 1/8W 1%

R8687 0R05 1/4W

R8688 0R05 1/4W

D8610

1N4148W

ZD8620 NC_BZT52-B6V2

1 2

U8608

L78L09ACUTR

IN

3

OUT

1

GND

2

R8608

47K 1/4W

ZD8613

NC

1 2

Q8604

MMBT3906

ZD8604 NC

12

HS8602

HEAT SINK

1 2

R8673 NC

D8612

SS1060FL

D8602

NC

C8636

0.1uF 50V

ZD8610

BZT52-B24G

1 2

R8680

1Kohm +-1% 1/4W

R8648 NC

R8661

1.5R 1/4W

R8618

470 OHM 1/8W

R8658 NC

C8628

0.1uF 50V

R8636 1R8 1/4W

ZD8608 BZT52-B15

1 2

U8605

NC_TPV101AD

DIM

1

SLP

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8627 100pF 50V

R8635 1R8 1/4W

ZD8612

BZT52-B30

1 2

R8626 NC

ZD8607

BZT52-B16G

1 2

C8629

4.7UF

C8633

NC

Q8607

NC_MMBT3906

R8630

470 OHM 1/4W

C8615

0.1uF 50V

R8631

2K2 1/8W 1%

R8609

47K 1/4W

R8604 10 OHM

R8671

1K 1/8W 1%

D8608

1N4148W

R8621 NC

R8645 NC

R8640

13K 1% 1/4W

R8666

NC_10K 1/8W 1%

R8668

NC_51OHM +-5% 1/8W

C8601 10NF 1KV

ZD8603 NC

1 2

ZD8616

NC

1 2

D8605 SS1060FL

U8601

SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

R8647 NC

C8644

NC

C8603 2N2 500V

R8616 82 OHM

ZD8614

NC

1 2

R8610

47K 1/4W

D8603

FMXA-2203SE

1

2

3

R8679 100R 1%

R8660 0 OHM +-5% 1/8W

C8631 1uF

U8603

NC_TPV101AD

DIM

1

SLP

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

ZD8602 NC

12

R8620

NC/JUMP

+

C8606

270UF 100V

R8681 1K 1/8W 1%

12VS

ZD8605

BZT52-B18

1 2

R8663 1R8 1/4W

R8662

1.5R 1/4W

R8641

0 OHM +-5% 1/8W

C8637

4.7UF

R8638 75K 1%

R8674 NC

R8642 10K 1/8W 1%

C8613 1uF

R8675 NC

U8604

TPV101AD

DIM

1

SLP

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8670 2K 1/8W 1%

C8634

NC

C8639

100N 50V

R8643 NC

+12V

C8640

0.1uF 50V

+12V

R8623 NC

C8624

4.7UF

R8603 10 OHM

C8623

0.1uF 50V

R8613 10K 1/8W 1%

R8633

1.5R 1/4W

C8610

1uF

Q8611 BSS127

3

1

2

R8611

47K 1/4W

R8602

1.5M 1% 1/4W

C8609

0.1uF 50V

+

C8608

NC

D8606

FMXA-2203SE

1

2

3

R8669

0 OHM +-5% 1/8W

D8609

1N4148W

Q8608

NC_2N7002K

HS8601

HEAT SINK

1 2

3

4

LED_VCC

C8643

NC

R8612

47K 1/4W

+

C8607

NC

LED_VCC

C8604 2N2 500V

R8607

47K 1/4W

LED_VCC

U8607 AS431AZTR-G1

LED_VCC

R8625 NC

C8625

NC

Q8605

2N7002K

R8657

NC

T8602

350uH

1 2

5 6 11

12

8

7

R8605

1.5M 1% 1/4W

C8622 2N2 500V

ZD8615

NC

1 2

R8606 82 OHM

C8635

0.1uF 50V

R8601

1.5M 1% 1/4W

R8654

510K 1% 1/8W

R8649

10K 1/8W 1%

R8676 NC

R8644 NC

Q8609

MMBT3906

R8628 0 OHM +-5% 1/8W

C8616 100PF

T8601

350uH

1 2

5 6 11

12

8

7

R8619 270R 1%

R8653 0 OHM +-5% 1/8W

R8650

10K 1/8W 1%

D8607

SS1060FL

C8638

NC

C8619

1uF

R8632

20K +-5% 1/8W

R8629

47K +-5% 1/8W

R8656 NC

R8614

18K 1/8W 1%

C8621 560PF 50V

R8634

1.5R 1/4W

U8606

EL817M(X)

1

23

4

C8630

10nF 50V

C8612

5PF

C8626

100N 50V

Q8601

TK10A50D

C8641

NC

R8637 1R8 1/4W

R8646 NC

Q8602

TK10A50D

C8620 1nF 50V

R8651

51OHM +-5% 1/8W

R8665 1R8 1/4W

C8645

0.1uF 50V

C8618 15nF

C8642

NC

R8615 10 OHM

FB8601

BEAD

1 2

C8632

NC

HS8606

HEAT SINK

1 2

3

4

R8617

10K 1/8W 1%

ZD8611

BZT52-B24G

1 2

R8677 NC

R8639 10K 1/8W 1%

D8604

NC

D8601 UF4007

Q8610

MMBT3904

+

C8605

270UF 100V

C8611

47P 50V

ZD8606 BZT52-B18

12

R8678 NC

ZD8609

BZT52-B33G

1 2

R8659

NC_10K 1/8W 1%

ZD8601

BZT52-B15

1 2

R8672

NC_510K 1% 1/8W

C8617 15nF

CN8601

CONN

1 2

3

4 5 6 7

8

9 10 11 12

R8664 1R8 1/4W

+

C8614

22UF 50V

R8652 NC

R8627 100KOHM +-1% 1/4W

VS

Vbus

+VCC2

VS

8

VLED

DIM

7

8

12VS

VLED

-VLED-1

-VLED-2

ON/OFF

3D

DIM

LED_VCC

-VLED-1

LED_VCC

DIM

3D_VCC

DIM

LED_VCC

-VLED-2

TPV101_COMP

VLED

LLC_OVP

GND

Q8603

NC

GND

Q8606

NC

LLC_VSEN

Circuit Diagrams and PWB Layouts

EN 62QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-1-5 Power layout top

20030_510.eps

2015-11-04

715G7831

LAYOUT TOP

SU10

SU2

SU1

SU3

SU4

SU5

SU6

SU7

SU9

SG3

SG4

SG5

DR7

DR2

DR3

DR4

DR5

DR8

DR1

SG1

DR6

DRA2

DR10

NP1

NP2

NP3

C8601

C8602

C8607

C8608

C8612

C8614

C8616

C8617

C8618

C8646

C8649

C9103

C9109

C9110

C9111

C9115

C9116

C9117

C9123

C9145

C9146

C9301

C9308

C9801

C9802

C9803

C9804

C9805

C9806

C9808

C9817

C9901

C9902

C9911

C9912

C9913

C9914

C9915

C9916

C9917

CN8601

CN9101

CN9102

CN9901

CN9902

D8601

D8602

D8603

D8604

D8606

D9100

D9101

D9109

D9801

D9802

D9803

F9901

FB8601

FB9801

FB9901

FB9902

FB9904

FB9916

FB9917

GND4

HS8601

HS8602

HS8603

HS8604

HS8605

HS8606

HS9101

HS9102

HS9801

HS9901

L9301

L9901

L9903

L9905

NR9902

NR9903

Q8601

Q8602

Q8603

Q8606

Q9101

Q9104

Q9111

J943

J942

J941

R9101

R9141

R9800

R9808 R9809

SG9901

SG9902

SW9901

T9101

U8602

U8603

U8604

U8605

U8606

U8607

U9102

U9103

GND1

GND2 GND3

L9801

L9904

L9902

FB9301

J928

J936

J932

J933

J934

J924

J937

J927

J929

FB8602

J904

FB9804

J939

J925

J923

J912

J911

J906

J907

J905

J921

J920

J917

J938

J931

J922

J903

J916

D9103

FB9803

R9905

J901

RV9901

J940

J935

J919

J918

J910

J926

C9903

MH17

MH16

MH15

MH14

NR9901

T8601

T8602

BD9901BD9902

R9140

R9150

J908

J909

J914

J913

J930

J944

J945

J902

D9107

J947

J915

J948

MH1

L9101

L9102

J949

J950

MH2

C8605

C8606

C9149

Q9801

J946

J951

J952

Circuit Diagrams and PWB Layouts

EN 63QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-1-6 Power layout bottom

20030_511.eps

2015-11-04

715G7831

LAYOUT BOTTOM

C9136

SM1

TEST3

SM5

C8603

C8604

C8609

C8610

C8611

C8613

C8615

C8619

C8620

C8621

C8622

C8623

C8624

C8625 C8626

C8627

C8628

C8629

C8630

C8631

C8632

C8633 C8634

C8635

C8636

C8637

C8638 C8639

C8640

C8641

C8642

C8643 C8644

C8645

C8647

C8648

C8690

C9104

C9112

C9114

C9119

C9120

C9121

C9122

C9124

C9128

C9133 C9134

C9135

C9139

C9140

C9141

C9142

C9143

C9144

C9147

C9302

C9303

C9304

C9305

C9306

C9307

C9310

C9807

C9809

C9810

C9811

C9812

C9813

C9814

C9815

C9816

C9818

C9819

D8605

D8607

D8608D8609

D8610

D8612

D9102

D9104

D9105

D9106

D9108

D9804

D9805

D9806

D9810

Q8604

Q8605

Q8607

Q8608

Q8609

Q8610

Q8611

Q9102

Q9105

Q9108

Q9109

Q9110

Q9802

Q9803

R8601 R8602

R8603

R8604

R8605

R8606

R8607R8608

R8609R8610

R8611R8612

R8613

R8614

R8615

R8616

R8617

R8618

R8619

R8621

R8623

R8625

R8626

R8627

R8628

R8629

R8630

R8632

R8633

R8634

R8635

R8636

R8637

R8638

R8639

R8640

R8641

R8642

R8643

R8644

R8645

R8646

R8647

R8648

R8649

R8650

R8651

R8652

R8653

R8654

R8656

R8657

R8658

R8659

R8660

R8661

R8662

R8663

R8664

R8665

R8666

R8668

R8669

R8670

R8671

R8672

R8673

R8674 R8675

R8676

R8677

R8678

R8679

R8680

R8681

R8682R8683 R8684

R8685

R8686R8687R8688

R8689

R8690

R8691

R9104

R9107

R9108

R9109

R9110

R9111

R9112

R9113

R9114

R9115

R9116

R9117

R9118

R9120

R9121

R9122

R9123

R9124

R9125

R9126

R9127

R9128

R9129

R9130

R9131

R9132

R9133

R9136R9137R9138

R9142

R9143

R9145

R9154

R9155

R9156

R9158

R9159

R9160

R9162

R9164

R9299

R9301

R9302

R9303

R9304

R9801

R9802

R9803

R9804

R9805

R9806

R9807

R9810

R9811

R9812

R9813

R9814

R9816

R9817

R9818

R9819

R9821R9822R9823

R9824

R9825

R9903 R9904

R9907

R9908

U8601

U9101

U9104

U9111

U9112

U9301

U9801

U9802

U9901

ZD8601

ZD8602ZD8603ZD8604

ZD8605

ZD8606ZD8607

ZD8608

ZD8609

ZD8610

ZD8611

ZD8612

ZD8613 ZD8614 ZD8615 ZD8616

ZD8620

ZD9102

ZD9103

ZD9106

ZD9107

ZD9109

ZD9301

SM6

U8608

R9163

R9153

R9157

R9119

JR911

JR910

JR909

JR908

JR901

JR905

JR912

JR903JR904

JR902

JR914

JR915

JR916

JR906

C9309

C9148

JR907

JR918

JR919

R8631 R8622

JR917

R9815

ZD9801

R9106

ZD9101

R9165

JR920

C9102

Circuit Diagrams and PWB Layouts

EN 64QM16.3A LA 10.

2016-Jun-08

back to

div.table

10.2 A 715G7732 PSU

20150_501.eps

AC input

A01 A01

2016-03-07

715G7732

AC input

FB9906

900R

1 2

FB9905

127R

12

GND2 GND

1

t

NR99033R 3.6W

1 2

R9903 NC / 510K 1/ 4W

FB9904

127R

1 2

R9298

NC/0R05

CN9903 NC/CONN

1 2

C9915 100PF 250V

R9908 NC / 510K 1/ 4W

R9901 390K 1/2W

HS9902

HEAT SINK

1 2

3

4

L9903

10uH

1

2

4

3

-

+

BD9901 GBJ1008-FUC

2

1

3

4

FB9902

900R

1 2

GND4 GND

1

L9902

NC/8MH

1

4

2

3

C9901

470NF 275V

R9904 NC / 510K 1/ 4W

SG9901

NC/DSPL-501N-A21F

t

NR9904 3R 3.6W

12

t

NR9902

5R

12

ZD9213

NC/BZT52-B3V0G

1 2

L9904 8mH

1

2

4

3

L9905 8mH

1

2

4

3

CN9902

NC/CONN

L

1

N

2

FB9903 BEAD

12

FB9901 900R

1 2

HS9901

HEAT SINK

1 2

3

4

ZD9210

NC/BZT52-B3V0G

1 2

R9905

NC / 510K 1/ 4W

CN9901

AC 2P

12

U9901 CAP004DG-TL

NC

1

D12D1

3

NC

4

NC5D26D27NC

8

t

NR9901

5R

1 2

F9901 8A 250V

1 2 3 4

R9100

NC/0R05

ZD9211

NC/BZT52-B3V0G

1 2

R9906 NC / 510K 1/ 4W

C9912

100PF 250V

C9902

470NF 275V

R9299

NC/2 OHM 1%

RV9901

680V

C9904 47PF

SW9901

NC/HF162F_en_12V

3

4

1 2

C9911 22PF 250V

R9297

NC/0R05

R9200

NC/0R05

SG9902

NC/DSPL-501N-A21F

GND1 GND

1

-

+

BD9902 GBJ1008-FUC

2

1

3

4

C9913 100PF 250V

R9902 390K 1/2W

R9907 NC / 510K 1/ 4W

L9901

NC/8MH

1

4

2

3

C9914

100PF 250V

GND3 GND

1

ZD9212

NC/BZT52-B3V0G

1 2

BO

R-

Vsin

N

R-

BI

R-

CZ2

+24V

CZ2

CZ1

DV5

CZ1

! !

!

!!

!

10-2-1 AC input

Circuit Diagrams and PWB Layouts

EN 65QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-2-2 PFC with TI

20150_502.eps

PFC with TI

A02 A02

2016-03-07

715G7732

PFC with TI

R9839

NC/18.7K 1%

R9825 120KOHM +-1% 1/8W

Vsin

Vbus

+VCC2

R-

GDB

GDA

ZCDA GDA

ZCDB ZCDA

ZCDB

Vref

VSENSE

Vsin

R-

FB9807 BEAD

1 2

D9801 IN5408G-04

L9802 200uH

6

41

3

FB9808BEAD

12

D9800 IN5408G-04

FB9809BEAD

12

C9125

10NF 1KV

D9806

SS1060FL

ZD9803

NC/BZT52-B18

1 2

FB9800 BEAD

1 2

ZD9802

NC/BZT52-B18

1 2

D9807

SS1060FL

ZD9803

NC/BZT52-B18

1 2

C9824 100N 50V

R9805 NC/0.03R

R9840

0.024R

R9801 NC/0.03R

R9841

0.024R

FB9806 BEAD

1 2

+

C9823

68uF 450V

Q9806

MMBT2907A

R9806

10R 1/ 8W 5%

R9808

33R 1%

!

D9803 SS1060FL

HS9802 HEAT SINK

1 2

3

4

C9808 47PF

D9805

SS1060FL

FB9804 NC/127R

1 2

Q9807

MMBT2907A

FB9805 NC/127R

1 2

C9126

10NF 1KV

R9818

33R 1/8W 5%

R9816

10R 1/ 8W 5%

R9827 200 OHM 1/4W

C9806 100PF

Q9802

IPA60R230P6

2

1

3

R9821 10KOHM

R9824 2Mohm 1/4W +/-1%

C9821

100N 50V

C9816 10NF 50V

C9803 1UF 450V

R9815

16.2K 1%

Q9801

IPA60R230P6

2

1

3

R9823

NC/18.7K 1%

+

C9805

68uF 450V

ZD9801

BZT52-B3V6

12

C9813 220nF50V

Q9805 STD1NK60T4

+

C9804

68uF 450V

R9834

33K 1/8W 1%

R98311K

L9801 200uH

6

41

3

Q9803

STD1NK60T4

R9836 1K 1/4W

R9814 0R05

C9812

1NF 50V

C9810

22pF 50V

R9809 1MOHM +-1% 1/4W

C9809 100PF

HS9801 HEAT SINK

1 2

3

4

R9803 1MOHM +-1% 1/4W

R9828

2Mohm 1/4W +/-1%

C9807

22pF 50V

C9802 47PF

R9813 0R05

C9811

100N 50V

C9819

100N 50V

+VCC2

C9815

1uF

+VCC2

FB9803 NC/127R

12

R9811 1MOHM +-1% 1/4W

R9830

NC / 0R 05 1/ 4W

R9826 7K5 1/8W +/-1%

R9807 10K OHM +-5% 1/8W

Q9804

STD1NK60T4

R9819

NC/0R05 1/4W

R9804

16.2K 1%

C9817 100N 50V

R9833

220K OHM 1%

C9801 1UF 450V

D9802 FMNS-1106S

R9835

NC

FB9802 NC/127R

12

R9838

120KOHM +-1% 1/8W

R9837 10KOHM

C9822

1NF 50V

R9820 1K

R9832 10KOHM

C9818

3.3nF 50V

R9812 1MOHM +-1% 1/4W

FB9801 BEAD

1 2

C9820

1NF 50V

U9801

UCC28063DR

ZCDB

1

VSENSE

2

TSET

3

PHB

4

COMP

5

AGND

6

VINAC

7

HVSEN8PWMCNTL

9

CS

10

GDB

11

VCC

12

PGND

13

GDA

14

VREF

15

ZCDA

16

R9829 2Mohm 1/4W +/-1%

R9802 1MOHM +-1% 1/4W

R9822

47K 1/8W 1%

R9817 10K OHM +-5% 1/8W

D9804 FMNS-1106S

R9810 1MOHM +-1% 1/4W

Circuit Diagrams and PWB Layouts

EN 66QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-2-3 Flyback with Sanken QR

20150_503.eps

Flyback with Sanken QR

A03 A03

2016-3-7

715G7732

Flyback with Sanken QR

ZD9301

BZT52-B5V1

1 2

C930610UF 16V

C9303

100NF 50V

L9302

4.7uH

C930510UF 16V

R9119

1K5 +-1% 1/8W

+12V

12VS

BI

+12V

R9118

4.7K 1/8W

C9114

1uF

!

+VCC1

U9104

AS431AN-E1

R9153

3K

C9311

10UF 16V

HOT COLD

Q9102

BTC4672M3

+

C9146

10UF 50V

R9121

1K 1/8W 1%

C9121

220NF 50V

R9306

43K

C9108

47PF

C9308

1uF

C9310

100PF 50V

+VCC2

R9307

10K 1/8W 1%

+12V

R9115

2K2 1/8W 1%

R9116

1.3K 1% 1/8W

R9154

20K 1/8W 1%

+12V_A

R9120

9K1 1/8W 1%

DV5

12VS

R9128

6.8K 1%

Q9105

2N7002K

Q9111 TK32A12N1 32A

ZD9109

BZT52-B16

1 2

Vbus

U9101

SSC3S121A

FB/OLP

1

BR

2

ST4DRV

5

OCP

6

VCC

7

GND

8

C9116 1NF

C9142

0.1uF 50V

U9111

SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj

4

GND

5

MOSG-C

6

Vdd

7

SYNC

8

T9101

POWER X'FMR

1

2

3

4

5

7

6

10

11

12

R9129

10K OHM

R9130

330K 1% 1/8W

C9916 220PF 250V

D9104 SK810C

12

DV5

+12V_A +12V_A

+12V+12V

+

C9107 NC/120uF 35V

C9917 330PF 250V

C9123

2.2NF

R9141 82K 2W

Q9110

2N7002K

D9108 IN4148W RHG

R9155

2Kohm 1/4W +/ -5%

R9140 39R

R9156

2Kohm 1/4W +/ -5%

C9150 NC/ 4. 7U F 25V

ZD9110

NC/BZT52-B4V7

1 2

D9101 SARS01-V1

R9157

10K OHM

R9158

1K5 +-1% 1/8W

+5V (Normal Output 3.7V)

Q9101

TK13A65U

D9102 SS1060FL

R9142

100KOHM +-5% 1/8W

R9107 82 OHM 1/4W

Q9108

2N7002K

+

C9105 2200uF 25V

C9307

1uF

+

C9106 2200uF 25V

C9147

0.1uF 50V

R9108

10ohm 1/4W +/ -1%

C9119 NC

C9120 1uF

R9159

100 OHM 1/4W

R9160

510K 1% 1/8W

R9109

10K 1/8W

PS_ON

12VS

R9101

0.22R 1%

DV5

LLC_OVP

R9104

330R 1/8W 5%

U9112

NC/L78L12ABUTR

IN

3

OUT

1

GND

2

R9143

100K

R9110

27 OHM

R9111

27 OHM

R9112

27 OHM

R9131

27 OHM

C9104 680P 50V

R9132

27 OHM

R9133

27 OHM

C9122 0.1uF 50V

R9145 510K 1% 1/8W

C9141

1uF

D9106 SK810C

12

R9144 100 OHM 1/4W

D9107 SS1060FL

R9308

1.96KOHM +-1% 1/8W

R9113

5.1 OHM 1/4W

12VS

CN9102 NC/CONN

2

4

6

8

10

12

14

16

1

3

5

7

9

11

13

15

C9139 1nF 50V

C9140 1nF 50V

R91642Kohm 1/4W +/ -5%

R9114

5.1 OHM 1/ 4W

R9122

10K 1/4W

R9123

5.1K 1/4W

D9103

PR1007G

R9134

5.1 OHM 1/ 4W

PS_ON

+5V(Normal Output 3.7V)

C9143 1uF

+

C9103

100UF 50V

12VS

C9144 1uF

7812

R91652Kohm 1/4W +/ -5%

CN9101 CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

ON/OFF DIM

3D

R9126

10 OHM 1/4W

C9918

NC/1NF 250V

Q9104 MTB5D 0P03FP-0-UB-S

R9117

5.1K 1/4W

D9109 PR1007G

C9919 NC/1NF 250V

Q9109

BTB1424AM3

R9105

10M

R9125

4R7 1/4W 5%

7812

12VS

FB9301

BEAD

1 2

R91662Kohm 1/4W +/ -5%

L9101 3UH

L9102 3UH

C9124

4.7uF K 25V

C9137

NC/1uF

+

C9113 470UF 25V

+

C9115 470UF 25V

R9102

56K 1/8W +/-1%

R9106 82K

C9149

4.7uF K 25V

D9105

SS1060FL

R9309

10ohm 1/4W +/ -1%

C9312

220P 50V

C9112

2N2 50V

C9111

NC/0.1uF 50V

C9136

100PF 50V

C9135

0.1uF 50V

R9170 39R

+

C9301

470UF 25V

C9134

100PF 50V

C9133

0.1uF 50V

D9111 SR810-05

12

HS9101 HEAT SINK

1 2

3

4

HS9102 HEAT SINK

1 2

3

4

R9124 22K 1%

+VCC1

C9117

NC/2.2NF

C9304

1NF 50V

U9102 EL817M(X)

1

23

4

U9103

EL817M(X)

1

23

4

D9110 SARS01-V1

BR

C93021uF

BR

ZD9106

BZT52-B15

1 2

R9161

620K +-1% 1/4W

R9162

620K +-1% 1/4W

R9163

620K +-1% 1/4W

+

C9309470UF 25V

U9305

SY8113BADC

BS

1

GND

2

FB3EN

4

IN

5

LX

6

R9302

10K 1/8W 1%

Circuit Diagrams and PWB Layouts

EN 67QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-2-4 LLC with Sanker

20150_504.eps

LLC with Sanken

A04 A04

2016-3-7

715G7732

LLC with Sanken

ZD9205 BZT52-B15

1 2

ZD9206 BZT52-B15

1 2

R9249 56K 1/4W

C9239

0.1uF 50V

T9202

POWER X'FMR

1

7

4

8

9

6

11

5

10

12

COLD

HOT

C9242

220NF 50V

R9247

NC/ 1. 5K OH M

R9248

NC/ 1. 5K OH M

R9251

0R05

R9241

NC/ 0R 05 1/ 4W

+

C9233

NC/1500uF 35V

+VCC2

R9242 1K

C9244

100N 50V

R9243 10KOHM

Q9206

STD1NK60T4

R9252

0R05

JP

+

C9204

270UF 100V

JP

+

C9234

NC/1500uF 35V

+

C9245

NC/1500uF 35V

+

C9246

NC/1500uF 35V

HS9201 HEAT SINK

1 2

3

4

R9244

1K 1/8W 1%

HS9202 HEAT SINK

1 2

3

4

HS9203 HEAT SINK

1 2

3

4

+

C9237 330UF 35V

+

C9236 330UF 35V

T9201

POWER X'FMR

1

7

4

8

9

6

11

5

10

12

R9207 1M5 1/4W 1% R9202

1M5 1/4W 1%

R9203

1M5 1/4W 1%

24VB

+VCC2

FB9202

BEAD

1 2

24VB

ZD9214

NC/BZT52-B6V2

1 2

C9209

5PF

R9221

100R 1/8W 5%

R9235

1Kohm +-1% 1/4W

D9205

SS1060FL

C9225

4.7uF 10V

D9204

FMXA-2203SE

1

2

3

R9227

220K OHM 1%

R9219

220K OHM 1%

D9201 UF4007

24VS

R9210

18K 1/8W 1%

+

C9211

22UF 50V

R9217 NC

CN9203 NC/CONN

2 4 6

8

10 12 14

1

3

5 7 9 11 13

C9220

100N 50V

U9201

SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

R9222

91KOHM +-1% 1/ 8W

+

C9205

47uF 100V

R9201

0.1R 1W

Q9204

LMBT3906LT1G

C9201 1NF

C9232

0.1uF 50V

ZD9202

BZT52-B22

1 2

C9223 NC

R9206 10R 1/8W 5%

R9236

2K 1/8W 1%

R9225

1K 1/8W 1%

R9216

200R 1/8W 1%

C9228

0.1uF 50V

C9226

0.1uF 50V

R9212 82 OHM

Q9205

LMBT3904LT1G

R9234

2.4KOHM +-1% 1/8W

C9218 1NF 50V

C9208

47P 50V

R9229

20K 1/4W

R9204 56K

C9207

1uF

D9202

FMXA-2203SE

1

2

3

R9214

470OHM +-5% 1/8W

U9204 AS431AN-E1

D9203 SS1060FL

C9219

560PF 50V

C9212

0.1uF 50V

CN9205 CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

C9215 100PF

D9210

FCHS30A08

1

2

3

R9211 10R 1/8W 5%

C9231

0.47UF 50V

D9211

IN4148W RHG

ZD9201

BZT52-B15

1 2

R9224 2K 1/8W 1%

L9201 3UH

R9215

NC

D9212

IN4148W RHG

R9228

3.9KOHM +-1% 1/4W

D9208

SS1060FL

R9231 560 OHM +-1% 1/8W

L9202 3UH

D9206

FMXA-2203SE

1

2

3

R9205 10R 1/8W 5%

Q9202

TK13A50D

C9216 22nF

Q9201

TK13A50D

R9223

470 OHM 1/ 4W

D9207

FMXA-2203SE

1

2

3

R9218

0 OHM +-5% 1/ 8W

ZD9208 BZT52-B30

1 2

24VS

C9202

CAP 0805 0.1uF 10% 100V X7R

ZD9207 BZT52-B30

1 2

C9210 1uF

R9209 10K 1/8W 1%

R9213 10K 1/8W 1%

R9230 8K2 1/8W 1%

C9206

0.1uF 50V

R9208 82 OHM

ZD9209 BZT52-B30

1 2

CN9201

CONN

2

4

6

8

10

12

14

1

3

5

7

9

11

13

C9217

1UF

VS

Vbus

24VS

VS

DV5LLC_OVP

+24V (Normal Output 60V)

24VB

+12V

24VS

+12V

CN9202

NC/CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14

+

C9213 270UF 100V

+

C9214

270UF 100V

R9253

47K 1/8W 1%

C9221 1NF 500V

U9202

EL817M(X)

1

23

4

C9920

680PF 250V

+12V

+24VA(Normal Output 12V)

C9240

100N 50V

ZD9204

NC/BZT52-B6V2

1 2

24VB

C9243

22nF

ZD9203

NC/BZT52-B6V2

1 2

R92391.5K OHM

R9232 56K

R9233 56K

R92461.5K OH M

R9237 1. 5K OH M

R9238 1. 5K OH M

+24VA (Normal Output 12V)

+

C9238

330UF 35V

L9203 3UH

ZD9215

NC/BZT52-B18

1 2

C9224

100PF

R9240 NC/180R 1%

+

C9203

270UF 100V

DIM

3D

R92451.5K OH M

ON/OFF

+24V(Normal Output 60V)

24VS

FB9201

NC/127R

1 2

R9250 56K 1/4W

Circuit Diagrams and PWB Layouts

EN 68QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-2-5 Power layout top

20150_505.eps

2015-12-22

715G7732

LAYOUT TOP

C9211

C9802

C9808

C9146

D9103

D9201

U9102

U9103

U9202

R9101

R9141

T9101

D9800

D9801

J946

J947

J916

J917

J915

J914

J903

J909

J910

J924

J928

J930

J940

J937

J945

J949

J948

J939

J943

J938

J942

J936

J941

J934

J931

J933

J925

J935

J927

J923

J921

J904

J922

J901

J905

J919

J911

J913

T9202T9201

J952

J932

J953

J912

J944

J954

SU5

SU1

SU2

SU3

SU4

J929

J902

J920

SU6

SU7

SU8

C9108

J956

J957

C9904

J951

J964

J965

J926

D9111

J918

J955

J908

J907

J906

J966

J967

J968

J969

J970

SU9

J971

SLT903

SLT904

SLT905

SLT908

SLT907

SLT909

SLT1

SLT2

SLT3

SLT4

SLT6

SLT5

SLT7

SLT901

SLT902

SLT8

ICT1

ICT2

SLT9

C9103

C9113

C9115

C9116

C9123

C9201

C9205

C9209

C9216

C9237

C9236

C9801

C9803

C9804

C9823

C9805

CN9903

D9802 D9804

FB9802

FB9803

FB9903

FB9904

HS9102

HS9101

L9101

L9102

L9202L9201

HS9802

HS9203

BD9901

BD9902

D9202D9204

D9206 D9207

HS9801

GND3

GND1

GND2

GND4

L9802

CN9201

CN9101

C9238

L9203

HS9901

HS9902

D9210

HS9202

HS9201

D9109

FB9801

FB9800

D9101

R9201

C9243

CN9202

FB9201

FB9301

L9801

Q9101

Q9104Q9111

Q9201Q9202

Q9801 Q9802

C9917

C9125

C9126

FB9804

FB9805

R9170

CN9203

CN9102

CN9205

FB9202

C9901

C9902

F9901

FB9901

FB9902

R9901

R9902

RV9901

SG9901

SG9902

SW9901

L9903

L9901

L9902

CN9902

C9301

CN9901

C9916

C9215

C9806

C9809

C9117

C9309

L9302

R9841

R9840

R9140

C9224

D9110

C9912

C9911

C9920

C9213

C9204

C9203

C9214

C9233

C9246

C9105 C9106

C9234

C9245

FB9807

FB9809

FB9808

FB9806

NR9901

NR9902

C9919

C9915

C9914

C9913

C9918

L9904

L9905

NR9903

NR9904

C9107

FB9905

FB9906

MH3

MH2

MH1

MH8

MH7

MH5 MH6

MH4

Circuit Diagrams and PWB Layouts

EN 69QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-2-6 Power layout bottom

20150_506.eps

2015-12-22

715G7732

LAYOUT BOTTOM

C9104

C9112

C9114

C9119 C9120

C9121

C9122

C9137

C9133

C9134

C9135

C9136

C9124

C9139C9140

C9141

C9142

C9143

C9144

C9147

C9149

C9202

C9206

C9207

C9208

C9210

C9212

C9217

C9218

C9219

C9220

C9240

C9223

C9225

C9226

C9228

C9231

C9232

C9307

C9308

C9807

C9810

C9811

C9812

C9813

C9815

C9816

C9817C9818

C9819

C9820

C9821

C9822

U9111

U9801

R9102

R9104

R9107R9108

R9109

R9111

R9110

R9112

R9113

R9114

R9115

R9116

R9117

R9118

R9119

R9120

R9121

R9122

R9123

R9124

R9125

R9126

R9128

R9129

R9130

R9133

R9131

R9132

R9142

R9144

R9145

R9153

R9154

R9155

R9156

R9157

R9158

R9159

R9160

R9161

R9162 R9163

R9202

R9203

R9204

R9205

R9206

R9207

R9208

R9209

R9210

R9211R9212

R9213

R9214

R9215

R9216

R9217

R9218

R9219

R9297

R9222

R9223

R9224 R9225

R9228

R9229

R9298

R9234

R9235

R9802

R9803

R9808

R9807

R9806

R9809

R9810

R9811

R9812

R9813

R9814

R9817

R9819

R9820

R9821

R9822

R9823

R9824

R9825

R9826

R9827

R9828

R9829

R9830

R9831

R9832

R9833

R9834

R9835

R9837

R9838

R9839

C9239

C9242

JR903

JR908

JR904

JR902

JR909

JR901

JR906

R9836

R9164

JR910

JR907

JR911

R9143

JR912

R9815

JR913

R9804

C9221

C9244

R9242

R9243

R9244

R9241

C9824

JR905

R9165

R9166

U9101

R9240

R9299

JR914

JR915

R9105

JR916

U9104

U9204

Q9105

Q9108

Q9110

C9306

U9901

R9904

R9903

R9905

R9906

R9908 R9907

C9302

R9302

R9306

R9307 R9308

C9303

C9310

C9305

C9304

R9816

R9818

JR917

R9227

R9236

C9311

R9134

R9221

C9111

R9230 R9231

R9100

R9200

R9232

R9233

R9237

R9238

R9239

C9150

R9245

R9246

R9247

R9248

R9249

R9250

R9251

R9252

C9312

R9309

R9106

R9253

U9201

Q9102

Q9803

Q9804

Q9805

SEN1

SEN3

SEN2

Q9109

Q9206

Q9204

Q9205

D9106

D9104

U9112

U9305

Q9806

Q9807

SEN4

ZD9208

D9102

D9105

D9107

D9108

D9203

D9205

D9208

D9803

D9805

ZD9106

ZD9109

ZD9201

ZD9202

ZD9203

ZD9204

ZD9801

D9806

D9807

ZD9207

ZD9210 ZD9211

ZD9212

ZD9213

ZD9301

D9211

D9212

ZD9205

ZD9206

ZD9209

ZD9214

ZD9110

ZD9215

ZD9802

ZD9803

ZD9804

Circuit Diagrams and PWB Layouts

EN 70QM16.3A LA 10.

2016-Jun-08

back to

div.table

10.3 A 715G7854 PSU

20150_507.eps

LED OZ9908A

A01 A01

2015-9-24

715G7854

LED OZ9908A

R8148 1K 1/8W

R8146 1K 1/8W

UVLS2

R8175 10 OHM

C8147

NC

R8186

5.1 OHM 1/4W

R8106 200K 1/4W

Q8119 PB210BM

R8107 200K 1/4W

C8157 220PF

VREF2

R8161 1K 1/8W

C8160

2.2uF 25V

LED_VCC

R8163 1K 1/8W

R8162 1K 1/8W

LED_VCCLED_VCC

LED_VCC

R8215 1K 1/8W

FB8102 BEAD

1 2

R8177

180K +-1% 1/8W

R8217

1K 1/8W

LED_VCC

-VLED8

R8216 1K 1/8W

R8174 150K 1/8W +/-1%

R8187

NC

R8171 200K 1/4W

R8201

1K 1/8W

C8164

0.1uF 50V

R8172 200K 1/4W

R8202 1K 1/8W

Q8126 PB210BM

C8134

2.2UF 25V

L8104 47uH

3

1

R8200 1K 1/8W

R8219

7.5R 1%

R8184

0.18R 1%

C8141

NC/0.1uF 50V

Q8117

TK20A20D

R18150

8.2 OHM

UVLS1

R8221

7.5R 1%

+VLED2

VREF2

OVP2

R8193 0 OHM +-5% 1/8W

+VIN

R8181

10K 1/8W 1%

R8180

10K 1/8W

L8105

NC/47uH

2

1

LED_VCC

OVP2

-VLED9

R8190

NC

R8203

7.5R 1%

R8131

150K 1/4W +/-1%

C8154

100P 50V

LED_VCC

+VIN

R8207

7.5R 1%

R8126

5.1 OHM 1/4W

-VLED10

-VLED7

+VIN

+VLED2

R8192

0 OHM +-5% 1/8W

-VLED9

-VLED8

+VIN

Q8124 PB210BM

CN8104

CONN

1

3

5

9 11 13

15

2 4 6

10 12 14

16

-VLED11

-VLED12

+VLED2

Q8125 PB210BM

C8153

1N 50V

C8150 NC

LED_VCC

R8211 0 OHM +-5% 1/8W

C8163

0.1uF 50V

L8102

NC/47uH

2

1

-VLED12

R8188 100K

R8210 0 OHM +-5% 1/8W

R8209 0 OHM +-5% 1/8W

C8129

2.2uF 25V

Q8103 PB210BM

R8157 0 OHM +-5% 1/8W

R8156 0 OHM +-5% 1/8W

ON OFF

+

C8106

100uF 160V

+

C8101

47uF 100V

R8155 0 OHM +-5% 1/8W

R8137 0 OHM +-5% 1/8W

R8138 0 OHM +-5% 1/8W

ENA1

R8102

10K 1/4W

R8139 0 OHM +-5% 1/8W

C8109

100N 50V

Q8104 PB210BM

R8108

300K

Q8105 PB210BM

D8101

MBRF10150CT

1

2

3

R8149

7.5R 1%

ZD8101 BZT52-B15G

1 2

R8225

200K 1/4W

D8104

MBRF10150CT

1

2

3

R8145

2K 1/4W

C8137

0.1uF 50V

R8167

7.5R 1%

R8125

6.2KOHM +-1% 1/8W

R8168

8.2OHM 1%

LED_VCC

+

C8102

47uF 100V

Q8112 PB210BM

Q8111 PB210BM

C8138

0.1uF 50V

R8164

8.2OHM 1%

R8169

7.5R 1%

LED_VCC

Q8113 PB210BM

VREF

-VLED6

R8182

6.2KOHM +-1% 1/8W

R8140

30K 1/8W 1%

-VLED5

R8127

NC

-VLED4

-VLED3

R8226

200K 1/4W

-VLED2-VLED1

R8227

200K 1/4W

VREF

R8119 1K 1/8W 1%

GND810 GND

1

GND811 GND

1

GND812 GND

1

R8208

8.2OHM 1%

GND813 GND

1

R8143

5.1KR 1%

R8144

5.1KR 1%

R8142

5.1KR 1%

+

C8139

47uF 100V

C8127

NC

R8194 0 OHM +-5% 1/8W

R8158

5.1KR 1%

R8159

5.1KR 1%

CN8101

NC_CONN

2 4 6

8

10 12 14

1

3

5 7 9 11 13

OVP2

+

C8105

100uF 160V

OVP1

C8118

100N 50V

R8228

200K 1/4W

R8160

5.1KR 1%

R8198

5.1KR 1%

C8128 220PF

R8199

5.1KR 1%

U8101

OZ9908AGN-A2

STATUS

1

ADIM

2

COM

3

RT

4

PWM1

5

PWM2

6

ISEN1

7

COMP1

8

ISEN2

9

COMP2

10

ISEN3

11

COMP3

12

ISEN4

13

COMP4

14

ISEN5

15

COMP5

16

ISEN6

17

COMP6

18

OVP

19

UVLS

20

SSTCMP

21

RANGELED

22

ISW

23

GND

24

DRV

25

VREF

26

ENA

27

VIN

28

+

C8140

47uF 100V

R8197

5.1KR 1%

R8206

8.2OHM 1%

R8212

5.1KR 1%

R8213

5.1KR 1%

R8128

100K

R8214

5.1KR 1%

R8229

200K 1/4W

R8230

200K 1/4W

C8122 1uF

R8130 NC

R8132

NC

R8204

8.2OHM 1%

+12V

PWM1

VREF1

R8179

10 OHM 1%

R8115

10 OHM 1%

R8231 10 OHM

R8232 10 OHM

COM COM

R8111 10 OHM

R8112 10 OHM

D8103 1N4148W

+

C8107

100uF 160V

R8150

8.2OHM 1%

LED_VCC

C8114

1N 50V

C8117

1N 50V

R8224 NC_1K 1/8W 1%

ENA1

R8218

8.2OHM 1%

CN8102

NC

2

4

6

8

10

12

14

1

3

5

7

9

11

13

C8123 NC

R8152

8.2OHM 1%

+12V

C8121 NC

R8154

8.2OHM 1%

Q8101 D8101

FB8103 BEAD

1 2

FB8104 BEAD

1 2

R8222

8.2OHM 1%

FB8101 BEAD

1 2

R8166

8.2OHM 1%

Q8102 NC

C8126 NC

Q8106 NC

C8124

2.2UF 25V

Q8114 BTB1184J3

R8136 NC

Q8115 BTB1184J3

Q8116 BTB1184J3

L8101 47uH

3

1

R8133

174K 1%

Q8107 BTB1184J3

Q8110 BTB1184J3

R8134

NC

R8135

NC

Q8123 BTB1184J3

Q8121 BTB1184J3

Q8122 BTB1184J3

C8116

10NF 50V

C8110

10N 50V

Q8127 BTB1184J3

Q8128 BTB1184J3

Q8129 BTB1184J3

R8151

7.5R 1%

L8103 3UH

C8111

NC/0.1uF 50V

C8103

NC/0.1uF 50V

C8108

NC

C8130

1NF 50V

R8153

7.5R 1%

VREF1

C8132

0.1uF 50V

R8109

300K

C8131

2.2uF 25V

HS8101

HEAT SINK

1 2

3

4

UVLS1

R8165

7.5R 1%

+12V

C8159

1NF 50V

C8135

0.1uF 50V

+

C8145

100uF 160V

R8120

10K 1/8W

R8121

300K

PWM2

C8120

10N 50V

R8113

180K +-1% 1/8W

OVP=93V

C8104 NC

+VLED1

R8114

10 OHM 1%

C8112 NC

R8110 150K 1/8W +/-1%

C8113 NC

C8133

0.1uF 50V

R8123

0.18R 1%

C8119

100P 50V

R8124

0.18R 1%

Q8101

TK20A20D

R8104

270K +-1% 1/8W

+VLED1

D8102

SS1060FL

12

R8103

10K 1/8W

Q8109 BTC4672M3

3D

OVP1

+

C8146

100uF 160V

+12V

DIM

STATUS

R8117

300K

ENA2

C8115

100N 50V

R8101

10K 1/4W

R8129

NC_10K 1/4W

STATUS

R8176 10 OHM

C8158

2.2uF 25V

R8196 100 OHM +-1% 1/8W

R8220

8.2OHM 1%

L8106 3UH

R8141 100 OHM +-1% 1/8W

UVLS2

LED_VCC

ENA2

+

C8144

100uF 160V

C8156 NC

C8148

NC/0.1uF 50V

Q8108 BTB1184J3

C8155

2.2UF 25V

C8161

0.1uF 50V

C8152

10NF 50V

R8118

10K 1/8W 1%

R8116

10K 1/8W

R8183

1K OHM +-5% 1/8W

R8170

270K +-1% 1/8W

VREF2

C8125 NC

R8178

10 OHM 1%

-VLED11

3D

DIM

+VLED2

R8122

1K OHM +-5% 1/8W

PWM2

R8195

30K 1/8W 1%

R8189 150K 1/4W +/-1%

HS8102

HEAT SINK

1 2

3

4

R8223

7.5R 1%

LED_VCC

CN8103

CONN

1

3

5

9 11 13

15

2 4 6

10 12 14

16

C8162

0.1uF 50V

C8142 100N 50V

D8105

SS1060FL

12

LED_VCC

+VLED1

R8173 200K 1/4W

R8105 200K 1/4W

+VLED1

Q8120 PB210BM

-VLED1

C8151

1N 50V

C8143 NC

LED_VCC

-VLED2

R8205

7.5R 1%

C8136

0.1uF 50V

C8166

0.1uF 50V

-VLED10

-VLED3

-VLED4

ON OFF

U8102

OZ9908AGN-A2

STATUS

1

ADIM

2

COM

3

RT

4

PWM1

5

PWM2

6

ISEN1

7

COMP1

8

ISEN2

9

COMP2

10

ISEN3

11

COMP3

12

ISEN4

13

COMP4

14

ISEN5

15

COMP5

16

ISEN6

17

COMP6

18

OVP

19

UVLS

20

SSTCMP

21

RANGELED

22

ISW

23

GND

24

DRV

25

VREF

26

ENA

27

VIN

28

Q8118 PB210BM

R8185

0.18R 1%

R8191 174K 1%

ON OFF

C8165

0.1uF 50V

-VLED7

-VLED6

-VLED5

C8149 NC

STATUS

PWM1

R8147 1K 1/8W

10-3-1 LED OZ9908A

Circuit Diagrams and PWB Layouts

EN 71QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-3-2 JUMPER

20150_508.eps

JUMPER

A02 A02

2015-09-24

715G7854

JUMPER

J8111

JUMPER

1 2

J8101

JUMPER

1 2

J8105

JUMPER

1 2

J8103

JUMPER

1 2

RJ8101

0R05 1/ 4W

J8106

JUMPER

1 2

J8102

JUMPER

1 2

J8107

JUMPER

1 2

J8108

JUMPER

1 2

J8109

JUMPER

1 2

J8110

JUMPER

1 2

J8112

JUMPER

1 2

J8104

JUMPER

1 2

J8114

JUMPER1

1 2

J8113

JUMPER1

1 2

J8115

JUMPER1

1 2

J8117

JUMPER1

1 2

J8116

JUMPER1

1 2

J8118

JUMPER1

1 2

J8120

JUMPER1

1 2

J8119

JUMPER1

1 2

J8121

JUMPER1

1 2

J8122

JUMPER1

1 2

J8123

JUMPER1

1 2

J8124

JUMPER1

1 2

J8125

JUMPER1

1 2

J8127

JUMPER1

1 2

J8126

JUMPER1

1 2

J8128

JUMPER1

1 2

J8130

JUMPER1

1 2

J8129

JUMPER1

1 2

J8131

JUMPER1

1 2

J8132

JUMPER1

1 2

J8133

JUMPER1

1 2

J8134

JUMPER1

1 2

J8135

JUMPER1

1 2

J8136

JUMPER1

1 2

J8137

JUMPER1

1 2

J8138

JUMPER1

1 2

J8139

JUMPER1

1 2

J8140

JUMPER1

1 2

J8141

JUMPER1

1 2

J8142

JUMPER1

1 2

J8143

JUMPER1

1 2

J8144

JUMPER1

1 2

J8145

JUMPER1

1 2

J8146

JUMPER1

1 2

RJ8102

0R05 1/ 4W

RJ8103

0R05 1/ 4W

RJ8104

0R05 1/ 4W

RJ8105

0R05 1/ 4W

RJ8106

0R05 1/ 4W

RJ8107

0R05 1/ 4W

RJ8108

0R05 1/ 4W

RJ8109

0R05 1/ 4W

RJ8110

0R05 1/ 4W

RJ8111

0R05 1/ 4W

RJ8112

0R05 1/ 4W

Circuit Diagrams and PWB Layouts

EN 72QM16.3A LA 10.

2016-Jun-08

back to

div.table

Circuit Diagrams and PWB Layouts

20150_509.eps

2016-01-20

715G7854

LAYOUT TOP

C8113

C8150

R8123

R8124

R8184

R8185

J8140

J8130

J8111

J8110

J8141

J8142

J8101 J8102 J8103 J8104

J8106 J8107

J8108

J8109

J8136

J8115

J8129

J8105

J8135

J8131

J8114

J8138

J8112

J8113

J8137

J8139

J8134

J8133

J8132

J8118

J8121

J8123

J8122

J8124

J8120

J8125

J8126

J8127

J8128

J8117

J8116

J8119

J8143

J8145

J8144

J8146

J8150

J8149

J8147

J8148

J8151

J8152

J8153

J8154

H1

H2

H3 H4

R1

C8101

C8102

C8139

C8140

CN8101

CN8102

FB8101

FB8102

GND810

L8102

L8103

L8105

L8106

Q8101 Q8117

MH2

MH3

MH4

MH5

HS8101

HS8102

GND811 GND812

GND813

MH6

MH1

CN8103 CN8104

D8101 D8104

FB8103

FB8104

C8107

C8105

C8106

C8144

C8145

C8146

L8101

L8104

EN 73QM16.3A LA 10.

10-3-3 Power layout top

2016-Jun-08

back to

div.table

10-3-4 Power layout bottom

20150_510.eps

2016-1-02

715G7854

LAYOUT BOTTOM

C8103

C8108

C8109

C8110

C8111

C8115C8116

C8118

C8119

C8120

C8121

C8122

C8123

C8124 C8125

C8126

C8127

C8128

C8129

C8130

C8131

C8132

C8133

C8134

C8135

C8136

C8137

C8138

C8141

C8142

C8147

C8148

C8152

C8154

C8155

C8156

C8157

C8158

C8159

C8160

C8161

C8162

C8163

C8164

C8165

C8166

Q8102

Q8106

R8101 R8102

R8103

R8104

R8105

R8106

R8107

R8108

R8109

R8110

R8111

R8112

R8113

R8115

R8116

R8117

R8118

R8119

R8120

R8121

R8122

R8125

R8126

R8127

R8128

R8130

R8131

R8132

R8133

R8134

R8135

R8136

R8137

R8138

R8139

R8140

R8141

R8145

R8149

R8151

R8153

R8155

R8156

R8157

R8165

R8167

R8169

R8170

R8171

R8172

R8173

R8174

R8175 R8176

R8177

R8179

R8180

R8181

R8182

R8183

R8186

R8187

R8188

R8189

R8190

R8192

R8193

R8194

R8195

R8196

R8203

R8205

R8207

R8211

R8219

R8221

R8223

R8146

R8147

R8148

R8161

R8162

R8163

R8200

R8201

R8202

R8209

R8210

R8215

R8216

R8217

R8159 R8144 R8143R8160 R8142R8158

RJ8101

RJ8102

R8198R8199

R8197R8214R8213R8212

RJ8105

RJ8106

RJ8103

RJ8104

RJ8110

R8224

RJ8107

RJ8108

RJ8109

RJ8111

R8129

FID1

FID2

FID3

FID4

R8225

R8226

R8227

R8228 R8229 R8230

R8114

R8178

R8191

R8231

R8232

RJ8112

R8150

R8152

R8154

R8164

R8166

R8168

R8204

R8206

R8208

R8218

R8220

R8222

C8112

C8104

Q8103

Q8104

Q8105

Q8109

Q8111

Q8112

Q8113

Q8118

Q8119

Q8120

Q8124

Q8125

Q8126

U8101

D8103

D8105

ZD8101

D8102

U8102

Q8107

Q8108

Q8110

Q8114

Q8115

Q8116

Q8121

Q8122

Q8123

Q8127

Q8128

Q8129

Circuit Diagrams and PWB Layouts

EN 74QM16.3A LA 10.

2016-Jun-08

back to

div.table

10.4 A 715G6679 PSU

19903_500.eps

AC Input

A01 A01

2015-08-18

715G6679

AC Input

T5AH/250V

R9904

510K 1/4W

R9905

510K 1/4W

R9902

510K 1/4W

F9901 NC/5A 250V

!

N

SG9902

NC/DSPL-501N-A21F

t

NR9902

1.5R

12

FB9903

BEAD

1 2

IC9901 NC

NC

1

D12D1

3

NC

4

NC

5D26D27NC8

C9908

NC

-

+

BD9901 KBJ1008G-FUC

2

1

3

4

T5AL/250V

FB9902

JUMPER

1 2

L9901

14mH

1

2

4

3

HS9901 HEAT SINK

1 2

3

4

!

L9902

18mH

1

2

4

3

SG9901

NC/DSPL-501N-A21F

!

F9902 5A 250V

CN9902 SOCKET

12

C9914

220PF 250V

C9913

220PF 250V

FB9901

BEAD

1 2

C9911 47PF 250V

C9901

470nF 275V

RV9901

680V

C9902

470nF 275V

CN9901

NC/CONN

1 2

C9912

47PF 250V

Vsin

!

L

CN9903

NC/CONN

L1N

2

BR

R9907

510K 1/4W

R9906

510K 1/4W

N

R9903

510K 1/4W

L

t

NR9901

1.5R

1 2

10-4-1 AC Input

Circuit Diagrams and PWB Layouts

EN 75QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-4-2 PFC

19903_501.eps

PFC

A02 A02

2015-08-18

715G6679

PFC

R9812

24K 1/8W 1%

+

C9802

68UF 450V

HS9801

HEAT SINK

1 2

3

4

+

C9801

68UF 450V

HV

Q9801 TK16A60W

C9810 NC

D9802

S8KC

R9807

47OHM +-5% 1/8W

R9806 2K4 +/-1% 1/ 8W

R9810

1K 1/4W

!

Vsin

R9809

10K 1/8W

C9805 47nF 50V

C9803

100N 50V

FB9801 BEAD

1 2

U9801

LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

VCC_ON

C9808 47PF

D9801

FMNS-1106S

R9808

33R 1/8W 5%

R9813

10K 1/8W

+

C9804

10UF 50V

R9805 20K 1/4W

R9801

0.1R

C9820 1UF 450V

C9807 220pF 50V

FB9802 JUMP ER

1 2

C9806

0.47U F 50V

C9811

47P 50V

R9802

1M 1% 1/4W

R9803 1M 1% 1/4W

R9817

1M 1% 1/4W

C9809

330P 50V

VCC_ON

L9801 240uH

1

3 4

5

R9815

NC

D9804

S8KC

R9804 19K1 +-1% 1/8W

R9814

0R05 1/ 4W

R9816 NC

Q9802

NC

D9803

SS1060FL

Circuit Diagrams and PWB Layouts

EN 76QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-4-3 Main power

19903_502.eps

Main power

A03 A03

2015-08-18

715G6679

Main power

D9109 NC

R9124

33K +-1% 1/4W

R9122 10K 1/4W

+12V_A+12V_A

U9101

LD5532

BNO

1

FB

2

CS

3

GND4OUT

5

VCC

6

NC

7

VCC

8

R9117 5K1 +-5% 1/8W

Q9102

NC

1

23

C9104 NC

D9105 NC

+

C9138

4.7UF 50V

R9141

100K 1/8W 1%

COLDHOT

+VCC1

R9113

3.3M 1/ 4W

R9105

330K 1/4W

C9121

4.7UF

R9111

330K 1/4W

BR

R9116

220R 1%

C9134

4.7UF

IC9104

NC/L78L12ABUTR

IN

3

OUT

1

GND

2

R9407

100 OHM 1/4W

R9119

2K7 1/8W 1%

+

C9126

NC

C9120

2.2NF

Q9101

TK11A65D

R9125

4R7 1/4W 5%

+

C9110 470UF 25V

.

C9139 100N 50V

Q9401

BTC4672M3

C9402

100N 50V

R9108

27 OHM 1/4W

R9134

27 OHM 1/4W

Q9402

LMBT3906LT1G

1

23

C9115 47PF

C9140

NC

+

C9101

NC

+

C9107

470UF 25V

R9115

2K2 1/8W 1%

C9922

220PF 250V

R9107

10K 1/8W

U9111

NC

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

FB9101

127R

1 2

R9408 510K 1% 1/8W

U9103

TL431G-AE2-R

+

C9106

NA/470UF 25V

D9104

PG1010R

R9152

NC

R9112

4R7 1/4W 5%

C9141 1uF

U9104

SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj4GND

5

MOSG-C

6

Vdd

7

SYNC

8

C9116

NC

R9128 0 OHM +-5% 1/8W

T9101

POWER X'FMR

1

2

3

4

5

6

7

9

10

R9138 0 OHM +-5% 1/8W

ZD9107 NC

12

L9105 3UH

+

C9105

470UF 25V

C9117

NC

R9129 NC

C9118

0.47UF 50V

Q9403

2N7002K

C9135

NC

C9131 100P 50V

+

C9109 470UF 25V

Q9105

TK22A10N1

R9403 1K 1/4W

C9119

NC

C9123

NC

R9137

NC

R9118 1K OHM +-5% 1/8W

R9104 10R 1/8W 5%

C9129

NC

R9142 22R

R9133

27 OHM 1/4W

R9131 NC

FB9102

NC

1 2

R9406

1K5 +-1% 1/8W

HS9101

HEAT SINK

1 2

3

4

+

C9108 470UF 25V

R9151

NC

R9154

NC

ZD9401

BZT52-B16

1 2

ZD9106

BZT52-B15

1 2

C9113 1NF

C9920 680PF 250V

C9143

1uF

C9125

NC

R9123 5.1K 1/ 4W

C9130

100N 50V

C9127

NC

R9401 3K

R9404 10K 1/4W

R9161

NC

Q9104

NC

L9106 3UH

HS9102

HEAT SINK

1 2

3

4

C9111 NC/1NF

L9102 NC

C9132 100N 50V

R9147 82K 2W

C9921

220PF 250V

C9122

NC

R9135

NC

C9142 1uF 50V

R9153

NC

+

C9401

10UF 50V

C9136

1N 50V

R9121 1K 1/8W 1%

R9130 NC

R9126 10 OHM 1/4W

D9108

SK510C

12

CN9101

CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

FB9904

127R

1 2

U9102

EL817M(X)

12

43

R9132

27 OHM 1/4W

C9133

NC

R9110

27 OHM 1/4W

R9136

NC

+

C9112 470UF 25V

R9402

20K 1/8W 1%

C9137

1N 50V

R9158

NC

D9102 SARS01-V1

R9140

NC

C9128

NC

R9139

NC

D9401 1N4148W

R9405 10K OHM

R9120 9K1 1/8W 1%

R9109

27 OHM 1/4W

Q9106

NC

SYNC

+12V_A

+12V

+5V

BL_ON/OFF

+5V

+VCC1

+12V

DIM

PS_ON

12VS

SYNC

DV5

PS_ON

3D_DB

12VS

BR

HV

VCC_ON

!

R9114

3.3M 1/ 4W

R9127

3.3M 1/ 4W

D9101

1N4148W

R9102

330K 1/4W

+

C9145 100UF 50V

C9144

1NF

Q9111

NC

R9103

1K 1/4W

C9102

330P 50V

GND1 NC

1

R9106

100R 1/8W 5%

FB9103

BEAD

12

GND2 NC

1

R9101

0.27R 2W

GND3 NC

1

GND4 GND

1

C9103

4.7nF 50V

GND5 GND

1

3.5V/40mA R9140:10.5K R9136:0ohm R9139:3K R9116:1.3K NR9901,NR9902:1.5R

GND6 NC

1

GND7 NC

1

D9103

SS1060FL

GND8 NC

1

D9106

SS1060FL

U9401

EL817M(X)

12

43

Circuit Diagrams and PWB Layouts

EN 77QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-4-4 LED

19903_503.eps

LED

A04 A04

2015-08-18

715G6679

LED

HS8602

HEAT SINK

1 2

C8118

1N 50V

HS8601

HEAT SINK

1 2

D8606

SS1060FL

VCC_ON

For D8106

R8152 100K

+

C8605

120UF 100V

C8119

1N 50V

R8172

NC

R8153 100K

+

C8606

120UF 100V

FB8601

BEAD

12

VLED

R8119

0R05 1/4W

!

C8101 1N 50V

R8136

0R05 1/4W

!

+

C8608 47uF 100V

R8601

0.15R

U8603

TL431G-AE2-R

R8128

NC/ 750K 1%

R8129 NC/ 510K 1% 1/ 8W

R8110 3K9 1/8W 5%

U8602

EL817M(X)

12

43

R8106 82KOHM +-5% 2WS

R8109

1.5K OHM

C8132 NC/2.2NF

COLD

12VS

R8154 NC

VLED

C8135

NC/ 100N 50V

C8136

NC/ 100N 50V

HOT

HV

C9114 1NF

3D_DB

+

C8609 47uF 100V

HS9202

HEAT SINK

1 2

3

4

-VLED-2

+

C8607 NC

R8120

300 OHM 1/4W

D8102

1N4148W

U8605

TPV101D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

Q8101

LMBT3906LT1G

1

2 3

C8113

1uF

U8606

TPV101D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8127

1uF

Q8601 AOTF8N65

R8107 510OHM +-5% 1/8W

R8121

300 OHM 1/4W

12VS

R8111

470K +-5% 1/8W

C8128

1uF

HS9201

HEAT SINK

1 2

3

4

C8106

4.7nF 50V

R8164

0R05 1/4W

R8114 75KOHM +-1% 1/8W

R8122

300 OHM 1/4W

R8113

68KOHM +-1% 1/8W

U8101

TL431G-AE2-R

R8116 330K 1/8W 1%

R8137

300 OHM 1/4W

R8144

200 OHM 1/ 4W

R8138

300 OHM 1/4W

R8146

200 OHM 1/ 4W

R8112 270K +-1% 1/8W

R8123

300 OHM 1/4W

R8145

200 OHM 1/ 4W

R8124

1.3R 1%

R8142

200 OHM 1/ 4W

R8141

200 OHM 1/ 4W

R8143

200 OHM 1/ 4W

R8155

300 OHM 1/4W

R8157

300 OHM 1/4W

C8131

NC/1NF 500V

C8122

NC/ 100P 50V

R8131

1.3R 1%

+12V

+

C8611

4.7UF 50V

C8129

1uF

L8602 3UH

R8171

0 OHM +-5% 1/8W

LED current setting 40 inch (1.5R/1.5R/1.5R/1.2R)

39.56 inch (1.5R/1.5/R/1.2R/1.2R)

R8130 47KOHM +-1% 1/8W

R8135

43KOHM +-1% 1/8W

R8140

39KOHM +-1% 1/8W

For IC8103

C8134

NC/1NF 500V

R8117 NC

VLED

R8139 13K 1/8W 1%

T8601

POWER X'FMR

3

4

5

7

10 11

6

C8123

100P 50V

C8124

100P 50V

For IC8105

R8161

NC/ 10K 1/ 4W

C8125

NC/ 100P 50V

Q8102

2N7002K

C8130

0.47UF 50V

D8107

1N4148W

R8149 1M 1/8W 5%

D8108

1N4148W

R8104

10K 1/4W

C8111 100PF 500V

C8120 NC/1NF

C8114

1uF

This block is for LPB function use, for PSU function all cancel.

C8121

NC/10N 50V

R8115

NC

R8125

1.3R 1%

C8116

1uF

C8103 47PF

R8150 510K +-5% 1/8W

R8126

1.3R 1%

R8105

0.1R

CN8601

CONN

1 2

3

4 5 6 7

8

9 10 11 12

+VLED

R8156

0 OHM +-5% 1/8W

-VLED-2

-VLED-1

+VLED

ZD8103 BZT52-B30

1 2

R8127

1.5R

C8133

NC

IC_VCC

C8126

NC

+VLED

R8132

1.3R 1%

R8108

3.3K 1/4W

DIM

-VLED-1

R8133

1.3R 1%

R8147

200 OHM 1/ 4W

R8148

200 OHM 1/ 4W

R8134

1.5R

ZD8104

BZT52-B22

1 2

ZD8105

BZT52-B22

1 2

ZD8106

BZT52-B22

1 2

C8137 470P 50V

R8103 470 OHM 1/4W

D8101 SARS01-V1

C8112 100PF 500V

R8101 22R

R8102

47OHM +-5% 1/8W

+VLED+VLED

U8601

PF6002AS

CT

1

FB

2

CS

3

GND4OUT

5

VCC

6

NC

7

VCC

8

C8102

100N 50V

C8104

2.2NF

CN9201 NC

2 4 6

8

10 12 14

1

3

5 7

9 11 13

C8105

0.47UF 50V

BL_ON/OFF

3D_DB

DIM

BL_ON/OFF

IC_VCC

D8602

NC

C8115

1uF

D8601

FMNS-1106S

L8601 3UH

R8118

100KOHM +-5% 1/8W

R8151 100K

Circuit Diagrams and PWB Layouts

EN 78QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-4-5 Power layout top

19903_504.eps

2015-01-08

715G6679

LAYOUT TOP

C8103

C9115

C9401

D9102

D9104

F9901

U8602

U9102

U9401

R8601

R8106

R8117

R9101

R9142

R9147

T8601

T9101

J929

J913

J918

J911

J910

J908

J902

J903

J904

J912

J901

J916

J923

J922

J909

J906

J905

J935

C9808

J937

J938

J934

J941

J945

J907

J919

J920

J936

J921

J914

J928

J946

J942

C9138

SU10

SU11

D8101

J943

SU12

SU6

SU3

J947

H5

H4

H9

HS1

P1

P2P3

P4

P5P6 P7

P8

P9

P10

HS2

MH1

MH2

MH4

MH5

MH7

MH6

MH8

MH9

MH10

C8104

C8605

C8606

C8608

C8120

C9109

C9105

C9106

C9107

C9108

C9110

C9111

C9112

C9113

C9114

C9126

C9101

C9804

C9801

C9802

C9911

C9912

C9908

C9913

C9914

C9920

C9922

C9921

CN8601

CN9901

CN9903

D9801

FB9101

FB9102

FB9801

FB9802

FB9901

FB9902

FB9904

HS9201

HS9101

HS9102

HS8601

HS8602

HS9801

U8605

U8606

L8601

L9105

L9106

L9102

NR9901

NR9902

Q9105

R9801

SG9901

SG9902

CN9201

CN9101

FB9103

HS9202

FB8601

Q9801

Q8601

Q9101

L9901

F9902

R8105

C8607

GND1

GND2

GND3

GND4

GND5

GND6

GND7

GND8

CN9902

L9801

BD9901

C9901

C9902

C9120

C8609

HS9901

C8611

L8602

C9145

D8601 D8602

C9820

L9902

FB9903

RV9901

Circuit Diagrams and PWB Layouts

EN 79QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-4-6 Power layout bottom

19903_505.eps

2015-01-08

715G6679

LAYOUT BOTTOM

C8137

C8101

C8102

C8105

C8106

C8111

C8112

C8113

C8114

C8115

C8116

C8118

C8119

C8121

C8122

C8123

C8124

C8125

C8126

C8131

C8132

C8133

C8134

C8135

C8136

C9102

C9103

C9143

C9116

C9117

C9118

C9119

C9121 C9122

C9123

C9125

C9127 C9128

C9129

C9130

C9131

C9132

C9133

C9134

C9135

C9136

C9137

C9139

C9140

C9141

C9142

C9144

C9402

C9811

C9803

C9805 C9806

C9807

U9104

U9111

U9801

IC9901

R8101

R8102

R8110

R8111

R8112

R8113

R8114

R8115

R8116

R8128R8129

R8156

R9104

R9107

R9116

R9118

R9119

R9120

R9131

R9135

R9136

R9137

R9139

R9140

R9151

R9152

R9154

R9402

R9406

R9408

R9806 R9807 R9808

R9809

R9812

R9813

JR911

JR907

JR906

JR901

JR903

JR902

R9128

U8601

C8127

C8128

C8129

C8130

C9810

R8107

R8130 R8135

R8139

R8140

R8149

R8150

R9816

R9141

R9117

R9121

R9115

R9106

R8118

R8103

R8104

R8109

R8119

R8120

R8121

R8122

R8123

R8124 R8125 R8126 R8127

R8131 R8132 R8133 R8134

R8136

R8137

R8138

R8141 R8142 R8143 R8144 R8145 R8146 R8147 R8148

R8161

R9103

R9108

R9109

R9110

R9112

R9113

R9114

R9122

R9123

R9124

R9125

R9126

R9127

R9129

R9130

R9132

R9133

R9134

R9153

R9158

R9161

R9401

R9403

R9404

R9405

R9817

R9802R9803

R9805

R9810

R9814

R9902

R9903

R9904 R9905

R9906 R9907

R8108

R9407

R9815

JR905

JR904

JR920

JR910

C9809

R9804

JR908

JR922

JR921

R9138

U9101

C9104

R9102

R9105

R9111

R8151

R8152

R8153

Q8102

Q9104

Q9106

Q9403

Q9802

R8154

U8603

U9103

R8155R8157

R8164

R8171

R8172

JR923

U8101

SG4

SG3

FD1

FD3

FD4

Q9111

Q9401

FD5

IC9104

Q8101

Q9102

Q9402

D9802

D9804

D9108

D8102

D8107

D8108

D8606

D9101

D9103

D9105

D9106

D9109

D9401

D9803

ZD8103

ZD8104

ZD8105

ZD8106

ZD9106

ZD9107

ZD9401

Circuit Diagrams and PWB Layouts

EN 80QM16.3A LA 10.

2016-Jun-08

back to

div.table

10.5 A 715G6677 PSU

19850_500.eps

AC input

A01 A01

2014-11-11

715G6677

AC input

L9901

12mH

1

2

4

3

L9902

12mH

1

2

4

3

U9901

NC/CAP004DG-TL

NC

1

D12D1

3

NC

4

NC

5D26D27NC8

HS9901 HEAT SINK

1 2

SG9901

NC/DSPL-501N-A21F

t

NR9902

2.5R

1 2

VXB

CN9901

AC SOKET

12

R9907 510K 1/4W

R9905 510K 1/4W

R9908 510K 1/4W

R9906 510K 1/4W

R9903 510K 1/4W

R9904 510K 1/4W

BR

VXC

VXA

VXB

C9907

NC/47PF

F9901

FUSE

1 2 3 4

C9904

220PF 250V

C9903

220PF 250V

-

+

BD9901

TS10K80-02

2

1

3

4

CN9903

NC/CONN

L1N

2

C9901

NC / 100PF 250V

C9905

470NF 275V

RV9901

680V

SG9902

NC/DSPL-501N-A21F

FB9901

BEAD

1 2

C9906

470NF 275V

CN9902

NC/CONN

1 2

C9902

NC / 100PF 250V

Vsin

FB9902 BEAD

12

!

T5.0AH/250V

F9902

NC/250V

t

NR9901

2.5R

1 2

!

10-5-1 AC input

Circuit Diagrams and PWB Layouts

EN 81QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-5-2 PFC

19850_501.eps

PFC

A02 A02

2014-11-11

715G6677

PFC

+

C9802

68UF 450V

+

C9803

68UF 450V

R9809 20K 1/4W

FB9802 BEAD

1 2

R9815

470 OHM 1/4W

C9813

100N 50V

C9814

100N 50V

C9812

470NF 50V

R9812 47OHM

D9803 SS1060FL

12

R9803 1M 1% 1/4W

+

C9809

10UF 50V

R9804

NC/0R05

R9813

10K 1/8W

R9816

10K 1/8W 1%

C9811

1nF 50V

Q9801

TK18A60V

C9808

10PF 50V

R9811

10 OHM

R9807

10K 1/8W

C9806

NC/100PF

C9810

100N 50V

D9802

FMNS-1106S

R9817

100K 1/8W 1%

R9806

680K 1%

R9810 2K 1/8W 1%

R9802

1M 1% 1/4W

FB9891 BEAD

1 2

R9814

0.1R

C9801

1UF 450V

R9801 1M 1% 1/4W

C9815 470P 50V

Q9802

AO3160

HS9801 HEAT SINK

1 2

3

4

C9805

NC/47PF

U9801 LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

R9895 20K 1/8W 1%

C9804

NC

HV

Vsin

VCC_ON

R9808 27K 1/8W 1%

-

+

BD9801

KBP206G X0G

2

1

3

4

L9801

240uH

5

43

1

!

Circuit Diagrams and PWB Layouts

EN 82QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-5-3 Standby

19850_502.eps

Standby

A03 A03

2014-11-11

715G6677

Standby

CN9302

NC/CONN

2

4

6

8

10

12

14

16

1

3

5

7

9

11

13

15

+

C9304 100UF 50V

R9328 5.1K 1/4W

R9334

27 OHM 1/4W

D9313

NC/SS1060FL

C9818 1NF 250V

R9307

2.2 OHM 1/ 4W

Q9309

NC/2N7002K

C9331

1N 50V

R9360

100 OHM 1/4W

T9301

POWER X'FMR

1

2

3

5

6

7

9

10

4

C9330

1N 50V

C9352

NC/ 100N 50V

R9313

3.3M 1/4W

C9355

NC/2N2 50V

R9315

3.3M 1/ 4W

R9321

4R7 1/4W 5%

ZD9302

BZT52-B15

1 2

C9341 1uF 50V

L9304 NC/47uH R9362 10K 1/8W 1%

R9318

100K 1/8W 1%

C9306

100N 50V

FB9302

BEAD

12

R9322

NC/ 100KOH M 1/8W

Q9307

2N7002K

R9333

27 OHM 1/4W

D9302

FR107G-A0

C9340

1uF

R9363 100K

R9356

NC/ 620ohm 1/ 8W +/-1%

R9309 10R 1/8W 5%

R9366 0R05

C9315

220PF 250V

L9302 3UH

U9102

EL817M(X)

12

43

R9314

3.3M 1/4W

C9343 1N 50V

R9317 3K

Q9304 NC/P1604ED

C9358

NC/1uF

C9333 100N 50V

R9336

NC/0R05 1/4W

R9353

NC/30R 1%

C9353

NC/1N 50V

R9326

NC/510K 1/8W

C9328

NC/ 100N 50V

R9324

5.1K 1/4W

R9331

27 OHM 1/4W

R9364

10K OHM +-5% 1/8W

R9354

NC/30R 1%

HS9302

HEAT SINK

1 2

3

4

C9303

NC/1NF

C9308 330P 50V

C9342

1uF

R9340

NC/ 6. 2K OH M 1/8W

CN9303

CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

R9325

NC/ 100 OH M 1/4W

Q9306

BTC4672M3

R9330

27 OHM 1/4W

D9312

SS1060FL

R9327

NC/100K

D9314 1N4148W

L9303 3UH

C9302

2.2NF

R9365 2K 1%

HS9301

HEAT SINK

1 2

3

4

R9357

NC/3K3 1/8W 1%

C9351

NC/1uF

C9338

NC/ 1N 50V

R9332

27 OHM 1/4W

C9357

NC/1uF

ZD9303

NC/BZT52-B5V1_R1_00001

12

Q9305

NC/2N7002K

R9335

27 OHM 1/4W

C9301 1NF

R9339

NC/ 100K 1/ 8W

C9332

100N 50V

R9338

NC/ 100K 1%

ZD9301

BZT52-B16

1 2

R9361 510K 1% 1/8W

FB9301

BEAD

1 2

R9337 0 OHM +-5% 1/8W

C9335

NC/100P 50V

R9355

NC/ 10. 5K OH M 1%

+

C9313

10UF 50V

C9324

NC/1uF

+

C9305

10UF 50V

U9305

NC/AOZ3015AI

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

C9325

NC/1uF

R9345 1K 1/8W 1%

C9307

NC/47PF

CN9301

NC/CONN

2 4 6

8

10 12 14

1

3

5 7

9 11 13

C9329

100N 50V

R9329 8.2K 1/4W

R9310

10K OHM 1/8W

FB9305

NC/127R

1 2

R9320

33K +-1% 1/4W

R9352

NC/ 20K 1/ 8W 1%

C9334 100P 50V

C9354

NC/2N2 50V

+12V

+12V_A

SYNC

+3.5V/+5V

BL_ON/OFF

+3.5V/+5V

+12V

+12V_A

PS_ON

DIM

+12V

+12V_A

+VCC1

DV5

SYNC

12VS

3D_ON

PS_ON

DV5

VCC_ON

HV

+VLED

BL_ON/OFF

DIM

3D_ON

+VLED

+12V

3D_ON

BL_ON/OFF

PS_ON

+12V

+12V_A +12V_A

+12V

+3.5V/+5V

HOT COLD

For Q9301

From AC N

D9304

SS1060FL

12

D9311 SK510C

12

Q9303

TK22A10N1

C9310

1NF

R9306

22R 5%

R9308

82 OHM

U9304 TL431G-AE2-R

BR

U9306

EL817M(X)

12

43

R9312 0R27 5%

R9311

750 OHM 1/4W

R9346 2K7 1/8W 1%

U9303

NC/AS78L12RTR-G1

IN

3

OUT

1

GND

2

R9323 10ohm 1/4W +/ -1%

C9312

NC/4.7nF 50V

Q9302

NC/PMBT3906

1

23

D9395

NC/1N4148W

R9302

750K +-5% 1/4W

R9303 750K +-5% 1/4W

R9304 0 OHM +-5% 1/8W

R9305

82K 2W

R9301

750K +-5% 1/4W

R9316

100K 1/8W 1%

C9339

470NF 50V

R9351

NC/3K 1/8W 5%

R9347

1K OHM +-5% 1/8W

R9343

0 OHM 1/8W

R9342

2K43 1/8W 1%

R9341

9.53K 1/8W

+

C9320 470uF 25V

U9302 SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj4GND

5

MOSG-C

6

Vdd

7

SYNC

8

+

C9323

470uF 25V

+

C9321 470uF 25V

+

C9322

470uF 25V

FB9803

127R

1 2

Q9308

MMBT3906

Q9301

TK11A65D

BR

+VCC1

D9301

SARS01-V1

U9301 LD5532

BNO

1

COMP

2

CS

3

GND4OUT

5

VCC

6

NC

7

NC

8

+

C9326

470uF 25V

+

C9327 470uF 25V

D9393 1N4148W

C9336

4.7UF

C9337

4.7UF

LED_OV

+

C9350

NC/470uF 25V

+

C9356

NC/470uF 25V

C9311

4.7nF 50V

!

Circuit Diagrams and PWB Layouts

EN 83QM16.3A LA 10.

back to

div.table

2016-Jun-08

10-5-4 LED

19850_503.eps

LED

A04 A04

2014-11-11

715G6677

LED

U8102

EL817M(X)

1

23

4

ZD8107

0R05

1 2

R8107

10K OHM

R8157

1.5R 1%

Q8103

AO3160

R8156

1.5R 1%

R8106

NC/0R 05 1/ 4W

C8102

100N 50V

R8108

100K 1/8W 1%

VCC_ON

Q8102

TK10A50D

Q8101 TK10A50D

C8146

100N 50V

R8172

10K 1/4W

R8160

0R05 1/4W

C8156

100N 50V

R8170

0R05 1/4W

R8135

0R05 1/4W

R8152

1.5R 1%

U8106

TPV10 1D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8151

1.5R 1%

C8135

1uF 50V

U8108

TPV10 1D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8149

NC/100P 50V

C8160

NC/10N 50V

C8148

1uF

C8158

1uF

DIM

-VLED-1

IC_VCC

BL_ON/OFF

C8142

1uF 50V

D8106 FMXA-2202S

1

2

3

Q8107

MMBT3906

D8107 FMXA-2202S

1

2

3

R8101 0.1R 1W

R8159

1.2R 1%

U8104

TL431G-AE2-R

R8154

1.2R 1%

R8129

3K3 1/8W 5%

U8103 TL431G-AE2-R

R8113

10R 1/8W 5%

3D_ON

R8158

1.2R 1%

R8111

10R 1/8W 5%

R8153

1.2R 1%

R8150

75 K +-1% 1/8W

Q8106

MMBT3904

GND6

NC

1

GND7

GND

1

R8116

10R 1/8W 5%

C8133

470NF 50V

For Power Saving

LED_OV

VLED

ZD8106

0R05

1 2

D8112

1N4148W

+

C8105

22UF 50V

C8141

100N 50V

C8151

100N 50V

R8128 13K 1/8W 1%

R8171

10K 1/4W

R8155

0R05 1/4W

R8166 3R6 1%

R8165

0R05 1/4W

HS8105

HEAT SINK/NC

1 2

U8105

TPV101D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8147

1uF 50V

U8107

TPV101D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8143

1uF

C8154

NC/10N 50V

C8153

1uF

DIM

-VLED-2

IC_VCC

BL_ON/OFF

C8152

1uF 50V

R8167 3R6 1%

C8140

NC/1N F 500V

C8111 5PF

D8108

1N4148W

C8136

1uF

+12V

C8157

1uF

+VLED

R8126

43K +-1% 1/4W

R8127

43K 1/8W 1%

R8168 3R6 1%

Q8105

2N7002K

R8169 3R6 1%

R8123 1M 1/8W 5%

R8124 510K +-5% 1/8W

IC_VCC

R8175

10K 1/8W

U8101

SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

ZD8101

BZT52-B15

1 2

C8137

NC

HS8102 HEAT SINK

1 2

3

4

C8116

100PF1KV

C8126

100N 50V

C8108

0.47UF 50V

C8113 560P 50V

D8101

SS1060FL

+

C8120

82uF 100V

D8103

UF4007

+

C8121

82uF 100V

+

C8122

82uF 100V

R8149 100K

ZD8109

NC/BZ T52-B30

1 2

C8115

NC/100PF

D8102 SS1060FL

C8106

10NF 50V

C8125

100N 50V

R8161 3R6 1%

R8162 3R6 1%

R8163 3R6 1%

C8103

100N 50V

R8164 3R6 1%

C8128

4N7 50V

T8101 EE39

1

4

5 6

7

8

9

10

2

3

C8112 1uF

R8102 1M5 1/4W 1%

C8124

NC/1NF 500V

C8107

4.7uF 10V

L8101 3UH

HS8106

HEAT SINK/NC

1 2

C8127 100P 50V

C8109

1UF

R8105

18K 1/8W 1%

D8111

NC/SS1060FL

R8112 47 +-5% 1/8W

R8114

10K 1/8W 1%

R8117

10K 1/8W 1%

C8104

100N 50V

C8131

100N 50V

C8110

47P 50V

R8115

47 +-5% 1/8W

R8120

NC

R8110 47K +-1% 1/4W

R8145

330K 1% 1/8W

C8101 1NF

VBoot

+VLED

HV

VCC_ON

VLED

+12V

R8109

470 OHM 1/4W

R8103

1M5 1/4W 1%

R8140

300K 1% 1/8W

+VLED

CN8101

CONN

1 2

3

4 5 6 7

8

9 10 11 12

-VLED-1

+VLED

-VLED-2

+

C8123

82uF 100V

HS8107

HEAT SINK/NC

1 2

C8145

NC/1N F 500V

GND1

NC

1

R8104

1M5 1/4W 1%

ZD8104 BZT52-B16

2

ZD8105

BZT52-B16

1 2

R8132

1K 1/8W 1%

D8109

SS1060FL

R8133

NC/0R 05 1/ 4W

R8131

5.1KR 1%

R8136 2K 1/8W 1%

C8132 100N 50V

R8134

1K 1/8W 1%

+12V

VLED

DV5

HS8108

HEAT SINK/NC

1 2

R8137

1K 1/8W 1%

R8174 NC/0R 05 1/ 4W

R8139

1K 1/8W 1%

R8121

0R05 1/4W

R8122 0R05 1/4W

R8173 NC/0R 05 1/ 4W

R8130

510OHM +-5% 1/8W

R8142 82K +-1% 1/8W

D8110

1N4148W

C8129

NC

R8141

390K 1/8W 1%

R8138

1.5K OHM

R8119

470OHM +-5% 1/8W

ZD8108 BZT52-B16

1 2

R8118 390 OHM

C8114

220P 50V

R8125

36K 1/8W 1%

C8134

1uF

ZD8102 BZT52-B16

2

GND3

NC

1

GND2 GND

1

GND5 GND

1

GND4

NC

1

Q8104

MMBT3906

C8117 47NF

!

Circuit Diagrams and PWB Layouts

EN 84QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-5-5 Power layout top

19850_504.eps

2014-11-06

715G6677

LAYOUT TOP

C8105

C9307

C9313

C9805

C9907

D9302

U8102

U9102

U9306

R9312

R9306

R9305

T9301

J968

J966

J912

J902

J952

J955

J931

J906

J935

SU1

SU2

SU4

J950

J924

J942

J923

J928

J925

J908

J904

SU6

J945

SU3

J913

J964

J958

J938

J932

J937

J936

J943

J918

J920

J919

J917

J927

J915

J914

J916

J930

J909

J907

J901

J934

J903

J929

J911

C8120

J905

C9305

J939

J944

J947

C9803

C9806

C9809

J926

J933

C8101

J956

J960

J946

J957

J963

J959

J951

SU7

J962

J961

J910

F9902

J922

J921

SU5

J949

C8111

J967

J948

D9301

J941

J969

SU8

J970

T8101

H1

S6

J940

J965

MH8

C8116

C8115

C9303

C9301

C9901

C9902

C9903

C9904

C9315

CN9902

CN9903

D8106D8107

D9802

FB9803

FB9302

HS9301

HS9302

L8101

L9302

L9303

L9304

NR9901 NR9902

R9814

CN9301

CN9303

C9302

MH3

SG9901

SG9902

D8103

MH2

MH1

C9905

C9906

RV9901

F9901

FB9305

HS8107

U8106

U8108

U8105

U8107

MH4

HS8105

HS8106HS8108

MH5

C9818

CN9302

Q9301

Q9801

HS8102

C8121

C8122

R8101

C9801

C9802

C9350

C9304

C9321 C9322

C9323

C9326

C9327

C9356

C9320

MH6

MH7

C9804

FB9802

FB9891

FB9301

HS9901

HS9801

BD9901

FB9901

FB9902

Q8102

Q8101

C8123

CN8101

GND1

GND2

GND3

GND4

GND5

GND6

GND7

Q9303

C9920

FB9903

L9801

BD9801

FB9801

CN9901

L9901

L9902

C8117

Circuit Diagrams and PWB Layouts

EN 85QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-5-6 Power layout bottom

19850_505.eps

2014-11-06

715G6677

LAYOUT BOTTOM

C8103

C8109

C8112

C8104

C8108

C8113

C8114

C8106

C8107

C8125

C8126

C8124

C8110

C8132

C9308

C9311

C9340

C9343

C9325

C9324

C9339

C9329

C9337

C9358

C9357

C9354

C9351 C9352

C9353

C9332 C9334 C9333 C9335

C9336

C9355

C9330C9331

C9306

C9338

C9342

C9310

C9810

C9808

C9812

C9811

C9814

U9901

R8102

R8103

R8113

R8111

R8112

R8104

R8114

R8105

R8115

R8116

R8117

R8119

R8120

R8118

R8109

R8136 R8134

R9813

R9311

R9309

R9308

R9310

R9307

R9313

R9314

R9342

R9343

R9324

R9345

R9328

R9321

R9315

R9337

R9338

R9339

R9334

R9333

R9335

R9352

R9356

R9351

R9357

R9355

R9322

R9325

R9326

R9317

R9318

R9362

R9361

R9801

R9806

R9802

R8121

R9809

R9810

R9895

R9816

R9817

R9904

R9903

R9905

R9906

R9907

R9908

RJ910

R8110

R9316

R9803

R9364

R9340

R9365

R9360

RJ912

FID7

FID6

C9341

R8132

R9327

R9320

R9366

C8127

C8128

C8148

C8146C8135

C8137

C8149

C8158

C8151C8142

C8147

C8131

C8145

C8141C8152 C8156

C8153

C8143

R8149

R8154

R8138

R8141

R8172

R8145

R8152

R8151

R8153

R8142

R8164

R8161

R8162

R8163

R8171

R8159

R8158

R8156

R8157

R8166

R8168

R8167

R8169

R8130

R8129

RJ908

FID5

R8160

R8170

R8155

R8165

R8128

C8102

C8136

C8157

C8134

C8133

C8160

C8154

C9813

R8108

R8125

R8123

R8124

R9808

R9807

R8106

RJ904

RJ903

R8139

RJ909

R9812

R8137

R8107

C8140

R9329

R9347

R9346

R9341

R9363

R9323

R8173R8174

RJ905

R9336

RJ906

R8135

R8133

R8175

R9353

R9354

R8127

R8126

R9304

R9301R9302

R9303

C9815

R8122

R9804

R9815

R9811

Q8104

Q8106

Q8107

Q9308

Q8103

Q8105

Q9305

Q9309

Q9307

Q9802

RJ907

U9801

U9301

U9302

U9305

RJ911

R8131

R9330

R9331

R9332

C9328

RJ901 RJ902

U8103

U8104

U9304

R8150

R8140

C8129

S2

S1

S4

S3

U8101

Q9304

D9311

Q9306

U9303

D8101

D8102

D8108

D8109

D8110

D8111

D8112

D9304

D9312

D9313

D9314

D9393

D9803

ZD8101

ZD8102 ZD8104

ZD8105

ZD8106

ZD8107

ZD8108

ZD8109

ZD9301

ZD9302

ZD9303

Circuit Diagrams and PWB Layouts

EN 86QM16.3A LA 10.

2016-Jun-08

back to

div.table

10.6 A 715G6973 PSU

19900_508.eps

AC Input

A01 A01

2015-02-11

715G6973

AC Input

CN9901 NC/CONN

1 2

CN9902 AC SOKET

12

F9901

1 2 3 4

RV9901 680V

FB9902 BEAD

12

FB9901 BEAD

12

C9901

470NF 275V

C9902

470NF 275V

L9901 12mH

1

2

4

3

R-

-

+

BD9901 GBJ1008-FUC

2

1

3

4

BO

C9911 47pF 250V

N

Vsin

C9916

1NF 250V

U9901

CAP004DG-TL

NC

1

D12D1

3

NC

4

NC5D26D27NC

8

C9907 47PF

R9901 510k 1/2W

R9902 510k 1/2W

GND4 GND

1

CN9903 NC / CONN

L1N

2

GND2 GND

1

GND1 GND

1

T5AH/250V

NC

FB9903 BEAD

1 2

C9913

220PF 250V

C9912 47pF 250V

t

NR9903 1R

12

C9914

220PF 250V

t

NR9902 1R

1 2

L9902 12mH

1

2

4

3

SG9901 NC/DSPL-501N-A21F

SG9902

NC/DSPL-501N-A21F

F9902

R9903 NC/ 510K 1/ 4W

R9904 NC/ 510K 1/ 4W

R9905 NC/ 510K 1/ 4W

F9903

R9906 NC/ 510K 1/ 4W

R9907 NC/ 510K 1/ 4W

R9908 NC/ 510K 1/ 4W

t

NR9901 1R

12

HS9901 HEAT SINK

1 2

3

4

10-6-1 AC Input

Circuit Diagrams and PWB Layouts

EN 87QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-6-2 PFC

19900_509.eps

PFC

A02 A02

2015-02-11

715G6973

PFC

-

+

BD9801 KBP208G-C

2

1

3

4

Q9801

TK18A60V

R9816 10K 1/8W 1%

C9815

NC/47PF

D9802 SS1060

12

R9815 33R 1%

C9813

3.3nF 50V

R9813

NC / 24K 1/ 8W 1%

ZD9801

BZT52-B3V6

12

R9817 10K 1/8W 1%

R9812 47R 1%

C9812 47PF 50V

HS9801 HEAT SINK

1 2

3

4

R-

+VCC2

+

C9810 10UF 50V

C9811 100N 50V

C9805

1NF 50V

R9808

16K +-1% 1/8W

R9807 470K 1%

C9807

0.47uF 50V

R9809 27K 1/8W 1%

C9806

1uF

R9810

22K 1/8W 1%

C9808

10N 50V

R9811

33K 1/8W 1%

C9809

10N 50V

R9818

10K 1/8W 1%

C9818 47PF

C9817

100N 50V

FB9904 BEAD

12

L9801 220uH

6

4

C9816 1NF

C9814 47PF

D9801 FMNS-1106S

+

C9801

82uF 450V

+

C9802

82uF 450V

Vbus

R9803 1MOHM +-1% 1/4W

R9805 680K OHM +-1% 1/4W

R9806 100K 1%

R9804 680K OHM +-1% 1/4W

FB_PFC

+VCC2

U9801 SSC-2005S

FB

1

COMP

2

RT

3

RDLY4CS

5

GND

6

OUT

7

VCC

8

R9819

NC/0R05

Q9802

AO3160

R9814 10R 1/ 8W 5%

Vsin

C9803 1UF 450V

C9804 1UF 450V

R-

R9801

0.1R 3W

R9802

0.1R 3W

Circuit Diagrams and PWB Layouts

EN 88QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-6-3 Main power

19900_510.eps

Main power

A03 A03

2015-02-11

715G6973

Main power

C9303

0.1uF 50V

R9122

1K5 +-1% 1/8W

R9109

10K 1/8W 1%

R9146 0R05

12VS

R9123

4.7K 1/8W

C9118

NC/1uF

U9103 AS431AN-E1

+VCC1

R9131

3K

D9108 1N4148

Q9106 BTC4672M3

C9304

1nF 50V

+

C9121 10UF 50V

R9301

3K 1/8W +/-1%

R9124 1K 1/8W 1%

+

C9132

10UF 50V

+3.5V

C9119 220N 50V

C9106

2.2NF

L9301 47uH

+VCC2

NC

+12V

R9126

2K2 1/8W 1%

R9127

1K5 +-1% 1/8W

Q9109

NC/MMBT3906

12VS

R9132

100KOHM +-1% 1/4W

+12V_A

R9125

9K1 1/8W 1%

R9150 22R 5%

DV5

D9107

NC/1N4148W

12VS

R9128

6.2K 1%

Q9105 2N7002K

Q9102 AOTF298L

ZD9105 BZT52-B15

1 2

Vbus

C9120

0.1uF 50V

U9105

SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj

4

GND

5

MOSG-C

6

Vdd

7

SYNC

8

R9129 10K OHM +-5% 1/8W

R9130

330K 1/8W 5%

C9130

NC/4.7NF 50V

U9106 NC/AS78L12RTR-G1

IN

3

OUT

1

GND

2

D9104 SK810C

12

DV5

C9133 10N 50V

+

C9109

1500UF 35V

+

C9110

1500UF 35V

+

C9105

100UF 50V

R9111 82K 2W

R9302

20K 1/8W 1%

C9305

2.2nF 50V

FB_SB

C9306

2.2nF 50V

D9106

1N4148W

R9133 2K 1/8W 1%

R9303

30 OHM 1/ 4W

R9304

30 OHM 1/ 4W

R9134

10K 1/8W 1%

D9103 FR107G-A0

BO BO

Q9107 MMBT3906

R9135 10K 1/8W 1%

R9136 10K 1/8W 1%

R9118 100K 1/8W 1%

D9101 1N4148W

R9142

10ohm +/-1% 1/8W

Q9103 AOD4185

Q9108 2N7002K

R9106 82 OHM

T9101 POWER X'FMR

1

2

4

5

6

7

8

10

11

C9307

1uF

C9308

1uF

+

C9309

470UF 25V

C9122

0.1uF 50V

R9105

10ohm +/-1% 1/8W

C9112 NC/1uF

C9111 NC/1uF

R9137 100 OHM 1/4W

R9138

510K 1% 1/8W

PS_ON

R9101

0.2R

12VS

R9305 11K 1/8W 1%

DV5LED_OVP

R9306 0R051/8W

Q9104 2N7002K

R9107 1Kohm +-1% 1/4W

R9307 3K 1/8W +/-1%

R9119 100K 1/8W 1%

R9112

27 OHM

R9113

27 OHM

R9114

27 OHM

R9115

27 OHM

C9103 330P 50V

R9116

27 OHM

R9117

27 OHM

C9117

0.1uF 50V

C9104

0.1uF 50V

R9121

510K 1% 1/8W

U9301

AOZ3015AI

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

R9120

100 OHM 1%

ZD9103 SS1060

1 2

+3.5V

C9107

2N2 50V

R9110 2R2 +-5% 1/4W

R9139

8.2K 1/4W

R9140

5K1 1/8W 1%

U9101 LD5532

BNO

1

COMP

2

CS

3

GND4OUT

5

VCC

6

NC

7

NC

8

+12V

HS9101 HEAT SINK

1 2

3

4

D9102

FR107G-A0

+12V_A

PS_ON

HS9102 HEAT SINK

1 2

3

4

+3.5V

C9114

1uF

C9116

1uF

Q9101 TK11A65D

FB_SB

DIMBL_ON/OFF

3D_ON

R9141

5K1 1/8W 1%

R9145 0R05 1/4W

CN9101 CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

R9143

4R7 1/4W 5%

C9108

2N2 50V

L9101 3UH

L9102 3UH

C9124

1uF

C9123

1uF

+

C9113

470UF 25V

+

C9115

470UF 25V

U9102 EL817M(X)

1

23

4

C9102

1000pF 50V

D9105

SS1060

1 2

C9101

4N7 50V

C9125

47P 50V

12VS

FB_12V

C9126

0.1uF 50V

+

C9301

470uF 25V

C9127

100PF 50V

12VS

C9128

0.1uF 50V

R9144 47K +-1% 1/4W

+12V

+12V_A

R9104

100K 1/8W 1%

ZD9301 BZT52-B4V7

12

+VCC1

C9131 NC/ 100N 50V

U9104 EL817M(X)

1

23

4

C9302

1uF

C9129 1NF 500V

R9147 330K +-1% 1/4W

R9149

330K +-1% 1/4W

ZD9104

BZT52-B15

1 2

R9148

330K +-1% 1/4W

R9103

3.3M 1/ 4W

R9102

3.3M 1/4W

R9108

3.3M 1/ 4W

Circuit Diagrams and PWB Layouts

EN 89QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-6-4 LED Driver

19900_511.eps

LED Driver

A04 A04

2015-02-11

715G6973

LED Driver

R8143

1.5R R8144

1.5R

+VLED

U8105 TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

LED_OVP +12VDV5

U8106 TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

D8108

SS1060FL

+VCC2

Q8103 MMBT3904

R8141

1.5R R8142

1.5R

R8126 0 OHM +-5% 1/8W

R8124 75 KOHM +-1% 1/8W

R8129

NC / 0 OHM +-5% 1/8W

HS8101 HEAT SINK

1 2

3

4

R8127 2K 1/8W 1%

R8130

1K 1/8W 1%

R8146

1.5R

R8128

1K 1/8W 1%

R8145

1.5R

-VLED1

C8105

0.47UF 50V

Q8104

MMBT3906

R8106

NC

R8151 0 OHM +-5% 1/8W

C8136

1uF

+VCC2

R8107

470R 1/8W 1%

C8106 560PF 50V

R8108 180R 1%

-VLED1

-VLED2

-VLED1

-VLED2

C8107 1nF 50V

C8110

1uF

C8125

0.1uF 50V

C8111

47P 50V

+12V

R8159

5K1 1/8W 1%

Q8105 MMBT3906

R8152 0 OHM +-5% 1/8W

R8147

1R 1%

C8137

1uF

R8148

1R 1%

R8131

1K 1/8W 1%

+12V

R8132 5K1 1/8W 1%

U8104 AS431AN-E1

TPV101_VCC

3D_ON

R8160

62K 1/8W 1%

R8133

30K 1/8W 1%

DIM

R8134

4.3K OHM 1%

C8126

0.1uF 50V

BL_ON/OFF

C8133

1uF

C8112

5PF

VLED1

C8109 27NF

VLED1

HS8102 HEAT SINK

1 2

HS8103 HEAT SINK

1 2

ZD8101

BZT52-B15

1 2

D8106

SS1060FL

+12V

VS

D8107

SS1060FL

R8119

4.3K OHM 1%

ZD8103

BZT52-B16

1 2

VLED1

R8149

1.5R R8150

1.5R

R8153 0 OHM +-5% 1/8W

U8107 TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

C8132

1uF

C8131

0.1uF 50V

C8138

1uF

R8154 0 OHM +-5% 1/8W

U8108 TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

R8163 10K 1/8W 1%

C8135

1uF

C8113

100PF

C8134

0.1uF 50V

D8101 UF4007

R8164

1K 1/8W 1%

R8109 10ohm +/-1% 1/8W

C8139

1uF

FB_LED

C8141

100PF 50V

D8102 SS1060FL

D8103

SS1060FL

R8110 10ohm +/-1% 1/8W

R8113 10ohm +/-1% 1/8W

ZD8104

BZT52-B30

1 2

R8111 47R 1%

R8114 47R 1%

R8112

10K 1/8W 1%

R8115

10K 1/8W 1%

U8103 AS431AN-E1

C8124

NC/0. 47U F 50V

FB_LED

FB_LLC

R8120

NC/3K 1/8W 5%

VS

R8166

3K3 1/8W 1%

Q8107

LMBT3906LT1G

1

2 3

+12V

TPV101_VCC

R8165

510 OHM +-1% 1/8W

D8110

1N4148W

TPV101_VCC

U8109 AS431AN-E1

R8172 510K 1% 1/8W

Q8108

2N7002K

C8143

0.47UF 50V

R8171 1 MOHM +-1% 1/8W

C8108 100PF1KV

BL_ON/OFF

DIM

R8167

47K 1/8W 1%

R8155 10K 1/4W

R8168 43K 1/8W 1%

R8169 9K1 1/8W 1%

R8157 10K 1/4W

T8101 POWER X'FMR

1

4

5

6

7

8

9

10

11

12

3D_ON

C8122 NC

C8145 1uF

R8170

47K 1/8W 1%

C8123

0.1uF 50V

C8127

0.1uF 50V

HS8105 HEAT SINK

1 2

HS8104 HEAT SINK

1 2

C8128

1uF

R8125 470K +-5% 1/8W

CN9102 NC/CONN

2 4 6

8

10 12 14

1

3

5 7 9 11 13

C8101 1NF

Vbus

R8101

0.1R

C8144 1uF

D8104 FMX-23S

1

2

3

D8105 FMX-23S

1

2

3

U8101 SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

+VLED

C8129

0.1uF 50V

C8130

1uF

+VLED

Q8101

TK10A50D

+VLED

Q8102

TK10A50D

+

C8116

220UF 100V

+

C8117

220UF 100V

R8103

1M5 1/4W 1%

R8104

1M5 1/4W 1%

R8102

1M5 1/4W 1%

R8118 75K

C8140

1NF 500V

D8109 FMX-23S

1

2

3

R8161

NC/0R05

C8142

100N 50V

For Power Saving

Q8106

AO3160

R8162

10K 1/8W 1%

CN8101 CONN

1 2

3

4 5 6 7

8

9 10 11 12

L8101 3UH

R8105

18K 1/8W 1%

+

C8118

39uF 160V

C8102

0.1uF 50V

R8123 100K 1/8W 1%

ZD8102

BZT52-B16

1 2

NC

-VLED2

C8104

0.1uF 50V

R8158

0R05 1/4W

+

C8103

22UF 50V

R8135

1.5R R8136

1.5R

C8119

1NF 500V

R8156

NC/0 OHM +-5% 1/8W

C8120

0.1uF 50V

C8121

0.1uF 50V

R8139

1.5R R8140

1.5R

VLED1

R8137

1.5R R8138

1.5R

U8102 EL817M(X)

1

23

4

R8117

470R 1%

C8115

10N 50V

R8116

2K43 1/8W 1%

R8121

750K 1%

R8122

150K 1/8W +/-1%

VLED1

C8114

4.7uF 10V

Circuit Diagrams and PWB Layouts

EN 90QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-6-5 Power layout top

19820_548.eps

2014-12-02

715G6973

LAYOUT TOP

C9121

C8103

C9810

C9814

C9815

C9907

D9102

U8102

U9104

R9111

T8101

J9901

J9902

J9801

J9103

J9105

J9111

J9101

J8105

J8104

J9108

J9802

J8120

J9104

J9116

J9803

J9804

J8101

J9117

J9118

J8107

J9903

J8111

J9114

J9106

J9109

J9115

J9301

F9902

F9903

J9113

C9132

J9107

D9108

R9150

J8114

J8116

J8119

J8122

J8124

J8113

J9112

J9904

J9102

J8123

J8103

J8102

J8117

J8115

J8112

J8108

J8106

J8121

J9805

J9905

C9105

SU2

SU3

SU4

SU9

SU1

SU8

SU7

SU6

SU5

C9818

C9819

C9820

J8109

J9119

C9106

C9109

C9110

C9309

D9103

F9901

R9901

R9902

U9102

C9301

R9101

T9101

DR1

DR2

DE4

DR7

DR6DR5

DR8

DR3

C8112

C8108

C8118

C9113

C9115

C8101

C9802

C9801

C9816

C9803

C9804

C9901

C9902

C9913

CN8101

CN9901

CN9903

D9801

FB9901

FB9902

HS8102

HS8103

U8105

U8106

L8101

L9101

L9102

L9301

R9801

R9802

RV9901

SG9901

SG9902

D8105

D8104

HS8101

HS9901

BD9901

D8101

CN9102

GND1

GND2

GND4

C8116

C8117

MH7

MH2

MH4

MH3

MH1

MH6

MH5

CN9101

C9914

HS9801

HS9101

HS9102

HS8104

HS8105

U8107 U8108

C9916

D8109

NR9901

NR9902

NR9903

L9801

C8109

R8101

CN9902

FB9904

FB9903

BD9801

FB9801

C9911

C9912

C8113

L9901

L9902

Q8102 Q8101

Q9101

Q9102

Q9801

Circuit Diagrams and PWB Layouts

EN 91QM16.3A LA 10.

2016-Jun-08

back to

div.table

Circuit Diagrams and PWB Layouts

19820_549.eps

2014-12-02

715G6973

LAYOUT BOTTOM

C8102

C8110

C8133

C8104

C8105

C8106

C8107

C8115

C8122

C8114

C8123

C8136

C8127 C8128

C8124

C8141

C8137

C8129 C8130

C8120

C8121

C8140

C8119

C8111

C8125

C8126

C9103

C9101

C9118

C9112

C9111

C9119

C9117

C9124

C9308

C9307

C9305

C9302

C9303

C9304

C9128

C9127

C9126

C9125

C9123

C9306

C9107

C9108

C9104

C9120

C9114

C9116

C9122

C9102

C9809

C9808

C9811

C9813

C9812

C9807

C9806

C9805

U9901

R8103 R8104

R8110

R8102

R8112

R8118

R8105

R8113

R8115

R8107

R8106

R8108

R8117

R8116

R8151

R8125

R8138

R8137

R8135

R8136

R8152

R8139

R8140

R8141

R8142

R8155

R8157

R8156

R8129

R8127

R8130

R8131

R8134

R9146

R9109

R9113

R9114

R9112

R9110

R9126

R9127

R9123

R9122

R9125

R9124

R9139

R9144

R9143

R9130

R9115

R9117

R9116

R9302

R9306

R9301

R9307

R9305

R9118

R9119

R9121

R9303

R9304

R9131

R9136

R9138

R9103R9102

R9108

R9815

R9803

R9814

R9816

R9804

R9808

R9805

R9812

R9813

R9810

R9809

R9811

R9806

R9807

R9908

R9905

R9904

R9907

R9903

R9906

SM9

R9132

R8114

SM12

SM13

U9105

U9801

U9301

R9104

R8111

R9106

JR9101

R8109

R8147

R8148

R8149

R8150

C8139

R8154

R8146

R8145

R8143

R8144

C8138

R8153

C8132C8131C8135C8134

R9140

R9142R9141

R8159

R8133

R8160

R9135

R9133

R9134

R9129

R9145

R8128

JR8101

R9137

JR9102

R8123

R8119

R8120

R8121

R8122

R8158

C8142

C9817

R8162

R8163

R9817

R9818

R8161

R9819

U9101

C9130

R8164

R9147 R9148

R9149

R9107

R9105

C9131

C9129

U8103

U8104

U9103

Q8106

Q9104

Q9105

Q9108

Q9802

R8165

R8166

R8168

R8169

R8172

C8143

C8144

C8145

Q8108

U8109

R8132

R8171

R8167

R8126

R8170

JR9103

JR9104

R9120

R9128

JR9105

R8124

JR8102

JR9106

C9133

SM2

U8101

Q9103

Q9106

Q8103

Q8104

Q8105

Q9107

Q9109

U9106

Q8107

D8102

D8103

D8106

D8107

D8108

D8110

D9101

D9105

D9106

D9107

D9802

ZD8101

ZD8102

ZD8103

ZD8104

ZD9103

ZD9104

ZD9105

ZD9301

ZD9801

D9104

EN 92QM16.3A LA 10.

10-6-6 Power layout bottom

2016-Jun-08

back to

div.table

10.7 A 715G7720 PSU

20030_500.eps

AC input

A01 A01

2015-11-05

715G7720

AC input

CN9901 NC

1 2

F9901

1 2 3 4

RV9901 680V

FB9902 BEAD

12

FB9901 BEAD

12

C9901

470NF 275V

C9902

470NF 275V

L9901 12mH

1

2

4

3

-

+

BD9901 GBJ1008-FUC

2

1

3

4

C9911 NC

N

Vsin

C9916 NC

U9901

CAP004DG-TL

NC

1

D12D1

3

NC

4

NC5D26D27NC

8

C9907 47PF

R9901 510k 1/2W

R9902 510k 1/2W

C9913

220PF 250V

FB9903 NC

1 2

C9912 NC

t

NR9903

1R

1 2

C9914

220PF 250V

t

NR9902

1R

1 2

L9902 12mH

1

2

4

3

L9903

0.25mH

1

2

4

3

SG9901

NC

!

t

NR9901 1R

12

FB9905

NC

1 2

FB9904 NC

12

HOT COLD

!

FB9906 BEAD

1 2

FB9907 BEAD

1 2

HS9901

HEAT SINK

1 2

HS9902

NC

1 2

GND1

NC

1

GND2

NC

1

R9903 NC

GND4

NC

1

CN9902

AC 2P

12

10-7-1 AC input

Circuit Diagrams and PWB Layouts

EN 93QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-7-2 PFC LD7591T

20030_501.eps

PFC LD7591T

A02 A02

2015-11-05

715G7720

PFC LD7591T

R9817

10K OHM

R9807

2KOHM +-1% 1/8W

C9820 470PF 250V

!

R9813

27K +-1% 1/8W

C9818 680PF 250V

!

FB9802

BEAD

12

HS9801

HEAT SINK

1 2

3

4

C9814

100N 50V

R9819

0R05 1/ 4W

R9815

30K 1/8W 1%

C9815

100N 50V

C9816

100N 50V

C9817 100PF

D9805

SS1060FL

D9806

SS1060FL

R9818

NC

C9813

0.47U F 50V

C9809

100N 50V

C9812 47N 50V

R9812 470R 1%

+

C9808

22UF 50V

C9806 1UF 450V

C9807 47P 50V

+

C9803 82uF 450V

R9802

33ohm 1/ 4W +/-5%

R9814

10K 1/8W

+

C9804

82uF 450V

Vsin

D9804 SS1060FL

R9805

10K 1/8W

D9802

FMNS-1106S

C9801 47PF

U9801

LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

C9810

470PF 50V

C9811 1NF

R9803

56 OHM +-5% 1/4W

Vbus

R9804

1M 1% 1/4W

R9811 19K1 +-1% 1/8W

R9801 0R05

R9806

1M 1% 1/4W

R9810

1M 1% 1/4W

+VCC2

FB9805

BEAD

1 2

Q9801

IPA60R125P6

2

1

3

R9816

100K 1/8W 1%

FB9803 BEAD

12

R9808

0.15R

Q9802

BSS127

3

1

2

R9809

0.15R

C9821

220PF 250V

FB9804 BEAD

12

!

COLD HOT

!

L9802

120uH

C9802

10NF 1KV

-

+

BD9801 KBP208G-C

2

1

3

4

L9801

200uH

64

13

C9819

1UF 450V

COLD HOT

ZD9802 BZT52-B18

1 2

COLD

HOT

Circuit Diagrams and PWB Layouts

EN 94QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-7-3 Main power SSC3S121A

20030_502.eps

Main power SSC3S121A

A03 A03

2015-11-05

715G7720

Main power SSC3S121A

+

C9106

470uF 25V

C9303

0.1uF 50V

R9119

1K5 +-1% 1/8W

12VS

R9118

4.7K 1/8W

C9114

NC

IC9104

AS431AN-E1

+VCC1

R9153

3K 1/8W 5%

LED_OVP

Q9102

BTC4672M3

+

C9110

470uF 25V

R9302

3K 1/8W +/-1%

R9121

1K 1/8W 1%

C9121 220N 50V

L9303 47uH

+12V +12V

+VCC2

+12V

R9115

2K2 1/8W 1%

+12V_T

R9116

1K5 +-1% 1/8W

R9107

100R 1/8W 5%

+

C9150

22UF 50V

R9154

20K 1/8W 1%

+12V_A

R9120

9.1K 1%

DV5

12VS

R9128

6.2K OHM +-1% 1/8W

Q9105

2N7002K

ZD9109 BZT52-B16

1 2

Vbus

C9142

100N 50V

R9129

10K 1/4W

R9130

330K 1/8W 5%

D9104 NC

12

DV5

R9127

1.5 OHM

C9128

2.2UF 25V

D9110

1N4148W

R9150 39R 5%

+

C9107

470uF 25V

+

C9108

470uF 25V

PS_ON

ZD9107

BZT52-B15

1 2

R9309

NC

CN9101

CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

C9123

2.2NF

R9141 75K

C9116

2.2NF

R9303

20K 1/8W 1%

C9305

2.2nF 50V

C9145 47PF

C9306

2.2nF 50V

D9108

1N4148W

R9155 2Kohm 1/4W +/-5%

R9140 39R 5%

R9304

30R +-1% 1/8W

Q9111

TK32A12N1 32A

R9305

30R +-1% 1/8W

D9106 SR810-05

12

R9156

3K 1/8W +/-1%

D9101

SARS02

+

C9115

470uF 25V

HS9103

HEAT SINK

1 2

3

4

R9157

10K 1/8W 1%

D9116 SR810-05

12

D9117 NC

12

R9158 1K5 +-1% 1/8W

R9135

4.7 MOHM +-5% 1/4W

R9142

100KOHM +-5% 1/8W

D9102

SS1060FL

Q9108

2N7002K

T-CON_ON/OFF

C9307

0.1uF 50V

C9308

0.1uF 50V

+

C9309

470UF 10V

C9147

0.1uF 50V

R9108

10ohm 1/4W +/-1%

C9119

1UF/50V

R9165

100 OHM 1%

C9120

1UF/50V

R9159 51 OHM 1/4W

R9160

510K 1% 1/8W

R9109

10K 1/8W

PS_ON

12VS

R9306

11K 1%

DV5

R9307

0R05

R9104

330 OHM 1% 1/8W

R9308

3K 1/8W +/-1%

N

R9143 100K

Q9101 TK13A65U

R9110

35R7 1%

R9164

3K 1/8W +/-1%

R9111

35R7 1%

R9112

35R7 1%

R9131

35R7 1%

C9104 680PF 50V

R9132

35R7 1%

R9133

35R7 1%

C9122

0.1uF / 50V

C9141

1uF

R9145

510KOHM

U9301

AOZ3015AI

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

C9188

1uF

C9177

1uF

+5V/3.5V

C9139

2.2nF 50V

C9140

2.2nF 50V

R9114

1.5 OHM

R9122

8.2K 1/4W

R9123

5K1 +-5% 1/8W

+12V

L9102 3UH

U9111

SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj

4

GND

5

MOSG-C

6

Vdd

7

SYNC

8

+12V

D9103

FR107G-A0

+12V_A+12V_A

Q9110

2N7002

PS_ON

+5V/3.5V

+

C9103

47UF 50V

C9143

1uF

12VS

C9144

1uF

!

D9115 SS1060

1 2

COLDHOT

COLD

HOT

COLD

HOT

ON/OFF DIM

R9126

10 OHM 1/4W

U9101

SSC3S121A

FB/OLP

1

BR

2

ST4DRV

5

OCP

6

VCC

7

GND

8

R9117

5.1K 1/4W

C9310

1NF 50V

Q9109 2SA1797

R9151 0R05 4A 1/4W

R9134

35R7 1%

R9113

35R7 1%

T9101 POWER X'FMR

1

2

3

5

10

12

4

6

8

7 11

R9325 NC

R9327 NC

Q9104 PZ0703ETF

2

1

3

C9325

NC

Q9305 NC

ZD9111

BZT52-B30

1 2

C9328

NC

ZD9112

BZT52-B30

1 2

D9313 NC

C9324

NC

R9322

NC

R9326

NC

R9101

0.2R

T-CON_ON/OFF

L9101

1.1uH

12VS

C9124

4.7UF

+

C9113 470uF 25V

R9102

47K 1/8W 1%

ZD9301 BZT52-B4V7

12

Q9302

NC

C9127

2.2UF 25V

D9105

SS1060FL

Vbus

C9112

2.2nF

C9136

47P 50V

12VS

C9135

0.1uF 50V

+

C9301

470uF 25V

C9134

100PF 50V

C9133

0.1uF 50V

L9103 NC

+12V_T

+

C9327

NC

HS9101

HEAT SINK

1 2

3

4

R9310

HS9102

HEAT SINK

1 2

3

4

R9124

33KOHM +-1% 1/4W

+VCC1

U9102

EL817M(X)

1

23

4

U9103

EL817M(X)

1

23

4

C9302

0.47UF 50V

CN9102

NC

1 2

3

4 5 6

78

ZD9106

BZT52-B15

1 2

R9161

620K +-1% 1/4W

R9162

620K +-1% 1/4W

R9163

620K +-1% 1/4W

+

C9109

470uF 25V

Circuit Diagrams and PWB Layouts

EN 95QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-7-4 LED DRIVER SSC9522S

20030_503.eps

LED Driver SSC9522S

A04 A04

2015-11-05

715G7720

LED Driver SSC9522S

+VLED

U8105

TPV101AD

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

LED_OVP +12VDV5

U8106

TPV101AD

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

D8108

SS1060FL

+VCC2

Q8103 MMBT3904

R8141

1.2R 1%

R8142

1.5R

+12V

R8126 0 OHM +-5% 1/8W

R8124 10K 1/8W 1%

R8129

NC

HS8101 HEAT SINK

1 2

3

4

R8127 2K 1/8W 1%

R8130

1K 1/8W 1%

R8128

1K 1/8W 1%

T8101 POWER X'FMR

4

1

9

8

11

6

10 5

12 7

C8105

0.47UF 50V

Q8104

MMBT3906

R8106

NC

R8151 0 OHM +-5% 1/8W

C8136

4.7UF

+VCC2

R8107

470R 1/8W 1%

C8106 560PF 50V

R8108 174R 1%

Q8107

NC

C8107 1nF 50V

C8110

1uF

C8125

0.1uF 50V

C8111

47P 50V

R8159

5.1KR 1%

R8152 0 OHM +-5% 1/8W

C8137

4.7UF

TPV101_VCC

C8133

1uF

C8112

5PF

C8109 27nF

VLED1

HS8102 HEAT SINK

1 2

HS8103 HEAT SINK

1 2

ZD8101

BZT52-B15

1 2

D8106

SS1060FL

+12V

VS

D8107

SS1060FL

R8119

1.5K OHM

ZD8103

BZT52-B20

1 2

VLED1

C8155 NC

R8163 10K 1/8W 1%

C8113

100PF

D8101 UF4007

R8164

1K 1/8W 1%

R8109 10ohm +/-1% 1/8W

FB_LED

D8102 SS1060FL

D8103

SS1060FL

R8110 10ohm +/-1% 1/8W

R8113 10ohm +/-1% 1/8W

ZD8104

BZT52-B33

1 2

Q8106 BSS127

3

1

2

R8111 47R 1%

R8114 47R 1%

R8112

10K 1/8W 1%

R8115

10K 1/8W 1%

U8103 AS431AN-E1

ZD8110

NC

1 2

R8173 0R05 1/4W

C8124

NC

FB_LED

FB_LLC

R8120

3K 1/8W 5%

D8155

1N4148W

ZD8113

BZT52-B30

1 2

ZD8120

BZT52-B30

1 2

R8188

NC

ZD8112

BZT52-B30

1 2

R8166

0R05 1/4W

VS

+

C8188

82uF 100V

TPV101_VCC

!

ON/OFF

C8108 100PF1KV

C8143

NC

Q8108

NC

C8144

NC

DIM

R8172

NC

R8165 NC

R8155 10K 1/4W

R8170

NC

D8110

NC

ZD8102

BZT52-B20

1 2

R8143

0R05 4A 1/4W

R8144

0R05 4A 1/4W

C8122 NC

C8123

0.1uF 50V

C8127

NC

COLDHOT

C8128

1uF

R8125 39K 1/8W 1%

R8175NCR8176NCR8177NCR8178NCR8179

NC

C8101 1NF

Vbus

R8101

0.1R

D8104 FMX-23S

1

2

3

D8105 FMX-23S

1

2

3

U8101 SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

C8129NCC8130

1uF

Q8101

TK10A50D

Q8102

TK10A50D

+

C8116

82uF 100V

+

C8117

82uF 100V

R8103

1M5 1/4W 1%

R8104

1M5 1/4W 1%

R8102

1M5 1/4W 1%

R8135

1.2R 1%

R8136

1.2R 1%

R8139

1.2R 1%

R8140

1.2R 1%

R8171

NC

R8118 75K

D8109 NC

1

2

3

+VLED

R8161

NC

CN8601

CONN

1 2

3

4 5 6 7

8

9 10 11 12

C8142

100N 50V

+VLED

R8162

10K 1/8W 1%

L8101 3UH

R8105

18K 1/8W 1%

+

C8118

82uF 100V

C8102

0.1uF 50V

R8123

7.5KOHM +-1% 1/8W

C8104

0.1uF 50V

+

C8103

22UF 50V

C8119

1NF 500V

C8120

0.1uF 50V

C8121

0.1uF 50V

VLED1

R8137

1.2R 1%

R8138

1.5R

U8102 EL817M(X)

1

23

4

R8117

470R 1%

C8115

10N 50V

R8116

2K43 1/8W 1%

R8121

62K 1/8W 1%

R8122

62K 1/8W 1%

VLED1

C8114

4.7uF 10V

Circuit Diagrams and PWB Layouts

EN 96QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-7-5 Power layout top

20030_504.eps

2015-11-08

715G7720

LAYOUT TOP

C8103

C9801

C9808

C9907

R9141

T8101

T9101

U8102

U9102

U9103

J9828

J9852

J9809

J9831

J9835

J9838

J9814

J9816

J9815

J9817

J9833

J9830

J9819

J9854

J9853

J9844

J9855

J9851

R9808

R9809

J9823

J9842

J9848

J9801

J9813

J9805

J9803

J9810

J9806

J9807

J9808

J9826

J9821

J9850

J9829

J9832

J9824

J9804

J9827

J9822

J9839

J9845

J9840

J9841

J9812

J9834

J9847

J9846

J9825

J9836

J9837

D9106

J9857

J9856

J9811

J9858

CN8601

J9849

R9140 R9150

J9860

D9101

C9145

C9817

J9105

J9104

J9101

D9116

J9820

SU1

SU2

SU3

SU4

SU5

J9802

R9101

J9843

J9859

J9818

J9861

J9862

DR2

DR1

H7

H8

H9

H10

DR3

DR4

DR5

DR6DR7

DR8

DR9

DR10

DR11

DR12

DR13

BD9801

C8101

C8108

C8112

C8113

C8118

C9103

C9113

C9115

C9116 C9123

C9301

C9309

C9327

C9802

C9803 C9804

C9806

C9819

C9901

C9902

C9911

C9912

C9913

C9914

CN9101

CN9102

CN9901

D8101

D8104

D8105

D8109

D9103

D9802

F9901

FB9903

GND1

GND2

GND4

HS8101

HS8102 HS8103

L8101

L9102

L9103

L9303

L9801

L9903

NR9901

NR9902

NR9903

Q8101

Q8102

Q9101

Q9104

Q9111

Q9801

R8101

R9901

R9902

SG9901

SG9902

U8105

U8106

MH3HS2

MH1 MH2

HS9902

C8116

C8117

C9110

C8188

L9802

HS9101

HS9102

HS9103

FB9805

H5

R9903

L9901

L9902

RV9901

HS9801

CN9902

C9107

C9108

C9106

C9109

FB9904

FB9905

L9101

BD9901

C9818

HS9901

HS3

C9150

FB9803

FB9804

FB9906

FB9907

FB9802

C9820

C9821

C9916

C8109

FB9901

FB9902

Circuit Diagrams and PWB Layouts

EN 97QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-7-6 Power layout bottom

20030_505.eps

2015-11-08

715G7720

LAYOUT BOTTOM

F2

IC9104

Q8106

Q8108

Q9105

Q9108

Q9110

Q9305

Q9802

R8102R8103R8104

R8105

R8106

R8107

R8109

R8110R8111

R8112

R8113R8114

R8115

R8117

R8118

R8120

R8121

R8122

R8123

R8124

R8125

R8126

R8127

R8128

R8129

R8130

R8135

R8136

R8137

R8138

R8139

R8140

R8141

R8142

R8151

R8152

R8155

R8161

R8162

R8163

R8164

R8165

R8166

R8170

R8171

R8172

R8173

R8188

R9102

R9104

R9107

R9108

R9109

R9110 R9111 R9112 R9114

R9117

R9118 R9119

R9121

R9122

R9123

R9124

R9126

R9127

R9129

R9130

R9131

R9132

R9133

R9142

R9145

R9153

R9154

R9155

R9157

R9158

R9159

R9160

R9161

R9162R9163

R9302

R9303

R9306

R9308

R9309

R9310

R9322

R9325

R9326

R9327

R9801

R9802

R9803

R9804

R9805

R9806

R9807

R9810

R9811

R9812

R9813

R9814

R9815

R9816

R9818

R9819

U8103

U9101

U9901

R9135

R8116

R8108

R9156 R9164

R9305

R9304

R9817

R8159

R9307

R9128R9115

R9116

U9111

U9801

U9301

R9143

R9120

F5

F6

R8143

R8144

R8175

R8176

R8177

R8178

R8179

R9113 R9134

R9151

R9165

RJ9801

RJ9802

RJ9803

RJ9809

RJ9811

RJ9810

RJ9806

RJ9805

RJ9808

RJ9804

RJ9807

RJ9812

RJ9813

RJ9814

R8119

C9310

C8102

C8104

C8105

C8106

C8107

C8110

C8111

C8114

C8115

C8120

C8121

C8122

C8123

C8124

C8125

C8127

C8128

C8129

C8130

C8133

C8136

C8137

C8142

C8143

C8144

C9104

C9112

C9114

C9119 C9120

C9121

C9122

C9124

C9127

C9133

C9134

C9135

C9136

C9139C9140

C9141

C9142

C9143

C9144

C9147

C9177

C9188

C9302

C9303

C9305

C9306

C9307

C9308

C9324

C9325

C9328

C9807

C9809

C9810

C9811

C9812

C9813

C9814

C9815

C9816

C9128

RJ9815

C8119

C8155

D8102

D8103

D8106

D8107

D8108

D8110

D8155

D9102

D9104

D9105

D9108

D9110

D9313

D9804

D9805

D9806

Q8103

Q8104

Q8107

Q9302

U8101

ZD8101

ZD8102

ZD8103

ZD8104

ZD8110

ZD8112

ZD8113

ZD8120

ZD9106

ZD9107

ZD9109

ZD9112

ZD9301

Q9109

Q9102

ZD9111

D9115

ZD9802

D9117

Circuit Diagrams and PWB Layouts

EN 98QM16.3A LA 10.

2016-Jun-08

back to

div.table

10.8 A 715G8063 PSU

20152_500.eps

LED DRIVER 1-16

A01 A01

2016-3-23

715G8063

LED DRIVER 1-16

R8186 NC_220R

R8484 NC

DO-5

DO-4

Option

FB14

R8187 NC_100R 1/10W 1%

CN806

CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

+Vin

R8181 NC

R8157

4M7

D8104 NC

D8106 NC

D8105 NC

D8108 NC

D8107 NC

D8110 NC

D8109 NC

FB14

FB5

FB12

D8111 NC

FB7

FB4

FB3

VLED1+ VLED1+

FB9

FB8

+5V_SW

FB1

VLED1+

VLED1+ VLED1+

FB10

FB6

FB13

FB11

VLED1+

FB2

FB15

FB16

FB2

D8112 NC

D8114 NC

D8113 NC

Q8113 2N7002K

D8115 NC

R8158 100K 1/10W 5%

D8116 NC

D8118 NC

D8117 NC

D8119 NC

SHDET_801SHDET_801SHDET_801SHDET_801

C8136 NC_10PF 50V

FB13

DI-2

C8122

1uF25V

R8138 NC

R8105

4.7 OHM +-1% 1/10W

U8101

AS3820E-ZQFT

GATE16

12

SOURCE1

2

GATE1

1

FB18FB2

7

DCDC_EN

28

GND

9

VDD

6

V3_2

3

GATE2

47

SOURCE2

48

GATE3

45

SOURCE3

46

GATE4

43

SOURCE4

44

GATE5

42

SOURCE5

41

SOURCE6

39

GATE6

40

SOURCE7

37

GATE7

38

SOURCE8

35

GATE8

36

SOURCE9

26

GATE9

25

MODE3D

29

VSYNC4HSYNC5xCS30SCL33SDI34SDO31xFAULT

27

GATE10

23

SOURCE10

24

GATE11

21

SOURCE11

22

GATE12

19

SOURCE12

20

GATE13

18

SOURCE13

17

SOURCE14

15

GATE14

16

GATE15

14

GND_sns

10

SOURCE15

13

SOURCE16

11

GND_EP

49

V3_2

32

C8103 10UF 10V

R8127 10K 1/8W 1%

C8107 12pF 50V

R8137

0 OHM +-5% 1/8W

R8139 NC

R8112

4.7 OHM +-1% 1/10W

C8104 100pF 50V

ZD8103 BZT52-B15G

1 2

R8165 NC

C8102 1uF25V

DO-1

+3_2V OUT-1

R8121

4.7 OHM +-1% 1/10W

FAULT-1

+3_2V OUT-1

+5V_SW

LDM_HSYNC

LDM_VSYNC

LDM_CLK

LDM_CS

FB-P1

Q8103 AOD2922

R8120

4.7 OHM +-1% 1/10W

R8166

4.7 OHM +-1% 1/10W

R8152 _NC_0 OHM +-5% 1/8W

R8132

4.7 OHM +-1% 1/10W

R8115

4.7 OHM +-1% 1/10W

Q8123 AOD2922

+Vin_S

FB1

DO-1

DI-1

SHDET_801

CN805

CONN

1

2

3

4

5

6

7

8

9 10

FB13

FB17

FB20

Q8125 AOD2922

FB3

FB5

Q8105 AOD2922

FB19

FB2

R8164

0 OHM +-5% 1/8W

FB10

FB22

FB8

Q8127 AOD2922

Q8107 AOD2922

FB21

FB14

FB23

FB12

FB16

FB18

FB11

FB6

FB15

FB7

FB24

FB9

FB4

FB7

CN807

CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

CN801

CONN 51P

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

30 31 32 33 34 35 36 37 38 39

40 41 42 43 44 45 46 47 48 49 50 51

52

53

54

55

56

57

58

59

60

61

FB1

R8119

4.7 OHM +-1% 1/10W

R8136

4.7 OHM +-1% 1/10W

R8117

4.7 OHM +-1% 1/10W

R8111

4.7 OHM +-1% 1/10W

FB11

DI-1

R8114

4.7 OHM +-1% 1/10W

R8116

4.7 OHM +-1% 1/10W

R8163 10R 1/8W 5%

R8160 10R 1/8W 5%

R8118

4.7 OHM +-1% 1/10W

R8113

4.7 OHM +-1% 1/10W

R8161 10R 1/8W 5%

+5V_SW

+Vin

FB12

LDM_CLK

LDM_CS

LDM_VSYNC

+Vin

DO-5

R8159 10R 1/8W 5%

R8178 NC

R8122

4.7 OHM +-1% 1/10W

FB8

R8169

4.7 OHM +-1% 1/10W

R8171

4.7 OHM +-1% 1/10W

R8128

4.7 OHM +-1% 1/10W

CN808 CONN

2 4 6

8

10 12

1

3

5 7 9 11

R8123

4.7 OHM +-1% 1/10W

FB4

+Vin

F8101 NC_5A 125V

+3_2V OUT-4

R8179 NC

C8135 NC_100NF 50V

VLED1+

L8104

4.7uH

VLED1+

Q8101 AOD2922

VLED1+

VLED1+ VLED1+

HS8101

HEAT SINK

1 2

3

4

R8153

3K

C8157 NC_22UF 16V

Q8121 AOD2922

FB8105

CHIP BEAD 3216 80O HM 25%

1 2

C8150

4.7UF 25V

C8160

1uF

ZD8102

BZT52-B5V1

1 2

C8156

10UF 16V

FB28

C8154

220PF

U8105

SY8253ADC

BS

1

GND

2

FB3EN

4

IN5LX

6

FB29

C8155

10UF 16V

FB25

FB32

C8153

1NF 50V

FB31

FB26

FB30

C8152

100NF 50V

FB27

C8151

1uF

R8156

100KOHM +-5% 1/8W

R8126

4.7 OHM +-1% 1/10W

R8170

4.7 OHM +-1% 1/10W

R8124

4.7 OHM +-1% 1/10W

R8125

4.7 OHM +-1% 1/10W

R8131

4.7 OHM +-1% 1/10W

R8133

4.7 OHM +-1% 1/10W

R8129

4.7 OHM +-1% 1/10W

R8135

4.7 OHM +-1% 1/10W

R8175 NC

FB3

U8303 NC_74LVC1G17GV

24

53 1

R8174 NC

FB16

R8162 10R 1/8W 5%

+

C8108 47UF 100V

D8606 1N4148W

C8134

2.2UF 25V

R8185

0 OHM +-5% 1/8W

C8105 100pF 50V

R8167

4.7 OHM +-1% 1/10W

R8168

4.7 OHM +-1% 1/10W

R8134

4.7 OHM +-1% 1/10W

C8106 100pF 50V

R8130

4.7 OHM +-1% 1/10W

+

C8114 220UF 100V

+

C8115 220UF 100V

+

C8111 220UF 100V

R8176 NC

FB10

R8173

2K 1/4W

R8151

300K

ZD8101

NC(BZT52-B4V7)

1 2

C8101

0.1uF 50V

R8150 100K 1/8W

Q8109

AOTF298L

+

C8113 10UF 25V

C8120 1N 50V

R8144 33OHM

R8143

100K 1/8W 1%

D8101 FMEN-2308

1

2

3

L8101 47uH

3

1

C8119 47PF 5%

U8102 PF7900S

FB

1

GM

2

RT

3

CS4DIM

5

GND

6

OUT

7

VCC

8

R8146

6.8KOHM1/8W

C8118

1N 50V

C8121

1nF 50V

R8140 47K 1/8W 1%

D8102 SS0520_R1

12

R8141

0.03R 3W

R8147

220K OHM 1%

R8148 1K 1/8W 1%

R8142

10K 1/8W 1%

Q8122

AOD2922

C8116 100N 50V

C8117

470PF 50V

Q8102

AOD2922

R8172 33OHM

R8145

10K OHM +-5% 1/8W

FB8101 CHIP BEAD 3216 80OHM 25%

12

C8112 100N 50V

FB6

+Vin_S

FB-1

+5V_SW

FB-1

FB-P1

Q8124 AOD2922

+Vin

VLED1+

Q8104 AOD2922

FB15

R8101 0R05 1/4W

R8102 0R05 1/4W

Q8106

AOD2922

R8103 0R05 1/4W

Q8126

AOD2922

Q8110 BTC4672M3

Q8108

AOD2922

Q8128

AOD2922

+

C8109 47UF 100V

R8177 NC

R8154

100K 1/8W 1%

FB9

R8155

13.3K 1%

CN804 CONN

1 2

3

4 5 6 7

8

910

R8180 NC

FB5

DO-4

R8184 0 OHM +-5% 1/8W

10-8-1 LED DRIVER 1-16

Circuit Diagrams and PWB Layouts

EN 99QM16.3A LA 10.

2016-Jun-08

back to

div.table

10-8-2 LED DRIVER 17-32

20152_501.eps

LED DRIVER 17-32

A02 A02

2016-03-23

715G8063

LED DRIVER 17-32

SHDET_802

D8217 1N4148WS

D8208 NC/1N4148WS

D8215 NC/1N4148WS

D8214 NC/1N4148WS

R8251 4M7

D8211 NC/1N4148WS

D8210 NC/1N4148WS

D8212 NC/1N4148WS

D8213 NC/1N4148WS

D8206 NC/1N4148WS

D8218 NC/1N4148WS

D8204 NC/1N4148WS

D8216 NC/1N4148WS

D8207 NC/1N4148WS

D8203 NC/1N4148WS

R8250

NC/100K 1/ 10W

D8205 NC/1N4148WS

FB28

Q8210 NC/2N7002K

D8209 NC/1N4148WS

FB21

FB23

FB20

FB19

FB30

FB25

FB24

+5V_SW

FB17

FB26

FB22

FB29

FB27

FB32

FB18

FB31

FB32

+3_2V OUT-2

U8201

AS3820E-ZQFT

GATE16

12

SOURCE1

2

GATE1

1

FB18FB2

7

DCDC_EN

28

GND

9

VDD

6

V3_2

3

GATE2

47

SOURCE2

48

GATE3

45

SOURCE3

46

GATE4

43

SOURCE4

44

GATE5

42

SOURCE5

41

SOURCE6

39

GATE6

40

SOURCE7

37

GATE7

38

SOURCE8

35

GATE8

36

SOURCE9

26

GATE9

25

MODE3D

29

VSYNC4HSYNC5xCS30SCL33SDI34SDO31xFAULT

27

GATE10

23

SOURCE10

24

GATE11

21

SOURCE11

22

GATE12

19

SOURCE12

20

GATE13

18

SOURCE13

17

SOURCE14

15

GATE14

16

GATE15

14

GND_sns

10

SOURCE15

13

SOURCE16

11

GND_EP

49

V3_2

32

FAULT-2

C8204 100pF 50V

C8205 100pF 50V

C8206 100pF 50V

FB18

SHDET_802

R8227 10K 1/8W 1%

FB30

LDM_HSYNC

FB22

R8265 NC/100K 1/ 8W 1%

+3_2V OUT-2

FB31

C8207 NC

C8202 1uF25V

FB17

FB21

FB29

FB20

+5V_SW

FB-P1

R8239 NC/100K 1/ 8W 1%

LDM_CS

FB24

FB28

LDM_CLK

C8203 10UF 10V

FB23

FB27

LDM_VSYNC

DO-2

C8222

1uF25V

FB19

R8252 NC

Q8201 AOD2922

Q8203 AOD2922

R8205

4.7 OHM +-1% 1/10W

R8233

4.7 OHM +-1% 1/10W

Q8227 AOD2922

R8219

4.7 OHM +-1% 1/10W

Q8223 AOD2922

R8222

4.7 OHM +-1% 1/10W

R8269

4.7 OHM +-1% 1/10W

R8271

4.7 OHM +-1% 1/10W

R8217

4.7 OHM +-1% 1/10W

Q8207 AOD2922

R8223

4.7 OHM +-1% 1/10W

R8229

4.7 OHM +-1% 1/10W

Q8225 AOD2922

R8236

4.7 OHM +-1% 1/10W

Q8221 AOD2922

R8228

4.7 OHM +-1% 1/10W

R8270

4.7 OHM +-1% 1/10W

R8221

4.7 OHM +-1% 1/10W

R8212

4.7 OHM +-1% 1/10W

Q8205 AOD2922

R8211

4.7 OHM +-1% 1/10W

R8231

4.7 OHM +-1% 1/10W

FB25FB26

R8216

4.7 OHM +-1% 1/10W

R8226

4.7 OHM +-1% 1/10W

R8277 NC

R8230

4.7 OHM +-1% 1/10W

Q8222

AOD2922

Q8226

AOD2922

Q8206

AOD2922

R8214

4.7 OHM +-1% 1/10W

R8268

4.7 OHM +-1% 1/10W

Q8224 AOD2922

Q8208

AOD2922

R8275 NC

R8274 NC

R8281 NC

R8235

4.7 OHM +-1% 1/10W

R8232

4.7 OHM +-1% 1/10W

Q8204 AOD2922

R8279 NC

R8278 NC

R8276 NC

R8280 NC

R8225

4.7 OHM +-1% 1/10W

R8224

4.7 OHM +-1% 1/10W

R8267

4.7 OHM +-1% 1/10W

Q8202

AOD2922

R8213

4.7 OHM +-1% 1/10W

R8218

4.7 OHM +-1% 1/10W

R8215

4.7 OHM +-1% 1/10W

R8266

4.7 OHM +-1% 1/10W

R8220

4.7 OHM +-1% 1/10W

Q8228

AOD2922

R8234

4.7 OHM +-1% 1/10W

R8237

0 OHM +-5% 1/8W

DO-2

DI-3

DI-2

Circuit Diagrams and PWB Layouts

EN 100QM16.3A LA 10.

2016-Jun-08

back to

div.table

Philips 43PUT6801 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents Page Contents Page

1. Revision List

2. Technical Specs, Diversity, and Connections

2.1 Technical Specifications

2.2 Directions for Use

Table 2-1 Described Model Numbers and Diversity

2.3 Connections

2.3.1 Side Connections

Figure 2-1 Connection overview

1 - Cinch: Digital Audio - Out

2 - USB3 2.0

Figure 2-2 USB (type A)

3 - USB2 2.0

Figure 2-3 USB (type A)

4- HDMI 4 ARC/MHL: Digital Video - In, Digital Audio with ARC - In/Out

Figure 2-4 HDMI (type A) connector

Figure 2-5 HDMI (type A) connector

6- Head phone (Output)

2.3.2 Rear Connections

8- Service / UART

9 - Cinch: Video YPbPr - In, Audio - In

10 - RJ45: Ethernet

Figure 2-7 Ethernet connector

11 - Cinch: Digital Audio - Out

12 - TV ANTENNA - In

Figure 2-6 SCART connector

13 - SAT - In

14- USB1 2.0

Figure 2-8 USB (type A)

15 - HDMI1 : Digital Video - In, Digital Audio - In/Out

Figure 2-9 HDMI (type A) connector

16 - HDMI2 : Digital Video - In, Digital Audio - In/Out

Figure 2-10 HDMI (type A) connector

2.4 Chassis Overview

3. Precautions, Notes, and Abbreviation List

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.3.1 General

3.3.2 Schematic Notes

3.3.3 Spare Parts

3.3.4 BGA (Ball Grid Array) ICs

Introduction

BGA Temperature Profiles

3.3.5 Lead-free Soldering

3.3.6 Alternative BOM identification

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

3.3.8 Practical Service Precautions

3.4 Abbreviation List

4. Mechanical Instructions

4.1 Cable Dressing

Figure 4-1 Cable dressing (43" 6801 series)

Figure 4-2 Cable dressing (49" 6801 series)

Figure 4-3 Cable dressing (55" 6801 series)

Figure 4-4 Cable dressing (55" 7101 series)

Figure 4-5 Cable dressing (65" 7101 series)

Figure 4-6 Cable dressing (65" 7601 series)

Figure 4-7 Cable dressing (75" 7101 series)

4.2 Se rvice Positions

4.3 Assembly/Panel Removal (for 7101 series)

4.3.1 Stand

Figure 4-8 Stand removal

4.3.2 Rear Cover

Figure 4-9 Rear cover removal[1]

Figure 4-10 Rear cover removal[2]

4.3.3 AmbiLight Panel

Figure 4-11 Ambilight and Keyboard removal

4.3.4 Keyboard Control Unit

4.3.5 Small Signal Board (SSB)

Figure 4-12 SSB removal

4.3.6 IR/LED Board

4.3.10 LED Logo Board

Figure 4-13 IR/LED Board removal

4.3.7 Power Supply Unit (PSU)

4.3.8 Speakers
