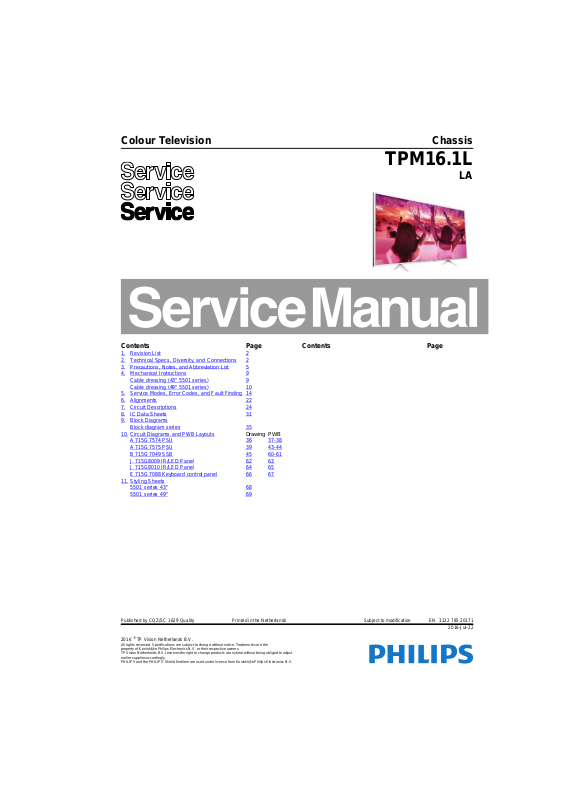

Philips 43PFG5501, 43PFD5501 Schematic

Colour Television Chassis

TPM16.1L

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9
Cable dressing (43" 5501 series) 9
Cable dressing (49" 5501 series) 10

5. Service Modes, Error Codes, and Fault Finding 14

6. Alignments 22

7. Circuit Descriptions 24

8. IC Data Sheets 31

9. Block Diagrams
Block diagram series 35

10. Circuit Diagrams and PWB Layouts Drawing PWB
A 715G7574 PSU
A 715G7575 PSU 39 43-44
B 715G7049 SSB 45 60-61
J 715G8009 IR/LED Panel 62 63
J 715G8010 IR/LED Panel 64 65
E 715G7088 Keyboard control panel 66 67

11. Styling Sheets
5501 series 43" 68
5501 series 49" 69

36 37-38

Published by CQZ/SC 1629 Quality Printed in the Netherlands Subject to modification EN 3122 785 20171

2016-Jul-22

2016 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPM16.1L LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 6: Updated tables 6-2 White tone default settings
and 6-3 Display code overview

2. Technical Specs, Diversity, and Connections

.

.

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in back to

div.table 2-1. Here is product information available, as well as

getting started, user manuals, frequently asked questions and

Notes:

software & drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 910 11

Mechanics

CTN

43PFG5501/77 2-1 4-1 4-3 4-4 4-5 4-6 4-7 9.1 10.1 or 10.2 10.3 10.4 10.6 11.1
43PFD5501/55 2-1 4-1 4-3 4-4 4-5 4-6 4-7 9.1 10.1 10.3 10.4 10.6 11.1
49PFG5501/77 2-1 4-2 4-3 4-4 4-5 4-6 4-7 9.1 10.2 10.3 10.5 10.6 11.2
49PFD5501/55 2-1 4-2 4-3 4-4 4-5 4-6 4-7 9.1 10.2 10.3 10.5 10.6 11.2

Connection Overview

Wire Dressing

Stand Removal

Rear Cover Removal

Kyboard Control Removal

IR/LED Board Removal

SSB Removal

Schematics

Block Diagram

Power Supply

SSB

2.2 Directions for Use

Directions for use can be downloaded from the following
websites:

http://www.philips.com/support
http://www.p4c.philips.com

J (IR/LED)

E (Keyboard/Leading Edge)

Styling

2016-Jul-22

back to

div.table

2.3 Connections

TV ANTENNA

SERV.U

AUDIO IN

DVI

HDMI 3

ARC

SPDIF

OUT

NETWORK

HDMI 2

ARC

USB3

USB

USB

HDMI

ARC/MHL

1

2

1

CVBS

R

L

20170_001.eps

1

2

6

9

12

Side Connectors

Rear Connectors

7

3

8

10

13

11

4

5

1 2 3 4

10000_022_090121.eps

090121

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3TPM16.1L LA 2.

2.3.1 Side Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Service / UART

1 -Ground Gnd H
2 -UART_TX Transmit k
3 -UART_RX Receive j

2 - USB1

Figure 2-2 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

3 - USB2

Figure 2-3 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

back to

div.table

4 - EXT: Video CVBS - In, Audio - In

Ye -Video - CBVS 1 V
Wh -Audio - L 0.5 V
Rd -Audio - R 0.5 V

5 - HDMI 1: Digital Video - In, Digital Audio with ARC/MHL ­In/Out

Figure 2-4 HDMI (type A) connector

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

6- Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

2016-Jul-22

EN 4 TPM16.1L LA2.

10000_025_090121.eps

120320

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

2.3.2 Rear Connections

7 - RJ45: Ethernet

Figure 2-5 Ethernet connector

1 -TD+ Transmit signal k
2 -TD- Transmit signal k
3 -RD+ Receive signal j
4 -CT Centre Tap: DC level fixation
5 -CT Centre Tap: DC level fixation
6 -RD- Receive signal j
7 -GND Gnd H
8 -GND Gnd H

8 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75 W kq

PP

9- TV ANTENNA - In

Signal input from an antenna, cable or satellite.

10 - USB3

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

13- HDMI 2: Digital Video - In, Digital Audio with ARC ­In/Out

Figure 2-8 HDMI (type A) connector

Figure 2-6 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

11 - Audio - In: Left / Right, DVI

Gn - Audio L/R in 0.5 V

/ 10 k jq

RMS

12- HDMI 3: Digital Video - In, Digital Audio with ARC ­In/Out

Figure 2-7 HDMI (type A) connector

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

2016-Jul-22

back to

div.table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched “on”.

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode with a colour bar signal and stereo
sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and
picture carrier at 475.25 MHz for PAL, or 61.25 MHz for
NTSC (channel 3).

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 k).

• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10
nano-farads (n 10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed on the Philips
Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare
Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this
URL: http://www.atyourservice-magazine.com
“Magazine”, then go to “Repair downloads”. Here you will find
Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the IC
Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is
required, please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then

back to

div.table

-9

), or pico-farads (p 10

. Select

EN 5TPM16.1L LA 3.

-6

),

-12

).

2016-Jul-22

EN 6 TPM16.1L LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production centre (e.g.
SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M.
code, digit 4 refers to the Service version change code, digits 5
and 6 refer to the production year, and digits 7 and 8 refer to
production week (in example below it is 2010 week 10 / 2010
week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3
format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to
remove horizontal black bars; keeps
the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels
directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information
ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA
ATV See Auto TV
Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections
CL Constant Level: audio output to

connect with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFI Dynamic Frame Insertion
DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion

2016-Jul-22

back to

div.table

Precautions, Notes, and Abbreviation List

EN 7TPM16.1L LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for service

technicians
DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display.
EDID Extended Display Identification Data

(VESA standard)
EEPROM Electrically Erasable and

Programmable Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency

Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate F requency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div.table

The SDI signal is self-synchronizing,
uses 8 bit or 10 bit data words, and has
a maximum data rate of 270 Mbit/s,
with a minimum bandwidth of 135
MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored
in RAM or in the NVM. They are called
at start-up of the set to configure it
according to the customer's

preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
MHEG Part of a set of international standards

related to the presentation of

multimedia information, standardised

by the Multimedia and Hypermedia

Experts Group. It is commonly used as

a language to describe interactive

television services
MIPS Microprocessor without Interlocked

Pipeline-Stages; A RISC-based

microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect

Transistor, switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTC Negative Temperature Coefficient,

non-linear resistor
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non-Volatile Memory: IC containing

TV related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of

software upgrade via RF transmission.

Upgrade software is broadcasted in

TS with TV channels.
OTC On screen display Teletext and

Control; also called Artistic (SAA5800)
P50 Project 50: communication protocol

between TV and peripherals
PAL Phase Alternating Line. Color system

mainly used in West Europe (colour

carrier = 4.433619 MHz) and South

America (colour carrier

PAL M = 3.575612 MHz and

PAL N = 3.582056 MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation

2016-Jul-22

EN 8 TPM16.1L LA3.

Precautions, Notes, and Abbreviation List

PDP Plasma Display Panel
PFC Power Factor Corrector (or

Pre-conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency
POD Point Of Deployment: a removable

CAM module, implementing the CA

system for a host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED

backlight with 2D-dimming
PSL Power Supply with integrated LED

drivers
PSLS Power Supply with integrated LED

drivers with added Scanning

functionality
PTC Positive Temperature Coefficient,

non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary

color signals for TV. By mixing levels

of R, G, and B, all colors (Y/C) are

reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote

control receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling

data interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

SCL Serial Clock I

Téléviseurs

SCL-F CLock Signal on Fast I
SD Standard Definition
SDA Serial Data I
SDA-F DAta Signal on Fast I

2

C

2

C bus

2

C

2

C bus
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.

Colour system mainly used in France
and East Europe. Colour
carriers = 4.406250 MHz and

4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a

4-wire synchronous serial data link

standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to

reduce the effects of EMI
STB Set Top Box
STBY STand-BY
SVGA 800 × 600 (4:3)
SVHS Super Video Home System
SW Software

SWAN Spatial temporal Weighted Averaging

Noise reduction
SXGA 1280 × 1024
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential

Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1600 × 1200 (4:3)
V V-sync to the module
VESA Video Electronics Standards

Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio

output toward external amplifier
VSB Vestigial Side Band; modulation

method
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024 × 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)

signal
YPbPr Component video. Luminance and

scaled color difference signals (B-Y

and R-Y)
YUV Component video

2016-Jul-22

back to

div.table

4. Mechanical Instructions

20170_100.eps

CN408

CN700

CN6005

CN401

CN8601

CN9103

CN4250

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN700

ECN6005

ECN408

ECN401

ECN6005

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

ECN408

ECN4250

IR/LED BOARD

(1056)

J

KEYBOARD CONTROL

(1057)

E

CN01

WIFI Module

(WiFi01)

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

EN 9TPM16.1L LA 4.

Figure 4-1 Cable dressing (43" 5501 series)

back to

div.table

2016-Jul-22

EN 10 TPM16.1L LA4.

20170_101.eps

CN408

CN700

CN401

CN6005

CN8603

CN9101

CN4250

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN700

ECN6005

ECN408

ECN601

ECN401

ECN6005

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

ECN408

ECN4250

IR/LED BOARD

(1056)

J

KEYBOARD CONTROL

(1057)

E

CN01

WIFI Module

(WiFi01)

Mechanical Instructions

4.2 Se rvice Positions

For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.

2016-Jul-22

Figure 4-2 Cable dressing (49" 5501 series)

back to

div.table

Mechanical Instructions

EN 11TPM16.1L LA 4.

4.3 Assembly/Panel Removal

Instructions below apply to the 49PFG5501/77, but will be
similar for other 43"/49"Pxx5501 series models.

1

1

4.3.1 Stand

Refer to Figure 4-3

1. Remove the fixation screws [1] that secure the stand
bracket. Refer to Figure 4-3

2. Take the stand bracket out from the set.

for details.

for details.

1

1

M4 × 16

1

Figure 4-3 Stand removal

20170_102.eps

back to

div.table

2016-Jul-22

EN 12 TPM16.1L LA4.

20170_103.eps

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

3

3

20170_104.eps

2

2

1

3

Mechanical Instructions

4.3.2 Rear Cover

Refer to Figure 4-4
Warning: The Keyboard catch on the Back cover, disconnect
the Keyboard cord before removing the rear cover.

for details.

1. Remove the fixation screws [2] and [3] that secure the rear
cover. Refer to Figure 4-4

2. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

for details.

4.3.3 Keyboard Control unit

Refer to Figure 4-5

1. The Keyboard catch on the Back cover, so the cable
connector[1] form the SSB must be released first before
opening of Back cover.

2. Remove all the fixation screws from the keyboard [2].Then
Unplug the connector[3] from the keyboard control panel.

When defective, replace the whole unit.

for details.

Figure 4-4 Rear cover removal

Figure 4-5 Keyboard removal

2016-Jul-22

back to

div.table

4.3.4 IR/LED Board

20170_106.eps

2

Step 1

Step 2

1

1

20170_105.eps

2

1

3

3

3

3

2

Mechanical Instructions

EN 13TPM16.1L LA 4.

Refer to Figure 4-6

1. The IR cover are fixed by the clips[1], press down the clips
to release the IR cover.

2. Carefully pull out the IR cover, then unplug the connector
[2] from the IR/LED board. The IR/LED Board can now be
lifted and taken out from the cover. Refer to Figure 4-6
details.

for details.

for

Figure 4-7 SSB removal

4.3.6 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

Figure 4-6 IR/LED Board removal

4.3.5 Small Signal Board (SSB)

Refer to Figure 4-7
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.

1. Release the clips from the LVDS connector that connect
with the SSB[1].
Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover,
then lifted and taken out of the I/O bracket. Refer to

Figure 4-7

for details.

for details.

4.3.7 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out.
When defective, replace the both units.

4.3.8 WIFI module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the WIFI module,
getntly remove the module from the set.

When defective, replace the whole unit.

4.3.9 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to
the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed

back to

div.table

and connected in their original position. See Figure 4-1

Figure 4-2

• Pay special attention not to damage the EMC foams on the
SSB shields. Ensure that EMC foams are mounted
correctly.

.

to

2016-Jul-22

EN 14 TPM16.1L LA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Service Modes

5.2 Stepwise Start-up

5.3 Service Tools

5.4 Software Upgrading

5.5 Error Codes

5.6 The Blinking LED Procedure

5.7 Fault Finding and Repair Tips

5.1 Service Modes

The Service Mode feature is split into five parts:

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

SDM, SAM and the Factory mode offer features, which can be
used by the Service engineer to repair/align a TV set. Some
features are:

• Make alignments (e.g. White Tone), reset the error buffer
(SAM and Factory Mode).

• Display information (“SAM” indication in upper right corner
of screen, error buffer, software version, operating hours,
options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the
consumer. The CSM displays diagnosis information, which the
customer can forward to the dealer or call centre. In CSM
mode, “CSM”, is displayed in the top right corner of the screen.
The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

• X is the main version number: this is updated with a major
change of specification (incompatible with the previous
software version). Numbering will go from 1 - 99 and
AA - ZZ.

- If the main version number changes, the new version
number is written in the NVM.

- If the main version number changes, the default settings
are loaded.

• YYY is the sub version number: this is updated with a minor
change (backwards compatible with the previous
versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version
number is written in the NVM.

- If the NVM is refreshed, the software identification,
version, and cluster will also be written to NVM.

Display Option Code Selection

When after an SSB or display exchange, the display option
code is not set properly, it will result in a TV with “no display”.
Therefore, it is required to set this display option code after
such a repair.
To do so, press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type. When
the value is accepted and stored in NVM, the set will switch to
Stand-by, to indicate that the process has been completed.
During this algorithm, the NVM-content must be filtered,
because several items in the NVM are TV-related and not SSB
related (e.g. Model and Prod. S/N). Therefore, “Model”
and “Prod. S/N” data is changed into “See Type Plate”. In case
a call centre or consumer reads “See Type Plate” in CSM
mode.

Note: For the new model range, a new remote control (RC) is
used with some renamed buttons. This has an impact on the
activation of the Service modes. For instance the old “MENU”
button is now called “HOME” (or is indicated by a “house” icon).

5.1.1 General

Next items are applicable to all Service Modes or are general.

Life Timer

During the life time cycle of the TV set, a timer is kept (called
“Op. Hour”). It counts the normal operation hours (not the
Stand-by hours). The actual value of the timer is displayed in
SAM in a decimal value. Every two soft-resets increase the
hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main
menu display of SAM, and CSM.
The screen will show: “AAAAAB-XXX.YYY.MMM.TTT”, where:

• AAAAA is the chassis name: TPM161L.

• B is the region indication: E = Europe, A = AP/China, U =
NAFTA, L = LATAM.

able 5-1 SAM mode overview

T

Main Menu Sub-menu 1 Sub-menu 2 Description

Hardware info The information of Hardware
Operation hours This represents the life timer. The timer counts normal operation hours, but does not

Shop operation hours This represents the life timer. The timer counts normal shop operation hours, but does

Errors Shows all errors detected since the last time the buffer was erased. Five errors

Reset error buffer Reset error buffer

5.1.2 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control
transmitter: “062596”, directly followed by the “INFO/OK”
button. Do not allow the display to time out between entries
while keying the sequence.

After entering SAM, the following items are displayed,
with “SAM” in the upper right corner of the screen to indicate
that the television is in Service Alignment Mode.

count Stand-by hours.

not count Stand-by hours.

possible.

2016-Jul-22

back to

div.table

Service Modes, Error Codes, and Fault Finding

Main Menu Sub-menu 1 Sub-menu 2 Description

Alignments Warm R Gain To align the White Tone. See

G Gain
B Gain

Normal R Gain

G Gain
B Gain

Cool R Gain

G Gain
B Gain

Ambilight Select module Ambilight select module

Brightness Brightness of Ambilight

Option numbers Group 1 Group 1 Option number

Group 2 Group 2 Option number

Store Store the Option number
Store Store
Software maintenance Software events Software events

Hardware events Hardware events
Test setting Digital info Test setting
BT Pairing tables Clear paired remote control Clear paired remote control
Wi-Fi Direct settings Reset Wi-Fi Direct group Reset Wi-Fi Direct group
Development 1 file versions Development 1 file versions
Development 2 file versions Development 2 file versions
Upload to USB To upload several settings from the TV to an USB stick
Download from USB To download several settings from the USB stick to the TV
NVM editor Type number NVM-editor will function as in the past: type number, production code, 18AC SSB,

Production code

18AC SSB

18AC display

18AC supply

paragraph 6.3 Software Alignments

18AC display, 18AC supply is a decimal value via digit entry

in the Alignments section for a detailed descript ion

EN 15TPM16.1L LA 5.

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN
keys on the remote control transmitter. The selected item
will be indicated. When not all menu items fit on the screen,
use the UP/DOWN keys to display the next/previous menu
items.

• With the “LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– (De) activate the selected sub menu.
– Change the value of the selected menu item.

• When you press the MENU button once while in top level
SAM, the set will switch to the normal user menu (with the
SAM mode still active in the background).

• Press the following key sequence on the remote control
transmitter: “062596” directly followed by the “Home/Menu”
button to switch to (do not allow the display to time out
between entries while keying the sequence).

How to Store SAM Settings

To store the settings changed in SAM mode (except the
RGB Align settings), leave the top level SAM menu by using
the POWER button on the remote control transmitter or the
television set. The mentioned exceptions must be stored
separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button
on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while
in SAM, the TV will show up in “normal operation mode” as
soon as the power is supplied again. The error buffer will not be
cleared.

5.1.3 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control
transmitter: from the “menu/home” press “1999”, directly
followed by the “Back/Return” button. Do not allow the
display to time out between entries while keying the
sequence.

After entering the Factory mode, the following items are
displayed,

Table 5-2 Factory mode overview

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture, BL Dimming, Source Meter, the

1 PANEL_ID See table back to div.table 6-3 Displays and changes the Panel ID with the left and right cursor; be careful changing this, it can result in

2 DEMOD_TYPE 5 5 Choose demod type.
3 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the data to the correct NVM address
4 NVM VALUE 0 Displays the value at the NVM address of item 5

Default value

Description43" 49"

Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, MCU and OAD
software versions.

not correct displaying the screen!

back to

div.table

2016-Jul-22

EN 16 TPM16.1L LA5.

Default value

Item Item value

5 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5
6 COPY NVM to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB memory stick. The TV will

7 COPY NVM to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The TV will save the two files which

8 TV Settings Key 1 1 TV Settings Key
9 TV Settings VALUE 0 0 TV Settings VALUE
10 TV Settings STORE Press OK TV Settings STORE
11 COPY TV Settings to USB Press OK COPY TV Settings to USB
12 COPY TV Settings to TV Press OK COPY TV Settings to TV
13 VIRGIN_MODE Off Off Use this to return the set to virgin mode. Depends whether the set has been used already.
14 ORT_MODE On On ORT mode
15 DRMWARNING On On Warning the dat a rights management
16 AGEING MODE Off Off Use this for aging a new LCD panel
17 COLOR TEMP MODE Normal COLOR TEMP MODE
18 CLR_TEMP_R 127 127 Red colour temperature setting
19 CLR_TEMP_G 115 126 Green colour temperature setting
20 CLR_TEMP_B 88 121 Red colour temperature setting
21 ADC_GAIN_R 255 255 Red ADC gain
22 ADC_GAIN_G 255 255 Green ADC gain
23 ADC_GAIN_B 255 255 Blue ADC gain
24 ADC_OFFSET_R 127 127 Red ADC offset
25 ADC_OFFSET_G 127 127 Green ADC offset
26 ADC_OFFSET_B 127 127 Blue ADC offset
27 AUD_GAIN_HDMI 0 HDMI audio gain
28 AUD_GAIN_ATV 12 Analogue TV audio gain
29 AUD_GAIN_DTV 0 Digital TV audio gain
30 AUD_GAIN_USB 0 USB audio gain
31 AUD_GAIN_SPDIF 0 SPDIF audio gain
32 AUD_GAIN_LINE_IN 0 LINE_IN audio gain
33 AQ_INDEX 52 52 Audio Quality index
34 Copy PQ to USB Press OK Saves the picture quality data to a file “pq.bin” to the root of a FAT formatted USB memory stick
35 Copy PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV
36 Copy AQ to USB Press OK Loads the audio quality data from a file “AQ.bin” in to the TV
37 Copy AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV
38 COPY DB CHL to USB Press OK Copy the USB channel list to USB
39 COPY DB CHL to TV Press OK Copy the TV channel list to TV
40 LIGHT SENSOR TYPE 0 0 Light sensor type
41 TEMP SENSOR TYPE 0 0 Tempreture sensor
42 LED TYPE 0 0 The type of LED
43 AMBILIGHT TYPE Side Segments The type of Ambient light
44 AMBILIGHT TYPE VALUE 0 0 The type value of Ambient light
45 3D 0 0 3D on/off
46 BLUETOOTH 1 1 BLUETOOTH
47 ARC TEST On ARC test
48 HDMI ARC OUTPUT ORDER EU HDMI ARC OUTPUT ORDER
49 UART ENABLE on off UART ENABLE
50 RESET MAC ADDRESS Press OK RESET MAC ADDRESS
51 EXIT_FACTORY Press OK Exits the Factory mode

Service Modes, Error Codes, and Fault Finding

Description43" 49"

write two files in the REPAIR folder of the memory stick. It will create this folder if it does not exist. The items
are “Channel list”, “Personal settings”, “Option codes”, “Display-related alignments” and “History list”. In
case the download to the USB stick was not successful “Failure” will appear. In this case, check if the USB
stick is connected properly. Now the settings are stored onto the USB stick and can be used to download
onto another TV or other SSB. Upl oading is of course only possible if the software is r unning and if a p icture
is available. This method is created to be able to save the customer’s TV settings and to store them into
another SSB.

were created in item 8 to the NVM of the set. Use these op tion s when replaci ng a S SB. When “ USB to TV
Success” is displayed remove the power and restart the TV

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK”
button.

Note: When the TV is switched “off” by a power interrupt, or
normal switch to “stand-by” while in the factory mode, the TV
will show up in “normal operation mode” as soon as the power
is supplied again. The error buffer will not be cleared.

5.1.4 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and
information on the TVs operation settings.The call centre can
instruct the customer (by telephone) to enter CSM in order to
identify the status of the set.This helps the call centre to

2016-Jul-22

back to

div.table

diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every
line (to make CSM language independent).

• Set the screen mode to full
screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original
settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or
enter the specific channel number on the RC.

Service Modes, Error Codes, and Fault Finding

How to Activate CSM

To activate CSM, press the following key sequence on a
standard remote control transmitter: “123654” (do not allow the
display to time out between entries while keying the sequence).
After entering the Customer Service Mode, the following items
are displayed.

Note: Activation of the CSM is only possible if there is no (user)
menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a
helpdesk/workshop as reference for further diagnosis. In
this way, it is not necessary for the customer to look at the
rear of the TV-set. Note that if an NVM is replaced or is
initialized after corruption, this set type has to be re-written
to NVM.

• 1.2 Production code Displays the production
code (the serial number) of the TV. Note that if an NVM is
replaced or is initialized after corruption, this production
code has to be re-written to NVM.

• 1.4 a Option Code 1 Gives the option codes of option
group 1 as set in SAM.

• 1.4b Option Code 2 Gives the option codes of option
group 2 as set in SAM.

• 1.5 18AC SSB Gives an identification of the SSB as stored
in NVM. Note that if an NVM is replaced or is initialized after
corruption, this identification number has to be re-written to
NVM. This identification number is the 12NC number of the
SSB.

• 1.6 18AC Display 18NC NVM read/write.

• 1.7 18AC Supply 18AC NVM read/write.

• 1.8 18AC sensor board 18AC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software
version. In case of field problems related to software,
software can be upgraded. As this software is consumer
upgradeable, it will also be published on the internet.

• 2.2 Standby Software Displays the built-in stand-by
processor software version. Upgrading this software will be
possible via USB.

• 2.3 e-UM version eDFU (help) version.

• 2.4 Strings database version Displays the version of
strings database.

• 2.5 NT333 FRC version Displays the version of NT333
FRC.

• 2.10 Channel package version version of channel
package.

• 3.1 Signal Quality Analog/digital signal strength.

• 3.4 Ethernet MAC address A Media Access Control
address (MAC address) is a unique identifier assigned to
network interfaces for communications on the physical
network segment.

• 3.5 Wireless MAC address Wireless Media Access
Control address.

•

3.6 Netflix key Ind
case this key are not valid and the customer wants to make
use of the functionality, the SSB has to be replaced.

• 3.9 Event counter The counter of event.

icates the validity of the netflix key. In

EN 17TPM16.1L LA 5.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll
wheel) on the RC-transmitter, can be navigated through the
menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control
transmitter.

• Press the POWER button on the remote control
transmitter.

• Press the POWER button on the television set.

back to

div.table

2016-Jul-22

EN 18 TPM16.1L LA5.

19080_206_110323.eps

120224

Power Off

Standby
Soft Mode

Power On

Semi-
Standby

Standby

Switch

Off(Mains
Power Plug)

Standby Soft Mode
Command Received,
previously in Standby

Soft Mode (Power tact
switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Digital
background
tasks started

Digital
background
tasks completed

Swith On,
previously in

Standby/Semi-
Standby (Mains
Power Plug)

Standby
Soft Mode

Command
Received
(Power tact

switch)

Switch Off (Mains
Power Plug)

Switch Off

(Mains Power
Plug)

Swith On,
previously in
Standby Soft Mode
(Mains Power Plug)

Standby
commands

Received (RC

Standby key)

Standby Soft Mode

Command Received,
previously in Standby
Soft Mode (Power
tact switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Switch On, previously
in Power On Mode
(Power tact switch)

Standby Soft Mode
Command Received,
(Power tact switch)

Switch Off (Mains
Power Plug)

Switch On,previously in
TV Operation Mode
(Mains Power Plug)

5.2 Stepwise Start-up

Service Modes, Error Codes, and Fault Finding

2016-Jul-22

Figure 5-1 Stepwise Start-up

back to

div.table

Service Modes, Error Codes, and Fault Finding

19080_207_110324.eps

110324

19080_208_110324.eps

110324

19080_209_110324.eps

110324

EN 19TPM16.1L LA 5.

5.3 Service Tools

5.3.1 ComPair

The ComPair Tool is no longer supported here. Still, the interface box can be used as level shifter between the TV chassis and PC.

5.4 Software Upgrading

5.4.1 Description

It is possible for the user to upgrade the main software via the
USB port. This allows replacement of a software image in a
stand alone set. A description on how to upgrade the main
software can be found in the DFU or on the Philips website.

5.4.2 Introduction

Philips continuously tries to improve its products, and it’s
recommend that the TV software is updated when updates are
available. Software update files can be obtained from the
dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip
for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

6. Upgrading will now begins and the status of the updating
progress will be displayed.

7. When the TV software is updated. Remove your USB flash
drive, then select [Restart] and press OK to restart the
TV.See Figure 5-4

.

Figure 5-2 Update the TV software [1/3]

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

web site.

5.4.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to
check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter
the CSM mode.

2. Use the up/down cursor keys to select “Current Main
Software”.

If the current software version of the TV is the same as the
latest update file found on http://www.philips.com/support
not necessary to update the TV software.

5.4.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the
PC.

4. Insert the USB memory stick into one of the USB ports of
the PC.

5. Decompress the downloaded ZIP file and copy it to the root
directory of the USB flash drive.

5.4.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software
update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically.
Then a window jumps out as Figure 5-2

.
Note: If the USB flash drive is not detected after power up,
disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-2

5. To proceed, In next menu select [Start] and press OK to
start software updates. See Figure 5-3

.

Figure 5-3 Update the TV software [2/3]

, it is

.

Figure 5-4 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software
update.

• If a power failure occurs during the update, do not remove
the USB flash drive from the TV. The TV will continue the
software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or
contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV
software from the USB portable memory.

.

back to

div.table

2016-Jul-22

EN 20 TPM16.1L LA5.

Service Modes, Error Codes, and Fault Finding

5.4.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and
instructions on how and when to use it. Only files that are
relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the
different EDID NVMs.

• FUS_clustername_version.zip: Contains the file
downloaded which is needed to upgrade the TV main
software and the software download application.

• NVM_clustername_version.zip: Default NVM content.

5.4.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder
“repair” is used. When inserting an empty USB memory stick,
and downloading data to the stick, the TV will create this folder.
When sending data from a USB memory stick to a TV, the
intended data must be available in the “repair” folder.
Note that when copying EDID data to the TV, all necessary
EDID files must be in this folder.
Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode
Factory Mode Used for extended alignments
CSM 3-page compact CSM pages. There wi ll be CS M dump to

USB SW upgradeable SW-upgrading of flash memories MT5593U can be done

NVM-Editor in SAM NVM-editor will function as in the past: Address and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in
SAM

UART logging Th ere will be printout avail able in UART. No specif ications

Blind SAM RC sequence “062598” + “Menu” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

via USB. The main SW can be upgraded via the ZIP file
downloaded.

field is a decimal value via digit entry

programming with virtual keyboard
Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

“Panel code”

Example:
– ERROR: 000 000 000 000 000: No errors detected
– ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected
(newest) error

• Via the blinking LED procedure (when you have no
picture). See paragraph 5.6 The Blinking LED Procedure

5.5.3 Error codes

In this chassis only “layer 2” error codes are available and point
to problems on the SSB. They are triggered by LED blinking
when CSM is activated. Only the following layer 2 errors are
defined:

Table 5-4 Error code table

Layer-2 error code Defective de vice

13 General I2C bus error on the SSB
16 +12 V missing or low, PSU defective
27 Channel decoder error on the SSB
34 Tuner I2C bus error on the SSB
35 EEPROM I2C error on SSB, M24C64

5.5.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control
transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50
hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the
television set, the error buffer is not reset.

5.6 The Blinking LED Procedure

5.6.1 Introduction

.

5.5 Error Codes

5.5.1 Introduction

Error codes are required to indicate failures in the TV set. In
principle a unique error code is available for every:

• Activated (SW) protection.

• Failing I

• General I
The last five errors, stored in the NVM, are shown in the
Service menu’s. This is called the error buffer.
The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.
An error will be added to the buffer if this error differs from any
error in the buffer. The last found error is displayed on the left.
An error with a designated error code never leads to a
deadlock situation. It must always be diagnosable (e.g. error
buffer via OSD or blinking LED).
In case a failure identified by an error code automatically
results in other error codes (cause and effect), only the error
code of the MAIN failure is displayed.

5.5.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/CSM (if you have a picture).

2

C device.

2

C error.

The software is capable of identifying different kinds of errors.
Because it is possible that more than one error can occur over
time, an error buffer is available, which is capable of storing the
last five errors that occurred. This is useful if the OSD is not
working properly.
Errors can also be displayed by the blinking LED procedure.
The method is to repeatedly let the front LED pulse with as
many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated.
Example (1): error code 4 will result in four times the sequence
LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After
this sequence, the LED will be “off” for 1.5 seconds. Any RC
command terminates the sequence. Error code LED blinking is
in red color.
Example (2): the content of the error buffer is “12 9 6 0 0” After
entering SAM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.6.2 How to Activate Blinking LED Procedurer

Use one of the following methods:

• Activate CSM.The blinking front LED will show the lay er 1
error(s), this works in “normal operation” mode or

2016-Jul-22

back to

div.table

Service Modes, Error Codes, and Fault Finding

EN 21TPM16.1L LA 5.

automatically when the error/protection is monitored by the
standby processor.
In case no picture is shown and there is no LED blinking,
read the logging to detect whether “error devices” are
mentioned. (see section “5.7 Fault Finding and Repair

Tips, 5.7.4 Guidelines Uart logging”).

• Activate SAM. The blinking front LED will show the entire
content of the LAYER 2 error buffer, this works in “normal
operation” mode.

5.7 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

5.7.1 NVM Editor

In some cases, it can be convenient if one directly can change
the NVM contents. This can be done with the “NVM Editor” in
SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of
each setting, because incorrect NVM settings may
seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before
changing the settings. This will enable you to return to the
original settings, if the new settings turn out to be incorrect.

5.7.6 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.7.7 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.7.8 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC
is replaced it must be ensured that the powerpad is very well
pushed to the PWB while the solder is still liquid. This is needed
to insure that the cooling is guaranteed, otherwise the Class
D-IC could break down in short time.

5.7.9 Loudspeakers

Make sure that the volume is set to minimum during
disconnecting the speakers in the ON-state of the TV. The
audio amplifier can be damaged by disconnecting the speakers
during ON-state of the set!

5.7.10 Display option code

Attention: In case the SSB is replaced, always check the Panel
Code in CSM, even when picture is available. Performance
with the incorrect display option code can lead to unwanted
side-effects for certain conditions.

5.7.2 CSM

When CSM is activated and there is an USB stick connected to
the TV set, then the software will collect the complete CSM
content in a file Csm.xml and dump the file in a folder “CSM” on
the USB stick.
When this mechanism works it can be concluded that a large
part of the operating system is already working (SOC, USB ...).

5.7.3 No Picture

When you have no picture, first make sure you have entered
the correct display code. See paragraph 6.4 Option Settings
the instructions. See also back to div.table 6-3

5.7.4 Guidelines Uart logging

Possible cases:

Uart loggings are displayed:

• We can conclude that the TV-set is starting up and
thatcommunication with the flash RAM seems to be
supported. The processor is able to read and write in the
DRAMs.

• We can not yet conclude that flash RAM and DRAMs are
fully operational/reliable.There still can be errors in the data
transfers, DRAM errors, read/write speed and timing
control.

Uart loggings report fault conditions, error messages, error
codes and fatal errors:

• Some failures are indicated by error codes in the logging,
check referring to back to div.table 5-4.

2C bus errors.

•I

• Not all failures or error messages should be interpreted as
fault. For instance the root cause can be wrong option
codes settings.

for

.

5.7.5 Unstable Picture via HDMI input

Check if HDMI EDID data is properly programmed.

back to

div.table

2016-Jul-22

EN 22 TPM16.1L LA6.

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer
with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct
ground (e.g. measure audio signals in relation to
AUDIO_GND).
Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 MW, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform
alignments.

, 50/ 60 ± 3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color
analyser (e.g. Minolta CA-210) in the centre of the screen.
Consequently, the measurement needs to be done in a
dark environment.

• Adjust the correct x, y coordinates (while holding one of the
White point registers R, G or B on max. value) by means of
decreasing the value of one or two other white points to the
correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx: ± 0.003, dy: ± 0.003.

• Repeat this step for the other colour Temperatures that
need to be aligned.

• When finished return to the SAM root menu and press
STANDBY on the RC to store the aligned values to the
NVM.

Table 6-1 White D alignment values

Value Cool (11000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313
y 0.282 0.296 0.329

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus.
The alignments are explained below.
The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the
left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a
video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal
strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a
signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal
strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off
Dynamic Contrast Off
Color Enhancement Off
Picture Format Unscaled
Light Sensor Off
Brightness 50
Color 0
Contrast 100

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the
following values:
– “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

If you do not have a colour analyser, you can use the default
values. This is the next best solution. The default values are
average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average
values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or
WARM).

• Set the RED, GREEN and BLUE default values according
to the values in back to div.table 6-2

.

• When finished press OK on the RC, then press STORE to
store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (9000K) 43PFG5501/77 105 113 101

43PFD5501/55 106 114 102
49PFG5501/77 125 115 88
49PFD5501/55 124 113 88

Cool (11000K) 43PFG5501/77 119 102 125

43PFD5501/55 118 101 123
49PFG5501/77 110 121 127
49PFD5501/55 111 120 126

Warm (6500K) 43PFG5501/77 123 102 105

43PFD5501/55 122 102 103
49PFG5501/77 127 97 42
49PFD5501/55 125 98 45

Colour temperature

Red Green Blue

This group setting of colour temperature will be applied
automatically to the TV / VGA / HDMI / AV sources.
Note: The information of the RGB value is only for reference,
the specific value is based on model adjustment.

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I
ICs in the set. To ensure good communication and to make
digital diagnosis possible, the microprocessor has to know
which ICs to address. The presence / absence of these
MT5561 ICs is made known by the option codes.

2

C

2016-Jul-22

back to

div.table

Alignments

EN 23TPM16.1L LA 6.

Notes:

• After changing the option(s), save them by pressing the OK
button on the RC before the cursor is moved to the left,
select STORE and press OK on the RC.

• The new option setting is only active after the TV is
switched “off” / “stand-by” and “on” again with the mains
switch (the NVM is then read again).

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could be
edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type: see
column “Display Code” in back to div.table 6-3
the Display Code, restart the set immediately.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

43PFG5501/77 TPT430H3-DUYSHA.G S1W 236
43PFD5501/55 TPT430H3-DUYSHA.G S1W 236
49PFG5501/77 TPT490F2-FHBN0.K S8940B 237
49PFD5501/55 TPT490F2-FHBN0.K S8940B 237

. After resetting

6.5.2 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB.
715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code
Make sure when replacing an SSB the SSB identification codes
match the replacement panel.

6.6 Cable position numbers

In this chassis, the cable position numbers can be defined via
the rule that the number is always starting with an “E” followed
by the connector number of the current sourcing board. The
order is always seen from where the power initiates from. So
from PSU to SSB, from SSB to IR/LED panel, from IR/LED
panel to keyboard control panel. For example, a cable from the
PSU connector CN902 to the SSB connector CN701, will have
the position number ECN902.

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service
repair shop (SSB repair on component level) implies the reset
of the NVM on the SSB.
A repaired SSB in Service should get the service Set type
“00PF0000000000” and Production code “00000000000000”.
Also the virgin bit is to be set. To set all this, you can use the
“NVM editor” and “Dealer options” items in SAM (do not forget
to “store”).

After a repaired SSB has been mounted in the set (set repair
on board level), the type number (CTN) and production code of
the TV has to be set according to the type plate of the set. For
this, you can use the NVM editor in SAM.

In case of a display replacement, reset the “Operation hours
display” to “0”, or to the operation hours of the replacement
display.
Remark:

- After the NVM has been replaced, go to SAM and scroll to the

<Reload MAC address> (see figure 1*).

- Select the item and press <OK> on the RC.

6.5.1 Reset of Repaired SSB

Instruction

After NVM replacement, reload MAC address via SAM
menu.This ensures the correct MAC address to be available in
CSM for future repair actions.

Way of working:

• After the NVM has been replaced, go to SAM and scroll to
the <Reload MAC address> .

• Select the item and press <OK> on the RC.

Notes:

• Only applicable to all related models that are “Smart TV
level 0”enabled (only YouTube access). For models

without internet connection feature, no action is needed.

• HDCP keys are located in the NVM.

New NVM EEPROMs are shipped with pre-loaded HDCP keys.

back to

div.table

2016-Jul-22

EN 24 TPM16.1L LA7.

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MT5593UPIJ

Notes:

•Only new circuits (circuits that are not published recently)
are described.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPM16.1L LA is a new chassis launched in Europe in

2016. The whole range is covered by MT5593UPIJ.
The major deltas versus its predecessor support ISDB-T with
also USB3.0, multi-media, WIFI, Video Out function.

The TPM16.1L LA chassis comes with the following stylings:

• series xxPFX5501/xx

7.1.1 Implementation

Key components of this chassis are:

• SCALER MT5593UPIJ HSBGA-900

• EMMC THGBMHG6C1LBAIL 8GB P-WFBGA153

• TUNER Latam TDST-H880F

• DEMODULATOR TC90537FG LQFP-48

• DRAM NT5CB256M16DP-EK 4Gb VFBGA-96

• AUDIO TTAS5760LDDCAR 20W TSSOP-48 for Audio
Amplifier

7.1.2 TPM16.1L LA Architecture Overview

For details about the chassis block diagrams refer

Block Diagrams. An overview architecture can be found in

to 9.

Figure 9.1

.

2016-Jul-22

back to

div.table

7.1.3 SSB Cell Layout

20170_200.eps

USB

SPDIF

ANALOG I/O

HDMI

DC/DC

DC/DC

DDR

USB

HDMI

HDMI

NETWORK

USB

SERVICE

CONNECTOR

DC/DC

DDR

MT5593UPIJ

Tuner

Headphone

Audio in

DC/DC

DC/DC

DC/DC

DC/DC

Circuit Descriptions

EN 25TPM16.1L LA 7.

Figure 7-1 SSB layout cells (top view)

back to

div.table

2016-Jul-22

EN 26 TPM16.1L LA7.

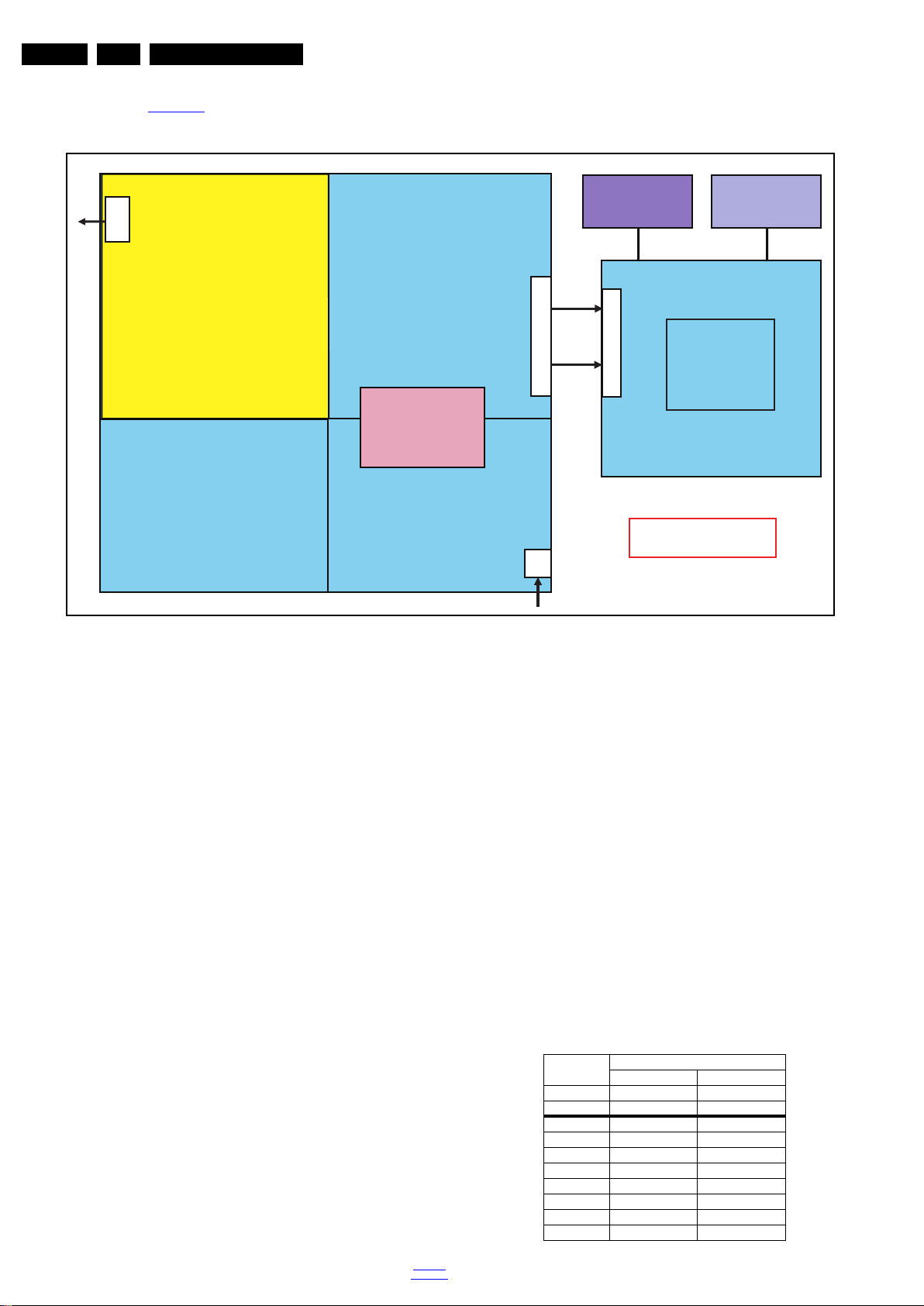

20170_205.eps

Display power

Platform
MT5593U

PFC

Platform power

1 power- PCB

LVDS AMP

Low stby
power

Ac-input + Mains filter

BL-ON/OFF

AC IN

CN9901

CN8603(FOR 715G7574)
CN8603(FOR 715G7575)

DIM

12V

12V_A

PS_On

12V

CN700

AMP

12V

7.2 Power Supply

Refer to figure Figure 7-2 for the power architecture of this
platform.

Circuit Descriptions

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective,
a new board must be ordered and the defective one must be
returned, unless the main fuse of the board is broken. Always
replace a defective fuse with one with the correct
specifications! This part is available in the regular market.
Consult the Philips Service web portal for the order codes of the
boards.

Important delta’s with the TPM16.1L LA classis platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of
design protection issues.

The output voltages to the chassis are:

• +8.5V output (standby mode)

• +12 output (on-mode)

• +12V_audio (audio AMP power)

• 37.4V output for Backlight

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

2016-Jul-22

Figure 7-2 Power Architecture

7.2.2 Diversity

7.2.3 Connector overview

back to

div.table

The diversity in power supply units is mainly determined by the
diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers.
PSLS stands for a Power Supply with integrated LED-drivers
with added Scanning functionality (added microcontroller).
PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

Table 7-1 Connector overview

Number
Description to SSB to panel
Pin 16 12

1DIM VLED+
2 BL_On/off n.c.
3 PS_ON/OFF VLED­4A3D VLED­5GND VLED­6GND n.c.
7GND n.c.
8GND VLED-

Connector
CN9101 CN8603

Circuit Descriptions

AUDIO - TAS5760LD

EMMC

MT5593
Demodulator IC

U701

1A
TO252

AP1117D33G-13

TUNER_3.3V

TUNER

U705 TU101

U4254

5A

U711

U707

AZ1117H-ADJ

EMMC

1A
SOT-223

1.8V

U503

1A
SOT-23-6

G529A1TB1U

USB *2

HDMI-MHL PWR5V

R4284

5V_USB

AUDIO - TAS5760LD

Audio VCC_12V

3A

For DDR quick start-stand by Mode.

uP1734PSW8

5V_STB

5A
SOP8

+12V

1A
SOT223

DFN8

AT1527F11U

G912T63U

DDR3-4G x5

AZ1084CS2-3.3TRE1

3A

5V_SW

MT5593

5.5A

SOP8

3A

1.2V

5A
TO-263

RT7240GSP

MOS-AON4421

+12V

Demodulator IC

1.05V

12V_AU

MT5593
VCCK(1.0V)

TPS54821RHL

8A
QFN-14

U702

7A

Q702

U708

U710

AVDD3V3/DVDD3V3

1.5V

20170_201.eps

EN 27TPM16.1L LA 7.

Connector

Number

CN9101 CN8603
Description to SSB to panel
Pin 16 12

9 +12V-A VLED­10 +12V-A VLED­11 +12V n.c.
12 +12V VLED+
13 +5.2V ­14 FLAG ­15 - ­16 - -

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages
(depending on set execution):

• +Wi-Fi_VCC, permanent voltage for WIFI.

• +3V3SB,voltage for IR/LED reciver,Key board

• +12V, input from the power supply for the panel
common(active mode)

• +12V, input from the power supply for LNB supply

• LDO_PWR,DVDD3V3, voltage for EMMC when TV on

• DDRV, VCCK, voltage for DDR

• +3V3_TUNER, supply voltage for tuner

• +5V-USB, input intermediate supply voltage for USB
Power

• PVDD from the power +12V_AU for the AUDIO AMP

• +1V2, +3.3VD voltage for Demodulator IC channel decoder

Figures gives a graphical representation of the DC/DC
converters with its current consumptions :

Figure 7-3 DC/DC converters

back to

div.table

2016-Jul-22

EN 28 TPM16.1L LA7.

20050_207.eps

U701, DVDD3V3/
AVDD3V3

U703, LDO_PWR

U4601, AVDD33_ETH

L701, VCCK(1V)

C770, PVDD(12V)

D752, T uner_LNB

U707 Pin7,DV12

C779, AVDD1V0

C709, 3V3SB

U4251 Pin6,WI-FI_VCC(3.5V)

L705, +5V_SW

L702, DDRV(1.5V)

C752, Panel_VCC(12V)

U705,+3V3_Tuner

7.3.1 Power layout SSB

Circuit Descriptions

Figure 7-4 Power SSB Top View

2016-Jul-22

back to

div.table

Circuit Descriptions

IF

RF_AGC

MT5593UPIJ

IF_AGC

TDST-H880F

I2C

I2C

20170_202.eps

EN 29TPM16.1L LA 7.

U102 Pin1,CI_VCC

Figure 7-5 Power SSB Bottom View

7.4 Front-End Analogue and ISDB-T reception

7.4.1 Front-End Analogue reception

The Front-End for analogue tuner consist of the following key
components:

• TUNER Latam TDST-H880F

• SCALER MT5593UPIJ HSBGA-900 Processor

Below find a block diagram of the front-end application for
analogue part.

back to

div.table

20050_208.eps

Figure 7-6 Front-End Analogue block diagram

2016-Jul-22

EN 30 TPM16.1L LA7.

IF

TS DATA

RF_AGC

MT5593UPIJ

Demod

TC90537FG

IF_AGC

TDST-H880F

I2C

I

2

C

I2C

20170_203.eps

20170_204.eps

MT5593

HDMI3

HDMI 1

CN504

CN501

RX

RX

I2C

I

2

C

HDMI2

CN503

RX

I2C

Circuit Descriptions

7.4.2 ISDB-T reception(DEMODULATOR part)

The Front-End for DVT part consist of the following key
components:

• TUNER Latam TDST-H880F

• SCALER MT5593FPIJ HSBGA-900 Processor

• DEMODULATOR TC90537FG LQFP-48

Below find a block diagram of the front-end application for DTV
part.

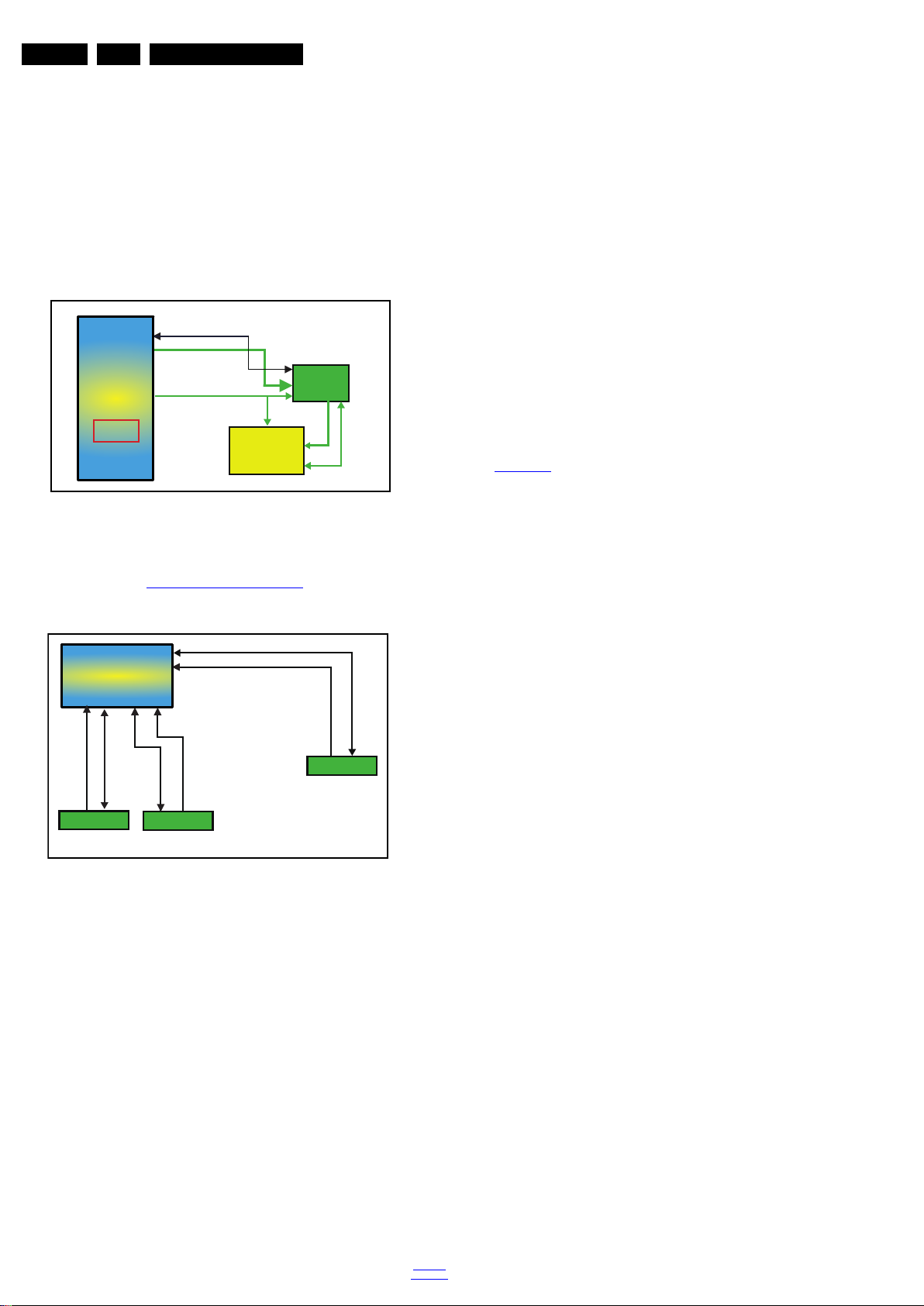

Figure 7-7 Front-End ISDB-T block diagram

• True 120Hz Full HD MJC

• Powerful CPU core

• A transport de-multiplexer

• A muti-standard video decoder

• Rich format audio codec

• MHL 2.0 & Standby Charging

• Ethernet MAC+PHY

• Local dimming (LED backlight)
The MT5593UPIJ combines DTV front-end video processing
functions, such as NTSC/PAL/SECAM Video Decoder,
MPEG1/2/4/H.264/VC1/RM/AVS/ and h.264/HEVC decode,
The MT5593UPIJ also supports MediaTek MDDi
de-interlace solution which can reach very smooth picture
quality for motions. A 3D comb filter added to the TV decoder
recovers great details for still pictures. The MT5593UPIJ
eanbles consumer electronics manufactures to build high
quality, low cost and feature-rich DTV.The special color
processing technology provides a natural, deep colors and true
studio quality video. Moreover, the MT5593UPIJ family has
built-in high resolution and high quality audio codec. The
MT5593UPIJ family supports ATSC, DVB-T,and DVB-C,
DTMB demodulation functions.

For a functional diagram of the MT5593UPIJ, refer to

Figure 8-1

.

TM

7.5 HDMI

Refer to figure 7-8 HDMI input configuration for the application.

Figure 7-8 HDMI input configuration

The following HDMI connector can be used:

• HDMI 1: HDMI input ( TV digital interface support
HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC

• HDMI 2: HDMI input ( TV digital interface support HDCP)
with digital audio/PC DVI input/ARC

• HDMI 3: HDMI input ( TV digital interface support
HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC

• HDMI 4: HDMI input ( TV digital interface support
HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC

• +5V detection mechanism

• Stable clock detection mechanism

•HPD control

• CEC control

7.6 Video and Audio Process ing -

The MT5593UPIJ is the main audio and video processor (or
System-on-Chip) for this platform. It has the following features:

2016-Jul-22

• Worldwide multi-standard analog TV demodulator

• ATSC/DVB-T/DVB-C/DTMB demodulators

MT5593UPIJ

back to

div.table

IC Data Sheets

19930_300.eps

Block diagram

MT5593FPIJ/UPIJ

8. IC Data Sheets

This chapter shows the internal block diagrams and pin
configurations of ICs that are drawn as “black boxes” in the
electrical diagrams (with the exception of “memory” and “logic”
ICs).

8.1 Diagram 10-3-3 Peripheral, B03, MT5593UPIJ (IC U401)

EN 31TPM16.1L LA 8.

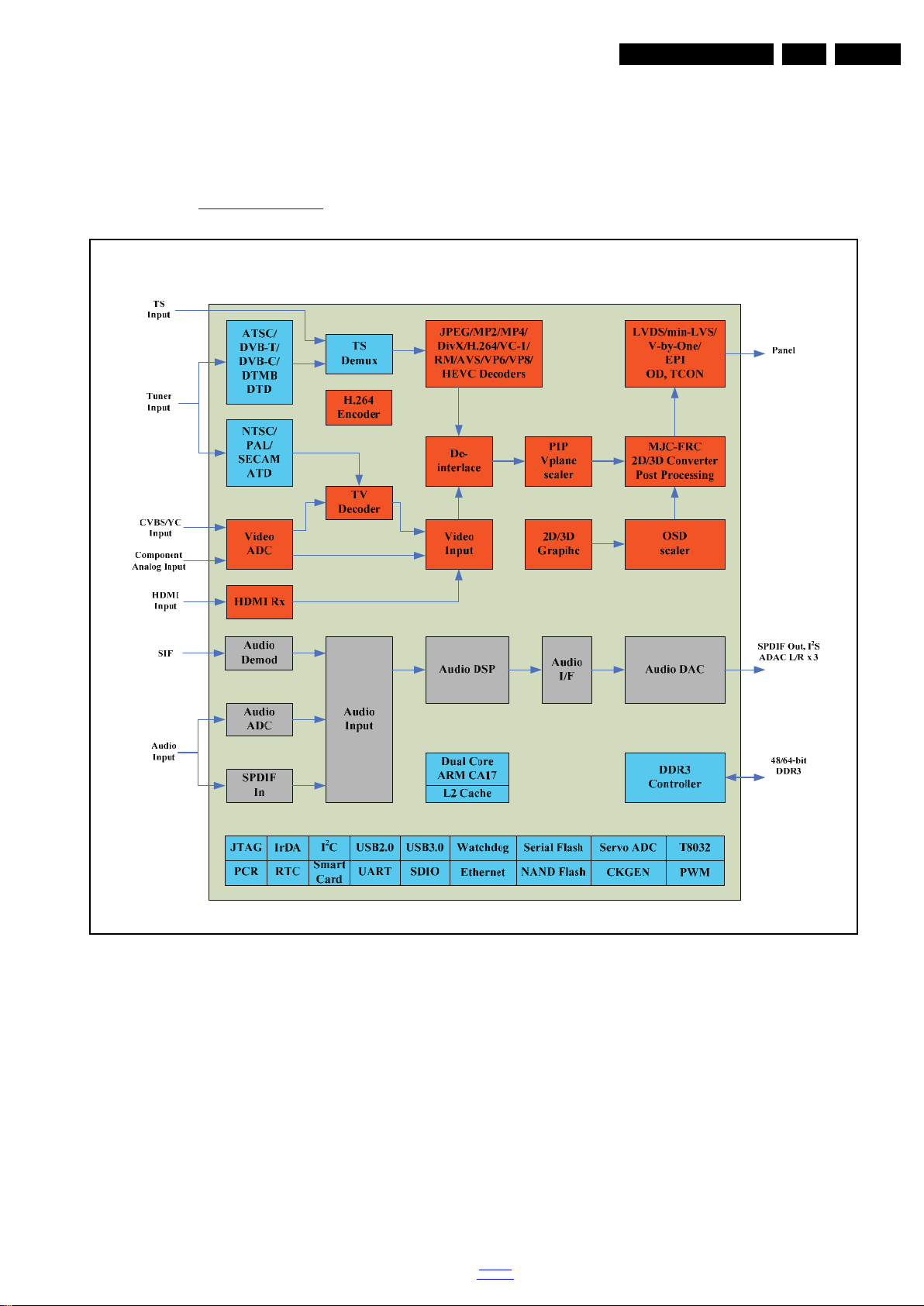

Figure 8-1 Internal block diagram

back to

div.table

2016-Jul-22

EN 32 TPM16.1L LA8.

19930_301.eps

Pinning Information

MT5593FPIJ/UPIJ

900 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

A

NC

CI_A5 CI_A6 CI_A7

CI_A12CI_MDI1CI_MD

I0 CI_INT

SPI_D
ATA

CI_TS
VAL

D_TSC

LK

USB_D

P_P0

USB_D

P_P1

0_RX_20_RX_10_RX_

0

0_RX_
C

1_RX_
2

1_RX_
C

2_RX_
0

3_RX_
1

10_HD

MI

10_SS
USB

SSUSB

_RXN

33_SS
USB

SSUSB

_TXN

SSUSB

_VRT

AIN_R3AIN_R

1

NC

A

B CI_A2 CI_A4

GPIO47CI_MDI7CI_MDI4CI_MI

VAL

CI_MD
I2

CI_MIS

TRT

CI_MDO6CI_MD

O5

SPI_CL

K

PVR_T
SCLK

CI_TSS

YNC

IF_AG
C

USB_V

RT_P0

USB_D

M_P0

USB_D

M_P1

0_RX_2B0_RX_

1B

0_RX_
0B

0_RX_CB1_RX_

2B

1_RX_
CB

2_RX_
0B

3_RX_
1B

10_HD

MI DVSS

SSUSB

_RXP DVSS

SSUSB

_TXP

AIN_L2AIN_R

0DVSS

AIN_R
2BB

C

CI_A0 CI_A1

CI_MDO2CI_MDI6GPIO64CI_MDI3CI_A14CI_A1

3 CI_D6

SPI_CLESPI_CL

K1

DATA
0

CI_TS
CLK

RF_AG

CDVSS DVSS

1_RX_11_RX_

0

2_RX_22_RX_

1

2_RX_
C

3_RX_
2

3_RX_
0

3_RX_
C

USB_D

P_P2

AL0_A
DAC

AR2_A

DAC

AIN_L3AIN_L

1

C

D

SD_D0

SD_CMDGPIO4

2CI_D2

CI_MDO1GPIO63GPIO66VCC3I

O_SD

CI_MDI5CI_MC

LKI

CI_A11CI_A10CI_MDO7CI_MDO3GPIO44PVR_T

SVAL

D_TSD

ATA0

D_TSS

YNC

1_RX_
1B

1_RX_
0B

2_RX_2B2_RX_1B2_RX_

CB

3_RX_
2B

3_RX_0B3_RX_

CB

USB_D

M_P2

HDMI_
3_SDA

HDMI_
3_SCL

AR1_A

DAC

AR0_A
DAC

AIN_L0VMID_

AADC DD

E

SD_D2

GPIO4
6CI_D1

CI_MDO0GPIO65GPIO62GPIO6

1CI_A8 CI_A9CI_D5CI_D7CI_D4

PVR_T

SSYNC

DEMO

SSVDSSVD

TSR_D

1_PWR

5V

2_PWR

5V

ADIN3
_SRV

3_PWR

5V

AL2_A
DAC

AL1_A
DAC XTALI

XTAL
OEE

F

VCC3I

O_A

SD_CLGPIO48GPIO4

5 CI_D0 DVSS DVSS

CI_MD
O4 CI_D3

SDAT
A0

D_TSV
AL

D_TSD

ATA1

D_TSD
ATA7

MHL_S
ENSE

D_TSD
ATA6

HDMI_
0_SCL

HDMI_
0_SDA

0_HPD

_CBUS

HDMI_
1_HPD

HDMI_
2_HPD

HDMI_
2_SDA

HDMI_
3_HPD

N_DE
MOD

P_DEM

OD

F

G

A

33_DD

R

AVSS_
DDR

NC NC

DVSS

GPIO4

3

SDAT

A1

FSRC_
WR

D_TSD
ATA2

D_TSD
ATA5

HDMI_
CEC

0_PWR
5V

ASPDI
FO1

HDMI_
1_SDA

HDMI_
1_SCL

HDMI_
2_SCL

33_XT
AL_ST

33_DE
MOD_ GG

H

NC NC NC NC NC NC NC

D_TSD
ATA3

D_TSD
ATA4

SIF_COMCVBS0

PHH

J

NC

DVSS

NC NC

DVSS DVSS

ADIN6
_SRV

CVBS_
COM PR0P

CVBS3
P

J

K

NC NC NC NC

DVSS

NC NC

DVSS DDRV

X_OU
T

CVBS1PCVBS2

PPB0PCOM0

K

L

NC NC NC NC NC NC

DVSS DDRV

LOUTP

LOUT
N

33_LV
DSADVSS

ADIN4
_SRV

ADIN0
_SRV

ADIN2

_SRV Y0 P SOY0 PR1P

L

M

NC

TN_AR

SSVDSSVDSSVDSSVDLLPM

AVSS3
3_CLN

AVSS3

3_RGB

33_AA

DC

33_AD
AC

33_LV
DSBDVSS

ADIN5
_SRV

ORESE

TB

33_VI

DEO_S PB1P Y1P COM1

M

N

NC NC NC

DVSS DDRV

TP_AR
MPLL

DVSS DVSS DVSS DVSS DVSS

3_DEM

OD

3_XTA
L

33_US

B

OPCTR

L6

ADIN9
_SRV

ADIN8
_SRV SOY1 RP NN

P

NC NC NC NC NC

DVSS

NC NC NC NC

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

33_HDMI33_HDMI33_ET

H

ADIN1
_SRV COM GP SOG

P

R

NC NC NC NC

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

OPCTRL2OPCTRL0OPCTRL8OPCTR

L1

HSYN
CBPRR

T

NC

DVSS

NC NC NC

DVSS DVSS DDRV

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

OPCTR

L5

VSYN
C

VGA_S

CL TT

U

NC NC

DVSS

NC NC NC NC NC NC

DDRV

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS VCCK

DVSS CPC0

POR_OPTOPCTRL7VGA_S

DA

ADIN7
_SRV

33_RG
B_STB

U

V

REF_A

1

NC

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS VCCK VCCK VCCK

CPC1 CPC2

10_LD
O

10_EL
DO REXT VV

W

ARDQ4ARDQ

CVSSVDSSVDSSVDSSVDSSVDSSVDSSVDSSVDSSVDSSVDSSVDNTRASSVDSSVDSSVD6 CK VCCK VCCK

OPCTR

L3

TXVP_0TXVN

_0

W

Y

ARDQ2ARDQ0ARDQ11ARCLK0ARCL

K0#

DDRV

_CKA DVSS DVSS ARTP

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS VCCK VCCK VCCK

OPCTRL9OPCTR

L4 OIRI

33_PL
L_STB

RXVP_1RXVN

_1

Y

AA

ARRAS#ARCAS#ARCK

KCCVKCCVKCCVSSVDSSVDSSVDSSVDSSVDSSVDSSVDSSVDSSVDSSVDSSVDE

LED_P
WM1

LED_P
WM0

PHYLE
D1

33_RE
G_STB

USB_D
P_P3

USB_D
M_P3

AA

AB

ARDQ15ARDQ13ARDQ9ARCS

D# ARCS#

ARODTARWE

#DDRV

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS VCCK VCCK VCCK

ASPDI
FO0

PHYLE

D0 DVSS

OPCTR

L11

OPWR
SB

AB

AC

ARDQS0ARDQ

S0#

ARDQ
M1 DVSS

DVSS DVSS DDRV DDRV

DVSS DVSS DVSS DVSS DVSS DVSS VCCK VCCK VCCK VCCK V

CCK VCCK VCCK VCCK

OPCTR

L12

OPCTR

L17

OPCTR

L10 DVSS

STB_SCLSTB_S

DA

AC

AD

ARDQM0ARDQ

S1DVSS

ARBA0ARBA

2ARA10 DVSS DDRV

DVSS DVSS DVSS DVSS DVSS VCCK VCCK VCCK VCCK VCCK VCCK VCCK V

CCK

OPCTR

L16

OPCTR

L15

OPCTR

L20

OPCTR

L18

OPCTR

L19 AAD

AE

ARDQ
S1#

ARBA
1ARA0 DVSS

MEMT
P

AVSS_
DDR

10_DD

R VCCKVCCKVCCKVCCKVCCKVCCKVCCKVCCK

OPCTR

L14 PAALE U0TX U0RX

AE

AF

ARDQ8ARDQ12ARDQ

14 ARA3 DVSS ARA12 ARA2 DVSS DVSS

MEMTNAVSS_

DDR

10_DD

R PDD2 PDD1

POCE1

__B

LED_P

WM2

POCE0

__B AAF

AG

ARDQ10ARDQ1ARDQ

3 DVSS ARA4 ARA1 ARA5 DVSS

OPCTR

L13

LED_P

WM3 PACLE

POWE
__B AAG

AH

ARDQ7ARDQ

5ARA9DVSS DDRV DDRV PDD3 PDD4

PARB_
_B

POOE_

_B

AH

AJ

ARDQ
20

REF_A

2

ARDQ
22 ARA7 ARA6 DVSS

DDRV

_CKB DDRV DDRV DDRV

NC

PDD7 PDD6 PDD5 DVSS PDD0

O_EM
MC AAJ

AK

ARDQ18ARDQ16ARDQ

27

ARRES

ET# ARA13 ARA11 DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV

TN_HP

CPLL

TP_HP

CPLL DVSS

GPIO4
9DVSS DVSS

EMMC_R

STB

GPIO60VCC3I

O_B

AK

AL

ARDQ25ARDQ

29 ARA8 DVSS DDRV DDRV DDRV DDRV DVSS DVSS BRTP BRTN

TCON12GPIO50GPIO55OPWM1AOSD

ATA2

6

EMMC
_CLK

AL

AM

ARDQM3ARDQ31ARDQ

S2 ARA14 DDRV DDRV DDRV DDRV DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

TCON1 TCON3 TCON4 TCON8

TCON1

0

GPIO51GPIO54AOSD

ATA1

AOBCKAOSD

ATA3 5

GPIO59

U1RX U1TX AAM

AN

ARDQ
S2#

ARDQ
M2 DVSS

BRCK

E BRA10 BRBA1 BRA2 BRA7 BRA6 BRA14

TCON2 TCON9

TCON1

1

GPIO52GPIO53AOLRCKAOSD

ATA0

AOSD
ATA4

GPIO58

OSCL1 OSDA1

AN

AP

ARDQS3ARDQ

S3#

ARD

Q

2

8 DDRV DDRV

BRCL
K0

BRCAS

#

BRODTBRWE

# BRBA0 BRBA2 BRA3 BRA5 BRA1 BRA9 BRA11 BRA8 DVSS DVSS DVSS DVSS DVSS DVSS

DVSS

AOMCLKOPWM2OPWM

0AAP

AR

ARDQ24ARDQ30ARDQ23BRDQ11BRCL

K0#

BRRAS

#

BRCS#

BRCSD

#DVSS BRA0 BRA12

BRDQ

M3 BRA4 DVSS BRA13

BRRES

ET# DVSS BE4N BE3NBE2NBE1NBO4NBO3NBO2NBO1NAE4N AE3NAE2NAE1NAO4NAO3N AO2N AO1N

GPIO56ASPDI

FI AAR

AT

ARDQ26ARDQ17BRDQ

4DVSS

BRDQ15BRDQ

S0# DVSS

BRDQS1BRDQ8BRDQ1BRDQ7BRDQ20BRDQ16BRDQ25BRDQM2BRDQ

S3#

BRDQ30BRDQ19BRDQ

21

BE4P BE3PBE2PBE1PBO4PBO3PBO2PBO1PAE4PAE3PAE2PAE1P

AT

AU

ARDQ19ARDQ21BRDQ2BRDQ0BRDQ9BRDQS0BRDQM0BRDQ

S1#

BRDQ10BRDQ

3

BRDQ5BRDQ18BRDQ27BRDQ29BRDQ

S2#

BRDQS3BRDQ28BRDQ17BRDQ23AVSS_

DDR

10_LV

DS

BECK
NBE0N

BOCK
NBO0N

AECK
NAE0N

AOCK
NAO0N

GPIO5
7AAU

AV

NC

REF_B
1

BRDQ6BRDQ13BRDQM1BRDQ12BRDQ

14

REF_B

2

BRDQ22BRDQ31BRDQS2BRDQ24BRDQ

26

10_DD

R

REXT_
VPLL

BOCK
P

BO0P

AOCK
PAO0PNCAV

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

SD_D3K

DDRV

DDRV

DDRV

DVSS

DVSS

DDRV

DDRV

DDRV

AE0P

AECKP

BE0P

BECKP

AVDD

AVDD

DEMO

HDMI_ HDMI_

HDMI_

HDMI_

HDMI_ HDMI_

HDMI_

HDMI_

SD_D1

DDRV

AVDD

AVDD

AVDD

HDMI_

HDMI_

HDMI_

AVDD

AVDD

ADCIN

ADCIN

AVDD

HDMI_

HDMI_

DVSS

HDMI_HDMI_

HDMI_

HDMI_

HDMI_

HDMI_ HDMI_ HDMI_

HDMI_

HDMI_

HDMI_

HDMI_

HDMI_

HDMI_HDMI_

HDMI_

HDMI_ HDMI_

HDMI_

HDMI_

HDMI_

HDMI_

CI_A3

CI_TS

DEMODEMO

OSCL2

OSDA2

PVR_T

DEMO

PVR_T

DEMO DEMO

DEMO

DEMO

DEMO

DEMO DEMO

HDMI_

HDMI_

VDAC

AVDD

OSCL0

OSDA0

AO1P

AO2P

AO3PAO4P

AVDD

AVDD

DVSS

VCC3I

AVDD

AVDD

AVDD

AVDD

AVDD

AVDD

AVSS3

AVSS3

AVDD

AVDD

AVDD

AVDD

AVDD

AVDD

AVDD

TCON0 TCON5 TCON6 TCON7

DVS

DVSS

VDD

IC Data Sheets

Figure 8-2 Internal pin configuration [1/2]

2016-Jul-22

back to

div.table

IC Data Sheets

19820_300.eps

Block diagram

Pinning information

+

+

S

+

-

+

-

TAS5760LD

TAS5760LD

8.2 Diagram 10-3-6 Speaker/Headphone B06, TAS5760LDDCAR (IC U601)

DDVAGER_ANADDVRDDDVD GVDD_REGPVDD

EN 33TPM16.1L LA 8.

Internal
Voltage

Supplies

FT_CLIP

MCLK

SCLK

LRCK

SDIN

Serial

Audio

Port

DR_INA+

DR_INA-

DR_INB+

DR_INB-

DirectPathTM Ground

Centered Headphone /

Line Driver

DR_OUTA DR_OUTB

DRVDD

Digital
Boost

&
Volume
Control

Clock Monitoring

DRVSS DR_CP

SPK_FAULT

FREQ/SDA

SPK_GAIN0
SPK_GAIN1

SPK_SLEEP/ADR

DR_MUTE

Internal Reference

Regulators

Internal Gate

Drive Regulator

Closed Loop Class D Amplifier

Full Bridge

Power Stage

Full Bridge

Power Stage

Digital

Clipper

DRVDD

Digital to

PWM

Conversion

Analog

Gain

Soft

Clipper

Gate

Drives

Gate

Drives

Charge Pump Internal Control Registers and State Machines

SPK_GAIN1

48
47
46
45
44
43
42
41
40

39
38
37
36
35
34
33
32
31
30

29
28
27
26
25

SPK_SD

GVDD_REG
GGND
AVDD
PVDD
PVDD
BSTRPA+
SPK_OUTA
PGND
SPK_OUTA­BSTRPA­BSTRPB­SPK_OUTB­PGND
SPK_OUTB
BSTRPB+
PVDD
PVDD
DR_INB­DR_INB+
DR_OUTB
DR_UVE
DRGND
DRVDD
DR_CP

SFT_CLIP

ANA_REG

VCOM

ANA_REF

SPK_SD

PBTL/SCL

DVDD

MCLK

SCLK

SDIN

LRCK

DGND

DR_INA-

DR_INA+

DR_OUTA

DRGND

DRVSS
DR_CN

DR_CN

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

PBTL/

SCL

SPK_GAIN0

PowerPAD

A

B

SPK_FAULT

Over-

Current

Protection

Die

Temp. Monitor

SPK_SLEEP/

ADR

FREQ/

SDA

SPK_OUTA

SPK_OUTA

SPK_OUTB

SPK_OUTB

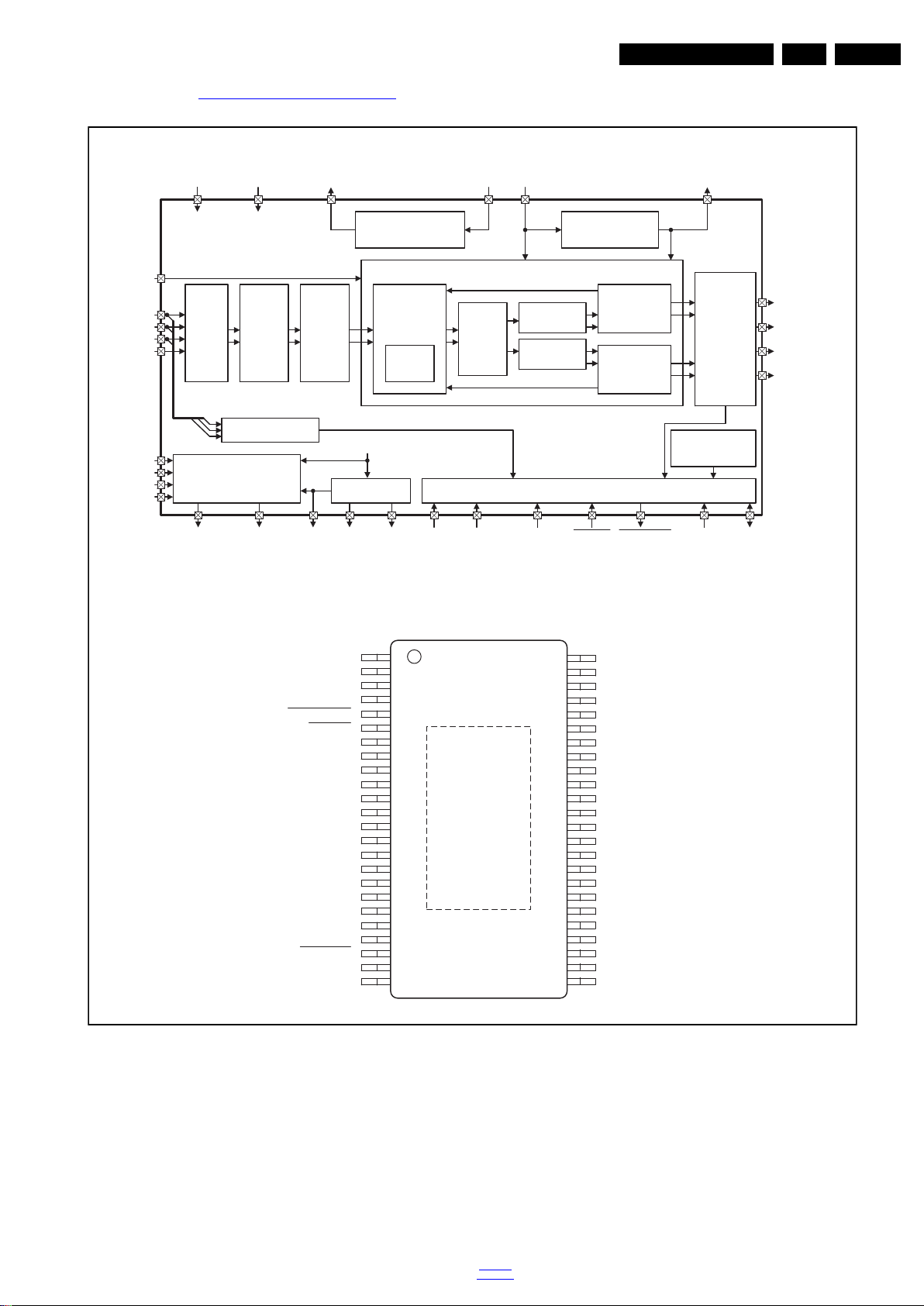

Figure 8-3 Internal block diagram and pin configuration

back to

div.table

2016-Jul-22

EN 34 TPM16.1L LA8.

19950_300.eps

Block diagram

Pinning information

TC90537FG

TC90537FG

SRCK

PBVAL

SRDT

SLOCK

RLOCK

RERR

SLPEN

GPIO2

GPIO1

GPIO0

VSS

VDDC

12 11 10 9 8 7 6 5 4 3 2 1
VSS 13 48 VDDS
VDDS 14 47 VSS
RSEORF 15 46 SDA

SBYTE 16 45 SCL
SLADRS0 17 44 STSFLG0

AGCCNTI 18 43 STSFLG1
AGCCNTR 19 42 SYRSTN
TNSCL 20 41 VPGM
TNSDA 21 40 AINN Q
XCKO 22 39 AINP Q
XO 23 38 AINN I
XI 24 37 AINP I
25 26 27 28 29 30 31 32 33 34 35 36

PLLVDD

PLLVSS

VDDC

CKI

SLADRS1

TSMD

VSS

VDDC

ADCVDD

ADCVSS

VREFL

VREFH

Synchroni-za

tion flag

TS output

Crystal

(reference clock)

Tuner

AGC

control

IIC

control

Filter
AGC

ISIC (unguarded

pre/post echo

suppression)

FFT

Control

Adaptive

interpolation

filter

Equalization

CSI

(Reliability
detection)

CVI

(CW interference

detection)

AGC control output

Tuner IIC

Clock PLL

Viterbi

decoding

Memory

Frequency

deinterleaving

RS

decoding

Error

detection

Output
control

Layer

isolation

TMCC

demodulation

Interpolation

phase

Correction

Synchroni

zation

Demapping

CSI

processing

Bit deinterleaving

Byte deinterleaving

TS multiplex

FFT window

control

ADC
ADC

IF input
or IQ input

SW

External AGC input

Host IIC

Energy

despreading

Energy

despreading

Energy

despreading

Demapping

CSI

processing

Demapping

CSI

processing

Modulation division

Quadrature

detection

AFC

Frequency

CPE

Pilot

extraction

Time

deinterleaving

(With Doppler

Compensation

)

IC Data Sheets

8.3 Diagram 10-3-14 ISDB-T Tuner B14, TC90537FG (IC U4253)

2016-Jul-22

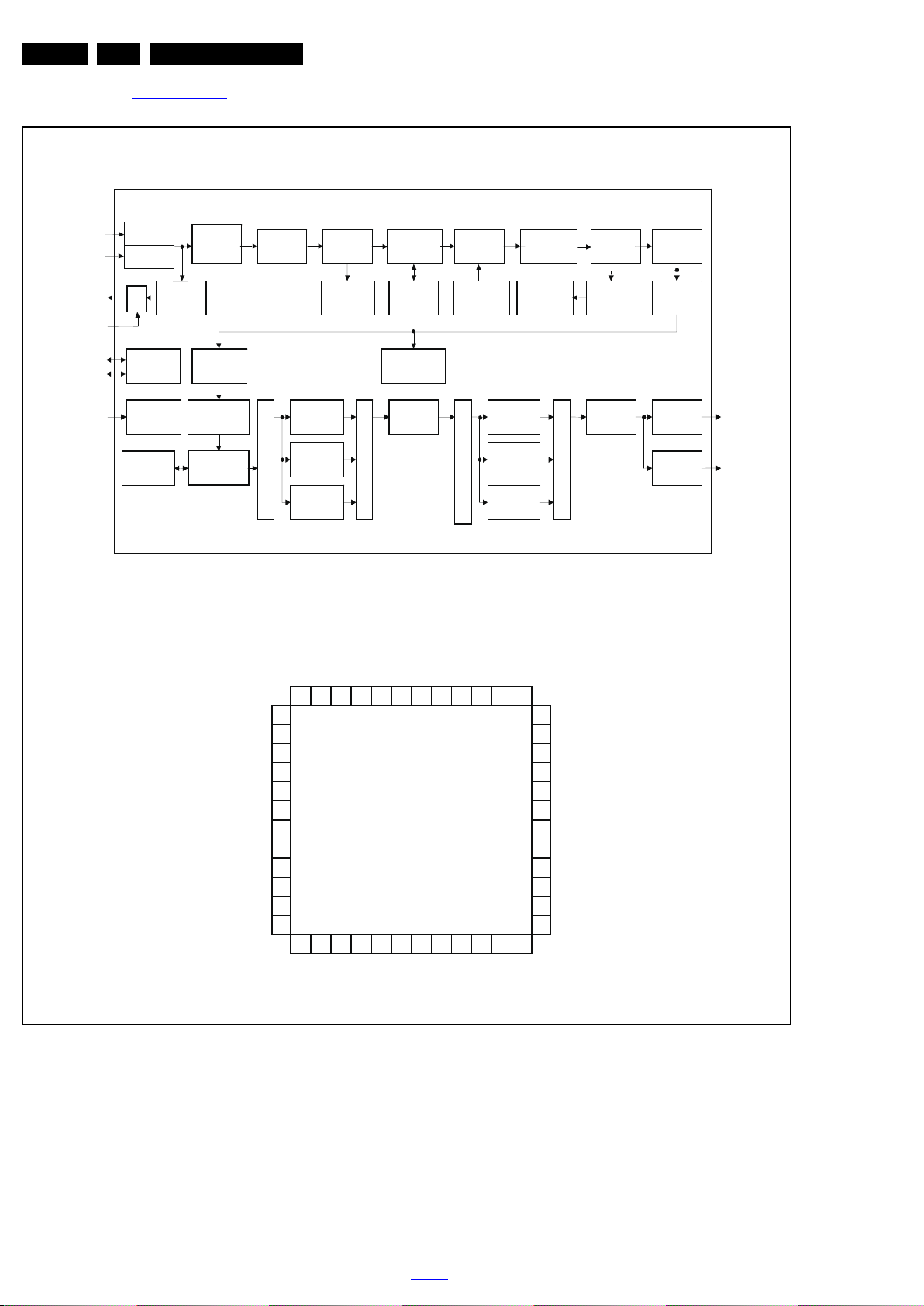

Figure 8-4 Internal block diagram and pin configuration

back to

div.table

9. Block Diagrams

20170_400.eps

ADAC

GLUE
GLUE

GLUE

GLUE
GLUE

MT5593H

2x DDR 3

2x DDR 3

eMMC

TS

input

USB 3.0

USB 2. 0

USB 2. 0

USB 2. 0

Ethernet

HD M I Rx

LVDS/Vx1

Transmitter

SPI

ADAC

Analog
I/O

CVBS

Wi-Fi/BT

IF

Optical

HDMI Port 1 + MHL 2.0

DVB

-

T/C

Demodulator

Hybrid

Tuner

Audio

AMP

UHD

Panel

SPDIF

HDMI ARC

SERV.U

I2S

Analog L/R

9.1 Block diagram series

Block Diagrams

EN 35TPM16.1L LA 9.

L

2016-Jul-22

back to

div.table

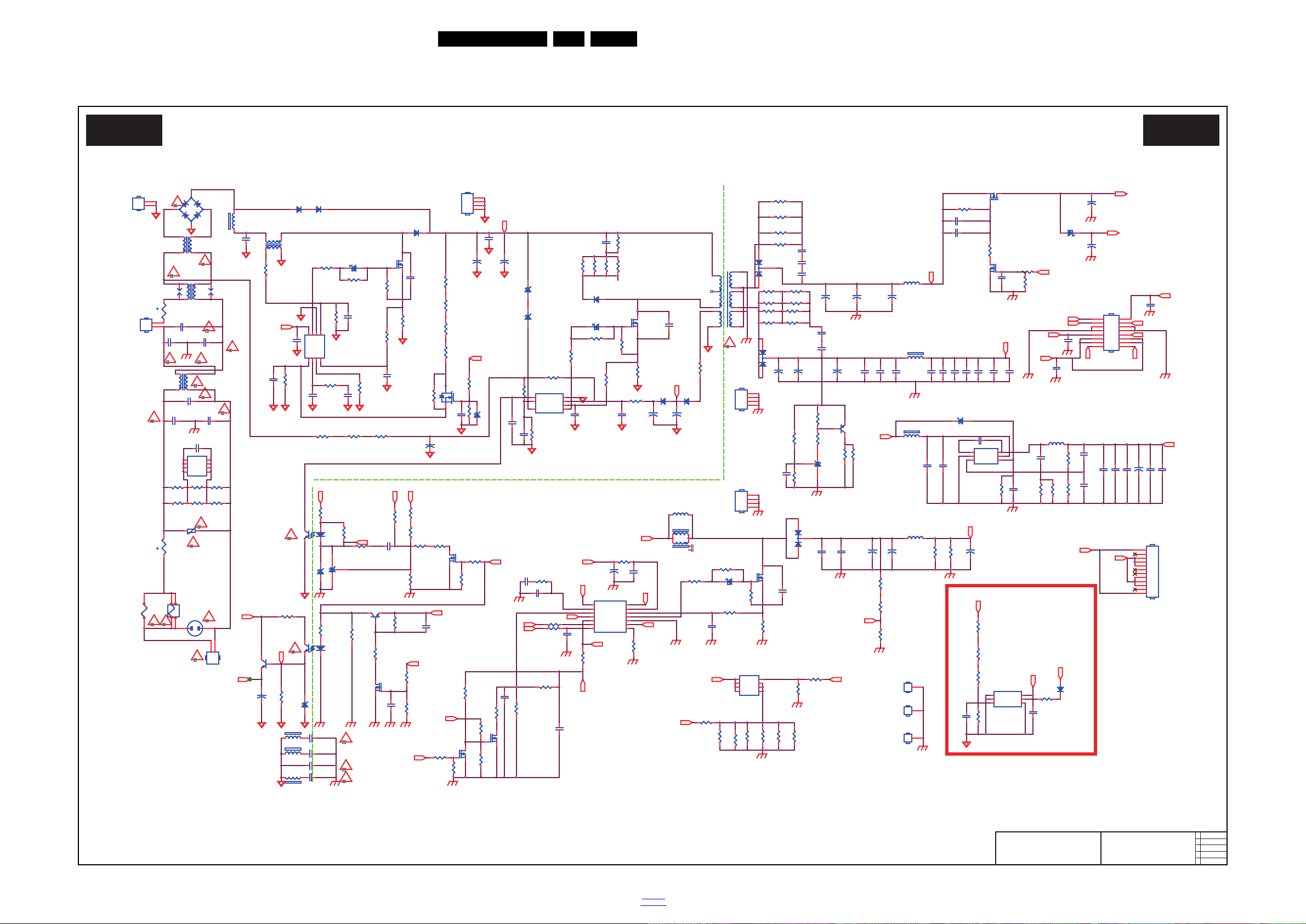

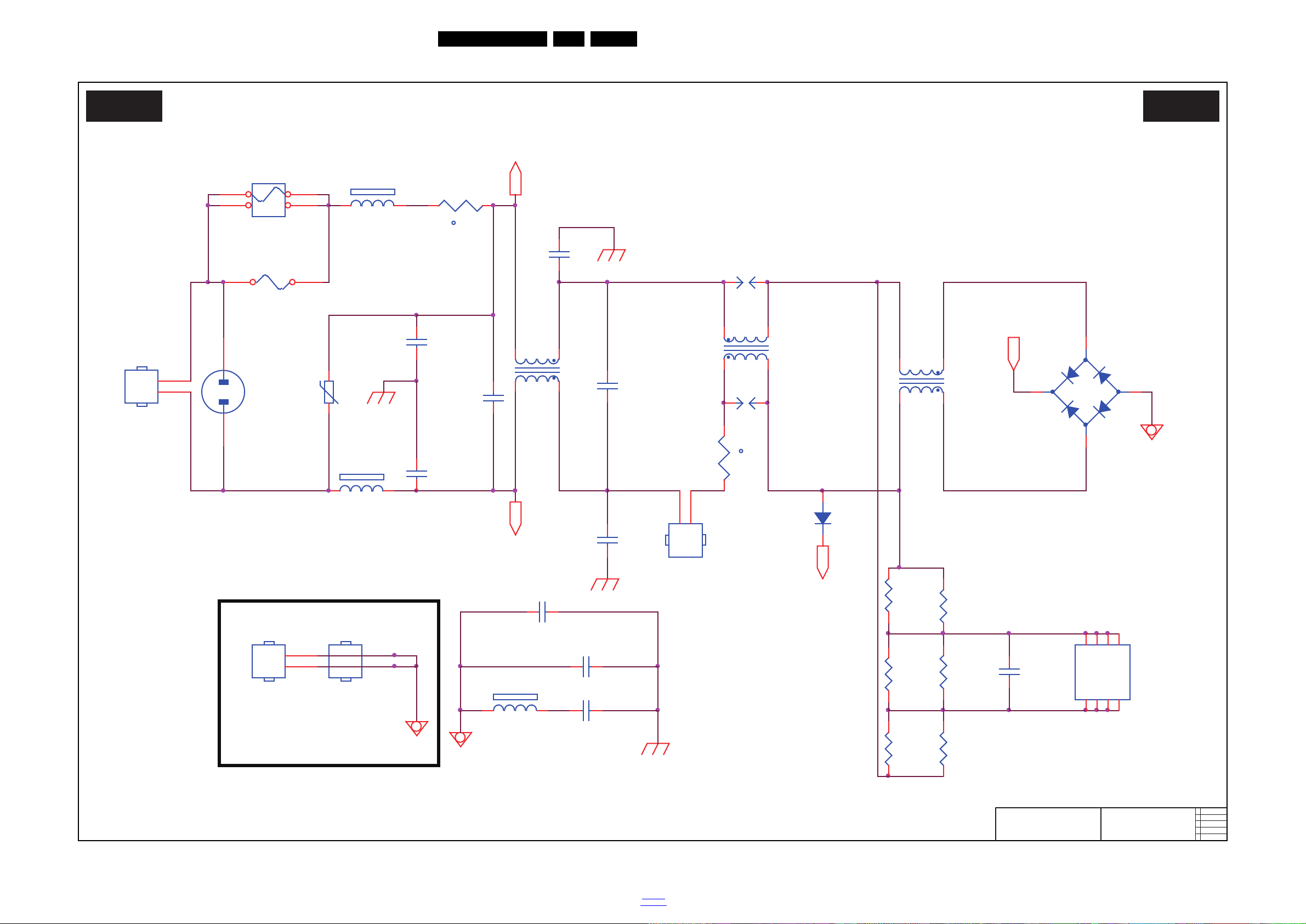

Circuit Diagrams and PWB Layouts

20050_500.eps

AC input

A01 A01

2015-11-26

715G7574

AC input

HS9901

HEAT SINK

1
2

C9157
1uF

C9151
1uF

!

C9903

47PF

FB9908

127R

1 2

+

C9102

1UF 50V

LED_OVP

LED_OVP

C9914

220PF 250V

R8611

100KOHM +-5% 1/8W-NC

C9913

220PF 250V

C9305

1N 50V

R9302

3K 1/8W +/-1%

FB9301

127R

1 2

R9304

20R 1%

C9303

100N 50V

L9301

4.7uH

R9305

10K 1/8W 1%

C9154
1uF-NC

R9306

1.96KOHM +-1% 1/8W

+

C9310 22UF 50V

C9306
2N2 50V

C9301

4.7UF 25V

+5.2V

R9303

20R 1%

HV

DIM

PS_ON/OFF

BL_ON/OFF

+12V

VREF

VREF

R8629

10K 1/8W 1%-NC

PS_ON/OFF

CN9101
CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

R9138
100R 1/8W 5%

+

C9125

47UF 50V

R8632

100KOHM +-5% 1/8W-NC

F9901

FUSE

1 2

3 4

!

GND1
GND-NC

1

C8613

3.3NF 500V-N C

C8604

100N 50V

R8613

100R 1/8W 5%

R8614
0 OHM +-5% 1/8W

C9120
1N 50V

C9922
1NF 250V

R9910

4.7M 5% 1/8W

C9811 100N 50V

R8625
30K 1/8W 1%

LA5200 43"

R8604=1. 3R
R8605=1. 3R
R8606=1. 3R

D9102

SCS160P

12

!

!

+

C9101

22uF50V

!

FB9803
JUMPER

1 2

!

D9804

SCS160P

12

!

!

+

C9121
330uF 35V

R9119

2.2M 1/4W

L9902

12mH

124

3

FB9907

127R-NC

12

C9923
100PF 250V

L9901

8mH

124

3

T9102

POWER X'FMR

1

2

3

4

5

7

8

9

6

11

12

U9105

TL431G-AE2-R

!

L8604

33uH-NC

C9103

10N 50V

R9109
130K 1%

C9130

3.3NF 50V

DIMOUT

HV

VCC_ON

EU5500 43"&40"

R9116=2M2 R
R9117=2M2 R
R9119=2M2 R
C9102=1UF/ 50V
R9109=130K R

FB9102
BEAD

1 2

R8603

1.2R 1%

D9104

1N4148W

R9169

2Kohm 1/4W +/-5%

R8630
100R 1/8W 5%

R8631

100KOHM +-5% 1/8W-NC

C9304
100N 50V

U8601

PF7909S

DIMOUT

1

VCC

2

CS

3

OUT

4

GND

5

OVP

6

RT

7

DIM

8

EN

9

FLAG

10

VREF

11

ADIM

12

GM

13

FB

14

U9103
EL817M(X)

12

43

DIMOUT

R9904

330K 1/4W-NC

R9903

330K 1/4W-NC

R9902

750K +-5% 1/4W

R9901

750K +-5% 1/4W

R9906

750K +-5% 1/4W

R9905

750K +-5% 1/4W

L8602
3UH

GND3
GND-NC

1

C8614

3.3NF 500V-N C

EU5500 43" & LA5101 49"

R8604=1. 0R
R8605=1. 0R
R8606=1. 2R

DV12

R8604

1oHM 1% 1/4W

FLAG

R8612

1K OHM +-5% 1/8W-NC

LED_FB

R8609
0 OHM +-5% 1/8W

C9308

100P 50V

C9921
1NF 250V-NC

LED_FB

+

C9801

47UF 450V

ZD9102
BZT52-B5V1_R1_00001

12

A3D

R9127

10K 1/8W 1%

HOT

COLD

L9100
3UH

R9117

2.2M 1/4W

+12V_A

C8606

470P 50V

+12V_A

R9909

0R05 1/4W

+

C9802

47UF 450V

R8605

1oHM 1% 1/4W

R8610

0 OHM +-5% 1/8W

C9313

4N7 50V/NC

R8628
10K OHM +-5% 1/8W

!

C9126
1uF

C9804
47P 50V

R9814

5K1 1/8W 1%

C9124

100N 50V

R9806

10K OHM +-5% 1/8W

R8606

1.2R 1%

C9806

100N 50V

D9801
MUR460-28

CN9903

CONN-NC

1

2

R9818

18.7K 1/8W 1%

U9802

LD8105GL/NC

ISEN

1

GND

2

VSEN3IREF

4

OUT

5

VCC

6

C9808

100P 50V

U9801
LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

VCC

C9807

220P 50V

R9815
130K 1%

Q9801

TK12A60W

VCC_ON

C9901

470nF 275V

12V

R9802

10R 1/8W 5%

R9803

33R 1/8W 5%

R9813

10K OHM +-5% 1/8W

R9810

470OHM +-5% 1/8W

R9805

47K +-1% 1/4W

R9812
30K 1/8W 1%

C9810

0.47UF 50V

HS8601

HEAT SINK

1
2

3

4

SG9901

DSPL-501N-A21F

C8607
47PF-NC

C9809
47N 50V

Q8601
AOTF4126

!

R8608

10K OHM +-5% 1/8W

A3D

C8605

10N 50V-NC

R9807

1MOHM +-1% 1/4W

R9809
750K 1%

R9804

1MOHM +-1% 1/4W

R8601

0R05

+

C8609

220uF 50V

R8620

1K OHM +-5% 1/8W

R8623

10K OHM +-5% 1/8W

R9811

10K OHM +-5% 1/8W

+

C8608

220uF 50V

R8617

0 OHM +-5% 1/8W

R8607

1.2R 1%

PS_ON/OFF

+12V

!

+24VS

C9128

100N 50V

+

C8610

220uF 50V

C9141

2N2 50V

+VLED

-VLED

+VLED

-VLED

CN8603

CONN

1

2

3

4

5

6

7

8

9

10

11

12

C9135

100N 50V-NC

!

C9139
330P 50V

!

R9155

47 OHM 1/4W

R9134

6.2K OHM +-1% 1/8W

EU5500 40"

R8604=1. 0R
R8605=1. 0R
R8606=1. 0R

FB9906

127R-NC

1 2

R9153
10K OHM +-5% 1/8W

Q9103
2N7002K

+

C9112
470uF 25V-NC

!

R9149
100K 1/8W 1%

R9105
10R 1/8W 5%

DIM

R9106

33R 1/8W 5%

t

NR9900

1.5R

12

C8612

1NF 50V

L9903

0.25mH

124

3

12V

R9148

10K OHM +-5% 1/8W

R9816

100KOHM +-5% 1/8W

C8611

100N 50V-NC

D8601
TSF20U100C

1

2

3

C9902

220NF 305V

L9801

300uH

1

3

5

4

C9152
1uF-NC

C9133

100N 50V

ZD9106

BZT52-B13G

1 2

Q9109
2N7002K

R9154
10K OHM +-5% 1/8W

Q9107

MMBT3906

FLAG

R9152
1K5 +-1% 1/8W

!

!

VCC

+

C9113

470uF 25V

!

R9103

470 OHM 1/4W

+

C9123
330uF 35V-NC

R9102

470 OHM 1/4W

R9157

47 OHM 1/4W

R9163

47 OHM 1/4W

C9104

2.2NF

D9103

PG1010R

!

R9160

1K 2W

R9159

9K1 1/8W 1%

R9144

470 OHM 1/4W

R9162

100K 1/8W 1%

R9104

82K 2W

R9164

1K 2W

R9129

4.3K OHM 1%

D9101

SARS01-V1

R9124

2K 1/8W 1%

R9146

100 OHM 1/4W

R9808

0R05 1/4W-NC

U9104

EL817M(X)

12

43

D9111

TSF20U100C

1

2

3

R9165

2K 1/8W 5%

R9113

470 OHM 1/4W

D9121

FMXA-2202S

1

2

3

R9114

470 OHM 1/4W

C9131

470pF 1KV

C9153
1uF-NC

R9118

47 OHM 1/4W

R8621

47K 1/4W / NC

-

+

BD9901

TS10K80-01

2

1

3

4

R8622

47K 1/4W / NC

ZD9107

BZT52-B39

1 2

C9119

100PF-NC

+

C9111

470uF 25V

R9145

100 OHM 1/4W

R9135

1R 1/8W 5%

R9130

91KOHM +-1 % 1/ 8W-NC

C 91 1 8

0. 47UF 50V

R91 66

20K +-5% 1/8W

R9112

3R9 1%

C91 4 3

2N2 50V

R91 07

10K OHM +-5% 1/8W

R9125

2K 1/8W 5%

+

C9122
330uF 35V

R9126
1K 1/8W 1%

C9134

470pF 1KV

R9150

2Kohm 1/4W +/-5%

R9147

220R 1/8W 5%

R9101

0.2R 2W

Q9104

BTB1424AM3

R9167

470 OHM 1/4W

+

C9137

10UF 50V

R9170

20K +-5% 1/8W

R8624

150K 1/8W +/-1%

C9146

2N2 50V

+24VS

12V

+24VS

12V

VCC_ON

OVP

VCC

BL_ON/OFF

D9803

QG806C

R9801

0.15R

L8603

33uH

8

1

4
6

R9151

10K OHM +-5% 1/8W

Q9106

BTC4672M3

C9307

10uF 16V

ZD9101

BZT52-B16G

1 2

C9312

100N 50V

C9311

1UF 16V-NC

C9302

10uF 16V

Q9101

AOTF12N65

C9150

1N 50V

R8633

1K OHM +-5% 1/8W-NC

+5.2V

R9168

330K 1/8W 5%

C9924

470PF 250V

+

C8601

10UF 50V

+

C9115
470UF 25V

R9136
100KOHM +-5% 1/8W

+12V_A

D9107

SR34H-NC

1 2

Q9105

2N7002K

C9117

1UF

C9116

4.7UF 25V-NC

Q9108

AOD4185

R9142

100KOHM +-5% 1/8W

HS9801

HEAT SINK

1
2

3

4

C9144

100N 50V

+

C9114

470UF 25V

R9133
1K OHM +-5% 1/8W

+12V

R9143
330K 1/8W 5%

C9821
1UF 450V

12V

Q9802
BSS127

3

1

2

C9309 10uF 16V

U9901

CAP004DG-TL

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

Q8604

2N7002K-NC

HS9111

HEAT SINK

1
2

3

4

R9173

0 OHM +-5% 1/8W

R9116

2.2M 1/4W

C8603

1UF 16V

D9802

QG806C

D8603

SCS160P-NC

12

C9912

47pF 250V

!

PFC_OVP

R9111

100 OHM 1/4W

C8602

1N 50V-NC

Q8605

2N7002K-NC

GND2
GND-NC

1

SG9902

DSPL-501N-A21F

R8616

33R 1/8W 5%

CN9902
CONN-N C

1

2

U9101

SSC3S121A

FB/OLP

1

BR

2

ST4DRV

5

OCP

6

VCC

7

GND

8

R8627
10K 1/8W 1%

C9148
1uF

!

R9128

100 OHM 1/4W

ZD9103

BZT52-B18

1 2

R8626

150K 1/8W +/-1%

CN9901

AC 2P

1 2

A3D

C9132
1NF

C9911

47pF 250V

R9132

470 OHM 1/4W

C9155
1uF

R9131

470 OHM 1/4W

C9156
1uF

Q8603

AO4482L

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

C9149
1uF

!

U9102

TL431G-AE2-R

!

t

NR9901

1.5R

1 2

U9301

SY8113BADC

BS

1

GND

2

FB3EN

4

IN

5

LX

6

F9902
NC

C9145

100N 50V

RV9901

680V

C9819

470PF-NC

R8615
10K OHM +-5% 1/8W

R8602

1.2R 1%

R8618

270K 1%

R8619
270K 1%

R9821
2Mohm 1/4W +/-1%/NC

R9824
15K 1/8W 1%/NC

R9823
2Mohm 1/4W +/-1%/NC

C9812
470PF 50V/NC

ZD9108

BZT52-B39

1 2

R9822
2Mohm 1/4W +/-1%/NC

C9813
100N 50V/NC

R9825

510OHM +-5% 1/4W/NC

D9810

1N4148W/NC

PFC_OVP

L8601

33uH

2

1

10. Circuit Diagrams and PWB Layouts

10.1 A 715G7574 PSU

10-1-1 AC input

EN 36TPM16.1L LA 10.

2016-Jul-22

back to

div.table

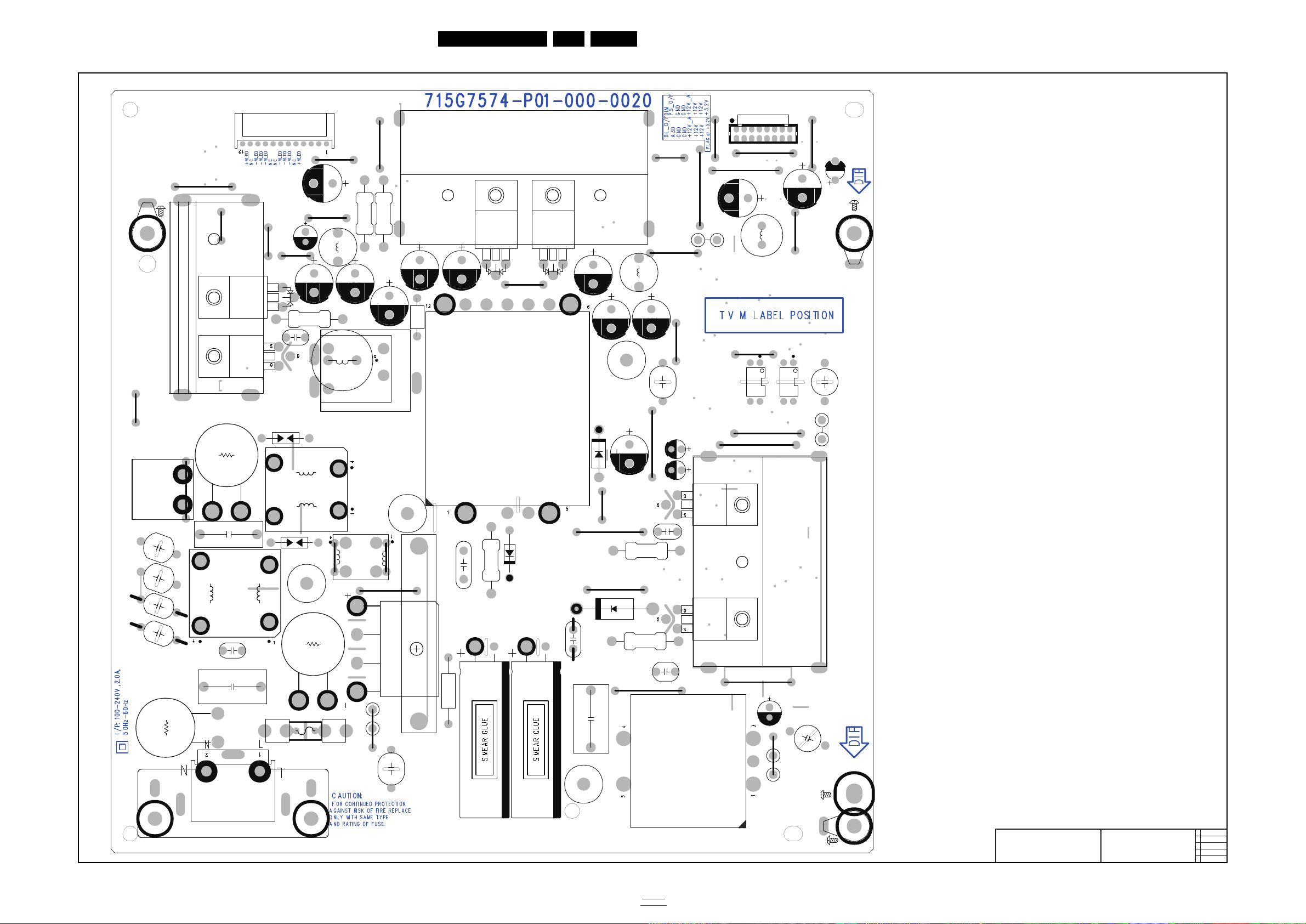

10-1-2 Power layout top

20030_501.eps

2015-11-12

715G7574

LAYOUT TOP

C8607

U9104

U9103

R8601

R9104

R9101

C9137

C9119

C9123

R9160

R9164

J919

F9902

J926

J901

J928

SU2

SU3

SU4

C8601

C9903

J932

J913

J907

J912

J904

J903

J906

J909

D9801

J908

J910

J914

J921

J915

J905

J916

J911

J918

J902

R9801

D9103

J920

J923

J917

C9115

C9122

C9801

C9802

J930

J929

J933

J931

C9819

C9132

SU1

J925

C9310

T9102

J927

J922

J924

MH27

MH3

MH22

MH23

MH20

MH17 MH18

MH5MH6MH7MH8

MH19

MH9

MH16

MH21

MH1

MH30

MH31

MH32

MH24

C8608

C9113

C9125

C9112

CN9902

CN9903

L9100

C9821

C9111

D9121

MH28

MH29

MH26

RV9901

L9902

D9111

C8609

HS9801

FB9907

CN8603

C8610

CN9101

FB9803

L9801

GND2

FB9301

D8601

C9901

MH25

L9903

Q9101

Q9801

GND1

F9901

GND3

C9913

C9914

C9104

L9901

HS9901

BD9901

C9924

C9922

C9923

FB9908

NR9901

NR9900

HS9111

C9902

FB9906

C9921

HS8601

L8601

FB9102

SG9901

SG9902

L8602

CN9901

Q8601

C9101C9102

C9114

C9121

L9301

L8603

L8604

C9911

C9912

D9101

Circuit Diagrams and PWB Layouts

EN 37TPM16.1L LA 10.

2016-Jul-22

back to

div.table

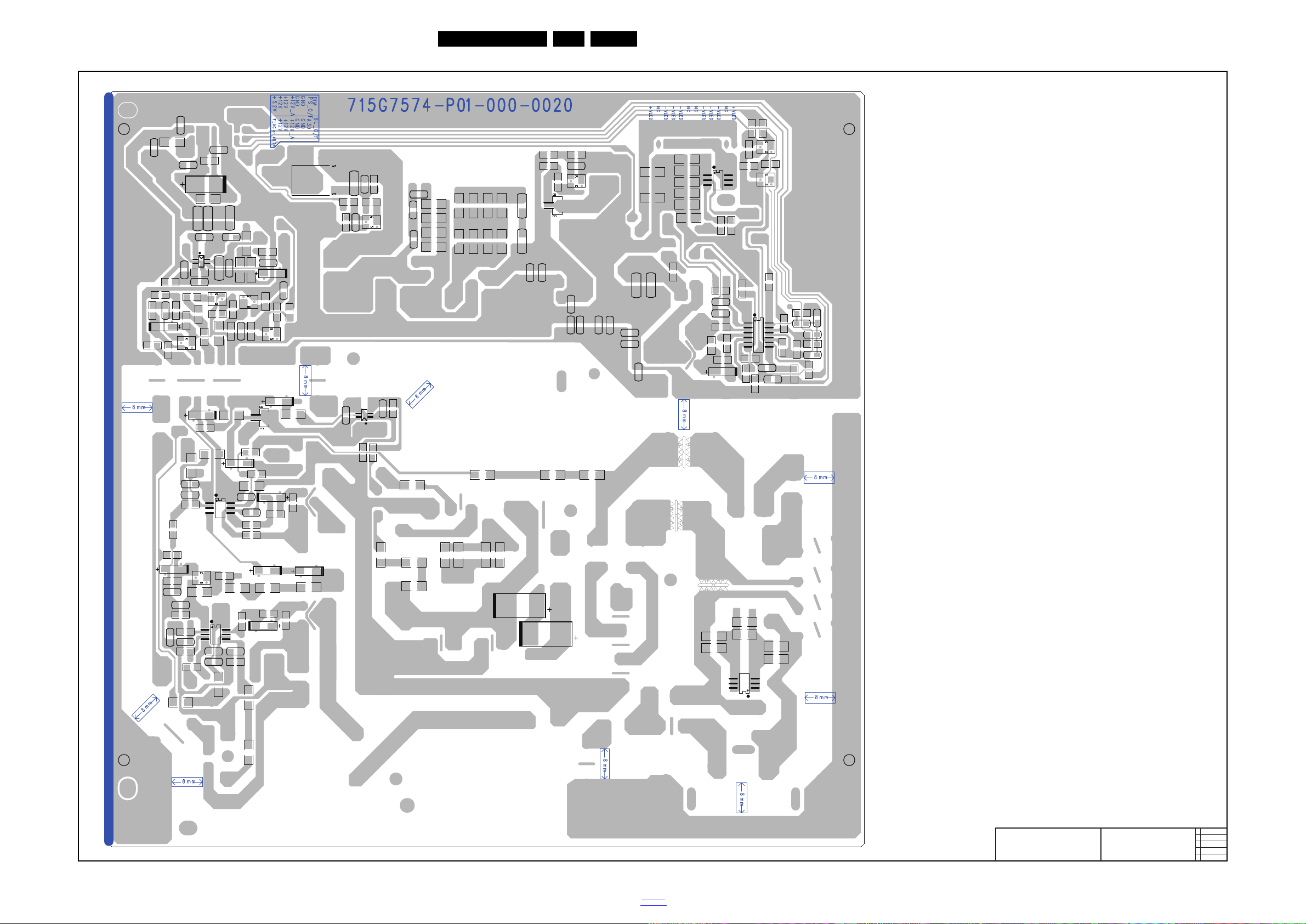

10-1-3 Power layout bottom

20050_502.eps

2015-11-12

715G7574

LAYOUT BOTTOM

C8612

C8603

C9103

C9118

C9303

C9305

C9306

C9139

C9806

C9809

C9810

C9808

R8617

R8616

R9169

R9170

R8618

R9112

R9107

R9142

R9125

R9168

R9302

R9306

R9305

R9303

R9304

R9802

R9803

R9804

R9806

R9807R9809

R9812

R9813

R9814

R9815

R9818

R9144

R9145

R9103

R9149

R9146

R9136

C9117

R9124

R9903

R9906

C9128

C9141

R9130

SEN1

SEN3

R9113

R9114

R9157

R9163

U9801

C9804

R8604

R8605

R8621

R8622

R9162
R9165

C9304

Q8603

C9134

U9901

C8605

C8606

C9130

C9143

C9146

C9150

C9133

C9807

C9116

C9131

R8619

R8620

R8612

R8623

R9109

R9126

R9129

R9133

R9143

R9159

R9152

R9134

R9148

R8606

R9111

R9102

R9118

R9155

R9167

R9150

R9135

R9166

R9151

R9810

R9805

R9105

R9106

R9147

RJ903

RJ902

RJ901

RJ904

R8607

R8602

R9173

R9138

R8615

R8603

R9132 R9131

C8604

R8609

C9811

R8608

R8610

R8611

R8613

R8614

R8624

R8625

R8626

R8627

R8628

R8629

R9811

R9816

R9808

R8630

C9311

R9116

R9904

D9802

R9153

C8611

RJ907

RJ909

RJ911

R8631

R8632

R8633

U9102

U9105

Q8604

Q8605

Q9103

Q9105

Q9109

Q9802

C9144

C9145

R9154

C8602

R9128

R9910

RJ906

R9127

C9148

C9149

C9151

C9152

C9153

C9154

C8613

C8614

C9155

C9156

C9157

C9308

C9309

C9302

C9307

U9101

R9117R9119

SEN4SEN5

RJ913

C9126

C9312

C9120

C9301

C9124

C9812

C9813

R9824

R9821

R9822

R9823

R9825

R9901

R9902

R9905

D9803

RJ905

RJ908

RJ910

RJ912

R9909

C9135

C9313

MH11MH10

MH12MH13

MH15MH14

Q9106

Q9108

D9107

Q9104

U8601

Q9107

U9301

D8603

D9102

D9804

ZD9101

ZD9102

ZD9106

ZD9107

ZD9108

D9104

D9810

U9802

ZD9103

Circuit Diagrams and PWB Layouts

EN 38TPM16.1L LA 10.

2016-Jul-22

back to

div.table

10.2 A 715G7575 PSU

20050_503.eps

AC input

A01 A01

2015-11-12

715G7575

AC input

F9902
FUSE

12
34

t

NR9902

2.5R

1 2

FB9903

NC

1 2

SG9901
DSPL-501N-A21F

t

NR9901

2.5R

12

D9901
PG4007

BR

R9906

910K 1/4W

HS9901
NC

1
2

U9901

CAP004DG-TL

NC

1

D12D1

3

NC

4

NC

5D26D27NC8

SG9902

DSPL-501N-A21F

L9902
12mH

1

2

4

3

CN9901

NC

1
2

C9912
22PF 250V

R9902

910K 1/4W

C9900

47pF

FB9901

BEAD

1 2

C9911
22PF 250V

FB9902

BEAD

12

F9901

NC

R9905

910K 1/4W

CN9902
AC 2P

12

C9914

470PF 250V

C9901

470NF 275V

L9901
12mH

1

2

4

3

RV9901
680V

R9904

NC

R9901

910K 1/4W

C9902

470NF 275V

C9913
470PF 250V

R9903

NC

L

VSIN

T5AH/250V

HS9902
HEAT SINK

1
2

N

L9903

0.25mH

1

2

4

3

C9916
NC

C9917
NC

C9915

220PF 250V

CN9903
NC

L

1

N

2

-

+

BD9901

GBJ1008-FUN

2

1

3

4

10-2-1 AC input

Circuit Diagrams and PWB Layouts

EN 39TPM16.1L LA 10.

2016-Jul-22

back to

div.table

10-2-2 PFC with LD7591T

20050_504.eps

PFC

A02 A02

2015-11-12

715G7575

PFC

R9821
NC

R9824
NC

R9823
NC

C9812
NC

R9822
NC

C9813
NC

R9825
NC

D9810
NC

PFC_OVP

R9811

330 OHM +-1% 1/8W

ZD9801

SMF12A

1 2

C9811

47P 50V

FB9801
BEAD

1 2

+

C9801

56UF 450V

C9820

1UF 450V

C9805
47N 50V

R9806
7K5 1/8W +/-1%

U9801

LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

R9808

33R 1%

D9804
SCS160P

12

R9815
10K

C9810
100P 50V

Q9801
IPA60R230P6

2

1

3

R9802

1M 1/4W 1%

Q9802

BSS127

3

1

2

C9809

330P 50V

R9816
20K 1/8W 1%

R9803
1M 1/4W 1%

R9812
24K9 1%

R9813

10K 1/8W 1%

C9808
47PF

R9804

19K1 +-1% 1/8W

R9817

1M 1/4W 1%

R9809

10K 1/8W 1%

+

C9802

56UF 450V

R9805

47K 1/8W 1%

D9801
FMNS-1106S

R9814

NC

R9807

10R 1/ 8W 5%

R9810

1K

HS9801

HEAT SINK

1
2

3

4

C9803
100N 50V

+

C9804

10UF 50V

FB9802
BEAD

1 2

C9807
220P 50V

C9806

0.47U F 50V

R9801

0.1R 2W

VCC_ON

VCC_ON

VSIN

HV

L9801

220uH

5

4

1

3

FB9803
BEAD

12

!

D9802
QG806C

U9802

NC

ISEN

1

GND

2

VSEN3IREF

4

OUT

5

VCC

6

D9803
QG806C

VCC_LLC

Circuit Diagrams and PWB Layouts

EN 40TPM16.1L LA 10.

2016-Jul-22

back to

div.table

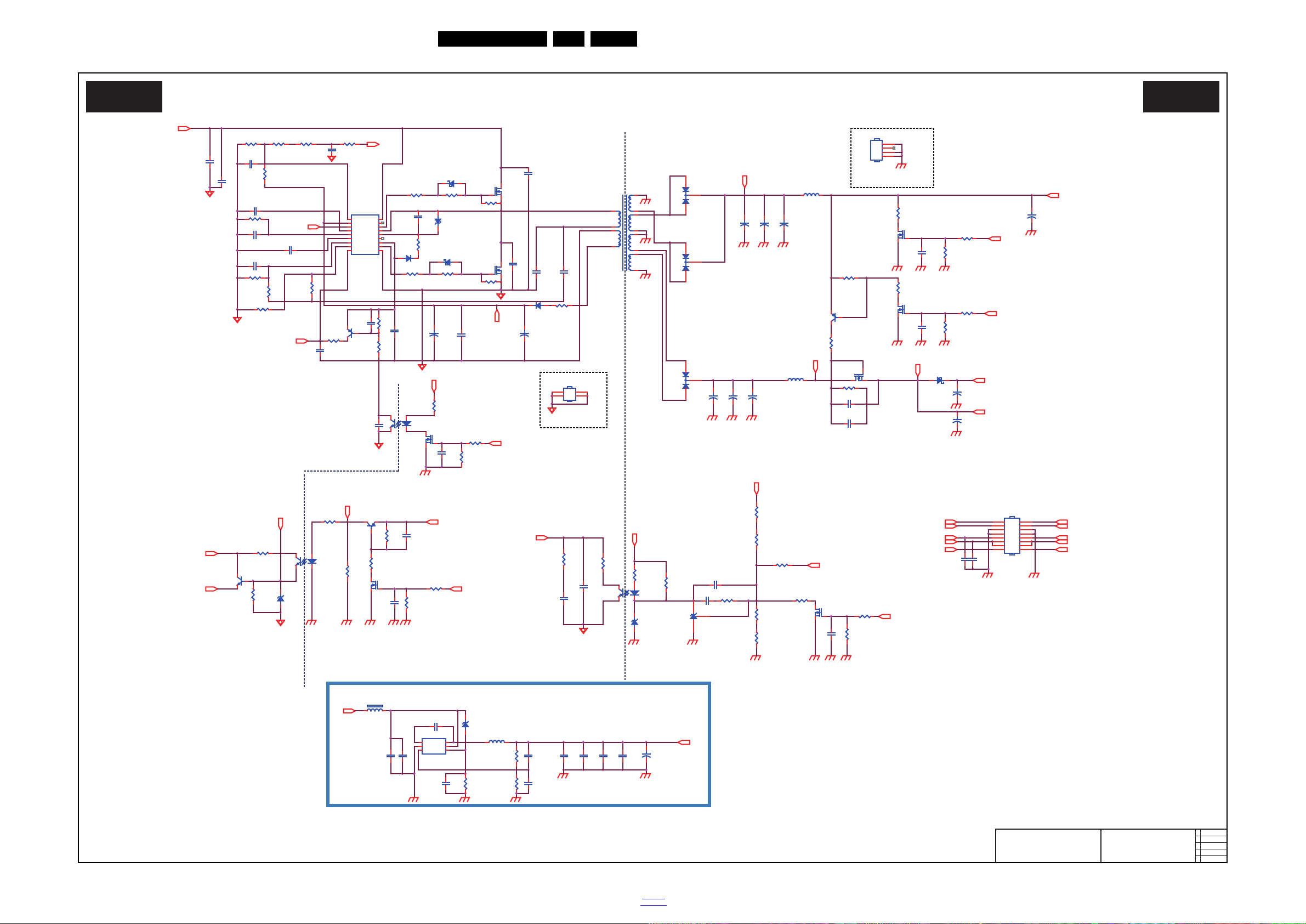

10-2-3 Flyback with SSC3S121

20050_505.eps

LLC

A03 A03

2015-11-12

715G7575

LLC

C9103

2.2NF

BR

FB_LLC

+12V

C9118
100N 50V

FLAG

T9101
POWER X'FMR

1

2

3

4

5

6

7

8

9

10

11
12

L9121
3UH

L9132
3UH

+24V

+

C9121

330UF 35V

+

C9122

330UF 35V

+

C9124

330UF 35V

+24VS

D9122
MBRF10100CT-Y

1

2

3

D9121
MBRF10100CT-Y

1

2

3

C9189

100N 50V

R9181

100 OHM 1%

DV5

+12V_A

R9185

47K 1/8W 1%

R9182

510K 1% 1/8W

Q9182
MMBT3906

R9183

5.1KR 1%

DV5

Q9181
2N7002K

R9184
47K 1/8W 1%

C9119

NC

U9301

SY8113BADC

BS

1

GND

2

FB3EN

4

IN

5

LX

6

R9108

100R

C9108
100N 50V

U9101

SSC3S910

VSEN

1

VCC

2

FB

3

ADJ

4

CSS

5

CL

6

RC

7

PL

8

SB9GND

10

VGL

11

REG

12

NC

13

VB

14

VS

15

VGH

16

NC

17

ST

18

3.53.5V DC TO DCDC TO DC USED TO USED TO improvimprove PowePower savingsaving

C9109

10N 50V

R9303

1K96 1/8W 1%

+

C9127

470UF 25V

+

C9126

470UF 25V

ZD9153
BZT52-B13G

1 2

+

C9123

330UF 35V

U9103
EL817M(X)

12

43

R9126
47K 1/8W 1%

PFC_OVP

U9102
EL817M(X)

12

43

Q9132
P1004BD

+

C9128

470UF 25V

Q9103
2N7002K

R9109
510K

R9110

5.1K

PS_ON

+12VS

R9118

10R 1/8W 5%

U9104
EL817M(X)

12

43

HOT

COLD

R9180
100K 1/8W 1%

C9120
NC

C9130

2.2UF 50V

STB

Q9141
2N7002K

PS_ON

Q9143
BTC4672M3

R9144
1K5

C9141

100N 50V

ZD9141
BZT52-B15

1 2

R9143
10KOHM

R9141
100R

Q9142
MMBT3906

R9145

10KOHM

+12VS

R9147

3K

R9148

20K

VCC_ON

VCC_LLC

DV5

R9142

510K

R9146
2K OHM

C9304

1N 50V

+12VS

R9154
10K 1/8W 1%

Q9131
2N7002K

R9114
100R

HS9122

HEAT SINK

1
2

3

4

R9125
47K 1/8W 1%

R9301

3K 1/8W +/-1%

C9148

NC

C9129

100N 50V

R9124

510K 1% 1/8W

C9172
100N 50V

R9123
100 OHM 1%

C9305

NC

C9307

NC

C9312

4N7 50V

FB9301

BEAD

1 2

C9302

100N 50V

C9303

100N 50V

L9301

4.7uH

C9306

NC

R9302

10K 1/8W 1%

C9173
100N 50V

+12VB

VCC_LLC

+12V

+5V

+12VS

C9174
10N 50V

+12V_A

D9123
TSF20U60C

1

2

3

A3D

PS_ON

+

C9117
NC

+

C9116
100UF 50V

+5V

D9105
UF1010G

BL_ON/OFF DIM

R9156

0R051/8W

R9163

0R051/8W

C9156

220N 50V

FB_LLC

C9155

1N 50V

+

C9308
100UF 50V

R9157

56K 1/8W +/-1%

R9164

1K2 1/8W +/-1%

C9153

100N 50V

R9161

4.7K

R9158
2K49 1/8W 1%

C9152
NC

C9100

1NF

R9160

22KOHM 1/8W +-1%

+24V

R9162

2K OHM

Q9151
2N7002K

D9102

SR34H

1 2

+12VS

R9152

510K

R9151
100R

C9151

100N 50V

R9153

6.2K 1%

DV5

+12VS

CN9101
CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

U9150

AS431AN-E1

C9104

10N 50V

R9116

1K

D9101
UF1010G

D9104
SCS160P

12

Q9102

TK10A 50D

C9107

220P 50V

R9119

1K

ZD9101
BZT52-B15G

12

R9101
2M 1%

R9105

100 OHM 1%

R9103
180K +-1% 1/8W

R9106

120OHM +-5% 1/8W

+

C9131

470UF 25V

R9159
100 OHM 1%

R9102
3M3 1%

+

C9133

470UF 25V

R9107
NC

C9105

220NF 50V

C9115

2.2UF 25V

C9102
220N 50V

C9106

0.47UF 50V

R9104

51K 1/8W 1%

R9100

4.7R 1%

C9112
15nF

C9114
47N 50V

C9101
1NF

R9120
2R2 +-5% 1/8W

C9113
100PF

C9111
100PF

D9103
SCS160P

12

Q9101

TK10A 50D

R9117
100R

HV

C9301

4.7UF 25V

R9121

2.2M 1/4W

COLD

HOT

R9190
20M OHM

+12V

+12V_A

C9311

10UF 16V

C9310

10UF 16V

R9115

10R 1/8W 5%

Q9104

MMBT3906
R9113

150K 1/8W 5%

ZD9301

BZT52-B5V1_R1_00001

1 2

C9110

3.3NF 50V

R9111
10KOHM

R9112

47K

HS9101
HEAT SINK

341

2

Circuit Diagrams and PWB Layouts

EN 41TPM16.1L LA 10.

2016-Jul-22

back to

div.table

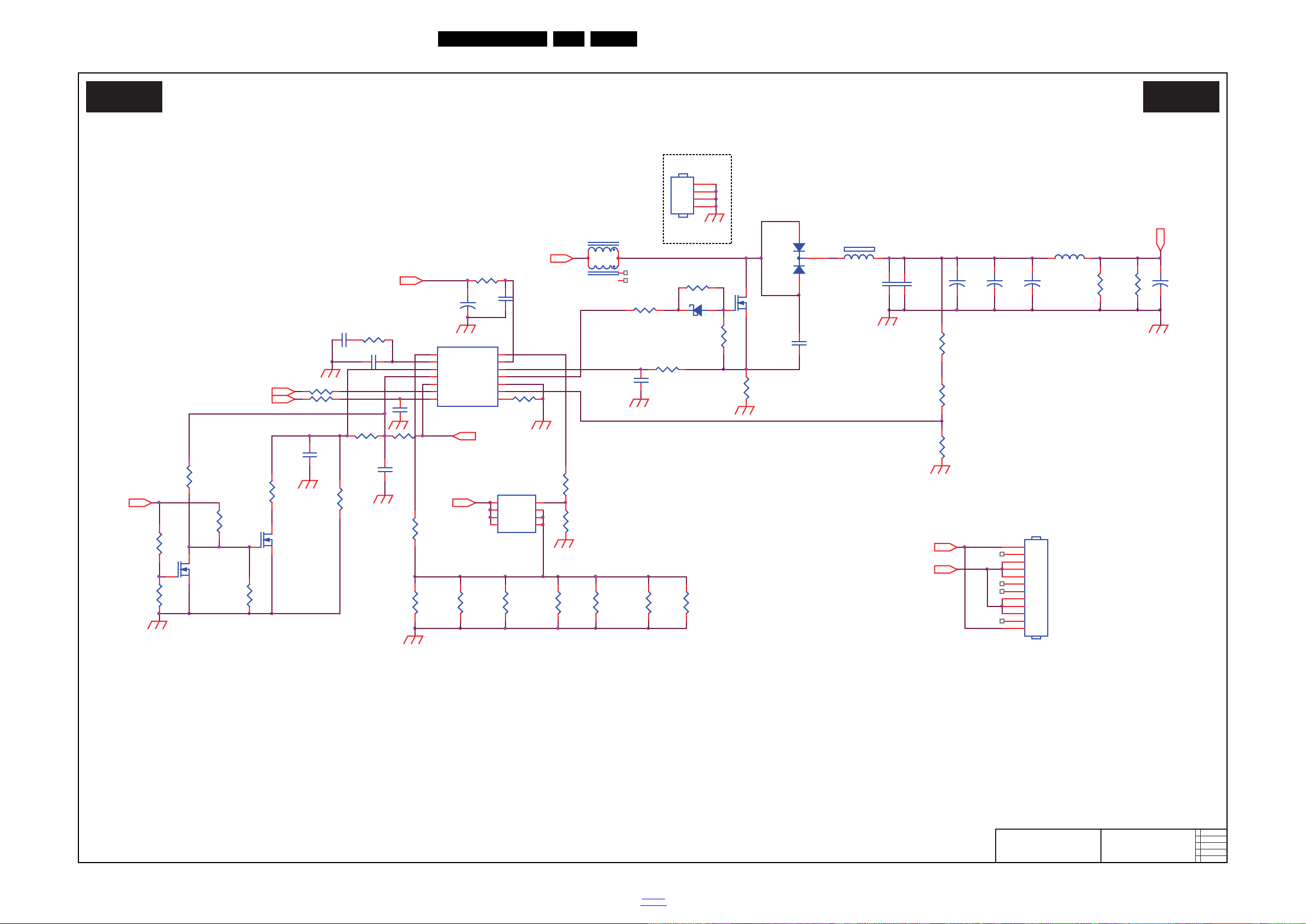

10-2-4 LED Boost

20050_506.eps

LED Boost

A04 A04

2015-11-12

715G7575

LED Boost

+

C8615

47uF 100V

R8611

NC

R8632
NC

R8629
NC

C8604

100N 50V

C8613
NC

R8614
0R051/8W

R8613

100R

R8625
22KOHM 1/8W +-1%

R8603

1.2R 1%

R8630
100R

R8631
NC

U8601

PF7909S

DIMOUT

1

VCC

2

CS

3

OUT

4

GND

5

OVP

6

RT

7

DIM

8

EN

9

FLAG

10

VREF

11

ADIM

12

GM

13

FB

14

L8602
3UH

C8614
NC

R8604

1.2R 1%

R8612

NC

FLAG

R8609
10KOHM

C8606

470P 50V

R8605

1.2R 1%

R8628
10KOHM

R8610

10KOHM

R8606

1.2R 1%

HS8601
HEAT SINK

1
2

3

4

Q8601
AOTF4126

C8607
47PF

R8608

10KOHM

A3D

C8605

NC

R8601

0R05

+

C8609

47uF 100V

R8620

1K

R8623

10KOHM

+

C8608

47uF 100V

R8617

0R051/8W

R8607

1.3R 1%

+24V

+

C8610
47uF 100V

-VLED

+VLED

C8612

1N 50V

DIM

D8601
MBRF20100CT

1

2

3

C8611

NC

R8622
47K 1/4W

R8621

47K 1/4W

R8624

180K +-1% 1/8W

BL_ON/OFF

R8633
NC

+

C8601
10UF 50V

Q8604

NC

C8603

1UF 16V

C8602
1N 50V

Q8605

NC

R8616

33OHM

R8627

10K 1/8W 1%

R8626

150K 1/8W +/-1%

Q8603

SM1A30NSK

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

R8615
10KOHM

R8618

270K 1%

R8602

1.2R 1%

R8619

270K 1%

L8601

33uH

2

1

-VLED

+VLED

CN8603

CONN

1

2

3

4

5

6

7

8

9

10

11

12

D8101

NC

12

L8603

NC

8

1

4
6

FB8603

NC

1 2

JUNPER

R8634

1.3R 1%

+12VS

Circuit Diagrams and PWB Layouts

EN 42TPM16.1L LA 10.

2016-Jul-22

back to

div.table

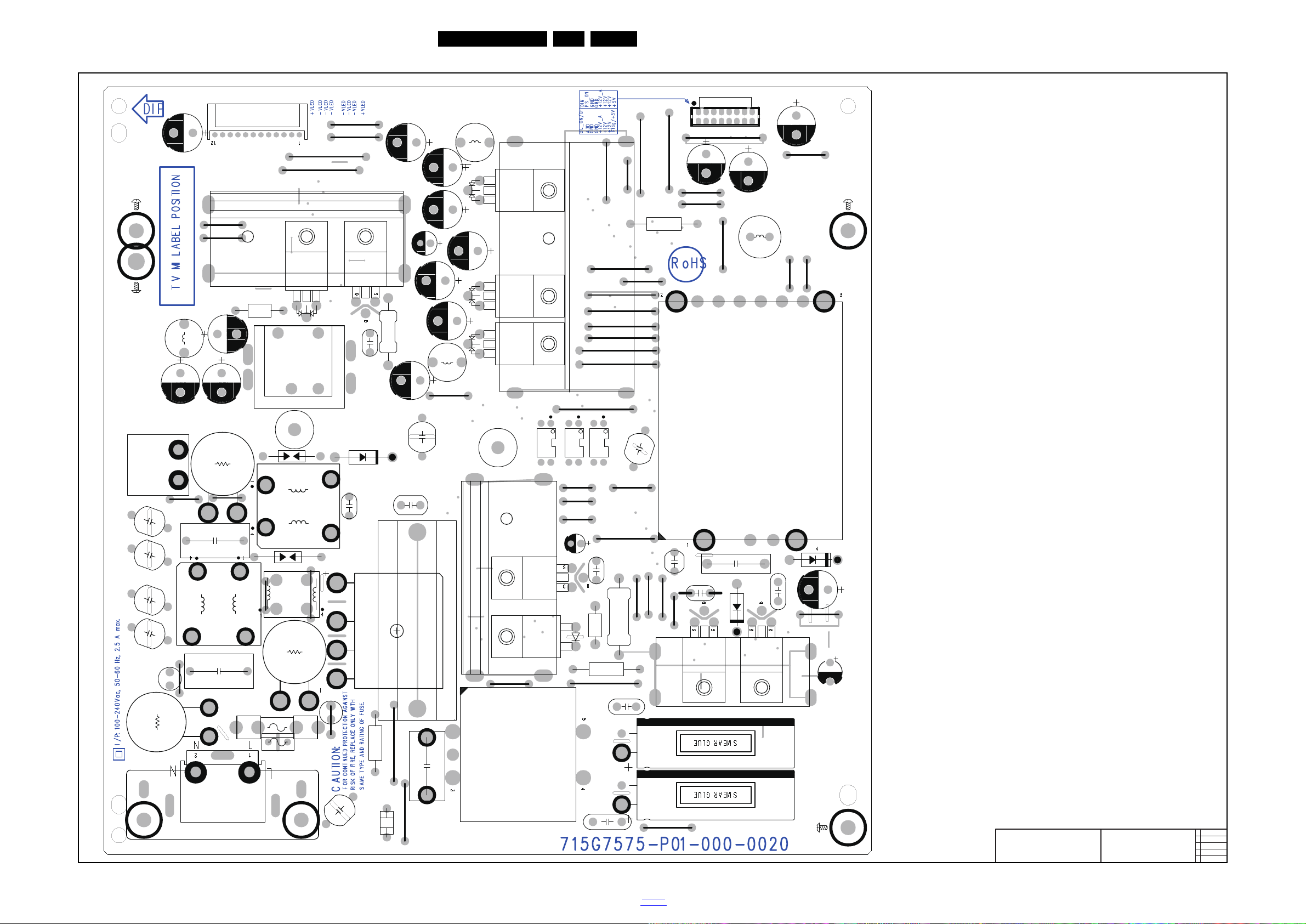

10-2-5 Power layout top

20050_507.eps

2015-10-21

715G7575

LAYOUT TOP

D9101

D9105

F9901

T9101

J941

J940

J934

J937

J935

J938

J936

J939

J944

J945

J946

J947

J948

J943

C9101

US1

J942

C8607

C9103

C9808

U9104

U9103

R8601

C9117

C9128

C9804

C9119

C9123

C9133

C9116

C9131

J919

F9902

J926

J901

J928

SU2

C8601

J932

J913

J907

J912

J904

J903

U9102

J906

J909

D9801

J908

J910

J914

J921

J915

J905

J916

J911

J918

C9308

J902

R9801

J920

J923

J917

C9122

C9126

C9124

C9801

C9802

J930

J929

J933

J931

J925

J927

J922

J924

H1

MH8

H10

SG3SG4SG5

SG6

SG9

SG10

SG1

SG2

MH1

H2

H3

H5

H8

H11

H12

H13

MH2

SG7

H7 H4

H6

H9

C8610

C9100

C9112

C9113

C9121

C9127

C9820

C9900

C9901

C9902

C9911

C9912

C9913

C9914

C9915

CN8603

CN9101

CN9901

D9121

D9122

FB9901

FB9902

HS8601

L8601

L8602

L9121

L9132

L9801

L9901

L9902

L9903

NR9902

Q8601

Q9101Q9102

Q9801

SG9901

CN9902

HS9122

HS9901

HS9801

C8608

C8609

NR9901

D8601

HS9101

CN9903

BD9901

D9123

C8615

D9901

SG9902

FB9802

L9301

L8603

C9916

C9917

FB9801

FB8603

FB9903

C9111

HS9902

FB9301

FB9803

RV9901

Circuit Diagrams and PWB Layouts

EN 43TPM16.1L LA 10.

2016-Jul-22

back to

div.table

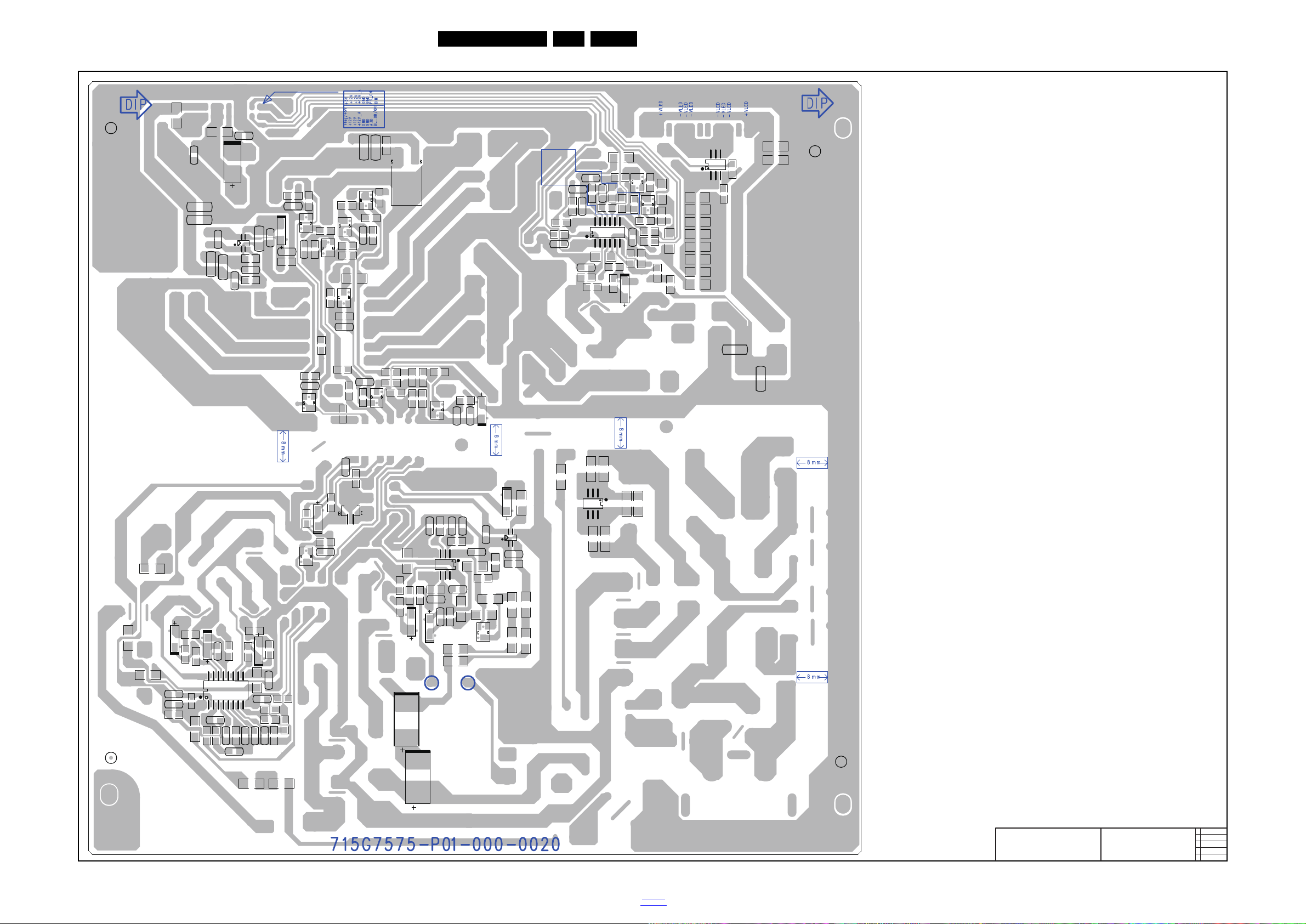

10-2-6 Power layout bottom

20050_508.eps

2015-10-21

715G7575

LAYOUT BOTTOM

SM1

TEST2

SM5

C9102

C9104

C9105

C9106

C9107

C9108

C9109

C9129

C9174

C9189

C9803

C9805

U9150

Q9131

Q9141

Q9151

Q9181

R9100

R9115

R9123

R9158

R9180

R9181

R9182

R9183

R9184

R9185

R9301

R9817

C9110

C9114

R9120

R9156

R9108

R9141

R9110

R9161

C9172

C9173

JR906

JR907

JR902

JR908

JR909

JR905

JR904

JR910

JR903

JR901

SM7

JR912

JR911

R8634

R9190

R9121

JR913

C8612

C8603

C9118

C9303

C9305

C9306

C9806

C9809

C9810

R8617

R8616

R8618

R9112

R9104

R9107

R9142

R9125

R9302

R9303

R9802 R9803

R9804

R9806

R9807

R9809

R9812

R9813

R9814

R9815

R9144

R9145

R9103

R9101

R9146

R9124

R9903

R9906

C9141

R9113

R9114

R9157

R9163

U9801

R8604
R8605

R8621
R8622

R9162

C9304

Q8603

U9901

C8605

C8606

C9130

C9807

R8619

R8620

R8612

R8623

R9109

R9126

R9143

R9159

R9152

R9148

R8606

R9111

R9102

R9118

R9160

R9164

R9151

R9810

R9805

R9105

R9106

R9147

R8607

R8602

R8615

R8603

C8604

R8609

C9811

R8608

R8610

R8611

R8613

R8614

R8624

R8625

R8626

R8627

R8628

R8629

R9811

R9816

R9808

R8630

C9311

R9116

R9904

D9802

R9153

C8611

R8631

R8632

R8633

Q8604

Q8605

Q9103

Q9802

R9154

C8602

C9148

C9151

C9152

C9153

C8613

C8614

C9155

C9156

C9302

C9307

U9101

R9117

R9119

D9103

C9115

C9312

C9120

C9301

C9812

C9813

R9824

R9821

R9822

R9823

R9825

R9901

R9902

R9905

D9803

C9310

D8101

D9104

D9804

Q9104

Q9132

Q9142

Q9143

Q9182

ZD9101

ZD9141

ZD9153

ZD9301

U8601

U9301

D9102

D9810

U9802

ZD9801

Circuit Diagrams and PWB Layouts

EN 44TPM16.1L LA 10.

2016-Jul-22

back to

div.table

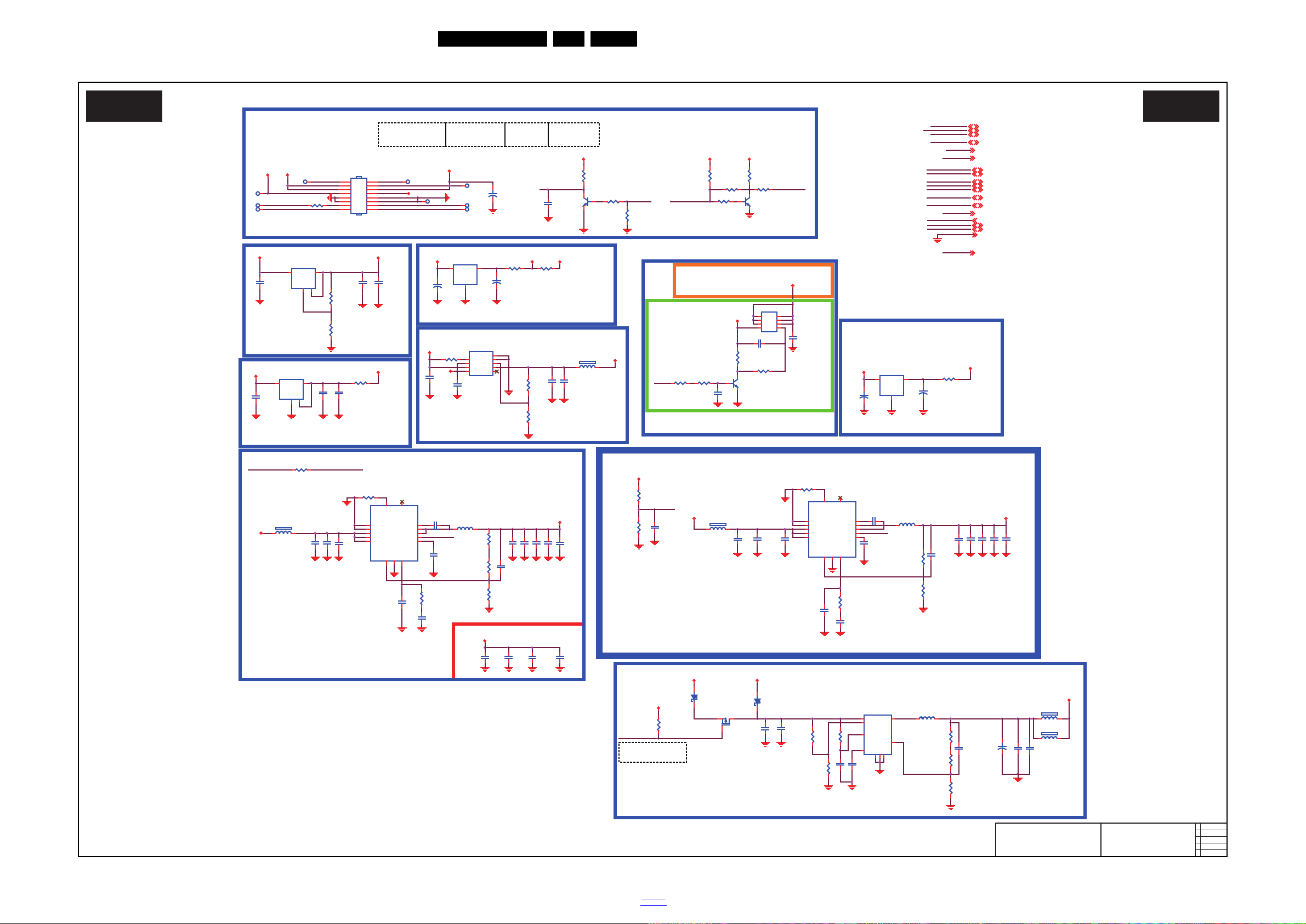

10.3 B 715G7049 SSB

19950_506.eps

System Power 1

B01 B01

2015-04-14

715G7049

System Power 1

TUNER VCC From +5V_SW

U705
uP0126BJT3-33

VI3VO

2

GND14

4

C749
10uF 10V

+3V3_TUNER

+5V_SW

FB706
120R

1 2

DVDD3V3+5V_SW

+

C774

100UF 16V

R4022

NC/0R 05 1/ 16W

C771

10uF 16V

+5V_STB

+5V_STB

R729

10R 1/10W 5%

R4277

0R05 1/4W

TP710

OPWRSB

R4066

0R051/8W

+

C758

100UF 16V

CN700

CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

+

C754

100UF 16V

+5V_STB

U706
AZ1084CS2-3.3TR G1

VIN3VOUT

2

GND

1

3V3SB From +5V_STB

R719
330R 1%

U710 AT1527F11U

VCC

1

REF

2

GND

3

FB

4

EN

5

PGND

6

LX

7

VIN

8

Thermal Pad

9

U708

RT7299BHGQW

RT/SYNC

1

GND

2

GND

3

PVIN

4

PVIN

5

VIN

6

FB7COMP

8

SS/TR

9

EN

10

LX

11

LX

12

BOOT

13

PGOOD

14

E-Pad

15

OPWRSB_PWR

C700

NC/10uF 6.3V

R727

47K 1/16W 5%

R715

20K 1/16W 5%

R701

4K7 1/16W 5%

LDO_PWR From DVDD3V3

R4298 0R05 1/16W

OPWRSB_PWR

C711 22UF 20% 6.3V

DDR_PW R_EN

C727
10uF 16V

C702

22UF 20% 6.3V

L702

2.2uH

D703
SX34

12

FB705
120R

1 2

TP703

Q706
AO3401A

D704
SX34

12

C726

100NF 16V

+5V_SW+5V_STB

C786

10uF 10V

TP701

DDRV

C730
150PF 50V

R4288

0R05 1/4W

C703
100NF 16V

R4289

0R051/8W

C717

100NF 16V

+

C775

100UF 16V

FB704

120R

1 2

C787

10uF 10V

AVDD1V0

Q700

MMBT3904

C713 10NF 50V

R707
3Kohm 1/16W +/-1%

TP705

R728

22K 1/16W 5%

3V3SB

TP700

INVERTER_ON_OFF:
Normal: High
Stand_By: Low

R412

NC 10K 1/16W 5%

DVDD3V3DVDD3V3

ANALOG_DIMMING

R419

NC 4K7 1/16W 5%

R420

NC 4.7K1/ 16W

Q410
NC MMBT3904

BRIGHT_ADJ:
Normal:Max:+3V3, Min:0V
Stand_By:0V

TP702

DC POWER INPUT_12V Only
Stand By:8.5V

LDO_PWR

OPWRSB:
Normal: Low
Stand_by: High

AVDD3V3

+12V_AU

R702

82 KOHM +-5% 1/16W

R718
750R 1%

C734

10uF 16V

TP704

C729
1UF 10V

TP706

+12V

C722

NC 10uF 16V

C725

NC 100NF 16V

C773

10uF 10V

VCCK

C724

NC 100NF 16V

C779

10uF 10V

C742

100N 16V

C744
NC 470PF 50V

C732 10uF 16V

PWR_EN

C728
10uF 10V

C743

100NF 25V

L701 1. 5UH

C721 100NF 16V

C745

8.2NF 50V

R713

0R05 1/16W

C737

10uF 16V

3V3SB

R712

16K 1%

C716
100N 16V

C644 10uF 16V

OPWRSB_PWR

FB710

120R

12

L705

4.7uH 32mOHM

C718

100NF 16V

C645 10uF 16V

R739

100K 1%

C723

NC/1U F 10% 16V

R716

24K 1%

C767

10uF 16V

C712

10uF 16V

R737

13K OHM +-1% 1/16W

R720

100K 1/16W 5%

C769

10uF 16V

U707 AZ1117H-ADJ-E1

VI3VO

2

GND14

4

C709

180PF 50V

C731 10uF 16V

C733

NC 10uF 16V

FB712

120R

1 2

C768

10uF 16V

C720

0805 22uF

+5V_STB+12V

+12V

VCCK

AVDD3V3

R7110 4.7K1/16W

R4023

0R05 1/16W

VCCK

C643

10uF 10V

U701

AZ1084CS2-3.3TR G1

VIN3VOUT

2

GND

1

+5V_STB

R730

2.4K 1% 1/16W

R731

300R 1/16W 1%

+12V_AU 4,14

+12V_AU

R721

4.3K 0.5% 1/16W

2D/3D_SELECT

2D/3D_SELECT 14

+12V to +5V_STB by PSU 12V.

INVERTER_ON_OFF

+

C701 100UF 16V

DDR_PWR_EN 14

DDR_PW R_EN

C788

100NF 16V

C770 10NF 50V

+5V_SW On control by VCCK.

DRAM Power

2D/3D_SELECT:
3D Mode: High
2D Mode: Low

+12V

C748
NC/470PF 50V

TP711

C765 100NF 16V

R703

5.1K 1%

+

C706

100UF 16V

R709

1.6KOHM +- 1% 1/10W

DDR_PW R_EN :
Fast Boot Enable : Low
Fast Boot Disable : High

R417

NC 100R 1/ 10W 5%

BOOST_PWM

BOOST_PWM

BRIGHT_ADJ

R717

100K 1/16W 5%

R708

10K 1/16W 5%

U711

G9661

POK

1

VEN

2

VIN

3

VPP4NC

5

VO

6

ADJ

7

GND

8

E-Pad

9

ANALOG POWER AVDD1V05

AVDD1V05 Fr om AVDD3V3

+5V_EN

PWR_EN

R724

100K 1/16W 5%

+12V

STB_PW R

U702

RT7299BHGQW

RT/SYNC

1

GND

2

GND

3

PVIN

4

PVIN

5

VIN

6

FB7COMP

8

SS/TR

9

EN

10

LX

11

LX

12

BOOT

13

PGOOD

14

E-Pad

15

C714 180PF 50V

DVDD3V3

+5V_EN

DVDD3V3 From +5V_SW

+12V_AU

ANALOG_DIMMING 14

ANALOG_DIMMING

R741

10K 1/10W 5%

+5V_STB

+5V_SW

2D/3D_SELECT

C715

8.2NF 50V

R706

22KOHM 1/10W

Q701
BC847C

R704

33K 1/10W 5%

C763

10UF 10V

R705

2K7 1/16W 5%

C735

100NF 16V

C764

1UF 10% 16V

+5V_SW

Q702

AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

+5V_USB

+12V

+5V_USB6

DVDD3V3

+3V3_TUNER

OPWRSB
BRIGHT_ADJ

+5V_STB TO +5V_SW BY VCCK

GND 4,5,6,7,8,9,10,11,12,13,14,15,16,17

OPWRSB5

DDRV

INVERTER_ON _OFF

DVDD3V3 5, 6,8,10,11, 14,15,16,17

INVERTER_ON _OFF 10

BRIGHT_ADJ 10

AVDD3V3 6,7,10, 15

+3V3_TUNER 16

3V3SB 5,6,7,10,14,15

VCCK 5,11,14

+12V 4,6,17

AVDD1V0 6,10,15

+5V_SW 4,6,7,10,15

DDRV 11,12,13

AVDD3V3

+5V_SW

VCCK

3V3SB

AVDD1V0

R714

680R 1/16W 5%

R723

33K 1/16W 5%

C736

10uF 10V

10-3-1 System power 1

Circuit Diagrams and PWB Layouts

EN 45TPM16.1L LA 10.

2016-Jul-22

back to

div.table

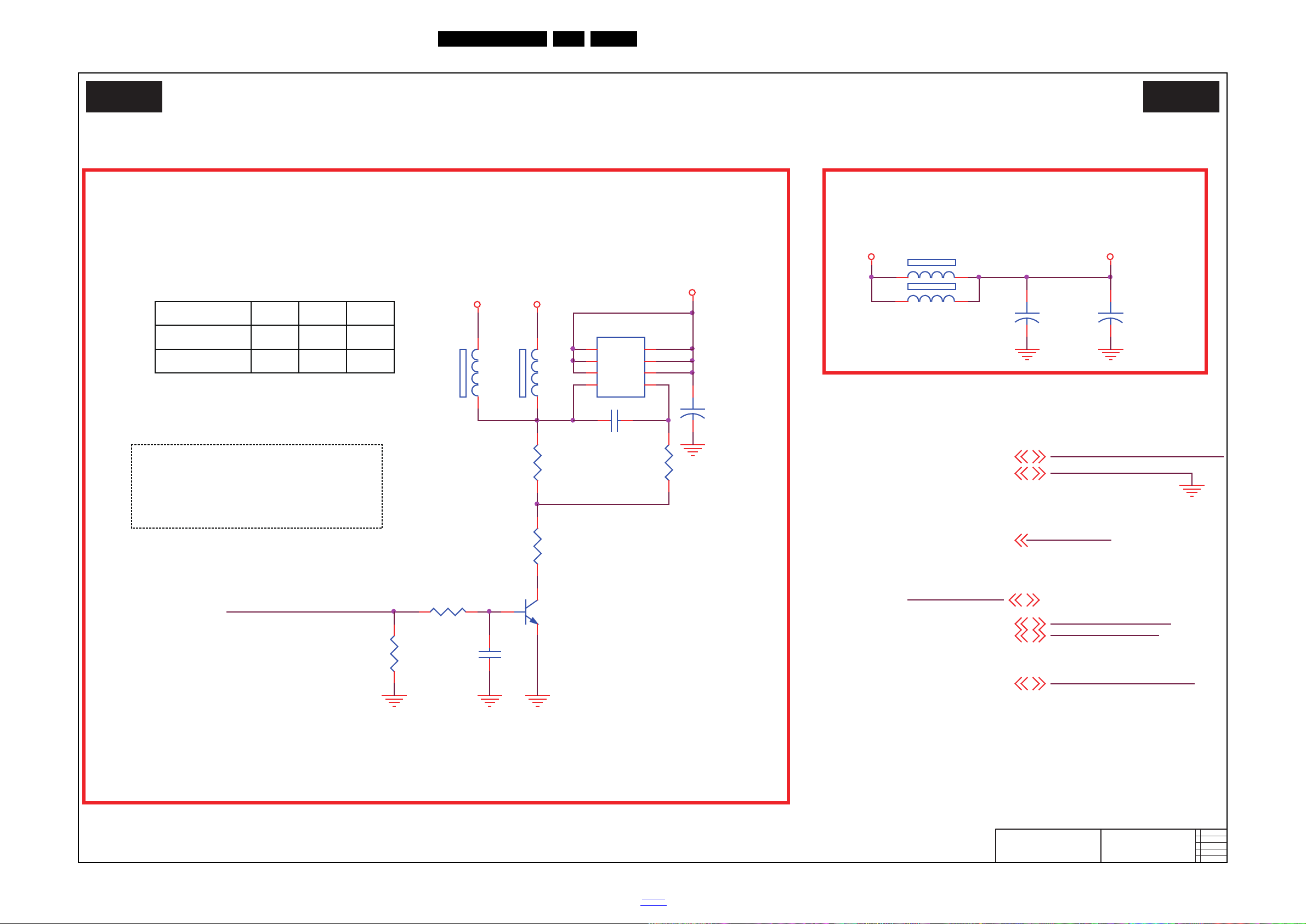

10-3-2 System Power 2

19950_507.eps

System Power 2

B02 B02

2015-04-14

715G7049

System Power 2

+

C762
220uF 16V

R753

6K8 1/10W 5%

FB751

NC 120R

1 2

FB754

120R

12

R750

10K 1/16W 5%

R759

10K 1/16W 5%

R752

10K 1/10W 5%

FB755

120R

1 2

+12V_AU 3,14

+12V_AU

Q750 AON4421

D

1

D

2

D

3

G

4

S

5

D

6

D

7

D

8

C750

1UF 10% 16V

C751

NC/4.7UF 10V

Q751
BC847C

FB750

120R

1 2

R751

5.1KOH M +-5% 1/10W

PANEL_VCC

+12V+5V_SW

PVDD

+12V_AU

PANEL_VCC_ON/OFF10,17

GND3,5,6,7,8,9,10,11,12,13,14,15,16,17

DVDD3V33,5,6,8,10,11,14,15,16,17

+

C766
220uF 16V

PVDD8

+5V_SW3,6,7,10,15

+12V3,6,17

+

C752

220UF 16V

Panel VCC=12V or 5V

PANEL_VCC ON/OFF:(OPCTRL9)
Normal:High
Stand_By:Low

PANEL_VCC_ON/OFF

GND

PANEL_VCC_ON/OFF

Audio VCC= +12V

Yes

0R

5.1K

R751

NC

NC
Yes

+12V

FB751FB750

PANEL VCC

+5V

DVDD3V3

PVDD

+5V_SW

+12V

Circuit Diagrams and PWB Layouts

EN 46TPM16.1L LA 10.

2016-Jul-22

back to

div.table

10-3-3 Peripheral

19950_508.eps

Peripheral

B03 B03

2015-04-14

715G7049

Peripheral

TP818

PDD0

C4039

1UF 6. 3V

TP816

PDD6

PAALE

POCE0#

PACLE

PDD5

R4034 4K7 1/16W 5%

PDD4

R4033 4K7 1/16W 5%

POWE#

PDD1

U0TX

DVDD3V3

PDD7

POOE#

RXD_RF4CE

PDD3

PARB#

EMMC_CLK

PDD2

U0RX

TP819

POCE1#

TXD_RF4CE

TP820

C4033
100NF 16V

PACLE

PAALE

EMMC_RST#

TP817

R4287

NC/ 0R 05 1/ 10W

R4060 NC 10K 1/ 16W 5%

OPWRSB

C601
100NF 16V

EMMC VCC/VCCQ Power

C4014

10NF 50V

ORESET#

EMMC

3V3SB

RC6

C4037
100NF 16V

R4035

4K7 1/16W 5%

R4036

4K7 1/16W 5%

VCC3IO_EMMC

FSRC_WR

R4005

4K7 1/16W 5%

Cobra RAV0.3_20120502

E-Fuse

CN412

PHONE J AC K

1

2

3

C4023
100NF 16V

R4003

0R05 1/16W

R4002

2K7 1/16W 5%

3V3SB

OSDA1

MT5593UPIJ

U401-7

OSDA0

AT37

OSCL0

AT38

OSDA1

AN38

OSCL1

AN37

XTALO

E38

XTALI

E37

AVDD33_REG_STB

AA36

AVDD33_RGB_STB

U38

AVSS33_RGB

M25

AVDD33_PLL_STB

Y36

AVDD10_LDO

V36

U0TX

AE36

U0RX

AE37

U1RX

AM37

U1TX

AM38

POWE__B

AG38

POOE__B

AH37

POCE1__B

AF36

POCE0__B

AF38

PDD7

AJ33

PDD6

AJ34

PDD5

AJ35

PDD4

AH34

PDD3

AH32

PDD2

AF32

PDD1

AF33

PDD0

AJ37

PARB__B

AH36

PACLE

AG37

PAALE

AE34

OPWRSB

AB38

ORESETB

M34

OIRI

Y35

FSRC_WR

G20

STB_SCL

AC37

STB_SDA

AC38

EMMC_CLK

AL37

AVDD10_ELDO

V37

POR_OPT

U34

VCC3I O_EMMC

AJ38

CPC0

U33

CPC1

V33

CPC2

V34

EMMC_RSTB

AK36

DS

AJ32

C4038
100NF 16V

R4056 NC 10K 1/ 16W 5%

ORESET#

SYS_EEPROM_WP

GND

OPWRSB

R4297

0R05 1/10W

PDD5

C4035

10UF 6.3V 20%

R4054 NC 10K 1/ 16W 5%

+5V_STB3

+5V_STB

C4034
100NF 16V

R4061 NC 10K 1/ 16W 5%

VCC3I O_EMMC

R4058 NC 10K 1/16W 5%

RC66

RC6

C4043

10UF 6.3V 20%

R4057 NC 10K 1/ 16W 5%

C4045

NC/10UF 6.3V 20%

C4016

10UF 6. 3V 20%

3V3SB

LDO_PWR

R4059 NC 10K 1/ 16W 5%

C4017
1UF 6. 3V

C4044

10UF 6. 3V 20%

R4028
4K7 1/16W 5%

OSCL1

EMMC_RST#

C4036
10UF 6. 3V 20%

R4055 NC 10K 1/ 16W 5%

R4053 NC 10K 1/16W 5%

VCC_EMMC

VCC3IO_EMMC

VCC3I O_EMMC

VCC_EMMC

VCC3I O_EMMC

VCC_EMMCDVDD3V3

VCC3I O_EMMC

DVDD3V3

VCC3IO_EMMC

C4019 NC 10UF 10V

R4062

NC 10K 1/16W 5%

R4280

0R05 1/10W

TP450

R4291

NC/ 0R 05 1/ 10W

R4067

0R05 1/16W

R4068

0R05 1/16W

POWE

0

1

LED_PWM2

0

0
1

ICE mode + 24M + serial boot(with GPIO)

ICE moce + 24M + ROM to eMMC boot from
eMMC pins (share pins w/s NAND)

LED_PWM0

0

ICE moce + 24M + ROM to 60bit ECC Nand boot

ICE mode + 24M + serial boot

0

0

1

0

0

LED_PWM1

STRAPPING

1

3.3V IO Power

PDD4

I2C Address "A0"

VCCK

LED_PWM06,14
LED_PWM16,14

LED_PWM1

LED_PWM0SYS_EEPROM_WP

LDO_PWR

R671
NC 4K7 1/ 16W 5%

R672

NC 4K7 1/16W 5%

R673

NC 4K7 1/ 16W 5%

DVDD3V3

POOE#
POCE1#

PARB# VCC_EMMC

R675

4K7 1/16W 5%

R674

4K7 1/16W 5%

DVDD3V3

AVDD33_PLL_STB

AVDD33_REG_STB

DVDD3V3

R689

47R +-1% 1/16W

HS401

HEAT SINK

1
2

R4010

2K 1/16W 5%

LED_PWM214

LED_PWM2

R4011

2K 1/16W 5%

R690

47R +-1% 1/16W

R691

47R +-1% 1/16W

AVDD33_REG_STB

AVDD33_RGB_STB

R692

47R +-1% 1/16W

C5010

NC 100pF 50V

PDD7

PDD2

C5011

NC 100pF 50V

D4001

NC/BAV99

3

1

2

C4005

22PF 50V

For code download,debugging,factory alignment and compair mode.

C4027

NC 10UF 6.3V 20%

AVDD33_PLL_STB

R4040

20K 1%

OSDA0

C4011
100NF 16V

Core Power

OSDA0
OSCL0

C4022

1UF 10% 16V

U410

NC/AZ809ANSTR-E1

GND

1

RESET

2

Vcc

3

VCC_EMMC

R4029

100R 1/16W 5%

C4008
100NF 16V

AVSS33_RGB_STB

AVDD33_RGB_STB

EMMC_RST#

D4000

NC/BAV99

3

1

2

C4004

22PF 50V

X40 00

24MHz

1

2 4

3

C4012
100NF 16V

R4009

NC 4K7 1/ 16W 5%

U409

NC C AT24C128WI-GT3

A0

1

A1

2

A2

3

VSS4SDA

5

SCL

6

WP

7

VCC

8

AVDD10_LDO

C4024

4.7UF 6. 3V

EMMC_CLK#

AVDD10_ELDO

R4042

47R +-1% 1/16W

C4031

4.7UF 6. 3V

C4013

10UF 10V

C4006

4.7UF 6. 3V

Reset IC

VCC3IO_EMMC

R693 47R +-1% 1/16W

OXTALO

+

C4015
100UF 16V

R4007

NC 0R 05 1/ 16W

R694 47R +-1% 1/16WC4010

100NF 16V

R4031

4K7 1/16W 5%

R695 47R +-1% 1/16W
R696 47R +-1% 1/16W
R697 47R +-1% 1/16W

R4032

4K7 1/16W 5%

R4021

27K 1/16W 1%

R4030

100R 1/16W 5%

C4009
NC 100N F 16V

VCCK

DVDD3V3

OXTALO

OXTALI

3V3SB

EMMC_CLK#

3V3SB3V3SB

DVDD3V3

3V3SB

3V3SB

3V3SB

3V3SB

SYS_EEPROM_WP14

OPWRSB3

PDD3

OSCL08
OSDA08

GND3,4,6,7,8,9,10,11,12,13,14,15,16,17

OSCL0

3V3SB3,6,7,10,14,15

OSDA0

DVDD3V33,6,8,10,11,14,15,16,17

AVDD3V33,6,7,10,15

VCCK3,11,14

U4052

THGBMBG6D1KBAIL

DAT0

A3

DAT1

A4

DAT2

A5

VSS

A6

NC

A7

DAT3

B2

DAT4

B3

DAT5

B4

DAT6

B5

DAT7

B6

VDDI

C2

Vssq

C4

Vccq

C6

NC

C5

Vcc

E6

Vss

E7

NC

E8

NC

E9

Vcc

F5

NC

F10

Vss

G5

NC

G10

NC

G3

DS

H5

Vss

H10

VSS

J5

Vcc

J10

RSTN

K5

NC

K6

NC

K7

Vss

K8

Vcc

K9

NC

K10

Vccq

M4

CMD

M5

CLK

M6

Vssq

N2

Vccq

N4

Vssq

N5

Vccq

P3

Vssq

P4

Vccq

P5

Vssq

P6

NC

P7

NC

P10

A1 index

D4

NC

E5

NC

E10

NCB1NCC1NC

N1

OXTALI

PDD6

24MHz CR YSTAL

Pin7 WP

OSCL0

HI = > Disable write
LO = > Enable Write

SYSTEM EEPROM

VCC3IO_AB

VCC3IO_AB

VCC3IO_AB3,6,8,10,11,14,15,16,17

OSDA16

OSCL16

OSCL1
OSDA1

POWE

OSDA1
OSCL1

AVDD3V3

C4311

NC 100NF 16V

C4312
100NF 16V

C4313
100NF 16V

C4314
100NF 16V

C4315
22UF 20% 6.3V

R4001

0R05 1/16W

R4019

NC 4K7 1/ 16W 5%

U0TX

POR

Internal POR

R4001
0R
NC

External ResetNC4.7K

R4019

U0RX

Analog Power

POR_OPT

POWE#

POR_OPT

3V3SB

R4017

NC 4K7 1/ 16W 5%

R4016

10K 1/16W 5%

R4020

NC 4K7 1/ 16W 5%

R4013

10K 1/16W 5%

R4014

10K 1/16W 5%

LED_PWM0

Cobra RAV0.3_20120502

3V3SB

Cobra RAV0.2_20120411

LED_PWM2

STRAPPING

STB_SCL
STB_SDA

R4018

NC 4K7 1/ 16W 5%

STB_SDA10

STB_SCL10

STB_SCL
STB_SDA

LED_PWM1

Circuit Diagrams and PWB Layouts

EN 47TPM16.1L LA 10.

2016-Jul-22

back to

div.table

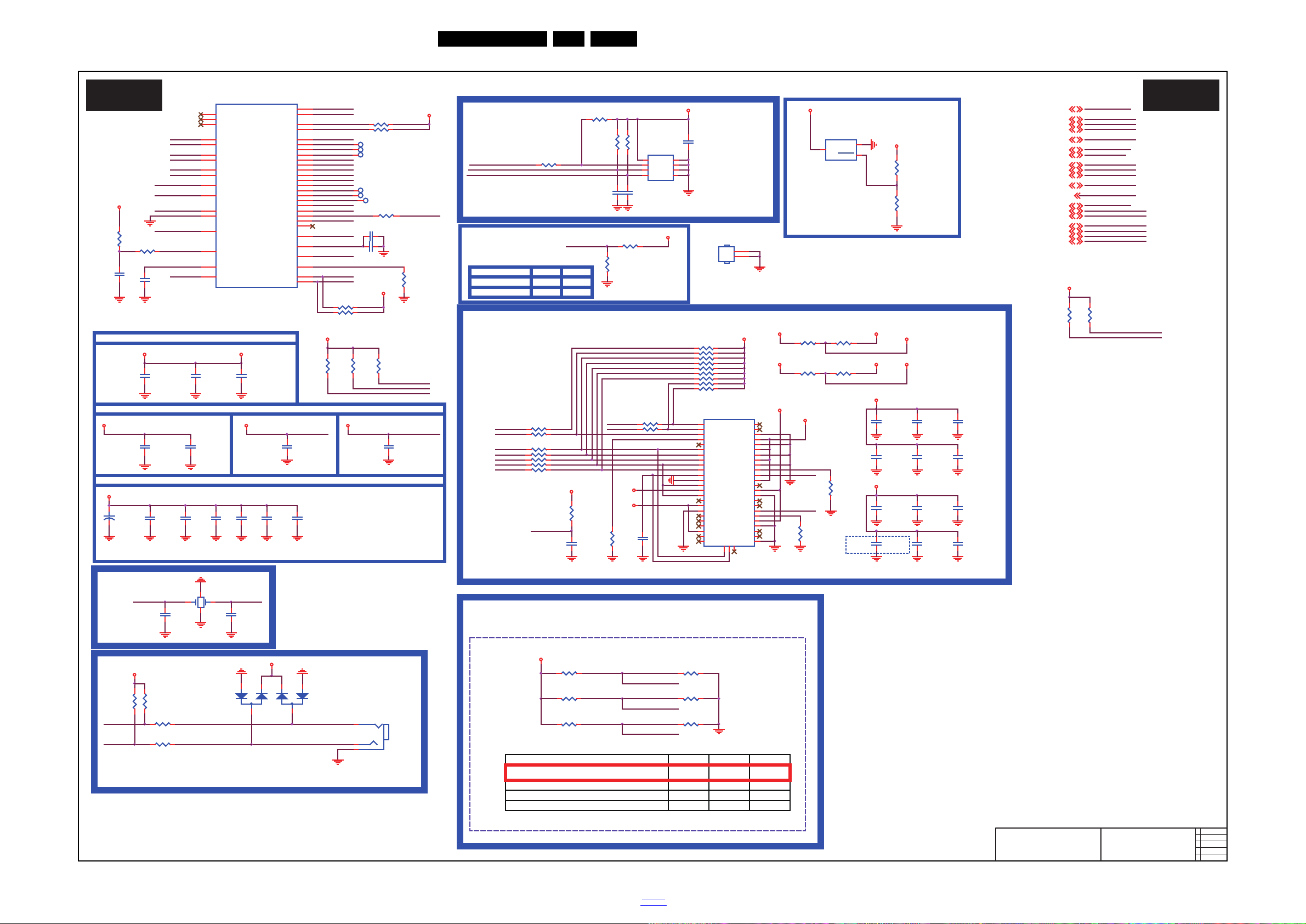

10-3-4 Connector/USB/WIFI

19950_509.eps

Connector/USB/WIFI

B04 B04

2015-04-14

715G7049

Connector/USB/WIFI

KEY_PAD0 14

LED_PWM0 5, 14

LED_PWM0

GND 3,4,5,7,8,9,10,11,12,13,14, 15,16,17

3V3SB 3,5,7,10,14,15

+5V_USB

DVDD3V33,5,8,10, 11,14,15,16, 17

AVDD3V33,7,10,15

+5V_SW 3,4,7,10,15

+12V 3,4,17

Key1KEY_PAD0

TO KEY PAD BOARD

WoBLE-IRQ14

WoBLE-IRQ

RC6#

LED_PWM1

SSUSB_TXN_R

W/S/W

U1101

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

7.5/7.5/7.5

EQUAL LENGTH and
DIFFERENTIAL
IMPEDANCE 90ohm

USB PORT 1 (SIDE)

C608

NC 10UF 6. 3V 20%

USB_DP_P1
USB_DM_P1

C4242 10uF 16V

C4241 10uF 16V

Q4003
AO3414

WoBLE-IRQ

R4135 0R05 1/16W
R4136 0R05 1/16W

R4137 0R05 1/16W

R4202
0R051/8W

R4138 0R05 1/16W

MT 55 9 3UPIJ

U401-9

USB_DP_P0

A16

USB_DM_P0

B16

USB_DP_P1

A17

USB_DM_P1

B17

USB_DP_P2

C31

USB_DM_P2

D31

USB_DP_P3

AA37

USB_DM_P3

AA38

AVDD33_USB

N28

AVDD33_SSUSB

A33

SSUSB_TXP

B34

SSUSB_TXN

A34

SSUSB_RXP

B32

SSUSB_RXN

A32

AVDD10_SSUSB

A31

SSUSB_VRT

A35

USB_VRT_P0

B15

SSUSB_TXP_R
SSUSB_TXN_R

SSUSB_RXP_R
SSUSB_RXN_R

C1116
100NF 16V

C1117

100NF 16V

Wi-Fi_VCC14

USB_DM_P3

USB_DM_P1

Wi-Fi_VCC

SSUSB_TXN

SSUSB_TXP

USB_DP_P3

USB_DP_P1

USB_DM_P0

USB_DP_P0

SSUSB_RXN

SSUSB_RXP

TP337

TP353

USB_DP_P2
USB_DM_P2

TP285

USB 3.0

R732

5.1K 1%

R733

5.1K 1%

SSUSB_VRT

R4254

10K 1/16W 5%

LED_R:
Enable(Stand_By) : High
Disable: Low

+5V_USB

+5V_SW

USB_VRT_P0

+5V_USB

C4113

NC/100N 50V

3V3SB

SSUSB_TXP

R4255

NC 0R05 1/ 16W

SSUSB_TXN

TO IR/KEY BOARD

SSUSB_TXP_R

SSUSB_RXP
SSUSB_RXN

AVDD33_USB
AVDD33_SSUSB

C4129

1UF 6.3V

AVDD1V0

AVDD3V3

C4131

100NF 16V

AVDD10_SSUSB

C4130

1UF 6.3V

AVDD10_SSUSB

LS_SDA

3V3SB

3D_L/R_IN10,14

3D_L/R_IN

LED_R

C4244 100NF 16V

CN401

CONN

2
4
6

8

10
12
14
16
18

1

3

5
7

9
11
13
15
17

C4117

NC/100N 50V

LOGO

SSUSB_TXN_R

Key1 17

Key1

U4251

MP1470GJ

-Z

GND

1

SW

2

IN3FB

4

EN

5

BST

6

+12V

C4246

10uF 16V

C4245

10uF 16V

L4201

4.7UH

SSUSB_RXP_R

ZD4101 NC/M M3Z5V6B

DVDD3V3

LED_PWM15, 14

LED_PWM1

W/S/W

Gaming :
2D Dual View Mode :
High
Normal 3D Mode : Low

Key1

7.5/7.5/7.5

Wi-Fi Power Control

Wi-Fi_OCP :
Disable :
Low

R/A

USB_DP_P2
USB_DM_P2

WoWLAN_IRQ

WIFI_PWR_EN14
WIFI_OCP10

WoWLAN_IRQ14

WIFI_OCP

WIFI _PWR_EN

ZD1101

NC/VPORT0603100KV05

12

SSUSB_RXN_R

Reserve USB 3.0 (SIDE)

t

TH4102

PTCR

1 2

LS_SCL

C4116 N C / 10N 50V

ZD1102

NC/VPORT0603100KV05

12

KEY_PAD0

C4247

1UF 10% 16V

R4285 0R05 1/16W

Wi-Fi_VCC

R4286

10K 1/16W 5%

SSUSB_RXP_R

W/S/W

R4284

0R051/8W

7.5/7.5/7.5

EQUAL LENGTH and
DIFFERENTIAL
IMPEDANCE 90ohm

USB PORT 2 (DOW N)

USB_DP_P3
USB_DM_P3

R4256 0R05 1/16W

R4064

3K3 1/16W 5%

Wi-Fi_RESET

R4257

10K 1/16W 5%

LS_SDA

R4258

NC 10K 1/16W 5%

USB2.0

USB3.0

CN4102

USB CONN 9P

HAND1

10

HAND2

11

VCC

1

D+

3

GND

4

D-

2

RXN

5

RXP

6

GND

7

TXN

8

TXP

9

R4290

NC 10K 1/16W 5%

SSUSB_RXN_R

C4243

100NF 16V

ZD1103

NC/VPORT 0603100KV05

12

ZD1104

NC/VPORT 0603100KV05

12

ZD4102

NC/MM3Z 3V6B

1 2

R7106 1K

3D_L/R_IN

WIFI_PWR_EN WIFI_OCP

USB_DM_P0
USB_DP_P0

U4250

APL3511ABI-TRG

VOUT

1

GND

2

OCB3EN

4

VIN

5

C4251

1UF 10% 16V

R4252

4K7 1/16W 5%

FB4250

120R

1 2

R4251

4K7 1/16W 5%

R4265 2R2 1/16W 5%

R4264 2R2 1/16W 5%

C4253100NF 16V

C425010U F 10V

R4250

10K 1/16W 5%

C4252
10UF 10V

WIFI_PWR

3V3SB

Add for 3D interference
suppression

Wi-Fi_VCC

Wi-Fi_VCC

AVDD1V0 3,10, 15

WoWLAN_IRQ

AVDD1V0

R4278

10K 1/16W 5%

LOGO

OSDA1 5

OSCL1 5

OSDA1

OSCL1

R4063

40.2K 1/16W 1%

Wi-Fi_RESET10

Wi-Fi_RESET

Q606

NC BC857BW

1

23

Q607

NC BC857BW

1

23

Q608

NC BC847C

R4269

13K 1%

RC65

RC6

R682

NC 1K

RC6#

R4065

75K 1/16W 1%

R683
NC 2.7K 1%

ZD1105

NC/VPOR T0603100KV05

12

ZD1106

NC/VPOR T0603100KV05

12

AVDD33_USB

C4127

1UF 6.3V

C4126

NC 100NF 16V

3V3SB

+5V_USB

AVDD3V3

AVDD33_SSUSB

R684

NC 3.3K 1/16W

C4128

100NF 16V

Wi-Fi_PWR_EN :
Enable : High
Disable : Low

C784
NC 1uF 10V

WIFI_PWR: (Stand By Mode)
PSU 12V Stand By-->8.5V

1234

CN4101
USB CONN

1

2

3

4

65

C785

NC 1uF 10V

+5V_SW

WIFI_PWR

+

C4108

100UF 16V

R4105 2R2 1/16W 5%

t

TH4100 PTCR

1 2

TP118

R4104 2R2 1/16W 5%

R685

NC 10K 1/16W 5%

t

TH4101 PTCR

1 2

R4111 2R2 1/16W 5%

C4106

0.1uF 50V

R686

NC 100OHM

R4106

100R 1/10W 1%

R4112 2R2 1/16W 5%

R687

NC 100K 1/16W 5%

R4102

100R 1/10W 1%

R6762R2 1/ 16W 5%
R6772R2 1/ 16W 5%

R4273 0R05 1/16W

C4107

0.1uF 50V

SSUSB_TXP_R

+5V_SW

R4100

6.8K +-1% 1/16W

3D_L/R10,14

Gaming14

3D_L/R

Gaming

1234

CN4100
USB CONN

1

2

3

4

65

R4121 100OHM

+12V

+

C4111

100UF 16V

3V3SB

Gaming

OSDA1

+5V_USB

R7107

NC/10K

R7108

NC/10K

R7105

100OHM

+5V_SW

R4122 100OHM

RC6

LS_SCL

C1115

NC 10UF 6. 3V 20%

+5V_USB

LED_PWM0 LED_R

OSCL1

CN4250

CONN

1
2

3

4
5
6
7

8

910

R4117 100OHM

Gaming

RC6#

R4114 100OHM

3D-IR-OUT

+

C1080

100UF 16V

DVDD3V3

C4115
NC/10uF 6.3V

DVDD3V3

Circuit Diagrams and PWB Layouts

EN 48TPM16.1L LA 10.

2016-Jul-22

back to

div.table

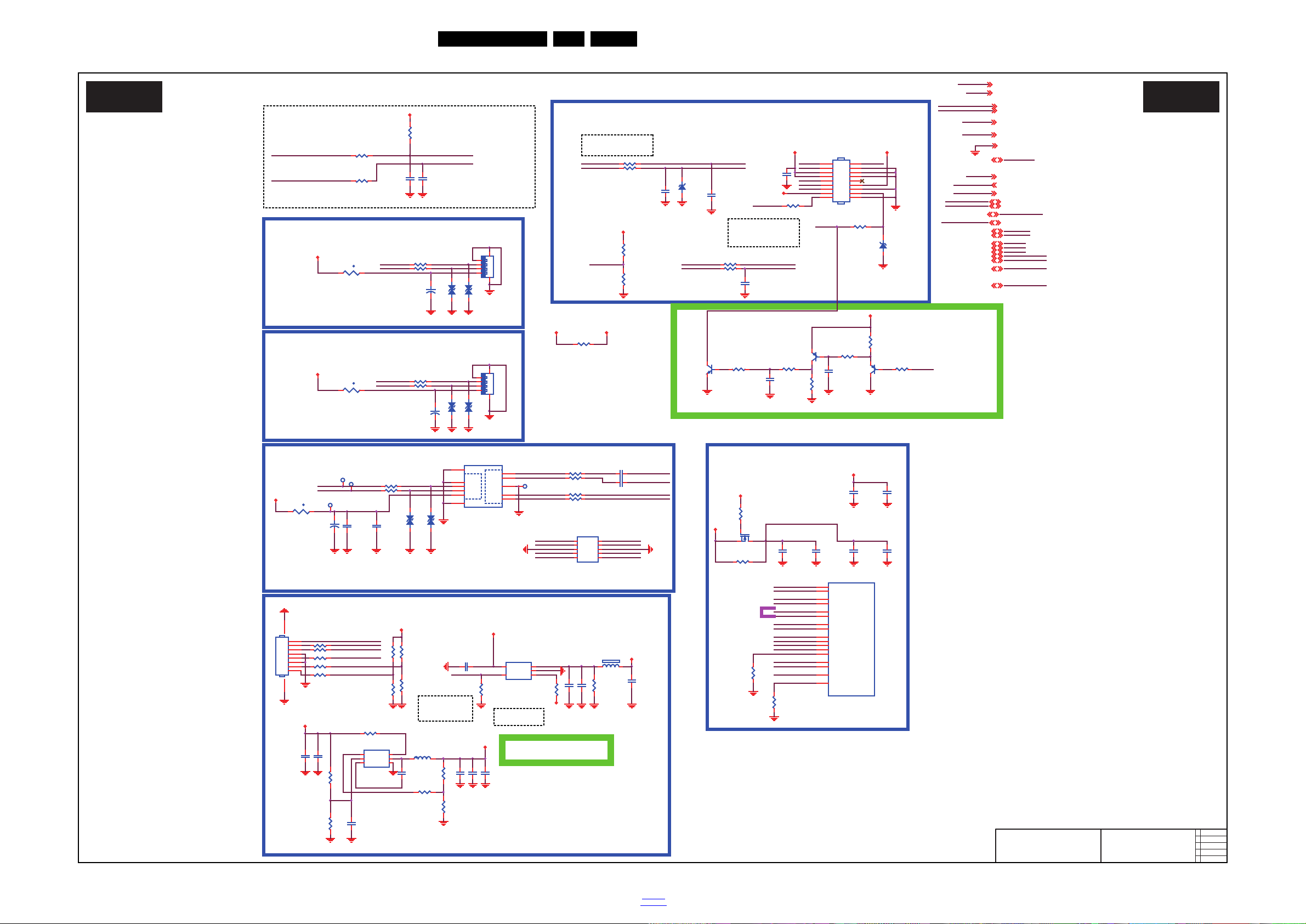

10-3-5 Audio /Video IO/SPDIF

19950_510.eps

Audio /Video IO/SPDIF

B05 B05

2015-04-14

715G7049

Audio /Video IO/SPDIF

R1071

NC 75 OH M +-5% 1/ 16W

CN6003

JACK

VIN

1

VCC

2

GND

3

TH1

4

TH2

5

TH3

6

TH4

7

DVI_R_IN

GND

DVI_L_IN

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

AVSS33_XTAL_STB

C603
100NF 16V

AVDD3V3

C1040

1UF 10% 16V

AVDD33_XTAL_STB

3V3SB

AVDD33_AADC

CVBS_DETECTN14

CVBS0PCV1_AV_IN

AVDD33_XTAL_STB

C602
100NF 16V

R1088

30Kohm 1/16W +/ -5%

C1039

1UF 10% 16V

R1087

30Kohm 1/16W +/ -5%

AVDD3V3

CVBS_DETECTN

3V3SB

DVI_R_IN9

R1072 10R 1/16W 1%

DVI_L_IN9

GND3,4,5,6,8,9,10,11,12,13,14,15,16,17

AL0O8
AR0O8

AOLRCK_D8

AOBCLK_D8
AOMCLK_D8

AOSDATA0_D8

TU_FAT_IN2+16
TU_FAT_IN2-16

OSCL216
OSDA216

IF_AGC16

AVDD3V33,6,10,15
ARC15

TUN ER _BY PASS_OUT

AVDD33_DEMOD_STB

R7121

10K 1/16W 5%

CV1_AV1_GND

SPDIF_OUT

+5V_SW

C613
100NF 16V

R606

33R 1/16W 5%

Analog Power

C612
100NF 16V

C614
10UF 6. 3V 20%

C611
100NF 16V

AVDD3V3

AVDD33_ADAC

CVBS1_L_IN

CVBS1_R_IN

Analog Power

IF_AGC

CV1_L_IN

AIN4_R_IN

DVI_L_IN

TP612TP

DVI_R_IN

CV1_R_IN

TP613TP

AIN4_L_IN

AVDD33_AADC

VMID_AADC

C610
100NF 16V

C606
1uF 10V

CV1_L_IN

CV1_R_IN

MT5593UPIJ

U401-4

AVDD33_AADC

M26

VMID_AADC

D38

AL2_ADAC

E35

AL0_ADAC

C35

AR0_ADAC

D36

AL1_ADAC

E36

AR1_ADAC

D35

AR2_ADAC

C36

ASPDIFI

AR38

ASPDIFO0

AB34

ASPDIFO1

G27

AOBCK

AM31

AOLRCK

AN30

AOMCLK

AP36

AOSDATA4

AN33

AOSDATA3

AM33

AOSDATA2

AL31

AOSDATA1

AM30

AOSDATA0

AN31

AVDD33_ADAC

M27

AIN_R0

B36

AIN_L0

D37

AIN_R1

A37

AIN_L1

C38

AIN_R2

B38

AIN_L2

B35

AIN_R3

A36

AIN_L3

C37

AVSS33_CLN

M24

CVBS_COM

AVSS33_CLN

CVBS1_L_IN

A

B

C

CN600

RCA JACK 7P

2
1
4

3

6
5

7

TU_FAT_IN2+

R603

51OHM 1/16W +/ -5%

TU_FAT_IN2- ADCINN_DEMOD

ADCINP_DEMOD

R604

51OHM 1/16W +/ -5%

C622

47PF 50V

C623

47PF 50V

AVDD3V3

AR0O

TP609 TP

AL0O

TP608 TP

AR2O

TP610 TP
TP611 TP

AL2O

AL1O

AR1O

AVDD33_ADAC

TP451 TP
TP452 TP

ARC

AOMCLK_D

TP614 TP

AOBCLK_D

TP453 TP

AOSDATA4
AOSDATA2

C4317
22PF 50V

AOLRCK_D

AOSDATA0_D

SPDIF_OUT

AU_DIN

AOSDATA3

TP454 TP

AOSDATA1

R1011

100R 1/16W 5%

R7155

100R 1/16W 5%

IF_AGC

C621

47NF 16V

R605 10K 1/ 16W

Video

+5V_SW

+5V_SW 3,4,6,10,15

Audio

CVBS_DETECTN :
Cable connec t ed : High
Cable not c onnec ted : Low

C1009

47NF 16V

C1010

47PF 50V

R1012

75 OHM +-5% 1/16W

R/A TYPE

MT5593UPIJ

U401-5

ADCINP_DEMOD

F38

ADCINN_DEMOD

F37

IF_AGC

B14

RF_AGC

C15

OSCL2

E18

OSDA2

F18

CVBS3P

J38

CVBS2P

K35

CVBS1P

K34

CVBS0P

H38

CVBS_COM

J36

HSYNC

R37

VSYNC

T36

RP

N37

GP

P37

BP

R38

COM

P36

SOG

P38

VGA_SDA

U36

VGA_SCL

T37

COM1

M38

PB1P

M36

PR1P

L38

Y1P

M37

SOY1

N36

COM0

K37

PB0P

K36

PR0P

J37

Y0P

L36

SOY0

L37

VDACX_OUT

K33

AVDD33_VIDEO_STB

M35

AVDD33_DEMOD_STB

G38

AVSS33_XTAL

N25

AVSS33_DEMOD

N24

LOUTP

L26

LOUTN

L27

AVDD33_XTAL_STB

G37

SIF_COM

H37

TP603

RF_AGC

OSDA2

OSCL2

CVBS0P

C607

1uF 10V

ARC

CVBS_COM

CVBS_DETECTN

CV1_AV_IN

FB1001

120R

1 2

C604

10UF 6. 3V 20%

AVDD33_VIDEO_STB

CVBS1_R_IN

OSDA2

OSCL2

Q609

BC857BW

1

23

R698 100K 1/16W 5%

AVDD33_DEMOD_STB

TU_FAT_IN2+

TU_FAT_IN2-

RF_AGC

AVSS33_DEMOD

IF_AGC_ATV

R699

NC 0R 05 1/ 16W

3V3SB 3,5,6,10,14,15

3V3SB

(20mil)

(20mil)

Y

R

CV1 IN (R/A)

10.5mm

W

R688 0R05 1/16W

CV1_AV1_GND

CV1_AV_GND

AVDD33_VIDEO_STB

CV1 IN

(20mil )

Circuit Diagrams and PWB Layouts

EN 49TPM16.1L LA 10.

2016-Jul-22

back to

div.table

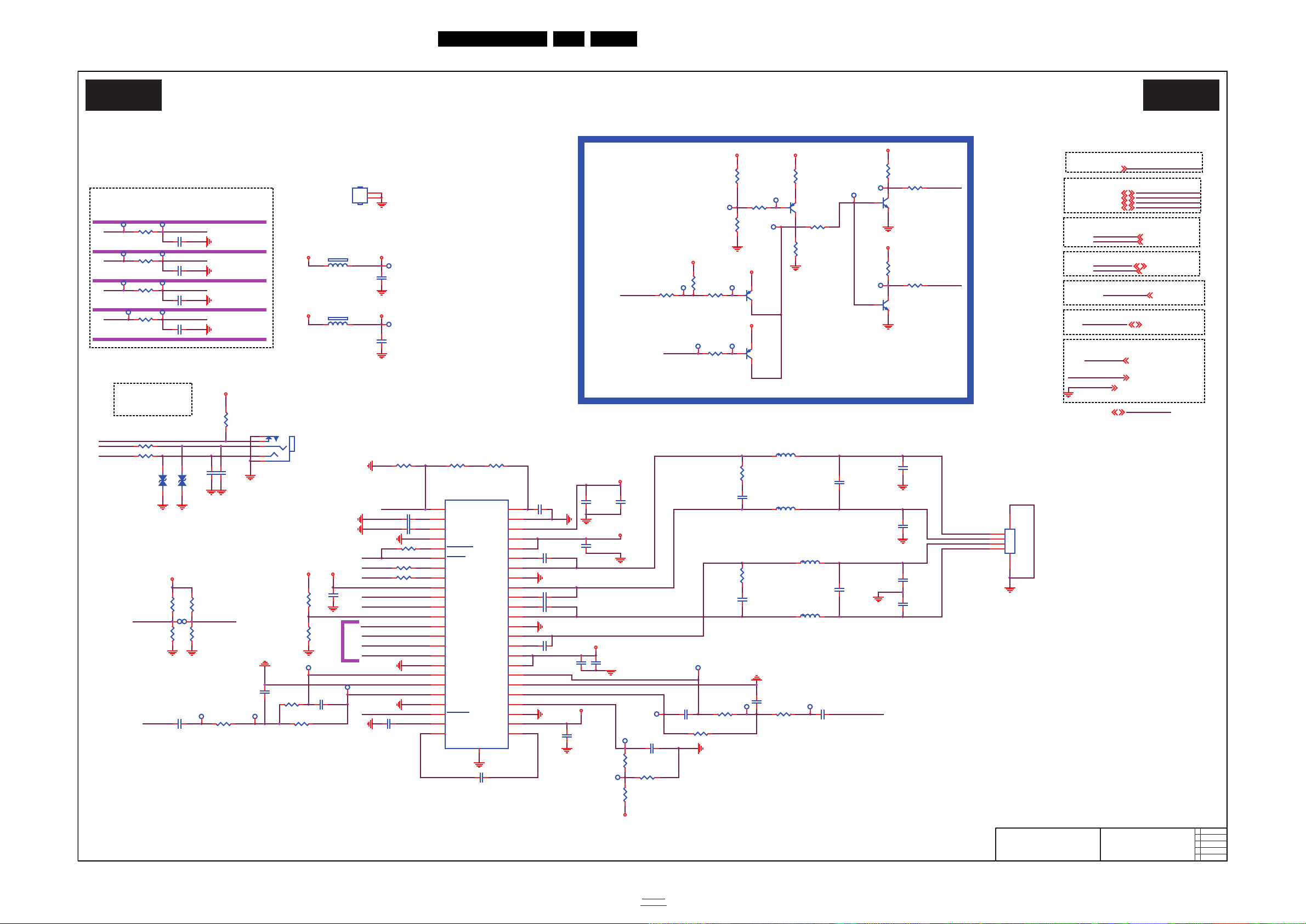

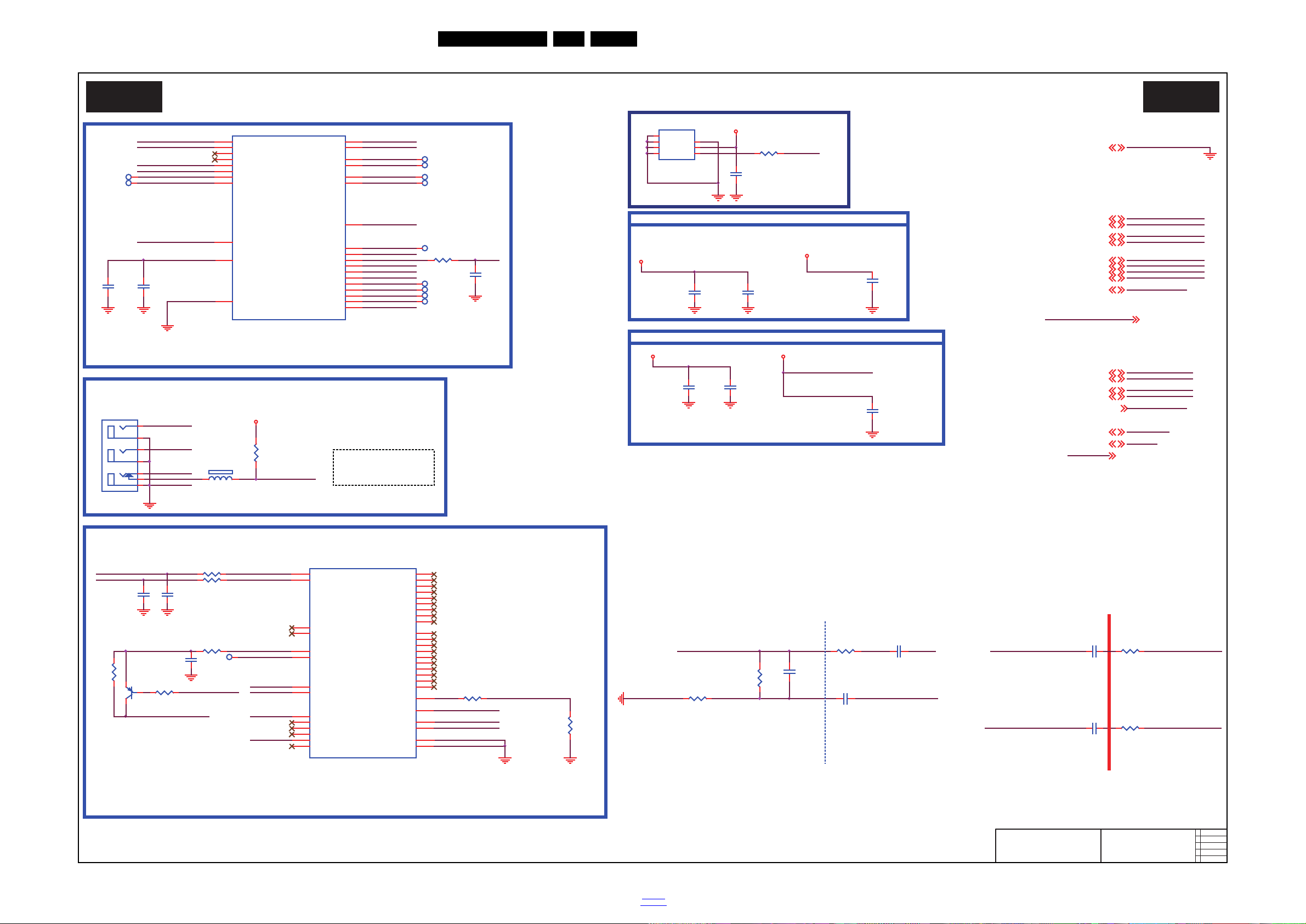

10-3-6 Speaker/Headphone

19950_511.eps

Speaker/Headphone

B06 B06

2015-04-14

715G7049

Speaker/Headphone

LSPK+

R617

0R05 1/16W

R618

0R05 1/16W

Grounding

R680 10R 1/ 16W 1%

Power

Item number from 630

SPK Mute Control

Grounding

LSPK-

Q605

BC857BW

1

23

DVDD3V3

Main Speak CKT

DVDD3V3

C5030
1UF16V

C5020
1UF16V

Grounding

I2S Input

C617

4.7UF

Audio Output Interface

I2S Interface

R658

0R05 1/16W

HP Mute Control

SPK_SD

Grounding

A ll Path Grounding(20mil)

L602
10uH

Anti-Pop CKT

RSPK+

L603
10uH

L604
10uH

C5025
10UF 16V

C634
680NF 16V

C635

680NF 16V

SDI

C638
680NF 16V

C639
680NF 16V

PVDD 4

PVDD

R581
10K 1/16W 5%

PLIM

BICKI

12V_DET

AR0O

OSCL0

OSDA0

AL0O

SPK_SD

R607

1K 1/16W 5%

R626

NC 4K7 1/16W 5%

R636

10K 1/16W 5%

AOSDATA0_D

C618
100NF 16V

C620

100NF 16V

R625
4K7 1/16W 5%

R7166

0R05 1/16W

Q603
BC847C

C627
22PF 50V

PWRDN

TP76

R635

22K 1/16W 5%

C5027
22PF 50V

R631

22 OHM 1/4W

TP80

R619

100R 1/16W 5%

R620

100R 1/16W 5%

U601

TAS5760LD

SFT_CLIP

1

AVDD_REG

2

VCOM

3

AVSS

4

SPK_FAULT

5

SPK_SD

6

SDA/FREQ

7

SCL/PBTL

8

DVDD

9

SPK_GAIN0

10

SPK_GAIN1

11

SPK_MU TE12SPK_OUTB-

37

BSTRPB-

38

BSTRPA-

39

SPK_OUTA-

40

PGND

41

SPK_OUTA+

42

BSTRPB A+

43

PVDD

44

PVDD

45

AVDD

46

GGND

47

GVDD_REG

48

PGND

36

SPK_OUTB+

35

PVDD

33

BSTRPB +

34

PVDD

32

DR_INB-

31

DR_INB+

30

DR_OUTB

29

DR_UVP

28

DRGND

27

DRVDD

26

DR_CP

25

MCLK

13

SCLK

14

SDIN

15

LRCLK

16

DGND

17

DR_INA-

18

DR_INA+

19

DR_OUTA

20

DRGND

21

DR_MUTE

22

DRVSS

23

DR_CN

24

E-PAD

49

Mute CKT

PWRDN-HP

C5014

NC 33P50V

R7169

10K 1/16W 5%

R627

16K 1%

R628

43K 1/16W

C636
220PF 50V

R63418Kohm 1/ 16W +/-1%

R660

1K 1/16W 5%

OSDA0
OSCL0

C630
1uF 10V

R611

10K 1/16W 5%

R609

0R05 1/16W

C637

680pF 50V

R7168

16K 1%

R637

2K2 1/16W 5%

C632

220PF 50V

R629
18Kohm 1/16W +/ -1%

C5022

1uF 10V

TP74

C619
10UF 16V

R602

0R05 1/16W

R624

NC 4K7 1/16W 5%

C5026
330PF 50V

TP75

C5017

NC 33P50V

AOBCLK_D

R614

10K 1/16W 5%

R616

NC 2.4K 1% 1/ 16W

R623

4K7 1/16W 5%

C5028
1uF 10V

R610

10K 1/16W 5%

L601
10uH

R7165

0R05 1/16W

R613

0R05 1/16W

R7167

100K 1/16W 5%

C5015

NC 33P50V

R601

0R05 1/16W

C5018

NC 33P50V

Q601

BC857BW

1

23

C633

680pF 50V

C625

220nF 25V

C631 100NF 16V

R633

43K 1/16W

C629
1uF 10V

R612
10K 1/16W 5%

Q602
BC847C

C628
330PF 50V

R608

10K 1/16W 5%

R630
22 OHM 1/4W

DVDD3V3

DVDD3V3

LRCLKI

DVDD3V3

SPK_SD14

12V_DET14

AR0O 7

AL0O 7

OSCL0 5

OSDA0 5

HP_DE T :
HP connec ted : High
HP not c onnected :
Low

HP_DET

SDI

BICKI

MCLK

LRCLKI

AOMCLK_D7
AOSDATA0_D7

AOLRCK_D

AOBCLK_D

AOBCLK_D7
AOLRCK_D7

AOSDATA0_D

AOMCLK_D

MCLK

HP_DET14

HP_DET

AR0OPWRDN-HP

+12V_AU 3,4,14

+12V_AU

R621

NC 4K7 1/16W 5%

R622

4K7 1/16W 5%

C615

1uF 10V

12V_DET

C616
1uF 10V

HPOUTL

AL0O

AVDD_HP

FB633

120R

1 2

C5016
10UF 6.3V X5R +-20%

DVDD3V3

AVDD

C5019
10UF 6.3V X5R +-20%

FB603

120R

1 2

TP057

DVDD3V3

TP058

TP821

TP828

TP822

TP604

TP605

TP606

TP607

SPK_MUTE (GPIO57)
L: SPK Mute
H: SPK sound output

TP830

TP823

TP825

RSPK-

TP824

TP826

TP827

TP829

DVDD3V3

C5032

NC 100NF 16V

TP616

AVDD_HP

TP617

TP618

TP619

TP620

TP621

TP622

GAIN0
GAIN1

TP623

TP624

TP625

TP626

PVDD

TP627

PVDD

PVDD

PVDD

PVDD

C5031

NC 100NF 16V

R681 10R 1/ 16W 1%

C5024 220nF 25V

C5023 220nF 25V

CN604

PHONE JACK 5P

1

2

3

5

4

R655
22R 1/16W 5%

GND 3,4,5,6,7,9,10,11,12,13,14,15,16,17

DVDD3V33,5,6,10,11,14,15,16,17

AVDD AVDD

AVDD

HPOUTR

C5021 220nF 25V

R656

100R 1/16W 5%

DVDD3V3

HPOUTL

R657

10K 1/16W 5%

ZD4104

MLVG0402

1 2

GAIN1

HPOUTR

ZD4103

MLVG0402

1 2

GAIN0

CN6005

CONN

1

2

3

4

5 6

HS601

HEAT SINK

1
2

AOMCLK_D

AOLRCK_D

Q604

BC857BW

1

23

C626

100NF 16V

PWRDN

GPIO & I2C Control

DVDD3V3

Circuit Diagrams and PWB Layouts

EN 50TPM16.1L LA 10.

2016-Jul-22

back to

div.table

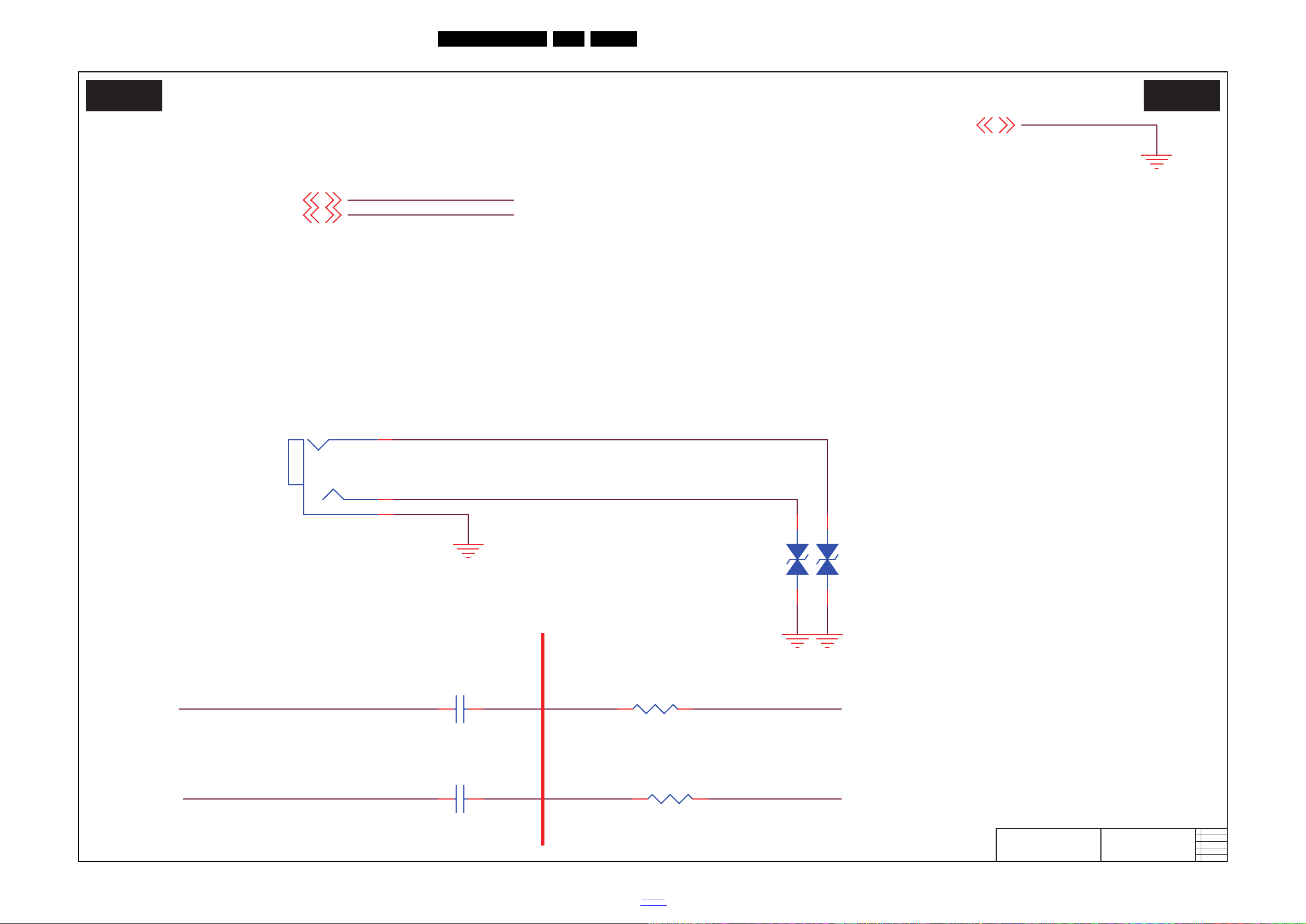

10-3-7 DVI Audio IN

19950_512.eps

DVI Audio IN

B07 B07

2015-04-14

715G7049

DVI Audio IN

DVI_AudioLIN

DVI_AudioRIN DVI_R_IN

DVI_L_IN

CN104

PH ON E J AC K

1

2

3

DVI_AudioLIN

DVI_L_IN

DVI_R_IN

R1034

30Kohm 1/ 16W +/-5%

C1025 1uF 10V

DVI_AudioRIN

R1033

30Kohm 1/ 16W +/-5%

C1024 1uF 10V

GND3,4,5,6,7,8,10,11,12,13,14,15,16,17

DVI_R_IN7
DVI_L_IN7

DVI 1/ 2/3/4 Audi o Input

GND

ZD4105

MLVG0402

1 2

ZD4106

MLVG0402

1 2

Circuit Diagrams and PWB Layouts

EN 51TPM16.1L LA 10.

2016-Jul-22

back to

div.table

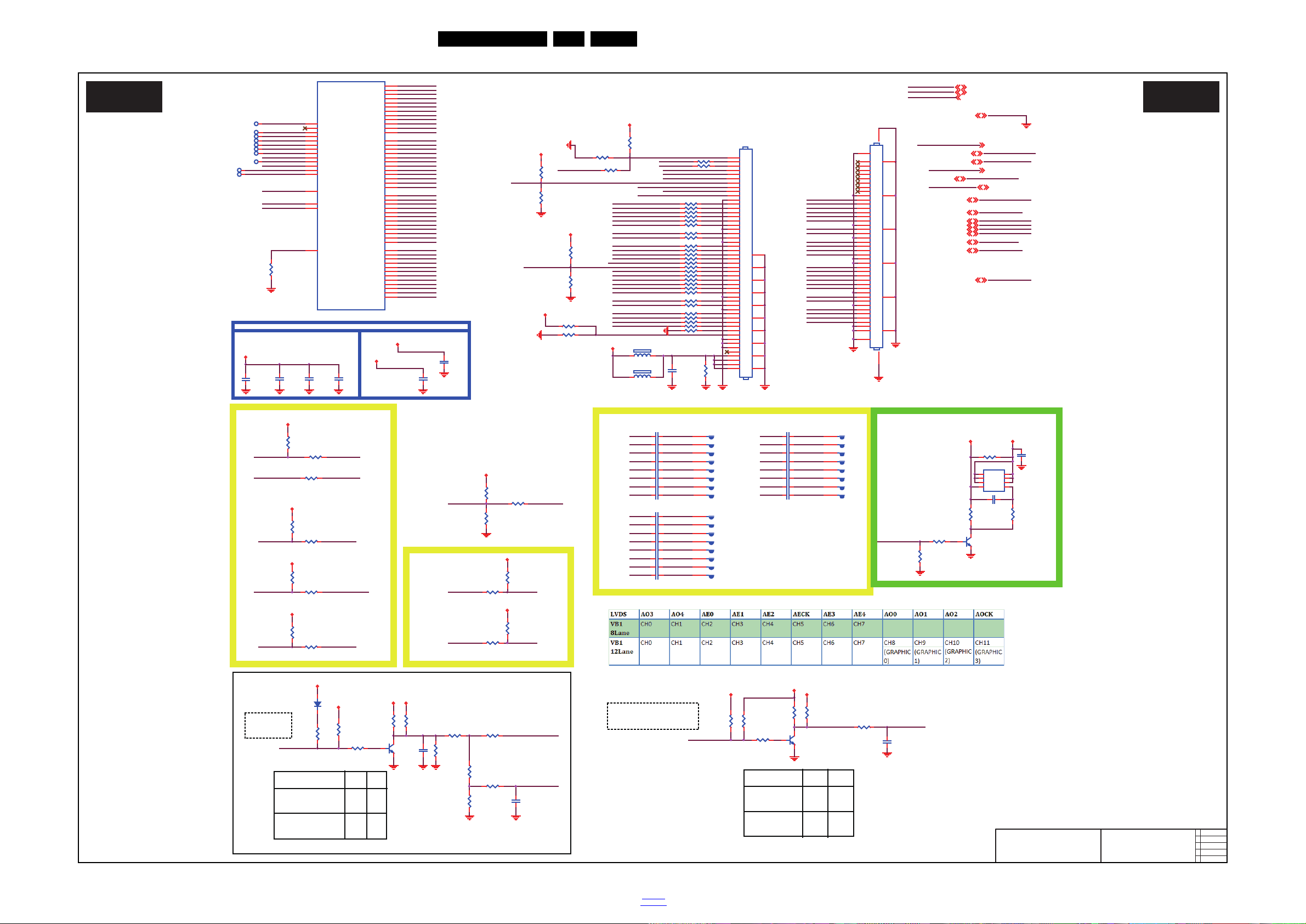

10-3-8 LVDS

19850_513.eps

LVDS

B08 B08

2015-04-14

715G7049

LVDS

B8

R402

NC 1K 1/10W 5%

R405

NC/2KOH M 1/10W

R452 NC/ 47K 1/ 16W 5%

C400

NC/10uF 10V

C

R403

100R 1/10W 5%

R409

4K7 1/16W 5%

R7147&R7148 NC 10K
R7159&R7161 NC 0R

LVDS V-by-1

3D_L/R

R406

1K 1/10W 5%

L/R_IN _to_Panel

+5V_SW

DVDD3V3

3V3SB

DVDD3V3 DVDD3V3

OPC_EN

C4018
NC 100NF 16V

POWER_OK

BL_DIMMING 14

GND3,4,5,6,7,8, 9,11,12,13,14,15,16, 17

3V3SB 3,5,6,7,14,15

INVERTER_ON _OFF 3

BRIGHT_ADJ 3

AVDD3V33,6,7,15
DVDD3V33,5,6,8,11,14,15,16,17

+5V_SW 3,4,6,7,15

R454

NC 0R05 1/16W

R455

NC 0R05 1/16W

R456

NC 0R05 1/16W

R457

NC 0R05 1/16W

R458

NC 0R05 1/16W

R459

NC 0R05 1/16W

R442

NC 100R 1/ 10W 5%

R460

NC 0R05 1/16W

R4315

NC 3K3 1/16W 5%

PANEL_3V3

R461

NC 0R05 1/16W

3D_FORMAT_13D_FORMAT1

C490 100NF 16V

STB_SDA

C492 100NF 16V

C487 100N F 16V

C489 100N F 16V

C488 100N F 16V

C485 100N F 16V
C486 100N F 16V

C491 100NF 16V

R432

0R05 1/16W

V17
V18
V19
V20
V21
V22
V23
V24

B17
B18
B19
B20
B21

LVDSTX_BOC KP

LVDSTX_BO3P

LVDSTX_BO2P

LVDSTX_BO3N

LVDSTX_BOC KN

B22

LVDSTX_BO1N

LVDSTX_BO0N

LVDSTX_BO1P
LVDSTX_BO2N

LVDSTX_BO0P

B23

LVDSTX_BE0 N

LVDSTX_BE1 P

LVDSTX_BE0 P

B24

LVDSTX_BECKP

LVDSTX_BE2 P

LVDSTX_BE3P

LVDSTX_BE2 N

LVDSTX_BECKN

LVDSTX_BO4P

LVDSTX_BE4 P

LVDSTX_BE4 N

LVDSTX_BE3N

LVDSTX_BO4N

B17

C403
100NF 16V

B18
B19

3D_FORMAT_0

B20
B21

B22
B23

R431
10K+-5%1/16W

B24

3D_FORMAT_1

R735

4.7K1/16W

OPC_EN

BL_DIMMING

INVERTER_ON_OFF

BRIGHT_ADJ

LVDSTX_BE1 N

GND

BRIGHT_ADJ

3D_L/R14

3D_L/R

MT 55 9 3UPIJ

U401-3

TCON 0

AL21

TCON 1

AM21

TCON 2

AN22

TCON 3

AM22

TCON 4

AM23

TCON 5

AL22

TCON 6

AL23

TCON 7

AL24

TCON 8

AM24

TCON 9

AN24

TCON 10

AM25

TCON 11

AN25

TCON 12

AL25

AVDD10_LVDS

AU21

AVDD33_LVDSA

L28

REXT_VPLL

AV21

BE0P

AV25

BE0N

AU25

BE1P

AT24

BE1N

AR24

BE2P

AT23

BE2N

AR23

BECKP

AV23

BECKN

AU23

BE3P

AT22

BE3N

AR22

BE4P

AT21

BE4N

AR21

BO0P

AV29

BO0N

AU29

BO1P

AT28

BO1N

AR28

BO2P

AT27

BO2N

AR27

BOCKP

AV27

BOCKN

AU27

BO3P

AT26

BO3N

AR26

BO4P

AT25

BO4N

AR25

AE0P

AV33

AE0N

AU33

AE1P

AT32

AE1N

AR32

AE2P

AT31

AE2N

AR31

AECKP

AV31

AECKN

AU31

AE3P

AT30

AE3N

AR30

AE4P

AT29

AE4N

AR29

AO0P

AV37

AO0N

AU37

AO1P

AT36

AO1N

AR36

AO2P

AT35

AO2N

AR35

AOCKP

AV35

AOCKN

AU35

AO3P

AT34

AO3N

AR34

AO4P

AT33

AO4N

AR33

AVDD33_LVDSB

M28

3D_L/R_IN6,14

3D_L/R_IN

C407
NC/1uF 10V

WIFI_OCP6

WIFI_OCP

PANEL_3V3

+5V_SW

C409 100NF 16V

PANEL_3V3

PANEL_3V3

PANEL_3V3

PANEL_3V3

CN408

CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

PANEL_3V3

LVDSTX_AO0 N V1

PANEL_3V3

R411

10K 1/8W

R415

NC/0R 05 1/ 16W

R414

NC/47K 1/ 16W 5%

Panel_12V

BIT_SEL

R7163

NC 3K3 1/16W 5%

DVDD3V3

C402
NC/10uF 16V

LVDSTX_BO3P

LVDSTX_BE0 N

LVDSTX_BO1N

LVDSTX_AOC KP

R418

NC/0R 05 1/ 16W

LVDSTX_AE4 P

LVDSTX_AECKP

LVDSTX_AO4P

LVDSTX_AO2N

LVDSTX_BO4N

R413

NC/47K 1/ 16W 5%

LVDSTX_AOC KN

LVDSTX_BO1P

LVDSTX_BOC KP

LVDSTX_BE4 N

LVDSTX_AO0N

LVDSTX_AE2 N

FB401

120R

1 2

FB400

120R

1 2

LVDSTX_BO4P

LVDSTX_BO2N

LVDSTX_BE4 P

LVDSTX_AE3N

LVDSTX_AE0 P

LVDSTX_AE2 P

LVDSTX_AO3N

LVDSTX_BOC KN

LVDSTX_BE2 N

LVDSTX_AE1 N

LVDSTX_AE3P

LVDSTX_BE2 P
LVDSTX_BECKP

LVDSTX_AECKN

LVDSTX_BE0 P

LVDSTX_AO0P

LVDSTX_AO2 P V6

LVDSTX_AO4P V12

LVDSTX_AO2 N V5

LVDSTX_AO4N V11

LVDSTX_AE4 N

LVDSTX_BO0N

LVDSTX_BE3N

LVDSTX_BO2P

LVDSTX_AO3P

LVDSTX_AOC KP V8

LVDSTX_AO3NV9

LVDSTX_AOCKN V7

LVDSTX_AE0 N V1 3

LVDSTX_AO3PV10

LVDSTX_BO3N

LVDSTX_BECKN

LVDSTX_AE1 P

LVDSTX_BE1 N

LVDSTX_AO1N

LVDSTX_AE2N V17
LVDSTX_AE2 P V 18

LVDSTX_AE1P V16

LVDSTX_AE1N V15

LVDSTX_AE0P V14

LVDSTX_AO2P

LVDSTX_AE0 N

LVDSTX_BO0P

LVDSTX_BE3P

LVDSTX_AO4N

LVDSTX_AO1P

LVDSTX_AE3NV21
LVDSTX_AE3PV22

LVDSTX_AECKN V19
LVDSTX_AECKP V20

LVDSTX_AE4 N V 23
LVDSTX_AE4P V24

LVDSTX_BE1 P

DVDD3V3

LVDSTX_AO0 P V2
LVDSTX_AO1 N V3
LVDSTX_AO1 P V4

PANEL_VCC

R416

NC/0R 05 1/ 16W

I NVERTER _ON_OFF

R410

NC/47K 1/ 16W 5%

RA

TP456

2K

1K

TP463

3V3

INVERTER ON/OFF

RA

TP462

5V

BL_ON/OFF:
Inverter on: Low
Inverter off:
High

Wi-Fi_RESET

TP461

N/C

POWER_OK14

WIFI_OCP

POWER_OK

TP455

N/C

RB

TCON2

2D/3D_EN ABLE

RB

R424

6.8K +-1% 1/16W

AVDD33_LVDSA

TP808

PANEL_VCC_ON/OFF

3D_FORMAT1

TP815

TP459

3D_FORMAT0

TP464

REXT_VPLL

AVDD10_LVDS

TP814

LVDS_SEL

R407 0R05 1/16W

PANEL_VCC_ON /OFF4,17

PANEL_VCC_ON /OFF

R426

10K+-5%1/16W

R429
100R 1/16W 5%

L/R_OUT

R7164

NC 0R05 1/ 16W

C408

NC 10UF 10V

AVDD3V3

PANEL_VCC_ON /OFF

R540

NC/0R 05 1/ 16W

R440

6K8 1/16W 5%

R771

10K 1/16W 5%

R772

10K

V1

R773

10K 1/16W 5%

C501

1UF 10% 16V

Q758
BC847C

PANEL_3V3DVDD3V3

R661 0R05 1/16W

AVDD3V3

AVDD33_LVDSB

AVDD1V0 3,6,15

AVDD1V0

C405
1uF 10V

AVDD33_LVDSB

LVDS R423~R439 mounted
V-by-1 C409~C416 mounted

LVDS R663~R670 mounted
V-by-1 C738~C741 mounted
V-by-1 C780~C783 mounted

OPC

D633

NC/BAS316

A

1

K

2

V-by-1: 100N / LVDS: 0R

R7159

0R05 1/16W

R401

NC/4K7 1/ 16W 5%

HTPDN_OUT

BL_ON/OFF

B1

C404
NC 100NF 16V

LVDS_SEL

BL_DIMMING(PW M for BRIGHT_ADJ):
Max: 0V
Min : +3V3

DC

BRIGHT_AD J

10K

100R

PWM

10U

N/C

BL_D IMMI NG

CR

HTPDN

BL_ON/OFF

INVERTER_ON _OFF

BRIGHT ADJUST

L/R_OUT

R7132

NC 0R05 1/ 16W

3D_L/R_IN

C410 100NF 16V

C406
100NF 16V

V2 B2

2D/3D_EN ABLE#

R7133

NC 100R 1/ 10W 5%

R

2D/3D_EN ABLE

R7131

NC 3K3 1/16W 5%

PCID_EN

C522

NC/1UF 10% 16V

R582

NC/0R 05 1/ 16W

2D/3D_EN ABLE#

R666

NC 0R05 1/16W

R665

NC 0R05 1/16W

B11

2D/3D_EN ABLE#

B12

R662 0R05 1/16W

R667

NC 0R05 1/16W

R668

NC 0R05 1/16W

B13
B14

R670

NC 0R05 1/16W

R669

NC 0R05 1/16W

B15
B16

R4294

NC 100K 1%

CN409

NC CONN 41P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48 49

50

51

L/R_IN _to_Panel

B11

B10

V15

V10

C780100NF 16V

C741 100NF 16V

V13
V14

3V3SB

C782100NF 16V

PANEL_3V3 SW

C738 100NF 16V

B9

B13

B15

V12

C740 100NF 16V

B16

C783 100NF 16V

V11

V16

R4295

NC 100K 1%

C739100NF 16V

C781100NF 16V

NEW

PANEL_3V3

B12

B14

V9

Wi-Fi_RESET

Wi-Fi_RESET6

Q4020

SM3201PSQA-TRG

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

R425

NC 0R05 1/16W

R423

NC 0R05 1/16W

2D/3D SETUP

C411 100NF 16V
C412 100NF 16V

V4

B3V3

LOCKN

R7161

0R05 1/16W

B4

LOCKN_OUT

R7148
10K+-5%1/16W

PANEL_3V3

R421

NC 0R05 1/16W

R422

NC 0R05 1/16W

LOCKN_OUT

HTPDN14

HTPDN

TP1201

1

R444

NC 0R05 1/16W

R453

0R05 1/16W

R445

100R 1/10W 5%

2D/3D

HTPDN_OUT

R663

NC 0R05 1/16W

VB1
8Lane

TP1203

1

R664

NC 0R05 1/16W

TP1202

1

STB_SCL

TP1204

1

STB_SCL5

B9

TP1205

1

TP1206

1

TP1207

1

TP1208

1

B10

AVDD10_LVDS

R470

NC 0R05 1/16W

R471

NC 0R05 1/16W

AVDD3V3

AVDD1V0

AVDD33_LVDSA

Analog Power

Cobra RAV0.3_20120502

TP1209

1

TP1210

1

TP1211

1

TP1212

1

TP1213

1

TP1214

1

TP1215

1

TP1216

1

R7147
10K+-5%1/16W

TP121 7

1

LOCKN14

LOCKN

R430

NC/0R 05 1/ 16W

OPC

R4296

NC 10R 1/ 16W 1%

scaler output to panel

DVDD3V3

LVDS OUTPUT

LVDS R454~R461 m ounted
V-by-1 C485~C492 mounted

R441

NC 100R 1/ 10W 5%

PANEL_3V3

R4314

NC 3K3 1/16W 5%

3D_FORMAT0 3D_FORMAT_0

TP121 8

1

TP121 9

1

TCON9

TP122 0

1

TP122 1

1

TP122 2

1

TP122 3

1

R438

NC 0R05 1/16W

TP122 4

1

R439

NC 0R05 1/16W

C413 100N F 16V
C414 100NF 16V

V6

B5V5

C416 100NF 16V

V7
V8

B7

B6

C415 100NF 16V

B8

R734

NC 4.7K1/ 16W

STB_SCL

STB_SDA5

B1

STB_SDA

B2
B3
B4

Q400
MMBT3904

B5

R404

4K7 1/16W 5%

B6

Q401

MMBT3904

R400

NC 4.7K1/ 16W

R443

1K 1/10W 5%

C401

NC/10uF 10V

B7

R408

4.7K1/16W

Circuit Diagrams and PWB Layouts

EN 52TPM16.1L LA 10.

2016-Jul-22

back to

div.table

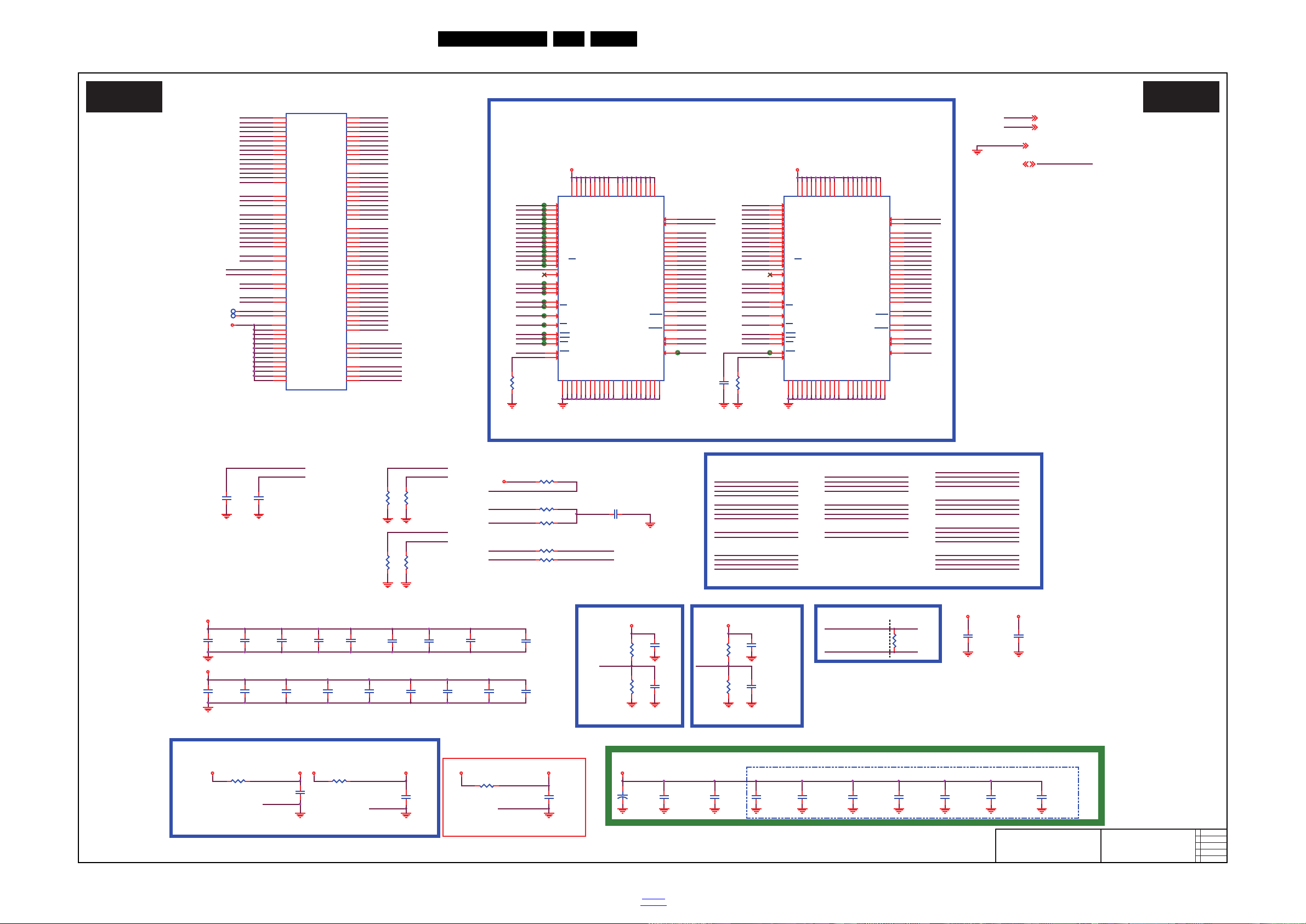

10-3-9 DRAM Interface

19950_514.eps

DRAM Interface

B09 B09

2015-04-14

715G7049

DRAM Interface

R4168

240 OHM +-1% 1/16W

A_RDQS0ARDQS0

A_RDQ14ARDQ14

A_RDQ8ARDQ8

A_RDQ22ARDQ22

A_RDQM3ARDQM3

A_RDQS2ARDQS2

A_RDQS3ARDQS3

DDRVREF_A2

A_RDQ18ARDQ18
A_RDQ20ARDQ20

A_RDQ29ARDQ29
A_RDQ27ARDQ27

ARDQM1 A_RDQM1

A_RDQ16ARDQ16

A_RDQ31ARDQ31
A_RDQ25ARDQ25

ARDQ24 A_RDQ24

A_RDQM2ARDQM2

ARDQ26 A_RDQ26

A_RDQ17ARDQ17

A_RDQ30ARDQ30 A_RDQ12ARDQ12

A_RDQ23ARDQ23
A_RDQ19ARDQ19

C4169
100NF 16V

C4167
100NF 16V

C4168
100NF 16V

C4166

NC 10UF 10V

VCCK3,5,14

VCCK

R433 0R05 1/16W

VCCK

C4172

NC 100NF 16V

AVDD10_DDR

C4193

100NF 16V

C4164
100NF 16V

AVDD10_DDR

C4191
100NF 16V

C4163
100NF 16V

ARCLK0

AVSS_DDR

ARCLK0B

Differential Clock

R427 NC 0R05 1/16W
R434 NC 0R 05 1/ 16W

R4160

1Kohm 1/16W +/-1%

DDRVREF_A1 A_VREFCA1
DDRVREF_A2 A_VREFCA2

AVDD10_DDR

Main Chip Bottom Side

C4179
100NF 16V

C4185
NC 100NF 16V

R4167

240 OHM +-1% 1/16W

C4218

100NF 16V

ARDQS3B

A_RDQS3

C4219
100NF 16V

C4171
100NF 16V

C4192
100NF 16V

C4180
100NF 16V

DDRV

DDRV

DVDD3V3 AVDD33_DDR

DDRV DDRV

AVDD33_DD R

A_VREFCA2A_VREFCA1

DDR3#1 Ref Volt.

AVDD33_DDR

MT5593UPIJ

U401-1

DDRV

AB8

DDRV

AC10

DDRV

AC9

DDRV

AD10

DDRV

AH10

DDRV

AH9

DDRV

AJ10

DDRV

AJ11

DDRV

AJ8

DDRV

AJ9

MEMTP

AE10

MEMTN

AF10

DDRVREF_A1

V1

ARCKE

AA7

ARCLK0

Y4

ARCLK0#

Y5

ARODT

AB6

ARRAS#

AA5

ARCAS#

AA6

ARCS#

AB5

ARWE#

AB7

ARRESET#

AK4

ARBA0

AD5

ARBA1

AE3

ARBA2

AD6

ARCSD#

AB4

ARA14

AM4

ARA13

AK5

ARA12

AF6

ARA11

AK6

ARA10

AD7

ARA9

AH4

ARA8

AL4

ARA7

AJ5

ARA6

AJ6

ARA5

AG7

ARA4

AG5

ARA3

AF4

ARA2

AF7

ARA1

AG6

ARA0

AE4

ARDQM0

AD1

ARDQS0

AC1

ARDQS0#

AC2

ARDQ0

Y2

ARDQ1

AG2

ARDQ2

Y1

ARDQ3

AG3

ARDQ4

W1

ARDQ5

AH3

ARDQ6

W2

ARDQ7

AH2

ARDQM1

AC3

ARDQS1

AD2

ARDQS1#

AE2

ARDQ8

AF1

ARDQ9

AB3

ARDQ10

AG1

ARDQ11

Y3

ARDQ12

AF2

ARDQ13

AB2

ARDQ14

AF3

ARDQ15

AB1

ARDQM2

AN2

ARDQS2

AM3

ARDQS2#

AN1

ARDQ16

AK2

ARDQ17

AT2

ARDQ18

AK1

ARDQ19

AU1

ARDQ20

AJ1

ARDQ21

AU2

ARDQ22

AJ3

ARDQ23

AR4

ARDQM3

AM1

ARDQS3

AP1

ARDQS3#

AP2

ARDQ24

AR2

ARDQ25

AL2

ARDQ26

AT1

ARDQ27

AK3

ARDQ28

AP3

ARDQ29

AL3

ARDQ30

AR3

ARDQ31

AM2

AVDD33_DD R

G1

AVDD10_DD R

AV20

ARTN

W10

ARTP

Y10

DDRVREF_A2

AJ2

TN_HPCPLL

AK18

TP_H PCPLL

AK19

DDRV

AK10

DDRV_CKA

Y6

AVSS_DDR

G2

AVSS_DDR

AU20

DDRV

AK11

AVDD10_DD R

AF13

AVSS_DDR

AF12

AVDD10_DD R

AE19

AVSS_DDR

AE17

TP448 TP

DRAM#2 Bypass Cap

DRAM#1 Bypass Cap

GND 3,4,5,6,7,8,9,10,12,13,14,15,16,17

DVDD3V33,5,6,8,10,14,15,16,17

DDRV 3,12,13

+

C4189

47uF 16V

DDRV

R4150

1Kohm 1/16W +/-1%

C418
100NF 16V

C419
100NF 16V

DDRVREF_A1
DDRVREF_A2

R4166

1Kohm 1/16W +/-1%

C4183

4.7UF 6. 3V

R7127 NC 47K 1/16W 5%

C4170
100NF 16V

ARRESET#

DDRV

C4174

100NF 16V

C4181
100NF 16V

C4178
1UF 10% 16V

AVDD33_DDR

ARDQ21

ARDQ16

ARDQ9

ARDQS0

ARDQ27

ARDQ10

ARDQ7

ARDQ11

ARDQ20

ARDQS0B

ARDQ30

ARDQ13

ARDQM2

C4026

NC 4.7U F 10% 10V

C4025

NC 4.7U F 10% 10V

ARDQ5

ARDQ28

ARDQ4
ARDQ6

ARDQ29

DDRV

ARDQ22

ARDQS2

ARDQ0
ARDQ2

ARDQS1

ARDQ24

ARDQS3B

ARDQ23

ARDQ18

ARDQ14
ARDQ15

ARDQ12

ARDQ3

ARDQM3

ARDQ26

ARDQM0

AVDD10_DDR

ARDQS2B

ARDQ31

ARDQ17

ARDQS1B

ARDQM1

ARDQ8

ARDQ25

ARDQS3

ARDQ1

ARDQ19

DDRV

AVDD10_DDR

Main Chip DE-CAP.

R4107

NC 49.9 OHM 1% 1/16W

R4108

NC 49.9 OHM 1% 1/16W

AVDD10_DDR

DDRV

MEMTN

MEMTP

DVDD3V3

R437 0R05 1/16W

AVDD10_DDR

AVSS33_DDR

C4186
1uF 10V

C4173

100NF 16V

R4152

100R 1/16W 5%

DDRV

U402
NT5CB256M16CP-EK

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

DDRV

AVSS33_DDR

ARA3

ARA2

ARA1

ARA7

ARA6

ARA5

ARA4

ARA0

ARA12

ARA11

ARA10

ARA9

ARA8

ARCAS

ARRAS

ARCS

ARODT

ARWE

ARCKE

ARA14

ARBA0
ARBA2

ARBA1

ARA13

A_RDQ12

A_RDQ11

A_RDQ10

A_RDQ9

A_RDQ8

ARDQS1B

A_RDQS1

A_RDQ0

A_RDQ15

A_RDQ14

A_RDQ13

A_RDQ1

A_RDQM1

A_RDQM0

A_RDQS0
ARDQS0B

AVSS_DDR

A_RDQ6

A_RDQ5

A_RDQ4

A_RDQ3

A_RDQ2

A_VREFCA1

DDRVREF_A2

ARRESET#

A_RDQ7

A_VREFCA2

ARRESET#

A_ZQ2

ARCLK0

A_ZQ1

DDRVREF_A1

MEMTN

ARCKE

ARCLK0B

ARCLK0

ARCLK0B

MEMTP

ARBA0
ARBA1
ARBA2

ARCS

ARODT

ARWE

R4109

47R +-1% 1/16W

ARA4

ARA0

ARA3

ARA2

ARA1

R4110

47R +-1% 1/16W

ARA13

ARA8

ARA7

ARA6

ARA5

ARRAS

ARA14

ARA12

ARA11

ARA10

ARA9

ARCAS

ARTN

A_RDQ18

A_RDQ17

A_RDQ16

C755

NC 15NF 50V

DDR3#1-256Mx16-1866MHz DDR3#2-256Mx16-1866MHz

ARTP

A_RDQ21

A_RDQ20

A_RDQ19

A_RDQM2

A_RDQ24

A_RDQ23

A_RDQ22

A_RDQ26

A_RDQ25

A_RDQM3

A_RDQ31

A_RDQ30

A_RDQ29

A_RDQ28

A_RDQ27

R678
NC 0R05 1/16W

ARTN

ARTP

U403
NT5CB256M16CP-EK

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

AVSS_DDR

TP449 TP

TP_HPCPLL

C4175

100NF 16V

TN_H PC PLL

C4182
100NF 16V

AVSS_DDR

ARBA1
ARBA2

ARBA0

ARCS

ARRESET#

R4118

47R +-1% 1/16W

R4119

47R +-1% 1/16W

C4162
100NF 16V

C4161
100NF 16V

ARCS

ARCSD

C4160

10UF 10V

ARCLK0B

ARCLK0

C4310
NC 1uF 10V

DDR3#2 Ref Volt.

C417

100NF 16V

VCCK

ARA0

R4165

1Kohm 1/16W +/-1%

C4155

100NF 16V

AVDD10_DD R

ARCSD

ARA1

C4188
100NF 16V

ARODT

ARA2

Keep a trace from the GND of Cap to Main Chip

ARCKE

ARA3

ARDQS2B

A_RDQS2

ARRAS

ARA4

ARCAS

ARA5

ARWE

ARA6

ARCLK0
ARCLK0B

ARA7

C4194

100NF 16V

ARA8

DDRVREF_A1

ARA9

AVSS_DDR

DDRV

C4184
NC 100NF 16V

ARA10
ARA11
ARA12
ARA13
ARA14

C4158
100NF 16V

A_RDQS1ARDQS1

A_RDQ21ARDQ21

A_RDQM0ARDQM0

ARDQ13 A_RDQ13

ARDQ6 A_RDQ6

A_RDQ28ARDQ28

ARDQ4 A_RDQ4

ARDQ2 A_RDQ2

ARDQ15 A_RDQ15

ARDQ11 A_RDQ11

A_RDQ3ARDQ3
A_RDQ1ARDQ1

ARDQ0 A_RDQ0

ARDQ9 A_RDQ9

A_RDQ7ARDQ7

A_RDQ10ARDQ10

A_RDQ5ARDQ5

Circuit Diagrams and PWB Layouts

EN 53TPM16.1L LA 10.

2016-Jul-22

back to

div.table

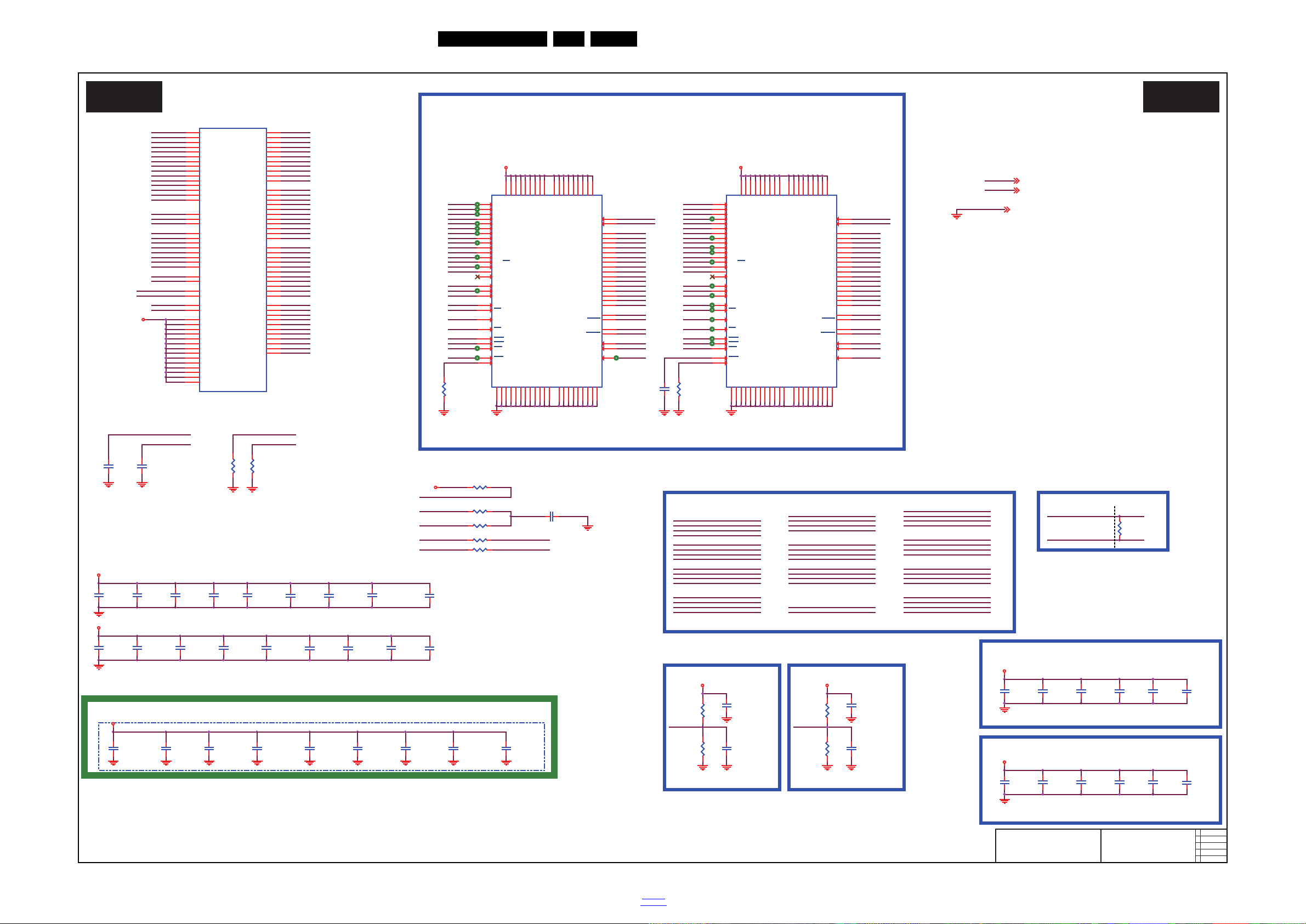

10-3-10 DRAM2 Interface

19950_515.eps

DRAM2 Interface

B10 B10

2015-04-14

715G7049

DRAM2 Interface

BRTN

DDRVREF_B1
DDRVREF_B2

BRTP

R4156

100R 1/16W 5%

B_RCLK0

B_RCLK0#

C452
100NF 16V

Main Chip Bottom Side

DDRV 3,11,13

DDRV

GND 3,4,5,6,7,8,9,10,11,13,14,15,16,17

AVDD3V33,6,7,10,15

AVDD3V3

DDRV

DDR3#3-256Mx16-1866MHz

BRA6

B_RDQ14

B_RDQ20

B_RDQ6

BRCKE

BRA7

B_RDQ23

DDR3#4-256Mx16-1866MHz

B_RDQ9

B_RDQS2

B_RDQ25

BRA11

DDRVREF_B1

R4128

240 OHM +-1% 1/16W

B_RDQ1

B_VREFCA1

BRA3

B_RDQ30

BRA10

BRA2

B_RDQS1#

BRBA2

BRCAS#

BRBA1

B_RDQ22

B_RDQ13

B_RDQ19

B_RDQ5

B_RDQ8

BRCLK0#_D

B_RDQ31

BRODT

MT5593UPIJ

U401-2

DDRVREF_B1

AV2

BRCLK0

AP6

BRCLK0#

AR6

BRCKE

AN9

BRODT

AP9

BRRAS#

AR7

BRCAS#

AP7

BRCS#

AR9

BRBA0

AP11

BRBA1

AN13

BRBA2

AP12

BRWE#

AP10

BRA14

AN18

BRA13

AR17

BRA12

AR13

BRA11

AP17

BRA10

AN10

BRA9

AP16

BRA8

AP18

BRA7

AN16

BRA6

AN17

BRA5

AP14

BRA4

AR15

BRA3

AP13

BRA2

AN14

BRA1

AP15

BRA0

AR12

DDRV

AK12

DDRV

AK13

DDRV

AK14

DDRV

AK15

DDRV

AK16

DDRV

AK17

DDRV

AK7

DDRV

AK8

BRDQM0

AU7

BRDQS0

AU6

BRDQS0#

AT6

BRDQ0

AU4

BRDQ1

AT10

BRDQ2

AU3

BRDQ3

AU10

BRDQ4

AT3

BRDQ5

AU11

BRDQ6

AV3

BRDQ7

AT11

BRDQM1

AV6

BRDQS1

AT8

BRDQS1#

AU8

BRDQ8

AT9

BRDQ9

AU5

BRDQ10

AU9

BRDQ11

AR5

BRDQ12

AV8

BRDQ13

AV5

BRDQ14

AV9

BRDQ15

AT5

BRRESET#

AR18

BRDQM2

AT15

BRDQS2

AV15

BRDQS2#

AU15

BRDQ16

AT13

BRDQ17

AU18

BRDQ18

AU12

BRDQ19

AT18

BRDQ20

AT12

BRDQ21

AT19

BRDQ22

AV12

BRDQ23

AU19

BRDQM3

AR14

BRDQS3

AU16

BRDQS3#

AT16

BRDQ24

AV17

BRDQ25

AT14

BRDQ26

AV18

BRDQ27

AU13

BRDQ28

AU17

BRDQ29

AU14

BRDQ30

AT17

BRDQ31

AV14

BRTP

AL18

BRTN

AL19

DDRVREF_B2

AV11

BRCSD#

AR10

DDRV

AK9

DDRV

AL6

DDRV

AL7

DDRV

AL8

DDRV_CKB

AM8

DDRV

AL9

B_VREFCA2

BRA10

B_RDQ29

BRA5

B_RDQM1

B_RDQS3#

BRA6

DDRVREF_B2

BRA2

DDRV

B_RDQS1

BRA13

BRA9

B_RDQM3

BRA1

BRRAS#

C454
100NF 16V

C456

100NF 16V

DDRV

CAPs for DRAM IO Power ( Close to DDR#3 )

C479
100NF 16V

C483
100NF 16V

C484
NC 100NF 16V

C482
100NF 16V

U404
NT5CB256M16CP-EK

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

B_RDQ18

BRCLK0_D

BRWE#

B_RDQ12

BRCS#

BRA9

BRA14

BRA4

BRRESET#

B_ZQ1

BRRESET#

B_RDQ28

BRA1

B_RDQM0

B_RDQ4

U405
NT5CB256M16CP-EK

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

BRA5

BRA13
BRA14

BRCAS#

B_RDQ11

B_RDQS3

BRCLK0#_D

B_RDQ17

B_RDQM2

BRA8

B_RDQ0

BRCKE

B_ZQ2

BRA0

BRODT

B_RDQ27

B_RDQS0

B_RDQ7

BRBA0

B_RDQ3

BRA4

DDRV

BRRAS#

BRA8

BRA12

B_RDQ10

BRBA0

C451
100NF 16V

B_RDQ21

BRA7

BRCLK0_D

B_RDQ24

B_RDQ15

B_RDQS2#

BRWE#

R4127

240 OHM +-1% 1/16W

B_RDQ2

B_RDQ26

BRA0

BRBA1

B_RDQ16

DDRV

BRA3

BRA12

DDRV

BRBA2

BRA11

BRCS#

B_RDQS0#

B_VREFCA1 B_VREFCA2

BRDQM3

BRDQ24

BRDQ7

BRDQM2
BRDQS2

BRDQ26

BRDQS0#

BRDQS3#

BRDQ4

BRDQ0

BRDQS1#

BRDQ21

BRDQ15

BRDQ9

BRDQS3

BRDQ19

BRDQ1

BRDQ6

BRDQ2

BRDQ30

BRDQ23

BRDQM0

BRDQ8

BRDQS2#
BRDQ16

BRDQS0

BRDQ22

BRDQ25
BRDQ27

BRDQS1

BRDQ29

BRDQ13

BRDQ12

BRDQ31

BRDQ10
BRDQ11

BRDQ5

BRDQM1

BRDQ17

BRDQ3

BRDQ14

BRDQ18

R4124

47R +-1% 1/16W

BRDQ20

BRDQ28

BRTP

R4123

47R +-1% 1/16W

BRTN

NEAR DRAM

DDRVREF_B1

R4126 47R +-1% 1/ 16W

DDR3#4 Ref Volt.

R4125 47R +-1% 1/ 16W

BRCSD#

R435 N C 0R 05 1/ 16W

NEAR Main Chip

B_VREFCA2

BRCS#

C422

100NF 16V

B_VREFCA1

R436 N C 0R 05 1/ 16W

DDRVREF_B2

DRAM#3 Bypass Cap

DDR3#3 Ref Volt.

C428

100NF 16V

DDRV

C427
100NF 16V

C426
100NF 16V

DRAM#4 Bypass Cap

C434
100NF 16V

Differential Clock

C424
100NF 16V

C435
NC 100NF 16V

C430

100NF 16V

C436
100NF 16V

C429

NC 100NF 16V

C440

10UF 10V

C433
100NF 16V

DDRV

C423
NC 100NF 16V

C438

100NF 16V

C431

10UF 10V

C439

100NF 16V

C432
NC 100NF 16V

C425
100NF 16V

C437

100NF 16V

R4132

1Kohm 1/16W +/-1%

C448
100NF 16V

C445
100NF 16V

Main Chip DE-C AP.

C450
100NF 16V

C444
NC 100NF 16V

C457
NC 100NF 16V

DDRV

C461

NC 100NF 16V

C443
1UF 10% 16V

C447
100NF 16V

C449
100NF 16V

DDRV

C460
100NF 16V

C441
NC 10UF 10V

C462

100NF 16V

C458
NC 100NF 16V

C446
100NF 16V

C459
100NF 16V

C453
100NF 16V

CAPs for DRAM IO Power ( Close to DDR#4 )

C756

NC 15NF 50V

R7128 NC 47K 1/16W 5%

DDRV

BRRESET#

R4130

1Kohm 1/16W +/-1%

BRCLK0_D

BRCLK0#_D

R4129

1Kohm 1/16W +/-1%

C480
100NF 16V

B_RDQ3BRDQ3

B_RDQ8BRDQ8

B_RDQ21BRDQ21

B_RDQS0BRDQS0

B_RDQM3BRDQM3

B_RDQ23BRDQ23

BRDQ4 B_RDQ4

BRDQ11 B_RDQ11

B_RDQ16BRDQ16

B_RDQ29BRDQ29

B_RDQ28BRDQ28

B_RDQ30BRDQ30 B_RDQ12BRDQ12

B_RDQS2#BRDQS2#

B_RDQ7BRDQ7

BRDQ13 B_RDQ13

B_RDQM2BRDQM2

B_RDQS2BRDQS2

B_RDQM0BRDQM0

B_RDQS0#BRDQS0#

B_RDQ1BRDQ1

B_RDQS1#BRDQS1#B_RDQS3#BRDQS3#

B_RDQ31BRDQ31

B_RDQ27BRDQ27

BRDQ26 B_RDQ26

B_RDQS3BRDQS3

B_RDQ18BRDQ18

B_RDQ17BRDQ17

NEAR BRANCH

BRDQ0 B_RDQ0

B_RDQ10BRDQ10

BRDQ2 B_RDQ2

B_RDQ22BRDQ22

B_RDQ14BRDQ14

B_RDQ25BRDQ25

B_RCLK0#BRCLK0#

B_RCLK0BRCLK0

B_RDQ20BRDQ20

BRDQ24 B_RDQ24

B_RDQS1BRDQS1

BRDQ9 B_RDQ9

B_RDQ5BRDQ5

BRDQ15 B_RDQ15

BRDQM1 B_RDQM1

B_RDQ19BRDQ19

BRDQ6 B_RDQ6

BRWE#

BRA9

BRA14

BRBA2

BRA1

BRA13

BRBA0

BRA0

BRA5

BRCSD#

R4131

1Kohm 1/16W +/-1%

BRRAS#

BRA12

BRA4

BRBA1

BRCAS#

BRCKE

BRA11

BRCLK0

BRA3

BRA8

BRRESET#

BRCLK0#

BRA10

BRA2

BRA7

BRCS#

BRA6

BRODT

DDRVREF_B2

C481
100NF 16V

DDRVREF_B1

C420
100NF 16V

Circuit Diagrams and PWB Layouts

EN 54TPM16.1L LA 10.

2016-Jul-22

back to

div.table

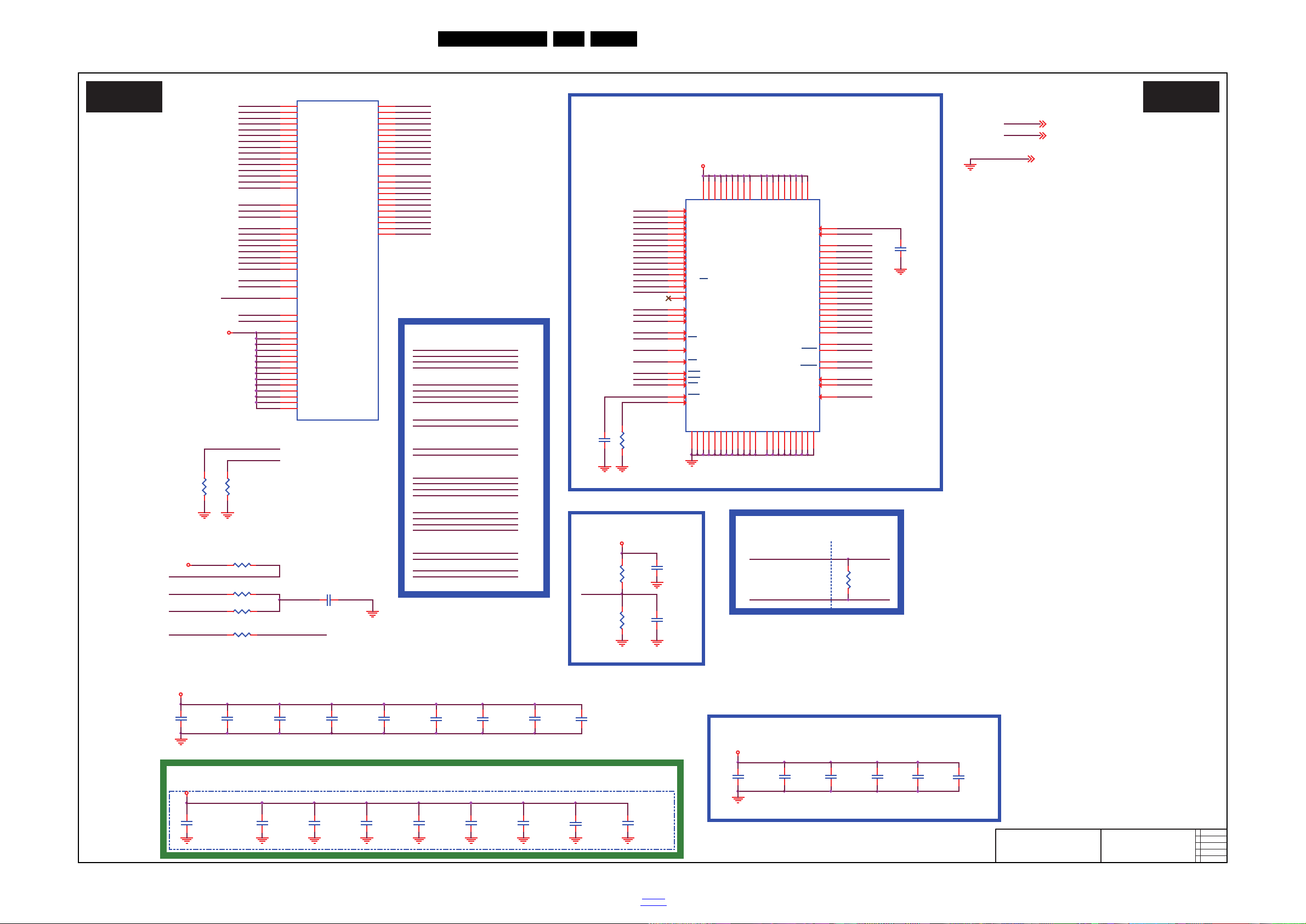

10-3-11 DRAM3 Interface

19950_516.eps

DRAM3 Interface

B11 B11

2015-04-14

715G7049

DRAM3 Interface

CRODT

C_RCLK0#

Damping and Termi natio n fo r CL K

CRDQS0 C_RDQS0

CRCLK0# C_RCLK0#

CRA0

CRDQS1# C_RDQS1#

CRRESET#

C_RDQ5

CRDQ2 C_RDQ2

CRDQ8 C_RDQ8

CRA9

C_RDQ10

CRDQS0# C_RDQS0#

C_RCLK0

CRCS#

C_RDQM0CRDQM0

CRCKE

CRWE#

CRA14

CRDQ13 C_RDQ13

DDRVREF_C1

C421
NC 100N F 16V

CRTN

R4171

NC 47R +-1% 1/16W

CRTP

R4170

NC 47R +-1% 1/16W

CRCS#

DDRVREF_C1

CRCSD#

C_VREFCA1

R4177

NC 47R +-1% 1/16W

R4151

NC 0R 05 1/ 16W

R4178

NC 47R +-1% 1/16W

C4201

NC 100N F 16V

Main Chip Bottom Side

DDR3#5 Ref Volt.

C4195
NC 100N F 16V

C4207

NC 100N F 16V

C4210
100NF 16V

C4213

100NF 16V

C4211
NC 100N F 16V

C4212
NC 100N F 16V

C4214
NC 100N F 16V

R4134

NC 1Kohm 1/ 16W +/ -1%

Main Chip DE-CAP.

DRAM#5 Bypass Cap

DDRV

C467
NC 100N F 16V

C463
100NF 16V

C470

NC 100N F 16V

C469

NC 100NF 16V

C464
NC 100N F 16V

C465
NC 100N F 16V

C471

10UF 10V

C466
NC 100N F 16V

C468

NC 100N F 16V

MT 5593UPIJ

U401-13

DDRVREF_C1

H1

CRCLK0

P4

CRCLK0#

P5

CRCKE

T7

CRODT

L7

CRRAS#

L8

CRCAS#

P9

CRCS#

L5

CRBA0

K5

CRBA1

T4

CRBA2

P7

CRWE#

P8

CRA14

U7

CRA13

H5

CRA12

R4

CRA11

U6

CRA10

T6

CRA9

H8

CRA8

U8

CRA7

H7

CRA6

U9

CRA5

K8

CRA4

U4

CRA3

J4

CRA2

K7

CRA1

U5

CRA0

J5

DDRV

AM5

DDRV

AM6

DDRV

AM7

DDRV

AN4

DDRV

AN5

DDRV

AN6

DDRV

AP4

DDRV

AP5

CRDQM0

N1

CRDQS0

N3

CRDQS0#

N2

CRDQ0

K2

CRDQ1

T2

CRDQ2

J2

CRDQ3

U2

CRDQ4

H2

CRDQ5

V2

CRDQ6

H3

CRDQ7

U1

CRDQM1

M3

CRDQS1

P2

CRDQS1#

P1

CRDQ8

R3

CRDQ9

K3

CRDQ10

R2

CRDQ11

K1

CRDQ12

P3

CRDQ13

L1

CRDQ14

R1

CRDQ15

L2

CRRESET#

H6

CRTP

G3

CRTN

G4

CRCSD#

L6

DDRV

K10

DDRV

L10

DDRV

N10

DDRV

T10

DDRV_CKC

P10

DDRV

U10

C455
NC 100NF 16V

DDRV

DDRV

C_VREFCA1

C478
NC 100NF 16V

DDRV

C472
NC 100N F 16V

C473

100NF 16V

C476

100NF 16V

C474

100NF 16V

C475

100NF 16V

CAPs for DRAM IO Power ( Close to DDR#5 )

C477

100NF 16V

C757

NC 15NF 50V

CRCAS#

CRA7

CRBA2

CRODT

CRTN

CRCLK0

DDRVREF_C1

CRCLK0#

CRA3

CRA13

CRWE#

CRA8

CRBA0

CRA9

CRCS#

CRA1

CRA12

CRCKE

CRA0

CRRESET#

CRA4
CRA5

CRRAS#

CRBA1

CRTP

CRA10

CRCSD#

CRA2

CRA6

CRA11

CRA14

DDRV

CRDQ7
CRDQM1

CRDQ10

CRDQ8

CRDQ11

CRDQS1

CRDQ13

CRDQ1

CRDQ9

CRDQ3
CRDQ5

CRDQ12

CRDQ6

CRDQ4

CRDQS1#

CRDQS0#

CRDQ15

CRDQ14

CRDQ2

CRDQ0

CRDQS0

CRDQM0

DDRV

CRRESET#

R7129 N C 47K 1/ 16W 5%

R4133

NC 1Kohm 1/16W +/ -1%

CRCAS#

CRBA1

GND 3,4,5,6,7,8,9,10,11,12,14,15,16,17

CRCLK0_D

CRA5

CRCLK0#_D

C_RDQ14

CRDQ10 C_RDQ10

CRA10

C_RDQM0

C_RDQ8

CRBA0

C_RDQ3

CRDQ4 C_RDQ4

CRCLK0#_D

CRDQ1 C_RDQ1

DDR3#5-128Mx16-1866MHz

C_RDQ0

C_RDQ6

CRA6

R4192

NC 100R 1/ 16W 5 %

CRDQ11 C_RDQ11

AVDD3V33,6,7,10,15

DDRV 3,11,12

CRA3

C_RDQS0
C_RDQS0#

C_RDQ12

CRDQS1 C_RDQS1

C_RDQS1#

CRBA2

CRRAS#

C_ZQ1

CRDQ14 C_RDQ14

CRA7

CRA1

CRDQ5 C_RDQ5

CRA12

C_RDQ15

CRDQ15 C_RDQ15

CRDQ0 C_RDQ0

R4175

NC 240 OHM +-5% 1/16W

C_RDQS1

C_RDQ7

CRA8

C_RDQ9

CRDQ6 C_RDQ6

C_RDQ11
C_RDQ13

C_RDQM1

C_RDQ12CRDQ12

AVDD3V3

CRA4

CRDQ7 C_RDQ7

CRA2

DDRV

C_VREFCA1

C_RDQ4

C4153
1UF 10% 16V

U406
NC NT5CB128M16FP-EK

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

DDRV

CRA11

C_RDQ2

CRCLK0 C_RCLK0

CRA13

CRDQ9 C_RDQ9

CRDQ3 C_RDQ3

C_RDQM1CRDQM1

C_RDQ1

CRCLK0_D

C4208
NC 10U F 10V

Circuit Diagrams and PWB Layouts

EN 55TPM16.1L LA 10.

2016-Jul-22

back to

div.table

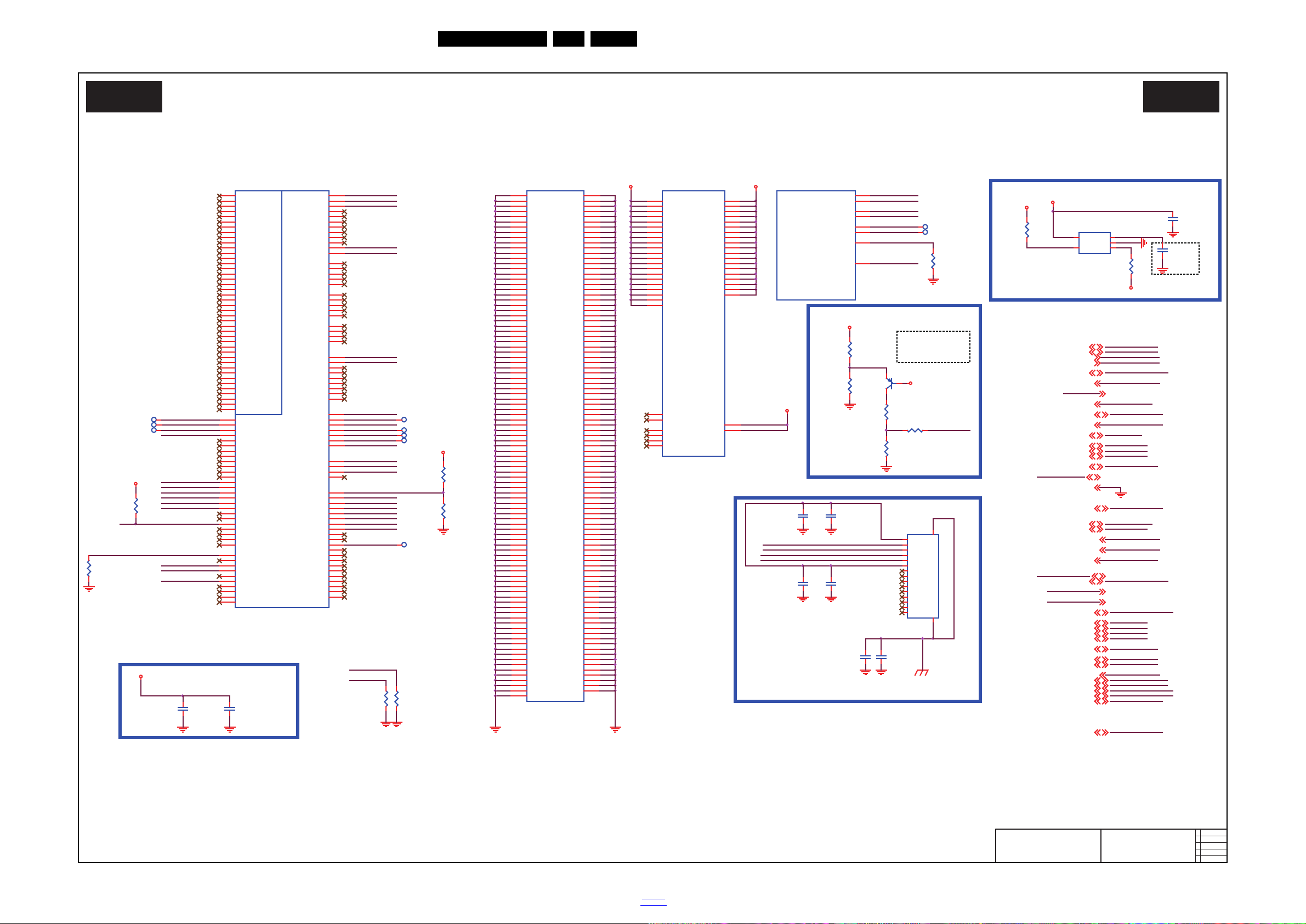

10-3-12 MII/GPIO/ServAD/RJ45

19950_517.eps

MII/GPIO/ServAD/RJ45

B12 B12

2015-04-14

715G7049

MII/GPIO/ServAD/RJ45

2D/3D_SELECT3

2D/3D_SELECT

+5V_SW 3,4,6,7,10,15

+5V_SW

DVDD3V3

R7144

22K 1/16W 1%

Gaming6

Gaming

HP_DET8

HP_DET

HP_DET

R7146

100K 1%

CN4252

RJ45 15P

TCT P 1

1

TD+ P 2

2

TD- P3

3

RD+ P4

4

RD- P5

5

RCT P6

6

NC P7

7

NC P8

8

NC P9

9

NC P10

10

NC P11

11

Y- P12

12

G- P14

14

Y+ P13

13

G+ P15

15

TH1

16

TH2

17

3D_L/R10

3D_L/R

MHL_PWR_EN

BL_DIMMING

Wi-Fi_VCC6

Wi-Fi_VCC

R767

3K3 1/16W 5%

VCC3IO_AB

VCC3IO_B
VCC3IO_A

CVBS_DETECTN

R766

4K7 1/16W 5%

R765

4K7 1/16W 5%

AMBI_TEMP
POWER_OK

KEY_PAD0

R4262

10K 1/16W 5%

DEMOD_TSSYNC16

ARC_SEL_0
ARC_SEL_1

CVBS_DETECTN7

CVBS_DETECTN

DEMOD_TSVALID

DEMOD_TSCLK

DEMOD_TSSYNC

DEMOD_TS0

3D_L/R_IN6,10

DEMOD_TSVALID16

DEMOD_RST

3D_L/R_IN

R7145

0R05 1/16W

R659

4K7 1/16W 5%

3V3SB

SPK_SD

12V_DET :
Normal : High
Power Down : Low

SPK_SD8

SPK_SD

WoBLE-IRQ

WoWLAN_IRQ6

WoWLAN_IRQ
WIFI_PWR_EN

WIFI_PWR_EN6

LED_PWM05,6

ANALOG_DIMMING 3

ANALOG_DIMMING

LED_PWM0

ARC_SEL_1

ARC_SEL_0

WOL_PWR_EN

VCC3IO_SD

DVDD3V3

C4020
100NF 16V

3V3SB

C4021
NC 100N F 16V

VCC3IO_SD

C747
10UF 6. 3V

Gaming

HTPDN

AMBIL_SPI_CLK 17

AMBIL_SPI_CLK

ANALOG_DIMMING

VCC3IO_AB3,5,6,8,10,11,15,16,17

VCC3IO_AB

BL_DIMMING

2D/3D_SELECT

WOL_PWR_EN

DVDD3V3

GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
GPIO15
GPIO16
GPIO17
GPIO18
GPIO19
GPIO20
GPIO21
GPIO22
GPIO23
GPIO24
GPIO25
GPIO26
GPIO27
GPIO28
GPIO29
GPIO30
GPIO31
GPIO32
GPIO33
GPIO34
GPIO35
GPIO36

GPIO39
GPIO40

GPIO38

GPIO37

GPIO41

MT5593UPIJ

U401-8

CI_A0

C1

CI_A1

C2

CI_A2

B1

CI_A3

C3

CI_A4

B2

CI_A5

A2

CI_A6

A3

CI_A7

A4

CI_A8

E11

CI_A9

E12

CI_A10

D13

CI_A11

D12

CI_A12

A5

CI_A13

C9

CI_A14

C8

CI_MCLKI

D11

CI_MIVAL

B6

CI_MISTR T

B8

CI_MDI0

A8

CI_MDI1

A7

CI_MDI2

B7

CI_MDI3

C7

CI_MDI4

B5

CI_MDI5

D10

CI_MDI6

C5

CI_MDI7

B4

CI_D0

F8

CI_D1

E5

CI_D2

D4

CI_D3

F16

CI_D4

E15

CI_D5

E13

CI_D6

C10

CI_D7

E14

CI_MDO0

E6

CI_MDO1

D5

CI_MDO2

C4

CI_MDO3

D15

CI_MDO4

F14

CI_MDO5

B10

OPCTRL0

R34

OPCTRL1

R36

OPCTRL2

R33

OPCTRL3

W35

OPCTRL4

Y34

OPCTRL5

T35

OPCTRL6

N33

OPCTRL7

U35

DEMOD_RST

E20

DEMOD_TSCLK

A14

DEMOD_TSDATA0

D19

DEMOD_TSDATA1

F22

DEMOD_TSDATA2

G22

DEMOD_TSDATA3

H22

DEMOD_TSDATA4

H23

DEMOD_TSDATA5

G23

DEMOD_TSDATA6

F25

DEMOD_TSDATA7

F23

DEMOD_TSSYNC

D20

DEMOD_TSVAL

F20

CI_INT

A10

CI_TSCLK

C14

CI_TSDATA0

C13

CI_TSSYNC

B13

CI_TSVAL

A13

PVR_TSCLK

B12

PVR_TSVAL

D18

PVR_TSSYNC

E17

PVR_TSDATA0

F17

PVR_TSDATA1

G17

SPI_CLK1

C12

SPI_CLK

B11

SPI_DATA

A11

SPI_CLE

C11

OPWM2

AP37

OPWM1

AL30

OPWM0

AP38

SD_D0

D1

SD_D1

E2

SD_D2

E1

SD_D3

F2

SD_CMD

D2

SD_CLK

F3

LED_PWM1

AA32

LED_PWM0

AA33

CI_MDO6

B9

CI_MDO7

D14

GPIO42

D3

GPIO43

G16

GPIO44

D17

GPIO45

F5

GPIO46

E4

GPIO47

B3

GPIO48

F4

GPIO49

AK25

GPIO50

AL27

GPIO51

AM27

GPIO52

AN27

GPIO53

AN28

GPIO54

AM28

GPIO55

AL28

OPCTRL8

R35

OPCTRL9

Y33

OPCTRL10

AC35

OPCTRL11

AB37

ADIN0_SRV

L34

ADIN1_SRV

P35

ADIN2_SRV

L35

ADIN3_SRV

E33

ADIN4_SRV

L33

ADIN5_SRV

M33

ADIN6_SRV

J35

ADIN7_SRV

U37

GPIO56

AR37

GPIO57

AU38

GPIO58

AN36

GPIO59

AM36

GPIO60

AK37

GPIO61

E10

GPIO62

E9

GPIO63

D6

GPIO64

C6

GPIO65

E8

GPIO66

D8

VCC3IO_SD

D9

ADIN8_SRV

N35

ADIN9_SRV

N34

OPCTRL12

AC32

OPCTRL13

AG33

OPCTRL14

AE33

OPCTRL15

AD33

OPCTRL16

AD32

OPCTRL17

AC33

OPCTRL18

AD37

OPCTRL19

AD38

OPWM3

AN35

OPWM4

AL36

OPWM5

AM35

OPWM6

AL34

OPWM7

AK35

OPWM8

AK34

LED_PWM2

AF37

LED_PWM3

AG36

OPCTRL20

AD36

TP001

3D_L/R_IN

MT 559 3UPIJ

U401-10

TXVP_0

W37

TXVN_0

W38

RXVN_1

Y38

RXVP_1

Y37

PHYLED1

AA34

PHYLED0

AB35

REXT

V38

AVDD33_ETH

P29

R679

4K7 1/16W 5%

AVDD33_ETH

TP486TP
TP487TP

PHYLED1
PHYLED0

REXT

R4253

24K 1%

3V3SB

TXVP

RXVN

RXVP

TXVN

Q4002

BC857BW

1

23

12V_DET

TP471

TP470

SD_D1

AMBIL_SPI_DO

TP468

SD_CLK

AMBIL_SPI_CLK
SD_CMD

TP472

SD_D3

C4263

0.1uF 25V

C4260

0.1uF 25V

TP831

12V_DET8

12V_DET

LED_PWM0

SYS_EEPROM_WP5

LED_PWM1

ARC_SEL_015
ARC_SEL_115

ARC_SEL_1

ARC_SEL_0

C4258
10NF 50V

C4262

10NF 50V

DEMOD_RST16

DEMOD_RST

C4259
10NF 50V

MT 559 3UPIJ

U401-11

DVSS

AA15

DVSS

AA16

DVSS

AA17

DVSS

AA18

DVSS

AA19

DVSS

AA20

DVSS

AA21

DVSS

AA22

DVSS

AA23

DVSS

AA24

DVSS

AA8

DVSS

AB14

DVSS

AB15

DVSS

AB16

DVSS

AB17

DVSS

AB18

DVSS

AB19

DVSS

AB20

DVSS

AB21

DVSS

AB22

DVSS

AB23

DVSS

AB24

DVSS

AB36

DVSS

AC14

DVSS

AC15

DVSS

AC16

DVSS

AC17

DVSS

AC18

DVSS

AC19

DVSS

AC36

DVSS

AC4

DVSS

AC7

DVSS

AC8

DVSS

AD15

DVSS

AD16

DVSS

AD17

DVSS

AD18

DVSS

AD19

DVSS

AD4

DVSS

AD9

DVSS

AE9

DVSS

AF35

DVSS

AF5

DVSS

AF8

DVSS

AF9

DVSS

AG4

DVSS

AG8

DVSS

AH5

DVSS

AJ36

DVSS

AJ7

DVSS

AK21

DVSS

AK26

DVSS

AK28

DVSS

AL12

DVSS

AL15

DVSS

P19

DVSS

P18

DVSS

P17

DVSS

P16

DVSS

P15

DVSS

N9

DVSS

N23

DVSS

L9

DVSS

M20

DVSS

M21

DVSS

M22

DVSS

M23

DVSS

M31

DVSS

N18

DVSS

N19

DVSS

N20

DVSS

N21

DVSS

P20

DVSS

P21

DVSS

P22

DVSS

P23

DVSS

P24

DVSS

P6

DVSS

R15

DVSS

R16

DVSS

R17

DVSS

R18

DVSS

R19

DVSS

R20

DVSS

R21

DVSS

R22

DVSS

R23

DVSS

R24

DVSS

T15

DVSS

T16

DVSS

T17

DVSS

T18

DVSS

T19

DVSS

T20

DVSS

T21

DVSS

T22

DVSS

T23

DVSS

T24

DVSS

T3

DVSS

T8

DVSS

T9

DVSS

U15

DVSS

U16

DVSS

U17

DVSS

U18

DVSS

U19

DVSS

U20

DVSS

U21

DVSS

U22

DVSS

U23

DVSS

U24

DVSS

U3

DVSS

U32

DVSS

V15

DVSS

V16

DVSS

V17

DVSS

V18

DVSS

V19

DVSS

V20

DVSS

V21

DVSS

V22

DVSS

V23

DVSS

V24

DVSS

W14

DVSS

W15

DVSS

AL5

DVSS

AM10

DVSS

AM11

DVSS

AM12

DVSS

AM13

DVSS

AM15

DVSS

AM16

DVSS

AM17

DVSS

AM9

DVSS

AN3

DVSS

AN7

DVSS

AN8

DVSS

AP21

DVSS

AP23

DVSS

AP24

DVSS

AP26

DVSS

AP27

DVSS

AP28

DVSS

AP29

DVSS

AP31

DVSS

L31

DVSS

W16

DVSS

W17

DVSS

W18

DVSS

AP34

DVSS

AR11

DVSS

AR16

DVSS

AR19

DVSS

AT4

DVSS

AT7

DVSS

B31

DVSS

B33

DVSS

W19

DVSS

W20

DVSS

W21

DVSS

W22

DVSS

W23

DVSS

W24

DVSS

W3

DVSS

W6

DVSS

W8

DVSS

Y14

DVSS

Y15

DVSS

Y16

DVSS

Y17

DVSS

Y18

DVSS

Y19

DVSS

Y20

DVSS

Y21

DVSS

B37

DVSS

C17

DVSS

C19

DVSS

C20

DVSS

E22

DVSS

E26

DVSS

F9

DVSS

G5

DVSS

J3

DVSS

J31

DVSS

Y23

DVSS

Y24

DVSS

Y7

DVSS

Y8

DVSS

J6

DVSS

K6

DVSS

K9

DVSS

F12

DVSS

Y22

TP811

MT 559 3UPIJ

U401-12

VCCK

AA25

VCCK

AA26

VCCK

AA27

VCCK

AB25

VCCK

AB26

VCCK

AB27

VCCK

AC20

VCCK

AC21

VCCK

AC22

VCCK

AC23

VCCK

AC24

VCCK

AC25

VCCK

AC26

VCCK

AC27

VCCK

AD20

VCCK

AD21

VCCK

AD22

VCCK

AD23

VCCK

AD24

VCC3IO_A

F1

VCC3IO_B

AK38

VCCK

AD25

VCCK

AD26

VCCK

AD27

VCCK

AE20

VCCK

AE21

VCCK

AE22

VCCK

AE23

VCCK

AE24

VCCK

AE25

VCCK

AE26

VCCK

AE27

VCCK

V25

VCCK

V26

VCCK

V27

VCCK

W25

VCCK

W26

VCCK

W27

VCCK

Y25

VCCK

Y26

VCCK

Y27

TN_ARMPLL

M14

TP_ARMPLL

N14

NC

A1

NC

A38

NC

AV1

NC

AV38

VCCK

U26

LOCKN

SYS_EEPROM_WP

C4261

100NF 16V

DEMOD_TSCLK16

WoBLE-IRQ

LED_PWM2

WoBLE-IRQ6

AVDD3V33,6,7,10,15

GND3,4,5,6,7,8,9,10,11,12,13,15,16,17

U4601

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

SYS_EEPROM_WP

3D_L/R

KEY_PAD06

BL_DI MMING10

MHL_PWR_EN15

TXVP
TXVN
RXVP

DVDD3V33,5,6,8,10,11,15,16,17

RXVN

AMBIL_SPI_DO 17

3V3SB3,5,6,7,10,15

+12V_AU

DEMOD_TS016

AMBI_TEMP

AMBI_TEMP17

DDR_PWR_EN3

DDR_PWR_EN

LED_PWM25

LED_PWM2

POWER_OK

POWER_OK10

VCCK

R7142

22K 1/16W 1%

DDR_PWR_EN

+12V_AU 3,4

+12V_AU

AVDD33_ETH

C4607
100NF 16V

3V3SB

DEMOD_TSVALID

DEMOD_TS0
DEMOD_TSSYNC

DEMOD_TSCLK

LED_PWM15,6

LED_PWM1

Wi-Fi_VCC

WoWLAN_IRQ

KEY_PAD0

R4266

NC/ 10K 1/ 10W 5%

R4267

10K 1/10W 5%

RJ45

SEPARATE GROUND

WIFI_PWR_EN

HTPDN10

HTPDN

LOCKN10

LOCKN

12V drop detect

MHL_PW R_EN

12V_DET

VCCK

TP482

R7143

15K 1%

AMBIL_SPI_DO

AVDD3V3

3V3SB

VCCK3,5,11

VCCK

Circuit Diagrams and PWB Layouts

EN 56TPM16.1L LA 10.

2016-Jul-22

back to

div.table

10-3-13 HDMI SW/Connector

19950_518.eps

HDMI SW/Connector

B13 B13

2014-04-14

715G7049

HDMI SW/Connector

HDMI 3 INPUT (Down) FOR HDCP 2.0

RX3_2+

RX3_0-

RX3_0+

RX3_1-

RX3_C+

PWR5V_2

HPD2

PWR5V_3

PWR5V_3

HPD3

PWR5V_2

ZD504NC/PDZ24B

12

R542910R

U514 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R543

75 OHM +-5% 1/16W

U515 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R545

100R 1/16W 5%

R546

100R 1/16W 5%

U516 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

D511BAS316

A

1

K

2

R547470K 1/16W 5%

HDMI 3 ESD PROTECTER

C511100NF 16V

(5/7/5)

SDA_3

SCL_3

SMD/ 0402

SMD/ 0402

------><-------

RX2_1-

RX0_1-

RX2_2-

RX2_0+

RX0_C-

RX0_C+

HPD3

RX3_0+
RX3_1+

RX3_C-

RX2_0-

U517 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

RX3_1­RX3_2-

RX3_0-

HDMI3_SCL

U518 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

RX2_C-

RX2_C+

HDMI3_SDA

U519 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

RX2_1+

RX3_2+

RX2_2+

RX0_2+

RX0_0-

RX3_C+

RX0_2-

RX0_1+

RX0_0+

RX3_C-

CEC_3

RX3_2-

HDMI 1 ESD PROTECTER

U503

G529A1TB1U

EN(EN)

1

GND

2

IN3OUT

4

OUT

5

OC

6

R428

100K 1/16W 5%

ARC1_HDMI

SDA_2

SCL_2

PWR5V_2

CEC_2

PWR5V_2

SDA_2

SCL_2

CEC_2

RX2_2+
RX2_2-

RX2_1+

RX2_2-

RX2_2+

RX2_1-

RX2_1+

RX2_0+

RX2_C-

RX2_C+

RX2_0-

RX2_0+

RX2_1-

RX2_C-

RX2_C+

RX2_0-

R533

180R

R552

NC/0R 05 1/ 16W

ARC2_HD MI

ZD503NC/PDZ24B

12

R511

33R 1/16W 5%

ZD501
BAT54

13

R536

NC 4K7 1/16W 5%

Audio Return Channel ( ARC)

CN501

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

MHL_ PWR _EN

R523910R

C513

NC 1UF 6. 3V

R522

75 OHM +-5% 1/16W

R531

100R 1/16W 5%

C500
100NF 16V

D505BAS316

A

1

K

2

R504 100R 1/16W 5%

R526

100R 1/16W 5%

D510BAS316

A

1

K

2

R530470K 1/ 16W 5%

R505 100R 1/16W 5%

R510

820R

R509

10K 1/16W

R537

0R05 1/16W

C508

1uF 10V

U512

74LVC1G125GV

24

5

1

3

DVDD3V33,5,6,8,10,11,14,16,17

3V3SB

R534

47K 1/16W 5%

ARC7

3V3SB 3,5,6,7,10,14

GND3,4,5,6,7,8, 9,10,11,12,13,14,16, 17

ARC

R535

82R

AVDD3V3

DVDD3V3

AVDD3V33,6,7,10

AVDD1V0

C502
100NF 16V

C509100NF 16V

+5V_SW3,4,6,7,10

GND

+5V_SW

AVDD1V03,6,10

ARC3_HDMI

DVDD3V3

DVDD3V3

Q4001

AO3414

AVDD3V3

(5/7/5)

AVDD1V0

SCL_0

SMD/0402
SMD/0402

SDA_0

R574

100R 1/16W 1%

R544

300K

All HDMI 5V needs 10mils

Q402

MMBT3904

All HDMI 5V needs 10milsAll HDMI 5V needs 10mils

C510

10UF 10V

C507

10UF 10V

R548

10K 1/16W 5%

Q501

AO3401A

AVDD33_HD MI

ARC

R549
0R05 1/10W

AVDD10_HD MI

HDMI_CEC

+5V_SW

DVDD3V3

+5V_SW

D506

BAT54C

3

1

2

+5V_SW

R508

10K 1/16W 5%

ARC_SEL_0

ARC_SEL_014
ARC_SEL_114

ARC_SEL_1

R4037

47K 1/16W 5%

HPMI_0_HPD_C BUS

30mil

50mil

H:MHL ON
L:MHL OFF

+5V_SW

MHL_PWR_EN

CN503

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

R577

47K 1/16W 5%

Q406

MMBT3904

Q403
MMBT3904

Q407
MMBT3904

3V3SB

R578

47K 1/16W 5%

HPD2

MHL_ PWR _EN

MHL_PWR_EN14

Analog Power

C746

NC 100NF 16V

SDA_3

SCL_3

CEC_3

PWR5V_3

RX3_0+

RX3_1-

RX3_1+

RX3_2-

RX3_2+

CEC_0

PWR5V_0

RX3_C-

RX3_C+

RX3_0-

RX0_1+

RX0_2-

SDA_0

PWR5V_0

SCL_0

Prevent HDMI leakage from HDMI
device.

RX0_2+

RX0_1-

SDA_0

SCL_0

CEC_0

RX0_2+

RX0_0-

RX0_0+

RX0_1-

RX0_1+

RX0_2-

RX0_C+

RX0_0-

RX0_0+

RX0_C-

RX0_C+

RX0_C-

R7114 47K 1/16W 5%

R550

300K

3V3SB

MHL_ SENSE

ARC_SEL_1

+5V_SW

(5/7/5)

SCL_2
SDA_2

------><-------

ARC2_HDMI

PWR5V_0

R573

20K 1/16W

R554

4K7 1/16W 5%

R7112

47K 1/16W 5%

HDMI 2 INPUT (Down)

R7113

47K 1/16W 5%

HDMI0_SCL
HDMI0_SDA

R539

1K 1/16W 5%

ARC1_HD MI

R7116 47K 1/16W 5%
R7117 47K 1/16W 5%

R7118 47K 1/16W 5%

U521 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R7119 47K 1/ 16W 5%

U522 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U523 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

HDMI 4 ESD PROTECTER

PWR5V_3

SDA_3

SCL_3

CEC_3

RX3_0+

RX3_1-

RX3_1+

RX3_2-

RX3_2+

RX3_C-

RX3_C+

RX3_0-

HDMI2_SCL
HDMI2_SDA

PWR5V_2 PWR5V_3

R503 0R 05 1/ 16W
R572 0R05 1/ 16W

R500

0R05 1/16W

CEC_2
CEC_3

MHL_ SENSE

CEC_0

HDMI-CEC

PWR5V_0

MHL_ SENSE

ARC_SEL_0

R579

47K 1/16W 5%

Q408

MMBT3904

Q409
MMBT3904

3V3SB

R580

47K 1/16W 5%

MT5593UPIJ

U401-6

HDMI_CEC

G24

HDMI_0_SCL

F26

HDMI_1_SCL

G30

HDMI_2_SCL

G31

HDMI_3_SCL

D34

HDMI_0_SDA

F27

HDMI_1_SDA

G28

HDMI_2_SDA

F33

HDMI_3_SDA

D33

HDMI_0_PWR5V

G26

HDMI_1_PWR5V

E30

HDMI_2_PWR5V

E31

HDMI_3_PWR5V

E34

HDMI_3_HPD

F34

HDMI_1_HPD

F30

HDMI_2_HPD

F31

HDMI_0_HPD_CBUS

F28

AVDD10_HDMI

A30

HDMI_0_RX_0

A20

HDMI_0_RX_0B

B20

HDMI_0_RX_1

A19

HDMI_0_RX_1B

B19

HDMI_0_RX_2

A18

HDMI_0_RX_2B

B18

HDMI_0_RX_C

A21

HDMI_0_RX_CB

B21

HDMI_1_RX_0

C23

HDMI_1_RX_0B

D23

HDMI_1_RX_1

C22

HDMI_1_RX_1B

D22

HDMI_1_RX_2

A22

HDMI_1_RX_2B

B22

HDMI_1_RX_C

A24

HDMI_1_RX_CB

B24

HDMI_2_RX_0

A26

HDMI_2_RX_0B

B26

HDMI_2_RX_1

C25

HDMI_2_RX_1B

D25

HDMI_2_RX_2

C24

HDMI_2_RX_2B

D24

HDMI_2_RX_C

C26

HDMI_2_RX_CB

D26

HDMI_3_RX_0

C28

HDMI_3_RX_0B

D28

HDMI_3_RX_1

A28

HDMI_3_RX_1B

B28

HDMI_3_RX_2

C27

HDMI_3_RX_2B

D27

HDMI_3_RX_C

C29

HDMI_3_RX_C B

D29

AVDD33_HD MI

P27

MHL_ SENSE

F24

AVDD10_HDMI

B30

AVDD33_HD MI

P28

ARC3_HD MI

TP512 TP

TP511 TP

HDMI0_SCL

AVDD10_HDMI

HPD2

TP513 TP

HPD3

HDMI_0_PWR 5V

AVDD33_HDMI

HDMI2_SDA
HDMI3_SDA

HPMI_0_HPD_C BUS

AVDD10_HDMI

HDMI2_SCL

TP510 TP

HDMI_CEC

HDMI0_SDA

HDMI3_SCL

AVDD33_HDMI

U520

74HC4051PW

Y4

1

Y6

2

Z

3

Y7

4

Y5

5

E

6

VEE

7

GND

8

S2

9

S1

10

S0

11

Y3

12

Y0

13

Y1

14

Y2

15

VCC

16

HDMI 1 INPUT (Sid e) (MHL)

RX2_0+

RX2_1-

RX2_1+

RX2_2-

RX2_2+

CEC_2

RX2_C-

RX2_C+

RX2_0-

RX0_1-

RX0_1+

RX0_2-

RX0_2+

CEC_0

RX0_C-

RX0_C+

RX0_0-

RX0_0+

RX3_1+

CN504

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GN D

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

Circuit Diagrams and PWB Layouts

EN 57TPM16.1L LA 10.

2016-Jul-22

back to

div.table

10-3-14 ISDB-T Tuner

19950_519.eps

ISDB-T Tuner

B14 B14

2015-04-14

715G7049

ISDBT Tuner

C4279

10NF 50V

TP733

C4301
27P 50V

C4295

100NF 16V

TP744

TP717

C4284

10UF 6.3V X5R +-20%

R1316

2K 1/16W 5%

C1325

120PF 50V

R7083

0R05 OHM

R1336 0R05 1/16W

C4291
100NF 16V

TP723

TP736

+3V3_TUNER

IF BPF

GND_TunerGND_Tuner

+3V3_TUNER

+3.3VD

Crystal is 16MHZ

+3.3VD

+3.3VD

+3.3VD+3.3VD

+3.3VD

+1V2

+1V2

DVDD3V3 +1V2

DVDD3V3+3.3VD

TU_FAT_IN2-7

TU_FAT_IN2+7

IF_AGC7

OSCL27

OSDA27

GND3,4,5,6,7,8,9,10,11,12,13,14, 15,17

DVDD3V33,5,6,8,10,11,14,15, 17

+3V3_TUNER3

DEMOD_TSVALID14

DEMOD_TSSYNC14

DEMOD_TS014

DEMOD_TSCLK14

DEMOD_RST14

DEMOD_RESET

TS_S2_CLK

TS_S2_DQ0

TUNER

X40 01

16MHz

1243

TU_FAT_IN2+

TU_FAT_IN2-

TS_S2_VALTS_S2_VAL

SBYTE_ORR

TS_S2_SYNC

C4320

NC 10PF 50V

C4321

NC 10PF 50V

DEMOD_RST

FB1022
120R

1 2

FB1023

120R

1 2

XT_O
XT_I

XT_O
XT_I

DEMOD_IFP
DEMOD_IFN

C1072

1uF 10V

GND_Tuner

DEMOD_RESET

R1082

1K

R1081

1K

TUNER_SCL

TUNER_SDA

R1083

NC 200R 1/ 16W 1%

GND_Tuner

GND_Tuner

GND_Tuner

T_IFAGC

DIF_OUT_P
DIF_OUT_N

D_IF_AGC

R7139

0R05 OHM

T_IFAGC

TP238

IF_AGC

DEMOD POWER

DIF_OUT_N

DIF_OUT_P

OSDA2

+3V3_TUNER

DEMOD_SDA
DEMOD_SCL

SLADRS1

SRCK_ORR

PBVAL_ORR
SRDT_ORR

ISDB_T Demodulator

SLADRS0

D_IF_AGC

AGCCNT I

SLADRS1

DEMOD_TSVALID

DEMOD_TSSYNC
DEMOD_TSCLK

OSCL2

R7156

0R05 OHM

R7157

0R05 OHM

GND_Tuner

IF_AGC

OSCL2

OSDA2

TU_FAT_IN2-

TU_FAT_IN2+

ISDB-T TUNER & Demodulator CIRCUIT

AGC

I2C

DEMOD

DEMOD_RESET:
Reset : Low
Normal : High

DEMOD_TS0TS_S2_DQ0

TU101

NC1NC

2

3.3V

5

NC8DIF(P)10DIF(N)

11

SDA3SCL4NC6NC7IF_AGC

9

TH112TH213TH314TH4

15

TS_S2_SYNC DEMOD_TSSYNC
TS_S2_CLK D EMOD_TSCLK

TS_S2_VAL DEMOD_TSVALID

DEMOD

TU_SDA

TU_SCL

SLADRS0

DVDD3V3

DEMOD_TS0

GND_Tuner

DEMOD_RESET

C1071

1uF 10V

C1067
47pF 50V

C1068

47pF 50V

OSDA2

OSCL2

C1065

1uF 10V

C1066

1uF 10V

DEMOD_IFN

DEMOD_SCL

TUNER_SDA

DEMOD_IFP

DEMOD_SDA

Serial TS output

TUNER_SCL

For ISDB-T

TU_SDA

TP731

C4285

100NF 16V

FB4260

120R

12

TP746

C4296
100NF 16V

C4299

10UF 6.3V X5R +-20%

TP725

C4293

10UF 6.3V X5R +-20%

RP4252

33 OHM +-5% 1/16W

1

2

3

4

8

7

6

5

FB4253
120R

12

C4275

100NF 16V

C4280
1uF 10V

C4289

10UF 6.3V X5R +-20%

TP721

R7087
10K 1/10W

TP730

R7096

1.2K OHM

R7095

1M 1/10W 5%

R7104
NC 10K 1/16W 5%

TP713

R7088

NC/ 10K+-5%1/16W

C4283

100NF 16V

C4276

100NF 16V

TU_SCL

R1313

33R 1/10W 5%

C4294
100NF 16V

C0402

TP724

TP729
FB4255
120R

12

R7098

100OHM

TP732

TP740

R1335

0R05 1/16W

TP742

R7089

NC/ 10K+-5%1/16W

FB4254
120R

12

RESET CIRCUIT

C4281

1nF 50V

C4282
470PF 50V

TP727

C4287

100NF 16V

C4288

100NF 16V

R1326 N C / 0R 05 1/ 16W

TP712

TP726

TP739

R7090

10K 1/16W 5%

DEMOD_RST

R1308

33R 1/16W 5%

C4302
27P 50V

R7085
0R05 OHM

R7094

47K 1/16W

C4292

100NF 16V

FB4257

120R

1 2

TP737

TP728

TP719

R7091

10K 1/16W 5%

R1303

47R +-1% 1/16W

FB4259
120R

12

R1309

47R +-1% 1/16W

TP714

C4297

100NF 16V

TP734

R7103

4.7K 1/16W

R1302

33R 1/16W 5%

TP743

FB4256

120R

1 2

R1320

2K 1/16W 5%

C4303

10NF 50V

C4300

100NF 16V

R7086
0R05 OHM

U4254
uP0126BJT3-12

VI3VO

2

GND14

4

TP738

R7101
10K 1/16W 5%

C4278

100NF 16V

C4286
NC 10PF 50V

R7102

4.7K 1/16W

R7093

NC 0R05 OH M

TP716

TP745

R7092

20K OHM 1/16W 1%

TP735

TP720

R7100

100OHM

1.2V

U4253

TC90537FG

VSS

47

VDDS

14

GPIO1

4

GPIO2

5

SBYTE

16

AGCCNT1

18

XO

23

SLADRS1

29

PLLVSS

26

SYRSTN42VPGM

41

VDDC

32

ADCVSS

34

VREFH

36

STSFLG143SCL

45

VSS

31

ADCVDD

33

TNSCL

20

TNSDA

21

AINN Q40AINN I38AINP I

37

STSFLG044SDA

46

RSEORF

15

XI

24

VREFL

35

AINP Q

39

SLADRS0

17

CKI

28

VDDC

1

VSS

13

SRCK

12

PBVAL

11

SRDT

10

SLOCK

9

RLOCK

8

RERR

7

SLPEN

6

VDDS

48

VSS

2

GPIO0

3

AGCCNT R

19

XCKO

22

PLLVDD

25

VDDC

27

TSMD

30

TP722

FB4258
120R

12

XTAL

TP715

C4298

100NF 16V

R7099

100R

TP741

R7097

0R05 OHM

R1325 N C / 0R 05 1/ 16W

R7084

0R05 OHM

C1326

120PF 50V

C4290

10UF 6.3V X5R +-20%

Circuit Diagrams and PWB Layouts

EN 58TPM16.1L LA 10.

2016-Jul-22

back to

div.table

10-3-15 Ambient Light

19950_520.eps

Ambient Light

B15 B15

2015-04-14

715G7049

Ambient Light

FB752

NC 120R

1 2

+12V

C760

NC/4.7UF 10V

R755

NC 10K 1/ 10W 5%

AMBIL_SPI_CLK
AMBIL_SPI_DO

R1401

NC 0R 05 1/ 16W

+12V

+12V_Ambient Light Switch.

PANE L _VCC ON/OF F :(TCON0)
Normal:High
Stand_By:Low

AL+KEY

AMBIL_SPI_DO

R1403

NC 0R 05 1/ 16W

C1405

NC 22PF 50V

Ambient Light

PANEL_VCC_ON/OFF4,10

PANEL_VCC_ON/OFF

DVDD3V3

Key1

Key1 6

Key1

AMBI_TEMP

R1402

NC 0R 05 1/ 16W

AMBIL_SPI_CLK

AMBIL_SPI_CLK

+12V_AMBI

C1400

NC 10UF 16V

FB1402

NC 120R

1 2

C1401

NC 100N F 16V

CN1404

NC CONN

1
2

3

4
5
6
7

8

9
10
11
12

14
15
16
17
18
19
20
21
22
23
24
25
26

2728

13

CN402

CONN

1
2

3

4
5
6
7

8

9
10

1112

C1403

NC 1UF 10% 16V

+12V_AL

DVDD3V3

DVDD3V33,5,6,8,10,11,14,15,16

GND3,4,5,6,7,8,9,10,11,12,13,14,15,16

AMBIL_SPI_CLK 14
AMBIL_SPI_DO 14

+12V3,4,6

AMBI_TEMP 14

AMBI_TEMP

AMBIL_SPI_DO

DVDD3V3

+12V_AMBI
AMBI_TEMP

+12V_AMBI

C1404

NC 22PF 50V

GND

+12V_AL

C759

NC 1UF 10% 16V

Q752
NC BC847C

R757

NC 10K 1/ 16W 5%

R756

NC 5. 1KOH M +-5% 1/10W

PANEL_VCC_ON/OFF

R758

NC 10K 1/ 16W 5%

R754

NC 6K8 1/ 10W 5%

Q753 NC AON4421

D

1

D

2

D

3

G

4

S

5

D

6

D

7

D

8

Circuit Diagrams and PWB Layouts

EN 59TPM16.1L LA 10.

2016-Jul-22

back to

div.table

10-3-16 SSB layout top

19950_521.eps

715G7049

LAYOUT TOP

U401

C407

C434

C449

C453

C4162

C4163

C4168

C4313

C4314

C4164

C480

C4167

C470

C474

C476

C1115

C4153

C4026

C1403

C4006

C4315

C1400

C731

C400

C401

CN409CN408

C1039

C1040

C4016

C4022

C4024

C4031

C4035

C4036

C4043
C4044

C4045

C4106

C4107

C4113

C4115

C4117

C4178

C4183

C4247

C4251

C4284

C4289

C4290

C4293

C4299

C443

C501

C5016

C5019

C5020

C5021

C5023

C5024

C5030

C522

C608

C614

C625

C633

C637

C700

C604

C715

C723

C745

C750

C751

C764

C4013

C402

C408

C4160

C4166

C4241

C4242

C4245

C4246

C4250

C4252

C431

C440

C471

C5025

C507

C510

C617

C619

C634

C635

C638

C639

C702

C711

C712

C720

C727

C728

C732

C737

C749

C763

C767

C768
C769

C773

C779

C786

C787

C1080

C4015

C4108

C4111

C4189

C701

C706

C752

C754

C758

C774

C775

FB1001

FB1022

FB1023

FB1402

FB400

FB401

FB4250

FB4253

FB4254

FB4255

FB4256

FB4257

FB4258

FB4259

FB4260

FB603

FB633

FB704

FB705

FB706

FB710

FB712

FB750

FB751

FB754

FB755

L701

L705

L601

L602

L603

L604

R1313

R402

R403

R405

R406

R4102

R4106

R417

R4266

R4267

R4280

R4287

R4291

R4297

R441

R442

R443

R445

R549

R704

R706

R7087

R709

R7095

R7096

R7097

R7133

R7139

R729

R751R752
R753

R4066

R411

R4284

R4289

R4277

R630

R631

D505

D510

D511

D633

ZD4101

ZD4102

ZD503

ZD504

X4000

C643

C644

C736

C645

R4288

R741

C4208

C734

R4202

C771

X4001

C759

C760

FB752

R754

R755

R756

TH4100

TH4101

TH4102

C4019

C4320

C4321

TP1221

H10

TP1216

TP1205

TP1202

TP1201

TP1207

TP1208

TP1204

TP1203

TP1220

TP1219

TP1222

TP1215

TP1224

TP1223

TP1218

TP1217

TP1214

TP1213

TP1212

TP1211

TP1210

TP1209

TP1206

C409
R423

C489

R669

R668

C738

C739

HS401

R4264
R4265

R456
C487

R454
C485

R460

C491

R461

C492

R455

C486

R457

C488

R1011

R424

R4127

R4128

R4168

R4175

R1071

R4129

R4131

R4132

R4130

R435

R436

R4123

R4124

R433

R4001

R4005

C403

C405

C4161

C444

C450

C454

C426

C427

C430

C4312

C452

C433

C438

C436

C439

C445

C446

C437

C447

C448

C481

C4169

C4170

C451

C4171

C4173

C4174

C4179

C4180

C4181

C4182

C4191

C4192

C4195

C4210

C4213

C1010

C4218

C4219

C423

C424

C425

C1325

C472

C473

C475

C4188

C1326

C1067

C455

C459

C460

C461

C463

C464

C465

C466

C467

CN1404

CN104

CN412

CN604

CN501

CN503CN504

CN4102

HS601

C1009

C1024

C1025

C1065
C1066

C1068

C1071

C1072

C1116

C1117

C1401

C1404

C1405

C4004

C4005

C4008

C4009

C4010

C4011

C4012

C4014

C4017

C4018

C4020

C4021

C4023

C4033

C4034

C4037

C4038

C4039

C404

C406

C415

C416

C740

C4116

C741

C4126

C4127

C4128

C4129

C780

C4130

C4131

C781

C411

C4155

C4158

C417

C4172

C4175

C418

C419

C4193

C4194

C420

C4201

C4207

C421

C422

C4244

C4253

C4258

C4259

C4260

C4261

C4262

C4263

C4275

C4276

C4278

C4279

C428

C4280

C4281

C4282

C4283

C4285

C4286

C4287

C4288

C4291

C4292

C4294

C4295

C4296

C4297

C4298

C4300

C4301

C4302

C4303

C4317

C456

C4607

C462

C468

C469

C477

C478

C479

C482

C483

C500

C5010

C5011

C5014

C5015

C5017

C5018

C502

C5022

C5026

C5027

C5028

C5031

C5032

C508

C509

C511

C513

C601

C602

C603

C606

C607

C610

C611

C612

C613

C615

C616

C618

C620

C621

C622

C623

C626

C627

C628

C629

C630
C631

C632

C636

C703

C713

C714

C716

C717

C718

C721

C726

C729

C730

C735

C742

C743

C744

C765

C788

RP4252

CN700

ZD4103

ZD4104

ZD4105

ZD4106

Q4020

Q702

Q750

C766

U4052

L4201

L702

CN402

U702

R1012

R1033

R1034

R1081

R1082

R1083

R1087

R1088

R1302

R1303

R1308

R1309

R1316

R1320

R1325

R1326

R1335

R1336

R4068

R1401

R1402

R1403

R400

R4007

R4009

R401

R4010

R4011

R4013
R4014

R4016

R4017

R4018

R4019

R4020

R4021

R4022

R4023

R4028

R4029

R4030

R4031

R4032

R4033

R4034

R4035

R4036

R404

R4040

R4053

R4054

R4055

R4056

R4057

R4058

R4059

R4060

R4061

R4062

R4063

R4065

R408

R409

R410

R4100

R4104
R4105

R4109

R4110

R4111

R4112

R4114

R765

R4117

R4118

R4119

R412

R4121

R4122

R4125

R4126

R413

R4133

R4134

R4135

R4136

R4137

R4138

R414R415

R4150

R4151

R4152

R4156

R416

R4160

R4165

R4166

R4167

R4170

R4171

R4177

R4178

R418

R419

R4192

R420

R665

R666

R438

R439

R4250

R4251

R4252

R4253

R426

R4262

R4269

R427

R4273

R539

R4064

R4258

R429

R4294

R4295

R4296

R4298

R430

R431

R4314

R4315

R432

R434

R421

R440

R444

R667

R500

R503

R504
R505

R508

R509

R510

R511

R522

R523

R526

R530

R531

R533

R534

R535

R536

R537

R540

R542

R543

R544

R545

R546

R547

R548

R550

R552

R554

R572

R573

R574

R577

R578

R579

R580

R581

R582

R601

R602

R603

R604

R605

R606

R607

R608 R609

R610

R611

R612

R613

R614

R616
R617R618

R619

R620

R621
R622

R623 R624

R625
R626

R627

R628

R629

R633

R634

R635

R636
R637

R660

R701

R702

R703

R705

R707

R708

R7083

R7084

R7085

R7086

R7088

R7089

R7090

R7091

R7092

R7093

R7094

R7098

R7099

R7100

R7101

R7102

R7103

R7104

R7105

R7106

R7107

R7108

R7110

R7112
R7113

R7114

R7116

R7117

R7118

R7119

R712

R7121

R713

R7131

R7132

R714

R7142

R7143

R7144

R7145

R7146

R715

R7155

R7156

R7157

R716

R7163

R7165

R7166

R7167

R7168

R7169

R717

R718R719

R723

R724

R727

R728

R730

R731

R732

R733

R734

R735

R737

R739

R750 R759

R771

R772

R773

U514

U515

U516

U517

U518

U519

U521

U522

U523

D703

D704

U4254

U707

U4250

U512

U4251

U503

Q501

Q706

D4000

D4001

ZD501

Q701

Q751

Q758

Q400

Q401

Q402

Q403

Q406

Q407

Q408

Q409

Q410

Q602 Q603

Q700

U410

Q4001

Q4002

Q604

U701

U706

U520

X1

X2

X3

S2

S3

S1

C410

C412

C413

C414

C782

C783

C762

R4037

R4254

R422

R425

R470

R471

R659

R661

R662

R663

R664

R670

R7127

R7128

R7129

R7147

R7148

R7159

R7161

R766

R767

X5

C746
R428

R4285

R4286

R4290

R671

R672

R673

R4042

U705

C4243

U402

U403

U404

U405

U406

R4278

Q605

R655

R656 R657

R658

R674
R675

R676

R677

Q601

R679

R680

R681

U4601

R437

C4186

C784

C785

R682

R683

R684

R685
R686

R687

R688

Q608

Q606

Q607

CN4100

CN4101

CN4252

X12

X15

X17

CN6005

CN6003

CN600

C709

CN4250

C748

C770

CN401

ZD1101

ZD1102

ZD1103

ZD1104

ZD1105ZD1106

U708

R1072

R4067

R4255

R4256

R4257

R689

R690

R691

R692

R693

R694

R695

R696

R697

R698

R699

R720

R721

U1101

D506

Q4003

Q609

Q753

R757

R758

Q752

U711

U710

U4253

U409

U601

C755

C756

C757

R407

C490

R452
R453

R458

R459

R7164

TU101

C747

R4002

R4003

Circuit Diagrams and PWB Layouts

EN 60TPM16.1L LA 10.

2016-Jul-22

back to

div.table

10-3-17 SSB layout bottom

19950_522.eps

715G7049

LAYOUT BOTTOM

C432

C4025

C4027

C722

C733

C441

TP627

TP819

TP482

TP820

TP057

TP058

TP118

TP238

TP285

TP337

TP353

TP604

TP605

TP606

TP607

TP823

TP616

TP617

TP618

TP619

TP620

TP622

TP623

TP624

TP625

TP626

TP712

TP713

TP714

TP715

TP716

TP717

TP719

TP720

TP721

TP722

TP723

TP724

TP725

TP726

TP727

TP728

TP729

TP730

TP731

TP732

TP733

TP734

TP735

TP736

TP737

TP738

TP739

TP740

TP741

TP742

TP743

TP744

TP745

TP746

TP821

TP822

TP825

TP827

TP828

TP824

TP830

TP621

TP826

TP829

TP001

TP74

TP75

TP76

TP80

TP448

TP449

TP450

TP451

TP452 TP453

TP454

TP455

TP456

TP459

TP461

TP462

TP463

TP464

TP468

TP470

TP471

TP472

TP486

TP487

TP510

TP511

TP512

TP513

TP603

TP608

TP609

TP610

TP611

TP612

TP613

TP614

TP700

TP701

TP702

TP703

TP704

TP705

TP706

TP710

TP711

TP808

TP811

TP814

TP815

TP816

TP817

TP818

TP831

R4107

R4108

C4311

C435

C4184

C4185

C4211

C4212

C4214

C457

C458

C429

C4310

C484

C724

C725

R678

X18

X24

X25

Circuit Diagrams and PWB Layouts

EN 61TPM16.1L LA 10.

2016-Jul-22

back to

div.table

10.4 J 715G8009 IR/LED Panel

20050_526.eps

IR & LED & Light Sensor

J J

2015-08-26

715G8009

IR & LED & Light Sensor

C201

1uF 10V

St andby LED

3V3SB

R204

100R 1/16W 5%

R203

NC/ 2K7 1/ 16W 5%

RC-IR

RC-IR

3V3SB

LS_SDA

LS_SCL

DVD3V3

LED201

GPSS008RC4

12

Red

DVD3V3

U221
NC/ JSA-1130

ADDR

1

VDD

2

GND3SCL

4

SDA

5

INT

6

R224

NC/ 0R 05 1/ 16W

Light Sensor

R222

NC/ 10K 1/ 16W 5%

C222 NC/ 1uF 10V

R221

NC/ 10K 1/ 16W 5%

LS_SCL

LS_SDA

R223

NC/ 0R 05 1/ 16W

JSA-1130

R223R224

JSA-1130NCNC 0R

0R

I2C addr

0x45

0x44

C221 NC/ 100N 16V

LS_SDA
LS_SCL

DVD3V3

C202

1uF 10V

IR Receiver

3V3SB

R202

1K 1/16W 5%

LED_R

Q201
BC847BW

LED_R

R201
100R 1/16W 5%

ZD201

MLVG0402

12

U201

TSOP75436TR

GND

1

VCC

2

Vout

3

GND

4

CN201

1
2

3

4
5
6
7

8

9
10
11
12
13

1415

3V3SB

10-4-1 IR & LED & Light Sensor

Circuit Diagrams and PWB Layouts

EN 62TPM16.1L LA 10.

2016-Jul-22

back to

div.table

10-4-2 IR/LED board layout

20050_527.eps

2015-08-27

715G8009

IR/LED panel

layout top/bottom

U201

CN201

R204

R202

R203

Q201

Q1

Q3

C201

C202

ZD201

U221

LED201

C221

C222

R201

R221

R222

R223

R224

Q2

Q4

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 63TPM16.1L LA 10.

2016-Jul-22

back to

div.table

10.5 J 715G8010 IR/LED Panel

20030_547.eps

IR & LED & Light Sensor

J J

2015-08-26

715G8010

IR & LED & Light Sensor

C201

1uF 10V

St andby LED

3V3SB

R204

100R 1/16W 5%

R203

NC/ 2K7 1/16W 5%

RC-IR

RC-IR

3V3SB

LS_SDA

LS_SCL

DVD3V3

LED201

GPSS008RC4

12

Red

DVD3V3

U221
NC/ JSA-1130

ADDR

1

VDD

2

GND3SCL

4

SDA

5

INT

6

R224

NC/ 0R 05 1/ 16W

Light Sensor

R222

NC/ 10K 1/ 16W 5%

C222 N C / 1uF 10V

R221

NC/ 10K 1/ 16W 5%

LS_SCL

LS_SDA

R223

NC/ 0R 05 1/ 16W

JSA-1130

R224 R223

JSA-1130NCNC 0R

0R

I2C addr

0x45

0x44

C221 N C / 100N 16V

LS_SDA
LS_SCL

DVD3V3

C202

1uF 10V

IR Receiver

3V3SB

R202

1K 1/16W 5%

LED_R

Q201
BC847BW

LED_R

CN201

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13

1415

R201
100R 1/16W 5%

ZD201

MLVG0402

12

U201

TSOP75436TR

GND

1

VCC

2

Vout

3

GND

4

3V3SB

10-5-1 IR & LED & Light Sensor

Circuit Diagrams and PWB Layouts

EN 64TPM16.1L LA 10.

2016-Jul-22

back to

div.table

10-5-2 IR/LED board layout

20030_548.eps

2015-08-27

715G8010

IR/LED panel

layout top/bottom

R204

R202

CN201

R203

Q201

H7

H9

U201

C201
C202

ZD201

R221

R222

C221

C222

U221

R224
R223

R201

LED201

H8

H10

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 65TPM16.1L LA 10.

2016-Jul-22

back to

div.table

Circuit Diagrams and PWB Layouts

19850_524.eps

Key

E E

2014-05-28

715G7088

Key

KEY1

Menu
Right
Left
Down
Up

6-5 short

R04

2K2 1/10W 1%

2-5 short

F1

3-5 short

R01

1K2 1/10W 1%

1-5 short
4-5 short

F2
F3

F5

F3

F1

F4

F2

SW01

TACT SW 6P

3 4

2

1 6

5

7

8

F4
F5

R05

15K 1/10W 1%

Direction

R03

6K8 1/10W 1%

switch

----><----|

Joystick circuit diagram

C06

0.1uF 50V

pin1

0V

0.5V

0.81V

1.65V

2.27V

pin2

No function

pin3

3.3V

C04

NC / 100N 50V

pin4 pin5

C05

NC / 100N 50V

pin6

----><----|

C01

NC / 100N 50V

C02

NC / 100N 50V

C03

NC / 100N 50V

----><----|

----><----|

----><----|

Down

Up

Center

CN01

CONN

1
2

34

R02

0R05 1/ 10W

0R

2K2

Key functionResistance

Center

CH+

CH-

1K2

VOL-

VOL+

Left

15K

6K8

Right

Voltage

JOYSTICK

10.6 E 715G7088 Keyboard control panel

10-6-1 Key

EN 66TPM16.1L LA 10.

2016-Jul-22

back to

div.table

Circuit Diagrams and PWB Layouts

19850_525.eps

2014-06-06

715G7088

Keyboard control panel

layout top/bottom

C01

C02

C03

C04

C05

C06

R01

R02

R03

R04

R05

H1

H2

H3

H4

H5

H6

CN01

SW01

SW1

SW2

SW3

SW4

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-6-2 Key board layout

EN 67TPM16.1L LA 10.

2016-Jul-22

back to

div.table

11. Styling Sheets

20170_800.eps

5501 series 43"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0030 Bezel
0040 Rear cover
0050R Stand_R
0050L Stand_L
0095 V0 SHEET
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1184 Speakers
WiFi01 WiFi_USB

Pos No. Description Remarks

0040

1054

1053

1050

1184

1184

0030

WIFI01

1057

1056

0050R

0050L

11.1 5501 series 43"

Styling Sheets

EN 68TPM16.1L LA 11.

2016-Jul-22

back to

div.table

11.2 5501 series 49"

20170_801.eps

5501 series 49"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0030 Bezel
0040 Rear cover
0050R Stand_R
0050L Stand_L
0095 V0 SHEET
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1184 Speakers
WiFi01 WiFi_USB

Pos No. Description Remarks

0040

1054

1053

1050

1184

0030

WIFI01

1057

1057

0095

1184

0050R

0050L

Styling Sheets

EN 69TPM16.1L LA 11.

2016-Jul-22

back to

div.table
