5600系列LED背光源智能电视

使用产品前请阅读用户手册（具体操作详见操
作导引）并请保留备用！

产品外形根据型号不同会有所差异，
请以实际机型为准！

43PFF5657/T3

50PFF5657/T3

43PFF5659/T3

50PFF5659/T3

快速

使用指南

目录

重要信息 3

包装清单 5

电池安装方式 6

安装底座 7

连接 8

打开电视 12

操作导引 13

中国电子信息产品污染控制标识要求 15

2

重要信息

安全
小心触电或发生火灾！

• 切勿让电视机与雨或水接触。切勿将液体容器（

例如花瓶）放置在电视机旁边或上面。如果将液
体洒到了电视机表面或内部，请立即断开电视机
的电源。请与Philips 客户服务中心联系，对电视
机进行检查后再行使用。

• 切勿将电视机、遥控器或电池放在明火或其它热

源（包括直射的阳光）附近。为避免火焰蔓延，请
始终使蜡烛或其它明火远离电视机、遥控器和电
池。

• 切勿向电视机上的通风槽或其它开口中插入任

何物体。

• 旋转电视机时，请确保电源线不会绷紧。电源线

绷 紧 会 使 电 源 连 接 变 松 ，进 而 产 生 火 花 。

小心短 路或起火！

• 切勿将遥控器或电池暴露在雨中、水中或过热的

环境中。

• 请避免电源插头产生拉力。松动的电源插头可能

产生火花或者导致 起火。

小心人身伤害或电视机损坏！

• 需由两个人搬运重量超过25千克的电视机。

• 将电视机安装在机座上时，请仅使用提供的机

座 。将 机 座 牢 固 地 固 定 到 电 视 机 上 。将 电 视 机 放
在水平、平坦且可承受电视机和机座总重量的表
面上。

• 采用壁挂方式安装电视时，请仅使用可承受电视

机重量的壁挂安装托架。将壁挂安装托架固定
到可承受电视机和壁挂安装托架总重量的墙壁
上。
TPV Display Technology(Xiamen)Co.,Ltd.对
由于安装不当而造成的事故、人身伤害或损失不
负任何责任。

3

小心伤害儿童！
请遵循以下注意事项，以避免因电视机掉落而导致
儿童受伤：

• 切勿将电视机放在由可拉动的布或其它材料覆盖

的表面上。

• 确保电视机的任何部分均位于表面边缘以内。

• 将电视机放在较高的家具（如书柜）上时，一定要

将家具和电视机都固定到墙壁或适当的支撑物
上。

• 告知儿童爬上家具触摸电视机可能带来的危

险。

小心误食电池！

• 此产品的遥控器含有电池，有可能被孩童误食，

请将电池放于孩童无法接触的位置。

小心过热！

• 切勿将电视机安装在封闭空间内。 始终在电视

机周围留出至少4英寸或10厘米的空间以便通
风。确保窗帘或其它物体不会遮挡电视机上的通
风槽。

小心损坏电视机！

• 在将电视机连接到电源插座上之前，请确保电源

电压与电视机背面印刷的值相匹配。如果电压不
同，切勿将电视机连接到电源插座上。

• 电视长期不使用的情况下，请切断电源。

小心人身伤害、起火或电源线损坏！

• 切勿将电视机或任何物体放在电源线上。

• 电源插头作为断开装置，应当保持能方便地操

作。

• 断开电源线时，应始终握住插头，而不能拉电

缆。

• 雷雨天气来临之前，请断开电视机与电源插座及

天线的连接。 在雷雨天气里，切勿触摸电视机、
电源线或天线的任何部分。

• 接入本设备的有线网络天线必须与保护接地隔

离，否则可能会引起着火等危险！

小心听力损害！

• 避免在高音量下或长时间使用耳机或听筒。

4

X

包装清单

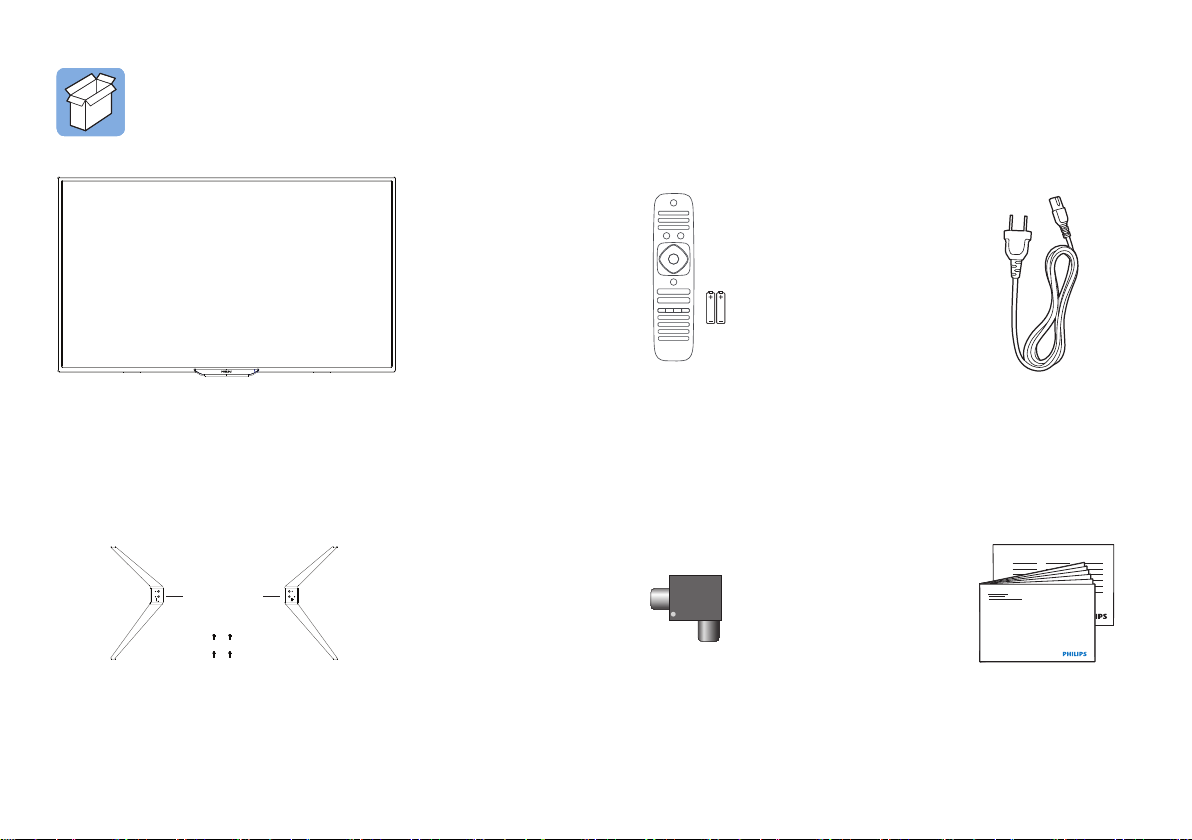

您的产品包装箱内应该含有下列物品：

AAA

电视机(不含底座) 遥控器与

2颗AAA电池

L R

底座含4颗M4 的螺丝

底座（含螺丝）

天线隔离器x1

5

电源线

快速

使用指南

快速使用指南

保修卡

X61

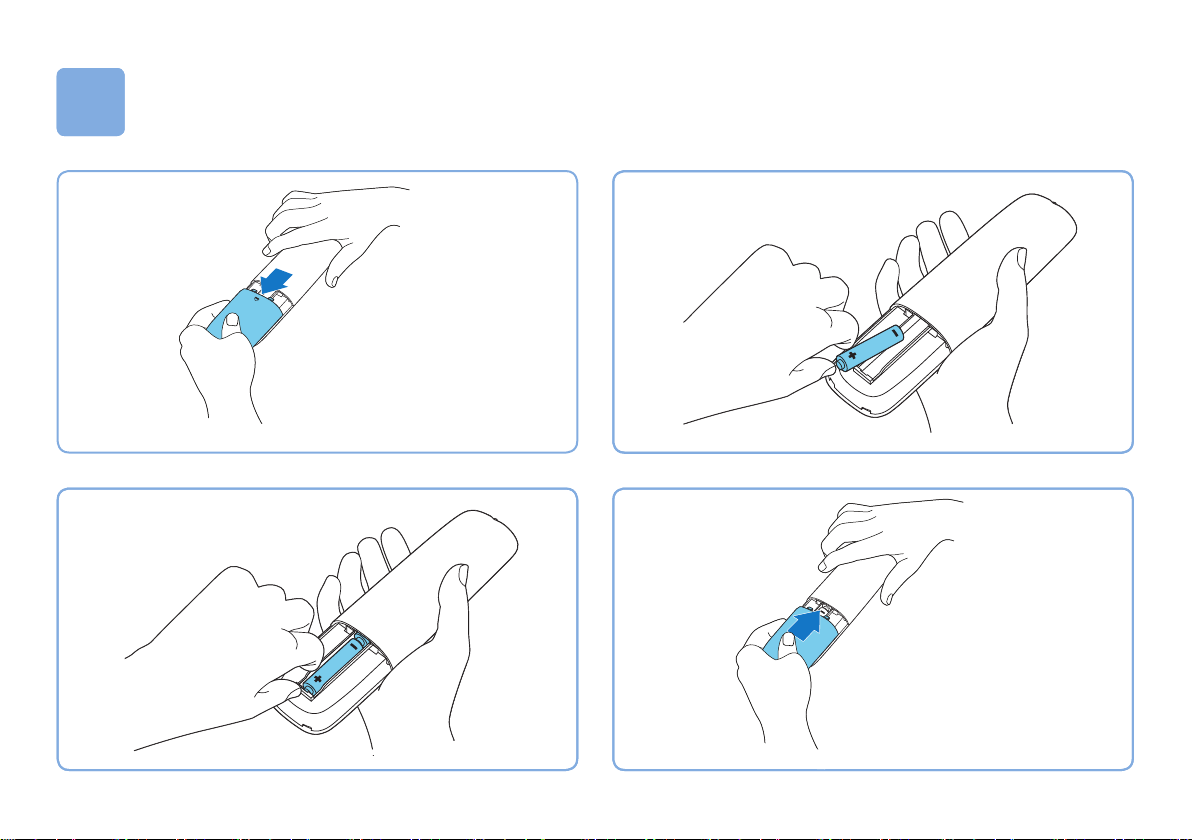

按下遥控器后方的电池盖后打开电池盖 依图所示方向放入2颗AAA电池

电池安装方式

21

43

2

安装底座

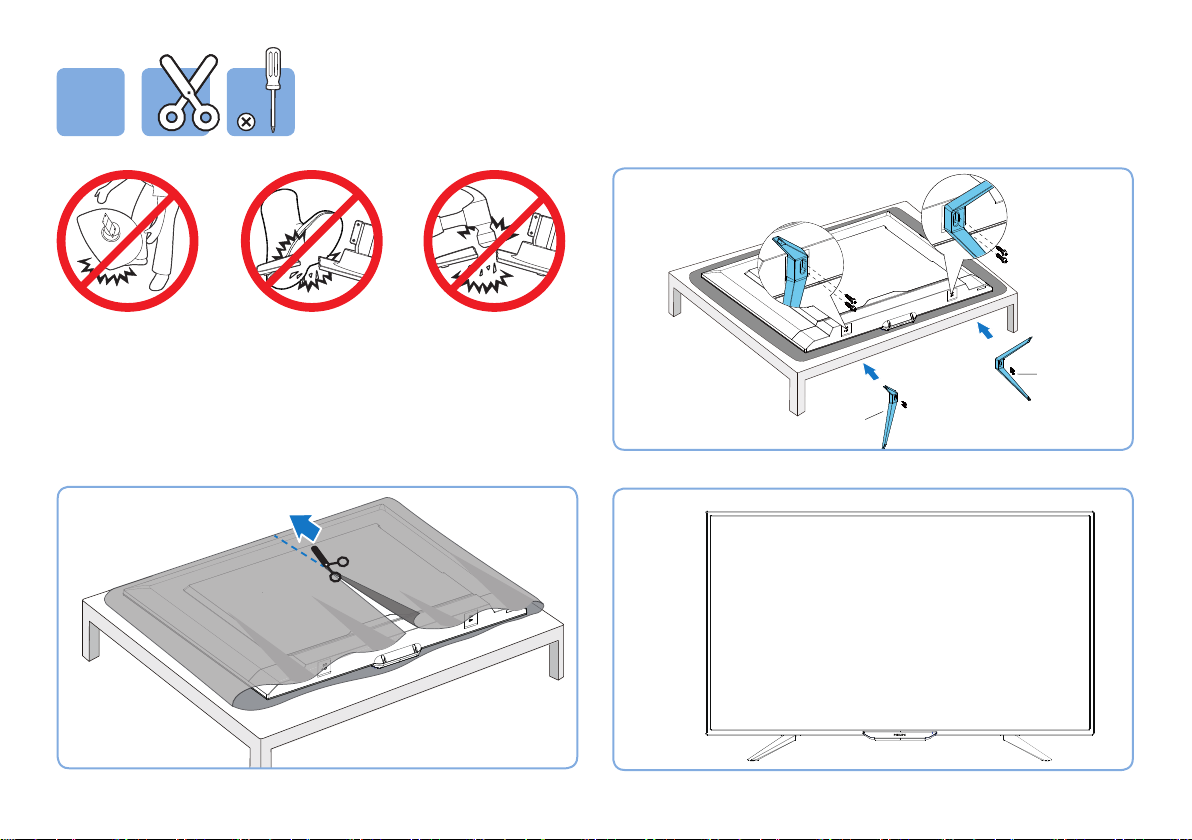

将底座依所示方向装上并锁上螺丝。

2

L

将电视机正面朝下置于平坦处，依图示方向剪开
外包装

1

R

将电视扶起放好

3

7

3

YPbPr & AUDIO L/R

HDMI

视频输入&音频

连接

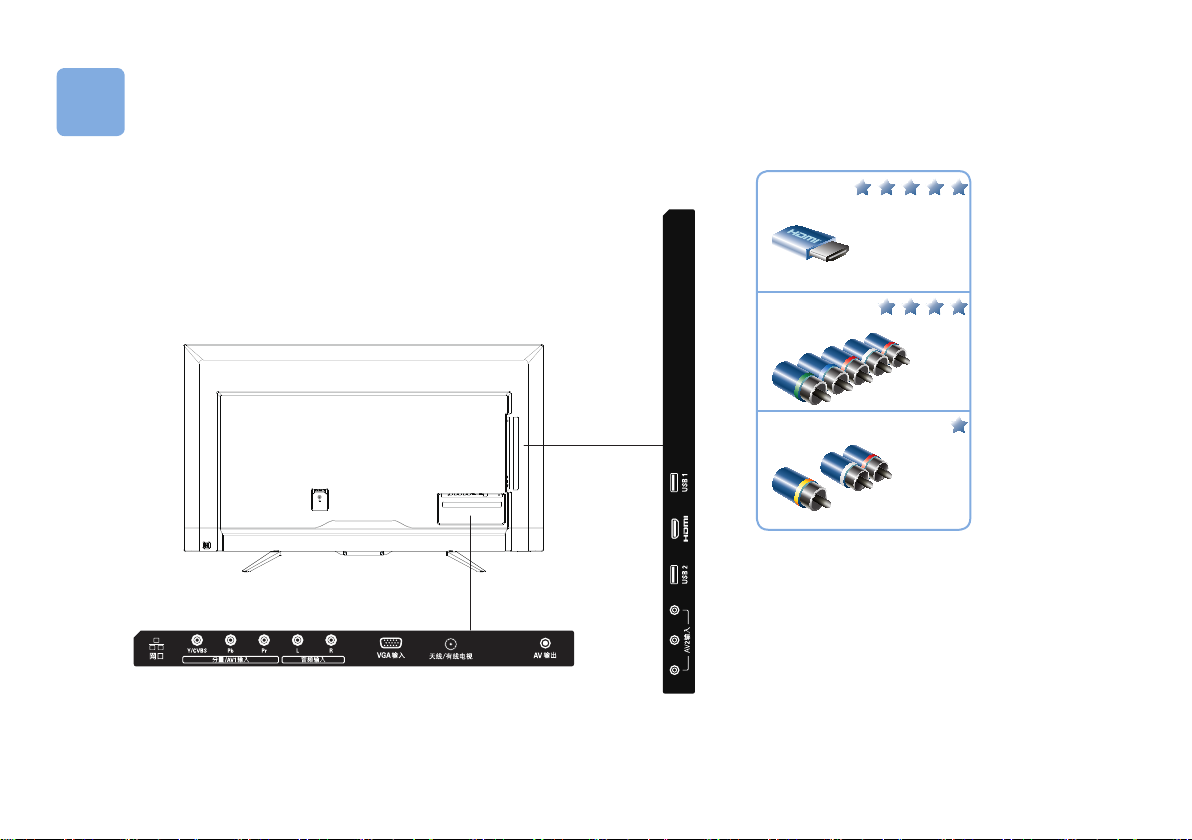

建议使用的影像端子接口:

HDMI:
影像画质最佳

分量端子:
影像画质次佳

AV端子:
影像画质普通

8

视频 & 左右声道

右左视频

视频 & 左右声道

右左视频

HDMI

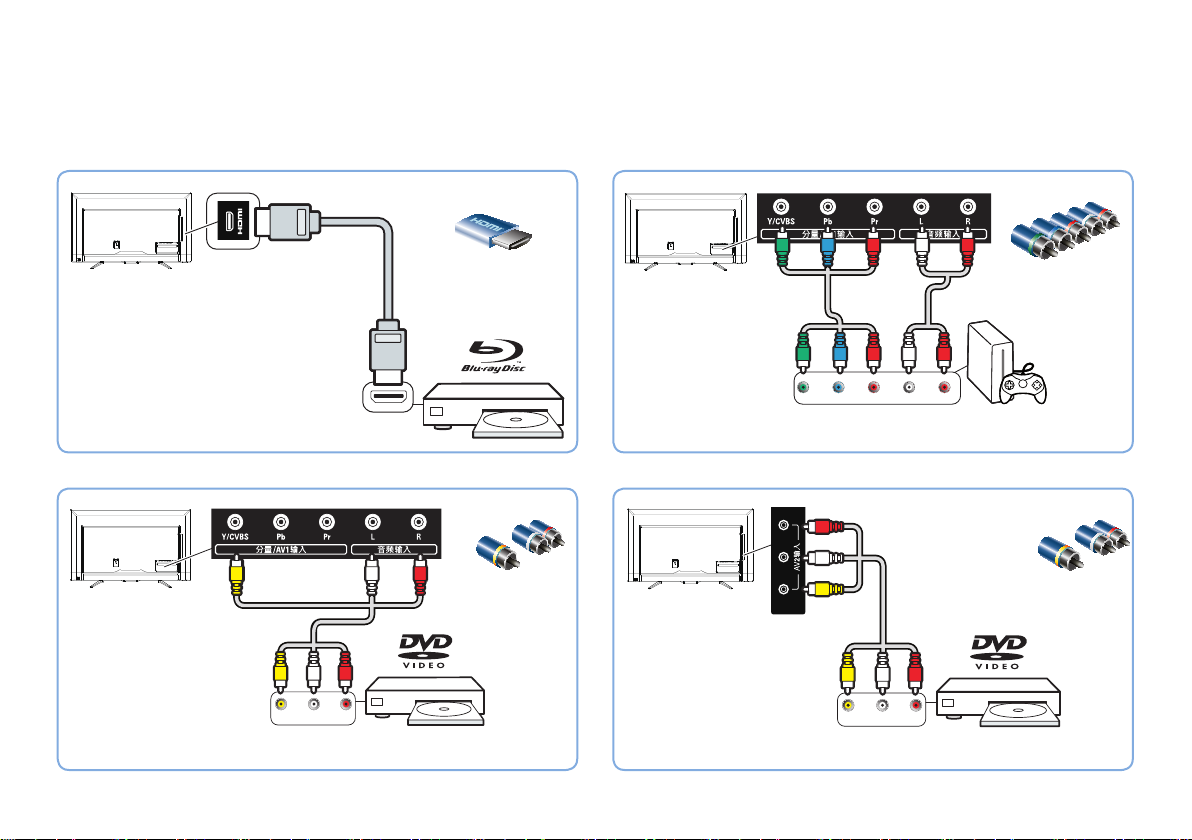

影音端子连接方式

分量信号 & 左右声道

Pb

Y

左 右

Pr

9

4

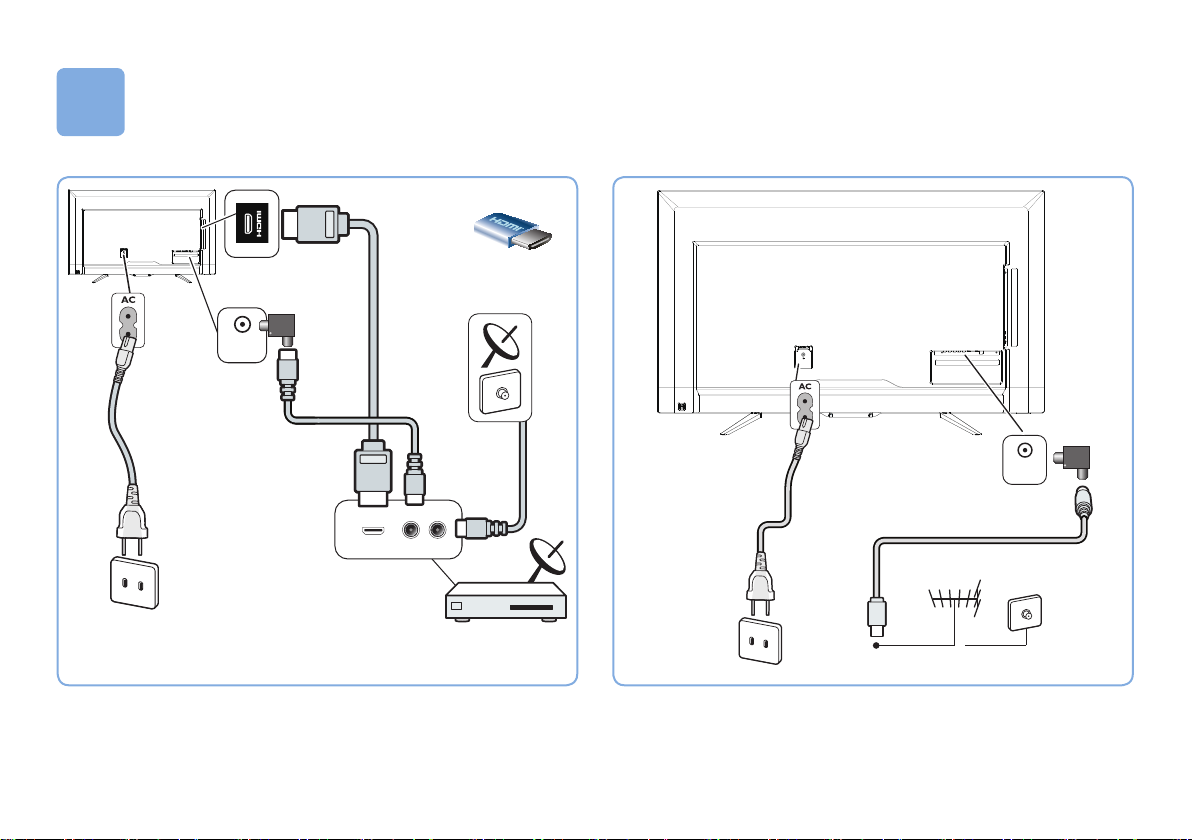

接上电源与电视信号

通过机顶盒连接

天线/

有线电视

天线

通过天线连接

HDMI

天线/

有线电视

输入输出

电缆

我们随机附送天线隔离器,请在安装电视的同时一并安装上天线隔离器(安装方式如上图示)。
请用户在使用前务必确认天线隔离器是否有安装,若为直接接入,电视机的有线网络天线必须与保护接
地隔离,否则可能会引起着火等危险。

10

5

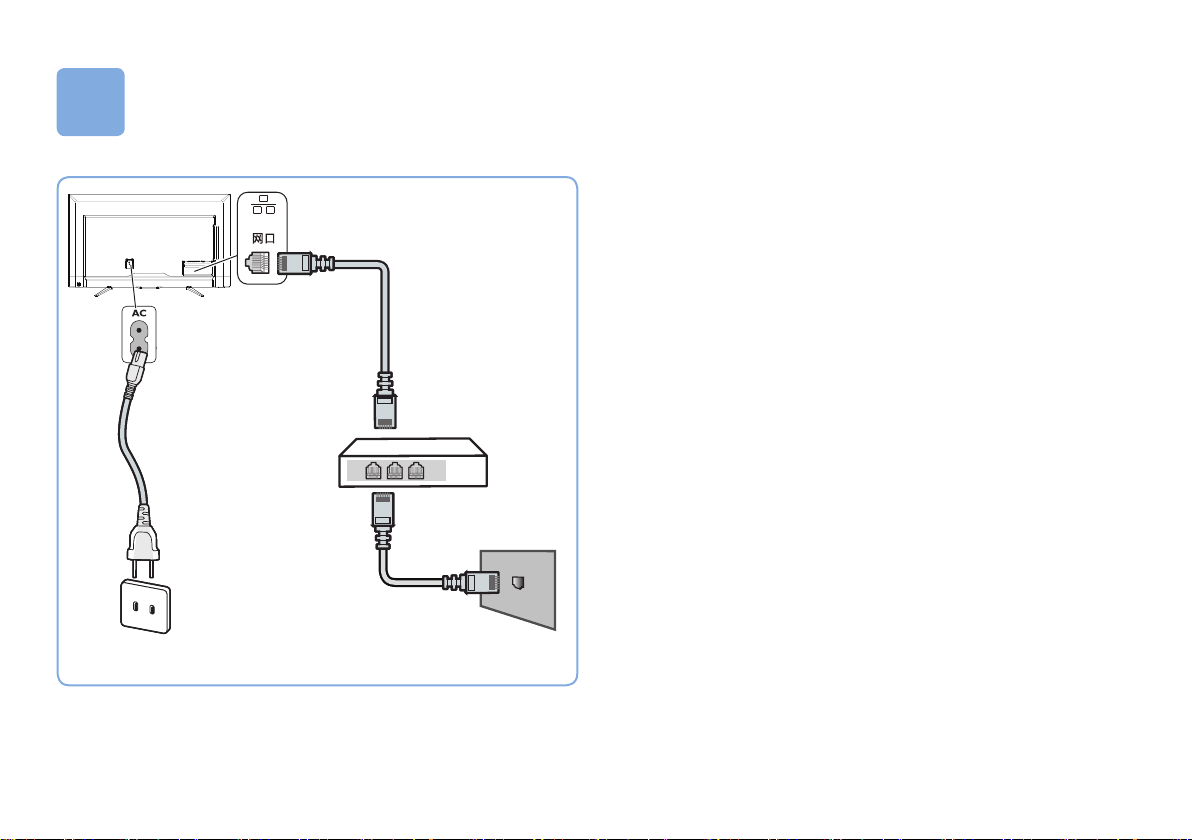

有线安装—通过网络电缆

接上网络信号

路由器

11

6

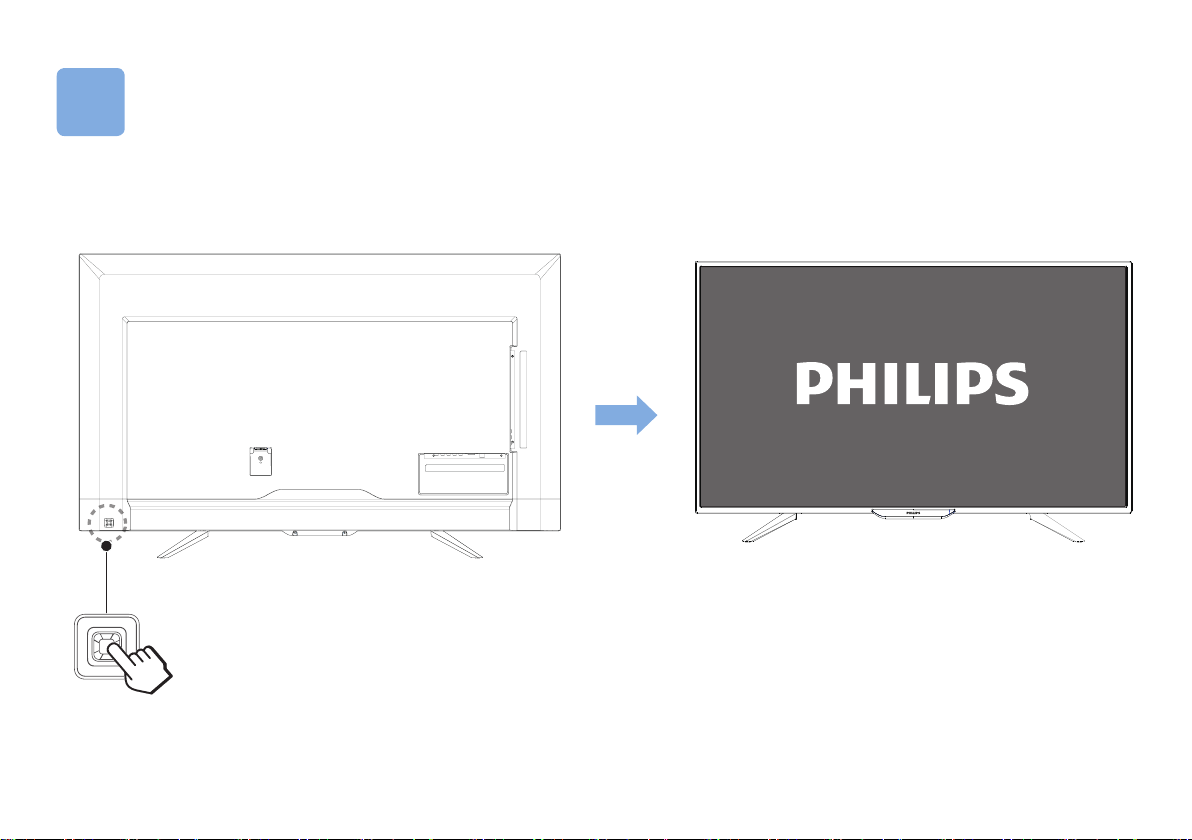

按下电视背面多功能方向键的中间键，打开电视
机。

背视图

打开电视

12

7

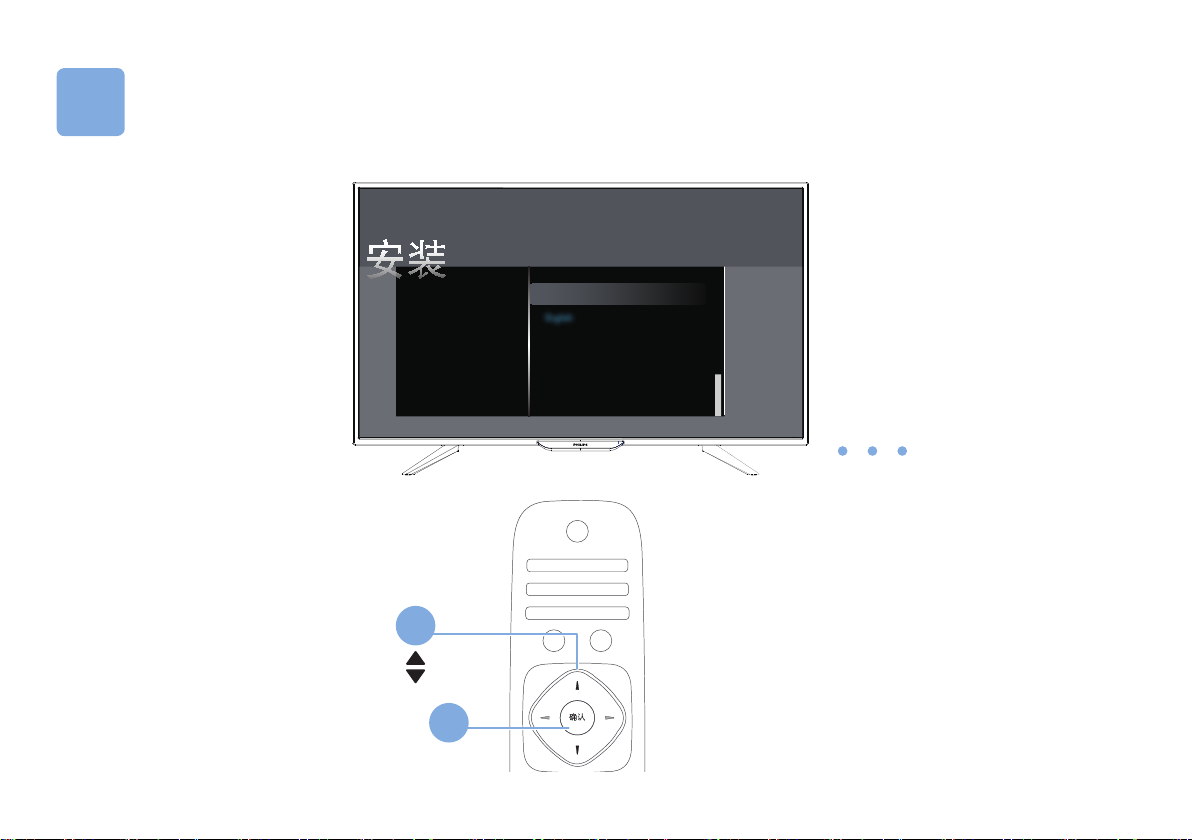

请按照提示，进行电视设置。

操作导引

选择您的语言

1

2

简体中文

English

13

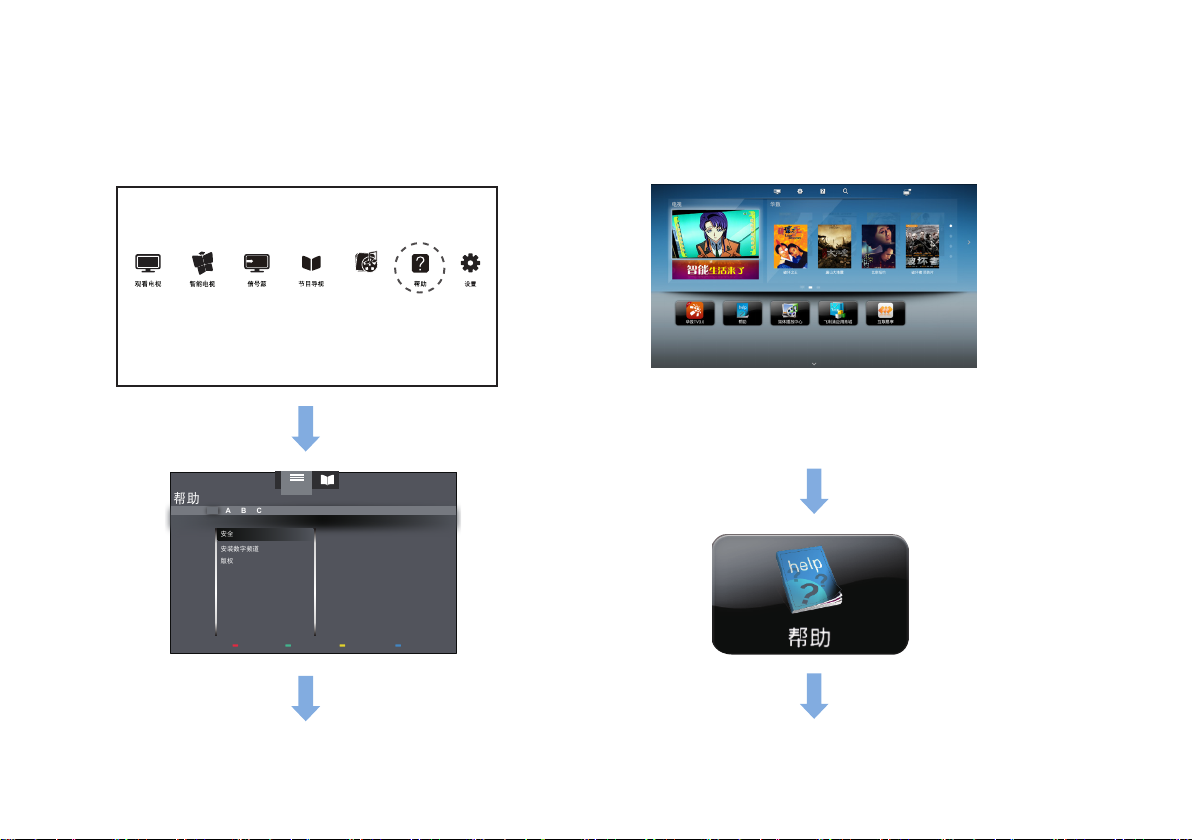

选择帮助，查看用户手册。
方式一： 方式二：

媒体播放中心

（图片及图片中的应用程序仅供参

考，具体请以实际机台为准！）

帮助

*

安全

安装数字频道

版权

保修

变更语言

重排频道

从连接的USB储存设备中观看照

产品规格

创建和使用喜爱频道列表

列表

A B C D F G H J K L M P Q >

目录

- - 关闭

查看用户手册

查看用户手册

14

8

中国电子信息产品污染控制标识要求

本产品有害物质名称及含量

有害物质

零部件名称

塑料外框
后壳

LCD面板

电路板组件*
底座
电源线
其他线材
遥控器
*：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。
本表格根据 SJ/T 11364 的规定编制
○：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572规定的限量要求以下。
×：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572规定的限量要
求。
备注：以上打“×”的部件，应功能需要，部分有害物质含量超过GB/T 26572规定的限量要
求，但符合欧盟RoHS 法规要求（属于豁免部分）。

CCFL
LED

铅（Pb） 汞（Hg） 镉（Cd） 六价铬

（Cr(VI)）

○ ○ ○ ○ ○ ○
○ ○ ○ ○ ○ ○

× × ○ ○ ○ ○
× ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○

○ ○ ○ ○ ○ ○

× ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○

多溴联苯
（PBB）

多溴二苯醚

（PBDE）

15

该电子电气产品含有某些有害物质，在环保使用期限内可以放心使用，超过环保使用期限之后则应该
进入回收循环系统。

《废弃电器电子产品回收处理管理条例》提示性说明
为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品回收
处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。

16

X

www.philips.com/support

更多操作信息请参考PHILIPSsupport网站。

www.philips.com.cn

17

所有注册和未注册的商标是其各自所有者的财产。

规格如有变更，恕不另行通知。

Philips 和 Philips 盾牌图形是皇家飞利浦有限公司的注册商标，

其使用需遵循皇家飞利浦有限公司的许可。

出版日期：2015年5月

USB 升级方式

1.拷贝对应机种名软体，如40PFF5650T3

EBONYLite_40PFF5650T3_CN_MSD8561VXM_PCB715G7204_USB_FullHD_TPV_LV
M400J6PE1ADP2P0X_V2.01_20141211.bin到U盘根目录。

2.插U盘到电视USB接口。

3.AC上电or RC power on

4.TV自动升级(LED灯闪烁)，升级完成后会自动开启，升级过程请勿断电。

5.升级完成后，按RC“功能列表+1999+返回”，进工厂菜单进行reset。

ISP 升级方式

必须用 v4.6.t2 以上版本的 ISP tool 工具.

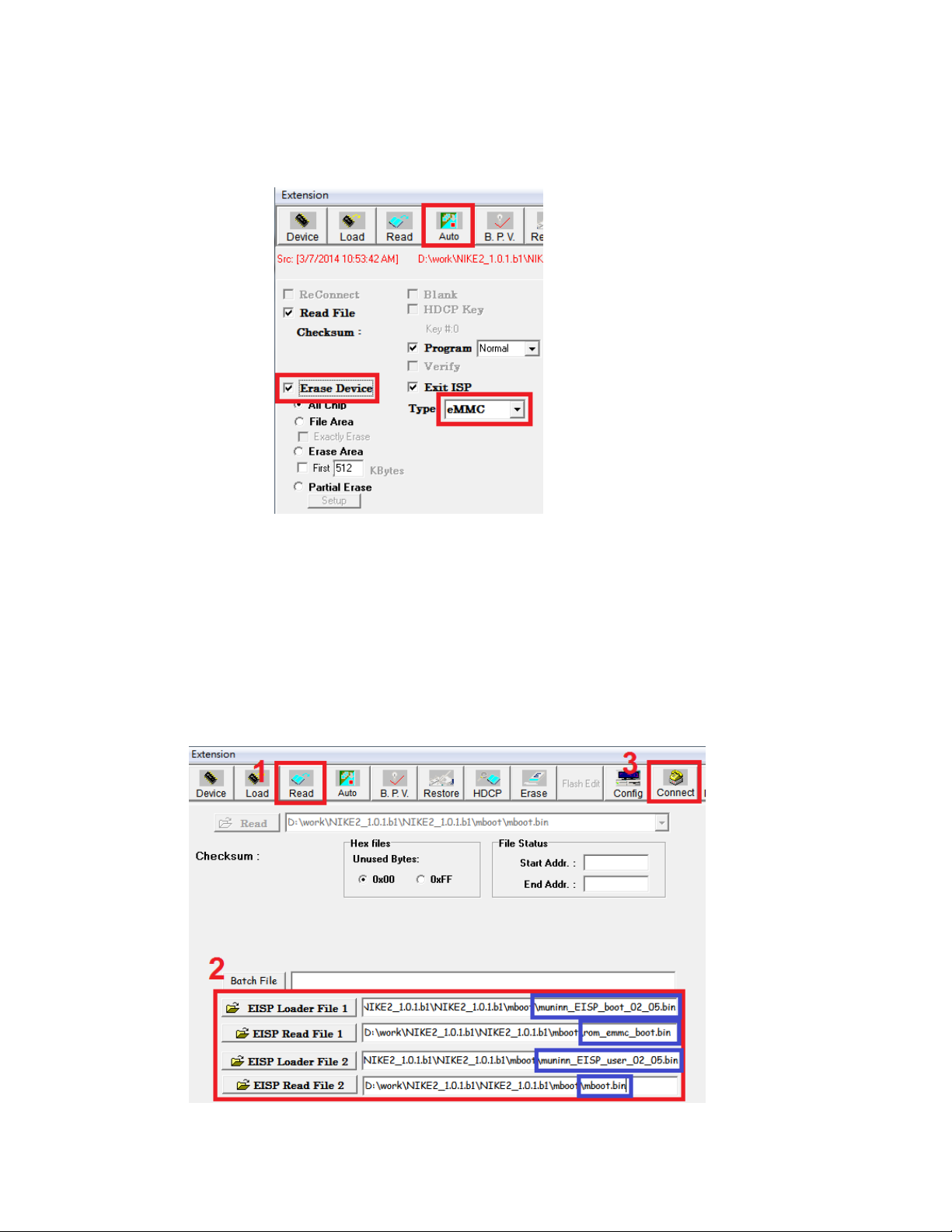

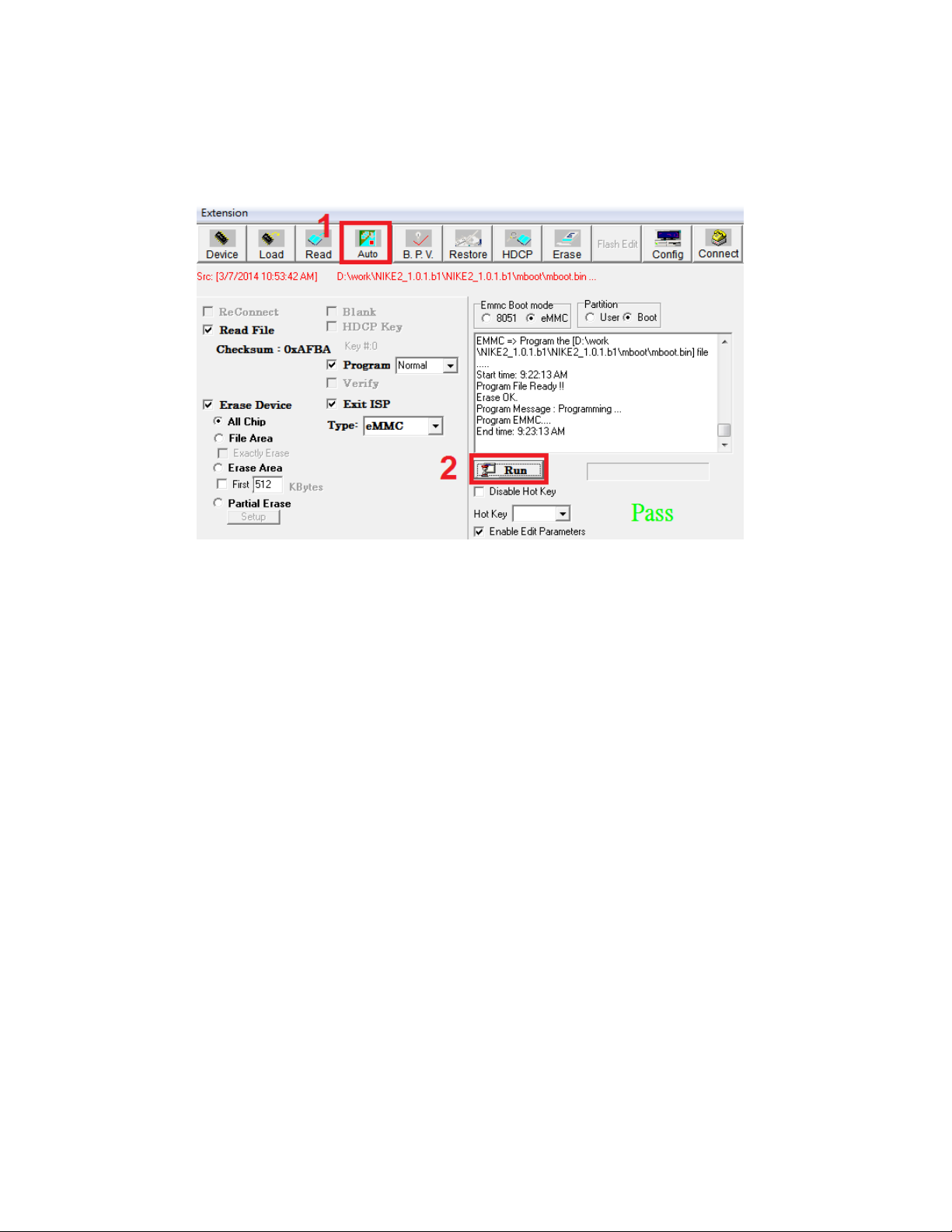

a. 在“Auto”界面，Type 选项选择“eMMC”，并选中“Erase Device”，具体如下图：

b. 连接设备

2.1 选择“Read”选项

2.2 选择 Mboot 文件

2.2.1 EISP Loader File 1  muninn_EISP_boot_xx_xx.bin

2.2.2 EISP Read File 1 rom_emmc_boot.bin

2.2.3 EISP Loader File 2  muninn_EISP_user_xx_xx.bin

2.2.4 EISP Read File 2  mboot.bin

2.3 给设备上电，选择“Connect”进行连接

PS.

如果治具没有连接成功，请重试

2.3

步骤。

c. 治具连接成功后

3.1 在“Auto”界面选择“Run”开始烧录

d. 请耐心等待，直至 ISP 治具提示“Pass”，烧录完成。

55PFF5659 机种的工厂模式调整同 50PFF5650 机种

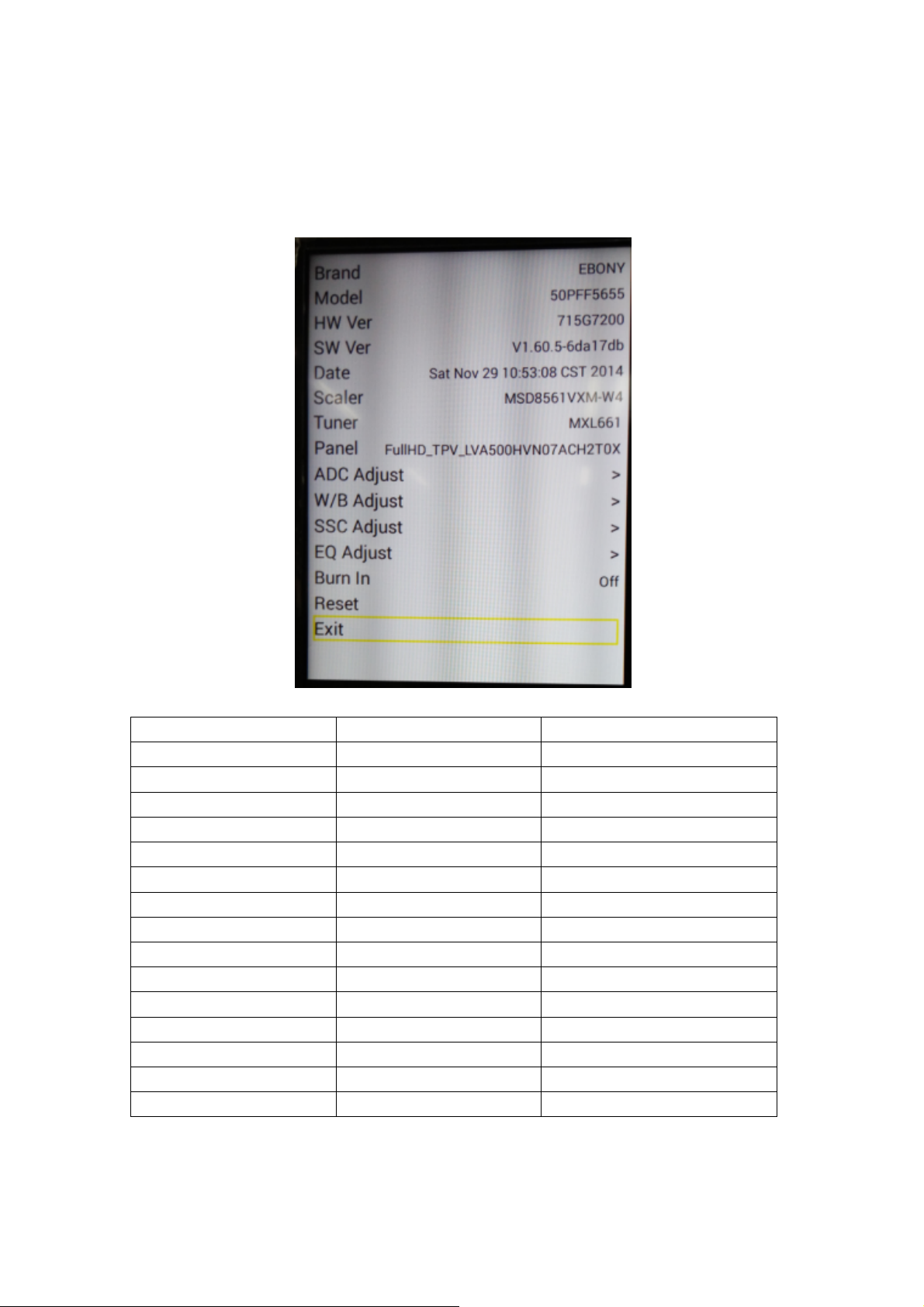

工厂模式调整：菜单（功能列表）+1999+回看

项目名称 功能说明 备注

Brand 机种品牌 不可调整
Model 机器型号 不可调整
HW Ver 硬体板号 不可调整
SW Ver 软体版本 不可调整
Date 软体发布日期 不可调整
Scaler 主芯片型号 不可调整
Tuner 高频头型号 不可调整
Panel 液晶屏型号 不可调整
ADC ADC调整 免调
WB 白平衡调整 不建议调整
SSC Adjust 展频调整 不建议调整
EQ Adjust 不建议调整
Burn In 拷机模式 On/Off
Reset 复位
Exit 退出工厂模式

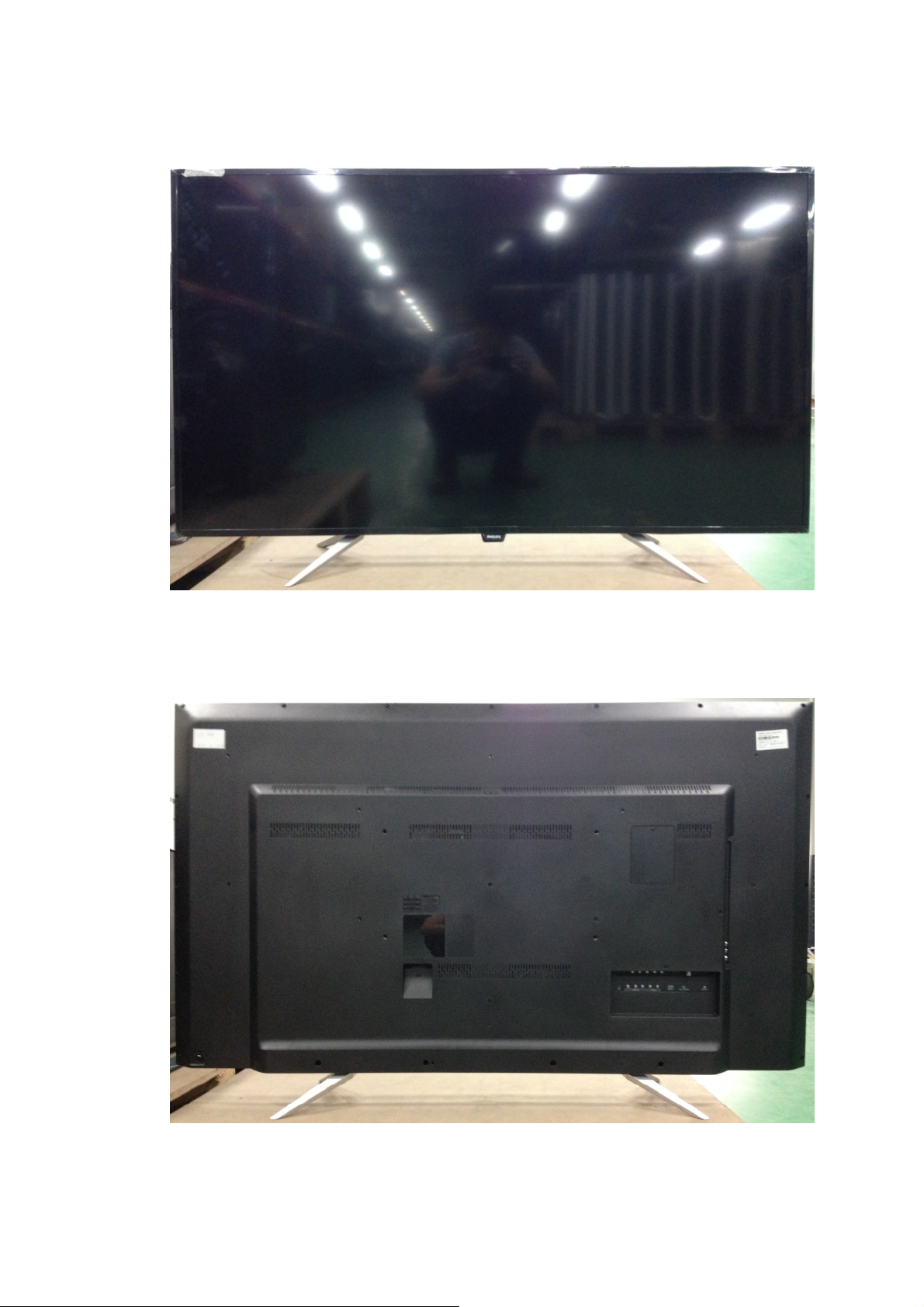

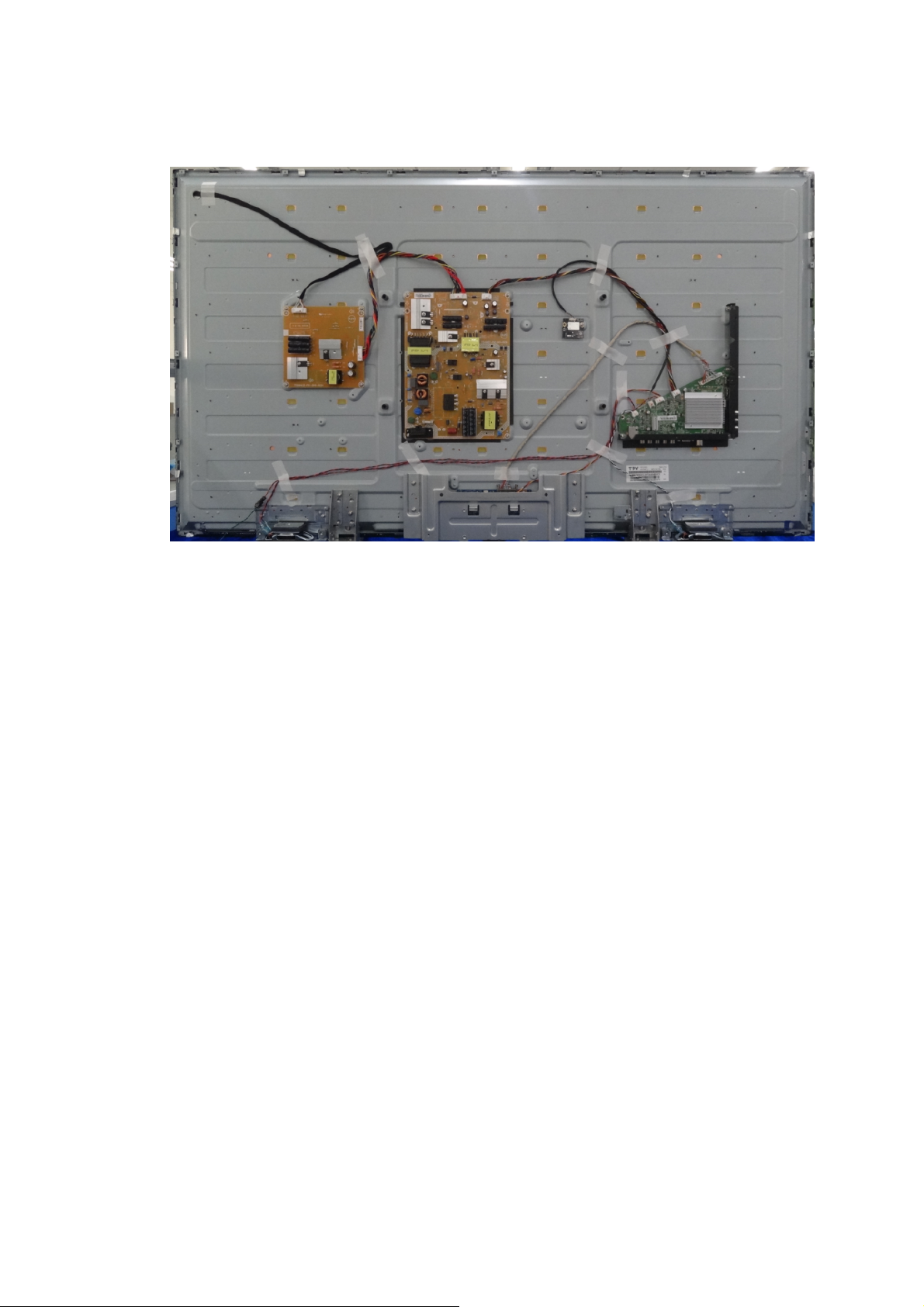

1. 正视图

2. 后视图

3. 内部结构图

版本 发布日期 变更说明 对外机种名

A00 7/17/2015 首次发布 55PFF5657/T3

对内机种名 Scalar

E55F41NDCCPHNNX MSD8561VXM-W4 HSBGA-590

屏 主板板号 电源板板号

TPT550J1-HVN06.U S410B XM TPV 715G7204M0E000004Y 715G6607P02001002M

升压板板号 按键板板号 遥控板板号

715G6432P01000002H 715G7088K01000004K 715G7055R01000004Y

级别 点位 组件 对象描述

1 0M1G1730 6120 SCREW M3 6
1 036T 600 18129 NONWOVEN FABRTC
1 041G 68508 A control card
1 Q051 051G 2 14 FUSE GEL
1 E08901 089G214A15N IS AC POWER CORD 1500
1 0M1G 130 6 47 CR3 SCREW M3 6
1 0M1G1030 4120 SCREW M3 4
1 0M1G1030 6 47 CR3 SCREW M3 6
1 0M1G1730 8120 SCREW M3 8
1 0M1G1740 10120 SCREW M4 10
1 0M1G1740 10120 SCREW M4 10
1 0Q1G1030 6 47 CR3 SCREW M3 6
1 317G01 317GAAWF550TCL WIFI USB IEEE 802.11 b/g/n WF0KRT1510W
1 SP01 378G0110567CDX 6 OHM 11W 132*34*37mm 0 UNIT
1 SP01 378G0110567YDX 6 OHM 11W 132*34*37mm 0 UNIT
1 ECN01 395G801402RC01 HARNESS 2P pitch2.0-2P pitch1.25 200mm
1 ECN01 395G801402WC01 HARNESS 2P pitch2.0-2P pitch1.25 200mm
1 ECN9102 395G801414RC52 HARNESS 13P pitch2.0-14P pitch2.0 380mm
1 ECN9102 395G801414XC52 HARNESS 13P pitch2.0-14P pitch2.0 380mm
1 ECN700 395G801416DD32 HARNESS 12P pitch2.0-16P pitch2.0 500mm
1 ECN700 395G801416RD32 HARNESS 12P pitch2.0-16P pitch2.0 500mm
1 ECN107 395GH12506DT003000 HARNESS 5P pitch1.25-6P pitch2.0 400mm
1 ECN107 395GH12506HT003000 HARNESS 5P pitch1.25-6P pitch2.0 400mm
1 ECN600 395GH20004DT002000 HARNESS 4P pitch2.0-B&R+B&W 850 + 400 m
1 ECN600 395GH20004RT002000 HARNESS 4P pitch2.0-B&R+B&W 850 + 400 m
1 ECN400 395GH20014DT036000 HARNESS 14P pitch2.0-5P pitch1.25+2P pi
1 ECN400 395GH20014RT036000 HARNESS 14P pitch2.0-5P pitch1.25+2P pi
1 ECN401 395GLT5140R0010000 LVDS CABLE 51P(0.5mm)-40P(2.0mm) 600mm
1 ECN401 395GLT5140X0010000 LVDS CABLE 51P(0.5mm)-40P(2.0mm) 600mm
1 RC01 398GR08BCPHN0000HL REMOTE PHILIPS HOF-44K-GJ13844 chinese
1 708GVB228130WP01CH PHILIPS 40(204 CH)
1 E750 750TBV550V64B8N000 LCD TPT550J1-HVN06.U S410B XM TPV
1 756TXFCB01D055000X MCU ASSY
1 ADTVF1220XB8 ADAPTER BOARD NA
1 CBPFEMSDA7 CONVERSION BOARD NA
1 IRPFFAA9 IR BOARD
1 KEPFEAA9 KEY BOARD
1 LNTVEW661XXA6 CONVERTER BOARD -­1 E750 LVA550HVN06ACL2P0X PANEL TPT550J1-HVN06.U S410B XM TPV
1 P33E0738XJL01T0100 KEY_FUNCTION
1 P33E0756ALDZ1C0100 DECO_LOGO
1 P33E0757ADT01L0100 DECO_REAR_COVER
1 P34E23680GM0FK0400 REAR_COVER NA
1 P40GD000813 9A A4 PALLET LABEL -for A4 paper
1 Q02G707105000100XL BOLT
1 Q02G708105500100HX BOLT

1 EQ52C1 Q12G714001200100HK HEAT PAD

产线

需求的

栈

板

洁

剂

1 Q40G0001624 4A

LABEL
1 Q44T3231 21 11 EVA WASHER
1 Q45G88010TV08600WN PROTECT BAG
1 Q45G88010TV12000WN PROTECT BAG 1200*1600
1 Q49G 51500 HF panel清
1 Q052 Q52G100203000A00ZA AL FOIL
1 Q52G130118600000YY TAPE
1 Q52G1501150523AWBK TAPE_INSULATING
1 Q52G160119100A00YY TAPE
1 X15T968010100000NP BKT_STAND
1 X15T968110100000NP BKT_STAND
1 X15T984710100000GH BKT_STAND
1 X15T986310100000GH BKT_SPEAKER
1 X15T995630100000BL BKT_IO
1 X15T9957501000GMYF BKT_IO
1 X20T818701100000XL BASE
1 X20T818801100000XL BASE
1 X40G2014040X8100XY IO LABEL
1 X40G2014055X2500ZA IO LABEL
1 X44GVB221010SY CUSHION-T N/A China(2002)
1 X44GVB222010SY CUSHION-B N/A China(2002)
1 X44GVB22301EPE CUSHION N/A China(2002)
1 X44GVB2281301A00JA ARTWORK CARTON 55PFF5657/T3 55PFF5659/T
1 X52G18012660000ALF INSULATING SHEET
1 E08901 089G214A15N HL AC POWER CORD 1500
1 0M1G1740 20225 CR3 SCREW M4 20
1 317G02 317GARFM008TCL RF MODULE GL03-2-E
1 BT01 392GB1JA1A3E2C BATTERY 1.5V 2P LR03(KA)2S/G
1 Q45G88010TV05600X1 PROTECT BAG
1 X41G55SV81321A QSG PFF5657_PFF5659_55
1 X41G78DV81311D WARRANTY CARD TPV address china
1 X52G200124700000BK TAPE
1 040G 58162435A MANUAL P/N LABEL
1 Q40G000162492A CEL LABEL FOR TV MODEL G3/1.3/0.5
1 X40G0001624 2A Label for screw pe bag
1 X40G000181310C CARTON LABEL
1 X40G055081373A RATING LABEL 55PFF5657/T3
1 Z40G0002ALL01A OTHER LABEL
1 Q11G701100500100JY PCB-SUPPORT D2.9xH14.97
1 0M1G1830 6120 SCREW
1 708GVB228130WP01CH PHILIPS 40(204 CH)
2 Q45G 77 5 PE PACKING
2 Q50G 4 10 TIE (Y1900221)
2 X07G011113502C WOOD PALLET
2 Q44G6002132107 PAPER BOARD
2 X44G6002CP522A PAPER CAP5

2 Q52G1301 9 BIG TAPE FOR PHILIPS
2 Q44G9003165 CORNER PAPER
1 756TXFCB01D055000X MCU ASSY
2 SMTF-U404 100TPMVS017DTX PHP 55PFF5657/T3 Nand_FLASH NA NA
2 U404 356G333304A600 sAND FLASH THGBMBG5D1KBAIT 4G BGA 153
1 ADTVF1220XB8 ADAPTER BOARD NA
2 Z40G0002ALL01A OTHER LABEL
2 GND2 009G6005 1 GND TERMINAL
2 CN9102 033G380214B YH WAFER 2.0mm 14P W2015-14RVA-S01
2 IC9104 056G 139 9 IC EL817M(X) photocoupler DIP-4
2 IC9304 056G 139 9 IC EL817M(X) photocoupler DIP-4
2 IC9102 056G 139 9 IC EL817M(X) photocoupler DIP-4
2 Q9105 057G 667929 MOSFET AOTF8N50 8A 500V TO-220FP
2 Q9106 057G 667929 MOSFET AOTF8N50 8A 500V TO-220FP
2 C9906 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
2 C9905 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
2 C9117 067G215Z102 6K LOW ESR EC 1000uF M 35V 10*35mm
2 C9131 067G215Z102 6K LOW ESR EC 1000uF M 35V 10*35mm
2 C9307 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr
2 C9306 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr
2 FB9801 071G 55906 FERRITE CORE 510R C8B R6H 6x9.2(A)
2 L9103 073G 253191 HP CHOKE COIL 1.1uH VOC
2 L9103 073G 253191 LP CHOKE COIL 1.1uH VOC
2 CN9901 087G 50147D HC HF AC R/A 2P 12.81mm
2 D9801 093G 52918 RECTIFIER 1N5408G-04 X0 3A 1000V DO201AD
2 FORCN9901 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q x8.0
2 CN9101 311GW200C16BBX ONN 2.0mm 16P R/A W2010-16RVA-S04,B200
2 RV9901 361G0046681KZE VARISTOR 680V 10%
2 NR9902 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504
2 NR9901 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504
2 R9808 361G3SWJ10859B00TZ RST NWR 0.1R 5% 3W NKNP3WS0R1JMS10
2 C9801 363G210K105GZP CAP MPP 1uF 10% 450V 18.1*12.6*8.5 ECWF
2 C9111 363G211J2235HA CAP MPP 22nF 5% 1KV 18*5*11 R75QI2220HA0
2 C9811 367G215X680PKZ000S EC 68uF 20% 450V 12.5*50 2000 hr 620mA
2 C9812 367G215X680PKZ000S EC 68uF 20% 450V 12.5*50 2000 hr 620mA
2 L9903 373G0174301H00 LINE FILTER 0.25mH MIN 2A LCL-11010 HA
2 L9903 373G0174301X00 LINE FILTER 0.25mH MIN 2A 3LFT1064-251M
2 L9901 373G0174303H00 LINE FILTER 18mH MIN 1.26A LCL-11822 HA
2 L9902 373G0174303H00 LINE FILTER 18mH MIN 1.26A LCL-11822 HA
2 L9901 373G0174303X00 LINE FILTER 18mH MIN 1.26 3LFT18106-183
2 L9902 373G0174303X00 LINE FILTER 18mH MIN 1.26 3LFT18106-183
2 L9801 373G0174308H01 PFC CHOKE 220uH 10% 2A GL-13240 HA
2 L9801 373G0174308X01 PFC CHOKE 220uH 10% 2A 3TRATQ32-221K
2 L9302 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
2 L9301 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
2 L9301 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
2 L9302 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A

2 T9301 380GL32P141H03 X'FMR 360uH 10% 5uH ER31 BCK-13142-HA1
2 T9101 380GL52P186H00 X'FMR 830uH 12% 160uH EE42 BCK-14234-H
2 T9101 380GL52P186YS0 X'FMR 830uH 12% 160uH EE42 YS04160730
2 BD9902 393G0050460600 BRIDGE TS10P06G-04 10A 800V TS-6P
2 705TAD84023 F9901
2 705TAD93119 Q9801&Q9802
2 705TAD93120 Q9301
2 705TAD93121 Q9303
2 705TXE93083 D9103&D9104 ASSY
2 ADF1220XB8SMT ADAPTER BOARD FOR SMT
1 CBPFEMSDA7 CONVERSION BOARD NA
2 Z40G0002ALL01A OTHER LABEL
2 C607 067G315M1514LV EC 150UF 20% 25V RTR151M1ECCF0807P 8*7
2 C608 067G315M1514LV EC 150UF 20% 25V RTR151M1ECCF0807P 8*7
2 CN101 088G 78G152ACL RCA JACK R/A 12P G/BL/R/W/R 1*5 H=10.5
2 CN101 088G 78G152AYG RF JACK 12P G/BL/R/W/R 1*5 R/A 10.5
2 CN108 088G352E912AXH USB A TYPE R/A 9P 1*1 BLUE 6.96mm
2 CN104 088G353GFF1ACL D-SUB CONN 15P BLUE R/A H=10mm
2 CN104 088G353GFF1AXH D-SUB CONN 15P BLUE - R/A 10
2 CN600 311GW200A04ABL CONN 2.0mm 4P R/A B2009W04HTK0
2 CN600 311GW200A04ABX WAFER 2.0mm 4P
2 CN107 311GW200C06ABL WAFER 2.0mm 6P R/A B2000W06HTKB
2 CN700 311GW200C12BBL CONN 2.0mm 12P R/A B2000W12HTKE
2 CN700 311GW200C12BBX CONN 2.0mm 12P R/A W2010-12RVA-S04
2 CN400 311GW200C14BBL CONN 2.0mm 14P R/A B2000W14HTKE
2 CN400 311GW200C14BBX CONN 2.0mm 14P R/A W2010-14RVA-S04
2 CN401 311GW200C40AAL WAFER 2.0mm 40P
2 CN103 388G078G13NACL RCA AV3-8.4-R25-3020 3P 1*3 Y/W/R -­2 CN103 388G078G13NAYG RCA R/A 6P 1*3 Y/W/R 9.5mm
2 CN100 388G302F5B1ACL PHONE JACK R/A 5P 1*1 BLACK 8.5mm
2 CN109 388G342GFB6AGN RJ45 R/A 15P 1*1 BLACK 11.2
2 CN109 388G342GFB6AKX RJ45 R/A 15P 1*1 BLACK 11.2
2 CN106 388G352F6B3AAT USB A TYPE R/A 6P 1*1 BLACK 9.1mm
2 CN106 388G352F6B3AXH USB A TYPE R/A 6P 1*1 BLACK 8.4
2 J100 388G510H401ACL RF PAL-R02-0010 5P 1*5 W -­2 J100 388G510H401AHC RF IFP-007 4P 1*1 W -­2 Q85T01 Q85T 583162 GASKET
2 HS600 Q90G6119 6 EAT SINK
2 SMTFEMSDA7 MAIN BOARD FOR SMT
2 X85 X85T806910100000LH SHIELD_TUNER
2 HS400 X90G070310100000BF HEAT SINK
2 HS400 X90G070310100000SY HEAT SINK
1 IRPFFAA9 IR BOARD
2 SMTIRPFFAA9 IR BOARD FOR SMT
1 KEPFEAA9 KEY BOARD
2 SMTKEPFEAA9 KEY BOARD FOR SMT
1 LNTVEW661XXA6 CONVERTER BOARD --

2 Z40G0002ALL01A OTHER LABEL
2 CN8102 033G380212B YH wafer 12P 2.0 DIP
2 CN8101 033G380213B YH AFER 2.0mm 13P
2 C8107 067G515Z271 9K EC 270UF 20% 100V 10*40 5000 hr
2 C8106 067G515Z271 9K EC 270UF 20% 100V 10*40 5000 hr
2 C8105 067G515Z271 9K EC 270UF 20% 100V 10*40 5000 hr
2 C8102 367G415X3317KT EC 330UF 20% 50V 12.5*12
2 C8101 367G415X3317KT EC 330UF 20% 50V 12.5*12
2 L8101 373G0253353X00 BOOST CHOKE 33uH 10% 4A 3LCEQ2513-330K
2 705TXD57224 Q8101
2 705TXD93200 D8101
2 LNEW661XXA6SMT CONVERTER BOARD FOR SMT
2 705TAD84023 F9901
3 EF9901 084G 34 14 bSE -- -- -­3 F9901 084G 41 7 C FUSE 5A 250V UDA005(PF)
2 705TAD93119 Q9801&Q9802
3 Q9801 057G 667954 MOSFET TK18A60V 18A 600V SC-67
3 D9802 093G 52905 DIODE FMNS-1106S TO-220
3 0M1G1730 8120 SCREW M3 8
3 HS9801 Q90T0236002A0000HG HEAT SINK
2 705TAD93120 Q9301
3 Q9301 057G 667931 MOSFET AOTF8N65 8A 650V TO-220FP
3 0M1G1730 8120 SCREW M3 8
3 HS9301 Q90G0219 4 HEAT SINK ÐͲÄ/Profile
2 705TAD93121 Q9303
3 0M1G1730 8120 SCREW M3 8
3 Q9303 357G0600100020 MOSFET AOTF298L 33A 100V TO-220F
3 HS9303 Q90T0236001A0000HG HEAT SINK
2 705TXE93083 D9103&D9104 ASSY
3 D9103 093G 60247 ME-220A
3 D9104 093G 60247 ME-220A
3 0M1G1730 8120 SCREW M3 8
3 HS9103 Q90T0236003A0000HG HEAT SINK
2 ADF1220XB8SMT ADAPTER BOARD FOR SMT
3 IC9305 056G 158501 DC/DC AS431ANTR-E1 150mA 40V SOT23-3
3 IC9101 056G 379211 AC/DC SSC9522S-TL SOP-18
3 Q9103 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC
3 Q9104 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
3 Q9101 057G 419912 T RANSISTOR 2SD1624T-TD-E PCP
3 R9148 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
3 R9162 061G0805000 JT RST 0805 0.05R MAX 1/8W
3 R9802 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
3 R9109 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
3 R9311 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
3 R9133 061G08051001FT RST CHIP 1K 1/8W 1%
3 R9332 061G08051001FT RST CHIP 1K 1/8W 1%
3 R9137 061G08051001FT RST CHIP 1K 1/8W 1%

3 R9156 061G08051002FT RST CHIP 10K 1/8W 1%
3 R9152 061G08051002FT RST CHIP 10K 1/8W 1%
3 R9151 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
3 R9150 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
3 R9810 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
3 R9134 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
3 R9806 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
3 R9813 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
3 R9314 061G0805103 JT RST 0805 10K 5% 1/8W
3 R9341 061G08051200FT RST CHIP 120R 1/8W 1%
3 R9103 061G08051600FF RST 0805 160R 1% 1/8W FENGHUA
3 R9127 061G08051802FT RST 0805 18K 1% 1/8W
3 R9116 061G08051802FY RST CHIP 18K 1/8W 1%
3 R9811 061G08051912FT RST CHIPR 19K1 +-1% 1/8W TZAI YUAN
3 R9814 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA
3 R9128 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA
3 R9136 061G0805202 JT RST CHIP 2K 1/8W 5% TZAI YUAN
3 R9122 061G08052101FT RST CHIPR 2.1KOHM +-1% 1/8W TZAI YUAN
3 R9340 061G08052201FT CHIP 2K2 1/8W 1%
3 R9312 061G08052209FT RST 0805 22R 1% 1/8W
3 R9112 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA
3 R9120 061G0805242 JF RST CHIPR 2.4KOHM +-5% 1/8W FENGHUA
3 R9163 061G08052431FT RST CHIP 2K43 1/8W 1%
3 R9118 061G0805302 JY RST CHIPR 3K +-5% 1/8W YAGEO
3 R9803 061G0805330 JT RST CHIP 33R 1/8W 5% TZAI YUAN
3 R9812 061G0805363 JF ST CHIPR 36KOHM +-5% 1/8W FENGHUA
3 R9119 061G08054701FT RST CHIP 4K7 1/8W 1%
3 R9117 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA
3 R9328 061G0805472 JT RST CHIPR 4K7 +-5% 1/8W TZAI YUAN
3 R9130 061G0805514 JF ST CHIPR 510KOHM +-5% 1/8W FENGHUA
3 R9149 061G0805820 JY RST CHIP R 82ohm 1/8W +/-5% YAGEO
3 R9154 061G0805820 JY RST CHIP R 82ohm 1/8W +/-5% YAGEO
3 R9329 061G08059101FT RST CHIP 9K1 1/8W 1%
3 JR901 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 JR907 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 JR902 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 JR905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 JR906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 JR904 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 JR903 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 R9308 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
3 R9807 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA
3 R9804 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA
3 R9809 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA
3 R9131 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
3 R9132 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
3 R9101 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

3 R9102 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
3 R9129 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA
3 R9324 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
3 R9138 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
3 R9143 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
3 R9141 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
3 R9142 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
3 R9139 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
3 R9124 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
3 R9327 061G12061501FF RST CHIPR 1.5KOHM +-1% 1/4W FENGHUA
3 R9113 061G12061504FT RST CHIP 1M5 1/4W 1%
3 R9114 061G12061504FT RST CHIP 1M5 1/4W 1%
3 R9115 061G12061504FT RST CHIP 1M5 1/4W 1%
3 R9319 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
3 R9320 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
3 R9322 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
3 R9323 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
3 R9316 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
3 R9315 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
3 R9805 061G1206203 JF RST CHIPR 20KOHM +-5% 1/4W FENGHUA
3 R9305 061G12062202FT RST 1206 22K 1% 1/4W TZAI YUAN
3 R9318 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN
3 R9303 061G1206479 JT RST 1206 4.7R 5% 1/4W
3 R9309 061G1206479 JT RST 1206 4.7R 5% 1/4W
3 R9310 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
3 R9325 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
3 R9902 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
3 R9903 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
3 R9904 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
3 R9905 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
3 R9105 061G1206561 JT RST CHIPR 560 OHM +-5% 1/4W TZAI YUAN
3 C9315 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
3 C9316 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
3 C9101 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
3 C9322 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
3 C9323 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
3 C9102 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
3 C9113 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 C9320 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 C9318 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 C9806 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9144 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9314 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9302 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9123 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9137 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9119 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

3 C9128 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9135 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9108 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9145 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9313 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9134 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9337 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9312 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9141 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9143 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9807 065G080522131J F CAP CHIP 0805 220PF J 50V NPO
3 C9109 065G080522131J M CAP 0805 220PF 5% 50V NP0
3 C9129 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
3 C9133 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
3 C9138 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
3 C9132 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
3 C9116 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
3 C9130 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
3 C9329 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
3 C9804 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
3 C9106 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
3 C9808 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
3 C9324 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5%
3 C9326 065G080547232K A CAP 0805 4.7NF 10% 50V X7R
3 C9809 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%
3 C9810 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
3 C9142 065G0805475A2K T CAP CHIP 0805 4.7uF K 10V X7R
3 C9139 065G080556131J Y CAP CHIP 0805 560P 50V NP0 +/-5%
3 IC9305 356G01585020HF Shunt Regu TL431G-AE2-R SOT23-3
3 IC9801 356G0379008218 PFC LD7591T GS SOP-8
3 IC9301 356G0379213 AC/DC SSC2S110 SOP-8
3 IC9302 356GD563008152000Z DC/DC SP6018S8RGB 1A 16V SOP-8
3 Q9102 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V
3 R9901 361G12069103FT RST 1206 910K 1% 1/4W RC1206FR-07910KL,
3 R9906 361G12069103FT RST 1206 910K 1% 1/4W RC1206FR-07910KL,
3 D9109 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
3 ZD9106 393G039S95200T00HF HF BZT52-B6V2_R1_00001 6.2V 0.41W
3 ZD9107 393G039S95200T00HF HF BZT52-B6V2_R1_00001 6.2V 0.41W
3 ZD9302 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
3 ZD9301 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
3 ZD9103 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
3 ZD9101 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
3 ZD9105 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
3 D9304 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9803 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9302 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9110 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL

3 D9107 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9113 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9114 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9307 393G060SA0700T SCHOTTKY MB810 8A 100V SMC
3 ADF1220XB8AI ADAPTER BOARD FOR AI
2 SMTFEMSDA7 MAIN BOARD FOR SMT
3 U105 056G 581 9 IC G5250K1T1U SOT23-5
3 U101 056G 581 9 IC G5250K1T1U SOT23-5
3 U700 056G 585 4A LDO AP1117E33G-13 1A 3.3V SOT-223
3 U702 056G 585 4A LDO AP1117E33G-13 1A 3.3V SOT-223
3 U107 056G 585 4A LDO AP1117E33G-13 1A 3.3V SOT-223
3 U102 056G 616 55 AUDIO DRV602PW 870mW TSSOP-14
3 U402 056G 643 5B IC G690H293T73Uf SOT-23 GMT
3 U501 056G 665918 IC STMPS2171STR SOT23-5L
3 Q705 057G 417511 MMBT3904
3 Q703 057G 417511 MMBT3904
3 Q601 057G 417511 MMBT3904
3 Q701 057G 417511 MMBT3904
3 Q702 057G 417511 MMBT3904
3 Q406 057G 417511 MMBT3904
3 Q602 057G 417512 MMBT3906
3 Q600 057G 417512 MMBT3906
3 Q400 057G 417512 MMBT3906
3 Q703 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
3 Q705 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
3 Q601 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
3 Q701 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
3 Q702 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
3 Q406 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
3 Q400 057G 417526 SMALLTRAN MMBT3906 -0.2A -40V SOT-23
3 Q600 057G 417526 SMALLTRAN MMBT3906 -0.2A -40V SOT-23
3 Q602 057G 417526 SMALLTRAN MMBT3906 -0.2A -40V SOT-23
3 Q405 057G 763 79 FET AO4449 -7A/-30V SOIC-8
3 Q700 057G 763 79 FET AO4449 -7A/-30V SOIC-8
3 RP302 061G 1260008JT RST NET 0R 5% 1/16W
3 RP301 061G 1260008JT RST NET 0R 5% 1/16W
3 C142 061G0402000 JT RST 0402 0.05R MAX 1/16W ­3 FB500 061G0402000 JT RST 0402 0.05R MAX 1/16W ­3 C143 061G0402000 JT RST 0402 0.05R MAX 1/16W ­3 R4219 061G0402000 JT RST 0402 0.05R MAX 1/16W ­3 R4108 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R631 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R117 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R171 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R160 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R729 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R527 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

3 R150 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R100 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C306 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4107 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4105 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4052 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R626 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C312 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R734 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C309 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R744 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4054 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R174 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4103 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4106 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C307 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R123 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4109 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R717 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4111 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R748 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C308 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R616 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R623 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4104 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R101 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4110 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C311 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C313 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4102 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C310 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R162 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 R161 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 R4035 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 R522 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 R4036 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 R502 061G04021000FY RST CHIP 100R 1/16W 1%
3 R118 061G04021000FY RST CHIP 100R 1/16W 1%
3 R124 061G04021000FY RST CHIP 100R 1/16W 1%
3 R152 061G04021000FY RST CHIP 100R 1/16W 1%
3 R119 061G04021000FY RST CHIP 100R 1/16W 1%
3 R719 061G04021000FY RST CHIP 100R 1/16W 1%
3 R4043 061G04021000FY RST CHIP 100R 1/16W 1%
3 R4044 061G04021000FY RST CHIP 100R 1/16W 1%
3 R120 061G04021000FY RST CHIP 100R 1/16W 1%
3 R4037 061G04021000FY RST CHIP 100R 1/16W 1%
3 R720 061G04021000FY RST CHIP 100R 1/16W 1%

3 R4028 061G04021001FY RST CHIP 1K 1/16W 1%
3 R773 061G04021001FY RST CHIP 1K 1/16W 1%
3 R4025 061G04021001FY RST CHIP 1K 1/16W 1%
3 R4027 061G04021001FY RST CHIP 1K 1/16W 1%
3 R618 061G04021001FY RST CHIP 1K 1/16W 1%
3 R4026 061G04021001FY RST CHIP 1K 1/16W 1%
3 R4051 061G04021001FY RST CHIP 1K 1/16W 1%
3 R507 061G04021001FY RST CHIP 1K 1/16W 1%
3 R4014 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R112 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4042 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R525 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4000 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4020 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R632 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R106 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R750 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4015 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R621 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4092 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4098 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4097 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4099 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R633 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R111 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R116 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4096 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R634 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R115 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4093 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R107 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4019 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4100 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R704 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4094 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R776 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R624 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4095 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R625 061G04021003FY RST CHIP 100K 1/16W 1%
3 R4039 061G04021003FY RST CHIP 100K 1/16W 1%
3 R166 061G04021003FY RST CHIP 100K 1/16W 1%
3 R164 061G04021003FY RST CHIP 100K 1/16W 1%
3 R165 061G04021003FY RST CHIP 100K 1/16W 1%
3 R4055 061G04021003FY RST CHIP 100K 1/16W 1%
3 R163 061G04021003FY RST CHIP 100K 1/16W 1%
3 R4065 061G04021003FY RST CHIP 100K 1/16W 1%
3 R4061 061G04021004FT RST CHIPR 1M +-1% 1/16W TZAI YUAN

3 R4046 061G04021004FT RST CHIPR 1M +-1% 1/16W TZAI YUAN
3 R148 061G04021004FT RST CHIPR 1M +-1% 1/16W TZAI YUAN
3 R770 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
3 R134 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 R109 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO
3 R108 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO
3 R113 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO
3 R114 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO
3 R772 061G04021243FY RST CHIP 124K 1/16W 1%
3 R761 061G04021243FY RST CHIP 124K 1/16W 1%
3 R4133 061G0402152 JY RST CHIPR 1.5KOHM +-5% 1/16W YAGEO
3 R766 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R4101 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R611 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R4060 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R145 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R610 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R131 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R735 061G04022202FT RST CHIP 22K 1/16W 1% TZAI YUAN
3 R763 061G04022202FT RST CHIP 22K 1/16W 1% TZAI YUAN
3 R774 061G04022212FF RST 0402 22.1K 1% 1/16W FENGHUA
3 R127 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 R740 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 R4132 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 R126 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 R739 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 R725 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 R620 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO
3 R4023 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO
3 R4024 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO
3 R504 061G0402304 JT RST 0402 300K 5% 1/16W TZAI YUAN
3 R746 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4011 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R516 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4010 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4013 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R701 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R520 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4018 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4009 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4007 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R702 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R514 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4006 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R700 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4021 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R760 061G04023301FF RST CHIP 3K3 1/16W 1% FENGHUA

3 R731 061G04023302FF RST 0402 33K 1% 1/16W FENGHUA
3 R4034 061G0402332 JF RST CHIPR 3.3KOHM 5% 1/16W FENGHUA
3 R724 061G0402332 JY RST CHIPR 3.3KOHM 5% 1/16W YAGEO
3 R154 061G0402391 JT RST CHIP 390R 1/16W 5% TZAI YUAN
3 R153 061G0402391 JT RST CHIP 390R 1/16W 5% TZAI YUAN
3 R167 061G0402393 JY RST CHIP 39K 1/16W 5% YAGEO
3 R168 061G0402393 JY RST CHIP 39K 1/16W 5% YAGEO
3 R526 061G0402393 JY RST CHIP 39K 1/16W 5% YAGEO
3 R722 061G04024702FF RST CHIPR 0402 47K +-1% 1/16W FENGHUA
3 R509 061G04024702FF RST CHIPR 0402 47K +-1% 1/16W FENGHUA
3 R510 061G04024702FF RST CHIPR 0402 47K +-1% 1/16W FENGHUA
3 R4003 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4073 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4016 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4002 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R727 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4001 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R726 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4004 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4005 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4059 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4078 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4091 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4068 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4017 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R716 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R749 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4090 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R775 061G04025101FT RST CHIP 5.1K 1/16W 1% TZAI YUAN
3 R721 061G04026201FY RST CHIP 6.2K 1/16W 1%
3 R170 061G0402623 JY RST CHIP R 62K 1/16W +/-5% YAGEO
3 R169 061G0402623 JY RST CHIP R 62K 1/16W +/-5% YAGEO
3 R4022 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO
3 R4008 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO
3 R4012 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO
3 R105 061G04027509FY RST CHIP 75R 1/16W 1%
3 R122 061G04027509FY RST CHIP 75R 1/16W 1%
3 R121 061G04027509FY RST CHIP 75R 1/16W 1%
3 R125 061G04027509FY RST CHIP 75R 1/16W 1%
3 R102 061G04027509FY RST CHIP 75R 1/16W 1%
3 R110 061G04027509FY RST CHIP 75R 1/16W 1%
3 R104 061G04027509FY RST CHIP 75R 1/16W 1%
3 R103 061G04027509FY RST CHIP 75R 1/16W 1%
3 R706 061G04029101FF RST CHIP 9K1 1/16W 1% FENGHUA
3 R4218 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 R606 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 R607 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

3 R4088 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 R707 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 R712 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 R635 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
3 R723 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
3 R4029 061G06031501FF RST CHIPR 1.5K OHM +-1% 1/10W FENGHUA
3 R619 061G06031502FY RST CHIP 15K 1/10W 1%
3 R713 061G0603154 JY RST CHIPR 150K +-5% 1/10W YAGEO
3 R4089 061G0603154 JY RST CHIPR 150K +-5% 1/10W YAGEO
3 R710 061G06031802FY RST CHIPR 18 KOHM +-1% 1/10W YAGEO
3 R523 061G0603201 JY RST CHIPR 200 OHM +-5% 1/10W YAGEO
3 R4030 061G06033301FY RST CHIP 3K3 1/10W 1%
3 R4031 061G06033301FY RST CHIP 3K3 1/10W 1%
3 R711 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
3 R4080 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
3 FB105 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO
3 R147 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
3 R612 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R602 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R615 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R614 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R601 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R604 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R613 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R603 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R600 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
3 C4078 065G040210131J Y CAP CHIP 0402 100P 50V NP0 +/-5%
3 C4131 065G040210232K F CAP 0402 1NF 10% 50V X7R
3 C128 065G040210232K F CAP 0402 1NF 10% 50V X7R
3 C133 065G040210232K F CAP 0402 1NF 10% 50V X7R
3 C4130 065G040210232K F CAP 0402 1NF 10% 50V X7R
3 C131 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 C4074 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 C702 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 C719 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 C4090 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 C624 065G040210332K F CAP 0402 10NF 10% 50V X7R
3 C763 065G040210332K F CAP 0402 10NF 10% 50V X7R
3 C615 065G040210332K F CAP 0402 10NF 10% 50V X7R
3 C630 065G040210332K F CAP 0402 10NF 10% 50V X7R
3 C127 065G040210332K F CAP 0402 10NF 10% 50V X7R
3 C609 065G040210332K F CAP 0402 10NF 10% 50V X7R
3 C721 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
3 C783 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
3 C761 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 C762 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 C129 065G040210412K Y CAP 0402 100NF 10% 16V X7R

3 C749 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4047 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4085 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4098 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C708 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C149 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C150 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C118 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C726 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C122 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4033 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4025 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4026 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4045 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4010 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4009 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C705 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C727 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C141 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4036 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4080 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4046 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C716 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4021 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C745 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4073 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C144 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4027 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4024 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4070 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C136 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4084 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4093 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4094 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4123 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4031 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C125 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C121 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C729 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4124 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4065 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4062 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4039 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4117 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4038 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4016 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4022 065G040210425K Y CAP 0402 100nF 10% 25V X5R

3 C4092 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C782 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4086 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4007 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C752 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4032 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4008 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C742 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C120 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C140 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4097 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4003 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4091 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4089 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4023 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4000 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4072 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C115 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C145 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4122 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4035 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4106 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4081 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4030 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C781 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C733 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C732 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4002 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C760 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C703 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C780 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4014 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C119 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C709 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4037 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C741 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4015 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4118 065G0402105A5K T CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV
3 C4001 065G0402105A5K T CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV
3 C4018 065G0402105A5K T CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV
3 C4107 065G040218031J T CAP CHIP 0402 18PF 50V J NPO
3 C4108 065G040218031J T CAP CHIP 0402 18PF 50V J NPO
3 C747 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
3 C788 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
3 C768 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
3 C151 065G040222232K F CAP 0402 2.2NF K 50V X7R
3 C139 065G040222232K F CAP 0402 2.2NF K 50V X7R

3 C4017 065G040222322K Y CAP 0402 22NF 10% 25V X7R
3 C147 065G040233031J Y CAP CHIP 0402 33P 50V NP0 +/-5%
3 C734 065G040233031J Y CAP CHIP 0402 33P 50V NP0 +/-5%
3 C4069 065G040233031J Y CAP CHIP 0402 33P 50V NP0 +/-5%
3 C148 065G040233031J Y CAP CHIP 0402 33P 50V NP0 +/-5%
3 C146 065G040247031J F CAP 0402 47PF 5% 50V NP0
3 C154 065G040247031J F CAP 0402 47PF 5% 50V NP0
3 C623 065G040247131J Y 0402 470pF J 50V NP0
3 C616 065G040247131J Y 0402 470pF J 50V NP0
3 C602 065G040247131J Y 0402 470pF J 50V NP0
3 C631 065G040247131J Y 0402 470pF J 50V NP0
3 C4048 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C500 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C4064 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C4040 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C4058 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C4060 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C4061 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C4059 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C152 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C4050 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C4063 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C4066 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C4042 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 C126 065G0402474A5K F CAP 0402 470NF 10% 10V X5R
3 C110 065G040256132K Y CAP 0402 560pF 50V X7R +/-10%
3 C105 065G040256132K Y CAP 0402 560pF 50V X7R +/-10%
3 C111 065G040256132K Y CAP 0402 560pF 50V X7R +/-10%
3 C106 065G040256132K Y CAP 0402 560pF 50V X7R +/-10%
3 C632 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C718 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C4113 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C622 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C619 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C606 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C701 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C605 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C603 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C503 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C621 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C613 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C617 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C601 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C604 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 C109 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C767 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C720 065G060310512K A CAP 0603 1UF 10% 16V X7R

3 C165 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C103 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C163 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C104 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C166 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C786 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C787 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C164 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C707 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C108 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C504 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 C743 065G060310522K M CAP MLCC 0603 1uF K 25V X7R
3 C743 065G060310522K T CAP CHIP 0603 1uF K 25V X7R
3 C4006 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
3 C4020 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
3 C4005 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
3 C4120 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
3 C4071 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
3 C4019 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
3 C730 065G060322422K Y CAP 0603 220N 25V X7R 10%
3 C4112 065G060322422K Y CAP 0603 220N 25V X7R 10%
3 C4051 065G060322515K A 0603 2.2UF K 16V X5R
3 C4121 065G060322515K A 0603 2.2UF K 16V X5R
3 C4041 065G060322515K A 0603 2.2UF K 16V X5R
3 C4043 065G060322515K A 0603 2.2UF K 16V X5R
3 C4116 065G060322515K A 0603 2.2UF K 16V X5R
3 C4049 065G060322515K A 0603 2.2UF K 16V X5R
3 C634 065G060347412K Y CAP CHIP 0.47uF 16V +/-10% X7R
3 C611 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C628 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C744 065G080510615K T CHIP 10uF 16V X5R 0805
3 C116 065G080510615K T CHIP 10uF 16V X5R 0805
3 C153 065G080510615K T CHIP 10uF 16V X5R 0805
3 C748 065G080510615K T CHIP 10uF 16V X5R 0805
3 C502 065G080510615K T CHIP 10uF 16V X5R 0805
3 C123 065G080510615K T CHIP 10uF 16V X5R 0805
3 C162 065G080510615K T CHIP 10uF 16V X5R 0805
3 C746 065G080510615K T CHIP 10uF 16V X5R 0805
3 C750 065G080510615K T CHIP 10uF 16V X5R 0805
3 C736 065G080510615K T CHIP 10uF 16V X5R 0805
3 C160 065G080510615K T CHIP 10uF 16V X5R 0805
3 C117 065G080510615K T CHIP 10uF 16V X5R 0805
3 C161 065G080510615K T CHIP 10uF 16V X5R 0805
3 C4114 065G080510615K T CHIP 10uF 16V X5R 0805
3 C501 065G080510615K T CHIP 10uF 16V X5R 0805
3 C4096 065G080510615K T CHIP 10uF 16V X5R 0805
3 C612 065G080510615K T CHIP 10uF 16V X5R 0805

3 C735 065G080510615K T CHIP 10uF 16V X5R 0805
3 C625 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
3 C614 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
3 C610 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
3 C629 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
3 C167 065G080547515K M CAP 0805 4.7UF 10% 16V X5R
3 C168 065G080547515K M CAP 0805 4.7UF 10% 16V X5R
3 C167 065G080547515K T AP 0805 4.7UF 10% 16V X5R EMK212 BJ475
3 C168 065G080547515K T AP 0805 4.7UF 10% 16V X5R EMK212 BJ475
3 C784 065G120610622K M CAP 1206 10UF 10% 25V X7R
3 C764 065G120610622K M CAP 1206 10UF 10% 25V X7R
3 C785 065G120610622K M CAP 1206 10UF 10% 25V X7R
3 C765 065G120610622K M CAP 1206 10UF 10% 25V X7R
3 C706 065G120610622K M CAP 1206 10UF 10% 25V X7R
3 C784 065G120610622K T CAP 1206 10UF 10% 25V X7R
3 C706 065G120610622K T CAP 1206 10UF 10% 25V X7R
3 C764 065G120610622K T CAP 1206 10UF 10% 25V X7R
3 C785 065G120610622K T CAP 1206 10UF 10% 25V X7R
3 C765 065G120610622K T CAP 1206 10UF 10% 25V X7R
3 C633 067G311C1013CT EC SMD 100UF 20% 16V RV 6.3*7.7
3 C731 067G311C1013CT EC SMD 100UF 20% 16V RV 6.3*7.7
3 C731 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 2
3 C633 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 2
3 C717 067G311F4713LT EC SMD 470UF 20% 16V 8*10 VZH471M1CTR-0
3 HDCP-U404 070GHDCP500HDC HDCP CODE
3 FB700 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
3 FB703 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
3 FB106 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
3 FB601 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
3 FB706 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
3 FB705 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
3 FB700 071G 56G301 TA CHIP BEAD 0805 300R 25% HCB2012KF-301T40
3 FB705 071G 56G301 TA CHIP BEAD 0805 300R 25% HCB2012KF-301T40
3 FB706 071G 56G301 TA CHIP BEAD 0805 300R 25% HCB2012KF-301T40
3 FB601 071G 56G301 TA CHIP BEAD 0805 300R 25% HCB2012KF-301T40
3 FB106 071G 56G301 TA CHIP BEAD 0805 300R 25% HCB2012KF-301T40
3 FB703 071G 56G301 TA CHIP BEAD 0805 300R 25% HCB2012KF-301T40
3 FB714 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
3 FB713 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
3 FB712 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
3 FB711 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
3 FB714 071G 56K121 TA HIP BEAD 120R/6000mA HCB2012KF-121T60
3 FB713 071G 56K121 TA HIP BEAD 120R/6000mA HCB2012KF-121T60
3 FB712 071G 56K121 TA HIP BEAD 120R/6000mA HCB2012KF-121T60
3 FB711 071G 56K121 TA HIP BEAD 120R/6000mA HCB2012KF-121T60
3 FB600 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
3 FB606 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30

3 FB604 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
3 FB603 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
3 FB408 071G 59A121 TA CHIP BEAD 120R/3000mA HCB1608KF-121T30
3 L106 073G 63228 TA CHIP INDUCTOR 0.22UH 10% 0.8R
3 L105 073G 63228 TA CHIP INDUCTOR 0.22UH 10% 0.8R
3 L105 073G 6322810M SMD CHOKE 0.22UH 10% 0.05A 2.1R MGFI160
3 L106 073G 6322810M SMD CHOKE 0.22UH 10% 0.05A 2.1R MGFI160
3 L705 073G253S 67 M SMD CHOKE 3.3UH 20% 0.028R 6.5A
3 L706 073G253S 67 M SMD CHOKE 3.3UH 20% 0.028R 6.5A
3 L706 073G253S 67 DN SMD CHOKE 3.3UH 20% 0.028R LZ.413R3.A0P
3 L705 073G253S 67 DN SMD CHOKE 3.3UH 20% 0.028R LZ.413R3.A0P
3 L701 073G253S 68 H SMD CHOKE 2.2UH 30% 2.04A 0.031R SPI530L
3 CN500 088G 34019K AD HDMI HEADER 19P H:2.8mm
3 CN500 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4
3 D101 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23
3 D601 093G 6432P LL4148
3 ZD409 093G 39S911 T ZENER BZX84-C5V6 5.6V 0.25W SOT-23
3 ZD700 093G 39S923 T ZENER BZX84B6V8 6.8 0.5 SOT-23
3 D702 093G 60S 37 T SCHOTTKY SM260A 2A 40V DO-214AC
3 ZD103 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD119 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD114 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD123 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD109 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD124 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD108 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD115 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD110 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD111 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD107 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD120 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD106 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD112 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD113 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD102 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 ZD100 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 D601 093G 64S522SEM LL4148
3 U107 356G056351400C00HF LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223
3 U702 356G056351400C00HF LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223
3 U700 356G056351400C00HF LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223
3 U106 356G0566024600 Silicon Tuner MxL661-AG-R
3 U400 356G0568590601 SCALER MSD8561VXM-W4 HSBGA-590
3 U600 356G061613300A AUDIO AD82588B-LG48NAY 2x15W stereo E-LQ
3 U404 356G333304A600 sAND FLASH THGBMBG5D1KBAIT 4G BGA 153

3 U704 356GD563006183 DC/DC SY8009BABC 2A 3.3V SOT23-6
3 U701 356GD563008140 DC/DC TPS54328DDAR 3A 0.76~7V DDA
3 U705 356GD563008141 DC/DC TPS54528DDAR 5A ADJ DDA
3 U706 356GD563008141 DC/DC TPS54528DDAR 5A ADJ DDA
3 U703 356GD563008609 DC/DC MSH6000A 5A ADJ ESOP-8
3 Q405 357G0763030014 MOSFET MTP9435BDYAQ8 -8.4A -30V SOP-8-6
3 Q700 357G0763030014 MOSFET MTP9435BDYAQ8 -8.4A -30V SOP-8-6
3 Q501 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V
3 R503 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R140 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R138 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R141 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R501 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R515 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R136 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R137 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R517 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R513 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R505 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R139 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R142 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R500 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R512 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 R143 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 C4044 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 C4083 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 C4011 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 C4082 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 C704 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 C4034 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 C728 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 C4150 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 C739 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22
3 C738 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22
3 C724 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22
3 C620 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22
3 C723 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22
3 C790 365G1206226A2K000M CAP 1206 22UF 10% 10V X7R GRM31CR71A226
3 C769 365G1206226A2K000M CAP 1206 22UF 10% 10V X7R GRM31CR71A226
3 C770 365G1206226A2K000M CAP 1206 22UF 10% 10V X7R GRM31CR71A226
3 C771 365G1206226A2K000M CAP 1206 22UF 10% 10V X7R GRM31CR71A226
3 C789 365G1206226A2K000M CAP 1206 22UF 10% 10V X7R GRM31CR71A226
3 C791 365G1206226A2K000M CAP 1206 22UF 10% 10V X7R GRM31CR71A226
3 C600 365G121010632K000T CAP 1210 10UF 10% 50V X7R UMK325AB7106K
3 MAC-U404 370G0MAC636EBY CD 0003665601
3 HDCP2-U404 370GHDCP603PHP CD CD HDCP2.2 code for Wifi Miracast
3 FB409 371G042P121C04 CHIP BEAD 0402 120ohm 25% HCB1005KF-121

3 FB400 371G042P121C04 CHIP BEAD 0402 120ohm 25% HCB1005KF-121
3 FB103 371G042P121C04 CHIP BEAD 0402 120ohm 25% HCB1005KF-121
3 FB407 371G042P121C04 CHIP BEAD 0402 120ohm 25% HCB1005KF-121
3 FB403 371G042P121C04 CHIP BEAD 0402 120ohm 25% HCB1005KF-121
3 FB402 371G042P121C04 CHIP BEAD 0402 120ohm 25% HCB1005KF-121
3 FB401 371G042P121C04 CHIP BEAD 0402 120ohm 25% HCB1005KF-121
3 FB406 371G042P121C04 CHIP BEAD 0402 120ohm 25% HCB1005KF-121
3 FB101 371G042P121C04 CHIP BEAD 0402 120ohm 25% HCB1005KF-121
3 FB405 371G042P121C04 CHIP BEAD 0402 120ohm 25% HCB1005KF-121
3 FB404 371G042P121C04 CHIP BEAD 0402 120ohm 25% HCB1005KF-121
3 FB402 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 FB401 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 FB403 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 FB404 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 FB405 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 FB409 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 FB400 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 FB103 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 FB407 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 FB101 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 FB406 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 FB104 371G042U102C00 CHIP BEAD 0402 1000 25% FCM1005KF-102T0
3 FB104 371G042U102M00 CHIP BEAD 0402 1000 25% FCM1005KF-102T0
3 L702 373G253S140Y01 SMD CHOKE 2.2uH 20% 1.48A 0.058R NRS301
3 L600 373G253S147M00 SMD CHOKE 22uH 20% 1.5 0.115Ω±30% MP
3 L603 373G253S147M00 SMD CHOKE 22uH 20% 1.5 0.115Ω±30% MP
3 L602 373G253S147M00 SMD CHOKE 22uH 20% 1.5 0.115Ω±30% MP
3 L601 373G253S147M00 SMD CHOKE 22uH 20% 1.5 0.115Ω±30% MP
3 L602 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22
3 L603 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22
3 L600 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22
3 L601 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22
3 L101 373G253S239D00 SMD CHOKE 75R 25% 280mA 75R BW21S7511B01
3 L700 373G253S366M00 SMD CHOKE 4.7UH 20% 2.2A 0.057 MPIT5020
3 X100 393G022S60100J CRYSTAL NXH16.000AE18F-KAB8-PA 16MHz 18
3 X400 393G022SA8200J CRYSTAL NXK24.000AE12F-KAB8 24MHz 12pF
3 D400 393G060S03000T00HF SCHOTTKY BAT54C_R1_00001 0.2A 30V SOT-2
3 D500 393G060S03000T00HF SCHOTTKY BAT54C_R1_00001 0.2A 30V SOT-2
3 D600 393G060S04300T00HF SCHOTTKY SX36 HF 3A 60V SMA
3 D400 393G060SA1300T SCHOTTKY BAT54C 0.2A 30V SOT-23
3 D500 393G060SA1300T SCHOTTKY BAT54C 0.2A 30V SOT-23
3 D101 393G064SA0700T SWITCHING BAV99 0.2A 85V SOT-23
3 E715 715G7204M0E000004N MAIN PCB FR4 DS 133.5*207*1.6mm
3 E715 715G7204M0E000004Y MAIN PCB FR4 DS 133.5*207*1.6mm

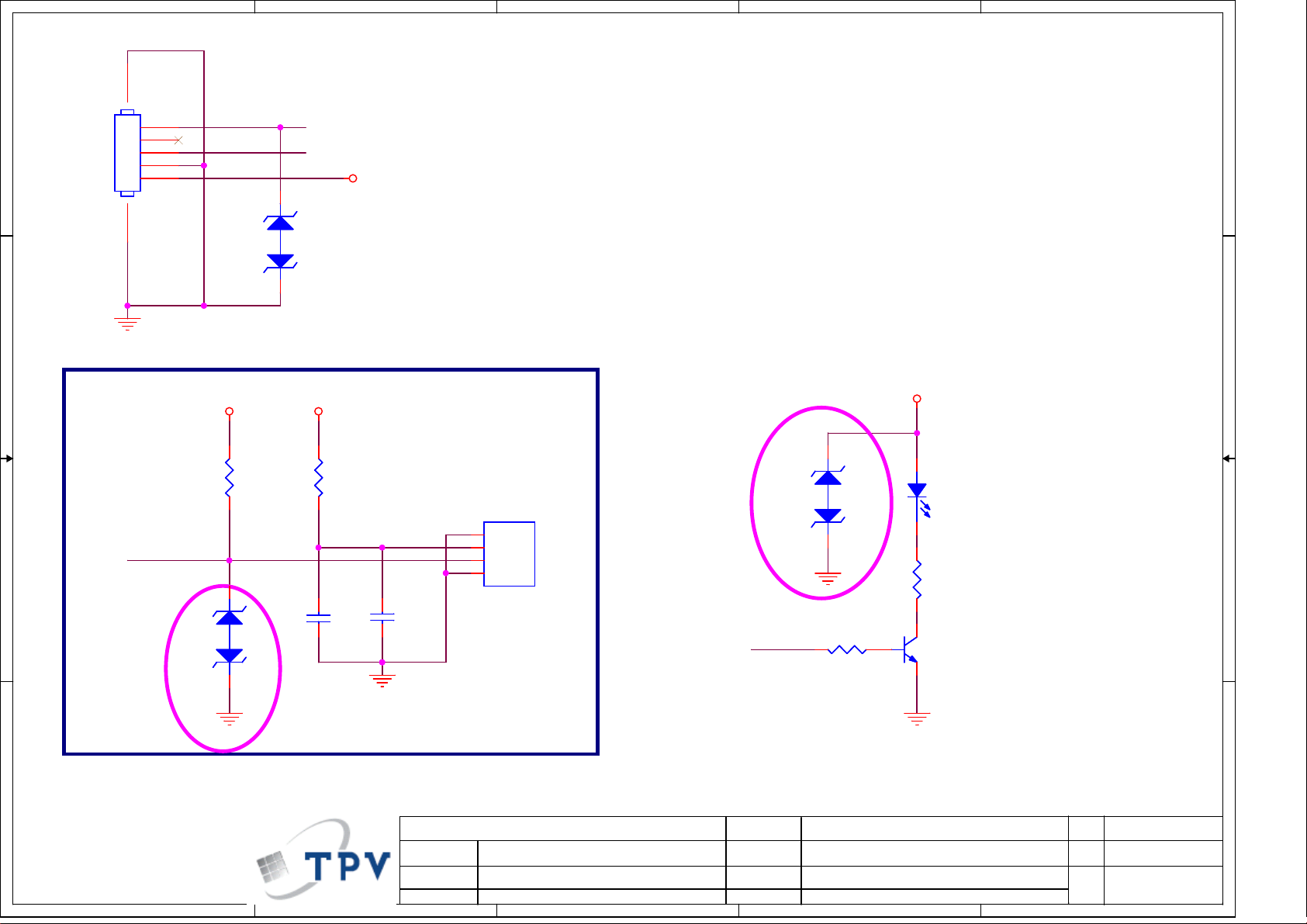

2 SMTIRPFFAA9 IR BOARD FOR SMT
3 R202 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
3 R301 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN

3 R201 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
3 R302 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN
3 CN201 033G8032 5F S HR CONNECTOR
3 C304 065G0402105A5K M CAP 0402 1UF 10% 10V X5R
3 C305 065G0402105A5K M CAP 0402 1UF 10% 10V X5R
3 Q301 057G 477904 T TRA BC847BW 100mA/45V SOT-323
3 LED301 081G 63R 1 EL CHIP LED RED 19-21B/R6C-BL1M2VY/3T
3 LED301 081G 63R 1 GP CHIP LED RED GPTS06033RC3-PB
3 U201 356GS927075 IR RECEIVER TSOP75336WTT 36 KHz
3 E715 715G7055R01000004M IR PCB FR4 DS 30*8.5*1.6mm
3 E715 715G7055R01000004Y IR PCB FR4 DS 30*8.5*1.6mm

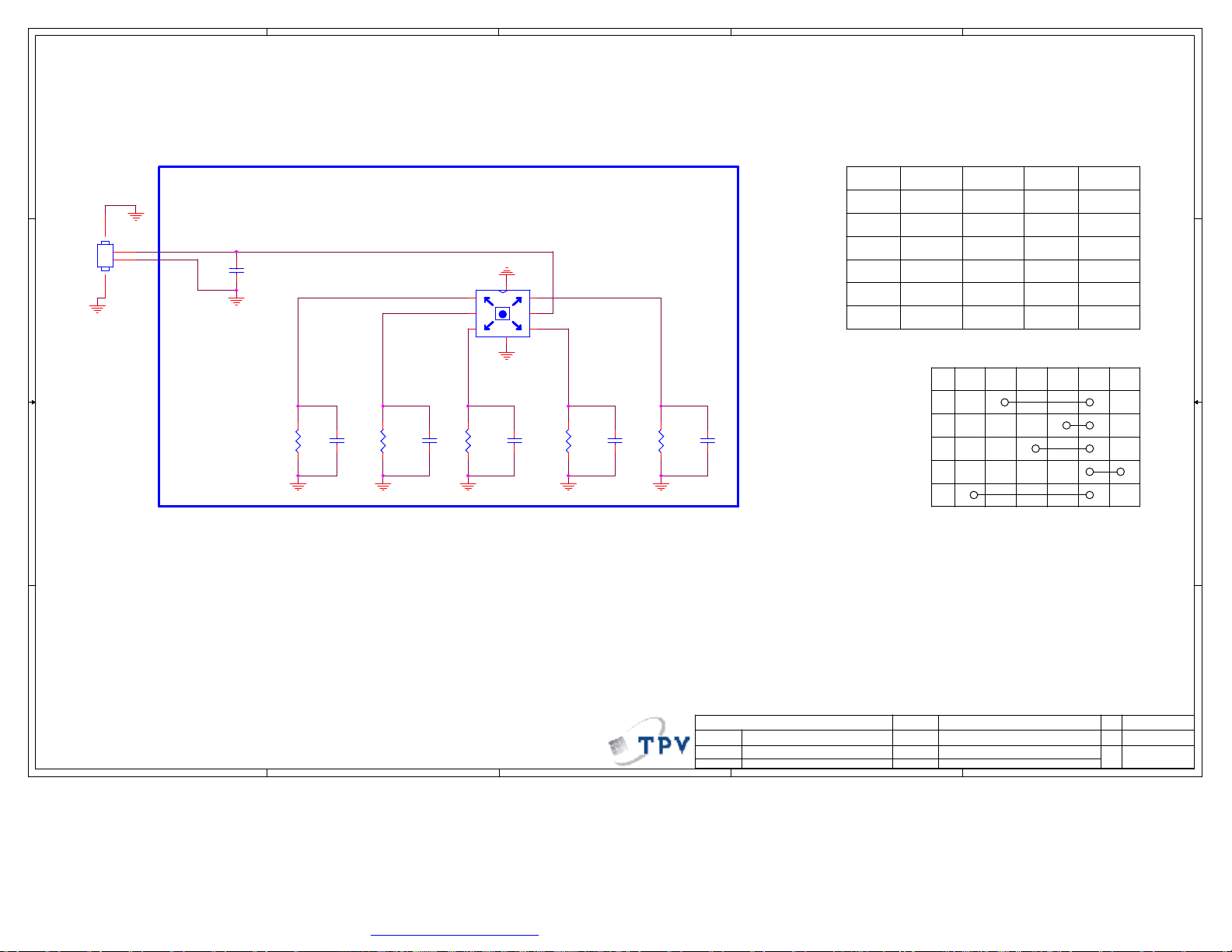

2 SMTKEPFEAA9 KEY BOARD FOR SMT
3 R01 061G06031201FF RST CHIPR 1.2KOHM +-1% 1/10W
3 R01 061G06031201FT RST CHIP 1K2 1/10W 1%
3 R01 061G06031201FY RST CHIPR 1.2KOHM +-1% 1/10W
3 R05 061G06031502FF RST CHIPR 15KOHM +-1% 1/10W FENGHUA
3 R05 061G06031502FT RST CHIP 15K 1/10W 1%
3 R05 061G06031502FY RST CHIP 15K 1/10W 1%
3 R04 061G06032201FT RST CHIP 2K2 1/10W 1%
3 R04 061G06032201FY RST CHIP 2K2 1/10W 1%
3 R02 061G06034709FT RST CHIP 47R 1/10W 1%
3 R03 061G06036801FF RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA
3 R03 061G06036801FT RST CHIP 6K8 1/10W 1%
3 R03 061G06036801FY RST CHIP 6K8 1/10W 1%
3 C06 065G060310432K A CAP 0603 100NF 10% 50V X7R
3 C06 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
3 C06 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 CN01 311GW125D02ADX WAFER 1.25mm 2P R/A S1315-02RVB-S03-K
3 SW01 377G060902C0CJ CHIP TACT SW 6P 6mm 160g SMD
3 SW01 377G060902C0HC CHIP TACT SW 6P 6mm 160g SMD
3 E715 715G7088K01000004K KEY PCB FR4 DS 22*29.5*1.6mm
2 705TXD57224 Q8101
3 0M1G1730 8120 SCREW M3 8
3 Q8101 357G0600100020 MOSFET AOTF298L 33A 100V TO-220F
3 HS8101 Q90T0236007A0000SY HEAT SINK
2 705TXD93200 D8101
3 D8101 093G 60500 FMEN210A TO-220 SANKEN
3 0M1G1730 8120 SCREW M3 8
3 HS8102 Q90T0236007A0000SY HEAT SINK

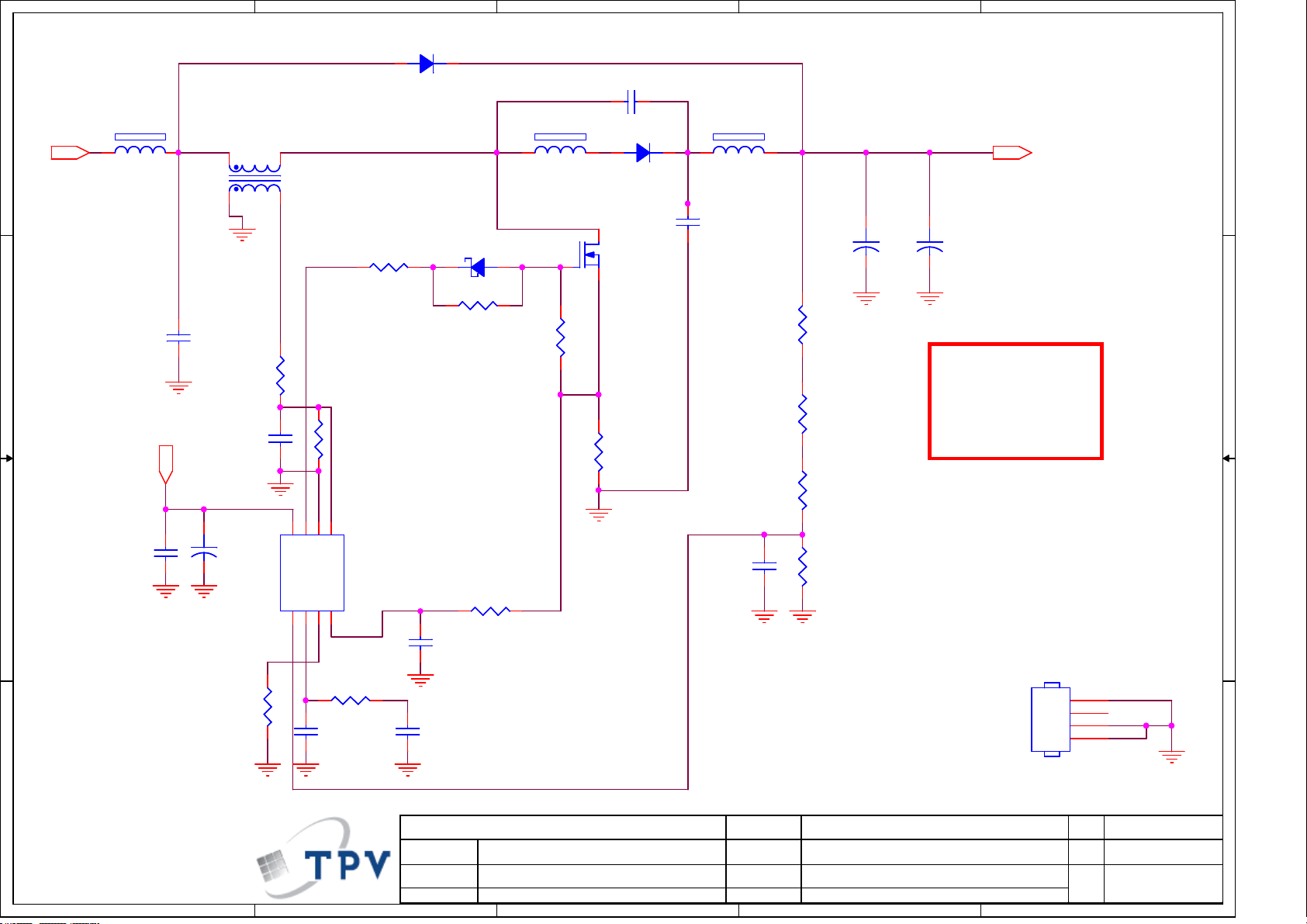

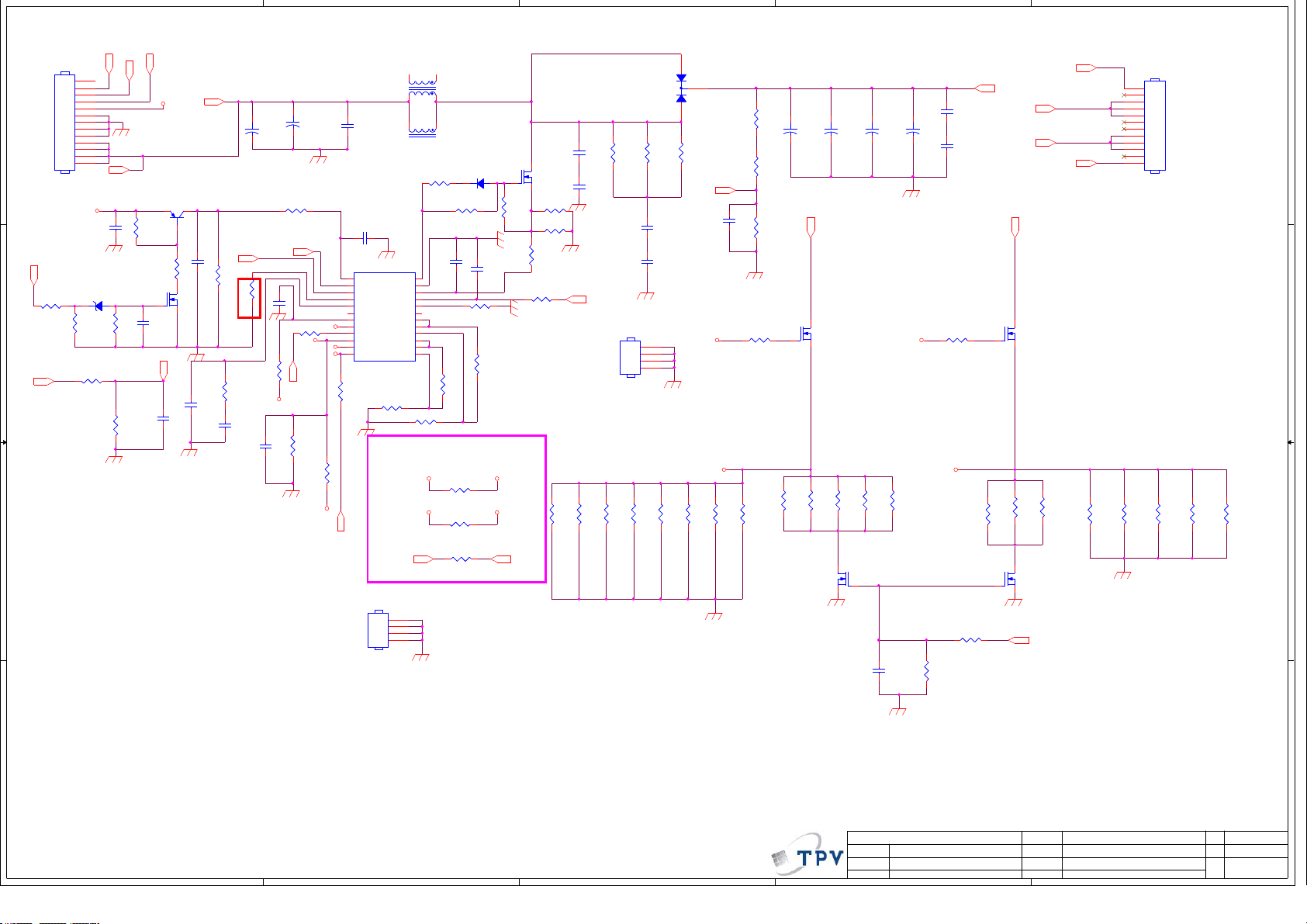

2 LNEW661XXA6SMT CONVERTER BOARD FOR SMT
3 R8117 061G08051003FY RST CHIP 100K 1/8W 1%
3 LNEW661XXA6AI CONVERTER BOARD FOR AI
3 R8149 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
3 R8119 061G08051003FY RST CHIP 100K 1/8W 1%
3 C8104 065G080522432K F CAP 0805 220NF 10% 50V X7R
3 R8109 061G08051003FY RST CHIP 100K 1/8W 1%
3 R8105 061G12064700FT RST 1206 470R 1% 1/4W TZAI YUAN

3 C8115 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 ZD8101 393G039S95300T00HF HF BZT52-B9V1_R1_00001 9.1V 0.41W
3 R8169 061G12061508FT RST 1206 1.5R 1% 1/4W
3 R8132 061G08056202FY RST 0805 62K 1% 1/8W ­3 R8144 361G12061108FT RST 1206 1.1R 1% 1/4W SMD12061R1F
3 R8146 361G12061108FT RST 1206 1.1R 1% 1/4W SMD12061R1F
3 C8132 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 R8147 061G12061508FT RST 1206 1.5R 1% 1/4W
3 R8168 061G12061508FT RST 1206 1.5R 1% 1/4W
3 R8145 061G12061508FT RST 1206 1.5R 1% 1/4W
3 C8112 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 R8139 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
3 C8134 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 R8170 061G12061508FT RST 1206 1.5R 1% 1/4W
3 C8133 065G080522522K T CAP 0805 2.2uF 10% 25V X7R
3 R8106 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206
3 R8110 061G08052203FT RST CHIPR 220KOHM +-1% 1/8W
3 R8137 061G08051003FY RST CHIP 100K 1/8W 1%
3 R8112 061G08051103FF RST CHIPR 110KOHM +-1% 1/8W FENGHUA
3 Q8102 057G 417907 T TRA PMBT3906 PNP -200mA/-40V SOT-23
3 C8110 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 R8103 061G08051002FT RST CHIP 10K 1/8W 1%
3 R8107 061G0805302 JY RST CHIPR 3K +-5% 1/8W YAGEO
3 C8114 065G080522232K A CAP 0805 2.2NF 10% 50V X7R
3 R8151 061G08051003FY RST CHIP 100K 1/8W 1%
3 R8134 061G0805103 JT RST 0805 10K 5% 1/8W
3 R8131 061G08053302FT RST CHIP 33K 1/8W 1%
3 R8160 361G12061208FY RST 1206 1.2R 1% 1/4W ­3 R8120 061G0805103 JT RST 0805 10K 5% 1/8W
3 C8145 065G080522232K Y CAP CHIP 0805 2N2 50V X7R +/-10%
3 Q8103 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V
3 R8141 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
3 C8146 065G080522232K Y CAP CHIP 0805 2N2 50V X7R +/-10%
3 R8153 061G08052203FT RST CHIPR 220KOHM +-1% 1/8W
3 R8152 061G08050004JT RST CHIPR 0805 0 OHM 4A
3 R8138 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
3 R8140 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
3 R8116 061G08052203FT RST CHIPR 220KOHM +-1% 1/8W
3 C8103 065G080522432K F CAP 0805 220NF 10% 50V X7R
3 R8150 061G08050004JT RST CHIPR 0805 0 OHM 4A
3 C8143 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
3 R8148 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO
3 C8131 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C8109 065G080510522K M AP 0805 1UF 10% 25V X7R
3 R8115 061G0805205 JT RST CHIPR 2M +-5% 1/8W TZAI YUAN
3 D8102 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 R8113 061G08051052FF RST CHIPR 10.5K OHM +- 1% 1/8W FENGHUA

3 R8136 061G0805304 JY RST CHIPR 300K +-5% 1/8W YAGEO
3 R8111 061G08051003FT RST CHIP 100K 1/8W 1%
3 R8108 061G08053303FT RST CHIP 330K 1% 1/8W
3 IC8101 356G0700024600 LED DRIVER LD7890GS SOP-24
3 R8101 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN
3 R8155 061G08052003FT RST CHIP 200K 1/8W 1%
3 C8111 065G080547131J M CAP 0805 470PF 5% 50V NP0
3 Q8143 057G 763139 MOSFET AOD478 11A 100V TO-252
3 R8102 061G0805330 JT RST CHIP 33R 1/8W 5% TZAI YUAN
3 R8133 061G08051002FT RST CHIP 10K 1/8W 1%
3 R8135 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
3 R8112 061G08051103FT RST CHIP R 110K 1/8W +/-1%
3 Q8102 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC
3 R8103 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
3 R8107 061G0805302 JT RST CHIP 3K 1/8W 5% TZAI YUAN
3 R8151 061G08051003FT RST CHIP 100K 1/8W 1%
3 R8134 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
3 R8131 061G08053302FF RST CHIPR 33KOHM +-1% 1/8W FENGHUA
3 R8160 361G12061208FT RST 1206 1.2R 1% 1/4W ­3 R8141 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 R8138 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
3 R8140 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
3 R8117 061G08051003FT RST CHIP 100K 1/8W 1%
3 R8149 061G0805203 JF RST CHIPR 20KOHM +-5% 1/8W FENGHUA
3 R8109 061G08051003FT RST CHIP 100K 1/8W 1%
3 R8105 061G12064700FF RST 1206 470R 1% 1/4W FENGHUA
3 R8115 061G0805205 JF RST CHIPR 2M +-5% 1/8W FENGHUA
3 R8113 061G08051052FT RST CHIP 10.5K OHM 1/8W 1% TZAI YUAN
3 R8111 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
3 R8108 061G08053303FF RST CHIP 330K 1/8W 1%
3 R8101 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA
3 R8155 061G08052003FF RST CHIPR 200KOHM +-1% 1/8W FENGHUA
3 R8102 061G0805330 JF RST CHIPR 33 OHM +-5% 1/8W FENGHUA
3 R8133 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
3 R8135 061G08051009FF RST CHIPR 10 OHM+-1% 1/8W FENGHUA
3 R8148 061G0805000 JT RST 0805 0.05R MAX 1/8W
3 R8106 061G12061002FF RST CHIPR 10KOHM +-1% 1/4W FENGHUA
3 R8139 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
3 R8146 361G12061108FY RST 1206 1.1R 1% 1/4W RC1206FR-071R1L
3 R8144 361G12061108FY RST 1206 1.1R 1% 1/4W RC1206FR-071R1L
3 C8115 065G080510532K M CAP 0805 1UF 10% 50V X7R

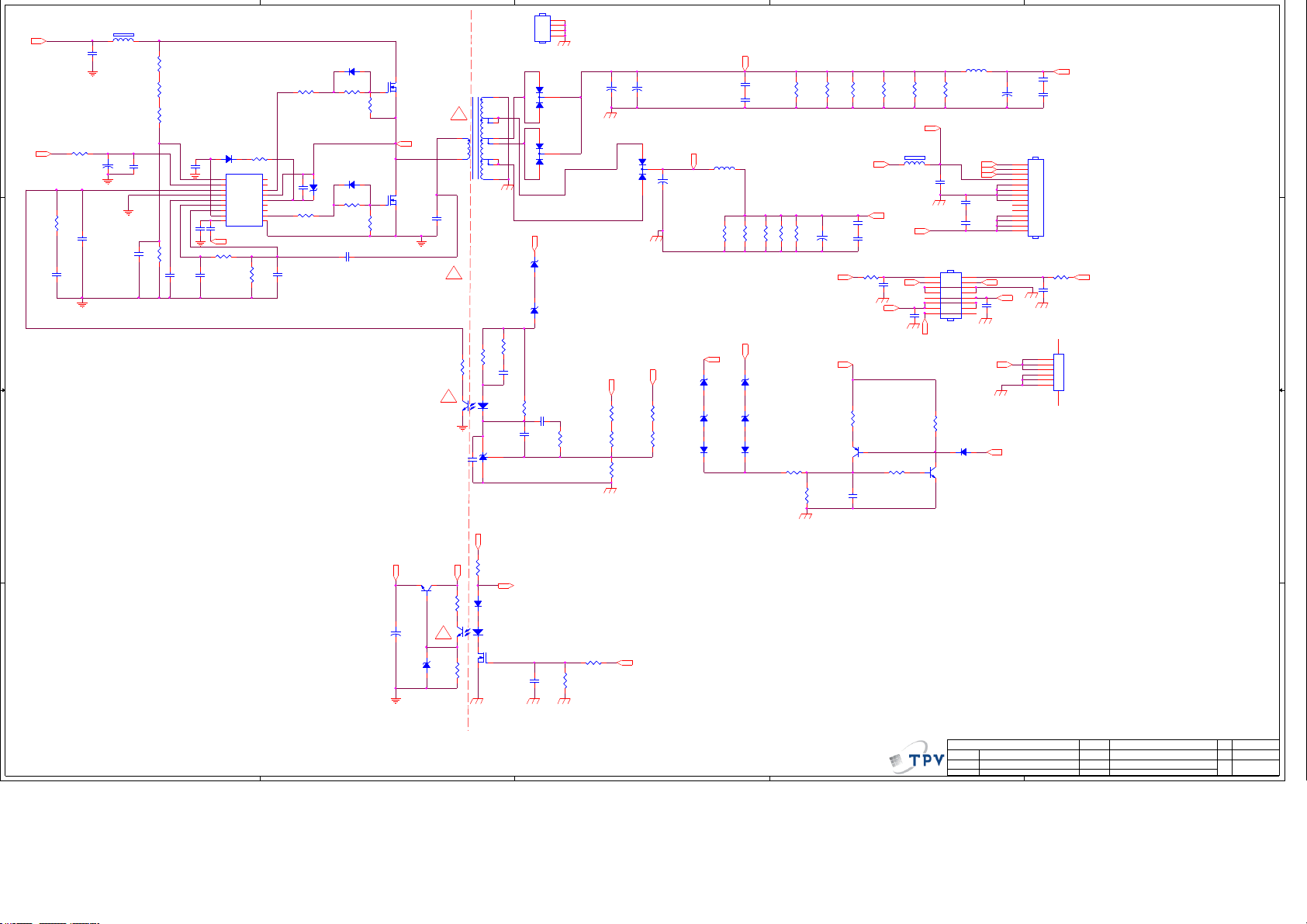

3 ADF1220XB8AI ADAPTER BOARD FOR AI

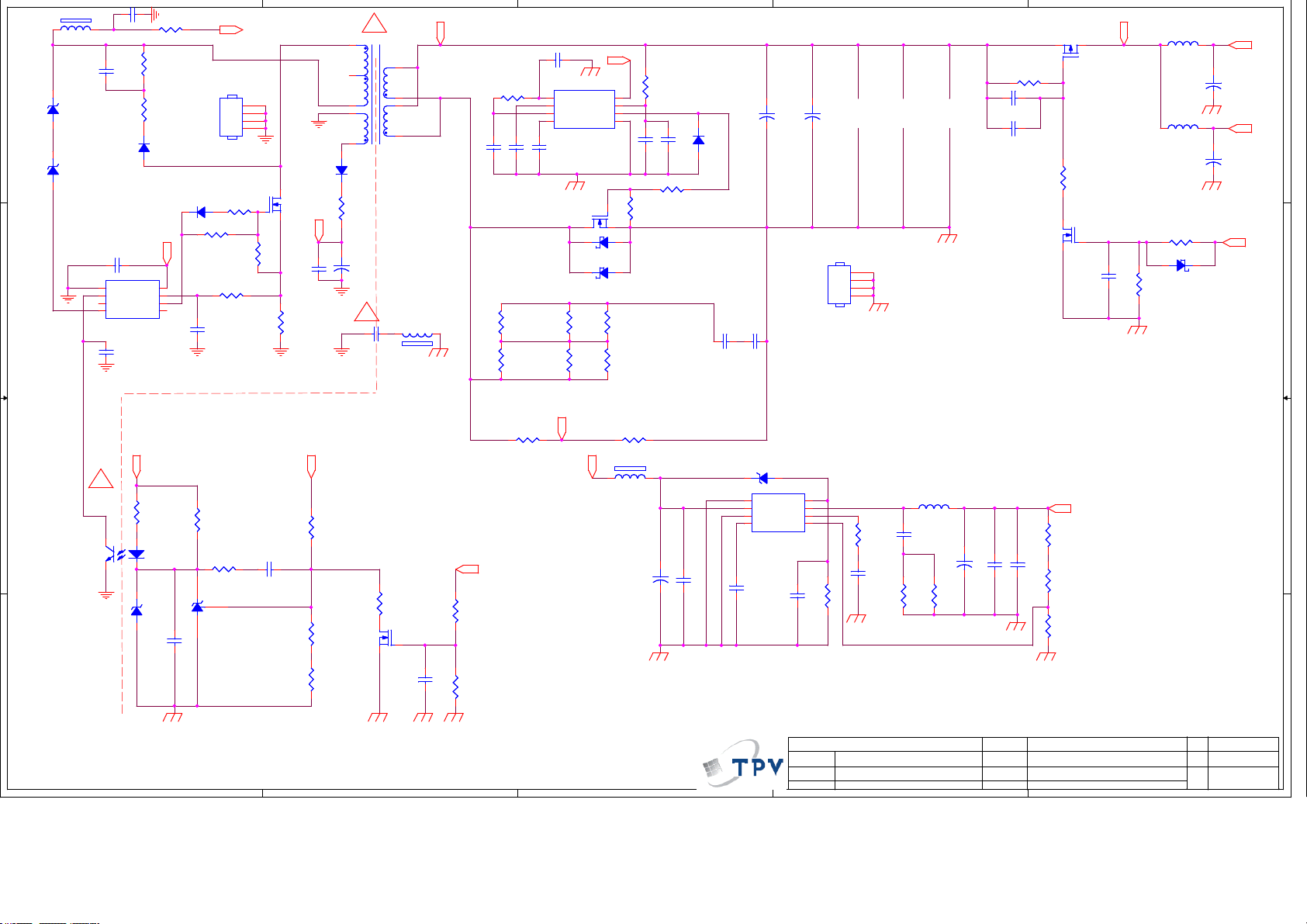

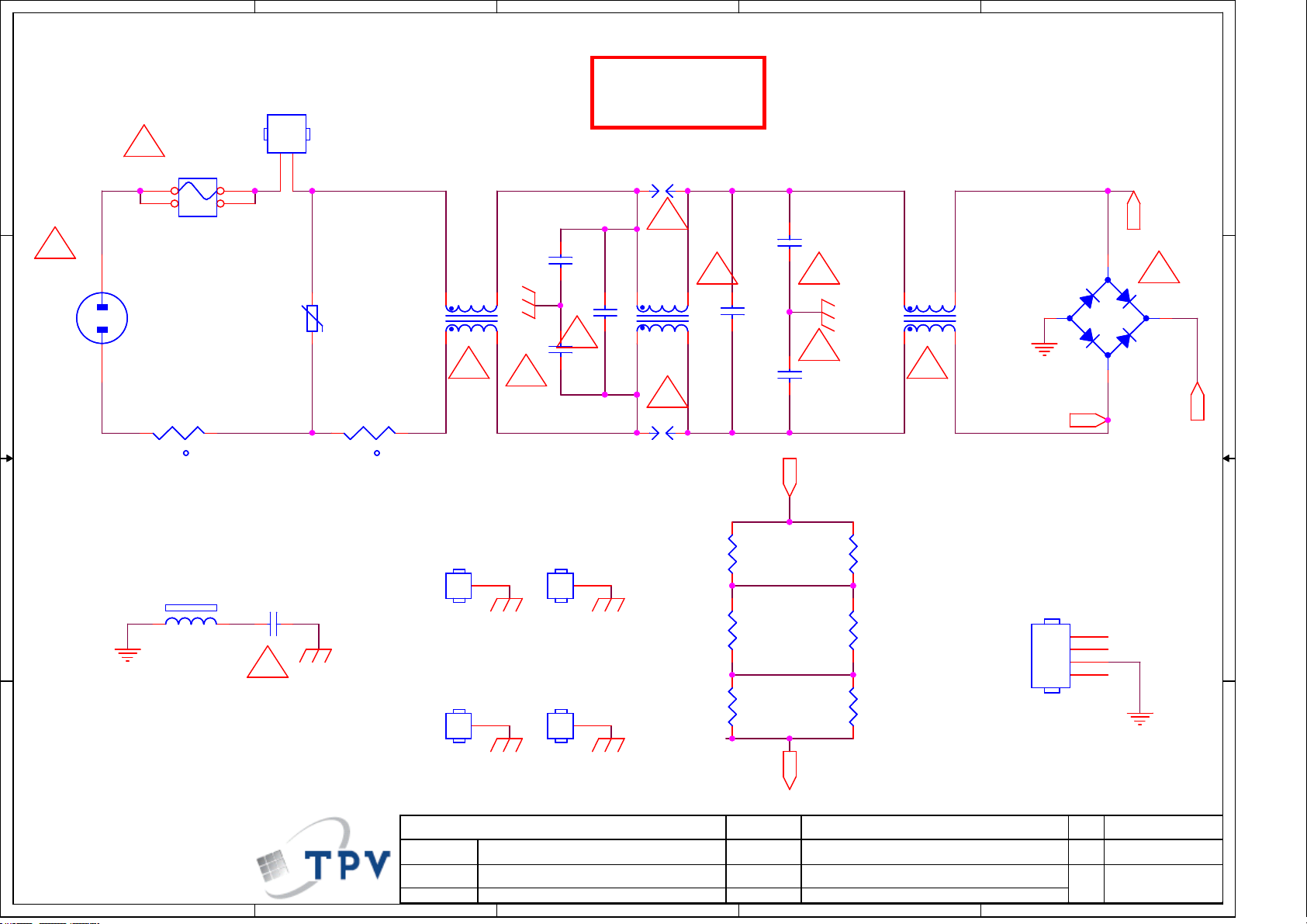

4 T9301 006G 31 4 1.7MM RIVET
4 BD9902 006G 31 4 1.7MM RIVET
4 CN9901 006G 31500 EYELET
4 T9101 006G 31500 EYELET
4 L9901 006G 31502 EYELET

4 L9902 006G 31502 EYELET
4 NR9901 006G 31502 EYELET
4 NR9902 006G 31502 EYELET
4 IC9103 056G 158 10 T DC/DC AS431AZTR-E1 150MA 40V TO-92
4 C9813 065G 1K101 2T6921 CAP CER 100pF 1KV K Y5P
4 C9110 065G 1K101 2T6921 CAP CER 100pF 1KV K Y5P
4 C9817 065G 1K10193T CAP CER 100PF 10% 1KV R
4 C9303 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING
4 C9904 065G306K10123R CAP Y1 100PF 10% 250V Y5P
4 C9908 065G306K22123R CAP Y1 220PF 10% 250V Y5P
4 C9907 065G306K33123R CAP Y1 330PF 10% 250V Y5P
4 C9902 065G306K33123R CAP Y1 330PF 10% 250V Y5P
4 C9325 065G306M10233R CAP Y1 1NF 20% 250V Y5U
4 C9122 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000H ER
4 C9319 067G 5151017KT EC 100UF 20% 50V 10*9 EJ
4 C9114 067G 5153316KT EC 330UF 20% 35V 10*12 5000H EV
4 C9317 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV
4 C9304 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV
4 C9124 067G315M2207KB EC 22UF 20% 50V 6.3*7 3000 hr
4 C9805 067G315M2207KB EC 22UF 20% 50V 6.3*7 3000 hr
4 FB9301 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
4 FB9904 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
4 FB9802 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
4 FB9803 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
4 FB9302 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
4 D9102 093G 52908 RECTIFIER UF4007 A0 1 1000 DO-41
4 D9303 093G 60953 SCHOTTKY FR107G-A0 1A 1000V DO-41
4 ZD9102 093G 39G 7 ZENER GDZJ15B 15 0.5 DO-35
4 D9301 093G1080 252T RECTIFIER SARS01-V1 1.2A 800V DO-41
4 J902 095G 90 23 JUMP WIRE - ­4 J911 095G 90 23 JUMP WIRE - ­4 J919 095G 90 23 JUMP WIRE - ­4 J917 095G 90 23 JUMP WIRE - ­4 J904 095G 90 23 JUMP WIRE - ­4 J903 095G 90 23 JUMP WIRE - ­4 J915 095G 90 23 JUMP WIRE - ­4 FB9102 095G 90 23 JUMP WIRE - ­4 J920 095G 90 23 JUMP WIRE - ­4 J912 095G 90 23 JUMP WIRE - ­4 J910 095G 90 23 JUMP WIRE - ­4 J921 095G 90 23 JUMP WIRE - ­4 J923 095G 90 23 JUMP WIRE - ­4 J906 095G 90 23 JUMP WIRE - ­4 J909 095G 90 23 JUMP WIRE - ­4 J916 095G 90 23 JUMP WIRE - ­4 J907 095G 90 23 JUMP WIRE - ­4 J905 095G 90 23 JUMP WIRE - -

4 J914 095G 90 23 JUMP WIRE - ­4 J913 095G 90 23 JUMP WIRE - ­4 J918 095G 90 23 JUMP WIRE - ­4 R9301 361G01SJ10852T00TZ RST WD 0.1R 5% 1W NKNP1WS0R1JT52E8
4 R9306 361G152M22052T00TZ RST MOF 22R 5% 2W MOF2WS22RJT52
4 R9302 361G152M82352T00TZ RST MOF 82K 5% 2W MOF2WS82KJT52
4 R9321 361G2SWJ36852T00TZ RST NWR 0R36 5% 2W NKNP2WS0R36JT52
4 RV9902 362G0010501MIT SPARK GAP 500V -20/+30%
4 RV9903 362G0010501MIT SPARK GAP 500V -20/+30%
4 C9140 365G001D5096WT CAP CER 5PF 0.5pF 1KV SL CC81-1KV-06d-S
4 E715 715G6607P02001002M PWR PCB FR2 CTI>600 SS 195.5*271*1.6MM
3 LNEW661XXA6AI CONVERTER BOARD FOR AI
4 J8108 095G 90 23 JUMP WIRE - ­4 J8107 095G 90 23 JUMP WIRE - ­4 J8106 095G 90 23 JUMP WIRE - ­4 J8105 095G 90 23 JUMP WIRE - ­4 J8110 095G 90 23 JUMP WIRE - ­4 J8103 095G 90 23 JUMP WIRE - ­4 J8111 095G 90 23 JUMP WIRE - ­4 J8102 095G 90 23 JUMP WIRE - ­4 R8104 361G152M10852T00TZ RST MOF 0.1R 5% 2W MOF2W0R1JT52
4 E715 715G6432P01000002H PWR PCB FR1 CTI>600 SS 150*150mm
4 J8101 095G 90 23 JUMP WIRE - ­4 J8104 095G 90 23 JUMP WIRE - ­4 R8118 361G152M10852T00TZ RST MOF 0.1R 5% 2W MOF2W0R1JT52
4 R8104 061G152M10852T SY RST MOF 0R1 5% 2W
4 R8118 061G152M10852T SY RST MOF 0R1 5% 2W

5

4

3

2

1

Platform: Mstar MSD8561VXM 207mm X 132.5mm(2 layers)

TPV

INDEX

D D

01.
COVER

02. BLOCK
DIAGRAM

03. POWER
DIAGRAM

04. SYSTEM
POWER

05.
MSD8561VXM

06.
LVDS

07. VIDEO
IN/OUT

08.

C C

VGA

09. USB &
ETHERNET

10.
HDMI

11.
TUNER

12. AUDIO
AMPILIFER

13. NAND
FLASH

SCHEMATIC NAME

Model No: 2K15 OTS - MSD8561VXM New

SHEET

1

2

3

4

5

6

7

8

9

10

11

12

13

REVISION HISTORY

Date

Author

2014/06/24

讲岸

Ver

A

Reviser reason

FN

B B

A A

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

5

4

3

Date

Date

Date

01. COVER

01. COVER

01. COVER

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

of

1 13Wednesday, October 08, 2014

of

1 13Wednesday, October 08, 2014

of

1 13Wednesday, October 08, 2014

Size

B

Size

B

Size

B

Rev

A

Rev

A

Rev

A

称爹

<称爹>

称爹

<称爹>

称爹

1

<称爹>

5

4

3

2

1

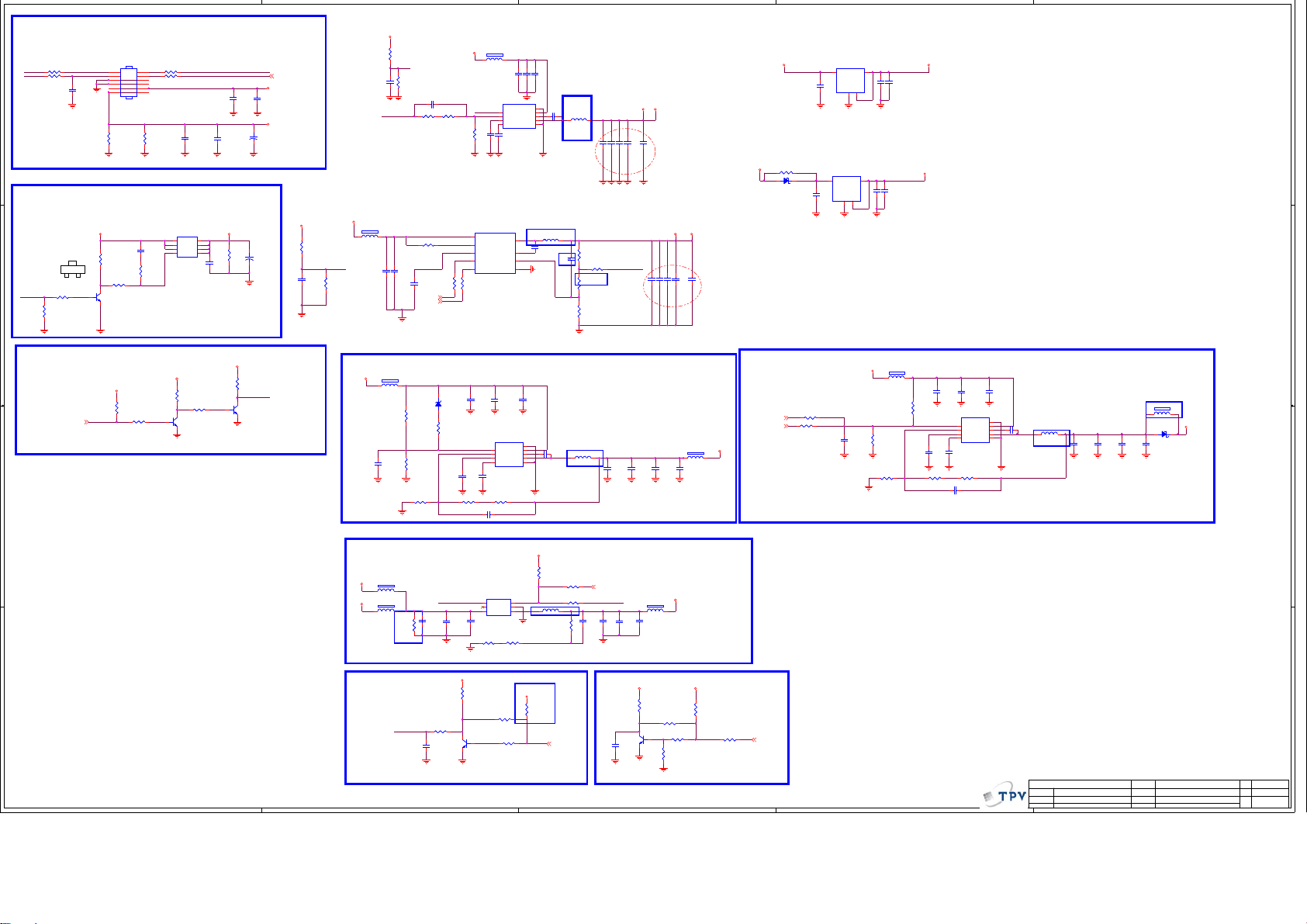

Connetor

CN700パ14pin传12pin

R700 33 OHM 1/16WR700 33 OHM 1/16W

PS_ON

R702 33 OHM 1/16WR702 33 OHM 1/16W

D D

12V Only Power Module:

+5V_Standy => +5V_Normal

R716

R716

4.7K1/16W

4.7K1/16W

PS_ON

C C

B B

R718

R718
NC/10K

NC/10K

PWR-ON/OFF5,9

B

C700

C700

NC/100N 50V

NC/100N 50V

C

E

夹非て

CN700

CN700
CONN

CONN

11

9
7
5
3
1

R708

R708
NC/1.2K 1/4W

NC/1.2K 1/4W

+5V_Standby

R711

R711
47K

47K

0603

R713 150KR713 150K

0603

Q701

Q701
MMBT3904

MMBT3904

+3.3V_Standby

R725

R725

2.2K1/16W

2.2K1/16W

R727 4.7K1/16WR727 4.7K1/16W

High : Power On
Low: Power Off

connector.

R726

R726

4.7K1/16W

4.7K1/16W

C732

C732

100NF 25V

100NF 25V

C719

C719
1N 50V

1N 50V

+5V_Normal

+5V_Standby

R732

R732

NC/10K 1%

NC/10K 1%

C701

C701
100N 50V

100N 50V

R723

R723
1K 1/10W

1K 1/10W

0603

Q702

Q702
MMBT3904

MMBT3904

BL_ONDIM

+

+

+

+

C717

C717
100UF 25V

100UF 25V

C731

C731

100UF 16V

100UF 16V

PS_ON

C702

C702
1N 50V

1N 50V

3D_EN 5,6

+24_Audio

+12V_Normal

+3.3V_Normal

C742

C742

100NF 25V

100NF 25V

R750

R750

10K 1%

10K 1%

R751

R751
NC/100K 1%

NC/100K 1%

EN_U703

R701 33 OHM 1/ 16WR701 33 OHM 1/16W

12

R703 NC/ 33 OHM 1/16WR703 NC/ 33 OHM 1/16W

10
8
6

+24_Audio

4
2

R709

R709

C718

C718

NC/1.2K 1/4W

NC/1.2K 1/4W C724

100N 50V

100N 50V

Q700

Q700

1

8

S

D

2

7

S

D

3

6

S

4

G

AO4449 -7A/-30V

AO4449 -7A/-30V

+3.3V_Standby

R724

R724

3.3K 1/16W

3.3K 1/16W

Q703

Q703
MMBT3904

MMBT3904

D

5

D

C730

C730
220N 25V

220N 25V

0603

R712

R712
0R05 OHM

0R05 OHM

0603

+12V_Normal

FB703

FB703
300R 4A

300R 4A

1 2

+12V_Normal

+3.3V_Normal

Vout=0.765*( 9.1K+18K)/18K =>1.15V

R704

R704
10K 1%

10K 1%

EN_U701

R705 NC/100K1/16WR705 NC/100K1/16W

C709 100NF 25VC709 100N F 25V

VDDC_VSENSE

C736

C736

C735

10uF 16V

10uF 16V

10uF 16V

10uF 16V

筿綼

DCDC,

庇稰絬,环瞒耑方

FB712

FB712

1 2

120R 6A

120R 6A

R771

R771

100K1/16W

100K1/16W

R770

R770

C786

C786

100K1/16W

100K1/16W

1UF 10% 16V

1UF 10% 16V

R774

R774

22.1K 1%

22.1K 1%

C715 NC/ 22P 50VC 715 NC /22P 50V

R706

R706

9.1K 1%

9.1K 1%

R1

R714 NC/10K 1%R714 NC/10K 1%

C743

C743

1uF 25V

1uF 25V

M_SDA5,6,12
M_SCL5,6,12

+12V_Normal

FB700

FB700
300R 4A

300R 4A

1 2

EN_U701

R707

R707
0R05 OHM

0R05 OHM

R710 18 KOHM +-1% 1/10WR710 18 KOHM +-1% 1/10W

R2

U703

U703

8

PVDD

EN_U703

1

EN

3

5V

4

SDA

5

SCL

MSH6000A

MSH6000A

R720

R720

R719

R719

100R 1/16W 1%

100R 1/16W 1%

100R 1/16W 1%

100R 1/16W 1%

Addr 0xC0

Vout=1.1V*(1+R1/R2)

!!!

惠ㄏノ5A

+12V_Normal => +5V_Standby

Vout=0.765x (1+125.1K/22.1K) = 5.09V

ZD700

ZD700

C785

C785

10UF 25V

10UF 25V

NC/BZX84B6V8

NC/BZX84B6V8

1 3

R775

R775

NC/5K6 1/16W 5%

NC/5K6 1/16W 5%

1
2
3

C787

C787

C783

C783

1UF 10% 16V

1UF 10% 16V

10N 50V

10N 50V

R772 124K 1%R772 124K 1%

R773

R773

1K 1/16W 1%

1K 1/16W 1%

C788 22P 50VC788 22P 50V

500 mA.

1

EN

2

VFB

3

VREG 5

C721 10N 50VC721 10N 50V

C720 1UF 10% 16VC 720 1UF 10% 16V

SS4GND

TPS54328DDAR

TPS54328DDAR

4000 mA

BST

VFB

Powe rPA D

C782

C782
100NF 25V

100NF 25V

U706

U706

TPS54528DDAR

TPS54528DDAR

EN
VFB
VREG 5
SS4GND

U701

U701

LX

E-Pa d

VIN

VBS T

SW

0.5A(MAX)

C707 1UF 10% 16VC 707 1UF 10% 16V

C708 100NF 25VC708 100N F 25V

C706 10UF 25VC706 10UF 25V

C716

C716

9

E-PA D

100NF 25V

100NF 25V

8

VIN

7

VBS T

6

SW

5

2.04A ( 1.14A max)



L701 2.2uHL701 2.2uH

6

C733

C733

100NF 25V

100NF 25V

7

R1

FB2

C734

C734

2

33P 50V

33P 50V

9

R2

DC/DC

C784

C784

10UF 25V

10UF 25V

9

C781

C781

8

100NF 25V

100NF 25V

7
6
5

3A( 2.2A max)



L700

L700

4.7uH

4.7uH

6.5A ( 4.7A max)

R715

R715
NC/ 0R05

NC/ 0R05

R721

R721

6.2K 1/16W 1%

6.2K 1/16W 1%

R722

R722
47K +-1% 1/16W

47K +-1% 1/16W

L706

L706

3.3UH

3.3UH

C723

C723

R717

R717
0R05 OHM

0R05 OHMC735

﹍筿溃玂靡



C725

C725

C724

NC/22uF

NC/22uF

22uF 6.3V

22uF 6.3V

22uF 6.3V

22uF 6.3V

綼

DC-DC

VDDC_CPU_VSENSE

IC pin 1.24V

C790

C790

22UF 10V

22UF 10V

VDDC

VDDC_VSENSE

C710

C710

C726

C726

NC/22uF

NC/22uF

100NF 25V

100NF 25V

VDDC_CPU_VSENSE

VDDC_CPU

C741

C741

C711

C711

C738

C738

C739

C739

C740

C740

100NF 25V

100NF 25V

NC/22uF

NC/22uF

22uF 6.3V

22uF 6.3V

22uF 6.3V

22uF 6.3V

NC/22uF

NC/22uF

綼

DC-DC



FB713

FB713

+5V_Standby

120R 6A

120R 6A

1 2

C789

C789

C791

C791

22UF 10V

22UF 10V

22UF 10V

22UF 10V

C780

C780
100NF 25V

100NF 25V

LDO

+5V_Standy => +3.3V_Standby

+5V_Standby

+5V_Normal => +3.3V_Normal

+5V_Normal

R752 0 OHM +-5% 1/ 8WR752 0 OHM +-5% 1/ 8W

1 2

D702 NC/SM260AD702 N C/SM260A

PWR-ON/OFF5,9

USB_PW_EN5,9

R762-NC ; R766
09/09 э



BOM change

3

C705

C705

100NF 25V

100NF 25V

U702

U702
AP1117E33L-13-77

AP1117E33L-13-77

3

C729

C729

100NF 25V

100NF 25V

R762 NC/22 OHM 1/16WR762 NC/22 OHM 1/16W

R766 22 OHM 1/ 16WR766 22 OHM 1/ 16W

ン

U700

U700
AP1117E33L-13-77

AP1117E33L-13-77

1

VOUT2VIN

ADJ(GND)

1

C766

C766

1UF 10% 16V

1UF 10% 16V

+3.3V_Standby

500 mA

C703 100NF 25VC703 100N F 25V

C704 2.2uF 6.3VC704 2.2uF 6.3V

VOUT2VIN

ADJ(GND)

4

4

+3.3V_Normal

400 mA

C727 100NF 25VC727 100NF 25V

C728 2.2uF 6.3VC728 2. 2uF 6.3V

4

4

+12V_Normal

1 2

R764

R764
NC/100K1/16W

NC/100K1/16W

R763

R763

22K 1%

22K 1%

FB711

FB711

120R 6A

120R 6A

+12V_SW => +5VUSB

Vout=0.765x (1+125.1K/22.1K) = 5.09V

VIN_U707

C762

C762

C764

C764

100NF 25V

100NF 25V

10UF 25V

10UF 25V

R765

R765

NC/100K1/16W

NC/100K1/16W

U705

U705

TPS54528DDAR

TPS54528DDAR

E-Pa d

1

EN

VIN

2

VFB

VBS T

3

VREG 5

SW

SS4GND

C767

C767

C763

C763

1UF 10% 16V

1UF 10% 16V

10NF 50V

10NF 50V

R761 124K 1%R761 124K 1%

R760

R760

1K 1/16W 1%

1K 1/16W 1%

C768 22P 50VC768 22P 50V

C765

C765

10UF 25V

10UF 25V

9
8
7
6
5

C761

C761

6.5A ( 4.7A max)

100NF 25V

100NF 25V

L705

L705

3.3UH

3.3UH

FB714

FB714

1 2

120R 6A

120R 6A



C769

C769

C770

C770

22UF 10V

22UF 10V

C771

C771

22UF 10V

22UF 10V

22UF 10V

22UF 10V

埃

FB710; 穝糤D701

09/09 э



BOM change; Layout change

D701

D701

1 2

NC/SX36

NC/SX36

C760

C760
100NF 25V

100NF 25V

+5V_USB

ぶ惠ㄏ ノ

C749

C749
100NF 25V

100NF 25V

BL_ON

C752

C752
100NF 25V

100NF 25V

+3.3V_Normal

FB706

FB706
300R 4A

300R 4A

1 2

C750

C750
10uF 16V

10uF 16V

R740

R740

2.2K1/16W

2.2K1/16W

Q704NCQ704
NC

3

500mA DC/DC!!

+1.5V_DDR

+3.3V_Standby

R741

R741
NC/4.7K1/16W

NC/4.7K1/16W

R744

R744
0R05 OHM

0R05 OHM

R747NCR747

NC

R777

R777
NC/10K 1%

NC/10K 1%

R748

R748
0R05 OHM

0R05 OHM

VBL_CTRL 5

T P V ( Top Victory Elec tronics Co . , Lt d. )

T P V ( Top Victory Elec tronics Co . , Lt d. )

T P V ( Top Victory Elec tronics Co . , Lt d. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

04. SYSTEM POWER

04. SYSTEM POWER

04. SYSTEM POWER

Date

Date

2

Date

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

of

4 13Thursday, Oct ober 09, 2014

of

4 13Thursday, Oct ober 09, 2014

of

4 13Thursday, Oct ober 09, 2014

1

Size

D

Size

D

Size

D

Rev

A

Rev

A

Rev

A

称爹

<称爹>

称爹

<称爹>

称爹

<称爹>

6
5
4

R734

R734

0R05 OHM

0R05 OHM

U704

U704
SY8009BABC

SY8009BABC

FB
NC

R743

R743
NC/0R05 1/16W

NC/0R05 1/16W

GND

R749

R749

4.7K1/16W

4.7K1/16W

EN

LX3IN

R735

R735
22K 1%

22K 1%

1
2

+3.3V_Standby

+5V_Standby

R728

R728
NC/4.7K1/16W

NC/4.7K1/16W

L702 2.2uHL702 2.2uH

DDR_PWR_FB

R776

R776
10K 1%

10K 1%

BRI_ADJ 5

R729

R729

0R05 OHM

0R05 OHM

R730

R730

NC/0R05 OHM

NC/0R05 OHM

1.48A ( 0.5A max)

R731

R731
33K 1%

33K 1%

C747

C747
22P 50V

22P 50V

Reserved for
power Enable
use

STR_GPIO 5

EN_U704DDR_PWR_FB



C748

C748
10uF 16V

10uF 16V

+5V_Normal => +1.5V_DDR

Vout = 0.6*(1+R1/R2)==>1.50V

FB704

FB704

+5V_Normal

NC/300R 4A

NC/300R 4A

1 2

FB705

FB705

+5V_Standby

300R 4A

300R 4A

1 2

NC/10K 1%

NC/10K 1%

A A

DIM

5

4

EN_U704

R767

R767

C744

C744
10uF 16V

10uF 16V

R746

R746
33 OHM 1/16W

33 OHM 1/16W

C753NCC753
NC

C745

C745

100NF 25V

100NF 25V

+3.3V_Normal

2.2K1/16W

2.2K1/16W

Q705

Q705
MMBT3904

MMBT3904

C746

C746
10uF 16V

10uF 16V

R739

R739

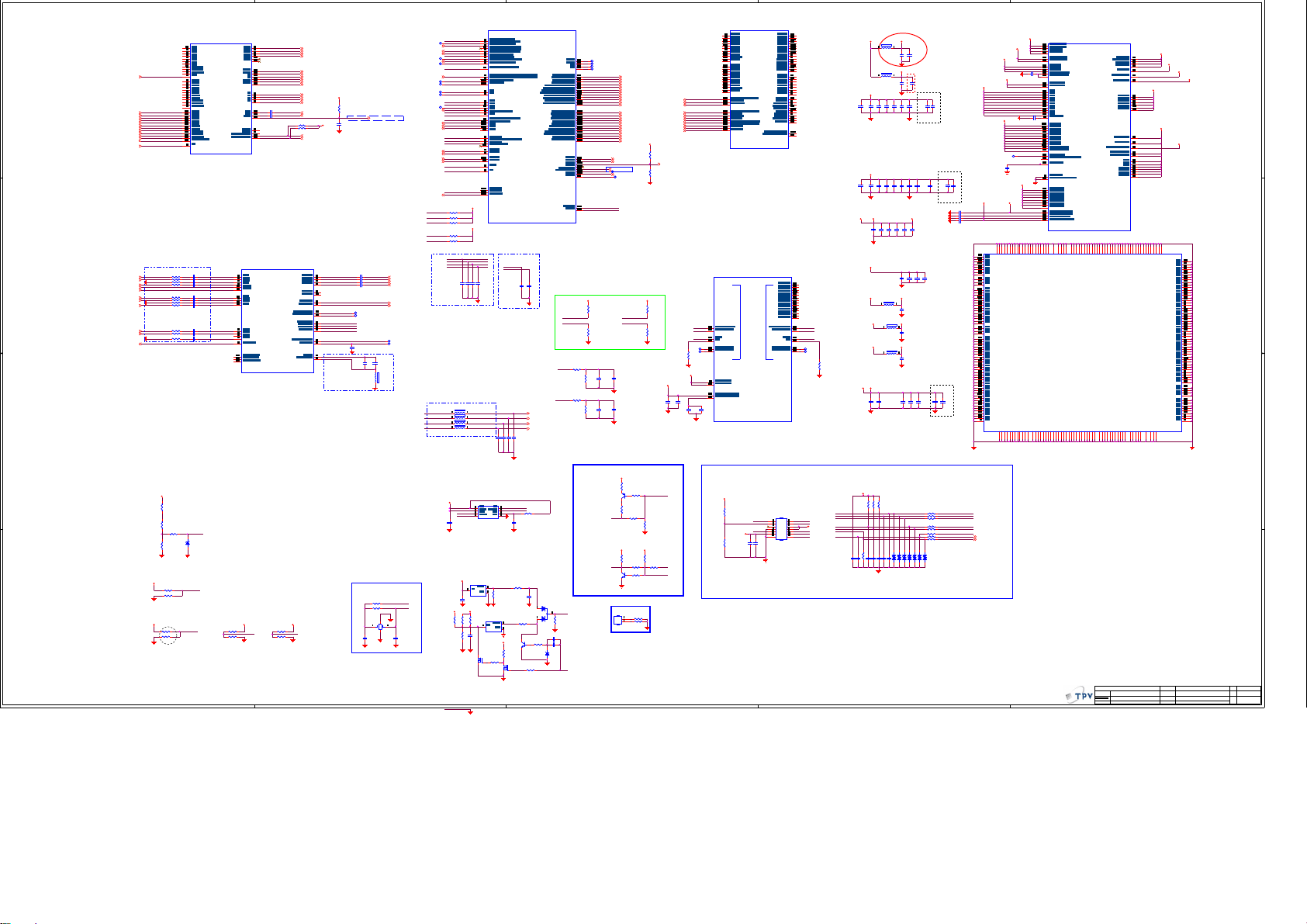

5

U400D

U400D

HDMI-ARC

D D

C C

B B

HDMI-ARC10

HDMI-RX0N

HDMI-RX0N1 0

HDMI-RX0P

HDMI-RX0P10

HDMI-RX1N

HDMI-RX1N1 0

HDMI-RX1P

HDMI-RX1P10

HDMI-RX2N

HDMI-RX2N1 0

HDMI-RX2P

HDMI-RX2P10

HDMI-CLKN

HDMI-CLKN1 0

HDMI-CLKP

HDMI-CLKP10

HDMI-SCL

HDMI-SCL10

HDMI-SDA

HDMI-SDA10

HDMI-HPDIN

HDMI-HPDIN10

AVDD5V-MHL

AVDD5V-MHL

HDMI-CEC

HDMI-CEC10

VGA-Rin8
VGA-Gin8

VGA-Bin8
VGA_HSYNC8
VGA_VSYNC8

YPbPr_PR7
YPbPr_Y7

YPbPr_PB7

AV2_IN7
AV1_IN7

CVBS_OUT7

R4006 33 OHM 1/16 WR400 6 33 OHM 1/16 W
R4007 33 OHM 1/16 WR400 7 33 OHM 1/16 W
R4008 68OHM 1/1 6WR40 08 68OHM 1 /16W
R4009 33 OHM 1/16 WR400 9 33 OHM 1/16 W

R4010 33 OHM 1/16 WR401 0 33 OHM 1/16 W
R4011 33 OHM 1/16 WR401 1 33 OHM 1/16 W
R4012 68OHM 1/1 6WR40 12 68OHM 1 /16W
R4013 33 OHM 1/16 WR401 3 33 OHM 1/16 W

R4018 33 OHM 1/16 WR401 8 33 OHM 1/16 W
R4021 33 OHM 1/16 WR402 1 33 OHM 1/16 W

R4022 68OHM 1/1 6WR40 22 68OHM 1 /16W

Close to MST IC
with wide trace

C4040 4 7NF 16 VC404 0 4 7NF 16 V
C4042 4 7NF 16 VC404 2 4 7NF 16 V
C4048 4 7NF 16 VC404 8 4 7NF 16 V
C4050 4 7NF 16 VC405 0 4 7NF 16 V

C4058 4 7NF 16 VC405 8 4 7NF 16 V
C4059 4 7NF 16 VC405 9 4 7NF 16 V
C4060 4 7NF 16 VC406 0 4 7NF 16 V
C4061 4 7NF 16 VC406 1 4 7NF 16 V

C4063 4 7NF 16 VC406 3 4 7NF 16 V
C4064 4 7NF 16 VC406 4 4 7NF 16 V

C4066 4 7NF 16 VC406 6 4 7NF 16 V

MSD8561VXM

MSD8561VXM

RIN0
GIN0
GIN0N
BIN0
VGA_HSYNC
VGA_VSYNC

RIN1
GIN1
GIN1N
BIN1

CVBS0
CVBS2

VCOM0

CVBS_OUT

USB0_D-

USB0_D- 9

USB0_D+

USB0_D+ 9

USB1_D-

USB1_D- 9

R4001 4.7K1 /16WR40 01 4 .7K1/16 W
R4002 4.7K1 /16WR40 02 4 .7K1/16 W

USB1_D+ 9

USB3_SSRXN 9
USB3_SSRXP 9
USB3_D- 9
USB3_D+ 9
USB3_SSTXN 9
USB3_SSTXP 9

MDI_RN 9
MDI_RP 9
MDI_TN 9
MDI_TP 9

DIF2 1 1
DIF1 1 1

T_SCL 11
T_SDA 11

+3.3V_TU

SPDIF_IN

Close to MST IC
with wide trace

TP401パU400(C4)эU400(Y21)
STR_GPIOパU400(Y21)эU400(C4)

09/09 э
Layout c hange

+3.3V_TU

LINE_IN_0L
LINE_IN_0R
LINE_IN_1L
LINE_IN_1R

AM_L
AM_R

EARPHONE_OUTL
EARPHONE_OUTR

I2S-MCK
I2S-BCK
I2S-WS
I2S-SDO

㏕﹚暗

SPDIF_IN
SPDIF_OUT

AUVAG
AUVRM

USB1_D+

USB3_SSRXN
USB3_SSRXP
USB3_D­USB3_D+
USB3_SSTXN
USB3_SSTXP

MDI_RN
MDI_RP
MDI_TN
MDI_TP

C4014 1 00 NF 25VC4014 100NF 2 5V
C4015 1 00 NF 25VC4015 100NF 2 5V

IF_AGC

T_SCL
T_SDA

TUNER I2C

U400B

U400B

MSD8561VXM

MSD8561VXM



R4000

R4000
10K 1%

10K 1%

C4017

C4017
22N 25V

22N 25V

3D_LR_Flag

C4041 2.2UF 16VC4041 2.2UF 16V
C4043 2.2UF 16VC4043 2.2UF 16V
C4049 2.2UF 16VC4049 2.2UF 16V
C4051 2.2UF 16VC4051 2.2UF 16V

3D_L/R_FLAG

C4069

C4069
33P 50V

33P 50V

C4071

C4071
10UF 6.3V 20%

10UF 6.3V 20%

TP409TP409
TP410TP410

4

IF_AGC_T 11

Shield with GND

HD_Lin
HD_Rin
AV1-Lin
AV1-Rin

块倒

6M30

C4072

C4072
100NF 25 V

100NF 25 V

12

FB408

FB408
120R 3A

120R 3A

HD_Lin 7
HD_Rin 7
AV2-Lin 7
AV2-Rin 7

AM_L 7
AM_R 7

TP411TP411
TP412TP412

TP400TP400

MHL_CABLE_DET10

PWR-ON/OFF4,9

STR_GPIO4

TP420TP420

AMP-MUTE12

TP402TP402

RST_AMP12

TP403TP403
TP404TP404

TP422TP422
TP418TP418

TP405TP405

VBL_CTRL4

LD_EN6
BRI_ADJ4
PANEL_ON/OFF6

UART-RX8
UART-TX8

M_SCL4,6,12
M_SDA4,6,12

3D_EN4,6

I2C-SCL

I2C-SDA

3D_EN

PM_TX

PM_RX

EMI solution

I2S-MCK

I2S-BCK

I2S-WS

I2S-SDO

All I2S trace need to shield GND

U400A

U400A

GPIO_PM0
PM_TX
MHL_CABLE_DET

PWR-ON/OFF
PM_RX
SPI_CSN

AMP-MUTE

3D_LR_in

LED_R

RST_AMP

UART-RX1
UART-TX1

KEY0-in
KEY1-in

VBL_CTRL
Power_Detect

Light_Se nsor

PWM_PM

BRI_ADJ
PANEL_ON/OFF

SPI_SCK
SPI_SDI
SPI_SDO

UART-RX
UART-TX

I2C-SCL
I2C-SDA

SYSTEM-RST

IR-in

LED_B
3D_EN

+3.3V_Nor mal

R4003 4.7K1/16WR40 03 4.7K1/16W

R4004 4.7K1/16WR40 04 4.7K1/16W

R4005 4.7K1/16WR40 05 4.7K1/16W

+5V_Stand by

MSD8561VXM

MSD8561VXM

R4017 4.7K1/16WR40 17 4.7K1/16W

穝糤

R4017 & R4016 for PM_TX and PM_RX pull-high

R4016 4.7K1/16WR40 16 4.7K1/16W

09/09 э



Layout change; BOM change

LINE_IN_0L
LINE_IN_0R
LINE_IN_1L
LINE_IN_1R

C4053 NC/22P 50VC40 53 NC/22P 50V

C4054 NC/22P 50VC40 54 NC/22P 50V

C4052 NC/22P 50VC40 52 NC/22P 50V

C4055 NC/22P 50VC40 55 NC/22P 50V

FB405 120RFB4 05 120R

I2S_MCLK

FB406 120RFB406 120R

I2S_SCLK

FB407 120RFB4 07 120R

I2S_LRCLK

FB409 120RFB409 120R

I2S_SD0

3

U400C

U400C

TP424TP424
TP426TP426
TP423TP423
TP425TP425

B0M

B0M 6

B0PB0P

B0P 6

B1M

B1M 6

B1P

B1P 6

B2M

B2M 6

B2P

B2P 6

BCKM

BCKM 6

BCKP

BCKP 6

B3M

B3M 6

B3P

B3P 6

B4M

B4M 6

B4P

B4P 6

A0M

A0M 6

A0P

A0P 6

A1M

A1M 6

A1P

A1P 6

A2M

A2M 6

A2P

A2P 6

ACKM

ACKM 6

ACKP

ACKP 6

A3M

A3M 6

A3P

A3P 6

A4M

A4M 6

A4P

A4P 6

+3.3V_Nor mal

USB_PW_EN 4,9

LINE_MUTE 7

FRC_RESET 6

TP417TP417

EDID_WP 8

TP401TP401

XTALO
XTALI

AM_L
AM_R

For

C4130 1 nF 5 0VC41 30 1nF 50V

C4131 1 nF 5 0VC41 31 1nF 50V

Audio

AVDD_DDR

RESET0

CKE0

AVDD_DDR_0

R4025

R4025

1K 1/16W 1%

1K 1/16W 1%

R4026

R4026

1K 1/16W 1%

1K 1/16W 1%

AVDD_DDR_1

R4027

R4027

R4028

R4028

1K 1/16W 1%

1K 1/16W 1%

1K 1/16W 1%

I2S_MCLK 12

I2S_SCLK 12

I2S_LRCLK 12

I2S_SD0 12

C4076 NC/33P 50VC40 76 NC/33P 50V

C4077 NC/33P 50VC40 77 NC/33P 50V

C4078 100P 50 VC4078 100 P 50V

C4075 NC/33P 50VC40 75 NC/33P 50V

1K 1/16W 1%

AVDD_DDR

R4014

R4014
10K 1%

10K 1%

RESET1

CKE1

R4019

R4019

10K 1%

10K 1%

STR

Vref0

C4073

C4073

C4074

C4074

100NF 25 V

100NF 25 V

1N 50V

1N 50V

Vref1

C4090

C4090

C4089

C4089

1N 50V

1N 50V

100NF 25 V

100NF 25 V

EMMC_CLK

EMMC_CLK13

EMMC_CMD

EMMC_CMD13

EMMC_RSTZ

EMMC_RSTZ13

EMMC_D1

EMMC_D11 3

EMMC_D6

EMMC_D61 3

EMMC_D7

EMMC_D71 3

EMMC_D5

EMMC_D51 3

EMMC_D0LD_EN

EMMC_D01 3

EMMC_D4

EMMC_D41 3

EMMC_D3

EMMC_D31 3

EMMC_D2

EMMC_D21 3

MSD8561VXM

R4220

R4220

NC/4.7K 1/16W

NC/4.7K 1/16W

WIFI_RST 9

R4221

R4221

NC/4.7K 1/16W

NC/4.7K 1/16W

R4015

R4015
10K 1%

10K 1%

R4020

R4020

10K 1%

10K 1%

240R 1%

240R 1%

AVDD_DDR

AVDD_DDR_0

C4081

C4081

C4080

C4080

100NF 25 V

100NF 25 V

100NF 25 V

100NF 25 V

MSD8561VXM

U400E

U400E

RESET0
CKE0

Vref0

TP413TP413

TP415TP415
R4023

R4023

AVDD_DDR

AVDD_DDR_1

C4091

C4091

100NF 25 V

100NF 25 V

MIU0

MIU0

C4092

C4092
100NF 25 V

100NF 25 V

MSD8561VXM

MSD8561VXM

RESET1
CKE1

MIU1

MIU1

Vref1

TP414TP414
TP416TP416

R4024

R4024
240R 1%

240R 1%

C4005 10UF 6.3V 20 %C4005 10UF 6.3V 2 0%

C4019 10UF 6.3V 20 %C4019 10UF 6.3V 2 0%

+3.3V_Nor mal

+3.3V_Stan dby

+1.5V_DDR

2



Bead

﹚璶綼秈

筿甧綼IC狠

VDDC

AVDDL_MOD

FB400 12 0RFB400 120R

C4000

C4000

100NF 25 V

100NF 25 V

FB401 12 0RFB401 120R

C4003

C4003

100NF 25 V

100NF 25 V

VDDC

Close to MTS IC

C4006 10UF 6.3V 20 %C4006 10UF 6.3V 2 0%

C4009 100NF 25 VC4009 100NF 2 5V

C4007 100NF 25 VC4007 100NF 2 5V

C4008 100NF 25 VC4008 100NF 2 5V

VDDC_CPU

C4023 100NF 25 VC4023 100NF 2 5V

C4022 100NF 25 VC4022 100NF 2 5V

C4020 10UF 6.3V 20 %C4020 10UF 6.3V 2 0%

C4021 100NF 25 VC4021 100NF 2 5V

AVDD3.3V

C4034 2.2uF 6.3 VC4034 2.2u F 6.3V

C4035 100NF 25 VC4035 100NF 2 5V

C4036 100NF 25 VC4036 100NF 2 5V

Close to MTS IC

Standby Power 3.3V

+3.3V_Stan dby

AVDD3P3_MPLL

FB402 12 0RFB402 120R

+3.3V_Stan dby

FB403 12 0RFB403 120R

AVDD3P3_DMPLL

+3.3V_Stan dby

FB404 12 0RFB404 120R

AVDD_DDR

DDR3 POWER

C4082 2.2 uF 6.3 VC40 82 2 .2uF 6.3V

C4083 2.2 uF 6.3 VC40 83 2 .2uF 6.3V

Close to MTS IC

DVDD_DDR

C4037 100NF 25 VC4037 100NF 2 5V

AVDD_AU33

!

FOR VB1

C4010 100NF 25 VC4010 100NF 2 5V

C4024 100NF 25 VC4024 100NF 2 5V

C4044 2.2 uF 6.3 VC40 44 2 .2uF 6.3V

C4062

C4062
100NF 25 V

100NF 25 V

C4065

C4065
100NF 25 V

100NF 25 V

C4070

C4070
100NF 25 V

100NF 25 V

C4084 10 0NF 25 VC408 4 10 0NF 25 V

DC-DC

VDDP_3318

块狠

C4001

C4001
1uF 10V

1uF 10V

IC璉(箇痙)

C4004

C4004
NC/100N 16V

NC/100N 16V

IC璉(箇痙)

C4011 2.2uF 6.3 VC4011 2.2u F 6.3V

C4026 100NF 25 VC4026 100NF 2 5V

C4025 100NF 25 VC4025 100NF 2 5V

C4039 100NF 25 VC4039 100NF 2 5V

C4045 10 0NF 25 VC404 5 10 0NF 25 V

C4046 10 0NF 25 VC404 6 10 0NF 25 V

C4086 10 0NF 25 VC408 6 10 0NF 25 V

C4085 10 0NF 25 VC408 5 10 0NF 25 V

!

C4013 NC/100N 16VC401 3 NC/100N 16V

C4012 NC/10UF 6.3V 20%C4012 NC/10UF 6.3 V 20%

IC璉(箇痙)

C4027 100NF 25 VC4027 100NF 2 5V

C4047 10 0NF 25 VC404 7 10 0NF 25 V

IC璉(箇痙)

C4088 NC/100 N 16VC4088 NC/100N 16 V

C4087 NC/10UF 6.3 V 20%C4087 NC/10UF 6.3V 2 0%

C4028 NC/10UF 6.3V 20%C4028 NC/10UF 6.3 V 20%

C4029 NC/100N 16VC402 9 NC/100N 16V

C4030 100NF 25 VC4030 100NF 2 5V
C4031 100NF 25 VC4031 100NF 2 5V
C4032 100NF 25 VC4032 100NF 2 5V
C4033 100NF 25 VC4033 100NF 2 5V

﹚璶

VDDC

Test pin!

AVDDL_MOD

U400G

U400G

MSD8561VXM

MSD8561VXM

1

AVDDL_MOD

U400F

U400F

AVDDL_MOD

DVDD_DDR

C4002

C4002

AVDDL_MOD

100NF 25 V

100NF 25 V

VDDC_CPU

C4016

C4016
100NF 25 V

100NF 25 V

TP408TP408

DVDD_NODIE

C4018

C4018
1uF 10V

1uF 10V

AVDD_DDR

AVDD_DDR

MSD8561VXM

MSD8561VXM

L10

L11

L12

L13

L15

L16

L20

L21

L22

L23

L24

L25

M10

M11

M12

M16

M20

M21

M22

M23

M24

M25

N10

N11

N12

N16

N20

N21

N22

GNDL9GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GNDD9GNDM7GNDM8GNDM9GND

GND

GND

GND

GND

GND

GND

GNDR7GNDR8GNDR9GND

GND

GND

GND

GND

GND

GND

GND

GND

GNDT7GNDT8GNDT9GND

GND

GND

GND

GND

GND

GND

GND

GND

T10

T11

T12

T13

T14

T15

T16

T17

T18

R10

R11

R12

R13

T19

R15

R16

P17

R21

R22

N23

GND

GND

GND

GNDN2GNDN3GNDR4GNDR5GNDR6GNDN7GNDN8GNDN9GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GNDU7GNDU8GNDU9GND

GND

GND

GND

GND

GNDT4GND

GND

GND

GND

GND

T20

T21

T22

U10

U11

U18

U19

U20

U21

U22

U24

W23

W20

W18

+3.3V_Stan dby

AVDD_AU33

AVDD3P3_DMPLL

AVDD3P3_MPLL

VDDC_CPU

AVDD3.3V

VDDP_3318

N24

H12

P10

P11

P12

P13

P16

P22

Y10

W11

GND

GND

W12

GND

GNDP2GNDP3GND

GNDN1GNDU4GNDV4GNDP8GNDP9GND

GND

GND

GND

GND

GND

GNDW4GND

GND

GND

GNDV7GNDV8GNDV9GND

GND

GND

GND

GND

GND

GND

GND

GNDW8GNDW9GND

V10

V11

V18

V19

V20

V21

V22

V23

W10

+3.3V_Stan dby

R4029

R4029

MMBT3906

MMBT3906

1.5K +-1% 1/1 0W

穝糤

R4133(箇痙LEDR瑈)

09/09 э



Layout c hange

1.5K +-1% 1/1 0W

Q400

Q400

LEDR

R4049

R4049
NC/200R 1/16W 5%

NC/200R 1/16W 5%

LEDB

Q401

Q401
NC/MMBT3904

NC/MMBT3904

Heat sink

HS400

HS400
HEAT SINK

HEAT SINK

+3.3V_Stan dby

.

connector.

+3.3V_Stan dby

R4032 NC/10K 1%R4032 NC/10K 1%

R4031 3K3 1/10W 1%R4031 3K3 1/10W 1%

R4030 3K3 1/10W 1%R4030 3K3 1/10W 1%

LED-R
LED-B
IR

KEY0
KEY1
M-SCL

M-SDA

R4054 0R05 OHMR40 54 0R05 OHM

C4099 NCC4099 NC

C4100 NCC4100 NC

C4101 NCC4101 NC

C4098 100 NF 25VC4098 100 NF 25V

C4102 NCC4102 NC

Connector

TO IR/KEY BOARD

R4035 1 0 OHMR4035 10 OHM

LEDR

R4036 1 0 OHMR4036 10 OHM

LEDB

R4037 1 00 R 1/16W 1%R403 7 1 00R 1/1 6W 1%

IR-in

R4043 100R 1/16 W 1%R4 043 10 0R 1/16W 1%

KEY0-in

R4044 100R 1/16 W 1%R4 044 10 0R 1/16W 1%

KEY1-in

R4045 NC/10 0R 1/16W 1%R4045 NC/100 R 1/16W 1%

Light_Se nsor

R4047 NCR4047 NC
R4048 NCR4048 NC

ZD403 NCZD403 NCC4038 100NF 25 VC4038 100NF 2 5V

ZD401 NCZD401 NC

ZD405 NCZD405 NC

ZD406 NCZD406 NC

ZD408 NCZD408 NC

ZD402 NCZD402 NC

ZD407 NCZD407 NC

C4103 NCC4103 NC

C4105 NCC4105 NC

1 2

1 2

1 2

1 2

1 2

1 2

1 2

2

M_SDA 4 ,6,12

M_SCL

M_SCL 4,6,12

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

05. MSD8561 VXM

05. MSD8561 VXM

05. MSD8561 VXM

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

of

5 13Thursda y, October 09, 20 14

Sheet

of

5 13Thursda y, October 09, 20 14

Sheet

of

5 13Thursda y, October 09, 20 14

1

Size

Custom

Size

Custom

Size

Custom

Rev

A

Rev

A

Rev

A

称爹

<称爹>

称爹

<称爹>

称爹

<称爹>

R4034

R4034

3.3K 1/16W

3.3K 1/16W

LED_R

R4133

R4133

1.5K 1/16W

1.5K 1/16W

R4038

R4038

NC/0R05 OHM

NC/0R05 OHM

R4040

R4040
NC/10K 1/16W

NC/10K 1/16W

+3.3V_Stan dby+5V_Norm al

R4050

R4050
NC/10K 1/16W

NC/10K 1/16W

R4052

R4052

R4053NCR4053

0R05 OHM

0R05 OHM

LEDR

NC

R4056

R4056

NC/4.7K 1/16W

NC/4.7K 1/16W

LED_B

R4121

R4121
NC/0R05 OHM

NC/0R05 OHM

X90G071110100000SY

R4120

R4120

X90G071110100000BF

NC/0R05 OHM

NC/0R05 OHM

Footprint :
90A0711-101X

3

+3.3V_Nor mal

R4217

R4217

NC/0R05 OHM

NC/0R05 OHM

+5V_Norm al

R4218

R4218

0R05 OHM

0R05 OHM

CN400

CN400
CONN

CONN

LED-B

KEY1

C4097 1 00 NF 25VC4097 100NF 2 5V

C4096 1 0u F 16VC40 96 10uF 16 V

CN400_Pin4: パ+3.3V_NormalэGND.
CN400_Pin6: LIGHT-LOGO穝糤4.7K

筿, 箇ň秨诀俐皗

R4031,R4032: パ0Rэ10R.

CN400パ13pin传14pin

LED-R
IR

KEY0
M-SCL
M-SDA M_SDA

夹非て

detect EMMC/NAND Flash Power

+12V_Nor mal

R4039

R4039
100K 1%

100K 1%

R4046

R4046

砞璸筿 隔璶

―:

1M 1%

1M 1%

SAR5

タ盽 筿溃莱 

1V

Power_Detect

R4051

R4051

1K 1/16W 1%

1K 1/16W 1%

ZD409

ZD409
BZX84-C5V6

BZX84-C5V6

R4055

R4055
100K 1%

100K 1%

1 3

+3.3V_Stan dby

CHIP_CONFIG[2:0]
{PAD_PM_SPI_DI, PAD_LED_R, PAD_PWM_PM}

R4057 NC/4.7K 1/16 WR405 7 NC/4.7K 1/16W

SPI_SDI

R4059 4.7K1 /16WR40 59 4 .7K1/16 W

Value Mode Description
3'b000 SB51_ExtSPI 51 boot from SPI
3'b001 HEMCU_ExtSPI ARM boot from SPI
3'b010 HEMCU_ROM_EMMC ARM boot from ROM; outer storage is eMMC
3'b011 HEMCU_ROM_NAND ARM boot from ROM; outer storage is NAND

A A

R4067 NC/4.7K 1/16WR40 67 NC/4.7K 1/16W

R4071 NC/4.7K 1/16WR40 71 NC/4.7K 1/16W

5

reserve for the fourth
HW strapping pin

GPIO_PM0

3'b100 DBUS for test only

+3.3V_Stan dby+3.3V_Stan dby

R4068 4.7K1 /16WR40 68 4 .7K1/16 W

LED_R

R4072 NC/4.7K 1/16 WR407 2 NC/4.7K 1/16W

R4069 NC/4.7K 1/16 WR406 9 NC/4.7K 1/16W

R4073 4.7K1 /16WR40 73 4 .7K1/16 W

+3.3V_Stan dby

PWM_PM

Crystal

垂砰熬惠

R4060

R4060
22 OHM 1/16W

22 OHM 1/16W

R4061

R4061
1M 1%

1M 1%

C4107

C4107

22P 50V

22P 50V

30PPM

X400

X400

24

24MHZ

24MHZ

C4108

C4108

27P 50V

27P 50V

4

+3.3V_Stan dby

U401

U401
NC/MX25L160 6EM2 I-12 G

NC/MX25L160 6EM2 I-12 G

SPI_CSN

SPI_SDO
SPI_SCK
SPI_SDI

C4093

C4093
100NF 25 V

100NF 25 V

穝糤

09/09 э
Layout c hange; BOM chan ge

+3.3V_Stan dby

U402

U402
G690H2 93T7 3

G690H2 93T7 3

C4106

100NF 25 V

C4106

XTALO

XTALI

100NF 25 V

+3.3V_Nor mal

+12V_Nor mal

R4062 330R 1/16W 1%R4062 330R 1/16W 1%

R4063

NC/47K

R4063

NC/47K

R4070 NC/10KR4070 NC/10K

Q403

Q403

2N7002 K

2N7002 K

R4042 10K 1%R4042 10K 1%

#F_WP

C4094

C4094
100NF 25 V

100NF 25 V

R4132, C4150 (э到Power sequence)



R4132 2.2K1/16WR4132 2.2K1/16W

SYS_RST

R4058

R4058

NC / 100K 1%

NC / 100K 1%

R4064

NC/47K

R4064

NC/47K

U403

U403

G690H2 93T7 3

G690H2 93T7 3

R4066

R4066

4.7K1/16W

C4109 NC/100 N 16VC4109 NC/100N 16 V

4.7K1/16W

+3.3V_Stan dby

R4075

R4075

4.7K1/16W

4.7K1/16W

R4076

R4076

4.7K1/16W

4.7K1/16W

Q404

Q404

2N7002 K

2N7002 K

C4150 2 .2uF 6.3VC4150 2.2u F 6.3V

BAT54CH

BAT54CH

System-RST

R4065

R4065

100K 1%

100K 1%

D400

D400

C4110

C4110
NC/22uF 6.3V

NC/22uF 6.3V

R4074

R4074

6.2K 1/16W 1%

6.2K 1/16W 1%
C4111

C4111
22uF 6.3 V

22uF 6.3 V

Q402

Q402
BC847C

BC847C

ZD400

ZD400
BAT54

BAT54

1 3

R4077

R4077

4.7K1/16W

4.7K1/16W

PWR-ON/OFF

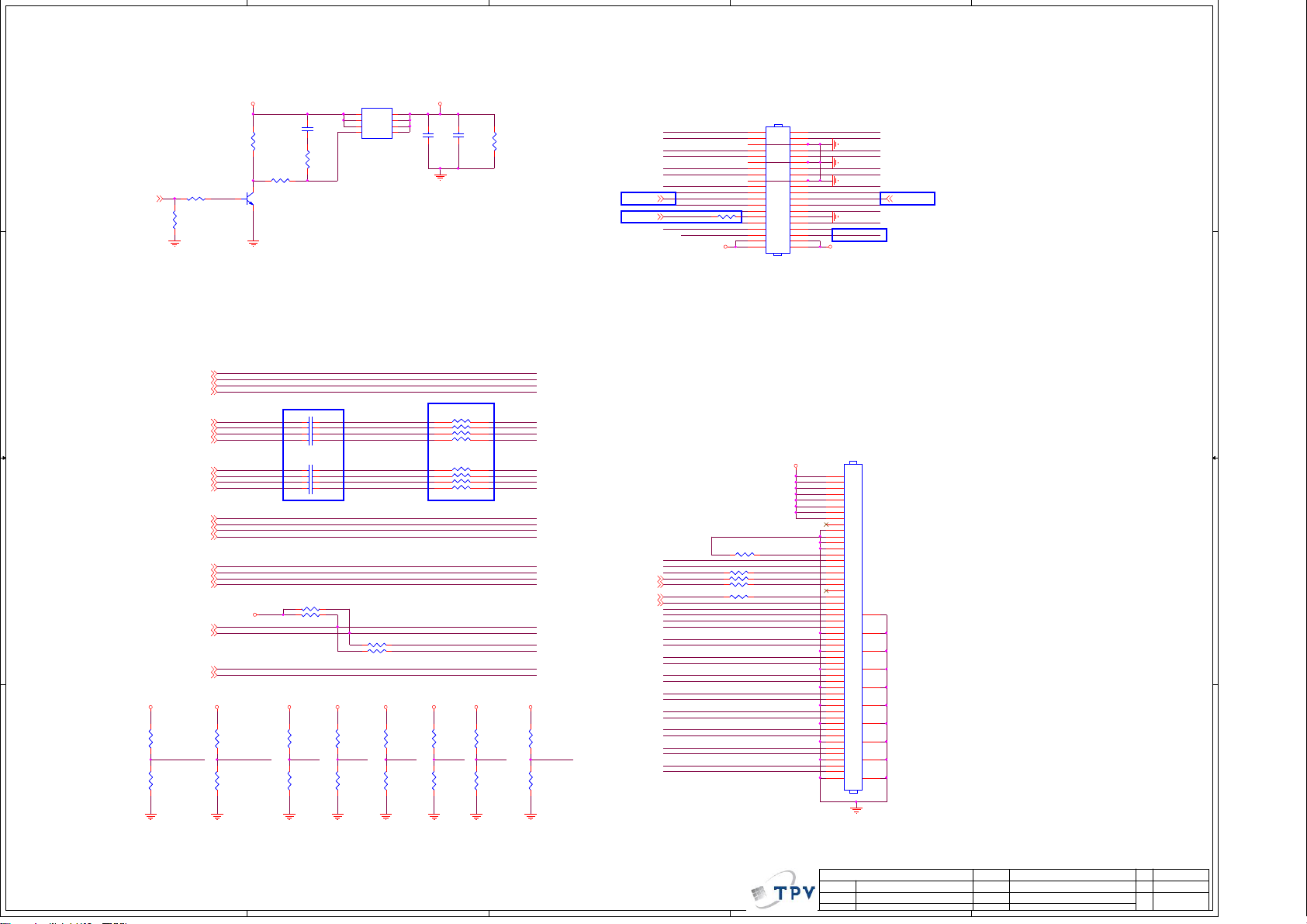

5

4

3

2

1

D
D
D
D

VBY0N
VBY0P
VBY1N
VBY1P

VBY2N
VBY2P
VBY3N
VBY3P

R4214

R4214

NC/4.7K 1/16W

NC/4.7K 1/16W

8b_10b- Sel

R4207

R4207

NC/4.7K 1/16W

NC/4.7K 1/16W

+PANEL_POWER

8
7
6
5

RP301 0RRP301 0R

RP302 0RRP302 0R

+3.3V_Normal

C4113 100N 50VC4113 100N 50 V

061G 1260008JT

1
2
3
4

1
2
3
4

R4211

R4211

NC/4.7K 1/16W

NC/4.7K 1/16W

8b_10b_ Sel

R4205

R4205

NC/4.7K 1/16W

NC/4.7K 1/16W

C4114 10uF 1 6VC4114 10 uF 16V

R4081 NC/2.2 KR4081 NC/2.2K

NC For Other VB1 Out
0R For LVDS Out.

RXO2-

8

RXO2+

7

RXOC-

6

RXOC+

5

RXO3-

8

RXO3+

7

RXO4-

6

RXO4+

5

VBYHTPDn
VBYLOCKn

+3.3V_Normal+3.3V_Normal +3.3 V_Normal +3.3V_Normal

R4078

R4078

4.7K1/16W

4.7K1/16W

LD_EN

R4079

R4079

NC/4.7K 1/16W

NC/4.7K 1/16W

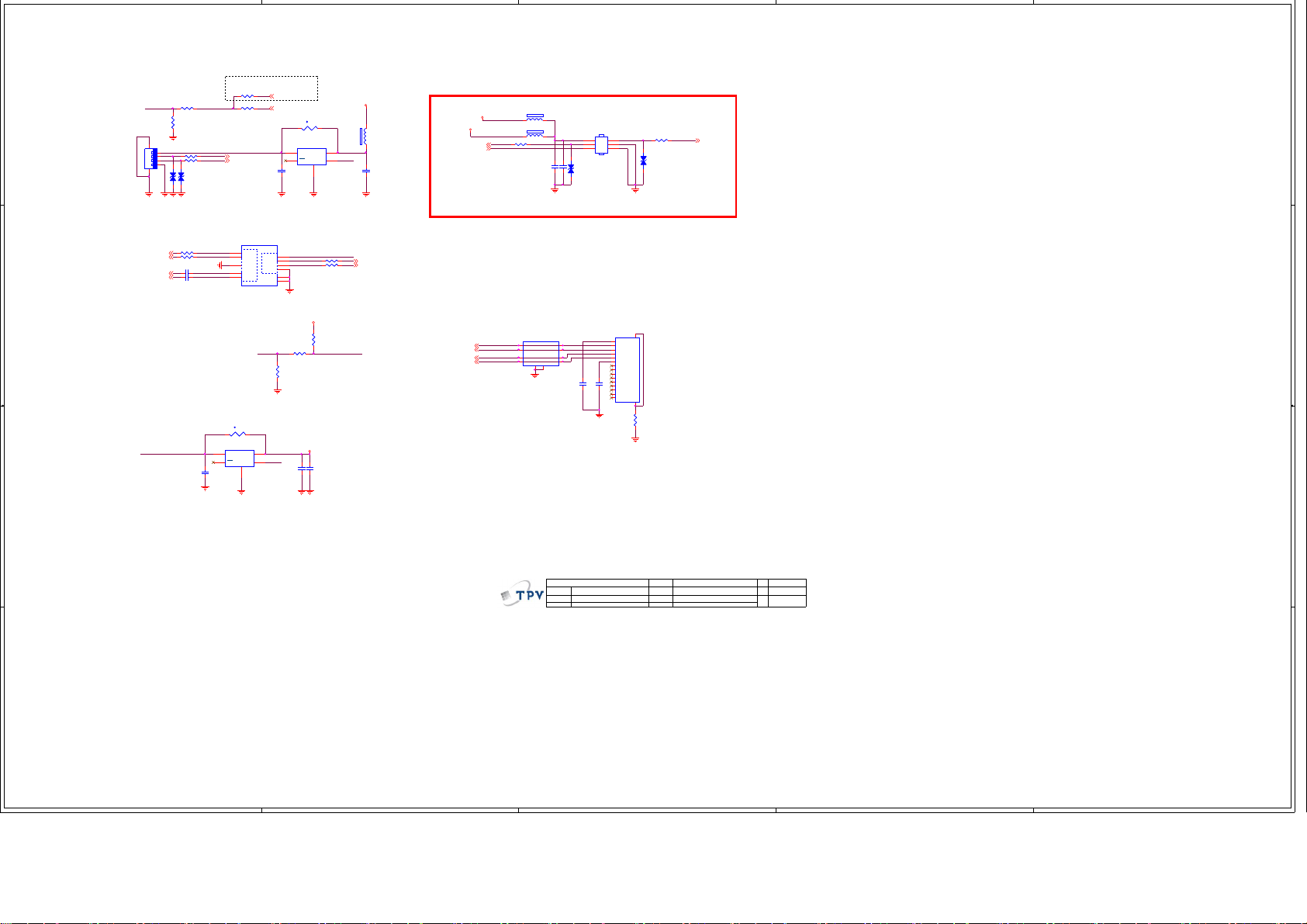

+3.3V_Normal

R4082

R4082

NC/4.7K 1/16W

NC/4.7K 1/16W

LVDS_Format

R4083

R4083

NC/4.7K 1/16W

NC/4.7K 1/16W

CN401(32pin)+CN402(16pin)传CN401(40pin)

RXE4­RXE3-

RXEC­RXE2-

RXE1­RXE0-

RXO4­RXO3-

M_SDA4,5 ,12 M_SCL 4,5, 12

RXOC­RXO2-

NC/22R 1/16W 5%

FRC_RESET5

M_SDA4,5,12
M_SCL4,5,1 2

3D_EN4 ,5
LD_EN5

RXO1­RXO0-

LVDS_Format

Data_fro mat_0
Data_fro mat_1
3D_EN
M_SDA
M_SCL

3D_EN
LD_EN
AGP
8b_10b_ Sel
VBYHTPDn
VBYLOCKn

VBY0N
VBY0P

VBY1N
VBY1P

VBY2N
VBY2P

VBY3N
VBY3P

RXE0­RXE0+

RXE1­RXE1+

RXE2­RXE2+

RXEC­RXEC+

NC/22R 1/16W 5%

CN401

CN401
CONN

CONN

40
38
36
34
32
30
28
26
24
22
20
18
16
14
12

R4162

R4162

10

R4200 NC/0R05 OHMR4200 NC/0R05 OHM

R4201 NC/0R05 OHMR4201 NC/0R05 OHM
R4204 NC/0R05 OHMR4204 NC/0R05 OHM
R4203 NC/0R05 OHMR4203 NC/0R05 OHM

R4202 NC/0R05 OHMR4202 NC/0R05 OHM

39
37
35
33
31
29
27
25
23
21
19
17
15
13
11
9

8

7

6

5

4

3

2

1

INNILUX VBY1 Conn
Reserve for LG and BOE panel

+PANEL_POWER

PCID_EN
VB1_SDA
VB1_SCL

8b_10b- Sel

夹非て

RXE4+
RXE3+

RXEC+
RXE2+

RXE1+
RXE0+

RXO4+
RXO3+

RXOC+
RXO2+

RXO1+
RXO0+

PANEL_ON/OFF

+PANEL_POWER+PANEL_POWER

CN403

CN403
NC/CONN

NC/CONN

51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

61

60

59

58

57

56

55

54

53

52

connector.

+12V_Normal

D D

High: Panel Power On
Low : Panel Power Off

R4090

R4090

4.7K1/16W

PANEL_ON/OFF5

C C

B B

A A

4.7K1/16W

R4091

R4091

4.7K1/16W

4.7K1/16W

B0M5
B0P5
B1M5
B1P5

100nF For VB1 Out
0R For LVDSOut.

B2M5
B2P5
BCKM5
BCKP5

B3M5
B3P5
B4M5
B4P5

A0M5
A0P5
A1M5
A1P5

A2M5
A2P5
ACKM5
ACKP5

A3M5
A3P5

A4M5
A4P5

+3.3V_Normal +3 .3V_Normal

R4206

R4206

NC/4.7K 1/16W

NC/4.7K 1/16W

Data_fro mat_0

R4210

R4210

NC/4.7K 1/16W

NC/4.7K 1/16W

+3.3V_Normal

R4216

R4216

NC/4.7K 1/16W

NC/4.7K 1/16W

Data_fro mat_1

R4208

R4208

NC/4.7K 1/16W

NC/4.7K 1/16W

RXO0­RXO0+
RXO1­RXO1+

RXE0­RXE0+
RXE1­RXE1+

RXE2­RXE2+
RXEC­RXEC+

RXE3­RXE3+

RXE4­RXE4+

R4080

R4080
47K

47K

Q406

Q406

MMBT3904

MMBT3904

R4089

R4089
150K

150K

C4112

C4112

220N 25V

220N 25V

R4088

R4088
0R05 OHM

0R05 OHM

C306 0R05 OHMC306 0R05 OHM
C307 0R05 OHMC307 0R05 OHM
C308 0R05 OHMC308 0R05 OHM
C309 0R05 OHMC309 0R05 OHM

C310 0R05 OHMC310 0R05 OHM
C311 0R05 OHMC311 0R05 OHM
C312 0R05 OHMC312 0R05 OHM
C313 0R05 OHMC313 0R05 OHM

R312 NC/10KR312 NC/10K
R311 NC/10KR311 NC/10K

R4209

R4209

NC/4.7K 1/16W

NC/4.7K 1/16W

PCID_EN

R4212

R4212

NC/4.7K 1/16W

NC/4.7K 1/16W

Q405

Q405

1

S

2

S

3

S

4

G

AO4449 - 7A/-30V

AO4449 - 7A/-30V

4.6A @ 70 C

R309 NC/0R05 OHMR309 NC/0R 05 OHM
R310 NC/0R05 OHMR310 NC/0R 05 OHM

R4213

R4213

NC/4.7K 1/16W

NC/4.7K 1/16W

AGP

R4215

R4215

NC/4.7K 1/16W

NC/4.7K 1/16W

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

06. LVDS

06. LVDS

06. LVDS

Date

Date

5

4

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

of

6 13Thursda y, October 09, 2014

of

6 13Thursda y, October 09, 2014

of

6 13Thursda y, October 09, 2014

Size

C

Size

C

Size

C

Rev

A

Rev

A

Rev

A

称爹

<称爹>

称爹

<称爹>

称爹

1

<称爹>

5

4

3

2

1

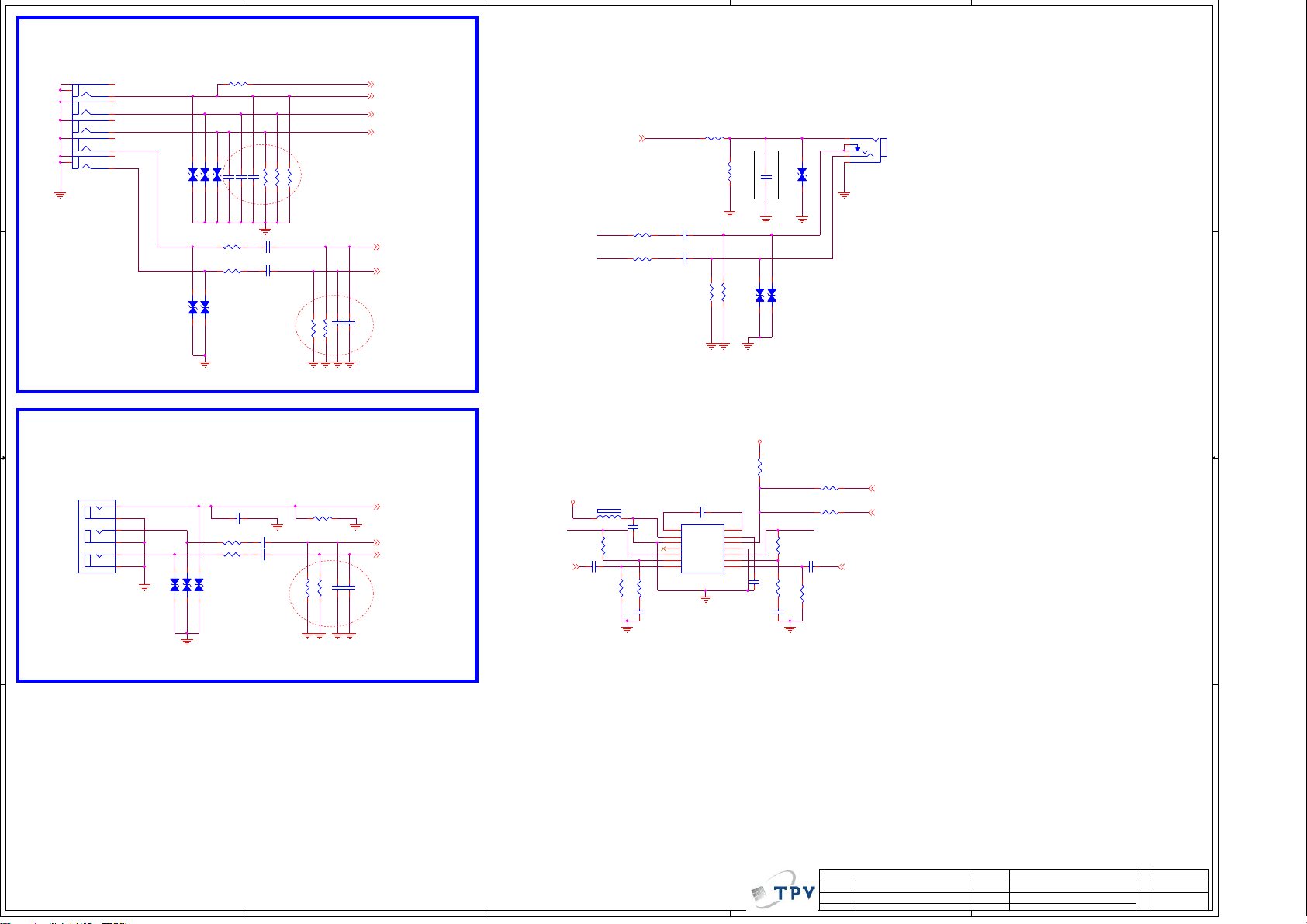

YPbPr/AV
Video-Input(Down)

CN101

CN101

RCA JACK

RCA JACK

11

G

D D

B

R

W

12

R

1

A

A

2
3

B

B

4
5

C

C

6
7

D

D

8
9

E

E

10

Audio_L

Audio_R

PC/YPbPr/AV
Audio-Input(Down)

R101

R101
0R05 OHM

0R05 OHM

ZD102 MLVG040 2ZD102 MLVG040 2

ZD101 MLVG040 2ZD101 MLVG040 2

ZD103 MLVG040 2ZD103 MLVG040 2

12

12

12

R103 75R 1/16W 1%R103 75R 1/16W 1%

R104 75R 1/16W 1%R104 75R 1/16W 1%

R105 75R 1/16W 1%R105 75R 1/16W 1%

C102 NCC102 NC

C100 NCC100 NC

C101 NCC101 NC

AV1_IN 5

YPbPr_Y 5

YPbPr_PB 5

YPbPr_PR 5

AV OUT (Side)

CVBS_OUT5

R100

R100
0R05 OHM

0R05 OHM

穝糤隔筿甧

R102 75R 1/16W 1%R102 75R 1/16W 1%

(Mstar某)

C169 NCC169 NC

CN100

CN100

VO

3
5

ZD100 MLVG 0402ZD100 MLVG 0402

4
2

12

1

PHONE JACK

PHONE JACK

Close to Mstar IC

C162 10uF 16VC162 10uF 16 V

R161

R161

A_OUT_L

10 OHM

C103

R106

R106
10K 1%

10K 1%

R107

R107
10K 1%

10K 1%

ZD104 MLVG040 2ZD104 MLVG040 2

ZD105 MLVG040 2ZD105 MLVG040 2

12

12

C103

1UF 10% 16V

1UF 10% 16V

C104

C104

1UF 10% 16V

1UF 10% 16V

HD_Lin 5

HD_Rin 5

C105 560pF 50VC105 560pF 50V

C106 560pF 50VC106 560pF 50V

R109 12K 1/16 WR109 12 K 1/16W

R108 12K 1/16 WR108 12 K 1/16W

A_OUT_R

10 OHM

R162

R162
10 OHM

10 OHM

C160 10uF 16VC160 10uF 16 V

R165 100K 1%R165 100K 1%

R166 100K 1%R166 100K 1%

LO

RO

ZD123 MLVG 0402ZD123 MLVG 0402

ZD124 MLVG 0402ZD124 MLVG 0402

12

12

C C

Side AV Input

CN103

CN103

2

A

A

Y

W

R

B B

B

B

C

C

RCA JACK

RCA JACK

1

4

3

6

5

C107 NCC107 NC

R111

R111
10K 1%

10K 1%
R112

R112
10K 1%

10K 1%

ZD107 MLVG0 402ZD107 MLVG0 402

ZD106 MLVG0 402ZD106 MLVG0 402

ZD108 MLVG0 402ZD108 MLVG0 402

12

12

12

C108

C108

1UF 10% 16V

1UF 10% 16V

C109

C109

1UF 10% 16V

1UF 10% 16V

R110

R110
75R 1/16 W 1%

75R 1/16 W 1%

R114 12K 1/16WR114 12K 1/16W

R113 12K 1/16WR113 12K 1/16W

Close to Mstar IC

AV2_IN 5

AV2-Lin 5

AV2-Rin 5

C110 560pF 50VC110 560pF 5 0V

C111 560pF 50VC111 560pF 5 0V

Close to Mstar IC

+3.3V_Normal

R172

R172

NC/4.7K1/16W

NC/4.7K1/16W

+3.3V_Normal

FB106

FB106

LINE OUT AMP

300R 4A

300R 4A

1 2

C161

C168

C168

4.7UF

4.7UF

R169

R169

62K

62K

R163 100K 1%R163 100K 1%

C161

10uF 16 V

10uF 16 V

R167 39KR167 39K

C163

C163

1UF 10% 16V

1UF 10% 16V

A_OUT_L A_OUT_R

AM_L5 AM_R 5

8

10
11
12
13
14

U102

U102

DRV602PWR

DRV602PWR

C166

C166

1UF 10% 16V

1UF 10% 16V

CP
PVDD9PVSS
PGND
NC

SGND

OUTL

OUTR

-INL
+INR

+INL

7

CN

6
5

EN

4
3
2

-INR

1

C164 1UF 10% 16VC164 1UF 10% 16V

R170

R170

62K

62K

R168

R168

39K

39K R1 64

C165 1UF 10% 16VC165 1UF 10% 16V

R164

100K 1%

100K 1%

R173

R173
NC/0R05 OHM

NC/0R05 OHM

R174

R174
0R05 OHM

0R05 OHM

C167

C167

4.7UF

4.7UF

LINE_MUTE 5

AMP_PD 12

A A

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

07. VIDEO IN/OUT

07. VIDEO IN/OUT

07. VIDEO IN/OUT

Date

Date

5

4

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

of

7 13Thursda y, October 09, 2014

of

7 13Thursda y, October 09, 2014

of

7 13Thursda y, October 09, 2014

Size

C

Size

C

Size

C

Rev

A

Rev

A

Rev

A

称爹

<称爹>

称爹

<称爹>

称爹

1

<称爹>

5

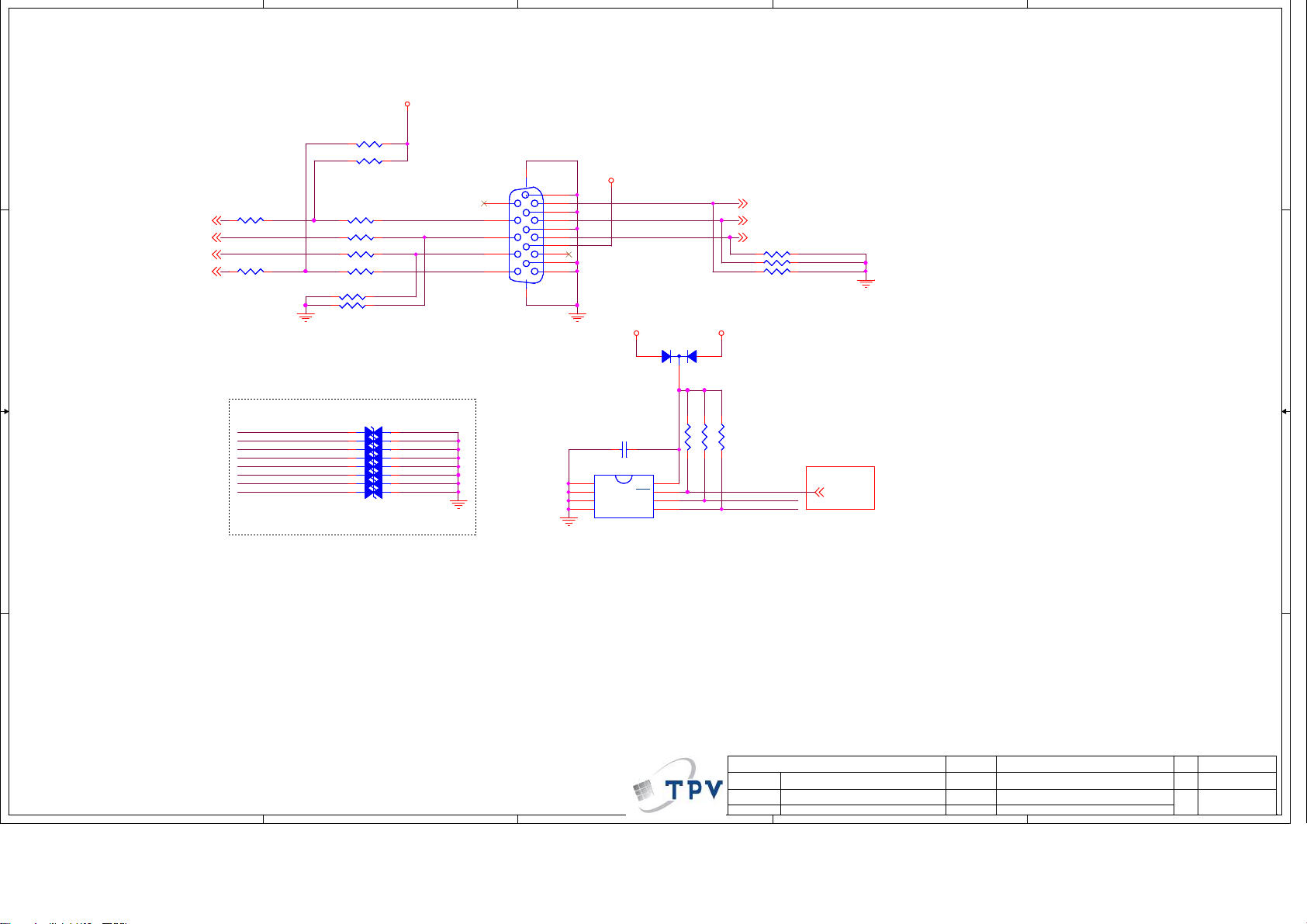

D D

VGA_HSYNC

VGA_VSYNC

VGA_SDA

VGA_SCL

R118 100R 1/16W 1%R118 100R 1/16W 1%

R119 100R 1/16W 1%R119 100R 1/16W 1%

R120 100R 1/16W 1%R120 100R 1/16W 1%

R124 100R 1/16W 1%R124 100R 1/16W 1%

R126 2.2K1/16WR126 2.2K1/16W
R127 2.2K1/16WR127 2.2K1/16W

R117

UART-TX5

VGA_HSYNC5

VGA_VSYNC5

UART-RX5

C C

R117

0R05 OHM

0R05 OHM

R123

R123

0R05 OHM

0R05 OHM

R115

R115
10K 1%

10K 1%
R116

R116
10K 1%

10K 1%

4

+5V_Standby

PC_SDA

PC_HSYNC

PC_VSYNC

PC_SCL

CN104

CN104

11

12

13

14

15

3

2

1

VGA Input (Down)

1716

6
1
7
2
8
3
9
4
10
5

CONN

CONN

VGA_5V

+5V_Normal

VGA-Rin

VGA-Gin

VGA-Bin

D100

D100

NC/BAT54C

NC/BAT54C

1

VGA-Rin 5

VGA-Gin 5

VGA-Bin 5

R121 75R 1/16W 1%R121 75R 1/16W 1%
R122 75R 1/16W 1%R122 75R 1/16W 1%
R125 75R 1/16W 1%R125 75R 1/16W 1%

Close to Mstar IC

VGA_5V

2

3

R129 NC/4.7K1/16WR129 NC/4.7K1/16W

R130 NC/4.7K1/16WR130 NC/4.7K1/16W

R128 NC/10KR128 NC/10K

VGA-Rin
VGA-Gin
VGA-Bin
PC_SDA
PC_SCL
PC_VSYNC
PC_HSYNC
VGA_5V

B B

Place close to connector

ZD109 MLVG0402ZD109 MLVG0402

1 2

ZD110 MLVG0402ZD110 MLVG0402

1 2

ZD111 MLVG0402ZD111 MLVG0402

1 2

ZD112 MLVG0402ZD112 MLVG0402

1 2

ZD113 MLVG0402ZD113 MLVG0402

1 2

ZD114 MLVG0402ZD114 MLVG0402

1 2

ZD115 MLVG0402ZD115 MLVG0402

1 2

ZD116 NC/MLVG0402ZD116 NC/MLVG0402

1 2

C112

C112

NC/100N 16V

NC/100N 16V

1

E0

2

E1

3

E2
VSS4SDA

U100

U100

NC/M24C02-WDW6P

NC/M24C02-WDW6P

VCC

WC

SCL

8
7
6
5

EDID_WP
PC_SCL
PC_SDA

EDID_WP 5

Low Active

A A

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

5

4

3

Date

Date

Date

08. VGA

08. VGA

08. VGA

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

of

8 13Thursday, October 09, 2014

of

8 13Thursday, October 09, 2014

of

8 13Thursday, October 09, 2014

Size

B

Size

B

Size

B

Rev

A

Rev

A

Rev

A

称爹

<称爹>

称爹

<称爹>

称爹

1

<称爹>

5

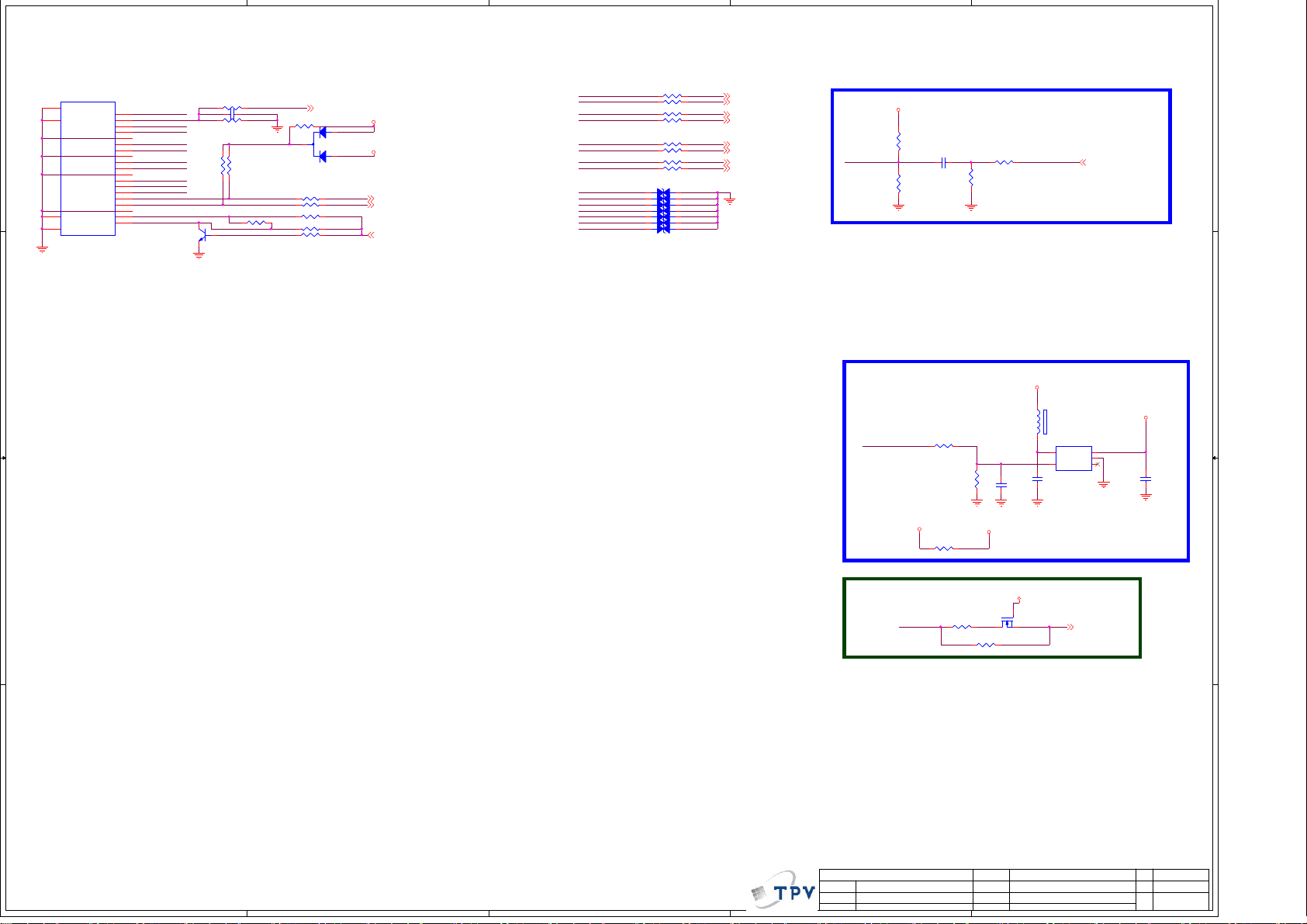

R160

R160
0R05 OHM

0R05 OHM

R131

R131

22 OHM 1/16W

USB CONN

USB CONN

CN106

CN106

USB3.0

USB3_SSRXN5
USB3_SSRXP5

USB3_SSTXN5
USB3_SSTXP5

1000mA

EN_U101

1

1234

1234

2
3
4

6 5

Traces of USB3.0
should be less than
10cm.

USB3_VBUS

22 OHM 1/16W

R134

R134

NC/10K

NC/10K

R136 5.1R 1/16WR136 5.1R 1/16W
R137 5.1R 1/16WR137 5.1R 1/16W

ZD120ZD120

ZD119ZD119

1 2

1 2

R140 5.1R 1/16WR140 5.1R 1/16W
R141 5.1R 1/16WR141 5.1R 1/16W

C119 100NF 25VC119 100NF 25V
C120 100NF 25VC120 100NF 25V

USB_PW_GPIO

C125

C125
100NF 25V

100NF 25V

5

3

U105

U105
G5250K1T1U

G5250K1T1U

D D

C C

R132

R132
NC/0R05 OHM

NC/0R05 OHM

USB0_D- 5
USB0_D+ 5

CN108

CN108

5

RXN

6

RXP

7

GND

8

TXN

9

TXP

USB CONN 9P

USB CONN 9P

1000mA

TH101

TH101

NC/PTCR

NC/PTCR

t

t

OUT

GND

2

USB_PW_EN 4,5

PWR-ON/OFF 4,5

500mA

t

t

12

TH100

TH100

NC/PTCR

NC/PTCR

U101

U101

G5250K1T1U

G5250K1T1U

OUT

+3.3V_Normal

IN

EN1OC

GND

2

1000mA

R142 5.1R 1/16WR142 5.1R 1/16W
R143 5.1R 1/16WR143 5.1R 1/16W

R144

R144

NC/10K

NC/10K

4

500mA500mA

EN_U101

USB_PW_GPIO

5

3

C115

C115
100NF 25V

100NF 25V

USB3_VBUS

1

USB3.0

USB3.0

VCC

2

D-

3

D+

4

USB2.0

USB2.0

GND

10

HAND1

11

HAND2

EN_U105

R145 22 OHM 1/16WR145 22 OHM 1/16W

R146 NC/10KR146 NC/10K

12

+5V_USB

1000mA

4

IN

EN1OC

EN_U105

C124 NC/ 22uF 10VC124 NC/22uF 10V

C123 10uF 16VC123 10uF 16V

+5V_USB

12

FB101

FB101
120R

120R

C116

C116
10uF 16V

10uF 16V

USB3_D- 5
USB3_D+ 5

4

INTERNAL USB 0

+3.3V_Normal

FB102 120RFB102 120R

1 2

500mA

+5V_Normal

USB1_D+5

WIFI_RST5

FB103 NC/120RFB103 N C/120R

1 2

R139 5.1R 1/ 16WR139 5.1R 1/16W

CN107

CN107
CONN

CONN

1
3
5

ZD121 NC/MLVG0402ZD121 N C/MLVG0402

C118 100NF 25VC118 100NF 25V

C117 10uF 16VC117 10uF 16V

1 2

埃

CN107

trace : diffenentail 100 R

U103 NCU103 NC

MDI_TP

1

MDI_TP5

MDI_TN

MDI_TN5

MDI_RP

MDI_RP5

MDI_RN

MDI_RN5

IN1

2

IN2

4

IN3
IN45NC

10

NC

9

NC

7

NC

6

GND

GND

3

8

C121 100NF 25VC121 100N F 25V

3

R138 5.1R 1/16WR138 5.1R 1/16W

2
4

ZD122 NC/MLVG0402ZD122 N C/MLVG0402

6

USB1_D- 5

2

1

1 2

CN109

CN109

16

RJ45 15P

RJ45 15P

1

TCT P1

2

TH1

TD+ P2

3

TD- P 3

4

RD+ P 4

5

RD- P5

6

RCT P6

7

NC P7

8

NC P8

9

C122 100NF 25VC122 100N F 25V

NC P9

10

NC P1 0

11

NC P1 1

12

Y- P1 2

13

Y+ P 13

14

G- P1 4

15

G+ P 15

TH2

17

R147

R147
0R05

0R05

B B

3

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

of

9 13Thursday, Oct ober 09, 2014

of

9 13Thursday, Oct ober 09, 2014

of

9 13Thursday, Oct ober 09, 2014

T P V ( Top Victory Elec tronics Co . , Lt d. )

T P V ( Top Victory Elec tronics Co . , Lt d. )

T P V ( Top Victory Elec tronics Co . , Lt d. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

09. USB & ETHERN ET

09. USB & ETHERN ET

09. USB & ETHERN ET

Date

Date

Date

A A

5

4

Size

D

Size

D

Size

D

Rev

A

Rev

A

Rev

A

称爹

<称爹>

称爹

<称爹>

称爹

<称爹>

2

1

5

4

3

2

1

HDMI? (Side)/(MHL)

CN500

CN500

20

SHLD0

TMDSD2+

D D

C C

22

DSHLD0

SHLD2

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+
CSHLD0
TMDSC-

CEC

NC
SCL
SDA

DDC_GND

23

21

SHLD3

SHLD1

HDMI

HDMI

VCC5

HPD

HDMI_RX2P

1

MHL_CD_SENSE

2

HDMI_RX2N

3

HDMI_RX1P

4
5

HDMI_RX1N

6

HDMI_RX0P

7
8

HDMI_RX0N

9

HDMI_CLKP

10
11

HDMI_CLKN

12

HDMI_CEC

13

HDMI_ARC

14

HDMISCL

15

HDMISDA

16
17

+5VBUS +5VBUS

18

HDMI_HPD

19

R502 100R 1 /16W 1%R502 100R 1 /16W 1%
C500 47NF 16VC500 47NF 16V
R504 300KR50 4 300K

R509 47K +-1% 1/1 6WR509 47K +-1% 1/1 6W

1200mA

Q500NCQ500
NC

R510 47K +-1% 1/1 6WR510 47K +-1% 1/1 6W

R519 NCR519 NC

PM14

MHL_CABLE_DET 5

R506 NC/0R05 OHMR506 NC/0R05 OHM

D500

D500

3

BAT54CH

BAT54CH

R514 33 OHM 1/16WR514 33 OHM 1/1 6W
R516 33 OHM 1/16WR516 33 OHM 1/1 6W

R518 NCR51 8 NC

R520 33 OHM 1/16WR520 33 OHM 1/1 6W
R521 NCR52 1 NC

+5VBUS

2

+5V_USB

1

HDMI-SCL 5
HDMI-SDA 5

HDMI-HPDIN 5

HDMI_CLKN
HDMI_CLKP

HDMI_RX0N
HDMI_RX0P

HDMI_RX1N
HDMI_RX1P

HDMI_RX2N
HDMI_RX2P

MHL_CD_SENSE
HDMI_CEC
HDMISCL
HDMISDA

HDMI_HPD
HDMI_ARC

R500 5.1R 1/16WR500 5.1R 1/16W
R501 5.1R 1/16WR501 5.1R 1/16W

R503 5.1R 1/16WR503 5.1R 1/16W
R505 5.1R 1/16WR505 5.1R 1/16W

R512 5.1R 1/16WR512 5.1R 1/16W
R513 5.1R 1/16WR513 5.1R 1/16W

R515 5.1R 1/16WR515 5.1R 1/16W
R517 5.1R 1/16WR517 5.1R 1/16W

ZD500 NC/MLVG0 402ZD500 NC/MLVG040 2

1 2

ZD501 NC/MLVG0 402ZD501 NC/MLVG040 2

1 2

ZD502 NC/MLVG0 402ZD502 NC/MLVG040 2

1 2

ZD503 NC/MLVG0 402ZD503 NC/MLVG040 2

1 2

ZD504 NC/MLVG0 402ZD504 NC/MLVG040 2

1 2

ZD505 NC/MLVG0 402ZD505 NC/MLVG040 2

1 2

ZD506 NC/MLVG0 402ZD506 NC/MLVG040 2

1 2

HDMI-CLKN 5
HDMI-CLKP 5

HDMI-RX0N 5
HDMI-RX0P 5

HDMI-RX1N 5
HDMI-RX1P 5

HDMI-RX2N 5
HDMI-RX2P 5

+5VBUS

R525

R525
10K 1%

10K 1%

R526

R526
39K

39K

HDMI ARC
DC voltage level = 4V
Signal voltage p-p = 500 mV +-100mV
(Test need add 55 ohm terminal resistor to GND)
Tr,Tf <= 60 ns

HDMI ARC Function

C504

C504

R527

R527

1UF 10% 16V

1UF 10% 16V

0R05 OHM

0R05 OHM

R528NCR528
NC

MHL

1200mA

MHL_CD_SENSE

R507 1K 1/16W 1%R507 1K 1/16W 1%

R511

R511
NC/10K 1%

NC/10K 1%

+5VBUS

R522 10 OHMR522 10 OHM

C503

C503

100N 50V

100N 50V

AVDD5V-MHL

HDMI-ARCHDMI_ARC

+5V_USB

12

C501

C501

10uF 16 V

10uF 16 V

FB500

FB500
120R

120R

U501

U501

5

IN

4

STMPS2171STR

STMPS2171STR

HDMI-ARC 5

40mil

OUT
GND

FAULT3EN

1200mA

1
2

+5VBUS

C502

C502

10uF 16 V

10uF 16 V

B B

+5V_Standb y

Q501

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

10 1 3Thursday, Octob er 09, 201 4

10 1 3Thursday, Octob er 09, 201 4

10 1 3Thursday, Octob er 09, 201 4

Q501

2N7002K

2N7002K

of

of

of

HDMI-CEC 5

1

Size

C

Size

C

Size

C

Rev

A

Rev

A

Rev

A

称爹

<称爹>

称爹

<称爹>

称爹

<称爹>

R523

R523
200 OHM

200 OHM

HDMI_CEC

R524 NCR524 NC

A A

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

10. HDMI

10. HDMI

10. HDMI

Date

Date

5

4

3

Date

2

5

4

3

2

1

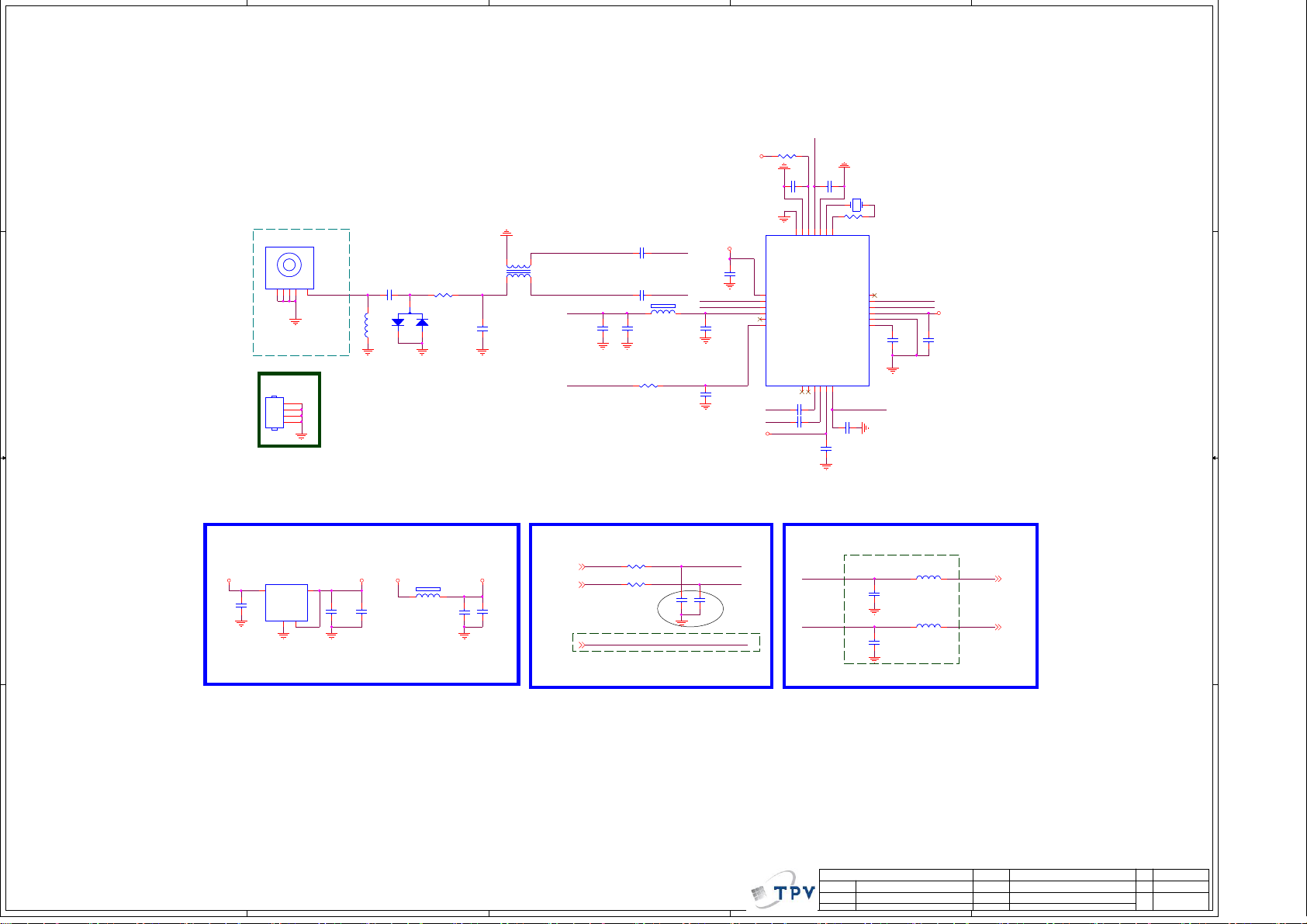

SI TUNER

D D

R148

R148
1M 1%

C129

C129

U106

U106
MxL661-AG-R

MxL661-AG-R

1

VDD_3p3

2

LNA_INP

3

LNA_INN

4

VDD_1p8

5

AGC_2/GPO_ 3

6

AGC_1

1M 1%

C126

C126

470NF 10V

470NF 10V

C127

C127
10NF 50V

10NF 50V

VDD_1.8V_OU TPUT

X100

X100
16MHz

16MHz

1 2

R150

R150
0R05 OHM

0R05 OHM

19

20

21

22

23AS24

25

E-PAD

XTAL_P

XTAL_N

VDD_1p8

RESET_N

GND_XTAL

18

CLK_OUT

VDD_IO

GND_DIG

VDD_1p2

SDA

SCL

SDA-T

17

SCL-T

16
15
14
13

2.2nF 5 0V

2.2nF 5 0V

C139

C139

C140

C140

100NF 25V

100NF 25V

+3.3V_TU

+3.3V_TU

High voltage isolation

J100

J100
RF CONN

RF CONN

R171

12345

C C

C131 1N 50VC131 1N 50V

L104

L104
NC/0.56uH

NC/0.56uH

R171
0R05 OHM

0R05 OHM

3

D101

D101

BAV99

BAV99

1

2

C170

C170

NC/1N 50V

NC/1N 50V

1

2

L101

L101
75R

75R

4

3

VDD_1.8V_OUTPUT

C134

C134
NC/2.2nF

NC/2.2nF

1nF 50V

1nF 50V

1nF 50V

1nF 50V

C128

C128

C133

C133

C135

C135

NC/100N

NC/100N

LNA_INN

FB104

FB104
1000

1000

LNA_INP

+3.3V_TU

NC/100N

NC/100N

LNA_INP
LNA_INN

12

C136

C136

100NF 25V

100NF 25V

HS100

HS100
NC/Tuner co ver

NC/Tuner co ver

4
3
2
1

Tuner Power

U107

B B

+5V_Normal

U107

AP1117E3 3L-13-77

AP1117E3 3L-13-77

3

VIN

C149

C149

100NF 25V

100NF 25V

VCC3V3

VCC3V3

2

VOUT

C151

C151

C150

ADJ(GND)

1

C150

4

4

100NF 25V

100NF 25V

2.2nF 5 0V

2.2nF 5 0V

FB105

FB105
300R 4A

300R 4A

1 2

47NF 16V

47NF 16V

C152

C152

+3.3V_TU

C153

C153
10uF 16 V

10uF 16 V

IF_AGC_TUNER

AGC RC Filter &I2C

T_SDA5

T_SCL5

IF_AGC_T5

R152 100R 1/16W 1%R152 100R 1/16W 1%

R153

R153
100R 1/1 6W 1%

100R 1/1 6W 1%

R154

R154
100R 1/1 6W 1%

100R 1/1 6W 1%

C147

C147

33P 50V

33P 50V

C141

C141

100NF 25V

100NF 25V

SDA-T

SCL-T

C148

C148
33P 50V

33P 50V

Close Tuner

IF_AGC_TUNER

+3.3V_TU

Shield with GND

A A

IF_OUTP_2/GPO_ 17IF_OUTN_2/GPO _28IF_OUTP_19IF_OUTN_110VDD_3p311VDD_1p8

12

C142

C142

IF-IN+ VDD_1 .8V_OUTPUT

100NF 25V

100NF 25V

IF-IN-

C143100NF 25VC143100NF 25V

C144

C144
100NF 25V

100NF 25V

C145

C145
100NF 25V

100NF 25V

DIF IN&OUT

IF-IN- VIFM

C146

C146

47PF 50V

47PF 50V

IF-IN+

C154

C154

Shield with GND

47PF 50V

47PF 50V

L105 0.22uHL105 0.22uH

L106 0.22uHL106 0.22uH

DIF2 5

VIFP

DIF1 5

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

11. TUNER

11. TUNER

11. TUNER

Date

Date

5

4

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

of

11 1 3Thursday, Octob er 09, 201 4

of

11 1 3Thursday, Octob er 09, 201 4

of

11 1 3Thursday, Octob er 09, 201 4

Size

C

Size

C

Size

C

Rev

A

Rev

A

Rev

A

称爹

<称爹>

称爹

<称爹>

称爹

1

<称爹>

5

4

3

2

1

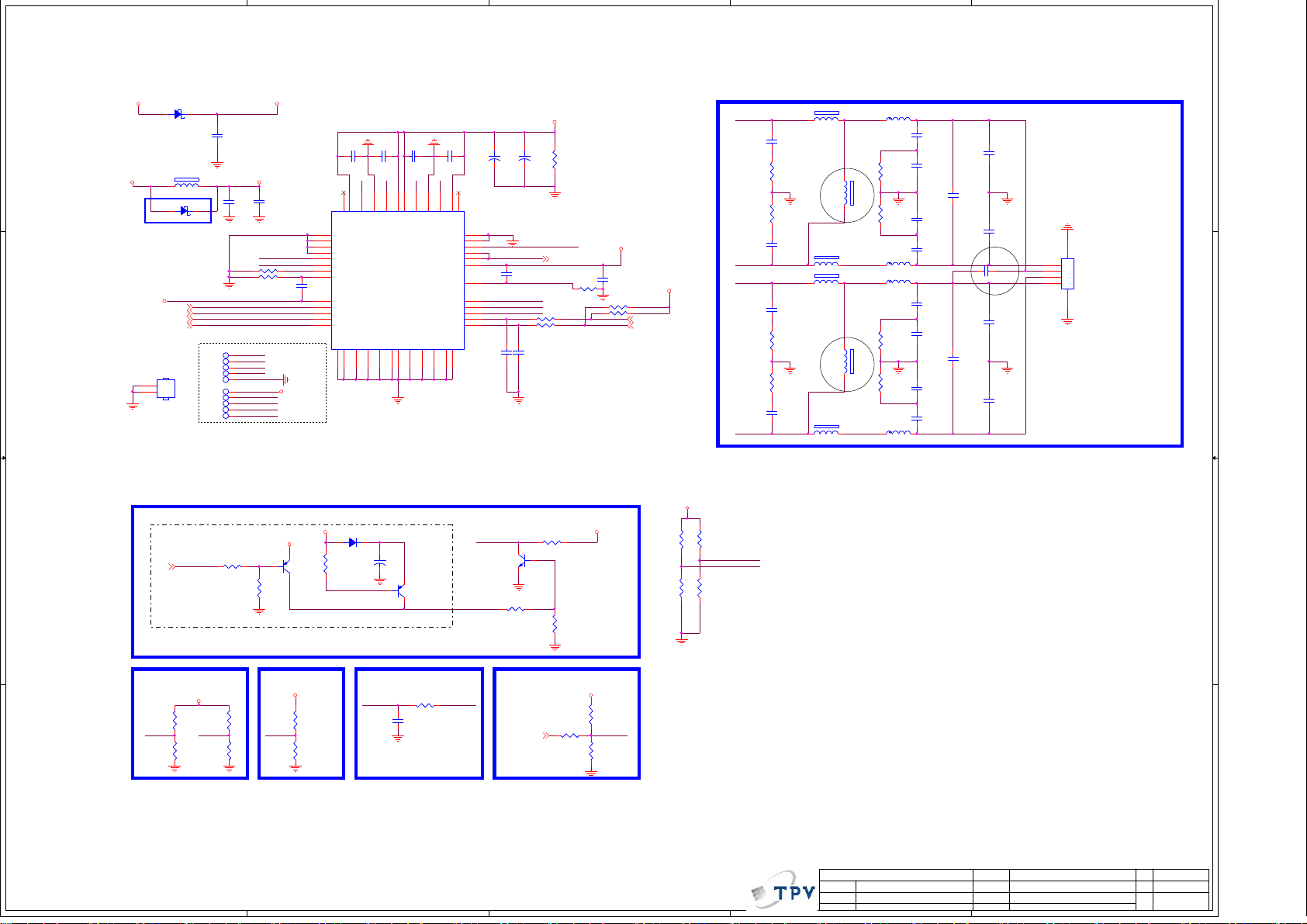

+24_Audio

D600

D600

D D

C C

1 2

SX36

SX36

+3.3V_Normal

1 2

1 2

D700 NC/RB551V-30D700 NC/RB551 V-30

+3.3V_AMP

I2S_SD05
I2S_LRCLK5
I2S_SCLK5 M_SCL 4,5,6
I2S_MCLK5

HS600

HS600

1
2

HEAT SINK

HEAT SINK

FB601

FB601
300R 4A

300R 4A

C600

C600

10UF 50V

10UF 50V

I2S_SD0
I2S_LRCLK
I2S_SCLK
I2S_MCLK

TP601TP6 01
TP602TP6 02
TP603TP6 03
TP604TP6 04
TP605TP6 05

TP606TP6 06
TP607TP6 07
TP608TP6 08
TP609TP6 09
TP610TP6 10

硂ㄇTP翴叫竚

鲸秖耚┘
よ獽ま絬代刚

+AMP_12V

+3.3V_AMP

C612

C612

C613

C613

10uF 16 V

10uF 16 V

100N 50V

100N 50V

AMP_CFG0

AMP_CFG1

R605 NC/0R05 OHMR605 NC/0R 05 OHM
R606 0R05 OHMR606 0R05 OHM

I2S_MCLK

I2S_SCLK

I2S_LRCLK

I2S_SD0

RST_AMP
POP_MUTE
M_SCL
M_SDA

TOP Layer.

,

.

+3.3V_Normal

C603

C603

C604

C604

100N 50V

100N 50V

100N 50V

100N 50V

LB

LA

45LA46

47NC48

U600

U600

GNDL

VDDLA

49

THERMALPAD

1

SDATA1

2

MS

3

PLL

4

CFG0

5

CFG1

6

CLK_OUT

7

DGND

AD82588B- LG48NAY

DVDD
SDATA0
LRCIN
BCLK
MCLK

AD82588B- LG48NAY

C621

C621

100N 50V

100N 50V

10
11
12

8
9

NC13NC14NC15NC16NC17NC18NC19NC20NC21NC22NC23NC

43LB44

C605

C605

100N 50V

100N 50V

42

VDDLB

VDDRB

+AMP_12V

C606

C606

100N 50V

100N 50V

RA

RB

40RB41

GNDR

LINEIN

LREX

RESET#

ERROR#

DVDD

DGND

C607

C607

C608

C608

R600

+

+

100UF 35V

100UF 35V

AMP_PD

C619

C619

100N 50V

100N 50V

AMP_DEF
AMP_SA0
AMP_SA1

R610 22 OHM 1/16WR610 22 OHM 1/16W
R611 22 OHM 1/16WR611 22 OHM 1/16W

C627 NC/22P 50 VC62 7 NC /22P 50V

C626 NC/22P 50 VC62 6 NC /22P 50V

R600
10K 1/4W

10K 1/4W

RESET#

AMP_PD 7

Low Active

R607

R607

0R05 OHM

0R05 OHM

+

+

100UF 35V

100UF 35V

37

38RA39

NC

VDDRA

36
35
34
33
32

PD#

31

30

29

DEF

28

SA1

27

SA0

A_SCL

26

SCL

A_SDA

25

SDA

24

2.0 CH
24V
AD82588
12V
AD83586

2.1 CH
AD83586

INDUCTOR
10uH
073G253S 81 Y
15uH
373G253S247Y00
22uH
373G253S147Y00

+3.3V_AMP

C620

C620
22uF 6. 3V

22uF 6. 3V

R608 NC/4K7 1/16W 5%R 608 NC/4K7 1/ 16W 5%

R609 NC/4K7 1/16W 5%R 609 NC/4K7 1/ 16W 5%

M_SCL
M_SDA

M_SDA 4,5,6

+3.3V_Normal

RA

RB

LA

LB

HCB3216KF-12 1T30

HCB3216KF-12 1T30

C602

C602
470pF 5 0V

470pF 5 0V

R601

R601
10 OHM

10 OHM

R603

R603
10 OHM

10 OHM

C616

C616
470pF 5 0V

470pF 5 0V

HCB3216KF-12 1T30

HCB3216KF-12 1T30

C623

C623
470pF 5 0V

470pF 5 0V

R612

R612
10 OHM

10 OHM

R614

R614
10 OHM

10 OHM

C631

C631
470pF 5 0V

470pF 5 0V

1 2

FB600

FB600

FB603

FB603

HCB3216KF-12 1T30

HCB3216KF-12 1T30

1 2

1 2

FB604

FB604

FB606

FB606

HCB3216KF-12 1T30

HCB3216KF-12 1T30

1 2

L600

L600

C601

C601

22uH

22uH

100N 50V

100N 50V

C610

C610

R602

R602

220N 50V

220N 50V

10 OHM

10 OHM

NC/HCB3216KF- 121T30

NC/HCB3216KF- 121T30

12

FB602

FB602

R604

R604
10 OHM

10 OHM

C614

C614

220N 50V

220N 50V

C617

C617

100N 50V

100N 50V

L601

L601
22uH

22uH

L602

L602
22uH

22uH

C622

C622

100N 50V

100N 50V

C625

C625

R613

R613

220N 50V

220N 50V

10 OHM

10 OHM

NC/HCB3216KF- 121T30

NC/HCB3216KF- 121T30

12

FB605

FB605

R615

R615
10 OHM

10 OHM

C629

C629

220N 50V

220N 50V

C632

C632

100N 50V

100N 50V

L603

L603
22uH

22uH

C611

C611
470NF 50V

470NF 50V

C618 NC/330nFC6 18 NC/330nF

C628

C628
470NF 50V

470NF 50V

C609

C609

10NF 50V

10NF 50V

C615

C615

10NF 50V

10NF 50V

C624

C624

10NF 50V

10NF 50V

C630

C630

10NF 50V

10NF 50V

CN600

CN600
CONN

CONN

R­R+
L­L+

CN600э

56

1
2
3
4

ノ夹非て

R

R­R+
L­L+

L

Connector

(for Audio debug)

+3.3V_AMP

R616 0R05 OHMR616 0R05 OHM

R617 NC/0R05 O HMR617 NC /0R05 OHM

AMP_CFG0
AMP_CFG1

R623 0R05 OHMR623 0R05 OHM

R622 NC/0R05 O HMR622 NC /0R05 OHM

For POP Noise

R620 240R 1%R620 240R 1 %

AMP-MUTE

B B

AMP-MUTE5

R621

R621
10K 1%

10K 1%

+3.3V_Stand by

Q600

Q600

MMBT3906

MMBT3906

+5V_Standb y

R619

R619
15K 1/10W 1%

15K 1/10W 1%

0603

D601

D601

LL4148

LL4148

+

+

C633

C633

100UF 16V

100UF 16V

Q602

Q602

MMBT3906

MMBT3906

PD_MUTE

POP_MUTE

R624 10K 1%R624 10K 1%

MUTE

R618

R618

1K 1/16W 1 %

1K 1/16W 1 %

Q601

Q601
MMBT3904

MMBT3904

R625

R625
100K 1%

100K 1%

+3.3V_Normal

I2C address
Write=0110"SA0"0"SA1"0=0x60

A A

5

+3.3V_Normal

R628

R628

NC/10K

NC/10K

AMP_SA0 RESET#

R632

R632
10K 1%

10K 1%

AMP_SA1

R629

R629

NC/10K

NC/10K

R633

R633
10K 1%

10K 1%

AMP_DEF

+3.3V_Normal

R630

R630

NC/10K 1/16W 5 %

NC/10K 1/16W 5 %

R634

R634
10K 1%

10K 1%

AMP_PD

4

R626

R626

0R05 OHM

0R05 OHM

C634

C634

0.47uF 16V

0.47uF 16V

POP_MUTE

Reset (pull-up)

RST_AMP5

R631

R631
0R05 OHM

0R05 OHM

+3.3V_Normal

R627

R627

NC/1M

NC/1M

R635

R635
1K 1/10W

1K 1/10W

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

12. AUDIO AMPILIFER

12. AUDIO AMPILIFER

12. AUDIO AMPILIFER

Date

Date

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

of

12 1 3Thursday, Octob er 09, 201 4

of

12 1 3Thursday, Octob er 09, 201 4

of

12 1 3Thursday, Octob er 09, 201 4

Size

C

Size

C

Size

C

Rev

A

Rev

A

Rev

A

称爹

<称爹>

称爹

<称爹>

称爹

1

<称爹>

5

4

3

2

1

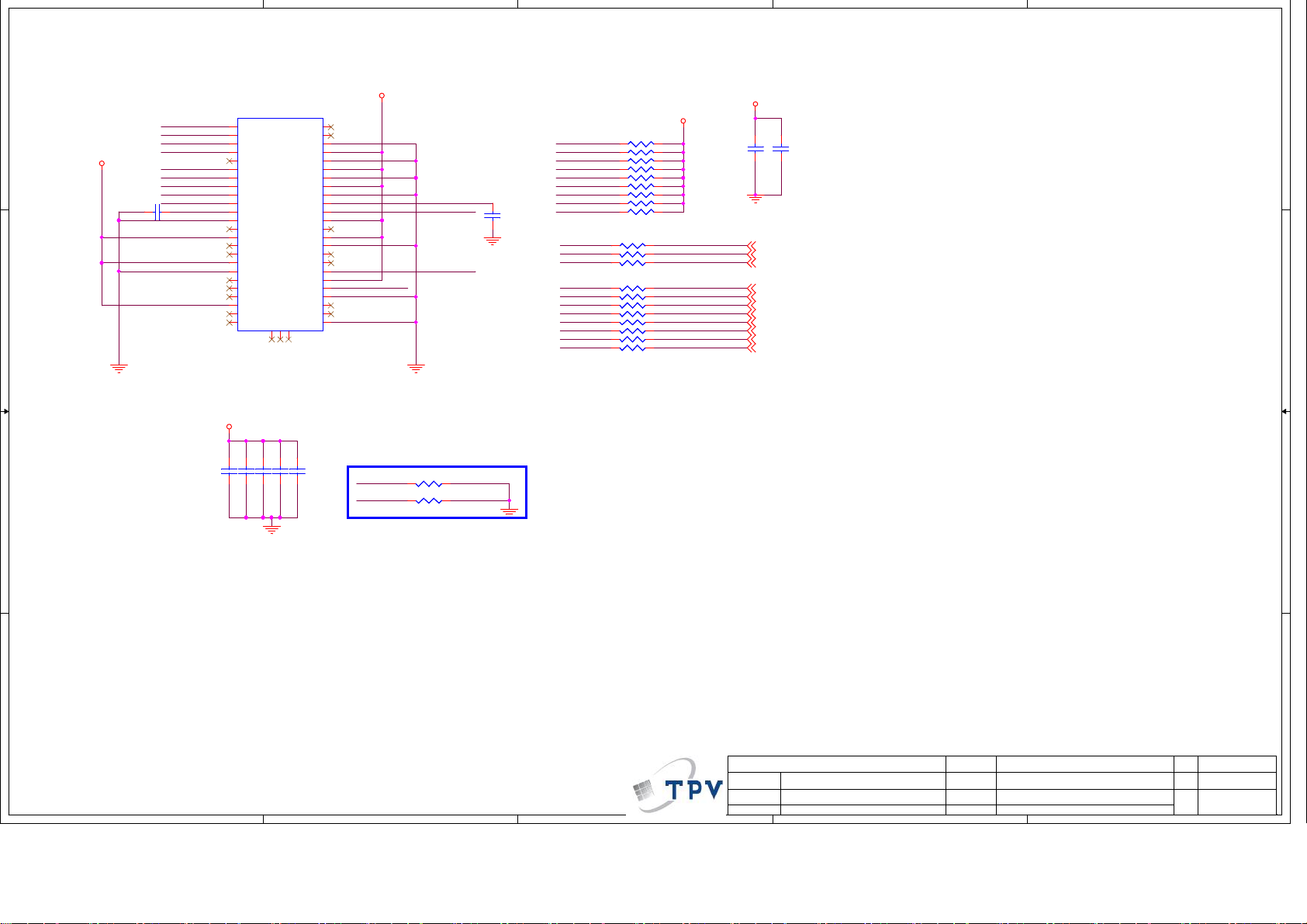

iNAND FLASH

U404

D D

+3.3V_Normal

C C

B B

C4118

C4118
1uF 10V

1uF 10V

NF_D0
NF_D1
NF_D2
NF_A6

NF_D3
NF_D4
NF_D5
NF_D6
NF_D7

U404
THGBMBG5D1KBAIT

THGBMBG5D1KBAIT

A3

DAT0

A4

DAT1

A5

DAT2

A6

VSS

A7

NC

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

C2

VDDI

C4

Vssq

C5

NC

C6

Vccq

D4

A1 index

E5

NC

E6

Vcc

E7

Vss

E8

NC

E9

NC

E10

NC

F5

Vcc

F10

NC

G3

NC

+3.3V_Normal

C4120 10UF 6.3V 20%C4120 10UF 6.3V 20%

NC

NC
Vssq
Vccq
Vssq
Vccq
Vssq
Vccq
Vssq

CLK
CMD
Vccq

NC
Vcc
Vss

NC

NC

RSTN

Vcc

VSS

Vss

DS

NC
Vss

NCB1NCC1NC

N1

C4121 2.2UF 16VC4121 2.2UF 16V

C4123 100NF 25VC4123 100NF 25V

C4124 100NF 25VC4124 100NF 25V

C4122 100NF 25VC4122 100NF 25V

+3.3V_Normal

P10
P7
P6
P5
P4
P3
N5
N4
N2
M6
M5
M4
K10
K9
K8
K7
K6
K5
J10
J5
H10
H5
G10
G5

NF_J5

NF_CLK
NF_CMD

NF_RSTZ

C4119NCC4119

NC

NF_D0
NF_D1
NF_D2
NF_D3
NF_D4
NF_D5
NF_D6
NF_D7
NF_CMD

NF_CLK
NF_CMD
NF_RSTZ

NF_D0
NF_D1
NF_D2
NF_D3
NF_D4
NF_D5
NF_D6
NF_D7

R4092 10K 1%R4092 10K 1%
R4093 10K 1%R4093 10K 1%
R4094 10K 1%R4094 10K 1%
R4095 10K 1%R4095 10K 1%
R4096 10K 1%R4096 10K 1%
R4097 10K 1%R4097 10K 1%
R4098 10K 1%R4098 10K 1%
R4099 10K 1%R4099 10K 1%
R4100 10K 1%R4100 10K 1%

R4101 22 OHM 1/16WR4101 22 OHM 1/16W
R4102 0R05 OHMR4102 0R05 OHM
R4103 0R05 OHMR4103 0R05 OHM

R4104 0R05 OHMR4104 0R05 OHM
R4105 0R05 OHMR4105 0R05 OHM
R4106 0R05 OHMR4106 0R05 OHM
R4107 0R05 OHMR4107 0R05 OHM
R4108 0R05 OHMR4108 0R05 OHM
R4109 0R05 OHMR4109 0R05 OHM
R4110 0R05 OHMR4110 0R05 OHM
R4111 0R05 OHMR4111 0R05 OHM

E-MMC(Ver4.5 Application): R4122 and R4123
E-MMC(Ver5.0 Application): R4122 and R4123

NF_A6

R4122 NC/0R05 OHMR4122 NC/0R05 OHM

NF_J5

R4123 NC/0R05 OHMR4123 NC/0R05 OHM

+3.3V_Normal

EMMC_CLK
EMMC_CMD
EMMC_RSTZ

EMMC_D0
EMMC_D1
EMMC_D2
EMMC_D3
EMMC_D4
EMMC_D5
EMMC_D6
EMMC_D7

ぃン
ン

+3.3V_Normal

C4116 2.2UF 16VC4116 2.2UF 16V

EMMC_CLK 5
EMMC_CMD 5
EMMC_RSTZ 5

EMMC_D0 5
EMMC_D1 5
EMMC_D2 5
EMMC_D3 5
EMMC_D4 5
EMMC_D5 5
EMMC_D6 5
EMMC_D7 5

C4117 100NF 25VC4117 100NF 25V

E-MMC Layoutǐ
NF_D0(A3)-A3

絬隔畖

:

NF_D1(A4)-A4
NF_D2(A5)-A5
NF_D3(B2)-B2, A2
NF_D4(B3)-B3,C3,D2,D1
NF_D5(B4)-B4,D4,E3,F2,F1
NF_D6(B5)-B5
NF_D7(B6)-B6,A7
VDDI(C2)-C2,C1

NF_CLK(M6)-M6,N7,P8
NF_CMD(M5)-M5,M8,N9,P9
NF_RSTZ(K5)-K5,M9,N10,P10

A A

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

5

4

3

Date

Date

Date

13. NAND FLASH

13. NAND FLASH

13. NAND FLASH

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

of

13 13Thursday, October 09, 2014

of

13 13Thursday, October 09, 2014

of

13 13Thursday, October 09, 2014

Size

B

Size

B

Size

B

Rev

A

Rev

A

Rev

A

称爹

<称爹>

称爹

<称爹>

称爹

1

<称爹>

5

CN9903

24V

D D

!

F9901

F9901

1 2
3 4

5A 250V

5A 250V

CN9903

CONN

CONN

2

L1N

!

RV9901

12

CN9901

CN9901

SOCKET

C C

SOCKET

NR9901

NR9901

1 2

2.5R

2.5R

t

t

RV9901
680V

680V

4

L9903

L9903

NR9902

NR9902

1 2

2.5R

2.5R

t

t

3

2

1

J9901~J9903

RV9902

RV9902
NC

NC

!

C9903

C9903
NC

NC

470NF 275V

!

470NF 275V

1

C9905

C9905

4

4

1

!

3

0.25mH

0.25mH
C9904

C9904

2

NC

NC

!

! !

C9906

18mH

18mH

C9906

470NF 275V

470NF 275V

2

L9901

L9901

3

!

RV9903

RV9903
NC

NC

BO

220PF 250V

220PF 250V

C9907

C9907

!

C9902

C9902

220PF 250V

220PF 250V

TS10K80-02 10A 800V

TS10K80-02 10A 800V

BD9902

BD9902

4

1

3

L9902

L9902

18mH

18mH

2

4

-

-

!

BO

N

3

!

1

+

+

2

Vsin

GND1

GND1

B B

FB9903

FB9903

1 2

BEAD

BEAD

C9908

C9908
470PF 250V

470PF 250V

NC

NC

1

!

GND3

GND3

1

NC

NC

A A

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

5

4

Date

G5593-P0A-000-0020-1-120208

G5593-P0A-000-0020-1-120208

G5593-P0A-000-0020-1-120208

01.AC input

01.AC input

01.AC input

GND2

GND2

NC

NC

GND4

GND4

NC

NC

R9904

R9902

R9902
510K

1

1

3

510K

R9901

R9901

910K

910K

R9903

R9903
510K

510K

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

R9904
510K

510K

R9906

R9906
910K

910K

R9905

R9905
510K

510K

N

Skyworth E7CRN 32"

Skyworth E7CRN 32"

Skyworth E7CRN 32"

PLTVCL546UAB2

PLTVCL546UAB2

PLTVCL546UAB2

715G5593-P0D-000-0020

715G5593-P0D-000-0020

715G5593-P0D-000-0020

of

1 5Tuesday, July 15, 2014

of

1 5Tuesday, July 15, 2014

of

1 5Tuesday, July 15, 2014

2

HS9901

HS9901

HEAT SINK

HEAT SINK

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

1
2
3
4

A

A

A

1

5

R9301

FB9301

FB9301

BEAD

BEAD

ZD9301

1 2

1 2

ZD9301
BZT52-B39

BZT52-B39

ZD9302

ZD9302
BZT52-B39

BZT52-B39

D D

C C

12

10NF 1KV

10NF 1KV

C9303

C9303

2.2NF

2.2NF

C9318

C9318

0.1uF 50V

0.1uF 50V

IC9301

IC9301

1

GND

2

FB/OLP

3

NC
ST4NC

4.7NF 50V

4.7NF 50V
C9326

C9326

C9301

C9301

SSC2S110

SSC2S110

R9301

0.1R

0.1R

R9302

R9302
82KOHM +-5% 2WS

82KOHM +-5% 2WS

R9306

R9306

22R

22R L9302

D9301

D9301

SARS01-V1

SARS01-V1

D9304

D9304

SS1060FL

SS1060FL

VCC

10K OHM +-5% 1/8W

10K OHM +-5% 1/8W

8

VCC

7

OCP

6

DRIVE

5

12VS

HS9301

HS9301

HEAT SINK

HEAT SINK

for Q9301

R9311

R9311

10R 1/8W 5%

10R 1/8W 5%

R9312

R9312

62R 1%

62R 1%

R9318

R9318

470 OHM 1/4W

470 OHM 1/4W

C9324

C9324
470P 50V

470P 50V

R9314

R9314

B+

1
2
3
4

D9303

D9303

FR107G-A0

FR107G-A0

Q9301

Q9301
AOTF8N65

AOTF8N65

VCC

C9320

C9320

0.1uF 50V

R9321

R9321

0.36R

0.36R

0.1uF 50V

12VS

+

+

!

R9327

IC9304

IC9304

1.5K 1/4W

1.5K 1/4W

R9327

R9328
4K7 +-5% 1/8W

12

43

ZD9304NCZD9304

NC

1 2

C9337

C9337

1uF

1uF

4K7 +-5% 1/8W

R9332

R9332
1K 1/8W 1%

1K 1/8W 1%

IC9305

IC9305

AS431AN-E1

AS431AN-E1

C9329

C9329
220N 50V

220N 50V

R9329

R9329
9K1 1/8W 1%

9K1 1/8W 1%R9328

R9340

R9340
2K2 1/8W 1%

2K2 1/8W 1%

B B

EL817M(X)

EL817M(X)

!

T9301

T9301

5

4

3
2

1

POWER X'FMR

POWER X'FMR

R9309

R9309
4R7 1/4W 5%

4R7 1/4W 5%

C9319

C9319

47UF 50V

47UF 50V

!

C9325

C9325

330PF 250V

330PF 250V

4

6

10
7

9

BEAD

BEAD
FB9302

FB9302

R9337

R9337
NC/10K OHM

NC/10K OHM

Q9305

Q9305

NC/2N7002K

NC/2N7002K

12VS

3

C9302

C9302

100N 50V

100N 50V

SYNC

IC9302

C9315

C9315

1

Timing

2

Pred

3

VR
Adj4GND

C9316

C9316

100P 50V

100P 50V

R9319

R9319

200 OHM 1/4W

200 OHM 1/4W

R9322

R9322

200 OHM 1/4W

200 OHM 1/4W

SYNC

IC9302

SYNC

MOSG-C

SP6018S8RGB

SP6018S8RGB

Q9303

Q9303

AOTF298L

AOTF298L

R9320

R9320

200 OHM 1/4W

200 OHM 1/4W

R9323

R9323

200 OHM 1/4W

200 OHM 1/4W

12VS

Vdd

R9305

R9305

22K 1%

22K 1%

100P 50V

100P 50V

C9314

C9314

100N 50V

100N 50V

R9315

200 OHM 1/4W

200 OHM 1/4W

PS_ON

R9338

R9338
NC/1Kohm

NC/1Kohm

R9315

R9316

R9316

200 OHM 1/4W

200 OHM 1/4W

R9324

R9324

10K 1/4W

10K 1/4W

12

8
7
6
5

R9310

R9310

5.1K 1/4W

5.1K 1/4W

D9305NCD9305

12

NC

D9307

D9307

12

MB510

MB510

R9325

R9325

5.1K 1/4W

5.1K 1/4W

1 2

FB9303

FB9303

BEAD

BEAD

C9332

C9332
470UF 25V

470UF 25V

R9303

R9303

4R7 1/4W 5%

4R7 1/4W 5%

C9312

C9312

C9313

C9313

1uF

1uF

R9308

R9308

10 OHM 1/4W

10 OHM 1/4W

+

+

1uF

1uF

100N 50V

100N 50V

SS1060FL

SS1060FL

C9334

C9334

D9302

D9302

C9322

C9322

1N 50V

1N 50V

1500UF 35V

1500UF 35V

C9306

C9306

1500UF 35V

1500UF 35V

+

+

C9323

C9323

1N 50V

1N 50V

ZD9303

ZD9303

BZT52-B5V1_R1_00001

BZT52-B5V1_R1_00001

12

IC9303

IC9303

1

PGND

2

VIN

3

AGND

COMP

VCC4FB

AOZ3015AI

AOZ3015AI

C9336

C9336

C9335

C9335

1N 50V

1N 50V

100N 50V

100N 50V

C9307

C9307

EN

LX

8
7
6
5

+

+

HS9303

HS9303

HEAT SINK

HEAT SINK

1
2
3
4

for Q9303

R9330

R9330

C9333

C9333
2N2 50V

2N2 50V

2

20K 1/8W 1%

20K 1/8W 1%

30 OHM 1/4W

30 OHM 1/4W

L930347uHL930347uH

C9327

C9327
2N2 50V

2N2 50V

R9335

R9335

R9336

R9336

30 OHM 1/4W

30 OHM 1/4W

R9304

R9304

NC/100KOHM +-5% 1/8W

NC/100KOHM +-5% 1/8W

C9305

C9305
NC/1uF

NC/1uF

C9311

C9311
NC/1uF

NC/1uF

NC/100KOHM +-5% 1/8W

NC/100KOHM +-5% 1/8W

C9330

C9330

+

+

C9328

C9328

100N 50V

100N 50V

470UF 25V

470UF 25V

R9307

R9307

C9331

C9331
100N 50V

100N 50V

Q9302

Q9302

P1604ED

P1604ED

Q9304

Q9304
NC/2N7002K

NC/2N7002K

C9321

C9321

NC/100N 50V

NC/100N 50V

+5V

R9331

R9331

10.5K OHM 1%

10.5K OHM 1%

R9333

R9333

100R 1%

100R 1%

R9339

R9339

2K 1/8W 1%

2K 1/8W 1%

+12VC

1

L9301

L9301
3UH

3UH

C9304

C9304

470UF 25V

470UF 25V

L9302
3UH

3UH

C9317

C9317

470UF 25V

470UF 25V

R9313

R9313

NC/100 OHM 1/4W

NC/100 OHM 1/4W

1 2

D9306NCD9306

NC

R9317

R9317
NC/510K 1% 1/8W

NC/510K 1% 1/8W

+12V

+

+

+12VA

+

+

PS_ON

R9334

C9338

R9341

R9341
120R 1/8W 1%

A A

5

120R 1/8W 1%

C9338

R9342

R9342
NC/330K 1% 1/8W

NC/330K 1% 1/8W

NC/100N 50V

NC/100N 50V

4

3

R9334

100K 1/8W 1%

100K 1/8W 1%

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

G5593-P0A-000-0020-1-120208

G5593-P0A-000-0020-1-120208

G5593-P0A-000-0020-1-120208

05.Standby

05.Standby

05.Standby

Date

Date

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Skyworth E7CRN 32"

Skyworth E7CRN 32"

Skyworth E7CRN 32"

PLTVCL546UAB2

PLTVCL546UAB2

PLTVCL546UAB2

715G5593-P0D-000-0020

715G5593-P0D-000-0020

715G5593-P0D-000-0020

of

1 1Thursday, January 02, 2014

of

1 1Thursday, January 02, 2014

of

1 1Thursday, January 02, 2014

Custom

Custom

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

1

Custom

5

BEAD

BEAD

FB9102

FB9102

B+

D D

R911 2

R916 3

R916 3

C914 2

C914 2

4.7uF 10 V

4.7uF 10 V

R911 2

2R2 +- 5% 1/8W

2R2 +- 5% 1/8W

C914 3

C914 3

1uF

1uF

VCC1

2K43 1 /8W 1%

2K43 1 /8W 1%

C C

B B

C912 0

C912 0
10NF 1 KV

10NF 1 KV

+

+

C912 4

C912 4

22UF 5 0V

22UF 5 0V

C910 8

C910 8

100N 50V

100N 50V

12

C914 4

C914 4

100N 50V

100N 50V

R911 6

R911 6

18K 1/8 W 1%

18K 1/8 W 1%

R911 3

R911 3

1.5M 1% 1 /4W

1.5M 1% 1 /4W

R911 4

R911 4

1.5M 1% 1 /4W

1.5M 1% 1 /4W

R911 5

R911 5

1.5M 1% 1 /4W

1.5M 1% 1 /4W

47P 50 V

47P 50 V
C910 6

C910 6

C913 4

C913 4

1uF

1uF

SS106 0FL

SS106 0FL

R915 0

R915 0

82 OHM

82 OHM

10oh m +/-1% 1/8W

10oh m +/-1% 1/8W

R910 9

R910 9

D910 2

D910 2

10R 1 /8W 5%

10R 1 /8W 5%

UF400 7

UF400 7

C914 5

C914 5

1uF

1uF

IC910 1 SSC9 522SIC 9101 S SC952 2S

1

Vsen

2

Vcc

3

FB

VGH

4

GND

5

Css

6

OC

7

RC

8

Reg
RV9COM

C914 0

C914 0
5PF

5PF

VBOOT

R911 7

R911 7

470 OH M 1/8W

470 OH M 1/8W

C913 9

C913 9

R910 3

R910 3

560P 5 0V

560P 5 0V

160R 1%

160R 1%

C914 1

C914 1

1uF

1uF

SS106 0FL

SS106 0FL

18

NC

17

NC

16
15

VS

14

VB

13

NC

12

NC

11

VGL

10

C910 9

C910 9

220PF

220PF

12

ZD910 1

ZD910 1

BZT52-B 15

BZT52-B 15

R915 1

R915 1

10oh m +/-1% 1/8W

10oh m +/-1% 1/8W

82 OHM

82 OHM

C911 0

C911 0

100PF1 KV

100PF1 KV

D911 3

D911 3

R914 9

R914 9

D911 4

D911 4

R915 4

R915 4

R915 6

R915 6
10K 1% 1/8W

10K 1% 1/8W

R915 2

R915 2

10K 1% 1/8W

10K 1% 1/8W

4

Q9105

Q9105

8.5A 500V 70 W TO-220 FP

8.5A 500V 70 W TO-220 FP

VBOOT

Q9106

Q9106

8.5A 500V 70 W TO-220 FP

8.5A 500V 70 W TO-220 FP

C911 1

C911 1
22nF

22nF

560 OH M 1/4W

560 OH M 1/4W

EL817 M(X)

EL817 M(X)

R910 5

R910 5

IC910 2

IC910 2

3

1

HS91 03

HS91 03

For D9103, D9104.

1

3

1

3

+VLLC2 S

BZT52-B 6V2

BZT52-B 6V2

1 2

BZT52-B 6V2

BZT52-B 6V2

1 2

R910 4NCR910 4
NC

C910 7NCC910 7
NC

R911 9

R911 9

4.7K OHM

4.7K OHM

C911 2NCC911 2

NC

D910 3

D910 3

FMEN-230 8

FMEN-230 8

2

D910 4

D910 4
FMEN-230 8

FMEN-230 8

2

ZD910 6

ZD910 6

ZD910 7

ZD910 7

C911 3

C911 3

0.1uF 50 V

0.1uF 50 V

2
3
4

+VBUSS

C913 0

C913 0

220N F 50V

1 2

1 2

L9104

L9104

1.1uH

1.1uH

ZD910 3

ZD910 3

BZT52-B 15

BZT52-B 15

ZD910 5

ZD910 5

BZT52-B 15

BZT52-B 15

D910 6

D910 6

SS106 0FL

SS106 0FL

+VLLC2

R916 1

R916 1
33K 1/4 W

33K 1/4 W

+VBUS

1 2

1 2

220N F 50V

C912 9

C912 9
220N F 50V

220N F 50V

R915 7

R915 7
33K 1/4 W

33K 1/4 W

D910 7

D910 7

SS106 0FL

SS106 0FL

R915 8

R915 8

R915 9

R915 9

33K 1/4 W

33K 1/4 W

33K 1/4 W

33K 1/4 W

R913 2

R913 2

100 OH M 1/4W

100 OH M 1/4W

R912 3NCR912 3
NC

R916 0

R916 0
33K 1/4 W

33K 1/4 W

+

+

ON/OFF

R913 3

R913 3
1K 1/8W 1 %

1K 1/8W 1 %

R912 4NCR912 4
NC

C910 4

C910 4
330U F 35V

330U F 35V

+12V_D r

R912 0

R912 0

2.4K 1/8 W

2.4K 1/8 W

C913 1

C913 1

1000 uF 35V

1000 uF 35V

+VBUSS

+

+

R912 7

R912 7
11K 1/8 W 1%

11K 1/8 W 1%

R914 8

R914 8

11K 1/8 W 1%

11K 1/8 W 1%

R912 2

R912 2
2K49 1 /8W 1%

2K49 1 /8W 1%

+

+

C911 7

C911 7

1000 uF 35V

1000 uF 35V

1

D910 5

D910 5
FMEN-230 8

FMEN-230 8

3

+VLLC2 S

+VLLC2 S

2

+

+

C910 3

C910 3

1000 uF 35V

1000 uF 35V

ZD910 4

ZD910 4

BZT52-B 15

BZT52-B 15

R912 5NCR912 5

ZD910 8

ZD910 8

NC

BZT52-B 15

BZT52-B 15

R912 6NCR912 6

NC

HEAT SINK

HEAT SINK

T9101NCT9101

11

!

7
8

1

5
6

4

9
10

12

NC

24V

!

R911 83KR911 8
3K

12

43

!

C911 5NCC911 5

NC

IC910 3

IC910 3
AS431AZTR-E 1

AS431AZTR-E 1

+12V

R914 1

R914 1
33K 1/4 W

33K 1/4 W

+12V

+VLLC2

C910 5

C910 5

220N F 50V

220N F 50V

C911 8

C911 8

220N F 50V

220N F 50V

R910 2

R910 2

10K 1/4 W

10K 1/4 W

C910 2

C910 2
1N 50 V

1N 50 V

+12V

R913 4

R913 4
1K OHM +-5 % 1/8W

1K OHM +-5 % 1/8W

Q9103

Q9103
PMBS390 6

PMBS390 6

1K 1/8W 1 %

1K 1/8W 1 %

C912 8

C912 8

100N 50V

100N 50V

2

R913 9

R913 9
33K 1/4 W

33K 1/4 W

+VBUS

3D

C913 5

C913 5

100N 50V

100N 50V

R913 7

R913 7

+12V_D r

BEAD

BEAD

FB9904

FB9904

R914 3

R914 3
33K 1/4 W

33K 1/4 W

C913 7

C913 7

100N 50V

100N 50V

+5V

12

2
4
6

8
10
12
14
16

CN91 01

CN91 01

CONN

CONN

R913 6

R913 6
2K 1/8W 5 %

2K 1/8W 5 %

Q9104

Q9104

PMBS390 4

PMBS390 4

R914 2

R914 2
33K 1/4 W

33K 1/4 W

D911 0

D911 0

SS106 0FL

SS106 0FL

ON/OFF

1
3
5
7
9
11
13
15

L9103

L9103

1.1uH

1.1uH

3D

DIM

C911 6

C911 6
220N F 50V

220N F 50V

C913 8

C913 8
220N F 50V

220N F 50V

+VLLC2

PS_ON

+12VA

C911 9

C911 9
100N 50V

100N 50V

OVP

C911 4

C911 4
330U F 35V

330U F 35V

+

+

1

+VBUS

C913 2

C913 2

220N F 50V

220N F 50V

C913 3

C913 3

220N F 50V

220N F 50V

CN91 02

CN91 02

14
13
12
11
10

9
8
7
6
5
4
3
2
1

CONN

CONN

R910 1

R910 1

100 OH M 1/4W

100 OH M 1/4W

DIM

C910 1

C910 1
1N 50 V

1N 50 V

CN91 03

CN91 03

6
5

CONN

CONN

4
3
2
1

7 8

VCC1

C912 2

C912 2

+

+

10UF 5 0V

10UF 5 0V

A A

5

4

2SD1 624T-TD -E

2SD1 624T-TD -E

Q9101

Q9101

ZD910 2

ZD910 2
GDZJ15 B

GDZJ15 B

1 2

100K

100K

R912 8

R912 8
2K OHM

2K OHM

!

R913 8

R913 8

VCC

R912 9

R912 9
1K 1/4W

1K 1/4W

OVP

D910 9

D910 9
1N41 48W

1N41 48W

12

43

IC910 4

IC910 4

EL817 M(X)

EL817 M(X)

Q9102

Q9102
2N70 02K

2N70 02K

C912 3

C912 3

100N 50V

100N 50V

R913 0

R913 0
510K 1 /8W

510K 1 /8W

R913 1

R913 1

100 OH M 1/4W

100 OH M 1/4W

PS_ON

Cus tom

Cus tom

T P V ( Top Victory Electro nics Co . , Ltd. )

T P V ( Top Victory Electro nics Co . , Ltd. )

T P V ( Top Victory Electro nics Co . , Ltd. )

絬 隔 瓜 絪 腹

G5593 -P0A-000 -0020 -1-120 208

絬 隔 瓜 絪 腹

G5593 -P0A-000 -0020 -1-120 208

絬 隔 瓜 絪 腹

G5593 -P0A-000 -0020 -1-120 208

Key Com ponent

Key Com ponent

Key Com ponent

03.Main power

03.Main power

03.Main power

Date

Date

3

2

Date

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Skyworth E 7CRN 32"

Skyworth E 7CRN 32"

Skyworth E 7CRN 32"

PLTVCL5 46UAB2

PLTVCL5 46UAB2

PLTVCL5 46UAB2

715G5 593-P0 D-000 -0020

715G5 593-P0 D-000 -0020

715G5 593-P0 D-000 -0020

of

3 5Tues day, July 15, 20 14

of

3 5Tues day, July 15, 20 14

of

3 5Tues day, July 15, 20 14

1

Cus tom

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

5

4

3

2

1

24V

D D

L9801

Vsin

C C

B B

1 2

FB9801

FB9801
BEAD

BEAD

C9801

C9801
1UF 450V

1UF 450V

C9806

C9806

100N 50V

100N 50V

VCC1

L9801

1

5

220uH

220uH

R9805

R9805

20K 1/4W

20K 1/4W

C9804

C9804

47P 50V

47P 50V

C9805

C9805

+

+

10uF/50V

10uF/50V

34

10 OHM 1/8W

10 OHM 1/8W Q9801

R9814

R9814
2K 1/8W

2K 1/8W

5

6

8

LD7591T

LD7591T

ZCD

OUT7VCC

GND

IC9801

IC9801

R9802

R9802

D9801

D9801
IN5408G-04

IN5408G-04

33R 1/8W 5%

33R 1/8W 5%

D9803

D9803
RB160M

RB160M

R9803

1 2

FB9803

FB9803
BEAD

BEAD

12

R9806

R9806

10K 1/8W

10K 1/8W

C9817 100PFC9817 100PF

D9802

D9802

FMNS-1106S

FMNS-1106S

Q9801
TK18A60V

TK18A60V

R9808

R9808

0.1R

0.1R

1 2

FB9802

FB9802
BEAD

BEAD

C9802

C9802
10NF 1KV

10NF 1KV

C9808

C9808
47P 50V

47P 50V

C9811

C9811
68UF 450V

68UF 450V

R9804

R9804

1M 1% 1/4W

1M 1% 1/4WR9803

R9807

R9807

1M 1% 1/4W

1M 1% 1/4W

R9809

R9809

1M 1% 1/4W

1M 1% 1/4W

R9811

R9811
19K1 +-1% 1/8W

19K1 +-1% 1/8W

C9812

C9812
68UF 450V

68UF 450V

+

+

B+

+

+

J9801~J9803

JR9801~JR9802

INV1COMP2RAMP3CS

4

10K 1/8W

10K 1/8W
R9813

R9812

R9812

36K 1/8W

36K 1/8W

A A

R9813

C9809

C9809
47N 50V

47N 50V

R9810

R9810

C9807

C9807

1K 1/8W

1K 1/8W

220pF 50V

220pF 50V

C9810

C9810

0.47UF 50V

0.47UF 50V

HS9801

HS9801

For Q9801

HEAT SINK

HEAT SINK

1
2
3
4

A

A

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

5

4

Date

G5593-P0A-000-0020-1-120208

G5593-P0A-000-0020-1-120208

G5593-P0A-000-0020-1-120208

04.PFC

04.PFC

04.PFC

3

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Skyworth E7CRN 32"

Skyworth E7CRN 32"

Skyworth E7CRN 32"

PLTVCL546UAB2

PLTVCL546UAB2

PLTVCL546UAB2

715G5593-P0D-000-0020

715G5593-P0D-000-0020

715G5593-P0D-000-0020

of

4 5Thursday, January 02, 2014

of

4 5Thursday, January 02, 2014

of

4 5Thursday, January 02, 2014

2

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

1

A

5

4

3

2

1

ON/OFF

CN8101

CN8101

13
12
11
10
9

CONN

CONN

8
7
6
5
4
3
2
1

+36V

D D

+12V

C8132

C8132

100N 50V

100N 50V

+36V

ZD8101

R8131

R8131

33K OHM 1%

33K OHM 1%

C C

ZD8101

BZT52-B9V1_R1_00001

BZT52-B9V1_R1_00001

R8132

R8132
18K 1/8W 1%

18K 1/8W 1%

R8120

R8120

ON/OFF

10K OHM +-5% 1/8W

10K OHM +-5% 1/8W

R8136

R8136

300K

300K

B B

2D/3D

DIM

PMBT3906

PMBT3906

R8133

R8133
15K 1% 1/8W

15K 1% 1/8W

R8134

R8134

10K OHM +-5% 1/8W

10K OHM +-5% 1/8W

12

R8119

R8119

C8131

C8131

100N 50V

100N 50V

100K 1/8W 1%

100K 1/8W 1%

+12V

Q8102

Q8102

Q8103

Q8103

EN

100N 50V

100N 50V

C8134

C8134

+36V

C8133NC C8133NC

2N7002K

2N7002K

D8101

D8101

3

MBRF10100CT

R8139

R8139

100 OHM 1/4W

100 OHM 1/4W

C8145

C8145
1nF 50V

1nF 50V

C8146

C8146
1nF 50V

1nF 50V

R8147

R8147

MBRF10100CT

2

1

R8140

R8140

R8111

R8111

R8112

R8112

OVP_L

100 OHM 1/4W

100 OHM 1/4W

C8114 2.2NF 50VC8114 2.2NF 50V

R8148

R8148

G1 G2

0R051/8W

0R051/8W

C8105

C8105

+

+

+

+

150KOHM +-1% 1/8W

150KOHM +-1% 1/8W

270UF 100V

270UF 100V

270UF 100V

270UF 100V

150KOHM +-1% 1/8W

150KOHM +-1% 1/8W

10.5K OHM 1%

10.5K OHM 1%
R8113

R8113

Q8143

Q8143
EMBA2N10A

EMBA2N10A

S1

R8171

R8171

R8172

R8172

1.2R 1%

1.2R 1%

1.2R 1%

R8145

R8145

R8146

R8146

2 OHM 1% 1/4W

2 OHM 1% 1/4W

2 OHM 1% 1/4W

2 OHM 1% 1/4W

R8144

R8144

2 OHM 1% 1/4W

2 OHM 1% 1/4W

2 OHM 1% 1/4W

2 OHM 1% 1/4W

1.2R 1%

C8106

C8106

R8156

R8156

1.8R

1.8R

Q8145

Q8145

EMB32N03J

EMB32N03J

100N 50V

100N 50V

C8107

C8107

+

+

270UF 100V

270UF 100V

R8157

R8157

1.5R

1.5R

C8144

C8144

R8158

R8158

1.5R

1.5R

VLED+

220nF50V

220nF50V

C8103

C8103

C8104

C8104

R8159NCR8159

NC

R8143

R8143

10K 1/8W 1%

10K 1/8W 1%

VLED_1-

VLED_2-

NC

C8108

C8108

+

+

220nF50V

220nF50V

NC

NC

R8154NCR8154

NC

S2

100KOHM +-5% 1/8W

100KOHM +-5% 1/8W

R8142

R8142

5

43

L8101

L8101

300uH

300uH

C8101

C8101

+

+

470UF 50V

470UF 50V

C8102

C8102

+

+

470UF 50V

470UF 50V

R8135

R8135

10ohm +/-1% 1/8W

10ohm +/-1% 1/8W

EN

330K 1% 1/8W

330K 1% 1/8W

R8137100K 1/8W 1% R8137100K 1/8W 1%

OVP_L

R8108

R8108

C8142

C8142

100P 50V_NC

100P 50V_NC

R8115

R8115

2M +-5% 1/8W

2M +-5% 1/8W

330K

R81073KR8107

R8149

C8110 0.1uF 50VC8110 0.1uF 50V

R8149

3K

C8109 1UFC8109 1UF

20K +-5% 1/8W

20K +-5% 1/8W

S1

NC

VLED_1-

R8151 100K 1/8W 1%R8151 100K 1/8W 1%

C8141NCC8141

C8112

C8112
100N 50V

100N 50V

C8115

C8115

1UF 50V

1UF 50V

IC8101

IC8101

1

VIN

2

OVP

3

EN

4

RT

5

COMP

6

PARL

STATUS

7

SENSE1

G1

8

Gate1

9

FB1

SENSE4

10

SENSE2

G2

11

Gate2
FB212SENSE3

SENSE2

LD7890GS

LD7890GS

FB2

NC

R8117

R8117

100K 1/8W 1%

100K 1/8W 1%

R8114NCR8114

R81500oHM R81500oHM

S2

VLED_2-

VLED_1-

HS8102

HS8102
HEAT SINK

HEAT SINK

1

1

2

L8102

LOSC

Gate4

Gate3

DRV
GND

DIM

FB4

FB3

L8102

90UH

90UH

2.2 OHM 1/8W

2.2 OHM 1/8W

CS

R8109

R8109

100K 1/8W 1%

100K 1/8W 1%

24
23
22
21
20
19
18
17
16
15
14
13

R8101

R8101

D8102

D8102

SS1060FL

SS1060FL

R8102

R8102
33 OHM

33 OHM

C8111

C8111

470PF 50V

470PF 50V

R8155

R8155

200K 1/8W 1%

200K 1/8W 1%

R8110

R8110
220K OHM 1%

220K OHM 1%

C8143 100P 50VC8143 100P 50V

R8116

R8116
220K OHM 1%

220K OHM 1%

option LED 1 ch or 2 ch

S2

R8153

R8153

G2

220K OHM 1%

220K OHM 1%

FB2

R8152

R8152

G2

0oHM

0oHM

R8141

R8141

0R05 1/4W

0R05 1/4W

1
2
3
4

C8116NCC8116
NC

C8117NCC8117
NC

470R 1%

470R 1%

DIM

10K 1% 1/8W

10K 1% 1/8W

R8103

R8103

R8105

R8105

10K 1% 1/4W

10K 1% 1/4W

Q8101

Q8101
EMD26N10F

EMD26N10F

R8118

R8118

0.1R 2W

0.1R 2W
R8104

R8104

0.1R 2W

0.1R 2W

R8106

R8106

option LED 1 ch or 2 ch

R8160

R8160

R8170

R8170

1.5R

1.5R

1.5R

1.5R

VLED_2-

R8138

R8138

100 OHM 1/4W

100 OHM 1/4W

HS8101

HS8101
HEAT SINK

HEAT SINK

1
2
3
4

For Q8101

R8169

R8169

R8168

R8168

1.5R

1.5R

2 OHM 1% 1/4W

2 OHM 1% 1/4W

VLED+

VLED+

VLED_2-VLED_1-

Q8144NCQ8144
NC

R8161NCR8161

R8162NCR8162

NC

Q8146NCQ8146
NC

2D/3D

R8163NCR8163
NC

1
2
3
4
5
6
7
8

9
10
11
12

R8164NCR8164
NC

CN8102

CN8102

CONN

CONN

R8165NCR8165
NC

R8166NCR8166
NC

R8167NCR8167
NC

For D8101

A A

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

03.LED Driver

03.LED Driver

03.LED Driver

Date

Date

5

4

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

of

3 5Friday, February 07, 2014

of

3 5Friday, February 07, 2014

of

3 5Friday, February 07, 2014

1

150.5*150*13.5mm

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

1

CONTENTS

SCHEMATIC NAME

01.COVER

02.KEY

A A

B B

C C

SHEET

1

2

REVISION HISTORY

Date Author FN

2014/5/13 William Ou

2014/5/28 William Ou PCB Demension change to 22mmX29.5mm to meet D2P5 panel.B

2

Ver

Reviser reason

3

4

5

Drawing released.A

D D

T P V ( Top Victory Electronics Co . , Ltd. )

Date

3

G7088-B-PHILIPS6000

01. COVER

線 路 圖 編
號

Key Component

1

2

OEM MODEL Size
TPV MODEL
PCB NAME

2K15 PHILIPS6000 KEY CONTROL BOARD Custom

715G7088-K0B

1 2Wednesday, May 28, 2014

Sheet of

4

1

Rev

XX

備註

5

PDF created with pdfFactory trial version www.pdffactory.com

1

A A

2

3

4

5

JOYSTICK

34

CN01

CONN

B B

KEY1

1
2

C06

0.1uF 50V

Right

----><----|

Center

----><----|

7

F5

F1

F3

SW01

F4

F2

8

TACT SW 6P

1 6
2
3 4

Down

----><----|

5

Left

----><----|

Up

----><----|

Direction switch
Center
Right
Left
Down

2-5 short
1-5 short
4-5 short
3-5 short

Up 6-5 short

Key functionResistance

Menu
CH+
CH­VOL­VOL+

0R
1K2
2K2
6K8
15K

No function 3.3V

Joystick circuit diagram

pin1 pin2 pin3 pin4 pin5 pin6

F1

Voltage

0V

0.5V

0.81V

1.65V

2.27V

F2

R01

1K2 1/10W 1%

C C

R02

C01

NC/100N 50V

0R05 1/10W

R03

C02

NC/100N 50V

6K8 1/10W 1%

R04

C03

NC/100N 50V

2K2 1/10W 1%

R05

C04

NC/100N 50V

C05

15K 1/10W 1%

NC/100N 50V

F3
F4
F5

D D

T P V ( Top Victory Electronics Co . , Ltd. )

Date

G7088-B-PHILIPS5000

02. KEY

4

線 路 圖 編
號

Key Component

1

2

3

OEM MODEL Size
TPV MODEL
PCB NAME

2K15 PHILIPS6000 KEY CONTROL BOARD B

715G7088-K0B

2 2Monday, September 01, 2014

Sheet of

1

Rev

XX

備註

5

PDF created with pdfFactory trial version www.pdffactory.com

CONTENTS

5

4

3

2

1

REVISION HISTORY

SCHEMATIC NAME

01.COVER

02.LED&IR

D D

C C

SHEET

1
2

Date

2014/04/23

2014/06/26

2014/10/21

Author

Gene

Gene

Chiu

Ver

Reviser reason

First release

A

ME DXF update

B

D

ME DXF update, LED position modify ( ESD reason)

FN

B B

A A

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

GXXXX-1-XXPFLXXXX-120618

GXXXX-1-XXPFLXXXX-120618

    

    

    

Key Component

Key Component

Key Component

Date

Date

5

4

Date

GXXXX-1-XXPFLXXXX-120618

01. COVER

01. COVER

01. COVER

3

OEM MODEL

OEM MODEL Size

OEM MODEL Size
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet of

Sheet of

Sheet of

PHILIPS 6500 IR board A

PHILIPS 6500 IR board A

PHILIPS 6500 IR board A

?

?

?

715Gxxxx_R0A_000_0040

715Gxxxx_R0A_000_0040

715Gxxxx_R0A_000_0040

1 2Friday, October 24, 2014

1 2Friday, October 24, 2014

1 2Friday, October 24, 2014

2

Size
Rev

Rev

Rev







0

0

0

<>

<>

<>

1

1

CONN

CONN

67

CN201

CN201

A A

1
2
3

LED_R
RC6

2

3

4

5

4
5

12

ZD202

ZD202

NC/AZ5125-01H.R7G

NC/AZ5125-01H.R7G

B B

3V3SB

3V3SB 3V3SB

3V3SB

IR

12

ZD203

ZD203

NC/AZ5125-01H.R7G

R301

R301

NC/AZ5125-01H.R7G

4

R201

R201
10K 1/16W 5%

10K 1/16W 5%

RC6

C C

D D

1

Close to U201

12

ZD201

ZD201

NC/AZ5125-01H.R7G

NC/AZ5125-01H.R7G

R202

R202

100R 1/10W 5%

100R 1/10W 5%

C304

C305

C305
1uF 10V

1uF 10V

C304

1uF 10V

1uF 10V

Close to U201

2

U201

U201

1

GND

2

VCC

3

Vout

4

GND

IRM-H336M3/TR2

IRM-H336M3/TR2

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

    

    

    

Key Component

Key Component

Key Component

Date

Date

Date

G5251-1-32PFL3507-111005

G5251-1-32PFL3507-111005

G5251-1-32PFL3507-111005

02. LED&IR&3D&Light sensor

02. LED&IR&3D&Light sensor

02. LED&IR&3D&Light sensor

3

LED_R

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size
TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet of

Sheet of

Sheet of

1K 1/16W 5%

1K 1/16W 5% Q301

PHILIPS 6500 IR board A

PHILIPS 6500 IR board A

PHILIPS 6500 IR board A

715Gxxxx-R0A-000-0040

715Gxxxx-R0A-000-0040

715Gxxxx-R0A-000-0040

2 2Tuesday, November 11, 2014

2 2Tuesday, November 11, 2014

2 2Tuesday, November 11, 2014

12

stanby

LED301

LED301

CHIP LED RED 19-21B/R6C-BL1M2VY/3T

CHIP LED RED 19-21B/R6C-BL1M2VY/3T

R302

R302
2K2 1/16W 5%

2K2 1/16W 5%

Q301
BC847BW

BC847BW

Rev

Rev

Rev







5

0

0

0

<>

<>

<>
