Philips 43PFF5231 Datasheet

㓈㓈 ׂ ᠟ ݠ

ક⠠ ᴎ⾡

Philips

技术规格书（１－５）

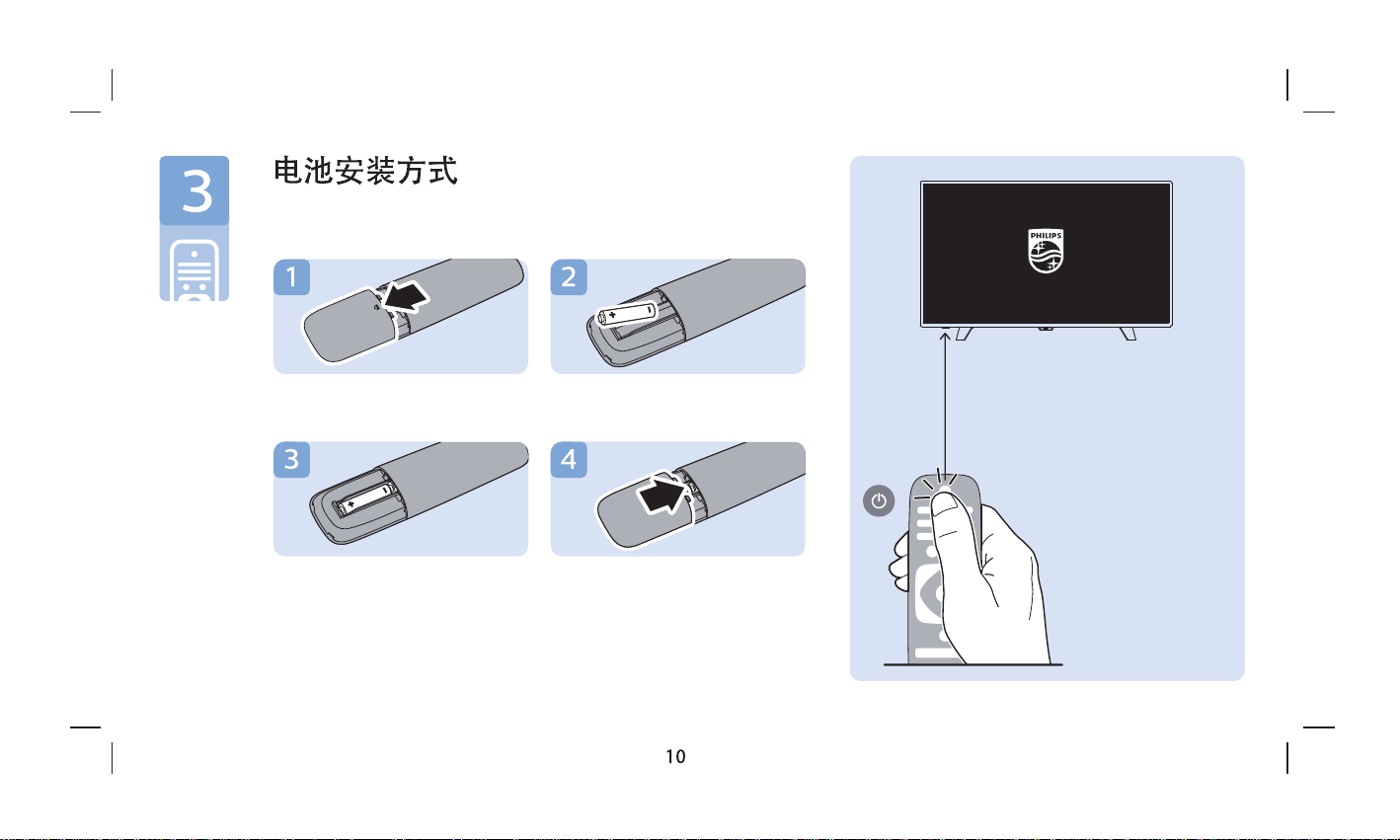

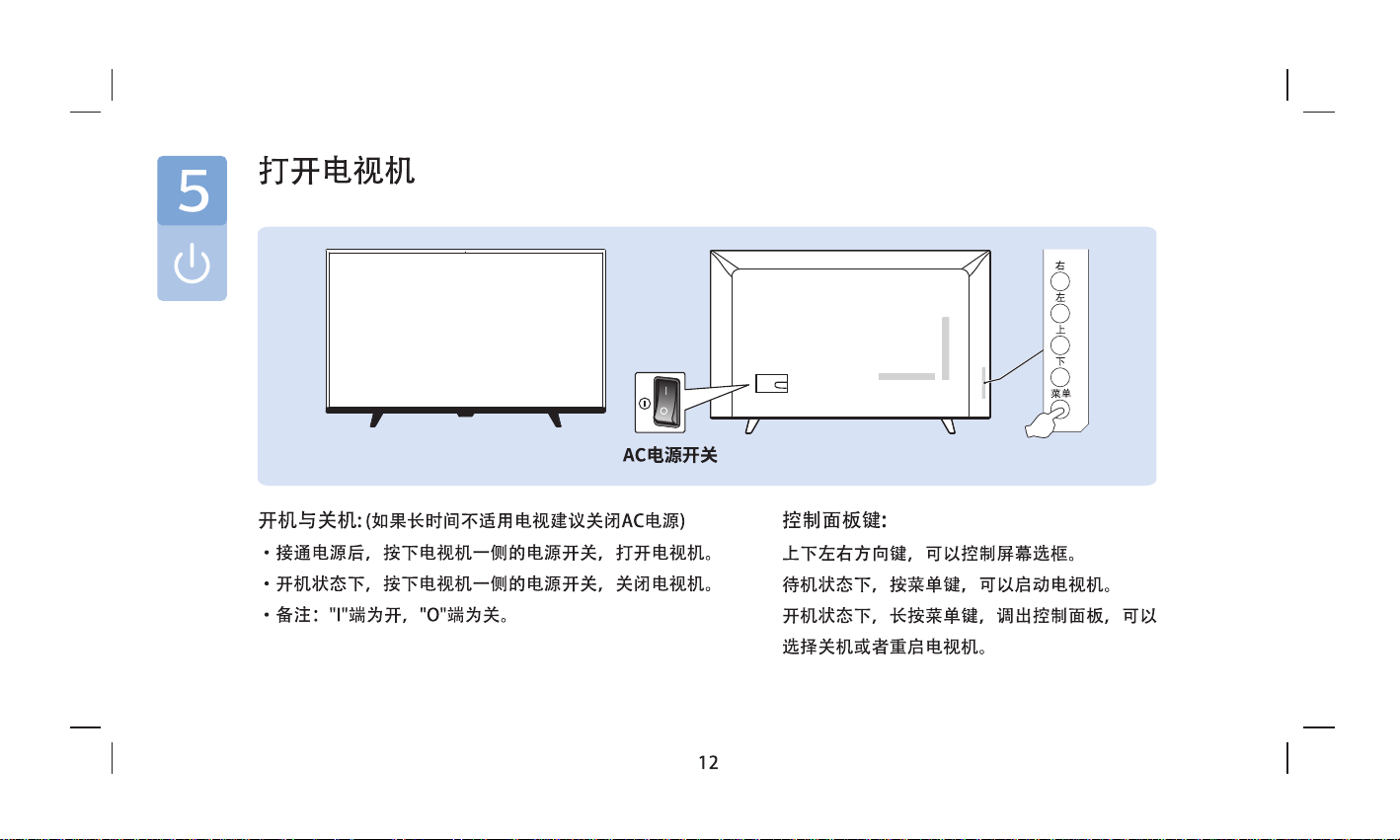

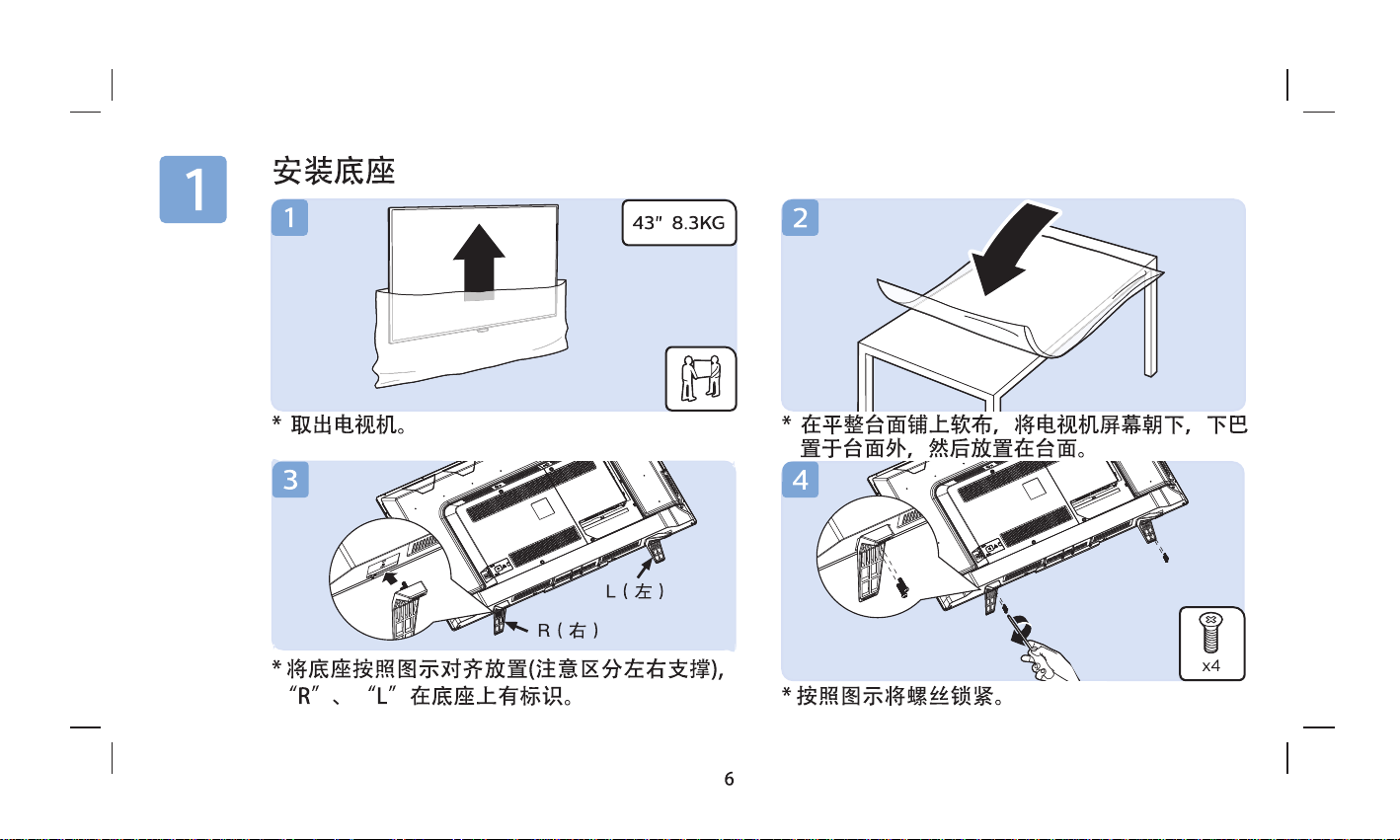

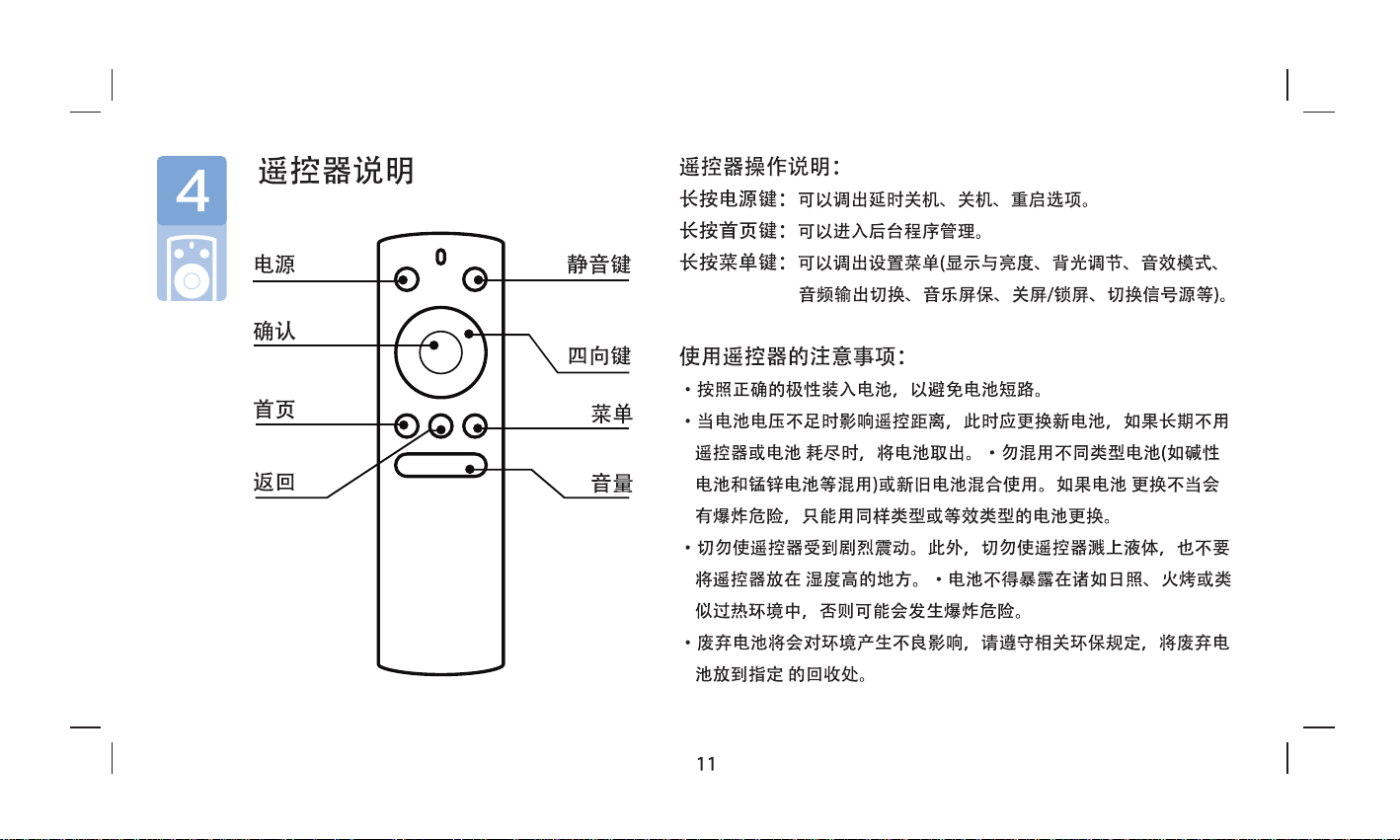

产品说明书（６－１４）
工厂调试说明（１５－１６）
软件升级流程（１７－３０）
Ｔｒｏｕｂｌｅｓｈｏｏｔｉｎｇ　Ｐｒｏｃｅｄｕｒｅ（３１－３５）

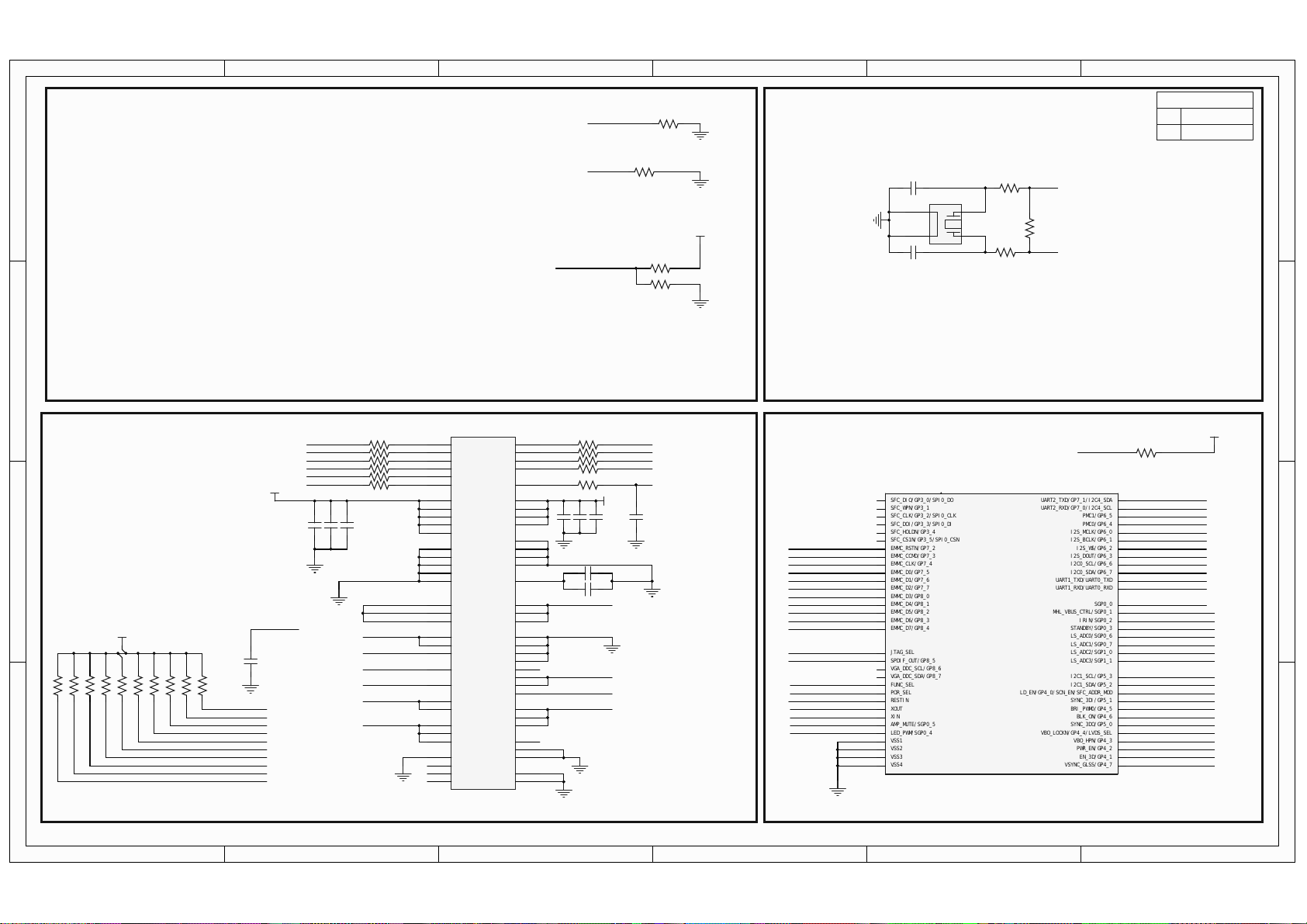

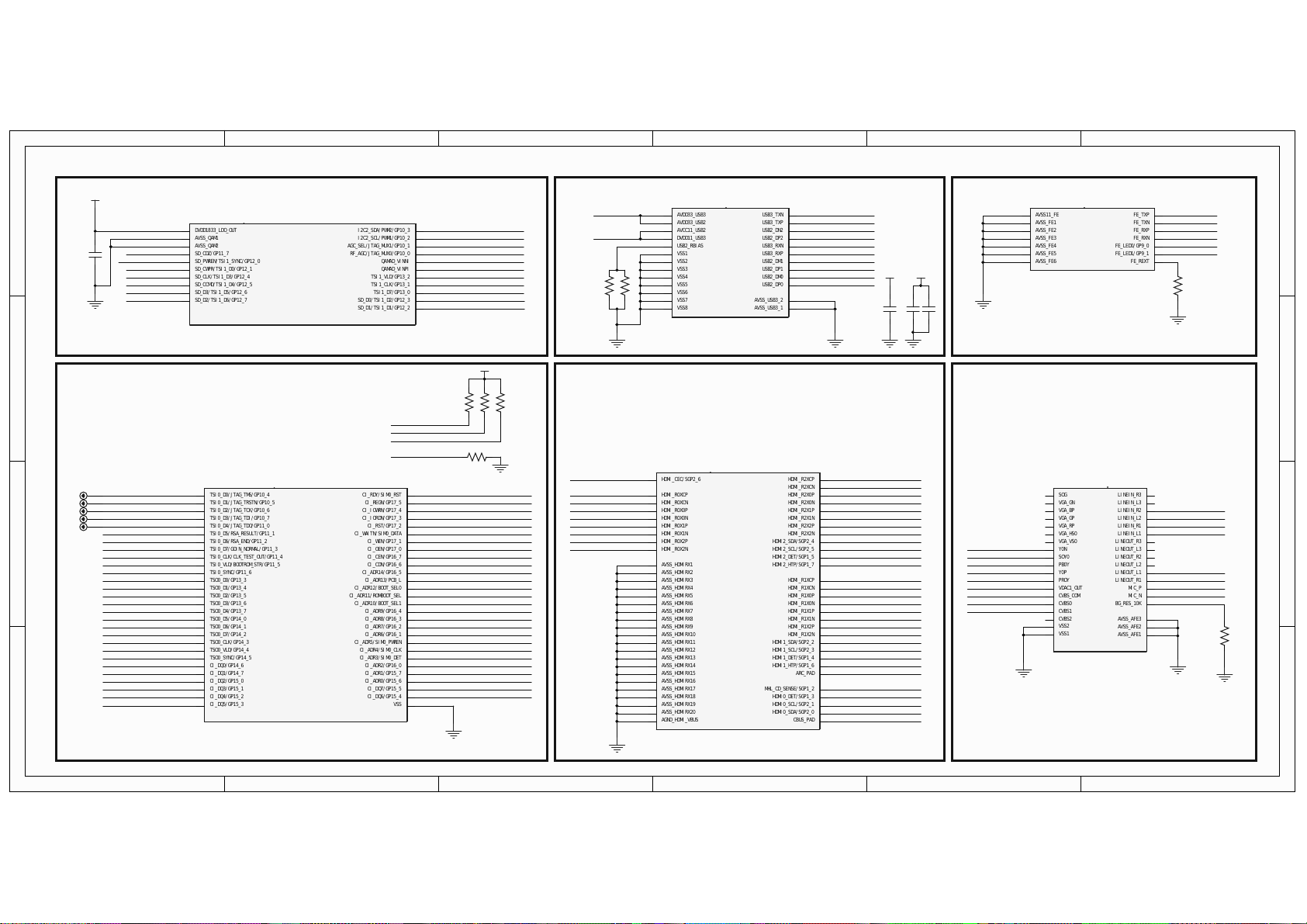

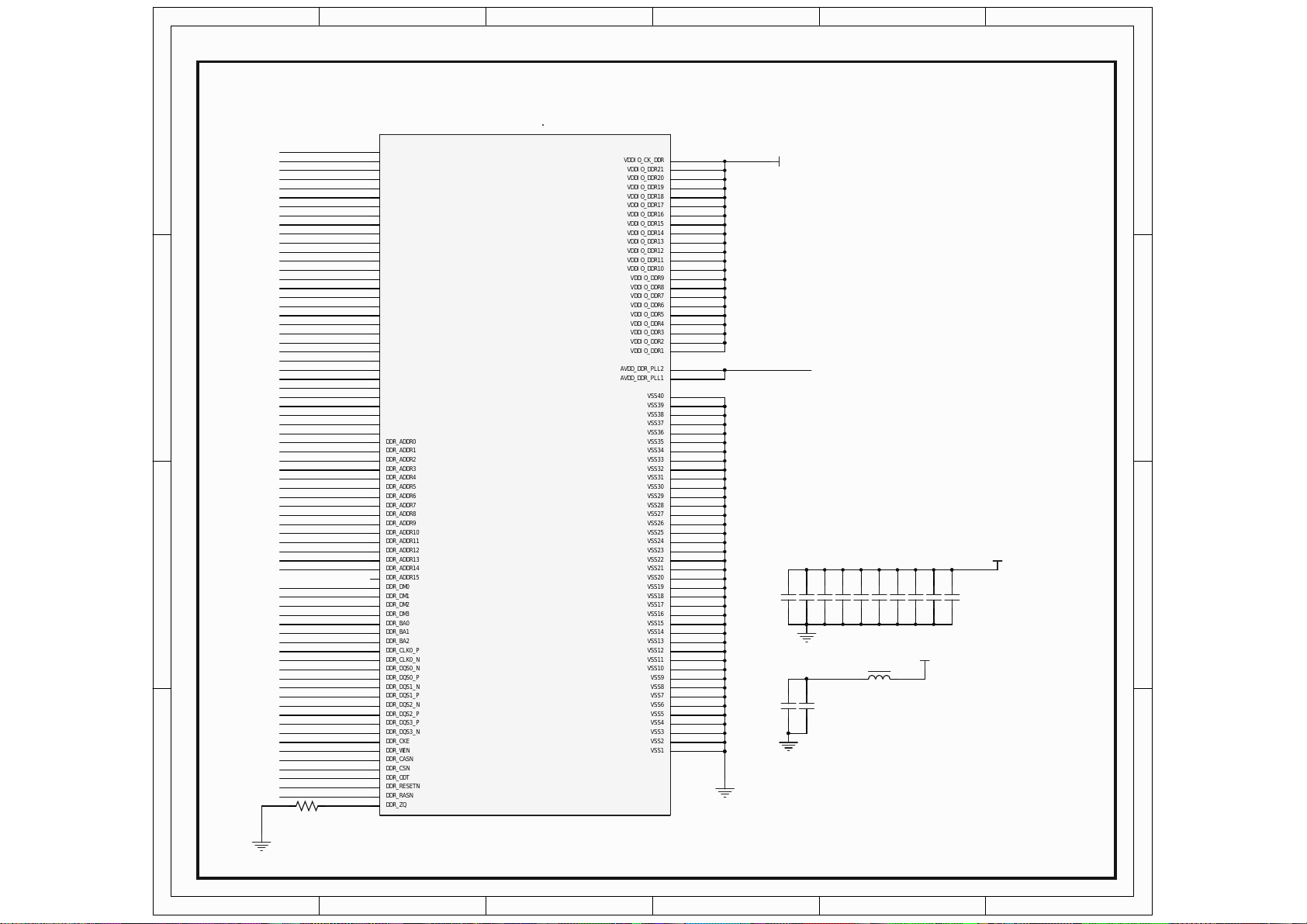

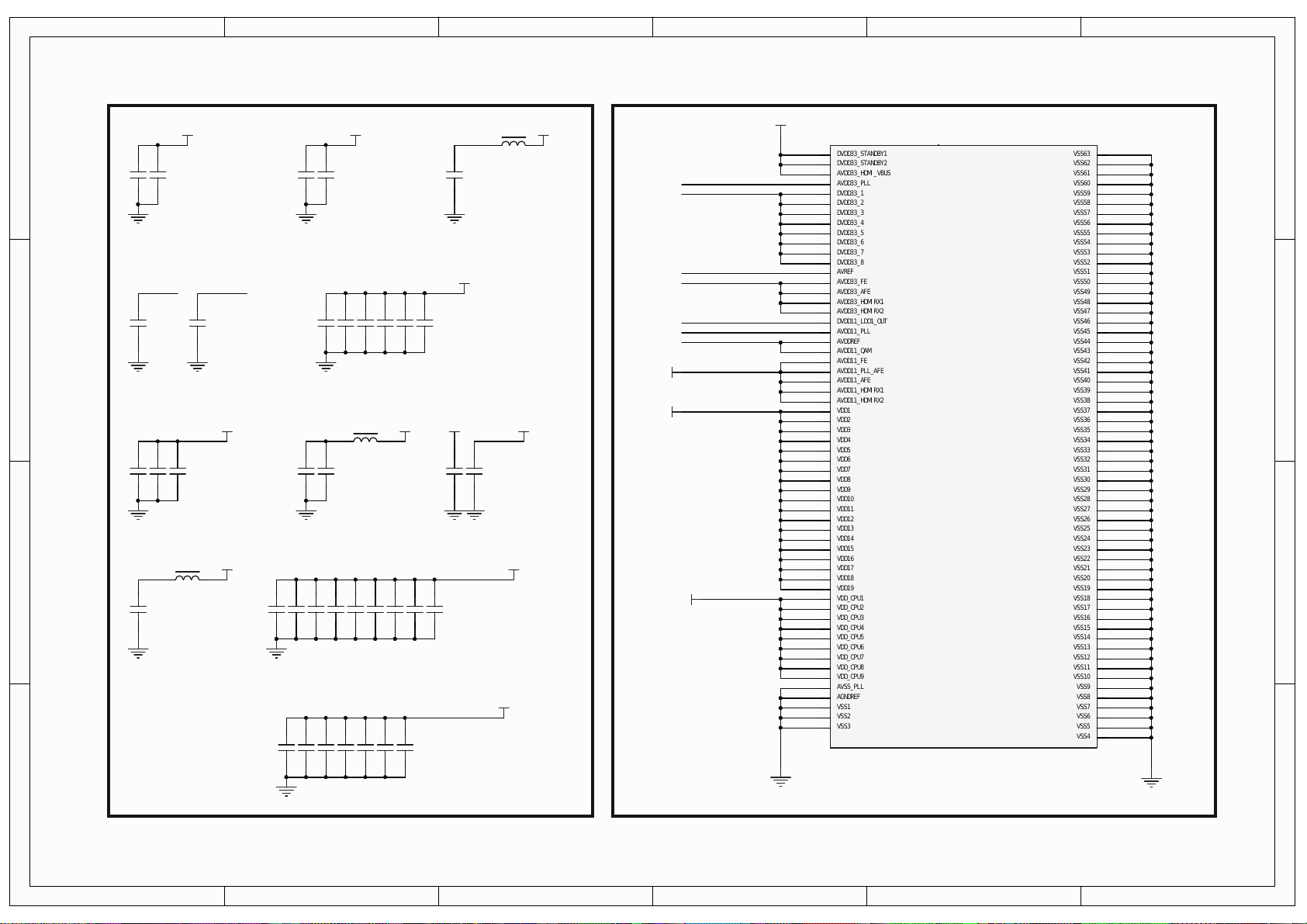

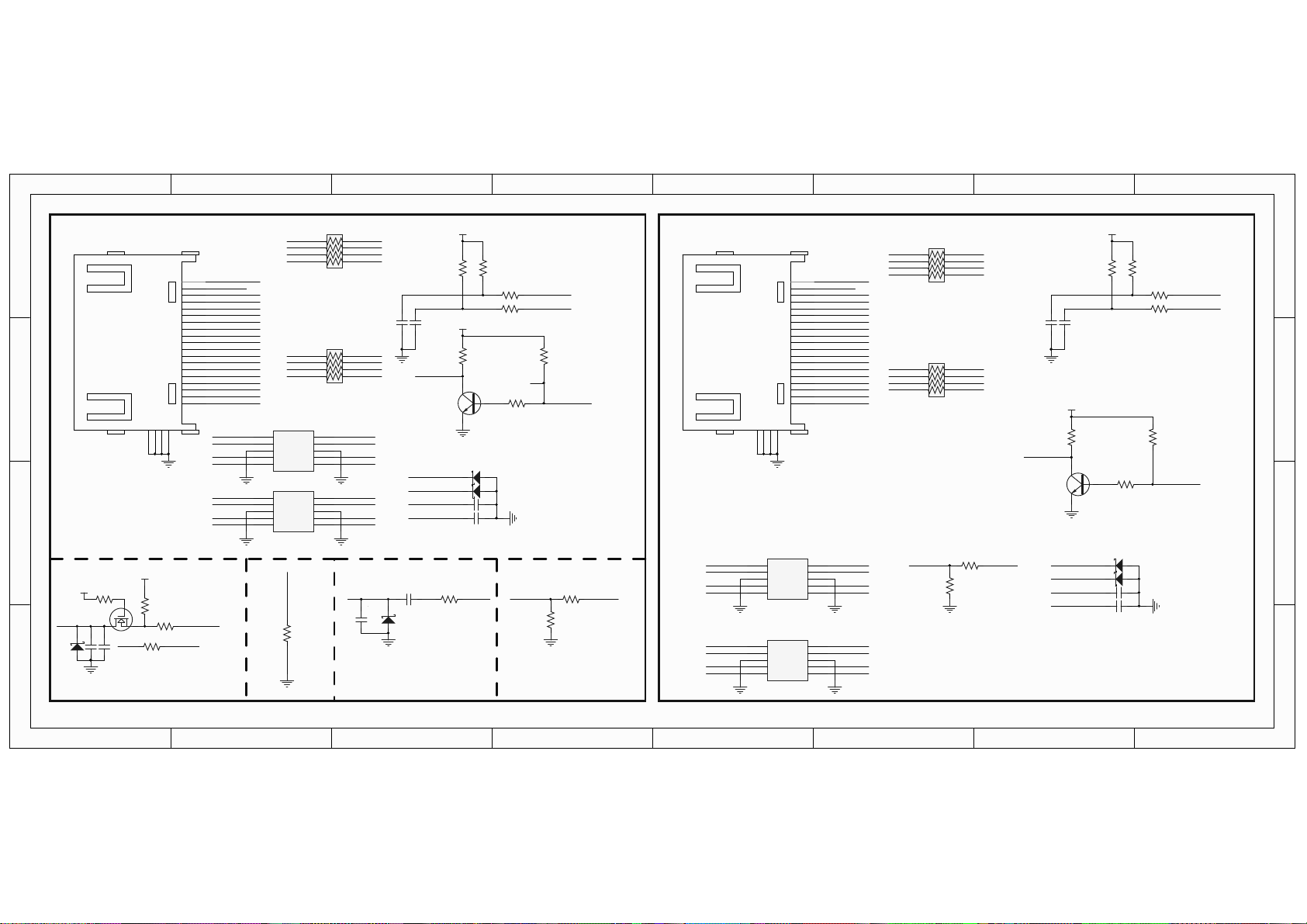

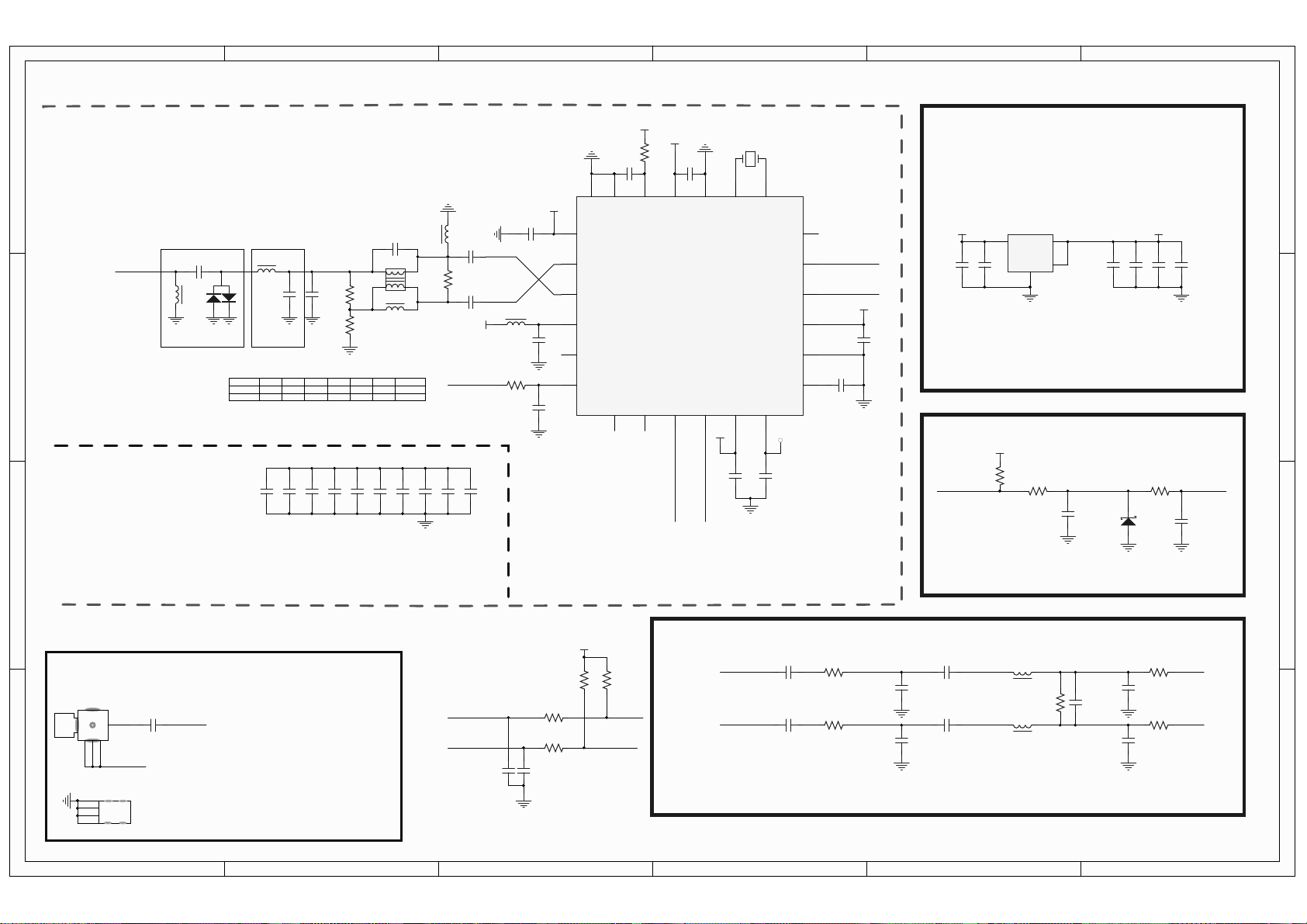

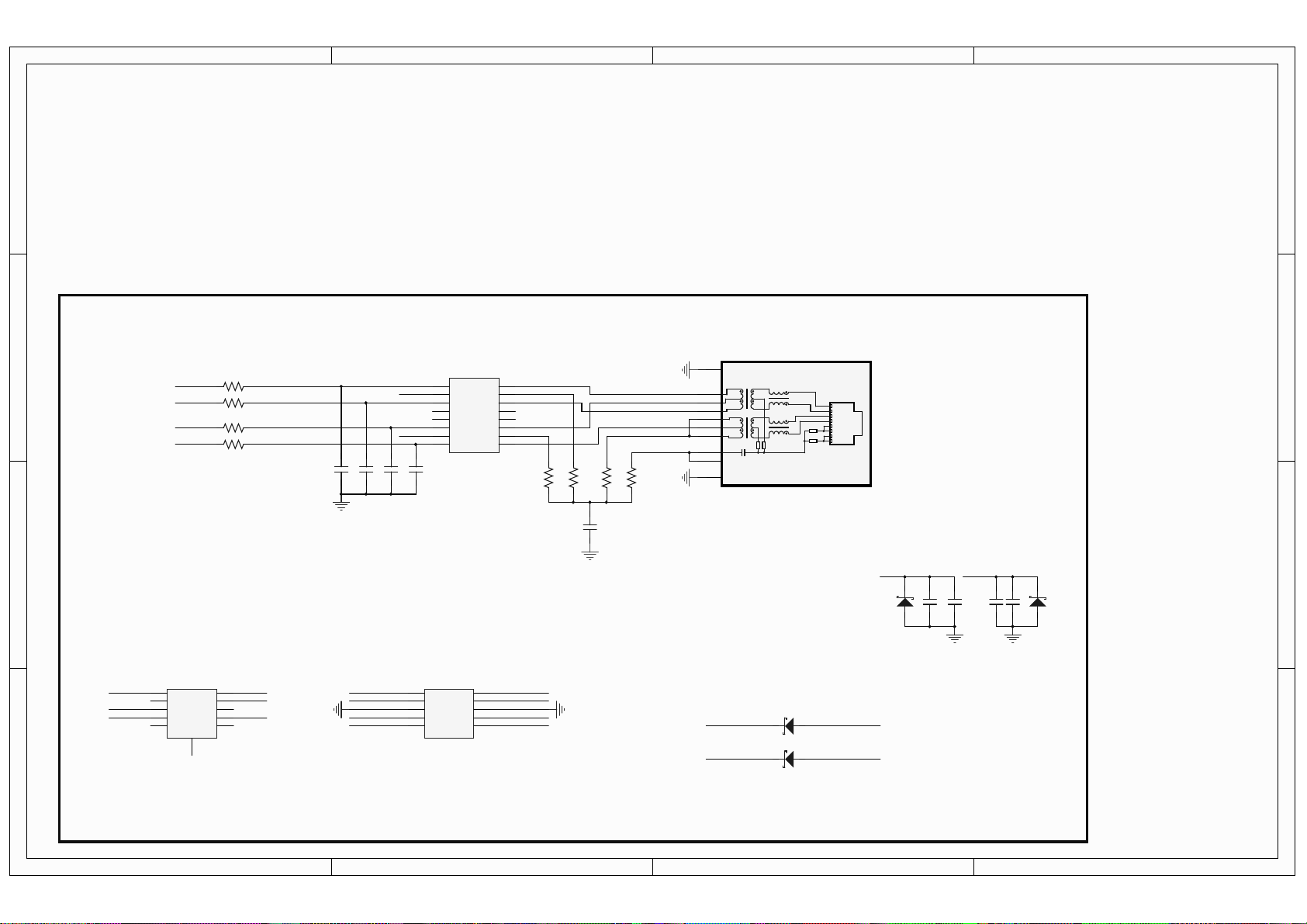

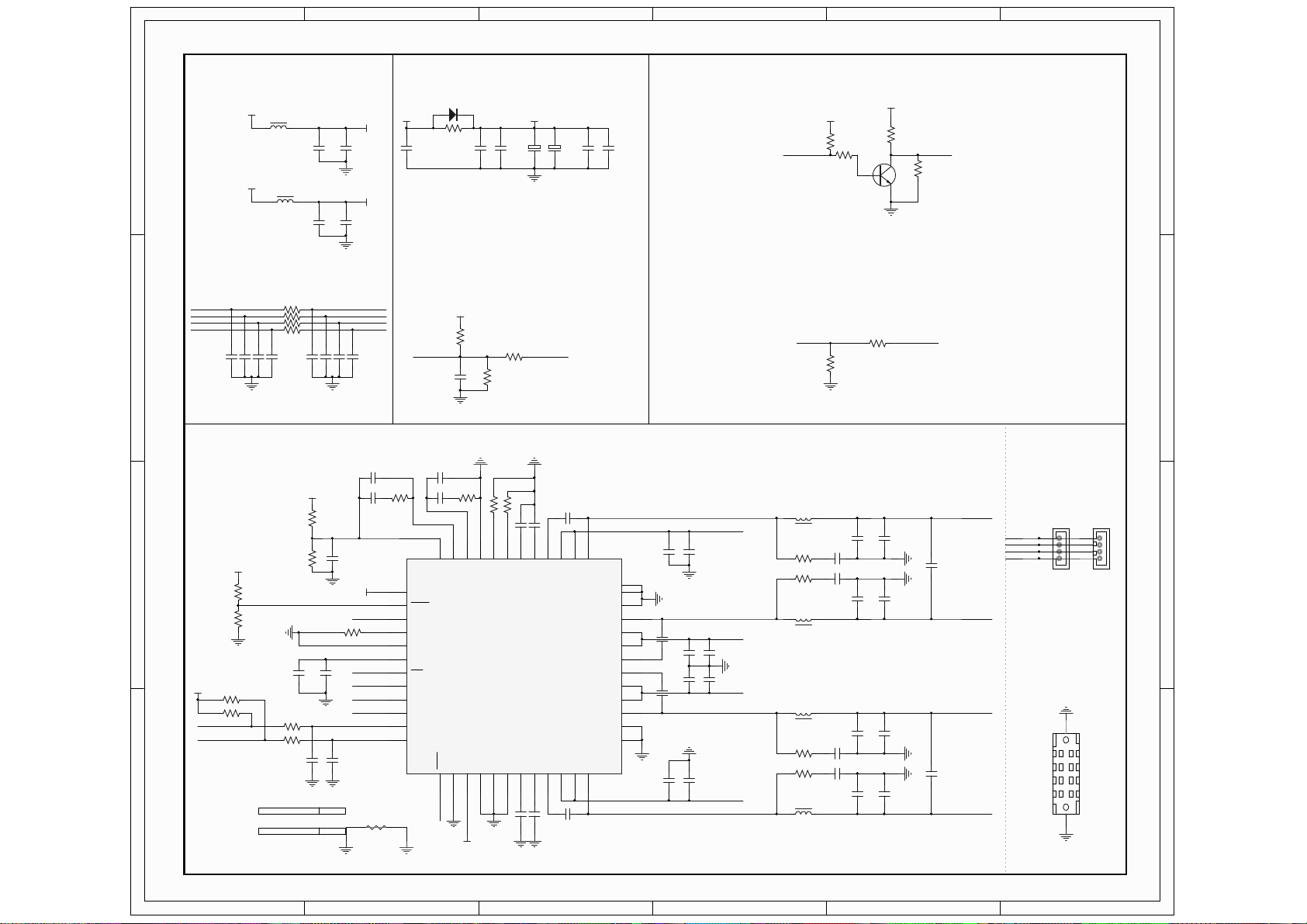

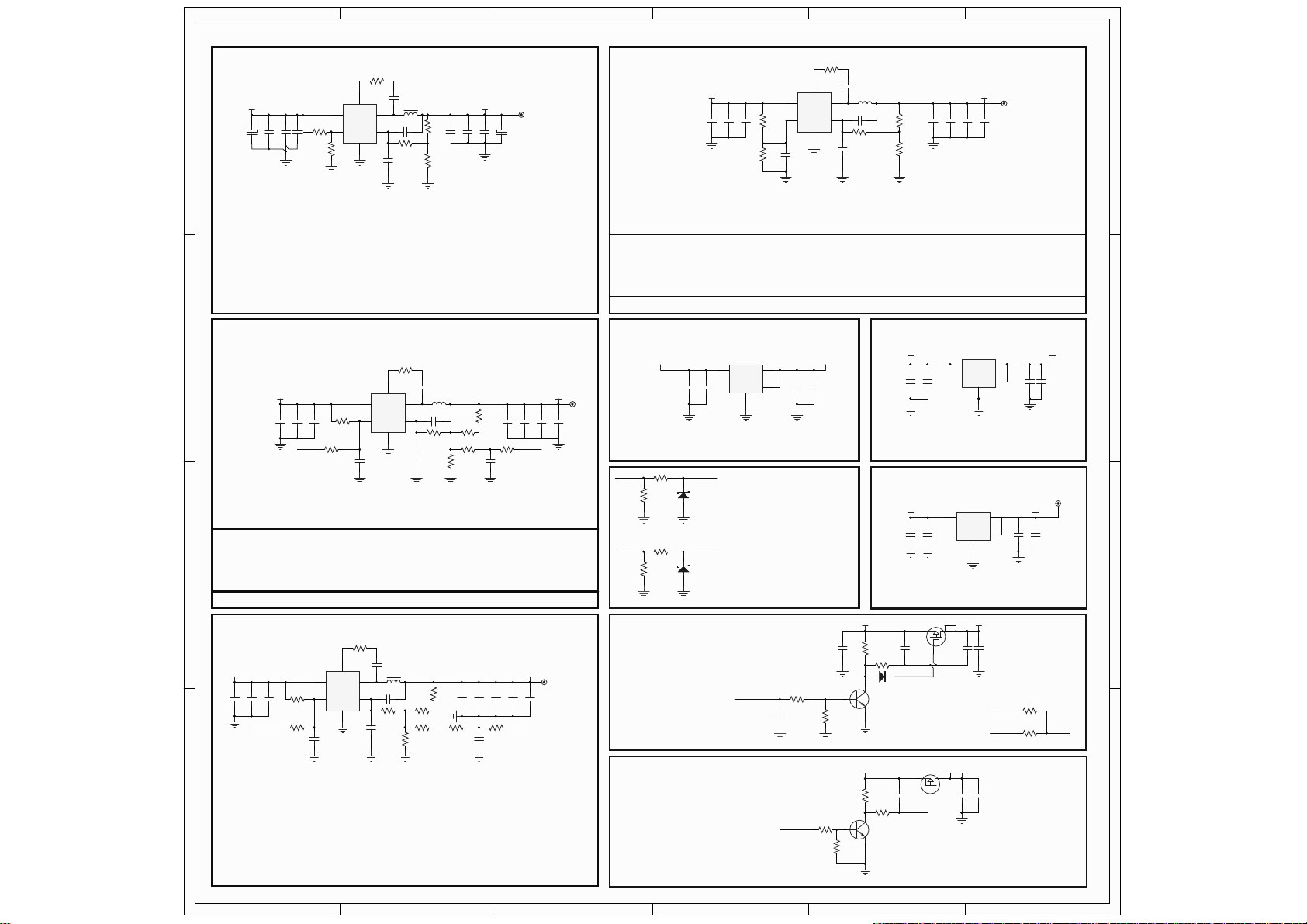

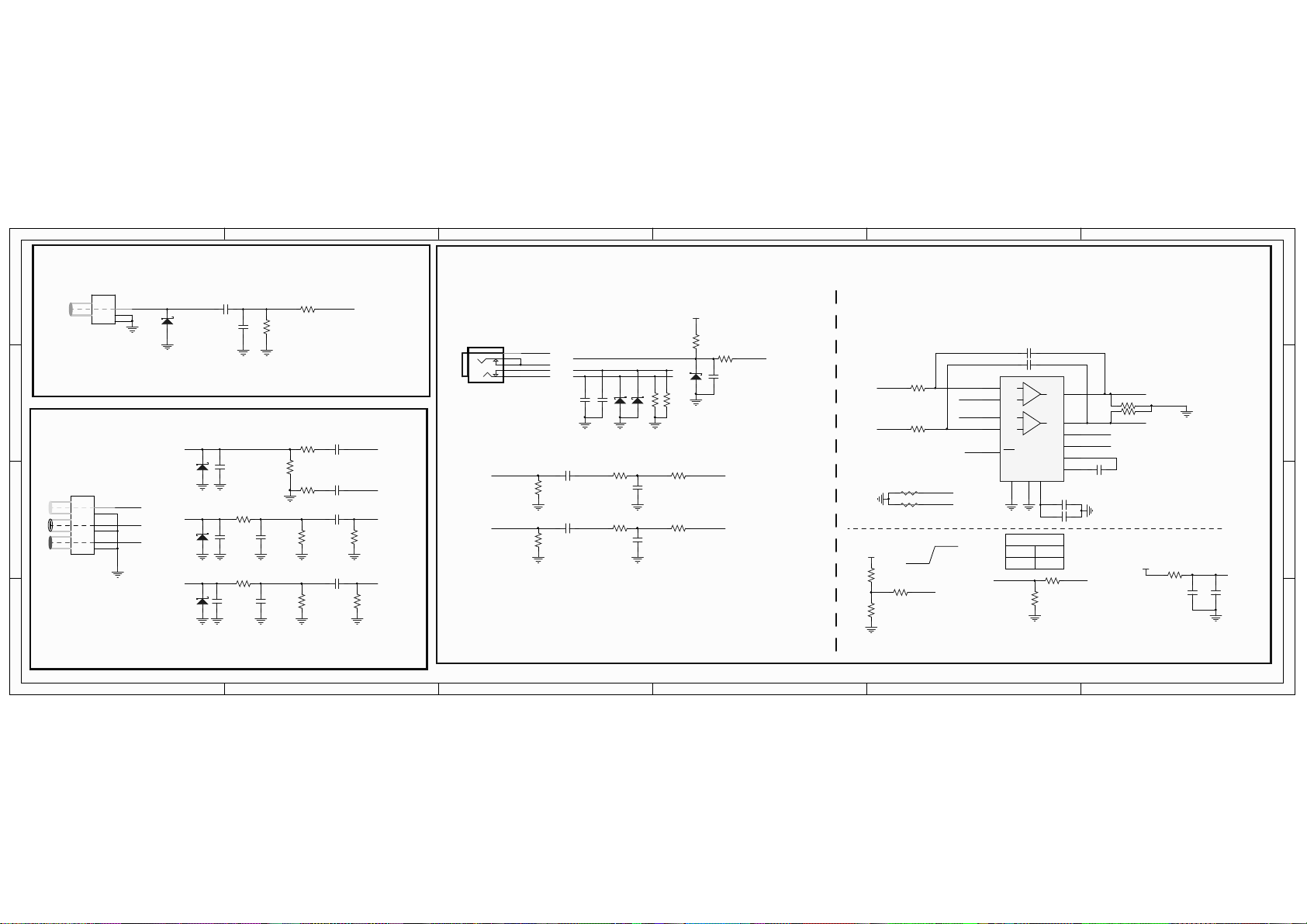

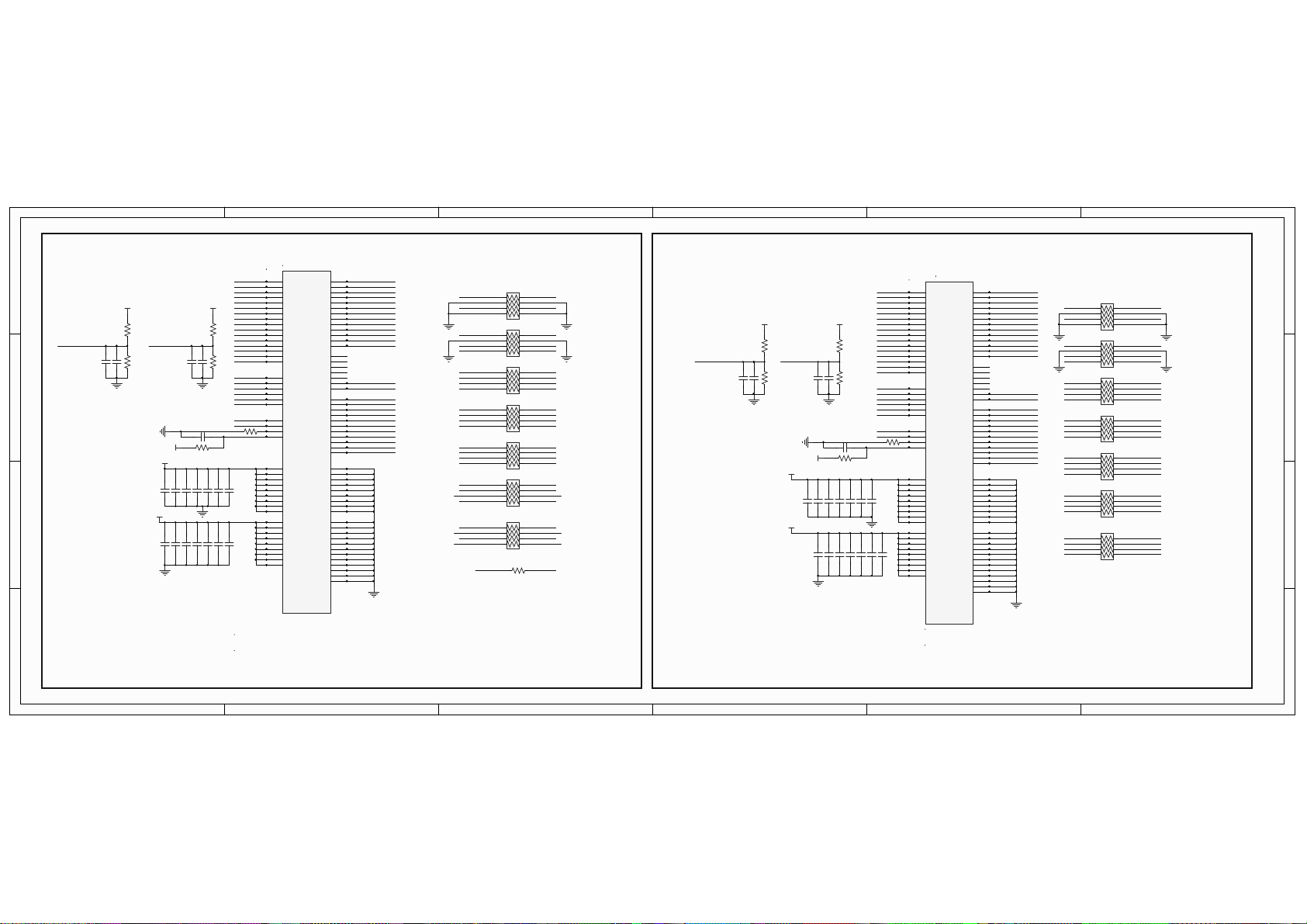

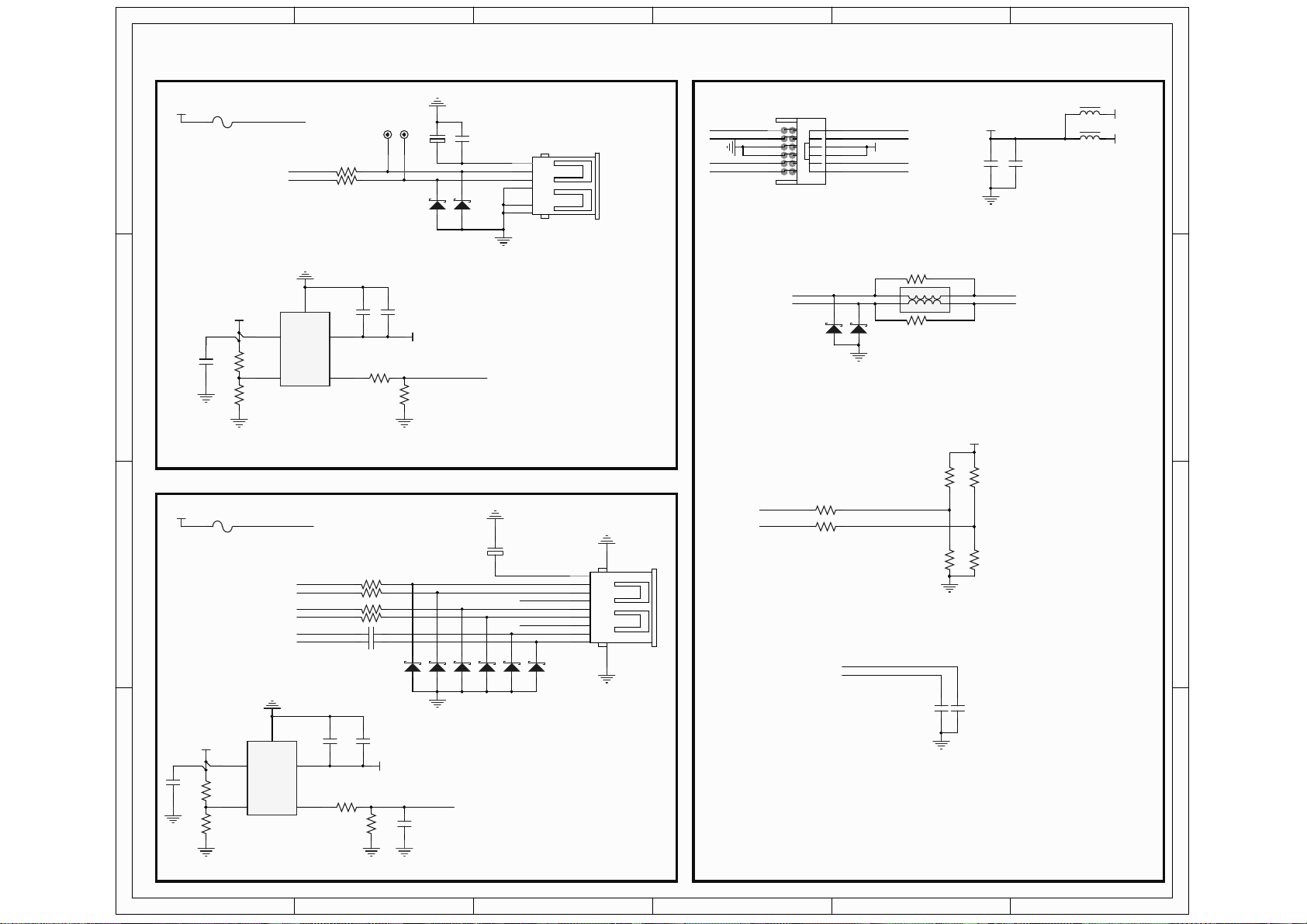

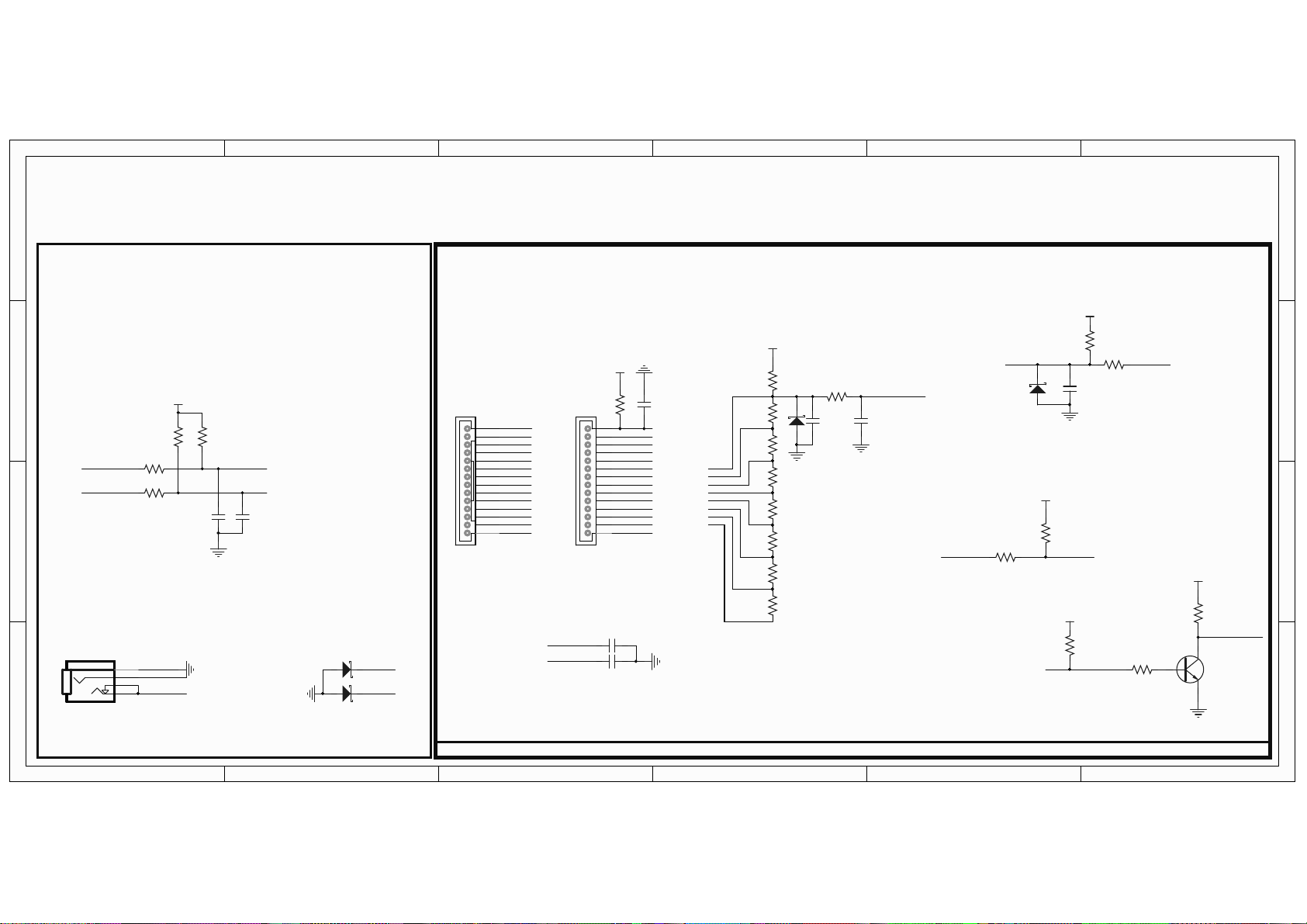

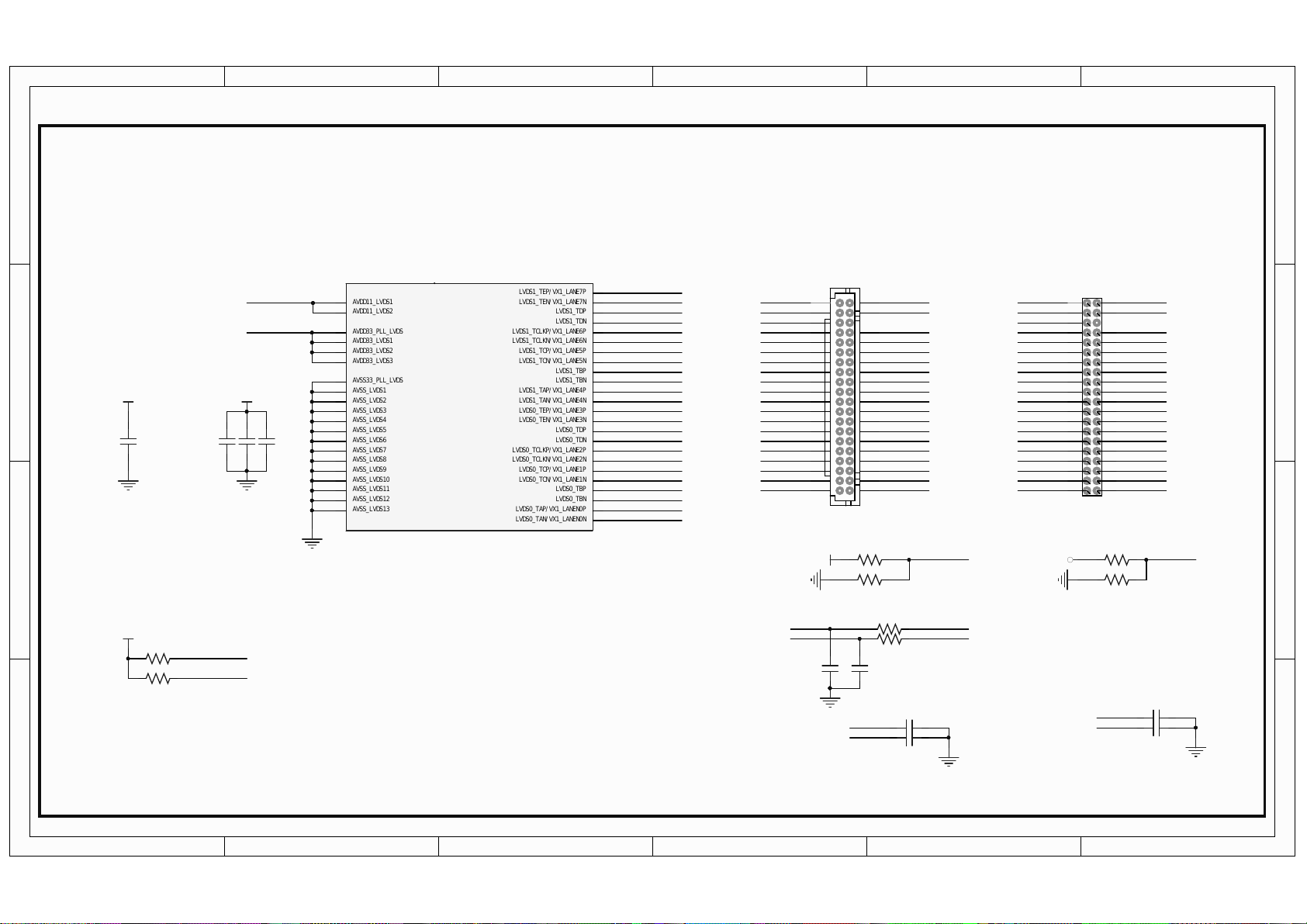

电路图（３６－４９）

43PFF5231/T3

!

Product Specification Sheet (China)

China

New Naming

5231

Set Product Manager

Fermion

Set Project Manager

Status

KO

CR leading set

Channel

大连锁

Size

43"

Model Name

43PFF5231/T3

Platform

V310

Board Size

140*235mm

ID

-

Key

feature

Portal

微鲸

Smart TV (Android)

Android 5.1

GMS/CTS

-

3D

-

CPU

A53x2

GPU

Mali450x4

EMMC (ROM)

8GB

DDR (RAM)

1GB

HEVC (H.265 for FHD)

-

HEVC (H.265 for UHD, 30Hz)

-

Open GL ES 2.0

Yes

Display

1st Panel source

LGD/LC430DUY-SHA1

2nd Panel source

-

Panel resolution (pixels)

FHD

Viewing angle (H/V) (CR≥

10)

178/178

Refresh rate

50HZ

Contrast Ratio (Panel, typ.)

1200

3D (PR/SG)

-

Goggleless 3D views

-

Backlight type

DLED(OD35)

Backlight Dimming / Scanning

-

LCM Brightness (nits)
(Typ/Min/Peak)

260/220

SI Brightness (nits) (Typ/Min)

evaluating

Color gamut(NTSC)

70%

Aspect Ratio

16:9

ABL (Anti-blue light)

-

PQ engine

-

Picture Performance Index

-

1

Receiving

System

Broadcasting system­Analogue

PAL(BG, D/K, I) ; SECAM

D/K ;NTSC M

Broadcasting system-Digital
(DTMB/DVB-S/DVB-C)

DTMB


Enhancemen

t

Aspect ratio mode/Video
modes

Super zoom, 4:3, unscaled,

Subtitle zoom, Movie expand

14:9,Movie expand 16:9,Wide

screen(16:9)

Picture Modes

Vivid/Natural/Standard/Soft/

User/Sports/Lightness

MEMC / FRC

-

Audio

(Sound

Quality)

Speaker type

Down firing

Audio output power (RMS)

8Wx2

Woofer

-

SAP/Mono/Stereo

Mono/ stereo/ virtual surround

Dolby Audio (DD / DD+)

DD/DD+

DTS

-

AOC DSS Virtual Surround
(SoC Proprietary)

-

Visible sound

-

UI

UI Version (2K1X version, UI
name, OSD)

微鲸

UI

Language

簡中

Source detection

Manual source activation via

UI

Sleep timer

Yes

Hot key (Express to)

-

EPG

Yes

Wallpaper Market

-

Child lock w/ lock(Channel
lock)

ATV/DTV

APP store

微鲸

Voice control-Embedded

-

Voice control-Cloud(via IME)

-

Voice control-VOD search

-

Voice control-NLU

-

Voice control-ADK/Volcalizer

-

Gesture control-left,right

-

Gesture control-Palm
swipe/tap

-Special

-

Face recognition-Access
control

-

2

Smart

Face recognition-Log in

-

MHL

-

Miracast

-

Support Airplay

-

OTA (New S/W inform end­user)

Yes

OTA (upgrade S/W)

Yes

My remote

-

Mirror Control

-

EZ-Link

-

Multi view-->History

-

App list (refer to App list
sheet)

Yes

RC with air motion

-

RC with touch pad

-

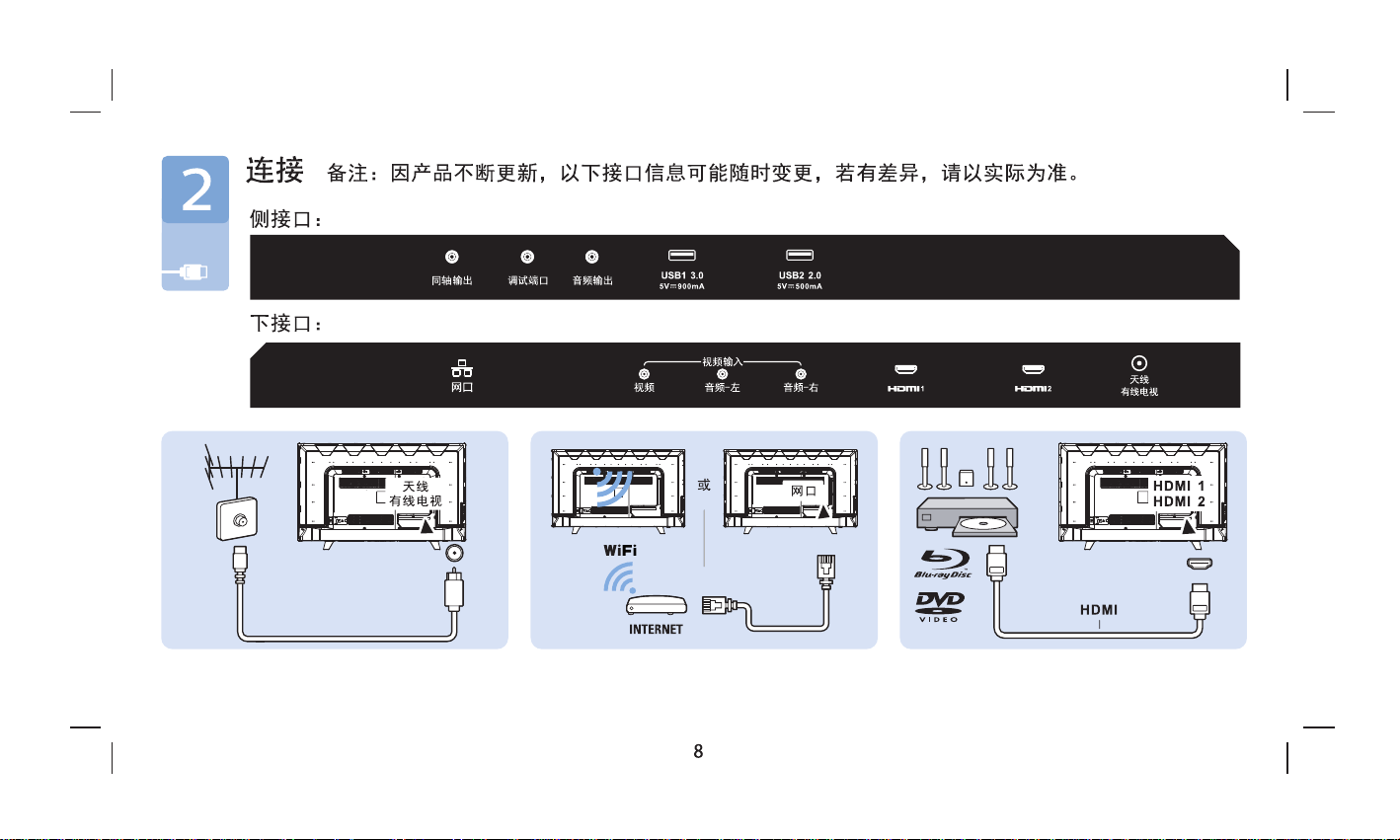

Connectivity

RF input

x1 (DTV/ ATV) (down)

HDMI

x2

HDMI 1 : 1.4 ,CEC、ARC

(down)

HDMI 2 : 1.4,(down)

USBx2USB 1 : USB 3.0 (side)

USB 2 : USB2.0(side)

AV+R/L audio input (RCA)

1 (down)

Component video+R/L audio
input (RCA)

-

D-sub

-

3.5mm mini audio jack ( input
signal for VGA D-sub)

-

Headphone

-

SPDIF digital sound output
(Coaxial/Fiber)

1 coaxial(side)

Video output (RCA)

1 Line out(side)

Audio stereo output

RJ-45

1 (down)

RS232

1(side)

SCART

-

CI+

-

SD slot

-

Microphone slot

-

WiFi

1T1R - 802.11b/g/n

Bluetooth

-

PIP / POP

-

3

Other

Feature

JPEG/MP3
(simultaneously/respectively)

simultaneously

Slide show photo

Yes

Multimedia video playback
(Refer to MM format sheet)

Yes

Time shift

-

PVR

-

DLNA (certification)

-

SW Update

USB / Ethernet

E-sticker

-

E-manual

-

RC finder

-

Ambilight

-

Hotel mode (Simple, Level)

-

Enable USB install

Yes

Mechanical

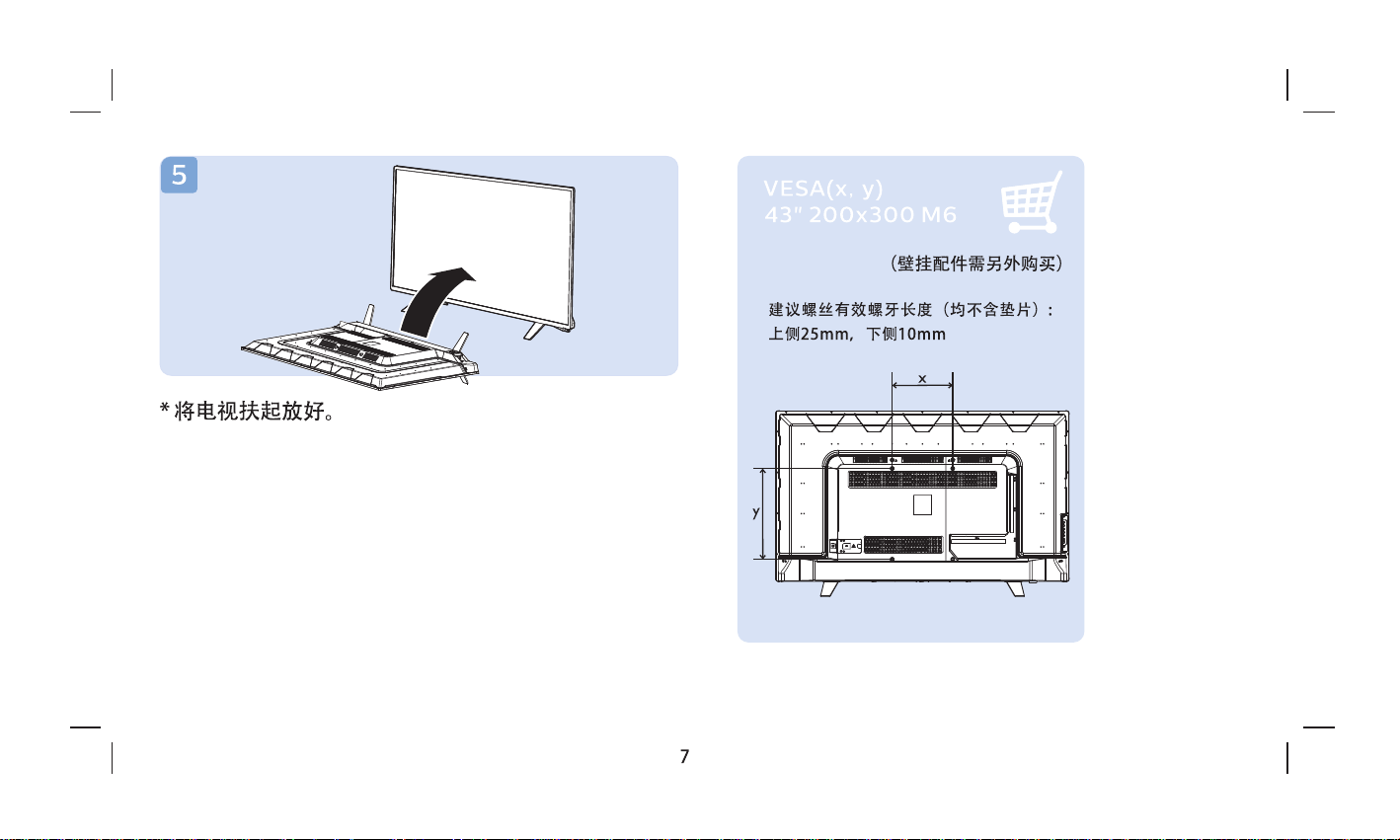

VESA wall-mount size , H x V
(mm)

200x300

Kensington lock

-

AC switch

Yes

Lighting logo

-

Light sensor

-

Lighting module for power
indicator

on : No , standby : red

Front bezel ID

2K15 D2P5

Chin ID

Clear Wrap

Rear cover ID

2K15 D2P5

Base ID

2 foot. plastic

Function keys

Joystick

elevation angle (

仰角

)

90~92 deg

Width of border (R/T/L/B)

11.2 / 11.2 / 11.2 / 17.6 (mm)

Thickness of TV (1st/2nd/3rd
step)

9.0 / 43.7 / 73.5 (mm)

Dimensions (w, h, d) - without
stand

970×564×74(mm)

Dimensions (w, h, d) - with
stand

970×614×214(mm)

Box dimensions (w,h,d)

1085x667x150(mm)

Gross weight

10.5KG

Net weight w/ stand

8.5KG

Net weight w/o stand

8.3KG

Swivel

-

Packing and drop test

國標

Power supply

100~240/ 50Hz

Powe consumption (W),
typical

75W

4

Power

Standby power consumption
(W)

<0.5W

Energy level

EEI 1.3

Energy level EEI2.0

-

Energy level EEI2.7

-

STR (suspend to RAM)

開機

EIT check

Accesory

RC (refer to RC sheet for
photos)

微鲸红外

RC

RC Battery

Yes

3D glasses

-

Camera module

-

SD card

-

Microphone

-

Power cord type

2 pin

Power cord length

1.5m

Power cord shaped

T-shaped

VGA cable

-

2-to-1 audio cable adaptor (
White, Red)

-

3-to-1 AV+L/R cable adaptor
(Yellow ,white ,Red)

-

3-to-1 YPbPr cable adaptor
(Green,Blue,Red)

-

DVI to HDMI cable

-

RF DC ISOLATED
PROTECTOR

-

Warranty card

Yes

DFU

Yes

QSG ( languages)

Simplified Chinese

Safety

CCC (

中国强制认证

)

Yes

CEL (

中国能效标识

)

Yes

SRRC (

Yes

CECP (

中国节能认证

)

-

ＳＲＲＣ　（国家无线电管理委员会）

5

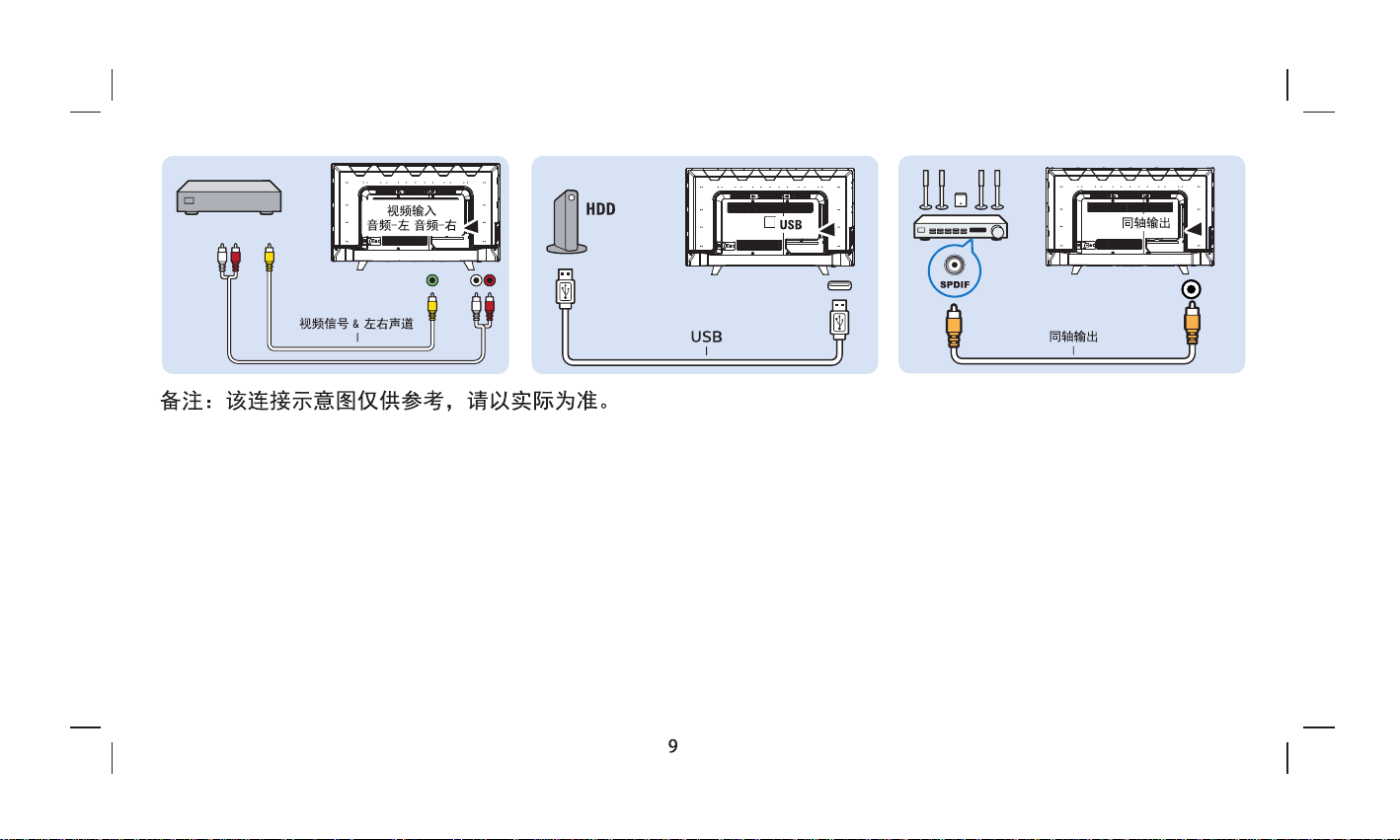

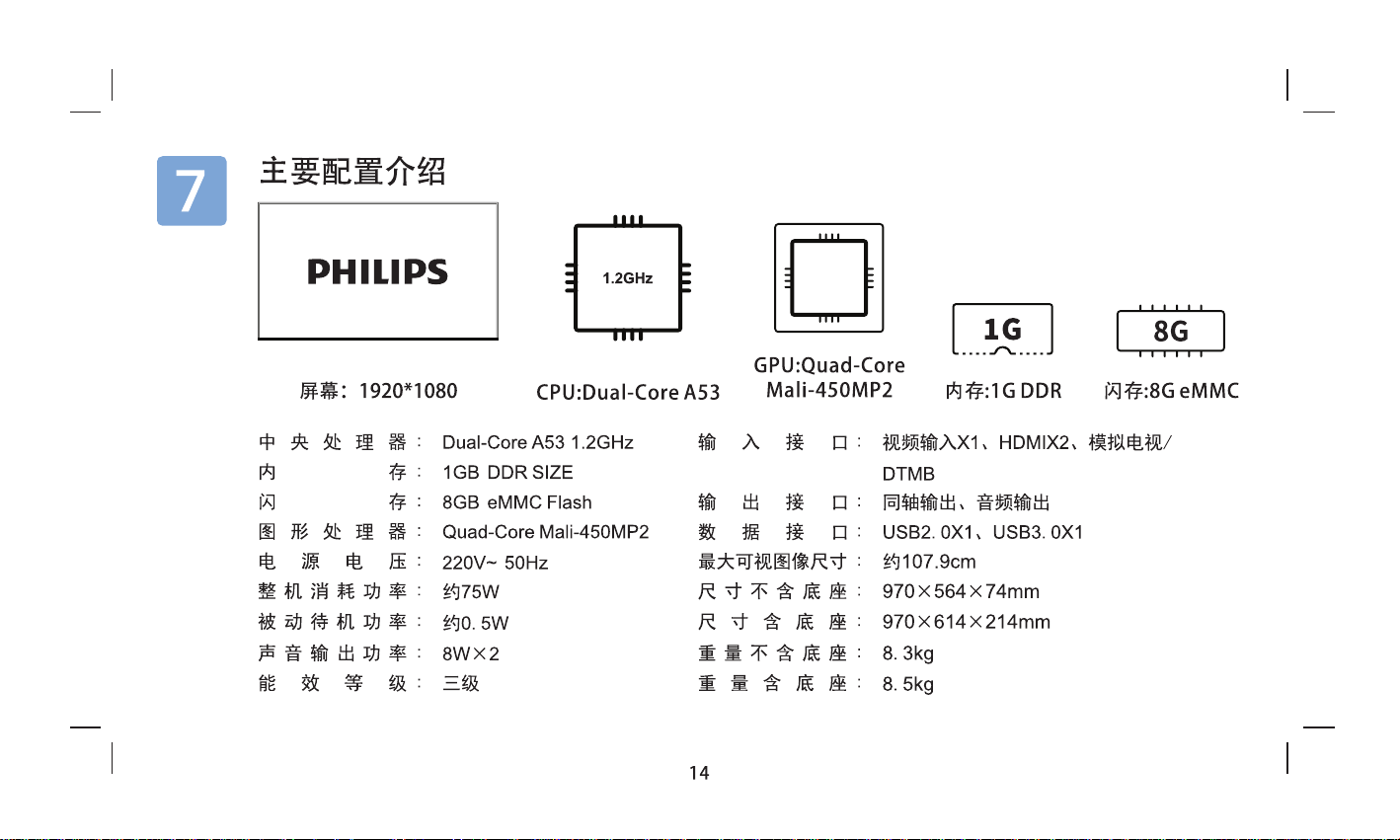

文

工厂模式调整

先按“菜单”键进入菜单界面，然后按 1999 进入工厂菜单

1 级菜单 2 级菜单 值，备注

ADC 调整
模式 VGA(RGB),分量(SD,HD)选择

R-GAIN
G-GAIN

ADC ADJUST

PICTURE MODE

W/B ADJUST

SSC ADJUST

B-GAIN
R-OFFSET
G-OFFSET
B-OFFSET
AUTO ADC 自动 ADC 调整
图像模式

模式 信源选择
图像模式 动态，标准，柔和等模式

BRIGHTNESS 亮度
CONTRAST 对比度
COLOR 色饱和度
SHARPNESS 清晰度
TINT 色调
色温调整
模式 信源选择
TEMPERATURE 冷色，标准，暖色三种
R-GAIN
G-GAIN
B-GAIN
R-OFFSET
G-OFFSET
B-OFFSET
展频调整
MIU Enable MIU 展频使能
MIU Span 展频频宽
MIU Step 展频步长
LVDS Enable 屏展频使能
LVDS Span 展频频宽
LVDS Step 展频步长

前端增益调整

钳位电平调整

白电平调整

黑电平调整

Other Setting 其他设置

NICAM CTRL 是否需要丽音
WHITE PATTERN 屏幕画面类型（关、白、红、绿、蓝、黑）

开机模式 开机模式（上电开机，上电关机，上电记忆）

老化 老化使能

15

VD&VIF-NoStrand1
VD&VIF-NoStrand2
VD&VIF-NoStrand3

文

。。。 非标信号处理及其它
。。。 。。。

频道表 1
频道表 2 预设龙华工厂频道表

UART DEBUG

NONLINEAR

复位 恢复出厂设置

软件升级（USB 软件更新

UART DEBUG 有关/HK/AEON/VDEC 四种方式，要调试一般选 HK

模式 信源选择

Brightness Curve OSD-0、OSD-25、OSD-50、OSD-75、OSD-100
Contrast Curve OSD-0、OSD-25、OSD-50、OSD-75、OSD-100
Saturation Curve OSD-0、OSD-25、OSD-50、OSD-75、OSD-100
Hue Curve OSD-0、OSD-25、OSD-50、OSD-75、OSD-100
Sharpness Curve OSD-0、OSD-25、OSD-50、OSD-75、OSD-100
Volume Curve OSD-0、OSD-25、OSD-50、OSD-75、OSD-100

调试方式

各种曲线调整

预设坂田工厂频道表

16

(

软件升级售后服务软件升级(

一、软件升级所用的工具及材料

*个人电脑（WINDOWSXP系统,USB2.0）
*AC100~240V电源及电源线
*ISP烧录板
*ISP烧录板驱动程序
*ISPToolV4.5.2.8.SZ.exe
*VGA连接线
*USB闪存盘（2.0版，容量不要超过2G）
*主板软件

二、升级前准备工作
升级前最好把工厂菜单里VGA/YPBPR信源的白平衡数据记录下来（升级后可能出现FLASH初始化，冲掉彩色
校准数据，这时要把记下来的数据还原） ：

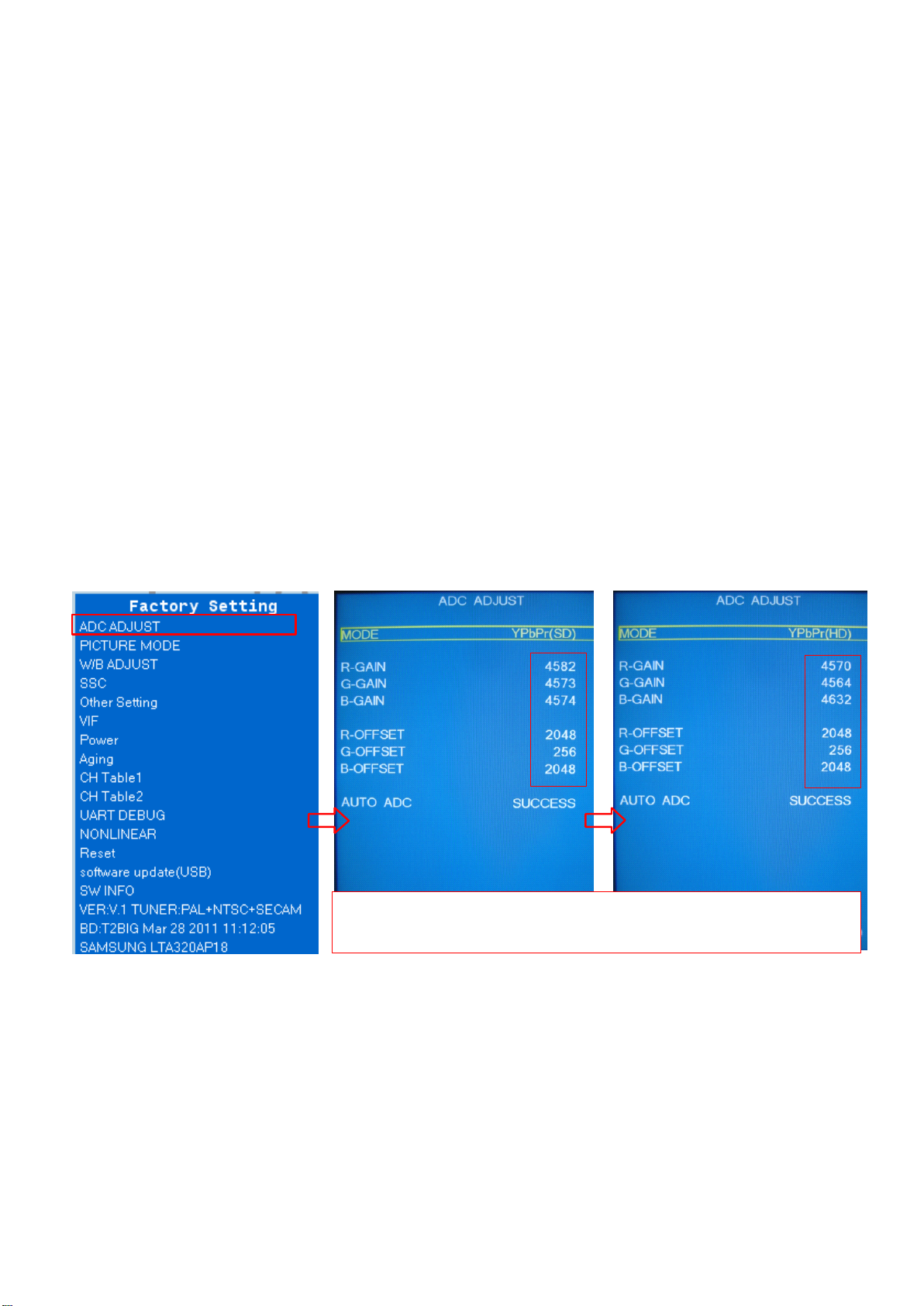

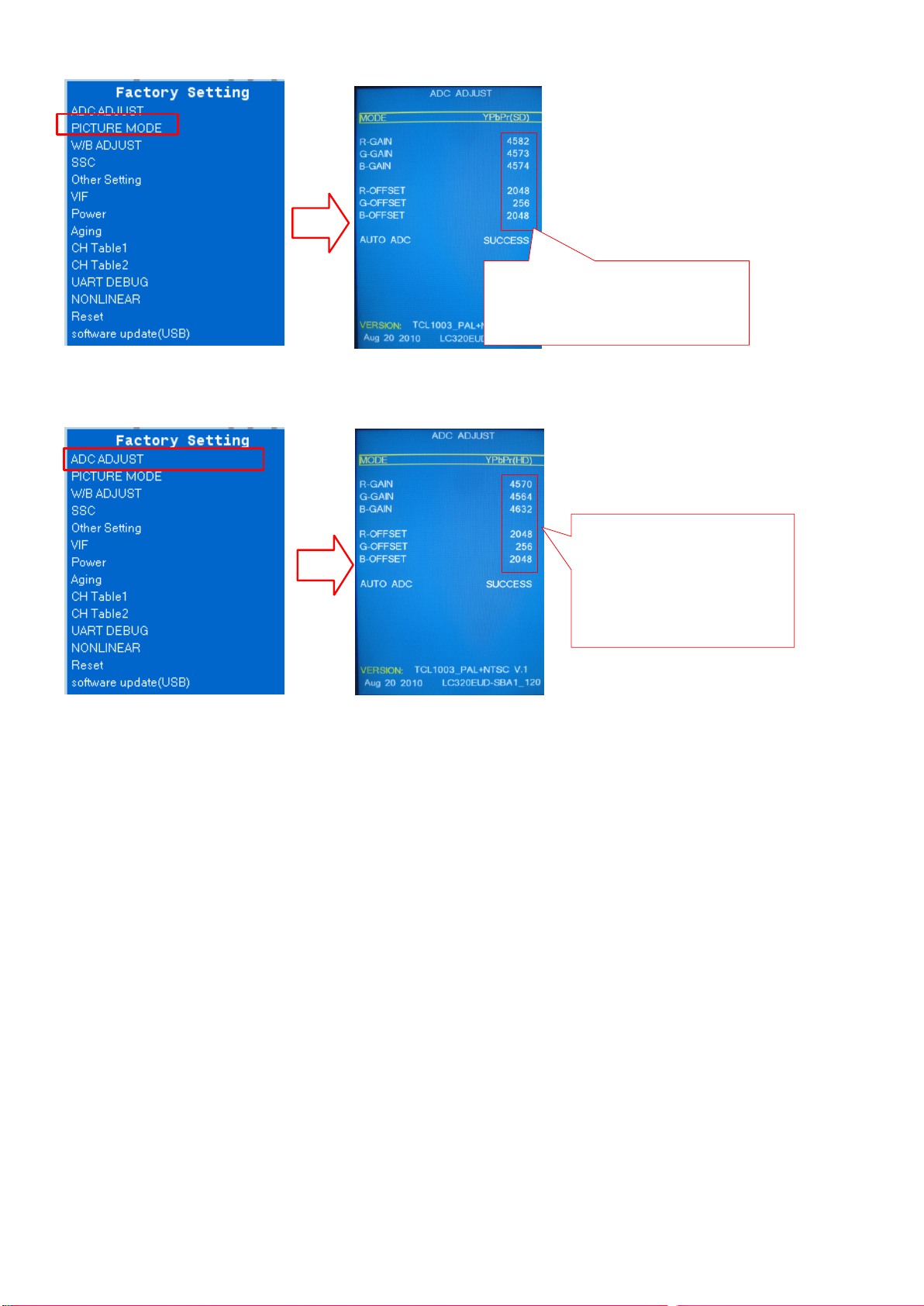

1.在YPbPb信源下，按MENU键在弹出主菜单后，再依次按8202数字键进入工厂菜单，选择ADCADJUST
项，按OK键进入下一级菜单，将光标移动到MODE项，按左/右移动键将光标选持YPbPr(SD)项，记录下

R-GAIN/G-GAIN/B-GAIN值以及R-OFFSET/G-OFFSET/B-OFFSET值.

2.在ADCADJUST项， 按OK键进入下一级菜单， 将光标移动到MODE项， 按左/右移动键将光标选持YPbPr(HD)
项，记录下R-GAIN/G-GAIN/B-GAIN值以及R-OFFSET/G-OFFSET/B-OFFSET值.

(

(售后

服务

)

)

)

)

记录好YPbPr(SD)和YPbPr(HD)模式下的R/G/B-GAIN和R/B/G-OFFSET的
值，待机器软件升级后再改成所记录下的值

三、软件升级作业内容及步骤：

1.在文件后缀不隐藏的情况下改文件名为“MERGE.bin” ，再将软件存到FA T32格式化后空白U盘内。

2.将USB闪存盘插在机器的USB升级口内，按以下操作说明进行软件升级：

方法一（方法一不会擦除主板上原来的EDID和HDCPKEY，操作简单，只需要一个U盘就可以完成升级。所以

我们要求客户首选这个方式进行升级） ：

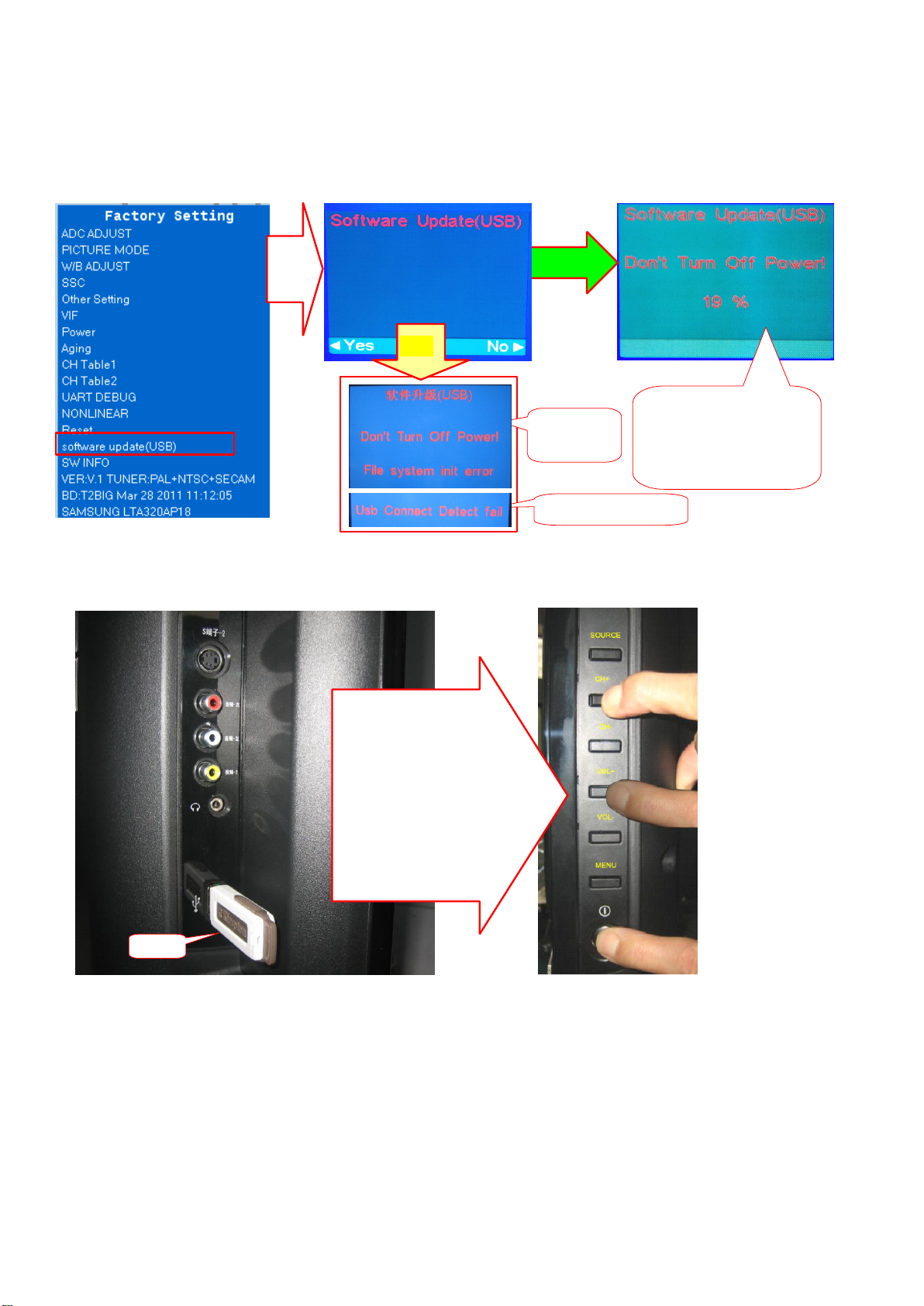

①.开机等机器正常显示画面后按遥控器上的MENU键， 将自动弹出主菜单， 再依次按数字键1999， 进入Factory

Setting菜单。

②.按上/下键移动光标至“sotfwareupdate(USB)”功能菜单后，再按右移键选择"Yes"，执行升级命令：

a.提示“Filesysteminiterror”则表示机器己找到USB设备，但未找到需要升级的软件，请检查软件名是否正

确或者重新格式化U盘后再拷入软件。

b.提示“USBConnectDetectfail”则表示机器未找到USB设备，请检查USB设备是否己插到位，或是更换其

他的U盘重试。

17

③.机器显示更新软件进度百分比提示大约10秒后，机器自动黑屏并重新上电，说明机器己完成升级，此时先关

掉机器电源再拔掉U盘。

按

OK

升级
异常

升级中

键

异常

机器自动黑屏并重新上

未能识别
升级文件

机器未能识别U盘

电，说明机器己完成升
级， 此时先关掉机器电源
再拔掉U盘

方法二：按住机器面板上VOL+和CH+键不放，再给机器通电，约5秒种后机器面板待机灯亮并快速闪烁，大约
一分钟后待机灯熄灭并转为常亮状态，说明升级完成。

方法二： 按住机器面板
上VOL+和CH+键不
放，再给机器通电， 约
5秒种后机器面板待机
灯亮并快速闪烁再松
开VOL+和CH+键， 大
约一分钟后待机灯熄
灭并转为常亮状态， 说
明升级完成

U盘

3.注意事项：

①.机器处于程序升级过程中（即面板指示灯处于闪烁状态时） ，禁止拔除U盘或是将机器断电，否则破坏机器

原来的软件或损坏FLASH芯片导致无法进行升级。

②.插拔U盘时机器须处于断电状态，以免造成U盘或机器损坏。
③.因机器与U盘兼容性有问题，部分机器在升级中将不会有待机灯闪烁的现象，出现此现象建议更换U盘（U
盘容量不得超过2G）或是使用“方法一”进行升级。

④.如果升级用的显示屏不能正常显示菜单，则无法使用

"

方法一

"

进行升级，除了方法一、二可以升级外还可以

按《Mst6M182/MST6E182TV主板程序烧录》使用MstarISPTools进行。

四、当不能按照以上第二步进行升级时或是升级失败后，只能进行ISP升级，请参照以下说明进行操作。

1.用VGA线将ISP烧录板与电视机的VGA接口连接起来。

18

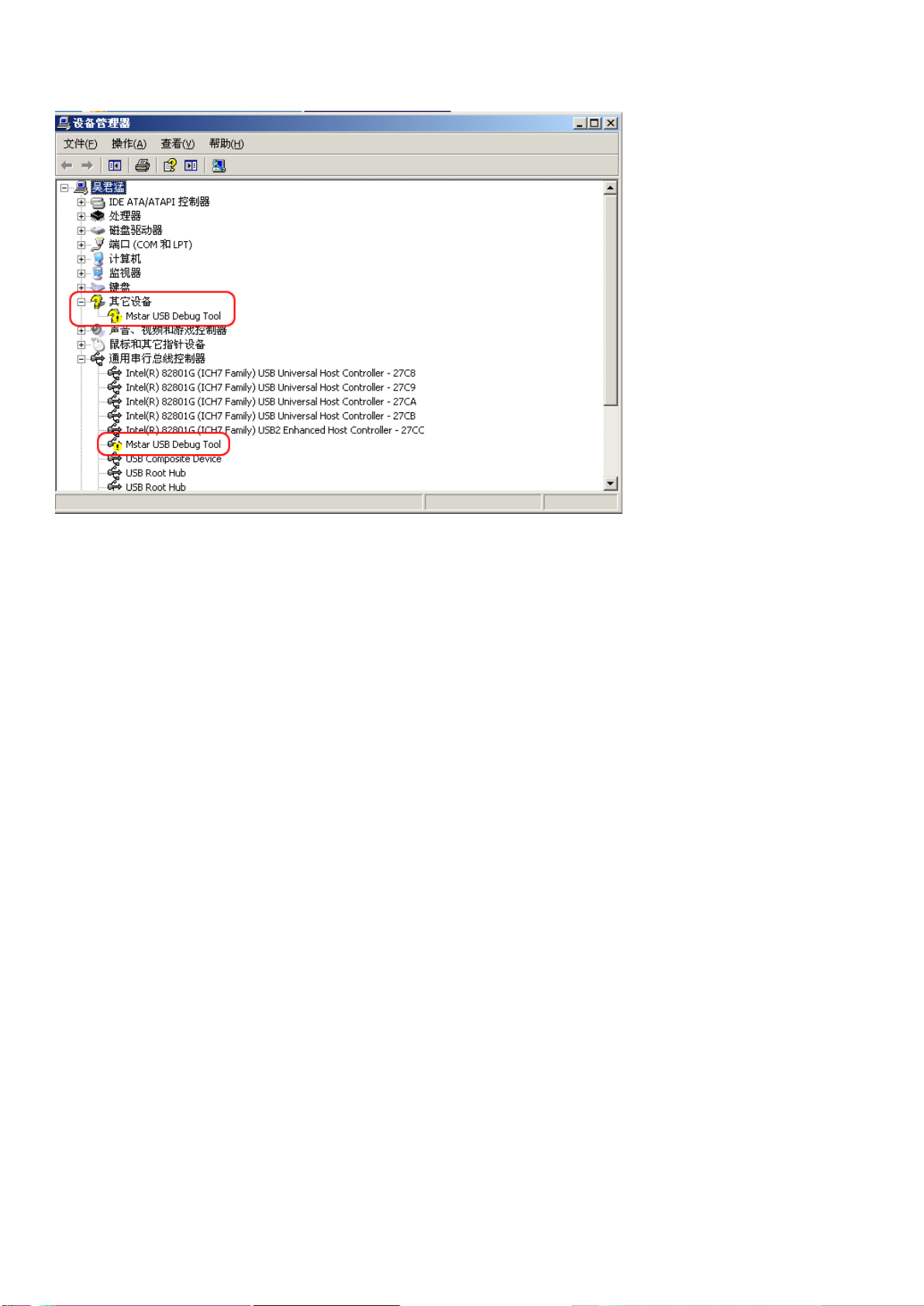

2.插入MstarUSBTool板到USB口，PC机识别到新设备，选择从列表或指定位置安装，并指定驱动文件位置
如下图。

，

19

20

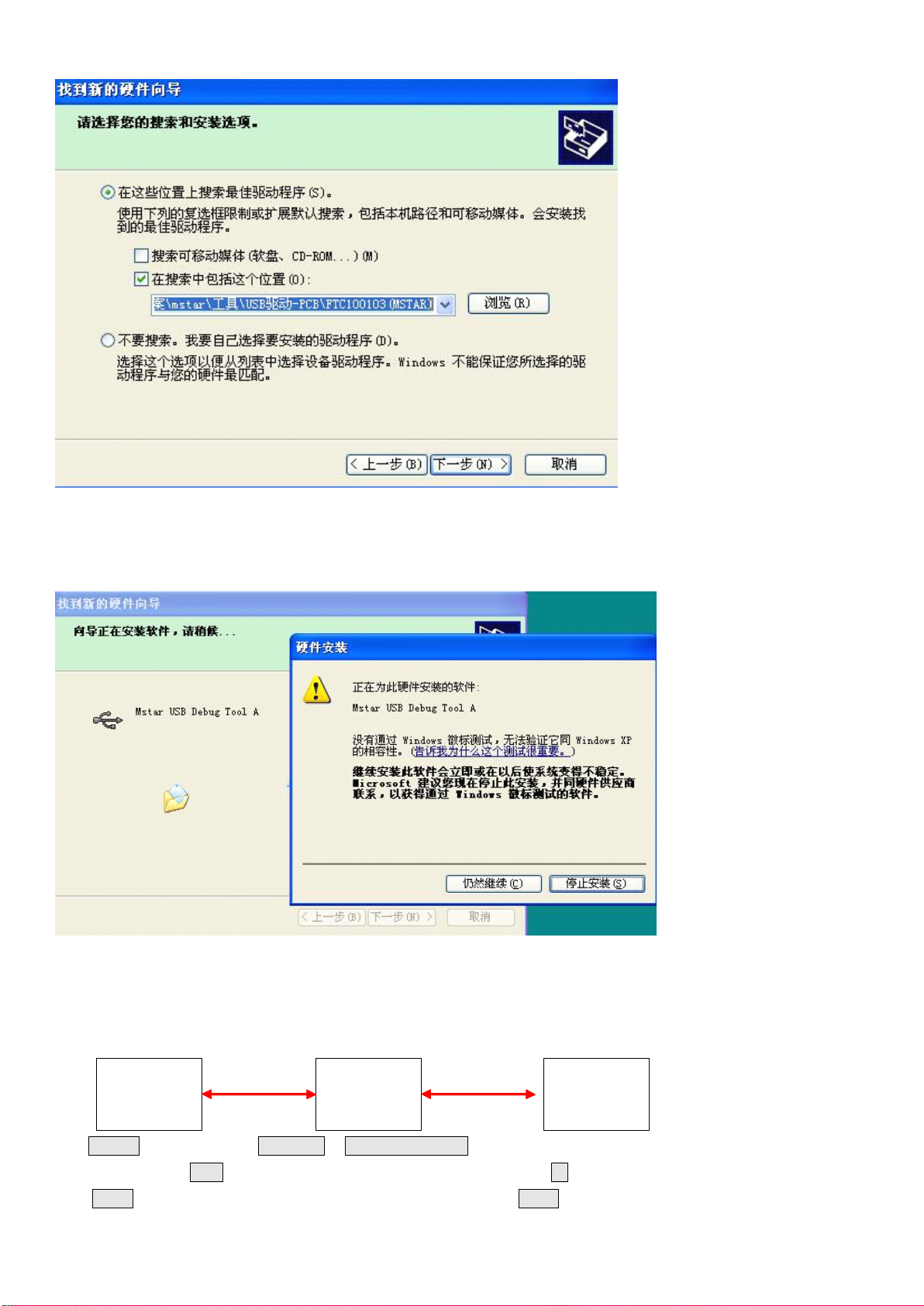

3.PC找到驱动文件后，在安装时会有如下图提示，点击仍然安装即可，系统会有三次安装驱动过程，分别是
MstarUSBDebugToolA;MstarUSBDebugToolB;MstarUSBSerialPort三个驱动的安装,依次安装好后即可！

C.软件烧录

1.安装好驱动后， 将MstarUSBTool板按下面的方法与电视接好， 并接上电源线后， 运行ISP-ToolV4.5.2.8.SZ.exe

：

软件准备将软件烧进电视机主板！.

个人电脑电视机

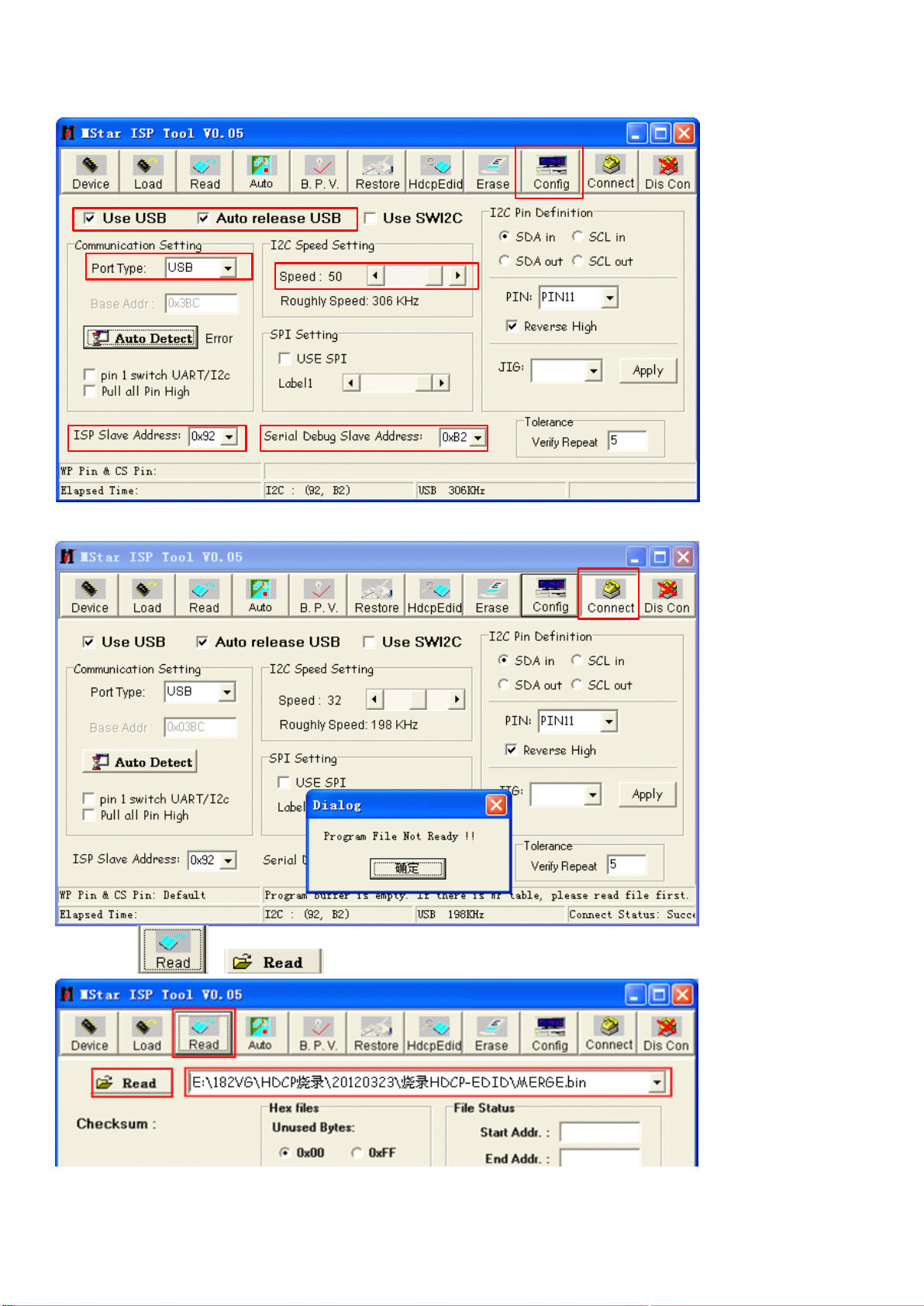

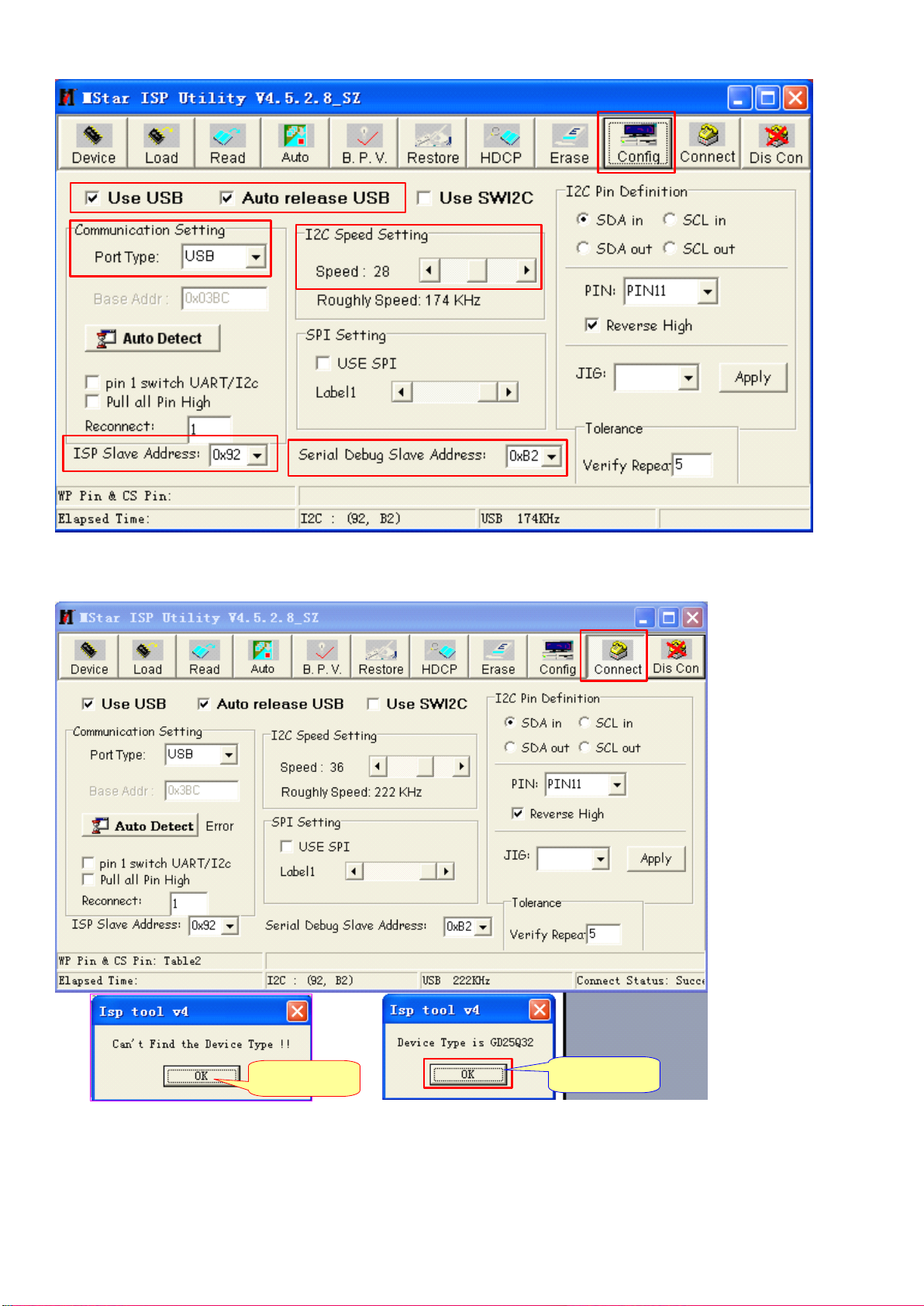

2.在

config主菜单栏，勾选UseUSB和AutoreleaseUSB复选框，CommunicationSetting项相对应的PortType

的下拉菜单里选择USB。 并在

USB连接线

I

ISP烧录板

VGA连接线

VGA插座

2CSpeedSetting项调节好烧录速度为28， ISPSlaveAddress项对应的下拉菜单里

选择OX92，SerialDebugSlaveAddress项相应的下拉菜单里选择0XB2。

21

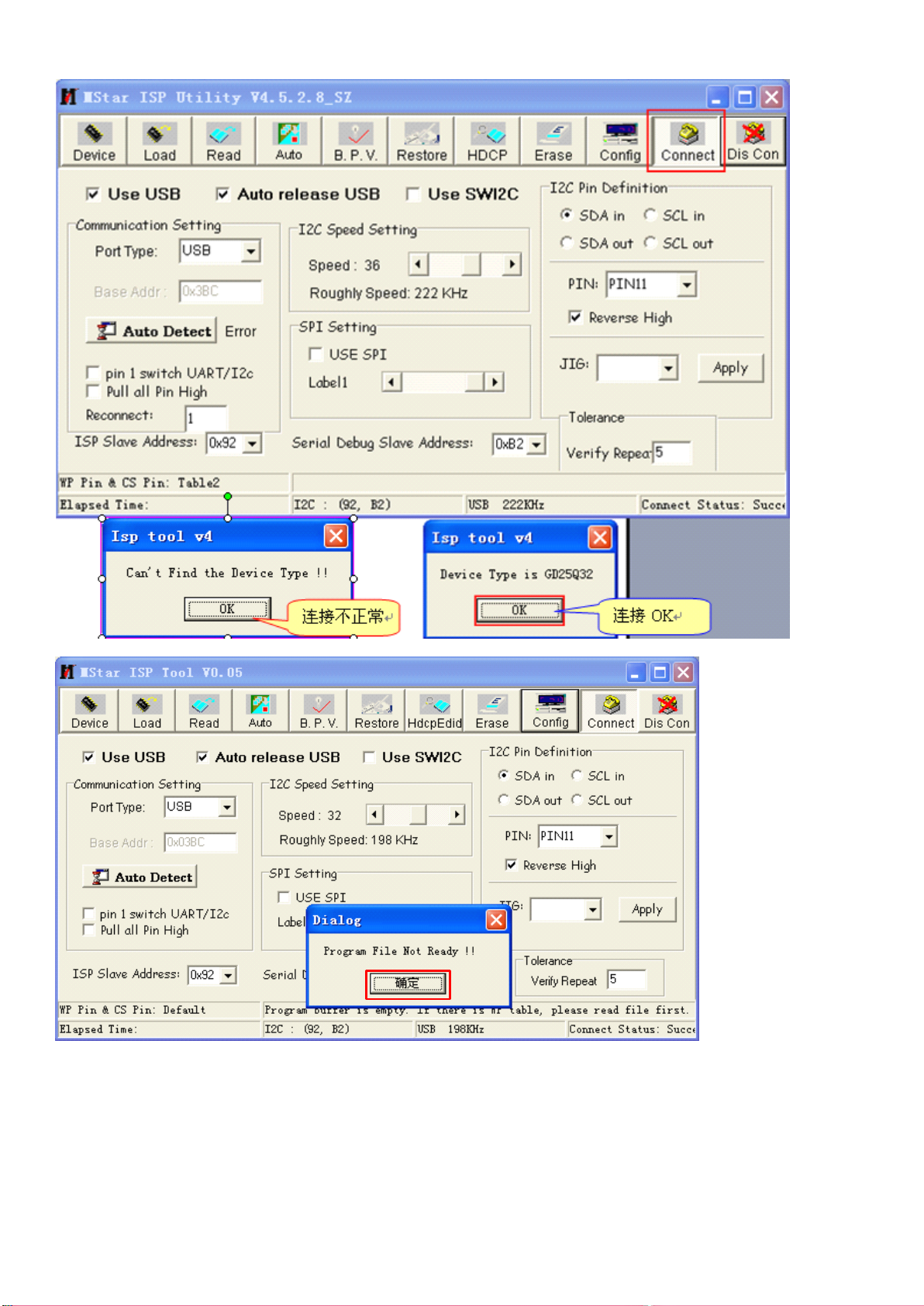

3.点击Connect按钮进行连接，如果提示“DeviceTypeisGD25Q32”提示说明连接正常；如果提示“Can’tfindthe
DeviceType!”则说明连接不正常，请检查烧录线材连接是否正确，主板有无加电。

连接不正常

连接OK

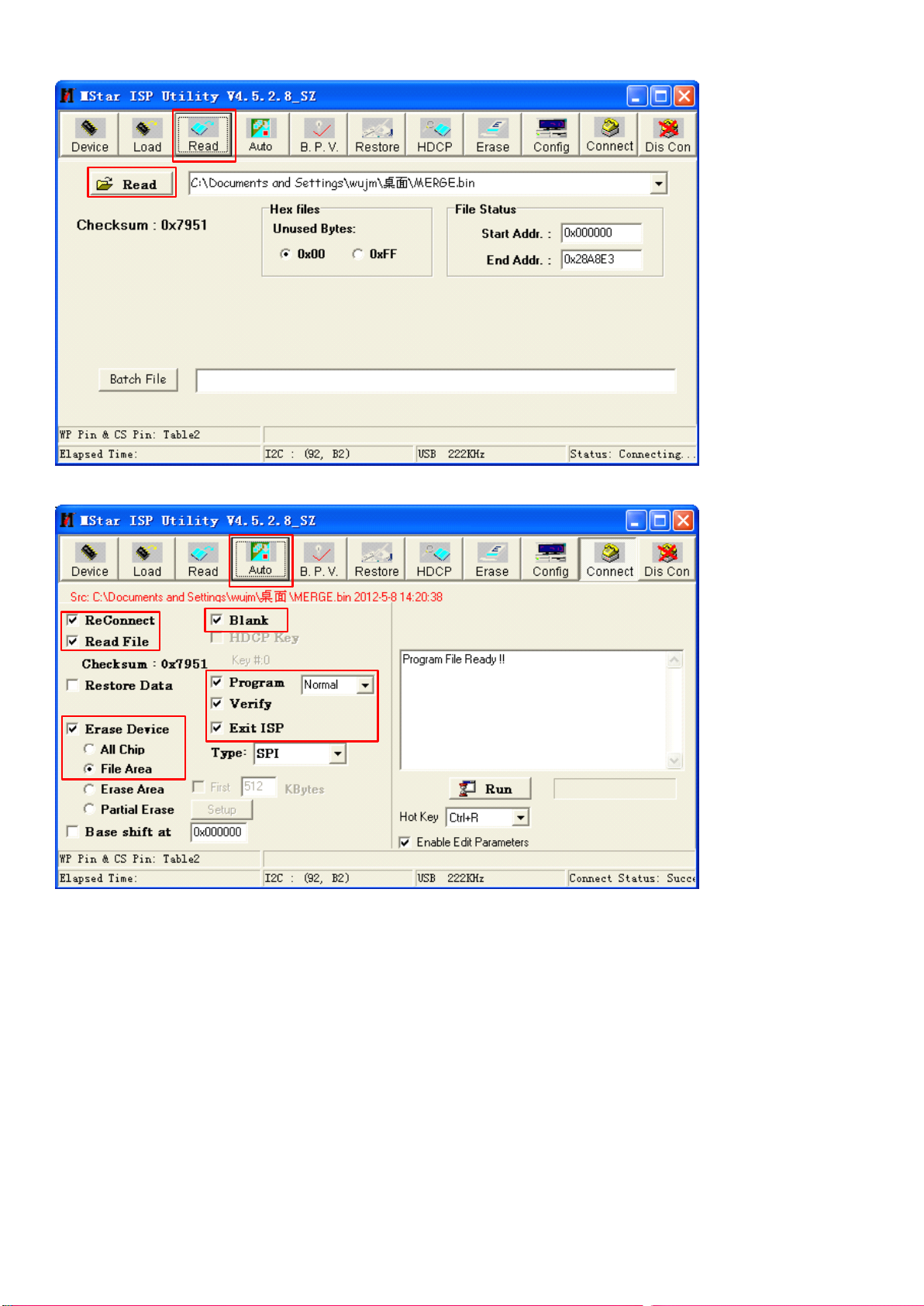

4.连接正常后，点主工具栏里的“Read”按钮再点击“Read”加载当前需要烧录的主板软件。

22

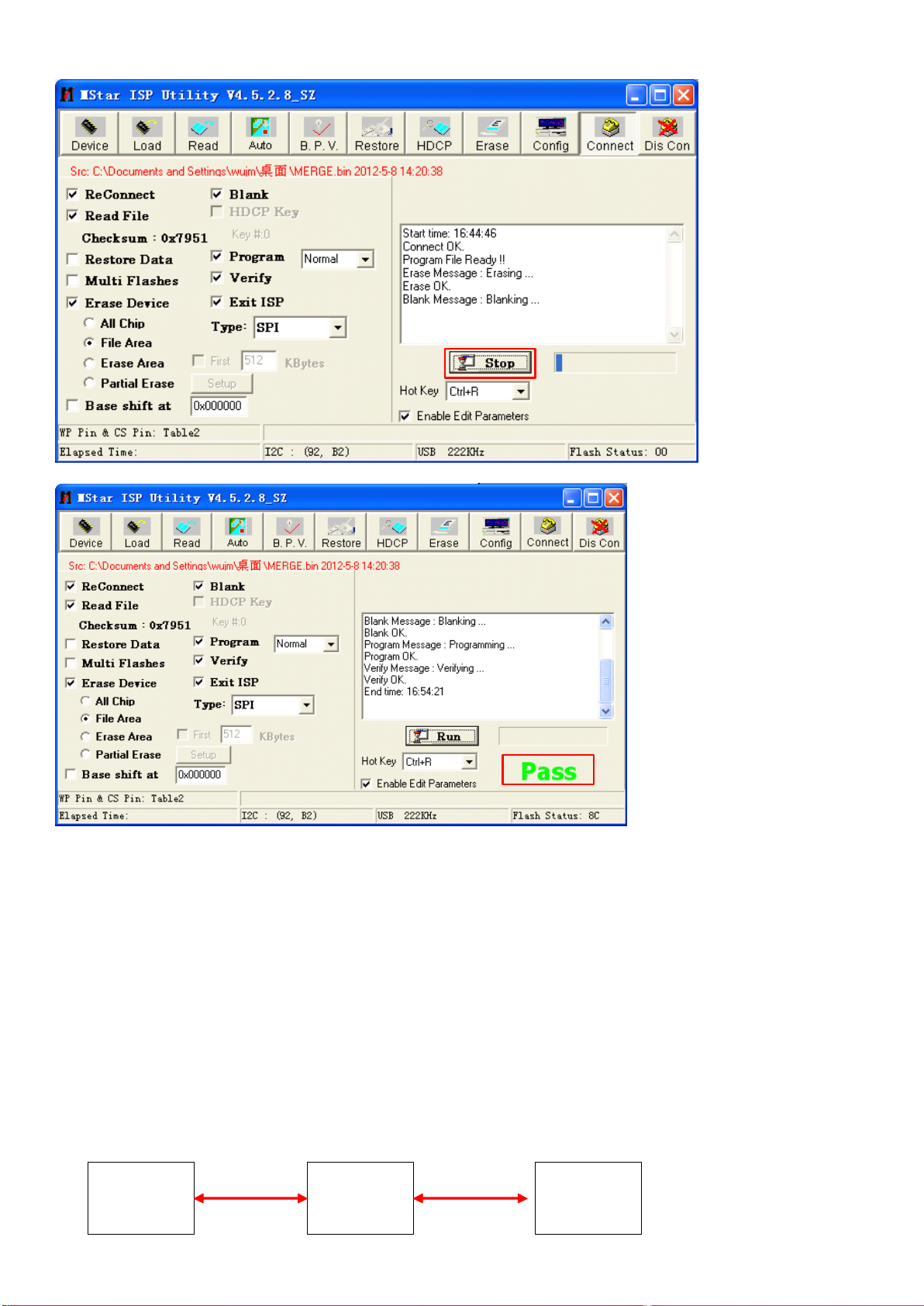

4.点主工具栏里的“Auto”按钮,按下图进行相应设置，

再点击“RUN”按钮进行软件烧录。

23

PASS

烧录完成后显示“PASS

PASS

PASS” ，说明软件烧录成功，再按下边说明进行EDID烧录。

五、采用ISP升级方式（当主板不能用通过USB接口进行升级时才会采用ISP升级）升级时如果选用了“Erase
Device”功能项下的“ALLChip”，则升级后的电视主板必须烧录EDID和HDCPKEY。HDCPKEY和EDID烧录

所用的工具及材料有：

*个人电脑（WINDOWSXP系统,USB2.0）
*AC100~240V电源及电源线
*ISP烧录板
*ISP烧录板驱动程序
*ISP_Tool_XC_V0.05.exe
*VGA连接线
*VGAEDID和HDMIEDID数据文件
具体烧录作业按以下说明：

1.将ISP烧录板与电视机及电脑连接好，并运行ISP_Tool_XC_V0.05.exe，先对通讯模式进行设置。

个人电脑电视机

USB

连接线

ISP烧录板

VGA连接线

24

VGA插座

2.点击Connect按钮进行连接，如果提示“ProgramFileNotReady!"

请单击按钮及加载机器当前烧录的软件，

如果提示“DeviceTypeisGD25Q32”提示说明连接正常；如果提示“Can’tfindtheDeviceType!”则说明连接不正
常，请检查烧录线材连接是否正确，主板有无加电。

25

“DeviceTypeisGD25Q32”提示说明连接正常；如果提示“Can’tfindtheDeviceType!”则说明连接不正常，请检
查烧录线材连接是否正确、主板有无加电。

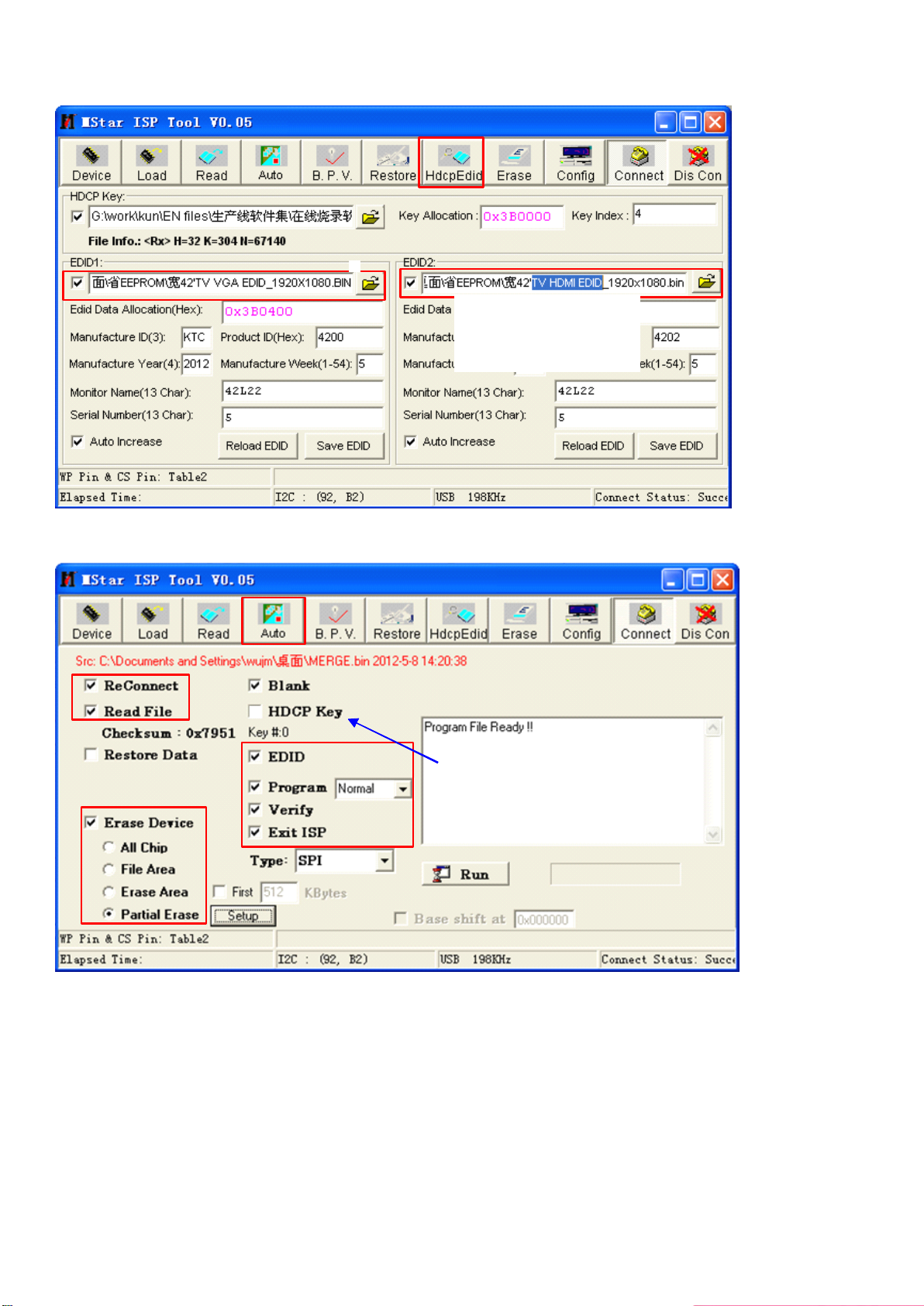

3.点击主菜单栏HdcpEdid按钮按以下说明进行相应的设置：
需要烧录HDCPKEY的则请勾选并加载当前工单所分配的KEY文件，在KEY存放地址栏里输入“0X3B0000"
并回车确认；勾选EDID1栏复选框并加载当前工单VGA接口EDID.bin文件，在EDID1相对应的文件地址栏里
输入“0X3B0400"并回车确认；勾选EDID2栏复选框并加载当前工单HDMI接口EDID.bin文件，在EDID2相对
应的文件地址栏里输入“0X3B0600"并回车确认.依据工单要求修改EDID1和EDID2相应的信息，确认无误后点

26

击主菜单栏里的"Auto"按钮切换到烧录主界面。

如果主板己烧录有
正确的KEY或

EDID请不要勾选相

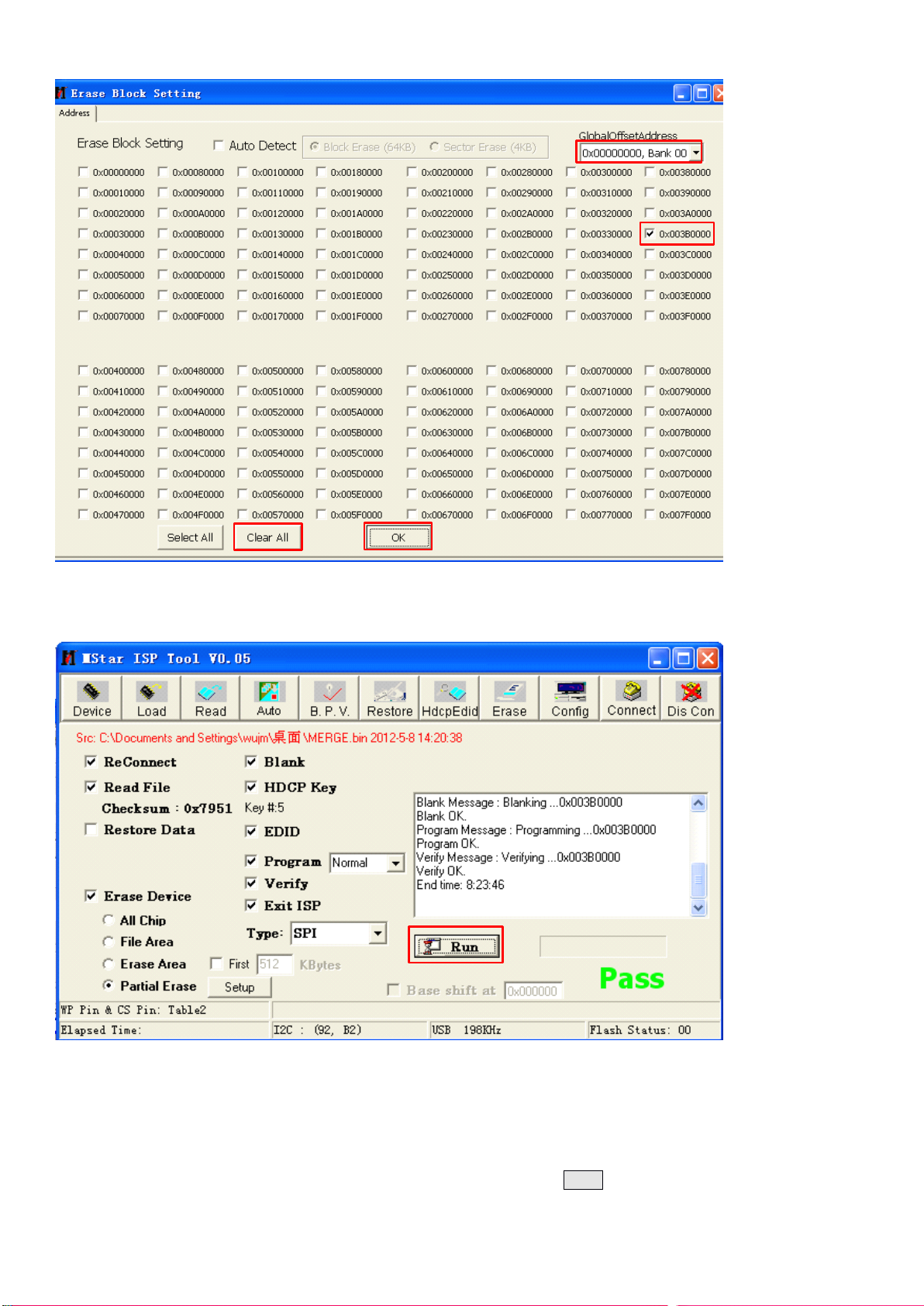

4.在烧录主界面，按下图勾选相应的功能项，点击EraseDevice下的PartialErase对应的Setup按钮，

如果主板己烧录有正确的
不要勾选相应的选项，避免重复烧录， 否
则需要勾选加并加载正确的文件

HDCPKEY

请

进入到EraseBlockSetting菜单。先点击ClearAll按钮清除，点击GlobalOffsetAddress栏里的下拉菜单，点击并
选择"OX00000000,Bank00"，在地址清单里勾选"0X3B0000",检查地址设置无误后点击"OK"按钮确认并退出地址
设置。

27

5.在烧录界面，点击"Run"按钮进行烧录作业。烧录提示栏会提示烧录过程等相关信息，约12秒后出现“Pass”
字样,且烧录提示栏不再有字符滚动,说明软件己烧录成功。

6.关掉电源，拔掉主板上的烧录线材完成烧录作业。烧录过程中禁止插拔连接线材，插拔连接线材时需将TV电

源开关置于“关”的状态。

7.烧录过程中禁止插拔连接线材，装取ISP板时需将机器电源开关置于“关”的状态。先拔掉插在机器上的电源

Run

线，再拔掉插在机器上的烧录转接板！烧录完后，只需更换电视再点击Run

Run

Run按钮即可烧录下一台机器！

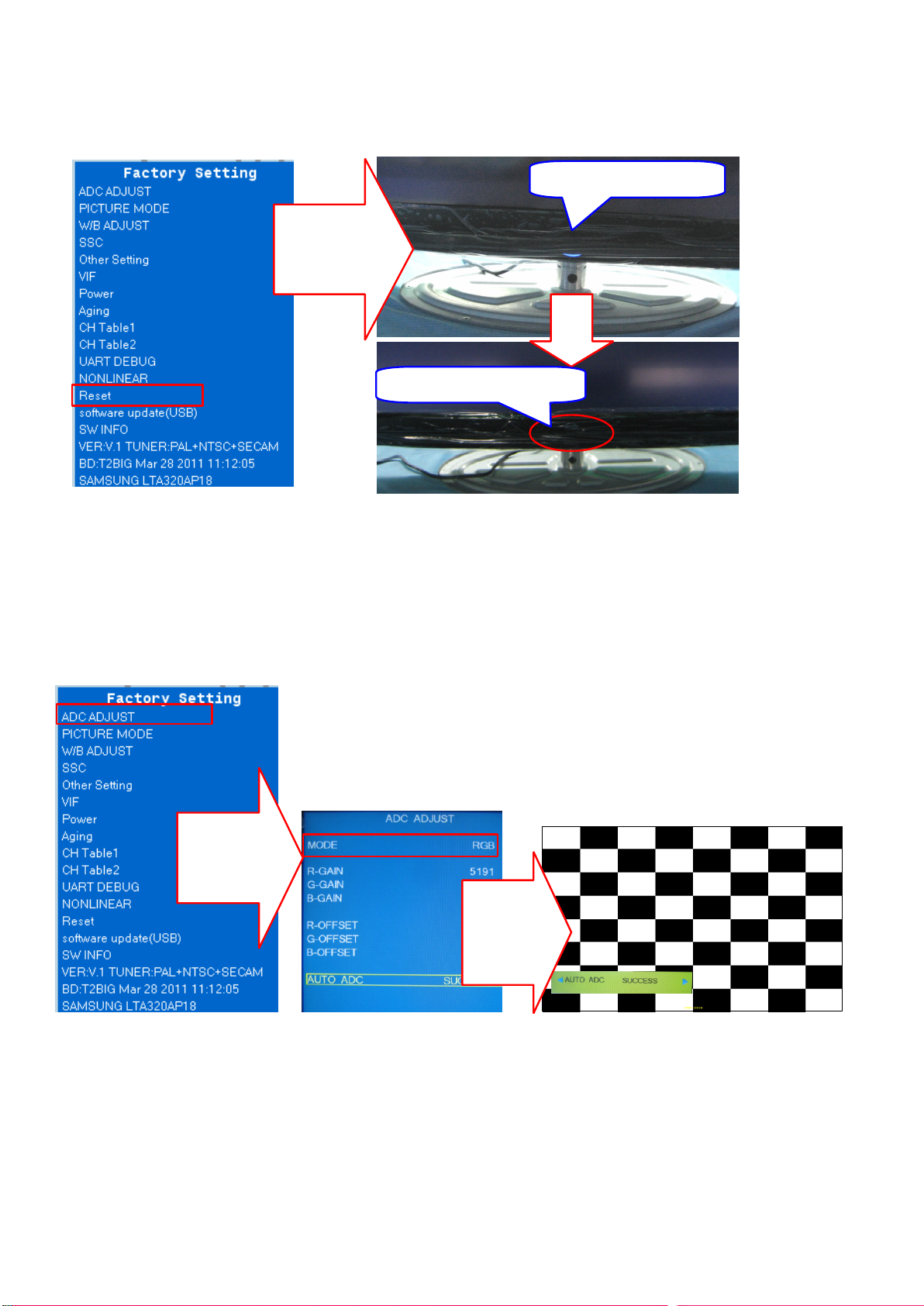

六、升级完成后，然后必须进行一次出厂前调整：

28

1.给机器通电，按遥控器的菜单键再依次按数字键，将自动弹出工厂菜单检测软件版本是否符合工单要求

1999

按遥控器上的上/下光标移动键移动到Reset选项按OK键执行，约5秒后机器执行工厂菜单清零命令。约5秒后
屏幕会黑一下并且面板显示灯会蓝色闪烁，说明命令成功执行.

面板待机灯亮，复位中

按遥控器上的
光标OK键执
行工厂复位

面板待机灯灭，复位完成

2.给机器插上VGA信号线，切换到PC信源。

3.运行KTC-LCD测试软件，切换到马赛克画面和最佳分辨率。按MENU键弹出主菜单，再依次按8202数字键

，

进入工厂菜单， 按下移键至ADCADJUST选项按OK键进入下一级菜单。在下一级菜单的MODE选项按左/右移
动键将光标选择RGB，再按下键移动光标至AutoADC选项按OK键进入下一级菜单，按左右键执行ADC动作
（执行过程中机器画面有轻微闪烁的现象并且AutoADC功能菜单提示SUCCESS为调试合格，如果提示为FAI
则表示调试不合格，请重试） ，调试完毕按MENU键退出工厂菜单。（VGA信源下的ADC数据也可通过手动修改
恢复到电视主板软件升级前的数值）

按遥控器上
的光标OK
键执行工厂
复位

按遥控器
上的光标
OK键执
行工厂复
位

L

4.在YPbPb信源下，按MENU键在弹出主菜单后，再依次按数字键进入工厂菜单，选择ADCADJUST项

1999

按OK键进入下一级菜单，将光标移动到MODE项，按左/右移动键将光标选择YPbPr(SD)项，将该机器升级后
R-GAIN/G-GAIN/B-GAIN值以及R-OFFSET/G-OFFSET/B-OFFSET值改为升级前的值。

29

，

将YPbPr(SD/HD)模式下的

R-GAIN/G-GAIN/B-GAIN值以及
R-OFFSET/G-OFFSET/B-OFFSET值改

为升级前的值

5.在ADCADJUST项， 按OK键进入下一级菜单， 将光标移动到MODE项， 按左/右移动键将光标选择YPbPr(HD)
项，将该机器软件升级后的R-GAIN/G-GAIN/B-GAIN值以及R-OFFSET/G-OFFSET/B-OFFSET值改为升级前的
值。

将YPbPr(SD/HD)模式下的
R-GAIN/G-GAIN/B-GAIN值
以及

R-OFFSET/G-OFFSET/B-OFF
SET值改为升级前的值

六、ADCADJUST调试完毕后，连按几次MENU键退出工厂内置菜单使机器保存调整后之数据，然后恢复原包
装。

30

7URXEOHVKRRWLQJ

7URXEOHVKRRWLQJ

7URXEOHVKRRWLQJ

7URXEOHVKRRWLQJ 3URFHGXUH

3URFHGXUH

3URFHGXUH

3URFHGXUH

 ᮴⬉

Ẕᶹ 9 կ⬉⬉ᰃ৺ℷᐌˈ⬉⑤ᦦ
ᑻᰃ৺᥹㾺㡃ད

ᶹ $&˄9˅⬉ᰃ৺ℷᐌˈ&1
ᦦᑻ᥹㾺ᬙ䱰DŽ

<(6 12

Ẕᶹݙ 㕂 ⬉⑤䕧ߎⱘ9ǃ
9 ⬉ᰃ৺ℷᐌ

<(6 12

ẔᶹӴ䕧ࠄЏᵓⱘ9ǃ9
⬉ᰃ৺ℷᐌ

<(6

Ẕᶹֱ䰽ᰃ৺ᓔ䏃ˈֱ䰽ᓔ䏃
߭ᤶֱ䰽ˈ৺߭᳈ᤶЏᵓ

 ᮴ܝ

᳈ᤶ⬉⑤㒓៪᳈ᤶ⬉⑤ᦦᑻ

ݙ㕂⬉⑤9ǃ9 䕧ߎᓖᐌ
᳈ᤶৠൟোⱘݙ㕂⬉⑤

Ẕᶹ⬉⑤ࠄЏᵓ৘䖲㒓᳝᮴ᵒ
ࡼǃᓔ䏃ǃ᥹㾺ϡ㡃

᮴ܝ˄ᣛ⼎♃҂˅ሣ᮴ᰒ⼎ˈᶹ䘹᥻᳝᮴
݇䯁ˈ҂ᑺǃᇍ↨ᑺ᳝≵᳝䇗ࠄ᳔ᇣˈᶹ

Џᵓ᥻ࠊ催ᵓⱘ⬉ᰃ৺ℷᐌ

ˈ

12

<(6

Ẕᶹ催ᵓϞֱ䰽᳝᮴ 9 կ⬉ Ẕᶹ᥻ࠊ䚼ߚ৘ϝ ᵕㅵᰃ৺ϡ

㡃៪᳈ᤶЏᵓ

<(6

᳈ᤶ催ᵓ Ẕᶹֱ䰽ϱ

31

12

12

 ֱᡸ៪᮴ܝ˄ᣛ⬏䴶ߎ⦄޴⾦䩳ৢ᮴೒ڣ˅

⬏䴶䮾ϔϟህ⍜༅њˈݡᓔᴎড໡བℸˈẔᶹ催
ᵓ䕧ߎ᥹ሣᦦ༈᳝᮴ᠧ☿ǃ᥹㾺ϡ㡃

<(612

≵᳝থ⦄䯂乬ˈ᳈ᤶ催ᵓˈ㢹᳾ᥦ䰸ᬙ
䱰ᶹ /&' ሣ㚠ܝ♃䖲㒓᳝᮴㹿⸈ᤳˈ᳈
ᤶ /&' ሣ

 ⱑሣ

ⱑሣᰃᣛሣⱘ㚠ܝ♃҂ˈ᮴ֵোᰒ⼎ˈܼⱑˈ
ẔᶹЏᵓ᥹ሣᥦ㒓ⱘᦦᑻ⬉ᰃ৺ℷᐌ

㢹᳝ᠧ☿⦄䈵ㄝ᳈ᤶ催ᵓ

<(6 12

ẔᶹЏᵓϢሣⱘ䖲㒓ᦦሣⱘ᥹
ষ໘᳝᮴ᵒࡼǃ㜅㨑ˈབ᮴ᓖᐌ
᳈ᤶ

/&' ሣ

ˈ

Ẕᶹ᥻ࠊሣկ⬉ⱘ㢃⠛៪ᤶЏ
ᵓDŽ

32

 ݇ᴎⱑሣᓔᴎᰒ⼎䛑ℷᐌ݇ᴎ៪ϡ䕧ֵܹো㡖㛑ᯊሣᐩᰒ⼎ܼⱑ⬏䴶 

Ẕ⌟Џᵓ᥻ࠊ催ᵓᓔ݇ᴎᯊ⬉
ᰃ৺᳝ব࣪

<(6 12

Ẕᶹ催ᵓᦦᑻ᥹ষ໘᥻ࠊ

㛮ᓔ݇ᴎ⬉ব࣪ᰃ৺ℷᐌ

催ᵓⳌ݇
⬉䏃ϡ㡃

 79 ᮴ৄ៪أ㡆

ẔᶹЏᵓࠄ 催
ᵓ ᑈ П䯈ⱘ㒓ᴤ
᳝ ᮴ ᓔ 䏃ঞ᥹㾺
ϡ㡃

Ẕᶹ⬉㾚໽㒓ᦦ༈᳝᮴ᵒࡼǃ
᳝᮴᥹㾺ϡ㡃

ẔᶹЏ㢃⠛᥻ࠊ催ᵓᎹ԰
⬉ⱘᓩ㛮೼ᓔ݇ᴎᯊ⬉
ᰃ৺ℷᐌ

<(6<(6 1212

ᶹ Џᵓ᥻ࠊ催
ᵓⱘⳌ݇⬉䏃

᳈ᤶЏ㢃⠛ϡ㡃
៪䞡ᣋ䕃ӊ

أ㡆߭ᶹⳟ㦰ᔽ㡆ࠊᓣ䆒
ᅮᰃ৺ℷᐌˈব᳈ᔽ㡆ࠊᓣ
ᰃ৺ᰒ⼎ℷᐌˈϔ㠀䛑䆒ᅮ
Ў㞾ࡼ

12

Ẕᶹ໽㒓ঞֵো⑤≵᳝䯂乬
ⱘᚙމϟˈ᳈ᤶৠൟো催乥
༈៪᥻ࠊ㢃⠛

<(6

᳈ᤶ໽㒓ᦦ༈

33

 ໄ䷇ϡ㡃

ໄ䷇ϡ㡃ᣛ᳝ᴖ䷇៪᮴ໄ䷇ˈẔᶹ䗝
ᢽໄ䷇ࠊᓣᰃ৺ℷᐌ

<(6

ߛᤶ݊ᅗ䷇乥䕧ܹˈབ '9' 䕧ܹᰃ৺
᳝ໄ䷇ˈ3& Џᵓ䕧ܹᰃ৺᳝䷇

12

݊ᅗ䕧ܹ䛑᮴ໄ䷇ˈẔᶹໄ䷇ࡳᬒ
݅⫼᥻ࠊ⬉䏃

 9*$ 䕧ܹ᮴ֵো

12

᮴䷇ˈ䘹᥻ᰃ৺䗝ᢽњ䴭䷇ˈߛᤶໄ
䷇ࠊᓣᰃ৺᳝䷇

<(6

݊ᅗ䕧ܹ᳝䷇ˈ᳈ᤶ 79 催乥༈៪

᥻ࠊ㢃⠛

䕧ܹ 9*$ ֵো≵ডᑨˈሣᐩᰒ⼎䇋䕧
ֵܹোˈᶹ 3& ֵো⑤ঞֵো㒓ᰃ৺
ℷᐌᐌDŽ

<(6

ᶹ 9*$ ֵো䕧ܹЏᵓˈ㸠ǃഎৠ
ℹֵোֱᡸѠᵕㅵ᳝᮴ߏこ

12

᳈ᤶЏᵓ៪Ꮉ໡ԡᰃ৺ℷᐌ

12

᳈ᤶ 3& ៪ֵো㒓ˈᶹᰒ⼎఼ 9*$
ᦦ༈᳝᮴ᵒࡼ

<(6

᳈ᤶЏᵓϞⱘ 9 〇Ѡᵕㅵ

34

 79 ݙ㕂⬉⑤ϡ㡃

66

ᓔᴎˈⳟ 79 ݙ㕂⬉⑤ 96%᳝᮴ 9 ⬉䕧ߎ

<(6

67% ໘᳝催⬉ᑇ˄໻Ѣ 9˅

<(6 12

ⳟ9ˈ 9 ᰃ
৺䕧ߎℷᐌ

12

᳈ᤶ⬉⑤

ⳟ (& ᳝᮴ 9 ⬉
ˈ᮴᳈ᤶ⬉⑤

12

Ẕᶹ⬉⑤㒓ᰃ৺ᵒࡼˈᣛ ⼎ ♃ ᰃ৺
ব࣪ˈ⬉⑤ᦦᑻᰃ৺ᵒࡼ

<(6

12

᳈ᤶ⬉⑤ᦦ㋻㒓ᴤঞᦦᑻ

35

1

CORD8

RD8 22ohm-0402-±5%-1/16W

PIRD801

COUD2

UD2

6

12V 5V_STB

PICD4902

COCD49

PICD5001

COCD50

PICD5101

COCD51

PIED101

+

A A

CD49

COED1

ED1

PIED102

10uF-0805-X5R-±20%-16V
220uF-16V-±20%-6.3×7.7-105℃(Capxon)

0.1uF-0402-X7R-±10%-16V
NC/10uF-0805-X5R-±20%-16V
100Kohm-0402-±5%-1/16W
NC/NC/100Kohm-0402-±5%-1/16W
DC-DC芯片,IC DCDC,Syn,3A,17V,650kHz,SOT-23,SMD,SN1501019DDCR,TI

B B

CORD19

CD50

RD19

CD51

PIRD1901

PICD4901

PICD5002

PICD5102

GND GND

10uF-0805-X5R-±20%-16V
NC/10uF-0805-X5R-±20%-16V

0.1uF-0402-X7R-±10%-16V
NC/10Kohm-0402-±5%-1/16W
10Kohm-0402-±5%-1/16W
NC/0.1uF-0402-X5R-±20%-16V

12V VDD_1V1CORE_1

PICD6402

COCD64

PICD6502

COCD65

CD65

CD64

PICD6401

PICD6501

STB_PWR

GND

3

PIUD203

5

PIRD1902

PIUD205

PIRD2202

CORD22

RD22

PIRD2201

GND

PICD6602

COCD66

CD66

CORD28

RD28

PIRD2801 PIRD2802

PICD6601

CORD31

RD31

PIRD3101PIRD3102

PIUD206

BS

IN

SW

EN

FB

GND

1

PIUD201

3

PIUD303

5

PIUD305

A_EN

PICD7302

COCD73

CD73

PICD7301

GND GND GND

C C

RD35 22ohm-0402-±5%-1/16W

CORD35

PIRD3501

PIRD3502

6

PIUD606

COUD6

12V CPU_1V1

PICD8002

PICD8102

PICD8202

COCD80

COCD81

COCD82

CD81

CD80

CD82

CORD38

RD38

PIRD3801

STB_PWR

PICD8201

PIRD4202

CORD42

RD42

PIRD3802

PIRD4201

PICD8001

PICD8101

GND

10uF-0805-X5R-±20%-16V
NC/10uF-0805-X5R-±20%-16V

0.1uF-0402-X7R-±10%-16V
NC/10Kohm-0402-±5%-1/16W
10Kohm-0402-±5%-1/16W
NC/0.1uF-0402-X5R-±20%-16V

DC-DC芯片,IC DCDC,Syn,3A,17V,650kHz,SOT-23,SMD,SN1501019DDCR,TI

D D

UD6

BS

3

5

PICD9502

COCD95

PICD9501

GND GND GND

IN

EN

PIUD601

CD95

GND

2

PIUD602PIUD603

SW

4

PIUD604PIUD605

FB

GND

1

CD93

COCD93

0ohm-0402-±5%-1/16W
NC/8pF-0402-NPO-±5%-50V
470ohm-0402-±1%-1/16W
15Kohm-0402-±1%-1/16W
22Kohm-0402-±1%-1/16W

PICD9302

PICD9301

2

PIRD802

0.1uF-0402-X7R-±10%-16V

PICD4001

SWPA6045S4R7MT

COCD40

CD40

NC/22pF-0402-NPO-±5%-50V

PICD4002

COLD2

LD2

2

PILD201 PILD202

PIUD202

PIUD204

COCD58

CD58

IN

EN

PICD7901

PICD7902

COCD83

CD83

PICD8301

PIRD3901

PIRD1802

CORD18

RD18

PICD5202

COCD52

COCD53

CD53

COCD55

4

CD55

PICD5502

PIRD2101

PICD5802

PICD5801

GND GND

CORD26

RD26 22ohm-0402-±5%-1/16W

PIRD2601

COUD3

6

PIUD306

BS

GND

1

PIUD301

GND

COCD79

CD79

LD5

COLD5

PILD501

PICD8302

CORD39

RD39

PIRD3902

CD52

PICD5501

PIRD1801

CORD21

RD21

UD3

SW

FB

0.1uF-0402-X7R-±10%-16V
SWPA6045S4R7MT
NC/15pF-0402-NPO-±5%-50V

PILD502

PICD5201

PIRD2102

PIRD2502

CORD25

RD25

PIRD2501

39Kohm-0402-±1%-1/16W
6K8ohm-0402-±1%-1/16W
0ohm-0402-±5%-1/16W
NC/8pF-0402-NPO-±5%-50V
220uF-16V-±20%-6.3×7.7-105
NC/10uF-0805-X5R-±20%-16V

0.1uF-0402-X7R-±10%-16V
10uF-0805-X5R-±20%-16V

PIRD2602

0.1uF-0402-X7R-±10%-16V

PICD5901

NC/15pF-0402-NPO-±5%-50V

COCD59

CD59

SWPA6045S4R7MT

COLD3

PICD5902

LD3

2

PILD301

PILD302

PIUD302

COCD67

CD67

4

PICD6701 PICD6702

PIUD304

CORD29

RD29

PIRD2901 PIRD2902

PICD7202

COCD72

CD72

PIRD4402

PIRD4401

PIRD3301 PIRD3302

PIRD3202

CORD32

RD32

PICD7201

PIRD3201

0ohm-0402-±5%-1/16W
NC/8pF-0402-NPO-±5%-50V
470ohm-0402-±1%-1/16W
9K1ohm-0402-±1%-1/16W
18K7ohm-0402-±1%-1/16W

,IC DCDC,Syn,3A,17V,650kHz,SOT-23,SMD,SN1501019DDCR,TI

芯片

DC-DC

PIRD3702

CORD37

RD37

COCD84

CD84

PIRD3701

CORD40

RD40

PIRD4001

PIRD4002

GND

CORD43

RD43

PIRD4301

PIRD4601

PIRD4602

RD44

CORD44

CORD46

RD46

75Kohm-0402-±1%-1/16W
24Kohm-0402-±1%-1/16W

2.2uF-0402-X5R-±20%-6.3V
1Kohm-0402-±1%-1/16W

PICD5302

COCD54

CD54

PICD5301

PIRD2702

PIRD2701

CORD30

RD30

PIRD3001PIRD3002

CORD33

RD33

COCD74

CD74

PICD8401

PICD8501

COCD85

CD85

PICD8402

PICD8502

PIRD4302

PICD9602

COCD96

CD96

PICD9601

GND

PI5V0STB01

PICD5402

PIED201

+

COED2

ED2

PICD5401

PIED202

GND

℃

CORD27

RD27

PICD6802

COCD68

COCD69

CD68

PICD6801

PIRD3401

PIRD3402

PICD7402

CORD34

RD34

PICD7401

100Kohm-0402-±1%-1/16W

2.2uF-0402-X5R-±20%-6.3V
1Kohm-0402-±1%-1/16W

GND

22uF-0603-X5R-±20%-6.3V
10uF-0603-X5R-±20%-6.3V
NC/22uF-0603-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

PICD8601

PICD8701

COCD86

COCD87

CD86

CD87

PICD8602

PICD8702

PMC1

PIRD4501

PIRD4502

RD45

CORD45

CO5V0STB

5V_STB

(Capxon)

COCORE01

PICORE0101

PICD6901

PICD7001

COCD70

PICD7102

COCD71

CD69

CD71

CD70

PICD6902

PICD7002

PICD7101

PMC0

GND

COGPU01

GPU_1

PIGPU0101

PICD8802

COCD88

CD88

PICD8801

NC/22uF-0603-X5R-±20%-6.3V
22uF-0603-X5R-±20%-6.3V
NC/10uF-0603-X5R-±20%-6.3V
22uF-0603-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

3

3V3_M

COC6

C6

NC/10uF-0603-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

CORG1

RG1

PWM0 PWM_DIM

PIRG101

PIRG102

PID30K

PIRG202

COD3

D3

CORG2

RG2

PID30A

PIRG201

GND

GND

CORG3

RG3

BL_PWR BL_ON

PIRG301

PIRG302

PID40K

PIRG402

COD4

D4

CORG4

RG4

PID40A

PIRG401

GND

GND

4

CORD7

RD7 22ohm-0402-±5%-1/16W

PIRD701

PIRD702

COUD1

UD1

6

12V 1V5_DDR3

PICD4102

COCD41

PICD4202

COCD42

PICD4302

COCD43

CD41

PICD4101

GND

10uF-0805-X5R-±20%-16V
NC/10uF-0805-X5R-±20%-16V

0.1uF-0402-X7R-±10%-16V
100Kohm-0402-±5%-1/16W
NC/4K7ohm-0402-±5%-1/16W

0.1uF-0402-X7R-±10%-16V
DC-DC

PIRD1702

CD42

CD43

PICD4201

PICD4301

PIRD1701
PIRD2402

PIRD2401

,IC DC-DC,Syn,2A,17V,650KHz,SOT-23,SMD,SN1504025DDCR,TI

芯片

PIUD106

3

BS

2

PIUD102PIUD103

IN

CORD17

RD17

CORD24

RD24

SW

5

4

PIUD104PIUD105

EN

FB

GND

1

PIUD101

COCD56

COCD57

CD57

GND

CD56

0ohm-0402-±5%-1/16W
NC/8pF-0402-NPO-±5%-50V
6K8ohm-0402-±1%-1/16W
6K8ohm-0402-±1%-1/16W

PICD5702

PICD5701

GND GND GND

1V2

COU3

PIU303

PIC601

PIC701

COC7

C7

PIC602

PIC702

GND

510ohm-0402-±5%-1/16W
4K7ohm-0402-±5%-1/16W
470pF-0402-NPO-±5%-50V

0ohm-0402-±5%-1/16W
4K7ohm-0402-±5%-1/16W
470pF-0402-NPO-±5%-50V

10uF-0805-X5R-±20%-16V
10Kohm-0402-±5%-1/16W
10Kohm-0402-±5%-1/16W
MMBT3904(f≥350MHz)
470pF-0402-NPO-±5%-50V

U3

VI3VO

PIU301

GND

TCON_PWR

ADJ1VO

PIU302

PIU304

LC1117CLTR12
10uF-0603-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

10Kohm-0402-±5%-1/16W

NC/10Kohm-0402-±5%-1/16W

KMBT3904

2

4

COC16

C16

COC8

C8

PIRM301 PIRM302

PIC1602

PIC1601

GND

STB_PWR

PIC801

PIC802

GND

CORM3

RM3

COC9

C9

LDO_1V2

PIC901

PIC902

PIRM402

PIRM401

GND

RM7

CORM7

PIRM702

RM8

CORM8

CM1

COCM1

GND

CORM4

RM4

PIRM701

PIRM801

PIRM802

5

0.1uF-0402-X7R-±10%-16V

PICD2001

SWPA6045S4R7MT

COCD20

CD20

NC/15pF-0402-NPO-±5%-50V

COLD1

PICD2002

LD1

PILD101 PILD102

COCD44

CD44

PICD4401 PICD4402

CORD20

RD20

PIRD2001 PIRD2002

PICD5602

PICD5601

PVCC

RM1

PICM101

PIRM101

CORM1

PICM102

PIRM102

PIRM201 PIRM202

PIDM10A PIDM10K

PIQM20C

PIQM20B

PIQM20E

GND

5V_STB 5V_M

PIRM501

RM5

CORM5

PIRM502
PIQM30C

QM3

COQM3

PIQM30B

PIQM30E

GND

COCD45

PIRD902

CD45

CORD9

RD9

PIRD901

PIRD2302

CORD23

RD23

PIRD2301

5V_M

PICD6001

PICD6301

COCD60

CD60

COCD63

CD63

PICD6002

PICD6302

GND

NC/10uF-0805-X5R-±20%-16V

0.1uF-0402-X7R-±10%-16V
LC1117COTR33

5V_STB 3V3_STB

PICD7502

PICD7802

COCD75

CD75

COCD78

CD78

PICD7501

PICD7801

GND

GND

NC/10uF-0805-X5R-±20%-16V

0.1uF-0402-X7R-±10%-16V
LC1117CLTR33

QM1B

3

PIQM103

PICM302

COCM3

CM3

PICM301

CORM2

RM2

CODM1

DM1 NC/1N4148WS

COQM2

QM2

4K7ohm-0402-±5%-1/16W
47Kohm-0402-±5%-1/16W

0.1uF-0402-X7R-±10%-16V
AO4803A

0.022uF-0402-X7R-±10%-50V
10uF-0805-X5R-±20%-16V

QM1A

COQM1A

COQM1B

S21D2

PIQM101

PICM502

CM5

COCM5

PIQM102

RM6

CORM6

2

PICM501

PIRM601PIRM602

4K7ohm-0402-±5%-1/16W
100Kohm-0402-±5%-1/16W

0.1uF-0402-X7R-±10%-16V
AO4803A

0.1uF-0402-X7R-±10%-16V
NC/10uF-0805-X5R-±20%-16V

PICD4501

PICD4502

GND

22uF-0603-X5R-±20%-6.3V
NC/22uF-0603-X5R-±20%-6.3V
10uF-0603-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

D1

D1

S1

G1

PIQM104

4

NC/0ohm-0805-±5%-1/8W
0ohm-0805-±5%-1/8W

PIQM107

D2

PIQM108

G2

PICD4601

COCD46

COCD47

CD46

PICD4602

5

PIQM105

6

PIQM106

COCM4

7
8

CM6

COCM6

PI1V50DDR301

PICD4701

PICD4802

COCD48

CD48

CD47

PICD4702

PICD4801

COUD7

UD7

UD4

COUD4

VI3VO

VI3VO

ADJ

ADJ

VO

1

1

PIUD401

PIUD701

GND

COUD5

UD5

PIUD502PIUD503

VI3VO

PIUD504

ADJ1VO

PIUD501

GND

VCC_Panel

PICM201

PICM402

CM4

COCM2

CM2

PICM202

PICM401

GND

PICM602

PICM702

CM7

COCM7

PICM601

PICM701

GND

CO1V50DDR3

1V5_DDR3

TEST

2

2

PIUD402PIUD403

PIUD702PIUD703

PICD6101

COCD61

COCD62

CD61

CD62

4

PIUD404

PICD6102

GND

NC/LC1084CMTR33-(C)
10uF-0603-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

2

PICD7701

COCD76

CD76

CD77

COCD77

4

PICD7702

GND

10uF-0603-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

COR5V

R5V

5V_STB

PIR5V01

R12V

COR12V

12V

PIR12V01

6

3V3_M

PICD6201

PICD6202

CO3V30STB

3V3_STB

PI3V30STB01

NC/TEST

PICD7602

PICD7601

PIR5V02

PVCC

PIR12V02

36

1

2

3

4

5

6

1

A A

2

3

RF_AGC/ JTAG_MUX0

NC/10Koh m-0402-±5%-1/1 6W

FUNC_SEL

1Kohm-0402-±5%-1/1 6W

CI _ADR12/BOOT_SEL0

10Kohm -0402-±5%-1/16 W
NC/10Koh m-0402-±5%-1/1 6W

COR46

R46

PIR4601 PIR4602

COR39

R39

PIR3901 PIR3902

COR43

R43

PIR4301

COR44

R44

PIR4401

PIR4302

PIR4402

GND

GND

3V3_M

GND

4

COC187

C187

PIC18701 PIC18702

GND

无源标准封装晶体振荡器

22pF-0402-NPO-±5%-50 V
22pF-04 02-NPO-±5%-50V
1Mohm-0402-±5%-1/16W
0ohm-0402-±5%-1/16W

4 3

COC190

C190

PIC19001 PIC19002

100oh m-0402-±5%-1/16 W

5

COR78

R78

XOUT

PIR7801

COR86

R86

PIR8601

PIR7802

PIR8602

PIR8002

COR80

R80

PIR8001

XIN

COY1

Y1

PIY103PIY104

12

PIY101PIY102

,SPXO,24 MHz,±20ppm,16pF,3.2×2.5 ,SMD,SMD3225 24.000MHZ,JWT

GPIO4_7

0

1

6

Wr i t e Enabl e

Wr i t e Di sabl e

B B

COU1

COR5

R5

EMC_CLK

PIR501

PIR502

COR9

EMC_CMD

R9

PIR901

PIR902

COR12

R12

EMC_D0

PIR1201

PIR1202

COR14

R14

EMC_D1

PIR1401

PIR1402

R16

COR16

EMC_D2

PIR1601

PIR1602

COR18

R18

EMC_D3

PIR1801

PIR1802

PIC8202

PIC8302

COC82

COC83

C82

C83

PIC8201

PIC8301

EMC_D5

GND

VDDI

EMC_D5

EMC_D3

EMC_D4

EMC_CLK

EMC_CMD

GND

,IC EMMC FLASH,8GB,MLC,BGA 153,SMD,KLM8G1GEND-B031,SAMSUNG

芯片

EMC_CLK

EMMC_CLK
EMMC_CMD
EMMC_D0
EMMC_D1
EMMC_D2
EMMC_D3

PIC8102

COC81

C81

PIC8101

GND

EMMC

C C

PIR4902

PIR5002

PIR5102

COR49

COR50

COR51

R51

R50

R49

PIR4901

PIR5001

PIR5101

D D

3V3_M

PIR5202

PIR5302

PIR5402

COR52

COR53

R53

R52

PIR5201

PIR5301

PIR5401

33ohm-0402-±5%-1/16 W
0ohm-04 02-±5%-1/16W
0ohm-04 02-±5%-1/16W
0ohm-04 02-±5%-1/16W
0ohm-04 02-±5%-1/16W
0ohm-04 02-±5%-1/16W

2.2uF-0 402-X5R-±20%-6 .3V

0.1uF-0 402-X7R-±10%-1 6V

0.1uF-0 402-X7R-±10%-1 6V

NC/47Koh m-0402-±5%-1/1 6W
NC/47Koh m-0402-±5%-1/1 6W
NC/47Koh m-0402-±5%-1/1 6W
NC/47Koh m-0402-±5%-1/1 6W
NC/47Koh m-0402-±5%-1/1 6W
NC/47Koh m-0402-±5%-1/1 6W
NC/47Koh m-0402-±5%-1/1 6W
NC/47Koh m-0402-±5%-1/1 6W
47Kohm -0402-±5%-1/16 W
10Kohm -0402-±5%-1/16 W

PIR5502

PIR5602

PIR5702

COR55

COR56

R56

R55

PIR5601

PIR5802

COR57

COR58

R58

R57

PIR5701

PIR5801

COR54

R54

PIR5501

3V3_M

PIC502

COC5

C5
NC/10pF -0402-NPO-±5%-50 V

PIC501

GND

EMC_CMD
EMC_RST
EMC_D0
EMC_D1
EMC_D2
EMC_D3
EMC_D4
EMC_D5
EMC_D6
EMC_D7

EMMC FLASH

M6

PIU10M6

M5

PIU10M5

A3

PIU10A3

A4

PIU10A4

A5

PIU10A5

B2

PIU10B2

C6

PIU10C6

M4

PIU10M4

N4

PIU10N4

P3

PIU10P3

P5

PIU10P5

C4

PIU10C4

N2

PIU10N2

N5

PIU10N5

P4

PIU10P4

P6

PIU10P6

E1

PIU10E1

E2

PIU10E2

D3

PIU10D3

D1

PIU10D1

D2

PIU10D2

C3

PIU10C3

C1

PIU10C1

A2

PIU10A2

N7

PIU10N7

P8

PIU10P8

M8

PIU10M8

N9

PIU10N9

P9

PIU10P9

A6

PIU10A6

E9

PIU10E9

E10

PIU10E10

F10

PIU10F10

U1

CLK
CMD
D0
D1
D2
D3

VDD_IF
VDD_IF
VDD_IF
VDD_IF
VDD_IF

VSS
VSS
VSS
VSS
VSS

ERR
ERR
ERR

ERR
ERR
ERR

ERR

ERR

ERR
ERR

ERR
ERR
ERR

Vss
VSF
VSF
VSF

RESET

VDD
VDD
VDD
VDD

VSS
VSS
VSS
VSS

CREG/VDDi

ERR
ERR
ERR

ERR
ERR
ERR
ERR
ERR
ERR
ERR
ERR

ERR
ERR
ERR

ERR
ERR
ERR

COR6

R6 0ohm-0402 -±5%-1/16W

B3

EMC_D4

PIU10B3

D4

EMC_D5

B4

PIU10B4

D5

B5

EMC_D6

PIU10B5

D6

B6

EMC_D7

PIU10B6

D7

K5

EMC_RST

PIU10K5

E6

PIU10E6

PIU10F5
PIU10J10
PIU10K9

PIU10E7

PIU10G5
PIU10H10
PIU10K8

PIU10C2

PIU10F3
PIU10G2
PIU10G1

PIU10D4
PIU10E3
PIU10F2
PIU10F1

PIU10A1
PIU10B7

PIU10A8
PIU10C5

PIU10M9
PIU10N10

PIU10P11

PIU10N1
PIU10M1
PIU10M2

PIU10J5

Vss

PIU10H5

DS

F5
J10
K9

E7
G5
H10
K8

C2

F3
G2
G1

D4
E3
F2
F1
A1
B7
A8
C5

M9
N10
P11

N1
M1
M2

J5
H5

VDDI

PIC7902

COC79

C79

PIC7901

GND

EMC_D6

EMC_D7

EMC_D6

EMC_RST

GND

EMMC_D4

PIR601

PIR602

COR11

R11 0ohm-04 02-±5%-1/16W

EMMC_D5

PIR1101

PIR1102

COR13

R13 0ohm-04 02-±5%-1/16W

EMMC_D6

PIR1301

PIR1302

COR15

EMMC_D7

R15 0ohm-04 02-±5%-1/16W

PIR1501

PIR1502

COR19

EMMC_RST

R19 0ohm-04 02-±5%-1/16W

PIR1901

PIR1902

3V3_M

PIC102

COC1

C1

PIC101

PIC8701

PIC8601

PIC8002

COC80

C80

0.1uF-0 402-X7R-±10%-1 6V

0.1uF-0 402-X7R-±10%-1 6V

2.2uF-0 402-X5R-±20%-6 .3V

PIC8001

NC/0.1uF -0402-X7R-±10 %-16V

0.1uF-0 402-X7R-±10%-1 6V

GND

2.2uF-0 402-X5R-±20%-6 .3V

PIC11002

COC110

C110

PIC11001

C87

COC87

PIC8702

COC86

C86

PIC8602

GND

GND

GND

eMMC & eeprom & xtal

2 Layers

AD28

SFC_DIO/ GP3_0/SPI0_DO

PIU150AD28

AD27

SFC_WPN/ GP3_1

PIU150AD27

AC27

SFC_CLK/ GP3_2/ SPI 0_CLK

PIU150AC27

AC28

PIU150AC28

SFC_DOI/ GP3_3/SPI0_DI

AD26

PIU150AD26

SFC_HOLDN/GP3_4

AD25

SFC_CS1N/ GP3_5/ SPI0_CSN

GND

PIU150AD25

D1

PIU150D1

D3

PIU150D3

C1

PIU150C1

E2

PIU150E2

F2

PIU150F2

G4

PIU150G4

D2

PIU150D2

E3

PIU150E3

F3

PIU150F3

F1

PIU150F1

G2

PIU150G2

H3

PIU150H3

G1

PIU150G1

G3

PIU150G3

H4

PIU150H4

C10

PIU150C10

B7

PIU150B7

D10

PIU150D10

A9

PIU150A9

B9

PIU150B9

D9

PIU150D9

C8

PIU150C8

A1

PIU150A1

B2

PIU150B2

C9

PIU150C9

E10

PIU150E10

EMMC_RSTN/ GP7_2
EMMC_CCMD/GP7_3
EMMC_CLK/ GP7_4
EMMC_D0/ GP7_5
EMMC_D1/ GP7_6
EMMC_D2/ GP7_7
EMMC_D3/ GP8_0
EMMC_D4/ GP8_1
EMMC_D5/ GP8_2
EMMC_D6/ GP8_3
EMMC_D7/ GP8_4

JTAG_SEL
SPDIF_OUT/GP8_5
VGA_DDC_SCL/ GP8_6
VGA_DDC_SDA/GP8_7
FUNC_SEL
POR_SEL
RESTIN
XOUT
XIN
AMP_MUTE/SGP0_5
LED_PWM/SGP0_4
VSS1
VSS2
VSS3
VSS4

EMMC_RST
EMMC_CMD
EMMC_CLK
EMMC_D0
EMMC_D1
EMMC_D2
EMMC_D3
EMMC_D4
EMMC_D5
EMMC_D6
EMMC_D7

JTAG_SEL
SPDIF_OUT

FUNC_SEL
POR_SEL
RESTIN
XOUT
XIN
AMP_MUTE
LED_PWM

COU15H

U15H

STB_PWR

10Kohm-0402-±5%-1/16W

UART2_TXD/GP7_1/I 2C4_SDA
UART2_RXD/ GP7_0/ I 2C4_SCL

PMC1/GP6_5

PMC0/GP6_4
I 2S_MCLK/GP6_0
I 2S_BCLK/ GP6_1

I 2S_WS/ GP6_2
I 2S_DOUT/GP6_3
I 2C0_SCL/ GP6_6
I 2C0_SDA/GP6_7

UART1_TXD/UART0_TXD
UART1_RXD/ UART0_RXD

MHL_VBUS_CTRL/SGP0_1

I RIN/SGP0_2
STANDBY/SGP0_3
LS_ADC0/SGP0_6
LS_ADC1/SGP0_7
LS_ADC2/SGP1_0
LS_ADC3/SGP1_1

I 2C1_SCL/ GP5_3

LD_EN/ GP4_0/ SCN_EN/ SFC_ADDR_MOD

I 2C1_SDA/GP5_2

SYNC_3DI/ GP5_1
BRI_PWM0/GP4_5

BLK_ON/GP4_6

SYNC_3DO/ GP5_0

VBO_LOCKN/GP4_4/ LVDS_SEL

VBO_HPN/GP4_3

PWR_EN/GP4_2

EN_3D/ GP4_1

VSYNC_GLSS/GP4_7

SGP0_0

PIR10802

B4

PIU150B4

B1

PIU150B1

D4

PIU150D4

C4

PIU150C4

C2

PIU150C2

C3

PIU150C3

A2

PIU150A2

A3

PIU150A3

A4

PIU150A4

B3

PIU150B3

C6

PIU150C6

B6

PIU150B6

D8

PIU150D8

A6

PIU150A6

C7

PIU150C7

A7

PIU150A7

A11

PIU150A11

B11

PIU150B11

C11

PIU150C11

D11

PIU150D11

N24

PIU150N24

N23

PIU150N23

M25

PIU150M25

M24

PIU150M24

M26

PIU150M26

N28

PIU150N28

M23

PIU150M23

N26

PIU150N26

N25

PIU150N25

N27

PIU150N27

P23

PIU150P23

P24

PIU150P24

COR108

R108

GPIO7_1
Line_Out_Mute
PMC1
PMC0
I2S_MCLK
I2S_BCLK
I2S_WS
I2S_DOUT
I2C0_SCL
I2C0_SDA
UART1_TXD
UART1_RXD

BT_REG_ON/
STB_GPIO0_1
IRIN
STB_PWR
LS_ADC0_KEY
BT_WAKEUP
WIFI_WAKEUP

WIFI_REG _ON/

LD_EN
DF0/SYNC_3D_IN
PWM0
BL_PWR
DF1/SYNC_3D_OUT
LOCKN
VBO_HPN
TCON_PWR
3D_MODE
GPIO4_7/USB3.0

3V3_STB

PIR10801

I2C1_SCL
I2C1_SDA

GPIO4_7 E2PROMQ™OÝb¤

1

2

3

4

5

6

37

1

2

3

4

5

6

DDR0

A A

PICD1702

COCD17

PICD1802

CD17

PICD1701

PICD1801

GND

0.1uF-0402-X7R-±10%-16V
1Kohm-0402-±1%-1/16W
1uF-0402-X5R-±20%-6.3V
1Kohm-0402-±1%-1/16W

PICD1901 PICD1902

CORD6

RD6

PIRD601 PIRD602

PICD802

COCD8

PICD1002

COCD10

PICD1202

COCD12

PICD1402

COCD14

CD14

CD12

CD10

CD8

PICD801

PICD1001

PICD1201

PICD1401

GND

PICD702

PICD902

PICD1102

PICD1302

COCD7

COCD9

COCD11

COCD13

CD13

CD11

CD9

CD7

PICD701

PICD901

PICD1101

PICD1301

GND

1V5_DDR3

PIRD302

CORD3

RD3

PIRD301

PIRD401

CORD4

RD4

COCD18

CD18

PIRD402

CORD5

RD5

COCD19

CD19

240ohm-0402-±1%-1/16W
1000pF-0402-X7R-±10%-50V
4K7ohm-0402-±5%-1/16W

PICD302

COCD3

PICD402

COCD4

PICD602

COCD6

CD6

CD4

CD3

PICD301

PICD401

PICD601

PICD102

PICD202

PICD502

COCD1

COCD2

COCD5

CD5

CD2

CD1

PICD101

PICD201

PICD501

DDR‚¯ rG, DDR3,1866M, 4Gb(256M×16bit ) , FBGA96,SMD,K4B4G1646E-BCMA,Samsung

NC/DDR‚¯ rG,I C DDR3,1866M,4Gb(256M×16b),TFBGA96,SMD,NT5CB256M16DP-EK,Nanya

1V5_DDR3

PIRD102

CORD1

RD1

PIRD101

PICD1602

COCD16

CD16

PICD1601

GND

PIRD201

CORD2

RD2

PIRD202

DDR_VREF_DQ_0DDR_VREF_CA_0

PICD1502

COCD15

CD15

PICD1501

B B

1Kohm-0402-±1%-1/16W
1uF-0402-X5R-±20%-6.3V
1Kohm-0402-±1%-1/16W

0.1uF-0402-X7R-±10%-16V

GND

1V5_DDR3

1V5_DDR3

1V5_DDR3

C C

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.47uF-0402-X5R-±10%-6.3V
1uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.47uF-0402-X5R-±10%-6.3V
1uF-0402-X5R-±20%-6.3V
22uF-0805-X5R-±20%-6.3V

D D

COU4

U4

COU17

U17

E3

E3

DDR_DQ0

PIU40E3

PIU170E3

DQ0

DQ0

F7

F7

DDR_DQ1

PIU40F7

PIU170F7

DQ1

DQ1

F2

F2

DDR_DQ2

PIU40F2

PIU170F2

DQ2

DQ2

F8

F8

DDR_DQ3

PIU40F8

PIU170F8

DQ3

DQ3

DDR_DQ4

H3

H3

PIU40H3

PIU170H3

DQ4

DQ4

DDR_DQ5

H8

H8

PIU40H8

PIU170H8

DQ5

DQ5

DDR_DQ6

G2

G2

PIU40G2

PIU170G2

DQ6

DQ6

H7

H7

DDR_DQ7

PIU40H7

PIU170H7

DQ7

DQ7

D7

D7

DDR_DQ8

PIU40D7

PIU170D7

DQ8

DQ8

C3

C3

DDR_DQ9

PIU40C3

PIU170C3

DQ9

DQ9

C8

C8

DDR_DQ10

PIU40C8

PIU170C8

DQ10

DQ10

C2

C2

DDR_DQ11

PIU40C2

PIU170C2

DQ11

DQ11

A7

A7

DDR_DQ12

PIU40A7

PIU170A7

DQ12

DQ12

DDR_DQ13

A2

A2

PIU40A2

PIU170A2

DQ13

DQ13

DDR_DQ14

B8

B8

PIU40B8

PIU170B8

DQ14

DQ14

DDR_DQ15

A3

A3

PIU40A3

PIU170A3

DQ15

DQ15

C7

C7

DDR_DQS1_P

PIU40C7

PIU170C7

UDQS

UDQS

B7

B7

DDR_DQS1_N DDR_RESETN

PIU40B7

PIU170B7

UDQS#

UDQS#

F3

F3

DDR_DQS0_P

PIU40F3

PIU170F3

LDQS

LDQS

DDR_DQS0_N

G3

G3

PIU40G3

PIU170G3

LDQS#

LDQS#

DDR_DM1

D3

D3

PIU40D3

PIU170D3

UDM

UDM

DDR_DM0

E7

E7

PIU40E7

PIU170E7

LDM

LDM

H1

H1

DDR_VREF_DQ_0

PIU40H1

PIU170H1

VREFDQ

VREFDQ

M8

M8

DDR_VREF_CA_0

PIU40M8

PIU170M8

VREFCA

VREFCA

L8

L8

PIRD501 PIRD502

PIU40L8

PIU170L8

ZQ

ZQ

DDR_RESETN_A

T2

T2

PIU40T2

PIU170T2

RESET#

RESET#

A1

A1

PIU40A1

PIU170A1

VDDQ_0

VDDQ_0

A8

A8

PIU40A8

PIU170A8

VDDQ_1

VDDQ_1

C1

C1

PIU40C1

PIU170C1

VDDQ_2

VDDQ_2

C9

C9

PIU40C9

PIU170C9

VDDQ_3

VDDQ_3

D2

D2

PIU40D2

PIU170D2

VDDQ_4

VDDQ_4

E9

E9

VDDQ_5

VDDQ_5

F1

F1

PIU40F1

PIU170F1

VDDQ_6

VDDQ_6

H2

H2

PIU40H2

PIU170H2

VDDQ_7

VDDQ_7

H9

H9

PIU40H9

PIU170H9

VDDQ_8

VDDQ_8

B2

B2

PIU40B2

PIU170B2

VDD_0

VDD_0

D9

D9

PIU40D9

PIU170D9

VDD_1

VDD_1

G7

G7

PIU40G7

PIU170G7

VDD_2

VDD_2

PIU40K2

PIU170K2

VDD_3K2VSS_3

VDD_3K2VSS_3

K8

K8

PIU40K8

PIU170K8

VDD_4

VDD_4

N1

N1

PIU40N1

PIU170N1

VDD_5

VDD_5

N9

N9

PIU40N9

PIU170N9

VDD_6

VDD_6

R9

R9

PIU40R9

PIU170R9

VDD_8

VDD_8

R1

R1

PIU40R1

PIU170R1

VDD_7

VDD_7

A10/AP

A10/AP

A12/BC#

A12/BC#

VSSQ_0

VSSQ_0
VSSQ_1

VSSQ_1
VSSQ_2

VSSQ_2
VSSQ_3

VSSQ_3
VSSQ_4

VSSQ_4
VSSQ_5

VSSQ_5
VSSQ_6

VSSQ_6
VSSQ_7

VSSQ_7
VSSQ_8

VSSQ_8

VSS_0

VSS_0
VSS_1

VSS_1
VSS_2

VSS_2

VSS_4

VSS_4
VSS_5

VSS_5
VSS_6

VSS_6
VSS_7

VSS_7
VSS_8

VSS_8
VSS_9

VSS_9

VSS_10

VSS_10
VSS_11

VSS_11

N3

N3

DDR_ADDR0_A

PIU40N3

PIU170N3

A0

A0

DDR_ADDR1_A

P7

P7

PIU40P7

PIU170P7

A1

A1

P3

P3

DDR_ADDR2_A

PIU40P3

PIU170P3

A2

A2

N2

N2

DDR_ADDR3_A

PIU40N2

PIU170N2

A3

A3

P8

P8

DDR_ADDR4_A

PIU40P8

PIU170P8

A4

A4

P2

P2

DDR_ADDR5_A

PIU40P2

PIU170P2

A5

A5

DDR_ADDR6_A

R8

R8

PIU40R8

PIU170R8

A6

A6

R2

R2

DDR_ADDR7_A

PIU40R2

PIU170R2

A7

A7

T8

T8

DDR_ADDR8_A

PIU40T8

PIU170T8

A8

A8

R3

R3

DDR_ADDR9_A

PIU40R3

PIU170R3

A9

A9

L7

L7

DDR_ADDR10_A

PIU40L7

PIU170L7

DDR_ADDR11_A

R7

R7

PIU40R7

PIU170R7

A11

A11

N7

N7

DDR_ADDR12_A

PIU40N7

PIU170N7

J1

J1

PIU40J1

PIU170J1

NC_0

NC_0

J9

J9

PIU40J9

PIU170J9

NC_1

NC_1

L1

L1

PIU40L1

PIU170L1

NC_2

NC_2

L9

L9

PIU40L9

PIU170L9

NC_3

NC_3

M7

M7

PIU40M7

PIU170M7

NC_4

NC_4

DDR_ADDR13_A

T3

T3

PIU40T3

PIU170T3

NC_5

NC_5

T7

T7

DDR_ADDR14_A

PIU40T7

PIU170T7

NC_6

NC_6

M2

M2

DDR_BA0_A

PIU40M2

PIU170M2

BA0

BA0

N8

N8

DDR_BA1_A

PIU40N8

PIU170N8

BA1

BA1

DDR_BA2_A

M3

M3

PIU40M3

PIU170M3

BA2

BA2

J7

J7

DDR_CLK0P

PIU40J7

PIU170J7

CK

CK

K7

K7

DDR_CLK0N

PIU40K7

PIU170K7

CK#

CK#

L2

L2

DDR_CS0N_A

PIU40L2

PIU170L2

CS#

CS#

K3

K3

DDR_CASN_A

PIU40K3

PIU170K3

CAS#

CAS#

DDR_ODT0_A

K1

K1

PIU40K1

PIU170K1

ODT

ODT

J3

J3

DDR_RASN_A

PIU40J3

PIU170J3

RAS#

RAS#

L3

L3

DDR_WEN_A

PIU40L3

PIU170L3

WE#

WE#

K9

K9

DDR_CKE_A

PIU40K9

PIU170K9

CKE

CKE

B1

B1

PIU40B1

PIU170B1

B9

B9

PIU40B9

PIU170B9

D1

D1

PIU40D1

PIU170D1

D8

D8

PIU40D8

PIU170D8

E2

E2

PIU40E2

PIU170E2

E8

E8

PIU40E8PIU40E9

PIU170E8PIU170E9

F9

F9

PIU40F9

PIU170F9

G1

G1

PIU40G1

PIU170G1

G9

G9

PIU40G9

PIU170G9

A9

A9

PIU40A9

PIU170A9

B3

B3

PIU40B3

PIU170B3

E1

E1

PIU40E1

PIU170E1

G8

G8

PIU40G8

PIU170G8

J2

J2

PIU40J2

PIU170J2

J8

J8

PIU40J8

PIU170J8

M1

M1

PIU40M1

PIU170M1

M9

M9

PIU40M9

PIU170M9

P1

P1

PIU40P1

PIU170P1

P9

P9

PIU40P9

PIU170P9

T1

T1

PIU40T1

PIU170T1

T9

T9

PIU40T9

PIU170T9

DDR_RASN

DDR_ODT

DDR_CSN

GND GND

DDR_BA0
DDR_ADDR3

GND GND

DDR_ADDR5
DDR_ADDR7

DDR_ADDR9

DDR_ADDR13
DDR_ADDR2
DDR_ADDR0
DDR_BA2

DDR_WEN
DDR_CASN
DDR_ADDR11
DDR_ADDR14

DDR_ADDR8
DDR_ADDR6
DDR_ADDR1
DDR_ADDR4

DDR_BA1
DDR_ADDR12
DDR_ADDR10
DDR_CKE

GND

DDR_CLK0N

CORND1

RND1

1 2

PIRND101 PIRND102

3 4

PIRND103 PIRND104

5 6

PIRND105 PIRND106

7 8

PIRND107 PIRND108

4*33ohm-0402-±5%-1/16W

CORND2

RND2

1 2

PIRND201 PIRND202

3 4

PIRND203 PIRND204

5 6

PIRND205 PIRND206

7 8

PIRND207 PIRND208

4*33ohm-0402-±5%-1/16W

CORND3

RND3

1 2

PIRND301 PIRND302

3 4

PIRND303 PIRND304

5 6

PIRND305 PIRND306

7 8

PIRND307 PIRND308

4*33ohm-0402-±5%-1/16W

CORND4

RND4

DDR_ADDR13_A

1 2

PIRND401 PIRND402

3 4

DDR_ADDR2_A

PIRND403 PIRND404

5 6

DDR_ADDR0_A

PIRND405 PIRND406

7 8

DDR_BA2_A

PIRND407 PIRND408

4*33ohm-0402-±5%-1/16W

CORND5

RND5

1 2

PIRND501 PIRND502

3 4

PIRND503 PIRND504

5 6

PIRND505 PIRND506

7 8

PIRND507 PIRND508

4*33ohm-0402-±5%-1/16W

CORND6

RND6

1 2

DDR_ADDR8_A

PIRND601 PIRND602

DDR_ADDR6_A

3 4

PIRND603 PIRND604

5 6

DDR_ADDR1_A

PIRND605 PIRND606

7 8

DDR_ADDR4_A

PIRND607 PIRND608

4*33ohm-0402-±5%-1/16W

CORND7

RND7

1 2

DDR_BA1_A

PIRND701 PIRND702

DDR_ADDR12_A

3 4

PIRND703 PIRND704

5 6

DDR_ADDR10_A

PIRND705 PIRND706

DDR_CKE_A

7 8

PIRND707 PIRND708

4*33ohm-0402-±5%-1/16W

CORD10

RD10

DDR_CLK0P

PIRD1001 PIRD1002

200ohm-0402-±1%-1/16W

DDR_RASN_A

DDR_ODT0_A

DDR_CS0N_A

DDR_BA0_A
DDR_ADDR3_A

DDR_ADDR5_A
DDR_ADDR7_A
DDR_RESETN_A
DDR_ADDR9_A

DDR_WE N_A
DDR_CASN_A
DDR_ADDR11_A
DDR_ADDR14_A

DDR1

PICD3502

PICD3602

COCD35

CD35

PICD3501

PICD3601

GND

1uF-0402-X5R-±20%-6.3V
1Kohm-0402-±1%-1/16W

0.1uF-0402-X7R-±10%-16V
1Kohm-0402-±1%-1/16W

1V5_DDR3

PIRD1102

CORD11

RD11

PIRD1101

PIRD1201

CORD12

RD12

COCD36

CD36

PIRD1202

DDR_VREF_DQ_1DDR_VREF_CA_1

0.1uF-0402-X7R-±10%-16V
1Kohm-0402-±1%-1/16W
1uF-0402-X5R-±20%-6.3V
1Kohm-0402-±1%-1/16W

GND

1V5_DDR3

1V5_DDR3

PICD3402

COCD34

CD34

PICD3401

1V5_DDR3

GND

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.47uF-0402-X5R-±10%-6.3V
1uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V

1V5_DDR3

PIRD1302

CORD13

RD13

PIRD1301

PICD3702

PICD3802

PIRD1401

COCD37

CORD14

RD14

CD37

COCD38

CD38

PICD3701

PICD3801

PIRD1402

GND

COCD39

CD39

PICD3901 PICD3902

CORD16

RD16

PIRD1601 PIRD1602

PICD2802

PICD3002

PICD3202

COCD28

COCD30

COCD32

CD32

CD30

CD28

PICD2801

PICD3001

PICD3201

PICD2902

PICD3102

PICD3302

COCD29

COCD31

COCD33

CD33

CD31

CD29

PICD2901

PICD3101

PICD3301

CORD15

RD15

240ohm-0402-±1%-1/16W
1000pF-0402-X7R-±10%-50V
4K7ohm-0402-±5%-1/16W

PICD2302

PICD2402

PICD2602

COCD23

COCD24

COCD26

CD23

CD26

CD24

PICD2301

PICD2401

PICD2601

GND

PICD2202

PICD2502

PICD2702

COCD22

COCD25

COCD27

CD27

CD25

CD22

PICD2201

PICD2501

PICD2701

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.47uF-0402-X5R-±10%-6.3V
1uF-0402-X5R-±20%-6.3V
22uF-0805-X5R-±20%-6.3V

COU5

U5

COU18

U18

E3

E3

DDR_DQ16

PIU50E3

PIU180E3

DQ0

DQ0

F7

F7

DDR_DQ17

PIU50F7

PIU180F7

DQ1

DDR_DQ18
DDR_DQ19
DDR_DQ20
DDR_DQ21
DDR_DQ22
DDR_DQ23
DDR_DQ24
DDR_DQ25
DDR_DQ26
DDR_DQ27
DDR_DQ28
DDR_DQ29
DDR_DQ30
DDR_DQ31

DDR_DQS3_P
DDR_DQS3_N
DDR_DQS2_P
DDR_DQS2_N
DDR_DM3
DDR_DM2

PIRD1501 PIRD1502

DDR_RESETN_B

PICD2102

COCD21

CD21

PICD2101

DQ1

F2

F2

PIU50F2

PIU180F2

DQ2

DQ2

F8

F8

PIU50F8

PIU180F8

DQ3

DQ3

H3

H3

PIU50H3

PIU180H3

DQ4

DQ4

H8

H8

PIU50H8

PIU180H8

DQ5

DQ5

G2

G2

PIU50G2

PIU180G2

DQ6

DQ6

H7

H7

PIU50H7

PIU180H7

DQ7

DQ7

D7

D7

PIU50D7

PIU180D7

DQ8

DQ8

C3

C3

PIU50C3

PIU180C3

DQ9

DQ9

C8

C8

PIU50C8

PIU180C8

DQ10

A10/AP

DQ10

A10/AP

C2

C2

PIU50C2

PIU180C2

DQ11

A11

DQ11

A11

A7

A7

PIU50A7

PIU180A7

DQ12

A12/BC#

DQ12

A12/BC#

A2

A2

PIU50A2

PIU180A2

DQ13

DQ13

B8

B8

PIU50B8

DDR_VREF_DQ_1
DDR_VREF_CA_1

PIU180B8
PIU50A3

PIU180A3

PIU50C7

PIU180C7

PIU50B7

PIU180B7

PIU50F3

PIU180F3

PIU50G3

PIU180G3
PIU50D3

PIU180D3
PIU50E7

PIU180E7

PIU50H1

PIU180H1
PIU50M8

PIU180M8
PIU50L8

PIU180L8

PIU50T2

PIU180T2

PIU50A1

PIU180A1
PIU50A8

PIU180A8
PIU50C1

PIU180C1
PIU50C9

PIU180C9
PIU50D2

PIU180D2

PIU50E9

PIU180E9

PIU50F1

PIU180F1

PIU50H2

PIU180H2

PIU50H9

PIU180H9

PIU50B2

PIU180B2
PIU50D9

PIU180D9
PIU50G7

PIU180G7
PIU50K2

PIU180K2
PIU50K8

PIU180K8
PIU50N1

PIU180N1

PIU50N9

PIU180N9

PIU50R9

PIU180R9

PIU50R1

PIU180R1

NC_0

DQ14

NC_0

DQ14

A3

A3

DQ15

NC_1

DQ15

NC_1
NC_2

NC_2
NC_3

NC_3

C7

C7

UDQS

NC_4

UDQS

NC_4

B7

B7

UDQS#

NC_5

UDQS#

NC_5

F3

F3

LDQS

NC_6

LDQS

NC_6

G3

G3

LDQS#

LDQS#

D3

D3

UDM

BA0

UDM

BA0

E7

E7

LDM

BA1

LDM

BA1
BA2

BA2

CK

H1

H1

M8

M8

L8

L8
T2

T2

A1

A1
A8

A8
C1

C1
C9

C9
D2

D2
E9

E9
F1

F1
H2

H2
H9

H9

B2

B2
D9

D9
G7

G7

K8

K8
N1

N1
N9

N9
R9

R9
R1

R1

CK

VREFDQ

CK#

VREFDQ

CK#

CS#

VREFCA

CS#

VREFCA

CAS#

ZQ

CAS#

ZQ

ODT

RESET#

ODT

RESET#

RAS#

RAS#

WE#

WE#
CKE

CKE

VSSQ_0

VDDQ_0

VSSQ_0

VDDQ_0

VSSQ_1

VDDQ_1

VSSQ_1

VDDQ_1

VSSQ_2

VDDQ_2

VSSQ_2

VDDQ_2
VDDQ_3

VSSQ_3

VDDQ_3

VSSQ_3

VDDQ_4

VSSQ_4

VDDQ_4

VSSQ_4
VSSQ_5

VDDQ_5

VSSQ_5

VDDQ_5

VSSQ_6

VDDQ_6

VSSQ_6

VDDQ_6

VSSQ_7

VDDQ_7

VSSQ_7

VDDQ_7
VDDQ_8

VSSQ_8

VDDQ_8

VSSQ_8

VDD_0

VSS_0

VDD_0

VSS_0

VDD_1

VSS_1

VDD_1

VSS_1
VSS_2

VDD_2

VSS_2

VDD_2
VDD_3K2VSS_3

VDD_3K2VSS_3

VSS_4

VDD_4

VSS_4

VDD_4
VDD_5

VSS_5

VDD_5

VSS_5
VSS_6

VDD_6

VSS_6

VDD_6

VSS_7

VDD_8

VSS_7

VDD_8

VSS_8

VDD_7

VSS_8

VDD_7

VSS_9

VSS_9

VSS_10

VSS_10
VSS_11

VSS_11

DDR‚¯ rG, DDR3,1866M, 4Gb(256M×16bit ) , FBGA96,SMD,K4B4G1646E-BCMA,Samsung

NC/DDR‚¯ rG,I C DDR3,1866M,4Gb(256M×16b),TFBGA96,SMD,NT5CB256M16DP-EK,Nanya

A0

A0
A1

A1
A2

A2
A3

A3
A4

A4
A5

A5
A6

A6
A7

A7
A8

A8
A9

A9

N3

N3

PIU50N3

PIU180N3

P7

P7

PIU50P7

PIU180P7

P3

P3

PIU50P3

PIU180P3

N2

N2

PIU50N2

PIU180N2

P8

P8

PIU50P8

PIU180P8

P2

P2

PIU50P2

PIU180P2

R8

R8

PIU50R8

PIU180R8

R2

R2

PIU50R2

PIU180R2

T8

T8

PIU50T8

PIU180T8

R3

R3

PIU50R3

PIU180R3

L7

L7

PIU50L7

PIU180L7

R7

R7

PIU50R7

PIU180R7

N7

N7

PIU50N7

PIU180N7

J1

J1

PIU50J1

PIU180J1

J9

J9

PIU50J9

PIU180J9

L1

L1

PIU50L1

PIU180L1

L9

L9

PIU50L9

PIU180L9

M7

M7

PIU50M7

PIU180M7

T3

T3

PIU50T3

PIU180T3

T7

T7

PIU50T7

PIU180T7

M2

M2

PIU50M2

PIU180M2

N8

N8

PIU50N8

PIU180N8

M3

M3

PIU50M3

PIU180M3

J7

J7

PIU50J7

PIU180J7

K7

K7

PIU50K7

PIU180K7

L2

L2

PIU50L2

PIU180L2

K3

K3

PIU50K3

PIU180K3

K1

K1

PIU50K1

PIU180K1

J3

J3

PIU50J3

PIU180J3

L3

L3

PIU50L3

PIU180L3

K9

K9

PIU50K9

PIU180K9

B1

B1

PIU50B1

PIU180B1

B9

B9

PIU50B9

PIU180B9

D1

D1

PIU50D1

PIU180D1

D8

D8

PIU50D8

PIU180D8

E2

E2

PIU50E2

PIU180E2

E8

E8

PIU50E8

PIU180E8

F9

F9

PIU50F9

PIU180F9

G1

G1

PIU50G1

PIU180G1

G9

G9

PIU50G9

PIU180G9

A9

A9

PIU50A9

PIU180A9

B3

B3

PIU50B3

PIU180B3

E1

E1

PIU50E1

PIU180E1

G8

G8

PIU50G8

PIU180G8

J2

J2

PIU50J2

PIU180J2

J8

J8

PIU50J8

PIU180J8

M1

M1

PIU50M1

PIU180M1

M9

M9

PIU50M9

PIU180M9

P1

P1

PIU50P1

PIU180P1

P9

P9

PIU50P9

PIU180P9

T1

T1

PIU50T1

PIU180T1

T9

T9

PIU50T9

PIU180T9

DDR_ADDR0_B
DDR_ADDR1_B
DDR_ADDR2_B
DDR_ADDR3_B
DDR_ADDR4_B
DDR_ADDR5_B
DDR_ADDR6_B
DDR_ADDR7_B
DDR_ADDR8_B
DDR_ADDR9_B
DDR_ADDR10_B
DDR_ADDR11_B
DDR_ADDR12_B

DDR_ADDR13_B
DDR_ADDR14_B

DDR_BA0_B
DDR_BA1_B
DDR_BA2_B

DDR_CLK0P
DDR_CLK0N

DDR_CS1N_B
DDR_CASN_B
DDR_O DT1 _B
DDR_RASN_B
DDR_WE N_B
DDR_CKE_B

GND

CORND8

RND8

DDR_RASN

1 2

DDR_RASN_B

PIRND801 PIRND802

3 4

PIRND803 PIRND804

DDR_ODT

5 6

DDR_ODT1_B

PIRND805 PIRND806

7 8

PIRND807 PIRND808

4*33ohm-0402-±5%-1/16W

CORND9

RND9

GND GND

1 2

DDR_CS1N_B

DDR_BA0_B
DDR_ADDR3_B

GND GND

DDR_ADDR5_B
DDR_ADDR7_B
DDR_RESETN_B
DDR_ADDR9_B

DDR_ADDR13_B
DDR_ADDR2_B
DDR_ADDR0_B
DDR_BA2_B

DDR_WE N_B
DDR_CASN_B
DDR_ADDR11_B
DDR_ADDR14_B

DDR_ADDR8_B
DDR_ADDR6_B
DDR_ADDR1_B
DDR_ADDR4_B

DDR_BA1_B
DDR_ADDR12_B
DDR_ADDR10_B
DDR_CKE_B

DDR_CSN

PIRND901 PIRND902

3 4

PIRND903 PIRND904

DDR_BA0

5 6

PIRND905 PIRND906

DDR_ADDR3

7 8

PIRND907 PIRND908

4*33ohm-0402-±5%-1/16W

CORND10

RND10

DDR_ADDR5

1 2

PIRND1001 PIRND1002

DDR_ADDR7

3 4

PIRND1003 PIRND1004

5 6

DDR_RESETN

PIRND1005 PIRND1006

7 8

DDR_ADDR9

PIRND1007 PIRND1008

4*33ohm-0402-±5%-1/16W

CORND11

RND11

DDR_ADDR13

1 2

PIRND1101 PIRND1102

DDR_ADDR2

3 4

PIRND1103 PIRND1104

DDR_ADDR0

5 6

PIRND1105 PIRND1106

DDR_BA2

7 8

PIRND1107 PIRND1108

4*33ohm-0402-±5%-1/16W

CORND12

RND12

DDR_WEN

1 2

PIRND1201 PIRND1202

DDR_CASN

3 4

PIRND1203 PIRND1204

DDR_ADDR11

5 6

PIRND1205 PIRND1206

DDR_ADDR14

7 8

PIRND1207 PIRND1208

4*33ohm-0402-±5%-1/16W

CORND13

RND13

DDR_ADDR8

1 2

PIRND1301 PIRND1302

DDR_ADDR6

3 4

PIRND1303 PIRND1304

DDR_ADDR1

5 6

PIRND1305 PIRND1306

DDR_ADDR4

7 8

PIRND1307 PIRND1308

4*33ohm-0402-±5%-1/16W

CORND14

RND14

DDR_BA1

1 2

PIRND1401 PIRND1402

DDR_ADDR12

3 4

PIRND1403 PIRND1404

DDR_ADDR10

5 6

PIRND1405 PIRND1406

DDR_CKE

7 8

PIRND1407 PIRND1408

4*33ohm-0402-±5%-1/16W

1

2

3

4

5

6

38

1

2

3

4

5

6

DDRI I I _Chi p Power

COU15I

A A

DDR_DQ3
DDR_DQ4
DDR_DQ1
DDR_DQ0
DDR_DQ7
DDR_DQ2
DDR_DQ5
DDR_DQ6
DDR_DQ9
DDR_DQ14
DDR_DQ11
DDR_DQ12
DDR_DQ13
DDR_DQ8
DDR_DQ15
DDR_DQ10
DDR_DQ19
DDR_DQ22
DDR_DQ17
DDR_DQ16
DDR_DQ21
DDR_DQ18

B B

C C

D D

DDR_DQ23
DDR_DQ20
DDR_DQ27
DDR_DQ24
DDR_DQ29
DDR_DQ26
DDR_DQ25
DDR_DQ28
DDR_DQ31
DDR_DQ30
DDR_ADDR0
DDR_ADDR1
DDR_ADDR2
DDR_ADDR3
DDR_ADDR4
DDR_ADDR5
DDR_ADDR6
DDR_ADDR7
DDR_ADDR8
DDR_ADDR9
DDR_ADDR10
DDR_ADDR11
DDR_ADDR12
DDR_ADDR13
DDR_ADDR14

DDR_DM0
DDR_DM1
DDR_DM2
DDR_DM3
DDR_BA0
DDR_BA1
DDR_BA2
DDR_CLK0P
DDR_CLK0N
DDR_DQS0_N
DDR_DQS0_P
DDR_DQS1_N
DDR_DQS1_P
DDR_DQS2_N
DDR_DQS2_P
DDR_DQS3_P
DDR_DQS3_N
DDR_CKE
DDR_WEN
DDR_CASN
DDR_CSN
DDR_ODT
DDR_RESETN
DDR_RASN

COR59

R59

PIR5901 PIR5902

2 Layers

f l y- by

G26

PIU150G26

DDR_DQ0

L24

DDR_DQ1

PIU150L24

G27

DDR_DQ2

PIU150G27

L23

PIU150L23

DDR_DQ3

F28

PIU150F28

DDR_DQ4

L28

PIU150L28

DDR_DQ5

F26

PIU150F26

DDR_DQ6

L26

PIU150L26

DDR_DQ7

K27

DDR_DQ8

PIU150K27

F25

DDR_DQ9

PIU150F25

K26

PIU150K26

DDR_DQ10

G24

PIU150G24

DDR_DQ11

K23

PIU150K23

DDR_DQ12

H23

PIU150H23

DDR_DQ13

K24

DDR_DQ14

PIU150K24

H24

DDR_DQ15

PIU150H24

C23

DDR_DQ16

PIU150C23

E27

PIU150E27

DDR_DQ17

A23

PIU150A23

DDR_DQ18

F24

DDR_DQ19

PIU150F24

C22

DDR_DQ20

PIU150C22

E26

DDR_DQ21

PIU150E26

B22

DDR_DQ22

PIU150B22

E25

DDR_DQ23

PIU150E25

D26

PIU150D26

DDR_DQ24

E21

PIU150E21

DDR_DQ25

C26

DDR_DQ26

PIU150C26

D21

DDR_DQ27

PIU150D21

C27

DDR_DQ28

PIU150C27

B24

DDR_DQ29

PIU150B24

B28

DDR_DQ30

PIU150B28

C24

PIU150C24

DDR_DQ31

C17

PIU150C17

DDR_ADDR0

D19

DDR_ADDR1

PIU150D19

F15

DDR_ADDR2

PIU150F15

C15

DDR_ADDR3

PIU150C15

E19

DDR_ADDR4

PIU150E19

F13

DDR_ADDR5

PIU150F13

B18

PIU150B18

DDR_ADDR6

D14

DDR_ADDR7

PIU150D14

C18

DDR_ADDR8

PIU150C18

B16

DDR_ADDR9

PIU150B16

E20

DDR_ADDR10

PIU150E20

F17

DDR_ADDR11

PIU150F17

A19

DDR_ADDR12

PIU150A19

F14

PIU150F14

DDR_ADDR13

D18

DDR_ADDR14

PIU150D18

D17

DDR_ADDR15

PIU150D17

J25

DDR_DM0

PIU150J25

J23

DDR_DM1

PIU150J23

E22

DDR_DM2

PIU150E22

D23

DDR_DM3

PIU150D23

B14

PIU150B14

DDR_BA0

B19

DDR_BA1

PIU150B19

A17

DDR_BA2

PIU150A17

B20

DDR_CLK0_P

PIU150B20

A20

DDR_CLK0_N

PIU150A20

J28

DDR_DQS0_N

PIU150J28

J27

DDR_DQS0_P

PIU150J27

H27

DDR_DQS1_N

PIU150H27

H28

DDR_DQS1_P

PIU150H28

A27

DDR_DQS2_N

PIU150A27 PIU150A28

B27

DDR_DQS2_P

PIU150B27

A25

DDR_DQS3_P

PIU150A25

B25

DDR_DQS3_N

PIU150B25

F19

DDR_CKE

PIU150F19

D15

DDR_WEN

PIU150D15

D16

DDR_CASN

PIU150D16

C14

DDR_CSN

PIU150C14

B13

DDR_ODT

PIU150B13

C16

DDR_RESETN

PIU150C16

D13

DDR_RASN

PIU150D13

G13

DDR_ZQ

PIU150G13

240ohm-0402-±1%-1/16W

U15I

VDDIO_CK_DDR

VDDIO_DDR21
VDDIO_DDR20
VDDIO_DDR19
VDDIO_DDR18
VDDIO_DDR17
VDDIO_DDR16
VDDIO_DDR15
VDDIO_DDR14
VDDIO_DDR13
VDDIO_DDR12
VDDIO_DDR11
VDDIO_DDR10

VDDIO_DDR9
VDDIO_DDR8
VDDIO_DDR7
VDDIO_DDR6
VDDIO_DDR5
VDDIO_DDR4
VDDIO_DDR3
VDDIO_DDR2
VDDIO_DDR1

AVDD_DDR_PLL2
AVDD_DDR_PLL1

VSS40
VSS39
VSS38
VSS37
VSS36
VSS35
VSS34
VSS33
VSS32
VSS31
VSS30
VSS29
VSS28
VSS27
VSS26
VSS25
VSS24
VSS23
VSS22
VSS21
VSS20
VSS19
VSS18
VSS17
VSS16
VSS15
VSS14
VSS13
VSS12
VSS11
VSS10

VSS9
VSS8
VSS7
VSS6
VSS5
VSS4
VSS3
VSS2
VSS1

H18

PIU150H18

G18

PIU150G18

G22

PIU150G22

G21

PIU150G21

G20

PIU150G20

G19

PIU150G19

G17

PIU150G17

G16

PIU150G16

G15

PIU150G15

G14

PIU150G14

M22

PIU150M22

L22

PIU150L22

K22

PIU150K22

J22

PIU150J22

H22

PIU150H22

F23

PIU150F23

F22

PIU150F22

F21

PIU150F21

F20

PIU150F20

E24

PIU150E24

E23

PIU150E23

D24

PIU150D24

H16

PIU150H16

J21

PIU150J21

L27

PIU150L27

L25

PIU150L25

K25

PIU150K25

J26

PIU150J26

J24

PIU150J24

H26

PIU150H26

H25

PIU150H25

G25

PIU150G25

G23

PIU150G23

F27

PIU150F27

F18

PIU150F18

F16

PIU150F16

E28

PIU150E28

E18

PIU150E18

E17

PIU150E17

E16

PIU150E16

E15

PIU150E15

E14

PIU150E14

E13

PIU150E13

D27

PIU150D27

D25

PIU150D25

D22

PIU150D22

D20

PIU150D20

C28

PIU150C28

C25

PIU150C25

C21

PIU150C21

C20

PIU150C20

C19

PIU150C19

C13

PIU150C13

B26

PIU150B26

B23

PIU150B23

B21

PIU150B21

B17

PIU150B17

B15

PIU150B15

A28
A26

PIU150A26

A22

PIU150A22

A16

PIU150A16

A14

PIU150A14

A13

PIU150A13

GND

1V5_DDR3

AVDD_DDR_PLL

PIC10702

COC107

C107

PIC10701

PIC10602

C106

COC106

PIC10601

GND

PIC10102

PIC10202

COC101

COC102

C101

C102

PIC10101

PIC10201

GND

AVDD_DDR_PLL

PIC8902

C89

COC89

PIC8901

PIC8802

PIC9302

PIC11802

COC88

COC93

COC118

C93

C118

C88

PIC8801

PIC9301

PIC11801

L5

COL5

PIL501 PIL502

0ohm-0402-±5%-1/16W
1uF-0402-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

PIC9802

PIC9902

COC98

COC99

C98

C99

PIC9801

PIC9901

3V3_M

PIC10802

PIC10902

COC108

COC109

C108

C109

PIC10801

PIC10901

1V5_DDR3

10uF-0603-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V

0.47uF-0402-X5R-±10%-6.3V

0.47uF-0402-X5R-±10%-6.3V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

GND

1

2

3

4

5

6

39

1

2

3

4

5

6

COL2

A A

3V3_M

PIC7502

PIC7602

COC75

COC76

C75

C76

PIC7501

PIC7601

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

GND

AVREF

PIC8402

COC84

C84

PIC8401

B B

GND

LDO_1V1_OUT

PIC8502

COC85

C85

PIC8501

2.2uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V

GND

3V3_M

PIC17702

PIC17802

PIC17902

COC177

COC178

COC179

C177

C178

C179

1uF-0402-X5R-±20%-6.3V

PIC17701

0.1uF-0402-X7R-±10%-16V

PIC17801

PIC17901

0.1uF-0402-X7R-±10%-16V

GND

VDD_1V1

COL3

L3

C C

PLL_1V1

PIL301

PIC15202

COC152

C152

0ohm-0402-±5%-1/16W

PIC15201

0.1uF-0402-X7R-±10%-16V

PIL302

GND

PIC12002

COC120

C120

PIC12001

GND

3V3_STB

PIC7702

PIC7802

COC77

COC78

C77

C78

PIC7701

PIC7801

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

GND

PIC14802

PIC16802

PIC17202

COC148

COC168

COC172

C168

C148

C172

PIC14801

PIC16801

PIC17201

GND

COL6

L6

REF_1V2

PIL601

PIC15702

PIC18202

COC157

COC182

C182

C157

PIC15701

PIC18201

PIL602

0ohm-0402-±5%-1/16W
1uF-0402-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

GND

PIC12102

PIC12202

PIC12302

PIC12402

COC121

COC122

C121

C122

PIC12101

PIC12201

1uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V

PIC12502

COC123

COC124

COC125

C123

C124

C125

PIC12301

PIC12401

PIC12501

PIC16102

PIC17402

PIC17602

COC161

COC174

COC176

C161

C174

C176

PIC16101

PIC17401

PIC17601

LDO_1V2

PIC12602

PIC12702

COC126

COC127

C126

C127

PIC12601

PIC12701

PLL_3V3

PIC15002

COC150

C150

PIC15001

0ohm-0402-±5%-1/16W
1uF-0402-X5R-±20%-6.3V

GND

3V3_M

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V
1uF-0402-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

LDO_1V2

PIC9002

PIC9102

COC90

COC91

C91

C90

PIC9001

PIC9101

GND

GND

PIC12801

COC128

C128

1uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V
10uF-0603-X5R-±20%-6.3V

PIC12802

1uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V
22uF-0603-X5R-±20%-6.3V

3V3_M

L2

PIL201

PIL202

LDO_1V2

1uF-0402-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

VDD_1V1

LDO_1V2

VDD_1V1

CPU_1V1

VDD_1V1

CPU_1V1

PIC13002

PIC13102

PIC13202

PIC13302

PIC13402

PIC13502

COC130

COC131

COC132

C132

PIC13101

PIC13201

PIC13301

COC133

C133

C130 1uF-0402-X5R-±20%-6.3VC131

PIC13001

D D

GND

COC134

COC135

C134

C135

PIC13401

PIC13501

PIC13601

COC136

C136

1uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V

PIC13602

1uF-0402-X5R-±20%-6.3V
10uF-0603-X5R-±20%-6.3V
22uF-0603-X5R-±20%-6.3V

3V3_STB

PLL_3V3
3V3_M

AVREF
3V3_M

LDO_1V1_OUT
PLL_1V1
REF_1V2

CPU_1V1

GND

2 Layers

C12

PIU150C12

D12

PIU150D12

E11

PIU150E11

J13

PIU150J13

AB12

PIU150AB12

AB13

PIU150AB13

AB14

PIU150AB14

AB15

PIU150AB15

AB17

PIU150AB17

AB18

PIU150AB18

E4

PIU150E4

F4

PIU150F4

AB9

PIU150AB9

R9

PIU150R9

T9

PIU150T9

V9

PIU150V9

W9

PIU150W9

F10

PIU150F10

K14

PIU150K14

Y13

PIU150Y13

Y12

PIU150Y12

R10

PIU150R10

T10

PIU150T10

U10

PIU150U10

V10

PIU150V10

W10

PIU150W10

L14

PIU150L14

T14

PIU150T14

T15

PIU150T15

L15

PIU150L15

M14

PIU150M14

M15

PIU150M15

M16

PIU150M16

M17

PIU150M17

N14

PIU150N14

N15

PIU150N15

N16

PIU150N16

P14

PIU150P14

P15

PIU150P15

R14

PIU150R14

R15

PIU150R15

L16

PIU150L16

L17

PIU150L17

L13

PIU150L13

M13

PIU150M13

F8

PIU150F8

G8

PIU150G8

H8

PIU150H8

K10

PIU150K10

L10

PIU150L10

M10

PIU150M10

K11

PIU150K11

L11

PIU150L11

M11

PIU150M11

J14

PIU150J14

W13

PIU150W13

AB10

PIU150AB10

R16

PIU150R16

K15

PIU150K15

DVDD33_STANDBY1
DVDD33_STANDBY2
AVDD33_HDMI _VBUS
AVDD33_PLL
DVDD33_1
DVDD33_2
DVDD33_3
DVDD33_4
DVDD33_5
DVDD33_6
DVDD33_7
DVDD33_8
AVREF
AVDD33_FE
AVDD33_AFE
AVDD33_HDMI RX1
AVDD33_HDMI RX2
DVDD11_LDO1_OUT
AVDD11_PLL
AVDDREF
AVDD11_QAM
AVDD11_FE
AVDD11_PLL_AFE
AVDD11_AFE
AVDD11_HDMI RX1
AVDD11_HDMI RX2
VDD1
VDD2
VDD3
VDD4
VDD5
VDD6
VDD7
VDD8
VDD9
VDD10
VDD11
VDD12
VDD13
VDD14
VDD15
VDD16
VDD17
VDD18
VDD19
VDD_CPU1
VDD_CPU2
VDD_CPU3
VDD_CPU4
VDD_CPU5
VDD_CPU6
VDD_CPU7
VDD_CPU8
VDD_CPU9
AVSS_PLL
AGNDREF
VSS1
VSS2
VSS3

Chi p Po wer

COU15J

U15J

VSS63
VSS62
VSS61
VSS60
VSS59
VSS58
VSS57
VSS56
VSS55
VSS54
VSS53
VSS52
VSS51
VSS50
VSS49
VSS48
VSS47
VSS46
VSS45
VSS44
VSS43
VSS42
VSS41
VSS40
VSS39
VSS38
VSS37
VSS36
VSS35
VSS34
VSS33
VSS32
VSS31
VSS30
VSS29
VSS28
VSS27
VSS26
VSS25
VSS24
VSS23
VSS22
VSS21
VSS20
VSS19
VSS18
VSS17
VSS16
VSS15
VSS14
VSS13
VSS12
VSS11
VSS10

VSS9
VSS8
VSS7
VSS6
VSS5
VSS4

W18

PIU150W18

W17

PIU150W17

W16

PIU150W16

W15

PIU150W15

W14

PIU150W14

W11

PIU150W11

V18

PIU150V18

V17

PIU150V17

V16

PIU150V16

V15

PIU150V15

V14

PIU150V14

V13

PIU150V13

V12

PIU150V12

V11

PIU150V11

U18

PIU150U18

U17

PIU150U17

U16

PIU150U16

U15

PIU150U15

U14

PIU150U14

U13

PIU150U13

U12

PIU150U12

U11

PIU150U11

T18

PIU150T18

T17

PIU150T17

T16

PIU150T16

T13

PIU150T13

T12

PIU150T12

T11

PIU150T11

R19

PIU150R19

R13

PIU150R13

R12

PIU150R12

R11

PIU150R11

P19

PIU150P19

P18

PIU150P18

P13

PIU150P13

P12

PIU150P12

P11

PIU150P11

N19

PIU150N19

N18

PIU150N18

N13

PIU150N13

N12

PIU150N12

N11

PIU150N11

M19

PIU150M19

M18

PIU150M18

L19

PIU150L19

L18

PIU150L18

K19

PIU150K19

K18

PIU150K18

K17

PIU150K17

K16

PIU150K16

M12

PIU150M12

L12

PIU150L12

H7

PIU150H7

G7

PIU150G7

P16

PIU150P16

N17

PIU150N17

AB16

PIU150AB16

AB11

PIU150AB11

N10

PIU150N10

R17

PIU150R17

GND

40

1

2

3

4

5

6

1

2

3

4

5

6

A A

B B

C C

D D

COCN6

CN6

0.1uF-0402-X5R-±20%-16V
,CAP MC,50V,330pF,±5%,NPO,0402,SMD,TP

陶瓷电容

RCA

,RCA Jack,AV1,H,Orange,CH5.5,Seal,DIP,AV38A-01S-5020,QS

端子

CN25

COCN25

RCA端子,RCA Jack,AV3,H,Yellow、White、Red,CH5.5,D14,Seal,DIP,RC075-F03L3BY-A,YUQIU

CVBS

GND

L

GND

R

GND

CVBS_OUT/COAX SPDIF_OUT

1

COAX

PICN601

PIDI140K

CODI14

DI14

2

GND

PICN602

3

GND

PICN603

PIDI140A

GND

GND

1

AV1_IN

PICN2501

2

PICN2502

3

AV1_L

PICN2503

4

PICN2504

5

AV1_R

PICN2505

6

PICN2506

GND

1

COCI22

CI22

PICI2201 PICI2202

PICI2302

COCI23

CI23

PICI2301

GND GND

AV1_IN

PICI502

PIDI30K

CODI3

DI3 SFI0402-240E-2R5PP-LF

COCI5

CI5

PICI501

PIDI30A

GND

GND

RI15

PIDI110K

DI11

CODI11

PIDI110A

GND

PIDI120K

CODI12

DI12

PIDI120A

GND

PICI202

PICI201

GND

PICI302

CI3

COCI3

PICI301

GND

COCI2

CI2

CORI15

CORI18

RI18

PIRI1501PIRI1502

PIRI1801PIRI1802

AV1_L

AV1_R

PIRI3002

CORI30

RI30

PIRI3001

PICI1202

COCI12

CI12

PICI1201

GND

PICI1302

CI13

COCI13

PICI1301

GND

CORI29

RI29

PIRI2901 PIRI2902

100ohm-0402-±5%-1/16W
100ohm-0402-±5%-1/16W
NC/NC/SFI0402-240E-2R5PP-LF

COCI6

CI6

RI2

CORI2

PIRI201PIRI202

PIRI302

CORI3

RI3

NC/56pF-0402-NPO-±5%-50V
75ohm-0402-±5%-1/16W

PIRI301

33ohm-0402-±5%-1/16W

0.047uF-0402-X7R-±10%-16V

CORI1

RI1

COCI1

CI1

PICI101 PICI102

PIRI101PIRI102

GND

COCI10

CI10

AV0_LIN/

PICI1001 PICI1002

PIRI1601

CORI16

RI16

PIRI1602

GND

COCI11

CI11

AV0_RIN/

PICI1101 PICI1102

PIRI1901

RI19

CORI19

PIRI1902

GND

NC/1000pF-0402-X7R-±10%-50V
SFI0402-240E-2R5PP-LF
NC/470pF-0402-NPO-±5%-50V
10Kohm-0402-±5%-1/16W
12Kohm-0402-±1%-1/16W

2.2uF-0402-X5R-±20%-6.3V

2

CVBS1_IN

PICI601PICI602

CVBS_VCOM

0.047uF-0402-X7R-±10%-16V
33ohm-0402-±5%-1/16W

LINEIN_L2

100Kohm-0402-±5%-1/16W

PIR102

NC/4700pF-0402-X7R-±10%-50V

COR1

R1

SFI0402-240E-2R5PP-LF
NC/470pF-0402-NPO-±5%-50V

PIR101

10Kohm-0402-±5%-1/16W
12Kohm-0402-±1%-1/16W

2.2uF-0402-X5R-±20%-6.3V

GND

LINEIN_R2

PIR302

R3

COR3

100Kohm-0402-±5%-1/16W

PIR301

GND

统一物料，修改为

1%

统一物料，修改为

COCN1

CN1

PJ-325

1%

GND

1

GND

PICN101

5

ERO

PICN105

HP_AROUT

2

RSPK

PICN102

3

HP_DET

LSPK

PICN103

HP_ALOUT

4

ELO

PICN104

LINEOUT_R1

PIRA4002

PIRA4001

GND GND

LINEOUT_L1

PIRA4702

PIRA4701

GND GND

470Kohm-0402-±1%-1/16W

2.2uF-0402-X5R-±20%-6.3V
2K2ohm-0402-±5%-1/16W
220pF-0402-NPO-±5%-50V

470Kohm-0402-±1%-1/16W

2.2uF-0402-X5R-±20%-6.3V
2K2ohm-0402-±5%-1/16W
220pF-0402-NPO-±5%-50V

PICA6101 PICA6102

CORA40

RA40

PICA6301 PICA6302

CORA47

RA47

3

COCA61

CA61

HP_DET

HP_ALOUT
HP_AROUT

PICA4302

PICA4502

COCA43

COCA45

CA45

CA43

PICA4301

PICA4501

LINEOUT_R1/

COCA63

CA63

LINEOUT_L1/

0ohm-0402-±5%-1/16W
0ohm-0402-±5%-1/16W

PIDA50K

CODA3

DA3

CODA5

DA5

PIDA50A

GND

CORA20

RA20

PIRA2001 PIRA2002

CORA44

RA44

PIRA4401 PIRA4402

PIDA30K

PIDA30A

PICA6202

PICA6201

PICA6402

PICA6401

3V3_M

PIRA1602

PIRA1601

PIDV120K

CODV12

DV12

PIDV120A

PIR202

PIR2102

COR2

COR21

R2

R21

GND

PIR201

PIR2101

GNDGND

NC/4700pF-0402-X7R-±10%-50V
NC/4700pF-0402-X7R-±10%-50V
SFI0402-240E-2R5PP-LF
SFI0402-240E-2R5PP-LF

CORA59

RA59

R_AMPIN

COCA62

CA62

L_AMPIN

COCA64

CA64

PIRA5901 PIRA5902

CORA60

RA60

PIRA6001 PIRA6002

HP_AROUT

RA16

CORA16

CORA29

RA29

HP_DETECT

PIRA2901 PIRA2902

PICA5202

COCA52

CA52

PICA5201

NC/0.1uF-0402-X5R-±20%-16V

NC/10Kohm-0402-±5%-1/16W
1Kohm-0402-±5%-1/16W
1Kohm-0402-±5%-1/16W
NC/1Kohm-0402-±5%-1/16W
NC/1Kohm-0402-±5%-1/16W

HP_ALOUT

COCA59

CA59

PICA5901 PICA5902

COCA60

CA60

PICA6001 PICA6002

CORA21

RA21

R_AMPIN

PIRA2101 PIRA2102

CORA45

RA45

L_AMPIN

PIRA4501 PIRA4502

NC/5K1ohm-0402-±1%-1/16W
NC/5K1ohm-0402-±1%-1/16W

CORA48

NC

RA48

AGND_HPR

RA49 NC

CORA49

Using 5V_M:

UVP

RA52

CORA52

CORA54

RA54

PIRA5401PIRA5402

CORA56

RA56

NC/12Kohm-0402-±5%-1/16W
NC/4K7ohm-0402-±5%-1/16W
NC/12Kohm-0402-±5%-1/16W

PIRA480JP01KPIRA480JP02K

AGND_HPL

PIRA490JP01KPIRA490JP02K

开启电压：

保护电压：

UVP

靠近主IC接地

4.2V

GND

5V_M

PIRA5202

PIRA5201

PIRA5602

PIRA5601

GND

4

AGND_HPR

AGND_HPL

HP_SDN

H: ENABLE
L: MUTE

4.4V

5

2

PIUA202

RINN

1

PIUA201

RINP

14

PIUA2014

LINP

13

PIUA2013

LINN

APA2171

TSSOP14

5

PIUA205

SDN

GND

4

COUA2

UA2

PIUA204

MIC_REST
0
1

Line_Out_Mute

NC/1Kohm-0402-±5%-1/16W
NC/4K7ohm-0402-±5%-1/16W

3

PIUA203

ROUT

12

PIUA2012

LOUT

UVP

11

PIUA2011

UVP

9

HP_VCC

PIUA209

VDD

8

PIUA208

CPP

CA65

COCA65

7

PICA6501 PICA6502

PIUA207

CPN

VSS

PGND

6

10

PIUA206

PIUA2010

COCA66

CA66

PICA6601 PICA6602

PICA6701 PICA6702

HP_SDN

PIRA5002

GND

COCA67

CA67

OFF
ON

CORA50

RA50

PIRA5001

PIRA5501

RA55

CORA55

PIRA5502

GND

HP_AROUT

CORA41

RA41

PIRA4101 PIRA4102

CORA42

RA42

PIRA4201 PIRA4202

HP_ALOUT

3V3_M

NC/0ohm-0402-±5%-1/16W
NC/10uF-0603-X5R-±20%-6.3V
NC/0.1uF-0402-X5R-±20%-16V

GND

NC/47pF-0402-NPO-±5%-50V
NC/47pF-0402-NPO-±5%-50V
NC/100Kohm-0402-±5%-1/16W
NC/100Kohm-0402-±5%-1/16W

NC/APA2171OI-TRG
NC/10uF-0603-X5R-±20%-6.3V
NC/10uF-0603-X5R-±20%-6.3V
NC/0.1uF-0402-X5R-±20%-16V

CORA51

RA51

HP_VCC

PIRA5101 PIRA5102

PICA6802

PICA6902

COCA68

CA68

PICA6801

PICA6901

GND

6

COCA69

CA69

41

1

A A

B B

5V_STB

4K7ohm -0402-±5%-1/16 W

PIRV1601

PIRV1701

CORV16

CORV17

RV16 4K7 ohm-0402-±5%-1/1 6WRV17

UART1_TXD

UART1_RXD

C C

PIRV1401PIRV1402

PIRV1501PIRV1502

PIRV1602

PIRV1702

CORV14

RV14

CORV15

RV15

GND

100oh m-0402-±5%-1/16 W
100oh m-0402-±5%-1/16 W
NC/22pF -0402-NPO-±5%-50 V
NC/22pF -0402-NPO-±5%-50 V

URAT_TX

URAT_RX

PIC1702

PIC4002

COC17

COC40

C40

C17

PIC1701

PIC4001

Service Port(DEBUG)

COCN2

CN2

D D

耳机端子

1

GND

PICN201

3

URAT_TX

RIN

PICN203

4

PICN204

URAT_RX

2

LIN

PICN202

,Earphon e Jack,H,Φ2. 6,CH2.5,Black, Seal,DIP,PJ-208M,J Y

GND

SFI0402 -240E-2R5PP-L F
SFI0402 -240E-2R5PP-L F

GND

2

CODV1

DV1

PIDV10A

CODV2

DV2

PIDV20A

URAT_TX

PIDV10K

URAT_RX

PIDV20K

14

PICNK1014

13

PICNK1013

12

PICNK1012

11

PICNK1011

10

PICNK1010

9

PICNK109

8

PICNK108

7

PICNK107

6

PICNK106

5

PICNK105

4

PICNK104

3

PICNK103

2

PICNK102

1

PICNK101

COCNK1

CNK1
NC/14PIN-2. 0-D-H-G-

3

0.1uF-0 402-X5R-±20%-1 6V

5V_IR
LED_R
LED_G
IR
GND
K0
K1
K2
K3
K4
K5
K6
K7
GND

0.67V

1.05V

1.36V

1.79V

2.24V

2.78V

0.32V

-J

带扣

LED_R

LED_G

1000p F-0402-X7R-±1 0%-50V
1000pF -0402-X7R-±10%-50 V

0V

COCNK2

5V_STB

PIRK201

CORK2

RK222ohm-0 402-±5%-1/16W

PIRK202

14

5V_IR

PICNK2014

13

LED_R

PICNK2013

12

LED_G

PICNK2012

11

IR

PICNK2011

10

GND

PICNK2010

9

K0

PICNK209

K1

8

PICNK208

K2

7

PICNK207

K3

6

PICNK206

K4

5

PICNK205

K5

4

PICNK204

3

K6

PICNK203

K7

2

PICNK202

1

GND

PICNK201

CNK2
14PIN-2.0 -D-H-G-LD

COCK4

CK4

PICK401

PICK402

CK5

COCK5

PICK501

PICK502

GND

PICK101

COCK1

CK1

PICK102

GND

4

3V3_ST B

CORK1

RK1

CORK5

RK5

CORK6

RK6

K6

CORK7

K7

RK7

K0
K1

CORK8

K2

RK8

K3
K4
K5

CORK9

RK9

RK10

CORK10

CORK11

RK11

4K7ohm -0402-±1%-1/16 W
NC/SFI0402 -240E-2R5PP-LF
1Kohm-04 02-±5%-1/16W

PIRK102

1000p F-0402-X7R-±1 0%-50V

0.01uF -0402-X7R-±10 %-50V

PIRK101
PIRK502

PICK201

PIDK20K

COCK2

CODK2

CK2

DK2

PIRK501
PIRK602

PICK202

PIDK20A

PIRK601
PIRK702

GND

510oh m-0402-±1%-1/16 W
680oh m-0402-±1%-1/16 W

PIRK701
PIRK802

1Kohm-04 02-±1%-1/16W
1K2ohm -0402-±1%-1/16 W
2K2ohm -0402-±1%-1/16 W
4K7ohm -0402-±1%-1/16 W

PIRK801

PIRK902

15Kohm -0402-±1%-1/16 W

PIRK901

PIRK1002

PIRK1001
PIRK1102

CORK3

RK3

PIRK302

PIRK301

PICK301

COCK3

CK3

PICK302

GND

LS_ADC0_ KEY

PIRK1101

5

CORK15

LED_R

RK15

PIRK1502

510oh m-0402-±5%-1/16 W
33Kohm-0402-±5%-1/1 6W

5V_STB

PIRK1802

CORK18

RK18

PIRK1801

CORK19

IR IRIN

PIDK10K

CODK1

DK1

PIDK10A

3V3_STB

CORK4

PIRK402

RK4

PIRK401

LED_P WM

PIRK1501

3V3_ST B

CORK12

RK12

4K7ohm -0402-±1%-1/16 W

10Koh m-0402-±5%-1/1 6W
LMBT3904LT1G
1Kohm-04 02-±5%-1/16W

PICK602

COCK6

CK6

PICK601

GND

PIRK1202

PIRK1201

STB_GP IO0_1

RK19

PIRK1901 PIRK1902

10Kohm-0402-±5%-1 /16W
100ohm-0 402-±5%-1/16W
22pF-04 02-NPO-±5%-50V
NC/SFI040 2-240E-2R5PP -LF

CORK16

RK16

PIRK1602

PIQK10B

PIRK1601

6

5V_M

PIRK1302

CORK13

RK13

PIRK1301

PIQK10C

PIQK10E

GND

COQK1

QK1

LED_G

版本

1

2

3

4

5

6

42

1

2

3

4

5

6

7

8

CORP31

A A

B B

C C

HDMI1部分(ARC)

HDMI

GND

COCN13

CN13

端子

,HDMI Jack,H,SMD,161031041(hull -SPCC ),VAST

HDMI

PICN13023

HDMI_R1X2P/

1

RX2+

PICN1301

GND

2

GND

PICN1302

3

HDMI_R1X2N/

RX2-

PICN1303

4

HDMI_R1X1P/

RX1+

PICN1304

GND

5

GND

PICN1305

HDMI_R1X1N/

6

RX1-

PICN1306

HDMI_R1X0P/

7

RX0+

PICN1307

GND

8

GND

PICN1308

9

HDMI_R1X0N/

RX0-

PICN1309

10

HDMI_R1XCP/

RXC+

PICN13010

GND

11

GND

PICN13011

HDMI_R1XCN/

12

RXC-

PICN13012

CEC

13

CEC

PICN13013

14

ARC

ARC

PICN13014

15

DDC1B_SCL

SCL

PICN13015

DDC1B_SDA

16

SDA

PICN13016

GND

17

GND

PICN13017

HDMI1_5V

18

+5V

PICN13018

19

HDMI1_HOTPLUG1

HPD

PICN13019

GND

GND

GND

PICN13020

PICN13021PICN13022

20

212223

GND

HDMI_R1X2P/
HDMI_R1X2N/

HDMI_R1X1P/
HDMI_R1X1N/

HDMI_R1X0P/
HDMI_R1X0N/

HDMI_R1XCP/
HDMI_R1XCN/

PIU908

PIU907

GND

PIU90GND

PIU906

PIU1008

PIU1007

GND

PIU100GND

PIU1006

8
7

6
5

8
7

6
5

COU9

U9

OUT1
OUT2
G2
OUT3
OUT4

ULC0524P

COU10

U10

OUT1
OUT2
G2
OUT3
OUT4

ULC0524P

HDMI_R1X2P/
HDMI_R1X2N/
HDMI_R1X1P/
HDMI_R1X1N/

HDMI_R1X0P/
HDMI_R1X0N/
HDMI_R1XCP/
HDMI_R1XCN/

IN1
IN2

G1
IN3
IN4

IN1
IN2

G1
IN3
IN4

RP31

HDMI_R1X2P

7 8

PIRP3107

PIRP3108

HDMI_R1X2N

5 6

PIRP3105

PIRP3106

HDMI_R1X1P

3 4

PIRP3103

PIRP3104

1 2

HDMI_R1X1N

PIRP3101

PIRP3102

4×5R1ohm-0402-±5%-1/16W

CORP33

RP33

HDMI_R1X0P

7 8

PIRP3307

PIRP3308

HDMI_R1X0N

5 6

PIRP3305

PIRP3306

3 4

HDMI_R1XCP

PIRP3303

PIRP3304

1 2

HDMI_R1XCN

PIRP3301

PIRP3302

4×5R1ohm-0402-±5%-1/16W

HDMI_R1X2P/

1

PIU901

2

HDMI_R1X2N/

PIU902

GND

HDMI_R1X1P/

3

PIU903

HDMI_R1X1N/

4

PIU904PIU905

GNDGND

HDMI_R1X0P/

1

PIU1001

HDMI_R1X0N/

2

PIU1002

GND
3

HDMI_R1XCP/

PIU1003

4

HDMI_R1XCN/

PIU1004PIU1005

PICH101

PICH102

GND

GND GND

3V3_STB

COR65

COR87

R87

PIR8701PIR8702

PIQ10D

COCH23

CH23

COQ1

Q1

PICH2202

PICH2302

PICH2201

PICH2301

R65

PIR6502

PIQ10G

PIR6501

COR66

R66

PIQ10S

PIR6601 PIR6602

R89

COR89

CEC HDMI_CEC

PIR8901 PIR8902

100ohm-0402-±5%-1/16W
NC/0ohm-0402-±5%-1/16W
0ohm-0402-±5%-1/16W
NC/NC/A VLC18S02003
27Kohm-0402-±1%-1/16W

5V_STB

CEC HDMI_CEC

COCH22

PIDH10K

CODH1

DH1

CH22

PIDH10A

D D

GND

NC/30pF-0402-NPO-±5%-50V
NC/30pF-0402-NPO-±5%-50V

场效应管

,NMOS,0.3A,60V,3.0ohm@ID=0.5A@VGS=10V,SOT-23,2N7002K,KEXIN

MHL_CD_SENSE

PIRH1001

CORH10

RH10

PIRH1002

GND

10Kohm-0402-±5%-1/16W

COCH14

CH14

ARC

PICH1402

CODH3

DH3

PICH1401

COCH15

CH15

PIDH30K

PIDH30A

GND

HDMI1_5V

PIRH102

CORH1

RH1

PIRH101

DDC1B_SCL

DDC1B_SDA

PICH201

COCH1

COCH2

CH2

CH1

HDMI1_5V

PICH202

HDMI1_HOTPLUG1

CORH30

RH30

COQH1

QH1

PIRH3002

PIRH3001

PIQH10C

PIQH10E

GND

CODH4

DH4

DDC1B_SCL

CODH5

DH5 NC/NC/A VLC18S02003

DDC1B_SDA

COCH3

HDMI1_5V

CH3

COCH4

CH4

HDMI1_HOTPLUG1

CORH32

RH32

PICH1501PICH1502

PIRH3201 PIRH3202

1uF-0402-X5R-±20%-6.3V

NC/NC/AVLC 18S02003
NC/30pF-0402-NPO-±5%-50V
0ohm-0402-±5%-1/16W

RH17 10Kohm-0402-±5%-1/16W

PIRH1701

CORH3

RH3

PIRH301 PIRH302

CORH4

RH4

PIRH401 PIRH402

22ohm-0402-±5%-1/16W
22ohm-0402-±5%-1/16W

HDMI1_SCL

HDMI1_SDA

NC/5pF-0402-NPO-±5%-50V
NC/5pF-0402-NPO-±5%-50V

PIRH601

CORH6

RH6

10Kohm-0402-±5%-1/16W

PIRH1702

CORH17

PIRH602

CORH7

PIQH10B

PIDH40APIDH40K

PIDH50APIDH50K

PICH301PICH302

PICH401PICH402

ARC_PAD

RH7

PIRH701

10Kohm-0402-±5%-1/16W
MMBT3904(f≥350MHz)
10Kohm-0402-±5%-1/16W
1Kohm-0402-±5%-1/16W

HDMI1_HOTPLUG

PIRH702

NC/NC/AVLC18S02003

NC/0.1uF-0402-X5R-±20%-16V
NC/0.1uF-0402-X5R-±20%-16V

GND

CORH5

RH5

HDMI1_5V

PIRH202

CORH2

RH2

1Kohm-0402-±5%-1/16W
10Kohm-0402-±5%-1/16W

PIRH201

GND

HDMI2部分V1.0

PICH601

COCH5

CH5

PICH602

HDMI2_5V

CORH18

RH18

COQH2

QH2

DDC2B_SCL

DDC2B_SDA

HDMI2_5V

HDMI2_HOTPLUG2

HDMI2_5V

PIRH802

CORH8

CORH9

RH8

RH9 10Kohm-0402-±5%-1/16W

PIRH801

DDC2B_SCL

DDC2B_SDA

COCH6

CH6

PIRH1802

PIRH1801

PIQH20C

PIQH20E

GND

CORH24

RH24

PIQH20B

PIRH2401 PIRH2402

10Kohm-0402-±5%-1/16W
MMBT3904(f≥350MHz)
10Kohm-0402-±5%-1/16W
1Kohm-0402-±5%-1/16W

CODH2

DH2

PIDH20A

PIDH20K

DH7 NC/NC/AV LC18S02003

CODH7

PIDH70A

PIDH70K

COCH9

CH9

PICH901

PICH902

COCH12

CH12

PICH1201

PICH1202

10Kohm-0402-±5%-1/16W

PIRH902

22ohm-0402-±5%-1/16W
22ohm-0402-±5%-1/16W

PIRH901

CORH12

RH12

PIRH1201 PIRH1202

CORH15

RH15

PIRH1501 PIRH1502

NC/5pF-0402-NPO-±5%-50V
NC/5pF-0402-NPO-±5%-50V

PIRH1901

CORH19

RH19

PIRH1902

HDMI2_HOTPLUG

NC/NC/AVLC18S02003

NC/0.1uF-0402-X5R-±20%-16V
NC/0.1uF-0402-X5R-±20%-16V

GND

HDMI2_SCL

HDMI2_SDA

HDMI2(HDMI2.0)

HDMI

COCN5

CN5

GND

HDMI_R2X2P/

1

RX2+

PICN501

GND

2

GND

PICN502

3

HDMI_R2X2N/

RX2-

PICN503

4

HDMI_R2X1P/

RX1+

PICN504

GND

5

GND

PICN505

HDMI_R2X1N/

6

RX1-

PICN506

HDMI_R2X0P/

7

RX0+

PICN507

GND

8

GND

PICN508

9

HDMI_R2X0N/

RX0-

PICN509

10

HDMI_R2XCP/

RXC+

PICN5010

GND

11

GND

PICN5011

HDMI_R2XCN/

12

RXC-

PICN5012

13

CEC

PICN5013

14

ARC

PICN5014

15

DDC2B_SCL

SCL

PICN5015

DDC2B_SDA

16

SDA

PICN5016

GND

17

GND

PICN5017

HDMI2_5V

18

+5V

PICN5018

19

HDMI2_HOTPLUG2

HPD

PICN5019

GND

GND

GND

PICN5020PICN5021

PICN5022PICN5023

20

212223

CEC

HDMI_R2X2P/
HDMI_R2X2N/
HDMI_R2X1P/
HDMI_R2X1N/

HDMI_R2X0P/
HDMI_R2X0N/
HDMI_R2XCP/
HDMI_R2XCN/

CORP32

RP32

HDMI_R2X2P

7 8

PIRP3207 PIRP3208

5 6

HDMI_R2X2N

PIRP3205 PIRP3206

3 4

HDMI_R2X1P

PIRP3203 PIRP3204

HDMI_R2X1N

1 2

PIRP3201 PIRP3202

4×5R1ohm-0402-±5%-1/16W

CORP34

RP34

7 8

HDMI_R2X0P

PIRP3407 PIRP3408

5 6

HDMI_R2X0N

PIRP3405 PIRP3406

HDMI_R2XCP

3 4

PIRP3403 PIRP3404

HDMI_R2XCN

1 2

PIRP3401 PIRP3402

4×5R1ohm-0402-±5%-1/16W

PICH501

PICH502

GND

HDMI2_HOTPLUG2

GND

端子

,HDMI Jack,H,SMD,161031041(hull-SPCC ),VAST

HDMI

COU11

PIU1108

PIU1107

GND

PIU110GND

PIU1106

8
7

6
5

U11

OUT1
OUT2
G2
OUT3
OUT4

ULC0524P

IN1
IN2

IN3
IN4

HDMI_R2X2N/

2

PIU1102

GND

G1

HDMI_R2X1P/

3

PIU1103

4

HDMI_R2X1N/

PIU1104PIU1105

HDMI_R2X2P/

1

PIU1101

HDMI_R2X2P/
HDMI_R2X2N/

HDMI_R2X1P/

HDMI1_DET

PIRH501PIRH502

HDMI_R2X1N/

GNDGND

COU13

PIU1308

PIU1307

GND

PIU130GND

PIU1306

8
7

6
5

U13

OUT1
OUT2
G2
OUT3
OUT4

ULC0524P

IN1
IN2

IN3
IN4

HDMI_R2X0N/

2

PIU1302

GND

G1

3

HDMI_R2XCP/

PIU1303

4

HDMI_R2XCN/

PIU1304PIU1305

HDMI_R2X0P/

1

PIU1301

HDMI_R2X0P/
HDMI_R2X0N/

HDMI_R2XCP/
HDMI_R2XCN/

HDMI2_5V

PIRH2802

RH28

CORH28

PIRH2801

GND

CORH26

RH26

HDMI2_DET

PIRH2601PIRH2602

1Kohm-0402-±5%-1/16W
10Kohm-0402-±5%-1/16W

GND GND

1

2

3

4

5

6

7

8

43

1

2

3

4

A A

3.5mm mi n gap between t race and GND plane

网络变压器

B B

FE_TX+

FE_TX-

FE_RX+

FE_RX-

COR33

R33

PIR3301 PIR3302

COR34

R34

PIR3401 PIR3402

COR35

R35

PIR3501 PIR3502

COR37

R37

PIR3701 PIR3702

COCE1

CE1

RJ_FE_TX+

RJ_FE_TX-

RJ_FE_RX+

RJ_FE_RX-

PICE102

PICE202

COCE2

CE2

PICE101

PICE201

COCE3

CE3

GND

NC/7pF-0402-NPO-±5%-50V
NC/7pF-0402-NPO-±5%-50V
NC/7pF-0402-NPO-±5%-50V

C C

0ohm-0402-±5%-1/16W
0ohm-0402-±5%-1/16W
0ohm-0402-±5%-1/16W
0ohm-0402-±5%-1/16W

NC/7pF-0402-NPO-±5%-50V

,Net Transformer,350uH,0.09×1P,H6.0MAX,B1601S,SMD ,DDY

COUE1

UE1

1

PIUE101

CTD

2

PIUE102

3

PIUE103

4

PIUE104

5

PIUE105

6

PIUE106

7

CRD

PIUE107
PIUE108 PIUE109

PICE302

PICE402

COCE4

CE4

PICE301

PICE401

75ohm-0603-±1%-1/10W
75ohm-0603-±1%-1/10W
75ohm-0603-±1%-1/10W
75ohm-0603-±1%-1/10W
1000pF-1206-X7R-±20%-2000V

TD+
CTD
TD­NC
NC
RD+
CRD
RD-8RX-

TX+
CTX

RX+
CRX

TX-

NC
NC

16

PIUE1016

15

PIUE1015

14

PIUE1014

13

PIUE1013

12

PIUE1012

11

PIUE1011

10

PIUE1010

9

CTX

CRX

PIRE602

PIRE702

CORE6

CORE7

RE6

RE7

PIRE601

PIRE701

COCE5

CE5

PIRE802

PIRE801

PICE501

PICE502

GND

PIRE902

CORE8

RE8

PIRE901

RJ45_FE_TX+
RJ45_FE_RX+
RJ45_FE_TX-

RJ45_FE_RX­PIN7&8

PIN4&5

CORE9

RE9

GND

GND

COCN29

CN29

9

PICN2909

1

TX+

PICN2901

3

RX+

PICN2903

2

TX-

PICN2902

7

NC

PICN2907

6

RX-

PICN2906

8

NC

PICN2908

5

PICN2905

4

PICN2904

PICN29010

NC

NC

10

网络端子

75R75R

1nF

,Network Terminal,DIP,RJ45-10NG-05LS-01,QS

75R

75R

卧式

RJ45

CTD CRD

PIDE10K

CODE1

DE1

PIDE10A

PICE701

COCE7

CE7

PICE702

PICE802

COCE8

CE8

PICE801

PICE602

COCE6

COCE9

CE9

CE6

PICE601

PICE901

PIDE30K

CODE3

DE3

PICE902

PIDE30A

GND

P lace On Top Layer

CODE2

DE2

1

RJ_FE_RX-

PIDE201

2

PIDE202

RJ_FE_TX-

3

PIDE203

4

RJ_FE_TX+

PIDE204

PIDE205 PIDE206

CH1
NC
CH3
NC
VDD5NC

10

RJ_FE_RX-

PIDE2010

NC

RJ_FE_RX+

9

PIDE209

CH2

8

PIDE208

NC

7

RJ_FE_TX+

PIDE207

CH4

6

EPAD

RJ_FE_RX­RJ_FE_RX+

GND GND

RJ_FE_TX­RJ_FE_TX+

PIDE20EPAD

D D

NC/TVS管,DIO ESD,3.6pF,18V,DFN2525P10E,SMD,AZ3133-04F,Amazing（OEM

EPAD

物料）

1

CODE6

DE6

1

PIDE601

2

PIDE602

3

PIDE603

4

PIDE604

PIDE605 PIDE606

CH1
CH2
GND

GND
CH3
CH45NC

NC
NC

NC

PIDE6010

PIDE609
PIDE608

PIDE607

NC/ON_ESD8104

10
9
8
7
6

RJ_FE_RX­RJ_FE_RX+

RJ_FE_TX­RJ_FE_TX+

2

DE4

RJ_FE_TX- RJ_FE_TX+

RJ_FE_RX- RJ_FE_RX+

CODE4

PIDE40APIDE40K

DE5

CODE5

PIDE50APIDE50K

NC/?SFI0402-240E-2R5PP-LF
NC/?SFI0402-240E-2R5PP-LF

3

GND

NC/?SFI0402-240E-2R5PP-LF
NC/?SFI0402-240E-2R5PP-LF
NC/0.01uF-0402-X7R-±10%-16V
NC/0.01uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

4

44

1

3V3_M

COLA7

3V3_M

LA7

PILA701 PILA702

COLA5

LA5

PILA501 PILA502

PICA4201

COCA42

CA42

PICA4202

AGND

PICA4801

COCA48

CA48

PICA4802

GND

A A

FCM1005KF-121T06(120ohm-500mA)
10uF-0603-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

FCM1005KF-121T06(120ohm-500mA)
10uF-0603-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

+3.3V'

PICA2902

COCA29

CA29

PICA2901

+3.3VD'

PICA4901

COCA49

CA49

PICA4902

2

NC/SK34A-SMA
0ohm-1206-±5%-1/4W

CODA1

DA1

PIDA10A PIDA10K

12V AMPVCC

PIRA2201 PIRA2202

PICA4601

CORA22

RA22

COCA46

CA46

靠端子放

PICA4602

1uF-0603-X5R-±10%-50V
1uF-0603-X5R-±10%-50V
1uF-0603-X5R-±10%-50V

220uF-16V-±20%-6.3×7.7-105
220uF-16V-±20%-6.3×7.7-105

陶瓷电容

,CAP MC,25V,22uF,±20%,X5R,0805,SMD,TP

陶瓷电容

,CAP MC,25V,22uF,±20%,X5R,0805,SMD,TP

PICA401

COCA4

CA4

PICA402

℃

(Capxon)

℃

(Capxon)

PICA201

COCA2

CA2

PICA202

PIEA301

COEA3

+

EA3

PIEA302

GND

PIEA401

COEA4

+

EA4

PIEA402

3

AMPVCC

PICA5002

PICA5102

COCA50

COCA51

CA50

CA51

PICA5001

PICA5101

4

3V3_STB

PIRA5301

CORA53

RA53

CORA24

RA24

PIRA5302

AMP_MUTE AMP-MUTE/

H :MUTE
L :Normal

4K7ohm-0402-±5%-1/16W

47Kohm-0402-±5%-1/16W
4K7ohm-0402-±5%-1/16W
MMBT3904(f≥350MHz)
100Kohm-0402-±5%-1/16W

PIRA2402

PIRA2401

PIQA30B

3V3_M

PIRA1301

CORA13

RA13

PIRA1302
PIQA30C

COQA3

QA3

PIQA30E

GND

5

PIRA1802

CORA18

RA18

PIRA1801

6

I2S_MCLK
I2S_WS
I2S_BCLK
I2S_DOUT

B B

22ohm-0402-±5%-1/16W
22ohm-0402-±5%-1/16W
22ohm-0402-±5%-1/16W
22ohm-0402-±5%-1/16W

RA3,RA4 ,CA30

NC/18Kohm-0402-±5%-1/16W
NC/15Kohm-0402-±5%-1/16W
NC/0.01uF-0402-X7R-±10%-50V

C C

D D

CORA28

RA28

CORA30

RA30

5711

使用

0.1uF-0402-X7R-±10%-16V
10uF-0603-X5R-±20%-6.3V

+3.3VD'

CORA57

RA57

CORA58

RA58

I2C0_SDA

I2C0_SCL

4K7ohm-0402-±5%-1/16W
4K7ohm-0402-±5%-1/16W
100ohm-0402-±5%-1/16W
100ohm-0402-±5%-1/16W
NC/10pF-0402-NPO-±5%-50V
NC/10pF-0402-NPO-±5%-50V

TPS5707 addr

AD82584 addr

1

CORA33

RA33

PIRA3301

CORA36

RA36

PIRA3601

CORA37

RA37

PIRA3701

CORA39

RA39

PIRA3901

PICA701

PICA801

PICA901

PICA1001

COCA7

COCA8

COCA9

COCA10

CA10

CA9

CA8

CA7

PICA702

PICA802

PICA902

PICA1002

GND

NC/22pF-0402-NPO-±5%-50V
NC/22pF-0402-NPO-±5%-50V
NC/22pF-0402-NPO-±5%-50V
NC/22pF-0402-NPO-±5%-50V

预留防止爆破音

+3.3VD'

PIRA2802

10Kohm-0402-±5%-1/16W

PIRA2801

PIRA3002

NC/15Kohm-0402-±5%-1/16W

PIRA3001

GND

GND

时通过14脚来选择

PIRA5701PIRA5702

PIRA5801PIRA5802

CORA5

RA5

PIRA501

CORA6

RA6

PIRA601

DEVI CE A DDRE SS

DEVI CE A DDRE SS

PIRA3302

PIRA3602

PIRA3702
PIRA3902

IIC

PICA2402

COCA24

CA24

PICA2401

PIRA502

PIRA602

PICA7001

PICA7101

PICA7201

COCA70

COCA71

COCA72

CA72

CA71

CA70

PICA7002

PICA7102

PICA7202

GND

4700pF-0402-X7R-±10%-50V

0.047uF-0402-X7R-±10%-16V
470ohm-0402-±5%-1/16W

+3.3VD'

PIRA302

CORA3

RA3

PIRA301

PICA3002

PIRA402

COCA30

CORA4

CA30

RA4

PICA3001

PIRA401

GND

CORA31

RA31

PIRA3101 PIRA3102

18K2ohm-0402-±1%-1/16W

地址

PICA2502

CA25

COCA25

PICA2501

GND

PICA4102

PICA4702

COCA41

COCA47

CA47

CA41

PICA4101

PICA4701

GND GND

0X36

0X30

GND

I2S_MCK
I2S_LRCLK
I2S_BCK
I2S_SD

PICA7301

COCA73

CA73

PICA7302

22pF-0402-NPO-±5%-50V
22pF-0402-NPO-±5%-50V
22pF-0402-NPO-±5%-50V
22pF-0402-NPO-±5%-50V

COCA1

CA1

PICA101

PICA102

COCA6

CA6

CORA25

RA25

PICA601

PICA602

13

PIUA1013

+3.3V'

I2S_MCK

AMP-MUTE/

I2S_LRCLK

I2S_BCK

I2S_SD

SDA_AMP01

SCL_AMP01

PIRA70JP02K

CORA7

RA7

PIUA1014

PIUA1015

PIUA1016

PIUA1017

PIUA1018

PIUA1019

PIUA1020

PIUA1021

PIUA1022

PIUA1023

PIUA1024

NC/

PIRA70JP01K

2

14

15

16

17

18

19

20

21

22

23

24

AGND

+3.3VD'

PIRA3402

CORA34

H :Normal
L :RESET

PIRA2501PIRA2502

AVDD

FAULT

MCLK

OSC_RES

DVSSO

VR_DIG

PDN

LRCLK

SCLK

SDIN

SDA

SCL

RA34

PIRA3401

GPI O7_1

PICA3102

PICA3101

GND

4700pF-0402-X7R-±10%-50V

0.047uF-0402-X7R-±10%-16V
470ohm-0402-±5%-1/16W

COCA3

CA3

PICA301 PICA302

COCA11

CA11

CORA26

RA26

PICA1101 PICA1102

PIUA1011

PIUA1012

11

12

VR_ANA

PLL_FLTP

RESET25STEST26DVDD27DVSS28GND29AGND30VREG31GVDD_OUT32BST_D33PVDD_D34PVDD_D35OUT_D

PIUA1025

PIUA1026

AMP_RESET/

GND

+3.3VD'

CORA35

RA35

PIRA3501 PIRA3502

PIRA1702

COCA31

CORA17

CA31

RA17

PIRA1701

AGND

CORA14

RA14 NC/0ohm-0402-±5%-1/16W

PIRA1402

PIRA2302

PIRA2601PIRA2602

PIRA1401

PIRA2301

PIUA107PIUA108

PIUA109

PIUA1010

7

10

8

9

NC

AVSS

OC_ADJ

PLL_FLTM

PIUA1027 PIUA1028

PIUA1029 PIUA1030

CA40

COCA40

GND

AMP_RESET/

4K7ohm-0402-±5%-1/16W
1Kohm-0402-±5%-1/16W

0.1uF-0402-X7R-±10%-16V
NC/4K7ohm-0402-±5%-1/16W

GND

NC/2200pF-0402-X7R-±10%-50V
22Kohm-0402-±5%-1/16W

1uF-0603-X5R-±10%-50V

CORA23

RA23

PICA1202

PICA1302

PICA1201

PICA1301

COCA12

CA12

PIUA105

PIUA106

5

6

SSTIMER

PIUA1031

PIUA1032

PICA3801

PICA4001

PICA3802

PICA4002

GNDGND

TAS5707PHPR

COCA5

CA5

PICA501

PICA502

COCA13

CA13

PIUA101PIUA102

PIUA103PIUA104

3

4

1

BST_A

OUT_A

PVDD_A2PVDD_A

EPAD

GVDD_OUT

CA38

COCA38

PGND_AB

PGND_AB

OUT_B

PVDD_B

PVDD_B

BST_B

BST_C

PVDD_C

PVDD_C

OUT_C

PGND_CD

PGND_CD

36

PIUA1033 PIUA1034

PIUA1035 PIUA1036

COCA33

CA33

PICA3301

PICA3302

1uF-0603-X5R-±10%-50V

0.1uF-0402-X7R-±10%-16V

3

COUA1

UA1

49

PIUA1049

48

PIUA1048

47

PIUA1047

46

PIUA1046

45

PIUA1045

44

PIUA1044

43

PIUA1043

42

PIUA1042

41

PIUA1041

40

PIUA1040

39

PIUA1039

38

PIUA1038

37

PIUA1037

GND

1000pF-0402-X7R-±10%-50V

0.1uF-0603-X7R-±10%-50V
1000pF-0402-X7R-±10%-50V

0.1uF-0603-X7R-±10%-50V

PICA1501

PICA1602

COCA16

CA16

COCA15

CA15

PICA1502

PICA1601

GND

GND

PICA1802

COCA18

CA18

PICA1901

COCA19

CA19

PICA1801

PICA1902

PICA2001

PICA2102

COCA20

CA20

PICA2002

COCA21

CA21

PICA2101

GND

PICA2601

PICA3401

CA34

COCA34

COCA26

CA26

PICA2602

PICA3402

0.033uF-0603-X7R-±10%-50V

0.033uF-0603-X7R-±10%-50V

0.033uF-0603-X7R-±10%-50V

0.033uF-0603-X7R-±10%-50V

AMPVCC

AMPVCC

PICA2202

COCA22

CA22

PICA2201

GND

PICA2702

COCA27

CA27

AMPVCC

PICA2701

AMPVCC

4

H :Normal
L :MUTE

AMP_MUTE

18ohm-0805-±5%-1/8W
330pF-0402-NPO-±5%-50V
18ohm-0805-±5%-1/8W
330pF-0402-NPO-±5%-50V

COLA1

LA1

PILA10F PILA10S

CORA2

RA2

PIRA201 PIRA202

CORA8

RA8

PIRA801 PIRA802

COLA2

LA2

PILA20F PILA20S

1uF-0603-X5R-±10%-50V
1000pF-0402-X7R-±10%-50V
1000pF-0402-X7R-±10%-50V
1uF-0603-X5R-±10%-50V

COLA3

LA3

PILA30F PILA30S

CORA10

RA10

PIRA1001 PIRA1002

PIRA1101 PIRA1102

RA11

CORA11

LA4

COLA4

+

PILA40FPILA40S

18ohm-0805-±5%-1/8W
330pF-0402-NPO-±5%-50V
18ohm-0805-±5%-1/8W
330pF-0402-NPO-±5%-50V

PIRA4601

CORA46

RA46

PIRA4602

GND

+

COCA35

CA35

PICA3501 PICA3502

COCA36

CA36

PICA3601 PICA3602

+

+

COCA37

CA37

PICA3701 PICA3702

PICA3901 PICA3902

CA39

COCA39

DSB5845-220M-LF
DSB5845-220M-LF

MUTE

预留直通

CORA38

RA38

AMP-MUTE/

PIRA3801 PIRA3802

NC/1Kohm-0402-±5%-1/16W

NC/4K7ohm-0402-±5%-1/16W

DSB5845-220M-LF
DSB5845-220M-LF

PICA1402

PICA5502

COCA14

COCA55

CA14

CA55

NC/?

PICA1401

PICA5501

GND

PICA1702

COCA17

CA17

PICA1701

PICA2302

CA23

COCA23

PICA2301

PICA2802

CA28

COCA28

PICA2801

GND

PICA5602

COCA56

CA56

NC/?

PICA5601

0.1uF-0603-X7R-±10%-50V

0.1uF-0603-X7R-±10%-50V

0.22uF-0805-X7R-±10%-50V

0.1uF-0603-X7R-±10%-50V

0.1uF-0603-X7R-±10%-50V

0.22uF-0805-X7R-±10%-50V

PICA5702

CA57

COCA57

NC/?

PICA5701

GND

GND

PICA5802

CA58

COCA58

NC/?

PICA5801

5

PICA3201

COCA32

CA32

PICA3202

CA44

PICA4401

COCA44

PICA4402

L_OUT+

连接插座

,connect jack,4Pin,D2.50,D,Nature,L=2.8mm,DIP,AMA

NC/4PIN-2.54-D-H-红色-G-带扣-B

L_OUT-

R_OUT+

L_OUT+
L_OUT­R_OUT+
R_OUT-

4

PICN1104

3

PICN1103

2

PICN1102

1

PICN1101

COCN11

CN11

非一一对应

R_OUT-

NC/

微鲸功放散热片

COCN3

CN3

4

PICN304

3

PICN303

2

PICN302

1

PICN301

GND

12

PIHS101

HS1

COHS1

PIHS102

GND

6

45

1

2

3

4

5

6

3V3_Tun

PIRT202

1.8VRF

CORT2

RT2

GND

COCT3

CT3

PIRT201

PICT301PICT302

PICT801 PICT802

23

25

24

AS

PADGND

VDD_3P3_1

LNA_INP

LNA_INN

VDD_1P8_1

AGC_2/GPO3

AGC_1

IF_OUTN_2/GP O_17IF_OUTP_2/GP O_28IF_OUTN_19IF_OUTP_110VDD_3P3_211VDD_1P8_2

22

RESET_N

PIUT207 PIUT208 PIUT209

GND

COCT13

CT13

PICT1301 PICT1302

CORT3

RT3

COCT21

CT21

PICT2101 PICT2102

1.8VRF

TDA_IF_AGC

1uF-0402-X5R-±20%-6.3V

0.01uF-0402-X7R-±10%-50V
750Kohm-0402-±5%-1/16W

0.1uF-0402-X7R-±10%-16V

3V3_Tun

COCT9

CT9

PICT901 PICT902

75ohm CROSS

COLT1

LT1

PILT101

CORT4

RT4

PIRT401

PILT102

PICT1101

PICT1102

GND

PIRT402

PICT1402

COCT11

CT11

COCT14

CT14

PIUT201

PIUT202

PIUT203

PIUT204

PIUT205

PIUT206

1

2

3

4

5

6

A A

BW21S7511A01TF
SDCL1608CR56JTDF
1000pF-0402-X7R-±10%-50V
1000pF-0402-X7R-±10%-50V
1Kohm-0402-±5%-1/16W

COCT25

CT25

PICT2501 PICT2502

COLT4

LT4

PILT401

PIRT502

PILT402 PILT403

CORT5

RT5

COLT2

LT2

PIRT501

PILT201 PILT202

PIRT602

CORT6

RT6

PIRT601

0ohm-0402-±5%-1/16W
NC/5.6pF-0402-NPO-±5%-50V
NC/0ohm-0402-±5%-1/16W

GND

NC/SDCL1005C33NJTDF(顺络)

LT2

CT25

RT5

33nH

5.6P

0R

NC

NC

NC

RF_INPUT

COCT17

CT17

PICT1701 PICT1702

PILT1101

COLT11

LT11

CODT1

DT1

PILT1102

GND

GNDGND

PIDT102

PIDT101

PIDT103

COLT3

LT3

PILT301

PILT302

COCT18

CT18

PICT1802

PICT2002

PICT1801

PICT2001

GND

GND

COCT20

CT20

FOR ESD Wifi Filter

NO BALUN

BALUN

0ohm-0402-±5%-1/16W
NC/?
NC/?

LT4

RT6

RT3

NC

NC

NC

75R

0R

1K

B B

,DIO FRD D2,0.215A,75V,SOT-23,SMD,KAV99,KEXIN

整流二极管

SDCL1005CR33JTDF

0ohm-0402-±5%-1/16W

PILT404

LT5

33nH

560nH

COLT5

LT5

GND

PILT502

PILT501

PIRT302

PIRT301

PICT1401

GND

RFGND

PICT4002

PICT4102

PICT4202

PICT4302

PICT4402

PICT4502

PICT4602

PICT4702

PICT4802

COCT40

COCT41

COCT42

COCT43

COCT44

COCT45

COCT46

CT40

CT41

CT43

CT42

CT44

PICT4001

PICT4101

PICT4201

PICT4301

PICT4401

4700pF-1206-X7R-±10%-1000V

CT40 :

4700pF-1206-X7R-±10%-1000V

CT41 :

4700pF-1206-X7R-±10%-1000V

CT42 :

4700pF-1206-X7R-±10%-1000V

CT43 :

4700pF-1206-X7R-±10%-1000V

CT44 :

4700pF-1206-X7R-±10%-1000V

C C

CT45 :

4700pF-1206-X7R-±10%-1000V

CT46 :

4700pF-1206-X7R-±10%-1000V

CT47 :

4700pF-1206-X7R-±10%-1000V

CT48 :

4700pF-1206-X7R-±10%-1000V

CT49 :

CT45

PICT4501

CT46

PICT4601

COCT47

CT47

GND

COCT48

COCT49

CT48

PICT4701

PICT4801

PICT4902

CT49

PICT4901

GZ1005U102CTF(1000ohm-300mA)

0.1uF-0402-X7R-±10%-16V
1Kohm-0402-±5%-1/16W
6800pF-0402-X7R-±10%-50V

16MHz-±20PPM-20PF-HC-49S-SMD-JWT

GND

COYT1

YT1

PIYT101 PIYT102

20

PIUT2019PIUT2020PIUT2021PIUT2022PIUT2023PIUT2024PIUT2025

XTAL_P

PICT2202

PICT2402

PICT2201

PICT2401

GND

19

XTAL_N

CLK_OUT

VDD_IO

GND_DIG

VDD_1P2

12

1.8VRF

COCT24

CT24

SDA

SCL

21

GND_XTAL

PIUT2010 PIUT2011 PIUT2012

3V3_Tun

COCT22

CT22

IFP

VDD_1P8_3

IFN

COCT8

CT8

COUT2

UT2
MxL661

18

PIUT2018

17

TUNER_SDA/

PIUT2017

16

TUNER_SCL/

PIUT2016

PIUT2015

PIUT2014

PIUT2013

3V3_Tun

15

14

13

0.1uF-0402-X7R-±10%-16V
1800pF-0402-X7R-±10%-50V

0.1uF-0402-X7R-±10%-16V
1uF-0402-X5R-±20%-6.3V

COCT2

CT2

PICT1201

PICT1202

PICT201PICT202

GND

COCT12

CT12

5V_M

COCT5

COCT23

CT5

CT23

PICT502

PICT2301

PICT501

PICT2302

10uF-0805-X5R-±20%-16V

0.1uF-0402-X7R-±10%-16V
LC1117CLTR33

3V3_M

CORT18

RT18

RF_AGC/JTAG_MUX0

10Kohm-0402-±5%-1/16W

0.047uF-0402-X7R-±10%-16V

COUT1

UT1

VI3VO

ADJ1VO

PIUT101

GND

NC/10Kohm-0402-±5%-1/16W

PIRT1801

CORT21

RT21

PIRT1802

2

PIUT102PIUT103

4

PIUT104

0.1uF-0402-X7R-±10%-16V
NC/10uF-0603-X5R-±20%-6.3V
10uF-0603-X5R-±20%-6.3V
10uF-0603-X5R-±20%-6.3V

PIRT2101PIRT2102

PICT1902

COCT19

CT19

PICT1901

GND

3V3_Tun

COCT1

COCT4

COCT7

CT7

CT1

CT4

PICT102

PICT402

PICT701

PICT101

PICT401

PICT702

GND

AIES12U020R2

0ohm-0402-±5%-1/16W

NC/0.047uF-0402-X7R-±10%-16V

CORT11

RT11

PIRT1101 PIRT1102

PIDT20K

CODT2

DT2

PIDT20A

GND

GND

COCT6

CT6

PICT602

PICT601

TDA_IF_AGC

PICT3002

COCT30

CT30

PICT3001

CORT17

RT17

PIRT1701 PIRT1702

RT16

CORT16

PIRT1601 PIRT1602

CT34

COCT34

3

3V3_Tun

PIRT1402

CORT14

RT14

PIRT1401

PIRT1502

CORT15

RT15

PIRT1501

I2C2_SDA

I2C2_SCL

COCT10

CT10

IFP

CT32

COCT32

IFN

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

PICT3201 PICT3202

4

RT1

CORT1

PICT1001PICT1002

PIRT101 PIRT102

CORT7

RT7

PIRT701 PIRT702

0ohm-0402-±5%-1/16W
0ohm-0402-±5%-1/16W

COCT31

CT31

PICT1502

COCT15

CT15

PICT1501

CT36

COCT36

GND

PICT2902

COCT29

CT29

1uF-0402-X5R-±20%-6.3V

PICT2901

1uF-0402-X5R-±20%-6.3V
NC/47pF-0402-NPO-±5%-50V
NC/47pF-0402-NPO-±5%-50V

GND

RT23

CORT12

PICT3101PICT3102

PICT3601PICT3602

RT12

CORT10

RT10

5

PIRT1201PIRT1202

PILT1001

PICT1602

COCT16

COLT10

CT16

LT10

PILT1002

PICT1601

PIRT1001PIRT1002

0ohm-0402-±5%-1/16W
0ohm-0402-±5%-1/16W

NC/330ohm-0402-±5%-1/16W
NC/NC/10pF-0402-NPO-±5%-50V

CORT23

PIRT2301 PIRT2302

PICT3501

COCT35

CT35

100ohm-0402-±5%-1/16W

PICT3502

100ohm-0402-±5%-1/16W

CORT24

RT24

GND

PIRT2401 PIRT2402

PICT3702

COCT37

CT37

PICT3701

47pF-0402-NPO-±5%-50V
47pF-0402-NPO-±5%-50V

GND

IF+

IF-

6

33pF-0402-NPO-±5%-50V
33pF-0402-NPO-±5%-50V

100ohm-0402-±5%-1/16W

100ohm-0402-±5%-1/16W

4K7ohm-0402-±5%-1/16W

T1

COT1

RF_GNDRFRF_GND

234

GND

PT1

COPT1

22.6×17.3×6-LHD(

PIPT101
PIPT102
PIPT103
PIPT104

PIT102 PIT103 PIT104

1

GND

2

GND

3

GND

4

GND

D D

1

PICT2801

PIT101

RF-A814.5(H=6.3mm)-

RF_GND

RFGND

带封口

1

CT28

COCT28

RF_INPUT

PICT2802

带热塑套管

4700pF-1206-X7R-±10%-1000V

)

-LHD

2

4K7ohm-0402-±5%-1/16W

TUNER_SDA/

TUNER_SCL/

PICT3302

CT33

COCT33

PICT3301

PICT3402

PICT3401

GND

46

1

2

3

4

5

6

NC/220uF-16V-±20%-6.3×7.7-105

5V_M

COF1

F1

A A

B B

PIF101 PIF102

10uF-0805-X5R-±20%-16V

PICU1701

PICU1702

GND

5V_M

PIF201 PIF202

C C

10uF-0805-X5R-±20%-16V

5V_M

PICU1401

COCU14

CU14

PIRU1802

PICU1402

GND

PIRU1801
PIRU2101

PIRU2102

GND

D D

5V_USB2

MSMD110

USB2_DM1
USB2_DP1

5R1ohm-0402-±5%-1/16W
5R1ohm-0402-±5%-1/16W
AIES12U020R2
AIES12U020R2

GND

PIU1402

5V_M

PIU1405

PIRU2902

COCU17

CORU29

RU29

CU17

PIRU2901

PIU1403 PIU1404

PIRU3101

CORU31

RU31

PIRU3102

NC/NC/10Kohm-0402-±5%-1/16W
NC/4K7ohm-0402-±1%-1/16W
NC/4K7ohm-0402-±5%-1/16W GND

GND

NC/10Kohm-0402-±5%-1/16W

NC/

COF2

F2

NC/FSMD200R

5

PIU1605

IN

RU18

CORU18

PIU1603 PIU1604

OCB3EN

CORU21

RU21

NC/10Kohm-0402-±5%-1/16W
4K7ohm-0402-±1%-1/16W
4K7ohm-0402-±5%-1/16W
10Kohm-0402-±5%-1/16W

限流开关芯片

2

GND

5

OUT

IN

OCB3EN

限流开关芯片

5V_USB3.0

AIES12U020R2
AIES12U020R2

GND

PIU1602

2

COU16

U16

GND

1

PIU1601

OUT

4

,IC switch,0.4-2A adj,5.5V,H,SOT23-5,SMD,SY6280AAAC,SILERGY

COU14

U14

1

PIU1401

4

,IC switch,0.4-2A adj,5.5V,H,SOT23-5,SMD,SY6280AAAC,SILERGY

220uF-16V-±20%-6.3×7.7-105℃
0ohm-0402-±5%-1/16W
0ohm-0402-±5%-1/16W
0ohm-0402-±5%-1/16W
0ohm-0402-±5%-1/16W

0.1uF-0402-X7R-±10%-16V

0.1uF-0402-X7R-±10%-16V

USB3_DM
USB3_DP

USB3_RXM
USB3_RXP

USB3_TXM
USB3_TXP

PICU1101

COCU11

CU11

PICU1102

CORU19

RU19

COUSB20M

COUSB20P

PIEF102

USB2_M

USB2_P

COEF1

EF1

PIUSB20M01

CORU27

RU27

PIRU2701PIRU2702

CORU28

RU28

PIRU2801PIRU2802

+

PIUSB20P01

PIEF101

PIDU60K

CODU6

DU6

PIDU60A

USB端子,USB Jack,H,Single,flange,DIP,USB-AF-90-DIP-FE-W-curved-entad-1,XFE

PICU1602

PICU1501

COCU16

CU16

COCU15

CU15

PICU1601

PICU1502

CORU30

AIES12U020R2
AIES12U020R2

PICU1202

PICU1201

PIRU1901PIRU1902

PIRU2201

PIRU2202

GND

5V_USB2

RU30

TSO0_D1/ USB2.0_EN

PIRU3001PIRU3002

PIRU3201

CORU32

RU32

PIRU3202

NC/10uF-0805-X5R-±20%-16V
NC/0.1uF-0402-X7R-±10%-16V

CORU10

RU10

PIRU1001PIRU1002

CORU12

RU12

PIRU1201PIRU1202

CORU13

RU13

PIRU1301PIRU1302

CORU14

RU14

PIRU1401PIRU1402

COCU7

CU7

PICU701PICU702

COCU9

CU9

PICU901PICU902

PIDU30K

CODU3

DU3AIES12U020R2

PIDU30A

GND

COCU12

CU12

10uF-0805-X5R-±20%-16V

0.1uF-0402-X7R-±10%-16V

5V_USB3.0

GPIO4_7/USB3.0

PIC1802

COC18

C18

CORU22

RU22

NC/?

H :Power on

PIC1801

L :Power off

GND

(Capxon)

PIDU40K

CODU4

DU4

PIDU40A

10uF-0805-X5R-±20%-16V

PICU101

COCU1

CU1

PICU102

5V_USB2
USB1_M
USB1_P

PIDU70K

CODU7

DU7

PIDU70A

PIDU110K

CODU11

DU11

PIDU110A

USB端子,USB Jack,H,Single,flange,DIP,USB-A1D70F-3L9N-W,CZT

PIAV501
PIAV502

PIAV503

PIAV504

PIAV505
PIAV506

GND

H :Power on
L :Power off

GND

PIEF202

COEF2

EF2

+

PIEF201

PIDU120K

PIDU130K

CODU12

DU12

PIDU120A

PIDU130A

COAV5

AV5

1

5V

2

DM

3

DP

4

GND

5

GND

6

GND

5V_USB3.0
USB3_D-'
USB3_D+'
GND
USB3_SSRXN'
USB3_SSRXP'
GND
USB3_SSTXN'
USB3_SSTXP'

PIDU140K

CODU13

CODU14

DU14AIES12U020R2 DU13

PIDU140A

(Capxon)GND

℃

GND

1011

PIAV9010

SHELL

1

VBUS

PIAV901

2

D-

PIAV902

3

D+

PIAV903

GND

4

PIAV904

5

STDA_ SSRX-

PIAV905

6

STDA_ SSRX+

PIAV906

7

GND_D RAIN

PIAV907

8

STDA_ SSTX-

PIAV908

9

STDA_ SSTX+

PIAV909

SHELL

PIAV9011

GND

close to USB Port

COAV9

AV9

,connect jack,2×6Pin,D2.0,L,SNAP,STEP,Fool-proofing,White,L=2.6mm,DIP,AMA

连接插座

WL_HOST_WAKE WIFI_REG_ON

COCN12

CN12

1

PICN1201

3

PICN1203

5

PICN1205

7

PICN1207

9

PICN1209
PICN12011

USB2_DM0
USB2_DP0

AIES12U020R2

WIFI_WAKEUP

WIFI_REG_ON/

NC/0.1uF-0402-X5R-±20%-16V
NC/0.1uF-0402-X5R-±20%-16V

2

PICN1202

4

PICN1204

6

PICN1206

8

PICN1208

10

PICN12010

1211

WIFI_D+WIFI_D-

PICN12012

PIDU170K

CODU17

DU17AIES12U020R2

PIDU170A

GND

CORF19

RF19

PIRF1901PIRF1902

CORF10

RF10

PIRF1001PIRF1002

100ohm-0402-±5%-1/16W
100ohm-0402-±5%-1/16W

WIFI_REG_ON
WL_HOST_WAKE

5V_WIFIGND

CORU23

RU23

4

IN2

1

PIL1401 PIL1402

PIDU180K

CODU18

DU18

PIDU180A

WL_HOST_WAKE

WIFI_REG_ON

IN1

CORU24

RU24

PIRU2301PIRU2302

OUT2
OUT1

PIRU2401PIRU2402

COCU19

CU19

COL14

L14

PIL1403PIL1404

PIRF602

PIRF601

PIRF1202

PIRF1201

GND

PICU1901

COCU20

CU20

PICU1902

GND

5V_WIFI

PIC28U02

PIC9U01

COC9U

COC28U

C9U

C28U

PIC28U01

PIC9U02

GND

3

WIFI_D-

2

WIFI_D+

DLP11SN900HL2
NC/0ohm-0402-±5%-1/16W
NC/0ohm-0402-±5%-1/16W

3V3_STB

PIRF802

CORF6

CORF8

RF6

RF8

PIRF801

CORF12

RF12

4K7ohm-0402-±5%-1/16W

CORF16

RF16

NC/4K7ohm-0402-±5%-1/16W

PIRF1602

NC/4K7ohm-0402-±5%-1/16W
NC/4K7ohm-0402-±5%-1/16W

PIRF1601

PICU2001

PICU2002

COLF1

LF1

PILF101 PILF102

5V_M

COLF2

LF2

PILF201 PILF202

5V_STB

HCB1005KF-121T20(120ohm-1200mA)
NC/NC/HCB1005KF-121T20(120ohm-1200mA)
10uF-0805-X5R-±20%-16V
NC/0.1uF-0402-X5R-±20%-16V

47

1

2

3

4

5

6

1

2

3

4

5

6

A A

V-BY-ONE socket

COU15G

2 Layers

V DD_1V1

3V3_M

B B

VDD_1V1

PIC9202

COC92

C92

PIC9201

GND GND

0.1uF-0402-X7R-±10%-16V

3V3_M

PIC9402

PIC9502

PIC9602

COC94

COC95

COC96

C94

C95

C96

PIC9401

PIC9501

PIC9601

10uF-0603-X5R-±20%-6.3V
1uF-0402-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V

T19

PIU150T19

U19

PIU150U19

T23

PIU150T23

U23

PIU150U23

V23

PIU150V23

W23

PIU150W23

R23

PIU150R23

P25

PIU150P25

P26

PIU150P26

R26

PIU150R26

T24

PIU150T24

U26

PIU150U26

V24

PIU150V24

W26

PIU150W26

Y24

PIU150Y24

AA26

PIU150AA26

AB24

PIU150AB24

AC24

PIU150AC24

AC25

PIU150AC25

AC26

PIU150AC26

AVDD11_LVDS1
AVDD11_LVDS2

AVDD33_PLL_LVDS
AVDD33_LVDS1
AVDD33_LVDS2
AVDD33_LVDS3

AVSS33_PLL_LVDS
AVSS_LVDS1
AVSS_LVDS2
AVSS_LVDS3
AVSS_LVDS4
AVSS_LVDS5
AVSS_LVDS6
AVSS_LVDS7
AVSS_LVDS8
AVSS_LVDS9
AVSS_LVDS10
AVSS_LVDS11
AVSS_LVDS12
AVSS_LVDS13

U15G

LVDS1_TEP/VX1_LANE7 P
LVDS1_TEN/ VX1_LANE7N

LVDS1_TDP

LVDS1_TDN
LVDS1_TCLKP/ V X1_LANE6P
LVDS1_TCLKN/ VX1_LANE6N

LVDS1_TCP/VX1_LANE5P
LVDS1_TCN/VX1_LANE5N

LVDS1_TBP

LVDS1_TBN

LVDS1_TAP/VX1_LANE4 P
LVDS1_TAN/ VX1_LANE4N
LVDS0_TEP/VX1_LANE3 P
LVDS0_TEN/ VX1_LANE3N

LVDS0_TDP

LVDS0_TDN
LVDS0_TCLKP/ V X1_LANE2P
LVDS0_TCLKN/ VX1_LANE2N

LVDS0_TCP/VX1_LANE1P
LVDS0_TCN/VX1_LANE1N

LVDS0_TBP

LVDS0_TBN

LVDS0_TAP/VX1_LANEN0P
LVDS0_TAN/ VX1_LANEN0N

AB25

PIU150AB25

AB26

PIU150AB26

AA24

PIU150AA24

AA25

PIU150AA25

AA28

PIU150AA28

AA27

PIU150AA27

Y25

PIU150Y25

Y26

PIU150Y26

W24

PIU150W24

W25

PIU150W25

W28

PIU150W28

W27

PIU150W27

V25

PIU150V25

V26

PIU150V26

U24

PIU150U24

U25

PIU150U25

U28

PIU150U28

U27

PIU150U27

T25

PIU150T25

T26

PIU150T26

R24

PIU150R24

R25

PIU150R25

R28

PIU150R28

R27

PIU150R27

RXE4_P

RXE4_N

RXE3_P
RXE3_N
RXEC_P
RXEC_N
RXE2_P
RXE2_N
RXE1_P
RXE1_N
RXE0_P
RXE0_N
RXO4_P
RXO4_N
RXO3_P
RXO3_N
RXOC_P
RXOC_N
RXO2_P
RXO2_N
RXO1_P
RXO1_N
RXO0_P
RXO0_N

COCNW5

CNW5

VCC_Panel
VCC_Panel
GND
RXO0_N

RXO2_N
GND
RXOC_N RXOC_P

RXE0_N RXE0_P

RXE2_N
GND GND
RXEC_N RXEC_P
RXE3_N
GND GND

RXO4_N
RXE4_N

NC/NC/

1

PICNW501 PICNW502

3

PICNW503 PICNW504

5

PICNW505

7

PICNW507 PICNW508

9

PICNW509

11

PICNW5011 PICNW5012

13

PICNW5013 PICNW5014

15

PICNW5015 PICNW5016

17

PICNW5017 PICNW5018

19

PICNW5019 PICNW5020

21

PICNW5021 PICNW5022

23

PICNW5023 PICNW5024

25

PICNW5025 PICNW5026

27

PICNW5027 PICNW5028

29

PICNW5029 PICNW5030

31

PICNW5031 PICNW5032

33

PICNW5033 PICNW5034

35

PICNW5035 PICNW5036

37 38

PICNW5037 PICNW5038

39 40

PICNW5039 PICNW5040

,connect jack,2×20Pin/without pin6,D2.0,D,SNAP,Fool-proofing,Nature,L=2.6mm ,DIP,CJ

连接插座

2
4

8
10

PICNW5010

12
14
16
18
20
22
24
26
28
30
32
34
36

VCC_Panel

GND

RXO0_P
RXO1_PRXO1_N
RXO2_P
GND

RXO3_PRXO3_N

RXE1_PRXE1_N
RXE2_P

RXE3_P

CON2/CON1/

PANEL_SDAPANEL_SCL

RXO4_P
RXE4_P

COCNW6

VCC_Panel
VCC_Panel
GND
RXO0_N

RXO2_N
GND
RXOC_N RXOC_P

RXE0_N RXE0_P

RXE2_N
GND GND
RXEC_N RXEC_P
RXE3_N
GND G ND

RXO4_N
RXE4_N

CNW6

1 2

PICNW601 PICNW602

3 4

PICNW603 PICNW604

5

PICNW605

7 8

PICNW607 PICNW608

9 10

PICNW609

PICNW6010

11 12

PICNW6011 PICNW6012

13 14

PICNW6013 PICNW6014

15 16

PICNW6015 PICNW6016

17 18

PICNW6017 PICNW6018

19 20

PICNW6019 PICNW6020

21 22

PICNW6021 PICNW6022

23 24

PICNW6023 PICNW6024

25 26

PICNW6025 PICNW6026

27 28

PICNW6027 PICNW6028

29 30

PICNW6029 PICNW6030

31 32

PICNW6031 PICNW6032

33 34

PICNW6033 PICNW6034

35 36

PICNW6035 PICNW6036

37 38

PICNW6037 PICNW6038

39 40

PICNW6039 PICNW6040

VCC_Panel
GND

RXO0_P
RXO1_PRXO1_N
RXO2_P
GND

RXO3_PRXO3_N

RXE1_PRXE1_N
RXE2_P

RXE3_P

CON2/CON1/

PANEL_SDAPANEL_SCL

RXO4_P
RXE4_P

2×20PIN-2.0-D-H-M(脚长=2.6mm)-LD(缺第6PIN)

C C

4K7ohm-0402-±5%-1/16W

3V3_M

CORW4

RW4

PIRW402

CORW5

RW5

PIRW502

4K7ohm-0402-±5%-1/16W

I 2C1_SDA

PIRW401

I 2C1_SCL

PIRW501

GND

I2C1_SDA
I2C1_SCL

D D

1

2

3

4

CORF69

RF69

PIRF6901

PIRF6902

CORF70

RF70

PIRF7001

PIRF7002

NC/100ohm-0402-±5%-1/16W
NC/4K7ohm-0402-±5%-1/16W

CORF2

RF2 33ohm-0402-±5%-1/16W

CORF3

RF3 33ohm-0402-±5%-1/16W

PICF702

COCF7

CF7

PICF701

GND

RXOC_N
RXOC_P

NC/NC/5pF-0402-NPO-±5%-50V
NC/NC/5pF-0402-NPO-±5%-50V

PIRF201

PIRF202

PIRF301

PIRF302

PICF1202

COCF12

CF12

PICF1201

PANEL_SDA
PANEL_SCL

CF8

COCF8

PICF801PICF802

PICF1001PICF1002

COCF10

CF10

GND

PWM_DIM3V3_M

NC/33pF-0402-NPO-±5%-50V
NC/33pF-0402-NPO-±5%-50V

5

CORF26

RF26

PIRF2601 PIRF2602

CORF1

RF1

GND

NC/NC/5pF-0402-NPO-±5%-50V
NC/NC/5pF-0402-NPO-±5%-50V

PIRF101 PIRF102

NC/NC/0ohm-0402-±5%-1/16W
NC/NC/0ohm-0402-±5%-1/16W

RXEC_N

PICF902

RXEC_P

PICF1102

CON2/CON1/

COCF9

CF9

PICF901

PICF1101

COCF11

CF11

GND

6

48

1

2

3

4

5

6

DVDD18_OUT

A A

PIC18602

COC186

C186

PIC18601

GND

Tuner

DVDD18_OUT

SD_CDZ

SD_PWREN

SD_CWPR
SD_CLK
SD_CMD
SD_D3
SD_D2

1uF-0402-X5R-±20%-16V

2 Layers

A B8

PIU150AB8

DVDD1833_LDO_OUT

A F10

PIU150AF10

A VSS_QAM1

W12

PIU150W12

A VSS_QAM2

A F12

S D_CDZ/ GP11_7

PIU150AF12

A D10

S D_PWREN/TSI1_SYNC/GP12_0

PIU150AD10

A C11

S D_CWPR/TSI1_D0/GP12_1

PIU150AC11

A E11

S D_CLK/ TSI1_D3/GP12_4

A D12

S D_CCMD/ TSI1_D4/ GP12_5

PIU150AD12

A C12

S D_D3/TSI1_D5/GP12_6

PIU150AC12

A E12

S D_D2/TSI1_D6/GP12_7

PIU150AE12

U15D

I2C2_SDA/PWM2/GP10_3
I2C2_SCL/ PWM1/ GP10_2

A GC_SEL/JTAG_MUX1/GP10_1

RF_AGC/JTAG_MUX0/GP10_0

QAMAD_VINNI

QAMAD_VINPI
TSI1_VLD/GP13_2
TSI1_CLK/GP13_1

TSI1_D7/GP13_0
S D_D0/TSI1_D2/GP12_3
S D_D1/TSI1_D1/GP12_2

A E9

PIU150AE9

A D9

PIU150AD9

A C8

PIU150AC8

A C9

PIU150AC9

A H10

PIU150AH10

A G10

PIU150AG10

A E10

PIU150AE10PIU150AE11

A C10

PIU150AC10

A F9

PIU150AF9

A F11

PIU150AF11

A D11

PIU150AD11

I2C2_SDA
I2C2_SCL
GPIO10_1/JTAG_MUX1
RF_AGC/JTAG_MUX0
IF­IF+

HP_DETECT

LED_B
LED_G

SD_D0
SD_D1

3V3_M

V DD_1V1

PIR8302

PIR8402

COR83

R83

PIR8301

PIR8401

AB20
AB21

V19

W19
AD24
AE26
AF26
AF27

COR84

AF28

R84

AH27
AH28
AB22
AB19

180ohm-0402-±1%-1/16W
510ohm-0402-±1%-1/16W

2 Layers

PIU150AB20

AVDD33_USB3

PIU150AB21

AVDD33_USB2

PIU150V19

AVCC11_USB2

PIU150W19

DVDD11_USB3

PIU150AD24

USB2_RBIAS
VSS1

PIU150AE26

VSS2

PIU150AF26

VSS3

PIU150AF27

VSS4

PIU150AF28

VSS5

PIU150AH27

VSS6

PIU150AH28

VSS7

PIU150AB22

VSS8

PIU150AB19

U15F

USB3_TXN
USB3_TXP
USB2_DN2
USB2_DP2
USB3_RXN
USB3_RXP
USB2_DM1
USB2_DP1
USB2_DM0
USB2_DP0

AVSS_USB3_2
AVSS_USB3_1

10uF-0603-X5R-±20%-6.3V

0.1uF-0402-X7R-±10%-16V
10uF-0603-X5R-±20%-6.3V

AG24

PIU150AG24

AH24

PIU150AH24

AF25

PIU150AF25

AE25

PIU150AE25

AG26

PIU150AG26

AH26

PIU150AH26

AG28

PIU150AG28

AG27

PIU150AG27

AE27

PIU150AE27

AE28

PIU150AE28

AF24

PIU150AF24

AE24

PIU150AE24

GNDGND

USB3_TXM
USB3_TXP
USB3_DM
USB3_DP
USB3_RXM
USB3_RXP
USB2_DM1
USB2_DP1
USB2_DM0
USB2_DP0

3V3_M

PIC17502

COC175

C175

PIC17501

GND

VDD_1V1

PIC18002

PIC18102

COC180

C180

PIC18001

PIC18101

GND

COC181

C181

2 Layers

P9

PIU150P9

AVSS11_FE

J3

AVSS_FE1

J4

PIU150J4

AVSS_FE2

K5

AVSS_FE3

L3

PIU150L3

AVSS_FE4

L4

AVSS_FE5

PIU150L4

L5

AVSS_FE6

PIU150L5 PIU150N6

GND

COU15A

COU15B

COU15C

COU15D

COU15E

COU15F

U15A

FE_TXP
FE_TXN
FE_RXP

FE_RXN
FE_LED0/GP9_0
FE_LED1/GP9_1

FE_REXT

10Kohm-0402-±1%-1/16W

J1

PIU150J1

J2

PIU150J2PIU150J3

K3

PIU150K3

K4

PIU150K4PIU150K5

H5

PIU150H5

J5

PIU150J5

N6

FE_RX+
FE_RX­FE_TX+
FE_TX­FE_LED0
FE_LED1

PIR8102

COR81

R81

PIR8101

GND

3V3_M

B B

C C

D D

CI & CA socket

COTMS

TMS

COTRST

TRST

COTCK

TCK

COTDI

TDI

COTDO

TDO

PITMS01
PITRST01
PITCK01
PITDI01
PITDO01

TSI0_D0/JTA G_TMS
TSI0_D1/JTAG_TRSTN
TSI0_D2/JTAG_TCK
TSI0_D3/JTAG_TDI
TSI0_D4/JTAG_TDO
TSI0_D5
TSI0_D6
TSI0_D7
TSI0_CLK
TSI0_VLD
TSI0_SYNC
TSO0_D0/USB2.0_EN
TSO0_D1/USB 2.0_EN
TSO0_D2/LVDS_WP
TSO0_D3
TSO0_D4
TSO0_D5
TSO0_D6
TSO0_D7
TSO0_CLK
TSO0_VLD/SPIF_DET1
TSO0_SYNC
CI_DQ0
CI_DQ1
CI_DQ2
CI_DQ3
CI_DQ4
CI_DQ5

2 Layers

AG22

TSI0_D0/JTAG_TMS/GP10_4

PIU150AG22

AE21

TSI0_D1/JTAG_TRSTN/GP10_5

PIU150AE21

AD22

PIU150AD22

TSI0_D2/JTAG_TCK/GP10_6

AH13

PIU150AH13

TSI0_D3/JTAG_TDI /GP10_7

AF13

PIU150AF13

TSI0_D4/JTAG_TDO/GP11_0

AD14

PIU150AD14

TSI0_D5/RSA_RESULT/GP11_1

AC14

PIU150AC14

TSI0_D6/RSA_END/GP11_2

AG14

TSI0_D7/GOIN_NORMAL/GP11_3

PIU150AG14

AF19

TSI0_CLK/CLK_TEST_OUT/GP11_4

PIU150AF19

AH21

TSI0_VLD/BOOTROM_STR/GP11_5

PIU150AH21

AC21

TSI0_SYNC/GP11_6

PIU150AC21

AG16

TSO0_D0/GP13_3

PIU150AG16

AD16

TSO0_D1/GP13_4

PIU150AD16

AD17

TSO0_D2/GP13_5

PIU150AD17

AG17

TSO0_D3/GP13_6

PIU150AG17

AC18

TSO0_D4/GP13_7

PIU150AC18

AC19

TSO0_D5/GP14_0

PIU150AC19

AF18

TSO0_D6/GP14_1

PIU150AF18

AD19

TSO0_D7/GP14_2

PIU150AD19

AE18

TSO0_CLK/GP1 4_3

PIU150AE18

AD18

TSO0_VLD/GP1 4_4

PIU150AD18

AF16

TSO0_SYNC/GP14_5

PIU150AF16

AH22

CI_DQ0/ GP14_6

PIU150AH22

AD21

CI_DQ1/ GP14_7

PIU150AD21

AE22

CI_DQ2/ GP15_0

PIU150AE22

AC13

CI_DQ3/ GP15_1

PIU150AC13

AG12

CI_DQ4/ GP15_2

PIU150AG12

AE14

CI_DQ5/ GP15_3

PIU150AE14

U15E

NC/4K7ohm-0402-±5%-1/16W
NC/4K7ohm-0402-±5%-1/16W

TSI0_D4/JTAG_TDO
TSI0_D0/JTAG_TMS
TSI0_D3/JTAG_TDI

TSI0_D2/JTAG_TCK

NC/1Kohm-0402-±5%-1/16W

CI_RST/GP17_2

CI_WEN/GP17_1
CI_OEN/ GP17_0
CI_CEN/GP16_7
CI_CDN/GP16_6

CI_DQ7/ GP15_5
CI_DQ6/ GP15_4

PIU150AE17
PIU150AG20
PIU150AC16
PIU150AG15
PIU150AD20
PIU150AF20
PIU150AC17

PIU150AD15
PIU150AC15
PIU150AC22
PIU150AF17

PIU150AH16

PIU150AG18

PIU150AF15

PIU150AF14
PIU150AE15
PIU150AH15
PIU150AH18
PIU150AC20
PIU150AH19
PIU150AG19
PIU150AE20
PIU150AF21
PIU150AG21
PIU150AF22
PIU150AG13
PIU150AD13

VSS

PIU150AH12

AE17
AG20
AC16
AG15
AD20
AF20
AC17
AD15
AC15
AC22
AF17
AH16
AG18
AF15
AF14
AE15
AH15
AH18
AC20
AH19
AG19
AE20
AF21
AG21
AF22
AG13
AD13
AH12

CI_RDY/SI M0_RST

CI_REGN/GP17_5
CI_I OWRN/GP17_4
CI_I ORDN/GP17_3

CI_WAITN/SIM0_DATA

CI_ADR14/GP16_5

CI_ADR13/PCB_L

CI_ADR12/BOOT_SEL0

CI_ADR11/ROMBOOT_SEL

CI_ADR10/BOOT_SEL1

CI_ADR9/ GP16_4

CI_ADR8/ GP16_3

CI_ADR7/ GP16_2

CI_ADR6/ GP16_1

CI_ADR5/ SIM0_PWREN

CI_ADR4/ SIM0_CLK
CI_ADR3/ SIM0_DET

CI_ADR2/ GP16_0

CI_ADR1/ GP15_7

CI_ADR0/ GP15_6

PIR10401

COR104

PIR10501

COR105

COR106

R104NC/NC/4K7ohm-0402-±5%-1/16W R105

R106

PIR10402

PIR10502

COR107

R107

PIR10701 PIR10702

GND

CI_RDY/SIM0_RS T
CI_REGN
CI_IOWRN
CI_IORDN
CI_RST
CI_WAITN/SIM0_DATA
CI_WEN
CI_OEN
CI_CEN
CI_CDN
CI_ADR14
CI_ADR13/P CB_L
CI_ADR12/B OOT_SEL0
CI_ADR11
CI_ADR10/B OOT_SEL1
CI_ADR9
CI_ADR8
CI_ADR7
CI_ADR6
CI_ADR5/SIM0_PWREN
CI_ADR4/SIM0_CLK
CI_ADR3/SIM0_DET
CI_ADR2
CI_ADR1
CI_ADR0
CI_DQ7
CI_DQ6

GND

PIR10601

PIR10602

HDMI 0(MHL)

HDMI_CEC

HDMI_R0XCP
HDMI_R0XCN
HDMI_R0X0P
HDMI_R0X0N
HDMI_R0X1P
HDMI_R0X1N
HDMI_R0X2P
HDMI_R0X2N

2 Layers

U5

HDMI _CEC/SGP2_6

PIU150U5

AE2

HDMI _R0XCP

PIU150AE2

AE1

HDMI _R0XCN

PIU150AE1

AF4

PIU150AF4

HDMI _R0X0P

AF3

PIU150AF3

HDMI _R0X0N

AG2

PIU150AG2

HDMI _R0X1P

AG1

PIU150AG1

HDMI _R0X1N

AH4

PIU150AH4

HDMI _R0X2P

AH3

HDMI _R0X2N

PIU150AH3

U3

AVSS_HDMI RX1

PIU150U3

U4

AVSS_HDMI RX2

PIU150U4

V5

AVSS_HDMI RX3

PIU150V5

W3

AVSS_HDMI RX4

PIU150W3

W4

AVSS_HDMI RX5

PIU150W4

Y5

AVSS_HDMI RX6

PIU150Y5

AA3

AVSS_HDMI RX7

PIU150AA3

AA4

AVSS_HDMI RX8

PIU150AA4

AB5

AVSS_HDMI RX9

PIU150AB5

AC3

AVSS_HDMI RX10

PIU150AC3

AC4

AVSS_HDMI RX11

PIU150AC4

AD5

AVSS_HDMI RX12

PIU150AD5

AE3

AVSS_HDMI RX13

PIU150AE3

AE4

AVSS_HDMI RX14

PIU150AE4

AF5

AVSS_HDMI RX15

PIU150AF5

AG3

AVSS_HDMI RX16

PIU150AG3

AG4

AVSS_HDMI RX17

PIU150AG4

AH1

AVSS_HDMI RX18

PIU150AH1

AH2

AVSS_HDMI RX19

PIU150AH2

AH5

AVSS_HDMI RX20

PIU150AH5

F12

AGND_HDMI _VBUS

PIU150F12

U15B

HDMI _R2XCP
HDMI _R2XCN
HDMI _R2X0P
HDMI _R2X0N
HDMI _R2X1P
HDMI _R2X1N
HDMI _R2X2P

HDMI _R2X2N
HDMI 2_SDA/SGP2_4
HDMI 2_SCL/ SGP2_5
HDMI 2_DET/SGP1_5
HDMI 2_HTP/SGP1_7

HDMI _R1XCP

HDMI _R1XCN

HDMI _R1X0P

HDMI _R1X0N

HDMI _R1X1P

HDMI _R1X1N

HDMI _R1X2P

HDMI _R1X2N
HDMI 1_SDA/SGP2_2
HDMI 1_SCL/ SGP2_3
HDMI 1_DET/SGP1_4
HDMI 1_HTP/SGP1_6

ARC_PAD

MHL_CD_SENSE/SGP1_2

HDMI 0_DET/SGP1_3
HDMI 0_SCL/ SGP2_1
HDMI 0_SDA/SGP2_0

CBUS_PAD

U2

PIU150U2

U1

PIU150U1

V4

PIU150V4

V3

PIU150V3

W2

PIU150W2

W1

PIU150W1

Y4

PIU150Y4

Y3

PIU150Y3

Y7

PIU150Y7

U6

PIU150U6

V7

PIU150V7

W6

PIU150W6

AA2

PIU150AA2

AA1

PIU150AA1

AB4

PIU150AB4

AB3

PIU150AB3

AC2

PIU150AC2

AC1

PIU150AC1

AD4

PIU150AD4

AD3

PIU150AD3

W5

PIU150W5

AA6

PIU150AA6

Y6

PIU150Y6

V6

PIU150V6

AC7

PIU150AC7

AA5

PIU150AA5

AB6

PIU150AB6

AD6

PIU150AD6

AC6

PIU150AC6

AC5

PIU150AC5

HDMI_R2XCP
HDMI_R2XCN
HDMI_R2X0P
HDMI_R2X0N
HDMI_R2X1P
HDMI_R2X1N
HDMI_R2X2P
HDMI_R2X2N
HDMI2_SDA
HDMI2_SCL
HDMI2_DET
HDMI2_HOTPLUG

HDMI_R1XCP
HDMI_R1XCN
HDMI_R1X0P
HDMI_R1X0N
HDMI_R1X1P
HDMI_R1X1N
HDMI_R1X2P
HDMI_R1X2N
HDMI1_SDA
HDMI1_SCL
HDMI1_DET
HDMI1_HOTPLUG
ARC_PAD

MHL_CD_SENSE
HDMI0_DET
HDMI0_SCL
HDMI0_SDA
HDMI0_HTP_CBUS

Y0N
SOY
YPBPR0_PB_P
YPBPR0_Y_P
YPBPR0_PR_P
VDAC1_OUT
CVBS_VCOM
CVBS0_IN
CVBS1_IN

GND

2 Layers

N3

SOG

PIU150N3

M3

VGA_GN

PIU150M3

L2

PIU150L2

VGA_BP

M2

PIU150M2

VGA_GP

N2

PIU150N2

VGA_RP

M4

PIU150M4

VGA_HS0

L1

PIU150L1

VGA_VS0

N1

Y0N

PIU150N1

R3

SOY0

PIU150R3

P1

PB0Y

PIU150P1

P3

Y0P

PIU150P3

P2

PROY

PIU150P2

T5

VDAC1_OUT

PIU150T5

T4

CVBS_COM

PIU150T4

R2

CVBS0

PIU150R2

R4

CVBS1

PIU150R4

R5

CVBS2

PIU150R5

T6

VSS2

PIU150T6

M5

VSS1

PIU150M5

U15C

LINEIN_R3

PIU150AG6

LINEIN_L3

PIU150AF6
PIU150AG5

LINEIN_R2

PIU150AH6

LINEIN_L2

PIU150AG7

LINEIN_R1

PIU150AF7

LINEIN_L1

PIU150AD8

LINEOUT_R3
LINEOUT_L3

PIU150AD7

LINEOUT_R2

PIU150AE8

LINEOUT_L2

PIU150AF8

LINEOUT_L1

PIU150AE6

LINEOUT_R1

PIU150AE5

MIC_P

PIU150AH8

MIC_N

PIU150AG8

BG_RES_10K

PIU150R6

AVSS_AFE3

PIU150P5

AVSS_AFE2

PIU150P4

AVSS_AFE1

PIU150N4

10Kohm-0402-±1%-1/16W

AG6
AF6
AG5
AH6
AG7
AF7
AD8
AD7
AE8
AF8
AE6
AE5
AH8
AG8
R6

P5
P4
N4

LINEIN_R2
LINEIN_L2
LINEIN_R1
LINEIN_L1

LINEOUT_L1
LINEOUT_R1
MIC_R
MIC_L

GND

PIR8801

R88

COR88

PIR8802

GND

GND

GND

1

2

3

4

5

6

49
