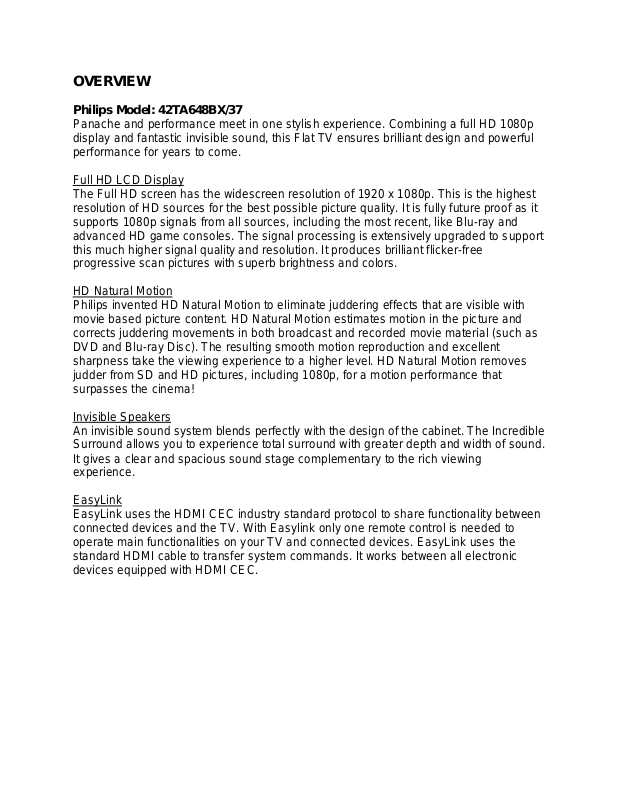

OVERVIEW

Philips Model: 42TA648BX/37

Panache and performance meet in one stylish experience. Combining a full HD 1080p
display and fantastic invisible sound, this Flat TV ensures brilliant design and powerful
performance for years to come.

Full HD LCD Display
The Full HD screen has the widescreen resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible picture quality. It is fully future proof as it
supports 1080p signals from all sources, including the most recent, like Blu-ray and
advanced HD game consoles. The signal processing is extensively upgraded to support
this much higher signal quality and resolution. It produces brilliant flicker-free
progressive scan pictures with superb brightness and colors.

HD Natural Motion
Philips invented HD Natural Motion to eliminate juddering effects that are visible with
movie based picture content. HD Natural Motion estimates motion in the picture and
corrects juddering movements in both broadcast and recorded movie material (such as
DVD and Blu-ray Disc). The resulting smooth motion reproduction and excellent
sharpness take the viewing experience to a higher level. HD Natural Motion removes
judder from SD and HD pictures, including 1080p, for a motion performance that
surpasses the cinema!

Invisible Speakers
An invisible sound system blends perfectly with the design of the cabinet. The Incredible
Surround allows you to experience total surround with greater depth and width of sound.
It gives a clear and spacious sound stage complementary to the rich viewing
experience.

EasyLink
EasyLink uses the HDMI CEC industry standard protocol to share functionality between
connected devices and the TV. With Easylink only one remote control is needed to
operate main functionalities on your TV and connected devices. EasyLink uses the
standard HDMI cable to transfer system commands. It works between all electronic
devices equipped with HDMI CEC.

SPECIFICATIONS

Picture/Display:

• Aspect Ratio: Widescreen

• Brightness: 500 cd/m2

• Dynamic Screen Contrast: 29,000:1

• Response Time (typical): 5 ms

• Viewing Angle: 178º (H) / 178º (V)

• Diagonal Screen Size: 42"

• Panel Resolution: 1920 x 1080p

• Picture Enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control +

Light sensor, Dynamic contrast enhancement, Progressive Scan

• Screen Format Adjustments: 4:3, Auto Format, Movie expand 14:9, Movie expand
16:9, Super Zoom, Widescreen, unscaled (1080p dot by dot)

• Multimedia Connections: USB memory class device

• Playback Formats: MP3, Slideshow files (.alb), JPEG Still pictures

• Aerial Input: 75 ohm F-type

• TV System: ATSC, NTSC

• Video Playback: NTSC

• Cable: Unscrambled Digital Cable -QAM

• Tuner Bands: Hyperband, S-Channel, UHF, VHF

• Computer Formats Refresh Rate: 640 x 480 60Hz, 800 x 600 60Hz, 1024 x 768

60Hz, 1280 x 768 60Hz, 1280 x 1024 60Hz, 1360 x 768 60Hz, 1920 x 1080i 60Hz,
1920 x 1080p 60Hz

• Video Formats Refresh Rate: 480i 60Hz, 480p 60Hz, 720p 60Hz, 1080i 60Hz, 1080p
60Hz

Inputs/Outputs:

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: CVBS in, S-Video in

• HDMI 1: HDMI v1.3

• HDMI 2: HDMI v1.3

• HDMI 3: Analog audio L/R in, HDMI v1.3

• HDMI-control (CEC features): One touch play, Power status, System info (menu

language), System standby

• Front / Side Connections: Audio L/R in, CVBS in, Headphone out, S-video in, USB,
HDMI

• Audio Output - Digital: Coaxial (cinch)

Audio:

• Equalizer: 5-bands

• Output Power (RMS): 25W
