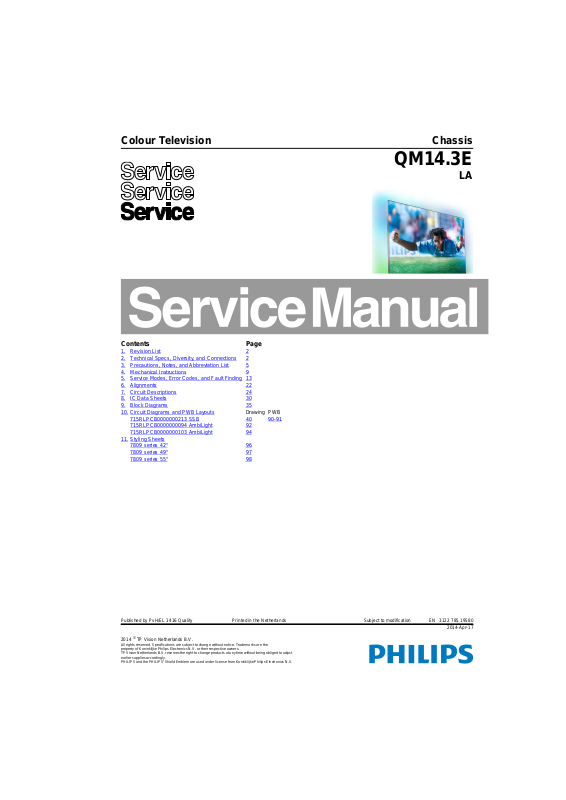

Philips 42PUK7809/12 Schematic

Colour Television Chassis

QM14.3E

LA

Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9

5. Service Modes, Error Codes, and Fault Finding 13

6. Alignments 22

7. Circuit Descriptions 24

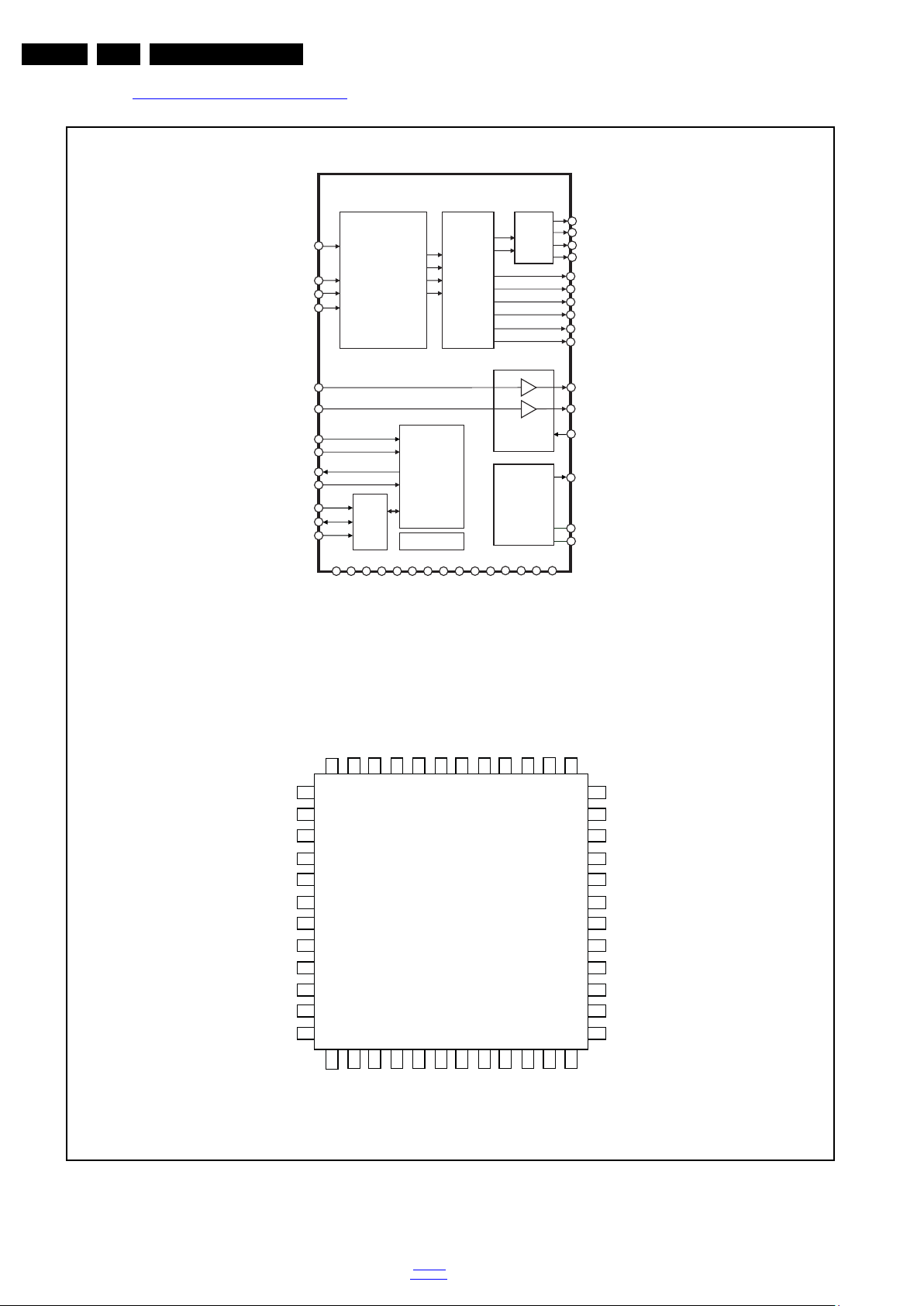

8. IC Data Sheets 30

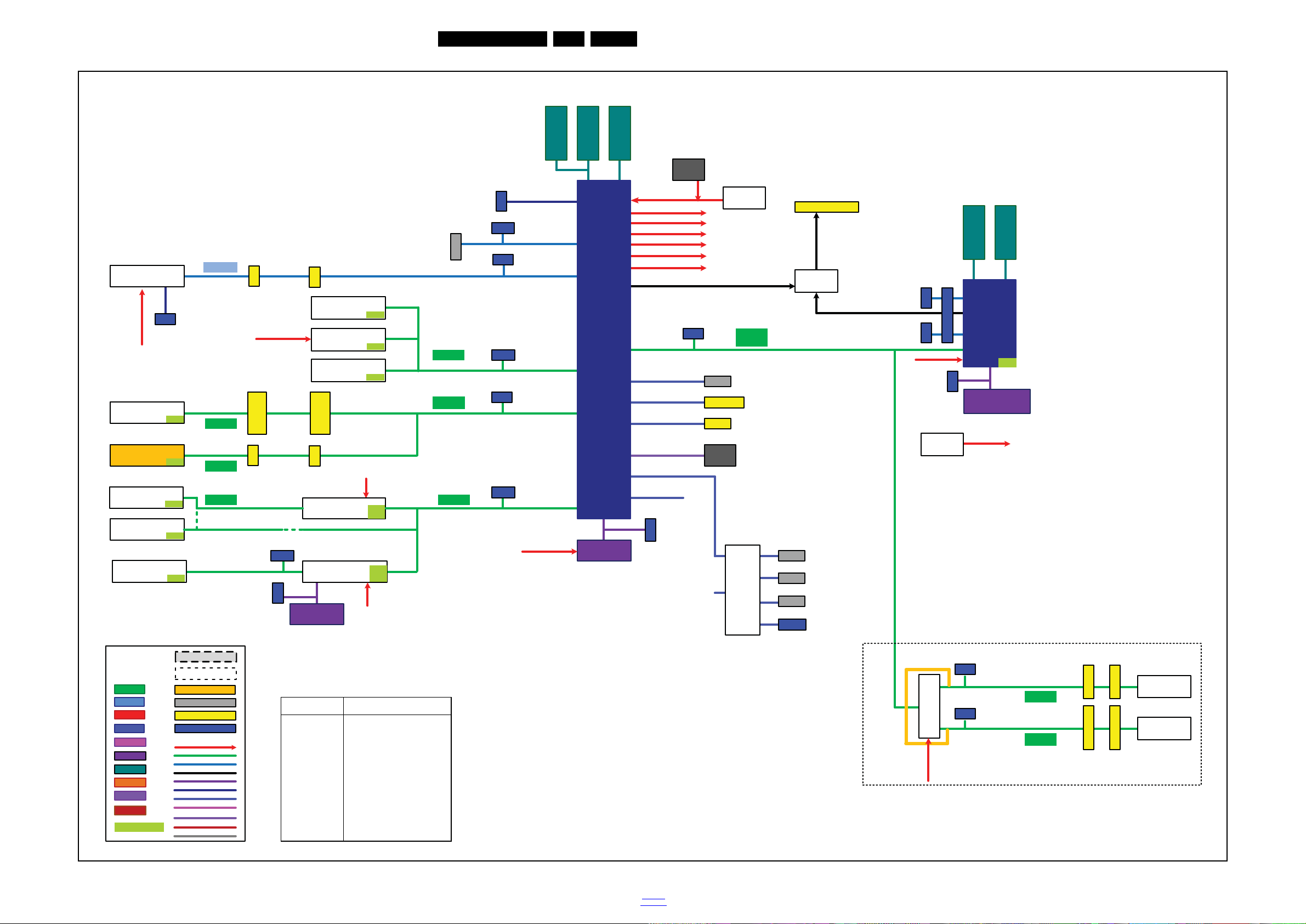

9. Block Diagrams 35

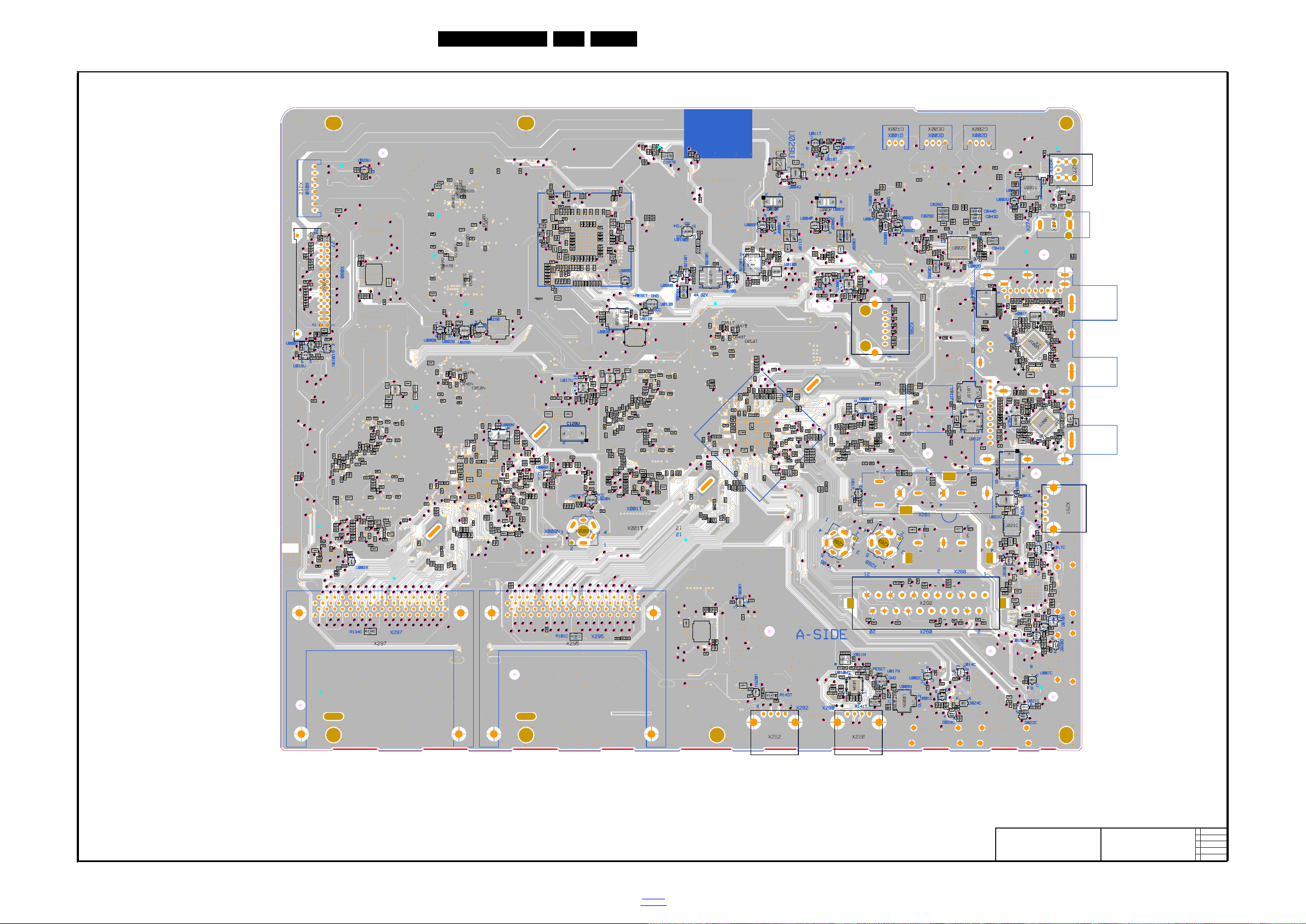

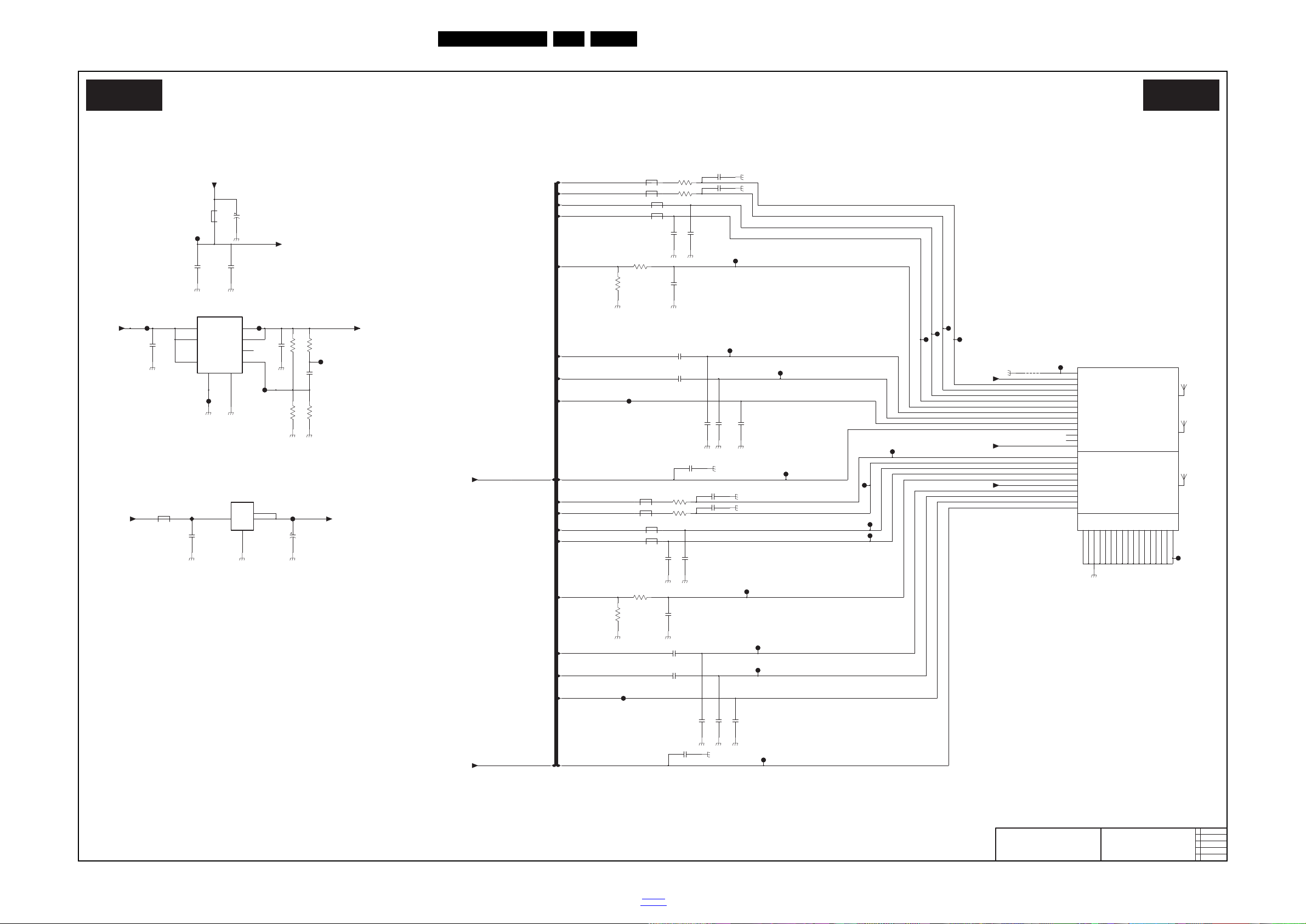

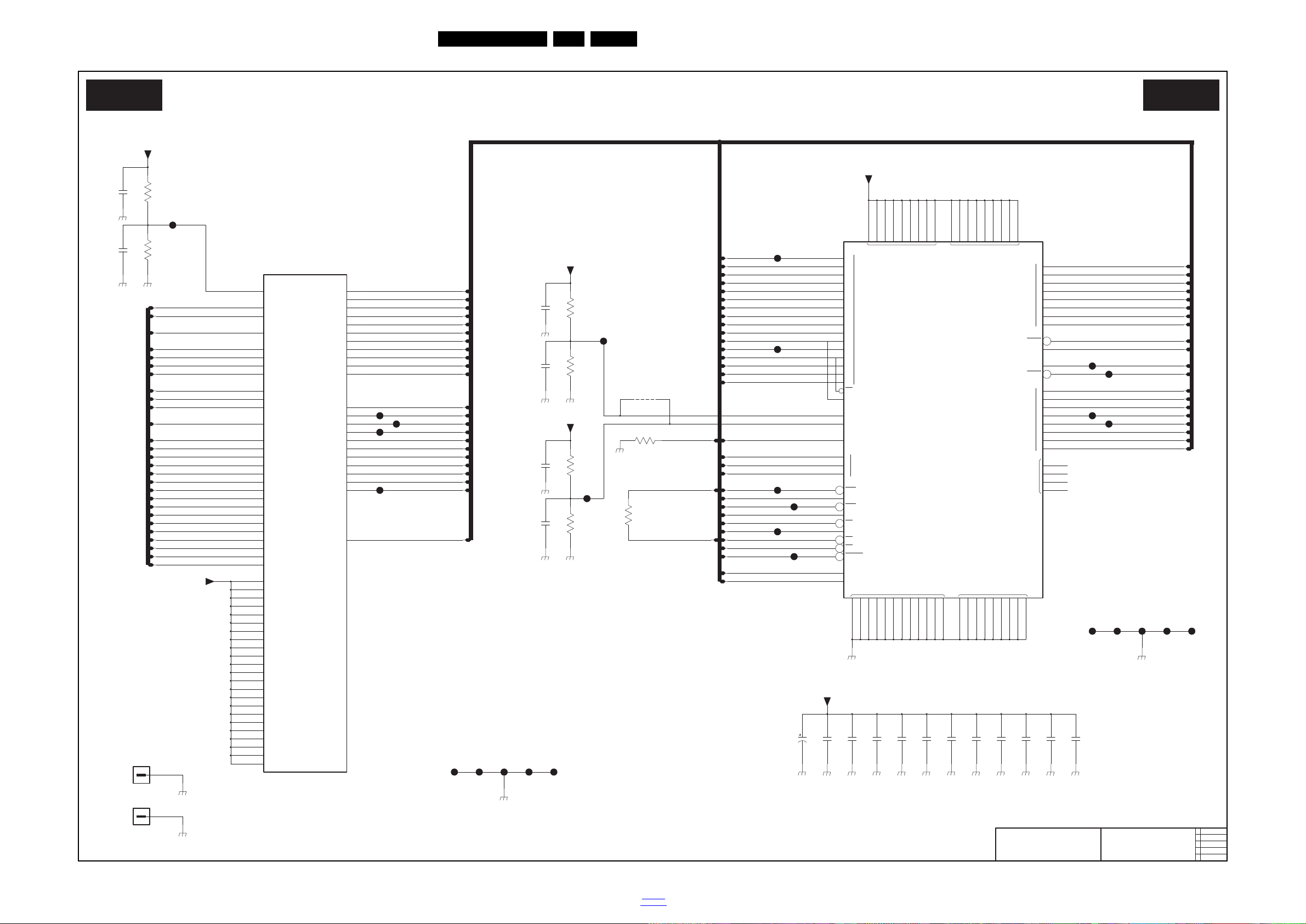

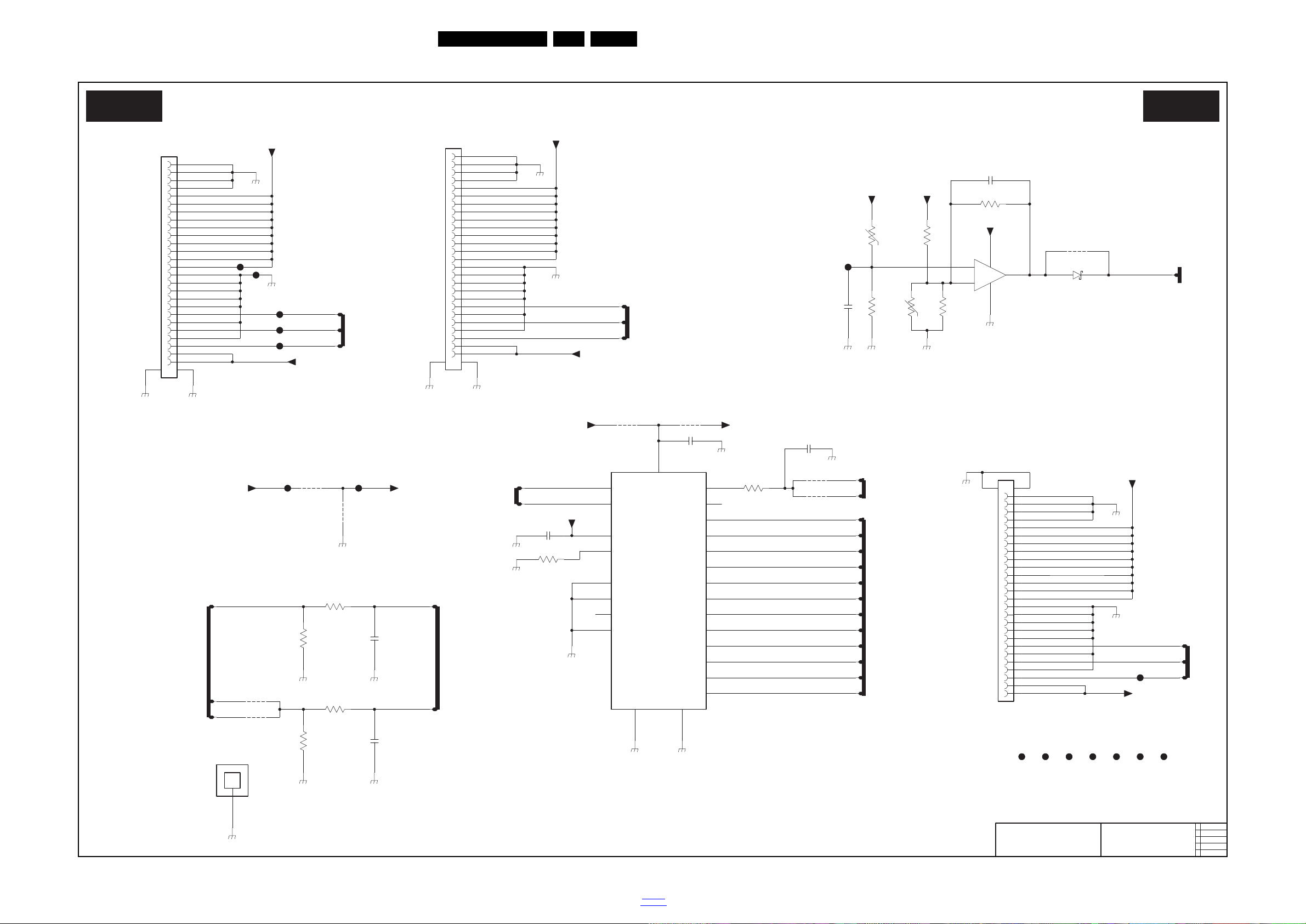

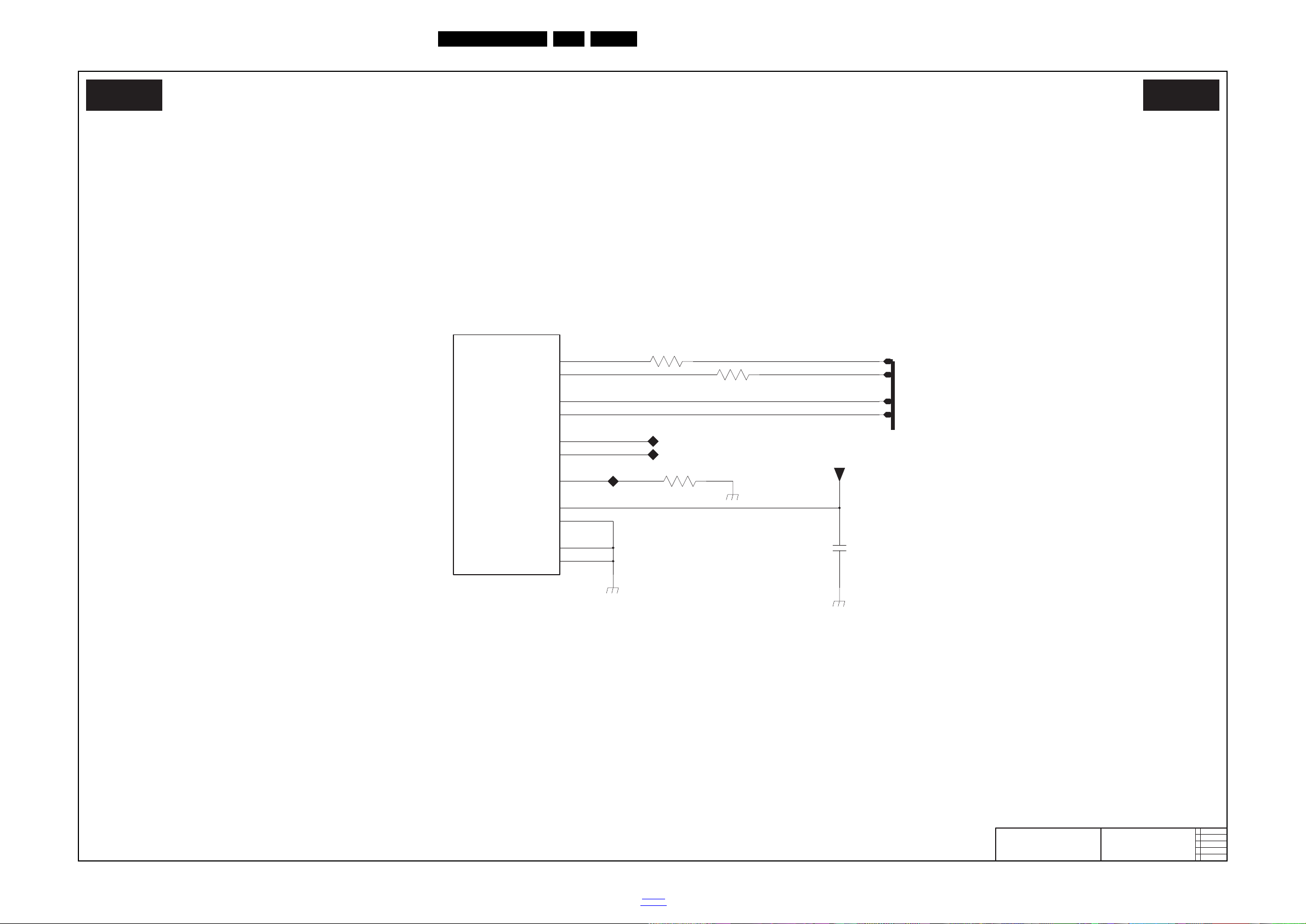

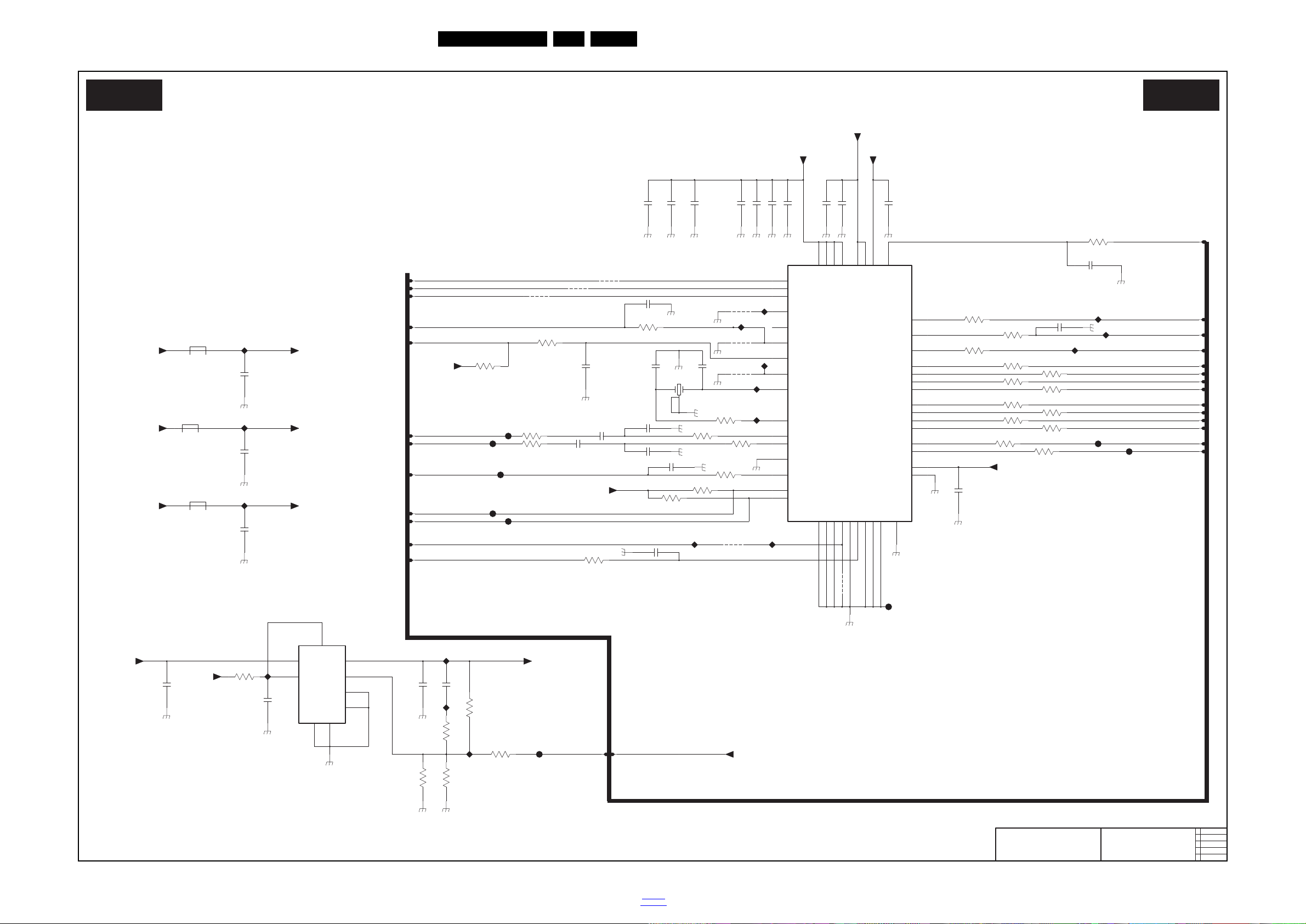

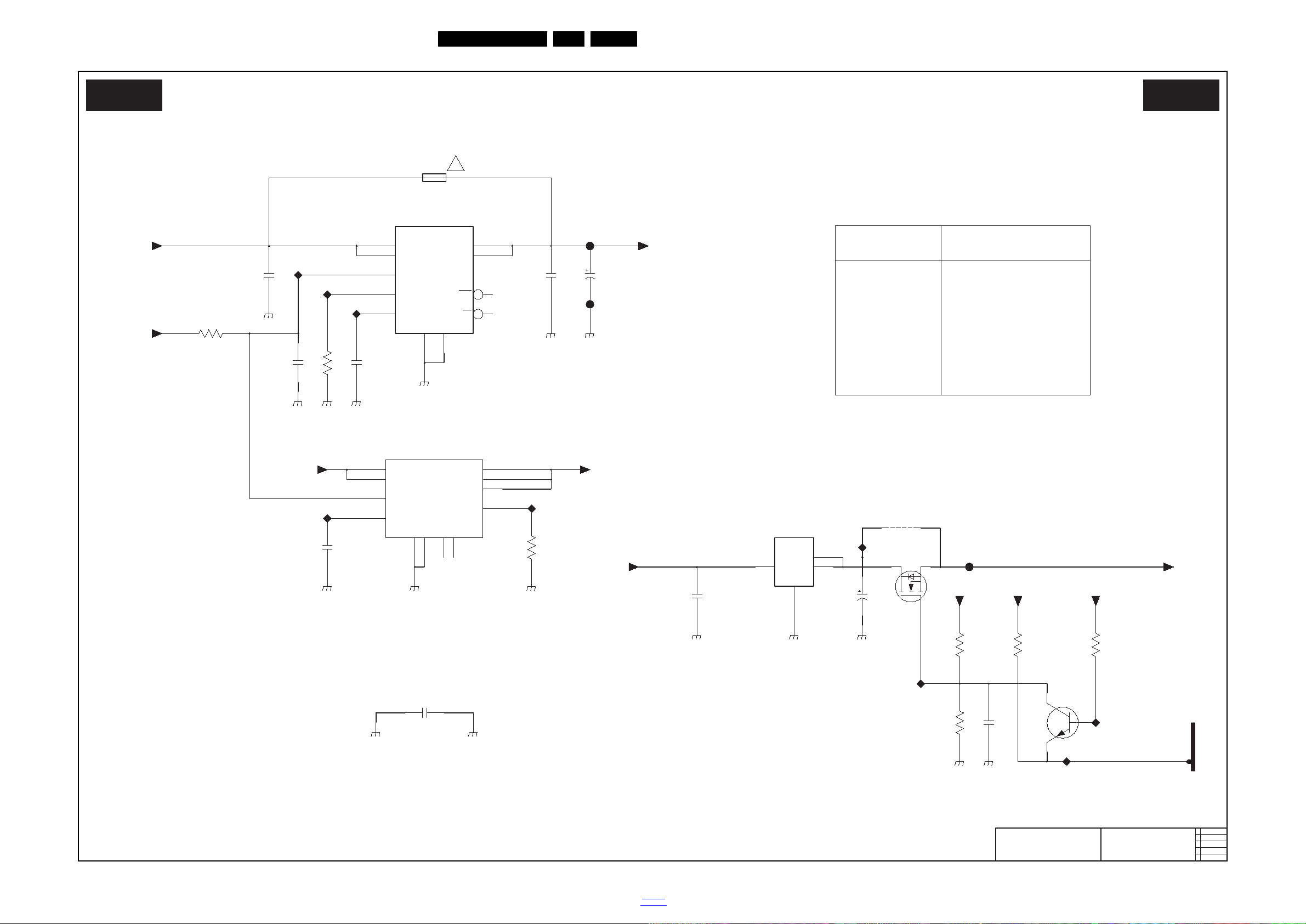

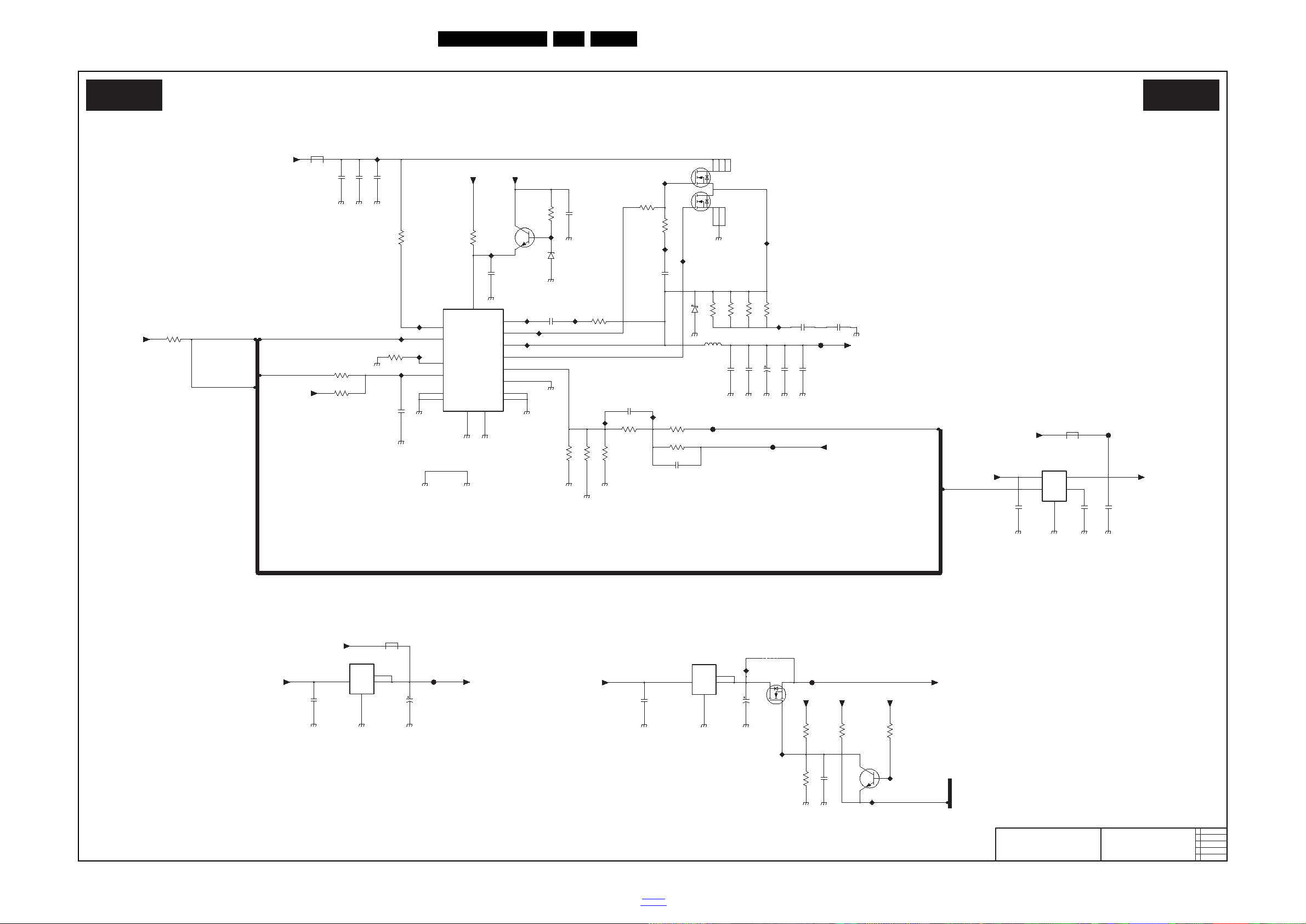

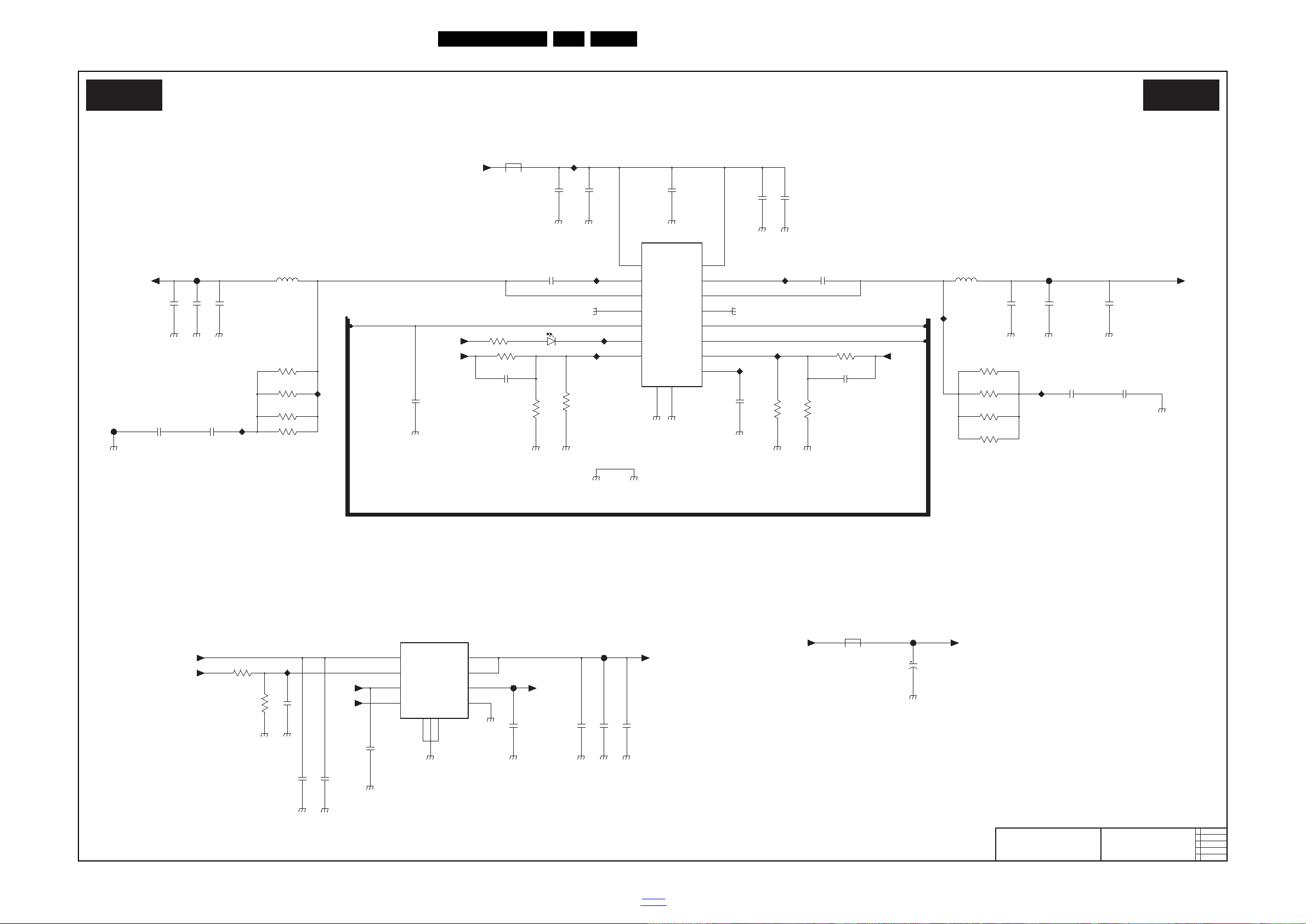

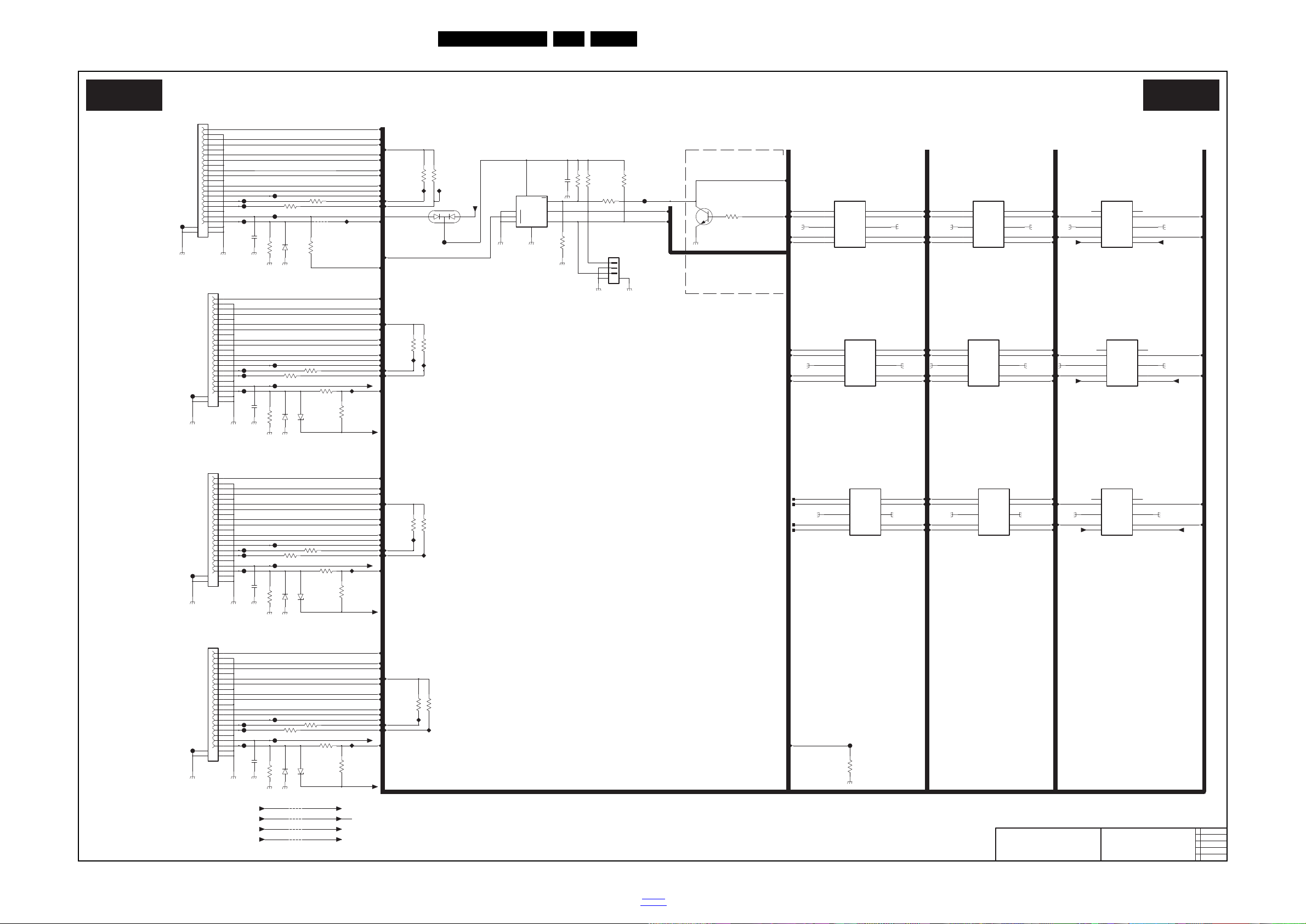

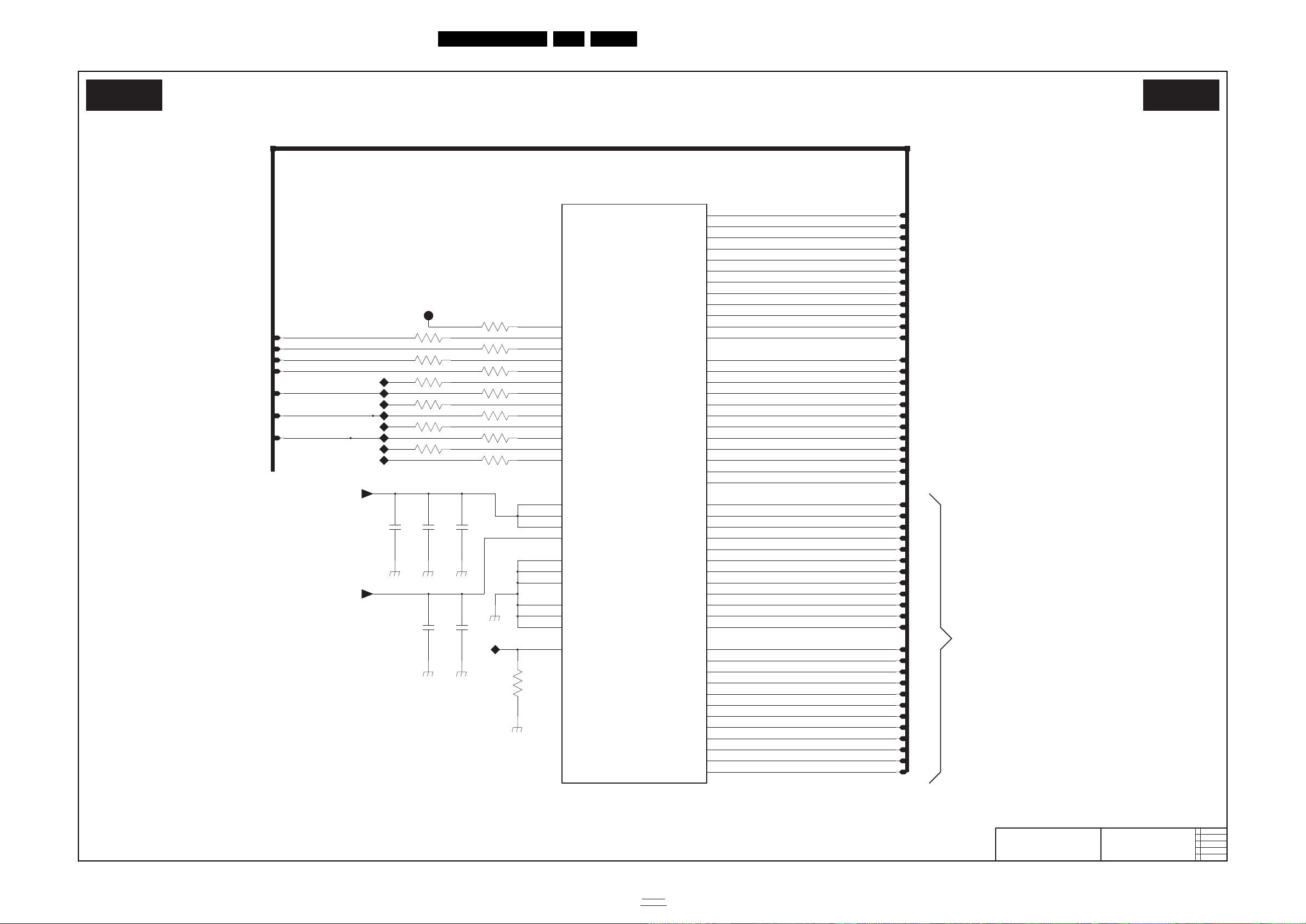

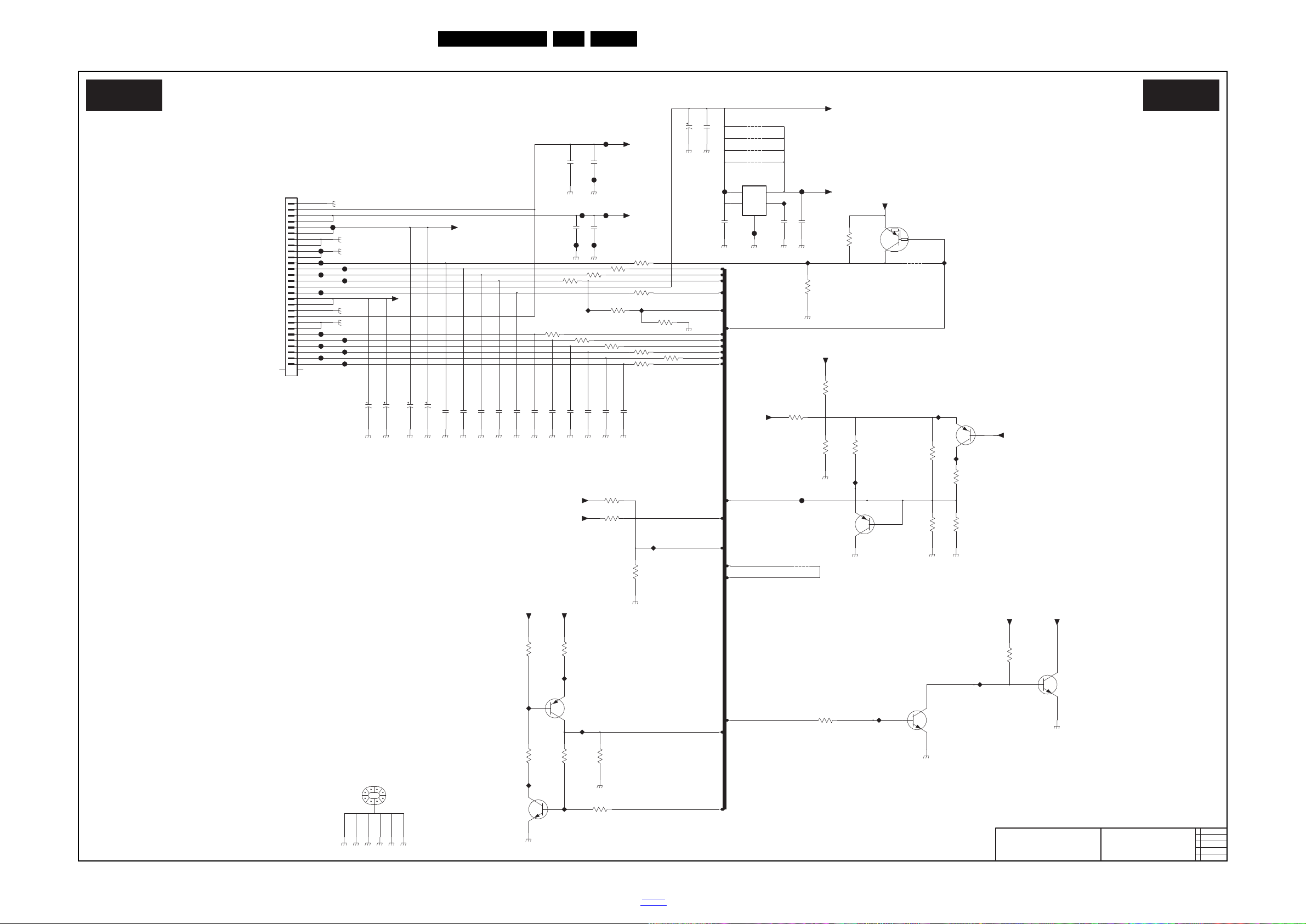

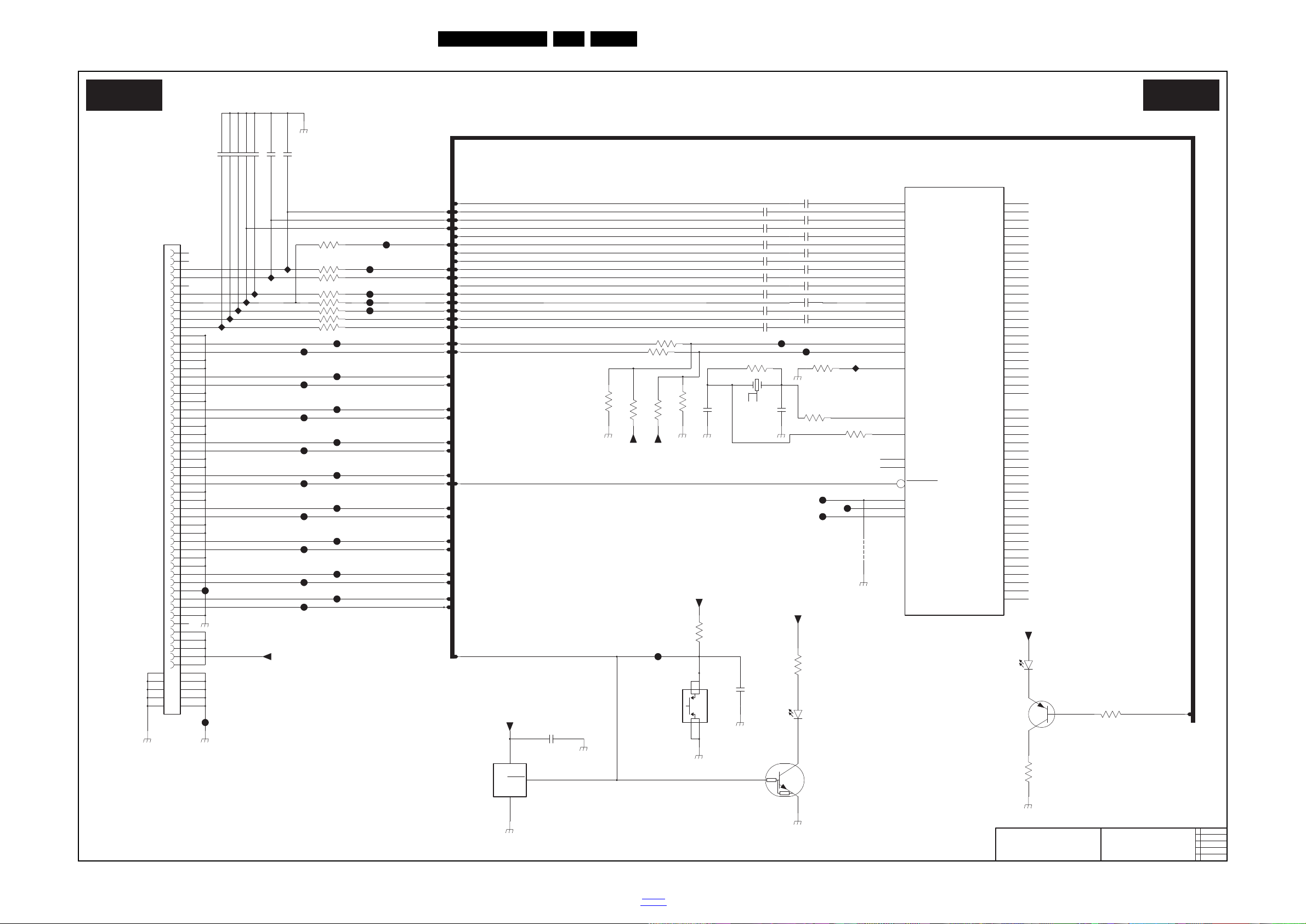

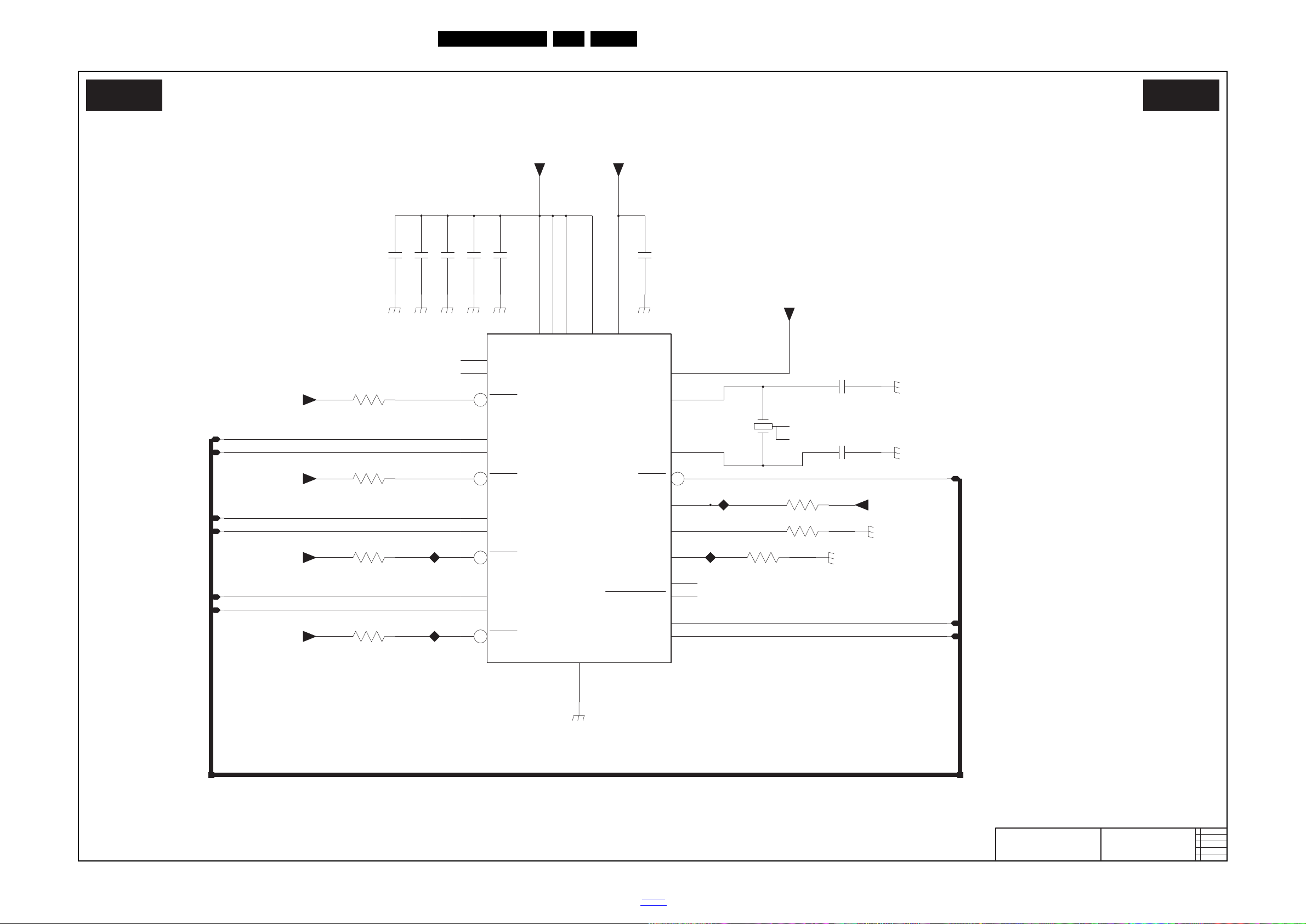

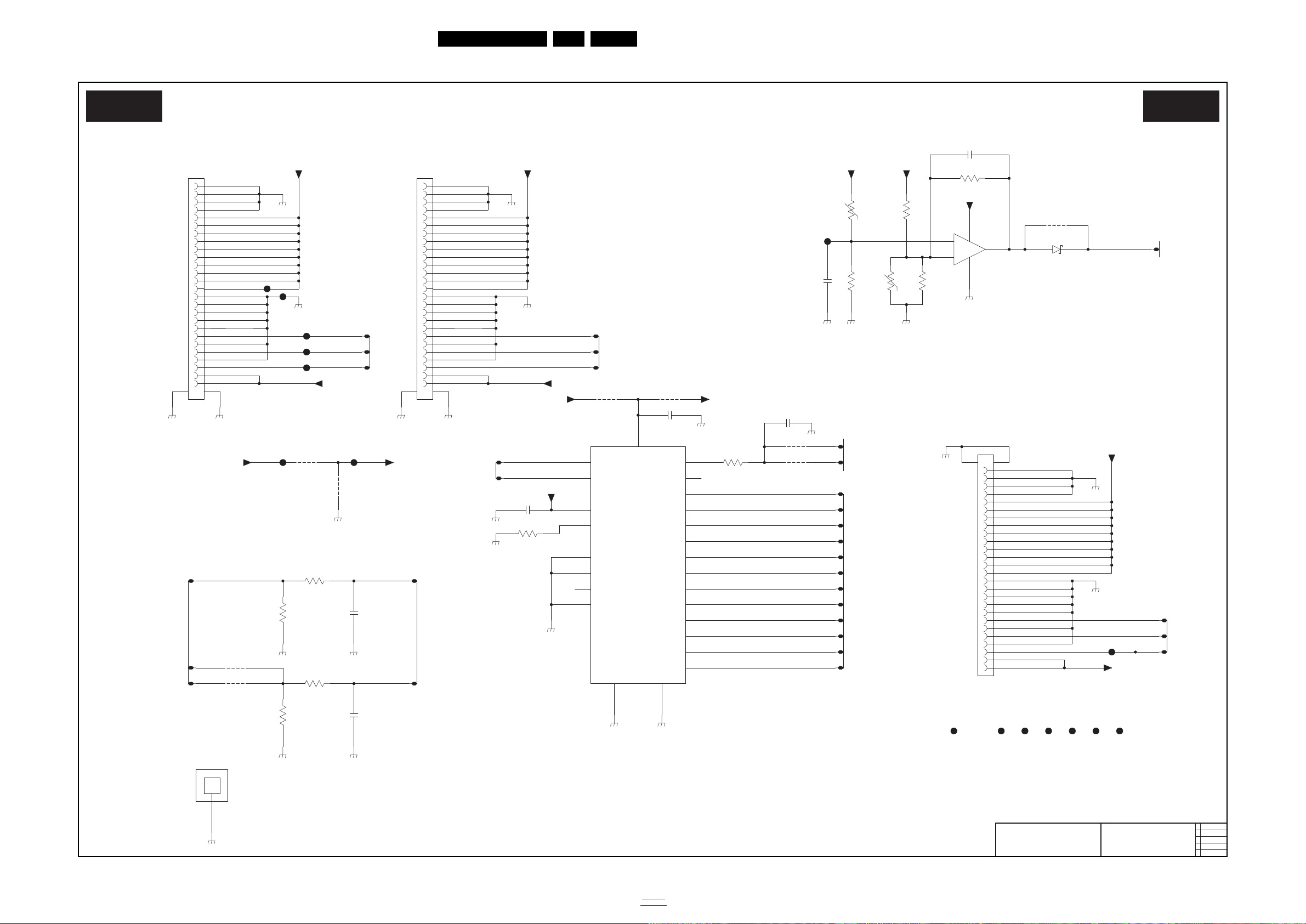

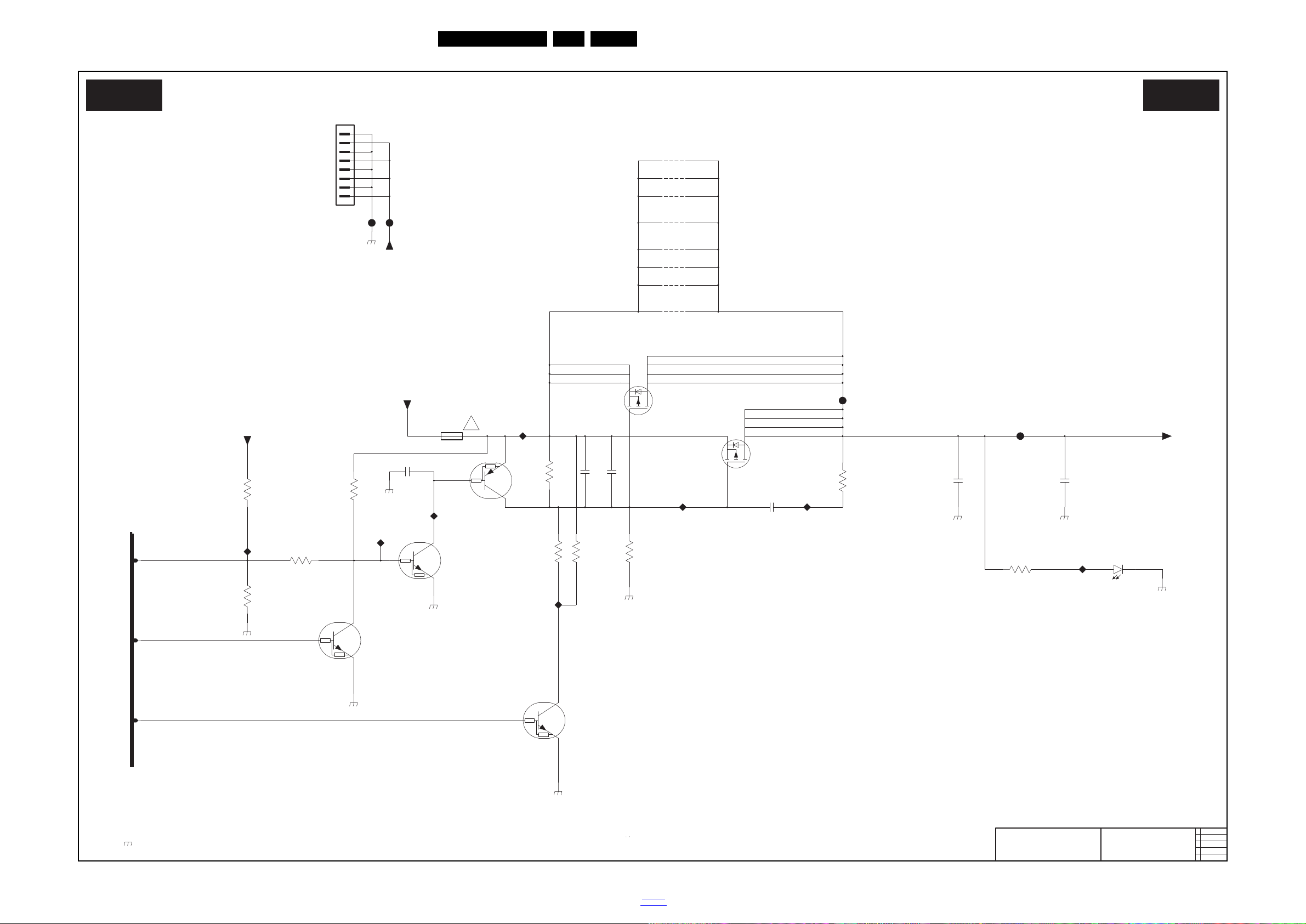

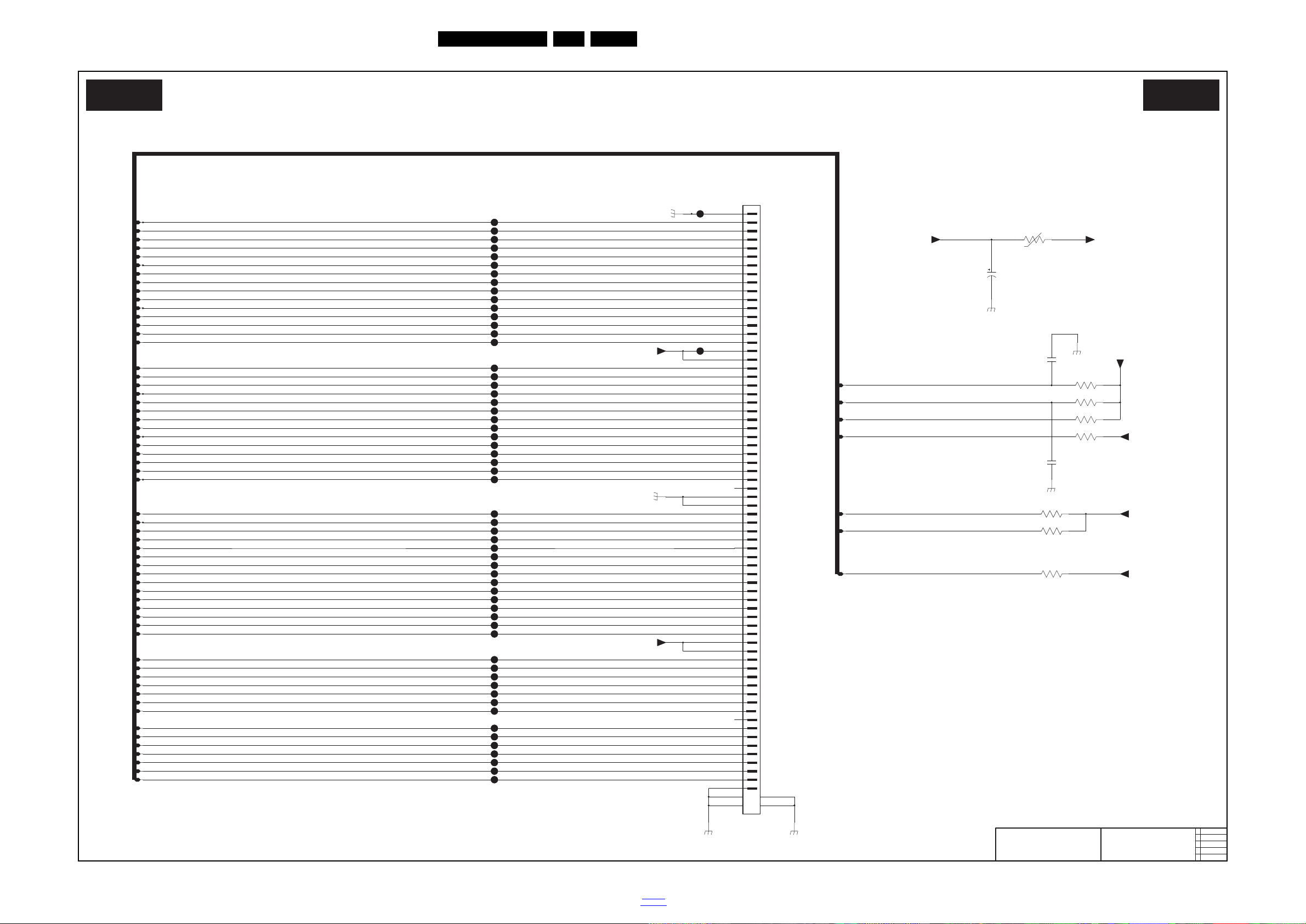

10. Circuit Diagrams and PWB Layouts Drawing PWB

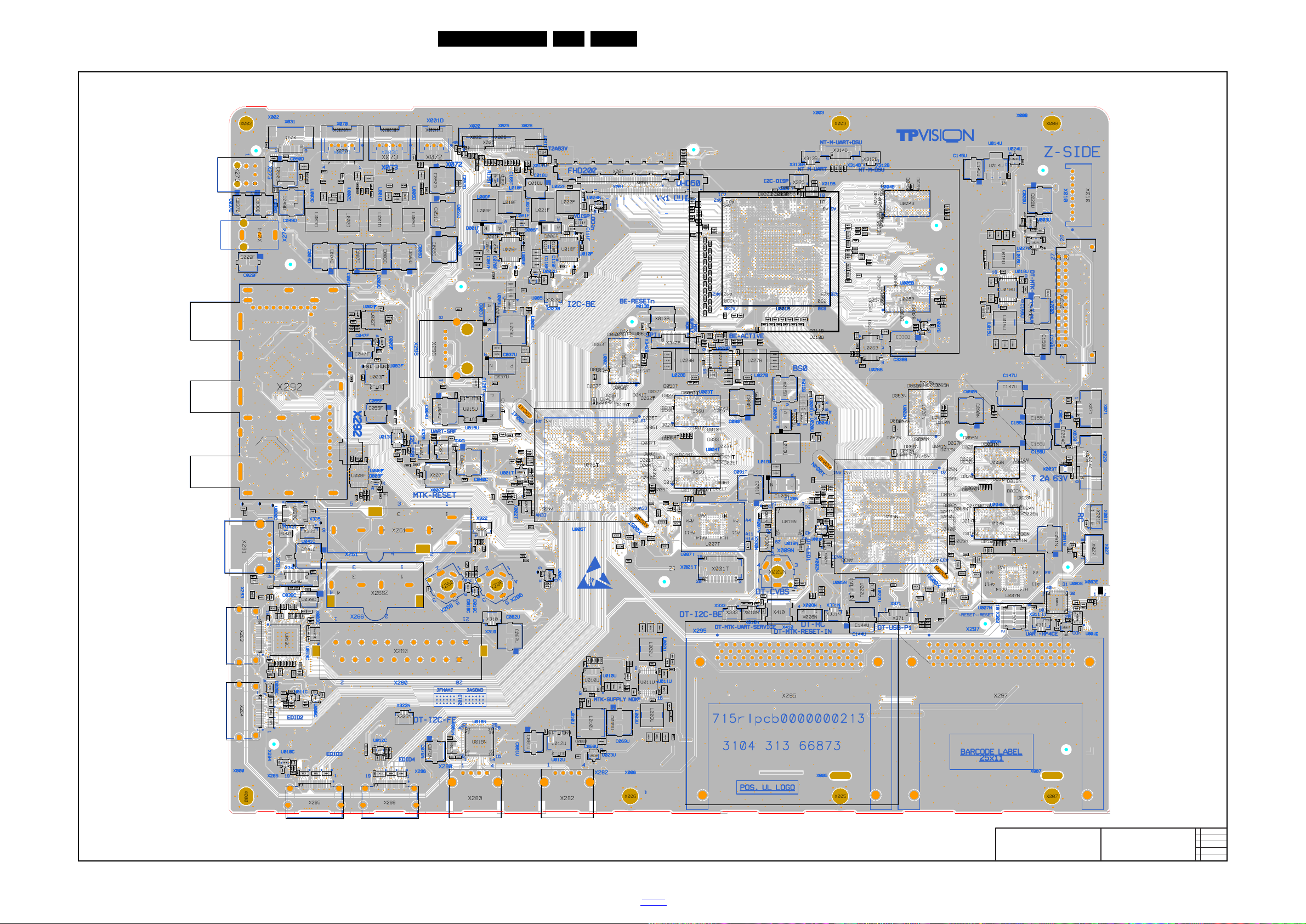

715RLPCB0000000213 SSB
715RLPCB0000000094 AmbiLight 92
715RLPCB0000000103 AmbiLight 94

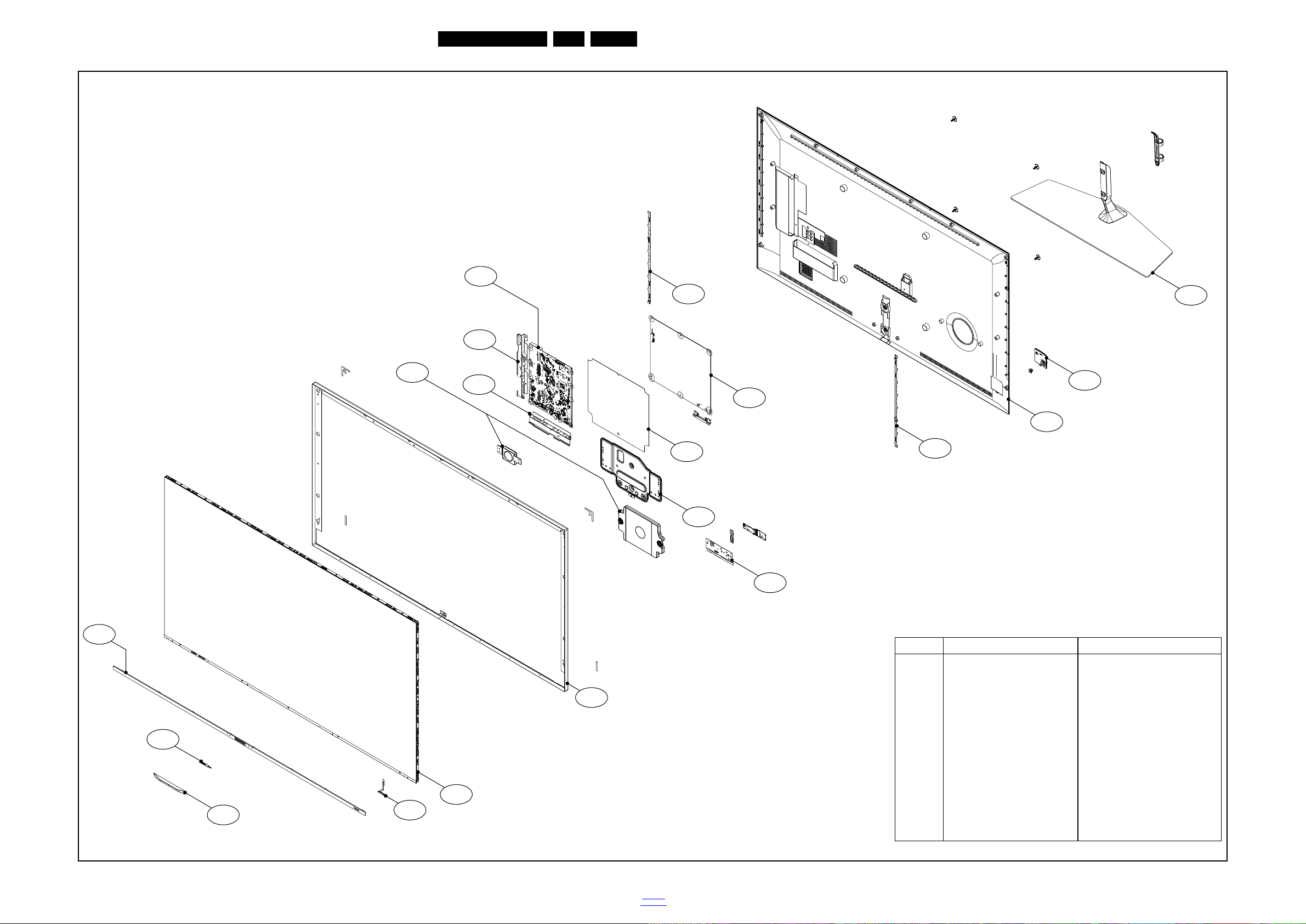

11. Styling Sheets
7809 series 42" 96
7809 series 49" 97
7809 series 55" 98

40 90-91

Published by PvH/EL 1416 Quality Printed in the Netherlands Subject to modification EN 3122 785 19580

2014-Apr-17

2014 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 QM14.3E LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

2.1

Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

Table 2-1 Described Model Numbers and Diversity

2 4 7 9 10 11

Mechanics Descr. Block Diagrams Schematics Styling

2.1 Technical Specifications

For on-line product support please use the CTN links in Table

2-1. Here is product information available, as well as getting

started, user manuals, frequently asked questions and
software & drivers.

CTN

42PUK7809/12 2.3 4-1

42PUS7809/12 2.3 4-1

42PUS7809/60 2.3 4-1

49PUK7809/12 2.3 4-3

49PUS7809/12 2.3 4-3

49PUS7809/60 2.3 4-3

55PUK7809/12 2.3 4-5

55PUS7809/12 2.3 4-5

55PUS7809/60 2.3 4-5

Connection Overview

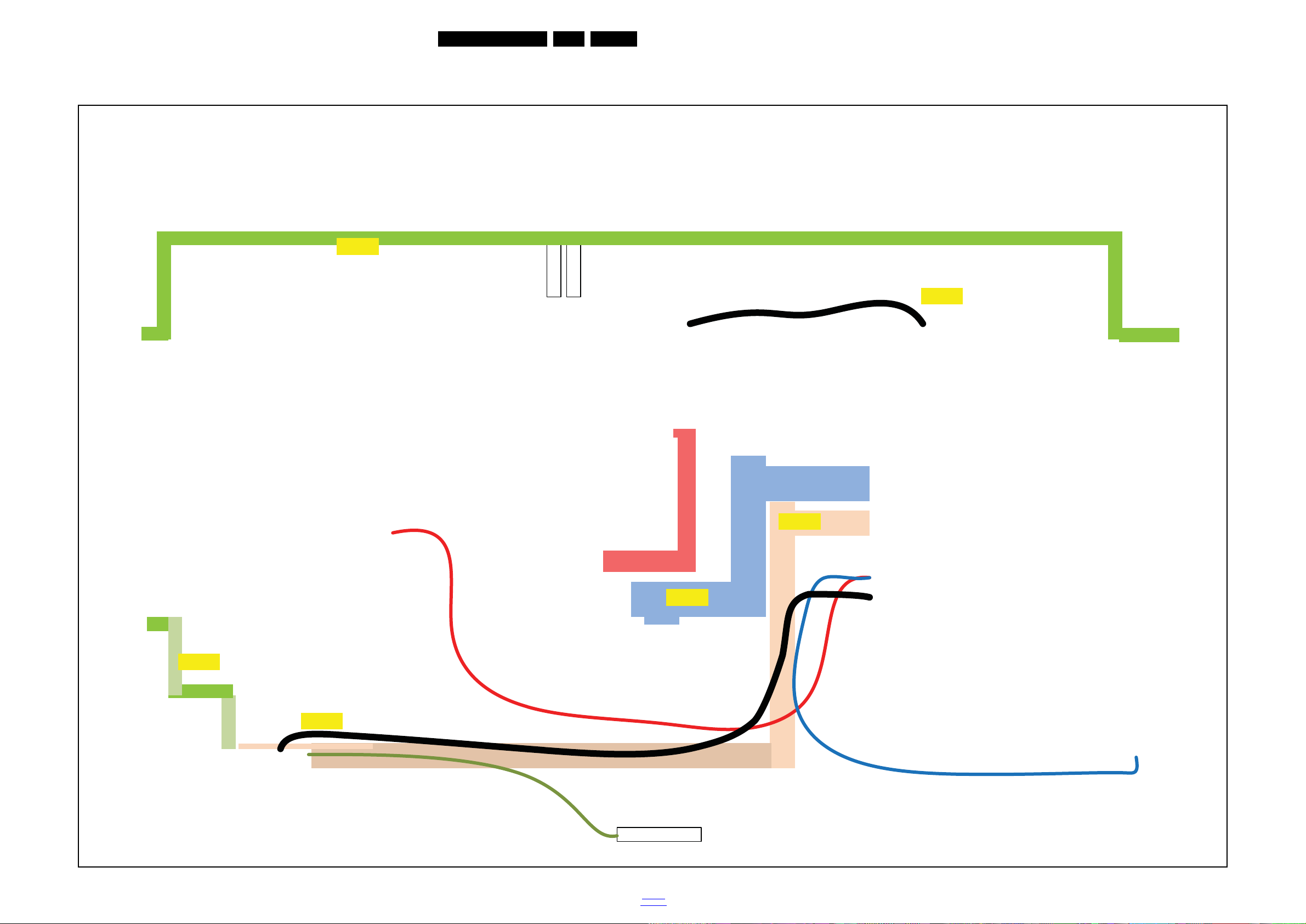

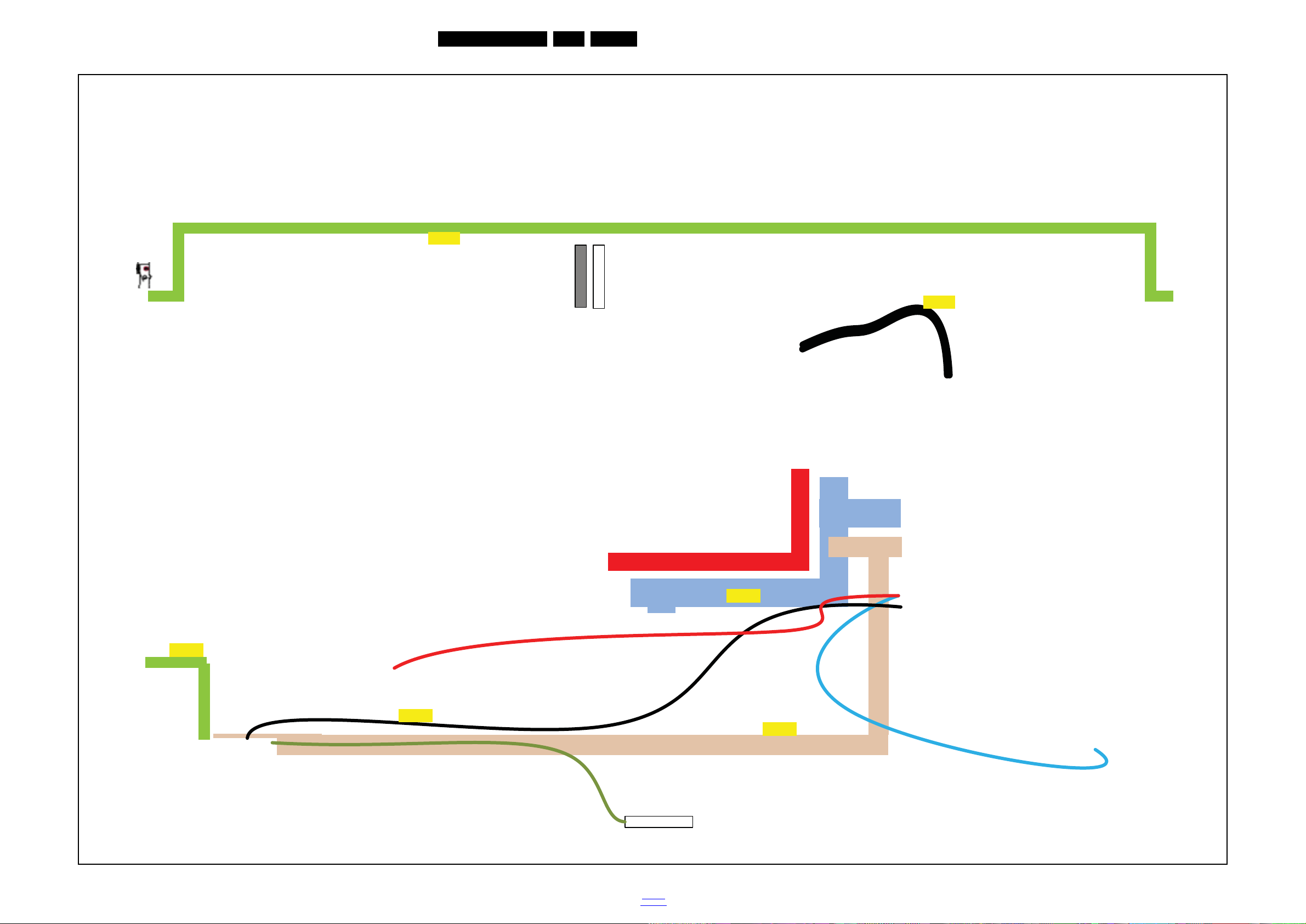

Cable Dressing

Assembly Removal

4.3 7.3 7.3 9.1 - - - - 9.5 - 10.1 - - - - 10.2 11.1

4-2

4.3 7.3 7.3 9.1 - - - - 9.5 - 10.1 - - - - 10.2 11.1

4-2

4.3 7.3 7.3 9.1 - - - - 9.5 - 10.1 - - - - 10.2 11.1

4-2

4.3 7.3 7.3 9.2 - - - - 9.5 - 10.1 - - - - 10.2 11.2

4-4

4.3 7.3 7.3 9.2 - - - - 9.5 - 10.1 - - - - 10.2 11.2

4-4

4.3 7.3 7.3 9.2 - - - - 9.5 - 10.1 - - - - 10.2 11.2

4-4

4.3 7.3 7.3 9.3 - - - - 9.5 - 10.1 - - - - 10.3 11.3

4-6

4.3 7.3 7.3 9.3 - - - - 9.5 - 10.1 - - - - 10.3 11.3

4-6

4.3 7.3 7.3 9.3 - - - - 9.5 - 10.1 - - - - 10.3 11.3

4-6

Power Supply

2.2 Directions for Use

You can download this information from the following websites:

http://www.philips.com/support
http://www.p4c.philips.com

General Power Architecture

Wiring Diagram

Video

Audio

Control & Clock

I2C

Supply lines

Power Supply

SSB

Amplifier control module

(Keyboard Control Module)

(Wireless LAN USB, Light Sensor, IR/LED Module)

(Sensor Module)

(AmbiLight)

Styling

2014-Apr-17

back to

div. table

2.3 Connections

19580_141_140401.eps

14-04-01

HDMI 4

HDMI 3

USB

USB

USB

COMMON

INTERFACE

AUDIO IN

HDMI 1

HDMI 2

Y

Pb

Pr

L

R

NETWORK

SERVICE

Side Connectors

Rear Connectors

Bottom Connectors

SCART

AUDIO OUT

ANTENNA

OPTICAL

SAT

12 11 10

8

7

6

9

(optional)

1

2

3

4

5

13

14

18

15

16

17

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3QM14.3E LA 2.

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, Ye= Yellow.

2.3.1 Connections

1 - Common Interface

68p- See Figure 10-1-26

2, 3 and 8 - USB2.0

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

4, 5, 6 and 7 - HDMI 4, 3, 2, 1 Digital Video - In, Digital Audio with ARC - In/Out

Figure 2-2 USB (type A)

Figure 2-1 Connection overview

jk

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

9 - SAT - In (optional)

- -F-type Coax, 75 ohm D

10 - Antenna - In

- -IEC-type (EU) Coax, 75 ohm D

Figure 2-3 HDMI (type A) connector

11 - Head phone (Output)

Bk -Head phone 32 - 600 ohm / 10 mW ot

back to

div. table

2014-Apr-17

EN 4 QM14.3E LA2.

10000_025_090121.eps

120320

Technical Specs, Diversity, and Connections

12 - Audio - Out: S/PDIF - Out

--Optical kq

13 - RJ45: Ethernet

Figure 2-4 Ethernet connector

1 -TD+ Transmit signal k
2 -TD- Transmit signal k
3 -RD+ Receive signal j
4 -CT Centre Tap: DC level fixation
5 -CT Centre Tap: DC level fixation
6 -RD- Receive signal j
7 -GND Gnd H
8 -GND Gnd H

14 - Cinch: Video YPbPr - In

Gn - Video Y 1 V
Bu -Video Pb 0.7 V
Rd -Video Pr 0.7 V

/ 75 ohm jq

PP

/ 75 ohm jq

PP

/ 75 ohm jq

PP

15 - Service

1 -Ground Gnd H
2 -UART_TX Transmit k
3 -UART_RX Receive j

16 - Audio - In: Left/Right (VGA/DVI)

Bu - Audio L/R in 0.5 V

/ 10 kohm jq

RMS

17 - Cinch: Audio - In

Rd -Audio - R 0.5 V
Wh -Audio - L 0.5 V

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

18 - Video RGB - In, CVBS - In/Out, Audio - In/Out

20

21

10000_001_090121.eps

2

1

090121

Figure 2-5 SCART connector

1-n.c.
2 -Audio R 0.5 V
3-n.c.

/ 10 kohm j

RMS

4 -Ground Audio Gnd H
5 -Ground Blue Gnd H
6 -Audio L 0.5 V
7 -Video Blue 0.7 V

/ 10 kohm j

RMS

/ 75 ohm jk

PP

8 -Function Select 0 - 2 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j
9 -Ground Green Gnd H
10 - n.c.
11 - Video Green 0.7 V

/ 75 ohm j

PP

12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red 0.7 V
16 - Status/FBL 0 - 0.4 V: INT

/ 75 ohm j

PP

1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - n.c.
20 - Video CVBS 1 V
21 - Shield Gnd H

/ 75 ohm j

PP

2.4 Chassis Overview

Refer to chapter 9. Block Diagrams for PWB/CBA locations.

2014-Apr-17

back to

div. table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

Safety Instructions

3.1

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

EN 5QM14.3E LA 3.

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched “on”.

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode with a colour bar signal and stereo
sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and
picture carrier at 475.25 MHz for PAL, or 61.25 MHz for
NTSC (channel 3).

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 k).

• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10
nano-farads (n 10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed on the Philips
Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare
Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this
URL: http://www.atyourservice-magazine.com
“Magazine”, then go to “Repair downloads”. Here you will find
Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the IC
Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is
required, please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.

-9

), or pico-farads (p 10

. Select

-12

-6

),

).

back to

div. table

2014-Apr-17

EN 6 QM14.3E LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then
result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production centre (e.g.
SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M.
code, digit 4 refers to the Service version change code, digits 5
and 6 refer to the production year, and digits 7 and 8 refer to
production week (in example below it is 2010 week 10 / 2010
week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),
6 = play 16 : 9 format, 12 = play 4 : 3
format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to
remove horizontal black bars; keeps
the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels
directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information
ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA
ATV See Auto TV
Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections
CL Constant Level: audio output to

connect with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFI Dynamic Frame Insertion

2014-Apr-17

back to

div. table

Precautions, Notes, and Abbreviation List

EN 7QM14.3E LA 3.

DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion
DNR Digital Noise Reduction: noise

reduction feature of the set
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for service

technicians
DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display.
EDID Extended Display Identification Data

(VESA standard)
EEPROM Electrically Erasable and

Programmable Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency

Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound

2

C Inter IC bus

I

2

D Inter IC Data bus

I

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

back to

div. table

SDI), is a digitized video format used
for broadcast grade video.
Uncompressed digital component or
digital composite signals can be used.
The SDI signal is self-synchronizing,
uses 8 bit or 10 bit data words, and has
a maximum data rate of 270 Mbit/s,
with a minimum bandwidth of 135
MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored
in RAM or in the NVM. They are called
at start-up of the set to configure it
according to the customer's

preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
MHEG Part of a set of international standards

related to the presentation of

multimedia information, standardised

by the Multimedia and Hypermedia

Experts Group. It is commonly used as

a language to describe interactive

television services
MIPS Microprocessor without Interlocked

Pipeline-Stages; A RISC-based

microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect

Transistor, switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTC Negative Temperature Coefficient,

non-linear resistor
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non-Volatile Memory: IC containing

TV related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of

software upgrade via RF transmission.

Upgrade software is broadcasted in

TS with TV channels.
OTC On screen display Teletext and

Control; also called Artistic (SAA5800)
P50 Project 50: communication protocol

between TV and peripherals
PAL Phase Alternating Line. Color system

mainly used in West Europe (colour

carrier = 4.433619 MHz) and South

America (colour carrier

2014-Apr-17

EN 8 QM14.3E LA3.

Precautions, Notes, and Abbreviation List

PAL M = 3.575612 MHz and

PAL N = 3.582056 MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation
PDP Plasma Display Panel
PFC Power Factor Corrector (or

Pre-conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency
POD Point Of Deployment: a removable

CAM module, implementing the CA

system for a host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED

backlight with 2D-dimming
PSL Power Supply with integrated LED

drivers
PSLS Power Supply with integrated LED

drivers with added Scanning

functionality
PTC Positive Temperature Coefficient,

non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary

color signals for TV. By mixing levels

of R, G, and B, all colors (Y/C) are

reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote

control receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling

data interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

Téléviseurs
SCL Serial Clock I

2

C
SCL-F CLock Signal on Fast I
SD Standard Definition
SDA Serial Data I

2

C
SDA-F DAta Signal on Fast I
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.

Colour system mainly used in France
and East Europe. Colour
carriers = 4.406250 MHz and

4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a

4-wire synchronous serial data link

standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to

reduce the effects of EMI
STB Set Top Box
STBY STand-BY

2014-Apr-17

2

C bus

2

C bus

back to

div. table

SVGA 800 × 600 (4:3)
SVHS Super Video Home System
SW Software
SWAN Spatial temporal Weighted Averaging

Noise reduction
SXGA 1280 × 1024
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential

Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1600 × 1200 (4:3)
V V-sync to the module
VESA Video Electronics Standards

Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio

output toward external amplifier
VSB Vestigial Side Band; modulation

method
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024 × 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)

signal
YPbPr Component video. Luminance and

scaled color difference signals (B-Y

and R-Y)
YUV Component video

4. Mechanical Instructions

19580_013_140128.eps

140128

19580_015_140206.eps

140206

Index of this chapter:

Cable Dressing

4.1

4.2 Service Positions

4.3 Assy/Panel Removal

4.4 Set Re-assembly

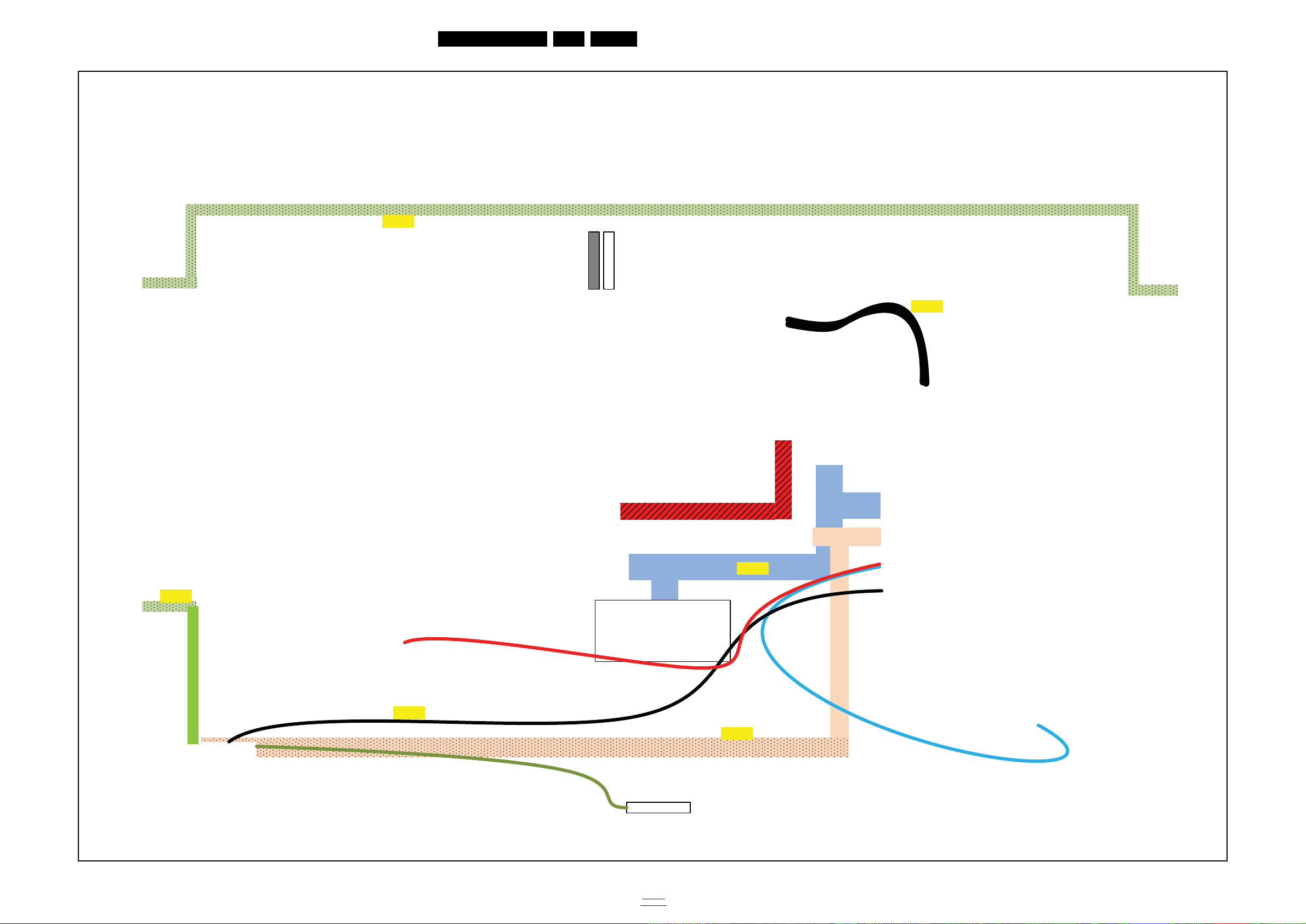

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

EN 9QM14.3E LA 4.

Figure 4-1 Cable dressing 42" 7809 series

Figure 4-2 Cable dressing back cover 42" 7809 series

back to

div. table

2014-Apr-17

EN 10 QM14.3E LA4.

19580_017_140206.eps

140206

19580_016_140206.eps

140206

Mechanical Instructions

Figure 4-3 Cable dressing 49"7809 series

2014-Apr-17

Figure 4-4 Cable dressing back cover 49" 7809 series

back to

div. table

Mechanical Instructions

19580_018_140206.eps

140206

EN 11QM14.3E LA 4.

Figure 4-5 Cable dressing 55" 7809 series

Figure 4-6 Cable dressing back cover 55" 7809 series

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take

back to

div. table

care that these always support the cabinet and never only the
display.
Caution: Failure to follow these guidelines can seriously
damage the display!
Ensure that ESD safe measures are taken.

2014-Apr-17

EN 12 QM14.3E LA4.

19370_081_130208.eps

130208

33

19054_001_111010.eps

111010

19222_001_120626.eps

120626

Click!

LVDS flat foil

Click!

4.3 Assy/Panel Removal

4.3.1 Rear Cover

Mechanical Instructions

Warning: Disconnect the mains power cord before removing
the rear cover.

Attention: For Ambilight sets, the leading edge cover has to be
removed.

It is mandatory to remove the leading edge cover and
disconnect the cables prior to removal of the rear cover!

See Figure 4-7

and Figure 4-8 for details.

1. For sets equipped with Ambilight: remove the stand and
swivel block [1].

2. Remove the leading edge hatch that covers the Ambilight
connector [2].

3. Unplug the Ambilight connectors located underneath the
hatch [3].

4. Lift the rear cover from the TV. Make sure that wires and
flat foils are not damaged while lifting the rear cover from
the set.

31

31

22

Some SSBs have a dedicated LVDS connector, requiring
pressing two catches as indicated in the figure, before
removing the LVDS cable.

Figure 4-9 SSB LVDS connector catches (optional) -1-

Upon re-connecting the LVDS cable, ensure the catches are
locked after having inserted the LVDS cable.

19370_080_130208.eps

Figure 4-7 Rear cover removal Ambilight models -1-

Figure 4-8 Rear cover removal Ambilight models -2-

4.3.2 Ambilight units in Rear Cover

The Ambilight units are affixed in the rear cover and will
self-destruct upon removal.

Attention: it is of the utmost importance to remove all remains
of any adhesive that might be left on the inside of the rear
cover.

130208

Figure 4-10 SSB LVDS connector catches (optional) -2-

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original position.

• Pay special attention not to damage the EMC foams in the
set. Ensure that EMC foams are mounted correctly.

The new units come with double-sided adhesive tape. Ensure
a correct mounting to avoid uneven light emission of the units.

4.3.3 SSB

Refer to Figure 4-9

2014-Apr-17

and Figure 4-10 for details.

back to

div. table

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

Test Points

5.1

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure
waveforms with a standard oscilloscope. However, several key
ICs are capable of generating test patterns. In this way it is
possible to determine which part is defective.

5.2 Service Modes

The Service Mode feature is split into three parts:

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

SAM and the Factory mode offer features, which can be used
by the Service engineer to repair/align a TV set. Some features
are:

• Make alignments (e.g. White Tone), reset the error buffer
(SAM and Factory Mode).

• Display information (“SAM” indication in upper right corner
of screen, error buffer, software version, operating hours,
options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the
consumer. The CSM displays diagnosis information, which the
customer can forward to the dealer or call centre. In CSM
mode, “CSM”, is displayed in the top right corner of the screen.
The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solve customer problems without home visit.

Note: For the new model range, a new remote control (RC) is
used with some renamed buttons. This has an impact on the
activation of the Service modes. For instance the old “MENU”
button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

Life Timer

During the life time cycle of the TV set, a timer is kept (called
“Op. Hour”). It counts the normal operation hours (not the
Stand-by hours). The actual value of the timer is displayed in
SAM in a decimal value. Every two soft-resets increase the
hour by + 1. Stand-by hours are not counted.

• MMM is the number of the mandatory (upgrade) release in
association with the area of the mandatory (upgrade)
release. Numbering will go from 0 - 255.

• TTT bit 7 to 1 is the area of the mandatory (upgrade)
release where 0 - none, 1 - Netflix, rest reserved.

• TTT bit 0 : 0 = development release, 1 = production
release.

Display Option Code Selection

After an SSB or display exchange, the display option code is
not set properly, this can result in a TV with “no display”.
Therefore, it is required to set this display option code after
such a repair.
To do so, press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type: see
column “Display Code” in Table 6-3
accepted and stored in NVM, the set will switch to Stand-by, to
indicate that the process has been completed.
During this algorithm, the NVM-content must be filtered,
because several items in the NVM are TV-related and not SSB
related (e.g. Model and Prod. S/N). Therefore, “Model”
and “Prod. S/N” data is changed into “See Type Plate”. In case
a call centre or consumer reads “See Type Plate” in CSM
mode.

5.2.2 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings
displayed.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen.

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control
transmitter: “062596”, directly followed by the “INFO” or
“OK” button. Do not allow the display to time out between
entries while keying the sequence.

After entering SAM, the following items are displayed,
with “SAM” in the upper right corner of the screen to indicate
that the television is in Service Alignment Mode.

EN 13QM14.3E LA 5.

. When the value is

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main
menu display of SAM and CSM.
The screen will show: “AAAAAAB-XXX.YYY.MMM.TTT”,
where:

• AAAAAA is the chassis name: QN143.

• B is the region indication: E = Europe, A = AP/China, U =
NAFTA, L = LATAM.

• XXX is the main version number: this is updated with a
major change of specification (incompatible with the
previous software version). Numbering will go from 0- 255.

• YYY is the sub version number: this is updated with a minor
change of specification (incompatible with the previous
versions). Numbering will go from 0- 255.

back to

div. table

2014-Apr-17

EN 14 QM14.3E LA5.

Service Modes, Error Codes, and Fault Finding

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour e.g. 00003 This represents the life timer. The timer counts normal operation hours, but does not

Main SW ID e.g. “QN143E_014.001.166.1” See paragraph Software Identification, Version, and Cluster for the software name

ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors

OP1 e.g. “000 224 032 000 038 192 192

OP2 e .g. “159 255 127 061 011003 000

Clear Codes Press [OK] to clean the Error Codes

Options OP#1-OP#16 e.g. “032” Option code
Alignments Warm R Gain To align the White Tone. See

NVM Editor NVM Editor Address Select and fill in the NVM address

Upload to USB Channel List To upload several settings from the TV to an USB stick

Download from USB Channel List To download several settings from the USB stick to the TV

Initialize NVM Press [OK] to Initialize NVM

Dealer Options Set Virgin mode Virgin mode:Off Set Virgin mode

RF4CE Clear Press [OK] to clear the RF4CE pairing

immediately

Normal R Gain

Cool R Gain

Store Store the RGB value

NVM Editor Value Select and fill in the NVM value
NV Editor Store Store the value in the address
Service Data Type Number Select and fill in the NVM Type Number value
Service Data Production Number Select and fill in the NVM Type Production Number value
Service Data 18AC SSB Select and fill in the NVM 18AC SSB
Service Data 18AC PSU Select and fill in the NVM 18AC PSU
Service Data 18AC Display Select and fill in the NVM 18AC Display

NVM Copy
Readable Info
EDID Copy

NVM Copy
EDID Copy

immediately

Store Press [OK] to store virgin mode

table

015”

000”

G Gain
B Gain

G Gain
B Gain

G Gain
B Gain

immediately

count Stand-by hours.

definition.

possible.
Used to read-out the option bytes. See paragraph 6.4 Option Settings in the

Alignments section for a detailed description. Ten codes are possible.

Erases the contents of the error buffer. Select this menu item and press the MENU
RIGHT key on the remote control. The content of the error buffer is cleared.

paragraph 6.3 Software Alignments in the Alignments section for a detailed description

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

Store the virgin mode in the address

Enable to clear the pairing table of Redio Frequency for Consumer Electronics

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN
keys on the remote control transmitter. The selected item
will be indicated. When not all menu items fit on the screen,
use the UP/DOWN keys to display the next/previous menu
items.

• With the “LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– (De) activate the selected sub menu.
– Change the value of the selected menu item.

• When you press the MENU button once while in top level
SAM, the set will switch to the normal user menu (with the
SAM mode still active in the background).

How to Store SAM Settings

To store the settings changed in SAM mode, leave the top level
SAM menu by using the POWER button on the remote control
transmitter or the television set. Exceptions must be stored
separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button
on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while
in SAM, the TV will show up in “normal operation mode” as

2014-Apr-17

soon as the power is supplied again. The error buffer will not be
cleared.

5.2.3 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control
transmitter: from the “Menu/Home screen” press “1999”,
directly followed by the “Back” button. Do not allow the
display to time out between entries while keying the
sequence.

After entering the Factory mode, the following items are
displayed,

back to

div. table

Service Modes, Error Codes, and Fault Finding

EN 15QM14.3E LA 5.

Table 5-2 Factory mode overview

Default value

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture,

1 PANEL_ID See table 6-3 Display code overview Displays and changes the Panel ID with the left and right cursor; be careful

2 TUNER_ID 5 5 5 5 5 5 3 Displays and changes the Tuner ID with the left and rig ht cursor. Not to be changed

3DEMOD_TYPE 3033334Choose demod type.
4 ERR Code: xxx xxx xxx

xxx xxx
5 CLEAR ERROR BUFFER Press OK Selecting this clear all current error codes.
6 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the da ta to the correct

7 NVM VALUE 0 Displays the value at the NVM address of item 5
8 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5
9 NVM COPY TV to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB

10 NVM READ USB to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The TV will

11 RESET_PBS_PWD Press OK Use this to reset the Child Lock
12 DIM_LIB RESET Press OK Reset the Dimming
13 SRC_METER RESET Press OK Reset the Source meter
14 AMBLIGHT RESET Press OK Reset Ambilight
15 ACFG RESET Press OK Reset ACFG
16 CIPLUS QUERY Press OK Shows the Validity of the CI+ key and the supplier information
17 CIPLUS UPDATE Press OK Used to enter a new CI+ code into the NVM. This can only be used when no CI+

18 EDID UPDATE Press OK Used to enter a new EDID codes into the NVM
19 TEST PATTERN Press OK With the “left” and “right” keys of the remote control various test patterns can be

20 VIRGIN_MODE Off Use this to return the set to virgin mode. Depends whether the set has been used

21 E-Fuse On E-fuse mode
22 ORT_MODE Off ORT mode
23 VGA_UART_SWITCH Off When switched “on” the VGA port can be used for UART logging.
24 DRMWARNING Off Off Off On On On On Warning the data rights management
25 AGEING MODE Off Use this for aging a new LCD panel
26 CLR_TEMP_R 255 Red colour temperature setting
27 CLR_TEMP_G 255 Green colour temperature setting
28 CLR_TEMP_B 255 Red colour temperature setting
29 AUTO_COLOR Press OK PC: any pattern that has black and white, YPbPr: SMPTE bar (colour bar), any

30 ADC_GAIN_R 146 0 0 83 0 0 0 Red ADC gain
31 ADC_GAIN_G 145 0 0 81 0 0 0 Green ADC gain
32 ADC_GAIN_B 138 0 0 80 0 0 0 Blue ADC gain
33 ADC_OFFSET_R 134 128 128 88 128 128 128 Red ADC offset
34 ADC_OFFSET_G 132 128 128 81 128 128 128 Green ADC offset
35 ADC_OFFSET_B 200 128 128 86 128 128 128 Blue ADC offset
36 YPBPR_PHASE 20 InValid InValid InValid InValid InValid InValid Not available for this chassis
37 AUD_GAIN_LINEIN 0 Line-in audio gain
38 AUD_GAIN_HDMI 0 HDMI audio gain
39 AUD_GAIN_ATV 0 Analogue TV audio gain
40 AUD_GAIN_DTV 0 Digital TV audio gain
41 AUD_GAIN_USB 0 USB audio gain
42 AQ_INDEX 11 9 3 3 9 4 5 Audio Quality index
43 AUDIO TEST MODE Off Used for audio testing during production
44 AUDIO CHANNEL TYPE 2.0 2.0 0.0 0.0 2.0 2.0 0.0 Defines the installed speaker system
45 AUDIO SRS Off Audio SRS
46 DUMP PQ FROM TV Press OK Saves the picture quality data to a file “pq.bin” to the root of a FAT formatted USB

47 LOAD PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV
48 DUMP AQ FROM TV Press OK Saves the audio quality data to a file “AQ.bin” to the root of a FAT formatted USB

000 000 000 000 000 Values showing the last 5 errors during the last 50 hours of operation, according to

Description32" 40" 42" 47" 48"55"65"

BL Dimming, Source Meter, the Picture Quality checksum, the Dimming library, the
Source meter library, the Flash AQ, the MTK, MCU and OAD software versions.

changing this, it can result in not correct displaying the screen!

when the tuner is replaced with the correct service part.

table 5-4

Error code overview

NVM address

memory stick. The TV will write two files in the REPAIR folder of the memory stick.
It will create this folder if it does not exist. The items are “Channel list”, “Personal
settings”, “Option codes”, “Display-rel ated alignments” and “His tory list”. In case the
download to the USB stick was not successful “Failure” will appear. In this case,
check if the USB stick is connected properly. Now the settings are stored onto the
USB stick and can be used to download onto another TV or other SSB. Uploading
is of course only possible if the softw are is runnin g and if a picture is avai lable. This
method is created to be able to save the custom er ’s TV se tting s and to store them
into another SSB.

save the two files which were created in item 8 to the NVM of the set. Use these
options when replacing a SSB. When “USB to TV Success” is di splayed remove the
power and restart the TV

code exists in the NVM

chosen

already.

timing.

memory stick

memory stick

back to

div. table

2014-Apr-17

EN 16 QM14.3E LA5.

Default value

Item Item value

49 LOAD AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV
50 COPY BIN CHL to TV - - - Press OK- - - COPY BIN CHL to TV

51 COPY BIN CHL to USB - - - Press OK- - - COPY BIN CHL to USB

52 FEF CHECK Off FEF Check
53 PANEL FLIP Off Off Off Off On Off Off Flip panel
54 VGA_SOURCE Off Enable/Disable VGA source
55 HDMI2 - Off On - - Off - Enable/Disable HDMI2 source
56 HDMI3 Off On On On Off On On Enable/Disable HDMI3 source
57 HDMI4 On Enable/Disable HDMI4 source
58 USB2 On Enable/Disable USB2 source
59 USB3 Off Off On On Off Off Off Enable/Disable USB3 source
60 KEYBOARD CONFIG On Enable/Disable HDMI3 source
61 LIGHT SENEOR TUNING 1 1 2 3 1 3 1 Light sensor
62 LIGHT SENSOR TYPE 0 Light sensor
63 TEMP SENSOR TYPE 3 Tempreture sensor
64 AMBILIGHT_DRIVER 0 0 2 0 0 0 0 Drive the Ambient light
65 AMBILIGHT TYPE 1 1 2 1 1 1 1 The type of Ambient light
66 LED TYPE 2 The type of LED
67 MHP APP Off MHP APP
683D 13113133D on/off
69 SMALL SCREEEN Off - - Off Off - On Small screen
70 BLUETOOTH - - - Off - - Off Bluetooth on/off
71 EXIT_FACTORY Press OK Exits the Factory mode

Service Modes, Error Codes, and Fault Finding

Description32" 40" 42" 47" 48" 55" 65"

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK”
button.

Note: When the TV is switched “off” by a power interrupt, or
normal switch to “stand-by” while in the factory mode, the TV
will show up in “normal operation mode” as soon as the power
is supplied again. The error buffer will not be cleared.

5.2.4 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and
information on the TV operation settings.The call centre can
instruct the customer (by telephone) to enter CSM in order to
identify the status of the set.This helps the call centre to
diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every
line (to make CSM language independent).

• Set the screen mode to full
screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original
settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or
enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a
standard remote control transmitter: “123654” (do not allow the
display to time out between entries while keying the sequence).
After entering the Customer Service Mode, the following items
are displayed.

Note: Activation of the CSM is only possible if there is no (user)
menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a
helpdesk/workshop as reference for further diagnosis. In
this way, it is not necessary for the customer to look at the

2014-Apr-17

back to

div. table

rear of the TV-set. Note that if an NVM is replaced or is
initialized after corruption, this set type has to be re-written
to NVM.

• 1.2 Production code Displays the production
code (the serial number) of the TV. Note that if an NVM is
replaced or is initialized after corruption, this production
code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first
installation of the TV. This date is acquired via time
extraction.

• 1.4a Option Code 1 Gives the option codes of option
group 1 as set in SAM.

• 1.4b Option Code 2 Gives the option codes of option
group 2 as set in SAM.

• 1.5 SSB Gives an identification of the SSB as stored in
NVM. Note that if an NVM is replaced or is initialized after
corruption, this identification number has to be re-written to
NVM. This identification number is the 12NC number of the
SSB.

• 1.6 Display 12NC NVM read/write.

• 1.7 PSU 12NC NVM read/write.

• 1.8 RF4CE SW version release.

• 2.1 Current Main SW Displays the built-in main software
version. In case of field problems related to software,
software can be upgraded. As this software is consumer
upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor
software version. Upgrading this software will be possible
via USB.

• 2.3 Pan

el Code Displays the Display Code number.

• 2.4 Bootloader ID ID of Bootloader.

• 2.5 NVM version Detects and displays NVM version.

• 2.6 Flash ID ID of flash model.

• 2.7 e-UM version eDFU (help) version.

• 2.8 Channel Table Structure Version version of channel
table structure.

• 2.9 Error Codes Detects and displays errors.

• 2.10 Sil Drv Version

• 3.1 Signal Quality Analog/digital signal strength.

• 3.2 Child lock Not active / active. This is a combined item
for locks. If any lock (channel lock, parental lock) is active,
it is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or
HDCP keys). In case these keys are not valid and the
customer wants to make use of the HDMI functionality, the
SSB has to be replaced.

Service Modes, Error Codes, and Fault Finding

19080_206_110323.eps

120224

Power Off

Standby
Soft Mode

Power On

Semi-
Standby

Standby

Switch

Off(Mains
Power Plug)

Standby Soft Mode
Command Received,
previously in Standby

Soft Mode (Power tact
switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Digital
background
tasks started

Digital
background
tasks completed

Swith On,
previously in

Standby/Semi-
Standby (Mains
Power Plug)

Standby
Soft Mode

Command
Received
(Power tact

switch)

Switch Off (Mains
Power Plug)

Switch Off

(Mains Power
Plug)

Swith On,
previously in
Standby Soft Mode
(Mains Power Plug)

Standby
commands

Received (RC

Standby key)

Standby Soft Mode

Command Received,
previously in Standby
Soft Mode (Power
tact switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Switch On, previously
in Power On Mode
(Power tact switch)

Standby Soft Mode
Command Received,
(Power tact switch)

Switch Off (Mains
Power Plug)

Switch On,previously in
TV Operation Mode
(Mains Power Plug)

EN 17QM14.3E LA 5.

• 3.4 Ethernet MAC address A Media Access Control
address (MAC address) is a unique identifier assigned to
network interfaces for communications on the physical
network segment.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll
wheel) on the RC-transmitter, can be navigated through the
menus.

5.3 Stepwise Start- up

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control
transmitter.

• Press the POWER button on the remote control
transmitter.

• Press the POWER button on the television set.

Figure 5-1 Stepwise Start-up

back to

div. table

2014-Apr-17

EN 18 QM14.3E LA5.

Service Modes, Error Codes, and Fault Finding

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips
Consumer Electronics products and offers the following:

1. ComPair helps to quickly get an understanding on how to
repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore
capable of accurately indicating problem areas. No
knowledge on I
because ComPair takes care of this.

3. ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
micro processor is working) and all repair information is
directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The ComPair II interface box is connected to the PC via an
USB cable. For the TV chassis, the ComPair interface box and
the TV communicate via a bi-directional cable via the service
connector(s).
Important remark: Currently, for this chassis, dedicated
ComPair functionality is not supported.
Still, the interface box can be used as level shifter between the
TV set and PC.

How to Connect

This is described in the chassis fault finding database in
ComPair.

ComPair II

RC in

Optional

Switch

2

C or UART commands is necessary,

TO TV

TO

TO

UART SERVICE

CONNECTOR

2

I

C

RS232 /UART

ComPair II Developed by Philips Brugge

Optional power

5V DC

Power ModeLink/

Activity

HDMI

2

I

C only

UART SERVICE

CONNECTOR

RC out

TO

I2C SERVICE

CONNECTOR

Multi

function

PC

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the
USB port. This allows replacement of a software image in a
stand alone set. A description on how to upgrade the main
software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s
recommend that the TV software is updated when updates are
available. Software update files can be obtained from the
dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip
for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to
check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter
the CSM mode.

2. Use the up/down cursor keys to select “Current Main
Software”.

If the current software version of the TV is the same as the
latest update file found on http://www.philips.com/support
not necessary to update the TV software.

5.5.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the
PC.

4. Insert the USB memory stick into one of the USB ports of
the PC.

5. Decompress the downloaded ZIP file and copy it to the root
directory of the USB flash drive.

5.5.5 Update the TV software

web site.

, it is

.

10000_036_090121.eps

Figure 5-2 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in
between), as the ComPair interface acts as a level shifter. If
one connects the TV directly to the PC (via UART), ICs can be
blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair/UART interface cable for QM14.3x xx.
(using 3.5 mm Mini Jack connector): 3138 188 75051.

Note: When you encounter problems, contact your local
support desk.

2014-Apr-17

091118

back to

div. table

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software
update files in one of the USB ports of the TV.

3. The TV will automatically detect the USB memory stick.
Then a window jumps out as Figure 5-3

.
Note: If the USB flash drive is not detected after power up,
disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-3

.

5. To proceed, In next menu select [Start] and press OK to
start software updates. See Figure 5-4

.

6. Upgrading will now begins and the status of the updating
progress will be displayed.

7. When the TV software is updated. Remove your USB flash
drive, then select [Restart] and press OK to restart the
TV.See Figure 5-5

.

Service Modes, Error Codes, and Fault Finding

19080_207_110324.eps

110324

19080_208_110324.eps

110324

19080_209_110324.eps

110324

Figure 5-3 Update the TV software [1/3]

Figure 5-4 Update the TV software [2/3]

• FUS_clustername_version.zip: Contains the
“autorun.upg” which is needed to upgrade the TV main
software and the software download application.

• NVM_clustername_version.zip: Dedicated default NVM
content.

5.5.7 How to Copy NVM Data to/from USB

When copying data to/and from a USB memory stick, the folder
“PhilipsChannelMaps” is used. When inserting an empty USB
memory stick, and downloading data to the stick, the TV will
create this folder. When sending data from a USB memory
stick to a TV, the intended data must be available in the
“PhilipsChannelMaps” folder.
Note that when copying EDID data to the TV, all necessary
EDID files must be in this folder.
Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode
Factory Mode Used for extended alignments
CSM 3-page compact CSM pages. There will be C SM dump to

USB SW upgradeable SW-upgrading of flash memories can be done via USB.

NVM-Editor in SAM NVM-editor will function as in the past: Address and Value

Service Data New Service data in SAM for CTN, Prod. no., 18AC

USB copy/paste in
SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC sequence “062598” + “Menu” + “Panel code”

USB-stick upon entering CSM-mode

The main SW can be upgraded via the ZIP

field is a decimal value via digit entry

programming with virtual keyboard
Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

EN 19QM14.3E LA 5.

Figure 5-5 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software
update.

• If a power failure occurs during the update, do not remove
the USB flash drive from the TV. The TV will continue the
software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or
contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV
software from the USB portable memory.

5.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and
instructions on how and when to use it. Only files that are
relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the
different EDID NVMs.

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failures in the TV set. In
principle a unique error code is available for every:

• Activated (SW) protection.

• Failing I

• General I
The last five errors, stored in the NVM, are shown in the
Service menu’s. This is called the error buffer.
The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.
An error will be added to the buffer if this error differs from any
error in the buffer. The last found error is displayed on the left.
An error with a designated error code never leads to a
deadlock situation. It must always be diagnosable (e.g. error
buffer via OSD or blinking LED or via ComPair).
In case a failure identified by an error code automatically
results in other error codes (cause and effect), only the error
code of the MAIN failure is displayed.

5.6.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/CSM (if you have a picture).

2

C device.

2

C error.

Example:
– ERROR: 000 000 000 000 000: No errors detected
– ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected
(newest) error

back to

div. table

2014-Apr-17

EN 20 QM14.3E LA5.

Service Modes, Error Codes, and Fault Finding

• Via the blinking LED procedure (when you have no
picture). See paragraph 5.7

The Blinking LED Procedure.

•Via ComPair.

5.6.3 Error codes

Take notice that some errors need several minutes before they
start blinking or before they will be logged. So in case of

Table 5-4 Error code overview

Description Layer 1 Layer 2

FE-bus 2 11 SOC E BL / EB SSB SSB
BE -bus 2 13 SOC E BL / EB SSB SSB
SRF-bus 2 14 SOC E BL / EB SSB SSB
12V 3 16 Stby µP/SOC P BL / Supply
Display supply 3 17 SOC E BL / Supply
HDMI mux 2 23 SOC E EB SiI9287/9573 SSB
I2C switch 2 24/25 SOC E EB PCA954X SSB
Channel decoder 1 2 27 SOC E EB CXD2834 SSB
Channel decoder 2 2 28 SOC E EB CXD2834 SSB
Rogue HDCP2.2 2 29 SOC E EB SiI9679 SSB
Lnb controller Single/dual 2 31 SOC E EB LNBH25/26 SSB
Hybrid Tuner 2 34 SOC E EB SUT-PEZ SSB
Class-D 2 37 SOC E EB / SSB
Light sensor 6 43 SOC E EB / Set
RF4CE 6 46 SOC E EB CC2533 Set
NT72314 9 61 SOC E BL NT72314 SSB
Splash error 2 65 SOC P BL NT314-SOC SSB

Monitored
by

problems wait 2 minutes from start-up onwards, and then
check if the front LED is blinking or if an error is logged.

In this chassis only “layer 2” error codes are available and point
to problems on the SSB. They are triggered by LED blinking
when CSM is activated. Only the following layer 2 errors are
defined:

Error/

Error Buffer/

Prot

Blinking LED Device Defective Board

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• If the content of the error buffer have not changed for 50
hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the
television set, the error buffer is not reset.

5.7 The Blinking LED Procedure

5.7.1 Introduction

The software is capable of identifying different kinds of errors.
Because it is possible that more than one error can occur over
time, an error buffer is available, which is capable of storing the
last five errors that occurred. This is useful if the OSD is not
working properly.
Errors can also be displayed by the blinking LED procedure.
The method is to repeatedly let the front LED pulse with as
many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated.
Example (1): error code 4 will result in four times the sequence
LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After
this sequence, the LED will be “off” for 1.5 seconds. Any RC
command terminates the sequence. Error code LED blinking is
in red color.
Example (2): the content of the error buffer is “12 9 6 0 0” After
entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

2014-Apr-17

back to

div. table

Service Modes, Error Codes, and Fault Finding

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

5.8.1 NVM Editor

In some cases, it can be convenient if one directly can change
the NVM contents. This can be done with the “NVM Editor” in
SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of
each setting, because incorrect NVM settings may
seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before
changing the settings. This will enable you to return to the
original settings, if the new settings turn out to be incorrect.

5.8.2 No Picture

When you have no picture, first make sure you have entered
the correct display code. See paragraph 6.4
the instructions. See also Table 6-3

Option Settings for

.

EN 21QM14.3E LA 5.

5.8.3 Unstable Picture via HDMI input

Check if HDMI EDID data is properly programmed.

5.8.4 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.8.5 TV will not start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.8.6 CSM

When CSM is activated and there is a USB memory stick
connected to the TV, the software will dump the complete CSM
content to the USB memory stick. The file (Csm.txt) will be
saved in the root of the USB memory stick.

5.8.7 Loudspeakers

Make sure that the volume is set to minimum during
disconnecting the speakers in the ON-state of the TV. The
audio amplifier can be damaged by disconnecting the speakers
during ON-state of the set!

5.8.8 Display option code

Attention: In case the SSB is replaced, always check the Panel
Code in CSM, even when picture is available. Performance
with the incorrect display option code can lead to unwanted
side-effects for certain conditions.

back to

div. table

2014-Apr-17

EN 22 QM14.3E LA6.

6. Alignments

Index of this chapter:

General Alignment Conditions

6.1

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer
with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct
ground (e.g. measure audio signals in relation to
AUDIO_GND).
Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 M, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform
alignments.

, 50/ 60  3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color
analyser (e.g. Minolta CA-210) in the centre of the screen.
Consequently, the measurement needs to be done in a
dark environment.

• Adjust the correct x, y coordinates (while holding one of the
White point registers R, G or B on max. value) by means of
decreasing the value of one or two other white points to the
correct x, y coordinates (see Table 6-1

White D alignment

values). Tolerance: dx:  0.003, dy:  0.003.

• Repeat this step for the other colour Temperatures that
need to be aligned.

• When finished return to the SAM root menu and press
STANDBY on the RC to store the aligned values to the
NVM.

Table 6-1 White D alignment values

Value Cool (11000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313
y 0.282 0.296 0.329

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus.
The alignments are explained below.
The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the
left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a
video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal
strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a
signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal
strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off
Dynamic Contrast Off
Color Enhancement Off
Picture Format Unscaled
Light Sensor Off
Brightness 50
Color 0
Contrast 100

If you do not have a colour analyser, you can use the default
values. This is the next best solution. The default values are
average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average
values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or
WARM).

• Set the RED, GREEN and BLUE default values according
to the values in Table 6-2

.

• When finished press OK on the RC, then press STORE to
store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (9000K) 42PUx7809/xx 255 228 19 6

49PUx7809/xx 205 254 204
55PUx7809/xx 197 255 206

Cool (11000K) 42PUx7809/xx 252 241 252

49PUx7809/xx 192 255 244
55PUx7809/xx 182 255 241

Warm (6500K) 42PUx7809/xx 255 202 111

49PUx7809/xx 239 254 142
55PUx7809/xx 236 255 146

Colour temperature

Red Green Blue

This group setting of colour temperature will be applied
automatically to the TV / VGA / HDMI / AV sources.

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the
following values:
– “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

2014-Apr-17

back to

div. table

Alignments

EN 23QM14.3E LA 6.

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I
ICs in the set. To ensure good communication and to make
digital diagnosis possible, the microprocessor has to know
which ICs to address. The presence / absence of these
MT5591 ICs is configured by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK
button on the RC before the cursor is moved to the left,
select STORE and press OK on the RC.

• The new option setting is only active after the TV is
switched “off” / “stand-by” and “on” again with the mains
switch (the NVM is then read again).

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could be
edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type: see
column “Display Code” in Table 6-3
Code, restart the set immediately.

. After resetting the Display

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service
repair shop (SSB repair on component level) implies the reset
of the NVM on the SSB.

2

C

A repaired SSB in Service should get the service Set type
“00PF0000000000” and Production code “00000000000000”.
Also the virgin bit is to be set. To set all this, you can use the
use the “NVM editor” and “Dealer options” items in SAM (do not
forget to “store”).

After a repaired SSB has been mounted in the set (set repair
on board level), the type number (CTN) and production code of
the TV has to be set according to the type plate of the set. For
this, you can use the NVM editor in SAM.

6.5.1 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB.
715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code
Make sure when replacing an SSB the SSB identification codes
match the replacement panel.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

42PUK7809/12 TFT-LCD LC420EQE-PGF1 471
42PUS7809/12 TFT-LCD LC420EQE-PGF1 471
42PUS7809/60 TFT-LCD LC420EQE-PGF1 471
49PUK7809/12 TFT-LCD LC490EQE-XGF1 470
49PUS7809/12 TFT-LCD LC490EQE-XGF1 470
49PUS7809/60 TFT-LCD LC490EQE-XGF1 470
55PUK7809/12 TFT-LCD LC550EQE-PGF1 469
55PUS7809/12 TFT-LCD LC550EQE-PGF1 469
55PUS7809/60 TFT-LCD LC550EQE-PGF1 469

back to

div. table

2014-Apr-17

EN 24 QM14.3E LA7.

19580_137_140328.eps

14-03-28

7. Circuit Descriptions

Index of this chapter:

Introduction

7.1

7.2 MTK platform

7.3 Power Supply

Notes:

•Only new circuits that are not published recently) are
described.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the wiring-, block- (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

necessary, you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

). Where

Circuit Descriptions

7.1 Introduction

The QM14.3E LA chassis is a new platform launched in Europe
in 2014. This chassis contains the MT5591. The major deltas
versus its predecessor are DVB-TC; DVB-TC/T2, DVB-TC/S2
with also multimedia, 3D, AmbiLight, WiFi, Smart TV and Light
Sensor functionality.

The QM14.3E LA covers sets in the 78xx-range (42”, 49”, 55”).

7.2 MTK platform

7.2.1 Architecture

Figure 7-1

Refer to chapter 9. Block Diagrams

gives an overview of the architecture.

for a detailed diagram.

2014-Apr-17

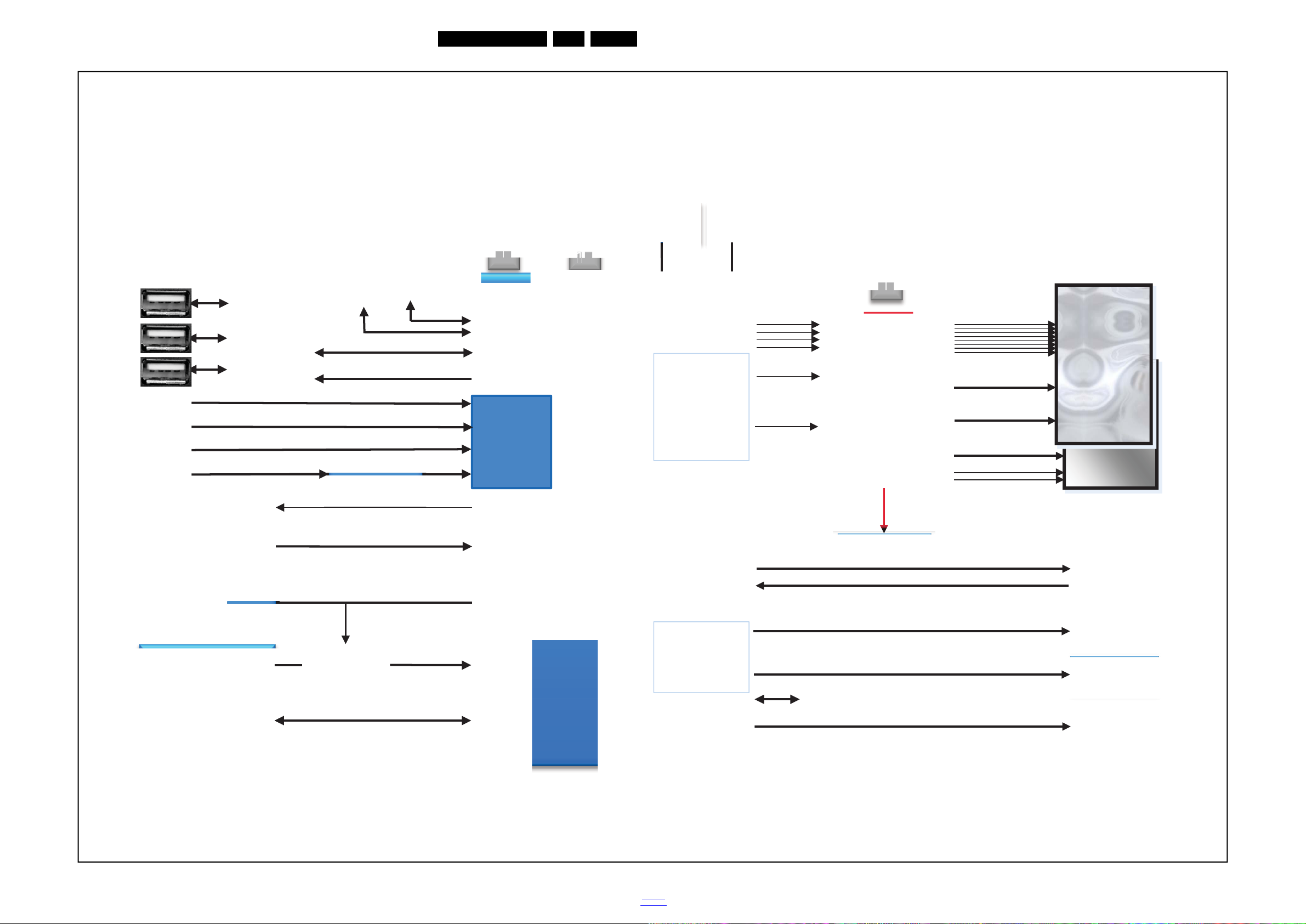

Figure 7-1 Architecture of the MT5591 platform

back to

div. table

Circuit Descriptions

19580_138_140331.eps

14-03-31

Audio Class-D

SCART

SERVICE

ANALOG

POWER

MT5591

FRC

N314

DDR

HDMI 2x

USB

LAN

Headphone SPDIF

USB 2x

HDMI 2x

HDCP 2.2

I/O

Hybrid

Satellite

BACK-END

FRONT-END

SOC1

SOC2

(optional)

COMMON INTERFACE

CI2 (optional)

CI1

Class-D
STA381

Rogue

SiL9679

Channel decoders

CXD2842

Tuner

EN 25QM14.3E LA 7.

7.2.2 MTK Copper Layout

Figure 7-2

and principal components.

gives the SSB layout and shows the location of parts

Refer to chapter 9. Block Diagrams

for a detailed diagram.

Figure 7-2 MTK MT5591 layout

back to

div. table

2014-Apr-17

EN 26 QM14.3E LA7.

19580_132_140318.eps

14-03-18

AC-input

+

Mainsfilter

PFC

Display power

Platform power

Display
interfacing

AC-in

Low Stby
power

BL-ON/OFF

DIM

+12 V

+3V5 Stby

AMP

Platform
MTK5591

1 power-PCB

+12 V

+12 V

LVDS AMP

Fully integrated PSLS

19580_135_140320.eps

14-03-21

Dual

DC/DC

Novatek

+12V

+1V5-M

+1V0-M

Novatek

DDR’s

Switch

+3V3-NVT

LDO

+2V5-M

Novatek

72314

+3V3

Novatek

IO supply

voltages
Novatek

U028B

U026B

U025B

Circuit Descriptions

7.3 Power Supply

7.3.1 Power Supply Unit

All power supplies are a black box for Service. When any of
these power supplies is defective, a new board must be
ordered and the defective one must be returned, unless the
main fuse of the board is broken. Always replace a defective

fuse with one with the correct specifications! This part is
available in the regular market.
Consult the Philips Service web portal for the order codes of the
boards.

7.3.2 Power Architecture

For the power architecture, refer to figure 7-3

2014-Apr-17

Figure 7-4 Power PSU-Connector

Figure 7-3 Power Architecture

back to

div. table

Circuit Descriptions

19580_134_140320.eps

14-03-21

Dual

DC/DC

MTK

+12V

+1V5-MTK

+3V3

DC/DC

+1V2-MTK

MTK

DDR’s

LDO

+1V1-DVBT2

Channel
decoder

DC/DC

+5V

USB

1,2&3

CI

Skype

3D

emitter

LDO

+3V3-DVBT

TUNER

+3V3-TUNER-

DC/DC

+V-LNB

LNB

to back end

Thermal
sensor

IR key
board

MTK IO

MTK
analog

Ethernet

Nand
flash,
eeprom

AmbiLight

Audio
amplifier

+12V

Spdif optical
output

LDO

+1V0-HDMI

HDCP IC
Rogue
Sil9679

U005F

U010U

U007U

U011U

U003F

U021C

U002F

19580_135_140320.eps

14-03-21

Dual

DC/DC

Novatek

+12V

+1V5-M

+1V0-M

Novatek

DDR’s

Switch

+3V3-NVT

LDO

+2V5-M

Novatek

72314

+3V3

Novatek

IO supply

voltages
Novatek

U028B

U026B

U025B

EN 27QM14.3E LA 7.

Figure 7-6 Power Back-end

Figure 7-5 Power Front-end

back to

div. table

2014-Apr-17

EN 28 QM14.3E LA7.

19580_143_140421.eps

14-04-21

Dual switching converter +1V0-M

and +3V3-M

+2V5-M LDO

Dual switching

converter +1V5-MTK

and +3V3

Switching converter

+5V

+3V3-STANDBY

LDO

External Mosfet and

coil for +1V2-MTK

switching controller

LNB supply

switching converter

+1V5-MTK to +1V2-DVBT2

LDO

+5V to +3V3-DVBT LDO

Amblight fuse

(2 sides)

7.3.3 Power Layout

Circuit Descriptions

Figure 7-7 Power Top View

2014-Apr-17

back to

div. table

Circuit Descriptions

19580_144_140421.eps

14-04-21

+3V3-NVT

switch

+1V2-MTK

Switching

controler

+3V5-STANDBY to +3V3-LAN

LDO

Front end power

sequencer

Back end power

sequencer

AMBILIGHT PROTECTION

(3/4 sides ambilight)

Vishay (and alternative

Alpha & Omega )

U021C

+1V0-HDMI

LDO

EN 29QM14.3E LA 7.

Figure 7-8 Power Bottom View

back to

div. table

2014-Apr-17

EN 30 QM14.3E LA8.

19580_142_140420.eps

14-04-20

Block diagram

Pinning information

Exposed-Pad

(49: AVSS)

8. IC Data Sheets

This chapter shows the internal block diagrams and pin
configurations of ICs that are drawn as “black boxes” in the

8.1 Diagram, B, CXD2842

For Circuit Diagrams refer to:

10-1-11 B, DVB CHANNEL DECODER 1
10-1-15 B, DVB CHANNEL DECODER 2

IC Data Sheets

electrical diagrams (with the exception of “memory” and “logic”
ICs).

,and
.

2014-Apr-17

Figure 8-1 Internal block diagram and pin configuration

div. table

back to

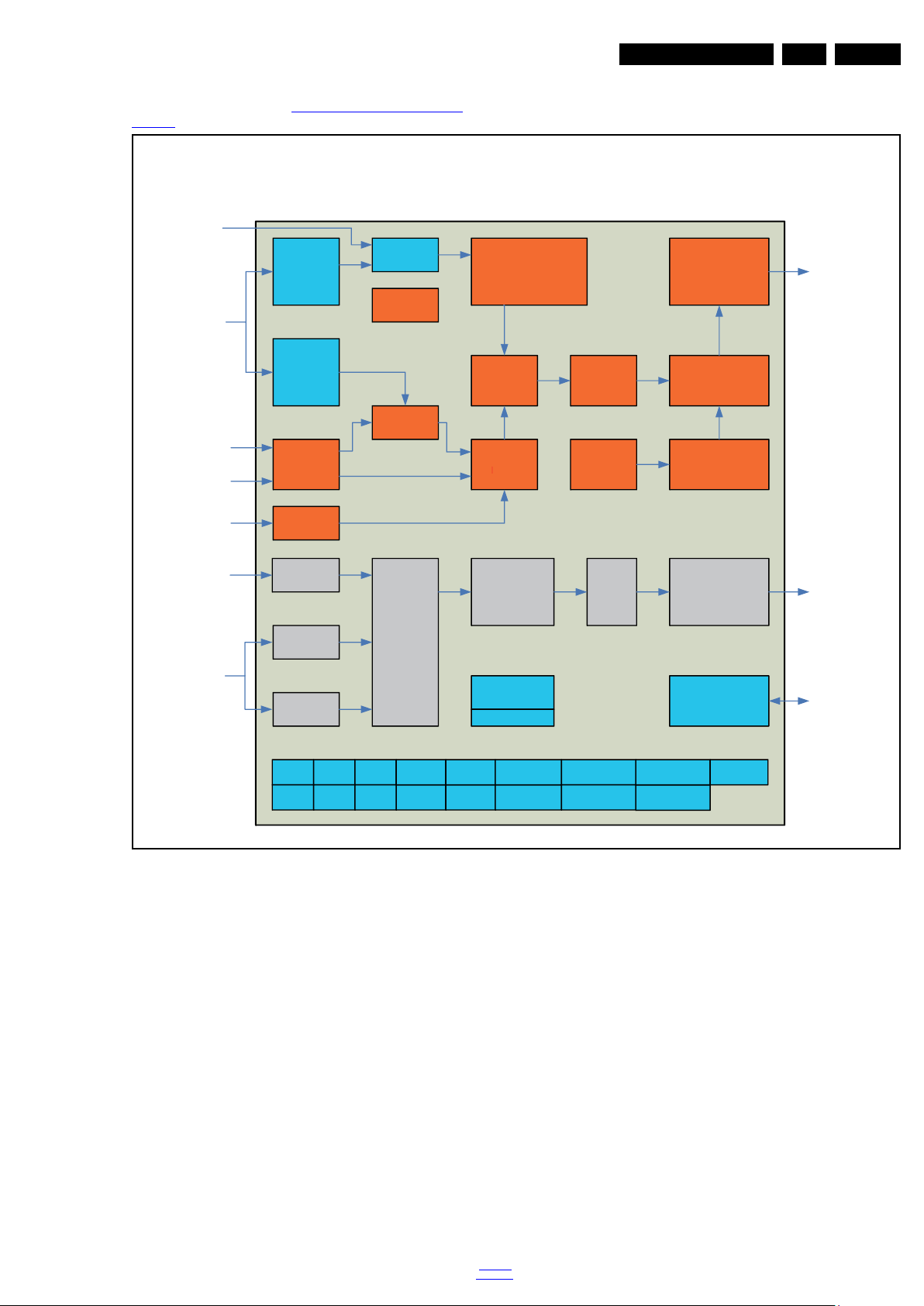

8.2 Diagram, B, MT5591

19580_139_140401.eps

14-04-01

Block diagram

MT5591IVDJ

NTSC/

PAL/

SECAM

ATD

TV

Decoder

TS

Demux

Dual C ore
ARM CA9

L2 Cache

Video

ADCx4

Video

Input

De-

interlace

ATSC/

DVB-T/

DVB-C

DTD

HDMI Rx

JPEG/MP2/MP4/

DivX/H.264/VC-1/

RM/AVS/VP6/VP8

Decoders

Audio
Input

Audio

Demod

Audio

ADC

SPDI F

In

2D/3D

Graphic

H.264

Encoder

LVDS/min-LVS/

V-by-One/

EPI

OD, TCON

MJC-FRC

2D/3D Converter

Post Pr ocessing

DDR3

Controller

OSD

scaler

PIP

Vplane

scaler

Audio DSP

Audio

I/F

Aud io DAC

JTAG IrDA

PCR

I

2

C

RTC UART SDIO

USB2.0 PWM

Ethernet

Watchdog Serial Flash

NAND Flash

Ser vo ADC

Panel

S Input

T8032

Smar t

Card

CKGEN

SPDIF Out, I²S
ADACC L/R x3

48/32-bit

DDR3

Tuner Input

Component

Analog input

CVBS/YC

Input

HDMI

Input

SIF

Input

Audio

Input

For Circuit Diagrams refer to 10. Circuit Diagrams and PWB

Layouts.

IC Data Sheets

EN 31QM14.3E LA 8.

Figure 8-2 Internal block diagram

back to

div. table

2014-Apr-17

EN 32 QM14.3E LA8.

758 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

B

C

D
E
F

G

H

J

K

L
M
N
P
R

T

U

V

W

Y

AA

AB

AC

AD

AE

AF

AG

AH

AJ

AK

AL

AM

AN

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

C

V

C

IC Data Sheets

Pinning Information

MT5591IVDJ

7

ARDQ24 ARDQ30 ARDQM2 ARDQS3 ARCLK1# ARDQ29 ARDQ20 ARDQ10 ARDQS1 ARCLK0# ARDQ13 ARDQ11

ARDQ19 ARDQ17 ARDQ28

RVREF_

ARDQ21

C

BRDQ4 BRDQ6 BRCAS# BRCS# ARDQS2 DVSS ARDQ31 ARA12 ARDQ7 ARDQ1 ARA14 ARDQM0 DDRV ARDQS0 ARBA0 DVSS DDRV
BRDQ2 BRDQ0 BRODT BRBA2 BRA0 ARDQ16 DDRV ARA4 ARA11 ARRAS# ARA3 ARA9 ARA5
BRDQ11 BRDQ9 BRDQ13 BRA9 DDRV ARBA1 ARA6 ARA8 ARODT ARCSX# ARA13 ARA2

BRDQ15

BRDQS0

BRDQS0 BRDQM1 BRA7 DDRV

#
BRCLK0# BRCLK0 BRA15 BRBA0

BRDQS1

BRDQS1

#

BRDQM0 BRDQ12 DVSS BRRAS# BRA10 BRCKE DDRV VCCK VCCK VCCK VCCK VCCK VCCK VCCK
BRDQ10 BRDQ14 BRA4 BRBA1 DDRV VCCK VCCK DVSS DVSS DVSS DVSS DVSS
BRDQ3 BRDQ7 BRDQ1 BRDQ8 BRA1 DDRV VCCK VCCK DVSS DVSS DVSS DVSS DVSS
BRDQ5 BRA6 BRA8 BRA14 BRA11 BRA12 DDRV VCCK VCCK DVSS DVSS DVSS DVSS DVSS
DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV VCCK VCCK DVSS DV SS DVSS DVSS DVSS

REXT_V

BE4P BE4N DDRV DDRV DDRV DDRV

PLL
BE3P BE3N TCON3 TCON4 TCON9 TCON10 VCCK VCCK DVSS DVSS DVSS DVSS DVSS

BECKP BECKN BE2P BE2N

BE1P BE1N TCON2 TCON8 VCCK VCCK DVSS DVSS DVSS DVSS DVSS

BE0P BE0N BO4P BO4N

BO3P BO3N GPIO50 TCON0 TCON1

BOCKP BOCKN BO2P BO2N GPIO54 TCON7 GPIO49 VCCK VCCK DVSS DVSS DVSS DVSS DVSS

BO1P BO1N

BO0P BO0N AE4P AE4N GPIO51 VCCK VCCK VCCK VCCK VCCK VCCK

AE3P AE3N

AECKP AECKN AE2P AE2N

AE1P AE1N VCCK VCCK VCCK VCCK ALIN ASPDIF0 OSCL1 U1RX

AE0P AE0N AO4P AO4N VCCK VCCK VCCK

AO3P AO3N VCCK VCCK VCCK

AOCKP AOCKN AO2P AO2N VCCK VCCK VCCK

AO1P AO1N VCCK VCCK VCCK OPWM2 JTDO RXVP_1 TXVP_0 STB_SCL OPWRSB

AO0P AO0N

AVDD12_

AVDD12_

LVD S_1

LVD S_2

ARDQS3

ARCLK1 ARDQ25 ARDQ5 ARDQ8

#

ARDQ23 ARDQ26

DDRV BRWE# BRA3 BRA5

AVSS12_
LVD S_2

AVDD12_
LVD S_3

ARDQS2

ARDQM3 ARDQ27 ARDQ18 ARDQ22 ARDQ3 ARDQ14 ARDQ12 DVSS

#

BRRESE

BRA13 BRA2 ARCKE ARA10 ARA1 DDRV ARCAS# ARCS#

T

AVSS33_

TCON6 TCON12 TCON5 TCON11 VCCK VCCK DVSS DVSS DVSS DVSS DVSS

LVD S

AVSS33_

GPIO55 GPIO53 GPIO52 VCCK VCCK VCCK DVSS DVSS

LVD S

AVSS33_

VCCK VCCK VCCK VCCK

LVD S
AVSS12_

VCCK VCCK VCCK VCCK AOMCLK OSDA1

LVD S_3

AVSS12_

VCCK VCCK VCCK OPWM1 OPWM0

LVD S_1

AVDD33_

VCCK VCCK VCCK

LVD S

AVSS33_
MEMPLL

VCC3IO_

VCCK VCCK DVSS DVSS DVSS DVSS DVSS

C

VCC3IO_

VCCK VCCK DVSS DVSS DVSS DVSS DVSS

B
VCC3IO_

VCCK VCCK DVSS DVSS DVSS DVSS DVSS

B

AVSS33_
USB_P3

AOSDAT

AOSDAT
A1
AOSDAT
A2
AOSDAT
A3

AVDD33_
USB_P3

OSCL0 OSDA0 U1TX U0RX U0TX

A4

AOSDAT

AOLRCK

AOBCK JTCK JTDI

JTMS JTRST#

A0

USB_DM

RXVN_1 TXVN_0

_P3

USB_DP_

REXT

P3

Figure 8-3 Pin configuration [1/2]

ARDQS1
#

AVSS33_
ELDO
PHYLED
1

PHYLED
0

ARCLK0 ARDQ9 ARDQ0

ARDQS0

ARDQM1 ARDQ15 ARDQ2

#

ARRESE

ARA7

T

AVSS33_

AVSS33_

COM

POR_BN
D

LED_PW
M1
LED_PW
M0

STB_SDA OPCTRL4 AVSS12_

AVDD33_
ETH

DVSS

LD

OPCTRL
9

OIRI

OPCTRL
3
OPCTRL
7
OPCTRL
2

RGB
AVSS33_

OPCTRL

VGA_ST

11

B

OPCTRL10AVDD10_

LDO
AVDD33_

AVDD10_

VGA_ST

ELDO

B

19610_302.eps

2014-Apr-17

back to

div. table

IC Data Sheets

19610_303.eps

Pinning Information

MT5591IVDJ

18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

DDRV

AVDD33_
MEMPLL

PDD5 PDD3 POCE0# PACLE SD_CMD GPIO26 GPIO1 GPIO3 GPIO5 AA

DDRV PDD6 PDD2 POOE# PAALE GPIO42 GPIO0 GPIO2 GPIO6 GPIO25 BB

ARDQ4 DDRV

FSRC_WR EMMC_C

LK

PDD7 PDD4 PDD0 PARB # SD_D3 SD_D1 GPIO47 GPIO28 GPIO4 GPIO7 GPIO12 GPIO24 CC

RVREF_A DDRV DDRV GPIO45

VCC3IO_
A

PDD1 POWE# POCE1# SD_D2 SD_D0 GPIO36 GPIO35 GPIO15 GPIO21 GPIO16 GPIO22 DD

ARDQ6 DDRV DDRV

VCC3IO_
A

SD_CLK GPIO44 GPIO34 GPIO27 GPIO23 GPIO8 GPIO19 GPIO20 EE

ARA0 DDRV DDRV GPIO48 GPIO10 GPIO11 GPIO9 GPIO13 GPIO17 GPIO14 GPIO18 FF

ARBA2 DDRV DDRV GPIO46 GPIO33 GPIO41 GPIO39 GPIO32 GPIO40 GG

ARWE#

AVSS33_
CPUPLL

GPIO37 GPIO30

USB_DP_
P0

USB_DM_
P0

H

MEMTP GPIO31 GPIO38 GPIO29

USB_DM_
P1

USB_DP_
P1

JJ

MEMTN DVSS DVSS

CI_TSDA
TA0

SPI_CLE GPIO43

USB_DM_
P2

USB_DP_
P2

AVDD 33_US
B_P0P1P2

K

VCCK VCCK DVSS CI_INT IF_AGC

PVR_TSS
YNC

SPI_CLK1

SPI_DAT
A

SPI_CLK LL

DVSS DVSS DVSS DVSS DVSS

AVSS33_
USB_P1

PVR_TSV
AL

RF_AGC

PVR_TSD
ATA0

PVR_TSD
ATA1

PVR_TSC
LK

MM

DVSS DVSS DVSS DVSS DVSS OSDA2 OSCL2

CI_TSSY
NC

CI_TSVAL DEMOD_

TSCLK

CI_TSCL
K

N

DVSS DVSS DVSS DVSS DVSS

DEMOD_
TSDAT A3

DEMOD_
TSVAL

DEMOD_
RST

AVDD 12_H
DMI_3_RX

AVDD 12_H
DMI_2_RX

P

DVSS DVSS DVSS DVSS DVSS VCCK

DEMOD_
TSDAT A7

DEMOD_
TSDAT A0

DEMOD_
TSDAT A4

DEMOD_
TSSYNC

RR

DVSS DVSS DVSS DVSS DVSS

AVSS33_
HDMI_RX

DEMOD_
TSDAT A1

DEMOD_
TSDAT A2

HDMI_3_
RX_2

HDMI_3_
RX_2B

HDMI_3_
RX_1

HDMI_3_
RX_1B

T

DVSS DVSS DVSS DVSS DVSS

DEMOD_
TSDAT A6

DEMOD_
TSDAT A5

HDMI_3_
RX_0

HDMI_3_
RX_0B

UU

DVSS DVSS DVSS DVSS DVSS VCCK DVSS

HDMI_CE
C

ASPDIF1

HDMI_3_
PWR5V

HDMI_3_
HPD

HDMI_3_
RX_C

HDMI_3_
RX_CB

VV

DVSS DVSS DVSS DVSS DVSS DVSS

AVSS33_
HDMI_RX

HDMI_3_
SDA

HDMI_3_
SCL

HDMI_2_
RX_2

HDMI_2_
RX_2B

HDMI_2_
RX_1

HDMI_2_
RX_1B

W

DVSS DVSS DVSS DVSS DVSS DVSS

HDMI_2_
SDA

HDMI_1_
PWR5V

HDMI_2_
RX_0

HDMI_2_
RX_0B

YY

DVSS DVSS DVSS DVSS DVSS DVSS

HDMI_2_
SCL

HDMI_1_
HPD

HDMI_2_
PWR5V

HDMI_2_
HPD

HDMI_2_
RX_C

HDMI_2_
RX_CB

AVDD 12_H
DMI_1_RX

AVDD 12_H
DMI_0_RX

AA

DVSS DVSS

AVSS33_
CVBS_1

DVSS

AVSS33_
CVBS_2

DVSS

HDMI_1_
SDA

HDMI_1_
SCL

AAB

DVSS

AVSS33_
VDAC_BG DVSS

AVSS33_
PLLGP

DVSS

AVSS33_
ADAC

AVSS33_
AADC

HDMI_0_
SDA

HDMI_0_
SCL

HDMI_1_
RX_2

HDMI_1_
RX_2B

HDMI_1_
RX_1

HDMI_1_
RX_1B

AC

DVSS

AVSS33_
HDMI_RX

ADIN3_S
RV

HDMI_0_
HPD

HDMI_1_
RX_0

HDMI_1_
RX_0B

AAD

OPCTRL6

AVSS33_
VDAC

AVSS33_
HDMI_RX

ADIN2_S
RV

HDMI_0_
PWR5V

HDMI_1_
RX_C

HDMI_1_
RX_CB

HDMI_0_
RX_2

HDMI_0_
RX_2B

AE

OPCTRL1

ADIN4_S
RV

HDMI_0_
RX_1

HDMI_0_
RX_1B

AAF

OPCTRL8

VGA_SD
A

ADIN6_S
RV

HDMI_0_
RX_0

HDMI_0_
RX_0B

HDMI_0_
RX_C

HDMI_0_
RX_CB

AG

OPCTRL5 VGA_SCL

ADIN1_S
RV

VDACX_
OUT

MPXP CVBS1P

AL2_ADA
C

AVDD33_
HDMI

AH

OPCTRL0

ADIN0_S
RV

VDACY_
OUT

CVBS_C
OM

LOUTN

AL0_ADAC AR2_ADAC AR1_ADAC AVDD33_

AADC

AVDD33_
ADAC

AJ

HSYNC SOG

ORESET# ADIN5_S

RV

PB1P SOY0 CVBS0P CVBS3P LOUTP

AL1_ADAC AR0_ADA

C

AIN3_L_A
ADC

AK

VSYNC BP RP COM1 PR1P PB0P PR0P

AVDD33_
PLL

AVSS12_
DEMOD

AVSS33_
DEMOD

AVSS33_XT
AL_STB

AIN1_R_A
ADC

AIN4_R_A
ADC

AL

ADIN7_S
RV

GP Y1P COM0 CVBS2P

AVDD33_
CVBS

ADCINP_
DEMOD

XTALO

AIN2_L_A
ADC

AIN3_R_A
ADC

AIN2_R_A
ADC

AM

AVDD12_
RGB

COM SOY1 Y0P

AVDD33_
VIDEO

AVDD33_
DEMOD

ADCINN_
DEMOD

AVDD12_
DEMOD

XTALI

AVDD 33_XT
AL_STB

VMID_AA
DC

AIN1_L_A
ADC

AIN4_L_A
ADC

AN

18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

Figure 8-4 Pin configuration [2/2]

back to

div. table

EN 33QM14.3E LA 8.

2014-Apr-17

EN 34 QM14.3E LA8.

Block diagram

Pinning information

1

2

3

4

5

6

7

8

9

10

11

12

36

35

34

33

32

31

30

29

28

27

26

25

VCC_REG

VSS_REG

OUT2B

GND2

VCC2

OUT2A

OUT1B

VCC1

GND1

OUT1A

VDD_REG

GND_REG

MCLK

AGNDPLL

VREGFILT

TWARNEXT/FFX4B

EAPD/FFX4A

FFX3B

FFX3A

GNDDIG1

VDDDIG1

VDD3V3CHP

CPP

GNDPSUB

13

14

15

16

17

18

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

F3X_FILT

F3XL

F3XR

LINEINL

LINEINR

LINEHPOUT_L

LINEHPOUT_R

GNDA

SOFTMUTE

VDD3V3

CPVSS

CPM

VDDDIG2

GNDDIG2

TESTMODESASCL

SDA

INTLINE

PWDN

RESET

SDI

LRCKI

BICKI

STA381BW

PWDN

TESTMODE

LRCKI

BICKI

4

Half

Bridges

OUT 1A
OUT 1B
OUT 2A
OUT 2B

FFX3A
FFX3B

MCLK

SDI

LINEINL
LINEINR

LINEHPOUT_L
LINEHPOUT_R

SDA
SCL

IIC

CPVSS

CPP

FFX4A
FFX4B

GND_REG

SOFT_MUTE

2 x GND

2 x VCC

VDD_REG

GNDPSUB

2 x VDDDIG

2 x GNDDIG

VREGFILT

AGNDPLL

VCC_REG

VSS_REG

CPM

2.1 Channel

Audio Processor

STAudioFx

TM

STSpeakerSafe

TM

Parametric EQ

Volume

Bass and Treble

Speaker Compensation

Stereo Widening

SA

RESET

INTLINE

GNDA

Headphone

(2Vrms)

PLL

Negative

Charge

Pump

-3.3V

Control logic

&

Protections

REG_M3

VDD3V3CHP

F3X_FILT

FFX

TM

Modulator

Binary

Ter nary

F3XL
F3XR

STA381BW

IC Data Sheets

8.3 Diagram 10-1-29 B, AUDIO AMPLIFIER, B, STA381

2014-Apr-17

Figure 8-5 Internal block diagram and pin configuration

back to

div. table

9. Block Diagrams

19580_014_140130.eps

140206

Wiring diagram 42" 78xx series

PHILIPS

8TC51

8CA26

8PS90

8AL02

8CA31

8AL01

42PUS7809

9.1 Wiring Diagram 7809 series 42"

Block Diagrams

EN 35QM14.3E LA 9.

2014-Apr-17

back to

div.table

9.2 Wiring Diagram 7809 series 49"

19580_020_140207.eps

140207

Wiring diagram 49" 78xx series

PHILIPS

49PUS7809

8AL01

8AL02

8CA26

8CA31

8TC51

8PS90

Block Diagrams

EN 36QM14.3E LA 9.

2014-Apr-17

back to

div.table

9.3 Wiring Diagram 7809 series 55"

19580_021_140207.eps

140207

Wiring diagram 55" 78xx series

PHILIPS

55PUS7809

8AL02

8AL01

8TC51

8CA26

8CA31

8PS90

Block Diagrams

EN 37QM14.3E LA 9.

2014-Apr-17

back to

div.table

9.4 Block Diagram Architecture

19580_145_140421.eps

14-04-21

TCON-ON

MT5591

32

DDR3

2x1Gb-1600

NVM

32

PCDDR3

8Gb-1600

eMMC

4GB

DVB-T2/C2

S/S2

TS-in

TS

IF1

Analogue

component

Hybrid

Tuner 1

DVB-C/T

Analog

LAN

Sat Tuner

HDMI Rx

SPDIF

USB2

16

PCDDR3

1Gb-1600

Light

Sensor

AL mods.

SPI

AL

I2S

CLASS-D

Audio

SPDIF

SPDIF

SPDIF

I2S

I2C

GPIO

Analog: temperature

GPIO

SPI switch

BLU

W-2Ddir

RGB-2Ddir

Cell

QFHD
@50/60

LVDS

3D-LR

Video

FRC

N314

LVDS/Vx1

8xPWM
/BOOST

BL-ON

GPIO

Splash
Screen

BLU

SiI9679

=Rogue

USB-HUB

WiFI

Skype

SOC1

CA

MTK Architecture

Block Diagrams

EN 38QM14.3E LA 9.

2014-Apr-17

back to

div.table

19580_136_140328.eps

14-04-16

BE-RESETn
AUDIO-RESETn

DEMOD-RESETn
RF4CE-RESETn

eMMC-RESETn

MT5591

I2C2

I2C1

RESET

UART0

Serial Flash

16Mbit=2MB

SPI

DDR3-1600

1Gbit

DDR3-1600

1Gbit

x16 x16

DDR3-1600

4Gbit

x32 x16

Light Sensor

Set Temp

Sensor

X071 X020-X025-

X026

X071

100kHz

SD(x8)

eMMC (x8)

4GByte

100kHz

100kHz

I²C-SRF-Bus

SPI

UART1

SPI

UART-RF4CE

CC2533

RF4CE

X027

X027

0

1

X051 -1G55

X325

X324

I²C-DISP-Bus

I²C-BL-Bus

I²C-M

I²C-S

DDR3

UART-SERVICE

X206

Mini-Jack

JTAG-MTK

I²C-MCU

I²C-BE

QC-SPI-AMBI

BackLight

Display

X051 -1G55

SRF-Bus

SRF-Bus

100kHz

X342

100kHz

X0..

X0..

UART2

X313X312

I2C MPX

PCA9540

RF4CE-RESETn

MTK-RESET-INn

BE-RESETn

Class D Amplifier

Bypass
opon

100kHz
400kHz

DDR3-1600

1-2Gbit

Buon

X400

DDR3

UART1

115kBaud

NT-SPI-AMBI

SPI-Switch

SPI-AMBI

X311

X310

X301

X322

X321

X323

DDR3-1600

4Gbit

EEPROM

Ethernet

Ethernet

X296

RJ45

USB1

USB2

USB0

USB3

X031

Wifi

6pins 3V3-WOLAN

X029/X030

5/8pins 5V

Skype

USB1

USB2

USB0

USB3

I2C0

X320

X340

I²C-SSB

X020-X025-

X026

X020-X025-X026

400kHz

X303

TI-RF4CE-DEBUG

X314

Temp-Sensor

NT72314

AUDIO-RESETn

EMMC-RESETn

0x34

0x38

0xA0

0x98

0x52

0x98

X280

USB-type A

X281

USB-type A

400kHz

I²C-FE-Bus

I²C-TUNER

Hybrid-Tuner

DVBS2-Tuner

400kHz

0xC0

0xC6

DVB-T/C/S/T2/C2/S2

Channel Decoder

DVB-T/C/S/T2/C2/S2
Channel Decoder

DEMOD-RESETn

0xC8

JTAG

0xCC

USB HUB

USB

switch

not used

X374

RC

IR

Receiver

X282

USB-type A

Reset

Generator

BE-RESETn

Reset

Generator

HDCP 2.2

0x70
0x64

EDID EEPROM

0xA0

X335

SPI

Serial Flash

1Mbit=128kByte

X346

HDCP-RESETn

I²C-HDCP

BE-RESETn

HDCP-RESETn

0xCC

For /K

Default in

Position Application
X000 - X099 Internal connectors

X100 - X199 Internal connectors (spare)
X200 - X299 User connectors
X300 - X399 Debug connectors
X300 - X309 (E)JTAG (incl. µP-debug-IF)
X310 - X319 UART
X320 - X329 I²C
X330 - X339 I²C (spare)
X340 - X349 SPI
X350 - X359 CTRL
X360 - X369 UART (spare)
X370 - X379 USB
X380 - X389 Other

Legend

Debug Connectors

Customer Connectors

UART

SPI

Flash

I2C

EJTAG

I2C

UART

RESET

Producon Connectors

USB-Eth

Power

USB&Ethernet

Power

Flash

DDR

Level Shi

RESET

Locaon Opons

GPIO

GPIO

ADC

ADC

8bits I2C address

Other

Diversity Opons

Not used

Connectors - Applicationata

9.5 Block Diagram Connections

Block Diagrams

EN 39QM14.3E LA 9.

2014-Apr-17

back to

div.table

Circuit Diagrams and PWB Layouts

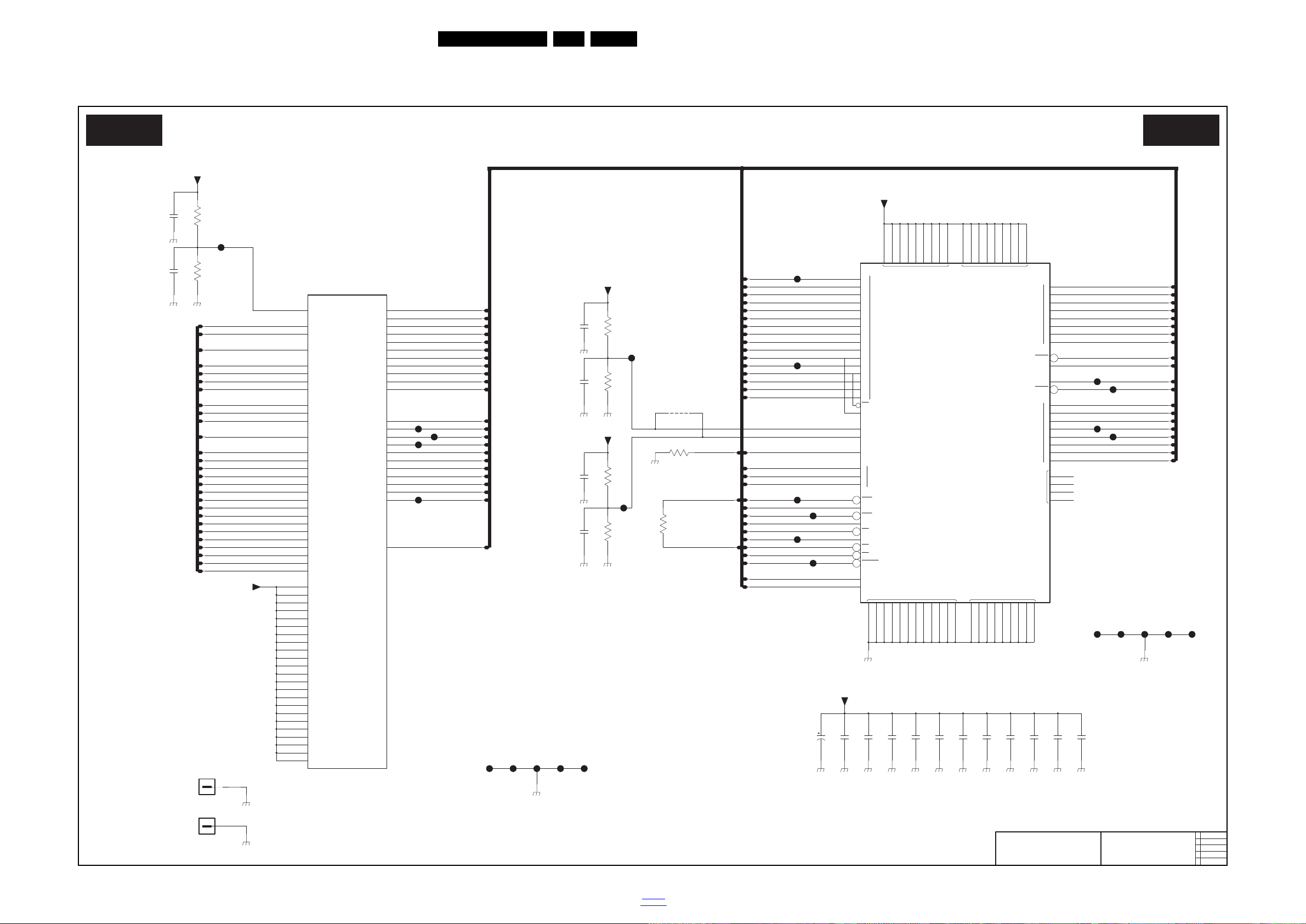

19580_082_140313.eps

26-03-13

DDR3 INTERFACE - 16 bits

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

BRA0
BRA1
BRA2
BRA3
BRA4
BRA5
BRA6
BRA7
BRA8
BRA9
BRA10
BRA11
BRA12
BRA13

BRBA0
BRBA1
BRBA2

BRRASn
BRODT
BRCASn
BRCLK0
BRCLK0n
BRCKE
BRCSn
BRWEn
BRRESET

BRDQM0
BRDQM1

+1V5-MTK

R101T

1%

100

BRCLK0

BRCLK0n

BRDQ8

BRDQ9
BRDQ10
BRDQ11
BRDQ12
BRDQ13
BRDQ14
BRDQ15

BRDQ0

BRDQ1

BRDQ2

BRDQ3

BRDQ4

BRDQ5

BRDQ6

BRDQ7

BRDQS1

BRDQS1n

A-ZQ3A-ZQ3

R082T

1%

1K

1K

1%

R083T

C001T

100nF

16V

16V

100nFC002T

+1V5-MTK

1K

1%

R084T R085T

1%

1K

16V

100nFC003T

C004T 100nF

16V

+1V5-MTK

R104T

1%

240

16V

100nFC005T

C006T 100nF

16V

C007T 100nF

16V

16V

100nFC008T

C009T 100nF

16V

16V

100nFC010T

16V

100nFC011T

C012T 100nF

16V

C088T

4.7uF

6.3V

C090T

100uF 16V

RES

+1V5-MTK

R086T

1%

1K 1K

1%

R087T

C013T 100nF

16V

16V

100nFC014T

+1V5-MTK

U005T

G4

G3

M4

F3

L2

F1

M3

F2

N4

K2

K1

H3

N2

D2

P1

D1

N1

E1

N3

E2

H1

H2

L1

T8

T7

T6

T5

R8

R7

G20

F20

E20

D20

G11

E8

D13

P8

N8

H5

F5

G19

F19

E19

D19

C19

B19

E5

N5

G6

K5

M5

K6

P2

H4

P3

F4

L5

P5

P6

G5

P4

J3

K4

E4

M6

J4

D4

D3

L4

E3

L6

J1

J2

C2

RVREF_C

BRCLK0
BRCLK0#

BRCKE

BRODT
BRRAS#
BRCAS#
BRCS#

BRBA0
BRBA1
BRBA2

BRWE#

BRA15
BRA14
BRA13
BRA12
BRA11
BRA10
BRA9
BRA8
BRA7
BRA6
BRA5
BRA4
BRA3
BRA2
BRA1
BRA0

DDRV_1
DDRV_2
DDRV_3
DDRV_4
DDRV_5
DDRV_6
DDRV_7
DDRV_8
DDRV_9
DDRV_10
DDRV_11
DDRV_12
DDRV_13
DDRV_14
DDRV_15
DDRV_16
DDRV_17
DDRV_18
DDRV_19
DDRV_20
DDRV_21
DDRV_22
DDRV_23

BRDQM0
BRDQS0

BRDQS0#

BRDQ0
BRDQ1
BRDQ2
BRDQ3
BRDQ4
BRDQ5
BRDQ6
BRDQ7

BRDQM1
BRDQS1

BRDQS1#

BRDQ8

BRDQ9
BRDQ10
BRDQ11
BRDQ12
BRDQ13
BRDQ14
BRDQ15

BRRESET

DDR_B

TYPE

BRDQM0
BRDQS0

BRDQS0n

BRDQ0
BRDQ1
BRDQ2
BRDQ3
BRDQ4
BRDQ5
BRDQ6
BRDQ7

BRDQM1
BRDQS1

BRDQS1n

BRDQ8

BRDQ9
BRDQ10
BRDQ11
BRDQ12
BRDQ13
BRDQ14
BRDQ15

BRRESET

BRCLK0
BRCLK0n

BRCKE
BRODT

BRRASn
BRCASn
BRCSn

BRBA0
BRBA1
BRBA2

BRWEn
BRA15

BRA14
BRA13
BRA12
BRA11
BRA10
BRA9
BRA8
BRA7
BRA6
BRA5
BRA4
BRA3
BRA2
BRA1
BRA0

+1V5-MTK

BRA14
BRA15

S001T

RES

BRDQS0
BRDQS0n

F006T

F008T

F009T

X004T

1

X005T

1

C074T 1uF

6.3V

C079T

10uF

6.3V

D042T

D043T

D044T

D045T

D046T

D047T

D048T

D049T

D050T

D051T

D052T

D053T

D054T

D055T

D056T D057T D058T

D059T

D060T

D061T

D062T D063T D064T

D065T

U002T

M7

A9

B3E1G8

J2

J8M1M9P1P9

T1T9B1

B9D1D8E2E8

F9G1G9

L9

L1

J9

J1

H7

G2

H8

H3

F8

F2

F7

E3

G3

F3

C7

B7

A3

B8

A2

A7

C2

C8

C3

D7

B2

D9

G7K2K8N1N9

R1R9A1

A8C1C9D2E9

F1H2H9

D3

E7

T2

L3

L2

K9

K7

J7

K3

K1

J3

M3

N8

M2

L8

M8

H1

T7

T3

N7

R7

L7

R3

T8

R2

R8

P2

P8

N2

P3

P7

N3

VREFDQ
VREFCA

ZQ

RAS
ODT
CAS
CK
CK
CKE
CS
WE
RESET

DML
DMU

DQSU
DQSU

DQSL
DQSL

NC

7

6

5

4

3

2

1

0

DQU

7

6

5

4

3

2

1

0

DQL

0
12BA

VDD VDDQ

VSS VSSQ

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14

A

BC
AP

15

H5TQ4G63AFR-PBCR

10. Circuit Diagrams and PWB Layouts

10.1 715RLPCB0000000213 SSB

10-1-1 B, DDR3 INTERFACE - 16 bits

EN 40QM14.3E LA 10.

2014-Apr-17

back to

div.table

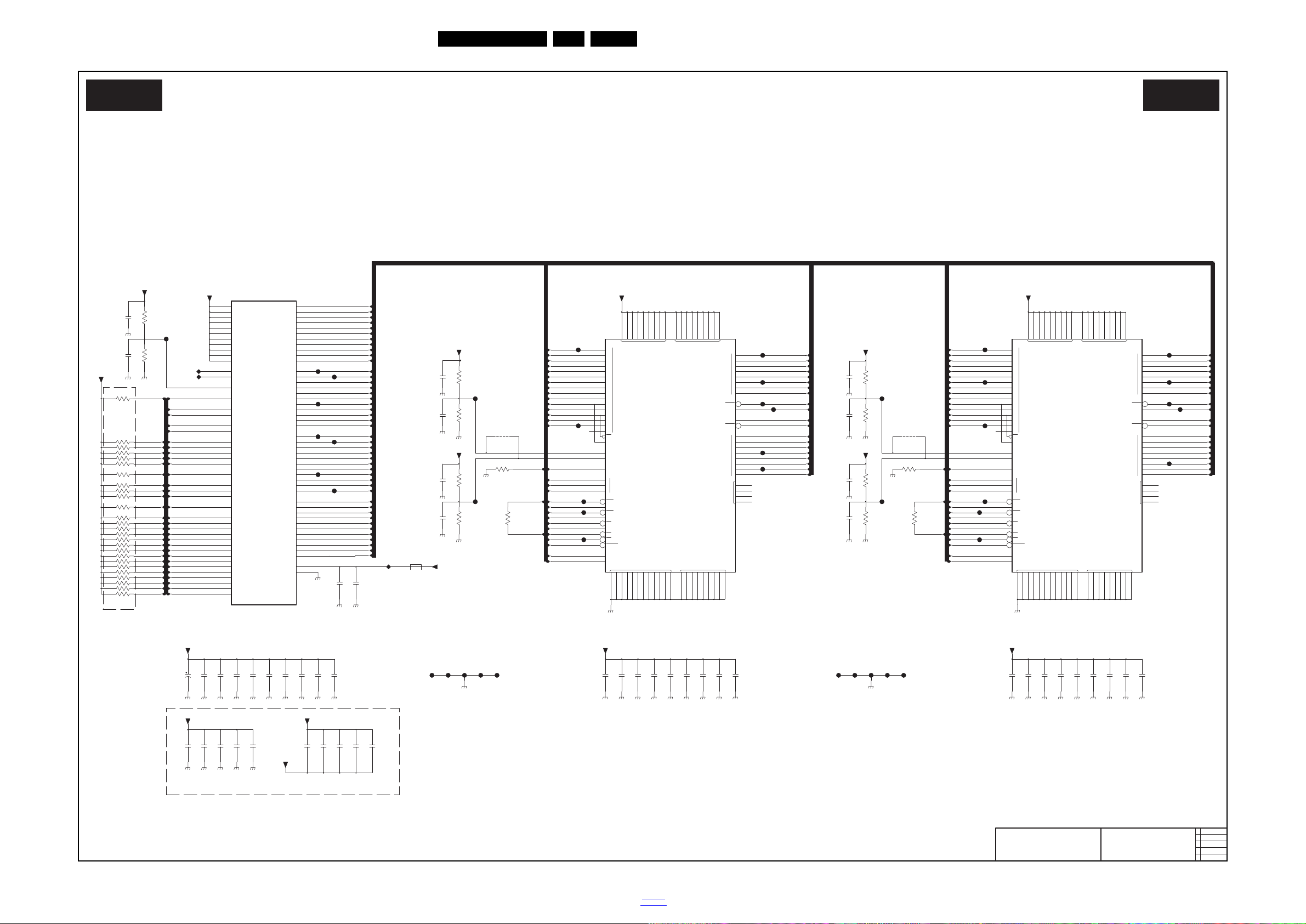

10-1-2 B, DDR3 INTERFACE - 32 Bits

19580_083_140313.eps

26-03-13

DDR3 INTERFACE - 32 bits

B B

2013-12-13

1

715RLPCB000000021

MTK UHD 50 Hz

7800

ARBA0
ARBA1
ARBA2

ARRASn
ARODT
ARCASn
ARCLK0
ARCLK0n
ARCKE
ARCSn
ARWEn
ARRESET

ARDQM0

+1V5-MTK

R102T

1%

100

ARCLK0

ARCLK0n

ARDQ8

ARDQ9
ARDQ10
ARDQ11
ARDQ12
ARDQ13
ARDQ14
ARDQ15

ARDQ0

ARDQ1

ARDQ2

ARDQ3

ARDQ4

ARDQ5

ARDQ6A-ZQ1A-ZQ1

R088T

1%

1K 1K

1%

R089T

+1V5-MTK

1K

1%

R090T R091T

1%

1K

+1V5-MTK

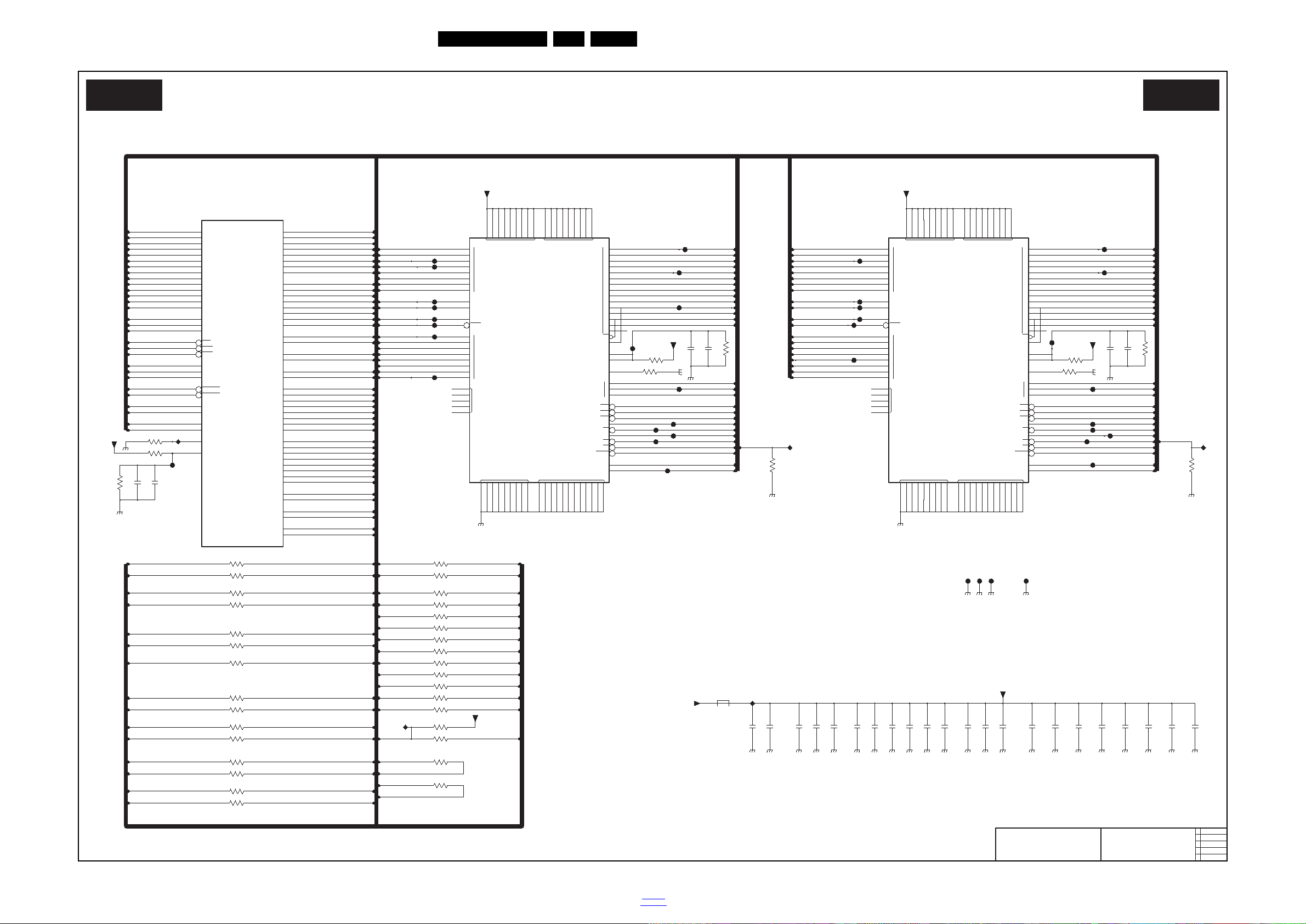

+1V5-MTK

100

1%

R103T

1K

1%

R092T

R093T

1%

1K

16V

100nFC015TC016T 100nF

16V

+1V5-MTK

R094T

1%

1K 1K

1%

R095T

C017T 100nF

16V

16V

100nFC018T

+1V5-MTK

ARA0
ARA1
ARA2
ARA3
ARA4
ARA5
ARA6
ARA7
ARA8
ARA9
ARA10
ARA11
ARA12
ARA13

ARBA0
ARBA1
ARBA2

ARRASn
ARODT
ARCASn
ARCLK1
ARCLK1n
ARCKE
ARCSXn
ARWEn
ARRESET

ARDQM2

A-ZQ2A-ZQ2

ARDQ16
ARDQ17
ARDQ18
ARDQ19
ARDQ20
ARDQ21
ARDQ22

ARDQ24
ARDQ25
ARDQ26
ARDQ27
ARDQ28
ARDQ29
ARDQ30
ARDQ31

R105T

1%

240 R106T1%240

C019T 100nF

16V

16V

100nFC020T

16V

100nFC021T

C022T 100nF

16V

16V

100nFC023T

C024T 100nF

16V

C025T 100nF

16V

16V

100nFC026T

+1V5-MTK

16V

100nFC027T

C028T 100nF

16V

C029T 100nF

16V

16V

100nFC030T

C031T 100nF

16V

16V

100nFC032T

16V

100nFC033T

C034T 100nF

16V

+1V5-MTK

16V

100nFC035T

16V

100nFC036T

C037T 100nF

16V

16V

100nFC038T

C039T 100nF

16V

C040T 100nF

16V

16V

100nFC041T

6.3V

4.7uFC089T

16V100uF

C091T

R096T

1%

1K

1K

1%

R097T

C042T 100nF

16V

16V

100nFC043T

+1V5-MTK

ARCLK1

ARCLK1n

U005T

H9

A20

D7

A2

A7

B3

C7

C4

B7

A1

B4

A4

C6

C3

C9

C1

A9

B1

C8

B2

E7

C5

D5

A3

C16

C11

A16

C12

A17

A11

B16

B11

B13

A13

C15

D9

E18

B9

C18

C10

C17

D10

B17

C14

D14

D12

F18

G10

F17

E15

E10

E17

F10

G17

F11

E16

G9

E11

D8

F16

D11

F15

G18

F9

D15

G16

H18

G15

G13

E13

F13

A14

B14

A5

B5

G8

D18

K22

J22

A19

R6

R5

R4

R3

R2

R1

M8

L8

K3

D17

DDRV_9

DDRV_7
DDRV_11
DDRV_10

DDRV_1
DDRV_2
DDRV_3
DDRV_4
DDRV_5
DDRV_6

DDRV_8

MEMTP
MEMTN

RVREF_A

ARCKE

ARCLK1
ARCLK1#

ARCLK0
ARCLK0#

ARODT
ARRAS#
ARCAS#
ARCS#
ARWE#

ARRESET

ARBA0
ARBA1
ARBA2

ARCSX#

ARA14
ARA13
ARA12
ARA11
ARA10
ARA9
ARA8
ARA7
ARA6
ARA5
ARA4
ARA3
ARA2
ARA1
ARA0

ARDQM0
ARDQS0

ARDQS0#

ARDQ0
ARDQ1
ARDQ2
ARDQ3
ARDQ4
ARDQ5
ARDQ6
ARDQ7

ARDQM1
ARDQS1

ARDQS1#

ARDQ8

ARDQ9
ARDQ10
ARDQ11
ARDQ12
ARDQ13
ARDQ14
ARDQ15

ARDQM2
ARDQS2

ARDQS2#

ARDQ16
ARDQ17
ARDQ18
ARDQ19
ARDQ20
ARDQ21
ARDQ22
ARDQ23

ARDQM3
ARDQS3

ARDQS3#

ARDQ24
ARDQ25
ARDQ26
ARDQ27
ARDQ28
ARDQ29
ARDQ30
ARDQ31

AVDD33_MEMPLL
AVSS33_MEMPLL

DDR_A

TYPE

+1V5-MTK

R054T 47

47R055T
R056T 47
R057T 47

47R058T
R059T 47

47R060T

R061T 47

47R062T
R063T 47

47R064T

47R065T
R066T 47

47R067T
R068T 47

47R069T
R070T 47
R071T 47

47R072T
R073T 47

47R074T
R075T 47

47R076T
R077T 47

47R078T
R079T 47

RES

+VTT

ARDQM0
ARDQS0

ARDQS0n

ARDQ0
ARDQ1
ARDQ2
ARDQ3
ARDQ4
ARDQ5
ARDQ6
ARDQ7

ARDQM1
ARDQS1

ARDQS1n

ARDQ8

ARDQ9
ARDQ10
ARDQ11
ARDQ12
ARDQ13
ARDQ14
ARDQ15

ARDQM2
ARDQS2

ARDQS2n

ARDQ16
ARDQ17
ARDQ18
ARDQ19
ARDQ20
ARDQ21
ARDQ22
ARDQ23

ARDQM3
ARDQS3

ARDQS3n

ARDQ24
ARDQ25
ARDQ26
ARDQ27
ARDQ28
ARDQ29
ARDQ30
ARDQ31

C044T 100nF

16V

ARCKE
ARCLK1

ARCLK1n
ARCLK0

ARCLK0n

I001T
I002T

ARODT
ARRASn
ARCASn
ARCSn
ARWEn

ARRESET
ARBA0

ARBA1
ARBA2

ARCSXn
ARA14

ARA13
ARA12
ARA11
ARA10
ARA9
ARA8
ARA7
ARA6
ARA5
ARA4
ARA3
ARA2
ARA1
ARA0ARA0

ARA1

ARA2

ARA3

ARA4

ARA5

ARA6

ARA7

ARA8

ARA9

ARA10

ARA11

ARA12

ARA13

ARA14

ARCSXn

ARBA2

ARBA1

ARBA0

ARRESET

ARWEn

ARCSn

ARCASn

ARRASn

ARODT

ARCKE

C045T 100nF

16V

16V

100nFC046T

16V

100nFC047T

C048T 100nF

16V

ARA0
ARA1
ARA2
ARA3
ARA4
ARA5
ARA6
ARA7
ARA8
ARA9
ARA10
ARA11
ARA12
ARA13
ARA14

ARDQM1

ARA14

ARDQ7

ARDQM3

ARDQ23

+1V5-MTK

S002T

RES RES

S003T

ARDQS1

ARDQS1n

ARDQS0

ARDQS0n

ARDQS3

ARDQS3n

ARDQS2

ARDQS2n

F010T

F011T

F012T

F013T

F014T

C075T 1uF

6.3V

C076T

1uF

6.3V

C080T

10uF

6.3V

C081T

10uF

6.3V

D001T

D002T

D004T

D005T

D006T

D007T

D008T

D009T

D011T

D012T

D013T

D014T

D015T

D016T

D017T

D018T

D019T

D020T

D021T

D022T

D023T

D024T

D025T

D026T

D027T

D028T

D029T

D030T

D031T

D032T

D033T D034T

D035T

D036T

D037T D038T

D039T D040T D041T

U004T

M7

A9B3E1G8J2J8M1M9P1P9T1T9B1B9D1D8E2

E8F9G1

G9

L9

L1

J9

J1

H7

G2

H8

H3

F8

F2

F7

E3

G3

F3

C7

B7

A3

B8

A2

A7

C2

C8

C3

D7

B2D9G7K2K8N1N9R1R9A1A8C1C9D2E9F1H2

H9

D3

E7

T2

L3

L2

K9

K7

J7

K3

K1

J3

M3

N8

M2

L8

M8

H1

T7

T3

N7

R7

L7

R3

T8

R2

R8

P2

P8

N2

P3

P7

N3

VREFDQ
VREFCA

ZQ

RAS
ODT
CAS
CK
CK
CKE
CS
WE
RESET

DML
DMU

DQSU
DQSU

DQSL
DQSL

NC

7

6

5

4

3

2

1

0

DQU

7

6

5

4

3

2

1

0

DQL

0
12BA

VDD VDDQ

VSS VSSQ

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14

A

BC
AP

15

H5TQ4G63AFR-PBCR

U003T

M7

A9

B3E1G8J2J8

M1M9P1P9T1T9B1

B9

D1D8E2

E8

F9

G1

G9

L9

L1

J9

J1

H7

G2

H8

H3

F8

F2

F7

E3

G3

F3

C7

B7

A3

B8

A2

A7

C2

C8

C3

D7

B2D9G7K2K8

N1

N9

R1

R9

A1A8C1C9D2

E9

F1H2H9

D3

E7

T2

L3

L2

K9

K7

J7

K3

K1

J3

M3

N8

M2

L8

M8

H1

T7

T3

N7

R7

L7

R3

T8

R2

R8

P2

P8

N2

P3

P7

N3

VREFDQ
VREFCA

ZQ

RAS
ODT
CAS
CK
CK
CKE
CS
WE
RESET

DML
DMU

DQSU
DQSU

DQSL
DQSL

NC

7

6

5

4

3

2

1

0

DQU

7

6

5

4

3

2

1

0

DQL

0
12BA

VDD VDDQ

VSS VSSQ

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14

A

BC
AP

15

H5TQ4G63AFR-PBCR

L005T

30H

+3V3-A

+VTT +VTT

+1V5-MTK

RES

16V

100nFC105T

16V

100nFC106T

C107T 100nF

16V

16V

100nFC108T

C109T 100nF

16V

C110T 100nF

16V

C111T 100nF

16V

16V

100nFC112T

C113T 100nF

16V

16V

100nFC114T

I038T

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

Circuit Diagrams and PWB Layouts

EN 41QM14.3E LA 10.

2014-Apr-17

div.table

back to

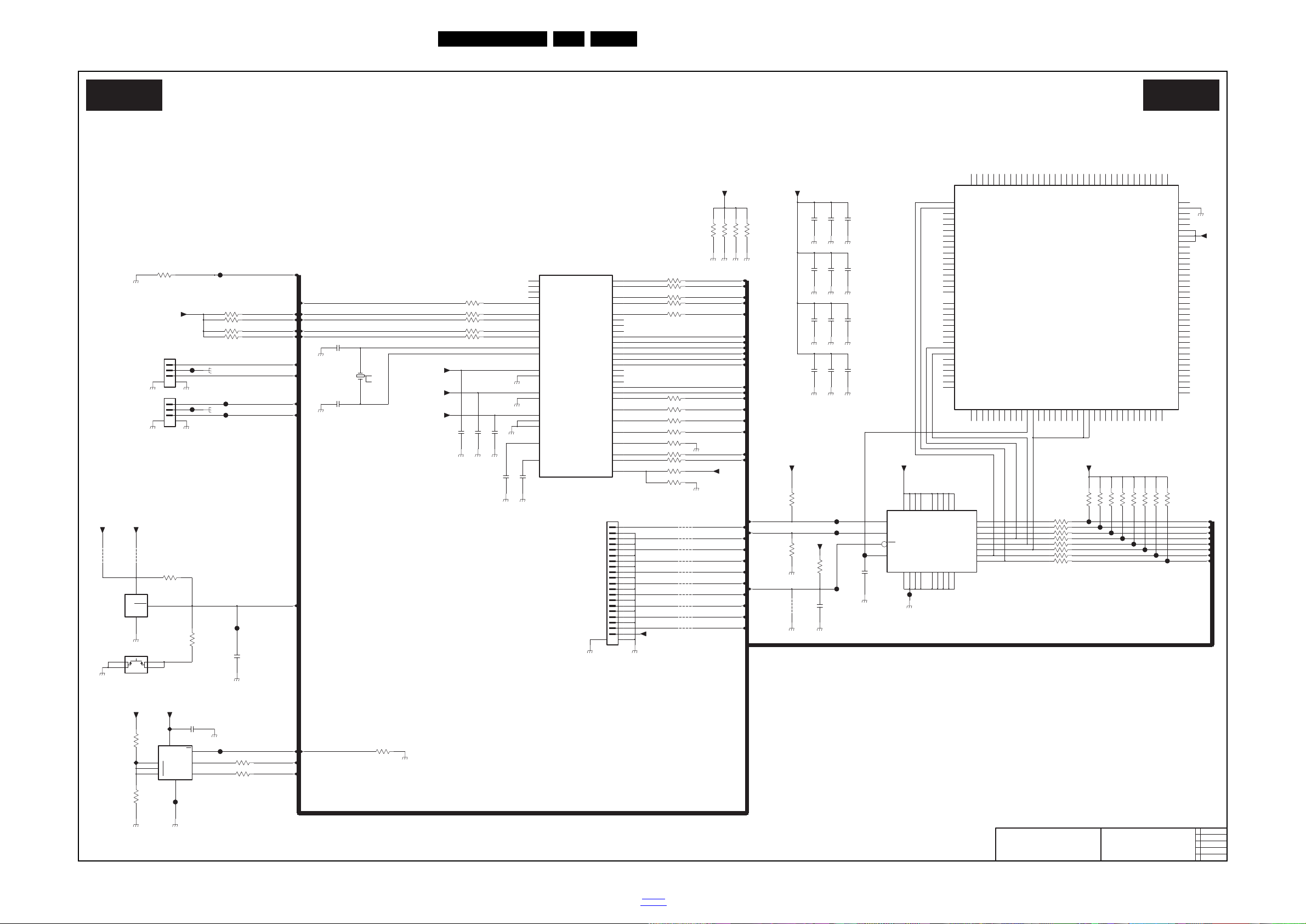

10-1-3 B, EMMC

19580_084_140313.eps

14-03-26

EMMC

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

C049T 100nF

16V

16V

100nFC050T

C051T 100nF

16V

16V

100nFC052T

C053T 100nF

16V

16V

100nFC054T

C055T 100nF

16V

+3V3

R001T 10K

10KR002T

10KR003T

R004T 10K

10KR005T

R006T 10K

R007T 10K

10KR008T

R009T 10K

+3V3

10KR010T

R081T

4.7K

C056T 100nF

16V

U007T

M7P5R10U8K4Y2Y5

AA4

AA6

J6

J5

J4

J3

J2

H5

H4

H3

M6

N5

T10

U9K6W4

Y4

AA3

AA5

K2

U5

W6

W5

CMD

CLK

RST

VDDI

VCCQ_5

VCCQ_4

VCCQ_3

VCCQ_2

VCCQ_1

VCC_4

VCC_3

VCC_2

VCC_1

DAT0
DAT1
DAT2
DAT3
DAT4
DAT5
DAT6
DAT7

VSSQ_5

VSSQ_4

VSSQ_3

VSSQ_2

VSSQ_1

VSS_4

VSS_3

VSS_2

VSS_1

MAIN

TYPE

+3V3+3V3

U005T

AE14

AK15

AL14

C20

AF17

AK20

AL15

C21

B26

A26

C25

C24

D23

B23

A23

C23

A22

B22

C22

A25

D25

B25

D24

AG13

AH13

AH14

AH15

AN16

AM17

H21

AC21

AL26

AL17

AN17

AL29

AN30

AM29

AN29

AF11
AG11

AH11
AH10

AJ11

AK11

AJ12

AL9

AK10

JTCK
JTDO

JTRST#

JTDI
JTMS

OSCL0

OSDA0

OSCL1

OSDA1

XTALI
XTALO

AVDD33_XTAL_STB
AVSS33_XTAL_STB

AVDD33_VGA_STB
AVSS33_VGA_STB

AVDD33_PLL
AVSS33_PLLGP
AVSS33_CPUPLL

AVDD10_LDO

AVDD10_ELDO

U0TX
U0RX

U1TX
U1RX

POWE#

POOE#
POCE1#
POCE0#

PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1

PDD0
PARB#
PACLE
PAALE

EMMC_CLK

OPWRSB

ORESET#

OIRI

FSRC_WR

STB_SCL
STB_SDA

POR_BND

MISC

TYPE

U007T

N2

N1

M14

M13

M12

M3

M2

M1

L14

L13

L12L4L3L2L1

K14

K13

K12

K11

K10

K9

K8K7K3K1J14

J13

J12

J11

J10J9J8J7J1

H14

W2

W1
V14
V13
V12

V3

V2

V1
U14
U13
U12

U3

U2

U1
T14
T13
T12

T3

T2

T1
R14
R13
R12

R3

R2

R1
P14
P13
P12

P2

P1
N14
N13
N12

N3

AH11

AH9

AH6

AH4

AG13

AG2

AE14

AE1

AA14

AA13

AA12

AA11

AA9

AA8

AA2

AA1

Y14

Y13

Y12

Y11

Y10

Y9

Y8Y7Y6Y3Y1

W14

W13

W12

W11

W10

W9W8W7

W3

AA10

AA7

U10

U7

U6

T5

R5

P10

P3

N10

M10

M9

M8

M5

K5

H13

H12

H11

H10

H9

H8

H7

H6

H2

H1

D14

D1

B13

B2

A11

A9

A6

A4

NC1
NC2
NC3
NC4
NC5
NC6
NC7
NC8
NC9
NC10

RFU1
RFU2

NC11
NC12
NC13
NC14
NC15
NC16

RFU3
RFU4
RFU5
RFU6
RFU7
RFU8
RFU9
RFU10
RFU11
RFU12
RFU13
RFU14
RFU15
RFU16
RFU17

NC87

NC88

NC89

NC90

NC91

NC92

NC93

NC94

NC95

NC96

NC97

NC98

NC99

NC100

NC101

NC102

NC103

NC104

NC105

NC106

NC107

NC108

NC109

NC110

NC111

NC112

NC113

NC114

NC115

NC116

NC117

NC118

NC119

NC120

NC121

NC122

NC52

NC53

NC54

NC55

NC56

NC57

NC58

NC59

NC60

NC61

NC62

NC63

NC64

NC65

NC66

NC67

NC68

NC69

NC70

NC71

NC72

NC73

NC74

NC75

NC76

NC77

NC78

NC79

NC80

NC81

NC82

NC83

NC84

NC85

NC86

NC17

NC18

NC19

NC20

NC21

NC22

NC23

NC24

NC25

NC26

NC27

NC28

NC29

NC30

NC31

NC32

NC33

NC34

NC35

NC36

NC37

NC38

NC39

NC40

NC41

NC42

NC43

NC44

NC45

NC46

NC47

NC48

NC49

NC50

NC51

NC

TYPE

S004T

RES

F015T

F001T

F002T

F003T

F004T

F005T

F016T

F017T

F018T

F019T

F020T

F021T

+3V3

C149T 10pF

10pFC150T

MTK-EJTAG-TRSTn

10R144T

+3V3-A

+3V3-STANDBY

+3V3-STANDBY

SDA-SRF
SCL-SRF

SDA-SSB
SCL-SSB

1
2
3
54

TYPE

1
2
3
54

TYPE

SCL-SRF
SDA-SRF

SCL-SSB
SDA-SSB

F032T

F035T

F036T

F037T

C168T 100nF

100nFC169T

C170T 100nF

10R151T
10R152T

R153T 10
R154T 10

MTK-EJTAG-TRSTn

R174T 2.2K

2.2KR175T

2.2KR176T

R177T 2.2K

SDA-SSB
SCL-SSB

SDA-SRF
SCL-SRF

10KR158T

10R166T

R167T 10

R168T 10

10R169T

MTK-TX-SERVICE
MTK-RX-SERVICE

R170T 10

10R171T

R172T 10

MTK-RESET-INn

R163T 4.7K

R161T

47
47R162T

4.7KR164T

R165T 4.7K

RC

SCL-BE
SDA-BE

+3V3-STANDBY

MTK-TX-RF4CE
MTK-RX-RF4CE

EMMC-D7
EMMC-D6
EMMC-D5
EMMC-D4
EMMC-D3
EMMC-D2

EMMC-D1
EMMC-D0

EMMC-CLK

EMMC-D5
EMMC-CMD

EMMC-D4

EMMC-D3

EMMC-D2

EMMC-CMD
EMMC-CLK

EMMC-RESETn

EMMC-D0
EMMC-D1
EMMC-D2
EMMC-D3
EMMC-D4
EMMC-D5
EMMC-D6
EMMC-D7

+3V3

C176T 4.7uF

4.7uFC177T

F040T

F045T

C084T 10uF

6.3V

6.3V

10uFC085T

C086T 10uF

6.3V

6.3V

10uFC082T

C087T

10uF

6.3V

STANDBYn

U001T

1

2

3

VCC

RESET

GND

R189T 10K

X007T

3

24

1

F070T

MTK-RESET-INn

+3V3-STANDBY

EMMC-CMD

EMMC-CLK

VDD

SCL

SDA

VSS

0
12ADDR

EEPROM

WP|WC

+3V3 +3V3

SCL-SSB
SDA-SSB

R243T 10

R244T 10

U008T

4

5

6

7

8

3

2

1

R232T 10K

R233T 47

R234T 47

C175T 100nF

16V

F031T

I035T

I036T

R245T 100

C178T

100nF

16V

X002T

1

4

3

2

S026T

50m

EMMC-D1

S027T

50m

EMMC-D0

S028T

50m

S029T

50m

EMMC-D7

EMMC-D6

S030T

50m

S031T

50m

S032T

50m

S033T

50m

S034T

50m

S035T

50m

X001T

20

19

18

17

16

15

14

13

12

22

11

10

9

8

7

6

5

21

4

3

2

1

TYPE

DBG

+3V3

R011T 10K

S009T

50m

S014T

50m

+3V3

C083T 10uF

6.3V

SYS-EEPROM-WP SYS-EEPROM-WP

R025T 10K

RES

+3V3

F076T

RES

RES

X321

X320

R294T

33
33R295T

R296T 33

33R297T

R239T 33

33R240T

R241T 33

33R242T

+3V3

+3V3

R157T 1K

5%

54

R157T 1K

5%

63

R157T 1K

5%

72

R157T 1K

5%

81

Circuit Diagrams and PWB Layouts

EN 42QM14.3E LA 10.

2014-Apr-17

back to

div.table

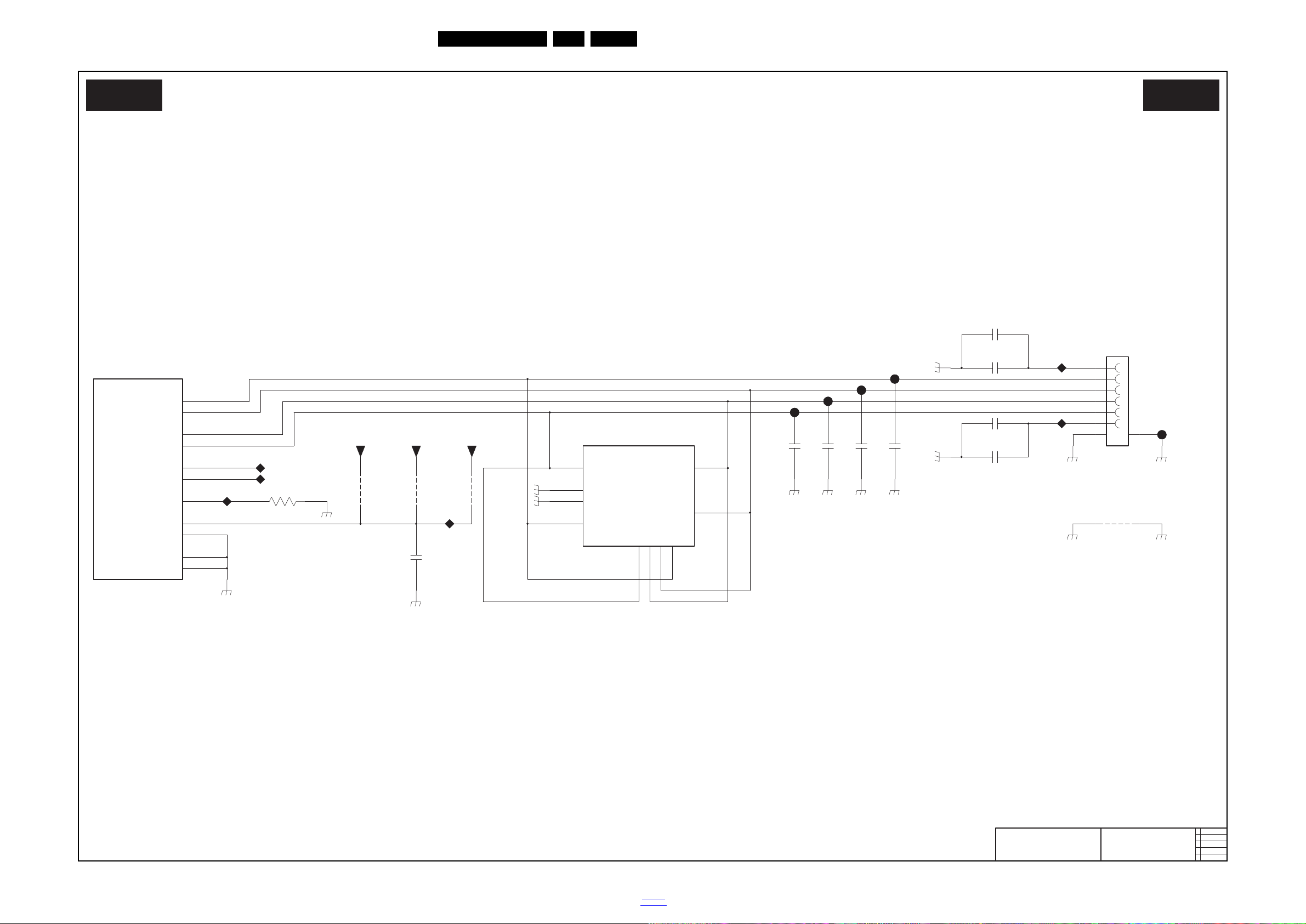

10-1-4 B, ETHERNET

19580_085_140313.eps

14-03-26

ETHERNET

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

U005T

AC15

AC16

AE13

AN14

AN12

AF13

AJ13

AM12

AL12

AM13

AL13

TXVP_0
TXVN_0

RXVP_1
RXVN_1

PHYLED0
PHYLED1

REXT

AVDD33_ETH

AVSS33_ELDO

AVSS33_LD

AVSS33_COM

ETHERNET

TYPE

X296

87

6

5

4

3

2

1

CHASSIS-GNDCHASSIS-GND

C057T 100nF

16V

C064T

10nF

16V

16V

100nFC058T

16V

10nFC065T

I003T
I004T

R107T

1%

24K

S005T

CHASSIS-GND

S006T

+3V3-LAN

+3V3 +3V3-STANDBY

16V

100nFC059T

C092T

15pF

50V

D003T

1

3
8

5

2

4

6

7

9

10

NC4

NC3

NC2

NC1

TMDS_CH2-

TMDS_CH1+

TMDS_CH2+

GND2

GND1

TMDS_CH1-

TYPE

50V

15pFC093T

C094T 15pF

50V

50V

15pFC095T

S007T

S008T

TXP

TXN

RXP

RXN

RES

RES

RES

RES

I009T

I010T

I011T

I012T

F022T

RES

RES

RES

RES

RES

F058T

F059T

F060T

F061T

Circuit Diagrams and PWB Layouts

EN 43QM14.3E LA 10.

2014-Apr-17

back to

div.table

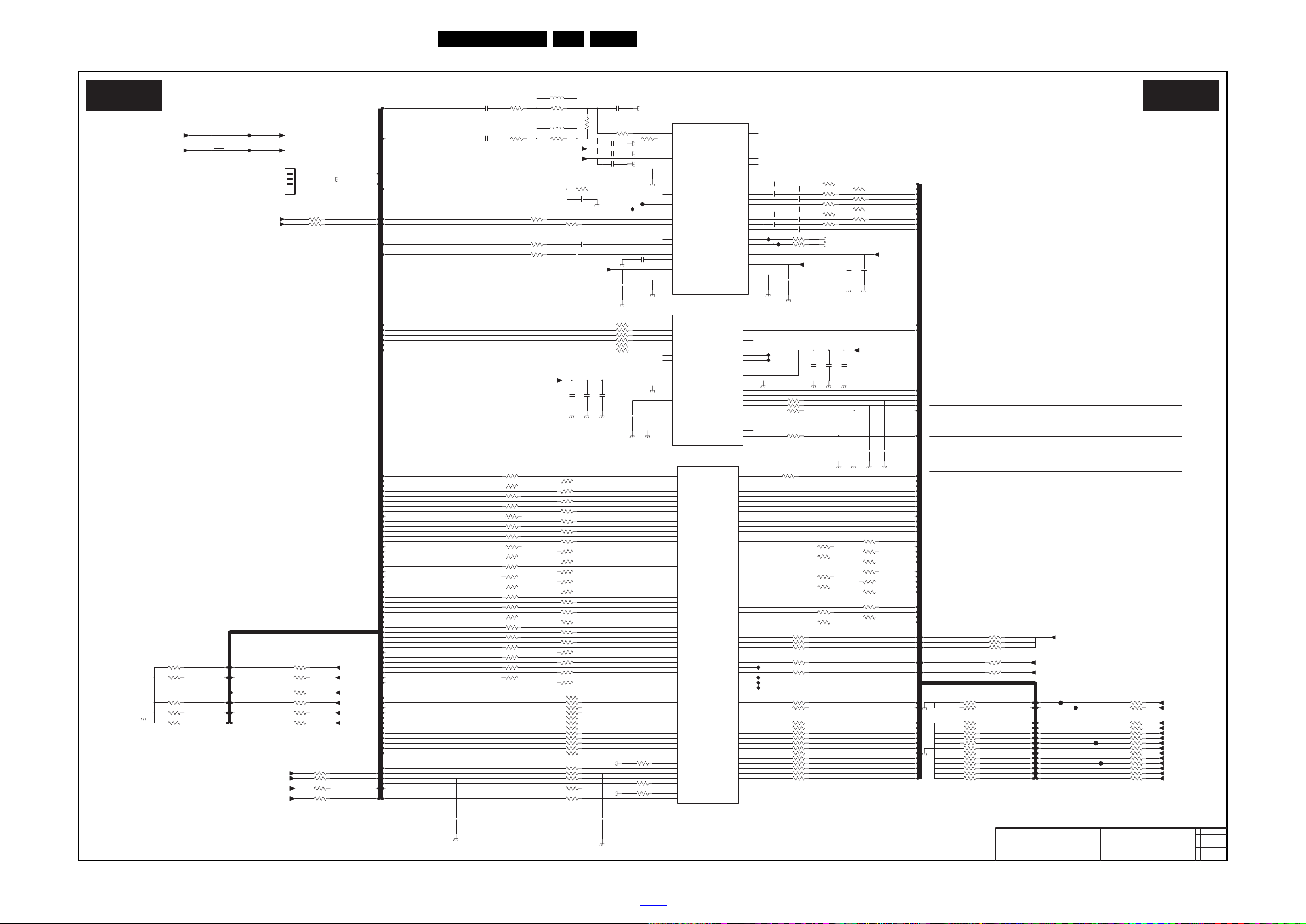

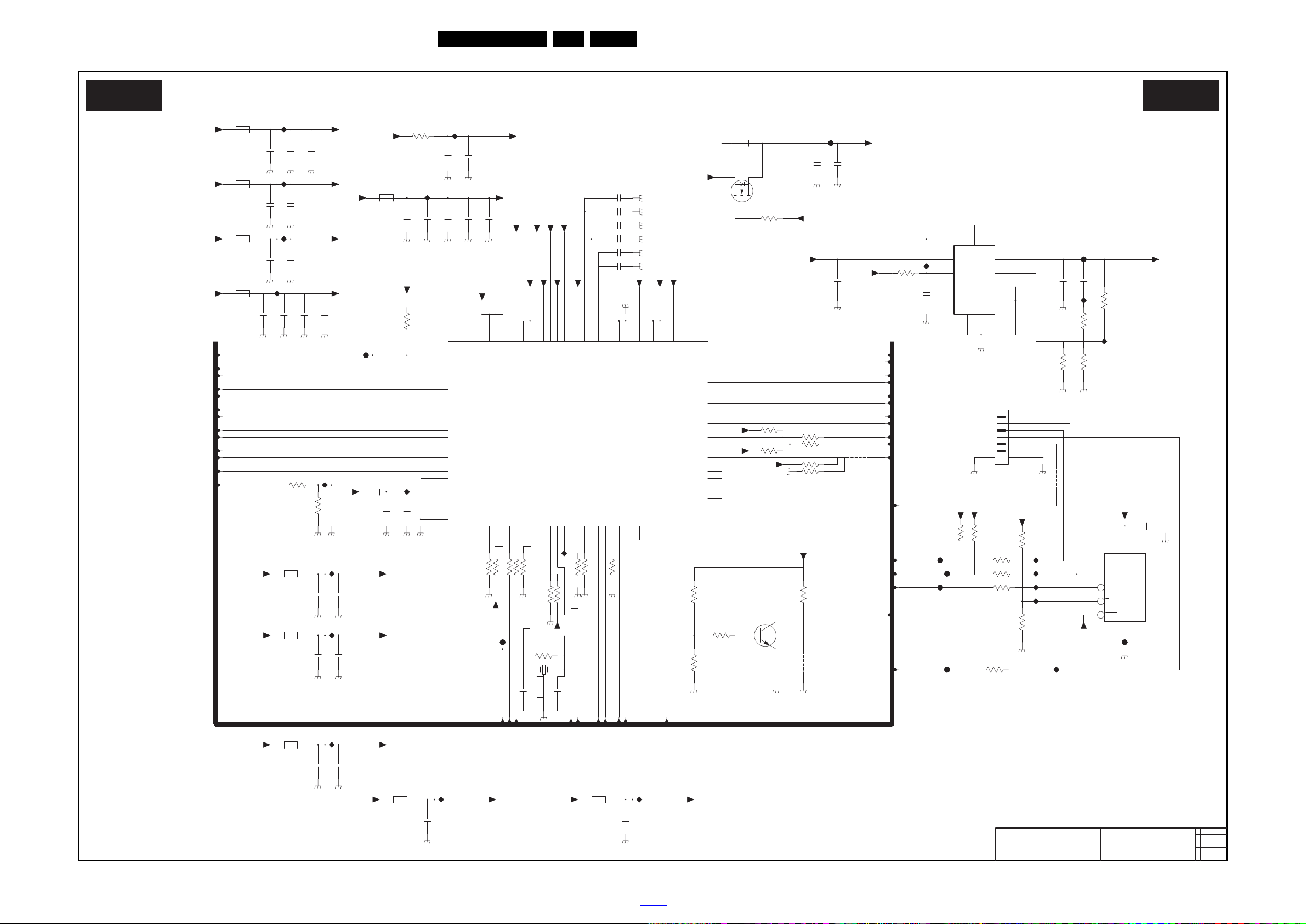

10-1-5 B, AUDIO/VIDEO

19580_086_140313.eps

14-03-26

AUDIO / VIDEO

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

U005T

AE20

AK17

AC19

AN18

AN25

AJ24

AH24

AK23

AN23

AL24

AL23

AM23

AN21

AM21

AL22

AK22

AL21

AH22

AG22

AK19

AN20

AL19

AM20

AL20

AL18

AK18

AB22

AB20

AM26

AJ26

AK25

AH26

AM25

AK26

N26

N27

AK27

AJ27

M28

L26

AL27

AL28

AN28

AN26

AM27

AN27

ADCINN_DEMOD
ADCINP_DEMOD

AVDD33_DEMOD

AVDD12_DEMOD

AVSS33_DEMOD
AVSS12_DEMOD

IF_AGC
RF_AGC

LOUTN
LOUTP

OSCL2
OSDA2

CVBS3P
CVBS2P
CVBS1P
CVBS0P
CVBS_COM

AVDD33_CVBS

AVSS33_CVBS_1
AVSS33_CVBS_2

HSYNC
VSYNC

RP
GP

BP
COM
SOG

VGA_SDA
VGA_SCL

COM1
PB1P
PR1P

Y1P

SOY1
COM0
PB0P
PR0P

Y0P

SOY0

VDACX_OUT
VDACY_OUT

AVDD33_VIDEO

AVDD12_RGB

AVSS33_VDAC_BG

AVSS12_RGB

AVSS33_VDAC

VIDEO

TYPE

U005T

AJ10

AH8

AJ8

AK8

AH9

AF10

AJ9

AK9

V27

AG10

AG9

AC23

AJ33

AH28

AJ30

AK29

AJ31

AJ29

AK30

AH25

AN31

AC24

AJ32

AL33

AN33

AM32

AK33

AM33

AM31

AL32

AN32

AIN1_L_AADC
AIN1_R_AADC
AIN2_L_AADC
AIN2_R_AADC
AIN3_L_AADC
AIN3_R_AADC
AIN4_L_AADC
AIN4_R_AADC

AVDD33_AADC
AVSS33_AADC

VMID_AADC

MPXP

AR0_ADAC
AL0_ADAC

AR1_ADAC
AL1_ADAC

AR2_ADAC
AL2_ADAC

AVDD33_ADAC
AVSS33_ADAC

ALIN

ASPDIF0
ASPDIF1

AOBCK
AOLRCK
AOMCLK

AOSDATA4
AOSDATA3
AOSDATA2
AOSDATA1
AOSDATA0

AUDIO

TYPE

U005T

AJ19

AF19

AJ17

AG17

AK16

AH19

AE19

AH17

AG19

AE17

AM16

AL16

AG15

AF15

E24

A28

C26

D26

C27

D27

AM9

AM8

AL8

K27

L32

L33

L30

M30

M29

L27

M27

M31

N31

N30

K26

N33

L25

R26

U26

U27

R28

P26

T27

T26

R27

R29

P27

N32

P30

AM18

AG24

AK21

AF22

AD28

AE28

AH23

AJ23

AC6

AB6

AC7

AC8

AD6

AA7

AB8

F24

C28

G23

D21

E25

K28

B28

G28

G31

G29

J27

H28

D28

D29

E27

G27

G30

J26

H29

J28

C29

E28

A30

B33

C33

E29

D33

D31

E32

E31

F33

F31

D32

D30

F32

F30

C32

F28

F27

F29

E30

C31

B32

A33

C30

A32

B31

A31

B30

GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
GPIO15
GPIO16
GPIO17
GPIO18
GPIO19
GPIO20
GPIO21
GPIO22
GPIO23
GPIO24
GPIO25
GPIO26
GPIO27
GPIO28
GPIO29
GPIO30
GPIO31
GPIO32
GPIO33
GPIO34
GPIO35
GPIO36
GPIO37
GPIO38
GPIO39
GPIO40
GPIO41
GPIO42
GPIO43
GPIO44
GPIO45
GPIO46
GPIO47
GPIO48
GPIO49
GPIO50
GPIO51
GPIO52
GPIO53
GPIO54
GPIO55

ADIN0_SRV
ADIN1_SRV
ADIN2_SRV
ADIN3_SRV
ADIN4_SRV
ADIN5_SRV
ADIN6_SRV
ADIN7_SRV

DEMOD_RST
DEMOD_TSCLK
DEMOD_TSVAL

DEMOD_TSSYNC
DEMOD_TSDATA0
DEMOD_TSDATA1
DEMOD_TSDATA2
DEMOD_TSDATA3
DEMOD_TSDATA4
DEMOD_TSDATA5
DEMOD_TSDATA6
DEMOD_TSDATA7

CI_INT

CI_TSCLK

CI_TSDATA0

CI_TSSYNC

CI_TSVAL

PVR_TSCLK
PVR_TSVAL

PVR_TSSYNC
PVR_TSDATA0
PVR_TSDATA1

SPI_CLK1

SPI_CLK

SPI_DATA

SPI_CLE

OPWM2
OPWM1
OPWM0

SD_D0
SD_D1
SD_D2

SD_D3
SD_CMD
SD_CLK

LED_PWM1
LED_PWM0

OPCTRL11
OPCTRL10

OPCTRL9
OPCTRL8
OPCTRL7
OPCTRL6
OPCTRL5
OPCTRL4
OPCTRL3
OPCTRL2
OPCTRL1
OPCTRL0

GPIO

TYPE

R014T 100 C096T 47nF

16V

AV-SCART-CVBS

R114T

680

R099T 1K

1KR100T

R013T 10K

IF-AGC-DVBT2

TS-CLK

TS-VALID

TS-SYNC

TS-DATA0

SPDIFO

I015T
I016T

L001T

4.7uH

4.7uH

L002T

TS-DATA1
TS-DATA2
TS-DATA3
TS-DATA4
TS-DATA5
TS-DATA6
TS-DATA7

C133T 100nF

C132T 1uF

6.3V

C134T 10uF

6.3V

+3V3-A

C151T 100nF

C137T 1uF

6.3V

C143T 10uF

6.3V

+3V3-A

C152T 100nF

C138T 1uF

6.3V

+3V3-VIDEO

C139T 1uF

6.3V

R124T 75

75R125T

C144T 100nF

16V

16V

100nFC145T

C140T

1uF

6.3V

+3V3-VIDEO

C146T 100nF

16V

+1V2-VIDEO

+3V3-A

+1V2-A

+3V3-VIDEO

+1V2-VIDEO

L003T

30H

30H

L004T

AUDIO-AL0

AUDIO-AR0

16V

100nFC171T

C172T 100nF

16V

+3V3-A
+1V2-A

HDMI-ARC

R029T 4.7K

R038T 10

10R039T

R040T 10

KEYBOARD
POWER-OK

AMBI-TEMP

R048T 100K

100KR049T

R030T

10K

KEYBOARD
POWER-OK

AMBI-TEMP

+3V3

+3V3-STANDBY

+3V3

10R041T

R042T 10

10R043T

R044T 10

10R045T

R046T 10

10R047T

LED1

SPLASH-ON

RF4CE-RESETn
WOLAN-ENABLE

WOLAN-IRQn

10KR031T

R032T 10K

10KR033T

R034T 10K

10KR035T

R036T 10K

10KR037T

LED1

MTK-LCD-PWR-ON

SPLASH-ON
RF4CE-RESETn

WOLAN-ENABLE
WOLAN-IRQn

+3V3-STANDBY
+3V3-STANDBY

+3V3-STANDBY

+3V3-STANDBY
+3V3-STANDBY

+3V3-STANDBY
+3V3-STANDBY

I006T

I008T
I014T
I017T

R185T 10

10R186T

R187T 10

R050T

10K
10KR051T

R052T 10K

+3V3

10KR053TR178T 10

AUDIO-ENABLEAUDIO-ENABLE

+3V3-STANDBY

10K R179T

R180T10K

RES

RES

10K

R181T

R182T 10K

RES

LED2
LED1

AUDIO-ENABLE

OPCTRL3

ARC4-EN
BL-DIMn

ARC4-EN
BL-DIMn

10R183T R184T 10K

+3V3-STANDBY

OPCTRL3 OPCTRL3

RES

LED1 LED2

LED_PWM0 LED_PWM1 OPCTRL3 OPCTRL7

STRAP OPTION

ICE mode + 27M + serial boot

ICE mode + 27M + ROM to Nand boot

ICE mode + 27M + ROM to eMMC boot
from eMMC pins (share pins w/s NAND)

ICE mode + 27M + ROM to eMMC boot

from SDIO pins

1

1

1

1

0

0

0

1

0

0

1

0

0

1

1

0

I022T

I023T

IF-N-DVBT2

IF-P-DVBT2

R188T 10

AUDIO-RESETn

I024T

I025T

MTK-BL-I-CTRLn MTK-BL-I-CTRLn

R203T 10
R204T

10

BE-RESETn
BE-ENABLE

R220T 10
R221T

10

DETECT12V

MTK-LCD-PWR-ON

LED2 LED2

R205T 10K

R206T

10K

R207T

10K

R208T

10K

R209T

10K

R210T

10K

R211T

10K

R212T

10K

R213T

10K

R214T

10K

R215T

10K

R216T

10K

R217T

10K

R218T

10K

BE-RESETn
BE-ENABLE

AUDIO-RESETn

DETECT12V

+3V3-STANDBY
+3V3-STANDBY

+3V3-STANDBY
+3V3-STANDBY

+3V3-STANDBY

10KR219T

BE-RESETn
BE-ENABLE

MTK-LCD-PWR-ON

AUDIO-RESETn

DETECT12V

RF4CE-RESETn
WOLAN-ENABLE

WOLAN-IRQn

ARC1-EN

ARC2-EN
ARC3-EN
MTK-3D-GOGGLES

AV-SCART-STATUS

R223T 10

R224T 10
R225T 10

10R226T

R227T 10

10
10

AV-YPBPR-DETECTn

R136T

R228T

R230T

10

10R231T

SDA-FE

SCL-FE

R287T 22

DEMOD-RESETn

5%

47R252T

81

R250T 47

5%

54

5%

47

R250T

36

CA-MOSTRT

CA-MOVAL
CA-MOCLK

22R277T

R278T 22

CA-CE1n

CA-REGn

22R281T

R282T 22

CA-WEn
CA-OEn

R285T 22

22R286T

CA-VS1n

CA-WAITn

R279T 22

22R280T

22R283T

R284T 22

CA-CD2n

CA-CD1n
CA-IORDn
CA-IOWRn

R222T 10

CA-RESET

5%

47

R251T

81

5%

47

R251T

54

5%

47

R249T

81

R249T

63

47

5%

5%

47

R249T

72

5%

47

R249T

54

5%

47

R252T

72

5%

47

R252T

54

5%

47

R252T

63

5%

47

R250T

18

5%

47

R250T

72

5%

47

R253T

81

5%

47

R253T

72

5%

47

R253T

63

5%

47

R253T

54

CA-MDI0
CA-MDI1
CA-MDI2
CA-MDI3
CA-MDI4
CA-MDI5
CA-MDI6
CA-MDI7

CA-MISTRT

CA-MIVAL

CA-MICLK

CA-MDO0
CA-MDO1
CA-MDO2
CA-MDO3
CA-MDO4
CA-MDO5
CA-MDO6
CA-MDO7

R254T 22

22R255T

22R256T

R257T 22

22R258T

R259T 22

R260T 22

22R261T

R264T 22

CA-A14

CA-A13

CA-A12

CA-A11

CA-A10

CA-A08

CA-A06

CA-A04

CA-A02

CA-A00

CA-A09

CA-A07

CA-A05

CA-A03

CA-A01

22R270T

R272T 22

22R273T

R274T 22

R275T 22

22R276T

CA-D00
CA-D01
CA-D02
CA-D03
CA-D04
CA-D05
CA-D06
CA-D07

22

CA-RDY

R288T

R268T

81

22

5%

R268T

63

22

5%

5%

22
45

R268T

R268T

72

22

5%

5%

22

36

R267T

R267T

81

22

5%

R267T

72

22

5%

5%

22
45

R267T

5%

47

R248T

54

5%

47

R248T

72

5%

47

R248T

63

5%

47

R248T

81

SPLASH-ON

CA-ENABLE
CA-OC

CA-ENABLE
CA-OCCA-OC

CA-ENABLE

+3V3
+3V3

R116T 10

10R117T

R118T 10

RES

R012T 10K

10KR080T

RES

R098T 10K

10KR115T

R119T

2.2K

2.2KR120T

SCL-FE
SDA-FE

+3V3
+3V3

1
2
3
54

TYPE

SCL-FE
SDA-FE

F072T

F073T

F074T

F075T

EMMC-RESETn

LNB-SENSE

+3V3

LNB-SENSE

+3V3

+3V3-STANDBY

EMMC-RESETn

R265T 10

10R266T

100K

R269T

10KR121T

R262T

10K

10KR263T

OPCTRL6 OPCTRL6OPCTRL6

SYS-EEPROM-WP

R026T 10

3D-ENABLE

MTK-3D-LR

C100T 10pF

50V

50V

10pFC101T

C098T 100nF

16V

C078T

10nF

50V

50V

10nFC077T

R247T

220

220R246T

4.7KR290T

10R291T

MTK-AMBI-SPI-MOSI

10R292T

MTK-AMBI-SPI-CLK

RES

RES

RES

RES

AUDIO-ENABLE

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

EMMC-RESETn

EMMC-RESETn

R137T 100

100

R138T

I026T

I037T

AV-CVBS_Y

R015T 100 C097T 47nF

16V

R108T 30K

30KR109T

R110T 30K

30KR111T

R112T 30K

30KR113T

100R016TC066T 10nF

16V

AV-COM_S

16V

10nFC067T R017T 100

AV-SCART-G

16V

10nFC068T 100R018T

C069T 10nF

16V

R019T 100

100R020T

C070T 10nF

16V

R021T 100

16V

10nFC071T 100R022T

C072T 10nF

16V

R023T 100

16V

10nFC073T 100R024T

AV-SCART-R
AV-SCART-B

AV-SCART-BLK

AV-COM_Y
AV-YPBPR-PB
AV-YPBPR-PR

AV-YPBPR-Y
AV-YPBPR-S

C099T 1nF

50V

AV-YPBPR-LIN
AV-YPBPR-RIN
AV-SCART-LIN
AV-SCART-RIN
AV-DVI-LIN
AV-DVI-RIN

R028T 33
R122T 33
R271T 33

R289T 33

C060T 33pF

50V

50V

33pFC102T

C103T 33pF

50V

50V

33pFC104T

I2S-SDI

I2S-MCLK

I2S-LRCKI

I2S-BICKI

R149T

10K

10KR150T

MTK-AMBI-SPI-CLK

MTK-AMBI-SPI-MOSI

+3V3

+3V3

X322

10KR237T

R235T 10K

RES

MTK-3D-GOGGLES

10KR236T

MTK-3D-GOGGLES

+3V3

R238T 6.8K

+3V3-STANDBY

DIVERSITY

DIVERSITYDIVERSITY

*

*

R027T 10

C188T 100nF

16V

C189T

100nF

16V

STRAP

Circuit Diagrams and PWB Layouts

EN 44QM14.3E LA 10.

2014-Apr-17

back to

div.table

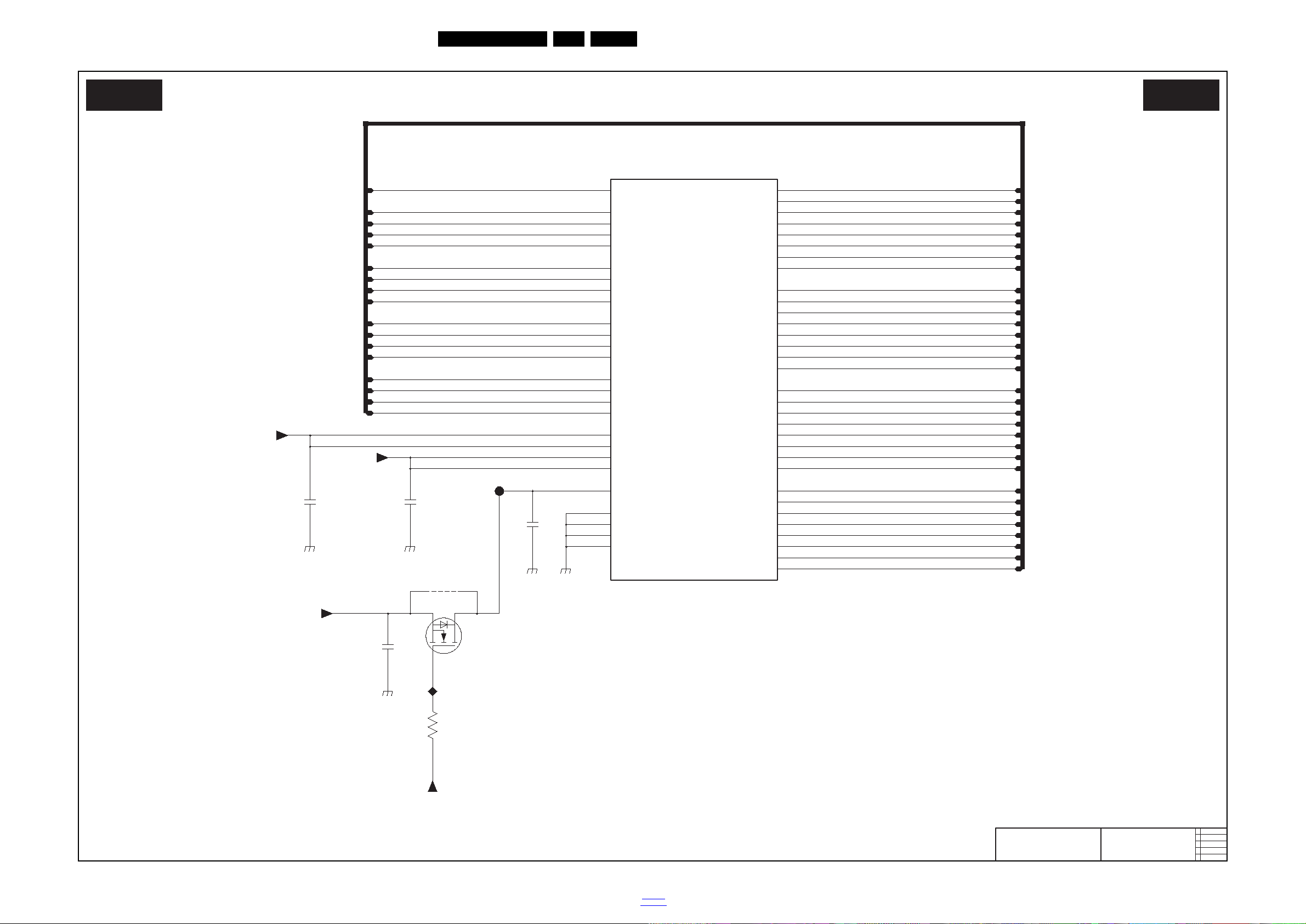

10-1-6 B, HDMI

19580_087_140313.eps

14-03-26

HDMI

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

U005T

V31

V30

T31

T30

T33

T32

U31

U30

AA31

AA30

W31

W30

W33

W32

Y31

Y30

AE31

AE30

AC31

AC30

AC33

AC32

AD31

AD30

AG33

AG32

AE33

AE32

AF31

AF30

AG31

AG30

AE27

AD27

W25

T25

AH33

P32

P33

AA32

AA33

V29

AA29

AA27

AD29

V28

AA28

Y27

AE29

W26

Y26

AB26

AC26

W27

AA26

AB27

AC27

V26

HDMI_CEC

HDMI_0_SCL
HDMI_1_SCL
HDMI_2_SCL
HDMI_3_SCL

HDMI_0_SDA
HDMI_1_SDA
HDMI_2_SDA
HDMI_3_SDA

HDMI_0_PWR5V
HDMI_1_PWR5V
HDMI_2_PWR5V
HDMI_3_PWR5V

HDMI_0_HPD
HDMI_1_HPD
HDMI_2_HPD
HDMI_3_HPD

AVDD12_HDMI_0_RX
AVDD12_HDMI_1_RX
AVDD12_HDMI_2_RX
AVDD12_HDMI_3_RX

AVDD33_HDMI

AVSS33_HDMI_RX_1
AVSS33_HDMI_RX_2
AVSS33_HDMI_RX_3
AVSS33_HDMI_RX_4

HDMI_0_RX_0

HDMI_0_RX_0B

HDMI_0_RX_1

HDMI_0_RX_1B

HDMI_0_RX_2

HDMI_0_RX_2B

HDMI_0_RX_C

HDMI_0_RX_CB

HDMI_1_RX_0

HDMI_1_RX_0B

HDMI_1_RX_1

HDMI_1_RX_1B

HDMI_1_RX_2

HDMI_1_RX_2B

HDMI_1_RX_C

HDMI_1_RX_CB

HDMI_2_RX_0

HDMI_2_RX_0B

HDMI_2_RX_1

HDMI_2_RX_1B

HDMI_2_RX_2

HDMI_2_RX_2B

HDMI_2_RX_C

HDMI_2_RX_CB

HDMI_3_RX_0

HDMI_3_RX_0B

HDMI_3_RX_1

HDMI_3_RX_1B

HDMI_3_RX_2

HDMI_3_RX_2B

HDMI_3_RX_C

HDMI_3_RX_CB

HDMI

TYPE

HDMI-CEC
HDMI0-SCL

HDMI1-SCL
HDMI2-SCL
HDMI3-SCL

HDMI0-SDA
HDMI1-SDA
HDMI2-SDA
HDMI3-SDA

HPD0
HPD1
HPD2
HPD3

RX0-0+
RX0-0­RX0-1+
RX0-1­RX0-2+
RX0-2­RX0-C+
RX0-C-

RX1-0+
RX1-0­RX1-1+
RX1-1­RX1-2+
RX1-2­RX1-C+
RX1-C-

RX2-0+
RX2-0­RX2-1+
RX2-1­RX2-2+
RX2-2­RX2-C+
RX2-C-

RX3-0+
RX3-0­RX3-1+
RX3-1­RX3-2+
RX3-2­RX3-C+
RX3-C-

C061T 100nF

+3V3-A

100nFC062T

C063T 100nF

+1V2-A

+1V2-A

HDMIA-5V
HDMIB-5V
HDMIC-5V
HDMID-5V

U006T

2

3

1

AO3414

S015T

50m

R293T

10K

+5V

C179T

100nF

16V

RES

RES

F034T

I018T

Circuit Diagrams and PWB Layouts

EN 45QM14.3E LA 10.

2014-Apr-17

back to

div.table

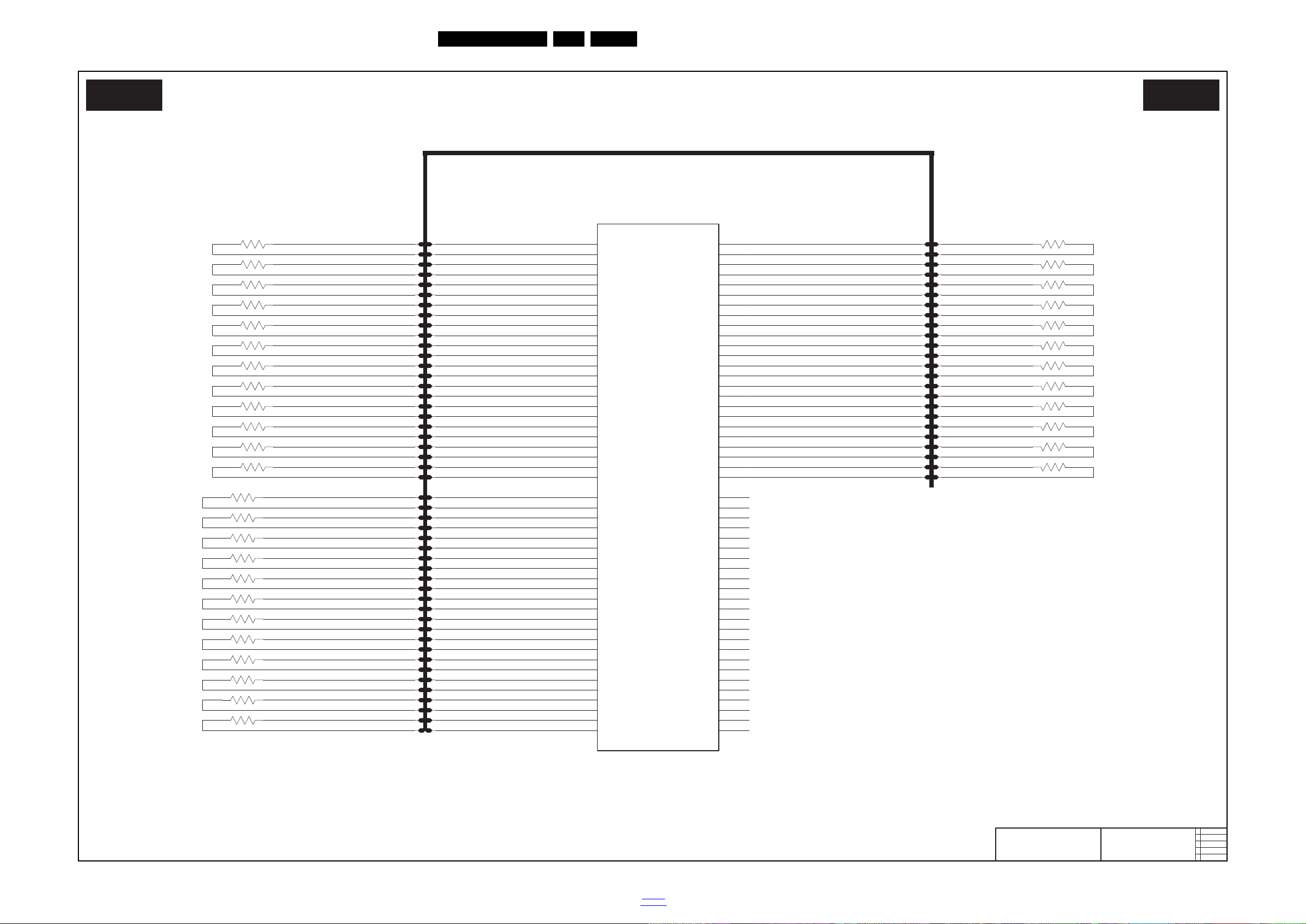

10-1-7 B, LVDS

19580_088_140313.eps

14-03-26

LVDS

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

U005T

AH4

AH3

AJ4

AJ3

AK2

AK1

AK4

AK3

AL4

AL3

AM2

AM1

AD4

AD3

AE4

AE3

AF2

AF1

AF4

AF3

AG4

AG3

AH2

AH1

Y4

Y3

AA4

AA3

AB2

AB1

AB4

AB3

AC4

AC3

AD2

AD1

T4

T3

U4

U3

V2

V1

V4

V3

W4

W3

Y2

Y1

T1

AE5

AC5

V5

AF5

AM3

AM4

AN4

AN3

AN2

AN1

V7

V9

U9

U8

W9

AB7

V6

V8

U7

U6

W6

AA9

AA8

TCON0
TCON1
TCON2
TCON3
TCON4
TCON5
TCON6
TCON7
TCON8
TCON9
TCON10
TCON11
TCON12

AVDD12_LVDS_1
AVDD12_LVDS_2
AVDD12_LVDS_3
AVDD33_LVDS

AVSS12_LVDS_1
AVSS12_LVDS_2
AVSS12_LVDS_3

AVSS33_LVDS_1
AVSS33_LVDS_2
AVSS33_LVDS_3

REXT_VPLL

BE0P
BE0N
BE1P
BE1N
BE2P

BE2N
BECKP
BECKN

BE3P

BE3N

BE4P

BE4N

BO0P

BO0N

BO1P

BO1N

BO2P

BO2N
BOCKP
BOCKN

BO3P

BO3N

BO4P

BO4N

AE0P

AE0N

AE1P

AE1N

AE2P

AE2N
AECKP
AECKN

AE3P

AE3N

AE4P

AE4N

AO0P

AO0N

AO1P

AO1N

AO2P

AO2N
AOCKP
AOCKN

AO3P

AO3N

AO4P

AO4N

LVDS

TYPE

TX-BE0N

TX-BE0P

TX-BE1N

TX-BE1P

TX-BE2N

TX-BE2P

TX-BE3N

TX-BE3P

TX-BE4N

TX-BE4P

TX-BECLKN

TX-BECLKP

TX-BO0N

TX-BO0P

TX-BO1N

TX-BO1P

TX-BO2N

TX-BO2P

TX-BO3N

TX-BO3P

TX-BO4N

TX-BO4P

TX-BOCLKN

TX-BOCLKP

TX-AE0N

TX-AE0P

TX-AE1N

TX-AE1P

TX-AE2N

TX-AE2P

TX-AE3N

TX-AE3P

TX-AE4N

TX-AE4P

TX-AECLKN

TX-AECLKP

TX-AO0N

TX-AO0P

TX-AO1N

TX-AO1P

TX-AO2N

TX-AO2P

TX-AO3N

TX-AO3P

TX-AO4N

TX-AO4P

TX-AOCLKN

TX-AOCLKP

TO NT72314

R123T 24K

C153T 100nF

C141T 1uF

+3V3-A

100nFC154T

C155T 100nF

1uFC142T

+1V2-A

R190T 10

10R191T

R192T 10

10R193T

R194T 10

10R195T

R196T 10

10R197T

R198T 10

10R199T

R200T 10

10R201T

R202T 10

I027T
I028T
I029T
I030T
I031T
I032T
I033T
I034T

CTRL-DISP1
CTRL-DISP2
CTRL-DISP3
CTRL-DISP4

EDID-WEn

F057T

I019T

HDCP-RESETn
HDCP-IRQn

Circuit Diagrams and PWB Layouts

EN 46QM14.3E LA 10.

2014-Apr-17

back to

div.table

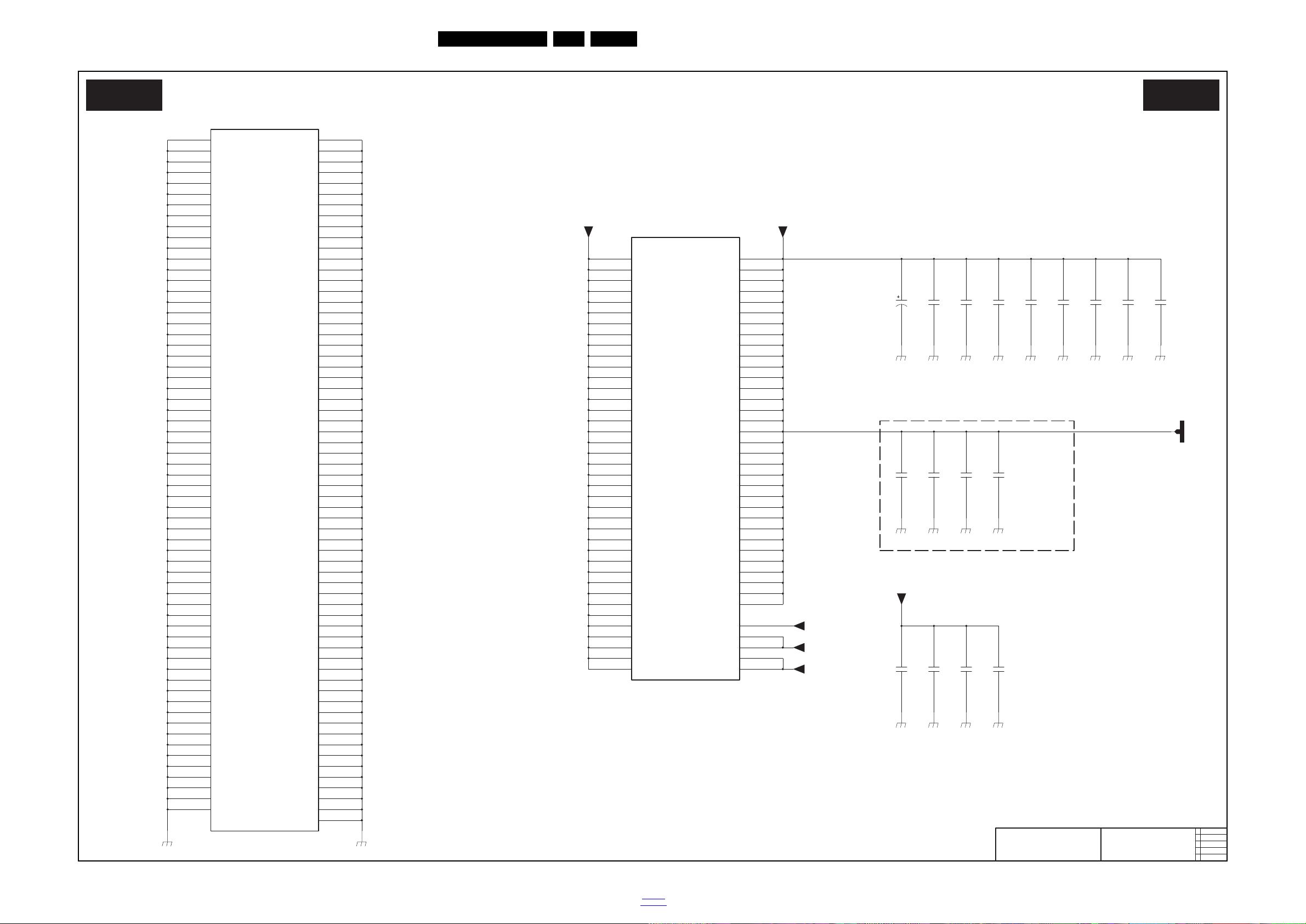

10-1-8 B, MTK POWER

19580_089_140313.eps

14-03-26

MTK POWER

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

U005T

E22

D22

AA10

Y10

T9

V23

R23

L19

L18

AN7

AN6

AN5

AM7

AM6

AM5

AL7

AL6

AL5

AK7

AK6

AK5

AJ7

AJ6

AJ5

AH7

AH6

AH5

AG8

AG7

AG6

AG5

AF9

AF8

AF7

AF6

AE10

AE9

AE8

AE7

AD17

AD14

AD13

AD11

AD10

AD8

AC12

AC11

AC10

AB12

AB11

AA12

AA11

Y12

Y11

W12

W11

V12

V11

U12

U11

T12

T11

R12

R11

P12

P11

N12

N11

M12

M11

L17

L16

L15

L14

L13

L12

L11

VCCK_1
VCCK_2
VCCK_3
VCCK_4
VCCK_5
VCCK_6
VCCK_7
VCCK_8
VCCK_9
VCCK_10
VCCK_11
VCCK_12
VCCK_13
VCCK_14
VCCK_15
VCCK_16
VCCK_17
VCCK_18
VCCK_19
VCCK_20
VCCK_21
VCCK_22
VCCK_23
VCCK_24
VCCK_25
VCCK_26
VCCK_27
VCCK_28
VCCK_29
VCCK_30
VCCK_31
VCCK_32
VCCK_33
VCCK_34
VCCK_35
VCCK_36
VCCK_37
VCCK_38
VCCK_39

VCCK_40
VCCK_41
VCCK_42
VCCK_43
VCCK_44
VCCK_45
VCCK_46
VCCK_47
VCCK_48
VCCK_49
VCCK_50
VCCK_51
VCCK_52
VCCK_53
VCCK_54
VCCK_55
VCCK_56
VCCK_57
VCCK_58
VCCK_59
VCCK_60
VCCK_61
VCCK_62
VCCK_63
VCCK_64
VCCK_65
VCCK_66

VCCK_67

VCCK_68
VCCK_69
VCCK_70
VCCK_71
VCCK_72

VCC3IO_C
VCC3IO_B_1
VCC3IO_B_2
VCC3IO_A_1
VCC3IO_A_2

VCCK

TYPE

U005T

AD20

AC22

AC20

AC18

AB23

AB21

AB19

AB18

AA23

AA22

AA21

AA20

AA19

AA18

Y23

Y22

Y21

Y20

Y19

Y18

W23

W22

W21

W20

W19

W18

V24

V22

V21

V20

V19

V18

U22

U21

U20

U19

U18

T22

T21

T20

T19

T18

R22

R21

R20

R19

R18

P22

P21

P20

P19

P18

N22

N21

N20

N19

N18

M22

M21

M20

M19

M18

L24

K25

K24

AC17

AC14

AC13

AB17

AB16

AB15

AB14

AB13

AA17

AA16

AA15

AA14

AA13

Y17

Y16

Y15

Y14

Y13

W17

W16

W15

W14

W13

V17

V16

V15

V14

V13

U17

U16

U15

U14

U13

T17

T16

T15

T14

T13

R17

R16

R15

R14

R13

P17

P16

P15

P14

P13

N17

N16

N15

N14

N13

M17

M16

M15

M14

M13

L3

D16

D6

C13

DVSS_1
DVSS_2
DVSS_3
DVSS_4
DVSS_5
DVSS_6
DVSS_7
DVSS_8
DVSS_9
DVSS_10
DVSS_11
DVSS_12
DVSS_13
DVSS_14
DVSS_15
DVSS_16
DVSS_17
DVSS_18
DVSS_19
DVSS_20
DVSS_21
DVSS_22
DVSS_23
DVSS_24
DVSS_25
DVSS_26
DVSS_27
DVSS_28
DVSS_29
DVSS_30
DVSS_31
DVSS_32
DVSS_33
DVSS_34
DVSS_35
DVSS_36
DVSS_37
DVSS_38
DVSS_39
DVSS_40
DVSS_41
DVSS_42
DVSS_43
DVSS_44
DVSS_45
DVSS_46
DVSS_47
DVSS_48
DVSS_49
DVSS_50
DVSS_51
DVSS_52
DVSS_53
DVSS_54
DVSS_55
DVSS_56
DVSS_57
DVSS_58
DVSS_59
DVSS_60
DVSS_61
DVSS_62
DVSS_63

DVSS_64
DVSS_65
DVSS_66
DVSS_67
DVSS_68
DVSS_69
DVSS_70
DVSS_71
DVSS_72
DVSS_73
DVSS_74
DVSS_75
DVSS_76
DVSS_77
DVSS_78
DVSS_79
DVSS_80
DVSS_81
DVSS_82
DVSS_83
DVSS_84
DVSS_85
DVSS_86
DVSS_87
DVSS_88
DVSS_89
DVSS_90
DVSS_91
DVSS_92
DVSS_93
DVSS_94
DVSS_95
DVSS_96
DVSS_97
DVSS_98

DVSS_99
DVSS_100
DVSS_101
DVSS_102
DVSS_103
DVSS_104
DVSS_105
DVSS_106
DVSS_107
DVSS_108
DVSS_109
DVSS_110
DVSS_111
DVSS_112
DVSS_113
DVSS_114
DVSS_115
DVSS_116
DVSS_117
DVSS_118
DVSS_119
DVSS_120
DVSS_121
DVSS_122
DVSS_123
DVSS_124
DVSS_125
DVSS_126
DVSS_127

DVSS

TYPE

GND

GND

+1V2-MTK

+1V2-MTK

+3V3
+3V3
+3V3

C123T 10uF

C115T

100nF

100nFC116T

10uFC124T

+3V3

RES

100nFC117T

C118T 100nF

100nFC119T

C125T 10uF

CHIP BOTTOM

10uFC126T

C127T 10uF

C120T 100nF

100nFC121T

C122T 100nF

C128T

220uF 2.5V

X006T

SENSE+1V2-MTK

RES

C192T 10uF

10uFC191T

C190T 10uF

Circuit Diagrams and PWB Layouts

EN 47QM14.3E LA 10.

2014-Apr-17

back to

div.table

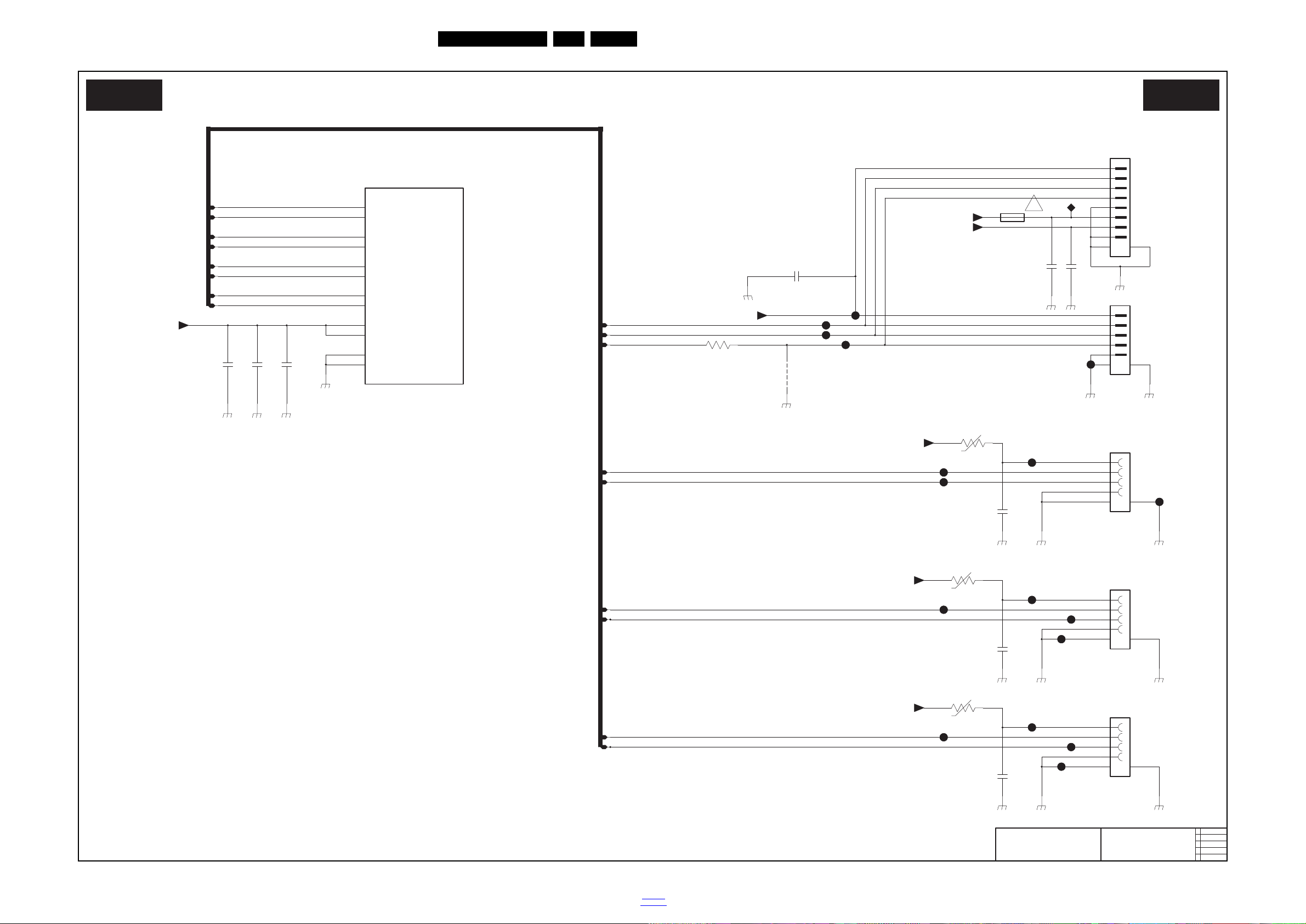

10-1-9 B, USB

19580_090_140313.eps

14-03-26

USB

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

USB_DP_P0
USB_DM_P0

USB_DP_P1
USB_DM_P1

USB_DP_P2
USB_DM_P2

USB_DP_P3
USB_DM_P3

AVDD33_USB_P0P1P2
AVDD33_USB_P3

AVSS33_USB_P1
AVSS33_USB_P3

USB

TYPE

USB-DP-P0
USB-DM-P0

USB-DP-P1
USB-DM-P1

USB-DP-P2
USB-DM-P2

U005T

AE11

M25

AN8

K33

AM10

AN10

K31

K32

J31

J32

H33

H32

C129T 100nF

16V

16V

100nFC130T

+3V3-A

USB-WIFI-DP
USB-WIFI-DM

C131T

1uF

6.3V

+T

+T

1
2
3

7 6

4
5

TYPE

TYPE

!

+T

1
2
3
4
56

X280

1
2
3
4
56

X281

DT-USB-SWITCHED-DM2
DT-USB-SWITCHED-DP2

DT-USB-SWITCHED-DM1
DT-USB-SWITCHED-DP1

+5V

+5V

F052C

X029

+5V

LED2

1
2
3

10 9

4
5
6
7
8

X030

USB-DM-P1
USB-DP-P1

+3V3-STANDBY

+12V

1
2
3
4
56

X282

+5V

DT-USB-SWITCHED-DP3

DT-USB-SWITCHED-DM3

F038T

F041T

F042T

F043T

F044T

F046T

F047T

6V

750mA

R141T

R142T

750mA

6V

C180T100nF

16V

F048T
F049T
F050T

F051T

C181T 100nF

16V

C182T 100nF

16V

10R140T

S016T

50m

F052T

16V

100nF

C183T

16V

100nF

C184T

X003T

2AT63V

F053T

F054T

F055T

F056T

6V

750mA

R143T

100nFC185T

16V

RES

RES

I041T

Circuit Diagrams and PWB Layouts

EN 48QM14.3E LA 10.

2014-Apr-17

back to

div.table

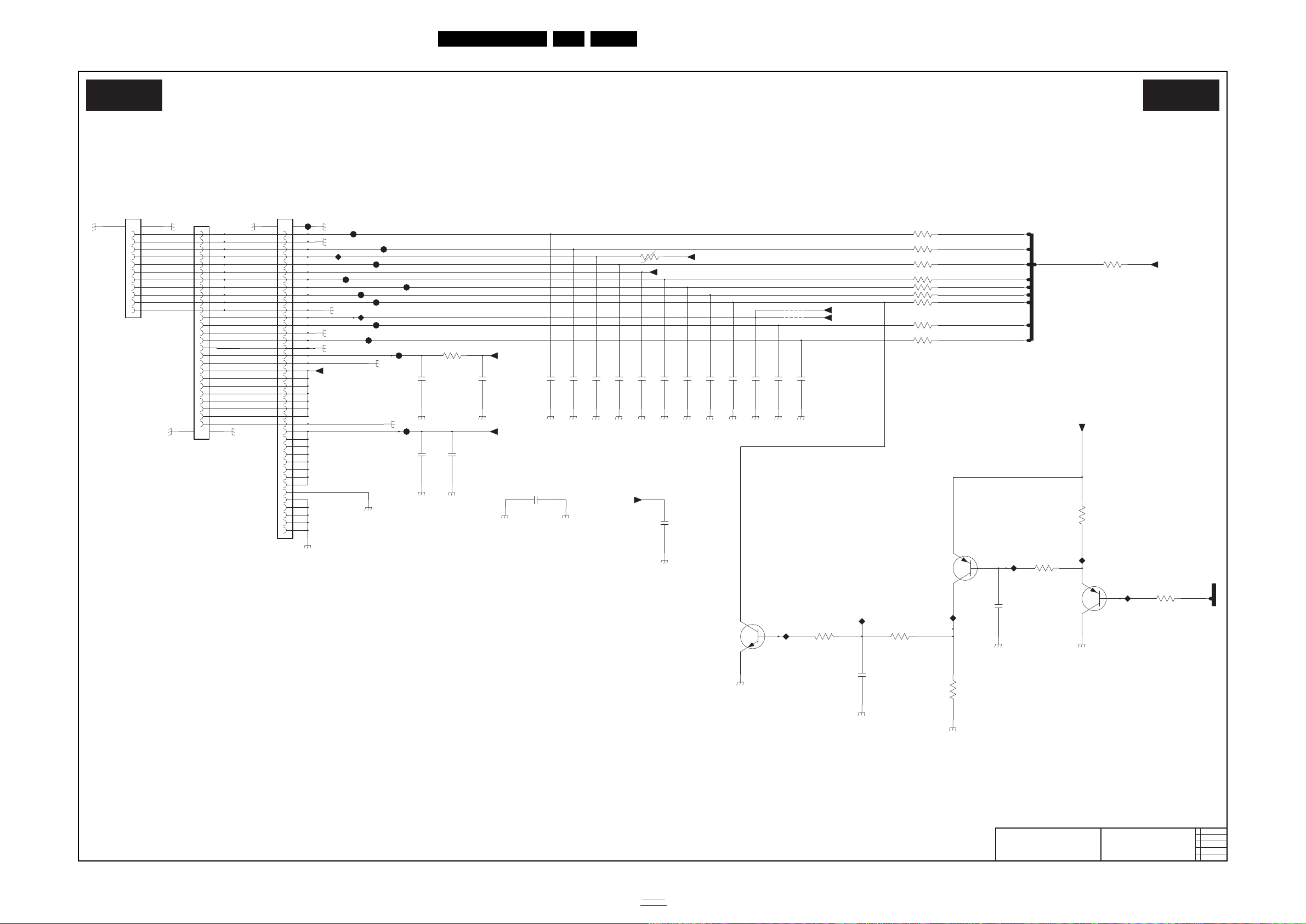

Circuit Diagrams and PWB Layouts

19580_091_140313.eps

14-03-26

SENSOR BOARD CONNECTION

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

+5V

+3V3-STANDBY

+3V3

GND-AL

TYPE

C136T 1uF

41

42 40

39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

X026

26

21

28

19
20

18

16
17

15

13
14

12

1
2
3
4
5
6
7
8
9

10

22
23
24
25

27

X025

11

F023T

R126T

10

10R127T

F024T

F025T

SDA-SRF
SCL-SRF

I013T

RC

KEYBOARD

LED2
LED1

3D-GOGGLES

AMBI-POWER

AMBI-SPI-MOSI

AMBI-SPI-CLK

C156T 1uF

F026T

10R132T

10pFC158T

1uFC157T

F027T

R133T 10

C159T 100pF

R130T 100

100pFC160T

1KR131T

C161T 100pF

F028T

F029T

C162T 100pF

S010T

F030T

R128T 47

47R129T

GND-AL

GND-AL

GND-AL

C135T 100nF

AMBI-POWER

GND-AL

AMBI-POWER

C163T 100nF

GND-AL

RES

+3V3

R135T

+T

750mA

RES

RES

+3V3-STANDBY

GND-AL

C167T 100pF

R139T 100

1uFC166T

AMBI-TEMP

100R134T

GND-ALGND-AL

RES

C173T 10pF

10pFC174T

S025T

I020T

F007T

F039T

C164T

10uF

16V

RES

R229T 10K

RC

F071T

C165T

10uF

6.3V

C147T

100pF

50V

50V

100pFC148T

TYPE

1

2

3

4

5

6

7

8

9

10

11

13 12

X020

RES

RES

F033T

+3V3-STANDBY

RC

U009T

BC847BW(COL)

2

3

1

R148T 100K

R147T 100

R145T 10K

R156T 3.3K

R146T 2.7K

R155T 1K

U010T

BC857BW(COL)

2

3

1

BC857BW(COL)

U011T 1

3

2

C186T1uF

10V

10V

1uFC187T

I005T

I007T

I021T

I039T

I040T

I042T

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

10-1-10 B, SENSOR BOARD CONNECTION

EN 49QM14.3E LA 10.

2014-Apr-17

back to

div.table

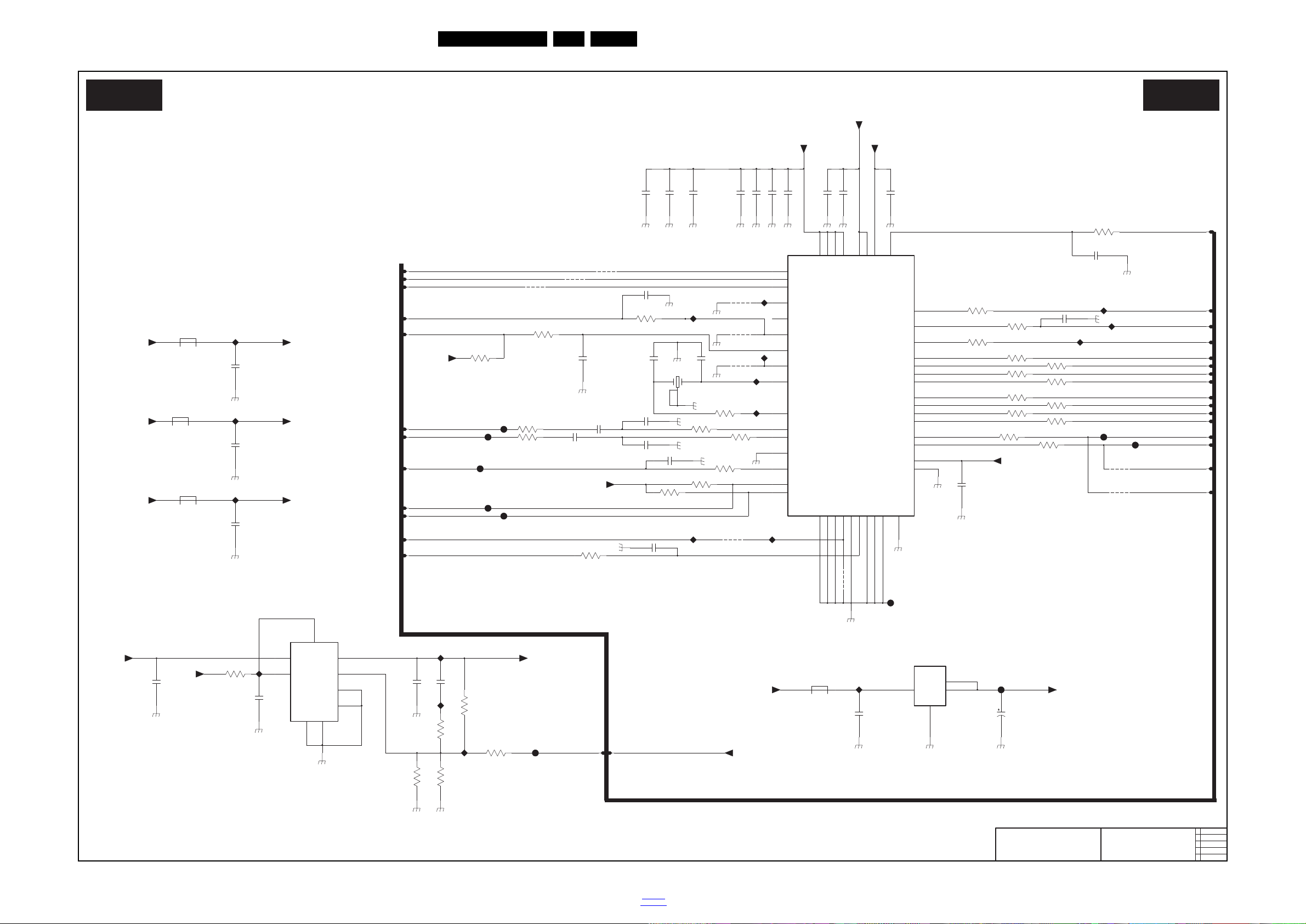

10-1-11 B, DVB CHANNEL DECODER 1

19580_092_140313.eps

14-03-26

DVB CHANNEL DECODER 1

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

GPIO0

GPIO2

TSSYNC

TESTMODE

SLVADR0

OSCEN_X

RST_X

SLVADR3

XTALO

XTALI

TAINM
TAINP

RFAIN

TTUSDA
TTUSCL

GPIO1

DVDD1

CVDD1

DVDD2

CVDD2

CVDD3

PVDD

DVDD3

TSVALID

TSCLK

TSDATA0
TSDATA1
TSDATA2
TSDATA3

TSDATA4
TSDATA5
TSDATA6
TSDATA7

SCL
SDA

NC1
NC2TIFAGC

VSS1

VSS2

VSS3

VSS4

VSS5

VSS6

VSS7

VSS8

VSS9

CVDD4

HS

23

18

11

6

48 40

33

21

20

17

16

15

14

13

12

9

8

5

4

42

32

U001F

CXD2834ER

49

44

43

39

36

31

27

28

221910

7

47

46

45

41

38

37

35

34

30

29

26

25

24

3

2

1

L001F

30H

+3V3-DVBT2-X

+3V3-DVBT

16V

100nFC001F

C002F 100nF

16V

C003F

16V

100nF

16V

100nFC004F

C005F 100nF

16V

C006F 100nF

16V

16V

100nFC007F

R005F

47

47

R006F

R007F

47

C008F 100nF

16V

50m

S001F

DEMOD-RESETn

S002F

50m

50m

S003F

1K

R014F

C027F

12pF

50V

50V

12pFC028F

47

R008F

R009F

47

C014F 22pF

50V

50V

22pFC015F

F001F

F002F

R001F

10K

16V

10nFC011F

R017F

3,3K

3,3K

R018F

+3V3-DVBT2-D

SDA-TUNER
SCL-TUNER

I2C

address
0XD8

=

DB001F

DB002F

DB003F

DB004F

DB005F

+3V3-DVBT2-D

30H

L004F

+3V3-DVBT2-A

30H

L005F

+3V3-DVBT2-X

+3V3-DVBT2-D

+3V3-DVBT2-A

+1V1-DVBT2

IF-P-DVBT2

IF-N-DVBT2

IF-AGC-DVBT2

TS-VALID

TS-CLK

TS-SYNC

TS-DATA0

SCL-FE
SDA-FE

50m

S006F

U002F

3

2

6

7

1

5

4

9

8

GND

GND_HS

VDD

NC

PGOOD

ADJ

VOUT

EN

VIN

C041F 10uF

6.3V

C044F

1uF

6.3V

C034F

22uF

6.3V

C032F

1nF

50V

R022F

5%

22K

R025F

5%

1

R026F

1%

220K

R027F

5%

680K

R028F

1%

82K

82K

1%

R029F

F003F

+1V5-MTK

+5V

SENSE+1V1

I001F

I002F

I003F

I004F

RES

C035F 100nF

16V

L002F

30H

U003F

4

1

2

3

IN

OUT_1

GND

OUT_2

C047F

22uF 16V

+5V

+3V3-DVBT

I005F F004F

+1V1-DVBT2

SENSE+1V1

+3V3-DVBT

+3V3-DVBT

R019F

5%

10K

C046F

2.2nF

50V

DVBS-AGC

C030F 22pF

50V

R020F

5%

47

DVBS-QP

50V

22pFC031F

47

5%

R021F

DVBS-IP

I007F

I008F

I009F

F005F

F006F

F007F

F009F

F010F

R032F

72

47

5%

R032F

81

47

5%

5%

47

36

R010F

5%

47

27

R010F

5%

47

18

R010F

TS-DATA3
TS-DATA4

TS-DATA5
TS-DATA6
TS-DATA7

R032F

54

47

5%

R010F

54

47

5%

R032F

63

47

5%

TS-DATA1
TS-DATA2

I013F I012F

I014F

22KHz

50m

S014F

C023F 1uF

6.3V

6.3V

1uFC024F

C025F 1uF

6.3V

6.3V

1uFC022F

C013F 22uF

6.3V

6.3V

22uFC066F

X003F

C026F 10pF

50V

RES

RES

+1V1-DVBT2

C009F 10nF

16V

C010F

10nF

16V

50V

220pF

C037F

R045F

10K

+3V3

R046F 22

LNB-VH
LNB-LINEDROP

LNB-ENABLE

50m

S020F

50m

S013F

50m

S015F

R016F

47

R072F

47

X001F

1

432

R091F

47

R092F

47

F032F

I058F

I060F

S004F

50m

50m

S005F

SDA-TUNER

SCL-TUNER

Circuit Diagrams and PWB Layouts

EN 50QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-12 B, DVB DUAL TUNER

19580_093_140313.eps

14-03-26

DVB DUAL TUNER

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

C012F 100nF

16V

C016F 10pF

50V

L006F

30H

C029F

22uF 16V

+3V3-DVBT

C017F 10pF

50V

30H

L007F

L008F

30H

50V

10pF

C018F

50V

10pFC019F

50V

C020F 10pF

50V

10pFC021F

R015F

22K

I2C

address
0XC0

=

IF-AGC-DVBT2

IF-P-DVBT2

IF-N-DVBT2

C033F 1nF

50V

C038F 100nF

16V

DVBS-IP

C039F 100nF

16V

DVBS-QP

DVBS-AGC

TUNER-LNB

C051F 10pF

50V

50V

10pFC052F

50V

10pFC054F

+V-LNB

X002F

TUNER-LNB

F011F

SDA-TUNER
SCL-TUNER

R002F 47

R003F

47

L011F

1KH

L012F

1KH

S012F

50m

R004F

1K

+3V3-TUNER

+3V3-TUNER

C042F 100nF

16V

L023F

30H

C055F

22uF 16V

+3V3-DT

+1V8-TUNER

I059F F025F

ANT_5V/GND
VCC
SDA
SCL
IF_N
IF_P
AGC_T
IOUT
QOUT
AGC_S
LNB_IN
RES_1
RES_2
VCC_2

SDA_2
SCL_2
IF_N_2
IF_P_2
AGC_T_2

2.5V
IOUT_2
QOUT_2
AGC_S_2
LNB_IN_2

MT_17

MT_16

MT_15

MT_14

MT_13

MT_12

MT_11

MT_10

MT_9

MT_8

MT_7

MT_6

MT_5

MT_4

MT_3

MT_2

MT_1

COMMON

SUT-PE531Z only

SUT-PE231ZN

SUT-PE531Z

X292
SUT-PEX31ZX

4140393837363534333231302928272625

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

+1V8-TUNER

C048F 10pF

50V

30H

L013F

L020F

30H

50V

10pF

C053F

50V

10pFC082F

50V

C101F 10pF

50V

10pFC110F

R031F

22K

DT-SDA-TUNER
DT-SCL-TUNER

DT-IF-AGC-DVBT2

DT-IF-P-DVBT2

DT-IF-N-DVBT2

C123F 1nF

50V

C036F 100nF

16V

DT-DVBS-IP

C045F 100nF

16V

DT-DVBS-QP

DT-TUNER-LNB

C120F 10pF

50V

50V

10pFC121F

50V

10pFC122F

+V-LNB-DT

X008F

DT-TUNER-LNB

F029F

R023F 47

R024F 47

L024F

1KH

L025F

1KH

R030F

1K

DT-DVBS-AGC

+2V5-TUNER

U012F

9

2

7

4

6

5

3

8

1

VIN1

EN

VOUT1

BP|ADJ

GND

VOUT2

NC

VIN2

GND_HS

10uFC043F

+3V3-DT

F022F

F024F

+2V5-TUNER

F023F

C049F 10uF

R097F

47K

R095F

22KR096F 470K C050F

10nF

16V

F030F

F031F

R099F 33K

1%

U011F

4

1

2

3

IN

OUT_1

GND

OUT_2

F034F

F035F

F036F

F037F

F038F

F039F

F040F

F041F

F042F

F043F

F044F

F045F

F046F

F047F

F048F

F049F

F051F

F052F

F050F

Circuit Diagrams and PWB Layouts

EN 51QM14.3E LA 10.

2014-Apr-17

back to

div.table

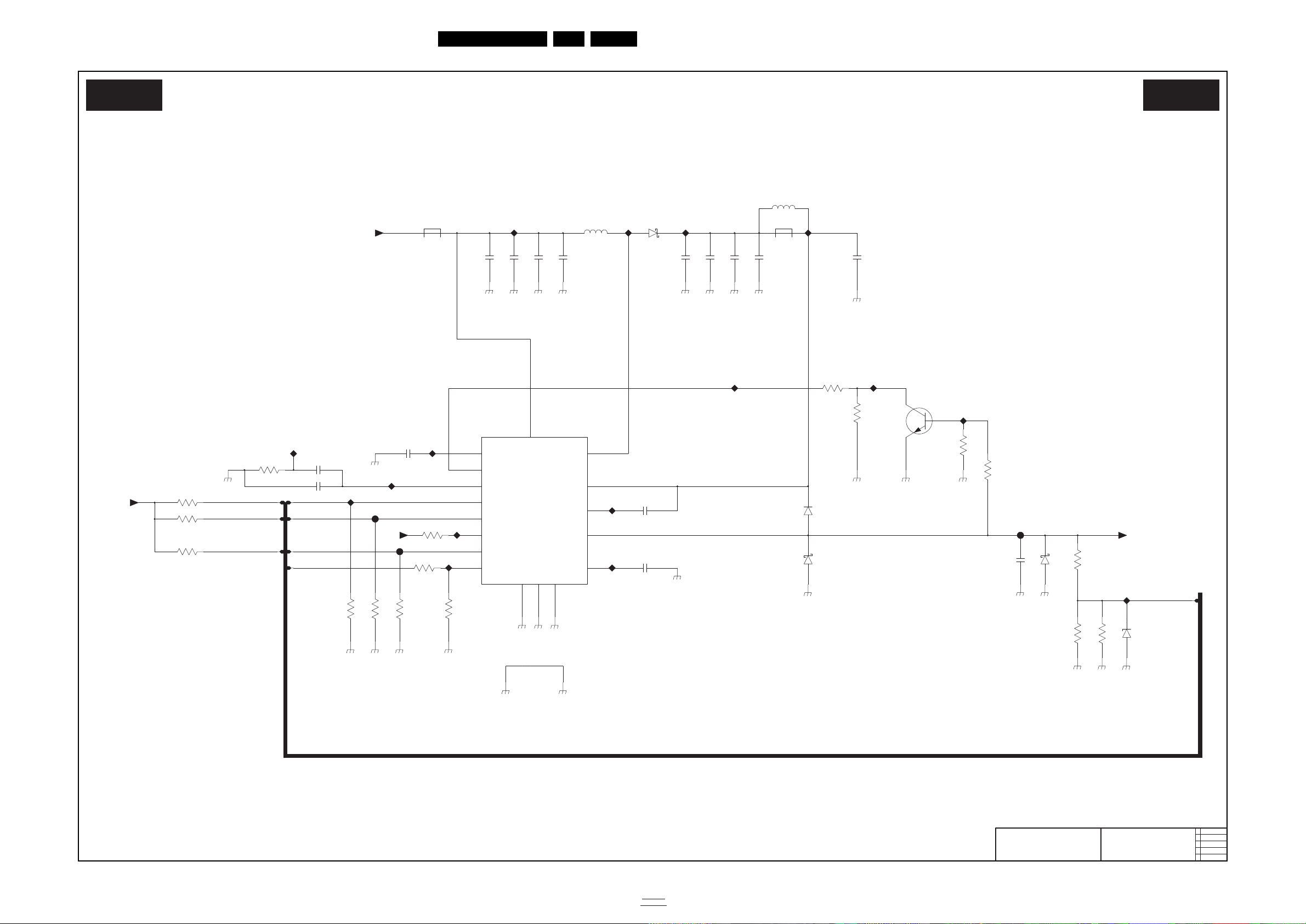

10-1-13 B, LNB SUPPLY 1

19580_094_140313.eps

14-03-26

LNB SUPPLY 1

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

L016F

30H

+12V

C056F 10uF

16V

16V

10uFC057F

+V-LNB

F012F

I016FI024F

I025F

I027F

X004F

GND-LNB

D004F

32V

SM15T

+3V3

L009F

22uH

LNB-SENSE

33K

R044F

10K

R012F

R043F

10K

I029F

2.4V

D005F

BYPASS

ILIMIT

COMP

EN

LINEDROP

POK

13V/18V

EXTM

VDD

SW

VBOOST

BST

VOUT

TCAP

SGND

PGND

HS

GND-LNB

RES

GND-LNB

GND-LNB

GND-LNB

LNB-ENABLE
LNB-LINEDROP

LNB-VH

+12V

LNB-ENABLE

LNB-LINEDROP

LNB-VH

22KHz

GND-LNBGND-LNB

GND-LNB

GND-LNB

GND-LNB

GND-LNB GND-LNB GND-LNB

2

11

4

5

6

7

9

8

3

15

13

14

12

10

11716

MP8126

U005F

16V

100nFC040F

16V

10uFC059F

B230LA-M3

D001F

1uH

L010F

30H

L003F

50V

220nF

C063F

16V

47nFC060F

C064F 470pF

50V

4.7KR035F

R036F

100K

R011F 10K

R013F 10K

RES

10KR033F

R041F

33

100K

R037F

100K

R038F

RES

RES

R039F

100K

100K

R040F

RES

22nFC062F

16V

BAT54 COL

D002F D003F

S1D

50V

100nFC065F

R034F

10K

39K

R042F

1

3

2

BC847BW(COL)

U004F

1%

10K

R047F

25V

10uFC067F

C068F 10uF

25V

25V

10uFC069F

10uF

25V

C070F

16V

100nFC058F

I006F I017F

I018F

I019F

I020FI021F

I022F

I026F

I030F

C061F 10uF

25V

F016F

F026F

I028F

I043F

R048F 33K

1%

RES

Circuit Diagrams and PWB Layouts

EN 52QM14.3E LA 10.

2014-Apr-17

back to

div.table

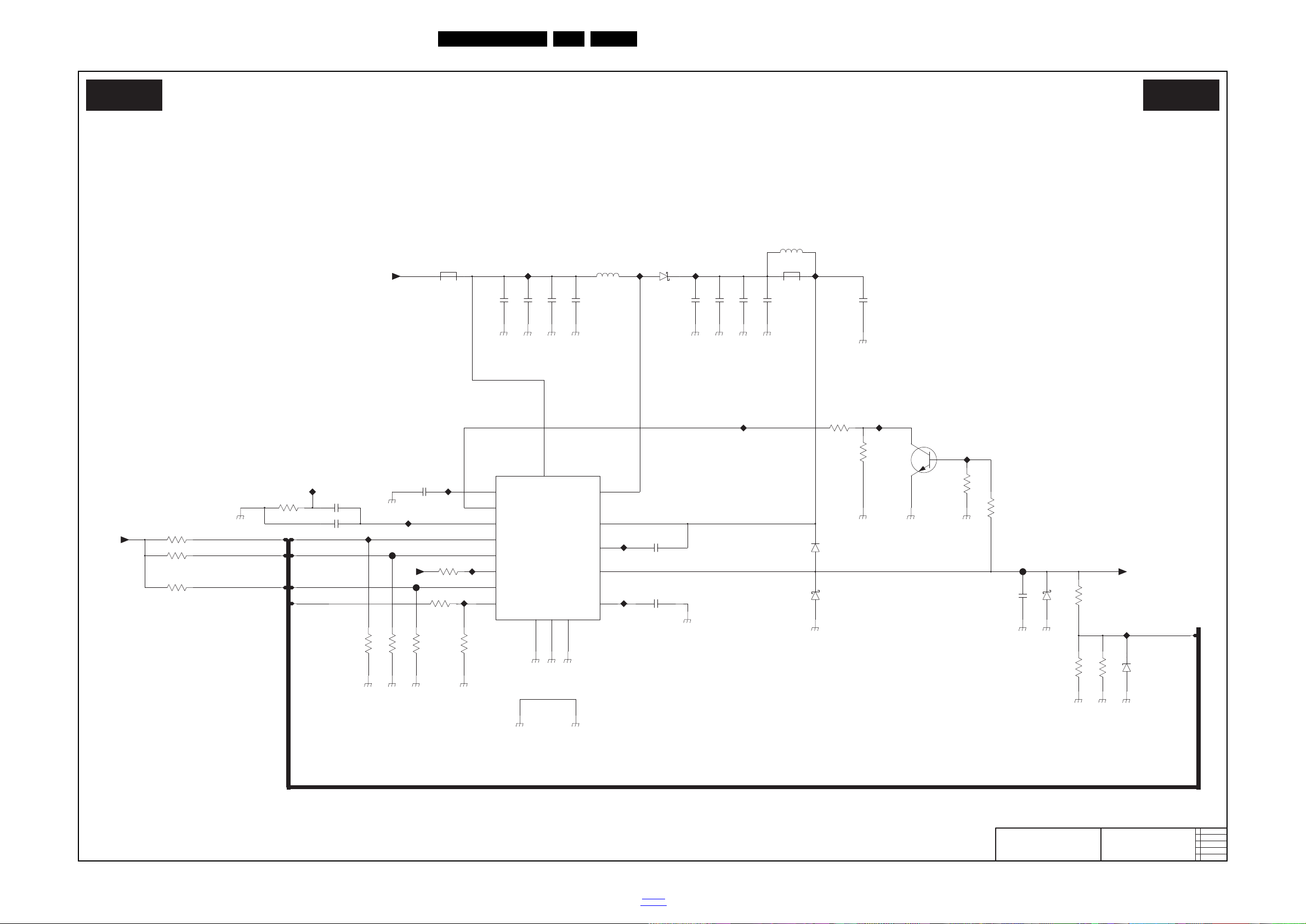

10-1-14 B, LNB SUPPLY 2

19580_095_140313.eps

14-03-26

LNB SUPPLY 2

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

BYPASS

ILIMIT

COMP

EN

LINEDROP

POK

13V/18V

EXTM

VDD

SW

VBOOST

BST

VOUT

TCAP

SGND

PGND

HS

30H

L014F

+12V

16V

10uFC089F

RES

C090F 10uF

16V

+V-LNB-DT

F008F

I031FI032F

I033F

I034F

X005F

SM15T

32V

D007F

+3V3-DT

22uH

L021F

33K

R086F

10K

R049F

R050F

10K

DT-LNB-SENSE

I035F

2.4V

D008F

2

11

4

5

6

7

8

9

3

15

13

14

12

10

1

16

17

MP8126

U010F

16V

100nFC071F

16V

10uFC091F

B230LA-M3

D006F

1uH

L022F

30H

L015F

50V

220nF

C113F

GND-LNB-DT

16V

47nFC098F

50V

470pFC114F

4.7KR058F

DT-LNB-ENABLE

DT-LNB-VH

100K

R059F

+12V

10KR051F

R052F 10K

RES

10KR053F

DT-LNB-ENABLE

DT-LNB-LINEDROP

DT-LNB-VH

33

R074F

DT-22KHz

R060F

100K

100K

R061F

RES

R062F

100K

RES

100K

R063F

RES

16V

22nFC112F

BAT54 COL

D009F

S1D

D010F

50V

100nFC115F

R054F

10K

39K

R087F

1

3

2

BC847BW(COL)

U006F

1%

10K

R088F

25V

10uFC116F

C117F 10uF

25V

25V

10uFC118F

C119F 10uF

25V

DT-LNB-LINEDROP

16V

100nFC072F

I036F I037F

I038F

I039F

I040F

I041F

I042F

I044F

I046F

GND-LNB-DT

GND-LNB-DT

GND-LNB-DT

GND-LNB-DT

GND-LNB-DT

GND-LNB-DT

GND-LNB-DT

GND-LNB-DT

GND-LNB-DT

GND-LNB-DT

GND-LNB-DT

GND-LNB-DT

C111F 10uF

25V

F027F

F028F

I045F

I051F

RES

R089F 33K

1%

Circuit Diagrams and PWB Layouts

EN 53QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-15 B, DVB CHANNEL DECODER 2

19580_096_140313.eps

14-03-26

DVB CHANNEL DECODER 2

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

GPIO0

GPIO2

TSSYNC

TESTMODE

SLVADR0

OSCEN_X

RST_X

SLVADR3

XTALO

XTALI

TAINM
TAINP

RFAIN

TTUSDA
TTUSCL

GPIO1

DVDD1

CVDD1

DVDD2

CVDD2

CVDD3

PVDD

DVDD3

TSVALID

TSCLK

TSDATA0
TSDATA1
TSDATA2
TSDATA3

TSDATA4
TSDATA5
TSDATA6
TSDATA7

SCL
SDA

NC1
NC2TIFAGC

VSS1

VSS2

VSS3

VSS4

VSS5

VSS6

VSS7

VSS8

VSS9

CVDD4

HS

GND

GND_HS

VDD

NC

PGOOD

ADJ

VOUT

EN

VIN

28

22

19

10

7

30

29

26

25

24

3

2

1
47

U007F

CXD2834ER

494443

39

363127

23

18

11

6

48 40

33

21

20

17

16

15

14

13

12

9

8

5

4

42

46

45

41

38

37

35

34

32

L017F

30H

+3V3-DVBT2-X-DT

+3V3-DVBT

16V

100nFC073F

C074F 100nF

16V

C075F

16V

100nF

16V

100nFC076F

C077F 100nF

16V

C078F 100nF

16V

16V

100nFC079F

R064F

47

47

R065F

R066F

47

C080F 100nF

16V

50m

S011F

S016F

50m

50m

S017F

1K

R071F

C108F

12pF

50V

50V

12pFC109F

47

R067F

R068F

47

C092F 22pF

50V

50V

22pFC093F

F013F

F014F

R055F

10K

16V

10nFC081F

R079F

3,3K

3,3K

R080F

+3V3-DVBT2-D-DT

DB006F

DB007F

DB008F

DB009F

DB010F

DT-SDA-TUNER
DT-SCL-TUNER

I2C

address
0XD8

=

+3V3-DVBT2-D-DT

L018F

30H

+3V3-DVBT2-A-DT

L019F

30H

+3V3-DVBT2-X-DT

+3V3-DVBT2-D-DT

+3V3-DVBT2-A-DT

+1V1-DVBT2-DT

DT-IF-P-DVBT2

DT-IF-N-DVBT2

DT-IF-AGC-DVBT2

DT-TS-VALID

DT-TS-CLK

DT-TS-SYNC

DT-TS-DATA0

DT-SCL-FE
DT-SDA-FE

50m

S021F

8

9

4

5

1

7

6

2

3

U008F

6.3V

10uFC083F

6.3V

1uFC084F

6.3V

22uFC103F

50V

1nFC095F22K

5%

R078F

1

5%

R081F

220K

1%

R082F

680K

5%

R083F

RES

82K

1%

R084F

R085F

1%

82K

RES

F015F

+1V5-MTK-DT

+5V

SENSE+1V1-DT

I047F

I048F

I049F

I050F

+1V1-DVBT2-DT

SENSE+1V1-DT

+3V3-DVBT

+3V3-DVBT

R056F

5%

10K

2.2nF

50V

C102F

DT-DVBS-AGC

C106F 22pF

50V

47

5%

R069F

50V

22pFC107F

R070F5%47

I052F

I053F

I054F

F017F

F018F

F019F

F020F

F021F

DT-TS-DATA3
DT-TS-DATA4

DT-TS-DATA5
DT-TS-DATA6
DT-TS-DATA7

DT-TS-DATA1
DT-TS-DATA2

I055FI056F

I057F

DT-22KHz

DT-DVBS-IP

DT-DVBS-QP

S022F

50m

6.3V

1uFC085F

C086F 1uF

6.3V 6.3V

1uFC087F C088F 1uF

6.3V

6.3V

C104F 22uF

6.3V

22uFC105F

X006F

50V

10pFC094F

RES

+1V1-DVBT2-DT

C096F 10nF

16V

C097F 10nF

16V

C099F

220pF

50V

10K

R057F

+3V3-DT

22R075F

DT-DEMOD-RESETn

50m

S023F

S024F

50m

DT-LNB-VH

S025F

50m

DT-LNB-LINEDROP

DT-LNB-ENABLE

R073F 47

R076F

47

R077F

54

47

5%

R077F

63

47

5%

R077F

72

47

5%

R077F

81

47

5%

R090F

54

47

5%

R090F

63

47

5%

R090F

72

47

5%

R090F

81

47

5%

X007F

1

432

R093F

47
47

R094F

F033F

I061F

I062F

Circuit Diagrams and PWB Layouts

EN 54QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-16 B, POWER CONNECTOR

19580_097_140313.eps

14-03-26

POWER CONNECTOR

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

C011U 1uF

C001U

100nF

1uF

C012U

100nF

C002U

+12V

TYPE

+12V

+12V-AL

F001U

F002U

C007U 10uF

C020U

330uF 6.3V

+3V5-STANDBY

S001U 54

S001U 63

S001U 72

S001U 81

RES

RES
RES

RES

U003U

2

4

5

3

1

VIN

INH

VOUT

BYP

GND

RT9193

+3V3-STANDBY

C019U 22nF

F003U

F004U

I001U

GND-AL

+12V-AUDIO

GND-AL

+12V

+5V

+3V3-STANDBY

DETECT12V

ENABLE+1V5+3V3

R026U

2.2K

R033U

1.5K

RES

R018U 22K

X003U

RES

R013U 220KR021U 100K

RES

R019U 1MEG

U006U
BC857BW(COL)

2

3

1

X090

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

30

11

10

9

8

7

6

5

29

4

3

2

1

ENABLE+1V2-MTK

R042U10K

+5V

POWER SEQUENCER

F009U

F010U

F011U

F012U

F013U

F014U

F015U

F016U

F017U

F018U

F019U

F020U

F021U

F022U

F023U

F024U

F025U

F026U

GND-AL GND-AL

F035U

RES

1V2-OK

R012U 22K

I042U

I043U

I044U

C085U 100pF

50V

50V

100pFC086U

C087U 100pF

50V

50V

100pFC088U

C089U 100pF

50V

50V

100pFC090U

C091U 100pF

50V

50V

100pFC092U

C093U 100pF

50V

R034U 100

R053U

100

R054U

100

R055U

100

BL-DIM2
BL-DIM1

BL-ON

R056U 100

BL-I-CTRL

50V

100pFC094U

C095U 100pF

50V

R057U 100

R058U

100

R059U

100

R060U

100

R061U

100

R062U

100

BL-DIM3
BL-DIM4
BL-DIM5
BL-DIM6
BL-DIM7
BL-DIM8

STANDBYn

POWER-OK

+3V3-STANDBY

R063U 10K

50m

S003U

PWR-ON

DETECT12V

C013U 1uF

6.3V

C014U

1uF

6.3V

I047U

R066U 10K

RES

R064U 220K

R065U

220K

I048U

I049U

I050U

X090
PIN 1 GND-AL
PIN 2 +12V-AL
PIN 3 +12V
PIN 4 +12V
PIN 5 +12V-Audio
PIN 6 +12V-Audio
PIN 7 GND
PIN 8 GND
PIN 9 GND-AUDIO
PIN 10 GND-AUDIO
PIN 11 PWR-ON-STBY
PIN 12 PWM-2
PIN 13 BL-BRI-ADJ
PIN 14 BL-ON-OFF
PIN 15 +3V5-SB
PIN 16 BL-I-CTRL
PIN 17 +12V
PIN 18 +12V
PIN 19 GND-AL
PIN 20 +12V-AL
PIN 21 GND
PIN 22 GND
PIN 23 PWM-3
PIN 24 PWM-4
PIN 25 PWM-5
PIN 26 PWM-6
PIN 27 PWM-7
PIN 28 PWM-8

U016U

2

3

1

PDTA114EU

RES

X003

6

5

4

3

2

1

EMC

+12V

22KR104U

RES

10KR105U

RES

S006U

50m

R106U

22K

RES

RES

22KR107U

R109U

47K

RES

U028U

1

6

2

BC847BPN(COL)

U028U

4

3

5

BC847BPN(COL)

+12V +12V

I090U

I091U

I092U

R108U 22K

RES

ENABLE+1V2-MTK

DETECT12V

R110U 22K

RES

I093U

I094U

R111U 22K

RES

RES

RES

C155U

100uF 16V

16V100uF

C156U

RES

RES

U019U
BC857BW(COL)

2

3

1

RES

R113U 10K

I097U

RES

R114U 100K

R115U 22K

U030U

4

3

5

BC847BS(COL)

U030U

1

6

2

BC847BS(COL)

1V2-OK

+5V +3V3

I098U

I099U

RES

C158U

100uF 16V

RES

16V100uF

C159U

Circuit Diagrams and PWB Layouts

EN 55QM14.3E LA 10.

2014-Apr-17

back to

div.table

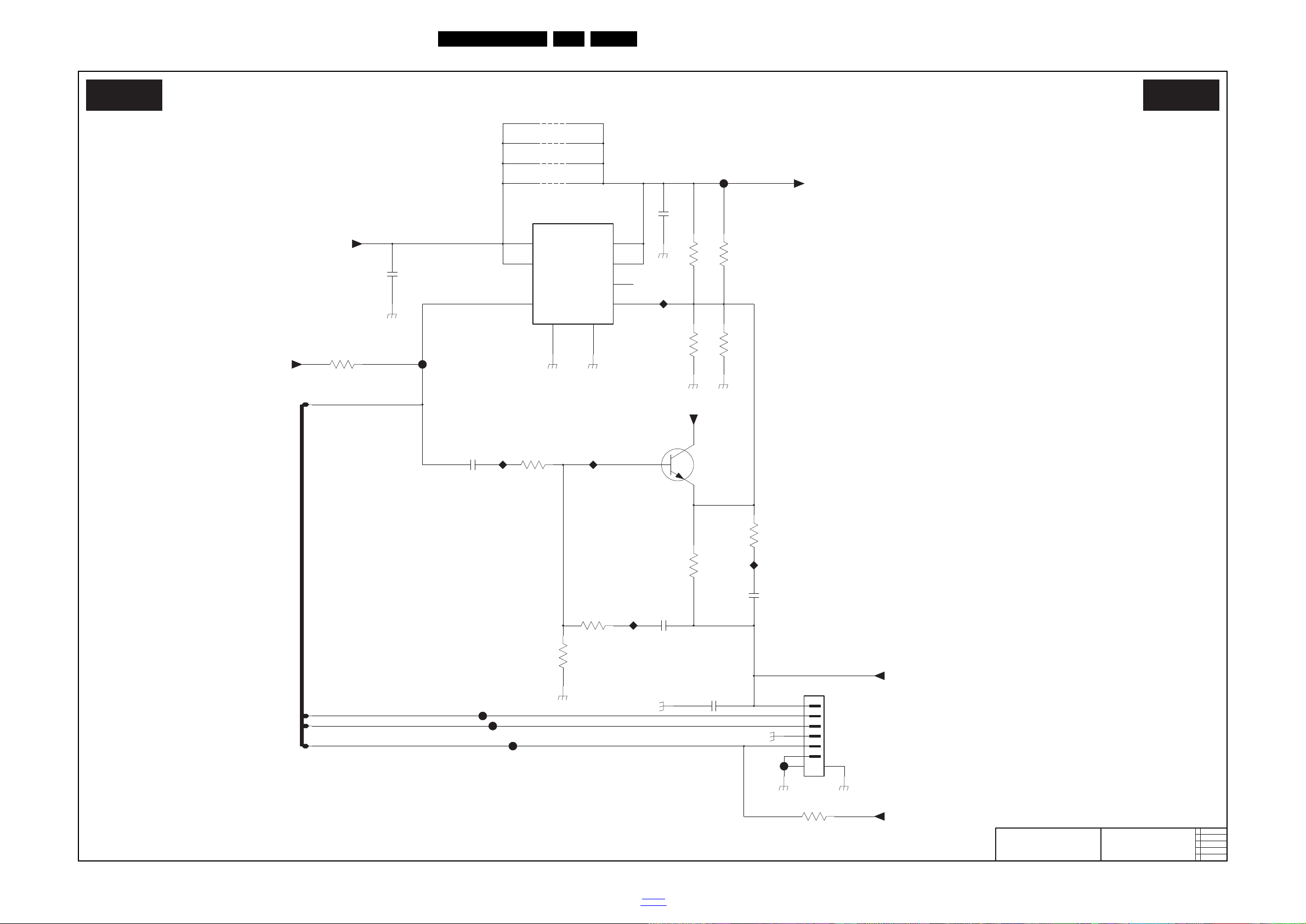

10-1-17 B, WIFI SUPPLY

19580_098_140313.eps

14-03-26

WIFI SUPPLY

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

S002U 54

S002U 63

S002U 72

S002U 81

RES

RES

RES

RES

U001U

9

2

7

4

6

5

3

8

1

VIN1

EN

VOUT1

BP|ADJ

GND

VOUT2

NC

VIN2

GND_HS

RT9187GSP

+3V5-STANDBY

C008U 10uF

C009U

10uF

R009U

1%

22K

R004U

1MEG

470KR005U

+3V3-LAN

WOLAN-ENABLE

C017U 47nF

R002U

22K

U002U

2

3

1

BC847BW(COL)

+3V5-STANDBY

R010U

1%

120K

R007U

5%

47K

R006U

5%

100K

C003U 100nF

16V

C010U 10nF

R003U

22K

+3V3-LAN

X031

6

5

4

78

3

2

1

C004U 100nF

RES

USB-WIFI-DM
USB-WIFI-DP

WOLAN-IRQn

R001U 10K

+3V3-LAN

I002U

I003U

I004U

RES

RES

RES

X001U

I005U

I006U

F027U

F028U

F029U

F030U

F031U

RES

R008U 68K

1%

R103U 10K

+3V3

F054U

Circuit Diagrams and PWB Layouts

EN 56QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-18 B, AMBILIGHT PROTECTION

19580_099_140313.eps

14-03-26

AMBILIGHT PROTECTION

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

2-SIDED AMBILIGHT2-SIDED AMBILIGHT 3- or 4- SIDED AMBILIGHT3- or 4- SIDED AMBILIGHT

X011UX011U
C016UC016U
C018UC018U

U004UU004U
R050UR050U
R011UR011U

C006UC006U

C016UC016U

C050UC050U
C018UC018U

****

*

U004UU004U

6

1111

7

8

1010

9

3

5

4

2

1

VIN1VIN1
VIN2VIN2

ENEN

ILIMILIM

SSSS

VOUT1VOUT1
VOUT2VOUT2

FLGFLG

PGPG

GND_HSGND_HS

GNDGND

SIP32429DN-GE4SIP32429DN-GE4

C015UC015U 1uF1uF

C018UC018U

22uF22uF

GND-ALGND-ALGND-ALGND-AL

AMBI-POWERAMBI-POWER

GND-ALGND-AL

I007UI007U

C005UC005U

100nF100nF

GND-ALGND-AL

R011UR011U

1.8K1.8K

I008UI008U

GND-ALGND-AL

C006UC006U 100nF100nF

I009UI009U

GND-ALGND-AL

C016UC016U

1uF1uF

GND-ALGND-AL

+12V-AL+12V-AL

+3V3+3V3

F032UF032U

F033UF033U

R050UR050U 10K10K

RESRES

*

GND-ALGND-AL

16V16V

100nF100nFC072UC072U

RESRES

****

****

****

****

****

ININ

OUT_1OUT_1

GNDGND

OUT_2OUT_2

C080UC080U

RESRES

16V16V

100nF100nF

C081UC081U

22uF22uF 16V16V

RESRES

RESRES

U012UU012U

4

1

2

3

+3V3-A+3V3-A

+5V+5V

F036UF036U

RESRES

U023UU023U

SI2304DDSSI2304DDS

2

3

1

RESRES

S004US004U

50m50m

R097UR097U

100K100K

RESRES

100nF100nF

16V16V

RESRES

C150UC150U

RESRES

100K100K

R098UR098U

+12V+12V

R044UR044U

10K10K

RESRES

+5V+5V

R099UR099U

100K100K

RESRES

U025UU025U

2

3

1

BC847BW(COL)BC847BW(COL)

RESRES

+5V+5V

3V3-OK3V3-OK

I082UI082U

I083UI083U

I086UI086U

I088UI088U

X011UX011U

!

2A2AT 63V63V

IN_1IN_1
IN_2IN_2

ENEN

SSSS

OUT_1OUT_1
OUT_2OUT_2

OUT_PADOUT_PAD

SETSET

NC_2NC_2

NC_1NC_1

GNDGND

GND_PADGND_PAD

U029UU029U

121243

8

7

1111

1010

9

5

6

2

1

AMBI-POWERAMBI-POWER

R112UR112U 47K47K

GND-ALGND-ALGND-ALGND-AL

C157UC157U 47nF47nF

GND-ALGND-AL

+12V-AL+12V-AL

I095UI095U

I096UI096U

16V16V

Circuit Diagrams and PWB Layouts

EN 57QM14.3E LA 10.

2014-Apr-17

back to

div.table

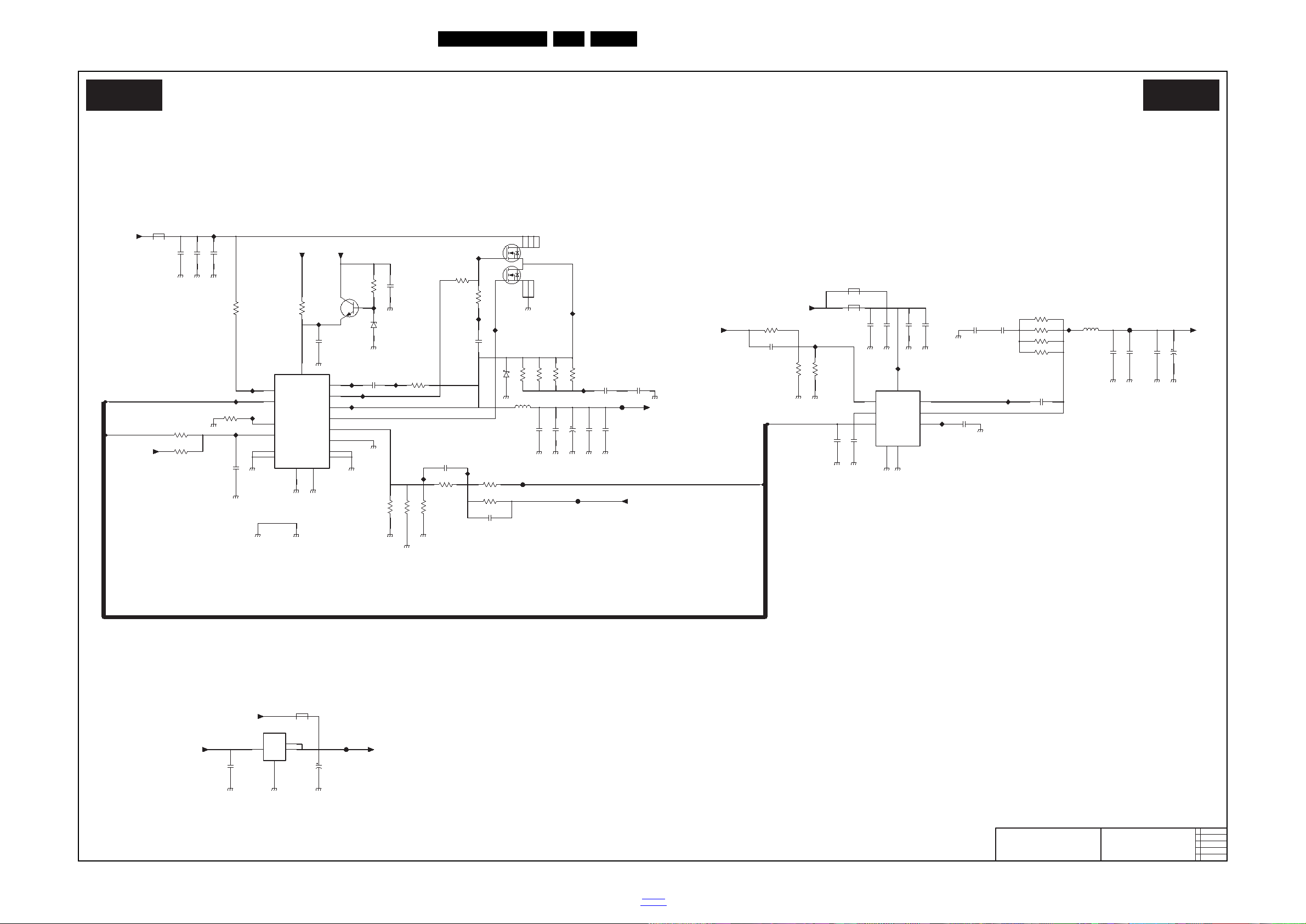

10-1-19 B, SUPPLY 1

19580_100_140313.eps

14-03-26

SUPPLY 1

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

U007UU007U

1616

9

6

1

1717

1515

1212

4

3

2

7

1414

1313

1111

1010

8

5

BOOTBOOT

FBFB

MODEMODE

ENEN

CSCS

TONTON

VCCVCC

LGATELGATE

PHASEPHASE

UGATEUGATE

PGOODPGOOD

GNDGND GND_HSGND_HS

NC1NC1
NC2NC2

NC3NC3
NC4NC4

RT8228DGQWRT8228DGQW

C034UC034U 1nF1nF

50V50V

+5V+5V

I010UI010U

I011UI011U

220K220KR014UR014U

L001UL001U

30H30H

+12V+12V

R025UR025U

1

C029UC029U

10uF10uF

6.3V6.3V

+5V+5V

U005UU005U

2

3

1

BC847BW(COL)BC847BW(COL)

+12V+12V

R028UR028U 2.2K2.2K

16V16V

10uF10uFC030UC030U

D002UD002U

5.6V5.6V

I012UI012U

C028UC028U 100nF100nF

I013UI013U

R030UR030U 3.33.3

I014UI014U

I015UI015U

R022UR022U

1010

R031UR031U 3.33.3C036UC036U 220pF220pF

50V50V

I016UI016U

L009UL009U

1uH1uH

C024UC024U 22uF22uF

22uF22uFC025UC025U

22uF22uFC026UC026U

C027UC027U 22uF22uF

C037UC037U

220uF220uF 2.5V2.5V

+1V2-MTK+1V2-MTK

U009UU009U

765

8

1010

4

3

9

2

1

AON7932AON7932

D003UD003U

B340A-M3B340A-M3

R017UR017U

54

1010

R017UR017U

63

1010

R017UR017U

72

1010

R017UR017U

81

1010

C022UC022U 1nF1nF 1nF1nFC023UC023U

I017UI017U

X005UX005U

GND+1V2MGND+1V2M

R020UR020U

1MEG1MEG

GND+1V2MGND+1V2M

1%1%

56K56K

R015UR015U

1%1%

22K22K

22K22K

1%1%

R016UR016U

R023UR023U

220220

1010R024UR024U

C021UC021U

22pF22pF

C035UC035U

1uF1uF

GND+1V2MGND+1V2M

GND+1V2MGND+1V2M

+1V2-MTK+1V2-MTK

SENSE+1V2-MTKSENSE+1V2-MTK

CORE VOLTAGE SUPPLY MTK 1CORE VOLTAGE SUPPLY MTK 1

C040UC040U 1nF1nF

50V50V

I018UI018U

100nF100nFC057UC057U

C063UC063U

10uF10uF

10uF10uFC064UC064U

L004UL004U

30H30H

30H30H

L005UL005U

+12V+12V

I019UI019U

100nF100nFC058UC058U

R047UR047U

54

5%5%

2222

R047UR047U

63

5%5%

2222

R047UR047U

72

5%5%

2222

R047UR047U

81

5%5%

2222

1nF1nFC041UC041UC042UC042U 1nF1nF

C048UC048U 22uF22uF

22uF22uFC049UC049U

I020UI020U

F005UF005U

+5V+5V

I021UI021U

R036UR036U

1%1%

22K22K

R046UR046U

1%1%

120K120K

C071UC071U

100pF100pF

+5V+5V

I033UI033U

I034UI034U

I035UI035U

I036UI036U

I037UI037U

I038UI038U

I039UI039U

I040UI040U

I041UI041U

F034UF034U

C069UC069U

100uF100uF 16V16V

RESRES

RESRES

RESRES

RESRES

1V2-OK1V2-OK

R027UR027U 1010

ENABLE+1V2-MTKENABLE+1V2-MTK

1010R049UR049U

RESRES

R029UR029U

1%1%

100K100K

RESRES

RESRES

RESRES

RESRES

C033UC033U 10uF10uF

10uF10uFC032UC032U

C031UC031U 10uF10uF

RESRES

GND+1V2MGND+1V2M

GND+1V2MGND+1V2M

DETECT12VDETECT12V

GND+1V2MGND+1V2M

RESRES

F038UF038U

C083UC083U 100nF100nF

16V16V

U015UU015U

4

1

2

3

ININ

OUT_1OUT_1

GNDGND

OUT_2OUT_2

L008UL008U

30H30H

+1V2-A+1V2-A

+1V2-MTK+1V2-MTK

+3V3+3V3

RESRES

RESRES

I045UI045U

I046UI046U

F039UF039U

F040UF040U

C068UC068U

22uF22uF

6.3V6.3V

RESRES

L010UL010U

3.3uH3.3uH

C056UC056U

1uF1uF

16V16V

R045UR045U

470K470K

ENEN

SSSS

VINVIN

VBSTVBST

SWSW

VREG5VREG5

VFBVFB

GND_HSGND_HS

GNDGND

16V16V

10uF10uFC148UC148U

50V50V

3.3nF3.3nFC149UC149U

TPS54527DDATPS54527DDA

U010UU010U

7

6

3

2

9

5

1

4

8

C084UC084U

100uF100uF 16V16V

RESRES

RESRES

RESRES

RESRES

R032UR032U

Circuit Diagrams and PWB Layouts

EN 58QM14.3E LA 10.

2014-Apr-17

back to

div.table

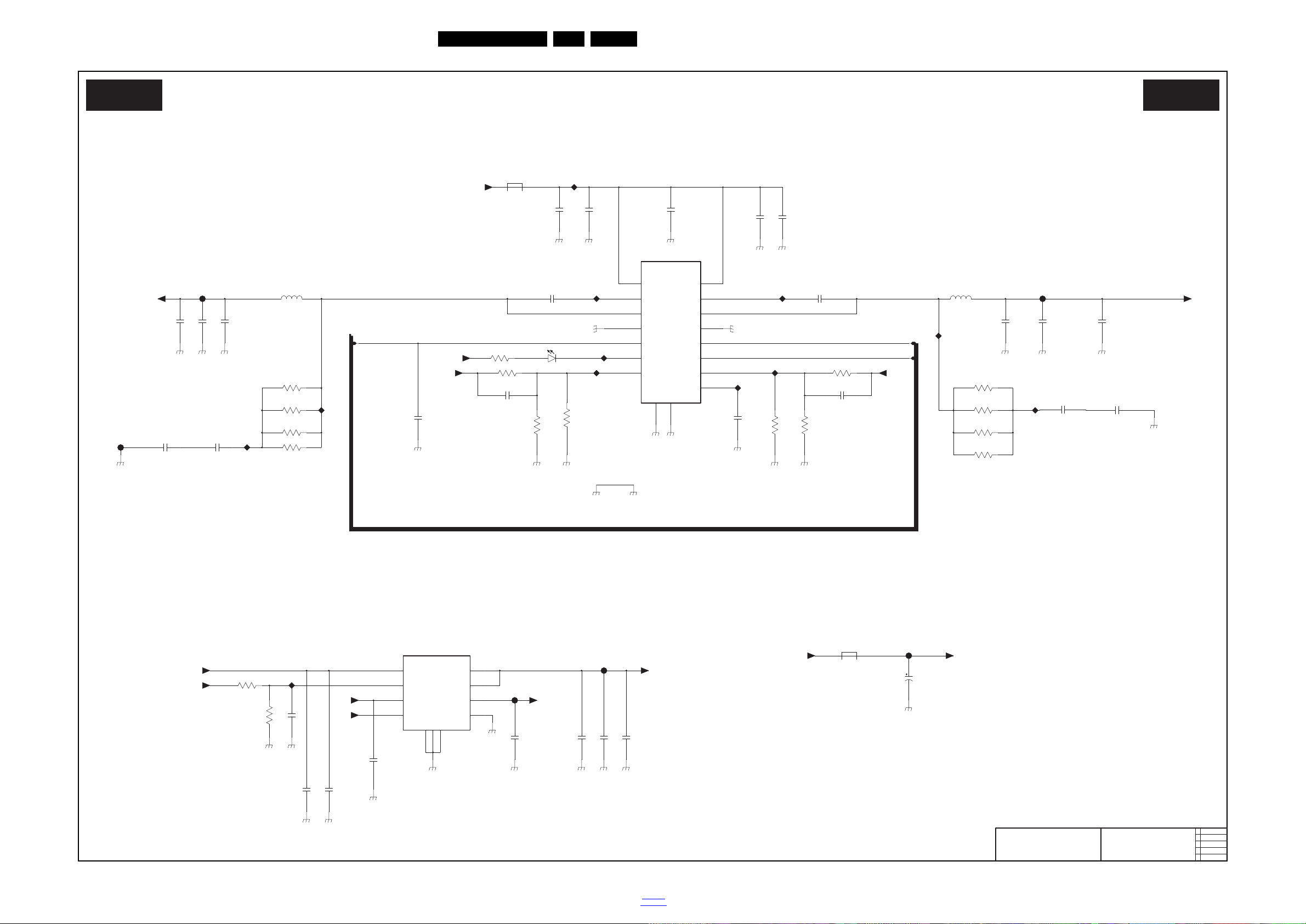

10-1-20 B, DDR I/O SUPPLY MTK 1

19580_101_140313.eps

14-03-26

DDR I/O SUPPLY MTK 1

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

50V 22pF

C038U

RES

50V

1nFC043U

22uFC050U

6,3V

16V

100nFC059U

+12V

16V

10uFC065U

C066U 10uF

16V

+1V5-MTK

470K

R043U

RES

C060U 100nF

16V

C051U 22uF

6,3V

6,3V

22uFC052U

RES

45

10R040U

36

10

R040U

27

10

R040U

18

10

R040U

C044U 1nF

50V50V

1nFC045U

1%

22KR037U

GND-D1

X010U

I022U

I023U

I024U

I025U

F006U

I026U

30H

L006U

I027U

I028U

F007U

1.5uH

L002U

+1V5-MTK

50V 22pF

C039U

RES

+3V3

1%

22KR038U

I029U

45

R041U 10

36

R041U

10

27

R041U

10

18

R041U

10

50V

1nFC046U

C047U 1nF

50VI030U

6,3V

C053U 22uF

6,3V

22uFC054U

RES

C055U 22uF

6,3V

F008U

+3V3

C061U 100nF

16VI031U

I032U

C067U

10uF

16V

C062U

100nF

16V

R039U

1%

22K

GND-D1

GND-D1

R048U

1%

68K

GND-D1GND-D1

GND-D1

L003U
2,2uH

RES

RES

VIN1

VBST1

SW1

PGND1

EN1

PG1

VFB1

VIN2

VBST2

SW2

PGND2

EN2

PG2

VFB2

VREG5

GND_HS

GND

U011U

8

17

9

10

11

12

13

14

15

16

7

6

5

4

3

2

1

TPS54494PWP

GND-D1

ENABLE+1V5+3V3ENABLE+1V5+3V3

U013U

11

8

4

9

6

5

3

10

7

2

1

REFIN

VLDO_IN

EN

VIN

VO

VOSNS

REFOUT

PGOOD

PGND

GND

GND_HS

TPS51200DRC

R051U

10K

C073U 10uF

6,3V

C079U

100nF

16V

+1V5-MTK

10KR052U

6,3V

10uFC074U

+1V5-MTK

+3V3
+3V3

6,3V

10uFC075U

C076U 10uF

6,3V

6,3V

10uFC077U

+VTT

VTT-REF

C078U 1nF

50V

+3V3

+3V3-A

L007U

30H

F037U

C070U

1uF

16V

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

I051U

F041U

F042U

+5V

D001U

RED

R067U

1K

6,3V

10uFC096U

3V3-OK

C082U

100uF 16V

RES

R035U 270K

Circuit Diagrams and PWB Layouts

EN 59QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-21 B, SUPPLY 2

19580_102_140313.eps

14-03-26

SUPPLY 2

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

BOOT

FB

MODE

EN

CS

TON

VCC

LGATE

PHASE

UGATE

PGOOD

GND GND_HS

NC1
NC2

NC3
NC4

IN

OUT_1

GND

OUT_2

5

4

3

2

7

14

13

11

10

8

16

9

6

1

U017U

RT8228DGQW

17

15

12

RES

C120U 1nF

50V

+5V

I052U

I053U

220KR086U

L011U

30H

+12V

R079U 1

C105U 10uF

6.3V

+5V

RES

U008U

BC847BW(COL)

2

3

1

+12V

R074U 2.2K

RES

10uFC113U

RES

16V

RES

5.6V

D004U

I054U

C097U 100nF

I055U

3.3R088U

I056U

I057U

R070U 10

R089U 3.3C130U 220pF

50V

I058U

1uH

L019U

C131U 22uF

C132U 22uF

22uF

RES

C133U

22uFC134U

+1V2-MTK-DT

243

9

1

765

8

10

U020U
AON7932

RES

D005U

B340A-M3

R090U

10

54

3

R090U

10

6

72

R090U10R090U

10

81

C121U 1nF C122U 1nF

I059U

X002U

RES

R078U 1MEG

R093U

1%

56K

1%

R080U 22K

22K

1%

R081U

220R075U

R071U

RES

10

RES

C141U 22pF

C112U 1uF

GND+1V2M-DT

+1V2-MTK-DT

CORE VOLTAGE SUPPLY MTK 2

I060U

I061U

I062U

I063U

I064U

I065U

I066U

I067U

I068U

F043U

10R072U

10R073U

R085U

1%

100K

C114U 10uF

10uFC115U

C116U 10uF

F044U

RES

C098U 100nF

16V

RES

U022U

4

1

2

3

L012U

30H

+3V3-DT

+1V2-A-DT

+1V2-MTK-DT

I069U

F045U

F046U

GND+1V2M-DT

GND+1V2M-DT

GND+1V2M-DT

GND+1V2M-DT

GND+1V2M-DT

GND+1V2M-DT

RES

SENSE+1V2-MTK-DT

DT-1V2-OK

DT-STANDBYn

IN

OUT_1

GND

OUT_2

C099U

RES

16V

100nF

C145U

22uF 16V

RES

RES

U014U

4

1

2

3

+3V3-A-DT

+5V

F047U

R095U

10K

+5V

DT-1V2-OK

X006U

DT-ENABLE+1V5+3V3

STANDBYn

U027U

2

4

5

3

1

VIN

INH

VOUT

BYP

GND

+3V5-STANDBY

C152U 1uF

6.3V

RES

C154U 22nF

16V

RES

+3V3-STANDBY-DT

RES

6.3V

1uFC153U

L017U

30H

+3V3

U024U

2

3

1

SI2304DDS

S005U

50m

RES

RES

R100U

100K

100nF

16V

RES

C151U

RES RES

100K

R101U

+12V

R096U

10K

+5V

RES

R102U

100K

RES

U026U

2

3

1

BC847BW(COL)

+5V

RES

DT-3V3-OK

I084U

I085U

F055U

I087U

C129U

100uF 2V

I089U

C144U

100uF 16V

RES

RES

RES

Circuit Diagrams and PWB Layouts

EN 60QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-22 B, DDR I/O SUPPLY MTK 2

19580_103_140313.eps

14-03-26

DDR I/O SUPPLY MTK 2

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

VIN1

VBST1

SW1

PGND1

EN1

PG1

VFB1

VIN2

VBST2

SW2

PGND2

EN2

PG2

VFB2

VREG5

GND_HS

GND

REFIN

VLDO_IN

EN

VIN

VO

VOSNS

REFOUT

PGOOD

PGND

GND

GND_HS

RES

C142U

50V 22pF

C123U 1nF

50V

RES

6,3V

C135U 22uF

C100U

16V

100nF

+12V

10uFC117U

16V

RES

16V

C118U 10uF

+1V5-MTK-DT

R077U

RES

470K

C101U 100nF

16V

C136U 22uF

6,3V

6,3V

22uFC137U

RES

54

10R091U

63

10

R091U

R091U

72

10

10

R091U

81

50V

C124U 1nF

50V

1nFC125U

1%

22KR082U

GND-D2

X004U

I070U

I071U

I072U

I073U

F048U

I074U

30H

L013U

I075U

I076U

F049U

1.5uH

L015U

+1V5-MTK-DT

50V 22pF

C143U

RES

+3V3-DT

1%

22KR083U

I077U

45

10R092U

36

10

R092U

27

R092U

10

18

R092U

10

C126U 1nF

50V

1nF

50V

C127U

I078U

C138U 22uF

6,3V

22uFC139U

6,3V

6,3V

22uF

RES

C140U

F050U

+3V3-DT

100nF

16V

C102U

I079U

I080U

16V

10uF

C119U

16V

100nF

C103U

1%

22KR084U

GND-D2

GND-D2

1%

68K

R094U

220K

R087U

GND-D2GND-D2

GND-D2

2,2uH

L016U

2

1

3

5

4

6

16

7

15

13

14

12

10

11

9

8

17

TPS54494PWP

U018U

GND-D2

4

9

6

5

3

10

7

2

1

RES

U021U

TPS51200DRC

11

8

RES

R068U 10K

C106U 10uF

6,3V

RES

C104U 100nF

16V

RES

+1V5-MTK-DT

RES

10KR069U

RES

6,3V

10uFC107U

+1V5-MTK-DT

+3V3-DT
+3V3-DT

RES

6,3V

10uFC108U

RES

C109U 10uF

6,3V

RES

6,3V

10uFC110U

+VTT-DT

VTT-REF-DT

RES

C128U 1nF

50V

30H

L014U

+3V3-DT

+3V3-A-DT

F051U

C146U

1uF

16V

I081U

F052U

F053U

+5V

RED

D006U

R076U 1K

6,3V

10uFC111U

DT-ENABLE+1V5+3V3 DT-ENABLE+1V5+3V3

DT-3V3-OK

C147U

100uF 16V

RES

Circuit Diagrams and PWB Layouts

EN 61QM14.3E LA 10.

2014-Apr-17

back to

div.table

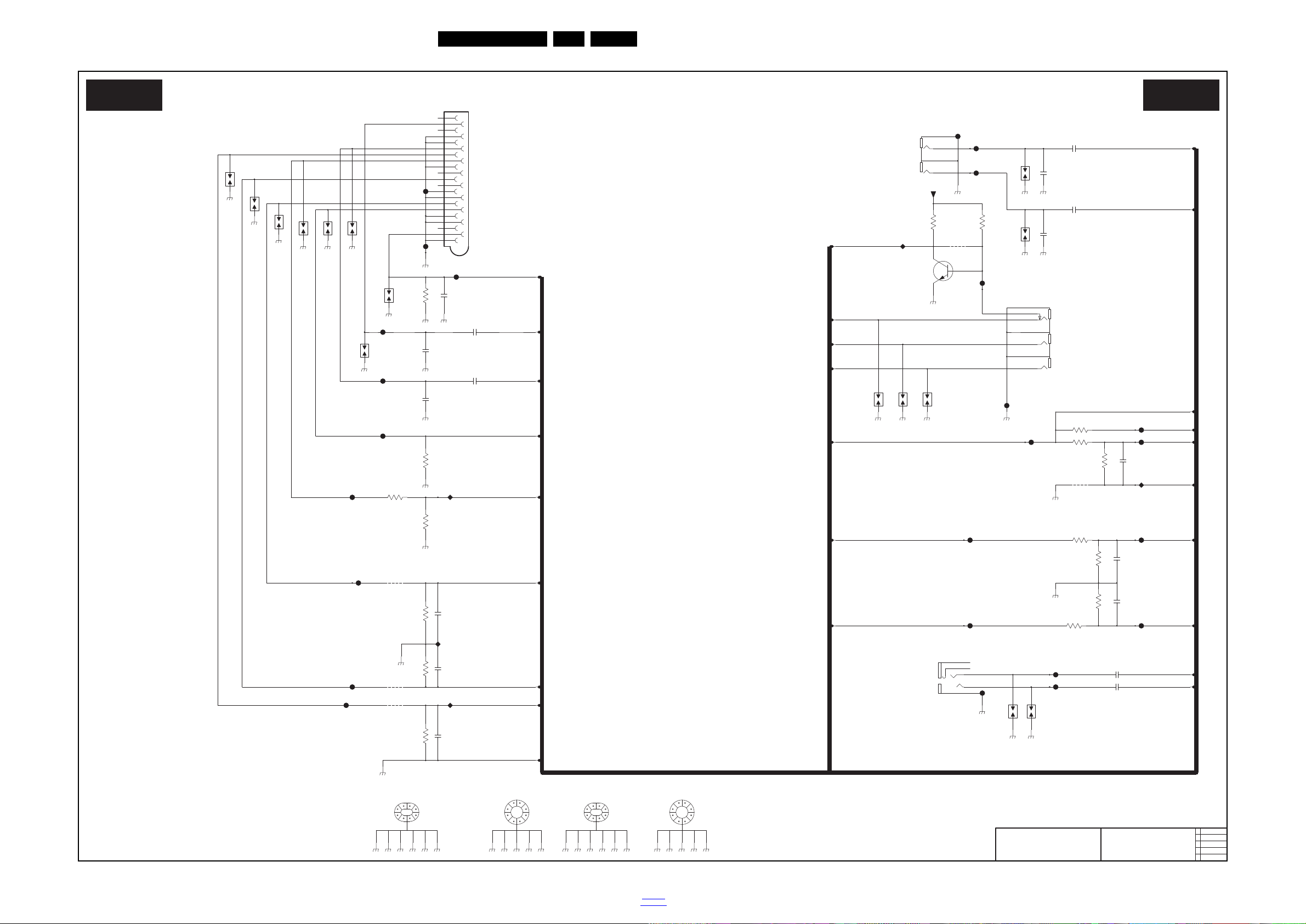

10-1-23 B, AUDIO-VIDEO I/O

19580_104_140313.eps

14-03-26

AUDIO-VIDEO I/O

B B

2013-12-13

1

715RLPCB000000021

MTK UHD 50 Hz

7800

AV-YPBPR-LIN

AV-YPBPR-RIN

R035C

5%

10

R036C

5%

18

R042C

5%

56

S001C

50m

R037C

5%

18

R043C

5%

56R044C

5%

56

R038C5%18

C020C 10pF

50V

C021C 10pF

50V

C022C 10pF

50V

PR

PB

AV-YPBPR-PR

AV-YPBPR-PB

AV-DVI-RIN
AV-DVI-LIN

Y AV-YPBPR-Y

AV-YPBPR-S

AV-CVBS_Y

C023C

50V

10pFC024C

50V

10pFC025C

50V

10pF

B

G

R

AV-SCART-B

AV-SCART-R

R048C

5%

75

R049C

5%

75

C015C

47pF

50V

AV-SCART-CVBS

AV-SCART-RIN

AV-SCART-LIN

R001C

5%

10K

AV-SCART-STATUS

AV-SCART-BLK

S016C

X001C

X002C

AV-COM_S

R070C

1%

49.9K

AV-SCART-G

S017C

S018C

S019C

Y-R

Y-L

AV-COM_Y

S020C

S021C

X268

1

2

3

4

5

F002C

F003C

F004C

F033C

F034C

F035C

F036C

F037C

I006C

I007C

I008C

I010C

F038C

F039C

F040C

F041C

F042C

F043C

F044C

F045C

F046C

F047C

F048C

F049C

EMC

F121C

F122C

Y

PB

PR

S034C

S035C

C016C 10nF

16V

C017C 10nF

16V

C018C 10nF

16V

C019C 10nF

16V

C013C 10uF

16V

C014C

10uF

16V

F133C

F134C

S038C

S039C

S040C

S041C

S014C

50m

S015C

50m

S037C

50m

R046C

75R047C 75

R045C 75

C027C 1uF

6.3V

6.3V

1uFC026C

C028C

1uF

6.3V

6.3V

1uFC029C

X260

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

X261

7

6

5

4

3

2

1

GREEN

BLUE

RED

R039C

10K

S042C

10KR097C

+3V3

AV-YPBPR-DETECTn

U017C

2

3

1

BC847BW(COL)

X266

4

3

2

1

WHITE

RED

I043C

S043C

X000

6

5

4

3

2

1

X006

5

4

3

2

1

EMC

X007

5

4

3

2

1

EMC

F050C

X008

6

5

4

3

2

1

EMC

S044C

S045C

Circuit Diagrams and PWB Layouts

EN 62QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-24 B, HDMI CONNECTORS

19580_105_140313.eps

14-03-26

HDMI CONNECTORS

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

X283

2021
2223

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

UHD-RX0-2+
UHD-RX0-2-

UHD-RX0-1+
UHD-RX0-1-

UHD-RX0-0-

UHD-RX0-0+

UHD-RX0-C+
UHD-RX0-C-

SDA-0

SCL-0

D013C

3

21

C001C 100nF

16V

U003C

4

5

6

7

8

3

2

1

VDD

SCL

SDA

VSS

0
12ADDR

EEPROM

WP|WC

D017C

+5V

R026C

5%

470K

R002C 10K

R058C

47K

R059C

47K

R066C 33

R016C

4.7K

UHD-HDMI0-SCL
UHD-HDMI0-SDA

EDID-WEn

16V

100nFC002C

+5V-EDID0

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

23 22

21 20

X284

RX1-2+
RX1-2-

RX1-1+

RX1-1-

RX1-0-

RX1-0+

RX1-C+
RX1-C-

SCL-1
SDA-1

16V

100nFC004C

D020C

R027C

5%

470K

R055C 910

R051C5%75

HDMI-CEC-IN
ARC1-HDMI

UHD-HDMI0-SCL
UHD-HDMI0-SDA

ARC0-HDMI

HDMI-CEC-IN

R007C

5%

22

R008C

5%

22

R009C5%22

R010C5%22

HDMI1-SCL
HDMI1-SDA

UHD-HPD0

HPD1

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15
16
17
18
19

23 22

21 20

X285

16V

100nFC006C

D022C

R028C

5%

470K

R056C 910

R052C5%75

RX2-2+
RX2-2-

RX2-1+
RX2-1-

RX2-0-

RX2-0+

RX2-C+
RX2-C-

SCL-2
SDA-2

HDMI-CEC-IN

HDMI2-SCL
HDMI2-SDA

HPD2

ARC2-HDMI

R011C5%22

R012C5%22

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15
16
17
18
19

23 22

21 20

X286

16V

100nFC008C

D024C

R029C

5%

470K

R057C 910

R053C5%75

RX3-2+
RX3-2-

RX3-1+
RX3-1-

RX3-0-

RX3-0+

RX3-C+
RX3-C-

SCL-3
SDA-3

HDMI-CEC-IN

HDMI3-SCL
HDMI3-SDA

HPD3

ARC3-HDMI

R013C5%22

R014C5%22

F005C

F007C
F008C
F009C

F010C

F011C

F013C
F014C
F015C

F016C

F017C

F019C
F020C
F021C

F022C

F023C

F025C
F026C
F027C

F028C

F029C

S030C

50m

S031C

50m

S032C

50m

S033C

50m

UHD-AIN-5V

BIN-5V
CIN-5V
DIN-5V

HDMIA-5V
HDMIB-5V
HDMIC-5V
HDMID-5V

I018C

I019C

I020C

I021C

D026C

15V

D027C

15V

D028C

15V

EDID-WEn

R025C

10K

F135C

F137C

F138C

F139C

F140C

UHD-HDMI0-SCL
UHD-HDMI0-SDA

HDMI1-SCL
HDMI1-SDA

HDMI2-SCL
HDMI2-SDA

HDMI3-SCL
HDMI3-SDA

BIN-5V

CIN-5V

DIN-5V

UHD-AIN-5V

R040C

47K

47K

R041C

47K

R106C

R107C

47K

R108C

47K

47K

R109C

47K

R110C

R111C

47K

RES

RESERVED

F006C

UHD-AIN-5V RES

I044C

I045C

I046C

I047C

I048C

I049C

I050C

I051C

2.2KR054C

HPD0

EDIDUHD-WP

RES

RES

TYPE

1
2
3
54

X335

DBG

RES

S048C

50m

EDID0-A1

RESRESRES

RES
RES
RES
RES

CH1

GND1 GND2

CH4

CH2

CH3

NC4

NC3

NC2

NC1

TYPE

RX1-2-

RX1-2+

RX1-1-

RX1-1+

RX1-2+
RX1-2-

RX1-1+
RX1-1-

CH1

1

GND13GND2

CH4

5

CH2

2

CH3

4

NC4

NC3

NC2

NC1

TYPE

CH1

1

GND13GND2

CH4

5

CH2

2

CH3

4

NC4

NC3

NC2

NC1

TYPE

D005C

10

9

7
6

8

D010C

10

9

7
6

8

RX1-C-

RX1-C+

RX1-0+
RX1-0-

RX1-C-

RX1-C+

SCL-1RX1-0-

RX1-0+

BIN-5V

SDA-1

SCL-1

SDA-1

BIN-5V

CH1

GND1 GND2

CH4

CH2

CH3

NC4

NC3

NC2

NC1

TYPE

CH1

GND1 GND2

CH4

CH2

CH3

NC4

NC3

NC2

NC1

TYPE

CH1

GND1 GND2

CH4

CH2

CH3

NC4

NC3

NC2

NC1

TYPE

RX2-2+ RX2-2+

RX2-1-

RX2-2-

RX2-1+

RX2-2-

RX2-1-

RX2-1+

RX2-0+ RX2-0+

RX2-C-

RX2-C+RX2-C+

RX2-0-

RX2-C-

RX2-0- SCL-2

D006C

10

9

7
6

4

2

5

83

1

D007C

10

9

7
6

4

2

5

83

1

D011C

10

9

7
6

4

2

5

83

1

CIN-5V

SDA-2

SCL-2

CIN-5V

SDA-2

CH1

GND1 GND2

CH4

CH2

CH3

NC4

NC3

NC2

NC1

TYPE

CH1

GND1 GND2

CH4

CH2

CH3

NC4

NC3

NC2

NC1

TYPE

CH1

GND1 GND2

CH4

CH2

CH3

NC4

NC3

NC2

NC1

TYPE

RX3-2+ RX3-2+

RX3-1-

RX3-2-

RX3-1+

RX3-2-

RX3-1-

RX3-1+

RX3-0+ RX3-0+

RX3-C-

RX3-C+RX3-C+

RX3-0-

RX3-C-

RX3-0-

D008C

10

9

7
6

4

2

5

83

1

D009C

10

9

7
6

4

2

5

83

1

D012C

10

9

7
6

4

2

5

83

1

SCL-3

SDA-3
DIN-5V

DIN-5V

SDA-3

SCL-3

R155C 10K

D004C

10

9

7
6

4

2

5

83

1

RES

U007C

2

3

1

BC847BW(COL)

DIN-5V

CIN-5V

BIN-5V

BIN-5V

BLOCK_IO

CIN-5V

DIN-5V

Circuit Diagrams and PWB Layouts

EN 63QM14.3E LA 10.

2014-Apr-17

back to

div.table

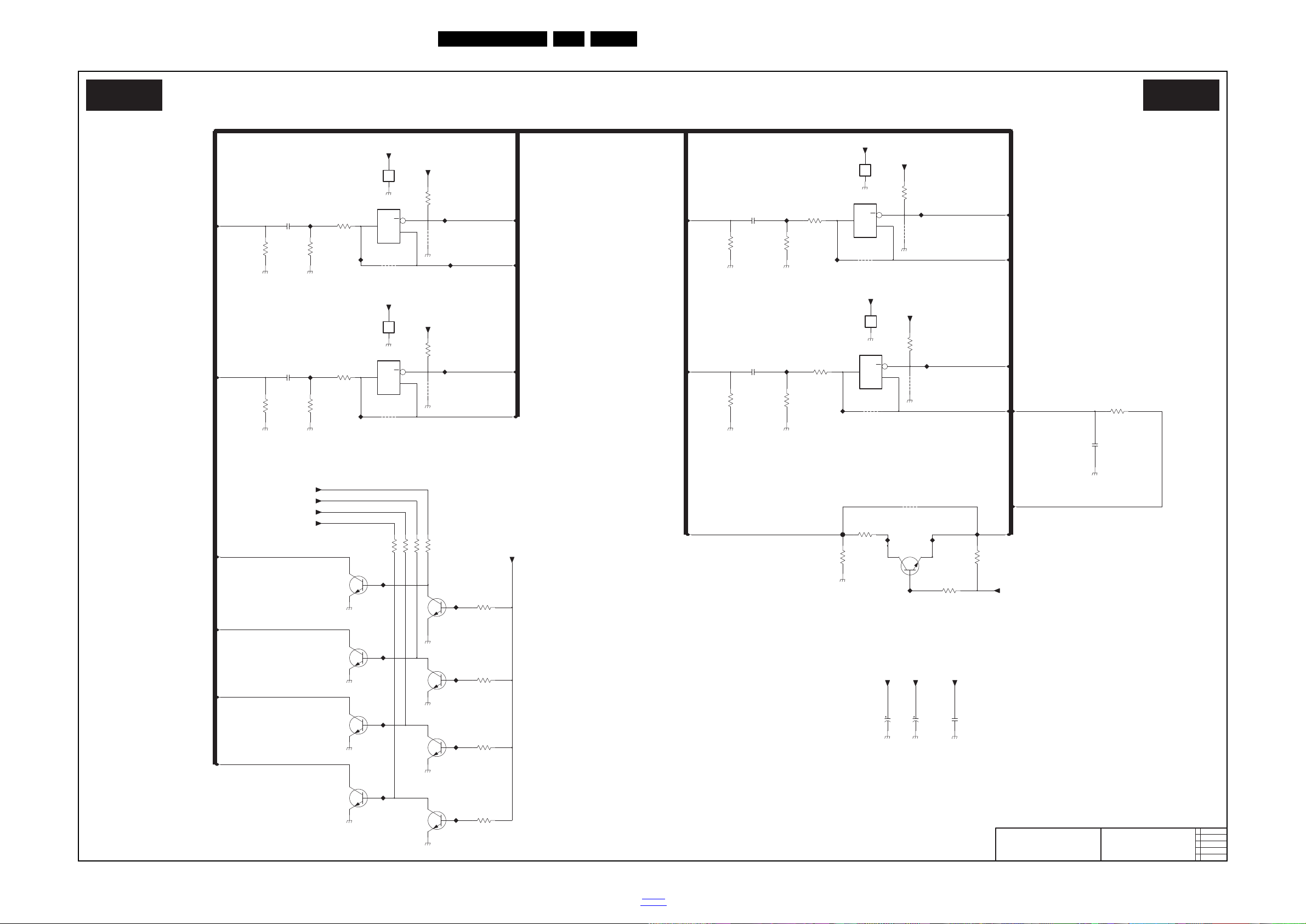

10-1-25 B, AUDIO RETURN CHANNEL

19580_106_140313.eps

14-03-26

AUDIO RETURN CHANNEL

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

OE

A

Y

1

2

4

U009C

U009C

3 5

VCC
GND

+3V3-A

R071C

5%

180

R075C

5%

82

R031C

5%

100K

S002C

50m

S003C

50m

R020C

5%

4.7K

+3V3-A

OE

A

Y

VCC
GND

1

2

4

U010C

U010C

35

+3V3-A

R072C5%180

R076C

5%

82

R032C

5%

100K

S005C

50m

S006C

50m

R021C

5%

4.7K

+3V3-A

OE

A

Y

VCC
GND

OE

A

Y

VCC
GND

1

2

4

U011C

U011C

3 5

+3V3-A

R073C5%180

R077C

5%

82

R033C

5%

100K

S008C

50m

S009C

50m

R022C

5%

4.7K

+3V3-A

1

2

4

U012C

U012C

35

+3V3-A

R074C5%180

R078C

5%

82

R034C

5%

100K

S011C

50m

S012C

50m

R023C

5%

4.7K

+3V3-A

ARC0-HDMI

ARC1-EN

HDMI-ARCF

ARC2-HDMI

ARC3-EN

HDMI-ARCF

ARC4-EN

HDMI-ARCF

ARC3-HDMIARC2-EN

HDMI-ARCF

ARC1-HDMI

C030C 100nF

16V

+3V3-A

R030C

5%

1MEG

R006C

5%

100

U001C

2

3

1

+3V3-STANDBY

HDMI-CECHDMI-CEC-IN

I002C

I003C

I004CI005C

F001C

RES

R024C 27K

+3V3+5V

C040C

100uF 16V

C041C

100uF 16V

I022C

I023C

I024C

I025C

I026C

I027C

I028C

I029C

I030C

I031C

I032C

I033C

I034C

C009C

100nF

16V

C010C

100nF

16V

C011C

100nF

16V

C012C

100nF

16V

S036C

50m

RESRES

RES

RESRES

RES

RES

RES RES

RESRES

RES

U002C

4

3

5

BC847BS(COL)

U002C

1

6

2

BC847BS(COL)

R092C

47K

U014C

4

3

5

BC847BS(COL)

U014C

1

6

2

BC847BS(COL)

R093C 47K

U015C

4

3

5

BC847BS(COL)

U015C

1

6

2

BC847BS(COL)

R094C 47K

U016C

4

3

5

BC847BS(COL)

U016C

1

6

2

BC847BS(COL)

R095C 47K

R096C 47K

R102C 47K

R103C Value=47K

R104C 47K

UHD-AIN-5V

BIN-5V
CIN-5V
DIN-5V

+3V3-STANDBY

HPD0

HPD1

HPD2

HPD3

I035C

I036C

I037C

I038C

I039C

I040C

I041C

I042C

R015C

22K

RES

RES

RES

RES

RES

RES

RES

RES

R003C 100

HDMI-ARCF

C003C 33pF

50V

HDMI-ARC

Circuit Diagrams and PWB Layouts

EN 64QM14.3E LA 10.

2014-Apr-17

back to

div.table

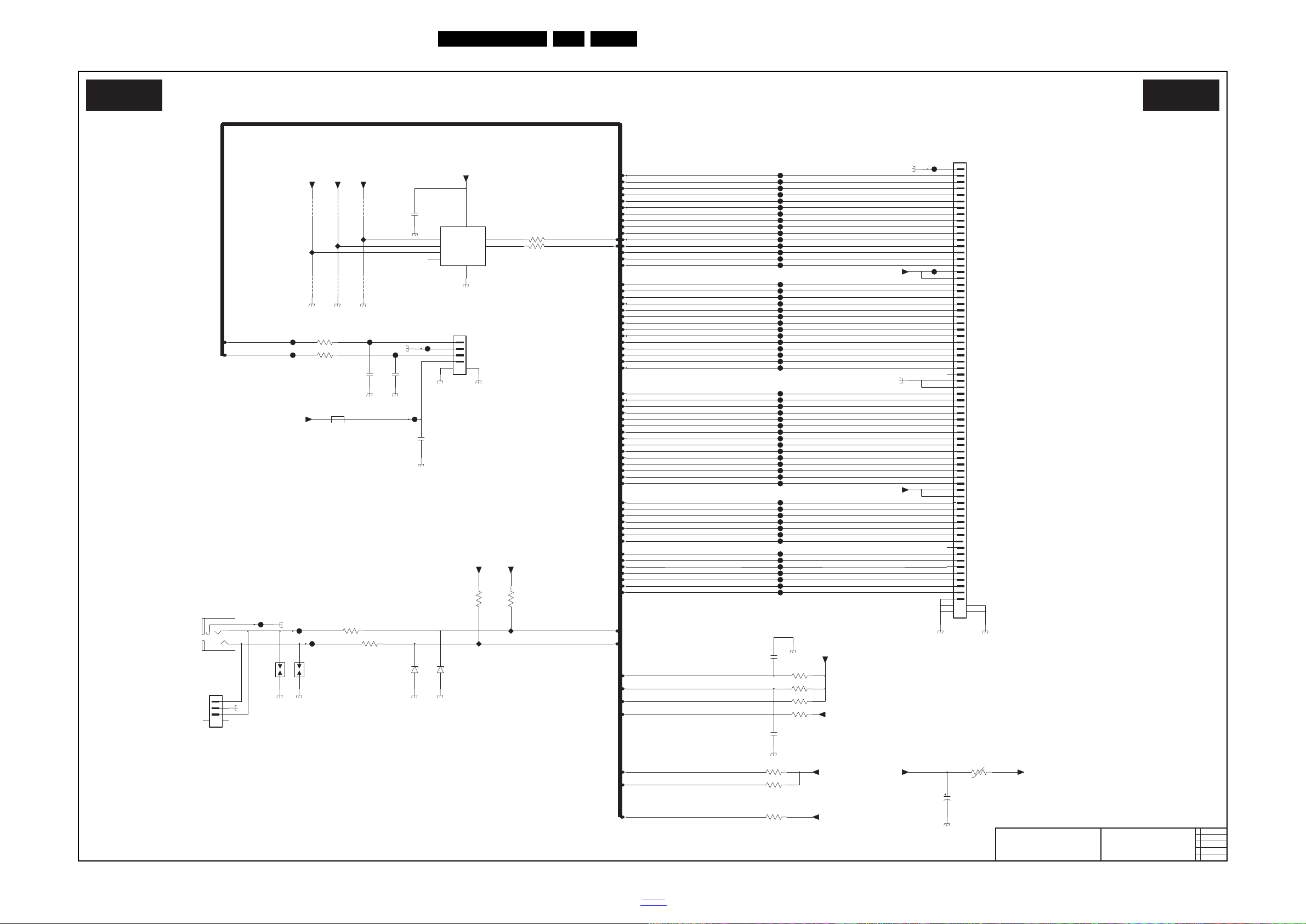

10-1-26 B, COMMON INTERFACE

19580_107_140313.eps

14-03-26

COMMON INTERFACE

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

+3V3

S022C

50m

S023C

50m

S024C

50m

S025C

50m

50m

S026C

S027C

50m

+3V3 +3V3 +3V3

C035C 100nF

16V

RES

RES

RES

X206

1

2

3

4

5

S028C

S029C

R079C

10K

R080C 10K

R081C 47

R082C

47

F058C

F059C

F060C

MTK-RX-SERVICE
MTK-TX-SERVICE

R084C 10K

R085C

10K

R086C

10K

R087C

10K

R088C

10K

CA-CD1n
CA-CD2n
CA-VS1n
CA-WAITn

+3V3

+5VCA

CA-RDY
CA-CE2n

+5VCA

R090C

100K

R089C 10K

CA-RESET

+3V3

C039C

22uF 6.3V

+5V

1
2
3
54

TYPE

+3V3

X071

4

56

3

2

1

TYPE

L001C

30H

R099C 10

R100C 10

C042C 10pF

50V

C043C 10pF

50V

F127C

F128C

F129C

F130C

F131C

F132C

D018C

5.1V

D019C

5.1V

+5VCA

R101C

+T

750mA

I013C

I014C

I015C

I016C

I017C

CA-D03
CA-D04
CA-D05
CA-D06
CA-D07
CA-CE1n
CA-A10
CA-OEn
CA-A11
CA-A09

CA-A13

CA-A08
CA-A14

CA-WEn
CA-RDY

CA-A12
CA-A07
CA-A06
CA-A05
CA-A04
CA-A03
CA-A02
CA-A01
CA-A00
CA-D00
CA-D01
CA-D02

CA-CD1n
CA-MDO4
CA-MDO6

CA-MDO7

CA-MOVAL
CA-MOSTRT
CA-MDO0

CA-MDO2
CA-CD2n

+5VCA

+5VCA

CA-CE2n
CA-VS1n
CA-IORDn
CA-IOWRn
CA-MISTRT
CA-MDI0
CA-MDI1
CA-MDI2
CA-MDI3

CA-MDI4
CA-MDI5
CA-MDI6
CA-MDI7
CA-MOCLK
CA-RESET
CA-WAITn

CA-MIVAL
CA-MICLK

60

59

58

57

56

55

54

53

52

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

51

11

10

9

8

7

6

5

4

3

2

1

X295

727170

69

68

67

66

65

64

63

62

61

F061C
F062C
F063C
F064C
F065C
F066C
F067C
F068C
F069C
F070C
F071C
F072C
F073C
F074C
F075C
F076C

F077C

F078C
F079C
F080C
F081C
F082C
F083C
F084C
F085C
F086C
F087C
F088C
F089C
F090C
F091C

F092C
F093C
F094C
F095C
F096C
F097C
F098C
F099C
F100C
F101C
F102C
F103C
F104C
F105C
F106C

F107C
F108C
F109C
F110C
F111C
F112C
F113C

F114C

F115C
F116C
F117C
F118C
F119C
F120C

CA-REGn

CA-MDO3
CA-MDO5

CA-MDO1

R083C47

SCL-SSB

R091C47

SDA-SSB

SCL-SRF
SDA-SRF

C036C 100nF

16V

C037C 100nF

16V

C045C

1uF

6.3V

+3V3-STANDBY

+3V3-STANDBY

X310

U013C

4

3

5

6

7

8

1

2

SCL
SDA

V+
A0
A1
A2
ALERT

GND

TMP75AIDGKR

Circuit Diagrams and PWB Layouts

EN 65QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-27 B, DT COMMON INTERFACE

19580_108_140313.eps

14-03-26

DT COMMON INTERFACE

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

+5VCA-DT

+5VCA-DT

1
2

3

4
5
6
7

8

9
10
11

51

12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

30
31
32
33
34
35
36
37
38
39

40
41
42
43
44
45
46
47
48
49
50

52
53
54

55
56
57
58
59
60
61
62
63
64
65
66
67
68

69
70

71
72

X297

F141C
F142C
F143C
F144C
F145C
F146C
F147C
F148C
F149C
F150C
F151C
F152C
F153C
F154C
F155C
F156C

F157C

F158C
F159C
F160C
F161C
F162C
F163C
F164C
F165C
F166C
F167C
F168C
F169C
F170C
F171C

F172C
F173C
F174C
F175C
F176C
F177C
F178C
F179C
F180C
F181C
F182C

F184C
F185C
F186C

F187C
F188C
F189C
F190C
F191C
F192C
F193C

F194C

F195C
F196C
F197C
F198C
F199C
F200C

DT-CA-D03
DT-CA-D04
DT-CA-D05
DT-CA-D06
DT-CA-D07
DT-CA-CE1n
DT-CA-A10
DT-CA-OEn
DT-CA-A11
DT-CA-A09

DT-CA-A13

DT-CA-A08
DT-CA-A14

DT-CA-WEn
DT-CA-RDY

DT-CA-A12
DT-CA-A07
DT-CA-A06
DT-CA-A05
DT-CA-A04
DT-CA-A03
DT-CA-A02
DT-CA-A01
DT-CA-A00
DT-CA-D00
DT-CA-D01
DT-CA-D02

DT-CA-CD1n
DT-CA-MDO4
DT-CA-MDO6

DT-CA-MDO7

DT-CA-MOVAL
DT-CA-MOSTRT
DT-CA-MDO0

DT-CA-MDO2
DT-CA-CD2n

DT-CA-CE2n
DT-CA-VS1n
DT-CA-IORDn
DT-CA-IOWRn
DT-CA-MISTRT
DT-CA-MDI0
DT-CA-MDI1
DT-CA-MDI2
DT-CA-MDI3

DT-CA-MDI4
DT-CA-MDI5
DT-CA-MDI6
DT-CA-MDI7
DT-CA-MOCLK
DT-CA-RESET
DT-CA-WAITn

DT-CA-MIVAL
DT-CA-MICLK

DT-CA-REGn

DT-CA-MDO3
DT-CA-MDO5

DT-CA-MDO1

+T

10K

R123C

10K

R124C

10K

R125C

10K

R126C

10KR127C

+3V3-DT

+5VCA-DT

+5VCA-DT

100K

R131C

10KR128C

+3V3-DT

6.3V22uF

C054C

+5V

+5VCA-DT

750mA

R134C

16V

100nFC052C

16V

100nFC053C

DT-CA-CD1n
DT-CA-CD2n
DT-CA-VS1n
DT-CA-WAITn

DT-CA-RDY
DT-CA-CE2n

DT-CA-RESET

F183C

Circuit Diagrams and PWB Layouts

EN 66QM14.3E LA 10.

2014-Apr-17

back to

div.table

Circuit Diagrams and PWB Layouts

19580_109_140313.eps

14-03-26

SiI9679CNUC on HDMI1 for HDCP 2.2

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

U019C

2520686949

50

21

22

2330313264

63

6261605453

72

52

29

28

27

26

38

67

66

40

41

42

43

44

45

46

47

70

5935241817

9

6

393658

57

2

1

375655

515486533

19

10

77

73

74

3

71

4

75

76

16

15

14

13

12

11

8

7

34

RESETN

RXCN
RXCP

RX0N
RX0P

RX1N
RX1P

RX2N
RX2P

DSDA
DSCL

CBUS_HPD
MHL_CD
RPWR5V
LPSBV5V

WAKEUP

EPAD

VDD33

VDDIO33_1

VDDIO33_2

VDDIO33_3

XTAL_VDD33

COC_GND

XTAL_GND

HSIC_GND

VDD12OUT

VDD18OUT

VDD33OUT

VDD5V_IN

HSIC_VDD33

HSIC_VDD10

AVDD10_PLL

AVDD10_DP

AVDD10_DOC

AVDD10_1

AVDD10_2

FVDD10

VDD10_1

VDD10_2

VDD10_3

VDD10_4

TX2P
TX2N

TX1P
TX1N

TX0P
TX0N

TXCP
TXCN

TDSCL
TDSDA

TX_HPD

NC_1
NC_2
NC_3
NC_4
NC_5
NC_6

HSIC_DAT

HSIC_STB

SPI_CLK

SPI_CS0

SPI_CS1

SPI_MOSI

SPI_MISO

GPIO5

GPIO4

GPIO3

GPIO2

GPIO1_PSCTL

GPIO0_CI2CA

XTAL_OUT

XTAL_IN

CSDA

CSCL

INT

TMODE

SII9679

UHD-RX0-C+

UHD-RX0-C-

UHD-RX0-0­UHD-RX0-0+

UHD-RX0-1­UHD-RX0-1+

UHD-RX0-2­UHD-RX0-2+

UHD-HDMI0-SCL
UHD-HPD0
UHD-AIN-5V

R115C 10

R142C 5.1K

C066C

1uF

10V

+5V

L002C

30H

C067C

10uF

6.3V

C031C

100nF

16V

R133C

1K

+3V3

R116C

10

10R117C

SCL-FE

SDA-FE

C068C 8.2pF

50V

50V

8.2pFC069C

+3V3

EDIDUHD-WP

SiI-SPI-MISO

SiI-SPI-MOSI

SiI-SPI-CS0

SiI-SPI-SCK

RX0-0-

RX0-0+

RX0-1-

RX0-1+

RX0-2-

RX0-2+

RX0-C-

RX0-C+

VDD10

FVDD10

AVDD10

AVDD10-DOC

AVDD10-DP

AVDD10-PLL

HSIC-VDD10

HSIC-VDD33

VDD5V-IN

VDDH33

VDDIO33

C032C 100nF

16V

C070C

4.7uF

6.3V

16V

100nFC033C

6.3V

4.7uFC071C

C034C 100nF

16V

C072C 4.7uF

6.3V

XTALVDD33

R118C 10
R119C

10

HDMI0-SCL
HDMI0-SDA

R139C 47K

47KR140C

+5V

+5V

S046C

50m

HPD0

R137C 1K
R105C

10K

+5V

D

C

S

W

HOLD

VCC

Q

VSS

FLASH

TYPE

U020C

M25P20

4

2

8

7

3

1

6

5

+3V3

C038C 100nF

16V

R112C 10K

+3V3

100R122C

100R129C

100R130C

100R132C

F051C

F053C

F054C

F056C

F057C

50m

S047C

SiI-SPI-MISO

SiI-SPI-CS0

SiI-SPI-SCK

SiI-SPI-MOSI

MX25L2006EM1C
9322 279 95668

2Mbit

DBG

X346

6

5

4

78

3

2

1

R113C 10K

+3V3

DBG

GND

GND_HS

VDD

NC

PGOOD

ADJ

VOUT

EN

VIN

U021C

RT9025

3

2

6

7

1

5

4

9

8

C056C 10uF

6.3V

C064C 1uF

6.3V

C073C 22uF

6.3V

C065C 1nF

50V

R138C

5%

22K

R143C

1

R144C

1%

220K

RES

R145C

680K

+1V5-MTK

+5V

+1V0-HDMI

R146C 56K

1%

F123C

30H

L003C

16V

100nFC044C

C046C 100nF

16V

+1V0-HDMI

AVDD10

L004C

30H

C047C 100nF

16V

+1V0-HDMI

FVDD10

30H

L005C

16V

100nFC048C

+3V3

XTALVDD33

L006C

30H

C049C 100nF

16V

+3V3

VDDIO33

C057C 10uF

6.3V

6.3V

10uFC058C

C059C 10uF

6.3V

6.3V

10uFC060C

30H

L007C

16V

100nFC050C

+1V0-HDMI

VDD10

C061C 10uF

6.3V

16V

100nFC051C

+5V

VDD5V-IN

C062C 10uF

6.3V

R120C

10

C055C 100nF

16V

VDDH33

6.3V

10uFC063C

U018C

2

3

1

AO3414

30H

L008C

+3V3

R114C 10K

+5V

UHD-HDMI0-SDA

TMDS OUT

HDCP-IRQn

393G022S021OTP

RES

HDCP-RESETn

+3V3

+1V0-HDMI

AVDD10-DOC

+1V0-HDMI

AVDD10-DP

+1V0-HDMI

AVDD10-PLL

+1V0-HDMI

HSIC-VDD10

+3V3

HSIC-VDD33

C074C 100nF

16V

16V

100nFC075C

16V

100nFC076C

C077C 100nF

16V

F124C

F125C

R050C 10K

F126C

L009C

30H

C078C 100nF

16V

6.3V

10uFC081C

30H

L010C

16V

100nFC079C

C082C 10uF

6.3V

L011C

30H

C080C 100nF

16V

6.3V

10uFC083C

30H

L012CL013C

30H

C084C 1uF

6.3V

6.3V

1uFC085C

R098C

4.7K

4.7K

4.7KR135C

R136C 4.7K

1MEG

R141C

143

2

X003C

27MEGHz

242254301698

RES

C086C 100nF

16V

RES

RES

RES

R149C 4.7K

4.7KR150C

4.7KR151C

GPio1_PSCTL

R121C 10KR152C

22K

R153C

1.8K

1.8KR154C

+5V

GPio1_PSCTL

EDID0-A1

R148C

U022C

2

3

1

BC847BW(COL)

30H

L014C

HDCP-RESETn

RES

R156C 10K

+3V3 +3V3

R157C 10K

I060C

I061C

I062C

I063C

I064C

I065C

I066C

I067C

I073C

I068C

I069C

I070C

I071CI072C

I052C

I053C

I054C

I055C

I056C

I057C

I058C

I059C

RES

RES

RES

RES

RES

S049C

50m

10-1-28 B, SiI9679CNUC ON HDMI1 FOR HDCP 2.2

EN 67QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-29 B, AUDIO AMPLIFIER

19580_110_140313.eps

14-03-26

AUDIO AMPLIFIER

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

VS

GND

IN

MT1MT2

+3V3

SPDIF-OUT

+12V-AUDIO PVDD

SPDIFO

C001D

100nF

16V

LINEINL
LINEINR

SOFTMUTE

CPM
CPP

MCLK
BICKI
LRCKI
SDI

RESET

PWDN

SDA
SCL
SA

TESTMODE

VCC_REG

VCC2

VCC1

VDD_REG

HALFVDD

VDD3V3

VDD3V3CHP

VDDDIG1

VREFFILT

VDDDIG2

OUT2B

OUT2A

OUT1B

OUT1A

F3XL
F3XR

LINEHPOUT_L
LINEHPOUT_R

FFX3A
FFX3B

EAPD|FFX4A

TWARNEXT|FFX4B

INTLINE

VSS

GND2

GND1

GND_REG

GNDA

CPVSS

GNDPSUB

GNDDIG1

AGNDPLL

GNDDIG2

GND_HS

RES

C016D 100nF

16V

STA381BWS

49

473529

25

23

2012942

42

33

32

31

30

19

18

15

14

10

7

6
3

483428

272213

11

851

46

45

44

43

41

40

39

38

37

36

26

24

21

17

16

U002D

C030D1uF

6,3V

6,3V

1uFC031D

C017D 100nF

16V

16V

100nFC018D

PVDD

6,3V

C039D 100uF

+3V3

C040D

16V

100nF

C041D

100uF

6,3V

I2S-MCLK
I2S-BICKI
I2S-LRCKI
I2S-SDI

SDA-SSB
SCL-SSB

1uF

C034D

C035D

1uF

R022D 11,8K

11,8KR023D

HPHOL
HPHOR

R026D 10

RES

R005D

5%

1K

PWRD

RES

1K

5%

R006D

+3V3

2,2K

5%

R027D

16V

100uF

C049D

C050D

100uF 16V

C051D

100uF

16V

16V100uF

C052D

R028D

5%

2,2K

2,2K

5%

R029D

R030D

5%

2,2K

PVDD

RES

4V 100uF

C037D

R008D

5%

1K631K

5%

R008D

54

S002D

16V

22nFC058D

3

2

1

X274

C059D 22nF

16V

S003D

RES

C038D

100uF4V

F002D

F003D

F004D

I002D

I003D

C003D

100uF 16V

16V100uF

C004D

C006D

100uF 16V

16V100uF

C007D

12V PVDD Only

LSPK+

LSPK-

RSPK+

RSPK-

BAS

+3V3

R004D

5%

10K

R039D

6,8K

R003D

2,2K

C005D

100uF 16V

U004D

2

3

1

+3V3

R007D

5%

10K

U005D

2

3

1

+3V3

R047D

180K

U006D

2

3

1

4,7K

5%

R046D

S009D

RES

S010D

S011D
S012D

+12V-AUDIO

PWRDN-HP

PWRD

D006DD007D

D008D

PWRDN-HP

6,3V

1uFC062D

1K

5%

R040D

AUDIO-RESETn

C025D 10uF

25V

25V

10uFC026D

C043D 10uF

25V

25V

10uFC044D

50V

220nFC019D

C020D 220nF

50V50V

220nFC021D

C022D 220nF

50V

50V

220nFC023D

50V

220nFC024D

C068D330pF

50V

R013D

5%

18

C069D330pF

50V

R014D

5%

18

C070D330pF

50V

18R015D

5%

50V

330pF C071D

5%

R016D 18

C072D 10nF

50V

50V

10nFC073D

C074D 10nF

50V

50V

10nFC075D

50V

10nFC076D

50V

10nFC077D

PVDD

+3V3

S017D

S018D

F005D
F006D

F007D

R056D

5%

2,7 2,7

5%

R057D R058D

5%

2,7 2,7

5%

R059D

50V

220nFC063D

C064D 220nF

50V

C065D 220nF

50V

50V

220nFC078D

S023D

S024D

HPHOL

HPHOR

S005D

I001D

X273

5

4

1

3

2

R033D 1

C029D 100pF

50V

F001D

50m

S001D

S004D

50m

S006D
S007D

S008D
S013D

I008D I009D

I010D

I011D

I012D

I014D

I015D

I017D

I019D

I020D

I021D

F008D

F009D

F010D

F011D

F012D

F013D

F014D

F015D

F016D

C079D 1uF

6,3V

RES

RES

AUDIO-AL0

AUDIO-AR0

C080D

1uF

C081D

1uF

R011D

11,8K
11,8KR012D

RES

RES

C042D 100nF

16V

S020D

50m

50m

S021D

C055D 1uF

6,3V

C056D

1uF

6.3V

C057D 1uF

6.3V

RES

RES

RES

RES

R021D 47

47R020D

RES

C045D 100nF

16V

16V

100nFC054D

RES

C066D 100nF

16V

RES

16V

100nFC067D

RES

C046D 100nF

16V

RES

16V

100nFC053D

C047D 100nF

16V

C048D 100nF

16V

C033D 100nF

16V

RES

RES

16V

100nFC032D

L003D

22uH

22uH

L002D

L001D

22uH

22uH

L005D

RES

RES

X070

4

56

3
2
1

TYPE

TYPETYPE

3

2

1

X001D

1
2
3
54

X072

50m

S044D

50m

S045D

S046D

50m

50m

S047D

S048D

50m

S049D

50m

50m

S036D

S037D

50m

50m

S038D

50m

S039D

50m

S040D

S041D

50m

50m

50m

S042D

S043D

R002D8133

5%

R002D

72

33

5%

R002D

63

33

5%

R002D

54

33

5%

C086D

330pF

50V

50V

330pFC085D

C087D 68pF

50V

50V

68pFC088D

HPHOR
HPHOL

R050D 16K
R051D 16K

R025D

16K

16KR024D

X002

5

4

3

2

1

EMC

I004D

I005D

I006D

I007D

I016D

I018D

I022D

I023D

I024D

I025D

I026D

I027D

I028D

I029D

I030D

I031D

I032D

F017D

TYPE

3

4

X002D

2
1

DBG

DBG

C089D

1uF

25V

25V

1uF C090D

R010D 10

PWRD

AUDIO-RESETn

S014D

50m

R001D 10

TYPE

X073

4

56

3
2
1

TYPE

DBG

X003D

4
3
2
1

RES

RES

RES

RES

RES

Circuit Diagrams and PWB Layouts

EN 68QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-30 B, MASTER - LVD RX

19580_111_140313.eps

14-03-26

MASTER - LVDS RX

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

R029B 100

R072B 100

100R073B

R074B 100

R075B 100

R076B 100

R077B 100

R078B 100

R079B 100

R080B 100

R081B 100

R082B 100

100 R083B

R084B100

100 R085B

100 R086B

100 R087B

100 R088B

100 R089B

100 R090B

100 R091B

100 R092B

100 R093B

100 R094B

MASTER

CRE0_N

AK28

CRE0_P

AJ28

CRE1_N

AH29

CRE1_P

AJ29

CRE2_N

AH30

CRE2_P

AJ30

CRE3_N

AG29

CRE3_P

AF28

CRE4_N

AF29

CRE4_P

AE28

CRECLK_N

AG28

CRECLK_P

AG30

CRO0_N

AH24

CRO0_P

AJ24

CRO1_N

AK24

CRO1_P

AH25

CRO2_N

AK25

CRO2_P

AJ25

CRO3_N

AH27

CRO3_P

AJ27

CRO4_N

AK27

CRO4_P

AH28

CROCLK_N

AH26

CROCLK_P

AJ26

DRE0_N

AK18

DRE0_P

AJ18

DRE1_N

AH19

DRE1_P

AJ19

DRE2_N

AH20

DRE2_P

AJ20

DRE3_N

AK21

DRE3_P

AJ21

DRE4_N

AH22

DRE4_P

AJ22

DRECLK_N

AK20

DRECLK_P

AH21

DRO0_N

AH14

DRO0_P

AJ14

DRO1_N

AK14

DRO1_P

AH15

DRO2_N

AK15

DRO2_P

AJ15

DRO3_N

AH17

DRO3_P

AJ17

DRO4_N

AK17

DRO4_P

AH18

DROCLK_N

AH16

DROCLK_P

AJ16

ARE0_N
ARE0_P
ARE1_N
ARE1_P
ARE2_N
ARE2_P
ARE3_N
ARE3_P
ARE4_N

ARE4_P
ARECLK_N
ARECLK_P

ARO0_N

ARO0_P

ARO1_N

ARO1_P

ARO2_N

ARO2_P

ARO3_N

ARO3_P

ARO4_N

ARO4_P
AROCLK_N
AROCLK_P

BRE0_N

BRE0_P

BRE1_N

BRE1_P

BRE2_N

BRE2_P

BRE3_N

BRE3_P

BRE4_N

BRE4_P
BRECLK_N
BRECLK_P

BRO0_N

BRO0_P

BRO1_N

BRO1_P

BRO2_N

BRO2_P

BRO3_N

BRO3_P

BRO4_N

BRO4_P
BROCLK_N
BROCLK_P

LVDS_RX

U001B

NT72314

AB29

AB30

Y29

Y28

AA29

AA28

AB28

AC30

AC29

AC28

AD29

AD28

U29

U28

T29

T30

T28

U30

V29

V28

W29

W30

W28

Y30

M29

M30

K29

K28

L29

L28

M28

N30

N29

N28

P29

P28

G29

G28

F29

F30

F28

G30

H29

H28

K30
J28
J30
J29

FROM MTK 2

FROM MTK

R097B 100

R111B 100

100R115B

R116B 100

R117B 100

R122B 100

R124B 100

R125B 100

R126B 100

R127B 100

R128B 100

R129B 100

FROM MTK

DT-TX-AO0N
DT-TX-AO0P
DT-TX-AO1N
DT-TX-AO1P
DT-TX-AO2N
DT-TX-AO2P
DT-TX-AO3N
DT-TX-AO3P
DT-TX-AO4N
DT-TX-AO4P
DT-TX-AOCLKN
DT-TX-AOCLKP

DT-TX-AE0N
DT-TX-AE0P
DT-TX-AE1N
DT-TX-AE1P
DT-TX-AE2N
DT-TX-AE2P
DT-TX-AE3N
DT-TX-AE3P
DT-TX-AE4N
DT-TX-AE4P
DT-TX-AECLKN
DT-TX-AECLKP

DT-TX-AO0N
DT-TX-AO0P
DT-TX-AO1N
DT-TX-AO1P
DT-TX-AO2N
DT-TX-AO2P
DT-TX-AO3N
DT-TX-AO3P
DT-TX-AO4N
DT-TX-AO4P
DT-TX-AOCLKN
DT-TX-AOCLKP

DT-TX-AE0N
DT-TX-AE0P
DT-TX-AE1N
DT-TX-AE1P
DT-TX-AE2N
DT-TX-AE2P
DT-TX-AE3N
DT-TX-AE3P
DT-TX-AE4N
DT-TX-AE4P
DT-TX-AECLKN

DT-TX-AECLKP
TX-BO0N
TX-BO0P
TX-BO1N
TX-BO1P
TX-BO2N
TX-BO2P
TX-BO3N
TX-BO3P
TX-BO4N
TX-BO4P

TX-BOCLKN
TX-BOCLKP

TX-BE0N
TX-BE0P
TX-BE1N
TX-BE1P
TX-BE2N
TX-BE2P
TX-BE3N
TX-BE3P
TX-BE4N
TX-BE4P

TX-BECLKN
TX-BECLKP

TX-BE0N

TX-BE0P

TX-BE1N

TX-BE1P

TX-BE2N

TX-BE2P

TX-BE3N

TX-BE3P

TX-BE4N

TX-BE4P
TX-BECLKN
TX-BECLKP

TX-BO0N

TX-BO0P

TX-BO1N

TX-BO1P

TX-BO2N

TX-BO2P

TX-BO3N

TX-BO3P

TX-BO4N

TX-BO4P
TX-BOCLKN
TX-BOCLKP

TX-AO0N
TX-AO0P
TX-AO1N
TX-AO1P
TX-AO2N
TX-AO2P
TX-AO3N
TX-AO3P
TX-AO4N
TX-AO4P
TX-AOCLKN
TX-AOCLKP

TX-AE0N
TX-AE0P
TX-AE1N
TX-AE1P
TX-AE2N
TX-AE2P
TX-AE3N
TX-AE3P
TX-AE4N
TX-AE4P

TX-AECLKN

TX-AECLKP

TX-AO0N
TX-AO0P
TX-AO1N
TX-AO1P
TX-AO2N
TX-AO2P
TX-AO3N
TX-AO3P
TX-AO4N

TX-AO4P
TX-AOCLKN
TX-AOCLKP

TX-AE0N
TX-AE0P
TX-AE1N
TX-AE1P
TX-AE2N
TX-AE2P
TX-AE3N
TX-AE3P
TX-AE4N
TX-AE4P
TX-AECLKN
TX-AECLKP

Circuit Diagrams and PWB Layouts

EN 69QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-31 B, MASTER V-BY-ONE OUTPUT

19580_112_140313.eps

14-03-26

MASTER V -BY-ONE OUTPUT

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

TX0N
TX0P
TX1N
TX1P
TX2N
TX2P
TX3N
TX3P
TX4N
TX4P
TX5N
TX5P
TX6N
TX6P
TX7N
TX7P

HTPDN
LOCKN

EXT_SWING

OSCI

OSCO

XTAL_BUF_OUT_N
XTAL_BUF_OUT_P

SYS_RESET

TEST
TEST_MPLL
TEST_RX

ATE0_N
ATE0_P
ATE1_N
ATE1_P
ATE2_N
ATE2_P
ATE3_N
ATE3_P
ATE4_N

ATE4_P
ATECLK_N
ATECLK_P

ATO0_N

ATO0_P

ATO1_N

ATO1_P

ATO2_N

ATO2_P

ATO3_N

ATO3_P

ATO4_N

ATO4_P
ATOCLK_N
ATOCLK_P

BTE0_N

BTE0_P

BTE1_N

BTE1_P

BTE2_N

BTE2_P

BTE3_N

BTE3_P

BTE4_N

BTE4_P
BTECLK_N
BTECLK_P

BTO0_N

BTO0_P

BTO1_N

BTO1_P

BTO2_N

BTO2_P

BTO3_N

BTO3_P

BTO4_N

BTO4_P
BTOCLK_N
BTOCLK_P

SYS_LVDS_VX1

TYPE

VCC

RESET

GND

U001B

R3

R2

N1

P3

P1

P2

T3

T2

T1

U3

U1

U2

K1

L3

J3

J2

K3

K2

L1

L2

M3

M2

N3

N2

AE3

AE2

AC1

AD3

AD1

AD2

AF3

AF2

AF1

AG3

AG1

AG2

Y1

AA3

W3

W2

Y3

Y2

AA1

AA2

AB3

AB2

AC3

AC2

V26

F5

J4

AF11

F2

F1

G2

G1

AJ10

AK10

AJ11

AK2

AJ2

AK3

AJ3

AK4

AJ4

AK5

AJ5

AK6

AJ6

AK7

AJ7

AK8

AJ8

AK9

AJ9

C029B 100nF

16V

16V

100nFC030B

16V

100nFC031B

C032B 100nF

16V

C033B 100nF

16V

16V

100nFC034B

16V

100nFC035B

C036B 100nF

16V

C037B 100nF

16V

16V

100nFC038B

16V

100nFC039B

C040B 100nF

16V

C041B 100nF

16V

16V

100nFC042B

16V

100nFC043B

C044B 100nF

16V

R234B 12K

HTPDn
LOCKn

R286B

100

100R287B

C045B 100nF

16V

X013B

SKHU

3

24

1

+3V3-NVT

DBG

R292B 470

DBG

D001B

GREEN

+3V3-NVT

VB1-TX0N
VB1-TX0P
VB1-TX1N
VB1-TX1P
VB1-TX2N
VB1-TX2P
VB1-TX3N
VB1-TX3P
VB1-TX4N
VB1-TX4P
VB1-TX5N
VB1-TX5P
VB1-TX6N
VB1-TX6P
VB1-TX7N
VB1-TX7P

MASTER

U011B
PDTC144EU

2

3

1

S001B

50m

F001B

F002B

F003B

C278B 22pF

50V

50V

22pFC279B

R107B

100

100

R108B

R204B

10K

+3V3-NVT

10K

R205B

+3V3-NVT

X019B

12MEGHz

1

4

3

2

U013B

NCP803

1

2

3

+3V3-NVT

F006B

X025B

X026B

X027B

X028B

X029B

X030B

X031B

X032B

X033B

X034B

X035B

X036B

X037B

X038B

X039B

X040B

X041B

X042B

I018B

R222B

4.7K

1K R289B

U024B

2

3

1

BC857BW(COL)

+3V3-NVT

470R312B

LOCKn

D008B

GREEN

TYPE
X055

51

50

49

48

47

46

45

44

43

42

61

59

57

55

60

58

56

54

5253

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

VDISP

10pF C328B

RES

RES

R010B

47

RES

47

R011B

RES

100

R005B

R006B

100

100

R007B

R008B

100

100

R009B

RES

10pF C329B

F113B

I032B

I033B

I034B

I035B

I036B

I037B

I038B

RES

100nF C323B

C324B100nF

RES

RES

100nF C325B

RES

100nF C326B

C327B100nF

RES

SDA-DISP
SCL-DISP

NT-CTRL-DISP2
NT-CTRL-DISP1

VB1-TX0N

VB1-TX0P

VB1-TX1N

VB1-TX7P

VB1-TX7N

VB1-TX6P
VB1-TX6N

VB1-TX5P
VB1-TX5N

VB1-TX4P
VB1-TX4N

VB1-TX3P
VB1-TX3N

VB1-TX2P
VB1-TX2N

HTPDn

LOCKn

BE-RESETn

BE-RESETn

DBG

DBG

DBG

DBG

DBG

DBG

C271B 100nF

16V

VB1-TX1P

NT-CTRL-DISP4
NT-CTRL-DISP3
NT-CTRL-DISP1

F009B

F010B

F013B

F014B

F015B

R253B

12K

12K

R254B

F102B

X001B

R001B 1MEG

R014B

100

3D-ENABLE

F118B

CTRL-DISP2
CTRL-DISP3

CTRL-DISP1

FHD-200Hz

Circuit Diagrams and PWB Layouts

EN 70QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-32 B, V-BY-ONE ULTRA HD 50 Hz

19580_113_140313.eps

14-03-26

V-by-One Ultra HD 50 Hz

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

TYPE

X061

51

50

49

48

47

46

45

44

43

42

61

59

57

55

60

58

56

54

5253

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

VB1-TX7P
VB1-TX7N

VB1-TX6P
VB1-TX6N

VB1-TX5P
VB1-TX5N

VB1-TX3P
VB1-TX3N

VB1-TX4N

VB1-TX4P

VB1-TX2P
VB1-TX2N

VB1-TX1P
VB1-TX1N

VB1-TX0P
VB1-TX0N

VDISP

LOCKn
HTPDn

R130B

100

5%

R131B

100

5%

3D-ENABLE

NT-CTRL-DISP3

C047B

1nF

50V

F132B

R132B

100

C048B 1nF

50V

UHD-50Hz

I025B

NT-CTRL-DISP1

Circuit Diagrams and PWB Layouts

EN 71QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-33 B, MASTER I/O, FLASH MEMORY

19580_114_140313.eps

14-03-26

MASTER I/O , FLASH memory

B B

2014-02-14

1

715RLPCB000000037

MTK UHD 50 Hz

7800

U001B

AF12

AG11

AE5

AE4

AD5

AD4

P26

R27

R26

T27

T4

R5

R4

P5

P4

AC5

AC4

AB5

AB4

AA5

AA4

Y5

Y4

W5

W4

V5

AF18

AG17

AF17

AG16

H27

H26

T26

U27

J27

U26

V27

J26

K27

K26

N5

N4

N27

M26

T5

U4

U5

V4

AG18

AF19

AG19

AF20

AG20

AF21

AG21

AG22

AG12

AF13

AG13

AF14

AG14

AF15

AG15

AF16

J5

K4

K5

L4

L5

M4

M5

P27

N26

M27

L26

G26

G27

F26

L27

AF22

GPIOC_15|PWM_OUT
GPIOC_14|PWM_IN
GPIOC_13|BS8
GPIOC_12|BS7
GPIOC_11|BS6
GPIOC_10|I2C_M_4_SDA
GPIOC_09|I2C_M_4_SCK
GPIOC_08|SPI_0_WS
GPIOC_07|SPI_0_HOLD
GPIOC_06|SPI_1_CS_7|BS9
GPIOC_05|SPI_1_CS_6
GPIOC_04|SPI_1_CS_5
GPIOC_03|SPI_1_CS_4
GPIOC_02|SPI_1_CS_3
GPIOC_01|SPI_1_CS_2
GPIOC_00|SPI_1_CS_1

GPIOB_31|SPI_SLAVER_DO|HSYNC_3
GPIOB_30|SPI_SLAVER_DI|VSYNC_3
GPIOB_29|SPI_SLAVER_CK|VDE_3
GPIOB_28|SPI_SLAVER_CS|H_OUT_3
GPIOB_27|LED_SPI_DO1|HSYNC_2
GPIOB_26|LED_SPI_DI1|LED_YDIO1|VSYNC_2
GPIOB_25|LED_SPI_CK1|LED_I2C_SDA1|VDE_2
GPIOB_24|LED_SPI_CS1|LED_I2C_SCL1|H_OUT_2
GPIOB_23|PWM_7|LED_SPI_DO2|HSYNC_1
GPIOB_22|PWM_6|LED_SPI_DI2|YDIO0|VSYNC_1
GPIOB_21|PWM_5|LED_SPI_CK2|LED_I2C_SDA0|VDE_1
GPIOB_20|PWM_4|LED_SPI_CS2|LED_I2C_SCL0|H_OUT_1
GPIOB_19|PWM_3|LED_SPI_DO0|HSYNC_0
GPIOB_18|PWM_2|LED_SPI_DI0|VSYNC_0
GPIOB_17|PWM_1|LED_SPI_CK0|VDE_0
GPIOB_16|PWM_0|LED_SPI_CS0|H_OUT_0
GPIOB_15|SPI_1_CS0|MULTI_CHIP
GPIOB_14|SPI_1_CK|MULTI_CHIP
GPIOB_13|SPI_1_DO|MULTI_CHIP
GPIOB_12|SPI_1_DI|MULTI_CHIP
GPIOB_11|SDA_SLAVER|MAIL_BOX
GPIOB_10|SCK_SLAVER|MAIL_BOX

GPIOA_0|I2C_SLAVE_SCL|MULTI_LVSYNC_OUT|MULTI_IVSYNC_IN
GPIOA_1|I2C_SLAVE_SDA|MULTI_PVSYNC_OUT|MULTI_PVSYNC_IN

GPIOA_2|BS0
GPIOA_3|BS1
GPIOA_4|BS2

GPIOA_5|3D_LR_IN

GPIOA_6|3D_IR_OUT_0

GPIOA_7|BS3
GPIOA_8|3D_IR_OUT_1
GPIOA_9|3D_IR_OUT_2

GPIOA_10|BS4

GPIOA_11|BS5
GPIOA_12|I2C_M2_SCK|LED_SPI_CS3|AMBI_LIGHT
GPIOA_13|I2C_M2_SDA|LED_SPI_CK3|AMBI_LIGHT
GPIOA_14|I2C_M3_SCK|LED_SPI_DI3|AMBI_LIGHT
GPIOA_15|I2C_M3_SDA|LED_SPI_DO3|AMBI_LIGHT

GPIOA_16|MASTER_READY_0
GPIOA_17|MASTER_READY_1
GPIOA_18|MASTER_READY_2
GPIOA_19|MASTER_READY_3

GPIOA_20|SLAVE_SYNC_1
GPIOA_21|SLAVE_SYNC_2
GPIOA_22|SLAVE_SYNC_3
GPIOA_23|SLAVE_SYNC_4
GPIOA_24|SLAVE_SYNC_5
GPIOA_25|SLAVE_SYNC_6
GPIOA_26|SLAVE_SYNC_7

GPIOA_27|MULTI_CFG0|PHSYNC_OUT|MULTI_PHSYNC_IN

GPIOA_28|MULTI_CHIP_CFG1
GPIOA_29|MULTI_CHIP_CFG2
GPIOA_30|MULTI_CHIP_CFG3

GPIOA_31|SLAVE_RESET

GPIOB_0|SPI_0_DI
GPIOB_1|SPI_0_DO
GPIOB_2|SPI_0_CK

GPIOB_3|SPI_0_CS
GPIOB_4|ICE_DSU_TX
GPIOB_5|ICE_DSU_RX

GPIOB_6|UART_RX1

GPIOB_7|UART_TX1
GPIOB_8|SCK_MASTER
GPIOB_9|SDA_MASTER

GPIO

TYPE

R200B 47

R201B

47

SDA-BE
SCL-BE

BL-DIM8
BL-DIM7
BL-DIM6
BL-DIM5
BL-DIM4
BL-DIM3
BL-DIM2
BL-DIM1

22R190B

F079B

F080B

22R156B

R157B 22

NT-AMBI-SPI-CLK

NT-AMBI-SPI-MOSI

R170B 22

22R171B

R172B 22

22R173B

R174B 22

22R175B

22R176B

SPI0-DI
SPI0-DO

SPI0-CLK

SPI0-CS
M-DSU-TX
M-DSU-RX

M-UART-RX
M-UART-TX

BS0
MBS1
MBS2

MBS3

MBS4
MBS5

SWDBG

U010B

11

6

1

7

10

8

9

5

2

4

3

1Z

1S

1Y1

1Y0

2Z

2S

2Y1

2Y0

VCC

GND

GND_HS

NX3L4684TK

AMBI-SPI-SWITCH
AMBI-SPI-CLK
NT-AMBI-SPI-CLK

AMBI-SPI-MOSI

AMBI-SPI-SWITCH

SCL-BE
SDA-BE

C277B

100nF

16V

+3V3

M-DSU-RX
M-DSU-TX
M-UART-RX
M-UART-TX

+3V3-NVT

SPI0-CLK
SPI0-CS
SPI0-DO
SPI0-DI

M-DSU-TX
M-DSU-RX

F081B

R206B 10K

5%

R207B 22

C275B

100nF

16V

+3V3-NVT

SPI0-DI

SPI0-DO
SPI0-CLK
SPI0-CS

SPI0-HOLD

10KR208B

SPI0-WP

F086B

F087B

F088B

F089B

F090B

F091B

BL-I-CTRL
MBS8

MBS7
MBS6

SPI0-WP
SPI0-HOLD
MBS9

NT-CTRL-DISP2

10KR300B

R224B

4.7K
5%

5%

4.7KR225B

R226B 4.7K

5%

5%

4.7KR227B

1
2
3
5 4

TYPE

1
2
3
5 4

TYPE

1
2
3
5 4

TYPE

F149B

NT-CTRL-DISP4

NT-CTRL-DISP3

3D-GOGGLES

MTK-3D-LR

NT-LCD-PWR-ON

AMBI-SPI-SWITCH

U003B

4

2

8

7

3

1

6

5

D

C

S

W

HOLD

VCC

Q

VSS

FLASH

M25P16-VMN6P

MTK-AMBI-SPI-CLK MTK-AMBI-SPI-MOSI

NT-AMBI-SPI-MOSI

NT-CTRL-DISP1

SPLASH-ON

X314B

5

4

67

3

2

1

TYPE

F155B

F156B

F157B

F158B

F159B

DBG

BE-RESETn

M-UART-TX
M-UART-RX

10KR244B

BL-ON

F030B

F031B

X342B

6

5

4

78

3

2

1

TYPE

DBG

1
2
3
5 4

TYPE

10KR236B

R239B 10K

10KR259B

10KR260B

R262B 10K

10KR263B

10KR264B

R265B 10K

10KR266B

10KR267B

1

4

3

2

DBG

SKHU

X015B

MBS1
MBS2

MBS4
MBS5
MBS6

MBS8
MBS9

BS0

S013B

50m

SDA-BE

SCL-BE

S016B

SDA-DISP

SCL-DISP

R177B 4.7K

4.7KR178B

SDA-DISP
SCL-DISP

+3V3

SCL-DISP
SDA-DISP

F140B

F144B

F145B

F146B

MBS7

MBS3

+3V3-NVT

R181B 22

R182B

22

R212B

22

F122B

F123B

F124B

F125B

F126B

F127B

F128B

F129B

F130B

F131B

CTRL-DISP1

X312B

X313B

X323B

X325

3D-GOGGLES

S014B

50m

MTK-3D-GOGGLES

R133B

1K

R189B 22

R160B

4.7K

U008B

2

3

1

PDTC144EU

SCL
SDA

INT

RESET

A0
A1

VCC

SD0
SC0

INT0

SD1
SC1

INT1

GND

+3V3

SCL-DISP

SDA-DISPSCL-BE

U022B
PCA9543APWR

7

8

10

9

4

6

5

14

2

1

3

11

13

12

+3V3

SDA-BE

R159B

10

BE-RESETn

R096B 10K

+3V3

10KR154B

C050B 100nF

16V

RES

R155B 10K

R161B 4.7K

10KR158B

4.7KR162B

I023B

F133B

D002B

D003B

D005B

D007B

D009B

D010B

D011B

R013B 22

MTK-3D-LR

Circuit Diagrams and PWB Layouts

EN 72QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-34 B, MASTER - DDR

19580_115_140313.eps

14-03-26

MASTER DDR

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
MA9
MA10
MA11
MA12
MA13

MBA0
MBA1
MBA2

MWE
MCAS
MRAS

DDR_MCKE
DDR_ODT
DDR_MRST

DDR_CS0
DDR_CS1

DDR1_MCLK0_P
DDR1_MCLK0_N

DDR2_MCLK0_P
DDR2_MCLK0_N

BYPASS_TEST0

DDR_VREF

DDR1_DQL0
DDR1_DQL1
DDR1_DQL2
DDR1_DQL3
DDR1_DQL4
DDR1_DQL5
DDR1_DQL6
DDR1_DQL7

DDR1_DQU0
DDR1_DQU1
DDR1_DQU2
DDR1_DQU3
DDR1_DQU4
DDR1_DQU5
DDR1_DQU6
DDR1_DQU7

DDR1_DQSL_P
DDR1_DQSL_N

DDR1_DQSU_P
DDR1_DQSU_N

DDR1_DML
DDR1_DMU

DDR2_DQL0
DDR2_DQL1
DDR2_DQL2
DDR2_DQL3
DDR2_DQL4
DDR2_DQL5
DDR2_DQL6
DDR2_DQL7

DDR2_DQU0
DDR2_DQU1
DDR2_DQU2
DDR2_DQU3
DDR2_DQU4
DDR2_DQU5
DDR2_DQU6
DDR2_DQU7

DDR2_DQSL_P
DDR2_DQSL_N

DDR2_DQSU_P
DDR2_DQSU_N

DDR2_DML
DDR2_DMU

DDR3_32BIT

DDR1V5-M

+1V5-M

DDR1V5-M

DQSL

DQSL

DQSU2

DQSU1

DMU

DML

RESET

WE

CS

CKE

CK

CK

CAS

ODT

RAS

ZQ

VREFCA

VREFDQ

NC

7

6

5

4

3

2

1

0

DQU

7

6

5

4

3

2

1

0

DQL

0
12BA

VDDVDDQ

VSSVSSQ

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14

A

BC
AP

DDR1V5-M

GND

GND

DDR1V5-M

DQSL

DQSL

DQSU2

DQSU1

DMU

DML

RESET

WE

CS

CKE

CK

CK

CAS

ODT

RAS

ZQ

VREFCA

VREFDQ

NC

7

6

5

4

3

2

1

0

DQU

7

6

5

4

3

2

1

0

DQL

0
12BA

VDDVDDQ

VSSVSSQ

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14

A

BC
AP

DDR1V5-M

GND

DDR1V5-M

C001B 10nF

16V

U004B
H5TQ1G63BFR-H9C

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
M7

H1
M8

L8

M2
N8
M3

J3
K1
K3
J7
K7
K9
L2
L3
T2

E7
D3

G9

G1F9E8E2D8D1B9B1T9T1P9P1M9

M1J8J2G8E1B3A9

D7
C3
C8
C2
A7
A2
B8
A3

B7
C7

F3
G3

E3
F7
F2
F8
H3
H8
G2
H7

J1
J9
L1
L9
T7

H9

H2F1E9D2C9C1A8A1R9R1N9

N1

K8K2G7D9B2

U001B

A28

B23

A25

B25

C25

B26

C26

A24

B27

C24

C27

C23

A27

B24

A22

B29

C21

C29

B22

C28

C22

B28

C8

C3

C5

B6

A6

C6

A7

C4

B7

B5

B8

A4

C7

B4

C2

C9

B2

A10

B3

A9

A3

B9

H15

B16

B18

C17

B17

C16

B11

C10

B13

B10

A21

A16

C15

A15

B12

C20

C11

C13

B20

A18

B21

B14

A19

A13

B19

C12

C19

A12

C14

C18

B15

C003B 100nF

16V

R015B 1K

R016B1%1K

R017B

1%

1K

R030B 22

54

R030B 22

63

2

R030B 22

7

R030B 22

81

22R031B

54

22R031B

63

22R031B

72

R032B 22

54

R032B 22

63

R032B 22

72

R032B 22

81

22R033B

54

22R033B

63

22R033B

72

81

22R033B

R018B1K

1%

R245B

240

1%

C071B 1nF

50V

1K R019B

RES

R214B 1K

G2
H7

J1
J9
L1
L9
T7

H9H2F1E9D2C9C1

A8

A1R9R1N9N1K8K2G7D9

B2

H5TQ1G63BFR-H9C

U005B

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
M7

H1
M8

L8

M2
N8
M3

J3
K1
K3
J7
K7
K9
L2
L3
T2

E7
D3

G9

G1F9E8E2D8D1B9B1T9

T1

P9

P1M9M1

J8J2G8

E1

B3

A9

D7
C3
C8
C2
A7
A2
B8
A3

B7
C7

F3
G3

E3
F7
F2
F8
H3
H8

1%

1K

R020B

1%

240

R246B

50V

1nFC072B

R021B1K

1%

RES

1KR215B

L001B

30H

C063B 10uF

6,3V

6,3V

10uFC064B

C004B 100nF

16V

16V

100nFC005B

C006B 100nF

16V

16V

100nFC007B

C008B 100nF

16V

16V

100nFC009B

C010B

100nF

16V

16V

100nFC011B

C012B 100nF

16V

16V

100nFC013B

C014B 100nF

16V

16V

100nFC015B

R052B 1K

1%

R068B

100

1%

1%

100R069B

DDR1V5-M

MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
MA9
MA10
MA11
MA12
MA13

MBA0
MBA1
MBA2

MWEn
MCASn
MRASn

MCKE
MODT
MRSTn

MCS0n
MCS1n

MCLKA-P
MCLKA-N

MCLKB-P
MCLKB-N

MBA1
MA12

MA4
MA6

MA8
MA1

MA11

MA2
MA9

MA13
MRSTn

MA5
MA3

MBA2
MBA0

DDRA-DQU0
DDRA-DQU1
DDRA-DQU2
DDRA-DQU3
DDRA-DQU4
DDRA-DQU5
DDRA-DQU6
DDRA-DQU7

DDRA-DQL0
DDRA-DQL1
DDRA-DQL2
DDRA-DQL3
DDRA-DQL4
DDRA-DQL5
DDRA-DQL6
DDRA-DQL7

DDRA-DQSL-P
DDRA-DQSL-N

DDRA-DQSU-N
DDRA-DQSU-P

DDRA-DQL0
DDRA-DQL1
DDRA-DQL2
DDRA-DQL3
DDRA-DQL4
DDRA-DQL5
DDRA-DQL6
DDRA-DQL7

DDRA-DQU0
DDRA-DQU1
DDRA-DQU2
DDRA-DQU3
DDRA-DQU4
DDRA-DQU5
DDRA-DQU6
DDRA-DQU7

DDRA-DQSL-P
DDRA-DQSL-N

DDRA-DQSU-P
DDRA-DQSU-N

DDRA-DML
DDRA-DMU

DDRB-DQL0
DDRB-DQL1
DDRB-DQL2
DDRB-DQL3
DDRB-DQL4
DDRB-DQL5
DDRB-DQL6
DDRB-DQL7

DDRB-DQU0
DDRB-DQU1
DDRB-DQU2
DDRB-DQU3
DDRB-DQU4
DDRB-DQU5
DDRB-DQU6
DDRB-DQU7

DDRB-DQSU-P
DDRB-DQSU-N

DDRB-DQSL-P
DDRB-DQSL-N

DDRB-DML
DDRB-DMU

DDRM-BA0
DDRM-BA1
DDRM-BA2

DDR-MRASn
DDR-MCASn

DDR-MODT

DDR-MCLKA-P
DDR-MCLKA-N

DDR-MCKE
DDR-MCS0n
DDR-MWEn
DDR-MRSTn

DDRA-DML
DDRA-DMU

DDR-MCS0n

DDRB-DQU0
DDRB-DQU1
DDRB-DQU2
DDRB-DQU3
DDRB-DQU4
DDRB-DQU5
DDRB-DQU6
DDRB-DQU7

DDRB-DQL0
DDRB-DQL1
DDRB-DQL2
DDRB-DQL3
DDRB-DQL4
DDRB-DQL5
DDRB-DQL6
DDRB-DQL7

DDRB-DQSL-P
DDRB-DQSL-N

DDRB-DQSU-N
DDRB-DQSU-P

DDRB-DML
DDRB-DMU

DDRM-BA0
DDRM-BA1
DDRM-BA2

DDR-MRASn
DDR-MODT
DDR-MCASn

DDR-MCKE
DDR-MCS1n
DDR-MWEn
DDR-MRSTn

DDR-MCS1n

DDR-MCLKB-P
DDR-MCLKB-N

DDR-MA0

DDR-MA1

DDR-MA2

DDR-MA3

DDR-MA4

DDR-MA5

DDR-MA6

DDR-MA7

DDR-MA8

DDR-MA9

DDR-MA10

DDR-MA11

DDR-MA12

DDR-MA13

DDRM-BA1

DDR-MRSTn

DDRM-BA2
DDRM-BA0

DDR-MCKE

DDR-MRASn
DDR-MCASn
DDR-MWEn

DDR-MCS0n
DDR-MCS1n
DDR-MCLKA-N
DDR-MCLKA-P
DDR-MCLKB-N
DDR-MCLKB-P

DDR-MODT

DDR-MCLKA-P
DDR-MCLKA-N
DDR-MCLKB-P
DDR-MCLKB-N

MA0

MA7

MA10

MCKE

MRASn
MCASn
MWEn

MCS0n

MCS1n
MCLKA-N
MCLKA-P
MCLKB-N
MCLKB-P

MODT

DDR-MA0
DDR-MA1
DDR-MA2
DDR-MA3
DDR-MA4
DDR-MA5
DDR-MA6
DDR-MA7
DDR-MA8
DDR-MA9

DDR-MA10
DDR-MA11
DDR-MA12
DDR-MA13

DDR-MA0
DDR-MA1
DDR-MA2
DDR-MA3
DDR-MA4
DDR-MA5
DDR-MA6
DDR-MA7
DDR-MA8
DDR-MA9
DDR-MA10
DDR-MA11
DDR-MA12
DDR-MA13

F147B

F148B

C311B 10nF

16V

RES

RES

16V

10nFC312B

C313B 10nF

16V

RES

RES

16V

10nFC314B

C315B 10nF

16V

RES

RES

16V

10nFC316B

C317B 10nF

16V

RES

RES

16V

10nFC318B

D031BD032BD033B

D038B
D039B

D040B
D041B

D042B
D043B

D044B

D045B

D046B

D047B

D048B

D049B

D050B

D051B

D052B

D053B

D054B

D055B

D056B
D057B

D058B

D059B

D060B

D061B

D062B

D064B

D065B
D066B

D067B

D068B

D069B

D028B

F017B

C067B 100nF

16V

C068B

100nF

16V

RES

R047B 1

1R048B

R049B 1

1R050B

R038B

22

1%

1%

22R039B

1%

22R040B

R041B 22

1%

R042B 22

1%

1%

22R043B

1%

22R044B

R045B 22

1%

1%

22R046B

1%

22R051B

I026B

I027B

I028B

I029B I030B

Circuit Diagrams and PWB Layouts

EN 73QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-35 B, MASTER - POWER

19580_116_140313.eps

14-03-26

MASTER - POWER

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

U001B

R8

T22T8U22U8V22V8W22W8Y22Y8Y9

AA14

AA15

AA16

AA17

AA18

AA19

AA20

AA21

AA22

AA8

AA9

AB10

AB11

AB12

AB13

AB14

AB15

AB16

AB9F3F4

J19

J12

H19

H12

E15

D15

K15

J15

AB23

AB22

AB21

AB20

AB19

AB18

AB17

AA23

Y23

W23

V23

U23

T23

R23

P23

AC23

AC22

AC21

AC16

AC15

AC14

N23

M8

M23

L8

L23

K23

K8

J8

D13

D14

E13

E14

F13

F14

G13

G14

H13

H14

H17

H18

J13

J14

J17

J18

K13

K14

K16

K17

K18

K19

P9R9T9U9V9

W9

AC9

AC10

AC11

AC12

AC13

R22

P8

P22

N9

N8

N22

M9

M22

L9

L22

K9

K22

J9

J24

J23

J22

J21

J20

J11

J10

H9

H24

H23

H22

H21

H20

H11

H10

G24

G23

F24

F23

E30

E29

E28

E27

E26

E25

E24

E23

D30

D29

D28

D27

D26

D25

D24

D23

C30

B30

CORE_1.0V_1
CORE_1.0V_2
CORE_1.0V_3
CORE_1.0V_4
CORE_1.0V_5
CORE_1.0V_6
CORE_1.0V_7
CORE_1.0V_8
CORE_1.0V_9
CORE_1.0V_10
CORE_1.0V_11
CORE_1.0V_12
CORE_1.0V_13
CORE_1.0V_14
CORE_1.0V_15
CORE_1.0V_16
CORE_1.0V_17
CORE_1.0V_18
CORE_1.0V_19
CORE_1.0V_20
CORE_1.0V_21
CORE_1.0V_22
CORE_1.0V_23
CORE_1.0V_24
CORE_1.0V_25
CORE_1.0V_26
CORE_1.0V_27
CORE_1.0V_28
CORE_1.0V_29
CORE_1.0V_30
CORE_1.0V_31
CORE_1.0V_32
CORE_1.0V_33
CORE_1.0V_34
CORE_1.0V_35
CORE_1.0V_36
CORE_1.0V_37
CORE_1.0V_38
CORE_1.0V_39
CORE_1.0V_40
CORE_1.0V_41
CORE_1.0V_42
CORE_1.0V_43
CORE_1.0V_44
CORE_1.0V_45
CORE_1.0V_46
CORE_1.0V_47
CORE_1.0V_48
CORE_1.0V_49
CORE_1.0V_50

VX1_2.5V_5

VX1_2.5V_4

VX1_2.5V_3

VX1_2.5V_2

VX1_2.5V_1

TX_2.5_6

TX_2.5_5

TX_2.5_4

TX_2.5_3

TX_2.5_2

TX_2.5_1

DDR_MMU_1.5V_22

DDR_MMU_1.5V_21

DDR_MMU_1.5V_20

DDR_MMU_1.5V_19

DDR_MMU_1.5V_18

DDR_MMU_1.5V_17

DDR_MMU_1.5V_16

DDR_MMU_1.5V_15

DDR_MMU_1.5V_14

DDR_MMU_1.5V_13

DDR_MMU_1.5V_12

DDR_MMU_1.5V_11

DDR_MMU_1.5V_10

DDR_MMU_1.5V_9

DDR_MMU_1.5V_8

DDR_MMU_1.5V_7

DDR_MMU_1.5V_6

DDR_MMU_1.5V_5

DDR_MMU_1.5V_4

DDR_MMU_1.5V_3

DDR_MMU_1.5V_2

DDR_MMU_1.5V_1

IO_3.3V_1
IO_3.3V_2
IO_3.3V_4
IO_3.3V_5
IO_3.3V_6
IO_3.3V_7
IO_3.3V_8

IO_3.3V_9
IO_3.3V_10
IO_3.3V_11
IO_3.3V_12
IO_3.3V_13
IO_3.3V_14
IO_3.3V_15

RX_2.5V_1

RX_2.5V_2

RX_2.5V_3

RX_2.5V_4

RX_2.5V_5

RX_2.5V_6

RX_2.5V_7

RX_2.5V_8

RX_2.5V_9
RX_2.5V_10
RX_2.5V_11
RX_2.5V_12
RX_2.5V_13
RX_2.5V_14
RX_2.5V_15

DDR_DLL_2.5V_1
DDR_DLL_2.5V_2

DDR_CLK_1.5V_1
DDR_CLK_1.5V_2

DDR_VCCAD_1.0V_1
DDR_VCCAD_1.0V_2
DDR_VCCAD_1.0V_3
DDR_VCCAD_1.0V_4

MPLL_2.5V_2

MPLL_2.5V_1

CORE_1.0V_81

CORE_1.0V_80

CORE_1.0V_79

CORE_1.0V_78

CORE_1.0V_77

CORE_1.0V_76

CORE_1.0V_75

CORE_1.0V_74

CORE_1.0V_73

CORE_1.0V_72

CORE_1.0V_71

CORE_1.0V_70

CORE_1.0V_69

CORE_1.0V_68

CORE_1.0V_67

CORE_1.0V_66

CORE_1.0V_65

CORE_1.0V_64

CORE_1.0V_63

CORE_1.0V_62

CORE_1.0V_61

CORE_1.0V_60

CORE_1.0V_59

CORE_1.0V_58

CORE_1.0V_57

CORE_1.0V_56

CORE_1.0V_55

CORE_1.0V_54

CORE_1.0V_53

CORE_1.0V_52

CORE_1.0V_51

POWER

TYPE

MPLL-2.5V-M

+1V0-M

MMU-1.5V-M TX-2.5V-M VX-2.5V-M

I/O-3.3V-M

RX-2.5V-M

DLL-2.5V-M

DDRCLK-1.5V-M
DDR-AD1.0V-M

6,3V

10uFC255B

16V

100nFC075B

C076B 100nF

16V

16V

100nFC077B

C078B 100nF

16V

16V

100nFC079B

C080B 100nF

16V

16V

100nFC081B

C082B 100nF

16V

16V

100nFC083B

C084B 100nF

16V

16V

100nFC085B

C086B 100nF

16V

C087B 100nF

16V

16V

100nFC088B

C089B 100nF

16V

16V

100nFC090B

C091B 100nF

16V

16V

100nFC092B

C093B 100nF

16V

16V

100nFC094B

C095B 100nF

16V

16V

100nFC096B

C097B 100nF

16V

16V

100nFC098B

16V

100nFC099B

16V

100nFC100B

C101B 100nF

16V

16V

100nFC102B

C103B 100nF

16V

16V

100nFC104B

C105B 100nF

16V

16V

100nFC106B

C107B 100nF

16V

16V

100nFC108B

C109B 100nF

16V

16V

100nFC110B

C111B 100nF

16V

C112B 100nF

16V

C113B 100nF

16V

16V

100nFC114B

C115B 100nF

16V

16V

100nFC116B

+1V5-M

C117B 100nF

16V

16V

100nFC118B

C256B 10uF

6,3V

C119B 100nF

16V

16V

100nFC120B

C121B 100nF

16V

16V

100nFC122B

C123B100nF

16V

16V

100nFC124B

C125B 100nF

16V

16V

100nFC126B

C127B 100nF

16V

16V

100nFC128B

C129B 100nF

16V

MMU-1.5V-M

DDR1V5-M

DDRCLK-1.5V-M

DDR-AD1.0V-M

16V

100nFC130B

C131B 100nF

16V

16V

100nFC132B

C133B100nF

16V

16V

100nFC134B

C135B 100nF

16V

16V

100nFC136B

C137B 100nF

16V

16V

100nFC138B

C139B 100nF

16V

16V

100nFC140B

I/O-3.3V-M

L011B

220H

C257B 10uF

6,3V

C141B 100nF

16V

16V

100nFC142B

C143B100nF

16V

16V

100nFC144B

C145B 100nF

16V

RX-2.5V-M

+2V5-M

220H

L012B

6,3V

10uFC258B

16V

100nFC146B

C147B 100nF

16V

16V

100nFC148B

C149B 100nF

16V

16V

100nFC150B

TX-2.5V-M

+2V5-M

L013B

220H

C259B 10uF

6,3V

C151B 100nF

16V

16V

100nFC152B

C153B 100nF

16V

16V

100nFC154B

C155B 100nF

16V

VX-2.5V-M

+2V5-M

220H

L014B

6,3V

10uFC260B

16V

100nFC156B

C157B 100nF

16V

MPLL-2.5V-M

+2V5-M

L015B

220H

C261B 10uF

6,3V

C158B 100nF

16V

16V

100nFC159B

DLL-2.5V-M

+2V5-M

220H

L016B

6,3V

10uFC262B

16V

100nFC160B

C161B 100nF

16V

16V

100nFC162B

C163B100nF

16V

16V

100nFC164B

I/O-3.3V-M

+3V3-NVT

I007B

I008B

I009B

I010B

I011BI012B

I013B

I014B

I015B

L003B

220H

L004B

220H

L005B

220H

C319B

10uF

6.3V

6.3V

10uFC320B

F025B

X007B

SENSE+1V0M

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

+1V0-M

Circuit Diagrams and PWB Layouts

EN 74QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-36 B, MASTER - GROUND

19580_117_140313.eps

14-03-26

MASTER - GND

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

U001B

Y10

Y11

Y12

Y13

AA10

AA11

AA12

AA13

AG10

AG4

AG5

AG6

AG7

AG8

AG9

AH1

AH10

AH11

AH12

AH2

AH3

AH4

AH5

AH6

AH7

AH8

AH9

AJ1

AJ12

AK12

H2H3H4N6P6

R6

T6U6V2V3V6

W6Y6AF4

AF5

R28

R29

W26

W27

Y26

Y27

AA26

AA27

AB26

AB27

AC26

AC27

AD26

AD27

AE23

AE24

AE25

AE26

AE27

AE29

AE30

AF23

AF24

AF25

AF26

AF27

AG23

AG24

AG25

AG26

AG27

AH13

AH23

AJ13

AJ23

D16

E16

Y21

Y20

Y19

Y18

Y17

Y16

Y15

Y14

W21

W20

W19

W18

W17

W16

W15

W14

W13

W12

W11

W10

V21

V20

V19

V18

V17

V16

V15

V14

V13

V12

V11

V10

U21

U20

U19

U18

U17

U16

U15

U14

U13

U12

U11

U10

T21

T20

T19

T18

T17

T16

F12

F18

F19

F20

F21

F22

G11

G12

G18

G19

G20

G21

G22

K10

K11

K12

K20

K21

L10

L11

L12

L13

L14

L15

L16

L17

L18

L19

L20

L21

M10

M11

M12

M13

M14

M15

M16

M17

M18

M19

M20

M21

N10

N11

N12

N13

N14

N15

N16

N17

N18

N19

N20

N21

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

P20

P21

R10

R11

R12

R13

R14

R15

R16

R17

R18

R19

R20

R21

T10

T11

T12

T13

T14

T15

E17

D17

G4

G3

F11

E9

E8

E7

E6

E5

E4

E3

E22

E21

E20

E19

E18

E12

E11

E10

D9

D8

D7

D6

D5

D4

D3

D22

D21

D20

D2

D19

D18

D12

D11

D10

D1

C1

B1

GND_35
GND_34
GND_33
GND_32
GND_31
GND_30
GND_29
GND_28
GND_27
GND_26
GND_25
GND_24
GND_23
GND_22
GND_21
GND_20
GND_19
GND_18
GND_17
GND_16
GND_15
GND_14
GND_13
GND_12
GND_11
GND_10
GND_9
GND_8
GND_7
GND_6
GND_5
GND_4
GND_3
GND_2
GND_1

MPLL_GND_1
MPLL_GND_2

DDR_APLL_GND_1
DDR_APLL_GND_2

GND_119

GND_118

GND_117

GND_116

GND_115

GND_114

GND_113

GND_112

GND_111

GND_110

GND_109

GND_108

GND_107

GND_106

GND_105

GND_104

GND_103

GND_102

GND_101

GND_100

GND_99

GND_98

GND_97

GND_96

GND_95

GND_94

GND_93

GND_92

GND_91

GND_90

GND_89

GND_88

GND_87

GND_86

GND_85

GND_84

GND_83

GND_82

GND_81

GND_80

GND_79

GND_78

GND_77

GND_76

GND_75

GND_74

GND_73

GND_72

GND_71

GND_70

GND_69

GND_68

GND_67

GND_66

GND_65

GND_64

GND_63

GND_62

GND_61

GND_60

GND_59

GND_58

GND_57

GND_56

GND_55

GND_54

GND_53

GND_52

GND_51

GND_50

GND_49

GND_48

GND_47

GND_46

GND_45

GND_44

GND_43

GND_42

GND_41

GND_40

GND_39

GND_38

GND_37

GND_36

GND_120
GND_121
GND_122
GND_123
GND_124
GND_125
GND_126
GND_127
GND_128
GND_129
GND_130
GND_131
GND_132
GND_133
GND_134
GND_135
GND_136
GND_137
GND_138
GND_139
GND_140
GND_141
GND_142
GND_143
GND_144
GND_145
GND_146
GND_147
GND_148
GND_149
GND_150
GND_151
GND_152
GND_153
GND_154
GND_155
GND_156
GND_157
GND_158
GND_159
GND_160
GND_161
GND_162
GND_163
GND_164
GND_165
GND_166
GND_167
GND_168
GND_169

DDR_CLK_GND2

DDR_CLK_GND1

LVDS_RX_GND_35

LVDS_RX_GND_34

LVDS_RX_GND_33

LVDS_RX_GND_32

LVDS_RX_GND_31

LVDS_RX_GND_30

LVDS_RX_GND_29

LVDS_RX_GND_28

LVDS_RX_GND_27

LVDS_RX_GND_26

LVDS_RX_GND_25

LVDS_RX_GND_24

LVDS_RX_GND_23

LVDS_RX_GND_22

LVDS_RX_GND_21

LVDS_RX_GND_20

LVDS_RX_GND_19

LVDS_RX_GND_18

LVDS_RX_GND_17

LVDS_RX_GND_16

LVDS_RX_GND_15

LVDS_RX_GND_14

LVDS_RX_GND_13

LVDS_RX_GND_12

LVDS_RX_GND_11

LVDS_RX_GND_10

LVDS_RX_GND_9

LVDS_RX_GND_8

LVDS_RX_GND_7

LVDS_RX_GND_6

LVDS_RX_GND_5

LVDS_RX_GND_4

LVDS_RX_GND_3

LVDS_RX_GND_2

LVDS_RX_GND_1

LVDS_TX_GND_15

LVDS_TX_GND_14

LVDS_TX_GND_13

LVDS_TX_GND_12

LVDS_TX_GND_11

LVDS_TX_GND_10

LVDS_TX_GND_9

LVDS_TX_GND_8

LVDS_TX_GND_7

LVDS_TX_GND_6

LVDS_TX_GND_5

LVDS_TX_GND_4

LVDS_TX_GND_3

LVDS_TX_GND_2

LVDS_TX_GND_1

VX_GND_30

VX_GND_29

VX_GND_28

VX_GND_27

VX_GND_26

VX_GND_25

VX_GND_24

VX_GND_23

VX_GND_22

VX_GND_21

VX_GND_20

VX_GND_19

VX_GND_18

VX_GND_17

VX_GND_16

VX_GND_15

VX_GND_14

VX_GND_13

VX_GND_12

VX_GND_11

VX_GND_10

VX_GND_9

VX_GND_8

VX_GND_7

VX_GND_6

VX_GND_5

VX_GND_4

VX_GND_3

VX_GND_2

VX_GND_1

GND

TYPE

Circuit Diagrams and PWB Layouts

EN 75QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-37 B, VDISP - UHD

19580_118_140313.eps

14-03-26

Vdisp - UHD

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

U018B

SI4835DDY-GE3

32

876

1

5

4

U019B

SI3443CDV

652

4

1

3

R199B

47

C295B 100nF

16V

R218B

4,7K

+3V3-NVT

U012B
PDTC144EU

2

3

1

4,7K

R219B

GREEN

D006B

DBG

F072B

F073B

I001B

I002B

I003B

I004B

+12V

S017B

50m

54

S017B

50m

63

S017B

50m

72

S017B

50m

81

50m

S018B 54

50m

S018B 63

50m

S018B 72

50m

S018B 81

VDISP

I005B

R294B

22K

22KR295B

C297B

22uF

16V

C298B

100nF

16V

PUMD12

5

3

4

U020B

X016B

!

4AT32V

NT-LCD-PWR-ON

I041B

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

DBG

R198B47K

TYPE

1
2
3
4
5
6
7
8

X010

+12V

I006B

C296B

22nF

16V

F119B

F120B

RES

U020B
PUMD12

1

6

2

RES

C049B 100nF

16V

NT-LCD-PWR-ON

NT-LCD-PWR-ON

RES

U009B
PDTC144EU

2

3

1

RES

R004B 1K

RES

R002B10K

I020B

R003B 100K

R012B 47

RES

10V

1uF C017B

RES

Circuit Diagrams and PWB Layouts

EN 76QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-38 B, NOVATEK SUPPLY

19580_119_140313.eps

14-03-26

NOVATEK SUPPLY

B B

2013-12-13

1

715RLPCB000000021

MTK UHD 50 Hz

7800

VIN1

VBST1

SW1

PGND1

EN1

PG1

VFB1

VIN2

VBST2

SW2

PGND2

EN2

PG2

VFB2

VREG5

GND_HS

GND

+12V

GND-D3 GND-D3

GND-D3

GND-D3

GND-D3

+1V0-M

+1V5-M

GND-D3GND-D3

+1V5-M

GND-D3

+3V3

DETECT12V

BE-ENABLE

ENABLE+3V3-NVT

VIN

EN|EN

VOUT

NC

GND

+3V3

+3V3

+5V +3V3

VIN1

EN

VOUT1

BP|ADJ

GND

VOUT2

NC

VIN2

GND_HS

+2V5-M

+3V3

RES

C377B

22pF50V

C352B 1nF

50V

6,3V

C367B 22uF

C292B 100nF

16V

C343B 10uF

16V

16V

10uFC344B

RES

R112B

470K

16V

100nF C293B

6,3V

22uFC368B

RES

C369B 22uF

6,3V

R196B10

45

R196B

10

36

R196B

10

27

R196B

10

18

50V

1nF C353BC354B

1nF50V

R118B 22K

1%

X003B

I054B

I055B

I056B

I057B

I058B

L010B

30H

I059B

F020B

L027B

1.5uH

RES

C378B

22pF 50V

R119B 22K

1%

I061B

220K

5%

R153B

RES

R197B 10

45

R197B

10

3 6

R197B

10

27

R197B

10

18

50V

1nFC355B C356B 1nF

50VI062B

6,3V

C370B 22uF

6,3V

22uFC371B

C372B 22uF

6,3V

F021BC294B 100nF

16VI063B

I064B

C345B

10uF

16V

C299B

100nF

16V

1.5uH

L028B

22K1%R120B

50V

1nFC357B

I065B

R238B1%8.2K

470

5%

R233B

D004B

REDLTST-C190

RES

S010B

U028B

TPS54494PWP

1

2

3

4

5

6

7

16

15

14

13

12

11

10

9

17

8

C381B 1uF

16V

RES

L023B

30H

F022B

RT9715EGB

U029B

RES

5

4

1

3

2

6,3V

10uFC302B

I066B

6,3V

10uFC303B

47KR240B

1%

R121B 22K

1%

RES

R113B 1MEG

RES

1MEGR114B

RES

R123B 22K

RES

C358B 10nF

16V

6,3V

10uFC337B

I067B

I068B

U026B

RT9187GSP

1

8

3

5

6

4

7

2

9

F023B

F024B

C339B

100uF 16V

6,3V

10uFC338B

+1V0-M

C386B 1uF

6.3V

R250B

10

R109B

1

RES

1

R110B

10KR104B

U002B

2

3

1

BC857BW(COL)

BC857BW(COL)

1

3

2

U006B

ENABLE+3V3-NVT

C002B

100nF

16V

SENSE+1V0M

R103B 22K

C016B

100nF

16V

U025B

2

3

1

AO3414

F103B

I016B

I017B

I019B

F121B

R106B

10K

R105B 10K

R147B

10K

I031B

I039B

R152B 47K

+3V3-NVT

R149B

22K

I040B

U007B

4

3

5

BC847BS(COL)

I042B

BC847BS(COL)

2

6

1

U007B

22KR150B

+5V

R151B 22K

ENABLE+1V5+2V5

+3V3-NVT

ENABLE+1V5+2V5

+3V3-NVT

ENABLE+1V5+2V5

R148B

10

R134B

10K

+3V3

RES

RES

Circuit Diagrams and PWB Layouts

EN 77QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-39 B, RF4CE

19580_120_140313.eps

14-03-26

RF4CE

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

L001E

1KH

X027

109

8

7

6

5

4

3

2

1

FH52

TYPE

+3V3-STANDBY

U001E

VDD

RESET|RESET

GND

RT9818C-29GVL

R003E

5%

100K

R004E

5%

10

10

5%

R005E

R001E

5%

10K

10K

5%

R002E

R006E

5%

56K

U002E

2

3

1

BC847BW(COL)

C010E 1uF

6.3V

C008E

15pF

50V

50V

15pFC009E

6.3V

1uFC011E

X303

10

9

8

7

6

5

4

3

2

1

FTSH

+3V3-STANDBY

+3V3-STANDBY

S001E

50m

C001E 10nF

16V

RES

+3V3-STANDBY

+3V3-STANDBY

+3V3-STANDBY

+3V3-STANDBY

RF4CE-DC

RF4CE-DC
RF4CE-DD

U003E

30

32

1

2

3

4

33

41

34

35

36

26

25

20

10

39

40

37

38

5

6

7

8

312129

282724

9

11

12

13

14

15

16

17

18

19

23

22

XOSC_Q1

XOSC_Q2

P0_0
P0_1
P0_2
P0_3
P0_4
P0_5
P0_6
P0_7

P1_0
P1_1

AVDD3

AVDD2

AVDD1

AVDD4

AVDD5

AVDD6

P1_2
P1_3
P1_4
P1_5
P1_6
P1_7

DCOUPL

DVDD1

DVDD2

RESET_N

RF_P
RF_N

P2_0
P2_1
P2_2

GND_HS

P2_3|XOSC32K_Q2

NC2

SDA

SCL

NC1

P2_4|XOSC32K_Q1

RBIAS

U004E

6

512

4

3

BAL1

BAL2

UNBAL

GND

RF4CE-DD

X004E

1

4

3

2

LFB18

F001E

I001EI002E

F002E

F003E

F004E

I003E

I004E

I005E

I006E

F005E

F006E

F007E

I007E

RF4CE-RESETn
MTK-TX-RF4CE
MTK-RX-RF4CE

RC

RF4CE-RESETn

RF4CE-RESETn
MTK-TX-RF4CE

MTK-RX-RF4CE
RC

X001E

4

3

1

2

VS

GND1

OUT

GND2

TSOP75236

R008E 10

R007E

100

+3V3-STANDBY

C017E

1uF

6.3V

RC

F008E

I008E

I009E

MTK-RX-RF4CE

MTK-TX-RF4CE

10K

5%

R009E

R010E

5%

10K

R011E

5%

10K

10K

5%

R012E

+3V3-STANDBY
+3V3-STANDBY

+3V3

+3V3

RES

RES

C002E 100nF

16V

16V

100nFC003E

C004E 100nF

16V

16V

100nFC005E

C006E 100nF

16V

C007E

100nF

16V

RES

C012E 220pF

50V

C015E

10pF

50V

C016E

10uF

6.3V

C018E

10pF

50V

C019E

100nF

16V

1
2

3

5 4

RES

I010E

GND

FEED

X003E

3

2

1

F009E

L002E
4,7nH

C014E

470fF

50V

F010E

X311

X005

5

4

3

2

1

EMC

Circuit Diagrams and PWB Layouts

EN 78QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-40 B, DDR 3 INTERFACE - 16 BITS

19580_121_140313.eps

14-03-26

DDR3 INTERFACE - 16 bits - DT

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

DT-BRA0
DT-BRA1
DT-BRA2
DT-BRA3
DT-BRA4
DT-BRA5
DT-BRA6
DT-BRA7
DT-BRA8
DT-BRA9
DT-BRA10
DT-BRA11
DT-BRA12
DT-BRA13

DT-BRBA0
DT-BRBA1
DT-BRBA2

DT-BRRASn
DT-BRODT
DT-BRCASn
DT-BRCLK0
DT-BRCLK0n
DT-BRCKE
DT-BRCSn
DT-BRWEn
DT-BRRESET

DT-BRDQM0
DT-BRDQM1

R101N

1%

100

DT-BRCLK0

DT-BRCLK0n

DT-BRDQ8

DT-BRDQ9
DT-BRDQ10
DT-BRDQ11
DT-BRDQ12
DT-BRDQ13
DT-BRDQ14
DT-BRDQ15

DT-BRDQ0

DT-BRDQ1

DT-BRDQ2

DT-BRDQ3

DT-BRDQ4

DT-BRDQ5

DT-BRDQ6

DT-BRDQ7

DT-BRDQS1

DT-BRDQS1n

DT-A-ZQ3DT-A-ZQ3

R082N

1%

1K

1K

1%

R083N

C001N

100nF

16V

16V

100nFC002N

1K

1%

R084N R085N

1%

1K

16V

100nFC003N

C004N 100nF

16V

R104N

1%

240

16V

100nFC005N

C006N 100nF

16V

C007N 100nF

16V

16V

100nFC008N

C009N 100nF

16V

16V

100nFC010N

16V

100nFC011N

C012N 100nF

16V

C088N

4.7uF

6.3V

C090N

100uF 16V

RES

R086N

1%

1K

1K

1%

R087N

C013N 100nF

16V

16V

100nFC014N

+1V5-MTK-DT

U005N

G4

G3

M4

F3

L2

F1

M3

F2

N4

K2

K1

H3

N2

D2

P1

D1

N1

E1

N3

E2

H1

H2

L1

T8

T7

T6

T5

R8

R7

G20

F20

E20

D20

G11

E8

D13

P8

N8

H5

F5

G19

F19

E19

D19

C19

B19

E5

N5

G6

K5

M5

K6

P2

H4

P3

F4

L5

P5

P6

G5

P4

J3

K4

E4

M6

J4

D4

D3

L4

E3

L6

J1

J2

C2

RVREF_C

BRCLK0
BRCLK0#

BRCKE

BRODT
BRRAS#
BRCAS#
BRCS#

BRBA0
BRBA1
BRBA2

BRWE#

BRA15
BRA14
BRA13
BRA12
BRA11
BRA10
BRA9
BRA8
BRA7
BRA6
BRA5
BRA4
BRA3
BRA2
BRA1
BRA0

DDRV_1
DDRV_2
DDRV_3
DDRV_4
DDRV_5
DDRV_6
DDRV_7
DDRV_8
DDRV_9
DDRV_10
DDRV_11
DDRV_12
DDRV_13
DDRV_14
DDRV_15
DDRV_16
DDRV_17
DDRV_18
DDRV_19
DDRV_20
DDRV_21
DDRV_22
DDRV_23

BRDQM0
BRDQS0

BRDQS0#

BRDQ0
BRDQ1
BRDQ2
BRDQ3
BRDQ4
BRDQ5
BRDQ6
BRDQ7

BRDQM1
BRDQS1

BRDQS1#

BRDQ8

BRDQ9
BRDQ10
BRDQ11
BRDQ12
BRDQ13
BRDQ14
BRDQ15

BRRESET

DDR_B

TYPE

DT-BRDQM0
DT-BRDQS0

DT-BRDQS0n

DT-BRDQ0
DT-BRDQ1
DT-BRDQ2
DT-BRDQ3
DT-BRDQ4
DT-BRDQ5
DT-BRDQ6
DT-BRDQ7

DT-BRDQM1
DT-BRDQS1

DT-BRDQS1n

DT-BRDQ8

DT-BRDQ9
DT-BRDQ10
DT-BRDQ11
DT-BRDQ12
DT-BRDQ13
DT-BRDQ14
DT-BRDQ15

DT-BRRESET

DT-BRCLK0
DT-BRCLK0n

DT-BRCKE
DT-BRODT

DT-BRRASn
DT-BRCASn
DT-BRCSn

DT-BRBA0
DT-BRBA1
DT-BRBA2

DT-BRWEn
DT-BRA15

DT-BRA14
DT-BRA13
DT-BRA12
DT-BRA11
DT-BRA10
DT-BRA9
DT-BRA8
DT-BRA7
DT-BRA6
DT-BRA5
DT-BRA4
DT-BRA3
DT-BRA2
DT-BRA1
DT-BRA0

+1V5-MTK-DT

DT-BRA14
DT-BRA15

S001N

RES

DT-BRDQS0
DT-BRDQS0n

F006N

F008N

F009N

X004N

1

X005N

1

C074N

1uF

6.3V

C079N

10uF

6.3V

D042N

D043N

D044N

D045N

D046N

D047N

D048N

D049N

D050N

D051N

D052N

D053N

D054N

D055N

D056N D057N D058N

D059N

D060N

D061N

D062N D063N D064N

D065N

U002N

M7

A9

B3E1G8J2J8M1M9P1P9T1T9

B1

B9D1D8E2E8

F9G1G9

L9

L1

J9

J1

H7

G2

H8

H3

F8

F2

F7

E3

G3

F3

C7

B7

A3

B8

A2

A7

C2

C8

C3

D7

B2

D9

G7K2K8N1N9R1R9A1A8

C1

C9

D2E9F1

H2

H9

D3

E7

T2

L3

L2

K9

K7

J7

K3

K1

J3

M3

N8

M2

L8

M8

H1

T7

T3

N7

R7

L7

R3

T8

R2

R8

P2

P8

N2

P3

P7

N3

VREFDQ
VREFCA

ZQ

RAS
ODT
CAS
CK
CK
CKE
CS
WE
RESET

DML
DMU

DQSU
DQSU

DQSL
DQSL

NC

7

6

5

4

3

2

1

0

DQU

7

6

5

4

3

2

1

0

DQL

0
12BA

VDD VDDQ

VSS VSSQ

0
1
2

3

4
5
6
7
8
9
10
11
12
13
14

A

BC
AP

15

H5TQ4G63AFR-PBCR

+1V5-MTK-DT

+1V5-MTK-DT

+1V5-MTK-DT

+1V5-MTK-DT

Circuit Diagrams and PWB Layouts

EN 79QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-41 B, DDR 3 INTERFACE - 32BITS

19580_122_140313.eps

14-03-26

DDR3 INTERFACE - 32 bits - DT

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

VREFDQ
VREFCA

ZQ

RAS
ODT
CAS
CK
CK
CKE
CS
WE
RESET

DML
DMU

DQSU
DQSU

DQSL
DQSL

NC

7

6

5

4

3

2

1

0

DQU

7

6

5

4

3

2

1

0

DQL

0
12BA

VDD VDDQ

VSS VSSQ

0
1
2

3

4
5
6
7

8

9
10
11
12
13
14

A

BC
AP

15

U004N

H5TQ4G63AFR-PBCR

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7

H1
M8

L8

M2
N8
M3

J3
K1
K3
J7
K7
K9
L2
L3
T2

E7
D3

H9H2F1

E9D2C9

C1A8A1R9R1N9N1K8K2G7D9

B2

D7
C3
C8
C2
A7
A2
B8
A3

B7
C7

F3
G3

E3
F7
F2
F8
H3
H8
G2
H7

J1
J9
L1
L9

G9G1F9E8E2

D8D1B9B1T9T1P9

P1

M9M1J8J2G8

E1B3A9

M7

R105N1%240

VREFDQ
VREFCA

ZQ

RAS
ODT
CAS
CK
CK
CKE
CS
WE
RESET

DML
DMU

DQSU
DQSU

DQSL
DQSL

NC

7

6

5

4

3

2

1

0

DQU

7

6

5

4

3

2

1

0

DQL

0
12BA

VDD VDDQ

VSS VSSQ

0
1
2

3

4
5
6
7

8

9
10
11
12
13
14

A

BC
AP

15

U003N

H5TQ4G63AFR-PBCR

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7

H1
M8

L8

M2
N8
M3

J3
K1
K3
J7
K7
K9
L2
L3
T2

E7
D3

H9H2F1

E9D2C9C1A8A1R9

R1

N9N1K8K2G7D9B2

D7
C3
C8
C2
A7
A2
B8
A3

B7
C7

F3
G3

E3
F7
F2
F8
H3
H8
G2
H7

J1
J9
L1
L9

G9

G1

F9E8E2D8D1B9B1

T9

T1P9P1M9M1

J8J2G8

E1B3A9

M7

R102N

1%

100

R106N1%240

R088N

1%

1K 1K

1%

R089N

C045N 100nF

16V

16V

100nFC046N

1K

1%

R090N R091N

1%

1K

16V

100nFC047N

C048N 100nF

16V

100

1%

R103N

C080N 10uF

6.3V

1K

1%

R092N R093N

1%

1K

16V

100nFC015N

C016N 100nF

16V

R094N

1%

1K 1K

1%

R095N

C017N 100nF

16V

16V

100nFC018N

C075N 1uF

6.3V
C019N 100nF

16V

16V

100nFC020N

16V

100nFC021N

C022N 100nF

16V

16V

100nFC023N

C024N 100nF

16V

C025N 100nF

16V

16V

100nFC026N

C081N 10uF

6.3V

16V

100nFC027N

C028N 100nF

16V

C029N 100nF

16V

16V

100nFC030N

C031N 100nF

16V

16V

100nFC032N

16V

100nFC033N

C034N 100nF

16V

R096N

1%

1K

16V

100nFC035N

16V

100nFC036N

C037N 100nF

16V

16V

100nFC038N

C039N 100nF

16V

C040N 100nF

16V

16V

100nFC041N

1K

1%

R097N

C076N 1uF

6.3V

6.3V

4.7uFC089N

16V100uF

C091N

C042N 100nF

16V

16V

100nF

C043N

+1V5-MTK-DT

RES

S002N

RES

S003N

DDRV_9

DDRV_7
DDRV_11
DDRV_10

DDRV_1
DDRV_2
DDRV_3
DDRV_4
DDRV_5
DDRV_6

DDRV_8

MEMTP
MEMTN

RVREF_A

ARCKE

ARCLK1
ARCLK1#

ARCLK0
ARCLK0#

ARODT
ARRAS#
ARCAS#
ARCS#
ARWE#

ARRESET

ARBA0
ARBA1
ARBA2

ARCSX#

ARA14
ARA13
ARA12
ARA11
ARA10
ARA9
ARA8
ARA7
ARA6
ARA5
ARA4
ARA3
ARA2
ARA1
ARA0

ARDQM0
ARDQS0

ARDQS0#

ARDQ0
ARDQ1
ARDQ2
ARDQ3
ARDQ4
ARDQ5
ARDQ6
ARDQ7

ARDQM1
ARDQS1

ARDQS1#

ARDQ8

ARDQ9
ARDQ10
ARDQ11
ARDQ12
ARDQ13
ARDQ14
ARDQ15

ARDQM2
ARDQS2

ARDQS2#

ARDQ16
ARDQ17
ARDQ18
ARDQ19
ARDQ20
ARDQ21
ARDQ22
ARDQ23

ARDQM3
ARDQS3

ARDQS3#

ARDQ24
ARDQ25
ARDQ26
ARDQ27
ARDQ28
ARDQ29
ARDQ30
ARDQ31

AVDD33_MEMPLL
AVSS33_MEMPLL

DDR_A

TYPE

C12
A16
C11
C16

A3
D5
C5
E7
B2
C8
B1
A9
C1
C9
C3

C6
A4
B4
A1
B7
C4
C7
B3
A7
A2
D7

A20

H9

U005N

D17

K3
L8
M8

R1
R2
R3
R4
R5
R6

A19

J22
K22

D18

G8

B5
A5

B14
A14

F13
E13
G13
G15
H18

G16

D15
F9
G18

F15

D11
F16
D8
E11
G9
E16
F11
G17
F10
E17
E10
E15
F17
G10
F18

D12
D14
C14
B17
D10
C17
C10
C18

B9

E18

D9

C15
A13
B13
B11
B16
A11
A17

I001N
I002N

R054N 47

47R055N
R056N 47
R057N 47

47R058N
R059N 47

47R060N

R061N 47

47R062N
R063N47

47R064N

47R065N
R066N 47

47R067N
R068N47

47R069N
R070N 47
R071N 47

47R072N
R073N47

47R074N
R075N 47

47R076N
R077N 47

47R078N
R079N 47

+VTT-DT

C044N 100nF

16V

L005N

30H

+3V3-A-DT

F010N

F011N

F012N

F013N

F014N

D001N

D002N

D004N

D005N

D006N

D007N

D008N

D009N

D011N

D012N

D013N

D014N

D015N

D016N

D017N

D018N

D019N

D020N

D021N

D022N

D023N

D024N

D025N

D026N

D027N

D028N

D029N

D030N

D031N

D032N

D033N D034N

D035N

D036N

D037N D038N

D039N D040N D041N

16V

100nFC105N

16V

100nFC106N

C107N 100nF

16V

16V

100nFC108N

C109N 100nF

16V

C110N 100nF

16V

C111N 100nF

16V

16V

100nFC112N

C113N 100nF

16V

16V

100nFC114N

DT-ARA1

DT-ARA1 DT-ARA1

DT-ARA1

DT-ARA2

DT-ARA2 DT-ARA2

DT-ARA2

DT-ARA3

DT-ARA3 DT-ARA3

DT-ARA3

DT-ARA4

DT-ARA4 DT-ARA4

DT-ARA4

DT-ARA5

DT-ARA5 DT-ARA5

DT-ARA5

DT-ARA6

DT-ARA6 DT-ARA6

DT-ARA6

DT-ARA7

DT-ARA7 DT-ARA7

DT-ARA7

DT-ARA8

DT-ARA8 DT-ARA8

DT-ARA8

DT-ARA9

DT-ARA9 DT-ARA9

DT-ARA9

DT-ARA10

DT-ARA10 DT-ARA10

DT-ARA10

DT-ARA11

DT-ARA11 DT-ARA11

DT-ARA11

DT-ARA12

DT-ARA12 DT-ARA12

DT-ARA12

DT-ARA13

DT-ARA13 DT-ARA13

DT-ARA13
DT-ARA14

DT-ARA14 DT-ARA14

DT-ARA14

DT-ARBA0 DT-ARBA0

DT-ARBA0

DT-ARBA0

DT-ARBA1 DT-ARBA1

DT-ARBA1

DT-ARBA1

DT-ARCLK0n

DT-ARCLK0n

DT-ARCLK0n

DT-ARODT DT-ARODT

DT-ARODTDT-ARODT

DT-ARDQS2

DT-ARDQS2

DT-ARCLK0

DT-ARCLK0

DT-ARCLK0

DT-ARBA2 DT-ARBA2

DT-ARBA2DT-ARBA2

DT-A-ZQ1DT-A-ZQ1

DT-ARCSn

DT-ARCSn DT-ARCSn

DT-ARRESET DT-ARRESET

DT-ARRESETDT-ARRESET

DT-ARDQM0

DT-ARDQM0

DT-ARDQ8

DT-ARDQ8

DT-ARDQ9

DT-ARDQ9

DT-ARDQ10

DT-ARDQ10
DT-ARDQ11

DT-ARDQ11
DT-ARDQ12

DT-ARDQ12

DT-ARDQ13

DT-ARDQ13

DT-ARDQ14

DT-ARDQ14

DT-ARDQ15

DT-ARDQ15

DT-ARDQ0

DT-ARDQ0

DT-ARDQ1

DT-ARDQ1

DT-ARDQ2

DT-ARDQ2

DT-ARDQ3

DT-ARDQ3

DT-ARDQ4

DT-ARDQ4

DT-ARDQ5

DT-ARDQ5

DT-ARDQ6

DT-ARDQ6

DT-ARDQS3

DT-ARDQS3

DT-ARDQS3n

DT-ARDQS3n

DT-ARA0

DT-ARA0 DT-ARA0

DT-ARA0

DT-ARDQS2n

DT-ARDQS2n

DT-ARCKE DT-ARCKE

DT-ARCKEDT-ARCKE

DT-ARCLK1n

DT-ARCLK1n

DT-ARCLK1n

DT-ARCLK1

DT-ARCLK1

DT-ARCLK1

DT-ARDQM2

DT-ARDQM2

DT-ARDQS0

DT-ARDQS0

DT-ARDQS1n

DT-ARDQS1n

DT-ARDQS0n

DT-ARDQS0n

DT-ARDQS1

DT-ARDQS1

DT-ARDQ16

DT-ARDQ16

DT-ARDQ17

DT-ARDQ17

DT-ARDQ18

DT-ARDQ18

DT-ARDQ19

DT-ARDQ19

DT-ARDQ20

DT-ARDQ20
DT-ARDQ21

DT-ARDQ21
DT-ARDQ22

DT-ARDQ22

DT-ARDQ24

DT-ARDQ24

DT-ARDQ25

DT-ARDQ25

DT-ARDQ31

DT-ARDQ31

DT-ARDQ26

DT-ARDQ26

DT-ARDQ27

DT-ARDQ27

DT-ARDQ28

DT-ARDQ28
DT-ARDQ29

DT-ARDQ29
DT-ARDQ30

DT-ARDQ30

DT-ARCSXn

DT-ARCSXn DT-ARCSXn

DT-ARDQM3

DT-ARDQM3

DT-ARDQ23

DT-ARDQ23

DT-ARDQ7

DT-ARDQ7

DT-ARDQM1

DT-ARDQM1

DT-ARWEn

DT-ARWEn DT-ARWEn

DT-ARWEn

DT-ARCASn

DT-ARCASn DT-ARCASn

DT-ARCASn

DT-ARRASn

DT-ARRASn DT-ARRASn

DT-ARRASn

DT-A-ZQ2

DT-A-ZQ2

RES

RES

+1V5-MTK-DT

+1V5-MTK-DT

+VTT-DT+VTT-DT

+1V5-MTK-DT

+1V5-MTK-DT

+1V5-MTK-DT

+1V5-MTK-DT

+1V5-MTK-DT

+1V5-MTK-DT

+1V5-MTK-DT

+1V5-MTK-DT +1V5-MTK-DT

I066N

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

Circuit Diagrams and PWB Layouts

EN 80QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-42 B, EMMC DT

19580_123_140313.eps

14-03-26

EMMC - DT

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

C049N 100nF

16V

16V

100nFC050N

C051N 100nF

16V

16V

100nFC052N

C053N100nF

16V

16V

100nFC054N

C055N 100nF

16V

+3V3-DT

R001N 10K

10KR002N

10KR003N

R004N 10K

10KR005N

R006N 10K

R007N 10K

10KR008N

R009N 10K

10KR010N

R081N 4.7K

C056N 100nF

16V

U007N

M7P5R10U8K4Y2Y5

AA4

AA6

J6

J5

J4

J3

J2

H5

H4

H3

M6

N5

T10

U9

K6W4Y4

AA3

AA5

K2

U5

W6

W5

CMD

CLK

RST

VDDI

VCCQ_5

VCCQ_4

VCCQ_3

VCCQ_2

VCCQ_1

VCC_4

VCC_3

VCC_2

VCC_1

DAT0
DAT1
DAT2
DAT3
DAT4
DAT5
DAT6
DAT7

VSSQ_5

VSSQ_4

VSSQ_3

VSSQ_2

VSSQ_1

VSS_4

VSS_3

VSS_2

VSS_1

MAIN

TYPE

U005N

AE14

AK15

AL14

C20

AF17

AK20

AL15

C21

B26

A26

C25

C24

D23

B23

A23

C23

A22

B22

C22

A25

D25

B25

D24

AG13

AH13

AH14

AH15

AN16

AM17

H21

AC21

AL26

AL17

AN17

AL29

AN30

AM29

AN29

AF11
AG11

AH11
AH10

AJ11

AK11

AJ12

AL9

AK10

JTCK
JTDO

JTRST#

JTDI
JTMS

OSCL0

OSDA0

OSCL1

OSDA1

XTALI
XTALO

AVDD33_XTAL_STB
AVSS33_XTAL_STB

AVDD33_VGA_STB
AVSS33_VGA_STB

AVDD33_PLL
AVSS33_PLLGP
AVSS33_CPUPLL

AVDD10_LDO

AVDD10_ELDO

U0TX
U0RX

U1TX
U1RX

POWE#

POOE#
POCE1#
POCE0#

PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1

PDD0
PARB#
PACLE
PAALE

EMMC_CLK

OPWRSB

ORESET#

OIRI

FSRC_WR

STB_SCL
STB_SDA

POR_BND

MISC

TYPE

U007N

N2

N1

M14

M13

M12

M3

M2

M1

L14

L13

L12

L4L3L2L1K14

K13

K12

K11

K10

K9

K8K7K3K1J14

J13

J12

J11

J10J9J8J7J1

H14

W2

W1
V14
V13
V12

V3

V2

V1
U14
U13
U12

U3

U2

U1
T14
T13
T12

T3

T2

T1
R14
R13
R12

R3

R2

R1
P14
P13
P12

P2

P1
N14
N13
N12

N3

AH11

AH9

AH6

AH4

AG13

AG2

AE14

AE1

AA14

AA13

AA12

AA11

AA9

AA8

AA2

AA1

Y14

Y13

Y12

Y11

Y10

Y9

Y8Y7Y6Y3Y1

W14

W13

W12

W11

W10

W9

W8

W7

W3

AA10

AA7

U10

U7

U6

T5

R5

P10

P3

N10

M10

M9

M8

M5

K5

H13

H12

H11

H10

H9

H8

H7

H6

H2

H1

D14

D1

B13

B2

A11

A9

A6

A4

NC1
NC2
NC3
NC4
NC5
NC6
NC7
NC8
NC9
NC10

RFU1
RFU2

NC11
NC12
NC13
NC14
NC15
NC16

RFU3
RFU4
RFU5
RFU6
RFU7
RFU8
RFU9
RFU10
RFU11
RFU12
RFU13
RFU14
RFU15
RFU16
RFU17

NC87

NC88

NC89

NC90

NC91

NC92

NC93

NC94

NC95

NC96

NC97

NC98

NC99

NC100

NC101

NC102

NC103

NC104

NC105

NC106

NC107

NC108

NC109

NC110

NC111

NC112

NC113

NC114

NC115

NC116

NC117

NC118

NC119

NC120

NC121

NC122

NC52

NC53

NC54

NC55

NC56

NC57

NC58

NC59

NC60

NC61

NC62

NC63

NC64

NC65

NC66

NC67

NC68

NC69

NC70

NC71

NC72

NC73

NC74

NC75

NC76

NC77

NC78

NC79

NC80

NC81

NC82

NC83

NC84

NC85

NC86

NC17

NC18

NC19

NC20

NC21

NC22

NC23

NC24

NC25

NC26

NC27

NC28

NC29

NC30

NC31

NC32

NC33

NC34

NC35

NC36

NC37

NC38

NC39

NC40

NC41

NC42

NC43

NC44

NC45

NC46

NC47

NC48

NC49

NC50

NC51

NC

TYPE

S004N

RES

F015N

F001N

F002N

F003N

F004N

F005N

F016N

F017N

F018N

F019N

F020N

F021N

C149N

10pF

10pFC150N

DT-MTK-EJTAG-TRSTn

10R144N

+3V3-A-DT

+3V3-STANDBY-DT

DT-SDA-SRF
DT-SCL-SRF

DT-SDA-SSB
DT-SCL-SSB

1
2

3

54

TYPE

1
2

3

54

TYPE

DT-SCL-SRF
DT-SDA-SRF

DT-SCL-SSB
DT-SDA-SSB

F032N

F035N

F036N

F037N

C168N100nF

100nFC169N

C170N 100nF

10R151N
10R152N

R153N10
R154N 10

DT-MTK-EJTAG-TRSTn

R174N 2.2K

2.2KR175N

2.2KR176N

R177N 2.2K

DT-SDA-SSB
DT-SCL-SSB

DT-SDA-SRF
DT-SCL-SRF

10KR158N

75R166N

R167N 75

R168N10K

DT-MTK-TX-SERVICE
DT-MTK-RX-SERVICE

R170N 10

10R171N

R172N 10

DT-MTK-RESET-INn

R163N 4.7K

4.7KR164N

R165N 4.7K

DT-RC

DT-SCL-BE
DT-SDA-BE

+3V3-STANDBY-DT

DT-EMMC-D7
DT-EMMC-D6
DT-EMMC-D5
DT-EMMC-D4
DT-EMMC-D3
DT-EMMC-D2

DT-EMMC-D1
DT-EMMC-D0

DT-EMMC-CMD
DT-EMMC-CLK

DT-EMMC-RESETn

DT-EMMC-D0
DT-EMMC-D1
DT-EMMC-D2
DT-EMMC-D3
DT-EMMC-D4
DT-EMMC-D5
DT-EMMC-D6
DT-EMMC-D7

C176N 4.7uF

4.7uFC177N

F040N

F045N

C084N 10uF

6.3V

6.3V

10uFC085N

C086N 10uF

6.3V

6.3V

10uFC082N

C087N

10uF

6.3V

DT-STANDBYn

U001N

1

2

3

VCC

RESET

GND

R189N 10K

X410

3

24

1

F070N

DT-MTK-RESET-INn

+3V3-STANDBY-DT

DT-EMMC-CMD

DT-EMMC-CLK

VDD

SCL

SDA

VSS

0
12ADDR

EEPROM

WP|WC

DT-SCL-SSB
DT-SDA-SSB

R243N10

R244N 10

U008N

4

5

6

7

8

3

2

1

R232N 10K

R233N47

R234N 47

C175N 100nF

16V

F031N

I035N

I036N

R245N

100

C178N

100nF

16V

X002N

1

4

3

2

+3V3-DT

R011N

10K

S009N

50m

S014N

50m

+3V3-DT

C083N 10uF

6.3V

DT-SYS-EEPROM-WP DT-SYS-EEPROM-WP

R025N 10K

RES

F076N

RES

RES

+3V3-DT

+3V3-DT+3V3-DT

+3V3-DT

+3V3-DT

+3V3-DT

+3V3-DT

+3V3-STANDBY-DT

10R162N

R161N 10

R032N

2.2K

2.2K

R033N

+3V3-DT

DT-SDA-BE

DT-SCL-BE

1
2

3

54

TYPE

F007N

DT-SCL-BE
DT-SDA-BE

VS

GND1

OUT

GND2

2

1

3

4

TSOP75236

X008N

10R135N

100R139N

+3V3-STANDBY-DT

6.3V

1uFC156N

F023N

I026N

I049N

50V

10pFC157N

16V

100nFC148N

DT-RC

R169N 10K

+3V3-DT

1
2

3

5 4

TYPE

DT-MTK-RX-SERVICE

DT-MTK-TX-SERVICE

DT-MTK-RX-SERVICE

DT-MTK-TX-SERVICE

+3V3-STANDBY-DT

10KR042N

R043N 10K

DEBUG

DBG

DBG

DBG

DBG

DBG

DBG

F025N

F028N

F029N

R100N 10K

+3V3-STANDBY-DT

F042N

F043N

F044N

F046N

I034N

X333

X331N

X330N

X010N

C132N 220pF

50V

C134N 220pF

50V

R235N

33
33R236N

R237N 33

33R238N

R239N 33

33R240N

R241N 33

33R242N

Circuit Diagrams and PWB Layouts

EN 81QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-43 B, ETHERNET DT

19580_124_140313.eps

14-03-26

ETHERNET - DT

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

U005N

AC15

AC16

AE13

AN14

AN12

AF13

AJ13

AM12

AL12

AM13

AL13

TXVP_0
TXVN_0

RXVP_1
RXVN_1

PHYLED0
PHYLED1

REXT

AVDD33_ETH

AVSS33_ELDO

AVSS33_LD

AVSS33_COM

ETHERNET

TYPE

I003N
I004N

R107N

1%

24K

+3V3-DT

16V

100nFC059N

I009N

R015N 10

10R017N

DT-TXP
DT-TXN

DT-RXP
DT-RXN

Circuit Diagrams and PWB Layouts

EN 82QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-44 B, AUDIO / VIDEO

19580_125_140313.eps

14-03-26

AUDIO / VIDEO - DT

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

U005N

AE20

AK17

AC19

AN18

AN25

AJ24

AH24

AK23

AN23

AL24

AL23

AM23

AN21

AM21

AL22

AK22

AL21

AH22

AG22

AK19

AN20

AL19

AM20

AL20

AL18

AK18

AB22

AB20

AM26

AJ26

AK25

AH26

AM25

AK26

N26

N27

AK27

AJ27

M28

L26

AL27

AL28

AN28

AN26

AM27

AN27

ADCINN_DEMOD
ADCINP_DEMOD

AVDD33_DEMOD

AVDD12_DEMOD

AVSS33_DEMOD
AVSS12_DEMOD

IF_AGC
RF_AGC

LOUTN
LOUTP

OSCL2
OSDA2

CVBS3P
CVBS2P
CVBS1P
CVBS0P
CVBS_COM

AVDD33_CVBS

AVSS33_CVBS_1
AVSS33_CVBS_2

HSYNC
VSYNC

RP
GP

BP
COM
SOG

VGA_SDA
VGA_SCL

COM1
PB1P
PR1P

Y1P

SOY1
COM0
PB0P
PR0P

Y0P

SOY0

VDACX_OUT
VDACY_OUT

AVDD33_VIDEO

AVDD12_RGB

AVSS33_VDAC_BG

AVSS12_RGB

AVSS33_VDAC

VIDEO

TYPE

U005N

AJ10

AH8

AJ8

AK8

AH9

AF10

AJ9

AK9

V27

AG10

AG9

AC23

AJ33

AH28

AJ30

AK29

AJ31

AJ29

AK30

AH25

AN31

AC24

AJ32

AL33

AN33

AM32

AK33

AM33

AM31

AL32

AN32

AIN1_L_AADC
AIN1_R_AADC
AIN2_L_AADC
AIN2_R_AADC
AIN3_L_AADC
AIN3_R_AADC
AIN4_L_AADC
AIN4_R_AADC

AVDD33_AADC
AVSS33_AADC

VMID_AADC

MPXP

AR0_ADAC
AL0_ADAC

AR1_ADAC
AL1_ADAC

AR2_ADAC
AL2_ADAC

AVDD33_ADAC
AVSS33_ADAC

ALIN

ASPDIF0
ASPDIF1

AOBCK
AOLRCK
AOMCLK

AOSDATA4
AOSDATA3
AOSDATA2
AOSDATA1
AOSDATA0

AUDIO

TYPE

U005N

AJ19

AF19

AJ17

AG17

AK16

AH19

AE19

AH17

AG19

AE17

AM16

AL16

AG15

AF15

E24

A28

C26

D26

C27

D27

AM9

AM8

AL8

K27

L32

L33

L30

M30

M29

L27

M27

M31

N31

N30

K26

N33

L25

R26

U26

U27

R28

P26

T27

T26

R27

R29

P27

N32

P30

AM18

AG24

AK21

AF22

AD28

AE28

AH23

AJ23

AC6

AB6

AC7

AC8

AD6

AA7

AB8

F24

C28

G23

D21

E25

K2

8

B28

G28

G31

G29

J27

H28

D28

D29

E27

G27

G30

J26

H29

J28

C29

E28

A30

B33

C33

E29

D33

D31

E32

E31

F33

F31

D32

D30

F32

F30

C32

F28

F27

F29

E30

C31

B32

A33

C30

A32

B31

A31

B30

GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
GPIO15
GPIO16
GPIO17
GPIO18
GPIO19
GPIO20
GPIO21
GPIO22
GPIO23
GPIO24
GPIO25
GPIO26
GPIO27
GPIO28
GPIO29
GPIO30
GPIO31
GPIO32
GPIO33
GPIO34
GPIO35
GPIO36
GPIO37
GPIO38
GPIO39
GPIO40
GPIO41
GPIO42
GPIO43
GPIO44
GPIO45
GPIO46
GPIO47
GPIO48
GPIO49
GPIO50
GPIO51
GPIO52
GPIO53
GPIO54
GPIO55

ADIN0_SRV
ADIN1_SRV
ADIN2_SRV
ADIN3_SRV
ADIN4_SRV
ADIN5_SRV
ADIN6_SRV
ADIN7_SRV

DEMOD_RST
DEMOD_TSCLK
DEMOD_TSVAL

DEMOD_TSSYNC
DEMOD_TSDATA0
DEMOD_TSDATA1
DEMOD_TSDATA2
DEMOD_TSDATA3
DEMOD_TSDATA4
DEMOD_TSDATA5
DEMOD_TSDATA6
DEMOD_TSDATA7

CI_INT

CI_TSCLK

CI_TSDATA0

CI_TSSYNC

CI_TSVAL

PVR_TSCLK
PVR_TSVAL

PVR_TSSYNC
PVR_TSDATA0
PVR_TSDATA1

SPI_CLK1

SPI_CLK

SPI_DATA

SPI_CLE

OPWM2
OPWM1
OPWM0

SD_D0
SD_D1
SD_D2

SD_D3
SD_CMD
SD_CLK

LED_PWM1
LED_PWM0

OPCTRL11
OPCTRL10

OPCTRL9
OPCTRL8
OPCTRL7
OPCTRL6
OPCTRL5
OPCTRL4
OPCTRL3
OPCTRL2
OPCTRL1
OPCTRL0

GPIO

TYPE

R014N 100 C096N 47nF

DT-AV-SCART-CVBS

100R016NC066N 10nF

DT-AV-COM_S

R114N

680

R013N 10K

DT-TS-CLK

DT-TS-VALID

DT-TS-SYNC

DT-TS-DATA0

I015N
I016N

DT-TS-DATA1
DT-TS-DATA2
DT-TS-DATA3
DT-TS-DATA4
DT-TS-DATA5
DT-TS-DATA6
DT-TS-DATA7

C133N 100nF

+3V3-A-DT

C151N 100nF

+3V3-A-DT

C152N 100nF

C138N1uF

+3V3-A-DT

C139N 1uF

R124N 75

75R125N

C144N 100nF

100nFC145N

C140N

1uF

+3V3-A-DT

C146N 100nF

+1V2-A-DT

100nFC171N

C172N 100nF

+3V3-A-DT
+1V2-A-DT

R029N 4.7K

R038N 10

10R039N

DT-KEYBOARD
DT-POWER-OK

R048N 100K

100KR049N

DT-KEYBOARD
DT-POWER-OK

+3V3-DT

+3V3-STANDBY-DT

DT-LED1

DT-WOLAN-IRQn

10KR031N

R036N 10K

10KR037N

DT-LED1

DT-WOLAN-IRQn

+3V3-STANDBY-DT

I006N

I008N
I014N
I017N

10KR053N

10K R179N

R180N10K

RES

RES

10K

R181N

R182N 10K

RES

DT-LED2
DT-LED1

DT-OPCTRL3

R184N 10K

DT-OPCTRL3 DT-OPCTRL3

RES

LED1 LED2

LED_PWM0 LED_PWM1 OPCTRL3 OPCTRL7

STRAP OPTION

ICE mode + 27M + serial boot

ICE mode + 27M + ROM to Nand boot

ICE mode + 27M + ROM to eMMC boot
from eMMC pins (share pins w/s NAND)

ICE mode + 27M + ROM to eMMC boot

from SDIO pins

1

1

1

1

0

0

0

1

0

0

1

0

0

1

1

0

I022N

I023N

DT-AUDIO-RESETn

I024N

I025N

DT-DETECT12V

DT-LED2 DT-LED2

R205N 10K

R208N

10K

R209N

10K

R210N

10K

R211N

10K

R214N

10K

R218N

10K

DT-AUDIO-RESETn

DT-DETECT12V

DT-AUDIO-RESETn

DT-DETECT12V

DT-WOLAN-IRQn

R230N 10

10R231N

DT-SDA-FE

DT-SCL-FE

R287N 22

DT-DEMOD-RESETn

47

R252N

81

R250N 47

54

47

R250N

3 6

DT-CA-MOSTRT

DT-CA-MOVAL
DT-CA-MOCLK

22R277N

R278N22

DT-CA-CE1n

DT-CA-REGn

22R281N

R282N 22

DT-CA-WEn
DT-CA-OEn

R285N 22

22R286N

DT-CA-VS1n

DT-CA-WAITn

R279N 22

22R280N

22R283N

R284N 22

DT-CA-CD2n

DT-CA-CD1n
DT-CA-IORDn
DT-CA-IOWRn

R222N 10

DT-CA-RESET

47

R251N

8 1

47

R251N

54

47

R249N

8 1

R249N

6 3

47

47

R249N

72

47

R249N

54

47

R252N

72

47

R252N

54

47

R252N

6 3

47

R250N

18

47

R250N

72

47

R253N

8 1

47

R253N

72

47

R253N

6 3

47

R253N

54

DT-CA-MDI0
DT-CA-MDI1
DT-CA-MDI2
DT-CA-MDI3
DT-CA-MDI4
DT-CA-MDI5
DT-CA-MDI6
DT-CA-MDI7

DT-CA-MISTRT

DT-CA-MIVAL

DT-CA-MICLK

DT-CA-MDO0
DT-CA-MDO1
DT-CA-MDO2
DT-CA-MDO3
DT-CA-MDO4
DT-CA-MDO5
DT-CA-MDO6
DT-CA-MDO7

R254N 22

22R255N

22R256N

R257N 22

22R258N

R259N 22

R260N 22

22R261N

R264N 22

DT-CA-A14

DT-CA-A13

DT-CA-A12

DT-CA-A11

DT-CA-A10

DT-CA-A08

DT-CA-A06

DT-CA-A04

DT-CA-A02

DT-CA-A00

DT-CA-A09

DT-CA-A07

DT-CA-A05

DT-CA-A03

DT-CA-A01

22R270N

R272N 22

22R273N

R274N 22

R275N 22

22R276N

DT-CA-D00
DT-CA-D01
DT-CA-D02
DT-CA-D03
DT-CA-D04
DT-CA-D05
DT-CA-D06
DT-CA-D07

22

DT-CA-RDY

R288N

R268N

8 1

22

R268N

6 3

22

22

45

R268N

R268N

72

22

22

36

R267N

R267N

8 1

22

R267N

72

22

22

45

R267N

47

R248N

54

47

R248N

72

47R248N

6 3

47

R248N

8 1

DT-CA-ENABLE
DT-CA-OC

DT-CA-ENABLE
DT-CA-OC

DT-CA-OC

DT-CA-ENABLE

+3V3-DT

+3V3-DT

R116N 10

10R117N

R118N10

RES

R012N 10K

10KR080N

RES

R098N

10K

10K

R115N

R119N

2.2K

2.2KR120N

DT-SCL-FE
DT-SDA-FE

+3V3-DT
+3V3-DT

1
2

3

54

TYPE

DT-SCL-FE
DT-SDA-FE

F072N

F073N

F074N

F075N

DT-EMMC-RESETn

DT-LNB-SENSE

+3V3-DT

DT-LNB-SENSE

+3V3-DT

+3V3-STANDBY-DT

DT-EMMC-RESETn

R265N 10

10R266N

100K

R269N

10KR121N

R262N

10K

10K

R263N

DT-OPCTRL6 DT-OPCTRL6DT-OPCTRL6

DT-SYS-EEPROM-WP

R026N 10

C100N 10pF

50V

50V

10pFC101N

C098N 100nF

R027N 4.7K

4.7KR290N

RES

RES

RES

AUDIO-ENABLE

RES

RES RES

RES
RES

DT-EMMC-RESETn

DT-EMMC-RESETn

R137N 100

100

R138N

+3V3-STANDBY-DT

+3V3-STANDBY-DT
+3V3-STANDBY-DT
+3V3-STANDBY-DT
+3V3-STANDBY-DT

+3V3-STANDBY-DT

+3V3-STANDBY-DT

DT-OPCTRL7 DT-OPCTRL7

I005N
I007N
I013N

I020N

I021N

I037N
I038N
I039N

I040N

I041N

4.7KR030N

DT-AV-SCART-CVBS

DT-AV-COM_S

X003N

S005N

R018N

100K

C057N

100pF

50V

F024N

X009N

1

2

3

4

5

R099N 75

DT-LED1

+3V3-STANDBY-DT

PUMD12
U006N

4

3

5

D003N

RED

R041N

470

F027N

DT-OPCTRL7

R044N 4.7K

DBG

DBG

DBG

R047N 6.8K

+3V3-STANDBY-DT

RES

X322N

+3V3-DT +3V3

S015N

50m

RES

STRAP

Circuit Diagrams and PWB Layouts

EN 83QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-45 B, HDMI - DT

19580_126_140313.eps

14-03-26

HDMI - DT

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

U005N

V31

V30

T31

T30

T33

T32

U31

U30

AA31

AA30

W31

W30

W33

W32

Y31

Y30

AE31

AE30

AC31

AC30

AC33

AC32

AD31

AD30

AG33

AG32

AE33

AE32

AF31

AF30

AG31

AG30

AE27

AD27

W25

T25

AH33

P32

P33

AA32

AA33

V29

AA29

AA27

AD29

V28

AA28

Y27

AE29

W26

Y26

AB26

AC26

W27

AA26

AB27

AC27

V26

HDMI_CEC

HDMI_0_SCL
HDMI_1_SCL
HDMI_2_SCL
HDMI_3_SCL

HDMI_0_SDA
HDMI_1_SDA
HDMI_2_SDA
HDMI_3_SDA

HDMI_0_PWR5V
HDMI_1_PWR5V
HDMI_2_PWR5V
HDMI_3_PWR5V

HDMI_0_HPD
HDMI_1_HPD
HDMI_2_HPD
HDMI_3_HPD

AVDD12_HDMI_0_RX
AVDD12_HDMI_1_RX
AVDD12_HDMI_2_RX
AVDD12_HDMI_3_RX

AVDD33_HDMI

AVSS33_HDMI_RX_1
AVSS33_HDMI_RX_2
AVSS33_HDMI_RX_3
AVSS33_HDMI_RX_4

HDMI_0_RX_0

HDMI_0_RX_0B

HDMI_0_RX_1

HDMI_0_RX_1B

HDMI_0_RX_2

HDMI_0_RX_2B

HDMI_0_RX_C

HDMI_0_RX_CB

HDMI_1_RX_0

HDMI_1_RX_0B

HDMI_1_RX_1

HDMI_1_RX_1B

HDMI_1_RX_2

HDMI_1_RX_2B

HDMI_1_RX_C

HDMI_1_RX_CB

HDMI_2_RX_0

HDMI_2_RX_0B

HDMI_2_RX_1

HDMI_2_RX_1B

HDMI_2_RX_2

HDMI_2_RX_2B

HDMI_2_RX_C

HDMI_2_RX_CB

HDMI_3_RX_0

HDMI_3_RX_0B

HDMI_3_RX_1

HDMI_3_RX_1B

HDMI_3_RX_2

HDMI_3_RX_2B

HDMI_3_RX_C

HDMI_3_RX_CB

HDMI

TYPE

DT-HDMI0-SCL
DT-HDMI1-SCL
DT-HDMI2-SCL
DT-HDMI3-SCL

DT-HDMI0-SDA
DT-HDMI1-SDA
DT-HDMI2-SDA
DT-HDMI3-SDA

DT-HPD0
DT-HPD1
DT-HPD2
DT-HPD3

C061N

100nF

+3V3-A-DT

100nFC062N

C063N 100nF

+1V2-A-DT

+1V2-A-DT

F034N

R023N

54

47K

R023N

63

47K

R023N

72

47K

R023N

81

47K

47K

45

R024N

47K

3 6

R024N

47K

27

R024N

47K

1 8

R024N

DT-HDMI0-SCL
DT-HDMI1-SCL
DT-HDMI2-SCL
DT-HDMI3-SCL

DT-HDMI0-SDA
DT-HDMI1-SDA
DT-HDMI2-SDA
DT-HDMI3-SDA

R019N 470K

470KR020N

470KR021N

R022N 470K

DT-HPD0
DT-HPD1
DT-HPD2
DT-HPD3

+3V3-DT

+3V3-DT

DB001N

DB002N
DB003N
DB004N
DB005N

DB006N
DB007N
DB008N
DB009N

DB010N
DB011N
DB012N
DB013N

Circuit Diagrams and PWB Layouts

EN 84QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-46 B, LVDS - DT

19580_127_140313.eps

14-03-26

LVDS - DT

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

U005N

AH4

AH3

AJ4

AJ3

AK2

AK1

AK4

AK3

AL4

AL3

AM2

AM1

AD4

AD3

AE4

AE3

AF2

AF1

AF4

AF3

AG4

AG3

AH2

AH1

Y4

Y3

AA4

AA3

AB2

AB1

AB4

AB3

AC4

AC3

AD2

AD1

T4

T3

U4

U3

V2

V1

V4

V3

W4

W3

Y2

Y1

T1

AE5

AC5

V5

AF5

AM3

AM4

AN4

AN3

AN2

AN1

V7

V9

U9

U8

W9

AB7

V6

V8

U7

U6

W6

AA9

AA8

TCON0
TCON1
TCON2
TCON3
TCON4
TCON5
TCON6
TCON7
TCON8
TCON9
TCON10
TCON11
TCON12

AVDD12_LVDS_1
AVDD12_LVDS_2
AVDD12_LVDS_3
AVDD33_LVDS

AVSS12_LVDS_1
AVSS12_LVDS_2
AVSS12_LVDS_3

AVSS33_LVDS_1
AVSS33_LVDS_2
AVSS33_LVDS_3

REXT_VPLL

BE0P
BE0N
BE1P
BE1N
BE2P

BE2N
BECKP
BECKN

BE3P

BE3N

BE4P

BE4N

BO0P

BO0N

BO1P

BO1N

BO2P

BO2N
BOCKP
BOCKN

BO3P

BO3N

BO4P

BO4N

AE0P

AE0N

AE1P

AE1N

AE2P

AE2N
AECKP
AECKN

AE3P

AE3N

AE4P

AE4N

AO0P

AO0N

AO1P

AO1N

AO2P

AO2N
AOCKP
AOCKN

AO3P

AO3N

AO4P

AO4N

LVDS

TYPE

DT-TX-BE0N

DT-TX-BE0P

DT-TX-BE1N

DT-TX-BE1P

DT-TX-BE2N

DT-TX-BE2P

DT-TX-BE3N

DT-TX-BE3P

DT-TX-BE4N

DT-TX-BE4P

DT-TX-BECLKN

DT-TX-BECLKP

DT-TX-BO0N

DT-TX-BO0P

DT-TX-BO1N

DT-TX-BO1P

DT-TX-BO2N

DT-TX-BO2P

DT-TX-BO3N

DT-TX-BO3P

DT-TX-BO4N

DT-TX-BO4P

DT-TX-BOCLKN

DT-TX-BOCLKP

DT-TX-AE0N

DT-TX-AE0P

DT-TX-AE1N

DT-TX-AE1P

DT-TX-AE2N

DT-TX-AE2P

DT-TX-AE3N

DT-TX-AE3P

DT-TX-AE4N

DT-TX-AE4P

DT-TX-AECLKN

DT-TX-AECLKP

DT-TX-AO0N

DT-TX-AO0P

DT-TX-AO1N

DT-TX-AO1P

DT-TX-AO2N

DT-TX-AO2P

DT-TX-AO3N

DT-TX-AO3P

DT-TX-AO4N

DT-TX-AO4P

DT-TX-AOCLKN

DT-TX-AOCLKP

TO NT72314

R123N

24K

C153N 100nF

C141N 1uF

+3V3-A-DT

100nFC154N

C155N 100nF

1uFC142N

+1V2-A-DT

Circuit Diagrams and PWB Layouts

EN 85QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-47 B, SECOND SOC DECOUPLING

19580_128_140313.eps

14-03-26

2nd SOC DECOUPLING

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

U005N

E22

D22

AA10

Y10

T9

V23

R23

L19

L18

AN7

AN6

AN5

AM7

AM6

AM5

AL7

AL6

AL5

AK7

AK6

AK5

AJ7

AJ6

AJ5

AH7

AH6

AH5

AG8

AG7

AG6

AG5

AF9

AF8

AF7

AF6

AE10

AE9

AE8

AE7

AD17

AD14

AD13

AD11

AD10

AD8

AC12

AC11

AC10

AB12

AB11

AA12

AA11

Y12

Y11

W12

W11

V12

V11

U12

U11

T12

T11

R12

R11

P12

P11

N12

N11

M12

M11

L17

L16

L15

L14

L13

L12

L11

VCCK_1
VCCK_2
VCCK_3
VCCK_4
VCCK_5
VCCK_6
VCCK_7
VCCK_8
VCCK_9
VCCK_10
VCCK_11
VCCK_12
VCCK_13
VCCK_14
VCCK_15
VCCK_16
VCCK_17
VCCK_18
VCCK_19
VCCK_20
VCCK_21
VCCK_22
VCCK_23
VCCK_24
VCCK_25
VCCK_26
VCCK_27
VCCK_28
VCCK_29
VCCK_30
VCCK_31
VCCK_32
VCCK_33
VCCK_34
VCCK_35
VCCK_36
VCCK_37
VCCK_38
VCCK_39

VCCK_40
VCCK_41
VCCK_42
VCCK_43
VCCK_44
VCCK_45
VCCK_46
VCCK_47
VCCK_48
VCCK_49
VCCK_50
VCCK_51
VCCK_52
VCCK_53
VCCK_54
VCCK_55
VCCK_56
VCCK_57
VCCK_58
VCCK_59
VCCK_60
VCCK_61
VCCK_62
VCCK_63
VCCK_64
VCCK_65
VCCK_66

VCCK_67

VCCK_68
VCCK_69
VCCK_70
VCCK_71
VCCK_72

VCC3IO_C
VCC3IO_B_1
VCC3IO_B_2
VCC3IO_A_1
VCC3IO_A_2

VCCK

TYPE

U005N

AD20

AC22

AC20

AC18

AB23

AB21

AB19

AB18

AA23

AA22

AA21

AA20

AA19

AA18

Y23

Y22

Y21

Y20

Y19

Y18

W23

W22

W21

W20

W19

W18

V24

V22

V21

V20

V19

V18

U22

U21

U20

U19

U18

T22

T21

T20

T19

T18

R22

R21

R20

R19

R18

P22

P21

P20

P19

P18

N22

N21

N20

N19

N18

M22

M21

M20

M19

M18

L24

K25

K24

AC17

AC14

AC13

AB17

AB16

AB15

AB14

AB13

AA17

AA16

AA15

AA14

AA13

Y17

Y16

Y15

Y14

Y13

W17

W16

W15

W14

W13

V17

V16

V15

V14

V13

U17

U16

U15

U14

U13

T17

T16

T15

T14

T13

R17

R16

R15

R14

R13

P17

P16

P15

P14

P13

N17

N16

N15

N14

N13

M17

M16

M15

M14

M13

L3

D16

D6

C13

DVSS_1
DVSS_2
DVSS_3
DVSS_4
DVSS_5
DVSS_6
DVSS_7
DVSS_8
DVSS_9
DVSS_10
DVSS_11
DVSS_12
DVSS_13
DVSS_14
DVSS_15
DVSS_16
DVSS_17
DVSS_18
DVSS_19
DVSS_20
DVSS_21
DVSS_22
DVSS_23
DVSS_24
DVSS_25
DVSS_26
DVSS_27
DVSS_28
DVSS_29
DVSS_30
DVSS_31
DVSS_32
DVSS_33
DVSS_34
DVSS_35
DVSS_36
DVSS_37
DVSS_38
DVSS_39
DVSS_40
DVSS_41
DVSS_42
DVSS_43
DVSS_44
DVSS_45
DVSS_46
DVSS_47
DVSS_48
DVSS_49
DVSS_50
DVSS_51
DVSS_52
DVSS_53
DVSS_54
DVSS_55
DVSS_56
DVSS_57
DVSS_58
DVSS_59
DVSS_60
DVSS_61
DVSS_62
DVSS_63

DVSS_64
DVSS_65
DVSS_66
DVSS_67
DVSS_68
DVSS_69
DVSS_70
DVSS_71
DVSS_72
DVSS_73
DVSS_74
DVSS_75
DVSS_76
DVSS_77
DVSS_78
DVSS_79
DVSS_80
DVSS_81
DVSS_82
DVSS_83
DVSS_84
DVSS_85
DVSS_86
DVSS_87
DVSS_88
DVSS_89
DVSS_90
DVSS_91
DVSS_92
DVSS_93
DVSS_94
DVSS_95
DVSS_96
DVSS_97
DVSS_98

DVSS_99
DVSS_100
DVSS_101
DVSS_102
DVSS_103
DVSS_104
DVSS_105
DVSS_106
DVSS_107
DVSS_108
DVSS_109
DVSS_110
DVSS_111
DVSS_112
DVSS_113
DVSS_114
DVSS_115
DVSS_116
DVSS_117
DVSS_118
DVSS_119
DVSS_120
DVSS_121
DVSS_122
DVSS_123
DVSS_124
DVSS_125
DVSS_126
DVSS_127

DVSS

TYPE

+1V2-MTK-DT

+1V2-MTK-DT

+3V3-DT

C123N 10uF

C115N

100nF

100nFC116N

10uFC124N

+3V3-DT

RES

100nFC117N

C118N 100nF

100nFC119N

C125N 10uF

CHIP BOTTOM

10uFC126N

C127N 10uF

C120N 100nF

100nFC121N

C122N 100nF

C128N

220uF 2.5V

X006N

SENSE+1V2-MTK-DT

+3V3-DT
+3V3-DT

RES

C190N 10uF

10uFC191N

C192N 10uF

Circuit Diagrams and PWB Layouts

EN 86QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-48 B, USB - DT

19580_129_140313.eps

14-03-26

USB - DT

B B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

USB_DP_P0
USB_DM_P0

USB_DP_P1
USB_DM_P1

USB_DP_P2
USB_DM_P2

USB_DP_P3
USB_DM_P3

AVDD33_USB_P0P1P2
AVDD33_USB_P3

AVSS33_USB_P1
AVSS33_USB_P3

USB

DT-USB-DP-P0
DT-USB-DM-P0

U005N

AE11

M25

AN8

K33

AM10

AN10

K31

K32

J31

J32

H33

H32

C129N

100nF

16V

16V

100nFC130N

+3V3-A-DT

C131N

1uF

6.3V

I012N
I019N

I047N
I048N

DT-USB-DM-P1

DT-USB-DP-P1

X371

5

4

67

3

2

1

TYPE

DT-USB-DP-P1

DT-USB-DM-P1

+5V

DBG

F033N

F038N

F039N

F041N

Circuit Diagrams and PWB Layouts

EN 87QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-49 B, USB SWITCH - DT

19580_130_140313.eps

14-03-26

USB SWITCH DT

B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

B

USBUP_DP1
USBUP_DM1

USBUP_DP2
USBUP_DM2

VBUS_DET1
VBUS_DET2

SDA/SMBDATA
SCL/SMBCLK/CFG_SEL0

CFG_SEL1
CFG_SEL2

XTAL1/CLKIN
XTAL2

RESET_N
SELF_PWR
TEST

PRTPWR1
PRTPWR2
PRTPWR3
PRTPWR4

PRT_ASSIGN0
PRT_ASSIGN1
PRT_ASSIGN2
PRT_ASSIGN3

PRTPWR_POL

RBIAS

VDDPLL18

VDDA33_1

VDDA33_2

VDDA33_3

VDDA33_4

VDD33_1

VDD33_2

VDD33_3

VDDCR18_1

VDDCR18_2

USBDN_DP1
USBDN_DM1

USBDN_DP2
USBDN_DM2

USBDN_DP3
USBDN_DM3

USBDN_DP4
USBDN_DM4

OCS1_N
OCS2_N
OCS3_N
OCS4_N

LED_A1_N/NON_REM0
LED_A2_N/NON_REM1
LED_A3_N/PRT_DIS0
LED_A4_N/PRT_DIS1

LED_B1_N
LED_B2_N
LED_B3_N
LED_B4_N

NC

HS/VSS

EXRES

USBDM

USBDP

TEST2

NC

USBRBIAS

XI

XO

VBUS_DET

RESET

TEST3

TRST|RXD0

TDO|PHY_RST

TCK|RXD1

TMS|RXD2

TDI|RXD3

TEST1

VDD33A_1

VDD33A_2

VDD33A_3

VDDPLL

VDD33A_4

VDDUSBPLL

VDDCORE_1

VDD33IO_1

VDD33IO_2

VDD33IO_3

VDDCORE_2

VDD33IO_4

VDD33IO_5

PHY_INT

TXN

TXP

RXN

RXP

MDC|GPIO2

MDIO|GPIO1

FDX_LED|GPIO8

LNKA_LED_|GPIO9

SPD_LED|GPIO10

EECLK|PWR_SEL

EECS

EEDO|AUTOMDIX_EN

EEDI

PHY_SEL

RXCLK

RXDV

TXEN

RXER

CRS|GPIO3

COL|GPIO0

TXCLK

TXD3|GPIO7|EEP_SIZE

TXD2|GPIO6|PORT_SWAP

TXD1|GPIO5|RMT_WKP

TXD0|GPIO4|EEP_DISABLE

GND_HS

VCC

RESET

GND

VCC
RESET
GND

2

3

48
49

45
46

32
33

34
35

52
51

44
36
18

27
24
23
20

41
40

39
38

19

56

53

1

6

11

47

541737

50

16

5
4

7
8

10

9

12
13

26
25
22
21

30
28
14
42

31
29
15
43

55

57

U018N

USB2524-ABZJ

8

11

12

13

14

16

18

19

20

24

33

36

37

38

39

40

49

479

101517

21

2535485051

52

1

2

3

5

6

22

23

26
27
28

29

30

31

32

34

41
42

43

44

45

46

47

53

54

55

56

57

U019N

LAN9500

16V

100nFC058N

C060N 100nF

16V

+3V3-USBSWITCH

10R108N

R109N

10

100KR112N

R113N100K

R122N 100K

100KR126N

R127N 100K

12KR130N

10KR028N

R034N 10K

50V

12pFC068N

C069N

12pF50V

2

3

4

1

X001N

SCL-SSB

SDA-SSB

DT-USBSWITCH-RESETn

DT-USB-SWITCHED-DP1
DT-USB-SWITCHED-DM1

DT-USB-SWITCHED-DP2
DT-USB-SWITCHED-DM2

DT-USB-SWITCHED-DP3
DT-USB-SWITCHED-DM3

16V

100nFC064N

10KR035N

F022N

3

2

1

U017N

DT-USBSWITCH-RESETn

+3V3-USBSWITCH

10V

4.7uFC070N

C071N 4.7uF

10V

DB001C
DB002C

USB-DP-P2
USB-DM-P2

DT-USB-DM-P0

DT-USB-DP-P0

L003N

30H

30H

L004N

+3V3-DT

30H

L006N

100nFC072N

C073N 100nF

100nFC092N

C093N 100nF

100nFC094N

C095N 100nF

100nFC097N

C099N 100nF

100nFC102N

45

100R131N

3 6

R131N 100

100R131N

27

18

R131N 100

10R110N

R111N 10

45

R132N 100

3 6

100R132N

27

R132N 100

18

100R132N

470pFC104N

C135N 470pF

470pFC136N

C147N 470pF

+3V3-DT

+3V3-DT

S006N

R040N 10K

+3V3-DT

10KR045N

R046N 10K

10KR050N

R051N 10K

12KR133N

R134N 12K

+3V3-DT

+3V3-DT

+3V3-DT

1KR128N

50V

33pFC065N

1MEGR129N

234

1

X007N

3

2

1

U020N

+3V3-DT

C067N 33pF

50V

+3V3-DT

10KR052N

DT-USB2ETH-RESETn

DT-RXP
DT-RXN

DT-TXP
DT-TXN

DT-USB2ETH-RESETn

USB-DM-P0

USB-DP-P0

I050N

I051N

I052N

I053N

I054N

I055N

I056N

I057N

I058N

I059N

I060N

I061N

I062N

I063N

I064N

I065N

F026N

C103N

100nF

16V

IN

OUT_1

GND

OUT_2

16V

100nFC077N

30H

L001N

3

2

1

4

U009N

16V22uF

C078N

+5V

+3V3-USBSWITCH

I010N F030N

+3V3-DT

+3V3-USBSWITCH

S007N

50m

50m

S008N

S010N

+3V3-DT

+3V3-USBSWITCH

+3V3-USBSWITCH

+3V3-USBSWITCH

S011N

S012N

I011N

I018N

I027N

RES

S013N

50m

R147N

1MEG

Circuit Diagrams and PWB Layouts

EN 88QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-1-50 B, USB HUB

19580_131_140313.eps

14-03-26

USB HUB

B

2013-12-13

3

715RLPCB000000021

MTK UHD 50 Hz

7800

B

U010N

29

19

13
12

16
15

20

24

7
6

25

4

3

27

21

14

9

5

2

1

26

18

8

23

22

17

11

10

28

VREG

XIN

XOUT

RESET

SELFPWR

GANG

RREF

TEST|I2C_SCL

PWR|I2C_SDA

DN
DP

VCC_A1

VCC_A2

VCC_A3

VCC_D

VCC

DDN_1

DDP_1

OVR_1

DDN_2

DDP_2

OVR_2

OVR_3

DDN_4

DDP_4

DDN_3

DDP_3

OVR_4

GND_HS

CY7C65632-28LTXC

DT-USB-SWITCHED-DM3

DT-USB-SWITCHED-DP3

DT-USB-SWITCHED-DM2

DT-USB-SWITCHED-DP2

DT-USB-SWITCHED-DM1

DT-USB-SWITCHED-DP1

DT-USBSWITCH-RESETn

+3V3-USBSWITCH

USB-DM-P2
USB-DP-P2

+3V3-USBSWITCH

+3V3-USBSWITCH

+3V3-USBSWITCH

+3V3-USBSWITCH

2

3

4

1

X011N

50V

18pFC158N

50V

18pFC159N

10KR136N

R140N 10K

R141N 10K

10KR142N

R145N 100K

R146N 680

10KR143N

+5V

+3V3-USBSWITCH

C160N 100nF

100nFC161N

100nFC162N

C163N 100nF

100nFC164N

C165N 100nF

I029N

I030N

I033N

+3V3-USBSWITCH

I032N

Circuit Diagrams and PWB Layouts

EN 89QM14.3E LA 10.

2014-Apr-17

back to

div.table

VIN

GND

INH

BYPVOUT

13

4 6

1 5

1 8

916

P N

1

2

3

4

5

119

119

1 5

A K

P N

A K

GSD

1

2

3

4

1 6

8

916

1

16

GND

~RESET

VCC

A K

A K

~OEAGND

YVCC

1 4

A K

A K

A K

A K

GNDOUT_1IN

OUT_2

~OE

A

GND

YVCC

119

A K

~OE

A

GND

YVCC

A K

AN1

AN33

A1

A33

1

4

58

GND ~RESET~|RESET

VDD

1

4582

1

5

14

AJ1

AJ30

AK2

AK28

A3

A28

B1

B30

A K

A K

1 3

GND

~RESET

VCC

A K

1

2

3

4

A K

16

1 4

1 4

58

A K

1 8

111

1 4

58

A K

GNDOUT_1IN

OUT_2

E

B

C

E

B

C

1 4

58

1 4

1 2

34

1

8

AA1

AA14

AH4

AH11

A4

A11

H1

H14

1 4

1 14

15

28

2942

43

56

B E

C

B E

C

GNDOUT_1IN

OUT_2

GSD

1

220

21

14

~OEAGND

YVCC

1

2

3

4

5

1

2

34

5

VIN

GND

INH

BYPVOUT

GNDOUT_1IN

OUT_2

1

2

9

10

A K

1

2

27

28

AN1

AN33

A1

A33

1 8

916

2

19

20

12

B E

C

AA1

AA14

AH4

AH11

A4

A11

H1

H14

1 40

119

1 6

1 2

1

4

P N

1 10

11

20

2130

31

40

1 4

58

A K

1 14

15

28

2942

43

56

G

S

D

IN

U027U

X002D

X007N

X371

U011U

C091T

C128N

C084U

X206

X286

X283

X314B

D005F

C128T

X007T

X005N

U023U

C090N

U002F

C054C

X011U

X261

X346

X297

L003D

U028B

X031

U008F

U001T

D020C

D001F

X311

X292

U010C

L009F

X333

L022F

X010

C018U

R135T

U019C

X282

U004N

C055F

D006F

C156U

X313B

X325

L001D

U012U

U011C

X284

L015U

D002U

U009C

D019C

C144U

C049D

X005T

X000

X015B

C050D

U005T

U003N

L028B

X007

L002D

U010U

U001E

U013C

X019B

X001D

U002N

X029

X335

X008N

L003U

C040C

U001B

C070F

X321

C051D

R142T

D005U

X331N

D008F

X273

X323B

C119F

U001N

U010F

X266

D018C

C047F

X025

U005B

X003C

X342B

C069U

X070

X295

C155U

L010F

C037D

X072

X001N

U020U

C004D

X027

X020

X004T

U020C

C005D

C158U

D003U

L010U

C006D

U003F

C081U

U007B

X061

L002U

X003T

U026B

X281

X320

C041C

C090T

X030

C003D

X005

C111F

U007T

X280

X310

C165T

U018N

U008U

C116F

U024B

X010N

C147U

U015U

L016U

U024U

X008

X006

X004N

X260

X001E

U012C

U004B

X268

C159U

X055

C339B

X009N

C068U

U003U

U004T

U022U

X303

X312B

U005F

X090

C029F

U005N

U018U

X001T

C078N

C039C

U002T

L027B

U005U

C067F

X322N

C052D

U007N

X026

X285

X296

X003D

C091N

C082U

C007D

C038D

L005D

X013B

U003T

L009U

X003E

X071

C037U

X073

X002

U003E

C145U

X003

C020U

X274

U009U

X322

X410

C164T

D004U

L021F

L019U

X002N

C061F

U019N

X002T

U006T

U014U

X330N

U027U

C004U

C048U

U004E

R084F

R247T

R051B

S022C

X002D

R134B

X007N

C043C

C010C

S014D

R236B

R084B

R085B

R099T

X371

R083N

U011U

R076U

R033C

C091T

C128N

C086C

C084U

C001T

D019T

X206

C083F

D008N

X286

L001U

R172N

S012C

C177N

L005N

R153T

D024T

X283

C098U

R285N

L011U

X314B

C040F

C025U

R186T

C368B

R119B

D044B

R129T

C158T

D018N

D005F

C128T

C100N

L007U

R041U

X007T

C131U

C102U

R029F

D025T

C115F

D026T

R052T

R002E

X005N

C014U

R074U

D001B

D061N

R040B

L001C

C047D

C060U

R022C

C293B

C045B

R154N

C022D

C356B

R086F

U023U

C012C

C086D

R069U

R059F

C063U

D061T

D053T

R083F

C027C

C367B

C381B

D004C

R292T

C371B

R248T

D054B

C056F

C090N

R115T

U002F

R130C

C299B

C047B

D026N

C054C

R263T

X011U

C159T

X261

X346

D012N

X297

L003D

C177T

D044N

C018E

C355B

U028B

C075D

R050F

C067N

R094B

X031

C136U

C012U

U008F

R049B

U001T

C032U

D007B

D008T

R093T

C069C

R125C

R139N

R091C

D020C

L008U

D053N

R269N

C061C

D001F

D013T

R076C

D069B

R137T

C055U

R050C

R131B

C343B

X311

R028U

R128C

R133T

C127U

S005N

X292

U010C

C179T

L009F

X333

L022F

X010

C018U

C160T

R135T

U019C

C072C

D006T

X282

C058U

R126T

R089C

D052N

R139T

R081F

U004N

C055F

D041N

D038N

C046T

R263N

R135C

D006F

C156U

C182T

C039B

R129N

D004B

L013U

L005U

R107B

C115U

C024U

D020T

R129C

D009B

R113T

R120B

X313B

X325

L002F

R126B

L013C

C057F

D063N

C021D

D049N

L001D

C054U

D001U

D008B

C157N

R253N

R245N

U012U

U011C

R042B

R127B

C045N

D038T

C079T

X284

C148U

C279B

L015U

C122U

D002U

D058N

R117C

R118T

D011B

U009C

D009T

S013D

D059N

C101T

C372B

R252T

R032B

D019C

C077D

C144U

R038B

C049D

C015N

R147N

L015F

X005T

X000

R135N

R265T

R010D

D037N

R100C

S001U

R246B

D064N

D046T

S015T

D043N

X015B

C050D

C085D

U005T

C386B

U003N

L028B

R250N

L014F

R227B

C136N

C048B

R153B

D005B

R150T

R126C

R124B

C147N

R262N

D054T

C074N

C068B

D005N

R045U

R110N

X007

R285T

D042B

S016T

R017N

C050U

C084C

C061U

R129B

R090B

R286B

L002D

D033N

C045C

D032T

D055N

R030B

R262T

R174N

C030C

R001B

U010U

D033T

C001N

D005C

C124U

S025C

R027D

R121N

U001E

D001N

C176N

R046B

C076N

R092B

U013C

R001D

C167T

R292B

D007N

X019B

R238B

X001D

R151T

R121C

U002N

R122B

R248N

R287N

C104N

R116C

R116B

R123C

C022U

D016T

C292B

R011E

D065T

X029

C031C

C016N

D057T

X335

X008N

C174T

L014U

R121B

R161T

C035B

L003U

D056N

C040C

D056B

R166T

R079B

U001B

R049F

C044N

C059F

R253T

C070F

X321

C078U

C051D

C370B

R108B

D024N

R089N

C024D

R142T

D005U

R074C

C180T

C031B

R105C

R132T

R114B

C369B

D025N

C184T

C358B

D009C

C089F

C148N

R149T

R158T

R104U

R196B

C070U

R124C

D019N

S005C

C140U

D045N

X331N

L006U

S023C

C125U

D008F

X273

X323B

C119F

C135T

U001N

S009T

C337B

D006U

D016N

C062U

R020C

C147T

R113C

U010F

R150C

D057B

C074D

D036T

D013N

S008D

S005U

C042B

C083U

R081C

C113U

R140T

R150B

X266

D018C

R114T

R252N

C114U

C047F

C135N

R111C

R115B

R265N

R131T

S009N

C064U

R119T

D057N

R085F

D003T

X025

C033U

R187T

D010B

C030U

C066N

C044B

R090U

L002T

U005B

C044F

C041F

X003C

R044B

D040B

R130B

C025N

C178T

D021N

R082T

C298B

C052U

X342B

D002N

D039N

D044T

C069U

R003C

R015N

C077C

R081B

X070

C006C

C038B

D022T

C007E

D042N

R077B

C080U

X295

D003B

R060F

R082N

C001C

C155U

C002E

C057U

R131C

R224B

R025F

R215B

S010T

R154T

C048D

R117B

S006T

R001U

D056T

L010F

S014N

D015T

C050C

C014E

C178N

S046C

C042U

R091B

R225B

C080N

R075B

C294B

C118U

C032F

R031T

C052C

R038T

C037D

D054N

C119U

X072

X001N

D041B

C045T

D030N

U020U

R032N

R047B

D006B

R175N

R099N

R115N

D034N

C040B

S026C

C076D

C011C

C023D

C031U

C161T

R137C

R031C

C019U

R250T

R197B

D065N

D030T

R048B

C099U

C004D

C027U

R075C

D027T

D029T

R151C

R097B

X027

R010E

D001T

R161B

X020

R040U

X004T

C008C

R162N

R251T

R079C

D064T

D060B

U020C

R083T

R058D

C005D

R042U

C037B

R214B

C016T

R027F

R138N

R041N

R093B

C158U

R231T

L004U

D058B

R093N

C091F

C149U

C019D

R031B

S004U

D003U

L010U

C071C

R036F

R136C

C006D

D059B

U003F

C135U

R128B

C081U

D002B

D035T

D008C

C303B

C067B

R082F

D015N

U007B

C084F

R249N

X061

D062N

C038C

D055T

C112F

C162T

C067U

S003C

L002U

X003T

U026B

R118B

S025T

C053U

S047C

X281

C030B

D023N

X320

C056U

R074F

R123B

D045B

D033B

D062T

R113B

R088N

L016F

C041C

C090T

R246T

X004E

C134N

X030

C003D

C078D

R128T

X005

C051U

R086B

L001T

C111F

D037T

R047U

C150T

R012E

R116N

C044T

R111N

R051T

S007D

R033N

C096N

R151B

C081D

D031B

U007T

R044F

D028T

C066D

C053D

D045T

R250B

S014T

C015T

D035N

R018B

R249T

R036U

R222N

C009E

X280

X310

R167N

D018T

R222T

C100U

C043B

R041B

R098C

C068N

C071U

C128U

C165T

R134T

R230T

D040N

R037F

R067U

U018N

C139U

U008U

D011C

C116F

C103U

C156T

D012T

C002N

R092U

U024B

C166T

D010C

C002B

C003C

R121T

X010N

C147U

C046U

R245T

R071C

R073C

D014N

D059T

D029N

U015U

L016U

R078C

L005T

C065N

U024U

R111B

X008

R056D

X006

C045D

R059D

R077C

R240B

R021B

C001E

S048C

D014T

X004N

X260

R029D

R022F

C025T

C035F

R068U

C152U

X001E

C034B

R112C

R172T

R287B

D060N

L002E

U012C

R161N

D049T

C058F

C352B

C035C

U004B

C116U

R132C

R133C

R023C

R014N

X268

R122C

D021T

C132N

C034F

C126U

D046N

R028D

R144T

C159U

X055

D012C

C062F

C339B

C068C

D055B

S011C

R033B

C071B

C058C

C149N

R057D

R189T

R088C

R137N

C020D

S009C

R116T

C101U

R088T

R100T

C138U

X009N

R012F

D017N

C353B

R009E

C081C

R042N

S001E

R034C

C068U

U003U

R167T

R289B

U004T

C344B

R162T

D006C

C154U

C065D

D052T

L012C

R019B

R086C

R078B

D027N

D002T

C278B

U022U

R293T

C095F

R017U

R268N

R046U

R083C

X303

R092N

R043B

R083B

R013B

D003N

R153N

C183T

R051D

R030D

L009C

C345B

D028B

R251N

R152T

D022N

X312B

U005F

C101N

D063T

R185T

R312B

R099C

R051U

C377B

D007C

R033T

S002U

L010B

X090

R268T

R189N

R245B

R052U

R109T

R046F

R267T

C137U

S010B

C029F

R125B

C072D

C074T

D009N

R054C

D004T

C066U

R072C

C008E

R130T

U005N

R219B

S005T

U018U

X001T

R015B

R092T

C036B

C153U

C078N

R226B

C148T

R082B

C039C

U002T

R291T

L027B

R157C

R032C

U005U

C029B

C067F

C023U

X322N

R041F

D060T

C146U

D043T

C052D

U007N

R082C

R016N

C173T

C049C

R152B

L003F

C072F

R156C

D031T

C073D

C156N

X026

C090F

C009C

C378B

C046D

R287T

R141C

X285

C033B

R029B

R127T

S024C

R114N

R043N

S008C

C067D

D017T

S027C

C044U

C354B

R043F

X296

C064D

C041U

X003D

R112T

C132U

C091N

D036N

R132B

C026U

R157T

D032N

S006D

R120T

D007T

C004C

D023T

C076C

D043B

D040T

C054D

C010E

C053C

C136T

R021C

R233B

C069N

C082U

C163T

C007D

C357B

C038D

C059U

R138T

R045B

R073B

C080D

R020B

L002C

S002C

D031N

D004N

R072B

R080B

C063D

L005D

X013B

R100N

U003T

L009U

D058T

C085C

R050T

R098U

C121U

X003E

C150N

C041B

C072B

R088B

R166N

R127C

R112B

X071

C037U

C157T

D020N

X073

R089B

C065F

R039B

C063C

R078F

R050B

D006N

C076T

R229T

X002

D028N

S033C

U003E

C032B

C145U

C072U

D041T

X003

R091U

R076B

C020U

R052B

C042C

R149B

X274

C002T

S006C

D034T

D039B

C100T

U009U

C046N

R074B

X322

D038B

X410

C045U

D032B

R089T

C164T

D039T

D005T

C047C

C149T

R026F

D004U

R087B

R080C

C071F

L021F

L019U

R050D

D042T

X002N

C061F

R149C

L012U

U019N

X002T

C047U

U006T

U014U

R267N

X330N

C176T

R028F

C013U

10-1-51 Layout Top

19580_071_140305.eps

14-04-21

2013-12-19

3

715RLPCB000000021

SSB Layout top

Circuit Diagrams and PWB Layouts

EN 90QM14.3E LA 10.

2014-Apr-17

back to

div.table

BE

C

D1D2G

SD3D4

B E

C

A K

1

2

3

4

5

E

B

C

E

B

C

1111 7777

8888

14141414

1515151521212121

22222222

28282828

14

5 8

12

13

24

25

36

1

48

37

A

K

E

B

C

E

B

C

1

B E

C

1

2

3

4

BE

C

BE

C

EBC

EBC

1

7

8

14

24

5

BE

C

B E

C

14

GND

~RESET

VCC

B E

C

1 4

58

14

5 8

VIN

GND

INH

BYPVOUT

BE

C

1

A K

GNDOUT_1IN

OUT_2

1 4

58

B E

C

E

B

C

E

B

C

A K

C

E

B

BE

C

GSD

PN

1 4

58

1 3

AK

1

2

3

4

A1 A2

J

1 5

610

BE

C

GNDOUT_1IN

OUT_2

1

12

13

24

25

36
37

48

A K

A K

1 5

610

B

EC

EBC

1

1 4

58

1 4

1 4

5

8

912

13

16

1 5

610

1 4

58

B E

C

AK

BE

C

14

A K

G S

D

E

B

C

E

B

C

AK

BE

C

1

1

2 20

21

B E

C

1

2

3

4

5

A K

GND

~RESET

VCC

B E

C

1

2

3 4

5

A K

25

24

12131

48

37

36

BE

C

1 4

5

8

912

13

16

AK

1

2

27

28

BE

C

12

1

BE

C

AK

VOUT

GND

NC

EN|~ENVIN

1 6

EBC

EBC

AK

E

B

C

E

B

C

BE

C

BE

C

BE

C

GND

~RESET

VCC

BE

C

U002U

DB001C

R284N

S016B

R101U

R020U

R093F

R234N

C067T

R036T

S034C

X002D

R052C

S035C

S024D

R088F

R070F

C005F

R013D

C048F

R294B

R179T

C124B

R077T

C140B

C043F

S006U

C313B

C085N

R005B

R204B

R056F

C164N

R009T

L017U

R233T

R102T

C053N

R055T

C016E

C035U

R199T

C018F

C026N

R097U

U019B

C063T

S029T

R049N

R056C

R060N

U002B

R254T

C118N

C047N

S014C

DB001F

C162B

D026C

S049D

S041C

C262B

C013F

R290T

X206

R181N

R024F

U028U

R288N

C033F

C041T

R043T

C035N

U010N

R053N

C088F

C028C

R027T

C031T

R274T

R011T

U001U

L011C

C171N

S007T

C096T

C064B

C028U

R009N

R009B

C042T

C338B

R200B

C275B

R043U

C140N

R122T

R067N

C148B

U001F

C140T

C029D

R062F

R047T

D022C

R023F

R115C

R012T

C014N

U016C

R300B

R066T

C075U

DB004N

C007B

x001F

L012F

DB006N

R003N

C099B

R014C

R218B

R261N

C127N

R207B

C029U

R034N

R011C

R016C

R270N

R193T

S010D

C095N

R140N

C133N

R071F

R065F

D050N

R204T

R107N

C025C

R259T

C100B

C107T

C158B

C047T

R025U

R024D

L010C

C120N

R224T

R256T

C017E

R159B

C089U

C092U

R096T

S028T

R080F

R039T

R212T

C088T

C152T

C042D

R170T

S047D

R244T

R004F

R075F

C311B

C189T

R092F

R158N

R258T

C033C

R098T

C056T

R104T

C150U

C277B

D049B

C169N

C145N

S021D

R045N

U006U

R074T

C103B

S040C

R019T

D051T

C190N

R201T

X297

R125T

C104U

C074U

R068B

U006F

R040C

R190B

U011B

U020B

R104C

R037T

R035C

C141T

X007F

C153T

S013B

R092C

C146B

R074N

C095B

R041T

R128N

R072N

R064N

S027T

R081N

C121N

U022B

C097N

C098T

R012C

C146N

C120T

S044C

R102N

C069T

U021C

C106F

R235N

R178B

C011E

R036C

D050T

R006B

U004F

R058C

R261T

R182N

R042T

R059C

R148B

R018F

R084T

R057U

C172N

C033D

R095N

U005D

C093U

R076T

C122F

C063N

R235T

R208N

S023F

R046N

C037N

R096B

C168T

C052T

C110B

R109U

C084N

C043N

R072U

S019C

X010

C116N

C051T

C040T

R036N

C049F

R215T

L001E

C151N

C138N

C139T

C087N

R007E

C033N

R093U

C071D

S037C

R016D

R242N

C026D

S017B

R277N

C011N

R266T

X282

R165N

C117U

R043C

R295B

C078T

R122N

R010T

L011B

L007C

R014T

C012F

R001N

L013B

C029T

R115U

R188T

R075N

C109F

C059C

R016F

R234T

R003U

L023B

S004F

C157U

C155B

C030D

R146N

DB003F

C010U

U013B

R140C

R016U

R218T

R050N

R014F

L005C

R025T

R063F

C077B

C078C

R069B

R070C

R047F

L001B

C036N

R014D

C044D

C036F

R198T

U017C

R208T

C154N

C073F

U008N

R101N

C086N

DB002N

C065T

R011B

R042F

R146C

R039N

C062C

C107U

R034F

R091F

C045F

C149B

U012F

C015C

R006T

R015F

C037F

R055F

R066F

R015T

S018D

R219T

R106C

DB011N

R255N

C138B

R162B

C117B

R006E

R056U

R029T

S021F

C004T

R008N

R038F

R105T

R110T

S008T

C120B

R110C

C296B

C130B

R095F

C067C

C034T

C034U

C069D

R021D

R007N

U006B

C008B

R080N

C018T

S015C

C024N

R090C

C121F

S049C

R024U

R028C

C172T

R091N

C060T

C315B

R168T

S004N

C163B

C075F

C049N

C023C

C109B

R016T

D067B

R044N

R118N

S001C

C030F

C130N

R182T

C059N

R007U

C118F

L004T

R009C

S017F

C079F

C102F

S015F

R196T

D052B

C127B

C050B

C038N

C073C

C123N

S002F

C026C

C136B

R124N

D009F

S011N

C086U

C168N

C088U

R275N

R035T

C016D

C014C

L001F

R077U

R210N

R094N

D050B

S002T

R228T

C103N

S014B

R062U

C115B

R039F

R109N

R109C

R094T

R091T

R065N

R264N

L003B

S006N

R297T

R014B

C068D

C327B

DB001N

R093C

U009N

C143T

R030F

C323B

C005B

R029N

R039C

C048C

C084T

S008N

R024C

R002C

C040U

R041C

C326B

S016F

R125N

S042C

U003B

U002E

C141U

R203T

C030T

R031F

C036U

C083B

C061N

R086N

C008N

R236N

R165T

C114N

C026T

R063N

R055C

C029N

C102B

C121T

R290N

C120F

L014C

R289T

R062T

S020C

R271T

DB009N

C094T

R127N

R168N

R108N

R099F

R058F

R201B

R040D

S023D

C068T

R075T

R106B

R004E

R143N

C094N

R276N

R002D

C095U

R004B

C007U

U015C

C014T

D007F

R084U

U029U

C085B

S045C

C088B

S007N

C070N

C317B

U006N

R288T

C081F

C019C

C076U

X001D

C082N

R108U

C034D

C039T

R114U

C069F

R015D

R226T

R078N

C142B

R181T

R103C

R051F

R266B

C107B

R197T

R068T

R220T

R046C

C035D

R264B

R002B

C154B

C004E

C007T

C052F

C123F

C152N

C023F

C094F

U026U

R008B

C106U

S048D

C109T

R113N

C102T

R243T

R013F

R079T

C087F

R241N

C082T

C070C

S009D

R078U

R017B

R015C

C036C

C007N

S020D

R006D

R020F

C038F

R144C

C009F

R011D

R076F

R035F

C012N

R009F

R104B

R047N

C001B

R094C

R114C

C128B

R145N

C260B

R005D

R147T

U025B

C162N

R040T

C024F

R237T

S041D

C085U

R058U

R106T

C105N

C129U

C019E

R039D

C075T

R234B

D061B

R046T

R084N

S004D

R089U

S032C

C163N

U003C

C021U

C078F

X273

C105B

C131N

C016U

C095T

R164N

C053T

C005N

C104F

R013T

R270T

R006F

C297B

C133B

R237N

C090B

C054N

R255T

C074F

C152B

R017T

D008D

R124T

R021U

C038U

L017F

L012B

C156B

R069T

R281T

R106U

D048B

R260T

R042C

R180N

S038C

C097T

C105T

R007F

R078T

R018T

C006E

R087T

C088N

X011N

R286T

R040N

C096B

R267B

R111U

S003N

R066U

R273N

R119C

C110N

C134U

C041D

C108U

C043D

C170N

C107N

R071U

R274N

S002D

R069F

R028T

C031D

C133T

R004U

C129N

DB008N

S016C

R176B

C012T

R007T

C068F

C027F

C111N

C084B

C142U

R003B

C057D

R070U

R112U

R072F

D013C

R132N

C122B

U004U

R257N

C024C

R170B

C089T

R027U

R146T

R169T

C109N

C082F

R190T

R206T

C066C

C112B

R073F

C010F

R144N

R047D

C113B

C150B

R169N

C022N

C016C

R026N

R154C

C090D

C188T

C164B

U010T

R214T

R212B

R054F

R133B

S001D

L004B

R061F

R039U

R155B

U011F

R094F

R207T

C023T

R065T

C302B

R071T

R004N

C053F

R260B

R113U

R175B

C099T

R063T

R119N

U007F

R138C

C046C

C050T

R073N

C151B

X295

R284T

D004F

C035T

R145C

R211T

R070N

R278N

R156T

R085N

R103T

R022T

C058D

R057C

R008E

R020N

C016B

C143U

R236T

R174B

C028F

C145B

D011N

R103N

C124N

C085T

R010U

C079U

C134B

R184T

C008F

R242T

R171T

R040F

C159N

C021N

R227T

C093B

R065U

R086T

R103U

C126N

C006N

R178T

R072T

C175N

C011T

R001T

L011F

R282T

C130T

C111T

C017F

R082U

R056T

C160N

R232N

R110U

L018F

R151N

R279T

D002F

C072T

U013U

C122N

C314B

C087D

C079B

C106N

C013T

C010B

C131T

C021F

R004D

R200T

R011U

R095T

R061U

R111T

C054T

C089D

C064C

R081T

C056N

R063U

C113T

C003U

R049U

R059T

R053F

R075U

C019F

R157B

C098F

R016B

S011F

R024N

R030N

C092T

R083U

C105F

R152C

R088U

R175T

R105N

C098B

U007C

S012N

S039C

R244N

R033F

L005F

R163N

C085F

R038U

C111U

C158N

R171N

S005F

C092B

L019F

C137B

R231N

D048T

C059D

C024T

C190T

R035N

C125B

R045T

R262B

R202T

R241T

C144T

C006T

C022T

C016F

R094U

C118B

R021N

C295B

C328B

R006N

R060T

R025D

R010C

S012F

C051F

R013U

R066C

S001T

R272T

C076F

C079N

R090N

R172B

R275T

C020T

C186T

R030T

C097B

R037N

S043D

DB010F

C049T

R035U

C065C

L020F

C139B

R173B

C057N

D046B

C146T

S001B

R097T

R002N

C139N

C028T

R198B

C052N

R105B

S029C

R230N

R266N

C153B

C261B

R019U

C003E

R260N

C039F

C129B

D064B

R002F

C022F

U018B

R205B

R177B

R102U

R079N

R208B

R280N

R265B

C034N

R194T

R281N

C015E

S037D

C258B

C185T

C042F

C087U

C132B

R098N

R064T

R257T

C017D

C012E

C096F

R077N

C014F

C121B

R018U

X281

C003N

C329B

C064N

R059U

U017U

C064T

R013C

C114F

C075B

C118T

DB003N

DB006F

D065B

C037C

C018D

C079D

R269T

C080B

C030N

C071N

L004C

C055C

C007F

R164T

R048N

R195T

S031T

R102C

C019T

R177T

L008F

C104B

C088D

R134N

C071T

R045C

R278T

R123T

C129T

C017T

R090T

U021U

C104T

R067T

C160B

S018B

C028N

R276T

L016B

U008T

S036D

C107F

R064U

R057F

S033T

R095U

C008T

R001E

C111B

R021T

S003U

U025U

R010N

R079F

C127T

C008U

D010F

R148C

R120C

C171T

C098N

C318B

R142N

R084C

DB012N

R023U

C099N

R223T

C080C

R277T

U009T

X280

R019N

R100U

C117F

L023F

C039D

R001C

R007D

R099U

C169T

D007D

C009B

R214N

C151U

R106N

D047T

C086T

C005U

U018C

R174T

R273T

R097C

D062B

R046D

R025C

R067F

R141N

R142C

R096C

R253B

C131B

S011D

S030C

R052N

C126T

R069N

R008U

U014C

C134T

C003T

D047B

R117N

C083N

R064F

C009T

C191N

R012D

R225T

C159B

C010N

S013F

R184N

C124T

R085T

L007F

R049C

R153C

C135B

C017N

R031U

C110U

R026C

C115N

R055U

R141T

R044U

C165N

C092N

C038T

C021C

R053C

R018N

D024C

C043T

C112U

R087C

C089B

D011T

C001D

R191T

C004B

R107C

R205N

R233N

C075C

S032T

C119N

R139C

U008B

R126N

C083T

R022N

C110T

R068F

R054T

R259N

C043U

S045D

DB007F

R136N

R024T

R085U

X260

C044C

R232T

C015B

R143C

R283N

R105U

R123N

D047N

R217T

S018C

DB013N

C108T

C066T

C011B

S003D

C013C

U019U

C325B

C257B

C036T

R033D

C002C

S005D

C106B

C312B

R009U

X268

C092F

C123T

S034T

C060C

C120U

C081T

R117T

D017C

C079C

C037T

R027N

C063B

R272N

S043C

R086U

S028C

R080T

C010T

S022F

C108F

C078B

S020F

R177N

R279N

U020N

R239T

R027C

C026F

R182B

C064F

C155T

C065U

R044C

C175T

R012B

C048N

R047C

C094B

R136T

R056N

C080F

R071N

R243N

R008D

R148T

C109U

C061T

U012B

C049U

R051N

S004T

C051C

C017C

C125T

X009N

D053B

C058N

D068B

C022C

C048T

R004T

C081N

R221T

C138T

R176T

R061N

R155T

D006D

R023T

C142T

R073T

C161B

R066N

R029C

R179N

R058T

R033U

L004N

C316B

C133U

DB004F

C006U

U002D

C110F

S026T

U009B

C086F

C192N

R001F

R143T

R170N

C155N

DB005N

R026U

R286N

C056C

R034T

R256N

R096U

R044T

U007U

R049T

C117T

R147B

C042N

R008F

C004N

DB010N

R154B

L015B

R003E

R238T

C113F

C187T

R097N

R013N

R002U

C076B

S040D

R032U

C157B

C080T

R005U

R181B

R090F

S015N

C082C

R183T

R032F

R134C

R057T

C040D

C073T

R022U

D003F

C103F

R010F

S017C

C020C

R258N

C062D

L003N

X090

C081B

C091B

R037U

R096N

R030C

C025D

C097U

R038N

R240T

R239N

C060N

R087F

C142N

S001F

C319B

C058T

L025F

U004D

C089N

C141B

C063F

C009U

C105U

L014B

C057C

R023N

R263B

C147B

C013N

C108N

X001T

S014F

R089F

C083C

L003C

S044D

C050F

R206B

C192T

R171B

X016B

R209T

R218N

R205T

C001U

R130N

C122T

R095C

R158B

C059T

C116T

C011U

C056D

C029C

R283T

S003T

R087U

C031F

S030T

C103T

C087T

R110B

C051N

C031N

C018N

R239B

C060F

C099F

U006D

R011N

R002T

C114B

R007B

R070T

R005F

R015U

R008T

C101F

R240N

R029U

R211N

R295T

R077F

C073N

R012N

C075N

R296T

D027C

DB005F

R022D

C112N

C115T

S035T

S036C

U029B

C039U

C025F

R216T

C324B

C271B

R155C

R025N

L005B

R021F

R176N

R061T

C005E

X296

D051B

R152N

C004F

L006F

R282N

R003F

U002C

C191T

C132T

L024F

R017F

S042D

X003D

R007C

D028C

L013F

C117N

C151T

R199B

S025F

C020F

C055D

R020T

R048U

R107T

C017U

L006C

C093F

C077N

D051N

C144B

C259B

S039D

S012D

C057T

C003B

R280T

C032C

C114T

R055N

R030U

C062N

C093T

U010B

R048C

R156B

C070T

U030U

R109B

R192T

R073U

C017B

L001N

C320B

R294T

C161N

C049B

C015U

C006B

D066B

D048N

C002U

R081U

C123U

S024F

R052F

C119B

C106T

S006F

C039N

R104N

U016U

R259B

R160B

C027N

R048T

C141N

C137T

C027T

C055N

R045F

R068N

C112T

R107U

L006N

R101C

R120N

R006C

R051C

R101T

R264T

C255B

R031N

S038D

R026D

R108C

DB007N

C093N

S001N

R011F

C020N

C094U

R180T

DB009F

R145T

R005T

C009N

C011F

R209N

R238N

C005T

C040N

R014U

C119T

C021T

U001C

C102N

R003D

S003F

DB008F

L008C

S046D

R005E

R131N

C087B

C181T

R023D

R054U

R108T

R118C

R189B

C097F

C144N

U022C

C086B

C116B

C090U

R254N

L004F

R254B

R085C

C077U

C032T

C074C

R112N

C256B

C096U

R010B

R059N

R222B

C032N

U017N

C073U

S002N

R057N

R053U

C019N

C070D

C145T

R163T

C077T

C015F

R008C

R076N

C126B

C108B

S021C

C101B

C130U

S017D

C091U

C018C

R034U

R079U

DB002F

R026T

DB002C

C066F

R060U

C082B

R003T

R053T

C154T

R006U

R054N

R133N

C170T

R058N

S010N

R213T

C077F

X274

C125N

R038C

C123B

R028N

R032T

C041N

C062T

R048F

R020D

C113N

R080U

R096F

C153N

R097F

C072N

R244B

C006F

C034C

C003F

C002F

S013N

C012B

R103B

C033T

S031C

C014B

R210T

R050U

R062N

C013B

R087N

C001F

L003T

C046F

U011T

C050N

R019F

C055T

C023N

R005N

C054F

C143B

R012U

C032D

R037C

10-1-52 Layout Bottom

19580_0072_140305.eps

14-04-09

2014-02-14

1

715RLPCB000000037

SSB Layout bottom

Circuit Diagrams and PWB Layouts

EN 91QM14.3E LA 10.

2014-Apr-17

div.table

back to

Circuit Diagrams and PWB Layouts

19580_020_140218.eps

14-02-18

Ambilight 7-LED
2k14

AL01 AL01

2013-10-14

4

715RLPCB000000009

Ambilight 7-LED

2K14

XA02

27

25

24

23

22

21

26

28

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

XA04

27

25
24
23
22
21

26

28

20
19
18
17
16
15
14
13
12
11
10

9

8

7
6
5
4

3

2
1

V+
V-

+

-

F001

+12v

F002

+3V3

F004

F003

F005

AMBI-TEMP

SCKI

SD1

F006 F007

+3V3

+3V3AL

+12V

+3V3

+3V3AL

SDI-BUF
SCKI-BUF

SCKI SCKI-BUF

SDI-BUF

-T

-T

+3V3 +3V3

+3V3

AMBI-TEMP

F016

F009

+3V3

SCKI

AMBI-TEMP

PWM2-R1

PWM2-G1

PWM2-B1

PWM2-R2
PWM2-R3
PWM2-R4

PWM2-G2
PWM2-G3
PWM2-G4

PWM2-B2
PWM2-B3
PWM2-B4

+12v

F010

F011

F008 F012 F013 F014 F015

U001

2

4

5

1

3

S001

50m

RES

50m

S002

C001 100nF

16V

10V

1uFC004

50V

C005 100pF

C002 100nF

16V

16V

100nFC003

50m

S006

S007

50m

S008

50m

1.2K

1%

R001

220R002

10KR003R004 10K

100R005

R006 100

50V

10pFC006C007 10pF

50V

3.3K
1%

R007

10K

1%

R008

R009

RES

10K

1%

R010

18K

1%

1%

10KR011

27KR012

D100

BAT54 COL

X000

1

U002

25

18

12

9

24

21

11

8

23

20

10

7

22

19

5

6

13

17

14

4

3

16

15

2

1

SDTI

SCKI

VREG

IREF

NC1

NC2

NC3

NC4

VCC

SDTO

SCKO

OUTR0

OUTR1

OUTR2

OUTR3

OUTG0

OUTG1

OUTG2

OUTG3

OUTB0

OUTB1

OUTB2

OUTB3

GND GND_HS

SD2

XA05

27

25

24

23

22

21

26

28

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

+12v

+3V3

AMBI-TEMP

SCKI

SD1

SD1

S014

50m

S015

50m

SD2

50m

S012

S013

50m

SD1
SD2

10.2 715RLPCB0000000094 AmbiLight

10-2-1 AL1, Ambilight 7-LED

EN 92QM14.3E LA 10.

2014-Apr-17

back to

div.table

Circuit Diagrams and PWB Layouts

19580_021_140219.eps

14-02-19

Ambilight 7-LED
2k14

AL02 AL02

2013-10-14

4

715RLPCB000000009

Ambilight 7-LED

2k14

t

R0137222

R013

81

22

R013

54

22

R013

63

22

D001

6

43

12

5

MT1 MT2

R

G

B

RED/GREEN/BLUE

87

MT1 MT2

R

G

B

7 8

RED/GREEN/BLUE

5

21

3 4

6

D002

MT1 MT2

R

G

B

D003

6

43

12

5

RED/GREEN/BLUE

87

MT1 MT2

R

G

B

7 8

RED/GREEN/BLUE

5

21

3 4

6

D004

MT1 MT2

R

G

B

7 8

RED/GREEN/BLUE

5

21

3 4

6

D005

MT1 MT2

R

G

B

7 8

RED/GREEN/BLUE

5

21

3 4

6

D006

C008 100nF

16V

R01554560

R015

63

560

R015

72

560

R015

81

560

22

45

R014

22

3 6

R014

22

27

R014

22

1 8

R014

560

45

R016

560

3 6

R016

560

27

R016

560

1 8

R016

16V

100nFC010

C009 100nF

50V

C011

100nF

50V

+12v

+12V

MT1 MT2

R

G

B

RED/GREEN/BLUE

D007

87

6

43

12

5

PWM2-R1

PWM2-G1

PWM2-B1

16V

100nFC012

C013

100nF

50V

+12V

R018

5%

560

54

R018

5%

560

63

R018

5%

560

72

R018

5%

560

81

R0175%22

54

R0175%22

63

R017

5%

22

72

R017

5%

22

81

PWM2-R2

PWM2-G2

PWM2-B2

PWM2-R3

PWM2-G3

PWM2-B3

EN 93QM14.3E LA 10.

10-2-2 AL2, Ambilight 7-LED

2014-Apr-17

back to

div.table

Circuit Diagrams and PWB Layouts

19580_073_140305.eps

14-03-05

Ambilight 8-LED
2k14

AL01 AL01

2013-10-14

3

715RLPCB000000010

Ambilight 8-LED

2K14

XA02

27

25

24

23

22

21

26

28

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

XA04

27

25
24
23
22
21

26

28

20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

V+
V-

+

-

F001

+12v

F002

+3V3

F004

F003

F005

AMBI-TEMP

SCKI

SD1

F006 F007

+3V3

+3V3AL

+12V

+3V3

+3V3AL

SDI-BUF
SCKI-BUF

SCKI SCKI-BUF

SDI-BUF

-T

-T

+3V3 +3V3

+3V3

AMBI-TEMP

F116

F009

+3V3

SD2

SCKI

AMBI-TEMP

PWM2-R1

PWM2-G1

PWM2-B1

PWM2-R2
PWM2-R3
PWM2-R4

PWM2-G2
PWM2-G3
PWM2-G4

PWM2-B2
PWM2-B3
PWM2-B4

+12v

F010

F011

F008 F012 F013 F014 F015

U001

2

4

5

1

3

S001

50m

RES

50m

S002

C001 100nF

16V

10V

1uFC004

50V

C005 100pF

C002 100nF

16V

16V

100nFC003

50m

S006

S007

50m

S008

50m

1.2K

1%

R001

220R002

10KR003R004 10K

100R005

R006 100

50V

10pFC006C007 10pF

50V

3.3K
1%

R007

10K

1%

R008

R009

RES

10K

1%

R010

18K

1%

1%

10KR011

27KR012

D100

BAT54 COL

SD1
SD2

SD1

S012

50m

50m

S013

50m

S014

S015

50m

SD2

X000

1

U002

25

18

12

9

24

21

11

8

23

20

10

7

22

19

5

6

13

17

14

4

3

16

15

2

1

SDTI

SCKI

VREG

IREF

NC1

NC2

NC3

NC4

VCC

SDTO

SCKO

OUTR0

OUTR1

OUTR2

OUTR3

OUTG0

OUTG1

OUTG2

OUTG3

OUTB0

OUTB1

OUTB2

OUTB3

GND GND_HS

XA05

27

25

24

23

3

2

1

22

21

26

28

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

+12v

+3V3

AMBI-TEMP

SCKI

SD1

10.3 715RLPCB0000000103 AmbiLight

10-3-1 AL1, Ambilight 8-LED

EN 94QM14.3E LA 10.

2014-Apr-17

back to

div.table

10-3-2 AL2, Ambilight 8-LED

19580_074_140305.eps

14-03-05

Ambilight 8-LED
2k14

AL02 AL02

2013-10-14

3

715RLPCB000000010

Ambilight 8-LED

2K14

R0135422

R013

63

22

R013

72

22

R013

81

22

D001

6

43

12

5

MT1 MT2

R

G

B

RED/GREEN/BLUE

87

MT1 MT2

R

G

B

78

RED/GREEN/BLUE

5

21

34

6

D002

MT1 MT2

R

G

B

D003

6

43

12

5

RED/GREEN/BLUE

87

MT1 MT2

R

G

B

78

RED/GREEN/BLUE

5

21

34

6

D004

MT1 MT2

R

G

B

78

RED/GREEN/BLUE

5

21

34

6

D005

MT1 MT2

R

G

B

78

RED/GREEN/BLUE

5

21

34

6

D006

C008

100nF

16V

R015

54

560

R015

63

560

R015

72

560

R015

81

560

22

45

R014

22

36

R014

22

27

R014

22

18

R014

560

45

R016

560

36

R016

560

27

R016

560

18

R016

PWM2-R3

PWM2-G3

PWM2-B3

PWM2-R2

PWM2-G2

PWM2-B2

16V

100nFC010

C009 100nF

50V

C011

100nF

50V

+12v

+12V

MT1 MT2

R

G

B

RED/GREEN/BLUE

D007

87

6

43

12

5

MT1 MT2

R

G

B

4

6

78

D008

RED/GREEN/BLUE

5

21

3

PWM2-R1

PWM2-G1

PWM2-B1

+12V

45

22R017

R017 22

63

R018 560

54

R018 560

63

R018 560

72

R018 560

81

R017 22

72

R017 22

81

C012 100nF

16V

50V

100nFC013

Circuit Diagrams and PWB Layouts

EN 95QM14.3E LA 10.

2014-Apr-17

back to

div.table

11. Styling Sheets

11.1 7809 series 42"

7800 series 42"

Styling Sheets

EN 96QM14.3E LA 11.

1163

1111

0050

5211

0054

0052

0111

0430

1050

0155

0061

0011

1163

1010

0003

1011

0040

1012

1004

0002

2014-Apr-17

back to

div.table

Pos No.

0002 Frame
0003 Bottom profile
0011 Back cover
0040 LED assembly
0050 Side I/O assembly
0052 Bottom I/O assembly
0054 SSB bracket assembly
0061 Joystick door
0111 Stand interface
0155 Stand assembly
0430 V0 sheet power supply
1004 TFT-LCD panel
1010 WiFi USB IEEE sensor module
1011 LED module
1012 IR module
1050 Power supply
1111 SSB
1127 3D Glasses Not displayed

1163

5211 Loudspeaker combination

Description Remarks

7 LED AmbiLight

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

19580_079_140306.eps

14-03-10

11.2 7809 series 49"

19580_080_140306.eps

14-03-10

7800 series 49"

Pos No.

Description Remarks

0002 Frame
0003 Bottom profile
0011 Back cover
0040 LED assembly
0050 Side I/O assembly
0052 Bottom I/O assembly
0061 Joystick door
0111 Stand interface
0155 Stand assembly
0430 V0 sheet power supply
1004 TFT-LCD panel
1010 WiFi USB IEEE sensor module
1011 LED module
1012 IR module
1050 Power supply
1111 SSB
1127 3D Glasses Not displayed
1163 7 LED AmbiLight
5211 Loudspeak

er combination

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

1050

1163

1163

0111

0155

0061

0050

0003

0052

5211

1111

0011

0430

1010

1004

0040

0002

1012

1011

Styling Sheets

EN 97QM14.3E LA 11.

2014-Apr-17

back to

div.table

11.3 7809 series 55"

19580_081_140306.eps

14-03-10

7800 series 55"

Pos No.

Description Remarks

0002 Frame
0003 Bottom profile
0011 Back cover
0040 LED assembly
0050 Side I/O assembly
0052 Bottom I/O assembly
0061 Joystick door
0111 Stand interface
0155 Stand assembly
0430 V0 sheet power supply
1004 TFT-LCD panel
1010 WiFi USB IEEE sensor module
1011 LED module
1012 IR module
1050 Power supply
1111 SSB
1127 3D Glasses Not displayed
1163 8 LED AmbiLight
5211 Loudspeak

er combination

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

1050

1163

1163

0111

0155

0061

0050

0003

0052

5211

1111

0011

0430

1010

1004

0040

0002

1012

1011

Styling Sheets

EN 98QM14.3E LA 11.

2014-Apr-17

back to

div.table
