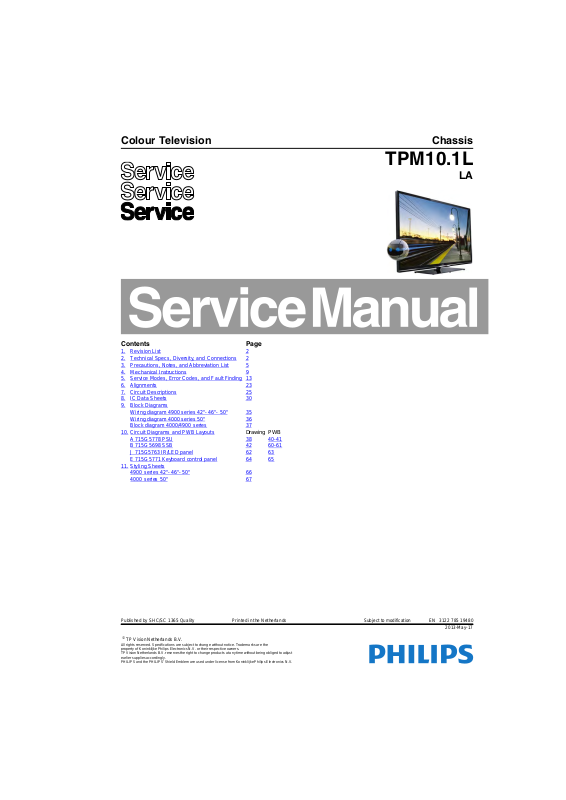

Philips 42PFL4908G/78 Schematic

Colour Television Chassis

TPM10.1L

LA

Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9

5. Service Modes, Error Codes, and Fault Finding 13

6. Alignments 23

7. Circuit Descriptions 25

8. IC Data Sheets 30

9. Block Diagrams Wiring diagram 4900 series 42"- 46"- 50" 35 Wiring diagram 4000 series 50" 36 Block diagram 4000/4900 series 37

10. Circuit Diagrams and PWB Layouts Drawing PWB A 715G5778 PSU B 715G5698 SSB 42 60-61 J 715G5763 IR/LED panel 62 63 E 715G5771 Keyboard control panel 64 65

11. Styling Sheets 4900 series 42"- 46"- 50" 66 4000 series 50" 67

38 40-41

Published by SHC/SC 1365 Quality Printed in the Netherlands Subject to modification EN 3122 785 19480

2013-May-17

©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

2 TPM10.1L LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1. Here is product information available, as well as getting started, user manuals, frequently asked questions and software &

Notes:

drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 9 10 11

CTN

42PFL4908G/77 2-1 4-1 4-3 4-4 9.1 9.3 10.1 10.2 10.3 10.4 11.1 42PFL4908G/78 2-1 4-1 4-3 4-4 9.1 9.3 10.1 10.2 10.3 10.4 11.1 46PFL4908G/78 2-1 4-1 4-3 4-4 9.1 9.3 10.1 10.2 10.3 10.4 11.1 50PFL4008G/78 2-1 4-2 4-3 4-4 9.2 9.3 10.1 10.2 10.3 10.4 11.2 50PFL4908G/78 2-1 4-1 4-3 4-4 9.1 9.3 10.1 10.2 10.3 10.4 11.1

Mechanics Block Diagrams Schematics

Connection Overview

Wire Dressing

Rear Cover Removal

SSB Removal

Wiring Diagram

Block Diagram

Power Supply

SSB

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

J (IR/LED)

E (Keyboard/Leading Edge)

Styling

2013-May-17

back to

div. table

2.3 Connections

HDMI

USB

TV ANTENNA

SPDIF

OUT

LR

CVBS/Y Pb

Pr

SERV.U

AUDIO IN

DVI/VGA

HDMI 1

ARC

HDMI 2

VGA

19480_001_130409.eps

130409

1

2

3

4

6

9

8

7 5

10

11

Side ConnectorsRear Connectors

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

1

6

10

11

5

15

10000_002_090121.eps

090127

Technical Specs, Diversity, and Connections

3TPM10.1L LA 2.

2.3.1 Side Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - USB

Figure 2-2 USB (type A)

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

2- HDMI: Digital Video - In, Digital Audio - In/Out

Figure 2-3 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j

10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

3 - Head phone (Output)

Bk -Head phone 80 - 600 W / 10 mW ot

2.3.2 Rear Connections

4 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

5 - Service / UART

1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j

6 - PC IN:VGA

1 -Video Red 0.7 V 2 -Video Green 0.7 V

back to

div. table

Figure 2-4 VGA connector

/ 75 W j

PP

/ 75 W j

PP

2013-May-17

?

4 TPM10.1L LA2.

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

3 -Video Blue 0.7 VPP / 75 W j 4-n.c. 5 -Ground Gnd H 6 -Ground Red Gnd H 7 -Ground Green Gnd H 8 -Ground Blue Gnd H 9-+5V 10 - Ground Sync Gnd H

+5 V j

DC

11 - Ground Red Gnd H 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j

7 - Audio - In: Left / Right, VGA

Bu -Audio L/R in 0.5 V

/ 10 kW jq

RMS

8 - HDMI 2: Digital Video - In, Digital Audio - In/Out

See 9 - HDMI 1: Digital Video - In, Digital Audio with ARC -

In/Out

9 - HDMI 1: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-5 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

10 - EXT2: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V Bu -Video - Pb 0.7 V Rd -Video - Pr 0.7 V

Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

11 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75 W kq

PP

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2013-May-17

back to

div. table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

back to

div. table

-9

), or pico-farads (p 10

. Select

5TPM10.1L LA 3.

-6

),

-12

).

2013-May-17

6 TPM10.1L LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

2013-May-17

back to

div. table

Precautions, Notes, and Abbreviation List

7TPM10.1L LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div. table

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

19480_100_130409.eps

130409

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

9TPM10.1L LA 4.

Figure 4-1 Cable dressing (42" 4900 series)

back to

div. table

2013-May-17

10 TPM10.1L LA4.

19480_101_130423.eps

130423

Mechanical Instructions

Figure 4-2 Cable dressing (50" 4000 series)

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal

Instructions below apply to the 42PFL4908G/77, but will be similar for other series models.

4.3.1 Rear Cover

Refer to Figure 4-3 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2], [3], [4]that secure the rear cover. Refer to

Figure 4-3

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

2013-May-17

back to

div. table

Mechanical Instructions

19480_102_130409.eps

130409

1

M4 × 10

M3 × 8

1

2

M3 × 5

3

Q3 × 10

4

19480_103_130409.eps

130409

2

1

3

11TPM10.1L LA 4.

Figure 4-3 Rear cover removal

4.3.2 Small Signal Board (SSB)

Refer to Figure 4-4 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-4

for details.

4.3.3 Power Supply Unit (PSU)

Figure 4-4 SSB removal

back to

div. table

Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

2013-May-17

12 TPM10.1L LA4.

4.3.4 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.3.5 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.3.6 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.3.7 IR/LED Panel

1. Remove the stand bracket, as described earlier.

2. Unplug the connector from the IR/LED panel.

3. Gently release the clip that holds the panel and take it out from the bezel.

When defective, replace the whole unit.

Mechanical Instructions

4.3.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the WIFI module as earlier.

7. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

8. Remove all other metal parts not belonging to the panel.

9. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4.3

Figure 4.4

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

.

and

2013-May-17

back to

div. table

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. However, several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into five parts:

• Service Default Mode (SDM).

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in SDM and SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SDM, SAM, and CSM. The screen will show: “AAAAB-X.YYY”, where:

• AAAA is the chassis name: TPM1012L x.yy.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

• X is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 1 - 99 and AA - ZZ.

- If the main version number changes, the new version number is written in the NVM.

- If the main version number changes, the default settings are loaded.

• YYY is the sub version number: this is updated with a minor change (backwards compatible with the previous versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version number is written in the NVM.

- If the NVM is refreshed, the software identification, version, and cluster will also be written to NVM.

13TPM10.1L LA 5.

SDM, SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• A pre-defined situation to ensure measurements can be made under uniform conditions (SDM).

• Activates the blinking LED procedure for error identification when no picture is available (SDM).

• Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).

• Display information (“SDM” or “SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

ComPair Mode is used for communication between a computer and a TV on I engineer to quickly diagnose the TV set by reading out error codes, read and write in NVMs, communicate with ICs and the micro processor (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I ComPair. To do this, ComPair has to be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

2

C /UART level and can be used by a Service

2

C with help of

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

5.2.2 Service Default Mode (SDM)

Purpose

Set the TV in SDM mode in order to be able to create a predefined setting for measurements to be made. In this platform, a simplified SDM is introduced (without protection override and without tuning to a predefined frequency).

Specifications

• Set linear video and audio settings to 50%, but volume to 25%. Stored user settings are not affected.

• All service-unfriendly modes (if present) are disabled, since they interfere with diagnosing/repairing a set. These service unfriendly modes are: – (Sleep) timer. – Blue mute/Wall paper. – Auto switch “off” (when there is no “ident” signal). – Hotel or hospital mode. – Child lock or parental lock (manual or via V-chip). – Skipping, blanking of “Not favourite”, “Skipped” or

“Locked” presets/channels.

– Automatic storing of Personal Preset or Last Status

settings.

. When the value is

back to

div. table

2013-May-17

14 TPM10.1L LA5.

Service Modes, Error Codes, and Fault Finding

– Automatic user menu time-out (menu switches

back/OFF automatically.

– Auto Volume levelling (AVL).

How to Activate SDM

To activate SDM, use the following methods:

• Press the following key sequence on the RC transmitter: “062596”, directly followed by the “Home” button.

After activating this mode, “SDM” will appear in the upper left corner of the screen.

On Screen Menu

After activating SDM, the following items are displayed, with SDM in the upper right corner of the screen to indicate that the television is in Service Default Mode. Menu items and explanation:

• xxxxx Operating hours (in decimal).

• AAAAB-X.YYY See Software Identification, Version, and

Cluster for the software name definition.

• ERR Shows all errors detected since the last time the buffer was erased in format <xxx> <xxx> <xxx> <xxx> <xxx> (five errors possible).

• OP Used to read-out the option bytes. In this chassis two times eight option codes are used.

How to Navigate

As this mode is read only, there is nothing to navigate. To switch to other modes, use one of the following methods:

• Command MENU from the user remote will exit SDM.

• To prevent the OSD from interfering with measurements in SDM, use the command “Adjust” or “Options” (“STATUS” or “INFO” for NAFTA and LATAM) from the user remote. This will switch the OSD “off” while remaining in the SDM mode. The “SDM” OSD is remains visible in the upper right corner of the screen. To exit SDM switch to “Stand-by” mode.

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the OK button to switch to SAM (do not allow the display to time out between entries while keying the sequence). Remarks: new remote

controls will not have I+ button, but an “INFO” button instead.

How to Exit SDM

• Switch the set to Stand-by, by pressing the standby button on the remote control transmitter or on the television set.

• Via a standard customer RC-transmitter: key in “00”-sequence. Note: If the TV is switched “off” by a power interrupt while in SDM, the TV will show up in the last status of SDM menu as soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO” button. Do not allow the display to time out between entries while keying the sequence.

• Or via ComPair.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour This represents the life timer. The timer counts normal operation hours, but does not

Main SW ID e.g. “TPM1013E 1.049B” See paragraph Software Identification, Version, and Cluster

ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors

OP1 e.g. “032 224 048 000 038 128 192

OP2 e.g. “159 255 127 061 235 004 000

Clear Press [OK] to clean the Error Codes

Options OP#1-OP#8 e.g. “032” Option code RGB Align Warm R Gain To align the White Tone. See

NVM editor Address Select and fill the NVM address

Upload to USB Copy Channel List to USB To upload several settings from the TV to an USB stick

immediately

Normal R Gain

Cool R Gain

Store Store the RGB value

Value Select and fill the NVM value Store Store the value in the address

Copy NVM to USB Copy Readable Info to USB Copy EDID to USB

015”

000”

G Gain B Gain

count Stand-by hours.

definition.

possible. Used to read-out the option bytes. See paragraph 6.4 Option Settings in the

Alignments section for a detailed description. Ten codes are possible.

Erases the contents of the error buffer. Select this menu item and press the MENU RIGHT key on the remote control. The content of the error buffer is cleared.

paragraph 6.3 Software Alignments in the Alignments section for a detailed description

for the software name

2013-May-17

back to

div. table

Service Modes, Error Codes, and Fault Finding

Main Menu Sub-menu 1 Sub-menu 2 Description

Download from USB Copy Channel List from USB To download several settings from the USB stick to the TV

Initialize NVM Press [OK] to Initialize NVM

EDID Write Enable Press [OK] to enable EDID writable

Service Data Type Number Press [OK] use key pad edit type

Clear OAD Version Press [OK] to clean OAD Version

Reload MAC address

Dealer Options Set Virgin mode Virgin mode:Off Set Virgin mode

Event Count Software Events 0000 0000 Software Events

Copy NVM from USB Copy Readable Info from USB Copy EDID from USB

immediately

Production Number Press [OK] use key pad edit

12NC SSB Press [OK] use key pad edit SSB

12NC PSU Press [OK] use key pad edit PSU

12NC Display Press [OK] use key pad edit display

immediately Press [OK] to reload MAC address

from ECD immediately

Store Press [OK] to store virgin mode

Hardware Events 0000 0000 Hardware Events Clear Software Events Press [OK] to clear software events

Clear Hardware Events Press [OK] to clear hardware events

number immediately

production number immediately

immediately

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

Enable EDID for writing

Edit and display the applicable service data by using the displayed key pad.

Clean OAD (Over Air Download, firmware update method) Version

If MAC address value in NVM is missing, you can trigger this item in SAM mode to reload MAC address from flash ECD key to NVM. Remark:- After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> (see figure 1*).

- Select the item and press <OK> on the RC.

Store the virgin mode in the address

Clear Software Events

Clear Hardware Events

15TPM10.1L LA 5.

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background).

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Home” button to switch to SDM (do not allow the display to time out between entries while keying the sequence).

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.4 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: from the “Home screen” press “1999”, directly followed by the “Back” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, the following items are displayed,

Table 5-2 Factory mode overview

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture, BLDimming, Source Meter,

1 PANEL_ID See table 6-3 Display code

2 ERR Code: xxx xxx xxx xxx xxx 000 000 000 000 000 Values showing the last 5 errors during the last 50 hours of operation, acco rding to table 5-4 Error code

Default value

overview

Description42" 46" 50"

the Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, the MTK, MCU and OAD software versions.

Displays and changes the Panel ID with the left and right curs or; be careful chang ing this, it can resu lt in not correct displaying the screen!

table

back to

div. table

2013-May-17

16 TPM10.1L LA5.

Default value

Item Item value

3 CLEAR ERROR BUFFER Press OK Selecting this clear all current error codes. 4 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the data to the correct NVM address 5 NVM VALUE various Displays the value at the NVM address of item 5 6 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5 7 NVM COPY TV to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB memory stick. The TV

8 NVM READ USB to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The TV will save the two files

9 CLR_TEMP_R 128 Red colour temperature setting 10 CLR_TEMP_G 128 Green colour temperature setting 11 CLR_TEMP_B 128 Red colour temperature setting 12 AUTO_COLOR Press OK PC: any pattern that has black and white, YPbPr: SMPTE bar (colour bar), any timing. 13 ADC_GAIN_R 141 Red ADC gain 14 ADC_GAIN_G 128 Green ADC gain 15 ADC_GAIN_B 137 Blue ADC gain 16 ADC_OFFSET_R 115 Red ADC offset 17 ADC_OFFSET_G 111 Green ADC offset

18 ADC_OFFSET_B 48 Blue ADC offset 19 VIRGIN_MODE Off Use this to return the set to virgin mode. Depends whether the set has been used already. 20 E-Fuse On E-fuse mode 21 ORT_MODE Off ORT mode 22 AGEING MODE Off Ageing mode 23 RESET_PBS_PWD Press OK Reset PBS PWD 24 VIDEO_PWM_MEDIUM 0 VIDEO PWM Medium value 25 VIDEO_PWM_MINIMUN 0 VIDEO PWM Minimun value 26 VIDEO_PWM_MAXIMUN 0 VIDEO PWM Maximun value 27 PWM_RATIO_BEST_PICTURE0 PWM ratio best picture

Service Modes, Error Codes, and Fault Finding

Description42" 46" 50"

will write two files in the REPAIR folder of the memory stick. It will create this folder if it does not exist. The items are “Channel list”, “Personal settings”, “Option codes”, “Display-related alignments” and “History list”. In case the download to the USB stick was not successful “Failure” will appear. In this case, check if the USB stick is connected properly. No w the settings are stored onto the USB stick and can be used to download onto another TV or other SSB. Uploading is of course only possible if the software is running and if a picture is available. This method is created to be able to save the customer’s TV settings and to store them into another SSB.

which were created in item 8 to the NVM of the set. Use these options when replacing a SSB. When “USB to TV Success” is displayed remove the power and restart the TV

28 PWM_RATIO_STD_TOP 0 PWM ratio atandard top 29 PWM_RATIO_STD_BOTTOM 0 PWM ratio atandard bottom 30 PWM_RATIO_BEST_POWER 0 PWM ratio best power 31 VIDEO_STD_TH_HIGH 0 VIDEO standard threshold high 32 VIDEO_STD_TH_LOW 0 VIDEO standard threshold low 33 YPBPR_PHASE 20 Not available for this chassis 34 AUD_GAIN_LINEIN 0 Line-in audio gain 35 AUD_GAIN_HDMI -1 HDMI audio gain 36 AUD_GAIN_ATV 22 Analogu e TV audio gain 37 AUD_GAIN_DTV -1 Digital TV audio gain 38 AUD_GAIN_USB 0 USB audio gain 39 ESTICKER NVM 1 0 ESTICKER value 40 ESTICKER NVM 2 0 ESTICKER value 41 ESTICKER NVM 3 0 ESTICKER value 42 ESTICKER NVM 4 0 ESTICKER value 43 ESTICKER NVM 5 0 ESTICKER value 44 ESTICKER NVM 6 0 ESTICKER value 45 ESTICKER NVM 7 0 ESTICKER value 46 ESTICKER NVM 8 0 ESTICKER value 47 ESTICKER NVM 9 0 ESTICKER value 48 ESTICKER NVM 10 0 ESTICKER value 49 ESTICKER NVM 11 0 ESTICKER value 50 ESTICKER NVM 12 0 ESTICKER value 51 ESTICKER NVM 13 0 ESTICKER value 52 ESTICKER NVM 14 0 ESTICKER value 53 ESTICKER NVM 15 0 ESTICKER value 54 ESTICKER NVM 16 0 ESTICKER value 55 ESTICKER NVM 17 0 ESTICKER value 56 ESTICKER NVM 18 0 ESTICKER value 57 ESTICKER NVM 19 0 ESTICKER value 58 ESTICKER NVM 20 0 ESTICKER value 59 ESTICKER RESET Press OK ESTICKER reset 60 DIM_LIB RESET Press OK Reset the Dimming 61 SRC_METER RESTE Press OK Reset the Source meter 62 AMBLIGHT RESET Press OK Reset Ambilight 63 ACFG RESET P ress OK Reset ACFG 64 AQ_ INDEX 4 Audio Quality index 65 AUDIO TEST MODE Off Used for audio testing during production 66 AUDIO CHANNEL TYPE 2.0 Defines the installed speaker system 67 Test Pattern Press OK With the “left”and “right”keys of the remode control various test patterms can be chosen

2013-May-17

back to

div. table

Service Modes, Error Codes, and Fault Finding

Default value

Item Item value

68 EDID UPDATE Press OK Used to enter a new EDID code into the NVM 69 TCON_GAMMA_UPDATE InValid TCON gamma update 70 DUMP PQ FROM TV Press OK Saves the picture quality data to a file “pq.bin” to the root of a FAT formatted USB memory stick 71 LOAD PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV 72 DUMP AQ FROM TV Press OK Saves the audio quality data to a file “AQ.bin” to the root of a FAT formatted USB memory stick 73 LOAD AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 74 PANEL FLIP On Flip panel 75 RESET_OPTION_CODE Press OK Reset Option Code 76 AMBILIGHT Off Ambilight on/off 77 AMBILIGHT_DRIVER AMS Choose Ambilight driver type 78 3D On 3D on/off 79 EXIT_FACTORY Press OK Exits the Factory mode

Description42" 46" 50"

17TPM10.1L LA 5.

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK” button.

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.5 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TVs operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first installation of the TV. This date is acquired via time extraction.

• 1.4 Option Code 1 Gives the option codes of option group 1 as set in SAM.

• 1.5 Option Code 2 Gives the option codes of option group 2 as set in SAM.

• 1.6 SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 1.7 Display 12NC NVM read/write.

• 1.8 PSU 12NC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

• 2.3 Panel Code Displays the Display Code number.

• 2.4 NVM version

• 2.5 Error Codes D

Detects and displays NVM version.

etects and displa

ys errors.

• 3.1 Signal Quality Analog/digital signal strength.

• 3.2 Child lock Not active / active. This is a combined item for locks. If any lock (channel lock, parental lock) is active, it is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or HDCP keys). In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.

• 3.4 Ethernet MAC address A Media Access Control address (MAC address) is a unique identifier assigned to network interfaces for communications on the physical network segment.

• 3.5 Wireless MAC address Wireless Media Access Control address.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control transmitter.

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

back to

div. table

2013-May-17

18 TPM10.1L LA5.

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

5.3 Stepwise Start-up

Service Modes, Error Codes, and Fault Finding

2013-May-17

Figure 5-1 Stepwise Start-up

back to

div. table

Service Modes, Error Codes, and Fault Finding

10000_036_090121.eps

091118

TO

UART SERVICE

CONNECTOR

TO

UART SERVICE

CONNECTOR

TO

I2C SERVICE

CONNECTOR

TO TV

PC

HDMI I

2

C only

Optional power

5V DC

ComPair II Developed by Philips Brugge

RC out

RC in

Optional

Switch

Power ModeLink/

Activity

I

2

C

ComPair II

Multi

function

RS232 /UART

19TPM10.1L LA 5.

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore capable of accurately indicating problem areas. No knowledge on I because ComPair takes care of this.

3. ComPair speeds up the repair time since it can automatically communicate with the chassis (when the micro processor is working) and all repair information is directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s). The ComPair fault finding program is able to determine the problem of the defective television, by a combination of automatic diagnostics and an interactive question/answer procedure.

How to Connect

This is described in the chassis fault finding database in ComPair.

2

C or UART commands is necessary,

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

web site.

, it is

Figure 5-2 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs can be blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair UART interface cable for TPM10.1x xx. (using DB9 to 2mm pitch JST connector): 3122 785 90630.

Note: When you encounter problems, contact your local support desk.

5.5.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy it to the root directory of the USB flash drive.

5.5.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-3 Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-3

5. To proceed, In next menu select [Start] and press OK to start software updates. See Figure 5-4

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash drive, then select [Restart] and press OK to restart the TV.See Figure 5-5

back to

div. table

.

2013-May-17

20 TPM10.1L LA5.

19080_207_110324.eps

110324

Figure 5-3 Update the TV software [1/3]

Figure 5-4 Update the TV software [2/3]

Service Modes, Error Codes, and Fault Finding

• FUS_clustername_version.zip: Contains the “autorun.upg” which is needed to upgrade the TV main software and the software download application.

• NVM_clustername_version.zip: Default NVM content. Must be programmed via ComPair.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode Factory Mode Used for extended al ignments SDM Service default Mode

19080_208_110324.eps

110324

CSM 3-page compact CSM pages. There will be CSM dump to

USB SW upgradeable SW-upgrading of flash memories MTK- chips MT5366 can

NVM-Editor in SAM NVM-editor will function as in the past: Ad dress and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC sequence “062598” + “Menu” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

be done via USB. The main SW can be upgraded via Autorun.upg

field is a decimal value via digit entry

programming with virtual keyboard Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

“Panel code”

19080_209_110324.eps

Figure 5-5 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

5.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs. See ComPair for further instructions.

110324

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:

• Activated (SW) protection.

•Failing I

• General I The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED or via ComPair). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

5.6.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/SDM/CSM (if you have a picture).

2

C device.

2

C error.

Example: – ERROR: 000 000 000 000 000: No errors detected – ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

2013-May-17

back to

div. table

Service Modes, Error Codes, and Fault Finding

21TPM10.1L LA 5.

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected (newest) error

• Via the blinking LED procedure (when you have no picture). See paragraph 5.7 The Blinking LED Procedure

•Via ComPair.

5.6.3 Error codes

In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking when CSM is activated. Only the following layer 2 errors are defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I2C bus error on the SSB 16 +12 V missing or low, PSU defective 27 Channel decoder error on the SSB 34 Tuner I2C bus error on the SSB 35 EEPROM I2C error on SSB, M24C64

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.

5.7 The Blinking LED Procedure

5.7.1 Introduction

The software is capable of identifying different kinds of errors. Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly. Errors can also be displayed by the blinking LED procedure. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated. Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color. Example (2): the content of the error buffer is “12 9 6 0 0” After entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.7.2 Displaying the Entire Error Buffer

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

.

• Before any fault finding actions, check if the correct options are set.

5.8.1 NVM Editor

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.8.2 Load Default NVM Values

It is possible to upload the default values to the NVM with ComPair in case the SW is changed, the NVM is replaced with a new (empty) one, or when the NVM content is corrupted. After replacing an EEPROM (or with a defective/no EEPROM), default settings should be used to enable the set to start-up and allow the Service Default Mode and Service Alignment Mode to be accessed.

5.8.3 No Picture

When you have no picture, first make sure you have entered the correct display code. See paragraph 6.4 Option Settings the instructions. See also Table 6-3

.

5.8.4 Unstable Picture via HDMI input

Check (via ComPair or factory mode) if HDMI EDID data is properly programmed.

5.8.5 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.8.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.8.7 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class D-IC could break down in short time.

5.8.8 CSM

When CSM is activated and there is a USB memory stick connected to the TV, the software will dump the complete CSM content to the USB memory stick. The file (Csm.txt) will be saved in the root of the USB memory stick.

for

Additionally, the entire error buffer is displayed when Service Mode “SDM” is entered.

5.8.9 Loudspeakers

back to

div. table

Make sure that the volume is set to minimum during disconnecting the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

2013-May-17

22 TPM10.1L LA5.

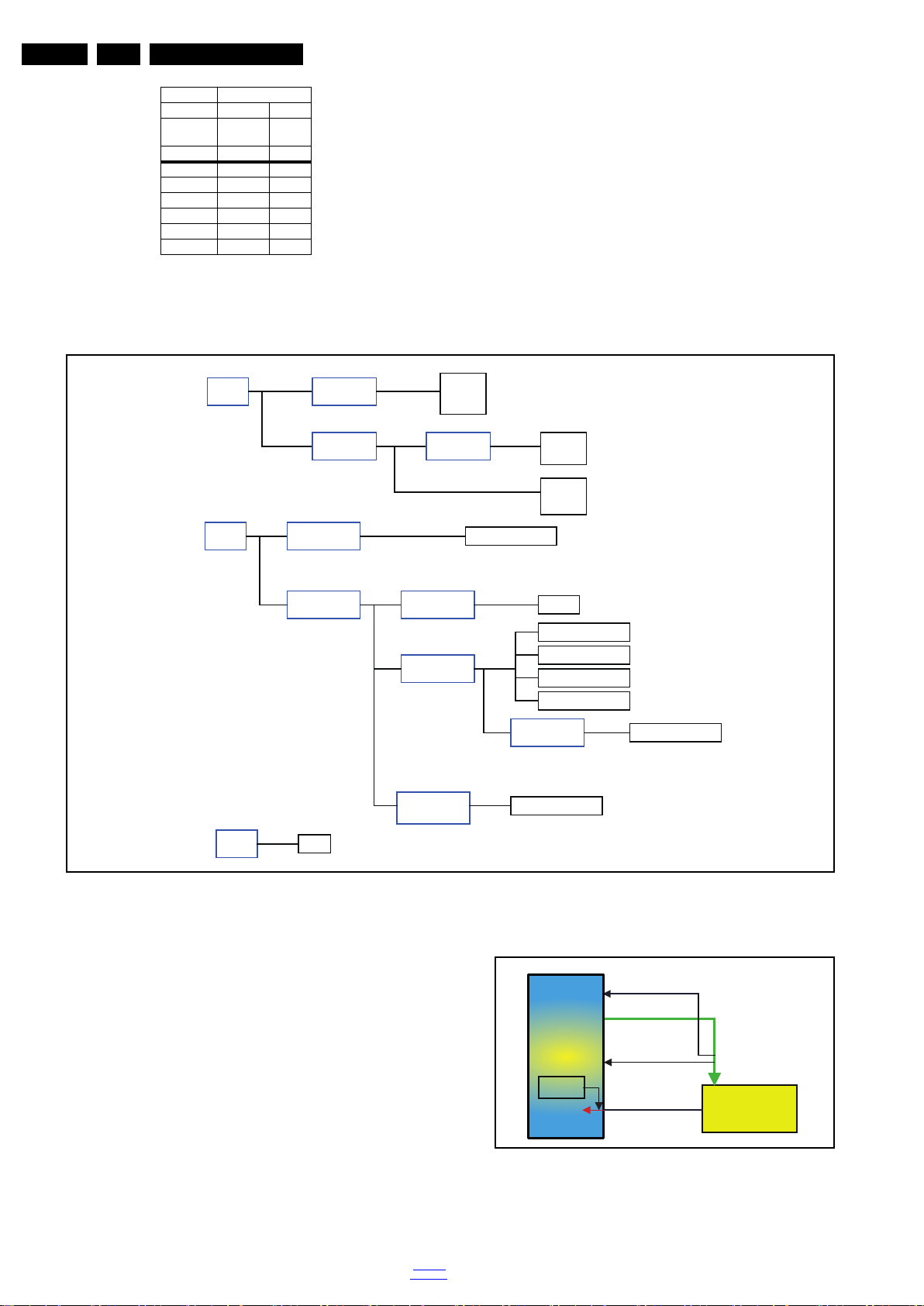

5.8.10 Display option code

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

Service Modes, Error Codes, and Fault Finding

2013-May-17

back to

div. table

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 M, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform alignments.

, 50/ 60  3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color analyser (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x, y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx:  0.003, dy:  0.003.

• Repeat this step for the other colour Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values

Value Cool (12000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313 y 0.282 0.296 0.329

23TPM10.1L LA 6.

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus. The alignments are explained below. The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off Dynamic Contrast Off Color Enhancement Off Picture Format Unscaled Light Sensor Off Brightness 50 Color 0 Contrast 100

If you do not have a colour analyser, you can use the default values. This is the next best solution. The default values are average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according to the values in Table 6-2

.

• When finished press OK on the RC, then press STORE to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (9000K) 42PFL4900 124 94 118

46PFL4900 123 100 128 50PFL4000 128 122 117 50PFL4900 94 112 118

Cool (11000K) 42PFL4900 117 95 124

46PFL4900 122 78 113 50PFL4000 125 128 120 50PFL4900 120 78 128

Warm (6500K) 42PFL4900 118 89 125

46PFL4900 124 110 128 50PFL4000 128 94 117 50PFL4900 123 116 128

Colour temperature

Red Green Blue

This group setting of colour temperature will be applied automatically to the TV / VGA / HDMI / AV sources.

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

back to

div. table

2013-May-17

24 TPM10.1L LA6.

Alignments

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these MT5366 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK button on the RC before the cursor is moved to the left, select STORE and press OK on the RC.

• The new option setting is only active after the TV is switched “off” / “stand-by” and “on” again with the mains switch (the NVM is then read again).

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could not be edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 Code, restart the set immediately.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

42PFL4900 TPT420H2-HVD02 201 46PFL4900 TPT460H1-HVD02 206 50PFL4000 TPT500J1-LE1 189 50PFL4900 TPT500J1-EUJFFK 210

. After resetting the Display

6.5.1 Reset of Repaired SSB

Instruction:

After NVM replacement, reload MAC address via SAM

2

C

menu.This ensures the correct MAC address to be available in CSM for future repair actions.

Way of working:

• After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> .

• Select the item and press <OK> on the RC.

Notes:

• Only applicable to all related models that are “Smart TV level 0”enabled (only YouTube access). For models

without internet connection feature, no action is needed.

• HDCP keys are located in the NVM. If you are loading NVM with the ComPair tool, there is warning message displayed.

New NVM EEPROMs are shipped with pre-loaded HDCP keys.

6.5.2 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes match the replacement panel.

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. A repaired SSB in Service should get the service Set type “00PF0000000000” and Production code “00000000000000”. Also the virgin bit is to be set. To set all this, you can use the ComPair tool or use the “NVM editor” and “Dealer options” items in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair on board level), the type number (CTN) and production code of the TV has to be set according to the type plate of the set. For this, you can use the NVM editor in SAM. The loading of the CTN and production code can also be done via ComPair (Model number programming).

In case of a display replacement, reset the “Operation hours display” to “0”, or to the operation hours of the replacement display. Remark:

- After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> (see figure 1*).

- Select the item and press <OK> on the RC.

2013-May-17

back to

div. table

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and DVB-T, DVB-C;ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MTK5580GPOI

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPM10.1L LA series is a new chassis launched in LATAM in 2013. The whole range is covered by MT5580.The major delta versus its predecessor support DTV,ATV with also multi-media, CEC, SPDIF, ARC functionality.

The TPM10.1L LA series comes with the following stylings:

• series xxPFL40xx

• series xxPFL49xx

7.1.1 Implementation

Key components of this chassis are:

• SCALER MT5580GPOI PBGA-512 TV Processor

• TUNER LATAM TDST-H030F

• DEMODULATOR TC90537FG LQFP48-P-0707-0.50 for DTV demod

• STA381BWTR 20W VQFN-48 for AUDIO Amplifier

• FLASH TC58NVG1S3ETAI0 2Gb TSOP48

7.1.2 TPM10.1L LA Architecture Overview

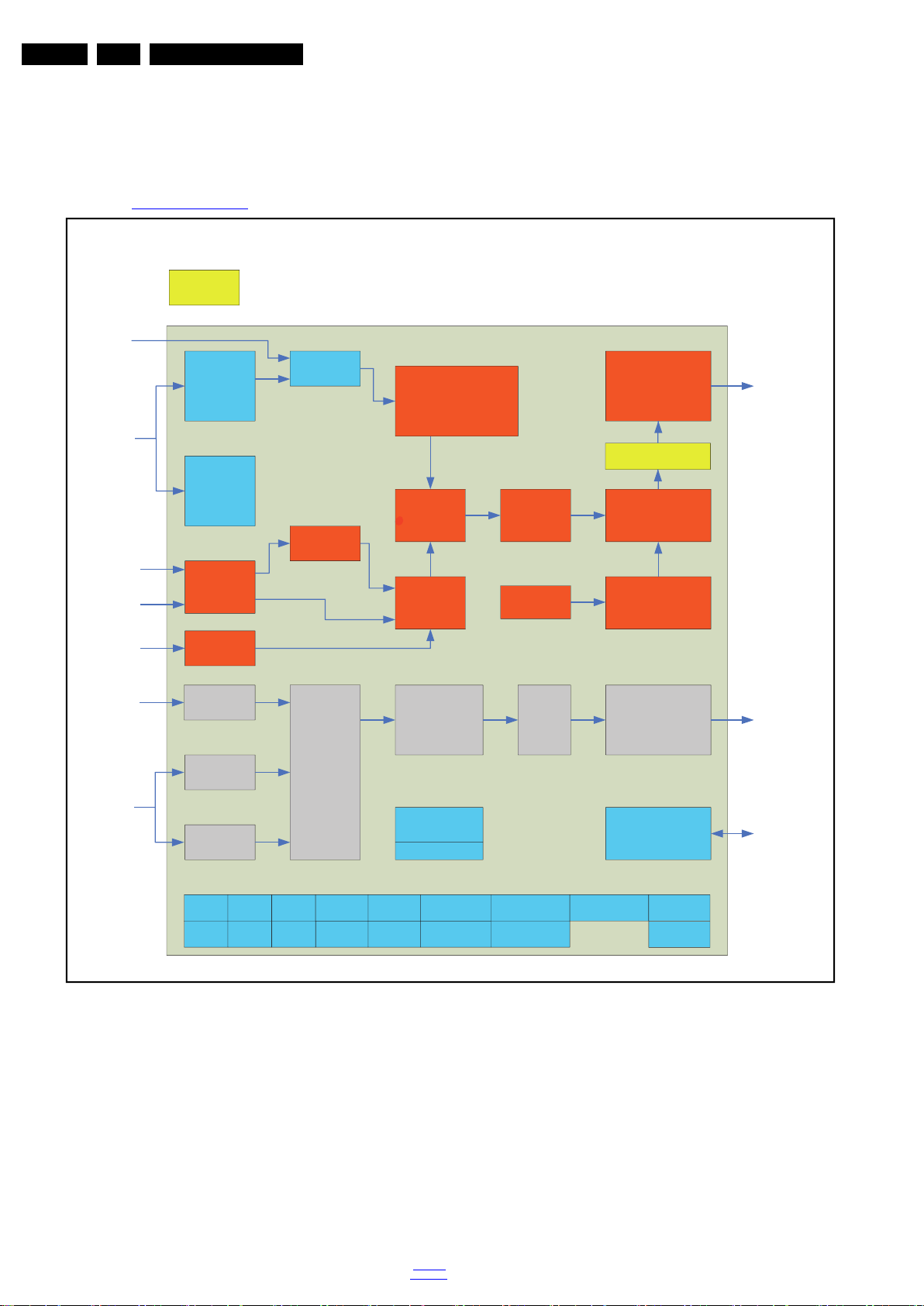

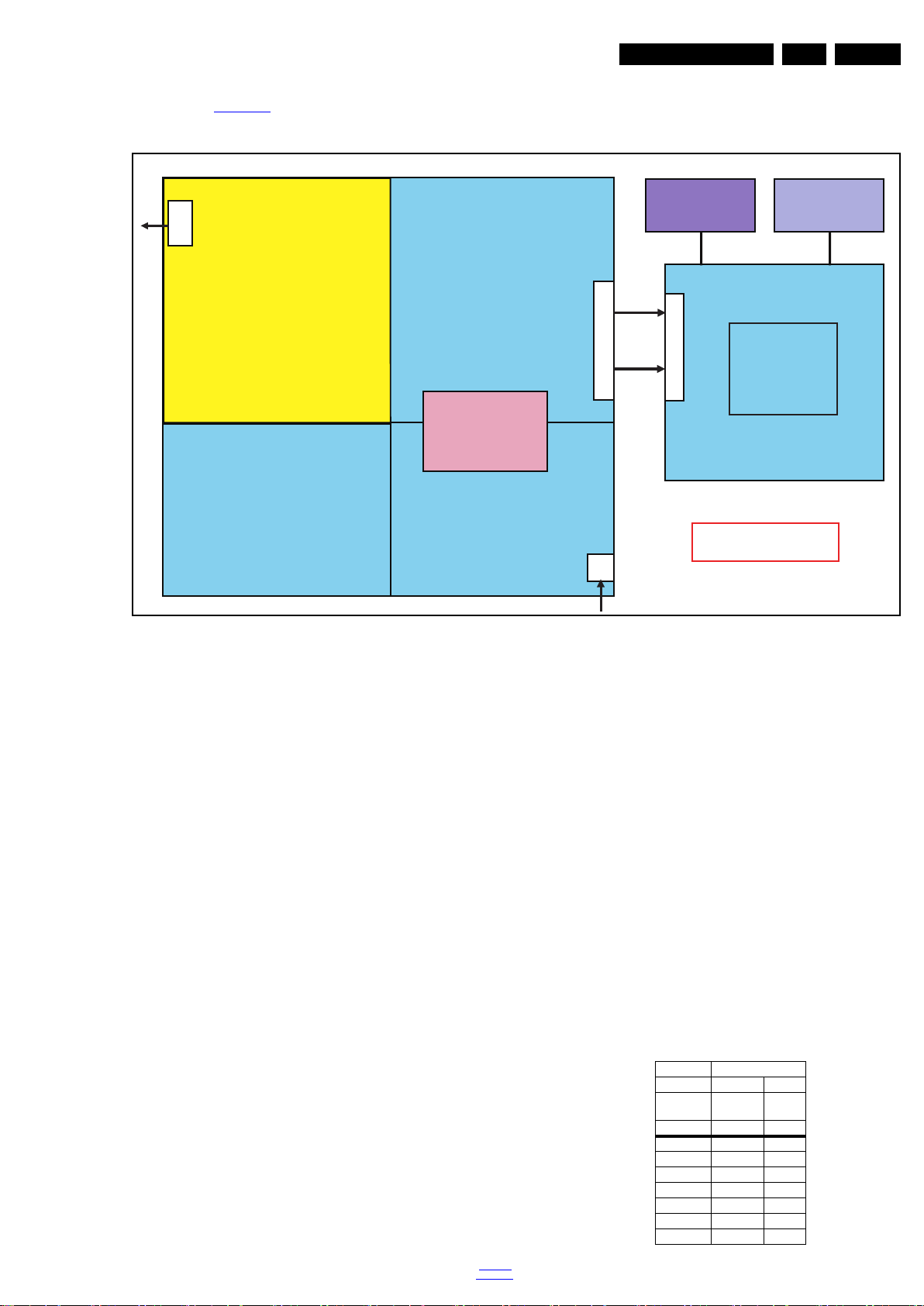

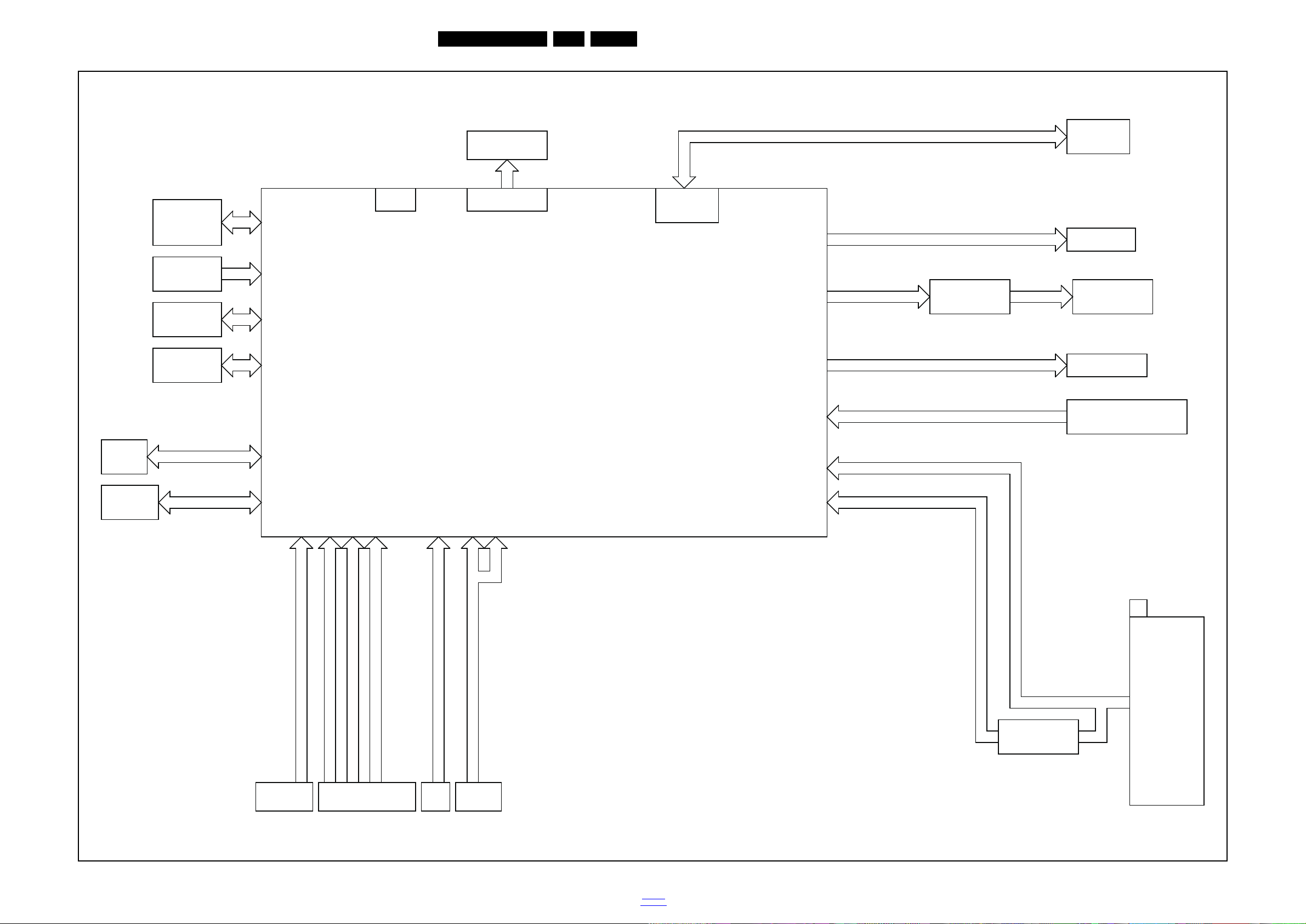

For details about the chassis block diagrams refer to Figure 9.3

.

25TPM10.1L LA 7.

back to

div. table

2013-May-17

26 TPM10.1L LA7.

19480_200_130409.eps

130409

AUDIO AMP

MT5580

DDR

HDMI

TUNER

SPDIF OUT

DC/DC

COMMON INTERFACE

USB

Headphone

SERVICE

CONNECTOR

ANALOG I/O

7.1.3 SSB Cell Layout

Circuit Descriptions

Figure 7-1 SSB layout cells (top view)

2013-May-17

back to

div. table

7.2 Power Supply

19480_201_130416.eps

130416

Display power

Platform MTK5580

PFC

Platform power

1 power- PCB

LVDS AMP

Low stby power

Ac-input + Mains filter

BL-ON/OFF

AC IN

CN901

CN8506

DIM

24V

12V

5V

CN701

AMP

24V

Refer to figure Figure 7-2 for the power architecture of this platform.

Circuit Descriptions

27TPM10.1L LA 7.

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective, a new panel must be ordered and the defective one must be returned, unless the main fuse of the panel is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the panels.

Important delta’s with the 4000 and 4900 series platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

The output voltages to the chassis are:

• +4V7-STANDBY (Stand-by mode only)

• +12V (on-mode)

• +Vsnd (+24V) (audio power) (on-mode)

• +24V (bolt-on power) (on-mode)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

Figure 7-2 Power Architecture

7.2.2 Diversity

The diversity in power supply units is mainly determined by the diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers. PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

Table 7-1 Connector overview

Number CN8506 CN902

Descriptio n to panel to SSB

Pin 8 13

1 VLED P_Scan 2 n.c. +5.2V 3 LED1 +5.2V 4 LED1 PS_ON 5LED1+24V 6LED1+24V 7LED1GND

Connector

back to

div. table

2013-May-17

28 TPM10.1L LA7.

19480_202_130416.eps

130416

5VSB MT5580

+12V

7A SOP8

MOS- A4449

PANEL

G5655P12U TUNER_3.3V

TUNER

USB *1

2A SOP8

G1117T63UF

1A SOT223

7A SOP8

MOS- A4449

5A TO252

G1084-33TU3Uf

MT5580 Demodulator IC NAND Flash AUDIO - STA381

3.2A SOP8

PWM- AT1529

DDR3

G5676F11U

5A SOP8

Demodulator IC

MT5580

DC-DC 1.2V

1A SOT223

24V Amp

IF

X

IF_AGC

RF_AGC

MTK5580

IF_AGC

TDST-H030F

I2C

I

2

C

19480_203_130416.eps

130416

Circuit Descriptions

Connector

Number CN8506 CN902

Descriptio n to panel to SSB

Pin 8 13

8LED1GND 9LED1GND 10 LED1 +12V 11 n.c. +12V 12 VLED DIM 13 - ON/OFF

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages (depending on set execution):

• +5V-STANDBY, permanent voltage for the Stand-by controller.

• +3V3-STANDBY, power supply for LED/IR receiver and controls.

• +12V, input from the power supply for the panel common (active mode)

• +24V, input from the power supply for audio amplifier

• +1V2, core voltage supply for MT5580

• +1V5, supply voltage for DDR2 (diagram B03B)

• +3V3, general supply voltage

• +3V3-TUN, supply voltage for tuner

• +5V-USB, input intermediate supply voltage for USB

• +3V3 from the power supply for the scaler IC MT5580

Figures gives a graphical representation of the DC/DC converters with its current consumptions:

7.4 Front-End Analogue and DVB-T, DVB-C;ISDB-T reception

7.4.1 Front-End Analogue part

The Front-End for Analogue tuner consist of the following key components:

• TUNER LATAM TDST-H030F

• MT5580GPOI PBGA-512

Below find a block diagram of the front-end application for DVB-T/C DTV.

2013-May-17

Figure 7-3 DC/DC converters

back to

div. table

Figure 7-4 Front-End block diagram Analogue reception

Circuit Descriptions

IF

TS DATA

X

RF_AGC

IF_AGC

RF_AGC

MTK5580

DTV Demod

IF_AGC

TDST-H030F

I2C

I

2

C

19480_204_130416.eps

130416

19480_205_130416.eps

130416

MT5580

HDMI1

HDMI2

HDMI SIDE

CN501

CN502

CN503

BRX

ARX

CRX

I2C

I

2

C

I

2

C

29TPM10.1L LA 7.

7.4.2 DTV part

The Front-End for DTV part consist of the following key components:

• TUNER LATAM TDST-H030F

• MT5580GPOI PBGA-512

Below find a block diagram of the front-end application for DTV part.

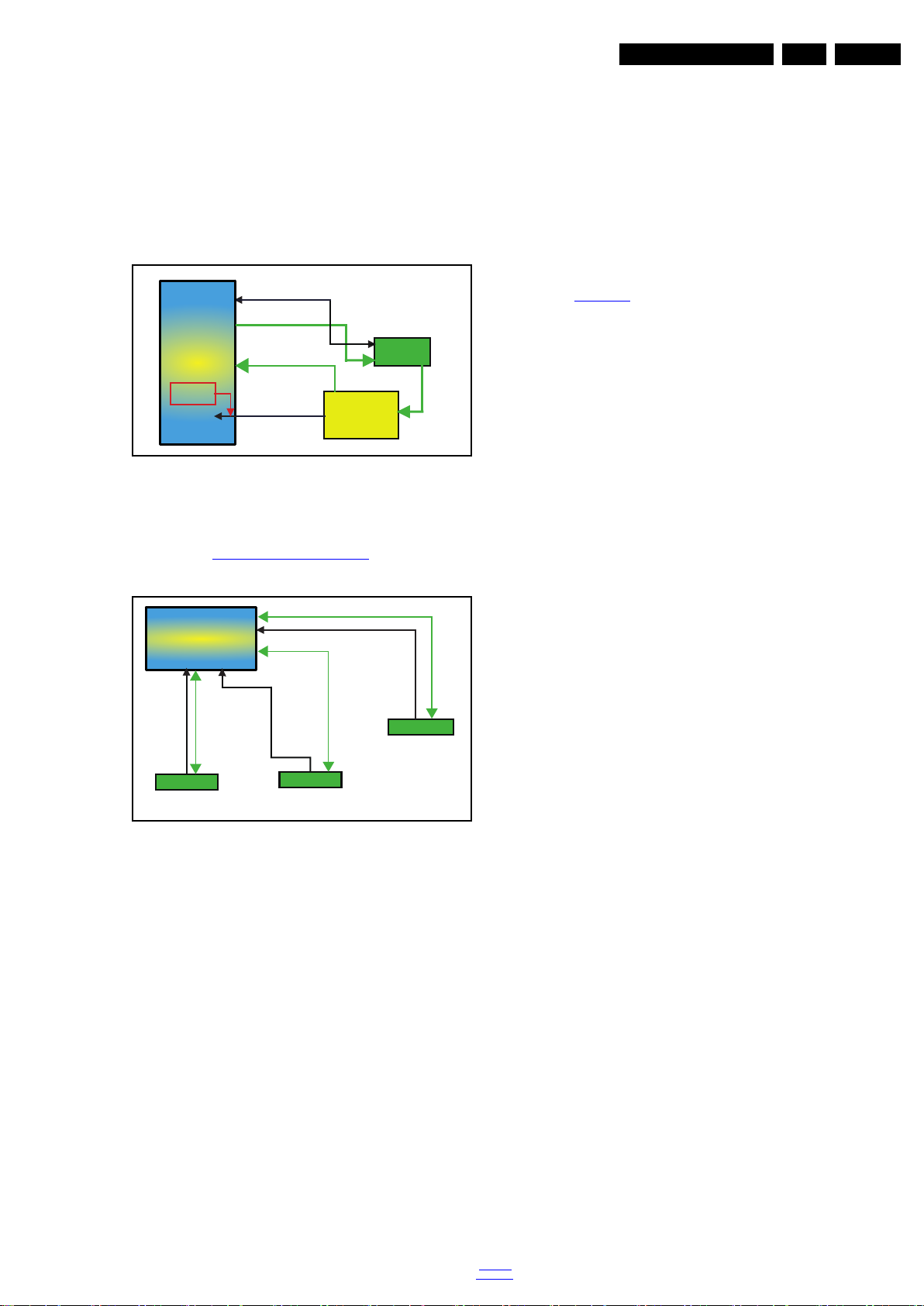

Figure 7-5 Front-End DTV block diagram

7.5 HDMI

Refer to figure 7-6 HDMI input configuration for the application.

The MTK5580GPOI combines front-end video processing functions, such as DVB-T channel decoding, MPEG-2/H.264 decoding, analog video decode and HDMI reception, with advanced back-end video picture improvements. High flat panel screen resolutions and refresh rates are supported with formats including 1366 × 768 @ 60Hz and 1920 × 1080 @ 60Hz. The combination of Ethernet, CI+ and H.264 supports new TV experiences with IPTV and VOD. On top of that, optional support is available for 2D dimming in combination with LED backlights for optimum contrast and power savings up to 50%.

For a functional diagram of the MTK5580GPOI, refer to Figure 8-1

.

Figure 7-6 HDMI input configuration

The following HDMI connector can be used:

• HDMI 1: HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input/ARC

• HDMI 2: HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input

• HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input

7.6 Video and Audio Processing - MTK5580GPOI

The MTK5580GPOI is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

• Multi-standard digital video decoder (MPEG-2, H.264, MPEG-4)

• Integrated DVB-T/DVB-C/DVB-S channel decoder

• Integrated motion accurate picture processing

• High definition ME/MC

• Extended colour gamut and colour booster

• Integrated USB2.0 host controller

• Improved MPEG artefact reduction

• Security for customers own code/settings (secure flash).

back to

div. table

2013-May-17

30 TPM10.1L LA8.

19480_300_130409.eps

130409

Block diagram

MT5580GPOI

NTSC/

PAL /

SECAM

ATD

TV

Decoder

TS

Demux

ARM CA9

L2 C ache

Video

ADCx4

Video Input

De-

interlace

ATSC/

DVB -T/

DVB -C

DTD

HDMI Rx

JPEG/MP2/MP4/

DivX/H.264/VC-1/

RM/AVS/VP8

Decoders

Audio

Input

Audio

Demod

Audio

ADC

SPDIF

In

2D

Graphic

LVDS/min-LVS/

EPI

OD, TCON

Post Processing

DDR3

Controller

OSD

scaler

PIP

Vplane

scaler

Audio DSP

Audio

I/F

Audio DAC

JTAG IrDA

PCR

I2C

RTC UART SDIO

USB2.0 PWM

Ethernet

Watchdog Serial Flash

NAND Flash

Servo ADC

SPDIF Out, I2S

ADAC L/R x 3

TS

Input

Tuner

Input

CVBS/YC

Input

Component

Analog Input

HDMI

Input

SIF

Audio Input

Panel

32-bit DDR3

T8032

Smart

Card

Optional

2D/3D Converter

CKGEN

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

8.1 Diagram 10-2-2 Periphral, B02,MT5580GPOI (IC U401-I)

2013-May-17

Figure 8-1 Internal block diagram

back to

div. table

19480_301_130409.eps

130409

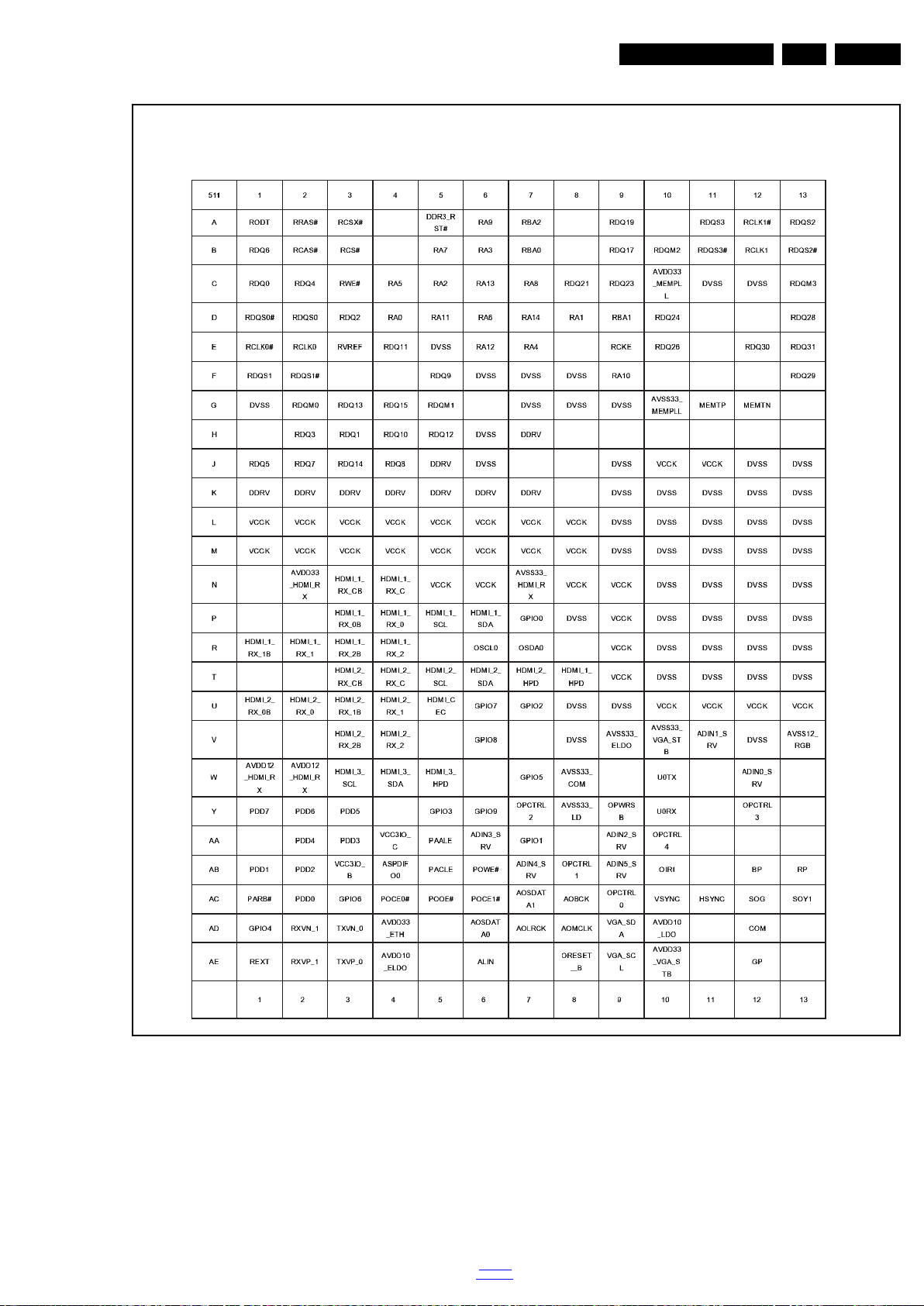

Pinning Information

MT5580GPOI

IC Data Sheets

31TPM10.1L LA 8.

Figure 8-2 Pin configuration [1/2]

back to

div. table

2013-May-17

32 TPM10.1L LA8.

19480_302_130409.eps

130409

Pinning Information

MT5580GPOI

IC Data Sheets

2013-May-17

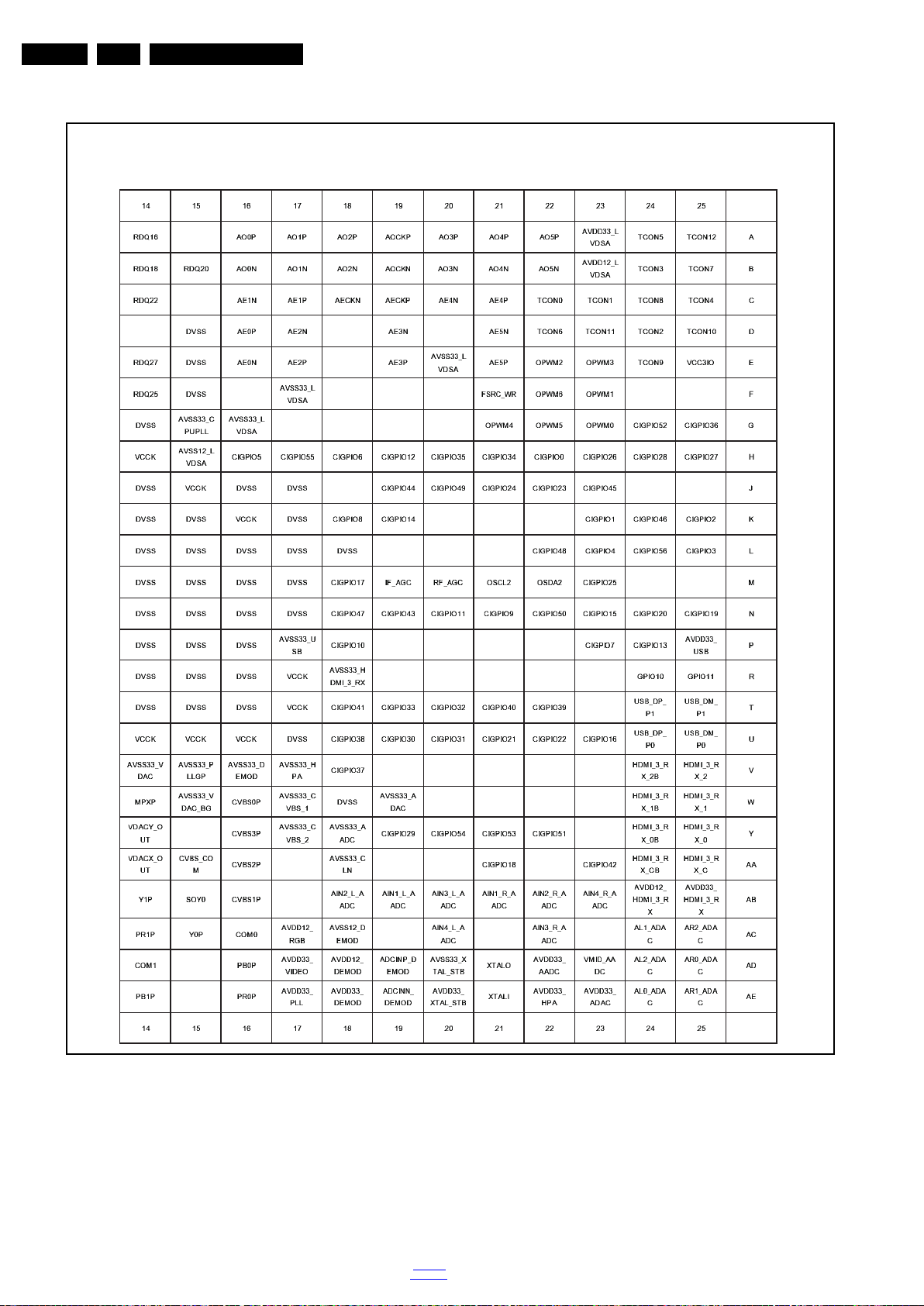

Figure 8-3 Pin configuration [2/2]

back to

div. table

IC Data Sheets

19480_303_130409.eps

130409

Block diagram

Pinning information

R

8.2 Diagram 10-2-4 AUDIO Amplifier/Speaker B04, STA381BW (IC U6001)

STA381BW

33TPM10.1L LA 8.

MCLK

LRCKI

BICKI

SDI

LINEINL

LINEINR

TESTMODE

PWDN

INTLINE

RESET

SDA

SCL

2.1 Channel

Audio Processor

TM

STAudioFx

STSpeakerSafe

Parametric EQ

Bass and Treble

Speaker Compensation

Stereo Widening

TM

Volume

TM

FFX

Modulator

Binary

Ter nary

4

Half

Bridges

OUT 1A OUT 1B OUT 2A OUT 2B

FFX3A FFX3B FFX4A FFX4B F3XL F3XR

LINEHPOUT_L LINEHPOUT_R

Headphone

(2Vrms)

SOFT_MUTE

Control logic

Negative

Charge

Pump

REG_M3

VSS_REG

VDD3V3CHP

-3.3V

CPVSS

CPP CPM

GNDA

F3X_FILT

&

Protections

SA

IIC

PLL

2 x VCC

2 x GND

VDD_REG

GND_REG

2 x VDDDIG

GNDPSUB

2 x GNDDIG

VREGFILT

AGNDPLL

VCC_REG

SDI

PWDN

GNDA

RESET

SOFTMUTE

LRCKI

BICKI

37

36

MCLK

AGNDPLL

35

VREGFILT

34

33

TWARNEXT/FFX4B

32

EAPD/FFX4A

FFX3B

31

30

FFX3A

29

GNDDIG1

28

VDDDIG1

27

VDD3V3CHP

26

CPP

25

GNDPSUB

24

CPM

CPVSS

VDD3V3

VCC_REG

VSS_REG

OUT2B

GND2

VCC2

OUT2A

OUT1B

VCC1

GND1

OUT1A

VDD_REG

GND_REG

TESTMODESASCL

VDDDIG2

GNDDIG2

4847464544434241403938

1

2

3

4

5

6

7

8

9

10

11

12

131415

F3XL

F3XR

F3X_FILT

SDA

INTLINE

STA 381BW

16

1920212223

17

18

LINEINL

LINEINR

LINEHPOUT_L

LINEHPOUT_R

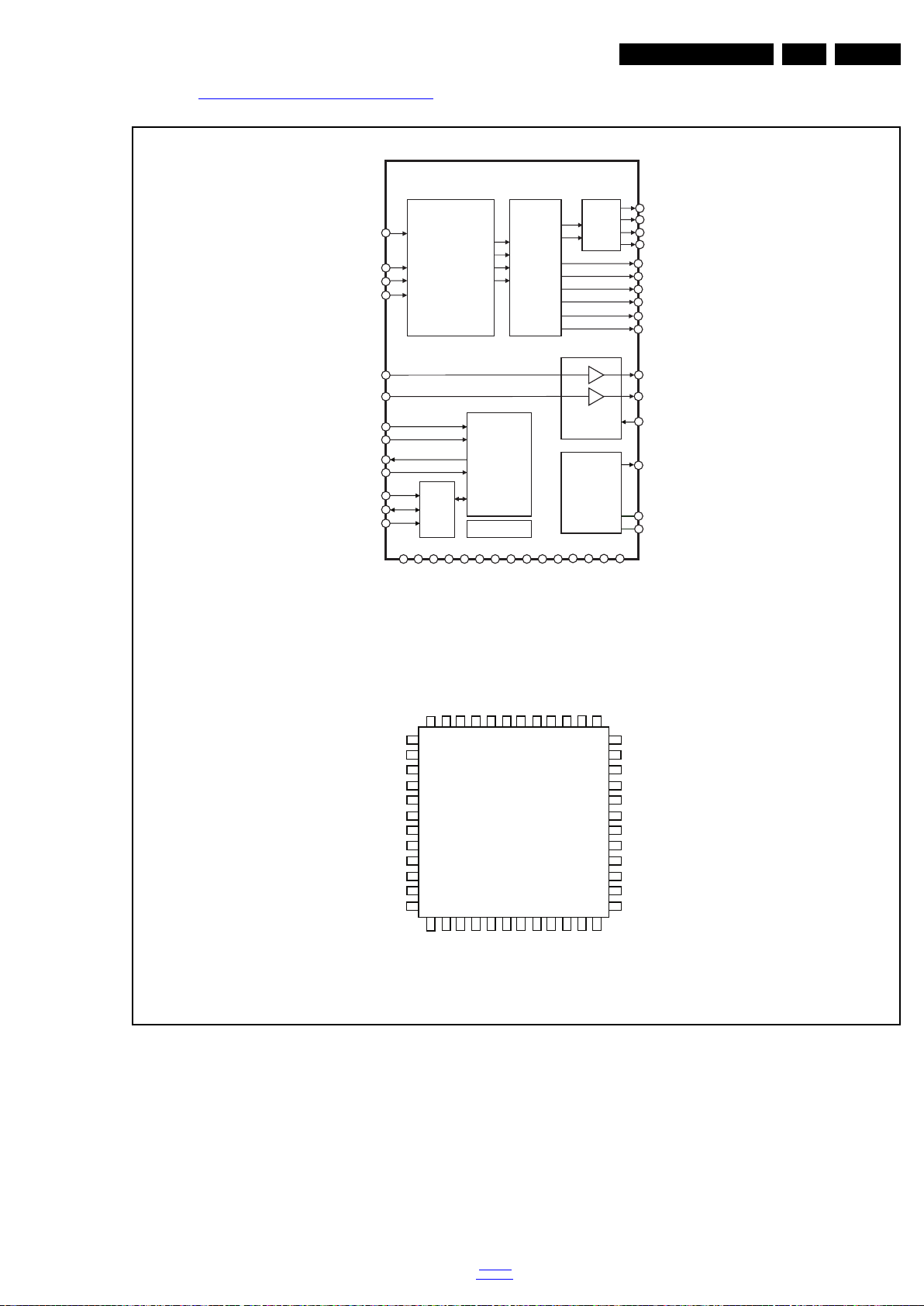

Figure 8-4 Internal block diagram and pin configuration

back to

div. table

2013-May-17

34 TPM10.1L LA8.

19480_304_130409.eps

130409

Block diagram

Pinning information

GF73509CT

SRCK

PBVAL

SRDT

SLOCK

RLOCK

RERR

SLPEN

GPIO2

GPIO1

GPIO0

VSS

VDDC

12 11 10 9 8 7 6 5 4 3 2 1 VSS 13 48 VDDS VDDS 14 47 VSS RSEORF 15 46 SDA

SBYTE 16 45 SCL SLADRS0 17 44 STSFLG0

AGCCNTI 18 43 STSFLG1 AGCCNTR 19 42 SYRSTN TNSCL 20 41 VPGM TNSDA 21 40 AINN Q XCKO 22 39 AINP Q XO 23 38 AINN I XI 24 37 AINP I 25 26 27 28 29 30 31 32 33 34 35 36

PLLVDD

PLLVSS

VDDC

CKI

SLADRS1

TSMD

VSS

VDDC

DCVDD

DCVSS

VREFL

VREFH

GF73509CT

Synchroni-za tion flag

TS output

Crystal

(reference clock

)

Tuner

AGC

control

IIC

control

Filter AGC

ISIC (unguarded

pre/post echo suppression)

FFT

Control

Adaptive

interpolation

filter

Equalization

(With Doppler

Com

p

ensation

)

CSI

(Reliability

detection)

CVI

(CW interference

detection)

AGC control output

Tuner IIC

Clock PLL

Viterbi

decoding

Memory

Frequency

deinterleaving

RS

decoding

Error

detection

Output control

Layer

isolation

TMCC

demodulation

Interpolation

phase

Correction

Synchroni

zation

Demapping

CSI

processing

Bit deinterleaving

B

y

te deinterleavin

g

TS multiplex

FFT window

control

ADC ADC

IF input or IQ input

SW

External AGC input

Host IIC

Energy despreading

Demapping

CSI

processing

Demapping

CSI

processing

Modulation division

Quadrature

detection

AFC

Frequency

CPE

Pilot

extraction

Time

deinterleaving

IC Data Sheets

8.3 Diagram 10-2-10 Demodulator B10, TC90537FG (IC U101)

2013-May-17

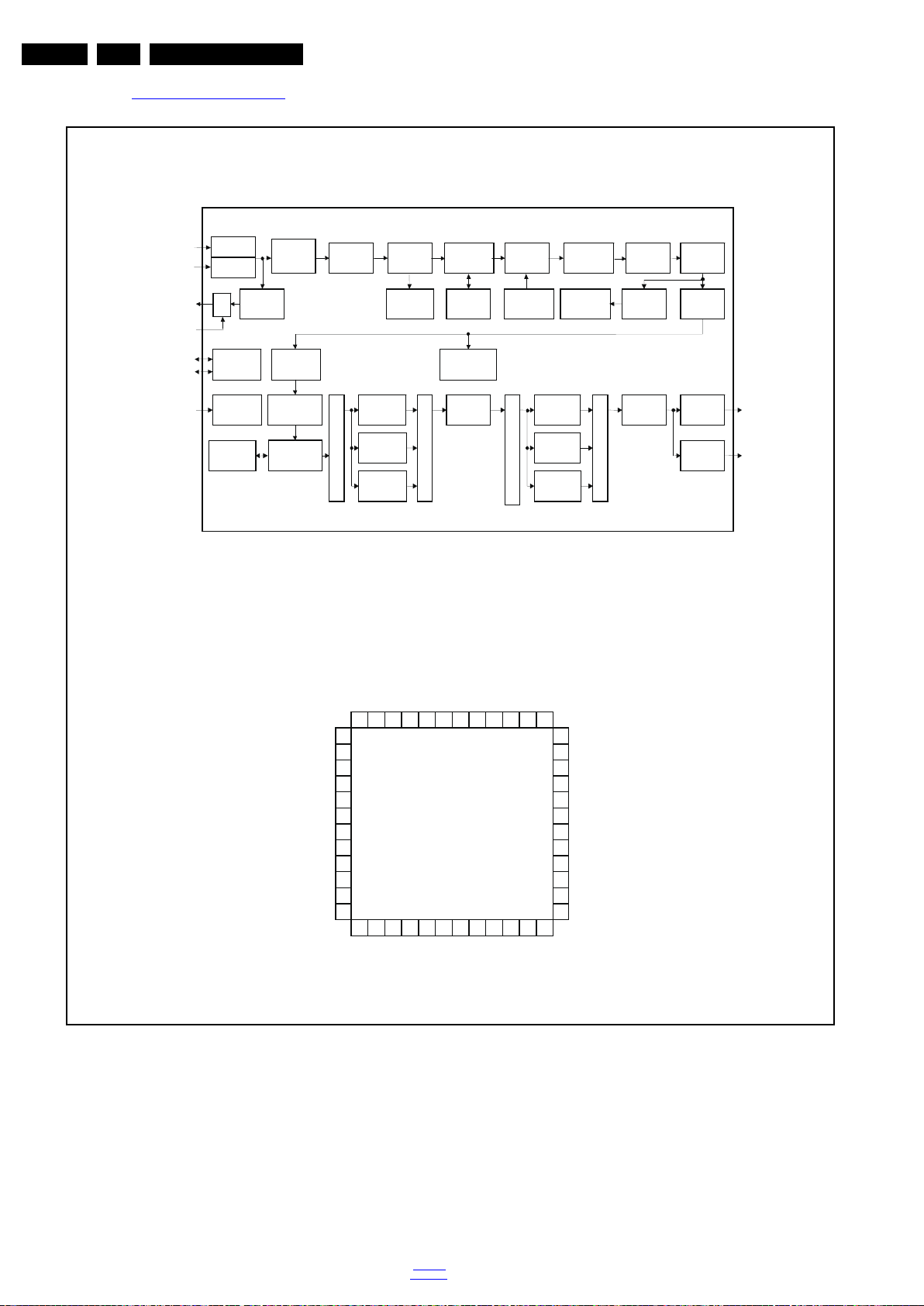

Figure 8-5 Internal block diagram and pin configuration

div. table

back to

A

9. Block Diagrams

19480_400_130409.eps

130409

WIRING DIAGRAM 42"- 46"- 50" (4900 series)

Board Level Repair

Component Level Repair Only for authorized workshops

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

IR/LED BOARD (1056)

J

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

SSB

(1053)

B

See note in Chapter 7 about cable position numbers

LN

CN9901

MAIN POWER SUPPLY

(1054)

A

HDMI

USB

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb Pr

SERV.U

AUDIO IN

DVI

HDMI 1

ARC

HDMI 2

6P

12P

CN8506

TO PANEL

40P

CN401

TO PANEL

13P

CN701

4P

CN601

12P

CN702

13P

CN902

CN201

CN016

3P

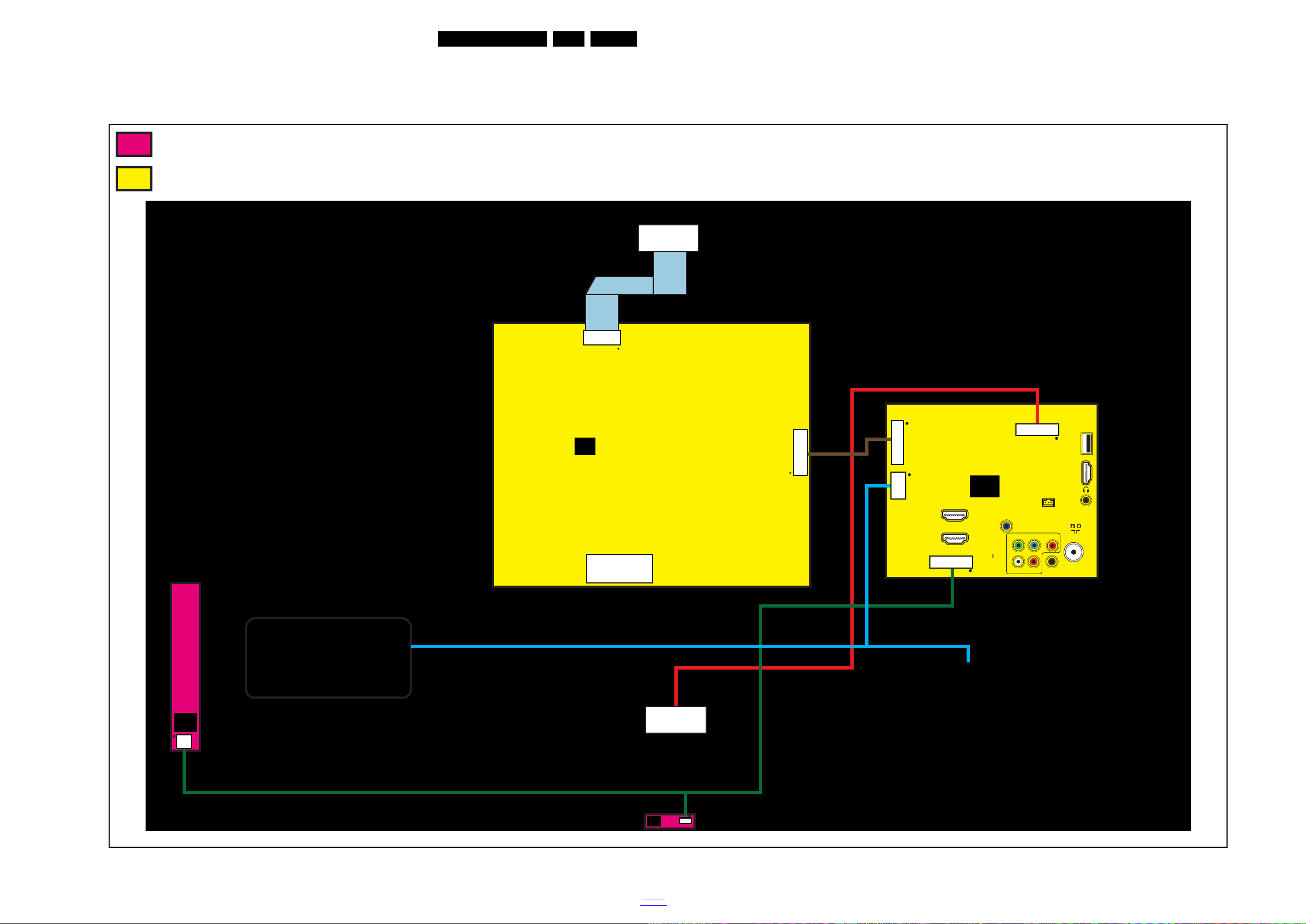

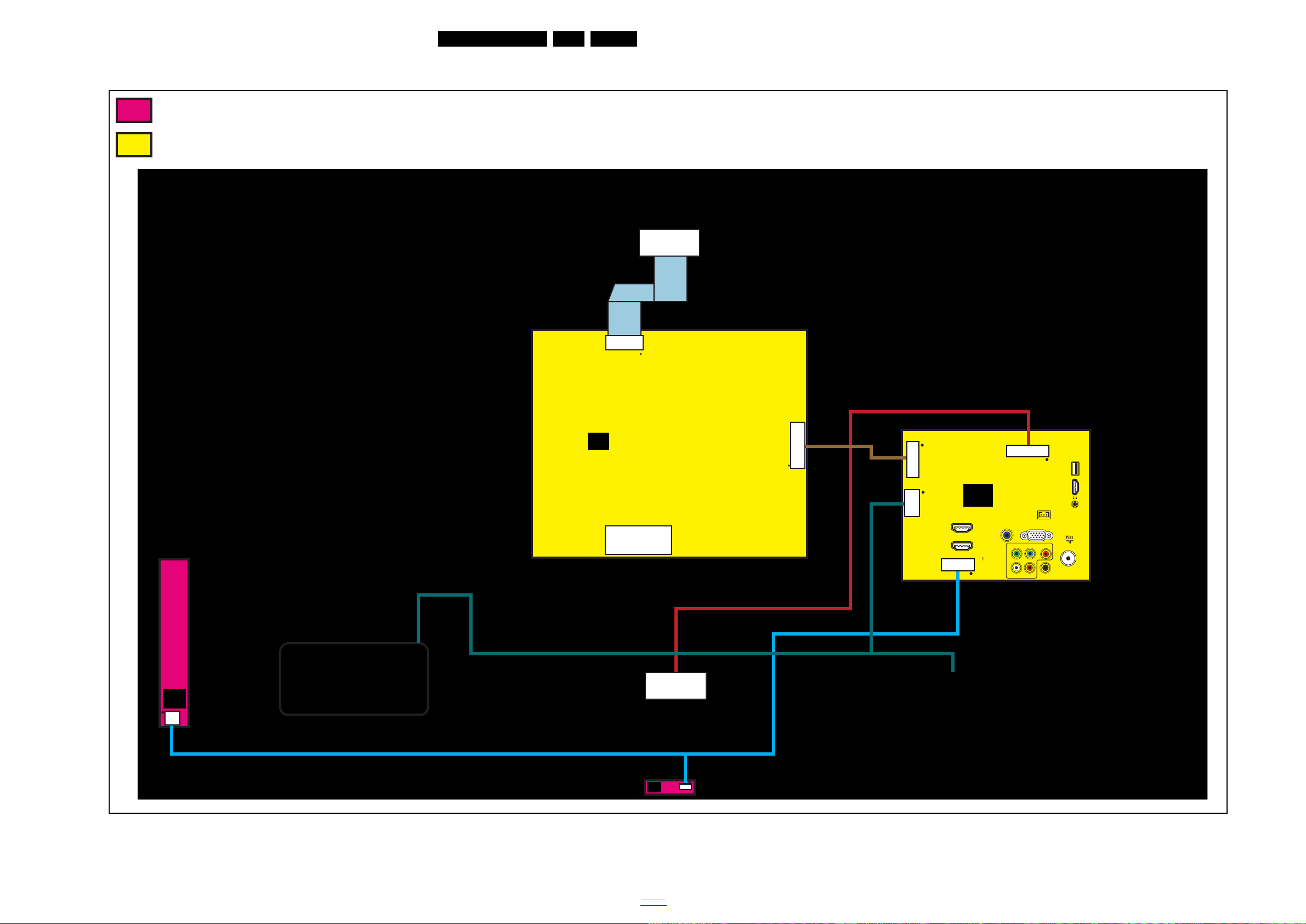

9.1 Wiring diagram 4900 series 42"- 46"- 50"

Block Diagrams

EN 35TPM10.1L LA 9.

2013-May-17

back to

div.table

9.2 Wiring diagram 4000 series 50"

19480_401_130423.eps

130423

WIRING DIAGRAM 50" (4000 series)

Board Level Repair

Component Level Repair Only for authorized workshops

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

IR/LED BOARD (1056)

J

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

SSB

(1053)

B

See note in Chapter 7 about cable position numbers

LN

CN9901

MAIN POWER SUPPLY

(1054)

A

HDMI

USB

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb Pr

SERV.U

AUDIO IN

DVI

HDMI 1

ARC

HDMI 2

6P

12P

CN8506

TO PANEL

VGA

40P

CN401

TO PANEL

CN016

3P

CN201

13P

CN701

13P

CN902

12P

CN702

4P

CN601

Block Diagrams

EN 36TPM10.1L LA 9.

2013-May-17

back to

div.table

9.3 Block diagram 4000/4900 series

19480_402_130408.eps

130408

NAND

UM1

HDMI3

RGB

HDMI2

SPEAKER AMP

RJ45

Embedded Eth PHY

SPDIF OUT

HDMI1

YPbPr1

VGA

LINE IN

HPOUT

SPEAKER OUT

SPDIF OUT

YPbPr1

GPIO

CVBS

HDMIx3

JTAG

LV DS Port

IR

UART

Flash

NAND INTERFACE

Flash

SPI

USBx1

Serial

DRAM

Main Chip

USB0/1

LINE IN

Headphone Out

LV DS

ISTB-TB TS

Tuner AIF+/AIF-

DTV DEMOD

TUNER

Block Diagrams

EN 37TPM10.1L LA 9.

2013-May-17

back to

div.table

Circuit Diagrams and PWB Layouts

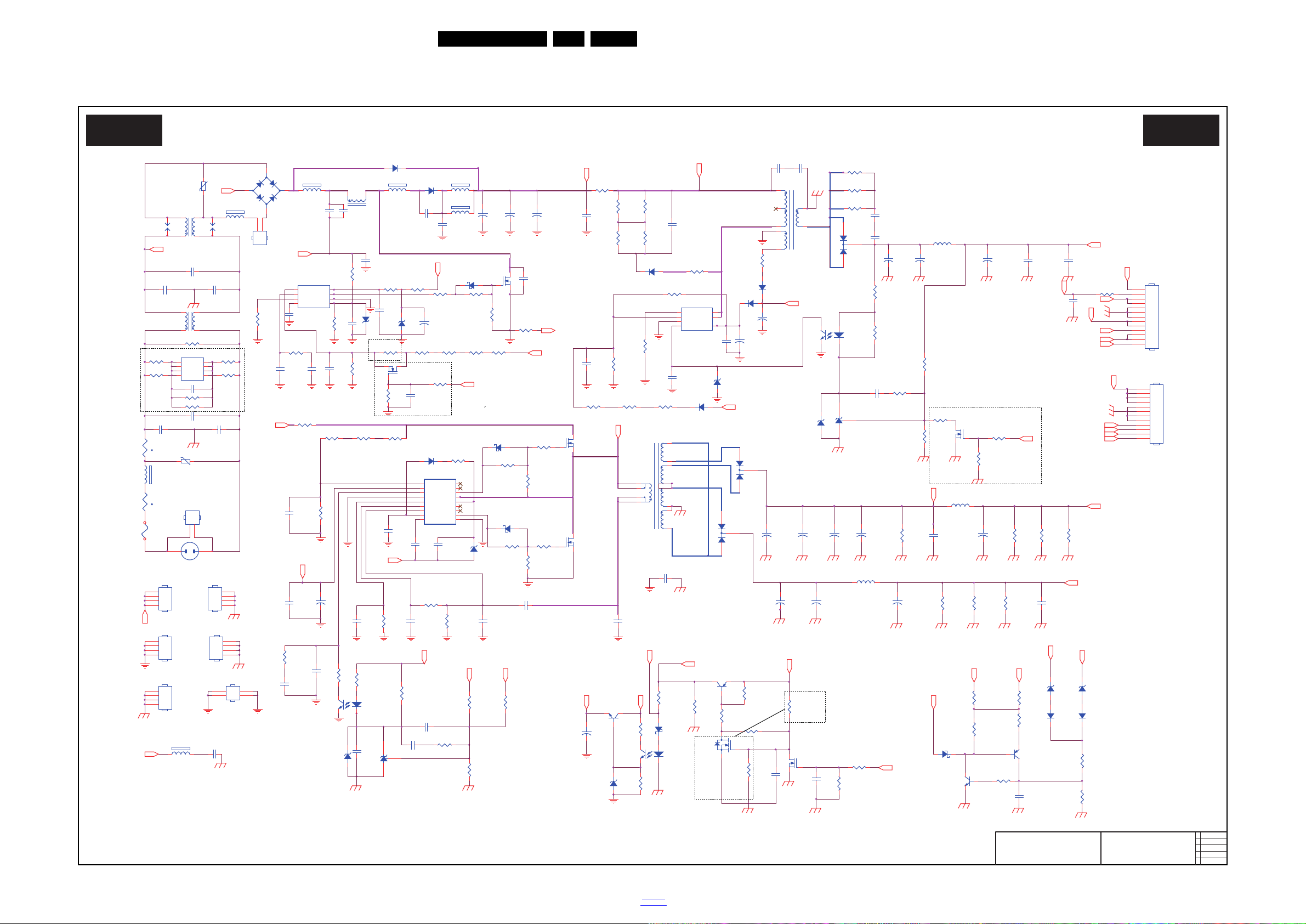

19430_500_130114.eps

130114

Power Circuit

A01 A01

2012-12-28

E

715G5778

Power Circuit

C9832 100N 50V

D9801

FMNS-1106S 093G 52905

P_Scan

HS9901 HEAT SINK

1

2

3

4

FB9302

BEAD

1 2

VCC1

D9305

FR107

093G 6026T52T

HS9101 HEAT SINK

1 2

3

4

C9911 470NF 275V

063G107M47410M

C9910 470NF 275V

R9311

0 OHM +-5% 1/8W

L9801 240UH

073G 174275 CP

6

1

ZD9106

BZT52-B3V6

12

IC9801

R2A20133ESP 356G0379008222

FB

1

COMP

2

RT

3

NC4CS

5

GND

6

OUT

7

VCC

8

ZD9107

BZT52-B22

1 2

C9955

220PF 250V

R9346

220 OHM 1/4W

12V

C9980

470PF 250V

+

C9147

22UF 50V

For Q9101,Q9102 NC

DIM

24VA

5.2V

C9826

3.3nF 50V

On/Off

PS-On

Q9301

2N7002K 057G 763 62

CN902

CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

12V

For BD9901 NC

Q9304

2N7002

057G 763904

R9161 24K 1/8W 1%

R9163 2K 1/8W 1%

C9877

47pF 1KV

D9302

SS1060FL

12

C9912 470PF 250V

R9301

1.0R 1W

+

C9344 470UF 25V

R9180 27K 1/8W 1%

+

C9340 470UF 25V

+

C9341

470UF 25V

067G 5154714HT

B1+

R9171

5.1K 1/4W

C9906

150PF 250V

IC9101

SSC9522S

056G 379211

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

D9116

MBRF1560CT 093G 60931

1

2

3

C9831

NC

PS-On

R9175

1.5K 1/4W

C9170 100N 50V

R9320

560K 1/8W 1%

P_Scan

R9340

10K 1/8W 1%

R9337

8K2 1/8W 1%

HS9301 HEAT SINK

1

2

3

4

C9395

3.3NF 50V

C9335

100N 50V

RV9907

680V

361G0046681KZW

R9901

1MOHM +-5% 1/2W

R9339

43.2KOHM +-1% 1/4W

D9307

FR107

R9804

NC

R9331

47 OHM 1/4W

12V

IC9303 EL817M(X)

056G 139 9

12

43

R9317

1.5M 1% 1/4W

24VA

C9151 1UF

C9153

1UF

D9113

SS1060FL

12

5.2V

ZD9105

GDZJ30B

1 2

C9333

0.47UF 50V

R9810

16K +-1% 1/8W

C9338

3.3NF 50V

+

C9802

47UF 450V

12V

R9806

56K 1/8W

Q9302 RK7002BM

057G 763532

R9801

0.07R 3W

C9824 22N 50V

C9144 100N 50V

R9151

10 OHM

R9141

0.1R

R9329

0.1R 1W

C9825 220N 50V

R9390

0R05

R9318

1.5M 1% 1/4W

RV9902

680V

361G0046681KZW

FB9804 BEAD

1 2

C9342 100N 50V

+

C9164 NC

C9829 100N 50V

C9159

330NF 50V

C9833

47pF

R9101

180R 1%

Q9103 PMBS3904

057G 417 4

L9906

3UH

C9171

1.5NF

R9140 1K 1/8W 1%

R9149

470 OHM 1/8W

L9903

12mH

073G 174270 X1

124

3

+

C9168 470UF 25V

+

C9163

NC

+

C9169 470UF 25V

D9306

1N4148

+

C9830 10UF 50V

R9172

5.1K 1/4W

R9153 10K 1/8W 1%

R9173

5.1K 1/4W

D9109 1N4148

R9174

5.1K 1/4W

R9303 20K OHM

R9156

10K 1/8W 1%

IC9301 A6069H

056G 379121

S/OCP

1

BR

2

GND

3

FB/OLP4VCC

5

D/ST

7

D/ST

8

R9158

5.6K

R9332 2R2 +-5% 1/4W

R9808

10R 1/8W 5%

C9828 100N 50V

R9176

1.5K 1/4W

ZD9104

GDZJ15B

1 2

+

C9804

47UF 450V 367G215X470PKZ001S

R9809

200 OHM 1/4W

R9177

1.5K 1/4W

Q9305 MMBT3906 PNP

057G 417907 T

R9335 3K3 1/8W 5%

R9160

10K 1/8W 1%

VCC1

R9399

47 OHM 1/4W

VCC

R9308 10K 1/8W 1%

R9816

680K OHM +-1% 1/4W

R9815

680K OHM +-1% 1/4W

C9345 100N 50V

R9302

100K 1/6W

ZD9101

GDZJ30B

1 2

DV5

C9331

1NF

R9310

100K 1/8W 1%

SB+

F9901

FUSE 5A

084G 41 7

R9813

10K 1/4W

T9301

POWER X'FMR

080GL52P 54 CP

1

2

3

4

5

7

9

24V

R9324

1K 1/8W 1%

R9304

100K 1/8W 1%

R9309 100K 1/8W 1%

R9330

47 OHM 1/4W

R9148 NC

ZD9102

GDZJ15B

1 2

24V

R9144

1M5 1/4W 1%

L9304

NC

CN905

CONN

1

2

C9343

220N 50V

R9146 2K43 1/8W 1%

C9150

0.47UF 50V

IC9106 EL817M(X)

056G 139 9

12

43

D9308 FMW-2156

093G1506 2

1

2

3

ZD9303 GDZJ15B

1 2

BOX

Q9801

STF24NM60N 057G 667A04

FB9801 BEAD

1 2

ZD9304

NC

1 2

FB9802

BEAD

1 2

R9333

2K 1/8W 1%

FB9810 BEAD

1 2

VBoot

IC9999

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

ZD9301

GDZJ18B

1 2

B1+

R9995 NC R9996 NC

Q9106

MMBT3906 PNP

057G 417907 T

R9992

NC

R9993

NC

R9994

NC

B1+

R9991

NC

C9999 NC

R9888

0 OHM +-5% 1/8W

C9156

100PF1KV

R9336

1Kohm +-1% 1/4W

R9338

9K1 1/8W 1%

BOX

R9139 100R 1%

C9149

100N 50V

5.2V

C9155

1N 50V

12V

C9334 1N 50V

T9101 POWER X'FMR

380GL32P111YS0

7

6

1 2

11

10

15 14

8

9

13 12

Q9101

STF8NM50N 357G0667A06

D9804

IN5408G-04

093G 52918

R9334 220 OHM 1/4W

VBoot

t

NR9901

2.5R

361G0058259MYW006A

12

R9143

NC

SG9905

NC

SG9904

NC

D9803

SS1060FL

12

C9803 470PF1KV

R9178 5K1 1/8W

D9115 FMEN-2308

093G 60987

1

2

3

D9301

SS1060FL

393G060S50000T00HF

1 2

For Q9801,D9801

C9165 100N 50V

VCC1

C9820

105 450V

-

+

BD9901

TS10K80-02

393G0050460A06

2

1

3

4

VCCVCC1

5.2V

R9811

100 OHM 1/4W

R9307 10K 1% 1/8W

C9154 560P 50V

FB9996

NC

1 2

For D9308

C9301 100N 50V

R9152

47OHM +-5% 1/8W

D9110 1N4148

R-

CN904 CONN-NC

L

1

N

2

IC9107 AS431AZTR-E1

R9154

47OHM +-5% 1/8W

R9111

0 OHM +-5% 1/8W

C9907

150PF 250V

C9146

100N 50V

IC9302 EL817M(X)

056G 139 9

12

43

Q9802 NTD4906NT4G

057G 600954

CN901

SOCKET

087G 50147D DL

1 2

D9114 UF4007

093G 52908

R-

C9827

1NF 50V

C9158 NC

D9304

FR107

C9145

100N 50V

R-

R8550

10K 1% 1/4W

C9166 NC

R9306

2K 1/8W 1%

DV5

Main_ov

R9159

20K 1/4W

R9805 200K1/8w

Main_ov

C9981

470PF 250V

IC9304 AS431AZTR-E1

056G 158 10 T

D9112

SS1060FL

12

R-

C9148

4.7UF 10V

C9152

5PF 1KV

R9147

470 OHM

R9817

100K 1%

For D9115,D9116

R9818

1K 1/8W

C9875 NC

FB9999

BEAD

12

+

C9161 330UF 35V

+

C9174 330UF 35V

NC

C8550

1N 50V

R9138

1Kohm +-1% 1/4W

NC

R9325 100K

R9326 100K

R9341

100K 1/8W 1%

R9327

100K

R9328 100K

R9145

18K 1/8W 1%

C9908

150PF 250V

+

C9172 NC

HEAT SINK

HS9103

1 2

3

4

Q9102

STF8NM50N 357G0667A06

R9319

1.5M 1% 1/4W

+

C9801

47UF 450V

C9347

1UF

L9901

12mH

073G 174270 X1

124

3

+

C9160 330UF 35V

067G 5153316KT

L9905

3UH

373G0253247X00

t

NR9902

2.5R

361G0058259MYW006A

12

+

C9302 22UF 50V

R9142

1.5M 1% 1/4W

R9150

1.5M 1% 1/4W

Q9303

BTC4672M3

357G0761A0100T

24VA

HS9102 HEAT SINK

341

2

For D8120,Q8101

CN903

CONN

1

2

3

4

5

6

7

8

9

10

11

12

R9323

4.7M OHM +-5% 1/4W

C9909

150PF 250V

C9157

22nF 1KV

24V

NC

R9807

200 OHM 1/4W

R9814

1MOHM +-1% 1/4W

NC

R-

DV5

DIM

On/Off

HS9801 HEAT SINK

1 2

3

4

+

C9336 10UF 50V

24V

RJ901

4R7 1/4W 5%

R9819

10K 1/8W

R9102

10 OHM

R9103

10 OHM

+

C9337 47UF 50V

10. Circuit Diagrams and PWB Layouts

10.1 A 715G5778 PSU

10-1-1 Power Circuit

EN 38TPM10.1L LA 10.

2013-May-17

back to

div.table

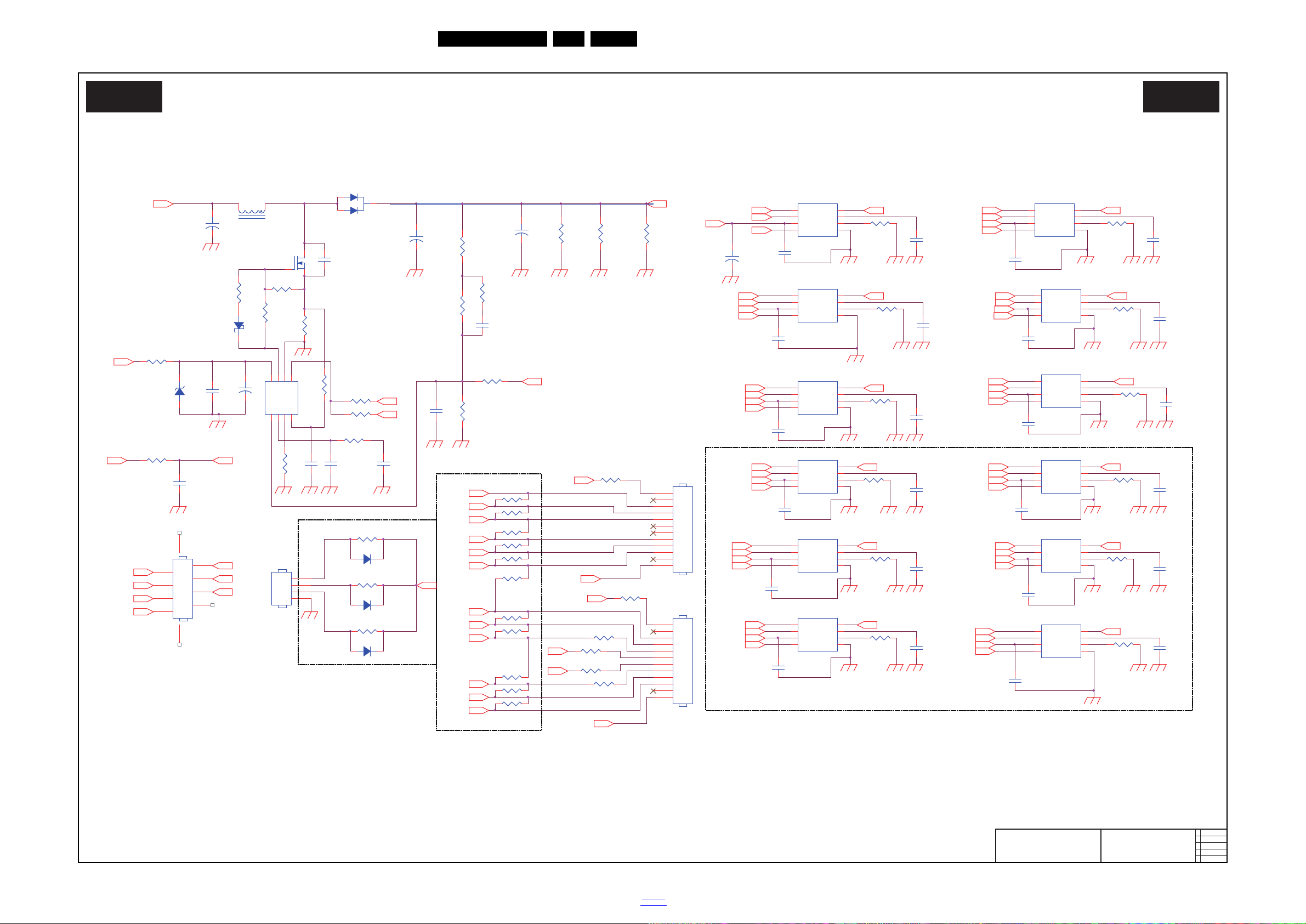

10-1-2 Converter

19430_501_130114.eps

130114

Converter

A02 A02

2012-12-28

E

715G5778

Converter

IC8103 PF7900S

056G 700 23

FB1GM2RT3CS

4

DIM

5

GND

6

OUT7VCC

8

+

C8118

120UF 100V

+

C8109

120UF 100V

VLED

DIM

R8510

9.31K +-1% 1/8W

R8549

0R05 1/4W

R8548

0R05 1/4W

R8521 0R05

R8546 0R05

R8555 0R05

R8543 NC

R8542 NC

IC8503

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8547 0R05

R8523 0R05 R8544 0R05

R8541 0R05

R8524 0R05

R8540 0R05

R8520 0R05

R8545 0R05

LED-COMP

R8522 0R05

D8555

1N4148W

D8557

1N4148W

D8556

1N4148W

R8515

0 OHM +-5% 1/8W

LED-12

LED-10LED-9

R8513

0 OHM +-5% 1/8W

R8514

0 OHM +-5% 1/8W

R8519 0R05

VLED

LED-12

CN8504 CONN

1

2

3

4

5

6

7

8

910

LED-10

VLED

LED-11

LED-12

12V

C8501 100N 50V

12V

C8502 100N 50V

12V12V

12V

LED-11

12V

C8503 100N 50V

12V

C8505 100N 50V

C8504 100N 50V

LED-2

LED-1

LED-7

LED-4

LED-8

LED-5

R8511

9.31K +-1% 1/8W

LED-3

LED-6

C8506 100N 50V

C8507 100N 50V

C8508 100N 50V

LED-8

LED-9

LED-7

LED-10

C8509 100N 50V

LED-9

C8510 100N 50V

C8511 100N 50V

C8512 100N 50V

DIM

LED-COMP

DIM

LED-COMP

EN

LED-COMP

DIM

EN

LED-COMP

EN

DIMLED-COMP

EN

LED-7

LED-COMP

CN8506 CONN

1

2

3

4

5

6

7

8

9

10

11

12

LED-8

PWM_C

EN

LED-1

LED-11

VLED

24V

LED-3

LED-COMP PWM_C

EN

LED-2

LED-5

LED-COMP

LED-4

LED-6

CN8501 NC

1

2

3

4

5

6

7

8

9

10

11

12

VLED

PWM_B

EN

LED-COMP

+

C8158 NC

R8512

9.31K +-1% 1/8W

EN

PWM_B

CN8503 CONN

1 2

3

4

LED-COMP

IC8504

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

EN

PWM_A

DIM

C8523 100N 50V

C8157 100N 50V

C8529 100N 50V

C8530 100N 50V

C8518 100N 50V

C8524 100N 50V

C8525 100N 50V

C8519 100N 50V

C8532 100N 50V

C8531 100N 50V

C8520 100N 50V

C8526 100N 50V

LED-COMP

R9322

3.0KOHM +-1% 1/4W

PWM_A

EN

LED-11

LED-12

R8501

9.31K +-1% 1/8W

IC8505

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8506

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

Q8101

AOTF4126

357G0600A01

R8177

NC

EN

R8153

0 OHM 1/8W

R8147

360K +-1% 1/8W

C8188

NC

R8188 NC

IC8507

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8145

330K +-1% 1/4W

IC8508

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8157

10K 1/8W 1%

EN

On/Off

IC8509

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8510

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8141

82K +-1% 1/8W

C8177

NC

IC8511

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

Note2

IC8512

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

L8101

33uH 373G0253257CP0

3

1

C8119

1N 50V

Note1

R8502

9.31K +-1% 1/8W

NC

R9997

0.03R 3W

NC

IC8501

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8503

9.31K +-1% 1/8W

R8144

75K 1%

R8504

9.31K +-1% 1/8W

ZD8103

NC

1 2

R8148

100K 1/8W 1%

R8505

9.31K +-1% 1/8W

R8162 1Kohm +-1% 1/4W

C9346

100N 50V

R8506

9.31K +-1% 1/8W

R8176

0 OHM 1/8W

R8163 200K 1%

R8507

9.31K +-1% 1/8W

C8113 1N 50V

D8118

NC

12

R8158

10R 1/8W 5%

R8161

NC

R8154 100K

R8155 100K

R8156 100K

NC

R8508

9.31K +-1% 1/8W

LED-COMP

NC

+

C8170

330UF 35V

+

C8121 22UF 50V

12V

NC

R8509

9.31K +-1% 1/8W

IC8502

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8106

NC

C8111 100N 50V

D8120

MBRF10150CT

093G 60903

1

2

3

C8105 1N 50V

NC

Circuit Diagrams and PWB Layouts

EN 39TPM10.1L LA 10.

2013-May-17

back to

div.table

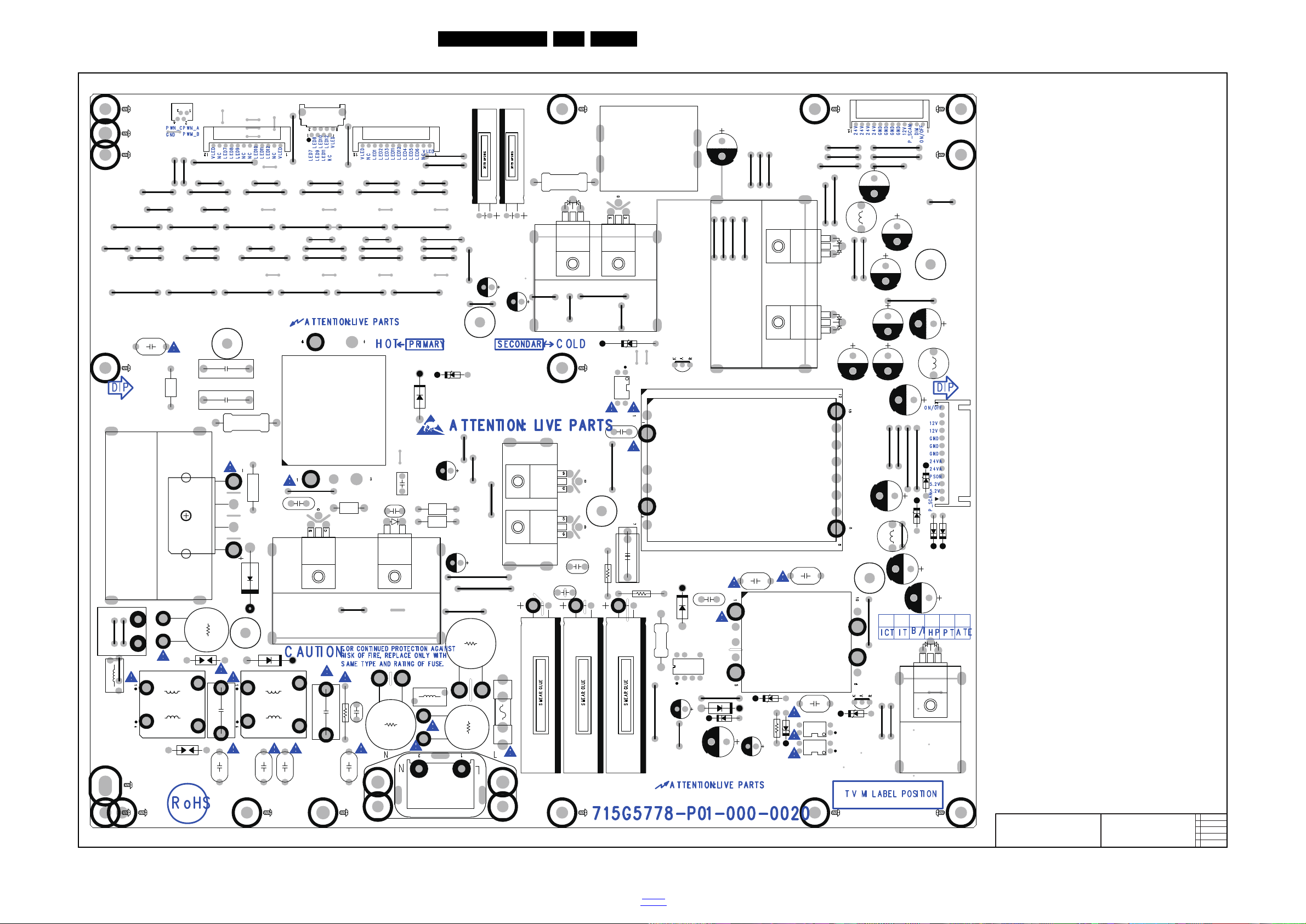

10-1-3 Power layout top

19430_502_130115.eps

130115

2012-12-28

E

715G5778

Power layout top

C8121

C8158

C9830

C9156

C9302

C9336

C9803

C9147

D9305

D9306

D9307

D9802

IC9106

IC9107

IC9302

IC9303

IC9304

R9301

H2

H1

D9109

D9110

J901

J909

J907

J906

J902

J903

J913

J952 J950

J916

J970 J968J966

J954 J955 J956 J957 J958

J972 J973 J974 J975 J976 J977

J937

J938

J940

J941

J910

J911

J914

J912

J915

J960

J961

J939

J959

J978

J926

J924

J921

J928

J929

J930

J927

J925

J923

J919

J917

J918

J922

J920

J931

J932

J933

J934

J981

J982

J953

J946 J944J986

J985

J987

J935

J942

J948

J988 J989 J990

J964

J965

J962

J963

J951 J949 J947 J945 J943

J971 J969 J967

H3

J991

J992

J983

J984

H4

H5

H6

J993

J905

J979

J936

J904

J908

J994

J996

J995

T9101A

T9301

T9101

J980

J1

J5

J6

J4

J2

J3

TEST3

TEST2

C9152

C9160 C9161

C9163

C9164

C9168

C9169

C9171

C9172

C8170

C9174

C9331

C9337

C9340

C9341

C9344

C9833

C9906C9907 C9908 C9909

C9912

C9955

C9980

C9981

CN8501

CN8504

CN8506

CN901

CN902

CN903

CN904

CN905

D8120

D9114

D9115

D9116

D9304

D9308

D9801

F9901

FB9302

FB9804

FB9810

HS9102

HS9301

HS9801

IC9301

L9105

L9106

L9304

Q8101

Q9101

Q9102

Q9801

R8175

R9329

R9801

SG9904

SG9905

ZD9104

MH13

MH15

MH14

MH2MH3 MH4 MH6 MH7 MH8

MH9

MH10MH11MH12

MH17

MH5

MH1

ZD9101

ZD9301

ZD9303

ZD9304

HS9101

HS9901

R9141

R9302

FB9801

FB9802

C9157

C9820

C9999

FB9999

ZD9102

ZD9105

C9875

CN8503

C8109C8118

C9877

FB9996

HS9103

BD9901

L9801

C9801 C9804 C9802

RV9902

MH16

L8101

RV9907

C9911

C9910

R9901

L9903 L9901

C9157A

NR9901

NR9902

Circuit Diagrams and PWB Layouts

EN 40TPM10.1L LA 10.

2013-May-17

back to

div.table

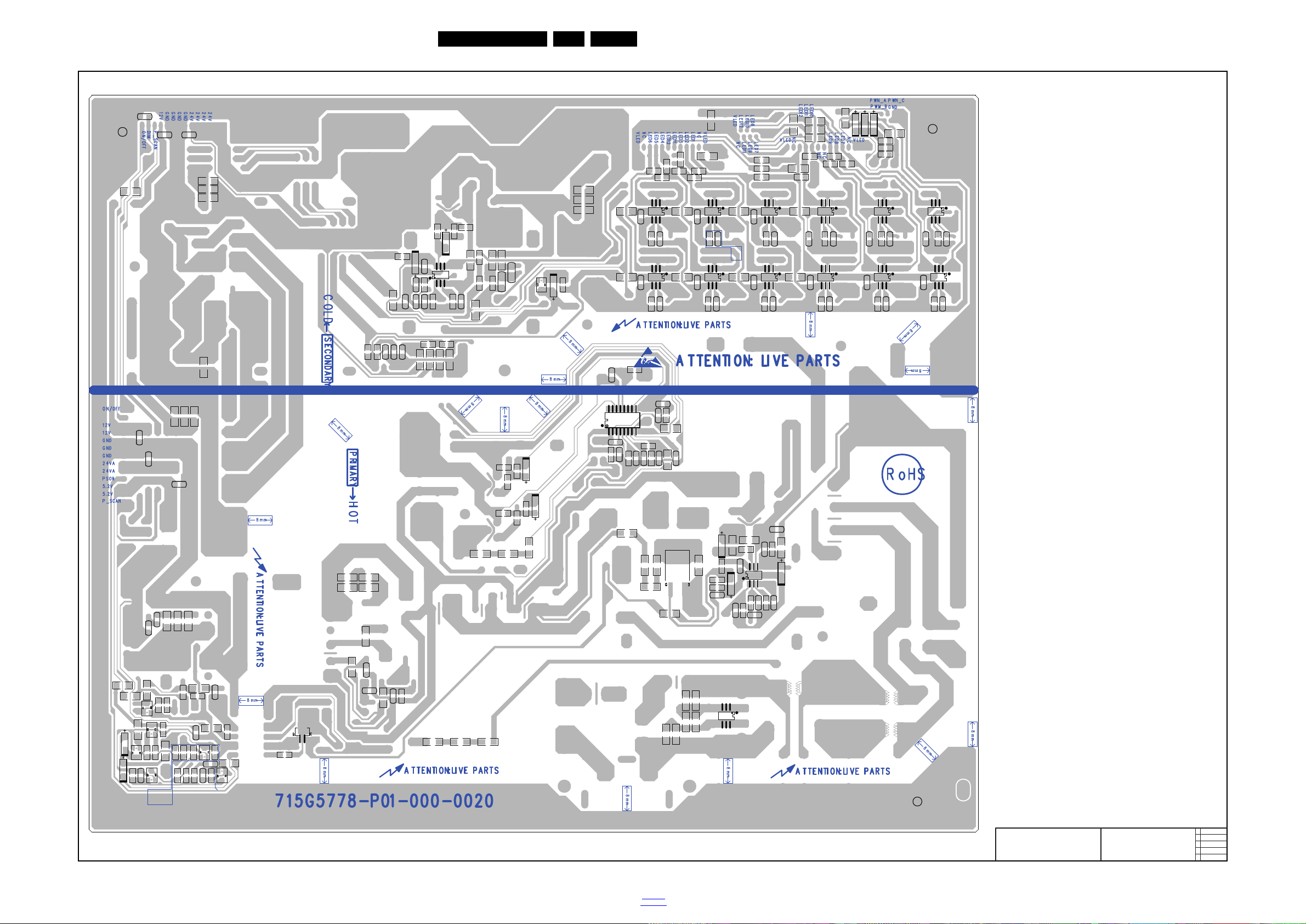

10-1-4 Power layout bottom

19430_503_130115.eps

130115

2012-12-28

E

715G5778

Power layout bottom

C8105

C8106

C8111

C8113 C8119

C8157

C8501

C8502

C8503

C8504

C8505C8506

C8507

C8508

C8509

C8510

C8511

C8512

C8518

C8519

C8520

C8523

C8524

C8525

C8526

C8529

C8530

C8531

C8532

C9144

C9145

C9146

C9148

C9149

C9150

C9151

C9153

C9154

C9155

C9158

C9159

C9165

C9166

C9170

C8550

C9301

C9333

C9334

C9335

C9342

C9343

C9346

C9824

C9825

C9826

C9827

C9828

C9829

C9831

C9832

Q9103

Q9106

Q9301

Q9302

Q9305

R8141

R8145

R8148

R8153

R8154

R8155

R8156

R8157

R8158

R8161

R8163

R8501

R8502

R8503

R8504

R8505R8506

R8507

R8508

R8509

R8510

R8511

R8512

R8519R8520R8521

R8522R8523

R8524

R9101

R9102

R9103

R9111

R9140

R9142

R9143

R9144

R9145

R9146

R9148

R9149

R9150

R9151

R9152

R9153

R9154

R9156

R9158

R9159

R9160

R9161

R9163

R9171

R9172

R9173

R9174

R9175

R9176

R9177

R9180

R9303

R9304

R9306

R9308

R9317 R9318 R9319

R9320

R9323

R9324

R9325

R9326R9327

R9328

R9330

R9331

R9332

R9333

R9335

R9337

R9338

R9340

R9341

R9346

R9390

R9804

R9805

R9806

R9807

R9808

R9809

R9810

R9811

R9813

R9814

R9815

R9816

R9817

R9818

R9819

RJ902

RJ901

RJ904

C9345

R9309

R9310

R9311

Q9304

RJ906

IC8103

IC9801

RJ909RJ908RJ907

RJ915RJ916RJ917

R9307

R9339

R8550

R8162

R8144

RJ905

R9322

R9138

R9178

R8147

R9147

R9991

R9992

IC9999

R9334

R9139

C9338

C9395

RJ903

R8176

R8177

R8514

R9336

RJ910

C8188

R8540 R8541

R8542

R8543

R8544 R8545

R8546

R8547

R8555

R9888

R8548

R8549

R9993

R9994

R9995

R9996

RJ921

R8515

RJ914

RJ913

RJ912

RJ911

R8513

RJ919

RJ920

SM5

SM6

SM7

R8190

R9399

Q8105

C8189

IC8507

IC8508IC8510

IC8509IC8511

IC8512IC8502

IC8501IC8503

IC8504IC8506

IC8505

R8188

C9347

C9348

C9349

PIN1

PIN2

PIN3

D8118

D9112

D9113

D9301

D9302

D9803

IC9101

Q9303

Q9802

ZD8103

ZD9106

ZD9107

D8557

D8556

D8555

ZD8109

Circuit Diagrams and PWB Layouts

EN 41TPM10.1L LA 10.

2013-May-17

back to

div.table

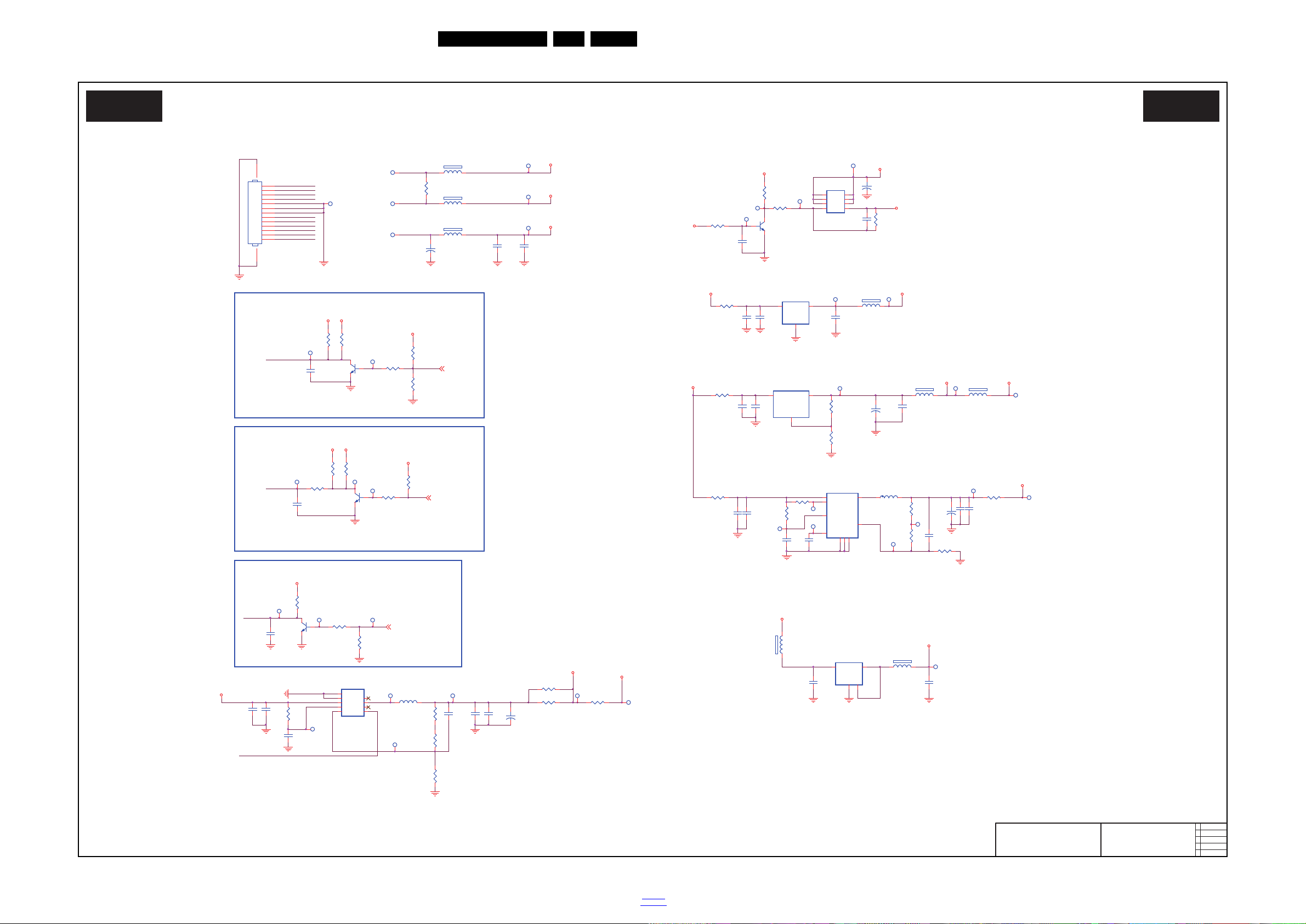

10.2 B 715G5698 SSB

19480_500_130408.eps

130408

System Power

B01 B01

2012-12-12

B

715G5698

System Power

R722

100R

C733 220NF 16V

C719 1uF 25V

AVDD12

VCCK

R1

R2

FB1011 120R/3000mA

1 2

Q703 BC847C

R2

R1

+

C713

100UF 16V

DVDD3V3

+5V DV DD3V3

C721

NC 10uF 16V

R706

1K 1/10W

R705 47K 1/10W 5%

BL_DIM PRE

Backlight ADJ

R729 10ohm +/-1% 1/10W

R726 10K 1/16W 5%

Q705 PMBS3904

R727

4.7K 1/16W

R728

4.7K 1/16W

5VSB

VCCK

+

C730

330UF 6.3V

3.3V_TUNER

+

C703 220UF 16V

BL_DIM 16

BL_ON/OFF 16

R711 NC/3.3K 1%

R0402

U702

VIN3VOUT

2

GND

1

R707 0R05 1/10W

C706

1uF 10V

C708

100NF 16V

Q702

AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

FB707

120R/3000mA

1 2

R718 10K 1/10W

3V3SB5VSB

+5V

R714 0R05 1/10W

+5V

R717 0R05 1/10W

C711

100NF 16V

R704 100K 1/10W

C714 100NF 16V

FB708 120R/6000mA

1 2

FB709

120R/6000mA

1 2

AVDD3V3DVDD3V3

U704

AT1527F11U

VCC

1

REF

2

GND

3

FB

4

EN

5

PGND

6

LX

7

VIN

8

Thermal Pad

9

R731

10K 1%

R730

10K 1%

R703 0R05 1/16W

R0402

5VSB

+

C729

100UF 16V

R702 10K

5VSB_PRE

R721

10ohm +/-1% 1/10W

C722

0.1uF 50V

C723

0.1uF 50V

U703

VIN3VOUT

2

ADJ(GND)

1

U701

uP1734PSW8

NC

1

LX

2

POK

3

EN4FB

5

VDD

6

VIN

7

GND

8

GND

9

L702

2.2uH 30%

C716 22uF 10V

C717

0.1uF 50V

R735 0R05OHM1/8W

R719

2.4KOHM +-1% 1/10W

R724

0R05 1/10W

R725

3K 1/10W 1%

C720

150pF 50V

TP041

TP042

TP047

TP048

TP050

TP051

DDRV

FB732

120R/3000mA

1 2

+12V

TP234

U709 G903T63UF

VIN3VOUT

2

GND14

4

+

C715

100UF 16V

C749 1uF 10V

C766

10UF 6.3V X5R +-20%

TUNER_3.3V

R736

200R 1/10W 1%

TP239

C702

100nF 50V

TP001

OPWRSB5

C704

100nF 50V

Power on/off control

C705 1uF 25V

TP002

CN701

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13

1415

TP005

C707 10uF 16V

TP007

TP009

TP010 TP011

TP012

C712 10uF 16V

BL_ON/OFF PRE

TP014

PS_ON PRE

TP015 TP016

BL_DIM PRE

TP017

+12V_PRE +12V_PRE

TP019

C725 10uF 16V

TP020

TP021 TP022

+24V_PRE

5VSB_PRE

+24V_PRE

5VSB_PRE

PS_ON PRE

5VSB_PRE

TP025

TP026

R701

NC 0R051/8W

+12V_PRE

TP027

TP028 TP029

TP030 TP031

TP033

+24V_PRE

TP034

FB701 120R/6000mA

1 2

TP035

FB703

120R/6000mA

1 2

TP036

TP037

TP038

TP039

+24V

FB705 120R/6000mA

1 2

C724

100NF 16V

5VSB

C701

0.1uF 50V

C731 100NF 16V

C710 100NF 16V

R709 NC 4.7K 1/16W

R712

4.7K 1/16W

PS_ON PRE

R713 NC 4.7K 1/16W

Q701

PMBS3904

5VSB L701

2.2uH 17.3mOHM

R708

2K 1/16W

R710 10K 1/16W 5%

R733 0R05OHM1/8W

R734 0R05OHM1/8W

BL_ON/OFF PRE

C726

2.2NF 50V

C727 100NF 16V

C728 22UF 6.3V

+5VDVDD3V3

3V3SB

5V_TUNER

Backlight ON/OFF

R715

NC 4.7K 1/16W

R716

4.7K 1/16W

R723

4.7K 1/16W

R720

4.7K 1/16W

R732 0R05OHM1/8W

C718

10uF 16V

Q704

PMBS3904

10-2-1 System Power

Circuit Diagrams and PWB Layouts

EN 42TPM10.1L LA 10.

2013-May-17

back to

div.table

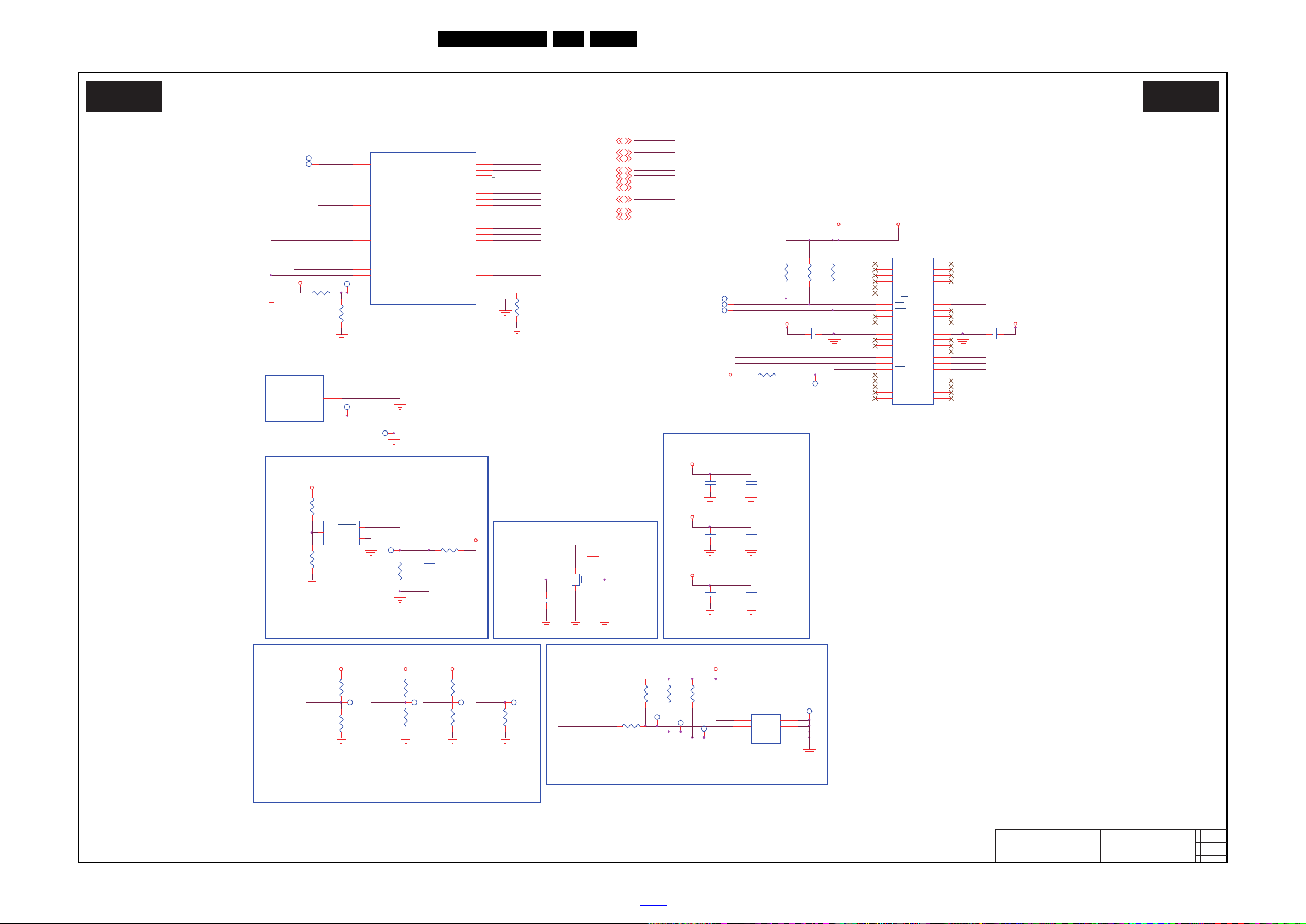

10-2-2 Periphral

19480_501_130408.eps

130408

Peripheral

B02 B02

2012-12-12

B

715G5698

Peripheral

OPCTRL3

TP052

TP053

TP054

TP055

3V3SB

R4012 10K 1%

TP303

FLASH_WP#

PAR B #

OXTALI OXTALO

R4016 10K 1%

PACLE

R4019

NC 10K 1%

AVSS33_XTAL_STB

AVSS33_PLLGP

AVDD33_XTAL_STB

AVDD33_PLL

TP314 TP315

TP316 TP317

R4017

10K 1%

OPCTRL0OPCTRL4

R4018

10K 1%

STRAPPING

U402

K9F2G08U0C-SIB0

CLE

16

I/O0

29

R/B1

7

VSS

13

VDD12VDD

37

VSS

36

ALE

17

I/O1

30

I/O2

31

I/O3

32

I/O4

41

I/O5

42

I/O6

43

I/O7

44

NC

1

NC

2

NC

3

NC

4

NC

5

NC

6

NC

10

NC

11

NC

14

NC

15

NC

20

NC

21

NC

22

NC

23

NC24NC

25

NC

26

NC

27

NC

28

NC

33

NC

34

NC

35

NC

38

NC

39

NC

40

NC

45

NC

46

NC

47

NC

48

RE

8

CE1

9

WE

18

WP

19

R4002

4.7K 1/16W

R4003

4.7K 1/16W

R4004

4.7K 1/16W

DVDD3V3

DVDD3V3Flash_3V3

POCE#

POOE#

U409

TLV809K33DBVR

GND

1

RESET

2

Vcc

3

AVSS33_VGA_STB

AVDD33_VGA_STB

PDD1

PDD2 PDD0

PDD5

PDD6 PDD4

PDD3

PDD7

ORESET

OPCTRL416

OPCTRL07,16

SYS_EEPROM_WP16

OPCTRL3

OPCTRL316

SYS_EEPROM_WP

OPCTRL4

OPCTRL0

OSCL0

OSDA0

OSDA07,11 OSCL07,11

OSCL0

OSDA0

U401K

MT5580GPOI

AVDD33_VGA_STB

AE10

AVSS33_VGA_STB

V10

AVDD10_LDO

AD10

C4003 100NF 16V

Flash_3V3

C4004 100NF 16V

3V3SB

Flash_3V3

R4056 NC 10K 1%

R4057 NC 10K 1%

PAALE

PACLE

NAND Flash

POWE

TP310

AVDD10_LDO

TP311

Flash_3V3

R4006 0R05 OHM

R4007 0R05 OHM

R4001 NC 4.7K 1/16W

3V3SB

C4006 10UF 6.3V X5R +-20%

C4007 100NF 16V

C4008

10UF 6.3V X5R +-20%

C4009 100NF 16V

C4011

10UF 10V

C4012 100NF 16V

3V3SB

AVDD3V3

3V3SB

AVDD33_XTAL_STB

AVDD33_VGA_STB

OPWRSB

AVDD33_PLL

R4005

4.7K 1/16W

U0TX U0RX

U0RX10,18

U0RX

OPWRSB4

OPWRSB

Analog Power

TP240

R4011

NC 13K 1/16W 1%

C4010 33PF 50V

U401I

MT5580GPOI

OSDA0

R7

OSCL0

R6

U0TX

W10

U0RX

Y10

XTALI

AE21

XTALO

AD21

AVSS33_XTAL_STB

AD20

AVDD33_XTAL_STB

AE20

AVDD33_PLL

AE17

AVSS33_PLLGP

V15

POWE#

AB6

POOE#

AC5

POCE1#

AC6

POCE0#

AC4

PDD0

AC2

PDD1

AB1

PDD2

AB2

PDD3

AA3

PDD4

AA2

PDD5

Y3

PDD6

Y2

PDD7

Y1

PAR B #

AC1

PACLE

AB5

PAA L E

AA5

ORESET__B

AE8

OPWRSB

Y9

OIRI

AB10

FSRC_WR

F21

FSRC_RD

F20

POR_BND

W9

R4010

NC 9.1K 1%

ORESET

POWE POOE#

3V3SB

POCE#

U404

CAT24C128WI-GT3

A0

1

A1

2

A2

3

GND

4

SDA

5

SCL

6

WP

7

VCC

8

RESET CircuitRESET Circuit

C4005

4.7UF 10V

PDD0

R4013

4.7K 1/16W

PDD1

R4014

4.7K 1/16W

E-Fuse

R4015

4.7K 1/16W

OIRI16,21

OIRI

PDD2

PDD5

PDD4

PDD3

PDD7

PDD6

DVDD3V3

OIRI

PAA L E

PAR B # PACLE

U0TX

U0TX10,18

OSCL0 OSDA0

TP040

R4059

820R 1/10W 1%

R4020 0R05 OHM

R4060

NC 1K8 1/10W 1%

SYS_EEPROM_WP

SYSTEM EEPROM

X401

27MHz

1

24

3

TP043

C4013

27P50V

C4014

27P50V

OXTALO

TP044

27MHz CRYSTAL

TP045

TP046

OXTALI

TP049

3V3SB

Circuit Diagrams and PWB Layouts

EN 43TPM10.1L LA 10.

2013-May-17

back to

div.table

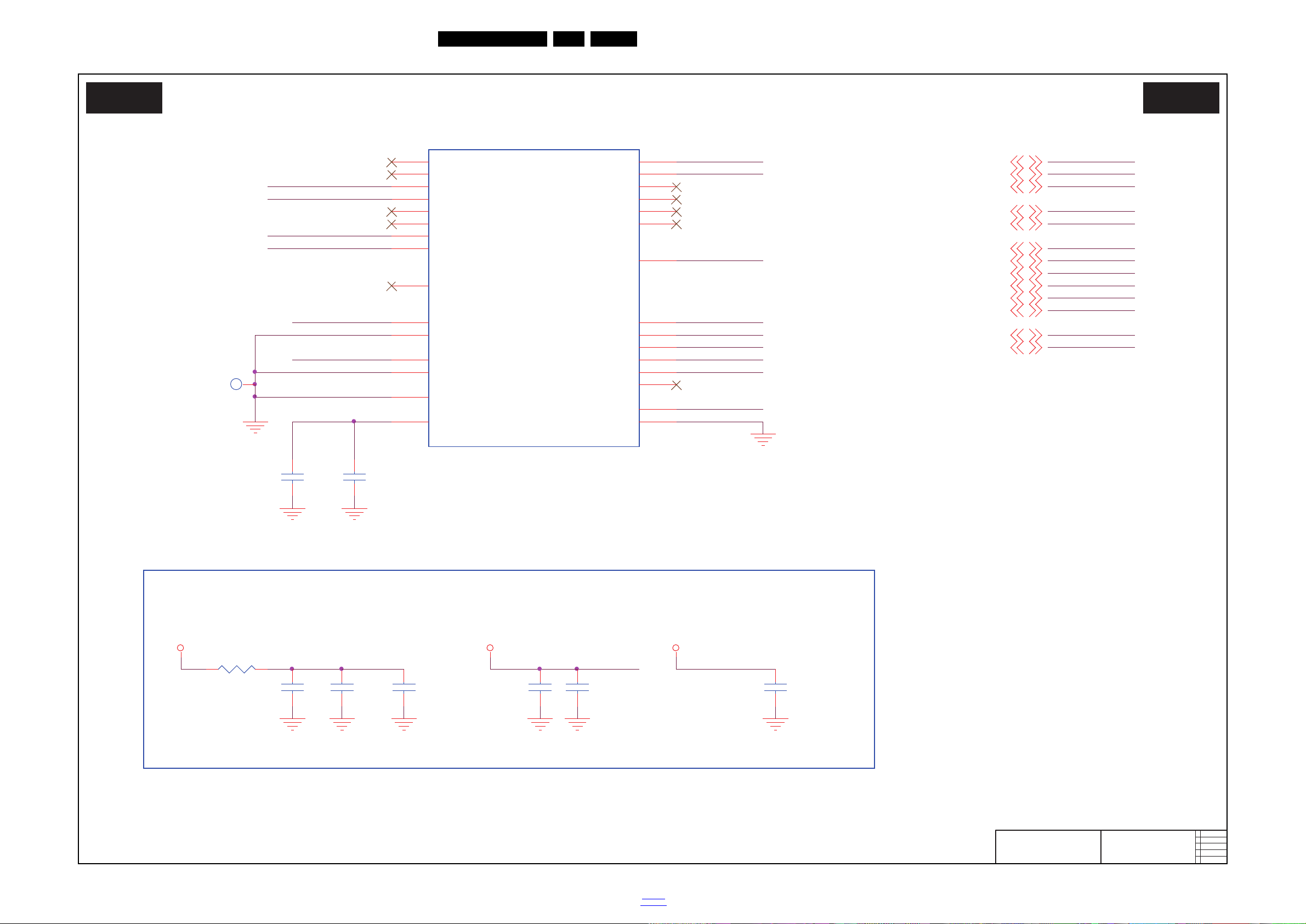

10-2-3 Audio

19480_502_130408.eps

130408

Audio

B03 B03

2012-12-12

B

715G5698

Audio

YPbPr_L_In1

C4015

100NF 16V

SPDIF_OUT

C4016 1uF 10V

SPDIF_OUT9

SPDIF_OUT

SPDIF_OUT9

C4018 1uF 10V

C4019 100NF 16V

AL0O AR0O

AR0O7

AR0O

AL0O

AL0O7

R4021 0R05 OHM

AVDD33_ADAC

C4017

10UF 6.3V X5R +-20%

AVDD3V3 AVDD3V3

C4020 10UF 6.3V X5R +-20%

AVDD3V3

AVDD33_HPA

C4021 NC 100NF 16V

AVDD33_AADC

C4022 100NF 16V

Analog Power

AVDD33_AADC

AVDD33_ADAC

AOSDATA0

AVSS33_AADC

AVSS33_ADAC AVSS33_CLN

VMID_AADC

ARC_OUT15

ARC_OUT

VGA_L_IN VGA_R_IN

VGA_R_IN10

VGA_L_IN

VGA_L_IN10

VGA_R_IN

AVDD33_HPA AVSS33_HPA

AOLRCK

AOSDATA0

AOSDATA07 AOLRCK7

AOLRCK

U401C

MT5580GPOI

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

AOBCLK

AOBCLK7

AOBCLK

TP023

YPbPr_R_In1

AOMCLK

AOMCLK7

AOMCLK

YPbPr_L_In19

YPbPr_R_In19

YPbPr_L_In1

YPbPr_R_In1

ARC_OUT

Circuit Diagrams and PWB Layouts

EN 44TPM10.1L LA 10.

2013-May-17

back to

div.table

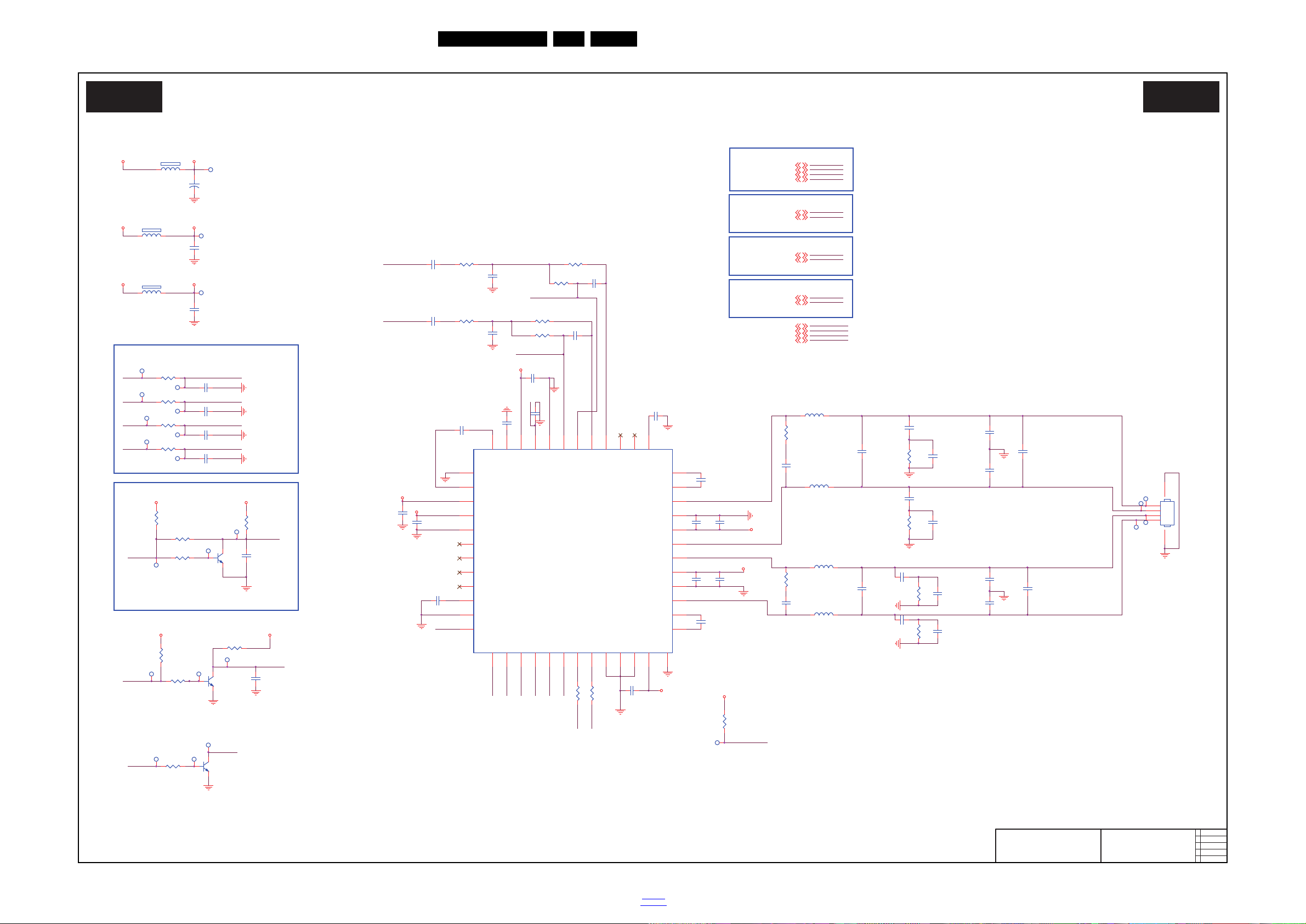

10-2-4 AUDIO Amplifier/Speaker

19480_503_130408.eps

130408

AUDIO Amplifier/Speaker

B04 B04

2012-12-12

B

715G5698

AUDIO Amplifier/Speaker

TP056

TP057

TP058

TP059

TP060

TP061

TP062

TP063

TP065

TP066

TP067TP068

TP069

TP070

L+

TP071

TP072

LR+

TP073

TP074

TP075

TP318

TP319

C6033 220nF50V

AOBCLK AOMCLK

AOSDATA 0

AR0O

AL0O

PWM audio input for HP AMP

I2S audio input for SPK AMP

TP304

AOLRCK

TP305

AOBCLK

R-

TP306

AOSDATA0

TP307

AOMCLK

AMP_PWDN

HP_SC_MUTE

HP_MUTE

HP

OSDA0 OSCL0

I2C for SPK AMP

R6054 22R

ROUT+

C6051 330PF 50V

R6025 10 OHM 1/4W

C6018

1UF 10% 16V

C6037 1nF 50V

R6001 33R 1/16W 5%

C6024

0.1uF 50V

Q6001

PMBS3904

C6004 22P 50V

C6009 NC 1UF 10V

+

C6001 NC 100UF 35V

Q6003 PMBS3904

R6026

10 OHM 1/4W

R6015 43K 1%

C6015 47pF 50V

C6019 1UF 10% 16V

C6038 10NF 50V

C6029

0.1uF 50V

R6002 33R 1/16W 5%

C6005 22P 50V

R6009 10K 1/16W 5%

R6010 10K 1/16W 5%

C6008 100NF 16V

C6012 47pF 50V

L6001 47uH

C6017 1UF 10% 16V

R6012 43K 1%

R6008 10K 1/16W 5%

R600333R 1/16W 5%

R6004 33R 1/16W 5%

C6006 22P 50V

FB6001

120R/6000mA

1 2

L6002 47uH

INT_LINE

C6007 22P 50V

U6001

STA381BWTR

F3X_FILT

13

F3XL

14

LINEINR

17

LINEHPOUT_L

18

LINEHPOUT_R

19

GNDA

20

SOFTMUTE

21

VDD3V3

22

CPVSS

23

CPM

24

GNDPSUB

25

CPP

26

GNDDIG1

29

FFX3A

30

FFX3B

31

EAPD/FFX4A

32

TWARNEXT/FFX4B

33

VREGFILT

34

AGNDPLL

35

BICKI37LRCKI38SDI39RESET40PWDN41INTLINE42SDA

43

SA45TESTMODE46GNDDIG247VDDDIG2

48

VSS_REG

2

OUT2B

3

GND2

4

VCC2

5

OUT2A

6

OUT1B

7

VCC1

8

GND1

9

OUT1A

10

VDD_REG

11

GND_REG

12

VCC_REG

1

LINEINL

16

F3XR

15

MCLK

36

VDD3V3CHP

27

VDDIG1

28

SCL

44

E-Pad

49

R6006 NC 0R05 1/16W

C6035

0.1uF 50V

C6002 10UF 6.3V X5R +-20%

C6044

0.1uF 50V

R6016

30K OHM

C6003 10UF 6.3V X5R +-20%

C6010 1uF 10V

C732 1UF 10% 16V

MCLK

C6013 1uF 10V

R6018

100R

R6005 10K 1/16W 5%

C6023

100NF 16V

C6030

330PF 50V

FB6003

120R/3000mA

1 2

R6013

30K OHM

SCLK

R6007 10K 1/16W 5%

R6014 20K 1/16W 5%

C6028 1UF 50V

C6020

100NF 16V

R6017

100R

LRCLK

C6034

0.1uF 50V

C6022

2.2NF

C6027

0.1uF 50V

R6019 22R

FB6004

120R/3000mA

1 2

SDATA0

R6011 20K 1/16W 5%

C6011 330PF 50V

C6026 1UF 50V

C6043

0.1uF 50V

C6021 100NF 16V

AMP_RESET

Q6002 PMBS3904

C6036 1nF 50V

C6025

0.1uF 50V

C6016 100NF 16V

AMP_PWDN

C6014 330PF 50V

+24V

DVDD3V3

PVDD

AVDD

AVDD_HPDVDD3V3

INT_LINE

DVDD3V3

AVDD

AVDD_HP

AVDD

PVDD

AL0O6 AR0O6

AOMCLK6

AOSDATA 06

AOBCLK6

AOLRCK6

HP_SC_MUTE11

INT_LINE16

OSCL05,11

OSDA05,11

OPCTRL05,16

SPK_MUTE16

AOLRCK

OSCL0

OSDA0

L6003 47uH

C6039 220nF50V

L6004 47uH

ROUT-

C6053

0.1uF 50V

C6052

0.1uF 50V

C6054

0.1uF 50V C6055

0.1uF 50V

R6052

10 OHM 1/4W

R6053

10 OHM 1/4W

Audio Control

SPK_MUTE HP_SC_MUTE

HP_MUTE

HP

C6057 1nF 50V

C6058 1nF 50V

LRCLK

SCLK

SDATA0

MCLK

I2S Input

R6057

4.7K 1/16W

AVDD

INT_LINE

R6033 10K 1/16W 5%

DVDD3V3

R6031 10K 1/16W 5%

AMP Mute

C6059 10NF 50V

DVDD3V3

SPK_MUTE

AMP_RESET

HPOUTR

HPOUTR8

HPOUTL8

HPOUTR

HPOUTL

AR0O

AL0O

HPOUTL

LOUT+

LOUT-

CN601

CONN

1

2

3

4

5 6

Circuit Diagrams and PWB Layouts

EN 45TPM10.1L LA 10.

2013-May-17

back to

div.table

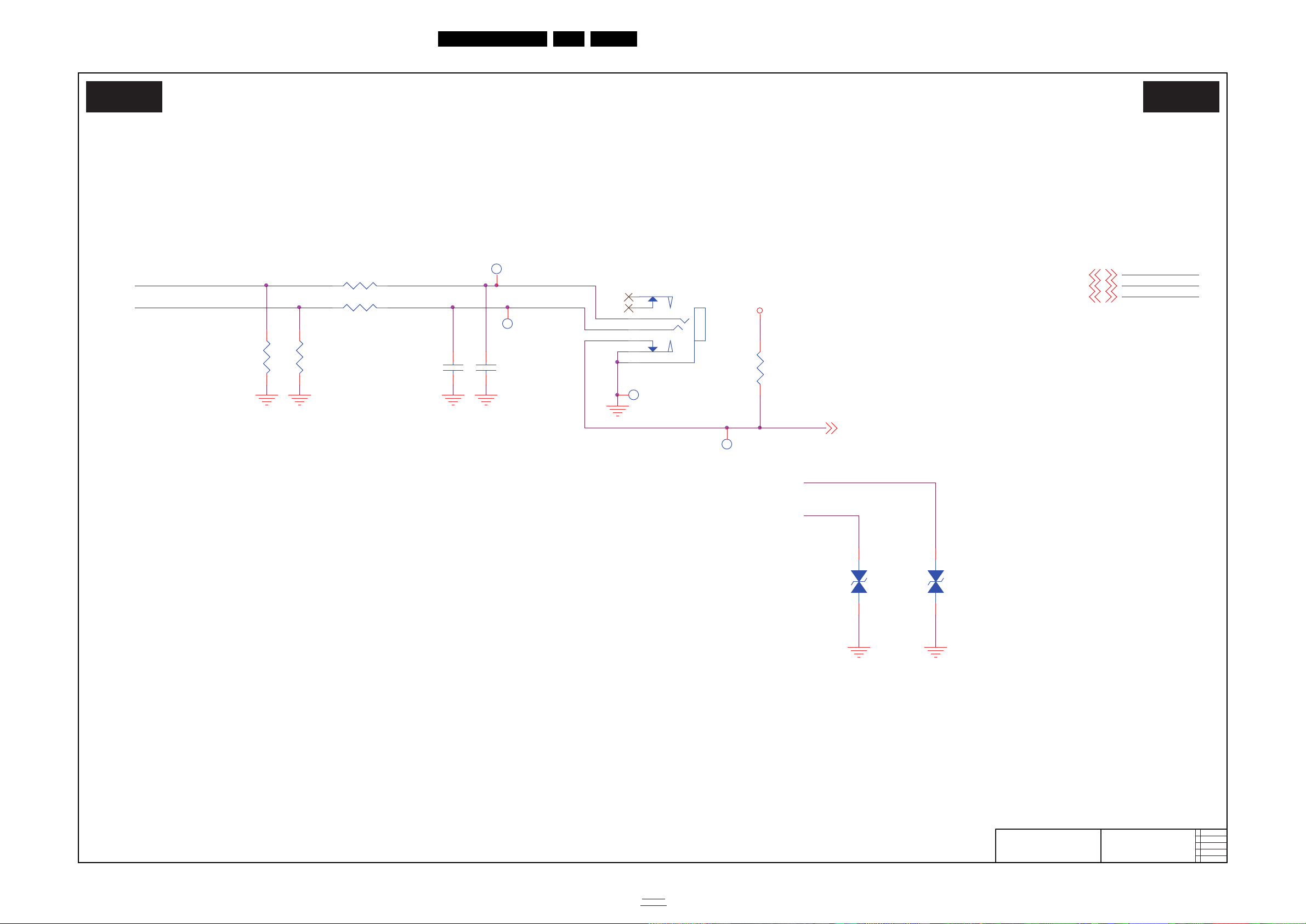

10-2-5 Headphone

19480_504_130408.eps

130408

Headphone

B05 B05

2012-12-12

B

715G5698

Headphone

HPOUTL

HPOUTR

HP_ROUT_AC

HP_LOUT_AC

C6048

0.1uF 25V

C6047

0.1uF 25V

TP076

HP_ROUT_AC

TP077

TP078

HP_LOUT_AC

HPOUTL HPOUTR HP_DET

TP064

R6029 NC 22K 1/16W

ZD6002

TVM1G5R5M100R

D0603

1 2

ZD6001

TVM1G5R5M100R

D0603

1 2

R6027 10R 1/16W 1%

R6030 10K 1/16W 5%

R6028

NC 22K 1/16W

DVDD3V3

HP_DET16

HPOUTL7 HPOUTR7

HP_DET 16

CN603

PHONE JACK

1

7

6

2

3

4

5

R6051 10R 1/16W 1%

Circuit Diagrams and PWB Layouts

EN 46TPM10.1L LA 10.

2013-May-17

back to

div.table

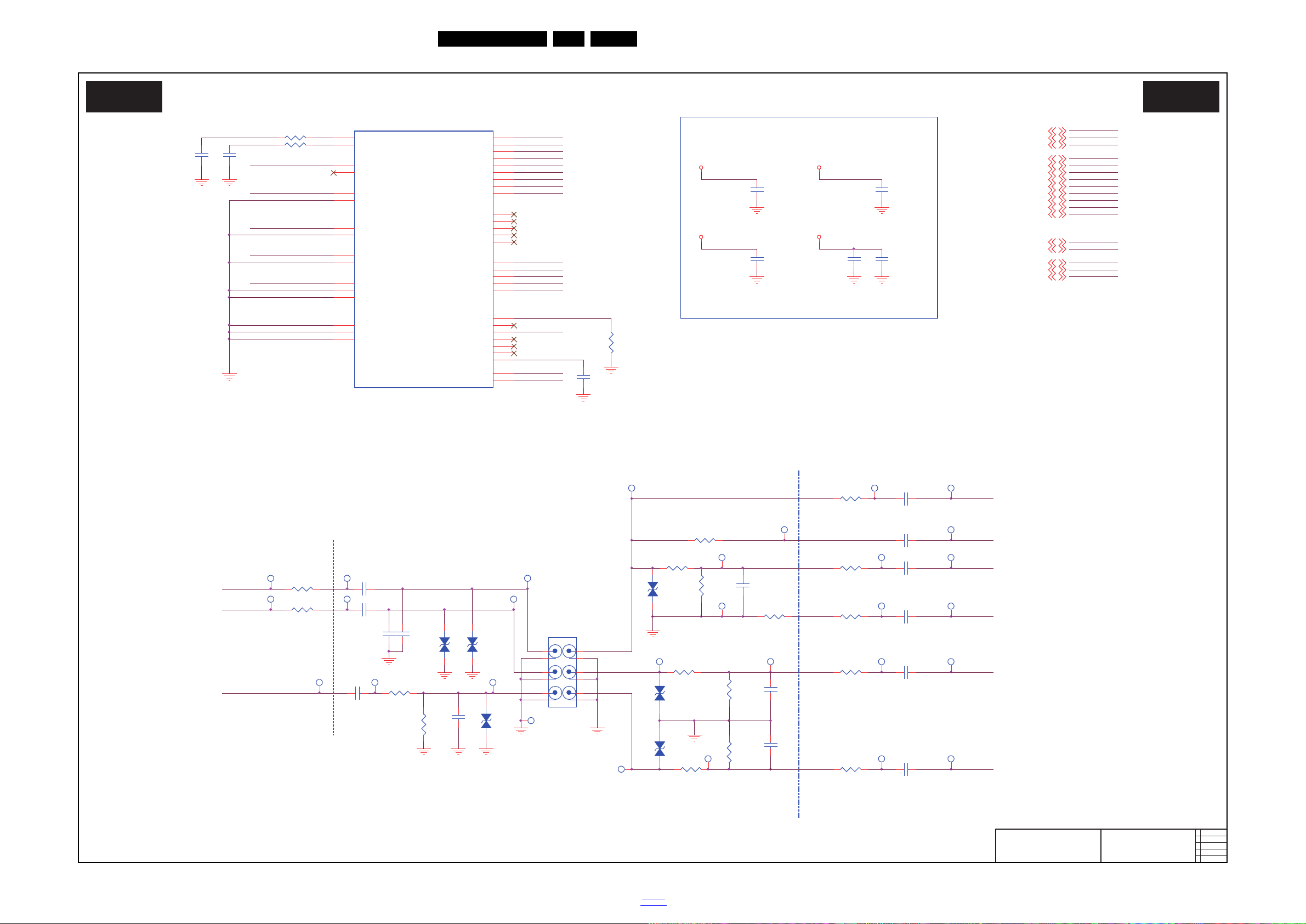

10-2-6 I/O

19480_505_130408.eps

130408

I/O

B06 B06

2012-12-12

B

715G5698

I/O

AVSS33_CVBS_1 AVSS33_CVBS_2 AVSS33_CPUPLL

AVDD33_VIDEO

AVDD12_DEMOD

R1005

100R 1/16W 1%

R1008

100R 1/16W 1%

R1011

100R 1/16W 1%

R1013

100R 1/16W 1%

R1017 100R 1/16W 1%

PR1

PB1

COM1X

C1006

1.5nF 50V

C1008 10NF 50V

C1009 10NF 50V

C1010 10NF 50V

C1013

10NF 50V

ABC

D

EF

CN101

RCA JACK

3

2

6 5

9

8

1 4

7

10

11

12

C1005 47NF 16V

YPbPr_L_In16

YPbPr_R_In16

A_IF_AGC

A_IF_AGC14

CVBS1_OUT

A_IFP14

A_IFP

A_IFN14

A_IFN

TP089TP090TP091

YPbPr_L_In1

TP092

TP093TP094

YPbPr_R_In1

TP095TP096

TP097 TP098 TP099

CVBS1_OUT

TP100 TP101

SOY0

TP102 TP103 TP104

Y0P

TP105 TP107 TP106

COM0

TP108 TP109 TP110 TP111

PB0P

TP113 TP114 TP115

PR0P

TP112

R4022 51R 1% R4023 51R 1%

SPDIF_OUT

SPDIF_OUT6

A_IFN

A_IFP

PB0P PR0P Y0P

COM0

SOY0

TP079

SDA_DEMOD

SCL_DEMOD

C4028

1uF 10V

TP291

YPbPr_R_In1

C4023 100NF 16V

C4025 100NF 16V

C4027 100NF 16V

C4024 100NF 16V

AVDD3V3AVDD12

AVDD12_RGB

AVDD12

AVDD12_DEMOD

AVDD33_DEMOD

SDA_DEMOD13

SDA_DEMOD

SCL_DEMOD13

SCL_DEMOD

AVDD3V3

AVDD33_VIDEO

Analog Power

GP10

SOG10 VGACOM10

VGASCL

RP10

GP

HSYNC

VSYNC

BP10

VGASCL10

VGACOM

VGASDA

VSYNC10 HSYNC10

RP

SOG

VGASDA10

BP

RP GP BP

VGASDA

VGASCL

VSYNC

YPbPr_L_In1

U401J

MT5580GPOI

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

HSYNC

SOG

VGACOM

C1040 100NF 16V

ZD1002

TVM1G5R5M100R

12

ZD1005

TVM1G5R5M100R

12

ZD1003

TVM1G5R5M100R

12

C1041

33PF 50V

R1001

30K 1%

R1002 30K 1%

C1001 1uF 10V

C1002

1uF 10V

C1003

330PF 50V

C1004

330PF 50V

R1004 180R 1/10W 1%

YBRL_IN1

R4024 75R 1/16W 1%

YBRr_IN1

SPDIF_OUT

C4115 NC 47pF 50V

C4116

NC 47pF 50V

R1003

100R 1/10W 1%

C4026 1uF 10V

ZD1001

TVM1G5R5M100R

12

ZD1004

TVM1G5R5M100R

12

R1007 18R 1%

ZD1006

TVM1G5R5M100R

12

R1012 18R 1%

R1016 18R 1%

R1009

56R 1/16W 1%

R1014

56R 1/16W 1%

R1015

56R 1/16W 1%

C1007 10PF 50V

C1012 10PF 50V

C1011 10PF 50V

R1010 0R05 OHM

R1006 0R05 OHM

Y_IN_1

Y1

AVSS12_RGB

PB_IN_1

AVSS33_DEMOD

AVDD12_RGB

AVDD33_DEMOD

PR_IN_1

AVSS12_DEMOD

AVSS33_VDAC AVSS33_VDAC_BG

Circuit Diagrams and PWB Layouts

EN 47TPM10.1L LA 10.

2013-May-17

back to

div.table

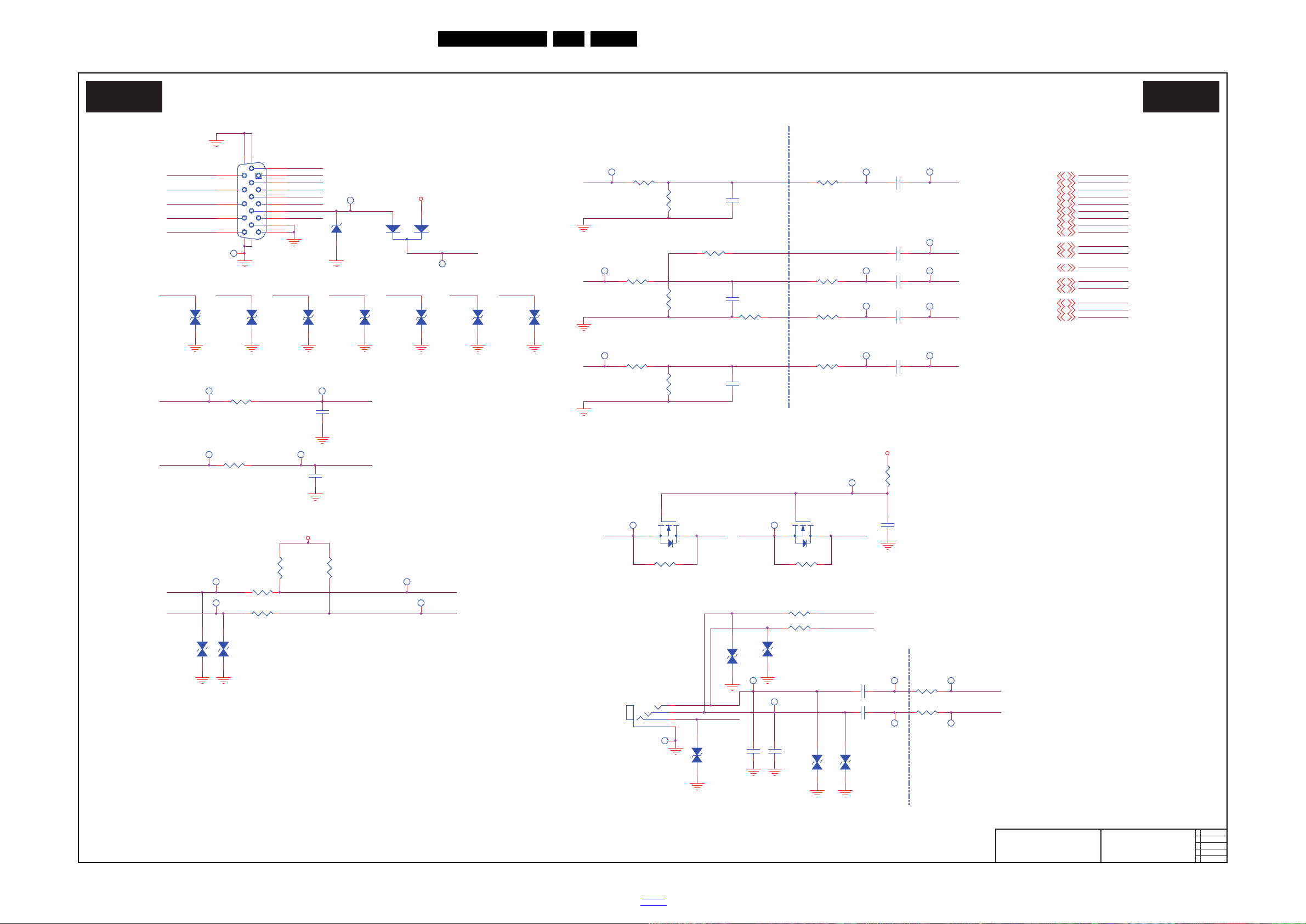

10-2-7 VGA Input

19480_506_130408.eps

130408

VGA Input

B07 B07

2012-12-12

B

715G5698

VGA Input

RED GRNVGA_TXHSYNC# VSYNC#

VGASCL_IN

VSYNC

VGASDA

VGASCL

RED_GND GRN_GND BLU_GND

TP312

TP313

GRN

CN103 D-SUB 15P

1

6

2

7

3

8

4

9

5

11 12 13 14 15

10

1716

18 19

CN6005

PHONE JACK

1

2

4

3

IR_OUT

TP116

TP117

R1061 NC 0R05 OHM

ZD1007

MM3Z5V6B

TP119

RED

TP120 TP121

RP

R1060 NC 0R05 OHM

TP122

GRN

TP123

SOG

TP124 TP125

GP

TP126 TP127

TP128

BLU

TP129 TP130

BP

ZD1008

TVM1G5R5M100R

1 2

TP131

ZD1009

TVM1G5R5M100R

1 2

HSYNC#

ZD1011

TVM1G5R5M100R

1 2

ZD1010

TVM1G5R5M100R

1 2

TP132

VSYNC#

ZD1012

TVM1G5R5M100R

1 2

ZD1013

TVM1G5R5M100R

1 2

TP133

VGASDA_IN

ZD1014

TVM1G5R5M100R

1 2

TP134

TP136 TP137

TP139 TP140

TP141

VGA_UR_EN

TP142

IR_SW_IN

IR_IN

TP143

VGA_L_IN

TP144

TP145 TP146

VGA_R_IN

BLU

R1018 100R 1/16W 1%

R1019 100R 1/16W 1%

HSYNC

R1022

10K 1/16W 5%

R1023 10K 1/16W 5%

IR_IN21

IR_SW_IN21

IR_IN IR_SW_IN

TP080

R1026 100R 1/16W 1%

R1025 100R 1/16W 1%

TP081

ZD1016

TVM1G5R5M100R

1 2

ZD1015

TVM1G5R5M100R

1 2

ZD1023

TVM1G5R5M100R

1 2

ZD1024

TVM1G5R5M100R

1 2

VGA_L_IN

VGASCL_IN

VGA_R_IN

ZD1022

TVM1G5R5M100R

1 2

R1029

0R05 OHM

R1030 10R

R1031 0R05 OHM

R1032 0R05 OHM

R1033

0R05 OHM

R1034 75R 1/16W 1%

R1036 75R 1/16W 1%

R1035 75R 1/16W 1%

C1018 10PF 50V

C1020 10PF 50V

C1019 10PF 50V

RED_GND

GRN_GND

R1037 100R 1/16W 1%

BLU_GND

R1038 100R 1/16W 1%

R1039 100R 1/16W 1%

VGACOM

R1040 100R 1/16W 1%

GP

RP BP VGASCL

VGASDA VSYNC

C1021

10NF 50V

C1023

10NF 50V

C1022

1.5nF 50V

C1024 10NF 50V

C1025 10NF 50V

HSYNC SOG VGACOM

VGA_RX

R1042

100R 1/16W 1%

R1041

100R 1/16W 1%

U0RXVGA_RX VGA_TX U0TX

C1026 NC 10uF 6.3V

5VSB

C1027

10PF 50V

C1028 10PF 50V

ZD1017

TVM1G5R5M100R

1 2

ZD1018

TVM1G5R5M100R

1 2

IR_OUT

C1030

1uF 10V

C1029

1uF 10V

R1044 30K 1/16W

R1045 30K 1/16W

RED

BLUHSYNC#

VSYNC#

VGASDA_IN

U0TX U0RX

VGA_TX

VGASDA9

GP9 BP9

RP9

SOG9

HSYNC9

VGASCL9 VSYNC9

VGA_UR_EN16

U0RX5,18

U0TX5,18

VGACOM9

VGA_R_IN6

VGA_L_IN6

D101

BAV70

3

1

2

VGA_PLUGPWR

TP241

C1014 5PF 50V

C1015 5PF 50V

R1043 10K 1/16W 5%

VGA_PLUGPWR

VGA_RX

Q1001 NC 2N7002

Q1002 NC 2N7002

3V3SB

VGA_UR_EN

Circuit Diagrams and PWB Layouts

EN 48TPM10.1L LA 10.

2013-May-17

back to

div.table

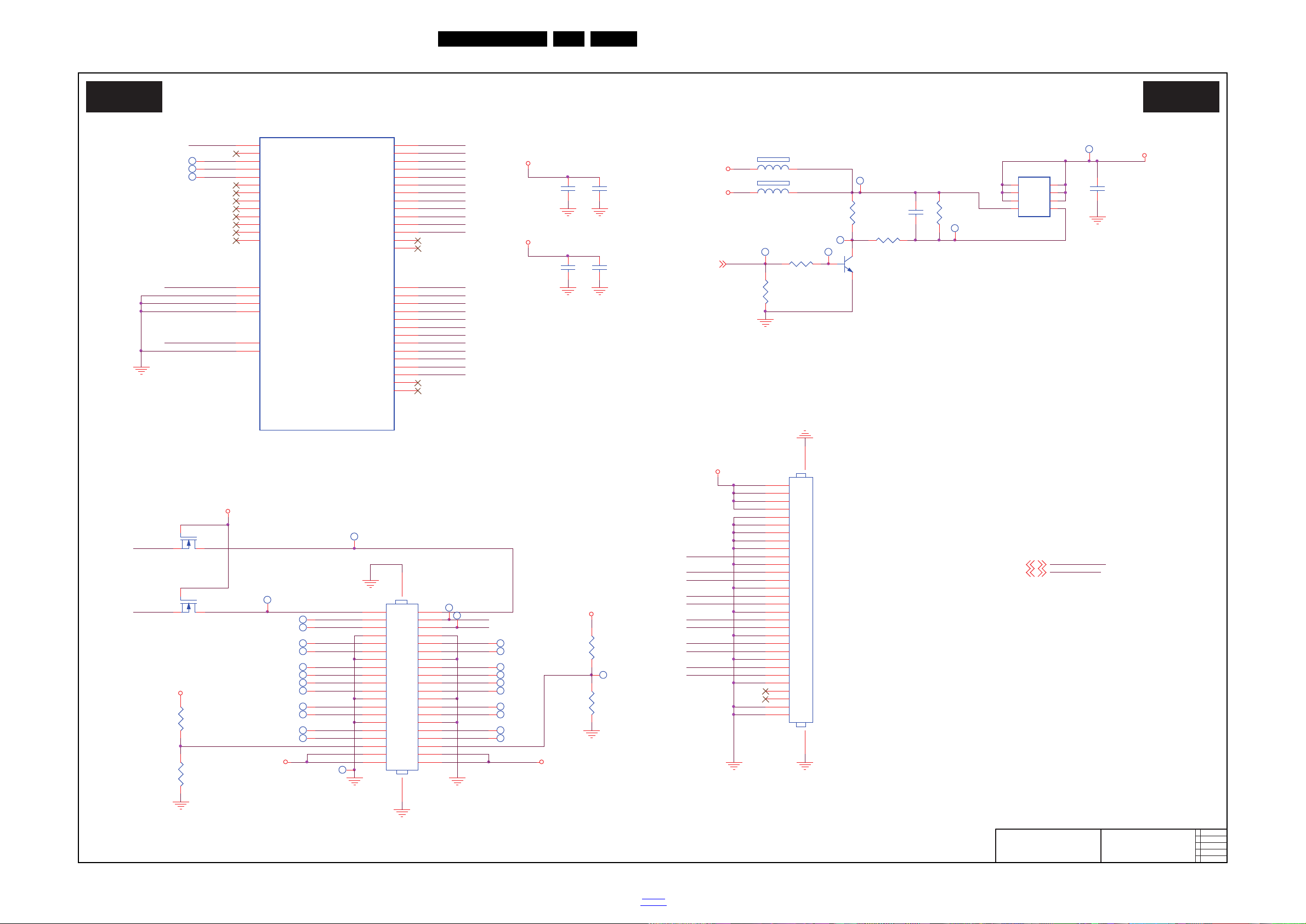

10-2-8 LVDS

19480_507_130408.eps

130408

LVDS

B08 B08

2012-12-12

B

715G5698

LVDS

AVDD12_LVDSA

O0P

O2N O1P

OCKN O2P

OCKP

O0N

O3P

R4025

4.7K

R4029

4.7K

R4028

4.7K Q4002 PMBS3904

PANEL_VCC

TP149

TP150

LVDS_SCL

E2P

E3P

E0P

R4027 150K 1/10W 5%

E1P

E2N

ECKP

E0N

ECKN

C4031

0.1uF 50V

LVDS_format

TP173

PANEL_ON16

TP176

TP177

TP178

TP179

TP180

TP181

C4033

0.1uF 50V

TP169

TP135 TP170

R4031 NC 4.7K 1/16W

R4030 NC 4.7K 1/16W

Q4001

AON4421

D

1

D

2

D

3

G

4

S

5

D

6

D

7

D

8

R4032 NC 4.7K 1/16W

R4033 NC 4.7K 1/16W

PANEL_VCC

TP008 TP006

3D_EN

TP013

O4P O4N

E3N

E1N

R4026

100K 1/10W

PANEL_VCC

OSDA05,7

OSCL05,7

OSCL0

OSDA0

LVDS_format O0N

O0P O1N

O1P

TP082

O2P

O2N

OCKN OCKP

O3P

O3N

TP151

TP152

E4P

TP154

E4N

AVSS33_LVDSA AVSS33_LVDSA

TP156TP155

TP159

TP157

TP161 TP163 TP165

TP167

Q4003 2N7002

TP171 TP175

Q4004 2N7002

TP158

TP160 TP164

TP162

DVDD3V3

TP166

TP168

TP172 TP174

OSDA0

OSCL0

CN401

CONN

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

C4029

NC 1UF 10V

LVDS_SDA

O1N

O3N

DVDD3V3

3D_EN

DVDD3V3

O0P

E2N

O2N

O2P

O0N

OCKP

E0N

E4P

E0P

O1P

O3N

O1N

E1P E2P

E3P

ECKN

O4N

ECKP

E3N

E1N

O3P

OCKN

E4N

O4P

PANEL_VCC

CN402

NC CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31 32

AVDD12

C4030 100NF 16V

AVDD12_LVDSA

AVDD3V3

C4034 NC 1UF 10V

C4035 100NF 16V

AVDD33_LVDSA

U401B

MT5580GPOI

TCON0

C22

TCON1

C23

TCON2

D24

TCON3

B24

TCON4

C25

TCON5

A24

TCON6

D22

TCON7

B25

TCON8

C24

TCON9

E24

TCON10

D25

TCON11

D23

TCON12

A25

AVDD33_LVDSA

A23

AVSS33_LVDSA

G16

AVDD12_LVDSA

B23

AVSS12_LVDSA

H15

AO0P

A16

AO0N

B16

AO1P

A17

AO1N

B17

AO2P

A18

AO2N

B18

AOCKP

A19

AOCKN

B19

AO3P

A20

AO3N

B20

AO4P

A21

AO4N

B21

AO5P

A22

AO5N

B22

AE0P

D16

AE0N

E16

AE1P

C17

AE1N

C16

AE2P

E17

AE2N

D17

AECKP

C19

AECKN

C18

AE3P

E19

AE3N

D19

AE4P

C21

AE4N

C20

AE5P

E21

AE5N

D21

AVSS33_LVDSA

F17

AVSS33_LVDSA

E20

FB4002 120R/6000mA

1 2

FB4003 NC 120R/6000mA

1 2

AVSS33_LVDSA

+12V

+5V

AVSS12_LVDSA

AVDD33_LVDSA

Circuit Diagrams and PWB Layouts

EN 49TPM10.1L LA 10.

2013-May-17

back to

div.table

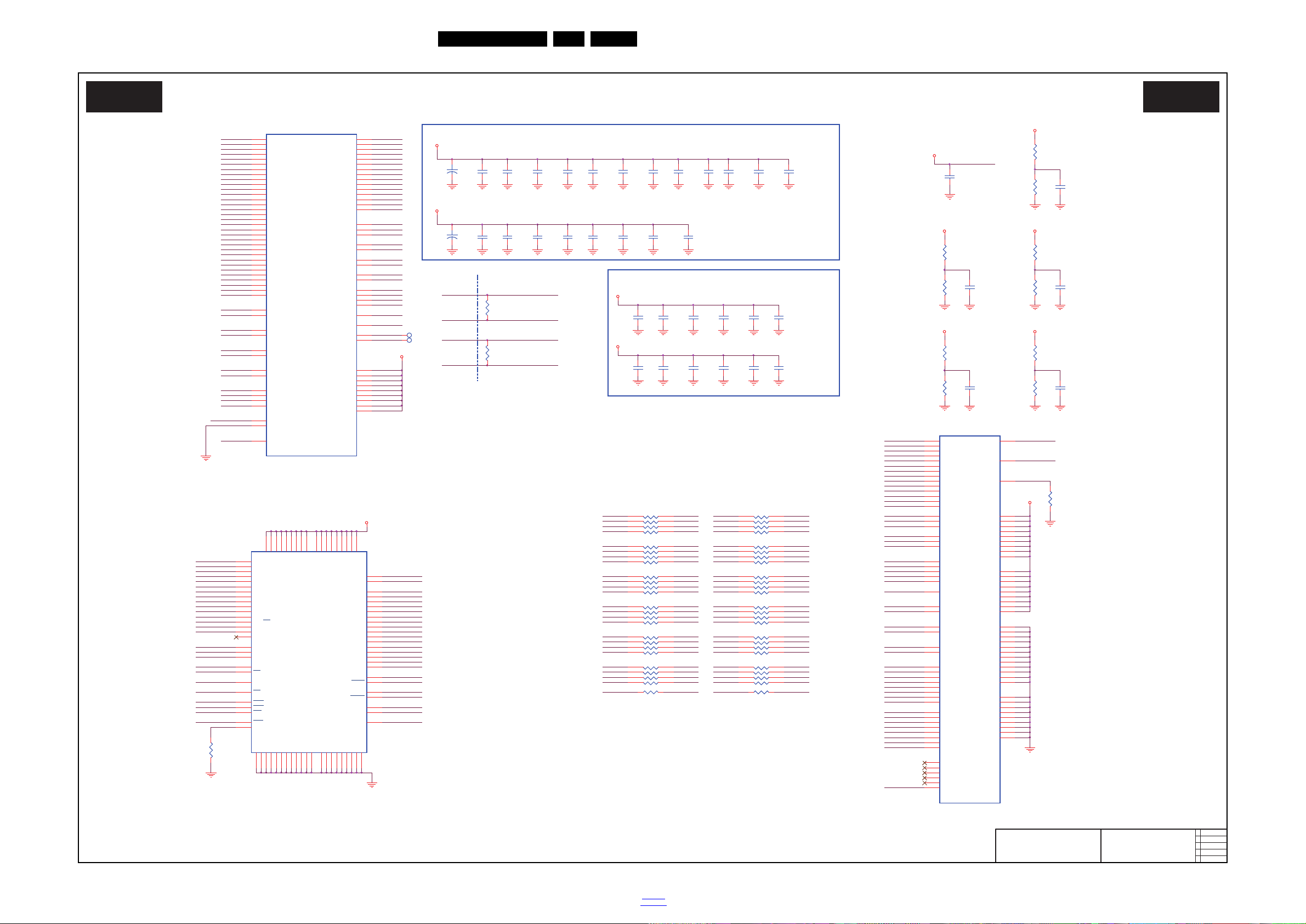

10-2-9 DDR

19480_508_130408.eps

130408

DDR

B09 B09

2012-12-12

B

715G5698

DDR

C4065 100NF 16V

C4050

NC 22UF 6.3V

U401A

MT5580GPOI

RDQ0

C1

RDQ1

H3

RDQ2

D3

RDQ3

H2

RDQ4

C2

RDQ5

J1

RDQ6

B1

RDQ7

J2

RDQ8

J4

RDQ9

F5

RDQ10

H4

RDQ11

E4

RDQ12

H5

RDQ13

G3

RDQ14

J3

RDQ15

G4

RDQ16

A14

RDQ17

B9

RDQ18

B14

RDQ19

A9

RDQ20

B15

RDQ21

C8

RDQ22

C14

RDQ23

C9

RDQ24

D10

RDQ25

F14

RDQ26

E10

RDQ27

E14

RDQ28

D13

RDQ29

F13

RDQ30

E12

RDQ31

E13

RDQS0

D2

RDQS0#

D1

RDQS1

F1

RDQS1#

F2

RDQS2

A13

RDQS2#

B13

RDQS3

A11

RDQS3#

B11

RDQM0

G2

RDQM1

G5

RDQM2

B10

RDQM3

C13

AVDD33_MEMPLL

C10

AVSS33_MEMPLL

G10

RVREF

E3

RA0

D4

RA1

D8

RA2

C5

RA3

B6

RA4

E7

RA5

C4

RA6

D6

RA7

B5

RA8

C7

RA9

A6

RA10

F9

RA11

D5

RA12

E6

RA13

C6

RA14

D7

RBA0

B7

RBA1

D9

RBA2

A7

RCLK0

E2

RCLK0#

E1

RCLK1

B12

RCLK1#

A12

RCS#

B3

RCSX#

A3

RCKE

E9

RWE#

C3

RCAS#

B2

RRAS#

A2

DDR3_RST#

A5

RODT

A1

DDRV

J5

DDRV

K7

DDRV

K6

DDRV

K5

DDRV

K4

DDRV

K3

DDRV

K2

DDRV

K1

DDRV

H7

MEMTP

G11

MEMTN

G12

RDQ27

RDQS3

RDQ24

RDQ10

AVSS33_MEMPLL

RDQM0

RDQ9

RDQ17

RDQ1

RDQ26

RDQ25

RDQ30

RDQ2

RDQS3#

RDQ20

RDQ16

RDQS1#

RDQ18

RDQM3

RDQ7

RDQ22

RDQ11

RVREF0

RDQ5

RDQ28 RDQ29

RDQM1

RDQS2#

AVDD33_MEMPLL

RDQ13

RDQ6

RDQ21

RA8

RDQ12

RDQS0#

RDQS1

RDQ3

RDQ19

RDQM2

RDQ15

RDQ8

RDQ23

RDQ31

RDQ14

RDQ4

RDQ0

RDQS0

RDQS2

RBA0

RRAS#

MEMTP

RA10

RA2

RA5

RBA1

R_CLK1#

RCAS#

MEMTN

RA4

DDR3_RST#

R_CLK0#

RA11

RA6

RA1

RODT

RBA2

R_CLK1

RA13

RA9

RCS#

RA0

RCSX#

RA14

RA12

R_CLK0

RCKE

RA7

RWE#

RA3

1_RCKE

1_RBA2

1_RA4

1_RA11

1_RA7

1_RCAS#

1_RA3 1_RA5

1_RBA1

1_RA0

1_RA8

1_RA6

1_DDR3_RST#

CLK0#

1_RRAS#

1_RA12

1_RA10

1_RA14

1_RA9

CLK0

1_RWE#

1_RA13

CS#

1_RBA0

1_RA2

1_RA1

RDQ4

RDQM0

RDQ12

RDQ7

RDQ5

RVREF2

RDQ0

RVREF3

RDQ3

RDQ2

RDQ6

1_RODT

RDQS1

RDQ10

RDQS0 RDQS0#

RDQ13

RDQS1#

RDQ8

RDQ11

RDQ14

RDQM1

RDQ15

RDQ1

RDQ9

2_RA9

2_RCAS#

2_RA1

2_RA5 2_RA6

CLK1#

2_RA10

2_RBA2

2_RA4

2_RBA1

2_RA0 2_RA2

CLK1

CSX#

2_RA12

2_RA7

2_RA11

2_DDR3_RST#

2_RA14

RDQM3

RDQS3#

RDQ29 RDQ31

RDQ30

RDQ19

RDQ22

RDQ20 RDQ21

2_RWE#

2_RBA0

2_RA3

2_RA13

2_RCKE

2_RRAS#

2_RA8

2_RODT

RDQM2

RDQS3

RDQS2 RDQS2#

RDQ24

RDQ28

RDQ26

RDQ25

RDQ27

RDQ16 RDQ17

RDQ23

RDQ18

RVREF5

RVREF4

1_RBA0

1_RA10

1_RCAS#

1_RA2

1_RA12

1_RBA1

1_RA3

1_RWE#

1_RA11

1_RA0

1_RRAS#

1_RBA2

1_RA6

1_RA5

1_RA4

1_RA9

RWE#

RCKE

RA4

RA0

RRAS#

RA10

RA6

RA13

1_RCKE

1_RODT

1_RA13 1_DDR3_RST#

1_RA7

1_RA8

1_RA1

1_RA14

RCAS#

RA5

RA12

RODT

RA11

RBA2

RA7

DDR3_RST#

RBA1

RA3

RA2

RBA0

RA8

RA14 RA1

RA9

2_RBA0

2_RCAS#

2_RBA2

2_RBA1

2_RA5

2_RA10

2_DDR3_RST#

2_RA2

2_RA14

2_RA13

2_RRAS#

2_RWE#

2_RA9

2_RA7

2_RA8

2_RA3

RCKE

RA12

RA5

RA6

RRAS#

DDR3_RST#

RCAS#

RA11

2_RA4

2_RODT

2_RCKE

2_RA12

2_RA11

2_RA1

2_RA0

2_RA6

RODT

RBA1

RBA0

RA2

RA13

RA8

RWE#

RA3

RBA2

RA14

RA7

RA10

RA0

RA9

RA4

RA1

RVREF2

RCSX#CSX#RCS# CS#

RVREF4

RVREF3

RVREF5

RVREF0

R_CLK1

CLK1#

CLK1

R_CLK1#

CLK0#R_CLK0#

CLK0R_CLK0

R4037

1K 1/16W 1%

AVDD33_MEMPLL

R4039

1K 1/16W 1%

RP409 22 OHM

1

2

3

4

8

7

6

5

C4046

NC 100NF 16V

C4055 22UF 6.3V

C4077 100NF 16V

C4063 22UF 6.3V

RP402 22 OHM

1

2

3

4

8

7

6

5

C4069 100NF 16V

R4042

1K 1/16W 1%

RP401 22 OHM

1

2

3

4

8

7

6

5

C4081 100NF 16V

R4041

1K 1/16W 1%

C4056 100NF 16V

R4034

100R 1/16W 1%

RP411 22 OHM

1

2

3

4

8

7

6

5

R4043

1K 1/16W 1%

C4061 100NF 16V

C4071

NC 100NF 16V

R4047 22R 1/16W 5%

RP406 22 OHM

1

2

3

4

8

7

6

5

RP403 22 OHM

1

2

3

4

8

7

6

5

C4048

NC 100NF 16V

C4041 100NF 16V

RP408 22 OHM

1

2

3

4

8

7

6

5

R4048 22R 1/16W 5%

C4062 100NF 16V

C4064

NC 100NF 16V

R4040

1K 1/16W 1%

R4035

100R 1/16W 1%

C4079 100NF 16V

C4049

NC 100NF 16V

TP182

C4053 100NF 16V

C4070

NC 100NF 16V

C4066 22UF 6.3V

C4059 22UF 6.3V

RP404 22 OHM

1

2

3

4

8

7

6

5

R4044

1K 1/16W 1%

RP405 22 OHM

1

2

3

4

8

7

6

5

C4082 100NF 16V

C4060

10UF 6.3V X5R +-20%

RP412 22 OHM

1

2

3

4

8

7

6

5

C4044

100NF 16V

R4046 240 OHM +-1% 1/16W

C4057 100NF 16V

C4068 100NF 16V

C4054 100NF 16V

C4040 100NF 16V

R4049 240 OHM +-1% 1/16W

C4042 22UF 6.3V

R4038

1K 1/16W 1%

C4058 100NF 16V

C4043 100NF 16V

RP407 22 OHM

1

2

3

4

8

7

6

5

C4078 100NF 16V

C4052

10UF 6.3V X5R +-20%

RP410 22 OHM

1

2

3

4

8

7

6

5

C4067 100NF 16V

C4047

NC 1UF

+

C4038

NC 100UF 16V

C4039

10UF 6.3V X5R +-20%

TP183

C4080 100NF 16V

C4045

22UF 6.3V

R4045

1K 1/16W 1%

R4036

1K 1/16W 1%

DDRV

DDRV DDRV

DDRV

AVDD3V3

DDRV

U406

K4B1G1646G-BCK0

A0

N3

A1

P7

A2

P3

A3

N2

A4

P8

A5

P2

A6

R8

A7

R2

A8

T8

A9

R3

A10

L7

A11

R7

A12

N7

BA0

M2

BA1

N8

BA2

M3

CK

J7

/CK

K7

CKE

K9

/CS

L2

ODT

K1

/RAS

J3

/CAS

K3

/WE

L3

/RESET

T2

DQSL

F3

/DQSL

G3

DQSU

C7

/DQSU

B7

DML

E7

DMU

D3

DQL0

E3

DQL1

F7

DQL2

F2

DQL3

F8

DQL4

H3

DQL5

H8

DQL6

G2

DQL7

H7

DQU0

D7

DQU1

C3

DQU2

C8

DQU3

C2

DQU4

A7

DQU5

A2

DQU6

B8

DQU7

A3

NC1

J1

NC2

J9

NC3

L1

NC4

L9

NC5

M7

A13

T3

NC7

T7

VREFCA

M8

VREFDQ

H1

ZQ

L8

VDDQ

A1

VDDQ

A8

VDDQ

C1

VDDQ

C9

VDDQ

D2

VDDQ

E9

VDDQ

F1

VDDQ

H2

VDDQ

H9

VDD

B2

VDD

D9

VDD

G7

VDD

K2

VDD

K8

VDD

N1

VDD

N9

VDD

R1

VDD

R9

VSS

A9

VSS

B3

VSS

E1

VSS

G8

VSS

J2

VSS

J8

VSS

M1

VSS

M9

VSS

P1

VSS

P9

VSS

T1

VSS

T9

VSSQ

B1

VSSQ

B9

VSSQ

D1

VSSQ

D8

VSSQ

E2

VSSQ

E8

VSSQ

F9

VSSQ

G1

VSSQ

G9

U405

NC = J1,J9,L1,L9

K4B2G1646E-BCK00DT

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

DDRV

+

C4051

NC 100UF 16V

Circuit Diagrams and PWB Layouts

EN 50TPM10.1L LA 10.

2013-May-17

back to

div.table

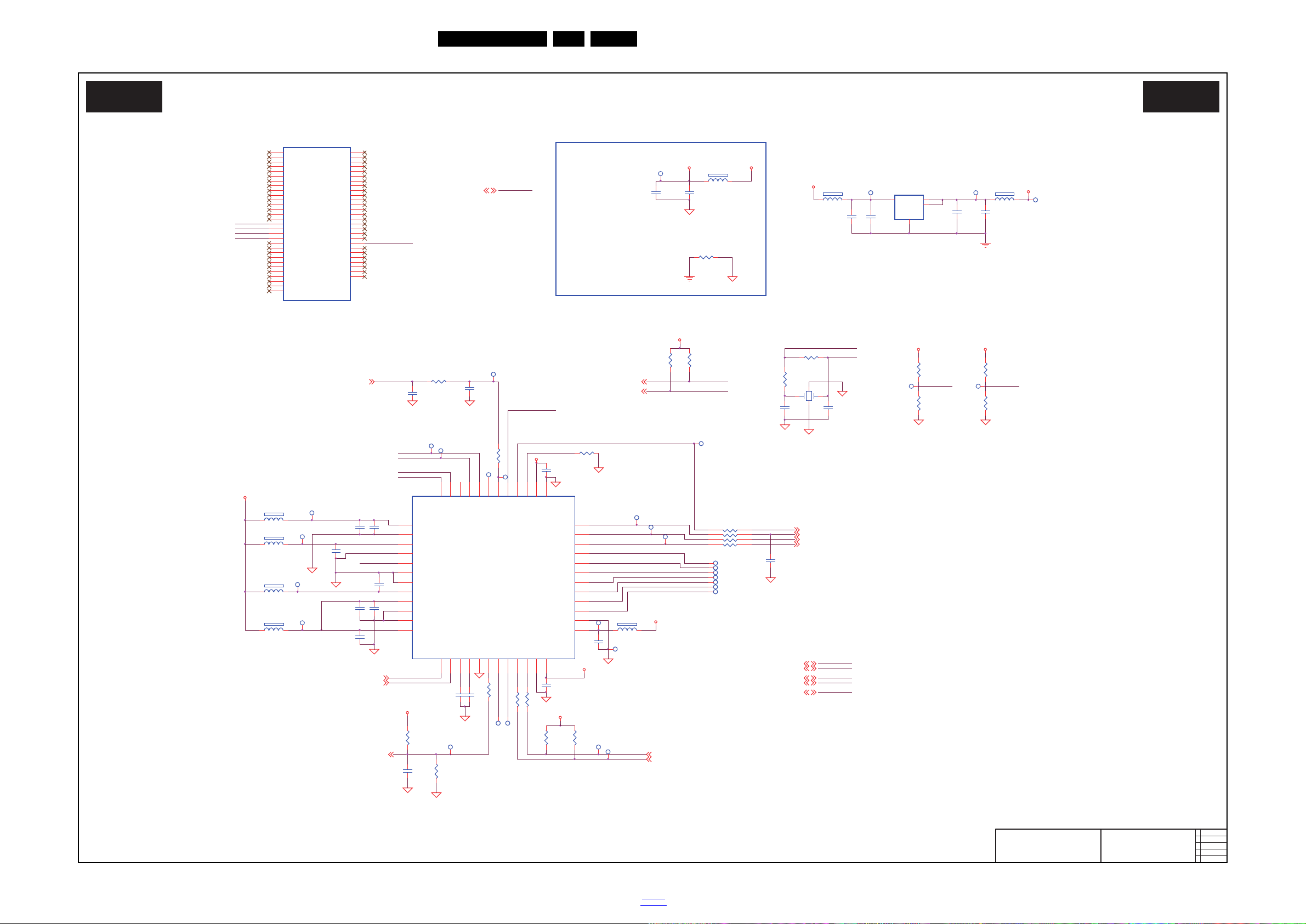

10-2-10 Demodulator

19480_509_130408.eps

130408

Demodulator

B10 B10

2012-12-12

B

715G5698

Demodulator

DEMOD_RST

R1059 10K 1/10W

SBYTE_ORR

TS1_CLK TS1_DEN

TS1_DI

TS1_SYNC

R7077 NC 10K 1/16W 5%

XT_O XT_I

TP191

TP192

TP194

TP196

TP198

TP199

TP200

TP202

TP203

R7076 10K 1/16W 5%

TP204

TP205

TP206

TP207

TP208

TP215

TP214

TP212 TP213

TP211

TP210

TP209

SLADRS1

TP216

TP217

SRCK_ORR

TP218

PBVAL_ORR

TP219

SRDT_ORR

TP220

TP221

TP222 TP223

SLADRS0

AGCCNTI

U401H

MT5580GPOI

CIGPIO0

H22

CIGPIO1

K23

CIGPIO2

K25

CIGPIO3

L25

CIGPIO4

L23

CIGPIO5

H16

CIGPIO6

H18

CIGPIO7

P23

CIGPIO8

K18

CIGPIO9

N21

CIGPIO10

P18

CIGPIO11

N20

CIGPIO12

H19

CIGPIO13

P24

CIGPIO14

K19

CIGPIO15

N23

CIGPIO16

U23

CIGPIO17

M18

CIGPIO18

AA21

CIGPIO19

N25

CIGPIO20

N24

CIGPIO21

U21

CIGPIO22

U22

CIGPIO23

J22

CIGPIO24

J21

CIGPIO25

M23

CIGPIO26

H23

CIGPIO27

H25

CIGPIO28

H24

CIGPIO29

Y19

CIGPIO30

U19

CIGPIO31

U20

CIGPIO32

T20

CIGPIO33

T19

CIGPIO34

H21

CIGPIO35

H20

CIGPIO36

G25

CIGPIO37

V18

CIGPIO38

U18

CIGPIO39

T22

CIGPIO40

T21

CIGPIO41

T18

CIGPIO42

AA23

CIGPIO43

N19

CIGPIO44

J19

CIGPIO45

J23

CIGPIO46

K24

CIGPIO47

N18

CIGPIO48

L22

CIGPIO49

J20

CIGPIO50

N22

CIGPIO51

Y22

CIGPIO52

G24

CIGPIO53

Y21

CIGPIO54

Y20

CIGPIO55

H17

CIGPIO56

L24

SLADRS1

TP224

C1116

10UF 6.3V X5R +-20%

TP226

R1052

4.7K 1/16W

R1067

4.7K 1/16W

R1068

4.7K 1/16W

SCL_DEMOD

SDA_DEMOD

C1048 10UF 6.3V X5R +-20%

C1054

100NF 16V

C1049

100NF 16V

C1046

100NF 16V

C1051

10NF 50V

C1052

100NF 16V

C1042

100NF 16V

C1055

100NF 16V

C1053 100NF 16V

RP1001

33 OHM +-5% 1/16W

1

2

3

4

8

7

6

5

C1043

100NF 16V

R1054

1.2K

C1047 100NF 16V

X101

16MHZ

1

24

3

FB1003

120R/3000mA

1 2

TP083

FB1005 120R/3000mA

12

R1064 100R

FB1009 120R/3000mA

12

R1051

4.7K 1/16W

U102

VI3VO

2

GND

1

4

FB1002

120R/3000mA

1 2

C1035 100NF 16V

C1036 27PF

R1053

1M 1/10W 5%

C1038

100NF 16V

R1056

10K 1/16W 5%

C1057

100NF 16V

Serial TS output

R1066 100R

R1049

0R05 OHM

FB1004 120R/3000mA

12

C1045 100NF 16V

C1033 100NF 16V

C0402

R1057

NC/ 10K+-5%1/16W

R1058

10K 1/16W 5%

R1065 100R

R1062 20K OHM 1/16W 1%

C1044 10UF 6.3V X5R +-20%

FB1001

120R/3000mA

12

R1055

NC/ 10K+-5%1/16W

C1039 100NF 16V

FB1006 120R/3000mA

12

C1037 27PF

FB1008 120R/3000mA

12

R1063 NC 0R05 OHM

+1V2

+3.3VD

AVDD3V3

+3.3VD

+1V2

+3.3VD

AVDD3V3

D_IFP14

TSDA14

D_IF_AGC14

TSCL14

TS1_SYNC

SDA_DEMOD 9

DEMOD_RST16

SCL_DEMOD 9

SCL_DEMOD9

TS1_CLK TS1_DEN

D_IFN14

DEMOD_RST16

D_IFP14

D_IFN14

SDA_DEMOD9

TS1_DI

TNSCL

SLADRS0

TNSDA

D_IFP

D_IFN

TNSCL TNSDA

C1032

10UF 6.3V X5R +-20%

U101

TC90537FG

VSS

47

VDDS

14

GPIO1

4

GPIO2

5

SBYTE

16

AGCCNT1

18

XO

23

SLADRS1

29

PLLVSS

26

SYRSTN42VPGM

41

VDDC

32

ADCVSS

34

VREFH

36

STSFLG143SCL

45

VSS

31

ADCVDD

33

TNSCL

20

TNSDA

21

AINN Q

40

AINN I

38

AINP I

37

STSFLG044SDA

46

RSEORF

15

XI

24

VREFL

35

AINP Q

39

SLADRS0

17

CKI

28

VDDC

1

VSS

13

SRCK

12

PBVAL

11

SRDT

10

SLOCK

9

RLOCK

8

RERR

7

SLPEN

6

VDDS

48

VSS

2

GPIO0

3

AGCCNTR

19

XCKO

22

PLLVDD

25

VDDC

27

TSMD

30

C1034

10UF 6.3V X5R +-20%

TP024

Power & GND

PHY_LED0

C1074 NC 10PF 50V

PHY_LED016

PHY_LED0

Circuit Diagrams and PWB Layouts

EN 51TPM10.1L LA 10.

2013-May-17

back to

div.table

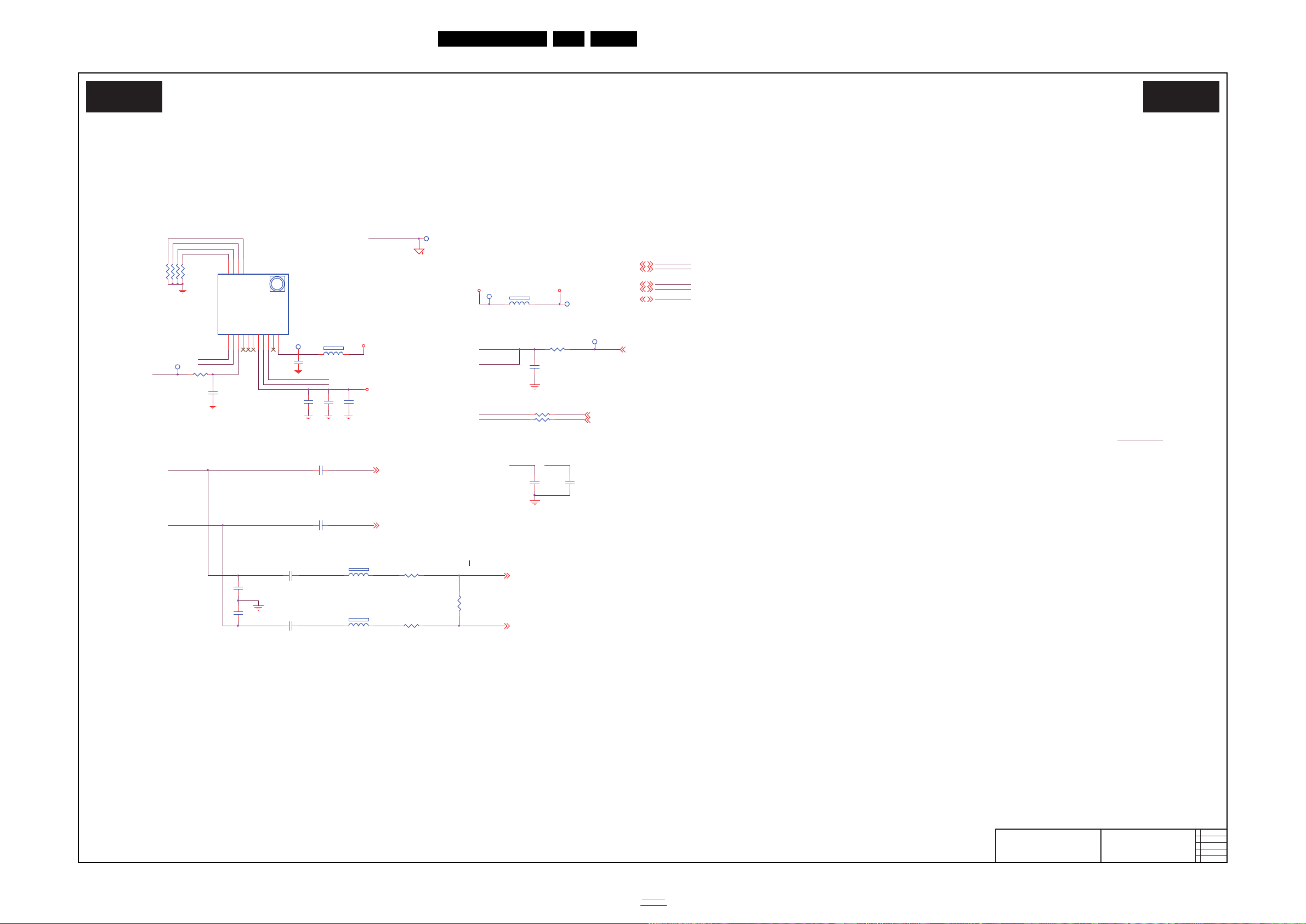

10-2-11 Tuner

19480_510_130408.eps

130408

Tuner

B11 B11

2012-12-12

B

715G5698

Tuner

Tuner_SDA

TUNER_GND

FB1023

120R/3000mA

1 2

FB1022 120R/3000mA

1 2

C1072

1uF 10V

R1082

1K

R1081

1K

Tuner_SCL

Tuner_SDA

R1083 NC 200R 1/16W 1%

T_IFAGC

TU2_DIF+

T_IFAGC

TU2_AIF

D_IF_AGC

C1073 47NF 16V

R1084

10K 1%

T_IFAGC

A_IF_AGC 9

TP238

TU2_AIF

TU2_DIF+

Tuner_SCL

TUNER_GND

D_IF_AGC13

D_IF_AGC

R1075 100R 1/16W 1%

R1076 100R 1/16W 1%

TP233

TP235

D_IFN D_IFP

TP084

TP085

TP086

A_IFP A_IFN

C1071

1uF 10V

C1067 47pF 50V

C1068 47pF 50V

R1072 0R05 OHM

R1070

0R05 OHM

C1060 1uF 10V

C1062 470PF 50V

R1074

4.7K 1/16W

C1056

1nF 50V

FB1012

120R/3000mA

1 2

C1065

1uF 10V

R1071 0R05 OHM

C1061

1nF 50V

C1063

47pF 50V

C1066

1uF 10V

C1058

10NF 50V

FB1010

NC/300 OHM

1 2

R1069

0R05 OHM

C1064 47pF 50V

TUNER_3.3V

5V_TUNER

USB_5V1

5V_TUNER

TSDA 13

A_IFP 9

A_IFN 9

D_IFN 13

TSCL 13

D_IFP 13

D_IFP13

A_IFN9

A_IFP9

D_IFN13

Tuner_SDA

TU1001

TDST-H 0 30F

Ant Power1N.C2SDA3SCL4+B1(3.3V)5N.C6N.C7N.C8IF AGC9DIF(P)10DIF(N)

11

TH112TH213TH314TH4

15

Tuner_SCL

Circuit Diagrams and PWB Layouts

EN 52TPM10.1L LA 10.

2013-May-17

back to

div.table

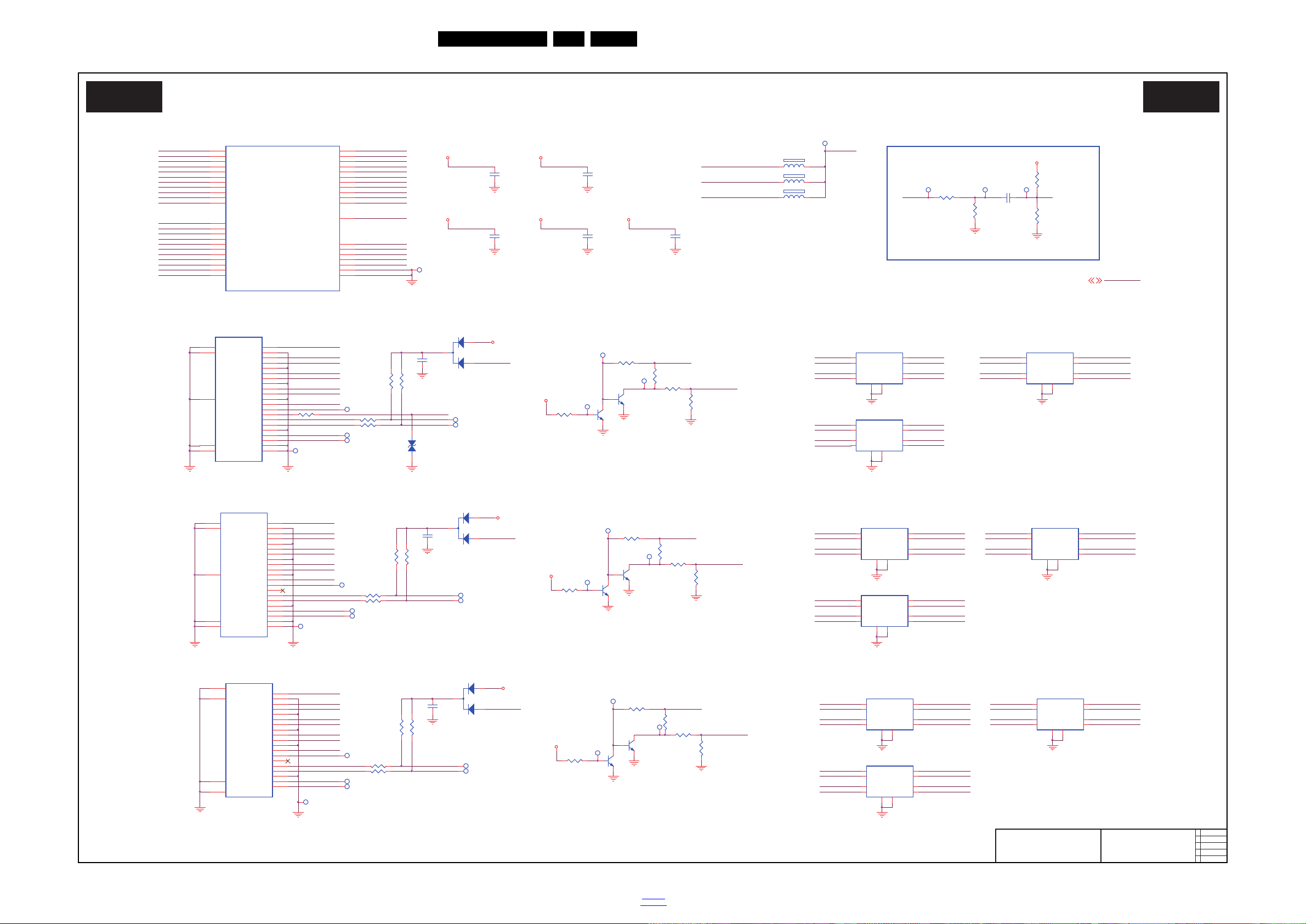

10-2-12 HDMI

19480_511_130408.eps

130408

HDMI

B12 B12

2012-12-12

B

715G5698

HDMI

TP257

TP258

TP259

HDMI3_HPD

TP260

TP261

TP262

HDMI2_HPD

TP264

TP263

TP265

HDMI1_HPD

TP267

TP268

C4097 1uF 25V

HDMI3_HP_DET

TP269

HDMI1_RX2+ HDMI1_RX2+

TP270

ARC_OUT

HDMI1_RX2- HDMI1_RX2-

HDMI1_RX1+ HDMI1_RX1+

HDMI1_RX1- HDMI1_RX1-

HDMI3_RX0HDMI3_RX0+

HDMI3_RXC+

HDMI3_RXC-

HDMI3_RX2+

HDMI3_RX1+

HDMI3_RX1-

HDMI3_RX2-

HDMI3_RX0+

HDMI3_RXC+

HDMI3_RXC-

HDMI3_RX1-

HDMI3_RX2-

HDMI1_RXC-

Q503

PMBS3904

HDMI1_RXC-

HDMI1_RXC+

HDMI2_SDA

R519 100R 1/16W 1%

HDMI3_SCL

HDMI2_5VIN

HDMI1_RXC+

HDMI1_RX0+

R511

47K 1/16W 5%

HDMI1_RX0+

HDMI2_SCL

+5V

HDMI1_RX0-

HDMI3_SCL

HDMI3_CEC

HDMI3_SDA

R513 47K 1/16W 5%

HDMI1_RX0-

HDMI3_5VIN

U504

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U505

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

HDMI2_HP_DET

HDMI2_5VIN

CN502

HDMI

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

SHELL6

25

SHELL7

26

R520 100R 1/16W 1%

HDMI2_RX2+

HDMI2_RX0+

HDMI2_RX0-

R517 47K 1/16W 5%

HDMI2_RX1HDMI2_RX1+

HDMI2_RXC-

R516 100K 1/16W

U506

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R514 910R

HDMI2_RX0+

HDMI2_RX1-

HDMI2_RX2+

HDMI2_RXC-

HDMI2_RX2-

HDMI2_HP_DET

Q504

PMBS3904

R512

47K 1/16W 5%

HDMI2_5VIN

3V3SB

C502 100NF 16V

HDMI1_5VIN

HDMI1_SCL

HDMI1_CEC HDMI1_SCL

HDMI1_SDA

HDMI1_CEC

HDMI1_5VIN

HDMI1_SDA

HDMI2_CEC

HDMI2_SDA

HDMI2_SCL

HDMI2_SDA

HDMI2_SCL

HDMI2_5VINHDMI2_5VIN

Q505

PMBS3904

HDMI2_RX1+

HDMI2_RX0-

HDMI3_SDA

R529 100R 1/16W 1%

HDMI3_5VIN

HDMI2_RXC+

HDMI2_CEC

HDMI2_RXC+

R521

47K 1/16W 5%

HDMI2_RX2-

+5V

HDMI3_SCL

R523 47K 1/16W 5%

U507

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U508

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

HDMI3_5VIN

HDMI3_CEC

HDMI3_5VIN

HDMI3_RX1+

HDMI3_RX2+

HDMI3_RX0-

R530 100R 1/16W 1%

HDMI3_SDA

R527 47K 1/16W 5%

R526 100K 1/16W

U509

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R524 910R

HDMI3_HP_DET

Q506

PMBS3904

R522

47K 1/16W 5%

3V3SB

HDMI3_5VIN

C503 100NF 16V

HDMI1_RX1+

HDMI1_RX0+

HDMI1_SDA

HDMI1_RX2+ HDMI1_RXC+

HDMI1_HPD

HDMI1_SCL

HDMI1_RX1-

HDMI1_RX0-

HDMI3_RX2-

HDMI3_RX0+

HDMI3_RXC+ HDMI3_RXC-

HDMI3_RX2+

HDMI3_HPD

HDMI3_SDA

HDMI3_RX0HDMI3_RX1-

ARC_OUT6

ARC_OUT

TP320

C4083 100NF 16V

C4085 100NF 16V

TP321

TP322

AVDD33_HDMI_RX

AVDD12_HDMI_1_RX

C4084 100NF 16V

AVDD3V3

C4086 100NF 16V

AVDD12

AVDD33_HDMI_3_RX

AVDD12_HDMI_2_RX

C4087 100NF 16V

AVDD12_HDMI_3_RX

AVDD12

FB501 30R 0.7A

1 2

FB50330R 0.7A

1 2

FB502 30R 0.7A

1 2

HDMI1_5VIN

HD_CEC

+5V

AVDD12_HDMI_1_RX AVDD12_HDMI_2_RX AVDD12_HDMI_3_RX AVDD33_HDMI_RX AVDD33_HDMI_3_RX AVSS33_HDMI_RX AVSS33_HDMI_3_RX

AVDD3V3

HDMI1_CEC

AVDD12

R532 180R 1/10W 1%

R534 100K1/16W

R533 82R 1/10W 1%

R535 NC 1.2K 1/16W 1%

HECC+ HEC+

ARC

+5V

CN501

HDMI

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

SHELL6

25

SHELL7

26

HDMI3_RX2+

R505 75R 1/16W 1%

R515 75R 1/16W 1%

R525 75R 1/16W 1%

HDMI3_RX1-

HDMI2_RX2-

HDMI2_RX0-

HDMI2_RX2+

HDMI2_RX0+

HDMI2_RX1-

HDMI3_RX0+

HDMI2_RXC+ HDMI2_RXC-

HDMI2_CEC

HDMI2_RX1+

HDMI3_RX0HDMI3_RXC+

3V3SB

HDMI3_CEC

HDMI3_RX1+

HDMI3_RX2-

HDMI3_RXC-

HDMI3_RX1+

U401D

MT5580GPOI

HDMI_1_RX_0

P4

HDMI_1_RX_0B

P3

HDMI_1_RX_1

R2

HDMI_1_RX_1B

R1

HDMI_1_RX_2

R4

HDMI_1_RX_2B

R3

HDMI_1_RX_C

N4

HDMI_1_RX_CB

N3

HDMI_1_SCL

P5

HDMI_1_SDA

P6

HDMI_1_HPD

T8

HDMI_2_RX_0

U2

HDMI_2_RX_0B

U1

HDMI_2_RX_1

U4

HDMI_2_RX_1B

U3

HDMI_2_RX_2

V4

HDMI_2_RX_2B

V3

HDMI_2_RX_C

T4

HDMI_2_RX_CB

T3

HDMI_2_SCL

T5

HDMI_2_SDA

T6

HDMI_2_HPD

T7

HDMI_3_RX_0

Y25

HDMI_3_RX_0B

Y24

HDMI_3_RX_1

W25

HDMI_3_RX_1B

W24

HDMI_3_RX_2

V25

HDMI_3_RX_2B

V24

HDMI_3_RX_C

AA25

HDMI_3_RX_CB

AA24

HDMI_3_SCL

W3

HDMI_3_SDA

W4

HDMI_3_HPD

W5

HDMI_CEC

U5

AVDD12_HDMI_1_RX

W1

AVDD12_HDMI_2_RX

W2

AVDD12_HDMI_3_RX

AB24

AVDD33_HDMI_RX

N2

AVDD33_HDMI_3_RX

AB25

AVSS33_HDMI_RX

N7

AVSS33_HDMI_3_RX

R18

HDMI3_CEC

HDMI1_RX2+

HDMI1_RX1-

HDMI1_HP_DET

HDMI1_RX1+

HDMI1_CEC

HDMI1_5VIN

HDMI1_RXC-

HDMI1_RX2-

HDMI1_RXC+

HDMI1_RX0-

HDMI1_RX0+

R509 100R 1/16W 1% R510 100R 1/16W 1%

R508 0R05 OHM

HDMI3_SCL

HDMI1_RXC-

HDMI1_RX2-

R502

47K 1/16W 5%

R501

47K 1/16W 5%

HDMI1_SCL HDMI1_SDA

TP032

HDMI2_RX1+

HDMI2_RXC-

HDMI2_RX0+

HDMI2_RXC+

HD_CEC

HDMI2_HPD

HDMI2_RX1-

HDMI2_SDA

HDMI2_SCL

HDMI2_RX2-

HDMI2_RX0-

HDMI2_RX2+

CN503

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

D501

BAV70

3

1

2

C501 100NF 16V

D502

BAV70

3

1

2

D503

BAV70

3

1

2

HDMI2_CEC

ZD501

TVM1G5R5M100R

1 2

TP242

HEC+

R507 47K 1/16W 5%

TP243 TP244

TP245 TP246

TP247

TP248 TP249

TP250 TP251

TP252

TP253 TP254

TP255 TP256

Q502

PMBS3904

Q501

PMBS3904

R504 910R

R503 47K 1/16W 5%

R506 100K 1/16W

HDMI1_5VIN

HDMI1_HP_DET

U501

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U503

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U502

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

Circuit Diagrams and PWB Layouts

EN 53TPM10.1L LA 10.

2013-May-17

back to

div.table

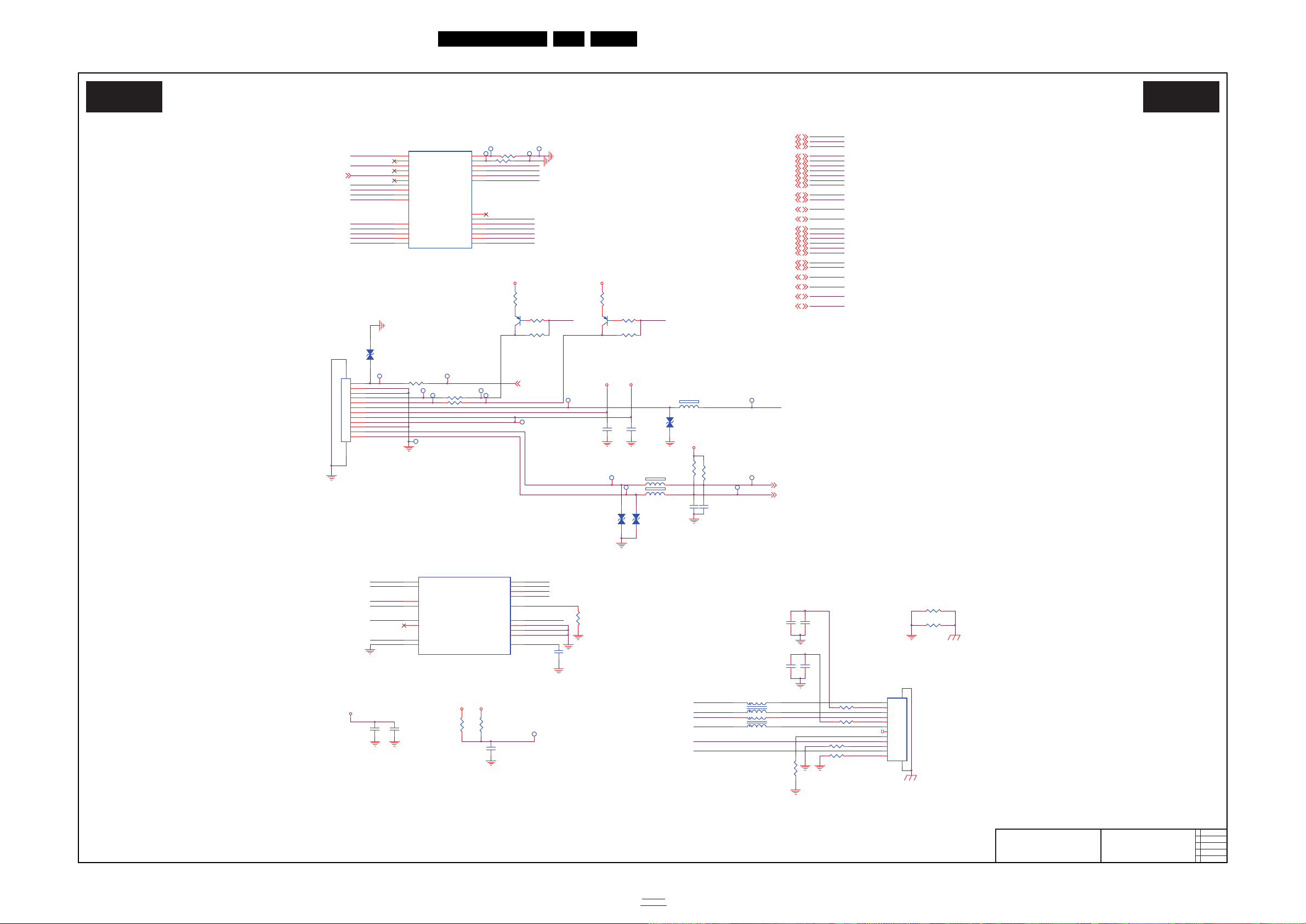

10-2-13 Ethernet/GPIO/KEYPAD

19480_512_130408.eps

130408

Ethernet/GPIO/KEYPAD

B13 B13

2012-12-12

B

715G5698

Ethernet/GPIO/KEYPAD

R4083

NC 0R05 OHM

TP299

DEMOD_RST13

USB_PWR_EN017

USB_PWR_EN0

DEMOD_RST

TP300

BL_DIM4

LED_B

BL_DIM

TP301

ZD4001

MLVG0402

12

USB_DP0

TP302

C4093

4.7UF 10V

CN702

CONN

1 2

3

4 5 6 7

8

9 10 11 12

1314

R4089 24K 1%

USB_DM1

USB_DP1

USB_DP117

USB_DP1 USB_DM1

USB_DM117

TP271

TP273

TP272

TP275

TP274

TP276 TP277

OIRI

TP278

TP279

TP280

TP281

TP282

BL_ON/OFF

BL_DIM

BL_DIM4

BL_DIM

RXVN

INT_LINE

OPWM6

INT_LINE7

INT_LINE

C4094 1uF 10V

AVDD3V3

AVDD33_USB

L101 NC 90R/400mA

1 2

4

3

C4095 100NF 16V

HP_SC_MUTE8

HP_SC_MUTE

U401F

MT5580GPOI

USB_DP_P0

U24

USB_DM_P0

U25

USB_DP_P1

T24

USB_DM_P1

T25

GPIO10

R24

GPIO11

R25

AVDD33_USB

P25

AVSS33_USB

P17

RXVN_1

AD2

RXVP_1

AE2

TXVN_0

AD3

TXVP_0

AE3

REXT

AE1

AVDD33_ETH

AD4

AVSS33_LD

Y8

AVSS33_ELDO

V9

AVSS33_COM

W8

AVDD10_ELDO

AE4

R4090

NC 0R05 OHM

R4091

0R05 OHM

AVDD3V33V3SB

C4096 100NF 16V

AVDD33_ETH

ZD4003

TVM1G5R5M100R

12

ZD4004

TVM1G5R5M100R

12

RJ-45

L102 NC 90R/400mA

1 2

4

3

PHY_LED0

TXVP TXVN

RXVP

R1104

0R05 OHM

TXVP

RXVP

TXVN

RXVN

TXVP

TXVN

RXVP

RXVN

REXT

AVDD33_ETH AVSS33_LD AVSS33_ELDO AVSS33_COM

AVDD10_ELDO

R4096

4.7K 1/16W

R4097 4.7K 1/16W

USB5V1_EN

C4091

100NF 16V

OPCTRL0

OPCTRL3 OPCTRL4

OPCTRL35 OPCTRL05,7

OPCTRL3 OPCTRL0

OPCTRL45

OPCTRL4

SYS_EEPROM_WP

SYS_EEPROM_WP5

SYS_EEPROM_WP

HP_DET8

HP_DET

AVDD33_USB AVSS33_USB

C4118

100NF 16V

SPI_DO20

+5V

SPI_DO

DEMOD_RST

TP003

USB_DM0

USB_DM017

BL_ON/OFF4

USB_PWR_EN0

BL_ON/OFF

USB_DM0

Q4005 NC PMBS3906

Q4006

NC PMBS3906

5VSB 5VSB

R4052 NC 10K 1/16W 5%

CN102

NC RJ45 CONN+LED

P1

1

P2

2

P3

3

P4

4

P5

5

P6

6

P7 NC

7

P8

8

P9

9

P10

10

P11

11

P12

12

TH2

14

TH1

13

R4050 NC 10K 1/16W 5%

Lightsensor 20

R4051

0R05 OHM

R1098 0R05 OHM

R4053

0R05 OHM

R1099 0R05 OHM

LED_BLED_R

C4090 100NF 16V

R4088 20K 1%

C4092 100NF 16V

ZD4002 MLVG0402

1 2

FB4006

120R

1 2

FB4005

120R

1 2

FB4004

120R

1 2

R4087

20K 1%

3V3SB

Lightsensor20

Lightsensor

TP087

TP088

C1111

100NF 16V

C1110

100NF 16V

IR_RC

3V3SB

C1113 10NF 50V

R4054 NC 4.7K 1/16W

C1112 10NF 50V

R4055 NC 4.7K 1/16W

PANEL_ON

R1100 0R05 OHM

R1101 0R05 OHM

VGA_UR_EN10

USB_OC_C0M

USB_DP0

USB_OC_C0M17

USB_OC_C0M

USB_DP017

KEY_PW_SU_MENU

PANEL_ON11

PANEL_ON

R1102 510R 1/10W R1103 510R 1/10W

HP_SC_MUTE7,11

HP_SC_MUTE

SPK_MUTE

OPWM6

Lightsensor

KEY_PW_SU_MENU

KEY_VOL_CH

OIRI5,21

OIRI

KEY_VOL_CH

U401G

MT5580GPOI

GPIO0

P7

GPIO1

AA7

GPIO2

U7

GPIO3

Y5

GPIO4

AD1

GPIO5

W7

GPIO6

AC3

GPIO7

U6

GPIO8

V6

GPIO9

Y6

OPCTRL0

AC9

OPCTRL1

AB8

OPCTRL2

Y7

OPCTRL3

Y12

OPCTRL4

AA10

ADIN0_SRV

W12

ADIN1_SRV

V11

ADIN2_SRV

AA9

ADIN3_SRV

AA6

ADIN4_SRV

AB7

ADIN5_SRV

AB9

OPWM0

G23

OPWM1

F23

OPWM2

E22

OPWM3

E23

OPWM4

G21

OPWM5

G22

OPWM6

F22

SPK_MUTE

SPK_MUTE7

R4086 100R 1/16W 5%

R4085 100R 1/16W 5%

IR_RC21

IR_RC

PHY_LED013

PHY_LED0

LED_R

USB5V1_EN

USB5V1_EN17

Circuit Diagrams and PWB Layouts

EN 54TPM10.1L LA 10.

2013-May-17

back to

div.table

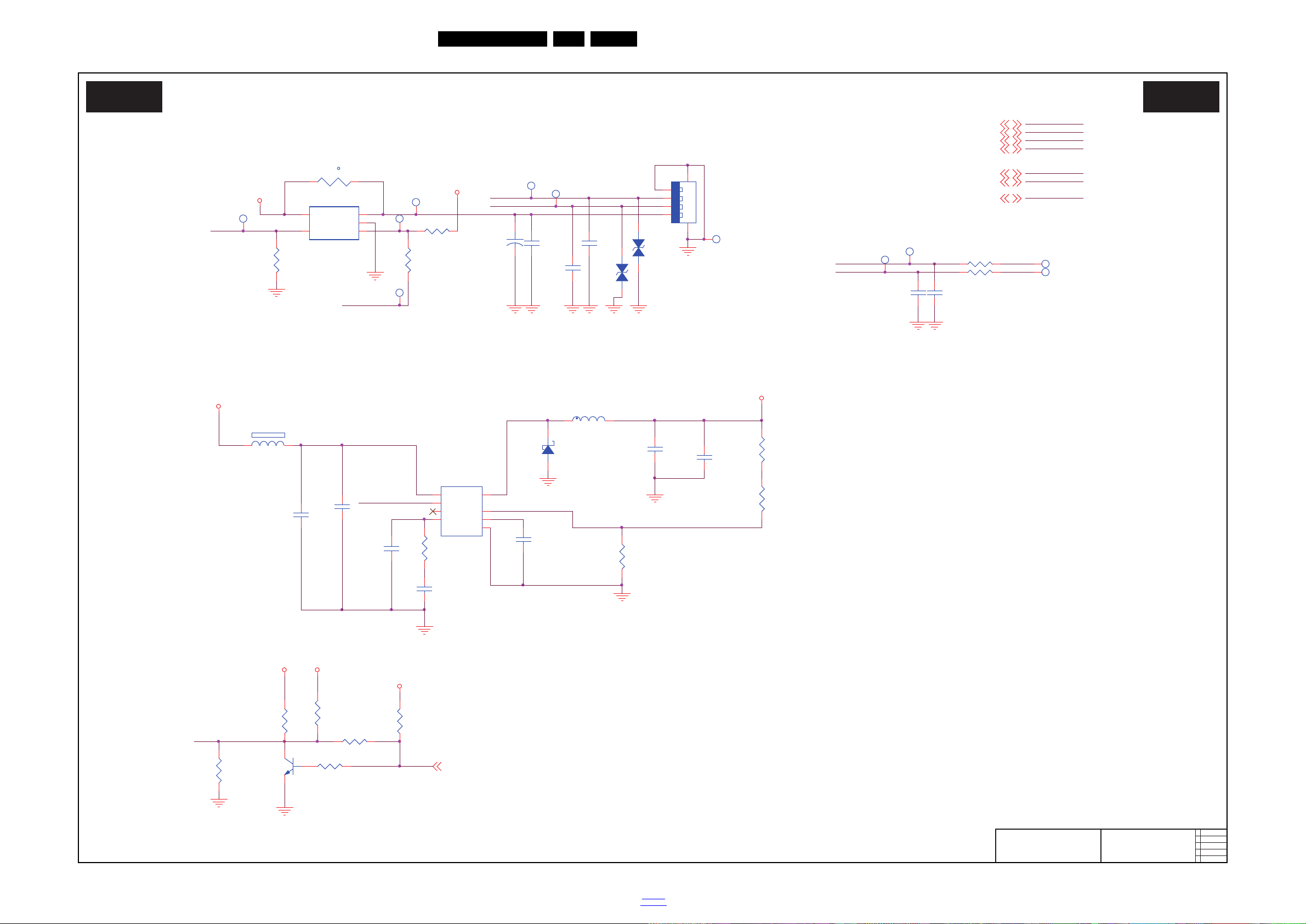

10-2-14 USB

19480_513_130408.eps

130408

USB

B14 B14

2012-12-12

B

715G5698

USB

C1088

100nF 50V

C1083

10PF 50V

R1094

51K 1/16W 5%

ZD1019

TVM1G5R5M100R

12

C1087

10PF 50V

C1089 10uF 25V

C1091

2.2NF 50V

DVDD3V3

USB_5V1

+5V

+12V

USB_5V1

USB_DM016

USB_DP016

+12V

USB5V1_EN 16

USB_PWR_EN016 USB_OC_C0M16

USB_PWR_EN016

USB_PWR_EN0

C1095 22UF 16V

R1097 18K 1/10W 1%

TP283

TP284

TP285

TP286TP287

TP288

USB_OC_C0M

TP289 TP290

R1095 47K

USB_DP116

USB_DP1

R1096

1K

DVDD3V3

R1111 0R05 OHM

R1112 0R05 OHM

R1105 NC 4.7K 1/16W

USB_PWR_EN0

USB_DM0

USB_DP0

TP308

USB_DP0

t

TH101

PTCR

1 2

R1092

4.7K

USB_DP1

TP309

M5VSW

USB_OC_C0M

1234

CN106

USB CONN

1

2

3

4

65

USB_PWR_EN0

U103

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

L1003

10uH

USB_DM1

USB_DM116

USB_DM1

C1092 1uF 25V

R0186

NC 10K 1/16W 5%

TP118

USB_DM0

C1115

100NF 16V

U1005

G5655P12U

NC

1

IN2LX

3

GND

4

FB

5

COMP

6

EN

7

SS

8

C1090

NC 22uF 10V

C1094 100NF 16V

R1087

NC 1K

C1082 10PF 50V

D1003

SJPW-T4VL

1 2

R1091 120K 1/10W 1%

+

C1080

100UF 16V

ZD1020

TVM1G5R5M100R

12

C1086

10PF 50V

FB1014

120R/3000mA

12

Q1003

NC/PMBS3904

R1090 27K 1/10W 1%

R1133 100R 1/16W 1%

R1088

NC 10K 1/16W 5%

R1093

4.7K1/16W

Circuit Diagrams and PWB Layouts

EN 55TPM10.1L LA 10.

2013-May-17

back to

div.table

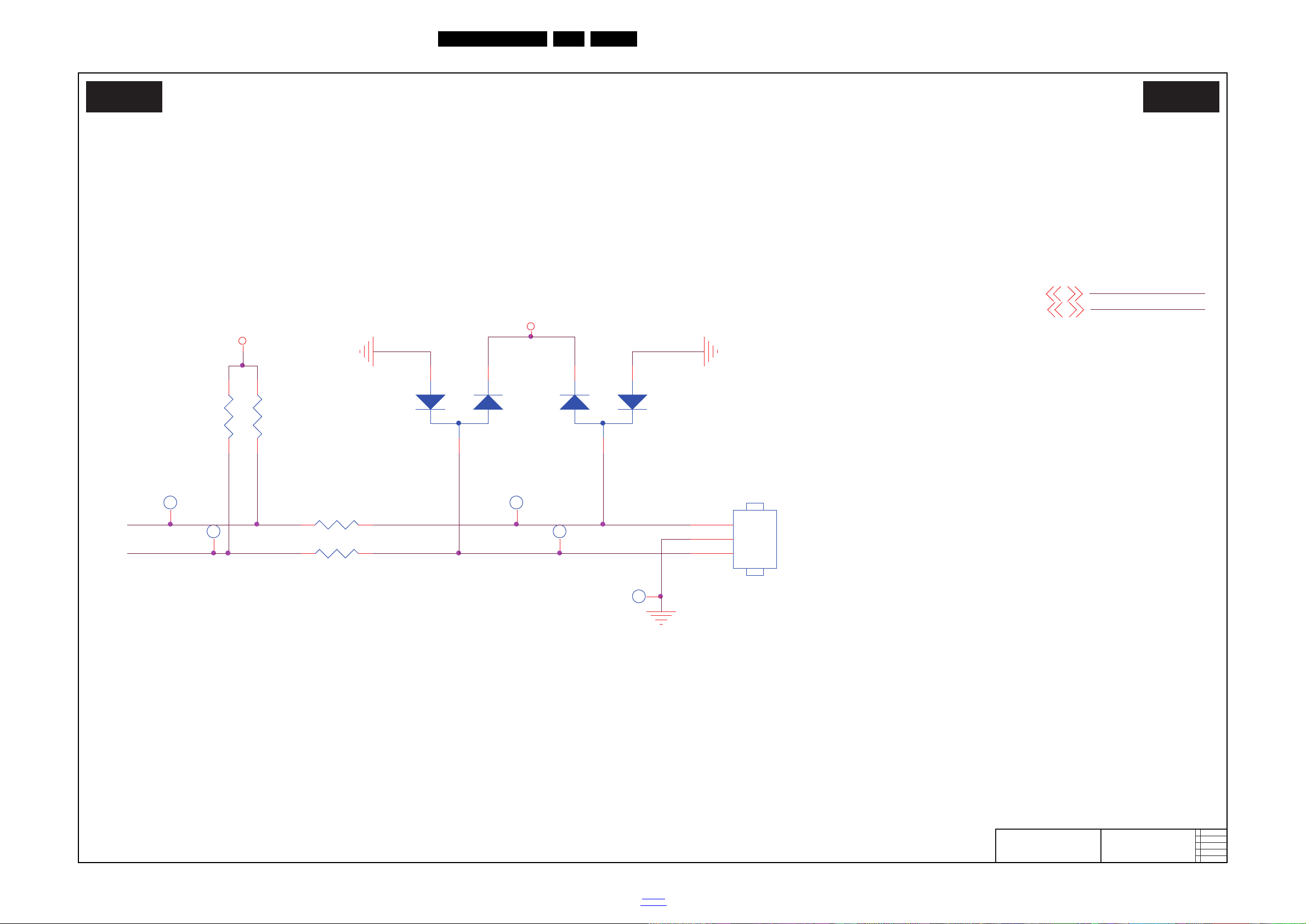

10-2-15 Debug Interface

19480_514_130408.eps

130408

Debug Interface

B15 B15

2012-12-12

B

715G5698

Debug Interface

U0TX5,10

U0RX5,10

U0RX

R4094 100OHM R4095 100OHM

U0TX

TP295

TP296

TP297 CN403

CONN

1 2

3

TP298

3V3SB

U0RX

U0TX

R4092

4.7K 1/ 16W

R4093

4.7K 1/ 16W

TP018

D4002 BAV99

3

1

2

D4003 BAV99

3

1

2

Circuit Diagrams and PWB Layouts

EN 56TPM10.1L LA 10.

2013-May-17

back to

div.table

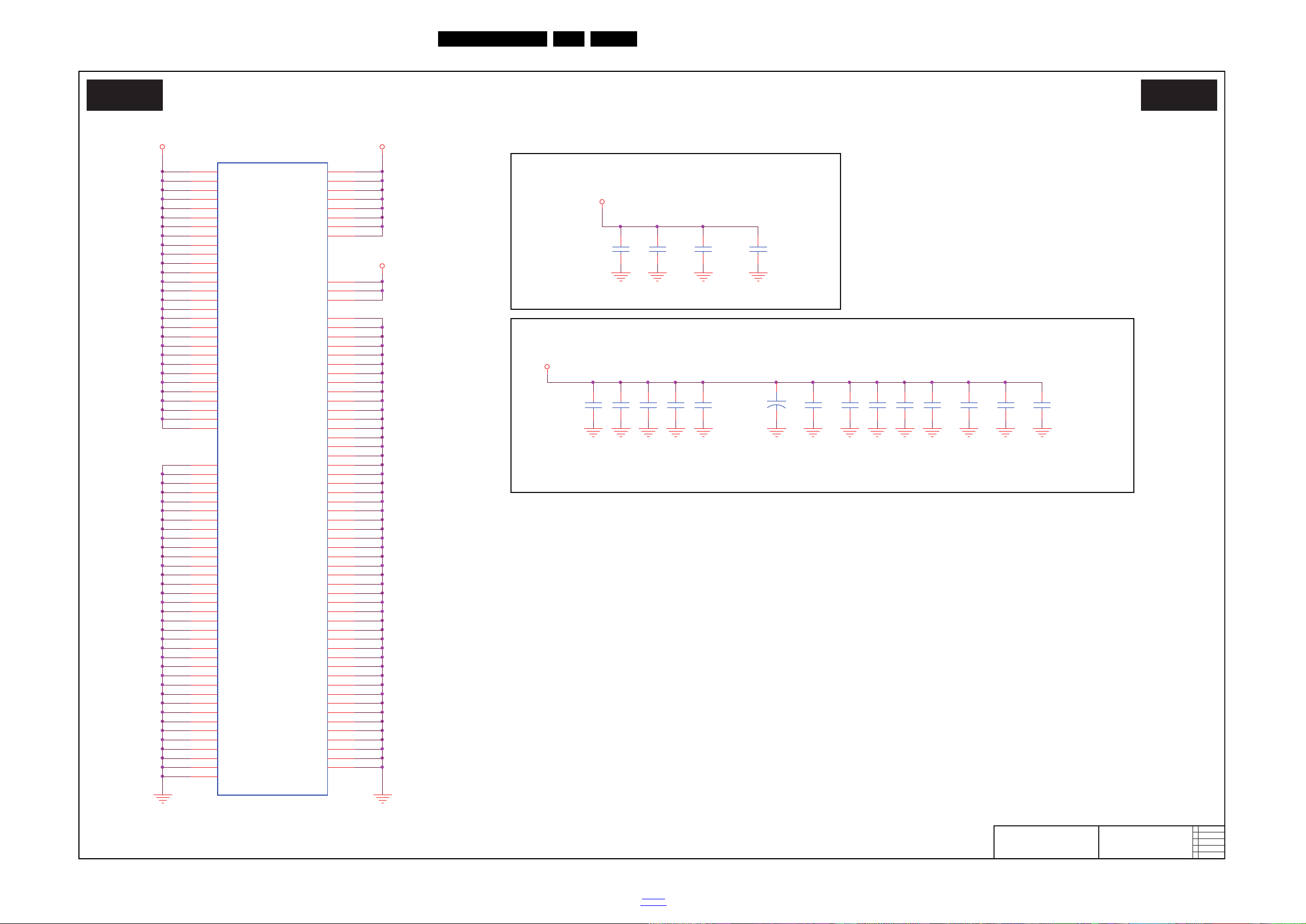

10-2-16 MT5580 Power

19480_515_130408.eps

130408

MT5580 Power

B16 B16

2012-12-12

B

715G5698

MT5580 Power

U401E

MT5580GPOI

VCCK

M6

VCCK

L6

VCCK

M5

VCCK

L5

VCCK

M4

VCCK

L4

VCCK

M3

VCCK

L3

VCCK

M2

VCCK

L2

VCCK

M1

VCCK

L1

VCCK

M8

VCCK

L8

VCCK

M7

VCCK

L7

VCCK

N8

VCCK

N9

VCCK

N5

VCCK

U13

VCCK

U14

VCCK

R17

DVSS

N10

DVSS

P10

DVSS

P8

DVSS

H6

DVSS

T13

DVSS

K11

DVSS

L11

DVSS

M11

DVSS

N11

DVSS

P11

DVSS

R11

DVSS

R10

DVSS

U9

DVSS

J12

DVSS

K12

DVSS

L12

DVSS

M12

DVSS

N12

DVSS

P12

DVSS

R12

DVSS

W18

DVSS

T11

DVSS

J13

DVSS

K13

DVSS

L13

DVSS

M13

DVSS

N13

DVSS

P13

DVSS

R13

DVSS

T12

DVSS

J14

DVSS

K14

DVSS

L14

DVSS

M14

DVSS

N14

DVSS

P14

DVSS

R14

VCC3IO_C

AA4

VCC3IO

E25

VCC3IO_B

AB3

DVSS

E5

DVSS

F6

DVSS

J6

DVSS

P15

DVSS

N15

DVSS

M15

DVSS

L15

DVSS

K15

DVSS

K17

DVSS

T14

DVSS

U17

DVSS

T15

DVSS

T16

DVSS

N17

DVSS

L17

DVSS

V12

DVSS

R16

DVSS

P16

DVSS

N16

DVSS

M16

DVSS

L16

DVSS

M10

DVSS

L10

DVSS

K10

DVSS

M9

DVSS

L9

DVSS

K9

DVSS

J9

DVSS

M17

DVSS

R15

VCCK

H14

VCCK

J15

VCCK

N6

VCCK

J10

VCCK

U10

VCCK

J11

VCCK

K16

DVSS

F8

DVSS

C11

DVSS

G1

DVSS

T10

DVSS

G7

DVSS

U8

DVSS

V8

DVSS

J16

DVSS

J17

DVSS

L18

VCCK

P9

VCCK

R9

VCCK

T9

VCCK

U11

VCCK

U12

VCCK

U15

VCCK

U16

VCCK

T17

DVSS

F7

DVSS

G14

DVSS

D15

DVSS

G8

DVSS

G9

DVSS

C12

DVSS

E15

DVSS

F15

C4110 100NF 16V

C4114 100NF 16V

CORE POWER

Analog Power

C4098

100NF 16V

+

C4101

100UF 16V

C4107 1uF 10V

C4099 100NF 16V

C4111 NC 100NF 16V

C4105

100NF 16V

C4102

22UF 6. 3V

C4103

4.7U F 10V

C4106 NC 100N F 16V

C4108

NC 22UF 6.3V

C4113 NC 100NF 16V

C4117

4.7U F 10V

C4112 1uF 10V

C4109

NC 22UF 6.3V

C4100 10NF 50V

DVDD3V3

VCCK

DVDD3V3

C4104

10UF 6. 3V X5R +-20%

Circuit Diagrams and PWB Layouts

EN 57TPM10.1L LA 10.

2013-May-17

back to

div.table

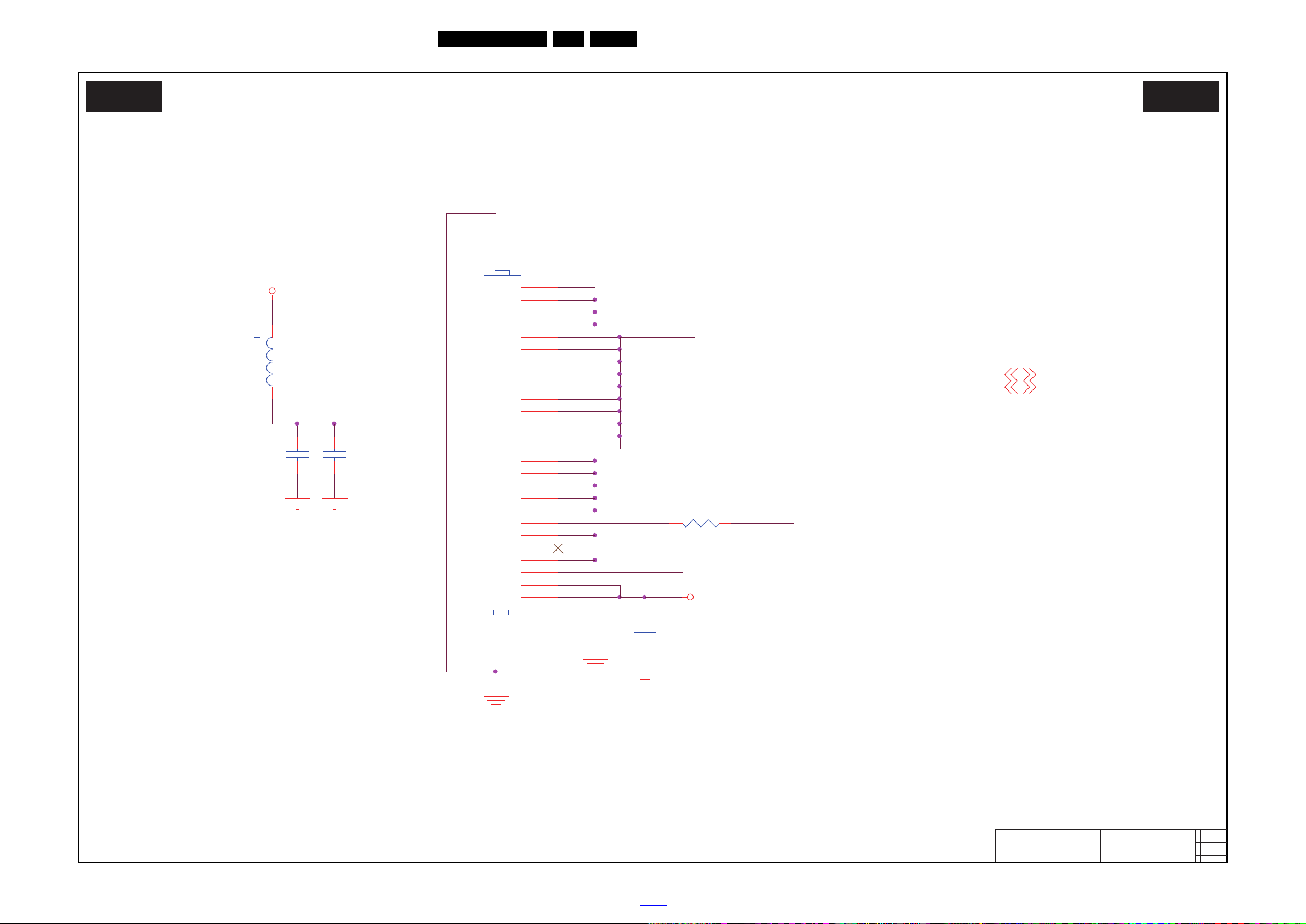

10-2-17 Ambi Glow

19480_516_130408.eps

130408

Ambi Glow

B17 B17

2012-12-12

B

715G5698

Ambi Glow

Temp_out

Ambient Light

LED_PWR

R101

0R05 1/16W

SPI_DO

CN105

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

2728

LED_PWR

SPI_DO16

+12V

SPI_DO

FB714

120R/6000mA

1 2

C102

10UF 16V

C103

100NF 16V

C101

1UF 10% 16V

Lightsensor

Lightsensor16

Lightsensor

AVDD3V3

Circuit Diagrams and PWB Layouts

EN 58TPM10.1L LA 10.

2013-May-17

back to

div.table

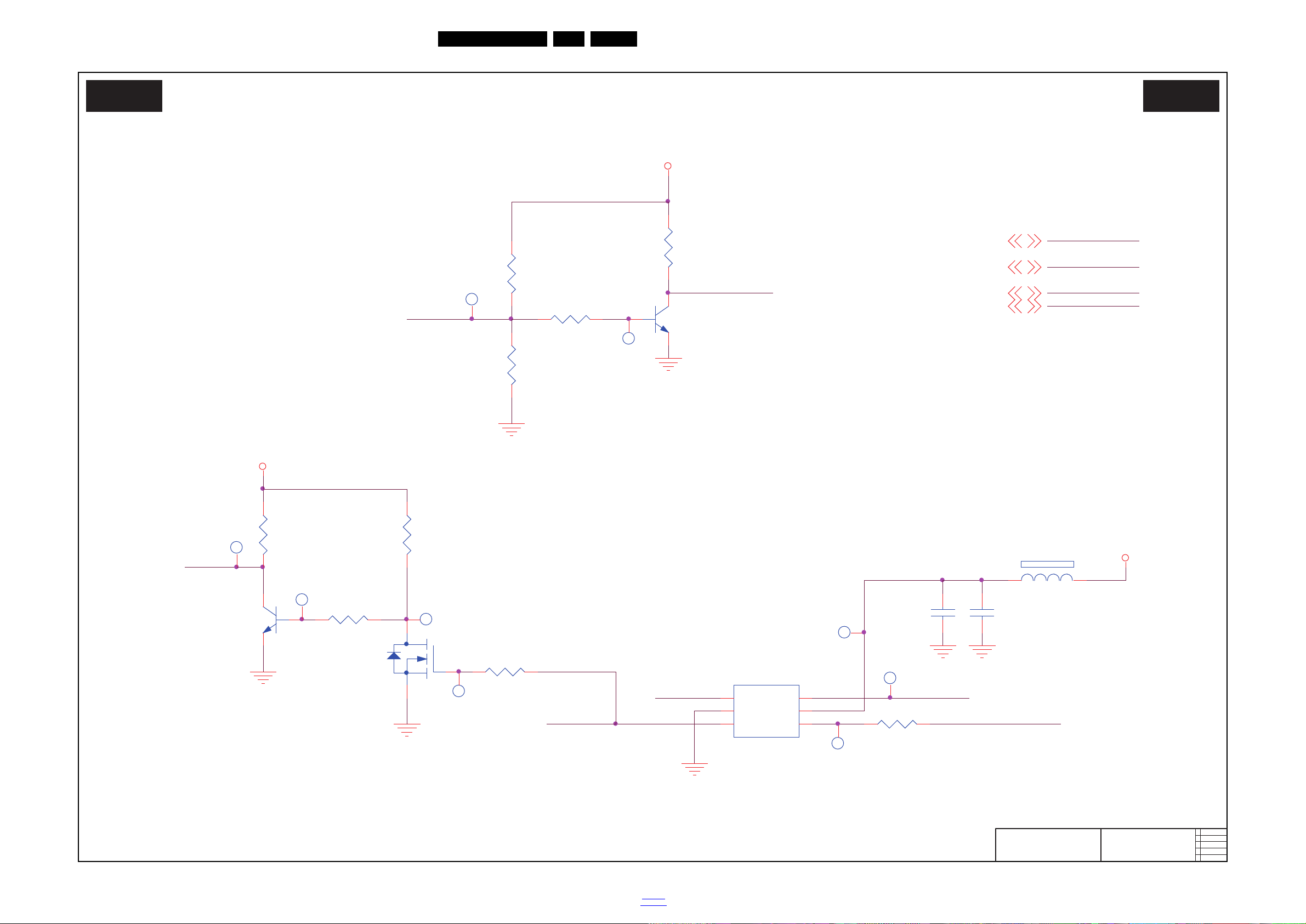

10-2-18 Hotel mode

19480_517_130408.eps

130408

Hotel mode

B18 B18

2012-12-12

B

715G5698

Hotel mode

Q1006

NC PMBS3904

OIRI5,16

OIRI

IR_IN

TP323

TP328

TP324

IR_OUT

TP325

TP326

TP327

IR_IN

IR_SW_IN10

IR_IN10

IR_SW_IN

IR_RC

Q1004 NC PMBS3904

R1136 NC 22K 1/16W

R1134 NC 33K 1/16W

R1144 NC 22K 1/16W

R1135 NC 10K 1/16W 5%

IR_DET_SW

3V3SB

Q1005 NC 2N7002

TP148

TP147

3V3_SW

TP153

IR_DET_SW

IR_SW_IN

3V3SB

R1137 NC 10K 1/16W 5%

R1138 NC 10K 1/16W 5%

R1139

NC 1K

U407

NC TS5A3157DCKRE4

NO

1

GND

2

NC3COM

4

V+

5

IN

6

R1140

NC 100R 1/16W 1%

R1142

NC 0R05 OHM

C1118 NC 100NF 16V

FB1015

NC 120R

1 2

IR_RC16

IR_RC

3V3SB

OIRI

C1119 NC 10UF 6.3V X5R +-20%

Circuit Diagrams and PWB Layouts

EN 59TPM10.1L LA 10.

2013-May-17

back to

div.table

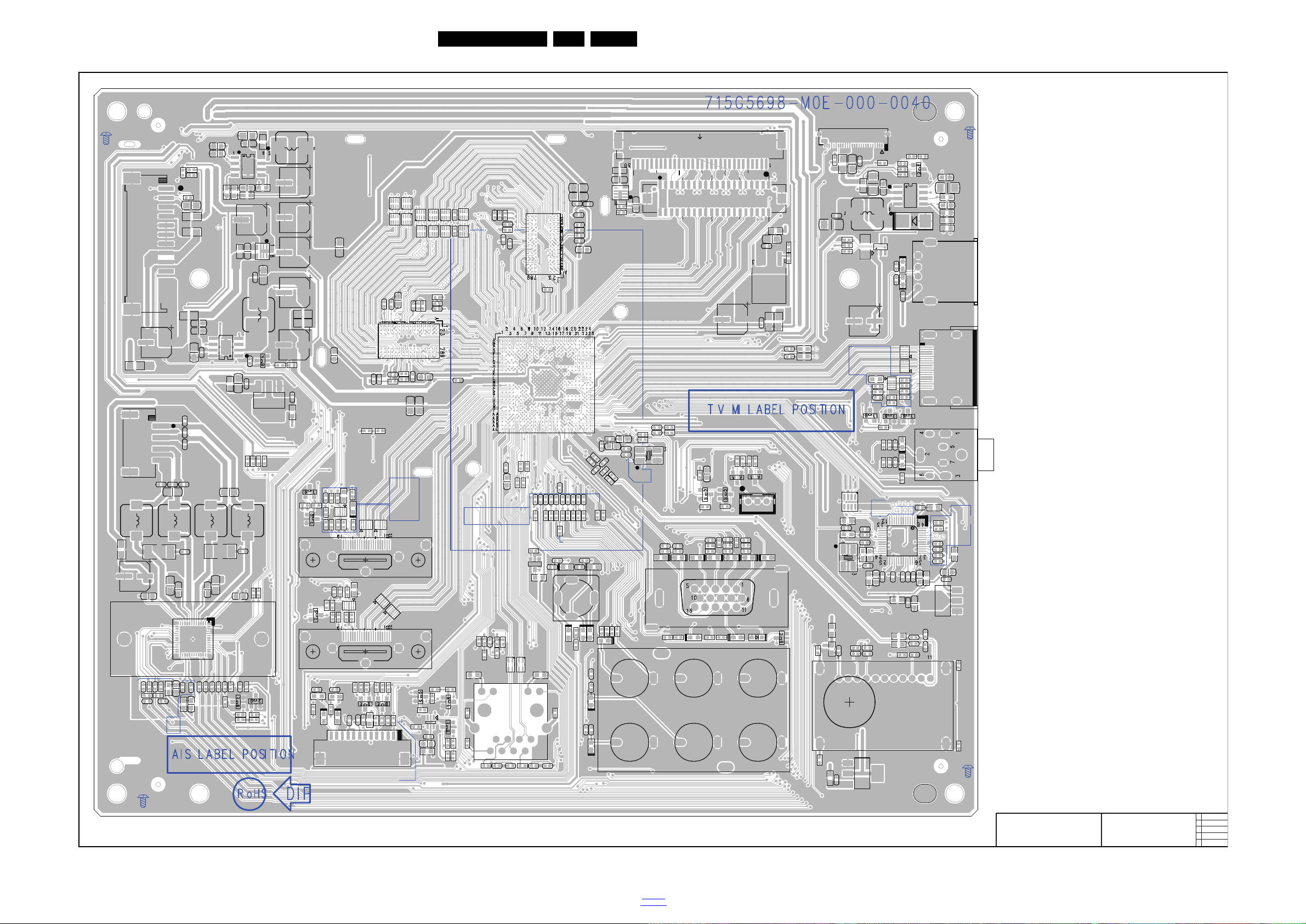

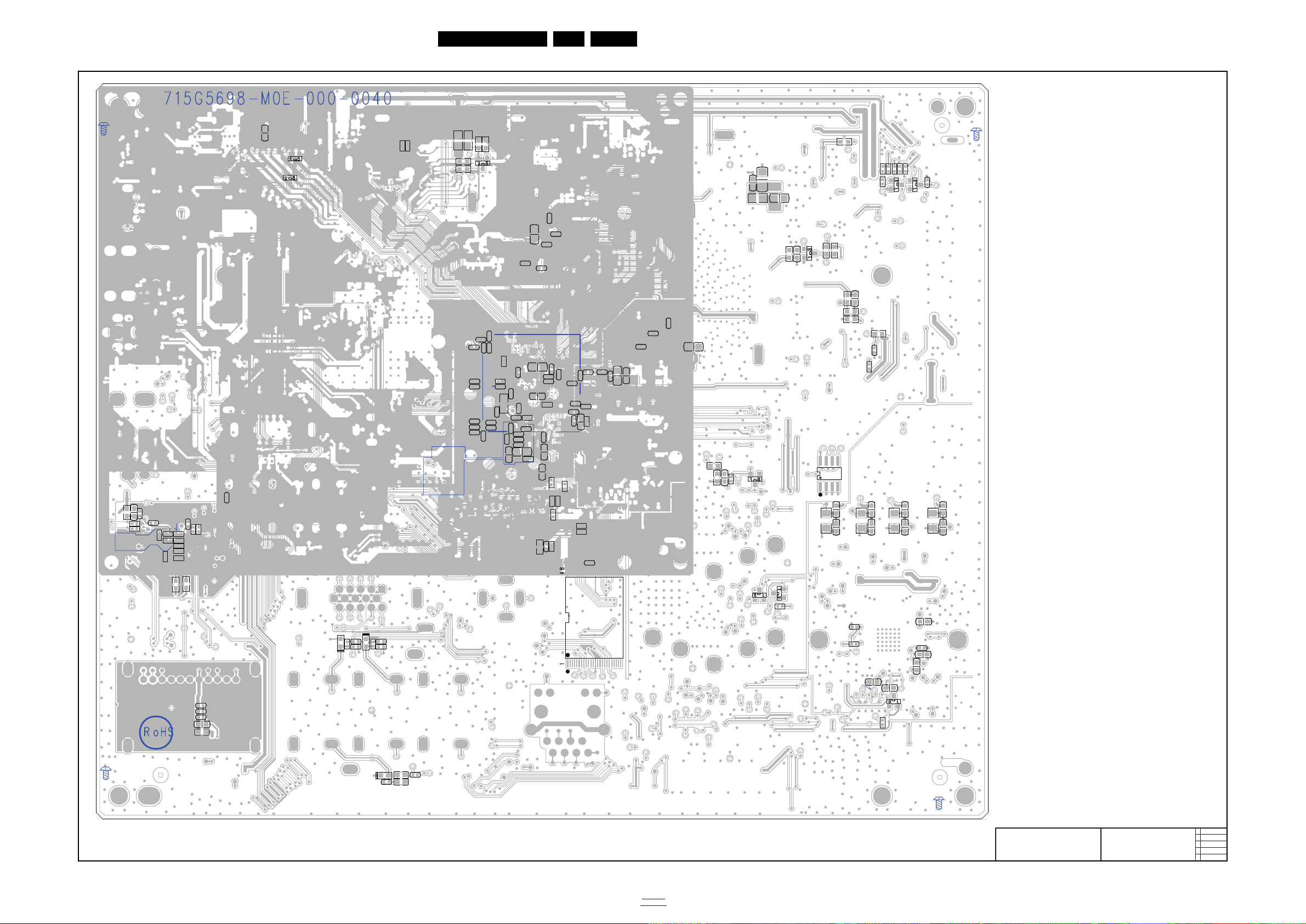

Circuit Diagrams and PWB Layouts

19480_518_130408.eps

130408

2012-12-12

B

715G5698

SSB layput top

C1032

C1034

C1080

C1119

C4033

C4038

C4047

C4051

C4093

C4102

C4109

C6001

C6024

C6025

C6026

C6027

C6028

C6029

C6033

C6039

C701

C703

C705

C707

C712

C713

C715

C718

C719

C720

C721

C722 C723

C725

C730

FB1010

FB4004

FB4005

FB4006

L701

R1049

R1053

R1054

R1059

R1090

R1091

R1092

R1102R1103

R1111

R1112

R4026

R701

R718

R719

R724

R725

X101

X401

ZD1007

C1026

C4042

C4055

C4059

C728

C1044

C1048

C4017

C4020

C4031

C4039

C4052

C4060

C6002

C6003

C702

R707

R714

R717

R704

R4059

C1090

C1089

C1091

C1088

C1092

C1095

C729

R1097

R732

R733

C4101

TH101

C102

TP204

TP205

TP209

TP210

TP211TP212

TP213

TP214 TP215

TP289 TP290

SCREW2

SCREW3

SCREW10 SCREW11

SCREW12

SCREW14

SCREW17

SCREW18

SH401

SCREW30 SCREW1 SCREW4

SCREW5SCREW6

TP006

TP008

TP013

HS401

TP311

H1

C1001

C1002

C1003

C1004

C1005

C1006

C1007

C1008

C1009

C1010

C1013

C1014 C1015

C1018

C1019

C1020

C1021

C1022

C1023

C1024

C1025

C1027 C1028

C1029 C1030

C1033

C1036

C1037

C1038

C1039

C1043

C1045

C1046

C1047

C1049

C1052

C1053

C1055

C1056

C1058

C1063 C1064

C1067 C1068

C1082C1083

C1086

C1087

C1110C1111 C1112C1113

C1118

C4003

C4040

C4041

C4043

C4044

C4053

C4054

C4056

C4057

C4058

C4061

C4077

C4078

C4079

C4080

C4081

C4082

C4090

C4091 C4092

C4096

C4105

C4115

C4116

C501

C502

C503

C6004

C6005

C6006

C6007

C6008

C6009

C6010

C6011

C6012

C6013

C6014

C6015

C6020

C6021

C6030

C6036C6037C6038

C6051

C6057 C6058C6059

CN101

CN102

CN103

CN106

CN401

CN402

CN403

CN501

CN502

CN503

CN701

CN702

D4002

D4003

D503

FB1002

FB1003

FB1004

FB1008

FB1009

FB1012

FB1014

FB1015

FB1022

FB1023

FB501

FB502

FB503

FB6001

FB701

FB703

FB705

FB708

FB709

L101L102

L6001 L6002 L6003 L6004

L702

Q1001

Q1002

Q1003

Q1004

Q4005Q4006

Q501

Q502

Q503

Q505Q506

Q6001

Q6002

Q705

R1144

R1001

R1002

R1005

R1006

R1007

R1008

R1009

R1010

R1011

R1013

R1017

R1018 R1019

R1022R1023 R1025R1026

R1029

R1030

R1031

R1032

R1033

R1034R1035

R1036

R1037

R1038

R1039

R1040

R1041

R1042

R1044

R1045

R1062

R1065

R1066

R1069

R1070

R1071

R1072

R1074

R1075 R1076

R1081

R1082

R1083

R1098

R1099

R1100R1101

R1104

R4057

R1134

R1135

R1136

R1137R1138

R1139

R1061

R1142

R4002

R4003 R4004

R4007

R4013

R4014

R4015

R4020

R4021

R4022

R4023

R4034

R4035

R4036

R4037

R4038

R4039

R4040

R4041

R4042

R4043

R4044

R4045

R4046

R4047 R4048

R4049

R4050

R4051

R4052

R4053

R4054

R4055

R4092

R4093

R501

R502

R503

R504R505

R507

R508

R509

R510

R511

R512

R513

R514R515

R519

R520

R521 R522

R523

R524 R525

R527

R529 R530

R534

R6001

R6002

R6003

R6004

R6005

R6006

R6007

R6008

R6009

R6011

R6012

R6013

R6014

R6015

R6016

R6017

R6018

R6027

R6028 R6029

R6051

R703

R710

R712

R713

R722

R727 R728

RP1001

RP401

RP402

RP403

RP404

RP405

RP406

RP407

RP408

RP409

RP410

RP411

RP412

U101

U102

U103

U401

U407

U501

U502

U503

U504

U505

U506

U507

U508

U509

U6001

U702

U704

ZD1001

ZD1002ZD1003

ZD1008ZD1009 ZD1010 ZD1011 ZD1012 ZD1013ZD1014

ZD1015 ZD1016

ZD1017 ZD1018

ZD1019 ZD1020

ZD4001

ZD4002

ZD501

ZD6001ZD6002

SCREW7

SCREW8

HS6001

FB714

U709

C1035

C1065 C1066

C1071

C1072

C1115

C4013

C4014

C4018

C6047

C6048

C706

C708

C711

C714

C724

C727

C749

FB6003

FB6004

FB707

FB732

R0186

R1043

R1087 R1088

R1093 R1094 R1133

R4010

R4012

R4016R4019

R4030 R4031

R4083

R4085

R4086

R4087

R4088

R4094

R4095

R506

R516

R526

R6030

Q4001

Q702

U703

R711

CN6005

R1060

U409

C1094

D1003

U1005

L1003

R6019

R6054

Q1006

ZD1022

R6031R6033

CN601

CN603

Q1005

TU1001

C4118

ZD1023

ZD1024

R1140

D101

U406

U405

C733

ZD4003

ZD4004

C103

R101

R1095R1096

R1105

CN105

U701

EN 60TPM10.1L LA 10.

10-2-19 SSB layout top

2013-May-17

back to

div.table

10-2-20 SSB layout bottom

19480_519_130408.eps

130408

2012-12-12

B

715G5698

SSB Layout Bottom

C766

C4005

C4097

C4103

C4108

C4117

C6022

C6034

C6035

C6043C6044

C6052

C6053

C6054

C6055

C704

C716

C717

C726

R4025

R4027

R4028

R4029

R532

R533

R6025

R6026

R6052

R6053

R702

R705

R706

R721

R729

R730

R731

C4045

C4050

C4063

C4066

C1116

C4006

C4008

C4104

R4060

R1003

R1004

R734

R735

C6018

C732

C4011

R736

C6017

C6019

C101

TP001

TP002

TP005

TP007

TP009

TP010

TP011

TP012

TP014

TP015

TP016

TP017

TP019

TP020

TP021

TP022

TP025

TP026

TP027

TP028

TP029

TP030

TP031

TP033

TP034

TP035

TP036

TP037

TP038

TP039

TP040

TP043

TP044 TP045

TP046

TP049

TP052

TP053 TP054 TP055

TP056

TP057

TP058

TP059

TP060

TP061

TP062TP063

TP065

TP066

TP067

TP068

TP069

TP070

TP071

TP072

TP073

TP076

TP077

TP078

TP089

TP090

TP091

TP092

TP093

TP094

TP095

TP096

TP097

TP098

TP099

TP100

TP101

TP102

TP10

3

TP104

TP105

TP106

TP107

TP108

TP109

TP110

TP111

TP112

TP113

TP114

TP115

TP116

TP117

TP119

TP120

TP121

TP122

TP123

TP124

TP125

TP126

TP127

TP128

TP129

TP130

TP131

TP132TP133

TP1

34

TP136

TP137

TP139

TP140

TP141

TP142

TP143

TP144

TP145

TP146

TP150

TP149

TP154

TP152

TP155

TP159

TP165

TP163

TP175

TP171

TP151

TP158

TP169

TP156

TP166

TP164

TP170

TP135

TP173

TP172

TP174

TP176

TP177

TP178

TP179

TP180TP181

TP182TP183

TP191

TP192

TP233

TP196

TP194

TP198

TP199

TP200

TP202

TP203

TP206

TP207

TP208

TP216

TP217

TP218

TP219

TP220

TP221

TP222

TP223

TP224

TP226

TP234

TP235

TP238

TP239

TP240

TP241

TP242

TP243

TP244

TP245

TP246

TP247

TP248

TP249

TP250

TP251

TP252

TP253

TP254

TP255

TP256

TP257

TP258

TP259

TP260

TP261

TP262

TP263

TP264

TP265

TP267

TP268

TP269

TP270

TP271

TP272

TP273

TP274

TP275

TP276

TP277

TP278 TP279

TP280

TP281

TP282

TP283

TP284

TP285

TP286

TP287

TP288

TP295TP296

TP297

TP298

TP074

TP075

SCREW13

SCREW15

SCREW16

SCREW19

TP160

TP162

TP161

TP167

TP157

TP168

TP041

TP042

TP047

TP048

TP050

TP051

TP064

TP079

TP080

TP081

TP082

TP083

TP084

TP085

TP086

TP087

TP088

TP147

TP148

TP153

TP003

TP018

TP023

TP024

TP032

TP118

TP291

TP299

TP300

TP301

TP302

TP303

TP

304

TP305

TP306

TP307

TP308

TP309

TP310

TP312

TP313

TP314

TP315

TP316

TP317

TP318

TP319

TP320

TP321

TP322

TP323

TP324

TP325

TP326

TP327

TP

328

C1011C1012

C1042

C1051

C1054

C1057

C1060

C1061

C1073

C1074

C4004

C4007

C4009

C4012

C4015

C4019

C4021

C4022

C4023

C4024

C4025

C4027

C4030

C4035

C4046

C4048

C4049

C4062

C4064

C4065

C4067

C4068

C4069

C4070

C4071

C4083

C4084

C4085

C4086

C4087

C4095

C4098

C4099

C4100

C4106

C4107

C4110

C4111

C4112

C4113

C4114

C6016

C6023

C710

D501

D502

FB1001

FB1005

FB1006

FB4002

FB4003

Q4002

Q4003

Q4004

Q504

Q6003

Q701

Q703

Q704

R1012

R1014R1015

R1016

R1051

R1052

R1055

R1056

R1057

R1058

R1063

R1064

R1067

R1068

R1084

R4001

R4005

R4006

R4011

R4024

R4089

R4090

R4091

R4096

R4097

R517

R535

R6010

R6057

R708

R709

R715

R716

R720R723

R726

U402

U404

ZD1004

ZD1005

ZD1006

C4010

C4016

C4026

C4028

C4029

C4034

C4094

C731

C1062

FB1011

R4017

R4018

R4032

R4033

R7076

R4056

C1041

C1040

R7077

Circuit Diagrams and PWB Layouts

EN 61TPM10.1L LA 10.

2013-May-17

back to

div.table

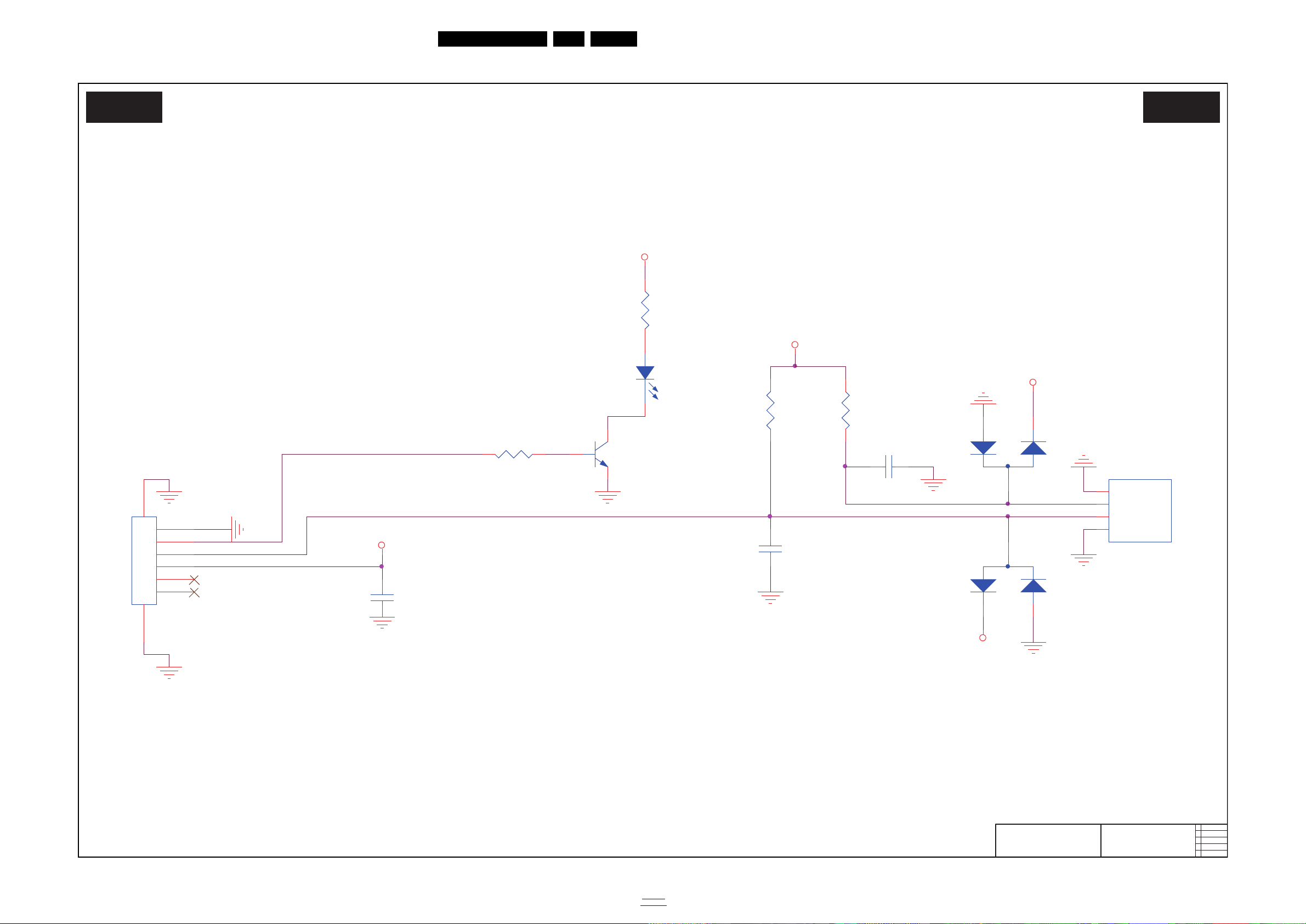

10.3 J 715G5763 IR/LED panel

19430_531_130115.eps

130115

IR/LED panel

J J

2012-12-20

C

715G5763

IR/LED panel

NC

Q301 BC847C

R302

1K 1/10W 5%

R301

2K2 1/10W 5%

LED301

LED

12

CN201 CONN

1 2

3

4 5 6

78

LED_R

U201

TSOP75436WTT

GND

1

Vs

2

OUT

3

GND

4

C204

1UF16V

--------><----|

R202

100R 1/10W 5%

----><----|

C203

NC/1N 50V

R201

NC/2K7 1/16W 5%

3V3SB

D201 BAV99

3

1

2

D202

BAV99

3

1

2

3V3SB

RC6

C201

100N 16V

3V3SB

10-3-1 IR/LED panel

Circuit Diagrams and PWB Layouts

EN 62TPM10.1L LA 10.

2013-May-17

back to

div.table

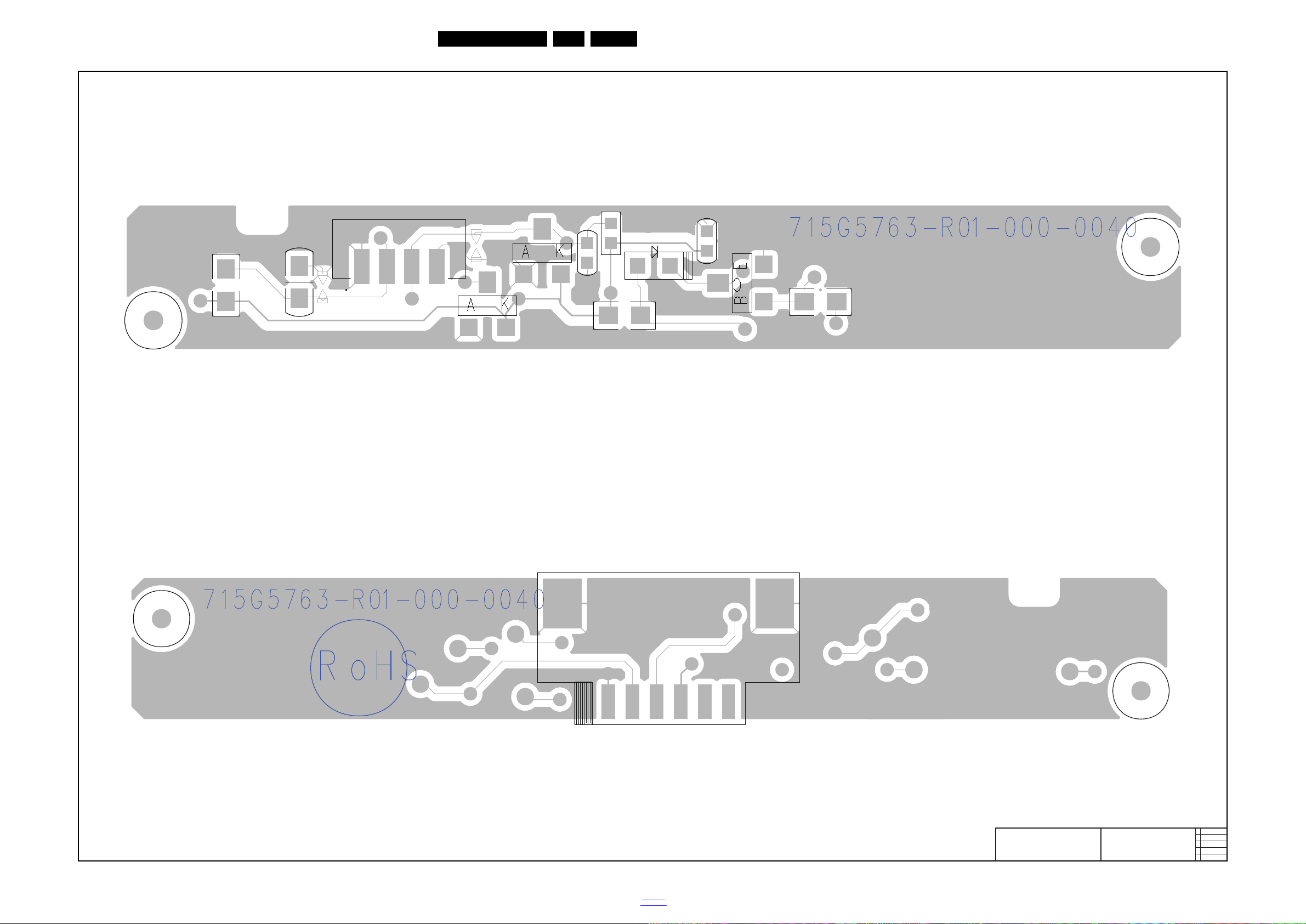

10-3-2 IR/LED board layout

19430_532_130115.eps

130115

2012-12-20

C

715G5763

IR/LED panel

layout top/bottom

C204

R202

R301

R302

U18

U19

C201

C203

D201

D202

LED301

Q301

R201

U201

U1

U2

U3

U4

CN201

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 63TPM10.1L LA 10.

2013-May-17

back to

div.table

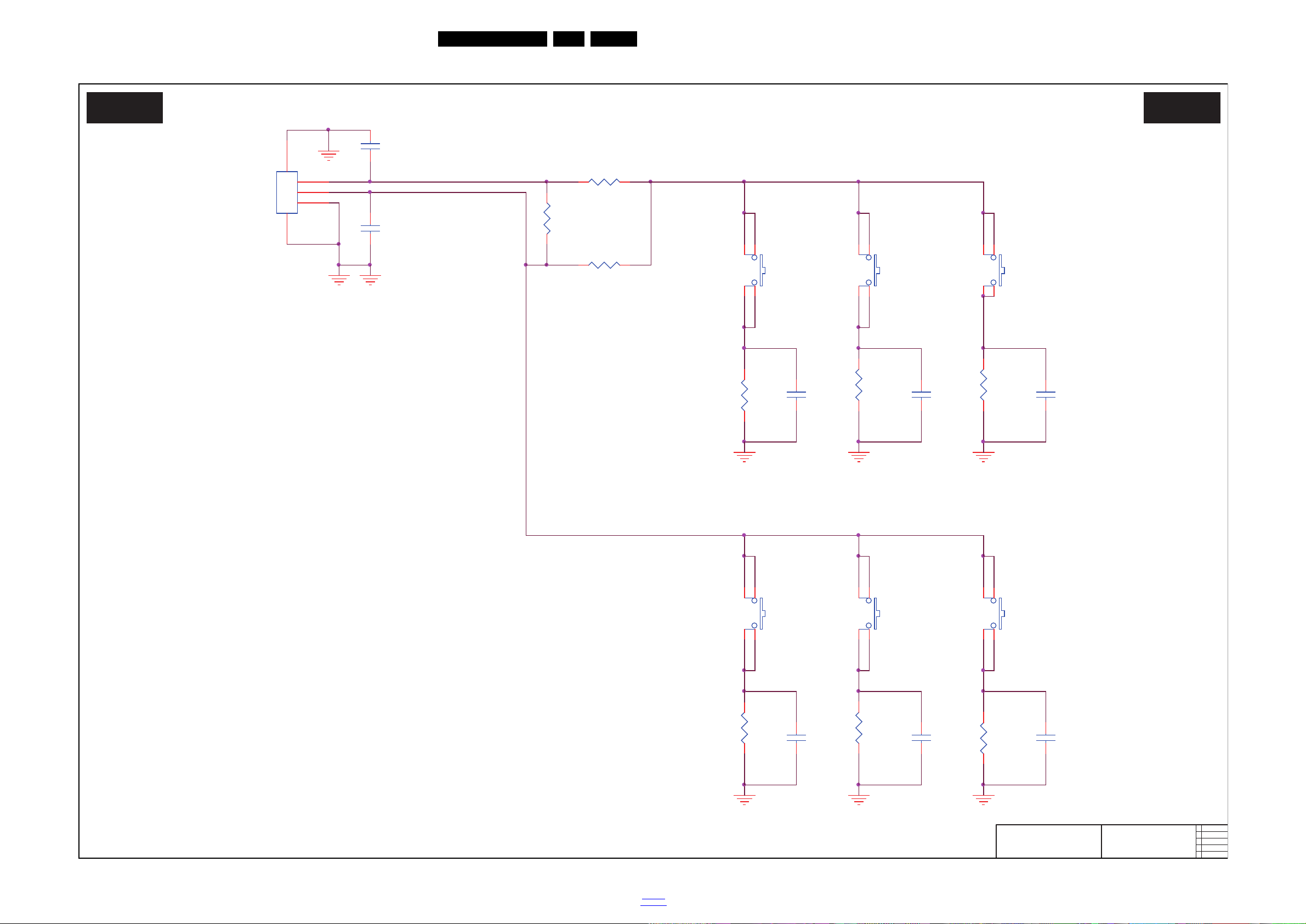

Circuit Diagrams and PWB Layouts

19430_535_130115.eps

130115

Keyboard control panel

E E

2012-07-23

C

715G5771

Keyboard control panel

----><----|

R023

0R05 1/10W

R024

NC/0R05 1/10W

SW021

TACT SW FWRD H1.5MM

KEY1

R020

470R 1/8W 1%

R021

2K2 1/8W 1%

R022

5K6 +-1% 1/8W

----><----|

KEY2

R025

NC/1K 1/10W 1%

C023

100N 50V

SW022

TACT SW FWRD H1.5MM

C016

NC/100N 50V

C017

NC/100N 50V

C018

NC/100N 50V

C019

NC/100N 50V

SW016

TACT SW FWRD H1.5MM

C020

NC/100N 50V

C021

NC/100N 50V

CN016 CONN

1 2

3

45

----><----|

SW019

TACT SW FWRD H1.5MM

----><----| ----><----|

C024 100N 50V

----><----|

SW020

TACT SW FWRD H1.5MM

----><----|

SOURCE

SW017

TACT SW FWRD H1.5MM

VOL- VOL+

CH- CH+POWER

R017

2K2 1/8W 1%

R018

5K6 +-1% 1/8W

R016

470R 1/8W 1%

10.4 E 715G5771 Keyboard control panel

10-4-1 Keyboard control panel

EN 64TPM10.1L LA 10.

2013-May-17

back to

div.table

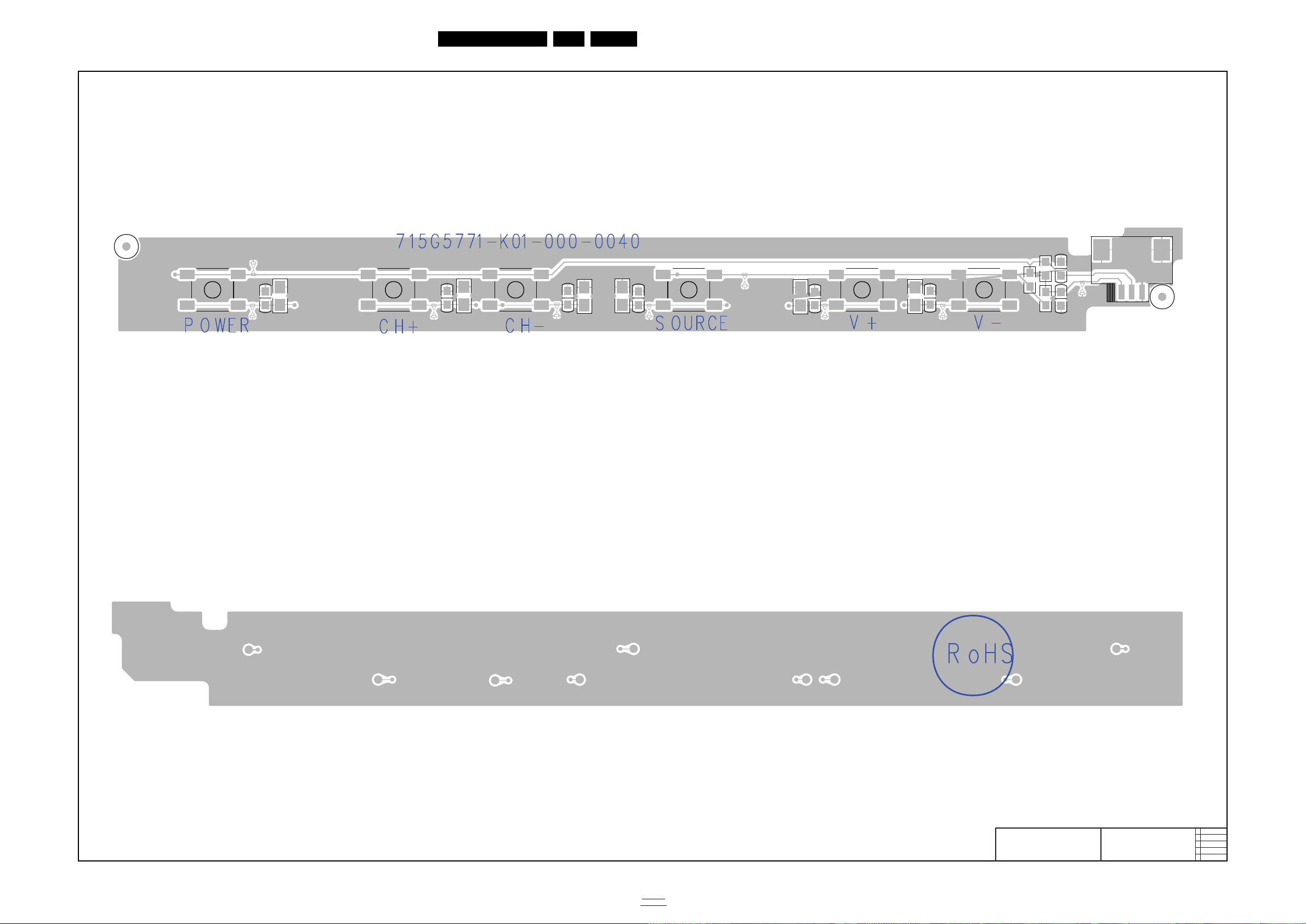

Circuit Diagrams and PWB Layouts

19430_536_130115.eps

130115

2012-07-23

C

715G5771

Keyboard control panel

layout top/bottom

C016

C017

C018

C019

C020

C021

C023C024

R016

R017

R018

R020

R021

R022

R023

R024

R025

SW11

SW12

SW13

SW14

SW15

SW16

SW17

SW18

SW20

CN016

SW016 SW017SW019 SW020SW021 SW022

SW1

SW2

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-4-2 Key board layout

EN 65TPM10.1L LA 10.

2013-May-17

back to

div.table

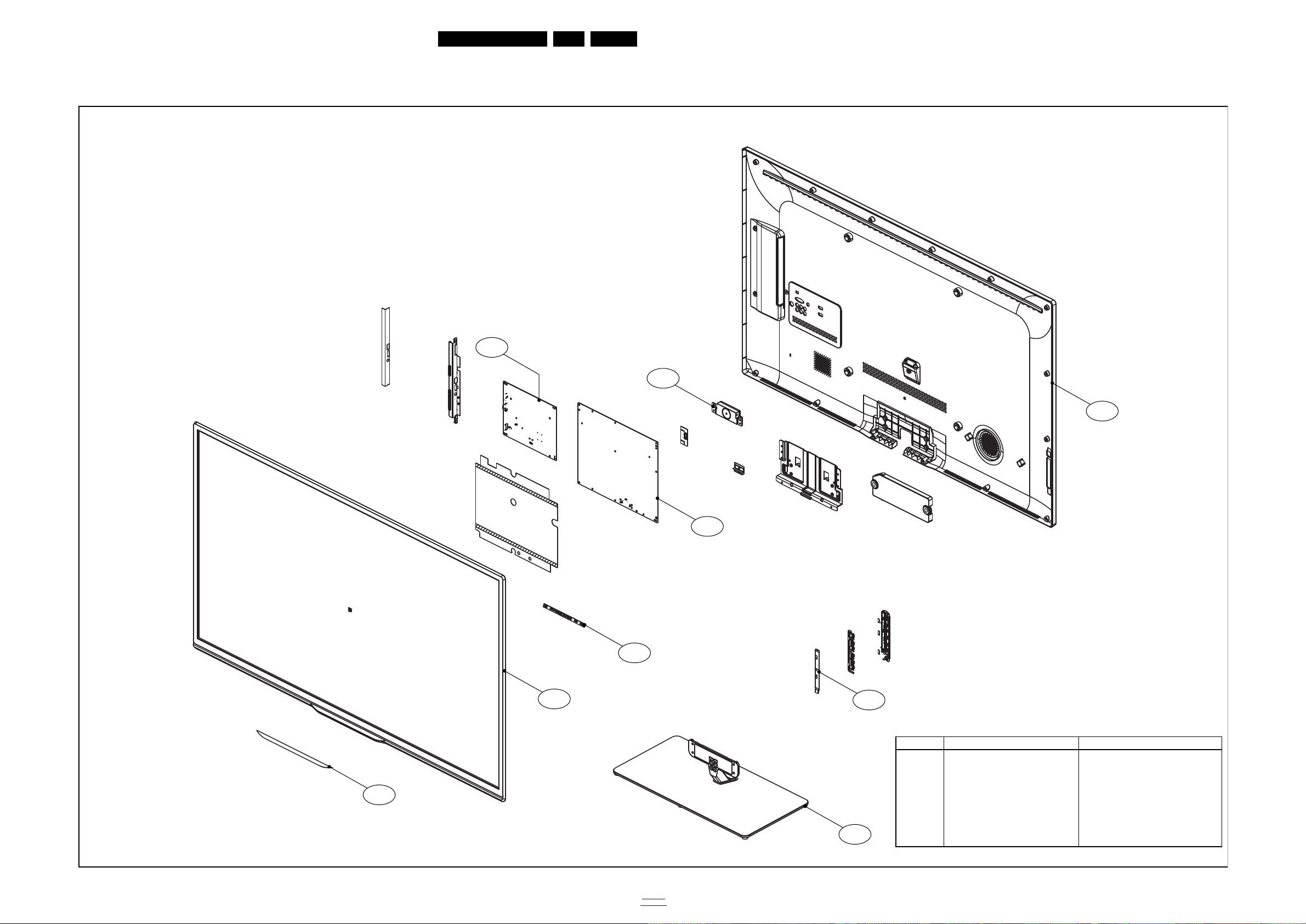

11. Styling Sheets

19480_800_130408.eps

130408

4900 series 42"-46"-50"

Pos No. Description Remarks

0032 Deco bezel 0041 Rear cover 0051 Base 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1185 Speakers

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

1053

0032

1185

1050

0051

0041

1054

1057

1056

11.1 4900 series 42"- 46"- 50"

Styling Sheets

EN 66TPM10.1L LA 11.

2013-May-17

back to

div.table

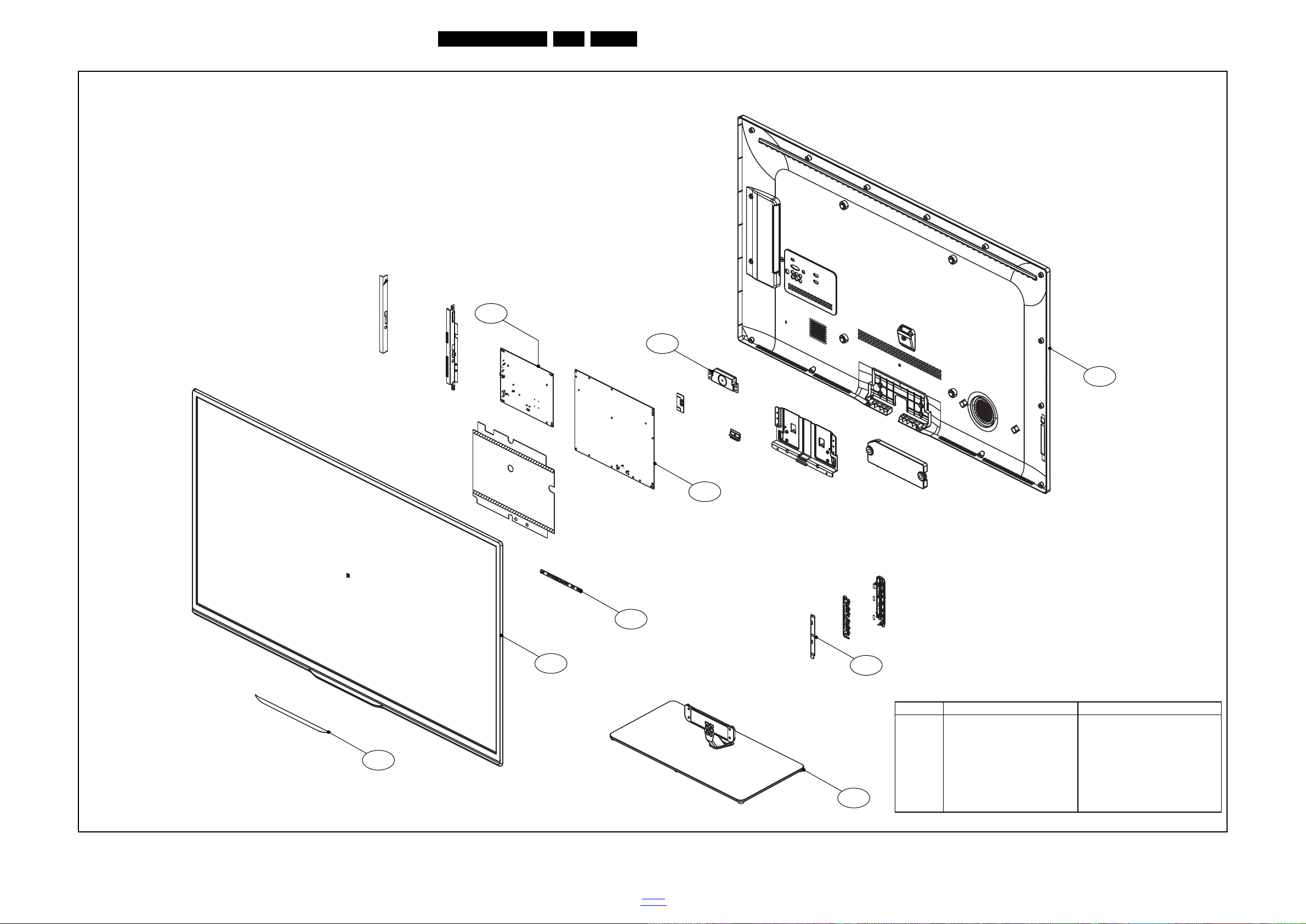

11.2 4000 series 50"

19480_801_130408.eps

130408

4000 series 50"

Pos No. Description Remarks

0032 Deco bezel 0041 Rear cover 0051 Base 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1185 Speakers

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

1053

0032

1185

1050

0051

0041

1054

1057

1056

Styling Sheets

EN 67TPM10.1L LA 11.

2013-May-17

back to

div.table
