1 Notice

Pixel characteristics
This LCD/LED product has a high number of

colour pixels. Although it has effective pixels of

99.999% or more, black dots or bright points of
light (red, green or blue) may appear constantly
on the screen. This is a structural property of
the display (within common industry standards)
and is not a malfunction.

Warranty
No components are user serviceable. Do not

open or remove covers to the inside of the
product. Repairs may only be done by Philips
Service Centres and official repair shops. Failure
to do so shall void any warranty, stated or
implied.
Any operation expressly prohibited in
this manual, any adjustments, or assembly
procedures not recommended or authorised in
this manual, shall void the warranty.

2 EN

2 Important

Read and understand all instructions before you
use your TV. If damage is caused by failure to
follow instructions, the warranty does not apply.

Safety

Risk of electric shock or fire !

Never expose the TV to rain or water.
Never place liquid containers, such as
vases, near the TV. If liquids are spilt on
or into the TV, disconnect the TV from
the power outlet immediately. Contact
Philips Consumer Care to have the TV
checked before use.
Never place the TV, remote control or .
batteries near naked flames or other heat
sources, including direct sunl ight.
To prevent the spread o f fire,keep
candles or other flames away from the
TV, remote control and batteries at all
times.

Never insert objects into the ventilation
slots or other openings on the TV.
When the TV is swiveled ensure that
no strain is exerted on the power cord.
Strain on the power cord can loosen
connections and cause arcing.

Risk of electric shock or fire !

Never expose the remote control or
batteries to rain, water or exc essive heat.
Avoid force coming on to power plugs.
Loose power plugs can cause arcing or

fire.

Risk of injury or damage to the TV !

Two people are required to lift and carry
a TV that weights more than 25 kg.

When stand mounting the TV, use only
the supplied stand. Secure the stand to
the TV tightly. Place the TV on a
surface that can support the combined
weight of the TV and the stand.
When wall mounting the TV, use only a
wall mount that can support the weight of
the TV. Secure the wall mount to a wall
that can support the combined w eight of
the TV and wall mount.

no responsibility

that result in

Risk of injury to children!
Follow these precautions to prevent the
TV from toppling over and causing injury to
children:

Never place the TV on a surface covered
by a cloth or other material that can be
pulled away.
Ensure that no part of the TV hangs over
the edge of the surface.
Never place the TV on tall furniture (such
as a bookcase) without anchoring both
the furniture and TV to the wall or a
suitable support.
Educate children about the dangers of
climbing on furniture to reach the TV.

Risk of overheating!

Never install the TV in a space.
Always leave a space of at least 4 inches
or 10 cm around the TV for ventilation.
Ensure curtains or other objects never
cover the ventilation slots on the TV.

Risk of damage to the TV!

Before you connect the TV to the power
outlet, ensure that the power voltage
matches the value printed on the back
of the TV. Never connect the TV to the
power outlet if the voltage is different.

Risk of injury, or power cord damage!

Never place the TV or any objects on the
power cord.
To disconnect the TV power cord easily
from the power outlet, ensure that you
have full access to the power cord at all
times.

accident, injury or damage.

fire

PE Electronics bears

for improper wall mounting

confined

flat

, level

EN 3

When you disconnect the power cord,
always pull the plug, never the cable.
Disconnect the TV from the power
outlet and antenna before lightning
storms. During lightning storms, never
touch any part of the TV, power cord or
antenna cable.

Risk of hearing damage!

Avoid using earphones or headphones at

high volumes or for prolonged periods of
time.

Low temperatures

If the TV is transported in temperatures
below 5
until the TV temperature matches room
temperature before connecting the TV to
the power outlet.

C, unpack the TV and wait

Screen care

Avoid stationary images as much as
possible. Stationary images are images
that remain on-screen for extended
periods of time. Examples include:
on-screen menus, black bars and time
displays. If you must use stationary
images, reduce screen contrast and
brightness to avoid screen damage.
Unplug the TV before cleaning.
Clean the TV and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the TV.

Risk of damage to the TV screen! Never
touch, push, rub or strike the screen with
any object.
To avoid deformations and colour fading,
wipe off water drops as soon as possible.

Disposal of your old product and

batteries

Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.

4 EN

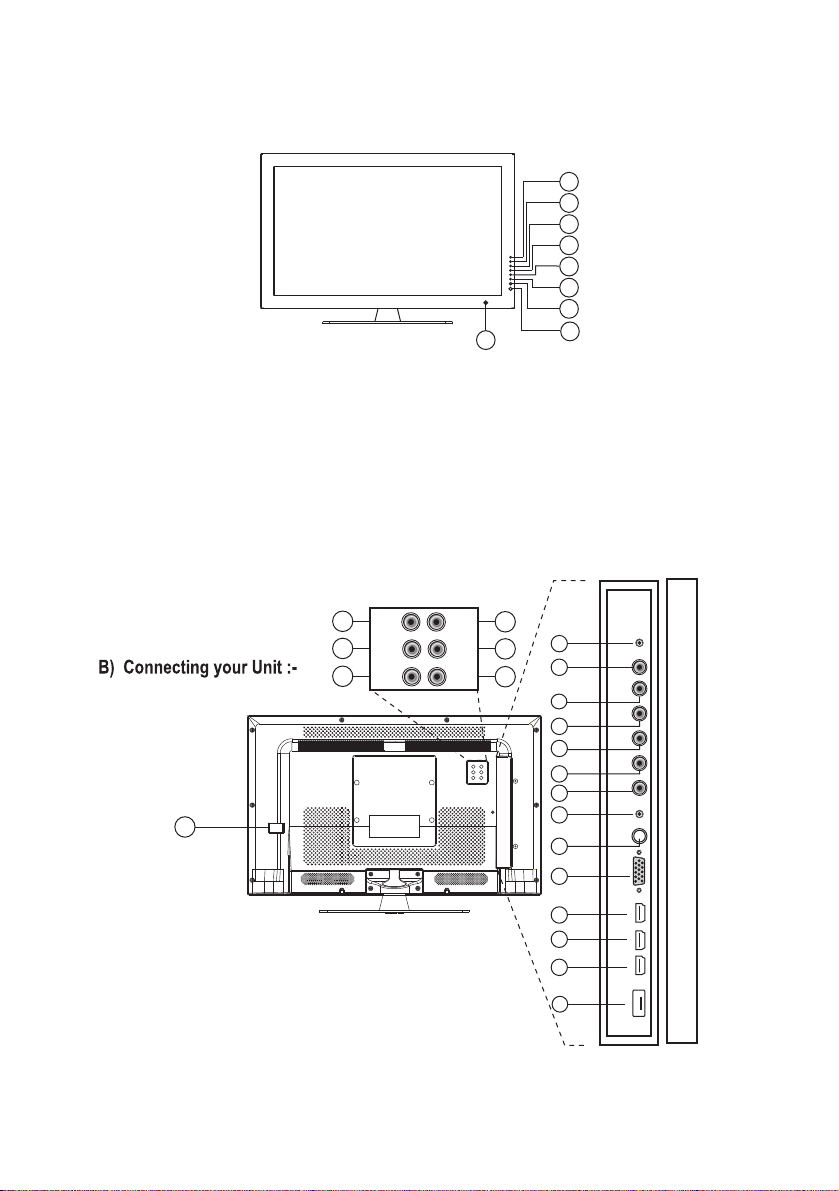

3 Antenna and External Equipment Connection

ANT IN

ANT IN

ANT IN

Y1 Pb1 Pr1 L1

YPbPr1

Av1R1

AV1

1. The aerial cable should not be bundled to the power cord.

COMPONENT (YCbCr/YPbPr) DVD INPUT

1. Connect the component outputs (YCbCr / YPbPr) of
DVD player to the component (YPbPr1 / YPbPr2) input of
the TV.

2. Connect audio outputs (L,R) of a DVD player to the
audio input (YPbPr1 / YPbPr2) respectively.

3. Press the PLAY button on the DVD player.

VIDEO INPUT

1. Connect the component outputs VIDEO out

YPbPr1

L

Av1R

AV1

of VCR/Cable receiver to AV1, AV2.

2. Connect audio outputs (L, R) of a DVD player to the
audio input AV1, AV2 respectively.

3. Press the PLAY button on the VCR.

Note : Selecting a Source

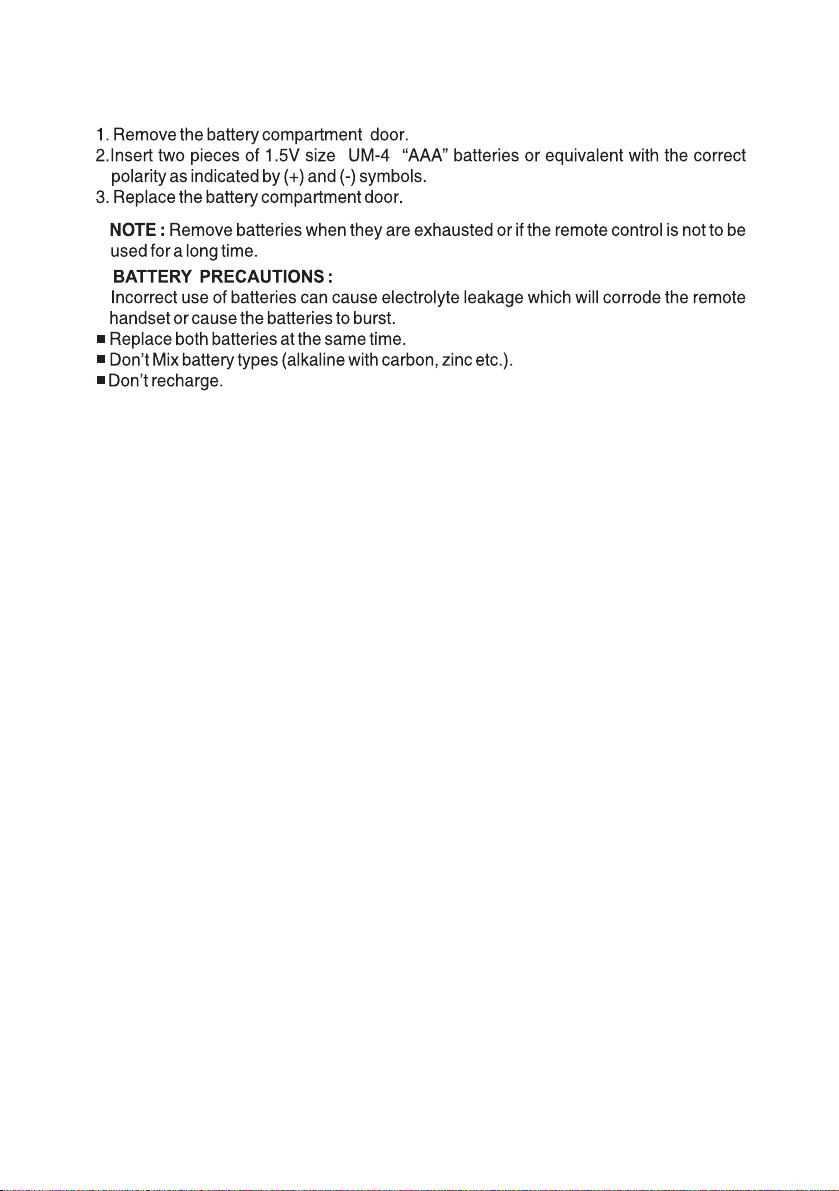

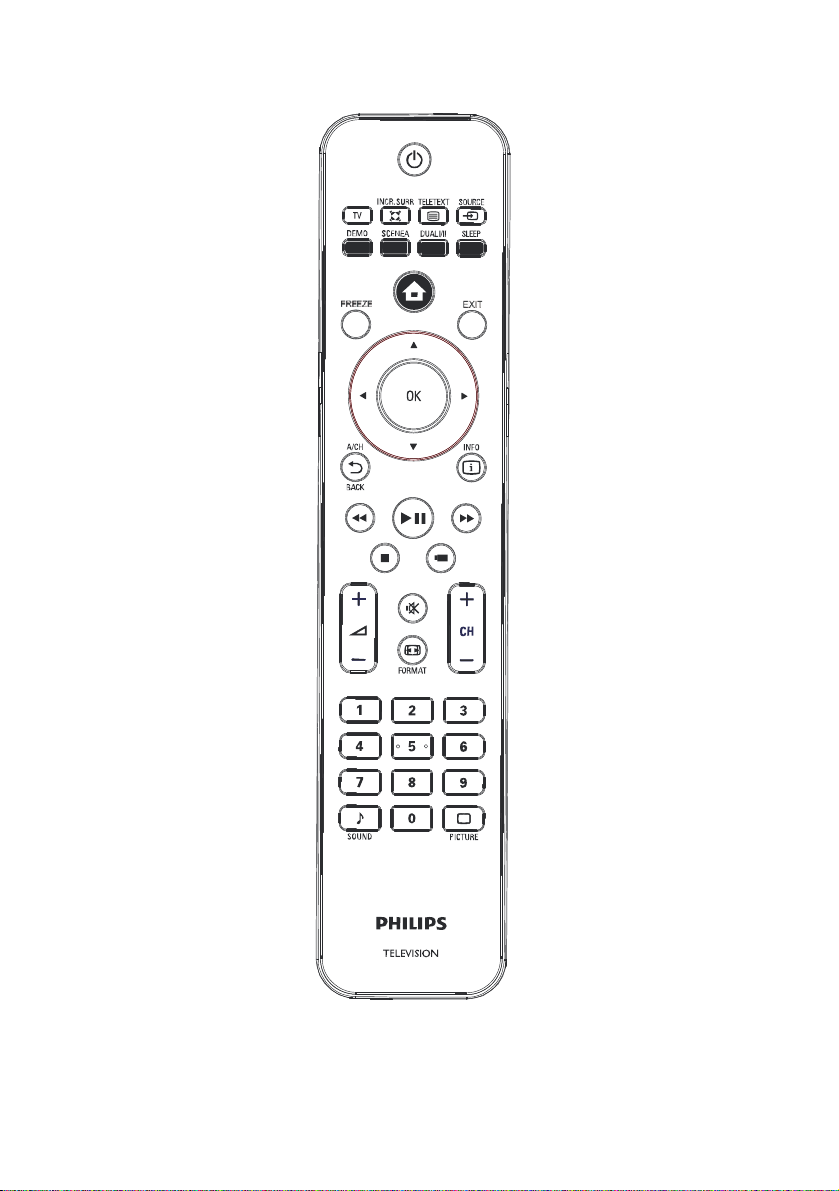

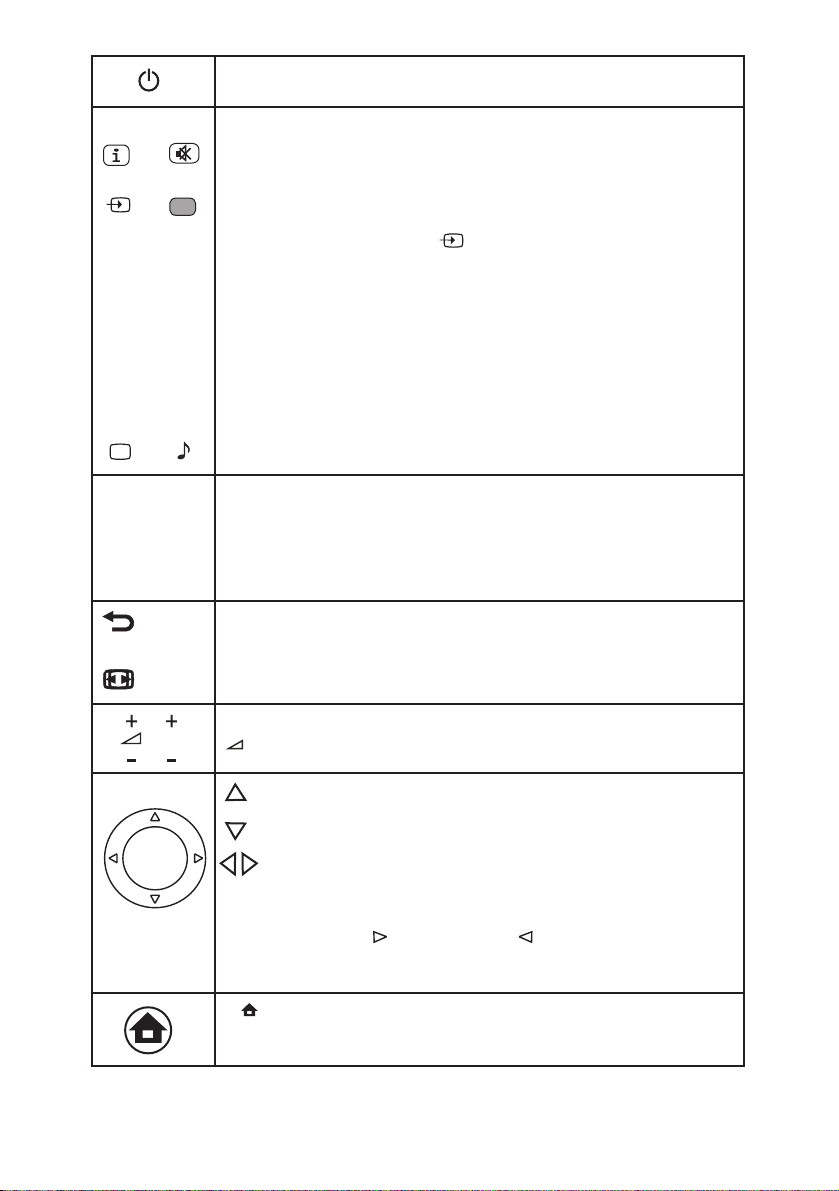

Press SOURCE key on remote or on front panel keypad.
A source OSD will appear to select a source press OK/Right key on the remote
or '+' key from front panel. Press SOURCE key repeatedly to
change and select source. Up/Down key on the remote or / on front panel
can be used to change sources.
Press TV key on the remote to enter into TV source from any other source.

EN 5

HDMI 2HDMI 3 HDMI 1

USB

HDMI 3

HDMI 2

3. Switch on the PC and PC screen appears on the set.
The set can be operated as PC monitor.

HDMI socket (HDMI1, HDMI2, HDMI3) on the TV.

MULTIMEDIA

Connect / Insert standard USB and select Multimedia
source on source OSD by pressing SOURCE key. Press
OK / Right key on remote, connected USB are
Listed, select USB with Up/Down keys and press OK to
enter in selected USB Multimedia. Similarly front panel
keys CH+/- and VOL+ can be operated as Up/Down
and OK/Right keys on remote respectively.

NOTE :

1) CH+/CH- keys on remote are represented by / on TV set.
VOL+/VOL- keys on remote are represented by +/ - on TV set.

6 EN
