PHILIPS 32PFL4208/56, 32PFL4208/98, 32PFL4208S/98, 39PFL4208/56, 39PFL4208/98 Service manual & schematics

Colour Television Chassis

TPM10.1A

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9

5. Service Modes, Error Codes, and Fault Finding 15

6. Alignments 25

7. Circuit Descriptions 27

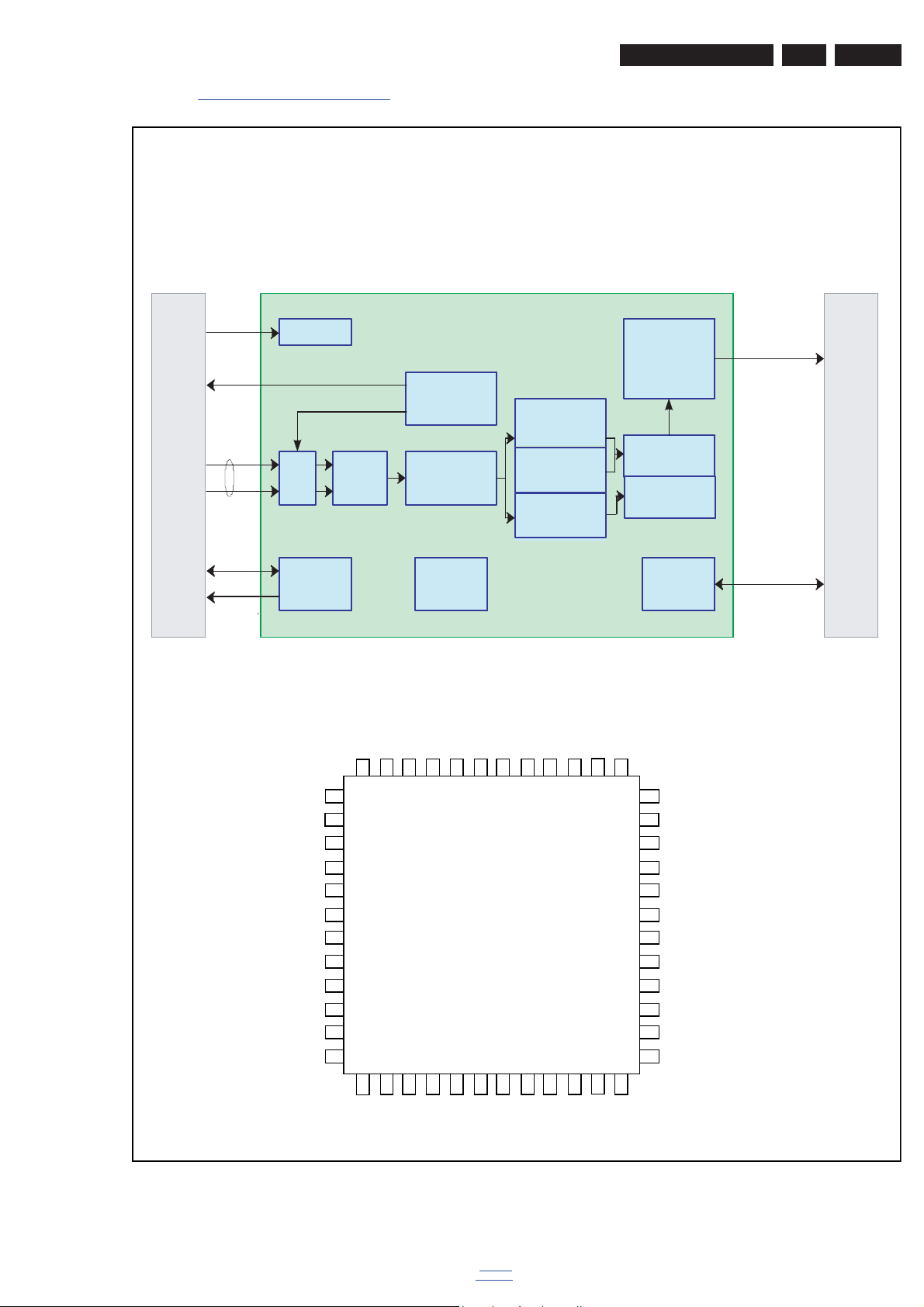

8. IC Data Sheets 32

9. Block Diagrams Wiring diagram 4208 series 32" 41 Wiring diagram 4208 series 39" 42 Wiring diagram 4208 series 42"- 46" 43 Wiring diagram 5008 series 42"- 46" - 50" 44 Block diagram 4208/5008 series 45

10. Circuit Diagrams and PWB Layouts Drawing PWB A 715G5856 PSU A 715G5193 PSU 50 52-53 A 715G5246 PSU 54 57-58 A 715G5778 PSU 59 61-62 B 715G5713 SSB 63 77-78 J 715G5471 IR/LED 3008 series 79 80 J 715G5471 IR/LED 3008 series 81 82 E 715G5925 Keyboard control panel 83 84

11. Styling Sheets 4208 series 32" 85 4208 series 39" 86 4208 series 42"- 46" 87 5008 series 42"- 46"-50" 88

46 48-49

Published by SHC/SC 1366 Quality Printed in the Netherlands Subject to modification EN 3122 785 19442

2013-Jun-14

2013©TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phil ips Electronics N.V.

EN 2 TPM10.1A LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Chapter 2: Updated table 2.1 Technical Specifications

.

• Chapter 4: Added figure 4-3 Cable dressing (42" 4208

series) and 4-4 Cable dressing (46" 4208 series)

• Chapter 5: Updated table 5-2 Factory mode overview.

• Chapter 6: Updated table 6-2 White tone default settings and 6-3 Display code overview

.

• Chapter 9: Added wire diagrams 9.3 Wiring diagram 4208

series 42"- 46".

• Chapter 10: Added circuit diagrams 10.3 A 715G5246

PSU.

• Chapter 11: Added styling sheets 11.3 4208 series 42"-

46".

Manual xxxx xxx xxxx.2

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 4: Added figure 4-5 Cable dressing (42" 5008

series) and 4-6 Cable dressing (46" 5008 series) and 4-7 Cable dressing (50" 5008 series).

• Chapter 5: Updated table 5-2 Factory mode overview

• Chapter 6: Updated table 6-2 White tone default settings and 6-3 Display code overview

• Chapter 9: Added wire diagrams 9.4 Wiring diagram 5008

series 42"- 46" - 50".

• Chapter 10: Added circuit diagrams 10.4 A 715G5778

PSUand 10.7 J 715G5330 IR/LED 5000 series

• Chapter 11: Added styling sheets 11.4 5008 series 42"-

46"-50".

2. Technical Specs, Diversity, and Connections

.

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1. Here is product information available, as well as getting started, user manuals, frequently asked questions and software &

Notes:

drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 9 10 11

Mechanics Block Diagrams Schematics

CTN

32PFL4208/56 2-1 4-1 4-8 4-9 9.1 9.5 10.1 10.5 10.6 10.8 11.1 32PFL4208/98 2-1 4-1 4-8 4-9 9.1 9.5 10.1 10.5 10.6 10.8 11.1 32PFL4208S/98 2-1 4-1 4-8 4-9 9.1 9.5 10.1 10.5 10.6 10.8 11.1 39PFL4208/56 2-1 4-2 4-8 4-9 9.2 9.5 10.2 10.5 10.6 10.8 11.2 39PFL4208/98 2-1 4-2 4-8 4-9 9.2 9.5 10.2 10.5 10.6 10.8 11.2 39PFL4208S/98 2-1 4-2 4-8 4-9 9.2 9.5 10.2 10.5 10.6 10.8 11.2 42PFL4208/56 2-1 4-3 4-8 4-9 9.3 9.5 10.3 10.5 10.6 10.8 11.3 42PFL4208/98 2-1 4-3 4-8 4-9 9.3 9.5 10.3 10.5 10.6 10.8 11.3 42PFL4208S/98 2-1 4-3 4-8 4-9 9.3 9.5 10.3 10.5 10.6 10.8 11.3 42PFL5008D/56 2-1 4-5 4-8 4-9 9.4 9.5 10.4 10.5 10.7 10.8 11.4 42PFL5008D/98 2-1 4-5 4-8 4-9 9.4 9.5 10.4 10.5 10.7 10.8 11.4 42PFL5008S/98 2-1 4-5 4-8 4-9 9.4 9.5 10.4 10.5 10.7 10.8 11.4 46PFL4208/56 2-1 4-4 4-8 4-9 9.3 9.5 10.3 10.5 10.6 10.8 11.3 46PFL4208/98 2-1 4-4 4-8 4-9 9.3 9.5 10.3 10.5 10.6 10.8 11.3 46PFL4208S/98 2-1 4-4 4-8 4-9 9.3 9.5 10.3 10.5 10.6 10.8 11.3 46PFL5008D/56 2-1 4-6 4-8 4-9 9.4 9.5 10.4 10.5 10.7 10.8 11.4 46PFL5008D/98 2-1 4-6 4-8 4-9 9.4 9.5 10.4 10.5 10.7 10.8 11.4 46PFL5008S/98 2-1 4-6 4-8 4-9 9.4 9.5 10.4 10.5 10.7 10.8 11.4 50PFL5008D/98 2-1 4-7 4-8 4-9 9.4 9.5 10.4 10.5 10.7 10.8 11.4

Connection Overview

Wire Dressing

Rear Cover Removal

SSB Removal

Wiring Diagram

Block Diagram

Power Supply

SSB

J (IR/LED)

E (Keyboard/Leading Edge)

Styling

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

2013-Jun-14

back to

div. table

2.3 Connections

HDMI

USB2

USB1

CI

NETWORK

TV ANTENNA SAT

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

SERV.U

AUDIO IN

DVI

HDMI1

ARC

HDMI 2

SCART

(RGB/CVBS)

19440_001_130310.eps

130310

1

2

3

4

5

6

7

11

910

8

12 13

14 15

Side ConnectorsRear Connectors

(optional)

10000_017_090121.eps

090428

19

1

18 2

1 2 3 4

10000_022_090121.eps

090121

Technical Specs, Diversity, and Connections

EN 3TPM10.1A LA 2.

2.3.1 Side Connections

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Common Interface

68p- See figure 10-5-14

2 - HDMI: Digital Video - In, Digital Audio - In/Out

Figure 2-2 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j

Figure 2-1 Connection overview

20 - Ground Gnd H

3 - USB2 2.0

jk

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

4 - USB1 2.0

See 3 - USB2 2.0

5 - Head phone (Output)

Bk -Head phone 80 - 600 : / 10 mW ot

2.3.2 Rear Connections

6 - SAT - In

Signal input from an SAT.

7 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

8 - Audio - In: Left / Right, VGA

Bu -Audio L/R in 0.5 V

9 - HDMI 2: Digital Video - In, Digital Audio - In/Out

See 10 - HDMI 1: Digital Video - In, Digital Audio with ARC -

In/Out

back to

div. table

Figure 2-3 USB (type A)

/ 10 k: jq

RMS

2013-Jun-14

EN 4 TPM10.1A LA2.

10000_017_090121.eps

090428

19

1

18 2

10000_025_090121.eps

120320

Technical Specs, Diversity, and Connections

10 - HDMI 1: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-4 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

11 - RJ45: Ethernet

Figure 2-5 Ethernet connector

1 -TD+ Transmit signal k 2 -TD- Transmit signal k 3 -RD+ Receive signal j 4 -CT Centre Tap: DC level fixation 5 -CT Centre Tap: DC level fixation 6 -RD- Receive signal j 7 -GND Gnd H 8 -GND Gnd H

12 - Service / UART

1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j

13 - EXT2: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V Bu -Video - Pb 0.7 V Rd -Video - Pr 0.7 V

Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

14 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75 W kq

PP

15 - EXT1: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out

20

21

10000_001_090121.eps

2

1

090121

Figure 2-6 SCART connector

1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V 4 -Ground Audio Gnd H

/ 1 k: k

RMS

/ 10 k: j

RMS

/ 1 k: k

RMS

5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue/C-out 0.7 V

/ 10 k: j

RMS

/ 75 : jk

PP

8 -Function Select 0 - 2 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j 9 -Ground Green Gnd H 10 - n.c. 11 - Video Green 0.7 V

/ 75 : j

PP

12 - n.c. 13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V 16 - Status/FBL 0 - 0.4 V: INT

/ 75 : j

PP

1 - 3 V: EXT / 75 : j 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V 21 - Shield Gnd H

/ 75 : k

PP

/ 75 : j

PP

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2013-Jun-14

back to

div. table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 S afety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M: and 12 M:.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k:).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 :).

• All capacitor values are given in micro-farads (P u10 nano-farads (n u10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

back to

div. table

-9

), or pico-farads (p u10

. Select

EN 5TPM10.1A LA 3.

-6

),

-12

).

2013-Jun-14

EN 6 TPM10.1A LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

2013-Jun-14

back to

div. table

Precautions, Notes, and Abbreviation List

EN 7TPM10.1A LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div. table

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

related to the presentation of

multimedia information, standardised

by the Multimedia and Hypermedia

Experts Group. It is commonly used as

a language to describe interactive

television services MIPS Microprocessor without Interlocked

Pipeline-Stages; A RISC-based

microprocessor MOP Matrix Output Processor MOSFET Metal Oxide Silicon Field Effect

Transistor, switching device MPEG Motion Pictures Experts Group MPIF Multi Platform InterFace MUTE MUTE Line MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV) NC Not Connected NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe. NTC Negative Temperature Coefficient,

non-linear resistor NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air) NVM Non-Volatile Memory: IC containing

TV related data such as alignments O/C Open Circuit OSD On Screen Display OAD Over the Air Download. Method of

software upgrade via RF transmission.

Upgrade software is broadcasted in

TS with TV channels. OTC O n screen display Teletext and

Control; also called Artistic (SAA5800) P50 Project 50: communication protocol

between TV and peripherals PAL Phase Alternating Line. Color system

mainly used in West Europe (colour

carrier = 4.433619 MHz) and South

America (colour carrier

PAL M = 3.575612 MHz and

PAL N = 3.582056 MHz) PCB Printed Circuit Board (same as “PWB”) PCM Pulse Code Modulation

2013-Jun-14

EN 8 TPM10.1A LA3.

Precautions, Notes, and Abbreviation List

PDP Plasma Display Panel PFC Power Factor Corrector (or

Pre-conditioner) PIP Picture In Picture PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency POD Point Of Deployment: a removable

CAM module, implementing the CA

system for a host (e.g. a TV-set) POR Power On Reset, signal to reset the uP PSDL Power Supply for Direct view LED

backlight with 2D-dimming PSL Power Supply with integrated LED

drivers PSLS Power Supply with integrated LED

drivers with added Scanning

functionality PTC Positive Temperature Coefficient,

non-linear resistor PWB Printed Wiring Board (same as “PCB”) PWM Pulse Width Modulation QRC Quasi Resonant Converter QTNR Quality Temporal Noise Reduction QVCP Quality Video Composition Processor RAM Random Access Memory RGB Red, Green, and Blue. The primary

color signals for TV. By mixing levels

of R, G, and B, all colors (Y/C) are

reproduced. RC Remote Control RC5 / RC6 Signal protocol from the remote

control receiver RESET RESET signal ROM Read Only Memory RSDS Reduced Swing Differential Signalling

data interface R-TXT Red TeleteXT SAM Service Alignment Mode S/C Short Circuit SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

SCL Serial Clock I

Téléviseurs

SCL-F CLock Signal on Fast I SD Standard Definition SDA Serial Data I SDA-F DAta Signal on Fast I

2

C

2

C bus

2

C

2

C bus SDI Serial Digital Interface, see “ITU-656” SDRAM Synchronous DRAM SECAM SEequence Couleur Avec Mémoire.

Colour system mainly used in France and East Europe. Colour carriers = 4.406250 MHz and

4.250000 MHz SIF Sound Intermediate Frequency SMPS Switched Mode Power Supply SoC System on Chip SOG Sync On Green SOPS Self Oscillating Power Supply SPI Serial Peripheral Interface bus; a

4-wire synchronous serial data link

standard S/PDIF Sony Philips Digital InterFace SRAM Static RAM SRP Service Reference Protocol SSB Small Signal Board SSC Spread Spectrum Clocking, used to

reduce the effects of EMI STB Set Top Box STBY STand-BY SVGA 800 × 600 (4:3) SVHS Super Video Home System SW Software

SWAN Spatial temporal Weighted Averaging

Noise reduction SXGA 1280 × 1024 TFT Thin Film Transistor THD Total Harmonic Distortion TMDS Transmission Minimized Differential

Signalling TS Transport Stream TXT TeleteXT TXT-DW Dual Window with TeleteXT UI User Interface uP Microprocessor UXGA 1600 × 1200 (4:3) V V-sync to the module VESA Video Electronics Standards

Association VGA 640 × 480 (4:3) VL Variable Level out: processed audio

output toward external amplifier VSB Vestigial Side Band; modulation

method WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound WXGA 1280 × 768 (15:9) XTAL Quartz crystal XGA 10 24 × 768 (4:3) Y Luminance signal Y/C Luminance (Y) and Chrominance (C)

signal YPbPr Component video. Luminance and

scaled color difference signals (B-Y

and R-Y) YUV Component video

2013-Jun-14

back to

div. table

4. Mechanical Instructions

19440_100_130304.eps

130304

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

EN 9TPM10.1A LA 4.

Figure 4-1 Cable dressing (32" 4208 series)

back to

div. table

2013-Jun-14

EN 10 TPM10.1A LA4.

19441_100_130319.eps

130319

Mechanical Instructions

Figure 4-2 Cable dressing (39" 4208 series)

19440_101_130304.eps

130304

2013-Jun-14

Figure 4-3 Cable dressing (42" 4208 series)

back to

div. table

Mechanical Instructions

19442_100_130507.eps

130507

EN 11TPM10.1A LA 4.

Figure 4-4 Cable dressing (46" 4208 series)

19441_101_130322.eps

130322

Figure 4-5 Cable dressing (42" 5008 series)

back to

div. table

2013-Jun-14

EN 12 TPM10.1A LA4.

19442_101_130507.eps

130507

19442_102_130507.eps

130507

Mechanical Instructions

Figure 4-6 Cable dressing (46" 5008 series)

2013-Jun-14

Figure 4-7 Cable dressing (50" 5008 series)

back to

div. table

Mechanical Instructions

19440_102_130310.eps

130310

1

M4 × 12

M3 × 6

1

2

2 2 2 2

2

Q3 × 8

3

EN 13TPM10.1A LA 4.

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal

Instructions below apply to the 32PFL4208/98, but will be similar for other series models.

4.3.1 Rear Cover

Refer to Figure 4-8 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2], [3], that secure the rear cover. Refer to

Figure 4-8

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

4.3.2 Small Signal Board (SSB)

Refer to Figure 4-9 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-9

for details.

Figure 4-8 Rear cover removal

back to

div. table

2013-Jun-14

EN 14 TPM10.1A LA4.

19440_103_130310.eps

130310

1

3

2

Figure 4-9 SSB removal

Mechanical Instructions

4.4 Set Re-assembly

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-8

Figure 4-9

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

.

and

4.3.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.4 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.3.5 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.3.6 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.3.7 IR/LED Panel

1. Remove the stand bracket, as described earlier.

2. Unplug the connector from the IR/LED panel.

3. Gently release the clip that holds the panel and take it out from the bezel.

When defective, replace the whole unit.

4.3.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

2013-Jun-14

back to

div. table

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. However, several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into five parts:

• Service Default Mode (SDM).

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in SDM and SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SDM, SAM, and CSM. The screen will show: “AAAAB-X.YYY”, where:

• AAAA is the chassis name: TPM1011A x.yy.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

• X is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 1 - 99 and AA - ZZ.

- If the main version number changes, the new version number is written in the NVM.

- If the main version number changes, the default settings are loaded.

• YYY is the sub version number: this is updated with a minor change (backwards compatible with the previous versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version number is written in the NVM.

- If the NVM is refreshed, the software identification, version, and cluster will also be written to NVM.

EN 15TPM10.1A LA 5.

SDM, SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• A pre-defined situation to ensure measurements can be made under uniform conditions (SDM).

• Activates the blinking LED procedure for error identification when no picture is available (SDM).

• Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).

• Display information (“SDM” or “SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

ComPair Mode is used for communication between a computer and a TV on I engineer to quickly diagnose the TV set by reading out error codes, read and write in NVMs, communicate with ICs and the micro processor (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I ComPair. To do this, ComPair has to be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

2

C /UART level and can be used by a Service

2

C with help of

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

5.2.2 Service Default Mode (SDM)

Purpose

Set the TV in SDM mode in order to be able to create a predefined setting for measurements to be made. In this platform, a simplified SDM is introduced (without protection override and without tuning to a predefined frequency).

Specifications

• Set linear video and audio settings to 50%, but volume to 25%. Stored user settings are not affected.

• All service-unfriendly modes (if present) are disabled, since they interfere with diagnosing/repairing a set. These service unfriendly modes are: – (Sleep) timer. – Blue mute/Wall paper. – Auto switch “off” (when there is no “ident” signal). – Hotel or hospital mode. – Child lock or parental lock (manual or via V-chip). – Skipping, blanking of “Not favourite”, “Skipped” or

“Locked” presets/channels.

– Automatic storing of Personal Preset or Last Status

settings.

. When the value is

back to

div. table

2013-Jun-14

EN 16 TPM10.1A LA5.

Service Modes, Error Codes, and Fault Finding

– Automatic user menu time-out (menu switches

back/OFF automatically.

– Auto Volume levelling (AVL).

How to Activate SDM

To activate SDM, use the following methods:

• Press the following key sequence on the RC transmitter: “062596”, directly followed by the “Home” button.

After activating this mode, “SDM” will appear in the upper left corner of the screen.

On Screen Menu

After activating SDM, the following items are displayed, with SDM in the upper right corner of the screen to indicate that the television is in Service Default Mode. Menu items and explanation:

• xxxx Operating hours (in decimal).

• AAAAB-X.YYY See Software Identification, Version, and

Cluster for the software name definition.

• ERR Shows all errors detected since the last time the buffer was erased in format <xxx> <xxx> <xxx> <xxx> <xxx> (five errors possible).

• OP Used to read-out the option bytes. In this chassis two times eight option codes are used.

How to Navigate

As this mode is read only, there is nothing to navigate. To switch to other modes, use one of the following methods:

• Command MENU from the user remote will exit SDM.

• To prevent the OSD from interfering with measurements in SDM, use the command “Adjust” or “Options” (“STATUS” or “INFO” for NAFTA and LATAM) from the user remote. This will switch the OSD “off” while remaining in the SDM mode. The “SDM” OSD is remains visible in the upper right corner of the screen. To exit SDM switch to “Stand-by” mode.

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the OK button to switch to SAM (do not allow the display to time out between entries while keying the sequence). Remarks: new remote

controls will not have I+ button, but an “INFO” button instead.

How to Exit SDM

• Switch the set to Stand-by, by pressing the standby button on the remote control transmitter or on the television set.

• Via a standard customer RC-transmitter: key in “00”-sequence. Note: If the TV is switched “off” by a power interrupt while in SDM, the TV will show up in the last status of SDM menu as soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO” button. Do not allow the display to time out between entries while keying the sequence.

• Or via ComPair.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour This represents the life timer. The timer counts normal operation hours, but does not

Main SW ID e.g. “TPM1013E 1.049B” See paragraph Software Identification, Version, and Cluster

ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors

OP1 e.g. “032 224 048 000 038 128 192

OP2 e.g. “159 255 127 061 235 004 000

Clear Press [OK] to clean the Error Codes

Options OP#1-OP#8 e.g. “032” Option code RGB Align Warm R Gain To align the White Tone. See

NVM editor Address Select and fill the NVM address

Upload to USB Copy Channel List to USB To upload several settings from the TV to an USB stick

immediately

Normal R Gain

Cool R Gain

Store Store the RGB value

Value Select and fill the NVM value Store Store the value in the address

Copy NVM to USB Copy Readable Info to USB Copy EDID to USB

015”

000”

G Gain B Gain

count Stand-by hours.

definition.

possible. Used to read-out the option byt es. See paragraph 6.4 Option Settings

Alignments section for a detailed description. Ten codes are possible.

Erases the contents of the error buffer. Select this menu item and press the MENU RIGHT key on the remote control. The content of the error buffer is cleared.

paragraph 6.3 Software Alignments

in the Alignments section for a detailed description

for the software name

in the

2013-Jun-14

back to

div. table

Service Modes, Error Codes, and Fault Finding

Main Menu Sub-menu 1 Sub-menu 2 Description

Download from USB Copy Channel List from USB To download several settings from the USB stick to the TV

Initialize NVM Press [OK] to Initialize NVM

Dealer Options Set Virgin mode Virgin mode:Off Set Virgin mode

Event Count Software Events 0000 0000 Software Events

Copy NVM from USB Copy Readable Info from USB Copy EDID from USB

immediately

Store Press [OK] to store virgin mode

Hardware Events 0000 0000 Hardware Events Clear Software Events Press [OK] to clear software events

Clear Hardware Events Press [OK] to clear hardware events

immediately

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

Store the virgin mode in the address

Clear Software Events

Clear Hardware Events

EN 17TPM10.1A LA 5.

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background).

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Home” button to switch to SDM (do not allow the display to time out between entries while keying the sequence).

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.4 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: from the “Home screen” press “1999”, directly followed by the “Back” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, the following items are displayed,

Table 5-2 Factory mode overview

Default value

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture, BLDimming, Source Meter,

1 PANEL_ID See table 6-3 Display code overview

2 TUNER_ID 130 Displays and changes the Tuner ID with the left and right cur sor. Not to be ch anged wh en the tun er is

3DEMOD_TYPE 3 11333Choose demod type. 4 ERR Code: xxx xxx xxx xxx xxx 000 000 000 000 000 Values showing the last 5 errors during the last 50 hours of operation, according to table 5-4 Error code

5 CLEAR ERROR BUFFER Press OK Selecting this clear all current error codes. 6 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the data to the correct NVM address 7 NVM VALUE various Displays the value at the NVM address of item 5 8 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5 9 NVM COPY TV to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB memory stick. The TV

10 NVM READ USB to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The TV will save the two files

Description32" 39" 42" 46" 50"

the Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, the MTK, MCU and OAD software versions.

Displays and changes the Panel ID with the left and right cursor; be careful changing this, it can result in not correct displaying the screen!

replaced with the correct service part.

table

will write two files in the REPAIR folder of the memory stick. It will create this folder if it does not exist. The items are “Channel list”, “Personal settings”, “Option codes”, “Display-related alignments” and “History list”. In case the download to the USB stick was not successful “Failure” will appear. In this case, check if the USB stick is connected properly. Now the settin gs are stored onto the USB sti ck and can be used to download onto another TV or other SSB. Uploading is of course only possible if the software is running and if a picture is available. This method is created to be able to save the customer’s TV settings and to store them into another SSB.

which were created in item 8 to the NVM of the set. Use these options when replacing a SSB. When “USB to TV Success” is displayed remove the power and restart the TV

back to

div. table

2013-Jun-14

EN 18 TPM10.1A LA5.

Default value

Item Item value

11 RESET_PBS_PWD Press OK Use this to reset the Child Lock 12 DIM_LIB RESET Press OK Reset the Dimming 13 SRC_METER RESET Press OK Reset the Source meter 14 AMBLIGHT RESET Press OK Reset Ambilight 15 ACFG RESET P ress OK Reset ACFG 16 CIPL US QUERY Press OK Shows the Validity of the CI+ key and the supplier information 17 CIPLUS UPDATE Press OK Used to enter a new CI+ code into the NVM. This can only be used when no CI+ code exists in the NVM 18 EDID UPDATE Press OK Used to enter a new EDID codes into the NVM 19 TEST PATTERN Press OK With the “left” and “right” keys of the remote control various test patterns can be chosen 20 VIRGIN_MODE Off Use this to return the set to virgin mode. Depends whether the set has been used already. 21 E-Fuse On E-fuse mode 22 ORT_MODE Off ORT mode 23 VGA_UART_SWITCH Off When switched “on” the VGA port can be used for UART logging. 24 DRM WARI On Use this to return the set to virgin mode. Depends whether the set has been used already. 25 AGEING_MODE Off Ageing mode 26 CLR_TEMP_R 128 128 128 99 128 Red c olour temperature setting 27 CLR_TEMP_G 128 128 128 109 128 Green colour temperature setting 28 CLR_TEMP_B 128 Red colour temperature setting 29 AUTO_COLOR Press OK PC: any pattern that has black and white, YPbPr: SMPTE bar (colour bar), any timing. 30 ADC_GAIN_R 0 Red ADC gain 31 ADC_GAIN_G 0 Green ADC gain 32 ADC_GAIN_B 0 Blue ADC gain 33 ADC_OFFSET_R 128 Red ADC offset 34 ADC_OFFSET_G 128 Green ADC offset 35 ADC_OFFSET_B 128 Blue ADC offset 36 YPBPR_PHASE InValid Not available for this chassis 37 AUD_GAIN_LINEIN 0 Line-in audio gain 38 AUD_GAIN_HDMI 0 HDMI audio gain 39 AUD_GAIN_ATV 0 Analogue TV audio gain 40 AUD_GAIN_DTV 0 Digital TV audio gain 41 AUD_GAIN_USB 0 USB audio gain 42 AQ_ INDEX 11 Audio Quality index 43 AUDIO TEST MODE Off Used for audio testing during production 44 AUDIO CHANNEL TYPE 2.0 Defines the installed speaker system 45 DUMP PQ FROM TV Press OK Saves the picture quality data to a file “pq.bin” to the root of a FAT formatted USB memory stick 46 LOAD PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV 47 DUMP AQ FROM TV Press OK Saves the audio quality data to a file “AQ.bin” to the root of a FAT formatted USB memory stick 48 LOAD AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 49 FEF CHECK Off FEF Check 50 PANEL FLIP On On On On Off Flip panel 51 VGA_SOURCE Off Enable/Disable VGA source 52 HDMI2 On Enable/Disable HDMI2 source 53 HDMISIDE On Enable/Disable HDM I3 source 54 LIGHT SENEOR Off Light sensor 55 RESET_OPTION_CODE Press OK Reset Option Code 56 AMBILIGHT Off Off Off Off On Ambilight on/off 57 AMBILIGHT_DRIVER AMS Choose Ambilight driver type 58 3D Off Off Off Off On 3D on/off 59 EXIT_FACTORY Press OK Exits the Factory mode

Service Modes, Error Codes, and Fault Finding

Description32" 39" 42" 46" 50"

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK” button.

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.5 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TVs operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

2013-Jun-14

back to

div. table

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

Service Modes, Error Codes, and Fault Finding

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first installation of the TV. This date is acquired via time extraction.

• 1.4 Option Code 1 Gives the option codes of option group 1 as set in SAM.

• 1.5 Option Code 2 Gives the option codes of option group 2 as set in SAM.

• 1.6 SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 1.7 Display 12NC NVM read/write.

• 1.8 PSU 12NC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

• 2.3 Panel Code Displays the Display Code number.

• 2.4 NVM version Detects and displays NVM version.

• 2.5 Error Codes Detects and displays errors.

• 3.1 Signal Quality Analog/digital signal strength.

• 3.2 Child lock Not active/active. This is a combined item

for locks. If any lock (channel lock, parental lock) is active, it is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or

HDCP keys). In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.

• 3.4 Ethernet MAC address A Media Access Control

address (MAC address) is a unique identifier assigned to network interfaces for communications on the physical network segment.

• 3.5 Wireless MAC address Wireless Media Access

Control address.

EN 19TPM10.1A LA 5.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control

transmitter.

• Press the POWER button on the remote control

transmitter.

• Press the POWER button on the television set.

back to

div. table

2013-Jun-14

EN 20 TPM10.1A LA5.

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

SemiStandby

Standby

Switch Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in Standby/SemiStandby (Mains Power Plug)

Standby Soft Mode Command Received (Power tact switch)

Switch Off (Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC Standby key)

Standby Soft Mode Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tactswitch)

Standby Soft Mode Command Received, (Power tactswitch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

5.3 Stepwise Start-up

Service Modes, Error Codes, and Fault Finding

2013-Jun-14

Figure 5-1 Stepwise Start-up

back to

div. table

Service Modes, Error Codes, and Fault Finding

10000_036_090121.eps

091118

TO

UART SERVICE

CONNECTOR

TO

UART SERVICE

CONNECTOR

TO

I2C SERVICE

CONNECTOR

TO TV

PC

HDMI I

2

C only

Optional power

5V DC

ComPair II Developed by Philips Brugge

RC out

RC in

Optional

Switch

Power ModeLink/

Activity

I

2

C

ComPair II

Multi

function

RS232 /UART

EN 21TPM10.1A LA 5.

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to

repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore

capable of accurately indicating problem areas. No knowledge on I because ComPair takes care of this.

3. ComPair speeds up the repair time since it can

automatically communicate with the chassis (when the micro processor is working) and all repair information is directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s). The ComPair fault finding program is able to determine the problem of the defective television, by a combination of automatic diagnostics and an interactive question/answer procedure.

How to Connect

This is described in the chassis fault finding database in ComPair.

2

C or UART commands is necessary,

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

web site.

, it is

Figure 5-2 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs can be blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair UART interface cable for TPM10.1x xx. (using DB9 to 2mm pitch JST connector): 3122 785 90630.

Note: When you encounter problems, contact your local support desk.

5.5.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy it to the root directory of the USB flash drive.

5.5.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-3 Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-3

5. To proceed, In next menu select [Start] and press OK to start software updates. See Figure 5-4

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash drive, then select [Restart] and press OK to restart the TV.See Figure 5-5

back to

div. table

.

2013-Jun-14

EN 22 TPM10.1A LA5.

19080_207_110324.eps

110324

Figure 5-3 Update the TV software [1/3]

Figure 5-4 Update the TV software [2/3]

Service Modes, Error Codes, and Fault Finding

• FUS_clustername_version.zip: Contains the “autorun.upg” which is needed to upgrade the TV main software and the software download application.

• NVM_clustername_version.zip: Default NVM content. Must be programmed via ComPair.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode Factory Mode Used for extended alignments SDM Service default Mode

19080_208_110324.eps

110324

CSM 3-page compact CSM pages. There will be CSM dump to

USB SW upgradeable SW-upgrading of flash memories MTK- chips MT5366 can

NVM-Editor in SAM NVM-editor will function as in the past: Ad dress and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC sequence “062598” + “Menu” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

be done via USB. The main SW can be upgraded via Autorun.upg

field is a decimal value via digit entry

programming with virtual keyboard Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

“Panel code”

19080_209_110324.eps

Figure 5-5 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

5.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs. See ComPair for further instructions.

110324

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:

• Activated (SW) protection.

•Failing I

• General I The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED or via ComPair). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

5.6.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/SDM/CSM (if you have a picture).

2

C device.

2

C error.

Example: – ERROR: 000 000 000 000 000: No errors detected – ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

2013-Jun-14

back to

div. table

Service Modes, Error Codes, and Fault Finding

EN 23TPM10.1A LA 5.

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected (newest) error

• Via the blinking LED procedure (when you have no picture). See paragraph 5.7 The Blinking LED Procedure

•Via ComPair.

5.6.3 Error codes

In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking when CSM is activated. Only the following layer 2 errors are defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I 16 +12 V missing or low, PSU defective 27 Channel decoder er ror on the SSB 34 Tuner I 35 EEPROM I

2

C bus error on the SSB

2

C bus error on the SSB

2

C error on SSB, M24C64

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

.

• Before any fault finding actions, check if the correct options are set.

5.8.1 NVM Editor

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.8.2 Load Default NVM Values

It is possible to upload the default values to the NVM with ComPair in case the SW is changed, the NVM is replaced with a new (empty) one, or when the NVM content is corrupted. After replacing an EEPROM (or with a defective/no EEPROM), default settings should be used to enable the set to start-up and allow the Service Default Mode and Service Alignment Mode to be accessed.

5.8.3 No Picture

Note: If you exit SAM by disconnecting the mains from the

television set, the error buffer is not reset.

5.7 The Blinking LED Procedure

5.7.1 Introduction

The software is capable of identifying different kinds of errors. Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly. Errors can also be displayed by the blinking LED procedure. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is repeated. Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color. Example (2): the content of the error buffer is “12 9 6 0 0” After entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.7.2 Displaying the Entire Error Buffer

When you have no picture, first make sure you have entered the correct display code. See paragraph 6.4 Option Settings the instructions. See also Table 6-3

.

5.8.4 Unstable Picture via HDMI input

Check (via ComPair or factory mode) if HDMI EDID data is properly programmed.

5.8.5 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.8.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.8.7 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class D-IC could break down in short time.

5.8.8 CSM

When CSM is activated and there is a USB memory stick connected to the TV, the software will dump the complete CSM content to the USB memory stick. The file (Csm.txt) will be saved in the root of the USB memory stick.

for

Additionally, the entire error buffer is displayed when Service Mode “SDM” is entered.

5.8.9 Loudspeakers

back to

div. table

Make sure that the volume is set to minimum during disconnecting the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

2013-Jun-14

EN 24 TPM10.1A LA5.

5.8.10 Display option code

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

Service Modes, Error Codes, and Fault Finding

2013-Jun-14

back to

div. table

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 M:, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform alignments.

, 50/ 60 r 3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color analyser (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x, y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx: r 0.003, dy: r 0.003.

• Repeat this step for the other colour Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values

Value Cool (12000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313 y 0.282 0.296 0.329

EN 25TPM10.1A LA 6.

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus. The alignments are explained below. The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off Dynamic Contrast Off Color Enhancement Off Picture Format Unscaled Light Sensor Off Brightness 50 Color 0 Contrast 100

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

If you do not have a colour analyser, you can use the default values. This is the next best solution. The default values are average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according to the values in Table 6-2

.

• When finished press OK on the RC, then press STORE to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (900 0K) 32PFL4208 128 118 121

39PFL4208 128 127 113 42PFL4208 128 120 123 42PFL5008 128 121 120 46PFL4208 99 109 128 46PFL5008 128 117 110 50PFL5008 128 114 97

Cool (11000K) 32PFL4208 118 114 128

39PFL4208 117 128 128 42PFL4208 128 113 103 42PFL5008 118 117 128 46PFL4208 116 120 128 46PFL5008 128 125 127 50PFL5008 128 121 117

Warm (6500K) 32PFL4208 128 104 82

39PFL4208 128 112 71 42PFL4208 128 94 61 42PFL5008 128 104 75 46PFL4208 128 121 99 46PFL5008 128 110 66 50PFL5008 128 101 58

Colour temperature

Red Green Blue

This group setting of colour temperature will be applied automatically to the TV / VGA / HDMI / AV sources.

back to

div. table

2013-Jun-14

EN 26 TPM10.1A LA6.

Alignments

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these MT5366 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK button on the RC before the cursor is moved to the left, select STORE and press OK on the RC.

• The new option setting is only active after the TV is switched “off” / “stand-by” and “on” again with the mains switch (the NVM is then read again).

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could be edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 Code, restart the set immediately.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

32PFL4208 TPT315B5-A041 208 39PFL4208 TPT390J1-HJ1L02 209 42PFL4208 TPT420H2-HVN01 210 42PFL5008 TPT420H2-HVD02 173 46PFL4208 TPT460H1-HM01 213 46PFL5008 TPT460H1-HVD02 211 50PFL5008 TPT500J1-HVD02 212

. After resetting the Display

6.5.1 Reset of Repaired SSB

Instruction:

After NVM replacement, reload MAC address via SAM

2

C

menu.This ensures the correct MAC address to be available in CSM for future repair actions.

Way of working:

• After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> .

• Select the item and press <OK> on the RC.

Notes:

• Only applicable to all related models that are “Smart TV level 0”enabled (only YouTube access). For models

without internet connection feature, no action is needed.

• HDCP keys are located in the NVM. If you are loading NVM with the ComPair tool, there is warning message displayed.

New NVM EEPROMs are shipped with pre-loaded HDCP keys.

6.5.2 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes match the replacement panel.

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. A repaired SSB in Service should get the service Set type “00PF0000000000” and Production code “00000000000000”. Also the virgin bit is to be set. To set all this, you can use the ComPair tool or use the “NVM editor” and “Dealer options” items in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set(set repair on board level), the type number (CTN) and production code of the TV has to be set according to the type plate of the set. For this, you can use the NVM editor in SAM. The loading of the CTN and production code can also be done via ComPair (Model number programming).

In case of a display replacement, reset the “Operation hours display” to “0”, or to the operation hours of the replacement display.

2013-Jun-14

back to

div. table

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC converters

7.4 Front-End Analogue and DVB-T, DVB-C ; ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MTK5580MPOI

Notes:

•Only new circuits(circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPM10.1A LA is a new chassis launched in Europe in

2013. The whole range is covered by MT5580. The major delta versus its predecessor ATV with also multi-media, CEC, DLNA, Smart TV, Skype, WIFI functionality.

The TPM10.1A LA chassis comes with the following stylings:

• series xxPFL4200

• series xxPFL500x

7.1.1 Implementation

Key components of this chassis are:

• MT5580MPOI PBGA-511 TV Processor

• TDSY-G230D EUROP Tuner for H /T series (DVB-T/C, T2 analogue)

• GL850G-OHG for USB HUB

• STA381BWTR 20W VQFN-48 for AUDIO Amplifier

• IC G5250M1T1U 1A SOT23-5 for Wi-Fi Power Control

7.1.2 TPM10.1A LA Architecture Overview

For details about the chassis block diagrams refer to

9. Block Diagrams

Figure 7-1

. An overview architecture can be found in

.

EN 27TPM10.1A LA 7.

back to

div. table

2013-Jun-14

EN 28 TPM10.1A LA7.

19440_200_130311.eps

130311

AUDIO AMP

MT5580

DDR

HDMI

TUNER

DC/DC

USB

Headphone

NETWORK

SERVICE CONNECTOR

ANALOG I/O

7.1.3 SSB Cell Layout

Circuit Descriptions

Figure 7-1 SSB layout cells (top view)

2013-Jun-14

back to

div. table

7.2 Power Supply

19441_200_130325.eps

130325

Display power

Platform MTK5580

PFC

Platform power

1 power- PCB

LVDS AMP

Low stby power

Ac-input + Mains filter

BL-ON/OFF

AC IN

CN801 for 715G5856

CN901 for 715G5246

CN8501 for 715G5193

CN9901 for 715G5193

CN8502 for 715G5246

DIM

24V

12V

5V

CN700

AMP

24V

Refer to figure Figure 7-2 for the power architecture of this platform.

Circuit Descriptions

EN 29TPM10.1A LA 7.

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective, a new panel must be ordered and the defective one must be returned, unless the main fuse of the panel is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the panels.

Important delta’s with the AP TPM10.1A series platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

The output voltages to the chassis are:

• +3V3-STANDBY (Stand-by mode only)

• +12V (on-mode)

• +Vsnd (+24V) (audio power) (on-mode)

• +24V (bolt-on power) (on-mode)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

Figure 7-2 Power Architecture

7.2.2 Diversity

The diversity in power supply units is mainly determined by the diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers. PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a PowerSupply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

Table 7-1 Connector overview

Number CN8501 CN902 CN801 CN9101 Descriptio

n to panel to SSB to panel to SSB Pin 12 13 12 13

1 LED-S n.c. VLED+ n.c. 2n.c.5Vn.c.+5.2V 3LED-15VLED5+5.2V 4 LED-2 PS_ON LED3 PS_ON 5 LED-3 +24V LED1 +24V 6n.c.+24Vn.c.+24V 7 n.c. GND n.c. GND

Connector

back to

div. table

2013-Jun-14

EN 30 TPM10.1A LA7.

19430_202_130130.eps

130130

LDO

U701

MAIN CHIP

MT5580

DDR*3

NT5CB256 M8GN- D1

USB PWR

+5V_SW

BUCK CONVERTER

POWER SWITCH

DDR 1V5

+5VSB

TDQS-A901F

TU101

TDSY-G230D

TU102

3V3-TUNER

P24V

DV15_DDR

PCMCIA CARD

U4100 GL850G-OHG

+5V_SW

DV15_DDR

LDO

U102

CI CARD PWR

CI2_VCC

STB_PWR5V

DV33 & AV33

AVDD3V3

U703

+5V_SW

DV33

MT5136AN

U103

DV3V3

MAIN CHIP

MT5580

U702

MT5580

PVDD

FB753

FB752

AMP STA381BWTR

P12V

PANEL_VCC+5V_SW

AON4421

Q750

Q702

IF

X

IF_AGC is no use

RF_AGC

MTK5580

IF_AGC

TDSY-G230D

I2C

I

2

C

19430_203_130129.eps

130129

Circuit Descriptions

Connector Number CN8501 CN902 CN801 CN9101 Descriptio

n to panel to SSB to panel to SSB Pin 12 131213

8 LED-4 GND LED2 GND 9 LED-5 GND LED4 GND 10 LED-6 +12V LED6 +12V 11 n.c. +12V n.c. +12V 12 LED-S DIM VLED+ DIM 13 - ON/OFF - ON/OFF

7.3 DC/DC converters

The on-board DC/DC converters deliver the following voltages (depending on set execution):

• +5V-STANDBY, permanent voltage for the Stand-by controller, LED/IR receiver and controls

• +12V, input from the power supply for the panel common (active mode)

• +24V, input from the power supply for audio amplifier

• +1V2, core voltage supply for MT5580

• +1V5, supply voltage for DDR2 (diagram B03B)

• +3V3, general supply voltage

• +5V, supply voltage for USB and CAM

• +3V3-TUN, supply voltage for tuner

• +5V-USB, input intermediate supply voltage for USB

• +3V3 from the power supply for the scaler IC MT5580

Figures gives a graphical representation of the DC/DC converters with its current consumptions:

Figure 7-3 DC/DC converters

7.4 Front-End Analogue and DVB-T, DVB-C ; ISDB-T reception

7.4.1 Front-End Analogue part

The Front-End for Analogue tuner consist of the following key components:

• TUNER DVB-T/T2/C, PAL/SECAM TDSY-G230D

• MT5580MPOI PBGA-511

Below find a block diagram of the front-end application for analogue part.

7.4.2 DVB-T/C DTV The Front-End for DVB-T/C DTV consist of the following key

2013-Jun-14

back to

div. table

Figure 7-4 Front-End DVB-T/C DTV block diagram

components:

Circuit Descriptions

IF

TS DATA

X

RF_AGC

MTK5580

T2 demod

MT5136AN

IF_AGC

TDSY-G230D

I2C

I

2

C

19430_204_130129.eps

130129

19430_206_130129.eps

130129

MT5580

HDMI1

HDMI2

HDMI SIDE

U504

U507

U509

BRX

ARX

CRX

EN 31TPM10.1A LA 7.

• TUNER DVB-T/T2/C, PAL/SECAM TDSY-G230D

• MT5580MPOI PBGA-511

Below find a block diagram of the front-end application for DVB-T/C DTV.

Figure 7-5 Front-End DVB-T2 DTV block diagram

7.5 HDMI

Refer to figure 7-6 HDMI input configuration for the application.

• Security for customers own code/settings (secure flash).

The MTK5580MPOI combines front-end video processing functions, such as DVB-T channel decoding, MPEG-2/H.264 decoding, analog video decode and HDMI reception, with advanced back-end video picture improvements. High flat panel screen resolutions and refresh rates are supported with formats including 1366 × 768 @ 60Hz and 1920 × 1080 @ 60Hz. The combination of Ethernet, CI+ and H.264 supports new TV experiences with IPTV and VOD. On top of that, optional support is available for 2D dimming in combination with LED backlights for optimum contrast and power savings up to 50%.

For a functional diagram of the MTK5580MPOI, refer to Figure 8-3

.

Figure 7-6 HDMI input configuration

The following HDMI connector can be used:

• HDMI 1: HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input/ARC

• HDMI 2: HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input

• HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input

• +5V detection mechanism

• Stable clock detection mechanism

• Integrated EDID

•HPD control

• Sync detection

• TMDS output control

•CEC control

7.6 Video and Audio Processing - MTK5580MPOI

The MTK5580MPOI is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

• Multi-standard digital video decoder (MPEG-2, H.264, MPEG-4)

• Integrated DVB-T/DVB-C/DVB-S channel decoder

• Integrated CI+

• Integrated motion accurate picture processing

• High definition ME/MC

• Extended colour gamut and colour booster

• Integrated USB2.0 host controller

• Improved MPEG artefact reduction

back to

div. table

2013-Jun-14

EN 32 TPM10.1A LA8.

19430_300_130116.eps

130116

Block diagram

Pinning information

DGRWP

TOOB

PH

TR

NE

DNGA

VIN

ESNESV

PMOC

15 14 13

GND

12

11

10

9

8

765

16

GND

VIN

NIV

PH

1

2

3

4

SS/TR

TPS54519

ERROR

AMPLIFIER

Boot

Charge

Boot

UVLO

Current Sense

Oscillator

Frequency

Shift

Slope

Compensation

PWM

Comparator

Minimum

COMP Clamp

Maximum

Clamp

Voltage

Reference

Overload Recovery

VSENSE

SS/TR

COMP

RT

PH

BOOT

VIN

AGND

Thermal

Shutdown

EN

Enable

Comparator

Shutdown

Logic

Shutdown

Enable

Threshold

Logic

Shutdo

wn

PWRGD

THERMALPAD

GND

Logic

Shutdown

107%

93%

Logic and PWM

Latch

i

1

i

hys

TPS54519

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

8.1 Diagram 10-5-1 System Power 1, B01,TPS54519RTE (IC U702)

Figure 8-1 Internal block diagram and pin configuration

2013-Jun-14

back to

div. table

8.2 Diagram 10-5-2 System Power 2, B02,LNBH25PQR (IC U751)

19430_301_130116.eps

130116

Block diagram

Pinning information

LNBH25

GND

DSQOUTNC

DSQIN/

EXTM

VUP

VCC

PGND

FLT

NC

LX-A

SDA ISEL NCNC

DETIN

NC

VOUT

NC

VBYP

BPSW

ADDR NC

SCL

1

2

3

4

5

6

18

17

16

15

14

13

7 8 9 121110

192021222324

GND

DSQOUTNC

DSQIN

VUP

VCC

PGND

FLT

NC

LX

SDA ISEL NCNC

DETIN

NC

VOUT

NC

VBYP

BPSW

ADDR NC

SCL

1

2

3

4

5

6

18

17

16

15

14

13

7 8 9 121110

192021222324

LNBH25

AM10400v1

VUP

SDASCL

ISEL

ADDR

DSQIN

Isense

PWM CTRL

PGND

DAC Drop control Tone ctr l Diagnostics Protections

I2C Digital core

LX

Voltage

reference

VCCGND BYP

DETIN

Tone

detector

Current

Limit

selection

DSQOUT

VOUT

Gate ctrl

Linear

Regulator

FLT

BPSW

IC Data Sheets

EN 33TPM10.1A LA 8.

Figure 8-2 Internal block diagram and pin configuration

back to

div. table

2013-Jun-14

EN 34 TPM10.1A LA8.

19430_302_130116.eps

130116

Block diagram

MT5580MPOI

NTSC/

PAL /

SECAM

ATD

TV

Decoder

TS

Demux

ARM CA9

L2 Cache

Video

ADCx4

Video Input

De-

interlace

ATSC /

DVB -T/

DVB -C

DTD

HDMI Rx

JPEG/MP2/MP4/

DivX/H.264/VC-1/

RM/AVS/VP8

Decoders

Audio

Input

Audio

Demod

Audio

ADC

SPDIF

In

2D

Graphic

LVDS /min-LVS /

EPI

OD, TCON

Post Processing

DDR3

Controller

OSD

scaler

PIP

Vplane

scaler

Audio DSP

Audio

I/F

Audio DAC

JTAG IrDA

PCR

I2C

RTC UART SDIO

USB2.0 PWM

Ethernet

Watchdog Serial Flash

NAND Flash

Servo ADC

SPDIF Out, I2S ADAC L/R x 3

TS

Input

Tuner

Input

CVBS/YC

Input

Component

Analog Input

HDMI

Input

SIF

Audio

Input

Panel

32-bit

DDR3

T8032

Smart

Card

Optional

2D/3D Converter

CKGEN

IC Data Sheets

8.3 Diagram 10-5-3 Peripheral, B03,MT5 580MPOI (IC U401)

Figure 8-3 Internal block diagram

2013-Jun-14

back to

div. table

19430_303_130116.eps

130116

Pinning Information

MT5580MPOI

IC Data Sheets

EN 35TPM10.1A LA 8.

Figure 8-4 Pin configuration [1/2]

back to

div. table

2013-Jun-14

EN 36 TPM10.1A LA8.

19430_304_130116.eps

130116

Pinning Information

MT5580MPOI

IC Data Sheets

2013-Jun-14

Figure 8-5 Pin configuration [2/2]

back to

div. table

8.4 Diagram 10-5-4 Connector/USB B04, GL850G-OHG (IC U4100)

19430_305_130116.eps

130116

Block diagram

Pinning information

GL850G

AVDD

DVDDDM0

DP0

DM1

DP1

AVDD

DM2

DP2

OVCUR3#

OVCUR4#

TEST/SCL

RESET#

DP4

DM4

PSEFL 22 14

13

8

9

10

11

12

15161718192021

1234567

23 24

25 26 27 28

PGANG

OVCUR2# OVCUR1#

SDA

V5

V33

DP3 DM3

X2

X1 AVDD RREF

GL850G

12/27/48

USPORT

Transceiver

UTMI

REPEATER

TT(Transaction Translator)

REPEATER/TT Routing Logic

DSPORT1 Logic DSPORT2 Logic DSPORT3 Logic DSPORT4 Logic

DSPORT DSPORT DSPORT DSPORT

Transeiver Transeiver Transeiver Transeiver

USPORT Control/Status

RegisterLogic

FRTIMER

PLL x40,x10

MHZ

RAM ROM

CPU

SIE

GPIO

D-

LED/ OVCUR/

PWRENB

LED/ OVCUR/

PWRENB

LED/ OVCUR/

PWRENB

LED/ OVCUR/

PWRENB

D- D- D-

D+

D+ D+

IC Data Sheets

EN 37TPM10.1A LA 8.

Figure 8-6 Internal block diagram and pin configuration

back to

div. table

2013-Jun-14

EN 38 TPM10.1A LA8.

19240_300_120221.eps

120224

Block diagram

Pinning information

1

2

3

4

5

6

7

8

9

10

11

12

36

35

34

33

32

31

30

29

28

27

26

25

VCC_REG

VSS_REG

OUT2B

GND2

VCC2

OUT2A

OUT1B

VCC1

GND1

OUT1A

VDD_REG

GND_REG

MCLK

AGNDPLL

VREGFILT

TWARNEXT/FFX4B

EAPD/FFX4A

FFX3B

FFX3A

GNDDIG1

VDDDIG1

VDD3V3CHP

CPP

GNDPSUB

13

14

15

16

17

18

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

F3X_FILT

F3XL

F3XR

LINEINL

LINEINR

LINEHPOUT_L

LINEHPOUT_R

GNDA

SOFTMUTE

VDD3V3

CPVSS

CPM

VDDDIG2

GNDDIG2

TESTMODESASCL

SDA

INTLINE

PWDN

RESET

SDI

LRCKI

BICKI

STA381BW

PWDN

TESTMODE

LRCKI

BICKI

4

Half

Bridges

OUT 1A OUT 1B OUT 2A OUT 2B

FFX3A FFX3B

MCLK

SDI

LINEINL

LINEINR

LINEHPOUT_L LINEHPOUT_R

SDA SCL

IIC

CPVSS

CPP

FFX4A FFX4B

GND_REG

SOFT_MUTE

2 x GND

2 x VCC

VDD_REG

GNDPSUB

2 x VDDDIG

2 x GNDDIG

VREGFILT

AGNDPLL

VCC_REG

VSS_REG

CPM

2.1 Channel

Audio Processor

STAudioFx

TM

STSpeakerSafe

TM

Parametric EQ

Volume

Bass and Treble

Speaker Compensation

Stereo Widening

SA

RESET

INTLINE

GNDA

Headphone

(2Vrms)

PLL

Negative

Charge

Pump

-3.3V

Control logic

&

Protections

REG_M3

VDD3V3CHP

F3X_FILT

FFX

TM

Modulator

Binary

Ter nary

F3XL F3XR

STA381BW

IC Data Sheets

8.5 Diagram 10-5-6 Speaker/Headphone B06, STA381BWTR (IC U602)

2013-Jun-14

Figure 8-7 Internal block diagram and pin configuration

back to

div. table

8.6 Diagram 10-5-11 T2 Demod/CI Card B11, MT5136AN (IC U103)

19430_306_130129.eps

130129

Block diagram

Pinning information

37

38

39

40

41

42

43

44

45

46

47

48

24

23

22

21

20

19

18

17

16

15

14

13

TS_DATA1

GPIO1

DVDD33

GPIO1

DVDD11

TS_DATA0

TS_SYNC

TS_VAL

TS_CLK

SDA

SCL

DGND33

DVDD33

TUNER_CLK

TUNER_DATA

CHIP_CTRL

DVDD11

AVDD33_IFPGA

AVDD12_DEMOD

IFPGA_INP

IFPGA_INN

AVSS12_DEMOD

EXT_CLKSEL

AVDD33_XTAL

1

2

3

4

5

6

7

8

9

10

11

12

36

35

34

33

32

31

30

29

28

27

26

25

DVDD33

RSTN

DVDD11

AVDD33_RSSI

ADINO

LOUTN

LOUTP

AVDD33_DEMOD

AVSS33_DEMOD

XTALI

AVSS33_XTAL

XTALO

TS_DATA2

TS_DATA3

TS_DATA4

DVDD11

DVDD33

TS_DATA5

TS_DATA6

TS_DATA7

TS_ERR

DVDD11

RF_AGC

IF_AGC

MT5136AN

RF Tuner

RSSI

RF AGC

Differential IF signal

Tuner SDA

Tuner SCL

RSSI ADC

AGC

PGA

10-bit ADC

Integrated SAW filter function

DVB-C demodulator

TSIFMUX

SIF Master

Microcontroller

DVB-T demodulator

Demod TS

MT5136AN

DVB-T/C FEC

decoder

SIF transceiver

SIF interface

Main decoder chip

DVB-T/C FEC

decoder

IC Data Sheets

EN 39TPM10.1A LA 8.

2013-Jun-14

Figure 8-8 Internal block diagram and pin configuration

back to

div. table

EN 40 TPM10.1A LA8.

19240_305_120221.eps

120221

Block diagram

Pinning information

AADC_AVDD

ADC_AVDD

ADC_AVSS

ADC_IP

ADC_IN

ADC_QP

ADC_QN

PLL_AVDD

ADC_AVSS

PLL_AVSS

VDDC

PLL_REFCLK_XI

GND

RFAGC

PLL_REFCLK_XO

VDDC

GND

MPEG_ERR

MPEG_SYNC

MPEG_VALID

VDDIO

GND

VDDC

MPEG_CLK

MPEG_DATA_0

MPEG_DATA_1

GND

VDDIO

VDDC

VDDIO

TDI

TDO

TCLK

GND

TMS

TRST_N

VDDC

MPEG_DATA_7

MPEG_DATA_6

GND

VDDIO

GND

RST_B

CS_0

LNB_CNTRL_1

LNB_CNTRL_0

DIS

EQC_OUT

VDDC

VDDIO

DISEQC_IN

SDA2

SCL2

GND

1

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

1920212223

242526

2728293031

35

36

37

38

39

40

41

42

43

44

45

46

47

48

52

53

54

55

56

57

58

59

60

61

62

64

GPIO_CLK

LOCK

MPEG_DATA_5

115

16

MPEG_DATA_4 32

MPEG_DATA_2

33

34

SDA1

SCL150

51

MPEG_DATA_3

SLEEP49

63

AVL6211LA

Dual

10 - Bit

ADC

PLL

Digital Front-end Down Converter

Carrier

Phase

Recovery

Symbol

Timing

Recovery

Equalizer

PL Frame Processor

DVB FEC

Viterbi/RS

Decoder

TS Output

Interface

Tuner

Control

Interface

DiSEqC

2.0

Control

Interface

Two-wire

Bus

Controller

RFAGC

ADC_I

ADC_Q

MPEG TS

Output

JTAG

LDPC &

BCH FEC

Decoder

AVL6211LA

IC Data Sheets

8.7 Diagram 10-5-13 DVB T2/C/S2 Tuner B13, AVL6211LA (IC U104)

Figure 8-9 Internal block diagram and pin configuration

2013-Jun-14

back to

div. table

19440_400_130304.eps

130304

WIRING DIAGRAM 32" (4208 series)

Board Level Repair

Component Level Repair

Only for authorized workshops

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

IR/LED BOARD

(1056)

J

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

SSB

(1053)

B

See note in Chapter 7 about cable position numbers

LN

CN9901

MAIN POWER SUPPLY

(1054)

A

HDMI

USB2

USB1

NETWORK

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

SERV.U

AUDIO IN

DVI

HDMI1

ARC

HDMI 2

4P

CN601

38P

CN408

TO PANEL

CN01

5P

CN201

6P

CN401

13P

CN9101

12P

CN700

TO PANEL

12P

CN801

EN 41TPM10.1A LA 9.

back to

2013-Jun-14

div.table

Block Diagrams

9. Block Diagrams

9.1 Wiring diagram 4208 series 32"

19440_401_130304.eps

130304

WIRING DIAGRAM 39" (4208 series)

Board Level Repair

Component Level Repair

Only for authorized workshops

KEYBOARD CONTROL

(1057)

E

IR/LED BOARD

(1056)

J

SSB

(1053)

B

See note in Chapter 7 about cable position numbers

LN

CN9901

MAIN POWER SUPPLY

(1054)

A

HDMI

USB2

USB1

NETWORK

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

SERV.U

AUDIO IN

DVI

HDMI1

ARC

HDMI 2

6P

13P

CN902

12P

CN700

CN01

5P

CN201

CN401

13P

38P

CN408

TO PANEL

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

4P

CN601

TO PANEL

12P

CN8501

EN 42TPM10.1A LA 9.

back to

2013-Jun-14

div.table

Block Diagrams

9.2 Wiring diagram 4208 series 39"

19441_400_130320.eps

130320

WIRING DIAGRAM 42"- 46" (4208 series)

Board Level Repair

Component Level Repair

Only for authorized workshops

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

IR/LED BOARD

(1056)

J

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

SSB

(1053)

B

See note in Chapter 7 about cable position numbers

LN

CN901

MAIN POWER SUPPLY

(1054)

A

HDMI

USB2

USB1

NETWORK

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y

Pb

Pr

SERV.U

AUDIO IN

DVI

HDMI1

ARC

HDMI 2

6P

4P

CN601

CN201

CN01

5P

CN401

13P

38P

CN408

TO PANEL

12P

CN700

13P

CN902

12P

CN8502

12P

CN8501

TO PANEL

EN 43TPM10.1A LA 9.

back to

2013-Jun-14

div.table

Block Diagrams

9.3 Wiring diagram 4208 series 42"- 46"

19442_400_130507.eps

130507

WIRING DIAGRAM 42" - 46"- 50"(5008 series)

Board Level Repair

Component Level Repair

Only for authorized workshops

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

IR/LED BOARD

(1056)

J

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

SSB

(1053)

B

See note in Chapter 7 about cable position numbers

LN

CN9901

MAIN POWER SUPPLY

(1054)

A

CN201

HDMI

USB2

USB1

NETWORK

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

SERV.U

AUDIO IN

DVI

HDMI1

ARC

HDMI 2

WIFI

MODULE

4P

12P

CN700

13P

CN902

TO PANEL

38P

CN408

CN01

4P

CN401

13P

6P

CN601

5P

WIFI01

WiFi Antenna

3P

CN4250

TO PANEL

CN8506

EN 44TPM10.1A LA 9.

back to

div.table

2013-Jun-14

Block Diagrams

9.4 Wiring diagram 5008 series 42"- 46" - 50"

19430_407_130123.eps

130123

Audio R/L of CVI/CBVS

Audio AMP

STA381BW

NVM

24C128

SPDIF Out

RC

A u dio R / L of S C A RT

S yste m I 2C

Loca l Ke y pad

YPbPr x 1

CVBS share with Y

HDMI x 3

A u dio R / L of P C/ D V I

Half SCART x 1

NAND Flash

512 MByte

DDR3 1.6 GHz

256 MByte x 4

PC VGA ( small size )

LVDS (50Hz )

12V/5V

I2S

USB hub

Tuner I2 C

CI/CI+

Analog Audio inputs :

Analog Video inputs :

Panel

EDID

24C02

EDID

24C02

EDID

24C02

DBV-T2/T/C

DEMUX

MT5136

DIF +/-

Speakers

UART ( ISP & Factory alignment )

Headphone

T/C/T2

RF Tuner

MT5580

.MCU ARM Cortex-A9

.MPEG/video/audio

decoder

.Scaling

.Video enhancement

.3D comb

.LVDS Transmitter

.HDMI 1.4

.ADC

.H.264

.Build-in HDMI swichx 3

.min LVDS Transmitter

. A TD b uild-in

.DVB-T/C Demod

.Head phone Amp

. USB x2

CI card slot

(CAM)

TS

RJ45

S2 t uner

AVL6211

LNB power

System I2C

S2 function

Tuner I2C

IP/IN/OP/ON

WiFi module

USB2

USB1

System I2C

Light S ensor(5000 only)

back to

div.table

2013-Jun-14

EN 45TPM10.1A LA 9.

Block Diagrams

9.5 Block diagram 4208/5008 series

19440_500_130228.eps

130228

Power

A01 A01

2013-02-27

3

715G5856

Power

DD_EN

+12V2

FB9907

BEAD

1 2

Q9372

2N7002K

R9375

NC

+24V

D9503

1N4148W

R9116

22 OHM +-5% 3WS

!

!!

!

R9377

10K OHM +-5% 1/8W

ZD9102

BZT52-B22

1 2

C9113

2.2NF

C9166

1uF

C9167

1uF

C9168

1uF

C9911

470pF 250V

!

R9358

10K 1/6W

R9376

10K 1/4W

R9159

100 OHM 1/4W

HS9251

HEAT SINK

123

4

ZD9103

BZT52-B36

1 2

R9112

18R 1%

!

!!!

R9371

20K OHM

C9355

100N 50V

C9372

100N 50V

R9352

3.3 OHM 1/4W

Q9371

2N7002K

R9374

100K 1/8W 1%

CN9903 NC

L1N

2

R9373

100K 1/8W 1%

R9372

360K OHM

C9169

1uF

R9903 NC

R9901 390K

R9904 NC

C9163

1uF

SG901

DSPL-501N-A21F

+

C9100

NC

R9172

1K 1/8W

C9170

10N 50V

C9171

2.2nF 50V

-

+

BD901

TS6K80-02

2

1

3

4

SG902

DSPL-501N-A21F

R9120

300 OHM 1/4W

R9170

4K7 1/4W +/-5%

RV9901

620V

C9258

1NF

C9172

100N 50V

R9121

300 OHM 1/4W

DD_EN

C9371

100N 50V

R9122

300 OHM 1/4W

R9350

3.3 OHM 1/4W

R9351

3.3 OHM 1/4W

R9123

300 OHM 1/4W

C9112

1uF

C9110

220N 50V

C9164

1N 50V

D9103

UF4007

R9339

NC

R9171

91KOHM +-1% 1/8W

C9105

2.2NF

R9161

2K43 1/8W 1%

C9901 220NF 305V

IC9102

EL817M(X)

1

23

4

C9907

47PF 1KV

R9165

1K OHM

L9201

3UH

L9101

3UH

R9256

220 OHM 1/4W

F901

FUSE

1 2

3 4

R9151

200K +-1% 1/4W

D9102

NC

12

+

C9356

470UF 25V

Q9108

NC

+

C9157

330UF 35V

R9105

82KOHM +-5% 2WS

R9104

NC

R9160

27K 1/8W 1%

C9346

10N 50V

R9164

1K OHM

C9131

47N 50V

R9902 390K

R9322

100K 1/8W 1%

DIM

C9255

1uF

L9901 18MH

1

2

4

3

DIM

C9903

100PF 250V

D9101

SARS01-V1

D9107

FMX-12SL

123

C9904

100PF 250V

R9167

0 OHM +-5% 1/8W

IC9152

PF8200S

GND1GND2SS3FLAG

4

EN

5

ADJ

6

GATE

7

VCC

8

T9101

POWER X'FMR

12345

89101112

7

C9357

1UF

C9902 220NF 305V

R9142

NC

R9173

100KOHM +-5% 1/8W

C9906

220PF 250V

R9162

2K 1/8W 1%

IC9351

NR111D

BS1VIN2SW3GND

4

FB

5

ISET

6

EN

7

SS

8

R9109

470 OHM

R9166

5.1K 1/4W

ZD9101

BZT52-B22

1 2

CN9901

AC SOKET

12

R9101

10K 1/4W

HS9101

HEAT SINK

123

4

CN9102

NC

123456789

101112

C9354

2N2 500V

D9112

NC

1 2

+

C9156

330UF 35V

+

C9151

330UF 35V

FB9908

127R

1 2

R9341

NC

C9162

NC

HS9151

HEAT SINK

123

4

+

C9350

470UF 25V

C9905

220PF 250V

R9103

10K 1/4W

R9251

10.5K OHM 1%

L9902 18MH

1

2

4

3

+

C9153

330UF 35V

R9106 47 OHM

R9113

0 OHM 1/4W

C9119

47pF

D9251

FME-210B

123

R9163

20K 1/8W 1%

R9146

1K2 1/8W +/-1%

R9102

10K 1/4W

IC9151

AS431AN-E1

R9353

22 OHM 1/8W

+

C9152

330UF 35V

+

C9107

47UF 50V

+

C9254

470UF 25V

ZD9152

BZT52-B15

1 2

C9256

1NF 50V

R9359

1K8 +/-1% 1/8W

!

C9159

1NF 500V

FB9903

BEAD

1 2

C9165

1uF

R9168

1M 1/8W 5%

FB9904

BEAD

1 2

IC9106

AS431AN-E1

Q9107

AOD409

D9502

1N4148W

R9107

10K 1/4W

R9340

NC

+

C9154

330UF 35V

D9351

SK84C

1 2

IC9101

LD7752

CT1COMP2CS3GND

4

OUT

5

VCC

6

HV

8

C9104

2.2NF

R9141

NC

Q9301

NC

+

C9252

470UF 25V

R9145

1K OHM 1%

CN9101

CONN

123456789

101112

13

+

C9251

470UF 25V

R9147

2Kohm 1/4W +/-5%

R9321

100OHM 1/8W

+

C9101

47UF 450V

+

C9103

47UF 450V

L9301

15uH

C9160

1NF 500V

R9114

NC

R9257

220 OHM 1/4W

R9169

360K OHM

R9357

3.0KOHM +-1% 1/4W

R9356

33K OHM

Q9101

TK6A65D

R9258

220 OHM 1/4W

R9111

0.22OHM +-5%

C9108

220P 50V

C9908

220PF 250V

IC9901

CAPZERO

NC1D12D13NC

4

NC

5

D26D2

7

NC

8

PS_ON

R9150

2K49 1/8W 1%

+

C9102

47UF 450V

C9109

1N 50V

FB9902

BEAD

1 2

FB9901

127R

1 2

C9161 220NF 50V

t

NR9901

2.5R

1 2

C9353

100N 50V

C9155

100N 50V

Q9104

2SA1797

CN9902

NC

1 2

C9351

2.2UF 25V

C9111

0.22uF 50V

C9106

1uF

C9158

100N 50V

+

C9352

470UF 25V

C9910

220PF 250V

C9257

1NF 50V

FB9906

BEAD

1 2

+12V

+5.2V

+12V1

FB_1

+24V1

+12V1

ON/OFF

+24V

FB_1

+12V

PS_ON

ON/OFF

EN

+5.2V

+12V2

+12V1

DV5

+24V

+12V1

+24V1

+24LED

EN 46TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10.1 A 715G5856 PSU

10-1-1 Power

10. Circuit Diagrams and PWB Layouts

back to

div.table

2013-Jun-14

19440_501_130228.eps

130228

LED DRIVER

A02 A02

2013-01-02

3

715G5856

LED DRIVER

+24LED

CN801

CONN

123456789

101112

SLP

R8116

120K

VADJ

+12V

VBJT

VLED+

Q8207

2N3904

C8119

NC

Q8208

2N3904

Q8209

2N3904

Q8210

2N3904

C8117

2.2nF 50V

VLED+

C8120

NC

+

C8102

47UF 100V

C8121

NC

C8122NCC8123

NC

+

C8113

47UF 100V

LED3

LED1

LED4

LED2

LED3

LED1

LED4

LED1 LED2 LED3

VSET

C8118

10nF 50V

R8202

14.3oHM 1/4W

R8203

14.3oHM 1/4W

R8201

15R 1%

R8204

14.3oHM 1/4W

R8205

14.3oHM 1/4W

R8206

14.3oHM 1/4W

+

C8101

330UF 35V

R8207

14.3oHM 1/4W

R8208

14.3oHM 1/4W

R8209

14.3oHM 1/4W

VLED+

R8210

14.3oHM 1/4W

D8101

MBRD10150D

1

2

3

C8115

47pF

R8211

14.3oHM 1/4W

C8116

47pF

Q8211

2N3904

R8212

14.3oHM 1/4W

Q8213

2N3904

Q8212

2N3904

Q8214

2N3904

EN

R8213

14.3oHM 1/4W

R8104

20R 1/8W 1%

R8108

330R 1/8W 5%

C8103

1uF

Q8201

2N3904

R8105

NC

Q8202

2N3904

R8214

14.3oHM 1/4W

R8106

10K OHM +-5% 1/8W

R8103

0 OHM 1/4W

SLP

D8102

NC

12

R8110

100K 1% 1/4W

C8110

1NF 50V

R8119

150K 1/8W 5%

C8105

100N 50V

C8111

NC

C8109

100N 50V

R8111

18K 1/8W 5%

C8112

NC

VADJ

Q8203

2N3904

VBJT

C8106

1NF

Q8204

2N3904

Q8205

2N3904

Q8206

2N3904

D8103

BAV99

3

1

2

D8108

BAV99

3

1

2

D8107

BAV99

3

1

2

D8105

BAV99

3

1

2

D8104

BAV99

3

1

2

D8106

BAV99

3

1

2

R8117

4.3K 1% 1/8W

R8118

1M 1/6W 5%

C8104

100N 50V

R8107

0.07R

IC8501

PF7001S

EN1DIM2GM3VFB4VSET5OVP6RT

7

CS

8

GND

9

VMOS

10

VCC

11

VBJT

12

VADJ

13

SLP

14

R8101

51K 1/4W

C8108

10N 50V

C8114

10N 50V

R8102

150K

+5.2V

L8101

33uH

8

1

VFB

LED4

LED5

VSET

Q8101

AOD4126

LED6

VFB

LED5

DIM

LED6

FB8100

BEAD

12

EN 47TPM10.1A LA 10.

back to

2013-Jun-14

div.table

Circuit Diagrams and PWB Layouts

10-1-2 LED DRIVER

19440_502_130228.eps

130228

2013-01-24

3

715G5856

Power LAYOUT TOP

IC9102

R9105

MH14

D9103

J9940

MH25

C9119

C9356

L9101

R9165

R9164

J9910

J9913

J9903

J9909

J9915

J9911

J9918

J9919

J9921

J9917

J9908 J9922

J9923 J9924

J9925

J9928

J9930

J9931

J9934

J9933

J9937

L9301

J9920

J9902

J9904

J9938

J9929

J9906

J9936

J9907

J9927

J9905

J9912

C9101C9102C9103C9100

J9941

J9935

J9916

J9939

J9943

J9942

J9932

J9914

J9901

R9358

J9926

J9944

J9946

J9945

C9151

C9153

C9154

R9901

R9902

R9111

T9101

H6

H8

H7

SL4

SL7

SL1

SL2

SL3

SL5

SL6

SL8

SL9

SL10

SL11

SL12

C9907

CN9101

FB9903

C9107

C9254

C9104

Q9101

MH10

MH12

MH2

C9152

FB9904

SG901

SG902

HS9151

CN9102

FB9901

C9105

D9251

C9156

C9157

C9251

C9252

C9350

L9201

MH6

HS9101

HS9251

C8115

C8116

C8106

CN801

R8118

R8107

Q8201

Q8202

Q8203 Q8204 Q8205 Q8206Q8207Q8208

Q8209Q8210

Q8211 Q8212

Q8213 Q8214

L8101

FB8100

MH7

MH4

MH3

MH8

MH9

MH5

MH11

MH13

MH1

C8101

FB9908

C9352

D9107

FB9906

FB9902

FB9907

L9901

L9902

BD901

CN9903

CN9902

CN9901

RV9901

C8102C8113

IC9351

F901

C9901

C9902

C9113

R9116

D9101

C9911

C9908

C9905

C9906

C9903

C9904

C9910

NR9901

EN 48TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10-1-3 Power layout top

back to

2013-Jun-14

div.table

19440_503_130228.eps

130228

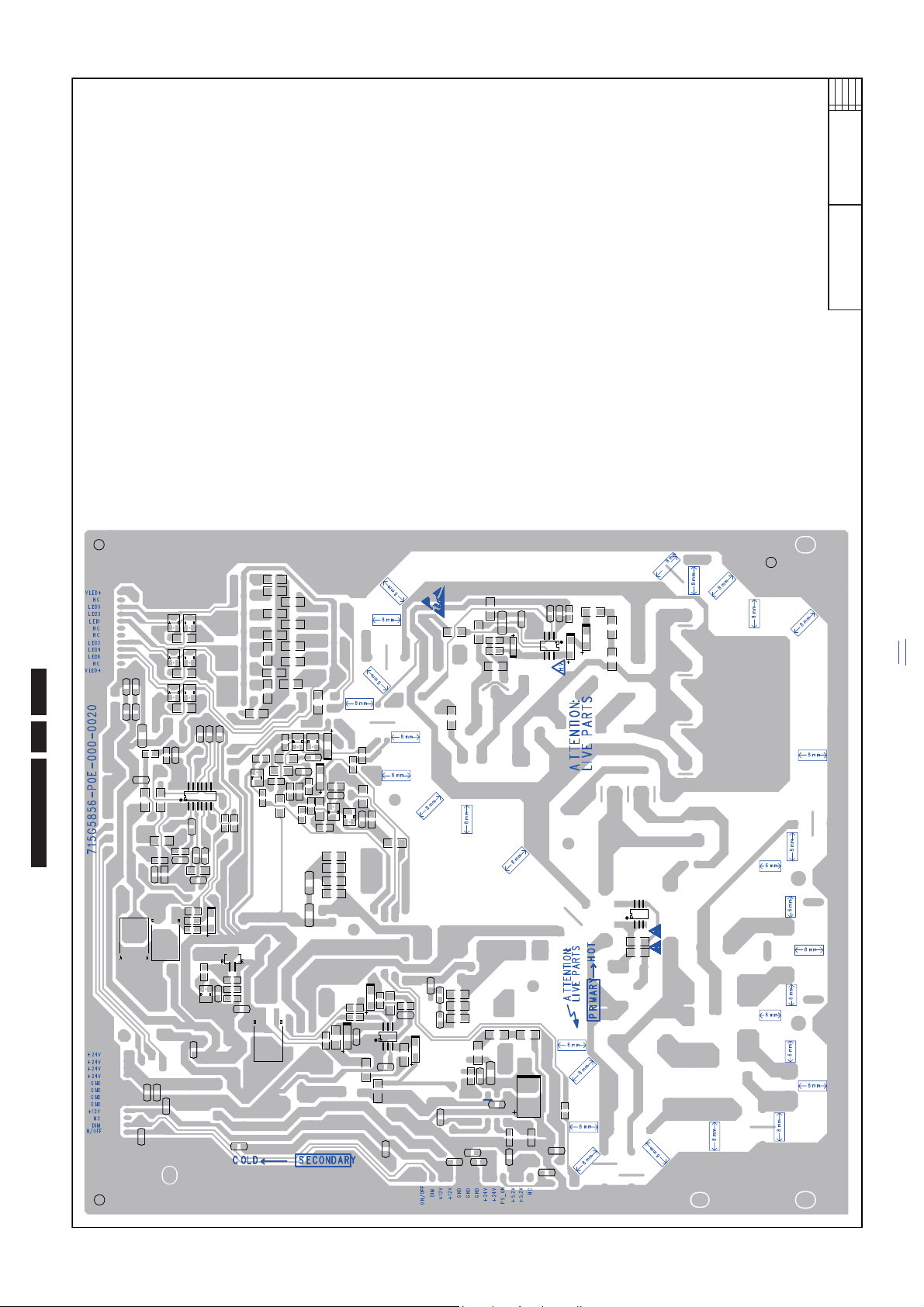

2013-01-24

3

715G5856

Power Layout Bottom

C9168

C9161

C9164

C9166

C9109

R9102

R9103

R9104

R9106

R9122

R9120

R9121

R9114

C9255

C9108

R9168

Q9301

C9106

R9173

R9169

R9167

Q9372

C9160

C9110

C9131

R9162

C9162

C9167

C9256 C9257

R9141

R9150

R9341

R9373

R9374

R9375

R9377

R9107

R9256

R9257

R9258

R9904

Q9108

IC9151

C8103

C8108

C8110

C8111

C8112

C8114

C8117

C8118

C8119

R8102

R8104

R8105

R8108

R8111

R8117

R8119

R9322

R8103

R8110

R8116

R8201

R8202

R8203

R8204

R8205

R8206

R8207

R8208

R8209

R8210

R8211

R8212

R8213

R8214

R9109

R9170

R8101

R9340

R9339

R9251

IC9152

C8120C8121

C8122C8123

R9321

R8106

C9346

C9112

C9357

C9163

C9169

C9171

C9355

R9353

R9356

R9359

C9354

C9353

R9350

R9351

C9351

R9372

R9352

R9371

Q9371

C8104

C8105

C8109

C9258

R9123

R9376

R9357

R9166

C9155

C9158

C9159

C9165

C9170

C9371

C9372

IC8501

IC9106

R9101

R9142

R9145

R9146

R9147

R9151

R9159

R9160

R9161

R9163

R9171

R9172

R9903

IC9901

C9111

R9112

R9113

C9172

FD5

FD7

FD6

D9502

Q9107

IC9101

Q9104

D9112

ZD9152

D8102

D8103

D8104 D8105

D8106 D8107

D8108

D8101

Q8101

ZD9101

ZD9102

RJ9902

RJ9901

RJ9903

RJ9904

RJ9905

D9102

RJ9906

D9351

D9503

ZD9103

RJ9907

EN 49TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10-1-4 Power layout bottom

back to

div.table

2013-Jun-14

19440_504_130228.eps

130228

LED DRIVER

A01 A01

2013-02-27

3

715G5193

LED DRIVER

L8502

5uH

+

C8509

12UF 160V

CN8501

CONN

123456789

101112

+12V

LED-FB

LED-1

LED-2

LED-5

LED-6

+

C8512

150UF 35V

C8522

0.47UF 50V

C8523

0.47UF 50V

+12V

+

C8507

100UF 50V

+

C8510

220UF 100V

LED-3

LED-4

DIM

+24V

IC8501

PF7700S

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

C8502

1uF

C8503

1uF

C8506

1uF

LED-1

C8505

1uF

+12V

C8504

1uF

ON/OFF

DIM

R8501

8.66KOHM +-1% 1/8W

C8501

1uF

LED-FB

IC8502

PF7700S

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

ON/OFF

DIM

+12V

LED-2

IC8503

PF7700S

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

ON/OFF

DIM

+12V

LED-3

IC8504

PF7700S

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

ON/OFF

DIM

+12V

LED-4

+

C8511

150UF 35V

IC8505

PF7700S

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

ON/OFF

+12V

DIM

LED-5

IC8506

PF7700S

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

ON/OFF

+12V

DIM

LED-6

LED-COMP LED-COMP

R8549

470 OHM 1/4W

C8521

LED-COMP

C8508

100N 50V

LED-COMP LED-COMP

IC8550

PF7900S

FB1GM2RT3CS

4

DIM

5

GND

6

OUT

7

VCC

8

R8547

27 OHM

R8507

150K 1/8W +/-1%

LED-COMP

R8551

240K OHM 1%

C8514

470P 50V

R8548

10K 1/8W

C8513

1N 50V

R8550

1.5K 1/8W

L8501

25UH

1

2

D8512

MBRF10100CT

1

2

3

C8516

NC

R8554

36K 1/8W 1%

R8553

680K 1%

R8552

0.05R

Q8525

TK12A10K3

LED-S

R8513

100K 1/4W

R8514

100K 1/4W

R8515

100K 1/4W

R8502

8.66KOHM +-1% 1/8W

R8503

8.66KOHM +-1% 1/8W

R8504

8.66KOHM +-1% 1/8W

R8505

8.66KOHM +-1% 1/8W

R8506

8.66KOHM +-1% 1/8W

EN 50TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

back to

2013-Jun-14

div.table

10.2 A 715G5193 PSU

10-2-1 LED DRIVER

EN 51TPM10.1A LA 10.

19440_505_130228.eps

130228

Power circuit

A02 A02

2013-02-27

3

715G5193

Power circuit

R9337

8K2 1/8W 1%

R9302

2 OHM 1%

+

C9163

1000uF 35V

R8511

33KOHM +-1% 1/4W

+12V

R9904

NC

IC9901

NC

NC1D12D13NC

4

NC

5

D26D2

7

NC

8

C8517

1000pF 630V

R9161

24K 1/8W 1%

R9163

2K 1/8W 1%

R9180

27K 1/8W 1%

+24V

B1+

R9171

5.1K 1/4W

FB9802

BEAD

1 2

R9175

1.5K 1/4W

C9170

100N 50V

C9903

220PF 250V

T9301

POWER X'FMR

1

2

345

7

9

R9829

0.1R

+

C9168

270UF 25V

D9117

FMW-2156

123

C9906

220PF 250V

C9335

100N 50V

C9905

NC

ZD9101

NC

1 2

+

C9171

270UF 25V

+24V

ON/OFF

ZD9303

GDZJ15B

1 2

!

C9901

220PF 250V

R9331

47 OHM 1/4W

SG9901

NC

IC9303

PC123X8YFZOF

12

43

C9907

220PF 250V

B-

CN9902

NC

1

2

+24V

R9334

220 OHM 1/4W

5V

-

+

BD9901

TS10B06G-06-X0

2

1

3

4

C9338

1NF

R9320

560K 1/8W

B-

ZD9102

NC

1 2

L9902

12MH

1

2

4

3

+12V

R9327

100K 1/4W

C9144

NC

R9325

100K 1/4W

R9324

4R7 1/4W 5%

SG9902

NC

D9307

PG1010R

PS_ON

C9910

470NF 305V

C9342

100N 50V

+12V

ON/OFF

RV9901

NC

D9802

IN5408G-04

ZD9351

GDZJ6.2B

1 2

C9331

1NF

DIM

+

C9340

330UF 16V

L9901

12MH

1

2

4

3

R9140

NC

R9318

1M5 1/4W 5%

ZD9103

GDZJ27B

1 2

D9306

1N4148

R9317

1M5 1/4W 5%

R9172

5.1K 1/4W

L9304

5uH

t

NR9901

NTCR

1 2

C9909

330PF 250V

R9319

1M5 1/4W 5%

!

IC9301

A6069H

S/OCP1BR2GND3FB/OLP

4

VCC

5

D/ST7D/ST

8

FB9909

BEAD

1 2

IC9304

AS431AZTR-E1

R9328

100K 1/4W

5V

+24V

R9158

3.9K 1/4W

R9176

1.5K 1/4W

Q9103

NC

123

R9335

3K3 1/8W 5%

!

R8512

33KOHM +-1% 1/4W

R9323

4.7 MOHM +-5% 1/4W

R9139

NC

VCC1

FB9301

BEAD

1 2

VCC

C9333

220NF

D9309

NC

R9336

1K 1/8W

C9332

470PF1KV

DIM

D9109

NC

C9804

470PF1KV

C8518

1000pF 630V

R9301

2 OHM 1%

D9110

NC

R9326

100K 1/4W

R9148

NC

R9330

47 OHM 1/4W

R9142

1M 1% 1/4W

+12V

D9304

PG1010R

R9146

2K43 1/8W 1%

ZD9104

GDZJ15B

1 2

C9150

0.47UF 50V

IC9106

PC123X8YFZOF

12

43

D9305

PG1010R

ZD9305

GDZJ15B

1 2

DET

C9157

18NF

+24V

R9143

1M 1% 1/4W

DET

BOX

Q9102

TK10A50D

R9153

10K 1/8W

R9101

160OHM +-5% 1/8W

F9901

FUSE

VBoot

B1+

Q9101

TK10A50D

!

B+

C9148

4.7uF 25V

C9156

100PF1KV

R9151

10R 1/8W 5%

D9113

SS0520_R1

12

+

C9169

270UF 25V

D9112

SS0520_R1

12

BOX

C9149

100N 50V

C9155

1N 50V

D9308

FMW-2156

123

C9334

10N 50V

+12V

VBoot

R9145

13K OHM 1%

+

C9164

150UF 35V

ZD9352

NC

1 2

5V

+

C9802

47UF 450V

CN903

NC

123456789

1011121314

C9904

100PF 250V

R9147

0R05 1/4W

+

C9830

10UF 50V

R9155

10K 1/8W

C9152

10PF 3KV

C9153

1uF25V

+

C9147

10UF 50V

C9165

100N 50V

Q9306

PMBS3904

R9365

220 OHM 1/4W

VCC1

D9114

UF1010G

+

C9341

270UF 25V

+

C9803

47UF 450V

VCC

IC9101

SSC9512S-TL

Vsen1Vcc2FB3GND4Css5OC6RC7Reg8RV

9

COM

10

VGL

11

NC12NC

13

VB14VS

15

VGH

16

NC17NC

18

VCC1

R9364

10K 1/8W

5V

+

C9337

100UF 50V

+

C9336

10UF 50V

R9144

1M 1% 1/4W

T9101

POWER X'FMR

124

5

6

7

89111210

!

C9154

560P 50V

Q9305

BTC4672M3

R9366

22K 1/8W

C9372

100N 50V

R9152

47OHM +-5% 1/8W

Q9802

NC

IC9107

AS431AZTR-E1

PS_ON

R9367

2.7K 1/8W

R9154

47OHM +-5% 1/8W

+

C9371

10UF 50V

CN902

CONN

123456789

101112

13

R9160

10K 1/4W

C9159

330NF 50V

C9146

100N 50V

C9151

1uF25V

IC9308

PC123X8YFZOF

12

43

R9159

3.3K 1/4W

C9826

2N2 50V

R9808

30 OHM 1/4W

R9149

1K 1/8W

C9820

1UF 450V

C9158

NC

IC9801

R2A20113ASP

FB1COMP2RT3VREF

4

CS

5

GND

6

OUT

7

VCC

8

C9145

100N 50V

R9807

220 OHM 1/4W

+24V

L9801

300UH

1

3

!

C9824

22N 50V

R9814

680K OHM +-1% 1/4W

R9809

30R +-1% 1/8W

R9801

0.07R

C9829

100N 50V

R9817

NC

C9902

220PF 250V

D9118

NC

1 2

+

C9801

47UF 450V

R9818

NC

R9805

240K 1/8W 5%

D9801

FMNS-1106S

C9821

NC

D9119

NC

1 2

C9828

100N 50V

+

C9172

NC

FB9903

BEAD

1 2

R9813

10K 1/4W

VCC1

R9806

200K 1/8W

Q9801

TK13A60D

C9827

100P 50V

D9116

FMEN-2308

123

C9825

47N 50V

D9803

SS0520_R1

12

R9816

680K OHM +-1% 1/4W

B+

R9819

0R05 1/4W

R9810

13K OHM 1%

R9815

680K OHM +-1% 1/4W

R9112

NC

R9113

0R05 1/4W

R9111

NC

Q9111

NC

C9111

NC

24V

R9338

7K5 1/8W +/-1%

C9908 NC

MSS

ZD9801

GDZJ4.7B

12

MSS

!!

!

C9343

0.22uF 50V

!

!!

!

! !

!

! !

VCC1

C9911

470NF 305V

L9105

5uH

L9106

5uH

R9901

330K 1/4W

R9902

330K 1/4W

R9903

330K 1/4W

CN9901

SOCKET

1 2

FB9904

BEAD

1 2

Circuit Diagrams and PWB Layouts

10-2-2 Power circuit

back to

div.table

2013-Jun-14

19440_506_130228.eps

130228

2012-10-10

3

715G5193

Power LAYOUT TOP

C9147

C9336

C9371

C9830

D9114

D9304

D9305

D9306

D9307

D9802

IC9106

IC9107

IC9303

IC9304

IC9308

R8552

J901

J902

J903

J908

J907

J910

J909

J915

J917

J916

J920

J919

J913

J912

J925

J929

J926

J928

J802

J931

J813

J809J804

J812

J810

J805

J808

J806

J921

J927

J914

J930

T1

T2

T3

T4

J906

J911

J811J807

J803

J801

T5

J814

J922

J905

J904

J923

D9109

D9110

D9309

C9172

T9101

T9301

H5

H6

H10

H9 H8 H7

H4

H1

H2

H3

MH1 MH3

MH4

MH5

MH9

MH11

MH15

MH16

MH17

MH18

MH6

MH2

C8510

C9163

C9338

C9801 C9802C9803

C9910

C9911

CN8501

D8512

D9116

D9117

D9308

D9801

F9901

FB9802

FB9903

FB9904

IC9301

L8501

L9105

L9106

L9304

NR9901

Q8525

Q9101Q9102

Q9801

R9904

RV9901

SG9901

SG9902

HS901

HS902

HS904

HS905

HS907

HS906

CN902

C8507

C8511 C8512

C9164

C9168

C9169

C9171

C9337

C9340

C9341

ZD9104

R9317

R9318

R9319

BD9901

C9333

R9829

C8509

L8502

C9908

C9157

CN9902

CN903

ZD9103

C9903

C9904

C9905

C9906

C9907

C9901

C9902

C9156

ZD9101ZD9102

ZD9303

ZD9305

ZD9351

ZD9352

C9909

C9332

C9804

FB9301

FB9909

C9820

L9801

CN9901

CN9903

L9902

L9901

C9152

C9331

R9801

ZD9801

HS1

EN 52TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10-2-3 Power layout top

back to

div.table

2013-Jun-14

19440_507_130228.eps

130228

2012-10-10

3

715G5193

Power Layout Bottom

C8501

C8502

C8503

C8504

C8505

C8506

C8508

C8513

C8514

C8516

C8521

C9144

C9145

C9146

C9148

C9149

C9150

C9151

C9153

C9154

C9155

C9158

C9159

C9165C9170

C9334

C9335

C9342

C9343

C9372

C9824

C9825

C9826

C9827

C9828

C9829

IC8501

IC8550

IC9801

Q9306

R8501

R8502

R8503

R8504

R8505

R8506

R8507

R8547

R8548

R8549

R8550

R8551

R8553

R8554

R9101

R9139

R9140

R9142

R9143

R9144

R9145

R9146

R9147

R9148

R9149

R9151

R9152

R9153

R9154

R9155

R9158

R9159

R9160

R9161

R9163

R9171

R9172

R9175

R9176

R9180

R9301

R9302

R9320

R9323

R9324

R9325

R9326R9327

R9328

R9330

R9331

R9334

R9335

R9336

R9337

R9338

R9364

R9365

R9366

R9367

R9805

R9806

R9807

R9808

R9809

R9810

R9813

R9814

R9815 R9816

R9901

R9902

R9903

JR901

JR904

JR907

JR807

JR805

JR810

JR809

JR802

JR801

JR804

JR803

JR903

IC8502

IC8503

IC8504

IC8505

IC8506

H11H12

H13

H14

C8522

C8523

R8513

R8514

R8515

IC9901

C9111

C9821

R9111

R9112

R9817

R9818

R9113

R9819

Q9111

Q9802

JR806

C8517

C8518

R8511

R8512

JR902

C1 C2

C3 C4

D9112

D9113

D9803

IC9101

Q9305

Q9103

D9118

D9119

EN 53TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10-2-4 Power layout bottom

back to

div.table

2013-Jun-14

19240_506_120213.eps

120320

Power Circuit

A01 A01

2012-01-10

1

715G5246

Power Circuit

P_OK

C9832 100N 50V

P_OK

On/Off

1 2

3 4

F9901

FUSE

1 2

FB9302

BEAD

R9145

20K 1/8W 1%

VCC1

D9307

FR103

D9305

FR107

1 2

FB9803

60R

EN

R9320

510K 1% 1/8W

12V

+

C9147

22UF 50V

+

C9344

NC

NC1D12D13NC

4

NC

5D26D27NC8

IC9901

NC

Q9304

2N7002

R9161

24K 1/8W 1%

R9311

NC

R9163

2K 1/8W 1%

C9903

470PF 250V

C9904

NC

C9906

470PF 250V

R9180

27K 1/8W 1%

B1+

R9171

5.1K 1/4W

C9831

NC

PS-On

R9339

NC

R9175

1.5K 1/4W

C9170

100N 50V

3

4

1

2

HS9101

HEAT SINK

R9307

10K 1% 1/4W

Q9301

NC

123

4

HS9301

HEAT SINK (D9308)

C9335

100N 50V

On/Off

SG9902

GS41-201MA

R9901

1MOHM +-5% 1/2W

!

R9341

NC

R9804

NC

R9331

47 OHM 1/4W

R9807

470 OHM 1/4W

SG9903

GS41-201MA

FB1COMP2RT3VREF

4

CS

5

GND

6

OUT

7

VCC

8

IC9801

R2A20113ASP

12

43

IC9303

PC123X8YFZOF

R9340

NC

R9317

1.5M 1% 1/4W

5.2V

24V

R9334

220 OHM 1/4W

C9151

1UF

C9153

1UF

5.2V

+

C9160

560UF 35V

C9333

0.47UF 50V

+

C9161

560UF 35V

2

1

3

4

-

+

BD9901

TS10B06G-06-X0

12V

R9806

56K 1/8W

Q9302

RK7002BM

C9824

22N 50V

C9144

100N 50V

R9151

10 OHM

!

R9141

0.1R

C9825

220N 50V

R9329

0.1R

RV9902

TVR14561KFAOZF

R9318

1.5M 1% 1/4W

D9801

FMN-1106S

1 2

FB9804

BEAD

C9342

100N 50V

+

C9164

330UF 35V

12V

C9827

100P 50V

R9810

13K OHM 1%

D9802

1N5408-11

C9159

330NF 50V

C9833

47pF

R9165 10K 1/8W

Q9103

PMBS3904

C9162

100N 50V

C9908

470PF 250V

!! !

C9909

470PF 250V

C9171

2.2NF

R9147

470 OHM 1/8W

R9336

1K 1/8W 1%

R9140

1K 1/8W 1%

R9149

470 OHM 1/8W

+

C9168

470UF 25V

!

+

C9163

470UF 25V

+

C9169

470UF 25V

123

HS9802

SHIELD

D9306

1N4148

C9826

220pF 50V

+

C9830

10UF 50V

R9172

5.1K 1/4W

R9153

10K 1/8W 1%

R9173

5.1K 1/4W

D9109

1N4148

R9174

5.1K 1/4W

R9303

20K OHM

R9156

10K 1/8W 1%

!

S/OCP1BR2GND3FB/OLP

4

VCC

5

D/ST7D/ST

8

IC9301

A6069H

R9306

10K 1/8W 1%

5.2V

R9332

2R2 +-5% 1/4W

C9152

1.5NF

R9808

10R 1/8W 5%

C9828

100N 50V

R9158

3.9K 1/4W

R9176

1.5K 1/4W

1 2

ZD9104

GDZJ15B

R9177

1.5K 1/4W

!

Q9305

MMBT3906 PNP

R9335

3K3 1/8W 5%

R9160

10K 1/8W 1%

R9139

100 OHM 1%

VCC1

C9910

470NF 305V

C9911

470NF 305V

VCC

R9308

10K 1/8W 1%

R9816

680K OHM +-1% 1/4W

C9829

100N 50V

R9815

680K OHM +-1% 1/4W

R9817

0R05

DIM

C9345

100N 50V

R9302

100K 1/6W 5%

1 2

ZD9101

GDZJ30B

DV5

C9331

1NF

R9310

100K 1/8W 1%

SB+

R9813

10K 1/4W

R9801

0.05R

R9809

30 OHM

Q9801

TK18A60V

163

4

L9801

300UH

12

D9803

RB160M

R9342

10K 1/8W 1%

R9138

1K 1/8W 1%

24V

R9333

1K 1/8W 1%

R9324

1K 1/8W 1%

24V

R9330

47 OHM 1/4W

R9304

100K 1/8W 1%

R9148

NC

R9309

100K 1/8W 1%

1 2

ZD9102

GDZJ15B

24V

1 2

ZD9105

NC

1

2

CN905

CONN

C9343

220N 50V

R9146

2K43 1/8W 1%

C9150

0.47UF 50V

12

D9113

RB160M

12

43

IC9106

PC123X8YFZOF

12

D9112

RB160M

123

D9308

FMW-2156

C9157

27NF

1 2

ZD9303

GDZJ15B

BOX

1 2

t

NR9901

NTCR

1 2

ZD9304

NC

1 2

FB9801

BEAD

1 2

FB9802

BEAD

R9101

200R 1/8W 1%

L9304

5uH

L9103

5uH

L9105

5uH

1 2

FB902

BEAD

L9106

5uH

VBoot

1 2

ZD9301

GDZJ18B

B1+

Q9106

MMBT3906 PNP

B1+

R9904

510K

R9905

510K

C9156

100PF1KV

D145T60P7_5-1_2-R

!

BOX

C9149

100N 50V

5.2V

R9343

0 OHM 1/8W

C9155

1N 50V

12V

C9334

1N 50V

761

2

111015

14

8913

12

T9101

POWER X'FMR

R9301

1.2R

SB+

VBoot

R9111

NC

R9143

NC

R9814

680K OHM +-1% 1/4W

SG9905

DSPL201M-A21F

SG9904

DSPL201M-A21F

+

C9802

47UF 450V

C9803

470PF1KV

2 3

1

IC9304

AZ432AZTR-G1

123

D9115

FMEN-2308

C9165

100N 50V

VCC1

VCCVCC1

Vsen1Vcc2FB3GND4Css5OC6RC7Reg8RV

9

COM

10

VGL

11

NC12NC

13

VB14VS

15

VGH

16NC17NC18

IC9101

SSC9512S-TL

5.2V

R9811

100 OHM 1/4W

R9144

1M 1% 1/4W

R9337

12.7 KOHM +-1% 1/8W

R9338

7.87K 1%

C9154

560P 50V

!

Q9303

2SD1624T-TD-E

R9155

100 OHM 1/4W

1

2

4

3

L9901

12MH

C9301

100N 50V

R9152

47OHM +-5% 1/8W

D9110

1N4148

12

t

NR9902

NTCR

L

1

N

2

CN904

CONN-NC

IC9107

AS431AZTR-E1

1

2

4

3

L9903

12MH

R9154

47OHM +-5% 1/8W

+

C9340

470uF 16V

+

C9341

470uF 16V

Q9104

NTD4906NT4G

C9146

100N 50V

12

43

IC9302

PC123X8YFZOF

R9159

3.3K 1/4W

Q9802

NTD4906NT4G

1 2

CN901

SOCKET

D9114

UF4007

1 2

D9301

RB160M

R-

12

D9302

RB160M

C9158

NC

D9304

FR107

C9145

100N 50V

R-

C9907

470PF 250V

C9166

NC

DV5

R9164

1K 1/8W

+

C9801

47UF 450V

Main_ov

1

235

679

10

4

T9301

POWER X'FMR

R9805

200KOHM 1/8W +/-5%

Main_ov

RV9901

TVR14561KFAOZF

+24V

1 2

ZD9107

BZT52-B22

R-

C9148

4.7UF 10V

123

D9116

FMEN-2308

VCC1

R9818

1K 1/8W

123456789

101112

13

CN902

CONN

+

C9804

47UF 450V

C9820

1UF 450V

C9901

NC

1 2

FB9904

BEAD

C9912

470PF 250V

C9905

470PF 250V

R9325

100K

R9326

100K

R9328

100K

R9327

100K

!

! !

!

12

ZD9106

BZT52-B5V1

!

R9178

5.1K 1/4W

!

123

4

HS9103

HEAT SINK

R9319

1.5M 1% 1/4W

+

C9805

47UF 450V

+

C9302

22UF 50V

R9142

1.5M 1% 1/4W

R9150

1.5M 1% 1/4W

R9346

1K 1/4W

24V-LED

3

4

1

2

HS9102

HEAT SINK

C9338

1NF

123456789

101112

CN903

CONN

PS-On

R9323

4.7M OHM +-5% 1/4W

24V

R-

DV5

12

ZD9302

P6KE160A

DIM

On/Off

+

C9336

10UF 50V

123

4 HS9801

HEAT SINK

123

4

HS9901

HEAT SINK

24V

R9819

10K 1/8W

R9102

10 OHM

Q9101

TK10A50D

5.2V

Q9102

TK10A50D

R9103

10 OHM

+

C9337

47UF 50V

1 2

FB903

NC

R9345

NC

EN 54TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10.3 A 715G5246 PSU

10-3-1 Power Circuit

back to

2013-Jun-14

div.table

19240_507_120213.eps

120213

24 V to VLED

A02 A02

2012-01-10

1

715G5246

24 V to VLED

FB

1

GM

2

RT

3

CS

4

DIM

5

GND

6

OUT

7

VCC

8

IC8103

PF7900S

1

2

3

4

L8101

25UH

12

D8118

RB160M

DIM

VLED

R9316

NC

24V-LED

R8153

0 OHM 1/8W

Q8101

TK12A10K3

R8148

1K 1/8W 1%

R8162

1K 1/8W 1%

R8157

10K 1/8W 1%

+

C8118

100UF 100V

+

C8108

100UF 100V

R9322

100K 1/8W 1%

12V_LED

Q9306

MMBT3906 PNP

12V

R9312

51K OHM

R9313

15K 1% 1/8W

12V_LED

R8177

NC

Q9308

PMBS3904

R9321

33K OHM

On/Off

C9346

100N 50V

R8176

0 OHM 1/4W

1 2

ZD8103

BZT52-B13

R8141

20K 1% 1/8W

R8144

430K 5%

R8163

200K 1%

R8158

22 OHM 1/8W

R8161

2.2 OHM 1/8W

C8113

1N 50V

EN

R8154

100K

R8155

100K

R8156

100K

R8145

270K 1/4W

R8147

110K OHM 1%

R9315

3.9K1% 1/8W

R9344

10K 1/8W

LED-COMP

+

C8121

22UF 50V

12V

C8119

NC

C8106

NC

C8111

100N 50V

123

D8120

MBRF10150CT

C8105

1N 50V

R8175

0.1R

EN 55TPM10.1A LA 10.

back to

2013-Jun-14

div.table

Circuit Diagrams and PWB Layouts

10-3-2 24V to VLED

19240_508_120213.eps

120213

LED Driver

A03 A03

2012-01-10

1

715G5246

LED Driver

C8503

1UF 16V

C8504

1UF 16V

C8505

1UF 16V

C8506

1UF 16V

C8507

1UF 16V

VLED

LED-4

C8508

1UF 16V

C8509

1UF 16V

LED-COMP

C8510

1UF 16V

C8511

1UF 16V

LED-15

LED-11

C8512

1UF 16V

C8513

1UF 16V

C8514

1UF 16V

LED-13

C8515

1UF 16V

C8516

1UF 16V

LED-14

LED-15

LED-16

EN

DIM

12V_LED

LED-COMP

12V_LED

EN

DIM

12V_LED

12V_LED 12V_LED

12V_LED

LED-16

LED-9

LED-10

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8509

PF7703S

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8507

NC

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8508

NC

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8510

PF7703S

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8513

NC

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8515

PF7703S

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8511

PF7703S

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8514

NC

LED-COMP

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8516

PF7703S

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8512

PF7703S

EN

DIM LED-COMP

DIM DIM

LED-COMP

EN

DIM

DIM LED-COMP

LED-COMP

EN

DIM

EN

DIM

EN

LED-COMP

LED-11

EN

LED-COMP

LED-8

123456789

101112

CN8502

NC

EN

DIM

LED-7

LED-COMP

LED-13

LED-11

LED-9

LED-12

LED-14

LED-10

VLED

LED-12

LED-1

LED-7

LED-8

LED-COMP

LED-2

EN

DIM

LED-15

LED-16

LED-COMP

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8501

PF7703S

LED-3

LED-6

LED-5

1234567

8

CN8503

NC

1234567

8

CN8504

NC

LED-3

LED-6

LED-2

LED-4

LED-1

123456789

101112

CN8501

NC

LED-5

VLED

LED-4

VLED

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8502

PF7703S

DIM

EN

R8501

11K 1%

LED-COMP

R8502

11K 1%

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8503

PF7703S

R8503

11K 1%

R8504

11K 1%

R8505

11K 1%

+

C8158

NC

C8501

1UF 16V

R8506

11K 1%

R8507

11K 1%

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8504

PF7703S

R8508

11K 1%

C8502

1UF 16V

R8509

11K 1%

DIM

EN

R8510

11K 1%

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8505

PF7703S

R8511

11K 1%

LED-COMP

R8512

11K 1%

R8513

11K 1%

DIM

EN

R8514

11K 1%

DIM1FLAG2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8506

PF7703S

C8157

100N 50V

C8523

100N 50V

C8529

100N 50V

C8530

100N 50V

C8524

100N 50V

C8518

100N 50V

C8519

100N 50V

C8525

100N 50V

C8531

100N 50V

C8532

100N 50V

C8526

100N 50V

C8520

100N 50V

C8521

100N 50V

C8527

100N 50V

C8528

100N 50V

C8522

100N 50V

R8515

11K 1%

LED-COMP DIM

EN

R8516

11K 1%

LED-14

LED-12

LED-13

LED-5

LED-3

LED-6

LED-1

LED-2

EN 56TPM10.1A LA 10.

back to

div.table

2013-Jun-14

Circuit Diagrams and PWB Layouts

10-3-3 LED Driver

19240_509_120215.eps

120215

2011-12-22

1

715G5246

Power

layout top

C9147

C9156

C9302

C9803

D9109

D9110

D9305

D9306

D9307

D9802

IC9302

IC9106

IC9107

IC9303

IC9304

J9901

T9301

J9306

J9905

J9907

J9302

J9303

J8501 J8504 J8507 J8510 J8514 J8517

J8525

J8524

J8529

J8528

J8513

J8503

J8506

J8509

J8512

J8516

J8519

J8523

J8526

J8530

J8549

J8550

J8533

J8538J8537

J8532

J8546

J8551

J8547

J8535

J8564

J8548

J9906

J9902

J9903

J9904

J8544

J8545J8543J8541

J8542

J8521

J8522J8518J8515J8511J8508J8505J8502

C8121

C9336

C9830

R9301

J9307

T9101

J8536

J9114

J9115

J9113

J9110

J9111

J9103

J9105

J9112

J9109

J8561

J8531

J8540

J9106

J8520

J9108

J8539

J8558

J8552

J8527

J9309

J9305

J9308

J9908

J9909

J9910

J9117

J9116

J9107

J9104

J8554 J8553

J9102

J9101

J9304

J8534

J9301

C8158

J8565

J9118

C9905

C9912

J9912 J9911

BD1

C9901

C9157

C9801C9802 C9804C9805

D9801

F9901

FB902

FB903

FB9801

IC9301

Q9801

R9904

R9905

SG9902

SG9903

SG9904

SG9905

R9801

HS9801

C9164

CN8501

CN8502

D9115 D9116

L8101

R8175

CN903

D8120

CN8504 CN8503

HS9901

FB9802

GND1

HS9802

C9340

C9341

C9344

C9163

C9168

C9169

C9337

CN902

L9103

L9901

HS9103

HS9301

D9114

RV9901

RV9902

FB9904

L9903

Q8101

D9308

C9160

C9161

HS9102

HS9101

C9910

C9911

R9141

R9329

L9801

Q9101

Q9102

C9820

ZD9302

NR9901NR9902

R9901

R9302

CN905

C9331

C9338

L9105

L9106

L9304

C9903

C9904

C9906

C9907

C9152

ZD9101

ZD9102

ZD9105

ZD9301

ZD9303

ZD9304

ZD9104

C8108

C8118

C9908

C9909

D9304

C9833

FB9804

C9171

FB9803

FB9302

BD9901

CN901

CN904

EN 57TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10-3-4 Power layout top

back to

2013-Jun-14

div.table

EN 58TPM10.1A LA 10.

19240_510_120215.eps

120215

2011-12-22

1

715G5246

Power

layout bottom

C8105

C8106

C8111

C8119

C9144

C9145

C9146

C9149

C9150

C9151

C9153

C9154

C9155

C9158

C9159

C9165

C9170

C9333

C9334

C9335

C9342

C9343

C9301

C9824

C9825

C9826

C9827

C9828

C9829

IC9801

IC9901

Q9103

Q9301

R8141

R8144

R8148

R8153

R8154

R8155 R8156

R8157

R8161

R8162

R8163

R9101

R9139

R9140

R9150 R9144

R9145

R9146

R9148

R9149

R9151

R9152

R9153

R9154

R9156

R9158

R9159

R9161

R9163

R9171

R9172

R9173

R9174

R9175

R9176

R9177

R9180

R9317 R9318 R9319

R9320

R9323

R9332

R9325

R9326

R9327

R9328

R9330

R9331

R9334

R9335

R9336

R9337

R9338 R9339

R9340

R9341

R9306

R9304

R9804

R9805

R9806

R9807

R9810

R9813

R9815

R9816

R9342

R9343

R9345

C8501

C8502

C8503

C8504

C8505

C8506

C8507

C8508

C8509

C8510

C8511

C8512

C8513

C8514

C8515

C8516

IC8103

IC8501

R8501

R8502

R8503

R8504

R8505

R8506

R8507

R8508

R8509

R8510

R8511

R8512

R8513

R8514

R8515

R8516

C8157

C8518

C8519

C8520

C8521

C8522

C8523

C8524

C8525

C8526

C8527

C8528

C8529

C8530

C85

31

C8532

IC8503

IC8505

IC8504

IC8507

IC8506

IC8508

IC8502

IC8512

IC8510

IC8509

IC8511

IC8513

IC8516

IC8514

IC8515

C9345

R9309

R9310

Q9304

R9817

R8158

R9142

JR9101

R8176

R8147

R8145

C9346

R9809

R9147

R9160

R9808

R9308

R9311

R9312

R9313

R9316

R9321

R9322

R9178

Q9305

Q9306

Q9308

C9148

R9102

R9103

C9831

R9307

JR9102

JR8101

C8113

R9346

Q9302

C9832

R9111

R9138

R9143

R9315

R9324

R9333

R9344

R9818

R9819

Q9106

R9303

R9814

R9165

C9162

R9164

R9155

R9811

JR9103

R8177

C9166

JR9104

D8118

D9112

D9113

D9803

IC9101

ZD8103

D9301

D9302

Q9104

Q9802

Q9303

ZD9106

ZD9107

Circuit Diagrams and PWB Layouts

10-3-5 Power layout bottom

back to

div.table

2013-Jun-14

19430_500_130114.eps

130114

Power Circuit

A01 A01

2012-12-28

E

715G5778

Power Circuit

C9832

100N 50V

D9801

FMNS-1106S

093G 52905

P_Scan

HS9901

HEAT SINK

123

4

FB9302

BEAD

1 2

VCC1

D9305

FR107

093G 6026T52T

HS9101

HEAT SINK

123

4

C9911

470NF 275V

063G107M47410M

C9910

470NF 275V

R9311

0 OHM +-5% 1/8W

L9801

240UH

073G 174275 CP

6

1

ZD9106

BZT52-B3V6

12

IC9801

R2A20133ESP

356G0379008222

FB1COMP2RT3NC

4

CS

5

GND

6

OUT

7

VCC

8

ZD9107

BZT52-B22

1 2

C9955

220PF 250V

R9346

220 OHM 1/4W

12V

C9980

470PF 250V

+

C9147

22UF 50V

For Q9101,Q9102 NC

DIM

24VA

5.2V

C9826

3.3nF 50V

On/Off

PS-On

Q9301

2N7002K

057G 763 62

CN902

CONN

123456789

101112

13

12V

For BD9901 NC

Q9304

2N7002

057G 763904

R9161

24K 1/8W 1%

R9163

2K 1/8W 1%

C9877

47pF 1KV

D9302

SS1060FL

12

C9912

470PF 250V

R9301

1.0R 1W

+

C9344

470UF 25V

R9180

27K 1/8W 1%

+

C9340

470UF 25V

+

C9341

470UF 25V

067G 5154714HT

B1+

R9171

5.1K 1/4W

C9906

150PF 250V

IC9101

SSC9522S

056G 379211

Vsen1Vcc2FB3GND4Css5OC6RC7Reg8RV

9

COM

10

VGL

11

NC12NC

13

VB14VS

15

VGH

16

NC17NC

18

D9116

MBRF1560CT

093G 60931

123

C9831

NC

PS-On

R9175

1.5K 1/4W

C9170

100N 50V

R9320

560K 1/8W 1%

P_Scan

R9340

10K 1/8W 1%

R9337

8K2 1/8W 1%

HS9301

HEAT SINK

123

4

C9395

3.3NF 50V

C9335

100N 50V

RV9907

680V

361G0046681KZW

R9901

1MOHM +-5% 1/2W

R9339

43.2KOHM +-1% 1/4W

D9307

FR107

R9804

NC

R9331

47 OHM 1/4W

12V

IC9303

EL817M(X)

056G 139 9

12

43

R9317

1.5M 1% 1/4W

24VA

C9151

1UF

C9153

1UF

D9113

SS1060FL

12

5.2V

ZD9105

GDZJ30B

1 2

C9333

0.47UF 50V

R9810

16K +-1% 1/8W

C9338

3.3NF 50V

+

C9802

47UF 450V

12V

R9806

56K 1/8W

Q9302

RK7002BM

057G 763532

R9801

0.07R 3W

C9824

22N 50V

C9144

100N 50V

R9151

10 OHM

R9141

0.1R

R9329

0.1R 1W

C9825

220N 50V

R9390

0R05

R9318

1.5M 1% 1/4W

RV9902

680V

361G0046681KZW

FB9804

BEAD

1 2

C9342

100N 50V

+

C9164

NC

C9829

100N 50V

C9159

330NF 50V

C9833

47pF

R9101

180R 1%

Q9103

PMBS3904

057G 417 4

L9906

3UH

C9171

1.5NF

R9140

1K 1/8W 1%

R9149

470 OHM 1/8W

L9903

12mH

073G 174270 X1

1

2

4

3

+

C9168

470UF 25V

+

C9163

NC

+

C9169

470UF 25V

D9306

1N4148

+

C9830

10UF 50V

R9172

5.1K 1/4W

R9153

10K 1/8W 1%

R9173

5.1K 1/4W

D9109

1N4148

R9174

5.1K 1/4W

R9303

20K OHM

R9156

10K 1/8W 1%

IC9301

A6069H

056G 379121

S/OCP1BR2GND3FB/OLP

4

VCC

5

D/ST7D/ST

8

R9158

5.6K

R9332

2R2 +-5% 1/4W

R9808

10R 1/8W 5%

C9828

100N 50V

R9176

1.5K 1/4W

ZD9104

GDZJ15B

1 2

+

C9804

47UF 450V

367G215X470PKZ001S

R9809

200 OHM 1/4W

R9177

1.5K 1/4W

Q9305

MMBT3906 PNP

057G 417907 T

R9335

3K3 1/8W 5%

R9160

10K 1/8W 1%

VCC1

R9399

47 OHM 1/4W

VCC

R9308

10K 1/8W 1%

R9816

680K OHM +-1% 1/4W

R9815

680K OHM +-1% 1/4W

C9345

100N 50V

R9302

100K 1/6W

ZD9101

GDZJ30B

1 2

DV5

C9331

1NF

R9310

100K 1/8W 1%

SB+

F9901

FUSE 5A

084G 41 7

R9813

10K 1/4W

T9301

POWER X'FMR

080GL52P 54 CP

1

2

345

7

9

24V

R9324

1K 1/8W 1%

R9304

100K 1/8W 1%

R9309

100K 1/8W 1%

R9330

47 OHM 1/4W

R9148

NC

ZD9102

GDZJ15B

1 2

24V

R9144

1M5 1/4W 1%

L9304

NC

CN905

CONN

1

2

C9343

220N 50V

R9146

2K43 1/8W 1%

C9150

0.47UF 50V

IC9106

EL817M(X)

056G 139 9

12

43

D9308

FMW-2156

093G1506 2

123

ZD9303

GDZJ15B

1 2

BOX

Q9801

STF24NM60N

057G 667A04

FB9801

BEAD

1 2

ZD9304

NC

1 2

FB9802

BEAD

1 2

R9333

2K 1/8W 1%

FB9810

BEAD

1 2

VBoot

IC9999

NC

NC1D12D13NC

4

NC

5D26D27NC8

ZD9301

GDZJ18B

1 2

B1+

R9995 NC

R9996 NC

Q9106

MMBT3906 PNP

057G 417907 T

R9992

NC

R9993

NC

R9994

NC

B1+

R9991

NC

C9999 NC

R9888

0 OHM +-5% 1/8W

C9156

100PF1KV

R9336

1Kohm +-1% 1/4W

R9338

9K1 1/8W 1%

BOX

R9139

100R 1%

C9149

100N 50V

5.2V

C9155

1N 50V

12V

C9334

1N 50V

T9101

POWER X'FMR

380GL32P111YS0

761

2

111015

14

8913

12

Q9101

STF8NM50N

357G0667A06

D9804

IN5408G-04

093G 52918

R9334

220 OHM 1/4W

VBoot

t

NR9901

2.5R

361G0058259MYW006A

12

R9143

NC

SG9905

NC

SG9904

NC

D9803

SS1060FL

12

C9803

470PF1KV

R9178

5K1 1/8W

D9115

FMEN-2308

093G 60987

123

D9301

SS1060FL

393G060S50000T00HF

1 2

For Q9801,D9801

C9165

100N 50V

VCC1

C9820

105 450V

-

+

BD9901

TS10K80-02

393G0050460A06

2

1

3

4

VCCVCC1

5.2V

R9811

100 OHM 1/4W

R9307

10K 1% 1/8W

C9154

560P 50V

FB9996

NC

1 2

For D9308

C9301

100N 50V

R9152

47OHM +-5% 1/8W

D9110

1N4148

R-

CN904

CONN-NC

L

1

N

2

IC9107

AS431AZTR-E1

R9154

47OHM +-5% 1/8W

R9111

0 OHM +-5% 1/8W

C9907

150PF 250V

C9146

100N 50V

IC9302

EL817M(X)

056G 139 9

12

43

Q9802

NTD4906NT4G

057G 600954

CN901

SOCKET

087G 50147D DL

1 2

D9114

UF4007

093G 52908

R-

C9827

1NF 50V

C9158

NC

D9304

FR107

C9145

100N 50V

R-

R8550

10K 1% 1/4W

C9166

NC

R9306

2K 1/8W 1%

DV5

Main_ov

R9159

20K 1/4W

R9805

200K1/8w

Main_ov

C9981

470PF 250V

IC9304

AS431AZTR-E1

056G 158 10 T

D9112

SS1060FL

12

R-

C9148

4.7UF 10V

C9152

5PF 1KV

R9147

470 OHM

R9817

100K 1%

For D9115,D9116

R9818

1K 1/8W

C9875

NC

FB9999

BEAD

12

+

C9161

330UF 35V

+

C9174

330UF 35V

NC

C8550

1N 50V

R9138

1Kohm +-1% 1/4W

NC

R9325

100K

R9326

100K

R9341

100K 1/8W 1%

R9327

100K

R9328

100K

R9145

18K 1/8W 1%

C9908

150PF 250V

+

C9172

NC

HEAT SINK

HS9103

123

4

Q9102

STF8NM50N

357G0667A06

R9319

1.5M 1% 1/4W

+

C9801

47UF 450V

C9347

1UF

L9901

12mH

073G 174270 X1

1

2

4

3

+

C9160

330UF 35V

067G 5153316KT

L9905

3UH

373G0253247X00

t

NR9902

2.5R

361G0058259MYW006A

12

+

C9302

22UF 50V

R9142

1.5M 1% 1/4W

R9150

1.5M 1% 1/4W

Q9303

BTC4672M3

357G0761A0100T

24VA

HS9102

HEAT SINK

3

4

1

2

For D8120,Q8101

CN903

CONN

123456789

101112

R9323

4.7M OHM +-5% 1/4W

C9909

150PF 250V

C9157

22nF 1KV

24V

NC

R9807

200 OHM 1/4W

R9814

1MOHM +-1% 1/4W

NC

R-

DV5

DIM

On/Off

HS9801

HEAT SINK

123

4

+

C9336

10UF 50V

24V

RJ901

4R7 1/4W 5%

R9819

10K 1/8W

R9102

10 OHM

R9103

10 OHM

+

C9337

47UF 50V

EN 59TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10.4 A 715G5778 PSU

10-4-1 Power Circuit

back to

2013-Jun-14

div.table

19430_501_130114.eps

130114

Converter

A02 A02

2012-12-28

E

715G5778

Converter

IC8103

PF7900S

056G 700 23

FB

1

GM

2

RT

3

CS4DIM

5

GND

6

OUT

7

VCC

8

+

C8118

120UF 100V

+

C8109

120UF 100V

VLED

DIM

R8510

9.31K +-1% 1/8W

R8549

0R05 1/4W

R8548

0R05 1/4W

R8521 0R05

R8546 0R05

R8555 0R05

R8543 NC

R8542 NC

IC8503

PF7700A

356G0700008052

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

R8547 0R05

R8523 0R05

R8544 0R05

R8541 0R05

R8524 0R05

R8540 0R05

R8520 0R05

R8545 0R05

LED-COMP

R8522 0R05

D8555

1N4148W

D8557

1N4148W

D8556

1N4148W

R8515

0 OHM +-5% 1/8W

LED-12

LED-10LED-9

R8513

0 OHM +-5% 1/8W

R8514

0 OHM +-5% 1/8W

R8519 0R05

VLED

LED-12

CN8504

CONN

1234567

8

910

LED-10

VLED

LED-11

LED-12

12V

C8501

100N 50V

12V

C8502

100N 50V

12V12V

12V

LED-11

12V

C8503

100N 50V

12V

C8505

100N 50V

C8504

100N 50V

LED-2

LED-1

LED-7

LED-4

LED-8

LED-5

R8511

9.31K +-1% 1/8W

LED-3

LED-6

C8506

100N 50V

C8507

100N 50V

C8508

100N 50V

LED-8

LED-9

LED-7

LED-10

C8509

100N 50V

LED-9

C8510

100N 50V

C8511

100N 50V

C8512

100N 50V

DIM

LED-COMP

DIM

LED-COMP

EN

LED-COMP

DIM

EN

LED-COMP

EN

DIMLED-COMP

EN

LED-7

LED-COMP

CN8506

CONN

123456789

101112

LED-8

PWM_C

EN

LED-1

LED-11

VLED

24V

LED-3

LED-COMP PWM_C

EN

LED-2

LED-5

LED-COMP

LED-4

LED-6

CN8501

NC

123456789

101112

VLED

PWM_B

EN

LED-COMP

+

C8158

NC

R8512

9.31K +-1% 1/8W

EN

PWM_B

CN8503

CONN

123

4

LED-COMP

IC8504

PF7700A

356G0700008052

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

EN

PWM_A

DIM

C8523

100N 50V

C8157

100N 50V

C8529

100N 50V

C8530

100N 50V

C8518

100N 50V

C8524

100N 50V

C8525

100N 50V

C8519

100N 50V

C8532

100N 50V

C8531

100N 50V

C8520

100N 50V

C8526

100N 50V

LED-COMP

R9322

3.0KOHM +-1% 1/4W

PWM_A

EN

LED-11

LED-12

R8501

9.31K +-1% 1/8W

IC8505

PF7700A

356G0700008052

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8506

PF7700A

356G0700008052

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

Q8101

AOTF4126

357G0600A01

R8177

NC

EN

R8153

0 OHM 1/8W

R8147

360K +-1% 1/8W

C8188

NC

R8188

NC

IC8507

PF7700A

356G0700008052

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

R8145

330K +-1% 1/4W

IC8508

PF7700A

356G0700008052

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

R8157

10K 1/8W 1%

EN

On/Off

IC8509

PF7700A

356G0700008052

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

IC8510

PF7700A

356G0700008052

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

R8141

82K +-1% 1/8W

C8177

NC

IC8511

PF7700A

356G0700008052

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

Note2

IC8512

PF7700A

356G0700008052

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

L8101

33uH

373G0253257CP0

3

1

C8119

1N 50V

Note1

R8502

9.31K +-1% 1/8W

NC

R9997

0.03R 3W

NC

IC8501

PF7700A

356G0700008052

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

R8503

9.31K +-1% 1/8W

R8144

75K 1%

R8504

9.31K +-1% 1/8W

ZD8103

NC

1 2

R8148

100K 1/8W 1%

R8505

9.31K +-1% 1/8W

R8162

1Kohm +-1% 1/4W

C9346

100N 50V

R8506

9.31K +-1% 1/8W

R8176

0 OHM 1/8W

R8163

200K 1%

R8507

9.31K +-1% 1/8W

C8113

1N 50V

D8118

NC

12

R8158

10R 1/8W 5%

R8161

NC

R8154

100K

R8155

100K

R8156

100K

NC

R8508

9.31K +-1% 1/8W

LED-COMP

NC

+

C8170

330UF 35V

+

C8121

22UF 50V

12V

NC

R8509

9.31K +-1% 1/8W

IC8502

PF7700A

356G0700008052

DIM1EN2VCC3LED

4

GND

5

ISET

6

GM

7

COMP

8

C8106

NC

C8111

100N 50V

D8120

MBRF10150CT

093G 60903

123

C8105

1N 50V

NC

EN 60TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

back to

div.table

2013-Jun-14

10-4-2 Converter

19430_502_130115.eps

130115

2012-12-28

E

715G5778

Power layout top

C8121

C8158

C9830

C9156

C9302

C9336

C9803

C9147

D9305

D9306

D9307

D9802

IC9106

IC9107

IC9302

IC9303

IC9304

R9301

H2

H1

D9109

D9110

J901

J909

J907

J906

J902

J903

J913

J952 J950

J916

J970 J968J966

J954 J955 J956 J957 J958

J972 J973 J974 J975 J976 J977

J937

J938

J940

J941

J910

J911

J914

J912

J915

J960

J961

J939

J959

J978

J926

J924

J921

J928

J929

J930

J927

J925

J923

J919

J917

J918

J922

J920

J931

J932

J933

J934

J981

J982

J953

J946 J944J986

J985

J987

J935

J942

J948

J988 J989 J990

J964

J965

J962

J963

J951 J949 J947 J945 J943

J971 J969 J967

H3

J991

J992

J983

J984

H4

H5

H6

J993

J905

J979

J936

J904

J908

J994

J996

J995

T9101A

T9301

T9101

J980

J1

J5

J6

J4

J2

J3

TEST3

TEST2

C9152

C9160 C9161

C9163

C9164

C9168

C9169

C9171

C9172

C8170

C9174

C9331

C9337

C9340

C9341

C9344

C9833

C9906C9907 C9908 C9909

C9912

C9955

C9980

C9981

CN8501

CN8504

CN8506

CN901

CN902

CN903

CN904

CN905

D8120

D9114

D9115

D9116

D9304

D9308

D9801

F9901

FB9302

FB9804

FB9810

HS9102

HS9301

HS9801

IC9301

L9105

L9106

L9304

Q8101

Q9101

Q9102

Q9801

R8175

R9329

R9801

SG9904

SG9905

ZD9104

MH13

MH15

MH14

MH2MH3 MH4 MH6 MH7 MH8

MH9

MH10MH11MH12

MH17

MH5

MH1

ZD9101

ZD9301

ZD9303

ZD9304

HS9101

HS9901

R9141

R9302

FB9801

FB9802

C9157

C9820

C9999

FB9999

ZD9102

ZD9105

C9875

CN8503

C8109C8118

C9877

FB9996

HS9103

BD9901

L9801

C9801 C9804 C9802

RV9902

MH16

L8101

RV9907

C9911

C9910

R9901

L9903 L9901

C9157A

NR9901

NR9902

EN 61TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10-4-3 Power layout top

back to

2013-Jun-14

div.table

19430_503_130115.eps

130115

2012-12-28

E

715G5778

Power layout bottom

C8105

C8106 C8111

C8113 C8119

C8157

C8501

C8502

C8503

C8504

C8505C8506

C8507

C8508

C8509

C8510

C8511

C8512

C8518

C8519

C8520

C8523

C8524

C8525

C8526

C8529

C8530

C8531

C8532

C9144

C9145

C9146

C9148

C9149

C9150

C9151

C9153

C9154

C9155

C9158

C9159

C9165

C9166

C9170

C8550

C9301

C9333

C9334

C9335

C9342

C9343

C9346

C9824

C9825

C9826

C9827

C9828

C9829

C9831

C9832

Q9103

Q9106

Q9301

Q9302

Q9305

R8141

R8145

R8148

R8153

R8154

R8155

R8156

R8157

R8158

R8161

R8163

R8501

R8502

R8503

R8504

R8505R8506

R8507

R8508

R8509

R8510

R8511

R8512

R8519R8520R8521

R8522R8523

R8524

R9101

R9102

R9103

R9111

R9140

R9142

R9143

R9144

R9145

R9146

R9148

R9149

R9150

R9151

R9152

R9153

R9154

R9156

R9158

R9159

R9160

R9161

R9163

R9171

R9172

R9173

R9174

R9175

R9176

R9177

R9180

R9303

R9304

R9306

R9308

R9317 R9318 R9319

R9320

R9323

R9324

R9325

R9326R9327

R9328

R9330

R9331

R9332

R9333

R9335

R9337

R9338

R9340

R9341

R9346

R9390

R9804

R9805

R9806

R9807

R9808

R9809

R9810

R9811

R9813

R9814

R9815

R9816

R9817

R9818

R9819

RJ902

RJ901

RJ904

C9345

R9309

R9310

R9311

Q9304

RJ906

IC8103

IC9801

RJ909RJ908RJ907

RJ915RJ916RJ917

R9307

R9339

R8550

R8162

R8144

RJ905

R9322

R9138

R9178

R8147

R9147

R9991

R9992

IC9999

R9334

R9139

C9338

C9395

RJ903

R8176

R8177

R8514

R9336

RJ910

C8188

R8540 R8541

R8542

R8543

R8544 R8545

R8546

R8547

R8555

R9888

R8548

R8549

R9993

R9994

R9995

R9996

RJ921

R8515

RJ914

RJ913

RJ912

RJ911

R8513

RJ919

RJ920

SM5

SM6

SM7

R8190

R9399

Q8105

C8189

IC8507

IC8508IC8510

IC8509IC8511

IC8512IC8502

IC8501IC8503

IC8504IC8506

IC8505

R8188

C9347

C9348

C9349

PIN1

PIN2

PIN3

D8118

D9112

D9113

D9301

D9302

D9803

IC9101

Q9303

Q9802

ZD8103

ZD9106

ZD9107

D8557

D8556

D8555

ZD8109

EN 62TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

back to

div.table

2013-Jun-14

10-4-4 Power layout bottom

19430_515_130114.eps

130114

System Power 1

B01 B01

2012-11-15

C

715G5713

System Power 1

+12V

BRIGHT_ADJ

TUNER VCC

FB711

1 2

VCCK

+24_12V

R713

10K +-1% 1/16W

FB701

1 2

OPWRSB

+

C701

220UF 16V

C741

NC/100N 16V

C711

10UF 10V

C729

100NF 16V

C738

NC/100N 16V

C726

10UF 10V

C734

10UF 6.3V 20%

R719

100K 1/16W 5%

TP703

C747 NC/100N 16V

+3V3_TUNER

C740

NC/22P 50V

TP701

C709

1UF 10% 16V

R706

22KOHM 1/10W

L704

NC/15UH

C724

10UF 6.3V 20%

Q701

BC847C

321

C708

10UF 10V

FB704

1 2

C718

100NF 16V

U705 AP1117D33G-13

VIN

3

VOUT

2

ADJ(GND)

1

R722

36K 1/16W 5%

R704

33K 1/10W 5%

C704

2.2nF 50V

C722

2.2nF 50V

R710

4K7 1/16W 5%

C716

10UF 6.3V 20%

C705

NC/10UF 6.3V X5R +-20%

DVDD3V3

Q706

NC/2N7002

FB712

1 2

C702

100NF 16V

R716

10K +-1% 1/16W

R724

NC/2K 1/16W 5%

C719

100NF 16V

L701

1.5UH

C700

NC/10uF 6.3V

U703

TPS54519RTE

VIN1VIN

2

GND3GND

4

AGND

5

VSNS6COMP7RT/CLK8SS

9

PH10PH11PH

12

BOOT

13

PWRGD

14

EN15VIN

16

PwPd

17

C725

10UF 6.3V 20%

U706

AZ1117H-3.3TRG1

INPUT

3

ADJ/GND

1

OUTPUT

2

4

R727

NC/22K 1/16W 5%

R720

22K 1%

C763

NC/4N7 50V

C707

10UF 10V

FB705

1 2

R735

NC/18K 1/16W

R700

NC/10KOHM +-5% 1/8W

C715

100NF 16V

FB709

1 2

TP705

R733

NC/10K 1%

R714

5K6 1/16W 5%

R717

5K6 1/16W 5%

C728

10UF 6.3V 20%

C721

100NF 16V

TP700

R703

110R 1/10W 1%

C723

22NF 25V

C739

NC/4N7 50V

C748

NC/10uF 16V

R711

36K 1/16W 5%

R731

NC/18K 1/16W

C713

22NF 25V

OPWRSB

+

C736

220UF 16V

CN700

CONN

1234567891011

12

L702

1.5UH

R702

24R 1/10W 1%

BRIGHT_ADJ

C703

NC/10UF 6.3V X5R +-20%

C749

10uF 10V

INVERTER_ON_OFF

STB_PWR

TP708

TP

R705 2K7 1/16W 5%

+

C717

100UF 16V

Q705

NC/MMBT3904

R732

NC/62K 1/16W 1%

TP702

DC POWER INPUT

R725

NC/10K 1/16W 5%

U701

AZ1084CS2-ADJTRE1

ADJ/GND

1

OUTPUT(TAB)

2

INPUT

3

C746

NC/100N 50V

C720

100NF 16V

R734

NC/0R05 1/10W

C712

10UF 10V

C759

10uF 10V

R723

NC/10K 1/16W 5%

FB706

1 2

R726

NC/100K 1/16W 5%

R715

10K 1/16W 5%

INVERTER_ON_OFF

U704

NC/RT7257AHZSP

BOOT1VIN2SW3GND

4

FB

5

COMP

6

EN

7

SS

8

GND

9

C732

10UF 6.3V 20%

FB708

1 2

FB703

NC/120R

1 2

C761

10uF 10V

C731

10UF 6.3V 20%

R718

100K 1%

FB707

1 2

C733

10UF 6.3V 20%

C735

100NF 16V

C714

10UF 6.3V 20%

C706 1UF 10% 16V

FB702

1 2

TP704

R701 100R 1/16W 5%

+5V_STB

U702

TPS54519RTE

VIN1VIN

2

GND3GND

4

AGND

5

VSNS6COMP7RT/CLK8SS

9

PH10PH11PH

12

BOOT

13

PWRGD

14

EN15VIN

16

PwPd

17

FB700

1 2

Q702

AON4421

D1D2D3G

4

S5D6D7D

8

C727

100NF 16V

C710

1UF 10% 16V

C730

10UF 6.3V 20%

R721

NC/1K8 1/16W 1%

TP706

+12V

+24_12V

+5V_STBSTB_PWR

+5V_STB

+5V_SW

+12V

DDRV

3V3SB

DVDD3V3

VCCK

+5V_STB

AVDD1V2

+5V_STB +5V_SW

DVDD3V 3

AVDD3V 3

+3V3_TUNER

+5V_SW

DDRV

3V3SB

+5V_STB

+3V3_TUNER+5V_SW

OPWRSB 4

BRIGHT_ADJ 9

GND 3,4,5,6,7,8,9,10,11,12,13,14,15

INVERTER_ON_OFF 9

DVDD3V3 3,4,5,7,9,11,12,14,15

+3V3_TUNER 14

3V3SB 4,5,9,11,12

AVDD3V3 4,5,6,9,10,11,12,13

+12V3,5,7,15

AVDD1V2 6,9,12,13,14

VCCK4,11,12

DDRV 10

+5V_SW 3,5,8,9,12,13,14

+24_12V3

+5V_STB4,7

OPWRSB

+5V_SW

FB713

NC/120R

1 2

AVDD3V3

+24_12V

Updated 11/15

AVDD1V2

3V3SB

VCCK

EN 63TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

back to

2013-Jun-14

div.table

10.5 B 715G5713 SSB

10-5-1 System Power 1

19430_516_130114.eps

130114

System Power 2

B02 B02

2012-12-15

C

715G5713

System Power 2

R753 27K 1/10W 5%

FB751

NC/120R

1 2

C758

220nF50V

R755

20K 1/10W 1%

R750 10K 1/16W 5%

FB753 120R

12

L750

10uH

R759

10K 1/16W 5%

R752

10K 1/10W 5%

R756

100R 1/16W 5%

R763

NC/5.1KOHM +-5% 1/10W

Q752

NC/BC847C

D751

GS1A

C756

220N 25V

FB755

NC/120R

12

ZD750

PJSD24CW

1 2

R762

NC/10K 1/16W 5%

R764

NC/10K 1/16W 5%

D752

FB340M

1 2

R758

10K 1/16W 5%

R754

100R 1/16W 5%

+

C666

NC/100uF 35V

+

C753

100uF 25V

FB754

NC/120R

12

C757

220N 25V

R757

0R05 1/16W

Q750

AON4421

D1D2D3G

4

S5D6D7D

8

R761 NC/7K5 1/10W 5%

C750 1UF 10% 16V

C751

NC/4.7UF 10V

FB752 120R

12

+

C752

NC/100UF 16V

C760 NC/1UF16VR760

NC/10K 1/10W 5%

U751

LNBH25PQR

NC1FLT2LX3PGND4NC5ADDR

6

SCL

7

SDA

8

ISEL

9

NC

10

NC

11

NC

12

NC13NC

14

GND

15

VBYP

16

VCC

17

BPSW

18

DETIN

19

VOUT

20

VUP

21

DSQIN

22

DSQOUT

23

NC

24

E-Pad

25

+

C667

NC/100uF 35V

C754

2.2UF 25V

+

C755

100UF 16V

Q751

BC847C

Q753

NC/AON4421

D1D2D3G

4

S5D6D7D

8

FB750

120R

1 2

R751

5.1KOHM +-5% 1/10W

D750

FB340M

1 2

PANEL_VCC+12V+5V_SW

PVDD

+24_12V

+12V

+24_12V2

PANEL_VCC_ON/OFF11

TUNER_LNB14

GND2,4,5,6,7,8,9,10,11,12,13,14,15

DVDD3V32,4,5,7,9,11,12,14,15

OPWRSB 2,4

PVDD7

DISEQC_OUT14

+5V_SW 2,5,8,9,12,13,14

S2_DEMO_SDA14

+12V2,5,7,15

S2_DEMO_SCL14

ZD751

NC/PJSD24CW

1 2

TUNER_LNB

+24_12V

DVDD3V3

R765

NC/5.1KOHM +-5% 1/10W

TUNER_LNB

Q754

NC/BC847C

PANEL_VCC_ON/OFF

R766

NC/10K 1/16W 5%

FB757

NC/120R

12

GND

R767

NC/10K 1/16W 5%

FB758

NC/120R

12

R768 NC/7K5 1/10W 5%

C762 NC/1UF16VR769

NC/10K 1/10W 5%

OPWRSB

Q755

NC/AON4421

D1D2D3G

4

S5D6D7D

8

+24_12V

DVDD3V3

PANEL_VCC_ON/OFF

DVDD3V3

PVDD

+5V_SW

S2_DEMO_SCL

DISEQC_OUT

S2_DEMO_SDA

+12V

S2_DEMO_SDA

DISEQC_OUT

S2_DEMO_SCL

EN 64TPM10.1A LA 10.

back to

2013-Jun-14

div.table

Circuit Diagrams and PWB Layouts

10-5-2 System Power 2

19430_517_130114.eps

130114

Peripheral

B03 B03

2012-12-15

C

715G5713

Peripheral

PACL E

OPCTRL0

OPCTRL4

ORESET#

OSDA0

SYS_EEPROM_WP

GND

OSDA0

OSCL0

OPCTRL0

OPCTRL3

OPWRSB

OPCTRL4

3V3SB

PAALE

VDD_NAND

PACL E

AVDD33_VGA_STB

POWE#

IO Power

VCCK

AVDD33_XTAL_STB

SYS_EEPROM_WP

PDD7

PDD5

PDD6

PARB #

PDD4

PDD3

PDD2

POOE#

PDD0

POCE1#

PDD1

C4019

100NF 16V

(20mA Max.)

DVDD3V3

NAND Flash

VDD_NAND

OSCL0

AVDD33_XTAL_STB

U0TX

U0RX

AVDD33_PLL

AVSS33_PLLGP

OXTALO

OXTALI

OSDA0

C4002

100NF 16V

PACL E

PAALE

POWE#

PARB #

AVSS33_XTAL_STB

PDD4

PDD3

POOE#

POCE1#

POCE0#

PDD2

PDD1

PDD7

PDD6

PDD0

PDD5

E-Fuse

FSRC_WR

ORESET#

RC6

AVDD33_VGA_STB

AVSS33_VGA_STB

OPWRSB

AVDD10_LDO

D4001

NC/BAV99

3

1

2

C4018

100NF 16V

C4005

8.2PF 50V

C4027

10UF 10V

R4040

13K OHM +-1%

R4001

NC/0R05 1/16W

C4011

100NF 16V

R4019

10K 1/16W 5%

Core Power

OPCTRL3

C4022

1UF 10% 16V

U410

NC/AZ809ANSTR-E1

GND

1

RESET

2

Vcc

3

C4014

NC/4.7uF 10V

R4029

100R 1/16W 5%

C4008

100NF 16V

C4016

100NF 16V

MT5580MPOI

U401I

OSDA0R7OSCL0R6U0TX

W10

U0RX

Y10

XTALI

AE21

XTALO

AD21

AVSS33_XTAL_STB

AD20

AVDD33_XTAL_STB

AE20

AVDD33_PLL

AE17

AVSS33_PLLGP

V15

POWE#

AB6

POOE#

AC5

POCE1#

AC6

POCE0#

AC4

PDD0

AC2

PDD1

AB1

PDD2

AB2

PDD3

AA3

PDD4

AA2

PDD5Y3PDD6Y2PDD7

Y1

PARB #

AC1

PACL E

AB5

PAALE

AA5

ORESET__B

AE8

OPWRSB

Y9

OIRI

AB10

FSRC_WR

F21

POR_BND

W9

D4000

NC/BAV99

3

1

2

R4016

NC/10K 1/16W 5%

C4023

10UF 10V

C4004

8.2PF 50V

R4041

NC/3K9 +/-5% 1/16W

X4000

27MHz

1

2 4

3

C4012

100NF 16V

R4005

4K7 1/16W 5%

MT5580MPOI

U401K

AVDD33_VGA_STB

AE10

AVSS33_VGA_STB

V10

AVDD10_LDO

AD10

CN412

CONN

123

R4009

4K7 1/16W 5%

C4003

NC/1uF 16V

U409

CAT24C128WI-GT3

A01A12A2

3

VSS

4

SDA5SCL6WP7VCC

8

C4007

10UF 6.3V 20%

R4020

NC/10K 1/16W 5%

C4026

NC/10uF 10V

R4027 4K7 1/16W 5%

C4013

10UF 10V

C4025

10uF 16V

C4030

100NF 16V

R4014

10K 1/16W 5%

C4006

NC/4.7uF 10V

R4013

10K 1/16W 5%

R4024

4K7 1/16W 5%

C4028

1UF 10% 16V

C4029

100NF 16V

C4020

100NF 16V

C4017

100NF 16V

R4017

10K 1/16W 5%

C4015

100NF 16V

R4007

0R05 1/16W

+

C4021

NC/100UF 16V

C4010

100NF 16V

R4008

NC/100K 1/16W 5%

R4031

4K7 1/16W 5%

+5V_STB

U4051

TC58NVG2S0FTAI0

CLE

16

I/O0

29

R/B17VSS13VDD

12

VDD

37

VSS

36

ALE

17

I/O130I/O231I/O3

32

I/O441I/O542I/O643I/O7

44

NC1NC2NC3NC4NC5NC6NC10NC11NC14NC15NC20NC21NC22NC23NC

24

NC25NC26NC27NC28NC33NC34NC35NC38NC39NC40NC45NC46NC47NC

48

RE8CE1

9

WE18WP

19

C4024

4U7 10V

R4026 4K7 1/16W 5%

R4042

NC/10K 1/16W 5%

TP4000

TP

R4004 4K7 1/16W 5%

C4001

100NF 16V

TP4001

TP

R4032

4K7 1/16W 5%

R4011

4K7 1/10W 5%

R4021

9.1K 1%

R4018

NC/10K 1/16W 5%

R4030

100R 1/16W 5%

R4015

10K 1/16W 5%

R4002

4K7 1/16W 5%

C4009

100NF 16V

R4006

NC/0R05 1/16W

R4010

4K7 1/10W 5%

VCCK

DVDD3V3

---><---|>

AVDD3V33V3SB3V3SB

U0TX

U0RX

DVDD3V3

---><---|>

DVDD3V3

3V3SB

DVDD3V3

DVDD3 V3

3V3SB

R4012

NC/0R05 1/16W

3V3SB

+5V_STB

RC6 5

SYS_EEPROM_WP11

OPWRSB2

OSCL07

OPCTRL411

OSDA07

OPCTRL05,11

GND2,3,5,6,7,8,9,10,11,12,13,14,15

3V3SB2,5,9,11,12

OPCTRL311

DVDD3V32,3,5,7,9,11,12,14,15

+12V2,3,5,7,15

AVDD3V32,5,6,9,10,11,12,13

VCCK2,11,12

+5V_STB2,7

+12V

OXTALO

27MHz CRYSTAL

OXTALI

OSCL0

SYSTEM EEPROM

RC6

AVDD3V3

PAALE

Analog Power

Flash_WP#

AVDD33_PLL

Chip bottom

back to

div.table

EN 65TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10-5-3 Peripheral

2013-Jun-14

19430_518_130114.eps

130114

Connector/USB

B04 B04

2012-12-15

C

715G5713

Connector/USB

KEY_UP_DN_DCSW 11

Gamming 9

LED_R 4,11

RC6 4

USB_PWR_EN0 11

GND 2,3,4,6,7,8,9,10,11,12,13,14,15

Light_Sensor 11

KEY_MENU_L_R_SOURCE 11

USB_PWR_EN1 11

3V3SB 2,4,9,11,12

V33

DVDD3V3 2,3,4,7,9,11,12,14,15

USB_DP_P0 11

USB_DM_P0 11

USB_RESET 9

AVDD3V3 2,4,6,9,10,11,12,13

USB_DP_P1 11

USB_DM_P1 11

+5V_SW 2,3,8,9,12,13,14

+12V 2,3,7,15

L/R_OUT 9

KEY_UP_DN_DCSW Key1

TO KEY PAD BOARD

DM0

KEY_MENU_L_R_SOURCE

USB PORT 1

USB_PWR_EN0

USB_DP0

USB_DM0

USB_OC_OCP0

USB_DM0

DP0

AVDD3V3

USB_DP0

3V3SB

USB_DM_P0

Key2KEY_MENU_L_R_SOURCE

DM1

HUB CKT

DVDD3V3

USB_RESET

DVDD3V3

USB_DP_P0

ZD4100

NC/PDZ5.6B

1 2

USB_DM_P0

L/R_OUT

DVDD3V3

DP1

USB_DM_P1

USB_DP_P1

USB_PWR_EN1

KEY_UP_DN_DCSW

USB_OC_OCP0

USB_DP_P0

DM2

Gamming

LED_R

USB PORT 2

USB_DP1

USB_DM1

USB_OC_OCP1

Light_Sensor

USB_OC_OCP1

DP2

RC6

AVDD3V3

USB_RESET

USB_PWR_EN0

USB_DP_P0

USB_DM_P0

USB_DM1

USB_PWR_EN1

RC6

Light_Sensor

Key1

LED_R

Key2

---><---|>

R4144

NC/100R 1/16W 5%

Gamming

R4145

NC/10K 1/16W 5%

L/R_OUT

USB_DP1

USB_DP_P1

USB_DM_P1

R4143 0R05 1/16W

R4119 100R 1/10W 5%

C4110

NC/100NF 25V

R4117 100R 1/10W 5%

R4118

NC/10K 1/16W 5%

X4100

12MHz

1

2 4

3

AVDD3V3

FB4102

220R

1 2

R4125

NC/0R05 1/16W

C4102

100NF 16V

1234

CN1032 USB CONN

123

4

65

R4115

NC/1K 1/16W 5%

R4132

NC/3K3 1/16W 5%

GL850G-OHG

U4100

DP02DM13DP14AVDD5DM26DP2

7

DP4

16

DVDD

21

OVCUR3#20OVCUR4#

19

TEST/SCL

18

DM0

1

DM4

15

RESET#

17

RREF

8

AVDD

9

XTAL1

10

XTAL2

11

DM3

12

DP3

13

AVDD

14

V33

28

V5

27

SDA

26

OVCUR1#

25

OVCUR2#

24

PGANG

23

PSELF

22

P

29

R4138 0R05 1/16W

+5V_SW

R412810K 1/16W 5%

C4100

100NF 16V

R4110

NC/10K 1/10W

R4122 10K 1/16W 5%

+

C4108

100UF 16V

R4116 100R 1/10W 5%

R4114 100R 1/10W 5%

C4121

27PF 50V

R4105 0R05 1/16W

R4142 0R05 1/16W

R4121 100K 1/16W 5%

t

TH4000 PTCR

1 2

U1051

NC/G5250M1T1U

OUT

1

GND

2

OC

3

EN4IN

5

CN401

CONN

123456789

101112

13

1415

R4134 NC/0R05 1/16W

R4140 0R05 1/16W

R4130 NC/8K2 1/16W +/-5%

R4104 0R05 1/16W

R4139 0R05 1/16W

C4119

NC/100NF 25V

R4107

NC/4.7K1/16W

R4124

NC/0R05 1/16W

t

TH4001 PTCR

1 2

R4123

10K 1/16W 5%

ZD4101

NC/PDZ5.6B

1 2

R4106

NC/10K 1/10W

C4103

100NF 16V

R4111 0R05 1/16W

C4106

0.1uF 50V

C4118

10UF 10V

C4117

NC/100N 50V

C4104

100NF 16V

R4112 0R05 1/16W

R4141 0R05 1/16W

R4135 NC/0R05 1/16W

R4127 10K 1/16W 5%

R412910K 1/16W 5%

R4102

100R 1/10W 1%

FB4100

120R/600mA

1 2

R4108

NC/4.7K1/16W

C4113

NC/100N 50V

R4136 NC/0R05 1/16W

R4146

NC/10K 1/16W 5%

R4101

3.9K 1%

R4133 NC/0R05 1/16W

R4109

NC/4.7K1/16W

C4123

1uF 10V

U1052

NC/G5250M1T1U

OUT

1

GND

2

OC

3

EN4IN

5

C4109

NC/10uF 10V

C4122

1uF 10V

R4103

100R 1/10W 1%

C4116

NC/10N 50V

C4101

100NF 16V

R4131 NC/4K7 1/16W 5%

R4120

680R 1/16W 5%

FB4101

220R/2000mA

1 2

C4115NC/10uF 6.3V

C4120

27PF 50V

R4126 10K 1/16W 5%

R4113

NC/4.7K1/16W

R4137

NC/10K 1/16W 5%

C4107

0.1uF 50V

C4112

NC/10uF 10V

C4105

100NF 16V

R4100

3.9K 1%

+12V

1234

CN1031 USB CONN

123

4

65

3V3SB

+

C4111

100UF 16V

+5V_SW

DVDD3V3

3V3SB

+5V_SW

DVDD3V3

+5V_SW

3V3SB

V33

+5V_SW

DVDD3V3

AVDD3V3

DVDD3V3

AVDD3V3

DVDD3V3

+12V

DVDD3V3

EN 66TPM10.1A LA 10.

back to

2013-Jun-14

div.table

Circuit Diagrams and PWB Layouts

10-5-4 Connector/USB

19430_519_130114.eps

130114

Audio/Video IO/SPDIF

B05 B05

2012-12-15

C

715G5713

Audio/Video IO/SPDIF

Y1P

SOY0

ADCINP_DEMOD

ADCINN_DEMOD

IF BPF

VGA_R_IN

SCART1_R_IN

SCART1_L_IN

GND

VGA_L_IN

AVDD33_ADAC

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

AVDD33_HPAAVDD33_AADC

Analog Power

YPBPR0_L_IN

R1047

56R 1/16W 1%

MT5580MPOI

U401J

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13GPAE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

C605

33pF 50V

R1043 100R 1/16W 5%

MT5580MPOI

U401C

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

R1048 100R 1/16W 5%

R1040

18R 1/16W 5%

C619 10NF 50V

C603

100NF 16V

C1034 10NF 50V

R600

240R 1/10W 5%

C1040

10UF 10V

C618

10PF 50V

R1045

56R 1/16W 1%

C620 10NF 50V

R1039 0R05 1/16W

C615

10UF 10V

C600

100NF 16V

C612

100NF 16V

R1073 75 OHM +-5% 1/16W

C601

100NF 16V

C1037

NC/10N 50V

C614

10UF 10V

C613

100NF 16V

C1036 47NF 16V

C1035

10PF 50V

C1033 1.5NF 50V

C617 10NF 50V

R1071 75 OHM +-5% 1/16W

R1050 100R 1/16W 5%

C607

1uF 10V

R1041 100R 1/16W 5%

R1042

18R 1/16W 5%

R604

51OHM 1/16W +/-5%

C606

1uF 10V

C602

100NF 16V

R1113 10R 1/16W 5%

R1088

30Kohm 1/16W +/-5%

R605 10K 1/16W 5%

R1049 100R 1/16W 5%

R601

100R 1/10W 5%

C609

10PF 50V

C622

47PF 50V

C604

100NF 16V

R603

51OHM 1/16W +/-5%

ABC

D

EF

CN112

RCA JACK

326

5

9

8

1

4

7

101112

C623

47PF 50V

C611

100NF 16V

C610

100NF 16V

C1039

10UF 10V

C608

1uF 10V

C1038

NC/10N 50V

C616

10NF 50V

R1087

30Kohm 1/16W +/-5%

C621

47NF 16V

R1044

18R 1/16W 5%

YPBPR0_R_IN

R1046

56R 1/16W 1%

AVDD3V3

AVDD1V2 AVDD 3V3

VGA_R_IN8

VGA_L_I N8

SCART1_L_IN8

GND2,3,4,5,7,8,9,10,11,12,13,14,15

AL0O7

SCART1_R_IN8

AR0O7

AOLRCK_D7

AOBCLK_D7

AOMCLK_D7

Y0P8

AOSDATA0_D7

PB0P8

COM08

PR0P8

VSYNC8

HSYNC8

RP8

SPDIFOUT

BP8

GP8

VGACOM8

SOG8

VGASCL8

VGASDA8

TU_FAT_IN2+14

PR1P

TU_FAT_IN2-14

OSCL212,14

CVBS3P8

OSDA212,14

IF_AGC12,14

AVDD1V2 2,9,12,13,14

SOY08

AVDD3 V32,4,5,9,10,11,12,13

ARC13

Analog Power

AVDD12_DEMOD

AVDD12_RGB AVDD33_DEMOD

AVDD33_VIDEO

AVDD1V2

SPDIF_OUT

YPbPrL_INY_IN_1

YPbPrR_IN

SPDIFOUT

PB_IN_1

YPbPr & Audio IN

PR_IN_1

IF_AGC

YPbPrL_IN

---><---|>

YPBPR0_L_IN

YPBPR0_R_INYPbPrR_IN

IF_AGC

PB1P

TU_FAT_IN2+

AVDD3 V3

PR_IN_1

PB_IN_1

-------><-------

YPBPR IN

PR1

PB1P

COM1

PR1P

SOY1

Y1PY1

-------><--------------><-------

PB1

Y_IN_1

CVBS1P

Video

TU_FAT_IN2-

---><---|>

SPDIF OUT

AOLRCK_D

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AL0O

AVSS33_HPA

AVDD33_HPA

AR0O

SPDIF_OUT

ARC

VGA_R_IN

SCART1_R_IN

SCART1_L_IN

AVDD33_AADC

AVSS33_AADC

AVSS33_ADAC

AVDD33_ADAC

VGA_L_I N

VMID_AADC

AVSS33_CLN

ARC

OSDA2

OSCL2

SOG

Y0P

COM0

VGASDA

CVBS_COM

PB0P

VGASCL

HSYNC

AVSS33_DEMOD

AVDD12_RGB

AVSS12_RGB

VSYNC

AVSS33_VDAC_BG

AVSS33_VDAC

AVDD33_VIDEO

AVSS12_DEMOD

AVDD12_DEMOD

AVDD33_DEMOD

TU_FAT_IN2+

RP

PR0P

AVSS33_CVBS_1

AVSS33_CPUPLL

ADCINP_DEMOD

ADCINN_DEMOD

TU_FAT_IN2-

GP

BPGPVSYNC

HSYNC

AVSS33_CVBS_2

BP

CVBS3P

VGASDA

VGASCL

VGACOM

SOG

RP

VGACOM

COM0

SOY1

Y0P

PR0P

PB0P

SOY0

OSDA2

CVBS1P

CVBS3P

OSCL2

Audio

COM1

back to

2013-Jun-14

div.table

EN 67TPM10.1A LA 10.

10-5-5 Audio/Video IO/SPDIF

Circuit Diagrams and PWB Layouts

19430_520_130114.eps

130114

Speaker/Headphone

B06 B06

2012-12-15

C

715G5713

Speaker/Headphone

LRCLKI

LSPK-

RSPK+

L631

33UH

C685 0.1uF 25V

DVDD3V3

C633

100NF 16V

C668

1nF 50V

FB633

120R

1 2

C675

68PF 50V

R650

100R 1/16W 5%

R644

10R 1/10W 5%

AOSDATA0_D

Q632

BC847C

C649

220nF50V

C656

1uF 10V

U602

STA381BWTR

F3X_FILT

13

F3XL

14

LINEINR

17

LINEHPOUT_L

18

LINEHPOUT_R

19

GNDA

20

SOFTMUTE

21

VDD3V3

22

CPVSS

23

CPM

24

GNDPSUB25CPP26GNDDIG129FFX3A30FFX3B31EAPD/FFX4B32TWARN/FFX4A33VREGFILT34AGNDPLL

35

BICKI

37

LRCKI

38

SDI

39

RESET

40

PWDN

41

INTLINE

42

SDA

43

SA

45

TESTMODE

46

GNDDIG2

47

VDDDIG2

48

VSS_REG

2

OUT2B

3

GND2

4

VCC2

5

OUT2A6OUT1B

7

VCC1

8

GND1

9

OUT1A

10

VDD_REG

11

GND_REG

12

VCC_REG

1

LINEINL

16

F3XR

15

MCLK

36

VDD3V3CHP27VDDIG1

28

SCL

44

E-Pad

49

C661

0.1uF 50V

C657

100NF 16V

C670

1uF 10V

R653

4K7 1/16W 5%

C636

NC/33P50V

C660

1uF 10V

C653

2.2UF 10V

BICKI

R652

10K 1/16W 5%

R657

1K 1/16W 5%

C671

68PF 50V

R662

43K 1/16W

R661

18Kohm 1/16W +/-1%

D631

BAS316

A

1

K

2

C669

330PF 50V

R641

0R05 1/16W

C640

NC/33P50V

R637

43K 1/16W

C659

1nF 50V

C663

1nF 50V

C646

1nF 50V

CN601

CONN

123

4

5 6

R647

6.2 OHM 1/4W

R670

0R05 1/16W

C651

100NF 16V

R639

0R05 1/16W

C673

1UF 50V

C639

NC/33P50V

C686 0.1uF 25V

R669

10K 1/16W 5%

CN604

PHONE JACK

123

R640

22 OHM 1/4W

AOBCLK_D

C682

0.1uF 25V

R645

6.2 OHM 1/4W

C641

NC/33P50V

R654

NC/0R05 1/10W

C647

1uF 10V

L633

33UH

C681 0.1uF 25VL632

33UH

C679

0.1uF 25V

C662

330PF 50V

C672

1UF 50V

D630

BAS316

A1K

2

C632

100NF 16V

R655

0R05 1/10W

AR0O

C638

0.1uF 50V

AL0O

R660

100R 1/16W 5%

C683 0.1uF 25V

C654

0.1uF 50V

R638

6.2 OHM 1/4W

C677

NC/1UF 10V

C678

NC/100N 50V

R642

0R05 1/16W

R658

100K 1/16W 5%

Q633

BC847C

L630

33UH

R646

6.2 OHM 1/4W

C650

4.7UF 10% 10V

+

C642

220UF 16V

R643

10R 1/10W 5%

R651

100R 1/16W 5%

C676

NC/1UF 10V

C643

0.1uF 50V

D632

BAS316

A

1

K

2

R635

16K 1%

Q631

BC857BW

1

23

C645

4.7UF 10% 10V

C658

100NF 16V

C665

1nF 50V

FB631

120R

1 2

C680

0.1uF 25V

R659

NC/4.7K1/16W

C664

1uF 10V

R663

18Kohm 1/16W +/-1%

C655

220nF50V

+5V_STB

R656 4K7 1/16W 5%

C684

0.1uF 25V

R649

0R05 1/16W

R634

22 OHM 1/4W

R636

16K 1%

C648

330PF 50V

C674

1uF 10V

C637

100NF 16V

C644

NC/1uF 10V

C652

330PF 50V

R648

0R05 1/16W

+5V_STB+12V

DVDD3 V3

AUD_V33

PVDD

AUD_V33HP

AUD_V33

PVDD

AUD_V33

PWRDN-HP

AUD_V33HP DVDD3V3DVDD3V3

AUD_V33

DVDD3 V3

AOMCLK_D 6

I2SAMP_RESET 11

AOBCLK_D 6

AOSDATA0_D 6

AOLRCK_D 6

OSDA0 4

OSCL0 4

DVDD3V3 2,3,4,5,9,11,12,14,15

GND 2,3,4,5,6,8,9,10,11,12,13,14,15

+5V_STB 2,4

AR0O 6

+12V 2,3,5,15

AL0O 6

PVDD3

HPOUTR

LRCLKI

PWRDN-HP

MCLK

AR0O

AL0O

OUT2A

SDI

BICKI

PWRDN

AMP_RESET

reserve for test

OUT1B

OUT1A

PVDD

OSDA0

LR SPK

HPOUTL

OUT2B

HPOUTR

Mute CKT

AOSDATA0_D

I2SAMP_RESET

AMP_RESET

OSDA0

OSCL0

AOMCLK_D

AOBCLK_D

MCLK

LSPK+

RSPK-

OSCL0

AOLRCK_D

I2SAMP_RESET

SDI

+12V

AOMCLK_D

AOLRCK_D

PWRDN

EN 68TPM10.1A LA 10.

back to

div.table

2013-Jun-14

Circuit Diagrams and PWB Layouts

10-5-6 Speaker/Headphone

19430_521_130114.eps

130114

SCART/VGA Input

B07 B07

2012-12-15

C

715G5713

SCART/VGA Input

GRN

BLU

RED

GP

RP

BP

VGACOM

SOG

VGA IN

-------><--------------><------- -------><-------

GRN_GND

RED_GND

BLU_GND

VGASDA_IN

VGASCL_IN

CVBS3PSCT1_AV_IN

CVBS IN

Audio Input

FAST BLANKING/SOY

SCART (Full SCART) -- CVBS+SV+RGB

VSYNCVSYNC#

VGA SYNC SLICER

+5V_SW

HSYNCHSYNC#

SCART1_L_IN

SCART1_R_IN

SCART_FS0

SOY0

SCT1_FS_IN

VGA_AudioRIN

VGA_L_IN

VGA_R_IN

VGA_AudioLIN

SCT1_G_IN

VGA AUDIO

SCT1_B_IN

SCT1_AV_IN

SCT1_AUL_IN

SCT1_R_IN

SCT1_FB_IN

VGA_AudioLIN

SCT1_AUR_IN

SCT1_AVO_GND

SCT1_FS_IN

VGA Audio Input

SCT1_AV1_GND

VGA_AudioRIN

Function Select

VGASCL

VGA_L_IN

VGASDA

HSYNCRPVSYNC

VGA_R_IN

SOG

VGACOMBPGP

SCT1_AUL_IN

SCT1_FB_IN

EDID_WEN

SCT1_AUR_IN

VGA I2C

----------><---------|----------><---------|

VGASCL

VGASDA

SCART1_R_IN

SCART1_L_IN

R1022

NC/100R 1/16W 5%

R1002

18R 1/16W 5%

R1025

NC/100R 1/16W 5%

R1028

NC/10K 1/16W 5%

C1015

NC/100N 16V

CN103

NC/CONN

162738495

1112131415

10

1716

C1000

10PF 50V

R1034

30Kohm 1/16W +/-5%

R1008 100R 1/16W 5%

R1011

100R 1/16W 5%

R1013

75R 1/16W 1%

R1019

NC/10R 1/16W 5%

C1004 10NF 50V

R1006

56R 1/16W 1%

C1001 10NF 50V

R1001 100R 1/16W 5%

R1014

5K1 1/16W 5%

C1020 NC/10N 50V

C1006 10NF 50V

R1030

NC/10K 1/16W 5%

C1027

NC/5PF 50V

R1015

0R05 1/16W

C1016 NC/1.5nF 50V

R1032

NC/100R 1/16W 5%

ZD1002

NC/UDZSNP5.6B

1 2

R1027

NC/10K 1/16W 5%

C1002

10PF 50V

C1026

NC/5PF 50V

R1000

18R 1/16W 5%

ZD1003

NC/UDZSNP5.6B

1 2

C1025

1uF 10V

R1007

56R 1/16W 1%

CN104

PHONE JACK

123

C1013

NC/10N 50V

C1021

NC/10PF 50V

R1016

30Kohm 1/16W +/-5%

R1026

NC/75R

R1023

NC/100R 1/16W 5%

C1017 NC/10N 50V

R1024

NC/75R

D1001

NC/BAS316

A1K

2

R1018

30Kohm 1/16W +/-5%

C1022 NC/10N 50V

R1021

NC/75R

SCART CONN 21P

CN151

123456789101112131415161718192021

R1009 100R 1/16W 5%

C1009

47NF 16V

C1010

47PF 50V

C1011 1uF 10V

R1017

1K 1/16W 5%

C1014

NC/10N 50V

R1012

75 OHM +-5% 1/16W

R1033

30Kohm 1/16W +/-5%

ZD1000

NC/UDZSNP5.6B

1 2

C1003 10NF 50V

C1023

NC/10PF 50V

R1004

18R 1/16W 5%

C1012

1uF 10V

D1000

NC/BAS316

A

1

K

2

R1037

NC/100R 1/16W 5%

R1020

NC/100R 1/16W 5%

U110

NC/M24C02-WDW6P

E01E12E23VSS

4

SDA

5

SCL

6

WC

7

VCC

8

ZD1001

NC/UDZSNP5.6B

1 2

C1018

NC/10PF 50V

R1038

NC/100R 1/16W 5%

C1024

1uF 10V

C1007

10PF 50V

Q1000

NC/BC847C

321

C1019 NC/10N 50V

R1029

NC/100R 1/16W 5%

R1003 100R 1/16W 5%

R1031

NC/10K 1/16W 5%

SCT1_R_IN

R1005

56R 1/16W 1%

+5V_SW

VGA_PLUGPWR

SOY06

CVBS3P6

COM06

Y0P6

PB0P6

SCART_FS011

PR0P6

SCT1_G_IN

GND2,3,4,5,6,7,9,10,11,12,13,14,15

-------><-------

SCART IN

VGA_L_IN6

VGA_R_IN6

VSYNC6

HSYNC6

PR0P

RP6

Y0P

PB0P

COM0

BP6

GP6

-------><--------------><-------

VGACOM6

VGASDA6

SOG6

EDID_WEN11,13

VGASCL6

SCART1_R_IN6

SCT1_B_IN

+5V_SW 2,3,5,9,12,13,14

SCART1_L_IN6

SOY0

Y0P

COM0

PB0P

PR0P

CVBS3P

SCART_FS0

GND

VGASCL

VGASDA

EDID_WEN

VGA EDID

VGA_PLUGPWR

BLU_GND

RED

----------><---------|

GRN

VGA_PLUGPWR

VGASDA_IN

VGASCL_IN

GRN_GND

HSYNC#

VSYNC#

RED_GND

BLU

VGA Input

EN 69TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

back to

2013-Jun-14

div.table

10-5-7 SCART/VGA Input

EN 70TPM10.1A LA 10.

19430_522_130114.eps

130114

LVDS

B08 B08

2012-12-15

C

715G5713

LVDS

TP411

TP

R420

4K7 1/16W 5%

TP421

TP

AVDD33_LVDSA

TP412

TP

Analog Power

AVDD12_LVDSA

MT5580MPOI

U401B

TCON0

C22

TCON1

C23

TCON2

D24

TCON3

B24

TCON4

C25

TCON5

A24

TCON6

D22

TCON7

B25

TCON8

C24

TCON9

E24

TCON10

D25

TCON11

D23

TCON12

A25

AVDD33_LVDSA

A23

AVSS33_LVDSA

G16

AVDD12_LVDSA

B23

AVSS12_LVDSA

H15

AO0P

A16

AO0N

B16

AO1P

A17

AO1N

B17

AO2P

A18

AO2N

B18

AOCKP

A19

AOCKN

B19

AO3P

A20

AO3N

B20

AO4P

A21

AO4N

B21

AO5P

A22

AO5N

B22

AE0P

D16

AE0N

E16

AE1P

C17

AE1N

C16

AE2P

E17

AE2N

D17

AECKP

C19

AECKN

C18

AE3P

E19

AE3N

D19

AE4P

C21

AE4N

C20

AE5P

E21

AE5N

D21

AVSS33_LVDSA

F17

AVSS33_LVDSA

E20

TP410

TP

TP4006

TP419

TP

R416

3K3 1/16W 5%

R402

1K 1/10W 5%

TP420

TP

R405

NC/2KOHM 1/10W

TP417

TP

TP401

TP

C400

NC/10uF 10V

TP406

TP

TP404

TP

R403

100R 1/10W 5%

R423

1K 1/16W 5%

R409

4K7 1/16W 5%

TP422

TP

R415

NC/0R05 1/16W

R421

NC/4K7 1/16W 5%

R410

100R 1/10W 5%

R406

1K 1/10W 5%

R417

3K3 1/16W 5%

DVDD3V3

DVDD3 V3

+5V_SW

3V3SB DVDD3 V3 DVDD3V3

Panel_12V

PANEL_VCC

AVDD3V3AVDD1V2

DVDD3V3DVDD3V3

DVDD3V3

DVDD3 V3

DVDD3V3

BL_ON/OFF 11

BL_DIMMING 11

GND2,3,4,5,6,7,8,10,11,12,13,14,15

USB_RESET 5

3V3SB 2,4,5,11,12

INVERTER_ON_OFF 2

BRIGHT_ADJ 2

AVDD3 V32,4,5,6,10,11,12,13

DVDD3V32,3,4,5,7,11,12,14,15

Gamming 5

DEMOD_S2_RESET14

CI_OCP 12

AVDD1V22,6,12,13,14

L/R_OUT 5

+5V_SW 2,3,5,8,12,13,14

T2_RESET 12

EXTVBR_PWM 11

BL_ON/OFF 11

Temp_sel0EXTVBR_PWM OPC OPC_EN

EXTVBR_PWM_IN

BL_DIMMING

INVERTER_ON_OFF

BRIGHT_ADJ

BL_ON/OFF

GND

Temp_sel1

+5V_SW

BL_ON/OFF

DVDD3V3

OPC_EN

DEMOD_S2_RESET

AVDD3V3

L/R_OUT

CI_OCP

Temp_sel1

EXTVBR_PWM

2D/3D_EN

R422

100R 1/10W 5%

EXTVBR_PWM_IN

Gamming

T2_RESET

2D/3D_SEL

OPC

DEMOD_S2_RESET

AVDD1V2

Temp_sel_0

BL_DIMMING

USB_RESET

TX_AO2N

TX_AO0P

TX_AO0N

TX_AO1P

TX_AO1N

TX_AO2P

TX_AO3P

TX_AO3N

TX_AOCKN

TX_AOCKP

INVERTER_ON_OFF

TX_AE4N

TX_AO4N

TX_AO4P

TX_AE1P

TX_AE1N

TX_AE3P

TX_AE3N

TX_AE4P

TX_AECKP

TX_AECKN

TX_AE2N

TX_AE2P

TX_AE0P

TX_AE0N

INVERTER ON/OFF

BRIGHT ADJUST

AVSS33_LVDSA

AVDD33_LVDSA

BRIGHT_ADJ

AVSS12_LVDSA

AVDD12_LVDSA

BL_ON/OFF

C

R

RBRA

AVSS33_LVDSA

Temp_sel_1

CI_OCP

USB_RESET

Gamming

3V3SB

T2_RESET

TX_AO3N

TX_AE3N

TX_AO4N

TX_AE3P

TX_AE0N

K1P

2D/3D_EN

TX_AE1N

2N

TX_AE4P

K1N

TX_AECKN

TX_AE4N

1N

TX_AE2P

TX_AE1P

TX_AO4P

Panel_12V

TX_AE0P

TX_AO3P

3P

TX_AO2P TX_AOCKP

0P

TX_AO0P

1P

TX_AO0N

TX_AO1P

TX_AECKP

0N

TX_AE2N

TX_AO2N

TX_AO1N

TX_AOCKN

3N

2P

LVDS OUTPUT

L/R_OUT

2D/3D_SEL

Temp_sel_0

Temp_sel_1

Temp_sel0

C402

NC/10uF 16V

TP403

TP

R413

100R 1/10W 5%

R412

100R 1/10W 5%

TP415

TP

C406

NC/1uF 25V

CN408

CONN

135791113151719212325272931333537

39

41

246

8

101214161820222426283032343638

40

42

TP423

TP

TP402

TP

TP413

TP

TP405

TP

TP408

TP

C404

100NF 16V

FB400

120R

1 2

Q400

MMBT3904

TP409

TP

R404

4K7 1/16W 5%

R411

10K 1/8W

TP414

TP

R419

NC/100R 1/10W 5%

TP400

TP

C405

NC/1uF 25V

TP416

TP

TP418

TP

TP407

TP

R414

NC/47K 1/16W 5%

C403

100NF 16V

Q401

MMBT3904

R400

NC/4.7K1/16W

C401

NC/10uF 10V

R401

NC/4.7K1/16W

R418

3K3 1/16W 5%

R407

4K7 1/16W 5%

R408

NC/4.7K1/16W

FB401

120R

1 2

Circuit Diagrams and PWB Layouts

10-5-8 LVDS

back to

2013-Jun-14

div.table

19430_523_130115.eps

130115

DRAM Interface

B09 B09

2012-12-15

C

715G5713

DRAM Interface

R4191 47R 1/16W 5%

C4217

100NF 16V

RP4164 47R

123

4

876

5

C4188

100NF 16V

RA10

RA6

RA8

C4179

100NF 16V

5_RODT RODT

RCKE

C4203

100NF 16V

RP4158 47R

123

4

876

5

5_RA8

5_RA6

5_RA10

5_RCKE

RP4154 47R

123

4

876

5

R4176

1Kohm 1/16W +/-1%

C4157

100NF 16V

C4174

100NF 16V

RP4153 47R

123

4

876

5

C4202

100NF 16V

R4151

1Kohm 1/16W +/-1%

R4159

1Kohm 1/16W +/-1%

C4186

100NF 16V

R4162

1Kohm 1/16W +/-1%

R4161

1Kohm 1/16W +/-1%

R4180 47R 1/16W 5%

C4216

100NF 16V

R4187 47R 1/16W 5%

R4194 47R 1/16W 5%

RP4165 47R

123

4

876

5

RP4151 47R

123

4

876

5

R4196 47R 1/16W 5%

RP4162 47R

123

4

876

5

RP4159 47R

123

4

876

5

R4153 22R 1/16W 5%

C4176

100NF 16V

R4171

1Kohm 1/16W +/-1%

C4172

100NF 16V

R4170

1Kohm 1/16W +/-1%

C4195

100NF 16V

C4159

100NF 16V

R4160

1Kohm 1/16W +/-1%

C4171

100NF 16V

C4170

100NF 16V

R4186 47R 1/16W 5%

R4188 47R 1/16W 5%

C4184

100NF 16V

C4185

100NF 16V

R4173

1Kohm 1/16W +/-1%

C4150

100NF 16V

C4206

100NF 16V

R4198 47R 1/16W 5%

C4151

100NF 16V

RP4155 47R

123

4

876

5

C4201

100NF 16V

C4207

100NF 16V

C4197

100NF 16V

C4193

100NF 16V

RP4160 47R

123

4

876

5

R4179 47R 1/16W 5%

R4163

1Kohm 1/16W +/-1%

C4194

100NF 16V

R4189 47R 1/16W 5%

R4175

240 OHM +-5% 1/16W

C4165

100NF 16V

C4173

100NF 16V

C4196

100NF 16V

R4156

100R 1/16W 5%

C4200

100NF 16V

+

C4208

100UF 16V

C4160

10UF 10V

R4192 22R 1/16W 5%

R4174

1Kohm 1/16W +/-1%

C4204

100NF 16V

R4199 47R 1/16W 5%

R4200 47R 1/16W 5%

R4152

100R 1/16W 5%

R4150

1Kohm 1/16W +/-1%

+

C4190

100UF 16V

RP4156 47R

123

4

876

5

C4164

100NF 16V

RP4150 47R

123

4

876

5

R4165

1Kohm 1/16W +/-1%

C4181

100NF 16V

C4177

10UF 10V

RP4161 47R

123

4

876

5

RP4157 47R

123

4

876

5

R4193 47R 1/16W 5%

RP4163 47R

123

4

876

5

RP4167 47R

123

4

876

5

RP4166 47R

123

4

876

5

C4192

100NF 16V

U404

NT5CB256M8GN-DI

A0K3A1L7A2L3A3K2A4L8A5L2A6M8A7M2A8N8A9M3A10H7A11M7A12K7A13N3BA0J2BA1K8BA2J3CKF7/CKG7CKEG9/CSH2ODTG1/RASF3/CASG3/WEH3/RESETN2DQSC3/DQSD3DM/TDQSB7NU/TDQSA7DQ0B3DQ1C7DQ2C2DQ3C8DQ4E3DQ5E8DQ6D2DQ7E7NC1A3NC2F1NC3F9NC4H1NC5H9NC6

J7

A14

N7

VREFCA

J8

VREFDQ

E1

ZQ

H8

VDD_1A2VDD_2A9VDD_3D7VDD_4G2VDD_5G8VDD_6K1VDD_7K9VDD_8M1VDD_9

M9

VDDQ1B9VDDQ2C1VDDQ3E2VDDQ4

E9

VSS1A1VSS2A8VSS3B1VSS4D8VSS5F2VSS6F8VSS7J1VSS8J9VSS9

L1

VSS10L9VSS11N1VSS12

N9

VSSQ1B2VSSQ2B8VSSQ3C9VSSQ4D1VSSQ5

D9

C4166

10UF 10V

R4155

1Kohm 1/16W +/-1%

C4191

100NF 16V

C4156

100NF 16V

C4155

100NF 16V

R4172

240 OHM +-5% 1/16W

C4198

100NF 16V

R4178

1Kohm 1/16W +/-1%

C4187

100NF 16V

C4169

100NF 16V

C4162

100NF 16V

C4180

100NF 16V

C4163

100NF 16V

RP4152 47R

123

4

876

5

C4161

100NF 16V

R4164

1Kohm 1/16W +/-1%

RVREF4

R4201 47R 1/16W 5%

C4205

100NF 16V

C4182

100NF 16V

R4166

1Kohm 1/16W +/-1%

R4184 47R 1/16W 5%

1_RA1

1_RBA1

1_RA10

1_RCKE

C4210

100NF 16V

1_RA4

RA14

RA13

RA3

RA9

RA12

1_RA2

1_RA3

1_RA4

1_RA5

1_RA6

1_RA14

C4183

10uF 16V

1_RA3

RBA2

RBA0

1_RA6

RCS#

1_RA0

1_RBA0

1_RA1

RCLK0

RCLK0#

C4178

10UF 10V

1_RA11

1_RA13

1_RA7

1_RA9

RA7

RDQ6

RDQ7

RDQ3

RDQ2

RDQ1

RDQS0#

RDQS0

RDQM0

C4213

100NF 16V

1_RA0

1_RA5

1_RA2

1_DDR3_RST#

1_RBA0

1_RA8

RDQ4

RDQ0

RDQ5

C4167

100NF 16V

2_RBA0

RODT

1_CS#

1_RRAS#

1_RCAS#

1_RBA1

R4158 47R 1/16W 5%

2_DDR3_RST#

2_RA13

2_RA7

2_RA9

2_RA3

1_RCKE

ZQ1

2_CS#

2_RRAS#

2_RCAS#

2_RA0

2_RA5

2_RA2

1_RRAS#

1_RCAS#

1_RWE#

1_RODT

1_CS#

1_RBA2

RVREF2

1_RA8

1_RA9

1_DDR3_RST#

1_RA10

1_RA11

1_RA12

RVREF3

1_RA13

RA5

1_RA7

2_RODT

DDR3_RST#

1_RWE#

2_RWE#

2_RA14

U403

NT5CB256M8GN-DI

A0K3A1L7A2L3A3K2A4L8A5L2A6M8A7M2A8N8A9M3A10H7A11M7A12K7A13N3BA0J2BA1K8BA2J3CKF7/CKG7CKEG9/CSH2ODTG1/RASF3/CASG3/WEH3/RESETN2DQSC3/DQSD3DM/TDQSB7NU/TDQSA7DQ0B3DQ1C7DQ2C2DQ3C8DQ4E3DQ5E8DQ6D2DQ7E7NC1A3NC2F1NC3F9NC4H1NC5H9NC6

J7

A14

N7

VREFCA

J8

VREFDQ

E1

ZQ

H8

VDD_1A2VDD_2A9VDD_3D7VDD_4G2VDD_5G8VDD_6K1VDD_7K9VDD_8M1VDD_9

M9

VDDQ1B9VDDQ2C1VDDQ3E2VDDQ4

E9

VSS1A1VSS2A8VSS3B1VSS4D8VSS5F2VSS6F8VSS7J1VSS8J9VSS9

L1

VSS10L9VSS11N1VSS12

N9

VSSQ1B2VSSQ2B8VSSQ3C9VSSQ4D1VSSQ5

D9

2_RA12

RWE#

1_RODT

2_RBA2

1_RBA2

1_RA12

1_RA14

RA1

RA2

RA0

RCAS#

U405

NT5CB256M8GN-DI

A0K3A1L7A2L3A3K2A4L8A5L2A6M8A7M2A8N8A9M3A10H7A11M7A12K7A13N3BA0J2BA1K8BA2J3CKF7/CKG7CKEG9/CSH2ODTG1/RASF3/CASG3/WEH3/RESETN2DQSC3/DQSD3DM/TDQSB7NU/TDQSA7DQ0B3DQ1C7DQ2C2DQ3C8DQ4E3DQ5E8DQ6D2DQ7E7NC1A3NC2F1NC3F9NC4H1NC5H9NC6

J7

A14

N7

VREFCA

J8

VREFDQ

E1

ZQ

H8

VDD_1A2VDD_2A9VDD_3D7VDD_4G2VDD_5G8VDD_6K1VDD_7K9VDD_8M1VDD_9

M9

VDDQ1B9VDDQ2C1VDDQ3E2VDDQ4

E9

VSS1A1VSS2A8VSS3B1VSS4D8VSS5F2VSS6F8VSS7J1VSS8J9VSS9

L1

VSS10L9VSS11N1VSS12

N9

VSSQ1B2VSSQ2B8VSSQ3C9VSSQ4D1VSSQ5

D9

RA8

RA9

RA11

RA12

RA4

R4185 47R 1/16W 5%

RRAS#

RA14

RA13

RA3

RA10

RA6

R4190 47R 1/16W 5%

RA7

RBA2

RBA1

RBA0

RCS#

C4152

100NF 16V

RWE#

DDR3_RST#

RA5

RODT

RCKE

C4199

100NF 16V

RRAS#

RA2

RA0

RCAS#

C4168

100NF 16V

C4211

100NF 16V

C4212

100NF 16V

+

C4189

100UF 16V

C4158

100NF 16V

R4195 47R 1/16W 5%

C4215

100NF 16V

RVREF0

RDQ6

RDQ7

RDQ3

RDQ2

RDQ1

U402

NT5CB256M8GN-DI

A0K3A1L7A2L3A3K2A4L8A5L2A6M8A7M2A8N8A9M3A10H7A11M7A12K7A13N3BA0J2BA1K8BA2J3CKF7/CKG7CKEG9/CSH2ODTG1/RASF3/CASG3/WEH3/RESETN2DQSC3/DQSD3DM/TDQSB7NU/TDQSA7DQ0B3DQ1C7DQ2C2DQ3C8DQ4E3DQ5E8DQ6D2DQ7E7NC1A3NC2F1NC3F9NC4H1NC5H9NC6

J7

A14

N7

VREFCA

J8

VREFDQ

E1

ZQ

H8

VDD_1A2VDD_2A9VDD_3D7VDD_4G2VDD_5G8VDD_6K1VDD_7K9VDD_8M1VDD_9

M9

VDDQ1B9VDDQ2C1VDDQ3E2VDDQ4

E9

VSS1A1VSS2A8VSS3B1VSS4D8VSS5F2VSS6F8VSS7J1VSS8J9VSS9

L1

VSS10L9VSS11N1VSS12

N9

VSSQ1B2VSSQ2B8VSSQ3C9VSSQ4D1VSSQ5

D9

RDQ14

RDQ15

RDQ4

RDQ0

RDQ5

R4197 22R 1/16W 5%

RDQ11

RDQ12

RDQ8

RDQ13

RDQ9

R4183 47R 1/16W 5%

RDQ30

RDQ19

RDQ31

RDQ17

RDQ16

RDQ10

R4154 47R 1/16W 5%

RDQ23

RDQ28

RDQ20

RDQ21

RDQ18

R4169 22R 1/16W 5%

RDQ25

RDQ24

RDQ27

RDQ29

RDQ22

R4177

1Kohm 1/16W +/-1%

RDQ26

R4181 47R 1/16W 5%

MT5580MPOI

U401A

RDQ0C1RDQ1H3RDQ2D3RDQ3H2RDQ4C2RDQ5J1RDQ6B1RDQ7J2RDQ8J4RDQ9F5RDQ10H4RDQ11E4RDQ12H5RDQ13G3RDQ14J3RDQ15G4RDQ16

A14

RDQ17B9RDQ18

B14

RDQ19A9RDQ20

B15

RDQ21C8RDQ22

C14

RDQ23C9RDQ24

D10

RDQ25

F14

RDQ26

E10

RDQ27

E14

RDQ28

D13

RDQ29

F13

RDQ30

E12

RDQ31

E13

RDQS0D2RDQS0#D1RDQS1F1RDQS1#F2RDQS2

A13

RDQS2#

B13

RDQS3

A11

RDQS3#

B11

RDQM0G2RDQM1G5RDQM2

B10

RDQM3

C13

AVDD33_MEMPLL

C10

AVSS33_MEMPLL

G10

RVREF

E3

RA0D4RA1D8RA2C5RA3B6RA4E7RA5C4RA6D6RA7B5RA8C7RA9

A6

RA10F9RA11D5RA12E6RA13C6RA14

D7

RBA0B7RBA1D9RBA2

A7

RCLK0

E2

RCLK0#

E1

RCLK1

B12

RCLK1#

A12

RCS#

B3

RCSX#

A3

RCKE

E9

RWE#

C3

RCAS#B2RRAS#

A2

DDR3_RST#

A5

RODT

A1

DDRVJ5DDRVK7DDRVK6DDRVK5DDRVK4DDRVK3DDRVK2DDRVK1DDRV

H7

MEMTP

G11

MEMTN

G12

C4175

100NF 16V

R4157 47R 1/16W 5%

C4153

100NF 16V

C4209

10UF 10V

R4167

240 OHM +-5% 1/16W

R4182 47R 1/16W 5%

R4168

240 OHM +-5% 1/16W

C4214

100NF 16V

DDRV

DDRV DDRV DDRVDDRV

AVDD3V 3

DDRV

DDRV DDRV

RDQS1

2_RA14

RDQM1

DDRV

RDQ14

RDQ15

RDQ11

RDQ10

RDQ9

RDQS1#

DDRV

RDQ12

RDQ8

RDQ13

DDRV

ZQ2

DDRV

RCLK0#

RCLK0

RVREF42_RA3

2_RA4

2_RA5

2_RA6

RVREF5

DDR#2DDR#1

2_RCKE

2_RBA1

2_RA0

2_RBA0

2_RA1

2_RA2

RVREF8

DDRV

2_RA12

2_RA13

2_RBA2

2_RRAS#

2_RCAS#

2_RA8

2_RA9

2_DDR3_RST#

2_RA10

2_RA11

2_CS#

2_RA7

DDRV

DDRV DDRV

2_RWE#

2_RODT

DDRV DDRV

DVDD3V3 2,3,4,5,7,9,11,12,14,15

GND 2,3,4,5,6,7,8,9,11,12,13,14,15

AVDD3V3 2,4,5,6,9,11,12,13

DDRV 2

RVREF9RVREF6

RA11

RA4

RA1

RCKE

RBA1

RA10

RA6

RA8

2_RA6

2_RA4

2_RA1

2_RBA1

2_RA10

2_RCKE

2_RA11

2_RA8

RVREF7

RVREF5

AVDD3V3

CAPs for DRAM IO Power

RDQ21

RDQ18

RDQ19

RDQ17

RDQ16

DDR#3

4_RA6

4_RA14

RDQ22

RDQ23

RDQ20

4_RA3

4_RA4

4_RA5

4_RBA0

4_RA1

RCLK1

RCLK1#

4_RA2

RDQM2

4_RA0

RDQS2#

RDQS2

4_RBA1

4_RCKE

ZQ3

4_RCAS#

4_RRAS#

RVREF6

4_RWE#

4_RODT

4_CS#

4_RBA2

4_DDR3_RST#

4_RA10

4_RA11

4_RA12

RVREF7

4_RA13

4_RA7

4_RA8

4_RA9

DVDD3V 3

RDQS0#

RDQS1

RDQS1#

RDQS2

RDQS2#

RDQS0

RDQM2

RDQM3

RDQM1

RDQS3

RDQS3#

RDQM0

RVREF0

AVSS33_MEMPLL

AVDD33_MEMPLL

RODT

AVDD33_MEMPLL

CAPs for DRAM IO Power

DDR#4

RDQM3

RVREF2

RDQS3#

RDQS3

5_RA14

ZQ4

CAPs for DRAM IO Power

RCLK1#

RCLK1

RVREF8

5_RA2

5_RA3

5_RA4

5_RA5

5_RA6

RVREF9

5_RCKE

5_RBA1

5_RA0

5_RBA0

5_RA1

5_RA12

5_RA13

5_RBA2

5_RRAS#

5_RCAS#

5_RA7

5_RA8

5_RA9

5_DDR3_RST#

5_RA10

5_RA11

5_RWE#

5_RODT

5_CS#

RDQ29

RDQ28

RDQ30

RDQ31

RDQ26

RDQ25

RDQ24

RDQ27

RCLK1

CLK0

CLK0#

CLK1

CLK1#

RCLK0

RCLK0#

RCLK1#

Damping and Termination for CLK

CAPs for DRAM IO Power

RVREF3

RA12

RA7

RA11

RA13

RA14

RA8

RA4

RA5

RA10

RA9

RBA2

RA0

RA2

RA1

RA6

RA3

RCLK1#

RCLK0#

RCLK0

RBA1

RBA0

RWE#

RCKE

RCSX#

RCS#

RCLK1

DDRV

DDR3_RST#

RRAS#

RCAS#

RA4

RA1

RA6

RA8

RA9

RA11

RA12

RA13

RA3

RA10

RBA0

RCSX#

RA14

RODT

RA7

RCKE

RBA2

RBA1

RA2

RA0

RCAS#

RWE#

DDR3_RST#

RA5

RA9

RA11

RA12

RA4

RA1

RBA0

RCSX#

RRAS#

RA14

RA13

RA3

DDR3_RST#

RA5

RA7

RBA2

RBA1

RA2

RA0

RCAS#

RWE#

RRAS#

4_RODT

4_RRAS#

4_RA5

4_RA0

4_CS#

5_CS#

4_RWE#

4_RA2

4_RA13

4_RA7

4_DDR3_RST#

4_RA9

4_RA3

4_RBA2

4_RCKE

4_RBA1

4_RA12

4_RCAS#

4_RBA0

4_RA14

4_RA11

4_RA4

4_RA1

4_RA10

5_RA11

5_RA4

5_RA1

5_RBA1

4_RA6

4_RA8

5_RA3

5_RBA2

5_RBA0

5_RA12

5_RA14

5_RA2

5_DDR3_RST#

5_RA13

5_RA7

5_RA9

5_RRAS#

5_RCAS#

5_RWE#

5_RA0

5_RA5

EN 71TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10-5-9 DRAM Interface

back to

2013-Jun-14

div.table

19430_524_130115.eps

130115

MII/GPIO/SERVAD

B10 B10

2012-12-15

C

715G5713

MII/GPIO/SERVAD

EDID_WEN

ARC2_EN

ARC3_EN

ARC1_EN

DVDD3 V3

AVDD33_ETH

AVDD33_USB

PANEL_VCC_ON/OFF

BL_ON/OFF

USB_PWR_EN1

BL_ON/OFF

BL_DIMMING

KEY_UP_DN_DCSW

BL_ON/OFF

CI_PWR_EN

SPI_CLK

EDID_WEN

Wi-Fi Power Control

Temp_out

Wi-Fi_PWR_EN Wi-Fi_OCP

VCCK

PANEL_VCC_ON/OFF

KEY_MENU_L_R_SOURCE

USB_DM_P1

I2SAMP_RESET

3V3SB

SPI_DO

SCART_FS1CI_PWR_EN

USB_PWR_EN1

SYS_EEPROM_WP

USB_PWR_EN0

SCART_FS0

Wi-Fi_PWR_EN

OPCTRL3

OPCTRL4

OPCTRL0 LED_R

GPIO3

ARC1_EN

USB_DP_P1

USB_DM_P1

Thermal Sensor

SCART_FS0

USB_DP_P1

I2SAMP_RESET

Wi-Fi-Reset

C4263

0.1uF 25V

U4250

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN4VIN

5

C4251

1UF 10% 16V

C4260

0.1uF 25V

R4252

4K7 1/16W 5%

CN4250

CONN

12345

67

CN4252

couplier assembly

P11P22P33P44P55P66P7 NC7P8

8

TH2

10

TH1

9

R4267

10K 1/10W 5%

R4269 0R05 1/16W

C4256

1UF 25V

MT5580MPOI

U401G

GPIO0P7GPIO1

AA7

GPIO2U7GPIO3Y5GPIO4

AD1

GPIO5W7GPIO6

AC3

GPIO7U6GPIO8V6GPIO9Y6OPCTRL0

AC9

OPCTRL1

AB8

OPCTRL2Y7OPCTRL3

Y12

OPCTRL4

AA10

ADIN0_SRV

W12

ADIN1_SRV

V11

ADIN2_SRV

AA9

ADIN3_SRV

AA6

ADIN4_SRV

AB7

ADIN5_SRV

AB9

OPWM0

G23

OPWM1

F23

OPWM2

E22

OPWM3

E23

OPWM4

G21

OPWM5

G22

OPWM6

F22

TP4004

FB4250 120R

1 2

R4251

4K7 1/16W 5%

C4254

100NF 16V

R4265 0R05 1/16W

R4268 0R05 1/16W

TP4003

R4253

24K 1%

ARC2_EN

TP4005

C4255

100NF 16V

R4263 4K7 1/16W 5%

TP4002

TP

C4258

10NF 50V

R4255

NC/0R05 1/16W

R4254

0R05 1/16W

C4262

10NF 50V

C4253100NF 16V

R4266

NC/10K 1/10W 5%

R4264 0R05 1/16W

C4264

100NF 16V

C4265

100NF 16V

Temp_out

C4259

10NF 50V

R4250

10K 1/16W 5%

C425010UF 10V

MT5580MPOI

U401E

VCCKM6VCCKL6VCCKM5VCCKL5VCCKM4VCCKL4VCCKM3VCCKL3VCCKM2VCCKL2VCCKM1VCCKL1VCCKM8VCCKL8VCCKM7VCCKL7VCCKN8VCCKN9VCCKN5VCCK

U13

VCCK

U14

VCCK

R17

DVSS

N10

DVSS

P10

DVSSP8DVSSH6DVSS

T13

DVSS

K11

DVSS

L11

DVSS

M11

DVSS

N11

DVSS

P11

DVSS

R11

DVSS

R10

DVSSU9DVSS

J12

DVSS

K12

DVSS

L12

DVSS

M12

DVSS

N12

DVSS

P12

DVSS

R12

DVSS

W18

DVSS

T11

DVSS

J13

DVSS

K13

DVSS

L13

DVSS

M13

DVSS

N13

DVSS

P13

DVSS

R13

DVSS

T12

DVSS

J14

DVSS

K14

DVSS

L14

DVSS

M14

DVSS

N14

DVSS

P14

DVSS

R14

VCC3IO_C

AA4

VCC3IO

E25

VCC3IO_B

AB3

DVSSE5DVSSF6DVSSJ6DVSS

P15

DVSS

N15

DVSS

M15

DVSS

L15

DVSS

K15

DVSS

K17

DVSS

T14

DVSS

U17

DVSS

T15

DVSS

T16

DVSS

N17

DVSS

L17

DVSS

V12

DVSS

R16

DVSS

P16

DVSS

N16

DVSS

M16

DVSS

L16

DVSS

M10

DVSS

L10

DVSS

K10

DVSSM9DVSSL9DVSSK9DVSSJ9DVSS

M17

DVSS

R15

VCCK

H14

VCCK

J15

VCCKN6VCCK

J10

VCCK

U10

VCCK

J11

VCCK

K16

DVSS

F8

DVSS

C11

DVSSG1DVSS

T10

DVSSG7DVSSU8DVSSV8DVSS

J16

DVSS

J17

DVSS

L18

VCCKP9VCCKR9VCCKT9VCCK

U11

VCCK

U12

VCCK

U15

VCCK

U16

VCCK

T17

DVSSF7DVSS

G14

DVSS

D15

DVSSG8DVSS

G9

DVSS

C12

DVSS

E15

DVSS

F15

+

C4252

NC/100UF 16V

LED_R

MT5580MPOI

U401F

USB_DP_P0

U24

USB_DM_P0

U25

USB_DP_P1

T24

USB_DM_P1

T25

GPIO10

R24

GPIO11

R25

AVDD33_USB

P25

AVSS33_USB

P17

RXVN_1

AD2

RXVP_1

AE2

TXVN_0

AD3

TXVP_0

AE3

REXT

AE1

AVDD33_ETH

AD4

AVSS33_LD

Y8

AVSS33_ELDO

V9

AVSS33_COM

W8

AVDD10_ELDO

AE4

KEY_MENU_L_R_SOURCE

U4251

BD1020HFVTR

N.C.

1

PG

2

VOUT

3

VDD4GND

5

R4262

4K7 1/16W 5%

C4257

4U7 10V

C4261

100NF 16V

AVDD3V3

3V3SB

VCCK VCCK

DVDD3V3

Wi-Fi_VCC

DVDD3V3

DVDD3 V3

AVDD3V3 2,4,5,6,9,10,12,13

VCCK 2,4,12

GND 2,3,4,5,6,7,8,9,10,12,13,14,15

CI_PWR_EN 12

PANEL_VCC_ON/OFF3

USB_PWR_EN0 5

SYS_EEPROM_WP4

USB_PWR_EN1 5

Wi-Fi_VCC

SCART_FS08

KEY_UP_DN_DCSW 5

KEY_MENU_L_R_SOURCE 5

Light_Sensor

BL_ON/OFF 9

BL_DIMMING 9

I2SAMP_RESET 7

ARC3_EN13

EDID_WEN8,13

SEPARATE GROUND

ARC2_EN13

TXVN

TXVP

OPCTRL44

ARC1_EN13

SYS_EEPROM_WP

OPCTRL34

OPCTRL04,5

RXVP

USB_DP_P0 5

Light_Sensor 5

USB_DM_P0 5

LED_R 4,5

T2_RESET 9,12

DVDD3V3 2,3,4,5,7,9,12,14,15

RXVN

USB_DM_P1 5

USB_DP_P1 5

BL_ON/OFF 9

SPI_DO 15

EXTVBR_PWM 9

SPI_CLK 15

3V3SB2,4,5,9,12

USB_DM_P0

ARC3_EN

Light_Sensor

EXTVBR_PWM

EDID_WEN

AVSS33_USB

AVDD33_USB

AVSS33_LD

AVDD33_ETH

AVSS33_COM

AVSS33_ELDO

RXVP

AVDD10_ELDO

REXTUSB_DM_P1

USB_DM_P0

USB_DP_P0

TXVP

TXVN

RXVN

USB_DP_P1

KEY_UP_DN_DCSW

Wi-Fi-Reset

USB_DP_P0

USB_PWR_EN0

Temp_out 15

Temp_out

T2_RESET

SPI_CLK

SPI_DO

EXTVBR_PWM

AVDD3V3

OPCTRL4

OPCTRL0

OPCTRL3

BL_DIMMING

EN 72TPM10.1A LA 10.

back to

div.table

2013-Jun-14

Circuit Diagrams and PWB Layouts

10-5-10 MII/GPIO/SERVAD

19430_525_130115.eps

130115

T2 Demod/CI Card

B11 B11

2012-12-15

C

715G5713

T2 Demod/CI Card

X1050

27MHz

1

2 4

3

C1083

8.2PF 50V

R1103 0R05 1/16W

R1061 10K 1/16W 5%

DEMOD_TSCLK

C1052100NF 16V

R1085 22R 1/16W 5%

R1135 0R05 1/16W

C1086

10UF 6.3V 20%

R1117 0R05 1/16W

FB1054

120R

1 2

R1074

4K7 1/16W 5%

C1084

8.2PF 50V

R1118 47R 1/16W 5%

RP1061

22R

123

4

876

5

R1065

10K 1/16W 5%

FB1052

120R

1 2

R1067

NC/10K 1/16W 5%

R1122 47R 1/16W 5%

R1056

NC/39K 1/16W 5%

CIGPIO21

CIGPIO27

CIGPIO20

CIGPIO26

R1106 22R 1/16W 5%

CIGPIO24

CIGPIO23

CIGPIO29

CIGPIO22

CIGPIO28

FB1050 120R

1 2

CIGPIO1

CIGPIO7

CIGPIO0

CIGPIO6

CIGPIO25

+5V_SW

CIGPIO5

CIGPIO4

CIGPIO3

CIGPIO9

CIGPIO2

CIGPIO8

DVDD3V3

CIGPIO18

CIGPIO11

CIGPIO17

CIGPIO10

CIGPIO16

CI_VCC

CIGPIO15

CIGPIO14

CIGPIO13

CIGPIO19

CIGPIO12

CIGPIO37

CIGPIO30

CIGPIO36

CIGPIO54

CIGPIO46

CIGPIO53

CI_VCC

CIGPIO33

CIGPIO39

CIGPIO32

CIGPIO38

CIGPIO31

CI_VCC

CIGPIO47

CIGPIO41

CIGPIO40

CIGPIO35

CIGPIO34

CI_VCC

CIGPIO43

CIGPIO49

CIGPIO42

CIGPIO56

CIGPIO48

CIGPIO55

DVDD3V3

CIGPIO52

CIGPIO45

CIGPIO51

CIGPIO44

CIGPIO50

3V3SB

AVDD3 3_IF PGA

DVDD3V3

DVDD3 3

AVDD12_DEMOD

DVDD3 3

DVDD33

AVDD33_RSSI

DVDD3 3

AVDD33_DEMOD

DVDD11

AVDD3 3_XTAL

DVDD11

AVDD3 3_XTAL

AVDD33_XTAL

AVDD33_RSSI

AVDD3 3_IF PGA

AVDD3 V3

AVDD33_DEMOD

CI_VCC

AVDD1V2

CI_VCC

CI_DVDD3V3 CI_VCCCI_DVDD3V3

DVDD3V3

CI_DVDD3V3

CI_VCC

DVDD11

DVDD3V3

VCCK

+5V_SW

GND2,3,4,5,6,7,8,9,10,11,13,14,15

DVDD3V3

CI_PWR_EN 11

DVDD3V3 2,3,4,5,7,9,11,14,15

CI_OCP 9

IF_P14

T2_RESET 9

IF_N14

OSCL2 6,14

IF_AGC6,14

TUNER_DATA14

OSDA2 6,14

TUNER_CLK14

AVDD3V3 2,4,5,6,9,10,11,13

3V3SB 2,4,5,9,11

AVDD1V2 2,6,9,13,14

+5V_SW 2,3,5,8,9,13,14

VCCK 2,4,11

FEF 14

DEMOD_TSSYNC14

DEMOD_TSCLK14

DEMOD_TSVALID14

DEMOD_TS014

DEMOD_TS214

DEMOD_TS114

DEMOD_TS414

DEMOD_TS314

DEMOD_TS514

DEMOD_TS714

DEMOD_TS614

DVDD3V3

DEMOD_TS2

CI_CD2#

CI 3V3 PWR Cap.

CI_OUT_TSCLKCI_WAIT#CI_CD1# CI_VS1#

CI_IREQ#

CI_CE2#

TUNER_DATA

TUNER_CLK

VCCK

T2_RESET

3V3SB

CIGPIO27CI_D1

CIGPIO10CI_A10

CIGPIO9CI_A9

CIGPIO8CI_A8

CI_OUT_TSCLK

CIGPIO4CI_A4

AVDD12_DEMOD

CI_OUTDATA3

CIGPIO50CI_WAIT#

CIGPIO53CI_IORD#

CI_OUTDATA5

CI_INSYNC

CI_OUTDATA7

CI_OUTDATA5

CI_CD2#

CI_CE2#

CI_INDATA3

CI_INDATA4

CI_INDATA0

CI_OUTDATA3

CI_VS1#

CI_OUTSYNC

CI_OUTVALID

CI_INDATA2

CI_INVALID

CI_OUTDATA4

CI_OUTDATA7

CI_INSYNC

CI_IOWR#

CI_OUTDATA6

CI_INDATA0

CI_REG#

CI_IORD#

CI_CD1#

CI_INDATA4

CIGPIO13CI_A13

CIGPIO12CI_A12

CI_IN_TSCLK

CI_OUTDATA2

CI_INDATA7

CI_INDATA6

CI_INDATA5

CI_INDATA3

CI_INDATA1

CIGPIO32CI_D6

CIGPIO41

CIGPIO6CI_A6

TSCLK

CIGPIO14CI_A14

CI_OUT_TSCLK

CI_OUTDATA2

CI_OUTDATA1

CI_OUTDATA0

CI_WAIT#

CI_RESET

CI_OUTDATA6

CI_OUTDATA4

CI_INDATA6

CI_INDATA5

CI_INDATA2

CI_OUTSYNC

CI_OUTVALIDCI_OUTDATA0

CI_INDATA7

CIGPIO44CI_WE#

CIGPIO43CI_OE#

CIGPIO42CI_CE1#

CIGPIO5CI_A5

CIGPIO11CI_A11

CIGPIO48

CIGPIO47CI_VS1#

CIGPIO46

CIGPIO45

TS0

TSSYNC

TSVALID

CIGPIO54CI_IOWR#

CIGPIO51CI_CD1#

CIGPIO39

CIGPIO37

CIGPIO28CI_D2

CIGPIO7CI_A7

TS4

CIGPIO52CI_CD2#

CIGPIO56CI_REG#

CIGPIO0CI_A0

CIGPIO30CI_D4

CIGPIO33CI_D7

CIGPIO1CI_A1

TS5

TS2

TS3

TS6

CIGPIO55CI_RESET

CIGPIO34

CIGPIO40

CIGPIO36

CIGPIO2CI_A2

TS7

CIGPIO31CI_D5

CIGPIO38

CIGPIO29CI_D3

PAD_CHIP_CTRL

CIGPIO3CI_A3

CIGPIO23

CIGPIO25

CIGPIO24

CIGPIO22

CIGPIO20

CIGPIO18

CIGPIO21

CIGPIO19

IF_N

IF_P

CI interface

CI Bus Power Control

DVDD33

CI_OCP

DEMOD_TS7

DEMOD_TS3

OSDA2

OSCL2

OSDA2

DEMOD_TS1

CI_OUTDATA1

CIGPIO17

CIGPIO16

+5V_SW

OSCL2

DEMOD_TSVALID

DEMOD_TSSYNC

DEMOD_TSCLK

DEMOD_TS7

DEMOD_TS2

DEMOD_TS1

DEMOD_TS0

DEMOD_TS3

DEMOD_TS6

DEMOD_TS5

DEMOD_TS4

CIGPIO26CI_D0

DEMOD_TS0

TS1

AVDD3V3

DEMOD_TS6

CI_PWR_EN

IF_AGC

AVDD3V3star-connection

DEMOD_TSSYNC

AVDD1V2

CI_OCP

DEMOD_TS5

CIGPIO35

Reset

R1083 22R 1/16W 5%

XTALI

R1076

4K7 1/16W 5%

XTALO

C105310UF 10V

CI_PWR_EN

R1095 22R 1/16W 5%

PAD_RSTN_1

R1084 22R 1/16W 5%

R1128 0R05 1/16W

R1097 22R 1/16W 5%

R1124 47R 1/16W 5%

Xtal

R1054

4K7 1/16W 5%

R1072 22R 1/16W 5%

CI_INVALID

CI_OE#

FEF

CI_CE1#

CI_A13

CI_D6

CI_D7

CI_A6

CI_A7

CI_D5

CI_A10

PCMCIA

CN159

PCMICA CARD

A1520A16

19

CE1#7OE#9WE#15READY#:IREQ#

16

GND

1

GND34D030D131D2

32

D32D43D54D65D7

6

A029A128A227A326A425A524A623A7

22

A812A911A108A11

10

A12

21

A1313A14

14

WP#

33

VPP118VCC

17

GND

68

CD2#

67

D10

66

D965D8

64

BVD1#:STSCHG

63

BVD2#:SPKR

62

GND

35

CD1#

36

D1137D1238D1339D1440D15

41

CE2#

42

VS1#

43

IORD#

44

IOWR#

45

A1746A1847A1948A2049A21

50

VCC

51

VPP2

52

A2253A2354A2455A25

56

VS2#

57

RESET

58

WAIT#

59

INPACK

60

REG#

61

69

70

71

72

CIGPIO15

CI_IREQ#

CI_A1

CI_A2

CI_A8

CI_A9

CI_A11

R1134 0R05 1/16W

CI_A4

CI_A5

CI_D1

CI_D0

CI_A12

C1087

NC/1UF16V

CI_D3

CI_A0

CI_D2

CI_A14

CI_A3

R1105 22R 1/16W 5%

CI_WE#

CI_IN_TSCLK

CI_D4

C1060100NF 16V

R1069

10K 1/16W 5%

R1096 22R 1/16W 5%

R1129 0R05 1/16W

R1100 22R 1/16W 5%

R1080 22R 1/16W 5%

U102

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN4VIN

5

C107110UF 6.3V 20%

C1080

NC/10PF 50V

C1081

NC/10PF 50V

DEMOD_TSVALID

R1121 22R 1/16W 5%

R1112 22R 1/16W 5%

R1098 22R 1/16W 5%

P3_DEMOD_TS_DATA1

P3_DEMOD_TS_VAL

TS3

TS2

TUNER_CLK

TUNER_DATA

P3_DEMOD_TS_DATA3

TS1

XTALI

MT5580MPOI

U401H

CIGPIO0

H22

CIGPIO1

K23

CIGPIO2

K25

CIGPIO3

L25

CIGPIO4

L23

CIGPIO5

H16

CIGPIO6

H18

CIGPIO7

P23

CIGPIO8

K18

CIGPIO9

N21

CIGPIO10

P18

CIGPIO11

N20

CIGPIO12

H19

CIGPIO13

P24

CIGPIO14

K19

CIGPIO15

N23

CIGPIO16

U23

CIGPIO17

M18

CIGPIO18

AA21

CIGPIO19

N25

CIGPIO20

N24

CIGPIO21

U21

CIGPIO22

U22

CIGPIO23

J22

CIGPIO24

J21

CIGPIO25

M23

CIGPIO26

H23

CIGPIO27

H25

CIGPIO28

H24

CIGPIO29

Y19

CIGPIO30

U19

CIGPIO31

U20

CIGPIO32

T20

CIGPIO33

T19

CIGPIO34

H21

CIGPIO35

H20

CIGPIO36

G25

CIGPIO37

V18

CIGPIO38

U18

CIGPIO39

T22

CIGPIO40

T21

CIGPIO41

T18

CIGPIO42

AA23

CIGPIO43

N19

CIGPIO44

J19

CIGPIO45

J23

CIGPIO46

K24

CIGPIO47

N18

CIGPIO48

L22

CIGPIO49

J20

CIGPIO50

N22

CIGPIO51

Y22

CIGPIO52

G24

CIGPIO53

Y21

CIGPIO54

Y20

CIGPIO55

H17

CIGPIO56

L24

R1094

NC/11K 1/10W 1%

Vout=0.8x (1+4.3K/11K) = 1.113V

TS0

P3_DEMOD_TS_SYNC

R1130 0R05 1/16W

R1089 0R05 1/16W

P3_DEMOD_TS_DATA0

R1070 0R05 1/16W

XTALO

R1082 22R 1/16W 5%

EFUSE

TSSYNC

C1067100NF 16V

TS7

TSVALID

C1064100NF 16V

P3_DEMOD_TS_DATA4

P3_DEMOD_TS_ERR

TSCLK

C1066100NF 16V

C107410UF 6.3V 20%

P3_DEMOD_TS_DATA6 P3_DEMOD_TS_DATA5

IF_AGC_M

R1093

NC/4K3 1/10W 1%

P3_DEMOD_TS_DATA7

P3_DEMOD_TS_DATA2

R1092 0R05 1/16W

C1061100NF 16V

IF_AGC

RP1062

22R

123

4

876

5

DEMOD_TS4

C1059100NF 16V

TS6

R1060

4K7 1/16W 5%

R1126 47R 1/16W 5%

R1091 0R05 1/16W

MT5136 IC

IF_N

IF_P

TS5

R1051 100K 1/16W 5%

PAD_RSTN_1

P3_DEMOD_TS_CLK

TS4

C1069100NF 16V

R1131 0R05 1/16W

C1051

1UF 10% 16V

R1116 0R05 1/16W

R1053

4K7 1/16W 5%

C1085

NC/10UF 6.3V X5R +-20%

R1066

10K 1/16W 5%

C1055

NC/100N16V

CIGPIO49CI_IREQ#

R1090 0R05 1/16W

C107210UF 6.3V 20%

R1075 22R 1/16W 5%

C1062100NF 16V

C1058100NF 16V

R1132 0R05 1/16W

C1056NC/10uF 6.3V

R1099 22R 1/16W 5%

R1101 22R 1/16W 5%

R1058

4K7 1/16W 5%

R1077 47R 1/16W 5%

C1077100NF 16V

R1064

10K 1/16W 5%

R1109 22R 1/16W 5%

C1068100NF 16V

FB1051

120R

1 2

MT5136AN

U103

DVDD3 3

1

DVDD11

3

RSTN

2

AVDD33_RSSI

4

ADIN0

5

LOUTN

6

LOUTP

7

AVDD33_DEMOD

8

AVSS33_DEMOD

9

XTALI

10

AVSS33_XTAL

11

XTALO

12

AVDD3 3_XTAL

13

EXT_CLKSEL

14

AVSS12_DEMOD

15

IFPGA_INN

16

IFPGA_INP

17

AVDD12_DEMOD

18

AVDD33_IFPGA

19

DVDD11

20

CHIP_CTRL

21

TUNER_DATA

22

TUNER_CLK

23

DVDD33

24

IF_AGC

25

RF_AGC

26

DVDD11

27

TS_ERR

28

TS_DATA7

29

TS_DATA6

30

TS_DATA5

31

DVDD3 3

32

DVDD11

33

TS_DATA4

34

TS_DATA3

35

TS_DATA2

36

TS_DATA137GPIO138DVDD3339GPIO240DVDD1141TS_DATA042TS_SYNC43TS_VAL44TS_CLK45SDA46SCL47DGND3348EPAD

49

R1063

10K 1/16W 5%

R1125 47R 1/16W 5%

R1108 22R 1/16W 5%

R1123 47R 1/16W 5%

R1133 0R05 1/16W

R1068

10K 1/16W 5%

R1081 22R 1/16W 5%

C1088

10UF 6.3V 20%

R1119 22R 1/16W 5%

R1055

10K 1/16W 5%

C1065100NF 16V

C107510UF 6.3V 20%

R1086 47R 1/16W 5%

C1078100NF 16V

R1059 4K7 1/16W 5%

R1107 22R 1/16W 5%

R1115 47R 1/16W 5%

C1079100NF 16V

C1063100NF 16V

C1057100NF 16V

R1102 0R05 1/16W

R1052

NC/0R05 1/16W

CI_INDATA1

R1062 100R 1/16W 5%

T2_RESET

C1082100NF 16V

R1057

NC/4.7K1/16W

C107647NF 16V

C107310UF 6.3V 20%

U105

NC/G9661

POK1VEN2VIN3VPP

4

NC

5

VO

6

ADJ

7

GND

8

E-Pad

9

FB1053

120R

1 2

C1070100NF 16V

R1110 22R 1/16W 5%

R1120 22R 1/16W 5%

R1114

10K 1/16W 5%

+

C1054

NC/100UF 16V

FEF

R1127 47R 1/16W 5%

R1111 22R 1/16W 5%

R1104 47R 1/16W 5%

EN 73TPM10.1A LA 10.

back to

2013-Jun-14

div.table

Circuit Diagrams and PWB Layouts

10-5-11 T2 Demod/CI Card

19430_526_130115.eps

130115

HDMI SW/Connector

B12 B12

2012-12-15

C

715G5713

HDMI SW/Connector

HDMI 2 INPUT

RX1_2+

GND

ARCARC3_HDMI

ARC3_EN

AVDD3V3

R552

0R05 1/16W

R546

NC/180R

R527

33R 1/16W 5%

U514

NC/74LVC1G125GV

24

513

C506100NF 16V

U513 NC/RClamp0524P.TCT

IN11IN2

2

GND

3

IN34IN4

5

OUT46OUT3

7

GND

8

OUT29OUT1

10

R516 100R 1/16W 5%

R503 0R05 1/16W

R532

47K 1/10W 5%

U510 NC/RClamp0524P.TCT

IN11IN2

2

GND

3

IN34IN4

5

OUT46OUT3

7

GND

8

OUT29OUT1

10

R518

10K 1/16W 5%

D501 BAS316

A

1

K

2

C505100NF 16V

R502

0R05 1/16W

C507

100NF 16V

R513

75 OHM +-5% 1/16W

R512

33R 1/16W 5%

ZD502NC/PDZ24B

12

ZD503NC/PDZ24B

12

R511

75 OHM +-5% 1/16W

R542

NC/100K1/16W

R543

NC/4.7K1/16W

ZD501NC/PDZ24B

12

R538

NC/0R05 1/16W

R536

NC/4K7 1/16W 5%

Q501

BC847C

321

U507

M24C02-WDW6P

E01E12E23VSS

4

SDA

5

SCL

6

WC

7

VCC

8

Audio Reture Channel (ARC)

ARC

R548

NC/4.7K1/16W

CN503

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+10CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

D504 BAS316

A

1

K

2

ARC1_HDMI

R541

NC/82R

CN501

HDMI

SHELL120SHELL2

21

D2+

1

D2Shield

2

D2-

3

D1+

4

D1Shield

5

D1-

6

D0+

7

D0Shield

8

D0-

9

CK+

10

CKShield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL423SHELL322SHELL524SHELL625SHELL7

26

ARC1_EN

CN502

HDMI

SHELL120SHELL2

21

D2+

1

D2Shield

2

D2-

3

D1+

4

D1Shield

5

D1-

6

D0+

7

D0Shield

8

D0-

9

CK+

10

CKShield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL423SHELL322SHELL524SHELL625SHELL7

26

Q503

BC847C

321

R549

NC/100K1/16W

R551

NC/0R05 1/16W

D503 BAS316

A

1

K

2

R523910R

C513

100NF 16V

R514

4K7 1/16W 5%

R506

10K 1/16W 5%

R522

75 OHM +-5% 1/16W

MT5580MPOI

U401D

HDMI_1_RX_0P4HDMI_1_RX_0BP3HDMI_1_RX_1R2HDMI_1_RX_1BR1HDMI_1_RX_2R4HDMI_1_RX_2BR3HDMI_1_RX_CN4HDMI_1_RX_CBN3HDMI_1_SCLP5HDMI_1_SDAP6HDMI_1_HPDT8HDMI_2_RX_0U2HDMI_2_RX_0BU1HDMI_2_RX_1U4HDMI_2_RX_1BU3HDMI_2_RX_2V4HDMI_2_RX_2BV3HDMI_2_RX_CT4HDMI_2_RX_CBT3HDMI_2_SCLT5HDMI_2_SDAT6HDMI_2_HPD

T7

HDMI_3_RX_0

Y25

HDMI_3_RX_0B

Y24

HDMI_3_RX_1

W25

HDMI_3_RX_1B

W24

HDMI_3_RX_2

V25

HDMI_3_RX_2B

V24

HDMI_3_RX_C

AA25

HDMI_3_RX_CB

AA24

HDMI_3_SCL

W3

HDMI_3_SDA

W4

HDMI_3_HPD

W5

HDMI_CEC

U5

AVDD12_HDMI_RXW1AVDD12_HDMI_RX

W2

AVDD12_HDMI_3_RX

AB24

AVDD33_HDMI_RX

N2

AVDD33_HDMI_3_RX

AB25

AVSS33_HDMI_RX

N7

AVSS33_HDMI_3_RX

R18

R539

10K 1/16W 5%

R531 100R 1/16W 5%

C500

100NF 16V

D505BAS316

A1K

2

R504 100R 1/16W 5%

R526 100R 1/16W 5%

D510BAS316

A1K

2

C504100NF 16V

D509 BAS316

A

1

K

2

D508BAS316

A1K

2

Q502

BC847C

321

C503

100NF 16V

R530470K 1/16W 5%

R524

33R 1/16W 5%

R505 100R 1/16W 5%

U504

M24C02-WDW6P

E01E12E23VSS

4

SDA

5

SCL

6

WC

7

VCC

8

R533

180ohm 1/16W +/-5%

D507 BAS316

A

1

K

2

R510910R

R509470K 1/16W 5%

R537

NC/0R05 1/16W

RX1_2-

R508

47K 1/16W 5%

U509

M24C02-WDW6P

E01E12E23VSS

4

SDA

5

SCL

6

WC

7

VCC

8

R540

NC/180R

R520

47K 1/16W 5%

C508

1uF 10V

C512

100NF 16V

R529

4K7 1/16W 5%

C510

NC/1UF 10V

U512

NC/74LVC1G125GV

24

513

R521470K 1/16W 5%

R507

47K 1/16W 5%

EDID_WEN

R547

NC/82R

R534

100K 1/16W 5%

AVDD1V2

U515

NC/74LVC1G125GV

24

513

R525

4K7 1/16W 5%

D506 BAS316

A

1

K

2

R528

47K 1/10W 5%

R535

82R

U511 NC/RClamp0524P.TCT

IN11IN2

2

GND

3

IN34IN4

5

OUT46OUT3

7

GND

8

OUT29OUT1

10

R550

NC/0R05 1/16W

C511

NC/1UF 10V

R544

NC/0R05 1/16W

C502

100NF 16V

C509100NF 16V

R517910R

R545

NC/0R05 1/16W

R519

47K 1/16W 5%

R515 100R 1/16W 5%

HPLUGP2_5V

C501

100NF 16V

R500

0R05 1/16W

AVDD3V 3

HPLUGP3_5V

AVDD3V 3

+5V_SW

HPLUGP1_5V

+5V_SW

HPLUGP2_5V

AVDD3V 3

AVDD1V2

AVDD3V 3

AVDD1V2AVDD1V2

AVDD3V 3

ARC3_EN11

EDID_WEN8,11

AVDD3V 32,4,5,6,9,10,11,12

SCL_1

AVDD1V22,6,9,12,14

GND2,3,4,5,6,7,8,9,10,11,12,14,15

ARC1_EN11

ARC2_EN11

SDA_1

+5V_SW 2,3,5,8,9,12,14

ARC6

PWR5V_1

------><-------

PWR5V_1

RX1_1-

RX1_1+

RX1_2-

RX1_2+

CEC_1

RX1_C-

RX1_C+

RX1_0-

RX1_0+

HPLUGP1_5V

HPD1

HPLUGP1_5V

HDMI1_SDA

HDMI1_SCL

------><-------

HDMI 1 EDID EEPROM

EDID_WEN

HDMI1_SDA

HDMI1_SCL

SMD/0402

ARC

HDMI2 & HDMI3 ARCHDMI2 & HDMI3 ARC

RX1_0-

RX1_C+

HDMI_CEC

AVDD33_HDMI_3_RX

AVDD12_HDMI_3_RX

AVDD12_HDMI_2_RX

AVSS33_HDMI_3_RX

AVSS33_HDMI_RX

AVDD33_HDMI_RX

AVDD12_HDMI_1_RX

RX1_C-

SCL_2

------><-------

SDA_2

PWR5V_2

RX2_2+

PWR5V_2

RX2_0-

RX2_0+

RX2_1-

RX2_1+

RX2_2-

CEC_2

RX2_C-

RX2_C+

HDMI2_SDA

HPLUGP2_5V

HDMI2_SCL

EDID_WEN

HDMI2_SCL

------><-------

HDMI 2 EDID EEPROM

HDMI2_SDA

HDMI3_SCL

AVDD12_HDMI_1_RX

Analog Power

AVDD33_HDMI_RX AVDD33_HDMI_3_RX

AVDD12_HDMI_3_RXAVDD12_HDMI_2_RX

ARC2_HDMI

HDMI1_SCL

ARC3_EN

RX3_C-

RX3_C+

RX3_0-

RX3_2-

RX3_2+

RX3_1-

HPD3

RX3_1+

HDMI3_SDA

RX3_0+

HDMI3_SCL

SCL_3

SDA_3

PWR5V_3

RX3_2-

RX3_2+

RX3_0-

RX3_0+

RX3_1-

RX3_1+

------><-------

CEC_3

RX3_C-

RX3_C+

HPD3

HPLUGP3_5V

HDMI3_SDA

HDMI3_SCL

EDID_WEN

HDMI 3 EDID EEPROM

------><-------

HDMI3_SDA

CEC_3

HDMI 3 INPUT (SIDE)

HPD2

CEC_3

PWR5V_3PWR5V_3

SDA_3

SCL_3

HDMI 3 ESD PROTECTER

ARC1_HDMI

RX3_2-

RX3_2+

SDA_3

SCL_3

CEC_3

RX3_1-

RX3_1+

RX3_1-

RX3_1+

RX3_2-

RX3_2+

RX3_0+

RX3_C-

RX3_C+

RX3_0-

RX3_0+

RX3_C-

RX3_C+

RX3_0-

RX1_0+

HDMI1_SDA

+5V_SW

HPLUGP3_5V

HDMI-CEC

ARC3_HDMI

RX2_2-

RX2_2+

HDMI2_SDA

RX2_0+

HDMI2_SCL

RX2_C-

RX2_C+

RX2_0-

RX2_1-

HPD2

RX2_1+

ARC2_EN

RX1_1+

ARCARC2_HDMI

ARC2_EN

CEC_2

CEC_1

HDMI_CEC

HPD1 ARC1_EN

RX1_1-

HDMI 1 INPUT

EN 74TPM10.1A LA 10.

back to

2013-Jun-14

div.table

Circuit Diagrams and PWB Layouts

10-5-12 HDMI SW/Connector

19430_527_130115.eps

130115

DVB T2/C/S2 Tuner

B13 B13

2012-12-15

C

715G5713

DVB T2/C/S2 Tuner

TS_S2_DQ5

+5V_SW

DV33_VDDIO

DV12_VDDC

IN

S2_DEMO_SDA

DEMOD_S2_RESET

DV12_ADC

TUNER_QP

TS_S2_CLK

DEMOD_S2_RESET

IF_P

TU_FAT_IN2+

TU_FAT_IN2-

TS_S2_DQ6

DV33_VDDIO

IF_AGC_T

DIF_OUT_P

TT_SDA

FEF

DIF_OUT_N

OSDA2

+3V3_VCC_T2

TT_SCL

DV12_VDDC

+5V_ANT

RF_AGC_S2_TUNER

DIF_OUT_P

DISEQC_OUT

TUNER_LNB

S2_DEMO_SCL

S2_DEMO_SDA

S2_DEMO_SCL

TUNER_QN

TS_S2_DQ0

QP

S2_RESET

+3V3_VCC_T2

S2_RESET

DV33_VDDIO

TS_S2_DQ7

DV12_VDDC

OSCL2

R1346

0R05 1/16W

C1303

1uF 10V

R1304

NC/2K7 1/16W 5%

R1349

0R05 1/10W

C1316

100NF 16V

FB1305

120R

1 2

C1330

10NF 50V

t

TH1300 NC/PTCR

1 2

R1310

180ohm 1/16W +/-5%

C1315

1nF 50V

C1351

NC/100N 16V

TU101

TDQS-A901F

LNA B

1

RF3.3V

2

TU3.3V

3

QN_OUT

4

QP_OUT

5

IP_OUT

6

IN_OUT

7

AGC

8

X-OUT

9

SDA

10

SCL

11

TH112TH213TH314TH4

15

C1345 NC/100N 16V

R1312

NC/2K7 1/16W 5%

C1332

0.1uF 50V

R1322

0R05 1/16W

R1348

0R05 1/10W

R1313

33R 1/10W 5%

C1306

1nF 50V

FB1300

120R

1 2

C1339

18pF 50V

R1315 100R 1/10W 1%

R1339 4K7 1/16W 5%

R1305

4K7 1/16W 5%

FB1301

120R

1 2

C1313

100NF 16V

C1342

10NF 50V

C1322

1nF 50V

R1347

0R05 1/16W

C1302

1uF 10V

C1320

1nF 50V

+3V3_TUNER

FB1304

120R

1 2

R1302

33R 1/16W 5%

RP1301

22R

123

4

876

5

R1306

NC/4K7 1/16W 5%

R1328

1K 1/16W 5%

C1317

22PF 50V

C1337

100NF 16V

C1309

100NF 16V

C1336

100NF 16V

C1308

100NF 16V

C1304

1uF 10V

C1312

100NF 16V

C1348 NC/100N 16V

R1314

4K7 1/16W 5%

C1333

NC/100N 16V

R1342 22R 1/16W 5%

R1333

750R 1/16W 5%

X1300

10MHz

1

24

3

C1329

0.1uF 50V

U104

AVL6211LA

ADC_AVDD1ADC_AVSS2ADC_IP3ADC_IN4ADC_AVSS5ADC_AVDD6ADC_QP7ADC_QN8PLL_AVDD9PLL_AVSS10VDDC11GND12VDDC13PLL_REFCLK_XI14PLL_REFCLK_XO15RFAGC

16

VDDIO

17

GPIO_CLK

18

LOCK

19

TDI

20

TDO

21

TCLK

22

GND

23

TMS

24

TRST_N

25

VDDC

26

MPEG_DATA_7

27

MPEG_DATA_6

28

MPEG_DATA_5

29

VDDIO

30

GND

31

MPEG_DATA_4

32

MPEG_DATA_333MPEG_DATA_2

34

VDDC

35

VDDIO

36

GND

37

MPEG_DATA_138MPEG_DATA_0

39

MPEG_CLK

40

VDDC

41

GND

42

VDDIO

43

MPEG_VALID44MPEG_SYNC

45

MPEG_ERR

46

GND

47

VDDC

48

SLEEP

49

SCL1

50

SDA1

51

GND

52

SCL2

53

SDA2

54

DISEQC_IN

55

VDDIO

56

VDDC

57

DISEQC_OUT

58

LNB_CNTRL_0

59

LNB_CNTRL_1

60

CS_0

61

RST_B

62

GND

63

GND

64

C1314

100NF 16V

R1331

1K 1/16W 5%

R1337 4K7 1/16W 5%

C1344

100NF 16V

R1343 22R 1/16W 5%

C1347 100NF 16V

R1326 0R05 1/10W

R1340 4K7 1/16W 5%

C1311

100NF 16V

C1353

NC/47pF 50V

C1307

100NF 16V

R1327

0R05 1/16W

R1330

1K 1/16W 5%

R1325 0R05 1/10W

R1311NC/4K7 1/16W 5%

R1323 0R05 1/16W

R1316

2K7 1/16W 5%

FB1302

120R

1 2

R1334

NC/4K7 1/16W 5%

R1344 22R 1/16W 5%

C1323

100NF 16V

TU102

TDSY-G230D

Ant.PWR

1

+B1(3.3V)

2

DIF_(N)

5

SDA

3

SCL

4

DIF_(P)

6

IF AGC

7

GPIO

8

TH19TH210TH311TH412TH513TH6

14

C1346 100NF 16V

R1332

560R 1/16W 5%

C1334

NC/100N 16V

R1307

4K7 1/16W 5%

C1350

270PF 50V

C1352

NC/47pF 50V

C1326

22PF 50V

C1338

100NF 16V

TS_S2_DQ1

C1328

NC/47pF 50V

C1300

100NF 16V

C1335

NC/47pF 50V

R1336

4K7 1/16W 5%

C1301

100NF 16V

C1325

22PF 50V

C1343

22PF 50V

U1300

NC/G552B1TA1U

VOUT

1

GND

2

FLAG

3

ON/ON

4

VIN

5

R1338 4K7 1/16W 5%

C1324

10UF 10V

C1340

18pF 50V

R1341 22R 1/16W 5%

R1329

1K 1/16W 5%

DV33_VDDIO

R1319 100R 1/10W 1%

+

C1319

100UF 16V

OSDA0

R1345

0R05 1/16W

R1309

33R 1/16W 5%

OSCL0

R1301

4K7 1/16W 5%

C1331

10UF 10V

C1305

1uF 10V

C1318

1UF 10% 16V

R1318 4K7 1/16W 5%

C1341

100NF 16V

C1321

100NF 16V

R1300

10K 1/10W 5%

C1349

10UF 6.3V 20%

R1303

33R 1/16W 5%

R1308

33R 1/16W 5%

R1320

2K7 1/16W 5%

FB1303

120R

1 2

RP1300

22R

123

4

876

5

DVB-T/C/T2 TUNER CIRCUIT

R1324 0R05 1/16W

R1335 4K7 1/16W 5%

R1321

10K 1/16W 5%

C1310

100NF 16V

+5V_SW

DV12_PLL

+3V3_TUNER

DV12_VDDCAVDD1V2

AVDD1V2

AVDD1V2 DV12_ADC

+3V3_TUNER

GND_Tuner

DVDD3V3 DV33_VDDIO

GND_Tuner GND_Tuner

DV33_VDDIO

GND_Tuner GND_Tuner GND_Tuner

GND_Tuner

+3V3_TUNER

GND_Tuner GND_Tuner

GND_TunerGND_Tuner

DV33_VDDIO

DVDD3V3

+3V3_TUNER

GND_Tuner GND_Tuner

TU_FAT_IN2-6

TU_FAT_IN2+6

IF_AGC6,12

OSCL26,12

OSDA26,12

GND2,3,4,5,6,7,8,9,10,11,12,13,15

+3V3_TUNER2

OSCL04,7

OSDA04,7

S2_DEMO_SDA3

DISEQC_OUT3

TUNER_LNB3

DEMOD_S2_RESET9

AVDD1V22,6,9,12,13

DVDD3V 32,3,4,5,7,9,11,12,15

S2_DEMO_SCL3

DEMOD_TSCLK12

DEMOD_TSVALID12

DEMOD_TSSYNC12

DEMOD_TS212

DEMOD_TS112

DEMOD_TS012

DEMOD_TS512

DEMOD_TS412

DEMOD_TS312

IF_P12

DEMOD_TS712

DEMOD_TS612

TUNER_CLK12

TUNER_DATA12

IF_N12

FEF 12

+5V_SW 2,3,5,8,9,12,13

TT_SCL TUNER_CLK

TT_SDA TUNER_DATA

DEMOD_TSVALID

DEMOD_TSSYNC

DEMOD_TSCLK

DV12_VDDC

IF BPF

IF_AGC

OSCL2

OSDA2

TU_FAT_IN2-

TU_FAT_IN2+

DVB-S/S2 TUNER & Demodulator CIRCUIT

DIF_OUT_N

TS_S2_ERR

TS_S2_DQ2

DV33_VDDIO

FEF

DV12_VDDC

IF_AGC_T

DV12_PLL

+3V3_VCC_S2

DEMOD_TS3

DEMOD_TSCLK

DEMOD_TSVALID

DEMOD_TSSYNC

DEMOD_TS2

DEMOD_TS1

DEMOD_TS0

DEMOD_TS6

DEMOD_TS5

DEMOD_TS4

DEMOD_TS7

TUNER_CLK

TUNER_DATA

TS_S2_DQ5

TS_S2_DQ4

TS_S2_ERR

TS_S2_VAL

TS_S2_SYNC

TS_S2_CLK

TS_S2_DQ2

TS_S2_DQ1

TS_S2_DQ0

TS_S2_DQ7

TS_S2_DQ6

TS_S2_DQ3

TS_S2_SYNC

QP

IP

TS_S2_DQ3

S2_TUNER_SCL

+3V3_VCC_S2

DVDD3V3

DEMOD_TS3

DEMOD_TS7

DEMOD_TS2

DEMOD_TS1

DEMOD_TS0

DEMOD_TS6

DEMOD_TS5

DEMOD_TS4

DV12_VDDC

S2_TU_SDA

+5V_ANT

TS_S2_VAL

OSDA2

OSCL2

AVDD1V2

QN

IN

TS_S2_DQ4

IF_N

IF_P

DV12_VDDC

S2_TUNER_SCL

S2_TUNER_SDA

TUNER I2C

DISEQC_OUT

IP

QN

DVB-S2 TUNER

TUNER_LNB

S2_TU_SCL

DVB-T2 IF

IF_N

S2_TU_SCL

S2_DEMO_SCL

S2_DEMO_SDAS2_TU_SDA

TUNER_IN

DV12_ADC

S2_TUNER_SDA

Tuner power

RF_AGC_S2_TUNER

IF_AGC

EN 75TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

back to

2013-Jun-14

div.table

10-5-13 DVB T2/C/S2 Tuner

19430_528_130115.eps

130115

Ambient Light

B14 B14

2012-12-15

C

715G5713

Ambient Light

SPI_CLK

SPI_DO

R1401

0R05 1/16W

+12V

R1403

0R05 1/16W

C1405

NC/22PF 50V

Temp_out

R1402

0R05 1/16W

SPI_CLK

C1400

10UF 16V

C1401

100NF 16V

FB1402

120R

1 2

+

C1402

NC/100UF 16V

CN1404

CONN

123456789

101112141516171819202122232425

26

2728

13

C1403

1UF 10% 16V

+12V

DVDD3V3

DVDD3V32,3,4,5,7,9,11,12,14

GND2,3,4,5,6,7,8,9,10,11,12,13,14

SPI_CLK 11

SPI_DO 11

+12V2,3,5,7

Temp_out 11

Temp_out

SPI_DO

DVDD3V3

C1404

NC/22PF 50V

GND

EN 76TPM10.1A LA 10.

back to

2013-Jun-14

div.table

Circuit Diagrams and PWB Layouts

10-5-14 Ambient Light

19430_529_130115.eps

130115

2012-12-25

C

715G5713

SSB layout top

C4118

C1053

C1051

C1318

C1329

C1332

C1349

C4003

C4007

C4022

C4028

C4106

C4107

C4113

C4115

C4117

C4251

C638

C643

C653

C654

C661

C678

C700

C703

C705

C710

C732

C750

C751

C756C757

C1324

C1331

C400

C401

C4014

C402

C4024

C4026

C4109

C4250

C4257

C672 C673

C1054

C1319

C4021

C4108

C4111

C4189

C4252

C642

C666

C667

C701

R1315

R1319

R402

R403

R405

R406

R410

R4102

R4103

R4106

R4114

R4116

R4117

R412

R413

R643

R644

R654

R655

R751

R752

R753

R411

R700

R634

R640

TH1300

TH4000

D501

D503

D504

D505

D506

D507

D508

D510

D630

D631

D632

ZD501

ZD502

ZD503

ZD750

C755

C754

C752

C714

C716

R4119

R702

C708

R1349

R1348

R1325

R1326

C1071

C1072

C1074

C1075

C1073

C1056

R755

C748

C645

C650

C724

C746

C726

C4190

R419

R422

R704

R706

C649

C655

R638

R645

R646

R647

C4208

C4178

C730

C733

C736

C731

C707

C712

C728

L701

X4000

C706

C725

C734

L702

R734

R4010

R4011

C760

R760

R761

R763

C1403

C1400

C711

C709

C749

C759

C761

C1402

C758

C762

R768

R769

C717

R703

ZD751

X8

X9

C10

C13

X10

TP4001

R1

R2

R3

R5

R6

R15

R16

R17

R18

R19R20

R21

R22

R23

R24 R25

R34 R35

R36

R37

R38

R39

R40

R41

U2

U3

CN412

CN104

CN604

CN503

CN501 CN502

CN1031

CN1032

CN103

CN159

CN112

D750

TU101

CN408

Q750

FB1050

FB1300

FB1301 FB1302

FB1303

FB1304

FB1305

FB400

FB401

FB4100

FB4250

FB631FB633

FB703

FB707

FB705

FB701

FB4101

U1300

U510

U511

U513

U409

U102

U1051

U4250

U512

U514

U515

D4000

D4001

Q1000

Q400

Q401

Q502

Q503

Q751

U410

Q631

U110

U504

U507

X2

X5

C753

FB1402

U751

FB1051

FB1052

FB1053

C2

C4

C6

C8

CN4250

Q705

U1

CN151

CN601

Q706

Q632

FB702

U704

X11

X12

X13

X14

X4X3

CN700

RP4162 RP4161

RP4160

RP4159

RP4158

RP4154

RP4152

RP4151 RP4150

RP4155

RP4153

L630

L631

L632L633

D751

C669

C510

C4253

C4002

C1082

C4001

C1033

C1036

C1015

C1016

C1017

C1018

C1019

C1020

C1021

C1022

C1023

C1024

C1025

C1052

C1057

C1058

C1059

C1060

C1061

C1062

C1063

C1064

C1065

C1066

C1067

C1068

C1069

C1070

C1077

C1078

C1079

C1080

C1081

C1300

C1301

C1304

C1305

C1306

C1307

C1308

C1310

C1311

C1312

C1313

C1314

C1315C1316

C1320

C1321

C1322C1323

C1325 C1326

C1328

C1330

C1333

C1334

C1335

C1336

C1337

C1338

C1341

C4010

C4185

C4100

C4101

C4102

C4103

C4104

C4105

C4110

C4116

C4258

C4259

C4260

C4261

C4262

C4263

C500

C501

C503

C504

C505

C506

C508

C509

C511

C513

C636

C637

C639

C640

C641

C644

C646

C647

C648

C651

C652

C656

C657

C658

C660

C662

C664

C670

C671

C674

C675

C676

C677

C721

C735

C722

C1035

C609

C1034

C617

C619 C620

C4123

C1401

C740

C1352C1353

C632 C633

C702

C715

C738

C659

C663

C665

C668

C679

C680

C681 C682

C683

C684

C685

C686

C739

R720

R1050

R1019

R1020

R1021

R1022

R1023

R1024

R1025

R1026

R1028

R1030

R1053 R1054

R1055

R1057

R1058

R1063

R1064

R1065

R1066

R1067

R1068

R1069

R1070

R1072

R1075

R1077

R1080

R1081

R1082

R1083

R1084

R1301

R1303

R1307

R1309

R1310

R1311

R1316

R1320

R1321

R1323

R1324

R1330

R1331

R1333

R1042

R400

R4002

R4004

R4006

R4007

R4008

R4009

R401

R4016

R4017

R4024

R4026

R4031

R4032

R404

R407

R408 R409

R4100

R4101

R4104

R4105

R4107 R4108

R4111

R4112

R4115

R4118

R4125

R414

R415

R416

R417

R418

R4250

R4251R4252

R4253

R500

R502

R503

R504

R505

R506

R507

R508

R509

R510

R511

R512

R513

R514

R515

R516

R517

R518

R519

R520

R521

R522R523

R524

R525

R526

R530

R531

R533

R534

R535

R536

R537

R538

R540

R541

R542

R543

R544

R545

R546

R547

R548

R549

R550

R551

R603

R604

R635

R636

R637

R639

R641

R642

R648

R649

R650

R651

R652

R653

R656

R657

R658

R659

R660

R661

R662

R663

R701

R732

R715

R727

R750

R754

R758

R1049

R1046

R757

R1045

R1040

R1041

R1043

R1048

R756

R4021

R4040

R1101

R4264

R4265

R1345

R759

R1104

R1105

R1110 R1111

R1115

R1346

R1347

R724

R723

R1119

R725

R420

R421

R423

R731

R726

R4152

R4153

R4154

R4156

R4157

R4158

R4179

R4180

R4182

R4183

R4184

R4185

R4186

R4189

R4190

R4191

R4192

R4193

R4194

R4195

R4196

R4201

R669

R670

C704

C713

FB704

L704

R717

R733

R721

U703

Q633

C718

C719

C720

C723

C727

C729

C741

C747

Q702

FB700

FB706

FB708

FB709

U702

R4041

R4042

R705

R710

R711

R713

R714

R716

R718

R719

R722

Q701

R4027

CN401

C622C623

Q753

FB750

FB751

FB752

R762

R764

Q752

R1085

R1120

R1121

R1123

R1124

R1125

R1126

R1127

R1129

R1132

R1134

R1133

R1128

R1117

R1116

FB711

U706

U705

R4268

R4269

R4134

R4133

CN4252

X7

X6

R4030

R4029

C1351

FB753

FB712

L750

R1074

R1076

CN1404

D752

FB754

FB755

TU102

R4137

R4144

R4145

R4146

Q755

FB757

FB758

R1401

U602

C763

R552

R735

FB713

U402

U403

U404

U405

U701

C4004

C4005

U401

U4

R4012

C1404

C1405

R1402

R1403

EN 77TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10-5-15 SSB layout top

back to

div.table

2013-Jun-14

19430_530_130115.eps

130115

2012-12-25

C

715G5713

SSB layout bottom

C4006

C4023

C1339 C1340

C405

C406

C4256

C605

C4013

C4027

C4112

C614

C615

R1300

R1313

R4110

R600

R601

TH4001

D1000

D1001

D509

ZD1000

ZD1001

X1300

C1039 C1040

X4100

C1085

C1086

C1087

C1088

R1093

R1094

R528

R532

C4160

C4166

C4177

C4209

C4155

C4156

C4157

C4158

X1050

R4266

R4267

ZD1003

ZD1002

C4025

C4183

R765

TP700

TP701

TP702

TP703

TP704

TP705

TP706

TP4000

TP4002

TP708

TP4003

TP4004

TP4005

TP4006

TP400

TP401

TP402

TP403

TP404

TP405

TP406

TP407

TP408

TP409

TP410

TP411

TP412

TP413TP414

TP415

TP416

TP417

TP418

TP419

TP420

TP421

TP422

TP423

R4

R7

R8

R9

R10

R11

R12

R13

R14

R26

R27 R28

R29

R30

R31

R32 R33

RP1061RP1062

RP1300

RP1301

FB4102

U4100

U1052

Q501

U4051

U509

U105

C1

C3

C5

C7

FB1054

U103

RP4156

RP4157

RP4167RP4166

RP4165

RP4164

RP4163

C4030

C4164

C4171

C1000

C1001

C1002

C1003

C1004

C1006

C1007

C1009

C1010

C1011

C1012

C1013

C1014

C1026

C1027

C1055

C1076

C1302

C1303

C1309

C1317

C1342

C1343

C1344

C1345

C1346

C1347

C1348

C1350

C4008

C4009

C4011

C4012

C4015

C4016

C4017

C4018

C4019

C4020

C4029

C403

C4165

C404

C4119

C4120C4121

C502

C507

C512

C600

C601

C602

C603

C604

C606

C607

C608

C618

C610

C611

C612

C613

C616

C1037 C1038

C621

C4122

C4150

C4151

C4152

C4153

C4159

C4161

C4162

C4163

C4167

C4168

C4169

C4170

C4172

C4173

C4174

C4175

C4176

C4179

C4180

C4181

C4182

C4184

C4187

C4188

C4191

C4192

C4193

C4194

C4195

C4196

C4197

C4198

C4199

C4200

C4201

C4202

C4203

C4204

C4205

C4206

C4207

C4210

C4211

C4212C4213

C4214

C4215

C4216

C4217

C4186

R1000

R1001

R1002

R1003

R1004

R1005

R1006

R1007

R1008

R1009

R1011

R1012

R1013

R1014

R1015

R1016

R1017

R1018

R1027

R1029

R1031

R1032

R1033

R1034

R1037

R1038

R1051

R1052

R1056

R1059

R1060

R1061

R1062

R1086

R1302

R1304

R1305

R1306

R1308

R1312

R1314

R1318

R1322

R1327

R1328

R1329

R1332

R1334

R1335

R1336

R1337

R1338

R1339

R1340

R4001

R4005

R4013

R4014

R4015

R4018

R4019

R4020

R4132

R4109

R4113

R4120

R4121

R4122

R4123

R4124

R4126

R4127

R4128 R4129

R4254

R4255

R4262

R527

R529

R539

R1044

R1047

R1039

R1087

R1088

R1089

R1090

R1091

R1092

R4135

R4136

R4263

R605

R1095

R1096

R1097

R1098

R1099

R1100

R1341

R1342

R1343

R1344

R1102

R1106

R1107

R1108

R1109

R1112

R1113

R1114

R1118

R4130

R4131

R4150

R4151

R4155

R4159

R4160

R4161

R4162

R4163

R4164

R4165

R4166

R4167

R4168

R4169

R4170

R4171

R4172

R4173

R4174

R4175

R4176

R4177

R4178

R4181

R4187

R4188

R4197

R4199

R4200

R4198

C1083

C1084

R1122

R1135

R1130

R1131

R1103

R4138

R4139

R4140

R4141

R4142

R4143

C4254

C4255

R1071

R1073

C4264

C4265

U4251

R766

R767

Q754

U104

EN 78TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

10-5-16 SSB layout bottom

back to

div.table

2013-Jun-14

19450_519_130111.eps

130117

J J

2012-01-18

A

IR/LED Panel

715G5471

U201

IRM-H636M3/TR2

GND1GND2OUT3VCC

4

IR

C201

0.1uF 50V

VCC

R201 15K 1/10W

R203 220 OHM 1/10W

LED_B

CN201

CONN

12345

67

LED_R

RED

BLUE

LED201

LED

1

23

4

R202 220 OHM 1/10W

back to

div.table

EN 79TPM10.1A LA 10.

2013-Jun-14

Circuit Diagrams and PWB Layouts

10.6 J 715G5471 IR/LED 3008 series

10-6-1 IR/LED Panel

19450_520_130111.eps

130111

2012-01-18

A

715G5471

IR/LED board

layout top/bottom

C201

R201

R202

R203

R1

R2

R3

R4

CN201

LED201

U201

Layout IR/LED Board (Top Side)

Layout IR/LED Board (Bottom Side)

EN 80TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

back to

2013-Jun-14

div.table

10-6-2 IR/LED board layout

IR/LED panel

J J

2011-10-05

B

715G5330

IR/LED panel

R0205

10K 1/16W 5%

R0201

1K5 1/16W 5%

BR

Q0203

BC847C

C207

NC/4.7UF 10V

C0202

1UF 10V

C208

NC/1UF16V

Q0202

BC847C

C0203

100N 16V

C0204

100N 16V

C0205

100N 16V

VCC_STBY

R0207

4K7 1/16W 5%

C0206

100P 50V

R0202

1K5 1/16W 5%

R0206

10K 1/16W 5%

GND3OUT1VCC2GND

4

U202

NC/ALS-PDIC17-55C-TR8

R0208

2K7 1/16W 5%

R215

NC/18K 1/16W

C213

NC/100P 50V

1234567

8

910

CN0201

CONN

R216

NC/15K 1/16W 5%

+5V_SW

R213

NC/100K 1/16W 5%

LIGHT SENSOR

R217

NC/22K 1/16W 5%

C214

NC/100P 50V

R211

NC/100K 1/16W 5%

C209

NC/1UF16V

1OUT11IN-21IN+3GND

4

2IN+

5

2IN-

6

2OUT

7

VCC

8

U205

NC/LM358APWR

C212

NC/100P 50V

Light_sensor

1 2

ZD202

NC/UDZSNP3.3B

R203

NC/100R 1/16W 5%

R210

NC/470R 1/16W 5%

R214

NC/100K 1/16W 5%

+5V_SW

RC6

1 2 3

4

Blue

Red

LED0201

15-22/R6BHC-B30/2T

LED2_STBY

GND

1

OUT3GND

2

VCC

4

U203

IRM-H936M3/TR2

LED_ON

R0212

NC/0R05 OHM

R0209

220R 1%

1 3

ZD0201

BZX84-C5V1

Light_sensor

R218

NC/0R05 1/16W

R219

NC/0R05 1/16W

VCC_STBY

+5V_SW

R0204

4K7 1/16W 5%

EN 81TPM10.1A LA 10.

back to

2013-Jun-14

div.table

Circuit Diagrams and PWB Layouts

10.7 J 715G5330 IR/LED 5000 series

10-7-1 IR/LED panel

19340_522_120713.eps

120816

2012-02-09

B

715G5330

IR/LED panel

layout top/bottom

C207

C208

C213

C0202

R0201R0202

R0208

R0209

R0212

U203

ZD1

ZD3

LED0201

U202

C214

R213

R214

R215

R216

R218R219

U205

C209

ZD202

C0203

C0204

C0205

C0206

Q0202 Q0203

R0204 R0205

R0206

R0207

ZD0201

ZD2

ZD4

C212

CN0201

R203

R210

R211

R217

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

back to

div.table

EN 82TPM10.1A LA 10.

Circuit Diagrams and PWB Layouts

2013-Jun-14

10-7-2 IR/LED Board layout

19440_508_130305.eps

130305

Keypad

E E

2012-12-18

A

715G5925

Keypad

KEY_ADC1

PWR_ADC2

C1

100N16V

R14

1.2KOHM 1%

R08

15K +-1% 1/10W

R03

NC/1.2KOHM 1%

R10

NC/0R05 1/16W

R13

0R05 1/16W

R09

1.2KOHM 1%

3V3

R06

NC/15K +-1% 1/10W

3V3

R05

NC/3.9K 1/10W

R04

5.6KOHM +-1% 1/10W

R01

15K +-1% 1/10W

FB1

600R

1 2

R02

5.6KOHM +-1% 1/10W

R07

1.2KOHM 1%

SW01

TACT SW FWRD H1.5MM

CN01

CONN

123

4

65

R11

11K OHM +-1% 1/10W

R12

11K OHM +-1% 1/10W

PWR_ADC2

KEY_ADC1

SW02

TACT SW FWRD H1.5MM

SW03

TACT SW FWRD H1.5MM

SW04

TACT SW FWRD H1.5MM

SW05

TACT SW FWRD H1.5MM

SW06

TACT SW FWRD H1.5MM

SW07

TACT SW FWRD H1.5MM

EN 83TPM10.1A LA 10.

back to

2013-Jun-14

div.table

Circuit Diagrams and PWB Layouts

10.8 E 715G5925 Keyboard control panel

10-8-1 Keyboard control panel

19440_509_130305.eps

130305

2012-12-18

A

715G5925

Keyboard control panel

layout top/bottom

R12

R01

R02

R03

R04

R05

R06

R07

R08

R09

R14

R11

R1

R2

CN01

SW01

SW02

SW03

SW04

SW05

SW06

SW07

C1

FB1

R13

R10

R3

R4

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

back to

div.table

EN 84TPM10.1A LA 10.

2013-Jun-14

Circuit Diagrams and PWB Layouts

10-8-2 Key board layout

19440_800_130314.eps

130314

4208 series 32"

Pos No. Description Remarks

0032 Deco bezel

0041 Rear cover

0051 Base

1050 Display panel

1053 Panel SSB

1054 Power Supply Unit

1056 IR/LED panel

1057 Keyboard control panel

1176 Remote control Not displayed

1185 Speakers

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0032

1050

1185

1053

0051

0041

1054

1185

1057

1056

EN 85TPM10.1A LA 11.

back to

2013-Jun-14

div.table

Styling Sheets

11. Styling Sheets

11.1 4208 series 32"

19440_801_130314.eps

130314

4208 series 39"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

Pos No. Description Remarks

0032 Deco bezel

0041 Rear cover

0051 Base

1050 Display panel

1053 Panel SSB

1054 Power Supply Unit

1056 IR/LED panel

1057 Keyboard control panel

1176 Remote control Not displayed

1185 Speakers

0032

1056

1185

1057

0041

1054

1050

1053

1185

0051

EN 86TPM10.1A LA 11.

Styling Sheets

back to

2013-Jun-14

div.table

11.2 4208 series 39"

19441_800_130320.eps

130320

4208 series 42"- 46"

Pos No. Description Remarks

0032 Deco bezel

0041 Rear cover

0051 Base

1050 Display panel

1053 Panel SSB

1054 Power Supply Unit

1056 IR/LED panel

1057 Keyboard control panel

1176 Remote control Not displayed

1185 Speakers

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0032

1050

1053

0051

0041

1054

1185

1056

1057

EN 87TPM10.1A LA 11.

Styling Sheets

back to

2013-Jun-14

div.table

11.3 4208 series 42"- 46"

19442_800_130520.eps

130520

5008 series 42"-46"-50"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

Pos No.

Description Remarks

0032 Deco bezel

0041 Rear cover

0050 Base Assembly

0090 Stand Assembly

1050 Display panel

1053 Panel SSB

1054 Power Supply Unit

1056 IR/LED panel

1057 Keyboard control panel

1176 Remote control Not displayed

1185 Speaker

0050

0090

0041

1056

1185

1057

0032

1050

1185

1054

1053

back to

div.table

EN 88TPM10.1A LA 11.

Styling Sheets

2013-Jun-14

11.4 5008 series 42"- 46"-50"

PHILIPS 32PFL4208/56, 32PFL4208/98, 32PFL4208S/98, 39PFL4208/56, 39PFL4208/98 Service manual & schematics

Specifications and Main Features

Frequently Asked Questions

User Manual
