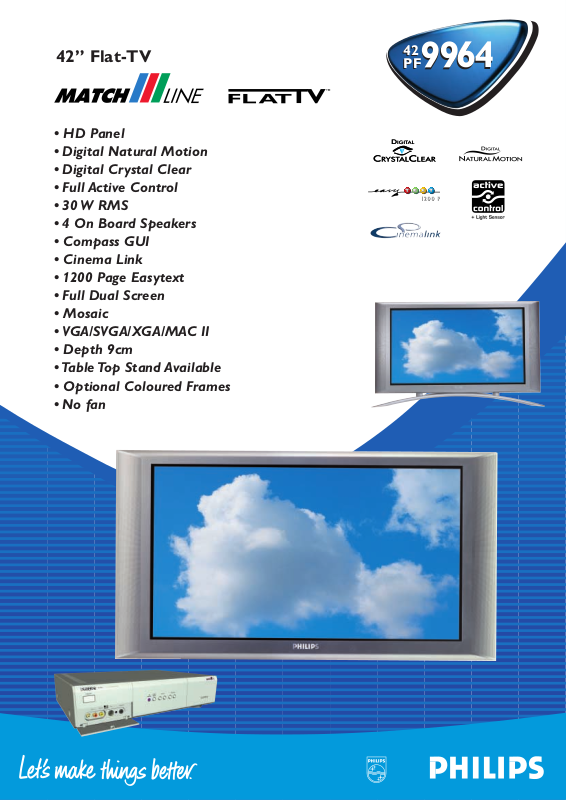

Philips 42PF9964 BROCHURE
42” Flat-TV
• HD Panel
• Digital Natural Motion
• Digital Crystal Clear
• Full Active Control
• 30 W RMS
• 4 On Board Speakers
• Compass GUI
• Cinema Link
• 1200 Page Easytext
• Full Dual Screen
• Mosaic
• VGA/SVGA/XGA/MAC II
• Depth 9cm
• Table Top Stand Available
• Optional Coloured Frames
• No fan
42
PF
9964
42
PF
9964
Technical specifications
• Screen Size : 42" (107 cm)
• New High Definition Plasma Technology
• 1024 (*3)x1024 pixels
• Constrast ratio 400 : 1
• Digital Natural Motion
• Digital Crystal Clear
• Active Control + Light Sensor
• Anti Reflex Coated Glass Screen
• Widescreen Plus
Sound
• Sound Power: 30 W RMS
60 W Music Power
• 4 On Board Speakers
• Digital Signal Processing
Ease of Use Installation
• 100 preset channels
• Autostore / Fine Tuning
• Sorting
• ATS/ ACI
Ease of Use Utilisation
• RC2042 (VCR/DVD/SAT/AUDIO)
• "Executive Commander" second Remote Control
• Smart Picture Control:
Soft, Natural, Rich, Multimedia, Personal
• Smart Sound Control:
Movie, Speech Music, Personal
• AVL
• Dual I-II
• 6 Wide screen modes:
4:3, Zoom 14:9, Zoom 16:9
Subtitle Zoom, Super Zoom,Widescreen
• Subtitle and Heading shift
• Autoformat / Autoscreen fit (incl. WSSB)
• Smart Clock
• Sleep Timer
• Child Lock
Connections
E-Box
Front
• Stereo headphones out (3.5mm jack)
• Video CVBS-in (cinch)
• Y/C-in (mini-DIN)
• Audio-L/R in (cinch)
Rear
• AV1: Euro A/V (SCART); RGB-in, CVBS-in/out
• AV2: Euro A/V (SCART); RGB-in, CVBS-in/out,
Y/C-in/out with WYSIWYR, Cinema/EasyLink
• AV3: Euro A/V (SCART); CVBS-in
• AV4: Euro A/V (SCART); CVBS-in
• AV5; 1 fh YUV DVD-in;YCbCr (cinch)
• Audio L/R out, constant level (cinch)
• VGA-in (15p. sub-D)
• Monitor-out VGA (15p. sub-D)
• "Monitor as Centre speaker-in" (cinch)
• Mains inlet (2-pin)
Monitor
• VGA-in (15p. sub-D) + audio L/R
• VGA-out (15p. sub-D) + audio L/R; Active "Loop
Through" for VGA (max 2 sets)
• RS232 (Service application only)
Product highlights
Flat, Slim,Wide
True Flat Multimedia TV which can be hung on the wall
like a painting.
High Definition Panel
State of the art plasma screen technology enabling
brillant flicker free picture with optimum brightnen and
superb colours.
Digital Natural Motion
Building upon 100 Hz technology Philips invented
Digital Natural Motion to eliminate juddering effects
that are visible with moving picture content. Digital
Natural Motion estimates motion in the picture and
corrects juddering movements in both broadcast and
movie material (DVD). Smooth motion reproduction and
excellent sharpness are the result.
Digital CrystalClear
A unique package of picture innovations including
Combfilter, Scavem, Dynamic Contrast, Color
Enhancement and Luminance Transient Processing.
Digital Crystal Clear, using 10 bit processing, offers 30%
more contrast, natural colors and a high level of detail..
Full Active Control
Active Control automatically analyses, 50 times per
second, the incoming signal and adjusts the key picture
settings on Sharpness, Digital Noise Reduction, Color,
Contrast and Picture Format.The ambient light sensor
adjusts the settings according to the viewing conditions
in the room.Active Control thus offers the best possible
picture settings any time, any source.
Compass GUI
The new Compass graphical user interface provides for
easy and intuitive operation and installation through a
dynamic display. Full control of all functions through clearly layered menus. Built in help function also provided.
Cinemalink
Philips Cinemalink allows for plug-and-play installation
and easy operation via one Remote Control of a fully
integrated Home Cinema system set up of video and
audio components. Control of all components is done
using the TV Remote Control and the TV screen menu.
When you activate a peripheral e.g. DVD player , the TV
automatically switches to DVD mode and the correct
sound mode present eg Dolby Digital , is automatically
activated in the AV Receiver.
1200 Page Easytext
Extremely fast access to many text pages and the
ability to scroll through subpages with no wait.
Full Dual Screen
The ability to watch simultaneously two different
channels, either 2 programs or any combination with
Teletext and/or NexTView.
Mosaic
Able to show main picture surrounded by eight smaller
pictures from other channels
VGA/SVGA/XGA/MAC II
Different standards of showing computer generated
images.This television w can handle all these computer
image standards and be used therefore
as a monitor when connected to a computer
42” Flat-TV
42
PF
9964
42
PF
9964
E-box FTR9964/12S
Flat monitor
42FD9944/01S
Information
• 1200 page Text level 2.5 with Habit Watch
• 2 Tuner - Full Dual Screen
• Mosaic
• Program Information Line
• NexTView Level 3
• Cinema Link
Reception
• Tuning system: 100 fold PLL
• Colour transmission systems
-off-air: PAL-B/G/I/D/K + SECAM-B/G/L/L’/D/K
-A/V connections: PAL-B/G/I/D/K + SECAMB/G/L/L’/D/K + NTSC replay
• Channel selections: 120 channels
- VHF, UHF, S-Channels and Hyperband
• Frequency range: 47.25 – 855.25 MHz
• Aerial input: 75 Ohm Coax (IEC75)
• Frequency/Channel selection
(Germany,Austria and Benelux only)
Multi media modes
Standard Resolution Refresh rate
VGA 640 x 480 60, 72, 75, 85 Hz
VGA 640 x 400 70 Hz
VGA 640 x 350 70 Hz
Wide VGA 856 x 480 60 Hz
Wide VGA 800 x 450 65 Hz
Wide VGA 1024 x 600 60 Hz
Wide VGA 1360 x 765 60 Hz
MAC 640 x 480 66.67 Hz
MAC 832 x 624 74.55 Hz
MAC 1024 x 768 74.93 Hz
MAC 1152 x 870 75 Hz
SVGA 800 x 600 56, 60, 72, 75, 85 Hz
XGA 1024 x 768 60, 70, 75, 85 Hz
SXGA 1280 x 1024 60, 72 Hz (Analog)
Miscellaneous
• Ambient temperature +5 --+ 40°C
• Maximum operating altitude: 2000 m
• Mains: 50/60 Hz Auto Voltage ranging
from 95V to 264V
• Power consumption: around 400W
• Sandby consumption: < 2W
• Weight - Monitor: 40 kg
- E-Box: 4 kg
• Dimensions without packaging (WxHxD)
- Monitor: 1164x644x89 mm
- E-box: 435x105x330 mm
• Wall mounting bracket included
• VGA cables (2m,5m) included
• Mainscords included
• 10 m VGA cable optional
•
TV Colour: Precision Silver (10888)
• Optional coloured frames: Crystal Blue,
Crystal Champagne, Crystal Green,
Crystal Rouge, Paintable Frame
Predecessor : 42PF9952
Chassis : MG-R FTV2.1 E-box; FTV2.3 Flat Monitor
Introduction :Year 2001
05/01
