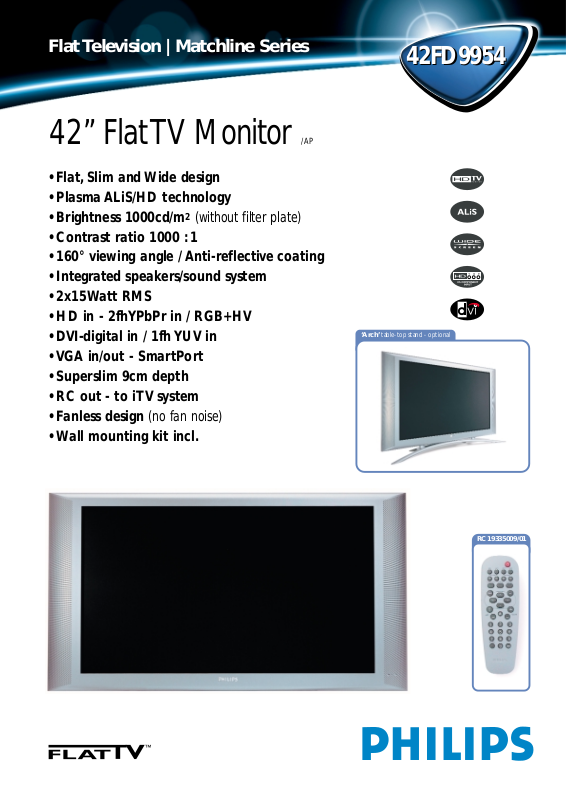

42FD9954

Flat Television | Matchline Series

42”FlatTV Monitor /AP

• Flat, Slim and Wide design

• Plasma ALiS/HD technology

• Brightness 1000cd/m2(without filter plate)

• Contrast ratio 1000 :1

• 160° viewing angle / Anti-reflective coating

• Integrated speakers/sound system

• 2x15Watt RMS

• HD in - 2fhYPbPr in / RGB+HV

• DVI-digital in / 1fh YUV in

• VGA in/out - SmartPor t

• Superslim 9cm depth

• RC out - to iTV system

• Fanless design (no fan noise)

• Wall mounting kit incl.

‘Arch’ table-top stand - optional

RC19335009/01

Flat Television | Matchline Series

Website: www.philips.com Specifications subject to change without notice.

Release date : Jan.2003 Predecessor(s) : – Date of issue : Dec. 2002

Technical specifications Plasma screen

• Visible screen diameter 42” / 106,7cm - 16:9 aspect ratio

• ALiS/HD 1024x1024 pixels (x3)

• Contrast ratio :1000:1 (dark room)

• Brightness :1000cd/m2 (without filter plate)

• Anti-reflex coated glass screen

• Fanless design (no fan noise)

• Wall mount kit :Flat-to-Wall as well as Tilted

• Optional stands :a.o. ‘Arch’ TC42 9964/2R

Picture processing

• Video standards : – PAL 4.43 (B,G,D,H, I, N) – PAL 3.58 (M,N) – NTSC 3.58 (M) – NTSC 4.43 – SECAM

• Tint Control (3 modes)

Sound processing

• Output :2x15W RMS (@10%THD)

• Digital Signal Processing

• Spatial-Pseudo Stereo

• Bass / Treble control

• ‘Monitor is Center’ setup (with ext.HiFi system)

Ease of Use

• Menu Languages :Danish, Dutch,English,Finnish, French,German, Italian,Norwegian,Portuguese, Swedish and Spanish

• Dynamic graphical user interface. Easy and intuitive operation through feedforward and backtracking display

• Full menu control of all functions through layered menus

• Onscreen status display for sources and functions (OSD)

• RS232 for service and control via PC

• Last Status (for picture & sound)

Remote Control

• RC19335009

Connections

•VGA

- VGA in (15pin sub-D) + audio L-R

- FlexVGA (Loop-through/in) (15pin sub-D) + audio L-R

• Multi media modes VGA 640 x 480 60,72, 75,85 Hz VGA 640 x 400 70 Hz VGA 640 x 350 70 Hz Wide VGA 856 x 480 60 Hz Wide VGA 800 x 450 65 Hz Wide VGA 1024 x 600 60 Hz Wide VGA 1360 x 765 60 Hz MAC 640 x 480 66.67 Hz MAC 832 x 624 74.55 Hz MAC 1024 x 768 74.93 Hz MAC 1152 x 870 75 Hz SVGA 800 x 600 56,60, 72,75, 85 Hz XGA 1024 x 768 60,70, 75,85 Hz SXGA 1280 x 1024 60, 72 Hz (Analogue)

60 Hz (DVI)

• Audio / Video

- AV 1 : – Video CVBS, audio L-R

- AV 2 : – Video CVBS, audio L-R

– S-Video (Y/C)

- AV 3 : – Component video in

YPbPr,audio L-R (+CVBS)

– Component video in

YPbPr (2Fh for DVD), audio L-R

– R/G/B/H/V (cinch) + audio L-R

- DVI-d in (digital) + audio L-R

– Video CVBS out,audio L-R out

- RC-out for ICONN box

- RS232 for service / control

Miscellaneous

• VGA cable included,2m

• CD-rom with RS232 driver software included

• Ambient temperature :+5/+40°C

• Maximum operating altitude :2000m / 6562ft

• Mains : AC 95–264V, 50/60Hz

• Power consumption:±380W (normal operation) Stand by :<2W

• Weight : monitor 40.0 Kg

• Dimensions (WxHxD): monitor :121.4x65.6x8.9 cm. carton : 149.0x95.2x49.0 cm.

Product highlights

ALiS/HD Plasma technology with 1024x1024 pixels. Dual HD component input and full 1080i resolu-

tion display for connection to high definition input.

480i, 576i, 1080i,480p, 720p resolution suppor t. Powerful 2x15W RMS amplifier built in.Full digital

sound processing.

Continuous Zoom.Cursor movable zoom window.

Multi system Remote Control Y PbPr inputs for best DVD reproduction 11 menu languages,Danish, Dutch,English, Finnish,

French,German, Italien,Norwegian, Portuguese,Swedish and Spanish

DVI-d

AUDIO IN

RS232

VGA 1 VGA 2

RC OUT

VGA 1VGA 2

DVI-d

Y/C

S-VHS

RRVR/PrG/YR

LLHB/PbCVBSL

Monitor connectors

42FD9954

42” FlatTV Monitor /AP

• Optional FRT9955 e-Box delivers superior picture with Digital Natural motion and the convenience of one cable hookup

• Optional Matchline FRT9965 e-Box delivers all of the benefits of the FRT9955 PLUS the ultimate in pictrue performance with Pixel Plus and 2 Tuner Split Window PIP

• Optional Television Stand (shown on front) provides the ideal solution to table top television placement with an emphasis on high design and safety.
