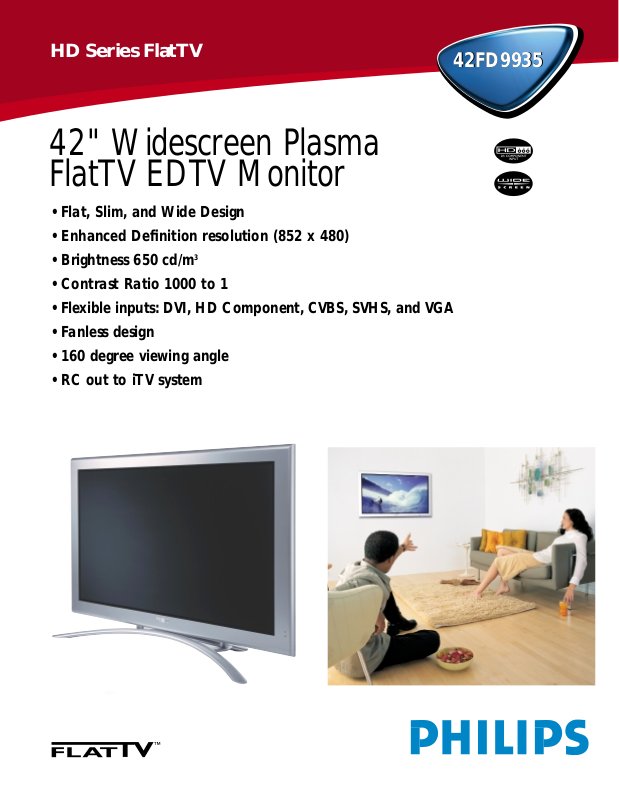

Philips 42FD9935 User Manual

HD Series FlatTV

42" Widescreen Plasma FlatTV EDTV Monitor

• Flat, Slim, and Wide Design

• Enhanced Deﬁnition resolution (852 x 480)

• Brightness 650 cd/m

• Contrast Ratio 1000 to 1

• Flexible inputs: DVI, HD Component, CVBS, SVHS, and VGA

• Fanless design

• 160 degree viewing angle

• RC out to iTV system

42FD9935

Picture Quality

Brightness 1000 cd/m3 (nits)

The high light output of this PDP Plasma FlatTV delivers exceptional detail even in well lit rooms.

Contrast Ratio 650 to 1

Higher Contrast delivers increased depth to the picture, resulting in greater dimensionality (more 3 D or life-like). In addition, the greater contrast delivers a picture that is far less washed out in appearance.

• Video standards: NTSC 3.58 (M), NTSC 4.43, PAL4.43 (B, G, D, H, I, N), PAL 3.58 (M, N), SECAM

• 16:9 Widescreen format

• 5 level Auto Picture™: (Soft, natural, rich, personal, and multimedia)

• Tri-mode Tint control

• Anti Reﬂective (non-glare) screen

• Viewing Angle: 160 degrees

Ease of Use

Flat, Slim and Wide Design

At less than 4 inches thick, this FlatTV offers more screen in less space than ever before

Fanless Design

No fan noise to distract during those quieter moments in the Video.

• Included Wall Mount Kit- Flat to wall

• RC out to iTV system

• Dynamic Graphical User Interface

• RS232 connection

• Ergonomic Remote Control

• English / French/ Spanish menu

• Closed Caption viewing

This television receiver provides display of television closed captioning in accordance with 15.119 of the FCC rules.

Sound Quality

This FlatTV is meant to be the video portion of a complete system or the display device in commercial applications- as such it has no speakers.

Connectivity

• 1 Set of HD Component Video Inputs YPbPr or RGB Plus H and V

• 1 set of SD Component Video Inputs

• SVHS input

• 2 Sets AV inputs

• AV outputs

• VGA Input: VGA 640x480 60, 72, 75, 85 Hz VGA 640x400 70 Hz VGA 640x350 70 Hz Wide VGA 856x480 60 Hz Wide VGA 800x450 65 Hz Wide VGA 1024x600 60 Hz Wide VGA 1360x765 60 Hz MAC 640x480 66.67 Hz MAC 832x624 74.55 Hz MAC 1024x768 74.93 Hz MAC 1152x870 75 Hz SVGA 800x600 56, 60, 72, 75, 85 Hz XGA 1024x768 60, 70, 75, 85 Hz SXGA 1280x1024 60, 72 Hz (Analog)

60 Hz (DVI)

• UPC: 0 00000 00000 0

• Product Dimensions: 42.4"W x 25.9"H x 3.7"D

• Product Weight: 79.4 lbs.

• Carton Dimensions: 58.7"W x 37.5"H x 19.3"D

• Carton Weight: 113.6 lbs.

• Carton contains: Remote Control w/ batteries, operating

instructions, warranty information, wall mount

• Country of Origin: Belgium

www.philips.com or AOL keyword: philips

42" Widescreen Plasma FlatTV EDTV Monitor

RC19335009

42FD9935

➢Optional FTR9955 e-Box delivers superior picture with Digital Natural

motion and the convenience of one cable hookup

➢Optional Matchline FTR9965 e-Box delivers all of the beneﬁts of the FTR9955

PLUS the ultimate in picture performance with Pixel Plus and 2 Tuner Split Window PIP

➢Optional TC42FL02 Television Stand (shown on front) provides the ideal

solution to table top television placement with an emphasis on high design and safety.

jack panel
