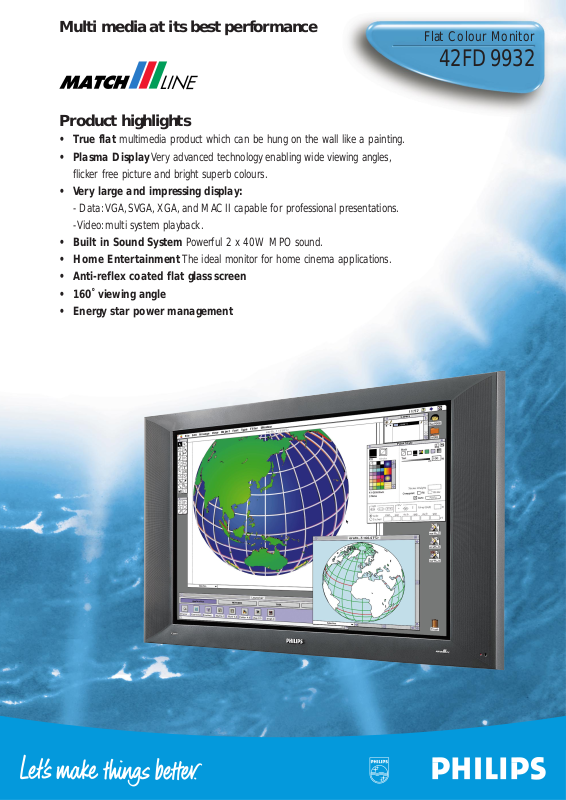

Philips 42FD9932 User Manual
Flat Colour Monitor
42FD9932
Product highlights
• True flat multimedia product which can be hung on the wall like a painting.
• Plasma DisplayVer y advanced technology enabling wide viewing angles ,
flicker free picture and bright superb colours.
• Ver y large and impressing display:
- Data:VGA, SVGA,XGA, and MACII capable for professional presentations.
- Video:multi system playback.
• Built in Sound System Powerful 2 x 40W MPO sound.
• Home EntertainmentThe ideal monitor for home cinema applications.
• Anti-reflex coated flat glass screen
• 160˚ viewing angle
• Energy star power management
Multi media at its best performance
Flat Colour Monitor
42FD9932
Release date : Autumn 1999
Predecessor : --Date of issue : August 1999
Subject to modification without notice
Technical specifications
Display
• Visible diagonal 42”,106 cm
• Display type AC-Plasma
• Number of pixels 852 (*3)*480
• Gray scale levels 256
• Contrast 480:1
• Aspect ratio 16:9
• Anti-reflex coated glass screen
• Viewing modes
- Data:16x9,4x3
- Video:16x9,14x9,4x3
• Settings via VGA menu
- Volume
- Brightness
- Contrast
- Colour temperature
- Horizontal picture
- Vertical picture
Multi media modes
- VGA 640x480 31.468 kHz 60 Hz
- VGA 640x400 31.468 kHz 70 Hz
- VGA 640x350 31.468 kHz 70 Hz
- SVGA 800x600 31.165 kHz 56 Hz
- XGA 1024x768 45.000 kHz 56 Hz
- MACII 640x480 35.000 kHz 67 Hz
Sound
• 2 x 40W MPO
• Sound system: 2x3 speaker stereo
• Loudspeakers:
- 2x65x132 mm Woofers
- 2x65x132 mm Passive Radiators
- 2x12 mm Dome Tweeters
- Volume 2.1 Litre per Box
Connections
• VGA input and audio L + R in
• VGA output and audio L + R out
• Active loop through for VGA maximum 2 sets
• A/V connections
- Y/C, YUV (1 Fh)
- CVBS inputs,Cinch and BNC
- Audio in
Selectable colour temperature
• 10,000˚K for data and presentations
• 6,500˚K or 5,600˚K for video
Remote control
• Executive commander
• RC type: RC0333
Miscellaneous
• Ambient temperature:+5~+45˚C
• Maximum operating altitude:2000 m
• Mains: AC 100-240V
• Power consumption:around 350 W
• Standby consumption:1 W
• Weight (excl.packaging):
- Display:42.5 kg
• Dimensions (wxhxd):
- Display:122.2x68.1x14.6 cm
• Wall mounting bracket included
View from below
