Page 1
请至以下互联网址注册产品以获得完整
的信息服务
使用产品前请阅读用户手册（具体操作详见操作导引）
并请保留备用！
6300系列LED背光源智能电视
40PFL6340/T3
50PFL6340/T3
55PFL6340/T3
快速
使用指南
Page 2
目录
重要信息 3
包装清单 5
电池安装方式 6
安装底座 7
连接 9
打开电视 13
操作导引 14
中国电子信息产品污染控制标识要求 16
2
Page 3
重要信息
安全
小心触电或发生火灾！
• 切勿让电视机与雨或水接触。切勿将液体容器（
例如花瓶）放置在电视机旁边或上面。如果将液
体洒到了电视机表面或内部，请立即断开电视机
的电源。请与Philips 客户服务中心联系，对电视
机进行检查后再行使用。
• 切勿将电视机、遥控器或电池放在明火或其它热
源（包括直射的阳光）附近。为避免火焰蔓延，请
始终使蜡烛或其它明火远离电视机、遥控器和电
池。
• 切勿向电视机上的通风槽或其它开口中插入任
何物体。
• 旋转电视机时，请确保电源线不会绷紧。电源线
绷 紧 会 使 电 源 连 接 变 松 ，进 而 产 生 火 花 。
小心短 路或起火！
• 切勿将遥控器或电池暴露在雨中、水中或过热的
环境中。
• 请避免电源插头产生拉力。松动的电源插头可能
产生火花或者导致 起火。
小心人身伤害或电视机损坏！
• 需由两个人搬运重量超过25千克的电视机。
• 将电视机安装在机座上时，请仅使用提供的机
座 。将 机 座 牢 固 地 固 定 到 电 视 机 上 。将 电 视 机 放
在水平、平坦且可承受电视机和机座总重量的表
面上。
• 采用壁挂方式安装电视时，请仅使用可承受电视
机重量的壁挂安装托架。将壁挂安装托架固定
到可承受电视机和壁挂安装托架总重量的墙壁
上。
TPV Display Technology(Xiamen)Co.,Ltd.对
由于安装不当而造成的事故、人身伤害或损失不
负任何责任。
3
Page 4
小心伤害儿童！
请遵循以下注意事项，以避免因电视机掉落而导致
儿童受伤：
• 切勿将电视机放在由可拉动的布或其它材料覆盖
的表面上。
• 确保电视机的任何部分均位于表面边缘以内。
• 将电视机放在较高的家具（如书柜）上时，一定要
将家具和电视机都固定到墙壁或适当的支撑物
上。
• 告知儿童爬上家具触摸电视机可能带来的危
险。
小心误食电池！
• 此产品的遥控器含有电池，有可能被孩童误食，
请将电池放于孩童无法接触的位置。
小心过热！
• 切勿将电视机安装在封闭空间内。 始终在电视
机周围留出至少4英寸或10厘米的空间以便通
风。确保窗帘或其它物体不会遮挡电视机上的通
风槽。
小心损坏电视机！
• 在将电视机连接到电源插座上之前，请确保电源
电压与电视机背面印刷的值相匹配。如果电压不
同，切勿将电视机连接到电源插座上。
• 电视长期不使用的情况下，请切断电源。
小心人身伤害、起火或电源线损坏！
• 切勿将电视机或任何物体放在电源线上。
• 电源插头作为断开装置，应当保持能方便地操
作。
• 断开电源线时，应始终握住插头，而不能拉电
缆。
• 雷雨天气来临之前，请断开电视机与电源插座及
天线的连接。 在雷雨天气里，切勿触摸电视机、
电源线或天线的任何部分。
• 接入本设备的有线网络天线必须与保护接地隔
离，否则可能会引起着火等危险！
小心听力损害！
• 避免在高音量下或长时间使用耳机或听筒。
4
Page 5
X

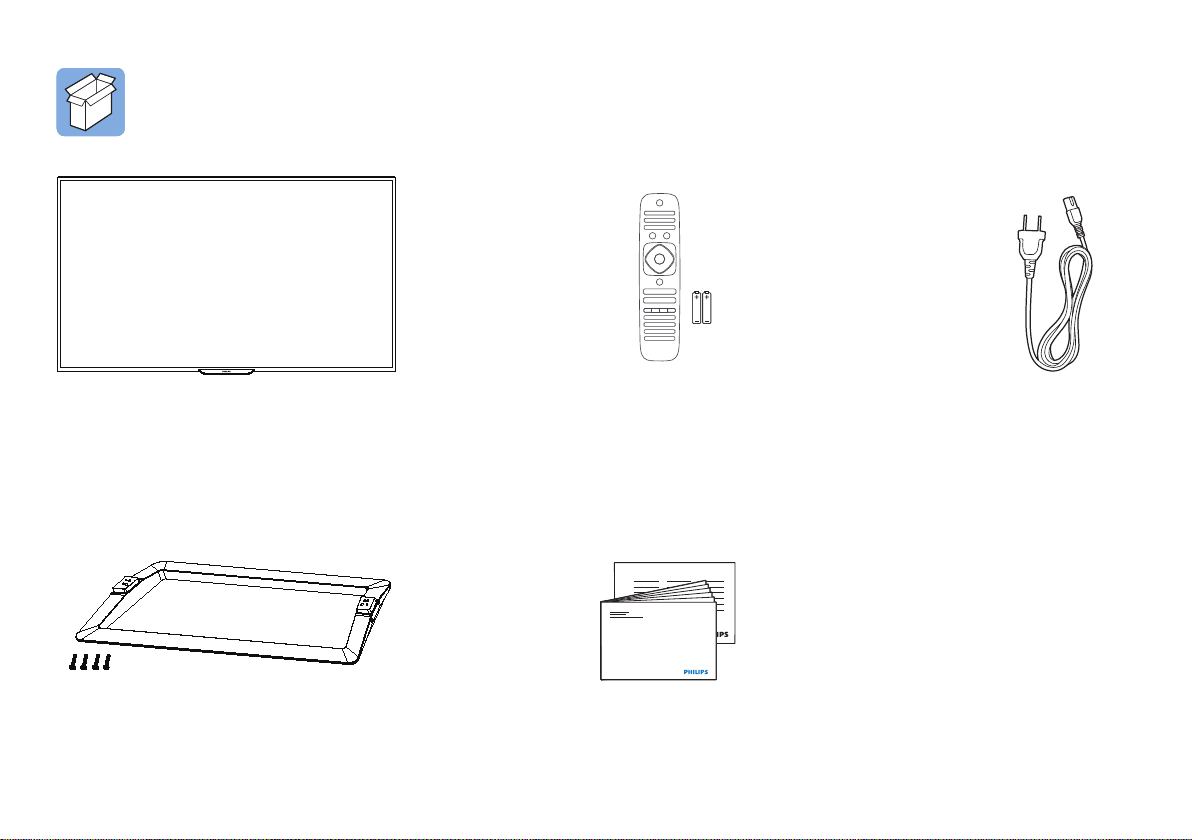

您的产品包装箱内应该含有下列物品：
包装清单
AAA
电视机(不含底座) 遥控器与
2颗AAA电池
快速
使用指南
底座（含螺丝）
快速使用指南
保修卡
5
电源线
Page 6
X61

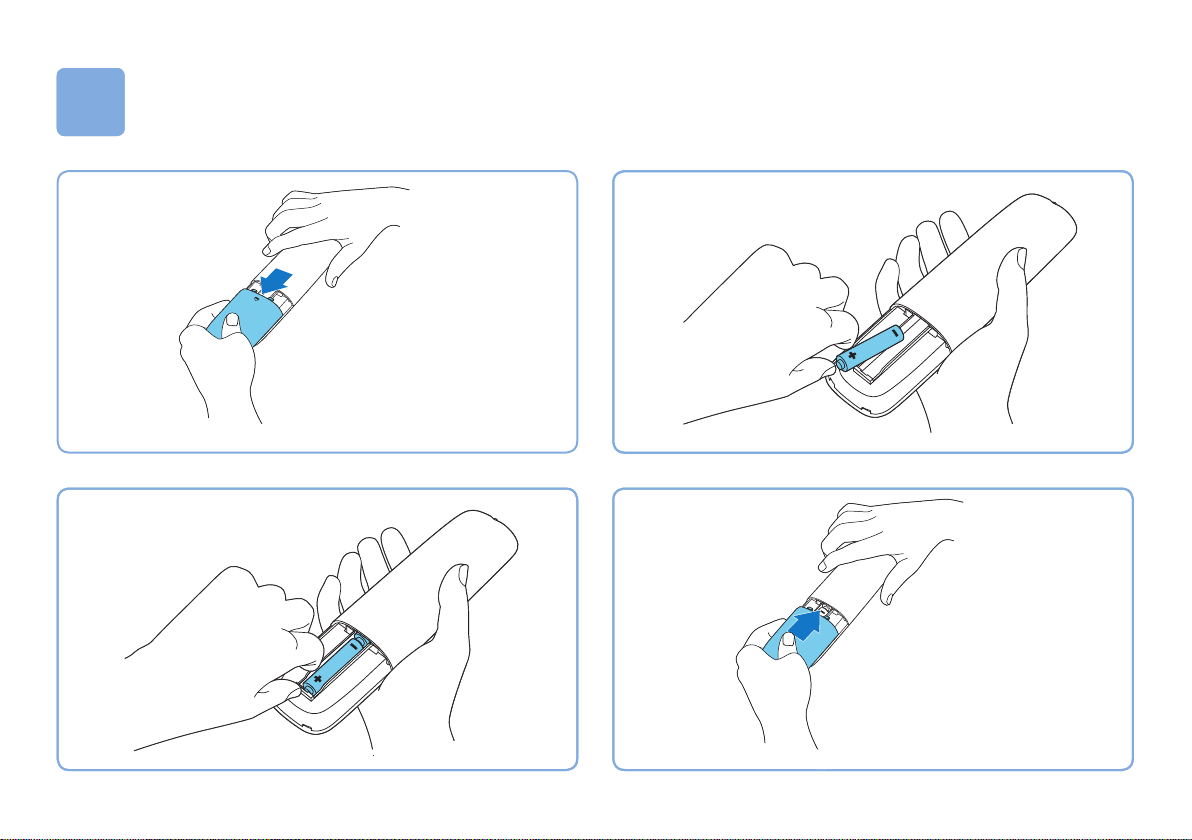

按下遥控器后方的电池盖后打开电池盖 依图所示方向放入2颗AAA电池
电池安装方式
21
43
Page 7
2

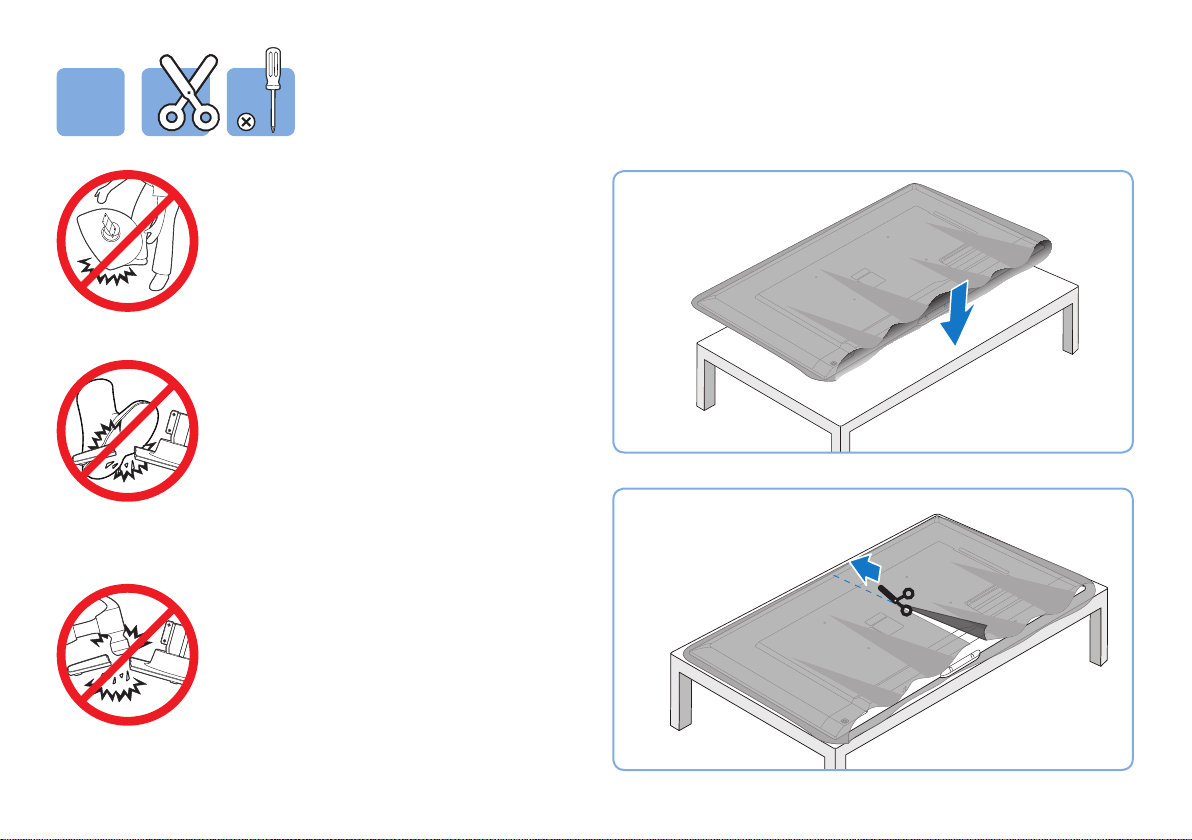

安装底座
1
将电视机正面朝下置于平坦处
2
请依图示方向剪开外包装
7
Page 8

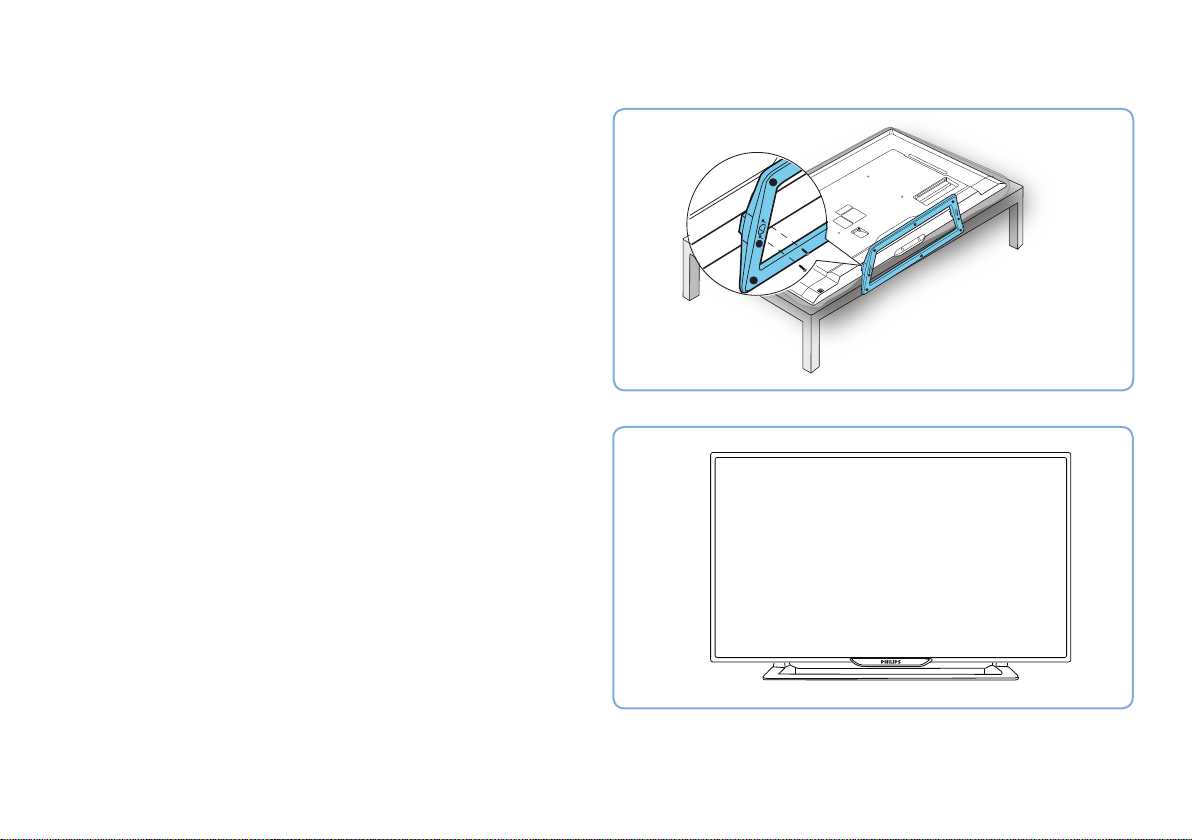

将底座依所示方向装上并锁上螺丝
将电视扶起放好
3
4
8
Page 9
X93
YPbPr & AUDIO L/R
HDMI
视频输入&音频

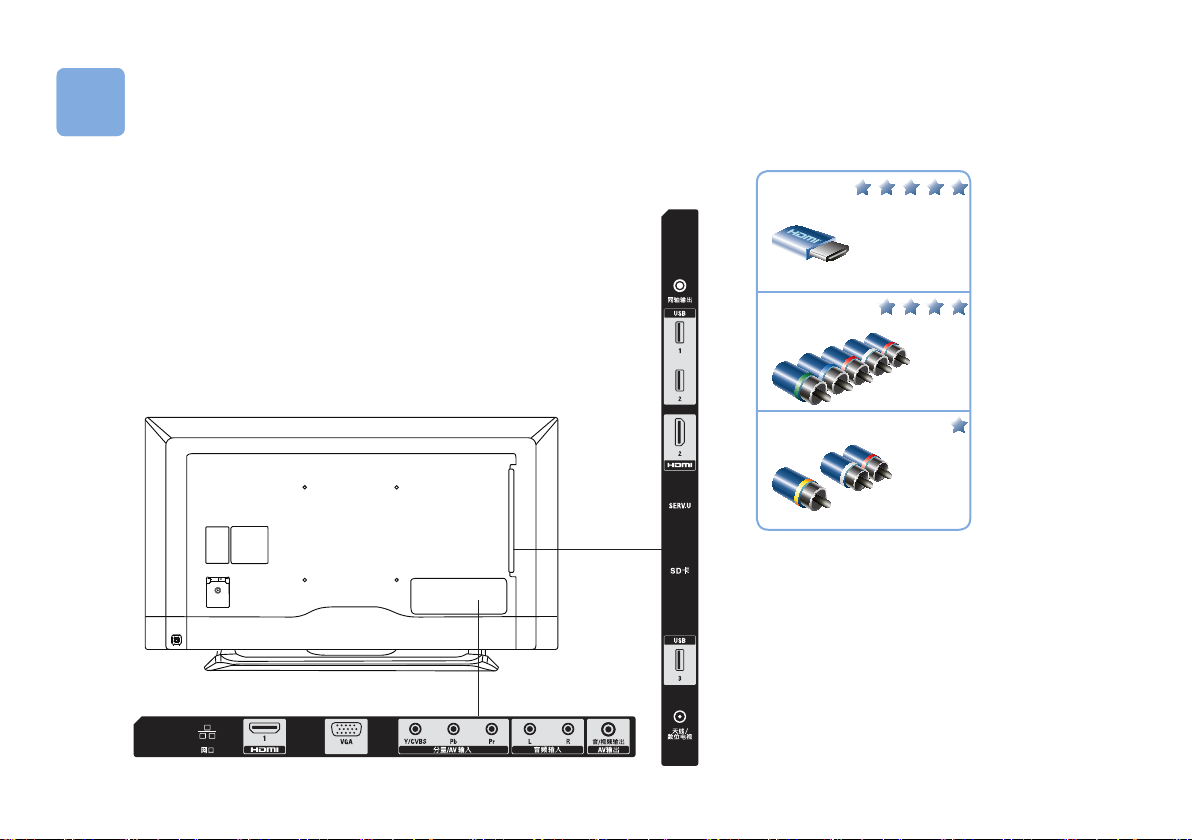

连接
建议使用的影像端子接口:
HDMI:
影像画质最佳
分量端子:
影像画质次佳
AV端子:
影像画质普通
Page 10
视频 & 左右声道
右左视频
SPDIF 同轴输出
SPDIF
HDMI

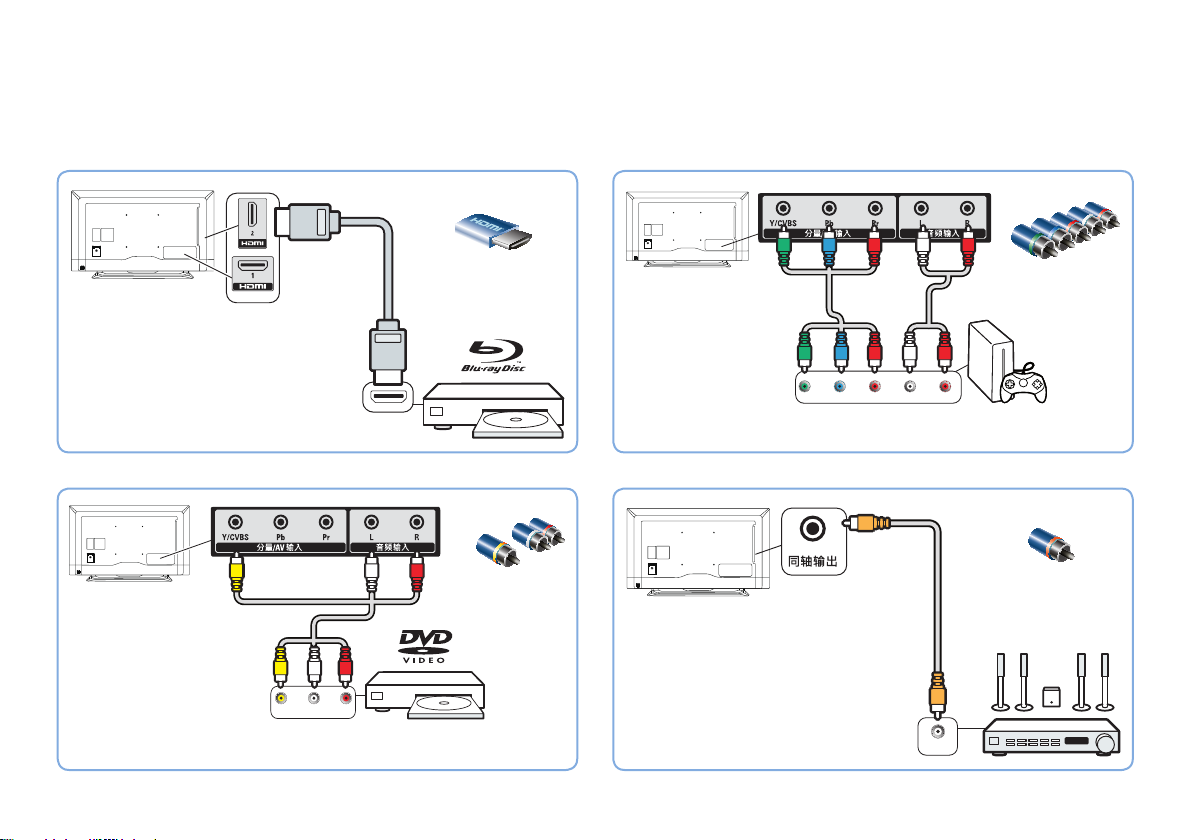

影音端子连接方式
分量信号 & 左右声道
Pb
Y
左 右
Pr
10
Page 11
4

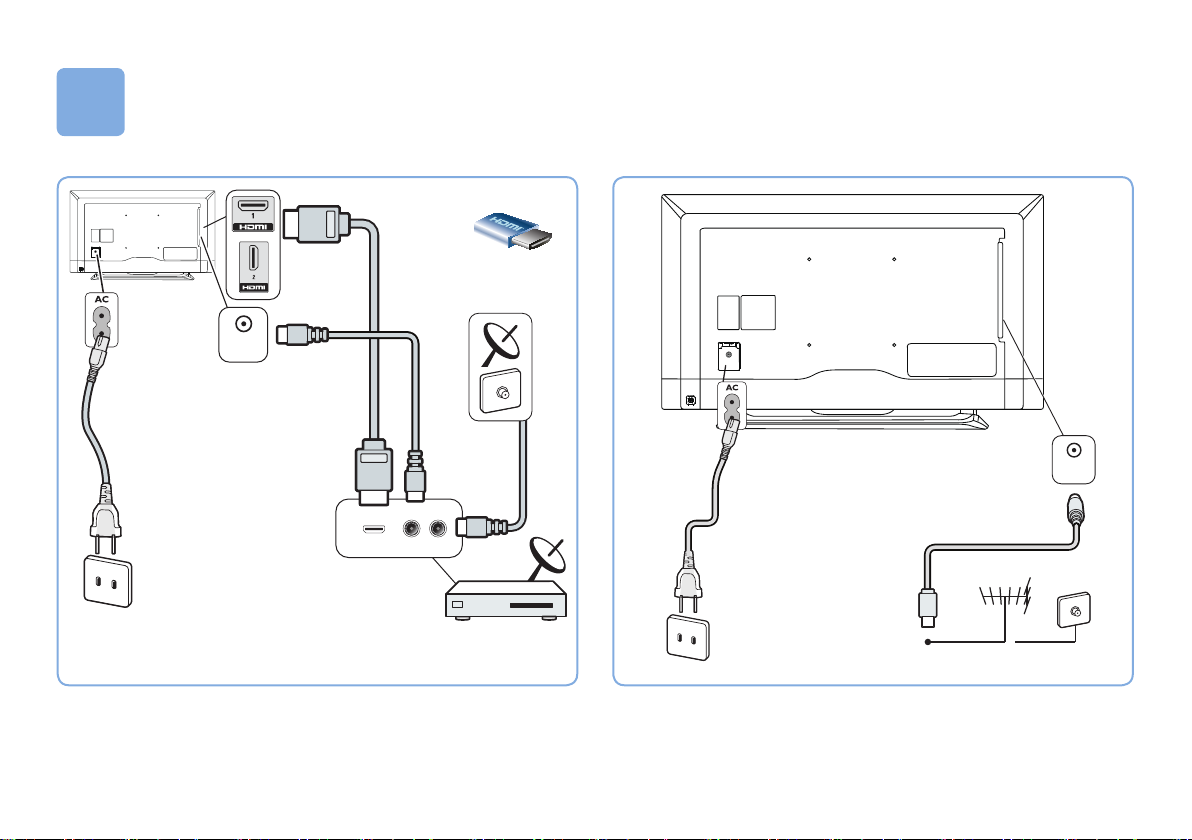

接上电源与电视信号
通过机顶盒连接 通过天线连接
HDMI
天线/
数位电视
天线
输入输出
天线/
数位电视
电缆
11
Page 12
5

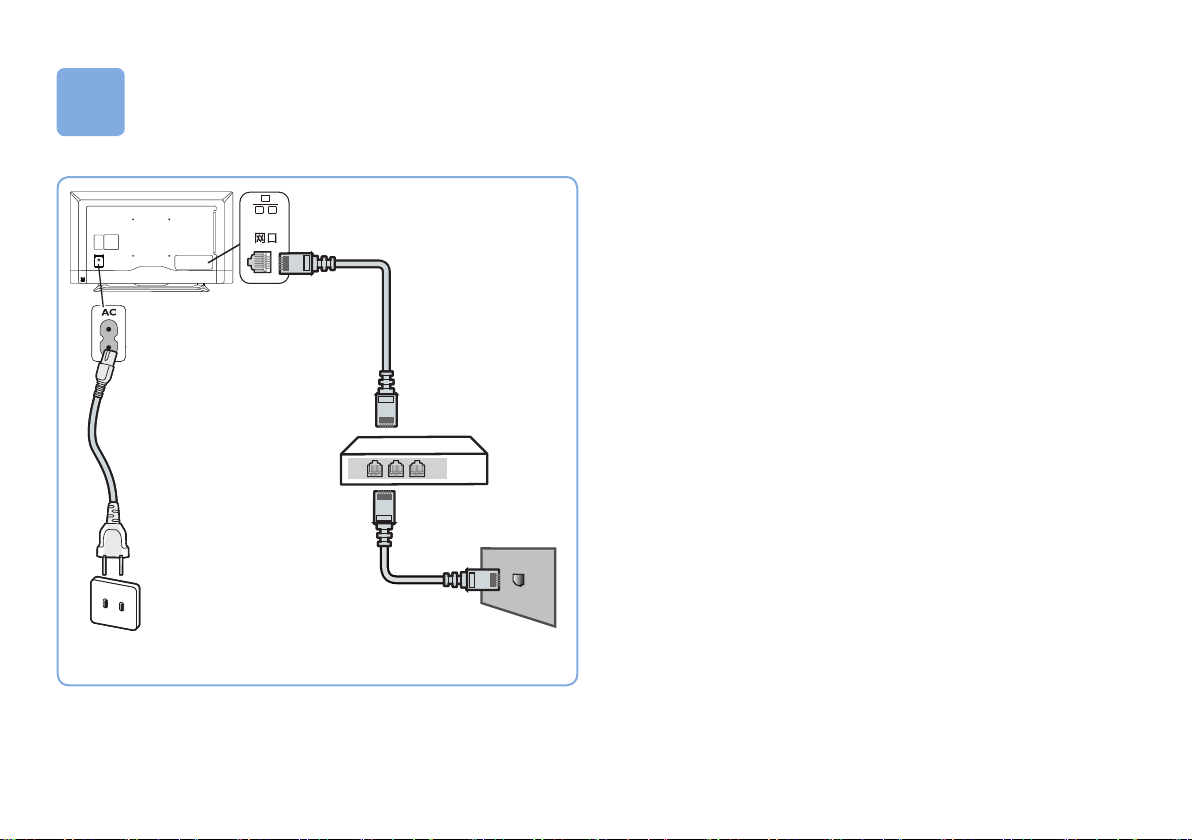

有线安装—通过网络电缆
接上网络信号
路由器
12
Page 13
6

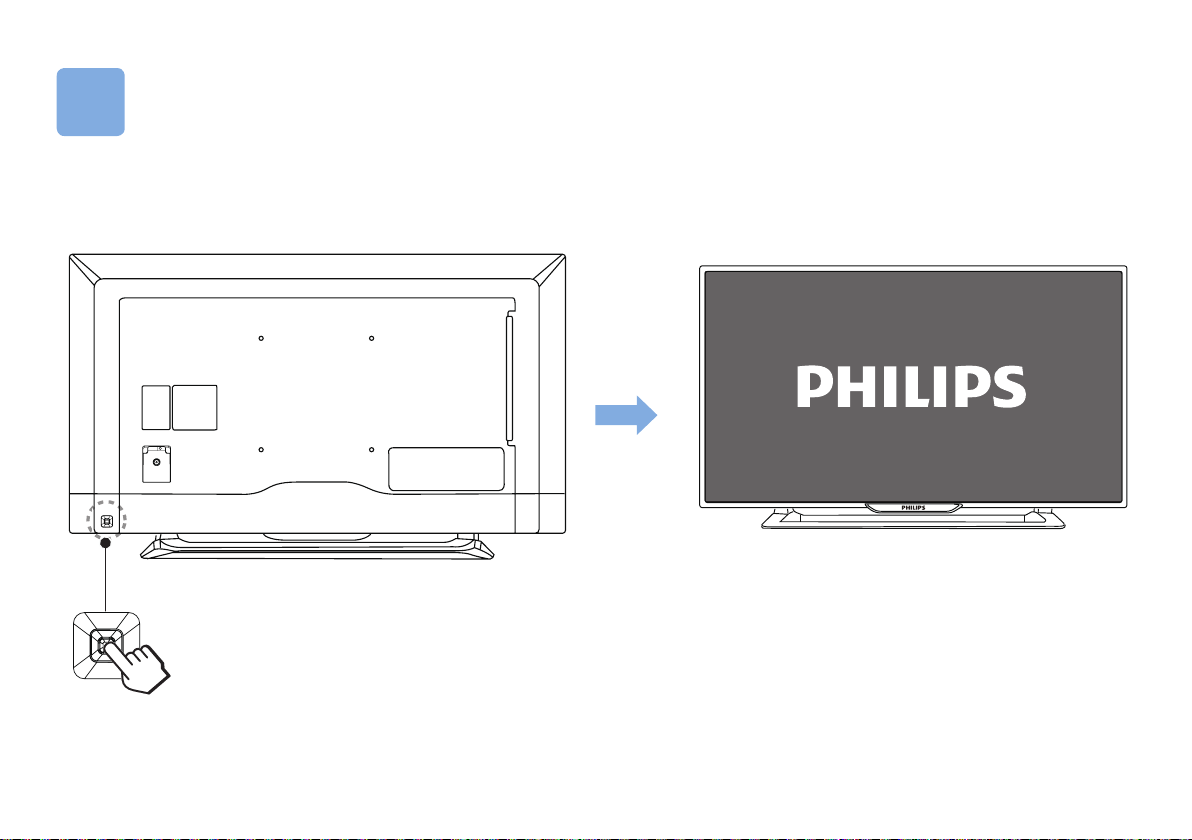

按下电视背面多功能方向键的中间键，打开电视
机。
背视图
打开电视
13
Page 14
7

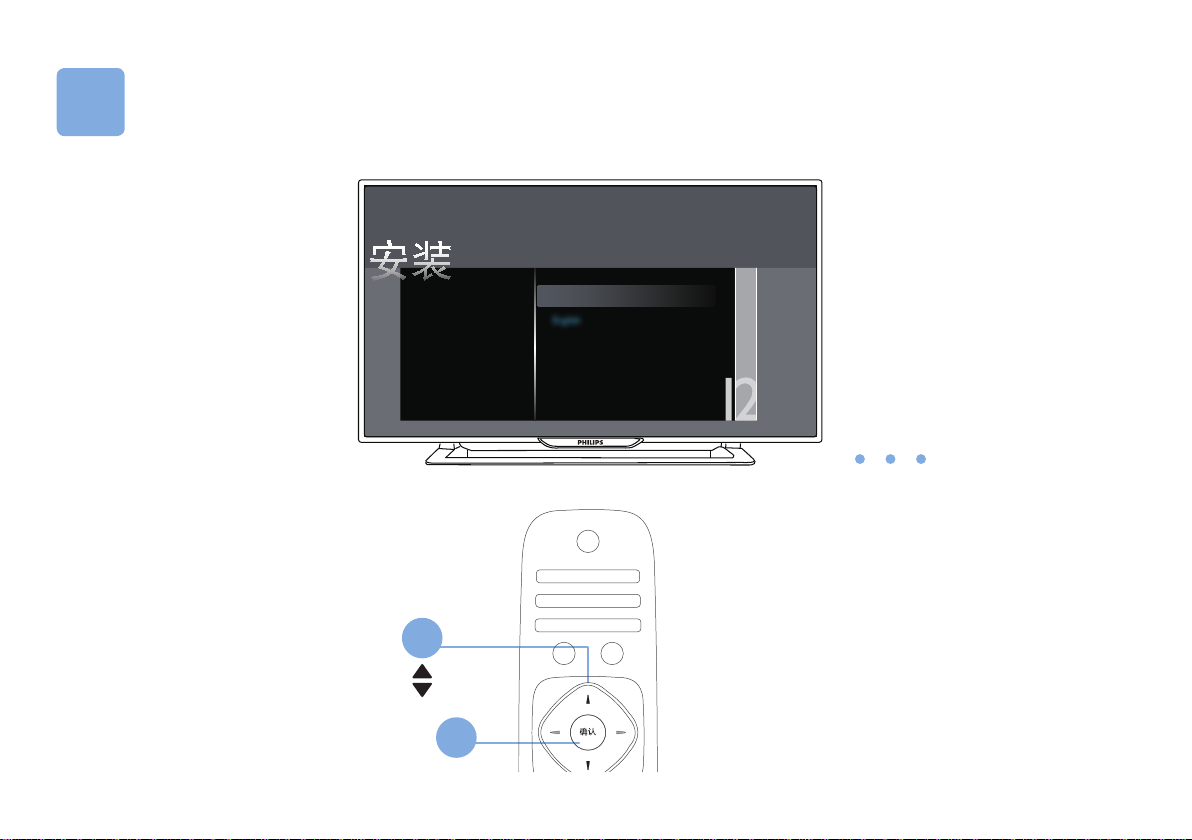

开始操作，请先选择操作导引语言。
操作导引
选择您的语言
1
2
简体中文
English
14
Page 15

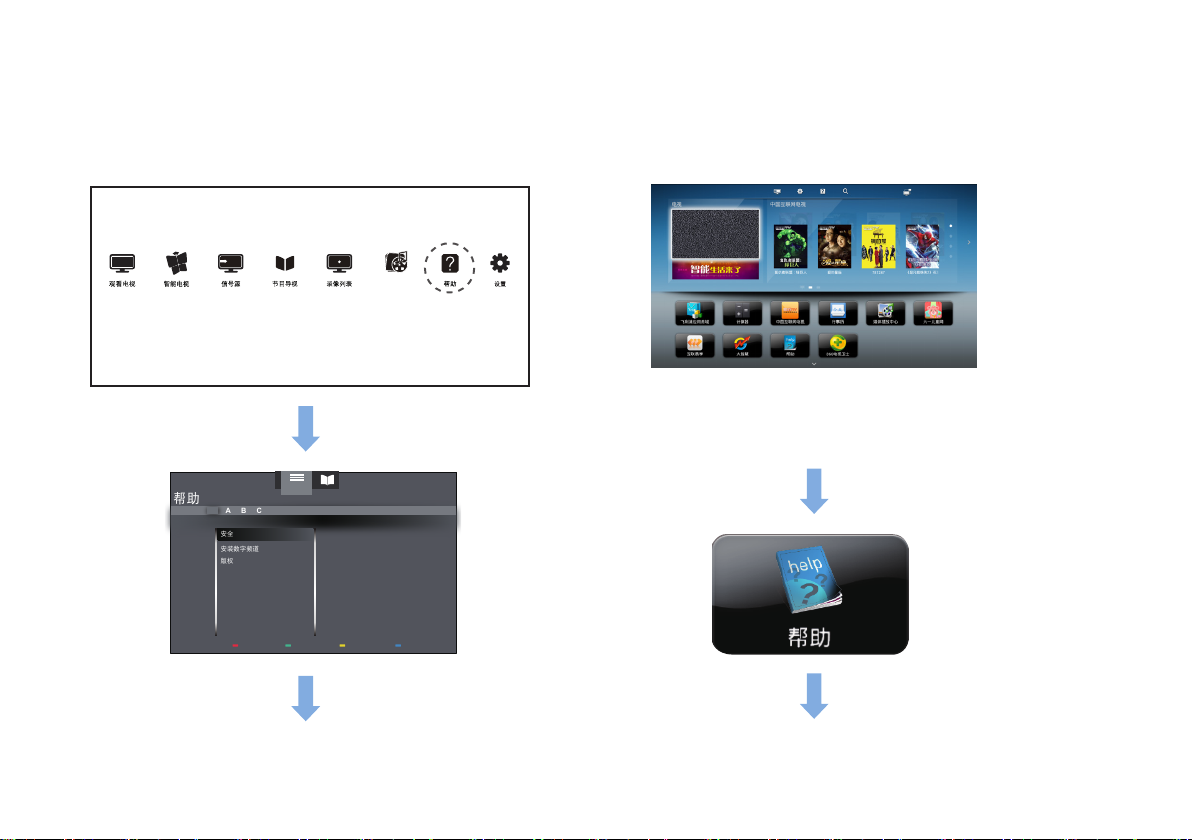

选择帮助，查看用户手册。
方式一： 方式二：
媒体播放中心
（图片及图片中的应用程序仅供参
考，具体请以实际机台为准！）
帮助
*
安全
安装数字频道
版权
保修
变更语言
重排频道
从连接的USB储存设备中观看照
产品规格
创建和使用喜爱频道列表
列表
A B C D F G H J K L M P Q >
目录
- - 关闭
查看用户手册
查看用户手册
15
Page 16
8
中国电子信息产品污染控制标识要求
本产品有毒有害物质或元素的名称及含量标识表
有毒有害物质或元素
零部件名称
塑料外框
后壳
LCD面板
电源基板
主基板
按键基板
底座
电源线
其他线材
遥控器
*：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。
○：表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572-2011规定的限量要求
以下。
×：表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572-2011规定的限
量要求。
备注：以上“×”的部件中，部分含有有害物质超过是由于目前行业技术水平所限，暂时无
法实现替代或减量化。
CCFL
LED
铅（Pb） 汞（Hg） 镉（Cd） 六价铬
（Cr6+）
○ ○ ○ ○ ○ ○
○ ○ ○ ○ ○ ○
× × ○ ○ ○ ○
× ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
○ ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
多溴联苯
（PBBs）
多溴二苯醚
（PBDEs）
16
Page 17
环保使用期限
在产品本体上标示的该标志表示环境保护使用期限为10年。
电子信息产品的环境保护使用期限是指电子信息产品中所含的有毒有害物质或元素不会向外部泄漏或
出现突然变异，并且电子信息产品的用户在使用该电子信息产品时也不会对环境造成严重污染或对人
体、财产带来严重损害的期限。
在环境保护期限中，请按照使用说明书使用本产品。
本环境保护使用期限不覆盖易损件：电池。
《废弃电器电子产品回收处理管理条例》提示性说明
为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品回收
处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。
17
Page 18
X
www.philips.com/support
更多操作信息请参考PHILIPSsupport网站。
www.philips.com.cn
18
Page 19
所有注册和未注册的商标是其各自所有者的财产。
规格如有变更，恕不另行通知。
Philips 和 Philips 盾牌图形是皇家飞利浦有限公司的注册商标，
其使用需遵循皇家飞利浦有限公司的许可。
出版日期：2015年2月
Page 20
一、USB 本地软体升级方式：
1、将软体(名称：update.zip)copy 到 USB 根目录
2、TV 正常开机后将 USB 接入

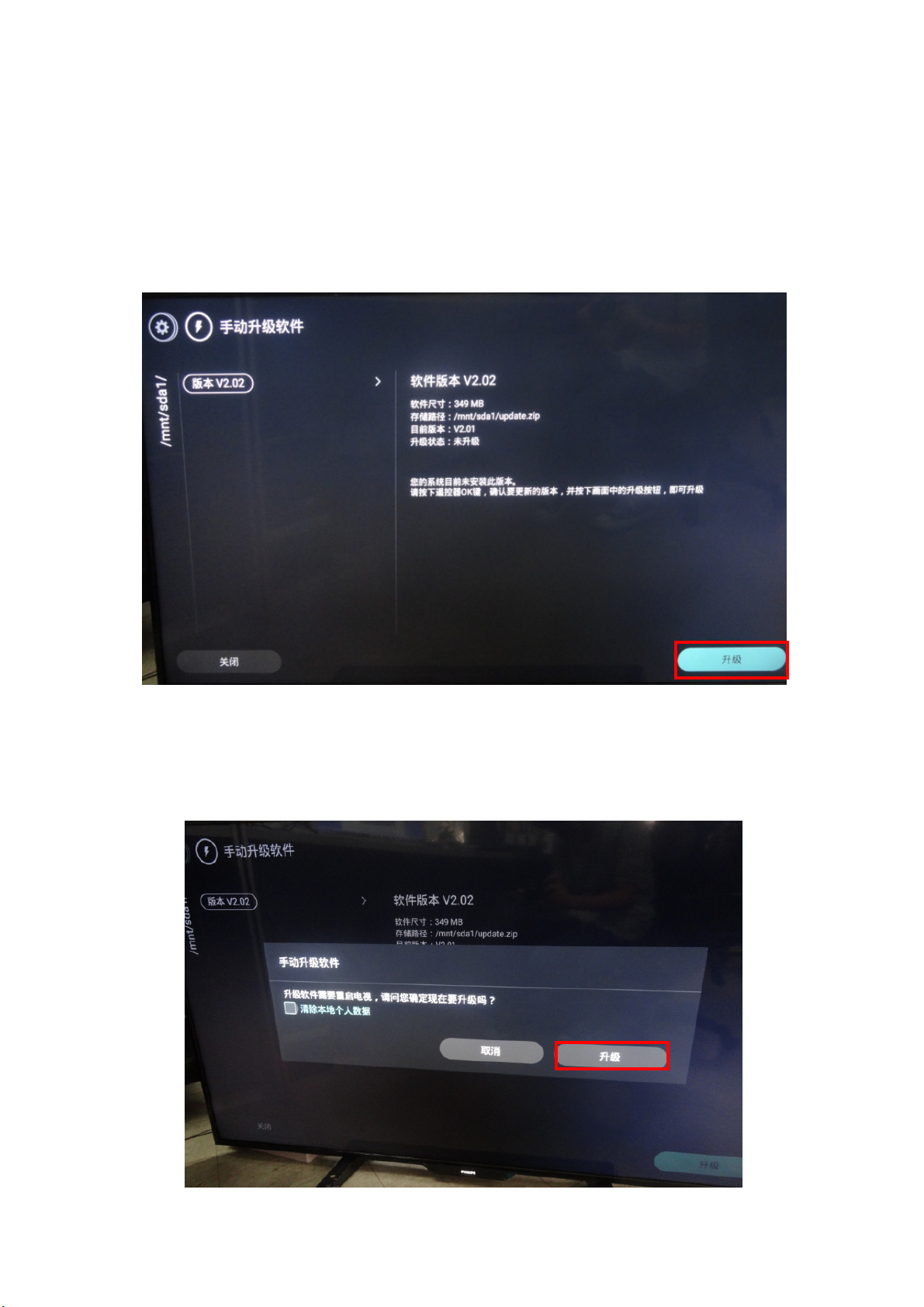

3、使用遥控器：设置‐>电视设置‐>关于电视‐>系统信息‐>手
动软体升级，出现如下界面 ：
4、选择”升级”确认升级，出现如下提示：“清除本地个人数
据”可勾选可不勾选。
Page 21

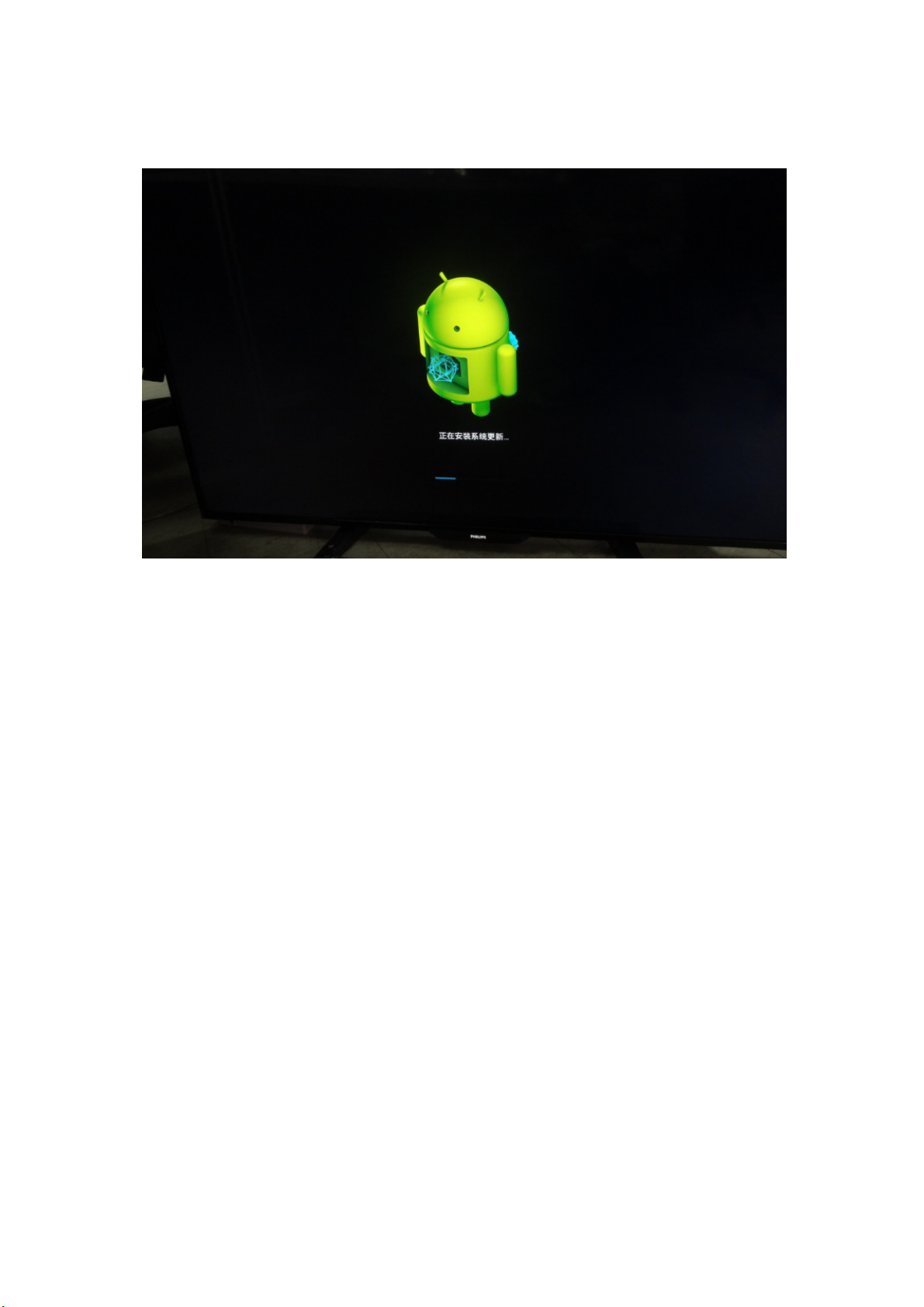

5、点击“升级”后电视会自动重启，重启后电视界面如下，
升级结束后自动进入电视播放界面。
6、按设置‐>电视设置‐>关于电视‐> 当前版本信息；
确认软体版本 。
注：TV 升级过程中，请勿断电和插拔 U 盘。
Page 22
二、USB 上电软体升级方式：
1.1 将获取的软体拷贝至 U 盘根目录（注意：名称必须是
usb_update.bin）；
1.3 将 U 盘插在 TV 后面 USB3.0 的接口上（蓝色标志），TV
上电；

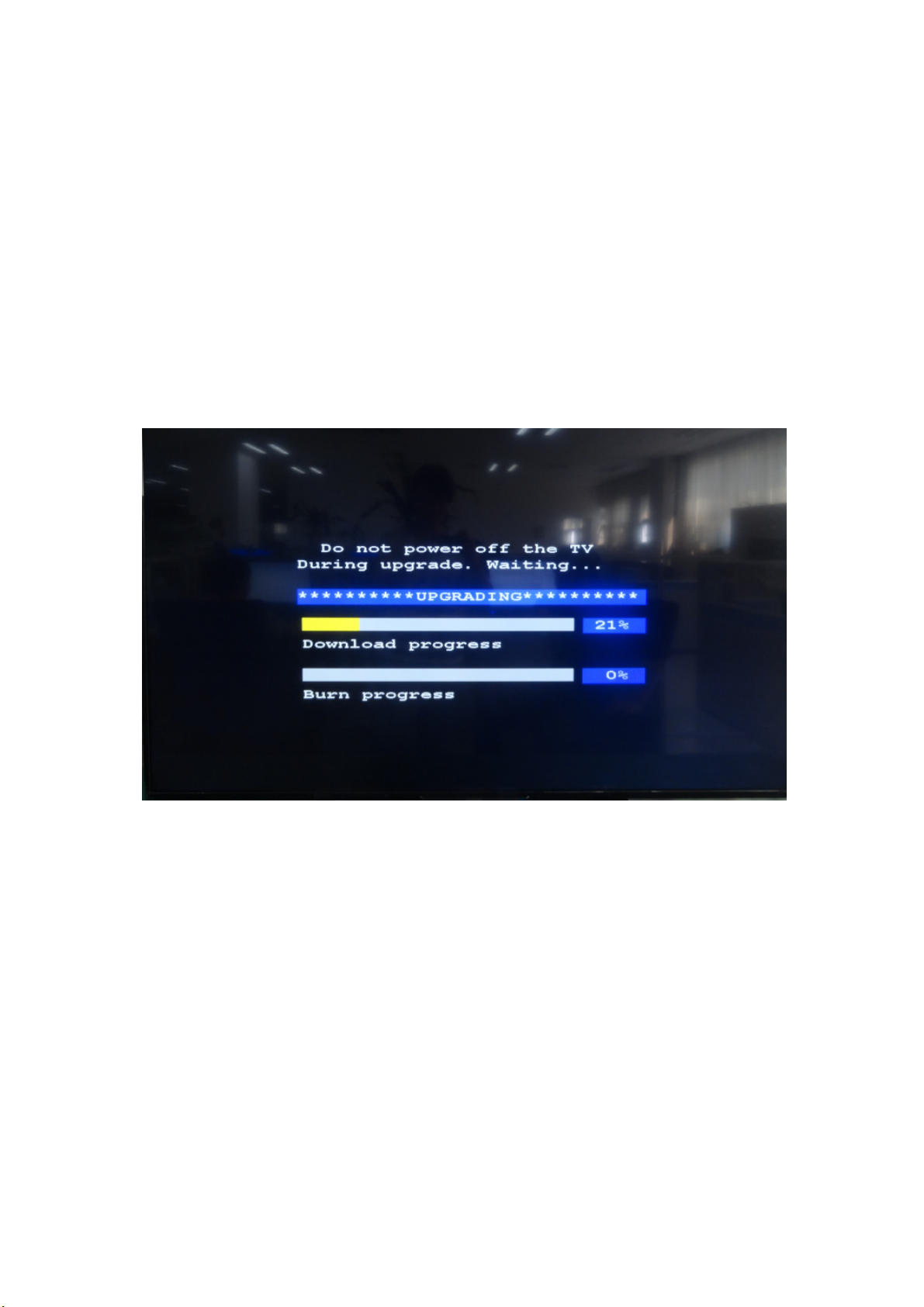

1.4TV 进入升级，出现如下提示；
1.5TV 软体升级后，TV 自动重启。
注：TV 升级过程中，请勿断电和插拔 U 盘。
Page 23
二、HiTool 升级方式：

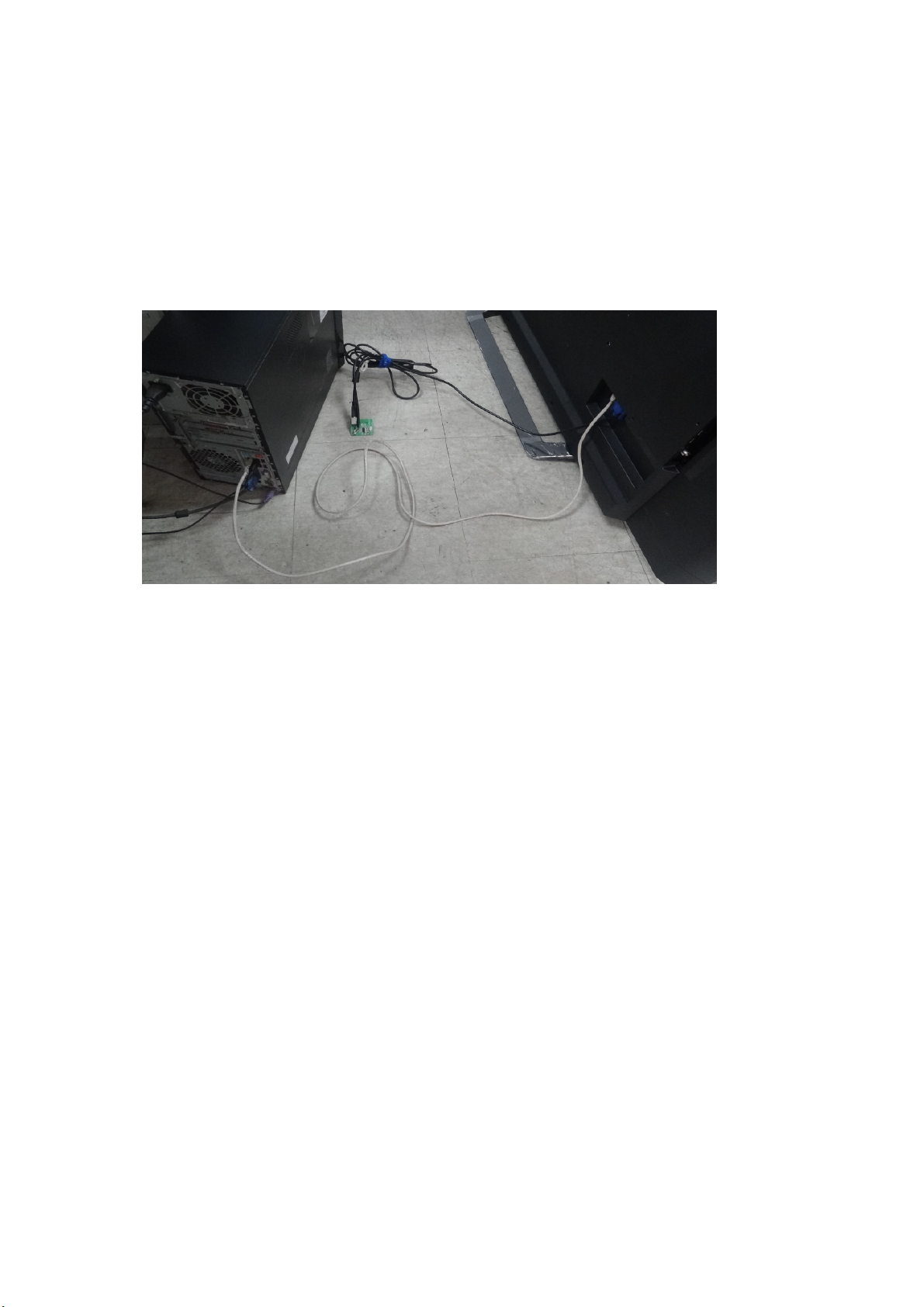

1.1 连接好单板的网口线、串口线及电源线。
1.1.1 网口线：网口线的一端连接电脑主机网口，另一端
连接TV的网口，如下图1所示
图1 网口线连接图
1.1.2 网口线连接完后手动更改服务器IP地址。
Window7电脑：

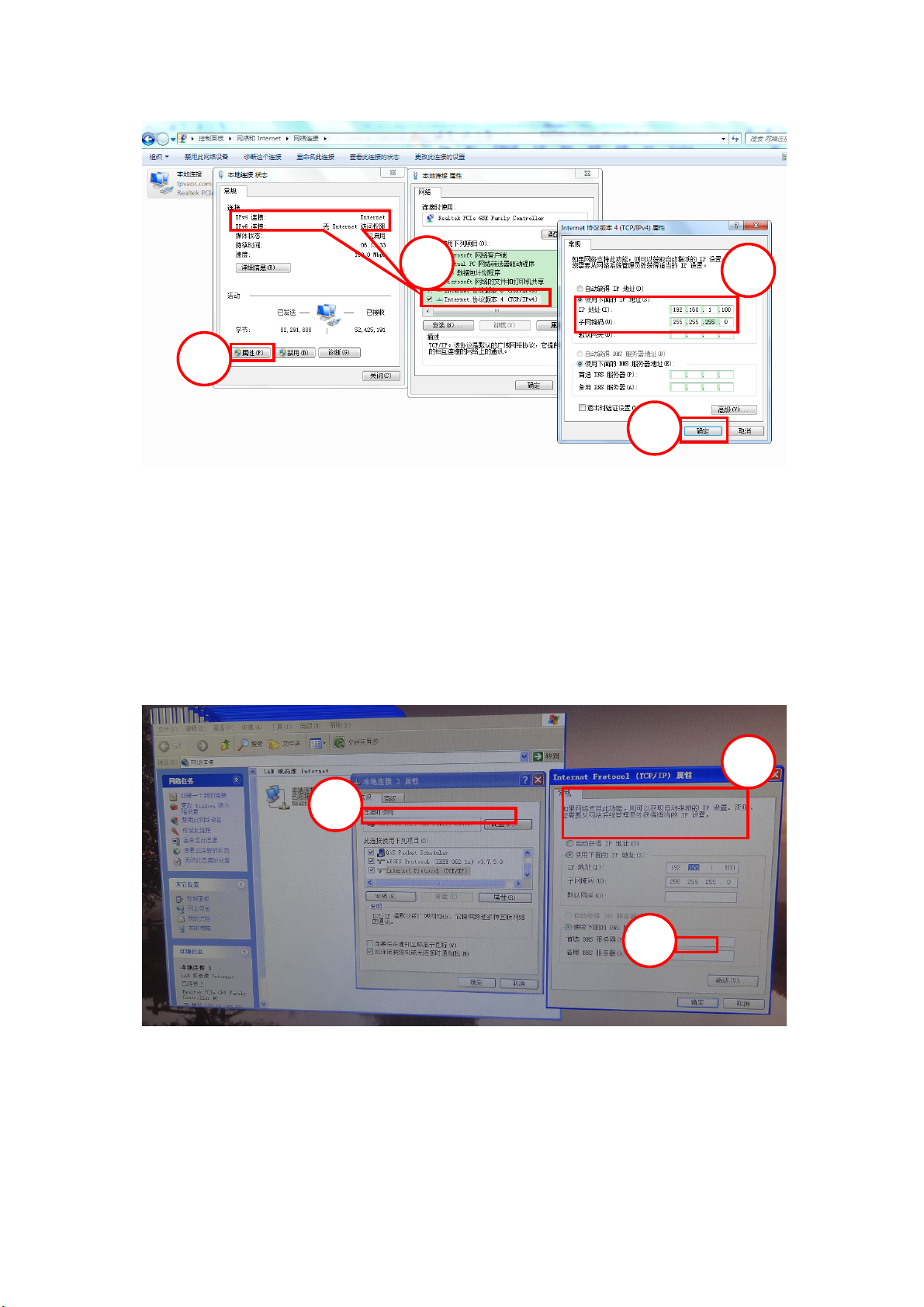

a、打开本地连接的属性，手动更改服务器IP地址。如下图2
所示
Page 24
2
1
4
3
图2window7 服务器IP设置
WindowXP电脑：
b. 打开本地连接的属性，手动更改服务器IP地址。如下图3
所示：
2
1
3
图3windowXP 服务器IP设置
1.1.3 串口线连接图。VGA端连接TV的VGA端口，USB端连接
主机的USB端口。如下图5所示：
Page 25

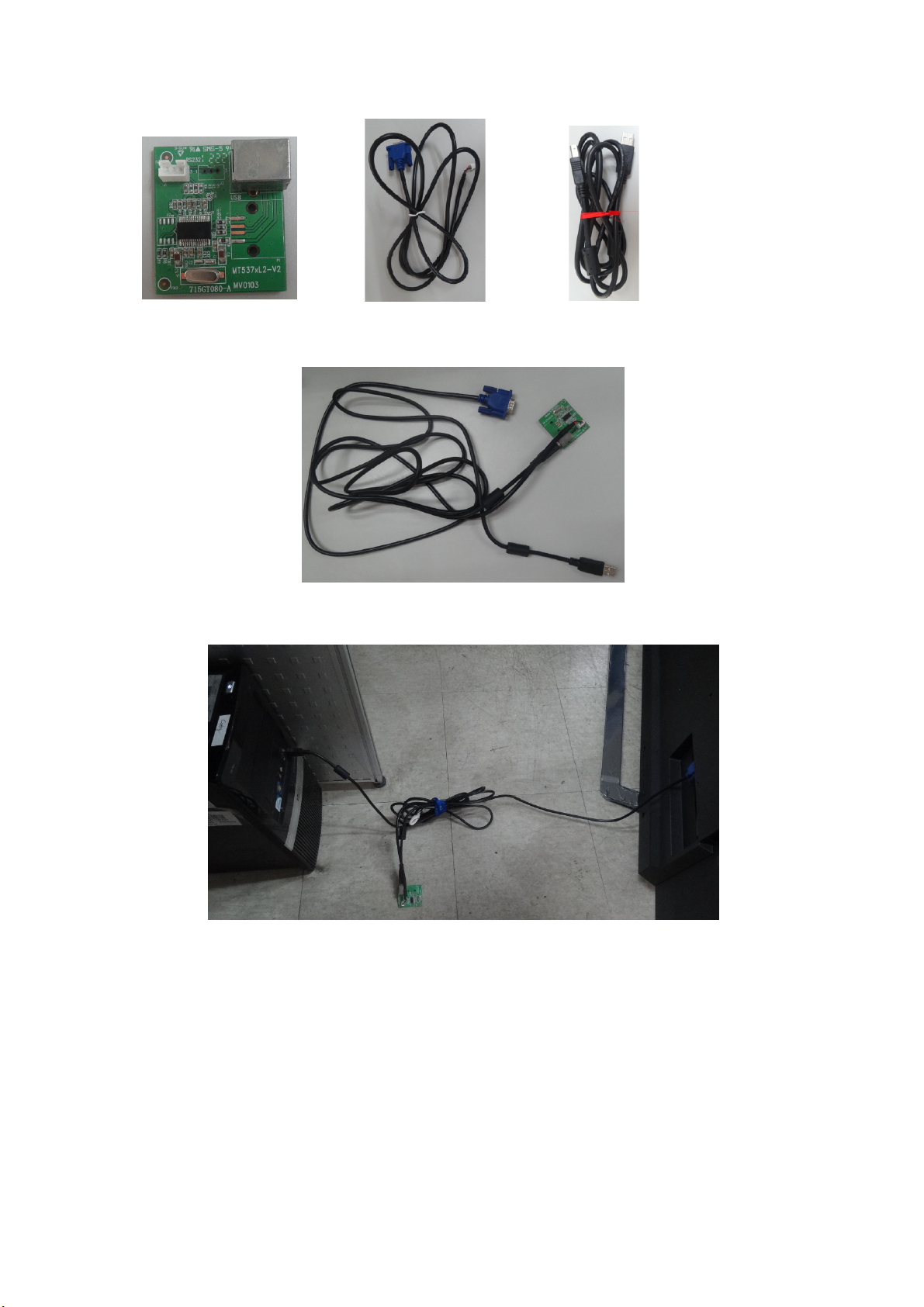

a.715GT080‐A小板b.VGA线c.USB数据线
图4715GT080‐A串口转接小板连接图
图5 串口线连接图

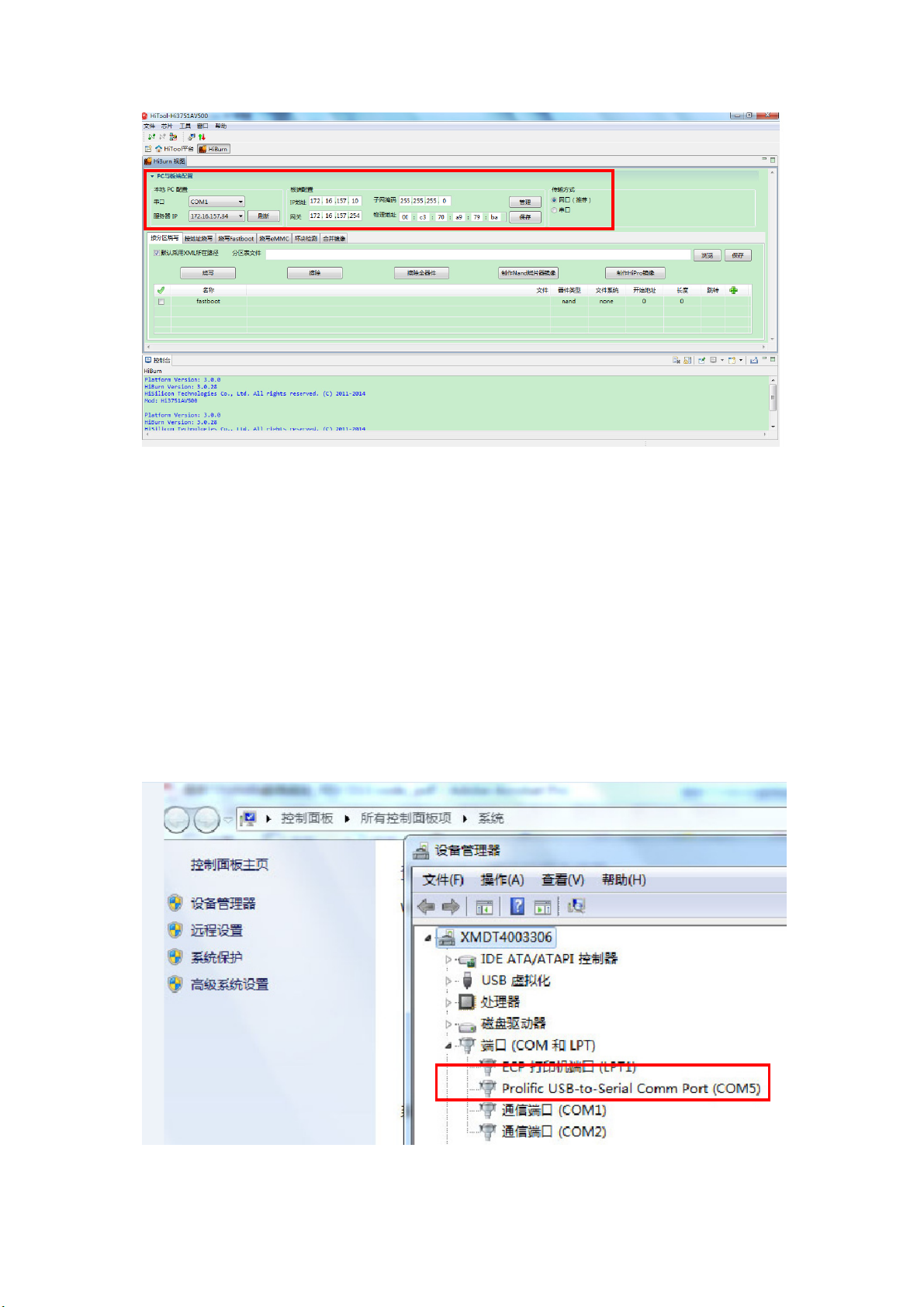

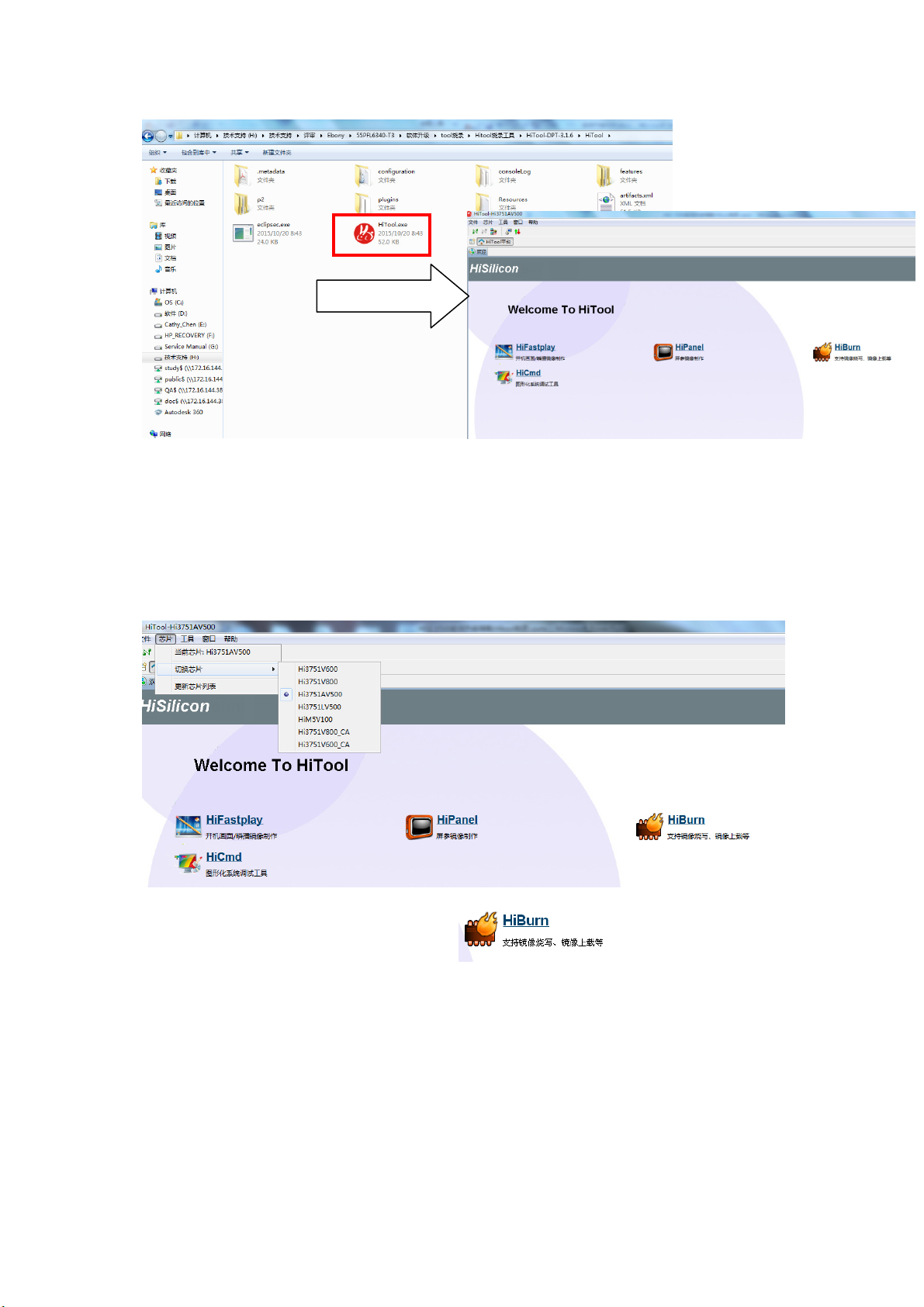

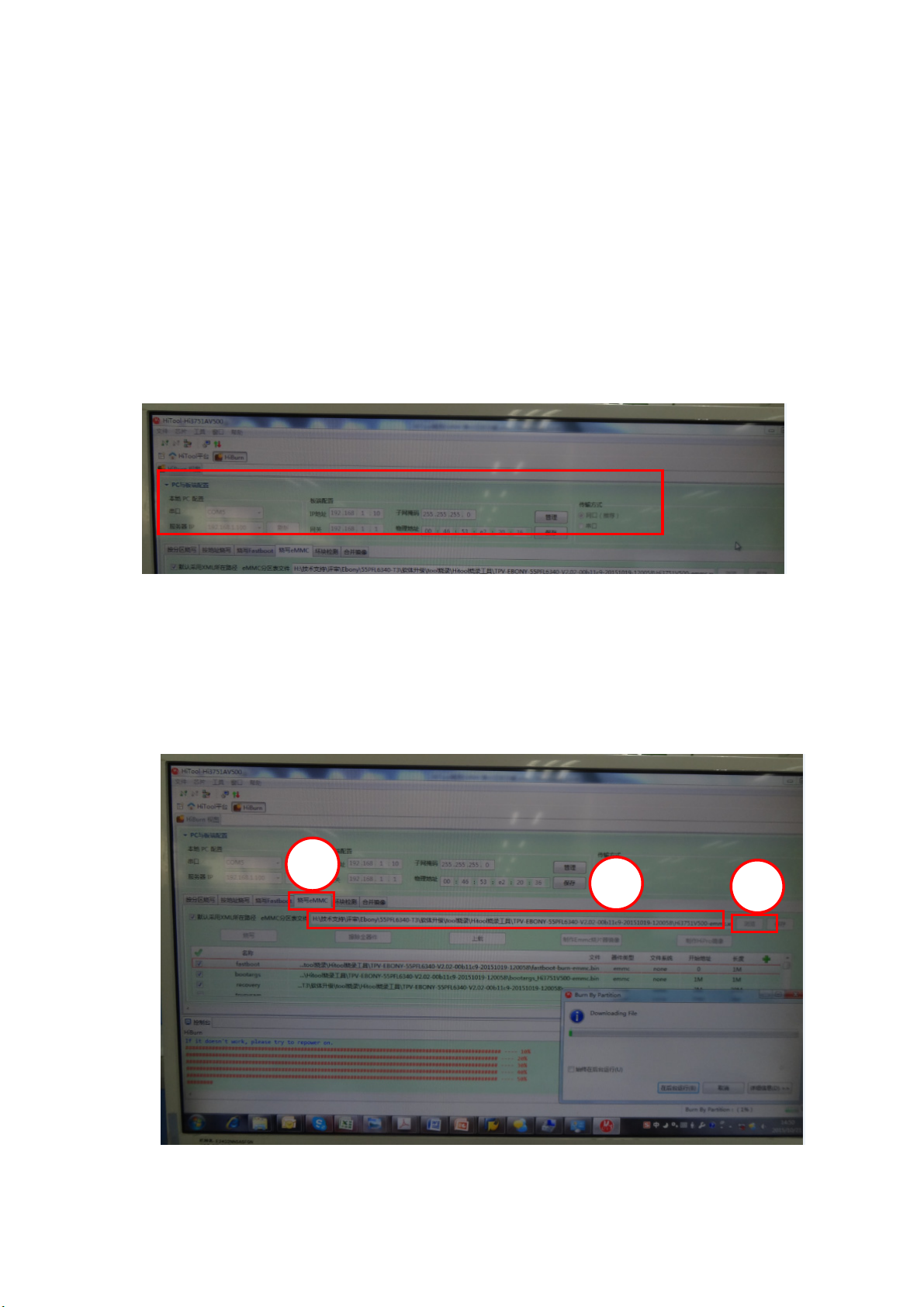

1.2 连接号网口线和串口线后，打开烧写工具HiTool,如下图
红框所示：
Page 26
打开 HiTool
1.3 首次打开时根据提示设置芯片；之后如需变更，选择：
芯片→切换芯片→选择所需芯片型号，如：Hi3751AV500 ，
如下图所示：
1.4 选择首页中的HiBurn图标 打开如下界面：
窗口中显示的参数均为默认值 。
Page 27
1.5 参数设置：
1.5.1PC与板端配置
注意：本地PC设置：先刷新，选择已连接的串口（到服
务器的设备管理器看，比如连接上串口tool后显
示COM5，如下图6所示）、服务IP(如上图2、图3
所示)；
图6 串口
Page 28
板端配置：IP地址需要更改下(如：169.254.242.0
改成 169.254.242.10，即最后一码需非0)，使用默认
的易发生烧写失败情况
1.5.2 传输方式选“网口”。
参数设置完后，如下图7所示：
图7 参数设置
1.6 参数设置完后，选择“烧写eMMC”选项，点击“浏览”，
在资源路径下选择Hi3751AV500‐emmc.xml
1
3
2
Page 29

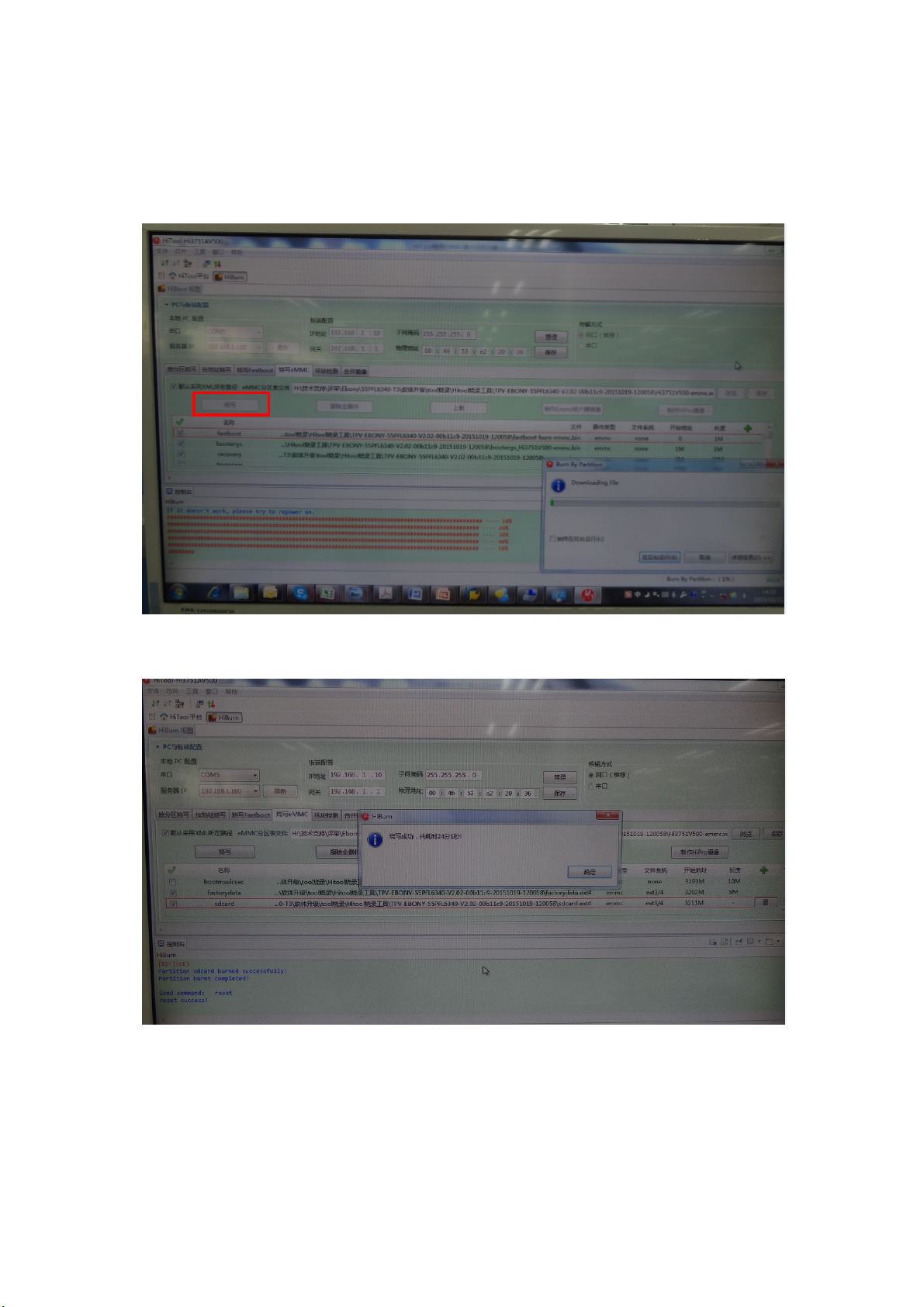

1.7 点击“烧写”，然后TV重新上电，开始烧写。
若提醒烧写失败，请检查串口、IP设置是否正确，再次烧写 。
1.8 等待24分钟左右，提醒如下，表示烧写成功。
1.9 烧写成功后，TV自动重启。按设置‐>电视设置‐>关于电视
‐> 当前版本信息； 确认软体版本。
注：TV 升级过程中，请勿断电和拔插网线、串口线。
Page 30

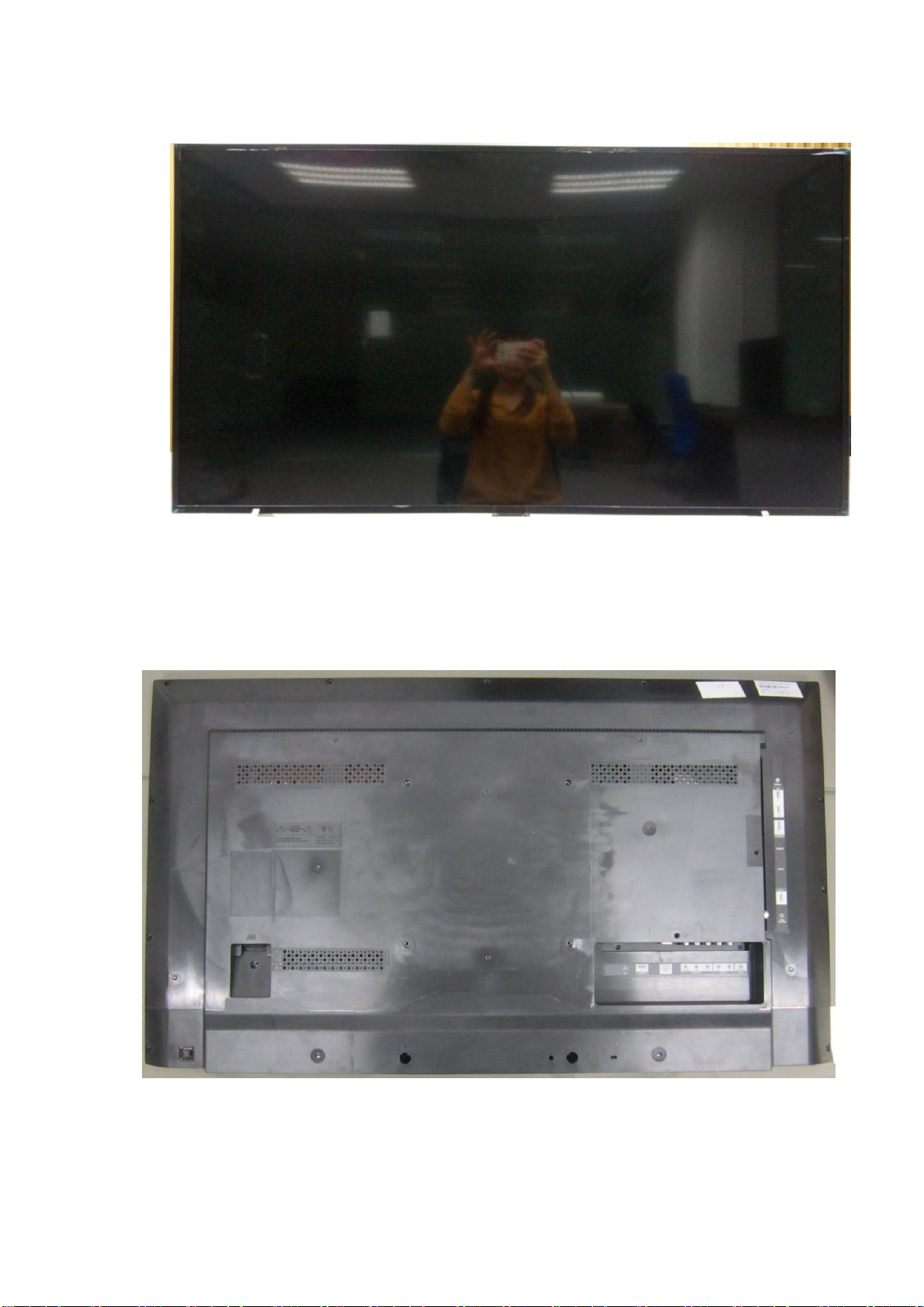

1. 正视图
2. 后视图
Page 31

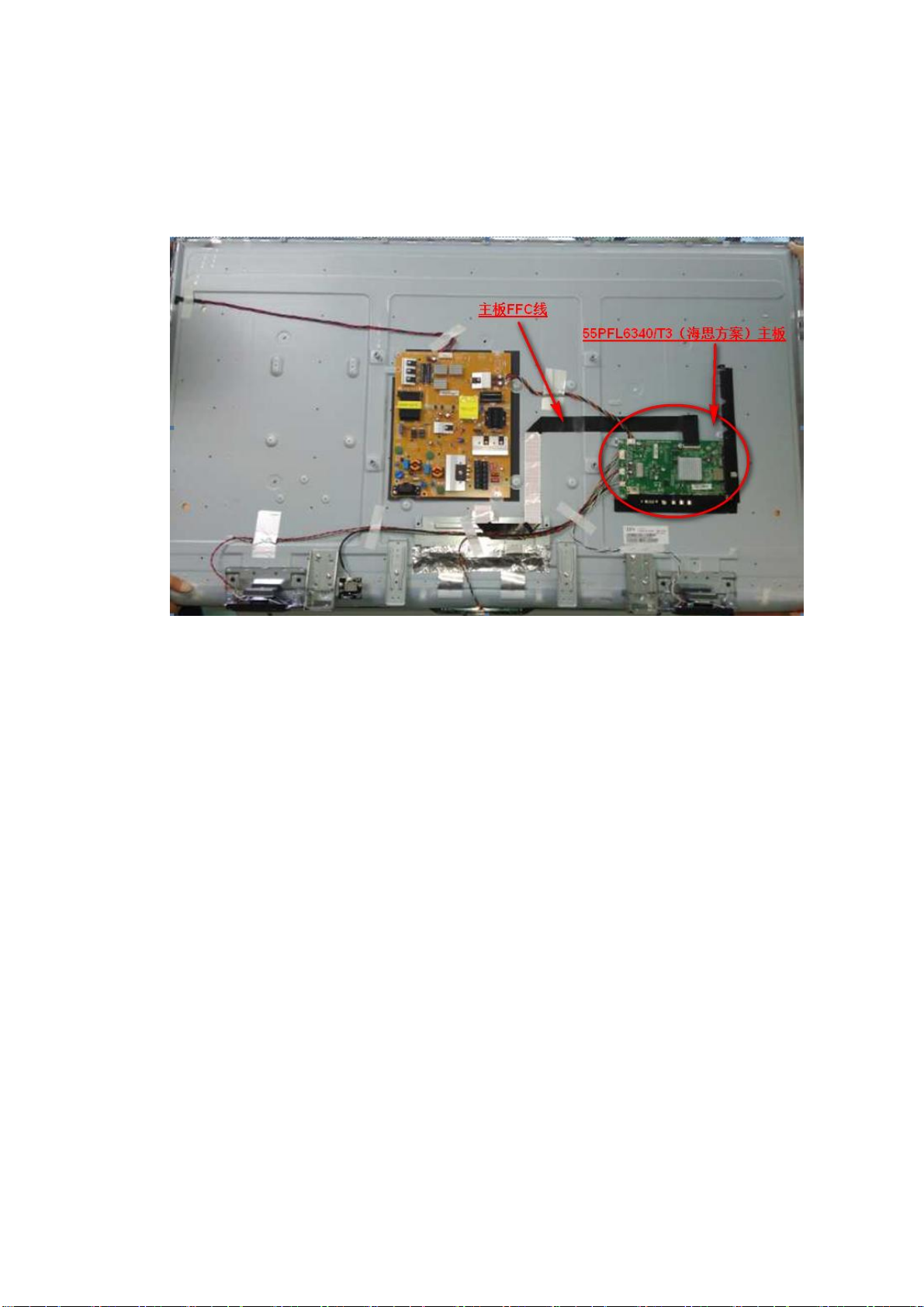

3. 内部机构图
Page 32

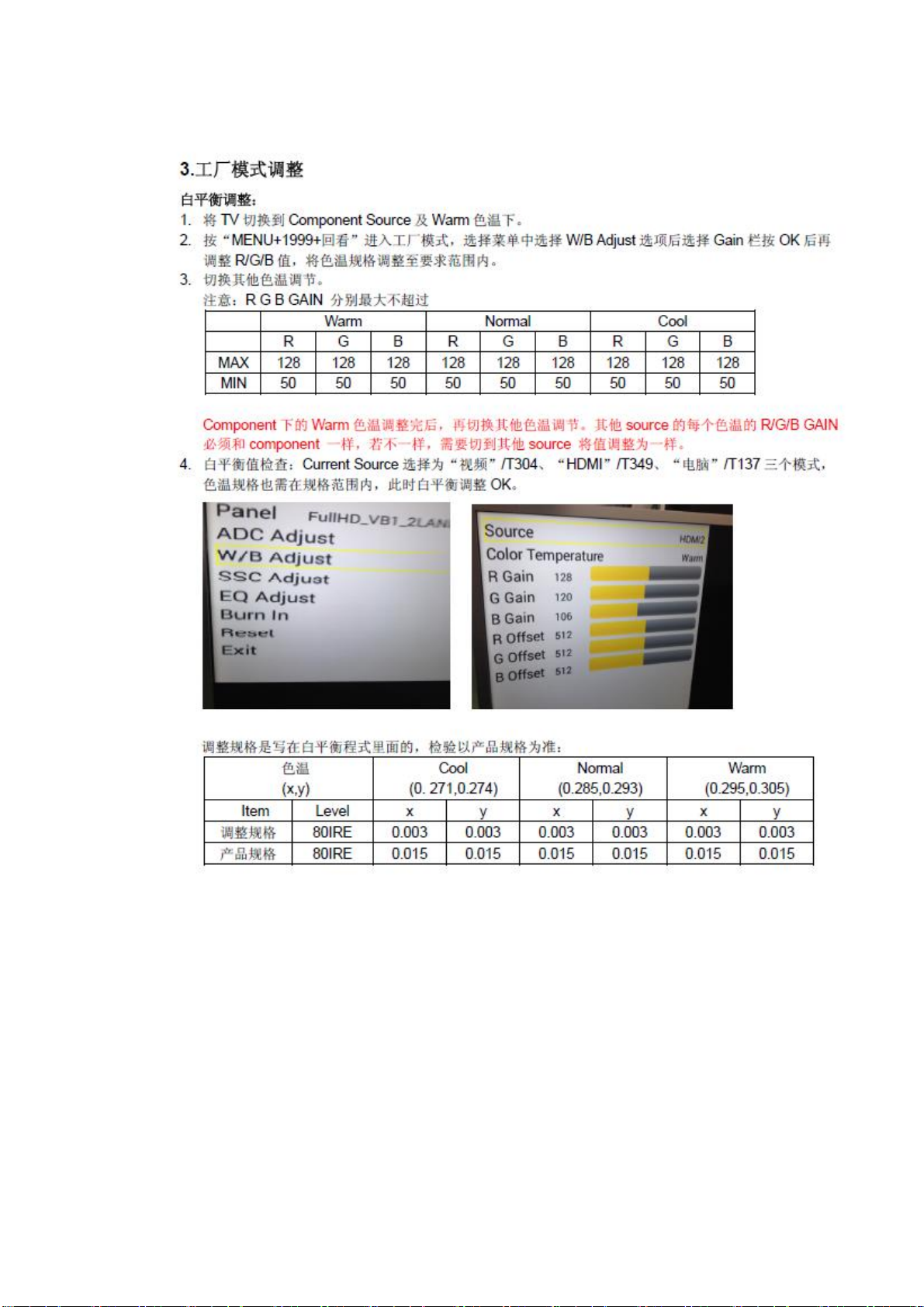

Page 33
版本 发布日期 变更说明 对外机种名
A01
10/9/2016
变为海思平台
55PFL6340/T3
A00 9/19/2016 首次发布 55PFL6340/T3
Page 34
对内机种名 Scalar
E55F97NDCZP1NNZ
E55E91NDFTPHNNZ MSD8590QV-XZ HSBGA-707
Page 35
屏 主板板号
TPT550J1-QU235.K S5940D BJ TP
715G7924M01B00004Y
TPT550J1-QU235.K S5940A BJ TPV 715G6591M01000004K
Page 36
电源板板号 升压板板号 按键板板号
715G6973P04006002M
715G6316K01000004C
715G6607P02001002M 715G6432P01000002H 715G6316K01000004C
Page 37
遥控板板号
715G8043R01000004C
715G6915R01000004N
Page 38
层次 物料
1 052G 1186 SMALL TAPE
1 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…)
1 089G214A15N HL AC POWER CORD 1500
1 089G214A15N IS AC POWER CORD 1500
1 0M1G 130 6 47 CR3 SCREW M3 6
1 0M1G 940 6125 SCREW M4 6
1 0M1G1030 5120 Screw
1 0M1G1030 6 47 CR3 SCREW M3 6
1 0M1G1030 8 47 CR3 SCREW M3 8
1 0M1G1030 8120 SCREW M3 8
1 0Q1G 930 6 47 CR3 SCREW
1 0Q1G 930 8120 SCREW
1 317GAAWF550TCL WIFI USB IEEE 802.11 b/g/n WF0KRT1510W
1 378G0110567CDX 6 OHM 11W 132*34*37mm 0 UNIT
1 395G279R51HC34 FFC CABLE 51P 730MM 0.5MM
1 395G801402RC01 HARNESS 2P pitch2.0-2P pitch1.25 200mm
1 395G801402WC01 HARNESS 2P pitch2.0-2P pitch1.25 200mm
1 395G801416DC72 HARNESS 16P pitch2.0-12P pitch2.0 280mm
1 395GH20004DT002000 HARNESS 4P pitch2.0-B&R+B&W 850 + 400 m
1 395GH20004RT002000 HARNESS 4P pitch2.0-B&R+B&W 850 + 400 m
1 395GH20006AT010000 HARNESS 5P pitch1.25-6P pitch2.0 600mm
1 395GH20006DT010000 HARNESS 5P pitch1.25-6P pitch2.0 600mm
1 395GH20014DT069000 HARNESS 14P pitch2.0-9P pitch1.25+2P pi
1 395GH20014WT069000 HARNESS 14P pitch2.0-9P pitch1.25+2P pi
1 398GR08BCPH04H REMOTE PHILIPS HOF-44K-GJ13669 chinese
1 708TVA800WPZ01 PHILIPS 40(224 CH)
2 H52G 1175 4 MIDDLE TAPE
2 Q07G000200L184 PALLET FOR LENOVO 55" TV
2 Q44G6002137110 PAPER BOARD
2 Q44G9003176 CORNER PAPER 1760
2 Q45G 77 5 PE PACKING
2 Q50G 4 10 TIE (Y1900221)
2 Q52G1301 9 BIG TAPE FOR PHILIPS
2 X44G6002130110 PAPER BOARD
2 X44G6002CP512A PAPER CAP5
1 750TBV550Q25DDN000 LCD TPT550J1-QU235.K S5940D BJ TPV
1 756TXFCB07D001050X MCU ASSY
2 100TP7VS001D5X PHP 55PFL6340/T3 EMMC V2.25 60D0E360
2 356G333304A600 NAND FLASH THGBMBG5D1KBAIT 4G BGA 153
1 CBPRF9CDX1 CONVERSION 715G7924M0B
2 SMTRF9CDX1 MAIN BOARD FOR SMT
3 061G04021001FY RST CHIP 1K 1/16W 1%
3 061G04026801FY RST CHIP 6K8 1/16W 1%
3 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0
3 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G04021001FY RST CHIP 1K 1/16W 1%
3 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K
3 061G04021692FY RST 0402 16.9K 1% 1/16W 3 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K
3 365G040227931C000F AP 0402 2.7pF 0.25pF 50V NP0 0402CG2R7
物料描述
Page 39
3 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 365G040227931C000F AP 0402 2.7pF 0.25pF 50V NP0 0402CG2R7
3 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA
3 065G0402474A5K A CAP 0402 470NF 10% 10V X5R
3 365G060310535K000T CAP 0603 1UF 10% 50V X5R
3 056G 665918 IC STMPS2171STR SOT23-5L
3 061G04021001FY RST CHIP 1K 1/16W 1%
3 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G04021213FF RST 0402 121K 1/16W 1% FENGHUA
3 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
3 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA
3 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 065G1206226A5K A 1206 22UF K 10V X5R
3 057G 763 79 FET AO4449 -7A/-30V SOIC-8
3 061G04026801FY RST CHIP 6K8 1/16W 1%
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040233232K F CAP 0402 3.3NF 10% 50V X7R
3 033G8032 5F HR CONNECTOR
3 056G 563114 LDO G1117-33T63UF 1A 3.3V SOT-223
3 056G 563114 LDO G1117-33T63UF 1A 3.3V SOT-223
3 057G 417511 MMBT3904
3 057G 417512 MMBT3906
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402000 JT RST 0402 0.05R MAX 1/16W 3 061G0402000 JT RST 0402 0.05R MAX 1/16W 3 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 061G04021000FY RST CHIP 100R 1/16W 1%
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 061G0402339 JF RST CHIP 3R3 1/16W 5% FENGHUA
3 061G0402339 JF RST CHIP 3R3 1/16W 5% FENGHUA
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 061G0603154 JY RST CHIPR 150K +-5% 1/10W YAGEO
3 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
3 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
3 061G06036801FY RST CHIP 6K8 1/10W 1%
3 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
3 061G1206222 JF RST CHIPR 2.2KOHM +-5% 1/4W FENGHUA
3 065G040210232K F CAP 0402 1NF 10% 50V X7R
3 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
Page 40
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040215131J A CAP 0402 150PF 5% 50V NP0
3 065G040247931C F CAP 0402 4.7PF 0.25pF 50V NP0
3 065G040247931C F CAP 0402 4.7PF 0.25pF 50V NP0
3 065G040247931C Y CAP 0402 4.7PF 0.25pF 50V NP0
3 065G040247931C Y CAP 0402 4.7PF 0.25pF 50V NP0
3 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA
3 065G060322422K T CAP CHIP0603 220NF K 25V X7R
3 065G060322422K T CAP CHIP0603 220NF K 25V X7R
3 065G0805106A5K T CAP 0805 10uF 10% 10V X5R LMK212 BJ106K
3 065G0805106A5K T CAP 0805 10uF 10% 10V X5R LMK212 BJ106K
3 065G080533432K A CAP 0805 330NF 10% 50V X7R
3 065G080533432K A CAP 0805 330NF 10% 50V X7R
3 065G080533432K A CAP 0805 330NF 10% 50V X7R
3 065G080533432K A CAP 0805 330NF 10% 50V X7R
3 065G080533432K A CAP 0805 330NF 10% 50V X7R
3 065G080533432K A CAP 0805 330NF 10% 50V X7R
3 065G080533432K M CAP 0805 330NF 10% 50V X7R GRM219R71H33
3 065G080533432K M CAP 0805 330NF 10% 50V X7R GRM219R71H33
3 065G080533432K M CAP 0805 330NF 10% 50V X7R GRM219R71H33
3 065G080533432K M CAP 0805 330NF 10% 50V X7R GRM219R71H33
3 065G080533432K M CAP 0805 330NF 10% 50V X7R GRM219R71H33
3 065G080533432K M CAP 0805 330NF 10% 50V X7R GRM219R71H33
3 065G121010622K T CAP 1210 10UF 10% 25V X7R
3 065G121010622K T CAP 1210 10UF 10% 25V X7R
3 070GHDCP500HDC HDCP CODE
3 073G 6333810M CHIP INDUCTOR 0.33UH 10% 0.75R 100mA
3 093G 60S 37 T SCHOTTKY SM260A 2A 40V DO-214AC
3 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323
3 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
3 311GW125D05ADL WAFER 1.25mm 5P R/A B1254W05HUM2
3 356G056317300C00HF LDO AZ1084CD-3.3TRG1 5A 3.3V TO-252-2(3)
3 356G056351400C00HF LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223
3 356G056351400C00HF LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223
3 356G0616048163 AUDIO AD87588-LG48NAY 20W E-LQFP-48
3 357G07630620HF .F MOSFET 2N7002K_R1_00001 0.3A 60V
3 365G040210931B000Y AP 0402 1pf 0.1pF 50V NP0 CC0402BRNPO9
3 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 365G060310606M000A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N
Page 41
3 365G060310606M000A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N
3 365G060310606M000A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N
3 365G060310606M000A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N
3 365G060310606M000A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N
3 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22
3 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22
3 367G311X221FLT EC SMD 220uF 20% 25V 8x10.2 5000 hr 0.6
3 370G0MAC642CNT Buy key CNTV腾讯版MAC for 海
3 370GHDCP603PHP CD CD HDCP2.2 code for Wifi Miracast
3 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 373G0603338FKD CHIP IND 0.33uH 10% 0.1 0.75 SDFL1608LR3
3 393G022S662CEC CRYSTAL K-F-24.000M-18-1020-2070-40 24.0
3 393G022SA44TXC CRYSTAL 7V24000017 ±20ppm 18PF
3 709T79240XS001 COMSUMPTIVE ASSY
4 Q51G02UV0LT0HF0000 UV glue
4 Q55G02SP1VT0HF0000 Solder Paste
4 051G 200 1 OIL FOR DISAPPEAR
4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…)
4 055G 100610 Solder Paste
4 Q05G6054 1 SHEET
4 Q09G6012 1 PIN
4 Q49G03WB1TF0HF0000 Water-based Cleaning Agent
4 Q52G170100700B00XW MESH PRINTTING_PAPER
4 Q55G 100622 TIN STICK(SAC0507)
3 715G7924M01B00004N MAIN PCB FR4 DS 193*109*1.6MM
3 715G7924M01B00004Y MAIN PCB FR4 DS 193*109*1.6MM
3 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 073G253S 67 M SMD CHOKE 3.3UH 20% 0.028R 6.5A
3 061G04022202FY RST CHIP 22K 1/16W 1% YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G1206226A5K A 1206 22UF K 10V X5R
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA
3 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
3 356GD563008611 DC/DC RT6206BHGSP 5.5A 18V SOP-8
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G04021001FY RST CHIP 1K 1/16W 1%
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 061G04021001FY RST CHIP 1K 1/16W 1%
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 061G04021001FY RST CHIP 1K 1/16W 1%
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 061G04021001FY RST CHIP 1K 1/16W 1%
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G04021001FY RST CHIP 1K 1/16W 1%
Page 42
3 065G0402474A5K A CAP 0402 470NF 10% 10V X5R
3 061G 56A100 WT PTCR SMD 0.12R MAX 0.8W
3 061G 56A100 WT PTCR SMD 0.12R MAX 0.8W
3 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 065G0402474A5K A CAP 0402 470NF 10% 10V X5R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 361G04022492FY RST 0402 24.9K 1% 1/16W RC0402FR-0724K9
3 057G 763 79 FET AO4449 -7A/-30V SOIC-8
3 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 056G 643 43 RESET G690L263T73Uf 2.63V SOT-23
3 065G040222415K Y CAP CHIP 0402 220nF 16V X5R
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 2
3 061G0603154 JY RST CHIPR 150K +-5% 1/10W YAGEO
3 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 2
3 371G042U102C00 CHIP BEAD 0402 1000 25% FCM1005KF-102T0
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
Page 43
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
3 065G040222415K Y CAP CHIP 0402 220nF 16V X5R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 356GD563006183 DC/DC SY8009BABC 2A 3.3V SOT23-6
3 065G1206226A5K A 1206 22UF K 10V X5R
3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 356G333304A600 NAND FLASH THGBMBG5D1KBAIT 4G BGA 153
3 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
3 367G311F1014LT 367G311F1014LT 20% --25V --8*6.5 -- -3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 061G04021001FY RST CHIP 1K 1/16W 1%
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 371G042U102C00 CHIP BEAD 0402 1000 25% FCM1005KF-102T0
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 065G1206226A5K A 1206 22UF K 10V X5R
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
Page 44
3 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G06036801FY RST CHIP 6K8 1/10W 1%
3 093G 39GA01 T RLZ5.6B
3 065G040210031J A CAP 0402 10PF 5% 50V NP0 3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 388G340FJ05FAT0001 HDMI R/A 19P 1*1 BLACK 8.4mm
3 065G040233232K F CAP 0402 3.3NF 10% 50V X7R
3 388G340FJ05FAT0001 HDMI R/A 19P 1*1 BLACK 8.4mm
3 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 061G04023013FT RST 0402 301K 1% 1/16W TZAI YUAN
3 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 061G04023013FT RST 0402 301K 1% 1/16W TZAI YUAN
3 356G0615004612 DRAM K4B4G1646E-BCK0 4G FBGA-96
3 065G040210131J T CAP CHIP 0402 100pF 50V NPO
3 065G060347131J Y CAP CHIP 0603 470P 50V NP0 +/-5%
3 065G060347131J Y CAP CHIP 0603 470P 50V NP0 +/-5%
3 356GD563008140 DC/DC TPS54328DDAR 3A 0.76~7V DDA
3 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 065G060347131J Y CAP CHIP 0603 470P 50V NP0 +/-5%
3 065G060347131J Y CAP CHIP 0603 470P 50V NP0 +/-5%
3 067G315M1016KV EC 100UF 20% 35V 8*7
3 067G315M1016KV EC 100UF 20% 35V 8*7
3 088G 78G135ACL RCA JACK R/A 6P Y/W/R 1*3 H=10.5 C-PIN
3 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4
3 088G352F6B3AYG USB CONN A TYPE R/A 6P BLACK H=8.4
3 088G353GFF1ACL D-SUB CONN 15P BLUE R/A H=10mm
3 311GW200A04ABX WAFER 2.0mm 4P
3 311GW200C06ABL WAFER 2.0mm 6P R/A B2000W06HTKB
3 311GW200C12BBX CONN 2.0mm 12P R/A W2010-12RVA-S04
3 311GW200C14BBX CONN 2.0mm 14P R/A W2010-14RVA-S04
3 388G078G111ACL RCA R/A 3P 1*1 ORANGE 10.5
3 388G342GFB6AKX RJ45 R/A 15P 1*1 BLACK 11.2
3 388G352F911ADL USB 3.0 A R/A 9P 1*1 BLUE 8.4mm
3 388G510G601FHC RF RF connector 6P 1*1 - 13.8 mm
3 P90T0051301 Heat Sink
3 Q90G6119 6 EAT SINK
3 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
3 373G0402277FJM CHIP IND 27nH 5% 300mA 0.7ohm MGCI1005T
3 356GD563008140 DC/DC TPS54328DDAR 3A 0.76~7V DDA
3 373G0402277FJM CHIP IND 27nH 5% 300mA 0.7ohm MGCI1005T
3 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 065G040222232K F CAP 0402 2.2NF K 50V X7R
3 373G0402826FJM CHIP IND 8.2NH 5% 0.3A 0.35R MGCI1005T8
3 061G04027509FY RST CHIP 75R 1/16W 1%
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G04021202FY RST CHIP 12K 1/16W 1% YAGEO
3 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22
Page 45
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22
3 061G04023002FY RST 0402 30K 1% 1/16W RC0402FR-1330KL
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 361G0056159ALT PTCR SMD 1.5A 1% 0.8W 1206L150SLYR
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 061G0402201 JY RST CHIP 200R 1/16W 5% YAGEO
3 093G 6433S switching diode BAV99
3 356G0615004612 DRAM K4B4G1646E-BCK0 4G FBGA-96
3 365G060310615M000A CAP 0603 10U 20% 16V X5R CL10A106MO8NQN
3 057G 417512 MMBT3906
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
3 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
3 065G040247312K Y CAP 0402 47NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22
3 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 311GF050A51ADJ FFC CONN 0.5mm 51P R/A 0.5S-5X-51PWB
3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
Page 46
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G04022202FY RST CHIP 22K 1/16W 1% YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402471 JY RST CHIPR 470OHM +-5% 1/16W YAGEO
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G04021201FY RST CHIP 1.2K 1/16W 1%
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 065G040210031J T CAP 0402 10PF 5% 50V NP0
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040247031J Y CAP 0402 47PF 5% 50V NP0
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G04021212FF RST 0402 12.1K 1% 1/16W FENGHUA
3 065G040247031J Y CAP 0402 47PF 5% 50V NP0
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
Page 47
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 073G253S 46 M SMD CHOKE 4.7UH 20% MGSD54-4R7M-LF 2.8A
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G060347506K A CAP 0603 4.7UF 10% 6.3V X6S 3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 356GD563008611 DC/DC RT6206BHGSP 5.5A 18V SOP-8
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO
3 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 073G253S 46 M SMD CHOKE 4.7UH 20% MGSD54-4R7M-LF 2.8A
3 356G0566024600 Silicon Tuner MxL661-AG-R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402241 JY RST CHIPR 240 OHM +-5% 1/16W YAGEO
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G04023302FF RST 0402 33K 1% 1/16W FENGHUA
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 373G253S526M00 SMD CHOKE 4.7uH 20% 0.9A 0.444R 3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 065G040222232K F CAP 0402 2.2NF K 50V X7R
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
3 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 356G056313200C00HF LDO AZ1117CH-1.2TRG1 1A 1.2V SOT-223
3 356G0568577601 SCALER Hi3751ARBCV5000D00 PBGA-577
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G04022702FT RST 0402 27K 1% 1/16W
3 061G0402105 JT RST CHIP R 1Mohm 1/16W +/-5% TZAI YUAN
3 057G 417512 MMBT3906
3 061G04022702FT RST 0402 27K 1% 1/16W
Page 48
3 393G039SA2300T ZENER BZT52-B7V5 7.5V 0.41W SOD-123
3 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
3 056G 662 41 ESD PROTECT AZ5123-01H.R7G (for 3.3V ci
3 057G 417511 MMBT3904
3 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
3 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
3 061G04027509FY RST CHIP 75R 1/16W 1%
3 061G04027509FY RST CHIP 75R 1/16W 1%
3 057G 417511 MMBT3904
3 057G 417512 MMBT3906
3 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
3 061G04027509FY RST CHIP 75R 1/16W 1%
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 057G 417511 MMBT3904
3 061G04021000FY RST CHIP 100R 1/16W 1%
3 061G04021000FY RST CHIP 100R 1/16W 1%
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G04021213FF RST 0402 121K 1/16W 1% FENGHUA
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0
3 057G 417511 MMBT3904
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 057G 417511 MMBT3904
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 057G 417511 MMBT3904
3 065G040210425K F CHIP 0402 0.1UF 25V X5R
3 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
3 065G040210425K F CHIP 0402 0.1UF 25V X5R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 065G040233031J F CAP 0402 33PF 5% 50V NP0
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 061G0402184 JY RST CHIP 180K 1/16W 5% YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 065G060356931D Y CAP CHIP 0603 5P6 50V NP0 +/-0.5PF
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
Page 49
3 065G060310512K A CAP 0603 1UF 10% 16V X7R
3 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 361G06031330FY RST 0603 133Ω 1% 1/10W N/A
3 061G0402241 JY RST CHIPR 240 OHM +-5% 1/16W YAGEO
3 061G0402241 JY RST CHIPR 240 OHM +-5% 1/16W YAGEO
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
3 071G 56K121 TA HIP BEAD 120R/6000mA HCB2012KF-121T60
3 061G04022202FT RST CHIP 22K 1/16W 1% TZAI YUAN
3 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K
3 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K
3 065G060310432K Y CAP 0603 100NF 10% 50V X7R
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN
3 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
3 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
3 065G040233031J F CAP 0402 33PF 5% 50V NP0
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 371G042P221M00 CHIP BEAD 0402 220R 25% MGLB1005M221T1R
3 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S -
Page 50
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210425K F CHIP 0402 0.1UF 25V X5R
3 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 057G 417512 MMBT3906
3 071G 59A121 TA CHIP BEAD 120R/3000mA HCB1608KF-121T30
3 065G040210425K F CHIP 0402 0.1UF 25V X5R
3 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
3 065G040210425K F CHIP 0402 0.1UF 25V X5R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 065G0402474A5K A CAP 0402 470NF 10% 10V X5R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 073G253S 67 M SMD CHOKE 3.3UH 20% 0.028R 6.5A
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 371G042P221M00 CHIP BEAD 0402 220R 25% MGLB1005M221T1R
3 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 393G022S60100J CRYSTAL NXH16.000AE18F-KAB8-PA 16MHz 18
3 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 065G0402474A5K A CAP 0402 470NF 10% 10V X5R
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G040210506K T CAP 0402 1UF 10% 6.3V X6S 3 361G04022492FY RST 0402 24.9K 1% 1/16W RC0402FR-0724K9
3 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

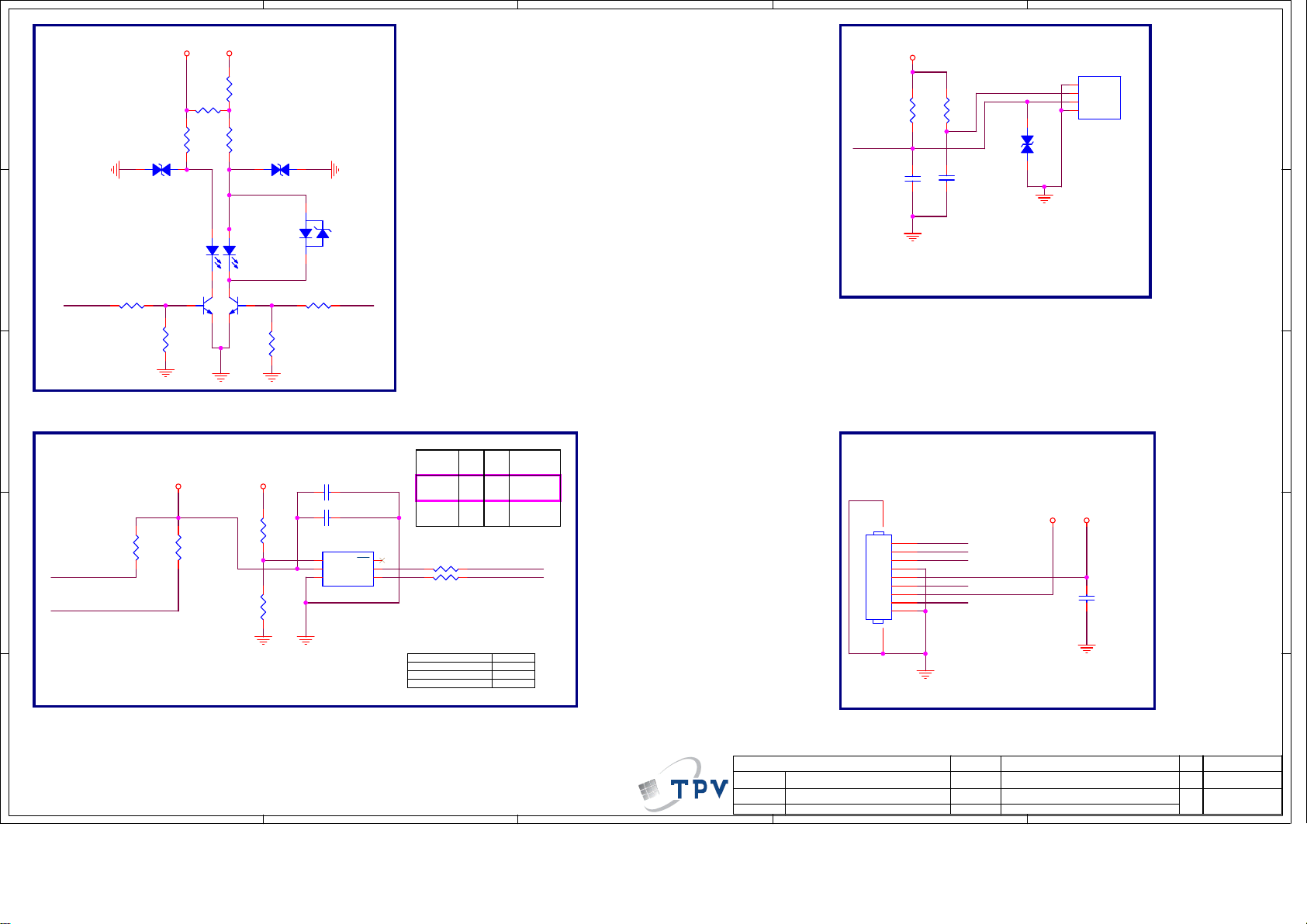

1 IRPFFXB6 IR BOARD 715GXXXXR*
2 SMTIRPFFXB6 IR BOARD FOR SMT
3 057G 477900 T RA SIG SM BC847C (KEC0) R
3 057G 477900 T RA SIG SM BC847C (KEC0) R
3 061G0402000 JT RST 0402 0.05R MAX 1/16W 3 061G0402000 JT RST 0402 0.05R MAX 1/16W 3 061G0402000 JT RST 0402 0.05R MAX 1/16W 3 061G0402000 JT RST 0402 0.05R MAX 1/16W 3 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
3 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
3 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
3 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
3 061G0402180 JT RST CHIP 18R 1/16W 5% TZAI YUAN
3 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA
3 061G0402272 JT RST CHIP 2K7 1/16W 5% TZAI YUAN
3 061G0402432 JT RST CHIP 4K3 1/16W 5% TZAI YUAN
3 061G0402432 JT RST CHIP 4K3 1/16W 5% TZAI YUAN
3 061G04024999FF RST 0402 49.9R 1% 1/16W
3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 065G0402105A5K M CAP 0402 1UF 10% 10V X5R
Page 51
3 065G0402105A5K M CAP 0402 1UF 10% 10V X5R
3 065G0805106A5K T CAP 0805 10uF 10% 10V X5R LMK212 BJ106K
3 081G 15W 1 EL CHIP LED WHITE 99-113UNC/2223010/TR8
3 081G 63R 1 GP CHIP LED RED GPTS06033RC3-PB
3 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
3 311GW125D09ACJ WAFER 1.25mm 9P V/T 1.25T-11-9PB
3 356GS527006006 LIGHT SENSOR JSA-1130 6pin
3 356GS927052 IR RECEIVER TSOP75436WTT 36 KHZ
3 709T80430ZS001 COMSUMPTIVE ASSY
4 055G 100610 Solder Paste
4 Q05G6054 1 SHEET
4 Q52G1701 7 XW MESH PRINTTING_PAPER
4 Q49G01WB1JL0HF0000 Water-based Cleaning Agent - Decotron 23
3 715G8043R01000004C IR PCB FR4 DS 186*207*1.6mm
3 715G8043R01000004Y IR PCB FR4 DS 186*207*1.6mm
1 J44GVA8081301A00GS ARTWORK CARTON 55PFL6340/T3 CHINA

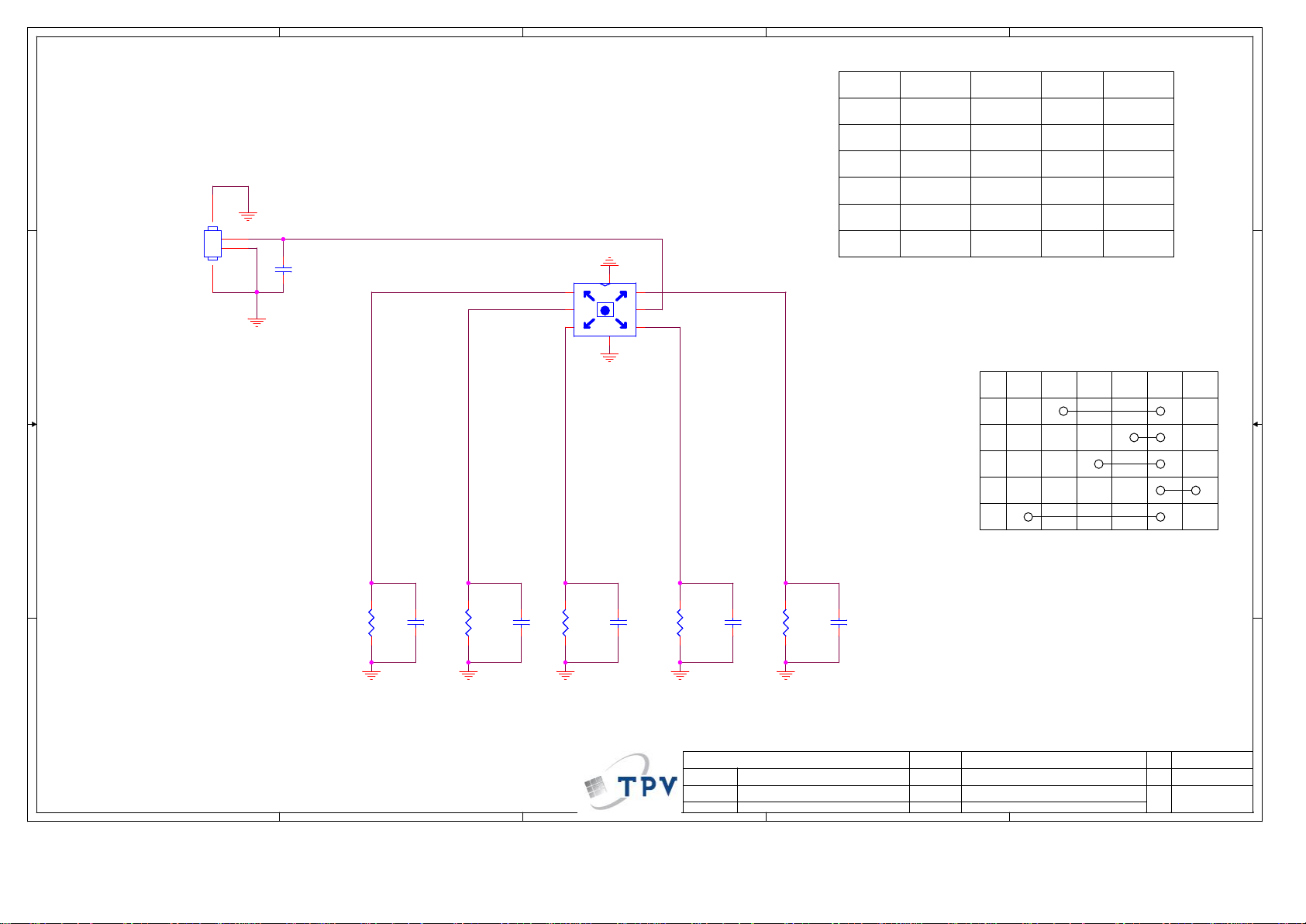

1 KEPFDZAM KEY BOARD
2 SMTKEPFDZAM KEY BOARD FOR SMT
3 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
3 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
3 061G06031201FF RST CHIPR 1.2KOHM +-1% 1/10W
3 061G06031201FT RST CHIP 1K2 1/10W 1%
3 061G06031502FF RST CHIPR 15KOHM +-1% 1/10W FENGHUA
3 061G06031502FT RST CHIP 15K 1/10W 1%
3 061G06032201FT RST CHIP 2K2 1/10W 1%
3 061G06032201FY RST CHIP 2K2 1/10W 1%
3 061G06036801FF RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA
3 061G06036801FT RST CHIP 6K8 1/10W 1%
3 311GW125D02ADX WAFER 1.25mm 2P R/A S1315-02RVB-S03-K
3 377G060902C0HJ CHIP TACT SW 6P 6mm 160g SMD
3 709T63160ZS001 COMSUMPTIVE ASSY
4 055G 100610 Solder Paste
4 Q05G6054 1 SHEET
4 Q09G6012 1 PIN
4 Q49G00CA1WT0HF IPA清洗剂
4 Q52G1701 7 XW MESH PRINTTING_PAPER
3 715G6316K01000004C KEY PCB FR4 SS 25*24.4*1.6mm
3 715G6316K01000004I KEY PCB FR4 SS 25*24.4*1.6mm
1 LVB550QU235AE22F0Z PANEL TPT550J1-QU235.K S5940D BJ TP
1 P33E0676XJT01R0100 Button
1 P33E0720ADT01L0200 DECO_LOGO
1 P34E2263ADT02L0100 BASE N/A
1 P34E22730GM01K0100 REAR_COVER N/A
1 P40GD000813 9A A4 PALLET LABEL -for A4 paper

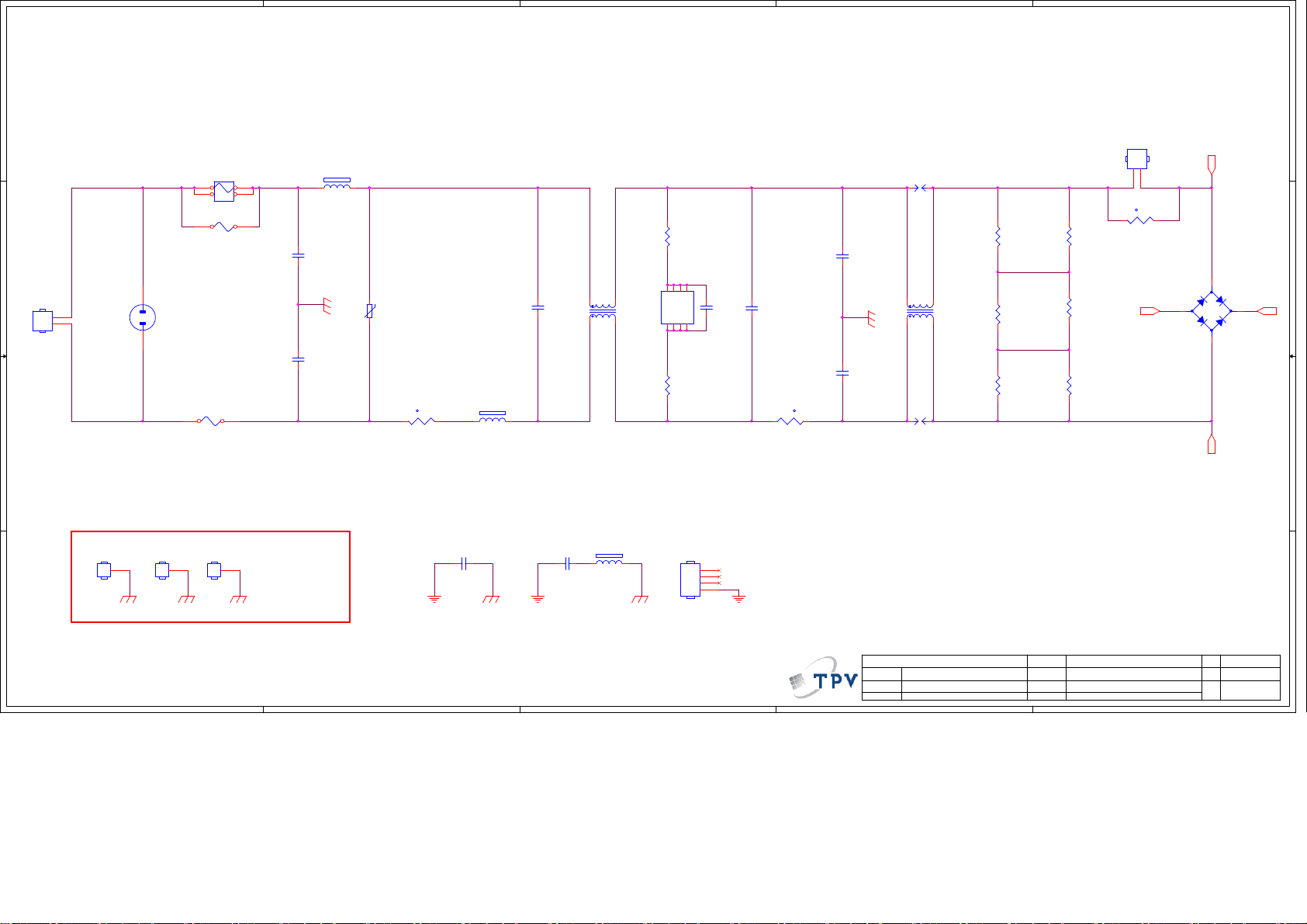

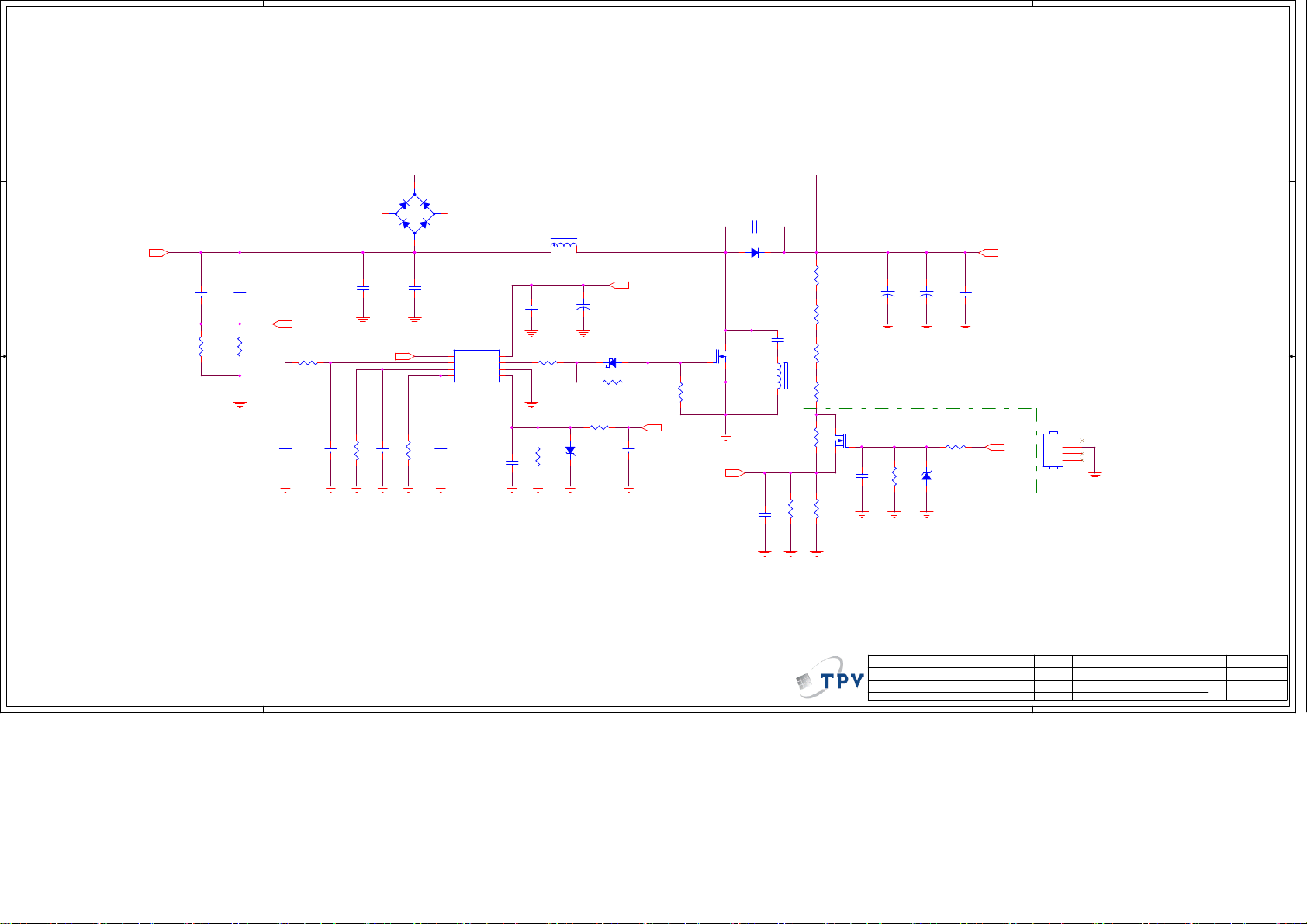

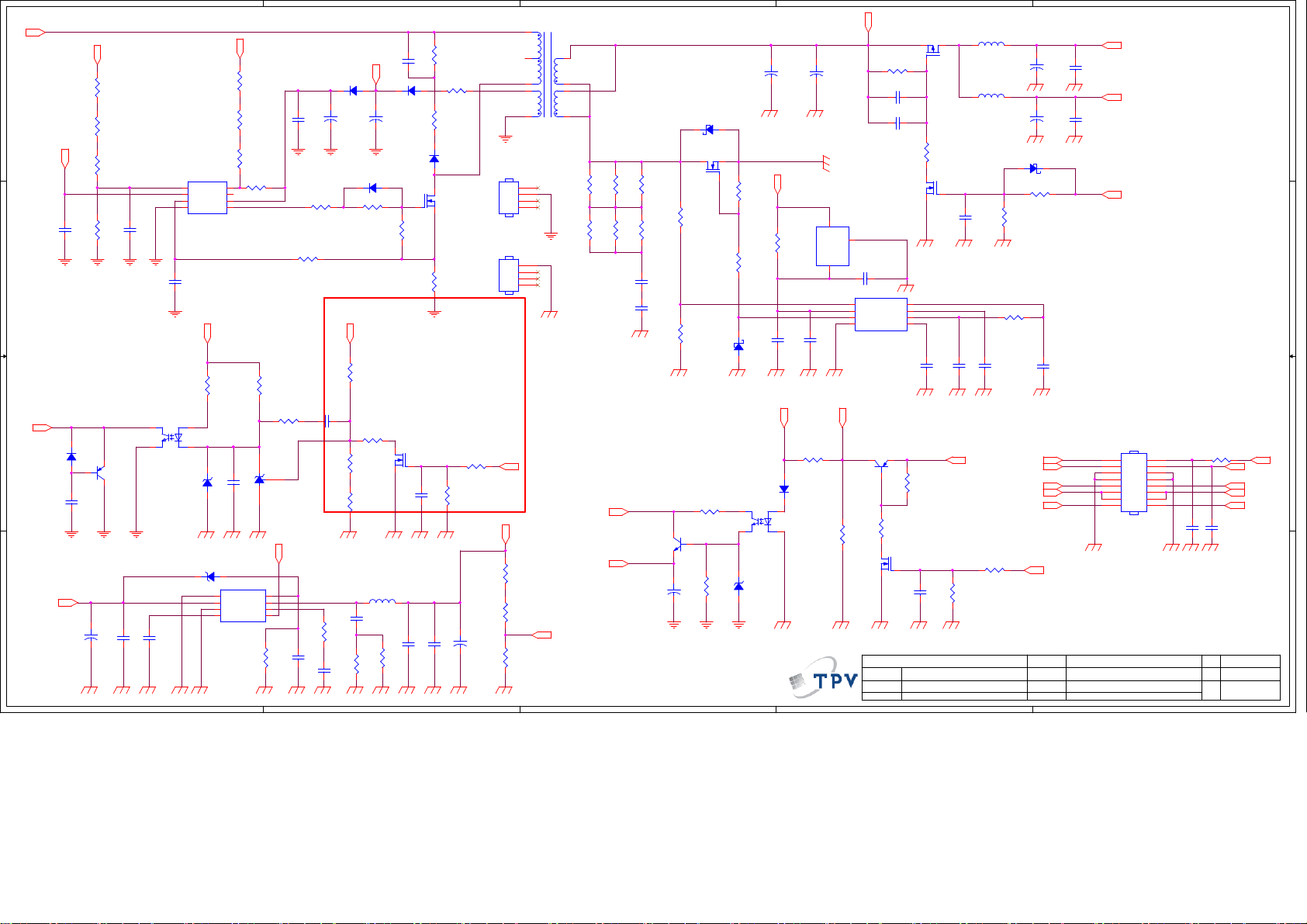

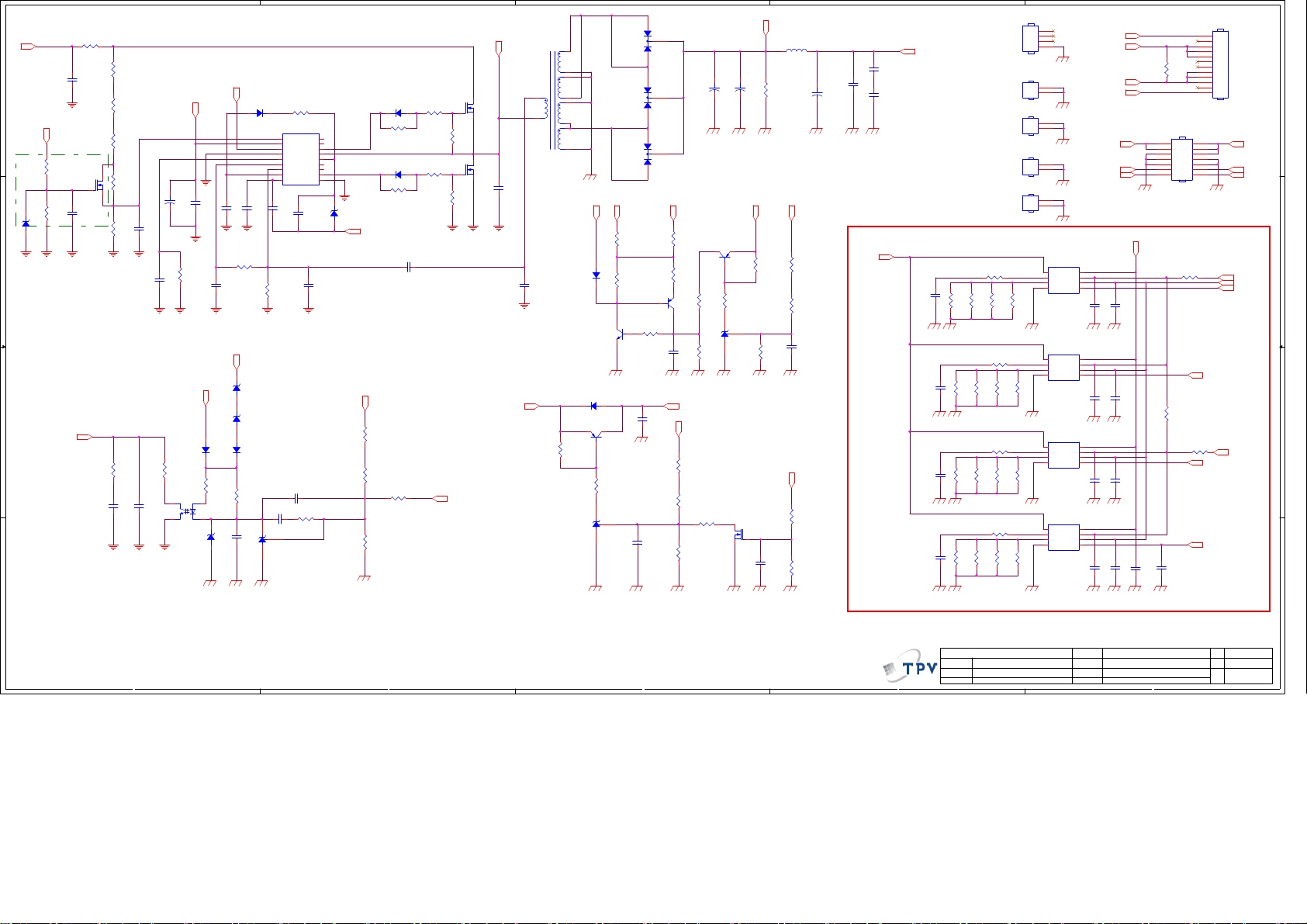

1 PLTVFS411XXB9 ADAPTER BOARD 715G6973
2 Z40G0002ALL01A OTHER LABEL
2 009G6005 1 GND TERMINAL
2 033G380212B YH wafer 12P 2.0 DIP
2 056G 139 9 IC EL817M(X) photocoupler DIP-4
2 056G 139 9 IC EL817M(X) photocoupler DIP-4
2 056G 139 9 IC EL817M(X) photocoupler DIP-4
2 057G 667914 MOSFET TK10A50D 10A 500V TO-220
2 057G 667914 MOSFET TK10A50D 10A 500V TO-220
Page 52
2 063G107M47410M CAP X2 470NF 20% 275V - 2 063G107M47410M CAP X2 470NF 20% 275V - 2 063G211J273 5C 10 CAP MPP 27NF 5% 1KV - R75QI2270500EJ
2 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr
2 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr
2 067G305Z221 9K EC 220UF 20% 100V 10*35
2 067G305Z221 9K EC 220UF 20% 100V 10*35
2 087G 50147D HC HF AC R/A 2P 12.81mm
2 093G 50460518 BRIDGE KBP208G-C 2A 800V KBP
2 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q x8.0
2 311GW200C16AAL WAFER 2.0mm 16P
2 356G013903B0HF Photo-Coupler PC123Y82FZ9F DIP-4
2 356G013903B0HF Photo-Coupler PC123Y82FZ9F DIP-4
2 356G013903B0HF Photo-Coupler PC123Y82FZ9F DIP-4
2 356G0700008060 LED DRIVER TPV101D DIP-8
2 356G0700008060 LED DRIVER TPV101D DIP-8
2 356G0700008060 LED DRIVER TPV101D DIP-8
2 361G0046681KZE VARISTOR 680V 10%
2 361G0058109MYW008A NTCR 1R 20% 3.6W SCK15018MTY503
2 361G0058109MYW008A NTCR 1R 20% 3.6W SCK15018MTY503
2 361G0058109MYW008A NTCR 1R 20% 3.6W SCK15018MTY503
2 361G3SWJ10859B00TZ RST NWR 0.1R 5% 3W NKNP3WS0R1JMS10
2 361G3SWJ10859B00TZ RST NWR 0.1R 5% 3W NKNP3WS0R1JMS10
2 363G107K474BEC CAP X2 470nF 10% 275V 18*9*13.5 B32922L2
2 363G107K474BEC CAP X2 470nF 10% 275V 18*9*13.5 B32922L2
2 363G210J105GHP CAP MPP 1UF 5% 450V
2 363G210J105GHP CAP MPP 1UF 5% 450V
2 363G211K105GCE CAP MPP 1uF 10% 450V 18*7*12.5mm B32672P
2 363G211K105GCE CAP MPP 1uF 10% 450V 18*7*12.5mm B32672P
2 367G215X820PKZ EC 82uF 20% 450V 13*50mm 2000 hr 720mA
2 367G215X820PKZ EC 82uF 20% 450V 13*50mm 2000 hr 720mA
2 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815
2 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815
2 373G0174362X00 LINE FILTER 12mH MIN 2A 3LFT20117-123M2 373G0174362X00 LINE FILTER 12mH MIN 2A 3LFT20117-123M2 373G0174365H01 PFC CHOKE 220 10% 4 GL-14009-HA
2 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
2 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
2 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
2 380GL32P173N00 X'FMR 360uH 10% 5uH EQ30 yuva-2251-5
2 380GL52P193H00 X'FMR 830uH 10% 155uH EE42 BCK-14220-H
2 705TAF57030 Q9101 ASS"Y
3 051G 200 1 OIL FOR DISAPPEAR
3 0M1G1730 8120 SCREW M3 8
3 357G0667650006 MOSFET TK11A65D 11A 650V TO-220SIS
3 Q90T0236001A0000HG HEAT SINK
2 705TAF57031 Q9102 ASS"Y
3 051G 200 1 OIL FOR DISAPPEAR
3 0M1G1730 8120 SCREW M3 8
3 357G0600100020 MOSFET AOTF298L 33A 100V TO-220F
3 X90G070810100000SY HEAT SINK
2 705TAF84006 F9901 ASSY
3 084G 34 14 bSE -- -- -3 084G 41 7 C FUSE 5A 250V UDA005(PF)
2 705TAF93012 D8104 D8105 D8109 ASS'Y
Page 53
3 051G 200 1 OIL FOR DISAPPEAR
3 093G 220 24 DIODE FMX-23S SANKEN
3 093G 220 24 DIODE FMX-23S SANKEN
3 093G 220 24 DIODE FMX-23S SANKEN
3 0M1G1730 8120 SCREW M3 8
3 Q90G0219003A0000BF HEAT SINK
3 Q90G0219003A0000SY HEAT SINK
2 705TAF93013 D9801 Q9801 Assy
3 051G 200 1 OIL FOR DISAPPEAR
3 057G 667954 MOSFET TK18A60V 18A 600V SC-67
3 093G 52905 DIODE FMNS-1106S TO-220
3 0M1G1730 8120 SCREW M3 8
3 Q90T0236004A0000SY HEAT SINK
2 705TAF93014 BD9901 ASS'Y
3 051G 200 1 OIL FOR DISAPPEAR
3 0M1G1730 8120 SCREW M3 8
3 393G0050460602 BRIDGE GBJ1008-FUC 10A 800V GBJ
3 Q90T0222008A0000SY HEAT SINK
2 709T69730ZM001 COMSUMPTIVE ASSY
3 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…)
3 055G 23524 WELDING FLUX WITHOUT PB
3 Q49G 51100 Water-based Cleaning Agent
3 Q51G 6 4509 GLUE_RTV
3 Q55G 23524 HF 无⻧助焊剂
3 Q55G 100622 TIN STICK(SAC0507)
3 Q55G 100655 Sn-Cu Solder
3 Q55G50SW3AS0HF Solder Wire
2 PLFS411XXB9SMT ADAPTER BOARD FOR SMT
3 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
3 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
3 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
3 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
3 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
3 061G0805000 JT RST 0805 0.05R MAX 1/8W
3 061G0805000 JT RST 0805 0.05R MAX 1/8W
3 061G0805000 JT RST 0805 0.05R MAX 1/8W
3 061G0805000 JT RST 0805 0.05R MAX 1/8W
3 061G0805000 JT RST 0805 0.05R MAX 1/8W
3 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
3 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
3 061G08051001FF RST CHIPR 1KOHM +-1% 1/8W FENGHUA
3 061G08051001FF RST CHIPR 1KOHM +-1% 1/8W FENGHUA
3 061G08051001FF RST CHIPR 1KOHM +-1% 1/8W FENGHUA
3 061G08051001FF RST CHIPR 1KOHM +-1% 1/8W FENGHUA
3 061G08051001FF RST CHIPR 1KOHM +-1% 1/8W FENGHUA
3 061G08051001FT RST CHIP 1K 1/8W 1%
3 061G08051001FT RST CHIP 1K 1/8W 1%
3 061G08051001FT RST CHIP 1K 1/8W 1%
3 061G08051001FT RST CHIP 1K 1/8W 1%
3 061G08051001FT RST CHIP 1K 1/8W 1%
3 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
3 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
3 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
3 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
3 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
Page 54
3 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
3 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
3 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
3 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
3 061G08051002FT RST CHIP 10K 1/8W 1%
3 061G08051002FT RST CHIP 10K 1/8W 1%
3 061G08051002FT RST CHIP 10K 1/8W 1%
3 061G08051002FT RST CHIP 10K 1/8W 1%
3 061G08051002FT RST CHIP 10K 1/8W 1%
3 061G08051002FT RST CHIP 10K 1/8W 1%
3 061G08051002FT RST CHIP 10K 1/8W 1%
3 061G08051002FT RST CHIP 10K 1/8W 1%
3 061G08051002FT RST CHIP 10K 1/8W 1%
3 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
3 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
3 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
3 061G08051003FT RST CHIP 100K 1/8W 1%
3 061G08051003FT RST CHIP 100K 1/8W 1%
3 061G08051003FT RST CHIP 100K 1/8W 1%
3 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
3 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
3 061G08051009FF RST CHIPR 10 OHM+-1% 1/8W FENGHUA
3 061G08051009FF RST CHIPR 10 OHM+-1% 1/8W FENGHUA
3 061G08051009FF RST CHIPR 10 OHM+-1% 1/8W FENGHUA
3 061G08051009FF RST CHIPR 10 OHM+-1% 1/8W FENGHUA
3 061G08051009FF RST CHIPR 10 OHM+-1% 1/8W FENGHUA
3 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
3 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
3 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
3 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
3 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
3 061G08051501FF RST CHIPR 1.5KOHM +-1% 1/8W FENGHUA
3 061G08051501FF RST CHIPR 1.5KOHM +-1% 1/8W FENGHUA
3 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN
3 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN
3 061G08051600FF RST 0805 160R 1% 1/8W FENGHUA
3 061G08051600FY RST 0805 160R 1% 1/8W YAGEO
3 061G08051602FF RST CHIPR 16KOHM +-1% 1/8W FENGHUA
3 061G08051602FT RST CHIPR 16K +-1% 1/8W TZAI YUAN
3 061G08051802FF RST CHIPR 18KOHM +-1% 1/8W FENGHUA
3 061G08051802FY RST CHIP 18K 1/8W 1%
3 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
3 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
3 061G08052001FT RST CHIP 2K 1/8W 1%
3 061G08052001FT RST CHIP 2K 1/8W 1%
3 061G08052003FF RST CHIPR 200KOHM +-1% 1/8W FENGHUA
3 061G08052003FT RST CHIP 200K 1/8W 1%
3 061G08052201FF RST CHIPR 2.2KOHM +-1% 1/8W FENGHUA
3 061G08052201FT CHIP 2K2 1/8W 1%
3 061G08052202FF RST CHIPR 22KOHM +-1% 1/8W FENGHUA
3 061G08052202FT RST CHIP 22K 1/8W 1%
3 061G08052400FF RST CHIPR 240 OHM +-1% 1/8W FENGHUA
3 061G08052400FT RST CHIP R 240 OHM +-1% 1/8W
3 061G08052431FF RST CHIPR 2.43KOHM +-1% 1/8W FENGHUA
3 061G08052431FT RST CHIP 2K43 1/8W 1%
Page 55
3 061G08052702FF RST CHIPR 27KOHM +-1% 1/8W FENGHUA
3 061G08052702FT RST CHIP 27K 1/8W 1%
3 061G08053002FF RST CHIPR 30KOHM +-1% 1/8W FENGHUA
3 061G08053002FT RST CHIP 30K 1/8W 1%
3 061G08053301FF RST CHIPR 3.3KOHM +-1% 1/8W FENGHUA
3 061G08053301FT RST CHIP 3K3 1/8W 1%
3 061G08053302FF RST CHIPR 33KOHM +-1% 1/8W FENGHUA
3 061G08053302FT RST CHIP 33K 1/8W 1%
3 061G08054301FF RST CHIPR 4.3KOHM +-1% 1/8W FENGHUA
3 061G08054301FT RST CHIPR 4.3 KOHM +-1% 1/8W 0805
3 061G08054302FF RST CHIPR 43KOHM +-1% 1/8W FENGHUA
3 061G08054302FF RST CHIPR 43KOHM +-1% 1/8W FENGHUA
3 061G08054302FT RST CHIP 43K 1/8W 1%
3 061G08054302FT RST CHIP 43K 1/8W 1%
3 061G08054700FF RST 0805 470R 1% 1/8W
3 061G08054700FT RST CHIP 470R 1/8W 1%
3 061G08054702FF RST CHIPR 47KOHM +-1% 1/8W FENGHUA
3 061G08054702FT RST CHIP 47K 1/8W 1%
3 061G08054703FF RST CHIPR 470KOHM +-1% 1/8W FENGHUA
3 061G08054703FT RST 0805 470K 1% 1/8W TAIZYUAN
3 061G08054709FF RST 0805 47R 1% 1/8W FENGHUA
3 061G08054709FF RST 0805 47R 1% 1/8W FENGHUA
3 061G08054709FT RST 0805 47R 1% 1/8W
3 061G08054709FT RST 0805 47R 1% 1/8W
3 061G0805472 JF RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA
3 061G0805472 JT RST CHIPR 4K7 +-5% 1/8W TZAI YUAN
3 061G0805474 JF RST CHIPR 470KOHM +-5% 1/8W FENGHUA
3 061G0805474 JT RST CHIPR 470K +-5% 1/8W TZAI YUAN
3 061G08055100FF RST CHIPR 510 OHM +-1% 1/8W FENGHUA
3 061G08055100FT RST CHIP R 510 OHM +-1% 1/8W
3 061G08055101FF RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA
3 061G08055101FF RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA
3 061G08055101FF RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA
3 061G08055101FF RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA
3 061G08055101FT RST CHIP 5K1 1/8W 1%
3 061G08055101FT RST CHIP 5K1 1/8W 1%
3 061G08055101FT RST CHIP 5K1 1/8W 1%
3 061G08055101FT RST CHIP 5K1 1/8W 1%
3 061G08055103FF RST CHIPR 510K OHM +- 1% 1/8W FENGHUA
3 061G08055103FF RST CHIPR 510K OHM +- 1% 1/8W FENGHUA
3 061G08055103FF RST CHIPR 510K OHM +- 1% 1/8W FENGHUA
3 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN
3 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN
3 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN
3 061G08056202FF RST CHIPR 62KOHM +-1% 1/8W FENGHUA
3 061G08056202FT RST CHIP 62K 1/8W 1%
3 061G08056802FF RST 0805 68K 1% 1/8W
3 061G08056802FT RST CHIP R 68K 1/8W 1%
3 061G0805750 JF RST CHIPR 75 OHM +-5% 1/8W FENGHUA
3 061G0805750 JT RST CHIPR 75OHM +-5% 1/8W TZAI YUAN
3 061G08059101FF RST CHIPR 9.1KOHM +-1% 1/8W FENGHUA
3 061G08059101FF RST CHIPR 9.1KOHM +-1% 1/8W FENGHUA
3 061G08059101FT RST CHIP 9K1 1/8W 1%
3 061G08059101FY RST CHIP 9K1 1/8W 1%
3 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
Page 56
3 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
3 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
3 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
3 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
3 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
3 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
3 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
3 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
3 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
3 061G12060004JT RST CHIPR 1206 MAX0R05 4A 1/4W TZAI YUAN
3 061G12060004JY RST CHIPR MAX0R05 4A 1/4W YAGEO
3 061G12061001FF RST CHIPR 1KOHM +-1% 1/4W FENGHUA
3 061G12061001FT RST CHIP R 1Kohm +-1% 1/4W
3 061G12061003FF RST CHIPR 100KOHM +-1% 1/4W FENGHUA
3 061G12061003FF RST CHIPR 100KOHM +-1% 1/4W FENGHUA
3 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF
3 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF
3 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA
3 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W
3 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
3 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
3 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA
3 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
3 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
3 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
3 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
3 061G12061504FT RST CHIP 1M5 1/4W 1%
3 061G12061504FT RST CHIP 1M5 1/4W 1%
3 061G12061504FT RST CHIP 1M5 1/4W 1%
3 061G12061508FT RST 1206 1.5R 1% 1/4W
3 061G12061508FT RST 1206 1.5R 1% 1/4W
3 061G12061508FT RST 1206 1.5R 1% 1/4W
3 061G12061508FT RST 1206 1.5R 1% 1/4W
3 061G12061508FT RST 1206 1.5R 1% 1/4W
3 061G12061508FT RST 1206 1.5R 1% 1/4W
3 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA
3 061G1206229 JT RST CHIPR 2R2 +-5% 1/4W TZAI YUAN
3 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA
3 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA
3 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA
3 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA
3 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA
3 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA
3 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN
3 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN
3 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN
3 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN
Page 57
3 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN
3 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN
3 061G1206302 JF RST CHIP 3K 5% 1/4W
3 061G1206302 JT RST CHIP 3K 5% 1/4W
3 061G12063303FF RST CHIPR 330KOHM +-1% 1/4W FENGHUA
3 061G12063303FF RST CHIPR 330KOHM +-1% 1/4W FENGHUA
3 061G12063303FF RST CHIPR 330KOHM +-1% 1/4W FENGHUA
3 061G12063303FT RST CHIPR 330 KOHM +-1% 1/4W TZAI YUAN
3 061G12063303FT RST CHIPR 330 KOHM +-1% 1/4W TZAI YUAN
3 061G12063303FT RST CHIPR 330 KOHM +-1% 1/4W TZAI YUAN
3 061G1206335 JF RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA
3 061G1206335 JF RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA
3 061G1206335 JF RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA
3 061G1206335 JT RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN
3 061G1206335 JT RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN
3 061G1206335 JT RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN
3 061G12064700FF RST 1206 470R 1% 1/4W FENGHUA
3 061G12064700FT RST 1206 470R 1% 1/4W TZAI YUAN
3 061G12064702FF RST CHIPR 47K OHM +-1% 1/4W FENGHUA
3 061G12064702FT RST CHIPR 47 KOHM +-1% 1/4W TZAI YUAN
3 061G12064709FF RST 1206 47R 1% 1/4W FENGHUA
3 061G12064709FT RST 1206 47R 1% 1/4W TZAI YUAN
3 061G1206479 JF RST CHIPR 4.7OHM +-5% 1/4W FENGHUA
3 061G1206479 JT RST 1206 4.7R 5% 1/4W
3 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
3 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
3 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
3 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
3 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
3 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
3 061G12066803FT RST CHIP 680K 1/4W 1%
3 061G12066803FT RST CHIP 680K 1/4W 1%
3 061G12066803FT RST CHIP 680K 1/4W 1%
3 061G12066803FT RST CHIP 680K 1/4W 1%
3 061G12066803FT RST CHIP 680K 1/4W 1%
3 061G12066803FT RST CHIP 680K 1/4W 1%
3 061G1206753 JF RST CHIPR 75KOHM +-5% 1/4W FENGHUA
3 061G1206753 JY RST CHIPR 75 KOHM +-5% 1/4W YAGEO
3 061G12068202FF RST CHIPR 82KOHM +-1% 1/4W FENGHUA
3 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
3 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA
3 061G1206822 JT RST CHIPR 8.2 KOHM +-5% 1/4W TZAI YUAN
3 065G080510131J F CAP CHIP 0805 100PF J 50V NPO
3 065G080510131J F CAP CHIP 0805 100PF J 50V NPO
3 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
3 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
3 065G080510231J A 0805 1000pF J 50V NPO
3 065G080510231J F CAP 0805 1NF 5% 50V NPO
3 065G080510232K A MLCC 0805 1NF 50V X7R +/-10% SAMSUNG
3 065G080510232K A MLCC 0805 1NF 50V X7R +/-10% SAMSUNG
3 065G080510232K F CAP 0805 1000PF 10% 50V X7R
3 065G080510232K F CAP 0805 1000PF 10% 50V X7R
3 065G080510332K F CAP 0805 10NF K 50V X7R
3 065G080510332K F CAP 0805 10NF K 50V X7R
3 065G080510332K F CAP 0805 10NF K 50V X7R
Page 58
3 065G080510332K F CAP 0805 10NF K 50V X7R
3 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
3 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
3 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
3 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
Page 59
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080510532K T CAP 0805 1UF 10% 50V X7R
3 065G080522232K F CAP 0805 2.2NF 10% 50V X7R
3 065G080522232K F CAP 0805 2.2NF 10% 50V X7R
3 065G080522232K Y CAP CHIP 0805 2N2 50V X7R +/-10%
3 065G080522232K Y CAP CHIP 0805 2N2 50V X7R +/-10%
3 065G080522432K F CAP 0805 220NF 10% 50V X7R
3 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
3 065G080522522K M CAP 0805 2.2UF 10% 25V X7R
3 065G080522522K T CAP 0805 2.2uF 10% 25V X7R
3 065G080533131J F CAP CHIP 0805 330PF J 50V NPO
3 065G080533131J Y CAP CHIP 0805 330P 50V NP0 +/-5%
3 065G080533232K F CAP 0805 3.3NF 10% 50V X7R
3 065G080533232K Y CAP 0805 3.3NF 10% 50V X7R
3 065G080547031J F CAP CHIP 0805 47PF J 50V NPO
3 065G080547031J F CAP CHIP 0805 47PF J 50V NPO
3 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
3 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
3 065G080547232K F CAP 0805 4.7NF 10% 50V X7R
3 065G080547232K Y CAP CHIP 0805 4N7 50V X7R +/-10%
3 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R
3 065G080547432K F 0805 0.47UF K 50V X7R
3 065G080547432K F 0805 0.47UF K 50V X7R
3 065G080547432K F 0805 0.47UF K 50V X7R
3 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
3 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
3 065G0805475A2K A CAP 0805 4.7UF 10% 10V X7R CL21B475KPFN
3 065G0805475A2K T CAP CHIP 0805 4.7uF K 10V X7R
3 065G120610272K A CAP 1206 1NF 10% 500V X7R SAMSUNG
3 065G120610272K A CAP 1206 1NF 10% 500V X7R SAMSUNG
3 065G120610272K A CAP 1206 1NF 10% 500V X7R SAMSUNG
3 065G120610272K F CAP 1206 1NF 10% 500V X7R
3 065G120610272K F CAP 1206 1NF 10% 500V X7R
3 065G120610272K F CAP 1206 1NF 10% 500V X7R
3 357G0763600601 MOSFET BSS127 0.021A 600V PG-SOT-23
3 361G12061108FF RST 1206 1.1R 1% 1/4W RS-06L1R10FT
3 361G12061108FF RST 1206 1.1R 1% 1/4W RS-06L1R10FT
3 361G12061108FF RST 1206 1.1R 1% 1/4W RS-06L1R10FT
3 361G12061108FF RST 1206 1.1R 1% 1/4W RS-06L1R10FT
3 361G12061108FF RST 1206 1.1R 1% 1/4W RS-06L1R10FT
3 361G12061108FF RST 1206 1.1R 1% 1/4W RS-06L1R10FT
3 361G12061108FT RST 1206 1.1R 1% 1/4W SMD12061R1F
3 361G12061108FT RST 1206 1.1R 1% 1/4W SMD12061R1F
Page 60
3 361G12061108FT RST 1206 1.1R 1% 1/4W SMD12061R1F
3 361G12061108FT RST 1206 1.1R 1% 1/4W SMD12061R1F
3 361G12061108FT RST 1206 1.1R 1% 1/4W SMD12061R1F
3 361G12061108FT RST 1206 1.1R 1% 1/4W SMD12061R1F
3 361G12061508FF RST 1206 1.5R 1% 1/4W RS-06K1R5FT
3 361G12061508FF RST 1206 1.5R 1% 1/4W RS-06K1R5FT
3 361G12061508FF RST 1206 1.5R 1% 1/4W RS-06K1R5FT
3 361G12061508FF RST 1206 1.5R 1% 1/4W RS-06K1R5FT
3 361G12061508FF RST 1206 1.5R 1% 1/4W RS-06K1R5FT
3 361G12061508FF RST 1206 1.5R 1% 1/4W RS-06K1R5FT
3 709T69730ZS001 COMSUMPTIVE ASSY
4 Q51G 100502 GLUE_RED_MALER
4 Q05G6054 1 SHEET
4 Q55G 100622 TIN STICK(SAC0507)
4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…)
3 PLFS411XXB9AI ADAPTER BOARD FOR AI
4 065G 1K10193T CAP CER 100PF 10% 1KV R
4 065G 1K10193T CAP CER 100PF 10% 1KV R
4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - -
Page 61
4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 095G 90 23 JUMP WIRE - 4 709T69730ZA001 COMSUMPTIVE ASSY
5 Q52G2001038A0100YY TAPE
5 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…)
4 006G 31 4 1.7MM RIVET
4 006G 31 4 1.7MM RIVET
4 006G 31 4 1.7MM RIVET
4 006G 31 4 1.7MM RIVET
4 006G 31500 EYELET
4 006G 31500 EYELET
4 006G 31500 EYELET
4 006G 31500 EYELET
4 006G 31502 EYELET
4 006G 31502 EYELET
4 006G 31502 EYELET
4 006G 31502 EYELET
4 006G 31502 EYELET
4 006G 31502 EYELET
4 006G 31502 EYELET
4 006G 31502 EYELET
4 006G 31502 EYELET
4 061G 30310852T SY RST FUSE 0.1R 5% 1W
4 065G 1K10293T CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY
4 065G 1K10293T CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY
4 065G 1K10293T CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY
4 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING
4 065G 1K4719ST CAP CER 470PF 10% 1KV R
4 065G306K22123R CAP Y1 220PF 10% 250V Y5P
4 065G306K22123R CAP Y1 220PF 10% 250V Y5P
4 065G306M10233R CAP Y1 1NF 20% 250V Y5U
4 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000H ER
4 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000H ER
4 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000H ER
4 067G 5154709KT EC 47UF 20% 100V 10*12
4 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV
4 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV
4 067G215P1017KT EC 100UF 20% 50V 10*9
4 067G315M2207KB EC 22UF 20% 50V 6.3*7 3000 hr
4 071G 55 29 FERRITE BEAD
4 071G 55 29 FERRITE BEAD
4 071G 55 29 FERRITE BEAD
4 093G 52908 RECTIFIER UF4007 A0 1 1000 DO-41
4 093G 60953 SCHOTTKY FR107G-A0 1A 1000V DO-41
4 093G 6451652T 1N4148
4 093G1080 252T RECTIFIER SARS01-V1 1.2A 800V DO-41
4 361G152M22052T00TZ RST MOF 22R 5% 2W MOF2WS22RJT52
Page 62
4 361G152M82352T00TZ RST MOF 82K 5% 2W MOF2WS82KJT52
4 361G2SWJ22852T00TZ RST NWR 0R22 5% 2W NKNP2WS0R22JT52
4 365G001D5096WT CAP CER 5PF 0.5pF 1KV SL CC81-1KV-06d-S
4 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G
4 365G001K1019WT CAP CER 100PF 10% 1KV R CT81-1KV-06d-2R
4 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA
4 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA
4 715G6973P04006002M PWR PCB FR2 CTI>600 SS 215*275*1.6mm
3 056G 158501 C/DC AS431ANTR-E1 150mA 40V SOT23-3
3 056G 158501 C/DC AS431ANTR-E1 150mA 40V SOT23-3
3 056G 158501 C/DC AS431ANTR-E1 150mA 40V SOT23-3
3 056G 158501 C/DC AS431ANTR-E1 150mA 40V SOT23-3
3 056G 379211 AC/DC SSC9522S-TL SOP-18
3 057G 417511 HF Tra MMBT3904G SOT-23
3 057G 417512 HF TRA MMBT3906G -0.2A/-40V SOT-23
3 057G 417512 HF TRA MMBT3906G -0.2A/-40V SOT-23
3 057G 417512 HF TRA MMBT3906G -0.2A/-40V SOT-23
3 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC
3 061G0805820 JY RST CHIP R 82ohm 1/8W +/-5% YAGEO
3 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
3 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
3 061G12066803FF E RST 1206 680K 1% 1/4W
3 061G12066803FF E RST 1206 680K 1% 1/4W
3 065G080556131J F CAP CHIP 0805 560PF J 50V NPO
3 065G080556131J Y CAP CHIP 0805 560P 50V NP0 +/-5%
3 093G 60S952 T SCHOTTKY SK510C R6 5A 100V SMC
3 356G0379008232 PFC SSC-2005S SOP-8
3 356G0379008605 AC/DC LD5532 GS SOP-8
3 356GD563008617 DC/DC SP6018ES8RGB 1A 16V SOP-8
3 357G0667600602 MOSFET AO3160 0.04A 600V SOT23A
3 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89
3 357G07630620HF .F MOSFET 2N7002K_R1_00001 0.3A 60V
3 357G07630620HF .F MOSFET 2N7002K_R1_00001 0.3A 60V
3 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
3 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
3 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
3 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD
3 393G039S96400T00HF ZENER BZT52-B13_R1_00001 13V 0.41W SOD-1
3 393G039S96400T00HF ZENER BZT52-B13_R1_00001 13V 0.41W SOD-1
3 393G039SA1500T ZENER BZT52-B30 30V 0.41W SOD-123
3 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
3 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
3 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
3 393G039SA3000T ZENER BZT52-B18 18V 0.41W SOD-123
3 393G039SA3000T ZENER BZT52-B18 18V 0.41W SOD-123
3 393G060S060600 SCHOTTKY SS1060 1A 60V SOD-123
3 393G060S060600 SCHOTTKY SS1060 1A 60V SOD-123
3 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
2 X90G201001400000BF HEAT SINK
2 X90G201001400000BF HEAT SINK
2 X90G201001400000BF HEAT SINK
Page 63
1 Q02G707105000100XL BOLT
1 Q11G701016000L00ZL PCB-SUPPORT
1 Q12G6300 25 1 FOOT PAD
1 Q12G714001200100HK HEAT PAD
1 Q36T 600 31 6 HIMERON
1 Q40G0001624 4A 产线需求的栈板LABEL
1 Q44T3231 21 35 EVA WASHER
1 Q49G 51500 HF panel清洁剂
1 Q51G 2 14 FUSE GEL
1 Q52G100204000A00ZA AL FOIL
1 Q52G15010040HF0ABK TAPE_ACETATE
1 Q52G15010040HF0ADG TAPE_ACETATE
1 Q52G1501150523 W NSULATING PLATE
1 X02G901001200000H1 BOLT M3
1 X15T2128301000GMLH BKT_IO_BTM
1 X15T915020200000AJ BKT_HOLDER
1 X15T9446202CKD00YF BKT_CONNECTOR
1 X15T9666101CKD00BL BKT_BASE
1 X15T968040100000NP BKT_STAND
1 X15T968110200000NP BKT_STAND
1 X15T969110100000JH BKT_SPEAKER
1 X15T9956901000GMBL BKT_IO_SIDE
1 X16G000200800000ZA EVA WASHER
1 X35T824100400C01XD LIGHT_GUIDE N/A
1 X35T8301001A1C01DA DECO_BEZEL N/A
1 X40G2015055X3000XY LABEL SIDE
1 X40G2015055X3100XY LABEL IO
1 X44GVA801010ZD CUSHION-TL TV55W-14d-ph13c-ph21 Non-reg
1 X44GVA802010ZD CUSHION-TR TV55W-14d-ph13c-ph21 Non-reg
1 X44GVA803010ZD CUSHION-BL TV55W-14d-ph13c-ph21 Non-reg
1 X44GVA804010ZD CUSHION-BR TV55W-14d-ph13c-ph21 Non-reg
1 X45G990108200000SJ PROTECT BAG 1000*1400mm
1 X52G180132100000ZA INSULATING SHEET
1 0M1G1740 16225 CR3 SCREW M4 16
1 317GARFM008TCL RF MODULE GL03-2-E
1 J41G55SV81304B QSG for 海思55PFL6340
1 Q45G88010TV05500SJ PROTECT BAG
1 Q45G88010TV05600SJ PROTECT BAG
1 040G 58162435A MANUAL P/N LABEL
1 J40G000281331A CEL LABEL --55PFL6340/T3 G3/1.3/0.5
1 J40G055081304A RATING LABEL 55PFL6340/T3
1 X40G0001624 2A Label for screw pe bag
1 X40G000181310C CARTON LABEL
1 Z40G0002ALL01A OTHER LABEL
1 392GB1TA1A3C2C BATTERY 1.5V 2P R03(KI)2S/PG
1 X40G000881328A OTHER LABEL 开机必读标签
1 X41G78DV81311E WARRANTY CARD TPV address china
1 X52G20012470000ABK TAPE
Page 64
HI3751AV500 DEMO VER.A
Update 2014.02.07
Hi3751AV500 Schematic Circuit Version and Page Information
Page Comment
1
2
3
4
5
6
7
8
9
10
11
Comment
Information indicator
Block diagram
Power tree & Boot strap
Power and Signal switching control
Power supply management
UART & JTAG socket & IR & KEY
Chip Power
DDRIII_Chip Power
DDRIII_0
DDRIII_1
eMMC & eeprom & xtal
Page
12
13
14
15
16
17
18
19
20
21
22
V-BY-ONE
USB2.0 & USB3.0 & WIFI
CI & CA
Tuner socket
MIC YPBPR & AV IN & CVBS OUT
Audio Output
AMP
HDMI0 & MHL
HDMI1(ARC) & HDMI2
Ethernet & SD
Power switching control
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
G7856-M0A-B00-0040-1-150624
G7856-M0A-B00-0040-1-150624
G7856-M0A-B00-0040-1-150624
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
A3
Size
A3
Size
A3
Rev
Rev
Rev
称爹
称爹
1
1
1
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
of
of
of
称爹
Page 65

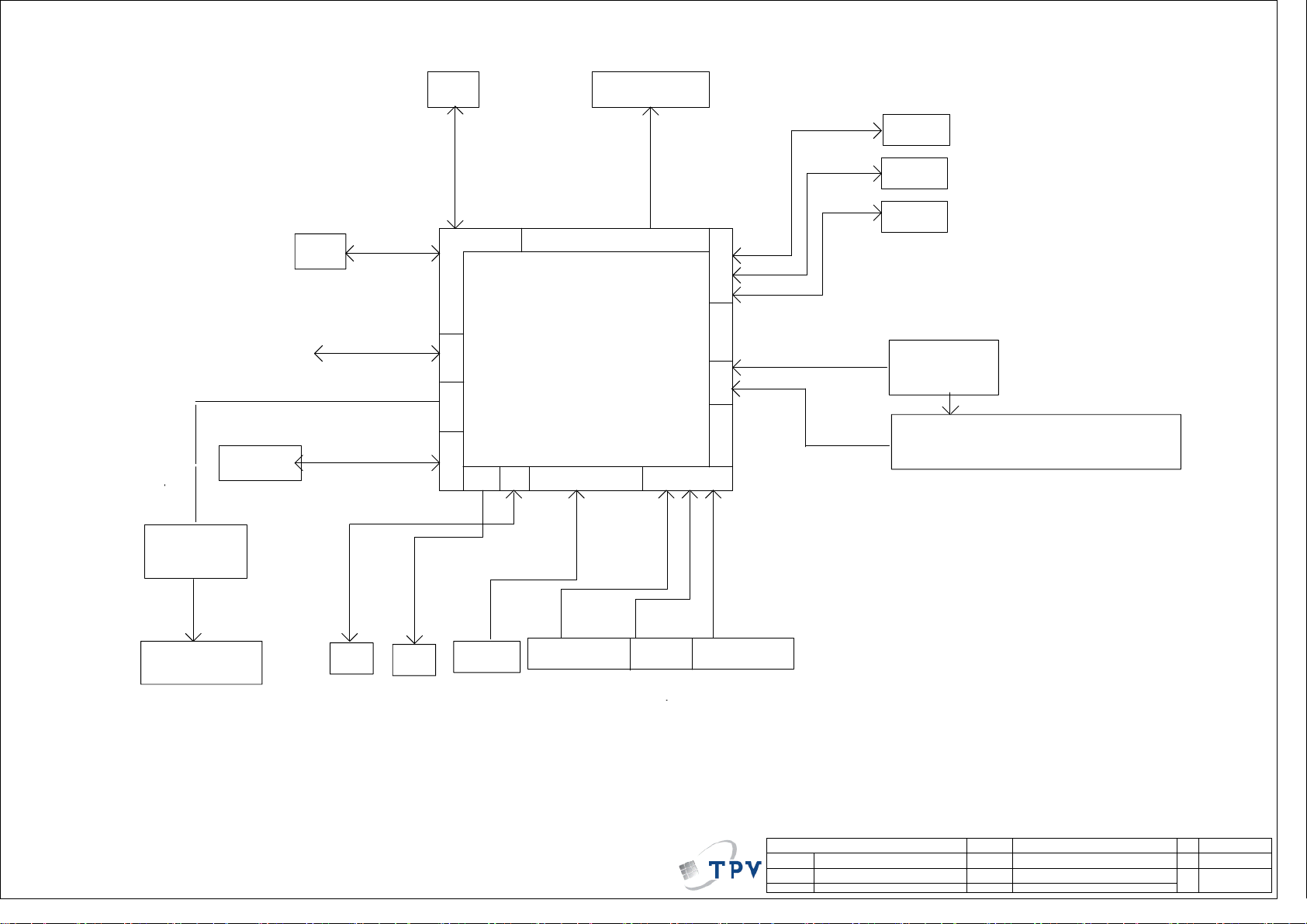

715G7924-M0A
BLOCK_DIAGRAM
DDR1
DDR0
DDR
VBO Connector
VBO & LVDS
USB
CI & SIM
& SD
USB2.0
USB2.0
USB3.0
for WIFI
AMP
AD87588
Headphone
OUT
KEY & IR
EMMC
RJ45
SPDIF
STB
I2S
EMMC
SPDIF
CVBS in
HI3751 AV500
FE
HDMI2(ARC)
AFE
HDMI1
IF & TS
AudioCodec
HDMI
HDMI0(MHL)
Tuner
MXL661
Demodulator(Reserve)
ATBM8880
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
A3
Size
A3
Size
A3
Rev
Rev
Rev
称爹
称爹
2
2
2
of
of
of
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
称爹
Page 66

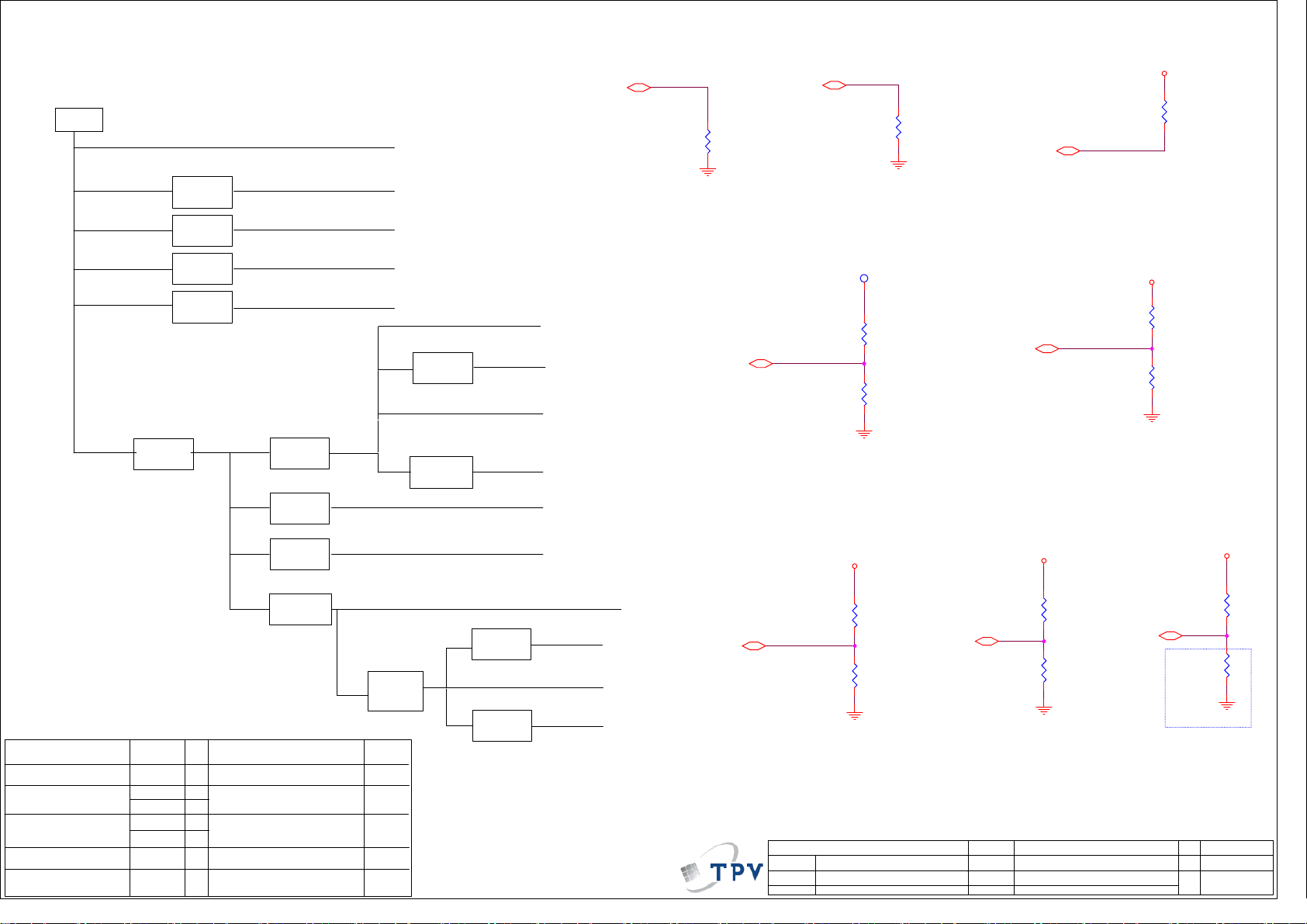

Power tree & Boot strap
12V0
12V0
AMP
4A
4K2K:4A PMOS
VCC_PANEL
TCON
CI_ADR13/PCB_L21
CI_ADR13/PCB_L
R401
10K
FUNC_SEL11
FUNC_SEL
R403
1K
CI_ADR10/BOOT_SEL121
CI_ADR10/BOOT_SEL1
3V3
R402
10K
DC/DC 5A
TPS54528
DC DC 2A
TPS56220
DC DC 3A
TPS554328
DC DC 3A
TPS54328
5V_SB
2.7A max
1A max
1A max
0.8A max
IRLML6401TRPBF
AZ1084/AS1117
1A max
2.5A max
2.5A max
5A max
Boot Strap Selection
0:2 LAYERS
PCB LAYER
FUNCTION MODE
BOOT DEVICE SEL
JTAG CHANNEL SEL
JTAG CONTROL SEL
POWER ON RESET SEL
PCB_L
FUNC_SEL
BOOT_SEL0
BOOT_SEL1
JTAG_MUX1
JTAG_MUX0
JTAG_SEL
POR_SEL US
DS
1:4 LAYERS
0:NORMAL FUCNTION
DS
1:TEST
0X:SPI FLASH
DS
10:FSD
US
11:eMMC
00:A53 JATG
S
01:DSP JTAG
10:DDRC JTAG
S
11:A53 JTAG
0:registers control JTAG
DS
1:JTAG_MUX0/1 control JTAG
0:reset from RESTIN pin
1:reset from internal POR signal
MOS 2.4A
MOS 1A
ETA6010
MOS 1A
ETA6010
LDO 1A
1V5_DDR3
DDR & DDR PHY
CPU_1V1
CPU
VDD_1V1
(Core GPU)
5V0
MOS 1A
0
0
11
00
1
1
0.5A
0.3A
NDS336P
MOS 1A
NDS336P
LDO
AZ1117
3V3
5V0
(USB2.0 * 2 & BT)
VCC_PCMCIA
CI
WIFI_PWR
WIFI
3V3_TUN
TUNER
MHL
VBUS
USB3.0
MOS 1A
NDS336P
LDO 1A
TJ4210GDP-ADJ
3V3_SB
VCC_SD
SD CARD
DVDD33
LDO_1V2
(QAM AVDDREF FE AFE HDMI)
TP400
1
R405
NC/10K
3V3
NC
R412
3
3
3
of
of
of
CI_ADR12/BOOT_SEL0
10K
R409
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
GPIO10_1/JTAG_MUX114,15
RF_AGC/JTAG_MUX015
GPIO10_1/JTAG_MUX1
10K
R407
3V3
R410
NC/10K
RF_AGC/JTAG_MUX0
R413
NC/10K
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
CI_ADR12/BOOT_SEL021
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
JTAG_SEL
JTAG_SEL11
3V3
R404
10K
R406
NC/10K
3V3_SB
R408
NC/10K
э
场
POR_SEL
Reset (ň
Size
Size
Size
Rev
Rev
Rev
称爹
称爹
称爹
10K
A3
A3
A3
R411
俐耞讽诀
)
POR_SEL11
Page 67

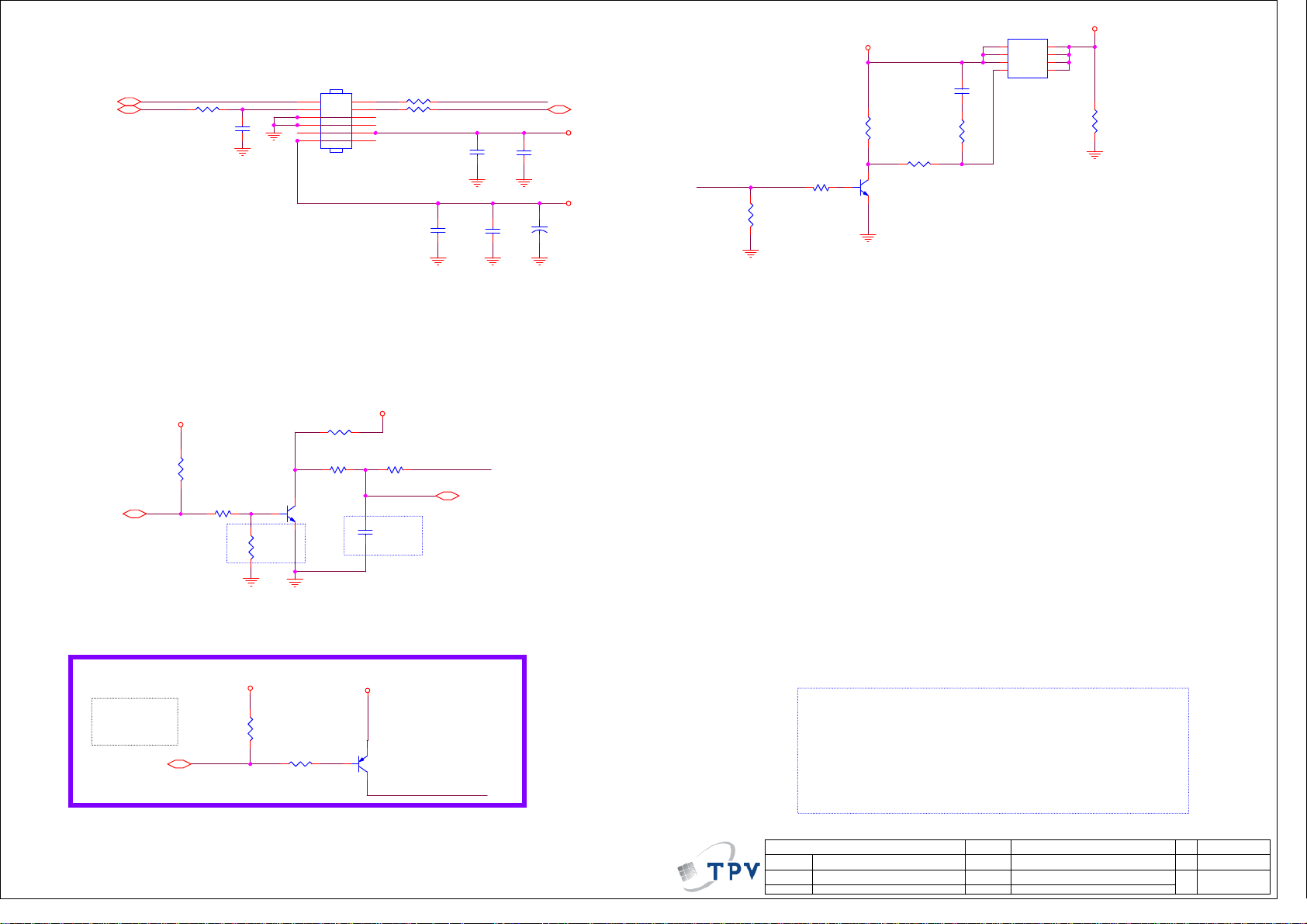

Connetor
PWM_OUT12
STB5,11
STB
R7030 33 OHM 1/16W
C7063
NC/100N 50V
5V_SB
CN700
CONN
11
12
R7020 1K
10
9
7
5
3
1
R708 NC/33 OHM 1/16W
8
6
4
2
C7032
NC/100N 50V
BL_ON_OFFPWM_OUT
C7030
NC/100N 50V
C7033
NC/1N 50V
C7031
1N 50V
+
BIT_SEL/3D_EN 12
AMP_12V
12V0
C7034
100UF 25V
STB
R757
4.7K1/16W
R711
4.7K1/16W
R705
47K
R709 150K
Q703
MMBT3904
C701
220NF 25V
R704
0R05 OHM
Q701
1
S
2
S
3
S
4
G
AO4449 -7A/-30V
D
D
D
D
5V0
8
7
6
5
R702
NC/10KOHM
Panel bright control
3V3
R714
NC/4.7K1/16W
R718
PWM011
PWM0
4.7K1/16W
R7021
4.7K1/16W
Power on off switch
3V3
BL_ON/OFF:
Inverter on: Low
Inverter off:
High
BL_ON11
BL_ON
10K
Q705
MMBT3904
R725
R728 4.7K1/16W
R713
10K
0R05 OHM
R716
3V3
C703
NC/1UF 6.3V
C703
3V3
Q708
MMBT3906
0R05 OHM
R717
パ ンэ
PWM_OUT
VBO_DIMM_CTL 12
NC
BL_ON_OFF
埃
:C704, Q707, R719, R720, R724, R727
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
A3
Size
A3
Size
A3
Rev
Rev
Rev
称爹
称爹
4
4
4
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
of
of
of
称爹
Page 68

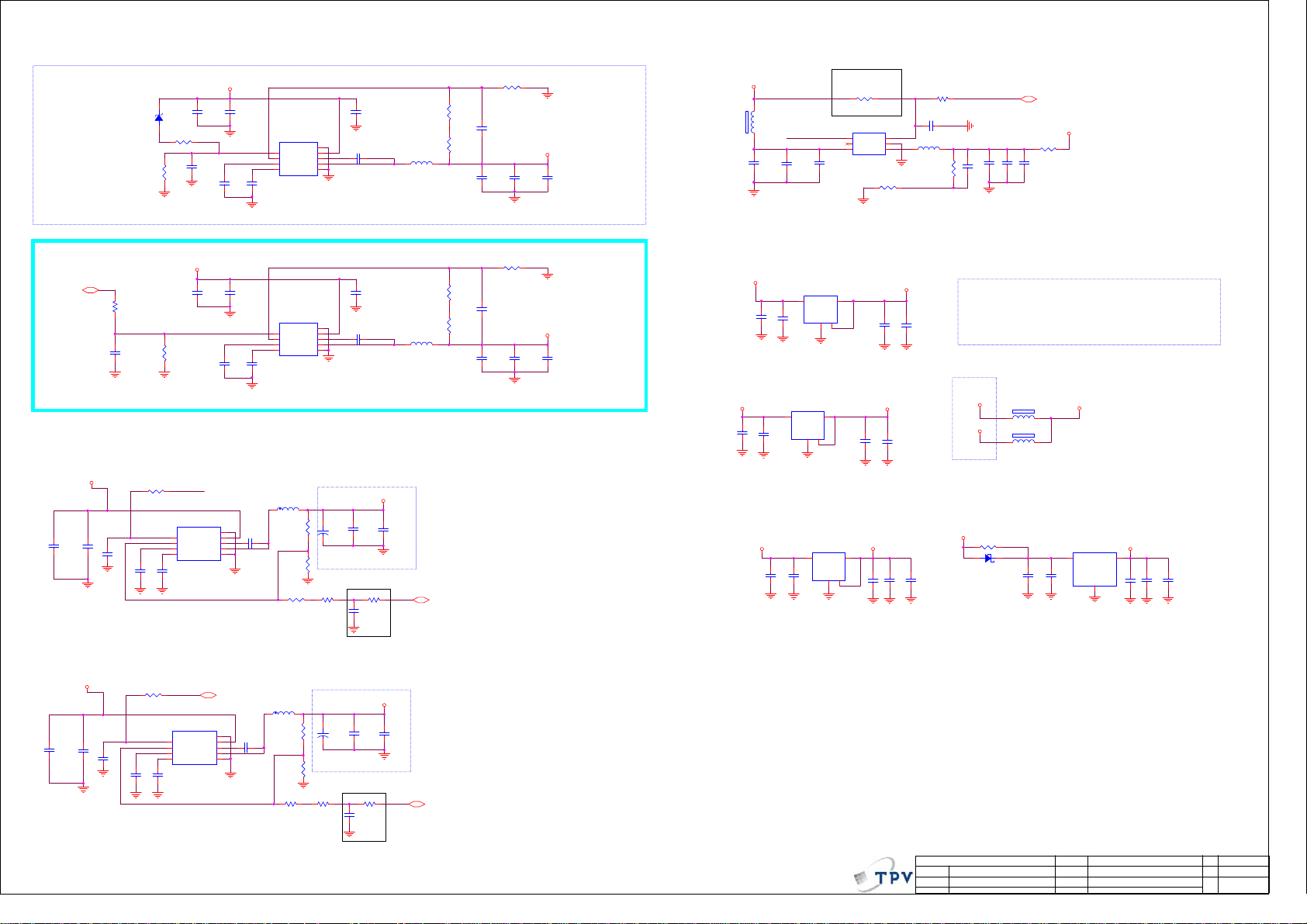

Power supply management
12 to 5V DC-DCパ3A(TI)э 5.5A(Richtek)
ZD710
BZT52-B7V5
1 2
R7002 12K 1%
R7005
30K 1%
C731
10uF 25V
STB4,11
R7027
22 OHM 1/16W
R736 1K
C735
1UF 6.3V
R7028
100K 1/16W
1
2
3
C736
10NF 50V
U704
EN
VFB
VREG5
SS4GND
TPS54328DDAR
C7052
1uF 50V
12V0
C733
C734
100N 16V
220nF 16V
12V0
C7010
C7011
10uF 25V
10uF 25V
1206
1206
C7015
NC/1nF 50V
C7016
1UF16V
0603
12V0
C7060
C7054
10uF 25V
10uF 25V
1206
1206
C7057
1UF16V
0603
STB
9
100N 16V
E-PAD
8
VIN
7
VBST
6
SW
5
3A DC-DC For CPU
U710
RT6206BHGSP
GND
1
EN
2
FB
BOOT
3
VREG5
SS4GND
C7017
3.3NF 50V
Vout = 0.765x(R1+R2)/R2
U712
RT6206BHGSP
GND
1
EN
2
FB
BOOT
3
VREG5
SS4GND
C7053
3.3NF 50V
Vout = 0.765x(R1+R2)/R2
L703
4.7UH
R738
16.9K 1%
C730
R739
24.9K 1%
R741
10K
9
8
VIN
7
6
SW
5
9
8
VIN
7
6
SW
5
+
100UF 16V
R742
100K 1/16W
C7012
100N16V
C7014 100N16V
C7058
100N16V
C7059 100N16V
1.2K传 6.8K (箇ňUSBのMHL power drop)
CPU_1V1
C7050
C728
10UF
Close to HI3751
R743
C738
2.2uF 6.3V
073G253S 67 M
073G253S 67 M
C729
100N 16V
PMC1
1K
L710
3.3UH
L711
3.3UH
R1
R1
PMC1 11
R7001
121K 1%
R7003
6K8 1%
R7025
121K 1%
R7026
6K8 1%
R7000
C7013
NC
C7018
22UF 10V
1206
R7029
C7056
NC
C7062
22UF 10V
1206
22K 1/16W 1%
R2
C7019
22UF 10V
1206 0805
22K 1/16W 1%
R2
C7055
22UF 10V
1206
5V_SB
5V_USB
C7020
NC/10uF 10V
C7061
NC/10uF 10V
0805
DDR_PWR_FB
C719
NC/100N 16V
U703
G1117-33T63Uf
VI3VO
U705
AZ1117H-1.2TRE1
VI3VO
GND14
4
U707
G1117-33T63Uf
VI3VO
C751
1UF 6.3V
Reserved for
Fast boot
C720
10UF 6.3V
GND14
4
2
GND14
5V_SB
FB703
120R 3A
1 2
C718
NC/1UF 6.3V
5V0
TUNER_3V3
C724
C725
NC/100N 16V
10UF
3V3
C739
NC/100N 16V
C740
1UF 6.3V
5V_SB 3V3_SB
C750
NC/100N 16V
1V5_DDR3_1A
R729
4.7K1/16W
U702
SY8009BABC
6
FB
5
NC
4
GND
C706 1UF 6.3V
1
EN
2
L702 4.7uH
LX3IN
R735
22K 1%
R733
33K 1%
DDR_PWR_FB
Vout= 0.6x(1+33K/22K)= 1.5V
2
C741
TU3V3
C727
C726
100N 16V
10UF
LDO_1V2
C742
NC/100N 16V
10UF
3V3_SB
2
C752
C7001
C753
NC/100N 16V
10UF
4
10UF 6.3V
R730
STB_GPIO0_0
NC/100OHM
C721
C723
10UF
22P 50V
埃
3V3
5V0
э 5V_USB
5V0
R758 NC/0 OHM +-5% 1/8W
1 2
D701 SM260A
STB_GPIO0_0 11
1V5_DDR3
R759 0R05 OHM
C717
C722
NC/100N 16V
10UF
:C7002, C737, Q709, R740, R744, R745
C7045
WIFI_PWR
3V3
GND/ADJ
1
3V3
2
C7048
C7049
C7047
NC/100N 16V
10UF
1UF 6.3V
U711
AZ1084CD-3.3TRG1
VIN3VOUT
C7046
NC/100N 16V
1UF 6.3V
FB702
1 2
NC/120R
FB705
1 2
120R
C746
10uF 25V
12V0
C748
100N 16V
C749
220nF 16V
R748 1K
C754
1UF 6.3V
STB
U706
1
EN
2
VFB
3
VREG5
SS4GND
C755
10NF 50V
TPS54328DDAR
3A DC-DC For VDD
E-PAD
VBST
VIN
SW
STB 4,11
9
100N 16V
8
7
6
5
C745
L704
4.7UH
R750
12.1K 1%
R751
24.9K 1%
R752
27K 1/16W 1%
+
100UF 16V
R753
100K 1/16W
C7051
C743
10UF
Close to HI3751
R754
C756
2.2uF 6.3V
VDD_1V1
1K
C744
100N 16V
PMC0
PMC0 11
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
A2
Size
A2
Size
A2
Rev
Rev
Rev
称爹
称爹
5
5
5
of
of
of
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
称爹
Page 69

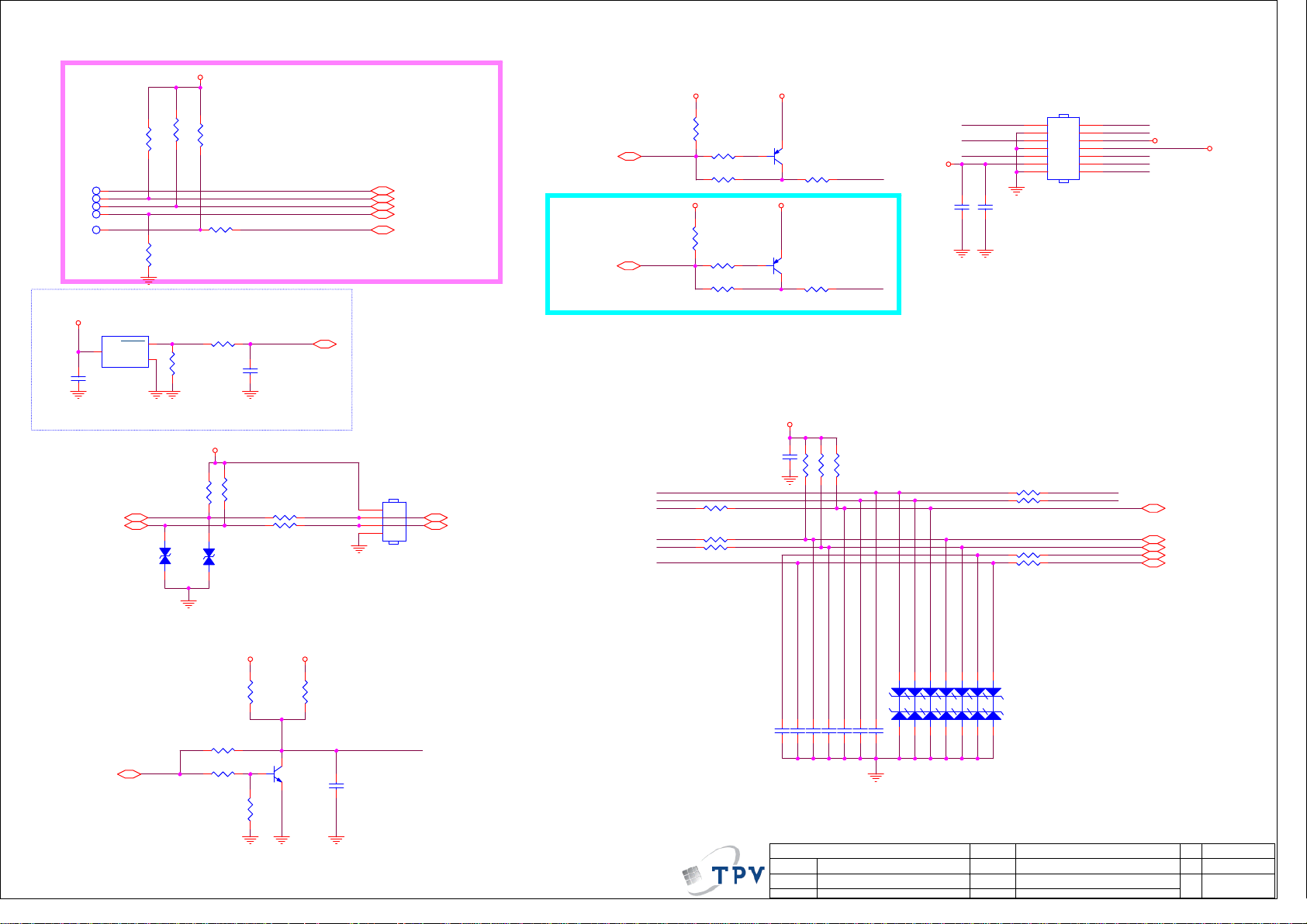

UART & JTAG socket & IR & KEY
3V3
JTAG
R418
R421
NC/4.7K1/16W
1
TP401
1
TP402
1
TP403
1
TP404
1
TP405
R429
NC/1K
RESET
3V3_SB
U402
3
Vcc
C4030
100NF 25V
G690L263T73U
UART1_RXD_IN16,20 UART1_RXD 11
UART1_TXD_IN16,20
RESET
GND
2
1
R420
NC/4.7K1/16W
NC/4.7K 1/16W
R4115 2.2K1/16W
R4119
100K 1/16W
3V3_SB
R438
NC/4.7K1/16W
ZD401
1 2
1 2
NC/MLVG0402
NC/22 OHM 1/16W
R428
C4031 NC/2.2uF 6.3V
R437
NC/4.7K1/16W
ZD402
NC/MLVG0402
TSI0_D1/JTAG_TRSTN
TSI0_D3/JTAG_TDI
TSI0_D0/JTAG_TMS
TSI0_D2/JTAG_TCK
TSI0_D4/JTAG_TDO
RESETIN
22 OHM 1/16W
R439
22 OHM 1/16W
R441
RESETIN 11
TSI0_D1/JTAG_TRSTN 21
TSI0_D3/JTAG_TDI 21
TSI0_D0/JTAG_TMS 21
TSI0_D2/JTAG_TCK 21
TSI0_D4/JTAG_TDO 21
UART1
CN412
1
2
3
4
NC/CONN
UART1_TXD 11
LED_R(LED_B):
H = LED OFF
L = LED ON
LEDR_OUT11
LED_PWM11
3V3_SB 3V3_SB
R4109
LEDR
LEDB
LED-R
LED-B
IR
KEY0
KEY1
I2C1-SCL
10K
R4110
NC/10K
R4113
1K 1/16W 1%
R4121
NC/0R05 1/16W
3V3_SB
R4112
NC/1K 1/16W 1%
R4120
NC/0R05 1/16W
R4108 100R 1/16W 1%
R4106 100R 1/16W 1%
R4107 NC/100R 1/16W 1%
C4032
100NF 25V
Q420
MMBT3906
R4101
1.2K 1/16W 1%
3V3_SB
Q421
NC/MMBT3906
R4102
NC/1.2K 1/16W 1%
3V3_SB
R4117 6K8 1/10W 1%
R4111 10K 1%
R4118 NC/6K8 1/10W 1%
LED-B
LOGO-PWM
KEY1
LED_R
LED_B
5V0
Connector
TO IR/KEY BOARD
C4039 1UF16V
C4040 NC/100NF 25V
R4104 10 OHM
R4103 NC/10 OHM
R4128 10 OHM
R4129 10 OHM
CN401
CONN
2
1
3
5
7
9
11
13
LED_R
LED_B
IRIN
LS_ADC0_KEY
LS_ADC1_KEY
I2C1_SDA
I2C1_SCL
LED-R
IR
KEY0
I2C1-SCL
I2C1-SDA
3V3_SB
IRIN 11,16
LS_ADC0_KEY 11
LS_ADC1_KEY 11
I2C1_SDA 11,12
I2C1_SCL 11,12
3V3
4
6
8
10
12
14
3V35V0
Lighting LOGO
R4100
NC/100R 1/8W 5%
R4130 0R05 OHM
LED_PWM11
R4114 NC/1K 1/16W 5%
R4105
NC/100K1/16W
R4122
NC/100R 1/8W 5%
Q423
NC/MMBT3904
LOGO-PWM
C4038
NC/10uF 16V
C4042 NC
C4034 NC/100N 50V
C4041 NC
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
C4033 100N 50V
C4035 100pF 50V
ZD410 NC/AZ5123-01H
ZD412 NC/AZ5123-01H
ZD411 NC/AZ5123-01H
12
12
12
C4036 NC
C4037 NC
ZD414 NC/AZ5123-01H
ZD413 AZ5123-01H
12
12
ZD415 NC/AZ5123-01H
ZD416 NC/AZ5123-01H
12
12
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
A3
Size
A3
Size
A3
Rev
Rev
Rev
称爹
称爹
6
6
6
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
of
of
of
称爹
Page 70

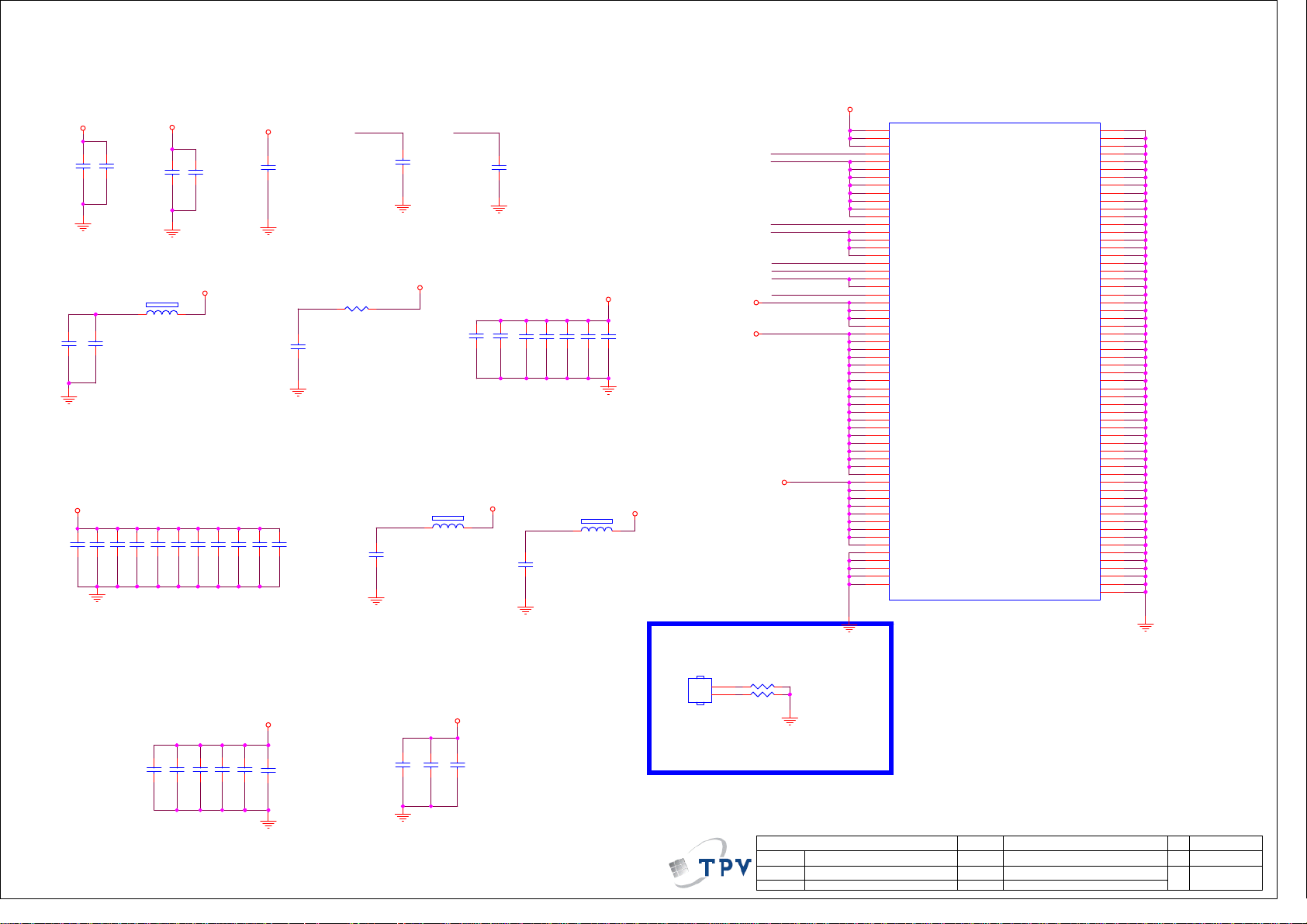

Chip Power
3V3
C758
C772
100N 16V
VDD_1V1
C782
22uF 6.3V
100N 16V
REF_1V2
1UF 6.3V
C783
C759
C771
100N 16V
100N 16V
C774
1UF 6.3V
3V3_SB
C762
FB709
1 2
120R
C784
C775
10uF 6.3V
1UF 6.3V
100N 16V
C776
1UF 6.3V
C763
100N 16V
LDO_1V2
C777
1UF 6.3V
C778
1UF 6.3V
C779
1UF 6.3V
LDO_1V2
C760
100N 16V
C780
1UF 6.3V
C781
1UF 6.3V
FE_1V2
C773
1UF 6.3V
LDO_1V1_OUT
LDO_1V1_OUT
R755
0R05 OHM
PLL_1V1
C785
100N 16V
C757
1UF 6.3V
LDO_1V2
1 2
FB710
220R
AVREF
AVREF
C764
22uF 6.3V
C765
VDD_1V1
C761
2.2uF 6.3V
100N 16V
C766
1UF 6.3V
PLL_3V3
C786
1UF 6.3V
C767
1UF 6.3V
CPU_1V1
C768
C769
1UF 6.3V
1UF 6.3V
FB711
1 2
220R
C770
1UF 6.3V
3V3
DVDD_3V3
FE_3V3
LDO_1V2
VDD_1V1
CPU_1V1
PLL_3V3
3V3
AVREF
3V3
LDO_1V1_OUT
PLL_1V1
REF_1V2
FE_1V2
3V3_SB
HI3751AV500
C12
DVDD33_STANDBY1
D12
DVDD33_STANDBY2
E11
AVDD33_HDMI_VBUS
J13
AVDD33_PLL
AB12
DVDD33_1
AB13
DVDD33_2
AB14
DVDD33_3
AB15
DVDD33_4
AB17
DVDD33_5
AB18
DVDD33_6
E4
DVDD33_7
F4
DVDD33_8
AB9
AVREF
R9
AVDD33_FE
T9
AVDD33_AFE
V9
AVDD33_HDMIRX1
W9
AVDD33_HDMIRX2
F10
DVDD11_LDO1_OUT
K14
AVDD11_PLL
Y13
AVDDREF
Y12
AVDD11_QAM
R10
AVDD11_FE
T10
AVDD11_PLL_AFE
U10
AVDD11_AFE
V10
AVDD11_HDMIRX1
W10
AVDD11_HDMIRX2
L14
VDD1
T14
VDD2
T15
VDD3
L15
VDD4
M14
VDD5
M15
VDD6
M16
VDD7
M17
VDD8
N14
VDD9
N15
VDD10
N16
VDD11
P14
VDD12
P15
VDD13
R14
VDD14
R15
VDD15
L16
VDD16
L17
VDD17
L13
VDD18
M13
VDD19
F8
VDD_CPU1
G8
VDD_CPU2
H8
VDD_CPU3
K10
VDD_CPU4
L10
VDD_CPU5
M10
VDD_CPU6
K11
VDD_CPU7
L11
VDD_CPU8
M11
VDD_CPU9
J14
AVSS_PLL
W13
AGNDREF
AB10
VSS1
R16
VSS2
K15
VSS3
U401J
HI3751AV500_AFE
MISC Interface of
VSS63
VSS62
VSS61
VSS60
VSS59
VSS58
VSS57
VSS56
VSS55
VSS54
VSS53
VSS52
VSS51
VSS50
VSS49
VSS48
VSS47
VSS46
VSS45
VSS44
VSS43
VSS42
VSS41
VSS40
VSS39
VSS38
VSS37
VSS36
VSS35
VSS34
VSS33
VSS32
VSS31
VSS30
VSS29
VSS28
VSS27
VSS26
VSS25
VSS24
VSS23
VSS22
VSS21
VSS20
VSS19
VSS18
VSS17
VSS16
VSS15
VSS14
VSS13
VSS12
VSS11
VSS10
VSS9
VSS8
VSS7
VSS6
VSS5
VSS4
W18
W17
W16
W15
W14
W11
V18
V17
V16
V15
V14
V13
V12
V11
U18
U17
U16
U15
U14
U13
U12
U11
T18
T17
T16
T13
T12
T11
R19
R13
R12
R11
P19
P18
P13
P12
P11
N19
N18
N13
N12
N11
M19
M18
L19
L18
K19
K18
K17
K16
M12
L12
H7
G7
P16
N17
AB16
AB11
N10
R17
C791
100N 16V
C792
100N 16V
C793
100N 16V
C790
1UF 6.3V
C794
100N 16V
3V3
C795
100N 16V
C787
1UF 6.3V
C788
100N 16V
3V3
C789
100N 16V
Heat sink
HS401
HEAT SINK
1
2
R4126
NC/0R05 OHM
R4127
NC/0R05 OHM
P90T0051301
Footprint :
90A0051-101
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
A3
Size
A3
Size
A3
Rev
Rev
Rev
称爹
称爹
7
7
7
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
of
of
of
称爹
Page 71

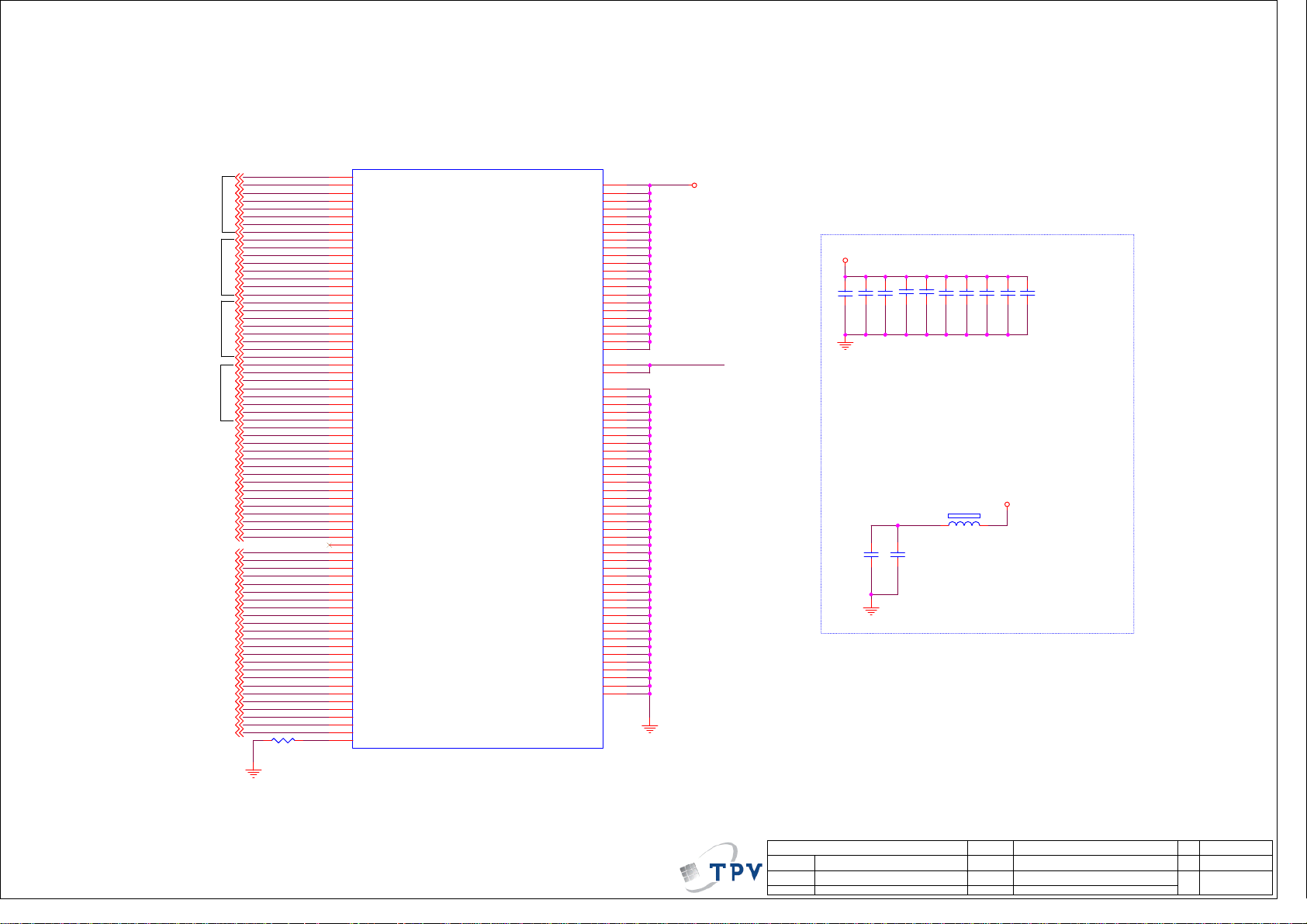

DDRIII_Chip Power
0-7 BIT
8-15 BIT16-23 BIT
24-31 BIT
DDR0_DQ3
DDR0_DQ4
DDR0_DQ1
DDR0_DQ0
DDR0_DQ7
DDR0_DQ2
DDR0_DQ5
DDR0_DQ6
DDR0_DQ9
DDR0_DQ14
DDR0_DQ11
DDR0_DQ12
DDR0_DQ13
DDR0_DQ8
DDR0_DQ15
DDR0_DQ10
DDR0_DQ19
DDR0_DQ22
DDR0_DQ17
DDR0_DQ16
DDR0_DQ21
DDR0_DQ18
DDR0_DQ23
DDR0_DQ20
DDR0_DQ27
DDR0_DQ24
DDR0_DQ29
DDR0_DQ26
DDR0_DQ25
DDR0_DQ28
DDR0_DQ31
DDR0_DQ30
DDR0_ADDR0
DDR0_ADDR1
DDR0_ADDR2
DDR0_ADDR3
DDR0_ADDR4
DDR0_ADDR5
DDR0_ADDR6
DDR0_ADDR7
DDR0_ADDR8
DDR0_ADDR9
DDR0_ADDR10
DDR0_ADDR11
DDR0_ADDR12
DDR0_ADDR13
DDR0_ADDR14
DDR0_DM0
DDR0_DM1
DDR0_DM2
DDR0_DM3
DDR0_BA0
DDR0_BA1
DDR0_BA2
DDR0_CLK0_P
DDR0_CLK0_N
DDR0_DQS0_N
DDR0_DQS0_P
DDR0_DQS1_N
DDR0_DQS1_P
DDR0_DQS2_N
DDR0_DQS2_P
DDR0_DQS3_P
DDR0_DQS3_N
DDR0_CKE
DDR0_WEN
DDR0_CASN
DDR0_CSN
DDR0_ODT
DDR0_RESETN
DDR0_RASN
R756
240 OHM
G26
G27
K27
K26
G24
K23
H23
K24
H24
C23
E27
A23
C22
E26
B22
E25
D26
E21
C26
D21
C27
B24
B28
C24
C17
D19
C15
E19
B18
D14
C18
B16
E20
A19
D18
D17
E22
D23
B14
B19
A17
B20
A20
H27
H28
A27
B27
A25
B25
D15
D16
C14
B13
C16
D13
G13
L24
L23
F28
L28
F26
L26
F25
F24
F15
F13
F17
F14
J25
J23
J28
J27
F19
HI3751AV500
DDR_DQ0
DDR_DQ1
DDR_DQ2
DDR_DQ3
DDR_DQ4
DDR_DQ5
DDR_DQ6
DDR_DQ7
DDR_DQ8
DDR_DQ9
DDR_DQ10
DDR_DQ11
DDR_DQ12
DDR_DQ13
DDR_DQ14
DDR_DQ15
DDR_DQ16
DDR_DQ17
DDR_DQ18
DDR_DQ19
DDR_DQ20
DDR_DQ21
DDR_DQ22
DDR_DQ23
DDR_DQ24
DDR_DQ25
DDR_DQ26
DDR_DQ27
DDR_DQ28
DDR_DQ29
DDR_DQ30
DDR_DQ31
DDR_ADDR0
DDR_ADDR1
DDR_ADDR2
DDR_ADDR3
DDR_ADDR4
DDR_ADDR5
DDR_ADDR6
DDR_ADDR7
DDR_ADDR8
DDR_ADDR9
DDR_ADDR10
DDR_ADDR11
DDR_ADDR12
DDR_ADDR13
DDR_ADDR14
DDR_ADDR15
DDR_DM0
DDR_DM1
DDR_DM2
DDR_DM3
DDR_BA0
DDR_BA1
DDR_BA2
DDR_CLK0_P
DDR_CLK0_N
DDR_DQS0_N
DDR_DQS0_P
DDR_DQS1_N
DDR_DQS1_P
DDR_DQS2_N
DDR_DQS2_P
DDR_DQS3_P
DDR_DQS3_N
DDR_CKE
DDR_WEN
DDR_CASN
DDR_CSN
DDR_ODT
DDR_RESETN
DDR_RASN
DDR_ZQ
U401I
HI3751AV500_AFE
MISC Interface of
VDDIO_CK_DDR
VDDIO_DDR21
VDDIO_DDR20
VDDIO_DDR19
VDDIO_DDR18
VDDIO_DDR17
VDDIO_DDR16
VDDIO_DDR15
VDDIO_DDR14
VDDIO_DDR13
VDDIO_DDR12
VDDIO_DDR11
VDDIO_DDR10
VDDIO_DDR9
VDDIO_DDR8
VDDIO_DDR7
VDDIO_DDR6
VDDIO_DDR5
VDDIO_DDR4
VDDIO_DDR3
VDDIO_DDR2
VDDIO_DDR1
AVDD_DDR_PLL2
AVDD_DDR_PLL1
VSS40
VSS39
VSS38
VSS37
VSS36
VSS35
VSS34
VSS33
VSS32
VSS31
VSS30
VSS29
VSS28
VSS27
VSS26
VSS25
VSS24
VSS23
VSS22
VSS21
VSS20
VSS19
VSS18
VSS17
VSS16
VSS15
VSS14
VSS13
VSS12
VSS11
VSS10
VSS9
VSS8
VSS7
VSS6
VSS5
VSS4
VSS3
VSS2
VSS1
H18
G18
G22
G21
G20
G19
G17
G16
G15
G14
M22
L22
K22
J22
H22
F23
F22
F21
F20
E24
E23
D24
H16
J21
L27
L25
K25
J26
J24
H26
H25
G25
G23
F27
F18
F16
E28
E18
E17
E16
E15
E14
E13
D27
D25
D22
D20
C28
C25
C21
C20
C19
C13
B26
B23
B21
B17
B15
A28
A26
A22
A16
A14
A13
1V5_DDR3
AVDD_DDR_PLL
1V5_DDR3
C7035
1UF 6.3V
C796
C7036
100N 16V
1UF 6.3V
AVDD_DDR_PLL
C7041
100N 16V
1UF 6.3V
C797
100N 16V
C7042
C798
C799
10uF 6.3V
FB712
1 2
120R
1UF 6.3V
C7037
1UF 6.3V
C7038
1UF 6.3V
3V3
C7039
1UF 6.3V
C7040
1UF 6.3V
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
A3
Size
A3
Size
A3
Rev
Rev
Rev
称爹
称爹
8
8
8
of
of
of
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
称爹
Page 72

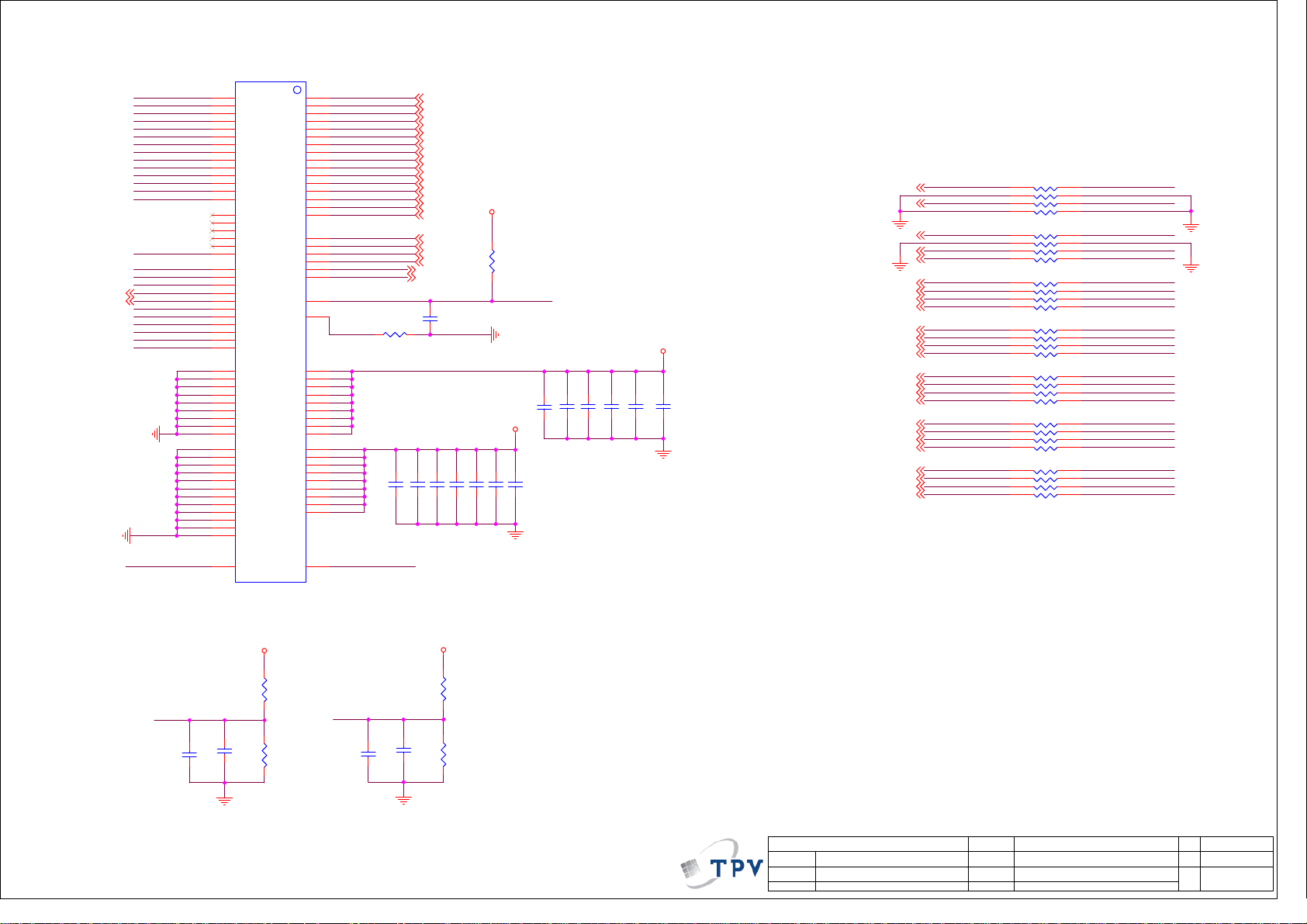

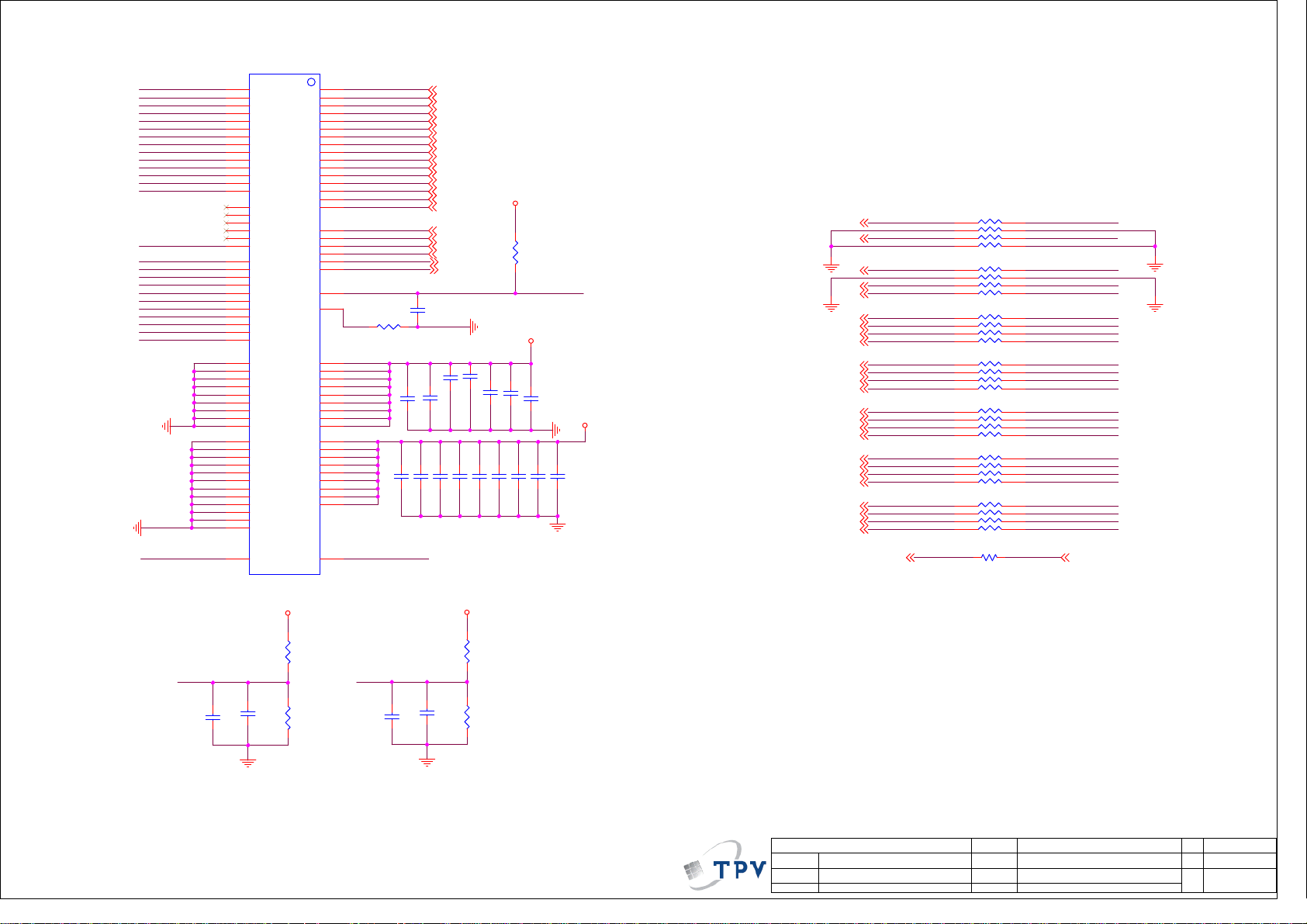

DDRIII_1
U403
ADDR0_1
ADDR1_1
ADDR2_1
ADDR3_1 DDR0_DQ3
ADDR4_1
ADDR5_1
ADDR6_1
ADDR7_1
ADDR8_1
ADDR9_1
ADDR10_1
ADDR11_1
ADDR12_1
ADDR13_1
ADDR14_1
BA0_1
BA1_1
BA2_1
DDR0_CLK0_P
DDR0_CLK0_N
CSN_1
CASN_1
ODT_1
RASN_1
WEN_1
CKE_1
VREF_CA_0
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC#
T3
A13
J1
NC_0
J9
NC_1
L1
NC_2
L9
NC_3
M7
NC_4
T7
A14
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK#
L2
CS#
K3
CAS#
K1
ODT
J3
RAS#
L3
WE#
K9
CKE
B1
VSSQ_0
B9
VSSQ_1
D1
VSSQ_2
D8
VSSQ_3
E2
VSSQ_4
E8
VSSQ_5
F9
VSSQ_6
G1
VSSQ_7
G9
VSSQ_8
A9
VSS_0
B3
VSS_1
E1
VSS_2
G8
VSS_3
VSS_4J2VDD_4
J8
VSS_5
M1
VSS_6
M9
VSS_7
P1
VSS_8
P9
VSS_9
T1
VSS_10
T9
VSS_11
M8
VREFCA
K4B4G1646E-BCK0
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
UDQS
UDQS#
LDQS
LDQS#
RESET#
VDDQ_0
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDD_0
VDD_1
VDD_2
VDD_3
VDD_5
VDD_6
VDD_8
VDD_7
VREFDQ
1V5_DDR3
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
UDM
LDM
ZQ
E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3
C7
B7
F3
G3
D3
E7
T2
L8
A1
A8
C1
C9
D2
E9
F1
H2
H9
B2
D9
G7
K2
K8
N1
N9
R9
R1
H1
DDR0_DQ0
DDR0_DQ1
DDR0_DQ2
DDR0_DQ4
DDR0_DQ5
DDR0_DQ6
DDR0_DQ7
DDR0_DQ8
DDR0_DQ9
DDR0_DQ10
DDR0_DQ11
DDR0_DQ12
DDR0_DQ13
DDR0_DQ14
DDR0_DQ15
DDR0_DQS1_P
DDR0_DQS1_N
DDR0_DQS0_P
DDR0_DQS0_N
DDR0_DM1
DDR0_DM0
R444
240 OHM
VREF_DQ_0
C421 100N 16V
C419
100N 16V
C422 100N 16V
C413
1N 50V
C418
100N 16V
C415
470NF 10% 10V
C423 100N 16V
1V5_DDR3
C414
C424 100N 16V
1V5_DDR3
C416
1UF 6.3V
470NF 10% 10V
C425 100N 16V
1V5_DDR3
C417
C426 100N 16V
R443
4.7K1/16W
RESETN_1
C420
1UF 6.3V
C427 100N 16V
10UF
C428 100N 16V
1V5_DDR3
C429 100N 16V
DDR0_RASN
DDR0_ODT
DDR0_CSN
DDR0_BA0
DDR0_ADDR3
DDR0_ADDR5
DDR0_ADDR7
DDR0_RESETN
DDR0_ADDR9
DDR0_ADDR13
DDR0_ADDR2
DDR0_ADDR0
DDR0_BA2
DDR0_WEN
DDR0_CASN
DDR0_ADDR11
DDR0_ADDR14
DDR0_ADDR8
DDR0_ADDR6
DDR0_ADDR1
DDR0_ADDR4
DDR0_BA1
DDR0_ADDR12
DDR0_ADDR10
DDR0_CKE
RP401
1
2
3
4
RP402
1
2
3
4
RP403
1
2
3
4
RP404
1
2
3
4
RP405
1
2
3
4
RP406
1
2
3
4
RP407
1
2
3
4
DDR0_CLK0_P DDR0_CLK0_N
R445
200R
33R
33R
33R
33R
33R
33R
33R
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
RASN_1
ODT_1
CSN_1
BA0_1
ADDR3_1
ADDR5_1
ADDR7_1
RESETN_1
ADDR9_1
ADDR13_1
ADDR2_1
ADDR0_1
BA2_1
WEN_1
CASN_1
ADDR11_1
ADDR14_1
ADDR8_1
ADDR6_1
ADDR1_1
ADDR4_1
BA1_1
ADDR12_1
ADDR10_1
CKE_1
VREF_CA_0
C433
100N 16V
C431
1UF 6.3V
R447
1K 1/16W 1%
R449
1K 1/16W 1%
VREF_DQ_0
C432
100N 16V
C430
1UF 6.3V
R446
1K 1/16W 1%
R448
1K 1/16W 1%
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
A3
Size
A3
Size
A3
Rev
Rev
Rev
称爹
称爹
9
9
9
of
of
of
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
称爹
Page 73
DDRIII_2
ADDR0_2
ADDR1_2
ADDR2_2
ADDR3_2
ADDR4_2
ADDR5_2
ADDR6_2
ADDR7_2
ADDR8_2
ADDR9_2
ADDR10_2
ADDR11_2
ADDR12_2
ADDR13_2
ADDR14_2
BA0_2
BA1_2
BA2_2
DDR0_CLK0_P
DDR0_CLK0_N
CSN_2
CASN_2
ODT_2
RASN_2
WEN_2
CKE_2
VREF_CA_1
U404
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC#
T3
A13
J1
NC_0
J9
NC_1
L1
NC_2
L9
NC_3
M7
NC_4
T7
A14
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK#
L2
CS#
K3
CAS#
K1
ODT
J3
RAS#
L3
WE#
K9
CKE
B1
VSSQ_0
B9
VSSQ_1
D1
VSSQ_2
D8
VSSQ_3
E2
VSSQ_4
E8
VSSQ_5
F9
VSSQ_6
G1
VSSQ_7
G9
VSSQ_8
A9
VSS_0
B3
VSS_1
E1
VSS_2
G8
VSS_3
VSS_4J2VDD_4
J8
VSS_5
M1
VSS_6
M9
VSS_7
P1
VSS_8
P9
VSS_9
T1
VSS_10
T9
VSS_11
M8
VREFCA
K4B4G1646E-BCK0
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
UDQS
UDQS#
LDQS
LDQS#
UDM
LDM
RESET#
VDDQ_0
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDD_0
VDD_1
VDD_2
VDD_3
VDD_5
VDD_6
VDD_8
VDD_7
VREFDQ
DDR0_DQ16
E3
DDR0_DQ17
F7
DDR0_DQ18
F2
DDR0_DQ19
F8
DDR0_DQ20
H3
DDR0_DQ21
H8
DDR0_DQ22
G2
DDR0_DQ23
H7
DDR0_DQ24
D7
DDR0_DQ25
C3
DDR0_DQ26
C8
DDR0_DQ27
C2
DDR0_DQ28
A7
DDR0_DQ29
A2
DDR0_DQ30
B8
DDR0_DQ31
A3
DDR0_DQS3_P
C7
DDR0_DQS3_N
B7
DDR0_DQS2_P
F3
DDR0_DQS2_N
G3
DDR0_DM3
D3
DDR0_DM2
E7
T2
L8
ZQ
A1
A8
C1
C9
D2
E9
F1
H2
H9
B2
D9
G7
K2
K8
N1
N9
R9
R1
H1
VREF_DQ_1
R451
240 OHM
C441 100N 16V
C442 100N 16V
C434
1N 50V
C443 100N 16V
C444 100N 16V
1V5_DDR3
C445 100N 16V
R450
4.7K1/16W
RESETN_2
1V5_DDR3
C446 100N 16V
C447 100N 16V
C440
100N 16V
C435
100N 16V
C436
470NF 10% 10V
C437
470NF 10% 10V
C438
1V5_DDR3
C439
10UF
470NF 10% 10V
DDR0_RASN
DDR0_ODT ODT_2
DDR0_CSN
DDR0_BA0
DDR0_ADDR3
DDR0_ADDR5
DDR0_ADDR7
DDR0_RESETN
DDR0_ADDR9
DDR0_ADDR13
DDR0_ADDR0
DDR0_BA2
DDR0_WEN
DDR0_CASN
DDR0_ADDR11
DDR0_ADDR8 ADDR8_2
DDR0_ADDR6
DDR0_ADDR1
DDR0_ADDR4
DDR0_BA1
DDR0_ADDR12
DDR0_ADDR10
DDR0_CKE
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
RP408
RP409
RP410
RP411
RP412
RP413
RP414
33R
33R
33R
33R
33R
33R
33R
5
6
7
8
5
6
7
8
5
6
7
8
5
6
7
8
5
6
7
8
5
6
7
8
5
6
7
8
RASN_2
CSN_2
BA0_2
ADDR3_2
ADDR5_2
ADDR7_2
RESETN_2
ADDR9_2
ADDR13_2
ADDR2_2DDR0_ADDR2
ADDR0_2
BA2_2
WEN_2
CASN_2
ADDR11_2
ADDR14_2DDR0_ADDR14
ADDR6_2
ADDR1_2
ADDR4_2
BA1_2
ADDR12_2
ADDR10_2
CKE_2
VREF_CA_1
C451
100N 16V
C449
1UF 6.3V
1V5_DDR3
R453
1K 1/16W 1%
R455
1K 1/16W 1%
VREF_DQ_1
C450
100N 16V
C448
1UF 6.3V
1V5_DDR3
R452
1K 1/16W 1%
R454
1K 1/16W 1%
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
A3
Size
A3
Size
A3
Rev
Rev
Rev
称爹
称爹
10
10
10
of
of
of
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
称爹
Page 74

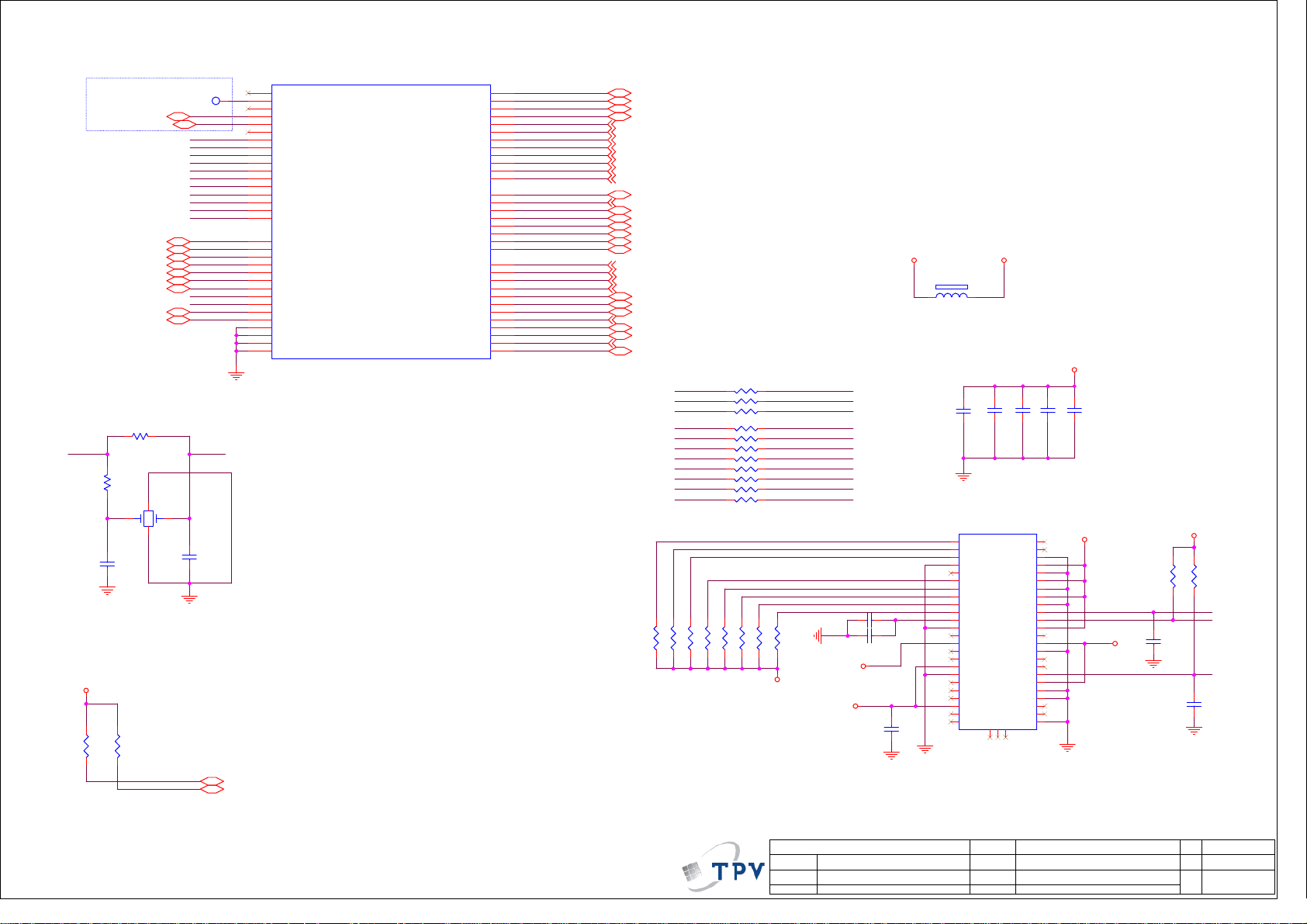

eMMC & eeprom & xtal
AD28
1
EAR_DET
USB-EN
EMMC_CMD
EMMC_CLK
EMMC_D0
EMMC_D1
EMMC_D2
EMMC_D3
EMMC_D5
EMMC_D6
EMMC_D7
JTAG_SEL
SPDIF_OUT
VGA_DDC_SCL
VGA_DDC_SDA
FUNC_SEL
POR_SEL
RESETIN
XOUT
XIN
AMP_MUTE
LED_PWM
XINXOUT
C457
30PF
I2C1_SCL 6,12
I2C1_SDA 6,12
AD27
AC27
AC28
AD26
AD25
R466
100OHM
3V3
R481
NC/4.7K1/16W
EAR_DET17
USB-EN14
JTAG_SEL3
SPDIF_OUT17
VGA_DDC_SCL16
VGA_DDC_SDA16
FUNC_SEL3
POR_SEL3
RESETIN6
AMP_MUTE17
LED_PWM6
R460
X401
1
C458
30PF
R482
NC/4.7K1/16W
TP406
EMMC_RST
1MOHM 1/16W +/-5%
24MHZ
3
2 4
MISC Interface of
SFC_DIO/GP3_0/SPI0_DO
SFC_WPN/GP3_1
SFC_CLK/GP3_2/SPI0_CLK
SFC_DOI/GP3_3/SPI0_DI
SFC_HOLDN/GP3_4
SFC_CS1N/GP3_5/SPI0_CSN
D1
EMMC_RSTN/GP7_2
D3
EMMC_CCMD/GP7_3
C1
EMMC_CLK/GP7_4
E2
EMMC_D0/GP7_5
F2
EMMC_D1/GP7_6
G4
EMMC_D2/GP7_7
D2
EMMC_D3/GP8_0
E3
EMMC_D4/GP8_1
F3
EMMC_D5/GP8_2
F1
EMMC_D6/GP8_3
G2
EMMC_D7/GP8_4
H3
JTAG_SEL
G1
SPDIF_OUT/GP8_5
G3
VGA_DDC_SCL/GP8_6
H4
VGA_DDC_SDA/GP8_7
C10
FUNC_SEL
B7
POR_SEL
D10
RESTIN
A9
XOUT
B9
XIN
D9
AMP_MUTE/SGP0_5
C8
LED_PWM/SGP0_4
A1
VSS1
B2
VSS2
C9
VSS3
E10
VSS4
U401H HI3751AV500_AFE
UART2_TXD/GP7_1/I2C4_SDA
UART2_RXD/GP7_0/I2C4_SCL
LD_EN/GP4_0/SCN_EN/SFC_ADDR_MOD
VBO_LOCKN/GP4_4/LVDS_SEL
PMC1/GP6_5
PMC0/GP6_4
I2S_MCLK/GP6_0
I2S_BCLK/GP6_1
I2S_WS/GP6_2
I2S_DOUT/GP6_3
I2C0_SCL/GP6_6
I2C0_SDA/GP6_7
UART1_TXD/UART0_TXD
UART1_RXD/UART0_RXD
MHL_VBUS_CTRL/SGP0_1
SGP0_0
IRIN/SGP0_2
STANDBY/SGP0_3
LS_ADC0/SGP0_6
LS_ADC1/SGP0_7
LS_ADC2/SGP1_0
LS_ADC3/SGP1_1
I2C1_SCL/GP5_3
I2C1_SDA/GP5_2
SYNC_3DI/GP5_1
BRI_PWM0/GP4_5
BLK_ON/GP4_6
SYNC_3DO/GP5_0
VBO_HPN/GP4_3
PWR_EN/GP4_2
EN_3D/GP4_1
VSYNC_GLSS/GP4_7
B4
B1
D4
PMC1
C4
PMC0
I2S_MCLK
C2
I2S_BCLK
C3
I2S_WS
A2
I2S_DOUT
A3
I2C0_SCL
A4
I2C0_SDA
B3
UART1_TXD
C6
UART1_RXD
B6
STB_GPIO0_0EMMC_D4
D8
STB_GPIO0_1
A6
C7
IRIN
A7
STB
LS_ADC0_KEY
A11
LS_ADC1_KEY
B11
LEDR_OUT
C11
LS_ADC3/STB_GPIO1_1
D11
I2C1_SCL
N24
I2C1_SDA
N23
LD_EN
M25
DF0/SYNC_3D_IN
M24
M26
PWM0
BL_ON
N28
DF1/SYNC_3D_OUT
M23
N26
LOCKN
VBO_HPN
N25
PWR_EN
N27
3D_EN
P23
HP_EN
P24
UART2_TXD_IN 16
UART2_RXD_IN 16
PMC1 5
PMC0 5
STB_GPIO0_0 5
IRIN 6,16
STB 4,5
LS_ADC0_KEY 6
LS_ADC1_KEY 6
LEDR_OUT 6
LS_ADC3/STB_GPIO1_1 18
PWM0 4
BL_ON 4
DF1/SYNC_3D_OUT 12
VBO_HPN 12
PWR_EN 13
HP_EN 18
GPIO4_7
R472
R471
NC
NC
EMMC_CLK
EMMC_CMD
EMMC_RST
EMMC_D0
EMMC_D1
EMMC_D2
EMMC_D3
EMMC_D4
EMMC_D5
EMMC_D6
EMMC_D7
R473
R474
NC
NC
R456 33 OHM 1/16W
R457 33 OHM 1/16W
R458 33 OHM 1/16W
R459 33 OHM 1/16W
R461 33 OHM 1/16W
R462 33 OHM 1/16W
R463 33 OHM 1/16W
R464 33 OHM 1/16W
R465 33 OHM 1/16W
R467 33 OHM 1/16W
R468 33 OHM 1/16W
R476
NC
R477
NC
R478
NC
VDD_EM
R475
NC
EMMCCK
EMMCCMD
EMMCRSTN
EMMCDAT0
EMMCDAT1
EMMCDAT2
EMMCDAT3
EMMCDAT4
EMMCDAT5
EMMCDAT6
EMMCDAT7
EMMCDAT0
EMMCDAT1
EMMCDAT2
EMMCDAT3
EMMCDAT4
EMMCDAT5
EMMCDAT6
EMMCDAT7
VDD_EM
3V3
C459100N 16V
100N 16V
C463
3V3 VDD_EM
FB402
1 2
120R
A3
A4
A5
A6
A7
B2
B3
B4
B5
B6
C2
E10
F10
C4
C5
C6
D4
E5
E6
E7
E8
E9
F5
G3
C4604.7UF 6.3V
C452
C456
100N 16V
2.2uF 6.3V
U413
THGBMBG5D1KBAIT
DAT0
DAT1
DAT2
VSS
NC
DAT3
DAT4
DAT5
DAT6
DAT7
VDDI
Vssq
NC
Vccq
A1 index
NC
Vcc
Vss
NC
NC
NC
Vcc
NC
NC
RSTN
NCB1NCC1NC
N1
Vssq
Vccq
Vssq
Vccq
Vssq
Vccq
Vssq
CLK
CMD
Vccq
VSS
Vcc
Vss
Vcc
Vss
Vss
C453
NC
NC
NC
NC
NC
DS
NC
100N 16V
P10
P7
P6
P5
P4
P3
N5
N4
N2
M6
M5
M4
K10
K9
K8
K7
K6
K5
J10
J5
H10
H5
G10
G5
C454
100N 16V
VDD_EM
C455
100N 16V
VDD_EM
EMMCCK
EMMCCMD
3V3
EMMCRSTN
10K
R469
C461
10PF 50V
3V3
R470
47K
C462
NC/100NF
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
A3
Size
A3
Size
A3
Rev
Rev
Rev
称爹
称爹
11
11
11
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
of
of
of
称爹
Page 75

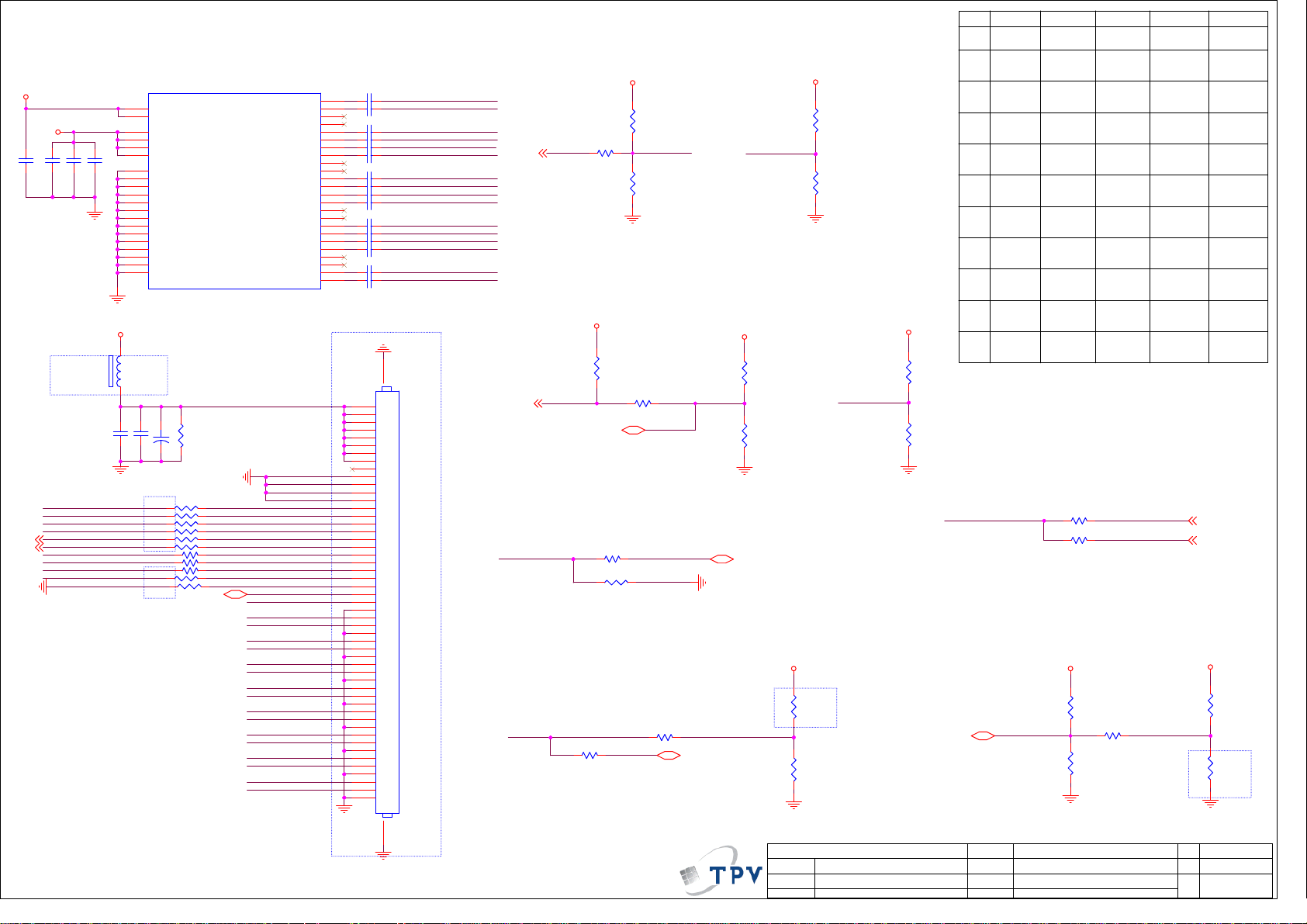

V-BY-ONE socket
MISC Interface of
VDD_1V1
VDD_1V1
3V3
C4001
C4009
C4008
100N 16V
100N 16V
1UF 6.3V
FB403
120R 6A
100N 16V
GND/PWM_TIN
DF0/SYNC_3D_IN/PWM_TOUT
DF1/SYNC_3D_OUT
3D_EN
I2C1_SDA
I2C1_SCL
WP/NC
BIT_SEL/3D_EN
NC/LD_EN/L/R_O
AGP/NSB/L/R_I
3V3
C4010
10uF 6.3V
C4022
HI3751AV500_AFE
T19
AVDD11_LVDS1
U19
AVDD11_LVDS2
T23
AVDD33_PLL_LVDS
U23
AVDD33_LVDS1
V23
AVDD33_LVDS2
W23
AVDD33_LVDS3
R23
AVSS33_PLL_LVDS
P25
AVSS_LVDS1
P26
AVSS_LVDS2
R26
AVSS_LVDS3
T24
AVSS_LVDS4
U26
AVSS_LVDS5
V24
AVSS_LVDS6
W26
AVSS_LVDS7
Y24
AVSS_LVDS8
AA26
AVSS_LVDS9
AB24
AVSS_LVDS10
AC24
AVSS_LVDS11
AC25
AVSS_LVDS12
AC26
AVSS_LVDS13
VCC_PANEL
12
C4026 NC
+
R4013~R4018
R4013 NC/0R05 OHM
R4014 NC/0R05 OHM
R4015 NC/0R05 OHM
R4016 NC/0R05 OHM
R4017 NC/0R05 OHM
R4018 NC/0R05 OHM
R4019
R4020
R4021
R4024 NC/0R05 OHM
R4025 0R05 OHM
R4024~R4025パNCэ
C4025 220uF 25V
パ ンэ
U401G
LVDS1_TEP/VX1_LANE7P
LVDS1_TEN/VX1_LANE7N
LVDS1_TCLKP/VX1_LANE6P
LVDS1_TCLKN/VX1_LANE6N
LVDS1_TCP/VX1_LANE5P
LVDS1_TCN/VX1_LANE5N
LVDS1_TAP/VX1_LANE4P
LVDS1_TAN/VX1_LANE4N
LVDS0_TEP/VX1_LANE3P
LVDS0_TEN/VX1_LANE3N
LVDS0_TCLKP/VX1_LANE2P
LVDS0_TCLKN/VX1_LANE2N
LVDS0_TCP/VX1_LANE1P
LVDS0_TCN/VX1_LANE1N
LVDS0_TAP/VX1_LANEN0P
LVDS0_TAN/VX1_LANEN0N
R4010
NC/1K 1/4W
NC
NC
NC
NC/0R05 OHM
VBO_HPN11
ン
AB25
AB26
LVDS1_TDP
LVDS1_TDN
LVDS1_TBP
LVDS1_TBN
LVDS0_TDP
LVDS0_TDN
LVDS0_TBP
LVDS0_TBN
AA24
AA25
AA28
AA27
Y25
Y26
W24
W25
W28
W27
V25
V26
U24
U25
U28
U27
T25
T26
R24
R25
R28
R27
V by One
CN408
CONN
DF0/SYNC_3D_IN/PWM_TOUT2
DF1/SYNC_3D_OUT_OUT
3D_EN_OUT
I2C1_SDA_OUT
I2C1_SCL_OUT
BIT_SEL/3D_EN_OUT
AGP/NSB/L/R_I_OUT
VBO_HPN
LOCKN_OUT
VX1_LANE0N
VX1_LANE0P
VX1_LANE1N
VX1_LANE1P
VX1_LANE2N
VX1_LANE2P
VX1_LANE3N
VX1_LANE3P
VX1_LANE4N
VX1_LANE4P
VX1_LANE5N
VX1_LANE5P
VX1_LANE6N
VX1_LANE6P
VX1_LANE7N
VX1_LANE7P
C4002100N 16V
C4003100N 16V
C4004100N 16V
C4005100N 16V
C4006100N 16V
C4007100N 16V
C4011100N 16V
C4012100N 16V
C4013100N 16V
C4014100N 16V
C4015100N 16V
C4016100N 16V
C4017100N 16V
C4018100N 16V
C4019100N 16V
C4020100N 16V
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
VX1_LANE7P
VX1_LANE7N
VX1_LANE6P
VX1_LANE6N
VX1_LANE5P
VX1_LANE5N
VX1_LANE4P
VX1_LANE4N
VX1_LANE3P
VX1_LANE3N
VX1_LANE2P
VX1_LANE2N
VX1_LANE1P
VX1_LANE1N
VX1_LANE0P
VX1_LANE0N
0R05 OHM
R4003
LOCKN
3V3
3V3
3D_EN
BIT_SEL/3D_EN4
GND/PWM_TIN
NC
R4022
NC/0R05 OHM
R4027
DF0/SYNC_3D_IN/PWM_TOUT
NC
R4033
3V3
3V3
10K
NC
R4006
NC/10K
NC/0R05 OHM
R4009
VBO_DIMM_CTL
NC/0R05 OHM
R4032
PWM_OUT
R4001
R4005
BIT_SEL/3D_EN
パ
NCэ ン10K
DF0/SYNC_3D_IN
PWM_OUT 4
VBO_HPNLOCKN_OUT
3V3
3V3
NC
R4008
NC
R4012
VBO_DIMM_CTL 4
Samsung
Pin No.
GND
38
(R83,R111)
Data format 0
3V3
3V3
10K
NC
R4002
R4004
3V3
3V3
37
36
35
34
33
32
3D_EN
31
(R100,R107)
3D_Sync_out
30
(R101,R110)
3D_Sync_In
29
(R102,R113)
28
(R106)
NC
R4007
NC
NC
NC
NC
NC
NC
GND
(R80,R114)
R137/R139
Data format 1
(R95)
R136/R152
Bit SEL
(R100)
R134/R135
AGP or NSB
(R102)
R150/R151
GND
(R106)
WP/NC
NC
R4011
NC/LD_EN/L/R_O
3V3 3V3
NC/0R05 OHM
R4023
NC
R4026
3V3
R4030
R4029
NC/10K
NC
R4036
DF1/SYNC_3D_OUT11
DF1/SYNC_3D_OUT
NC/10K
LG
NC
NC
NC
NC
NC
NC
3V3
NC/0R05 OHM
R4031
NC
R4034
AUO
GND
(R83,R111)
3D_Sync_out
(R80,R114)
3D_Sync_In
(R95)
3D_EN
(R96)
SDA
(R22)
SCL
(R105)
WP
(R103)
R156/R183
NC
NC
NC
GND
(R106)
DF0/SYNC_3D_IN
LD_EN
パ
CMI
GND
(R83,R111)
3D_Sync_out
(R80,R114)
3D_Sync_In
(R95)
3D_EN
(R96)
SDA
(R22)
SCL
(R105)
NC
NC
LD_EN
(R101,R109)
NC
NC
AGP/NSB/L/R_I
NCэ ン0R
(R83,R111)
PWM TOUT
(R80,R115)
Gplus Mode
R136/R152
Gplus EN
(R96,R107)
R134/R135
R134/R135
Data format
(R101,R109)
AGP or NSB
R150/R151
3V3
3V3
NC
NC/0R05 OHM
LG-S
PWM TIN
(R95)
SDA
(R22)
SCL
(R105)
NC
Bit SEL
(R100)
(R102)
NC
R4028
R4035
52 53
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
12
12
12
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
of
of
of
Size
Size
Size
Rev
Rev
Rev
称爹
称爹
称爹
A3
A3
A3
Page 76

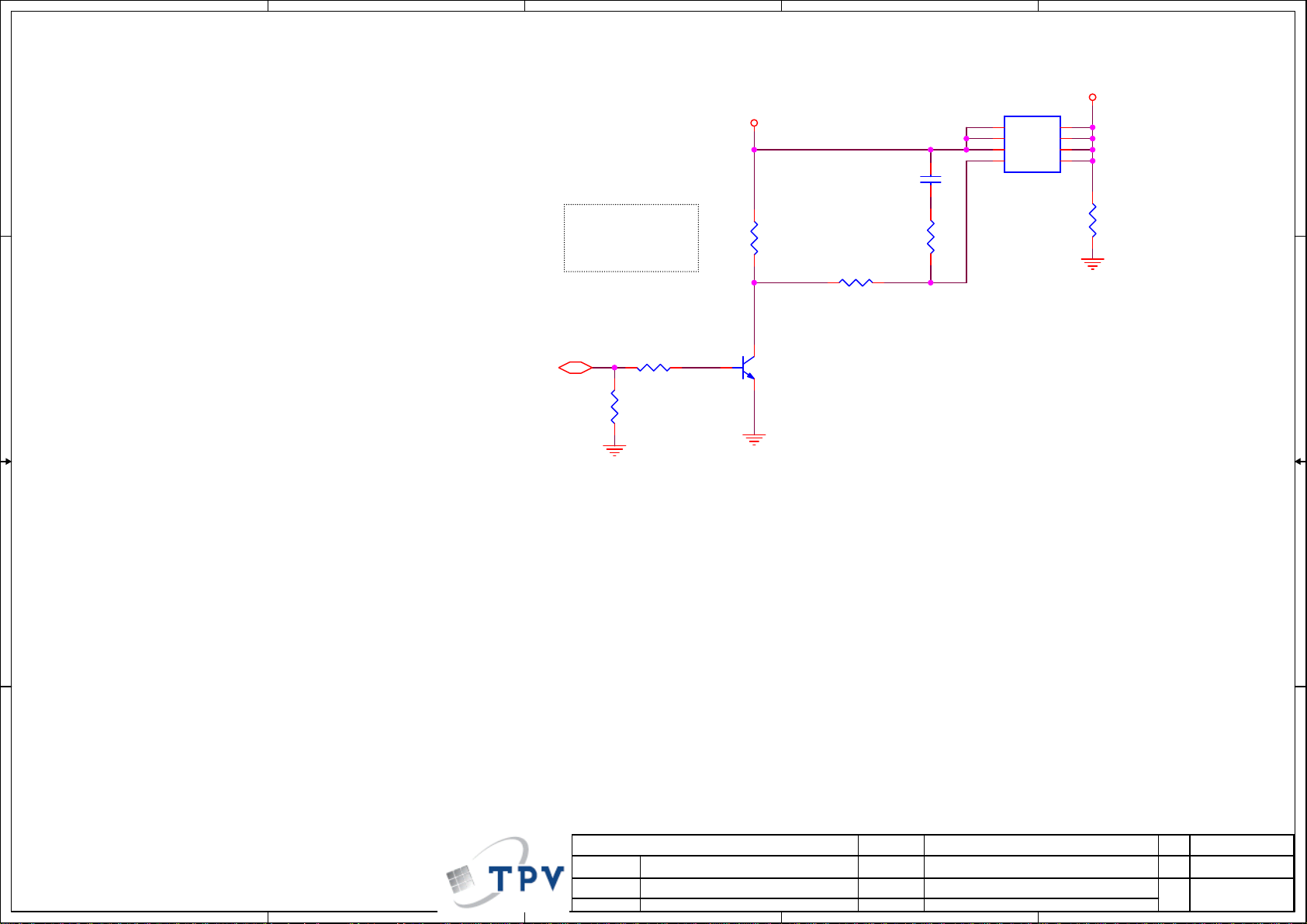

5
4
3
2
1
VCC_PANEL
12V0
D D
C4023
220NF 25V
OPWRSB_PWR
Normal:High
Stand_By:Low
R4057
C C
PWR_EN11
4.7K 1/16W
R4125
4.7K 1/16W
R4047
47K
Q409
MMBT3904
R4053
150K
R4046
0R05 OHM
Q408
1
S
2
3
4
D
S
D
S
D
G
D
AO4449 -7A/-30V
8
7
6
5
R4045
NC/10KOHM
B B
A A
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
5
4
Date
3
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
2
13
13
13
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
of
of
of
Size
Size
Size
Rev
Rev
Rev
称爹
称爹
称爹
1
A4
A4
A4
Page 77

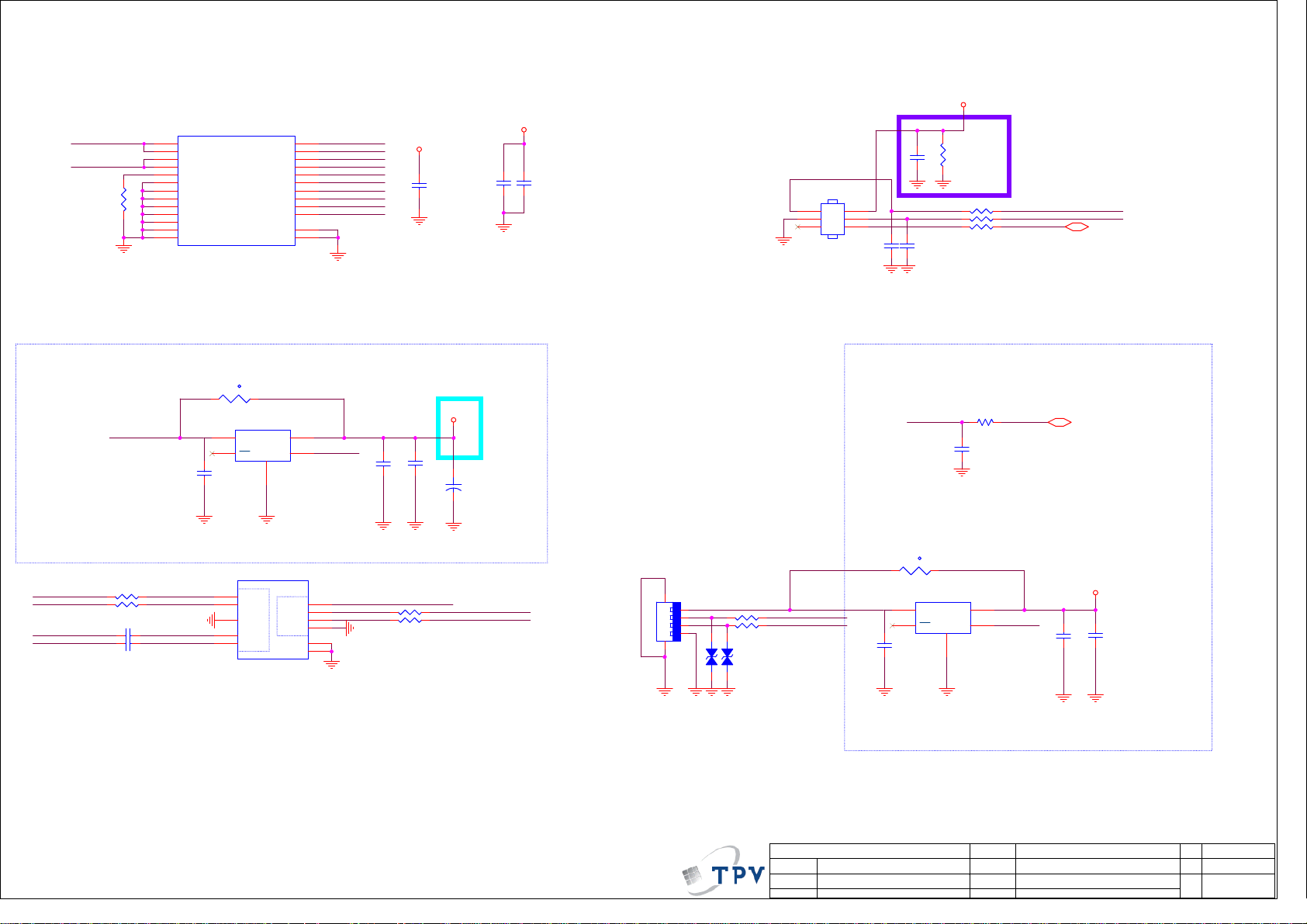

USB2.0 & USB3.0 & WIFI
VDD_1V1
R101
133R 1/10W 1%
USB3.0
3V3
USB3_VBUS
MISC Interface of
AB20
AB21
V19
W19
AD24
AE26
AF26
AF27
AF28
AH27
AH28
AB22
AB19
HI3751AV500
AVDD33_USB3
AVDD33_USB2
AVCC11_USB2
DVDD11_USB3
USB2_RBIAS
VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8
U401F
AVSS_USB3_2
AVSS_USB3_1
HI3751AV500_AFE
TH101
PTCR
1 2
NC/G5250K1T1U
5
OUT
3
OC
C1020
NC/100NF 25V
USB3_TXN
USB3_TXP
USB2_DN2
USB2_DP2
USB3_RXN
USB3_RXP
USB2_DM1
USB2_DP1
USB2_DM0
USB2_DP0
t
GND
2
U100
EN
C107
10UF
C1027
4.7pF 50V
USB_EN
WIFI_PWR
USB2_DM
USB2_DP
R106
NC/10K
R102 0R05 OHM
R103 0R05 OHM
R104 0R05 OHM
R191
C1023
NC/1uF 50V
NC/100OHM
USB2_DM0
USB2_DP0
GPIO10_1/JTAG_MUX1 3,15
USB-EN 11
Wi-Fi Power Control
VDD_1V1
USB3_TXM
AG24
USB3_TXP
AH24
USB3_DM
AF25
USB3_DP
AE25
USB3_RXM
AG26
USB3_RXP
AH26
USB2_DM1
AG28
USB2_DP1
AG27
USB2_DM0
AE27
USB2_DP0
AE28
AF24
AE24
4
IN
USB_EN
1
3V3
1000mA
C1021
NC/100N 16V
C101
10uF 6.3V
C1022
NC/10UF
100N 16V
э 5V_USB
5V_USB
C110
+
100UF 16V
C102
C103
10uF 6.3V
WIFI
CN102
2
4
6
6P R/A 2.0mm
311GW200C06ABL
CONN
1
3
5
C1026
4.7pF 50V
USB3_RXM
USB3_RXP
USB3_TXM
USB3_TXP
R108 5.1R 1/16W
R109 5.1R 1/16W
C108 100N 16V
100N 16V
C109
CN101
5
RXN
6
RXP
7
GND
8
TXN
9
TXP
USB CONN 9P
USB3.0
VCC
USB2.0
GND
HAND1
HAND2
TH102
PTCR
t
1 2
USB3_VBUS
1
2
D-
3
D+
4
10
11
R110 5.1R 1/16W
R111 5.1R 1/16W
USB3_DM
USB3_DP
CN103
USB CONN
USB2.0
1
1234
2
3
4
6 5
ZD101
1 2
R113 5.1R 1/16W
R114 5.1R 1/16W
ZD102
1 2
USB2_DM1
USB2_DP1
C1024
NC/100NF 25V
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
5
3
NC/G5250K1T1U
OUT
OC
GND
2
U101
IN
EN
4
USB_EN
1
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
э 5V_USB
5V_USB
500mA
C112
C111
10UF
NC/100N 16V
Size
A3
Size
A3
Size
A3
Rev
Rev
Rev
称爹
称爹
14
14
14
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
of
of
of
称爹
Page 78

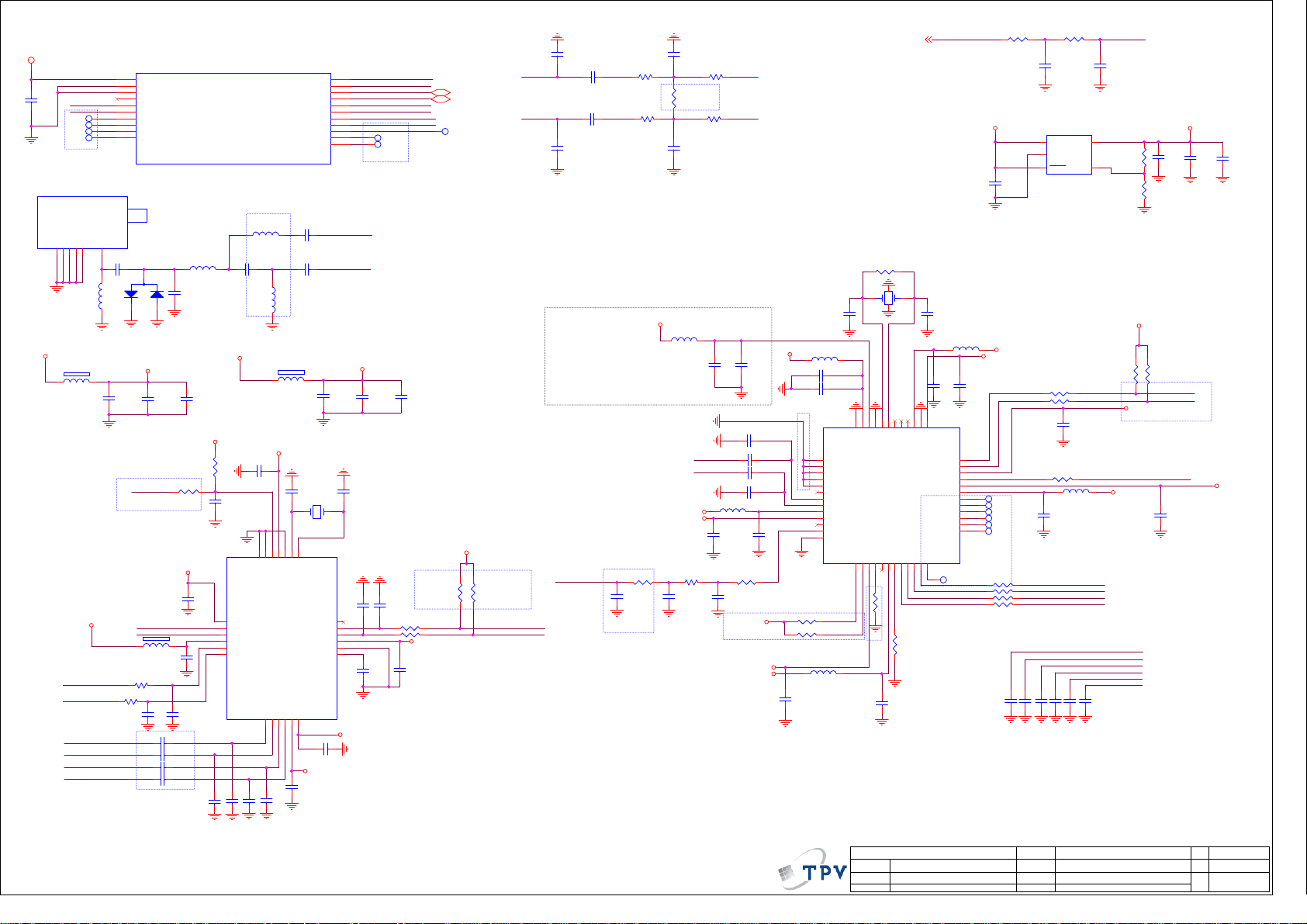

Tuner
DVDD18_OUT
C118
1UF 6.3V
TU3V3
TSI1_SYNC
TSI1_D0
TP408
TP409
TP410
TP411
TU101
RF CONN
6
L103
NC/0.33uH
FB103
1 2
1000
VDD_1V8_SOB
IF_AGC_TUXG
IF_AGC_DM
IFP_SOC
IFN_SOC
IFP_DM
IFN_DM
AD10
AC11
1
AE11
1
AD12
1
AC12
1
AE12
ANT1GND2GND3GND4GND5GND
C127
C138
10UF
R132
100OHM
NC/100OHM
R145
NC/100N 16V
AF10
W12
AF12
AB8
1N 50V
R144
C175
2
DEMOD_RST
MISC Interface of
DVDD1833_LDO_OUT
AVSS_QAM1
AVSS_QAM2
SD_CDZ/GP11_7
SD_PWREN/TSI1_SYNC/GP12_0
SD_CWPR/TSI1_D0/GP12_1
SD_CLK/TSI1_D3/GP12_4
SD_CCMD/TSI1_D4/GP12_5
SD_D3/TSI1_D5/GP12_6
SD_D2/TSI1_D6/GP12_7
HI3751AV500_AFE
8.2NH
D102
BAV99
1
C139
10PF 50V
NC/0R05 OHM
100N 16V
C164
C169
100N 16V
C132
1pF 50V
100N 16V
100K 1/16W
R132
1UF 6.3V
3V3_TUN
12
C176
100N 16V
L102
C140
R131
C160
C182
47pF 50V
3V3_TUN
3
3V3_TUN
ぃ ン
SOB_LNA_INP
SOB_LNA_INN
FB104 1000
C1000 100N 16V
C1001 100N 16V
C1002 NC/100N 16V
C1003 NC/100N 16V
U401D
I2C2_SDA/PWM2/GP10_3
I2C2_SCL/PWM1/GP10_2
AGC_SEL/JTAG_MUX1/GP10_1
RF_AGC/JTAG_MUXO/GP10_0
SD_D0/TSI1_D2/GP12_3
SD_D1/TSI1_D1/GP12_2
L101
27nH
C128
5.6PF 50V
TU3V3
10NF 50V
U407
25
MxL661-AG-R
1
VDD_3p3
2
LNA_INP
3
LNA_INN
4
VDD_1p8
5
AGC_2/GPO_3
6
AGC_1
C179
C181
C180
NC/47pF 50V
NC/47pF 50V
47pF 50V
QAMAD_VINNI
QAMAD_VINPI
TSI1_VLD/GP13_2
TSI1_CLK/GP13_1
TSI1_D7/GP13_0
L104
27nH
L101, L104
FB105
1 2
NC/1000
VDD_1V8_SOB
C157
22
24
23
21
AS
E-PAD
VDD_1p8
RESET_N
GND_XTAL
IF_OUTP_2/GPO_17IF_OUTN_2/GPO_28IF_OUTP_19IF_OUTN_110VDD_3p311VDD_1p8
20
C126
1N 50V
1N 50V
19
XTAL_P
XTAL_N
12
C178
100N 16V
C129
パ
39nHэ 27nH
C158
2.7pF
1 2
X102
16MHz
CLK_OUT
VDD_IO
GND_DIG
VDD_1p2
1UF 6.3V
3V3_TUN
TUNER_SDA
AE9
TUNER_SCL
AD9
GPIO10_1/JTAG_MUX1
AC8
RF_AGC/JTAG_MUX0
AC9
AH10
AG10
AE10
AC10
AF9
AF11
AD11
SOB_LNA_INP
SOB_LNA_INN
+3.3V_ATBM
C172
NC/10UF
C165
30PF
18
17
SDA
16
SCL
15
14
13
VDD_1V8_SOB
C177
IFIF+
1
1
C159
2.7pF
C166
30PF
C171
2.2nF 50V
C173
NC/10PF 50V
TSI1_VLD
TSI1_CLK
TSI1_D0+
TP412
TP413
C174
NC/100N 16V
0R05 OHM
R142
R143 0R05 OHM
3V3_TUN
C170
100N 16V
GPIO10_1/JTAG_MUX1 3,14
RF_AGC/JTAG_MUX0 3
1
TP414
3V3_TUN
R189
4.7K1/16W
R190
4.7K1/16W
TUNER_SDA
TUNER_SCL
IFN_SOC
IFP_SOC
C113
NC/47pF 50V
C117
C119
C120
NC/47pF 50V
IF_AGC_DM
near 3751
100OHM
R117
1UF 6.3V
100OHM
R120
1UF 6.3V
R1003 NC/1K
C1025
NC/100N 16V
+1.1V_ATBM
+3.3V_ATBM
+1.1V_ATBM
R133
C114
33PF 50V
R118
R119
NC/330R 1%
R121
C121
33PF 50V
IFN_DM
IFP_DM
C162
NC/100N 16V
L114
NC/2.2UH
L108
NC/200R
R119
0R05 OHM
C143
NC/100N 16V
C155
NC/100N 16V
0R05 OHM
Pin37~Pin41钡GND,
R134 NC/10K
C163
NC/100N 16V
IF-
ぃ ン
IF+
CAVDD
+3.3V_ATBM
C133
NC/10NF 50V
糤 床荐
C142 NC/22P 50V
C149 NC/100N 16V
C151 NC/100N 16V
C152 NC/22P 50V
NC/2.2UH
C156
NC/100N 16V
+3.3V_ATBM
+1.1V_ATBM
+3.3V_ATBM
C130
NC/8.2pF 50V
L105 NC/2.2UH
C134 NC/100N 16V
C135 NC/10NF 50V
.
37
NC
38
NC
39
IFBP
40
IFBN
41
NC
42
CLK_IO
43
IFAP
44
IFAN
45
VDD33
46
CVDD
47
PWM1/GPIO2
48
PWM0/GPIO3
49
E-PAD
R1001 NC/4.7K1/16W
R1002 NC/4.7K1/16W
L109 NC/2.2UH
C167
NC/100N 16V
R124
NC/1 MOHM 1% 1/16W
X101
NC/24MHZ
1
3
2 4
31
33
34
32
NC
ADDR
XTAL0
U406
NC/ATBM8880
R1000 NC/0R05 OHM
30
28
NC29NC
XTALI
TEST/GPIO1
R141
NC/1K
C168
NC/100N 16V
27
35
36
GND
AVDD33
SDAM1SCLM2CVDD3TEST04I2CINT/GPIO45VDD336STATUS7TSSYNC8TSVLID9TSCLK10TS011TS1
+3.3V_ATBM
C125
NC/1UF 6.3V
10K
R115
RF_AGC/JTAG_MUX0
Vout=0.8x (1+4.3K/11K) = 1.113V
C131
NC/8.2pF 50V
L106
NC/2.2UH
+3.3V_ATBM
+1.1V_ATBM
C137
26
TEST1
VDD33
C136
NC/100N 16V
25
CVDD
SDAS
SCLS
CVDD
RESETN
CVDD
VDD33
12
1
TS7
TS6
TS5
TS4
TS3
TS2
TP100
DEM_SDA
NC/100N 16V
24
23
22
21
20
19
1
18
TP106
1
17
TP105
1
16
TP104
1
15
TP103
1
14
TP102
1
13
TP101
R135 NC/22 OHM 1/16W
R136 NC/22 OHM 1/16W
R137 NC/22 OHM 1/16W
R138 NC/22 OHM 1/16W
DTMB Demo
C104
NC/10PF
0R05 OHM
R116
C115
47NF 16V
U405
1
IN
OUT
2
GND
SHDN3SET
NC/G9141T11U
NC/0R05 OHM
R127
R128 NC/0R05 OHM
C141
NC/100N 16V
R130
NC/0R05 OHM
L107 NC/2.2UH
C153
NC/100N 16V
TSI1_D0
TSI1_CLK
TSI1_VLD
TSI1_SYNC
C145
C144
C106
C105
NC/10PF
NC/10PF
NC/10PF
NC/10PF
IF_AGC_TUXG
5
4
NC/4.7K1/16W
DEM_SDA
DEM_SCL
TSI1_D0
TSI1_CLK
TSI1_VLD
TSI1_SYNC
C146
NC/10PF
C116
47NF 16V
R122
NC/4.3K 1%
R123
NC/11K 1%
R125
+3.3V_ATBM
+3.3V_ATBM
+1.1V_ATBM
DEMOD_RST
C122
NC/1UF 6.3V
R126
NC/4.7K1/16W
TUNER_SDA
TUNER_SCLDEM_SCL
C154
NC/100N 16V
+1.1V_ATBM
C123
NC/10UF
C124
NC/100N 16V
+1.1V_ATBM
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
Custom
Size
Custom
Size
Custom
Rev
Rev
Rev
称爹
称爹
15
15
15
of
of
of
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
称爹
Page 79

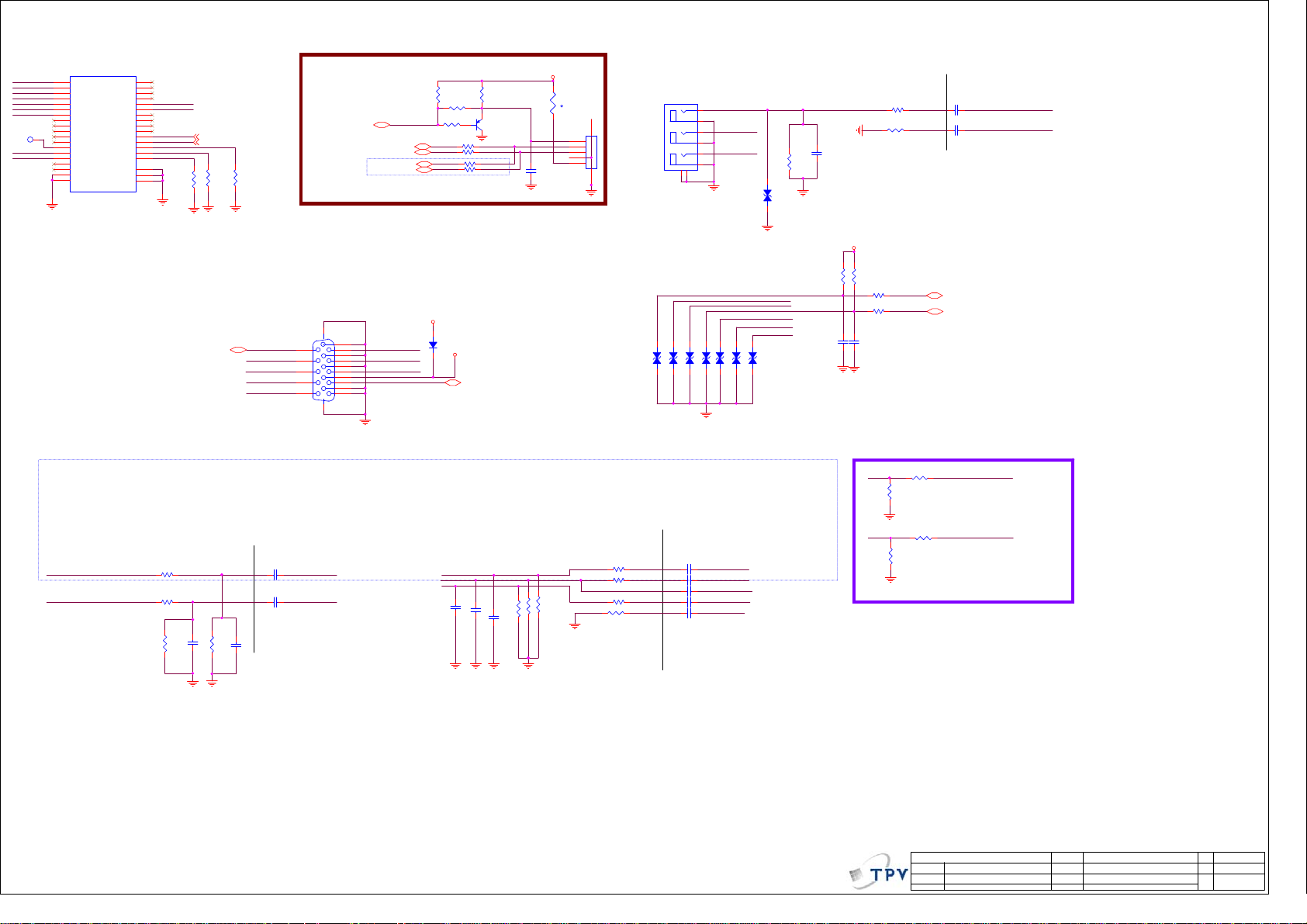

MIC & YPBPR & AV IN & CVBS OUT
MISC Interface of
U401C
VGA_SINCIN
VGA_GN
VGA_BP
VGA_GP
VGA_RP
VGA_HSYNC
VGA_VSYNC
TP415
CVBS_VCOM
CVBS0_IN
HI3751AV500_AFE
N3
SOG
M3
VGA_GN
L2
VGA_BP
M2
VGA_GP
N2
VGA_RP
M4
VGA_HS0
L1
VGA_VS0
N1
Y0N
R3
SOY0
P1
PB0Y
P3
1
Y0P
P2
PROY
T5
VDAC1_OUT
T4
CVBS_COM
R2
CVBS0
R4
CVBS1
R5
CVBS2
T6
VSS2
M5
VSS1
LINEIN_R3
LINEIN_L3
LINEIN_R2
LINEIN_L2
LINEIN_R1
LINEIN_L1
LINEOUT_R3
LINEOUT_L3
LINEOUT_R2
LINEOUT_L2
LINEOUT_L1
LINEOUT_R1
MIC_P
MIC_N
BG_RES_10K
AVSS_AFE3
AVSS_AFE2
AVSS_AFE1
AG6
AF6
AG5
AH6
LINEIN_R1
AG7
LINEIN_L1
AF7
AD8
AD7
AE8
AF8
LINEOUT_L1
AE6
LINEOUT_R1
AE5
AH8
AG8
R6
P5
P4
R154
N4
10K 1%
UART1_RXD_IN6,20
盢
TXDэ RXD
R1005
10K 1%
R1006
10K 1%
UART1_RXD_IN
VGA_SDA
VGA_HS
VGA_VS
VGA_SCL
ITV Port
Debug
NC R4155 , R4156
ADD R496 , R497 ,
R501 , R502
VGA
1716
CN106
6
1
11
7
2
12
8
3
13
9
4
14
10
5
15
CONN
IRIN6,11
UART2_RXD_IN11
UART2_TXD_IN11
UART1_RXD_IN6,20
UART1_TXD_IN6,20
盢
RXDэ TXD
IRIN
VGA_R_P
VGA_G_P
VGA_B_P
UART1_TXD_IN
NC/100R 1/16W 5%
R489
100OHM
5V0
BAS316WS
D101
R486
NC/10K
R488
R490
R491
R4124
R4123
VGA_5V
UART1_TXD_IN 6,20
R487
10K
RC_IR_OUT
MMBT3906
Q410
NC/100OHM
NC/100OHM
100OHM
100OHM
5V_SB
C467
NC/100P 50V
12
TH104
PTCR
t
CN109
CONN
67
1
2
3
4
5
YPBPR0/CVBS1
CN104
RCA JACK
YPBPR0_Y_P_IN
2
A
1
VGA_AUIN_L
4
B
3
VGA_AUIN_R
6
C
5
7
8
ZD103
1 2
VGA_SCL
VGA_VS
VGA_HS
VGA_SDA
VGA_R_P
VGA_G_P
12
ZD109NC/MLVG0402
ZD112
ZD111
ZD110
NC/MLVG0402
NC/MLVG0402
NC/MLVG0402
12
12
12
VGA_B_P
12
12
12
ZD113
ZD114
ZD115
NC/MLVG0402
NC/MLVG0402
NC/MLVG0402
NC/VPORT0603100KV05
Close to RCA port
C184
R146
NC/47pF
75R 1/16W 1%
R158
4.7K1/16W
C468 NC/100pF 50V
R153 33R 1/16W 5%
VGA_5V
R157
4.7K1/16W
R433
R434
C469 150pF 50V
R147
33R 1/16W 5%
100OHM
100OHM
Close to HI3751
C183
47NF 16V
C190
47NF 16V
VGA_DDC_SCL 11
VGA_DDC_SDA 11
CVBS0_IN
CVBS_VCOM
VGA/YPBPR0 Audio IN
VGA_AUIN_R
R160 10K
R161
R166
NC/470P 50V
12K 1/16W
10K
R167
C1006
C1008
NC/470P 50V
12K 1/16W
Close to HI3751
LINEIN_R1
C196
1UF 6.3V
LINEIN_L1VGA_AUIN_L
C197
1UF 6.3V
VGA_R_P
VGA_G_P
VGA_B_P
C1009
NC/10PF 50V
C1010
NC/10PF 50V
C1012
NC/10PF 50V
Nearby VGA PORT
R16875R 1/16W 1%
R17075R 1/16W 1%
R171
75R 1/16W 1%
R163
R165
R169
0R05 OHM
0R05 OHM
0R05 OHM
0R05 OHM
R172
Close to HI3751
47NF 16V
47NF 16V
VGA_RP
VGA_GP
VGA_SINCIN
VGA_BP
VGA_GN
C198
C199 47NF 16V
C1005 2.2nF 50V
C1007 47NF 16V
C1011
R164
2.2K 1/16W
R174
2.2K 1/16W
R162 33 OHM 1/16W
R173 33 OHM 1/16W
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
VGA_HSYNCVGA_HS
VGA_VSYNCVGA_VS
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
16
16
16
of
of
of
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
Size
A2
Size
A2
Size
A2
Rev
Rev
Rev
称爹
称爹
称爹
Page 80

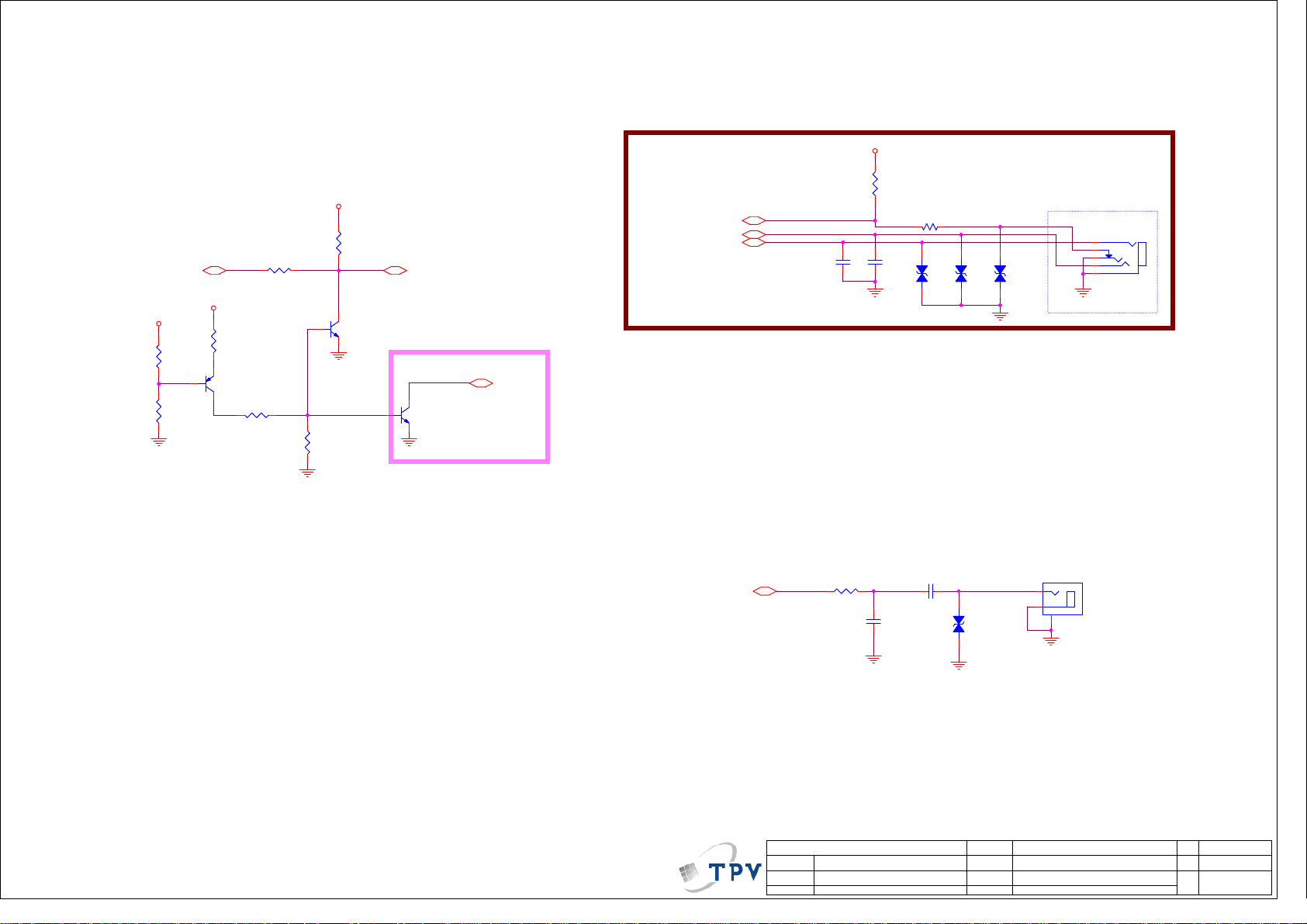

Audio Output
AMP_12V
R618
R1
301K 1%
R613
100K 1/16W
MUTE Circuit
AMPVCC=12V,R1=301K
Q1 OFF :Normal
Q1 ON :Mute
3V3_SB
R614
R619
10K
10K
Q601
MMBT3904
HP_PDN
Q603
NC/MMBT3904
R612
AMP_MUTE11 AMP_MUTE_OUT2 18
3V3
R617
1K
33 OHM 1/16W
Q1
Q602
MMBT3906
R615 1K
HP_PDN 18
3V3
R621
NC/10K
EAR_DET11
AUDIO_OUT_L118
AUDIO_OUT_R118
EAR_DET
AUDIO_OUT_L1
AUDIO_OUT_R1
C613
NC/100N 16V
C615
NC/100N 16V
R622
NC/100OHM
12
ZD604
NC/MLVG0402
12
ZD602
NC/MLVG0402
12
ZD603
NC/MLVG0402
CN603
3
5
4
2
1
NC/PHONE JACK
Coaxial
R616
SPDIF_OUT11
SPDIF_OUT
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
33 OHM 1/16W
C614
NC/100pF 50V
100N 16V
C612
12
ZD601
NC/MLVG0402
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
CN601
2
A
1
RCA JACK
3
388G078G111ACL
17
17
17
of
of
of
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
Size
Size
Size
Rev
Rev
Rev
称爹
称爹
称爹
A3
A3
A3
Page 81

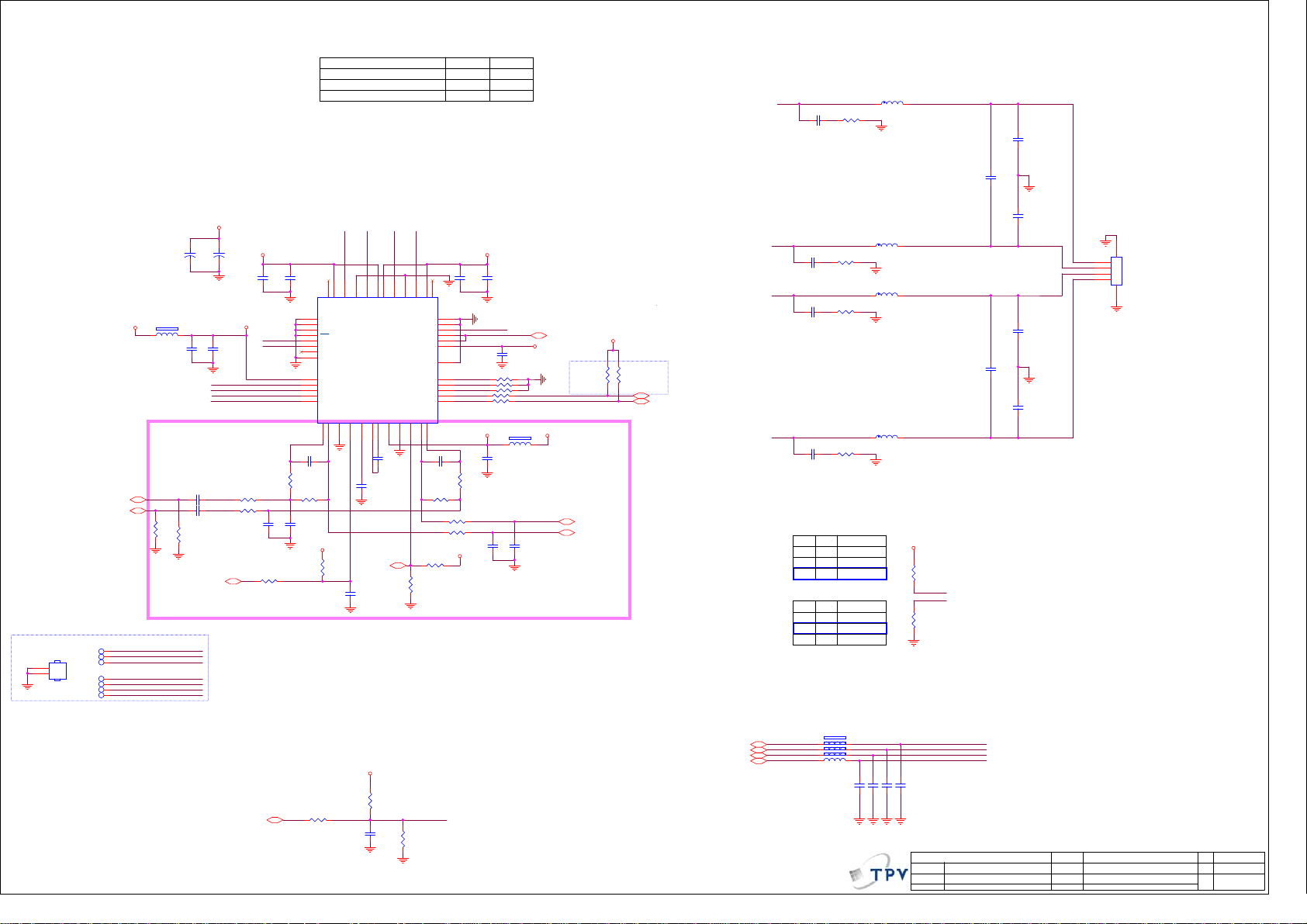

AMP
2.0 CH -> use 356G061613300A AD82588
2.1 CH -> use 056G 616X02 AD83586
AMP_12V
C646
C627
+
+
100UF 35V
100UF 35V
AMP_3V3
C636
10UF
I2S1_DOUT_P
I2S1_WS_P
I2S1_BCLK_P
I2S1_MCLK/BOOT_SEL0_P
R601 NC/20K 1/16W 5%
R602 NC/20K 1/16W 5%
HP_EN11
1
2
HS601
HEAT SINK
TP602
TP603
TP604
TP605
TP606
TP607
TP608
LINEOUT_R116
LINEOUT_L116
1
1
1
1
1
1
1
3V3
FB603
1 2
120R
R633
NC/470KOHM 5% 1/16W
I2S1_BCLK_P
I2S1_WS_P
I2S1_DOUT_P
LS_ADC3/STB_GPIO1_1
AMP_MUTE_OUT2
I2C0_SCL
I2C0_SDA
C635
100N 16V
C601 NC/2.2uF 6.3V
C602 NC/2.2uF 6.3V
R634
NC/470KOHM 5% 1/16W
AMP_12V
C630
C629
0.1uF 25V
0.1uF 25V
CFG0
CFG1
R603
NC/5K1
C605
C604
NC/680PF
NC/680PF
R605 NC/33 OHM 1/16W
AMP VCC
10uH -> 073G253S 81 Y
22uH -> 373G253S193D00
47uH -> 373G253S173Y00
RB
LB
LA
42
45
41
43
47
44
46
48
LB
LA
NC
GNDL
VDDLB
VDDLA
49
THERMALPAD
1
SDATA1
2
MS
3
PLL
4
CFG0
5
CFG1
6
CLK_OUT
7
DGND
8
DVDD
9
SDATA0
10
LRCIN
11
BCLK
12
MCLK
RINN13OUTR14VSS15EN16PVSS17CN18CP19PVDD20PGND21UVP22OUTL23LINN
C603
NC/47pF 50V
R604
NC/75K
HP_3V3
R620
NC/10K
VDDRB
U601
AD87588-LG48NAY
C607
NC/100N 16V
C606
NC/100N 16V
HP_PDN17
C608
NC/100N16V
40
RB
GNDR
RA
38
39
37
RA
NC
VDDRA
36
LINEIN
35
LREX
34
RESET#
33
ERROR#
32
PD#
31
DVDD
30
DGND
29
DEF
28
SA1
27
SA0
26
SCL
25
SDA
24
C609
NC/47pF 50V
R607
NC/75K
R608 NC/560R 1/16W 5%
R609 NC/560R 1/16W 5%
HP_3V3
R610
NC/1K
R611
NC/1K
16 ohmSpeaker
330nF/50VC604/C607/C613/C619/C622/C629
AMP_DEF
AMP_SA1
AMP_SA0
A_SCL
A_SDA
24V
47uHL601/L602/L603/L604/L605/L606
C631
0.1uF 25V
R606
NC/5K1
24V
8 ohm
680nF/50V
22uH
AMP_12V
C632
0.1uF 25V
060306030603 0603
AMP_RSTN_IN
AMP_MUTE_OUT2
R628
R629 10K
R630 10K
R631 33 OHM 1/16W
R632 33 OHM 1/16W
HP_3V3
1 2
C610
NC/100N 16V
C611
NC/1N 50V
C639
100N 16V
10K
FB601
NC/120R
AUDIO_OUT_L1
AUDIO_OUT_R1
C616
NC/1N 50V
AMP_MUTE_OUT2 17
AMP_3V3
3V3
AMP_3V3
R647
4.7K1/16W
AUDIO_OUT_L1 17
AUDIO_OUT_R1 17
穝糤
R648
4.7K1/16W
R647,R648
I2C0_SCL 11
I2C0_SDA 11
LB
RA
RB
LA
C622
470P 50V
C624
470P 50V
0603
C633
470P 50V
0603
AD83586
CFG0
X
AD82588
CFG0
1
0
1
C619
470P 50V
0603
CFG1
CFG1
00
0
1
1
1
0
R623
10 OHM 1/4W
1206
R624
10 OHM 1/4W
12060603
R625
10 OHM 1/4W
1206
R626
10 OHM 1/4W
1206
Mode
Mono
Stereo1
2.1 Channel
Mode
Mono
Stereo
2.1 Channel
L601
22uH
0805
C620
330nF
0805
C621
330nF
0805
C623
330nF
L602
22uH
L603
22uH
0805
C625
330nF
0805
C628
330nF
0805
C634
330nF
L604
22uH
AMP_3V3
R640
1K
CFG1
CFG0
R646
1K
Speaker
Output
CN602
4
L+
LR+
R-
L+
3
L-
2
R+
1
R-
5 6
CONN
4Pin R/A 2.0mm
311GW200A04ABX
L
R
1 2
1 2
1 2
1 2
120R
120R
C651
NC/22P 50V
I2S_BCLK
I2S_BCLK11
I2S_MCLK11
I2S_DOUT11
3V3
R637
NC/1M 1/16W
LS_ADC3/STB_GPIO1_111
R643 33 OHM 1/16W
C650
0.1uF 25V
0603
AMP_RSTN_IN
R644
10K
I2S_WS11
FB605
I2S_MCLK
FB606
I2S_DOUT
FB607 120R
I2S_WS
FB608 120R
C652
NC/22P 50V
I2S1_BCLK_P
I2S1_MCLK/BOOT_SEL0_P
I2S1_DOUT_P
I2S1_WS_P
C654
C653NC/22P 50V
NC/22P 50V
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
A2
Size
A2
Size
A2
Rev
Rev
Rev
称爹
称爹
18
18
18
of
of
of
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
称爹
Page 82

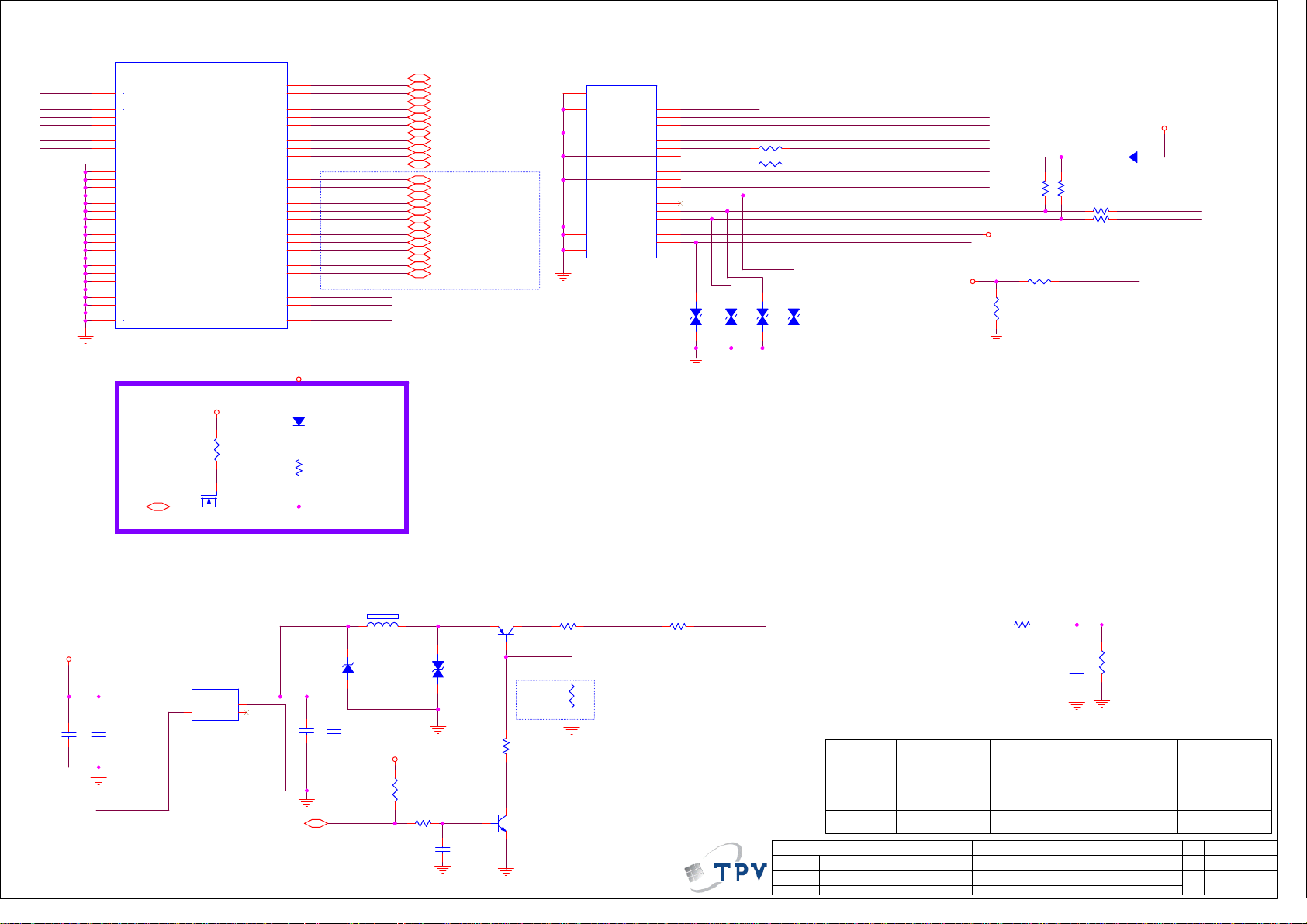

HDMI0 & MHL
HDMI_CEC HDMI_R2XCP
HDMI_R0XCP
HDMI_R0X0P
HDMI_R0X0N
HDMI_R0X1P
HDMI_R0X1N
HDMI_R0X2P
HDMI_R0X2N
U5
HDMI_CEC/SGP2_6
AE2
HDMI_R0XCP
AE1
HDMI_R0XCN
AF4
HDMI_R0X0P
AF3
HDMI_R0X0N
AG2
HDMI_R0X1P
AG1
HDMI_R0X1N
AH4
HDMI_R0X2P
AH3
HDMI_R0X2N
U3
AVSS_HDMIRX1
U4
AVSS_HDMIRX2
V5
AVSS_HDMIRX3
W3
AVSS_HDMIRX4
W4
AVSS_HDMIRX5
Y5
AVSS_HDMIRX6
AA3
AVSS_HDMIRX7
AA4
AVSS_HDMIRX8
AB5
AVSS_HDMIRX9
AC3
AVSS_HDMIRX10
AC4
AVSS_HDMIRX11
AD5
AVSS_HDMIRX12
AE3
AVSS_HDMIRX13
AE4
AVSS_HDMIRX14
AF5
AVSS_HDMIRX15
AG3
AVSS_HDMIRX16
AG4
AVSS_HDMIRX17
AH1
AVSS_HDMIRX18
AH2
AVSS_HDMIRX19
AH5
AVSS_HDMIRX20
F12
AGND_HDMI_VBUS
U401B
HI3751AV500_AFE
HDMI_R2XCP
HDMI_R2XCN
HDMI_R2X0P
HDMI_R2X0N
HDMI_R2X1P
HDMI_R2X1N
HDMI_R2X2P
HDMI_R2X2N
HDMI2_SDA/SGP2_4
HDMI2_SCL/SGP2_5
HDMI2_DET/SGP1_5
HDMI2_HTP/SGP1_7
HDMI_R1XCP
HDMI_R1XCN
HDMI_R1X0P
HDMI_R1X0N
HDMI_R1X1P
HDMI_R1X1N
HDMI_R1X2P
HDMI_R1X2N
HDMI1_SDA/SGP2_2
HDMI1_SCL/SGP2_3
HDMI1_DET/SGP1_4
HDMI1_HTP/SGP1_6
MISC Interface of
MHL_CD_SENSE/SGP1_2
HDMI0_DET/SGP1_3
HDMI0_SCL/SGP2_1
HDMI0_SDA/SGP2_0
ARC_PAD
CBUS_PAD
U2
U1
V4
V3
W2
W1
Y4
Y3
Y7
U6
V7
W6
AA2
AA1
AB4
AB3
AC2
AC1
AD4
AD3
W5
AA6
Y6
V6
AC7
AA5
AB6
AD6
AC6
AC5
HDMI_R2XCN
HDMI_R2X0P
HDMI_R2X0NHDMI_R0XCN
HDMI_R2X1P
HDMI_R2X1N
HDMI_R2X2P
HDMI_R2X2N
HDMI2_SDA
HDMI2_SCL
HDMI2_DET
HDMI2_HOTPLUG
HDMI_R1XCP
HDMI_R1XCN
HDMI_R1X0P
HDMI_R1X0N
HDMI_R1X1P
HDMI_R1X1N
HDMI_R1X2P
HDMI_R1X2N
HDMI1_SDA
HDMI1_SCL
HDMI1_DET
HDMI1_HOTPLUG
ARC_PAD
MHL_CD_SENSE
HDMI0_DET
HDMI0_SCL
HDMI0_SDA
CBUS_PAD
HDMI_R2XCP 20
HDMI_R2XCN 20
HDMI_R2X0P 20
HDMI_R2X0N 20
HDMI_R2X1P 20
HDMI_R2X1N 20
HDMI_R2X2P 20
HDMI_R2X2N 20
HDMI2_SDA 20
HDMI2_SCL 20
HDMI2_DET 20
HDMI2_HOTPLUG 20
HDMI_R1XCP 20
HDMI_R1XCN 20
HDMI_R1X0P 20
HDMI_R1X0N 20
HDMI_R1X1P 20
HDMI_R1X1N 20
HDMI_R1X2P 20
HDMI_R1X2N 20
HDMI1_SDA 20
HDMI1_SCL 20
HDMI1_DET 20
HDMI1_HOTPLUG 20
ARC_PAD 20
穝糤
HDMI port 1 for OTS
诀贺
HDMI0 (Side)/(MHL 2.0)
CN501
20
22
23
21
SHLD0
SHLD2
SHLD3
SHLD1
HDMI 19P
TMDSD2+
DSHLD0
TMDSD2-
TMDSD1+
DSHLD1
TMDSD1-
TMDSD0+
DSHLD2
TMDSD0-
TMDSC+
CSHLD0
TMDSC-
CEC
SCL
SDA
DDC_GND
VCC5
HPD
NC
1
MHL_CD_SENSE_1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
ZD501
NC/MLVG0402
1 2
R598 0R05 OHM
R599 0R05 OHM
ZD502
ZD503
NC/MLVG0402
1 2
NC/MLVG0402
ZD504
NC/MLVG0402
1 2
CEC
DDC0B_SCL
DDC0B_SDA
HDMI0_HTP_CBUS
1 2
VBUS_HDMI0_5V
HDMI_R0X2P
HDMI_R0X2N
HDMI_R0X1P
HDMI_R0X1N
HDMI_R0X0P
HDMI_R0X0N
HDMI_R0XCP
HDMI_R0XCN
VBUS_HDMI0_5V
R509
10K
VBUS_HDMI0_5V
R513
R514
1K
10K
HDMI0_DDC_5V
R510
10K
R511
R512
HDMI0_DET
D501
BAS316WS
100OHM
100OHM
5V_SB
HDMI0_SCL
HDMI0_SDA
Connect ditectly defaultly
100R 1/16W 1%
CEC20
5V0
C504
C505
1UF 6.3V
100N 16V
MHL_CD_SENSE_1
Imax = 39/(36+3) = 1A
5V_SB
R500
U503
STMPS2171STR
5
IN
4
FAULT
EN
Q512
2N7002K
OUT
GND
3V3_SB
D502
BAS316
R515
27K 1/16W 1%
HDMI_CEC
MHL 2.0 Switch Circuit
FB501
3V3_SB
R523
4.7K1/16W
R524
VBUS_HDMI0_5V
ZD506
NC/MLVG0402
1 2
1K
1 2
120R
ZD507
RLZ5.6B
C502
10uF 16V
1 2
C503
100N 16V
STB_GPIO0_1
1
2
3
STB_GPIO0_111
C506
1UF 6.3V
Q501
MMBT3906
穝糤
R521
4.7K1/16W
Q502
MMBT3904
R7023
NC/4.7K1/16W
R7023
R517
HDMI0_HTP_CBUS CBUS_PAD
1K
0R05 OHM
R518
MHL MODE
HDMI MODE
No Sourece
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
MHL_CD_SENSE_1 MHL_CD_SENSE
HH
L
L
R519
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
180K
100N 16V
OFF
ON
ON
19
19
19
R520
C501
301K 1%
QH5CD SENSE
output control
HDMI0_DETQH4
input detectinput detect output control
OFF
Size
Size
Size
Rev
Rev
Rev
称爹
称爹
称爹
H
L
A3
A3
A3
ON
ON
of
of
of
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
Page 83

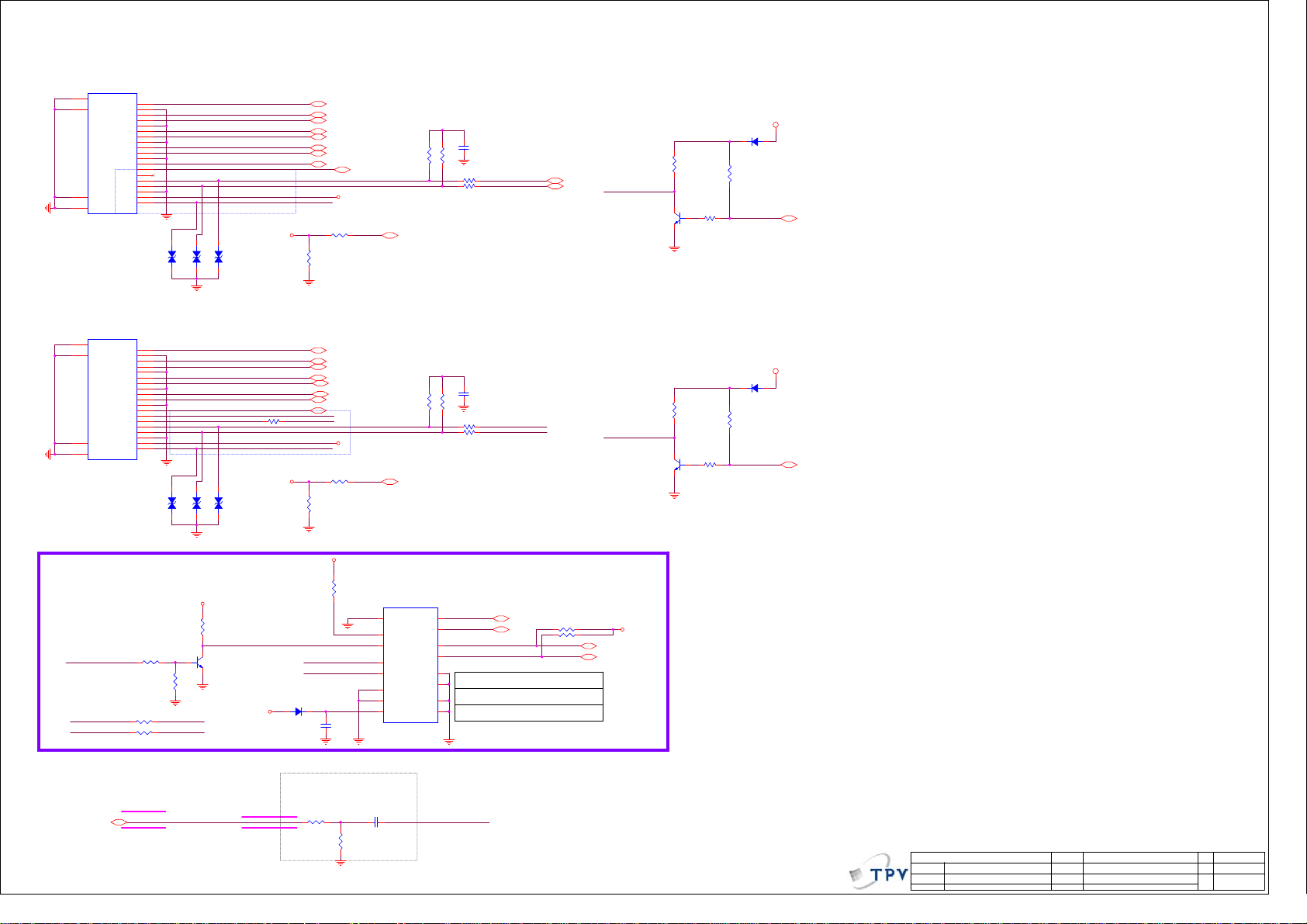

HDMI1 & HDMI2 (HDMI 2.0 / ARC)
HDMI1 (HDMI 1.4a) ; Co-layout with ITV connector
CN503
20
22
23
21
SHLD0
SHLD2
SHLD3
SHLD1
NC/HDMI 19P
TMDSD2+
DSHLD0
TMDSD2TMDSD1+
DSHLD1
TMDSD1TMDSD0+
DSHLD2
TMDSD0-
TMDSC+
CSHLD0
TMDSC-
DDC_GND
VCC5
1
2
3
4
5
6
7
8
9
10
11
12
13
CEC
14
NC
15
SCL
16
SDA
17
18
19
HPD
ZD513
NC/MLVG0402
ZD514
NC/MLVG0402
1 2
CEC
1 2
ZD515
NC/MLVG0402
1 2
HDMI1-HOTPLUG
HDMI1_5V
HDMI_R1X2P
HDMI_R1X2N
HDMI_R1X1P
HDMI_R1X1N
HDMI_R1X0P
HDMI_R1X0N
HDMI_R1XCP
HDMI_R1XCN
R559
NC/10K
HDMI_R1X2P 19
HDMI_R1X2N 19
HDMI_R1X1P 19
HDMI_R1X1N 19
HDMI_R1X0P 19
HDMI_R1X0N 19
HDMI_R1XCP 19
HDMI_R1XCN 19
CEC 19
HDMI1_5V
R558
HDMI1_DET
NC/1K
DDC1B_SCL
DDC1B_SDA
HDMI1_DET 19
HDMI2 (HDMI 2.0 / ARC and HDMI debug-programing)
CN504
20
SHLD0
22
SHLD2
23
SHLD3
21
SHLD1
HDMI 19P
TMDSD2+
DSHLD0
TMDSD2TMDSD1+
DSHLD1
TMDSD1TMDSD0+
DSHLD2
TMDSD0-
TMDSC+
CSHLD0
TMDSC-
DDC_GND
VCC5
1
2
3
4
5
6
7
8
9
10
11
12
13
CEC
14
NC
15
SCL
16
SDA
17
18
19
HPD
ZD516
NC/MLVG0402
ZD517
NC/MLVG0402
1 2
CEC
1 2
ZD518
NC/MLVG0402
1 2
R583
0R05 OHM
HDMI2-HOTPLUG
HDMI2_5V
HDMI_R2X2P
HDMI_R2X2N
HDMI_R2X1P
HDMI_R2X1N
HDMI_R2X0P
HDMI_R2X0N
HDMI_R2XCP
HDMI_R2XCN
UART_SEL
R597
10K
HDMI_R2X2P 19
HDMI_R2X2N 19
HDMI_R2X1P 19
HDMI_R2X1N 19
HDMI_R2X0P 19
HDMI_R2X0N 19
HDMI_R2XCP 19
HDMI_R2XCN 19
HDMI2_5V
R596
HDMI2_DET
1K
DDC2B_SCL
DDC2B_SDA
HDMI2_DET 19
HDMI1_5V0
NC/10K
R553
R552
R556
R557
HDMI2_5V0
10K
R589
R590
R593
R594
5V_SB
Q504
NC/MMBT3904
Q511
MMBT3904
HDMI1_5V0
R543
NC/1K
NC/4.7K1/16W
HDMI2_5V0
R591
1K
4.7K1/16W
C509
NC/100N 16V
NC/10K
HDMI1_SCL
NC/100OHM
HDMI1_SDA
NC/100OHM
10K
C511
100N 16V
HDMI2-SCL/RX
100OHM
HDMI2-SDA/TX
100OHM
HDMI1_SCL 19
HDMI1_SDA 19
HDMI1-HOTPLUG
HDMI2-HOTPLUG
R554
R595
NC/BAS316WS
D504
R545
NC/10K
HDMI1_HOTPLUG
BAS316WS
D511
R592
10K
HDMI2_HOTPLUG
HDMI1_HOTPLUG 19
5V_SB
HDMI2_HOTPLUG 19
Factory UART & I2C Switch IC
to HDMI Pin-14 for ARC
UART_SEL
NC/40.2K 1/16W 1%
HDMI2-SCL/RX
R581
0R05 1/16W
HDMI2-SDA/TX
R587
0R05 1/16W
R585
NC/60.4K 1%
R580
5V_SB
HDMI2_SCL
HDMI2_SDA
R588
NC/10K +-1% 1/16W
Q510
NC/LMBT3904LT1G
HDMI ARC Function
ARC_PAD19
Grounding
HDMI ARC
DC voltage level = 4V
Signal voltage p-p = 500 mV +-100mV
(Test need add 55 ohm terminal resistor to GND)
Tr,Tf <= 60 ns
5V_SB
Grounding
D510
NC/BAS316
For ARC
HDMI2-SCL/RX
HDMI2-SDA/TX
R538
0R05 OHM
5V_SB
C510
NC/100NF 16V
R582
NC/10K +-1% 1/16W
S1
S0
R577
NC
U510
6
/E
9
S1
10
S0
3
2Z
13
1Z
8
GND
7
VEE
16
VCC
C508
1UF 10% 16V
2Y3
1Y3
2Y2
1Y2
2Y1
1Y1
2Y0
1Y0
NC/74HC4052PW
4
11
2
15
5
14
1
12
HDMI2_SCL
HDMI2_SDA
UART1_RXD_IN
UART1_TXD_IN
HDMI
pin14
NC/ARC
+12V
UART_SEL
HDMI2_SCL 19
HDMI2_SDA 19
S1
S0
H
H
LH
R586 10K +-1% 1/16W
R584 10K +-1% 1/16W
UART1_RXD_IN 6,16
UART1_TXD_IN 6,16
CHANNEL
HDMI function
Debug mode
5V_SB
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Size
A2
Size
A2
Size
A2
Rev
Rev
Rev
称爹
称爹
20
20
20
of
of
of
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
称爹
Page 84

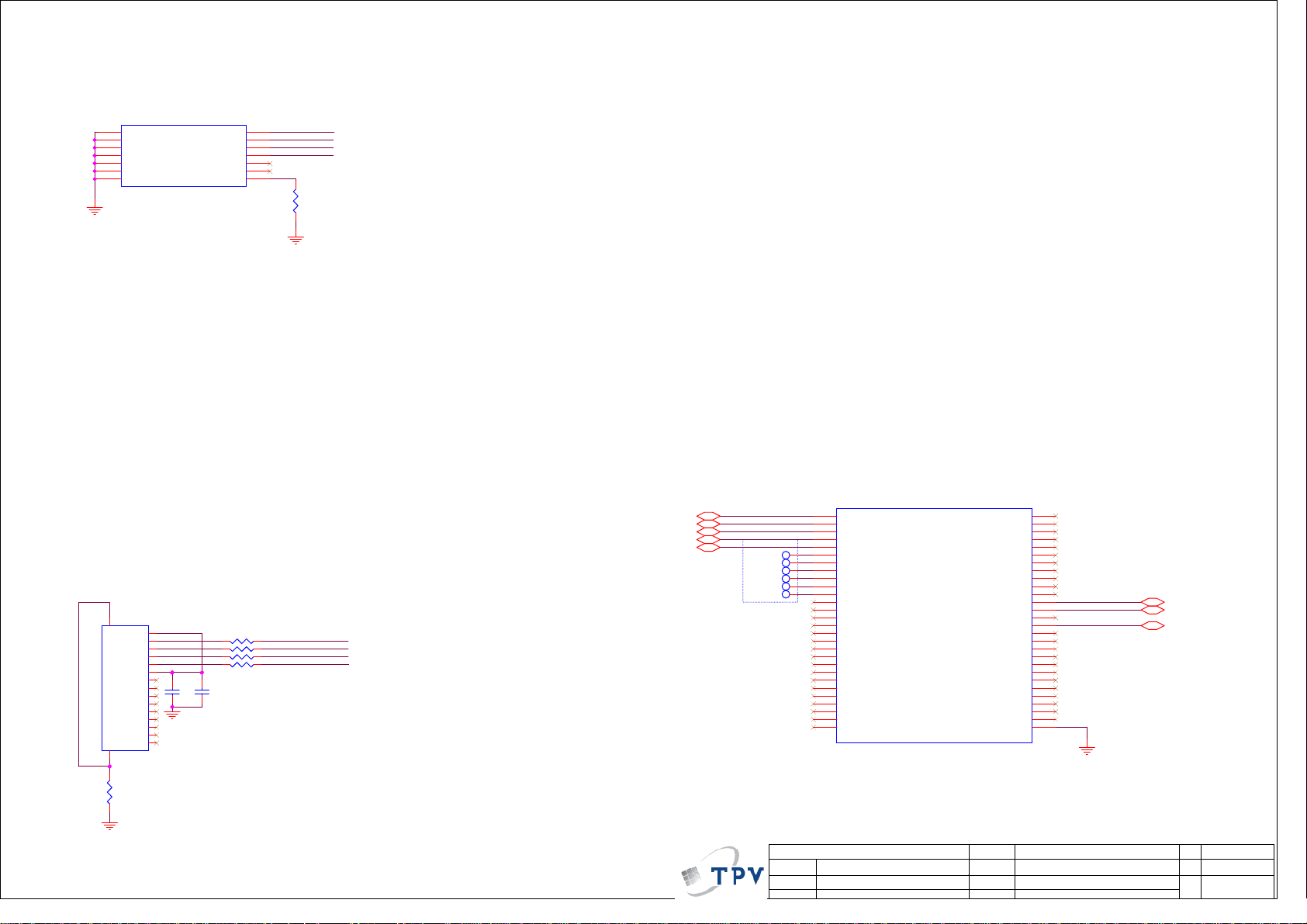

Ethernet & SD & CI
MISC Interface of
HI3751AV500
P9
AVSS11_FE
J3
AVSS_FE1
J4
AVSS_FE2
K5
AVSS_FE3
L3
AVSS_FE4
L4
AVSS_FE5
L5
AVSS_FE6
HI3751AV500_AFE
U401A
FE_LED0/GP9_0
FE_LED1/GP9_1
FE_TXP
FE_TXN
FE_RXP
FE_RXN
FE_REXT
FE_RX+
J1
FE_RX-
J2
FE_TX+
K3
FE_TX-
K4
H5
J5
N6
R183
10K 1%
100M ETHERNET
CN108
RJ45 15P
16
17
TCT P1
TH1
TD+ P2
RD+ P4
RD- P5
RCT P6
NC P10
NC P11
Y+ P13
G+ P15
TH2
TD- P3
NC P7
NC P8
NC P9
Y- P12
G- P14
R192
0R05
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Run As Differential Pairs
R185 22 OHM 1/16W
R186 22 OHM 1/16W
R187 22 OHM 1/16W
R188 22 OHM 1/16W
C1014
C1015
100N 16V
100N 16V
FE_TX+
FE_TXFE_RX+
FE_RX-
MISC Interface of
TSI0_D0/JTAG_TMS6
TSI0_D1/JTAG_TRSTN6
TSI0_D2/JTAG_TCK6
TSI0_D3/JTAG_TDI6
TSI0_D4/JTAG_TDO6
TSI0_D0/JTAG_TMS
TSI0_D1/JTAG_TRSTN
TSI0_D2/JTAG_TCK
TSI0_D3/JTAG_TDI
TSI0_D4/JTAG_TDO
TP416
TP417
TP418
TP419
TP420
TP421
AG22
TSI0_D0/JTAG_TMS/GP10_4
AE21
TSI0_D1/JTAG_TRSTN/GP10_5
AD22
TSI0_D2/JTAG_TCK/GP10_6
AH13
TSI0_D3/JTAG_TDI/GO10_7
AF13
TSI0_D4/JTAG_TDO/GP11_0
1
AD14
TSI0_D5/RSA_RESULT/GP11_1
1
AC14
TSI0_D6/RSA_END/GP11_2
1
AG14
TSI0_D7/GOIN_NORMAL/GP11_3
1
AF19
TSI0_CLK/CLK_TEST_OUT/GP11_4
1
AH21
TSI0_VLD/BOOTROM_STR/GP11_5
1
AC21
TSI0_SYNC/GP11_6
AG16
TSO0_D0/GP13_3
AD16
TSO0_D1/GP13_4
AD17
TSO0_D2/GP13_5
AG17
TSO0_D3/GP13_6
AC18
TSO0_D4/GP13_7
AC19
TSO0_D5/GP14_0
AF18
TSO0_D6/GP14_1
AD19
TSO0_D7/GP14_2
AE18
TSO0_CLK/GP14_3
AD18
TSO0_VLD/GP14_4
AF16
TSO0_SYNC/GP14_5
AH22
CI_DQ0/GP14_6
AD21
CI_DQ1/GP14_7
AE22
CI_DQ2/GP15_0
AC13
CI_DQ3/GP15_1
AG12
CI_DQ4/GP15_2
AE14
CI_DQ5/GP15_3
HI3751AV500_AFE
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
絬 隔 瓜 絪 腹
Key Component
Key Component
Key Component
Date
Date
Date
U401E
CI_RDY/SIM0_RST
CI_REGN/GP17_5
CI_IOWRN/GP17_4
CI_IORDN/GP17_3
CI_WAITN/SIM0_DATA
CI_WEN/GP17_1
CI_ADR14/GP16_5
CI_ADR13/PCB_L
CI_ADR12/BOOT_SEL0
CI_ADR11/ROMBOOT_SEL
CI_ADR10/BOOT_SEL1
CI_ADR9/GP16_4
CI_ADR8/GP16_3
CI_ADR7/GP16_2
CI_ADR6/GP16_1
CI_ADR5/SIM0_PWREN
CI_ADR4/SIM0_CLK
CI_ADR3/SIM0_DET
CI_ADR2/GP16_0
CI_ADR1/GP15_7
CI_ADR0/GP15_6
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
CI_RST/GP17_2
CI_OEN/GP17_0
CI_CEN/GP16_7
CI_CDN/GP16_6
CI_DQ7/GP15_5
CI_DQ6/GP15_4
VSS
Sheet
Sheet
Sheet
AE17
AG20
AC16
AG15
AD20
AF20
AC17
AD15
AC15
AC22
AF17
AH16
AG18
AF15
AF14
AE15
AH15
AH18
AC20
AH19
AG19
AE20
AF21
AG21
AF22
AG13
AD13
AH12
21
21
21
of
of
of
CI_ADR13/PCB_L
CI_ADR12/BOOT_SEL0
CI_ADR10/BOOT_SEL1
21Thursday, October 08, 2015
21Thursday, October 08, 2015
21Thursday, October 08, 2015
CI_ADR13/PCB_L 3
CI_ADR12/BOOT_SEL0 3
CI_ADR10/BOOT_SEL1 3
Size
A3
Size
A3
Size
A3
Rev
Rev
Rev
称爹
称爹
称爹
Page 85
5
D D
F9901
T5AH/250V
1 2
3 4
F9902
NC
C C
CN9901
NC
1
2
B B
12
CN9902
AC SOKET
F9903
NC
FB9901
BEAD
C9911
47pF 250V
C9912
47pF 250V
4
12
L9901
12mH
RV9901
680V
NR9901
1R
t
C9901
470NF 275V
FB9902
BEAD
12
12
4
1
3
R9901
NC
C9913
220PF 250V
123
45
NC
3
2
D1
D1
C9907
NC
NCNC
U9901
NC L9902
D2D2NC
678
R9902
NC
C9902
470NF 275V
NR9902
1R
1 2
C9914
220PF 250V
t
2
SG9901
NC
4
1
SG9902
NC
1
CN9903
NC
L
N
1
2
t
12
R9905
680K OHM +-1% 1/4W
3
12mH
2
R9904
680K OHM +-1% 1/4W
R9903
680K OHM +-1% 1/4W
R9908
680K OHM +-1% 1/4W
R9907
680K OHM +-1% 1/4W
R9906
680K OHM +-1% 1/4W
NR9903
1R
R-
BD9901
GBJ1008-FUC
4
BO
2
Vsin
+
-
1
3
N
GND1
GND
A A
GND2
NC
1
5
GND4
NC
1
1
4
C9915
NC
C9916
1NF 250V
FB9903
BEAD
1 2
3
HS9901
NC
1
2
3
4
T P V ( Top Victory Electronics Co . , Ltd. )
G6973-P0B-000-0020-1-20140811
Key Component
01. AC input
Date
2
OEM MODEL Size
PLTVEW441XAI4
TPV MODEL
715G6973-P0B-000-0020
PCB NAME
1 4Monday, April 18, 2016
Sheet of
1
Custom
Rev
Page 86
5
D D
Vsin
C C
C9803
C9804
1UF 450V
1UF 450V
R-
R9801
R9802
0.1R 3W
0.1R 3W
B B
R9809
27K 1/8W 1%
1uF
C9806
C9807
4
1
BD9801
KBP208G-C
+
C9819
470PF
FB_PFC
2
-
4
C9820
1NF
3
U9801
SSC-2005S
1
FB
VCC
2
COMP
OUT
3
RT
GND
4 5
RDLY CS
L9801
220uH
6
4
+
C9811
100N 50V
8
7
6
R9814
10 OHM 1/8W
C9810
10UF 50V
R9812
47R 1%
12
R9811
C9808
R9810
0.47uF 50V
10N 50V
22K 1/8W 1%
C9809
10N 50V
33K 1/8W 1%
NC
ZD9801
R9813
C9813
3.3nF 50V
BZT52-B3V6
D9802
SS1060
12
R9815
75 OHM 1/8W
3
+VCC2
C9812
47PF 50V
R-
Q9801
TK18A60V
R9816
10K 1/8W 1%
FB_PFC
C9814
47PF
D9801
FMNS-1106S
C9815
100PF
2
1
Vbus
R9803
1MOHM +-1% 1/4W
R9804
680K OHM +-1% 1/4W
C9818
NC
R9805
0R05
FB9904
NC
R9819
680K OHM +-1% 1/4W
R9806
100K 1%
12
Q9802
NC
+
+
C9801
68UF 450V
C9816
1NF
C9802
68UF 450V
For Power Saving
HS9801
+VCC2
HEAT SINK
1
2
3
4
R9817
NC
NC
NC
C9817
D9803
NC
R9818
1 2
R9807
470K 1%
R9808
C9805
1NF 50V
16K +-1% 1/8W
A A
T P V ( Top Victory Electronics Co . , Ltd. )
G6973-P0B-000-0020-1-20140811
Key Component
02. PFC with Sanken
5
4
3
Date
2
OEM MODEL Size
PLTVEW441XAI4
TPV MODEL
715G6973-P0B-000-0020
PCB NAME
2 4Monday, April 18, 2016
Sheet of
1
Custom
Rev
Page 87
5
Vbus
D D
C C
FB_12V
B B
12VS
A A
BO BO
R9108
3.3M 1/4W
R9102
FB_12V
NC
D9107
3.3M 1/4W
R9103
3.3M 1/4W
4N7 50V
R9104
C9101
100K 1/8W 1%
NC
Q9109
NC
C9130
NC
+
C9302
C9301
5
C9102
NC
1000pF 50V
U9102
EL817M(X)
4
1
2
3
4 5
NC
C9303
U9101
LD5532
BNO
COMP
CS
GND OUT
C9103
330P 50V
1
23
ZD9104
BZT52-B15
ZD9301
NC
12VS
1 2
NC
R9147
330K +-1% 1/4W
R9148
330K +-1% 1/4W
R9149
330K +-1% 1/4W
R9146
0R05
8
NC
7
NC
6
VCC
R9122
1K5 +-1% 1/8W
1uF
C9118
12
1
PGND
EN
2
VIN
LX
3
AGND
COMP
4 5
VCC FB
U9301
10ohm +/-1% 1/8W
R9107
1Kohm +-1% 1/4W
R9123
4.7K 1/8W
R9124
1K 1/8W 1%
U9103
AS431AN-E1
160R 1%
FB_SB
8
7
6
NC
R9301
C9104
0.1uF 50V
R9105
C9119
220N 50V
R9126
2K2 1/8W 1%
R9127
NC
C9304
D9108
1N4148
+
C9132
R9125
9K1 1/8W 1%
NC
R9302
NC
C9305
10UF 50V
12VS
+VCC1
D9101
1N4148W
R9106
82 OHM
R9128
NC
L9301
NC
C9306
NC
R9303
4
C9106
2.2NF
+
C9105
100UF 50V
NC
R9304
4
D9102
FR107G-A0
R9109
Q9105
NC
NC
10K 1/8W 1%
C9307
C9120
NC
R9111
82K 2W
R9110
2R2 +-5% 1/4W
R9150
22R 5%
D9103
SARS01-V1
Q9101
TK11A65D
0R22
R9101
R9129
NC
NC
R9130
NC
C9308
NC
NC
+
C9309
HS9101
HEAT SINK
HS9102
HEAT SINK
+5V
R9305
NC
R9306
NC
R9307
NC
T9101
POWER X'FMR
6
5
4
2
1
1
2
3
4
1
2
3
4
3.5V
R9305 10.5K
R9306 620
DV5
R9307 3.3K
380GL32P173N00
7
11
8
10
+VCC1
+VCC2
FB_SB
3
+
D9104
SK510C
12
Q9102
AOTF298L
R9113
R9112
R9115
R9114
27 OHM
R9116
27 OHM
2N2 50V
2N2 50V
C9121
10UF 50V
3
R9117
C9107
C9108
27 OHM
27 OHM
Q9106
BTC4672M3
+
R9141
R9139
8.2K 1/4W
R9140
5K1 1/8W 1%
R9131
3K
5K1 1/8W 1%
R9142
10ohm +/-1% 1/8W
D9105
SS1060
1 2
LED_OVP
U9104
EL817M(X)
4
ZD9105
BZT52-B15
R9132
1 2
100KOHM +-1% 1/4W
27 OHM
27 OHM
C9109
1500UF 35V
12VS
R9143
4R7 1/4W 5%
1uF
C9123
R9133
2K 1/8W 1%
D9106
1N4148W
1
23
+
C9110
1500UF 35V
U9106
NC
31
INOUT
2
GND
C9131
NC
8
7
6
1uF
C9124
DV5
R9134
2
12VS
Q9103
NC
R9118
NC
C9111
NC
C9112
NC
Timing
SYNC
Vdd
MOSG-C
U9105
SP6018ES8RGB
Q9107
MMBT3906
10K 1/8W 1%
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
Date
R9119
NC
Q9104
NC
1
2
Pred
3
VR
45
AdjGND
NC
C9125
R9136
10K 1/8W 1%
R9135
10K 1/8W 1%
Q9108
2N7002K
R9138
C9122
0.1uF 50V
510K 1% 1/8W
G6973-P0B-000-0020-1-20140811
3. main power
2
1
L9101
3UH
+
C9113
L9102
3UH
NC
C9117
R9144
47K +-1% 1/4W
C9127
C9126
0.1uF 50V
100PF 50V
12VS
BL_ON/OFF DIM
R9137
100 OHM 1/4W
470UF 25V
+
C9115
470UF 25V
ZD9103
NC
1 2
R9120
NC
NC
R9121
C9128
0.1uF 50V
3D_ON PS_ON
+12V_A
+12V
+5V
PS_ON
OEM MODEL Size
PLTVEW441XAI4
TPV MODEL
715G6973-P0B-000-0020
PCB NAME
3 4Monday, April 18, 2016
Sheet of
+12V_A
1uF
C9114
+12V
1uF
C9116
DV5
CN9101
CONN
2
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
C9129
1NF 500V
1
R9145
0R05 1/4W
Rev
C9133
10N 50V
Custom
+12V_A
+12V
+5V
Page 88
5
R8101
+VCC2
For Power Saving
NC
R8162
NC
R8163
Q8106
NC
0.1R
C8101
1NF
C8142
R8102
1M5 1/4W 1%
R8103
1M5 1/4W 1%
R8104
1M5 1/4W 1%
R8161
0 OHM 5% 1/8W
+
NC
R8105
18K 1/8W 1%
C8103
C8102
0.1uF 50V
C8105
0.47UF 50V
FB_LLC
+VCC2
C8104
22UF 50V
R8106
1uF
0.1uF 50V
C8110
R8107
470R 1/8W 1%
NC
C8106
560PF 50V
Vbus
D D
D8111
NC
1 2
C C
380GL52P193YS0 40V
D8101
R8109
UF4007
10ohm +/-1% 1/8W
U8101
SSC9522S
C8111
47P 50V
1
2
3
4
5
6
7
8
9 10
R8108
240 OHM +-1% 1/8W
Vsen
Vcc
FB
GND
Css
OC
RC
Reg
RV COM
C8112
5PF
18
NC
17
NC
16
VGH
15
VS
14
VB
13
NC
12
NC
11
VGL
1uF
C8133
1 2
C8107
1nF 50V
VLED1
+12V
B B
A A
FB_LLC
D8106
R8117
R8116
2K43 1/8W 1%
C8114
4.7uF 10V
470R 1%
R8119
4
10N 50V
C8115
U8102
EL817M(X)
ZD8102
BZT52-B13
1 2
ZD8103
BZT52-B13
1 2
SS1060FL
D8107
SS1060FL
NC
1K5 +-1% 1/8W
R8120
1
23
NC
C8124
ZD8104
BZT52-B30
1 2
C8123
0.1uF 50V
U8103
AS431AN-E1
C8122
NC
R8125
470K +-5% 1/8W
4
VS
9
6
5
1
4
T8101
POWER X'FMR
C8109
27nF
10
7
12
11
8
LED_OVP DV5 +12V +12V VLED1
D8108
SS1060FL
Q8103
MMBT3904
D8110
1N4148W
2 3
R8165
510 OHM +-1% 1/8W
D8102
R8110
SS1060FL
10ohm +/-1% 1/8W
R8111
47R 1%
D8103
R8113
SS1060FL
10ohm +/-1% 1/8W
R8114
47R 1%
ZD8101
BZT52-B15
VS
C8108
100PF1KV
Q8101
TK10A50D
R8112
10K 1/8W 1%
Q8102
TK10A50D
C8113
R8115
100PF1KV
10K 1/8W 1%
VLED1
+12V
R8121
510K 1% 1/8W
R8122
R8124
200K OHM 1% 1/8W
R8123
68K 1/8W 1%
82K +-1% 1/4W
FB_LED
Q8107
1
LMBT3906LT1G
R8166
3K3 1/8W 1%
U8109
AS431AN-E1
3
3
1
3
1
3
1
R8126
0 OHM +-5% 1/8W
R8127
2K 1/8W 1%
MMBT3906
R8128
1K 1/8W 1%
C8145
1uF
D8104
FMX-23S
2
D8109
NC
2
D8105
FMX-23S
2
Q8104
C8144
2.2UF 25V
R8129 NC
R8130
C8125
TPV101_VCC
VLED1
R8167
43K 1/8W 1%
R8168
43K 1/8W 1%
R8169
9K1 1/8W 1%
1K 1/8W 1%
0.1uF 50V
+
Q8105
MMBT3906
R8159
5K1 1/8W 1%
R8164
1K 1/8W 1%
R8170
47K 1/8W 1%
C8116
220UF 100V
R8132
5K1 1/8W 1%
U8104
AS431AN-E1
VLED1
2
L8101
3UH
R8118
+
75K
C8117
220UF 100V
C8119
+
1NF 500V
C8118
47UF 100V
+VLED
C8120
0.1uF 50V
C8121
0.1uF 50V
HS8101
HEAT SINK
HS8102
HEAT SINK
HS8103
HEAT SINK
HS8104
HEAT SINK
HS8105
NC
1
2
3
4
1
2
1
2
+VLED
1
2
1
2
3D_ON
BL_ON/OFF
+VLED
-VLED1
-VLED2
+VLED
R8158
0R05 1/4W
1
CN8101
CONN
1
2
3
4
5
6
7
8
9
10
11
12
CN9102
NC
2
1
4
3
6
5
8
7
10
9
12
11
14
13
+VLED
+12V
DIM
DIM
R8131
1K 1/8W 1%
Q8108
2N7002K
R8134
4.3K OHM 1%
TPV101_VCC
C8143
0.47UF 50V
R8160
62K 1/8W 1%
R8133
30K 1/8W 1%
C8126
0.1uF 50V
R8171
1 MOHM +-1% 1/8W
R8172
510K 1% 1/8W
FB_LED
R8151
0 OHM +-5% 1/8W
1uF
C8136
R8137
R8135
R8136
1.3R 1%
1oHM 1% 1/4W
R8152
0 OHM +-5% 1/8W
1uF
C8137
R8140
R8139
1.3R 1%
1oHM 1% 1/4W
R8153
0 OHM +-5% 1/8W
1uF
C8138
R8144
R8143
1.3R 1%
1oHM 1% 1/4W
R8154
NC
NC
NC
C8139
NC
R8147
R8148
U8105
TPV101D
1
8
DIM
COMP
2
7
EN
GM
3
6
VCC
ISET
45
LEDGND
R8138
1.3R 1%
1.3R 1%
U8106
TPV101D
1
8
DIM
COMP
2
7
EN
GM
3
6
VCC
ISET
45
LEDGND
R8141
R8142
1.3R 1%
1.3R 1%
U8107
TPV101D
1
8
DIM
COMP
2
7
EN
GM
3
6
VCC
ISET
45
LEDGND
R8145
R8146
1.3R 1%
1.3R 1%
U8108
NC
1
8
DIM
COMP
2
7
EN
GM
3
6
VCC
ISET
45
LEDGND
NC
NC
R8150
R8149
1uF
C8128
C8127
0.1uF 50V
1uF
C8130
C8129
0.1uF 50V
1uF
C8131
C8132
0.1uF 50V
NC
NC
C8134
C8135
R8155
10K 1/4W
BL_ON/OFF
TPV101_VCC
-VLED2
-VLED1
0 OHM 5% 1/8W
R8156
R8157
NC
3D_ON
-VLED2
-VLED1
C8140
C8141
1NF 500V
100PF 50V
T P V ( Top Victory Electronics Co . , Ltd. )
G6973-P0B-000-0020-1-20140811
Key Comp onent
4.LED Driver
5
4
3
2
Date
OEM MODEL S ize
PLTVEW441XAI4
TPV MODEL
715G6973-P0B-000-0020
PCB NAME
4 4Monday, April 1 8, 2016
Sheet of
1
Custom
Rev
Page 89
CONTENTS
SCHEMATIC NAME
1
2
3
4
5
REVISION HISTORY
SHEET
Date Author FN
Ver
Reviser reason
01.COVER
02.KEY
A A
1
2013/4/23 Yiyuan Chen
2
2013/5/14 Yiyuan Chen B Left/Right swap
Drawing released.A
EYiyuan Chen2013/9/17 Change SW01 footprint
B B
C C
D D
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
G6316-A-PHILIPS6000
G6316-A-PHILIPS6000
絬 隔 瓜 絪 腹 1
絬 隔 瓜 絪 腹 1
絬 隔 瓜 絪 腹 1
Key Component
Key Component
Key Component
Date
Date
1
Date
2
G6316-A-PHILIPS6000
01. COVER
01. COVER
01. COVER
3
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
2K14 PHILIPS6000 KEY CONTROL BOARD A
2K14 PHILIPS6000 KEY CONTROL BOARD A
2K14 PHILIPS6000 KEY CONTROL BOARD A
715G6316-K0E
715G6316-K0E
715G6316-K0E
of
1 2Tuesday, September 17, 2013
of
1 2Tuesday, September 17, 2013
of
1 2Tuesday, September 17, 2013
4
Size
Size
Size
Rev
Rev
Rev
称爹
称爹
称爹
XX
XX
XX
5
Page 90
1
2
3
4
5
Direction switch
Center
A A
Right
Left
Down
CN01
CN01
34
KEY1
1
2
C06
CONN
CONN
B B
C06
100N 50V
100N 50V
----><----|
7
SW01
SW01
F5
F5
1 6
F1
F1
2
F3
F3
3 4
SW 6P
SW 6P
F4
F4
5
F2
F2
8
Up 6-5 short
2-5 short
1-5 short
4-5 short
3-5 short
Key functionResistance
Menu
CH+
CHVOLVOL+
0R
1K2
2K2
6K8
15K
Voltage
0V
0.5V
0.81V
1.65V
2.27V
No function 3.3V
Joystick circuit diagram
pin1 pin2 pin3 pin4 pin5 pin6
F1
F2
F3
F4
C C
Down UpCenter
LeftRight
F5
----><----|
R01
R01
D D
1
C01
C01
NC/100N 50V
1K2 1/10W 1%
1K2 1/10W 1%
NC/100N 50V
2
----><----|
R02
R02
C02
C02
NC/100N 50V
0R05 1/10W
0R05 1/10W
NC/100N 50V
----><----|
R03
R03
C03
C03
NC/100N 50V
6K8 1/10W 1%
6K8 1/10W 1%
NC/100N 50V
3
----><----|
R04
R04
C04
C04
NC/100N 50V
2K2 1/10W 1%
2K2 1/10W 1%
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹 1
絬 隔 瓜 絪 腹 1
絬 隔 瓜 絪 腹 1
Key Component
Key Component
Key Component
Date
Date
Date
NC/100N 50V
G6316-A-PHILIPS6000
G6316-A-PHILIPS6000
G6316-A-PHILIPS6000
02. KEY
02. KEY
02. KEY
----><----|
R05
R05
C05
C05
NC/100N 50V
15K 1/10W 1%
15K 1/10W 1%
NC/100N 50V
4
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
2K14 PHILIPS6000 KEY CONTROL BOARD Custom
2K14 PHILIPS6000 KEY CONTROL BOARD Custom
2K14 PHILIPS6000 KEY CONTROL BOARD Custom
715G6316-K0E
715G6316-K0E
715G6316-K0E
of
2 2Tuesday, September 17, 2013
of
2 2Tuesday, September 17, 2013
of
2 2Tuesday, September 17, 2013
Size
Size
Size
Rev
Rev
Rev
称爹
XX
称爹
XX
称爹
5
XX
Page 91
5
4
3
2
1
3V3SB +5V_SW
R249
12
NC/0R05 1/16W
R221
18R 1/16W 5%
ZD203 MLVG0402
1 2
LED
BLUERED
12
LED208
NC/LED
Q202
BC847C
3V3SB3V3SB
LED210
2 1
R235 49.9 OHM 1% 1/16W
R236
4K3 1/16W 5%
R229
0R05 1/16W
R230
0R05 1/16W
LED_BLED_R
C211 1uF 10V
C212 100N 16V
U203
1
ADDR
2
VDD
SDA
GND3SCL
JSA-1130
R41 R42 I2C addr
JSA-1130
JSA-1130
6
INT
5
R224 0R05 1/16W
4
R227 0R05 1/16W
Light sensor Function
5500
6200
6500
0R
NC 0x44
0RNC
0x45
LS_SDA
LS_SCL
NC
NC
Yes
SSB to IR
5 5
LED light
ZD202
1 2
MLVG0402
4 4
3 3
GPTS06033RC3-PB
R225
2.2K 1/16W
R228
4K3 1/16W 5%
ZD202 and ZD203 close to LED0209 and LED0208
R220
1K
R250
0R05 1/16W
LED209
Q201
BC847C
Light Sensor
R232
R231
2 2
LS_SCL
LS_SDA
10K 1/16W 5%
10K 1/16W 5%
Digital Light Sensor
3V3SB
R222
2K7 1/16W 5%
RC6
C207
NC/100P 50V
ZD204 close to U202
CN201
1
2
3
4
5
6
7
8
9
CONN
10 11
100OHM
LED_R
LED_B
RC6
LS_SCL
LS_SDA
R223
C208
1uF 10V
IR
12
ZD204
MLVG0402
+5V_SW
U202
1
GND
2
Vs
3
OUT
4
GND
TSOP75436WTT
3V3SB
C210
10uF 10V
1 1
B
B
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
T P V ( Top Victory Electronics Co . , Ltd. )
G6024-R0A-000-0040-1-121127
G6024-R0A-000-0040-1-121127
絬 隔 瓜 絪 腹 42PFL7520 A
絬 隔 瓜 絪 腹 42PFL7520 A
絬 隔 瓜 絪 腹 42PFL7520 A
Key Component
Key Component
Key Component
5
4
3
G6024-R0A-000-0040-1-121127
2.0.IR BOARD
2.0.IR BOARD
2.0.IR BOARD
Date
Date
Date
2
OEM MODEL
OEM MODEL
OEM MODEL
TPV MODEL
TPV MODEL
TPV MODEL
PCB NAME
PCB NAME
PCB NAME
Sheet
Sheet
Sheet
Ebony
Ebony
Ebony
715G6024-R0A
715G6024-R0A
715G6024-R0A
22Sunday, September 13, 2015
22Sunday, September 13, 2015
22Sunday, September 13, 2015
of
of
of
Size
Size
Size
Rev
Rev
Rev
称爹
称爹
称爹
1
B
<称爹>
<称爹>
<称爹>
Loading...
