Philips 40PFL3706, 46PFL3706 User Manual

Download

Page 1

www.philips.com/support

46PFL3706 40PFL3706

EN User Manual

FR Manuel d’Utilisation

ES Manual del Usuario

EN: For fur ther assistance, call the customer support service in your country.

• To obtain assistance in the U.S.A., Canada, Puerto Rico, or the U.S. Virgin Islands, contact Philips

Customer Care Center at 1-866-309-0841

• To obtain assistance in Mexico, contact Philips Customer Care Center at 01 800 504 62 00

Enter below the model and serial numbers located on the back and right side of the TV cabinet.

FR: Pour obtenir de l’aide supplémentaire, communiquez avec le centre de service à la clientèle de votre pays.

• Pour obtenir de l’aide aux États-Unis, au Canada, à Puerto Rico ou aux Îles Vierges américaines,

communiquez avec le centre de service à la clientèle Philips au : 1-866-309-0841

• Pour obtenir l’aide au Mexique, entrez en contact avec le centre de soin de client de Philips à

01 800 504 62 00

Entrer ci dessous le modèle et le numéro de série situés dérrière à droite sur le dos du téléviseur.

ES: Para obtener más información, llame al servicio de soporte al cliente de su país.

• Para obtener asistencia en los Estados Unidos, en Canadá, Puerto Rico o en las Islas

Vírgenes de los Estados Unidos, comuníquese con Centro de atención al cliente de Philips al

1-866-309-0841

• Solo para Mexico CENTRO DE ATENCIÓN A CLIENTES LADA. 01 800 504 62 00 Solo

Para México.

Escriba a continuación el modelo y número de serie que estan localizados en lado derecho y parte posterior de el gabinete de el televisor.

Lea esta manual antes de usar el producto

EN : To obtain a more detailed electronic copy of this manual, go to www.philips.com/support FR : Pour obtenir une copie électronique plus détaillée de ce manuel, allez sur www.philips.com/support ES : Para obtener una copia electrónica más detallada de este manual, visite www.philips.com/support

MODEL NUMBER SERIAL NUMBER

Page 2

Contents

1 Notice 4

2 Important 5

Product information 5 Screen care Environmental care 5 Regulatory notices 5

3 Your TV 6

Side controls and indicators 6 Remote control

4 Get started 8

Supplied accessories 8 Mounting stand onto Positioning the TV 8 Installing the remote control batteries 8 Connecting the antenna or cable 9 Managing cables 10 Plugging in the AC power cord 10 Switching on and initial setup 11

TV 8

5 Use your TV 12

Switching on your TV and putting it in standby mode 12 Switching channels Adjusting volume 13 Still mode 13 Watching channels from a set-top box 13 Watching connected devices 13 Watching a Blu-ray disc 14 Switching audio mode 14

9 Connect devices 27

Connection overview 27 Selecting y Connecting your devices 29

our connection quality 28

English

10 Troubleshooting 31

Downloading an electronic copy 31 Contact us

11 Notes for the use of USB devices 32

12 Speciﬁ cations 32

13 Warranty 33

14 Index 34

6 Use more of your TV 15

Changing picture and sound settings 15 Sleeptimer 18 Child and r Closed caption 20 EasyLink 21 ECO 21 Set your location to home 21 View photos, play music and watch videos

on a USB storage device 22

ating locks 18

7 Install channels 24

Selecting your menu language 24 Autoprogr Channel list 25 Add channels 25 Optimizing the signal quality from your antenna 25

am 24

8 Upgrade your TV software 26

Checking your current software version 26

ing for the software upgrade 26

Prepar Upgrading software 26

Page 3

Return your Product Registration Card or register online at

www.philips.com/support today to get the very most from your purchase.

Registering your model with Philips makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once, or register online at www.philips.com/support to ensure:

*Product Safety Notification *Additional Benefits

By registering your product, you'll receive notification

- directly from the manufacturer - in the rare case of a product recall or safety defect.

Know these

safetysymbols

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et

pousser jusqu’au fond.

Visit our World Wide Web Site at http://www.philips.com/support

Registering your product guarantees that you'll receive all of the privileges to which you're entitled, including special money-saving offers.

This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

Page 4

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with

the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table speciﬁed by

the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product may contain lead or mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

16. Damage Requiring Service - The appliance should be serviced by qualiﬁed service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or

English

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a

marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

17. Tilt/Stability - All televisions must comply with recommended

international global safety standards for tilt and stability properties of its cabinets design.

• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

19. Power Lines - An outdoor antenna should be located away from power lines.

20. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure below.

21. Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

a) Warning: To reduce the risk of ﬁre or electric shock, this apparatus

should not be exposed to rain or moisture and objects ﬁlled with liquids, such as vases should not be placed on this apparatus.

22. Battery Usage CAUTION - To prevent battery leakage that may result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, with + and - alignment as marked on the unit.

• Do not mix batteries (old and new or carbon and alkaline, etc.)

• Remove batteries when the unit is not used for a long time.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE (NEC)

GROUND CLAMP

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

NEC SECTION 810-20)(

GROUNDING CONDUCTORS (

NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRIC SERVICE EQUIPMENT

Note to the CATV system installer:

this reminder is provided to call the CATV system installer’s attention to Article 820-40 of

ELECTRODE SYSTEM (

NEC ART 250, PART H)

the NEC that provides guidelines for proper grounding and, in particular, speciﬁes that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Page 5

1 Notice

Speciﬁ cations are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. P&F USA reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

The material in this manual is believed adequate for the intended use of the system. If the product, or its individual modules or procedures, are used for purposes other than those speciﬁ ed herein, conﬁ rmation of their validity and suitability must be obtained. P&F USA warrants that the material itself does not infringe any United States patents. No further warranty is expressed or implied.

P&F USA cannot be held responsible neither for any errors in the content of this document nor for any problems as a result of the content in this document. Errors reported to P&F USA will be adapted and published on the P&F USA support website as soon as possible.

Pixel characteristics

This LCD product has a high number of color pixels. Although it has effective pixels of 99.999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen. This is a structural proper ty of the display (within common industry standards) and is not a malfunction.

Warranty

No components are user serviceable. Do not open or remove covers to the inside of the product. Repairs may only be done by Service Centers and ofﬁ cial repair shops. Failure to do so shall void any warranty, stated or implied.

Any operation expressly prohibited in this manual, any adjustments, or assembly procedures not recommended or authorized in this manual shall void the warranty.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for help.

Declaration of Conformity

Trade Name : PHILIPS Responsible Party : P&F USA, Inc. Model : Address : PO Box 430 Daleville, IN 47334-0430 U.S.A. Telephone Number : 1-866-309-0841

46PFL3706, 40PFL3706

Modiﬁ cations

The FCC requires the user to be notiﬁ ed that any changes or modiﬁ cations made to this device that are not expressly approved by Philips Consumer Electronics may void the user’s authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI / EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canadian notice

Standard Television Receiving Apparatus, Canada BETS-7 / NTMR-7. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

All other registered and unregistered trademarks are the proper ty of their respective owners.

ENERGY STAR® is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efﬁ cient products and practices.

Consumer Notice:

This TV has been set to maximize energy efﬁ ciency while delivering the best possible picture using the factory installed home mode settings.

Changing or enabling other features in this TV (e.g. brightened backlighting) will possibly increase energy consumption beyond the original ENERGY STAR

The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

qualiﬁ ed limits.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

® Kensington and Micro Saver are registered US trademarks of ACCO World corporation with issued registrations and pending applications in other countries throughout the world.

Page 6

2 Important

Environmental care

Registering your model with Philips makes you eligible for all of the valuable beneﬁ ts listed below, so don’t miss out. Complete and return your Product Registration Card at once, or register online at www.philips.com/support to ensure :

• Product Safety Notiﬁ cation By registering your product you receive notiﬁ cation - directly from the manufacturer - in the rare case of a product recall or safety defect.

• Additional Beneﬁ ts of Product Ownership Registering your product guarantees that you receive all of the privileges to which you’re entitled, including special money-saving offers.

For further assistance

For further assistance, call the customer support service in your country.

• To obtain assistance in the U.S.A., Canada, Puerto Rico, or the U.S. Virgin Islands, contact Philips Customer Care Center at

1-866-309-0841

Product information

This TV consumes minimal energy in standby mode to minimize environmental impact. The active power consumption is given on the type plate at the back of the TV. The model and serial numbers of your TV can be found on the back and right side of the TV as well as on the packaging.

Screen care

English

The packaging of this product is intended to be recycled. Contact your local authorities for information about how to recycle the packaging.

For product recycling information, please visit - www.recycle.philips.com

End of life directives

This LCD TV contains a lamp with Mercury, please dispose of according to all local, state and federal laws.

Philips pays a lot of attention to produce environment-friendly products in green focal areas. Your new TV contains materials which can be recycled and reused. At the end of its life, specialized companies can dismantle the discarded TV to concentrate the reusable materials and to minimize the amount of materials to be disposed of. Please ensure you dispose of your old TV according to local regulations.

Disposal of used batteries

The batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless, in many areas batteries may not be disposed of with your household waste. Please ensure you dispose of batteries according to local regulations.

• Avoid stationary images as much as possible. Stationar y images are images that remain on-screen for extended periods of time. Examples include : on-screen menus, black bars and time displays. If you must use stationary images, reduce screen contrast and brightness to avoid screen damage.

• Unplug the TV before cleaning.

• Clean the TV screen and frame with a soft cloth. Never use substances such as alcohol, chemicals or household cleaners on the TV screen.

• Risk of damage to the TV screen! Never touch, push, rub or strike the screen with any object.

• To avoid deformations and color fading, wipe off water drops as soon as possible.

Regulatory notices

Warning

To reduce the risk of ﬁ re or electric shock, this apparatus should not be exposed to rain or moisture. Objects ﬁ lled with liquids, such as vases, should not be placed on this apparatus.

Caution

To prevent electric shock, match the wide blade of the plug to the wide slot, fully inser ted.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 4 inches (10cm) or more around this apparatus.

Page 7

3 Your TV

Congratulations on your purchase, and welcome to Philips! To fully beneﬁ t from the support that Philips offers, register your product at

www.philips.com/support

Remote control

Side controls and indicators

a Ambient light sensor

When in [Home] mode, this TV will automatically adjust the brightness based on the ambient light. If there is a sudden change in TV brightness, it may be due to changes in the room lighting conditions (sunshine / lamps), or an object blocking the light sensor on the front of the TV. Please ensure the room lighting is stable and the light sensor is not blocked.

q p

f g

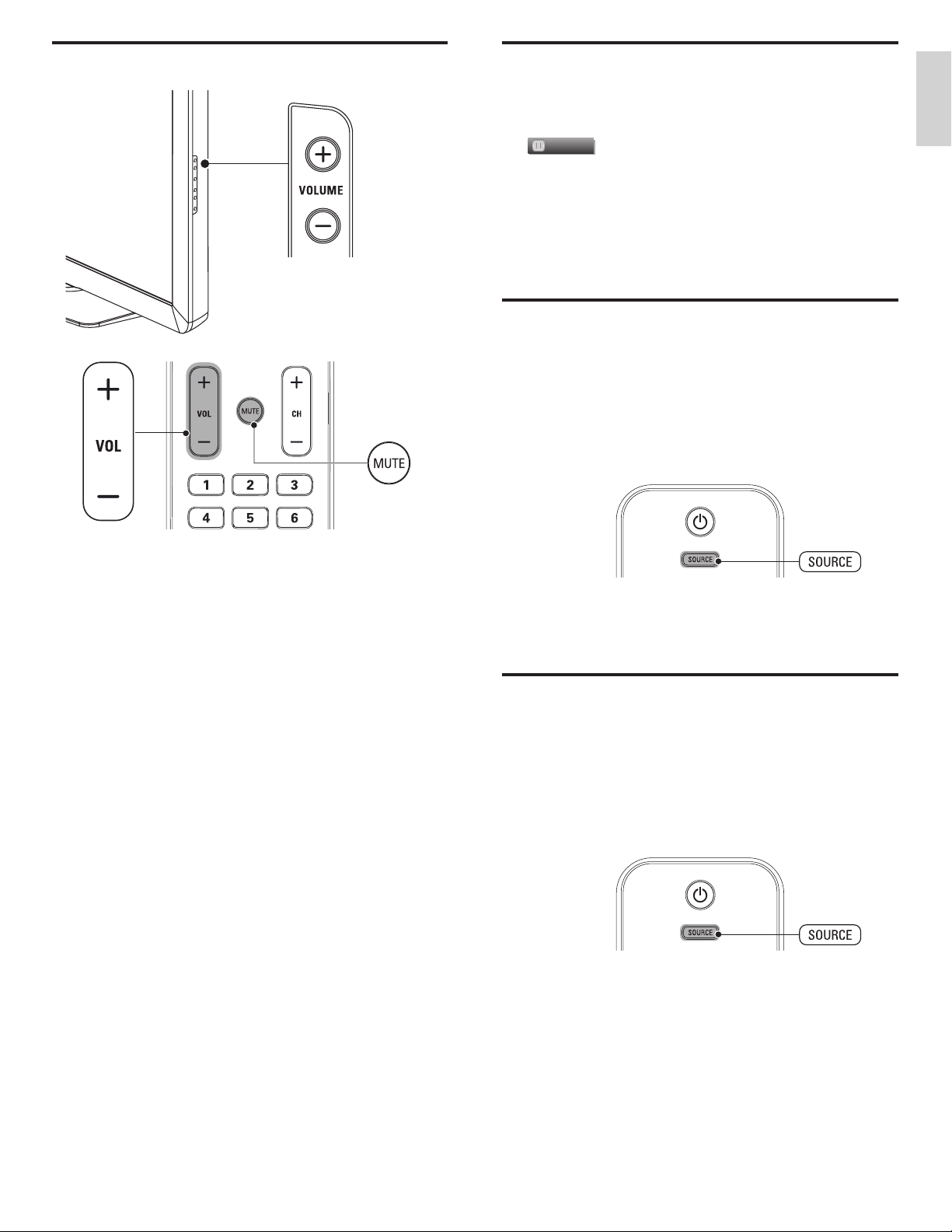

b Standby indicator / remote control sensor c . POWER

Switches the TV on or puts it in standby mode. The TV is not powered off completely unless it is physically unplugged.

d CHANNEL + / −

Switches to the next or previous channel.

e MENU

Toggles the main menu on or off.

f VOLUME + / −

Increases or decreases volume.

*This button does not function on this unit.

Page 8

a . (Standby-On)

Switches the TV on or puts it in standby mode. The TV is not powered off completely unless it is physically unplugged.

b SOURCE

Selects connected devices.

c FORMAT

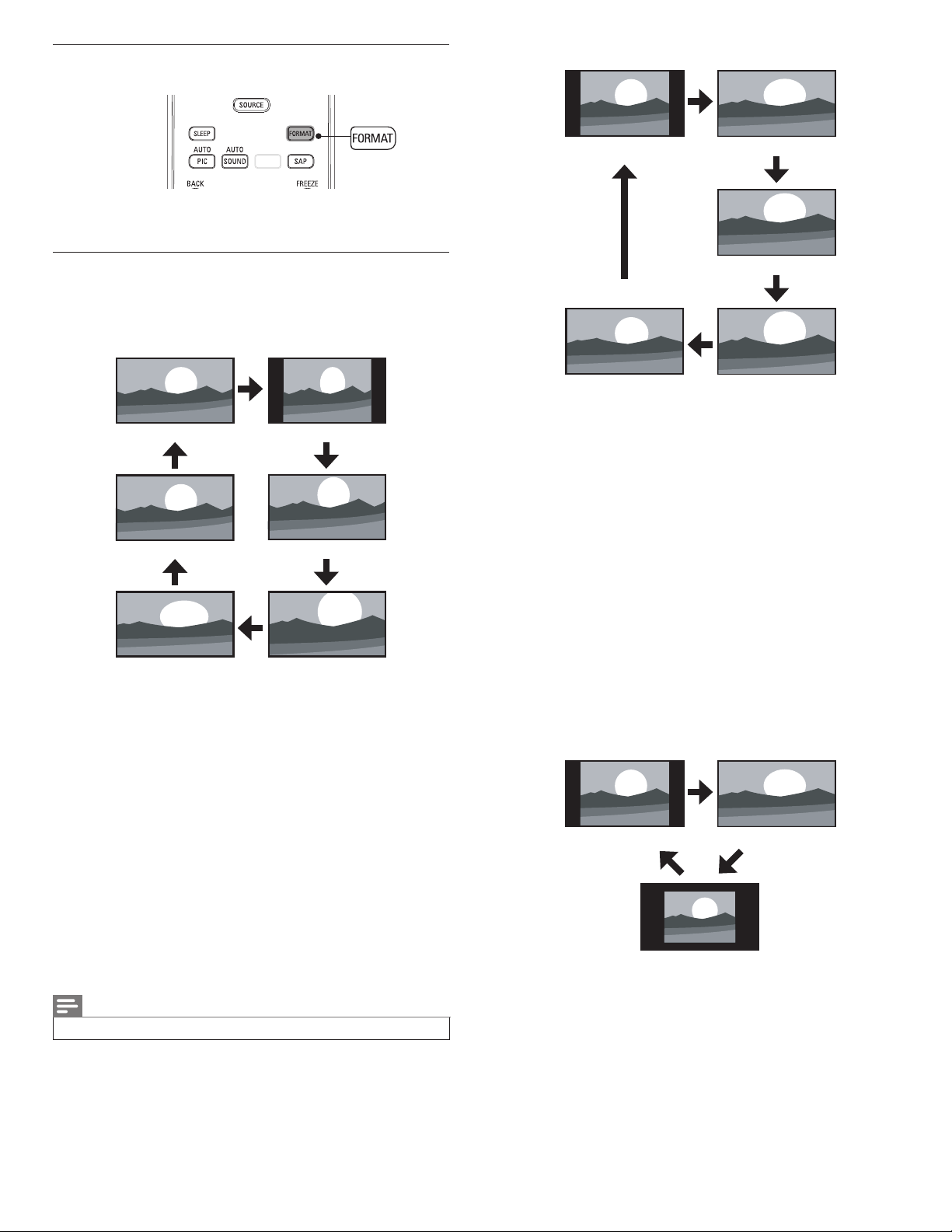

Selects a picture format (see ‘Changing picture format’ on page 16).

d SAP

Digital Mode (DTV)

• Press to select the audio language.

Analog Mode (TV)

• Press to select the audio mode.

e FREEZE

Press to pause screen image.

f OK

Activates a selection or accesses the menu.

Î ï Í Æ

(Navigation buttons)

Navigates through the menus.

h INFO

Displays information about the TV channel or accessory device. The quality and accuracy of the information depends on the broadcaster. You might see a difference in broadcast time if the broadcast is from a different time zone.

English

i CH + / −

Switches to the next or previous channel.

j MUTE

Mutes or unmutes audio.

k Number buttons

Select a channel, page or setting.

(Dot

•

)

Press the dot (•) for digital channels.

m PREV CH

Returns to the previously viewed channel.

n VOL + / −

Increases or decreases volume.

o MENU / EXIT

Turns the menu on or off.

p BACK

Returns to a previous screen.

q AUTO SOUND

Cycles through preset sound settings (see ‘Changing auto sound mode’ on page 17).

r AUTO PIC

Cycles through preset picture settings (see ‘Changing auto picture mode’ on page 15).

s SLEEP

Sets a delay after which the TV switches to standby.

Page 9

4 Get started

Supplied accessories

• Remote Control

• 2 x AAA, 1.5V Batteries

• M5 x 20 double sems screw x 4

• AC Power cord

• Cable management tie

• User Manual

• Quick Start Guide

Mounting stand onto TV

Applicable to TVs without mounted stands.

Positioning the TV

Warning

• Do not insert the AC power cord into the power socket outlet before all the

connections are made.

• Large screen TVs are heavy. 2 people are required to carry and handle a large screen TV.

• Before you move the TV, disconnect attached cables to prevent damage to connectors.

In addition to reading and understanding safety instructions, consider the following before positioning your TV :

• Ensure that you always have easy access to the AC power cord or plug to disconnect the TV from the power.

• If the TV is mounted on a swivel base, ensure that no strain is placed on the AC power cord when the TV is swiveled. Strain on the AC power cord can loosen connections.

• The ideal viewing distance for watching TV is three times its screen size.

• Position the TV where light does not fall on the screen.

• Connect your devices before you position the TV.

Using a Kensington lock

There is a Kensington security slot on the back of the TV. Prevent theft by looping a Kensington lock between the slot and a permanent object, such as a heavy table.

x 4

Note

• To wall mount the TV, refer to the Quick Start Guide.

• If you lose the stand mounting screws, please purchase 4 Phillips head screws

( M5 × 20) at your local store.

Installing the remote control batteries

1 Slide the battery cover off the back of the remote control. 2 Insert the 2 supplied batteries (AAA, 1.5V). Be sure the + and −

ends of the batteries line up with the markings inside the case.

3 Slide the cover back into position.

Note

• Remove the batteries if not using the remote control for an extended period of time.

Page 10

set-top box

RF cable

antenna

OUT

HDMI

set-top box

RF cable

OUT

set-top box

RF cable

audio L/R

YPbPr

Connecting the antenna or cable

RF cable

cable

antenna

cable

antenna

RF cable

If you connect to an antenna

Any DTV programs that are broadcast in your area can be received for free through an antenna connection.

Contact your local content provider or your local electronics retailer if you are unsure about what HDTV programs are available in your area.

Broadcasters are transitioning from analog to digital TV. This means that a given broadcaster can have channels available either in analog or in digital, or both analog and digital at the same time.

The TV produces stereo sound only if a stereo signal is broadcast.

If you connect a set-top box through RF IN / OUT If the TV is connected to a cable box or satellite set-top box via a

coaxial connection, set the TV to channel 3 or 4, or to the channel speciﬁ ed by the service provider.

antenna

RF cable

set-top box

OUT

English

If you connect a set-top box through HDMI

If the TV is connected to a cable box or satellite set-top box via HDMI, make sure you select the correct HDMI source by using SOURCE on this unit’s remote control.

If you connect to a cable

When your TV is connected to the cable socket, you might receive free digital and high deﬁ nition programs (depending on your cable provider). The channel number for digital and high deﬁ nition channels includes a dot “•”. For example, 11.1, 46.30, 108.201. Contact your cable provider for more information.

If you connect to a DBS (Direct Broadcast Satellite

)

There are two main DBS systems : DirecTV and DishNetwork. These systems require a separate, proprietary set-top box to decode signals and send them to the TV. The set-top box contains a digital TV tuner for receiving off-air digital broadcasts.

Contact your local DBS provider for more information about the connections and the TV channels.

If you connect to a set-top box

A cable box or satellite set-top box can be connected to the TV through the following connections :

• ANT

• A/V (Composite Video and Audio)

• YPbPr (Component Video Input)

• HDMI For information about how to connect a set-top box, see the Quick

Start Guide provided.

RF cable

set-top box

HDMI

OUT

If you connect a set-top box through component video input

If the TV is connected to a cable box or satellite set-top box via component video input, make sure you select the correct component video source by using SOURCE on this unit’s remote control.

RF cable

OUT

set-top box

YPbPr

OUT

audio L/R

Page 11

Managing cables

Plugging in the AC power cord

Route your antenna cable and all other cables through the cable management tie at the back of the TV. The holder helps keep your cables tidy and easily manageable.

1 Attach the cable management tie as illustrated below.

2 Pass cables through the cable management tie to avoid tangles.

Warning

• Verify that your power voltage corresponds with the voltage printed at the back of the

TV. Do not insert the AC power cord if the voltage is different.

Connect the AC power cord plug to the power outlet. Ensure that the cord is tightly secured.

Disconnect the TV from the power outlet

Caution

• Pull the AC power cord by the plug; do not pull on the AC power cord.

1 Unplug the AC power cord from the power outlet. 2 Unplug the AC power cord from the power connector at the back

of the TV.

Page 12

Switching on and initial setup

Before you switch on the TV, check that the AC power cord is properly connected. Press . POWER at the right side of the TV, or press . on the remote control. The TV normally takes 25-30 seconds to start up and the following screen appears the ﬁ rst time you turn on the TV.

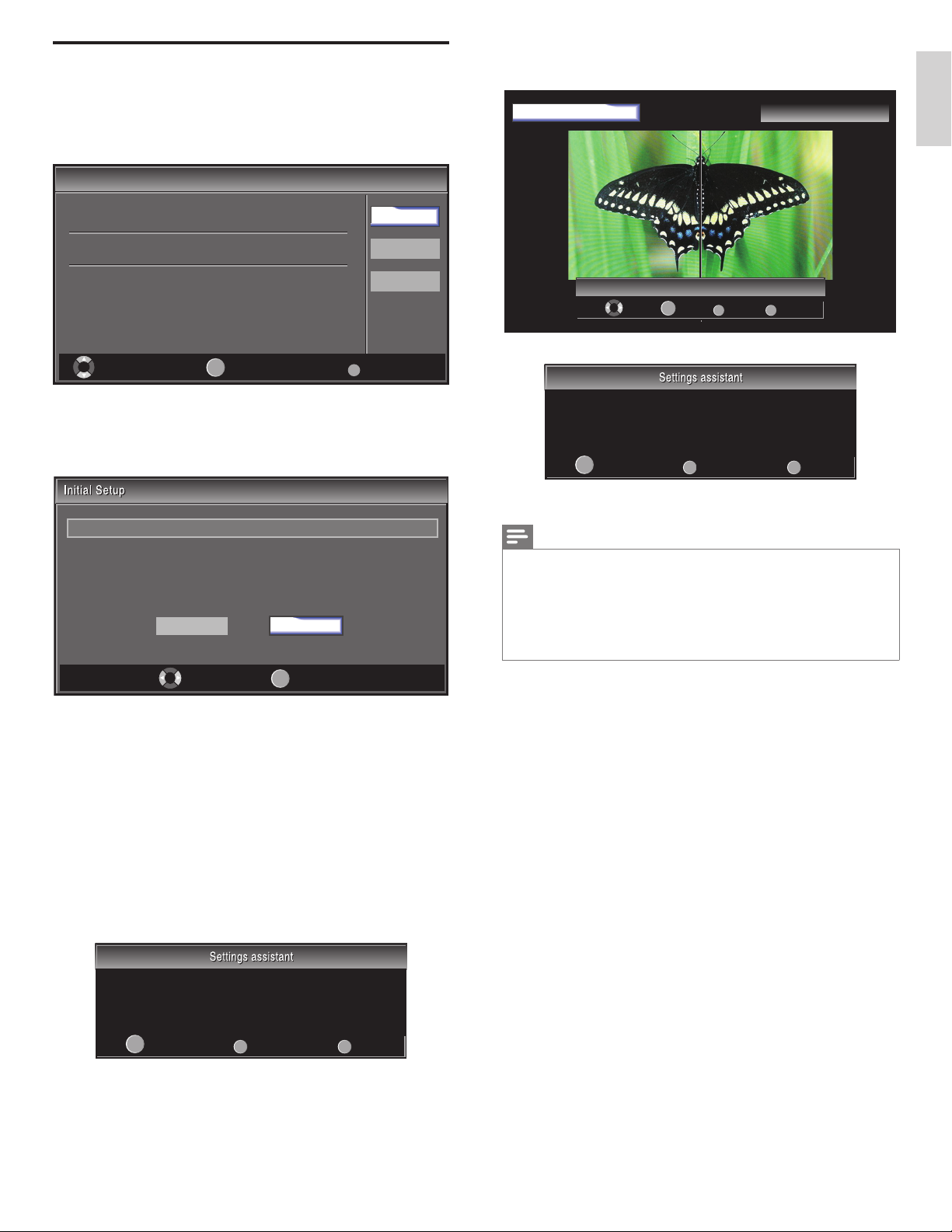

Initial Setup

Press Í or Æ 5 times to select the side of the pictures that is the most pleasing to you. then press OK.

Left side Right side

English

Select your menu language.

Seleccione el idioma para el menú.

Sélectionnez la langue du menu.

Select Skip

English

Español

Fran çai s

Follow the on-screen instructions to select your language and complete your TV setup. Installation takes approximately 10 minutes.

Press Í or Æ to select the desired mode for energy saving, then press OK.

Select “Retail” or “Home” for your location.

Retail

Home

1/5 Select the picture setting that you prefer.

Select Next Back Exit

BACK

Press OK to ﬁ nish [Settings assistant].

You have set up your viewing preferences.

Store Back Exit

BACK

Finish the Setup.

Note

• If you are not receiving a signal from your cable ser vice, contact the CATV provider.

• If you press

• The initial autoprogram function can be executed for either

only once. When you change the connection (Antenna / Cable), set autoprogram again. (Refer to page 24.)

or MENU during autoprogram, this setting will be canceled.

[

Antenna] or [Cable]

• If there is no signal input from the antenna terminal and no operation for several

seconds after you turn on the TV, [Helpful Hints] appears. Follow the instructions listed on the TV screen.

Select OK

Select [Retail] if you want backlight to be brighter. Select [Home] to reduce power consumption. You must set [Home]. Otherwise, personalized picture and sound

settings will not be memorized after the unit goes to standby mode.

• Select [Retail], the unit will be set up with predeﬁ ned setting for retail displays. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGY STAR qualiﬁ cation.

• Select [Home], the unit will be set to maximize energy efﬁ ciency. Picture and sound settings can be adjusted and saved as per your personal preferences.

Press OK to begin [Settings assistant].

Settings assistant helps you customize picture settings. You will see a series of test pictures where the right side and left side differ. Select the side that is most pleasing to you with the Left/ Right keys.

Next Back Exit

BACK

Page 13

5 Use your TV

This section helps you perform basic TV operations.

Switching on your TV and putting it in standby mode

Switching channels

To switch on

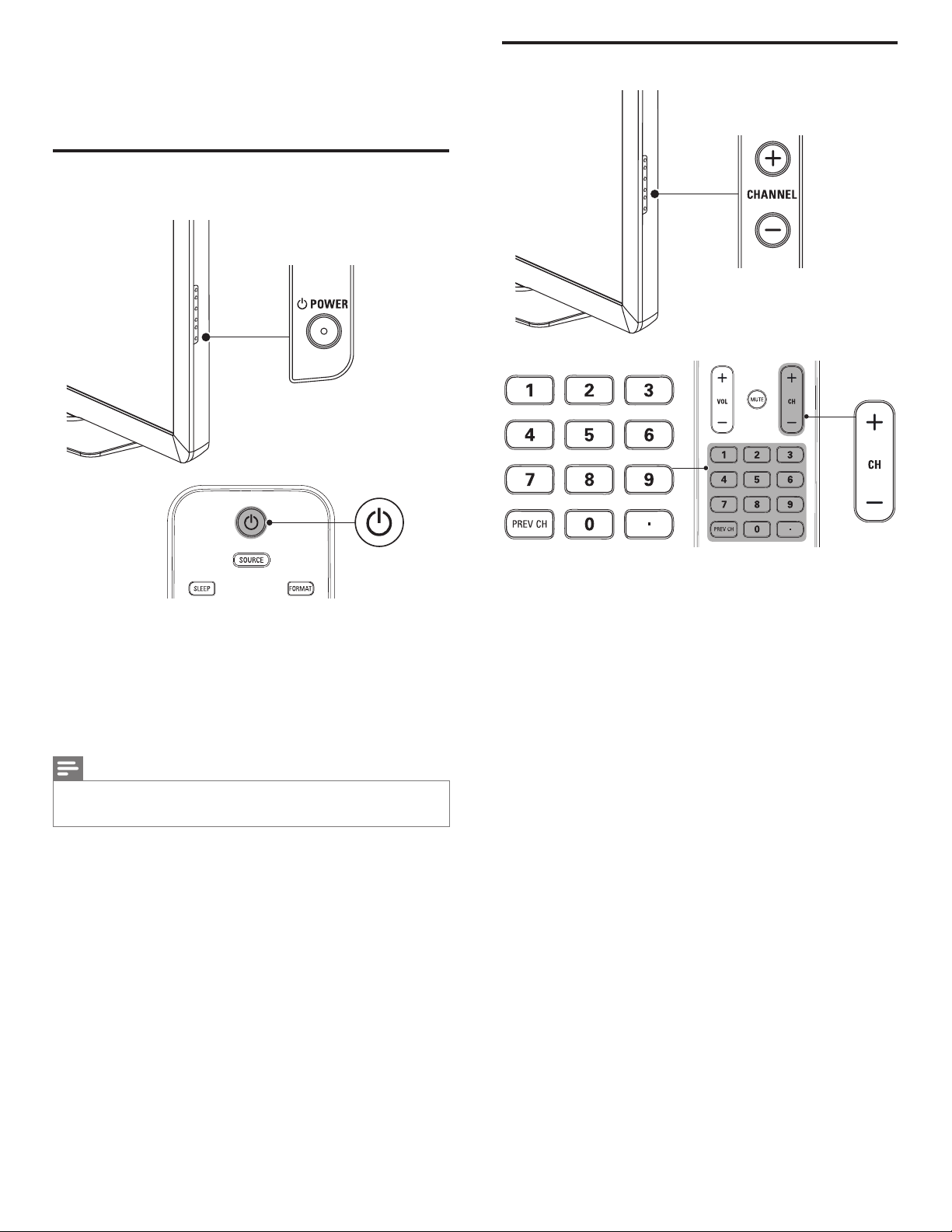

• Press . POWER at the side of the TV or press . (Standby-On) on the remote control.

To switch to standby

• Press . POWER at the side of the TV or press . (Standby-On) on the remote control again.

Note

• Energy consumption contributes to air and water pollution. When the AC power

cord is plugged in, your TV consumes energy. Your TV has very low standby power consumption.

Press CHANNEL + / − on the side of the TV. For digital channels, press a number (1 to 135) followed by a dot “•” and then the corresponding sub channel number (1 to 135). e.g. 108.30.

• Press CH + / − or enter a number on the remote control.

• Press PREV CH to return to the previously viewed channel.

Page 14

Adjusting volume

Still mode

To increase or decrease volume

• Press VOL + / − on the remote control or press VOLUME + / − on the side of the TV.

To mute or unmute sound

• Press MUTE on the remote control to mute the sound.

• Press MUTE again or VOL + / − to recover the original sound.

You can pause the image shown on the TV screen. Press FREEZE to pause the image shown on the TV screen.

• The sound output will not be paused.

• If no signal is detected or protected signal is received during still

• The still function will be released after 5 minutes. To cancel still mode, press any button except . (standby-On).

Freeze

mode, the image remains paused and the sound output will be muted.

Watching channels from a set-top box

To watch channels from a set-top box

1 Switch on the set-top box.

» The picture from your set-top box might appear automatically

on the TV screen.

Use the remote control of your set-top box to select channels.

If the picture does not appear

1 Press SOURCE repeatedly to select the set-top box and wait a

few seconds for the picture to appear.

2 Use the remote control of your set-top box to select channels.

English

Watching connected devices

To watch connected devices

1 Switch on the connected device.

» The picture from your connected device might appear

automatically on the TV screen.

2 Use the remote control of the device to select channels.

If the picture does not appear

1 Press SOURCE repeatedly to select the connected device and wait

a few seconds for the picture to appear.

2 Use the remote control of the device to select channels.

Automatic Power Shut Off

If there is no input signal and no operation for 15 minutes, the unit will turn off automatically.

Page 15

Watching a Blu-ray disc

Switching audio mode

To watch a Blu-ray Disc

1 Insert a Blu-ray Disc into your player. 2 Press

If the picture does not appear

►

(play) on the remote control of the Blu-ray Disc player.

» The Blu-ray Disc might automatically play on the TV.

1 Press SOURCE repeatedly to select the Blu-ray Disc player and

wait a few seconds for the picture to appear.

2 Use the remote control of the Blu-ray Disc player to play the disc.

This section describes how to switch audio language in digital mode and how to switch audio in analog mode.

DTV

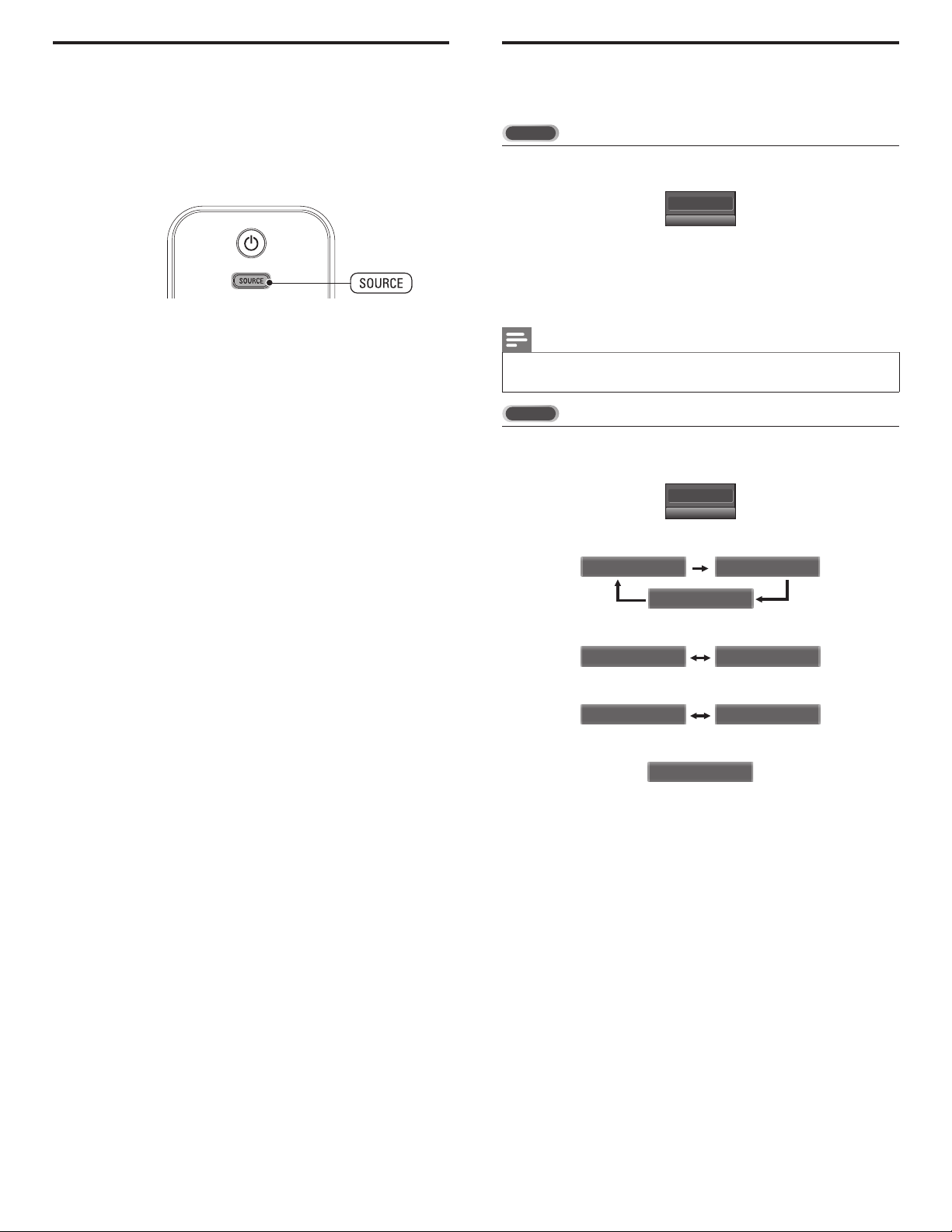

1 Press SAP to display the currently selected language and the

number of available languages.

11.1

English 1/3

2 Press SAP repeatedly to cycle through the available audio

languages.

• Available languages differ depending on the broadcast. [Other] is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.

Note

• SAP does not control external audio devices.

• The information display will automatically disappear in a few seconds.

Press SAP to display the currently selected audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel.

11.1

SAP / STEREO

English 1/3

When all audio are available

SAP / STEREO

SAP / STEREO SAP / MONO

SAP / STEREO

When stereo and monaural audio are available

MONO / STEREO MONO / STEREO

When SAP and monaural audio are available

SAP / MONO SAP / MONO

MONO / STEREO MONO / STEREO

When only monaural audio is available

MONO

(Cannot be switched)

STEREO : Outputs stereo-audio SAP : Outputs second audio program MONO : Outputs mono-audio

SAP / MONO

Page 16

6 Use more of your TV

Changing picture and sound settings

You must set [Home] in [Location] (refer to page 21). Otherwise, personalized picture and sound settings will not be memorized after the unit goes to standby mode.

Changing picture settings

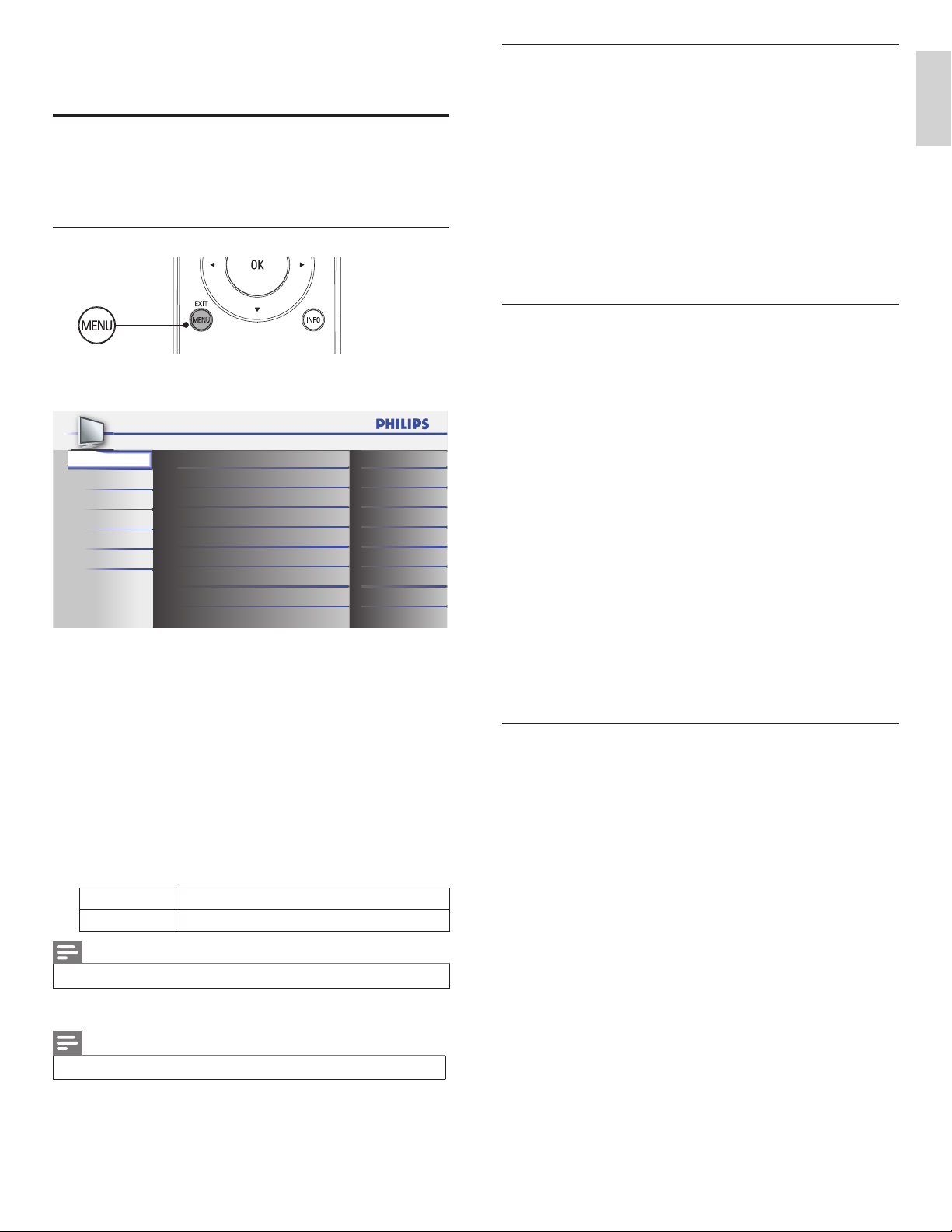

1 Press MENU on the remote control. 2 Press OK to enter the


Sound

Setup

eatures

Language

USB

3 Press

or ï to select one of the picture settings, and press OK

to enter the setting.

4 Adjust the picture quality.

[

Auto Picture

Press Î or ï to select the desired setting, then press OK. ([Personal], [Standard], [Sports], [Movie] and [Game])

[Brightness], [Contrast], [Color], [Tint], [Sharpness], [

Color Temperature

Press Î or ï to select the desired setting, then Press Í or Æ to adjust.

[

Noise Reduction

Reduces the noise of the picture. Press Î or ï to select the desired option, then press OK.

On Reduces noise in an image. Off Sets noise reduction to off.

]

[

Picture].

Settings assistant

Auto Picture

Brightness

Contrast

Color

Tint

Sharpness

Color Temperature

Noise Reduction

]

Personal

Normal

PC settings

This function lets you adjust the PC screen position, clock and phase during PC input.

1 Press MENU on the remote control and select

Settings].

[

Features] > [PC

English

2 Adjust the setting.

[

Auto Adjustment

Press Î or ï to select [Adjust], then press OK. The horizontal/vertical position, clock and phase of the PC screen

are automatically adjusted.

[

Horizontal Position], [Vertical Position], [Clock], [Phase

Press Í or Æ to adjust.

Summary of picture settings

The following picture settings can be conﬁ gured. Depending on the format of the picture source, some picture settings are not available.

• [Auto Picture]: Sets all picture settings to the factory default.

• [Brightness]: Adjusts the intensity and details of dark areas. When in [Home] mode, this TV will automatically adjust the brightness based on the ambient light. If there is a sudden change in TV brightness, it may be due to changes in the room lighting conditions (sunshine / lamps), or an object blocking the light sensor on the front of the TV. Please ensure the room lighting is stable and the light sensor is not blocked.

• [Contrast]: Adjusts the intensity of bright areas, keeping dark areas unchanged.

• [Color]: Adjusts color saturation.

• [Tint]: Adjusts the color balance in an image.

• [Sharpness]: Adjusts the level of sharpness in image details.

• [Color Temperature]: To set the color temperature to [Normal],

[

Warm] or [Cool].

• [Horizontal Position], [Vertical Position] : Adjusts the horizontal and vertical position of the picture for PC screen.

• [Clock] : Setting to stabilize the PC screen.

• [Phase] : Setting to improve the clarity of the PC screen.

Changing auto picture mode

]

1 Press AUTO PIC to set your TV to a predeﬁ ned picture setting. 2 Press

or ï to select one of the following settings:

• [Personal]: The customized settings you deﬁ ned by using the

[

Picture] menu.

• [Standard]: For normal TV viewing.

• [Sports]: Vivid picture settings for high action.

• [Movie]: Brilliant picture settings for a cinematic experience.

• [Game]: Optimized for PCs, games consoles and playstations.

Note

This function is disabled when PC input is selected. (Setting will be in gray.)

•

Press MENU to exit.

Note

•

To cancel picture adjustment, press MENU.

Page 17

Changing picture format

Press FORMAT on the remote control.

For 4:3 video signal

[

Normal

]

[

16:9

]

2 Press

or ï to select a picture format and press OK to conﬁ rm

your choice.

Summary of picture formats

Display modes can be selected when the broadcasting station is sending 16:9 or 4:3 video signal. And 3 types of display modes can be selected for PC input signal.

For 16:9 video signal

[

][

Normal

[Unscaled]

[

Wide

]

[

Normal

Display a 16:9 picture at its original size.

4:3

Display a 16:9 picture at a 4:3 size; the picture is shortened horizontally. Sidebars appear on both edges of the screen.

Movie Expand

Display a 16:9 picture that is vertically stretched to ﬁ ll the screen. This only crops out the top of the picture.

Zoom

Display a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.

Wide

Display a horizontally stretched picture. This crops out the left and right sides of the picture.

Unscaled

Display a picture in its original size.

Note

[

•

Unscaled] will be displayed only when the HDMI video signal is 1080i or 1080p.

]

4:3

Movie Expand

[

]

Zoom

]

[

Wide

[

Movie Expand

]

[

Zoom

]

Normal

Display a 4:3 picture at its original size. Sidebars appear on both edges of the screen.

16:9

Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally to ﬁ ll the screen.

Movie Expand

Display a 4:3 picture at a 16:9 size; the picture is stretched more vertically at the top of the screen. This crops out the top of the picture.

Zoom

Display a 4:3 picture at a 16:9 size; at its maximum size that is more vertically stretched to ﬁ ll the screen. This crops out the top and bottom of the picture.

Wide

Display the picture with its center at the original size and the edges stretched horizontally to ﬁ ll the screen.

For PC input signal

[

][

Normal

[

Unscaled

Full

]

Normal

Display a proportionately stretched picture. Sidebars appear on both edges of the screen.

Full

Display a picture that is stretched out of proportion to ﬁ ll the screen.

Unscaled

Display a picture in its original size.

Page 18

Using your TV as a PC monitor

Use an HDMI-DVI cable or an HDMI-DVI adaptor to connect a PC to your TV. For sound, add an audio cable with a stereo mini jack.

Caution

• Before you connect your PC, set the PC monitor refresh rate to 60Hz.

Supported screen resolutions

The following screen resolutions are supported in PC mode:

Resolution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768 60Hz 1360 x 768 60Hz

1920 x 1080 60Hz

Changing sound settings

1 Press MENU on the remote control and select

[

Sound].

[TV Speakers

]

This option will allow you to select the audio output from the unit’s speakers. If you connect this TV to an external ampliﬁ er which is compatible with HDMI CEC, you can use volume controls on this TV to control volume on the external ampliﬁ er.

Press Î or ï to select the desired option, then press OK.

On The sound will be output from the unit’s speakers. Off The sound will not be output from the unit’s speakers.

Speakers EasyLink

[Audio Setting

You can control audio output from your connected EasyLink Compliant Devices with VOL + / − by using this unit's remote control.

]

You can set the output mode as a default for the sound mode (NTSC only).

This setting is not interlocked when you change the output mode by pressing SAP. (see ‘Switching audio mode’ on page 14).

Press Î or ï to select the desired option, then press OK.

Stereo Outputs stereo-audio Mono Outputs mono-audio SAP Outputs second audio program

4 Press MENU to exit.

English


Sound

Setup

Features

Language

USB

2 Press

Auto Sound

Equalizer

Virtual Surround Sound

Auto Volume Leveling

TV Speakers

Audio Setting

or ï to highlight a sound setting and press OK to select

Standard

Off

Speakers EasyLink

Stereo

the setting.

3 Adjust the following items.

[

Auto Sound

Press Î or ï to select the desired setting, then press OK. ([Personal], [Standard], [Movie], [Music] and [News])

[Equalizer

Adjust tone quality for each frequency. Press Í or Æ to select the speciﬁ c frequency, then press Î or ï to

adjust the level.

[

Virtual Surround Sound

Sound mode for more spatial or surround sound reproduction. Press Î or ï to select the desired option, then press OK.

On The Virtual Surround Sound will be effective. Off The original sound will be output.

[Auto Volume Leveling

Reduces sudden changes in volume, for example, during commercials or when switching channels.

Press Î or ï to select the desired option, then press OK.

Off Select if you want to turn off the Auto Volume Leveling.

]

Select if you want to reduce volume differences between the TV commercials and the programs.

Summary of sound settings

The following sound settings can be conﬁ gured. Depending on the sound source, some sound settings are not available.

• [Auto Sound]: Sets all sound settings to the factory default.

• [Equalizer]: Adjusts individual sound frequencies.

• [Virtual Surround Sound]: Sound mode for more spatial or surround sound reproduction.

• [Auto Volume Leveling]: Reduces sudden changes in volume, for example, during commercials or when switching channels. Select

[On]

• [TV Speakers]: Select

[Off]

[On]

[Off]

, or output sound to an EasyLink compliant device. When [Speakers EasyLink] is selected, the TV speakers are disabled and TV sound outputs to the speakers of the compatible EasyLink compliant device. Adjust the volume using the unit’s remote control.

Note

• If the TV is connected to a non-EasyLink compliant device and

selected, the TV speakers will not be disabled and continue to output sound.

[

Speakers EasyLink] is

Changing auto sound mode

1 Press AUTO SOUND to set your TV to a predeﬁ ned sound setting. 2 Press

or ï to select one of the following settings:

• [Personal]: The customized settings you deﬁ ned by using the

[

Sound] menu.

• [Standard]: For normal TV viewing.

• [Movie]: Realistic sound settings for a cinematic experience.

• [Music]: Emphasize high and low freq. for instrument sound.

• [News]: Clear sound settings for human voice.

Page 19

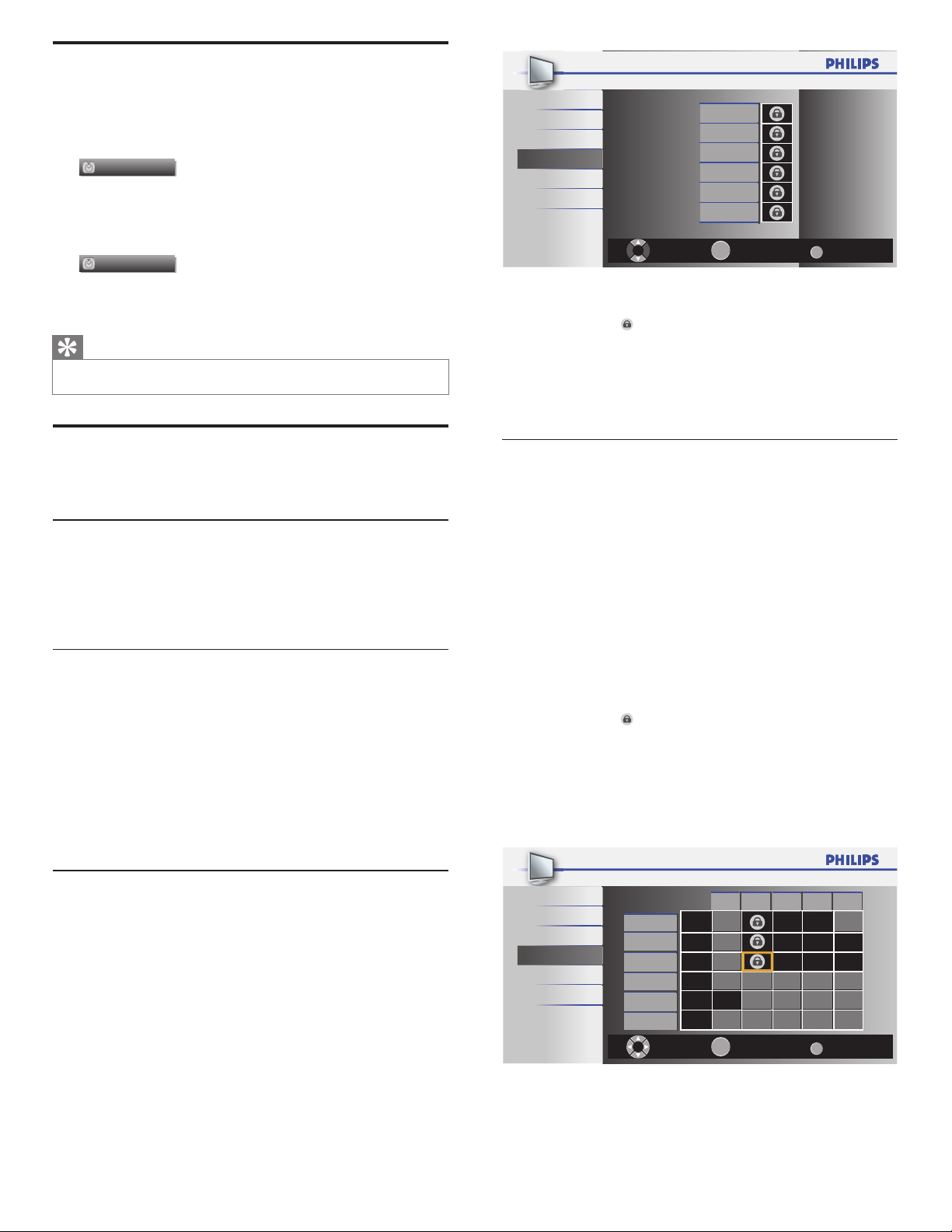

Sleeptimer

You can always put your TV in standby mode earlier or reset the sleeptimer during the countdown.

Press SLEEP to set the sleep timer.

Sleep Off

Sleep timer display appears on the TV screen.

Press SLEEP repeatedly to change the amount of time (in increments of 30 minutes up to 120 minutes).

Sleep 120min

• Each press of SLEEP will increase the time by 30 minutes.

• After setup, the sleep timer display can be called up for checking by pressing SLEEP.

Tip

To Cancel the Sleep Timer

• Press SLEEP repeatedly until “Sleep Off” is displayed on the TV screen.

Child and rating locks

You can prevent your children from watching certain programs or certain channels by locking the TV controls and by using ratings.

Setting your PIN

1 Press MENU on the remote control and select

[

Child Lock].

[

Features] >

2 Enter a 4-digit PIN on the Number buttons, of the remote control.

• If you have not set up your PIN, enter 0000.

Changing your PIN

1 Press MENU on the remote control and select

[

Child Lock] > [Change PIN].

[

Features] >

2 Enter a 4-digit PIN on the Number buttons of the remote control.

• If you have a PIN, enter your current PIN.

• If you do not have a PIN, enter 0000.

• If you have forgotten your PIN, unplug the AC power cord for

10 seconds to restore the PIN to 0000.

3 Enter your PIN again to conﬁ rm. 4 Press MENU to exit.


Sound

Setup

Features

Language

USB

3 Press

or ï and then press OK repeatedly to switch between

blocked and not blocked.

• A box with blocked.

• An empty box indicates that the channel or input source is not blocked.

indicates that the channel or input source is

Video

Component

HDMI 1

HDMI 2

HDMI 3

40.1 DTV

View/BlockSelect

BACK

Back

4 Press MENU to exit.

Using the TV ratings lock

Your TV is equipped with a V-chip that allows you to control access to individual programs based on their age rating and content rating. The program content advisory data are sent by the broadcaster or by the program provider.

If you receive channels through a set-top box or cable box connected by HDMI, you cannot use the TV ratings lock. Your set-top box or cable box must be connected through RF or AV connectors.

1 Press MENU on the remote control and select

[

Child Lock] > [US TV ratings lock].

2 Press

or ï or Í or Æ and then press OK repeatedly to switch between blocked and not blocked. Each rating has a box-graphic in front of it to indicate whether

programs carrying that rating are locked:

• A box with

are blocked.

• An empty box indicates that no items in the content ratings

list are blocked.

• An empty box indicates that some content ratings are

deselected. For example, for rating TV-14, you can deselect one or more of the following content ratings:[D] (Dialog),

[L]

(Language), [S] (Sex), or [V] (Violence).

indicates that all items in the content ratings list

[

Features] >

Locking a channel or input source

This section describes how to lock input sources or speciﬁ ed channels. The channels can be selected but the screen is blanked out and the audio is muted.

1 Press MENU on the remote control and select

[

Child Lock] > [Channel Lock].

[

Features] >

2 Enter your PIN (see ‘Setting your PIN’ on page 18).

18 EN


Sound

Setup

Features

Language

USB

• When you block a rating, all ratings in the younger age

categories are automatically blocked.

TV-MA

TV-14

TV-PG

TV-G

TV-Y7

TV-Y

FV V S L D

View/BlockSelect

3 Press MENU to exit.

BACK

Back

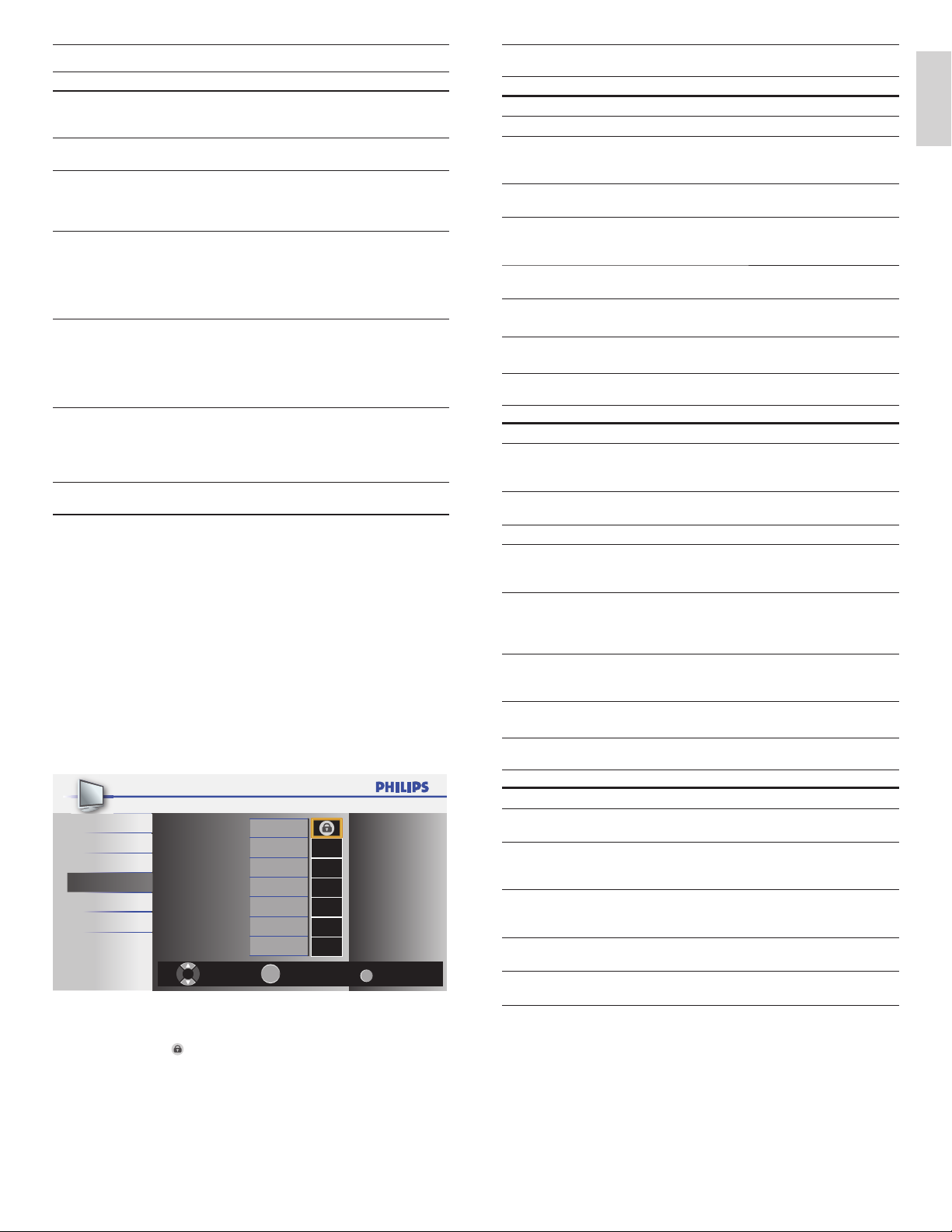

Page 20

Summary of TV ratings

Age rating Content rating

TV-Y :

TV-Y7 :

TV-G :

TV-PG :

TV-14 :

TV-MA :

Appropriate for children of all ages with themes and elements suitable for children aged 2-6.

Programs designed for children age 7 and older.

Programs suitable for all ages. These programs contain little or no violence, no strong language and little or no sexual dialog or situations.

Programs contain elements that some parents may ﬁ nd unsuitable for younger children and which may need parental guidance. The program may contain moderate violence, sexual dialog and / or situations and some strong language.

Programs contain elements that may not be suitable for children under 14 years of age. These programs include one or more of the following: intense violence, intense sexual situations, suggestive dialog and strong language.

Programs are designed to be viewed by adults and may be unsuitable for children under the age of 17. These programs may contain graphical violence, explicit sexual activity and / or crude or indecent language.

None

[FV]

(Fantasy Violence)

None

[D] (Dialog) [L] (Language) [S] (Sex) [V] (Violence)

[L] (Language) [S] (Sex) [V] (Violence)

Using the movie ratings lock

You can control viewing of movies based on their MPAA (Motion Picture Association of America) rating.

1 Press MENU on the remote control and select

[

Child Lock].

[

Features] >

2 Select one of the menus for movie ratings lock.

• In the USA, select [US Movie ratings lock].

• In Canada, select [Canadian English Rating] or

[

Canadian French Rating].

3 Enter your PIN (see ‘Setting your PIN’ on page 18).

» The following screen shows the ratings in

[

US Movie ratings lock].


Sound

Setup

Features

Language

USB

4 Press

or ï and then press OK repeatedly to switch between

NC-17

PG-13

View / BlockSelect

BACK

Back

blocked and not blocked.

• A box with

indicates that all items in the rating are blocked.

• An empty box indicates that no items in the rating are not blocked.

5 Press MENU to exit.

Summary of US movie ratings

Rating Description

NR Not rated. G Movies with a mild content, suitable for all ages. PG Movies for which parental guidance is recommended.

They may contain a few racy or violent scenes or maybe some bad language.

PG-13 Movies for which parental guidance may be

recommended if under age 13.

R Restricted. The movies usually contain offensive sex or

bad language and may be unsuitable for children under the age of 17. Parental guidance or permission needed.

NC-17 Even with parental permission, forbidden under age 17.

More offensive sex, violence or bad language.

X Movies which generally focus on sex, violence and / or

bad language. Also known as pornography.

Summary of Canadian English rating

Rating Description

E Exempt program. C Programming suitable for children under the age of

8 years. No profanity or sexual content of any level allowed. Minimal comedic violence.

C8+ Suitable for children ages 8 and over. Low intensity

violence and fantasy horror allowed.

G Movies with a mild content, suitable for all ages. PG Movies for which parental guidance is recommended.

They may contain a few racy or violent scenes or maybe some bad language.

14+ Programming intended for children ages 14 and over.

May contain intense scenes of violence, strong profanity, and depictions of sexual activity within the context of a story.

18+ Programming intended for viewers ages 18 and over.

May contain strong violence, language, and sexual activity.

Summary of Canadian French rating

Rating Description

E Exempt program. G Appropriate for all ages with little or no violence and

little to no sexual content.

8ans+ Appropriate for children 8 and up which may contain

little violence, some foul language and / or little to no sexual content.

13ans+ Appropriate for children 13 and up, with moderate

violence, language, and some sexual situations. Persons under 13 should be accompanied by an adult.

16ans+ Appropriate for children 16 and up, with strong

violence, strong language, and strong sexual content.

18ans+ Only to be viewed by adults and contains extreme

violence and graphic sexual content / pornography.

English

19EN

Page 21

Closed caption

Closed captioning is an assistive technology that allows persons with hearing disabilities to access television programming. Closed captioning displays the audio portion of programming as text superimposed over the video.

Note

• Closed captioning service may not be controlled by this unit’s menu options if you are

watching television through an external cable or satellite set top box. In which case you will need to use the menu options on the external set top box to control Closed Captioning.

• The captions do not always use correct spelling and grammar.

Not all TV programs and product commercials include closed caption information. Refer to your area TV program listings for the TV channels and times of closed caption shows. The captioned programs are usually noted in the TV listings with service marks such as [CC].

DTV

Selecting DTV caption services

1 Select a caption service for digital channels:

• Press MENU on the remote control and select [Features] > [

Closed Caption] > [Digital Caption Service].

• Press Î or ï to select one of the listed caption services, and press OK to conﬁ rm your choice.

Off

CS-1 to CS-6

Select if you do not want Digital Caption Service. This is the default.

Select one of these before changing any other item in [Closed Caption] menu. Choose [CS-1] under normal circumstances.

2 Press MENU to exit.

Selecting how captions are displayed

You can choose the size, font, color, background and other characteristics of the caption text.

Selecting caption services

1 Select a caption service for analog channels:

• Press MENU on the remote control and select

[

Features] > [Closed Caption] > [Caption Service].

• Press Î or ï to select one of the listed caption services, and press OK to conﬁ rm your choice.

Press MENU to exit.

Note

• Not all caption services are used by a TV channel during the transmission of a closed

caption program.

Summary of caption services

Service Description CC-1 and T- 1 ; are the primary caption and text services.

The captioning or text is displayed in the same language as the program’s dialogue

(up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture).

CC-3 and T- 3 ; serve as the preferred data channels.

The captioning or text is often a secondary language.

CC-2, CC-4, T- 2 and T- 4 ;

are rarely available and broadcasters use them only in special conditions, such as when

[

CC-1] and [CC-3] or [T- 1] and [T- 3] are not available.

• There are 3 display modes according to programs:

Paint-on mode:

Displays input characters on the TV screen immediately.

Pop-on mode:

Once characters are stored in memory, they are displayed all at once.

Roll-up mode:

Displays the characters continuously by scrolling (max. 4 lines).

1 Press MENU on the remote control and select

[

Closed Caption] > [Caption Style] > [User Setting].

Press Î or ï to select [On], then press OK.

2 Press

3 Press

Press MENU to exit.

or ï to highlight an option for digital captions, and press

OK to select the option.

or ï to highlight a setting for the option, and press OK to

conﬁ rm your choice.

[

Features] >

Difﬁ culties viewing closed captions on DTV programming

If you have difﬁ culties viewing closed captions on DTV programming, including HDTV, received from your subscription television provider, you should:

• consult any consumer information and manuals / guides on closed captions for DTV programming provided by your subscription television provider;

• ensure that the captioning function on your set-top box, if applicable, is turned on; and,

• ensure that the captioning function on your DTV is turned on.

If you are still unable to view closed captions on DTV programming, you should contact your subscription television provider for assistance.

Page 22

EasyLink

ECO

This function allows you to operate the linked functions between our brand devices with EasyLink capabilities and this unit connected via a HDMI cable.

1 Press MENU on the remote control and select

[

EasyLink].

Picture Master EasyLink On

Sound Auto Device Off On

Setup Auto TV On On

Device List

Features

Language

USB

2 Press

or ï to highlight the desired setting and press OK to

[

Features] >

select the setting.

3 Adjust the following items.

[Master EasyLink

Set the EasyLink [On] or [Off]. The following additional settings will be grayed out when you set to [Off].

Press Î or ï to select the desired option, then press OK.

Off Disable all EasyLink function.

[Auto Device Off Press Î or ï to select the desired option, then press OK.

Off

[Auto TV On Press Î or ï to select the desired option, then press OK.

Off

]

Select if you have connected an external device that is compatible with the EasyLink function.

]

Your connected EasyLink device goes into standby mode automatically when you put this unit into standby mode.

Your connected EasyLink device stays on even if unit goes into standby mode.

]

This unit turns on automatically when you turn on your connected EasyLink device.

This unit remains in standby mode even if you turn on your connected EasyLink device.

You can set whether the power consumption is saved or not.

1 Press MENU on the remote control and select

Picture Closed Caption


Sound Child Lock

Sound

Setup ECO

Setup

Features PC Settings

Features

Language EasyLink

Language

USB

2 Press

or ï to select the desired mode, then press OK.

On Select if you want to reduce power consumption.

Off

Closed Caption

Child Lock

EasyLink

Energy Saving Mode

Location

Current Software Info

Power consumption may possibly exceed the limited requirement of ENERGY STAR

[

Features] >

qualification.

Off

Home

[ ECO]

3 Press MENU to exit.

Set your location to home

You can set the location of your TV to [Home] or [Retail]. Choosing [Home] gives you full ﬂ exibility to change predeﬁ ned settings for picture and sound.

1 Press MENU on the remote control and select

[

Location].

2 Select

[

Home] and press OK to conﬁ rm your choice.

[

Features] >

3 Press MENU to exit.

Note

• You must set

memorized after the unit goes to standby mode.

[

Home]. Otherwise, personalized picture and sound settings will not be

English

[Device List

]

This function lets you see the product name of connected devices.

4 Press MENU to exit.

Page 23

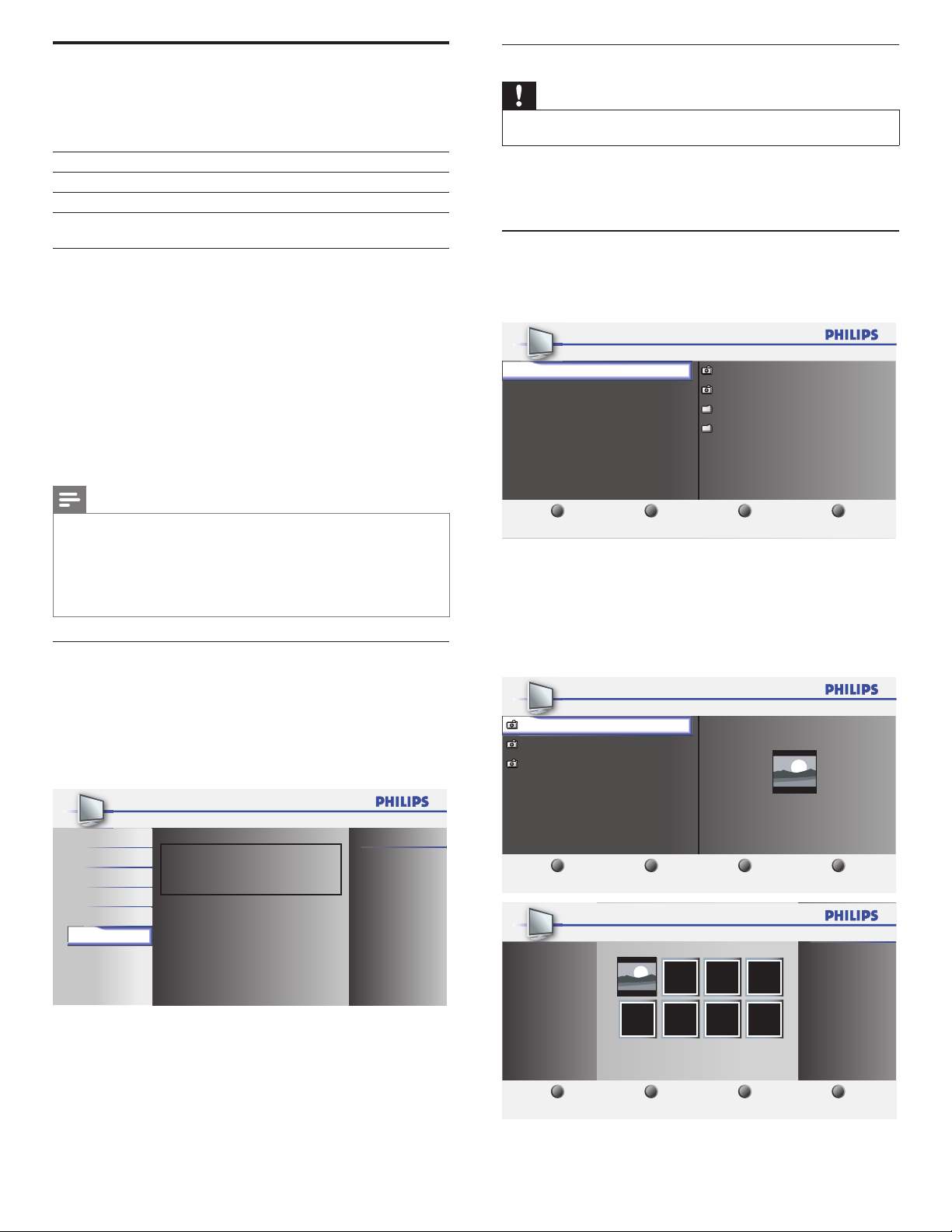

View photos, play music and watch videos on a USB storage device

Your TV is ﬁ tted with a USB connection that enables you to view photos or listen to music stored on a USB storage device.

Supported formats Not-suppor ted formats JPEG Progressive JPEG ﬁ les MP3 File name exceeding 128 characters FAT / DOS-formatted memor y

devices

It is recommended that ﬁ les to be played back in this unit are recorded under the following speciﬁ cations: <MP3>

• Sampling frequency : 32kHz or 44.1kHz or 48kHz

• Constant bit rate : 32kbps - 320kbps

<JPEG>

• Upper limit : 24Mpixel

• Size : 320 x 240 (QVGA)

• Frame rate : 30fps

• Audio type : LPCM - Sampling frequency

File names containing a dot character

- (32 kHz, 44.1 kHz or 48 kHz)

- Quantization bit rate (16 bit)

Disconnect a USB storage device

Caution

•

To avoid damaging the USB storage device always exit the on-screen menu and wait ﬁ ve seconds before you remove the USB storage device.

1 Press MENU to exit the on-screen menu. 2 Wait ﬁ ve seconds then remove the USB storage device.

View your pictures on a USB storage device

1 After connecting your USB storage device to the TV, press OK to

enter the [USB] menu.

»[Picture] is highlighted.

USB0


Music

Video



Folder 1

Folder 2

Note

Philips can not be held responsible if your USB storage device is not suppor ted, nor will

•

Philips accept any liability for damage or loss of stored data. The USB storage device is not supplied with the TV.

•

Motion JPEG ﬁ le with an extension of “.avi” can only be recognized. An extension of

•

“.mov” is not suppor ted. This unit doesn’t support “pause”, “forward” or “reverse” during video (Motion JPEG)

•

playback.

Connect a USB storage device

1 Turn on the TV. 2 Connect the USB storage device to the USB por t on the side of

your TV.

» The main menu appears automatically.


Sound

Setup

Features

Language

USB

or ï select [USB].

This menu allows you to enjoy your pictures, music and videos via your USB device.

USB0

3 Press

1 2 3 4

Press “OK” key to play/pause.

2 Press OK to enter the 3 Press

or ï to select a picture or an album on the USB storage

Thumbnails

[

Picture] folder.

device.

» The pictures appear in a list or as thumbnails.

4 Press a number 2

[

Thumbnails].

USB0





1 2 3 4

Press “OK” key to play/pause.

USB0


(

Number buttons) to toggle between [List] and


Thumbnails


1 2 3 4

Press “OK” key to play/pause.

List

Page 24

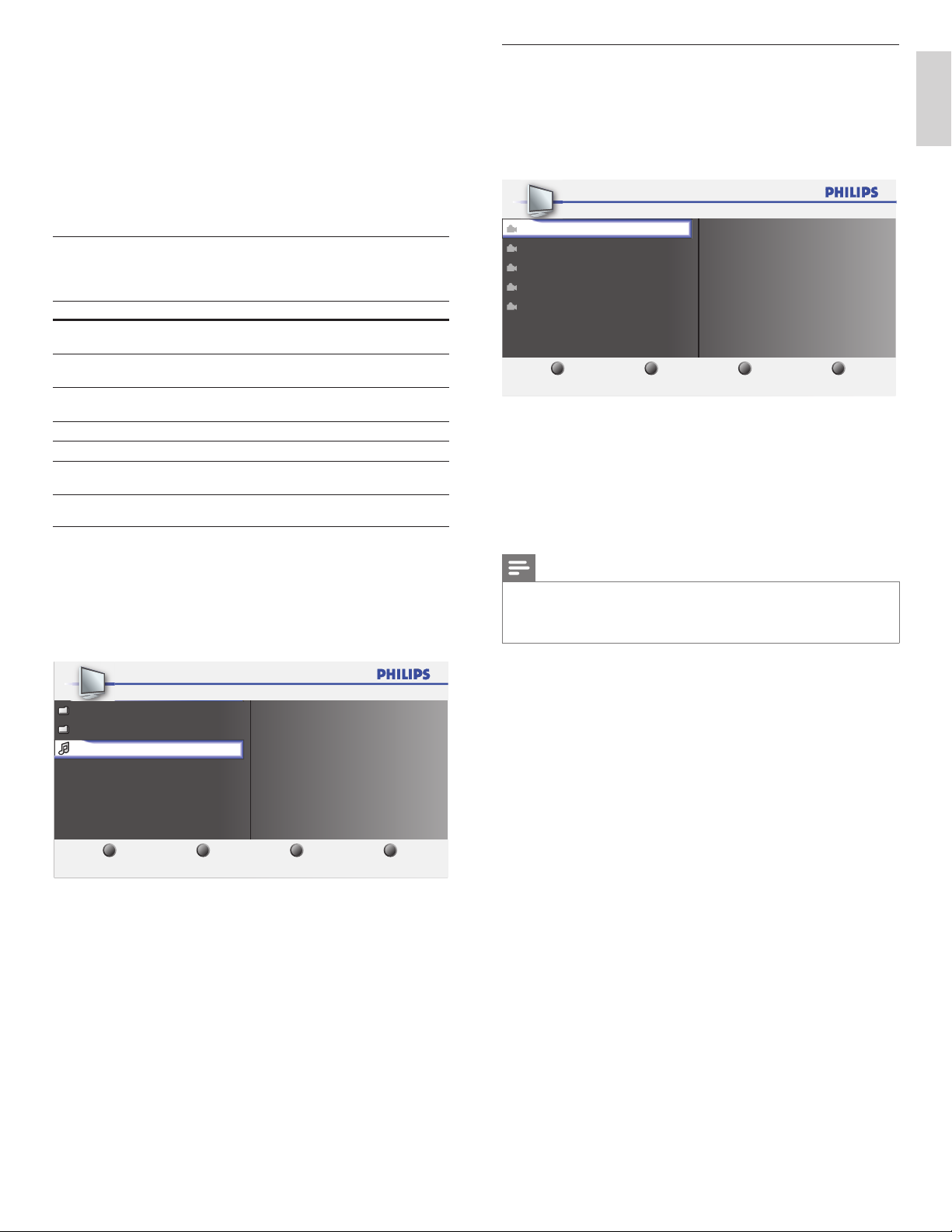

5 Press OK to view the picture or to start a slideshow of pictures in

the album.

• Press the Number buttons on the remote control to perform

the function shown at the bottom of the screen.

• If the function bar at the bottom disappears, press any

Number buttons to make it reappear.

During slideshow, you can skip forward or backward picture by pressing CH + / −.

6 Press

Conﬁ gure how the slideshow is played

You can conﬁ gure the following features of your slideshow.

Feature Description

[More details

[Transitions

[Slide time

[Rotate [Zoom [Start show] /

[

Stop show

Listen to music on a USB storage device

and select another picture or another album.

]

Displays the picture name, date, size and next picture in the slide show.

Displays a list of available transition styles of the pictures.

Sets the amount of time that a picture is shown.

Rotates a picture. Displays a list of available magniﬁ cations. Starts or stops a slide show.

Watch your Video on a USB storage device

1 Connect your USB storage device to the TV. 2 Press OK to enter the 3 Select

[

Video].

[

USB] menu.

4 Press OK to enter the video folder.

USB0

Video

MOVIE1.avi

MOVIE2.avi

MOVIE3.avi

MOVIE4.avi

MOVIE5.avi

1 2 3 4

Supported format: motion jpeg, 320 x 240, 30FPS

5 Press

6 Press

or ï to select a video.

• To stop playback and return to the ﬁ le list, press BACK, OK or CH +.

• Press CH − to play back from the beginning.

• Press 1 to display ﬁ le details below.

[

Title], [Director], [Date] and [Duration].

Press 1 again to remove ﬁ le details.

to select another video.

MOVIE1.avi

Title: MOVIE1.avi

Director:

Date: 2009/04/02

Duration: 00:06:37

English

1 Connect your USB storage device to the TV. 2 Press OK to enter the 3 Select

[

Music].

[

USB] menu.

4 Press OK to enter the music folder.

USB0

Music

folder

Track1.MP3

1 2 3 4

Press “OK” key to play/pause.

5 Press

6 Press

or ï to select a music.

• Press the Number buttons on the remote control to repeat, shufﬂ e, or change settings.

• Press OK to pause, press OK again to restart.

• If the Number buttons disappear from the screen, press OK to make them reappear.

During playback, you can skip forward or backward music by pressing CH + / −.

to select another song.

Track1.MP3

Title: Track1

Artist:

Album: Sentiment...

Duration: 00:02:53

Year:

Note

•

Motion JPEG ﬁ le with an extension of “.avi” can only be recognized. An extension of “.mov” is not suppor ted.

• This unit doesn’t support “pause”, “forward” or “reverse” during video (Motion JPEG)

playback.

Page 25

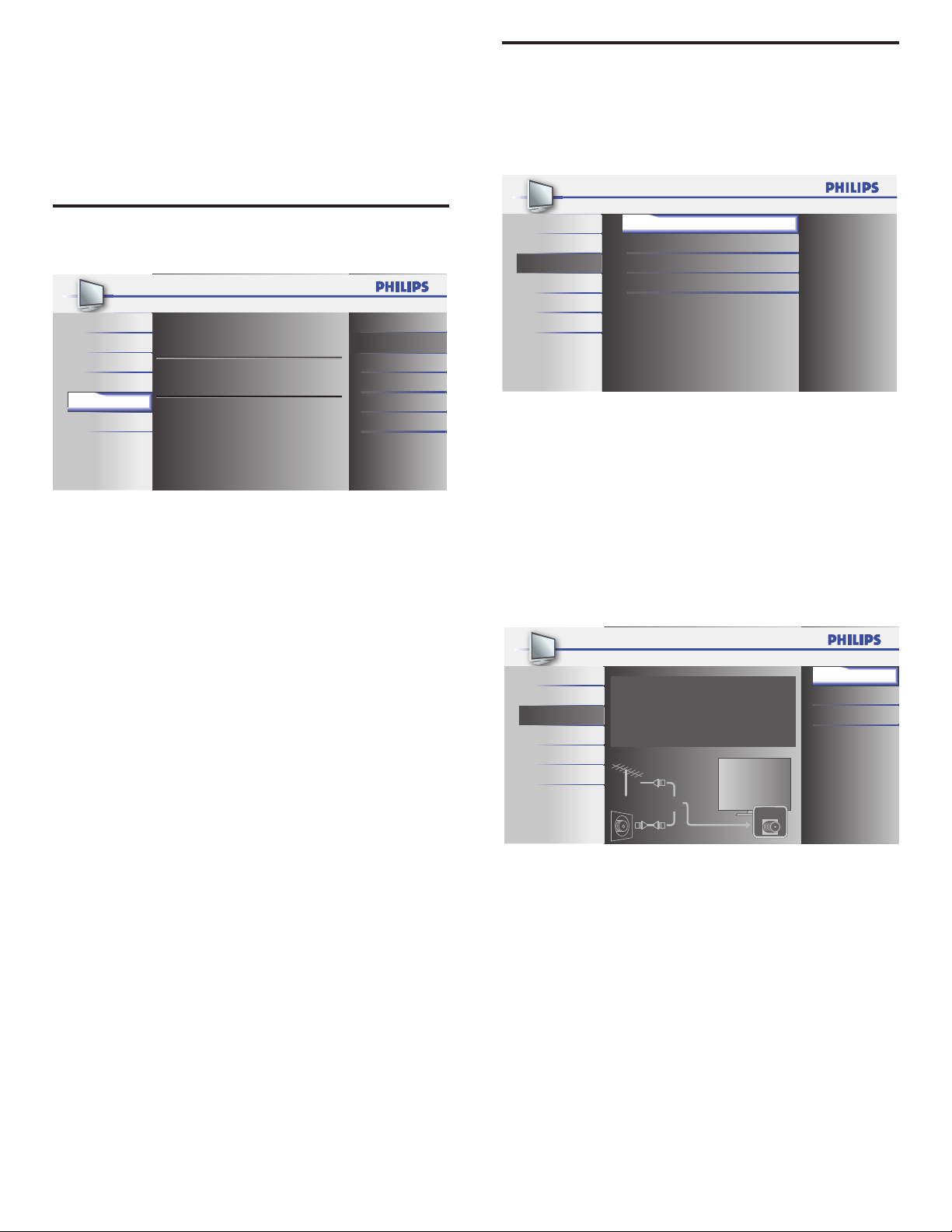

7 Install channels

The ﬁ rst time you set up your TV, you are prompted to select a menu language and to install TV and digital radio channels (if available). This

chapter provides instructions on how to reinstall and ﬁ ne-tune channels.

Autoprogram

Before you install channels, ensure that you are registered with your cable TV provider and that your equipment is correctly connected.

1 Press MENU on the remote control and select

[

Autoprogram].

[

Setup] >

Selecting your menu language

1 Press MENU on the remote control and select


Sound

Setup

Features

Language

USB

Select your menu language.

Seleccione el idioma para el menú.

Sélectionnez la langue du menu.

[

Language].

English

Español

Français

2 Select a language and press OK to conﬁ rm your choice. 3 Press MENU to exit.

Picture Autoprogram

Sound Channel List

Setup

Features Antenna

Language

USB

Add Channels

2 Press OK to start the installation.

If you run [Autoprogram] when you have locked channels, a message appears asking to enter your PIN . Enter your PIN in order to complete the installation.

If you have forgotten your PIN, reset it as described in ‘ Changing your PIN’ on page 18.

3 Select

[

Antenna] or [Cable] and press OK.

• When [Antenna] is selected, the TV detects antenna signals. It searches for NTSC and ATSC channels available in your area.

• When [Cable] is selected, the TV detects signals supplied by cable. It searches for NTSC, ATSC, and Cable channels available in your area.


Sound

Setup

Features

Language

USB

• When autoprogramming is complete, the lowest memorized channel will be displayed.

Follow the on-screen instructions to complete the installation.

Autoprogram will rescan all channels.

Auto programming may take more than 20

minutes to complete.

Select your signal source.

Antenna

Cable

ANT.IN

Back

Antenna

Cable

Page 26

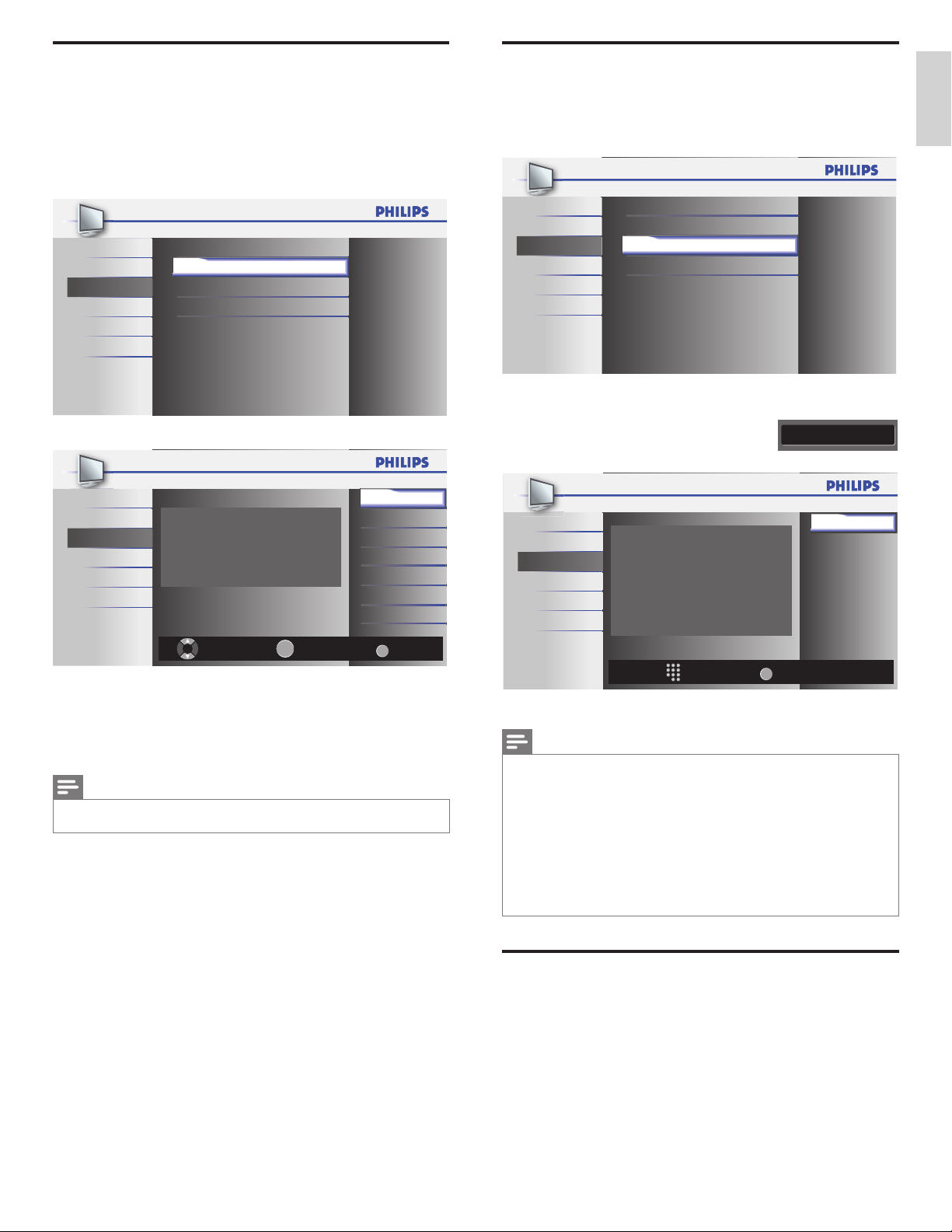

Channel list

Add channels

The channels selected here can be skipped when selecting the channels using CH + / −.

Those channels can still be selected with the Number buttons.

1 Press MENU on the remote control and select

[

Channel List].

Picture Autoprogram

Sound Channel List

Setup

Features Antenna

Language

USB

Press Î or ï to select the channel you want to remove, then press OK.


Sound

Setup

Features

Language

USB

Add Channels

Highlight channels for Ch Up/Down key selection.

Ch Select Watch/Skip

[

Setup] >

DTV 40.1

DTV

BACK

40.2

40.3

Back

• The channel display for the removed channel darkens. You will not be able to select the channel again using CH + / −.

• To reactivate a removed channel, press Î or ï and press OK. The registered channels are highlighted.

• When you remove a major channel, its minor channels are removed as well.

Note

• The channel with the

is NTSC.

[

DTV] indicated on the display is ATSC. Otherwise the channel

3 Press MENU to exit.

This function lets you add the channels that were not added by the autoprogram due to the receptible condition at the initial setup.

1 Press MENU on the remote control and

Picture Autoprogram

Sound Channel List

Setup

Features Antenna

Language

USB

Press a number (1 to 135) to enter the number of the channel you

Add Channels

[

Setup] > [Add Channels].

want to add, then press OK.


Sound

Setup

Features

Language

USB

For analog channels, select a channel to be added using number keys.

For digital channels, you must perform Autoprogram function.

Ch Change

BACK

Add channels

Back

3 Press MENU to exit.

Note

• If setup completes successfully,

• If external input is used, it is not possible to register the channel and

be displayed on the TV screen.

• By pressing

• In most cases, digital channels are not broadcast on the RF channel on which they

appear on your TV. To add digital channels you need to know the RF channel on which the digital channel is being broadcast. E.g. If there is a digital channel 9.1 which is being broadcast on RF channel 25, you need to enter 25 while performing a weak channel installation. To ﬁ nd out the RF channel on which a particular digital channel is being broadcast, please contact your local ser vice provider. Installing digital channels using [Add channels] might not work for direct cable connections and if the digital signal is too weak for the TV to process.

or ï you can select the memorized channels only.

[

Added to the channel list] is displayed.

[

Unavailable] will

English

Optimizing the signal quality from your antenna

You can optimize your signal quality by tuning in ATSC channels with weak signals, and adjusting the antenna.

1 Press MENU on the remote control and select

[

Antenna].

[

Setup] >

2 Press OK to conﬁ rm your choice. 3 Press a number (1 to 135) or press CH + or CH − to select the

channel for which you want to check the digital signal strength.

4 Press MENU to exit.

Page 27

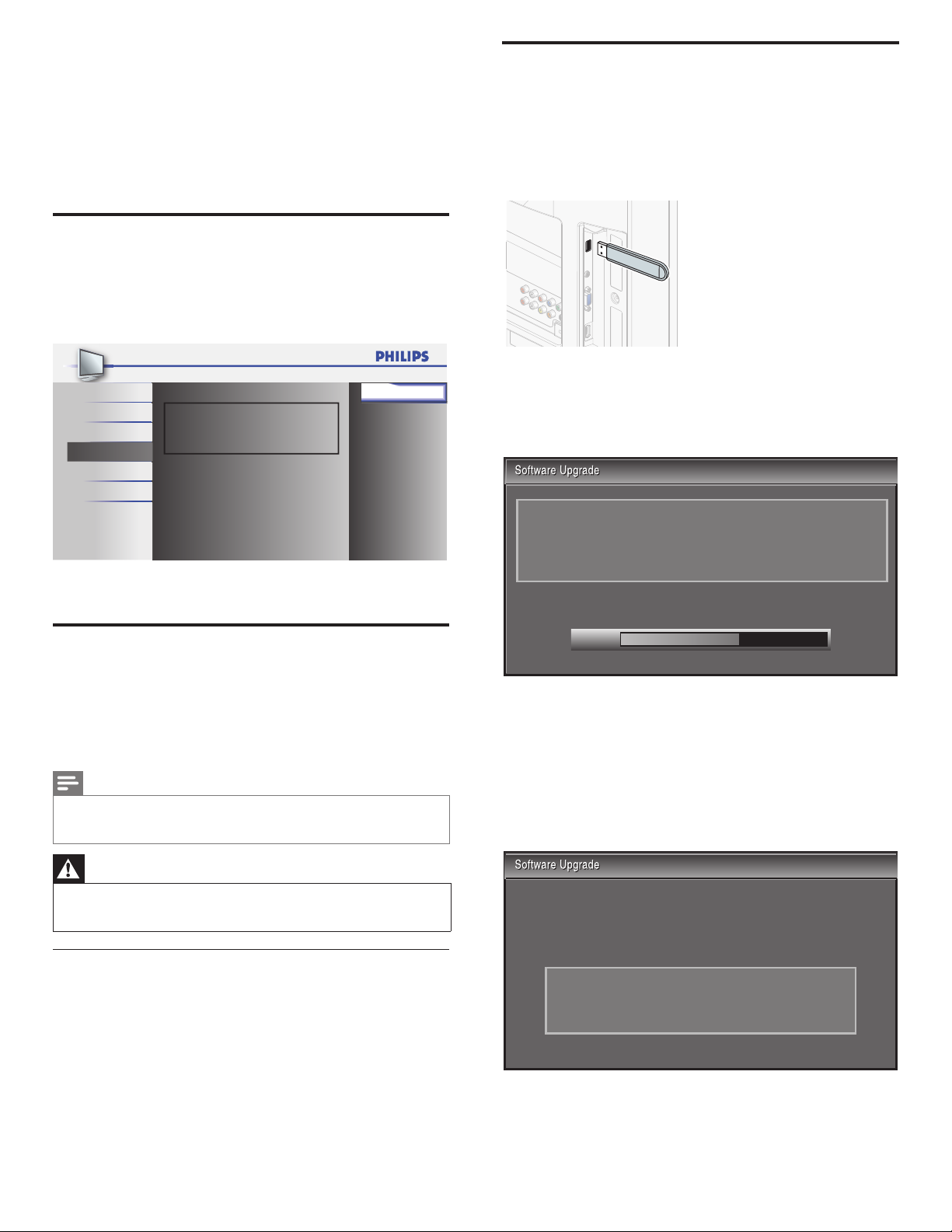

8 Upgrade your TV software

Philips continuously tries to improve its products and we strongly recommend that you upgrade the TV software when upgrades are available.

New software can be downloaded from our website at www.philips.com/support using the model number of your TV (e.g. 46PFL3706) to ﬁ nd information.

Checking your current software version

Press MENU on the remote control and select [Features] >

[

Current Software Info].

» The version and a description of the current software is

displayed, then press OK.

Picture Back

Sound

Setup

Features

Language

USB

Release Version: XXXXXXX_XXX_X_XXXX

Upgrading software

Prepare the software upgrade (see ‘Preparing for the software

upgrade’ on page 26).

2 If the TV is on, press

POWER at the side of the TV.

3 Connect your USB device to the service terminal on the side of

your TV.

4 Switch on the TV.

» The TV scans the USB device for the upgraded software and

automatically enters upgrade mode.

5 Read the on-screen instructions and conﬁ rm that you want to

continue with the installation.

2 Press MENU to exit.

Preparing for the software upgrade

You require the following equipment:

• A PC with web browsing capability.

• An archive utility that supports the ZIP-format (e.g. WinZip for Windows or StuffIt for Mac OS).

• An empty clean formatted USB stick.

Note

Only FAT/DOS-formatted portable memory is suppor ted.

•

• New software can be downloaded from www.philips.com/support

• Use only software upgrades that can be found on the Philips web site.

Warning

When the software upgrade is running, don’t press any buttons.

•

• Do not remove the USB device during the software upgrade.

• If an error occurs during the upgrade, retry the procedure or contact your dealer.

Downloading the software

1 On your PC, open a web browser and go to

www.philips.com/support

2 Find information and software related to your TV and download

the latest software upgrade ﬁ le to your PC.

3 Decompress the ZIP-ﬁ le. 4 Copy the upgrade ﬁ le to the root directory of the USB device.

Software upgrade in progress. Please wait.

Do not remove the USB storage device or turn the TV off while upgrade is in progress.

Downloading...

60%

6 When the software upgrade is complete, remove the USB device. 7 Press

POWER at the side of the TV to make sure the unit goes

to standby mode.

8 Switch on the TV.

» The TV starts up with the new software.

• The following messages are displayed without star ting software upgrade when it doesn’t fulﬁ ll the upgrade conditions.

The version of this update file is the same or older than the current version. Please check the file and try again.

Page 28

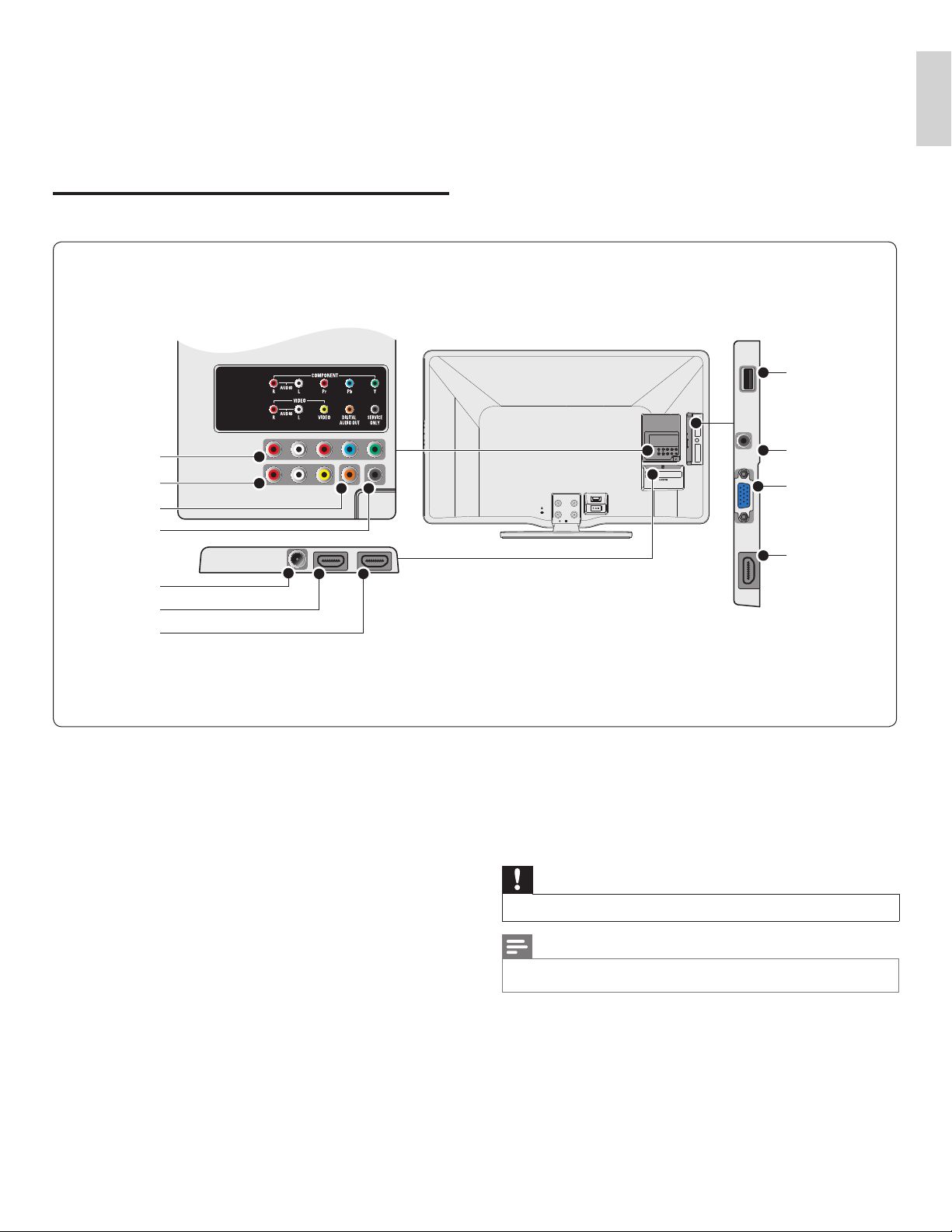

9 Connect devices

This section describes how to connect various devices with different connectors and supplements examples provided in the Quick Start Guide.

Connection overview

a b c

English

d e f

a Component video and audio input jack

Video input from analog devices such as DVD, receiver, game console, etc. This connector is used with audio input.

b Composite video and audio input jack

Video input for analog devices such as DVD, camcorder, game console, etc. To be used with audio input.

c Digital audio output jack

Digital audio output to home theaters and other digital audio systems.

d Antenna input jack

Signal input from an antenna, cable or satellite.

e HDMI 1 input jack

First HDMI in connector. Digital audio and video input from high deﬁ nition digital devices

such as Blu-ray players.

f HDMI 2 input jack

Second HDMI in connector.

g USB terminal

Data input from USB storage devices only. Do not connect any device to this terminal such as; digital camera, keyboard, mouse, etc.

h Audio input jack for HDMI 3 and PC

i PC input jack

VGA cable connection for PC.

j HDMI 3 input jack

Third HDMI in connector.

** service only

For use by service personnel only.

Caution

• Disconnect the AC power cord before connecting devices.

Note

• Different types of connectors may be used to connect a device to your TV, depending

on availability and your needs.

Page 29

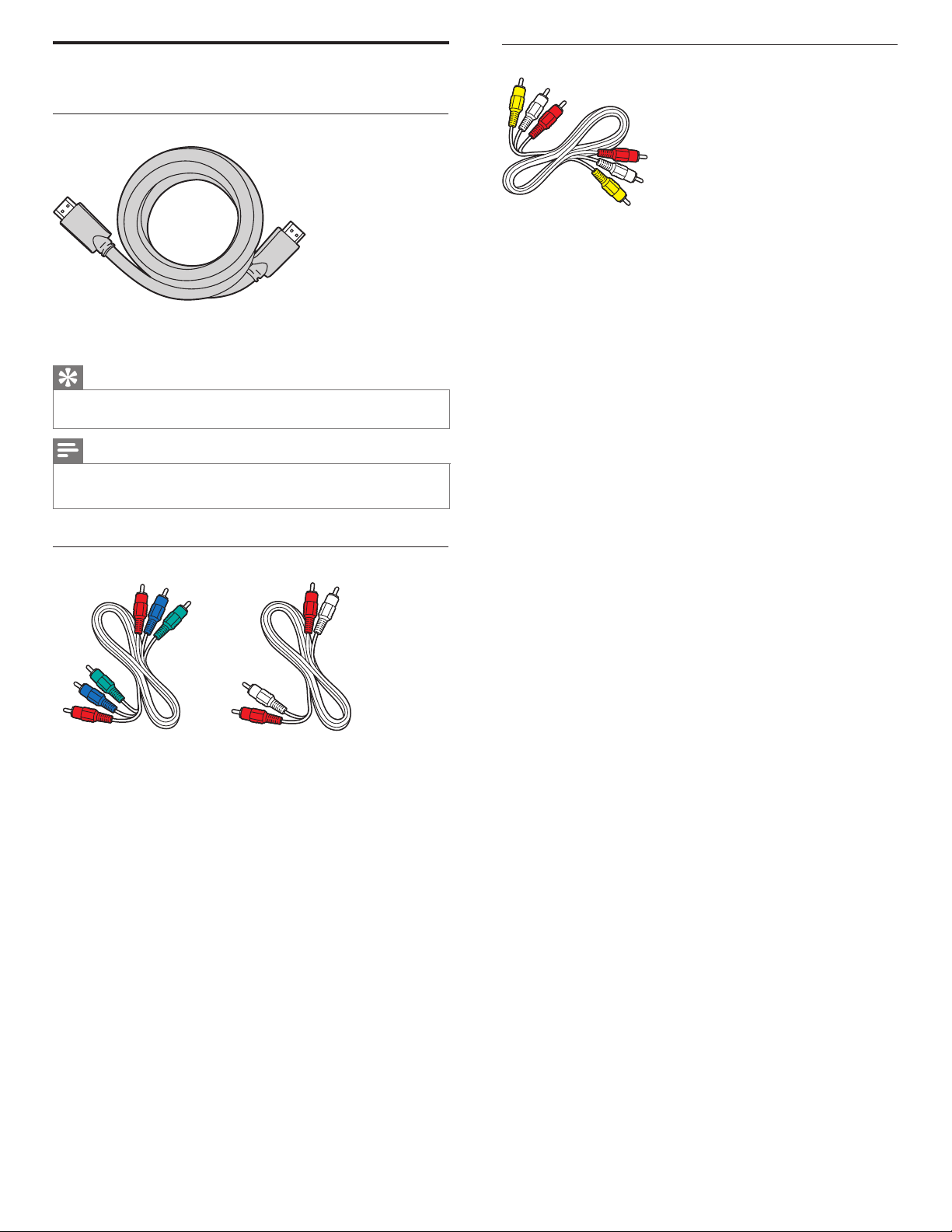

Selecting your connection quality

HDMI - Highest quality

Supports high-deﬁ nition signals and gives highest picture and sound quality. Video and audio signals are combined in one cable. You must use HDMI for full high-deﬁ nition video and to enable Philips EasyLink.

Tip

To connect to a PC without an HDMI connector, use a HDMI-DVI adaptor and a

•

separate audio cable.

Note

•

Philips HDMI suppor ts HDCP (High-bandwidth Digital Contents Protection). HDCP is a form of Digital Rights Management that protects high deﬁ nition content in DVD or Blu-ray Discs.

Composite - Basic quality

Composite video / audio cable (yellow / red / white) For analog connections. Composite cables usually combine a yellow video cable with a red / white audio L/R cable. Match the audio cable colors when you connect to the TV.

Component (Y Pb Pr) - High quality

Component video cable (red / green / blue) and audio L/R cable (red / white). Supports high-deﬁ nition signals but gives lower picture quality than HDMI. Component cables combine a red / green / blue video cable with a red / white audio L/R cable. Match the cable colors when you connect to the TV.

Page 30

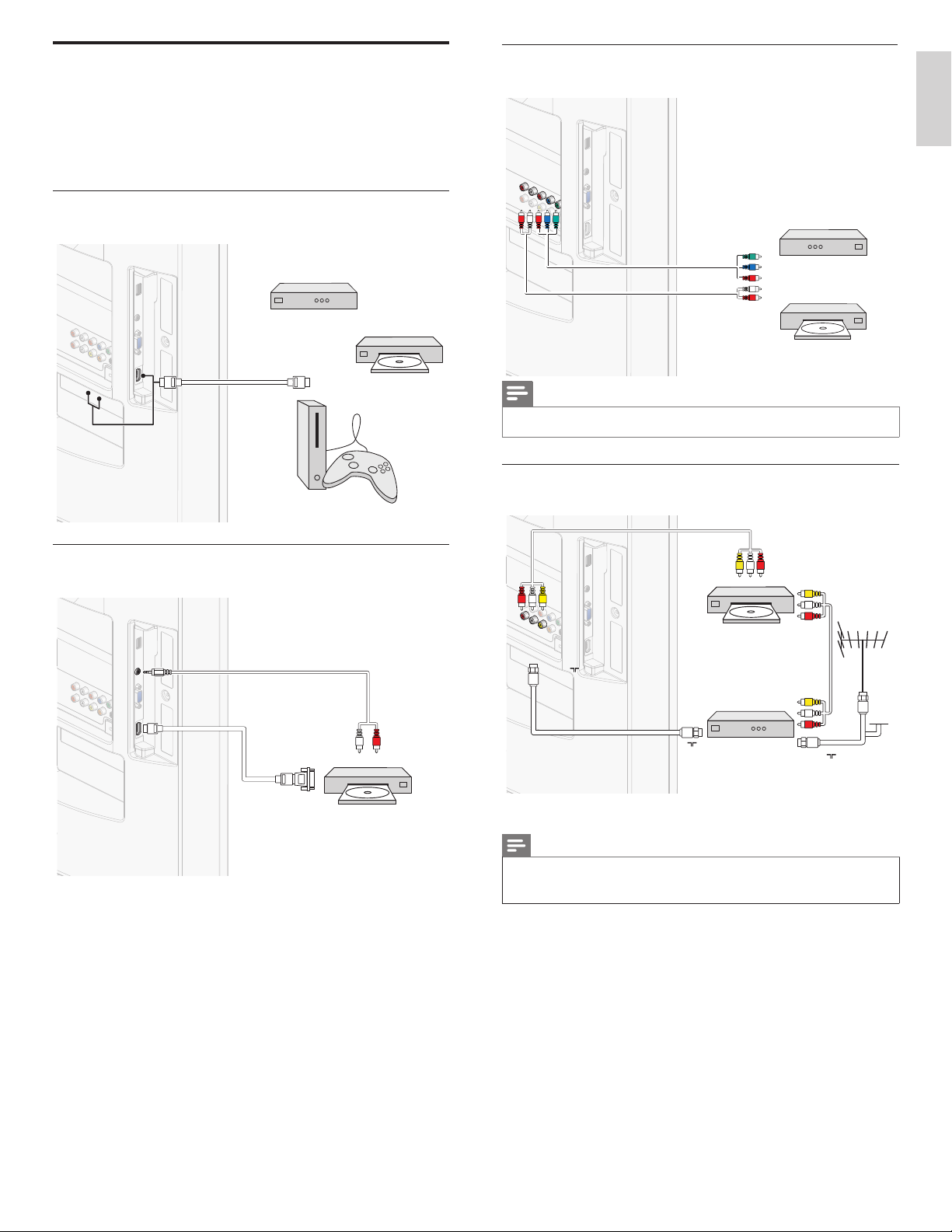

OUT

DVD player / recorder

set-top box

audio L/R

RF IN

RF OUT

DVD recorder

audio L/R + video

set-top box

cable

Connecting your devices

HDMI

set-top box

Blu-ray Disc player

HD game console

INININ

HDMI 3 IN only

DVD player / recorder

audio L/R

This section describes how to connect a selection of devices with different connectors. Different types of connectors can be used to connect a device to your TV. The following sections describe examples only, other conﬁ gurations are possible.

Connecting a set-top box, DVD player / recorder via component video connectors (YPbPr) and analog audio

English

Connecting a set-top box, Blu-ray Disc player and HD game console via HDMI

set-top box

HDMI

OUT

HD game console

Blu-ray Disc player

Connecting a DVD player / recorder via HDMI-DVI and analog audio

HDMI 3 IN only

audio L/R

OUT

audio L/R

YPbPr

OUT

set-top box

DVD player / recorder

Note

• When you connect cables, match the cable colors to the connectors on the TV.

Connecting a set-top box, DVD recorder via composite connectors and analog audio

audio L/R + video

INININ

RF IN

RF OUT

OUT

DVD recorder

set-top box

OUT

RF IN

cable

DVI OUT

DVD player / recorder

Do not place your recorder too close to the screen because some recorders can be susceptible to signals.

Note

• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to

stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

• When you connect cables, match the cable colors to the connectors on the TV.

Page 31

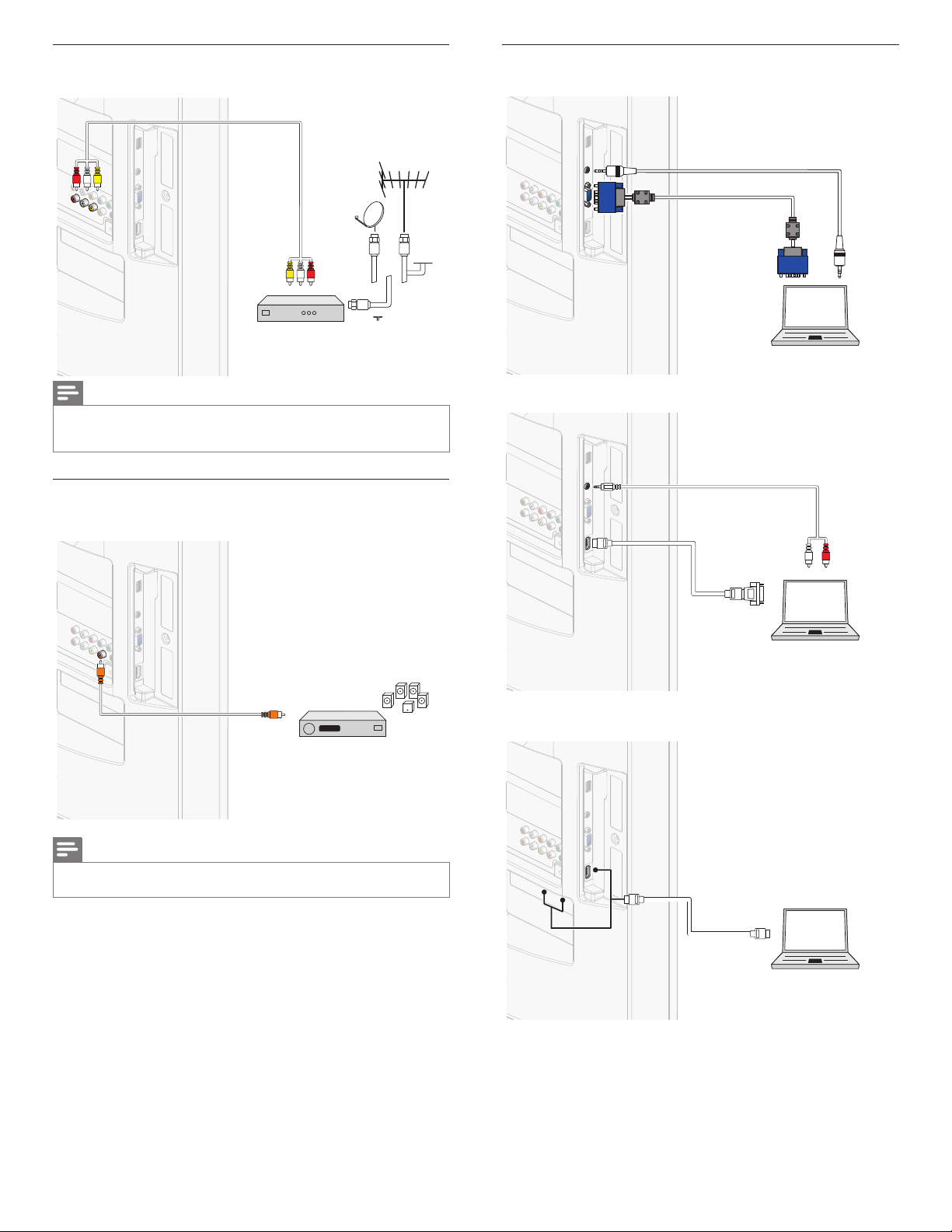

VGA

STEREO MINI-PLUG AUDIO

INININ

HDMI 3 IN only

HDMI

Connecting a set-top box via a composite connector and

audio L/R

set-top box

cable

OUT

digital home theater ampliﬁ er

DIGITAL AUDIO

analog audio

audio L/R

Connecting a PC

If you connect a PC with a VGA connector at the back.

INININ

OUT

set-top box

RF IN

Note

Only the left loudspeaker reproduces sound for mono equipment. Use a mono to

•

stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

• When you connect cables, match the cable colors to the connectors on the TV.

Connecting a digital home theater ampliﬁ er using a digital audio coaxial cable

cable

INININ

STEREO MINI-PLUG AUDIO

VGA

If you connect a PC with a HDMI-DVI connector.

INININININ

HDMI 3 IN only

OUT

DIGITAL AUDIO

digital home theater ampliﬁ er

Note

Due to Copyright restrictions, the broadcaster may choose to mute PCM audio over

•

Digital Audio Output for certain channels, shows or segments during the broadcast.

DVI OUT

If you connect a PC with an HDMI or Display Por t (HDMI-Display Port conversion cable) connector.

INININ

HDMI

OUT

Page 32

10 Troubleshooting

Problem Possible cause and solution

No power or indicator light.

Error message on the screen with HDMI connection.

No picture or sound is detected from the PC.

TV does not respond to the remote control.

The picture is distorted, stretched out, or has black bars on the side or top.

The picture is mostly red and green, or the picture misses red when connected to an accessory device via component cables.

No picture or sound.

The TV is not connected to the power. Press . POWER at the side of the TV or on the

remote control. Ensure that the AC power cord is connected

tightly to the TV power connector and to the power socket outlet.

Remove the AC power cord from the power socket outlet, wait 60 seconds and reconnect the AC power cord.

Connect the TV to a different power socket outlet.

HDCP authentication fail. Ensure that your HDMI cable is certiﬁ ed. Press SOURCE on the remote control to switch

to another source and then switch back to the HDMI source.

Reset the accessory device and the TV. Turn on the TV. Select the HDMI channel. Turn on the accessory device. While the TV and the accessory device are

powered on, unplug either end of the HDMI cable and then reinsert the cable.

An incorrect HDMI input jack is connected or an audio cable is not connected.

Connect a HDMI-DVI cable to the HDMI 1 input jack on the TV.

Connect an audio cable to the HDMI 1-IN on the TV.

Press SOURCE on the remote control, and select the HDMI 1 source.

Batteries are installed incorrectly, or low battery power.

Ensure the indicator light on the TV blinks when you press the remote control buttons.

Ensure that you are using the TV remote control. Ensure that the batteries are inserted correctly

and do not need to be replaced. Remove the AC power cord from the power

socket outlet, wait 60 seconds and reconnect the AC power cord.

Broadcast video format. Press FORMAT on the remote control to select

the best picture format. For some accessory devices, the picture format

must be set in the accessory device. Insecure / incorrect connection.

Ensure all the connections are made according to the color code.

Push the component cables all the way into the YPbPr sockets on the TV.

No picture or sound - ensure you have selected the correct channel.

Incomplete channel installation. If the TV receives channels via an AV connection,

set the TV to the correct source input. If the TV is connected directly to the wall via a

coaxial connection, perform the auto-installation again.

No sound on the TV loudspeaker.

Bad picture quality with a coaxial connection.

Cannot control your TV and connected devices with one remote control.

The brightness of the TV ﬂ uctuates automatically.

Volume level is set to zero - increase the volume. Sound is muted - press MUTE on the remote

control. Audio cable is not connected - for AV connection,

ensure that the Audio L/R cable is connected as described in Connecting your devices (see ‘Connecting your devices’ on page 29 ) . If you use a component cable, ensure that you have not crossed the red audio cable with the red video cable.

Audio output setting for the accessory device is incorrect. For HDMI connections, some accessory devices have an HDMI audio output setting that must be turned on for HDMI to HDMI connections.

Check if [Sound] > [TV Speakers] > [Off] is set to [On]. No sound will be output when

[

TV Speakers] is set to [Off].

Standard deﬁ nition channels are not as clear as high deﬁ nition channels - connect the devices via component or HDMI cables.

Conﬁ rm that the connected devices are EasyLink compliant and are connected to your TV via an HDMI cable. Not all brands of devices such as Blu-ray Disc players use the same system as Philips EasyLink. Other brands might not work with Philips EasyLink.

When in [Home] mode, this TV will automatically adjust the brightness based on the ambient light.

If there is a sudden change in TV brightness, it may be due to changes in the room lighting conditions (sunshine / lamps), or an object blocking the light sensor on the front of the TV. Please ensure the room lighting is stable and the light sensor is not blocked.

Downloading an electronic copy

To obtain a more elaborate and complete electronic copy of this manual :

1 Point your browser to www.philips.com/support 2 Choose your country of location. 3 Enter the model number or a keyword in the “ Find your product ”

ﬁ eld. Alternatively, you can browse the catalog.

4 Click the description or model. 5 Under Product support, click “ User manuals ”.

Contact us

If you cannot resolve your problem, refer to the FAQ for this TV at

www.philips.com/support

If the problem remains unresolved, contact the Customer Support Center in your country.

Warning

• Do not attempt to repair the TV yourself. This may cause severe injury, irreparable

damage to your TV or void your warranty.

Note

• Please have available your TV model and serial number before contacting us. These

numbers are available on the back and side of your TV, as well as on the packaging.

English

Page 33

11 Notes for the use of USB

devices

Digital Content Issues

• Only FAT (DOS) formatted (initialized) portable memory is supported. Errors in this formatting can result in unreadable content. If such problems appear try to re-format the card. Be aware that formatting the card will also delete all the content on it (pictures, music, …).

• Only linear JPEG picture formats are supported. Progressive JPEG and JPEG2000 encodings are not supported.

• The length of a ﬁ lename or directory name is limited to the length speciﬁ ed by the FAT16/32 ﬁ le systems.

• Max. levels of nested directories is 19.

• Never use the supported ﬁ le type extensions (.jpg, .jpeg, .mp3) as extensions for directories as these directories will be treated as corrupted ﬁ les.

• The MP3 decoder does not support MPEG1 Layer 1 or Layer 2 playback.

• MP3 Pro ﬁ les can be played with normal MP3 quality.

• The access and response time of the content on a device can differ depending on the type or brand of the device.

• The access and response time of the content on a device will increase the more unsupported or corrupted ﬁ les are on the device.

Digital Camera Issues

• If a USB connection between your digital camera and the TV isn’t working, you can tr y the solutions below to resolve your problem.

• Make sure your digital camera is switched on and verify if the conﬁ guration of your digital camera is correct (see the manual of your digital camera for more information).

• Some digital cameras allow you to switch off the USB interface. Make sure that the USB interface is switched on before connecting to the TV.

• If you have a digital camera with only internal memory (no removable memory) you can try to copy the content manually to a USB memory device (e.g. Philips KEY product) using a personal computer.

• Some digital cameras allow you to switch between PTP (Picture Transfer Protocol) or “PC Link” and USB Mass Storage or “PC Drive”. Make sure that you select USB Mass Storage or “PC Drive” on your digital camera.

• If your camera supports different interface settings be sure to try them one by one or contact the reseller of your camera to ﬁ nd out the correct setting.

USB Memory Device Issues

• Devices connected to the USB port of your TV must be “Mass Storage Class” compliant. If your device (digital camera. MP3 player, portable hard disk, …) is not “Mass Storage Class” compliant it will not be detected by the content browser of the TV.

• The following subsets of the Mass Storage Class speciﬁ cation are supported.

• The implementation of the TV is based on the “Universal Serial Bus Mass Storage Class Speciﬁ cation Overview” (v1.2, June 23,

2003) including all documents referenced by the document. The document can be found on the USB standardization website (www.usb.org).

• Full support of the USB Mass Storage Class Bulk-Only Transport (bInterfaceProtocol = 50h).

• Full support of SubClass Code = 05h; SFF-8070i spec.

• Full support of SubClass Code = 06h; SCSI transparent command set.

• For large USB memory devices, when you are in the Content Browser, it may take a long time before you can access your ﬁ les.

• When using a USB portable hard disk, and due to the high power consumption of the hard disk, it is advised to use the external power supply of the portable hard disk to guarantee proper working under all conditions.

1 2 Specifications

Note

•

Speciﬁ cations are subject to change without prior notice.

Picture enhancement

Type: Full HD (1920 x 1080 pixels 60Hz) Aspect ratio: 16:9 Viewing angles: 176° (V) by 176° (H) Built-in digital tuner: ATSC

Sound enhancement

Mono / Stereo: Mono, Stereo, Vir tual Surround Sound Power output

(RMS watts): Equalizer: 5 band

Ease of use

Video modes: For 16:9 video signal / Normal, 4:3, Movie

PC input: via VGA, HDMI Photo slide show: Yes (jpeg ﬁ les only) MP3 playback: Yes (mp3 ﬁ les only) Video playback: Yes (Motion JPEG 320 x 240, 30fps only)

Connections

Component video input with audio L/R:

Composite video input with audio L/R :

HDMI: 3

3.5mm stereo miniplug shared use for HDMI 3 and PC input :

PC input : 1

Digital audio output : 1, supporting Dolby Digital USB: 1 (on the side of TV)

Power

Power requirements: 120V~ AC +/− 10%, 60Hz +/− 0.5%

20 W

Expand, Zoom, Wide, Unscaled For 4:3 video signal / Normal, 16:9, Movie

Expand, Zoom, Wide For PC input signal / Normal, Full, Unscaled

1, suppor ting video signals / 480i/p, 720p, 1080i, 1080p 60Hz

HDMI supporting video signals / 480i/p, 720p, 1080i, 1080p 24Hz-60Hz For HDMI 3 / PC-input signal up to Full HD

up to 1920 x 1080 60Hz

32 EN

Page 34

1 3 Warranty

English

LIMITED WARRANTY

ONE (1) YEAR

WARRANTY COVERAGE: This warranty obligation is limited to the terms as set forth below.

WHO IS COVERED: This product warranty is issued to the original purchaser or the person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase (“Warranty Period”) from an Authorized Dealer. The original sales receipt showing the product name and the purchase date from an authorized retailer is considered such proof.

WHAT IS COVERED: This warranty covers new products if a defect in material or workmanship occurs and a valid claim is received within the Warranty Period. At its option, the company will either (1) repair the product at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new, or serviceable used parts and is at least functionally equivalent or most comparable to the original product in current inventory, or (3) refund the original purchase price of the product. Replacement products or parts provided under this warranty are covered against defects in materials and workmanship from the date of the replacement or repair for ninety (90) days or for the remaining portion of the original product’s warranty, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes company property. When a refund is given, your product becomes company property. Note: Any product sold and identified as refurbished or renewed carries a ninety (90) day limited warranty.

Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay.

WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS: This Limited Warranty applies only to new company manufactured products that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty does not apply to any hardware product or any software, even if packaged or sold with the product, as manufacturers, suppliers, or publishers may provide a separate warranty for their own products packaged with the bundled product.

or a part that has been modified without written company permission, or (d) if any serial number has been removed or defaced, or (e) product, accessories or consumables sold “AS IS” without warranty of any kind by including refurbished product sold “AS IS” by some retailers.

This Limited Warranty does not cover:

• Shipping charges to return defective product.

• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna/signal source systems outside of the product.

• Product repair and/or part replacement because of improper installation or maintenance, connections to improper voltage supply, power line surge, lightning damage, retained images or screen markings resulting from viewing fixed stationary content for extended periods, product cosmetic appearance items due to normal wear and tear, unauthorized repair or other cause not within the control of the company.

• Damage or claims for products not being available for use, or for lost data or lost software.

• Damage from mishandled shipments or transit accidents when returning product.

• A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• A product used for commercial or institutional purposes (including but not limited to rental purposes).

• Product lost in shipment and no signature verification receipt can be provided.

• Failure to operate per Owner’s Manual.

TO OBTAIN ASSISTANCE… Contact the Customer Care Center at:

1-866-309-0841

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER, WITH THE ISSUING COMPANY NOT LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

The company is not liable for any damage to or loss of any programs, data, or other information stored on any media contained within the product, or other additional product or part not covered by this warranty. Recovery or reinstallation of programs, data or other information is not covered under this Limited Warranty.

This warranty does not apply (a) to damage caused by accident, abuse, misuse, neglect, misapplication, or non-supplied product, (b) to damage caused by service performed by anyone other than company approved Authorized Service Location, (c) to a product

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

P&F USA, Inc. PO Box 430 Daleville, IN 47334-0430

Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

061708

33EN

Page 35

1 4 Index

PC 30 Picture format 16, 17 Picture settings 15

Antenna, connect 9 Audio 17 Audio setting 17 Auto device off 21 Auto picture mode 15 Auto sound mode 17 Auto TV on 21 Auto volume leveling 17

Ratings 18, 19 Remote control

insert batteries 8 overview 6, 7

Retail mode 11, 21

Cables

component 28 composite 28 connection quality 28 HDMI 28 manage cables 10 YPbPr 28

Channels

install 24 list 25 lock 18

Child lock

channel lock 18 PIN 18 ratings lock 18, 19

Closed caption 20 Connections 9, 27, 29 Controls 6 Customer support service 5

Device List 21

EasyLink 21 Eco 21 ENERGY STAR Environmental care 5 Equalizer 17

4, 11

Settings assistant 11 Signal quality 28 Sleeptimer 18 Software

update 26 version 26

Sound settings 17 Speakers EasyLink 17 Speciﬁ cations 32 Standby 6, 12 Subtitles 20

Troubleshooting 31 TV

as PC monitor 16, 17, 30 connections 9, 27, 29 controls 6 menu 15 position 8 remote control 6, 7, 8 screen care 5 software 26 switch channels 12 switch on 11, 12 TV Speakers 17

USB 22, 32

Home mode 11, 21

Volume

adjust 13 auto volume leveling 17 mute 13

Initial setup 11

Warranty 33

Location (retail or home) 11, 21

YPbPr 28

Master EasyLink 21 Mounting stand onto TV 8

34 EN

Page 36

P&F USA, Inc.

PO Box 430 Daleville, IN 47334-0430

P&F Mexicana, S.A. de C.V.

Av. La Palma No. 6, Col. San Fernando La Herradura,

Huixquilucan Edo. de México C.P. 52787

TELEVISOR A COLOR DE CRISTAL LIQUIDO (LCD)

MODELO LCD IMAGEN VISIBLE ENERGIA 46PFL3706 / F7 46”(116,84cm) 116,81cm 120V ~ 60Hz 217W 40PFL3706 / F7 40”(101,60cm) 101,60cm 120V ~ 60Hz 200W

Comercializado por : P&F MEXICANA, S.A. DE C.V.

IMPORTADOR : SOJITZ MEXICANA, S.A. DE C.V. Av. Paseo de las Palmas No. 239-302 Col. Lomas de Chapultepec, C.P. 11000 México, D.F. Tel. 52 (55) 5202 - 7222

EXPORTADOR : FUNAI ELECTRIC CO. LTD.

ENSAMBLADO EN : MEXICO GARANTIA INCLUIDA EN EL INSTRUCTIVO DE USO

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

TELEVISOR A COLOR DE CRISTAL LIQUIDO (LCD)

MODELO LCD IMAGEN VISIBLE ENERGIA

46PFL3706 / F7 46”(116,84cm) 116,81cm 120V ~ 60Hz 217W

40PFL3706 / F7 40”(101,60cm) 101,60cm 120V ~ 60Hz 200W

Comercializado por : P&F MEXICANA, S.A. DE C.V.

IMPORTADOR : SOJITZ MEXICANA, S.A. DE C.V. Av. Paseo de las Palmas No. 239-302 Col. Lomas de Chapultepec, C.P. 11000 México, D.F. Tel. 52 (55) 5202 - 7222

PAIS DE ORIGEN : CHINA GARANTIA INCLUIDA EN EL INSTRUCTIVO DE USO

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

Philips and Philips Shield are used under license of Koninklijke Philips Electronics N.V.

ANTES DE USAR SU APARATO.

A17Q7UD / A17P6UH

★★★★
