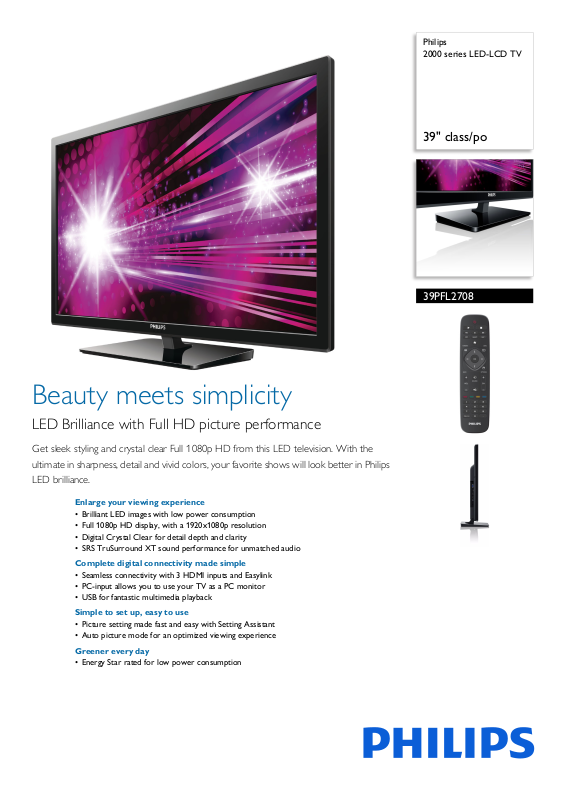

Page 1

Philips 2000 series LED-LCD TV

39" class/po

39PFL2708

Beauty meets simplicity

LED Brilliance with Full HD picture performance

Get sleek styling and crystal clear Full 1080p HD from this LED television. With the ultimate in sharpness, detail and vivid colors, your favorite shows will look better in Philips LED brilliance.

Enlarge your viewing experience

• Brilliant LED images with low power consumption

• Full 1080p HD display, with a 1920x1080p resolution

• Digital Crystal Clear for detail depth and clarity

• SRS TruSurround XT sound performance for unmatched audio

Complete digital connectivity made simple

• Seamless connectivity with 3 HDMI inputs and Easylink

• PC-input allows you to use your TV as a PC monitor

• USB for fantastic multimedia playback

Simple to set up, easy to use

• Picture setting made fast and easy with Setting Assistant

• Auto picture mode for an optimized viewing experience

Greener every day

• Energy Star rated for low power consumption

Page 2

2000 series LED-LCD TV

39" class/po

Highlights

39PFL2708/F7

LED with low power consumption

LED lighting technology is the most advanced available. In this TV it combines an eye-catching minimalistic design with stunning image quality, as well as being the lowest power consumption in its category. Another environmental benefit is that LED lighting technology does not contain hazardous materials. With an LED backlight you can enjoy low power consumption, high brightness, incredible contrast and sharpness and vibrant colors.

Full HD 1080p display

Blu-ray Discs have the capacity to carry high definiti

on data, along with pictures in the 1920 x 1080 resolution that defines full high definition images. This can only mean you get the best possible TV picture quality available today - so prepare to feast your eyes.

Digital Crystal Clear

Digital Crystal Clear is a package of picture innovations that digitally adjusts and optimizes picture quality to optimal contrast, color and sharpness levels. It's like watching vivid cinemalike images.

Picture setting with Assistant

Settings assistant for effortless personalized TV s

ettings. The new settings assistant personalization wizard guides you to personalized settings with unparalleled ease. It includes not only picture, but the complete viewing experience, including sound setting. The wizard shows a few screens with easy to choose options to select the essential settings. The TV performance is set to the your personal preference without difficult terms or settings, and this very quickly.

SRS TruSurround XT

SRS TruSurround XT® creates feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialog.

Seamless connectivity

EasyLink uses the HDMI CEC industry standard proto between connected devices and the TV. HDMI makes an uncompressed digital RGB connection from the source to the screen for the ultimate picture quality. HDMI uses HDCP copy protection. With HDMI input of the TV you can connect multiple HD sources, for instance an HD settop box, a Blu-ray player, and Game Console or Digital Camcorder.

USB multimedia playback

The USB connector allows access to jpeg p

hotos and motion jpeg movie(320x240 30fps, PCM) of most USB-sticks (USB memory-class device). Plug the USB into the slot at the side of the TV and access the multimedia content using the easy on screen content browser. You can now view and share your movie and photos.

col to share functionality

an immersive,

Page 3

2000 series LED-LCD TV

39" class/po

Specifications

39PFL2708/F7

Picture/Display

• Display screen type: LED Full HD Display

• Panel resolution: 1920x1080p

• Brightness: 300 cd/m²

• Aspect ratio: Widescreen(16:9)

• Response time (typical): 8 ms

• Contrast ratio (typical): 4000:1

• Diagonal screen size: 39 inch / 99 cm

• Visible screen diagonal (inch): 38.6 inch

• Viewing angle: 176º (H) / 176º (V)

• Picture enhancement: Digit Combfilter, Digital Noise Reduction, Progressive scan

l Crystal Clear, 3D

Supported Display Resolution

mputer formats

• Co Res

olution Refresh rate 640 x 480 60Hz 720 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz 1400 x 1050 60Hz 1440 x 900 60 Hz 1680 x 1050 60Hz 1920 x 1080 60Hz

deo formats

• Vi olution Refresh rate

Res 480i 60Hz 480p 60 720p 60Hz 1080i 60Hz 1080p 24,30,60Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 2 x 8W

• Sound System: SRS TruSurround XT, Dolby Digital

(AC-3), St

ereo, SAP

• Ease of Use: Auto Volume Leveller (AVL), AutoPicture, Au Wizard, EasyLink

• Remote Control: TV

• Screen Format Adjustments: 16:9, Normal, Zoo 4:3, Full, Movie Expand, Wide, unscaled (dot by dot)

• Multimedia: auto slideshow

Sound, Settings assistant

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: JPEG Still pictures, Motion JPEG

40 30fps, PCM

320x2

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

•Video Playback: NTSC

• Tuner bands: UHF, VHF

Connectivity

• AV 1: CVBS in, Shared audio L/R in

• AV 2: YPbPr, Shared audio L/R in

• HDMI 1: HDMI, Shared audio L/R in

• HDMI 2: HDMI, Shared audio L/R in

• HDMI 3: HDMI, Shared audio L/R in

• Audio Output - Digital: Coaxial (cinch)

• Other connections: Headphone out, PC-In VGA,

ed audio L/R in

Shar USB: USB

•

• EasyLink (HDMI-CEC): One touch play, Power

atus, System info (menu language), System audio

s control, System standby, Remote control passthrough

Power

• Mains power: 120V/60Hz

• Power consumption: 60 W

• Standby power consumption: < 0.5W

• Ambient temperature: 5°C to 40°C (41°F to

4°F

)

Box dimensions in inch (W x H x D):

• 2 x 25.00 x 4.69 inch

42.3

• Weight incl. Packaging (lb): 27.12

• VESA wall mount compatible: 300 x 300 mm

Accessories

• Included accessories: Table top stand, Quick start

guide, User Manual, Registration card, Remote Control, Batteries for remote control

•

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer

• Ease of Installation: Autostore

Issue date 2014-03-14

Version: 2.2.1

12 NC: 8670 000 97778 UPC: 6 09585 23067 5

Dimensions

• Set dimensions in inch (W x H x D):

35.91 x 21.34 x 2.62 inch

•Set dimensions with stand in inch (W

35.91 x 23.52 x 8.66 inch

• Product weight (lb): 18.96

• Product weight (+stand) (lb): 22.05 lb

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
