Philips 39HFL2869T User Manual

Download

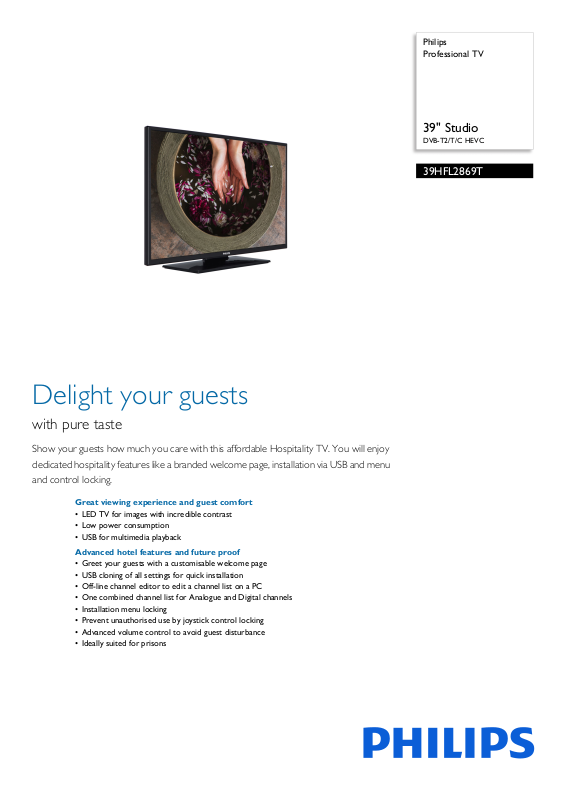

Page 1

Philips Professional TV

39" Studio

DVB-T2/T/C HEVC

39HFL2869T

Delight your guests

with pure taste

Show your guests how much you care with this affordable Hospitality TV. You will enjoy dedicated hospitality features like a branded welcome page, installation via USB and menu and control locking.

Great viewing experience and guest comfort

• LED TV for images with incredible contrast

• Low power consumption

• USB for multimedia playback

Advanced hotel features and future proof

• Greet your guests with a customisable welcome page

• USB cloning of all settings for quick installation

• Off-line channel editor to edit a channel list on a PC

• One combined channel list for Analogue and Digital channels

• Installation menu locking

• Prevent unauthorised use by joystick control locking

• Advanced volume control to avoid guest disturbance

• Ideally suited for prisons

Page 2

39HFL2869T/12

Professional TV

WelcomePage

PrisonMode

39" Studio DVB-T2/T/C HEVC

Highlights

Welcome page

A welcome page is displayed each time the TV set is switched on. The welcome page can be branded and customised easily at the time of installation via a simple welcome image in .png format.

USB Cloning

Provides the ability to easily copy all programming and channel programming settings from one TV into other TV sets in less than a minute. The feature ensures uniformity

between TV sets and significantly reduces installation time and costs.

PrisonMode

To control communication, this Hospitality TV i

s equipped with a specific PrisonMode setting. This Advanced Security Mode switches off certain settings not needed by the detention market, like Teletext, Electronic Programme Guide, Subtitles and USB ports.

USB (photos, music, video)

Share the fun. Connect your USB memorystick, digital camera, mp3 player or other multimedia device to the USB port on your TV to enjoy photos, videos and music with the easy to use onscreen content browser.

One combined channel list

One integrated channel list for digital and ana

logue channels. This allows the guest to

flick seamlessly between Analogue and Digital channels.

Advanced volume control

With advanced volume control, you can select t

he start-up volume of the TV and predefine the volume range of the TV set, preventing excessive volume adjustments and avoiding the disturbance of neighbouring guests.

Joystick control locking

By disabling or enabling joystick control l

ocking, the administrator can prevent unauthorised use of the TV via the joystick, saving the hotelier overheads.

Installation menu locking

Prevents unauthorised access to installation an

d configuration settings, to ensure maximum convenience for guests and to avoid unnecessary reinstallation costs.

Low power consumption

Philips TVs are designed to minimise power consumpti environmental impact but also lower operating costs.

on. This will not only reduce

Page 3

39HFL2869T/12

Professional TV

39" Studio DVB-T2/T/C HEVC

Specifications

Picture/Display

• Display: LED HD TV

• Diagonal screen size: 39 inch / 98 cm

• Aspect ratio: 16:9

• Panel resolution: 1366 x 768p

• Brightness: 300 cd/m²

• Viewing angle: 178º (H)/178º (V)

Audio

• Sound output Power: 12 (2x6) W

• Speakers: 2.0, Down Firing

• Sound Features: Equalizer, Balance, AVL, Incredible und, Dynamic Bass

surro

Design

•Colour: Black

Tuner/Reception/Transmission

• Digital TV: DVB-T/T2/C, HEVC FHD (up to

1080p60)

• Analogue TV: PAL, SECAM

Rear Connectivity

• Antenna: IEC-75

• HDMI1: HDMI 1.4, ARC

•HDMI 2: HDMI 1.4

• Digital Audio out: Optical

• Scart: CVBS, RGB, SVHS

• VGA input: 15 pin D-sub

Side Connectivity

• Common Interface Slot: CI+ 1.3

• AV input: CVBS+L/R (Cinch)

• Headphone out: Mini-Jack

•USB1: USB 2.0

Connectivity Enhancements

• EasyLink (HDMI CEC): One touch play, System

Standby, RC pass through

HP)

• Prison mode: high-security mode, TXT/MHEG/ EPG

USB/

• Your brand: Welcome Logo

• Cloning and Firmware update: via USB, Instant

Init

• Switch On control: Channel/Source, Picture Style,

• Timer: Sleep Timer, Wake Up Alarm

• Channels: Combined List, Off-Line Channel Editor

• Control: Block Automatic Channel Update

• Power control: Green/fast start-up

• Remote Control: Cable Strap Ready, RC Battery

Door Lock

• Anti-Theft: Kensington Lock

/Subtitle Lock

ial Cl

oning

lume (incl. HP)

Healthcare features

• Control: Multi-Remote Control

• Convenience: Headphone out

Multimedia

• Multimedia connections: USB

• Video playback supported: Containers: AVI, MKV,

s: H.264/MPEG4 AVC, MPEG1, MPEG2,

Format MPEG4, HEVC, TS

• Subtitle formats supported: SRT,

SMI, TX

•Music formats supported: MP3, AAC, WAV,

• Picture formats supported: BMP, JPG, PNG

• Supp. Video Resolution on USB: up to

(v2 up to v9.2)

20x

1080p@30Hz

SSA SUB, ASS,

WMA

Accessories

• Included: Remote Control 22AV1407A/12, 2 x

AAA Batteries, Tabletop Stand, Warranty Leaflet, Legal and Safety brochure

• Optional: Setup RC 22AV9573A, Remote Control

AV1

601A/12

Dimensions

•Set dimensions (W x H x D): 889 x 523 x 79/ 97 mm

• Set dimensions with stand (W x H x D):

x 563 x 220 mm

889

• Product weight: 6.6 kg

• Product weight (+stand): 7.5 kg

• VESA wall mount compatible: 200 x 200 mm, M6

•

Features

• Digital services: Subtitles, Teletext, MHEG, Now and Next, 8d EPG

• Ease of use: Picture Style, Sound Style

• Local control: Joystick

Hospitality Features

• Hotel mode: Joystick Control Lock, Menu lock, Installation Menu Lock, Volume limitation (incl.

Issue date 2017-10-21

Version: 1.0.1

12 NC: 8670 001 47631 EAN: 87 18863 01381 6

Power

• Mains power: AC 220-240 V; 50-60 Hz

• Energy Label Class: A++

• EU Energy Label power: 31 W

• Annual energy consumption: 45 kW·h

• Standby power consumption: <0.3 W

• Power Saving Features: Eco mode

• Ambient temperature: 5°C to 45°C

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* Availability of features will depend on implementation chosen by

integrator.

* Typical on-mode power consumption measured according to

IEC62087 Ed 2. The actual energy consumption will depend on how the TV is used.

* This television contains lead only in certain parts or components

where no technology alternatives exist in accordance with existing exemption clauses under the RoHS Directive.
