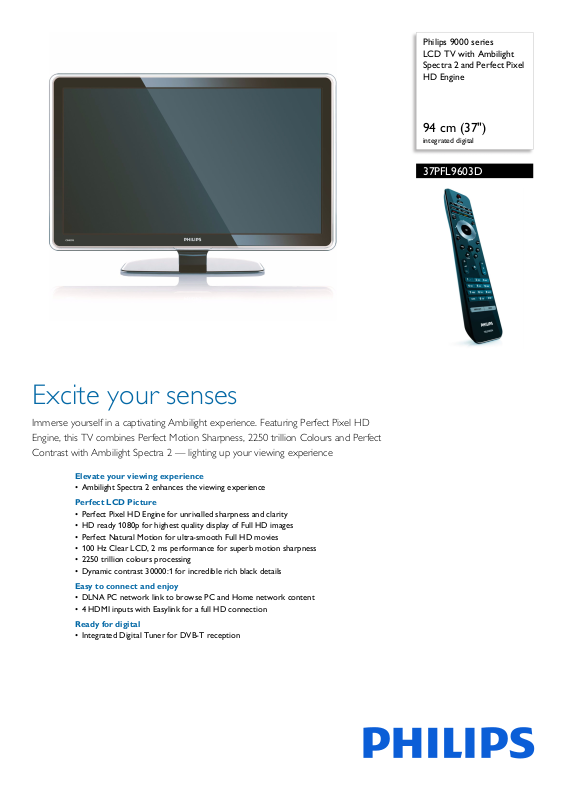

Page 1
Philips 9000 series
LCD TV with Ambilight
Spectra 2 and Perfect Pixel
HD Engine
94 cm (37")
integrated digital
37PFL9603D
Excite your senses
Immerse yourself in a captivating Ambilight experience. Featuring Perfect Pixel HD
Engine, this TV combines Perfect Motion Sharpness, 2250 trillion Colours and Perfect
Contrast with Ambilight Spectra 2 — lighting up your viewing experience
Elevate your viewing experience
• Ambilight Spectra 2 enhances the viewing experience
Perfect LCD Picture
• Perfect Pixel HD Engine for unrivalled sharpness and clarity
• HD ready 1080p for highest quality display of Full HD images
• Perfect Natural Motion for ultra-smooth Full HD movies
• 100 Hz Clear LCD, 2 ms performance for superb motion sharpness
• 2250 trillion colours processing
• Dynamic contrast 30000:1 for incredible rich black details
Easy to connect and enjoy
• DLNA PC network link to browse PC and Home network content
• 4 HDMI inputs with Easylink for a full HD connection
Ready for digital
• Integrated Digital Tuner for DVB-T reception
Page 2
37PFL9603D/10
LCD TV
94 cm (37") integrated digital
Highlights
Ambilight Spectra 2
Add a new dimension to your viewing
e
xperience with Ambilight Spectra 2. This
patented Philips technology enlarges the
screen further by projecting a glow of light
from the back of the screen onto the
surrounding wall. Ambilight automatically
adjusts the colour and brightness of the light
surrounding the TV to match the picture,
creating an immersive viewing experience.
With Ambilight Spectra 2 movies truly come to
life!
Perfect Pixel HD Engine
Experience unrivalled sharpness and clarity
w
ith Perfect Pixel HD Engine. Each pixel of the
picture is enhanced to match the surrounding
pixels better, resulting in a more natural
picture. The result is a unique combination of
sharpness, natural detail, vivid colours,
superior contrast and smooth natural motion
whatever you are watching. Clean and razor
sharp images result from artefact and noise
detection and reduction in all content sources
— from multimedia to standard TV.
Full HD LCD display 1920 x 1080p
Enjoy the exceptional picture quality of Full
High De
HDTV broadcast, or Blu-ray DVD. HD ready
1080p is a protected label that offers picture
quality far beyond that of ordinary HD Ready.
It conforms to strict standards laid out by
EICTA to offer a Full HD screen that displays
finition TV signals of HD sources like
the benefits of resolution and picture quality of
a Full HD 1920 x 1080p High Definition TV
signal. It has a
analogue YPbPr and uncompressed Digital
connection of DVI or HDMI, supporting
HDCP. It can display 1080p progressive signals
at 24, 50 and 60 Hz.
Perfect Natural Motion
Enjoy the action without any judder. Perfect
Nat
ural Motion estimates motion in the
picture and corrects juddering movements in
both broadcast and pre-recorded movie
material (including 1080p movies and 24p True
Cinema on Blu-ray and DVD). The result is
even smoother and quieter pictures with
excellent sharpness. Enjoy motion
performance that surpasses cinema quality!
100 Hz Clear LCD (2 ms)
100 Hz Clear LCD creates extreme motion
sharpness. The Doub
increases the sharpness of motion
reproduction to more than twice that of
conventional LCD, resulting in a performance
with a response time of 2 milliseconds. Now
you can enjoy clear images even with fast onscreen motion.
2250 trillion colour processing
Vibrant and natural images from most
advan
ced colour processing. The 17 bit colour
booster optimises each of the 3 colour
channels (RGB), a total processing power of
universal connection for both
le Frame Rate Insertion
2250 trillion colours. It produces more vibrant
colours while retaining excellent sharpness.
The advanced algorithms detect skin tones and
subtle colour shades, and processes these to
give most natural colours.
Dynamic contrast ratio 30000:1
You want the LCD flat display with the highest
c
ontrast and most vibrant images. Philips
advanced video processing combined with
unique extreme dimming and backlightboosting technology results in vibrant images.
Dynamic Contrast will increase the contrast
with excellent black level and accurate
rendition of dark shades and colours. It gives a
bright, lifelike picture with high contrast and
vibrant colours.
4 HDMI inputs with EasyLink
EasyLink uses the HDMI CEC industry
standard proto
between connected devices and the TV. With
Easylink only one remote control is needed to
operate main functionalities on your TV and
connected devices. HDMI makes an
uncompressed digital RGB connection from
the source to the screen for the ultimate
picture quality. HDMI uses HDCP copy
protection. With 3 HDMI inputs on the back
and 1 HDMI on the side of the TV you can
connect multiple HD sources, for instance an
HD set-top box, a Blu-ray player, and Game
Console or Digital Camcorder.
col to share functionality
Page 3
37PFL9603D/10
LCD TV
94 cm (37") integrated digital
Specifications
Picture/Display
• Aspect ratio: Widescreen
• Brightness: 500 cd/m²
• Dynamic screen contrast: 30000:1
• Response time (typical): 2 (BEW equiv.) ms
• Viewing angle: 176º (H)/176º (V)
• Diagonal screen size: 37 inch / 94 cm
• Display screen type: LCD Full HD W-UXGA Act.
ix
r
mat
• Panel resolution: 1920 x 1080p
• Picture enhancement: Per
Perfect Natural Motion, Perfect Contrast, 3/2 - 2/
2 motion pull down, 3D Combfilter, Active
Control + Light sensor, 100 Hz Clear LCD, Jagged
Line Suppression, Progressive scan, 1080p 24/25/
30 Hz processing, 1080p 50/60 Hz processing
• Screen enhancement: Anti-Reflection coated
en
re
sc
• Colour processing: 2250 t
• Colour cabinet: High-gloss decofront with black
ck cover
ba
f
ect Pixel HD Engine,
rillion colours 17bit RGB
Ambilight
• Ambilight Features: Ambilight Spectra 2, Lounge
light mode
• Dimming Function: Manual and via Light Sensor
• Ambilight light system: LED-wide colour
Supported Display Resolution
• Computer formats
olution Refresh rate
Res
640 x 480 60 Hz
800 x 600 60 Hz
1024 x 768 60 Hz
1280 x 768 60 Hz
1360 x 768 60 Hz
1920 x 1080i 60 Hz
1920 x 1080p 60 Hz
deo formats
• Vi
Res
olution Refresh rate
480i 60 Hz
480p 60 Hz
576i 50 Hz
576p 50 Hz
720p 50, 60 Hz
1080i 50, 60 Hz
1080p 24, 50, 60 Hz
1080p 24, 25, 30 Hz
Sound
• Output power (RMS): 2 x 15 W
• Sound Enhancement: Auto Vo
lume Leveller, Digital
Signal Processing, Dynamic Bass Enhancement,
Graphic Equalizer, Smart Sound
• Sound System: Virtual Dolby Digital, BBE
Loudspeakers
• Built-in speakers: 2
• Loudspeaker types: 2 integrated subwoofers,
tweeter
Dome
Convenience
• Child Protection: Child Lock+Parental Control
• Ease of Installation: Auto Programme Naming,
• Ease of Use: 4 favourite lists, Auto Volume Leveller
• Electronic Programme Guide: Now + Next EPG,
• Picture in Picture: Text dual screen
• Remote Control: Universal
• Remote control type: RC4492
• Screen Format Adjustments: 4:3, Auto Format,
• Teletext: 1200-page Hypertext
• Teletext enhancements: Habit Watch, Programme
• Firmware upgradeable: Firmware auto upgrade
• Multimedia: Digital media reader (browser), USB
• Smart mode: Game, Movie, Personal, Energy
tic Channel Install (ACI), Automatic
Automa
Tuning System (ATS), Autostore, Fine Tuning, PLL
Digital Tuning, Plug and Play
), Delt
(AVL
Interface, On-Screen Display, Programme List,
Settings assistant Wizard, Side Control
8-day
Mo
and Heading Shift, Super Zoom, Widescreen,
unscaled (1080p dot by dot)
info
wizard
autobr
ving, Standard, Vivid
sa
a Volume per preset, Graphical User
Elec
tronic Programme Guide
vie expand 14:9, Mo
rmat
ion Line
, Firmware upgradeable via USB
eak-in
vie expand 16:9, Subtitle
Multimedia Applications
• Multimedia connections: USB
• Playback Formats: MP3, Slideshow files (.alb), JPEG
ures, MPEG1, MPEG2
Still pict
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: DVB COFDM 2K/8K
• Video Playback: NTSC, SECAM, PAL
• Digital TV: DVB Terrestrial*
• Tuner bands: Hyperband, S-Channel, UHF, VHF
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in, RGB
•
Ext 2 Scart: Audio L/R, CVBS in, RGB
• Ext 3: YPbPr, Audio L/R in, VGA PC-in
• Ext 4: HDMI v1.3
• Ext 5: HDMI v1.3
• Ext 6: HDMI v1.3
• EasyLink (HDMI-CEC): One touch play, System
audio control, System standby
• Front/Side connections: HDMI v1.3, S-video in,
BS in, Audio L
CV
• PC network link: DLNA 1.0 certified
• Other connections: Analogue audio Left/Right out,
S/PDIF out (coaxial), Common Interface
/R in, Headphones Out, USB
Power
• Ambient temperature: 5°C to 35°C
• Mains power: AC 220-240 V +/- 10%
• Power consumption: 186 W
• Power (Energy-saving mode): 144 W
• Standby power consumption: 0.15 W
Dimensions
• Set dimensions (W x H x D): 953 x 604 x 101 mm
• Set dimensions with stand (H x D): 677 x 242 mm
• Stand width: 520 mm
• Weight incl. Packaging: 29 kg
• Product weight: 19.2 kg
• Product weight (+stand): 23.2 kg
•Box dimensions (W x H x D):
x 819 x 300 mm
67
10
• VESA wall mount compatible: 200 x 200 mm
Accessories
• Included accessories: RF antenna cable, Power
cord, Quick start guide, User Manual, Warranty
certificate, Remote Control, Batteries for remote
control
•
Issue date 2019-11-12
Version: 4.0.8
12 NC: 8670 000 34191
EAN: 87 12581 36568 4
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
