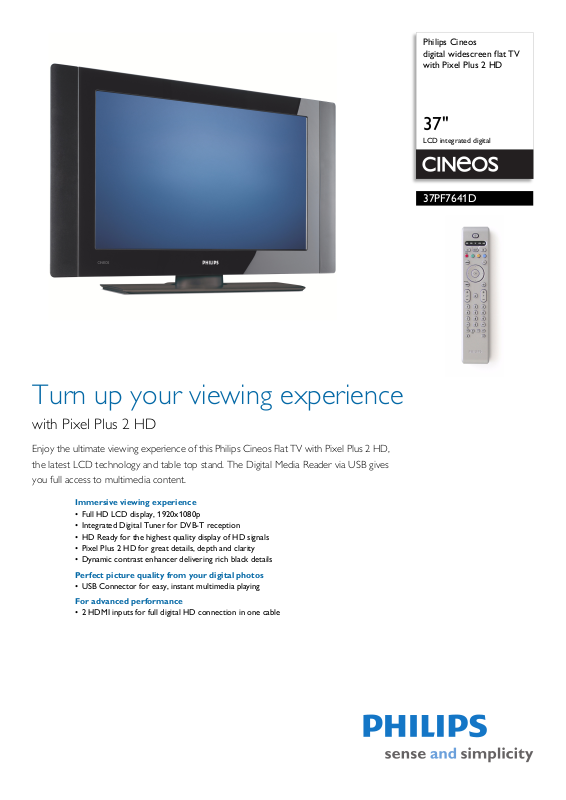

Philips Cineos
digital widescreen flat TV
with Pixel Plus 2 HD
37"
LCD integrated digital
37PF7641D
Turn up your viewing experience
with Pixel Plus 2 HD
Enjoy the ultimate viewing experience of this Philips Cineos Flat TV with Pixel Plus 2 HD,
the latest LCD technology and table top stand. The Digital Media Reader via USB gives
you full access to multimedia content.
Immersive viewing experience
• Full HD LCD display, 1920x1080p
• Integrated Digital Tuner for DVB-T reception
• HD Ready for the highest quality display of HD signals
• Pixel Plus 2 HD for great details, depth and clarity
• Dynamic contrast enhancer delivering rich black details
Perfect picture quality from your digital photos
• USB Connector for easy, instant multimedia playing
For advanced performance
• 2 HDMI inputs for full digital HD connection in one cable
Digital widescreen flat TV with Pixel Plus 2 HD
37" LCD integrated digital
Highlights
37PF7641D/10
Full HD LCD display 1920x1080p
This display has a resolution that is referred to
as
Full HD. The state-of-the-art LCD screen
technology has the full high-definition
widescreen resolution of 1080 progressive
lines, each with 1920 pixels. This allows the
best possible picture quality for HD input
signals with up to 1080 lines. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
Integrated Digital DVB-T tuner
The integrated DVB-T tuner lets you receive
Digital T
means you do not need an additional set top
box and also the additional cables.
HD Ready
Enjoy the exceptional picture quality of High
Definiti
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
errestrial TV to watch or record. This
on pictures and be fully prepared for
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
Pixel Plus 2 HD
Pixel Plus 2 HD offers the unique combination
of ultimate sharpness, natural detail, increased
depth, vivid colors and smooth and natural
motion from standard TV, High Definition
signals and multimedia sources. Each pixel of
the incoming picture is enhanced to better
match the surrounding pixels, resulting in a
more natural picture. Artifacts in compressed
multimedia content are detected and reduced,
ensuring that the picture is clean and razor
sharp. Digital noise reduction ensures that the
picture is perfectly smooth yet razor sharp.
Dynamic contrast enhancer
You want the LCD flat display with the highest
contrast
viewing angle. The Philips dynamic contrast
enhancer uses video processing and unique
dimming backlight technology. This delivers
deep rich black levels with increased detail.
and most vibrant images even at wide
The dimming backlight increases the contrast
up to 5 times*, and at the same time improves
the viewing angle. It gives a bright, lifelike
picture with high contrast and vibrant colors,
(* factor between 2 and 5, screen type and
picture content dependant).
USB Multimedia Connector
The USB connector allows access to
m
ultimedia jpg, mp3 and alb files of most USBsticks and most digital cameras (USB 1.1
memory-class device). Plug the USB into the
slot at the side of the TV and access your
photos or music files. This makes you easily
viewing and sharing your photos and music.
2 HDMI inputs
HDMI makes an uncompressed digital RGB
c
onnection from the source to the screen. By
eliminating conversion to an analog signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection. With 2 HDMI inputs you can
connect multiple HD sources, for instance an
HD settop box, and a Blu-ray player. Your TV
is fully prepared for the HD future.
Digital widescreen flat TV with Pixel Plus 2 HD
37" LCD integrated digital
Specifications
37PF7641D/10
Picture/Display
• Aspect ratio: 16:9
• Brightness: 500 cd/m²
• Dynamic screen contrast: 6000:1
• Response time (typical): 8 ms
• Viewing angle: 176º (H) / 176º (V)
• Diagonal screen size: 37 inch / 94 cm
• Display screen type: LCD Full HD W-UXGA Act.
rix
mat
• Panel resolution: 1920x1080p
• Picture enhancement: Pixel Plus 2 HD, Digital
ral Motion, Dynamic contrast enhancement,
Natu
3/2 - 2/2 motion pull down, 3D Combfilter, Active
Control + Light sensor, Jagged Line Suppression,
Progressive Scan, Pulse Killer Chip, Widescreen
Plus
• Screen enhancement: Anti-Reflection coated
reen
sc
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
deo Formats
• Vi
Resolution Refresh rate
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
Sound
• Output power (RMS): 2x15W
• Sound Enhancement: Digital Signal Processing,
amic Bass Enhancement, Graphic Equaliser
Dyn
• Sound System: Virtual Dolby Digital
Loudspeakers
• Built-in speakers: 4
• Loudspeaker types: Integrated woofers with
x, Dome tweeter
wOO
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Smart Clock
• Ease of Installation: Auto Program Naming,
matic Channel Install(ACI), Automatic Tuning
Auto
System (ATS), Autostore, PLL Digital Tuning, Plug
& Play
• Ease of Use: 4 favorite lists, Auto Volume Leveller
), Delta Volume per preset, Graphical User
(AVL
Interface, On Screen Display, Program List, Side
Control
• Electronic Program Guide: Now + Next EPG
• Remote Control: Amp, DVD, Sat, STB (Set-Top
ox), VCR, Multi-functional
B
• Remote control type: RC4350
• Screen Format Adjustments: 4:3, 6 Widescreen
Modes, Auto F
expand 16:9, Subtitle and Heading Shift, Super
Zoom, Widescreen
• Picture in Picture: Text dual screen
• Teletext: 1200 page Hypertext
• Teletext enhancements: Habit Watch, Program
rmation Line
info
• VESA Mount: Vesa compliant
ormat, Movie expand 14:9, Movie
Multimedia Applications
• Digital Content Management: Digital Media Reader
• Multimedia connections: USB (streaming video
pable)
ca
• Playback Formats: MP3, Slideshow files (.alb), JPEG
ill pictures, MPEG1, MPEG2
St
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL B/G, PAL D/K, SECAM B/G,
SECAM D/
• Video Playback: NTSC, SECAM, PAL
• DVB: DVB Terrestrial *
• Tuner bands: Hyperband, S-Channel, UHF, VHF
K, SECAM L/L', DVB COFDM 2K/8K
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, RGB, S-video
ideo out
in, S-v
• Ext 3: YPbPr, Audio L/R in
• Ext 4: HDMI
• Ext 5: HDMI
•Front / Side connections: Audio
Headphone out, S-video in, USB
• Other connections: Analog audio Left/Right out,
n VGA, S/PDIF in (coaxial), S/PDIF out
PC-I
(coaxial), Common Interface
L/R in, CVBS in,
Power
• Ambient temperature: 5 °C to 40 °C
• Mains power: AC 220 - 240 V +/- 10%
• Power consumption: 163 W
• Standby power consumption: 1.4W
Dimensions
• Color cabinet: High Gloss Black
•Set dimensions (W x H x D):
15 x 617 x 104 mm
11
• Set dimensions with stand (H x D): 767 x 255 mm
• Product weight: 26 kg
•Box dimensions (W x H x D):
x 830 x 330 mm
91
11
• Weight incl. Packaging: 39 kg
• VESA wall mount compatible: 800 x 200 mm
Accessories
• Included Accessories: Table top stand, RF antenna
cable
• Optional accessories: Floor stand
•
Issue date 2009-05-03
Version: 2.0.8
12 NC: 8670 000 29631
EAN: 87 12581 33504 5
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
