Introduction

Thank you for purchasing this television set. This handbook has been designed to help you install and operate your TV set. We strongly recommend that you read it thoroughly.

Table of Contents

Safety Information/Useful Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Television keys and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Remote control keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Remote control keys (Other functions) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

What is Digital Television

Digital and Analogue channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Overview of Digital main menu and sub-menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Switch on for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Understanding the information on the banner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rearrange services

View or Listen to new TV services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Add new services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Reinstall all services Test reception Language and location preferences

DIGITAL

Access restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Setting up your favourite list

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Downloading new software Using the Options menu TV guide Recording function Digital text Using the Conditional Access Module (CAM)

Automatic tuning of analogue programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Programme sort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Manual tuning of analogue programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Naming of channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Using the Sleeptimer feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Using the Contrast+ and NR (Noise Reduction) features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Timer function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Picture and Sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the PIP (Picture-in-Picture) feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Screen Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Using the Active Control feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using the Smart Picture and Sound features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

ANALOGUE

Using the TV as PC monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using the TV in HD (High Definition) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Centre Frequencies Table (in KHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Helpline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

12 12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Recycling

The packaging of this product is intended to be recycled. Apply to the local authorities for correct disposal.

Disposal of your old product

Your product is designed and manufactured with highly quality material and compone which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2002/976/EC. Please inform yourself about the local seperate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your product will help prevent potential negative consequences for the environment and human health

.

nts,

1

2

Safety Information

10 cm

X

Leave at least 10 cm around each side of the TV set to allow for proper ventilation. Place the set on a stable, level surface. Never cover the ventilation slots of the TV with a cloth or other material. It may cause overheating. Do not insert anything in the ventilation holes. If metal or something flammable is inserted in these holes, it may result in fire or electric shock.

X

Take care not to connect too many equipment to the same mains socket as it may cause overloading resulting in fire or electric shock.

X

To prevent fire or shock hazard, do not expose your TV to rain or moisture.

When cleaning the surface or the screen of the set, wipe gently with absorbent cotton or cloth or other soft material like chamois. Do not use too wet a cloth which is dripping with water. Do not use acetone, toulene or alcohol to clean the TV. As a safety precaution, unplug the power cord from the mains.

X

Pull the power lead by the plug. Do not pull on the power lead. Do not use a poor fitting mains socket. Insert the plug fully into the mains. If it is loose, it may cause arching and result in fire.

X

No naked flame sources (lighted candles) should be placed on the top of the set or near it.

X

Avoid placing your TV set under direct sunlight or heat.

Installation of the TV set on the wall should be carried out by qualified serviceman. Improper and incorrect installation may render the set unsafe.

As a safety precaution,do not touch any part of the TV, power lead or aerial lead during lightning storms.

X

Avoid placing vase filled with water on the TV. Water spilled into the set could result in electric shock. Do not operate set if water is spilled into it. Have it checked immediately by a qualified serviceman.

3

Television keys and connectors

4

32” TV

– PROGRAM +MENU– VOLUME +POWER

3

8

2

1

5

HDMI 2

AC in ~

37” / 42” / 50” TV

6

L

R

DVI

(AUDIO IN)

HDMI 1

11

7

AUDIO

R L

IN

EXT.2 /SVHS2

EXT. 4

Pb Y

Pr

EXT. 1

14

12

13

AUDIO IN

VIDEO IN

S-VIDEO

9

10

R

L

14

2

CAUTION :

This a Class 1 apparatus. It must be connected to a MAINS socket out with a protective earthing connection.

ï

5

42”/50” Plasma TV

MAINS ~

HDMI 2

6

L

R

DVI

(AUDIO IN)

HDMI 1

11

7

AUDIO

R L

IN

EXT 2 /SVHS2

8

EXT 4

Pr

Pb Y

EXT 1

12

3

+ PROGRAM –MENU+ VOLUME – POWER

4

9

10

ANTENNA

1

5

37” LCD TV

13

AC in ~

4

Television keys and connectors

2

1

3

4

8

9

10

26” TV

6

5

L

R

HDMI 2

AC in ~

1

POWER . : to switch the TV on and off.

The power remains on even when the Power

switch is turned off.

VOLUME –/+: to adjust sound level.

2

MENU : to access or close menus.

3

The

PROGRAM –/+ keys can be used to

DVI

(AUDIO IN)

select a menu item and the VOLUME – / + key to enter into the selected menu item and make adjustments.

4

PROGRAM / CHANNEL –/+ : to select

programmes.

POWER socket :

5

into

(high

a wall socket.

DVI Audio Input : for connecting a HD

6

definition) equipment or computer with

Insert the mains plug

DVI output.

Component Video Inputs / Audio Inputs :

7

to connect to equipment like box which have the same

DVD, Set-top

sockets. Connect the audio inputs of the TV to the outputs of the device together with the Component Video Inputs.

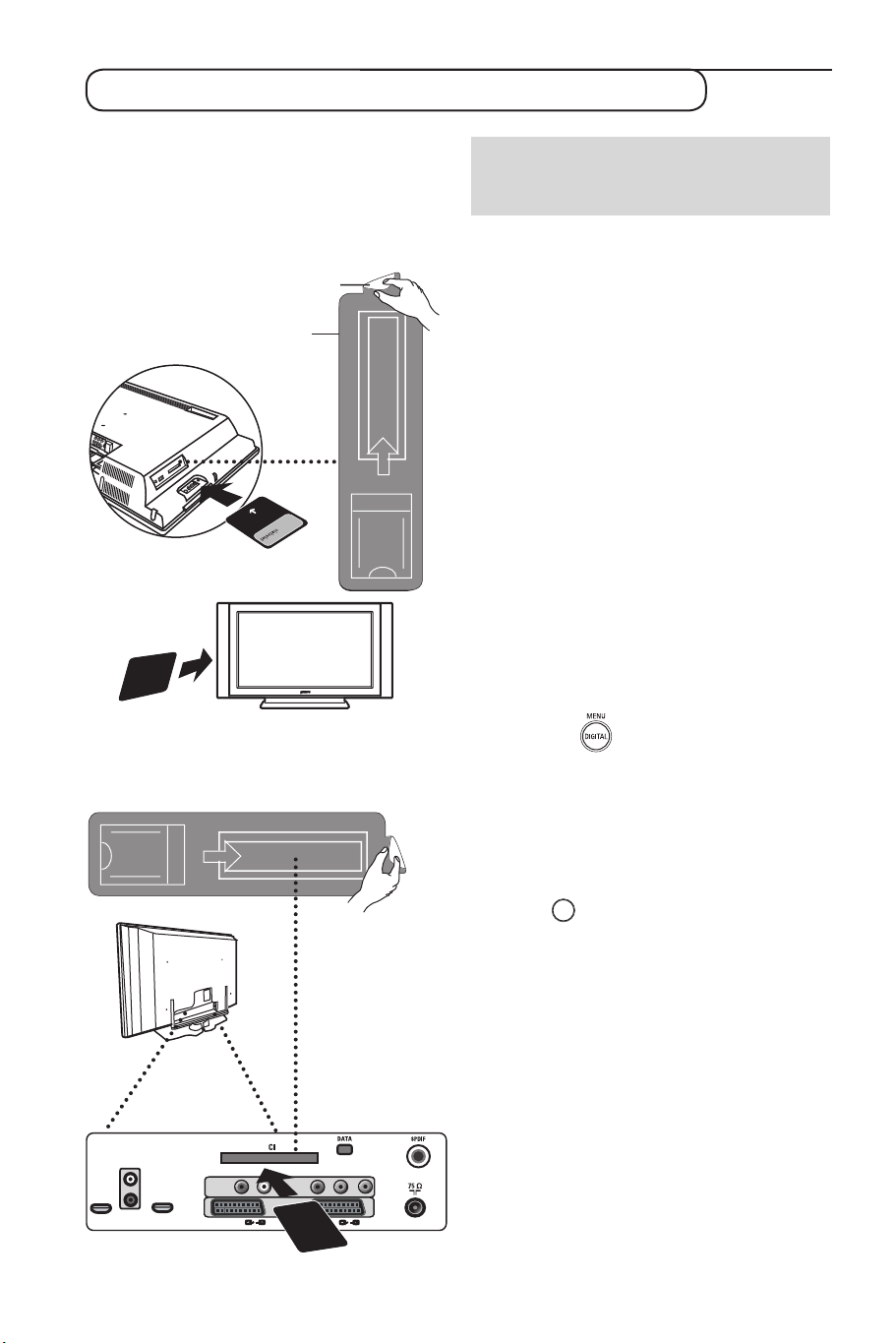

CI (Common Interface) slot : to connect

8

a CAM (Conditional Access Module) and a smartcard.

HDMI 1

11

7

EXT 4

Pb Y

AUDIO

R L

IN

EXT 2 /SVHS2

9

10

with coaxial digital input (only available in Digital Mode

11

set-top boxes Definition receiver Computer.

12

like DVD player/recorder, VCR, which have

decoder box , please use

13

14

like video camera or camcorder. Also allows you to connect your headphone for your personal listening pleasure.

Pr

EXT 1

12

13

DATA socket : for Service use only.

SPDIF socket : to connect to an amplifier

).

HDMI 1 /HDMI 2 sockets : to connect to

, DVD player/recorder, High

/equipment or Personal

EXT1 and EXT2 socket : connect to equipment

scart connections.

Important : In order to connect your

EXT1 scart only.

TV Aerial socket :

Insert the aerial plug into

the 75 Ω : (TV antenna) socket .

Side connections : for connecting to devices

NOTE For more details on connections, see CONNECTION GUIDE.

R

AUDIO IN

L

VIDEO IN

S-VIDEO

14

Decoder box

5

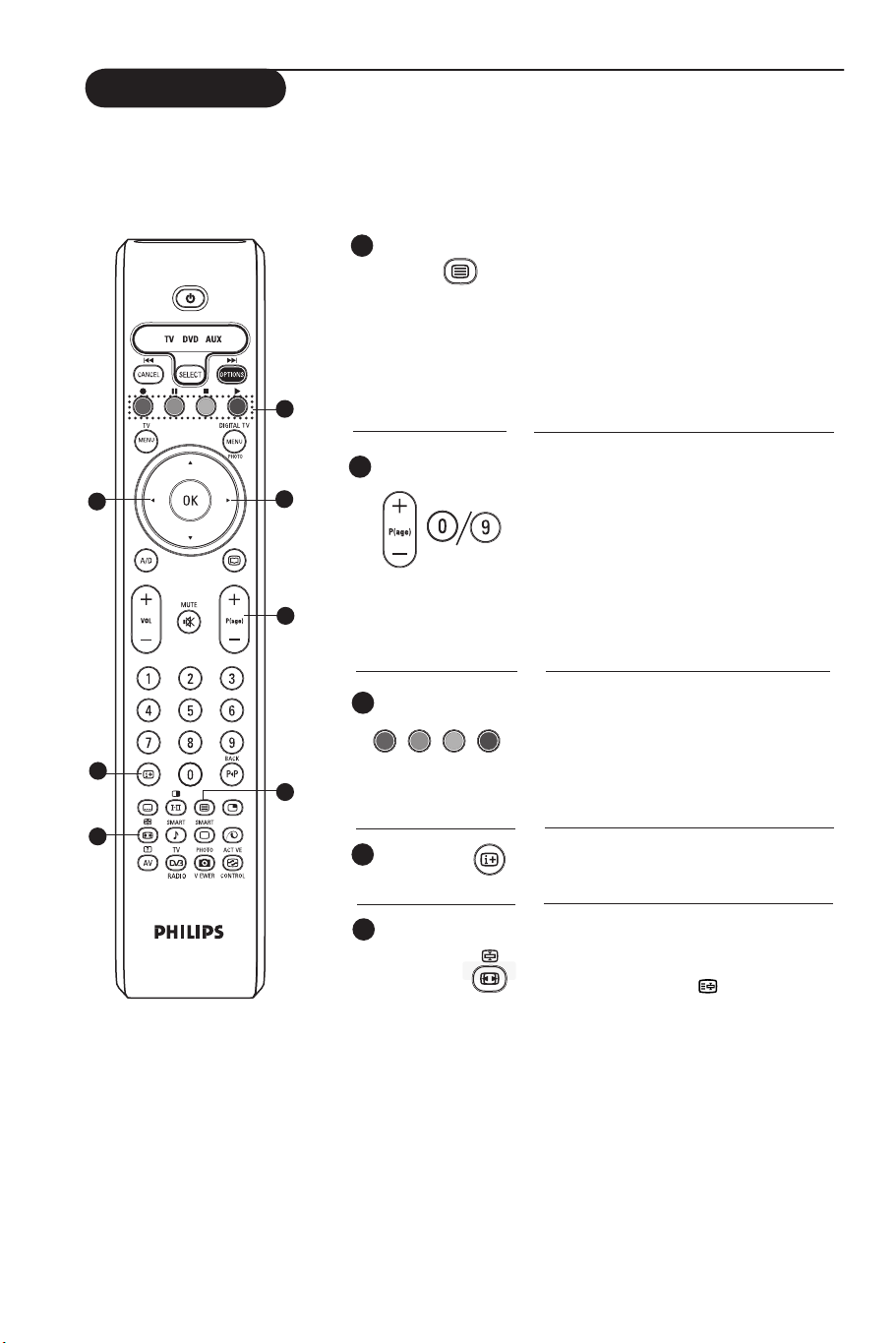

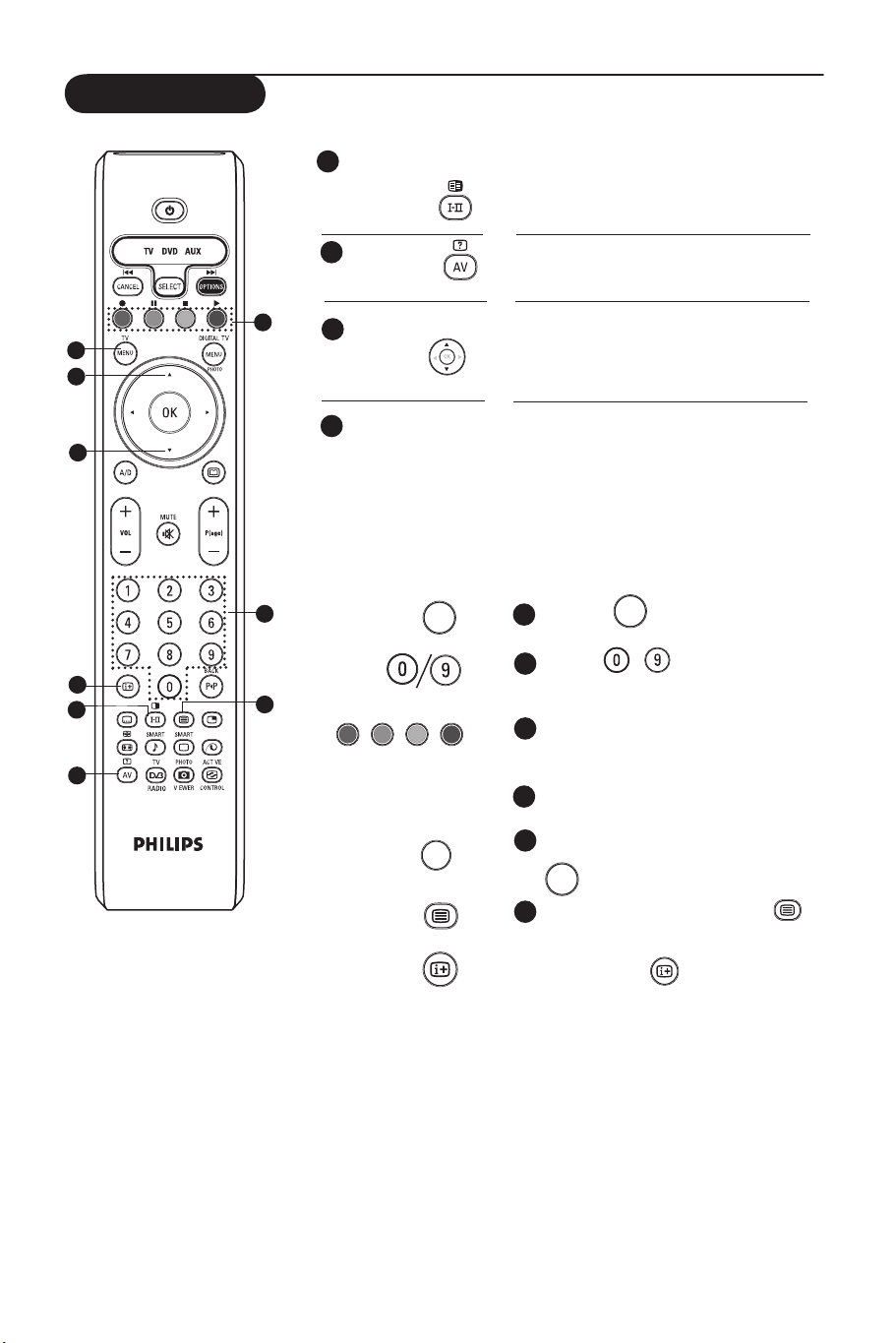

Remote Control keys

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

23

24

25

26

27

21

22

Standby

1

To set the TV to standby mode. To switch the TV set on again, press , to or the + P(age) – key.

2

Mode selecto

To activate the remote control in TV, DVD or AUX mode (see page 6).

Cancel

3

In digital mode, it functions as an exit key for MHEG teletext when no coloured are available to exit teletext mode.

TV menu

4

To display or edit from the analogue menus.

Cursor

5

These 4 keys are used to move within the menu or to directly access the screen formats.

Analogue or Digital mode

6

To switch the television between analogue and digital mode.

Volume + / –

7

To adjust the sound level.

8

Mute

To disable or enable the sound.

Numerical keys

9

For direct access to programmes. For a 2 (3) digit programme number, the second (third) digit must be entered before the dash disappears. The number, the name (and the sound mode, in analogue mode) are displayed

for a few seconds.

Screen information

10

In digital mode, press the key once to display the information banner and the second time to exit information banner (see page 11). In analogue mode, display/remove the programme number, the sound mode, the remaining time of the sleeptimer and the

*signal strength indicator.

Teletext / Sound mode

11

In teletext mode, it functions as a teletext key (see pages 27-28). In TV mode, it is used to force programmes in Stereo and Nicam Stereo to Mono or, for bilingual programmes, to choose between

Dualåor Dual». The Mono indication is red when in forced position

Subtitle mode

12

In digital mode, it activates or deactivates the subtitle mode.

r

key links

.

* The signal strength indicator shows the signal strength of the transmission

of the programme you are watching.

6

Remote Control keys

Teletext /

13

In teletext mode, it functions as a teletext key (see pages 27-28). In TV mode, it is used to access different screen formats (see page 25).

AV /Teletext

14

In teletext mode, it functions as a teletext key (see page 27-28). In TV mode, it is used to list to select TV or peripheral equipment connected to EXT1, EXT2/SVHS2, EXT3/SVHS3, EXT 4, HDMI 1, HDMI 2 or switch to Digital TV.

Digital TV /

15

In digital mode, it is used to access digital radio stations. Press the

Note : To return to digital video mode, press the

Dgital TV /

Smart Picture / Sound

16

Accesses a series of picture and sound settings. (see page 26).

Options / DVD/AUX

17

For Options function, see page 15. For DVD / AUX function, see page

Digital menu

18

To display or exit from the digital menu (when TV is in digital mode).

OK

19

Confirms selection. Also access program list in Digital mode.

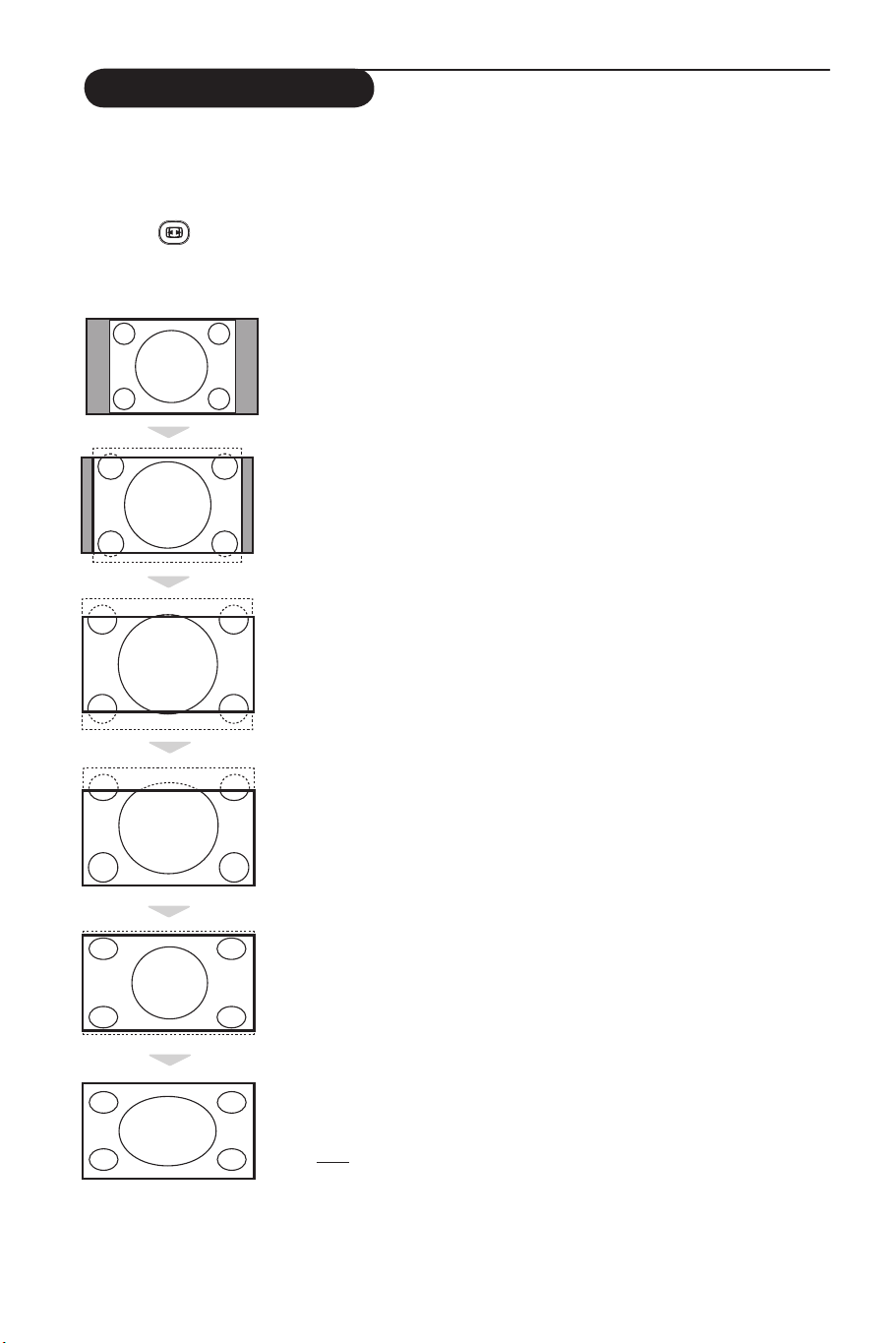

Screen Format

display the Source

Radio

OK key to access radio list.

Radio key again.

6.

TV Guide (See page 16).

20

Programme selection

21

To access the next or previous programme (or page in digital menu.

22

Alternate channel / Edit or back space

In Analogue/Digital mode, it allows you to alternate the previously viewed programme and the current programme. It also used as an edit or back space key when you are naming your favourite channel (see page 14 for digital mode and page 21 for anlaogue mode).

Teletext On / Off

23

PIP on/off

24

Display PIP screen on TV. Subsequent pressing of the key changes size of the window (see page

24).

Pixel +

25

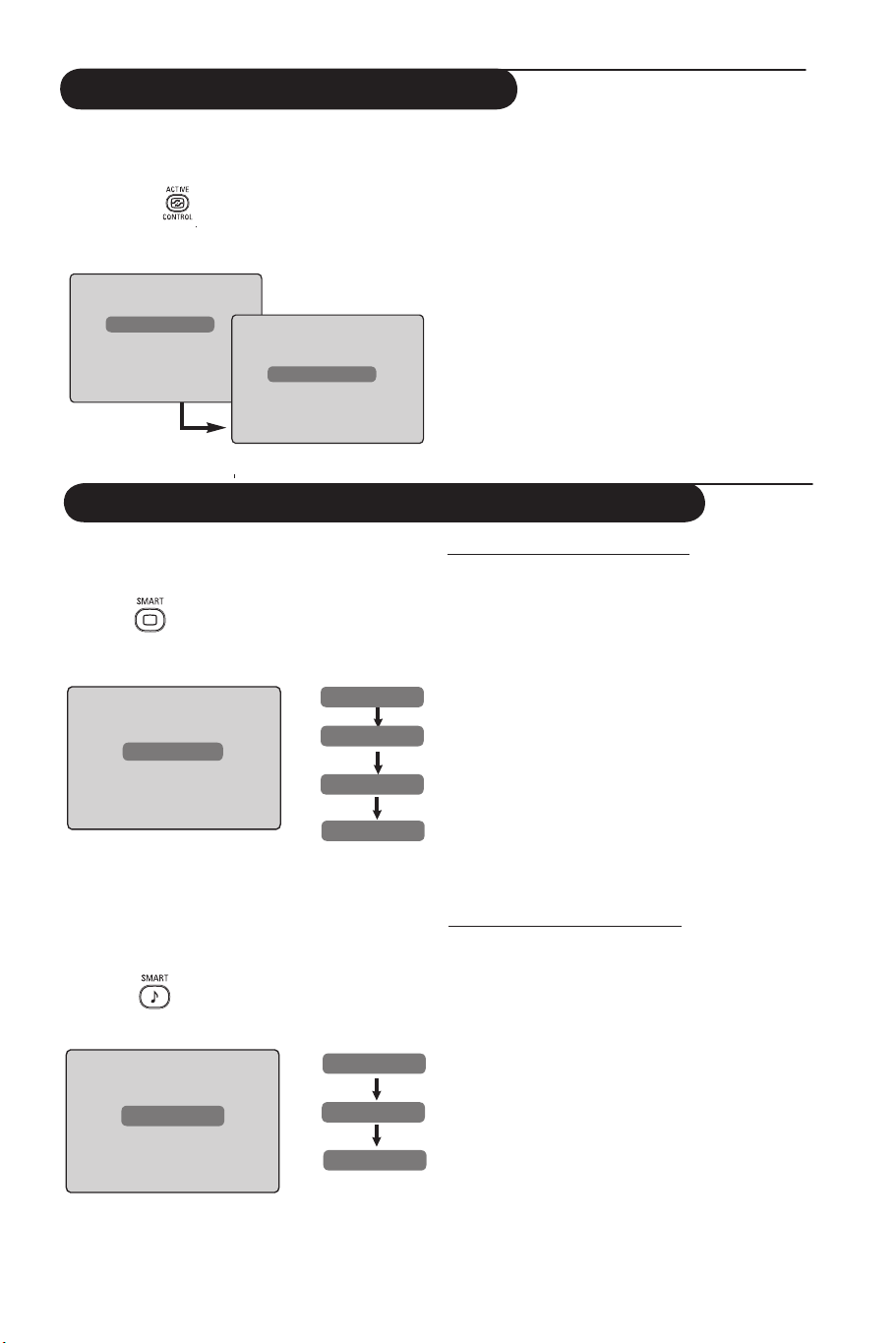

Offers a unique combination of ultimate sharpness, increased depth impression, true natural detail, brilliant and vivid colours. Press the key for a Pixel + demonstration

26

Active control

Optimises the picture quality depending on the quality of the incoming signal and ambient light conditions (see page 26).

Photo view

27

Unused key.

er

(See pages

27-28

.

).

Remote Control keys (DVD or AUX)

Press the (SELECT) key to select the required mode : DVD or AUX (amplifier). The remote control indicator lights up to display the selected mode. The remote control automatically returns to TV mode. NOTE : Functions not available to Philips DVD-R device. The following keys are operational depending on the equipment :

standby

fast rewind

fast forward

recording

pause

stop

play

display menu

confirm selection/adjustment fast forward

navigation and adjustment of menu items

digit keys for direct program selection

program selection

audio selection

exit menu

7

What is Digital Television?

Digital Television offers a far wider choice of TV viewing, free from the interference that you may experience on analogue TV. It promises to transform television viewing into a whole new experience. There is a greater selection of widescreen programming . Many of your favourite programmes are in widescreen on the digital channels - something the analogue TV cannot do properly.

There is new whole experience of interactivity on digital TV. By using your remote control, you can access all kinds of information like the digital text which is much clearer than the old teletext system. It gives you the added enjoyment of related information running alongside the programme you are watching. You can also access an Electronic Programme Guide that provides you with a quick and easy way to view a complete list of digital programmes as you would in a newspaper or TV magazine.

Digital or Analogue channels

When the television is powered on for the first time, it will always be in To receive TV channels, your television is equipped with 2 tuners. One is for digital channels, the

other is for analogue channels. Use the key of the remote control to switch the TV between analogue and digital mode. Use the P(age) +/– or

to keys to select channels.

DIGITAL mode.

Overview of Digital main menu and sub-menus

& Use the key of the remote control to select Digital mode.

é From the digital mode, press the key to display the setup menu. “ Use the Î ï Í Æ keys to navigate, select and adjust menu items.

Setup

Favourites List 1

Name Select TV channels. Select Radio stations. Add all services Remove all services

List 2

Select TV channels. Select Radio stations. Add all services Remove all services

List 3 Name

Select TV channels. Select Radio stations. Add all services Remove all services

List 4 Name

Select TV channels. Select Radio stations. Add all services Remove all services

Name

8

Overview of Digital main menu and sub-menus

Setup

Audio

Subtitling Mode On, Off, Auto

System Cesky, Deutsch, English, Español, Français,

Country Australia, Austria, Belgium, Czech, Denmark,

Time zone Digital Audio Output PCM/MPEG, AC3

PCM, MPEG

Always accept new software Yes, No

Access restrictions

Maturity rating

Radio stations

Change pin code

Preferences Type of Selection

Language

Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Serb, Slovak, Spanish, Swedish,

Turkish, Welsh

Italiano, Magyar, Norski, Polski, Portugués Suomi, Svenska

Finland, France, Germany, Hungary, Italy, Netherlands, Norway, Sweden, Switzerland, United Kingdom

Information System software Current software version

Set pin protection On, Off

Subtitle/Teletext

Subtitles for hearing impaired

Location

TV channels

Basque, Catalan, Croatian, Czech, Danish, Dutch, English, Finnish, French, Gaelic, Gallegan, German,

Yes, No

Poland, Portugal, Spain,

9

Overview of Digital main menu and sub-menus

Setup

Service lists

Rearrange services

View new TV channels.

Listen to new Radio Stations.

Service setup

Add new services

Search

TV channels found.

Radio station found.

Discard

Reinstall all services

Search

TV channels found.

Radio station found.

Discard

Test reception

Frequency

Network name

Signal quality

Signal strength

Installation

Other services found. Store

10

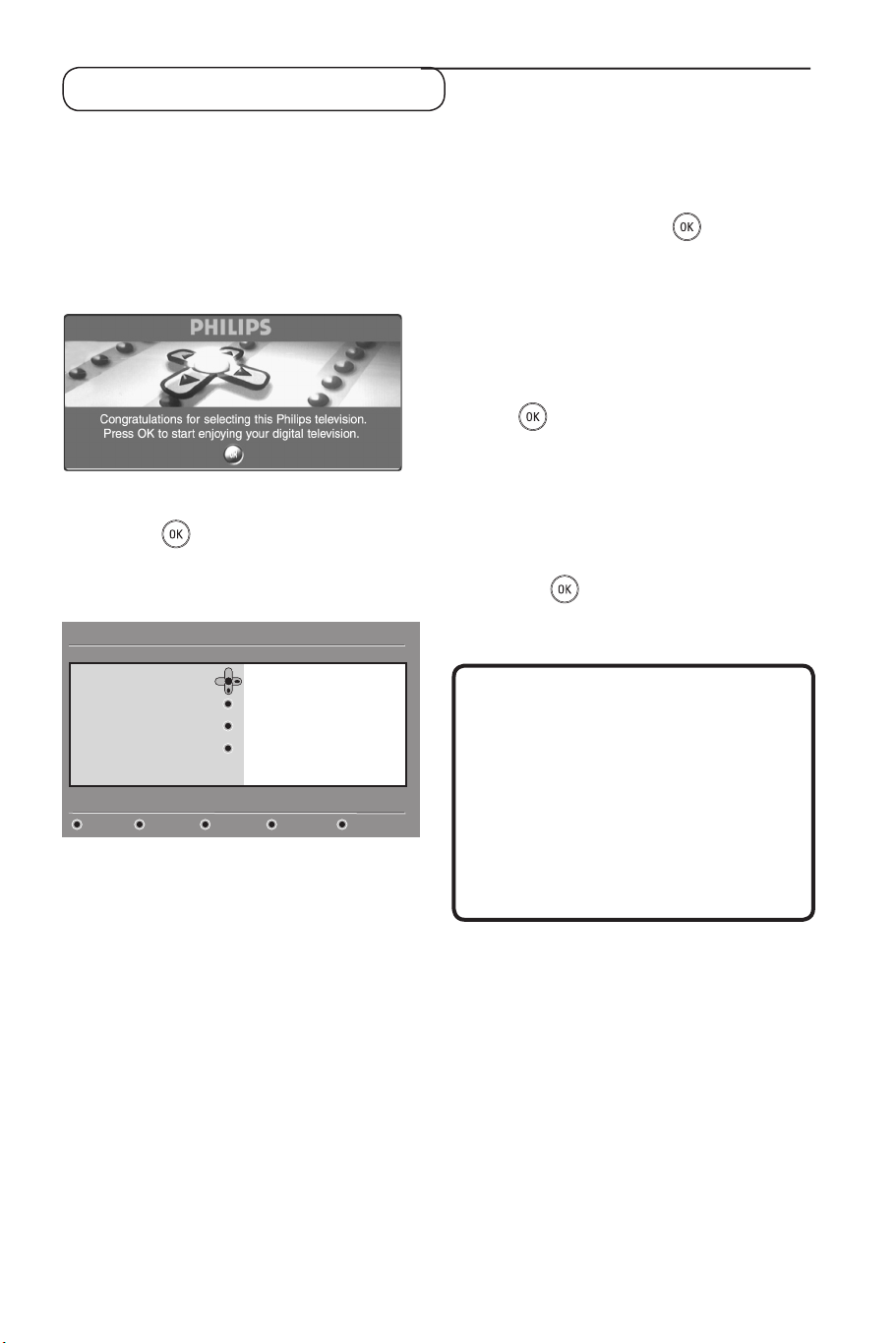

Switch on for the first time

* The first time the TV set is switched on, a congratulation message will appear on screen. The language of which changes every 5 seconds. If the message is not displayed, press and hold down the

MENU key on the side of the TV set

for 5 seconds to display the message.

* Only available on certain versions.

& Press the key on the remote control, the moment your prefered language is visible on the screen.The Setup menu is displayed :

Setup

Language

Country

Time Z

one

Service Scan

Select your preferred language

English Español Français Italiano Suomi

11:46

é With the cursor keys, select Language,

Country or Time Zone and check if the

adjustment is according to your preferences. If necessary, use the cursor keys to make your adjustment and press

key to exit.

CAUTION : if you select a wrong country, the

channel numbering will not be according to the standard for your country and you may not receive all services or nothing at all. Note that the Language can be selected

independently from the

Country.

“ Select Service Scan from the menu and press

key to start the installation. The service scan menu is displayed. All the digital and analogue programmes are searched for and stored automatically. When the search is complete, the menu will indicate the number of digital services and analogue programmes found.

‘ Press the key twice to start watching TV. The television then displays the current program. The installation is now complete.

NOTE : If at some point of time you decide to reset to the factory default settings, press and hold down the

MENU key on the side of the TV set for 5 seconds. A congratulation message will appear on screen. Repeat steps 1 - 5 as if this was the first time you have turned on the TV.

This activity will reset both Analogue mode to

factory default settings.

the Digital and

11

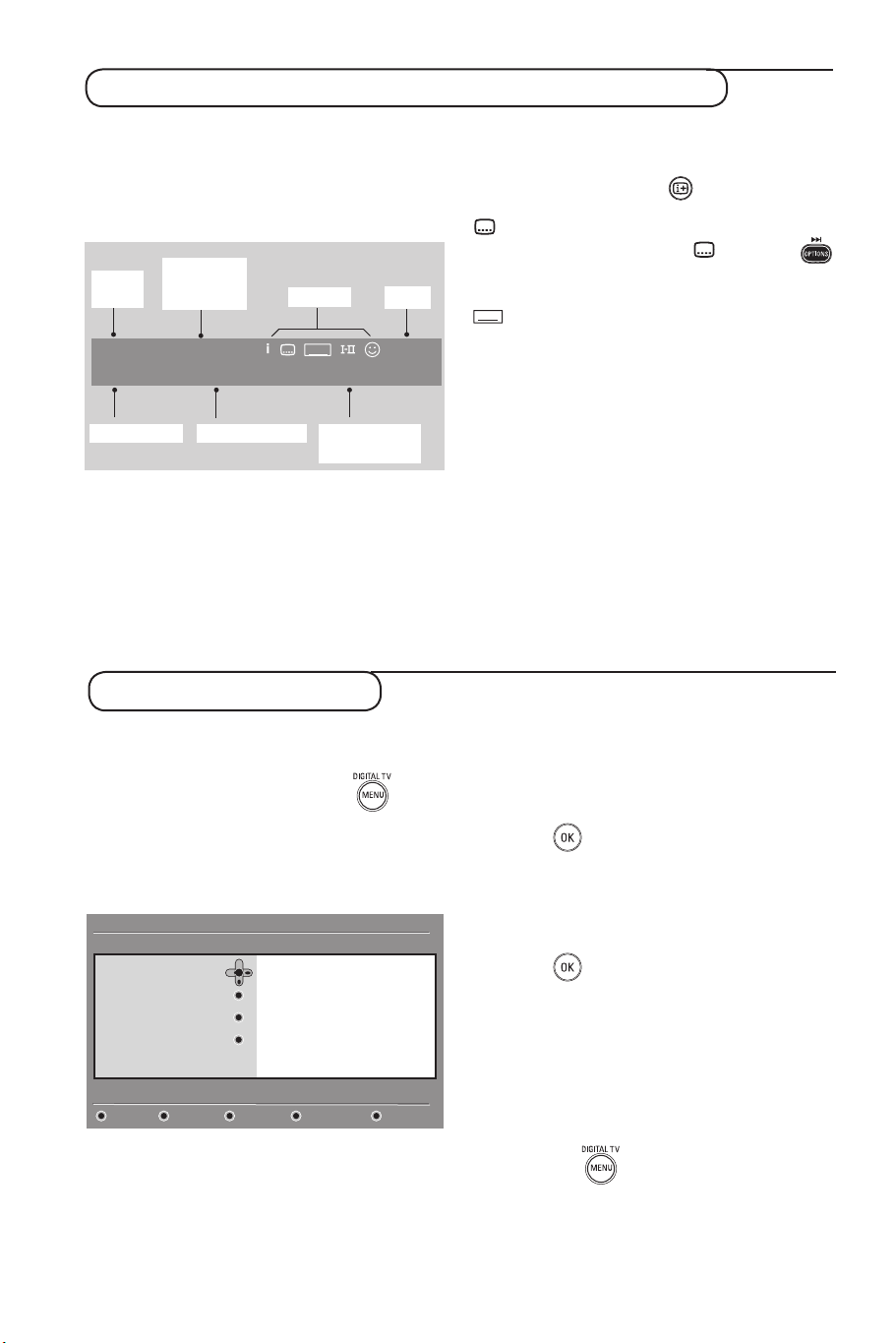

Understanding the information on the banner

When you select a digital programme, an information banner is displayed for a few seconds at the top of the screen.

Banner description

preset number

2 11:06-11:09 11:46

BBC 2 Snooker Minutes left : 14

channel name programme title remaining time

programme start and end time

symbols

TXT

of programme

clock

The banner contains information on the preset number, channel name, programme duration, transmission clock, programme title and the time remaining of the current programme.

Rearrange services

Symbols description : i More information about this programme is

available : press the

key once to display and the second time or remove it. Subtitling is available : if you want to

display them, press the

key or the key to access the options menu and select subtitles.

TXT

Indicates Analogue Teletext is available in

Digital mode. ù Other audio languages are availables and can be selected in the options menu.

u The selected Favourite list is displayed in

the one of the colour (red, green, yellow or blue) of the activated list.

Note : A white colour u will appear if the programme is stored in one or more of the favourite list which is currently not activated.

This menu allows you to change the order of the stored digital channels and radio stations.

& From the digital mode, press the

key

to display the setup menu. é Use the ï key to select Installation and

press Æ twice to select the Service lists menu.

Setup

Installation

Service lists

Service setup

Test reception

Manage service lists

Rearrange services View new TV channels Listen to new Radio stations

Close

11:46

“ Use the Î ï keys to select Rearrange services and press Æ key. ‘ Use the Î ï keys to select the channel you

want to exchange.

(

Press to activate.

If you want to uninstall the selected channel,

press the

red key.

§ Select (Î ï) the new channel number you

want to exchange it with.

è Press key to confirm. The exchange is

done.

! Repeat the operations ‘ to è until all the channels are in the required order.

ç To return to previous menu, press the Í

key.

à Press the key to exit the menu.

12

View or Listen to new services

This menu allows you to check the availability of new TV channels or new radio stations that have been launched by the broadcaster after the initial installation.

& From the digital mode, press the to display the setup menu. é Use the ï key to select Installation and

press Æ twice to select the Service lists menu.

key

Add new services

This menu allows you to search for new TV channels or radio stations that have been launched by the broadcaster after the initial installation.

Setup

Installation

Service lists

Service setup

Test reception

Install and manage services

Add new services Reinstall all service

Close

11:46

s

“ Use the Î ï keys to select View new TV channels or Listen to new Radio station. ‘ If new services are availables, press Æ to enter into the list and use the move through the list.

( To return to previous menu, press the

§ Press the key to exit the menu.

& From the digital mode, press the

display the setup menu.

é Use the ï key to select installation and press Æ

key.

“ Select Service setup (ï) and press Æ key. ‘ Press Æ to add new services and press

key to activate the installation. The search begins and only new channels will be stored and added to the channel list menu. The percentage of the installation that has been completed and the number of channels found is displayed. (When the search is completed, press the the new services.

( To return to previous menu, press the

key to accept

Î ï keys to

Í key.

key to

Í key.

Reinstall all services

This menu allows you to reinstall all the digital

TV channels and radio stations.

& From the digital mode, press the key

to display the setup menu.

Setup

Installation

Service lists

Service setup

Test reception

Install and manage services

Add new services Reinstall all service

Close

11:46

s

§ Press the

é Use the ï key to select installation and press Æ

key.

“ Select Service setup (ï) and press Æ key. ‘ Select Reinstall all services (ï) and press Æ

key.

( Press key to start the installation.

A search is then made for all digital services

which are then stored automatically.

When the search is completed, the menu will

indicate the number of digital services found.

§ When the search is complete, press key

to store the services.

è To return to previous menu, press the Í key.

! Press the

key to exit the menu.

13

Test reception

This menu allows you to check the strengh of

the signal you are receiving through your aerial.

& From the digital mode, press the

key to

display the setup menu.

é Use the ï key to select installation and press Æ key to display the installation menu.

Setup

Installation

Service lists

Service setup

Test reception

Test signal quality

Frequency Network name Signal quality Signal strength

Close

11:46

“ Use the ï key to select Test reception and

press Æ key. You obtain an indication of the actual programme frequency, the network name, the signal quality and strength.

‘ Use the Æ key to enter the Frequency slot

If after keying the frequency, the reception is

( After entering the frequency, use the

§ To return to previous menu, press the Í key.

è Press the

Language and location preferences

e the to keys to enter the

and us frequency of to test. character space.

the digital channel you want

Use the Æ key to move to the next

Your TV magazine can

provide the list of digital channel numbers.

the frequency table on page 34.

Refer to

still poor, you can try improving, renewing, adjusting or updating the aerial. It is however advisable to contact a specialised aerial installer in order to achieve best results

.

key to exit Frequency slot.

key to exit the menu.

This menu allows you to select your preferred language for audio, subtitle, teletext and menu and make changes to the location (country

and time zone).

& From the digital mode, press the key to display the setup menu.

é Use the ï key to select Preferences and press

Æ key.

Setup

Preferences

Language

Location

Digital Audio Output

Select your preferred language

Audio Subtitle / Teletext Subtitling Mode Subtitling for hearing impaired System

11:46

Close

“ Select Language, Location or Digital Audio Output (

ï) and press Æ key.

‘ Use the Î ï keys to select a setting and

press Æ key to enter into the sub-menu. Make your adjustment and press

key or

Í key to exit.

Language default settings

Audio : to select the audio sound language.

•

Subtitle/Teletext : to select the

subtitle/teletext language.

• Subtitling mode : off, on or auto (subtitle only displayed in case of original audio transmission).

•

Subtitles for hearing impaired : to activate or deactivate the specific subtitle for hearing impaired (if made available by the broadcaster).

•

System : to select the menu language. Location settings

• Country : to select the country where you are located. CAUTION : if you select a wrong

country, the channel numbering will not be according to the standard for your country and you may not receive all services or nothing at all. Note that the Language can be selected independently from the Country.

• Time zone : t

o select the time zone where

you are located.

Digital Audio Output settings

To select AC3 (if the amplifier supports the Dolby Digital format) or PCM/MPEG (if it does not support Dolby Digital format). Note : If you select AC3 sound, you must have your TV connected to a Home Theatre System or amplifier. In this mode, no sound will be heard from the TV speakers only.

( To return to previous menu, press the

§ Press the

key to exit the menu.

Í key.

14

Access restrictions

This menu allows you to setup the access restrictions of the digital channels.

& From the digital mode, press the to display the setup menu.

é Use the ï key to select Access restriction and press Æ key.

“ Press the Æ key to enter into the Set pin code protection menu.

Setup

Access restrictions

Set pin code protection

Maturity rating

TV channels

Radio stations

Change pin code

Switch pin code protection ‘on’ or ‘of’

On Off

Close

‘ Use the Í Æ keys to set to On option and press key to exit.You can then access

the other adjustments :

Warning : the moment you use any kind of access restriction, you need to fill in the pin code when you schedule a programme for recording.

key

11:46

• Maturity rating : select your preferred rating to lock the channel. Maturity rating will only block certain programmes if the broadcaster provides data with the programme.

• TV channels : select the TV channel you want to lock and press

key.

• Radio station : select the radio station you want to lock and press

• Change pin code : press

key

Æ keyto enter in the

menu. Follow the on-screen instruction to change your access code. The default pin code is 1234. If you have

forgotten your personal code, you can reset to the default pin code 0711

( To return to previous menu, press the

§ Press the

code (1234) by enter the universal

.

Í key.

key to exit the menu.

The TV is equipped with a Common Interface

(CI) slot (see page 19). A CI module can enable additional services, for example Pay TV. The Access Restrictions menu will show the CI Access Restrictions when a CI module is installed. The CI module is responsible for the messages and texts on screen. In case of failure or strange behaviour, you must call your CI service provider.

Setting up your favourite list

This menu enables you to create a favourite list with your prefered TV channels and radio stations. For example, each member of your family can create his/her own favourite list.

& From the digital mode, press the key to display the setup menu.

Setup

Favourites

Preferences Information

Access restrictions

Installation

Make changes to your lists of favourite services

é Press Æ to enter into the favourites list menu. You have the choice to create 4 different favourite lists.

“ Use the Î ï keys to select your Favourite list : List 1, List 2, List 3 or List 4 and

press Æ key.

List 1 List 2 List 3 List 4

Close

11:46

‘ Use the Î ï keys to select a setting and press

Æ key to enter into the sub-menu.

• Name : use the Í Æ keys to move around the name display area (16 characters) and the – P(age) + keys to select the characters. When the name has been entered, press

• Select TV channels : use the

key to exit.

Î ï keys to

select your favourite TV channels and confirm

• Select radio stations : use the to select your favourite radio station and

confirm with key. Press Í key to exit.

•

Add all services : press key if you to add all the service into your favourite list.

• Remove all services : press

with key. Press Í key to exit.

Î ï keys

want

key

if you

want to remove all the service from your favourite list.

( To return to previous menu, press the

Í key.

§ Press the key to exit the menu.

Your favourite list can be selected via the options menu (see next page).

15

Information

This menu provides information about the software version and the installation of new software.

& From the digital mode, press the key to display the setup menu. é Use the ï key to select information and press

Setup

The software version is displayed.

“

‘

accept any software update of your digital TV. Normally the product will detect if an update is available while it is in standby mode. Next time the television is turned on a message will on the screen indicating new software is available.

Selecting the key activates the software download.

Æ key twice.

11:46

Favourites

Preferences

Information

Access restrictions

Installation

Provide information on problem reports and installing new software

System software

Close

Use the Æ key to enter the selection mode.

Use the Í Æ keys to select Yes or No mode. You can activate the menu to automatically

appear

The software download menu will give a description of the software together with the date and time of the download. This may update certain menus, functions or add new features, but the general way in which the TV operate will not change. Once accepted the download will take place at the designated time and date. Note : The TV must be put into standby when the download is due in order for it to take place.

Off Air Downloading of new software

Whenever a new software is available, it is

advisable to always accept and download the software.

• In case new software is available, you will see a message when you switch on the TV. A message indicating the date and the duration of download

is indicated in the menu. Press the

ceed.

pro

Important : Leave your TV in standby to allow upgrade to take place. Do not power on your main switch.

• If a problem occurred during the download of the new software, you will be informed of the next scheduled software download. Press the

key to proceed to use your TV normally.

•

If download is successful, a congratulatory

message will appear. Press the

key to accept.

New software and upgrade instructions may be obtained from the website : www.philips.com/

( To return to previous menu, press the Í key.

§ Press the key to exit the menu.

key to

Using the Options menu

This menu gives you direct access to the: favourite list, the language selection and some other selections. & From the digital mode, press the white

OPTIONS key to display the options menu. é Use the Î ï keys to select a setting and press

Æ key to enter the sub-menu.

Options

Favourites

Subtitle language

Audio language

Mode

Selects the active favourite list

None List 1 List 2 List 3 List 4

ï

11:46

Exit

• Favourites : use the Î ï keys to select your favourite list and confirm with

key.

The “none” option deactivate any favourite list.

To create your own favourite list, see page 14.

• Subtitle language : use the

Î ï keys to

temporarily change the language and confirm with

key.

• Audio language : to temporarily change the audio sound language. To permanently change the audio and subtitle languages, use the Preferences menu (p. 13).

Mode : you can choose to only have radio

• stations, TV channels or services without audio or video. Remark : for the UK only, the TV list will

contain both radio stations and TV channels.

• Banner duration : to select the duration for which the banner is visible.

“ Press the white OPTIONS key to exit the menu.

16

TV guide

The TV guide is an Electronic Programme Guide that provides you with a quick and easy way to view a complete list of digital programmes as you would in a newspaper or TV magazine. You can navigate through the list of digital programmes and obtain detailed information on the programmes. You can also program the TV to provide a digital channel to be recorded.

& From the digital mode, press the key to display the TV guide :

1 17:24 BBC 17:24

Preset/Service Now Next

1 BBC See It Saw Microsoap 2

BBC TWO Snooker Ice Skating 3 ITC Channel 3 Trisha This morning 4 Channel 4 – – 5 ITV 2 Gmtv2 This afternoon 6 BBC CHOICE

Record Record list Top Close Options

Now/Next Today

Oakie Doke Bodger & Badger

A list of all the digital programmes in the currently selected favourite list is displayed.

é Use the ï key to enter into the Preset/service list or press Æ key to access

Today list.

“ Use the Í Æ keys to select a programme.

‘ The TV guide features are displayed at the

bottom of the screen. Use the coloured keys red, green, yellow, blue or white to activate them.

• Record (red key) : this feature enables you record a digital channel even the TV is in

to standby mode. You will still have to programme your video recorder. If you wish to continue watching another digital channel after setting a timer, you can do so by changing channels in the normal way.

If your recorder supports *

pin 8 recording,

switch your recorder to that mode.

*Pin 8 recording refers to the technique of using the pin 8 signal on a Scart cable (normally used to indicate the presence of a signal for display on the TV) connected between an idTV/Set-top box and a VCR, to switch the recorder into record mode. The pin 8 signal effectively acts as a record on/off switch, whilst additionally signalling thes aspect ratio of the video signal carried on the cable.

IMPORTANT : In digital mode, if you

change the channel when recording starts, a message will appear on the screen to confirm whether you want to stop recording. Select

Yes if you want to stop recording. The TV will switch to the channel you have changed. If you s

elect No, the TV will record the last channel you have selected. During recording, you are unable to access

the Digital menu. If you press the the same message will you change

the channel when recording starts.

appear when

key,

• Record list (green key) : this menu gives the list of recording schedules.You can check, modify, delete or add a new schedule by using the cursor or coloured keys as indicated on the screen.

• Top (yellow key) : to go directly to the top of the list.

• Close (blue key) : to exit from the TV guide.

• Options (white ÆÆ key) : with this menu,

can select your favourite list, mode or

you themes. Themes are areas of interest, you can for example, decide to display only : drama, news, movie, ...

( Press the key if you want to display more information about the selected programme (if available).

§ Press the key to exit the menu.

17

Recording function

This feature enables you to record a digital channel while the TV is in standby mode. You will still have to programme your video recorder. If you wish to continue watching another digital channel after setting a timer, you can do so by changing channels in the normal way. IMPORTANT : The video recorder must be connected to EXT2/SVHS2. Please note that it is NOT possible to record one digital channel and watch another digital channel at the same time. You can however record a digital channel and watch an analogue channel on your TV, or vice versa.

& From the digital mode, press the key to display the TV guide.

é

Use the ï key to enter into the Preset/service

list or press Æ key to access Today list.

“ Press the RED key to call up the Record

menu.

2 BBC 2

Name

Service

Enter your pin code if locked

Day & Month

Start time

End time

Audio language

Store Cancel Close

See it saw 2 BBC 2

16/02 12:15 12:30

English

ï

11:46

• Enter your pin code if locked : enter your secret code only if you have activated the access restriction feature (see page 14). Press

key to confirm.

• Day & Month : enter the date by using the or – P(age) + keys. Press

• Start tim

• End time : enter the end time.

e : enter the start time.

key to exit

• Audio language : select your language and confirm with

key.

• Subtitle language : make your selection and confirm with

Subtitles for hearing impaired : select Yes

• No and confirm with key.

or

Occurrence : select Once, Daily or

•

Weekly and confirm with key.

key.

( Press the RED key to store your recording. The TV guide reappears. You can press the

GREEN key to display the

list of recordings you have set.

§ If you have finished watching television, you

must leave it in standby in order for the recording programme to be activated.

IMPORTANT : never switch off the TV with the power button when a recording has been programmed, but use the

key on the remote control. If not, all the recordings will be lost.

‘ Use the Î ï keys to select a setting and press your adjustment and press

Æ to enter into the sub-menu. Make

key or Í key

to exit.

Name : the selected programme will be

• displayed here.

Service : you can change the number of the

• programme you want to record. Press key to confirm.

Note : it is only possible to change to a number that is in the currently selected favourite list.

è If you wish to continue watching another digital channel after setting a timer, you can do so by changing channels in the normal way. Important : In digital mode, if you change the

channel when the recording starts, the TV will record the last channel. you have selected.

! If you are watching another digital channel when the timer is due to start, the timer alarm will sound and present you with the option of switching channels or continuing to watch the current channel.

ç You can also watch analogue channels while recording digital channels. Press the to switch the TV to analogue mode.

key

18

Digital Teletext (MHEG)

Available in U.K. only

Digital teletext services differ greatly from analogue teletext. When you switch to a Digital teletext service, the images you see contain graphics and text which are laid out and controlled in a manner decided by the broadcaster. Some digital channels, which you select like any other channel, offer dedicated teletext services . Some digital channels also offer information on the programme being broadcast (a message or an instruction may appear on the screen).

& To use the digital teletext, follow the

instructions on screen.

é Depending on the service, you can be

asked to use the

(Teletext On/Off key) and sometimes the

Note : If no coloured key links are not

available in the Digital Teletext to allow you to exit teletext mode, use the the remote control to exit teletext mode.

“ When you have finished watching teletext,

select a different channel with P /+ keys or follow the on screen instructions to return to picture.

Í Æ Î ï (cursor keys),

(coloured keys),

numerical keys.

key on

When you switch to a digital channel with links to a telext service, software is downloaded in the background to enable the teletext function. You should wait for a while before you press

the key to allow the software download to complete. If you press the the download is complete, there will be a short delay before the teletext screen is displayed.

While navigating the digital teletext, there is a short delay while the page downloads. A prompt or message is often seen on the page to let you know the progress.

key before

Analogue teletext in Digital mode

Available in all countries

If you see an icon without digital telextext services, it indicates Analogue Teletext is available in Digital mode. Press the To use Analogue Teletext functions, see page 27

and 28.

TXT

on a digital channel

key to access Analogue teletext.

19

Using the Conditional Access Module (CAM)

The Conditional Access Module (CAM) menu provides access to functions contained on the CAM. The module can be inserted into the Common Interface (CI) slot located at the side of the 26”/32” TV and at the rear bottom of the 37”/42”/50” TV. Remove the sticker before inserting module.

Remove sticker

Common

26’ / 32” TV

Interface slot

Front side

PCMCIA

of module

Reverse side of module

26’ / 32” TV

PCMCIA

I

MPORTANT

Always switch the TV off before inserting or removing the module.

Inserting the CAM

& Switch off the TV. é Some modules come with a viewing card.

When using this type of module, first insert the viewing card into the module. Ensure that the arrow on the viewing card faces the arrow of the module before inserting into the module slot.

“ Insert the module into the Common Interface

(CI) slot on the TV. If you are inserting the module from the rear of the TV (26”/32”), the arrow indicated on top side of the card should be facing you. If you are inserting the module from the front of the TV screen (26”/32”), the reverse side of the module (without the arrow) should be facing you. For 37”/42’/50” TV, if you inserting the module from behind of the TV, the reverse side of the module (without the arrow) should be facing you.

‘ Switch on the TV. ( Press the key to switch the TV to

Digital mode, move to the Access Restrictions menu, the Conditional Access Module menu is displayed as the last item in the list.

§ Access the Conditional Access Module menu.

L

R

DVI

(AUDIO IN)

HDMI 1

HDMI 2

37” / 42” /50” TV

AUDIO

R L

IN

EXT 2 /SVHS2

Remove sticker

Common Interface slot

EXT 4

Pr

Pb Y

EXT 1

ANTENNA

Reverse side of module

è Press

OK

button as indicated on the screen

to access the CAM’s functions.

If no module is inserted, or the module is not inserted properly, the Conditional Access Module menu will not be displayed. (If you have inserted a module, check that it is fully inserted in the correct manner as mentioned in step 3 above)

The functions that now appear on screen are dependent on the contents of the selected Conditional Access Module in your country. Refer to the instruction supplied with the module or contact the vendor.

20

Automatic tuning of analogue programmes

This menu allows you to automatically search for all the analogue programmes available in your region.

Before you automatically search for all the analogue programmes, ensure the TV is in analogue mode. If it is in digital mode, press

A/D

the

(Analogue / Digital) key to enter the

analogue mode.

& From the analogue mode, press the key. é Using the ï key, select Install and the

Æ

/ OK key to enter the Install

menu.

“ Using the ï key, select Auto Store and

the searching of the channels. All the TV programmes will be stored. This operation takes a few minutes. The display shows the progress of the search and the number of programmes found.

Æ / OK key to start automatic

available

TV Menu


Sound

Features

Install

Language

Country

Auto Store

Manual Store

Sort

Name

Æ

Start

Important : To exit or interrupt the search before it is completed, press th

MENU

e

key.

TV

If you interrupt search during auto store, not all channels will be stored. For all channels to be stored, you need to do a complete auto store search again.

NOTE

ATS (Automatic Tuning System)

feature

If the transmitter or cable network sends the automatic sort signal, the programmes will be numbered correctly. In this case, the installation is complete. use the correctly.

If this is not the case, you need to

Sort menu to number the programmes

ACI (Automatic Channel Installation) feature

If a cable system or a TV channel which broadcasts ACI is detected, a programme list appears. Without ACI broadcast, the channels are numbered according to your language and country selection. You can use the Sort menu to renumber them.

You cannot

select Language or Country

in Analogue mode. If you want to select

Language or Country, you have to exit Analogue mode and enter into Digital mode to do so (refer to “Language and location

preferences” on page 13).

Program Sort

& Press the key. The TV Menu is

displayed on the screen.

TV Menu


Sound

Features

Install

é Use the ï key, select the Install menu

and the

Install

Æ / OK key to enter the

menu.

Install

Language

Country

Auto Store

Manual Store

Sort

Name

Æ • 0 Æ • 1 Æ • 2 Æ • 3 Æ • 4 Æ • 5

“ Use the ï key to select Sort and the

Æ

/ OK key to enter sort mode.

‘ Select the programme number you want to

move key to enter sorting mode (The arrow cursor now points to the left).

using the Î ï keys and the Æ / OK

( Use the Î ï keys to select the new

programme number and confirm with the Í / OK key. (The arrow points to the right and sorting is completed

).

§ Repeat steps ‘ and ( for each

programme number you wish to re-number.

è To return to previous menu, press the

key.

To exit the menu, press the

8

key.

21

Manual tuning of analogue programmes

This menu is used to store the programmes one at a time.

Press the key.

1

With the ï key, select Install and the

2

Æ / OK key to enter the Install menu.

Use the ï key to select Manual Store and

3

the Æ / OK key to enter Manual Store menu.

4

Use the

Î ï keys to select the items in the

Manual Store menu to adjust or activate.

System :

5

Use the Í Æ keys to select

Europe (automatic detection*) or France (LL’ standard) or UK (I standard), West Europe (BG standard), East Europe (DK standard)

. or

* Except for France (LL’ standard), you

select France.

must

TV Menu


Sound

Features

Install

Manual Store

System

Search

Program No.

Fine Tune

Store

Europe

Æ

Search :

6

Press the

Æ / OK key. The search starts.

Once a programme is found, the scanning stops and its name is displayed (if available). Go to the next step. If you know the frequency of the required programme, this can be entered directly using the keys.

If no picture is found, see “Trou on page 31

7

Program No. :

.

bleshooting Tips”

Enter the required number with the to

or Í Æ keys.

8

Fine Tune :

If the reception is not satisfactory, adjust using the

9

Store :

To store the changes, press

Í Æ keys.

Æ / OK key .

The programme is now stored.

10

Repeat steps

6

to

for each

9

programme to be stored.

11

To return to previous menu, press the key.

To exit the menu, press the

12

to

key.

Naming of Channel

If required, you can give a name to the TV channel.

Press the

1

2

With the

Æ / OK key to enter the Install menu.

TV Menu


Sound

Features

Install

key.

ï key, select Install and the

Install

Language

Country

Auto Store

Manual Store

Sort

Name

Æ Æ Æ Æ Æ Æ

8

3

Use the ï key to select Name and the

Use the you want to name and enter

Use the (maximum of 5 characters) and use the

Æ key to enter name mode.

4

Î ï keys to select the programme

naming mode.

5

Î ï keys to select the characters

the Æ / OK key to

Í Æ

keys to move around the name display area.

Press

6

Æ / OK key until the name appears

at the top right hand corner of the TV screen. The name is now stored.

22

Using the Contrast+ and NR (Noise Reduction) features

Press the key.

1

With the

2

Æ / key to enter the Features menu.

Use th

3

NR (Noise Reduction) and the Í Æ keys

to select an

4

To return to previous menu, press the

key.

ï key, select Features and the

e Î ï keys to select Contrast+ or

On or Off option.

5

To exit the m

enu, press the key.

Using the Sleeptimer Feature

Sleep feature allows you to select a *time period in which the set will switch to standby

mode automatically upon reaching the selected time period. feature.

Press the key.

1

With the

2

3

Use the Í Æ key to select a time period.

To return to previous menu, press the

4

key.

To exit the m

5

Select Off option to deactivate

ï key, select Features and the

Æ / OK key to enter the Features menu.

enu, press the

key.

Definition of the feature settings

Contrast+ :

– optimise the total contrast of the picture for impr

oved picture visibility.

– select

On option to activate feature.

NR (Noise Reduction) :

– improves “noisy” picture (little dots on picture) due to weak signal transmission. – select

On option to activate feature.

* time period

• 15, 30, 45 or 60 minutes.

OR

• 90 or 120 minutes

OR

• 180 or 240 minutes

NOTE :

setting, an on-screen countdown will be displayed.

During the last minute of a Sleep time

Pressing any button on the remote control will cancel the Sleep feature.

Timer function

This menu lets you use the TV set as an alarm.

& Press the key. é With the ï key, select the Features menu

then

“ Sleep: to select an automatic standby

‘ Time: enter the current time.

Note: the time is updated automatically

Timer :

period.

TV Menu


Sound

Features

Install

Timer

Sleep

Time

Start Time

Stop Time

Program No.

Activate

Æ

10:56

Æ

each time the TV set is switched on via the teletext information on programme 1. If this programme does not have teletext, the update will not take place.

( Start Time: enter the start time.

§ Stop Time: enter the standby time. è Program No.: enter the number of the

programme for the wake-up alarm.

! Activate: the settings include:

•

Once for a single alarm,

•

Daily for each day,

•

Off to cancel.

ç Press

If you leave the TV set on, it will just change

to put the TV set in standby. It will automatically come on at the time programmed.

programmes at the time entered (and will go to standby mode at the Stop Time).

23

Picture and Sound Settings

1

Press the key.

Use the

2

Sound.

Use the

3

Sound menu.

TV Menu

Use the

4

Sound setting and the Í Æ key to adjust.

To return to previous menu, press the

5

key.

To exit the menu, press the

6

Î ï key to select Picture or

Í Æ / OK key to enter Picture or


Sound

Features

Install

TV Menu


Sound

Features

Install


Brightness

Colour

Contrast

Sharpness

Colour Temp.

Store

Sound

Equalizer Æ

Balance Æ

Delta Voliume Æ

AVL Æ

Dolby Virtual Æ

Store Æ

Î ï keys to select a Picture or

39

• 120 Hz

• 500 Hz

• 1500 Hz

• 5 KHz

• 10 KHz

key.

Description of the Picture settings

Brightness : this changes picture brilliance.

Colour : this changes the intensity of the colour.

Contrast : this changes the difference between

the light and dark tones.

Sharpness : this increases or decreases the sharpness level to improve details in the picture.

Colour Temp. : this changes the colour rendering: Cool (bluer), Normal (balanced) or Warm (redder).

Store : to store the picture adjustments and settings.

Description of the Sound settings

Equalizer : to adjust the sound tone (from bass:

120 Hz to treble : 10 KHz).

Balance : this balances the sound on the left and right speakers.

Delta V

any volume differences between the different programmes or EXT sockets. Programmes 0 to 40 have individual volume setting and common setting.

AVL (Automatic Volume Leveller) : this is used to limit sudden increases in sound, especially on programme change or advertising slots.

Dolby Virtual

surround sound effect.

You can also access these settings with key.

Store : this is used to store the sound settings.

olume : this is used to compensate

Note :

programmes 41 and above share

: To activate / deactivate the

the

24

Using the PIP (Picture-in-Picture) Feature

The PIP (Picture-in-Picture) feature allows you to call up a PIP screen of the Computer) or

HD (High Defintion) device

PC (Personal

while watching a TV programme.

IMPORTANT

To call up a PIP screen of the PC equipment, the following step must be taken :

HDMI 1 or

connected to the DVI output of the PC equipment.

HDMI 2 input MUST be

Use a HDMI to DVI adaptor cable to do the connection.

To call up a PIP screen of the HD equipment, the following steps must be taken :

HDMI 1 or to the

HDMI 2 input MUST be

connected

HDMI output of the HD equipment.

NOTE

• While you are watching TV programmes, you

can only call up a PIP screen from only one source.

• Go to the PIP menu and select

HDMI. See

below on how to access the PIP menu.

• Select HDMI 1 or HDMI 2 depending on connection.

PIP

PIP Size

Horizontal

Verti

HDMI

Æ

cal

Æ

HDMI-1

Horizontal

Verti

PIP

PIP Size

HDMI

Æ

cal

Æ

HDMI-2

Accessing the PIP screen via the PIP menu

Note : This is only possible when PIP signal is

detected.

& Press the key to display main menu.

é With the Î ï key, select Features and

the

Æ / OK key to enter the Features

menu.

TV Menu


Sound

Features

Install

Features

Timer

Contrast+

NR

PIP

Æ

• PIP Size

Æ

• Horizontal

Æ

• Vertical

Æ

• HDMI

“ Use the Î ï keys to select PIP ‘ Use the Æ key to enter PIP menu.

PIP

Æ

PIP Size

Horizontal

Verti

HDMI

( Use the Î ï keys to select PIP menu items.

§ Use the Í Æ Î ï keys to access the PIP

Off

Æ

cal

Æ

menu items, make the following adjustments or

options.

§ To exit the PIP screen, select PIP Size.

followed by the

Definitions of PIP items

PIP Size

: Select your PIP size (Off, Small,

Horizontal :

Vertical :

HDMI : If HDMI 1 or HDMI 2 are both

connected, you can only select one source,

Accessing the PIP screen via the PIP

Off option.

Medium, Large and Side-by- Side).

Move the PIP screen horizontally from left to right and vice-versa.

Move the PIP screen vertically

from top to bottom and vice-versa.

HDMI 1 or HDMI 2.

key

& Press the key on the remote control

to display PIP screen. A small PIP screen will appear on the TV screen.

é Press the key a second time to change

the small PIP screen to a medium PIP screen size. Press the

“ Press the key a third time to change the

medium PIP screen to large PIP screen size.

‘ Press the key a fourth time to change

the large PIP screen to a Side-by-Side screen on one side and the PIP screen on the other side).

(

Press the key a fifth time exit PIP screen.

(a TV

NOTE For more details on connections to the PC and HD equipment,

see

CONNECTION GUIDE.

25

Screen Formats

The pictures you receive may be transmitted in 16:9 format (wide screen) or 4:3 format (conventional screen). 4:3 pictures sometimes have a black band at the left and right of the screen (letterbox format). This function allows you to optimise the picture display on screen.

If your televison is equipped with a 16:9 screen

Press the automatic switching which will select the correct-screen format, provided the specific signals are transmitted with the programmes.

key (or Í Æ) to select the different modes. This TV set is also equipped with

4:3

The picture is reproduced in 4:3 format and a black band is displayed on either side of the picture.

Movie Expand 14:9

The picture is enlarged to 14:9 format, a thin black band remains on both sides of the picture.

Movie Expand 16:9

The picture is enlarged to 16:9 format. This mode is recommended when displaying pictures which have black bands at the top and bottom

(letterbox format).

Subtitle Zoo

This mode is used to display 4:3 pictures using the full surface of the screen leaving the sub-titles visible.

Superzoom

This mode is used to display 4:3 pictures using the full surface of the screen by enlarging the sides of the picture.

Widescreen

The picture is displayed in the correct proportions of images transmitted in 16:9.

Note: If you display a 4:3 picture in this mode, it will be enlarged horizontally.

m

26

Using the Active Control feature

Active Control feature automatically adjusts

the picture setting for optimal picture quality continuously under any signal conditions.

& Press the key repeatedly to toggle

between Active Control Off and Active Control On

Active Control Off

options.

Active Control On

é Select the Active Control On option to

activate the Active Control feature.

“ Select the Active Control Off option to

deactivate the Active Control feature.

Using the Smart Picture and Sound Features

Smart Picture feature offers you a choice of 5

picture settings namely : Rich, Natural and Soft.

Press the the settings to select your desired mode.

button repeatedly to cycle through

Rich

Multimedia, Personal,

Natural

or

Soft

Multimedia

Personal

Definition of Picture Settings

Rich : Brilliant and sharp picture settings

suitable for bright environment and for use in demonstrations to show off the quality of the TV on good

sources. Natural : Reference mode for living room

conditions and average signals. Soft : Intended for bad-quality signals.

Suitable for living room viewing.

Multimedia : Best for graphical applications.

Personal : Pictures settings are set to your

preference.

Smart Sound feature offers you a choice of 4 sound settings namely : and Personal.

Press the through the settings to select your desired mode.

button repeatedly to cycle

Theatre

Theatre, Music, Voice,

Music

or

Personal

Voice

Definition of Sound Settings

Theatre : Emphasize sensation to action (Bass

and Treble boosted).

Music : Emphasize low tone (Bass boosted).

Voice :

Personal : Sound settings are set to your

preference

NOTE : The Personal setting is the setting that you set up using the Picture/Sound menu in the main menu. This is the only setting in the Smart Picture/Sound settings that can be changed. All other settings are pre-set at the factory.

Emphasize high tone (Treble boosted).

.

27

Teletext

Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the

transmission language (cable networks, satellite channels, etc.

).

Teletext call

1

3

Selecting a page

2

5

4

5

2

Direct access to

3

the items

1

This is used to switch on or off teletext display. The summary appears with a list of items that can be accessed has a corresponding 3 If channel selected does not broadcast teletext, the indication 100 will be displayed and the screen will remain blank. Proceed to exit teletext and select another channel.

Enter the number of the page required using the Example: page 120, enter number is displayed at the top left corner of the screen. When the page is located, the counter stops searching. Repeat this operation to view another page. counter continues to search, this means that the page is not transmitted. Select another numb

Coloured areas are displayed at the bottom of the keys are used to access the items or corresponding pages. flash when the item or the page is not yet available.

0 to 9 keys or P –/+ keys.

er.

screen. The 4 colour

. Each item

digit page number.

120. The

If the

The coloured areas

5

Contents

4

Sub-page display

5

This returns you to the contents page (usually page

Certain pages contain sub-pages which are automatically displayed successively. This key is used to stop or resume sub-page display. The indication

100).

appears top left.

28

Teletext

Double page

6

teletext

Hidden

7

information

9

8

Enlarge a page

8

Favourite pages

9

No Function. Not applicable.

To display or hide the concealed information (games

solutions).

This allows you to display the top or bottom part of the page. Pressing it again will return the page to normal size

.

Instead of the standard coloured areas displayed at the bottom of the screen, you can store 4 favourite pages on the first 40 channels which can then be accessed using the coloured keys (red, green, yellow, blue). Once set, these favourite pages will become the default every time teletext is selected.

9

TV

MENU

Press the

1

TV

MENU

key to change to

favourite pages mode.

Use the /

2

9

6

9

teletext page that you want to store as a favourite page.

Press and hold the colour key of your

3

keys to enter the

choice for about 5 seconds. The page

7

is now stored

Repeat steps 2 to 3 with the other

4

.

coloured keys.

MENU

TV

To exit favourite page mode, press the

5

TV

key.

MENU

To exit teletext mode, press the

6

key.

NOTE : To clear favourite pages,

press and hold

key for about 5

seconds.

29

Using the TV as a PC Monitor

NOTE : PC connection is only available via HDMI / DVI connector. VGA connection is not supported.

Your TV can be used as a computer monitor.

IMPORTANT

For the TV to function as PC monitor, the following steps must be taken :

& HDMI 1 or HDMI 2 input MUST be

connected to the DVI output of the PC. Use a DVI to HDMI adaptor to do the

connection.

é Press the

use the Î ï key

Use

source

Source

TV

EXT1 EXT2 / SVHS2 AV / SVHS3 EXT 4 HDMI 1 HDMI 2 DIGITAL TV

Using the PC menus

Press the

Use the Î ï key to access the settings

and the Í Æ key to select or adjust setting (the settings are automatically saved):

Description Picture settings

Brightness / Contrast

– Adjusts th

Colour Tem

– Changes the colour rendering :

Normal (balance) or Warm (redder).

Audio Selection

– Chooses the sound reproduced on the TV (PC or TV).

Supported PC Resolutions

640 x 480, 60 Hz 800 x 600, 72 Hz 640 x 480, 67 Hz 800 x 600, 75 Hz 640 x 480, 72 Hz 1024 x 768, 60 Hz 640 x 480, 75 Hz 1024 x 768, 70 Hz 800 x 600, 56 Hz 1024 x 768, 75 Hz 800 x 600, 60 Hz

key to

display Source List and

to select

HDMI 1 or HDMI 2

the Æ

/ OK

key to

switch to the selected

.

Æ

TV

MENU

Source

TV EXT1 EXT2 / SVHS2 AV / SVHS3 EXT 4

HDMI 1

HDMI 2 DIGITAL TV

key to display the PC menu.

:

e brightness and contrast.

p :

:

.

Æ

Cool (bluer),

Description of Features

Format :

– Chooses between full screen or native format of the PC screen.

PIP (Picture-in Picture

) :

– Displays a PIP screen to watch TV programmes at the same time.

* Mode Selection : – When you connect PC or HD equipment supporting resolutions of 480p, 57

the Mode Selection in the Features menu

6p or 720p,

will be highlighted. This will allow you to select between the PC and HD mode. If it does not support the 480p, 576p or 720p resolutions, you cannot access this function.

Using the PIP feature

The PIP (Picture-in-Picture) feature allows you to call up a PIP screen of a TV programme while you

PC mode.

are in

IMPORTANT

To call up a PIP screen of the TV programme, following step must be taken :

HDMI-1 or HDMI-2 input MUST be connected to the DVI output of the PC equipment. Use a HDMI to DVI adaptor cable to do the connection.

The PIP menu items : PIP Size, Horizontal and Vertical works in exactly the same way as when calling a PIP screen in TV mode. Except for HDMI, there is no selection for other source.

PIP

Æ

PIP Size

Horizontal

Verti

cal

HDMI

Æ

HDMI

No Selection

Í

For description of PIP menu items and how it works, refer to the section on “Using the PIP

(Picture-in Picture) Feature” page 2

4.

NOTE For more details on connection to the PC equipment,

see CONNECTION

GUIDE.

the

30

Using the TV in HD (High Definition) Mode

HD Mode

The HD (High Definition) mode allows you to enjoy clearer and sharper pictures if you are using a HD equipment that can transmit high definition programming.

IMPORTANT

For the TV to function in HD mode, the following steps must be taken :

& HDMI 1 or HDMI 2 input MUST be

connected to the HDMI/DVI output of the equipm is connected.

to Connection Guide

é Press the

“

source

Source

TV

EXT1 EXT2 / SVHS2 AV / SVHS3 EXT 4 HDMI 1 HDMI 2 DIGITAL TV

ent

and

use the Î ï key

HDMI 2

.

Use

the Æ

/

.

. Use a HDMI to DVI adaptor if DVI

For more information, refer

.

key to

display Source List

to select

HDMI 1 or

OK

key to

switch to the selected

Æ

Source

TV EXT1 EXT2 / SVHS2 AV / SVHS3 EXT 4

HDMI 1

HDMI 2 DIGITAL TV

HD

Æ

Using the HD menus

TV

&

Press the

MENU

key to display the HD menu.

é Use the Î ï key to access the settings

and the

Í Æ key to select or adjust setting.

HD Features

Timer : Functions of the Sleeptimer and Timer

are the same as the TV Sleeptimer and Timer functions and work in exactly the same way as the TV Sleeptimer and Timer functions (see page

22).

PIP : Display a PIP screen to watch TV programmes at the same time items : PIP Size, Horizontal and Vertical work in exactly the same way as when calling a PIP screen in TV mode. For description of PIP menu items and how it works, refer to the section on “Using the PIP (Picture-in Picture) Feature” pag

* Horizontal Shift

position of the image

* Mode Selection

: Adjust the horizontal .

: When you connect PC or

HD equipment supporting resolutions of

576p or 720p, the Mode Selection in the Features menu will be highlighted. This will

allow you to select between the PC and HD mode. If it does not support the 480p, 576p or 720p resolutions,

you cannot access this

function.

Features

Æ

Timer

Contrast+

NR

Horizontal Shift

Mode Selection

PIP

Æ

. The PIP menu

e 24.

480p,

HD

HD Install menu

Note : You cannot access Install in the HD

menu There

is NO Install function in HD mode.

HD Picture and Sound settings

Functions of HD Picture and Sound settings are the same as the TV Picture and Sound settings and work in exactly the same way as the TV Picture and Sound settings (see page 23).

Your Philips TV is HDMI compliant. If you do not get a good picture, please change the video format on your device (DVD player, cable set-top box, etc.) to a standard format. For example, for DVD player, select 480p, 576p, 720p or 1080i. For PC, select 640 x 480, 800 x 600 or 1024 x

768. If the problem persists, please refer to your PC user manual on possible software upgrades to your graphics card.

Please note that this is not a defect of the TV set.

Supported HD format

480p 576p 720p 1080i

NOTE : HD equipment,

For more details on connection to the

see CONNECTION GUIDE.

31

Troubleshooting Tips

Below is a list of symptoms you may encounter with your TV. Before you call for service, make these simple checks.

Symptom Possible Causes What you should do

No display on screen • Faulty power supply • Check whether power cord is properly connected

• TV’s Power not turned into the mains socket and to your TV. If there is still on no power, disconnect plug. Wait for 60 seconds and re-insert plug. Switch on TV again.

•

Poor reception • Faulty antenna connection • Check antenna connection at rear of TV. (snowish picture and

• noise

No picture • Faulty aerial and cable • Check whether euroconnector cables or aerial

sockets are properly connected.

• Wrong source selected • Check whether the source is correctly selected. Press button to enter Source list and select

the correct source.

No sound on • Wrong TV system • Check whether the correct TV system is selected certain channels (refer to page 21).

No sound • Zero volume level • Try increasing volume.

• Sound muted • Check that the mute ( ) mode is not on. If mute mode is on, press the mode.

• Aim remote control directly at sensor on front of TV.

• Headphone is connected • Disconnect headphone connection (only for 26”/32”).

Sound interference • Electrical appliances • Try switching off any electrical appliances, for interference example, hairdryer, vacuum cleaner that are in use.

TV not responding • to remote control • Flat batteries • Try changing the batteries.

• Weak transmission • Try adjusting the direction of the antenna.

• Wrong TV system •

Wrong polarity of batteries •

Press the

Try manually adjusting your picture (refer to page 21). Have you chosen the right TV system? (refer to page

Check polarity of the batteries.

key on the remote control.

key to deactivate mute

21).

Occasional appearance of red, blue, green crystal panel panel is built with very high precision technology and black spots on giving you the fine picture details. Occasionally, a few screen non-active pixels may appear on the screen as a fixed

point of red, blue, green or black. Note that this does not affect the performance of the set.

Intermittent or • * HDCP (see glossary) • flickering picture on authentication failed (DVD player or Set-Top box) *HDCP authentication in HD mode failed. Check user manual for the digital equipment

you are connecting.

• Use a standard HDMI to DVI cable.

No sound or picture but front panel red light is on

Changing from one • Pay TV channels are • This is normal behaviour and no action is required. channel to

channel takes a long provider and takes a time longer time to decode.

another encoded by the cable

• Characteristic of liquid • This symptom is not a problem. The liquid crystal

Noise is displayed if the connected digital equipment’s

• Set on standby mode • Press the

key on the remote control.

32

Troubleshooting Tips

Symptom Possible Causes What you should do

Unable to understand • Wrong language selected the language on accidently screen to operate set

menu and the Æ Press the Æ fifth menu item. Press the Æ Use the Press the OK key confirm

Cannot access Install • AV EXTERNAL or HD • Press AV key and select TV mode. You can now menu mode is selected. access Install menu by the (analogue TV menu)

key.

PC modes do not • Wrong connections • Check whether connections are correct.

work (For more details on connection to the PC

equipment, see “Connection Guide”.

• Wrong source selected. • Check whether the source is correctly selected.

Press button to enter Source list and select the correct source.

• Wrong display resolution • Check whether you have configured the computer on a compatible display resolution (see “Using your TV

as PC Monitor” on page 29).

• Wrong setting of PC • Check graphic card setting of PC. graphic card

•

Press the key to exit menu from screen. Press the

Press the ï key

Press the

key again to display menu.

to

select the menu second item on the

key to enter into the next menu level.

key again and use the ï key

key enter into the next menu level.

Î ï

keys

to to

select correct language.

selection.

key to exit menu from screen

to select the

S-Video colour • Wrong detection of • Check whether power cord is properly connected becomes faint signal • Press the P +/– key on the remote control and do a

channel up followed by a channel down.

Black bar on top • PC refresh rate too high • Change PC refresh rate to 60 Hz. and bottom of screen in PC mode

Cannot access digital • Still in Analogue mode • Press the key to switch to Digital mode. menu

Some channels or no • Pay TV antenna not • Check connection of TV antenna to digital equipment. channels are found properly connected to after channel scanthe digital equipment

• Antenna wall socket • Check condition of antenna wall socket and replace may be damaged if antenna wall socket is damaged.

33

Glossary

DVI (Digital Visual Interface) : A digital interface

standard created by the Digital Display Working Group (DDWG) to convert analog signals into digital signals to accommodate both analog and digital monitors.

RGB signals : These are the three video signals, Red Green Blue, which make up the picture. Using these signals improves picture quality.

S-VHS signals : These are 2 separate Y/C video signals from the S-VHS and Hi-8 recording standards. The luminance signals Y (black and white) and chrominance signals C (colour) are recorded separately on the tape. This provides better picture quality than with standard video (VHS and 8 mm) where the Y/C signals are combined to provide only one video signal.

NICAM sound : Process by which digital sound can be transmitted.

16:9 : Refers to the ratio between the length and height of the screen. Wide screen televisions have a ratio of 16/9, conventional screen TV sets have a ratio of 4/3.

MHEG (Multimedia and Hypermedia information coding Expert Group) : provides standards for the coded representation of multimedia hypermedia information objects that are interchanged among applications and services using a variety of media. The objects deﬁne the structure of a multimedia hypermedia presentation.

HDMI (High-Deﬁnition Multimedia Interface) :

Provides an uncompressed, all digital audio/video interface between the TV and any HDMI-equipped audio/video component, such as set-top box, DVD player and A/V receiver. HDMI supports enhanced or high-deﬁnition video plus two-channel digital audio.

System : Television pictures are not broadcast in the same way in all countries. There are different standards: BG, DK, I, and LL’. The System setting (page 24) is used to select these different standards. This is not to be confused with PAL or SECAM colour coding. PAL is used in most countries in Europe, SECAM in France, Russia and most African countries. The United States and Japan use a different system called NTSC.

HDCP (High-bandwidth Digital-Content Protection): HDCP encrypts the transmission of digital content between the video source or transmitter such as a computer, DVD player or set-top box and the digital display or receiver such as a monitor, television or projector.

PCM (Pulse Code Modulation) is a common method of storing and transmitting uncompressed digital audio. Since it is a generic format, it can be read by most audio applications—similar to the way a plain text ﬁle

can be read by any word-processing program. PCM is used by Audio CDs and digital audio tapes (DATs).

AC3

(Audio Coding 3) also known as Dolby Digital is supported as optional audio standard by Digital Video Broadcast. Dolby Digtial signal adapts to the viewer’s playback system, delivering the best posible sound to all viewers regardless of their equipment.

MPEG (Moving Picture Experts Group) is the nickname given to a family of International Standards used for coding audio-visual information in a digital compressed format.

34

Centre Frequencies Table (in KHz)

Digital Frequency Nominal Centre Channel Frequency KHz

21 . . . . . . . . . . . . . . . . . . . . .474 000

22 . . . . . . . . . . . . . . . . . . . . .482 000

23 . . . . . . . . . . . . . . . . . . . . .490 000

24 . . . . . . . . . . . . . . . . . . . . .498 000

25 . . . . . . . . . . . . . . . . . . . . .506 000

26 . . . . . . . . . . . . . . . . . . . . .514 000

27 . . . . . . . . . . . . . . . . . . . . .522 000

28 . . . . . . . . . . . . . . . . . . . . .530 000

29 . . . . . . . . . . . . . . . . . . . . .538 000

30 . . . . . . . . . . . . . . . . . . . . .546 000

31 . . . . . . . . . . . . . . . . . . . . .554 000

32 . . . . . . . . . . . . . . . . . . . . .562 000

33 . . . . . . . . . . . . . . . . . . . . .570 000

34 . . . . . . . . . . . . . . . . . . . . .578 000

35 . . . . . . . . . . . . . . . . . . . . .586 000

36 . . . . . . . . . . . . . . . . . . . . .594 000

37 . . . . . . . . . . . . . . . . . . . . .602 000

38 . . . . . . . . . . . . . . . . . . . . .610 000

39 . . . . . . . . . . . . . . . . . . . . .618 000

40 . . . . . . . . . . . . . . . . . . . . .626 000

41 . . . . . . . . . . . . . . . . . . . . .634 000

42 . . . . . . . . . . . . . . . . . . . . .642 000

43 . . . . . . . . . . . . . . . . . . . . .650 000

44 . . . . . . . . . . . . . . . . . . . . .658 000

45 . . . . . . . . . . . . . . . . . . . . .666 000

Digital Frequency Nominal Centre Channel Frequency KHz

46 . . . . . . . . . . . . . . . . . . . . .674 000

47 . . . . . . . . . . . . . . . . . . . . .682 000

48 . . . . . . . . . . . . . . . . . . . . .690 000

49 . . . . . . . . . . . . . . . . . . . . .698 000

50 . . . . . . . . . . . . . . . . . . . . .706 000

51 . . . . . . . . . . . . . . . . . . . . .714 000

52 . . . . . . . . . . . . . . . . . . . . .722 000

53 . . . . . . . . . . . . . . . . . . . . .730 000

54 . . . . . . . . . . . . . . . . . . . . .738 000

55 . . . . . . . . . . . . . . . . . . . . .746 000

56 . . . . . . . . . . . . . . . . . . . . .754 000

57 . . . . . . . . . . . . . . . . . . . . .762 000

58 . . . . . . . . . . . . . . . . . . . . .770 000

59 . . . . . . . . . . . . . . . . . . . . .778 000

60 . . . . . . . . . . . . . . . . . . . . .786 000

61 . . . . . . . . . . . . . . . . . . . . .794 000

62 . . . . . . . . . . . . . . . . . . . . .802 000

63 . . . . . . . . . . . . . . . . . . . . .810 000

64 . . . . . . . . . . . . . . . . . . . . .818 000

65 . . . . . . . . . . . . . . . . . . . . .826 000

66 . . . . . . . . . . . . . . . . . . . . .834 000

67 . . . . . . . . . . . . . . . . . . . . .842 000

68 . . . . . . . . . . . . . . . . . . . . .850 000

69 . . . . . . . . . . . . . . . . . . . . .858 000

35

Specifications

Panel Screen Size

Audio output 2 x 5 W 2 x 15 W 2 x 15 W 2 x 15 W 2 x 15 W

em PAL, SECAM

TV Syst

Video playback NTSC, PAL, SECAM

Sound System Mono, Nicam Stereo, Virtual Dolby Surround

Connectivity

Rear Antenna In 75 Ω,

Component Video Input, SPDIF socket (37’’/42”/50” TV),

Common Interface slot (37’’/42”/50” TV)

Side Audio In, Video In, S-Video In, Headphone,

SPDIF socket (26”/32” TV), Common Interface slot (26’’/32” TV)

Power consumption

Standby power consumption < 1 W < 1 W < 2 W < 2 W > 2 W

660 mm (26”) 800 mm (32”) 940 mm (37”) 1070 mm (42”)

26PF7xxxx 32PF7xxxx 37PF7xxxx 42PF7xxxx 50PF7xxxx

1270 mm (50”)

Scart 1, Scart 2, HDMI 1, HDMI 2,

50 W 65 W 75 W 230 W 290 W

Set dimensions (with stand)

Width 697.5 mm 935 mm 1114 mm 1249 mm 1425 mm

Depth 246.8 mm 233 mm 306 mm 306 mm 325 mm

Height

Nett Weight (with stand) 13 kg 19.2 kg 25.9 kg 43 kg 57.3 kg

540.2 mm 558 mm 683 mm 748 mm 856 mm

S pecifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. 2005 © Koninklijke Philips Electronics N.V. All rights reserved

.

www.philips.com

3139 125 35764

PHILIPS 37PF7531D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
