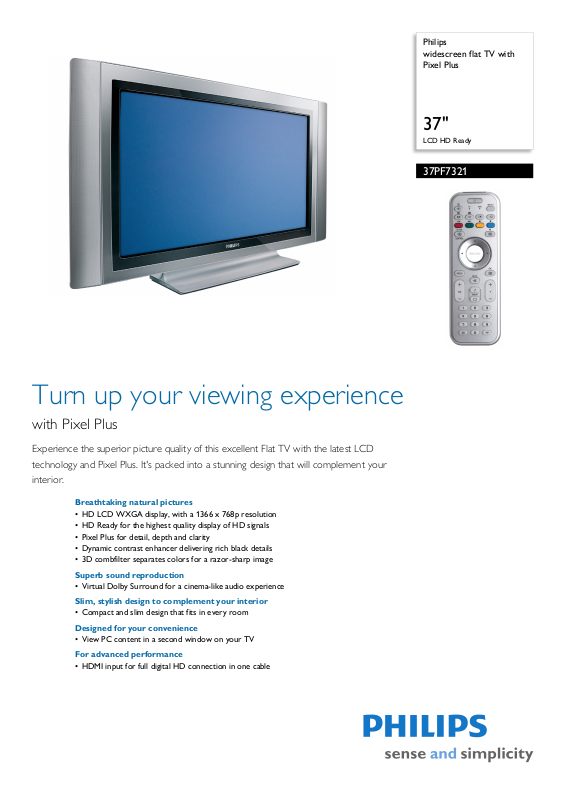

Philips
widescreen flat TV with
Pixel Plus
37"
LCD HD Ready
37PF7321
Turn up your viewing experience
with Pixel Plus
Experience the superior picture quality of this excellent Flat TV with the latest LCD
technology and Pixel Plus. It's packed into a stunning design that will complement your
interior.
Breathtaking natural pictures
• HD LCD WXGA display, with a 1366 x 768p resolution
• HD Ready for the highest quality display of HD signals
• Pixel Plus for detail, depth and clarity
• Dynamic contrast enhancer delivering rich black details
• 3D combfilter separates colors for a razor-sharp image
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Designed for your convenience
• View PC content in a second window on your TV
For advanced performance
• HDMI input for full digital HD connection in one cable
Widescreen flat TV with Pixel Plus
37" LCD HD Ready
Highlights
37PF7321/79
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD
s
creen technology gives you widescreen HD
resolution of 1366 x 768p pixels. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
HD Ready
Enjoy the exceptional picture quality of High
Definiti
on pictures and be fully prepared for
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
Pixel Plus
Pixel Plus is a digital picture processing
te
chnology that increases the number of lines
and the number of pixels. The result is razor
sharp pictures with incredible detail and depth,
every time from any source.
Dynamic contrast enhancer
You want the LCD flat display with the highest
contrast
viewing angle. The Philips dynamic contrast
enhancer uses video processing and unique
dimming backlight technology. This delivers
deep rich black levels with increased detail.
The dimming backlight increases the contrast
up to 5 times*, and at the same time improves
the viewing angle. It gives a bright, lifelike
picture with high contrast and vibrant colors,
(* factor between 2 and 5, screen type and
picture content dependant).
3D Combfilter
The 3D comb filter separates brightness and
c
cross-color, cross-luminance and dot-crawl
distortion - all of which detract from your
viewing pleasure. The 3D digital comb filter
performs field-by-field comparisons of the
television image to accurately separate the
color from the black-and-white information
and remove both horizontally and vertically
hanging dots, as well as dot crawl. The result is
a razor sharp image.
Virtual Dolby Surround
Virtual Dolby Surround is a processing
te
and most vibrant images even at wide
olor signals better in 3D domain to eliminate
chnology for enhancing surround sound
effects. It will create the sensation of Dolby
Pro Logic without the necessity of additional
rear speakers. You become totally immersed
in your television experience.
Compact and slim design
This design style emphasizes a slim, compact
l
ook that saves space and fits in anywhere.
Picture in Graphics
Picture-in-Graphics is a small window in the
m
ain picture, allowing to watch data/graphics
in your main TV screen. It provides the ability
to simultaneously watch data/graphics and the
TV.
HDMI input
HDMI makes an uncompressed digital RGB
c
onnection from the source to the screen. By
eliminating conversion to an analog signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.
Widescreen flat TV with Pixel Plus
37" LCD HD Ready
Specifications
37PF7321/79
Picture/Display
• Aspect ratio: 16:9
• Brightness: 500 cd/m²
• Diagonal screen size: 37 inch / 94 cm
• Display screen type: LCD WXGA Active Matrix
T
TF
• Picture enhancement: Progressive Scan, 3/2 - 2/2
tion pull down, 3D Combfilter, Contrast Plus,
mo
Digital Noise Reduction, Dynamic contrast, Jagged
Line Suppression, Active Control, Luminance
Transient Improver, Pixel Plus
• Screen enhancement: Anti-Reflection coated
reen
sc
• Viewing angle (H / V): 176 / 176 degree
• Panel resolution: 1366 x 768p
• Response time (typical): 8 ms
• Dynamic screen contrast: 2400:1
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60, 70, 75Hz
deo Formats
• Vi
Resolution Refresh rate
640 x 480p 2Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
Sound
• Sound System: Virtual Dolby Surround
• Output power (RMS): 2 x 15W
• Sound Enhancement: Dynamic Bass Enhancement
• Equalizer: 5-bands
Loudspeakers
• Built-in speakers: 4
• Loudspeaker types: Dome tweeter
• Ease of Use: Side Control, Smart Pictur
List, Smart Sound
• Remote control type: RCFE06FRS00
• Picture in Picture: Picture in graphics, Twin page
xt
te
• Remote Control: DVD, Multi-functional, TV
• Screen Format Adjustments: 4:3, Subtitle Zoom,
Super Zoom, Widescre
Movie expand 16:9
• Clock: Sleep Timer, Wake up Clock
• Child Protection: Child Lock
• Teletext enhancements: 4 favourite pages,
Program info
• VESA Mount: 800 x 400 mm
• Teletext: 10 page Smart Text
rmation Line
en, Movie expand 14:9,
e, Program
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL, SECAM
• Video Playback: NTSC, PAL, SECAM
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 100
•Tuner Display: PLL
Connectivity
• AV 1: Audio L/R in, YPbPr (2fh)
• AV 2: Audio L/R in, CVBS
• AV 3: VGA PC-in, Audio L/R in, YPbPr (2Fh)
•AV 4: HDMI
•Front / Side connections: Audio
Headphone out, S-video in
•AV 5: HDMI
• Number of AV connections: 5
• Other connections: Antenna IEC75
L/R in, CVBS in,
Power
• Power consumption: 110 W Normal Operation W
• Standby power consumption: < 1 W
• Mains power: AC 220 - 240 V +/- 10%
• Ambient temperature: 5 °C to 40 °C
•Set dimensions (W x H x D):
14 x 618 x 103 mm
11
• Color cabinet: Silver Frost Bi-Color with
mpered Glass Deco Front
Te
• Dimensions (with base) (W x H x D):
14 x 657
11
•Box dimensions (W x H x D):
91 x 830 x 330 mm
11
• VESA wall mount compatible: 0
x 306 mm
Accessories
• Included Accessories: Table top stand, Wall
mounting bracket, Power cord, Quick start guide,
Remote Control, User Manual, Warranty
certificate, Batteries for remote control
• Optional accessories: Floor stand
•
Convenience
• Ease of Installation: Autostore, Auto Program
Naming, Fine Tuning, Program Name, Sorting
Issue date 2009-03-30
Version: 8.0.11
12 NC: 8670 000 24122
EAN: 87 10895 97169 0
Dimensions
• Product weight: 25.9 kg
• Weight incl. Packaging: 33 kg
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
