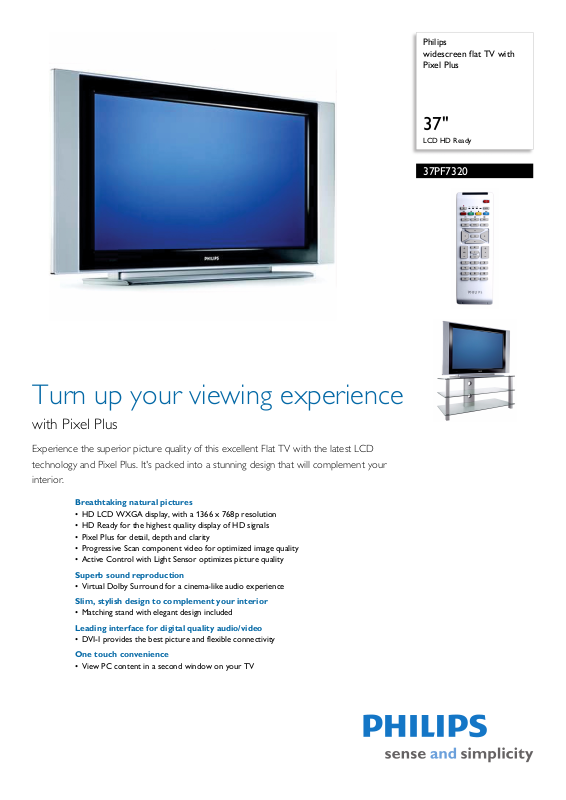

Philips
widescreen flat TV with
Pixel Plus
37"
LCD HD Ready
37PF7320
Turn up your viewing experience
with Pixel Plus
Experience the superior picture quality of this excellent Flat TV with the latest LCD
technology and Pixel Plus. It's packed into a stunning design that will complement your
interior.
Breathtaking natural pictures
• HD LCD WXGA display, with a 1366 x 768p resolution
• HD Ready for the highest quality display of HD signals
• Pixel Plus for detail, depth and clarity
• Progressive Scan component video for optimized image quality
• Active Control with Light Sensor optimizes picture quality
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
• Matching stand with elegant design included
Leading interface for digital quality audio/video
• DVI-I provides the best picture and flexible connectivity
One touch convenience
• View PC content in a second window on your TV
Widescreen flat TV with Pixel Plus
37" LCD HD Ready
Highlights
37PF7320/10
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD
s
creen technology gives you widescreen HD
resolution of 1366 x 768p pixels. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
HD Ready
Enjoy the exceptional picture quality of High
Definiti
on pictures and be fully prepared for
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
Pixel Plus
Pixel Plus is a digital picture processing
te
chnology that increases the number of lines
and the number of pixels. The result is razor
sharp pictures with incredible detail and depth,
every time from any source.
Progressive Scan
Progressive Scan doubles the vertical
resoluti
on of the image resulting in a noticeably
sharper picture. Instead of sending a field
comprising the odd lines to the screen first,
followed by the field with the even lines, both
fields are written at one time. A full image is
created instantaneously, using the maximum
resolution. At such a speed, your eye perceives
a sharper picture with no line structure.
Active Control + Light Sensor
Active Control is a unique and intelligent way
o
f optimizing picture quality by measuring and
analyzing the incoming signal to automatically
adjust picture quality settings. Active Control
with Light Sensor uses a sensor to adjust the
picture brightness depending on the room light
conditions.
Virtual Dolby Surround
Virtual Dolby Surround is a processing
te
chnology for enhancing surround sound
effects. It will create the sensation of Dolby
Pro Logic without the necessity of additional
rear speakers. You become totally immersed
in your television experience.
Bypacked tabletop stand
A table-top stand with matching design is
p
acked with the set.
DVI-I Input
A DVI-I input connects the non-compressed
h
igh-bandwidth digital RGB signal from source
to screen. By eliminating the conversion of the
digital signals to analog, it delivers an
unblemished and noisefree image, that is clear
and flickerfree. The DVI input supports HDCP
copy protection that allows viewing of copy
protected programs from Digital Settop boxes,
DVD players and HD recorders. DVI-I is
future proof as it can be be connected to all
HDMI devices (a converter cable is required).
The DVI-I input also supports analog PC-VGA
signals.
Picture in Graphics
Picture-in-Graphics is a small window in the
m
ain picture, allowing to watch data/graphics
in your main TV screen. It provides the ability
to simultaneously watch data/graphics and the
TV.
Widescreen flat TV with Pixel Plus
37" LCD HD Ready
Specifications
37PF7320/10
Picture/Display
• Aspect ratio: 16:9
• Brightness: 550 cd/m²
• Diagonal screen size: 37 inch / 94 cm
• Display screen type: LCD WXGA Active Matrix
T
TF
• Picture enhancement: Pixel
Active Control + Light sensor, 3/2 - 2/2 motion
pull down, Contrast Plus, Digital Noise Reduction,
Dynamic contrast, 3D Combfilter, Jagged Line
Suppression
• Screen enhancement: Anti-Reflection coated
reen
sc
• Panel resolution: 1366 x 768p
• Response time (typical): 8 ms
• Viewing angle: 176º (H) / 176º (V)
• Contrast ratio (typical): 800:1
Plus, Progressive Scan,
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60, 70, 75Hz
1280 x 1024 60Hz
deo Formats
• Vi
Resolution Refresh rate
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
Sound
• Sound Enhancement: Dynamic Bass Enhancement
• Sound System: Virtual Dolby Surround
• Output power (RMS): 2 x 15W
• Equalizer: 5-bands
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Autostore, Plug & Play, Auto
Program Naming, Automatic Channel Install(ACI),
Automatic Tuning System (ATS), Fine Tuning,
Program Name, Sorting
• Ease of Use: Side Control, Smart Picture, Smart
und, Auto Volume Leveller (AVL), Program List
So
• Remote control type: RCFE05SPS00
• Teletext: Smart Text
• Picture in Picture: Picture in graphics, Twin page
xt
te
• Remote Control: Amp, DVD, Multi-functional, TV
• Screen Format Adjustments: Auto Format, 4:3,
e Zoom, Super Zoom, Widescreen, Zoom
Subtitl
14:9, Zoom 16:9, Subtitle and Heading Shift
• Clock: Sleep Timer
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL, SECAM
• Video Playback: NTSC, PAL, SECAM
• Aerial Input: 75 ohm coaxial (IEC75)
•Tuner Display: PLL
• Number of Preset Channels: 100
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, S-video in
• AV 3: DVI-I with HDCP, Audio-in mini jack 3.5mm
•Front / Side connections: Audio
Headphone out, S-video in
L/R in, CVBS in,
Power
• Power consumption: 185 W
• Standby power consumption: < 2 W
• Mains power: AC 220 - 240 V +/- 10%
• Ambient temperature: 5 °C to 40 °C
Dimensions
• Product weight: 24 kg
• Weight incl. Packaging: 32 kg
• Set dimensions (W x H x D): 1105 x 610 x 97 mm
• Color cabinet: Bicolour High Gloss Black and Silver
ost
Fr
• VESA wall mount compatible: 800 x 400 mm
• Stand dimensions (W x H x D):
0 x 40 x 240 mm
82
Accessories
• Included Accessories: Table top stand, Power
cord, Quick start guide, Registration card, Remote
Control, RF antenna cable, User Manual, Warranty
certificate, DVI-I to YPbPr cable
• Optional accessories: Floor stand
•
Issue date 2009-03-30
Version: 28.0.30
12 NC: 8670 000 21621
EAN: 87 10895 88587 4
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
