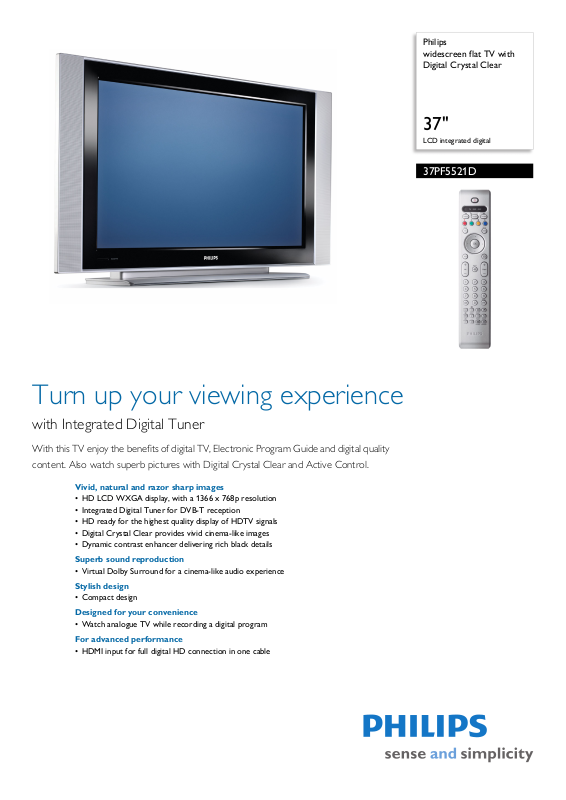

Philips
widescreen flat TV with
Digital Crystal Clear
37"
LCD integrated digital
37PF5521D
Turn up your viewing experience
with Integrated Digital Tuner
With this TV enjoy the benefits of digital TV, Electronic Program Guide and digital quality
content. Also watch superb pictures with Digital Crystal Clear and Active Control.
Vivid, natural and razor sharp images
• HD LCD WXGA display, with a 1366 x 768p resolution
• Integrated Digital Tuner for DVB-T reception
• HD ready for the highest quality display of HDTV signals
• Digital Crystal Clear provides vivid cinema-like images
• Dynamic contrast enhancer delivering rich black details
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Stylish design
•Compact design
Designed for your convenience
• Watch analogue TV while recording a digital program
For advanced performance
• HDMI input for full digital HD connection in one cable
Widescreen flat TV with Digital Crystal Clear
37" LCD integrated digital
Highlights
37PF5521D/10
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD
s
creen technology gives you widescreen HD
resolution of 1366 x 768p pixels. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colours.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
Integrated Digital DVB-T tuner
The integrated DVB-T tuner lets you receive
Digital T
means you do not need an additional set top
box and also the additional cables.
HD Ready
Enjoy the exceptional picture quality of a true
High Definition TV signal and be fully prepared
for HD sources like HDTV broadcast, Blu-ray
DVD or HD-DVD. HD ready is a protected
errestrial TV to watch or record. This
label that offers picture quality beyond that of
progressive scan. It conforms to strict
standards laid out by EICTA to offer a HD
screen that displays the benefits of resolution
and picture quality of a High Definition TV
signal. It has a universal connection for both
analogue YPbPr and uncompressed Digital
connection of DVI or HDMI, supporting
HDCP. It can display 720p, and 1080i signals at
50 and 60Hz.
Digital Crystal Clear
Digital Crystal Clear is a package of picture
i
nnovations that digitally adjusts and optimises
picture quality to optimal contrast, colour and
sharpness levels. It's like watching vivid cinemalike images.
Dynamic contrast enhancer
You want the LCD flat display with the highest
contrast
viewing angles. The Philips dynamic contrast
enhancer uses video processing and unique
dimming backlight technology. This delivers
deep rich black levels with increased detail.
The dimming backlight increases the contrast
up to 5 times*, and at the same time improves
the viewing angle. It gives a bright, lifelike
picture with high contrast and vibrant colours,
and most vibrant images even at wide
(* factor between 2 and 5, screen type and
picture content dependant).
Virtual Dolby Surround
Virtual Dolby Surround is a processing
t
echnology for enhancing surround sound
effects. It will create the sensation of Dolby
Pro Logic without the necessity of additional
rear speakers. You become totally immersed
in your television experience.
Watch analogue, record digital
Watch analogue TV while recording a digital
pr
ogram
HDMI input
HDMI makes an uncompressed digital RGB
c
onnection from the source to the screen. By
eliminating conversion to an analogue signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.
Widescreen flat TV with Digital Crystal Clear
37" LCD integrated digital
Specifications
37PF5521D/10
Picture/Display
• Aspect ratio: 16:9
• Brightness: 500 cd/m²
• Contrast ratio (typical): 800:1
• Dynamic screen contrast: 1600:1
• Response time (typical): 8 ms
• Viewing angle: 176º (H) / 176º (V)
• Diagonal screen size: 37 inch / 94 cm
• Display screen type: LCD WXGA Active Matrix
T
TF
• Panel resolution: 1366 x 768p
• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfilter, Active Control, Colour
3D Co
Temperature Adjustment, Contrast Plus, Digital
Crystal Clear, Digital Noise Reduction, Jagged Line
Suppression, Progressive Scan, Pulse Killer Chip,
Sharpness Adjustment
• Screen enhancement: Anti-Reflection coated
reen
sc
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
720 x 400 70Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60, 70, 75Hz
deo Formats
• Vi
Resolution Refresh rate
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
Sound
• Equalizer: 5-bands
• Output power (RMS): 2 x 15W
• Sound Enhancement: Dynamic Bass Enhancement
• Sound System: Stereo, Virtual Dolby Surround
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL, SECAM
• DVB: DVB Terrestrial *
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• Number of Preset Channels: 100
•Tuner Display: PLL
• Video Playback: NTSC, PAL, SECAM
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, RGB out, Sdeo in
vi
•Number of Scarts: 2
• Ext 4: YPbPr
• Ext 5: HDMI
• Ext 6: HDMI
•Front / Side connections: Audio
Headphone out, S-video in
• Other connections: Antenna IEC75, S/PDIF out
oaxial), Common Interface
(c
L/R in, CVBS in,
Convenience
• Clock: Sleep Timer, Wake up Clock
• Ease of Installation: Auto Program Naming,
matic Channel Install(ACI), Automatic Tuning
Auto
System (ATS), Autostore, Fine Tuning, Plug & Play,
Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL), Easy
toggle Dig/Analogu
Control, Smart Picture Control, Smart Sound
Control, Watch analogue/record digital
• Picture in Picture: Picture in graphics
• Remote Control: TV, Aux, DVD
• Remote control type: RC4343/01
• Screen Format Adjustments: 4:3, Movie expand
9, Movie expand 16:9, Subtitle Zoom, Super
14:
Zoom, Widescreen
• Teletext: 500 page Smart Text
• Teletext enhancements: Program information Line,
favourite pages
4
e modes, Program List, Side
cord, Quick start guide, User Manual, Registration
card, Warrant
Batteries for remote control
• Optional accessories: Floor stand
y certificate, Remote Control,
Dimensions
•Set dimensions (W x H x D):
1100 x 609 x 120.5 mm
• Dimensions (with base) (W x H x D):
4 x 657 x 240 mm
96
• Dimensions (without base) (H x D):
9 x 120.5
60
• Weight incl. Packaging: 31.5 kg
• Product weight: 25.1 kg
•Box dimensions (W x H x D):
91 x 821 x 330 mm
11
• Colour cabinet: Bicolour Gloss Black and Silver
ost
Fr
• VESA wall mount compatible: 800 x 400 mm
mm
Power
• Ambient temperature: 5 °C to 40 °C
• Mains power: AC 220 - 240 V +/- 10%
• Power consumption: 150-205 W
• Power supply: AC 90-240
• Standby power consumption: < 2 W
•
Loudspeakers
• Built-in speakers: 2
Issue date 2009-07-31
Version: 6.0.15
12 NC: 8670 000 23238
EAN: 87 10895 94522 6
Accessories
• Included Accessories: Table top stand, Power
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
