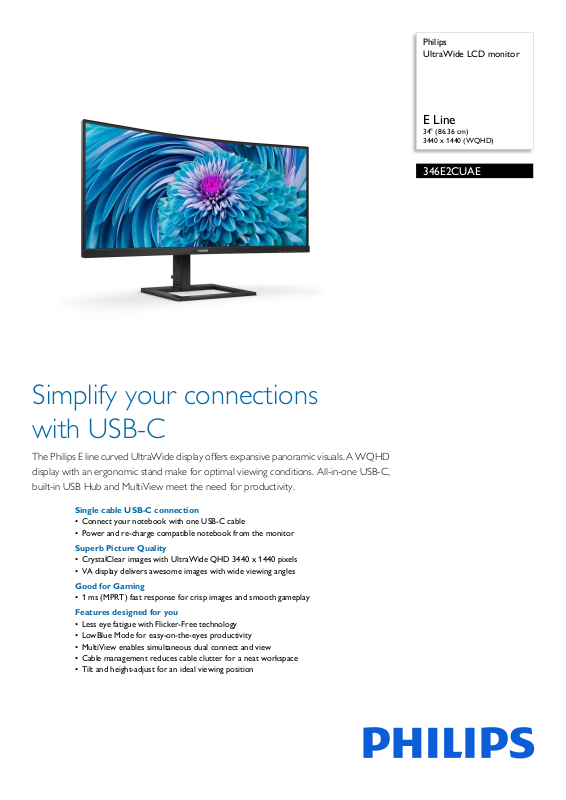

Philips
UltraWide LCD monitor
E Line
34" (86.36 cm)
3440 x 1440 (WQHD)
346E2CUAE
Simplify your connections
with USB-C
The Philips E line curved UltraWide display offers expansive panoramic visuals. A WQHD
display with an ergonomic stand make for optimal viewing conditions. All-in-one USB-C,
built-in USB Hub and MultiView meet the need for productivity.
Single cable USB-C connection
• Connect your notebook with one USB-C cable
• Power and re-charge compatible notebook from the monitor
Superb Picture Quality
• CrystalClear images with UltraWide QHD 3440 x 1440 pixels
• VA display delivers awesome images with wide viewing angles
Good for Gaming
• 1 ms (MPRT) fast response for crisp images and smooth gameplay
Features designed for you
• Less eye fatigue with Flicker-Free technology
• LowBlue Mode for easy-on-the-eyes productivity
• MultiView enables simultaneous dual connect and view
• Cable management reduces cable clutter for a neat workspace
• Tilt and height-adjust for an ideal viewing position
346E2CUAE/00
UltraWide LCD monitor
E Line 34" (86.36 cm), 3440 x 1440 (WQHD)
Highlights
USB-C connection
This Philips display features a USB type-C
connector with power delivery. With
intelligent and flexible power management, you
can power charge your compatible device
directly. Its slim, reversible USB-C allows for
easy, one-cable connection. You can watch
high-resolution video while powering up and
recharging your compatible device at the same
time.
Power and re-charge notebook
This monitor features a built-in USB-C
co
nnector that meets USB Power Delivery
standard. With intelligent and flexible power
management, you can now power up and/or
re-charge your compatible* Notebook directly
from the Monitor using a single USB-C cable.
VA display
management technology gives you a 178/178
degree extra-wide viewing angle, resulting in
crisp images.
UltraWide CrystalClear images
These Philips screens deliver Crystal Clear,
UltraWide Quad HD 3440 x 1440 pixel
images. Utilising high-performance panels with
high-density pixel count and 178/178 wide
viewing angles, these new displays will make
your images and graphics come alive. The
UltraWide 21:9 format enables more
productivity with more room for side-by-side
comparisons and more viewable spreadsheet
columns. Whether you are a demanding
professional requiring extremely detailed
information for CAD-CAM solutions or a
financial wizard working on huge spreadsheets,
Philips displays deliver Crystal Clear images.
1 ms MPRT fast response
to enhance your gaming experience. The best
choice for playing thrilling and twitch-sensitive
games.
Flicker-Free technology
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-Free technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
LowBlue Mode
The Philips VA LED display uses an advanced
multi-domain vertical alignment technology
that gives you super-high static contrast ratios
for extra-vivid and bright images. While
standard office applications are handled with
ease, it is especially suitable for photos, web
browsing, films, gaming and demanding
graphical applications. Its optimised pixel
MPRT (motion picture response time) is a
more intuitive way to describe response time,
which directly refers to the duration between
seeing blurry noise and clean, crisp images. The
Philips gaming monitor with 1 ms MPRT
e
ffectively eliminates smearing and motion blur
and delivers sharper and more precise visuals
Studies have shown that just as ultra-violet rays
can cause eye damage, shortwave-length blue
light rays from LED displays can cause eye
damage and affect vision over time. Developed
for wellbeing, the Philips LowBlue Mode
setting uses a smart software technology to
reduce harmful shortwave blue light.
MultiView technology
With the ultra-high resolution Philips
Mu
ltiView display, you can now experience a
world of connectivity. MultiView enables active
dual connect and view so that you can work
with multiple devices like a PC and notebook
simultaneously, for complex multitasking.
346E2CUAE/00
UltraWide LCD monitor
E Line 34" (86.36 cm), 3440 x 1440 (WQHD)
Specifications
Picture/Display
• LCD panel type: VA LCD
• Backlight type: W-LED system
•Panel Size: 34 inch / 86.36 cm
• Display Screen Coating: Anti-Glare, 3H, Haze 25%
• Effective viewing area: 797.22 (H) x 333.72 (V) mm
500R curvature*
- at a 1
• Aspect ratio: 21:9
• Maximum resolution: 3440 x 1440 @ 100 Hz*
• Pixel Density: 110 PPI
• Response time (typical): 4 ms (Grey to Grey)*
•MPRT: 1 ms
• Brightness: 300 cd/m²
• Contrast ratio (typical): 3000:1
• SmartContrast: Mega Infinity DCR
• Pixel pitch: 0.23175 x 0.23175 mm
• Viewing angle: 178º (H)/178º (V),
• Flicker-free
• Picture enhancement: SmartImage game
• Colour gamut (typical): NTSC
121.3%*
• Display colours: 16.7 M
• Scanning Frequency: 30 - 160 kHz (H) / 48 - 120 Hz
(V)
•LowBlue Mode
•EasyRead
•sRGB
• Adaptive sync
@ C/R > 10
99.5%*, sRGB
Connectivity
• Signal Input: DisplayPort x 1, HDMI x 1, USB-C x 1
• Sync Input: Separate Sync
• Audio (In/Out): Audio out
USB
•USB Ports: USB-C x 1 (DisplayPort Alt mode),
USB-B x 1 (upstream), USB-A: USB 3.2 x 4
(downstream with 1 fast charger B.C. 1.2, USB 3.2
Gen 1, 5 Gbps)
• Power delivery: USB-C: USB PD version 3.0 up to
65 W (5 V/3 A, 7 V/3 A, 9 V/3 A, 10 V/3 A, 12 V/
3 A, 15 V/3 A, 20 V/3.25 A); USB-A (side): x 1 fast
arge B.C 1.2 up to 7.5 W (5 V/1.5 A)
ch
Convenience
• Built-in Speakers: 5 W x 2
• MultiView: PIP/PBP mode, 2 x devices
•User convenience: Power On
Input, SmartImage Game
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukrainian
• Other convenience: Kensington lock, VESA mount
/Off, Menu, Volume,
(100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, Mac OS X,
RGB, Windows 10 / 8.1 / 8 / 7
s
Stand
• Height adjustment: 100 mm
• Tilt: -5/20 degree
Power
• On mode: 31.81 W (typ.) (EnergyStar test
method)
• Standby mode: 0.5 W (typ.)
• Off mode: 0.3 W (typ.)
• Energy Label Class: A
• Power LED indicator: Operation - White, Standby
mode - White (f
• Power supply: Internal, 100–240 VAC, 50–60 Hz
lashing)
Dimensions
• Product with stand (max height): 807 x 495 x
257 mm
• Product without stand (mm): 807 x 367 x 110
• Packaging in mm (W x H x D): 980 x 500 x 224 mm
mm
Weight
• Product with stand (kg): 10.05 kg
• Product without stand (kg): 7.83 kg
• Product with packaging (kg): 13.06 kg
Operating conditions
• Temperature range (operation): 0 to 40 °C
• Temperature range (storage): -20 to 60 °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000 ft (3658 m), Non-
eration: +40,000 ft (12,192 m)
op
• MTBF: 50,000 hrs (excluding backlight) hour(s)
Sustainability
• Environmental and energy: EnergyStar 8.0, TCO
Certified, RoHS, Lead-free, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: EPA, cETLus, CB, TUV/GS,
TUV Ergo, CU-EAC, EAEU RoHS, CE Mark, FCC
Class B, ICES-003, UKRAINIAN
Cabinet
• Colour: Black
• Finish: Textured
What's in the box?
• Monitor with stand
• Cables: USB-C to USB-C cable, Power cable
•User Documentation
•
Issue date 2020-11-06
Version: 2.0.1
12 NC: 8670 001 70033
EAN: 87 12581 77066 2
© 2020 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Response time value equal to SmartResponse
* The maximum resolution works for either HDMI, DP or USB-C
input.
* NTSC Area based on CIE 1976
* sRGB Area based on CIE 1931
* For USB-C power and charging function, your Notebook/device
must support USB-C standard Power Delivery specifications. Please
check with your Notebook user manual or manufacturer for more
details.
* For Video transmission via USB-C, your Notebook/device must
support USB-C DP Alt mode
* The monitor may look different from feature images.
