Colour television

Operating Instructions

29PT354329PT3543

29PT3543

34PT354334PT3543

34PT3543

1-4_29_34PT3543/E 09/12/03, 10:36 AM1

Page 2

TABLE OF CONTENTS

Introduction

Safety Information/Useful Tips .................................................................................................. 3

Before Calling Service ................................................................................................................. 4

Basic Installation/Functions

Hooking Up Your TV (Basic Connection) ............................................................................... 5

Use/Care of remote Control .................................................................................................... 5

Connecting the Audio/Video Sockets (Playback) .................................................................. 6

Connecting the Audio/Video Sockets (Recording) ............................................................... 8

Functions of Remote Control ................................................................................................... 9

Functions of TV Controls ...........................................................................................................11

TV Installation

Selecting the Menu Language...................................................................................................... 12

Automatic Tuning of Channels .................................................................................................. 13

Manual Tuning of Channels ......................................................................................................... 14

Selecting the Colour/Sound System ........................................................................................ 16

Fine Tuning Of Channels ............................................................................................................. 17

Editing of Channels........................................................................................................................18

Features

Adjusting the TV Picture ............................................................................................................. 19

Adjusting the TV Sound ............................................................................................................... 20

Using the Screen Format ............................................................................................................ 21

Activating the Signal Strength .................................................................................................... 22

Smart Picture Control .................................................................................................................23

Smart Sound Control....................................................................................................................24

Personal Zapping ...........................................................................................................................25

General

Specifications...................................................................................................................................26

Recycling Directive – To minimise harm to the environment, the batteries supplied

with the TV set do not contain mercury or nickel cadmium. If possible, when disposing of batteries, use recycling means available to you. Your TV set uses materials which are reusable or which can be recycled. To minimise the amount of waste in the environment, specialist companies recover used sets for dismantling and collection of reusable materials (contact your dealer).

1-4_29_34PT3543/E 09/12/03, 10:36 AM2

Page 3

SAFETY INFORMATION AND USEFUL T IPS

Safety Information

• Disconnect mains plug when :

– the red light below the TV screen is flashing continuously. –a bright white line is displayed across the screen. – cleaning the TV screen. Never use abrasive cleaning agents. Use a slight damp chamois

leather or soft cloth. – there is a lightning storm. – the set is left unattended for a prolonged period of time.

• No naked flame sources, such as lighted candles, should be placed on top of the TV or

in the vicinity.

• Do not place your TV set under direct sunlight or heat.

• Leave at least 5 cm around each side of TV set to allow for proper ventilation.

• Avoid placing your set (e.g. near the window) where it is likely to be exposed to rain

or water.

• No objects filled with liquids should be placed on top the TV so as to avoid dripping

or splashing of liquids on the set.

Useful Tips

• Do not leave your set on standby mode for a prolonged period of time. Switch off set

to allow it to be demagnetised. A demagnetised set supports good picture quality.

• Do not shift or move the set around when it is switched on. Uneveness in colour in

some parts of the screen may occur.

•Never attempt to repair a defective TV yourself. Always consult a skilled service

personnel.

1-4/E 01/15/03, 4:59 PM3

Page 4

BEFORE CALLING SERVICE

Below is a list of frequently occurred symptoms. Before you call for service, make these simple checks. Some of these symptoms can easily be rectified if you know what to do.

Symptom What you should do

Colour patch • Switch off the TV by the mains power button. Wait for 20 (uneveness) minutes before switching on again.

• Check the TV is not placed too near speakers or magnetic objects.

No power • Check the TV’s AC power cord is plugged into the mains

socket. If there is still no power, disconnect plug. Wait for 60 seconds and re-insert plug. Switch on the TV again.

No picture • Check the antenna connection at the rear of the TV.

•Possible TV station problem. Try another channel.

Good picture • Try increasing the volume. but no sound • Check that the sound is not muted. If it is muted, press the

Mute button on the remote control to restore sound.

Good sound but poor • Try increasing the contrast and brightness setting. colour or no picture

Snowish picture and • Check antenna connection at the rear of the TV. noise

Horizontal dotted lines • Possible electrical interference e.g. hairdryer, vacuum

cleaner, etc. Switch off appliances.

Double images or • Possible poor positioning of antenna. Using a highly “Ghost” images directional antenna may improve reception.

TV not responding to • Check life span of batteries of remote control handset. remote control handset • Aim remote control handset directly at remote control

sensor lens on the TV.

1-4/E 01/15/03, 4:59 PM4

Page 5

HOOKING UP Y OUR TV (BASIC CONNECTION)

Antenna Connection

• Connect the aerial plug to the antenna socket

on the backcover.

• Insert the mains plug into the wall socket.

Mains Connection

•For correct mains voltage, refer to type sticker at the rear of the TV set

• Consult your dealer if mains supply is different. Note : This diagram is not representative of the actual plug and socket.

Switching on the Set

•Press the main power button to switch on/ off the TV.

• If the set is on standby (indicator is red), press the Power button on the remote control to switch on set.

¬¬

USE/CARE OF REMOTE CONTROL

5-11_29_34PT3543/E 09/12/03, 10:41 AM5

• Insert the correct type of batteries into the compartment.

• Ensure the batteries are placed in the right direction.

Page 6

CONNECTING THE AUDIO/VIDEO SOCKETS (PLAYBACK)

out

VIDEO

ANTENNA

AUDIO

OUT

VIDEO

AUDIO RL

S-VIDEO

Back of a VCR

You can view the playback of VCR tapes (Video Disc players, camcorders, etc .) by using the AUDIO and VIDEO INPUT sockets on the rear of the TV.

– Connect the VIDEO and AUDIO IN sockets on the rear of the TV to the AUDIO and

VIDEO OUT sockets on the VCR.

out

VIDEO

AUDIO

S-VIDEO

AV sockets on the rear of TV

VCR (equipped with Video and Audio output sockets)

AV sockets on the rear of TV

OUT

AUDIO RL

OUT

ANTENNA

VIDEO

S-VIDEO

S-VHS VCR

Back of a S-VHS VCR

The S-Video connection on the rear of the TV is used for the playback of S-VHS VCR tapes, Video Discs, Video Games or Compact Disc-Interactive (cd-i) discs. Better picture detail and clarity is possible with the S-Video playback as compared to the picture from a normal antenna (RF) connection.

– Connect the S-VIDEO socket on the rear of the TV to the S-VHS OUT socket on a

S-VHS VCR.

5-10_29_34PT3543/E 09/18/03, 5:46 PM6

Page 7

CONNECTING THE AUDIO/VIDEO SOCKETS (RECORDING)

Connection for recording from the TV channel

out

VIDEO

AUDIO

OUT

ANTENNA

S-VIDEO

OUT

VIDEO

AUDIO RL

– Connect the corresponding INPUT sockets of the VCR to the out sockets on the rear of

the TV.

–To enhance the sound of your TV, connect the AUDIO L and R sockets to an external audio

system instead of the VCR. For mono equipment, connect only the AUDIO L socket.

AV sockets on the rear of TV

VCR (equipped with Video and Audio input sockets)

5-10_29_34PT3543/E 09/18/03, 5:46 PM7

Page 8

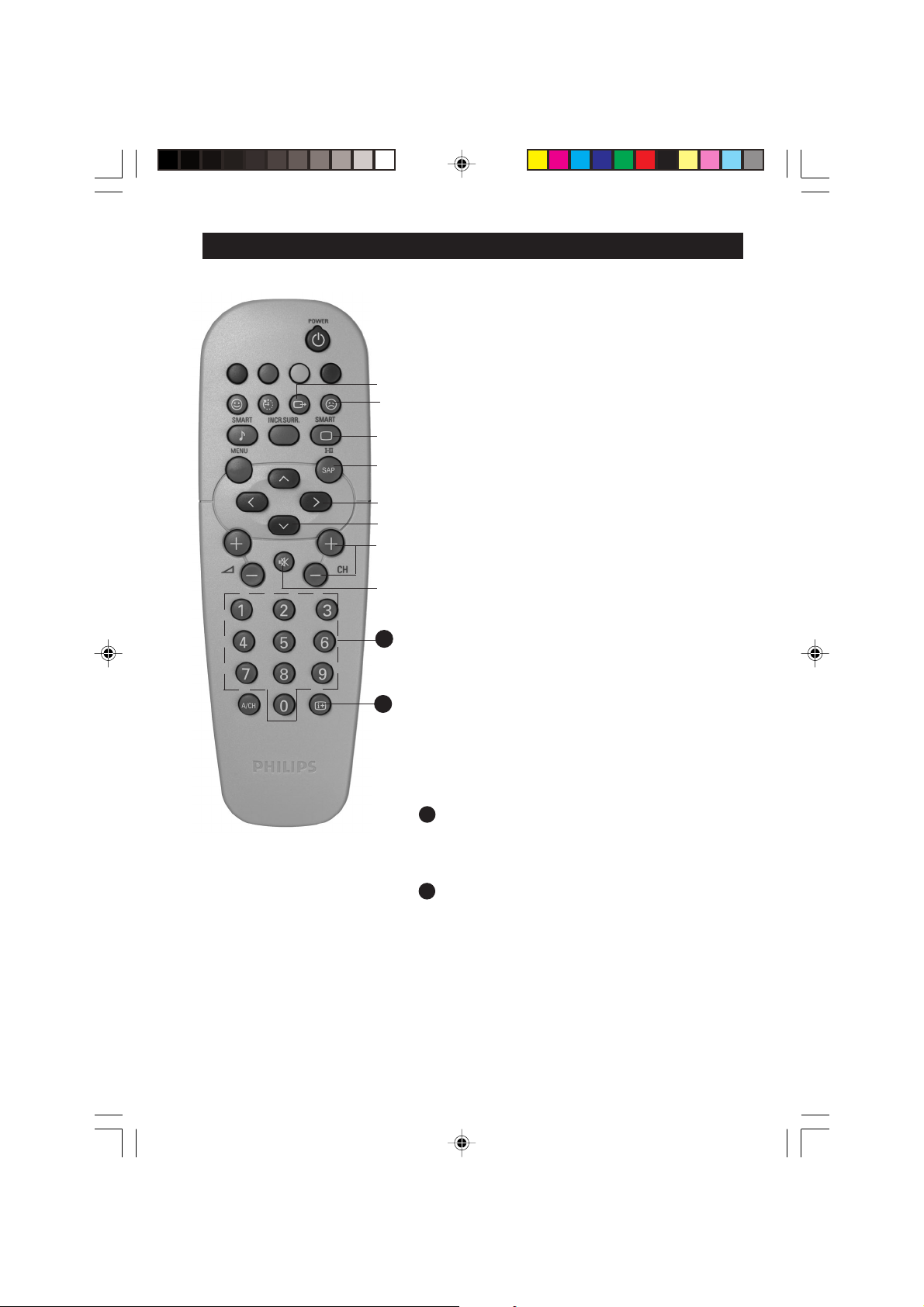

FUNCTIONS OF REMOTE CONTROL

& Power button

– Switch set off temporarily to standby mode.

(The red light indicator lights up when the set is on standby mode).

–To switch on set from standby mode, press

Channel +/– , Digit (0 -9) or Power button.

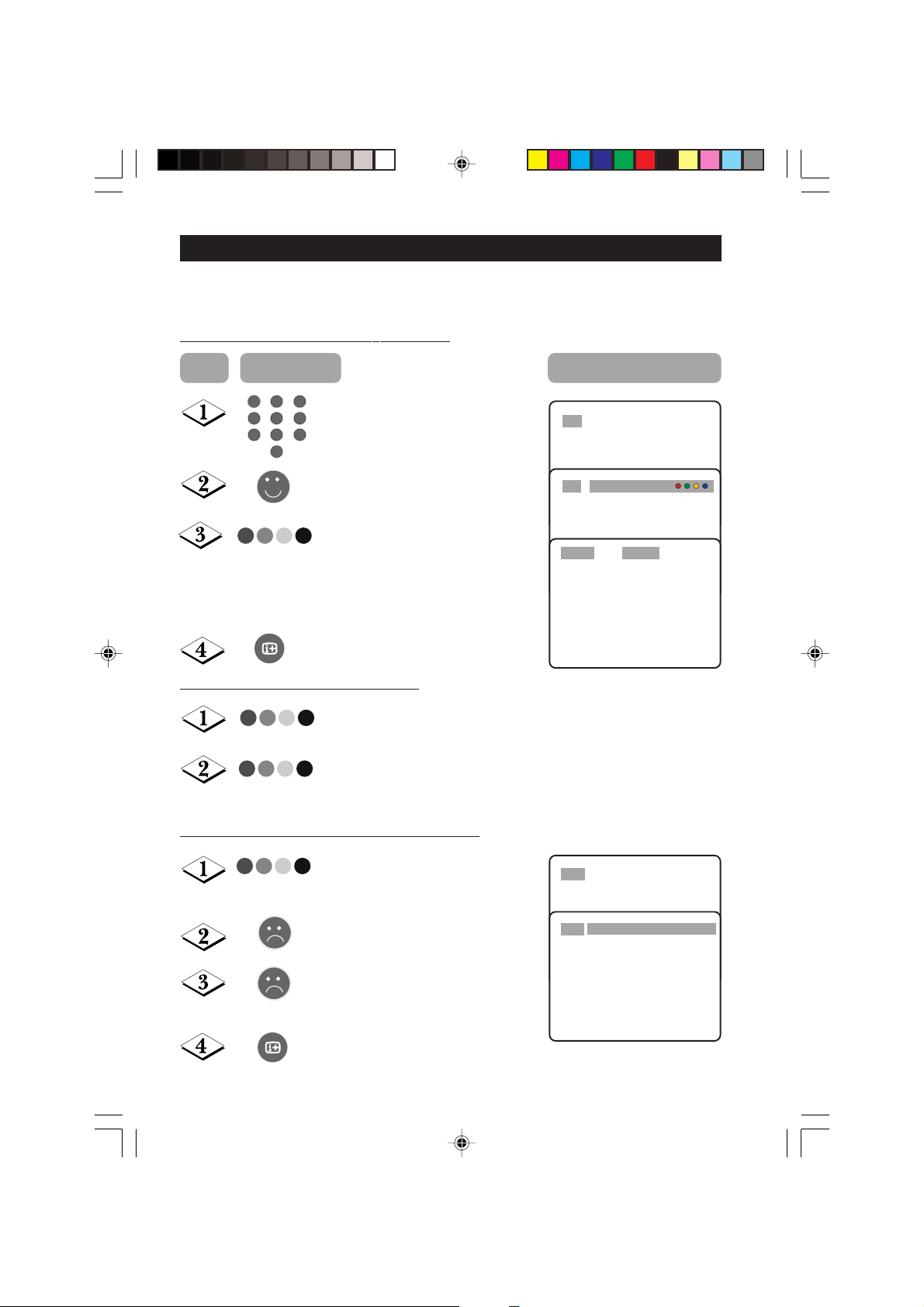

é Personal Zapping buttons

As Personal Zapping buttons, you can surf up to 10 personal channels for each button. For detailed description of functions, refer to section on “Personal Zapping ”.

“ Smiley button

Allows to add and store your personal preference channels in your Personal Preference list. For detailed description of functions, refer to section on “Using your Personal Zapping feature”.

‘ Sleeptimer Button

Allows you to select a time period after which the set will switch to standby mode automatically.

( Smart Sound Button

Press the Smart Sound button repeatedly to access 4 different types of sound settings and choose your desired setting.

é “

‘ (

§ è !

§ Incredible Surround Button

Not applicable.

è Menu Button

Displays the main menu. Also exits menu from screen.

! Cursor Up Button

Allows you to select the next item on the menu.

ç Cursor Left Button

Allows you to select the sub-menus and adjust the settings.

0 Volume + / – Button

Increases or decreases volume.

1 A/CH(Alternate channel) Button

Allows you to change between the current channel and the previous channel.

5-10_29_34PT3543/E 09/18/03, 5:46 PM8

Page 9

FUNCTIONS OF REMOTE CONTROL

2 A/V Button

Allows you to select the AV channels.

3 Frownie button

Allows to delete stored personal preference

2 3

channels in your Personal Preference list. For detailed description of functions, refer to section on “Personal Zapping ”.

6 7

4 Smart Picture Button

Press the Smart Picture button repeatedly to access 5 different types of picture settings and choose your desired setting.

Allows you to switch from Stereo to Mono sound during stereo transmission or to choose between language5or language6during dual sound transmission.

61Cursor Right Button

Allows you to access the sub-menus and adjust the settings.

7 Cursor Down Button

Allows you to select the next item on the menu.

8 Channel + / – Buttons

Allows you to select channels in ascending or descending order.

9 Mute Button

Mutes sound. To restore sound, press button again.

20 Digit (0 -9) Buttons

Press to select a channel. For a 2-digit channel number, press the first digit and followed immediately by the second digit.

5-10_29_34PT3543/E 09/18/03, 5:46 PM9

21 OSD button

Allows you to display the current channel number. It also allows to exit menu from the screen after control adjustments.

Page 10

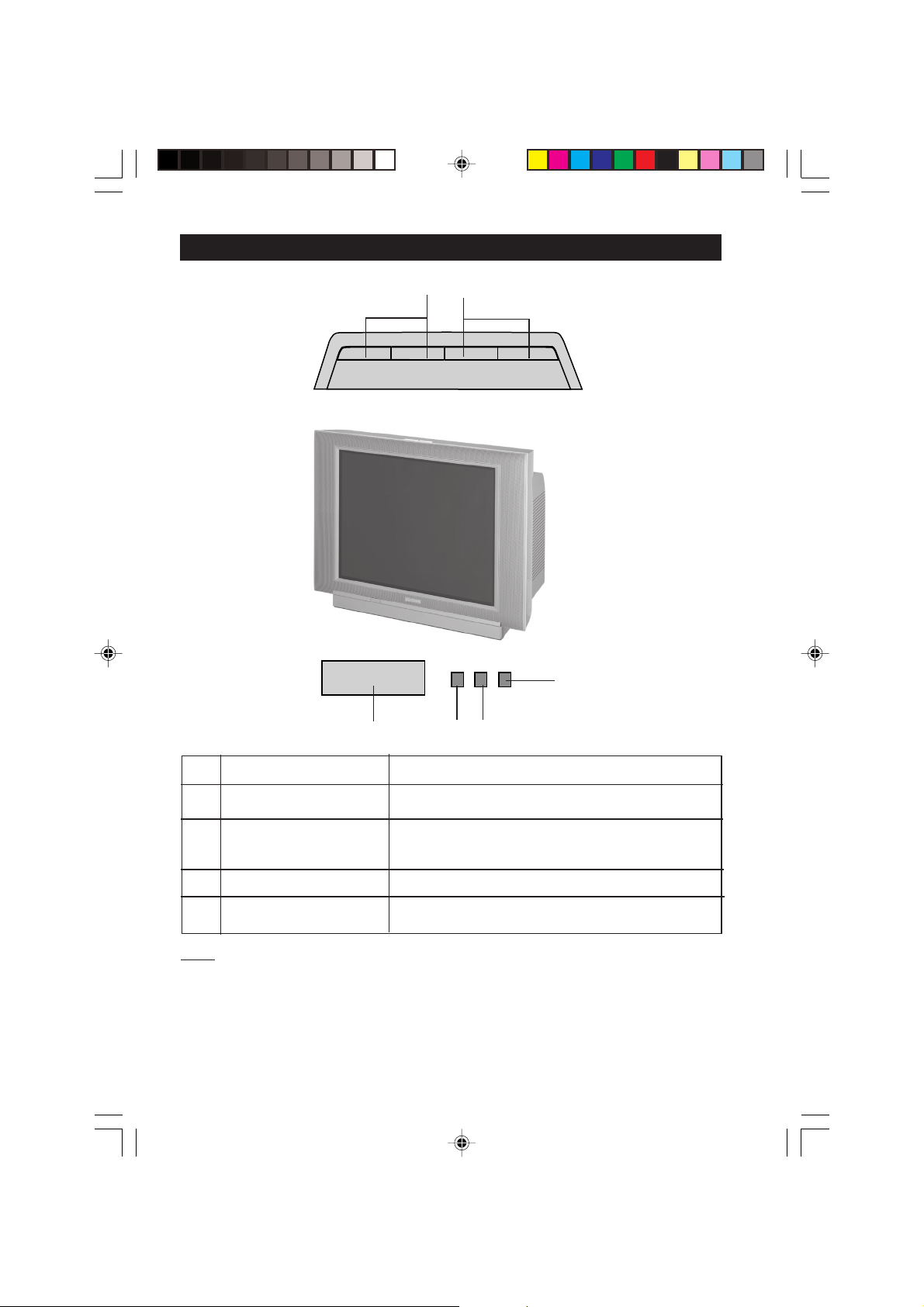

FUNCTIONS OF TV CONTROLS

‘

(

VOLUME —

PROGRAM

—

➩

“

not applicable

& Mains Power button Switch mains power on or off.

é Standby Light indicator Indicate red light when standby mode is activated.

“ Remote Sensor Acts as a sensor for activating the controls of the

TV when remote control handset is aimed at it.

‘ Volume + / – button Adjust sound volume louder/softer.

( Channel + / – button Select channel in ascending/descending order.

Note

•You can enter the main menu by pressing both the Volume + and – buttons at the same time.

•Press the Channel + or – button to select the next item on the menu.

•Press the Volume + or – button to access the sub-menus and adjust the settings.

5-10_29_34PT3543/E 09/18/03, 5:46 PM10

Page 11

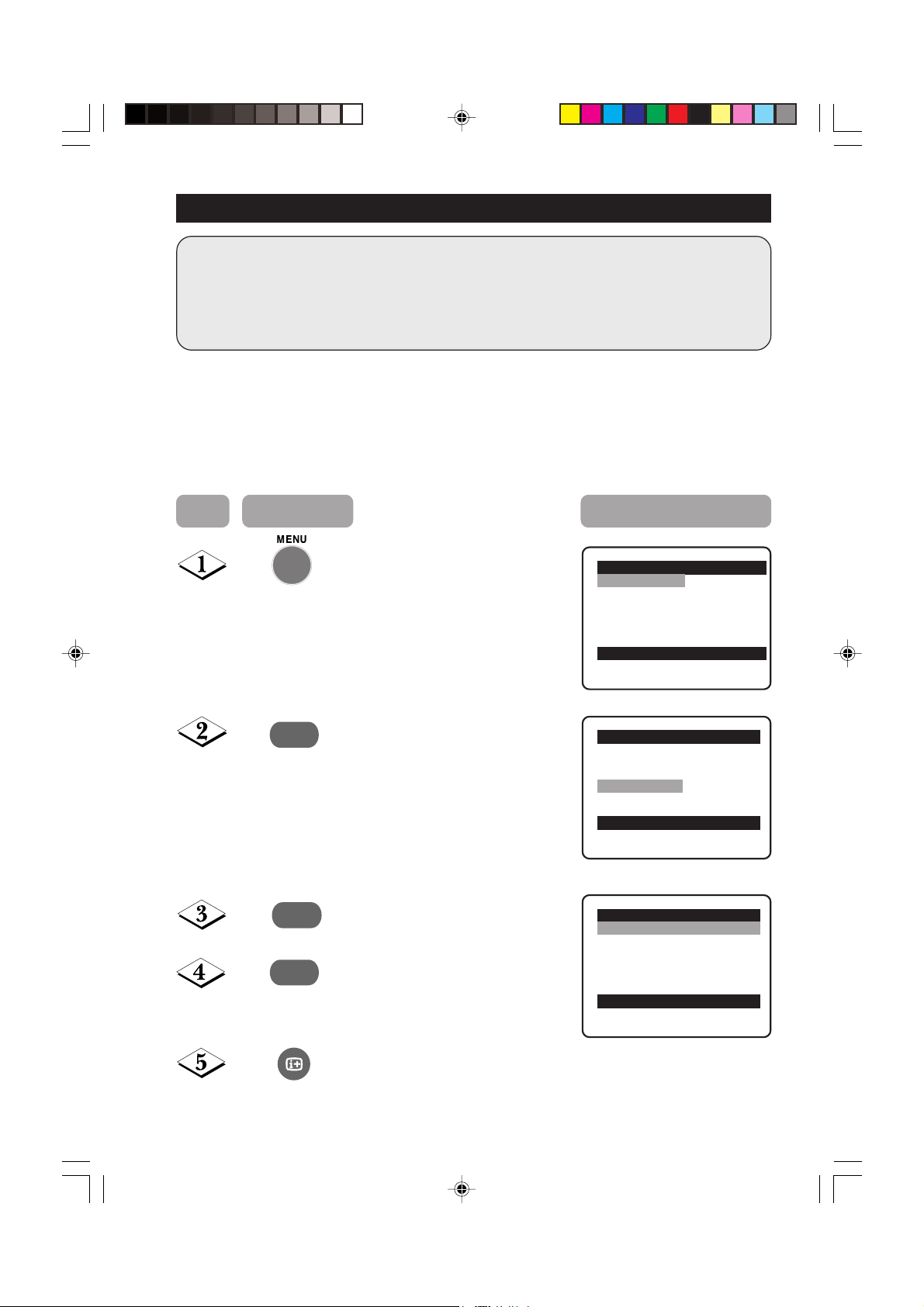

SELECTING THE MENU LANGUAGE

Operating instructions generally explains the operation of the TV set using the buttons on the remote control unless otherwise stated. Please read the following instructions carefully and follow the steps as shown to familiarise yourself with the installations and all features available in your set.

Note: When there is no signal input to the TV, you may encounter instability of the on screen display. In this instance, please use the v button on your remote control to select an AV channel.

The Language feature allows you to set the TV’s on-screen menu to be shown in your desired language.

Step Press button Result on screen

Enter main menu.

Select Install.

Enter the Install menu.

Press button repeatedly to cycle through the language list and select the language of your choice.

Main o

✔ Picture π Brightness

■ Sound Colour

■ Features Contrast

■ Install Sharpness

Main o

■ Picture Language

■ Sound Auto Store

■ Features Manual Store

✔ Install π Channel Edit

Install o

✔ Language English π

■ Auto Store

■ Manual store

■ Channel Edit

Colour Temp. More...

11-17_29_34PT3543/E 09/19/03, 9:02 AM11

Exit menu from screen.

Page 12

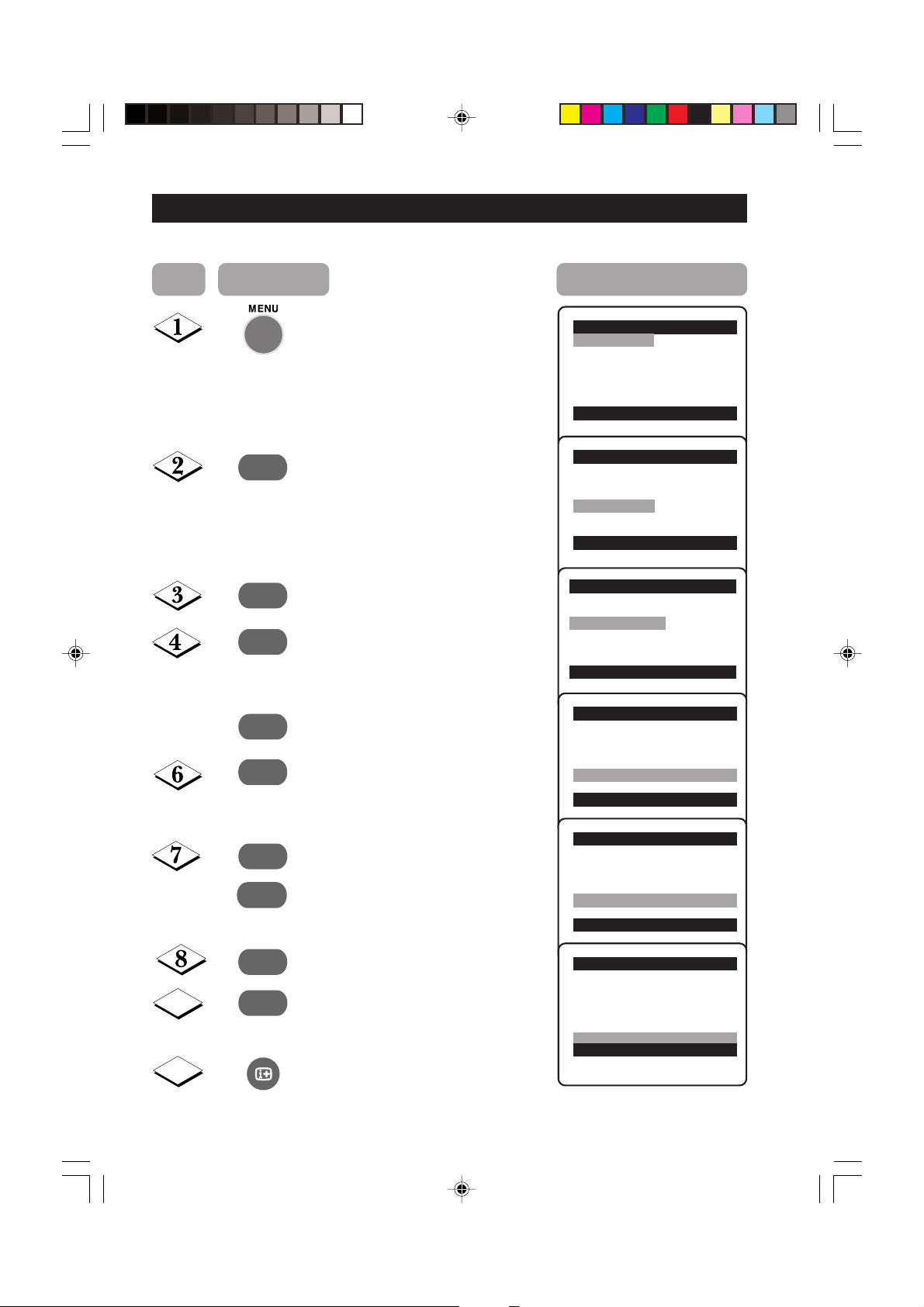

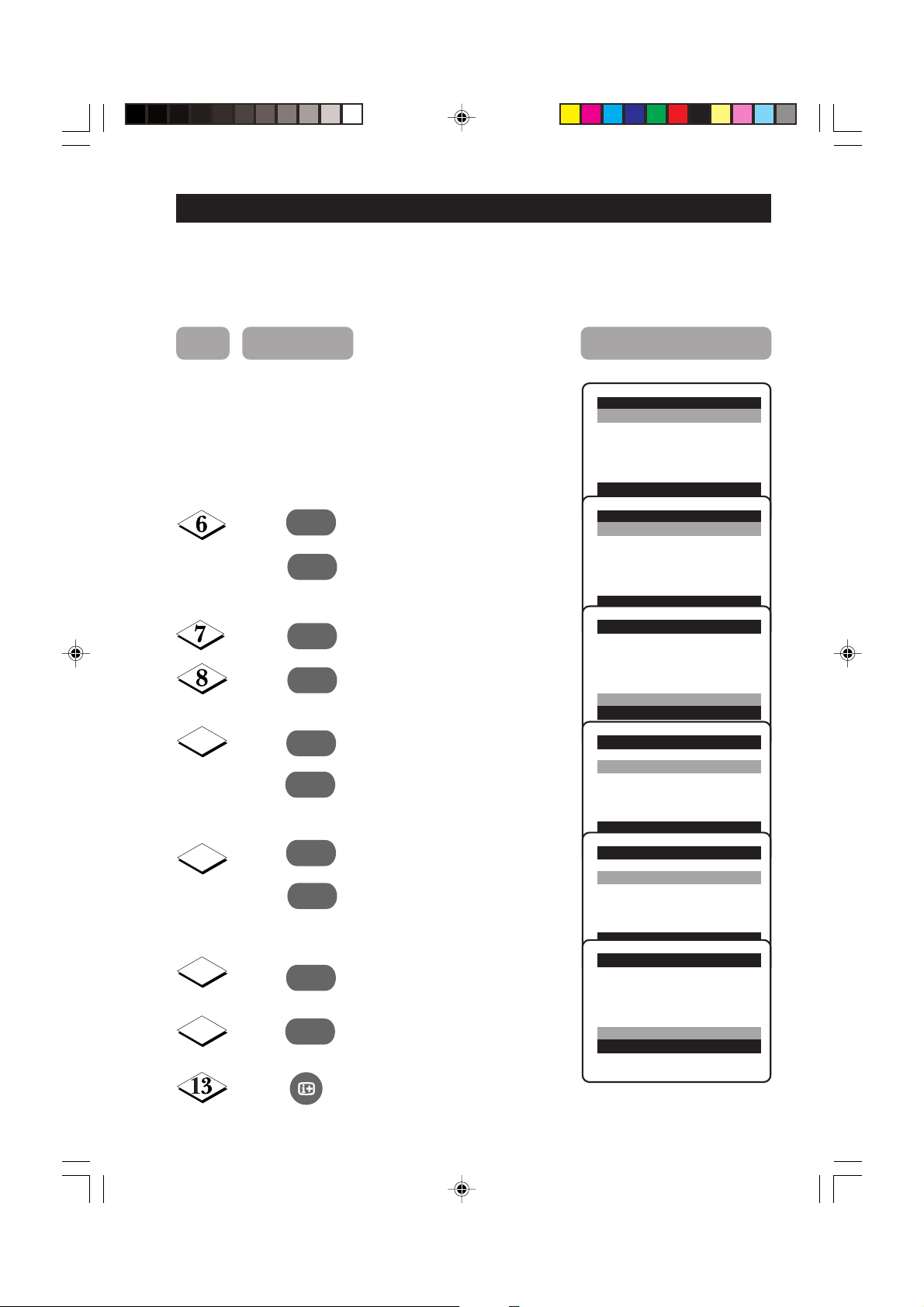

AUTOMATIC T UNING OF CHANNELS

Automatic tuning of channels allows you to store each programme automatically.

Step Press button Result on screen

Enter main menu.

Press button repeatedly until Install is selected.

Enter install menu.

Select Auto Store.

Main o

✔ Picture π Brightness

■ Sound Colour

■ Features Contrast

■ Install Sharpness

Main o

■ Picture Language

■ Sound Auto Store

■ Features Manual Store

✔ Install π Channel Edit

Install o

✔ Language π English

■ Auto Store

■ Manual store

■ Channel Edit

Install o

■ Language

✔ Auto Store π

■ Manual store

■ Channel Edit

Colour Temp. More...

Start automatic tuning of channels.

When tuning is completed, exit menu from screen.

11-17_29_34PT3543/E 09/19/03, 9:02 AM12

Auto Store

■ Channel 1

■ TV 142 MHz

♦♦♦♦♦♦♦♦♦♦♦♦♦♦π♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦

Install o

■ Language

✔ Auto Store π

■ Manual store

■ Channel Edit

Page 13

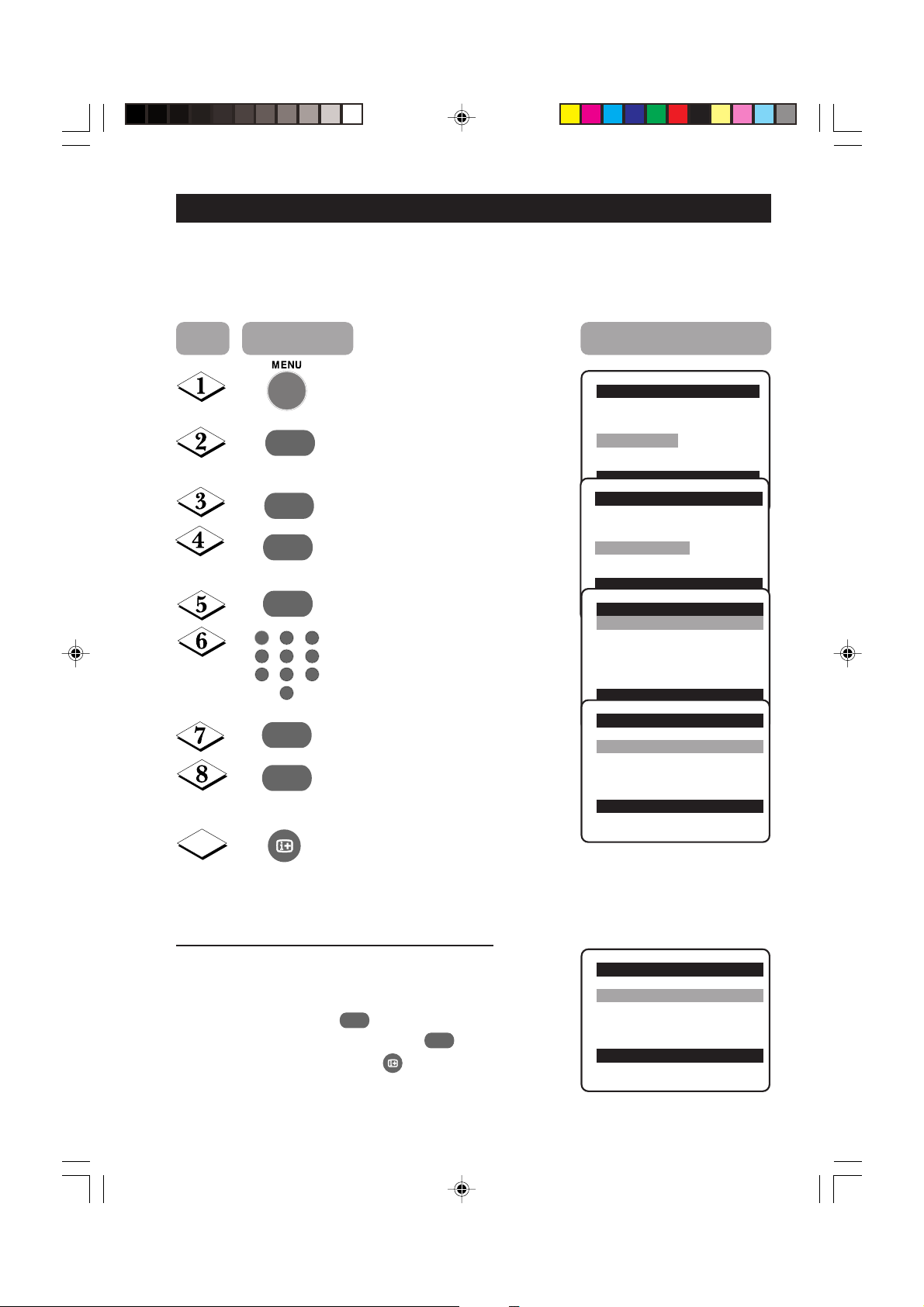

MANUAL T UNING OF CHANNELS

Manual tuning of channels allows you to select your preferred channel number for every available programme.

Step Press button Result on screen

Enter main menu.

Press button repeatedly until Install is selected.

Enter install menu.

Main o

✔ Picture π Brightness

■ Sound Colour

■ Features Contrast

■ Install Sharpness

Main o

■ Picture Language

■ Sound Auto Store

■ Features Manual Store

✔ Install π Channel Edit

Install o

✔ Language π English

■ Auto Store

■ Manual Store

■ Channel Edit

Colour Temp. More...

11-17_29_34PT3543/E 09/19/03, 9:02 AM13

Press button repeatedly until Manual Store is selected.

Enter manual store menu.

Press button repeatedly until

Search is selected.

MANUAL T UNING OF

Install o

■ Language Colour System

■ Auto Store Sound System

Manual Store π Search

✔

■ Channel Edit Channel

Manual Store o

■ Colour System

■ Sound System

Search 79 MHz π

✔

■ Channel

■ Fine Tune

■ Store

Fine Tune Store

Page 14

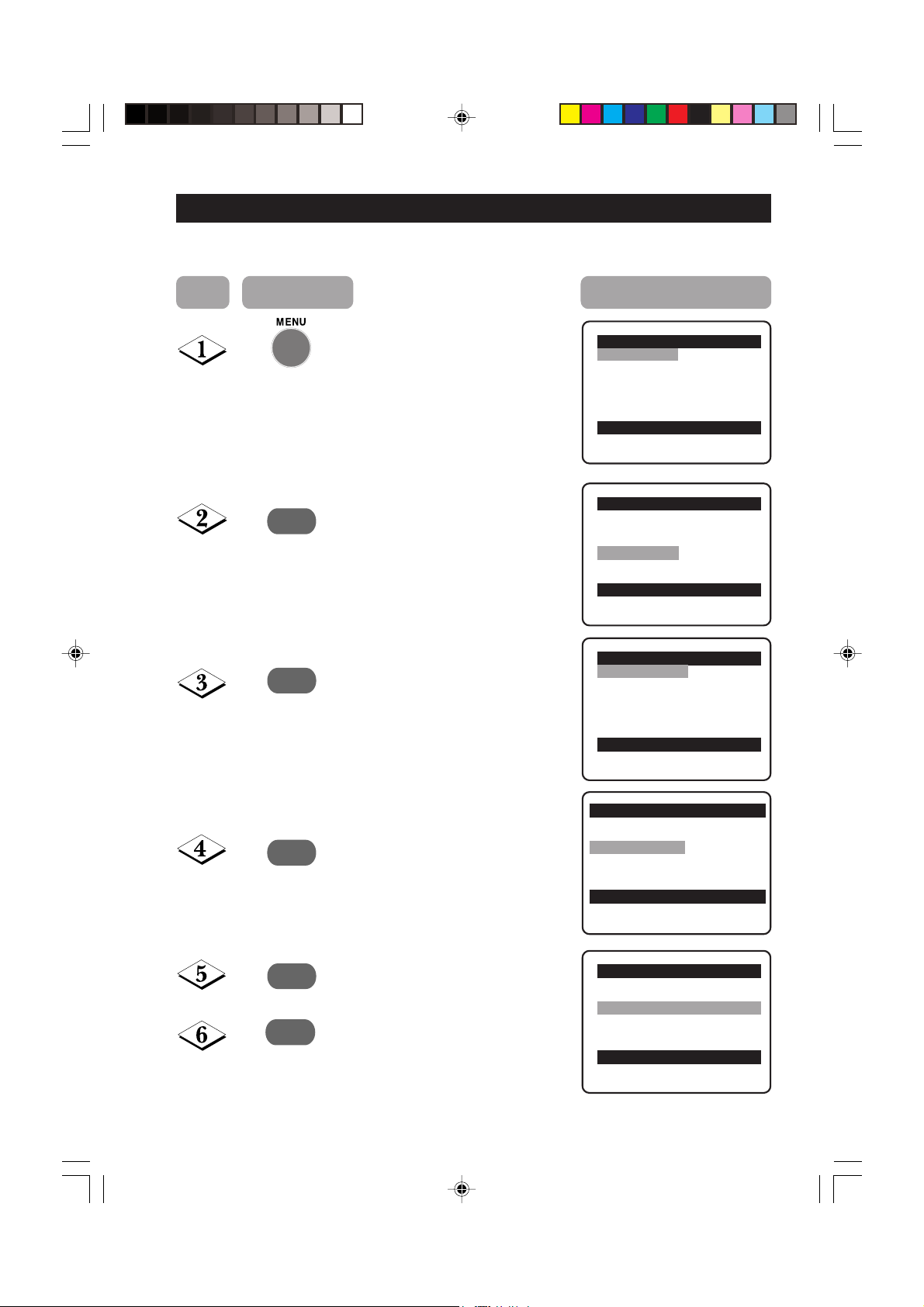

CHANNELSMANUAL T UNING OF CHANNELS

Step Press button Result on screen

Start manual searching. Searching stops once a transmitting signal is found.

Select Channel.

Key in the channel number.

Press button repeatedly until Store is selected.

Manual Store o

■ Colour System

■ Sound System

Search 128 MHz π

✔

■ Channel

■ Fine Tune

■ Store

Manual Store o

■ Colour System

■ Sound System

■ Search

Channel 2 π

✔

■ Fine Tune

■ Store

Manual Storeo

■ Colour System

■ Sound System

■ Search

■ Channel

■ Fine Tune

Store Store?π

✔

11-17_29_34PT3543/E 09/19/03, 9:02 AM14

Store tuned channel. Note : If you want to continue searching for another transmitting channel, repeat steps 7 to 11.

Exit menu from screen.

Manual Storeo

■ Colour System

■ Sound System

■ Search

■ Channel

■ Fine Tune

Store Stored

✔

Page 15

SELECTING THE COLOUR/SOUND SYSTEM

This feature allows you to select your desired Colour and Sound system. If Auto is selected, the respective colour and sound system will be automatically selected according to the transmission system. Note : Select your desired colour and sound system manually if reception is poor at Auto mode.

Step Press button Result on screen

Repeat step 1 Colour System is selected. to step 5 as in

“Manual Tuning of TV Channels”

Select the desired colour system (Auto, PA L , NTSC 3.58, NTSC 4.43 or SECAM).

Press button repeatedly until STORE is selected.

Store selected system.

Proceed to select Sound System.

Select the desired sound system (Auto, BG, I, DK or M.

Press button repeatedly

until STORE is selected.

Store selected system.

Manual Store o

Colour System Auto π

✔

■ Sound System

■ Search

■ Channel

■ Fine Tune

■ Store

Manual Store o

Colour System PAL π

✔

■ Sound System

■ Search

■ Channel

■ Fine Tune

■ Store

Manual Store o

■ Colour System

Sound System

✔

■ Search

■ Channel

■ Fine Tune

■ Store Stored

Manual Store o

■ Colour System

Sound System Auto π

✔

■ Search

■ Channel

■ Fine Tune

■ Store

Manual Store o

■ Colour System

Sound System DK π

✔

■ Search

■ Channel

■ Fine Tune

■ Store

Manual Store o

■ Colour System

Sound System

✔

■ Search

■ Channel

■ Fine Tune

■ Store Stored

11-17_29_34PT3543/E 09/19/03, 9:02 AM15

Exit menu from screen.

Page 16

FINE TUNING OF CHANNELS

This feature allows you to adjust picture reception in areas of weak reception.

Step Press button Result on screen

Enter main menu.

Press button repeatedly until Install is selected.

Enter install menu.

Press button repeatedly until Manual Store is selected.

Enter manual store menu.

Press button repeatedly until Fine Tune is selected.

Main o

✔ Picture π Brightness

■ Sound Color

■ Features Contrast

■ Install Sharpness

Main o

■ Picture Language

■ Sound Auto Store

■ Features Manual Store

✔ Install π Channel Edit

Install o

■ Language Colour System

■ Auto Store Sound System

Manual Store π Search

✔

■ Channel Edit Channel

Manual Storeo

■ Colour System

■ Sound System

■ Search

■ Channel

✓ Fine Tune

■ Store

Colour Temp. More...

Fine Tune Store

p❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘

Fine tune until the best reception is obtained.

11-17_29_34PT3543/E 09/19/03, 9:02 AM16

Select Store.

Store last fine-tuned status.

Exit menu from screen.

Manual Storeo

■ Colour System

■ Sound System

■ Search

■ Channel

✓ Fine Tune

■ Store

Manual Storeo

■ Colour System

■ Sound System

■ Search

■ Channel

■ Fine Tune

Store Stored

✔

p❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘

Page 17

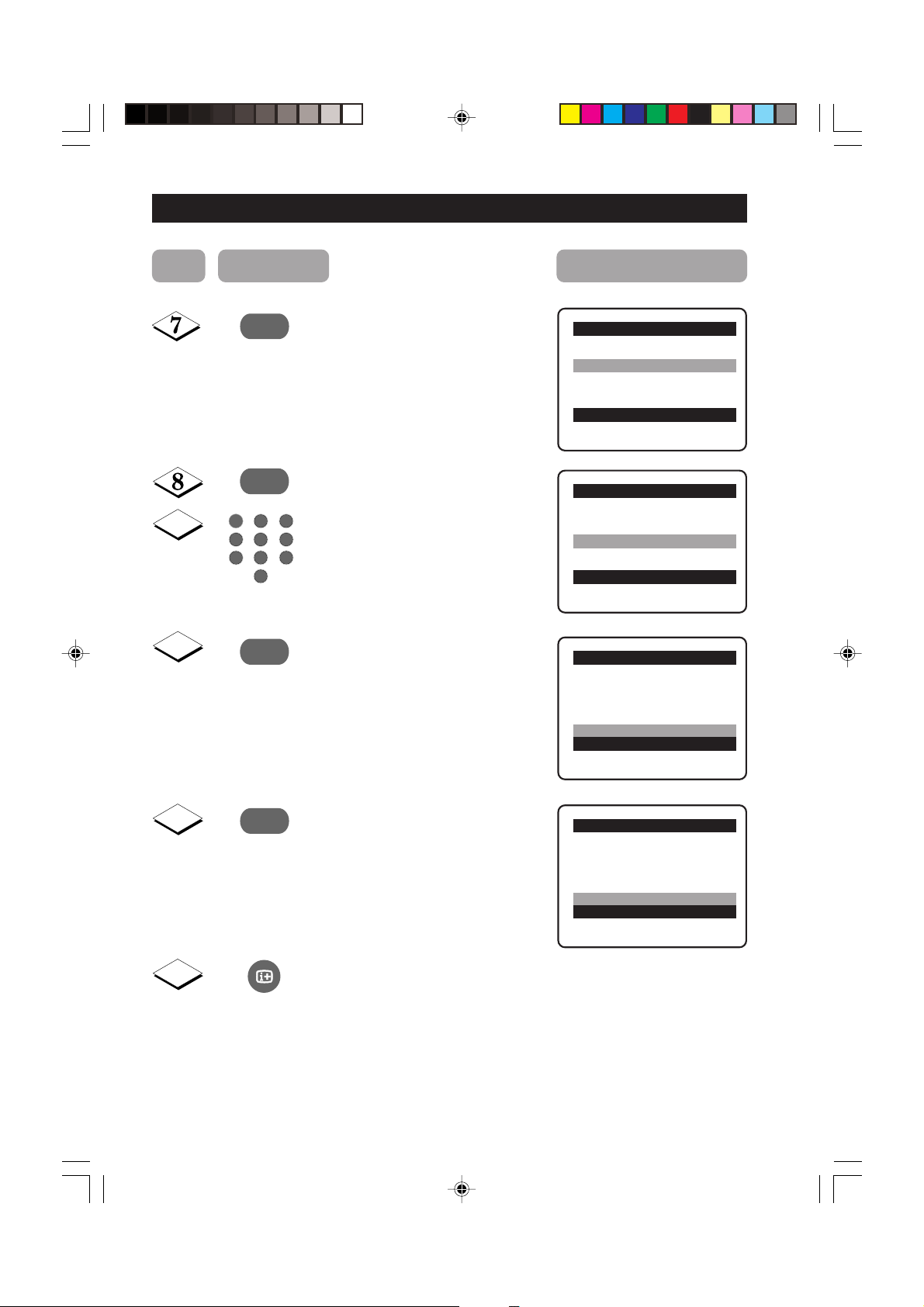

EDITING OF CHANNELS

This feature allows you to skip or edit channels which have bad or weak TV signal or channels that you do not watch often. Note : Once a channel is skipped, you cannot have access to it by the CH (Channel) + or – button. You can only have access to the channel by the Digit (0 -9) buttons.

Step Press button Result on screen

Enter main menu.

Press button repeatedly until Install is selected.

Enter install menu.

Press button repeatedly until

Main o

■ Picture Language

■ Sound Auto Store

■ Features Manual Store

✔ Install π Channel Edit

Install o

■ Language Channel

■ Auto Store Skipped

■ Manual Store

Channel Edit π

✔

Channel Edit is selected.

Enter Channel Edit menu.

Key in the channel number to be

skipped.

Select Skipped.

Select On to skip channel.

Channel Edit o

Channel 2 π

✔

■ Skipped

Channel Edit o

■ Channel

Skipped On

✔

HOW TO RESTORE SKIPPED CHANNELS

• Repeat Steps 1 to 5 as in”Editing of Channels”.

•Key in the channel number to be restored by the Digit (0 - 9) button.

• Select Skipped by the

• Select Off to restore channel by the

• Exit menu from screen by the

11-17_29_34PT3543/E 09/19/03, 9:02 AM17

Exit menu from screen.

button.

Channel Edit o

■ Channel

Skipped Off

✔

Page 18

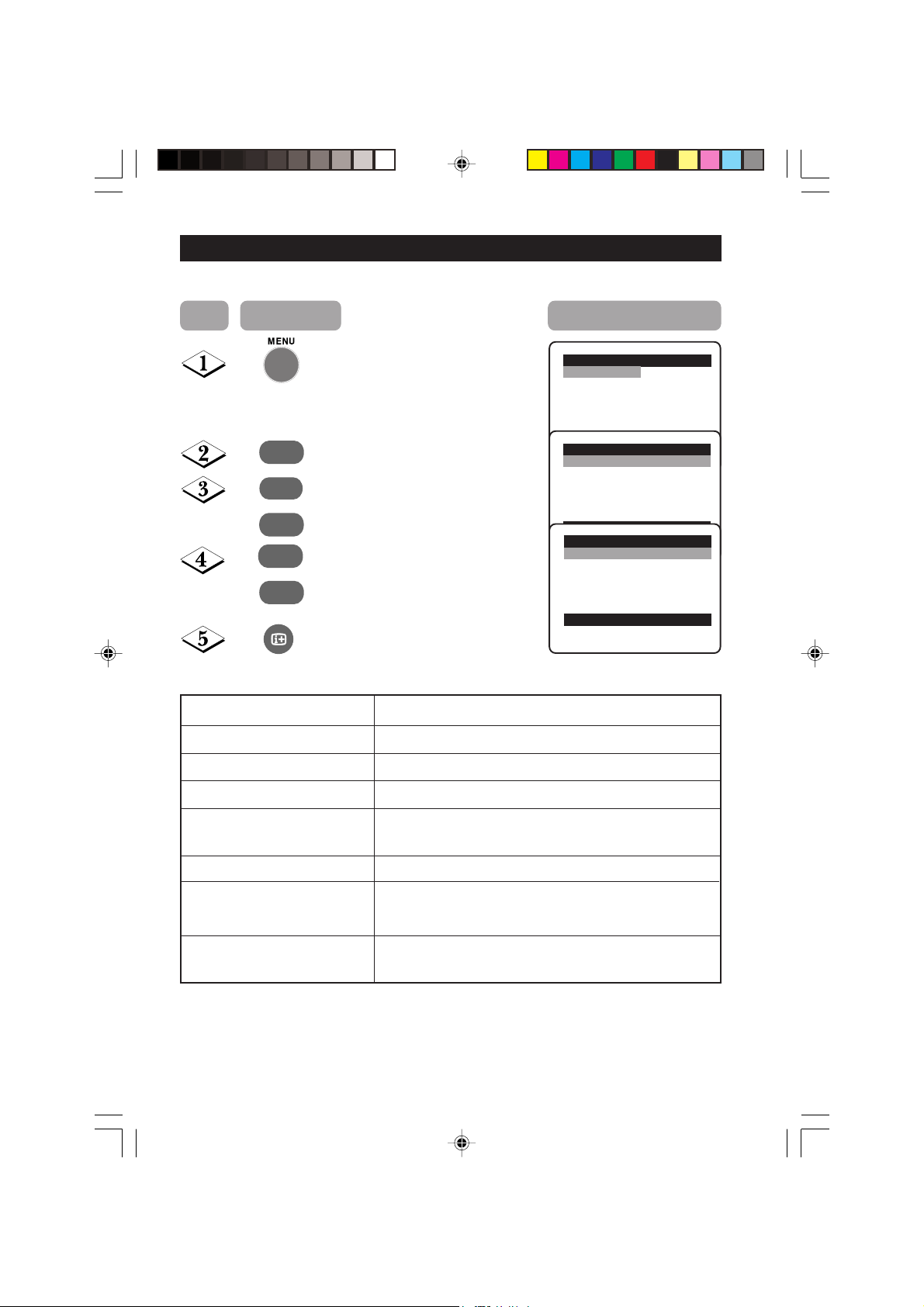

ADJUSTING THE TV PICTURE

The picture menu allows you to make adjustments to the picture.

Step Press button Result on screen

Display the main menu on screen.

Enter Picture menu.

Select item.

Adjust level or select desired setting.

Main o

✔ Picture π Brightness

■ Sound Colour

■ Features Contrast

■ Install Sharpness

Picture o

✔ Brightnessp

■ Colour

■ Contrast

■ Sharpness

■ Colour Temp

■ NR

Picture o

✔ Colour p

■ Contrast

■ Sharpness

■ Colour Temp

■ NR

■ Contrast +

Exit menu from screen.

Picture menu items Activities

Brightness Increase or decrease brightness level.

Colour Increase or decrease color level.

Contrast Increase or decrease contrast level.

Colour Temp More...

❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘❘

59π

Sharpness Increase or decrease sharpness level to improve detail

in picture.

Colour temperature Choose from 3 settings (Normal, Warm or Cool).

NR (Noise Reduction) Select “On” to reduce “noisy” picture (little dots on

picture) due to weak signal.

Contrast + Select “On” to allow you to optimise the total contrast

for improved picture quality.

18-19_29_34PT3543/E 09/19/03, 9:03 AM18

Page 19

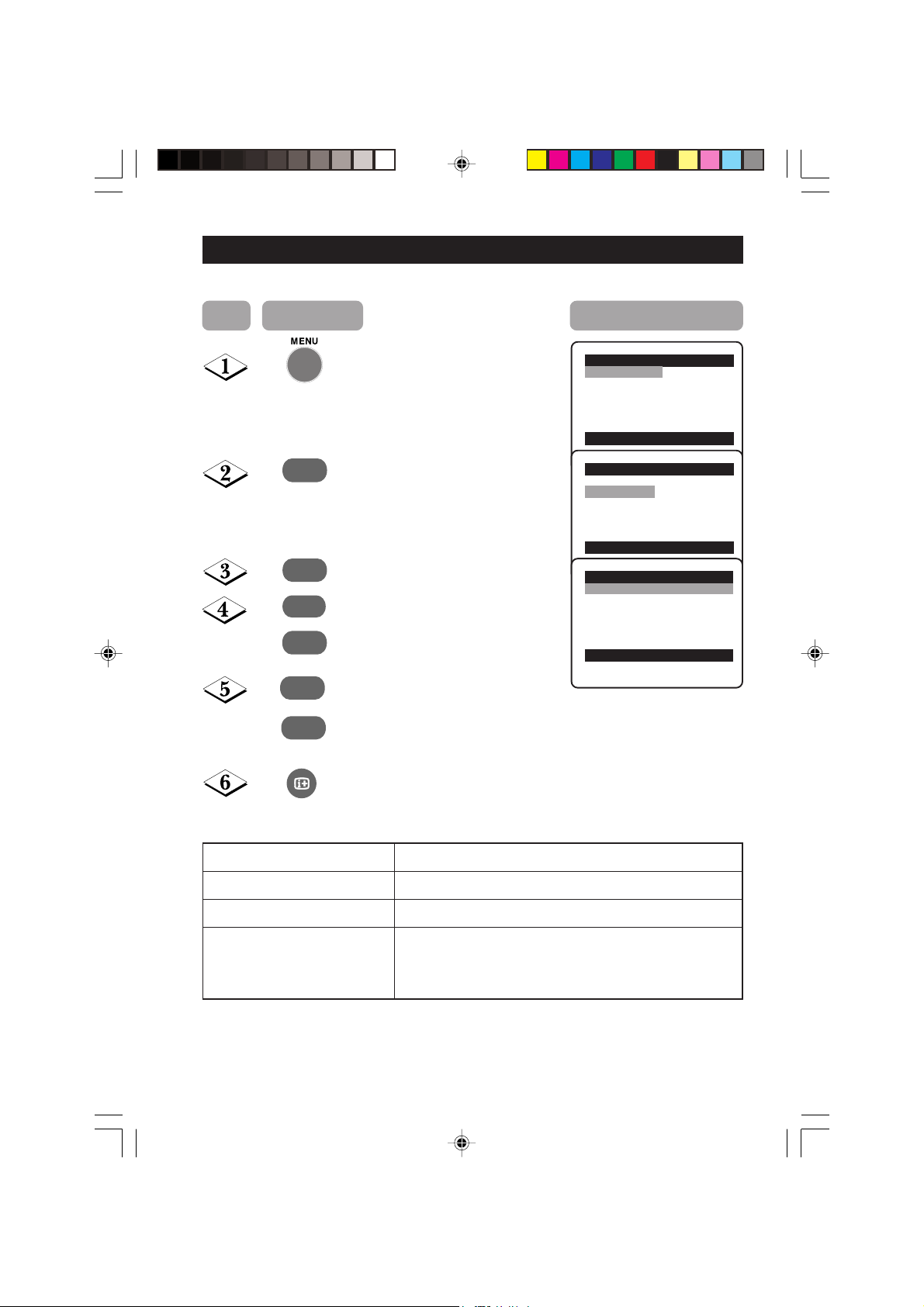

ADJUSTING THE TV SOUND

The sound menu allows you to make adjustments to the sound.

Step Press button Result on screen

Display the main menu on screen.

Select Sound menu.

Enter Sound menu.

Select item.

Adjust level or select desired setting.

Exit menu from screen.

Main o

✔ Picture π Brightness

■ Sound Colour

■ Features Contrast

■ Install Sharpness

Main o

■

Picture Treble Boost

✔ Sound π Bass Boost

■ Features AVL

■ Install

Sound o

✔ Treble Boost On

■ Bass Boost

■ AVL

Colour Temp. More...

Sound menu items Activities

Tr eble Boost Switch on or off high frequency level.

Bass Boost Switch on or off low frequency level.

AVL (Auto Volume Leveller) Select On to enable volume to remain at a pre-

18-19_29_34PT3543/E 09/19/03, 9:03 AM19

determined level should there be a sudden change in volume during commercial breaks or channel switching.

Page 20

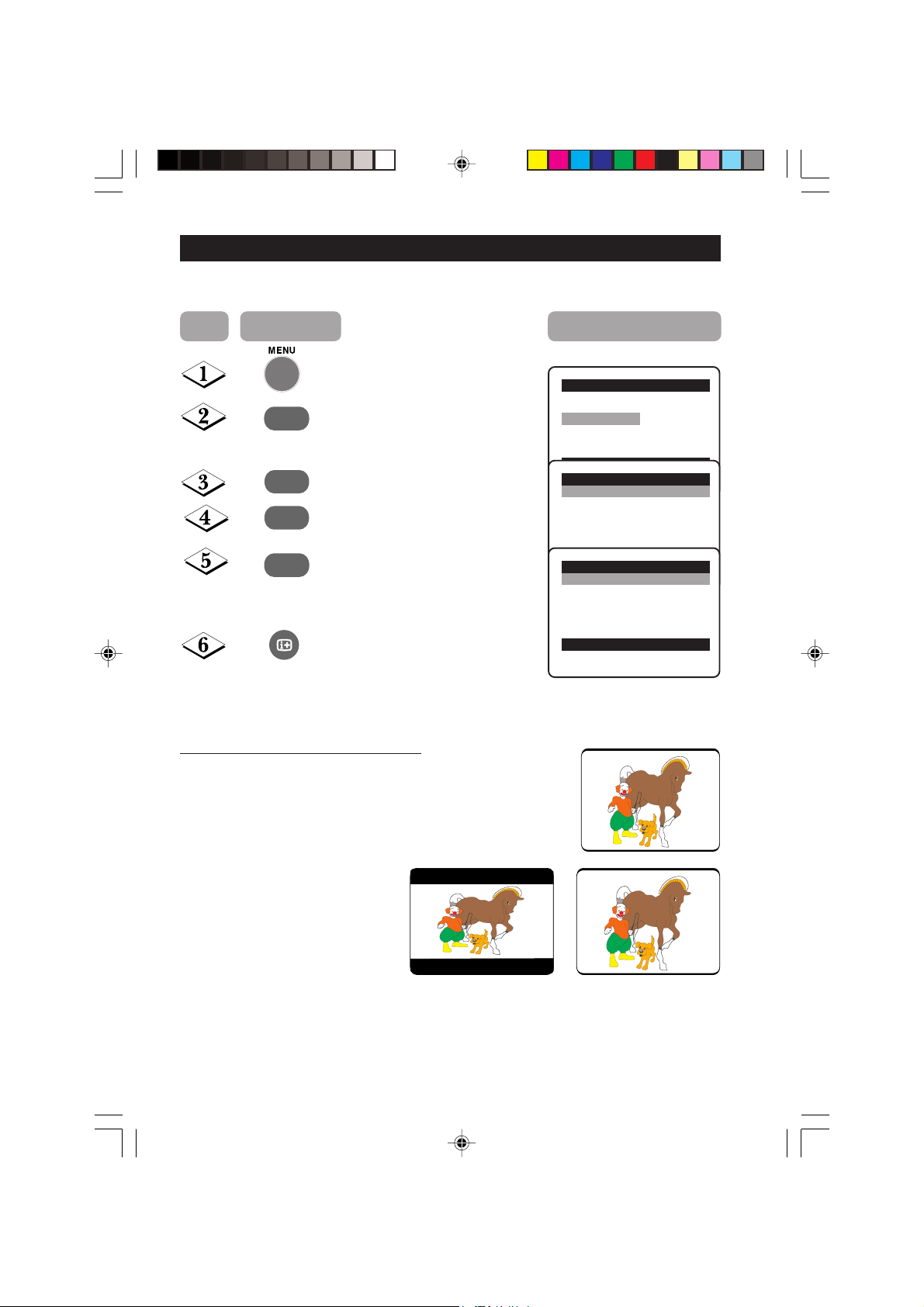

USING THE SCREEN FORMAT

➩

You can have a choice of two formats for your viewing pleasure, namely : - 4:3 mode and the EXPAND 4:3 mode through the FORMAT menu.

Step Press button Result on screen

Display the main menu on screen.

Press button repeatedly until Features is selected.

Enter the Features menu.

Press button repeatedly until Format is selected.

Press the button repeatedly to cycle through the different formats (4:3 or Expand 4:3) or and select your desired format.

Exit menu from screen.

When to use the Screen Formats

4:3 format

Select the 4:3 format if you want to display the 4:3 picture using the full surface of the screen.

Main o

■ Picture Format

■ Sound

✔ Features π

■ Install

Feature o

✔ Format 4:3 π

■

Signal strength

Features o

✔ Format 4:3 Expand π

■

Signal Strength

Expand 4:3 format

Select the Expand 4:3 format if you want to expand movie images recorded in the letterbox format. When this format is selected, the black horizontal bars at the top and bottom are expanded thus filling up the entire TV screen.

20-21_29_34PT3543/E 09/19/03, 9:04 AM20

➩

Page 21

ACTIVATING THE SIGNAL STRENGTH

The Signal Strength feature allows to view the signal strength level when the On option is selected. The signal strength level will be indicated at the bottom of the screen whenever you switch channel.

Step Press button Result on screen

Display the main menu on screen.

Press button repeatedly until Signal Strength is selected.

Press the button to select On option to activate the Signal Strength mode.

Main o

■ Picture Format

■ Sound

✔ Features π

■ Install

Feature o

■ Format

✔

Signal strength

Feature o

■ Format

✔

Signal strength

Signal Strength

Off

20-21_29_34PT3543/E 09/19/03, 9:04 AM21

Page 22

SMART PICTURE CONTROL

Whether you are watching a movie or video game, your TV has automatic video control settings matched to your current program source or content. The Smart Picture feature quickly resets your TV’s video controls of program for a number of different types of programs and viewing conditions you may have in your home. Each Smart Picture setting is preset at the factory to automatically adjust the TV’s Brightness, Colour, Picture and Sharpness levels.

Step Press button

Press botton repeatedly to cycle through the 5 settings namely, Personal, DVD/VCD, Rich, Natural and Soft and select your desired picture setting.

Exit menu from screen.

Defintion of Picture Settings

Personal : Picture settings are set to your preference.

DVD/VCD :For optimal picture setting, whenever

the source is connected to DVD/VCD player, select DVD/VCD setting for AV mode.

Rich : Emphasize very vibrant colours. This

setting is the optimal setting when you are viewing TV programmes in a brightly-lit room.

Natural : Emphasize original colours.

Soft : Emphasize “warm” colours.

(Suitable for dimly-lit room condition and givescinema-like effect when light is switched off).

Personal

DVD/VCD

Rich

Natural

Soft

22-24_29_34PT3543/E 09/19/03, 9:04 AM22

Page 23

SMART SOUND CONTROL

Whether you are watching a movie or video game, your TV has automatic sound control settings matched to your current program source or content. The Smart Sound feature quickly resets your TV’s sound controls of program for a number of different types of programs and viewing conditions you may have in your home. Each Smart Sound setting is preset at the factory to automatically adjust the TV’s Treble and Bass levels.

Step Press button

Press botton repeatedly to cycle through the 4 settings namely, Personal, Theatre, Music and Voice and select your desired sound setting.

Exit menu from screen.

Definition of Sound Settings

Personal : Sound settings are set to your preference.

Theatre : Emphasize sensation to action.

(Bass and Treble boosted)

Music : Emphasize low tone (Bass boosted).

Voice : Emphasize high tone (treble boosted).

22-24_29_34PT3543/E 09/19/03, 9:04 AM23

Personal

Theatre

Music

Voice

Page 24

PERSONAL ZAPPING

A list or series of favourite TV programs can be selected and stored in the 4 coloured buttons with the Personal Zapping feature. With this feature you can easily viewed up to a total of 10 preferred channels for each coloured button.

Adding Channels to the Favourite list

Step Press button Result on screen

Select a channel by the Digit buttons

Press button to display list.

Choose your favourite colour button to store selected channel.

Repeat steps 1 to 3 to add and store your avourite channels to the list.

Exit menu from screen.

To view through the favourite list

Press the colour button that you have selected.

Press button repeatedly to cycle through your favourite list and view your favourite channel.

Deleting Channels from the Favourite list

Select a colour button and press button repeatedly to select the channel you want to delete.

Press button to display list.

8 { Select List!

{ 8 Added!

{ 8

{Remove Item?- Press |

{ 8

Press button to remove item.

Repeat steps 1 to 3 to delete more channels from list.

Exit menu from screen.

22-24_29_34PT3543/E 09/19/03, 9:04 AM24

Page 25

SPECIFICATIONS

29PT3543 34PT3543

Picture tube screen size 720 mm 870 mm

Picture tube visible area 680 mm 800 mm

Audio Output : Speaker 2 x 5 W

TV System NTSC M (3.58-4.5)

NTSC (4.43-6.5) PAL B/G PAL D/K PAL I SECAM B/G SECAM D/K SECAM K1

Playback System NTSC 3.58, NTSC 4.43, PAL 60

Set Dimensions : Width 755 mm 895 mm Depth 578 mm 699 mm Height 493 mm 587 mm

Net Weight of Set (approximate ) 49 kg 70 kg

Note For Operating Voltage, Frequency, Power Consumption and Version Number, refer to the type number at the rear of the set.

25-26_29_34PT3543/E 09/19/03, 9:05 AM25

Page 26

25-26_29_34PT3543/E 09/19/03, 9:05 AM26

3141 055 xxxxx
