Information for users in the UK
(Not applicable outside the UK)
Positioning the TV
For the best results, choose a position where light does not fall directly on the screen, and at some
distance away from radiators or other sources of heat. Leave a space of at least 5 cm all around
the TV for ventilation, making sure that curtains, cupboards etc. cannot obstruct the air flow
through the ventilation apertures.
The TV is intended for use in a domestic environment only and should never be operated or
stored in excessively hot or humid atmospheres.
General Points
Please take note of the section 'Tips' at the end of this booklet.
Interference
The Department of Trade and Industry operates a Radio Interference Investigation Service to help
TV license holders improve reception of BBC and IBA programmes where they are being spoilt by
interference.
If your dealer cannot help, ask at a main Post Office for the booklet "How to improve Television
and Radio Reception".
Mains connection
Before connecting the TV to the mains, check that the mains supply voltage corresponds to the
voltage printed on the type plate on the rear panel of the TV. If the mains voltage is different,
consult your dealer.
Important
This apparatus is fitted with an approved moulded 13 Amp plug.
To change a fuse in this type of plug proceed as follows :
1. Remove fuse cover and fuse.
2. Fit new fuse which should be a BS1362 5A, A.S.T.A. or BSI approved type.
3. Refit the fuse cover.
In order to maintain conformity to the EMC directive, the mains plug on this product must not be
removed.
Connecting the aerial
The aerial should be connected to the socket marked x at the back of the set. An inferior aerial is
likely to result in a poor, perhaps unstable picture with ghost images and lack of contrast. Makeshift or set-top aerials are unlikely to give adequate results.
Your dealer will know from experience the most suitable type for your locality.
Should you wish to use the set in conjunction with other equipment, which connects to the aerial
socket such as TV games, or a video camera, it is recommended that you consult your dealer on
the best method of connection.
Stand (if provided)
Use only the stand provided with the set, making sure that the fixings are properly tightened.A
diagram showing how to assemble the stand is packed with the stand. Never use a make-shift
stand, or legs fixed with woodscrews.
Contents
Help?
If this instruction manual does
not give an answer or if ‘Tips’ do
not solve your TV problem, you
can call your Local Philips
Customer or Service Centre. See
the supplied World-wide
guarantee booklet.
Please, have the Model and
Product number which you can
find at the back of your television
set or on the packaging, ready,
before calling the Philips helpline.
Model: 28-32PW9509
Product No: ..............................................
Due to continuous product
improvements this manual is subject
to change without notice.
R End of life directives
Philips is paying a lot of attention to
producing environmentally-friendly in
green focal areas.Your new TV contains
materials which can be recycled and
reused. At the end of its life specialised
companies can dismantle the
discarded TV to concentrate the
reusable materials and to minimise the
amount of materials to be disposed of.
Please ensure you dispose of your old
TV according to local regulations.
Installation
Preparation ........................................................................................ 2
Keys on top of the TV .................................................................... 2
Your remote control ................................................................... 3-4
To use the menus .............................................................................. 5
Select the menu language and country ....................................... 5
Store TV channels ............................................................................ 6
Automatic installation ..............................................................6
Manual installation .................................................................... 6
Give name .................................................................................. 6
Reshuffle the programme list.................................................. 7
Select favourite TV channels .................................................. 7
TV setup ............................................................................................. 7
General ....................................................................................... 7
Source .......................................................................................... 8
Decoder ...................................................................................... 8
Demo .................................................................................................. 8
Operation
TV menu
Picture menu ........................................................................ 9-10
Sound menu ............................................................................. 10
Features menu......................................................................... 11
Teletext guide ................................................................................. 12
Teletext ...................................................................................... 13-14
Connect peripheral equipment
Connecting and selecting equipment ..................................15-16
Audio- and video equipment keys ............................................. 17
Tips .................................................................................................. 18
English
EasyLink features are based on the “one touch operation” approach.
This means that a sequence of actions are executed at the same time
in both the television and the video cassette recorder, provided both
are fitted with the EasyLink function and connected with the eurocable
supplied with your video recorder.
1
Preparation
MENU PROGRAMVOLUME
& Place the TV on a solid surface.
! 28PW9509: 37 kg; 32PW9509: 56 kg !
min.
1m
For ventilation, leave at least 5 cm free all
around the TV. Do not place the TV on a
carpet.To prevent any unsafe situations, do not
place any objects on top of the TV. Avoid heat,
direct sunlight and exposure to rain or water.
é Insert the aerial plug firmly into the aerial
socket x at the back of the TV. For best
picture quality use the suppressor-aerial cable
supplied.
“ Insert the mains plug of the TV in the wall
socket having a mains voltage of 220V-240V.
Keys on top of the TV
‘ Remote control: Insert the 2 batteries
supplied (Type R6-1,5V).
The batteries supplied do not contain the heavy
metals mercury and cadmium. Please check on how
to dispose of exhausted batteries according to local
regulations.
( Switch the TV on : Press the power switch A
on the front of your TV.
A blue indicator on the front of the TV lights
up and the screen comes on. If the TV is in
standby mode (red indicator), press the
-P+
keys or the red B key on the remote control.
TV
Setup
Demo
Install
Exit
2
2
Picture Sound Features
Should your remote be lost or broken you can still
change some of the basic settings with the keys on
top of your TV.
Press:
• the
VOLUME - or + key to adjust the volume;
• the PROGRAM - or + key to select the TV
channels or sources.
Press the
MENU key to summon the main menu
without the remote control.
Use:
• the
VOLUME - or + key and the PROGRAM -
or + key to select menu items in the directions
as shown;
• the
MENU key to confirm your selection.
Note:
When activated via the
only
Exit lets you dismiss the menu.
Navigate to
Exit and press the MENU key.
MENU key on top of the TV,
B
b
¬
+
-
V
+
-
P
v
b
i
0
h
q
Select
VCR DVD SAT AMP CD
MENU
OK
123
456
789
0
Ò®‡π
†
Active Control
S
®
®
®
®
æ
Use of the remote control RC4301
Note: For most keys pressing a key once will activate the function. Pressing a second time will de-activate it.
When a key enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list.
The list will be removed automatically after 4 seconds or press
OK to remove immediately.
VCR DVD SAT AMP CD
Audio and Video equipment keys
(p. 17)
v Select peripherals
(p. 16)
®Ò‡π†
Audio- and Video equipment keys
(p. 17)
® Instant record
See Record with your recorder
with EasyLink, p. 17.
U Time display
The time is displayed on the
screen.
Q Surround mode
Incredible surround
With stereo transmission, and
when Incredible surround is
selected, it seems as though the
loudspeakers are spread further
apart from one another.
Virtual Dolby Surround
Optimal with Dolby surround
signals. Enables you to
experience the effect of Dolby
surround Pro Logic, reproducing
a rear sound effect. See Sound
menu, 3D effect, p. 10.
Note:You can make the same
selection in the Sound menu,
surround mode, p. 10.
Ì Cinema Go
See separate Cinema Link
æ Teletext Guide on/off p. 12
booklet supplied.
Press the
b key to show
Teletext Guide on the right half
of the screen.
B Standby
Press to switch the TV on or off.
When switched off, a red
indicator on the TV lights up.
x Pixel Plus 2 demo on/off
In the right part Pixel Plus 2 and
Digital Natural Motion are
switched on.
b Teletext on/off p. 13
Press the
b key to show
teletext on the right half of the
screen.
OK Press this key
• to activate your choice, when in
the menus.
• to display the programme list.
MENU Main menu on/off see p. 5
V To adjust the volume.
¬ Interrupt the sound or restore it.
PProgramme selection
To browse through the TV
channels and sources stored in
the favourite list.
0/9 Digit keys
To select a TV channel.
For a two digit programme
number, enter the second digit
before the dash disappears.To
switch immediately to a selected
one digit TV channel, keep the
digit key pressed a bit longer.
S Freeze
To freeze the picture.
33
B
b
¬
+
-
V
+
-
P
v
b
i
0
h
q
Select
VCR DVD SAT AMP CD
MENU
OK
123
456
789
0
Ò®‡π
†
Active Control
S
®
®
®
®
æ
i On Screen information
Press to display information about the selected TV channel and
programme.
Menu/Remote control info
When a menu is on screen, press i to display info on the selected
menu item. For information on the remote control functions, while the
menu info is displayed, press any key on the remote control.
The normal function of the key is not executed.
0 Smart surf
With this key you can easily switch between 2 up to 9 different TV
channels or sources. See General, Smart surf, p. 7.
Press the
OK key or wait for the time out to dismiss the Smart surf
display.
b Dual screen
& Press the b or æ key.
Press the
b key to show Teletext or Teletext Guide on the right of the
screen.
é • Picture/Teletext Guide:
-Press the cursor left/right to select a TV channel.
-Press the cursor down to move the puck to the blue ball in the left
screen.
-Press
+P- to select another TV channel.
• Picture/Teletext:
See Active screen selection, p. 13.
“ Press the b key to switch off dual screen.
h Active control see p. 10
q Picture format
Press this key repeatedly or press the cursor up/down to select another
picture format:Auto format, Super zoom, 4:3, Movie Expand 14:9, Movie
Expand 16:9, Subtitle zoom or Wide screen.
Auto format Super zoom 4:3 Movie Expand 14:9
Movie Expand 16:9 Subtitle zoom Wide screen
Auto format makes the picture fill the screen as much as possible.
In case of subtitles in the bottom black bar,Auto format makes the
subtitles visible. If subtitles are only partly visible, press cursor up.
In case of a broadcaster logo in the corner of the top black bar, the logo
disappears from the screen.
Super zoom removes the black bars on the sides of 4:3 programs with
minimal distortion.
When in Movie Expand 14:9, 16:9, Super zoom or Subtitle zoom picture
format, you can make subtitles visible with the cursor up/down.
4
To use the menus
B
b
++
v
Select
VCR DVD SAT AMP CD
MENU
OK
Ò®‡π
†
S
®
®
®
®
æ
cursor to select
adjustments
OK key to
activate
return or switch
main menu on/off
Press the i key on the
remote control to get
information about the
selected menu item.
& Press the MENU key on the remote control to summon the
main menu.At any moment you can exit the menu by
pressing the
MENU key again.
Note: If you have connected equipment with Cinema Link, more
menu items are present.
Picture Sound Features
TV
Setup
Demo
Install
é Use the cursor in the up/down direction to select the TV,
Setup, Demo or Install menu.
Use the cursor left/right to select
Picture, Sound or
Features.
Note: Sometimes not all the menu items are visible on the screen
(indicated by a cluster of blue balls). Use the cursor down or right
to reveal all items.
“ Use the cursor in the left/right direction to select the menu
item.
‘ Use the cursor up/down again to select the control you
want to select or to adjust.
Note: Items temporary not available or not relevant are displayed
in a light grey colour and cannot be selected.
Installation
The installation menu contains the following items:
Language Country Automatic Manual Give name Reshuffle Favourite
install install programmes
Install
EasyLink
If your video recorder has an EasyLink function, during installation, the language, country and available channels
are automatically transmitted to the video recorder.
Select the menu language and country
Install
Language
English
Deutsch
Français
Install
Austria
Belgium
Croatia
Country
& Press the MENU key on the remote control.
é Use the cursor down to select Install.
“ Use the cursor right to select Language.
Follow the instructions on screen.
‘ Use the cursor up/down to select your preferred language
and press the
( Use the cursor right to select Country.
§ Select the country where you are now located and press
the
OK key.
Select
è Proceed with the Install menu.
OK key to confirm your selection.
Other when none of the countries applies.
5
Store TV channels
After language and country are set correctly, you can now search for and store the TV channels in two
different ways: using Automatic Installation or Manual Installation (tuning-in channel by channel).
Select your choice with the cursor right.
Automatic installation
Install
& Select Automatic install in the Install menu.
Note: All channels must be unlocked in order to
autoprogram. If requested, enter your code to unlock
all channels. (See TV, Features menu, Childlock,
p. 11.)
é Press the cursor down.The autoprogramming
option label
“ Press the cursor right.
Manual installation
Install
Automatic install
Install Start
Start appears.
Manual install
Selection mode
System
Programme
Search
Fine tune
Store
Searching for and storing TV channels is done channel by channel.
You must go through every step of the Manual Installation menu.
& Select Manual install in the Install menu.
é Press the cursor down.
Follow the instructions on screen.
Note: Search or direct selection of a TV channel.
If you know the frequency, the C- or S-channel number, enter the 3 or
2 digits of the frequency or the channel number directly with the digit
keys 0 to 9 (e.g. 048). Press the cursor down to proceed.
‘ The message Searching appears and the
progress of autoprogramming is displayed.
If a cable system or a TV channel which
broadcasts ACI (Automatic Channel
Installation) is detected, a programme list
appears.Without ACI broadcast, the channels
are numbered according your language and
country selection.You can use Reshuffle to
renumber them. See p. 7.
It is possible that the cable company or the TV
channel displays a broadcast selection menu.
Layout and items are defined by the cable
company or the TV channel. Make your choice with
the cursor and press the
OK key.
Repeat to search for another TV channel.
Give name
Install
It is possible to change the name stored in the
memory or to assign a name to a TV channel for
which a name has not yet been entered.A name
with up to 5 letters or numbers can be given to
the programme numbers 0 to 99.
& Select Give Name in the Install menu and
press the cursor down.
6
Give name
VCR1
BBC1
BBC2
CNN
TVE
.....
® Space ® Delete
pπ
ABCDEFG 123
HIJKLMN 456
OPQRSTU 789
VWXYZ 0
® Shift ® Special
é Select the programme number.
Note: keep the cursor up/down pressed to scroll
through the programme list quickly.
“ Press the cursor right.
A keyboard appears on the screen.
Press the cursor right to enter the keyboard.
Press the cursor up/down, left/right to select
the first character and press
OK. Repeat for
every character you want to enter.
Select
Space to enter a space; Delete to erase
the highlighted character in the name entered;
Shift to display upper- or lowercase characters
on the keyboard;
characters on the keyboard. Press
Special to display special
OK to
confirm.
‘ Press the cursor left repeatedly when you have
finished the name giving.
( Select another programme number and repeat
steps
“ to ‘.
Reshuffle the programme list
You can change the order of the stored TV
channels.
& Select Reshuffle in the Installation menu.
é Follow the instructions on screen.
Select Favourite TV channels
& Select Favourite programmes in the Install
menu.
é Select your programme number with the
cursor up/down.
“ Select Ye s or No with the cursor right.
‘ Repeat é and “ for every TV channel or
external you want to make a favourite or a
non-favourite TV channel or external.
TV Setup
Setup
Menu background
Factory settings
Programme title
Teletext level 2.5
Auto surround
Set/Change code
General
Smart surf
& Select Smart surf.
é With the cursor left/right, select
•
2 programmes if you want the 0 key to
toggle between the current and the previously
selected channel,
•
9 programmes if you want the 0 key to
summon a list of up to 9 channels which can
be selected,
To add/remove a channel or source:
Tune to the channel or source you wish to add
or remove. Press the 0 key and press the
cursor right to add or remove.
Note: If there are already 9 channels/sources in the
list, the one at the bottom of the list will be
removed.
Factory settings
This resets the picture and sound settings to
their predefined factory values, but maintains
the channel installation settings.
General Source Decoder
Smart surf
Tilt adjust
OSD
The Setup menu contains items that control the settings of the
TV’s functions, features, services and peripherals you may have
connected.
The
General menu allows you to change various settings that
are presumably adjusted less frequently than most other
settings.
The
Source menu allows you to select a source.
The
Decoder menu allows you to define one or more
programme numbers as decoder programme numbers.
Press the i key on the remote control to get information
about the selected menu item.
OSD (On Screen Display)
See Use of the remote control, p. 3, i On
screen information.
& Select OSD.
é Select Normal to activate the continuous
display of the programme number.Also TV
channel and programme information are
extended.
Minimum will display reduced
channel information.
Note: When subtitles is switched on, see Features,
p.11, continuous display of the programme number
is not possible.
Teletext 2.5
Some broadcasters offer the opportunity to
see more colours, other background colours
and nicer pictures in the teletext pages.
& Select Teletext 2.5.
é Press the cursor right to select Teletext 2.5
to take advantage of this feature.
On
“ Press the cursor right again to select Teletext
2.5 Off
if you like the more neutral teletext
layout.
The selection made is valid for all channels
which broadcast teletext 2.5.
Note: It may take a few seconds before teletext
broadcast switches over to Teletext 2.5.
7
Auto Surround
Sometimes the broadcaster transmits special
signals for Surround Sound encoded
programmes.The TV automatically switches to
the best surround sound mode when
Surround
is switched On.
Auto
Set/Change code
The Child lock feature (see TV, Features, p. 11)
allows you to lock channels to prevent others
from watching certain programmes.To watch
locked channels, a 4-digit code must be
entered.The Set/Change code menu item
allows you to create or change a Personal
Identification Number (PIN).
& Select Set/Change code.
é If no code exists yet, the menu item is set to
Set code. If a code has previously been entered,
the menu item is set to
Change code.Follow
the instructions on screen.
Important:You have forgotten your code !
& Select Change code in the General menu and
press
OK.
é Press the cursor right and enter the overriding
code 8-8-8-8.
“ Press the cursor again and enter a new
personal 4-digit code.The previous code is
erased and the new code is stored.
Source
Setup
Source
EXT1
EXT2
EXT3
SIDE
This menu allows you to indicate the peripheral
you connected to one of the external inputs.
Decoder
Setup
If a decoder or a descrambler is connected, see
p. 15, you can define one or more programme
numbers as decoder programme numbers.
& Select Decoder with the cursor right.
é Select Programme.
Decoder
Programme
Status
& Press the cursor right to enter the list of types
of peripherals attached to the selected input.
é Select the peripheral device with the cursor
up/down.
Once you have selected the source type, e.g. DVD,
this source will automatically be selected when
your remote control is in DVD mode, see p. 3, and
when you press the v key on the remote
control.
“ Select the programme number under which
you have stored the programme coming from
your decoder.
‘ Select Status.
• Select the input used to connect your
decoder:
• Select
None, EXT1 or EXT2.
None if you do not want the selected
programme number being activated as a
decoder programme number.
Note: Select
EXT2 when the decoder is connected
to your EasyLink video recorder.
8
Demo
TV
Setup
Demo
Install
Auto demo
......
Dealer demo - Digital options
- Light sensor
- Comb filter
The Demo menu allows to demonstrate the TV
features separately or in a continuous loop.
If
Auto demo has been selected the demo will
automatically present the features sequentially in a
loop. Press one of the cursor keys to stop the
Auto demo.
If one of the features has been selected, this
particular feature demo will run only once, and the
Demo menu will reappear.
Note:The Dealer demo is not part of the automatic
sequence and can only be activated separately.
TV menu
Press the MENU key on the remote control to summon the main menu.
Press the i key on the remote control to get information about the selected menu item.
Picture menu
Picture Sound Features
TV
Smart picture
Contrast
Brightness
Colour
Sharpness
Tint
Digital options
Dynamic contrast
DNR
Colour enhancement
(Hue)
Picture format
& Press the cursor right to select Picture.
é Select the menu items in the Picture menu with
the cursor up/down.
“ Adjust the settings with the cursor left/right or
enter the list of submenu items with the cursor
right. Select a submenu item with the cursor
up/down.
Note:To remove the menu background before
adjusting the picture settings, see Select TV setup,
General, p. 7.
Smart picture
Select
Smart picture to display a list of
predefined picture settings, each corresponding
with specific factory settings.
Personal refers to the personal preference
settings of picture in the picture menu.
Digital options
Pixel Plus 2 is the most ideal setting, doubles
the horizontal resolution and increases the
number of lines with 33%.You may consider to
select Movie Plus in case a halo effect should
disturb you. Dependent on your own
preference, select Double lines, or 100 Hz
Digital Scan.
Note: When 60 Hz NTSC material is used, the
options are changed to Pixel Plus 2, Movie Plus or
Progressive, progressive scan without motion
compensation.
9
Active Control
The TV continuously measures and corrects all incoming signals in
order to provide the best picture possible.
& Press the h key on the remote control.
é The Active Control menu appears.
“ Press the cursor up/down to select the Active Control values
Off, Minimum, Medium (recommended) or Maximum.
The picture settings are being optimised continuously and
automatically which is displayed by bars.The menu items can
not be selected.
‘ Press the cursor right to select Smart Picture.
( Press the cursor up/down to select one of the predefined
picture settings.
§ Press the cursor right to select Active Display.
è Press the cursor up/down to select Show bars, one of the Dual
screen demos or
Off.
When you select Dynamic contrast, Pixel Plus 2, Digital Noise
Reduction or Digital Natural Motion, the TV screen is divided
into two parts: in the left part the selected picture quality
setting is switched off; in the right part it is switched on.
! Press the h key again to switch off the Active Control menu.
Sound menu
TV
Smart sound
Equalizer
Volume
Balance
(Loudness)
Headphone volume
Surround mode
(Dual I-II)
(Mono/Stereo)
(Nicam/Analogue)
(3D effect)
AVL
Delta volume
10
Sound
& Press the cursor right to select Sound.
é Select the menu items in the Sound menu with the cursor
up/down and adjust the settings with the cursor left/right.
Remember, control settings are at normal mid-range levels when
the bar scale is centred.
Smart sound
Select
Smart sound to display a list of predefined sound
settings, each corresponding with specific factory settings of
Tr eble and Bass.
Personal refers to the personal preference settings of sound in
the sound menu.
Notes:
- Some menu items are only available in case of a Cinema Link
configuration and when the Cinema Link is activated. Others are
steered by the audio receiver instead of by the TV. See the separate
Cinema Link booklet supplied.
-
Dual X is only available with dual sound transmission.
-
Mono/Stereo is only selectable in case of analogue stereo
transmission.
-
Nicam/Analogue is only selectable in case of Nicam transmission.
Features menu
Features
TV
Programme list
Subtitle
Sleeptimer
Child lock
On timer
Zoom
Off
On
On during mute
& Press the cursor right to select Features.
é Select the menu items with the cursor
up/down and adjust the settings with the
cursor left/right.
Programme list
Press the
OK key to switch over to the
selected TV channel or external.
Select subtitles
The subtitle page must be stored for each TV
channel:
Switch on teletext and select the proper
subtitle page from the index. Switch off teletext.
Subtitle On will automatically display them on
the selected TV channels if subtitles are in the
transmission.A symbol will indicate that the
mode is on.
Select
On during mute when you want to
have the subtitles automatically displayed only
when the sound has been muted with the ¬
key on the remote control.
Child lock
& Select Child lock.
Lock
Child lock
é Press the cursor right to enter the Child lock
Custom lock
Unlock
Lock after
Programme lock
menu.You’re summoned to enter your code.
Note:You have to re-enter your code each time you
enter the child lock menu.
Important:You have forgotten your code !
See p. 8.
“ Select one of the menu items of the child lock
menu:
•
Lock if you want to lock all channels and
externals.
•
Custom lock and press the cursor right.
Select:
-
Lock after if you want to lock all channels
and externals from a certain time onwards.
Press the cursor right and enter the time
with the cursor up/down and right. Press the
OK key to validate.
-
Programme lock if you want to lock a
certain TV channel or external;
• Select
Unlock to disable all locks you have
set.
On timer
& Select On timer with the cursor down.
VCR1
BBC2
Off
On timer
é Select On with the cursor right.
“ Press the cursor right again to enter the
On
CNN
TVE
π.....
Sunday
Monday
.......
Daily
15:45
programme list.
‘ Select the TV channel or external you want
your TV to switch to on a selected time and
day.
( Press the cursor right again to select a day of
the week or to select
§ Press the cursor right once again to enter the
Daily.
time with the digit keys or with the cursor
up/down and press the
è Press the MENU key to turn off the menu.
OK key to activate.
Note:To check your timer settings, press the i key.
Zoom
& Select Zoom with the cursor down and press
the
OK key.
é Press the OK key to select one of the zoom
magnifications (x1, x4, x9, x16).
“ Additionally you can shift the selected zoom
window over the screen with the cursor keys
up/down, left/right.
‘ Press the MENU key to turn off the zoom
function.
11
Teletext guide
TV channels which broadcast teletext also transmit a page with the programme guide of the day.
If the displayed teletext programme guide page satisfies the Video Programming via Teletext (VPT)
requirements, it will be possible to record, remind, watch or lock programmes.
page ball
selection ball
Mon 05 Feb 16.35
BBC1
BBC2
ITV
CH4
CH5
channel list
Review Record Remind Watch Lock
& Press the æ key.
é Select a TV channel with the cursor up/down and press OK.
“ Move the cursor up to the top of the channel list where the name of the selected TV channel
100 1
BBC CEEFAX
LIONS RECORD ANOTHER WIN 430
Index 100 News 300
BBC Info 110 Headlines 305
Children 120 Weather 400
Cookery 150 Sports 415
Education 200 Radio 500
reappears.
‘ Press the cursor right to move the puck over the selection ball.
( In the teletext index page, look for the programme guide page of the day or the following day.
§ Enter with the digit keys, the programme guide page number.
Press the cursor right twice to move the puck to the right to choose one of the subpages if available.
subpages
scroll ball
If the selected programme satisfies the VPT requirements, the TV will remember the last selected teletext
page number of that channel that contains programme guide information and indicates which programme
starts at what time.
Every time you press the æ key, the teletext programme guide page of the selected TV channel will be
available.
Note:The broadcaster is responsible for the content of the information.
Basic functions
Press one of the grey, red, green, yellow or blue keys to activate a Teletext Guide function. The keys
appear in grey if the function is not available.
Review: this menu provides a list of programmes that are marked as reminders, those that have to be
recorded and those that are locked.This menu can be used to change or remove marked
programmes.
Record: to programme the recording of the video recorder (if it has a NEXTVIEWLink function and is
connected to
Remind: to automatically switch on the TV if it is in standby or to display a message if the TV is on.
Lock: to lock certain programmes to prevent recording or watching.
For the functions Record, Remind or Lock, a small menu pops up in which you can choose the
interval: once, daily or weekly, or clear an earlier made record, remind or lock setting. The default
interval is set to
Watch: to watch the selected and currently broadcast programme.
EXT. 2).
Once.To confirm the frequency, press the OK key.
12
Teletext
Most TV channels broadcast information via teletext.This TV has a 1200 pages memory that will store
most broadcasted pages and subpages to reduce waiting time. After each programme change, the
memory is refreshed.
Switch Teletext on and off
Press b to switch the teletext on.
102 W «03 04 05 06 07 08 09 10 11 12»
BBC CEEFAX 102 Mon 05 Feb 16.35.22
BBC CEEFAX
LIONS RECORD ANOTHER WIN 430
Index 100 News 300
BBC Info 110 Headlines 305
Children 120 Weather 400
Cookery 150 Sports 415
Education 200 Radio 500
Lottery 230 Travel 550
Finance 240 Subtitling 888
Music 280 TV Listings 600
Red Green Yellow Blue
Select a Teletext page
- Enter the desired page number with the digit
keys, the cursor keys up/down or with the -P+
key.
- Select the options at the bottom of the screen
with the colour keys.
Previously selected teletext page
(Only possible in case there is no list of favourite
teletext pages available. See p. 14.)
Press the 0 key.
Select the index teletext page
Press the grey colour key † to display the
main index (usually p.100).
Only for T.O.P teletext broadcasts:
Press i.A T. O.P. overview of the teletext
subjects available is displayed.
Select with the cursor up/down, left/right the
desired subject and press the
OK key.
Not all TV channels broadcast T.O.P. teletext.
Select subpages
When a selected teletext page consists of
different subpages, a list of available subpages
appears on the screen.
Press the cursor left or right to select the next
or previous subpage.
Enlarge a Teletext page
Press q repeatedly to display the upper
teletext part, the lower teletext part and then
to return to the normal teletext page size.
When the teletext page is enlarged, you can
scroll the text, line by line using the cursor
up/down.
Picture/Teletext
& Press the b key. Press the b key to show
Teletext on the right of the screen.
é Use the cursor keys to select a TV channel.
“ Press the b key to switch off dual screen.
Active screen selection
When in dual screen picture/teletext (b key),
enter the desired page number with the
-P+
key, then press the MENU key, then select the
left screen (with the blue ball at the top).
You can now select a compressed or full screen
view of picture/teletext with the q key.
Hypertext
With hypertext you can quickly jump to a
pagenumber or search for a specific word
shown on the current teletext page.
& Press the OK key to highlight the first word or
a number on the page.
é Use the cursor up/down, left/right to select any
other word or number you want to search for.
“ Press the OK key to confirm.The search starts.
A message appears at the bottom of the screen
to indicate the searching, or that the word or
page is not found.
‘ Use the cursor up to exit hypertext.
13
Teletext menu
(only available in full screen teletext mode)
& Press the MENU key to activate the menu.
é Press the cursor up/down to select the menu
items.
“ Press the cursor right to activate.
Reveal
Reveals/conceals hidden information on a page,
such as solutions to riddles and puzzles.
Press the cursor right to activate.
Favourite
You may create a list of eight favourite teletext
pages in total, selected from various TV
channels.
To add a favourite page to the list:
& Select a favourite teletext page.
é Select Favourite in the teletext menu and
press the cursor right to enter the list.
" Press the cursor right again to add the page.
' Press the MENU key to watch the current
page.
To watch a favourite page from the list:
When in Teletext, use the 0 key to browse
through the favourite pages of the TV channel
actually selected.
Note: Only the pages of the current channel
can be selected.
Search
Selecting a word
On the keyboard on screen you can type in a
random word you want to search for in the
teletext pages.Whether upper- or lowercase is
used has no influence.
102 03 04 05 06 07 08 09 10 11 12
BBC1
WORD
NAME
FOOTBALL
puck
Cancel Accept
Space Delete
ABCDEFG 1 2 3
HIJKLMN 4 5 6
OP QRSTU 7 8 9
V W X Y Z 0
Shift Special
Red Green Yellow Blue
TELETEXT
‘ Select Cancel to cancel the word; Space to
enter a space;
character selected;
lowercase or capital characters;
Delete to delete the last
Shift to switch between
Special to
display special characters on the keyboard and
press the
( Press the cursor left repeatedly to return to
OK key.
the Teletext menu again.
Searching a word
& Type in the word on screen or select a word
from the history list on the right and press
é Select Accept and press OK again. The
message
“ To cancel the searching or to search for a new
word, select
‘ When a word is not found, a message appears.
Searching appears.
Keyboard and press OK.
OK.
When the word is found, it is highlighted in the
teletext page.To continue the search, press the
OK key.
Cycle subpages (if available)
Makes the subpages cycle automatically.
Press the cursor right to activate and to deactivate again.
Timed page
To display a specific page from a selected TV
channel at a certain time.
& Press the cursor right and select Ye s or No.
é Enter the time and pagenumber with the
cursor keys or the digit keys.
Note:Teletext does not have to remain switched on,
but you should watch the TV channel you have
selected the specific page from.
“ Press the cursor left to return to the TV menu
again.
Language
If the displayed characters on screen do not
correspond with the characters used by the
teletext broadcaster, you can change the
language group here.
Select
Group 1 or 2 with the cursor right.
Press the
MENU key to leave the Teletext
menu.
& Press the cursor right to enter the keyboard.
é Press the cursor left/right, up/down to select
the characters, words or functions.
“ Press the OK key to confirm each character
selected.
14
CABLE
1
4
2
EXT.
2
3
CABLE
1
2
1
EXT.
2
4
5
3
Connect Peripheral Equipment
A
U
DIO
VIDEO
S•VIDEO
1 2 3
There is a wide range of audio and video equipment that can be connected to your TV.
The following connection diagrams show you how to connect them.
EXT. 1 can handle CVBS and RGB, EXT. 2 CVBS and Y/C, EXT. 3 CVBS and RGB. It is preferred to connect
Note:
peripherals with RGB output to
If your recorder is provided with the Easylink function, it should be connected to
functionality.
EXT. 1 or EXT. 3 as RGB provides a better picture quality.
EXT. 2 to benefit from the EasyLink
Recorder (VCR-
DVD +RW)
Other equipment
Connect the aerial cables 1, 2 and, to obtain the optimum
picture quality, eurocable 3 as shown.
If your recorder does not have a euroconnector, the only
possible connection is via the aerial cable.You will therefore
need to tune in your recorder’s test signal and assign it
programme number 0 or store the test signal under a
programme number between 90 and 99, see Manual installation,
p. 6. See the handbook of your recorder.
Decoder and Recorder
Connect a eurocable 4 to your decoder and to the special
euroconnector of your recorder. See also the recorder
handbook. See Decoder, p. 8. You can also connect your
decoder directly to
EXT. 1 or 2 with a eurocable.
(satellite receiver, decoder, DVD, games, etc.)
& Connect the aerial cables 1, 2 and 3 as shown (only if
your peripheral has TV aerial in-/output).
Connect your equipment with a eurocable 4 or 5 to one of
the euroconnectors
EXT.1, 2 or 3 to obtain a better picture
quality.
é Look for the test signal of your peripheral in the same way as
you do for a recorder.
“ Make a selection in the Setup, Source menu, p. 8.
Side connections
Camera or Camcorder
& Connect your camera or camcorder as shown.
é Connect to VIDEO 2 and AUDIO L 3 for mono
equipment. For stereo equipment also connect
AUDIO R 3.
S-VHS quality with an S-VHS camcorder is obtained by
connecting the S-VHS cables with the
AUDIO inputs 3.
S-VIDEO input 1 and
Do not connect cable 1 and 2 at the same time. This may cause
picture distortion !
Headphone
& Insert the plug into the headphone socket L as shown.
é Press ¬ on the remote control to switch off the internal
loudspeakers of the TV.
The headphone impedance must be between 8 and 4000 Ohm.The
headphone socket has a 3.5 mm jack.
In the Sound menu select
Headphone volume to adjust the
headphone volume.
15
Stereo amplifier and two extra front speakers
& Connect the audio cables to the AUDIO input
of your amplifier and to
AUDIO L and R at the
back of your TV.
é The output level is controlled by the volume
control of the amplifier.
AUDIO
Note: Switch off the TV and your audio amplifier
before connecting them. Set the audio amplifier’s
volume to minimum.
To select connected equipment
Press the v key on the remote control repeatedly to select EXT1, EXT2, EXT3 or SIDE according
to where you connected your equipment at the back or the right side of your TV.
Remark : Most equipment (decoder, recorder) carries out the switching itself, when it is switched on.

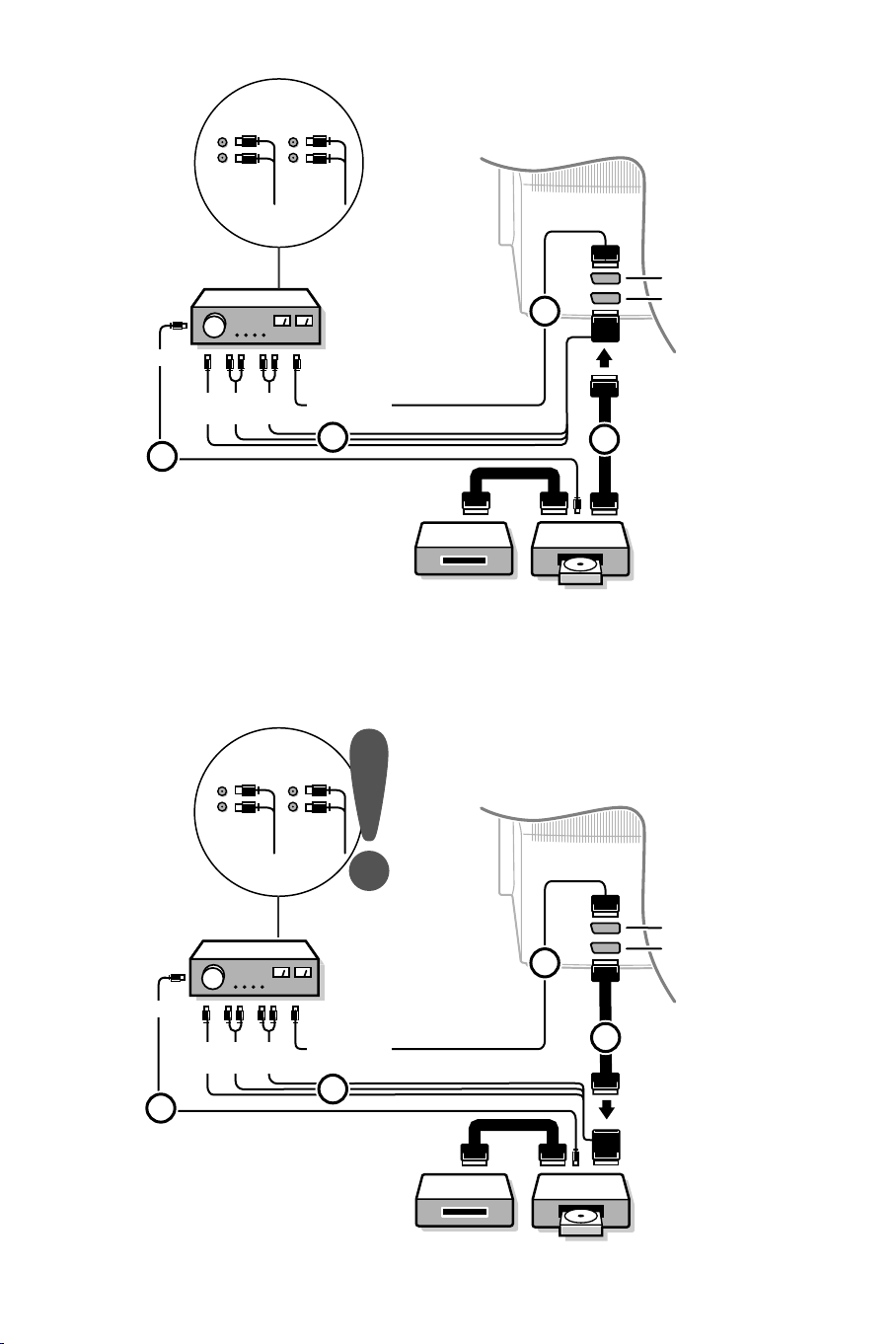

Cinema Link surround receiver
See the separate supplied Cinema Link instruction manual.
Attention: the sound info on screen will not correspond with the actual sound reproduction.
Recorder or DVD with EasyLink
The recorder (VCR or DVD+RW) or DVD can
be operated with the remote control via the
Recorder or DVD menu on screen.
Recorder
Òp‡π † ® Ï
Rwd Play Stop Play Ffw Rec Eject
DVD
Òp ‡ π † Ï
Prev. Play Stop Play Next Eject
& Press the MENU key on the remote control.
é Select the Recorder or DVD menu with the
cursor up/down.
“ Press the cursor left/right, up/down to select
one of the recorder or DVD functions.
The key ® for recording can be operated in the TV
mode.
If your EasyLink recorder has the system standby
function, when you press the B key for 3 seconds,
both TV and the recorder are switched to standby.
16
Audio- and video equipment keys
B
b
¬
+
-
V
+
-
P
v
b
i
0
h
q
Select
VCR DVD SAT AMP CD
MENU
OK
123
456
789
0
Ò®‡π
†
Active Control
S
®
®
®
®
æ
This system remote control operates the following Philips equipment:TV,VCR,
DVD, SAT (RC5),AMP (+TUNER), CD;
Press the
Another device can be selected by pressing Select repeatedly within 2 seconds.The
led will blink slowly to indicate the device.
Press one of the keys on the remote control to operate the peripheral equipment.
To r eturn to TV mode press
When no action is taken within 60 seconds, the remote goes back to TV mode.
Note: When the
system select command is transmitted.
B to switch to standby
S for pause (
® for record,
Ò for rewind (
‡ for stop
π for play
† for fast forward (
æ to select your choice of
b to select a dvd title;
i display information
Select key to operate any of the equipment indicated in the display.
Select key is pressed and held for more than 2 seconds, the RC5/RC6
VCR, DVD, CD)
VCR, CD);
search down (
DVD , AMP)
VCR, CD);
search up (
subtitle language (
RDS news/TA (
to shuffle play (
RDS display (
info on screen (
DVD/AMP)
DVD );
AMP);
CD)
AMP);
CD)
Select while the led is blinking.
MENU to switch the menu on or off
-P+ for chapter, channel, track
selection
0 to 9 digit entry
0 tape index (
select a
select a frequency (
U VCR timer
Q surround on/off (
cursor up/down
to select the next or the
previous disc (
cursor left/right
to select the previous or
following track (
search up/down (
VCR),
DVD chapter,
AMP)
AMP, CD)
CD)
CD)
AMP)
Additionally the DVD, SAT and CD indicator can be programmed to operate the
DVD-R, SAT (RC6), CD-R instead.
& Press the Select key repeatedly until no LED is lit.
é To program DVD-R,press the OK key + digit 2.
To program
SAT (RC6),press the OK key + digit 4.
To program CD-R,press the OK key + digit 6.
Record with your recorder with EasyLink
From now on, when the corresponding (
the remote control will operate your DVD-R, SAT (RC6) or CD-R.
Note:To return to the modes programmed in the factory, either remove the batteries for a
few minutes, or press the
OK key + digit 1 (DVD mode); or + digit 3 (SAT-RC5) or +
digit 5 (CD mode).
In TV mode, it is possible to start a direct recording of the programme which is
being displayed on the TV screen. Continue to press the ® record key on the
remote control for more than 2 seconds.
Note:
Switching programme numbers on your TV does not disturb recording !
When recording a programme from a peripheral connected to
can not select another TV programme on the screen.
DVD , SAT, CD) indicator is selected,
EXT. 1, EXT. 3 or SIDE, you
17
Tips
Care of the screen
Poor Picture
No picture
No sound
Do not touch, push or rub or strike the screen with anything hard as this may
scratch, mar or damage the screen permanently.And please do not rub with dust
clothes with chemical treatment. Do not touch the surface with bare hands or
greasy cloth (some cosmetics are detrimental to the screen). Unplug the TV before
cleaning the screen.When the surface becomes dusty, please wipe gently with
absorbent cotton or other soft materials like chamois soaks. Do not use acetone,
toluene and alcohol because they cause chemical damage. Do not use liquid
cleaners or aerosol cleaners.Wipe off saliva or water drops as soon as possible.
Their long time contact with the screen causes deformations and colour fading.
• Have you selected the correct TV system in the manual installation menu ?
• Is your TV or house aerial located too close to loudspeakers, non-earthed audio
equipment or neon lights, etc.?
• Mountains or high buildings can cause double pictures or ghost images.
Sometimes you can improve the picture quality by changing the direction of the
aerial.
• Is the picture or teletext unrecognisable? Check if you have entered the correct
frequency. See Installation, p. 6.
•Are brightness, sharpness and contrast out of adjustment? Select Factory
settings in the Setup, General menu, p. 7.
• Sometimes poor picture quality is possible when having activated an S-VHS
camera or camcorder connected to the right side of your TV and another
peripheral is connected to one of the peripherals at the same time. In this case
switch off one of the other peripherals.
• Is the aerial connected properly?
•Are the plugs tightly connected in the aerial socket?
• Is the aerial cable in good condition and does it have suitable plugs?
• No sound on any channel? Check the volume isn’t at minimum.
• Is the sound interrupted with the mute key ¬?
No solution found
for your picture or
sound problem ?
Remote control
Menu
Standby
18
Switch your TV off and then on again once. Never attempt to repair a defective
TV yourself. Check with your dealer or call a TV technician.
• If your TV no longer responds to the remote control, the batteries may be dead
or the wrong mode (TV or other peripheral, see p. 3) is selected.
MENU
•You can still use the
Have you selected the wrong menu? Press the
key and the -/+ keys at the top of your TV.
MENU
key again to exit from
the menu.
Your TV consumes energy in the standby mode. Energy consumption contributes
to air and water pollution.
Power consumption: 1 W.
English
3104 315 2288.1
Table of TV frequencies.
Frequenztabelle der Fernsehsender.
Liste des fréquences des émetteurs.
Frequentietabel TV-Zenders.
Tabella delle frequenze delle trasmittenti.
Lista de las frecuencias de las emisoras.
Lista das frequências dos emissores.
Liste over TV senderne.
Tabell over TV-frekvenser.
EUROPE
CHANNEL ...FREQ (MHz)
E2 ....................48.25
E3 ....................55.25
E4 ....................62.25
E5 ..................175.25
E6 ..................182.25
E7 ..................189.25
E8 ..................196.25
E9 ..................203.25
E10 ................210.25
E11 ................217.25
E12 ................224.25
S1 ..................105.25
S2 ..................112.25
S3 ..................119.25
S4 ..................126.25
S5 ..................133.25
S6 ..................140.25
S7 ..................147.25
S8 ..................154.25
S9 ..................161.25
S10 ................168.25
S11 ................231.25
S12 ................238.25
S13 ................245.25
S14 ................252.25
S15 ................259.25
S16 ................266.25
S17 ................273.25
S18 ................280.25
S19 ................287.25
S20 ................294.25
H1..................303.25
H2..................311.25
H3..................319.25
H4..................327.25
H5..................335.25
H6..................343.25
H7..................351.25
H8..................359.25
H9..................367.25
H10................375.25
H11................383.25
H12................391.25
H13................399.25
H14................407.25
H15................415.25
H16................423.25
H17................431.25
H18................439.25
H19................447.25
21...................471.25
22...................479.25
23...................487.25
24...................495.25
25...................503.25
26...................511.25
27...................519.25
28...................527.25
29...................535.25
30...................543.25
31...................551.25
32...................559.25
33...................567.25
34...................575.25
35...................583.25
36...................591.25
37...................599.25
38...................607.25
39...................615.25
40...................623.25
41...................631.25
42...................639.25
43...................647.25
44...................655.25
45...................663.25
46...................671.25
47...................679.25
48...................687.25
49...................695.25
50...................703.25
51...................711.25
52...................719.25
53...................727.25
54...................735.25
55...................743.25
56...................751.25
57...................759.25
58...................767.25
59...................775.25
60...................783.25
61...................791.25
62...................799.25
63...................807.25
64...................815.25
65...................823.25
66...................831.25
67...................839.25
68...................847.25
69...................855.25
EASTERN EUROPE
CANAL............FREQ (MHz)
R1......................49.75
R2......................59.25
R3......................77.25
R4......................85.25
R5......................93.25
R 6...................175.25
R 7...................183.25
R 8...................191.25
R 9...................199.25
R10..................207.25
R11..................215.25
R12..................223.25
S1....................105.25
S2....................112.25
S3....................119.25
S4....................126.25
S5....................133.25
S6....................140.25
S7....................147.25
S8....................154.25
S9....................161.25
S10..................168.25
S11..................231.25
S12..................238.25
S13..................245.25
S14..................252.25
S15..................259.25
S16..................266.25
S17..................273.25
S18..................280.25
S19..................287.25
S20..................294.25
H1....................303.25
H2....................311.25
H3....................319.25
H4....................327.25
H5....................335.25
H6....................343.25
H7....................351.25
H8....................359.25
H9....................367.25
H10..................375.25
H11..................383.25
H12..................391.25
H13..................399.25
H14..................407.25
H15..................415.25
H16..................423.25
H17..................431.25
H18..................439.25
H19..................447.25
21 ....................471.25
22 ....................479.25
23 ....................487.25
24 ....................495.25
25 ....................503.25
26 ....................511.25
27 ....................519.25
28 ....................527.25
29 ....................535.25
30 ....................543.25
31 ....................551.25
32 ....................559.25
33 ....................567.25
34 ....................575.25
35 ....................583.25
36 ....................591.25
37 ....................599.25
38 ....................607.25
39 ....................615.25
40 ....................623.25
41 ....................631.25
42 ....................639.25
43 ....................647.25
44 ....................655.25
45 ....................663.25
46 ....................671.25
47 ....................679.25
48 ....................687.25
49 ....................695.25
50 ....................703.25
51 ....................711.25
52 ....................719.25
53 ....................727.25
54 ....................735.25
55 ....................743.25
56 ....................751.25
57 ....................759.25
58 ....................767.25
59 ....................775.25
60 ....................783.25
61 ....................791.25
62 ....................799.25
63 ....................807.25
64 ....................815.25
65 ....................823.25
66 ....................831.25
67 ....................839.25
68 ....................847.25
69 ....................855.25
Tabell över TV-frekvenser.
TV-taajuustaulukko.
Kατάλογος συχνοτήτων ποµπών.
Spisok hastot peredathikov.
A televizió−adóállomások frekvenciáinak a listája.
Lista częstotliwości stacji nadawczych.
Seznam frekvenčních pásem vysílačů.
Zoznam frekvenčných pásiem vysielačov.
FRANCE
CANAL........FREQ (MHz)
2 .......................55.75
3 .......................60.50
4 .......................63.75
5 .......................176.0
6 .......................184.0
7 .......................192.0
8 .......................200.0
9 .......................208.0
10 .....................216.0
B.....................116.75
C.....................128.75
D ....................140.75
E.....................159.75
F .....................164.75
G ....................176.75
H ....................188.75
I ......................200.75
J .....................212.75
K.....................224.75
L .....................236.75
M....................248.75
N ....................260.75
O ....................272.75
P.....................284.75
Q ....................296.75
H1 ..................303.25
H2 ..................311.25
H3 ..................319.25
H4 ..................327.25
H5 ..................335.25
H6 ..................343.25
H7 ..................351.25
H8 ..................359.25
H9 ..................367.25
H10 ................375.25
H11 ................383.25
H12 ................391.25
H13 ................399.25
H14 ................407.25
H15 ................415.25
H16 ................423.25
H17 ................431.25
H18 ................439.25
H19 ................447.25
21 ...................471.25
22 ...................479.25
23 ...................487.25
24 ...................495.25
25 ...................503.25
26 ...................511.25
27 ...................519.25
28 ...................527.25
29 ...................535.25
30 ...................543.25
31 ...................551.25
32 ...................559.25
33 ...................567.25
34 ...................575.25
35 ...................583.25
36 ...................591.25
37 ...................599.25
38 ...................607.25
39 ...................615.25
40 ...................623.25
41 ...................631.25
42 ...................639.25
43 ...................647.25
44 ...................655.25
45 ...................663.25
46 ...................671.25
47 ...................679.25
48 ...................687.25
49 ...................695.25
50 ...................703.25
51 ...................711.25
52 ...................719.25
53 ...................727.25
54 ...................735.25
55 ...................743.25
56 ...................751.25
57 ...................759.25
58 ...................767.25
59 ...................775.25
60 ...................783.25
61 ...................791.25
62 ...................799.25
63 ...................807.25
64 ...................815.25
65 ...................823.25
66 ...................831.25
67 ...................839.25
68 ...................847.25
69 ...................855.25
ITALY
CANALE ......FREQ (MHz)
A........................53.75
B........................62.25
C........................82.25
D......................175.25
E ......................183.75
F ......................192.25
G......................201.25
H......................210.25
H1....................217.25
S1....................105.25
S2....................112.25
S3....................119.25
S4....................126.25
S5....................133.25
S6....................140.25
S7....................147.25
S8....................154.25
S9....................161.25
S10..................168.25
S11..................231.25
S12..................238.25
S13..................245.25
S14..................252.25
S15..................259.25
S16..................266.25
S17..................273.25
S18..................280.25
S19..................287.25
S20..................294.25
H1....................303.25
H2....................311.25
H3....................319.25
H4....................327.25
H5....................335.25
H6....................343.25
H7....................351.25
H8....................359.25
H9....................367.25
H10..................375.25
H11..................383.25
H12..................391.25
H13..................399.25
H14..................407.25
H15..................415.25
H16..................423.25
H17..................431.25
H18..................439.25
H19..................447.25
21 ....................471.25
22 ....................479.25
23 ....................487.25
24 ....................495.25
25 ....................503.25
26 ....................511.25
27 ....................519.25
28 ....................527.25
29 ....................535.25
30 ....................543.25
31 ....................551.25
32 ....................559.25
33 ....................567.25
34 ....................575.25
35 ....................583.25
36 ....................591.25
37 ....................599.25
38 ....................607.25
39 ....................615.25
40 ....................623.25
41 ....................631.25
42 ....................639.25
43 ....................647.25
44 ....................655.25
45 ....................663.25
46 ....................671.25
47 ....................679.25
48 ....................687.25
49 ....................695.25
50 ....................703.25
51 ....................711.25
52 ....................719.25
53 ....................727.25
54 ....................735.25
55 ....................743.25
56 ....................751.25
57 ....................759.25
58 ....................767.25
59 ....................775.25
60 ....................783.25
61 ....................791.25
62 ....................799.25
63 ....................807.25
64 ....................815.25
65 ....................823.25
66 ....................831.25
67 ....................839.25
68 ....................847.25
69 ....................855.25
GB
The frequencies used by a cable company may differ
from the frequencies on the table. Consult your cable
company or your dealer for detailed information.
D
In Kabelfernsehanlagen können Abweichungen von
den in den Frequenztabellen aufgeführten Frequenzen
vorkommen. Bitte wenden Sie sich an Ihren
Fachhändler oder Ihre Kabelfernsehgesellschaft, die
Ihnen die zutreffenden Frequenzen mitteilt.
F
Les fréquences utilisées par une société de
télédistribution peuvent être différentes de celles sur
la liste des fréquences. Consultez votre société de
télédistribution ou votre revendeur pour des
informations plus détailées.
NL
De frequenties die gebruikt worden door een
kabelmaatschappij kunnen verschillen van deze op
de tabel. Raadpleeg uw kabelexploitant of uw
handelaar voor meer informatie.
I
Le frequenze usate per una società di teledistribuzione
possano essere differenti di quelle nella tabella.
Consultate la società di teledistribuzione o il vostro
rivenditore per informazione specifica.
E
Las frecuencias utilizadas por las empresas de
distribución de señal por cable, pueden ser diferentes
de las que se encuentran en esta tabla. Consulte con
su compañia de distribución de televisión por cable o
con su distribuidor para que le proporcionen una
información más detallada.
P
As frequências utilizadas por uma sociedade de
teledistribuição podem ser diferentes das indicadas na
lista de frequências. Consultar a sociedade de
teledistribuição ou o vendedor para informações mais
detalhadas.
DK
Frekvenser benyttet af kabel operatører kan være
afvigende fra disse, kantakt deres kabel operatør eller
forhandler for næmere informa-tion.
N
Frekvensene som benyttes pa et kabelnett kan avvike
fra de som er oppfört i tabellen. Kontakt ditt kabel-TV
selskap eller din forhandler for næmere opplysninger.
S
Frekvenserna som används i kabel-TV-näten kan
avvika från frekvenserna i tabellen. Kontakta ditt kabelTV-bolag eller din radiohandlare för vidare information.
SF
Kaapeliyhtiöden käyttämät taajuudet voivat poiketa
taulukossa olevista taajuuksista. Tarkat tiedot saat
kaapeliyhtiösta tai myyjältä.
GR
Οι συχντητες που χρησιµοποιούνται απ µια εταιρεία
τηλεµετάδοσης είναι δυνατν να είναι διαφορετικές απ
αυτές που περιέχει ο κατάλογος. (Συµβουλευθείτε την
εταιρεία τηλεµετάδοσης ή τον πωλητή για λεπτοµερέστερες
πληροφορίες).
CEI
Hastoty na kotoryx peredaòt telakampaniä mogut
otlihatæsä ot hastot na dannoj tablice.
(Obratitæsä k Vaπej telekampanii ili Vaπemu
prodavcu za dopolnitelænoj informaciej.
H
Egy televizió−adóállomás sugárzáshoz használt
frekvenciatartományai lehetnek a táblázatban
közöltektől eltérőek is. (Abban az esetben, ha
bővebb információkra van szüksége, forduljon az
eladóhoz.)
PL
Operator sieci telewizyjnej może stosować inne
częstotliwości, niż te, które figurują na tablicy
(bardziej szczegółowych informacji na ten temat
zasięgnąć u operatora lub sprzedawcy).
CZ
Frekvence používané některými televizními
společnostmi se mohou lišit od údajů uvedených v
tomto seznamu. Informujte se blíže u příslušné
společnosti nebo v prodejně, kde jste televizor
koupili.
SK
Frekvencie používané niektorými spoločnosami
televízneho prenosu sa môžu liši od údajov uve−
dených v tomto zozname. Informujte sa bližšie u
príslušnej spoločnosti alebo v predajni, kde ste
televízor kúpili.
Printed in Belgium
AUDIO
TV
IN
VCR
IN
TV
VCR
AUDIO
TV
IN
VCR
IN
TV
VCR
2
1
EXT.
2
1
EXT.
1
3
TV
IN
VCR
IN
CINEMA
LINK
4
DIGITAL IN
Recorder DVD
1
3
TV
IN
VCR
IN
CINEMA
LINK
4
DIGITAL IN
Recorder DVD
2
CENTRE OUT
CENTRE OUT
2
Note:The Cinema Link
functionality is only available
with devices of the Cinema Link
(P50.3) generation !
Cinema Link is a new Philips feature in which the TV, the audio
receiver and other video peripherals communicate with each other
(on condition they all are equipped with the Cinema Link
functionality and are connected via a eurocable).They automatically
offer the highest quality combination of picture and multi channel
surround sound to create your own Home Cinema.
Recommended:
Do not use the AC outlet at
the back of the audio receiver
to power the DVD or the
video recorder in a Home
Cinema configuration.
The TV can function as the centre speaker of your system, making a
separate centre speaker unnecessary.
Configuration of the Cinema Link peripherals
The connection diagram in the inside cover shows you how to connect the Cinema Link peripherals
with each other.
Notes:
- Besides the TV at least one peripheral should be provided with the Cinema Link functionality to benefit from
this feature.
- To take advantage of the highest quality of multi channel Surround sound it is advisable that you have a
Cinema Link audio receiver connected.
- The peripherals connected don’t need to see the TV remote control in the Cinema Link system.The commands
given to the TV are automatically passed to the other peripherals.This allows you to put the peripherals behind
the doors of a cabinet or to place them in another room.
-To enjoy Digital Surround playback, the digital device (e.g. DVD) should be connected to the digital input of the
audio receiver with a separate cinch audio cable 4. If you connect the digital audio output connector of your
peripheral equipment to a digital input connector of your audio receiver 4, select the appropriate digital
input (1 or 2) in your audio receiver.
English
Preparation and Operation
& Cinema Link is switched on as soon as the audio receiver and the TV are switched on. If necessary,
Cinema Link may be switched off or on again only on the audio receiver. See the instructions for
use of your audio receiver.
Important: When Cinema Link is switched on all audio commands control the audio receiver instead of the TV.
é The message
CinemaLink system is activated.
Note: it is recommended to disable CinemaLink when the receiver is used to record a CD e.g. or when using
a headphone when others are watching TV.
Now you can adjust the initial TV settings for optimal surround sound and install the audio channels
before starting up one of the CinemaLink devices.The system information about country choice,
menu language and picture format you set up during the installation of the TV is transferred to the
audio receiver automatically.
TV as centre speaker
See the Instructions for Use of the TV, Setup, Source menu, Centre input.
Use the test tone function in the Speakers menu to have a reference of the loudness of the
separate speakers.
Note: If you want the loudspeakers of your TV to act as centre speaker, also connect a cinch to scart cable
(not supplied) 2 to EXT1 of your TV.
CINEMALINK ON is displayed on the audio receiver and on the TV. Now the
1
Receiver menu
TV
DVD
Recorder
Receiver
Setup
Demo
Install
Sound Surround Speakers Automatic Manual Give name Reshuffle
installation installation
Note:When Cinema Link is enabled, certain items of the Sound menu (see TV menu) are steered by the
audio receiver instead of by the TV.
& Press the
é Press the cursor down to select
MENU key on the remote control.
Receiver.
“ Press the cursor right to enter the Receiver menu items.
‘ Press the cursor up/down to select the submenu items.
Note: the audio receiver submenu items may only be selected if provided by the audio receiver (dependent on
the configuration setup and the sound signals transmitted).
Sound menu
Dependent on the audio receiver speakers configuration, you may not be able to select certain menu
items.
Receiver
Sound
Smart Sound
Tr eble
Bass
Loudness
3D effect
Night mode
Audio Only
Smart Sound,Treble, Bass
See the Instructions for Use for the TV.
Loudness
When
Loudness On is selected and when listening at low
volume, the low and high frequencies are amplified so that the
natural balance is restored.
3D effect
3D effect enables you to experience the effect of Dolby Surround
Pro Logic without the need of having rear speakers connected or
activated.
Select the level of 3D effect with the cursor left/right.
Night mode (only functional with Dolby Digital sound broadcasting input)
The loud parts of the sound are lowered and the soft passages are raised.
You can enjoy surround sound without disturbing sleeping children or neighbours.
Audio only
This control enables you to blank the TV picture if the TV is used as centre speaker in the Cinema Link
system and if the audio receiver is reproducing sound unrelated to a TV picture.
Switch
Audio only On to only hear the sound and to switch off the picture.
The message
Audio only appears on screen.
2
Surround menu
Dependent on the audio receiver speakers configuration, you may not be able to select certain menu
items.
Receiver
Surround
Test Tone
Front left volume
Front right volume
Centre volume
Rear volume
Rear left volume
Rear right volume
Subwoofer volume
Adjustment of the volume level of the loudspeakers
Note: the test tone function is automatically cancelled by the audio
receiver when leaving the Surround menu.
& Select
Test Tone On.
A steady noise tone is switched sequentially through the available
loudspeakers, except for the subwoofer, for 2 seconds each.This
enables you to have a reference of the loudness of each
loudspeaker and to adjust the level of each until they all sound
equally loud.
The loudspeakers activated light up in the screen graphic.
é Select the Surround menu items with the cursor up/down one
after another and alter the selected adjustments with the cursor
left/right.
The best result is achieved when all speakers have equal volume in
your usual listening position.
“ Select
Test tone Off when you have finished the adjustment of the
speaker levels.
Speakers menu
Dependent on the audio receiver speakers configuration, you may not be able to select certain menu
items.
Once the number and position of the loudspeakers has been fixed, selecting Centre speaker, Rear
Speakers and Subwoofer Yes or No, you can adjust the initial receiver settings, size and distance, for
optimal surround sound.
Note: after changing the configuration, the menu will disappear temporarily and re-appear again after the new
settings will be updated.
Receiver
Centre speakers
Rear speakers
Subwoofer present
Front speaker size
Centre speaker size
Rear speaker size
Distance to front
Distance to centre
Distance to rear
Speakers
Yes/No
Yes/No
Yes/no
Large/Small
Large/Small
Large/Small
1-10 m
1-10 m
1-10 m
Size of the speakers
Select
Small if your speaker is able to reproduce low notes down
to at least 80-100 Hz. Select
Large if your speaker is able to
reproduce low notes down to at least 50 Hz.
Note:
- As a rule of thumb, a large speaker has a cone diameter of at least
12 cms (5 inches). See the specification sheet of your loudspeakers.
- If Subwoofer present is set to No, Front speaker size can only be set
to Large. If Front speaker size is set to Small, Centre speaker size can
only be set to Small and consequently a subwoofer must be
connected.
Distance to the speakers
Select the distance from your usual listening position to the
available speakers each; front, centre and rear speakers.
This defines the delay time for the surround sound.
3
Automatic installation
Receiver
Automatic install
Install Start
Manual installation
Manual install
Receiver
Band
Search
Preset
Store
LW
MW
SW
FM
AM
In the Automatic installation menu select
Start to activate
the automatic searching of all radio stations which can be
received.
The programme list is automatically filled with all the
numbers and names of the radio stations transmitted.
You can also search for a known radio station by keying in
the frequency.
& First select
LW , MW, SW, FM or AM.
é Select
Band to switch to the desired waveband:
Search and press the cursor right.
The frequency increases until a radio station is found.
If you know the 3-digit frequency, enter it directly with
the digit keys 0 to 9.
Select
Preset to enter the preset number using a three
digit entry with the digit keys.
“ To store your radio station, select
OK key.
Store and press the
‘ Repeat steps & to “ to store another radio station.
Give name - Reshuffle
Give name Reshuffle
Receiver
4
To assign or change a name to a radio station or to change
the order of the stored radio stations according to your
preference, act in the same way as with giving a name or
reshuffling the programme list of TV channels.
See the Instructions for Use of the TV.
Printed in Belgium
Loading...
