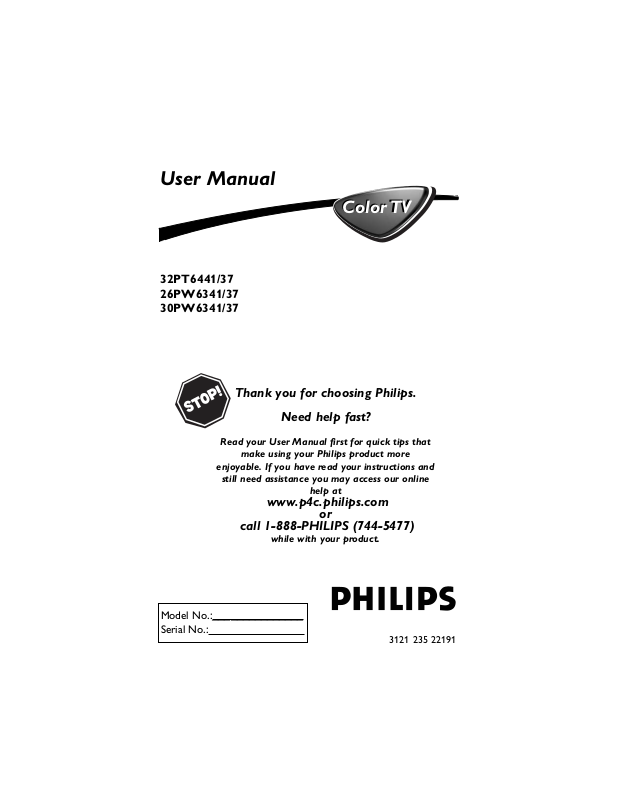

PHILIPS 32PT6441 User Manual

Color TV

32PT6441/37 26PW6341/37 30PW6341/37

3121 235 22191

Model No.:_______________ Serial No.:

User Manual

Thank you for choosing Philips.

Need help fast?

Read your User Manual first for quick tips that

make using your Philips product more

enjoyable. If you have read your instructions and

still need assistance you may access our online

help at

www.p4c.philips.com

call 1-888-PHILIPS (744-5477)

while with your product.

Return your Product Registration Card today

to get the very most from your purchase.

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS.You’ve selected one of the best-built, bestbacked products available today.We’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

Most importantly,you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome - and thanks for investing in a PHILIPS product.

P.S. To get the most from your PHILIPS purchase, be sure to complete and return your Product Registration Card at once.

Know these

safetysymbols

This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household,please do not remove product covering.

The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: To r educe the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION:Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once to ensure:

*Proof of Purchase

Returning the enclosed card guarantees that your date of purchase will be on file, so no additional paperwork will be required from you to obtain warranty service.

*Product Safety Notification

By registering your product, you'll receive notification - directly from the manufacturer - in the rare case of a product recall or safety defect.

*Additional Benefits of Product Ownership

Registering your product guarantees that you'll receive all of the privileges to which you're entitled, including special money-saving offers.

t s

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Visit our World Wide Web Site at http://www.philips.com

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings.

Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radia-

tors, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the

manufacturer.

12. Use only with a cart, stand, tripod, brack-

et, or table specified by the manufacturer,

or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product may contain lead and mercury.

Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org

16. Damage Requiring Service - The appliance

should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been dam-

aged; or

B. Objects have fallen, or liquid has been spilled into

the appliance; or

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normal-

ly or exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure

damaged.

17. Tilt/Stability - All televisions must comply with

recommended international global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18. Wall or Ceiling Mounting - The appliance

should be mounted to a wall or ceiling only as recommended by the manufacturer.

19. Power Lines - An outdoor antenna should be

located away from power lines.

20. Outdoor Antenna Grounding - If an outside

antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPANo. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure below.

21. Object and Liquid Entry - Care should be taken

so that objects do not fall and liquids are not spilled into the enclosure through openings. a) Warning: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

22. Battery Usage CAUTION - To prevent battery

leakage that may result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, with + and aligned as marked on the unit.

• Do not mix batteries (old and new or carbon and alkaline, etc.).

• Remove batteries when the unit is not used for a long time.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Example of Antenna Grounding as per NEC - National Electric Code

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMP

POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250, PART H)

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

Side 1

PANEL L

AYOUT

PANEL

INDEX

Subject Panel No.

Active Control . . . . . . . . . . . . . . . . .20

Antenna/Cable Basic Connection . . .1 Audio/Video Connections

AV Input Jacks . . . . . . . . . . . . . . . .4

Component Video Input Jacks . . . .7

Headphone Jack . . . . . . . . . . . . . . .5

Monitor Output Jacks . . . . . . . . . . .8

S-Video Input Jacks . . . . . . . . . . . .6

Side AV Input Jacks . . . . . . . . . . . .5

AutoLock™ Controls

Access Code . . . . . . . . . . . . . . . . .22

Block All Channels . . . . . . . . . . . .24

Block Channels . . . . . . . . . . . . . . .23

Clear All Blocked Channels . . . . .24

Movie Ratings . . . . . . . . . . . . . . . .25

Other Blocking Options . . . . . . . .27

TV Ratings . . . . . . . . . . . . . . . . . .26

Understanding AutoLock™ . . . . .21

Automatically Programming TV . .13

AutoPicture™ Control . . . . . . . . . .30

AutoSound™ Control . . . . . . . . . . .30

Basic Remote Operation . . . . . . . . . .3

Basic Television Operation . . . . . . . .3

Cable Box Connection . . . . . . . . . . .2

Channel Edit . . . . . . . . . . . . . . . . . .14

Subject Panel No.

Timer Controls

Activate Control . . . . . . . . . . . .18-19

Clock . . . . . . . . . . . . . . . . . . . .18-19

Display Control . . . . . . . . . . . .18-19

Specific Channel . . . . . . . . . . .18-19

Start or Stop Time . . . . . . . . . .18-19

Closed Caption Control . . . . . . . . . .29

Demo Mode . . . . . . . . . . . . . . . . . . .17

Format Control . . . . . . . . . . . . . . . .28

Language Controls . . . . . . . . . . . . .11

Limited Warranty . . . . . . . . . . . . . .42

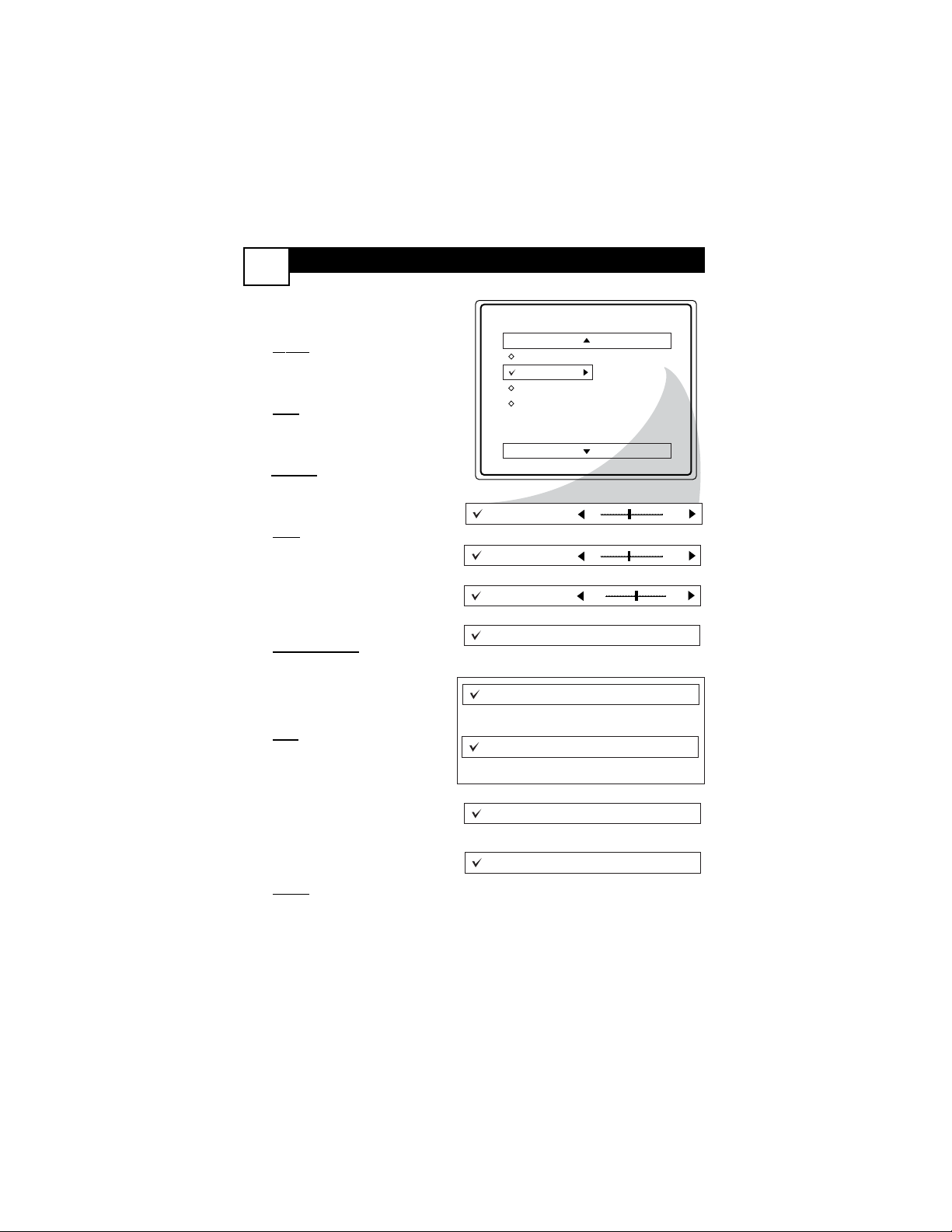

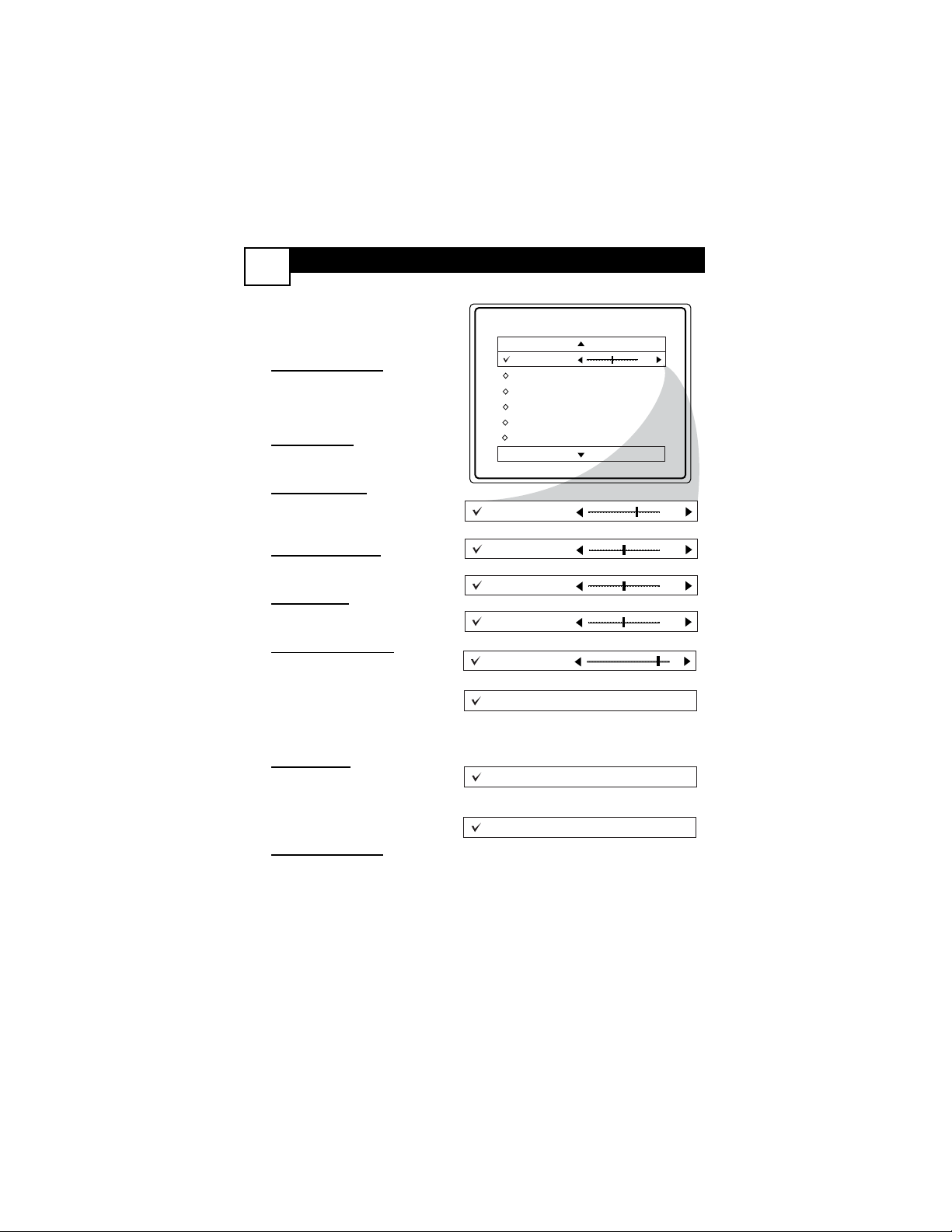

Picture Menu Controls . . . . . . . . . .15

QuadraSurf™ . . . . . . . . . . . . . . .31-32

Remote Batteries . . . . . . . . . . . . . . . .3

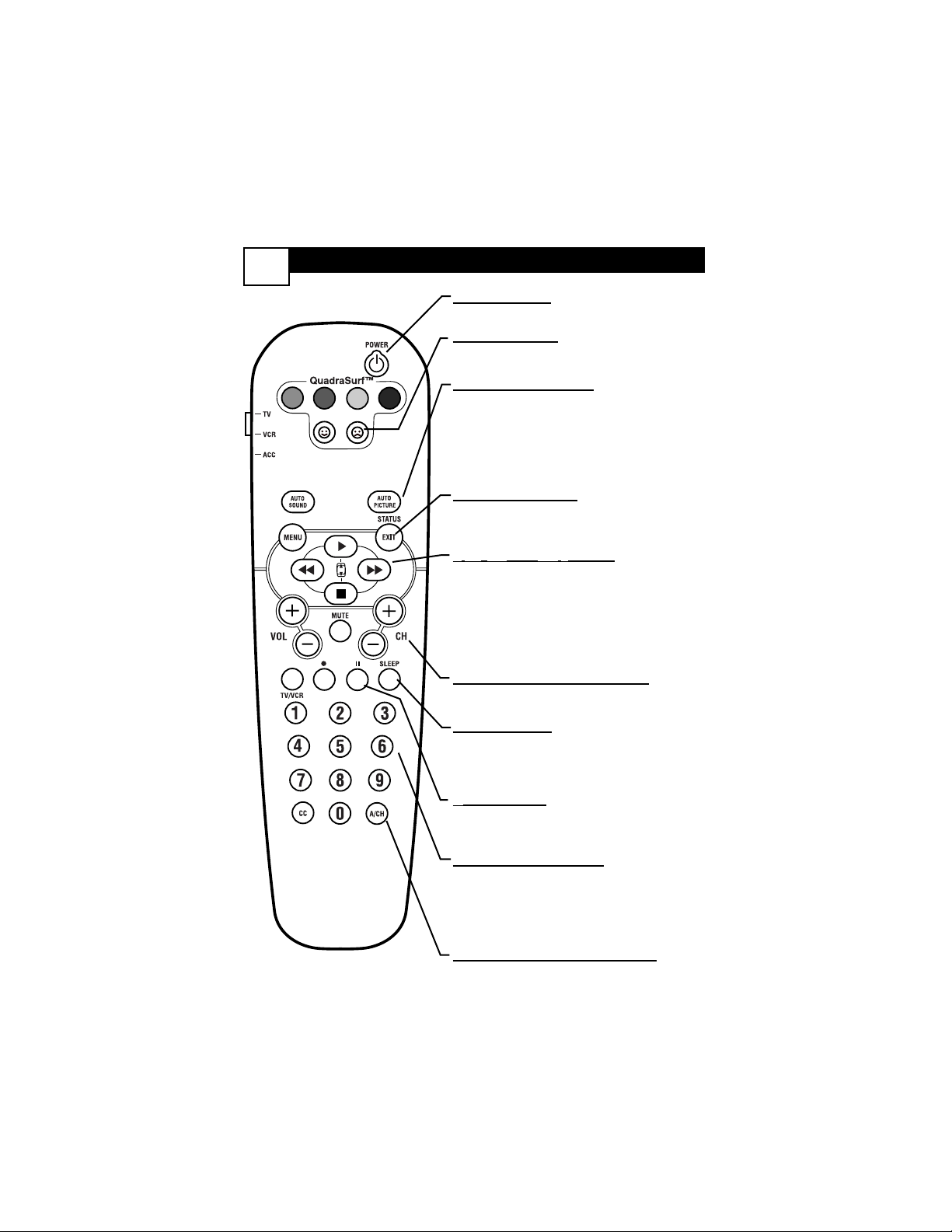

Remote Button Descriptions . . . .9-10

Remote Control Use

Code Entry Method . . . . . . . . . . . .33

Search Method . . . . . . . . . . . . . . .34

Code Entry List . . . . . . . . . . . .35-37

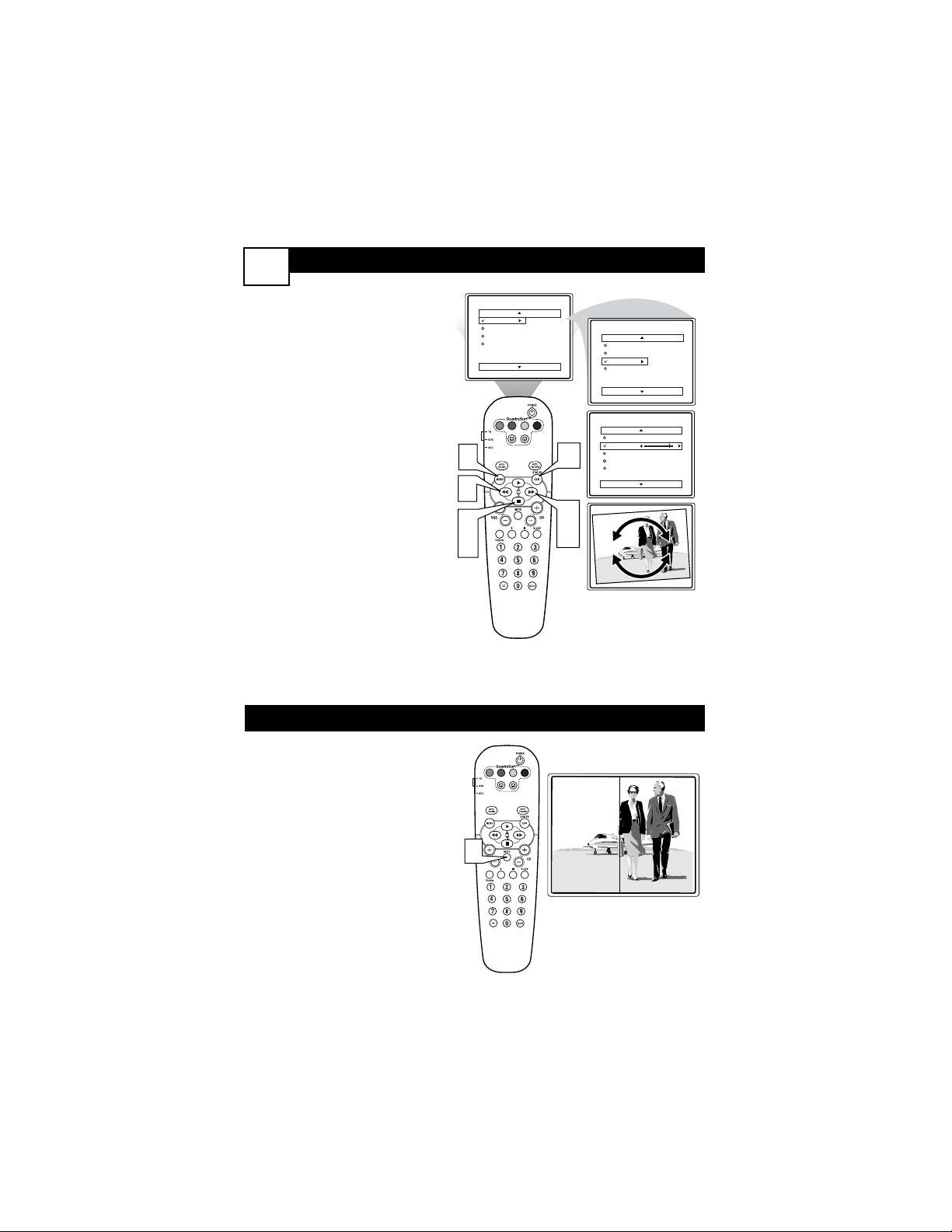

Rotation Controls . . . . . . . . . . . . . .17

Sleeptimer . . . . . . . . . . . . . . . . . . . .29

Sound Menu Controls . . . . . . . . . . .16

Troubleshooting . . . . . . . . . . . . . . .37

Tuner Mode . . . . . . . . . . . . . . . . . . .12

Active Control, AutoPicture, AutoSound, and Incredible Surround are trademarks of Philips Consumer Electronics Company. Copyright 2001 Philips Consumer Electronics.*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

MODEL REGISTRATION INFORMATION

SAFETY

INFO

PANEL

COVER

LIMITED

WARRANTY

(Panel 38)

and

PANEL

Panel Index

PANEL

Sequence

Panel

Side 2

PANEL

BASIC

ANTENNA AND CABLE CONNECTIONS

our home’s signal input might

come from a single (75 ohm) round cable, a Converter Box, or from an antenna. In either case the connection to the TV is very easy.

If your Cable TV signal or Antenna signal is a round cable (75 ohm) then you're

ready to connect to the TV.

If your antenna has flat twinlead wire (300 ohm), you first

need to attach the antenna wires to the screws on a 300 to 75 ohm adapter.

If you have a Cable Converter Box: Connect the Cable TV sig-

nal to the Cable Signal IN(put) plug on the Converter.

Connect the Cable TV cable or Antenna cable (or 300 to 75 ohm adapter) to the 75Ω plug on the TV.

If you have a Cable Converter Box: Connect the OUT(put) plug

from the Converter to the 75Ω plug on the TV.

After using the AutoProgram Control, press the CH + and – buttons to scroll through all the channels stored in the television’s memory.

HELPFUL HINT

Back of TV

Cable signal

coming from

Cable Company

Jack Panel

Back of TV

75 ⍀

ANT 75‰

L/Mono

Monitor out

VIDEO

S-VIDEO

AV1 in

AV2 in

AUDIO

COMPONENT VIDEO INPUT

Antenna Connection

300 to 75Ω

Adapter

Combination VHF/UHF Antenna (Outdoor or Indoor)

Twin Lead

Wire

Round Cable

75Ω

Back of TV

Direct Cable Connection

75Ω Round

Coaxial Cable

75 ⍀

ANT 75‰

VIDEO

L/Mono

AUDIO

Monitor out

AV2 in

AV1 in

S-VIDEO

COMPONENT VIDEO INPUT

TV/VCR

CABLE

USB

DVD-D OUT

AUDIO IN

SPDIF

VIDEO

IN OUT

S-VIDEO

R L

AUDIO OUT

PASSCARD

Y Pb Pr

OPTICAL

SPDIF

ANT 75‰

L/Mono

Monitor out

VIDEO

S-VIDEO

AV1 in

AV2 in

AUDIO

COMPONENT VIDEO INPUT

L/Mono

Monitor out

VIDEO

S-VIDEO

AV1 in

AV2 in

AUDIO

COMPONENT VIDEO INPUT

ABLE BOX CONNECTIONS

f your cable signal uses a cable

box or decoder, follow the easy steps below to complete the connection.

Cable Box (w/RF In/Outputs):

This connection will be mono.

Connect the Cable Company supplied cable to

the signal IN(put) plug on the back of the Cable Box.

Using a separate round coaxial cable, connect one end to the

OUT(put)

(TO TV) plug on the

back of the Cable Box.

Connect the other end of the round coaxial cable to the 75Ω

input on the back of the television. Screw it down finger tight.

NOTE: If applicable, set the OUTPUT CHANNEL SWITCH on the back of the cable box to CH 3 or 4. Tune the TV to the same channel and change channels at the cable box. In some cases, the cable box will automatically tune to either channel 3 or 4, change channels until the picture appears.

Cable Box (w/Audio/Video Outputs):

This connection will supply Stereo sound.

Connect the Cable Company supplied cable to

the cable signal IN(put) plug on the back of the Cable Box.

Using a RCA type Video Cable,

connect one end of the cable to the Video (or ANT, your cable

box may be labeled differently)

Out jack on the cable box and the other end to the AV1 Video Input on the TV.

Connect one end of the Audio Left and Right Cable to the left

and right Audio Out L & R jacks on the cable box. Connect

the other end to the AV1 Audio L & R Input jacks on the TV.

NOTE: Use the CH+ or CH- on the TV remote control to tune to the AV1 channel for the cable box signal. Once tuned, change channels at the cable box, not the television.

Jack Panel Back of Cable Box

Cable Signal IN from the

Cable Company

Round 75Ω

Coaxial Cable

Jack Panel Back of TV

Cable Signal IN

from the Cable

Company

Cable Box with A/V Outputs

Jack Panel Back of TV

Audio Cables L (White) & R (Red)

Video Cable

(Yellow)

Cable Box (w/RF In/Outputs):

Cable Box (w/Audio/Video Outputs):

TV/VCR

CABLE

DVD-D OUT

USB

75 ⍀

VIDEO

AUDIO IN

SPDIF

IN OUT

R L

S-VIDEO

Y Pb Pr

AUDIO OUT

PASSCARD

OPTICAL

SPDIF

ANT 75‰

Monitor out

AV2 in

AV1 in

VIDEO

L/Mono

AUDIO

S-VIDEO

COMPONENT VIDEO INPUT

POWER

–

VOLUME

–

CHANNEL

BASIC

TV AND REMOTE CONTROL OPERATION

Press the POWER button to turn the TV ON.

Note: You can also press any button on the front of the TV to turn the TV ON.

Press the VOLUME + button to increase the sound level, or the VOLUME – button to lower the sound level.

Pressing both buttons at the same time will display the on-

screen menu. Once in the menu, use these buttons to make adjustments or selections.

Press the CHANNEL UP + or DOWN – button to select TV

channels.

Point the remote control toward the remote sensor window on the TV when operating the TV with the remote.

REMOTE CONTROL

o load the supplied batteries into the remote:

1. Remove the battery compartment lid on the back of the remote.

2. Place the batteries (2-AA) in the remote. Be sure the (+) and (-)

ends of the batteries line up correctly (inside of case is marked.)

3. Reattach the battery lid.

Standby Light Indicator - Red light will show

when in the Standby Mode. Press the Power button to return the TV to it’s active state.

Remote Sensor - Sensor for

activating remote control com-

mands when the remote is

used to control the TV.

Battery Compartment

2-AA Batteries

Battery Lid

Back of Remote

VOL

AV (AUDIO

/VIDEO) INPUT CONNECTION

Monitor out

Audio and video cables are not supplied with the TV, but are available from Philips or electronics retailers.

HELPFUL HINT

Audio In (Red and

White)

VCR Two (or accessory device) (Equipped with Video and Audio Output Jacks)

Video In

(Yellow)

Back of VCR

Back of TV

AV 1

Connection

AV2 Connection

VCR One (or

accessory device) (Equipped with

Audio and Video Output Jacks)

he TV’s audio/video input jacks

are for direct picture and sound connections between the TV and a VCR (or similar device) that has audio/video output jacks. Both the AV1 and AV2 Input Jack connections are shown on this page, but either one can be connected alone. Follow the easy steps below to connect your accessory device to the AV1 and AV2 IN Jacks located on the back of the TV.

Connect the VIDEO (yellow) cable to the VIDEO AV 1 IN (or

AV2 IN) jack on the back of the TV.

Connect the AUDIO (red and white) cables to the AUDIO

(left and right) AV 1 IN (or AV2 in) jacks on the rear of the TV.

Connect the VIDEO (yellow) cable to the VIDEO OUT jack

on the back of the VCR (either one or two) or accessory device being used.

Connect the AUDIO (red and white) cables to the AUDIO (left

and right) OUT jacks on the rear of the VCR (either one or two) or accessory device being used.

Turn the VCR (either one or two) or accessory device and the TV ON.

Press the CH+ or CH- buttons set the TV to its AV1or AV2 channel.

With either of the VCRs (or accessory devices) ON and a prerecorded tape (CD, DVD, etc.) inserted, press the PLAY button to view the tape on the television.

VIDEO

L/Mono

AUDIO

AV1 in

COMPONENT VIDEO INPUT

AV2 in

S-VIDEO

ANT/CABLE

OUT

ANT/CABLE

OUT

S-VIDEO

OUT

S-VIDEO

OUT

R L

AUDIO OUT

R L

AUDIO OUT

VIDEO

OUT

SIDE

AV CONNECTIONS

udio and Video Side Inputs are

available for a quick connec-

tion of a VCR, to playback video from a camera, or attach a gaming device. Use the AV button on the remote control to tune these inputs.

Connect the video (yellow) cable from the Video output

on the Camera (or accessory device) to the Video (yellow) Input located on the SIDE of the TV.

For Stereo Devices: Connect the audio cable (red and white) from the Audio Left and Right Outputs on the Camera to the Audio In (white) jack on the SIDE of the television.

For Mono Devices: Connect one end of the audio cable from the Audio Out jack on the device to the Audio In (white) jack on the SIDE of the television.

Turn the TV and the accessory device ON.

Press the CH+ or CH- buttons on the remote control to

tune the TV to the side input jacks. “Front” will appear on the TV screen.

Press the PLAY  button

on the accessory device to view playback, or to access the accessory device (camera, gaming unit, etc.).

Front

Side Jack panel

of TV

Audio

Cables

Video

Cable

Jack Panel of Accessory Device

Optional

Headphones

3 5

VIDEO

AUDIO

VIDEO

AUDIO

S-VIDEO

LEFT RIGHT

VOL

S-VIDEO (S-V

HS) INPUT CONNECTIONS

he S(uper)-Video connection on

the rear of the TV can provide you with better picture detail and clarity for the playback of accessory sources such as DBS (digital broadcast satellite), DVD (digital video discs), video games, and S-VHS VCR (video cassette recorder) tapes than the normal antenna picture connections.

NOTE: The accessory device must have an S-VIDEO OUT(put) jack in order for you to complete the connection on this page.

Connect one end of the SVIDEO CABLE to the S-

VIDEO jack on the back of the TV. Then connect one end the AUDIO (red and white) CABLES to the AV1 in AUDIO L and R (left and right) jacks on the rear of the TV.

Connect other end of the SVIDEO CABLE to the S-VHS

(S-Video) OUT jack on the back of the VCR. Then connect the other ends of the AUDIO (red and white) CABLES to the AUDIO (left and right) OUT jacks on the rear of the VCR.

Turn the VCR and the TV ON.

Press the CH + or CH – buttons on the remote to scroll the

channels until SVHS appears in the upper left corner of the TV screen.

Now your ready to place a prerecorded video tape in the VCR and press the PLAY  button

VCR or External

Accessory Device

(with S-Video

Output)

Audio Cables

(Red & White)

S-Video

Cable

Back of TV

Monitor out

VIDEO

L/Mono

AUDIO

AV1 in

COMPONENT VIDEO INPUT

AV2 in

S-VIDEO

L R

AUDIO OUT

S-VIDEO

VIDEO

OUT

ANT/CABLE

OUT

VOL

COMPONENT VIDEO

(CVI) INPUT C

ONNECTIONS

omponent Video inputs provide

for the highest possible color and picture resolution in the playback of digital signal source material, such as with DVD players. The color difference signals (Pb, Pr) and the luminance (Y) signal are connected and received separately, which allows for improved color bandwidth information (not possible when using composite video or SVideo connections).

Connect the Component (Y, Pb, Pr) Video OUT jacks from

the DVD player (or similar device) to the (Y, Pb, Pr) in(put) jack on the TV. When using the Component Video Inputs, it is best not to connect a signal to the AV in Video Jack.

Connect the red and white AUDIO CABLES to the Audio

(left and right) output jacks on the rear of the accessory device to the Audio (L and R) AV1 in Input Jacks on the TV.

Turn the TV and the DVD (or digital accessory device) ON.

Press the CH + or CH – buttons to scroll the available

channels until CVI appears in the upper left corner of the TV screen.

Insert a DVD disc into the DVD player and press the

PLAY  button on the DVD Player.

The description for the component video connectors may differ depending on the DVD player or accessory digital source equipment used (for example, Y, Pb, Pr; Y, B-Y, R-Y; Y, Cr, Cb). Although abbreviations and terms may vary, the letters b and r stand for the blue and red color component signal connectors, and Y indicates the luminance signal. Refer to your DVD or digital accessory owner’s manual for definitions and connection details.

HELPFUL

HINT

Component

Video Cables

(Green, Blue,

Red)

Audio

Cables

(Red &

White)

Accessory Device

Equipped with

Component Video

Outputs

Back of TV

The CVI connection will be dominate over the AV1

in Video Input. When a Component Video Device is connected as described, it is best not to have a video

signal connected to the AV1 in Video Input jack.

AV1 in

COMPONENT VIDEO INPUT

S-VIDEO

VIDEO

OUT

AV2 in

S-VIDEO

AUDIO

OUT

Monitor out

VIDEO

L/Mono

AUDIO

COMP VIDEO

VOL

MONITOR

OUT(PUT) CONNECTIONS

he Audio/Video (Monitor) Output

jacks are great for recording with a VCR or used to connect an external audio system for better sound reproduction.

AUDIO SYSTEM CONNECTION:

Connect one end of the R(ight) and L(eft) AUDIO (Monitor Out) jacks on the TV

to the R and L audio input jacks on your amplifier or sound system. Set the audio system’s volume to a normal listening level.

Turn the TV and audio system ON. To adjust the volume

on the audio system, you will need to change the volume at the external audio system, not the television.

SECOND VCR CONNECTION:

NOTE: Refer to panel number 4 for the proper hookup of the first VCR. Follow the instructions on how to tune to the AV1 channel to view a pre-recorded tape.

The following steps allow you to connect a second VCR to record the program while your watching it.

Connect one end of the yellow Video Cable to the Monitor

Out VIDEO plug. Connect the other end to the VIDEO IN plug on the second VCR.

Connect one end of the red and white Audio cable from

the Monitor Out AUDIO L and R plugs on the TV to the AUDIO IN plugs on the VCR.

Turn the Second VCR ON,

insert a VHS tape and it’s ready to record what’s being viewed on the TV screen.

Back of TV

Audio Cables

(Red and White)

Back of TV

Audio

Cables

1st VCR

(refer to panel 4 for

proper connection)

Video Cable

2nd VCR with Audio and

Video Input Jacks

SECOND VCR CONNECTION:

AUDIO SYSTEM CONNECTION:

Monitor out

VIDEO

L/Mono

AUDIO

COMPONENT VIDEO INPUT

AV2 in

AV1 in

S-VIDEO

AV1 in

COMPONENT VIDEO INPUT

AV2 in

S-VIDEO

ANTENNA

OUTOUT

VIDEO

AUDIO

ANTENNA

OUT

Monitor out

VIDEO

L/Mono

AUDIO

ANTENNA

OUT OUT

AUDIO

VIDEO

ANTENNA

OUT

REMOTE C

ONTROL BUTTON DESCRIPTIONS

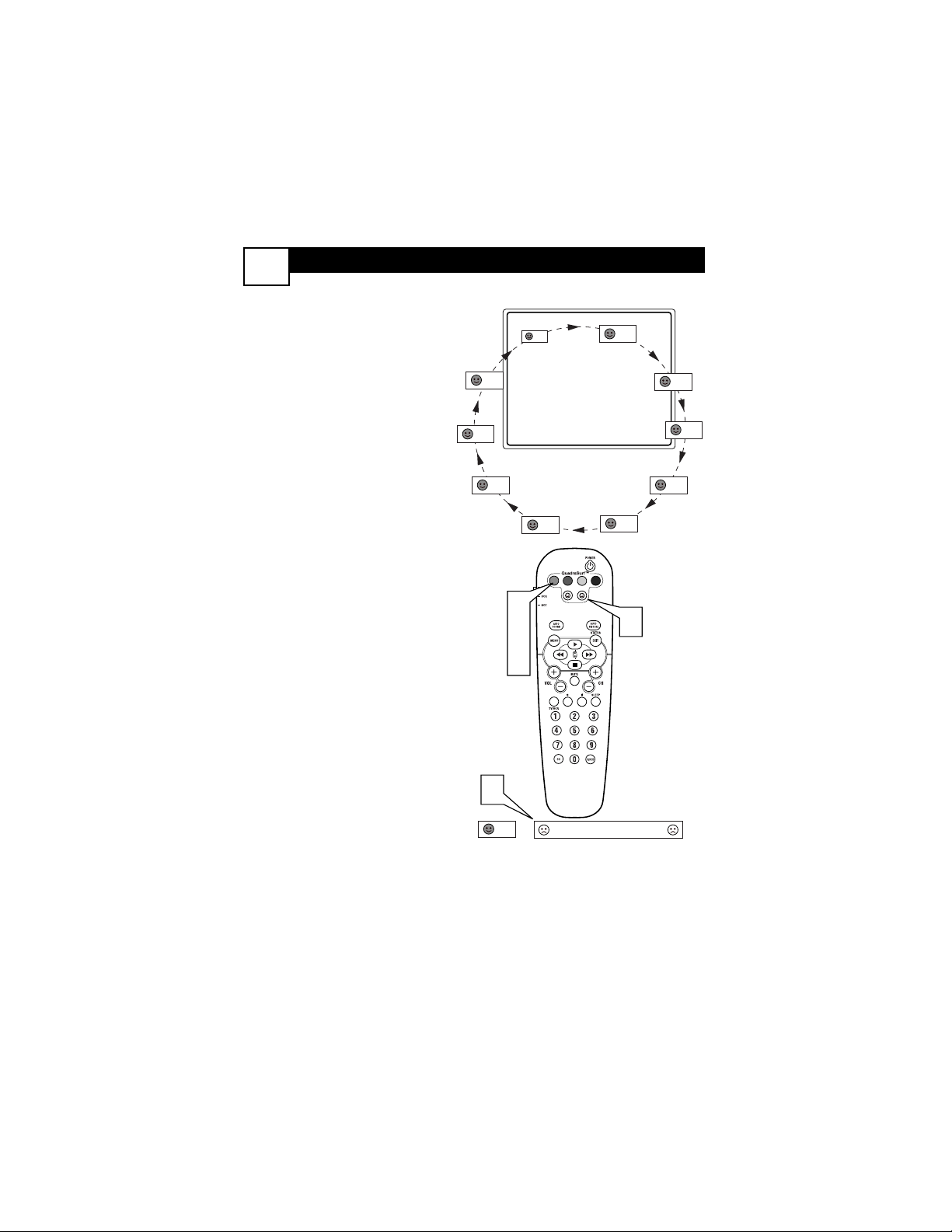

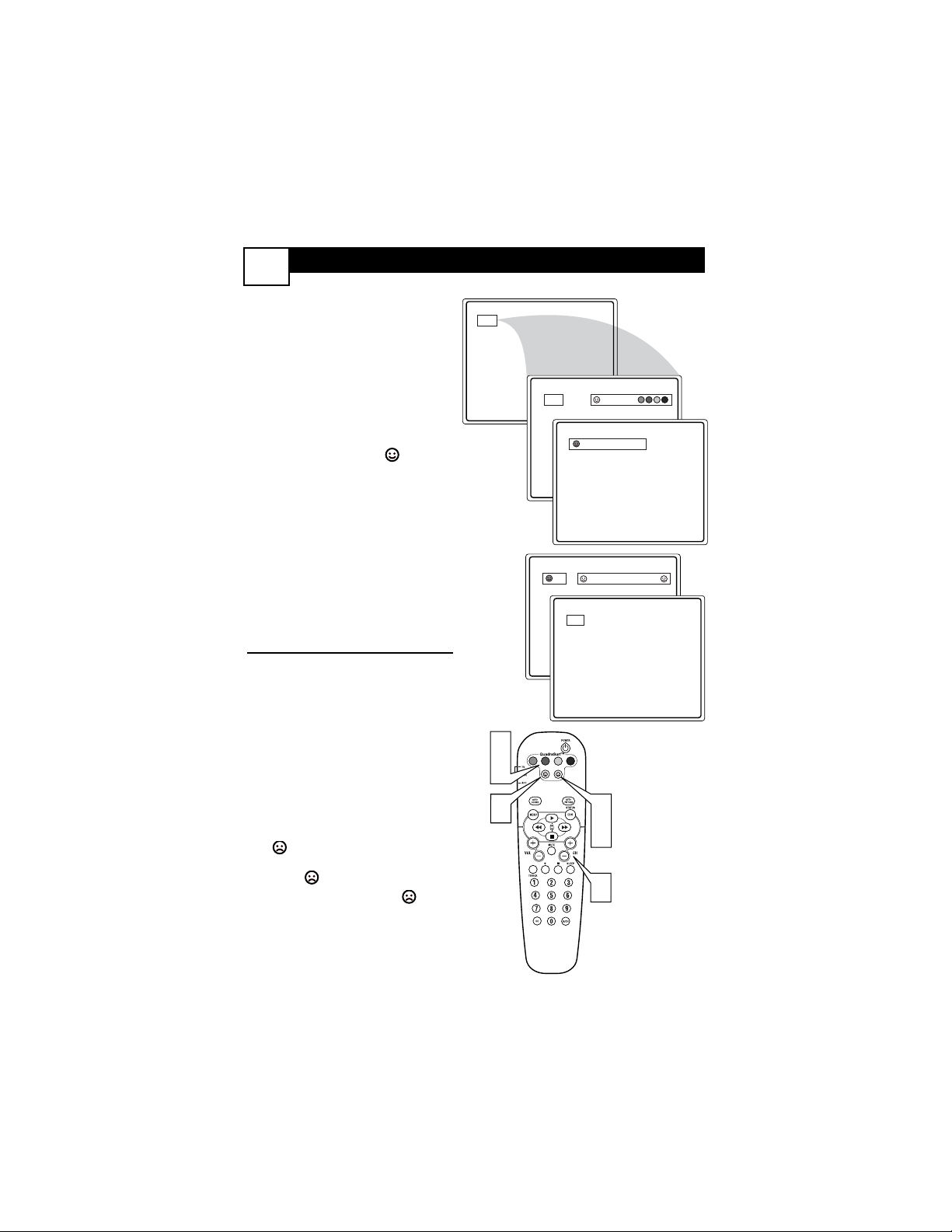

QUADRASURF Buttons (Red, Green, Yellow, Blue) Allows you to store and surf up to 10 channels you choose for each colored button.

SMILEY

Button - Press to add channels

to the “QuadraSurf” lists. Works with all colored buttons.

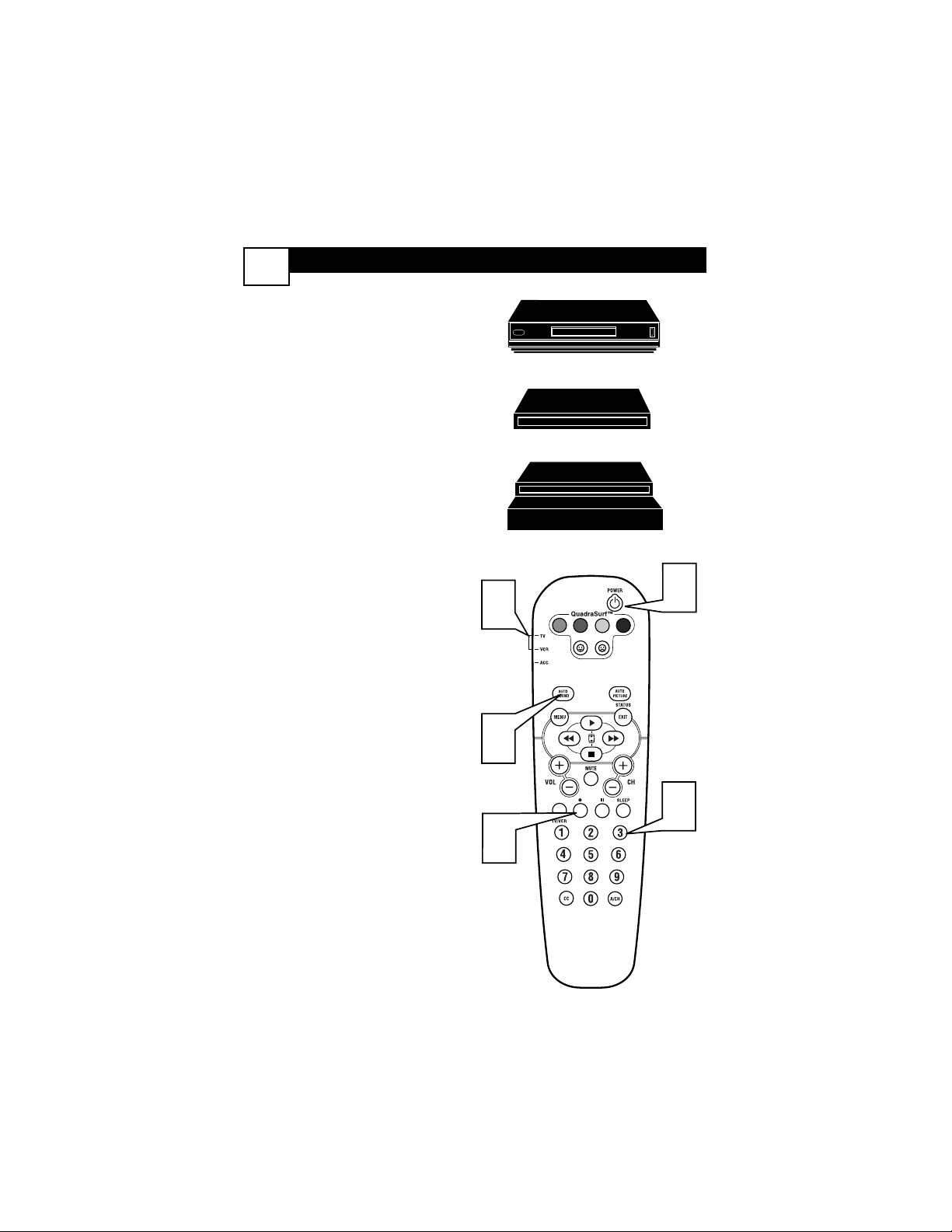

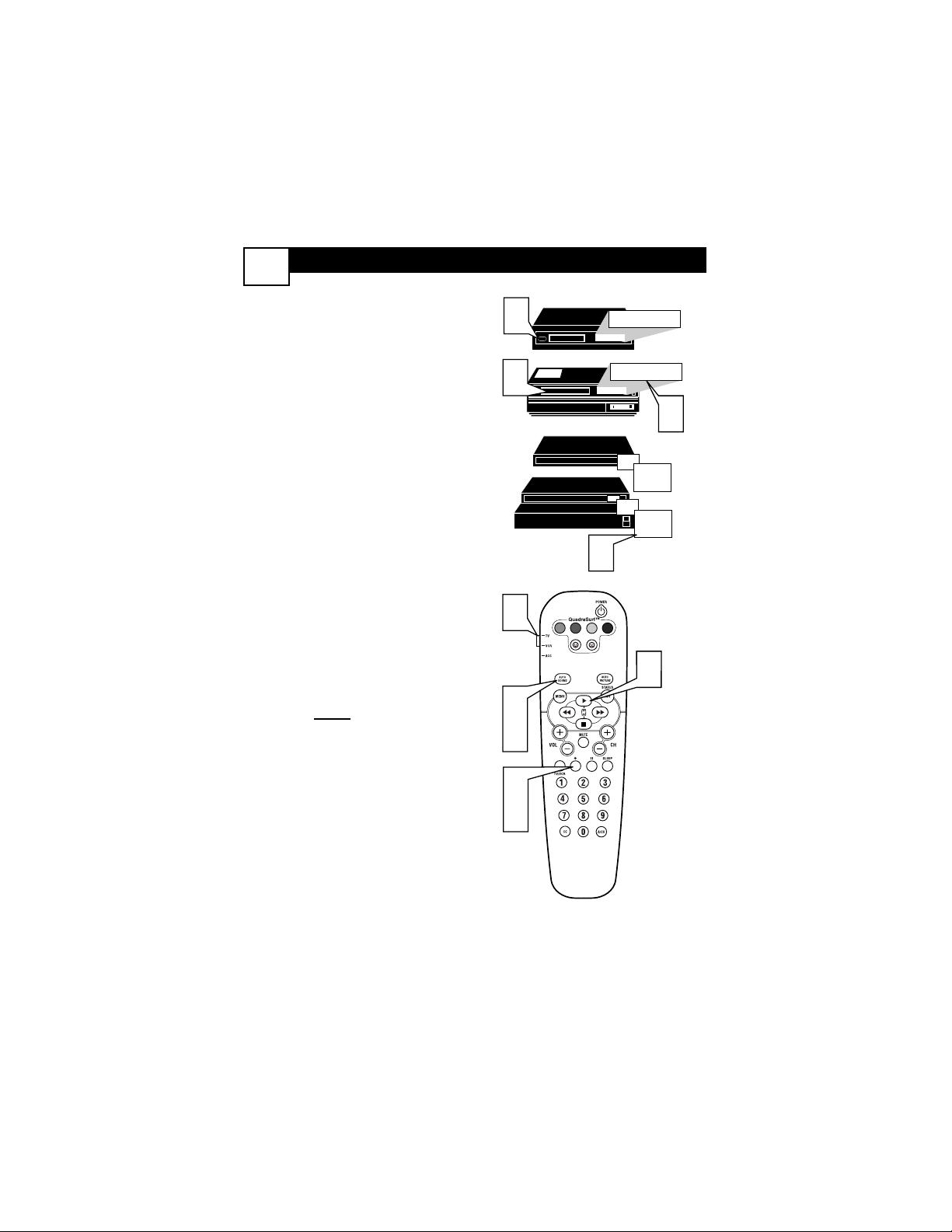

TV/VCR/ACC Mode Switch

- Slide to position of TV to control TV functions, VCR to control VCR, and ACC for Cable Converter, DBS, DVD, etc., functions.

AUT

O SOUND Button - Press repeated-

ly to choose from different factory predefined sound settings. Choose from Personal (how you set the Sound Menu options), Voice (for programming with speaking only), Music (for musical type programs such as concerts), or Theatre (used when watching movies).

Button - Press to display the on-

screen menu. Also can be used to back out of the on-screen menu until it disappears from the TV’s screen.

OL(ume) + or - Buttons - Press the

VOL + button to increase the TV’s sound level. Press the VOL – button to decrease the TV’s sound level.

MUTE Button

- Press the mute button to eliminate the sound being heard from the TV. “MUTE” will be displayed on the TV’s screen. Press again to restore the TV’s volume to it’s previous level. pressing this button for 3-4 seconds will activate the Demo Mode.

CLOCK (TV/VCR) Button

- Press to display the Timer menu when in TV mode.

VCR Record Button - Press to start a

VCR recording of a TV program.

CC Button

- Press to activate the Closed Captioning options. Repeatedly pressing the CC button will scroll the available options on the TV screen.

VOL

+ 29 hidden pages
