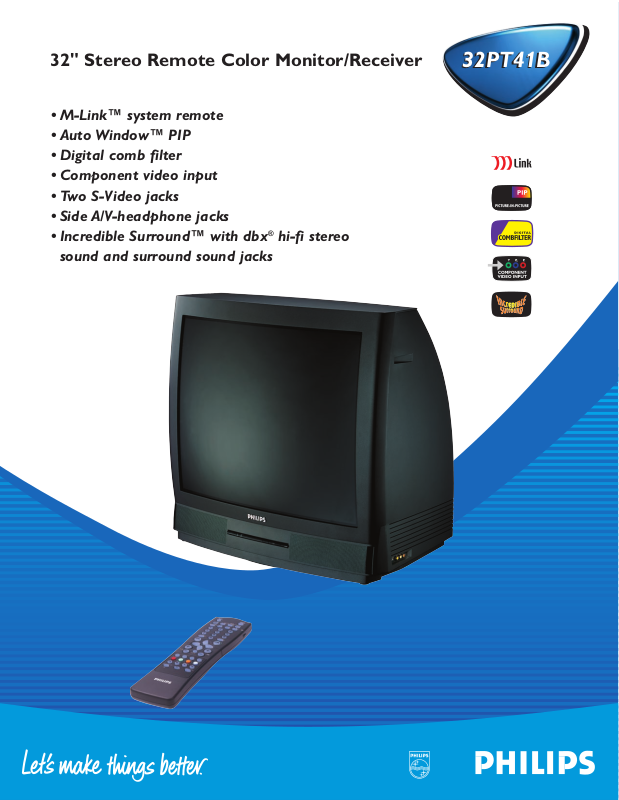

32" Stereo Remote Color Monitor/Receiver

• M-Link™ system remote

• Auto Window™ PIP

• Digital comb filter

• Component video input

• Two S-Video jacks

• Side A/V-headphone jacks

• Incredible Surround™ with dbx

hi-fi stereo

sound and surround sound jacks

32PT41B


Auto Window (PIP)

Monitor one video source such as a TV channel, the Internet, a videotape, videodisc, or video game while watching another.You can swap the main and secondary pictures, or position the PIP window in any screen corner.

Incredible Picture™

Creates a remarkable increase in clarity and sharpness at the point of transition from dark to light areas of the video image for a picture so sharp and well defined that you’ll never want to go to the movies again.

Digital Comb Filter

Digital circuitry clearly separates black and white detail from color data virtually eliminating dot crawl and delivering unmatched, razor-sharp picture performance with 800+ lines of horizontal resolution.

Component Video Input

Supports advanced video input (such as DVD) for superb color purity, crisp color detail, and reduced color noise—surpassing even that of S-Video!

32" FSQ High-Contrast Picture Tube

Increased contrast 35% transmission dark glass faceplate, black matrix, and specially-tinted phosphors provide the best picture in its class.

Improved Image Definition (IID™) Video DNR (Dynamic Noise Reduction) AutoPicture™ Black Stretch Blue Stretch Green Stretch 3-Position Color Temperature

Remote Control

M-Link™ System Remote (RC type# RC A10 U81E)

The perfect remote for any home cinema system! M-Link™ “learns” and controls up to five input devices (DVD,VCR, Cable box,Satellite, etc.) and one output device (audio amp/receiver) with just one remote.Easy to use onscreen display and macros launch your full system with the press of one button!

Convenience

Multimedia Mode

One button instantly switches to A/V input source and automatically sets the Auto feature options to MULTIMEDIA.

AutoSurf™

Simplify channel surfing by storing up to ten favorite stations in the Surf™ memory and then surfing only those channels at the touch of a button.Add or delete channels from list through onscreen display.

AutoChron™

Automatically sets the right time of day and maintains it through brown-outs, power failures, and even daylight savings time adjustments.

AutoLock™ AutoMute™ Alternate Channel Onscreen Clock with Sleep Timer Alarm On/Off Timer Second S-Video Jack Trilingual Onscreen Display AutoProgramming Close Caption Onscreen Volume Bar

32" Stereo Remote Color Monitor/Receiver

Printed in the U.S.A. ®2001 Philips Consumer Electronics Co. A Division of Philips Electronics North America Corp. Philips Design Singapore, Philips Consumer Electronics Co.

INTERNET ADDRESS: http//www.philipsusa.com

CC Icon This television receiver provides display of television closed captioning in accordance with

§15.119 of the FCC rules

AutoSound Plus,AutoPicture, AutoSurf,AutoLock,AutoMute, AutoChron,Auto Window,Incredible Picture, Incredible Surround, Surf, Improved Image Definition (IID) and M-Link are trademarks of Philips Consumer Electronics Company. dbx is a registered trademark of dbx, Inc. Sunnyvale,C A.

UPC: 0 37849 89026 4 Product Dimension: 29.7" W x 27.0" H x 21.5" D Product weight: 103.6 lbs Carton dimensions: 34.7" W x 32.0" H x 25.2" D Carton weight: 121.3 lbs Master pack: 1 Carton contains: 36" Stereo Remote Color Monitor/Receiver, M-Link™ Remote Control w/Batteries, Operating Instructions,Warranty Information

Sound

Incredible Surround™

An exciting psycho-acoustic method of widening the stereo spatial image for full-impact home entertainment.

AutoSound Plus™

Instantly optimize sound to satisfy any program situation.Select from one of four factory settings including movies, music, voice, or personal with a variety of combinations of ultra bass, treble, and automatic volume leveling to suit any taste.

10-Watt dbx® Hi-Fi Stereo Sound System with Surround Sound Jacks

(5 Watts RMS per channel into 8Ω, from 40Hz to 15.6kHz, with no more than 7% Total Harmonic Distortion).

Tone Controls

Audio/Video Jack Panel JP0522

Surround Sound Jacks Gold-Plated Stereo A/V Input/Output Jacks

Additional features include:

• Channel edit

• Total remote menu format tuning with multicolor onscreen graphics

• 181-channel capability

• 4-way cursor control

• Direct channel access

• Programmable scan tuning

• Status recall

• Mono/stereo SAP select

• Cable/normal select

• Two 5"-oval, full-range speakers with menu-selectable speaker switch

Rear

Side

Lines per picture width. 600 based on EIA measurement procedures.

Specifications subject to change without notice.

32PT41B

8Ω 8Ω

75 Ω

VIDEO

L/Mono

AUDIO

+ R -

Monitor out AV1 in AV2 in

+ L -

SURROUND SOUND

S-VIDEO

VIDEO

AUDIO
