Philips 32PHG5101 Schematic

Colour Television Chassis

TPM16.4L

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9
Cable dressing (32" 5101 series) 9
Cable dressing (43" 5101 series) 10
Cable dressing (49" 5101 series) 10

5. Service Modes, Error Codes, and Fault Finding 14

6. Alignments 21

7. Circuit Descriptions 23

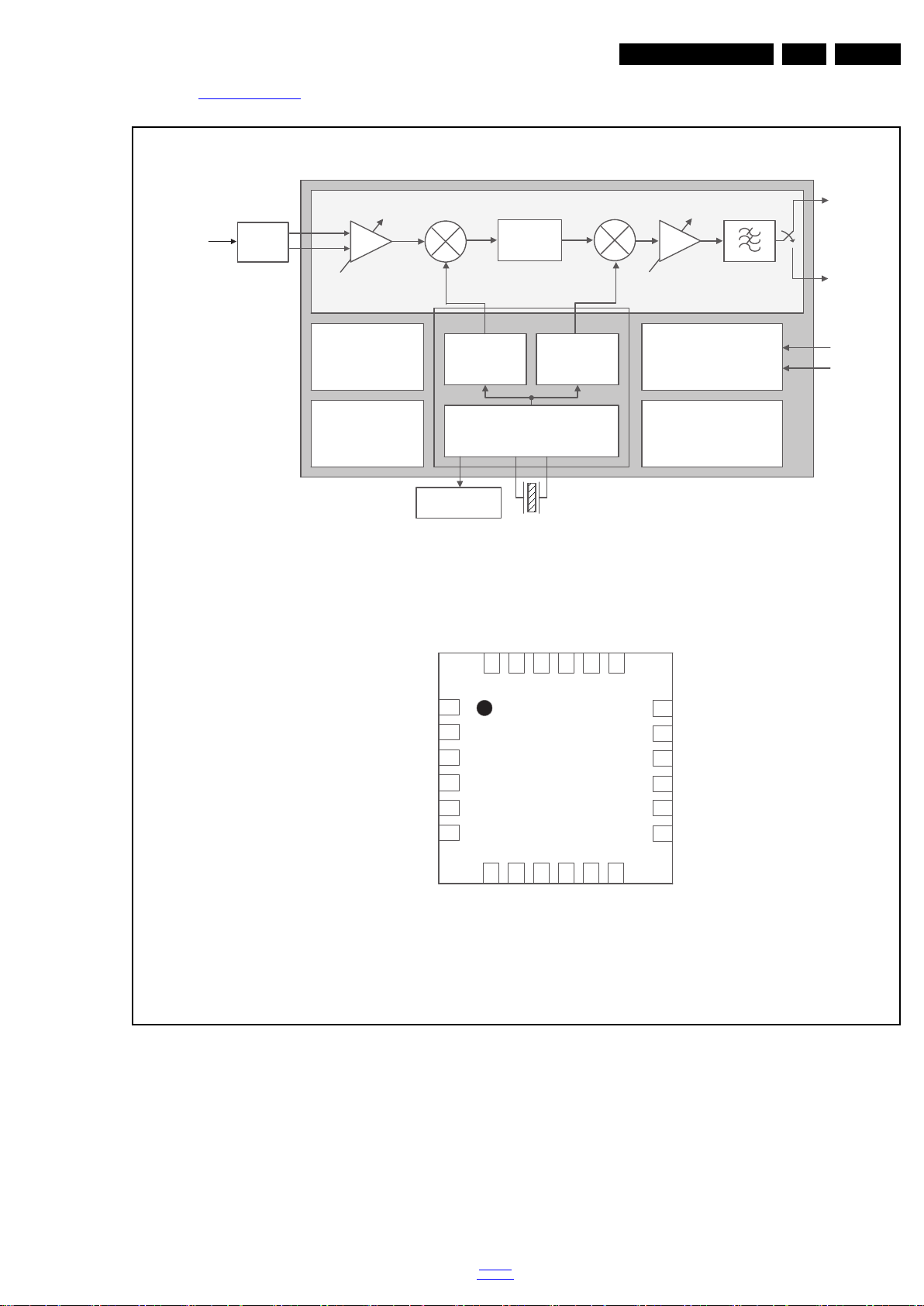

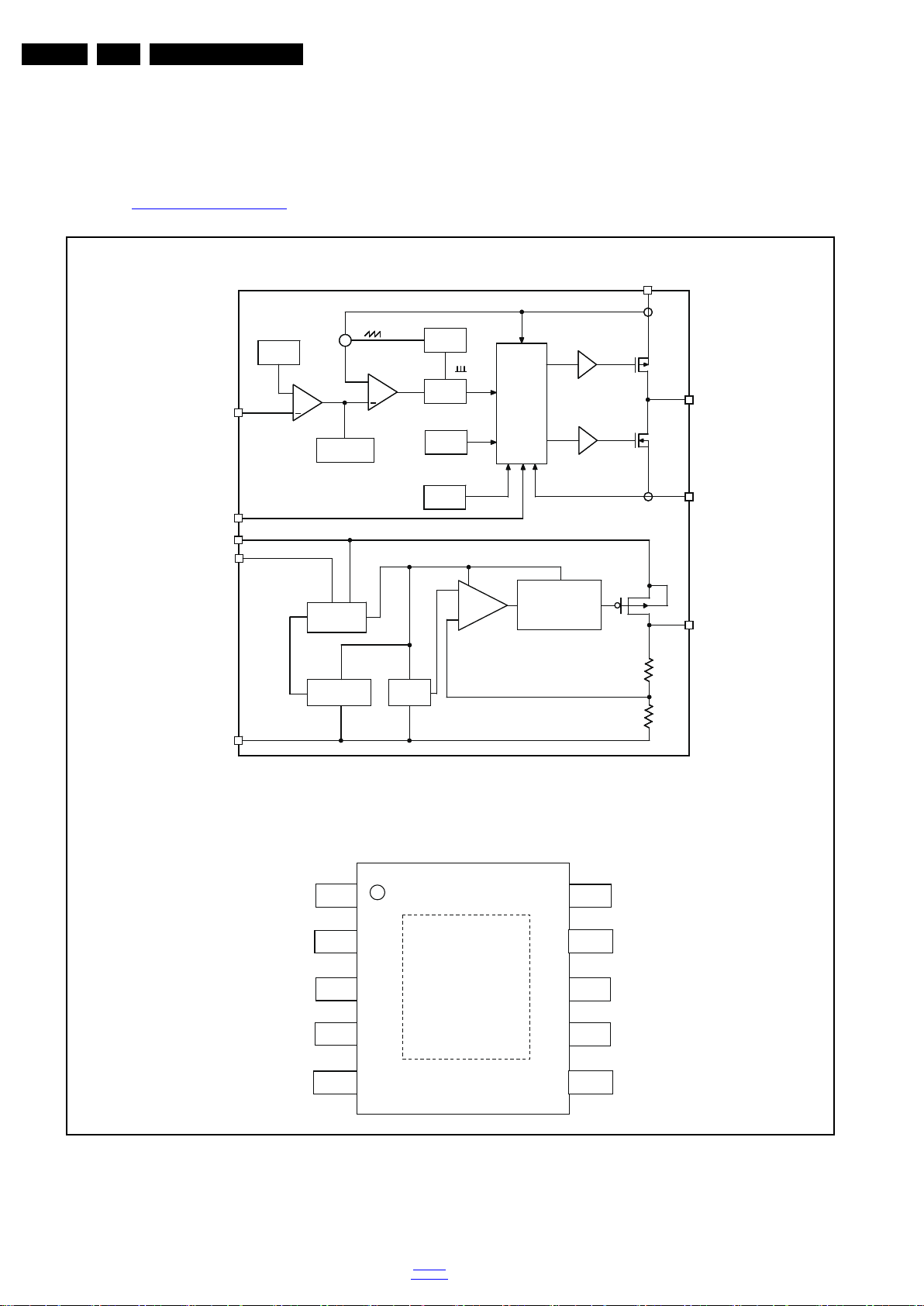

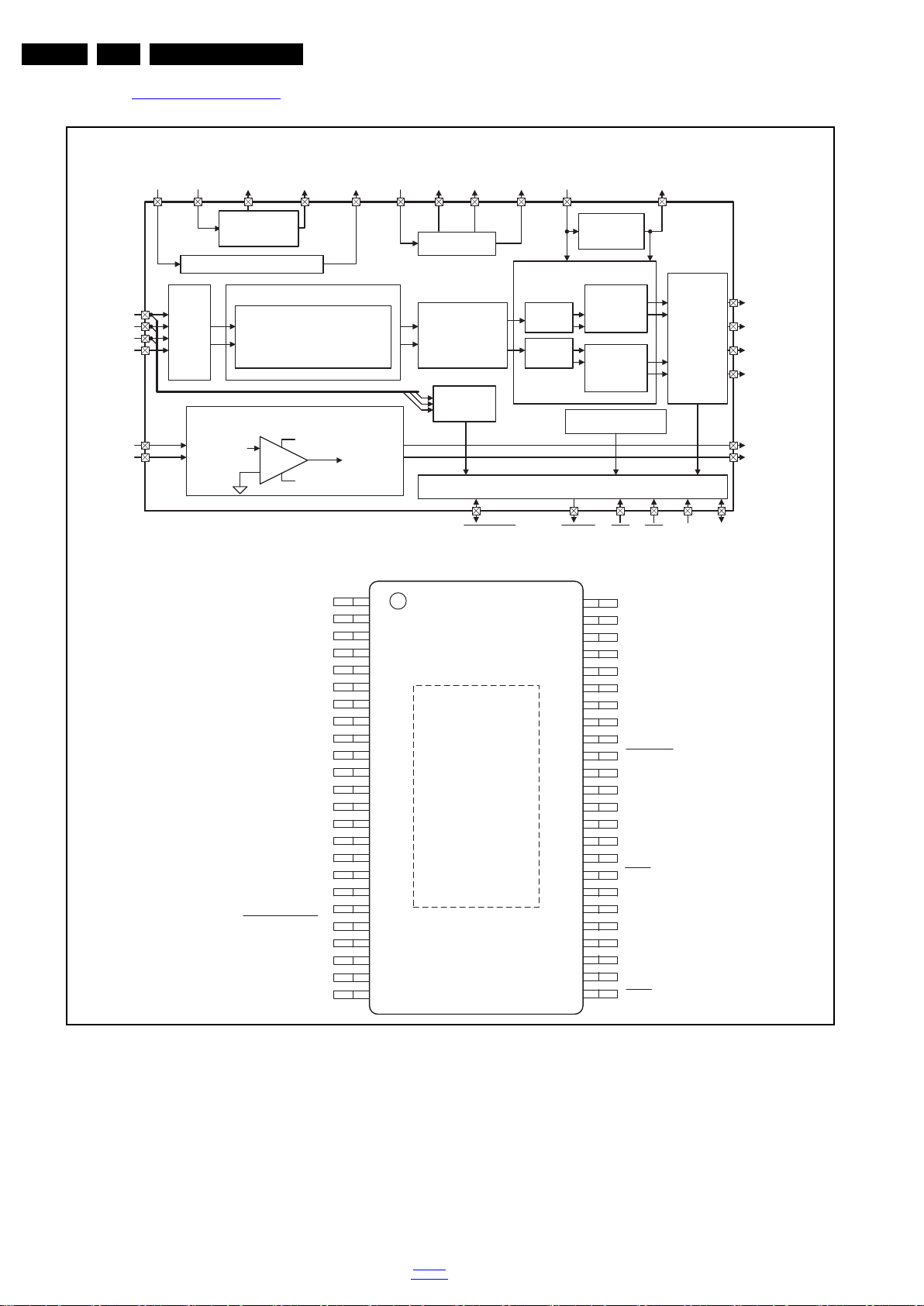

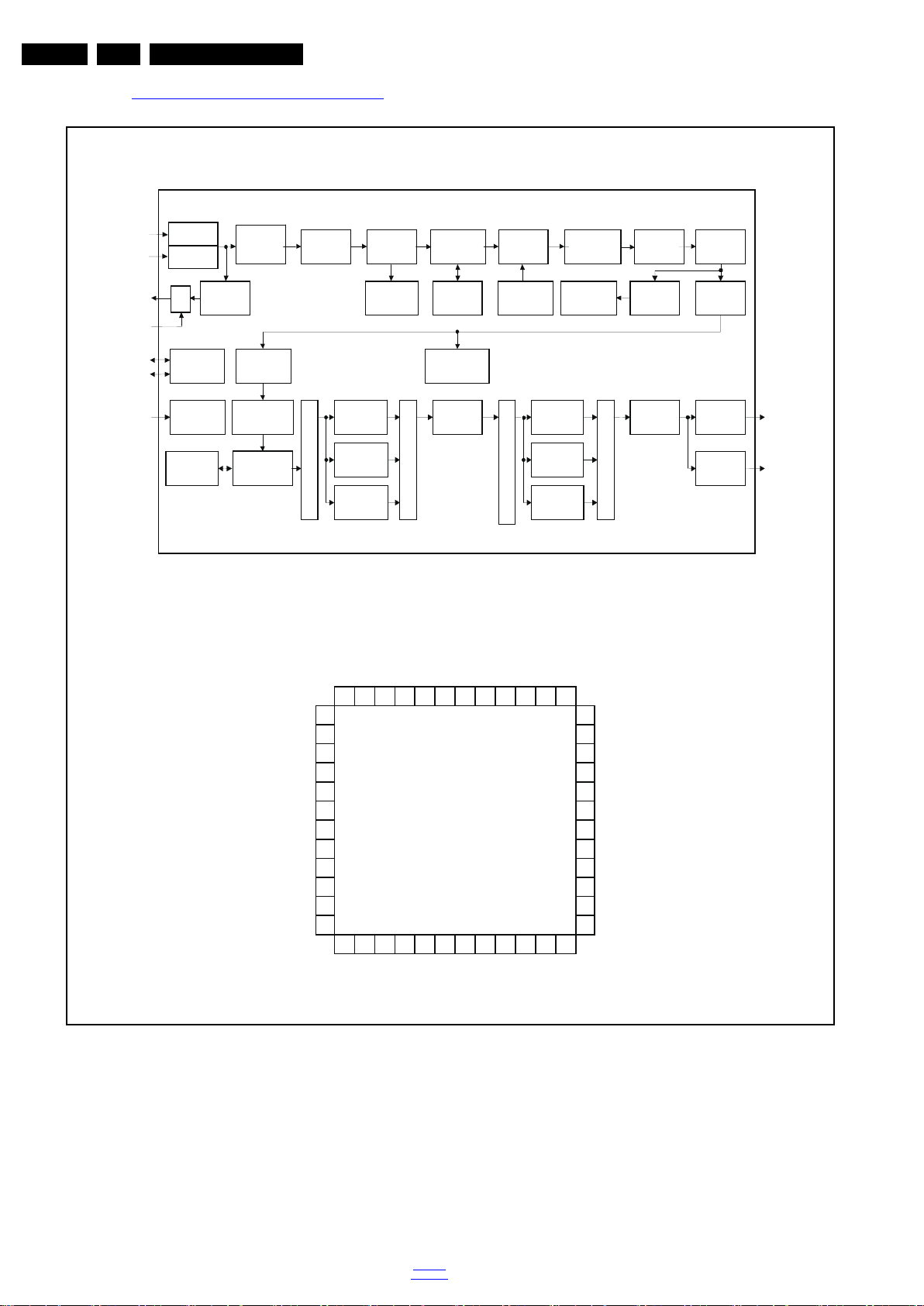

8. IC Data Sheets 30

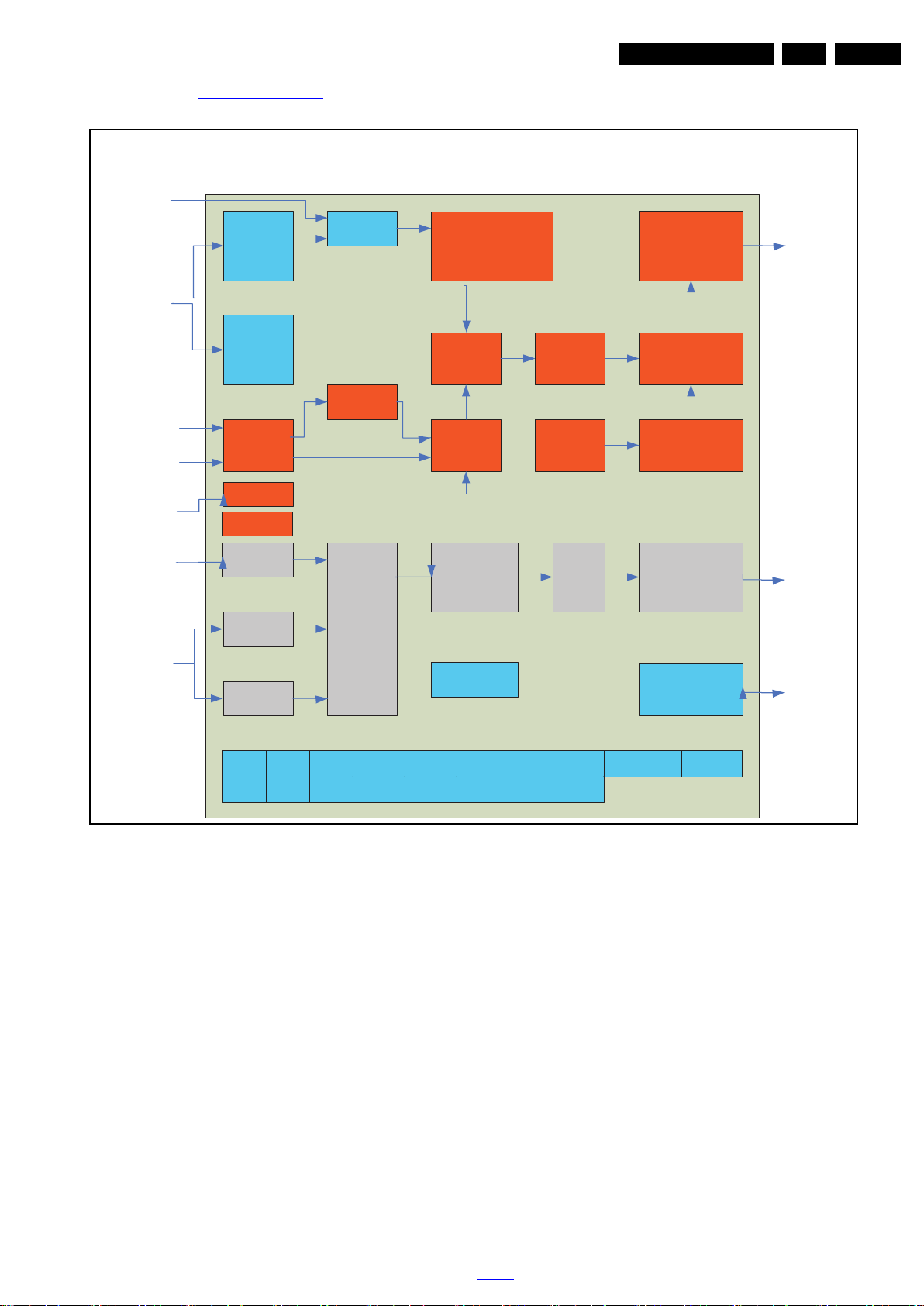

9. Block Diagrams
Block diagram 5101 series 37

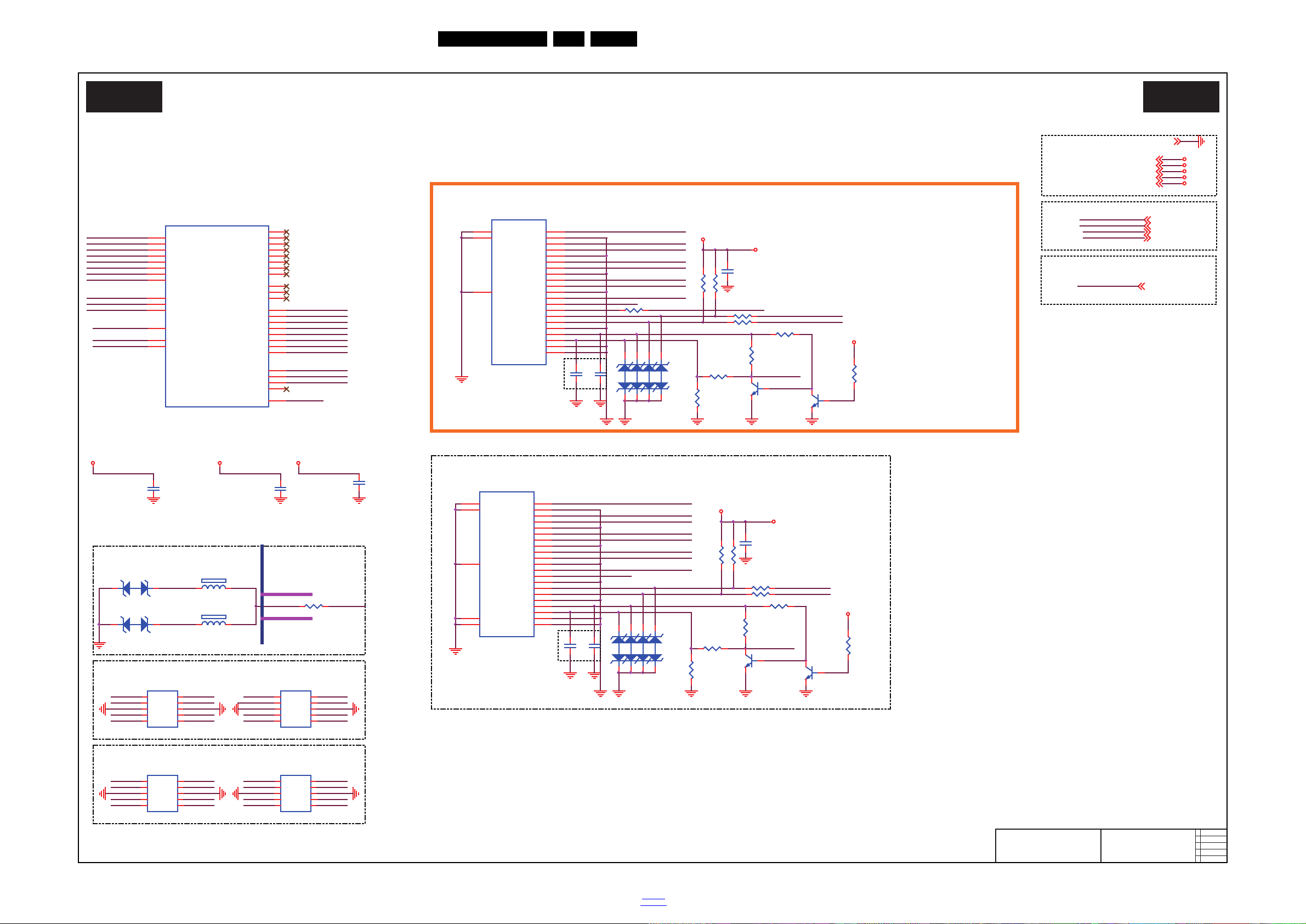

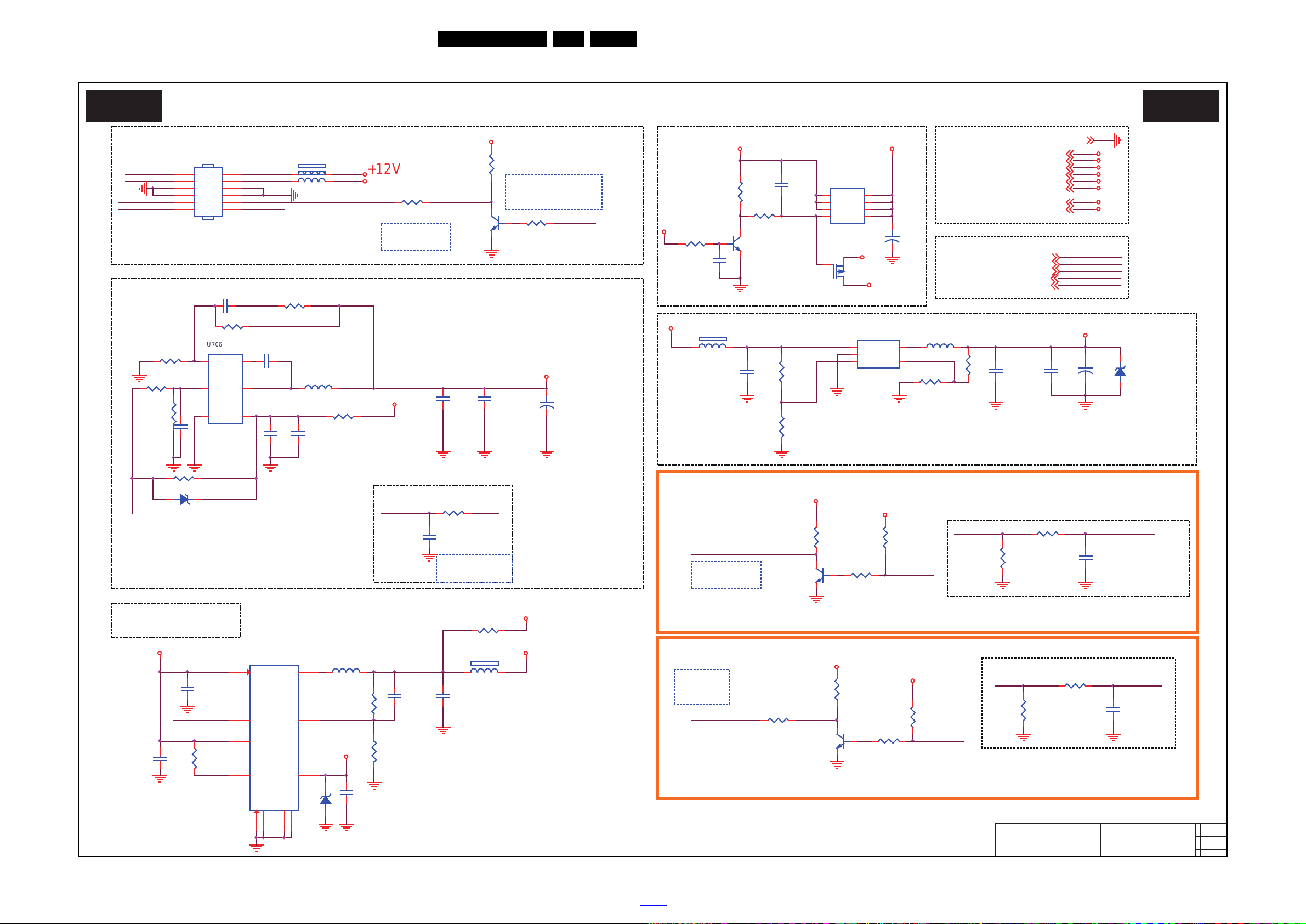

10. Circuit Diagrams and PWB Layouts Drawing PWB

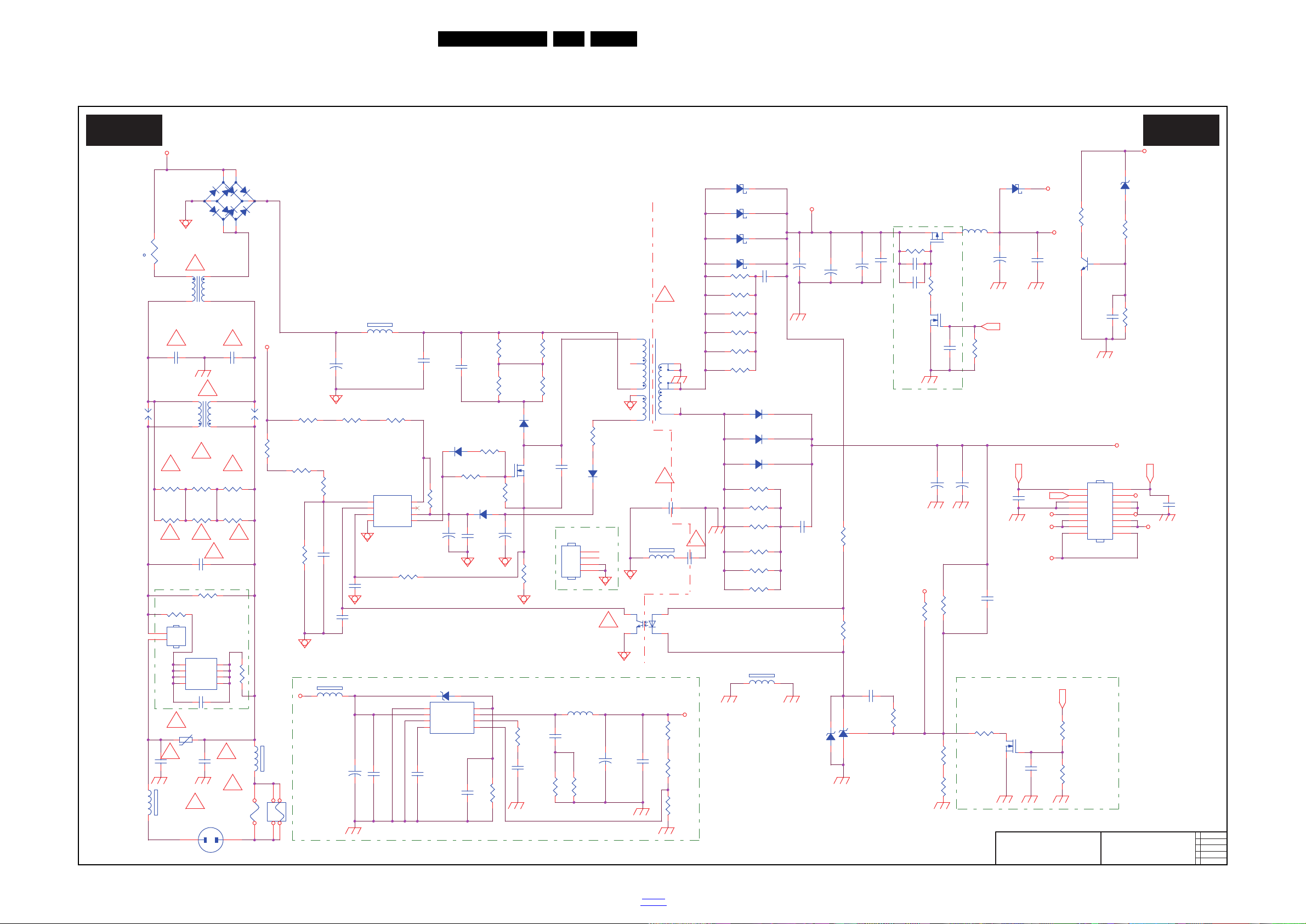

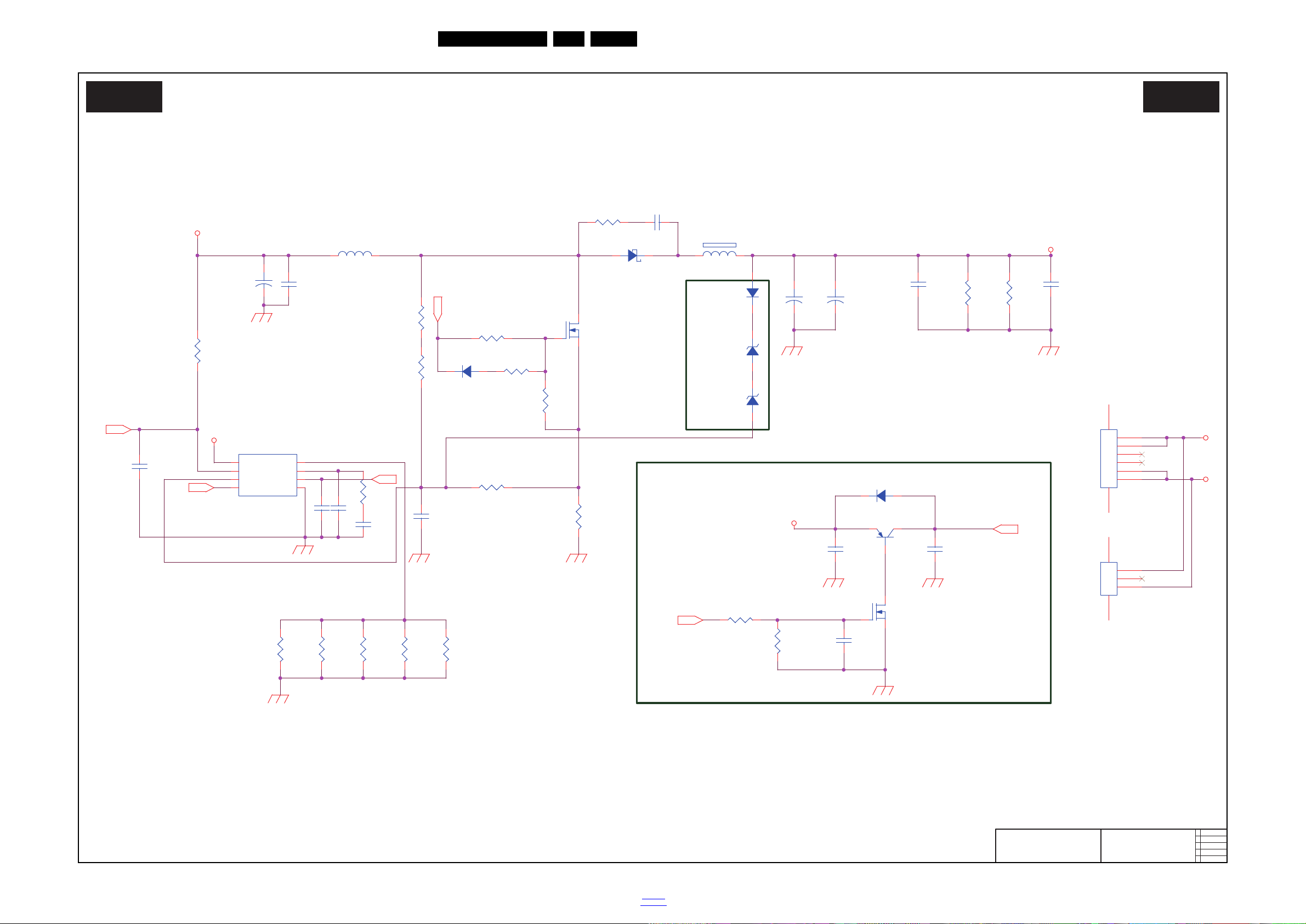

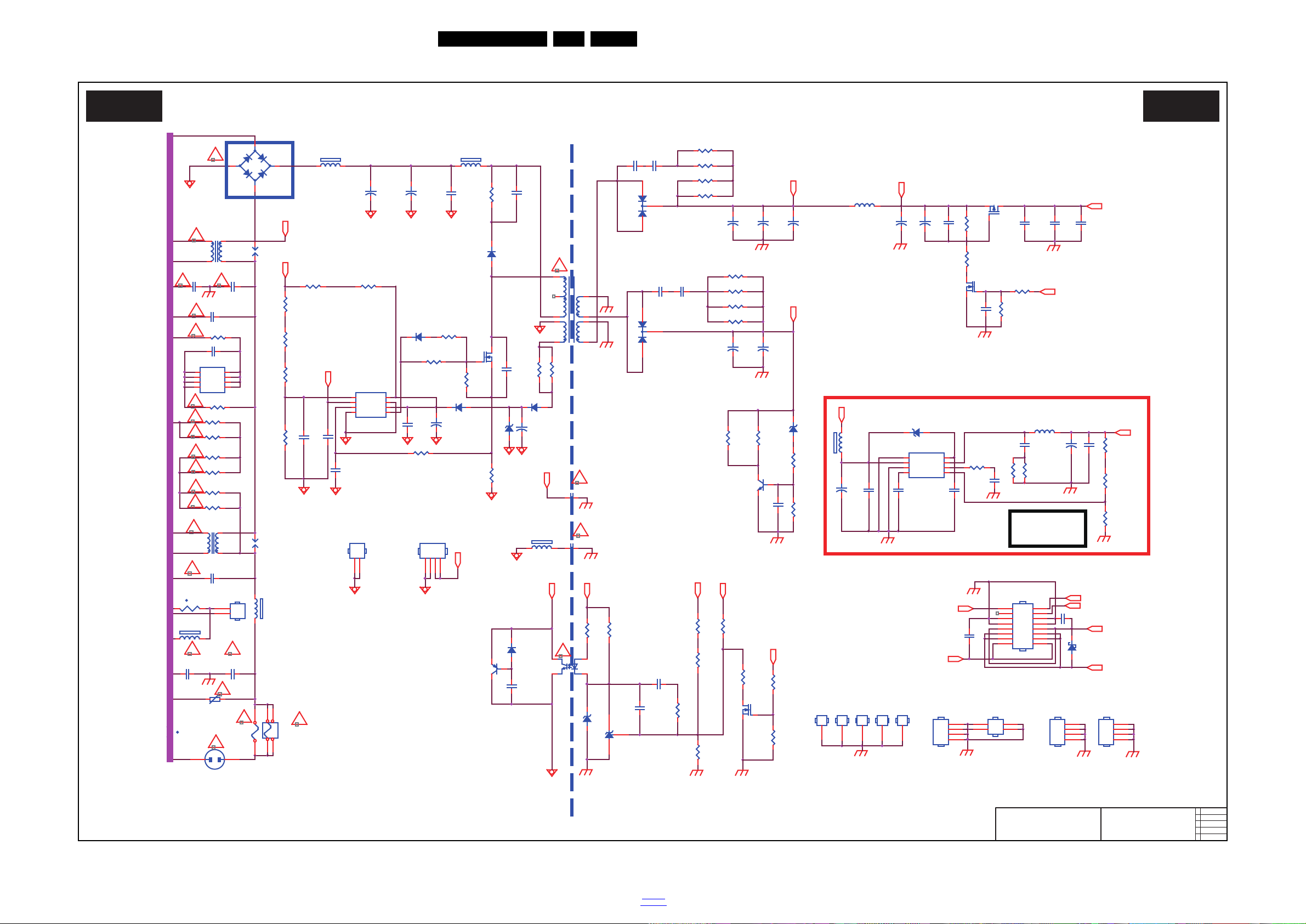

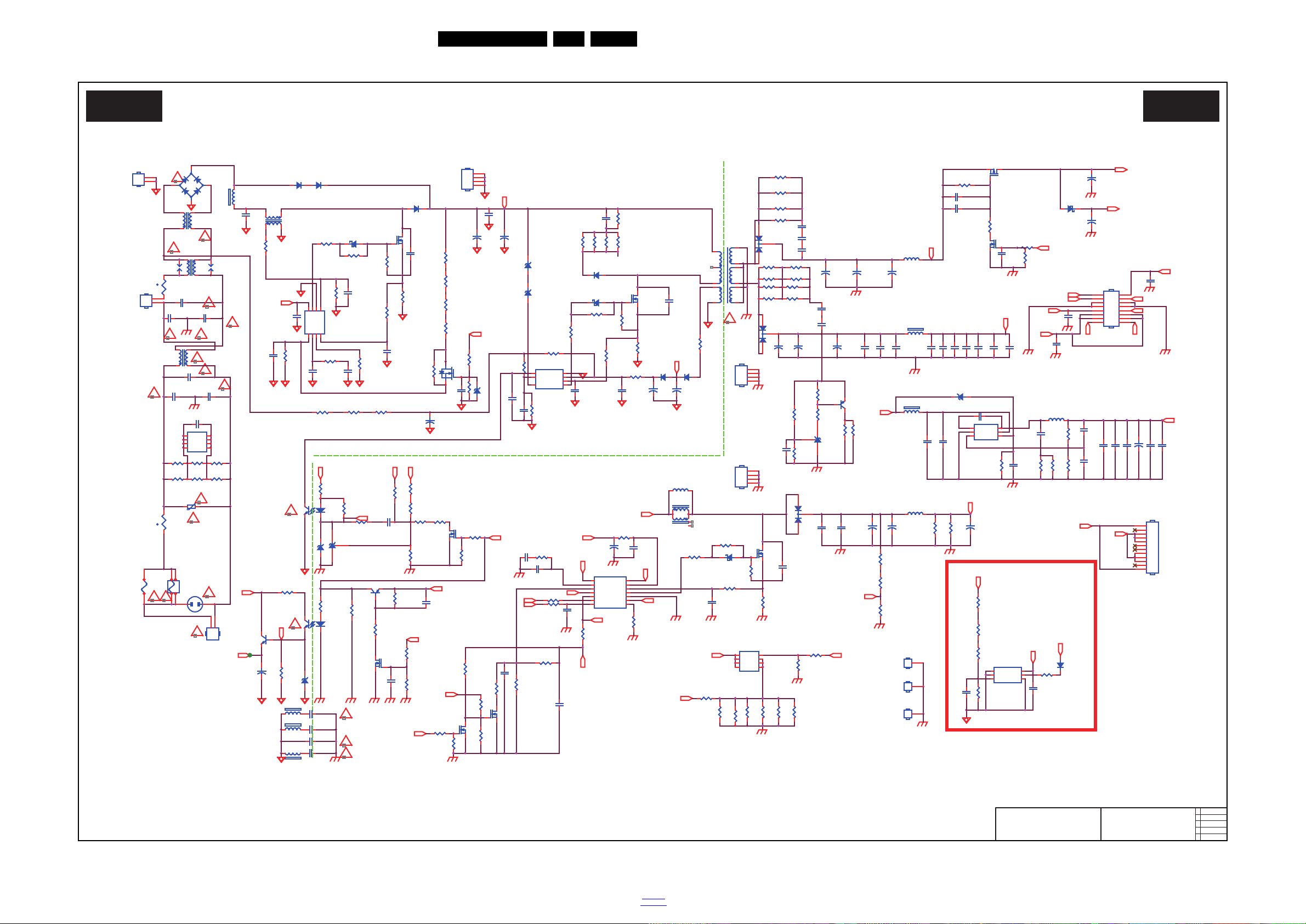

A 715G7734 PSU

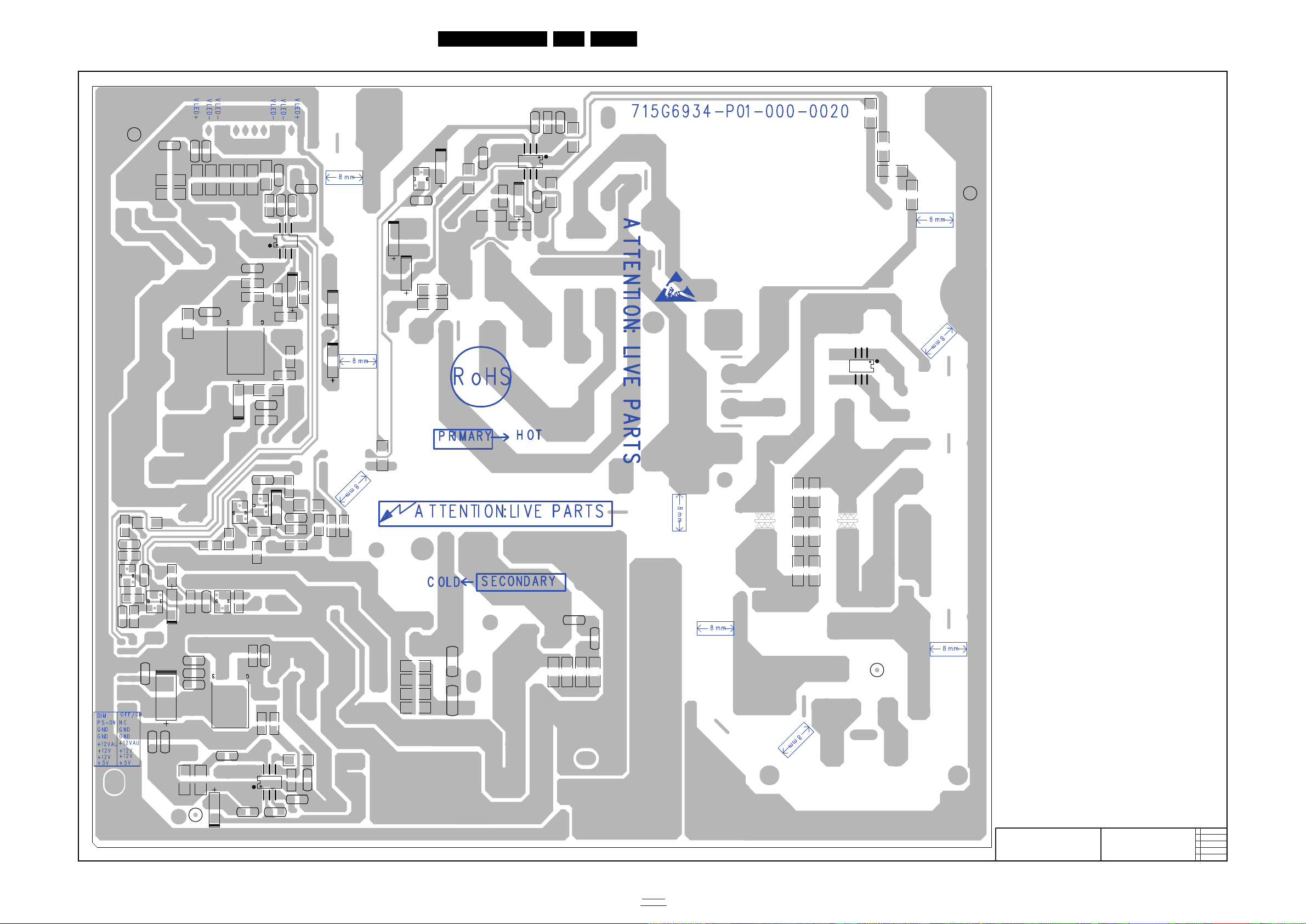

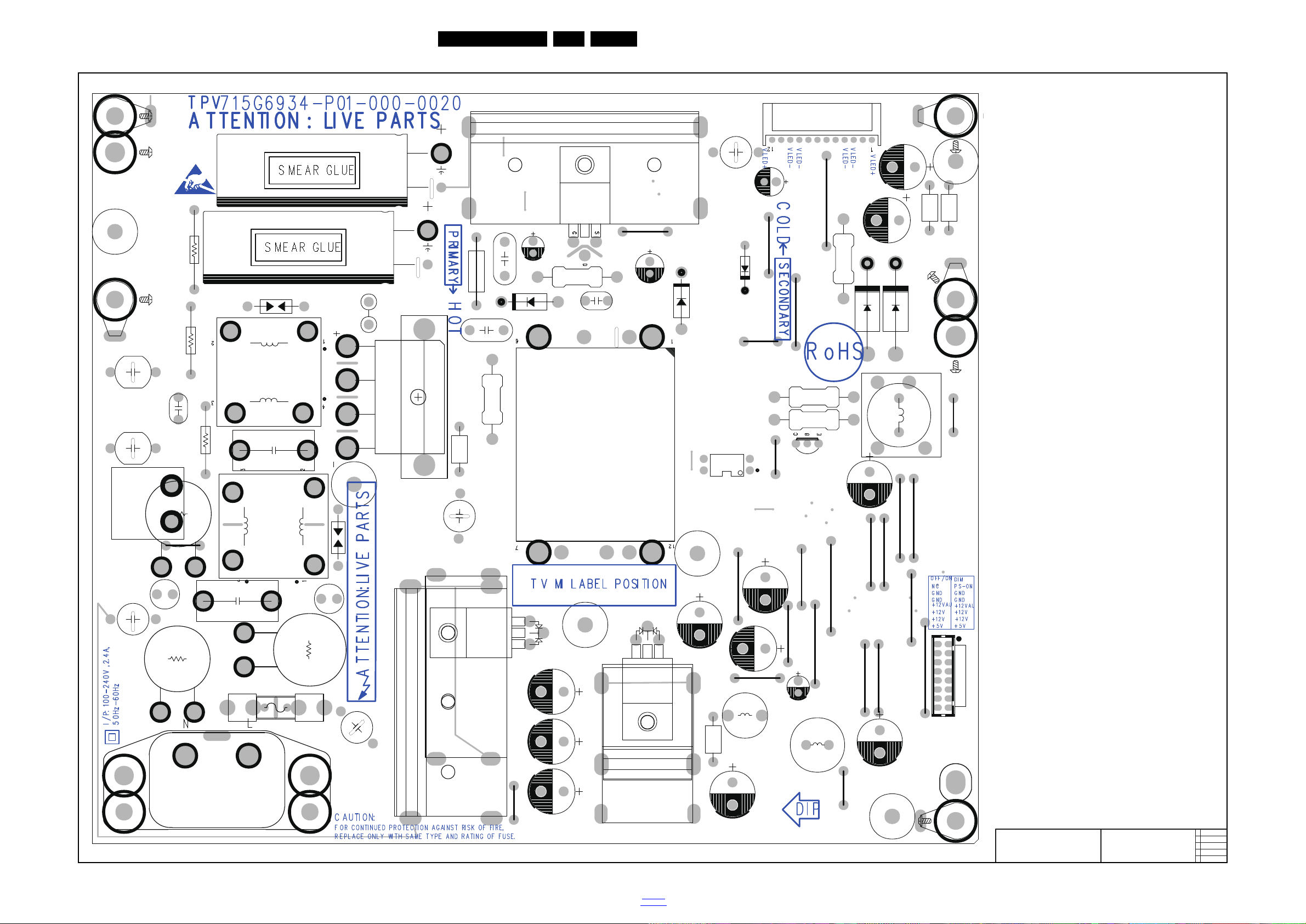

A 715G6934 PSU 42 44-45

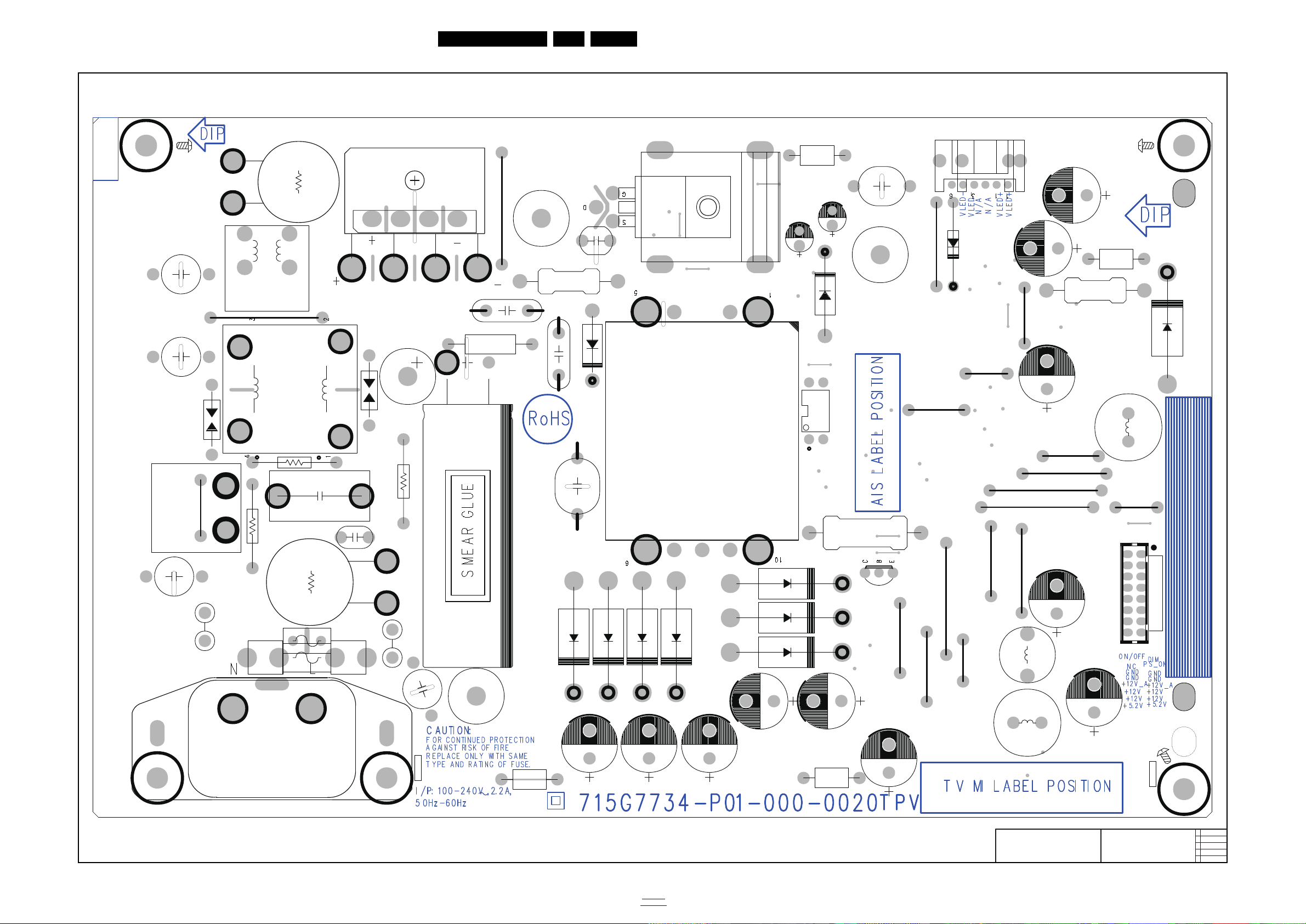

A 715G7734 PSU 46 47-48

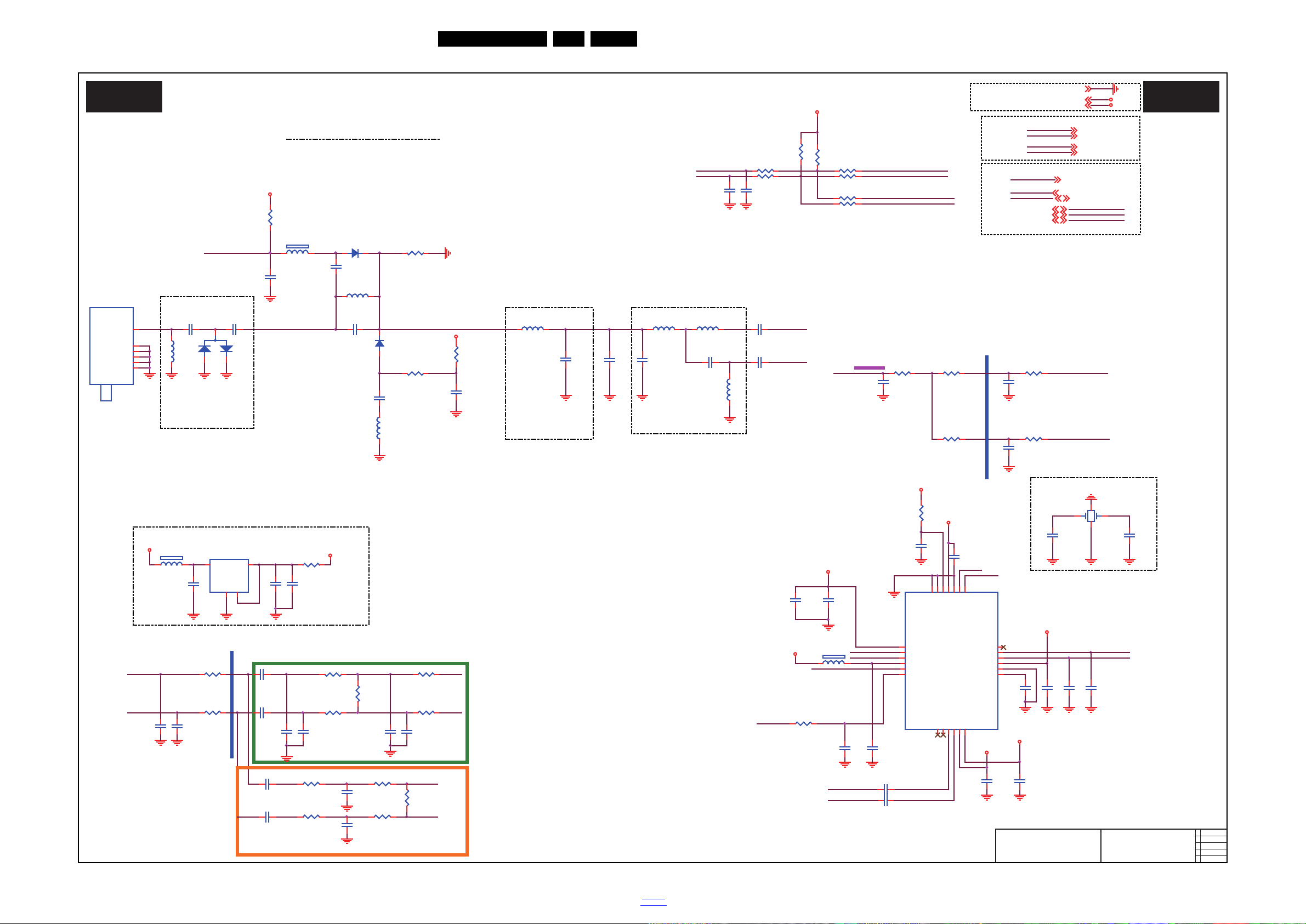

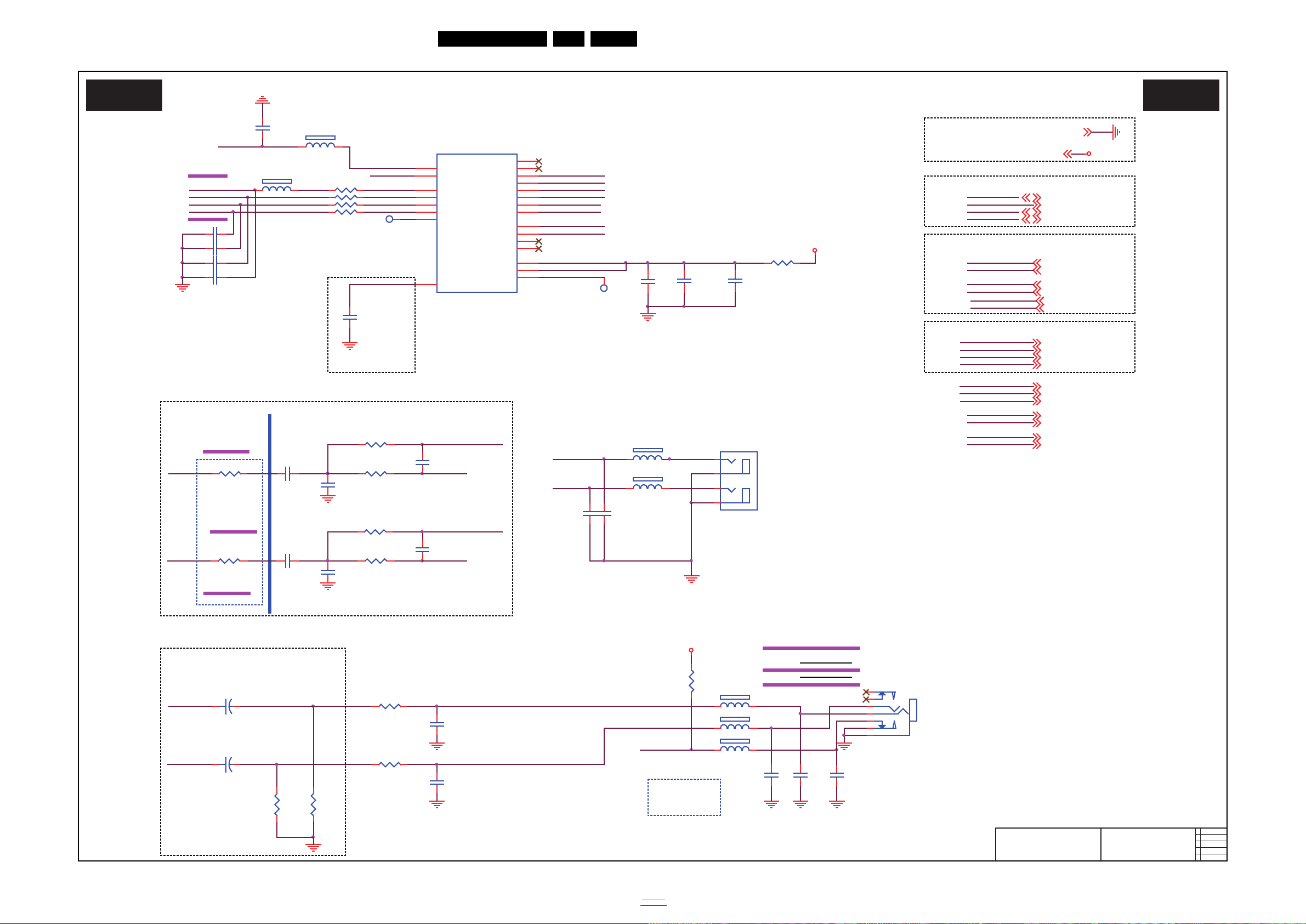

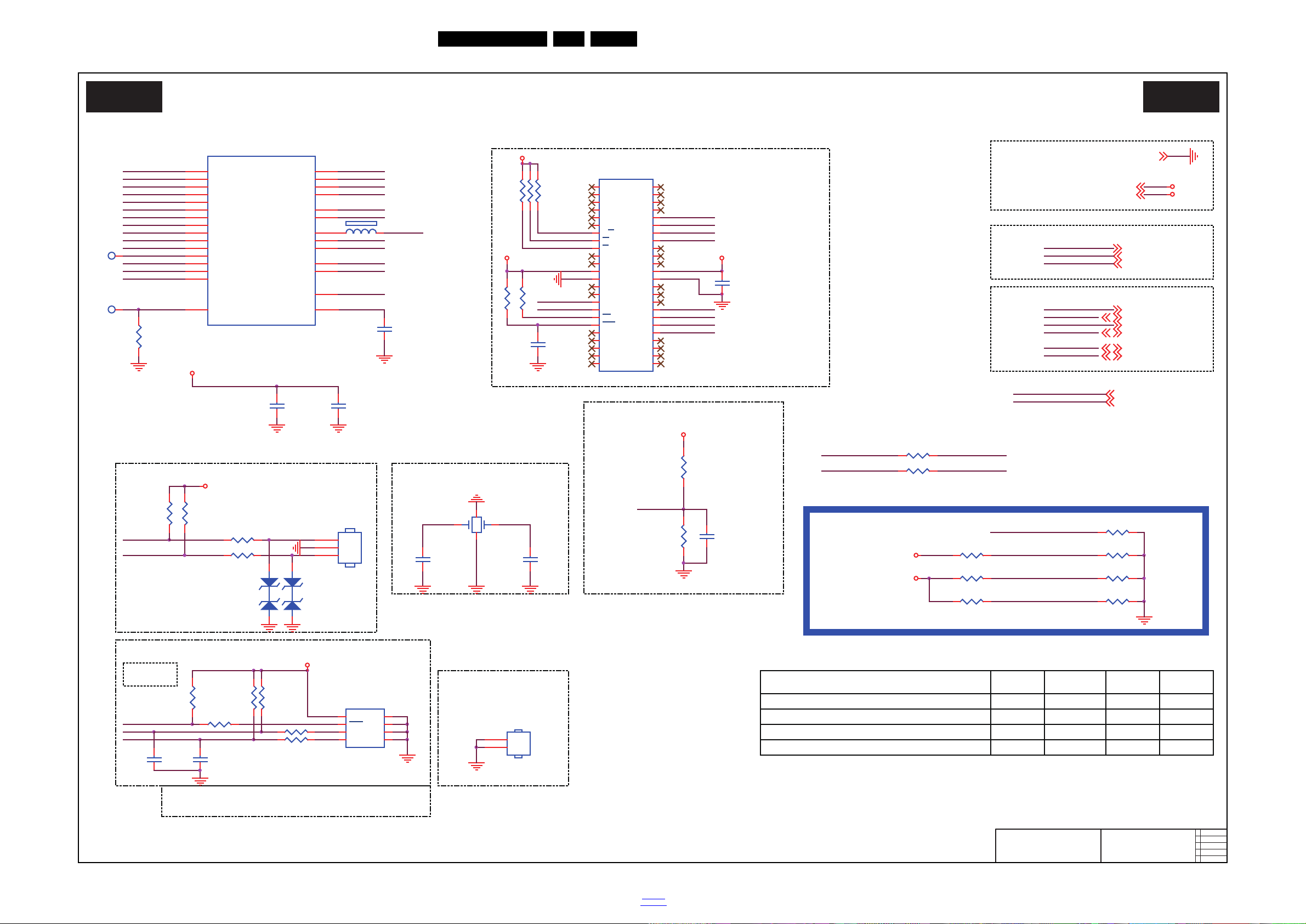

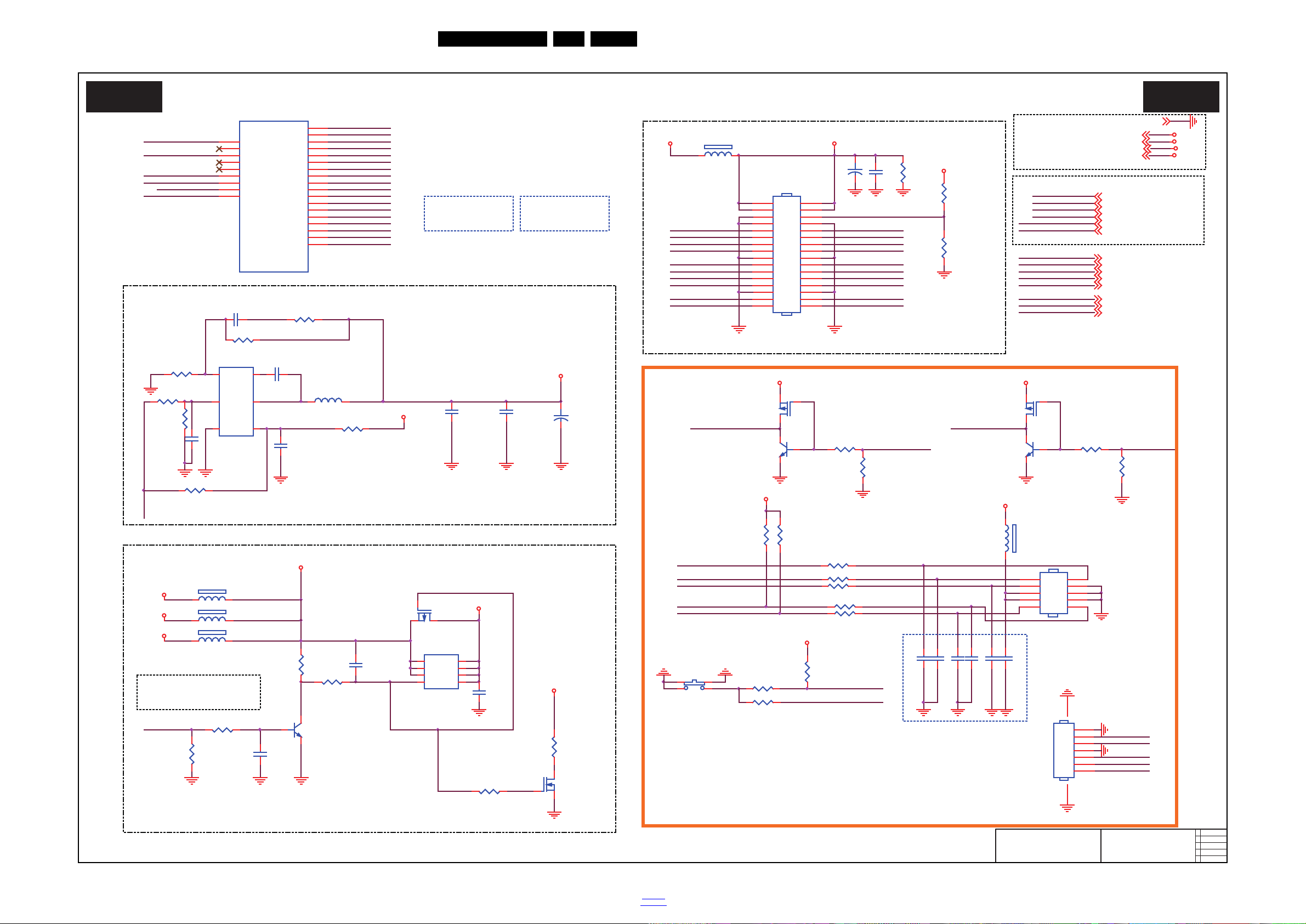

B 715G7805 SSB 49 65-66

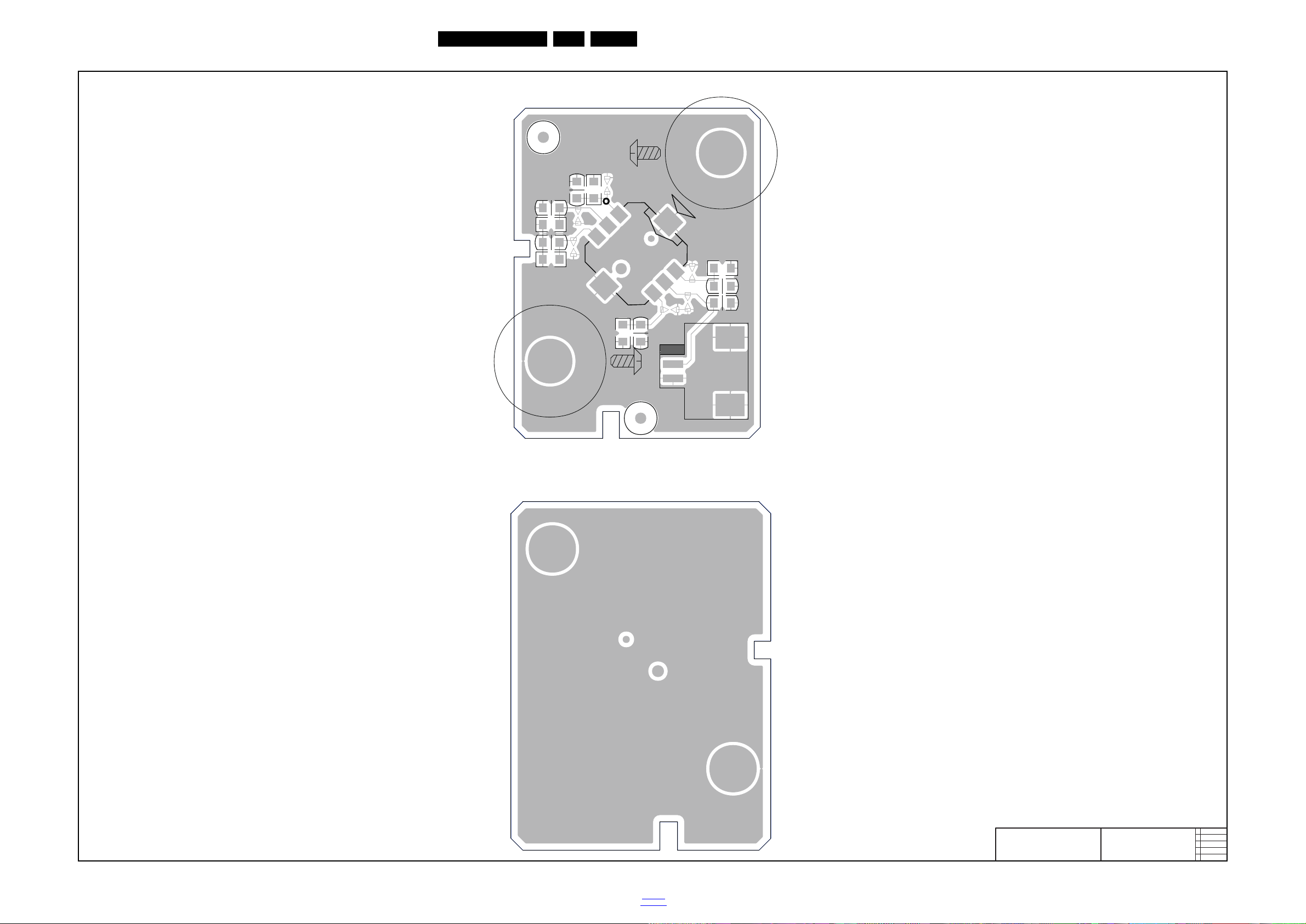

J 715G8009 IR/LED Panel 67 68

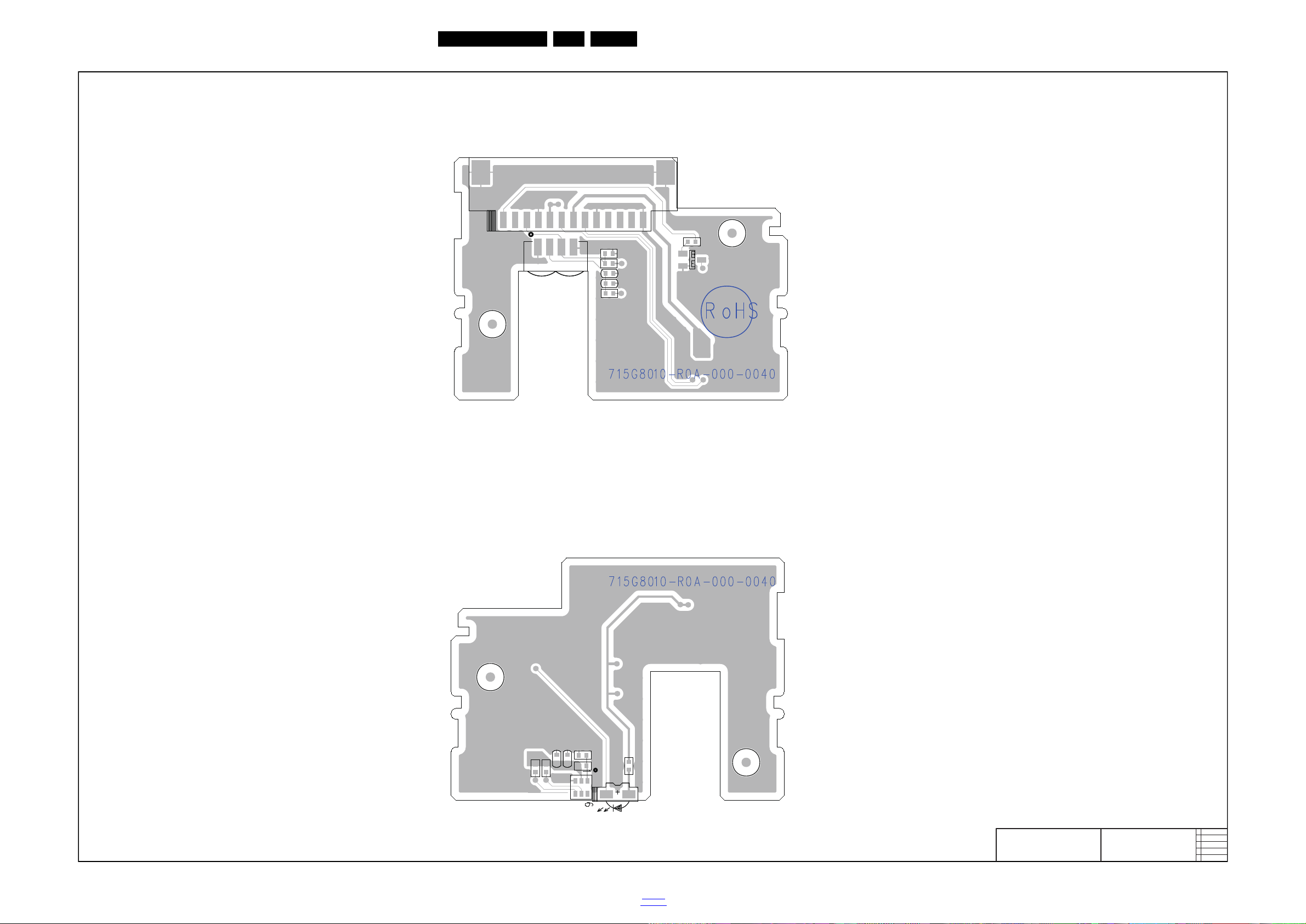

J 715G8010 IR/LED Panel 69 70
E 715G7088 Keyboard control panel 71 72

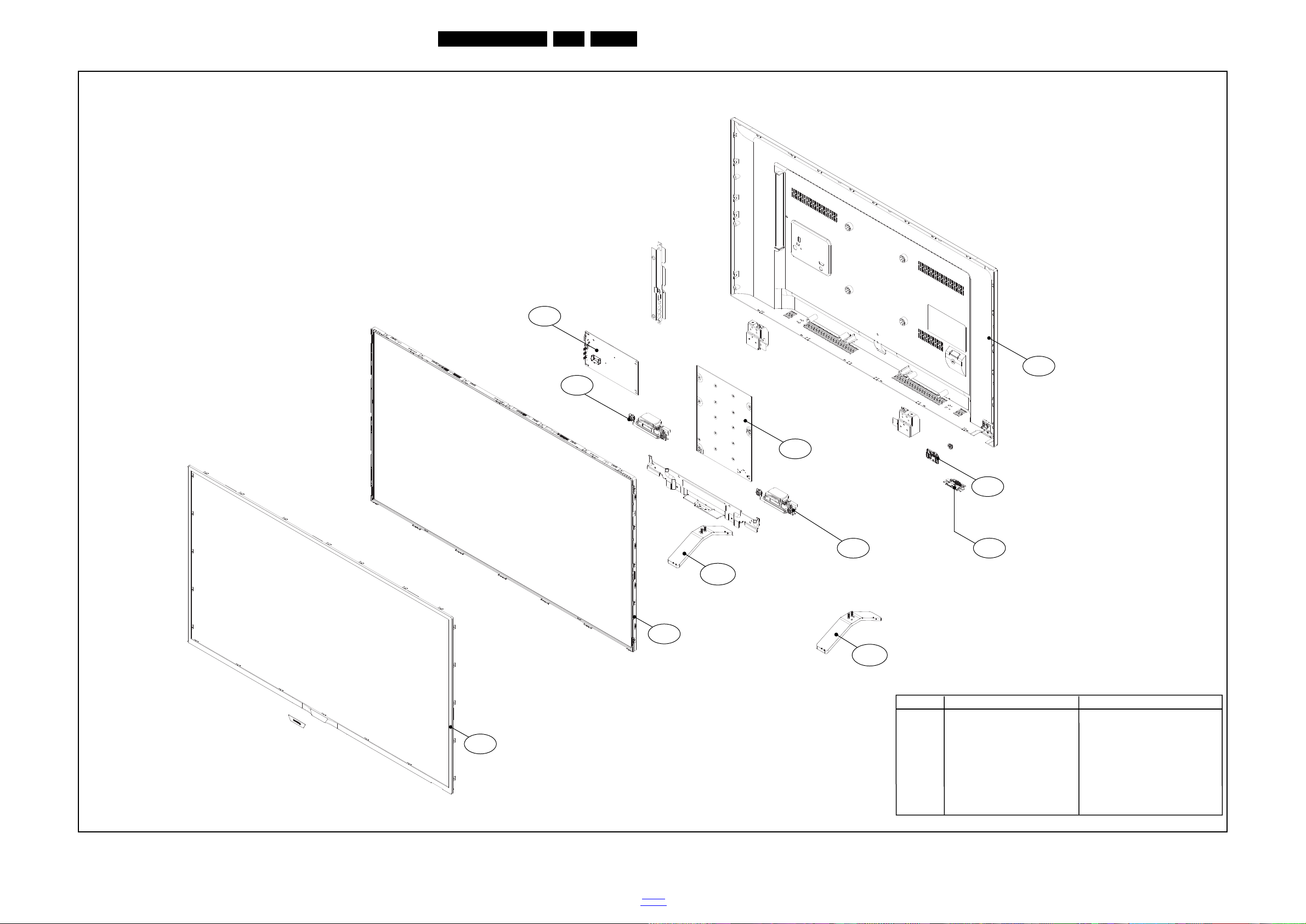

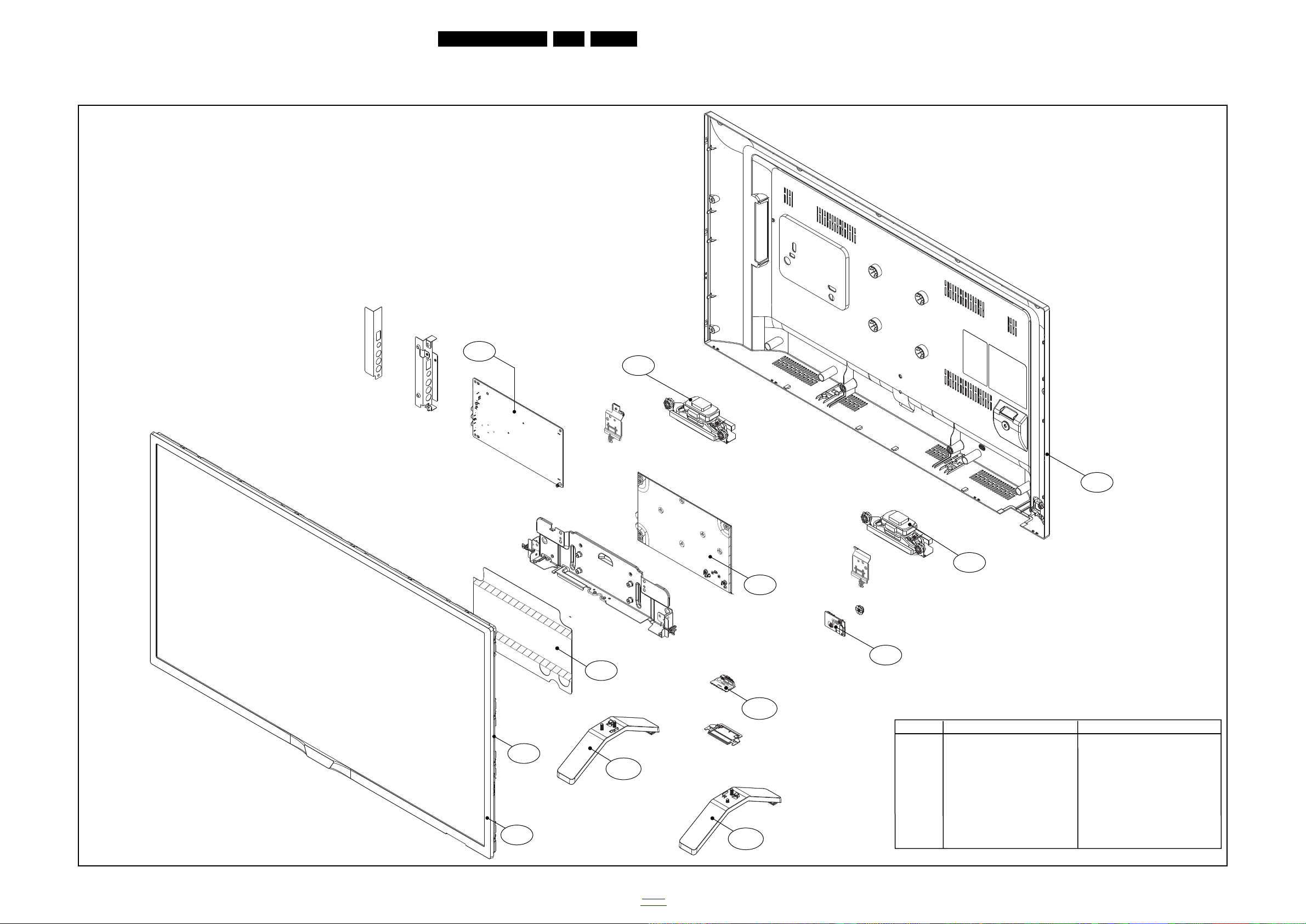

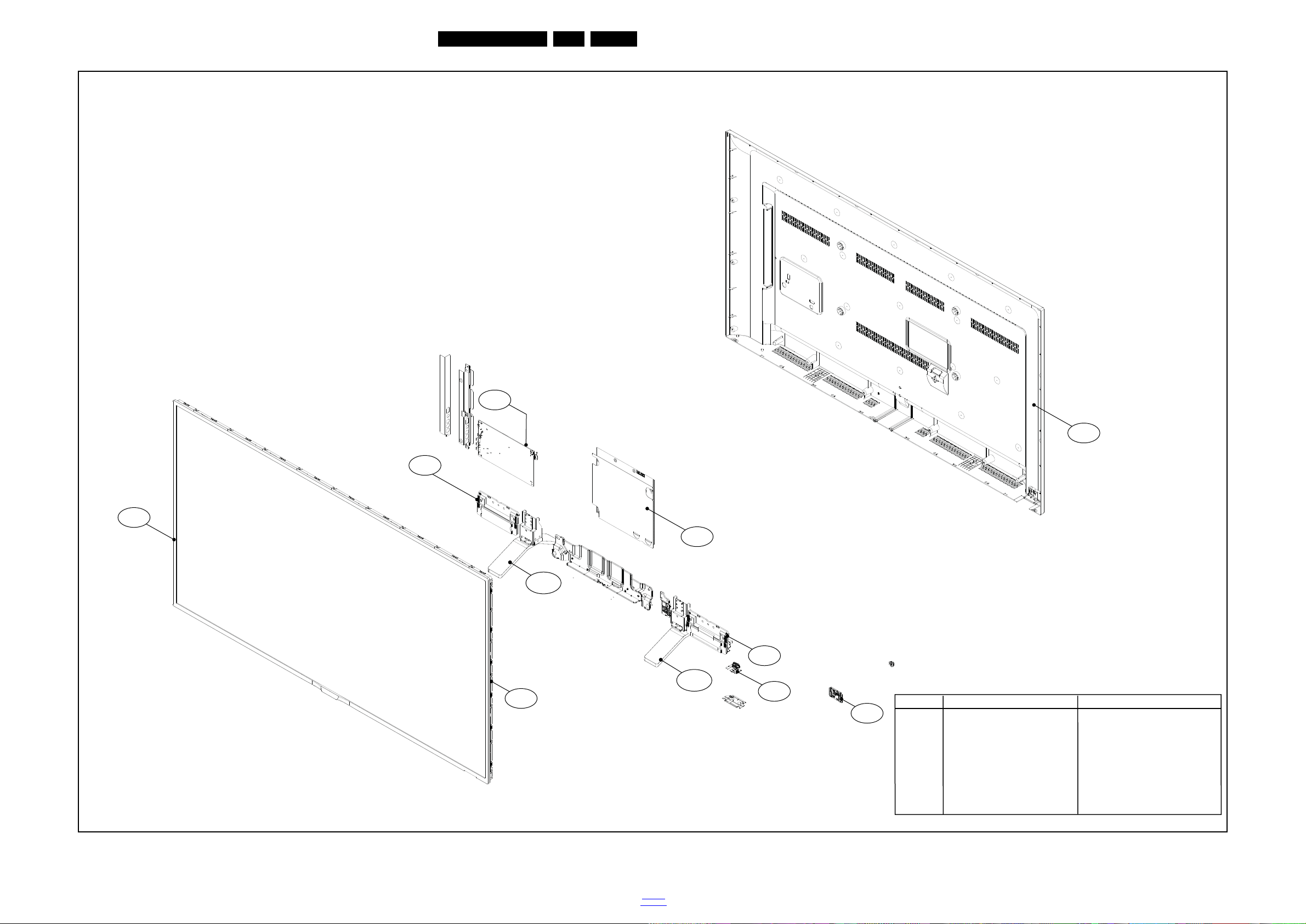

11. Styling Sheets
5101 series 32" 73
5101 series 43" 74
5101 series 49" 75

38 40-41

Published by XMM&CQZ/SC 1613 Quality Printed in the Netherlands Subject to modification EN 3122 785 20071

2016-Apr-1

2016 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPM16.4L LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

First release.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in back to

div.table 2-1. Here is product information available, as well as

getting started, user manuals, frequently asked questions and

Notes:

software & drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 9 10 11

CTN

32PHG5101/77 2-1 4-1 4-4 4-5 4-6 9.1 10.1 10.4 10.5 10.7 11.1
32PHD5101/55 2-1 4-1 4-4 4-5 4-6 9.1 10.1 10.4 10.5 10.7 11.1
43PFD5101/55 2-1 4-2 4-4 4-5 4-6 9.1 10.2 10.4 10.5 10.7 11.2
49PFD5101/55 2-1 4-3 4-4 4-5 4-6 9.1 10.3 10.4 10.6 10.7 11.3

Mechanics

Connection Overview

Wire Dressing

Stand Removal

Rear Cover Removal

Schematics

SSB Removal

Block Diagram

Power Supply

SSB

2.2 Directions for Use

Directions for use can be downloaded from the following
websites:

http://www.philips.com/support
http://www.p4c.philips.com

J (IR/LED)

E (Key board/Leading Edge)

Styling

2016-Apr-1

back to

div.table

2.3 Connections

USB

TV ANTENNA

SERV.U

HDMI

1

SPDIF

OUT

L

CVBS

R

HDMI 2

ARC

20010_001.eps

1

2

3

7

8

Side ConnectorsRear Connectors

5

6

4

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3TPM16.4L LA 2.

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,

5 - HDMI 2 ARC: Digital Video - In, Digital Audio with ARC ­In/Out

Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

2.3.1 Side Connections

1 - USB 2.0

Figure 2-3 HDMI (type A) connector

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j

Figure 2-2 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

2 - Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k

3 - EXT: Video CVBS - In, Audio - In

Ye -Video - CBVS 1 V
Wh -Audio - L 0.5 V
Rd -Audio - R 0.5 V

2.3.2 Rear Connections

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

4 - Service / UART

1 -Ground Gnd H
2 -UART_TX Transmit k
3 -UART_RX Receive j

back to

div.table

6- HDMI 1: Digital Video - In, Digital Audio - In/Out

Figure 2-4 HDMI (type A) connector

2016-Apr-1

EN 4 TPM16.4L LA2.

Technical Specs, Diversity, and Connections

1 -D2+ Data channel j
2-Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5-Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8-Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

7 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75 W kq

PP

8- TV ANTENNA - In

Signal input from an antenna, cable or satellite.

2016-Apr-1

back to

div.table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched “on”.

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode with a colour bar signal and stereo
sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and
picture carrier at 475.25 MHz for PAL, or 61.25 MHz for
NTSC (channel 3).

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 k).

• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10
nano-farads (n 10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed on the Philips
Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare
Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this
URL: http://www.atyourservice-magazine.com
“Magazine”, then go to “Repair downloads”. Here you will find
Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the IC
Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is
required, please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then

back to

div.table

-9

), or pico-farads (p 10

. Select

EN 5TPM16.4L LA 3.

-6

),

-12

).

2016-Apr-1

EN 6 TPM16.4L LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production centre (e.g.
SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M.
code, digit 4 refers to the Service version change code, digits 5
and 6 refer to the production year, and digits 7 and 8 refer to
production week (in example below it is 2010 week 10 / 2010
week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3
format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to
remove horizontal black bars; keeps
the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels
directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information
ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA
ATV See Auto TV
Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections
CL Constant Level: audio output to

connect with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFI Dynamic Frame Insertion
DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion

2016-Apr-1

back to

div.table

Precautions, Notes, and Abbreviation List

EN 7TPM16.4L LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for service

technicians
DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display.
EDID Extended Display Identification Data

(VESA standard)
EEPROM Electrically Erasable and

Programmable Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency

Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div.table

The SDI signal is self-synchronizing,
uses 8 bit or 10 bit data words, and has
a maximum data rate of 270 Mbit/s,
with a minimum bandwidth of 135
MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored
in RAM or in the NVM. They are called
at start-up of the set to configure it
according to the customer's

preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
MHEG Part of a set of international standards

related to the presentation of

multimedia information, standardised

by the Multimedia and Hypermedia

Experts Group. It is commonly used as

a language to describe interactive

television services
MIPS Microprocessor without Interlocked

Pipeline-Stages; A RISC-based

microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect

Transistor, switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTC Negative Temperature Coefficient,

non-linear resistor
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non-Volatile Memory: IC containing

TV related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of

software upgrade via RF transmission.

Upgrade software is broadcasted in

TS with TV channels.
OTC On screen display Teletext and

Control; also called Artistic (SAA5800)
P50 Project 50: communication protocol

between TV and peripherals
PAL Phase Alternating Line. Color system

mainly used in West Europe (colour

carrier = 4.433619 MHz) and South

America (colour carrier

PAL M = 3.575612 MHz and

PAL N = 3.582056 MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation

2016-Apr-1

EN 8 TPM16.4L LA3.

Precautions, Notes, and Abbreviation List

PDP Plasma Display Panel
PFC Power Factor Corrector (or

Pre-conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency
POD Point Of Deployment: a removable

CAM module, implementing the CA

system for a host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED

backlight with 2D-dimming
PSL Power Supply with integrated LED

drivers
PSLS Power Supply with integrated LED

drivers with added Scanning

functionality
PTC Positive Temperature Coefficient,

non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary

color signals for TV. By mixing levels

of R, G, and B, all colors (Y/C) are

reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote

control receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling

data interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

SCL Serial Clock I

Téléviseurs

SCL-F CLock Signal on Fast I
SD Standard Definition
SDA Serial Data I
SDA-F DAta Signal on Fast I

2

C

2

C bus

2

C

2

C bus
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.

Colour system mainly used in France
and East Europe. Colour
carriers = 4.406250 MHz and

4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a

4-wire synchronous serial data link

standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to

reduce the effects of EMI
STB Set Top Box
STBY STand-BY
SVGA 800 × 600 (4:3)
SVHS Super Video Home System
SW Software

SWAN Spatial temporal Weighted Averaging

Noise reduction
SXGA 1280 × 1024
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential

Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1600 × 1200 (4:3)
V V-sync to the module
VESA Video Electronics Standards

Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio

output toward external amplifier
VSB Vestigial Side Band; modulation

method
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024 × 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)

signal
YPbPr Component video. Luminance and

scaled color difference signals (B-Y

and R-Y)
YUV Component video

2016-Apr-1

back to

div.table

4. Mechanical Instructions

20010_100.eps

CN401

CN9101

CN701

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN601

ECN601

ECN701

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

CN8602

CN408

CN601

ECN601

ECN401

ECN701

ECN408

KEYBOARD CONTROL

(1057)

E

CN01

ECN408

ECN401

ECN401

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

EN 9TPM16.4L LA 4.

Figure 4-1 Cable dressing (32" 5101 series)

back to

div.table

2016-Apr-1

EN 10 TPM16.4L LA4.

20070_100.eps

CN401

CN9101

CN701

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN601

ECN601

ECN701

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

CN8601

CN408

CN601

ECN701

ECN408

KEYBOARD CONTROL

(1057)

E

CN01

ECN408

ECN401

ECN401

20070_101.eps

CN401

CN701

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN601

ECN601

ECN701

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

CN8603 CN9101

CN408

CN601

ECN408

KEYBOARD CONTROL

(1057)

E

CN01

ECN408

ECN401

ECN401

Mechanical Instructions

2016-Apr-1

Figure 4-2 Cable dressing (43" 5101 series)

Figure 4-3 Cable dressing (49" 5101 series)

back to

div.table

Mechanical Instructions

20010_101.eps

1

M4 × 14

1

1

1

1

EN 11TPM16.4L LA 4.

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal

Instructions below apply to the 32PHG5101/77, but will be
similar for other 32"/43"/49"Pxx5101 models.

4.3.1 Stand

Refer to Figure 4-4
Warning: Disconnect the mains power cord before removing
the rear cover.

1. Remove fixation screws [1] that secure the Stand assy_L &
Stand assy_R, pull out them from the set. Refer to

Figure 4-4

for details.

for details.

4.3.2 Rear Cover

Refer to Figure 4-5
Warning: Disconnect the mains power cord before removing
the rear cover.

1. remove the fixation screws [1],[2] that secure the rear
cover. Refer to Figure 4-5

2. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

for details.

for details.

Figure 4-4 Stand removal

back to

div.table

2016-Apr-1

EN 12 TPM16.4L LA4.

20010_102.eps

1

M3 × 8

1

1

2

2

1

M3 × 6

1

1

1

1

1

1

1

1

1

20010_103.eps

2

1

3

3

3

3

3

Mechanical Instructions

4.3.3 Keyboard Control unit

1. Gently release the tapes that secure the keyboard cable.

2. Remove the fixation screws that secure the keyboard
control panel.

3. Gently take the keyboard out.

When defective, replace the whole unit.

4.3.4 Small Signal Board (SSB)

Refer to Figure 4-6
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.

1. Release the clips from the LVDS connector [1] that connect
with the SSB.
Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2].

3. Remove all the fixation screws [3] from the SSB.

4. The SSB can now be shifted from side connector cover,
then lifted and taken out of the I/O bracket. Refer to

Figure 4-6

for details.

for details.

2016-Apr-1

Figure 4-5 Rear cover removal

4.3.5 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

back to

div.table

Figure 4-6 SSB removal

Mechanical Instructions

20010_104.eps

2

1

1

20010_105.eps

5

4

3

3

EN 13TPM16.4L LA 4.

4.3.6 IR board Control Unit

Refer to Figure 4-7

1. Unplug the connector from the SSB.
Caution: be careful, as these are very fragile connectors!

2. The indicated areas [1] are secured by clips. Gently and be
very careful with releasing the IR board control unit.

3. Unplug the connector [2] from IR board control unit. Refer
to Figure 4-7

4. Take the IR board contorl unit with hands, gently use
thumbs to press backward the indicated areas [3], the IR
board [4] and the IR lens [5] can be detached from the IR
board control unit. Refer to Figure 4-8

When defective, replace the whole unit.

, Figure 4-8 for details.

for details.

for details.

4.3.8 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out.
When defective, replace the both units.

4.3.9 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to
the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original position. See Figure 4-1

Figure 4-3

• Pay special attention not to damage the EMC foams on the
SSB shields. Ensure that EMC foams are mounted
correctly.

.

to

Figure 4-7 IR board Control Unit removal 1

Figure 4-8 IR board Control Unit removal 2

4.3.7 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

back to

div.table

2016-Apr-1

EN 14 TPM16.4L LA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Service Modes

5.2 Stepwise Start-up

5.3 Software Upgrading

5.4 Error Codes

5.5 The Blinking LED Procedure

5.6 Fault Finding and Repair Tips

5.1 Service Modes

The Service Mode feature is split into following parts:

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).
SAM and the Factory mode offer features, which can be used
by the Service engineer to repair/align a TV set. Some features
are:

• Make alignments (e.g. White Tone), reset the error buffer
(SAM and Factory Mode).

• Display information (“SAM” indication in upper right corner
of screen, error buffer, software version, operating hours,
options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the
consumer. The CSM displays diagnosis information, which the
customer can forward to the dealer or call centre. In CSM
mode, “CSM”, is displayed in the top right corner of the screen.
The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home vi it.

Note: For the new model range, a new remote control (RC) is
used with some renamed buttons. This has an impact on the
activation of the Service modes. For instance the old “MENU”
button is now called “HOME” (or is indicated by a “house” icon).

5.1.1 General

Next items are applicable to all Service Modes or are general.

Life Timer

During the life time cycle of the TV set, a timer is kept (called
“Op. Hour”). It counts the normal operation hours (not the
Stand-by hours). The actual value of the timer is displayed in
SAM in a decimal value. Every two soft-resets increase the
hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main
menu display of SAM and CSM.
The screen will show: “AAAAAAB-XXX.YYY.MMM.TTT”,
where:

• AAAAAA is the chassis name: TPM164L.

• B is the region indication: E = Europe, A = AP/China, U =
NAFTA, L = LATAM.

• XXX is the main version number: this is updated with a
major change of specification (incompatible with the
previous software version). Numbering will go from 0- 255.

• YYY is the sub version number: this is updated with a minor
change of specification (incompatible with the previous
versions). Numbering will go from 0- 255.

• MMM is the number of the mandatory (upgrade) release in
association with the area of the mandatory (upgrade)
release. Numbering will go from 0 - 255.

• TTT bit 7 to 1 is the area of the mandatory (upgrade)
release where 0 - none, 1 - Netflix, rest reserved.

• TTT bit 0 : 0 = development release, 1 = production
release.

Display Option Code Selection

When after an SSB or display exchange, the display option
code is not set properly, it will result in a TV with “no display”.
Therefore, it is required to set this display option code after
such a repair.
To do so, press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type: see
column “Display Code” in back to div.table 6-3
is accepted and stored in NVM, the set will switch to Stand-by,
to indicate that the process has been completed.
During this algorithm, the NVM-content must be filtered,
because several items in the NVM are TV-related and not SSB
related (e.g. Model and Prod. S/N). Therefore, “Model”
and “Prod. S/N” data is changed into “See Type Plate”. In case
a call centre or consumer reads “See Type Plate” in CSM
mode.

5.1.2 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control
transmitter: “062596”, directly followed by the “INFO/OK”
button. Do not allow the display to time out between entries
while keying the sequence.

After entering SAM, the following items are displayed,
with “SAM” in the upper right corner of the screen to indicate
that the television is in Service Alignment Mode.

. When the value

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour e.g. 00057 This represents the life timer. The timer counts normal operation hours, but does

Clear Codes Press [OK] to clean the Error Codes

2016-Apr-1

not count Stand-by hours.

Main SW ID e.g. “TPM144L_002.004.000.00 1” See paragraph Software Identificati on, Version, and Cl uster for the software name

ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors

OP1 e.g. “001 224 032 000 038 137 220

OP2 e.g. “159 255 127 045 011 017 000

immediately

015”

000”

back to

div.table

definition.

possible.
Used to read-out the option bytes. See paragraph 6.4 Option Settings in the

Alignments section for a detailed description. Ten codes are possible.

Erases the contents of the error buffer. Select this menu item and press the MENU
RIGHT key on the remote control. The content of the error buffer is cleared.

Service Modes, Error Codes, and Fault Finding

Main Menu Sub-menu 1 Sub-menu 2 Description

Options OP#1-OP#8 e.g. “032” Option code
Alignments Warm R Gain To align the White Tone. See

G Gain

Normal R Gain

Cool R Gain

Store Store the RGB value

NVM editor NVM editor NVM-editor will function as in the past: Address and Value

Service Date Edit and display the applicable service data by using the displayed key pad

Upload to USB Channel List To upload several settings from the TV to an USB stick

Download from USB Channel List To download several settings from the USB stick to the TV

Initialised NVM Press [OK] to initialise NVM

NVM Copy
Readable info
EDID Copy

NVM Copy
EDID Copy

immediately

B Gain

G Gain
B Gain

G Gain
B Gain

paragraph 6.3 Software Alignments in the Alignments section for a detailed
description

field is a decimal value via digit entry

Initialised NVM

EN 15TPM16.4L LA 5.

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN
keys on the remote control transmitter. The selected item
will be indicated. When not all menu items fit on the screen,
use the UP/DOWN keys to display the next/previous menu
items.

• With the “LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– (De) activate the selected sub menu.
– Change the value of the selected menu item.

• When you press the MENU button once while in top level
SAM, the set will switch to the normal user menu (with the
SAM mode still active in the background).

How to Store SAM Settings

To store the settings changed in SAM mode (except the
RGB Align settings), leave the top level SAM menu by using
the POWER button on the remote control transmitter or the
television set. The mentioned exceptions must be stored
separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button
on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while
in SAM, the TV will show up in “normal operation mode” as

soon as the power is supplied again. The error buffer will not be
cleared.

5.1.3 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control
transmitter: from the “menu/home” press “1999”, directly
followed by the “Back/Return” button. Do not allow the
display to time out between entries while keying the
sequence.

After entering the Factory mode, the following items are
displayed,

Table 5-2 Factory mode overview

Default value

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture, BL Dimming,

1 PANEL_ID see back to div.table 6-3 Displays and changes the Panel ID with the left and right cursor; be careful changing this , it can

2 ERR Code: xxx xxx xxx xxx xxx 000 000 000 000 000 Values showing the last 5 errors during the last 50 hours of operation, according to table 5-4

3 CLEAR ERROR BUFFER Press OK Selecting this clear all current error codes.
4 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change a nd 7 to store the data to the co rrect NVM address
5 NVM VALUE 0 Displays the value at the NVM address of item 5
6 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5

Description32" 43" 49"

Source Meter, the Picture Quality checksum, the Dimming library, the Source meter library, the
Flash AQ, the MTK, MCU and OAD software versions.

result in not correct displaying the screen!

Error code table

back to

div.table

2016-Apr-1

EN 16 TPM16.4L LA5.

Default value

Item Item value

7 NVM COPY TV to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB memory stick. The

8 NVM READ USB to TV Press OK Use this to store th e NVM dat a fr om the USB memory stick to the TV. The TV will save the two

9 CLR_TEMP_R 117 126 255 Red colour temperature setting
10 CLR_TEMP_G 110 117 161 Green colour temperature setting
11 CLR_TEMP_B 128 128 167 Blue colour temperature setting
12 AUTO_COLOR Press OK PC: any pattern that has black and white, YPbPr: SMPTE bar (colour bar), any timing.
13 ADC_GAIN_R 0 Red ADC gain
14 ADC_GAIN_G 128 Green ADC gain
15 ADC_GAIN_B 128 Blue ADC gain
16 ADC_OFFSET_R 255 Red ADC offset
17 ADC_OFFSET_G 255 Green ADC offset
18 ADC_OFFSET_B 255 Blue ADC offset
19 VIRGING_MODE off Use this to return the set to virgin mode. Depends whether the set has been used already.
20 E_Fuse on E-fuse mode
21 ORT_MODE off ORT mode
22 AGEING MODE off Use this for aging a new LCD pan el
23 RESET_PBS_PWD Press OK Use this to reset the Child Lock
24 VIDEO_PWM_MEDIUM 0 video_pwm_medium
25 VIDEO_PWM_MINIMUM 0 video_pwm_minimum
26 VIDEO_PWM_MAXIMUM 0 video_pwm_maximum
27 PWM_RATIO_BEST_PICTURE 0 pwm_ratio_best_picture
28 PWM_RATIO_STD_TOP 0 pwm_ratio_std_top
29 PWM_RATIO_STD_BOTTOM 0 pwm_ratio_std_bottom
30 PWM_RATIO_BEST_POWER 0 pwm_ratio_best_power
31 VIDEO_STD_TH_HIGH 0 video_std_th_high
32 VIDEO_STD_TH_LOW 0 video_std_th_low
33 YPBPR_PHASE InValid Not available for this chassis
34 AUD_GAIN_LINEIN 1 0 1 Line-in audio gain
35 AUD_GAIN_HDMI 0 0 0 HDMI audio gain
36 AUD_GAIN_ATV 0 -3 0 Analogue TV audio gain
37 AUD_GAIN_DTV 0 0 0 Digital TV audio gain
38 AUD_GAI N _USB 0 0 0 USB audio gain
39 ESTICKER NVM 1 0 esticker nvm 1
40 ESTICKER NVM 2 0 esticker nvm 2
41 ESTICKER NVM 3 0 esticker nvm 3
42 ESTICKER NVM 4 0 esticker nvm 4
43 ESTICKER NVM 5 0 esticker nvm 5
44 ESTICKER NVM 6 0 esticker nvm 6
45 ESTICKER NVM 7 0 esticker nvm 7
46 ESTICKER NVM 8 0 esticker nvm 8
47 ESTICKER NVM 9 0 esticker nvm 9
48 ESTICKER NVM 10 0 esticker nvm 10
49 ESTICKER NVM 11 0 esticker nvm 11
50 ESTICKER NVM 12 0 esticker nvm 12
51 ESTICKER NVM 13 0 esticker nvm 13
52 ESTICKER NVM 14 0 esticker nvm 14
53 ESTICKER NVM 15 0 esticker nvm 15
54 ESTICKER NVM 16 0 esticker nvm 16
55 ESTICKER NVM 17 0 esticker nvm 17
56 ESTICKER NVM 18 0 esticker nvm 18
57 ESTICKER NVM 19 0 esticker nvm 19
58 ESTICKER NVM 20 0 esticker nvm 20
59 ESTICKER RESET Press OK reset esticker
60 DIM_LIB RESET Press OK Reset the Dimming
61 SRC_METER-RESET Press OK Reset the Source meter
62 AMBLIGHT RESET Press OK Amblight reset
63 ACFG RESET Press OK Reset ACFG
64 AQ_INDEX 5 5 6 Audio Qu ality index
65 AUDIO TEST MODE off Used for audio testing during production
66 AUDIO CHANNEL TYPE 2.0 Defines the installed speaker system
67 TEST PATTERN Press OK With the “left” and “right” keys of the remote control various test patterns can be chosen
68 EDID UPDATE Press OK Used to enter a new EDID codes into the NVM
69 TCON_GAMMA_UPDATE InValid Tcon_gamma_update
70 DUMP PQ FROM TV Press OK Saves the picture quality data to a f ile “pq .bi n ” to the root of a FAT formatted USB mem ory sti ck
71 LOAD PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV

Service Modes, Error Codes, and Fault Finding

Description32" 43" 49"

TV will write two files in the REPAIR folder of the memory stick. It will create this folder if it does
not exist. The items are “Channel list”, “Personal settings”, “Option codes”, “Display-related
alignments” and “History list”. In case the download to the USB stick was not successful “Failure”
will appear. In this case, check if the USB stick is connected properly. Now the settings are stored
onto the USB stick and can be used to download onto another TV or other S SB. Upl oading is o f
course only possible if the software is ru nning and if a pictur e is available. This me thod is created
to be able to save the customer’s TV settings and to store them into another SSB.

files which were created in item 8 to the NVM of the set. Use these options when replacing a
SSB. When “USB to TV Success” is displayed remove the power and restart the TV

2016-Apr-1

back to

div.table

Service Modes, Error Codes, and Fault Finding

Default value

Item Item value

72 DUMP AQ FROM TV Press OK Saves the audio quality data to a file “AQ.bin” to the root of a FAT formatted USB memor y stick
73 LOAD AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV
74 PANEL FLIP on off off Flip panel
75 CVI_SOURCE off off off Enable/Disable CVI source
76 VGA_SOURCE off off off Enable/Disable VGA source
77 HDMI2 off off off Enable/Disable HDMI2 source
78 HDMI SIDE on on on Enable/Disable HDMI SIDE source
79 RESET_OPTION_CODE Press OK Reset option code
80 EXIT_FACTORY Press OK Exits the factory mode

Description32" 43" 49"

EN 17TPM16.4L LA 5.

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK”
button.

Note: When the TV is switched “off” by a power interrupt, or
normal switch to “stand-by” while in the factory mode, the TV
will show up in “normal operation mode” as soon as the power
is supplied again. The error buffer will not be cleared.

5.1.4 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and
information on the TVs operation settings.The call centre can
instruct the customer (by telephone) to enter CSM in order to
identify the status of the set.This helps the call centre to
diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every
line (to make CSM language independent).

• Set the screen mode to full
screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original
settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or
enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a
standard remote control transmitter: “123654” (do not allow the
display to time out between entries while keying the sequence).
After entering the Customer Service Mode, the following items
are displayed.

Note: Activation of the CSM is only possible if there is no (user)
menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a
helpdesk/workshop as reference for further diagnosis. In
this way, it is not necessary for the customer to look at the
rear of the TV-set. Note that if an NVM is replaced or is
initialized after corruption, this set type has to be re-written
to NVM.

• 1.2 Production code Displays the production
code (the serial number) of the TV. Note that if an NVM is
replaced or is initialized after corruption, this production
code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first
installation of the TV. This date is acquired via time
extraction.

• 1.4a Option Code 1 Gives the option codes of option
group 1 as set in SAM.

• 1.4b Option Code 2 Gives the option codes of option
group 2 as set in SAM.

• 1.5 SSB Gives an identification of the SSB as stored in
NVM. Note that if an NVM is replaced or is initialized after
corruption, this identification number has to be re-written to
NVM. This identification number is the 12NC number of the
SSB.

• 1.6 Display 12NC NVM read/write.

• 1.7 PSU 12NC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software
version. In case of field problems related to software,
software can be upgraded. As this software is consumer
upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor
software version. Upgrading this software will be possible
via USB.

• 2.3 Panel Code Displays the Display Code number.

•

2.4 Bootloader ID ID of Boot

loader.

• 2.5 NVM version Detects and displays NVM version.

• 2.6 Flash ID ID of flash model.

• 2.7 e-UM version eDFU (help) version.

• 2.8 Channel Table Structure Version version of channel
table structure.

• 2.9 Error Codes Detects and displays errors.

• 3.1 Signal Quality Analog/digital signal strength.

• 3.2 Child lock Not active / active. This is a combined item
for locks. If any lock (channel lock, parental lock) is active,it
is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or
HDCP keys). In case these keys are not valid and the
customer wants to make use of the HDMI functionality, the
SSB has to be replaced.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll
wheel) on the RC-transmitter, can be navigated through the
menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control
transmitter.

• Press the POWER button on the remote control
transmitter.

• Press the POWER button on the television set.

back to

div.table

2016-Apr-1

EN 18 TPM16.4L LA5.

19080_206_110323.eps

120224

Power Off

Standby
Soft Mode

Power On

Semi-
Standby

Standby

Switch

Off(Mains
Power Plug)

Standby Soft Mode
Command Received,
previously in Standby

Soft Mode (Power tact
switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Digital
background
tasks started

Digital
background
tasks completed

Swith On,
previously in

Standby/Semi-
Standby (Mains
Power Plug)

Standby
Soft Mode

Command
Received
(Power tact

switch)

Switch Off (Mains
Power Plug)

Switch Off

(Mains Power
Plug)

Swith On,
previously in
Standby Soft Mode
(Mains Power Plug)

Standby
commands

Received (RC

Standby key)

Standby Soft Mode

Command Received,
previously in Standby
Soft Mode (Power
tact switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Switch On, previously
in Power On Mode
(Power tact switch)

Standby Soft Mode
Command Received,
(Power tact switch)

Switch Off (Mains
Power Plug)

Switch On,previously in
TV Operation Mode
(Mains Power Plug)

5.2 Stepwise Start-up

Service Modes, Error Codes, and Fault Finding

5.3 Software Upgrading

5.3.1 Description

It is possible for the user to upgrade the main software via the
USB port. This allows replacement of a software image in a
stand alone set. A description on how to upgrade the main
software can be found in the DFU or on the Philips website.

5.3.2 Introduction

Philips continuously tries to improve its products, and it’s
recommend that the TV software is updated when updates are
available. Software update files can be obtained from the
dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip
for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2016-Apr-1

Figure 5-1 Stepwise Start-up

5.3.3 Check the current TV software version

5.3.4 Download the latest software

back to

div.table

2. Only use software update files that can be found on the

http://www.philips.com/support

Before starting the software upgrade procedure, it is advised to
check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter
the CSM mode.

2. Use the up/down cursor keys to select “Current Main
Software”.

If the current software version of the TV is the same as the
latest update file found on http://www.philips.com/support
not necessary to update the TV software.

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the
PC.

4. Insert the USB memory stick into one of the USB ports of
the PC.

5. Decompress the downloaded ZIP file and copy it to the root
directory of the USB flash drive.

web site.

, it is

.

Service Modes, Error Codes, and Fault Finding

19080_207_110324.eps

110324

19080_208_110324.eps

110324

19080_209_110324.eps

110324

EN 19TPM16.4L LA 5.

5.3.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software
update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically.
Then a window jumps out as Figure 5-2

.
Note: If the USB flash drive is not detected after power up,
disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-2

5. To proceed, In next menu select [Start] and press OK to
start software updates. See Figure 5-3

.

6. Upgrading will now begins and the status of the updating
progress will be displayed.

7. When the TV software is updated. Remove your USB flash
drive, then select [Restart] and press OK to restart the
TV.See Figure 5-4

.

Figure 5-2 Update the TV software [1/3]

• Do not remove the USB flash drive during the software
update.

• If a power failure occurs during the update, do not remove
the USB flash drive from the TV. The TV will continue the
software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or
contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV

.

software from the USB portable memory.

5.3.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and
instructions on how and when to use it. Only files that are
relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the
different EDID NVMs.

• FUS_clustername_version.zip: Contains the file
downloaded which is needed to upgrade the TV main
software and the software download application.

• NVM_clustername_version.zip: Default NVM content.

5.3.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder
“repair” is used. When inserting an empty USB memory stick,
and downloading data to the stick, the TV will create this folder.
When sending data from a USB memory stick to a TV, the
intended data must be available in the “repair” folder.
Note that when copying EDID data to the TV, all necessary
EDID files must be in this folder.
Service mode overview for your reference.

Table 5-3 Service mode overview

Figure 5-3 Update the TV software [2/3]

Figure 5-4 Update the TV software [3/3]

Note:

Service Modes Description

SAM Service alignment mode
Factory Mode Used for extended alignments
CSM 3-page compact CSM pages. There will be C SM dump to

USB SW upgradeable SW-upgrading of flash memories MT5561 can be done

NVM-Editor in SAM NVM-editor will function as in the past: Address and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in
SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC sequence “062598” + “Menu” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

via USB. The main SW can be upgraded via the ZIP file
downloaded.

field is a decimal value via digit entry

programming with virtual keyboard
Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

“Panel code”

5.4 Error Codes

5.4.1 Introduction

Error codes are required to indicate failures in the TV set. In
principle a unique error code is available for every:

• Activated (SW) protection.

• Failing I

• General I

The last five errors, stored in the NVM, are shown in the
Service menu’s. This is called the error buffer.
The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.
An error will be added to the buffer if this error differs from any
error in the buffer. The last found error is displayed on the left.

2

C device.

2

C error.

back to

div.table

2016-Apr-1

EN 20 TPM16.4L LA5.

Service Modes, Error Codes, and Fault Finding

An error with a designated error code never leads to a
deadlock situation. It must always be diagnosable (e.g. error
buffer via OSD or blinking LED).
In case a failure identified by an error code automatically
results in other error codes (cause and effect), only the error
code of the MAIN failure is displayed.

5.4.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/CSM (if you have a picture).
Example:
– ERROR: 000 000 000 000 000: No errors detected
– ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected
(newest) error

• Via the blinking LED procedure (when you have no
picture). See paragraph 5.5 The Blinking LED Procedure

5.4.3 Error codes

In this chassis only “layer 2” error codes are available and point
to problems on the SSB. They are triggered by LED blinking
when CSM is activated. Only the following layer 2 errors are
defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I2C bus error on the SSB
16 +12 V missi ng or low, PSU defective
27 Channel decoder error on the SSB
34 Tuner I2C bus error on the SSB
35 EEPROM I

2

C error on SSB, M24C64

5.4.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control
transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50
hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the
television set, the error buffer is not reset.

5.5 The Blinking LED Procedure

5.5.1 Introduction

The software is capable of identifying different kinds of errors.
Because it is possible that more than one error can occur over
time, an error buffer is available, which is capable of storing the
last five errors that occurred. This is useful if the OSD is not
working properly.
Errors can also be displayed by the blinking LED procedure.
The method is to repeatedly let the front LED pulse with as
many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated.
Example (1): error code 4 will result in four times the sequence
LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After
this sequence, the LED will be “off” for 1.5 seconds. Any RC
command terminates the sequence. Error code LED blinking is
in red color.

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

5.6.1 NVM Editor

In some cases, it can be convenient if one directly can change
the NVM contents. This can be done with the “NVM Editor” in
SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of
each setting, because incorrect NVM settings may
seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before
changing the settings. This will enable you to return to the
original settings, if the new settings turn out to be incorrect.

.

5.6.2 No Picture

When you have no picture, first make sure you have entered
the correct display code. See paragraph 6.4 Option Settings
the instructions. See also back to div.table 6-3

.

for

5.6.3 Unstable Picture via HDMI input

Check if HDMI EDID data is properly programmed.

5.6.4 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.6.5 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.6.6 Audio Amplifier

The Class D-IC U601 has a powerpad for cooling. When the IC
is replaced it must be ensured that the powerpad is very well
pushed to the PWB while the solder is still liquid. This is needed
to insure that the cooling is guaranteed, otherwise the Class
D-IC could break down in short time.

5.6.7 CSM

When CSM is activated and there is a USB memory stick
connected to the TV, the software will dump the complete CSM
content to the USB memory stick. The file (Csm.txt) will be
saved in the root of the USB memory stick.

5.6.8 Loudspeakers

Make sure that the volume is set to minimum during
disconnecting the speakers in the ON-state of the TV. The
audio amplifier can be damaged by disconnecting the speakers
during ON-state of the set!

5.6.9 Display option code

Attention: In case the SSB is replaced, always check the Panel
Code in CSM, even when picture is available. Performance
with the incorrect display option code can lead to unwanted
side-effects for certain conditions.

5.6 Fault Finding and Repair Tips

Note:

2016-Apr-1

back to

div.table

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer
with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct
ground (e.g. measure audio signals in relation to
AUDIO_GND).
Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 MW, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform
alignments.

, 50/ 60 ± 3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color
analyser (e.g. Minolta CA-210) in the centre of the screen.
Consequently, the measurement needs to be done in a
dark environment.

• Adjust the correct x, y coordinates (while holding one of the
White point registers R, G or B on max. value) by means of
decreasing the value of one or two other white points to the
correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx: ± 0.003, dy: ± 0.003.

• Repeat this step for the other colour Temperatures that
need to be aligned.

• When finished return to the SAM root menu and press
STANDBY on the RC to store the aligned values to the
NVM.

Table 6-1 White D alignment values

Value Cool (11000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313
y 0.282 0.296 0.329

EN 21TPM16.4L LA 6.

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus.
The alignments are explained below.
The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the
left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a
video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal
strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a
signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal
strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off
Dynamic Contrast Off
Color Enhancement Off
Picture Format Unscaled
Light Sensor Off
Brightness 50
Color 0
Contrast 100

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the
following values:
– “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

If you do not have a colour analyser, you can use the default
values. This is the next best solution. The default values are
average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average
values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or
WARM).

• Set the RED, GREEN and BLUE default values according
to the values in back to div.table 6-2

.

• When finished press OK on the RC, then press STORE to
store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Warm (6500K) 32PHG5101/77 128 104 80

32PHD5101/55 127 105 81
43PFD5101/55 128 92 69
49PFD5101/55 255 153 128

Normal (9000K) 32PHG5101/77 128 117 121

32PHD5101/55 126 116 120
43PFD5101/55 126 117 128
49PFD5101/55 255 161 167

Cool (11000K) 32PHG5101/77 117 110 128

32PHD5101/55 116 111 127
43PFD5101/55 118 111 127
49PFD5101/55 195 174 252

Colour temperature

Red Green Blue

This group setting of colour temperature will be applied
automatically to the TV / HDMI / AV sources.

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I
ICs in the set. To ensure good communication and to make
digital diagnosis possible, the microprocessor has to know
which ICs to address. The presence / absence of these
MT5561 ICs is made known by the option codes.

Notes:

2

C

back to

div.table

2016-Apr-1

EN 22 TPM16.4L LA6.

Alignments

• After changing the option(s), save them by pressing the OK
button on the RC before the cursor is moved to the left,
select STORE and press OK on the RC.

• The new option setting is only active after the TV is
switched “off” / “stand-by” and “on” again with the mains
switch (the NVM is then read again).

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could be
edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type: see
column “Display Code” in back to div.table 6-3
the Display Code, restart the set immediately.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

32PHG5101/77 TPT315B5-WX226.K S4944G 197
32PHD5101/55 TPT315B5-WX226.K S4944G 197
43PFD5101/55 TPT430H3-DUYSHA.G S1U 198
49PFD5101/55 TPT490F2-FHBN0.K S8940C 199

6.5.2 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB.
715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code
Make sure when replacing an SSB the SSB identification codes
match the replacement panel.

. After resetting

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service
repair shop (SSB repair on component level) implies the reset
of the NVM on the SSB.
A repaired SSB in Service should get the service Set type
“00PF0000000000” and Production code “00000000000000”.
Also the virgin bit is to be set. To set all this, you can use the
tool or use the “NVM editor” and “Dealer options” items in SAM
(do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair
on board level), the type number (CTN) and production code of
the TV has to be set according to the type plate of the set. For
this, you can use the NVM editor in SAM.

In case of a display replacement, reset the “Operation hours
display” to “0”, or to the operation hours of the replacement
display.
Remark:

- After the NVM has been replaced, go to SAM and scroll to the

<Reload MAC address> (see figure 1*).

- Select the item and press <OK> on the RC.

6.5.1 Reset of Repaired SSB

Instruction

After NVM replacement, reload MAC address via SAM
menu.This ensures the correct MAC address to be available in
CSM for future repair actions.

Way of working:

• After the NVM has been replaced, go to SAM and scroll to
the <Reload MAC address> .

• Select the item and press <OK> on the RC.

Notes:

• Only applicable to all related models that are “Smart TV
level 0”enabled (only YouTube access). For models

without internet connection feature, no action is needed.

• HDCP keys are located in the NVM. If you are loading NVM
with the tool, there is warning message displayed.

New NVM EEPROMs are shipped with pre-loaded HDCP keys.

2016-Apr-1

back to

div.table

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MT5561LVNT

Notes:

•Only new circuits (circuits that are not published recently)
are described.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPM16.4L LA is a new chassis launched in Argentina in

2016. The whole range is covered by MT5561LVN T .
The major deltas versus its predecessor support NTSC;
PAL-M; PAL-N AND ISDB-T with also multi-media, CEC,
ARC, SPDIF functionality.

The TPM16.4L LA chassis comes with the following stylings:

• series xxPHG5101xx

7.1.1 Implementation

Key components of this chassis are:

• SCALER MT5561LVNT/B PBGA-329

• NAND FLASH W29N01GVSIAA 1Gb TSOP-48

• Silicon Tuner MxL661-AG-R

• DEMODULATOR TC90537FG LQFP-48

• AUDIO TAS5729MDDCAR 10W TSSOP-48 for Audio
Amplifier

7.1.2 TPM16.4L LA Architecture Overview

EN 23TPM16.4L LA 7.

For details about the chassis block diagrams refer to

9. Block Diagrams

.

back to

div.table

2016-Apr-1

EN 24 TPM16.4L LA7.

20010_200.eps

TUNER

DC/DC

DDR

Headphone

SERVICE

CONNECTOR

SPDIF OUT

ANALOG I/O

MT5561

USB

HDMI

DDR

DC/DC

DC/DC

DC/DC

HDMI

DC/DC

7.1.3 SSB Cell Layout

Circuit Descriptions

Figure 7-1 SSB layout cells (top view)

2016-Apr-1

back to

div.table

7.2 Power Supply

20010_201.eps

Platform

MT5561LVNT

AUDIO

AMP

LVDS

12V 12V

CN701

AC IN

DIM

ON/OFF

12V

AC input +

Main filter

Display Power

Platfor m p ow er

CN8602 (for 32'')

PFC

(NC)

Lower Stby
Power

1 power-PCB

CN8601 (for 43'')
CN8603 (for 49'')

Refer to figure Figure 7-2 for the power architecture of this
platform.

Circuit Descriptions

EN 25TPM16.4L LA 7.

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective,
a new board must be ordered and the defective one must be
returned, unless the main fuse of the board is broken. Always
replace a defective fuse with one with the correct
specifications! This part is available in the regular market.
Consult the Philips Service web portal for the order codes of the
boards.

Important delta’s with the TPM16.4L LA classis platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by (PS_ON)

•Lamp (ON/OFF)

• Backlight adjust (DIM) (not for PSDL)

In this manual, no detailed information is available because of
design protection issues.

The output voltages to the chassis are:

• 12V output (standby and on-mode)

• +12V_A (audio AMP power)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

Number
Description to SSB to Panel to SSB to Panel to SSB to Panel
Pin 16 6 16 12 16 12

1 DIM VLED+ DIM VLED+ DIM VLED+
2 ON/OFF VLED+ ON/OFF n.c. BL_ON/OFF n.c.
3 PS_ON n.c. PS_ON VLED- PS_ON/OFF VLED­4 n.c. n.c. n.c. VLED- A3D VLED­5 GND LED- GND n.c. GND VLED-

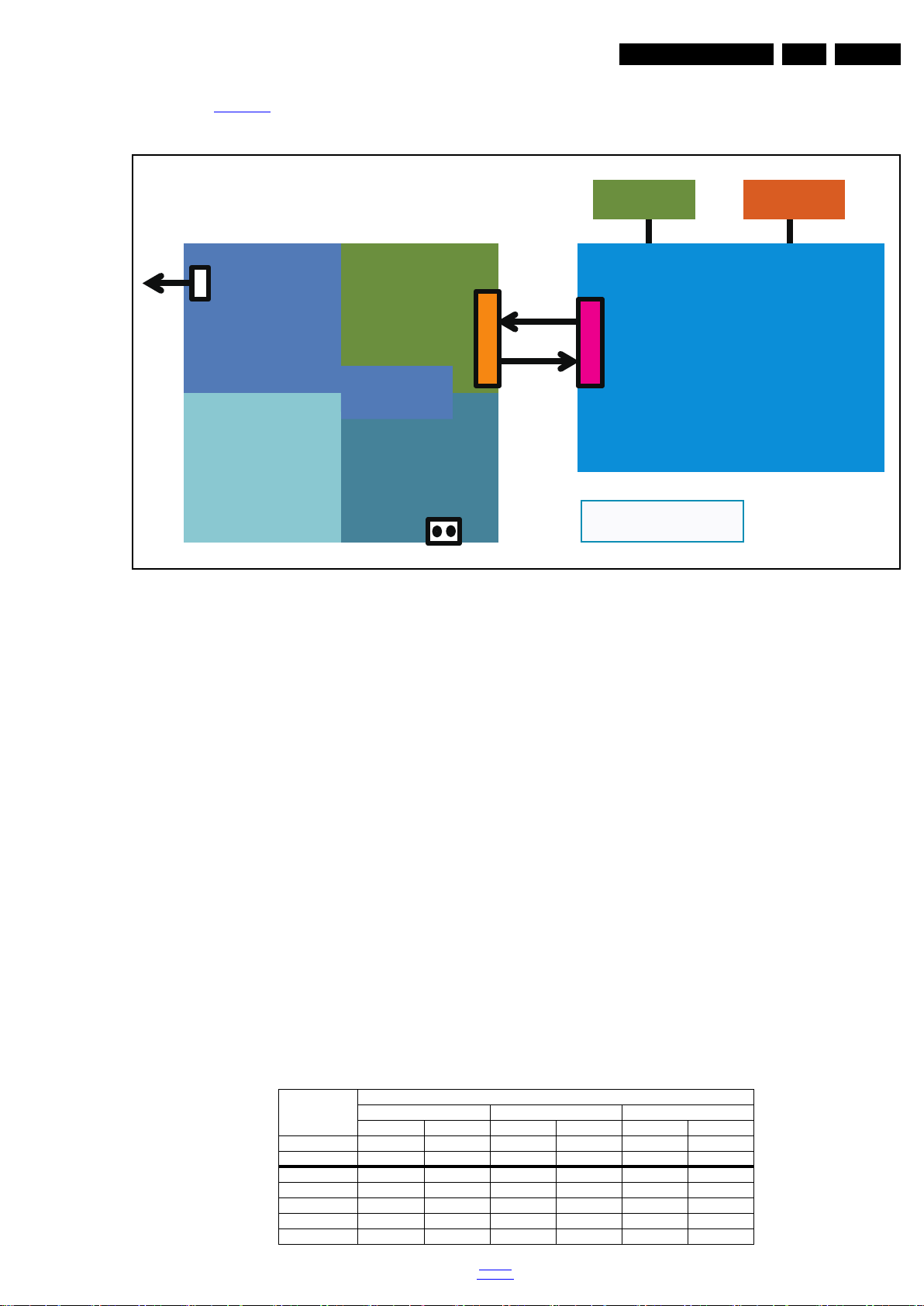

Figure 7-2 Power Architecture

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

7.2.2 Diversity

The diversity in power supply units is mainly determined by the
diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers.
PSLS stands for a Power Supply with integrated LED-drivers
with added Scanning functionality (added microcontroller).
PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

Table 7-1 Connector overview

Connector
32" 43" 49"
CN9101 CN8602 CN9101 CN8601 CN9101 CN8603

back to

div.table

2016-Apr-1

EN 26 TPM16.4L LA7.

+12V_AMP

FB403

FB414

5V_Normal

FB702

AVDD_AU

Q701

DVDD3V3

U601
TAS5729MD

AVDD_DMPLL

U702
G903T63UF

+12V

PVDD

U706
SY8104ADC

VCCK (1.2V)

FB602

FB703

VCC3.3VA_A1

+12VSB_PRE

+5V_SB

+3.3V_SB

AO3401A

U703
M5723B-33F61U

U705
G5695T11U

FB413

R719

AVDD1V2 (1.2V)

20010_202.eps

Circuit Descriptions

Connector

Number
Description to SSB to Panel to SSB to Panel to SSB to Panel
Pin 16 6 16 12 16 12

6 GND LED- GND n.c. GND n.c.
7 GND - GND n.c. GND n.c.
8 GND - GND n.c. GND VLED­9 +12V_A - +12V VLED- +12V_A VLED­10 +12V_A - +12V VLED- +12V_A VLED­11 +12V - +12V n.c. +12V n.c.
12 +12V - +12V VLED+ +12V VLED+
13 +12V - +12V - +12V
14 +12V - +12V - +12V
15 +5.2V - +5V - +5.2V
16 +5.2V - +5V - FLAG

32" 43" 49"
CN9101 CN8602 CN9101 CN8601 CN9101 CN8603

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages
(depending on set execution):

• PVDD from the power 12V_AMP for the AUDIO AMP.

• 3V3SB, permanent voltage for the Stand-by controller,
LED/IR, keyborad receiver and controls.

• +12V, input from the power supply for the panel
common(active mode)

• +12V, input from the power supply for the AMP

• DDRV supply voltage for DDR

• TUNER3.3V, supply voltage for tuner

• +5V_SW, input intermediate supply voltage for the USB
Power

• 3V3SB, from the power supply for the scaler IC MT5561

• DVDD3V3, +1V2,clean voltage for Demodulator IC
channel decoder

Figures gives a graphical representation of the DC/DC
converters with its current consumptions :

2016-Apr-1

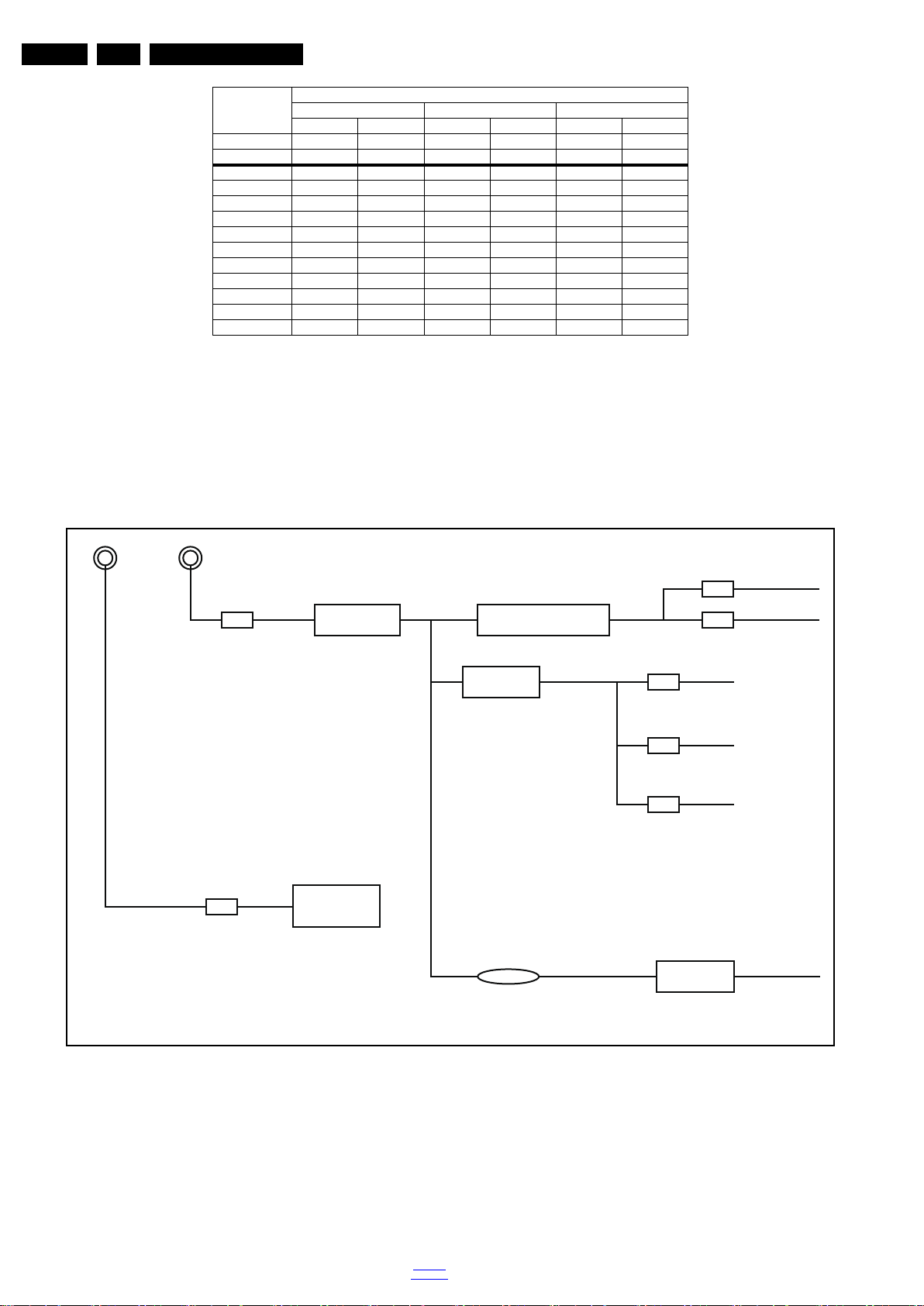

Figure 7-3 DC/DC converters

back to

div.table

7.3.1 Power layout SSB

20010_200.eps

C409, Panel_VCC(12V)

U113, TUNER3.3V

C702, Vcck(1.2V)

L703, +5VSB

L401, DDRV(1.5V)

C609, PVDD(12V)

C719, DVDD3V3

U103, PIN5 1V2

Circuit Descriptions

EN 27TPM16.4L LA 7.

Figure 7-4 Power SSB Top View

back to

div.table

2016-Apr-1

EN 28 TPM16.4L LA7.

20010_200.eps

IF

IF_AGC

RF_AGC

MT5561

IF_AGC

MxL661-AG-R

I2C

I

2

C

20010_203.eps

Circuit Descriptions

Figure 7-5 Power SSB Bottom View

7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

7.4.1 Front-End Analogue part

The Front-End for analogue tuner consist of the following key
components:

• Silicon Tuner MxL661-AG-R

• SCALER MT5561LVNT/B PBGA-329

Below find a block diagram of the front-end application for
analogue part.

2016-Apr-1

back to

div.table

Figure 7-6 Front-End Analogue block diagram

Circuit Descriptions

IF

TS DATA

RF_AGC

MT5561

TC90537FG

LQFP-48

IF_AGC

MxL661-AG-R

I2C

I

2

C

I2C

Demod

20010_204.eps

20010_205.eps

MT5561

HDMI1

CN501

RX

I2C

HDMI2

CN502

RX

I2C

EN 29TPM16.4L LA 7.

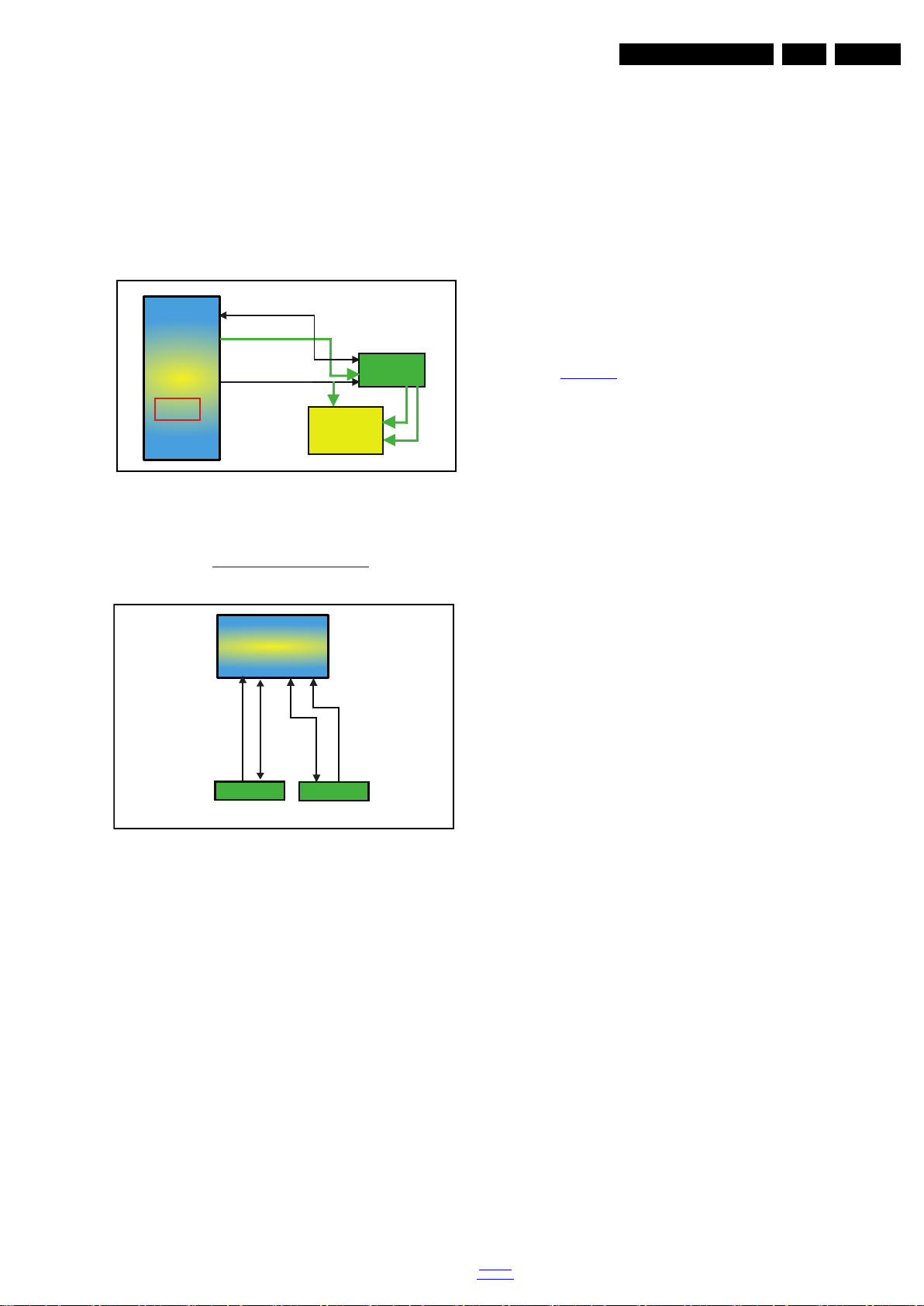

7.4.2 Front-End ISDB Reception DTV part

The Front-End for DVT part consist of the following key
components:

• Silicon Tuner MxL661-AG-R

• SCALER MT5561LVNT/B PBGA-329

• DEMODULATOR TC90537FG LQFP-48

Below find a block diagram of the front-end application for DTV
part.

Figure 7-7 Front-End ISDB DTV block diagram

• Panel overdrive control

• Two-link LVDS
The MT5561LVNT combines front-end video processing
functions, support NTSC/PA L/SECA M TV de c o der wi t h a 3D
comb filter (NTSC/PAL). The MT5561LVNT 2Gb enables
consumer electronics manufacturers to build high quality, low cost
and f eat ure -ri ch DT V. The MT5561LVNT 2Gb supports Full-HD
MPEG1/2/4/h.264/DiviX/VC1/RM/AVS/VP8 (option) video
decoder standards, and JPEG. The MT5561LVNT 2Gb also
supports MediaTek MDDi

TM

de-interlace solution which can
reach very smooth picture quality for motions. A 3D comb filter
added to the TV decoder recovers great details for still pictures.
The special color processing technology provides a natural,
deep colors and true studio quality video. Moreover, the
MT5561LVNT 2Gb family has built-in high resolution and
high-quality audio codec.

For a functional diagram of the MT5561LVNT, refer to

Figure 8-2

.

7.5 HDMI

Refer to figure 7-8 HDMI input configuration for the application.

Figure 7-8 HDMI input configuration

The following HDMI connector can be used:

• HDMI 1: HDMI input ( TV digital interface support HDCP)
with digital audio/PC DVI input

• HDMI 2: HDMI input ( TV digital interface support HDCP)
with digital audio/PC DVI input/ARC

• +5V detection mechanism

• Stable clock detection mechanism

• Integrated EDID

•HPD control

•CEC control

7.6 Video and Audio Processing -

The MT5561LVNT is the main audio and video processor (or
System-on-Chip) for this platform. It has the following features:

• Powerful CPU core

• A transport de-multiplexer

• A muti-standard video decoder

• Rich format audio codec

• HDMI 1.4a receiver with 3D support

• 2D/3D converter

• Local dimming (LED backlight) (option)

MT5561LVNT

back to

div.table

2016-Apr-1

EN 30 TPM16.4L LA8.

20010_300.eps

Block diagram

Pinning information

M5723B

IN1

+

CONTROL

HDRV

A1

+

100mΩ

80mΩ

LDRV

R

S

Q

Thermal

Shutdown

UVLO

OSC

Compensation

+

EA

VREF

LX

Zero Current Detect

Current Sense

OC

0.6V

FB1

IN2

OUT2

SHUTDOWN

LOGIC

1.25V
Vref

炼

ERROR

AMP

為

OVER CURRENT

PROTECT & DYNAMIC

FEEDBACK

AGND

R1

R2

OVER TEMP.

PROTECT

EN1

PGND

EN2

IN1

+

CONTROL

HDRV

A1

+

100mΩ

80mΩ

LDRV

R

S

Q

Thermal

Shutdown

UVLO

OSC

Compensation

+

EA

VREF

LX

Zero Current Detect

Current Sense

OC

0.6V

FB1

IN2

OUT2

SHUTDOWN

LOGIC

1.25V
Vref

炼

ERROR

AMP

為

OVER CURRENT

PROTECT & DYNAMIC

FEEDBACK

AGND

R1

R2

OVER TEMP.

PROTECT

EN1

PGND

EN2

FB1

10

8

7

1

2

3

4

EN1

AGND

AGND

LX
PGND
IN1

OUT2

M5723B

9

6

5

EN2

IN2

Thermal

Pad

FB1

10

8

7

1

2

3

4

EN1

AGND

AGND

LX
PGND
IN1

OUT2

M5723B

9

6

5

EN2

IN2

Thermal

Pad

FB1

10

8

7

1

2

3

4

EN1

AGND

AGND

LX
PGND
IN1

OUT2

M5723B

9

6

5

EN2

IN2

Thermal

Pad

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin
configurations of ICs that are drawn as “black boxes” in the
electrical diagrams (with the exception of “memory” and “logic”
ICs).

8.1 Diagram 10-4-1 System Power B01, M5723B (IC U703)

2016-Apr-1

Figure 8-1 Internal block diagram and pin configuration

back to

div.table

IC Data Sheets

20010_301.eps

Block diagram

MT5561LVNT

NTSC/

PAL/

SECAM

ATD

TV

Decoder

TS

Demux

Video

ADC

Video
Input

De-

interlace

HDMI Rx

Audio

Input

Audio

Demod

Audio

ADC

SPDIF

In

Grapihc

DDR3

Controller

OSD

scaler

Audio DSP

Audio

I/F

Audio DAC

JTAG IrDA

PCR

I2C

RTC UART SDIO

USB2.0 PWM

Ethernet

Watchdog SerialFlash

NAND Flash

Servo ADC

SPDI F Out,I2S

ADAC L /R x2

TS

Input

Tuner

Input

CVBS /YC

Input

Component

Analog I nput

SIF

Audio

Input

Panel

16-bit

Embedded

DDR3

T8032

Smart

Card

MHL Rx

JPEG/MP2/MP4/

DivX/H.264/VC-1/

RM/AVS/VP8

Decoders (option)

LVDS/min-LVS/

EPI

OD, TCON

(option)

2D/3D Converter

PostProcessing

(option)

HDMI
Input/

MHL

Demod

ARM

Vplane

scaler

8.2 Diagram 10-4-2 Peripheral, B02, MT5561LVNT/B (IC U401)

EN 31TPM16.4L LA 8.

Figure 8-2 Internal block diagram

back to

div.table

2016-Apr-1

EN 32 TPM16.4L LA8.

20010_302.eps

Pinning Information

MT5561LVNT

3229

1

2

3

4

5

6

7

8

9

10

A

DVSS

AO0P AOCKP

AE1P DVSS CI_A3

B

GPIO0

AO0N AOCKN

AE1N CI_D0 CI_REG#

C

TCON4

TCON2

AO1P

AO2P

AO3P

AE0P

AE2P

AE3P

CI_A1

CI_MOVAL

D

TCON5

TCON7

AO1N

AO2N

AO3N

AE0N

AE2N

AE3N

CI_A0

CI_A4

E

TCON3

TCON0

GPIO1

OPWM0

CI_MDO1

CI_MDO2

CI_A12

CI_A5

F

TCON8

TCON1

TCON6

OSCL1

OSDA1

DVSS

CI_CD2#

CI_D2

CI_A2

G

PDD6

PDD0

PDD3

PDD1

OPWM1

OPWM2

DVSS

DVSS

H

PDD4

GPIO4

GPIO3

DVSS

DVSS

J

POOE
#

POCE1#

PDD7

POCE0#

POWE#

PDD5

DVSS VCCK

DVSS

K

PACLE

PAALE

PDD2

PARB#

VCCK

VCCK

VCCK

VCCK

DVSS

DVSS

L

VCCK

VCCK

VCCK

VCCK

VCCK

VCCK

VCCK

VCCK

DVSS

DVSS

M

DVSS

DVSS

DVSS

DVSS

DVSS

DVSS

VCCK

VCCK

DVSS

DVSS

N

DDRV

DDRV

DDRV

DDRV

DDRV

DDRV

DVSS

DVSS

DVSS

VCC3IO

P

DDRV
REF

ZQ

AOLRC
K

OSDA0

DVSS

ADIN1

VCC3IO

VCC3IO

R

AOBC
K

AOMCLK

AOSDAT
A0

ASPDIF
O

OSCL0

DVSS ADIN7

AVDD33_E
TH

AVDD33_HD
MI

T

OPWRSB

OIRI

AOSDAT
A1

DVSS

ADIN6

ADIN0

ADIN4

U

U0TX

U0RX

OPCTRL
0

OPCTRL
4

ADIN5

ADIN3

HDMI_0_SCL

ADIN2

HDMI_0_R
X_1B

HSYNC

V

OPCT
RL3

OPCTRL1

OPCTRL
2

VGA_SD
A

VGA_SCL

HDMI_0_S
DA

HDMI_0_RX_
0B

HDMI_0_RX_0

HDMI_0_R
X_1

VSYNC

W

RXVN

RXVP

REXT_E
TH

HDMI_0_HPD

HDMI_0_RX_
CB

HDMI_0_R
X_2B

ORESETB

Y

TXVN

TXVP

DVSS

AVDD12
_ETH

AVDD12_HDM
I_0

HDMI_0_RX_
C

HDMI_0_R
X_2

AVDD10_LD
O

1

2

3

4

5

6

7

8

9

10

IC Data Sheets

2016-Apr-1

Figure 8-3 Internal pin configuration [1/2]

back to

div.table

Pinning Information

11

12

13

14

15

16

17

18

19

20

A

CI_MCLKO

CI_MDI4

CI_A14

CI_MDI0

CI_IORD#

CI_A10

FSRC_WR

B

CI_A6

CI_MIVAL

CI_WE#

CI_A13 CI_A11

CI_CE1#

CI_D7

C

CI_WAIT#

CI_RESET

CI_MDI3

CI_MDI2

CI_MDI1

CI_A8

CI_A9

CI_OE#

CI_MDO7

CI_MDO6

D

CI_MOSTRT

CI_A7

CI_D1

CI_MCLKI

CI_MISTRT

CI_IOWR#

CI_D6

CI_MDO5

CI_D5

E

CI_MDO0

CI_MDI5

CI_MDI7

CI_MDO3

CI_D3

CI_CD1#

CI_D4

CI_MDO4

F

CI_IREQ#

CI_MDI6

ASPDIFI

GPIO5

CI_PWR_EN

USB_DP1

DVSS

G

GPIO2

DVSS

USB_DM1

H

DVSS

DVSS

DVSS

DVSS DVSS USB_DP0

USB_DM0

AVDD12_HDMI_1

J

DVSS

DVSS

DVSS

HDMI_2_SDA

IF_AGC

HDMI_2_HPD_CBUS

HDMI_2_SCL

HDMI_1_SCL

HDMI_2_RX_2

HDMI_2_RX_2B

K

DVSS

DVSS HDMI_1_SDA

MHL_SENCE

HDMI_CEC

HDMI_2_RX_0

HDMI_2_RX_1

HDMI_2_RX_1B

L

DVSS

DVSS

DVSS AVDD33_CAP

RF_AGC

HDMI_1_HPD

HDMI_2_RX_0B

M

DVSS

DVSS

DVSS

AVDD33_AADC

AVDD33_ADAC

HDMI_2_RX_C

HDMI_2_RX_CB

HDMI_1_RX_2

HDMI_1_RX_2B

N

DVSS

DVSS

DVSS

AVSS33_CLN

DVSS

DVSS

HDMI_1_RX_1

HDMI_1_RX_1B

P

DVSS

DVSS DVSS AR0_ADAC

HDMI_1_RX_0

HDMI_1_RX_0B

HDMI_1_RX_C

HDMI_1_RX_CB

R

DVSS

DVSS

DVSS

DVSS AL0_ADAC

AIN_R1

AIN_R3

AIN_R2

AIN_R0

T

AVSS33_RGB

DVSS

AVSS33_VIDEO

DVSS

VMID_AADC

AVDD33_REG_STB

AL1_ADAC

AIN_L3

AIN_L2

U

SOG

SOY1

COM1

Y0

PB0

DVSS

AVDD33_VIDEO_STB

AR1_ADAC

AIN_L0

V

BP

RP

Y1

SOY0

COM0

DVSS

AVDD33_RGB_STB

CVBS0

XTALI

AIN_L1

W

GP PB1 PR0

VDAC_OUT

ADCINP_DEMOD

DVSS

XTALO

Y

COM PR1 CVBS_COM

CVBS1 ADCINN_DEMOD

AVDD12_DEMOD

11

12

13

14

15

16

17

18

19

20

MT5561LVNT

IC Data Sheets

EN 33TPM16.4L LA 8.

Figure 8-4 Internal pin configuration [2/2]

back to

div.table

20010_303.eps

2016-Apr-1

EN 34 TPM16.4L LA8.

19900_301.eps

Block diagram

Pinning information

TAS5729MDD

TAS5729MDD

C

D

D

IC Data Sheets

8.3 Diagram 10-4-4 Speaker Amp B04, TAS5729MDDCAR (IC U601)

DVDD DRVDD GVDD_REGPVDD

AVDD

Digital Supply Regulator

MCLK

SCLK

LRCLK

SDIN

Serial

Audio

Port

R_INA
R_INB

DR_INx

ADR / SPK_FAULT

ANA_REG1 ANA_REG2 DIG_REG

Analog Supply

Regulators

Digital Audio Processor

Digital Equalizer, Two-Band

AGL, Coarse/Fine Volume

Control, THD Manager, PWM

Level Meter

Stereo HP / Line Driver

DRVDD

­+

DRVSS

DR_OUTx

PGND

SPK_OUTA

BSTRPA

PVDD
TEST1
TEST2

DR_INA
DR_OUTA
DR_OUTB

DR_INB

DRVSS
DR_CN
DR_CP

DRVDD

PLL_GND

PLL_FLTM

PLL_FLTP

ANA_REG1

AVDD

MCLK

OSC_RES

OSC_GND

DIG_REG

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

DRVSSDR_CPDR_CN

Gate Drive

Charge Pump

PWM Power Stage

Open Loop

Digital PWM

Modulator

Clock

Monitoring

Internal Control Registers and State Machines

Gate

Drives

Gate

Drives

Die Temp. Monitor

DR_SDI

48
47
46
45
44
43
42
41
40

39
38
37
36
35
34
33
32

Thermal Pad

31
30

29
28
27
26
25

Regulator

Full Bridge

Power

Stage A

Full Bridge

Power

Stage B

PDNADR / SPK_FAULT

SPK_OUTB
BSTRPB
BSTRPC
SPK_OUTC
PGND
SPK_OUTD
BSTRPD
PVDD
GVDD_REG
DR_SDI
SSTIMER
ANA_REG2
AGND
DGND
DVDD
TEST3
RST
NC

SCL
SDA
SDIN
SCLK

LRCLK
PDN

RST

Over-

Current

Protection

SCL

SDA

SPK_OUTA
SPK_OUTB
SPK_OUT
SPK_OUTD

DR_OUTA
DR_OUTB

2016-Apr-1

Figure 8-5 Internal block diagram and pin configuration

back to

div.table

8.4 Diagram 10-4-9 TUNER B09, MxL661 (IC U104)

19900_300.eps

Block diagram

Pinning information

24

23

22

21

20

19

18
17

16
15
14
13

7

8

9

10

11

12

1
2

3

4
5

6

LNA_INP

LNA_INN

AS

GND_XTAL

CLK_OUT

XTAL_P

XTAL_N

VDD_1p8

VDD_IO

AGC_1

AGC_2/GPO_3

MxL661

VDD_3p3

RESET_N

VDD_1p8

VDD_1p8

GND_DIG
VDD_1p2

IF_OUTN_1

IF_OUTP_1

IF_OUTP_2/GPO_1

IF_OUTN_2/GPO_2

SDA
SCL

VDD_3p3

Crystal

Reference

I2C

Voltage

Regulator

AGC1

RF

Synth

Gain

Control

IF

Synth

Synth

Calibration

LNA

AGC2

Channel
Filtering

CLK_OUT

IF1 Out

IF2 Out

RF Input

Balun

MxL661

IC Data Sheets

EN 35TPM16.4L LA 8.

back to

div.table

Figure 8-6 Internal block diagram and pin configuration

2016-Apr-1

EN 36 TPM16.4L LA8.

19950_300.eps

Block diagram

Pinning information

TC90537FG

TC90537FG

SRCK

PBVAL

SRDT

SLOCK

RLOCK

RERR

SLPEN

GPIO2

GPIO1

GPIO0

VSS

VDDC

12 11 10 9 8 7 6 5 4 3 2 1
VSS 13 48 VDDS
VDDS 14 47 VSS
RSEORF 15 46 SDA

SBYTE 16 45 SCL
SLADRS0 17 44 STSFLG0

AGCCNTI 18 43 STSFLG1
AGCCNTR 19 42 SYRSTN
TNSCL 20 41 VPGM
TNSDA 21 40 AINN Q
XCKO 22 39 AINP Q
XO 23 38 AINN I
XI 24 37 AINP I
25 26 27 28 29 30 31 32 33 34 35 36

PLLVDD

PLLVSS

VDDC

CKI

SLADRS1

TSMD

VSS

VDDC

ADCVDD

ADCVSS

VREFL

VREFH

Synchroni-za

tion flag

TS output

Crystal

(reference clock)

Tuner

AGC

control

IIC

control

Filter
AGC

ISIC (unguarded

pre/post echo

suppression)

FFT

Control

Adaptive

interpolation

filter

Equalization

CSI

(Reliability

detection)

CVI

(CW interference

detection)

AGC control output

Tuner IIC

Clock PLL

Viterbi

decoding

Memory

Frequency

deinterleaving

RS

decoding

Error

detection

Output
control

Layer

isolation

TMCC

demodulation

Interpolation

phase

Correction

Synchroni

zation

Demapping

CSI

processing

Bit deinterleaving

Byte deinterleaving

TS multiplex

FFT window

control

ADC
ADC

IF input
or IQ input

SW

External AGC input

Host IIC

Energy

despreading

Energy

despreading

Energy

despreading

Demapping

CSI

processing

Demapping

CSI

processing

Modulation division

Quadrature

detection

AFC

Frequency

CPE

Pilot

extraction

Time

deinterleaving

(With Doppler

Compensation

)

IC Data Sheets

8.5 Diagram 10-4-16 DEMOD_Toshiba TC90537 B16, TC90537FG (IC U101)

2016-Apr-1

Figure 8-7 Internal block diagram and pin configuration

back to

div.table

9. Block Diagrams

20010_400.eps

5W SPK

L

CVBS / L / R

AUDIO AM P

KeyPad

Silicon Tuner MxL661-AG-R

HDMI1

Headphone AMP

L/R

MT5561

ATV LVDS

UART

CN103
(Side)

IF+/-

HDMI2 w/ARC

USB2

CN501
(Side)

TI 31100

R

PC Audio in

Headphone

APA2176A

CN502
Rear

USB1
(Share to Wi-Fi modul)

Remote Control

5W SPK

L/R

VGA

SPIDF Out

CN104
(Rear)

DTV
DEMOD

TC90537

TSB Demod

Joystick

9.1 Block diagram 5101 series

Block Diagrams

EN 37TPM16.4L LA 9.

2016-Apr-1

back to

div.table

Circuit Diagrams and PWB Layouts

20010_500.eps

Power

A01 A01

2015-08-21

715G7734

Power

Full range: BD9901/093G 50460938
Low and High V: BD9902/393G0050460A03

C9801
Full range: 367G215X121PKY or
367G215X101PKY
Low side: 367G215X331MKY
High V: 367G215S820PKY

Q9101
Full range: 357G0667650004/TK8A65D
or 357G0667650006/TK11A65D
Low and High V: 357G06119080HF/TK6A65D

NC

JUMPER

NCNC

NC

HOT COLD

T4AH/250V

JUMPER

+12V

+18V

!

!

!

!

!

!

!

!

!

!

!

!

!

+12V_A

+18V

!

+5.2V

!

+12VS

+12VS

!

!

A

A

!

!

!

+12V

+12V_A

+12V

+12VS

+12V_A

NC

+5.2V

CN9101
CONN

2
4
6

8

10
12
14
16

1

3

5
7

9
11
13
15

D9104

IN4148W

R9119

NC

R9144

NC/8.2K 1/8W

R9107

82K OHM 1%

+

C9116

330UF 35V

R9903

620K +-1% 1/4W

C9103

2.2NF

R9149

22 OHM 1/4W

D9108
SR515

R9109
10R 1/8W 5%

R9150

NC

SG9902

Q9305
NC/2N7002K

U9103
TL431G-AE2-R

R9348

NC/10.5K

R9115

22 OHM 1/4W

C9306

NC/100N 50V

C9113

2.2NF

R9102

510K 1/4W

R9148

22 OHM 1/4W

R9131

1K 1/8W

HS9101
HEAT SINK

1
2

3

4

Q9306
NC/P1604ED

+

C9122

330UF 35V

R9146

0 OHM +-5% 1/8W

R9304

NC/100K 1/8W

C9907
100PF 250V

R9121
2K4 1/8W 5%

R9302

NC/100K 1/8W

C9119

0.1uF 50V

CN9901
AC 2P

12

C9129

NC

L9301

D9110
SR510-22

1

2

+

C9101

NC/470uF 25V

R9141

680R 1/8W 1%

C9128
1nF 50V

R9908

R9108
4R7 1/4W 5%

R9129

470OHM +-5% 1/8W

R9128

3.3M 1/4W

-

+

BD9902
GBL408-C

2

1

3

4

C9124
1NF

C9323

NC/220N 50V

R9140

22 OHM 1/4W

R9342

NC/200R

Q9101
TK8A65D

R9130
1K OHM

U9301
NC/AOZ3015AI

1
2

3

4

5

6

7

8

PGND
VIN
AGND
VCC FB

COMP

LX

EN

C9140

NC/1N 50V

FB9301

NC/BEAD

1 2

FB9902
127R

12

D9105
PR1007G

T9101
POWER X'FMR

1

2

3

5

6
7

8

9

10

4

FB9906
NC

1 2

R9125

620K 1/8W 1%

C9106
330PF 50V

FB9908
BEAD

1

2

F9901

NC/T4AL 250V

ZD9104

BZT52-B16G

1 2

C9908
NC

ZD9301

NC/BZT52-B5V1

12

R9112

510K 1/4W

R9118

NC

R9358

NC/30R 1/4W

C9117
220nF50V

R9114
110K

+

C9332

NC470UF 25V

R9145
NC/100K 1/8W 1%

R9344

NC/3K OHM 1%

R9906

620K +-1% 1/4W

F9902

1 2

3 4

t

NR9901

2.5R

12

C9336

NC/220N 50V

R9902

620K +-1% 1/4W

R9103

510K 1/4W

R9909

R9361
NC/30R

C9903
470PF 250V

R9138

22 OHM 1/4W

R9345
NC/20K 1%

D9109
SR34H

1 2

+

C9109

470uF 25V

Q9102
2N3904

C9902
470PF 250V

R9105
82K OHM 1%

C9127

1nF 50V

R9307
NC/270K +-1% 1/8W

+

C9111

470UF 25V

R9904

620K +-1% 1/4W

R9127

3.3M 1/4W

R9104
82K OHM 1%

C9125
1NF

U9101

PF6005AS

1
2

3

4 5

6

7

8

BNO
FB
CS
GND OUT

VCC

NC

VCC

+

C9102

2.2UF 50V

C9330

NC/1N 50V

L9901
18MH

1

2

4

3

R9143
NC/100K 1/8W 1%

C9910
100PF 250V

D9111
SR510-22

1

2

C9104

0.1uF 50V

+

C9801

120uF 450V

R9117

NC

U9102

EL817M(X)

1

23

4

R9347

NC/2K

R9901

620K +-1% 1/4W

D9102
SR515

R9122

9.1K OHM

-

+

BD9901
NC/KBJ608G-FUC

2

1

3

4

FB9901
127R

12

C9126
100PF

D9106

IN4148W

R9116

22 OHM 1/4W

+

C9105

10UF50V

U9901

NC/CAP004DG-TL

1
2

3

4 5

6

7

8

NC
D1
D1
NC NC

D2

D2

NC

C9110

0.1uF 50V

C9107

3.3NF 500V

C9904
1NF 250V

RV9901 680V

C9906
NC/47pF

C9333

NC/2N2 50V

Q9106
NC/2N7002K

R9907

R9111

10K OHM +-5% 1/8W

D9112
SR510-22

1 2

R9123

43K 1/8W 1%

C9307

NC/1uF

R9101

0.27R 2W

R9110
47R 1%

R9106

82K OHM 1%

L9903
4mH

1

2

4

3

C9335
NC/2N2 50V

R9905

620K +-1% 1/4W

ZD9101
BZT52-B22

1 2

+

C9331

NC/470UF 25V

R9139

NC

FB9302
BEAD

1

2

D9101
SR510-22

1

2

C9901
470nF 275V

R9126

9.31K +-1% 1/8W

C9308
NC/1uF

D9103
FR107G-A0

C9334
NC/100N 50V

CN9902
NC/CONN

1

2

L

N

C9112

0.1uF 50V

R9120

22 OHM 1/4W

+

C9121

470uF 25V

R9113

1K 1/4W

L9101

3UH

C9108
470pF 1KV

R9124

10K OHM +-5% 1/8W

R9142

3.3M 1/4W

D9107

SR515

SG9901

ON/OFFDIM

PS_ON

PS_ON

PS_ON

10. Circuit Diagrams and PWB Layouts

10.1 A 715G7734 PSU

10-1-1 Power

EN 38TPM16.4L LA 10.

2016-Apr-1

back to

div.table

10-1-2 LED Driver

20010_501.eps

LED Driver

A02 A02

2015-08-21

715G7734

LED Driver

Q8601: 357G0763100601 or
357G0763100605

+18V

VLED+

VLED+

LED-

LED-

+12V

R8612
100K

R8608

4.7KOHM +-1% 1/8W

C8603

47nF 50V

C8606

1NF

C8610

22pF 50V

R8653

1.5R 1%

CN8601
NC/CONN

1
2

3

45

R8611
NC

R8604

33R 1/8W 5%

R8603

33K 1/8W 5%

C8607

220pF 50V

R8652

1.2R 1%

R8656

1.2R 1%

R8647

10K OHM +-5% 1/8W

Q8602
2N7002K

D8602
1N4148

R8605
1K 1/8W

C8617

100PF 500V

D8604
IN4148W RHG

CN8602
CONN

1
2

3

4
5
6

78

R8602
NC

R8616

0 OHM +-5% 1/8W

Q8603
DTA144WN3/S

R8617

62K 1/8W 1%

D8601
SR506

1

2

R8606
330K 1/8W 5%

R8601

0R05

C8609

0.1uF 50V

C8602
220nF50V

R8615

22K 1/4W

C8621

0.1uF 50V

U8601
PF7708BS

1
2

3

4

5

6

7

8

LED
VCC
CS/OVP
OUT GND

DIM

GM

FB

ZD8602
BZT52-B18

1 2

+

C8601

330UF 35V

R8654

1.2R 1%

ZD8601
BZT52-B18

1 2

FB8605
BEAD

1 2

C8611

0.47UF 50V

D8603

IN4148W RHG

R8609

10R 1/8W 5%

R8655

1.2R 1%

C8623

NC

C8605

0.1uF 50V

L8602
47uH

+

C8616

NC/220uF 50V

C8604

0.47UF 50V

+

C8612

220uF 50V

Q8601
AOD2922

DIM

OUT

OUT

Vcc2

Vcc2

ON/OFF

Circuit Diagrams and PWB Layouts

EN 39TPM16.4L LA 10.

2016-Apr-1

back to

div.table

10-1-3 Power layout top

20010_502.eps

2015-08-01

715G7734

LAYOUT TOP

U9102

R9101

R8601

SU1

J9112

SU4

D9102

D9107

D9108

L9903

D9110

D9112

J9102

D9111

D9103

SU2

C9102

D9101

J9118

J9110

J9109

J9111

J9116

J9119

J9117

J9101

J9113

SU3

F9901

J9115

D8601

J9107

J9108

J9104

J9120

J9106

J9103

T9101

BD9901

BD9902

DR8

DR10

DR1

MH28

DR3

DR2

DR4

DR7

DR5

DR11

DR6

MH7

C8601

C9109

C9111

C9116

C9121

C9122

C9126

CN8602

CN9902

FB9906

HS9101

L8602

L9101

MH1

MH3

D9105

L9901

NR9901

FB8605

SG9901

SG9902

C9105

C8612

C8616

C9908

R9130

C9331

C9332

L9301

R9907

FB9908

C9101

FB9301

CN9101

C9801

FB9302

Q9101

C9906

FB9901

FB9902

R9908

C9907

C9910

C9902

C9903

RV9901

MH5

F9902

R9909

D8602

CN8601

CN9901

C9904

C9113

MH6

C9901

C9103

MH2

Q9102

Circuit Diagrams and PWB Layouts

EN 40TPM16.4L LA 10.

2016-Apr-1

back to

div.table

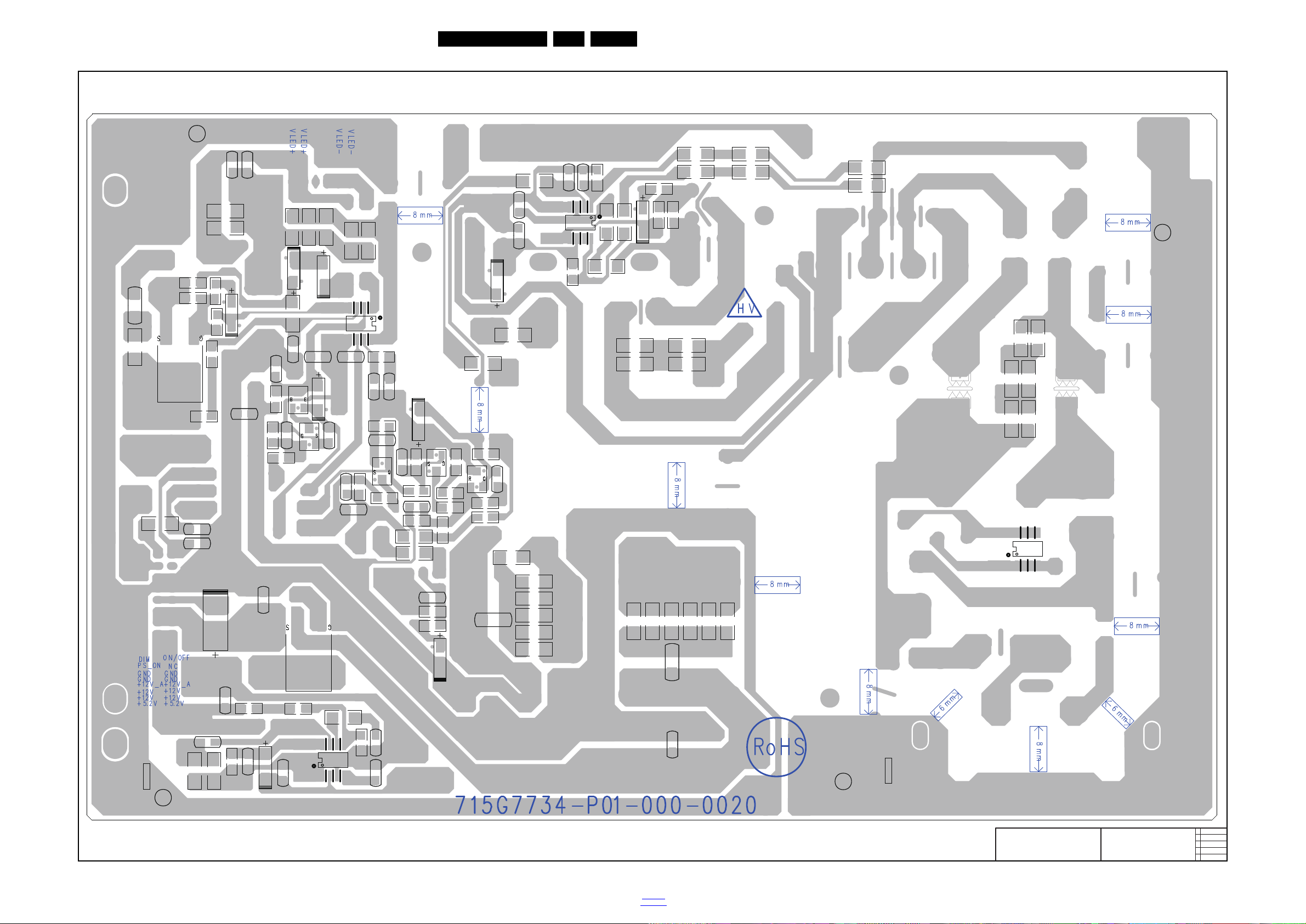

10-1-4 Power layout bottom

20010_503.eps

2015-08-01

715G7734

LAYOUT BOTTOM

MH11

MH14

MH19

R9145

R8647

R9342

R9348

R9347

R9109

R9110

R9111

R9114

R9121

R9122

R9123

R9124

R9126

R9131

R9141

R9125

C9336

C8605

C8610

C9106

C9110

C9112

C9117

C9119

C9124

C9127
C9128

R8652

R8653

R8654

R8655

R9112

R9102

R9103

R9104

R9105

R9106 R9107

R9108

R9113

R9115

R9116

R9117

R9118
R9119
R9120

R9138

R9139

R8612

JR9104

JR9101

C9129

C8621

C8602

C8607

C9125

R8611

C8606

C8623

C9140

C9330

C9333C9334

C9335

R8616

R9344

R8615

R9127

R9128

R9142

R9358

R9361

C9108

C9107

C8617

R9903

R9904

C9306

C9307

C9308

R9302

R9304

R9307

Q9306

C9323

JR9105

R9345

JR9107

JR9102

JR9108

R8602

JR9103

R9146

C9104

R9148

R9149

R9150

R9140

R9129

R8604

R8608

R9143

R9144

JR9109

R8603

C8603

U9901

R8656

C8604

C8609

C8611

R8605

R8606

Q8603

R8617

R8609

U8601

U9101

U9301

R9901

R9902

R9905

R9906

MH4

ZD9301

Q8602

Q9305

Q9106

U9103

SG1

SG2

Q8601

D9109

D8604

D8603

D9104

ZD9104

D9106

ZD8601

ZD8602

ZD9101

Circuit Diagrams and PWB Layouts

EN 41TPM16.4L LA 10.

2016-Apr-1

back to

div.table

10.2 A 715G6934 PSU

19910_500.eps

Power

A01 A01

2014-06-05

715G6934

Power

C9172
220N 50V

R9107

10K 1/4W

HS9152

NC/HEAT SINK

341

2

F9902

5A 250V

1 2

3 4

Q9181

NC/AOD4185

R9125
1K OHM

+

C9802

NC/68UF 450V

DIM

12V Switch
(option)

ON/OFF

FB_1

D9152
SR34

1 2

PS_ON

CN9901
SOCKET

12

R9184

6.8KOHM +-1%

R9108

10 OHM 1/ 4W

!

C9104

2.2NF

R9176
10K 1%

C9158
1uF

+12V'

!

+12V'

R9174
3K9 1/8W 1%

C9159

NC/100N 50V

C9902

470nF 275V

R9164
33ohm 1/4W +/-5%

R9187

NC/ 10K OH M +-5%

HS9101
HEAT SINK

123

4

+22V

R9129
330K 1%

+12V1

!

!

!

R9906
510K 1/4W

D9104

SS1060FL

!

+12V_AUDIO

!

C9920

470PF 250V

Q9183
2N7002K

R9126

1K OHM

PS_ON

R9128

1K 1/8W

D9105

NC/1N4148W

C9106

NC/ 4N 7 50V

U9103
AS431AN-E1

R9186

100KOHM +-5% 1/8W

R9101

0.22OHM +-5%

R9185

10K OHM +-5% 1/8W

+

C9154

470UF 25V

FB9901
BEAD

1 2

ZD9101

NC/BZT52-B30

1 2

CN9101
CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

!

!

!

C9103

NC

3.5Vout
R9305=620R
R9306=3.3K

+5V

+5V

U9101
PF6003AHS

BNO

1

FB

2

CS

3

GND4OUT

5

VCC

6

NC

7

VCC

8

!

FB9903
BEAD

12

R9907

NC/390K

-

+

BD9901

KBJ608G-FUC

2

1

3

4

FB9905
BEAD

1 2

C9907

NC/47pF

HS9151
HEAT SINK

1
2

3

4

U9901

NC/CAP004DG-TL

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

T9101

POWER X'FMR

1

2

4

5

6

7

8

10

11

L9901
18MH

1

2

4

3

SG9901

NC/DSPL-501N-A21F

C9155
220N 50V

R9104
22OHM 1/8W

L9902
18MH

1

2

4

3

+12V

C9171

22NF 50V

HS9901

NC/HEAT SINK

1

2

C9157

100N 50V

ZD9301

NC/BZT52-B5V1

12

AC-1

!

SG9902

NC/DSPL-501N-A21F

AC-1

!

t

NR9901

2.5R

12

t

NR9902

2.5R

12

C9110
1NF 50V

R9124

150 OHM 1/4W

R9183

NC/100KOHM

C9105

2.2NF

+

C9151
470UF 25V

R9106
47OHM 1/8W

U9102
EL817M(X)

1

23

4

C9111
100N 50V

R9112

3.3M 1/4W

R9111
2M2 5% 1/2W

R9103

10 OHM 1/ 4W

R9113

3.3M 1/4W

R9173

680R 1/8W 1%

R9114

3.3M 1/ 4W

HOT COLD

D9102
SS1060FL

R9102

47K 1/4W

3.5V/5V output
(option)

R9163
33ohm 1/4W +/-5%

R9162
33ohm 1/4W +/-5%

R9161

33ohm 1/4W +/-5%

!

+

C9801
82UF 450V

R9105
75K

FB_1

!

R9171

2K OHM

+12V1

+

C9152
470UF 25V

L9101

3UH

!

R9121
150 OHM 1/4W

R9122
150 OHM 1/4W

R9123
150 OHM 1/4W

+12V1

GND1
GND

1

C9912

100PF 250V

D9103
FR107G-A0

C9911

100PF 250V

C9921
470PF 250V

+

C9153
470UF 25V

!

HS-GND

FB9904
BEAD

1 2

!

RV9901
680V

R9127

470 OHM 1/ 4W

!

C9125

100N 50V

+

C9107
22UF 50V

Q9121
BTN5551A3

R9305

NC/ 220R 1%

R9306

NC/2K 1/8W 1%

C9308

NC/ 2N 2 50V

R9302

NC/30 OHM 1/ 4W

C9304

NC/100N 50V

+

C9306

NC/470UF 25V

+

C9302

NC/ 470U F 25V

U9301

NC/AOZ3015AI

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

R9303

NC/30 OHM 1/4W

C9182

NC/100N 50V

R9304

NC/10.5K OHM 1%

C9309

NC/ 2N 2 50V

R9301

NC/ 20K 1/ 4W

C9307

NC/220N 50V

L9301

NC/47uH

C9303

NC/220N 50V

FB9301

NC/BEAD

1 2

C9914
220PF 250V

C9913
220PF 250V

C9162

1N5 50V

+

C9112

4.7UF 50V

C9161

1N5 50V

D9121
FMXA-2202S

1

2

3

+

C9121
220uF 50V

+

C9122
220uF 50V

!

+22V

CN9902

NC

L

1

N

2

Q9102

NC/LMBT3906LT1G

C9901

470nF 275V

R9181

NC/100KOHM

D9151
FMEN-220A

1

2

3

+

C9160

NC/4.7UF 50V

C9156
100N 50V

ZD9171

BZT52-B15

1 2

HS9121

NC/HEAT SINK

1
2

3

4

R9182

NC/100KOHM

C9301

NC/ 220N 50V

D9101
FR107G-A0

ZD9121
BZT52-B27

1 2

HS-GND

!

Q9101

TK8A65D

Q9182

NC/2N7002K

HS9122
HEAT SINK

1
2

3

4

FB9902

127R

1 2

F9901

NC/5A 250V

R9109
470 OHM 1/4W

!

!

!

+12V

PS_ON

C9109

2N2 50V

R9175

0 OHM +-5% 1/8W

GND3
GND

1

GND2
GND

1

!

GND5

NC

1

R9905
510K 1/4W

GND4

NC

1

R9904
510K 1/4W

R9172

1K5 +-1% 1/8W

R9903
510K 1/4W

C9108
220P 50V

R9902
510K 1/4W

R9901
510K 1/4W

R9110

100K 1/8W 1%

R9908

NC/390K

C9305

NC/100N 50V

C9123

1NF 500V

C9124

1NF 500V

10-2-1 Power

Circuit Diagrams and PWB Layouts

EN 42TPM16.4L LA 10.

2016-Apr-1

back to

div.table

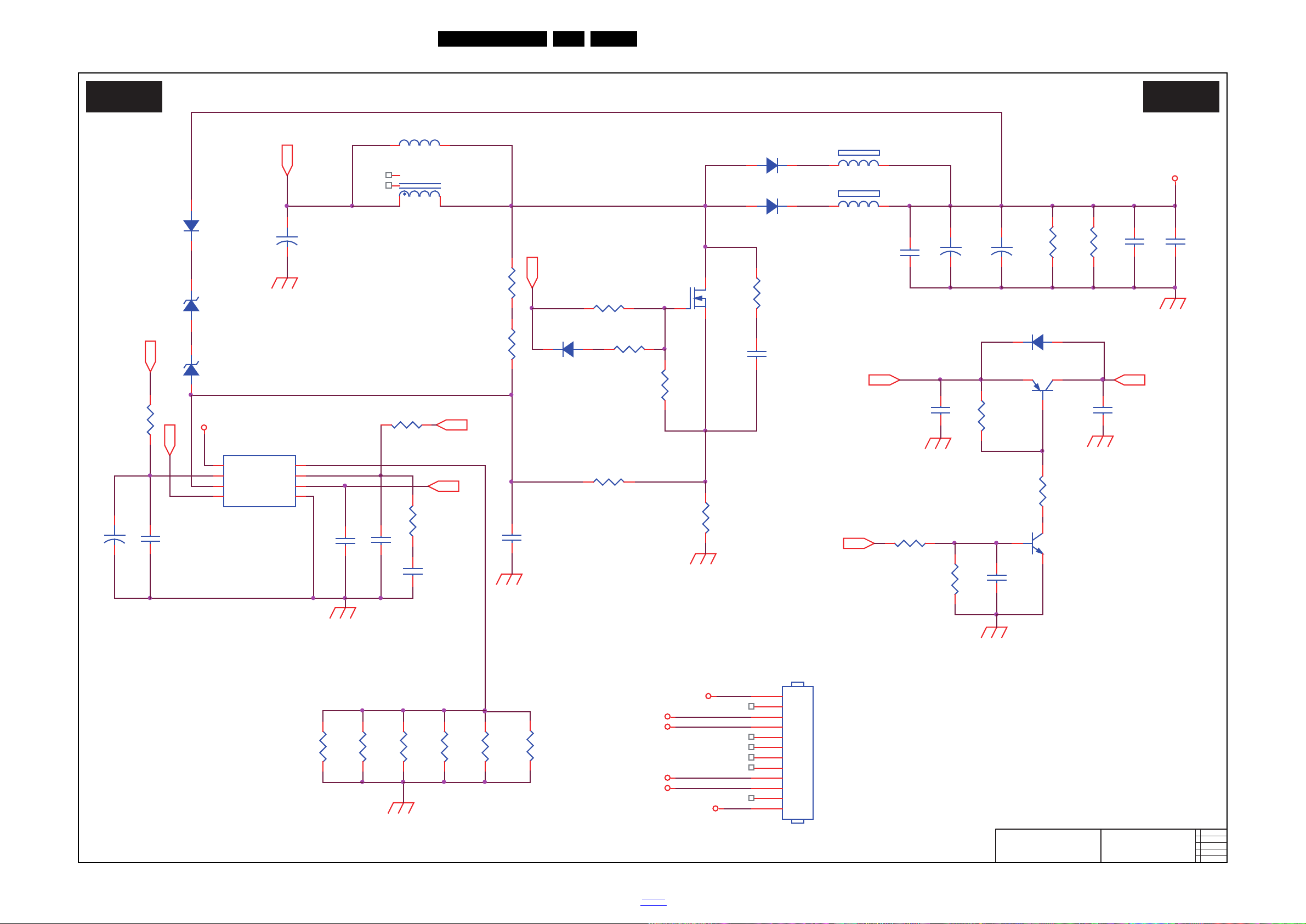

10-2-2 PFC with TI

19890_503.eps

LED DRIVER

A02 A02

2014-06-05

715G6934

LED DRIVER

R8601

0.05R

+

C8603

220uF 50V

R8623

300K 1/8W 5%

R8605

10ohm +/ -1% 1/ 8W

L8602

NC

R8615

1R2 1%

R8612

33K 1/8W 1%

C8605

100N 50V

R8613

1R2 1%

C8612

47N 50V

L8601

33uH

8

1

4

6

R8606

33K 1/8W 1%

R8617

1R2 1%

C8611

22pF 50V

R8603

100K

C8610

1NF 50V

+

C8604

220uF 50V

D8603
SS1060FL

C8609

220P 50V

R8619

10 OHM

C8607
1uF

C8608
220N 50V

R8604

NC

R8616

1R2 1%

R8608

10K 1/8W

R8607

5.1R 1/ 8W

+

C8601
220uF 50V

FB8601
BEAD

1 2

R8614

1R2 1%

C8606
1uF

R8609

10R 1/ 8W 5%

+22V

ON/OFF

OUT

DIM

OUT

VLED+

VLED-

R8618

1R2 1%

ZD8602

NC/BZT52-B22

1 2

FB8602

NC/BEAD

1 2

R8622

10K 1/8W 1%

C8615

100N 50V

Q8602
LMBT3906LT1G

R8620

2K2 1/8W

C8617

100N 50V

+

C8614

NC/22UF 50V

D8605

NC/1N4148

R8621

1K 1/8W 1%

+12V

R8602

NC / 0R 05 1/ 4W

CN8601
CONN

1

2

3

4

5

6

7

8

9

10

11

12

ON/OFF

VCC

C8613
100pF 50V

VCC

C8616

2.2U F 25V

Q8603
LMBT3904LT1G

VLED+

VLED-

VLED+

VLED­VLED-

VLED-

D8604

SS1060FL

D8602

NC/SR506

D8601

SR506

R8610

4K3 1/8W 1%

R8611

33K 1/8W 1%

Q8601

CYS9240

U8601

PF7708AS

LED

1

VCC

2

CS/OVP

3

OUT4GND

5

DIM

6

GM

7

FB

8

ZD8601

NC/BZT52-B22

1 2

Circuit Diagrams and PWB Layouts

EN 43TPM16.4L LA 10.

2016-Apr-1

back to

div.table

19820_538.eps

2014-06-06

715G6934

LAYOUT TOP

C9107

C9103

D9101

D9103

F9901

U9102

J905

J901

J922

J918

J917

J909

J911

J923

J906

H1

H2

J904

C8614

J916

J915

J902

J914

J908

J921

J924

J910

J912

J913

J903

J919

J920

R8601

R9105

R9101

R9125

R9126

J925

T9101

D8601

D8602

D8605

J926

H3

H4

H5

H6

TP2TP3TP4

TP5

TP6

TP7

TP9

TP8

DR1

MH2

MH1

MH7

MH8

MH6

MH5

MH4

MH3

C8603

C8604

C9907

C9104

C9105

C9112

C9151

C9152

C9153

C9154

C9160

C9121

C9122

C8601

C9302

C9306

C9912

C9911

C9913

C9914

C9921

C9920

CN9902

D9151

D9121

FB9301

FB8601

GND1

GND2

GND3

HS9101

HS9151

HS9121

L8601

L8602

L9101

L9301

L9901

L9902

Q9121

R9907

SG9901

SG9902

HS9901

FB9904

FB9902

HS9122

GND4

GND5

R9111

HS9152

RV9901

R9908

CN8601

C9801

C9802

FB8602

CN9101

NR9902

NR9901

FB9903

FB9905

Q9101

BD9901

FB9901

CN9901

F9902

C9901

C9902

10-2-3 Power layout top

Circuit Diagrams and PWB Layouts

EN 44TPM16.4L LA 10.

2016-Apr-1

back to

div.table

10-2-4 Power layout bottom

19820_539.eps

2014-06-06

715G6934

LAYOUT BOTTOM

SG3

C8611

C8610

C8612

C8608

C8607

C8606

C9106

C9108

C9109

C9110

C9111

C9155

C9161

C9162

C9172

C9171

C9182

C9123C9124

C9125

C9303

C9304

C9305

C9308

C9309

C8609

C9307

R8609

R8605

R8607

R8603
R8604

R8613

R8612

R8606

R8610
R8608

R8614

R8615

R8616

R8617

R9102

R9104

R9106

R9107

R9109

R9103

R9110

R9172

R9174

R9161

R9162

R9163

R9164

R9173

R9171

R9175

R9176

R9181

R9182

R9183

R9184

R9186

R9127

R9128

R9129

R9301

R9302

R9303

R9304

R9305

R9306

R9901

R9902

R9903

R9904

R9905

R9906

U9101

U8601

U9301

R9185

U9901

JR901

JR902

SM2

SM3

SM4

R8611

SM5

C9301

C8613

R8602

R8618

R8619

JR903

R9108

JR904

C9156

C9157

C8615

C8616

C8617

R8620

R8621

R8622

R8623

C8605

C9158

C9159

R9187

R9121
R9122

R9123

R9124

R9112

R9114

R9113

Q9182

Q9183

U9103

SG4

D8603

D9102

D9105

D9152

Q8601

Q9181

ZD9171

D9104

ZD9301

ZD9101

D8604

ZD9121

ZD8601ZD8602

Q9102

Q8602

Q8603

Circuit Diagrams and PWB Layouts

EN 45TPM16.4L LA 10.

2016-Apr-1

back to

div.table

10.3 A 715G7574 PSU

20050_500.eps

AC input

A01 A01

2015-11-26

715G7574

AC input

HS9901

HEAT SINK

1
2

C9157
1uF

C9151
1uF

!

C9903

47PF

FB9908

127R

1 2

+

C9102

1UF 50V

LED_OVP

LED_OVP

C9914

220PF 250V

R8611

100KOHM +-5% 1/8W-NC

C9913

220PF 250V

C9305

1N 50V

R9302

3K 1/8W +/-1%

FB9301

127R

1 2

R9304

20R 1%

C9303

100N 50V

L9301

4.7uH

R9305

10K 1/8W 1%

C9154
1uF-NC

R9306

1.96KOHM +-1% 1/8W

+

C9310 22UF 50V

C9306
2N2 50V

C9301

4.7UF 25V

+5.2V

R9303

20R 1%

HV

DIM

PS_ON/OFF

BL_ON/OFF

+12V

VREF

VREF

R8629

10K 1/8W 1%-NC

PS_ON/OFF

CN9101
CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

R9138
100R 1/8W 5%

+

C9125

47UF 50V

R8632

100KOHM +-5% 1/8W-NC

F9901

FUSE

1 2

3 4

!

GND1
GND-NC

1

C8613

3.3NF 500V-N C

C8604

100N 50V

R8613

100R 1/8W 5%

R8614
0 OHM +-5% 1/8W

C9120
1N 50V

C9922
1NF 250V

R9910

4.7M 5% 1/8W

C9811 100N 50V

R8625
30K 1/8W 1%

LA5200 43"

R8604=1. 3R
R8605=1. 3R
R8606=1. 3R

D9102

SCS160P

12

!

!

+

C9101

22uF50V

!

FB9803
JUMPER

1 2

!

D9804

SCS160P

12

!

!

+

C9121
330uF 35V

R9119

2.2M 1/4W

L9902

12mH

124

3

FB9907

127R-NC

12

C9923
100PF 250V

L9901

8mH

124

3

T9102

POWER X'FMR

1

2

3

4

5

7

8

9

6

11

12

U9105

TL431G-AE2-R

!

L8604

33uH-NC

C9103

10N 50V

R9109
130K 1%

C9130

3.3NF 50V

DIMOUT

HV

VCC_ON

EU5500 43"&40"

R9116=2M2 R
R9117=2M2 R
R9119=2M2 R
C9102=1UF/ 50V
R9109=130K R

FB9102
BEAD

1 2

R8603

1.2R 1%

D9104

1N4148W

R9169

2Kohm 1/4W +/-5%

R8630
100R 1/8W 5%

R8631

100KOHM +-5% 1/8W-NC

C9304
100N 50V

U8601

PF7909S

DIMOUT

1

VCC

2

CS

3

OUT

4

GND

5

OVP

6

RT

7

DIM

8

EN

9

FLAG

10

VREF

11

ADIM

12

GM

13

FB

14

U9103
EL817M(X)

12

43

DIMOUT

R9904

330K 1/4W-NC

R9903

330K 1/4W-NC

R9902

750K +-5% 1/4W

R9901

750K +-5% 1/4W

R9906

750K +-5% 1/4W

R9905

750K +-5% 1/4W

L8602
3UH

GND3
GND-NC

1

C8614

3.3NF 500V-N C

EU5500 43" & LA5101 49"

R8604=1. 0R
R8605=1. 0R
R8606=1. 2R

DV12

R8604

1oHM 1% 1/4W

FLAG

R8612

1K OHM +-5% 1/8W-NC

LED_FB

R8609
0 OHM +-5% 1/8W

C9308

100P 50V

C9921
1NF 250V-NC

LED_FB

+

C9801

47UF 450V

ZD9102
BZT52-B5V1_R1_00001

12

A3D

R9127

10K 1/8W 1%

HOT

COLD

L9100
3UH

R9117

2.2M 1/4W

+12V_A

C8606

470P 50V

+12V_A

R9909

0R05 1/4W

+

C9802

47UF 450V

R8605

1oHM 1% 1/4W

R8610

0 OHM +-5% 1/8W

C9313

4N7 50V/NC

R8628
10K OHM +-5% 1/8W

!

C9126
1uF

C9804
47P 50V

R9814

5K1 1/8W 1%

C9124

100N 50V

R9806

10K OHM +-5% 1/8W

R8606

1.2R 1%

C9806

100N 50V

D9801
MUR460-28

CN9903

CONN-NC

1

2

R9818

18.7K 1/8W 1%

U9802

LD8105GL/NC

ISEN

1

GND

2

VSEN3IREF

4

OUT

5

VCC

6

C9808
100P 50V

U9801
LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

VCC

C9807

220P 50V

R9815
130K 1%

Q9801

TK12A60W

VCC_ON

C9901

470nF 275V

12V

R9802

10R 1/8W 5%

R9803

33R 1/8W 5%

R9813

10K OHM +-5% 1/8W

R9810

470OHM +-5% 1/8W

R9805

47K +-1% 1/4W

R9812
30K 1/8W 1%

C9810

0.47UF 50V

HS8601

HEAT SINK

1
2

3

4

SG9901

DSPL-501N-A21F

C8607
47PF-NC

C9809
47N 50V

Q8601
AOTF4126

!

R8608

10K OHM +-5% 1/8W

A3D

C8605

10N 50V-NC

R9807

1MOHM +-1% 1/4W

R9809
750K 1%

R9804

1MOHM +-1% 1/4W

R8601

0R05

+

C8609

220uF 50V

R8620

1K OHM +-5% 1/8W

R8623

10K OHM +-5% 1/8W

R9811

10K OHM +-5% 1/8W

+

C8608

220uF 50V

R8617

0 OHM +-5% 1/8W

R8607

1.2R 1%

PS_ON/OFF

+12V

!

+24VS

C9128

100N 50V

+

C8610

220uF 50V

C9141

2N2 50V

+VLED

-VLED

+VLED

-VLED

CN8603

CONN

1

2

3

4

5

6

7

8

9

10

11

12

C9135

100N 50V-NC

!

C9139
330P 50V

!

R9155

47 OHM 1/4W

R9134

6.2K OHM +-1% 1/8W

EU5500 40"

R8604=1. 0R
R8605=1. 0R
R8606=1. 0R

FB9906

127R-NC

1 2

R9153
10K OHM +-5% 1/8W

Q9103
2N7002K

+

C9112
470uF 25V-NC

!

R9149
100K 1/8W 1%

R9105
10R 1/8W 5%

DIM

R9106

33R 1/8W 5%

t

NR9900

1.5R

12

C8612

1NF 50V

L9903

0.25mH

124

3

12V

R9148

10K OHM +-5% 1/8W

R9816

100KOHM +-5% 1/8W

C8611

100N 50V-NC

D8601
TSF20U100C

1

2

3

C9902

220NF 305V

L9801

300uH

1

3

5

4

C9152
1uF-NC

C9133

100N 50V

ZD9106

BZT52-B13G

1 2

Q9109
2N7002K

R9154
10K OHM +-5% 1/8W

Q9107
MMBT3906

FLAG

R9152
1K5 +-1% 1/8W

!

!

VCC

+

C9113

470uF 25V

!

R9103

470 OHM 1/4W

+

C9123
330uF 35V-NC

R9102

470 OHM 1/4W

R9157

47 OHM 1/4W

R9163

47 OHM 1/4W

C9104

2.2NF

D9103

PG1010R

!

R9160

1K 2W

R9159

9K1 1/8W 1%

R9144

470 OHM 1/4W

R9162

100K 1/8W 1%

R9104
82K 2W

R9164

1K 2W

R9129

4.3K OHM 1%

D9101

SARS01-V1

R9124

2K 1/8W 1%

R9146

100 OHM 1/4W

R9808

0R05 1/4W-NC

U9104

EL817M(X)

12

43

D9111

TSF20U100C

1

2

3

R9165

2K 1/8W 5%

R9113

470 OHM 1/4W

D9121

FMXA-2202S

1

2

3

R9114

470 OHM 1/4W

C9131

470pF 1KV

C9153
1uF-NC

R9118

47 OHM 1/4W

R8621

47K 1/4W / NC

-

+

BD9901

TS10K80-01

2

1

3

4

R8622

47K 1/4W / NC

ZD9107

BZT52-B39

1 2

C9119

100PF-NC

+

C9111

470uF 25V

R9145

100 OHM 1/4W

R9135

1R 1/8W 5%

R9130

91KOHM +- 1% 1/8W-NC

C 91 1 8

0. 47UF 50V

R91 66

20K +-5% 1/8W

R9112

3R9 1%

C91 4 3

2N2 50V

R91 07

10K OHM +-5% 1/8W

R9125

2K 1/8W 5%

+

C9122
330uF 35V

R9126
1K 1/8W 1%

C9134

470pF 1KV

R9150

2Kohm 1/4W +/-5%

R9147

220R 1/8W 5%

R9101

0.2R 2W

Q9104

BTB1424AM3

R9167

470 OHM 1/4W

+

C9137

10UF 50V

R9170

20K +-5% 1/8W

R8624

150K 1/8W +/-1%

C9146

2N2 50V

+24VS

12V

+24VS

12V

VCC_ON

OVP

VCC

BL_ON/OFF

D9803

QG806C

R9801

0.15R

L8603

33uH

8

1

4
6

R9151

10K OHM +-5% 1/8W

Q9106

BTC4672M3

C9307

10uF 16V

ZD9101

BZT52-B16G

1 2

C9312

100N 50V

C9311

1UF 16V-NC

C9302

10uF 16V

Q9101

AOTF12N65

C9150

1N 50V

R8633

1K OHM +-5% 1/8W-NC

+5.2V

R9168

330K 1/8W 5%

C9924

470PF 250V

+

C8601

10UF 50V

+

C9115
470UF 25V

R9136
100KOHM +-5% 1/8W

+12V_A

D9107

SR34H-NC

1 2

Q9105

2N7002K

C9117

1UF

C9116

4.7UF 25V-NC

Q9108

AOD4185

R9142

100KOHM +-5% 1/8W

HS9801

HEAT SINK

1
2

3

4

C9144

100N 50V

+

C9114

470UF 25V

R9133
1K OHM +-5% 1/8W

+12V

R9143
330K 1/8W 5%

C9821
1UF 450V

12V

Q9802
BSS127

3

1

2

C9309 10uF 16V

U9901

CAP004DG-TL

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

Q8604

2N7002K-NC

HS9111

HEAT SINK

1
2

3

4

R9173

0 OHM +-5% 1/8W

R9116

2.2M 1/4W

C8603

1UF 16V

D9802

QG806C

D8603

SCS160P-NC

12

C9912

47pF 250V

!

PFC_OVP

R9111

100 OHM 1/4W

C8602

1N 50V-NC

Q8605

2N7002K-NC

GND2
GND-NC

1

SG9902

DSPL-501N-A21F

R8616

33R 1/8W 5%

CN9902
CONN-N C

1

2

U9101

SSC3S121A

FB/OLP

1

BR

2

ST4DRV

5

OCP

6

VCC

7

GND

8

R8627
10K 1/8W 1%

C9148
1uF

!

R9128

100 OHM 1/4W

ZD9103

BZT52-B18

1 2

R8626

150K 1/8W +/-1%

CN9901

AC 2P

1 2

A3D

C9132
1NF

C9911

47pF 250V

R9132

470 OHM 1/4W

C9155
1uF

R9131

470 OHM 1/4W

C9156
1uF

Q8603

AO4482L

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

C9149
1uF

!

U9102

TL431G-AE2-R

!

t

NR9901

1.5R

1 2

U9301

SY8113BADC

BS

1

GND

2

FB3EN

4

IN

5

LX

6

F9902
NC

C9145

100N 50V

RV9901

680V

C9819

470PF-NC

R8615
10K OHM +-5% 1/8W

R8602

1.2R 1%

R8618

270K 1%

R8619
270K 1%

R9821
2Mohm 1/4W +/-1%/NC

R9824
15K 1/8W 1%/NC

R9823
2Mohm 1/4W +/-1%/NC

C9812
470PF 50V/NC

ZD9108

BZT52-B39

1 2

R9822
2Mohm 1/4W +/-1%/NC

C9813
100N 50V/NC

R9825

510OHM +-5% 1/4W/NC

D9810

1N4148W/NC

PFC_OVP

L8601

33uH

2

1

10-3-1 AC input

Circuit Diagrams and PWB Layouts

EN 46TPM16.4L LA 10.

2016-Apr-1

back to

div.table

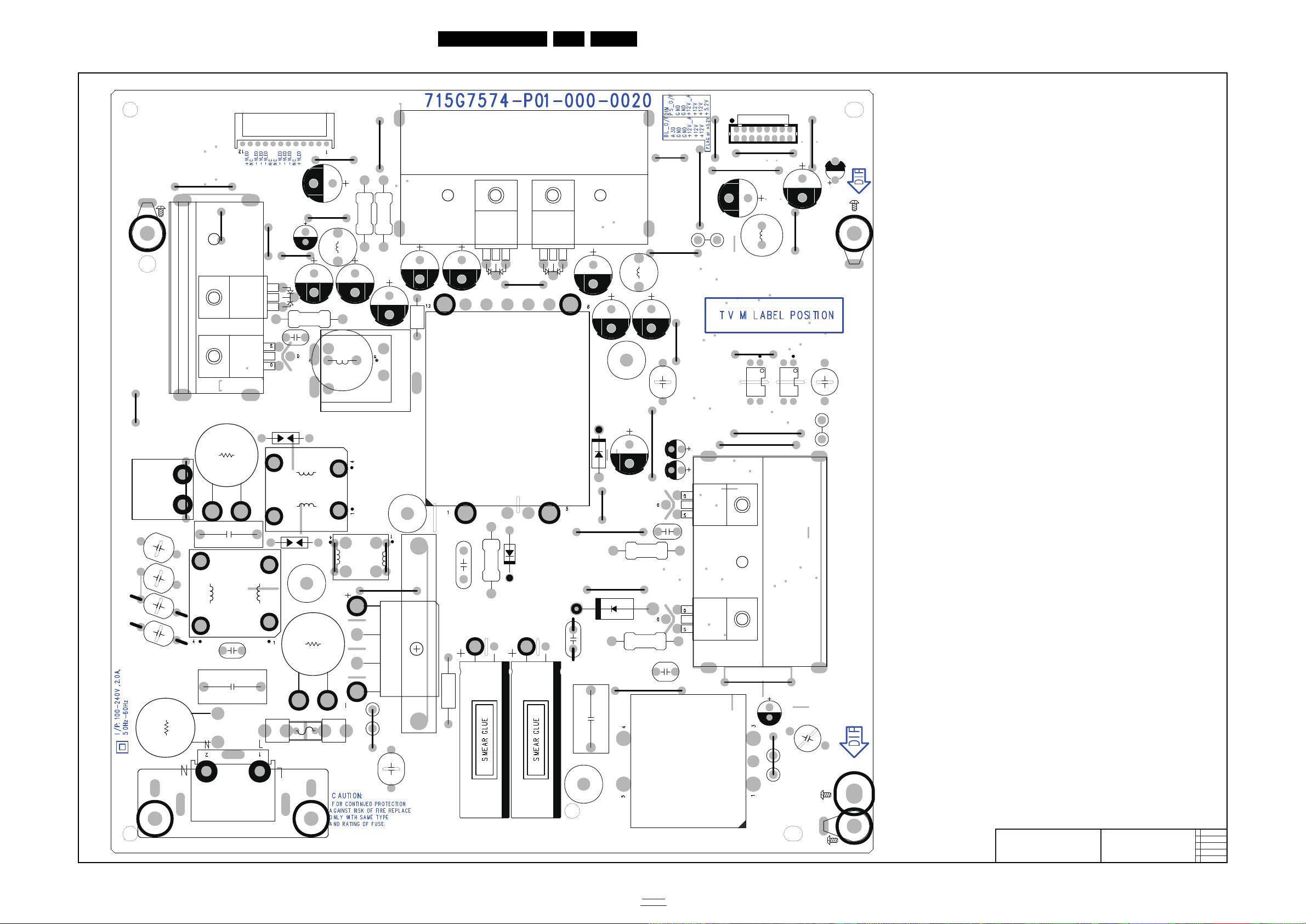

10-3-2 Power layout top

20030_501.eps

2015-11-12

715G7574

LAYOUT TOP

C8607

U9104

U9103

R8601

R9104

R9101

C9137

C9119

C9123

R9160

R9164

J919

F9902

J926

J901

J928

SU2

SU3

SU4

C8601

C9903

J932

J913

J907

J912

J904

J903

J906

J909

D9801

J908

J910

J914

J921

J915

J905

J916

J911

J918

J902

R9801

D9103

J920

J923

J917

C9115

C9122

C9801

C9802

J930

J929

J933

J931

C9819

C9132

SU1

J925

C9310

T9102

J927

J922

J924

MH27

MH3

MH22

MH23

MH20

MH17 MH18

MH5MH6MH7MH8

MH19

MH9

MH16

MH21

MH1

MH30

MH31

MH32

MH24

C8608

C9113

C9125

C9112

CN9902

CN9903

L9100

C9821

C9111

D9121

MH28

MH29

MH26

RV9901

L9902

D9111

C8609

HS9801

FB9907

CN8603

C8610

CN9101

FB9803

L9801

GND2

FB9301

D8601

C9901

MH25

L9903

Q9101

Q9801

GND1

F9901

GND3

C9913

C9914

C9104

L9901

HS9901

BD9901

C9924

C9922

C9923

FB9908

NR9901

NR9900

HS9111

C9902

FB9906

C9921

HS8601

L8601

FB9102

SG9901

SG9902

L8602

CN9901

Q8601

C9101C9102

C9114

C9121

L9301

L8603

L8604

C9911

C9912

D9101

Circuit Diagrams and PWB Layouts

EN 47TPM16.4L LA 10.

2016-Apr-1

back to

div.table

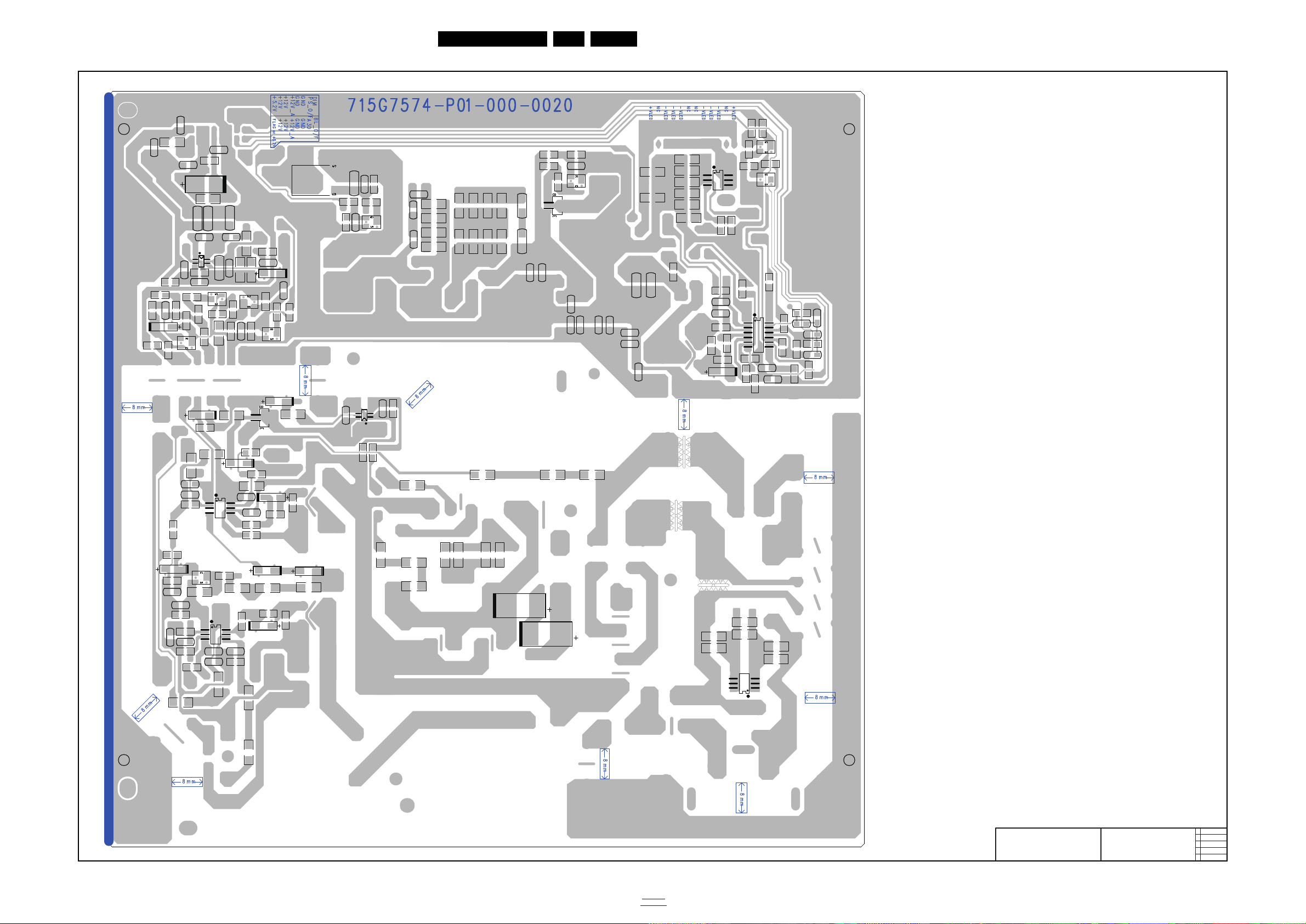

10-3-3 Power layout bottom

20050_502.eps

2015-11-12

715G7574

LAYOUT BOTTOM

C8612

C8603

C9103

C9118

C9303

C9305

C9306

C9139

C9806

C9809

C9810

C9808

R8617

R8616

R9169

R9170

R8618

R9112

R9107

R9142

R9125

R9168

R9302

R9306

R9305

R9303

R9304

R9802

R9803

R9804

R9806

R9807R9809

R9812

R9813

R9814

R9815

R9818

R9144

R9145

R9103

R9149

R9146

R9136

C9117

R9124

R9903

R9906

C9128

C9141

R9130

SEN1

SEN3

R9113

R9114

R9157

R9163

U9801

C9804

R8604

R8605

R8621

R8622

R9162
R9165

C9304

Q8603

C9134

U9901

C8605

C8606

C9130

C9143

C9146

C9150

C9133

C9807

C9116

C9131

R8619

R8620

R8612

R8623

R9109

R9126

R9129

R9133

R9143

R9159

R9152

R9134

R9148

R8606

R9111

R9102

R9118

R9155

R9167

R9150

R9135

R9166

R9151

R9810

R9805

R9105

R9106

R9147

RJ903

RJ902

RJ901

RJ904

R8607

R8602

R9173

R9138

R8615

R8603

R9132 R9131

C8604

R8609

C9811

R8608

R8610

R8611

R8613

R8614

R8624

R8625

R8626

R8627

R8628

R8629

R9811

R9816

R9808

R8630

C9311

R9116

R9904

D9802

R9153

C8611

RJ907

RJ909

RJ911

R8631

R8632

R8633

U9102

U9105

Q8604

Q8605

Q9103

Q9105

Q9109

Q9802

C9144

C9145

R9154

C8602

R9128

R9910

RJ906

R9127

C9148

C9149

C9151

C9152

C9153

C9154

C8613

C8614

C9155

C9156

C9157

C9308

C9309

C9302

C9307

U9101

R9117R9119

SEN4SEN5

RJ913

C9126

C9312

C9120

C9301

C9124

C9812

C9813

R9824

R9821

R9822

R9823

R9825

R9901

R9902

R9905

D9803

RJ905

RJ908

RJ910

RJ912

R9909

C9135

C9313

MH11MH10

MH12MH13

MH15MH14

Q9106

Q9108

D9107

Q9104

U8601

Q9107

U9301

D8603

D9102

D9804

ZD9101

ZD9102

ZD9106

ZD9107

ZD9108

D9104

D9810

U9802

ZD9103

Circuit Diagrams and PWB Layouts

EN 48TPM16.4L LA 10.

2016-Apr-1

back to

div.table

10.4 B 715G7805 SSB

20010_504.eps

System Power

B01 B01

2015-09-21

715G7805

System Power

R1

R2

R778

4.7K 1/16W

R787

4.7K 1/16W

3V3SB

INVERTER ON/OFF
H: ON
L: OFF

INVERTER ON/OFF

90mil

+5V Switch

Low active

CO-LAY

+5V_SWQ701

AO3401A

CN701

CONN

2
4
6

8

10
12

1

3

5
7
9
11

+5VSB

12V_AMP6

12V_AMP

BL_ON/OFF

ZD703

NC/ BZ T52-B3V6

1 2

AC_DET#

R2

R1

CORE POWER 1.2V

AC_Of f10

AC_Of f

FB703 120R

1 2

+12V

R719

0R051/8W

AVDD1V2

FB702

120R

1 2

3V3SB

FB706

120R 3A

1 2

AC_DET

R788

4.7K 1/16W

Q705

MMBT3904

AC_DETAC_DET#

R714

10K +-1% 1/16W

C714

NC/ 100N 16V

+

C748

100UF 16V

R717

10K +-1% 1/16W

PS_ON

L702

2.2uH

C712

2.2UF

BL_DIMMING

C710

4.7UF 10% 10V

VCCK17

C730

10UF 6. 3V 20%

+5VSB

L701

2.2UH

6/17

R723

NC 100R 1/ 16W 5%

GND4,5,6,7,8,9,10,11,12,13,14,15,16,17,18

OPWRSB

VCCK

DVDD3V34,5,6,8,9,10,11,13,15,16,17,18

+5V_SW

DVDD3V3

R725

NC 10K +-1% 1/ 16W

+12V

BL_ON/OFF

BL_ON/OFF14

+5VSB

BL_DIMMING

R722

NC 0R05 1/16W

3V3SB

BL_DIMMING

R710

51K 1/16W 5%

+5V_SW9,10,11,12,15

AVDD1V2

DVDD3V3

R709

22K 1%

+12V10

+5V_SW

R779
1K 1/16W 5%

+5VSB

R713

2.2K 1%

+5VSB7,9,16

VCCK

+12V

R724
NC 10K +-1% 1/16W

R786

1K 1/16W 5%

3V3SB4,8,10,13,14,15

DVDD3V3

Q703

LMBT3904LT1G

AVDD1V28,13,15

+5VSB

Q702

NC SM4310PSKC

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

OPWRSB4

INVERTER_ON_OFF

BL_ON/OFF

Q707

MMBT3904

BL_DIMMING14

3V3SB

ZD702

BZT52-B3V6

1 2

5/28

BL_DIMMING

BRIGHT ADJUST

Max:3.3V
Min: 0V

Low active

U703
M5723B-33F61U

EN1

1

IN1

8

AGND

2

LX

10

AGND

4

EN2

5

FB1

3

OUT2

7

IN2

6

PGND9tGND

11

R780

4.7K 1/16W

C706

1UF 10V

C708

NC/ 4. 7U F 10% 10V

R706

100K 1%

R749

36K 1%

C745

1UF 10% 16V

C747

22UF 10V

+

C707

100UF 16V

L703

4.7uH

ZD701

NC/ LUDZS5.1BT1G

1 2

C731

100NF 16V

AC_Off

R746 0R 05 1/ 16W

U705

G5695T11U

VIN

1

GND

2

EN3VFB

4

LX

5

R751

40.2K 1/16W 1%

VCCK

R747 100K 1%

R748

13K 1/10W

R752 0R051/8W

C746
22UF 10V

R750

12K 1% 1/16W

C721

2.2UF

C742

100pF 50V

U706

SY8104ADC

LX

5

FB

1

EN

2

GND3IN

4

BS

6

C722

10UF 6. 3V 20%

C743

0.1uF 50V

C74410N 50V

R729

82K 1%

BRIGHT_ADJ

Pre_12V

R730

18Kohm 1/16W +/ -1%

Pre-12V_AMP

R1

12V TO 5VSB

AC _ D E T

R728

0R05 1/16W

L = > AC_OFF_DET

H = > AC_ON

AC Detect

C723

NC 10U F 6. 3V 20%

3.3A

R718
10K +-1% 1/16W

R2

DVDD3V3

+5V_SW

Pre_12V
Pre-12V_AMP

Control Interface

LO = > POWER_ON

Main power On/Off control

HI = > POWER_OFF

L = > DC_OFF

+

C719

100UF 16V

H = > POWER_ON

BRIGHT_ADJ

PS_ON /STAND BY

INVERTER_ON_OFF

R704
100R 1/16W 5%

C726
NC/22uF 10V

C725

NC/ 10U F 10V

C705

100NF 16V

AC_DET10

R785

100R 1/10W 5%

12V_AMP

OPWRSB

PS_ON

R739

4.7K 1/16W

3V3SB

R705

1K 1/16W 1%

Q708

BC847C

R738

4.7K 1/16W

FB701 120R

1 2

STANDBY

INVERTER_ON_OFF BRIGHT_ADJ

C713

1UF 10% 16V

10-4-1 System Power

Circuit Diagrams and PWB Layouts

EN 49TPM16.4L LA 10.

2016-Apr-1

back to

div.table

10-4-2 Peripheral

20010_505.eps

Peripheral

B02 B02

2015-09-21

715G7805

Peripheral

1Gb for BZ

C462
NC/ 100NF 16V

ORESET#

3V3SB

R477
16K 1%

Flash_WP#

R479

22K 1%

PACLE

OPCTRL0

OPWRSB

U0TX
U0RX

U405
W29N01GVSIAA

NC

1

NC

2

NC

3

NC

4

NC

5

NC

6

RB

7

R

8

E

9

NC

10

NC

11

VDD

12

VSS

13

NC

14

NC

15

CL

16

AL

17

W

18

WP

19

DNU

20

NC

21

NC

22

NC

23

NC24VSS

25

NC

26

NC

27

NC

28

I/O0

29

I/O1

30

I/O2

31

I/O3

32

NC

33

VCC

34

NC

35

VSS

36

VDD

37

DNU

38

VCC

39

NC

40

I/O4

41

I/O5

42

I/O6

43

I/O7

44

NC

45

NC

46

NC

47

VSS

48

FB409 120R

1 2

OSDA1 11,18

OSCL1 11,18

OSCL1
OSDA1

OSCL1
OSDA1

X401

24MHz

1

24

3

24MHz CRYSTAL

TXC

3V3SB

UART Port 0

XTALO

HS401

HEAT SINK

1

2

OPCTRL1

OPCTRL0

LED_PWR_Blue

LED_POWER_RED

R473

0R05 1/16W

R474

0R05 1/16W

PARB#

R170

100R 1/ 16W 5%

POOE#

R171

100R 1/ 16W 5%

OPCTRL1

POCE1#

ZD109

AZ5123-01H

12

ZD110

AZ5123-01H

12

OSDA0

OSCL0

POWE#

10mil

NAND Flash

ICE mode + 24M + serial boot

BGA Strapping

OPCTRL0OPWRSBPACLEOPCTRL1

ICE mode + 27M + serial boot

ICE moce + 24M + ROM to Nand boot

X

X

X

X

ICE moce + 27M + ROM to Nand boot

1

0

1

00

0

0

01

1

0

0

AVDD10_LDO

PACLE

U401B

MT5561LVNT

PDD0

G2

PDD1

G4

PDD2

K3

PDD3

G3

PDD4

H3

PDD5

J6

PDD6

G1

PDD7

J3

PARB#

K4

POOE#

J1

POCE1#

J2

POCE0#

J4

PACLE

K1

PAALE

K2

POWE#

J5

OSDA1

F5

OSCL1

F4

OSCL0

R5

OSDA0

P5

ORESETB

W10

OPWRSB

T2

OIRI

T3

U0RX

U2

U0TX

U1

XTALO

W20

XTALI

V19

AVDD10_LDO

Y10

AVDD33_REG_STB

T17

FSRC_WR

A20

TP409

I2C & UART Interface

HI = >WP

LO = >WRITE

SYSTEM EEPROM

I2C ADDRESS "A0"

PDD1

PDD2
PDD0

PDD3

PDD4

PDD6
PDD5

PDD7

AVDD33_REG_STB

PAALE

U406

M24128-BRMN6TP

E0

1

E1

2

E2

3

VSS

4

SDA

5

SCL

6

WC

7

VCC

8

20mil

TP401

FSRC_WR

STRAPPING

C490
68PF 50V

C491
68PF 50V

2015/08/04 :
U406_эΘ356G113317400T_SO-8 for G7805M0B-B00

OSCL0
OSDA0

U0RX

U0TX

SYS_EEPROM_WP

GPIO Interface

5/28

XTALI

R423

1Kohm 1/16W +/-1%

R418

10K +-1% 1/16W

R173 100R 1/ 16W 5%

R419 NC / 10K 1/ 16W 5%

R172 100R 1/16W 5%

R414

10K +-1% 1/16W

C402

4.7U F 10% 10V

C405

100NF 16V

R425

0R05 1/16W

R411

4.7K 1/16W

R415 10K +-1% 1/16W

R407

4.7K 1/16W

C404

100NF 16V

R412

4.7K 1/16W

R421

4.7K 1/16W

R420

10K +-1% 1/16W

R417 NC / 10K 1/ 16W 5%

R422

1Kohm 1/16W +/-1%

Heat Sink

R416

NC / 10K 1/ 16W 5%

CN402

CONN

1
2

3

3V3SB

DVDD3V3

DVDD3V3

LED_POWER_RED 10,14
LED_PWR_Blue 10,14

DVDD3V3

3V3SB

LED_POWER_RED
LED_PWR_Blue

OPWRSB 3

SYS_EEPROM_WP 14

3V3SB

GND3,5,6,7,8,9,10,11,12,13,14,15,16,17,18

3V3SB3,8,10,13,14,15

OSCL0 6

OSDA0 6

DVDD3V33,5,6,8,9,10,11,13,15,16,17,18

OIRI 10

U0TX 15,16
U0RX 15,16

C406
15PF 50V

XTALO

C403

100NF 16V

033G3802 3 : high 6.0mm
311GW200G03BAL : high 11mm

R403

4.7K 1/16W

C401

100NF 16V

R404

4.7K 1/16W

R402

4.7K 1/16W

R405

4.7K 1/16W

C407

15PF 50V

R401

4.7K 1/16W

DVDD3V3

DVDD3V3

DVDD3V3

U0TX

U0RX

ORESET#

XTALI

POCE1#

POOE#

PAALE

PACLE

PDD2

PDD0

PARB#

POWE#

OPWRSB

PDD6

PDD3
PDD5
PDD7

PDD4

PDD1

OIRI

SYS_EEPROM_WP

OPWRSB

RESET Circuit

AVDD33_REG_STB

POCE0#

OIRI

OSDA0

OSCL0

Circuit Diagrams and PWB Layouts

EN 50TPM16.4L LA 10.

2016-Apr-1

back to

div.table

10-4-3 Audio A-in/I2S/HP

20010_506.eps

Audio A-in/I2S/HP

B03 B03

2015-09-21

715G7805

Audio A-in/I2S/HP

C602NC 22N F 25V

FB611
NC 30R

12

C601NC 22N F 25V

OUTR

OUTL

OUTL 6

OUTR 6

+

C650

NC 100U F 16V

+

C651

NC 100U F 16V

OUTL

C608

1UF 25V

R627

NC 22K 1/16W

R628

NC 22K 1/16W

OUTR

OUTL

I2C & UART Interface

U0TX

AL0O

U0RX

OSCL0

OSDA0

CN602

PHONE JACK

1

2

3

4

5

6
7

ARC_SPDIF

ARC_SPDIF 16

Audio Input Interface

I2S Interface

FB610 120R

1 2

C663
10N 50V

R637

4.7K 1/16W

FB608 120R

1 2

FB609 120R

1 2

C662

10N 50V

HP_DET#

C664
NC/ 100N 16V

DVDD3V3

C687

22PF 50V

R603

22R 1/16W 5%

R604

22R 1/16W 5%

C605

NC/33P 50V

R602

22R 1/16W 5%

C606

NC/33P 50V

C603

NC/33P 50V

C604

NC/33P 50V

R601

22R 1/16W 5%

CVBS_L_IN

CVBS_R_IN

YPBPR_L_IN 8

YPBPR_R_IN 8

AOLRCK 6
AOSDATA0 6

AOMCLK 6
AOBCK 6

U0TX 4,15,16

OSDA0 4,6

OSCL0 4,6

U0RX 4,15,16

GND3,4,6,7,8,9,10,11,12,13,14,15,16,17,18

PreAmp output for Headphone

H = > H P Detect

EMI Solution

10.5 mm

HP Detect

HPOUT_LT

HPOUT_RT

L = > Normal

Grounding
Grounding

MCLK

8.5mm

Audio Line Out

C660

6.8NF 50V

C661

6.8NF 50V

SPDIF_OUT

SPDIF_OUT 9

R625

10 OHM 1/10W

CVBS_L_IN 8

CVBS_R_IN 8

CVBS_R_IN
CVBS_L_IN

R626

10 OHM 1/10W

AL0O

AR0O

HPR_IN

HPL_IN

HPR_IN 6

HPL_IN 6

A

B

CN605

NC CONN

2
1
4

3

AR0O

U401C

MT5561LVNT

AIN_L0

U20

AIN_L1

V20

AIN_L2

T20

AIN_L3

T19

AIN_R0

R20

AIN_R1

R17

AIN_R2

R19

AIN_R3

R18

AL0_ADAC

R16

AR0_ADAC

P16

AL1_ADAC

T18

AR1_ADAC

U19

ASPDIFI

F16

ASPDIFO

R4

AOMCLK

R2

AOBCK

R1

AOLRCK

P3

AOSDATA0

R3

AOSDATA1

T4

VMID_AADC

T16

AVDD33_ADAC

M16

AVDD33_AADC

M14

AVDD33_CAP

L15

All Path
Grounding(20mil)

15mil

HP_DET# 10

HP_DET#

FB405 120R

1 2

SPDIF_OUT

TP408
TP

DVDD3V3

DVDD3V33,4,6,8,9,10,11,13,15,16,17,18

FB406 120R

1 2

R678

0R05 1/16W

DVDD3V3

TP404

TP

ARC_SPDIF

VGA_IN_R
VGA_IN_L

VGA_IN_L

VGA_IN_R 7
VGA_IN_L 7

VGA_IN_R

AVDD33_AADC

HPOUT_RT

HPOUT_LT

YPBPR_L_IN

YPBPR_R_IN

AOLRCK

AOMCLK
AOBCK

AOSDATA0

C684
22uF 6.3V

C688

22uF 6.3V

AVDD33_ADAC

AOBCK

AOMCLK

AOSDATA0

AOLRCK

BCK
LRCK

SDATA0

AVDD33_CAP

C607

100NF 16V

YPBPR_R_IN

OUTR

YPBPR_L_IN

VMID_AADC

FB612
NC 30R

12

C645

330pF 50V

C646
47pF 50V

R615 27K 1/16W 5%

R622

10K +-1% 1/16W

C643
47pF 50V

AR0O

AL0O

OUTL

OUTR

Grounding

R623

10K +-1% 1/16W

R620 27K 1/16W 5%

HPR_IN

C647

2.2UF

Grounding

R617

10K +-1% 1/16W

PreAmp output for Line out

C648

330pF 50V

R618
10K +-1% 1/16W

C644

2.2UF

Gain= -R2/R1=

-10/10=-1

HPL_IN

Circuit Diagrams and PWB Layouts

EN 51TPM16.4L LA 10.

2016-Apr-1

back to

div.table

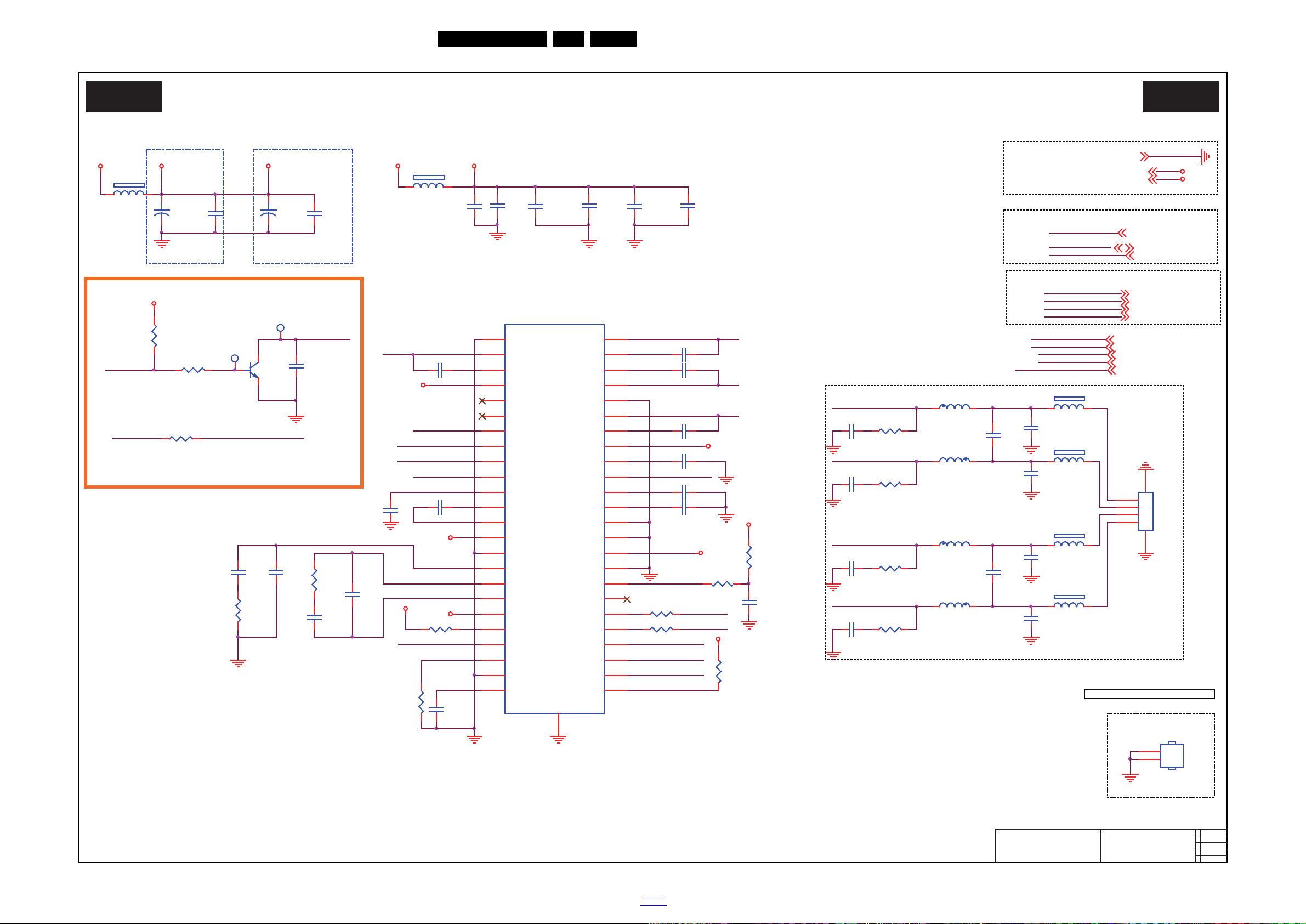

10-4-4 Speaker Amp

20010_507.eps

Speaker Amp

B04 B04

2015-09-21

715G7805

Speaker Amp

FB605

120R

1 2

R607

18R 1/10W 5%

C626

470NF 16V

FB604

120R

1 2

R608

18R 1/10W 5%

C627

330pF 50V

FB606

120R

1 2

C629

1UF 16V

C619

470NF 16V

L602
10uH

R631

33R 1/16W 5%

R632

33R 1/16W 5%

C632

330pF 50V

AOBCK

C631

470NF 16V

OUTB

AOSDATA0

OSDA0

L603
10uH

HPL_IN

C618

330pF 50V

FB607

120R

1 2

L+

C622

330pF 50V

L601
10uH

R605

18R 1/10W 5%

R606

18R 1/10W 5%

CN601

CONN

1

2

3

4

5 6

C621

470NF 16V

L604
10uH

OSCL0

AMP_RESETN

OUTC

HPR_IN

TP063

TP065

AOMCLK

ADR

AOLRCK

OUTA

HP_AC_MUTE

OUTA

OUTD

AMP_PDN

OUTC

5/28

4Pin 2.0mm

311GW200A04ABL
311GW200A04AAL(Vertical)
311GW200A04AAX(Vertical)

HS601

NC HEAT SINK

1

2

+

C609

100uF 25V

C614

10UF 6. 3V 20%

C630 1UF 25V

C616

100nF 50V

R609
10K +-1% 1/16W

C638

4.7nF 50V

C62333nF50V

C636

1UF 25V

R614

18.2K OH M +-1% 1/16W

R610

470R 1/ 16W 5%

C624 33nF50V

U601

TAS5729MD

GND

1

OUTA

2

BSTA

3

PVDD

4

PWM1

5

PWM2

6

HPIL

7

HPOL

8

HPOR

9

HPIR

10

HPVSS

11

CN

12

AVDD_REG2

37

SSTIMER

38

HP_SD

39

GVDD_REG

40

PVDD

41

BSTD

42

OUTD

43

GND

44

OUTC

45

BSTC

46

BSTB

47

OUTB

48

GND

36

GND

35

TEST

33

DVDD

34

RESET

32

NC

31

SCL

30

SDA

29

SDIN1

28

SCLK

27

LRCLK

26

PDN

25

CP

13

HPVDD

14

GND

15

FLTM

16

FTLP

17

AVDD_REG1

18

AVDD

19

ADR

20

MCLK

21

ROSC

22

GND

23

DVDD_REG

24

E-Pad

49

C637
47nF 16V

C615

10UF 6. 3V 20%

C610

10UF 6.3V 20%

FB603
120R

1 2

C633

2.2nF 50V

R613

10K +-1% 1/16W

C62833nF50V

R611

1K 1/16W 1%

C642

4.7UF 10% 10V

C612

100NF 16V

C613

100NF 16V

C625 33nF50V

OUTL
OUTR

C639

4.7nF 50V

C617

100nF 50V

C634 1UF 25V

50mil

R612

470R 1/ 16W 5%

C611

100NF 16V

R616
10K +-1% 1/16W

C635100NF 16V

C641

47nF 16V

DVDD3V3

AMP3V3PVDD

12V_AMP

DVDD3V3

AMP3V3

AMP3V3

AMP3V3

AMP3V3

PVDD

R-

AMP3V3

AMP3V3

PVDD

OSCL0 4

OSDA0 4

12V_AMP

GND3,4,5,7,8,9,10,11,12,13,14,15,16,17,18

HP_AC_MUTE 9

DVDD3V33,4,5,8,9,10,11,13,15,16,17,18

12V_AMP3

AOLRCK 5

AOBCK 5

AOMCLK 5

AOSDATA0 5

HPL_IN 5
HPR_IN 5

SPK_MUTE(OPWM4-->GPIO5)
H: AMP worlable
L: AMP Power dow n

AMP Mute

L+

GPIO & I2C Control

L

R+

AOBCK

AOMCLK

AMP_MUTE

AOSDATA0

AMP_MUTE 14

AOLRCK

R-

L-

L­R+

Heat Sink

I2S Interface

10mil

10mil

R

+

C690

100uF 25V

HPL_IN
HPR_IN

FB602

120R

1 2

Q602

NC MMBT3904

C691
100NF 16V

R633

NC 10K 1/ 16W 5%

PVDD

AMP_PDNAMP_MUTE

R635

NC 22R 1/16W 5%

C640

2.2UF

R634
NC 10K 1/ 16W 5%

DVDD3V3

AMP_MUTE

AMP_PDN

OSDA0
OSCL0

HP_AC_MUTE

OUTR

OUTL

OUTR 5
OUTL 5

OUTB

OUTD

C620

1UF 16V

Circuit Diagrams and PWB Layouts

EN 52TPM16.4L LA 10.

2016-Apr-1

back to

div.table

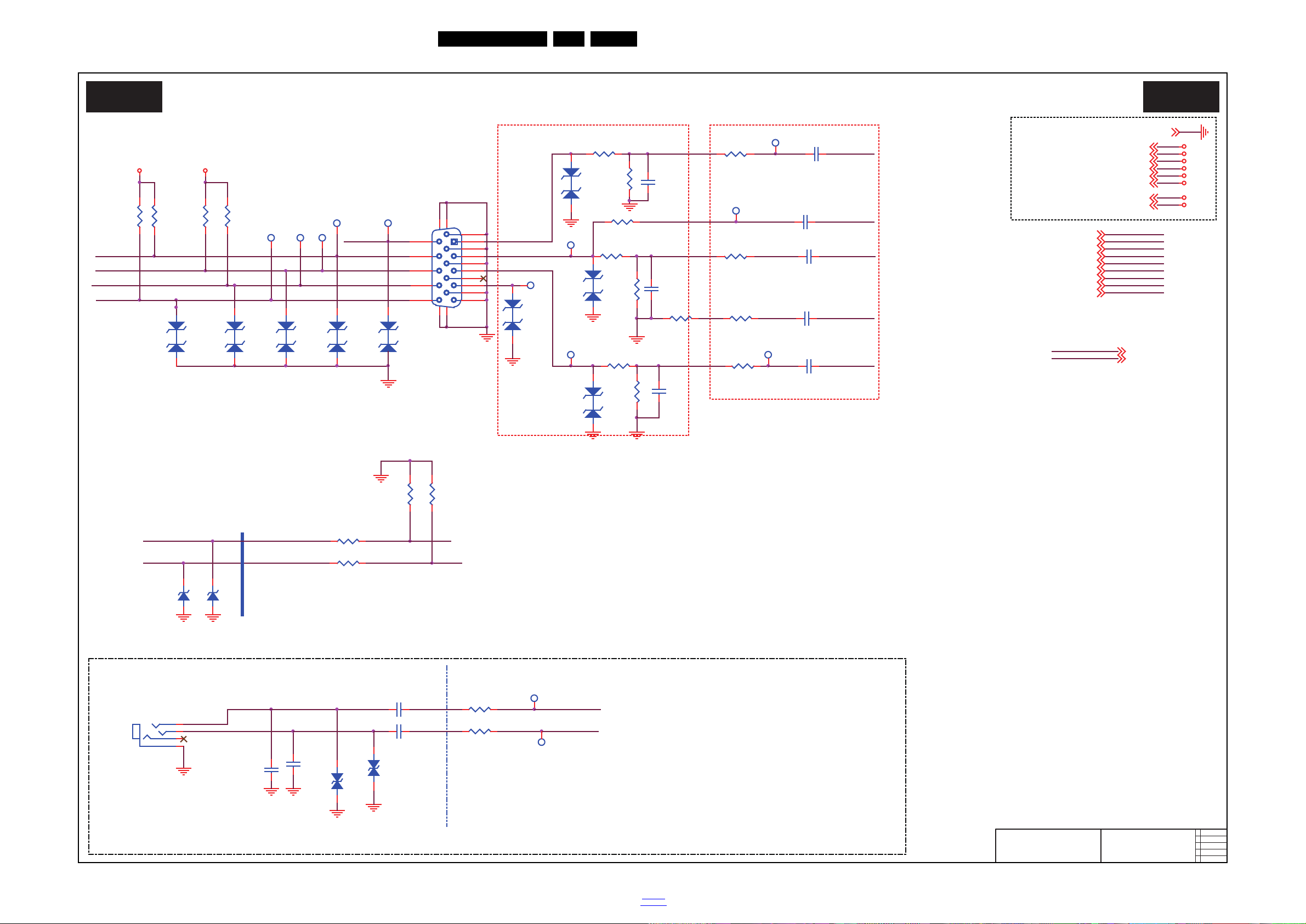

10-4-5 VGA

20010_508.eps

VGA

B05 B05

2015-09-21

715G7805

VGA

R1208

NC/ 0R 05 1/ 16W

R1209

NC/ 0R 05 1/ 16W

C1203

NC/ 10N 50V

R1211

NC/ 0R 05 1/ 16W

TP1101 TP1102 TP1103

VGA_RIN

TP1104

C1206

NC/ 1.5nF 50V

TP1105

C1204

NC/ 10N 50V

TP1106

C1210

NC/ 10N 50V

TP1107

TP1108

VGACOM

C1207

NC/ 10PF 50V

C1208

NC/ 10PF 50V

C1209

NC/ 10PF 50V

TP1109

VGA_R

CN606

NC/PHONE JACK

1

2

3

4

VGA_G

TP1111

TP1110

VGA_SOG

R1210

NC/ 0R05 1/16W

VGA_SDA

VGA_HSYNC

VGA_SCL

ZD1101

NC/AZ5123-01H

12

R1207

NC/ 0R 05 1/ 16W

ZD1102

NC/AZ5123-01H

12

ZD1103

NC/AZ5123-01H

12

ZD1104

NC/AZ5123-01H

12

R1220

NC/4.7K 1/16W

R1219

NC/4.7K 1/16W

+5VSB

088G353GFF1ACL

R1201

NC/ 75R 1/ 16W 1%

Use CN101 #7(GND) close this trace

R1212 NC / 100R 1/ 16W 1%

VGA IN (V/T)

ZD1123

NC/AZ5123-01H

12

R1202

NC/ 75R 1/ 16W 1%

ZD116

NC BZ T52-B5V6S

1 2

ZD1105

NC/AZ5123-01H

12

C1205

NC/ 10N 50V

VGA_TX

ZD115

NC BZ T52-B5V6S

1 2

VGA_RX

ZD1106

NC/AZ5123-01H

12

R1205

NC/ 100R 1/16W 1%

R1203

NC/ 75R 1/ 16W 1%

R1217

NC/100R 1/16W 5%

GND3,4,5,6,8,9,10,11,12,13,14,15,16,17,18

+5V_SW3,9,10,11,12,15

AVDD1V23,8,13,15

AVDD1V2

+5VSB3,9,16
3V3SB3,4,8,10,13,14,15

12V_AMP

VCCK

R1227 NC/30K OHM

12V_AMP3,6

+5V_SW

R1228 NC/30K OHM

C1201

NC/2.2uF 10V

3V3SB

+5VSB

+12V

ZD1107

NC/AZ5123-01H

12

C1202

NC/2.2uF 10V

BLUE 8.5mm

DVDD3V33,4,5,6,8,9,10,11,13,15,16,17,18

+12V3,10

VCCK3,17

DVDD3V3

TP1116

VGA_IN_L

NC/470pF 50V

C1212

NC/470pF 50V

C1211

ZD1111

NC VPOR T 0603100KV05

1 2

ZD1108

NC/AZ5123-01H

12

ZD1110

NC VPOR T 0603100KV05

1 2

TP1117

R1218

NC/100R 1/16W 5%

R1206

NC/ 100R 1/16W 1%

R1204

NC/ 100R 1/16W 1%

VGA_IN_R

VGA_IN_L 5

VGA_IN_R 5

R2001

NC 4.7K 1/16W

+5VSB

R2002
NC 4.7K 1/16W

VGA_VSYNC

VGA_IN_R
VGA_IN_L

R2006
NC 4.7K 1/16W

R2005

NC 4.7K 1/16W

VGA_VS

VGA_SDA

VGACOM

SOG0

VGA_SCL

VGA_BIN

VGA_HS

VGA_RIN

VGA_GIN

VGA_SCL8
VGA_SDA8
VGA_VS8
VGA_HS8
VGA_BIN8
SOG08
VGA_GIN8
VGACOM8
VGA_RIN8

VGA_VSYNC

VGA_HSVGA_HSYNC

VGA_VS

CN101

NC/D-SUB 15P

1

6

2

7

3

8

4

9

5

11
12
13
14
15

10

1716

18 19

VGA_BIN

SOG0

VGA_GIN

Circuit Diagrams and PWB Layouts

EN 53TPM16.4L LA 10.

2016-Apr-1

back to

div.table

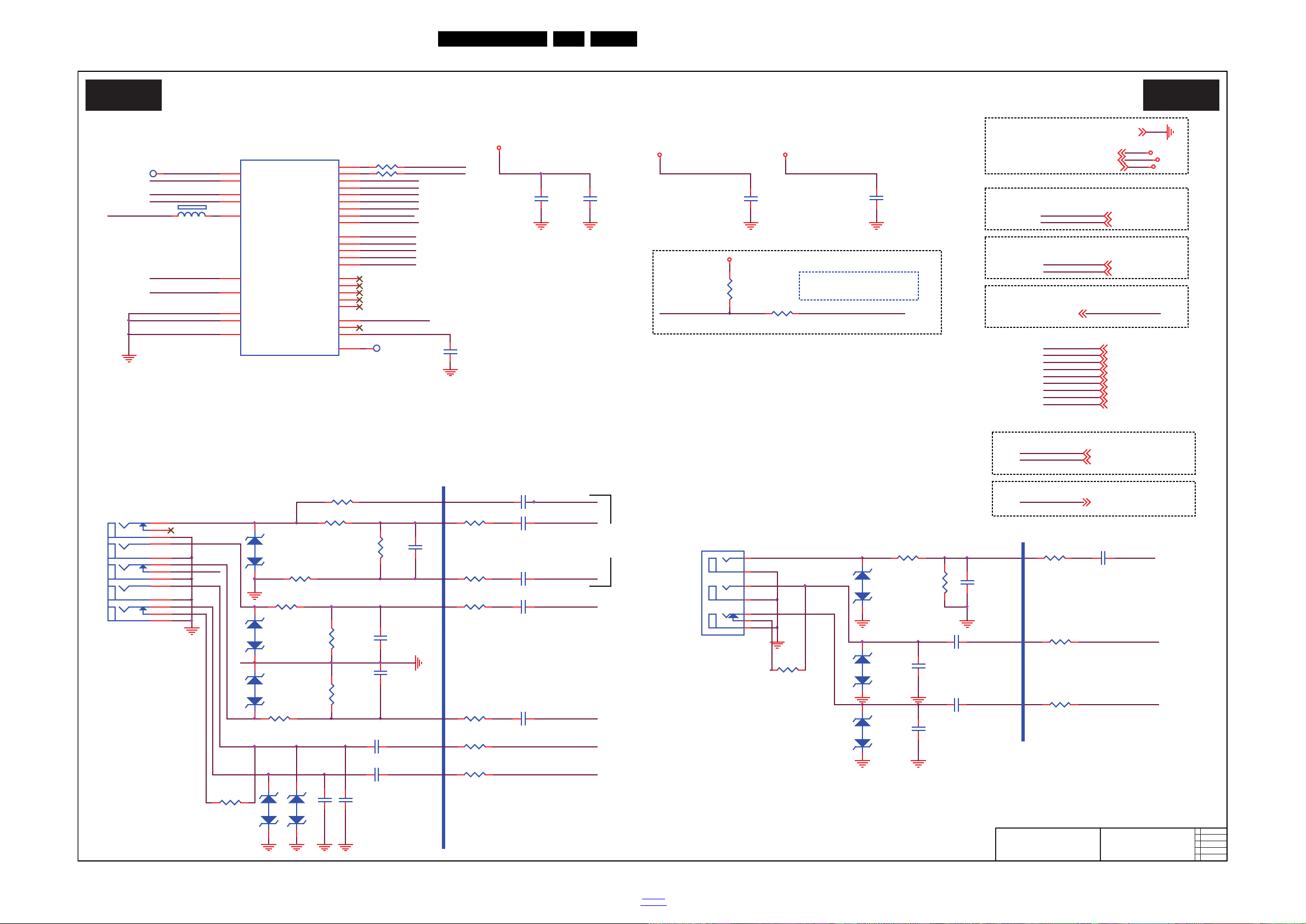

10-4-6 Video YPbPr/CVBS

20010_509.eps

Video YPbPr/CVBS

B06 B06

2015-09-21

715G7805

Video YPbPr/CVBS

AV_AudioRIN

PR1_DET

AVDD33_RGB_STB

SOY1
Y1P

PR1P

PB1P

COM1

AVDD33_VIDEO_STB

R1001

0R05 1/10W

R1002

100R 1/16W 5%

C1003 2.2UF

SOY1

YPbPr Audio Input

YPBPR_R_IN
YPBPR_L_IN

C1004 2.2UF

ZD105

NC/ AZ 5125-01H . R 7G

12

ADCINP_DEMOD

IF Interface

ADCINN_DEMOD

R1003

75R 1/16W 1%

ADCINP_DEMOD

C1001
47pF 50V

DVDD3V3

DVDD3V33,4,5,6,9,10,11,13,15,16,17,18

Analog 1.2V Pow er

AV_CVBS_IN

FB102120R

1 2

ZD107

AZ5125-01H.R7G

12

ZD108

AZ5125-01H.R7G

12

ZD106

AZ5125-01H.R7G

12

AV_AudioLIN

C118NC 1N 50V

AV_R_In

CVBS0P

CVBS_R_IN
CVBS_L_IN

CVBS_R_IN

CVBS_L_IN

C117NC 1N 50V

R107

NC 75R 1/16W 1%

AV_L_In

CVBS_L_IN 5

CVBS_R_IN 5

R113

NC 75R 1/16W 1%

TP407TP

VGA_RIN

ADCINN_DEMOD

VGA_GIN

SOG0

PR_DET

C1214
330PF 50V

VGA_BIN

C1215
330PF 50V

DVDD3V3

CVBS0P

C105
1UF 10V

VGA_HS

VGA_VS

VGA_SDA

VGA_SCL

C103
1UF 10V

C101

NC/100N 16V

C102

100NF 16V

R1005

NC/ 0R 05 1/ 16W

C104

100NF 16V

R1302

33R 1/16W 5%

R114

NC 75R 1/16W 1%

CVBS Audio Input

AVDD1V2

3V3SB 3V3SB

Control Interface

AVDD1V2

3V3SB

PR1_DET10

GND3,4,5,6,7,9,10,11,12,13,14,15,16,17,18

3V3SB3,4,10,13,14,15
AVDD1V23,13,15

YPBPR_L_IN 5

YPBPR_R_IN 5

ADCINN_DEMOD 11
ADCINP_DEMOD 11

IFAGC_Scaler 11

R1301

33R 1/16W 5%

VGACOM

CVBS_COM

ZD101

NC/ AZ 5125-01H . R 7G

12

A

B

C

CN102

RCA JACK 7P

2
1
4

3

6
5

7

ZD102

NC/ AZ 5125-01H . R 7G

12

ZD104

NC/ AZ 5125-01H . R 7G

12

ZD103

NC/ AZ 5125-01H . R 7G

12

8.5 mm

YPbPr Video/Audio Input

U401D

MT5561LVNT

VGA_SCL

V5

VGA_SDA

V4

VSYNC

V10

HSYNC

U10

BP

V11

SOG

U11

GP

W12

COM

Y12

RP

V12

SOY1

U12

Y1

V13

COM1

U13

PB1

W14

PR1

Y14

SOY0

V14

Y0

U14

COM0

V15

PB0

U15

PR0

W16

VDAC_OUT

W17

CVBS1

Y17

CVBS0

V18

ADCINP_DEMOD

W18

ADCINN_DEMOD

Y19

AVDD33_RGB_STB

V17

AVDD33_VIDEO_STB

U17

AVDD12_DEMOD

Y20

AVSS33_CLN

N14

CVBS_COM

Y16

AVSS33_RGB

T12

AVSS33_VIDEO

T14

IF_AGC

J15

RF_AGC

L16

20mil 20mil

AVDD12_DEMOD

20mil

E

A

B

C

D

CN116

NC/RCA JACK

1

2

3

4

5

6

7

8

9

10

11

12

13

10.5 mm

Side CVBS Video/Audio input

VGA_RIN

SOG0

VGA_SCL

VGA_BIN
VGA_GIN

VGA_VS

VGA_SDA

R122

NC 100R 1/ 16W 5%

VGA_HS

VGACOM

IFAGC_Scaler

Control Interface

R102

NC 10R 1/16W 1%

YPBPR_R_IN

R106

NC 0R05 1/10W

R117

NC 100R 1/ 16W 5%

PR_DET

PB1P

VGA_SCL 7
VGA_SDA 7
VGA_VS 7

R109

NC 100R 1/ 16W 5%

VGA_HS 7
VGA_BIN 7

C113

NC 10PF 50V

PR1P

SOG0 7

R110

NC 0R05 1/10W

Y1P

VGA_GIN 7

C106
NC 1. 5nF 50V

VGACOM 7
VGA_RIN 7

R118

NC 30K OHM

R108

NC 0R05 1/10W

COM1

R112

NC 100R 1/ 16W 5%

C114
NC 10N 50V

PB_IN_1

Y_IN_1

C109

NC 10PF 50V

R105

NC 100R 1/ 16W 5%

C108
NC 10N 50V

PR_IN_1

R115
NC 0R05 1/10W

C115
NC 2.2uF

YPbPr1R_IN

YPbPr1L_IN

R119

NC 30K OHM

C110
NC 10N 50V

YPBPR_L_IN

C116
NC 2.2uF

C112

NC 10PF 50V

C111
NC 10N 50V

TP405 TP

AVDD33_VIDEO_STB AVDD33_RGB_STB

H = > Pr Plug-in (YPbPr)

For Component/Composite Detect

L = > Pr Plug-out (AV)

AVDD12_DEMOD

IFAGC_Scaler

AVSS33_CLN
AVSS33_RGB

AVSS33_VIDEO

PR1_DET

R120

NC/0R05 1/16W

10mil

C1002

47nF 16V

Mer ged Analog 3.3V Power

R121
NC 47K 1/16W 5%

R1004

30K OHM

R1006

30K OHM

Circuit Diagrams and PWB Layouts

EN 54TPM16.4L LA 10.

2016-Apr-1

back to

div.table

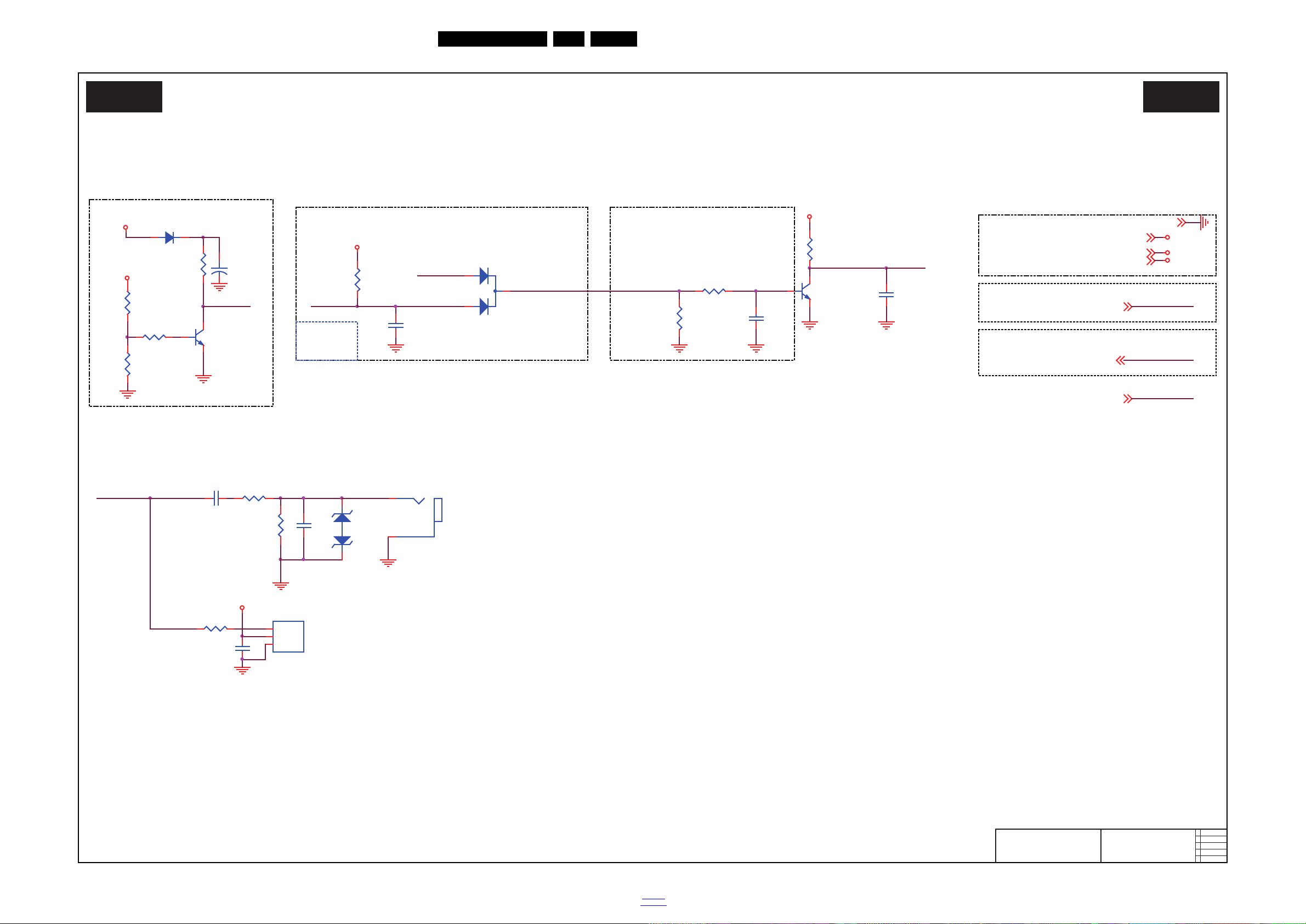

10-4-7 SPDIF/ Mute contorl

20010_510.eps

SPDIF/ Mute contorl

B07 B07

2015-09-21

715G7805

SPDIF/ Mute contorl

R679

5.1K 1%

R657

10K +-1% 1/16W

R658

4.7K 1/ 16W

R659

2.2K 1%

R668

470R 1/ 16W 5%

C678
10UF 6. 3V 20%

Q603
LMBT3904LT1G

R660

4.7K 1/16W

HP_AC_MUTE

R664

1K 1/16W 1%

C680

100NF 16V

C679

NC/10UF 6.3V 20%

Q601

LMBT3904LT1G

R669
10K +-1% 1/16W

DVDD3V3

DVDD3V3

+5V_SW

DVDD3V33,4,5,6,8,10,11,13,15,16,17,18

+5VSB

DVDD3V3

+5V_SW3,10,11,12,15

HP_AC_MUTE6

HP_MUTE10

+5VSB3,7,16

GND3,4,5,6,7,8,10,11,12,13,14,15,16,17,18

+5VSB

+5V_SW

C677

NC 100N 16V

R656

NC 33R 1/ 16W 5%

CN603

NC CONNNECTOR

GND

1

VCC

2

VIN

3

+5V_SW

SPDIF_OUT5

15mil

OPTICAL

SPDIF_OUT

R624

100R 1/16W 5%

CO-LAY

C685

100NF 16V

R654

180R 1/ 16W 5%

CN604
RCA 2P

1

2

C686

33P 50V

COAXIAL

ZD602
AZ5125-01H.R7G

12

HP_MUTE

A_MUTE

HP_MUTE

AC OFF

DC OFF

Audio Mute for SCART

HP_MUTE
H: MUTE
L: UN-MUTE

10mil

10mil

SPDIF OUT

SPDIF_OUT

Mute Control

GPIO Control Mute

A_MUTE

D601

BAV70

3

1

2

D602

BAS316WS

+

C681
22uF 16V

HP_AC_MUTE

Circuit Diagrams and PWB Layouts

EN 55TPM16.4L LA 10.

2016-Apr-1

back to

div.table

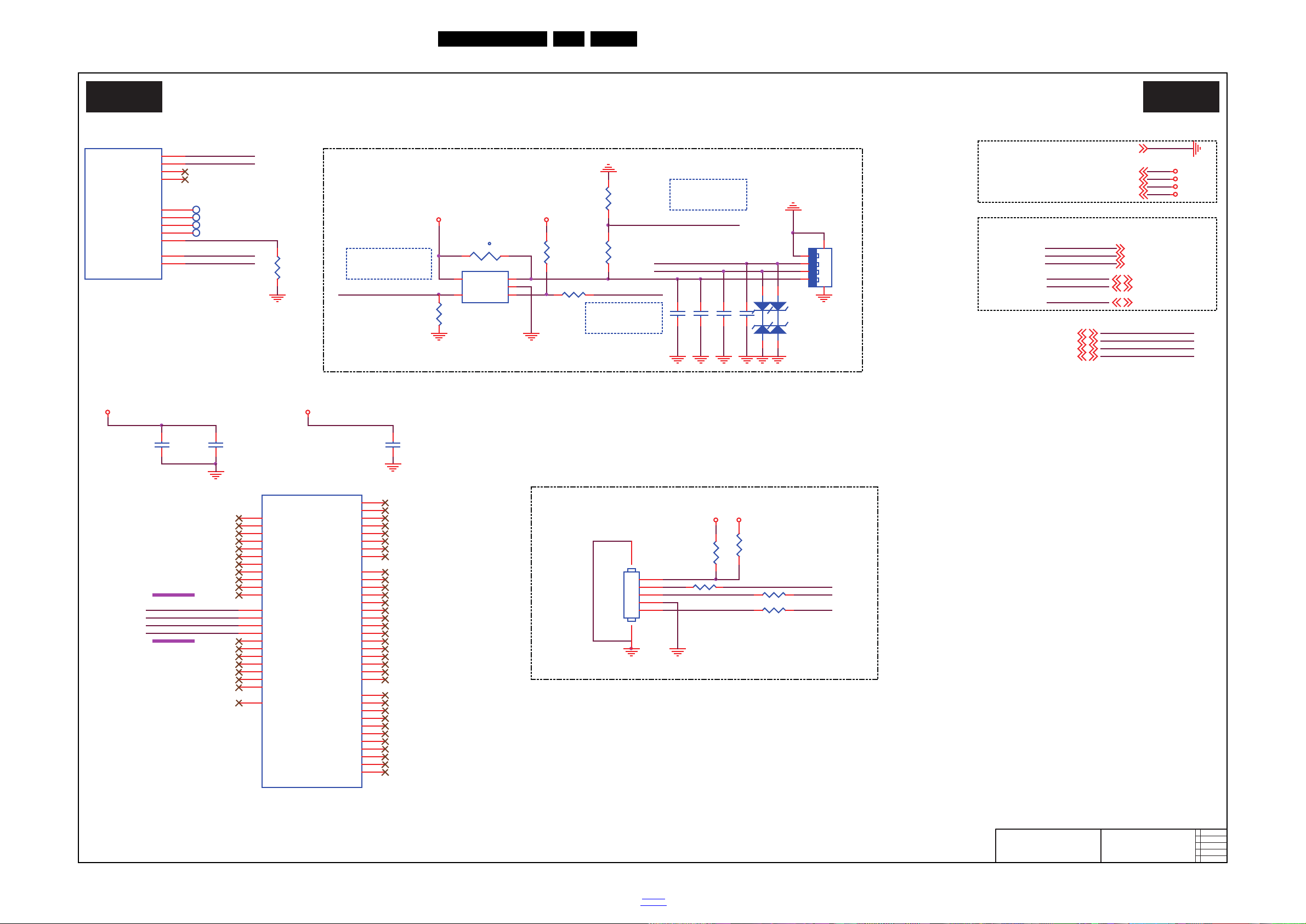

10-4-8 LVDS_Keypad_IR

20010_511.eps

LVDS_Keypad_IR

B08 B08

2015-09-21

715G7805

LVDS_Keypad_IR

TX_AOCKP

TX_AO1N

TX_AO0N

TX_AO3N

TX_AOCKP

TX_AO2N

TX_AE2N

TX_AE0N

TX_AE3N

TX_AE1N

+

C409

100UF 35V

KEY_On_board

KEY_On_board 14

HP_DET#

KEY_MENU_L_R_SOURCE

LVDS_PWR_EN

panel_power

+

C480
NC 100U F 25V

AC_DET

IR_PWR

TX_AO2P

TX_AO0P

TX_AOCKN

TX_AOCKN

TX_AE1P

TX_AO3P

TX_AO1P

TX_AE3P

TX_AE0P
TX_AE2P

PR1_DET

DEMOD_RST

ARC_on/off

HP_MUTE

R409

4.7K 1/8W

Panel_Select

IR

R434 100R 1/ 16W 5%
R435 100R 1/ 16W 5%

FB403
30R

12

C414 100NF 16V

3V3SB

LED_PWR_Blue

R430

6.8K 1/16W

R4050

NC 1. 2K 1/ 16W

C418 100NF 16V

16V - > 12V for PANEL

C415 NC 100N 16V

Joy _Key

R4054

NC/10K

R438 100R 1/ 16W 1%

KEY_MENU_L_R_SOURCE

3.3A

C417 NC / 100N 16V

C416 NC 100N 16V

C419 100NF 16V

KEY_UP_DN_DCSW

OIRI

R433 100R 1/ 16W 5%

LED_POWER_RED

3V3SB

R437 100R 1/ 16W 1%

CN401
CONN

2
4
6

8

10

1

3

5
7
9

Q421

NC BC847C

LED_POWER_RED

DVDD3V3

DVDD3V33,4,5,6,8,9,11,13,15,16,17,18

GPIO Interface

PR1_DET

DEMOD_RST
HP_MUTE

3V3SB

C477

10UF 16V

KEY_UP_DN_DCSW

R490

NC 100R 1/ 16W 1%

FB408 NC/220R

1 2

R491

NC 100R 1/ 16W 5%

16Vto12V

KEY_On_board

R492
NC 4.7K 1/16W

3V3SB

U401G

MT5561LVNT

AE3P

C8

AE3N

D8

AE2P

C7

AE2N

D7

AE1P

A6

AE1N

B6

AE0P

C6

AE0N

D6

AO3P

C5

AO3N

D5

AOCKP

A4

AOCKN

B4

AO2P

C4

AO2N

D4

AO1P

C3

AO1N

D3

AO0P

A2

AO0N

B2

TCON0

E4

TCON1

F2

TCON2

C2

TCON3

E3

TCON4

C1

TCON5

D1

TCON6

F3

TCON7

D2

TCON8

F1

C476

NC/ 10N 50V

U403

NC/SY8104ADC

LX

5

FB

1

EN

2

GND3IN

4

BS

6

C479

NC/22UF 10V

R488 0R051/8W

R484

NC/ 10K 1/ 10W 1%

C478

NC/22UF 10V

AC_Off

3V3SB

Q422

NC/BC847C

LED_PWR_Blue

R4052

NC 1. 2K 1/ 16W

L402

NC/4.7uH

R485

NC/36K 1%

LED-B

R486

NC/ 20K OH M 1/ 16W 1%

R487

NC/ 40. 2K 1/ 16W 1%

LED-R

R483

NC/ 191K OH M 1% 1/16W

Q409

NC AO3401

R4055
NC/10K

R482 N C / 0R 05 1/ 16W

C474

NC/ 100pF 50V

C475

NC/0.1uF 50V

Q405

NC AO3401A

CN408

CONN

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

HP_DET#

HP_DET# 5

C411

470NF 16V

LED-B

KEY_UP_DN_DCSW

OIRI

LED_PWR_Blue

LED_POWER_RED

SW401

NC SW

1 2

3 4

311GW200C32ABX (R/A)

R431

6.8K 1/16W

Q403

NC/2N7002K

R440

NC/470R 1/10W 1%

C410

100NF 16V

C412

100NF 16V

R436

47K 1/16W 5%

R441

4.7K 1/16W

Q401

SM4310PSKC

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

R444

NC/ 1K 1/ 16W 1%

R427
NC/ 1K 1/ 16W

R432

47K 1/16W 5%

C413

NC/ 100N 16V

FB404 220R

1 2

FB402 NC/220R

1 2

R439

2.2K 1%

Q402

LMBT3904LT1G

R428
NC 0R05 1/16W

Panel_VCC

+12V

LVDSVDD

FB401

120R

1 2

+5V_SW

DVDD3V3

Panel_VCC

LVDSVDD

+5V_SW

3V3SB

+12V

GND3,4,5,6,7,8,9,11,12,13,14,15,16,17,18

+5V_SW3,9,11,12,15

LVDS_PWR_EN 14

+12V3

3V3SB3,4,8,13,14,15

OIRI 4
KEY_UP_DN_DCSW14
KEY_MENU_L_R_SOURCE 14

LED_PWR_Blue4,14

LED_POWER_RED 4,14

DEMOD_RST18
PR1_DET 8

HP_Mute 9

AC_DET

AC_DET 3

ARC_on/off

ARC_on/off 16

TX_AOCKP
TX_AOCKN

LED-R

LVDS POWER Control

H = > LVDS POWER ON

TX_AO2N

TX_AO1P
TX_AO2P

LVDS_PWR_EN

L = > LVDS POWER OFF

TX_AO3P

TX_AO0P

TX_AO3N

TX_AO0N
TX_AO1N

TX_AE1N

TX_AE0P
TX_AE1P

TX_AE3N

TX_AE3P

TX_AE2P
TX_AE2N

TX_AE0N

+12V

5/31

16Vto12V

Q408

NC AO3401

LED-R

LED-B

L = > Standby

H = > Standby

LED_POWER_RED LED_PWR_GREEN

L = > Power ON

H = > Power ON

CN406

NC/ CONN

1

2

3

4

5

6

7

8 9

IR_PWR

Joy _Key

IR

IR/KEY BOARD

EMI & ESD solution

AC_Of f

AC_Of f 3

Circuit Diagrams and PWB Layouts

EN 56TPM16.4L LA 10.

2016-Apr-1

back to

div.table

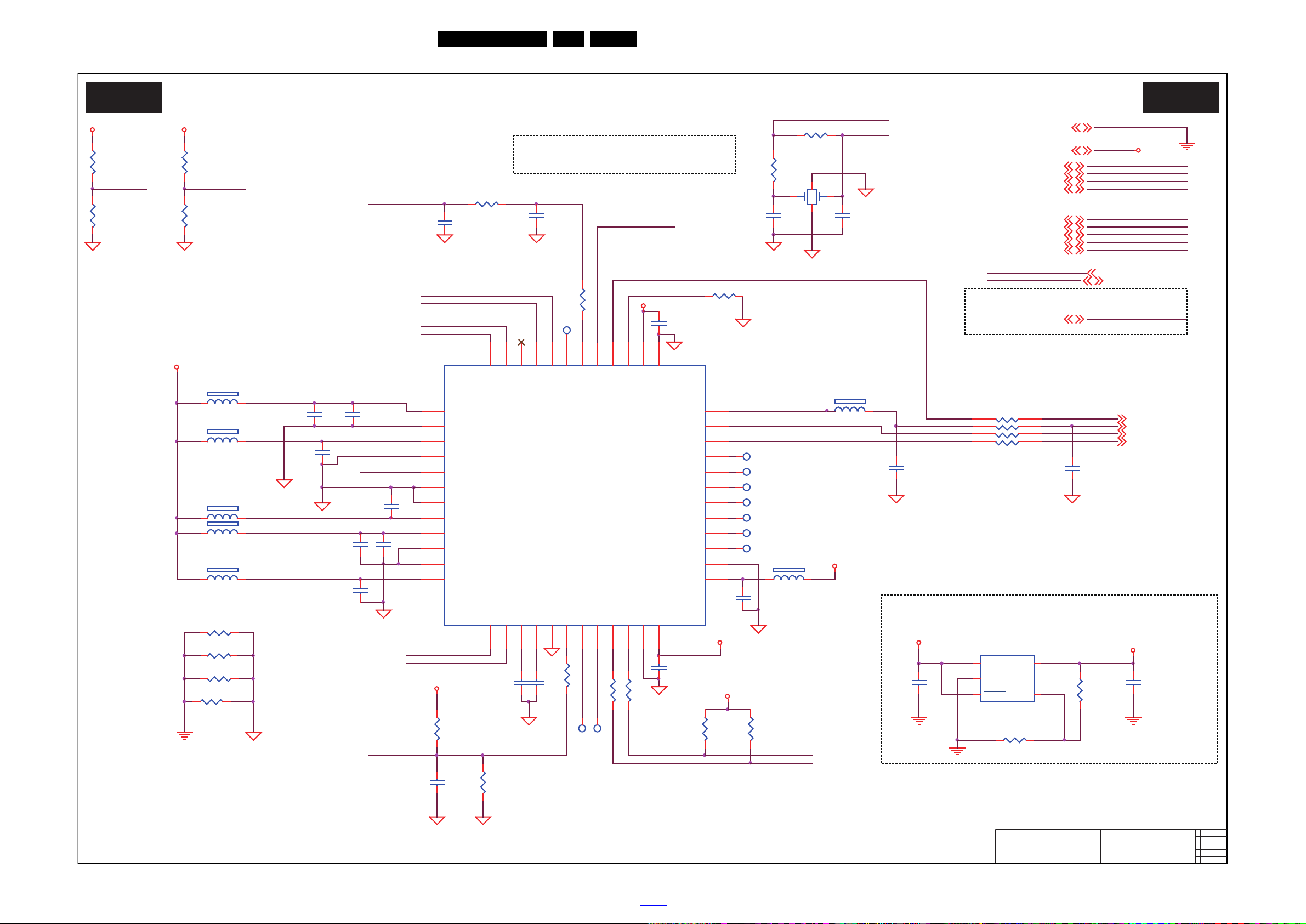

10-4-9 TUNER

20010_512.eps

TUNER

B09 B09

2015-09-21

715G7805

TUNER

R162 100R 1/ 16W 5%

R165

100R 1/16W 5%

R159

2.2K 1%

IFAGC

R160

2.2K 1%

L108

3.3nH

Optional components
of wifi filter
Part Value
L16 13nH
C101 2.7pF

Optional components
of wifi filter
Part Value
L16 13nH
C101 2.7pF

Optional components required for
ESD protection. It is highly
recommended that some form of
external ESD protection is
implemented.

D103

BAP1321-02

C127

100NF 16V

R124

1K 1/16W 1%

LNA_INN

C126

47pF 50V

C129 4.7NF 50V

C122

2.2nF 50V

+1V8TUNER

OSCL1

T_SCL

C167

100NF 16V

OSDA1

C166
10N 50V

IFOUT1P

RESET

XTALP

C164

15PF 50V

+1V8TUNER

XTALN

C124
47pF 50V

C165

15PF 50V

XTALN

XTALP

C128

1UF 10V

T_SDA

C131
1UF 10V

C135

100NF 16V

U104

MxL661-AG-R

VDD_3p3

1

LNA_INP

2

LNA_INN

3

VDD_1p8

4

AGC_2/GPO_3

5

AGC_1

6

IF_OUTP_2/GPO_17IF_OUTN_2/GPO_28IF_OUTP_19IF_OUTN_110VDD_3p311VDD_1p8

12

VDD_1p2

13

GND_DIG

14

VDD_IO

15

SCL

16

SDA

17

CLK_OUT

18

XTAL_N

19

XTAL_P

20

GND_XTAL

21

VDD_1p8

22

RESET_N

23

AS

24

E-PAD

25

R123

510K 1%

C125

100NF 16V

+1V8TUNER

C130 4.7NF 50V

TUN ER 3.3V

C123

100NF 16V

TUN ER 3.3V

X10 2

16MHZ

1

24

3

TUN ER 3.3V

LNA_INP

IFOUT1N

FB103 1KOHM

1 2

TUN ER 3.3V

R133

1K 1/16W 1%

OSDA1

OSCL1

L107
27nH

LNA_INN

C120
1nF 50V

L101

NC 2. 2nH

L103
27nH

LNA_INP

C132
1nF 50V

C121
1nF 50V

C160

33pF 50V

MxL661

TXC

C159

100NF 16V

C169

5.6pF 50V

TUNER3.3V

U113

AZ1117CH-3.3TRG1

ADJ(GND)

1

VOUT

2

VIN

3

4

4

+5V_SW

C14110UF 6. 3V 20%

Notch_On1

C134
1nF 50V

C190

1UF 10% 16V

FCN101

RF 5P

5

5

4

4

3

3

2

2

ANT

1

6

6

Control Interface

IF Interface

R156

330R 1/16W 1%

FB108 1000R

1 2

C133

10UF 6. 3V 20%

TUN ER _SCL
TUN ER _SDA
IFAGC_Toshiba_demo

R149

1K 1/16W 1%

C143

10N 50V

IFAGC_Toshiba_demo

T_SCL
T_SDA TUN ER _SDA

TUN ER _SCL

R116

0R05 1/10W

ADCINP_DEMOD 8

ADCINN_DEMOD 8

FAT_IN­FAT_IN+

R127

1.5K 1/16W

D102

BAP1321-02

D_IFP 18
D_IFN 18

D_IFP
D_IFN

C139

NC 10N 50V

C140

NC 10N 50V

R449 0R05 1/16W

L106

8.2NH

R450 0R05 1/16W

C192

1pF 50V

DVDD3V3

DVDD3V33,4,5,6,8,9,10,13,15,16,17,18

D_IFN

+5V_SW

DIF

OSCL1 4,18

GND3,4,5,6,7,8,9,10,12,13,14,15,16,17,18

IFAGC_Scaler 8

OSDA1 4,18

+5V_SW3,9,10,12,15

TUNER_SCL18
IFAGC_Toshiba_demo18

D_IFP

TUNER_SDA18

AIF

C136

1nF 50V

C197

100NF 16V

IFAGC_Scaler

R1029

51R 1/16W 5%

L102 82nH

R1030

51R 1/16W 5%

C137
33PF 50V

IFAGC IFAGC_Scaler

D101
BAV99

3

1

2

L104

82nH

C148

1UF 10% 16V

R153

10K +-1% 1/16W

R101

0R05 1/16W

C162
NC/ 47pF 50V

R104

0R05 1/16W

C152
1UF 10% 16V

R164
NC 150R 1/ 16W 1%

R151

10K +-1% 1/16W

Tuner on board for SA/AP

R150

0R05 1/16W

C153
NC/22pF 50V

Notch_On1

C142

100NF 16V

R157

100R 1/16W 5%

FB104

220R

1 2

C154

NC/ 47PF 50V

R167

0R05 1/16W

R152

0R05 1/16W

R128

1K 1/16W 1%

C145

22N 25V

R155

100R 1/16W 5%

R1089 NC/0R05 1/16W

R129

1K 1/16W 1%

+1V8TUNER

C155
NC/ 47PF 50V

C144

47nF 16V

R161

0R05 1/16W

C151
NC/ 47pF 50V

R1090 NC/0R05 1/16W

C157
NC/22pF 50V

C161

NC/ 47pF 50V

C156

1UF 10% 16V

C149

1UF 10% 16V

C150

NC/ 47pF 50V

C191
22PF 50V

C163

22PF 50V

DVDD3V3

TUNER3.3V

IFOUT1P

IFOUT1N FAT_IN-

FAT_IN+

R1112

0R05 1/16W

R1111

0R05 1/16W

Circuit Diagrams and PWB Layouts

EN 57TPM16.4L LA 10.

2016-Apr-1

back to

div.table

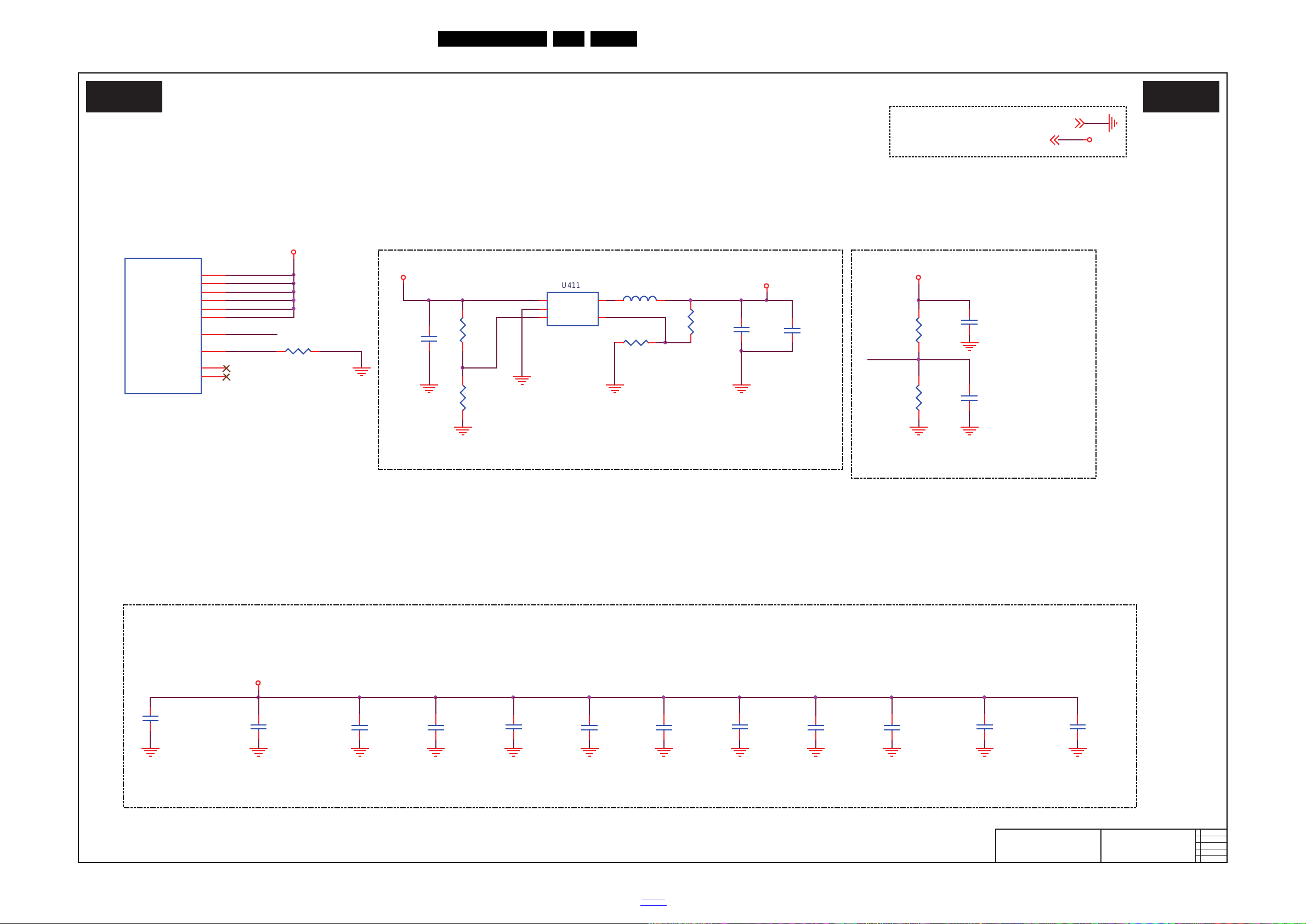

10-4-10 DDR3

20010_513.eps

DDR3

B10 B10

2015-09-21

715G7805

DDR3

R480

0R05 1/ 16W

C435

1UF 10V

C426
22UF 6.3V

R456

33K 1/16W 1%

U411

G5695T11U

VIN

1

GND

2

EN3VFB

4

LX

5

R460

22K 1%

DRAM# Bypass Cap

C441

1UF 10V

C427

100NF 16V

C428

2.2UF

DDRV

C430

10UF 6. 3V 20%

L401

2.2UH

C196

NC/4.7UF 10% 10V

RVREF

Main Chip Ref Voltage.

C436

100NF 16V

U401A

MT5561LVNT

DDRV

N1

DDRV

N2

DDRV

N3

DDRV

N4

DDRV

N5

DDRV

N6

DDRVREF

P1

ZQ

P2

TN_MEMPLL

H8

TP_MEMPLL

J8

RVREF

R410
100K 1%

ZQ

R2

DRAM POWER DDRV

R1

+5V_SW

R461

1K 1/16W 1%

C433

100NF 16V

C429

NC / 100N 16V

C438

100NF 16V

C440

4.7U F 10% 10V

R455

1K 1/16W 1%

R457

240R 1%

C434

100NF 16V

C432

100NF 16V

C425

NC / 100N 16V

C437

100NF 16V

C439

NC/10UF 6.3V 20%

DDRV

DDRV

DDRV

+5V_SW3,9,10,11,15

GND3,4,5,6,7,8,9,10,11,13,14,15,16,17,18

+5V_SW

Circuit Diagrams and PWB Layouts

EN 58TPM16.4L LA 10.

2016-Apr-1

back to

div.table

10-4-11 HDMI/MHL

20010_514.eps

HDMI/MHL

B11 B11

2015-09-21

715G7805

HDMI/MHL

RX_0_C

HPWR0

RX_0_0

C505 NC/ 100N 16V

R510

10K +-1% 1/16W

RX_0_1B

RX_0_C

CEC_A0

RX_0_0B

RX_0_1

Q506
BC847C

HDMI_SCL2_IN

RX_2_1

RX_2_C

R508

47K 1/16W 5%

R513
100K1/16W

RX_2_CB

C511

100N 16V

HPWR2

R504

10K 1/16W 5%

RX_2_0

Q504

BC847C

R507 22R 1/ 16W 5%

RX_2_1B

R509
910R 1/16W

3V3SB

RX_0_2B

R506 22R 1/ 16W 5%

RX_2_0B

HD MI_2M_HPD

C510 N C / 100N 16V

OPWR2_5V

OPWR2_5V

R512

75 OHM 1/16W

C509 N C / 100N 16V

R505

10K 1/16W 5%

RX_2_2

HDMI_SCL2/RX

CEC_A2

HDMI_SDA2_IN HDMI_SDA2/TX

RX_2_2B

R501

100R 1/16W 5%

FB501

120R

1 2

I2C & UART Interface

Control Interface

DVDD3V33,4,5,6,8,9,10,11,15,16,17,18

DVDD3V3

FB503

120R

1 2

CEC_A0

HDMI_SCL0

HDMI_SDA0

HDMI_0M_HPD

R503

0R05 1/10W

C503

100NF 16V

C501

100NF 16V

REAR HDMI 1

C502

100NF 16V

100 o hm di ffer ential impedance
for TMDS traces.

AVDD1V2AVDD1V2DVDD3V3

R519 100R 1/ 16W 5%

+5V_SW
+5VSB

R520 100R 1/ 16W 5%

3V3SB

GND3,4,5,6,7,8,9,10,11,12,14,15,16,17,18

+5VSB3,7,9,16

+5V_SW3,9,10,11,12,15

UART_SEL 16

3V3SB3,4,8,10,14,15

ESD protcetion

R525

10K +-1% 1/16W

R514

10K 1/16W 5%

R561

75 OHM 1/16W

REAR HDMI 2
(with ARC)

100ohm differential impedance
for TMDS traces.

RX_0_1B

RX_0_2

RX_0_1RX_0_1

RX_0_2B

RX_0_1B

RX_0_2

U502

NC/ AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

RX_0_2B

CN502

HDMI CONN

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

ZD514

NC/ AZ5125-01H.R7G

12

ZD516

NC/ AZ5125-01H.R7G

12

ZD515

NC/ AZ5125-01H.R7G

12

ZD517

NC/ AZ5125-01H.R7G

12

U401E

MT5561LVNT

HDMI_0_RX_CB

W7

HDMI_0_RX_C

Y7

HDMI_0_RX_0B

V7

HDMI_0_RX_0

V8

HDMI_0_RX_1B

U9

HDMI_0_RX_1

V9

HDMI_0_RX_2B

W9

HDMI_0_RX_2

Y9

HDMI_0_SCL

U7

HDMI_0_SDA

V6

HDMI_0_HPD

W5

AVDD33_HDMI

R10

AVDD12_HDMI_0

Y5

HDMI_1_RX_CB

P20

HDMI_1_RX_C

P19

HDMI_1_RX_0B

P18

HDMI_1_RX_0

P17

HDMI_1_RX_1B

N18

HDMI_1_RX_1

N17

HDMI_1_RX_2B

M20

HDMI_1_RX_2

M19

HDMI_2_RX_CB

M18

HDMI_2_RX_C

M17

HDMI_2_RX_0B

L18

HDMI_2_RX_0

K18

HDMI_2_RX_1B

K20

HDMI_2_RX_1

K19

HDMI_2_RX_2B

J20

HDMI_2_RX_2

J19

HDMI_CEC

K16

HDMI_2_SCL

J17

HDMI_2_SDA

J14

MHL_SENCE

K15

HDMI_2_HPD_CBUS

J16

HDMI_1_SCL

J18

HDMI_1_SDA

K14

HDMI_1_HPD

L17

AVDD12_HDMI_1

H20

HDMI_0M_HPD

AVDD1V23,8,15

AVDD1V2

RX_0_C
RX_0_0B

RX_0_1B

RX_0_CB

RX_0_0

RX_0_2

ZD506

NC/ AZ5125-01H.R7G

12

ZD507

NC/ AZ5125-01H.R7G

12

ZD505

NC/ AZ5125-01H.R7G

12

ZD504

NC/ AZ5125-01H.R7G

12

Analog Power Merged Analog Power

UART_SEL

HDMI_2M_HPD

AVDD12_HDMI_0

AVDD33_HDMI

AVDD12_HDMI_1

HDMI_SCL2 16

HDMI_SCL2/RX 16

HDMI_SDA2 16

HDMI_SDA2/TX

HDMI_SDA2/TX 16

UART_SEL

HDMI_SCL2/RX

HDMI_SCL2

HDMI_SDA2

HDMI_SCL2
HDMI_SDA2

RX_2_1

RX_2_1B

RX_2_CB

RX_2_2

RX_2_0B

RX_2_2B

RX_2_C
RX_2_0

AVDD33_HDMI AVDD12_HDMI_1AVDD12_HDMI_0

ZD501

AZ5125-01H.R7G

1 2

ZD518

AZ5125-01H.R7G

1 2

CN501

HDMI

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

SHELL6

25

SHELL7

26

HDMI_CEC

CEC

CEC

ESD protcetion

HDMI CEC

Grounding

CEC_A2

RX_2_0

RX_2_2BRX_2_0B RX_2_2B

RX_2_CB

RX_2_C

RX_2_0

U506

NC/ AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U507

NC/ AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

RX_2_CB

RX_2_C
RX_2_0B

RX_2_1B
RX_2_1

RX_2_2RX_2_2

RX_2_1B
RX_2_1

R502
100K 1%

RX_0_2B

C504

100NF 16V

RX_0_1

U501

NC/ AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

RX_0_0B
RX_0_0

OPWR0_5V

C506 N C / 100N 16V

HDMI_SCL0
HDMI_SDA0HDMI_SDA0_IN

OPWR0_5V

RX_0_CB

R560

47K 1/16W 5%

RX_0_C

RX_0_0B

Q503
BC847C

RX_0_CB

HDMI_SCL0_IN

R511

10K +-1% 1/16W

RX_0_2

RX_0_CB

R524
910R 1/16W

RX_0_0

Q502

BC847C

3V3SB

Circuit Diagrams and PWB Layouts

EN 59TPM16.4L LA 10.

2016-Apr-1

back to

div.table

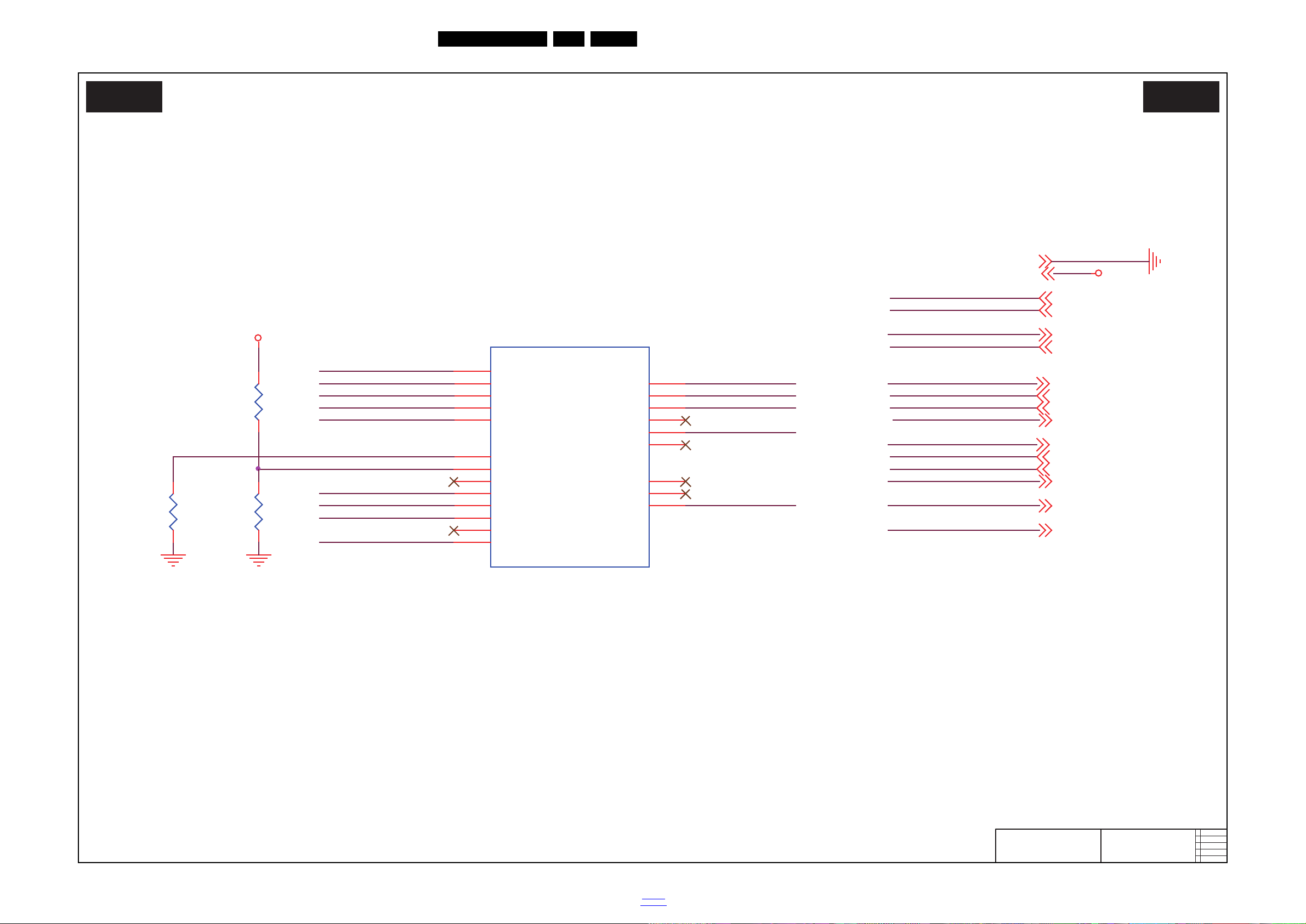

10-4-12 GPIO

20010_515.eps

GPIO

B12 B12

2015-09-21

715G7805

GPIO

USB_PWR_OCP0

KEY_On_board

KEY_On_board 10

LED_POWER_RED

BL_ON/OFF

LVDS_PWR_EN

LED_PWR_Blue

LED_POWER_RED

R499

10K +-1% 1/16W

USB_OC 15

USB_OC

3V3SB3,4,8,10,13,15

3V3SB

USB_OC

3V3SB

R448

NC 10K +-1% 1/16W

U401I

MT5561LVNT

GPIO0

B1

GPIO1

E5

OPWM0

E6

OPWM1

G5

OPWM2

G6

OPCTRL1

V2

OPCTRL2

V3

OPCTRL3

V1

OPCTRL4

U4

ADIN7

R8

ADIN6

T6

ADIN5

U5

ADIN4

T8

ADIN3

U6

ADIN2

U8

ADIN1

P8

ADIN0

T7

GPIO2

G17

GPIO3

H5

GPIO4

H4

GPIO5

F17

OPCTRL0

U3

USB_PWR_EN0

LED_PWR_Blue LVDS_PWR_EN

BL_ON/OFF

BL_DIMMING

USB_PWR_EN0
SYS_EEPROM_WP

KEY_UP_DN_DCSW
KEY_MENU_L_R_SOURCE

USB_PWR_OCP0

GND3,4,5,6,7,8,9,10,11,12,13,15,16,17,18

AMP_MUTE

AMP_MUTE 6

AMP_MUTE

BL_DIMMING

KEY_MENU_L_R_SOURCE

KEY_UP_DN_DCSW

R481

10K +-1% 1/16W

HTV_OPCTRL2

HTV_OPCTRL2 15

HTV_OPCTRL2

SYS_EEPROM_WP

KEY_On_board

LVDS_PWR_EN 10

USB_PWR_EN0 15

SYS_EEPROM_WP 4

BL_ON/OFF 3

LED_PWR_Blue4,10

BL_DIMMING 3

LED_POWER_RED 4,10

USB_PWR_OCP0 15

KEY_UP_DN_DCSW10
KEY_MENU_L_R_SOURCE 10

Circuit Diagrams and PWB Layouts

EN 60TPM16.4L LA 10.

2016-Apr-1

back to

div.table

10-4-13 USB/ HTV

20010_516.eps

USB/ HTV

B13 B13

2015-09-21

715G7805

USB/ HTV

< 2.0 = >OC

2.5 = > NORMAL

USB

HI = > POWER ON
LO = > POWER OFF

USB_DP_P0

USB_DM_P0

HI = > NORMAL
LO => OC

8.5 mm

USB_OC 14

USB_OC

DEMOD_TSSYNC

DEMOD_TSVAL
DEMOD_TSDATA0

DEMOD_TSCLK

3V3SB

DEMOD_TSCLK18

DEMOD_TSDATA018

DEMOD_TSSYNC18

DEMOD_TSVAL18

DEMOD_TSSYNC

DEMOD_TSCLK
DEMOD_TSVAL

DEMOD_TSDATA0

AVDD12_ETH

U0RX

U0TX

R451

NC/ 100R 1/16W 5%

R452

NC/ 100R 1/16W 5%

USB_OC

C171

NC / 100N 16V

C172

NC/100N 16V

REXT

AVDD33_ETH

DVDD3V3AVDD1V2

R1116
NC/ 0R05 1/10W

R1115

NC / 0R 05 1/ 10W

Grounding

R1117

NC / 100R 1/ 16W 5%

HTV_OPCTRL2

U401H

MT5561LVNT

CI_CD1#

E18

CI_D3

E17

CI_MDO3

E16

CI_MDO4

E20

CI_D4

E19

CI_D5

D20

CI_MDO5

D19

CI_A1

C9

CI_MDO6

C20

CI_D6

D18

CI_D7

B20

CI_MDO7

C19

CI_CE1#

B19

CI_A10

A19

CI_IORD#

A18

CI_OE#

C18

CI_A11

B18

CI_IOWR#

D17

CI_MISTR T

D16

CI_A9

C17

CI_A8

C16

CI_MDI0

A16

CI_MDI1

C15

CI_A13

B16

CI_A14

A15

CI_MDI2

C14

CI_MDI3

C13

CI_WE#

B15

CI_IREQ#

F11

CI_MDI4

A13

CI_MDI5

E12

CI_MIVAL

B13

CI_MCLKI

D14

CI_MDI6

F12

CI_MDI7

E13

CI_A12

E9

CI_A7

D12

CI_MCLKO

A12

CI_RESET

C12

CI_A6

B12

CI_A5

E10

CI_WAIT#

C11

CI_A4

D10

CI_A3

A10

CI_REG#

B10

CI_MOVAL

C10

CI_A2

F10

CI_MOSTRT

D11

CI_MDO0

E11

CI_A0

D9

CI_MDO1

E7

CI_MDO2

E8

CI_PWR_EN

F18

CI_D0

B8

CI_D1

D13

CI_D2

F9

CI_CD2#

F7

U401F

MT5561LVNT

USB_DM0

H19

USB_DP0

H18

USB_DM1

G19

USB_DP1

F19

RXVN

W2

RXVP

W3

TXVN

Y1

TXVP

Y2

AVDD33_ETH

R9

AVDD12_ETH

Y4

REXT_ETH

W4

3V3SB3,4,8,10,13,14

3V3SB

AVDD1V23,8,13

AVDD1V2

TP410
TP411
TP412
TP413

R1114

10K +-1% 1/16W

USB_PWR_OCP0

U0TX 4,16
U0RX 4,16

U0RX

C170
1UF 10% 16V

U0TX

USB_DP_P0

USB_PWR_EN0 USB_PWR_OCP0

USB_DM_P0
USB_PR

DVDD3V3

For HTV

R1027
24K 1%

+5V_SW
DVDD3V3

USB_PWR_OCP0 14

+5V_SW3,9,10,11,12

GND3,4,5,6,7,8,9,10,11,12,13,14,16,17,18

DVDD3V33,4,5,6,8,9,10,11,13,16,17,18

USB_PWR_EN0 14

Control Interface

HTV_OPCTRL2 14

HTV_OPCTRL2

AVDD33_ETH

AVDD12_ETH USB_PWR_EN0

1234

CN103
USB C ON N

1

2

3

4

65

R1025

NC 0R05 1/16W

R1026

NC 4.7K 1/16W

C173 10UF 10V

C175 NC / 10P 50V

t

TH101

PTCR

1 2

R1024

NC 10K 1/16W 5%

U404

NC/G5250M1T1U

OUT

1

GND

2

OC

3

EN

4

IN

5

R1032

10K +-1% 1/16W

C176

NC/ 10P 50V

C174 100NF 16V

+5V_SW

DVDD3V3

ZD119

AZ5123-01H

12

ZD118

AZ5123-01H

12

CN403

NC/ CONN

1

2

3

4

5

6 7

Circuit Diagrams and PWB Layouts

EN 61TPM16.4L LA 10.

2016-Apr-1

back to

div.table

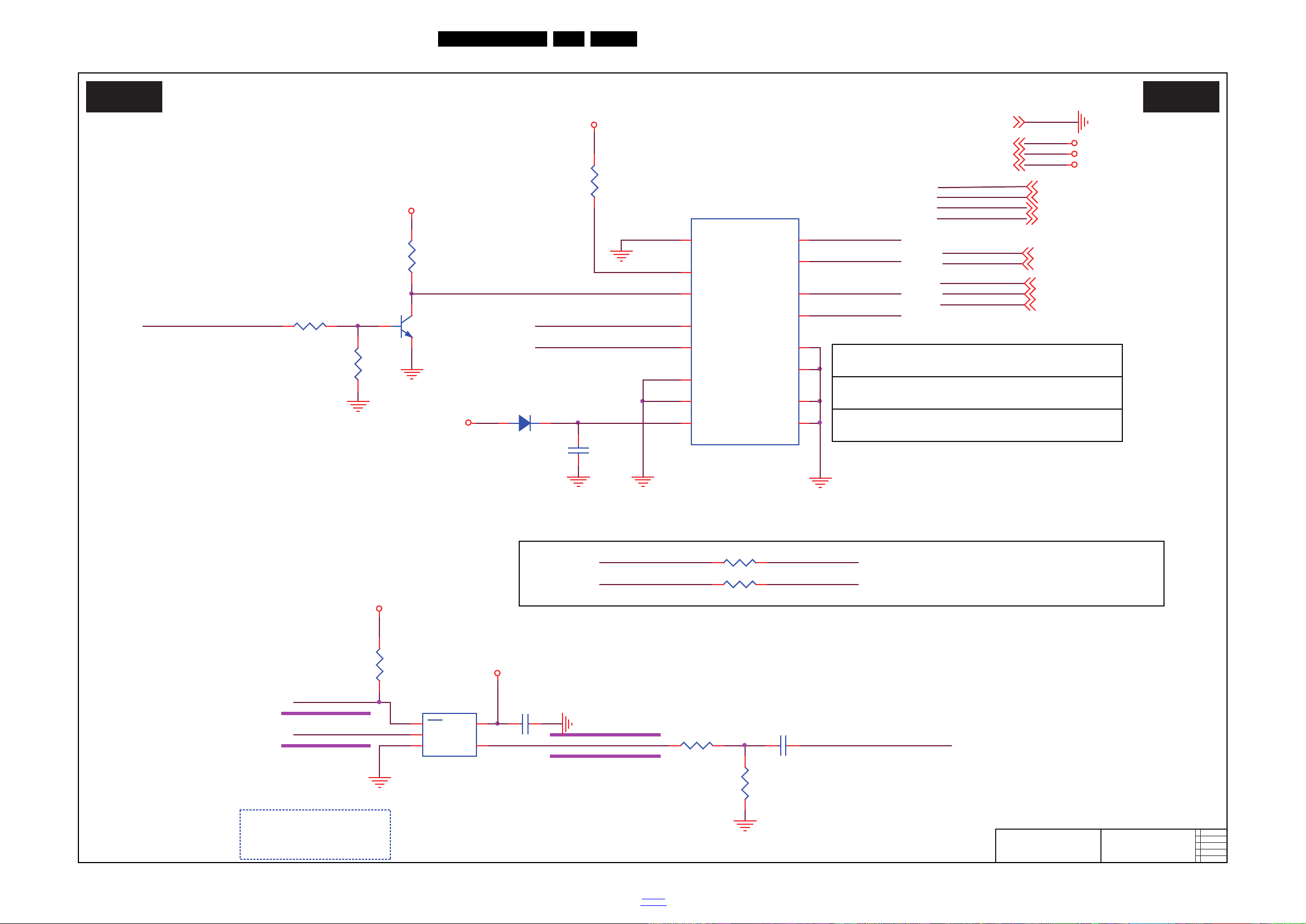

10-4-14 FACTORY DEBUG PORT

20010_517.eps

FACTORY DEBUG PORT

B14 B14

2015-09-21

715G7805

FACTORY DEBUG PORT

U414

NC 74H C 4052PW

1Y0

12

2Y0

1

1Y1

14

2Y1

5

1Y2

15

2Y2

2

1Y3

11

2Y3

4

S0

10

S1

9

VEE

7

GND

8

/E

6

1Z

13

2Z

3

VCC

16

S1

C408

NC 100NF 16V

U0TX

+5VSB

U0RX

+5VSB

D401

NC BAS316

ARC_on/off

HDMI_SCL2/RXUART_SEL

to HDMI Pin-14 for ARC

R406

NC 10K +-1% 1/16W

10mil

UART_SEL

ARC_on/of f

S0

L :ON-state

HDMI function

H

Factory UART & I2C Switch IC

S1

NC/ARC

H

H

CHANNEL

L

S0

to HDMI Pin-14 for ARC

Grounding

ARC on/off enable control

H :OFF-state

Debug mode

Grounding

HDMI
pin14

+12V

ARC_SPDIF

R467

NC 40.2K 1/16W 1%

U0TX
U0RX

R466

NC 60.4K 1%

R464
NC 10K +-1% 1/16W

+5VSB

HDMI_SCL2

HDMI_SDA2

Q404

NC LMBT3904LT1G

ARC_SPDIF

UART_SEL

HDMI_SDA2/TX

HDMI_SCL2/RX

HDMI_SDA2HDMI_SDA2/TX

HDMI_SCL2/RX HDMI_SCL2

R493

0R05 1/16W

R494

0R05 1/16W

For Philips:
R493 and R494 use 0ohm

5/31

U410

74CBTLV1G125GW

OE

1

A

2

GND3B

4

Vcc

5

R468
10K +-1% 1/16W

R470

180R 1/ 10W 1%

C444

1UF 25V

R471
82R 1/ 10W 1%

C443
100NF 16V

DVDD3V3

DVDD3V3

+5VSB
DVDD3V3

+5V_SW

UART_SEL 13

HDMI_SDA2 13

HDMI_SDA2/TX 13

+5VSB3,7,9

HDMI_SCL2 13

GND3,4,5,6,7,8,9,10,11,12,13,14,15,17,18

U0RX 4,15

U0TX 4,15

+5V_SW3,9,10,11,12,15

DVDD3V33,4,5,6,8,9,10,11,13,15,17,18

ARC_on/off 10

ARC_SPDIF 5

HDMI_SCL2/RX 13

HDMI_SDA2

HDMI_SCL2

HDMI_SDA2/TX

Circuit Diagrams and PWB Layouts

EN 62TPM16.4L LA 10.

2016-Apr-1

back to

div.table

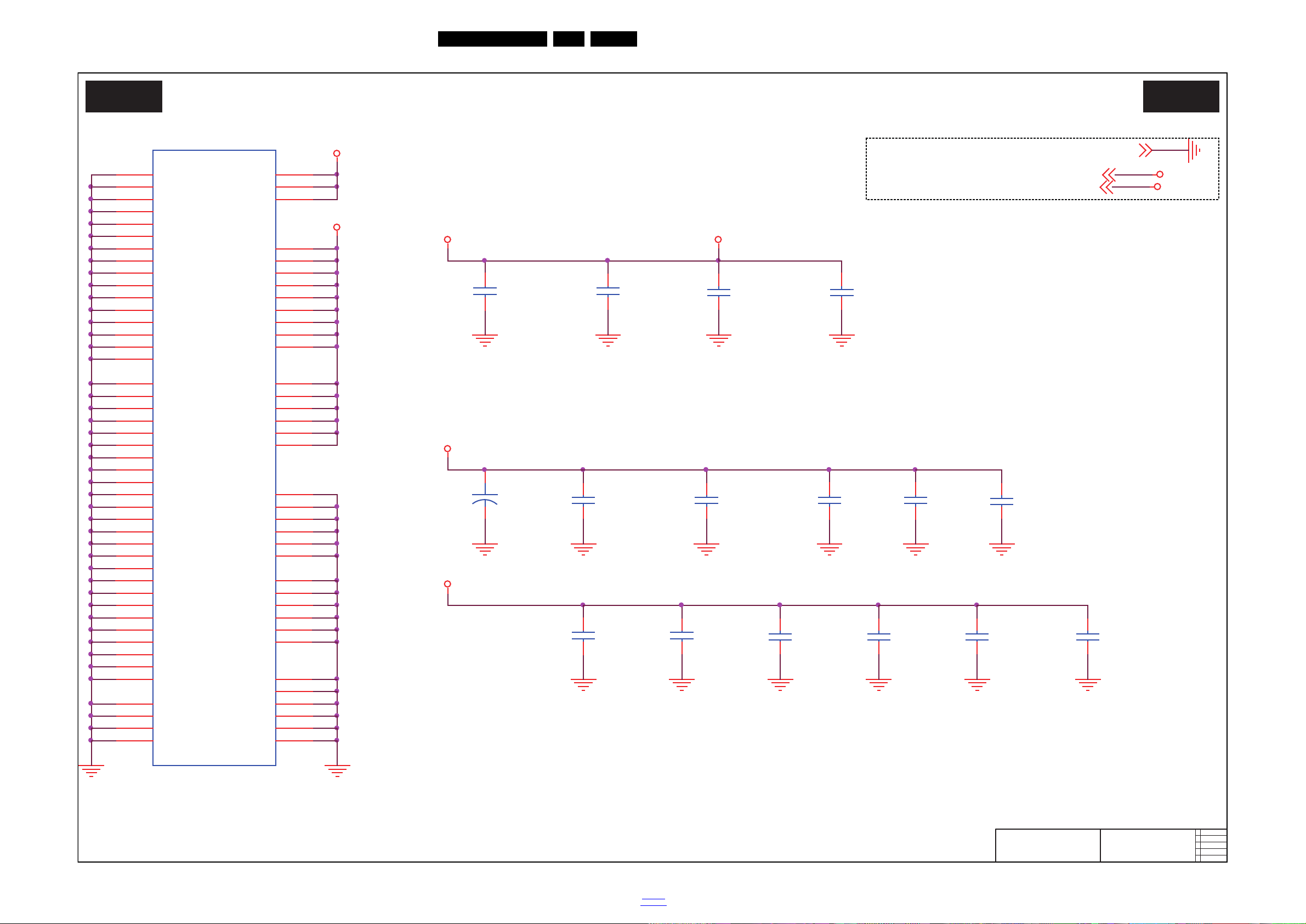

10-4-15 VCCK & DVSS

20010_518.eps

VCCK & DVSS

B15 B15

2015-09-21

715G7805

VCCK & DVSS

C456

10UF 6. 3V 20%

C451

10UF 6. 3V 20%

C447

10N 50V

C459
100NF 16V

C448

10N 50V

C458
100NF 16V

C460
100NF 16V

C450

10UF 6.3V 20%

C454

4.7U F 10% 10V

C457
100NF 16V

VCCK

VCCK

VCC3IO

VCCK

DVDD3V3

VCC3IO

DVDD3V3

VCCK

GND3,4,5,6,7,8,9,10,11,12,13,14,15,16,18

DVDD3V33,4,5,6,8,9,10,11,13,15,16,18

VCCK3

+

C449

100UF 16V

Core Power

3.3V IO Power

C446

1UF 10V

C452

1UF 10V

C453

1UF 10V

U401J

MT5561LVNT

VCCK

K6

VCCK

K5

VCCK

J9

VCCK

L1

VCCK

L2

VCCK

L3

VCCK

L4

VCCK

L5

VCCK

L6

DVSS

H9

DVSS

H10

DVSS

H12

DVSS

A1

DVSS

J10

DVSS

J11

DVSS

J12

DVSS

K9

DVSS

K10

DVSS

K11

VCC3IO

P9

VCC3IO

N10

VCC3IO

P10

DVSS

R13

DVSS

M9

DVSS

L12

DVSS

M11

DVSS

M13

DVSS

M12

VCCK

K7

VCCK

K8

VCCK

L7

VCCK

L8

VCCK

M7

VCCK

M8

DVSS

K12

DVSS

A8

DVSS

F6

DVSS

F20

DVSS

G7

DVSS

G18

DVSS

H13

DVSS

H11

DVSS

J13

DVSS

L9

DVSS

L11

DVSS

L13

DVSS

M1

DVSS

M2

DVSS

L10

DVSS

M3

DVSS

R6

DVSS

M4

DVSS

M5

DVSS

M6

DVSS

N8

DVSS

N13

DVSS

N11

DVSS

N12

DVSS

N15

DVSS

T13

DVSS

N16

DVSS

P7

DVSS

P11

DVSS

P12

DVSS

P14

DVSS

R11

DVSS

R12

DVSS

R14

DVSS

T5

DVSS

W19

DVSS

Y3

DVSS

G8

DVSS

H16

DVSS

J7

DVSS

M10

DVSS

N7

DVSS

N9

DVSS

T15

DVSS

U16

DVSS

V16

DVSS

H14

C461

10UF 6.3V 20%

C463

10UF 6. 3V 20%

Circuit Diagrams and PWB Layouts

EN 63TPM16.4L LA 10.

2016-Apr-1

back to

div.table

10-4-16 DEMOD_Toshiba TC90537

20010_519.eps

DEMOD_Toshiba TC90537

B16 B16

2015-09-21

715G7805

DEMOD_Toshiba TC90537

X101

16MHZ

1

24

3

R135

10K 1/10W

SBYTE_ORR

R142
NC 10K 1/ 16W 5%

OSDA1

OSCL1

R175 0R05 OH M

XT_I

XT_O

XT_O
XT_I

D_IFP
D_IFN

TP101

R141
10K +-1% 1/16W

DEMOD_RST

TP110 TP109

OSDA1

IFAGC_Toshiba_demo

OSCL1

R148

10K +-1% 1/16W

R154

2.2K 1%

TP108

U103

G9141T11U

IN

1

GND

2

SHDN3SET

4

OUT

5

TP107

TP105
TP106

TP104

C195
10UF 6. 3V 20%

TP103

C194

1UF 10V

TP102

DVDD3V3

+1V2

SLADRS1

PBVAL_ORR
SRDT_ORR

TUNER_SCL
TUNER_SDA

IFAGC_Toshiba_demo

SLADRS0

AGCCNTI

SLADRS1

R146

4.7K 1/ 16W

DVDD3V3

R147

4.7K 1/ 16W

DEMOD_RST10

TUNER_SDA11

DEMOD_TSCLK15

DEMOD_TSDATA015

DVDD3V33,4,5,6,8,9,10,11,13,15,16,17

DEMOD_TSVAL15

IFAGC_Toshiba_demo11

DEMOD_TSSYNC15

D_IFP11

GND3,4,5,6,7,8,9,10,11,12,13,14,15,16,17

OSDA1 4,11

TUNER_SCL11

D_IFN11

OSCL1 4,11

DEMOD_TSCLK

TUNER_SDA

DEMOD_TSDATA0

DEMOD_TSVAL
DEMOD_TSSYNC

C185

10UF 6. 3V 20%

C188

100NF 16V

C186

100NF 16V

C183

100NF 16V

C193

10N 50V

C187

100NF 16V

C177

100NF 16V

C199

100NF 16V

C189

100NF 16V

RP101

33 OHM +-5% 1/16W

1

2

3

4

8

7

6

5

R137

1.2K OH M 1/16W 1%

C180
100NF 16V

C184

100NF 16V

R143

100R 1/16W 5%

FB106
120R

12

FB1009
120R

12

C178
27PF

R136

1M 1/10W 5%

C119

100NF 16V

R125
10K +-1% 1/16W

R145
100R 1/16W 5%

R140

0R05 OH M

FB105
120R

12

C182

100NF 16V

R126

NC/ 10K+-5%1/16W

R134

10K +-1% 1/16W

R138

20K OHM 1/16W 1%

R144

100R 1/16W 5%

C181

10UF 6. 3V 20%

R111
NC / 10K+-5%1/16W

C138

100NF 16V

FB107
120R

12

C179
27PF

FB1008
120R

12

R139

NC 0R 05 OH M

DVDD3V3

+1V2

+1V2

DVDD3V3

DVDD3V3

FB407 10R

1 2

DVDD3V3

DVDD3V3

SRCK_ORR

DVDD3V3

DEMOD_TSSYNC 15
DEMOD_TSVAL 15

DEMOD_TSCLK 15
DEMOD_TSDATA0 15

FB1010
120R

12

SLADRS0

U101

TC90537FG

VSS

47

VDDS

14

GPIO1

4

GPIO2

5

SBYTE

16

AGCCNT1

18

XO

23

SLADRS1

29

PLLVSS

26

SYRSTN

42

VPGM

41

VDDC

32

ADCVSS

34

VREFH

36

STSFLG1

43

SCL

45

VSS

31

ADCVDD

33

TNSCL

20

TNSDA

21

AIN N Q

40

AIN N I38AIN P I

37

STSFLG0

44

SDA

46

RSEORF

15

XI

24

VREFL

35

AIN P Q

39

SLADRS0

17

CKI

28

VDDC

1

VSS

13

SRCK

12

PBVAL

11

SRDT

10

SLOCK

9

RLOCK

8

RERR

7

SLPEN

6

VDDS

48

VSS

2

GPIO0

3

AGCCNTR

19

XCKO

22

PLLVDD

25

VDDC

27

TSMD

30

DEMOD_RST

GPIO Interface

C198

NC/33P 50V

C1074
NC 10PF 50V

Crystal is 16MHZ

R176 NC/0R051/8W

R138 close with TC90537
to avoid spurious.

Serial TS output

D_IFN

D_IFP

R174 NC/0R051/8W

R2

R1

TUNER_SCL

Circuit Diagrams and PWB Layouts

EN 64TPM16.4L LA 10.

2016-Apr-1

back to

div.table

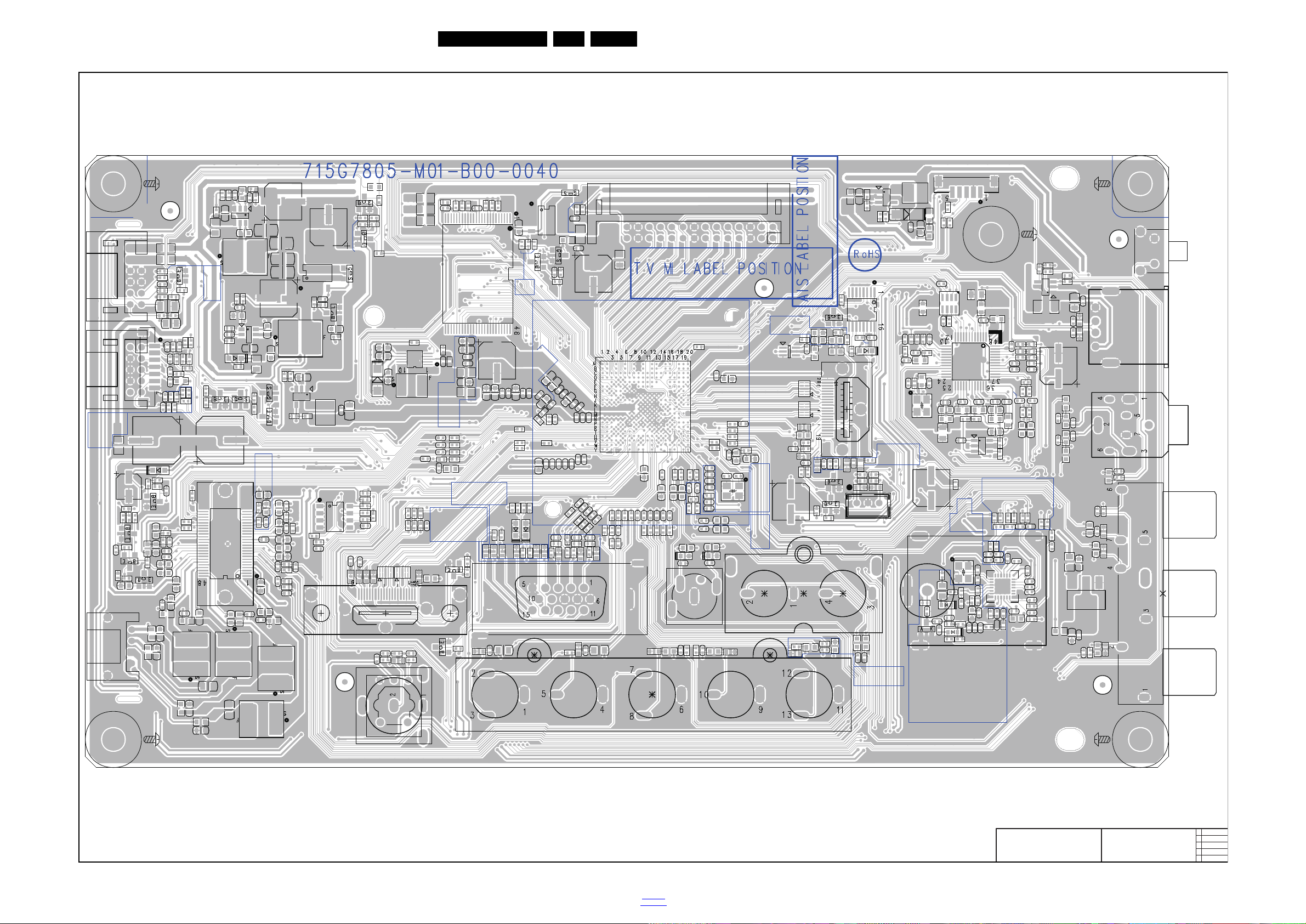

10-4-17 SSB layout top

20010_520.eps

715G7805

LAYOUT TOP

X401

D602

D401

C141

C148

C149

C152

C156

C190

C196

C439

C402

C411

C428

C430

C440

C444

C450

C451

C454

C456

C461

C463

C610

C614

C615

C616

C617

C619

C621

C623

C624

C625

C626

C628

C630

C631

C634
C636

C638 C639

C640

C642

C644

C647

C678

C679

C684

C195

C708

C710

C712

C713

C721

C722

C730

C173

C620

C629

C725

C726

FB611

FB403

FB405

FB501

FB503

FB603

FB604

FB605

FB606

FB607

FB608

FB609

FB610

FB706

FB104

FB401

FB402

FB404
FB408

FB602

FB701

FB702

FB703

R116

R440

R466

R470

R471

R605

R606

R607

R608

R625

R626

R719

C426

C1201

C170

C608

C115C116

R106

R108

R110R115

R1001

R140

C1003

C1004

FB612

C133

FB103

X102

R135

C181C185

FB1008

FB1009

FB105

FB106 FB107

R136

FB1010

C475

C743

C478

C479

C746
C747

C449

C409

C707

C1202

C477

C745

R484

R748

R488

R752

ZD701

C748

C480

R409

X101

ZD115

ZD116

C719

R785

R503

C650

C651

C723

R174

R176

R175

TH101

C160

C169

D102

D103

CN602

CN606

FCN101

C688

R1115R1116

R1

R2

SCREW1

SCREW2

HS401

ICT1

U401

U705

U410

U501 U502

U506 U507

U404

U113

U103

L601

L602

L603

L604

U405

L703

L702

C101

C102

C104

C105

C106

C108

C109

C110

C111

C112

C113

C114

C117

C118

C1002

C186

C179

C1001

C103

C677

C142

C143

C144

C145

C150C151

C153

C154C155

C157

C161

C162

C163

C601

C193

C171

C174

C175 C176

C172

C119

C188

C189

C191

C194

C401

C403

C404

C405

C406C407

C408

C410

C412

C413

C414

C415

C416

C417

C418

C419

C425

C427

C429

C432

C433

C434

C435

C436

C437

C438

C441

C443

C446

C447

C448

C452

C453

C457

C458

C459

C460

C462

C501

C502
C503

C504

C505

C506

C177

C685C686

C604

C605

C606

C607

C611

C612

C613

C618

C622

C627

C632

C633

C635

C637C641

C643

C645

C646

C648

C660C661

C662

C663

C664

C680

C603

C687

C706

C714

C731

C184

C602

FB102

FB409

U411

C1074

C705

C138

C120

C121

C122

C159

C124

C125

C126

C127

C128

C129
C130

C131

C132

C134

C135

C136

C139

C164

C165C166

C167

C192

C197

L101

L102

L103

L104

L106

L107

D101

U101

C178

C180

C182C183

C187

C199

RP101

C1207

C1210

C1211

C1212

L402

U706

C1203

C1204

C1205

C1206

C1208

C1209

C474

C476

C742

C744

ZD1110

ZD1111

U403

R1002

R101

R102

R104

R105

R107

R109

R121

R112

R113

R114

R122

R117

R118

R119

R1003

R1114

R481

R149

R150

R151

R152

R153

R155

R156

R157

R159

R160

R161

R162

R164

R165

R167

R141

R401

R402

R403

R404

R405

R406

R407

R480

R411 R412

R414

R415

R416

R417

R418

R419

R420

R421

R422

R423

R425

R427

R428

R430

R431

R432

R433

R434

R435

R436

R437

R438

R439

R441

R508

R444

R448

R449R450

R452

R455

R457

R460

R461

R464

R467

R468

R1202

R473

R474

R1227

R477

R479

R485

R501

R502

R506

R507

R510

R511

R514

R504

R505

R519

R520

R524

R525

R4054

R513

R4050

R4055

R4052

R634
R635

R512

R560

R561

R601

R602
R603
R604

R609

R610

R611

R612

R613 R614

R615

R616

R617

R618

R620

R622

R623

R624

R637

R654

R656

R657

R658

R659

R660

R664

R668

R669

R679

R678

R704

R148

R154

R705

R706

R738

R709

R710

R739

R713

R714

R717

R718

R722

R723

R724

R725

R728

R729

R730

R1201

R138

R1024

R1025

R1026

R1027

R1029

R1030

R1032

R145
R144

R1089

R1090

R1111

R1112

R456

R483

R1004

R1005

R1006

R120

R147

R126

R123

R124

R127

R133

R125

R146

R111

R134

R139

R142R143

R137

R1219

R1203

R1207

R1208

R1209

R1210

R1211

R2002

R1217

R1218

R1220

R1228

R1301

R1302

R410

R482

R487

R499

R746

R747

R749

R750

R751

R486

C609

R1204

R1205

R1206

R1212

C690

FB108

R170 R171

R490

R491

R492

C1214

C1215

R631

R632

R778

R779

R780

R786

R787R788

Q405

Q701

Q421

D601

Q402

Q404

Q422

Q601

Q603

Q703

Q503

Q502

Q708

Q705

Q707

Q403

ZD101

ZD102

ZD103ZD104

ZD105

ZD106

ZD107 ZD108

ZD109 ZD110

ZD118 ZD119

ZD1101

ZD1102

ZD1103

ZD1104

ZD1105

ZD1106

ZD1107

ZD1108

ZD1123

ZD501

ZD504

ZD505

ZD506

ZD507

ZD518

ZD602

C691

ZD514

ZD515

ZD516

ZD517

C509

C510

C511

R509

R633

Q504

Q506

Q602

Q408

Q409

R172

R173

CN406

R493

R494

FB406

FB407

R627

R628

R4

C681

C198

U104

C490

C491

R2001

R2005

R2006

U601

C123

C140

L108

R128

R129

C137

Q401

Q702

U703

U414

SEN1

SEN2

SEN3

SEN4

SEN5

CN402

SW401

CN605

CN604

CN116

CN502

CN103

CN603

HS601

CN601

CN401

CN701

CN101

CN102

ME1 ME2

ME3

ME4

L701

L401

U406

CN403

R1117

R451

CN408

CN501

ZD702

ZD703

Circuit Diagrams and PWB Layouts

EN 65TPM16.4L LA 10.

2016-Apr-1

back to

div.table

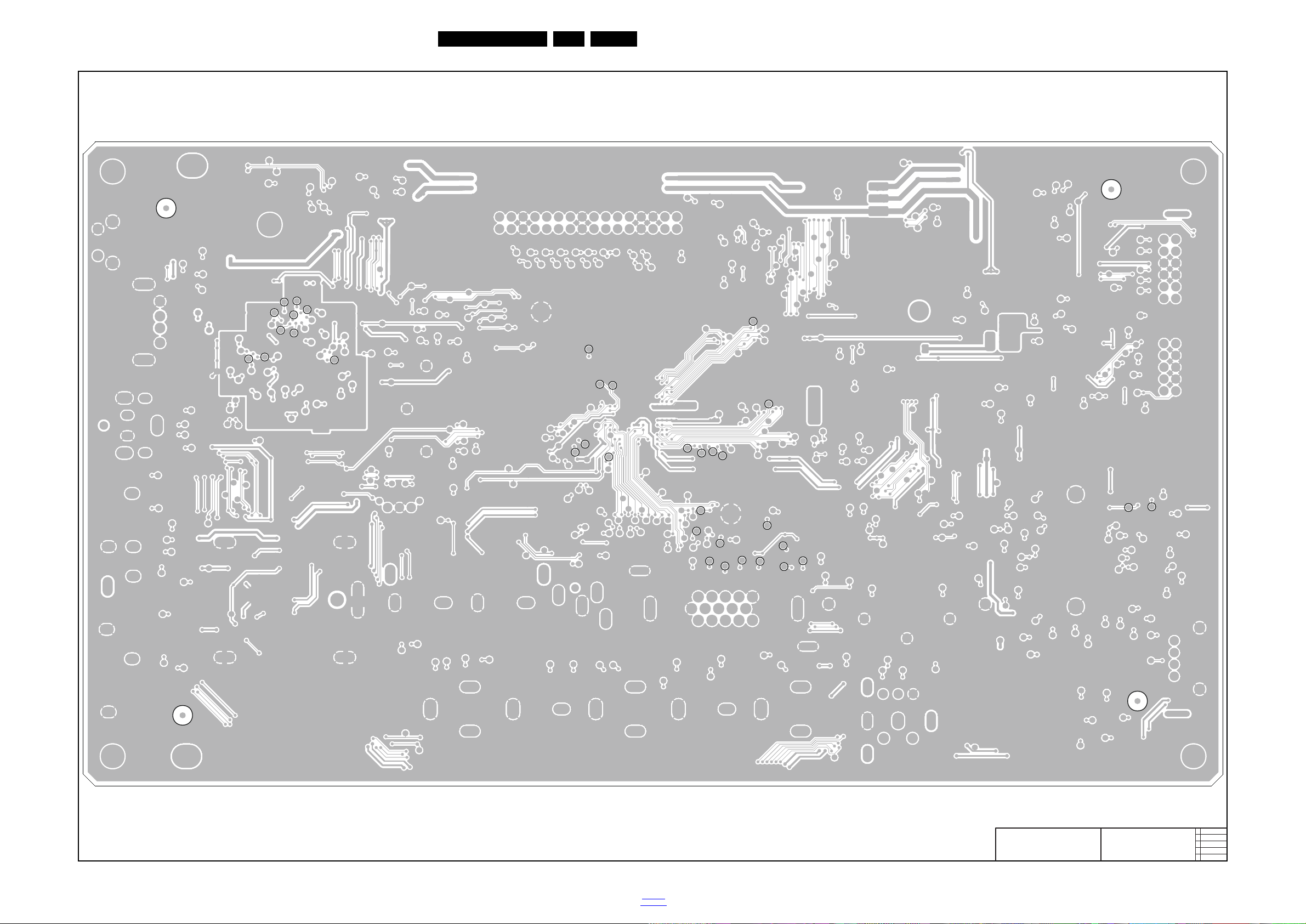

10-4-18 SSB layout bottom

20010_521.eps

715G7805

LAYOUT BOTTOM

TP101

TP102

TP103

TP104

TP105

TP106

TP107

TP108

TP109

TP110

TP401

TP404

TP405

TP407

TP1101

TP1102

TP1103

TP1104

TP1105

TP1106

TP1107

TP1108

TP1109

TP1110

TP1111

TP1116

TP1117

TP408

TP409

TP410

TP411

TP412

TP413

TP063

TP065

SEN10

SEN11

SEN12

SEN15

Circuit Diagrams and PWB Layouts

EN 66TPM16.4L LA 10.

2016-Apr-1

back to

div.table

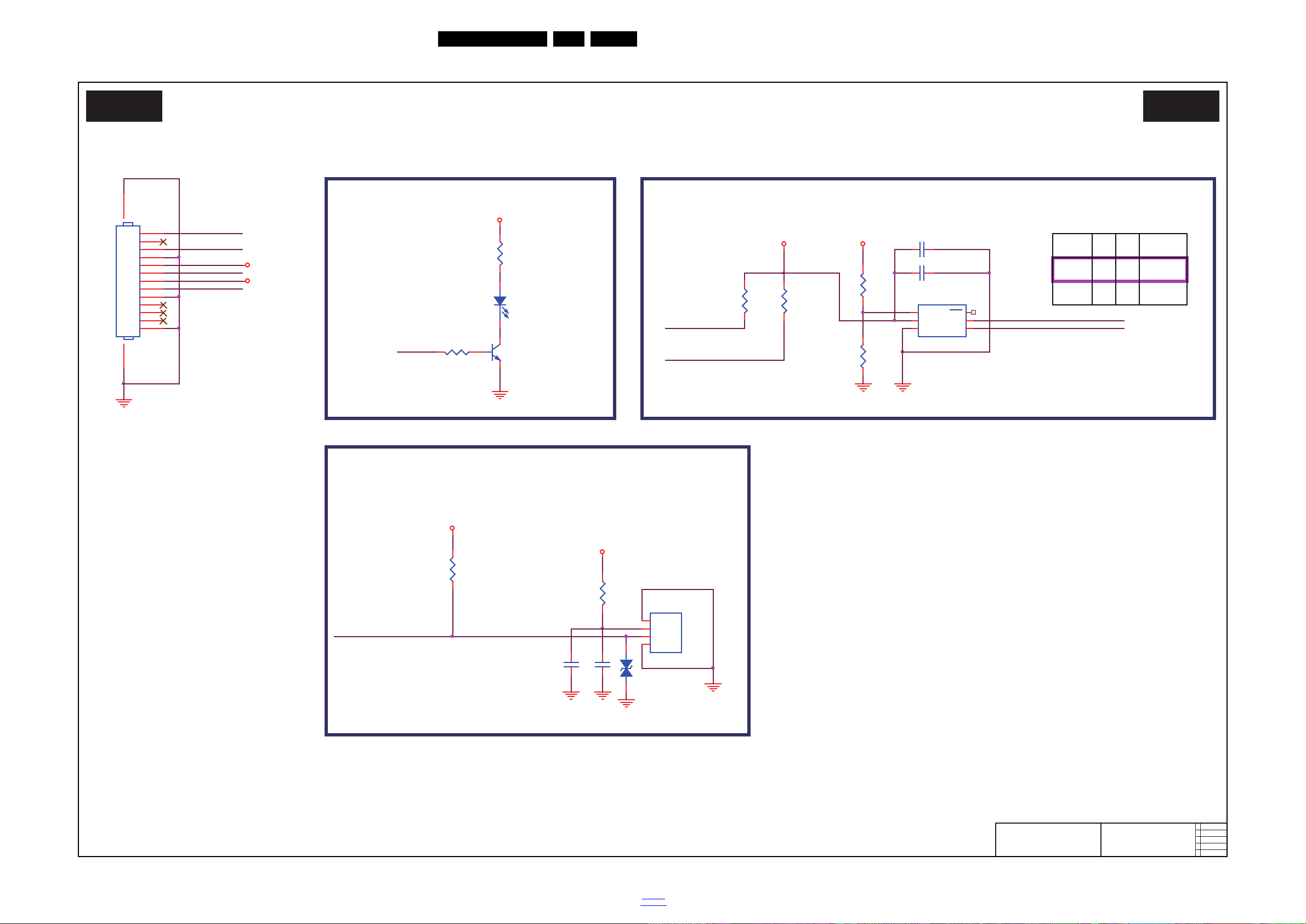

10.5 J 715G8009 IR/LED Panel

20010_522.eps

IR & LED & Light Sensor

J J

2015-09-01

715G8009

IR & LED & Light Sensor

C201

1uF 10V

St andby LED

3V3SB

R204

100R 1/ 16W 5%

R203

NC/ 2K7 1/16W 5%

RC-IR

RC-IR

3V3SB

LS_SDA

LS_SCL

DVD3V3

LED201

GPSS008RC4

12

Red

DVD3V3

U221
NC/ JSA-1130

ADDR

1

VDD

2

GND3SCL

4

SDA

5

INT

6

R224

NC / 0R 05 1/ 16W

Light Sensor

R222

NC / 10K 1/ 16W 5%

Digital Light Sensor

C222 NC/ 1uF 10V

R221

NC / 10K 1/ 16W 5%

LS_SCL

LS_SDA

R223

NC / 0R 05 1/ 16W

JSA-1130

R223R224

JSA-1130NCNC 0R

0R

I2C addr

0x45

0x44

C221 NC/ 100N 16V

LS_SDA
LS_SCL

DVD3V3

C202

1uF 10V

IR Receiver

3V3SB

R202

1K 1/16W 5%

LED_R

Q201
BC847BW

LED_R

R201
100R 1/ 16W 5%

ZD201

MLVG0402

12

U201

TSOP75436TR

GND

1

VCC

2

Vout

3

GND

4

CN201

1
2

3

4
5
6
7

8

9
10
11
12
13

1415

3V3SB

10-5-1 IR & LED & Light Sensor

Circuit Diagrams and PWB Layouts

EN 67TPM16.4L LA 10.

2016-Apr-1

back to

div.table

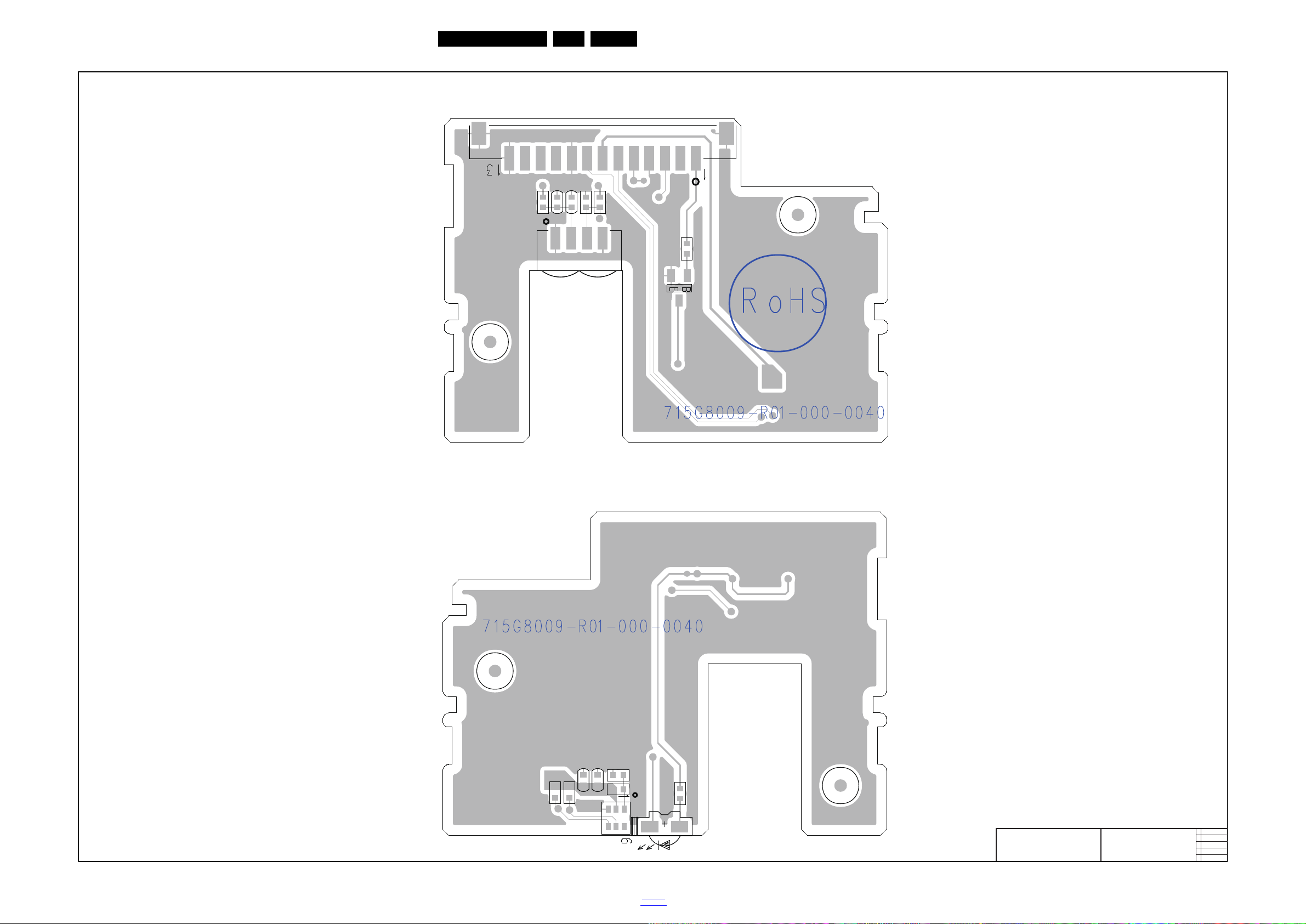

10-5-2 IR/LED board layout

20010_523.eps

715G8009

IR/LED panel

layout top/bottom

2015-08-27

U201

CN201

R204

R202

R203

Q201

Q1

Q3

C201

C202

ZD201

U221

LED201

C221

C222

R201

R221

R222

R223

R224

Q2

Q4

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 68TPM16.4L LA 10.

2016-Apr-1

back to

div.table

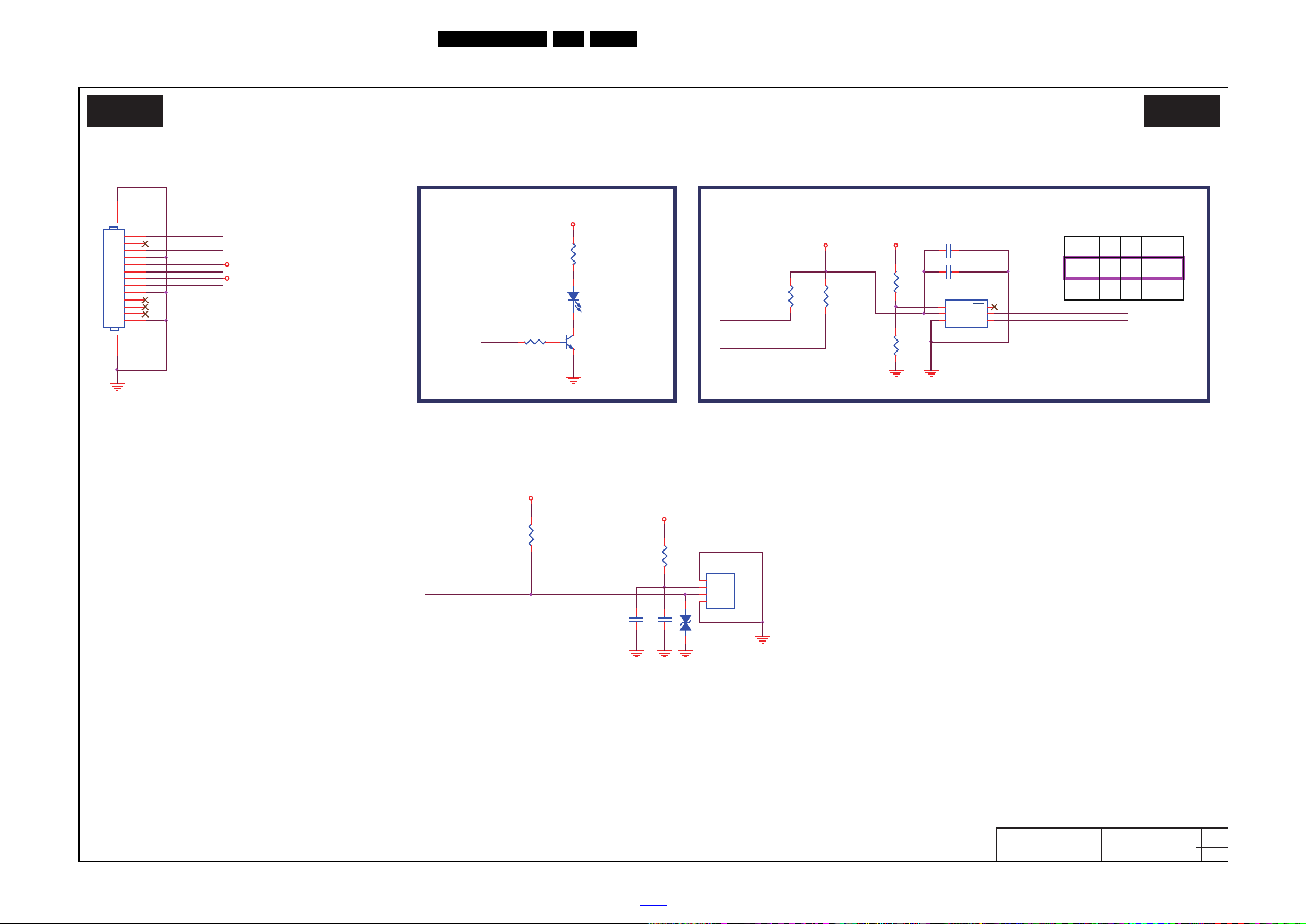

10.6 J 715G8010 IR/LED Panel

20030_547.eps

IR & LED & Light Sensor

J J

2015-08-26

715G8010

IR & LED & Light Sensor

C201

1uF 10V

St andby LED

3V3SB

R204

100R 1/16W 5%

R203

NC/ 2K7 1/16W 5%

RC-IR

RC-IR

3V3SB

LS_SDA

LS_SCL

DVD3V3

LED201

GPSS008RC4

12

Red

DVD3V3

U221
NC/ JSA-1130

ADDR

1

VDD

2

GND3SCL

4

SDA

5

INT

6

R224

NC/ 0R 05 1/ 16W

Light Sensor

R222

NC/ 10K 1/ 16W 5%

C222 N C / 1uF 10V

R221

NC/ 10K 1/ 16W 5%

LS_SCL

LS_SDA

R223

NC/ 0R 05 1/ 16W

JSA-1130

R224 R223

JSA-1130NCNC 0R

0R

I2C addr

0x45

0x44

C221 N C / 100N 16V

LS_SDA
LS_SCL

DVD3V3

C202

1uF 10V

IR Receiver

3V3SB

R202

1K 1/16W 5%

LED_R

Q201
BC847BW

LED_R

CN201

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13

1415

R201
100R 1/16W 5%

ZD201

MLVG0402

12

U201

TSOP75436TR

GND

1

VCC

2

Vout

3

GND

4

3V3SB

10-6-1 IR & LED & Light Sensor

Circuit Diagrams and PWB Layouts

EN 69TPM16.4L LA 10.

2016-Apr-1

back to

div.table

10-6-2 IR/LED board layout

20030_548.eps

2015-08-27

715G8010

IR/LED panel

layout top/bottom

R204

R202

CN201

R203

Q201

H7

H9

U201

C201
C202

ZD201

R221

R222

C221

C222

U221

R224
R223

R201

LED201

H8

H10

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 70TPM16.4L LA 10.

2016-Apr-1

back to

div.table

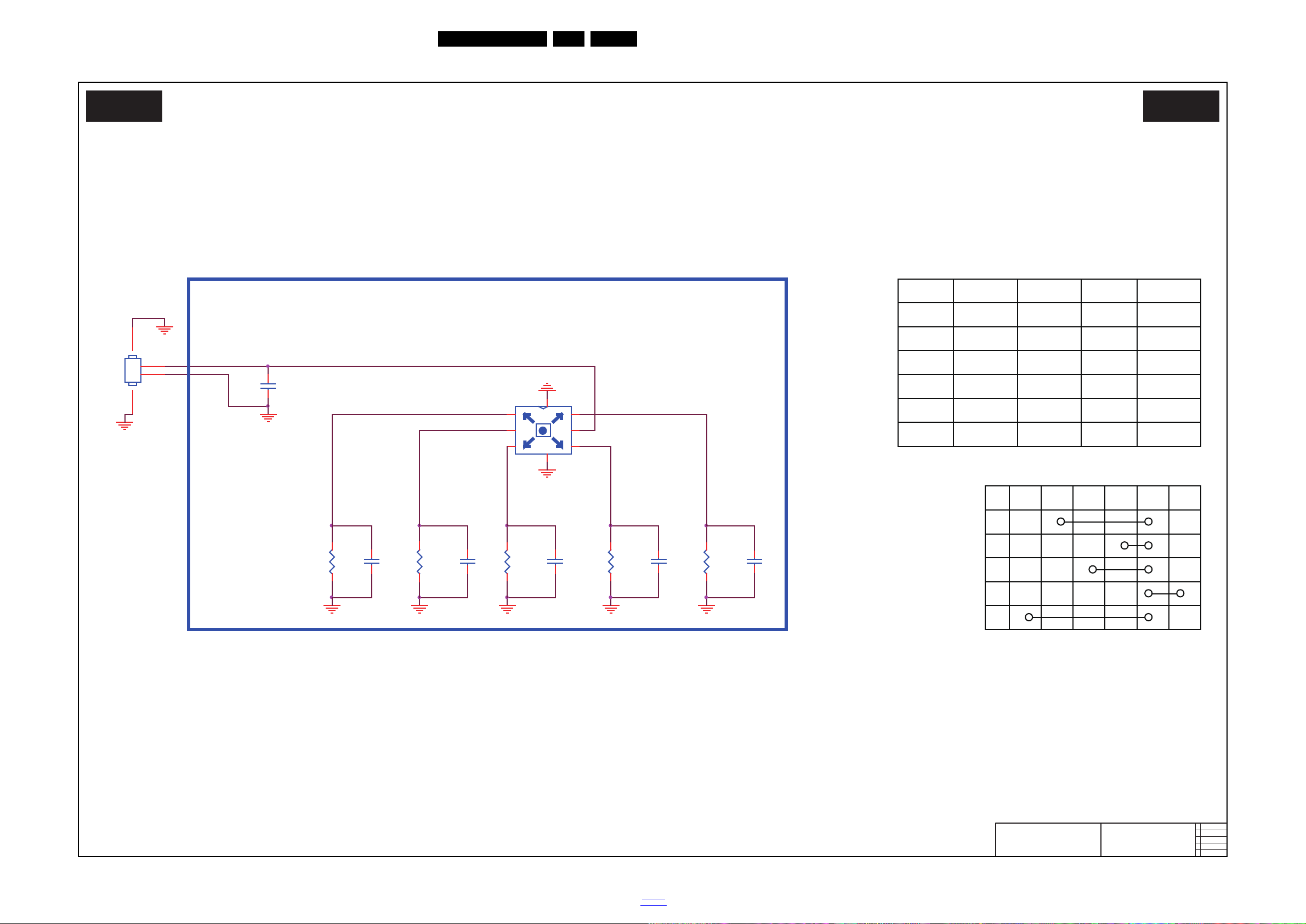

Circuit Diagrams and PWB Layouts

19850_524.eps

Key

E E

2014-05-28

715G7088

Key

KEY1

Menu
Right
Left
Down
Up

6-5 short

R04

2K2 1/10W 1%

2-5 short

F1

3-5 short

R01

1K2 1/10W 1%

1-5 short
4-5 short

F2
F3

F5

F3

F1

F4

F2

SW01

TACT SW 6P

3 4

2

1 6

5

7

8

F4
F5

R05

15K 1/10W 1%

Direction

R03

6K8 1/10W 1%

switch

----><----|

Joystick circuit diagram

C06

0.1uF 50V

pin1

0V

0.5V

0.81V

1.65V

2.27V

pin2

No function

pin3

3.3V

C04

NC / 100N 50V

pin4 pin5

C05

NC / 100N 50V

pin6

----><----|

C01

NC / 100N 50V

C02

NC / 100N 50V

C03

NC / 100N 50V

----><----|

----><----|

----><----|

Down

Up

Center

CN01

CONN

1
2

34

R02

0R05 1/ 10W

0R

2K2

Key functionResistance

Center

CH+

CH-

1K2

VOL-

VOL+

Left

15K

6K8

Right

Voltage

JOYSTICK

10.7 E 715G7088 Keyboard control panel

10-7-1 Key

EN 71TPM16.4L LA 10.

2016-Apr-1

back to

div.table

Circuit Diagrams and PWB Layouts

19850_525.eps

2014-06-06

715G7088

Keyboard control panel

layout top/bottom

C01

C02

C03

C04

C05

C06

R01

R02

R03

R04

R05

H1

H2

H3

H4

H5

H6

CN01

SW01

SW1

SW2

SW3

SW4

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-7-2 Key board layout

EN 72TPM16.4L LA 10.

2016-Apr-1

back to

div.table

11. Styling Sheets

20010_800.eps

5101 series 32"

Pos No. Description

Remarks

0030 Bezel
0040 Rear cover
0050L Stand Assy_L
0050R Stand Assy_R
0095 V0 SHEET
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1184 Speakers

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

1056

1054

1184

0040

1050

1184

1053

0095

1057

0030

0050R

0050L

11.1 5101 series 32"

Styling Sheets

EN 73TPM16.4L LA 11.

2016-Apr-1

back to

div.table

11.2 5101 series 43"

20070_800.eps

5101 series 43"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

Pos No. Description

Remarks

0030 Bezel
0040 Rear cover
0050L Stand Assy_L
0050R Stand Assy_R
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1184 Speakers

1054

1184

0040

1050

1184

1053

1056

1057

0030

0050R

0050L

Styling Sheets

EN 74TPM16.4L LA 11.

2016-Apr-1

back to

div.table

11.3 5101 series 49"

20070_801.eps

5101 series 49"

Pos No. Description

Remarks

0030 Bezel
0040 Rear cover
0050L Stand Assy_L
0050R Stand Assy_R
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1184 Speakers

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

1054

1184

1056

0040

1050

1184

1053

1057

0030

0050R

0050L

Styling Sheets

EN 75TPM16.4L LA 11.

2016-Apr-1

back to

div.table
