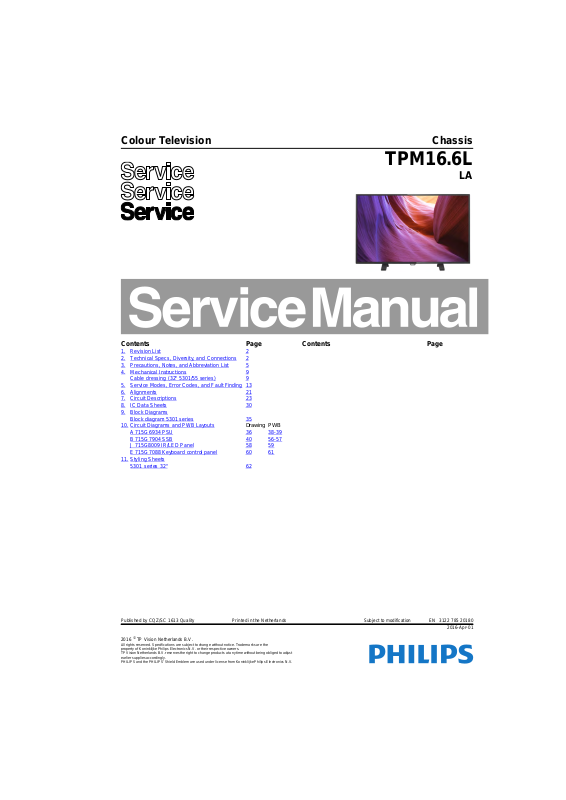

Philips 32PHD5301/55 Schematic

Colour Television Chassis

TPM16.6L

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9
Cable dressing (32" 5301/55 series) 9

5. Service Modes, Error Codes, and Fault Finding 13

6. Alignments 21

7. Circuit Descriptions 23

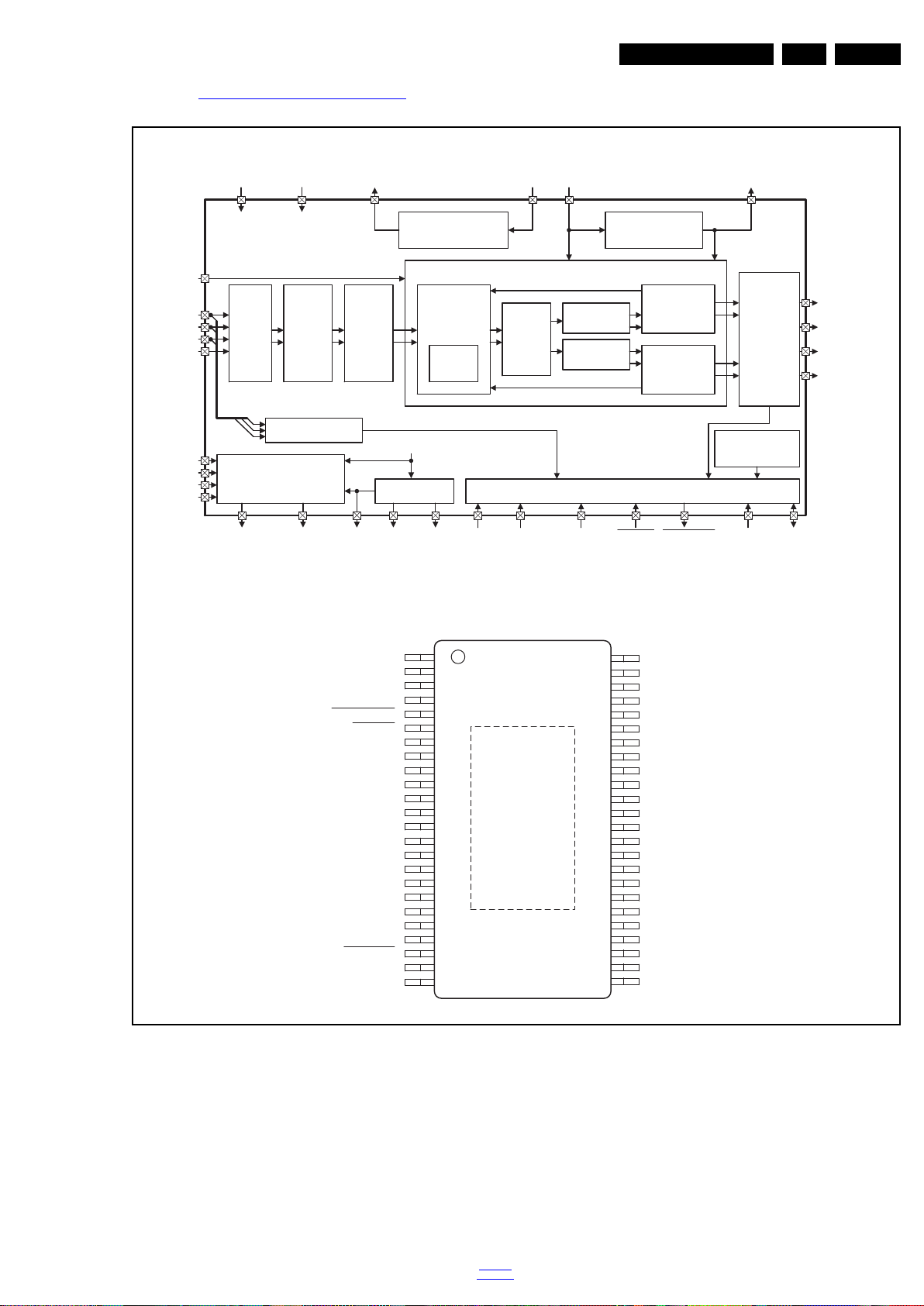

8. IC Data Sheets 30

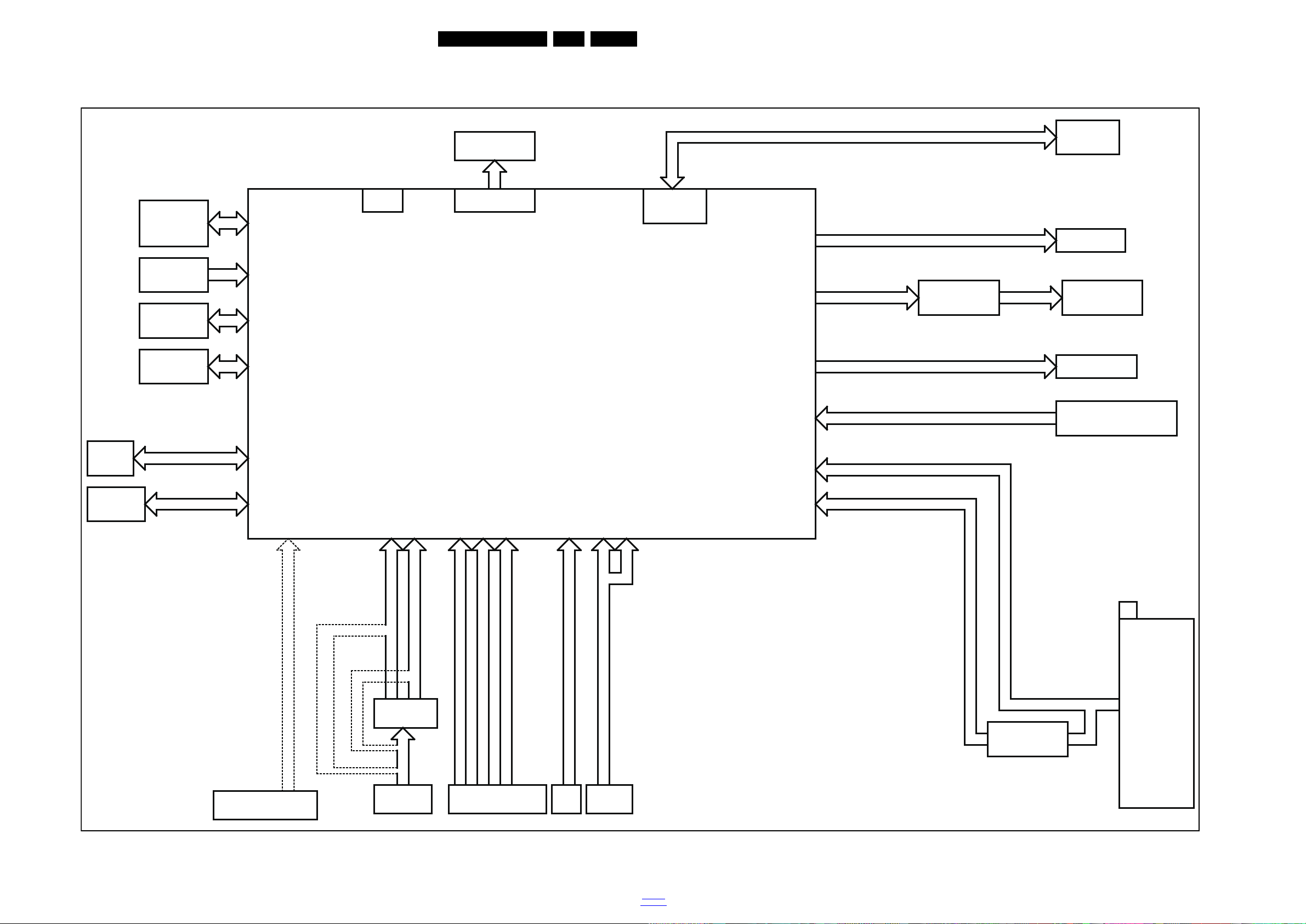

9. Block Diagrams

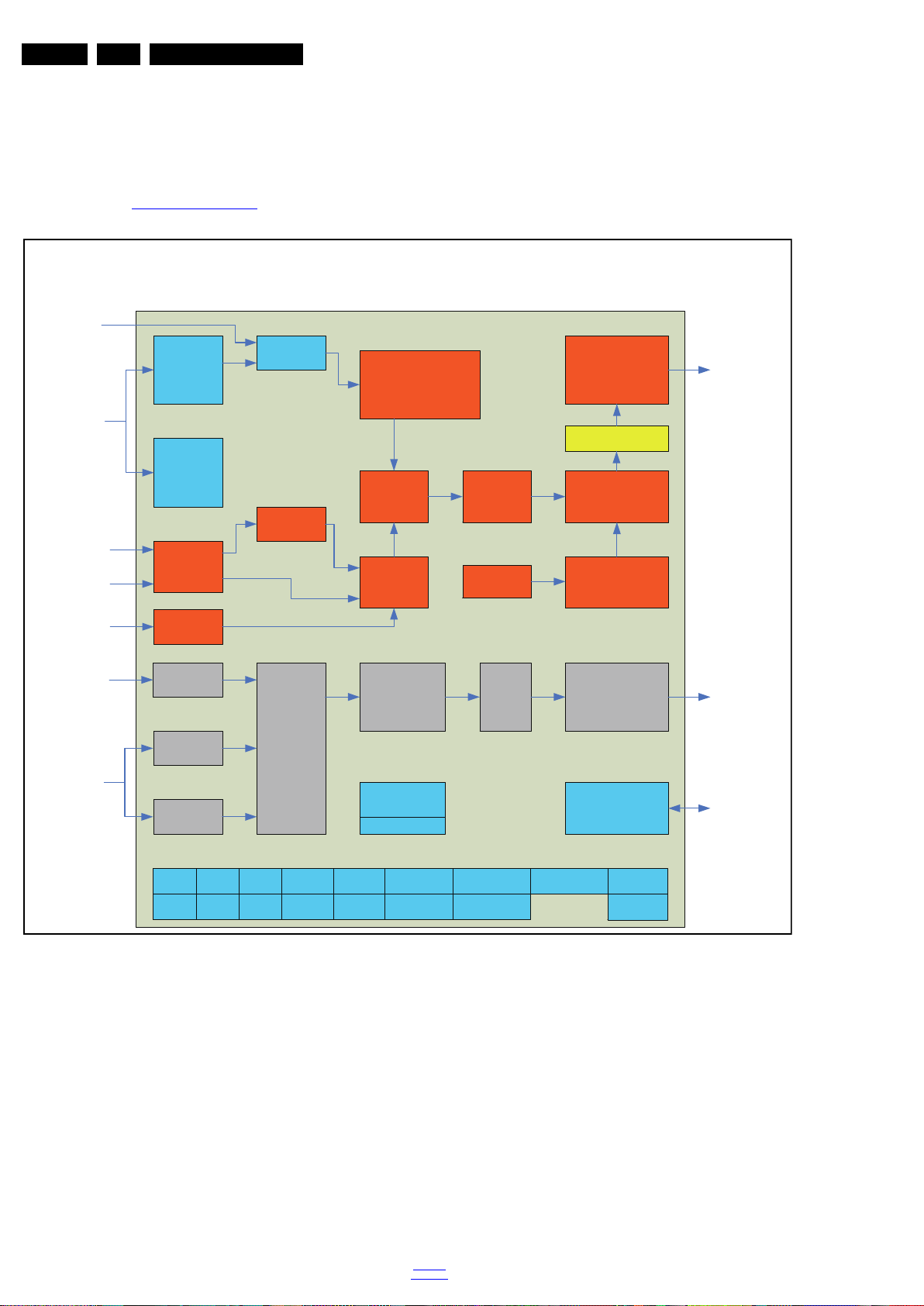

Block diagram 5301 series 35

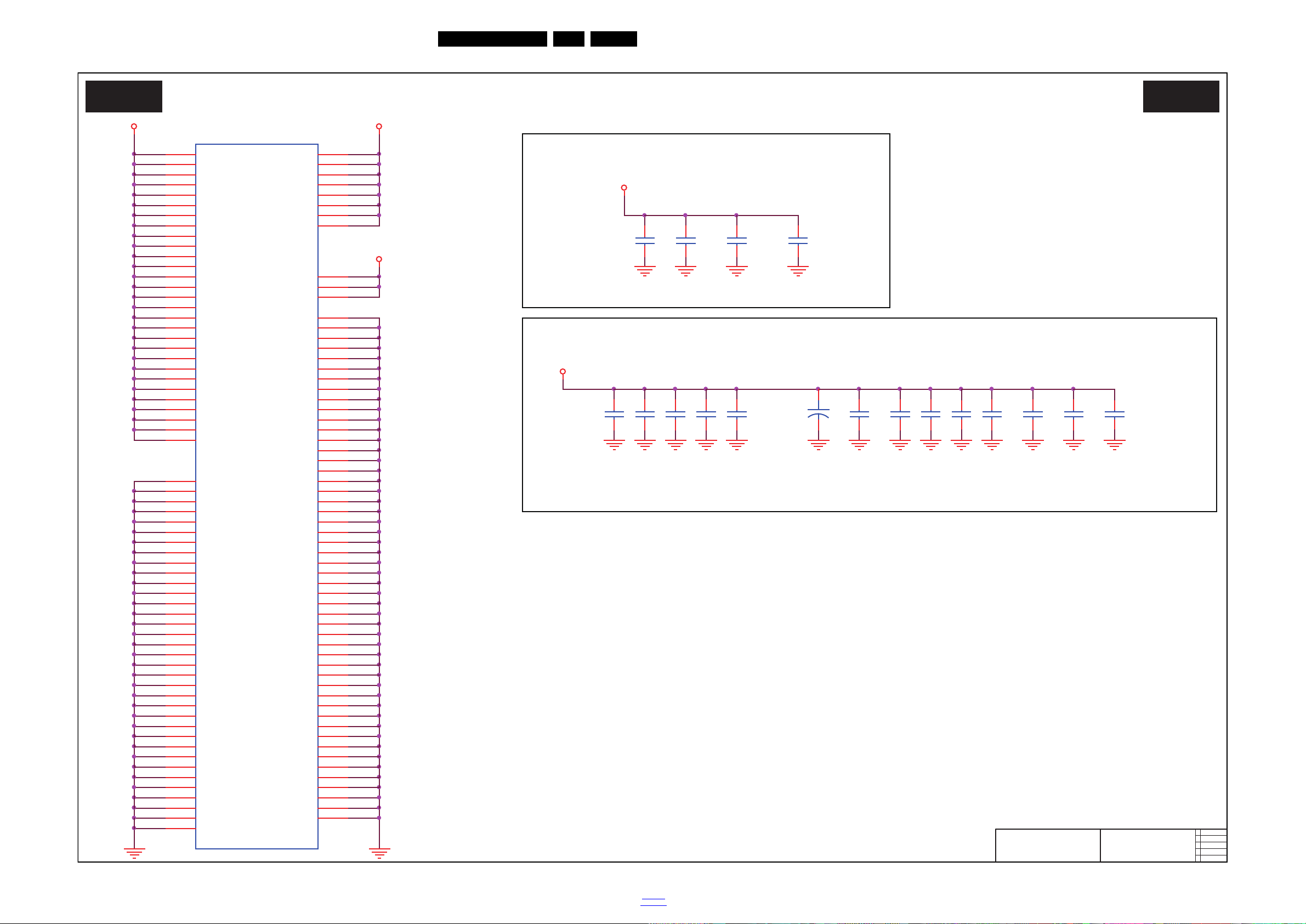

10. Circuit Diagrams and PWB Layouts Drawing PWB

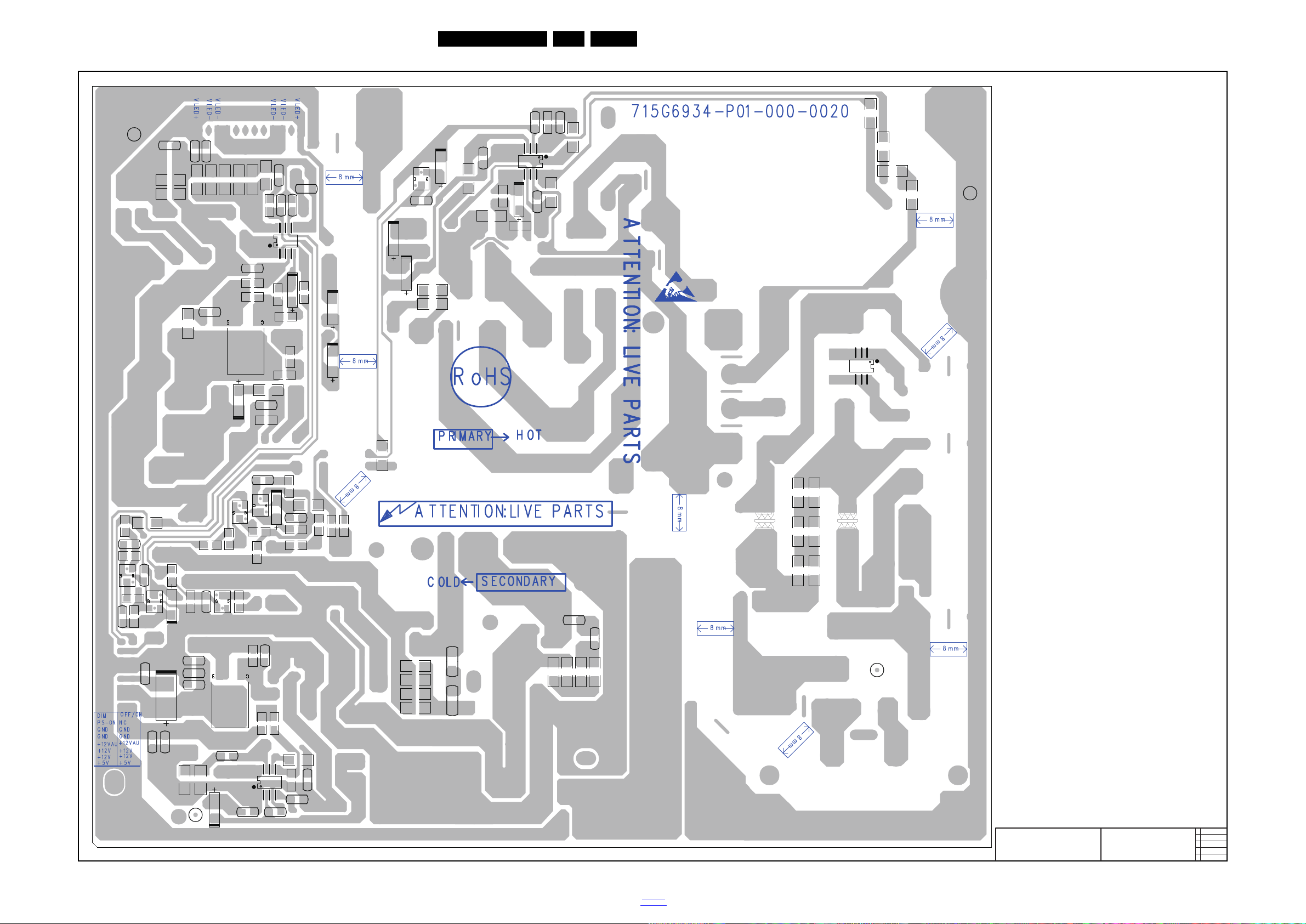

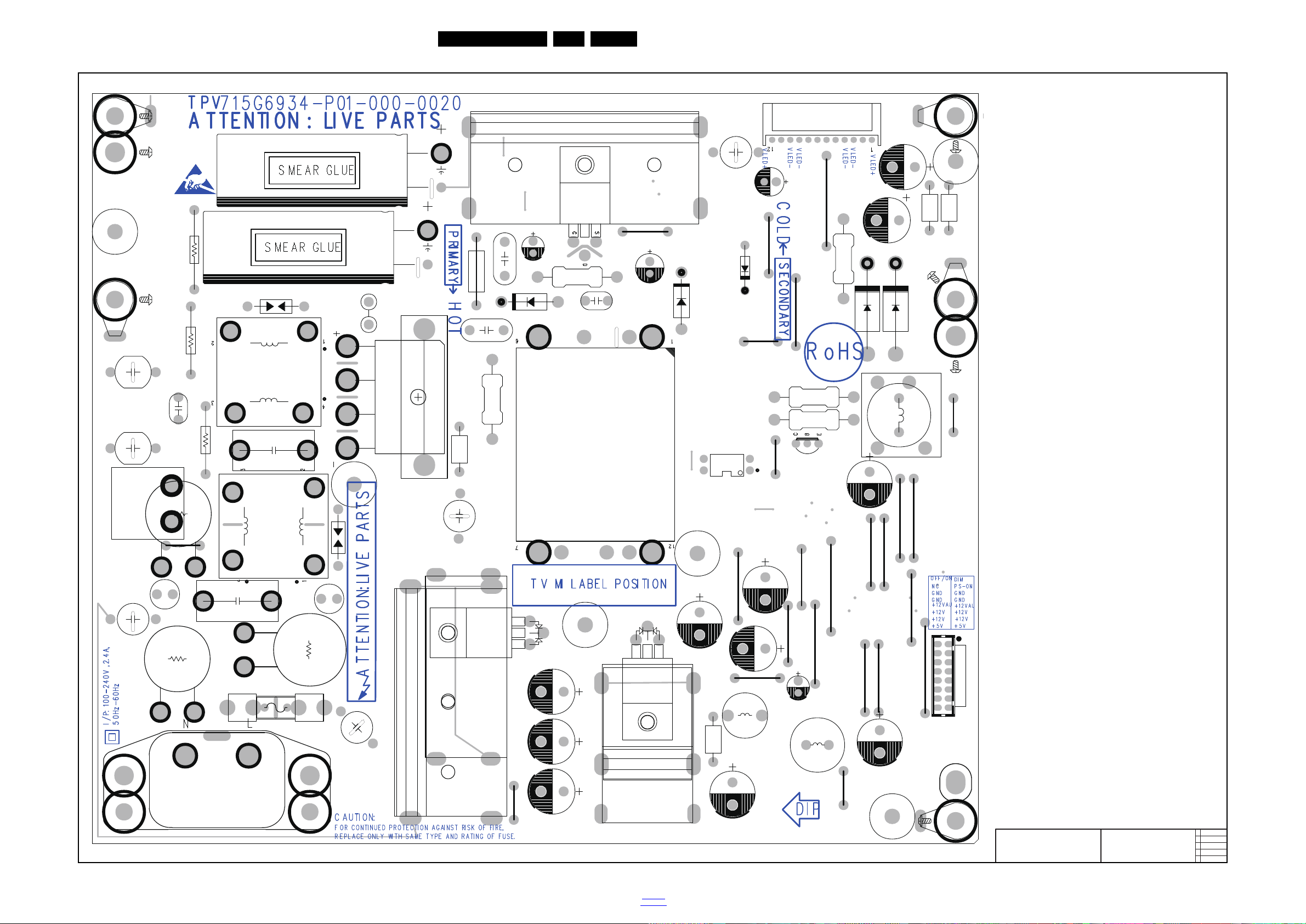

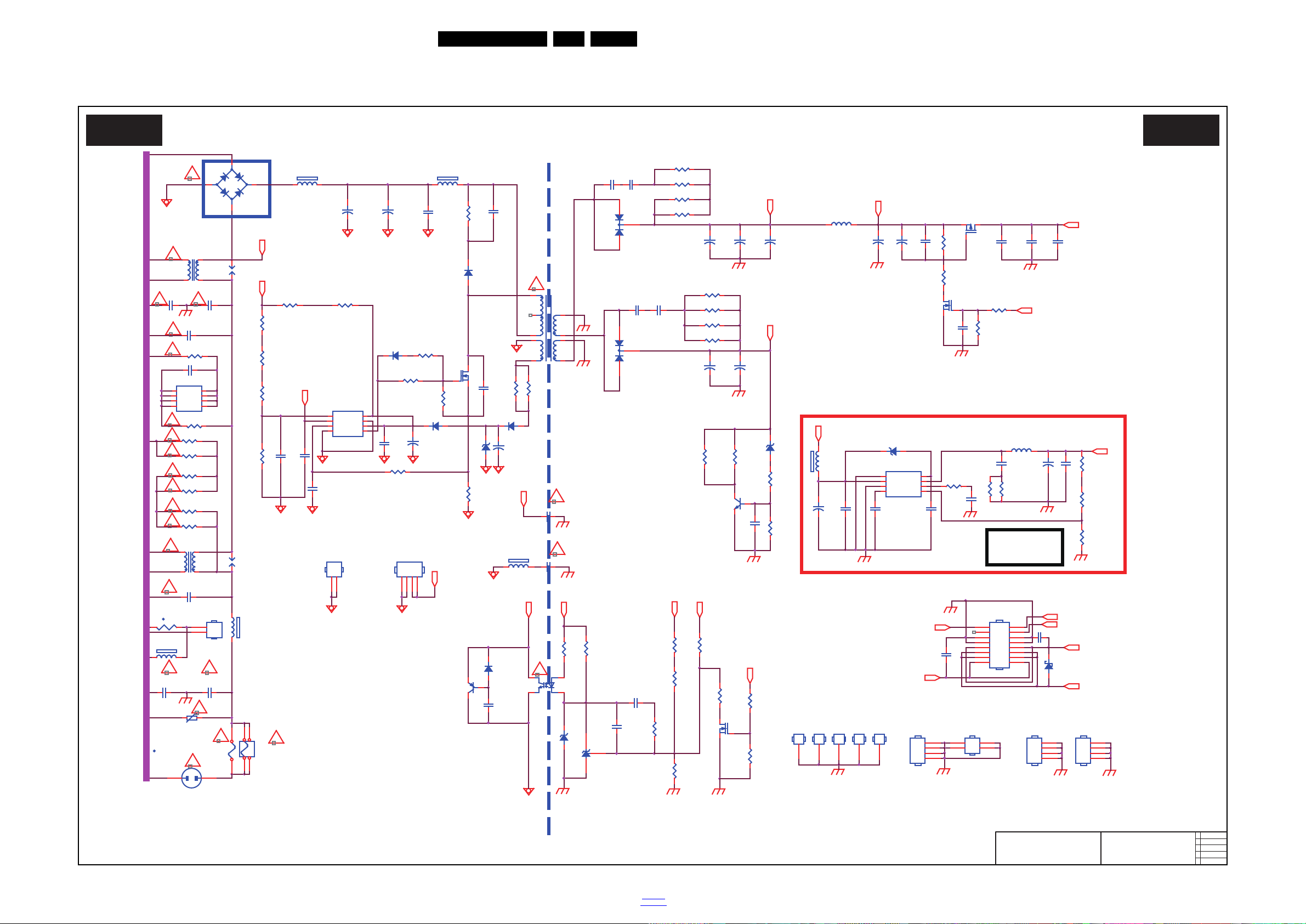

A 715G6934 PSU

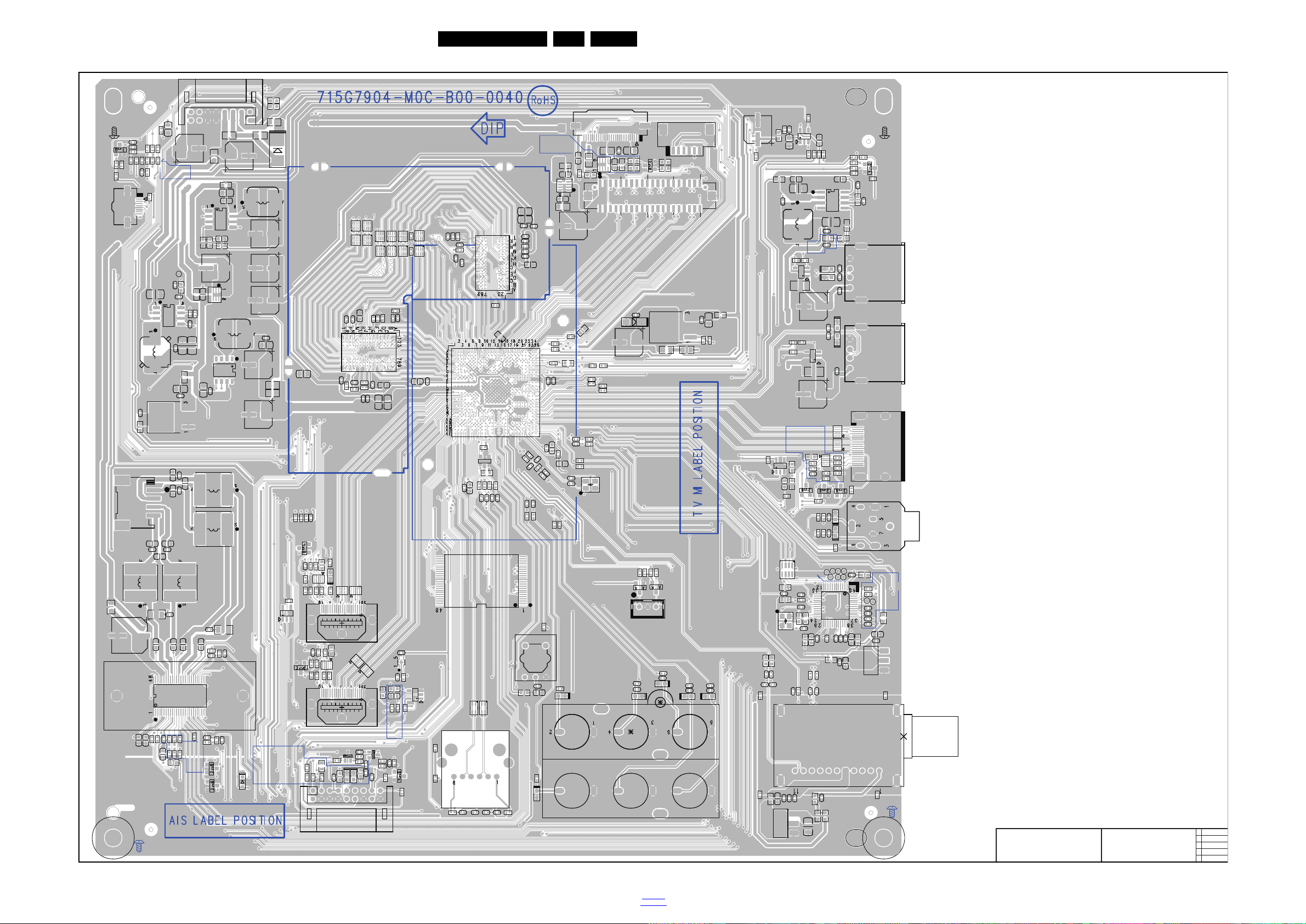

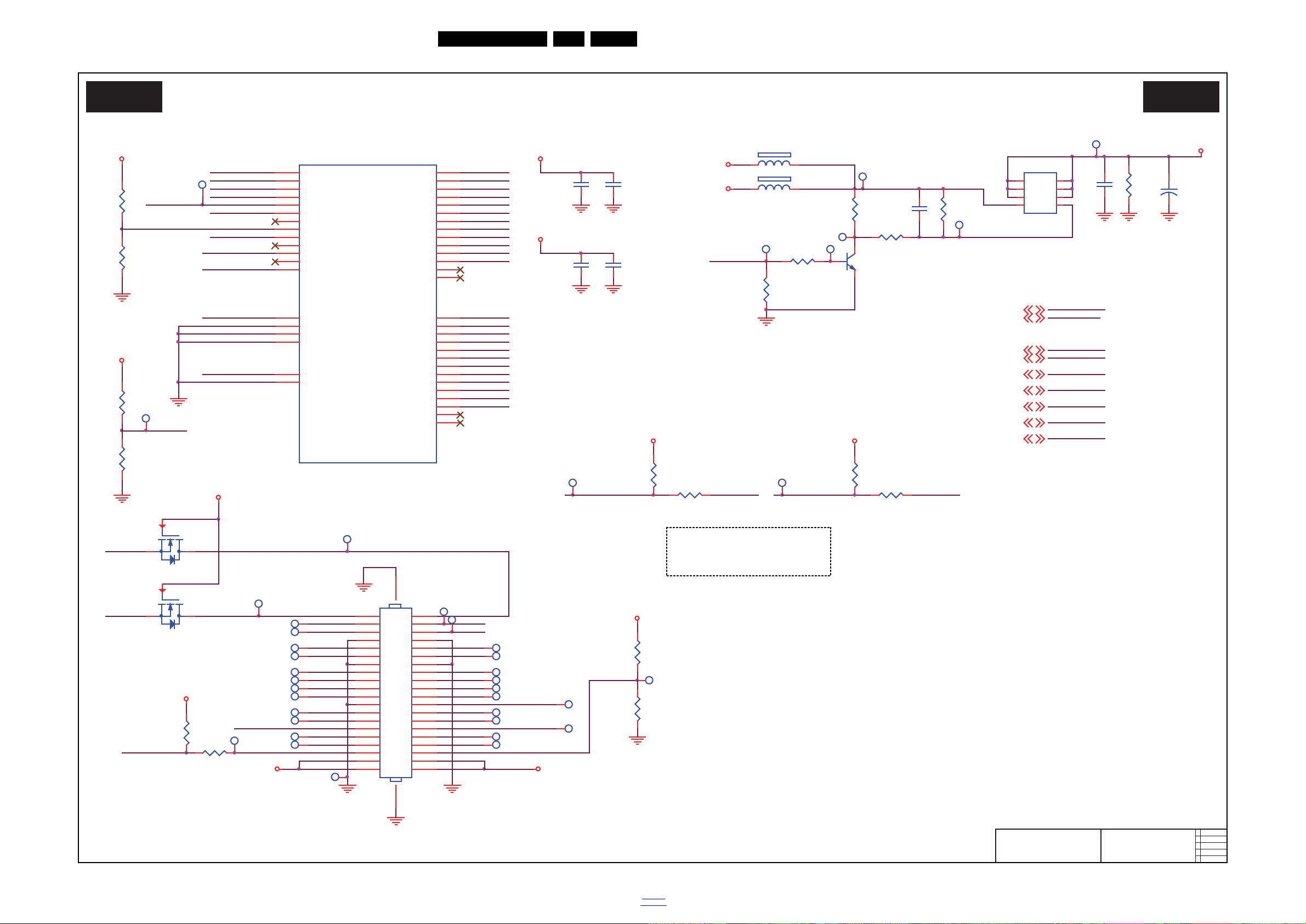

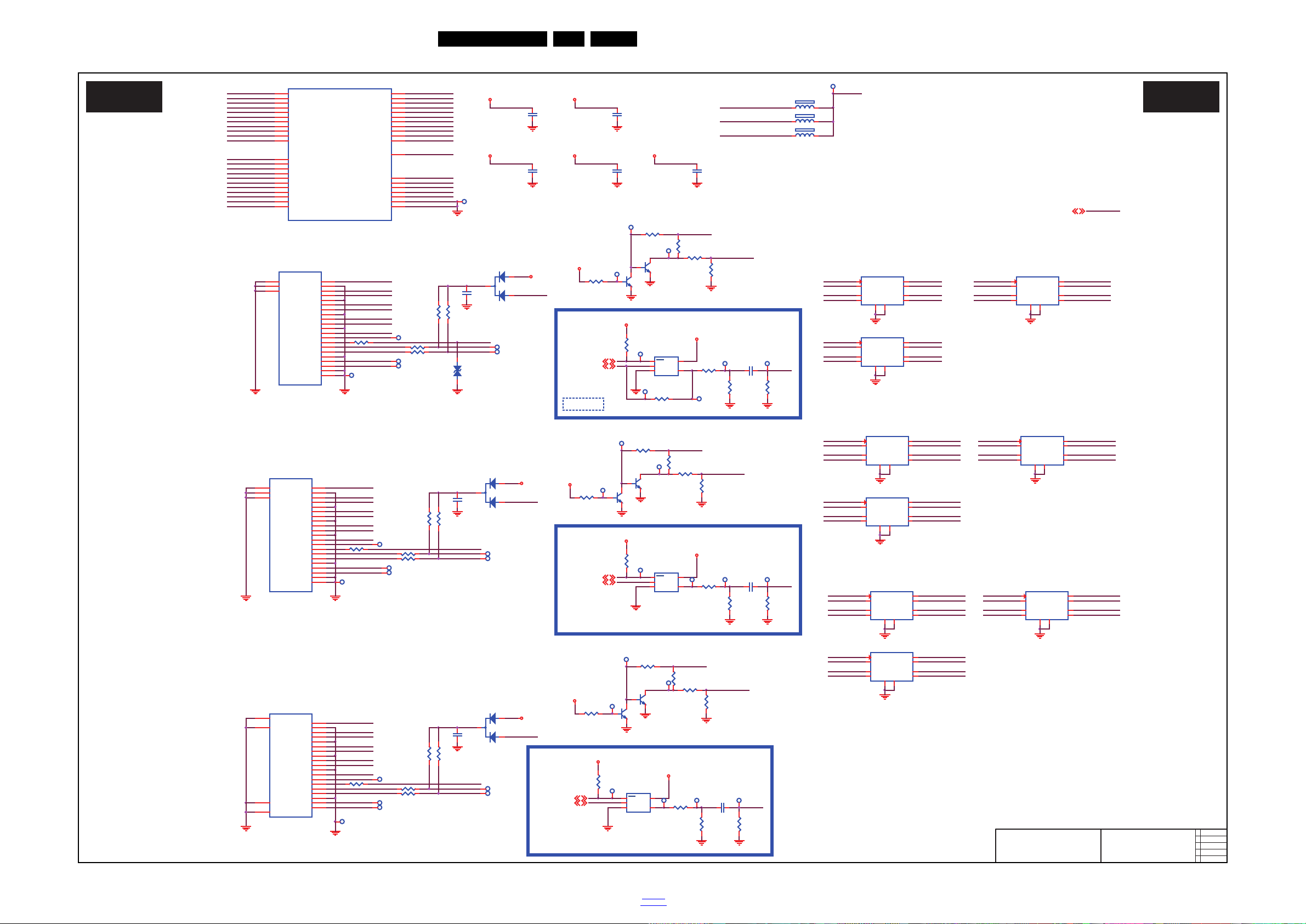

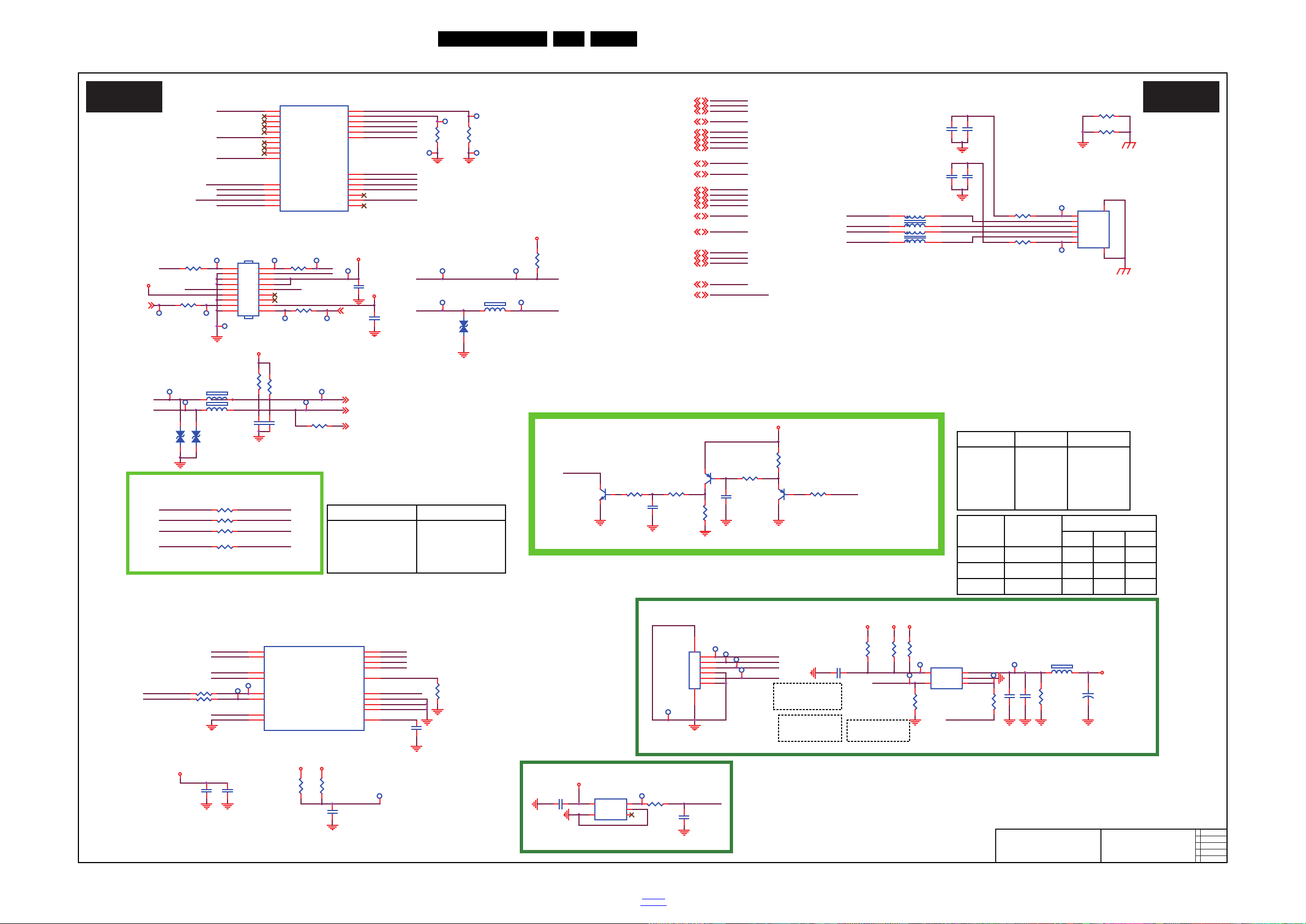

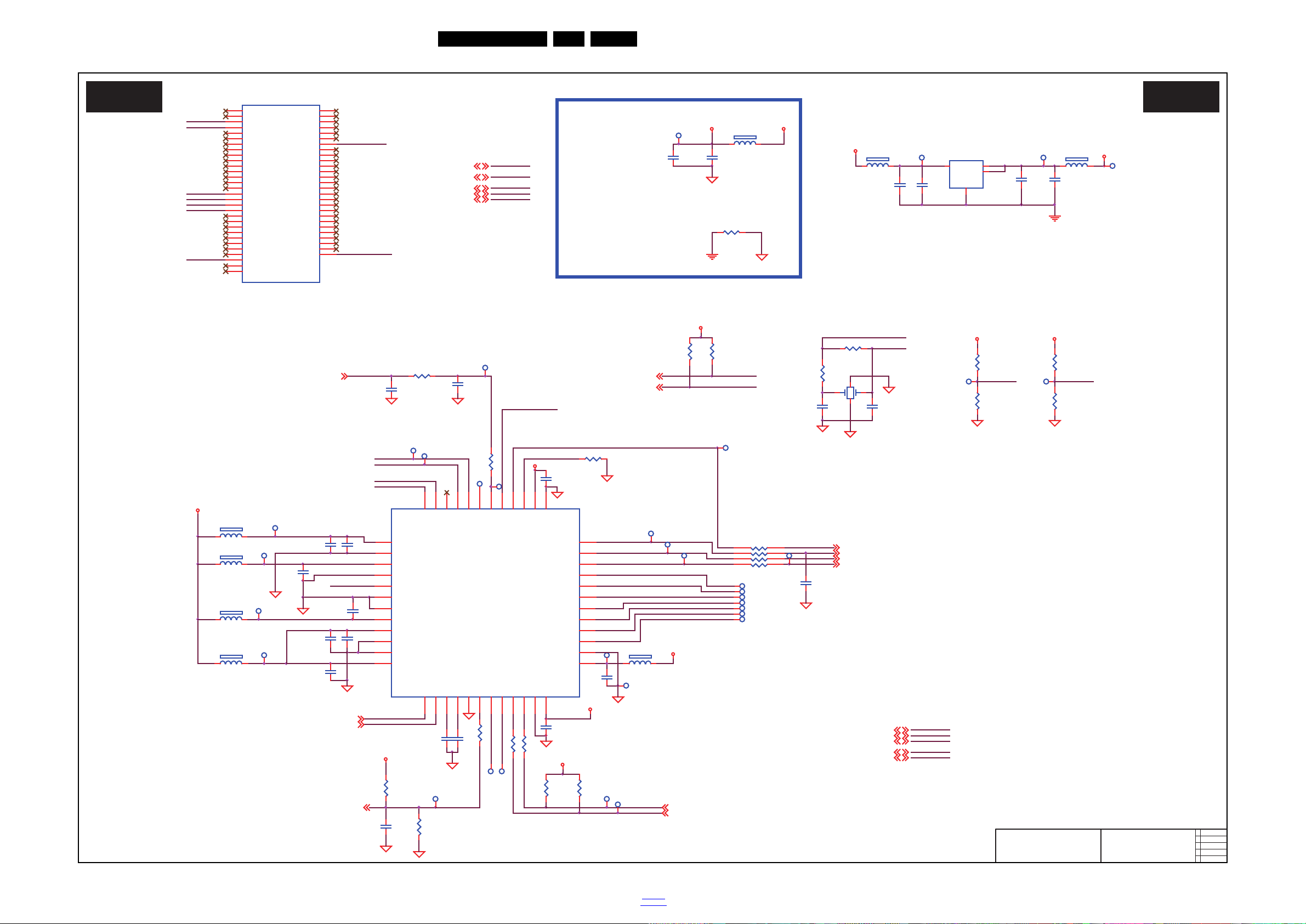

B 715G7904 SSB 40 56-57

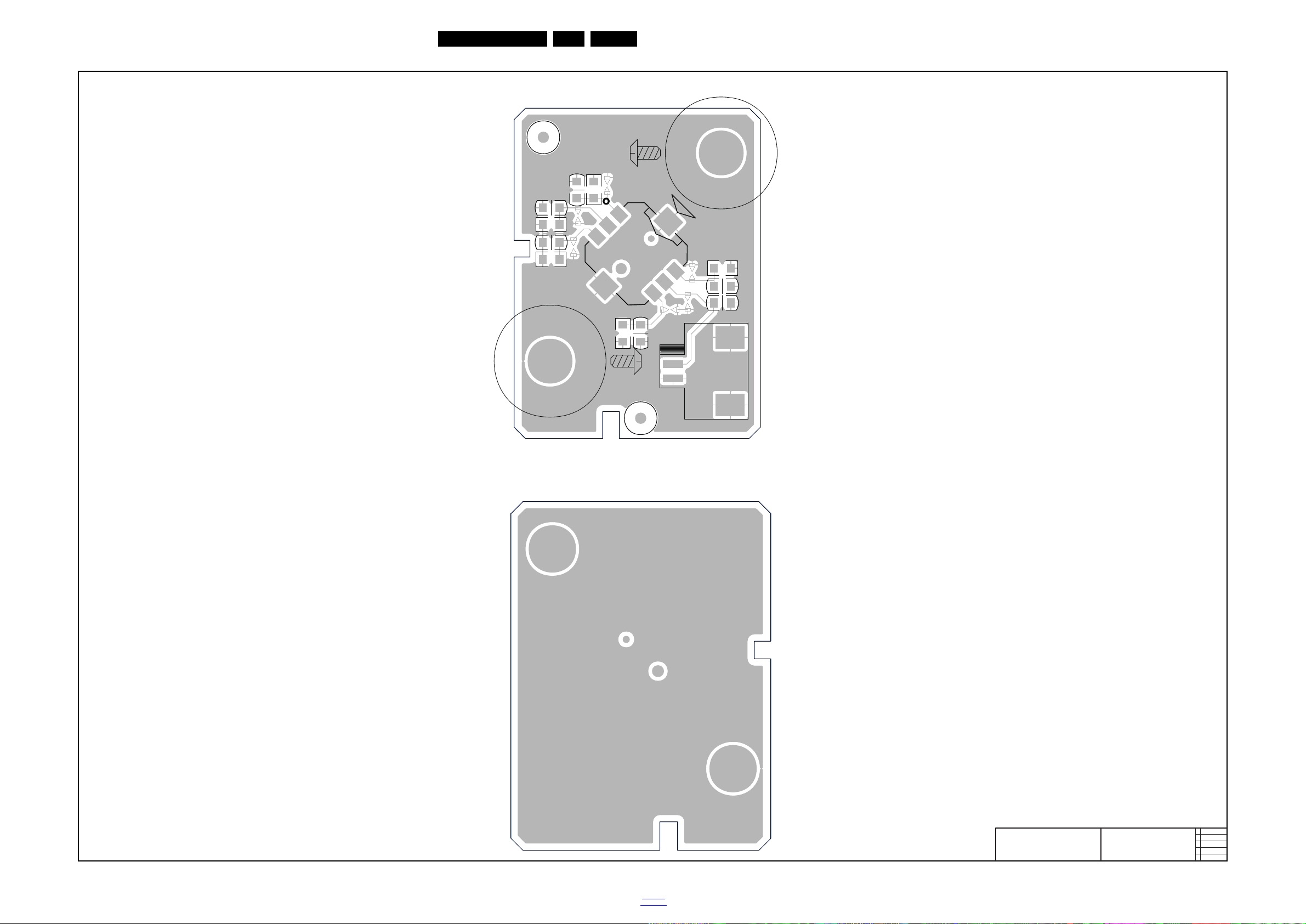

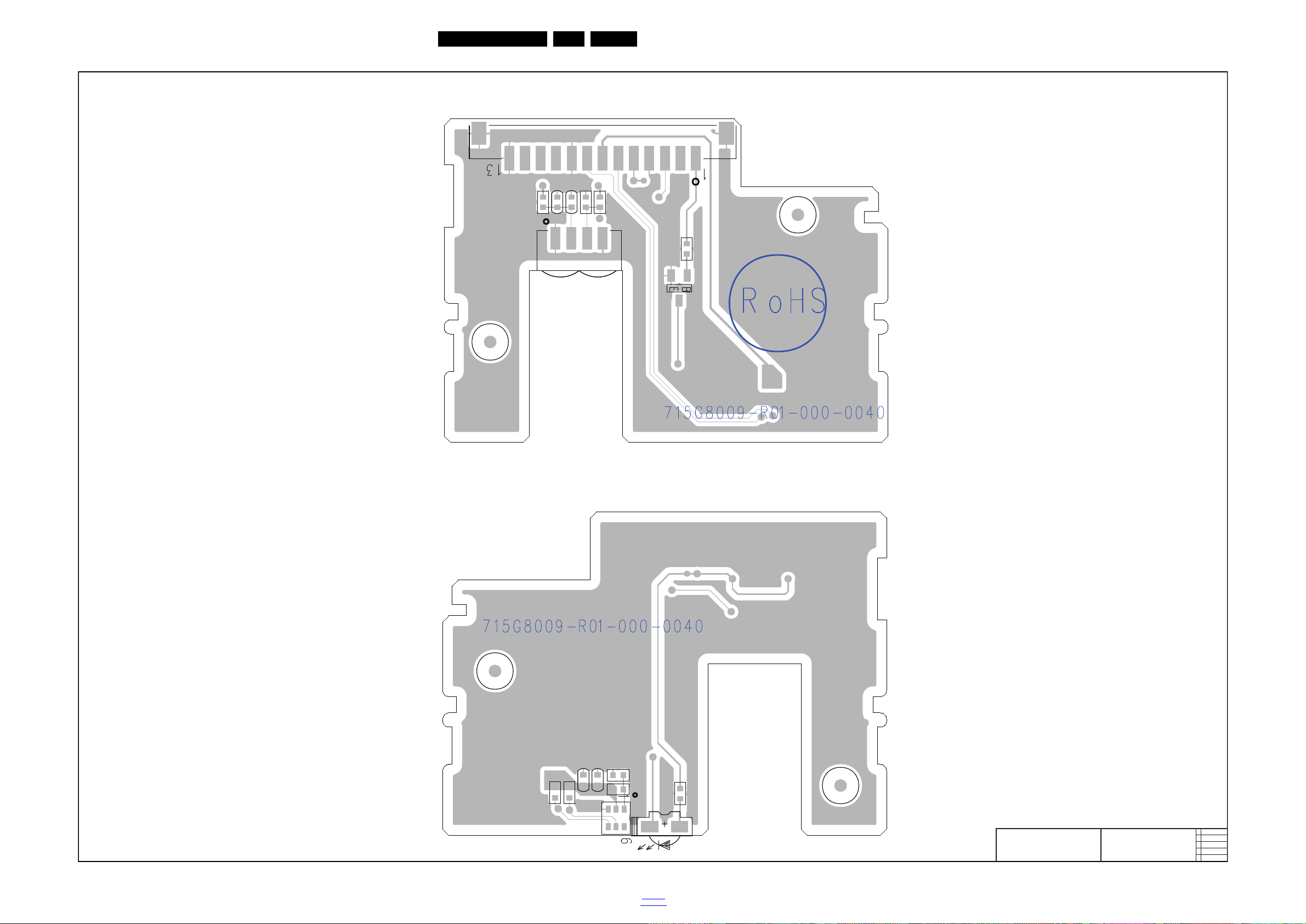

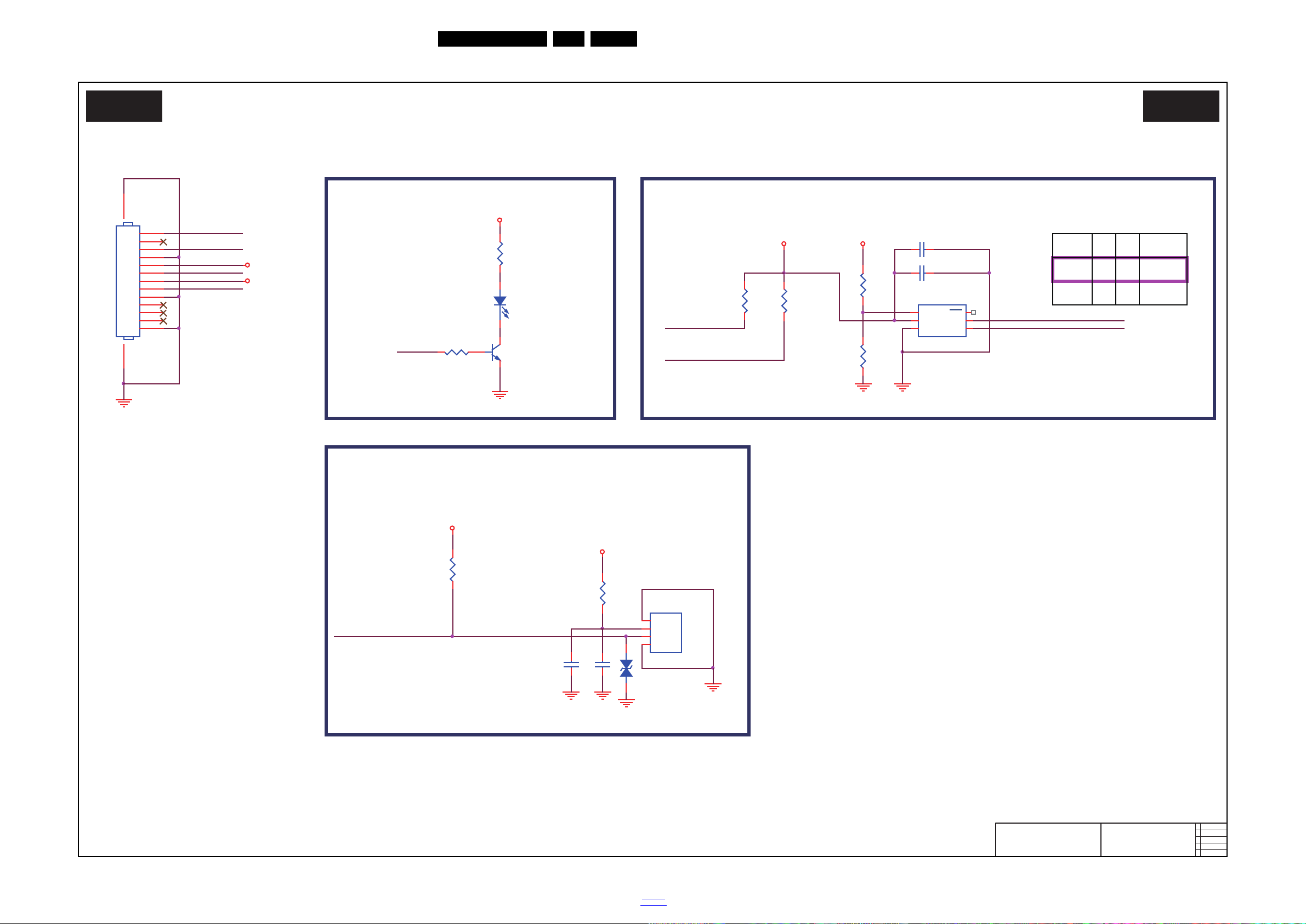

J 715G8009 IR/LED Panel 58 59

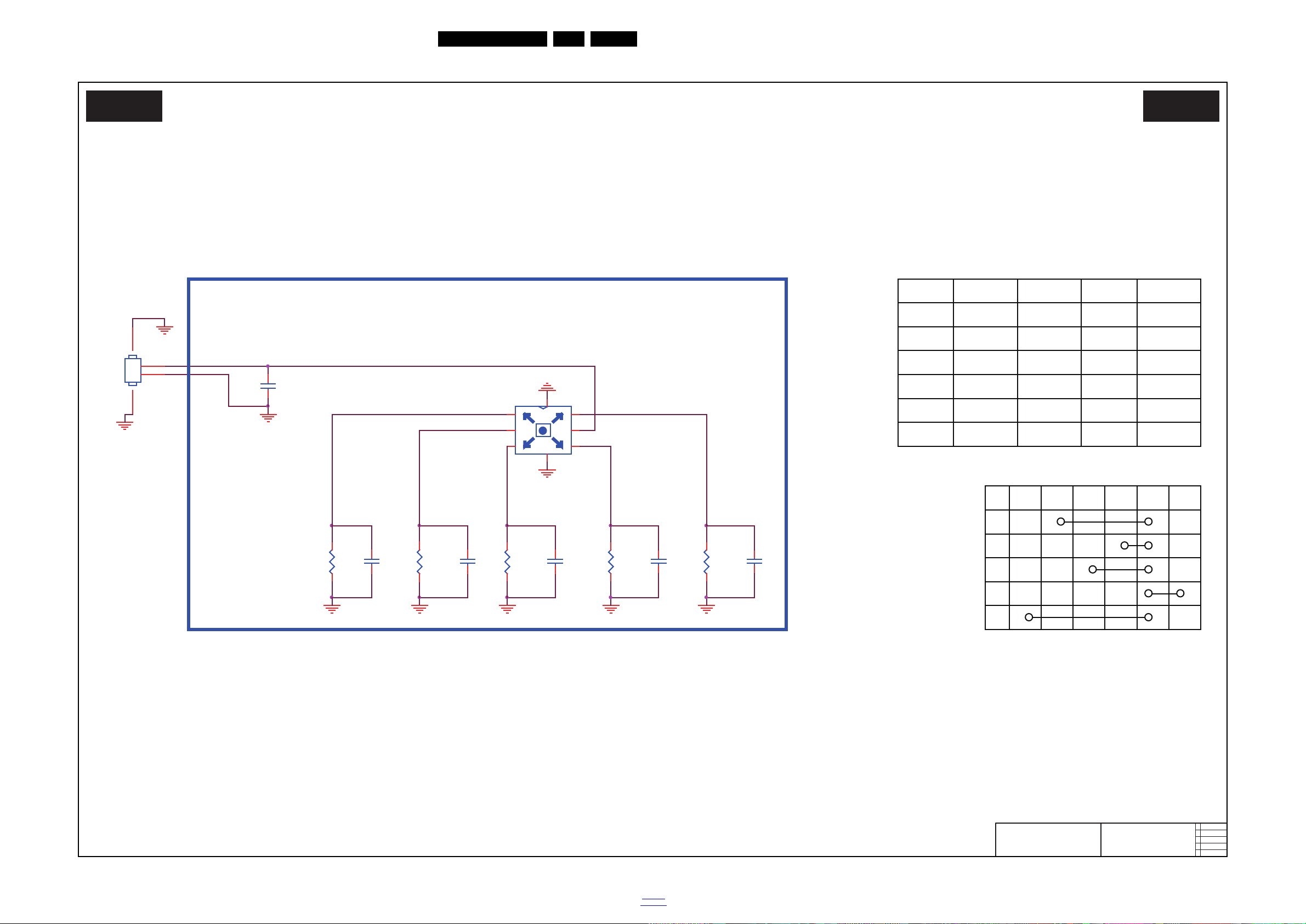

E 715G7088 Keyboard control panel 60 61

11. Styling Sheets
5301 series 32" 62

36 38-39

Published by CQZ/SC 1613 Quality Printed in the Netherlands Subject to modification EN 3122 785 20180

2016-Apr-01

2016 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPM16.6L LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

First release.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in back to

div.table 2-1. Here is product information available, as well as

getting started, user manuals, frequently asked questions and

Notes:

software & drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 910 11

CTN

32PHD5301/55 2-1 4-1 4-2 4-3 4-4 4-6 & 4-7 4-5 9.1 10.1 10.2 10.3 10.4 11.1

Mechanics

Connection Overview

Wire Dressing

Stand Removal

Rear Cover Removal

Schematics

Keyboard Removal

IR/LED Board Removal

SSB Removal

Block Diagram

Power Supply

SSB

2.2 Directions for Use

Directions for use can be downloaded from the following
websites:

http://www.philips.com/support
http://www.p4c.philips.com

J (IR/LED)

E (Key board/Leading Edge)

Styling

2016-Apr-01

back to

div.table

2.3 Connections

HDMI ARC

USB1

USB2

TV ANTENNA

SERV.U

HDMI 1

ARC

SPDIF

OUT

L

CVBS1

R

L

CVBS2

R

NETWORK

HDMI 2

ARC

20180_001.eps

1

3

4

2

5

10

11

Side ConnectorsRear Connectors

6

7

8

9

1 2 3 4

10000_022_090121.eps

090121

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3TPM16.6L LA 2.

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

2.3.1 Side Connections

1 - USB1 2.0

Figure 2-2 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

2 - USB2 2.0

Figure 2-3 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

3 - HDMI ARC: Digital Video - In, Digital Audio with ARC ­In/Out

Figure 2-4 HDMI (type A) connector

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

4 - Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

5- TV ANTENNA - In

Signal input from an antenna, cable or satellite.

back to

div.table

2016-Apr-01

EN 4 TPM16.6L LA2.

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

2.3.2 Rear Connections

6 - Service / UART

1 -Ground Gnd H
2 -UART_TX Transmit k
3 -UART_RX Receive j

7 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75 W kq

PP

8- HDMI 1: Digital Video - In, Digital Audio with ARC - In/Out

Figure 2-5 HDMI (type A) connector

1 -D2+ Data channel j
2-Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5-Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8-Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

9- HDMI 2: Digital Video - In, Digital Audio with ARC - In/Out

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

10 - RJ45: Ethernet

10000_025_090121.eps

120320

Figure 2-7 Ethernet connector

1 -TD+ Transmit signal k
2 -TD- Transmit signal k
3 -RD+ Receive signal j
4 -CT Centre Tap: DC level fixation
5 -CT Centre Tap: DC level fixation
6 -RD- Receive signal j
7 -GND Gnd H
8 -GND Gnd

EXT: Video CVBS - In, Audio - In

11 -

Ye -Video - CBVS 1 V
Wh -Audio - L 0.5 V
Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

H

Figure 2-6 HDMI (type A) connector

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2016-Apr-01

back to

div.table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched “on”.

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode with a colour bar signal and stereo
sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and
picture carrier at 475.25 MHz for PAL, or 61.25 MHz for
NTSC (channel 3).

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 k).

• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10
nano-farads (n 10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed on the Philips
Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare
Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this
URL: http://www.atyourservice-magazine.com
“Magazine”, then go to “Repair downloads”. Here you will find
Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the IC
Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is
required, please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then

back to

div.table

-9

), or pico-farads (p 10

. Select

EN 5TPM16.6L LA 3.

-6

),

-12

).

2016-Apr-01

EN 6 TPM16.6L LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production centre (e.g.
SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M.
code, digit 4 refers to the Service version change code, digits 5
and 6 refer to the production year, and digits 7 and 8 refer to
production week (in example below it is 2010 week 10 / 2010
week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3
format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to
remove horizontal black bars; keeps
the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels
directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information
ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA
ATV See Auto TV
Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections
CL Constant Level: audio output to

connect with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFI Dynamic Frame Insertion
DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion

2016-Apr-01

back to

div.table

Precautions, Notes, and Abbreviation List

EN 7TPM16.6L LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for service

technicians
DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display.
EDID Extended Display Identification Data

(VESA standard)
EEPROM Electrically Erasable and

Programmable Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency

Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div.table

The SDI signal is self-synchronizing,
uses 8 bit or 10 bit data words, and has
a maximum data rate of 270 Mbit/s,
with a minimum bandwidth of 135
MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored
in RAM or in the NVM. They are called
at start-up of the set to configure it
according to the customer's

preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
MHEG Part of a set of international standards

related to the presentation of

multimedia information, standardised

by the Multimedia and Hypermedia

Experts Group. It is commonly used as

a language to describe interactive

television services
MIPS Microprocessor without Interlocked

Pipeline-Stages; A RISC-based

microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect

Transistor, switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTC Negative Temperature Coefficient,

non-linear resistor
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non-Volatile Memory: IC containing

TV related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of

software upgrade via RF transmission.

Upgrade software is broadcasted in

TS with TV channels.
OTC On screen display Teletext and

Control; also called Artistic (SAA5800)
P50 Project 50: communication protocol

between TV and peripherals
PAL Phase Alternating Line. Color system

mainly used in West Europe (colour

carrier = 4.433619 MHz) and South

America (colour carrier

PAL M = 3.575612 MHz and

PAL N = 3.582056 MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation

2016-Apr-01

EN 8 TPM16.6L LA3.

Precautions, Notes, and Abbreviation List

PDP Plasma Display Panel
PFC Power Factor Corrector (or

Pre-conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency
POD Point Of Deployment: a removable

CAM module, implementing the CA

system for a host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED

backlight with 2D-dimming
PSL Power Supply with integrated LED

drivers
PSLS Power Supply with integrated LED

drivers with added Scanning

functionality
PTC Positive Temperature Coefficient,

non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary

color signals for TV. By mixing levels

of R, G, and B, all colors (Y/C) are

reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote

control receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling

data interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

SCL Serial Clock I

Téléviseurs

SCL-F CLock Signal on Fast I
SD Standard Definition
SDA Serial Data I
SDA-F DAta Signal on Fast I

2

C

2

C bus

2

C

2

C bus
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.

Colour system mainly used in France
and East Europe. Colour
carriers = 4.406250 MHz and

4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a

4-wire synchronous serial data link

standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to

reduce the effects of EMI
STB Set Top Box
STBY STand-BY
SVGA 800 × 600 (4:3)
SVHS Super Video Home System
SW Software

SWAN Spatial temporal Weighted Averaging

Noise reduction
SXGA 1280 × 1024
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential

Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1600 × 1200 (4:3)
V V-sync to the module
VESA Video Electronics Standards

Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio

output toward external amplifier
VSB Vestigial Side Band; modulation

method
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024 × 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)

signal
YPbPr Component video. Luminance and

scaled color difference signals (B-Y

and R-Y)
YUV Component video

2016-Apr-01

back to

div.table

4. Mechanical Instructions

20180_100.eps

CN9101

CN601

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN601

ECN601

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

CN8601

CN401

ECN701

ECN601

ECN701

ECN703

KEYBOARD CONTROL

(1057)

E

CN01

ECN401

ECN702

CN703

CN701

CN702

ECN703

ECN401

ECN702

ECN702

WIFI MODULE

W

WiFi01

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

EN 9TPM16.6L LA 4.

Figure 4-1 Cable dressing (32" 5301/55 series)

back to

div.table

2016-Apr-01

EN 10 TPM16.6L LA4.

20080_101.eps

1

M4 × 14

1

1

1

1

Mechanical Instructions

4.2 Se rvice Positions

For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal

Instructions below apply to the 32PHD5301/55.

4.3.1 Stand

Refer to Figure 4-2
Warning: Disconnect the mains power cord before removing
the rear cover.

1. Remove fixation screws [1] that secure the Stand assy_L &
Stand assy_R, pull out them from the set. Refer to

Figure 4-2

for details.

for details.

4.3.2 Rear Cover

Refer to Figure 4-3
Warning: Disconnect the mains power cord before removing
the rear cover.

1. remove the fixation screws [1],[2] that secure the rear
cover. Refer to Figure 4-3

2. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

for details.

for details.

Figure 4-2 Stand removal

2016-Apr-01

back to

div.table

Mechanical Instructions

20080_102.eps

1

M3 × 6

1

1

2

2

1

M3 × 6

1

1

1

1

1

1

1

1

1

20080_104.eps

1

1

2

20080_103.eps

1

3

3

3

3

2

2

2

2

EN 11TPM16.6L LA 4.

Figure 4-3 Rear cover removal

4.3.3 Keyboard Control unit

Refer to Figure 4-4
Caution: Keyboard catch on the Back cover,must be carefull
the Keyboard cable connected from the SSB while opening of
Back cover.

1. Remove the fixation screws [1] secure the keyboard control
panel from the Back cover.

2. Gently release the connector [2] that connect the keyboard
cable from SSB.

3. Gently take the keyboard out.

When defective, replace the whole unit.

for details.

4.3.4 Small Signal Board (SSB)

Refer to Figure 4-5
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.

1. Release the clips from the LVDS connector [1] that connect
with the SSB.
Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2].

3. Remove all the fixation screws [3] from the SSB.

4. The SSB can now be shifted from side connector cover,
then lifted and taken out of the I/O bracket. Refer to

Figure 4-5

for details.

for details.

Figure 4-4 Keyboard removal

back to

div.table

Figure 4-5 SSB removal

2016-Apr-01

EN 12 TPM16.6L LA4.

20010_104.eps

2

1

1

20010_105.eps

5

4

3

3

Mechanical Instructions

4.3.5 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.6 IR board Control Unit

Refer to Figure 4-6

1. Unplug the connector from the SSB.
Caution: be careful, as these are very fragile connectors!

2. The indicated areas [1] are secured by clips. Gently and be
very careful with releasing the IR board control unit.

3. Unplug the connector [2] from IR board control unit. Refer
to Figure 4-6

4. Take the IR board contorl unit with hands, gently use
thumbs to press backward the indicated areas [3], the IR
board [4] and the IR lens [5] can be detached from the IR
board control unit. Refer to Figure 4-7

When defective, replace the whole unit.

, Figure 4-7 for details.

for details.

for details.

4.3.7 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.3.8 WIFI module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the WIFI module,
getntly remove the module from the set.

When defective, replace the whole unit.

4.3.9 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out.

When defective, replace the both units.

4.3.10 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the WIFI as described earlier.

7. Remove the fixations screws that fix the metal clamps to
the front bezel. Take out those clamps.

8. Remove all other metal parts not belonging to the panel.

9. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

Figure 4-6 IR board Control Unit removal 1

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original position. See Figure 4-1

• Pay special attention not to damage the EMC foams on the
SSB shields. Ensure that EMC foams are mounted
correctly.

.

2016-Apr-01

Figure 4-7 IR board Control Unit removal 2

back to

div.table

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Service Modes

5.2 Stepwise Start-up

5.3 Service Tools

5.4 Software Upgrading

5.5 Error Codes

5.6 The Blinking LED Procedure

5.7 Fault Finding and Repair Tips

5.1 Service Modes

The Service Mode feature is split into four parts:

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

SAM and the Factory mode offer features, which can be used
by the Service engineer to repair/align a TV set. Some features
are:

• Make alignments (e.g. White Tone), reset the error buffer
(SAM and Factory Mode).

• Display information (“SAM” indication in upper right corner
of screen, error buffer, software version, operating hours,
options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the
consumer. The CSM displays diagnosis information, which the
customer can forward to the dealer or call centre. In CSM
mode, “CSM”, is displayed in the top right corner of the screen.
The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

Note: For the new model range, a new remote control (RC) is
used with some renamed buttons. This has an impact on the
activation of the Service modes. For instance the old “MENU”
button is now called “HOME” (or is indicated by a “house” icon).

5.1.1 General

Next items are applicable to all Service Modes or are general.

Life Timer

During the life time cycle of the TV set, a timer is kept (called
“Op. Hour”). It counts the normal operation hours (not the
Stand-by hours). The actual value of the timer is displayed in
SAM in a decimal value. Every two soft-resets increase the
hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main
menu display of SAM and CSM.
The screen will show: “AAAAAAB-XXX.YYY.MMM.TTT”,
where:

• AAAAAA is the chassis name: TPM165L.

• B is the region indication: E = Europe, A = AP/China, U =
NAFTA, L = LATAM.

• XXX is the main version number: this is updated with a
major change of specification (incompatible with the
previous software version). Numbering will go from 0- 255.

• YYY is the sub version number: this is updated with a minor
change of specification (incompatible with the previous
versions). Numbering will go from 0- 255.

• MMM is the number of the mandatory (upgrade) release in
association with the area of the mandatory (upgrade)
release. Numbering will go from 0 - 255.

• TTT bit 7 to 1 is the area of the mandatory (upgrade)
release where 0 - none, 1 - Netflix, rest reserved.

• TTT bit 0 : 0 = development release, 1 = production
release.

Display Option Code Selection

When after an SSB or display exchange, the display option
code is not set properly, it will result in a TV with “no display”.
Therefore, it is required to set this display option code after
such a repair.
To do so, press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type: see
column “Display Code” in back to div.table 6-3
is accepted and stored in NVM, the set will switch to Stand-by,
to indicate that the process has been completed.
During this algorithm, the NVM-content must be filtered,
because several items in the NVM are TV-related and not SSB
related (e.g. Model and Prod. S/N). Therefore, “Model”
and “Prod. S/N” data is changed into “See Type Plate”. In case
a call centre or consumer reads “See Type Plate” in CSM
mode.

5.1.2 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control
transmitter: “062596”, directly followed by the “INFO/OK”
button. Do not allow the display to time out between entries
while keying the sequence.

After entering SAM, the following items are displayed,
with “SAM” in the upper right corner of the screen to indicate
that the television is in Service Alignment Mode.

EN 13TPM16.6L LA 5.

. When the value

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour e.g. 00057 This represents the life timer. The timer counts normal operation hours, but doe s

Main SW ID e.g. “TPM144L_002.004.000.00 1” See paragraph Software Identification, Version, and Cluster for the softwa re name

ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors

OP1 e.g. “001 224 032 000 038 137 220

OP2 e.g. “159 255 127 045 011 017 000

015”

000”

back to

div.table

not count Stand-by hours.

definition.

possible.
Used to read-out the option bytes. See paragraph 6.4 Option Settings in the

Alignments section for a det ailed description. Ten codes ar e possible.

2016-Apr-01

EN 14 TPM16.6L LA5.

Main Menu Sub-menu 1 Sub-menu 2 Description

Clear Codes Press [OK] to clean the Error Codes

Options OP#1-OP#8 e.g. “032” Option code
Alignments Warm R Gain To align the White Tone. See

NVM editor NVM editor NVM-editor will function as in the past: Address and Value

Upload to USB Channel List To upload several settings from the TV to an USB stick

Download from USB Channel List To download several settings from the USB stick to the TV

immediately

Normal R Gain

Cool R Gain

Store Store the RGB value

Service Date Edit and display the applicable service dat a by using the displayed key pad

NVM Copy
Readable info
EDID Copy

NVM Copy
EDID Copy

Service Modes, Error Codes, and Fault Finding

Erases the contents of the error buffer. Select this menu item and press the MENU
RIGHT key on the remote control. The content of the error buffer is cleared.

G Gain
B Gain

G Gain
B Gain

G Gain
B Gain

paragraph 6.3 Software Alignments in the Alignments section for a detailed
description

field is a decimal value via digit entry

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN
keys on the remote control transmitter. The selected item
will be indicated. When not all menu items fit on the screen,
use the UP/DOWN keys to display the next/previous menu
items.

• With the “LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– (De) activate the selected sub menu.
– Change the value of the selected menu item.

• When you press the MENU button once while in top level
SAM, the set will switch to the normal user menu (with the
SAM mode still active in the background).

How to Store SAM Settings

To store the settings changed in SAM mode (except the
RGB Align settings), leave the top level SAM menu by using
the POWER button on the remote control transmitter or the
television set. The mentioned exceptions must be stored
separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button
on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while
in SAM, the TV will show up in “normal operation mode” as

soon as the power is supplied again. The error buffer will not be
cleared.

5.1.3 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control
transmitter: from the “menu/home” press “1999”, directly
followed by the “Back/Return” button. Do not allow the
display to time out between entries while keying the
sequence.

After entering the Factory mode, the following items are
displayed,

Table 5-2 Factory mode overview

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture, BL Dimming,

1 PANEL_ID see back to div.table 6-3 Displays and changes the Panel ID with the left and right cursor; be carefu l changin g this, it ca n

2 ERR Code: xxx xxx xxx xxx xxx 000 000 000 000 000 Values showing the last 5 errors during the last 50 hours of operation, according to table 5-4

3 CLEAR ERROR BUFFER Press OK Selecting this clear all current error codes.
4 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the data to the correct NVM address
5 NVM VALUE 0 Displays the value at the NVM address of item 5
6 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5

2016-Apr-01

Default value

Description32"

Source Meter, the Picture Quality checksum, the Dimming library, the Source meter library, the
Flash AQ, the MTK, MCU and OAD software vers ions.

result in not correct displaying the screen!

Error code table

back to

div.table

Service Modes, Error Codes, and Fault Finding

Default value

Item Item value

7 NVM COPY TV to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB memory stick. The

8 NVM READ USB to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The TV will save the two

9 CLR_TEMP_R 255 Red colour temperature setting
10 CLR_TEMP_G 255 Green colour temperature setting
11 CLR_TEMP_B 255 Blue colour temperature setting
12 AUTO_COLOR Press OK PC: any pattern that has black and white, YPbPr: SMPTE bar (colour bar), any timing.
13 ADC_GAIN_R 0 Red ADC gain
14 ADC_GAIN_G 0 Green ADC gain
15 ADC_GAIN_B 0 Blue ADC gain
16 ADC_OFFSET_R 128 Red ADC offset
17 ADC_OFFSET_G 128 Green ADC offset
18 ADC_OFFSET_B 128 Blue ADC offset
19 VIRGING_MODE off Use this to return the set to virgin mode. Depends whether the set has been used already.
20 E_Fuse on E-fuse mode
21 ORT_MODE off ORT mode
22 VGA_UART_SWITCH off When switched “on” the VGA port can be used for UART logging.
23 DRM WARNING on Warning the data rights management
24 AGEING MODE off Use this for aging a new LCD panel
25 RESET_PBS_PWD Press OK Use this to reset the Child Lock
26 YPBPR_PHASE InValid Not available for this chassis
27 AUD_GAIN_LINEIN 1 Line-in audio gain
28 AUD_GAIN_HDMI 0 HDMI audio gain
29 AUD_GAIN_ATV -1 Analogue TV audio gain
30 AUD_GA IN_DTV 1 Digital TV audio gain
31 AUD_GAIN_USB 0 USB audio gain
32 DIM_LIB RESET Press OK Reset the Dimming
33 SRC_METER-RESET Press OK Reset the Source meter
34 AMBLIGHT RESET Press OK AMBLIGHT RESET
35 ACFG RESET Press OK REST ACFG
36 AQ_INDEX 2 Audio Quality index
37 AUDIO TEST MODE off Used for audio testing during production
38 AUDIO CHANNEL TYPE 2.0 Defines the installed speaker system
38 AUDI O SRS off SRS Audio
40 TEST PATTERN Press OK With the “left” and “right” keys of the remote control various test patterns can be chosen
41 EDID UPDATE Press OK Used to enter a new EDID codes into the NVM
42 DUMP PQ FROM TV Press OK Saves the picture quality data to a file “pq.bin” to the root of a FA T formatte d USB me mory stick
43 LOAD PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV
44 DUMP AQ FROM TV Press OK Saves the audio quality data to a file “AQ.bin” to the root of a FAT formatted USB memory stick
45 LOAD AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV
46 PANEL FLIP on Flip panel
47 VGA_SOURCE off Enable/Disable VGA source
48 HDMI3 on Enable/Disable HDMI3 source
49 HDMI4 off Enable/Disable HDMI4 source
50 USB2 on Enable/Disable USB2 source
51 USB3 off Enable/Disable USB3 source
52 KEYBOARD CONFIG on Keyboard
53 LIGHT SENEOR TUNING 0 Light sensor
54 LIGHT SENSOR TYPE 3 Light sensor
55 TEMP SENSOR TYPE 0 Temperature sensor
56 AMBILIGHT_DRIVER 0 Drive the Ambient light
57 AMBILIGHT TYPE 0 The type of Ambient light
58 LED TYPE 2 The type of LED
59 3D 0 3D on/off
60 SMALL SCREEEN off Small screen
61 BLUETOOTH off BLUETOOTH
62 ARC TEST off ARC test
63 EXIF_FACTORY Press OK Exits the Factory mode

Description32"

TV will write two files in the REPAIR folder of the memory stick. It will create this folder if it does
not exist. The items are “Channel list”, “Personal settings”, “Option codes”, “Display-related
alignments” and “History list”. In case the download to the USB stick was not successful “Failure”
will appear. In this case, check if the USB stick is connected properly. Now the settings are stored
onto the USB stick and can be used to download on to anothe r TV or other SSB. Uplo ading is of
course only possible if the software is running and if a picture is available. This method is created
to be able to save the customer’s TV settings and to store them into another SSB.

files which were created in item 8 to the NVM of the set. Use these options when replacing a
SSB. When “USB to TV Success” is displayed remove the power and restart the TV

EN 15TPM16.6L LA 5.

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK”
button.

Note: When the TV is switched “off” by a power interrupt, or
normal switch to “stand-by” while in the factory mode, the TV

back to

div.table

will show up in “normal operation mode” as soon as the power
is supplied again. The error buffer will not be cleared.

2016-Apr-01

EN 16 TPM16.6L LA5.

Service Modes, Error Codes, and Fault Finding

5.1.4 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and
information on the TVs operation settings.The call centre can
instruct the customer (by telephone) to enter CSM in order to
identify the status of the set.This helps the call centre to
diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every
line (to make CSM language independent).

• Set the screen mode to full
screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original
settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or
enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a
standard remote control transmitter: “123654” (do not allow the
display to time out between entries while keying the sequence).
After entering the Customer Service Mode, the following items
are displayed.

Note: Activation of the CSM is only possible if there is no (user)
menu on the screen!

• 3.1 Signal Quality Analog/digital signal strength.

• 3.2 Child lock Not active / active. This is a combined item
for locks. If any lock (channel lock, parental lock) is active,it
is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or
HDCP keys). In case these keys are not valid and the
customer wants to make use of the HDMI functionality, the
SSB has to be replaced.

• 3.4 Ethernet MAC address A Media Access Control
address (MAC address) is a unique identifier assigned to
network interfaces for communications on the physical
network segment.

• 3.5 Wireless MAC address Wireless Media Access
Control address.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll
wheel) on the RC-transmitter, can be navigated through the
menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control
transmitter.

• Press the POWER button on the remote control
transmitter.

• Press the POWER button on the television set.

Contents of CSM

• 1.1 Set Type This information is very helpful for a
helpdesk/workshop as reference for further diagnosis. In
this way, it is not necessary for the customer to look at the
rear of the TV-set. Note that if an NVM is replaced or is
initialized after corruption, this set type has to be re-written
to NVM.

• 1.2 Production code Displays the production
code (the serial number) of the TV. Note that if an NVM is
replaced or is initialized after corruption, this production
code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first
installation of the TV. This date is acquired via time
extraction.

• 1.4a Option Code 1 Gives the option codes of option
group 1 as set in SAM.

• 1.4b Option Code 2 Gives the option codes of option
group 2 as set in SAM.

• 1.5 SSB Gives an identification of the SSB as stored in
NVM. Note that if an NVM is replaced or is initialized after
corruption, this identification number has to be re-written to
NVM. This identification number is the 12NC number of the
SSB.

• 1.6 Display 12NC NVM read/write.

• 1.7 PSU 12NC NVM read/write.

• 1.8 RF4CE 12NC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software
version. In case of field problems related to software,
software can be upgraded. As this software is consumer
upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor
software version. Upgrading this software will be possible
via USB.

• 2.3 Panel Code Displays the Display Code number.

• 2.4 Bootloader ID ID of Bootloader.

• 2.5 NVM-version Detects and displays NVM version.

• 2.6 Flash ID ID of flash model.

• 2.7 e-U

M version eDFU (help) version.

• 2.8 Channel Table Structure Version version of channel
table structure.

• 2.9 Error Codes Detects and displays errors.

2016-Apr-01

back to

div.table

5.2 Stepwise Start-up

19080_206_110323.eps

120224

Power Off

Standby
Soft Mode

Power On

Semi-
Standby

Standby

Switch

Off(Mains
Power Plug)

Standby Soft Mode
Command Received,
previously in Standby

Soft Mode (Power tact
switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Digital
background
tasks started

Digital
background
tasks completed

Swith On,
previously in

Standby/Semi-
Standby (Mains
Power Plug)

Standby
Soft Mode

Command
Received
(Power tact

switch)

Switch Off (Mains
Power Plug)

Switch Off

(Mains Power
Plug)

Swith On,
previously in
Standby Soft Mode
(Mains Power Plug)

Standby
commands

Received (RC

Standby key)

Standby Soft Mode

Command Received,
previously in Standby
Soft Mode (Power
tact switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Switch On, previously
in Power On Mode
(Power tact switch)

Standby Soft Mode
Command Received,
(Power tact switch)

Switch Off (Mains
Power Plug)

Switch On,previously in
TV Operation Mode
(Mains Power Plug)

Service Modes, Error Codes, and Fault Finding

EN 17TPM16.6L LA 5.

Figure 5-1 Stepwise Start-up

back to

div.table

2016-Apr-01

EN 18 TPM16.6L LA5.

19080_207_110324.eps

110324

19080_208_110324.eps

110324

19080_209_110324.eps

110324

Service Modes, Error Codes, and Fault Finding

5.3 Service Tools

5.3.1 ComPair

The ComPair Tool is no longer supported here. Still, the interface box can be used as level shifter between the TV chassis and PC.

5.4 Software Upgrading

5.4.1 Description

It is possible for the user to upgrade the main software via the
USB port. This allows replacement of a software image in a
stand alone set. A description on how to upgrade the main
software can be found in the DFU or on the Philips website.

5.4.2 Introduction

Philips continuously tries to improve its products, and it’s
recommend that the TV software is updated when updates are
available. Software update files can be obtained from the
dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip
for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

6. Upgrading will now begins and the status of the updating
progress will be displayed.

7. When the TV software is updated. Remove your USB flash
drive, then select [Restart] and press OK to restart the
TV.See Figure 5-4

.

Figure 5-2 Update the TV software [1/3]

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

web site.

5.4.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to
check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter
the CSM mode.

2. Use the up/down cursor keys to select “Current Main
Software”.

If the current software version of the TV is the same as the
latest update file found on http://www.philips.com/support
not necessary to update the TV software.

5.4.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the
PC.

4. Insert the USB memory stick into one of the USB ports of
the PC.

5. Decompress the downloaded ZIP file and copy it to the root
directory of the USB flash drive.

5.4.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software
update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically.
Then a window jumps out as Figure 5-2

.
Note: If the USB flash drive is not detected after power up,
disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-2

5. To proceed, In next menu select [Start] and press OK to
.

2016-Apr-01

start software updates. See Figure 5-3

Figure 5-3 Update the TV software [2/3]

, it is

.

Figure 5-4 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software
update.

• If a power failure occurs during the update, do not remove
the USB flash drive from the TV. The TV will continue the
software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or
contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV
software from the USB portable memory.

.

back to

div.table

Service Modes, Error Codes, and Fault Finding

EN 19TPM16.6L LA 5.

5.4.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and
instructions on how and when to use it. Only files that are
relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the
different EDID NVMs.

• FUS_clustername_version.zip: Contains the file
downloaded which is needed to upgrade the TV main
software and the software download application.

• NVM_clustername_version.zip: Default NVM content.

5.4.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder
“repair” is used. When inserting an empty USB memory stick,
and downloading data to the stick, the TV will create this folder.
When sending data from a USB memory stick to a TV, the
intended data must be available in the “repair” folder.
Note that when copying EDID data to the TV, all necessary
EDID files must be in this folder.
Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode
Factory Mode Used for extended alignments
CSM 3-page compact CSM pages. There will be CSM dump to

USB SW upgradeable SW-upgrading of flash memories MT5580P2 can be done

NVM-Editor in SAM NVM-editor will function as in the past: Addr ess and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in
SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC sequence “062598” + “Menu” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

via USB. The main SW can be upgraded via the ZIP file
downloaded.

field is a decimal value via digit entry

programming with virtual keyboard
Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

“Panel code”

Example:
– ERROR: 000 000 000 000 000: No errors detected
– ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected
(newest) error

• Via the blinking LED procedure (when you have no
picture). See paragraph 5.6 The Blinking LED Procedure

5.5.3 Error codes

In this chassis only “layer 2” error codes are available and point
to problems on the SSB. They are triggered by LED blinking
when CSM is activated. Only the following layer 2 errors are
defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I2C bus error on the SSB
16 +12 V missing or low, PSU defective
27 Channel decoder error on the SSB
34 Tuner I2C bus error on the SSB
35 EEPROM I2C error on SSB, M24C64

5.5.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control
transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50
hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the
television set, the error buffer is not reset.

5.6 The Blinking LED Procedure

5.6.1 Introduction

.

5.5 Error Codes

5.5.1 Introduction

Error codes are required to indicate failures in the TV set. In
principle a unique error code is available for every:

• Activated (SW) protection.

• Failing I

• General I
The last five errors, stored in the NVM, are shown in the
Service menu’s. This is called the error buffer.
The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.
An error will be added to the buffer if this error differs from any
error in the buffer. The last found error is displayed on the left.
An error with a designated error code never leads to a
deadlock situation. It must always be diagnosable (e.g. error
buffer via OSD or blinking LED).
In case a failure identified by an error code automatically
results in other error codes (cause and effect), only the error
code of the MAIN failure is displayed.

5.5.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/CSM (if you have a picture).

2

C device.

2

C error.

The software is capable of identifying different kinds of errors.
Because it is possible that more than one error can occur over
time, an error buffer is available, which is capable of storing the
last five errors that occurred. This is useful if the OSD is not
working properly.
Errors can also be displayed by the blinking LED procedure.
The method is to repeatedly let the front LED pulse with as
many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated.
Example (1): error code 4 will result in four times the sequence
LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After
this sequence, the LED will be “off” for 1.5 seconds. Any RC
command terminates the sequence. Error code LED blinking is
in red color.
Example (2): the content of the error buffer is “12 9 6 0 0” After
entering SAM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.6.2 How to Activate Blinking LED Procedurer

Use one of the following methods:

• Activate CSM.The blinking front LED will show the layer 1
error(s), this works in “normal operation” mode or

back to

div.table

2016-Apr-01

EN 20 TPM16.6L LA5.

Service Modes, Error Codes, and Fault Finding

automatically when the error/protection is monitored by the
standby processor.
In case no picture is shown and there is no LED blinking,
read the logging to detect whether “error devices” are
mentioned. (see section “5.7 Fault Finding and Repair

Tips, 5.7.4 Guidelines Uart logging”).

• Activate SAM. The blinking front LED will show the entire
content of the LAYER 2 error buffer, this works in “normal
operation” mode.

5.7 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

5.7.1 NVM Editor

In some cases, it can be convenient if one directly can change
the NVM contents. This can be done with the “NVM Editor” in
SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of
each setting, because incorrect NVM settings may
seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before
changing the settings. This will enable you to return to the
original settings, if the new settings turn out to be incorrect.

5.7.6 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.7.7 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.7.8 Audio Amplifier

The Class D-IC U601 has a powerpad for cooling. When the IC
is replaced it must be ensured that the powerpad is very well
pushed to the PWB while the solder is still liquid. This is needed
to insure that the cooling is guaranteed, otherwise the Class
D-IC could break down in short time.

5.7.9 Loudspeakers

Make sure that the volume is set to minimum during
disconnecting the speakers in the ON-state of the TV. The
audio amplifier can be damaged by disconnecting the speakers
during ON-state of the set!

5.7.10 Display option code

Attention: In case the SSB is replaced, always check the Panel
Code in CSM, even when picture is available. Performance
with the incorrect display option code can lead to unwanted
side-effects for certain conditions.

5.7.2 CSM

When CSM is activated and there is an USB stick connected to
the TV set, then the software will collect the complete CSM
content in a file Csm.xml and dump the file in a folder “CSM” on
the USB stick.
When this mechanism works it can be concluded that a large
part of the operating system is already working (SOC, USB ...).

5.7.3 No Picture

When you have no picture, first make sure you have entered
the correct display code. See paragraph 6.4 Option Settings
the instructions. See also back to div.table 6-3

5.7.4 Guidelines Uart logging

Possible cases:

Uart loggings are displayed:

• We can conclude that the TV-set is starting up and
thatcommunication with the flash RAM seems to be
supported. The processor is able to read and write in the
DRAMs.

• We can not yet conclude that flash RAM and DRAMs are
fully operational/reliable.There still can be errors in the data
transfers, DRAM errors, read/write speed and timing
control.

Uart loggings report fault conditions, error messages, error
codes and fatal errors:

• Some failures are indicated by error codes in the logging,
check referring to back to div.table 5-4.

2C bus errors.

•I

• Not all failures or error messages should be interpreted as
fault. For instance the root cause can be wrong option
codes settings.

for

.

5.7.5 Unstable Picture via HDMI input

Check if HDMI EDID data is properly programmed.

2016-Apr-01

back to

div.table

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer
with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct
ground (e.g. measure audio signals in relation to
AUDIO_GND).
Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 MW, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform
alignments.

, 50/ 60 ± 3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color
analyser (e.g. Minolta CA-210) in the centre of the screen.
Consequently, the measurement needs to be done in a
dark environment.

• Adjust the correct x, y coordinates (while holding one of the
White point registers R, G or B on max. value) by means of
decreasing the value of one or two other white points to the
correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx: ± 0.003, dy: ± 0.003.

• Repeat this step for the other colour Temperatures that
need to be aligned.

• When finished return to the SAM root menu and press
STANDBY on the RC to store the aligned values to the
NVM.

Table 6-1 White D alignment values

Value Cool (11000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313
y 0.282 0.296 0.329

EN 21TPM16.6L LA 6.

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus.
The alignments are explained below.
The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the
left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a
video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal
strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a
signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal
strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off
Dynamic Contrast Off
Color Enhancement Off
Picture Format Unscaled
Light Sensor Off
Brightness 50
Color 0
Contrast 100

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the
following values:
– “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

If you do not have a colour analyser, you can use the default
values. This is the next best solution. The default values are
average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average
values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or
WARM).

• Set the RED, GREEN and BLUE default values according
to the values in back to div.table 6-2

.

• When finished press OK on the RC, then press STORE to
store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Warm (6500K) 32PHD5301/55 255 206 171
Normal (900 0K) 32PHD5301/55 255 235 255
Cool (11000K) 32PHD5301/55 239 207 255

Colour temperature

Red Green Blue

This group setting of colour temperature will be applied
automatically to the TV / HDMI / AV sources.

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I
ICs in the set. To ensure good communication and to make
digital diagnosis possible, the microprocessor has to know
which ICs to address. The presence / absence of these
MT5561 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK
button on the RC before the cursor is moved to the left,
select STORE and press OK on the RC.

• The new option setting is only active after the TV is
switched “off” / “stand-by” and “on” again with the mains
switch (the NVM is then read again).

2

C

back to

div.table

2016-Apr-01

EN 22 TPM16.6L LA6.

Alignments

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could be
edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type: see
column “Display Code” in back to div.table 6-3
the Display Code, restart the set immediately.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

32PHD5301/55 TPT315B5-WX226.K S4944H 152

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service
repair shop (SSB repair on component level) implies the reset
of the NVM on the SSB.
A repaired SSB in Service should get the service Set type
“00PF0000000000” and Production code “00000000000000”.
Also the virgin bit is to be set. To set all this, you can use the
“NVM editor” and “Dealer options” items in SAM (do not forget
to “store”).

Make sure when replacing an SSB the SSB identification codes
match the replacement panel.

. After resetting

After a repaired SSB has been mounted in the set (set repair
on board level), the type number (CTN) and production code of
the TV has to be set according to the type plate of the set. For
this, you can use the NVM editor in SAM.

In case of a display replacement, reset the “Operation hours
display” to “0”, or to the operation hours of the replacement
display.
Remark:

- After the NVM has been replaced, go to SAM and scroll to the
<Reload MAC address> (see figure 1*).

- Select the item and press <OK> on the RC.

6.5.1 Reset of Repaired SSB

Instruction

After NVM replacement, reload MAC address via SAM
menu.This ensures the correct MAC address to be available in
CSM for future repair actions.

Way of working:

• After the NVM has been replaced, go to SAM and scroll to
the <Reload MAC address> .

• Select the item and press <OK> on the RC.

Notes:

• Only applicable to all related models that are “Smart TV
level 0”enabled (only YouTube access). For models

without internet connection feature, no action is needed.

• HDCP keys are located in the NVM.

New NVM EEPROMs are shipped with pre-loaded HDCP keys.

6.5.2 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB.
715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

2016-Apr-01

back to

div.table

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MT5580QUEI

Notes:

•Only new circuits (circuits that are not published recently)
are described.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPM16.6L LA is a new chassis launched in BRAZIL in

2016. The whole range is covered by MT5580HUE I .
The major deltas versus its predecessor support NTSC;
PAL-M; PAL-N AND ISDB-T with also multi-media, CEC,
ARC, SPDIF functionality.

The TPM16.6L LA chassis comes with the following stylings:

• series xxPHD5301xx

7.1.1 Implementation

Key components of this chassis are:

• SCALER MT5580HUEI PBGA-511

• DC/DC uP1735PSU8 3A -- PSOP-8

• TUNER Latam TDST-H880F

• DEMODULATOR TC90537FG LQFP-48

• AUDIO TAS5760LDDCAR 20W TSSOP-48 for Audio
Amplifier

7.1.2 TPM16.6L LA Architecture Overview

EN 23TPM16.6L LA 7.

For details about the chassis block diagrams refer to

9. Block Diagrams

.

back to

div.table

2016-Apr-01

EN 24 TPM16.6L LA7.

20080_200.eps

TUNER

DC/DC

DDR

Headphone

SERVICE

CONNECTOR

SPDIF OUT

ANALOG I/O

MT5580

USB

HDMI

DC/DC

HDMI

HDMI

NETWORKNETWORK

DDR

7.1.3 SSB Cell Layout

Circuit Descriptions

Figure 7-1 SSB layout cells (top view)

2016-Apr-01

back to

div.table

7.2 Power Supply

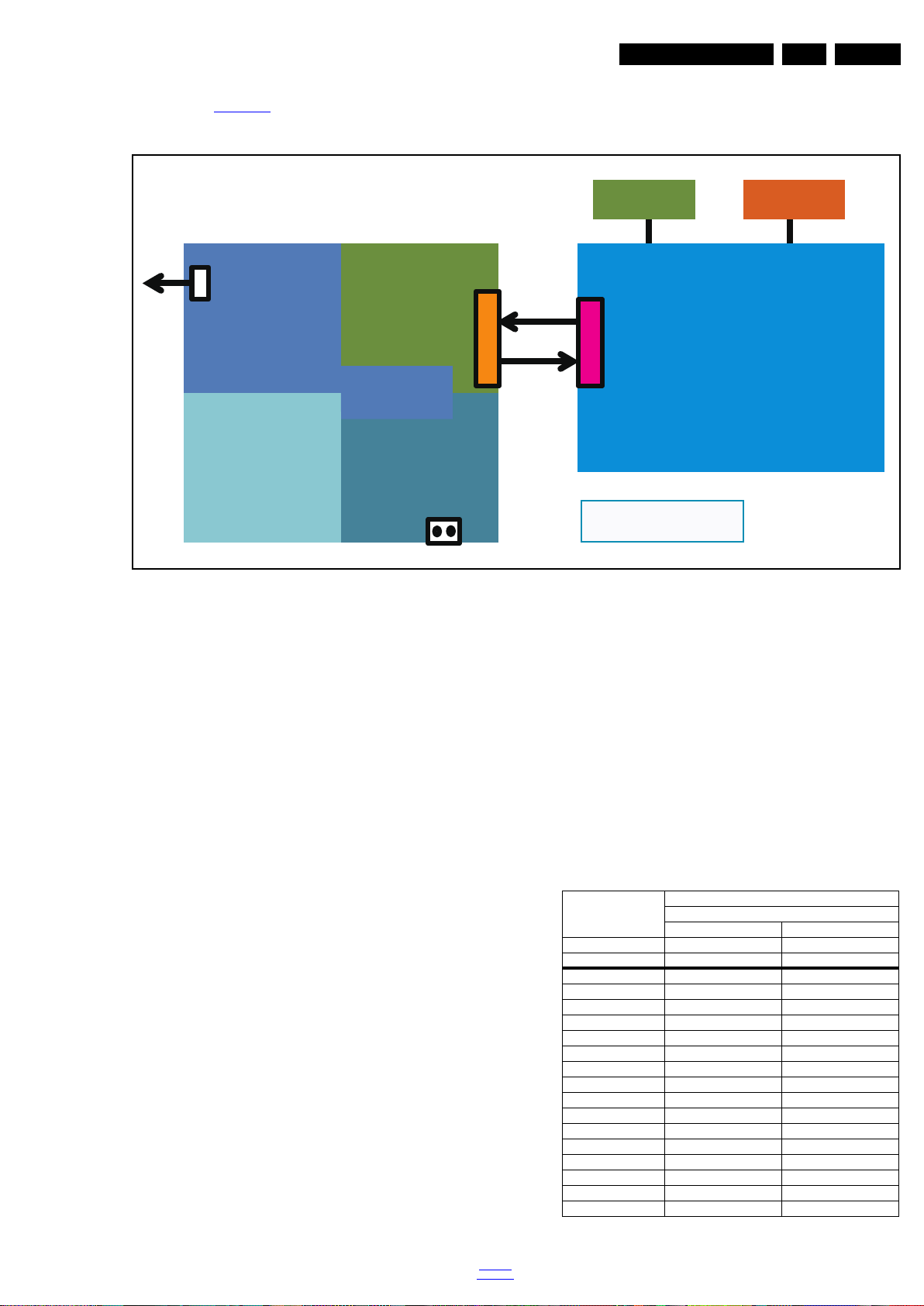

20180_201.eps

Platform

MT5580QUEI

AUDIO

AMP

LVDS

12V 12V

CN701

AC IN

DIM

ON/OFF

12V

AC input +

Main filter

Display Power

Platfor m p ow er

CN8601

PFC

(NC)

Lower Stby
Power

1 power-PCB

Refer to figure Figure 7-2 for the power architecture of this
platform.

Circuit Descriptions

EN 25TPM16.6L LA 7.

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective,
a new board must be ordered and the defective one must be
returned, unless the main fuse of the board is broken. Always
replace a defective fuse with one with the correct
specifications! This part is available in the regular market.
Consult the Philips Service web portal for the order codes of the
boards.

Important delta’s with the TPM16.6L LA classis platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by (PS_ON)

•Lamp (ON/OFF)

• Backlight adjust (DIM) (not for PSDL)

In this manual, no detailed information is available because of
design protection issues.

The output voltages to the chassis are:

• 12V output (standby and on-mode)

• +12V_A (audio AMP power)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

7.2.2 Diversity

The diversity in power supply units is mainly determined by the
diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

Figure 7-2 Power Architecture

• LED backlight:

PSL stands for Power Supply with integrated LED-drivers.
PSLS stands for a Power Supply with integrated LED-drivers
with added Scanning functionality (added microcontroller).
PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

Table 7-1 Connector overview

Description to SSB to Panel
Pin 16 12

1 DIM VLED+
2 ON/OFF n.c.
3 PS_ON VLED­4n.c. VLED­5GNDn.c.
6GNDn.c.
7GNDn.c.
8GNDn.c.
9 +12V VLED­10 +12V VLED­11 +12V n.c.
12 +12V VLED+
13 +12V ­14 +12V ­15 +5V ­16 +5V -

back to

div.table

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

Connector
32"

Number

CN9101 CN8602

2016-Apr-01

EN 26 TPM16.6L LA7.

5VSB

4A

MT5580

860mA

380mA

+12V

MOS- A4449

7A
SOP8

PANEL

G5655P12U TUNER_3.3V

TUNER

USB *1

2A
SOP8

USB_5V1 TUNER_3.3V

1A
SOT223

G1117T63UF

3VSB

7A
SOP8

MOS- A4449

5V

50mA

5A
TO252

G1084-33TU3Uf

3.3V

MT5580
Demodulator IC
NAND Flash

810mA

5mA

30mA

AUDIO - STA381

983mA

3.2A
SOP8

PWM- AT1529

1.5V

DDR3

5A

SOP8

uP1734PSW8 1.2V

Demodulator IC

MT5580

DC-DC 1.2V

1A
SOT223

138mA

12V AMP Amp

2416mA

650mA

1030mA

1.2V

+12VSB

G5759F11U

4A
SOP8

FB701

FB702

FB705

FB6001

+12VSB

1.13A @ 85%

303mA @85%

20080_202.eps

Circuit Descriptions

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages
(depending on set execution):

• PVDD from the power 12V_AMP for the AUDIO AMP.

• 3V3SB, permanent voltage for the Stand-by controller,
LED/IR, Wifi, keyborad receiver and controls.

• +12V, input from the power supply for the panel
common(active mode)

• +12V, input from the power supply for the AMP

• DDRV supply voltage for DDR

• TUNER_3.3V, supply voltage for tuner

• USB_5V1, input intermediate supply voltage for the USB
Power

• 3V3SB, from the power supply for the scaler IC MT5580

• DVDD3V3, +1V2,clean voltage for Demodulator IC
channel decoder

Figures gives a graphical representation of the DC/DC
converters with its current consumptions :

2016-Apr-01

Figure 7-3 DC/DC converters

back to

div.table

7.3.1 Power layout SSB

L703,5VSB

L702, DDRV1.5V

C703, +5V

C730, VCCK/AVDD12

Circuit Descriptions

U703, DVDD3V3

EN 27TPM16.6L LA 7.

L1003 ,USB_5V1

Figure 7-4 Power SSB Top View

U102, +1V2

U709, T uner_3.3V

20080_207.eps

back to

div.table

2016-Apr-01

EN 28 TPM16.6L LA7.

20080_208.eps

TP179,Panel_VCC12V

TP374,PVDD12V

IF

IF_AGC

RF_AGC

MT5580

IF_AGC

TDST-H880F

I2C

I

2

C

20080_203.eps

Circuit Descriptions

Figure 7-5 Power SSB Bottom View

7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

7.4.1 Front-End Analogue part

The Front-End for analogue tuner consist of the following key
components:

• TUNER Latam TDST-H880F

• SCALER MT5580HUEI PBGA-511

Below find a block diagram of the front-end application for
analogue part.

2016-Apr-01

back to

div.table

Figure 7-6 Front-End Analogue block diagram

Circuit Descriptions

IF

TS DATA

RF_AGC

MT5580

TC90537FG

LQFP-48

IF_AGC

TDST-H880F

I2C

I

2

C

I2C

Demod

20080_204.eps

19850_205.eps

MT5580

HDMI1

HDMI SIDE

CN501

CN503

RX

RX

I2C

I

2

C

HDMI2

CN502

RX

I2C

EN 29TPM16.6L LA 7.

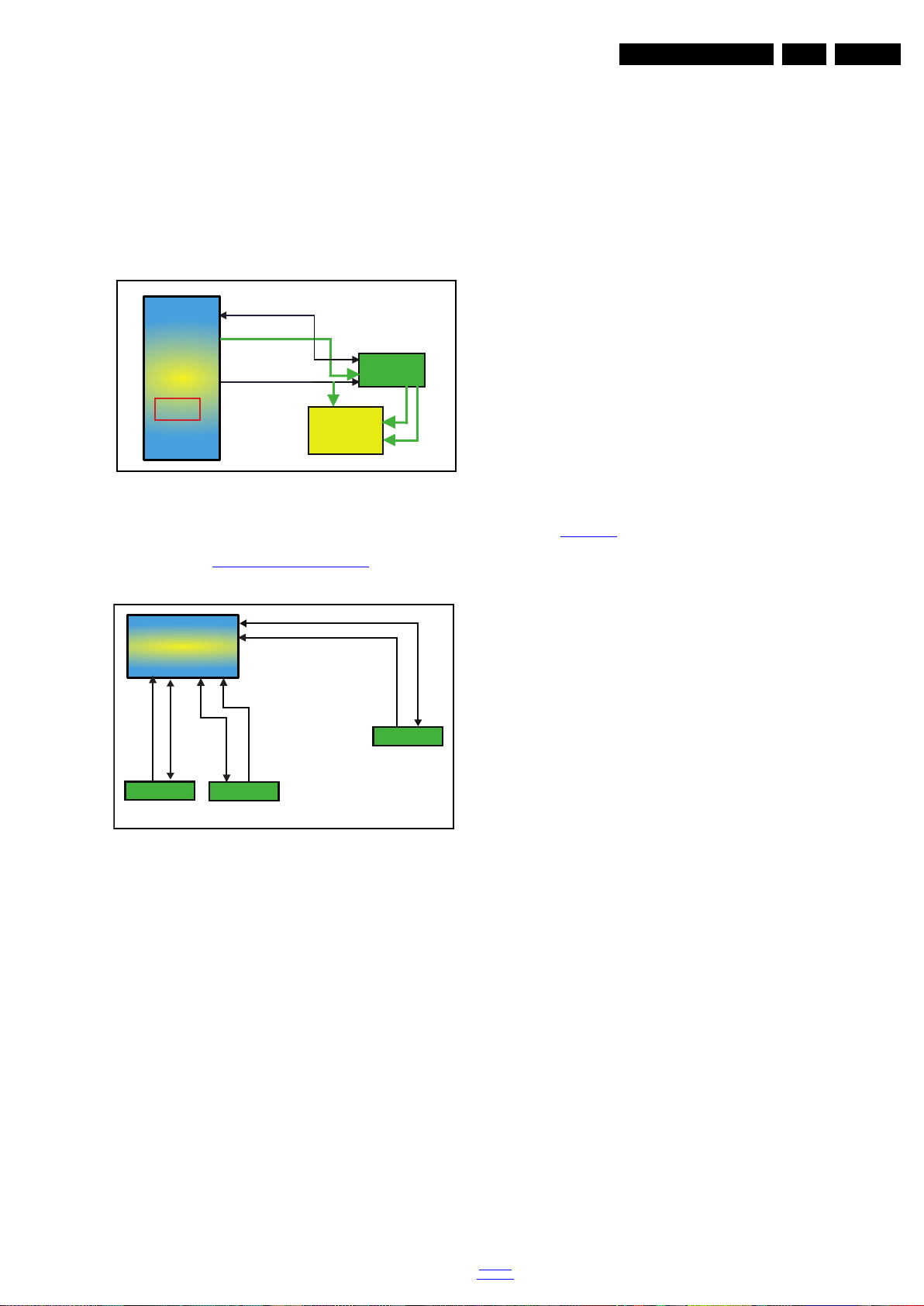

7.4.2 Front-End ISDB Reception DTV part

The Front-End for DVT part consist of the following key
components:

• TUNER Latam TDST-H880F

• SCALER MT5580HUEI PBGA-511

• DEMODULATOR TC90537FG LQFP-48

Below find a block diagram of the front-end application for DTV
part.

Figure 7-7 Front-End ISDB DTV block diagram

7.5 HDMI

Refer to figure 7-8 HDMI input configuration for the application.

7.6 Video and Audio Processing -

The MT5580QUEI is the main audio and video processor (or
System-on-Chip) for this platform. It has the following features:

• Powerful CPU core

• A transport de-multiplexer

• A muti-standard video decoder

• Rich format audio codec

• HDMI 1.4a receiver

• Ethernet MAC+PHY

• Local dimming (LED backlight) (option)

• Panel overdrive control

• Two-link LVDS
The MT5580QUEI combines front-end video processing
functions, support NTSC/PA L/SECA M TV de c o der wi t h a 3D
comb f ilter ( NTSC/PAL). T h e MT5580QUEI 2Gb en a b les
consumer electronics manufacturers to build high quality, low cost
and feature-ric h D T V . The MT5580QUEI supports Full-HD
MPEG1/2/4/h.264/DiviX/VC1/RM/AVS/VP8 (option) video
decoder standards, and JPEG. Also supports MediaTek

TM

de-interlace solution which can reach very smooth

MDDi
picture quality for motions. A 3D comb filter added to the TV
decoder recovers great details for still pictures. The special
color processing technology provides a natural, deep colors
and true studio quality video. Moreover, the MT5580QUEI
family has built-in high resolution and high-quality audio codec.

For a functional diagram of the MT5580QUEI, refer to

Figure 8-1

.

MT5580QUEI

Figure 7-8 HDMI input configuration

The following HDMI connector can be used:

• +5V detection mechanism

• Stable clock detection mechanism

• Integrated EDID

•HPD control

•CEC control

back to

div.table

2016-Apr-01

EN 30 TPM16.6L LA8.

20180_300.eps

Block diagram

MT5580QUEI

NTSC/

PAL/

SECAM

ATD

TV

Decoder

TS

Demux

ARM CA9

L2 Cache

Video

ADCx4

Video
Input

De-

interlace

ATSC/

DVB-T/

DVB-C

DTD

HDMI Rx

JPEG/MP2/MP4/

DivX/H.264/VC-1/

RM/AVS/VP8

Decoders

Audio

Input

Audio

Demod

Audio

ADC

SPDIF

In

2D

Graphic

LVDS/min-LVS/

EPI

OD, TCON

Post Processing

DDR3

Controller

OSD

scaler

PIP

Vplane

scaler

Audio DSP

Audio

I/F

Audio DAC

JTAG IrDA

PCR

I2C

RTC UART SDIO

USB2.0 PWM

Ethernet

Watchdog Serial Flash

NAND Flash

Servo ADC

SPDIF Out, I2S

ADAC L/R x 3

TS

Input

Tuner

Input

CVBS/YC

Input

Component

Analog Input

HDMI

Input

SIF

Audio
Input

Panel

32-bit

DDR3

T8032

Smart

Card

2D/3D Converter

CKGEN

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin
configurations of ICs that are drawn as “black boxes” in the
electrical diagrams (with the exception of “memory” and “logic”
ICs).

8.1 Diagram 10-2-2 Peripheral, B02, MT5580QUEI (IC U401)

Figure 8-1 Internal block diagram

2016-Apr-01

back to

div.table

20080_301.eps

Pinning Information

MT5580HUEI

511 1 2 3 4 5 6 7 8 9 10 11 12 13

A RODT RRAS# RCSX#

DDR3_R

ST#

RA9 RBA2 RDQ19 RDQS3 RCLK1# RDQS2

B RDQ6 RCAS# RCS# RA7 RA3 RBA0 RDQ17 RDQM2 RDQS3# RCLK1 RDQS2#

C RDQ0 RDQ4 RWE# RA5 RA2 RA13 RA8 RDQ21 RDQ23

AVDD33

_MEMPLL DVSS DVSS RDQM3

D RDQS0# RDQS0 RDQ2 RA0 RA11 RA6 RA14 RA1 RBA1 RDQ24 RDQ28

E RCLK0# RCLK0 RVREF RDQ11 DVSS RA12 RA4 RCKE RDQ26 RDQ30 RDQ31

F RDQS1 RDQS1# RDQ9 DVSS DVSS DVSS RA10 RDQ29

G DVSS RDQM0 RDQ13 RDQ15 RDQM1 DVSS DVSS DVSS

AVSS33_
MEMPLL

MEMTP MEMTN

H RDQ3 RDQ1 RDQ10 RDQ12 DVSS DDRV

J RDQ5 RDQ7 RDQ14 RDQ8 DDRV DVSS DVSS VCCK VCCK DVSS DVSS

K DDRV DDRV DDRV DDRV DDRV DDRV DDRV DVSS DVSS DVSS DVSS DVSS

L VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK DVSS DVSS DVSS DVSS DVSS

M VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK DVSS DVSS DVSS DVSS DVSS

N

AVDD33

_HDMI_R

X

HDMI_1_

RX_CB

HDMI_1_

RX_C

VCCK VCCK

AVSS33_

HDMI_RX VCCK VCCK DVSS DVSS DVSS DVSS

P

HDMI_1_

RX_0B

HDMI_1_

RX_0

HDMI_1_

SCL

HDMI_1_

SDA

GPIO0 DVSS VCCK DVSS DVSS DVSS DVSS

R

HDMI_1_

RX_1B

HDMI_1_

RX_1

HDMI_1_

RX_2B

HDMI_1_

RX_2

OSCL0 OSDA0 VCCK DVSS DVSS DVSS DVSS

T

HDMI_2_

RX_CB

HDMI_2_

RX_C

HDMI_2_

SCL

HDMI_2_

SDA

HDMI_2_

HPD

HDMI_1_

HPD

VCCK DVSS DVSS DVSS DVSS

U

HDMI_2_

RX_0B

HDMI_2_

RX_0

HDMI_2_

RX_1B

HDMI_2_

RX_1

HDMI_C

EC

GPIO7 GPIO2 DVSS DVSS VCCK VCCK VCCK VCCK

V

HDMI_2_

RX_2B

HDMI_2_

RX_2

GPIO8 DVSS

AVSS33_

ELDO

AVSS33_

VGA_ST

B

ADIN1_S

RV

DVSS

AVSS12_

RGB

W

AVDD12
_HDMI_R

X

AVDD12

_HDMI_R

X

HDMI_3_

SCL

HDMI_3_

SDA

HDMI_3_

HPD

GPIO5

AVSS33_

COM

POR_BN

D

U0TX

ADIN0_S

RV

Y PDD7 PDD6 PDD5 GPIO3 GPIO9

OPCTRL2 AVSS33_

LD

OPWRS

B

U0RX

OPCTRL

3

AA PDD4 PDD3

VCC3IO_

C

PAALE

ADIN3_S

RV

GPIO1

ADIN2_S

RV

OPCTRL

4

AB PDD1 PDD2

VCC3IO_B ASPDIF

O0

PACLE POWE#

ADIN4_S

RV

OPCTRL1 ADIN5_S

RV

OIRI BP RP

AC PARB# PDD0 GPIO6 POCE0# POOE# POCE1#

AOSDAT

A1

AOBCK

OPCTRL

0

VSYNC HSYNC SOG SOY1

AD GPIO4 RXVN_1 TXVN_0

AVDD33

_ETH

AOSDAT

A0

AOLRCK AOMCLK

VGA_SDA AVDD10

_LDO

COM

AE REXT RXVP_1 TXVP_0

AVDD10

_ELDO

ALIN

ORESET

__B

VGA_SC

L

AVDD33
_VGA_S

TB

GP

IC Data Sheets

EN 31TPM16.6L LA 8.

Figure 8-2 Internal pin configuration [1/2]

back to

div.table

2016-Apr-01

EN 32 TPM16.6L LA8.

20010_303.eps

Pinning Information

MT5580HUEI

14 15 16 17 18 19 20 21 22 23 24 25

RDQ16 AO0P AO1P AO2P AOCKP AO3P AO4P AO5P

AVDD33_L

VDSA

TCON5 TCON12 A

RDQ18 RDQ20 AO0N AO1N AO2N AOCKN AO3N AO4N AO5N

AVDD12_L

VDSA

TCON3 TCON7 B

RDQ22 AE1N AE1P AECKN AECKP AE4N AE4P TCON0 TCON1 TCON8 TCON4 C

DVSS AE0P AE2N AE3N AE5N TCON6 TCON11 TCON2 TCON10 D

RDQ27 DVSS AE0N AE2P AE3P

AVSS33_L

VDSA

AE5P OPWM2 OPWM3 TCON9 VCC3IO E

RDQ25 DVSS

AVSS33_L

VDSA

FSRC_WR OPWM6 OPWM1 F

DVSS

AVSS33_C

PUPLL

AVSS33_L

VDSA

OPWM4 OPWM5 OPWM0 CIGPIO52 CIGPIO36 G

VCCK

AVSS12_L

VDSA

CIGPIO5 CIGPIO55 CIGPIO6 CIGPIO12 CIGPIO35 CIGPIO34 CIGPIO0 CIGPIO26 CIGPIO28 CIGPIO27 H

DVSS VCCK DVSS DVSS CIGPIO44 CIGPIO49 CIGPIO24 CIGPIO23 CIGPIO45 J

DVSS DVSS VCCK DVSS CIGPIO8 CIGPIO14 CIGPIO1 CIGPIO46 CIGPIO2 K

DVSS DVSS DVSS DVSS DVSS CIGPIO48 CIGPIO4 CIGPIO56 CIGPIO3 L

DVSS DVSS DVSS DVSS CIGPIO17 IF_AGC RF_AGC OSCL2 OSDA2 CIGPIO25 M

DVSS DVSS DVSS DVSS CIGPIO47 CIGPIO43 CIGPIO11 CIGPIO9 CIGPIO50 CIGPIO15 CIGPIO20 CIGPIO19 N

DVSS DVSS DVSS

AVSS33_U

SB

CIGPIO10 CIGPIO7 CIGPIO13

AVDD33_

USB

P

DVSS DVSS DVSS VCCK

AVSS33_H
DMI_3_RX

GPIO10 GPIO11 R

DVSS DVSS DVSS VCCK CIGPIO41 CIGPIO33 CIGPIO32 CIGPIO40 CIGPIO39

USB_DP_

P1

USB_DM_

P1

T

VCCK VCCK VCCK DVSS CIGPIO38 CIGPIO30 CIGPIO31 CIGPIO21 CIGPIO22 CIGPIO16

USB_DP_

P0

USB_DM_

P0

U

AVSS33_V

DAC

AVSS33_P

LLGP

AVSS33_D

EMOD

AVSS33_H

PA

CIGPIO37

HDMI_3_R

X_2B

HDMI_3_R

X_2

V

MPXP

AVSS33_V

DAC_BG

CVBS0P

AVSS33_C

VBS_1

DVSS

AVSS33_A

DAC

HDMI_3_R

X_1B

HDMI_3_R

X_1

W

VDACY_O

UT

CVBS3P

AVSS33_C

VBS_2

AVSS33_A

ADC

CIGPIO29 CIGPIO54 CIGPIO53 CIGPIO51

HDMI_3_R

X_0B

HDMI_3_R

X_0

Y

VDACX_O

UT

CVBS_CO

M

CVBS2P

AVSS33_C

LN

CIGPIO18 CIGPIO42

HDMI_3_R

X_CB

HDMI_3_R

X_C

AA

Y1P SOY0 CVBS1P

AIN2_L_A

ADC

AIN1_L_A

ADC

AIN3_L_A

ADC

AIN1_R_A

ADC

AIN2_R_A

ADC

AIN4_R_A

ADC

AVDD12_

HDMI_3_R

X

AVDD33_

HDMI_3_RX AB

PR1P Y0P COM0

AVDD12_

RGB

AVSS12_D

EMOD

AIN4_L_A

ADC

AIN3_R_A

ADC

AL1_ADAC AR2_ADA

C

AC

COM1 PB0P

AVDD33_

VIDEO

AVDD12_

DEMOD

ADCINP_D

EMOD

AVSS33_X

TAL_STB

XTALO

AVDD33_

AADC

VMID_AA

DC

AL2_ADAC AR0_ADA

C

AD

PB1P PR0P

AVDD33_

PLL

AVDD33_

DEMOD

ADCINN_

DEMOD

AVDD33_

XTAL_STB

XTALI

AVDD33_

HPA

AVDD33_

ADAC

AL0_ADAC AR1_ADA

C

AE

14 15 16 17 18 19 20 21 22 23 24 25

IC Data Sheets

2016-Apr-01

Figure 8-3 Internal pin configuration [2/2]

back to

div.table

IC Data Sheets

19820_300.eps

Block diagram

Pinning information

+

+

S

+

-

+

-

TAS5760LD

TAS5760LD

8.2 Diagram 10-2-4 Audio IC- TAS5760LD B04, AS5760LDD (IC U601)

DDVAGER_ANADDVRDDDVD GVDD_REGPVDD

EN 33TPM16.6L LA 8.

FT_CLIP

MCLK

SCLK
LRCK

SDIN

DR_INA+

DR_INA-

DR_INB+

DR_INB-

Internal
Voltage

Supplies

DRVDD

Digital
Serial
Audio

Port

Boost

&
Volume
Control

Clock Monitoring

DirectPathTM Ground

Centered Headphone /

Line Driver

DR_OUTA DR_OUTB

SPK_SLEEP/ADR

Digital

Clipper

Charge Pump Internal Control Registers and State Machines

DRVSS DR_CP

SFT_CLIP

ANA_REG

VCOM

ANA_REF

SPK_FAULT

SPK_SD

FREQ/SDA

PBTL/SCL

DVDD

SPK_GAIN0
SPK_GAIN1

MCLK

SCLK

SDIN

LRCK

DGND

DR_INA-

DR_INA+

DR_OUTA

DRGND

DR_MUTE

DRVSS
DR_CN

Internal Reference

Regulators

Digital to

PWM

Conversion

Analog

Gain

DRVDD

DR_CN

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

Closed Loop Class D Amplifier

Soft

Clipper

PBTL/

SCL

SPK_GAIN0

SPK_GAIN1

PowerPAD

Gate

Drives

Gate

Drives

48
47
46
45
44
43
42
41
40

39
38
37
36
35
34
33
32
31
30

29
28
27
26
25

Internal Gate

Drive Regulator

Full Bridge

Power Stage

A

Full Bridge

Power Stage

B

SPK_FAULT

SPK_SD

GVDD_REG
GGND
AVDD
PVDD
PVDD
BSTRPA+
SPK_OUTA
PGND
SPK_OUTA­BSTRPA­BSTRPB­SPK_OUTB­PGND
SPK_OUTB
BSTRPB+
PVDD
PVDD
DR_INB­DR_INB+
DR_OUTB
DR_UVE
DRGND
DRVDD
DR_CP

Over-

Current

Protection

Die

Temp. Monitor

SPK_SLEEP/

ADR

FREQ/

SDA

SPK_OUTA

SPK_OUTA

SPK_OUTB

SPK_OUTB

Figure 8-4 Internal block diagram and pin configuration

back to

div.table

2016-Apr-01

EN 34 TPM16.6L LA8.

19950_300.eps

Block diagram

Pinning information

TC90537FG

TC90537FG

SRCK

PBVAL

SRDT

SLOCK

RLOCK

RERR

SLPEN

GPIO2

GPIO1

GPIO0

VSS

VDDC

12 11 10 9 8 7 6 5 4 3 2 1
VSS 13 48 VDDS
VDDS 14 47 VSS
RSEORF 15 46 SDA

SBYTE 16 45 SCL
SLADRS0 17 44 STSFLG0

AGCCNTI 18 43 STSFLG1
AGCCNTR 19 42 SYRSTN
TNSCL 20 41 VPGM
TNSDA 21 40 AINN Q
XCKO 22 39 AINP Q
XO 23 38 AINN I
XI 24 37 AINP I
25 26 27 28 29 30 31 32 33 34 35 36

PLLVDD

PLLVSS

VDDC

CKI

SLADRS1

TSMD

VSS

VDDC

ADCVDD

ADCVSS

VREFL

VREFH

Synchroni-za

tion flag

TS output

Crystal

(reference clock)

Tuner

AGC

control

IIC

control

Filter
AGC

ISIC (unguarded

pre/post echo
suppression)

FFT

Control

Adaptive

interpolation

filter

Equalization

CSI

(Reliability

detection)

CVI

(CW interference

detection)

AGC control output

Tuner IIC

Clock PLL

Viterbi

decoding

Memory

Frequency

deinterleaving

RS

decoding

Error

detection

Output
control

Layer

isolation

TMCC

demodulation

Interpolation

phase

Correction

Synchroni

zation

Demapping

CSI

processing

Bit deinterleaving

Byte deinterleaving

TS multiplex

FFT window

control

ADC
ADC

IF input
or IQ input

SW

External AGC input

Host IIC

Energy

despreading

Energy

despreading

Energy

despreading

Demapping

CSI

processing

Demapping

CSI

processing

Modulation division

Quadrature

detection

AFC

Frequency

CPE

Pilot

extraction

Time

deinterleaving

(With Doppler

Compensation

)

IC Data Sheets

8.3 Diagram 10-2-9 Demodulator (TC90537) B09, TC90537FG (IC U101)

2016-Apr-01

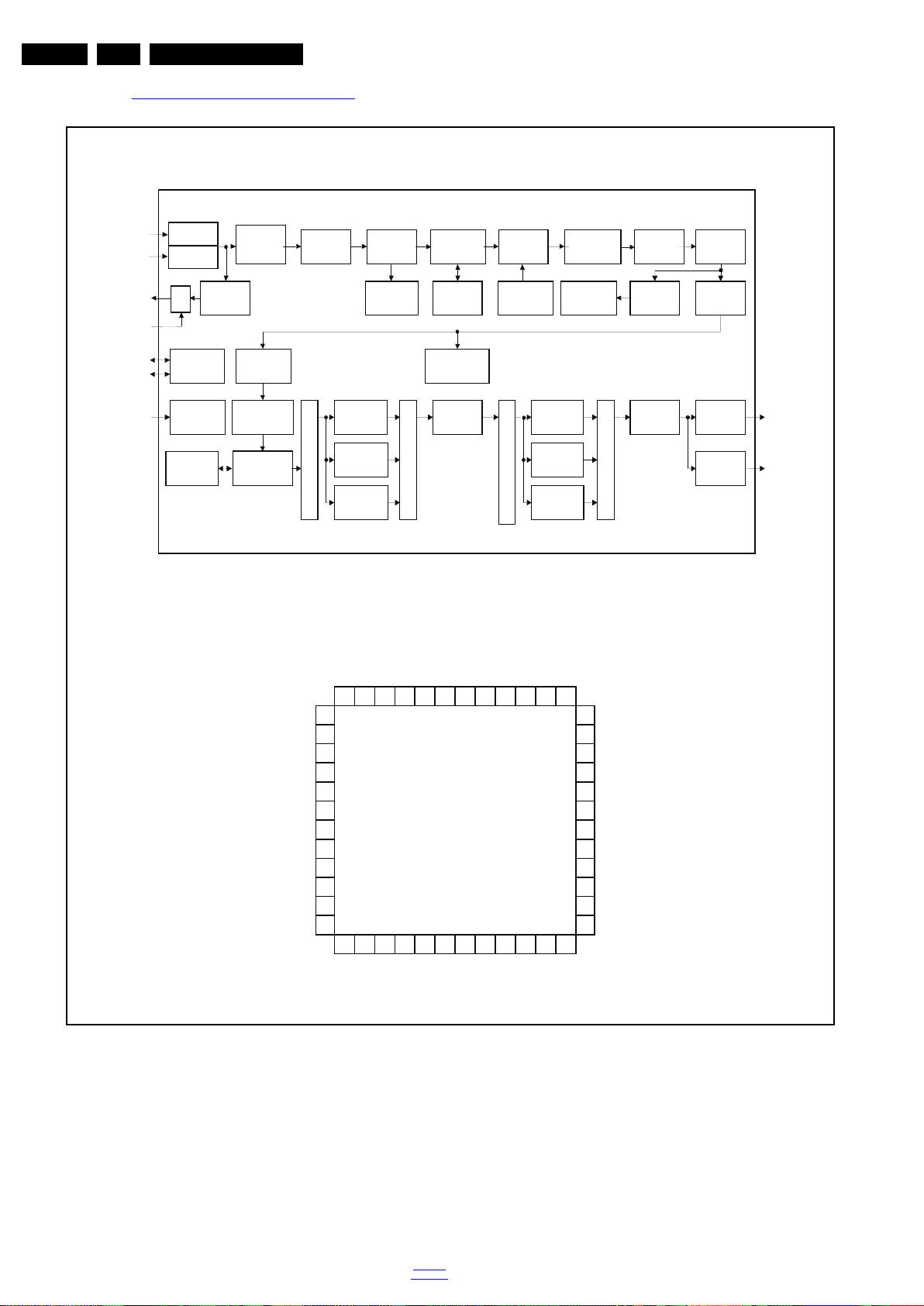

Figure 8-5 Internal block diagram and pin configuration

back to

div.table

9. Block Diagrams

20080_400.eps

NAND

UM1

VGA

USB HUB

HDMI1

HDMIx3

HDMI3

YPbPr1

USBx2

HDMI2

YPbPr1

SPEAKER AMP

USB1/2

RJ45

CVBS

Embedded
Eth PHY

RGB

USB0/1

SPDIF OUT

Wifi Wafer x1

USB2/3

LINE IN

HPOUT

SPEAKER OUT

SPDIF OUT

GPIO

JTAG

LVDS Port

IR

UART

Flash

NAND INTERFACE

Flash

SPI

Serial

DRAM

Main Chip

LINE IN

Headphone Out

LVDS

ISTB-TB TS

Tuner AIF+/AIF-

DTV DEMOD

TUNER

9.1 Block diagram 5301 series

Block Diagrams

EN 35TPM16.6L LA 9.

2016-Apr-01

back to

div.table

Circuit Diagrams and PWB Layouts

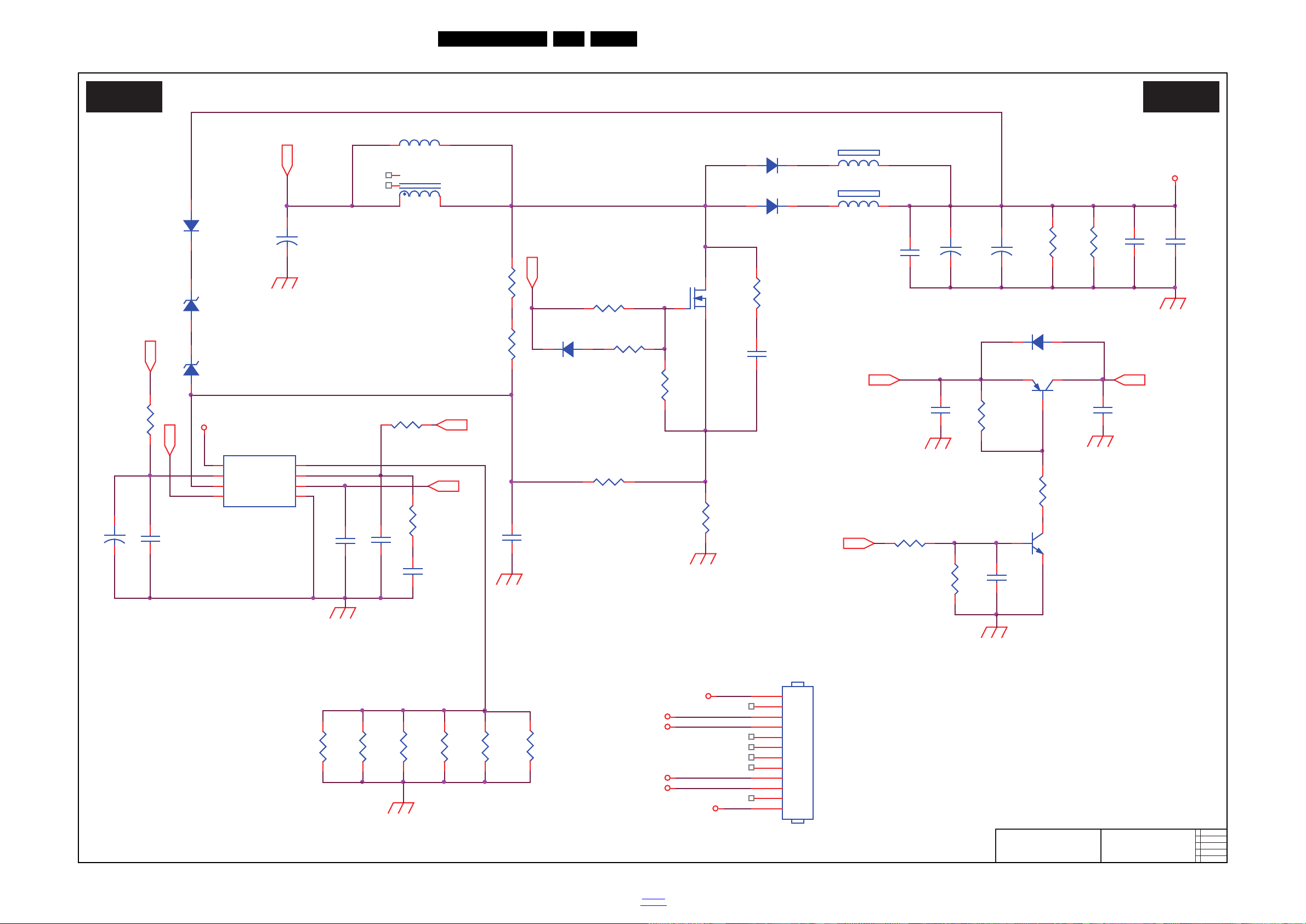

20180_500.eps

Power

A01 A01

2014-06-05

715G6934

Power

T4AH/250V

C9172
220N 50V

R9107

10K 1/4W

HS9152

NC/HEAT SINK

3

4

1
2

F9902

5A 250V

1 2

3 4

Q9181

NC/AOD4185

R9125
1K OHM

+

C9802

NC/68UF 450V

DIM

12V Switch
(option)

ON/OFF

FB_1

D9152
SR34

1 2

PS_ON

CN9901
SOCKET

12

R9184

6.8KOHM +-1%

R9108

10 OHM 1/ 4W

!

C9104

2.2NF

R9176
10K 1%

C9158
1uF

+12V'

!

+12V'

R9174
3K9 1/8W 1%

C9159

NC/100N 50V

C9902
470nF 275V

R9164
33ohm 1/4W +/-5%

R9187

NC/ 10K OH M +-5%

HS9101
HEAT SINK

123

4

+22V

R9129
330K 1%

+12V1

!

!

!

R9906

510K 1/4W

D9104

SS1060FL

!

+12V_AUDIO

!

C9920

470PF 250V

Q9183
2N7002K

R9126
1K OHM

PS_ON

R9128

1K 1/8W

D9105

NC/1N4148W

C9106

NC/ 4N 7 50V

U9103
AS431AN-E1

R9186

100KOHM +-5% 1/8W

R9101

0.22OHM +-5%

R9185

10K OHM +-5% 1/8W

+

C9154

470UF 25V

FB9901
BEAD

1 2

ZD9101

NC/BZT52-B30

1 2

CN9101
CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

!

!

!

C9103

NC

3.5Vout
R9305=620R
R9306=3.3K

+5V

+5V

U9101
PF6003AHS

BNO

1

FB

2

CS

3

GND4OUT

5

VCC

6

NC

7

VCC

8

!

FB9903
BEAD

12

R9907

NC/390K

-

+

BD9901

KBJ608G-FUC

2

1

3

4

FB9905
BEAD

1 2

C9907

NC/47pF

HS9151
HEAT SINK

1
2

3

4

U9901

NC/CAP004DG-TL

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

T9101

POWER X'FMR

1

2

4

5

6

7

8

10

11

L9901
18MH

124

3

SG9901

NC/DSPL-501N-A21F

C9155
220N 50V

R9104
22OHM 1/8W

L9902
18MH

124

3

+12V

C9171

22NF 50V

HS9901

NC/HEAT SINK

1

2

C9157
100N 50V

ZD9301

NC/BZT52-B5V1

12

AC-1

!

SG9902

NC/DSPL-501N-A21F

AC-1

!

t

NR9901

2.5R

12

t

NR9902

2.5R

12

C9110

1NF 50V

R9124
150 OHM 1/4W

R9183

NC/100KOHM

C9105

2.2NF

+

C9151
470UF 25V

R9106

47OHM 1/8W

U9102
EL817M(X)

1

23

4

C9111

100N 50V

R9112

3.3M 1/4W

R9111
2M2 5% 1/2W

R9103

10 OHM 1/ 4W

R9113

3.3M 1/4W

R9173

680R 1/8W 1%

R9114

3.3M 1/4W

HOT COLD

D9102
SS1060FL

R9102

47K 1/4W

3.5V/5V output
(option)

R9163
33ohm 1/4W +/-5%

R9162
33ohm 1/4W +/-5%

R9161

33ohm 1/4W +/-5%

!

+

C9801
82UF 450V

R9105
75K

FB_1

!

R9171

2K OHM

+12V1

+

C9152
470UF 25V

L9101

3UH

!

R9121
150 OHM 1/4W

R9122
150 OHM 1/4W

R9123
150 OHM 1/4W

+12V1

GND1
GND

1

C9912

100PF 250V

D9103
FR107G-A0

C9911

100PF 250V

C9921
470PF 250V

+

C9153
470UF 25V

!

HS-GND

FB9904
BEAD

1 2

!

RV9901
680V

R9127

470 OHM 1/ 4W

!

C9125

100N 50V

+

C9107
22UF 50V

Q9121
BTN5551A3

R9305

NC/220R 1%

R9306

NC/2K 1/8W 1%

C9308

NC/2N2 50V

R9302

NC/30 OHM 1/ 4W

C9304

NC/ 100N 50V

+

C9306

NC/470UF 25V

+

C9302

NC/ 470U F 25V

U9301

NC/AOZ3015AI

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

R9303

NC/30 OHM 1/4W

C9182

NC/100N 50V

R9304

NC/ 10. 5K OH M 1%

C9309

NC/2N2 50V

R9301

NC/ 20K 1/ 4W

C9307

NC/220N 50V

L9301

NC/47uH

C9303

NC/ 220N 50V

FB9301

NC/BEAD

1 2

C9914
220PF 250V

C9913
220PF 250V

C9162

1N5 50V

+

C9112

4.7UF 50V

C9161

1N5 50V

D9121
FMXA-2202S

1

2

3

+

C9121
220uF 50V

+

C9122
220uF 50V

!

+22V

CN9902

NC

L

1

N

2

Q9102

NC/LMBT3906LT1G

C9901

470nF 275V

R9181

NC/100KOHM

D9151
FMEN-220A

1

2

3

+

C9160

NC/4.7UF 50V

C9156
100N 50V

ZD9171

BZT52-B15

1 2

HS9121

NC/HEAT SINK

1
2

3

4

R9182

NC/100KOHM

C9301

NC/ 220N 50V

D9101

FR107G-A0

ZD9121
BZT52-B27

1 2

HS-GND

!

Q9101

TK8A65D

Q9182

NC/2N7002K

HS9122
HEAT SINK

1
2

3

4

FB9902
127R

1 2

F9901

NC/5A 250V

R9109

470 OHM 1/4W

!

!

!

+12V

PS_ON

C9109

2N2 50V

R9175

0 OHM +-5% 1/8W

GND3
GND

1

GND2
GND

1

!

GND5

NC

1

R9905

510K 1/4W

GND4

NC

1

R9904

510K 1/4W

R9172

1K5 +-1% 1/8W

R9903

510K 1/4W

C9108
220P 50V

R9902

510K 1/4W

R9901

510K 1/4W

R9110

100K 1/8W 1%

R9908

NC/390K

C9305

NC/ 100N 50V

C9123

1NF 500V

C9124

1NF 500V

10. Circuit Diagrams and PWB Layouts

10.1 A 715G6934 PSU

10-1-1 Power

EN 36TPM16.6L LA 10.

2016-Apr-01

back to

div.table

10-1-2 PFC with TI

19890_503.eps

LED DRIVER

A02 A02

2014-06-05

715G6934

LED DRIVER

R8601

0.05R

+

C8603

220uF 50V

R8623

300K 1/8W 5%

R8605

10ohm +/ -1% 1/ 8W

L8602

NC

R8615

1R2 1%

R8612

33K 1/8W 1%

C8605

100N 50V

R8613

1R2 1%

C8612

47N 50V

L8601

33uH

8

1

4

6

R8606

33K 1/8W 1%

R8617

1R2 1%

C8611

22pF 50V

R8603

100K

C8610

1NF 50V

+

C8604

220uF 50V

D8603
SS1060FL

C8609

220P 50V

R8619

10 OHM

C8607
1uF

C8608
220N 50V

R8604

NC

R8616

1R2 1%

R8608

10K 1/8W

R8607

5.1R 1/ 8W

+

C8601
220uF 50V

FB8601
BEAD

1 2

R8614

1R2 1%

C8606
1uF

R8609

10R 1/ 8W 5%

+22V

ON/OFF

OUT

DIM

OUT

VLED+

VLED-

R8618

1R2 1%

ZD8602

NC/BZT52-B22

1 2

FB8602

NC/BEAD

1 2

R8622

10K 1/8W 1%

C8615

100N 50V

Q8602

LMBT3906LT1G

R8620

2K2 1/8W

C8617

100N 50V

+

C8614

NC/22UF 50V

D8605

NC/1N4148

R8621

1K 1/8W 1%

+12V

R8602

NC / 0R 05 1/ 4W

CN8601
CONN

1

2

3

4

5

6

7

8

9

10

11

12

ON/OFF

VCC

C8613
100pF 50V

VCC

C8616

2.2U F 25V

Q8603
LMBT3904LT1G

VLED+

VLED-

VLED+

VLED­VLED-

VLED-

D8604

SS1060FL

D8602

NC/SR506

D8601

SR506

R8610

4K3 1/8W 1%

R8611

33K 1/8W 1%

Q8601
CYS9240

U8601

PF7708AS

LED

1

VCC

2

CS/OVP

3

OUT4GND

5

DIM

6

GM

7

FB

8

ZD8601

NC/BZT52-B22

1 2

Circuit Diagrams and PWB Layouts

EN 37TPM16.6L LA 10.

2016-Apr-01

back to

div.table

19820_538.eps

2014-06-06

715G6934

LAYOUT TOP

C9107

C9103

D9101

D9103

F9901

U9102

J905

J901

J922

J918

J917

J909

J911

J923

J906

H1

H2

J904

C8614

J916

J915

J902

J914

J908

J921

J924

J910

J912

J913

J903

J919

J920

R8601

R9105

R9101

R9125

R9126

J925

T9101

D8601

D8602

D8605

J926

H3

H4

H5

H6

TP2TP3TP4

TP5

TP6

TP7

TP9

TP8

DR1

MH2

MH1

MH7

MH8

MH6

MH5

MH4

MH3

C8603

C8604

C9907

C9104

C9105

C9112

C9151

C9152

C9153

C9154

C9160

C9121

C9122

C8601

C9302

C9306

C9912

C9911

C9913

C9914

C9921

C9920

CN9902

D9151

D9121

FB9301

FB8601

GND1

GND2

GND3

HS9101

HS9151

HS9121

L8601

L8602

L9101

L9301

L9901

L9902

Q9121

R9907

SG9901

SG9902

HS9901

FB9904

FB9902

HS9122

GND4

GND5

R9111

HS9152

RV9901

R9908

CN8601

C9801

C9802

FB8602

CN9101

NR9902

NR9901

FB9903

FB9905

Q9101

BD9901

FB9901

CN9901

F9902

C9901

C9902

10-1-3 Power layout top

Circuit Diagrams and PWB Layouts

EN 38TPM16.6L LA 10.

2016-Apr-01

back to

div.table

10-1-4 Power layout bottom

19820_539.eps

2014-06-06

715G6934

LAYOUT BOTTOM

SG3

C8611

C8610

C8612

C8608

C8607

C8606

C9106

C9108

C9109

C9110

C9111

C9155

C9161

C9162

C9172

C9171

C9182

C9123C9124

C9125

C9303

C9304

C9305

C9308

C9309

C8609

C9307

R8609

R8605

R8607

R8603
R8604

R8613

R8612

R8606

R8610
R8608

R8614

R8615

R8616

R8617

R9102

R9104

R9106

R9107

R9109

R9103

R9110

R9172

R9174

R9161

R9162

R9163

R9164

R9173

R9171

R9175

R9176

R9181

R9182

R9183

R9184

R9186

R9127

R9128

R9129

R9301

R9302

R9303

R9304

R9305

R9306

R9901

R9902

R9903

R9904

R9905

R9906

U9101

U8601

U9301

R9185

U9901

JR901

JR902

SM2

SM3

SM4

R8611

SM5

C9301

C8613

R8602

R8618

R8619

JR903

R9108

JR904

C9156

C9157

C8615

C8616

C8617

R8620

R8621

R8622

R8623

C8605

C9158

C9159

R9187

R9121
R9122

R9123

R9124

R9112

R9114

R9113

Q9182

Q9183

U9103

SG4

D8603

D9102

D9105

D9152

Q8601

Q9181

ZD9171

D9104

ZD9301

ZD9101

D8604

ZD9121

ZD8601ZD8602

Q9102

Q8602

Q8603

Circuit Diagrams and PWB Layouts

EN 39TPM16.6L LA 10.

2016-Apr-01

back to

div.table

10.2 B 715G7904 SSB

20080_500.eps

System Power

B01 B01

2015-11-13

715G7904

System Power

C733
220NF 16V

R744

47K 1/16W 5%

VCCK

AVDD12

C719
1uF 25V

+

C709

220UF 16V

C736

100NF 25V

R1

R2

FB1011 120R

1 2

R1

R2

+

C713

100UF 16V

DVDD3V3

DVDD3V3+5V

C721

NC 10uF 16V

R706

1K 1/10W

R705
47K 1/10W 5%

BL_DIM_PRE

Backlight ADJ

BL_DIM
MAX:3.3V
MIN:0V

TP389

R729

10ohm +/-1% 1/10W

R726
10K 1/16W 5%

Q705
LMBT3904LT1G

R727

4.7K 1/16W

R728

4.7K 1/16W

L702 2.2uH 17.3mOHM 8.2A

5VSB

5VSB

D1004

NC SJPW-T4VL

1 2

VCCK

+

C730
330uF 6.3V

CN701

CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

3.3V_TUNER

3D_SEL_PRE

R759

NC 0R05 OH M

Analog_Dimming_PR E

R760
NC 0R05 OHM

+

C703
220UF 16V

TP390

BL_DIM 16

BL_ON/OFF 13

R752
0R05 OHM

R751
0R05 OHM

R711

NC/3.3K 1%

R0402

(+5V ON/OFF):
Normal: High
Stand_By : Low

R707
0R05 1/10W

C706

1uF 10V

C708
100NF 16V

TP391

Q702

AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

FB707

120R 3A

1 2

3V3SB

R718
82K 1/10W

5VSB

+5V

+5V

R714
0R05 1/10W

BRIGHT_ADJ

PWM for 2D or
P3D panel

PWM for Scanning
(A3D panel)

R717
0R05 1/10W

R738 R739

C711

100NF 16V

ZD704
BZT52-B3V6

1 2

OR

OR

NC

NC

R738
0R05 OHM

R748

18Kohm 1/16W +/-1%

R739

NC 0R05 OH M

C741

100N 16V

R704
100K 1/10W

C737

10UF 25V

TP392

C740

22UF 16V

C739

NC 22pF 50V

R749

3.3K 1%

BL_3D_DIMMING 16

C714

100NF 16V

C738

1.5nF 50V

C735
100N 50V

FB708
120R

1 2

5VSB

+12VSB_PRE

+12VAMBI

FB709
120R

1 2

DVDD3V3 AVDD3V3

U704

AT1527F11U

VCC

1

REF

2

GND

3

FB

4

EN

5

PGND

6

LX

7

VIN

8

Thermal Pad

9

R703
0R05 1/16W

R0402

3D_SEL11

TP393

TP394

5VSB

+

C729
NC 100UF 16V

R702
10K 1/10W

R721

10ohm +/-1% 1/10W

C722

0.1uF 50V

C723

0.1uF 50V

+12VSB_PRE TO 5VSB

U703

VIN3VOUT

2

ADJ(GND)

1

R2

R1

C716

22uF 10V

C717

0.1uF 50V

R735
0R05OHM1/8W

R719

2.4KOHM +-1% 1/10W

R724

300R 1/10W 1%

R725

3K 1/10W 1%

C720
150pF 50V

TP041

TP042

TP047

FB702
NC 120R

1 2

TP050

R754

NC 100K 1%

R753

NC 100K 1%

TP051

R750
NC 4.7K 1/ 16W

C746
NC 100N16V

R755

NC 10R 1/16W 1%

R722
100R 1/16W 5%

R731
10K 1/10W 1%

Power on/off control

PS_ON
H:Stand by
L:Normal

DDRV

TP369

TP355

FB732

120R

1 2

R740

22K 1/10W

TP356

TP004

TP006

TP008

BL_ON/OFF _PRE

+12VAMBI

TP420

PS_ON_PRE

+12VAMBI
+12VSB_PRE

BL_ON/OFF _PRE

12V_Amp_PRE

TP048

3D_SEL_PRE

12V_Amp_PRE

POK

+12VSB_PRE

R747

24.9K 1%

YES

NO

2K14 Pow er
12V Only

YES

FB705

2K13 Power

Item

NO

FB702

R730

10K 1/10W 1%

TP370

L703

15UH

+12V

Analog_Dimming_PR E

TP234

U709
G903T63UF

VIN3VOUT

2

GND14

4

C749
22UF 16V

+

C715

100UF 16V

C766

10UF 6.3V X5R +-20%

TUNER_3.3V

R736

560 OHM +-1% 1/10W

BL_DIM_PRE

+5VSB_PRE

U702

VIN3VOUT

2

ADJ(GND )

1

TP239

C702

100nF 50V

TP001

OPWRSB5

Q703
BC847N3

C704

100nF 50V

U701

uP1734PSW8

NC

1

LX

2

POK

3

EN4FB

5

VDD

6

VIN

7

GND

8

GND

9

C705
NC 1uF 25V

TP340

TP002 TP341

POK16

C744
NC 22UF 16V

POK

TP005

C707
10uF 16V

TP007

TP009

TP010 TP011

TP012

C712

10uF 16V

PS_ON_PRE

TP014

TP015 TP0 16

TP017

TP019

C725
10uF 16V

TP020

TP021

TP022

TP025

TP026

R745

12K 1%

+12VSB_PRE

R701

NC 0R051/ 8W

TP027

TP028 TP029

TP030 TP031

TP033

12V_Amp_PRE

TP034

FB701

120R

1 2

TP035

TP036

U706

G5759F11U

EN

1

BS

2

IN

3

LX4VCC

5

GND

6

FB

7

COMP

8

E-PAD

9

FB703

120R

1 2

TP037

TP038

TP039

12V_Amp

+5VSB_PRE

FB705
NC 120R

1 2

C724

100NF 16V

Analog_Dimming16

5VSB

C701

NC 0.1uF 50V

C731
100NF 16V

C710
100NF 16V

R709
NC 4.7K 1/ 16W

PS_ON_PRE

R712

4.7K 1/16W

R713
NC 4.7K 1/ 16W

Q701

LMBT3904LT1G

5VSB

L701

2.2uH 17.3mOHM 8.2A

R708

2K 1/16W

R710
10K 1/16W 5%

R733
0R05OHM1/8W

R734

0R05OHM1/8W

C726

2.2NF 50V

C727
100NF 16V

C728
22UF 6.3V

+5VDVDD3V3

3V3SB

5V_TUNER

Backlight ON/OFF

BL_ON/OFF
H:OFF
L:ON

R715

NC 4.7K 1/ 16W

R716

4.7K 1/16W

R723

4.7K 1/16W

R720

4.7K 1/16W

R732
0R05OHM1/8W

C718

10uF 16V

Q704

LMBT3904LT1G

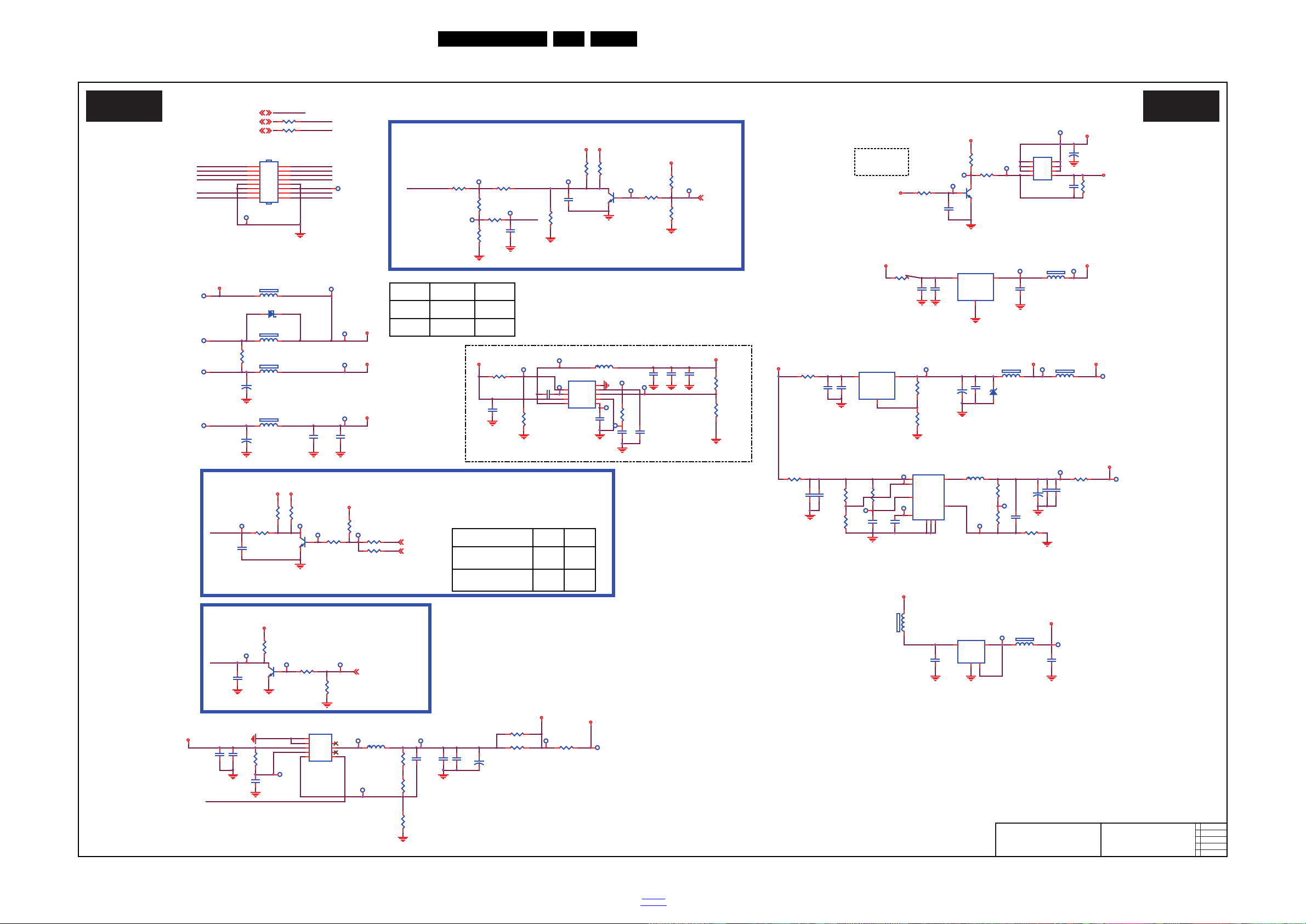

10-2-1 System Power

Circuit Diagrams and PWB Layouts

EN 40TPM16.6L LA 10.

2016-Apr-01

back to

div.table

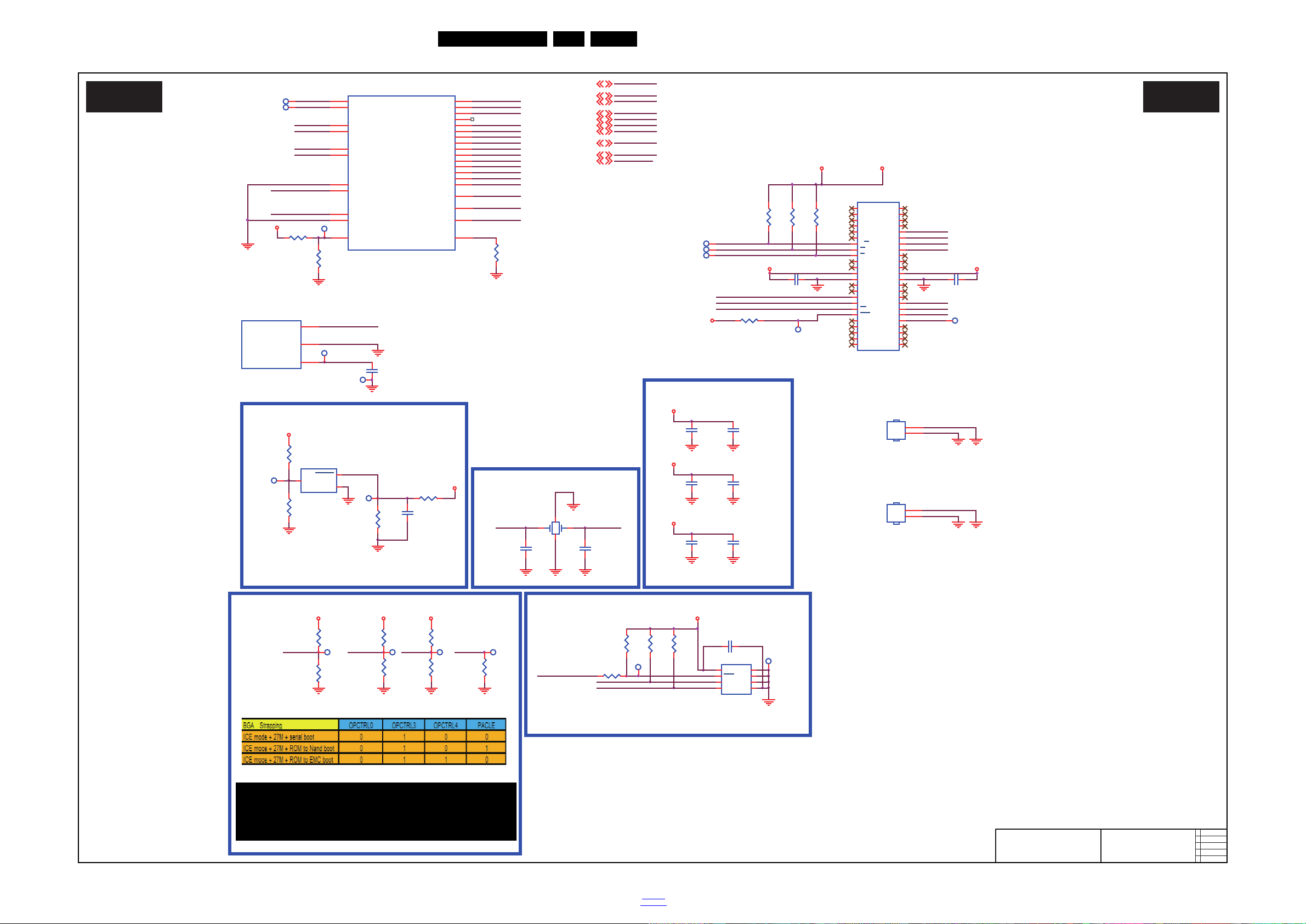

10-2-2 Peripheral

20080_501.eps

Peripheral

B02 B02

2015-11-13

715G7904

Peripheral

OPCTRL3

R4011
13K 1%

TP052

TP053

3V3SB

R4012

NC 10K 1%

TP303

FLASH_WP#

OXTALI
OXTALO

PACLE

R4019

NC 10K 1%

AVSS33_XTAL_STB

AVSS33_PLLGP

AVDD33_XTAL_STB

AVDD33_PLL

TP314

TP315

TP316

TP317

R4017

NC 10K 1%

OPCTRL0OPCTRL4

STRAPPING

R4002

4.7K 1/16W

R4003

4.7K 1/16W

R4004

4.7K 1/16W

DVDD3V3

DVDD3V3Flash_3V3

HS6001

HEAT SINK

1
2

STRAPPING for 5580ZCRI

STRAPPING f or 5580GPOI

PARB#

U409

NC TLV809K33DBVR

GND

1

RESET

2

Vcc

3

AVSS33_VGA_STB

AVDD33_VGA_STB

U404

M24128-BRMN6TP

E0

1

E1

2

E2

3

VSS

4

SDA

5

SCL

6

WC

7

VCC

8

PDD1

PDD2
PDD0

PDD5

PDD6
PDD4

PDD3

PDD7

ORESET

OPCTRL416

OPCTRL016

SYS_EEPROM_WP16

OPCTRL3

OPCTRL316

SYS_EEPROM_WP

OPCTRL4

OPCTRL0

OSCL0

OSDA0

OSDA011,20
OSCL011,20

OSCL0

OSDA0

U402

TC58NVG2S0HTAI0

NC

1

NC

2

NC

3

NC

4

NC

5

NC

6

RB

7

R

8

E

9

NC

10

NC

11

VDD

12

VSS

13

NC

14

NC

15

CL

16

AL

17

W

18

WP

19

NC

20

NC

21

NC

22

NC

23

NC24NC

25

NC

26

NC

27

NC

28

I/O1

29

I/O2

30

I/O3

31

I/O4

32

NC

33

NC

34

NC

35

VSS

36

VDD

37

NC

38

NC

39

NC

40

I/O5

41

I/O6

42

I/O7

43

I/O8

44

NC

45

NC

46

NC

47

NC

48

C4003
100NF 16V

Flash_3V3

C4004
100NF 16V

3V3SB

Flash_3V3

PAALE

PACLE

NAND Flash

POWE

TP310

AVDD10_LDO

TP311

C4119
10N 50V

Flash_3V3

R4006
NC 0R 05 OH M

R4007
0R05 OHM

R4001

4.7K 1/16W

3V3SB

C4006

10UF 6.3V X5R +-20%

C4007
100NF 16V

C4008

10UF 6.3V X5R +-20%

C4009
100NF 16V

C4011

10UF 10V

C4012
100NF 16V

3V3SB

AVDD3V3

3V3SB

AVDD33_XTAL_STB

AVDD33_VGA_STB

OPWRSB

AVDD33_PLL

R4005

4.7K 1/16W

U0TX
U0RX

U0RX18

U0RX

OPWRSB4

OPWRSB

Analog Power

TP240

U401I

MT5580QUEI

OSDA0

R7

OSCL0

R6

U0TX

W10

U0RX

Y10

XTALI

AE21

XTALO

AD21

AVSS33_XTAL_STB

AD20

AVDD33_XTAL_STB

AE20

AVDD33_PLL

AE17

AVSS33_PLLGP

V15

POWE#

AB6

POOE#

AC5

POCE1#

AC6

POCE0#

AC4

PDD0

AC2

PDD1

AB1

PDD2

AB2

PDD3

AA3

PDD4

AA2

PDD5

Y3

PDD6

Y2

PDD7

Y1

PARB#

AC1

PACLE

AB5

PAALE

AA5

ORESET__B

AE8

OPWRSB

Y9

OIRI

AB10

FSRC_WR

F21

POR_BND

W9

X401

27MHz

1

24

3

C4010
33PF 50V

R4010

9.1K 1%

ORESET

POWE
POOE#

3V3SB

POCE#

Internal reset R4011

䕧 13.1K

1%

RESET Circuit

C4005

4.7UF 10V

PDD0

R4013

4.7K 1/16W

PDD1

R4014

4.7K 1/16W

E-Fuse

R4015

4.7K 1/16W

OIRI9,16

OIRI

PDD2

PDD5

PDD4

PDD3

PDD7

PDD6

DVDD3V3

OIRI

PAALE

PARB#
PACLE

U0TX

U0TX18

OSCL0
OSDA0

TP040

R4059

NC 820R 1/10W 1 %

R4020

0R05 OHM

R4060

NC 1K8 1/10W 1%

SYS_EEPROM_WP

LO = > WRITE

HI = > WP

SYSTEM EEPROM

TP346

TP043

POOE#

OXTALO

TP347

TP044

27MHz CRYSTAL

TP045

POCE#

C4013

8.2PF 50V

C4014

8.2PF 50V

TP046

OXTALI

TP049

HS401

HEAT SINK

1
2

U401K

MT5580QUEI

AVDD33_VGA_STB

AE10

AVSS33_VGA_STB

V10

AVDD10_LDO

AD10

R4016
10K 1%

R4056
10K 1%

R4057
10K 1%

R4018
10K 1%

3V3SB

Circuit Diagrams and PWB Layouts

EN 41TPM16.6L LA 10.

2016-Apr-01

back to

div.table

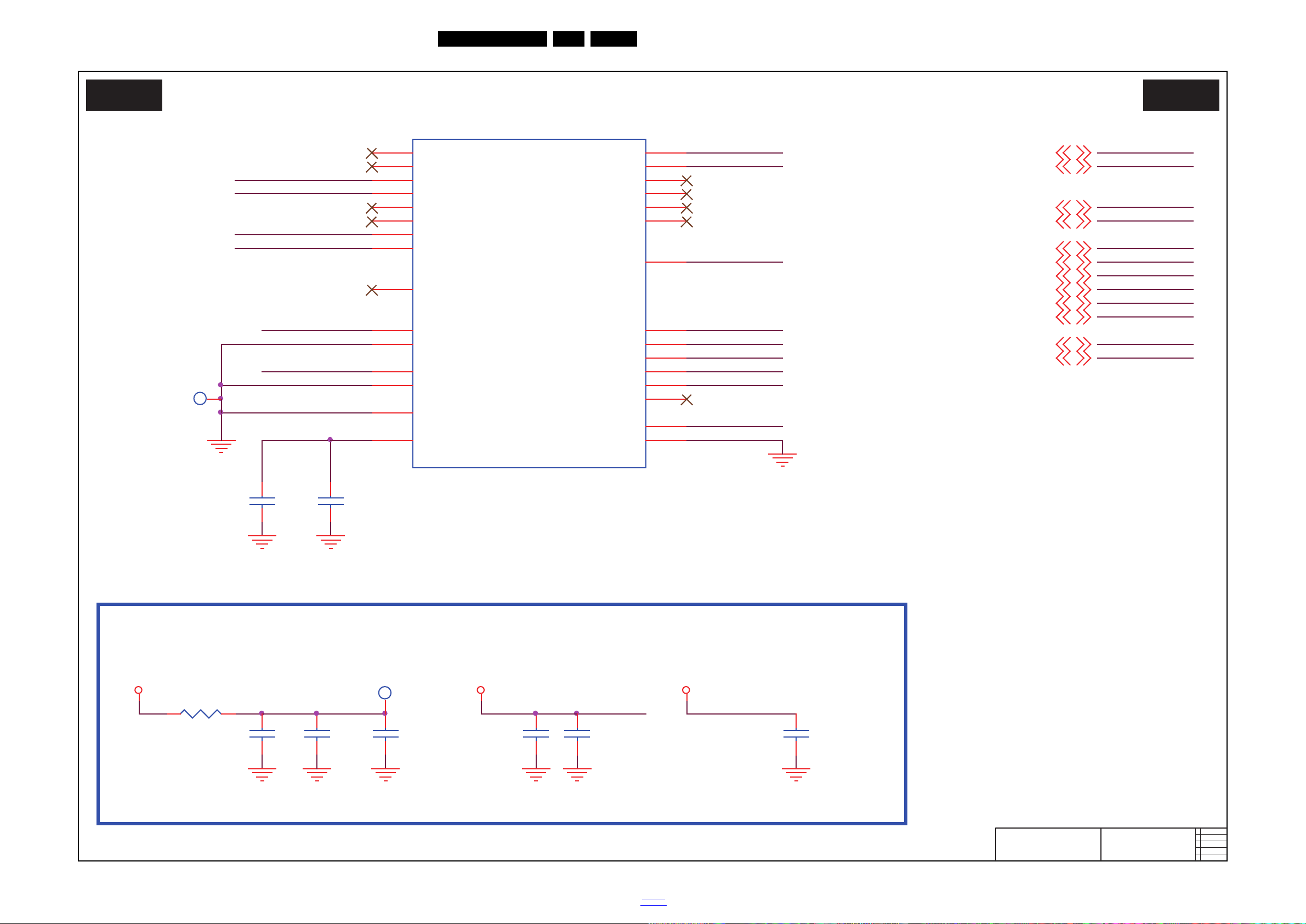

10-2-3 Audio

20080_502.eps

Audio

B03 B03

2015-11-13

715G7904

Audio

U401C

MT5580QUEI

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

AV_L_IN1

C4015

100NF 16V

SPDIF_OUT

C4016
1uF 10V

SPDIF_OUT

SPDIF_OUT9

C4019
100NF 16V

C4018
1uF 10V

AL0O
AR0O

AL0O
AR0O

AR0O20

AL0O20

R4021
0R05 OH M

AVDD33_ADAC

C4017

10UF 6. 3V X5R +-20%

AVDD3V3 AVDD3V3

C4020

10UF 6. 3V X5R +-20%

AVDD3V3

AVDD33_HPAAVDD33_AADC

C4021
NC 100N F 16V

C4022
100NF 16V

Analog Power

AVDD33_AADC

AVDD33_ADAC

AOSDATA0

AVSS33_AADC

AVSS33_ADAC
AVSS33_CLN

VMID_AADC

ARC_OUT

ARC_OUT15

AV_L_IN2
AV_R_IN2

AV_L_IN2

AV_R_IN29

AV_R_IN2

AV_L_IN29

AVDD33_HPA
AVSS33_HPA

AOLRCK

AOSDATA0

AOSDATA020

AOLRCK

AOLRCK20

AOBCLK

AOBCLK

AOBCLK20

TP023

AV_R_IN1

AOMCLK

AOMCLK

AOMCLK20

AV_R_IN1

AV_L_IN1

AV_R_IN19
AV_L_IN19

TP342

ARC_OUT

Circuit Diagrams and PWB Layouts

EN 42TPM16.6L LA 10.

2016-Apr-01

back to

div.table

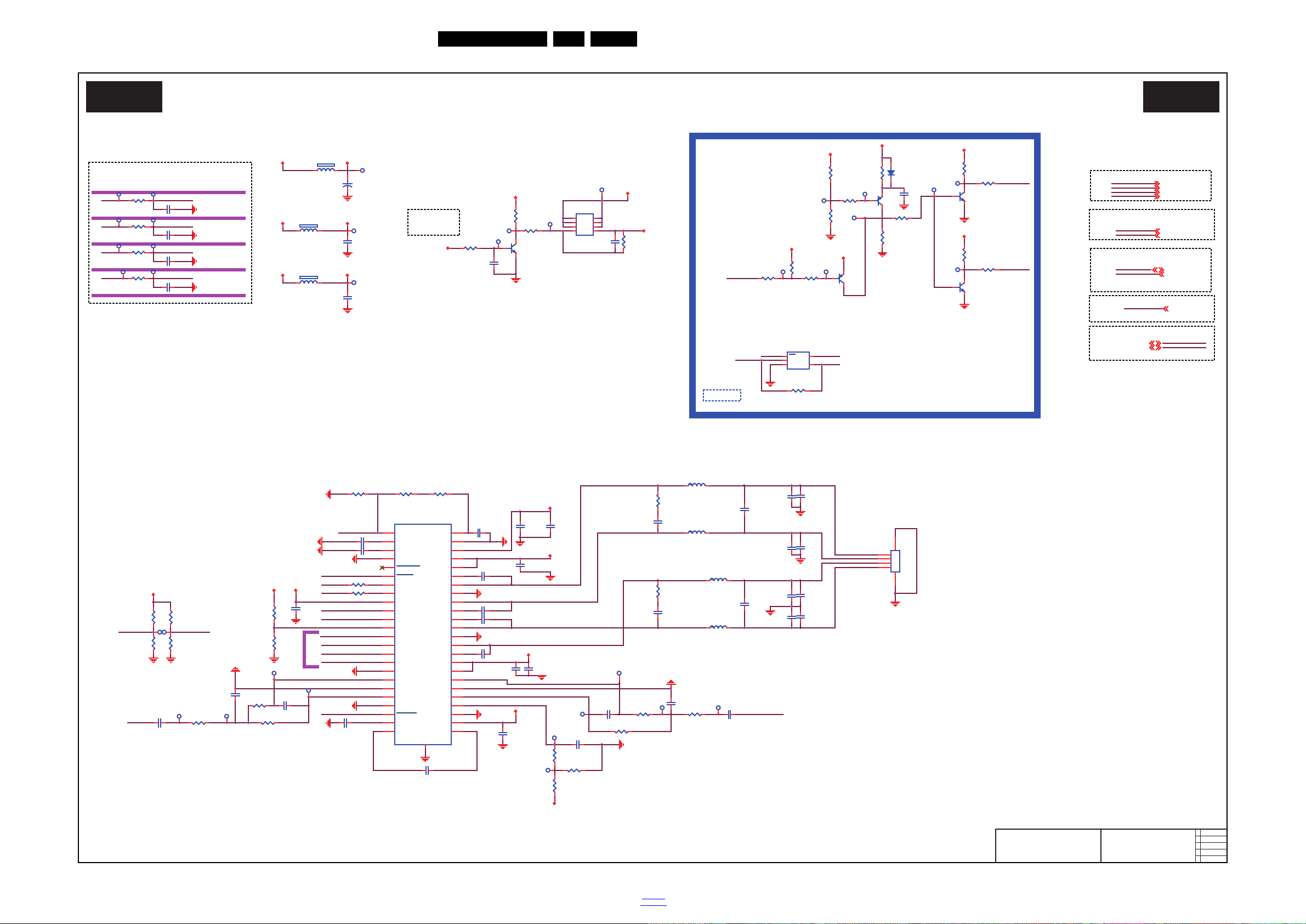

10-2-4 Audio IC- TAS5760LD

20080_503.eps

Audio IC- TAS5760LD

B04 B04

2015-11-13

715G7904

Audio IC- TAS5760LD

LSPK+

HPOUTL

HPOUTR8

HPOUTR

HPOUTL8

Head Phone

LSPK-

Q601

BC857BW

1

23

DVDD3V3

C610
1UF16V

SDI_SW

C609
1UF16V

Main Speak CKT

I2S Input

C617

4.7UF

R605

0R05 1/16W

SPK_MUTE

RSPK+

LO = > Enable

SDI

C621
10UF 16V

DVDD3V3C

R639 0R05 OHM

SDI_#

SDI_SW

C634
220NF 16V

HI = > Disable

U602

NC 74LVC1G125GV

OE

1

A

2

GND3Y

4

VCC

5

C635

220NF 16V

SDI

C638
220NF 16V

C627

22P 50V

C639
220NF 16V

PLIM

BICKI

OSCL0

AOMCLK
AOLRCK

AR0O

OSDA0

AOSDATA0

SPK_MUTE

AOBCLK

AL0O

R612

4.7K 1/16W

R626

NC 4K7 1/16W 5%

R636

10K 1/16W 5%

AOSDATA0

C618
100NF 16V

C620

100NF 16V

R625
4K7 1/16W 5%

Q605
BC847C

R604

0R05 1/16W

PWRDN

R635

22K 1/16W 5%

R631

22 OHM 1/4W

R619

100R 1/16W 5%

R620

100R 1/16W 5%

PWRDN-HP

U601

TAS5760LD

SFT_CLIP

1

AVDD_REG

2

VCOM

3

AVSS

4

SPK_FAULT

5

SPK_SD

6

SDA/FREQ

7

SCL/PBTL

8

DVDD

9

SPK_GAIN0

10

SPK_GAIN1

11

SPK_MUTE12SPK_OUTB-

37

BSTRPB-

38

BSTRPA-

39

SPK_OUTA-

40

PGND

41

SPK_OUTA+

42

BSTRPBA+

43

PVDD

44

PVDD

45

AVDD

46

GGND

47

GVDD_REG

48

PGND

36

SPK_OUTB+

35

PVDD

33

BSTRPB +

34

PVDD

32

DR_IN B-

31

DR_INB+

30

DR_OUTB

29

DR_UVP

28

DRGND

27

DRVDD

26

DR_CP

25

MCLK

13

SCLK

14

SDIN

15

LRCLK

16

DGND

17

DR_IN A-

18

DR_IN A+

19

DR_OUTA

20

DRGND

21

DR_MUTE

22

DRVSS

23

DR_CN

24

E-PAD

49

C601

33P50V

R609

10K 1/16W 5%

R627

16K 1%

C636
220PF 50V

R628

43K 1/16W

R63418Kohm 1/16W +/ -1%

OSCL0

OSDA0

C630
1uF 10V

R607

10K 1/16W 5%

R615

0R05 1/16W

C637

680pF 50V

R637

2K2 1/16W 5%

R632
16K 1%

R629
18Kohm 1/16W +/ -1%

C632
220PF 50V

C611

1uF 10V

R602

0R05 1/16W

C619
10UF 16V

TP74

R624

NC 4K7 1/16W 5%

TP75

C613
330PF 50V

C642

1UF16V

AOBCLK

C603

33P50V

R616

NC 2.4K 1% 1/ 16W

C612
1uF 10V

R623

4K7 1/16W 5%

R608

10K 1/16W 5%

R603

0R05 1/16W

R638

0R05 1/16W

C602

33P50V

R613

100K 1/16W 5%

R601

0R05 1/16W

C604

33P50V

Q603

BC857BW

1

23

C633

680pF 50V

C625

220nF 25V

R633

43K 1/16W

C631 100NF 16V

C643

1UF16V

R606
10K 1/16W 5%

C629
1uF 10V

Q604
BC847C

C628
330PF 50V

R614

10K 1/16W 5%

DVDD3V3

C644

1UF16V

R630
22 OHM 1/4W

DVDD3V3

LRCLKI

C645

1UF16V

DVDD3V3

SPK_MUTE 16

AOMCLK 6

AR0O 6

AOBCLK 6
AOLRCK 6

OSCL0 5,11

AL0O 6

AOSDATA0 6

OSDA0 5,11

All Path Grounding(20mil)

D601

NC BAS316WS

MCLK

LRCLKI

SDI_#

BICKI

DVDD3V3C

C647

NC 10UF 6. 3V

MCLK

Grounding

Grounding

Grounding

Grounding

TP373

R746

1K 1/10W

12V_Amp

Q707

AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

TP374

(PVDD ON/OFF):
Normal: High
Stand_By: Low

R758
100K 1/10W

R756

4.7K 1/10W

PVDD

DVDD3V3

C742

100nF 50V

C734

100nF 50V

AR0O

R757
150K 1/10W 5%

Q706
BC847N3

12V_Amp

TP371
TP372

PWRDN-HP

Mute CKT

SPK_MUTE (GPI O57)
L: SPK Mute
H: SPK sound
output

R622

4K7 1/16W 5%

R621

NC 4K7 1/16W 5%

C614
22P 50V

C615

1uF 10V

R617

0R05 OHM

R618

0R05 OHM

C616
1uF 10V

HPOUTL

AL0O

AVDD_HP

12V_Amp

FB601

NC 120R

1 2

FB602

120R

1 2

DVDD3V3

C606
10UF 6.3V X5R +-20%

AVDD

C607
10UF 6.3V X5R +-20%

+

C605
220uF 16V

TP057

FB603

120R

1 2

DVDD3V3

PVDD

TP056

TP601

TP058

AVDD

TP602

AVDD

TP603

TP604

TP605

TP606

TP607

AVDD

TP608

TP823

RSPK-

TP825

TP824

TP826

TP827

TP829

AVDD_HP

TP616

TP617

TP618

TP619

TP620

TP621

TP622

GAIN0
GAIN1

TP623

TP624

TP625

+12VSB_PRE

TP626 TP627

CN601

CONN

1

2

3

4

5 6

PVDD

PVDD

PVDD

PVDD

Mute Control

C624 220nF 25V

C623 220nF 25V

GPIO & I2C Control

I2S Interface

Audio Output Interface

R611

22R 1/16W 5%

C622 220nF 25V

R610

100R 1/16W 5%

DVDD3V3

GAIN1

HPOUTR

L601

10uH

L603

10uH

L602

10uH

L604

10uH

GAIN0

R657
4K3

AOMCLK

AOLRCK

C626

100NF 16V

PWRDN

Circuit Diagrams and PWB Layouts

EN 43TPM16.6L LA 10.

2016-Apr-01

back to

div.table

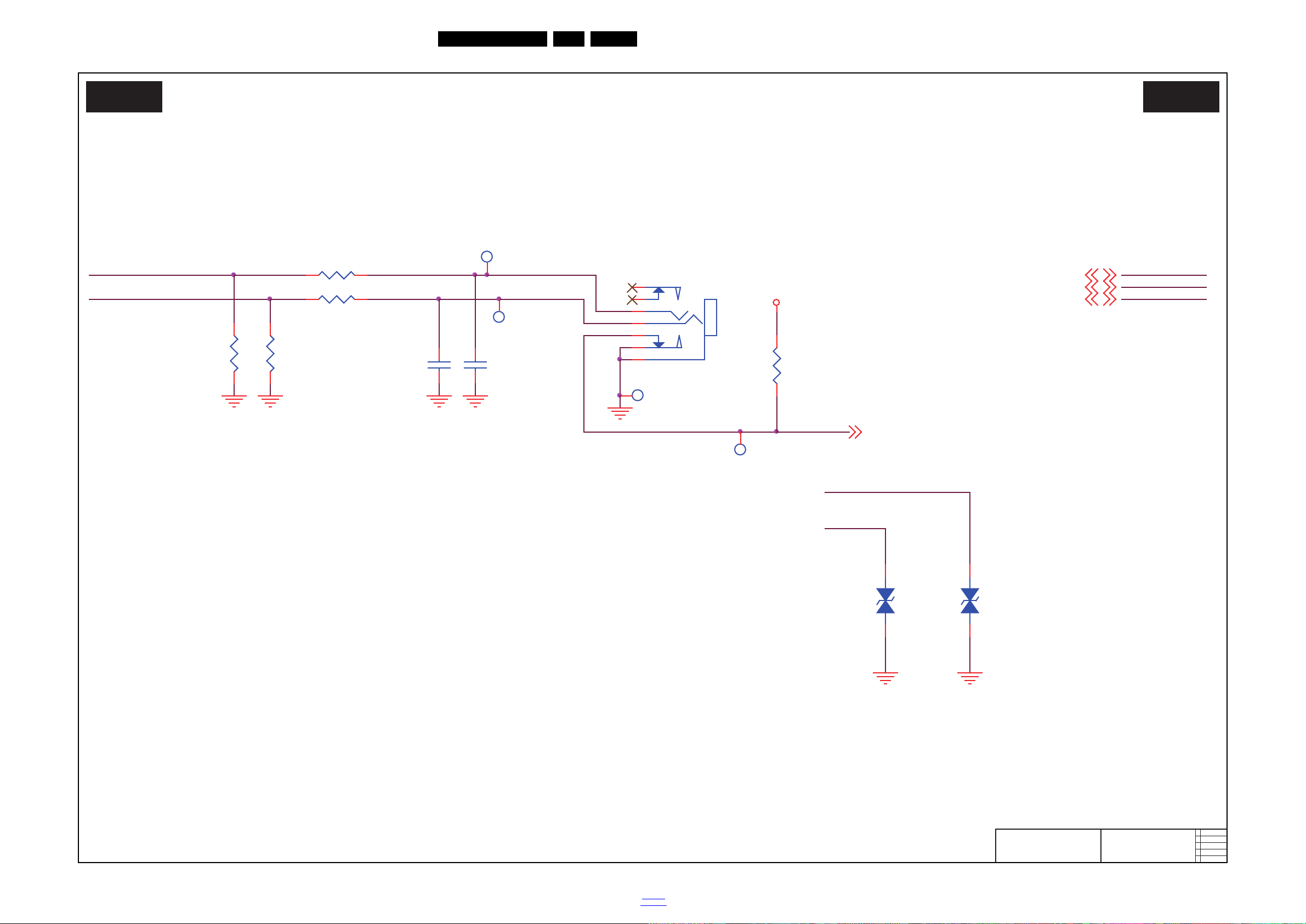

10-2-5 Headphone

20080_504.eps

Headphone

B05 B05

2015-11-13

715G7904

Headphone

HPOUTR

HPOUTL

HP_ROUT_AC

HP_LOUT_AC

C6048

0.1uF 25V

C6047

0.1uF 25V

TP076

HP_LOUT_AC

TP077

HP_ROUT_AC

TP078

HPOUTR

HPOUTL
HP_DET

TP064

CN603

PHON E J AC K

1

2

3

4

5

6
7

R6029
NC 22K 1/ 16W

ZD6002

VPORT0603100KV05

D0603

1 2

ZD6001

VPORT0603100KV05

D0603

1 2

R6027 10R 1/ 16W 1%

R6030
10K 1/16W 5%

R6028

NC 22K 1/ 16W

DVDD3V3

HPOUTR20

HPOUTL20
HP_DET13

HP_DET 13

R6051 10R 1/ 16W 1%

Circuit Diagrams and PWB Layouts

EN 44TPM16.6L LA 10.

2016-Apr-01

back to

div.table

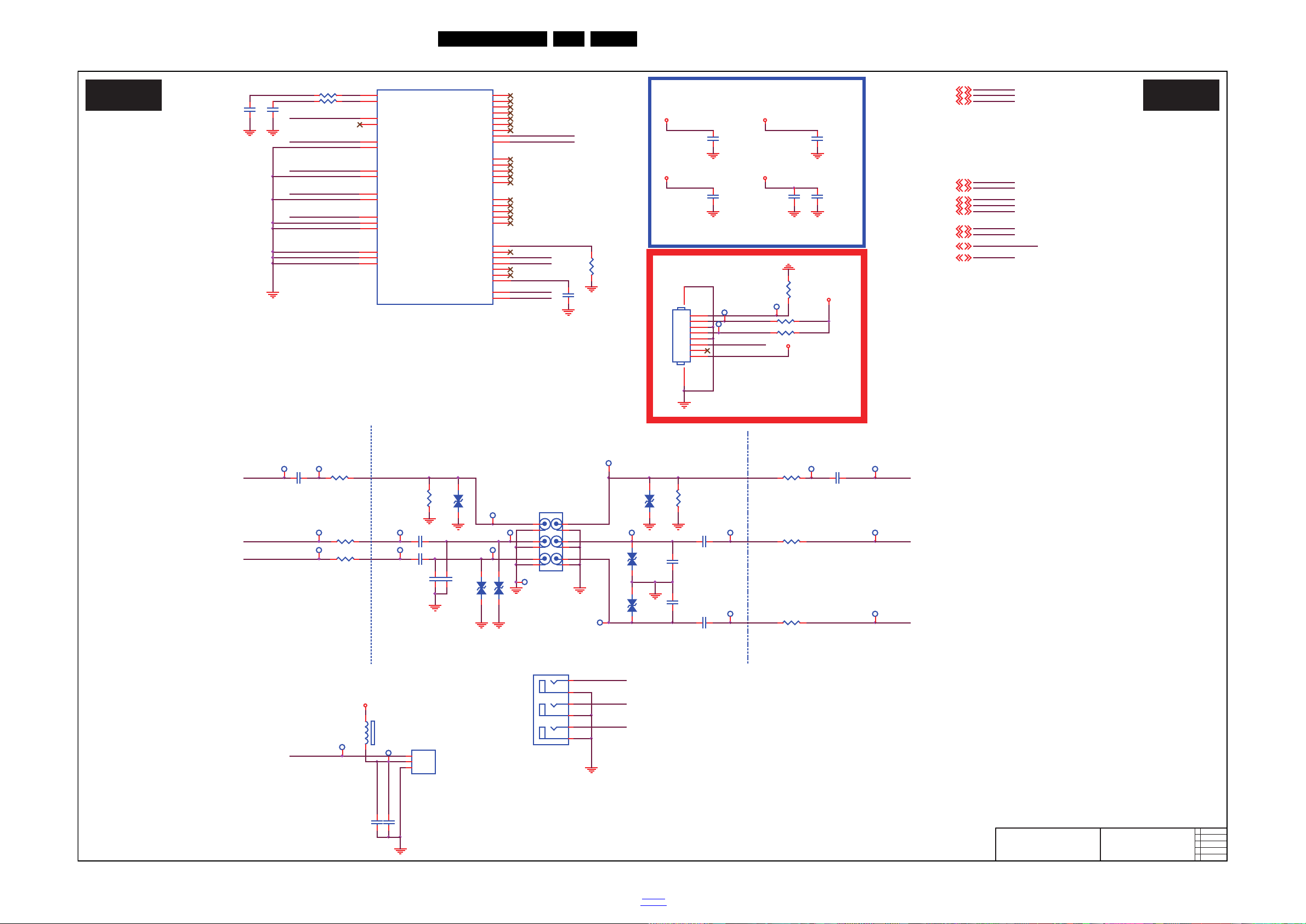

10-2-6 I/O

20080_505.eps

I/O

B06 B06

2015-11-13

715G7904

I/O

AVSS33_CVBS_1
AVSS33_CVBS_2
AVSS33_CPUPLL

AVDD33_VIDEO

AVDD12_DEMOD

R1006

100R 1/16W 1%

TP100

C1006

47NF 16V

TP101

R1005

100R 1/16W 1%

C1010
1uF 10V

C1013

1uF 10V

C1005
47NF 16V

AV_L_IN16

AV_R_IN16

A

B

C

CN103

NC RCA JACK

2
1
4

3

5

6

R1017

30K OHM +-1% 1/16W

R1013

30K OHM +-1% 1/16W

AVR_IN2

U401J

MT5580QUEI

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY _OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

CVBS1

AVL_IN1

AVR_IN1

A_IF_AGC

A_IF_AGC

A_IF_AGC14

RESET_RF4CE#

CVBS1_OUT

CN103 Dual Layout with
CN101

A_IFP14

A_IFP

A_IFN14

A_IFN

TP365

R1001

30K OHM +-1% 1/16W

CVBS2_OUT

TP416

ZD1022

VPORT0603100KV05

1 2

TP417

RXD_RF4CE

TP418

TXD_RF4CE

TP089TP090

CVBS2_OUT

TP102

TP091

TP092TP093TP094

TP097

TP098 TP099

CVBS1_OUT

TP108

TP110 TP111

AV_L_IN1

TP114 TP115

AV_R_IN1

TP112

0.5mm FFC con n

RESET_RF4CE#
HI : NORM AL
LO: RESET AC TI VE

SPDIF OUT

RF4CE Interface

TP291

3V3SB

SPDIF_OUT

AV1 & AV2 input

R4022 51R 1%
R4023 51R 1%

SPDIF_OUT

SPDIF_OUT6

A_IFN

A_IFP

R1002

30K OHM +-1% 1/16W

RXD_RF4CE

R556
75R 1/16W 1%

R555

75R 1/16W 1%

RESET_RF4CE#16

TXD_RF4CE

RESET_RF4CE#

TP079

R1022 4. 7K 1/ 16W
R1023 4.7K 1/ 16W

SDA_DEMOD

SCL_DEMOD

3V3SB

OIRI5,16

OIRI

C4028

1uF 10V

AV_R_IN1

C4023
100NF 16V

C4025
100NF 16V

C4027
100NF 16V

C4024
100NF 16V

AVDD3V3AVDD12

FB604
120R 3A

12

C640

10UF 6. 3V X5R +-20%

C641

100NF 16V

AVDD12_RGB

AVDD12

AVDD12_DEMOD

AVDD33_DEMOD

SDA_DEMOD13

SDA_DEMOD

SCL_DEMOD13

SCL_DEMOD

AVDD3V3

AVDD33_VIDEO

OIRI

Analog Power

AV_L_IN1

DVDD3V3

AV_L_IN26

AV_L_IN2
AV_R_IN2

AV_R_IN26

ZD1002

VPORT0603100KV05

12

ZD1003

VPORT0603100KV05

12

C1001
1uF 10V

C1002

1uF 10V

C1003

330PF 50V

R4255

10K 1/16W 5%

C1004

330PF 50V

R4024
75R 1/16W 1%

AV_L_IN2

AV_R_IN2

AVL_IN2

Close to CO NN.

CN6005

CONNNECTOR

GND

1

VCC

2

VIN

3

Close to MT5580

C4115
NC 47pF 50V

C4116

NC 47pF 50V

C4026
1uF 10V

ZD1001

VPORT0603100KV05

12

ZD1004

VPORT0603100KV05

12

ZD1006

VPORT0603100KV05

12

ABC

D

EF

CN101

RCA JACK

3

2

6
5

9

8

1
4

7

10

11

12

C1011
330PF 50V

C1012
330PF 50V

CVBS1

CN413

CONN

1
2

3

4
5
6
7

8

910

AVSS12_RGB

AVL_IN1

AVSS33_DEMOD

AVDD12_RGB

AVDD33_DEMOD

AVSS12_DEMOD

AVR_IN1

AVSS33_VDAC
AVSS33_VDAC_BG

Circuit Diagrams and PWB Layouts

EN 45TPM16.6L LA 10.

2016-Apr-01

back to

div.table

10-2-7 LVDS

20080_506.eps

LVDS

B07 B07

2015-11-13

715G7904

LVDS

AVDD12_LVDSA

R417

NC 3K3 1/16W 5%

O0P

O2N

DVDD3V3

O1P

OCKN
O2P

OCKP

DVDD3V3

O0N

O3P

Q4002
LMBT3904LT1G

PANEL_VCC

PANEL_ON

TP149

TP150

LVDS_SCL

Temp_sel0

E2P

E3P

E0P

R4027
150K 1/10W 5%

E1P

E2N

ECKP

E0N

ECKN

C4031

0.1uF 50V

Temp_sel0

LVDS_f ormat

TP173

TP176

TP177

TP178

TP179

TP180

C4033

0.1uF 50V

TP181

L/R_OUT

TP169

TP135
TP170

R4031

NC 100R 1/ 10W 5%

R4030

NC 3K3 1/16W 5%

Q4001

AON4421

D

1

D

2

D

3

G

4

S

5

D

6

D

7

D

8

R4032
NC 4. 7K 1/ 16W

R4033
NC 4. 7K 1/ 16W

L/R_OUT

Gamming

Gamming16

Gamming

PANEL_VCC

PANEL POWER
1:ON ;
0:OFF

R4155

1K8 +-5% 1/ 8W

TP419

12V_DET

Wi-Fi-Reset

3D_SEL

Wi-Fi-Reset16

Wi-Fi-Reset

3D_SEL4

3D_SEL

+

C4120
220UF 16V

TP013

R4253

NC 10K 1/16W 5%

R4254

10K 1/16W 5%

O4P
O4N

DVDD3V3

E3N

Temp_sel1

E1N

R4026

100K 1/10W

U401B

MT5580QUEI

TCON0

C22

TCON1

C23

TCON2

D24

TCON3

B24

TCON4

C25

TCON5

A24

TCON6

D22

TCON7

B25

TCON8

C24

TCON9

E24

TCON10

D25

TCON11

D23

TCON12

A25

AVDD33_LVDSA

A23

AVSS33_LVDSA

G16

AVDD12_LVDSA

B23

AVSS12_LVDSA

H15

AO0P

A16

AO0N

B16

AO1P

A17

AO1N

B17

AO2P

A18

AO2N

B18

AOCKP

A19

AOCKN

B19

AO3P

A20

AO3N

B20

AO4P

A21

AO4N

B21

AO5P

A22

AO5N

B22

AE0P

D16

AE0N

E16

AE1P

C17

AE1N

C16

AE2P

E17

AE2N

D17

AECKP

C19

AECKN

C18

AE3P

E19

AE3N

D19

AE4P

C21

AE4N

C20

AE5P

E21

AE5N

D21

AVSS33_LVDSA

F17

AVSS33_LVDSA

E20

PANEL_ON

OSDA05,20
OSCL05,20

OSCL0

OSDA0

Temp_sel1

TP082

TP151

TP361

TP152

E4P

TP154

AVSS33_LVDSA
AVSS33_LVDSA

E4N

TP156TP155

TP157
TP159

TP161
TP163
TP165

TP167

TP171
TP175

TP158

TP160
TP162
TP164

DVDD3V3

TP166

TP168

TP172
TP174

OSDA0

OSCL0

TP405

3D_EN

C4029

NC 1U F 10V

CN401

CONN

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

12V_DET

+12V

LVDS_SDA

O1N

O3N

DVDD3V3

Q4003

2N7002LT1 FET

DVDD3V3

Q4004
2N7002LT1 FET

USB_PWR_EN0

3D_SEL/Temp_sel_1/Temp_sel_0:
Enable: High
Disable: Low

USB_PWR_EN017

USB_PWR_EN0

USB5V1_EN

USB5V1_EN17

USB5V1_EN

Temp_sel_0
Temp_sel_1

TP407

O0P

E2N

O2N

O2P

O0N

OCKP

E0N

E4P

E0P

O1P

O3N

O1N

E1P
E2P

E3P

ECKN

O4N

R4028

4.7K 1/ 10W

ECKP

E3N

E1N

O3P

OCKN

E4N

O4P

TP408

Temp_sel_0

TP409

Temp_sel_1

PANEL_VCC

3D_SEL

AVDD12

C4030
100NF 16V

AVDD12_LVDSA

AVDD3V3

C4034

NC 1UF 10V

C4035
100NF 16V

R1011
10K 1%

AVDD33_LVDSA

R1012

3.6K 1%

FB4002
120R

1 2

FB4003
NC 120R

1 2

AVSS33_LVDSA

R4025

4.7K 1/ 10W

+12V

+5V

AVSS12_LVDSA

R4029

4.7K 1/ 10W

L/R_OUT16

L/R_OUT

AVDD33_LVDSA

R413

NC 100R 1/ 10W 5%

R412

NC 100R 1/ 10W 5%

PANEL_ON20

PANEL_ON

R418

NC 3K3 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 46TPM16.6L LA 10.

2016-Apr-01

back to

div.table

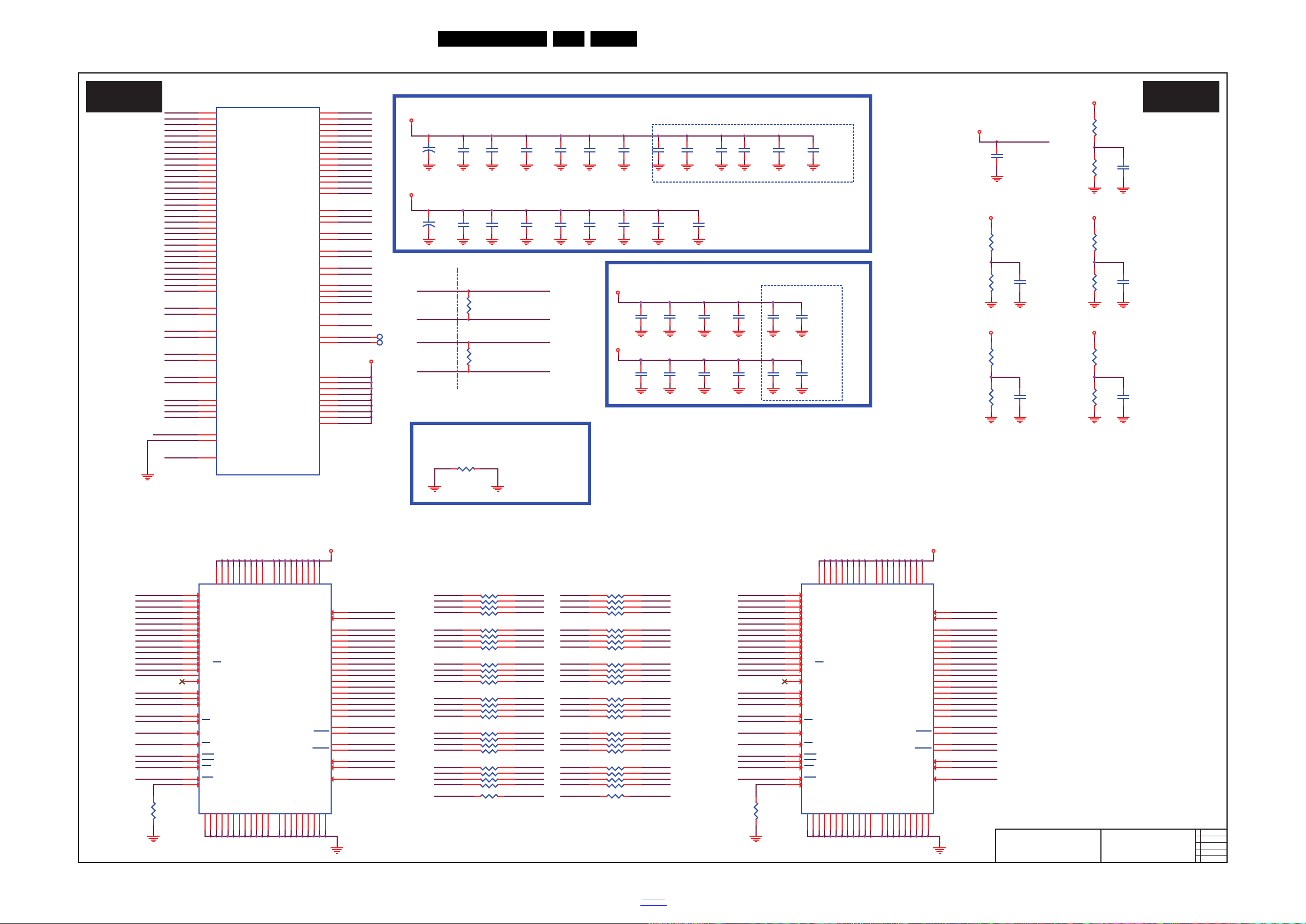

10-2-8 DDR

20080_507.eps

DDR

B08 B08

2015-11-13

715G7904

DDR

Chip bottom

C4065
100NF 16V

CAPs for DRAM IO power (Beneach the MT5580)

C4050

NC 22UF 6.3V

U405

NC = J1, J 9, L1, L9

NT5CC256M16DP-DI

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

DRAM DE-CAP (Beneach DDR1)

DRAM DE-CAP (Beneach DDR2)

RDQ16

RDQ20

RDQS3#

RDQ2

RDQ30

RDQ25
RDQ26

RDQ1

RDQ17

RDQ9

RDQM0

AVSS33_MEMPLL

RDQ10

RDQ24

RDQS3

RDQ27

RDQ21

RDQ6

RDQ13

AVDD33_MEMPLL

RDQS2#

RDQM1

RDQ29

RDQ28

RDQ5

RVREF0

RDQ11

RDQ22

RDQ7

RDQM3

RDQ18

RDQS1#

RDQS2

RDQS0

RDQ0

RDQ4

RDQ14

RDQ31

RDQ23

RDQ8

RDQ15

RDQM2

RDQ19

RDQ3

RDQS1

RDQS0#

RDQ12

RA8

DDR3_RST#

RA4

MEMTN

RCAS#

R_CLK1#

RBA1

RA5

RA2

RA10

MEMTP

RRAS#

RBA0

RA9

RA13

R_CLK1

RBA2

RODT

RA1

RA6

RA11

R_CLK0#

RWE#

RA7

RCKE

R_CLK0

RA12
RA14

RCSX#

RA0

RCS#

RA3

1_RA6
1_RA8

1_RA0

1_RBA1

1_RA5

1_RA3

1_RCAS#

1_RA7

1_RA11

1_RA4

1_RBA2

1_RCKE

1_RA1
1_RA2

1_RBA0

CS#

1_RA13

1_RWE#

CLK0

1_RA9

1_RA14

1_RA10
1_RA12

1_RRAS#

CLK0#

1_DDR3_RST#

RDQ4

RDQ13

RDQS0#

RDQS0

RDQ10

RDQS1

1_RODT

RDQ6

RDQ2
RDQ3

RVREF3

RDQ0

RVREF2

RDQ5
RDQ7

RDQ12

RDQM0

RDQ9

RDQ1

RDQ15

RDQM1

RDQ14

RDQ11

RDQ8

RDQS1#

1_RA9

1_RA4

1_RA5

1_RA6

1_RBA2

1_RRAS#

1_RA0

1_RA11

1_RWE#

1_RA3

1_RBA1

1_RA12

1_RA2

1_RCAS#

1_RA10
1_RBA0

1_RA14
1_RA1

1_RA8

1_RA7

1_DDR3_RST#

1_RA13

1_RODT

1_RCKE

RA13

RA6

RA10

RRAS#

RA0

RA4

RCKE

RWE#

RA9

RA1

RA14

RA8

RBA0

RA2

RA3

RBA1

DDR3_RST#

RA7

RBA2

RA11

RODT

RA12

RA5

RCAS#

2_RA3

2_RA8

2_RA7

2_RA9

2_RWE#

2_RRAS#

2_RA13

2_RA14

2_RA2

2_DDR3_RST#

2_RA10

2_RA5

2_RBA1

2_RBA2

2_RCAS#

2_RBA0

2_RA6

2_RA0

2_RA1

2_RA11
2_RA12

2_RCKE

2_RODT

2_RA4

RA11

RCAS#

DDR3_RST#

RRAS#

RA6

RA5

RA12

RCKE

RA1
RA4

RA9

RA0

RA10

RA7

RA14

RBA2

RA3

RWE#

RA8

RA13

RA2

RBA0

RBA1

RODT

CS#RCS# CSX# RCSX#

RVREF2 RVREF3

RVREF4

RVREF0

RVREF5

R_CLK0 CLK0

R_CLK0# CLK0#

R_CLK1#

CLK1

CLK1#

R_CLK1

AVDD33_MEMPLL

R4037

1K 1/16W 1%

R4039

1K 1/16W 1%

RP409 22 OH M

1

2

3

4

8

7

6

5

C4046

NC 100NF 16V

C4055

22UF 6.3V

C4077
100NF 16V

RP402 22 OH M

1

2

3

4

8

7

6

5

C4063

22UF 6.3V

C4069

100NF 16V

R4042

1K 1/16W 1%

RP401 22 OH M

1

2

3

4

8

7

6

5

C4081
100NF 16V

R4041

1K 1/16W 1%

C4056
100NF 16V

R4034

100R 1/16W 1%

RP411 22 OH M

1

2

3

4

8

7

6

5

R4043

1K 1/16W 1%

C4061
100NF 16V

C4071

NC 100NF 16V

R4047
22R 1/16W 5%

RP406 22 OH M

1

2

3

4

8

7

6

5

RP403 22 OH M

1

2

3

4

8

7

6

5

C4041
100NF 16V

C4048

NC 100NF 16V

RP40822 OHM

1

2

3

4

8

7

6

5

R4048
22R 1/16W 5%

C4064

NC 100N F 16V

C4062
100NF 16V

R4040

1K 1/16W 1%

C4079
100NF 16V

R4035

100R 1/16W 1%

TP182

C4049

NC 100NF 16V

C4053
100NF 16V

C4070

NC 100NF 16V

C4059
22UF 6.3V

C4066

22UF 6. 3V

RP404 22 OH M

1

2

3

4

8

7

6

5

R4044

1K 1/16W 1%

RP405 22 OH M

1

2

3

4

8

7

6

5

C4082
100NF 16V

C4060

10UF 6.3V X5R +-20%

RP412 22 OH M

1

2

3

4

8

7

6

5

C4044

100NF 16V

R4046
240 OHM +-1% 1/16W

C4057
100NF 16V

C4068
100NF 16V

C4054
100NF 16V

C4040
100NF 16V

R4038

1K 1/16W 1%

C4042

22UF 6.3V

C4043
100NF 16V

C4058
100NF 16V

RP407 22 OH M

1

2

3

4

8

7

6

5

C4078
100NF 16V

C4052

10UF 6.3V X5R +-20%

RP410 22 OH M

1

2

3

4

8

7

6

5

C4047

NC 1UF

C4067

100NF 16V

C4039

10UF 6.3V X5R +-20%

+

C4038

NC 100UF 16V

C4080
100NF 16V

TP183

R4045

1K 1/16W 1%

C4045

22UF 6.3V

DDRV

R4036

1K 1/16W 1%

DDRV

DDRV

DDRV

DDRV DDRV

DDRV

DDRV

DDRV

DDRV

DDRV

AVDD3V3

2_RODT

RDQS2

RDQS2#

Chip bottom

RDQS3#

RDQS3

RDQM2
RDQM3

U406
NT5CC128M16IP-DI

NC = J1,J9,L1,L9

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

NC

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

RDQ17

RDQ20

RDQ19
RDQ21

RDQ22
RDQ23

RDQ18

RDQ16

RDQ29

RDQ27
RDQ28

RDQ26

RDQ30
RDQ31

RDQ24
RDQ25

2_RA2

2_RA1

U401A

MT5580QUEI

RDQ0

C1

RDQ1

H3

RDQ2

D3

RDQ3

H2

RDQ4

C2

RDQ5

J1

RDQ6

B1

RDQ7

J2

RDQ8

J4

RDQ9

F5

RDQ10

H4

RDQ11

E4

RDQ12

H5

RDQ13

G3

RDQ14

J3

RDQ15

G4

RDQ16

A14

RDQ17

B9

RDQ18

B14

RDQ19

A9

RDQ20

B15

RDQ21

C8

RDQ22

C14

RDQ23

C9

RDQ24

D10

RDQ25

F14

RDQ26

E10

RDQ27

E14

RDQ28

D13

RDQ29

F13

RDQ30

E12

RDQ31

E13

RDQS0

D2

RDQS0#

D1

RDQS1

F1

RDQS1#

F2

RDQS2

A13

RDQS2#

B13

RDQS3

A11

RDQS3#

B11

RDQM0

G2

RDQM1

G5

RDQM2

B10

RDQM3

C13

AVDD33_MEMPLL

C10

AVSS33_MEMPLL

G10

RVREF

E3

RA0

D4

RA1

D8

RA2

C5

RA3

B6

RA4

E7

RA5

C4

RA6

D6

RA7

B5

RA8

C7

RA9

A6

RA10

F9

RA11

D5

RA12

E6

RA13

C6

RA14

D7

RBA0

B7

RBA1

D9

RBA2

A7

RCLK0

E2

RCLK0#

E1

RCLK1

B12

RCLK1#

A12

RCS#

B3

RCSX#

A3

RCKE

E9

RWE#

C3

RCAS#

B2

RRAS#

A2

DDR3_RST#

A5

RODT

A1

DDRV

J5

DDRV

K7

DDRV

K6

DDRV

K5

DDRV

K4

DDRV

K3

DDRV

K2

DDRV

K1

DDRV

H7

MEMTP

G11

MEMTN

G12

2_RA10
2_RA11

2_RA6

2_RA5

2_RA12

2_RA7

2_RA3

2_RA8

2_RA4

2_RA0

2_RA9

2_RA13

DDRV

2_RA14

2_RBA2

2_RBA1

2_RBA0

CLK1
CLK1#

2_RCKE
CSX#

2_RWE#

2_RCAS#

2_RRAS#

2_DDR3_RST#

R4049

240 OHM +-1% 1/16W

R737 NC 0R 05 1/ 10W

Reserve for RDQ16/RDQ18 Trace
under the R737

RVREF4
RVREF5

2K14 Smart TV:

+

C4051

NC 100UF 16V

Circuit Diagrams and PWB Layouts

EN 47TPM16.6L LA 10.

2016-Apr-01

back to

div.table

10-2-9 Demodulator (TC90537)

20080_508.eps

Demodulator (TC90537)

B09 B09

2015-11-13

715G7904

Demodulator (TC90537)

DEMOD_RST

R1059
10K 1/10W

SBYTE_ORR

TS1_CLK
TS1_DEN
TS1_SYNC
TS1_DI

R7077
NC 10K 1/ 16W 5%

XT_O
XT_I

XT_O
XT_I

TP191

TP192

TP194

TP196

ARC_OE1

ARC_OE115

ARC_OE1

ARC_OE215

ARC_OE2

ARC_OE2

TP198

TP199

TP200

TP202

TP203

R7076
10K 1/16W 5%

TP204

TP205

TP206

TP207

TP208

TP215

TP214

TP212
TP213

TP211

TP210

TP209

SLADRS1

TP216

TP217

SRCK_ORR

TP218

PBVAL_ORR

TP219

SRDT_ORR

TP220

TP221

TP222 TP223

ARC_OE3

ARC_OE315

ARC_OE3

SLADRS0

HP_DET8

HP_DET

AGCCNTI

SLADRS1

TP224

C1116

10UF 6. 3V X5R +-20%

TP226

R1052

4.7K 1/16W

R1067

4.7K 1/16W

R1068

4.7K 1/16W

SDA_DEMOD
SCL_DEMOD

BL_ON/OFF

R1054

1.2KOHM 1%

R1064

100R 1/16W 5%

R1066
100R 1/16W 5%

R1065

100R 1/16W 5%

C1048

10UF 6.3V X5R +-20%

C1054

100NF 16V

C1049

100NF 16V

C1046

100NF 16V

C1051

10NF 50V

C1052

100NF 16V

C1042

100NF 16V

X10 1

16MHz

1

24

3

C1055

100NF 16V

C1053

100NF 16V

RP1001

33 OHM +-5% 1/16W

1

2

3

4

8

7

6

5

C1043

100NF 16V

C1047

100NF 16V

FB1003

120R

1 2

TP083

FB1005
120R

12

R1051

4.7K 1/16W

FB1009
120R

12

FB1002

120R

1 2

U102

VI3VO

2

GND

1

4

4

C1035
100NF 16V

R1053

1M 1/10W 5%

C1038

100NF 16V

R1056
10K 1/16W 5%

C1057

100NF 16V

Serial TS output

R1049

0R05 OHM

FB1004
120R

12

C1045

100NF 16V

C1033
100NF 16V

C0402

R1057

NC/ 10K+-5%1/16W

R1058
10K 1/16W 5%

R1062

20K OHM 1/16W 1%

C1044

10UF 6.3V X5R +-20%

FB1001
120R

12

R1055
NC/ 10K+-5%1/16W

C1039

100NF 16V

FB1006
120R

12

FB1008
120R

12

R1063

NC 0R 05 OH M

BL_ON/OFF4

+1V2

+1V2

+3.3VD

AVDD3V3

+3.3VD

+1V2

+3.3VD

+3.3VD

+3.3VD

+3.3VD

+3.3VD

+3.3VD

AVDD3V3

D_IFP14

TSDA14

D_IF_AGC14

TSCL14

TS1_SYNC

SDA_DEMOD 9

DEMOD_RST16

SCL_DEMOD 9

TS1_DEN

SCL_DEMOD9

TS1_CLK

D_IFN14

D_IFN14

DEMOD_RST16

D_IFP14

SDA_DEMOD9

TS1_DI

BL_ON/OFF

TP339

TNSCL

SLADRS0

TNSDA

1.2V

For demodulator

D_IFP

D_IFN

TNSCL
TNSDA

C1032

10UF 6.3V X5R +-20%

U101
TC90537FG

VSS

47

VDDS

14

GPIO1

4

GPIO2

5

SBYTE

16

AGCCNT1

18

XO

23

SLADRS1

29

PLLVSS

26

SYRSTN42VPGM

41

VDDC

32

ADCVSS

34

VREFH

36

STSFLG143SCL

45

VSS

31

ADCVDD

33

TNSCL

20

TNSDA

21

AINN Q

40

AINN I38AINP I

37

STSFLG044SDA

46

RSEORF

15

XI

24

VREFL

35

AINP Q

39

SLADRS0

17

CKI

28

VDDC

1

VSS

13

SRCK

12

PBVAL

11

SRDT

10

SLOCK

9

RLOCK

8

RERR

7

SLPEN

6

VDDS

48

VSS

2

GPIO0

3

AGCCNTR

19

XCKO

22

PLLVDD

25

VDDC

27

TSMD

30

C1034

10UF 6.3V X5R +-20%

HP_DET

TP024

Power & GND

Crystal is 16MHZ

C1074
NC 10PF 50V

U401H

MT5580QUEI

CIGPIO0

H22

CIGPIO1

K23

CIGPIO2

K25

CIGPIO3

L25

CIGPIO4

L23

CIGPIO5

H16

CIGPIO6

H18

CIGPIO7

P23

CIGPIO8

K18

CIGPIO9

N21

CIGPIO10

P18

CIGPIO11

N20

CIGPIO12

H19

CIGPIO13

P24

CIGPIO14

K19

CIGPIO15

N23

CIGPIO16

U23

CIGPIO17

M18

CIGPIO18

AA21

CIGPIO19

N25

CIGPIO20

N24

CIGPIO21

U21

CIGPIO22

U22

CIGPIO23

J22

CIGPIO24

J21

CIGPIO25

M23

CIGPIO26

H23

CIGPIO27

H25

CIGPIO28

H24

CIGPIO29

Y19

CIGPIO30

U19

CIGPIO31

U20

CIGPIO32

T20

CIGPIO33

T19

CIGPIO34

H21

CIGPIO35

H20

CIGPIO36

G25

CIGPIO37

V18

CIGPIO38

U18

CIGPIO39

T22

CIGPIO40

T21

CIGPIO41

T18

CIGPIO42

AA23

CIGPIO43

N19

CIGPIO44

J19

CIGPIO45

J23

CIGPIO46

K24

CIGPIO47

N18

CIGPIO48

L22

CIGPIO49

J20

CIGPIO50

N22

CIGPIO51

Y22

CIGPIO52

G24

CIGPIO53

Y21

CIGPIO54

Y20

CIGPIO55

H17

CIGPIO56

L24

C1036

18PF 50V

C1037
18PF 50V

Circuit Diagrams and PWB Layouts

EN 48TPM16.6L LA 10.

2016-Apr-01

back to

div.table

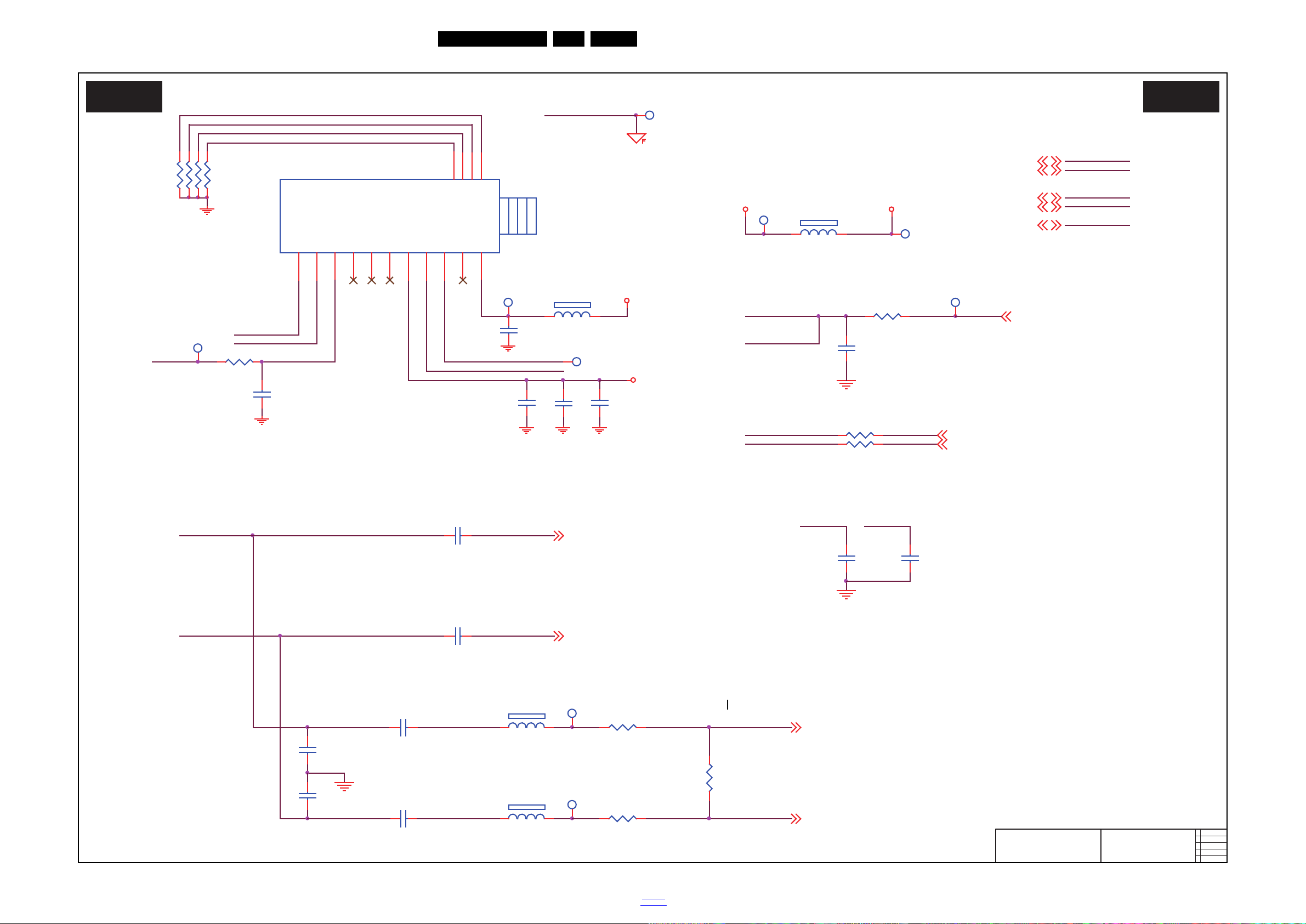

10-2-10 Tuner

20080_509.eps

Tuner

B10 B10

2015-11-13

715G7904

Tuner

Tuner_SDA

R1084

10K 1%

TUNER_GND

TUNER_GND

TUNER_GND

TUNER_GND

TP362

TP363

FB1022
120R

1 2

FB1023

120R

1 2

C1072

1uF 10V

Tuner_SCL

Tuner_SDA

R1083
NC 200R 1/ 16W 1%

TU2_DIF+

T_IFAGC

TU2_AIF

D_IF_AGC

C1073
47NF 16V

T_IFAGC

A_IF_AGC 9

TP238

TU2_AIF

TU2_DIF+

Tuner_SCL

TUNER_GND

D_IF_AGC13

D_IF_AGC

TU1001

NC

1

NC

2

3.3V

5

NC

8

DIF(P)

10

DIF(N)

11

SDA

3

SCL

4

NC

6

NC

7

IF_AGC

9

TH1

12

TH2

13

TH314TH4

15

R1075
100R 1/ 16W 1%

R1076
100R 1/ 16W 1%

TP233

TP235

D_IFN
D_IFP

TP084

TP085

TP086

R1081

1K

R1082

1K

A_IFP
A_IFN

C1071

1uF 10V

C1067
47pF 50V

C1068

47pF 50V

R1072
0R05 OH M

R1070

0R05 OH M

C1060
1uF 10V

C1062
470PF 50V

R1074

4.7K 1/ 16W

C1056

1nF 50V

FB1012

120R

1 2

C1065

1uF 10V

C1061

1nF 50V

R1071
0R05 OH M

C1063

47pF 50V

C1066

1uF 10V

C1058

10NF 50V

FB1010

NC/300 OHM

1 2

C1064
47pF 50V

R1069

0R05 OH M

TUNER_3.3V

5V_TUNER

USB_5V1

5V_TUNER

TSDA 13

A_IFP 9

A_IFN 9

D_IFN 13

TSCL 13

D_IFP 13

D_IFP13

A_IFN9

A_IFP9

D_IFN13

Tuner_SDA

TP379

Tuner_SCL

Circuit Diagrams and PWB Layouts

EN 49TPM16.6L LA 10.

2016-Apr-01

back to

div.table

10-2-11 HDMI

20080_510.eps

HDMI

B11 B11

2015-11-13

715G7904

HDMI

R528

0R05 OHM

TP257

HEC2+

TP258

R538

0R05 OHM

TP259

HDMI3_HPD

TP260

HEC3+

TP261

TP262

HDMI2_HPD

TP263

TP264

TP265

HDMI1_HPD

TP267

HDMI3_HP_DET

HDMI1_RX2+ HDMI1_RX2+

HDMI1_RX2- HDMI1_RX2-

HDMI1_RX1+ HDMI1_RX1+

HDMI1_RX1- HDMI1_RX1-

HDMI3_RX0­HDMI3_RX0+

HDMI3_RXC+

HDMI3_RXC-

HDMI3_RX2+

HDMI3_RX1+

HDMI3_RX1-

HDMI3_RX2-

R518

NC 0R05 OH M

HDMI3_RX0+

HDMI3_RXC+

HDMI3_RXC-

HDMI3_RX1-

HDMI3_RX2-

HDMI1_RXC-

Q503
LMBT3904LT1G

HDMI1_RXC-

HDMI1_RXC+

HDMI2_SDA

R519

100R 1/16W 1%

HDMI3_SCL

HDMI2_5VIN

HDMI1_RXC+

HDMI1_RX0+

R511

47K 1/16W 5%

HDMI1_RX0+

HDMI2_SCL

+5V

HDMI1_RX0-

HDMI3_SCL

HDMI3_CEC

HDMI3_SDA

R513
47K 1/16W 5%

HDMI1_RX0-

HDMI3_5VIN

U504

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R536

180R 1/10W 1%

R543
82R 1/10W 1%

U505

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

ARC_OE213

DVDD3V3

HDMI2_HP_DET

R544
100K1/16W

ARC_OUT6

HDMI2_5VIN

ARC Buffer

C4197
1uF 25V

HEC2+

R1080

10K 1/16W 5%

R520

100R 1/16W 1%

TP385

DVDD3V3

HDMI2_RX2+

HDMI2_RX0+

HDMI2_RX0-

U107

74LVC1G125GV

OE

1

A

2

GND3Y

4

VCC

5

R517
47K 1/16W 5%

HDMI2_RX1­HDMI2_RX1+

HDMI2_RXC-

TP384

R516
100K 1/16W

U506

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R514
910R

HDMI2_RX0+

HDMI2_RX1-

HDMI2_RX2+

HDMI2_RXC-

HDMI2_RX2-

HDMI2_HP_D ET

Q504
LMBT3904LT1G

R512

47K 1/16W 5%

HDMI2_5VIN

3V3SB

C502
100NF 16V

HDMI1_5VIN

HDMI1_SCL

HDMI1_CEC
HDMI1_SCL

HDMI1_SDA

HDMI1_CEC

HDMI1_5VIN

HDMI1_SDA

HDMI2_CEC

HDMI2_SDA

HDMI2_SCL

HDMI2_SDA

HDMI2_SCL

HDMI2_5VIN

DVDD3V3

R1079
10K 1/16W 5%

HDMI2_5VIN

Q505
LMBT3904LT1G

HDMI2_RX1+

DVDD3V3

HDMI2_RX0-

HDMI3_SDA

R529

100R 1/16W 1%

HDMI3_5VIN

R532

180R 1/10W 1%

HDMI2_RXC+

R533
82R 1/10W 1%

C4097
1uF 25V

HDMI2_CEC

HDMI2_RXC+

R534
100K1/16W

R521

47K 1/16W 5%

HDMI2_RX2-

+5V

HDMI3_SCL

R523
47K 1/16W 5%

U507

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

HEC1+

U508

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

HDMI3_5VIN

HDMI3_CEC

HDMI3_5VIN

HDMI3_RX1+

HDMI3_RX2+

HDMI3_RX0-

R530

100R 1/16W 1%

HDMI3_SDA

R527
47K 1/16W 5%

R526
100K 1/16W

U509

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R524
910R

ARC_OUT6

HDMI3_HP_DET

Q506

LMBT3904LT1G

U401D

MT5580QUEI

HDMI_1_RX_0

P4

HDMI_1_RX_0B

P3

HDMI_1_RX_1

R2

HDMI_1_RX_1B

R1

HDMI_1_RX_2

R4

HDMI_1_RX_2B

R3

HDMI_1_RX_C

N4

HDMI_1_RX_CB

N3

HDMI_1_SCL

P5

HDMI_1_SDA

P6

HDMI_1_HPD

T8

HDMI_2_RX_0

U2

HDMI_2_RX_0B

U1

HDMI_2_RX_1

U4

HDMI_2_RX_1B

U3

HDMI_2_RX_2

V4

HDMI_2_RX_2B

V3

HDMI_2_RX_C

T4

HDMI_2_RX_CB

T3

HDMI_2_SCL

T5

HDMI_2_SDA

T6

HDMI_2_HPD

T7

HDMI_3_RX_0

Y25

HDMI_3_RX_0B

Y24

HDMI_3_RX_1

W25

HDMI_3_RX_1B

W24

HDMI_3_RX_2

V25

HDMI_3_RX_2B

V24

HDMI_3_RX_C

AA25

HDMI_3_RX_CB

AA24

HDMI_3_SCL

W3

HDMI_3_SDA

W4

HDMI_3_HPD

W5

HDMI_CEC

U5

AVDD12_HD MI_RX

W1

AVDD12_HD MI_RX

W2

AVDD12_HDMI_3_RX

AB24

AVDD33_HDMI_RX

N2

AVDD33_HDMI_3_RX

AB25

AVSS33_HDMI_RX

N7

AVSS33_HDMI_3_RX

R18

R522

47K 1/16W 5%

3V3SB

HDMI3_5VIN

C503

100NF 16V

HDMI1_RX1+

HDMI1_RX0+

HDMI1_SDA

HDMI1_RX2+
HDMI1_RXC+

HDMI1_HPD

HDMI1_SCL

HDMI1_RX1-

HDMI1_RX0-

HDMI3_RX2-

HDMI3_RX0+

HDMI3_RXC+
HDMI3_RXC-

HDMI3_RX2+

HDMI3_HPD

HDMI3_SDA

HDMI3_RX0­HDMI3_RX1-

ARC_OUT6

ARC_OUT

TP320

C4083
100NF 16V

C4085
100NF 16V

TP321

TP322

ARC_OE113

AVDD33_HDMI_RX

AVDD12_HD MI_1_RX

C4084
100NF 16V

AVDD3V3

C4086
100NF 16V

AVDD12

AVDD33_HDMI_3_RX

AVDD12_HD MI_2_RX

C4087
100NF 16V

AVDD12_HDMI_3_RX

AVDD12

FB501 30R

1 2

FB502 30R

1 2

FB50330R

1 2

HDMI1_5VIN

HD_CEC

HEC3+

R553
82R 1/10W 1%

TP395

TP387

R545
100K1/16W

ARC_OUT6

TP396

ARC Buffer

C4198
1uF 25V

TP397

DVDD3V3

R1085
10K 1/16W 5%

TP386

ARC_OE313

+5V

U108

74LVC1G125GV

OE

1

A

2

GND3Y

4

VCC

5

R537

180R 1/10W 1%

DVDD3V3

AVDD12_HDMI_1_RX
AVDD12_HDMI_2_RX
AVDD12_HDMI_3_RX
AVDD33_HDMI_RX
AVDD33_HDMI_3_RX
AVSS33_HDMI_RX
AVSS33_HDMI_3_RX

TP398

TP399

TP400

AVDD3V3

HDMI1_CEC

AVDD12

CN502

HDMI 21P

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

CN501

HDMI 21P

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

LO = > Enable

HI = > Disable

ARC Buffer

HDMI3_RX2+

R505
75R 1/16W 1%

R515
75R 1/16W 1%

R525

75R 1/16W 1%

HDMI3_RX1-

HDMI2_RX2-

HDMI2_RX0-

HDMI2_RX2+

HDMI2_RX0+

HDMI2_RX1-

HDMI3_RX0+

HDMI2_RXC+
HDMI2_RXC-

HDMI2_CEC

HDMI2_RX1+

HDMI3_RX0­HDMI3_RXC+

3V3SB

HDMI3_CEC

HDMI3_RX1+

HDMI3_RX2-

HDMI3_RXC-

HDMI3_RX1+

HDMI3_CEC

HDMI1_RX2+

HDMI1_RX1-

HDMI1_HP_DET

HDMI1_RX1+

HDMI1_CEC

HDMI1_5VIN

HDMI1_RXC-

HDMI1_RX2-

HDMI1_RXC+

HDMI1_RX0-

HDMI1_RX0+

R509

100R 1/16W 1%

R510

100R 1/16W 1%

R508 0R 05 OH M

HDMI3_SCL

HDMI1_RXC-

HDMI1_RX2-

R501

47K 1/16W 5%

R502

47K 1/16W 5%

HDMI1_SCL
HDMI1_SDA

TP032

HDMI2_RX1+

HDMI2_RXC-

HDMI2_RX0+

HDMI2_RXC+

HD_CEC

HDMI2_HPD

HDMI2_RX1-

HDMI2_SDA

HDMI2_SCL

HDMI2_RX2-

HDMI2_RX0-

HDMI2_RX2+

TP269

CN503

HDMI 19P

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

D501

BAV70

3

1

2

C501
100NF 16V

D502

BAV70

3

1

2

D503

BAV70

3

1

2

U106

74LVC1G125GV

OE

1

A

2

GND3Y

4

VCC

5

HDMI2_CEC

TP268

TP270

ZD501
VPORT0603100KV05

1 2

TP242

HEC1+

R507
47K 1/16W 5%

TP243
TP244

TP245
TP246

TP247

TP248
TP249

TP250
TP251

TP252

TP253
TP254

TP255
TP256

Q502

LMBT3904LT1G

Q501

LMBT3904LT1G

R504
910R

R503
47K 1/16W 5%

R506
100K 1/16W

HDMI1_5VIN

HDMI1_HP_DET

U501

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U503

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U502

NC RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

Circuit Diagrams and PWB Layouts

EN 50TPM16.6L LA 10.

2016-Apr-01

back to

div.table

10-2-12 Ethernet/GPIO/KEYPAD/WIFI

20080_511.eps

Ethernet/GPIO/KEYPAD/WIFI

B12 B12

2015-11-13

715G7904

Ethernet/GPIO/KEYPAD/

WIFI

OPCTRL0 LED_R

DEMOD_RST

DEMOD_RST13

TP299

BL_DIM

BL_DIM4

TP300

TP301

USB_DP_P0

TP302

TP350

TP351

C4093

4.7UF 10V

R4089
24K 1%

Support WOL : connectored 3VSB
Otherwise : connectored AVDD33

TP352

POK4

POK

USB_DP_P1#
USB_DM_P1#

USB_DM_P1

USB_DP_P1

USB_DP_P117
USB_DM_P117

TP273TP272

TP275

R4271

NC 0R 05 1/ 16W

TP274

R4272 NC 0R 05 1/ 16W

USB_DM_P2USB_DM_P1#

USB_DP_P1# USB_DP_P2

TP276

OIRI

TP277

TP278

TP279

TP280

TP281

LED_B

TP282

BL_DIM

No Support WI FI

Un-Mount

BL_3D_DIMMING

BL_3D_DIMMING4

TP410

L/R_OUT11

R551
100R 1/16W 5%

R552

100R 1/16W 5%

RXVN

C4094
1uF 10V

AVDD3V3

TP345

AVDD33_USB

C4095
100NF 16V

L101
90R

1
2

4

3

R4090

NC 0R 05 OH M

R4091
0R05 OHM

AVDD3V33V3SB

Gamming 11

C4096
100NF 16V

USB_DP_P2

TP354

AVDD33_ETH

ZD4003

VPORT0603100KV05

12

RJ-45

ZD4004
VPORT0603100KV05

12

L102
90R

1
2

4

3

TXVP

TP412

TP413

TP415

TP414

RXVP

TXVN

USB & WIFI select

TXVP
TXVN

RXVP
RXVN

TXVP

TXVN

U401G

MT5580QUEI

GPIO0

P7

GPIO1

AA7

GPIO2

U7

GPIO3

Y5

GPIO4

AD1

GPIO5

W7

GPIO6

AC3

GPIO7

U6

GPIO8

V6

GPIO9

Y6

OPCTRL0

AC9

OPCTRL1

AB8

OPCTRL2

Y7

OPCTRL3

Y12

OPCTRL4

AA10

ADIN0_SRV

W12

ADIN1_SRV

V11

ADIN2_SRV

AA9

ADIN3_SRV

AA6

ADIN4_SRV

AB7

ADIN5_SRV

AB9

OPWM0

G23

OPWM1

F23

OPWM2

E22

OPWM3

E23

OPWM4

G21

OPWM5

G22

OPWM6

F22

RXVP

RXVN

REXT Wi-Fi-Reset

TP366

KEY2

AVDD33_ETH
AVSS33_LD
AVSS33_ELDO

Analog_Dimming

Analog_Dimming

Analog_Dimming16

AVSS33_COM

Wi-Fi-Reset :
Normal : High
Reset : Low

Thermal Sensor

Wi-Fi-Reset

Wi-Fi-Reset11

AVDD10_ELDO

U401F

MT5580QUEI

USB_DP_P0

U24

USB_DM_P0

U25

USB_DP_P1

T24

USB_DM_P1

T25

GPIO10

R24

GPIO11

R25

AVDD33_USB

P25

AVSS33_USB

P17

RXVN_1

AD2

RXVP_1

AE2

TXVN_0

AD3

TXVP_0

AE3

REXT

AE1

AVDD33_ETH

AD4

AVSS33_LD

Y8

AVSS33_ELDO

V9

AVSS33_COM

W8

AVDD10_ELDO

AE4

BL_3D_DIMMING

R4088

6.8K +-1% 1/16W

R4087

NC 20K 1%

R4096

4.7K 1/16W

R4097

4.7K 1/16W

C4091

NC 100N F 16V

OPCTRL3

USB_DM_P2

OPCTRL4 OPCTRL0

OPCTRL3

OPCTRL35
OPCTRL05

OPCTRL4

OPCTRL45

SYS_EEPROM_WP

USB_DP_P2

SYS_EEPROM_WP

SYS_EEPROM_WP5

+5V

R4150

NC 0R 05 OH M

AVDD33_USB
AVSS33_USB

C4118
100NF 16V

SPI_DO20

SPI_DO

SPI_CLK

+5V

SPI_CLK20

CN702

CONN

2
4
6

8

10
12
14
16
18

1

3

5
7
9
11
13
15
17

SPI_DO

SPI_CLK

For 5580P2

For 3D interference suppression

07/10 Add.

Temp_out

TP401

TP402

L/R_OUT

LED_R

RESET_RF4CE#

RESET_RF4CE#9

RESET_RF4CE#

TP357

DEMOD_RST

Wi-Fi_PWR_EN

TP358

Wi-Fi_VCC

TP359

TP003

LOGO

USB_DM_P0

USB_DM_P017

USB_DM_P0

R554
NC 6.8K +-1% 1/16W

R4270

NC 0R05 1/ 16W

CN102

RJ45 CONN

TCT P 1

1

TD+ P 2

2

TD- P 3

3

RD+ P4

4

RD- P5

5

RCT P6

6

TH1

7

TH2

8

LOGO

R1098
0R05 OHM

R1099
0R05 OHM

U105

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

C4251

1UF 10% 16V

3V3SB

R4252

4K7 1/16W 5%

LED_B

CN703

CONN

1
2

3

4
5
6

78

R4269 0R05 1/16W

TP422

FB1013 120R

1 2

R4251

2K2 +-1% 1/16W

R4268 0R05 1/16W

Wi-Fi_PWR_EN

C4253100NF 16V

Wi-Fi_PWR_EN :
Enable : High
Disable : Low

C4264

NC 100N F 16V

Temp_out

C4265

NC 100N F 16V

C4090

100NF 16V

Regulator for 1A output Current

R4250

10K 1/16W 5%

C425010UF 10V

C4092
100NF 16V

W i- F i Powe r C o n trol

Wi-Fi_OCP :
Disable :
Low

ZD4002
MLVG0402

1 2

OIRI#

Temp_out_AL

OIRI#

FB4006

NC 120R

1 2

FB4005

120R

1 2

FB4004

120R

1 2

3V3SB

+

C4252

100UF 16V

U4251

NC BD 1020H F VTR

N.C.

1

PG

2

VOUT

3

VDD

4

GND

5

3V3SB

Wi-Fi_VCC

DVDD3V3

Temp_out_AL

Temp_out_AL20

TP088

C1110

100NF 16V

C1111

100NF 16V

3V3SB

USB_DM_P2

C1113

10NF 50V

C1112
10NF 50V

DVDD3V3

TP406

R1100 0R05 OHM

R1101 0R05 OHM

KEY1KEY2

R4133

0R05 OHM

R4134
NC 0R 05 OH M

USB_OC_C0M

USB_DP_P0

KEY1

USB_OC_C0M

USB_OC_C0M17

USB_DP_P017

KEY_PW_SU_MENU

DVDD3V3

USB_OC_C0M

SPK_MUTE

Q606

NC BC857BW

1

23

Q607

NC BC857BW

1

23

Q608

NC BC847C

R6821K

KEY_PW_SU_MENU

R4273

0R05 1/16W

OIRI#

R4274

0R05 1/16W

KEY_VOL_CH

USB_DM_P1#

USB_DP_P1# USB_DP_P1

USB_DM_P1

OIRI

OIRI5,9

R4084
0R05 OHM

POK 4

R683
NC 2. 7K 1%

TP344

3V3SB

R684NC 3.3K

C784
1uF 10V

C785

NC 1uF 10V

KEY_VOL_CH 4

SPK_MUTE

SPK_MUTE20

R685

NC 10K 1/ 16W 5%

R686

NC 100OHM

R4086

100R 1/16W 5%

R4085

100R 1/16W 5%

U104 OCP

214

Typ

U103 OCP

Min

2.35V

1.86V

USB OCP Level

Item

R687

NC 100K 1/ 16W 5%

U105 OCP

Item

1.32V

Support WIFI

Mount

ADC Value

C4250/C4251
C4253/CN703
FB1013/R4250
R4251/R4252
R4264/R4265
R4268/R4269
U105

USB*2 + WI F I

R4268, R4269,
R4273, R4274

䕧

NC

USB*1 + WI F I

203
160
114 120

169

225
178
126

Max

R4271, R4272

䕧

0R

R4268, R4269,
R4273, R4274

䕧

0R

R4271, R4272

䕧

NC

Circuit Diagrams and PWB Layouts

EN 51TPM16.6L LA 10.

2016-Apr-01

back to

div.table

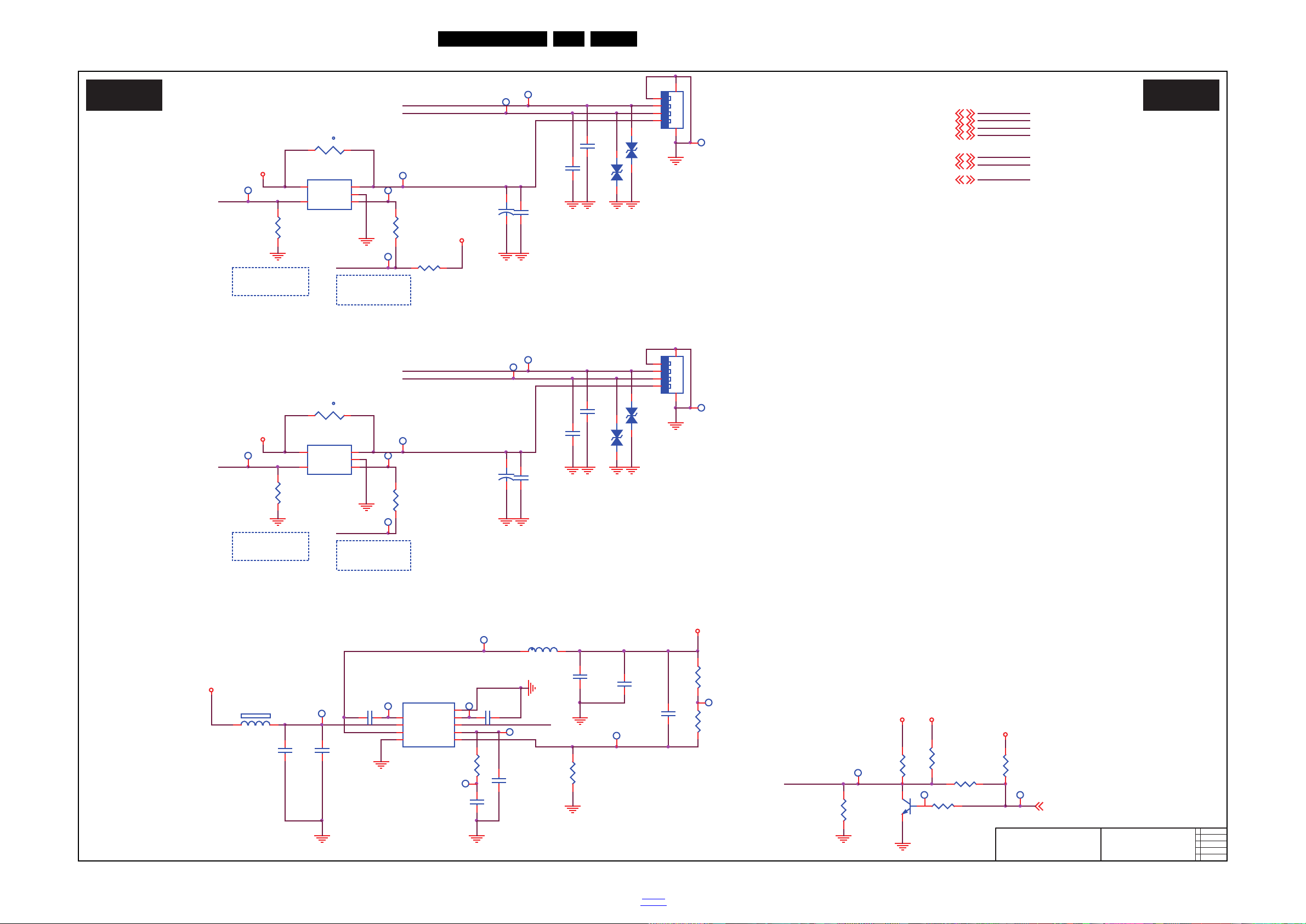

10-2-13 USB & USB HUB

20080_512.eps

USB & USB HUB

B13 B13

2015-11-13

715G7904

USB & USB HUB

C1083

NC 10PF 50V

C1088

100nF 50V

R1115

NC 4.3K 1%

ZD1019

VPORT0603100KV05

12

C1085

NC 10PF 50V

C1089
10uF 25V

C1091

1.5nF 50V

DVDD3V3

USB_5V1

+5V

+12V

USB_5V1

USB_DM_P016

USB_DP_P016

+12V

TP349

USB5V1_EN 11

USB_PWR_EN011
USB_OC_C0M16

C4199
NC

R1092

24.3K 1%

U1005

uP1735PSU8

BOOT

1

VIN

2

LX

3

GND4FB

5

COMP

6

EN

7

SS

8

GND

9

USB_PWR_EN011

USB_PWR_EN0

C1095
22UF 16V

R1097

5.1KOHM +-5% 1/10W

TP360

TP337

USB_DM_P0

USB_DP_P0

TP353

TP285

TP286TP287

TP288

USB_OC_C0M

R1094

3.3K 1%

USB_DP_P116

TP364

USB_DP_P1

TP411

R1096

1K

DVDD3V3

R1095

47K 1/16W 5%

R1105
NC 4. 7K 1/ 16W

USB_DM_P1

HI = > POWER ON

USB_PWR_EN0

LO = > POWER OFF

HI = > NORMAL
LO=> OC

USB_DP_P0

t

TH101

PTCR

1 2

TP403

M5VSW

M5VSW

USB_OC_C0M

1234

CN106
USB CONN

1

2

3

4

65

TP404

USB_PWR_EN0

U103

NC APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

TP336

TP338

C745
10N 50V

L1003

10uH

USB_DP_P1

TP343

USB_DM_P116

USB_DM_P1

C1092

47nF 50V

R0186

NC 10K 1/ 16W 5%

TP118

TP380

TP381

TP382

TP383

USB_DM_P0

R1113

NC 4. 7K1/ 16W

USB_5V1

TP330

t

TH102

PTCR

1 2

TP329

C1115

100NF 16V

C1090
22pF 50V

TP331

C1094
100NF 16V

C1084

NC 10PF 50V

USB_PWR_EN0

R1087

NC 1K

C1082

NC 10PF 50V

ZD1026

VPORT0603100KV05

12

+

C1081

100UF 16V

LO=> OC

USB_OC_C0M

R1091
120K 1/10W 1%

U104

NC APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

+

C1080

100UF 16V

ZD1020

VPORT0603100KV05

12

LO = > POWER OFF

HI = > NORMAL

FB1014

120R

12

TP335

Q1003

NC/PMBS3904

R1090
27K 1/10W 1%

TP334

R1133
NC 8.2K 1%

R1088

NC 10K 1/ 16W 5%

C1117

100NF 16V

1234

CN107
USB CONN

1

2

3

4

65

ZD1025

VPORT0603100KV05

12

R1093

NC 4. 7K1/ 16W

HI = > POWER ON

Circuit Diagrams and PWB Layouts

EN 52TPM16.6L LA 10.

2016-Apr-01

back to

div.table

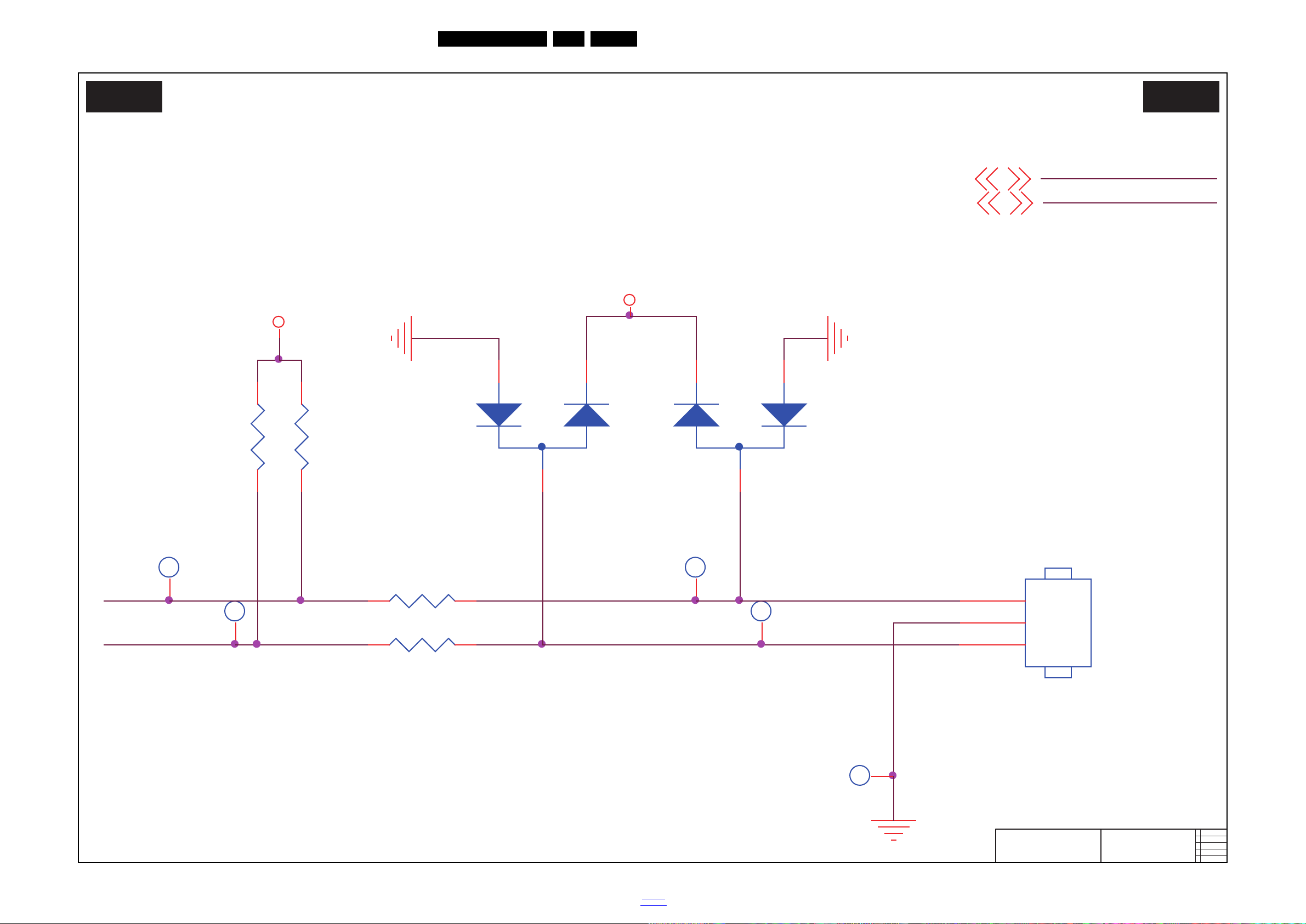

10-2-14 Debug Interface

20080_513.eps

Debug Interface

B14 B14

2015-11-13

715G7904

Debug Interface

U0TX5

U0RX5

U0RX

R4095 100OHM

R4094 100OHM

U0TX

TP295

TP296

TP297 CN403

CONN

1
2

3

TP298

3V3SB

3V3SB

U0RX

U0TX

R4092

4. 7K 1/ 16W

R4093

4. 7K 1/ 16W

TP018

D4002
BAV99

3

1

2

D4003
BAV99

3

1

2

Circuit Diagrams and PWB Layouts

EN 53TPM16.6L LA 10.

2016-Apr-01

back to

div.table

10-2-15 MT5580 Power

20080_514.eps

MT5580 Power

B15 B15

2015-11-13

715G7904

MT5580 Power

C4110
100NF 16V

C4114
100NF 16V

CORE POWER

Analog Power

U401E

MT5580QUEI

VCCK

M6

VCCK

L6

VCCK

M5

VCCK

L5

VCCK

M4

VCCK

L4

VCCK

M3

VCCK

L3

VCCK

M2

VCCK

L2

VCCK

M1

VCCK

L1

VCCK

M8

VCCK

L8

VCCK

M7

VCCK

L7

VCCK

N8

VCCK

N9

VCCK

N5

VCCK

U13

VCCK

U14

VCCK

R17

DVSS

N10

DVSS

P10

DVSS

P8

DVSS

H6

DVSS

T13

DVSS

K11

DVSS

L11

DVSS

M11

DVSS

N11

DVSS

P11

DVSS

R11

DVSS

R10

DVSS

U9

DVSS

J12

DVSS

K12

DVSS

L12

DVSS

M12

DVSS

N12

DVSS

P12

DVSS

R12

DVSS

W18

DVSS

T11

DVSS

J13

DVSS

K13

DVSS

L13

DVSS

M13

DVSS

N13

DVSS

P13

DVSS

R13

DVSS

T12

DVSS

J14

DVSS

K14

DVSS

L14

DVSS

M14

DVSS

N14

DVSS

P14

DVSS

R14

VCC3IO_C

AA4

VCC3IO

E25

VCC3IO_B

AB3

DVSS

E5

DVSS

F6

DVSS

J6

DVSS

P15

DVSS

N15

DVSS

M15

DVSS

L15

DVSS

K15

DVSS

K17

DVSS

T14

DVSS

U17

DVSS

T15

DVSS

T16

DVSS

N17

DVSS

L17

DVSS

V12

DVSS

R16

DVSS

P16

DVSS

N16

DVSS

M16

DVSS

L16

DVSS

M10

DVSS

L10

DVSS

K10

DVSS

M9

DVSS

L9

DVSS

K9

DVSS

J9

DVSS

M17

DVSS

R15

VCCK

H14

VCCK

J15

VCCK

N6

VCCK

J10

VCCK

U10

VCCK

J11

VCCK

K16

DVSS

F8

DVSS

C11

DVSS

G1

DVSS

T10

DVSS

G7

DVSS

U8

DVSS

V8

DVSS

J16

DVSS

J17

DVSS

L18

VCCK

P9

VCCK

R9

VCCK

T9

VCCK

U11

VCCK

U12

VCCK

U15

VCCK

U16

VCCK

T17

DVSS

F7

DVSS

G14

DVSS

D15

DVSS

G8

DVSS

G9

DVSS

C12

DVSS

E15

DVSS

F15

C4098

100NF 16V

+

C4101

100UF 16V

C4099
100NF 16V

C4107
1uF 10V

C4105

100NF 16V

C4111
NC 100N F 16V

C4102

22UF 6. 3V

C4103

4.7U F 10V

C4106

NC 100N F 16V

C4108

NC 22UF 6.3V

C4113
NC 100NF 16V

C4117

4.7U F 10V

C4112
1uF 10V

C4109

NC 22UF 6.3V

C4100
10NF 50V

DVDD3V3

VCCK

VCCK

VCCK

DVDD3V3

C4104

10UF 6. 3V X5R +-20%

Circuit Diagrams and PWB Layouts

EN 54TPM16.6L LA 10.

2016-Apr-01

back to

div.table

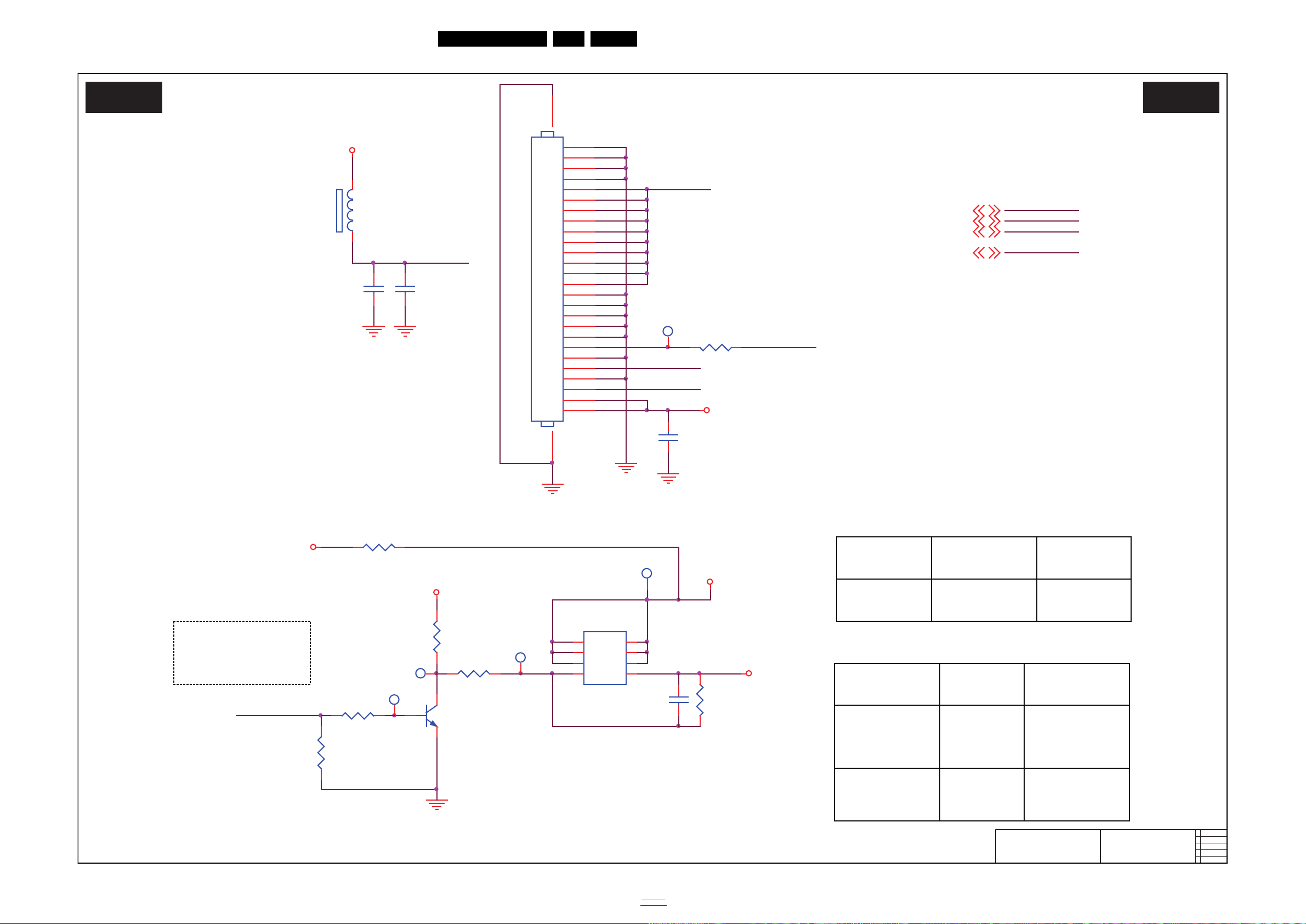

10-2-16 Ambi Glow

20080_515.eps

Ambi Glow

B16 B16

2015-11-13

715G7904

Ambi Glow

Used

C 101 C102
C103 FB 714
R 101 CN 105

Ambient Light

Un-Used

R4083

NC

NC

YES

YES

LED_PWR

R101

NC 0R 05 1/ 16W

SPI_DO

SPI_CLK

PANEL_ON11

PANEL_ON

CN105

NC CONN

1
2

3

4
5
6
7

8

9
10
11
12

14
15
16
17
18
19
20
21
22
23
24
25
26

2728

13

LED_PWR

R4064
NC 100K 1/ 10W

(12V_AL ON/OFF):
Normal: High
Stand_By: Low

+12VAMBI

TP377

C743

NC 100nF 50V

TP376

R4063
NC 150K 1/ 10W 5%

+12V_AL

TP375

+12VAMBI

Q708

NC AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

TP378

SPI_CLK16

SPI_CLK

SPI_DO16

+12V_AL

SPI_DO

FB714

NC 120R 6A

1 2

PANEL_ON

R741

NC 0R 051/ 8W

+12V

C102

NC 10U F 16V

C103

NC 100N F 16V

C101

NC 1UF 10% 16V

Temp_out_AL

Temp_out_AL16

Temp_out_AL

Item

R741

NO

2K14 Power
12V On ly

YES

2K13 Power

DVDD3V3

Q709
NC BC847N3

R4061

NC 4. 7K 1/ 10W

R4058

NC

R4062

NC 4. 7K 1/ 10W

TP388

Circuit Diagrams and PWB Layouts

EN 55TPM16.6L LA 10.

2016-Apr-01

back to

div.table

10-2-17 SSB layout top

20080_516.eps

715G7904

LAYOUT TOP

C1032

C1034

C766

C1080

C4033

C4038

C4047

C4051

C4093

C4102

C4109

C637

C703

C707

C712

C713

C715

C718

C719

C720

C721

C725

C730

FB1010

FB4004

FB4005

FB4006

R1049

R1053

R1054

R1059

R1090

R1091 R1092

R4026

R701

R719

R724

R725

C4042

C4055

C4059

C728

C1044

C1048

C4017

C4020

C4031

C4039

C4052

C4060

C640

C702

R707

R714

R717

R704

R4059

C1089

C1088

C1092

C1095

C729

R1097

R732
R733

C4101

C101

C102

C4251

C4250

C1081

C4252

R737

C743

C737

C740

R4058

R4061

R4062

R4063

R4064

R747

R741

C749

C744

C4197

C4198

R536

R537

R543

R553

R4031

R412

R413

C709

C606

X101

X401

C622

C623

C624

C625

C633

R630

R631

C609

C610

L601

L602

L603

L604

C642 C643

C644C645

R759

R760

CN101

CN603

CN503

L702

L701

TH101

TH102

C4120

R4155

C605

D601

SCREW12

SCREW14

SCREW17

SCREW18

SH401

SCREW3

SCREW4

HS401

C1001 C1002

C1003C1004

C1005

C1006

C1010
C1011

C1012

C1013

C1033

C1036

C1037

C1038

C1039

C1043

C1045

C1046

C1047

C1049

C1052

C1053

C1055

C1056

C1058

C1060

C1061

C1063

C1064

C1067 C1068

C1082

C1083

C1117

C1110

C1111

C1112

C1113

C603

C4040

C4041

C4043

C4044

C4053

C4054

C4056

C4057

C4058

C4061

C4071

C4077

C4078

C4079

C4080

C4081

C4082

C4090

C4092

C4095

C4096

C4105

C4106

C4115

C4116

C501

C502

C503

C604

C601

C612

C614

C629

C627

C641

C628

C710

D4002

D4003

D501

D503

FB1002

FB1003

FB1004

FB1008

FB1009

FB1012

FB1014

FB1022

FB1023

FB501

FB502

FB503

FB601

FB701

FB703

FB708 FB709

L101

L102

Q1003

Q503

Q505Q506

Q701

R1001

R1002

R1005

R1006

R1013

R1017

R1062

R1065

R1066

R1069

R1070

R1071

R1072

R1074

R1075

R1076

R1081

R1082

R1083

R1098

R1099

R1100

R1101

R4013

R4014

R4015

R4021

R4022

R4023

R4034

R4035

R4036

R4037

R4038

R4039

R4040

R4041

R4042

R4043

R4044

R4045

R4046

R4047 R4048

R4049

R4085

R4092

R4093

R4096

R501

R502

R504R505

R508

R509

R510

R511

R512

R513

R514

R515

R519

R520

R521
R522

R523

R524 R525

R527

R529
R530

R534

R603

R602

R604

R601

R627

R628

R629

R632

R633

R634

R6051

R6029

R6028

R6027

R703

R708

R709

R710 R712

R713

R720

R722

R723

RP1001

RP401

RP402

RP403

RP404

RP405 RP406

RP407

RP408RP409

RP410RP411

RP412

TP204

TP205

TP209

TP210

TP211

TP212

TP213

TP214

TP215

U101

U102

U103

U402

U501

U502

U503

U504

U505

U506

U507

U508

U509

ZD1001

ZD1002

ZD1003ZD1004

ZD1006

ZD1019ZD1020

ZD4002

ZD501

ZD6001

ZD6002

FB714

U709

C1035

C1065
C1066

C1071

C1072

C1115

C4013

C4014

C4018

C4094

C6048

C6047

C706

C708

C711

C714

C724

C727

C1062

FB1011

FB602

FB604

FB707

FB732

R0186

R1087

R1088

R1093

R1094

R1133

R4010

R4030

R4086

R4088

R4094

R4095

R506

R516

R526

R6030

Q4001

Q702

U703

R711

U409

C1094

L1003

ZD1022

C4118

TP311

ZD4003

ZD4004

C103

R101

R1095

R1096

R1105

C1084

C1085

C4253

ZD1025

ZD1026

FB1013

R1113 R1115

R4134

R4133

R4250

R4251

R4252

R4253

R4268

R4269

U104

U105

CN703

R4254

CN105

C736

C738

C739

C741

Q708

FB702

R748

R749

Q709

C745

D1004

R1080

R1085

R518

R528

R538

R544

R545

U106

U107

U108

C1091

C1090

C4199

U401

C4264

C4265

U4251

R417

R418

R4270

SCREW7

SCREW1

CN413

R4255

R551

R552

R554

R555

R556

CN401

R1011R1012

R739

R738

U601

C602

L703

R623

C611

C613

C632

C636

C746

R619

R620

R621 R622

R624

R625 R626

R750
R751

R752

R753

R754

R755

Q605

Q604

U702

C634C635

C638

C639

U1005

C784

C785

R682

R683

R684

R685

R686

R687

Q608

Q606

Q607

R4273

R4274

CN601

U704

U706

U701

C4119

R4150

CN403

CN502

CN501

CN102

CN107

CN106

CN6005

TU1001

CN702

CN103

CN701

SCREW30

SCREW9

SCREW8

SCREW2

HS6001

U405

U406

R639

ZD704

Circuit Diagrams and PWB Layouts

EN 56TPM16.6L LA 10.

2016-Apr-01

back to

div.table

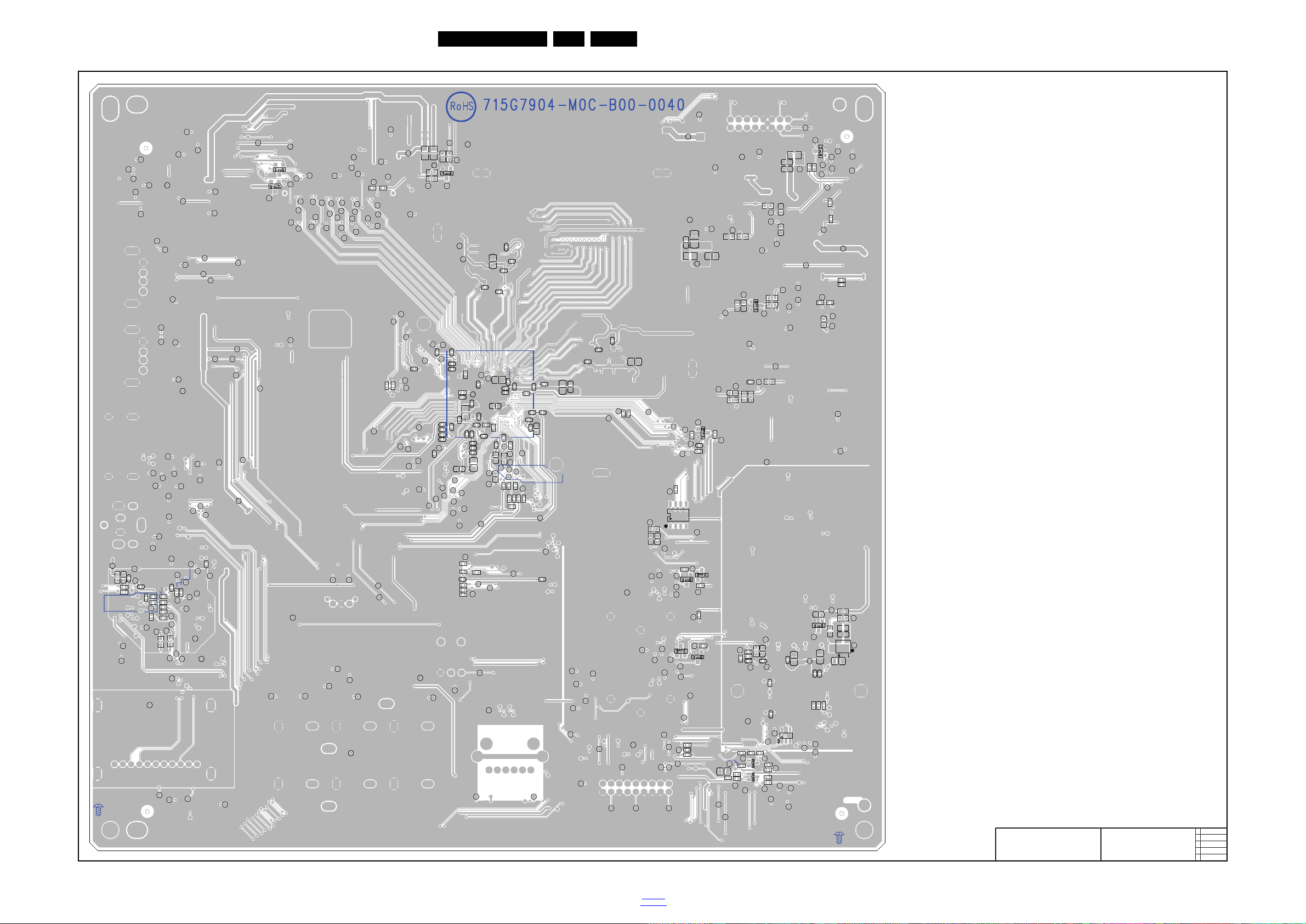

Circuit Diagrams and PWB Layouts

20080_517.eps

715G7904

LAYOUT BOTTOM

C4005

C4097

C4103

C4108

C4117

C621

C701

C704

C705

C716

C717

C722C723

C726

R4025

R4027

R4028

R4029

R532

R533

R702

R705

R706

R718

R721

R729

R730

R731

C4045

C4050

C4063

C4066

C1116

C4006

C4008

C4104

R4060

R734

R735

C607

C4011

R736

C734

C742

R757

R758

R746

C735

R740

C619

R756

C617

C647

SCREW13

SCREW15

SCREW16

SCREW19

TP74

TP75

TP165

C1042

C1051

C1054

C1057

C1073

C1074

C4003

C4004

C4007

C4009

C4012

C4015

C4019

C4021

C4022

C4023

C4024

C4025

C4027

C4030

C4035

C4046

C4048

C4049

C4062

C4064

C4065

C4067

C4068

C4069

C4070

C4083

C4084

C4085

C4086

C4087

C4091

C4098

C4099

C4100

C4107
C4110

C4111

C4112

C4113

C4114

C618

C620

C626

C631

D502

FB1001

FB1005

FB1006

FB4002

FB4003

FB705

Q4002

Q4003

Q4004

Q501

Q502

Q504

Q703

Q704

Q705

R1051

R1052

R1055

R1056

R1057

R1058

R1063

R1064

R1067

R1068

R1084

R4057

R4001

R4002

R4003

R4004

R4005

R4006

R4007

R4011

R4020

R4024

R4089

R4090

R4091

R4097

R503

R507

R517

R635

R637

R638

R715

R716

R726

R727

R728

TP001

TP002

TP005

TP007

TP009

TP010

TP011

TP012

TP014

TP015

TP016

TP017

TP019

TP020

TP021

TP022

TP025

TP026

TP027

TP028

TP029

TP030

TP031

TP033

TP034

TP035

TP036

TP037

TP038

TP039

TP040

TP043

TP044

TP045

TP046

TP049

TP052

TP053

TP056

TP622

TP058

TP604

TP601

TP623

TP078

TP077

TP076

TP089

TP090

TP111

TP092

TP093

TP115

TP097

TP098

TP099

TP100

TP101

TP108

TP110

TP112

TP114

TP091

TP094

TP150

TP149

TP154

TP152

TP155

TP159

TP163

TP175

TP171

TP151

TP158

TP169

TP156

TP166

TP164

TP170

TP135

TP173

TP172

TP174

TP176

TP177

TP178

TP179

TP180TP181

TP191

TP192

TP233

TP196

TP194

TP198

TP199

TP200

TP202

TP203

TP206

TP207

TP208

TP216

TP217

TP218

TP219

TP220

TP221

TP222

TP223

TP224

TP226

TP234

TP235

TP238

TP239

TP240

TP242

TP243

TP244

TP245

TP246

TP247

TP248

TP249

TP250

TP251

TP252

TP253

TP254

TP255

TP256

TP257

TP258

TP259

TP260

TP261

TP262

TP263

TP264

TP265

TP267

TP268

TP269

TP270

TP272

TP274

TP275

TP276

TP277

TP278

TP279

TP280

TP281

TP282

TP353

TP337

TP285

TP286

TP287

TP288

TP349

TP338

TP295TP296

TP297

TP298

U404

C4010

C4016

C4026

C4028

C4029

C4034

C731

R4012

R4016

R4017

R4018

R4019

R4032R4033

R4087

R7076

R4056

TP160

TP162

TP161

TP013

TP167

TP157

TP168

R605

TP041

TP042

TP047

TP048

TP050

TP051

TP064

TP079

TP082

TP083

TP084

TP085

TP086

TP088

TP003

TP018

TP023

TP024

TP032

TP118

TP291

TP299

TP300

TP301

TP302

TP303

TP607

TP606

TP608

TP605

TP329

TP310

C733

R7077

TP314

TP315

TP316

TP317

TP824

TP320

TP321

TP322

TP330

TP331

TP334

TP335

C630

R606

TP336

TP339

TP340

TP341

TP342

TP343

TP344

TP345

TP347

TP350

TP351

TP352

TP354

TP355

TP356

TP357

TP358

TP359

TP360

TP361

TP362

TP363

TP364

TP365

TP366

TP102

Q707

R744R745

Q706

TP346

TP369

TP370

TP371

TP372

TP373

TP374

TP375

TP376

TP377

TP378

TP379

TP380

TP381

TP382

TP383

R1079

TP384

TP385

TP386

TP387

FB603

R1022

R1023

TP388

TP389

TP390

TP391

TP392

TP393

TP394

TP395

TP396

TP397

TP398

TP399

TP400

TP401 TP402

TP403

TP404

TP405

TP406

TP407

TP408

TP409

TP410

TP411

TP412

TP413

TP414

TP415

TP416

TP417

TP418

TP419

TP420

TP422

C615

C616

R4084

R613 R612

R608

R615

R614

R607

R616

R617

R618

R636

Q603

TP004

TP006

TP008

TP057

TP602

TP603

TP829 TP827

TP823

TP616

TP617

TP618

TP619

TP620

TP621

TP624

TP625

TP626

TP627

TP182

TP183

TP273

R4272

R4271

TP826

R609

R610

R611

R657

Q601

TP825

U602

EN 57TPM16.6L LA 10.

10-2-18 SSB layout bottom

2016-Apr-01

back to

div.table

10.3 J 715G8009 IR/LED Panel

20010_522.eps

IR & LED & Light Sensor

J J

2015-09-01

715G8009

IR & LED & Light Sensor

C201

1uF 10V

St andby LED

3V3SB

R204

100R 1/ 16W 5%

R203

NC/ 2K7 1/16W 5%

RC-IR

RC-IR

3V3SB

LS_SDA

LS_SCL

DVD3V3

LED201

GPSS008RC4

12

Red

DVD3V3

U221
NC/ JSA-1130

ADDR

1

VDD

2

GND3SCL

4

SDA

5

INT

6

R224

NC / 0R 05 1/ 16W

Light Sensor

R222

NC / 10K 1/ 16W 5%

Digital Light Sensor

C222 NC/ 1uF 10V

R221

NC / 10K 1/ 16W 5%

LS_SCL

LS_SDA

R223

NC / 0R 05 1/ 16W

JSA-1130

R223R224

JSA-1130NCNC 0R

0R

I2C addr

0x45

0x44

C221 NC/ 100N 16V

LS_SDA
LS_SCL

DVD3V3

C202

1uF 10V

IR Receiver

3V3SB

R202

1K 1/16W 5%

LED_R

Q201
BC847BW

LED_R

R201
100R 1/ 16W 5%

ZD201

MLVG0402

12

U201

TSOP75436TR

GND

1

VCC

2

Vout

3

GND

4

CN201

1
2

3

4
5
6
7

8

9
10
11
12
13

1415

3V3SB

10-3-1 IR & LED & Light Sensor

Circuit Diagrams and PWB Layouts

EN 58TPM16.6L LA 10.

2016-Apr-01

back to

div.table

10-3-2 IR/LED board layout

20010_523.eps

715G8009

IR/LED panel

layout top/bottom

2015-08-27

U201

CN201

R204

R202

R203

Q201

Q1

Q3

C201

C202

ZD201

U221

LED201

C221

C222

R201

R221

R222

R223

R224

Q2

Q4

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 59TPM16.6L LA 10.

2016-Apr-01

back to

div.table

Circuit Diagrams and PWB Layouts

19850_524.eps

Key

E E

2014-05-28

715G7088

Key

KEY1

Menu
Right
Left
Down
Up

6-5 short

R04

2K2 1/10W 1%

2-5 short

F1

3-5 short

R01

1K2 1/10W 1%

1-5 short
4-5 short

F2
F3

F5

F3

F1

F4

F2

SW01

TACT SW 6P

3 4

2

1 6

5

7

8

F4
F5

R05

15K 1/10W 1%

Direction

R03

6K8 1/10W 1%

switch

----><----|

Joystick circuit diagram

C06

0.1uF 50V

pin1

0V

0.5V

0.81V

1.65V

2.27V

pin2

No function

pin3

3.3V

C04

NC / 100N 50V

pin4 pin5

C05

NC / 100N 50V

pin6

----><----|

C01

NC / 100N 50V

C02

NC / 100N 50V

C03

NC / 100N 50V

----><----|

----><----|

----><----|

Down

Up

Center

CN01

CONN

1
2

34

R02

0R05 1/ 10W

0R

2K2

Key functionResistance

Center

CH+

CH-

1K2

VOL-

VOL+

Left

15K

6K8

Right

Voltage

JOYSTICK

10.4 E 715G7088 Keyboard control panel

10-4-1 Key

EN 60TPM16.6L LA 10.

2016-Apr-01

back to

div.table

Circuit Diagrams and PWB Layouts

19850_525.eps

2014-06-06

715G7088

Keyboard control panel

layout top/bottom

C01

C02

C03

C04

C05

C06

R01

R02

R03

R04

R05

H1

H2

H3

H4

H5

H6

CN01

SW01

SW1

SW2

SW3

SW4

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-4-2 Key board layout

EN 61TPM16.6L LA 10.

2016-Apr-01

back to

div.table

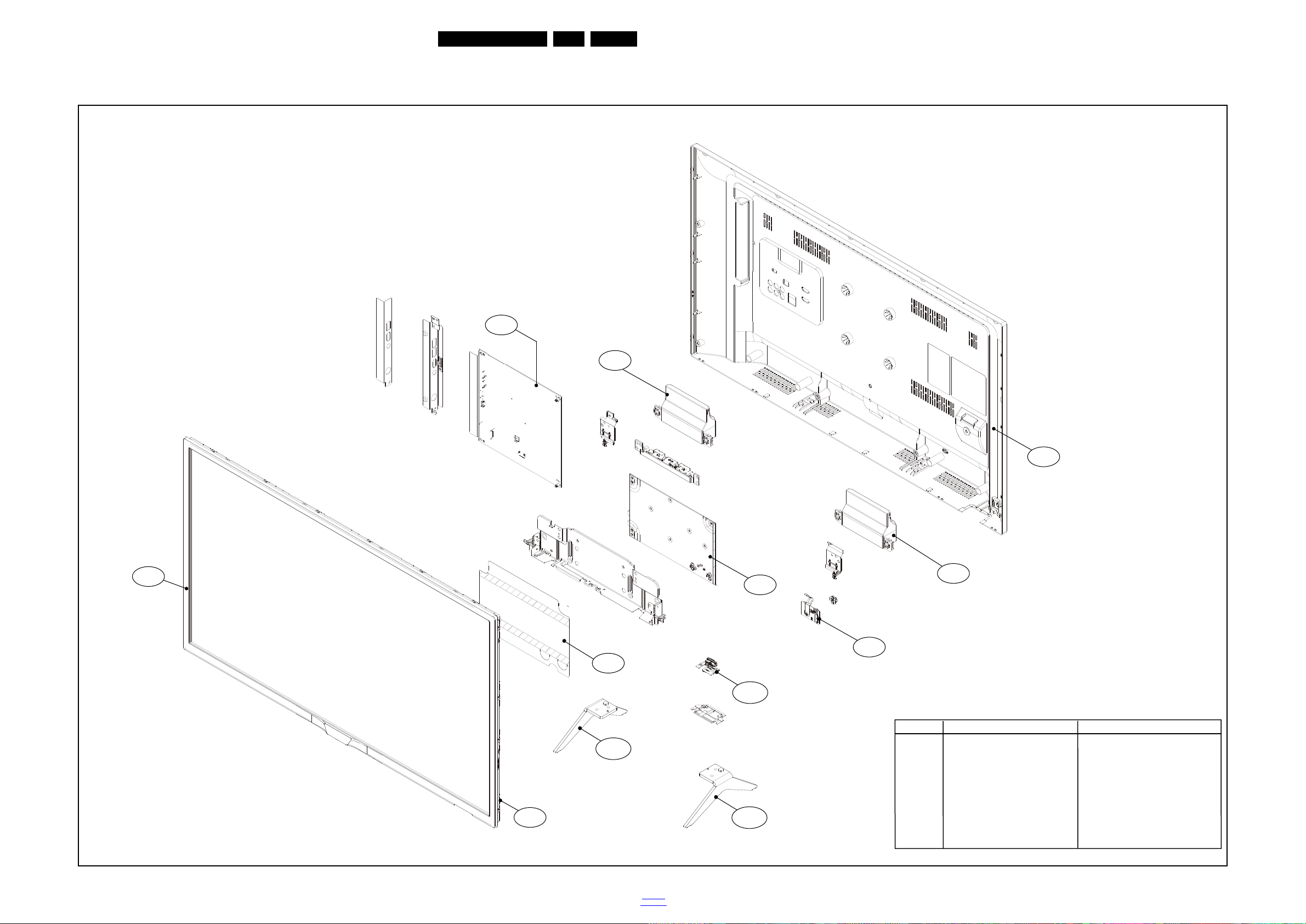

11. Styling Sheets

20180_800.eps

5301 series 32"

Pos No. Description

Remarks

0030 Bezel
0040 Rear cover
0050L Stand Assy_L
0050R Stand Assy_R
0095 V0 SHEET
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1184 Speakers

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

1056

1054

1184

0040

1050

1184

1053

0095

1057

0030

0050R

0050L

11.1 5301 series 32"

Styling Sheets

EN 62TPM16.6L LA 11.

2016-Apr-01

back to

div.table
