Philips 32PFL5708/F7 Leaflet

Download

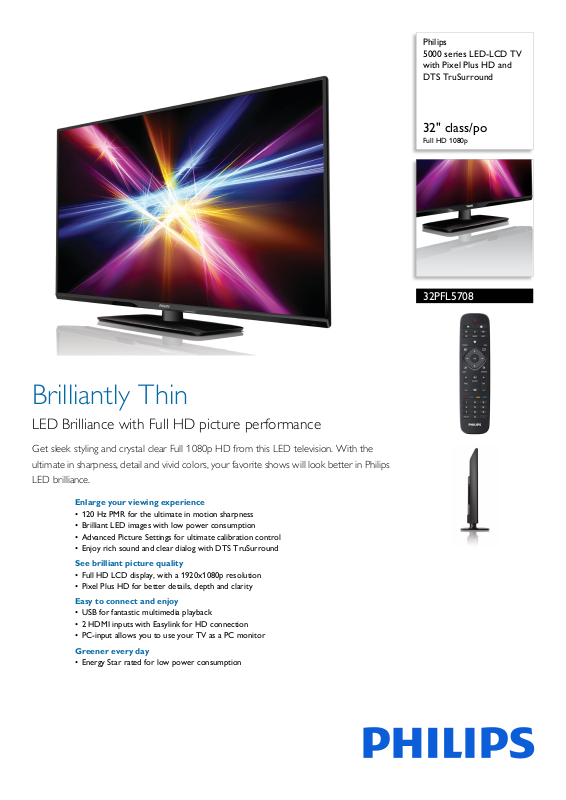

Page 1

Philips 5000 series LED-LCD TV with Pixel Plus HD and DTS TruSurround

32" class/po

Full HD 1080p

32PFL5708

Brilliantly Thin

LED Brilliance with Full HD picture performance

Get sleek styling and crystal clear Full 1080p HD from this LED television. With the ultimate in sharpness, detail and vivid colors, your favorite shows will look better in Philips LED brilliance.

Enlarge your viewing experience

• 120 Hz PMR for the ultimate in motion sharpness

• Brilliant LED images with low power consumption

• Advanced Picture Settings for ultimate calibration control

• Enjoy rich sound and clear dialog with DTS TruSurround

See brilliant picture quality

• Full HD LCD display, with a 1920x1080p resolution

• Pixel Plus HD for better details, depth and clarity

Easy to connect and enjoy

• USB for fantastic multimedia playback

• 2 HDMI inputs with Easylink for HD connection

• PC-input allows you to use your TV as a PC monitor

Greener every day

• Energy Star rated for low power consumption

Page 2

5000 series LED-LCD TV with Pixel Plus HD and DTS TruSurround

32" class/po Full HD 1080p

Highlights

32PFL5708/F7

Pixel Plus HD

Pixel Plus HD is a picture processing technology that enables viewers to watch content that is vivid, natural, and real. The result means superbly life-like pictures with incredible details and depth from any HD source.

120 Hz PMR

120 Hz Perfect Motion Rate (PMR) creates extreme motion sharpness for clear and vibrant images in fast action movies. The new Philips PMR standard reduces response time of the HDTV to produce faster picture transitions and reduces motion artifacts.

DTS TruSurround

DTS TruSurround creates an immersive, feature-rich surround sound experience from

two speakers, complete with rich bass, high frequency detail and clear dialog. Extremely broad sweet spot for maximum realism and enjoyment, sculpted bass to optimize low frequency performance of small drivers and enclosures, dialog enhancement to ensure clear and intelligible vocals and definition control for maximum high-frequency realism and clarity.

Advanced Picture Settings

Advanced Picture Settings gives you access to more granular control over the picture performance of your TV. Discrete RGB Gain and Offset controls let you adjust the brightness and contrast of individual Red, Green and Blue pixels of your LCD TV to achieve a perfectly calibrated picture.

USB (multimedia)

The USB connector allows access to jpeg photos, mp3 music and video files of most USB-sticks (USB memory-class device). Plug the USB into the slot at the side of the TV and access the multimedia content using the easy on screen content browser. You can now view and share your videos, photos and music.

LED with low power consumption

LED lighting technology is the most advanced available. In this TV it combines an eye-catching minimalistic design with stunning image quality, as well as being the lowest power consumption in its category. Another environmental benefit is that LED lighting technology does not contain hazardous materials. With an LED backlight you can enjoy low power consumption, high brightness, incredible contrast and sharpness and vibrant colors.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen resolution of 1920 x 1080p. This is the highest resolution of HD sources for the best possible picture quality. It is fully future proof as it supports 1080p signals from all sources, including the most recent like Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colors.

Page 3

5000 series LED-LCD TV with Pixel Plus HD and DTS TruSurround

32" class/po Full HD 1080p

Specifications

32PFL5708/F7

Picture/Display

• Aspect ratio: Widescreen

• Display screen type: LED Full HD Display Response time (typ

•

• Brightness: 250 cd/m²

• Diagonal screen size: 31.5 inch / 80.01 cm

• Contrast ratio (typical): 1200:1 (IPS Panel)

• Visible screen diagonal (inch): 31.5 inch

• Viewing angle: 178º (H) / 178º (V)

• Panel resolution: 1920x1080p

• Picture enhancement: Dynamic contrast

ancemen

enh HD, Scanning backlight

ical): 6.5 ms

t, Digital Noise Reduction, Pixel Plus

Supported Display Resolution

mputer formats

• Co Res

olution Refresh rate 640 x 480 60Hz 720 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768

80 x 1024 60Hz

12 1360 x 768 60Hz 1400 x 1050 60Hz 1440 x 900 60 Hz 1680 x 1050 60Hz 1920 x 1080 60Hz

deo formats

• Vi olution Refresh rate

Res 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz 1080p 24, 25, 30, 50, 60Hz

60Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 2 x 5W RMS

• Sound System: Dolby Digital (AC-3), Stereo, SAP

• Sound Enhancement: Balance, DTS TruSurround

Convenience

• Ease of Installation: Autostore

• Ease of Use: Auto Volume Leveller (AVL),

assistant Wizard, AutoPicture, AutoSound, Favorite program selection, EasyLink

• Remote Control: TV

• Screen Format Adjustments: Auto Format, 4:3,

e Expand, Normal, unscaled (1080p dot by

Mov

Settings

dot), Wide, Zoom

• Multimedia: USB media browser, auto slideshow

• User convenience: Vchip and parental lock, Closed io

ning, Sleep Timer

Capt

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: MP3, JPEG Still pictures, H.264/

MPEG-4 AVC, MPEG

4 SP/ASP, MPEG1, MPEG2

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

•Video Playback: NTSC

• Tuner bands: UHF, VHF

• Cable: Unscrambled Digital Cable QAM

Connectivity

• AV 1: CVBS in, Shared audio L/R in, YPbPr in

• HDMI 1: HDMI (Audio Return Channel), Shared

audio mini-jack

•HDMI 2: HDMI

• EasyLink (HDMI-CEC): One touch play, Power

atus, System info (menu language), System audio

s control, System standby, Remote control passthrough

• Audio Output - Digital: Coaxial (cinch)

• Other connections: PC-In VGA, Shared audio

• USB: USB(photo,music,movie)

mini-jac

k, He

adphone out

Power

• Mains power: 110V, 60Hz

• Power consumption: 43 W

• Standby power consumption: < 0.5W

• Ambient temperature: 5°C to 40°C (41°F to

4°F

)

Dimensions

• Set dimensions in inch (W x H x D):

28.60 x 17.01 x 3.31 inch

•Set dimensions with stand in inch (W

28.60 x 19.03 x 7.08 inch

• Box dimensions in inch (W x H x D): x 20.08 x 6.30 inch

31.5

• Product weight (lb): 9

• Product weight (+stand) (lb): 11 lb

• Weight incl. Packaging (lb): 16.6

• VESA wall mount compatible: 200 x 200 mm

x H x D):

Accessories

• Included accessories: Quick start guide, User Manual, Registration card, Remote Control, Batteries for remote control, Power cord, Cable management, Table top stand

•

Issue date 2014-03-14

Version: 2.1.2

12 NC: 8670 001 09111 UPC: 6 09585 23917 3

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com
