Philips 32PFL3508/F8 Schematic

Service Manual

32” LCD TV

chassis PL13.8

Contents

TYPE A

32PFL3508/F7 PHILIPS (Serial No.: ME1)
32PFL3508/F8 PHILIPS (Serial No.: XA1, XA2)
32PFL1508/F8 PHILIPS (Serial No.: XA1)

TYPE B

32PFL1508/F8 PHILIPS (Serial No.: DS1)

This service manual contains information of different types of models.

This service manual contains information of different types of models.

Make sure to refer to the section describing your model.

Make sure to refer to the section describing your model.

© 2013 Funai Electric Co., Ltd.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed,
downloaded or stored in any storage medium, in any form or for any purpose without the express prior written
consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto
is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content
herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way
without the express written consent of Funai. All other trademarks used herein remain the exclusive property of
their respective owners. Nothing contained in this manual should be construed as granting, by implication or
otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any
other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights
to the fullest extent of the law.

T

130926

IMPORTANT SAFETY NOTICE

The LCD panel is manufactured to provide many years of useful life.
Occasionally a few non active pixels may appear as a tiny spec of color.
This is not to be considered a defect in the LCD screen.

Proper service and repair is important to the safe, reliable operation of all
P&F Equipment. The service procedures recommended by P&F and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
P&F could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, P&F has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by P&F must first use
all precautions thoroughly so that neither his safety nor the safe operation
of the equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to Initialize the LCD TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

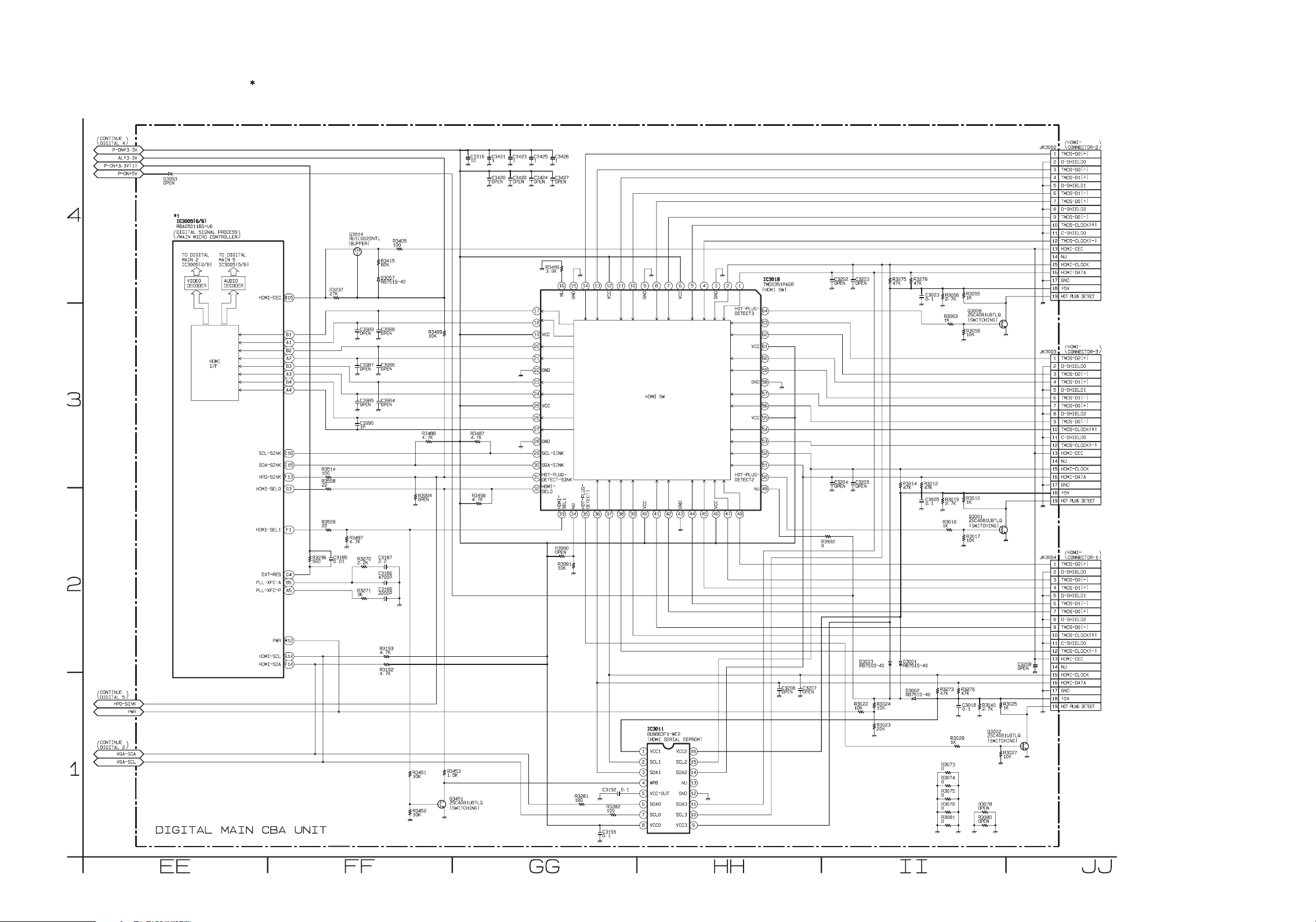

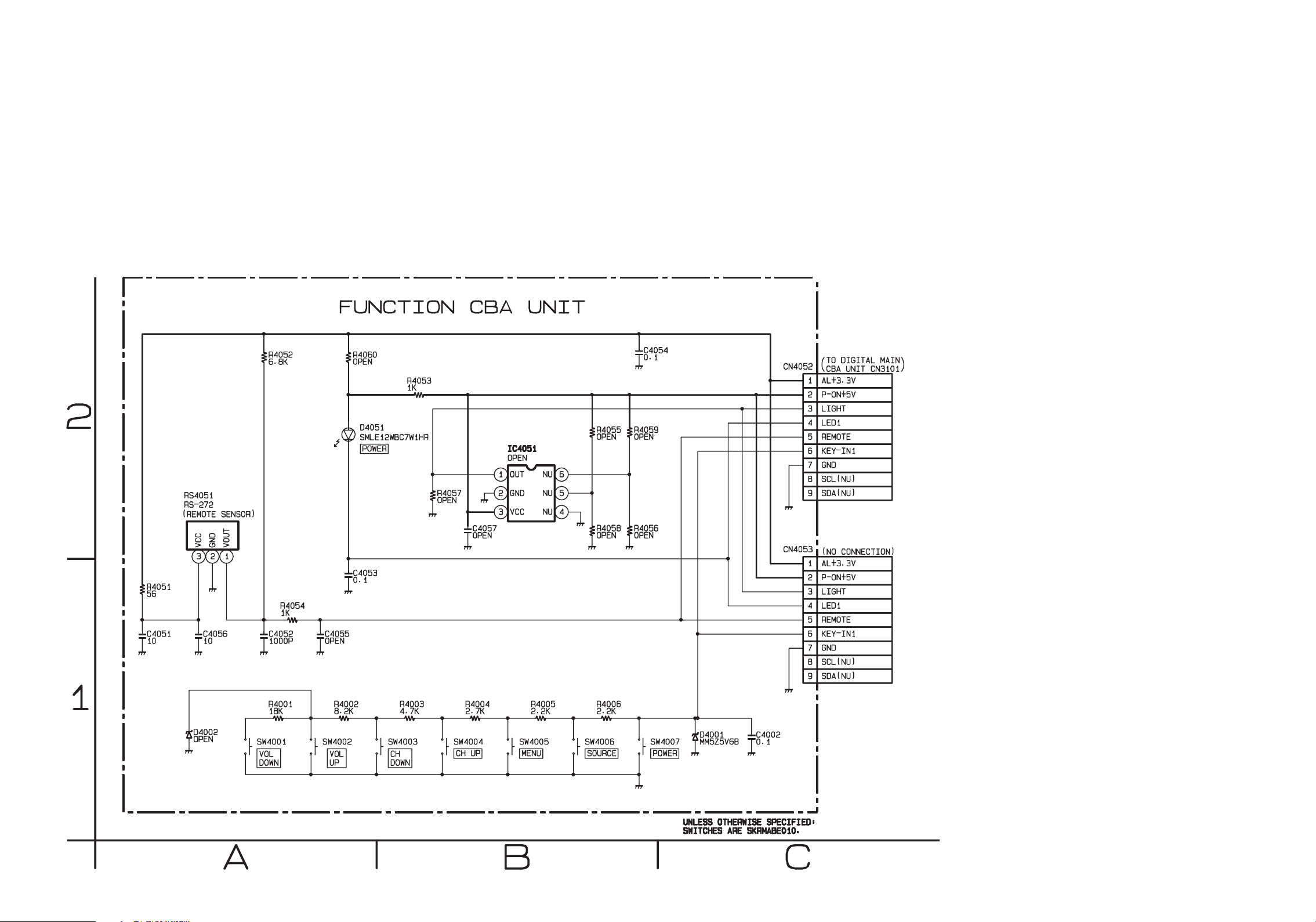

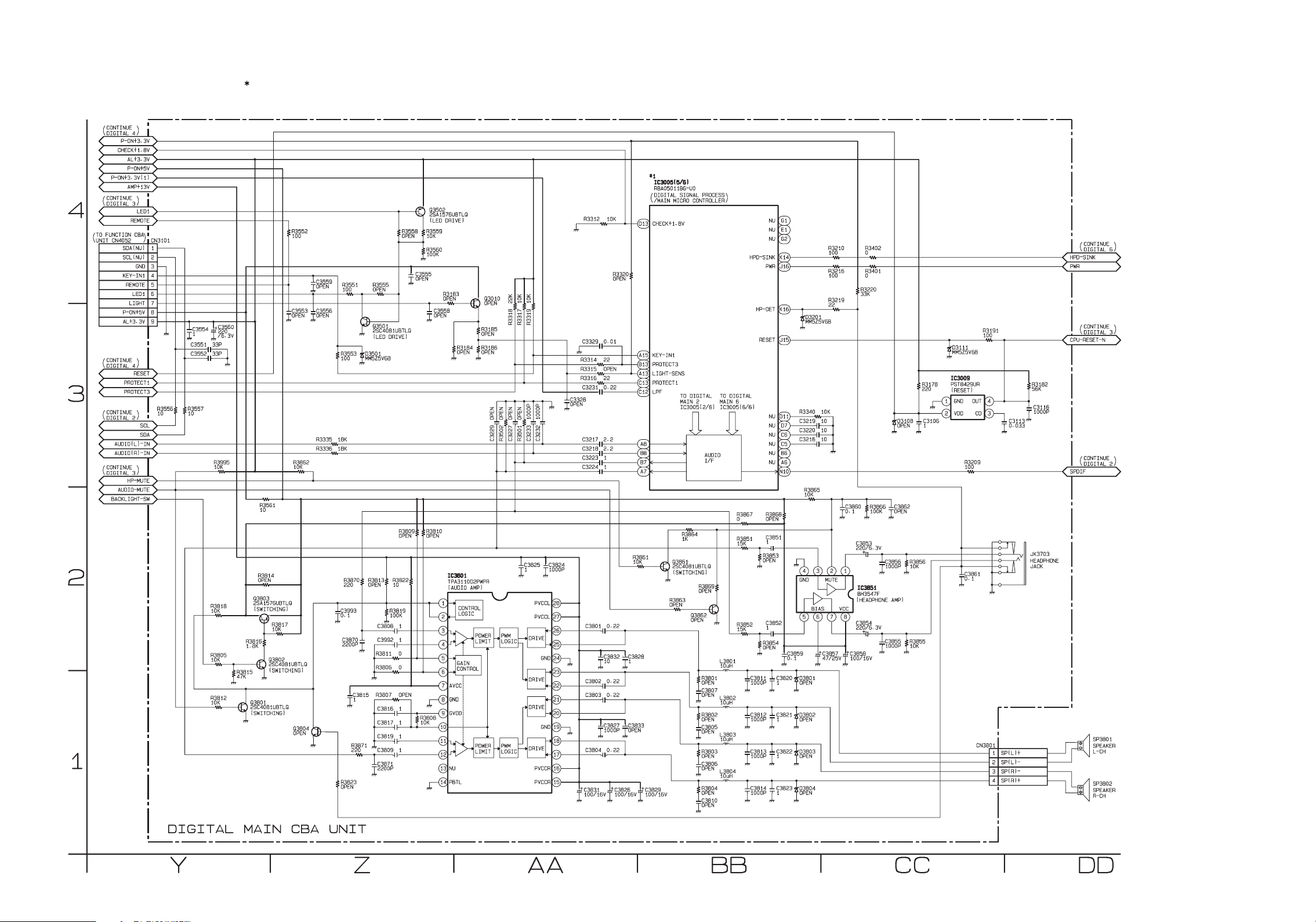

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

SPECIFICATIONS

< TUNER / NTSC >

Description Condition Unit Nominal Limit

1. AFT Pull-In Range --- MHz ±2.3 ±2.1

TV.ch.4

2. Synchronizing Sens.

CA.ch.31
CA.ch.87

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

ch.4

2. ATSC Dynamic Range (min / max)

ch.10
ch.41

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolution

2. Brightness (w / filter) ---

3. Viewing Angle

Horizontal

Verti cal

Horizontal

Verti cal

dBμ
dBμ
dBμ

dBm
dBm
dBm

pixels
pixels

cd/m

°
°

18
18
18

---

---

---

1366

768

2

250 (TYPE A)
230 (TYPE B)

-88 to 88

-88 to 88

20
20
23

-76/0

-76/0

-76/+4

---

---

---

---

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Verti cal

--­x
y

<Measurement Condition>
Input signal: HDMI1 Raster (40/80IRE) 1080i@60
Measurement point: Screen Center

Measuring instrument: Made of KONICA MINOLTA Luminance meter CA-310

Aging Time: 60min. (Retail MODE/100IRE Raster HDMI

MODE setting of TV: Shipment setting/Retail MODE
Ambient temperature:25°C ± 5°C

Horizontal

Verti cal

%
%

°K 12000

1080i@60)

line
line

5
5

0.272

0.278

400
350

5±5
5±5

--­±3%
±3%

---

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1.

Audio MAX Output (ATSC 0dBfs)

2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

3. Audio Freq. Response (NTSC)

Lch/Rch W 8.0/8.0 7.0/7.0

-

6dB: Lch

-

6dB: Rch

Hz
Hz

70 to 10 k
70 to 10 k

100 to 8 k
100 to 8 k

1-1 PL13.9SP

IMPORTANT SAFETY PRECAUTIONS

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

TEST ALL EXPOSED
METAL SURFACES

READING SHOULD
NOT BE ABOVE 0.5 mA

EARTH
GROUND

_

DEVICE

LEAKAGE

CURRENT

TESTER

+

BEING

TESTED

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV
Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the
following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during
servicing. (1) Protective shields are provided
on this chassis to protect both the technician
and the customer. Correctly replace all missing
protective shields, including any removed for
servicing convenience. (2) When reinstalling
the chassis and/or other assembly in the
cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating
fishpapers, adjustment and compartment
covers/shields, and isolation resistor/capacitor
networks. Do not operate this instrument or

permit it to be operated without all
protective devices correctly installed and
functioning. Servicers who defeat safety
features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to
insert their fingers and contact a hazardous
voltage. Such openings include, but are not
limited to, (1) spacing between the Liquid
Crystal Panel and the cabinet mask, (2)
excessively wide cabinet ventilation slots, and
(3) an improperly fitted and/or incorrectly
secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug
prongs. Place the instrument AC switch in the
on position. Connect one lead of an ohmmeter
to the AC plug prongs tied together and touch
the other ohmmeter lead in turn to each tuner
antenna input exposed terminal screw and, if
applicable, to the coaxial connector. If the
measured resistance is less than 1.0 megohm
or greater than 5.2 megohm, an abnormality
exists that must be corrected before the
instrument is returned to the customer. Repeat
this test with the instrument AC switch in the off
position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the
AC line cord directly into a 120 V AC outlet. (Do
not use an isolation transformer during this
test.) Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI) C101.1
Leakage Current for Appliances and
Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on
position and then in the off position, measure
from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal
cabinet, screw heads, metallic overlays, control
shafts, etc.), especially any exposed metal
parts that offer an electrical return path to the
chassis. Any current measured must not
exceed 0.5 milli-ampere. Reverse the
instrument power cord plug in the outlet and
repeat the test.

ANY MEASUREMENTS NOT WITHIN THE
LIMITS SPECIFIED HEREIN INDICATE A
POTENTIAL SHOCK HAZARD THAT MUST
BE ELIMINATED BEFORE RETURNING THE

2. Read and comply with all caution and safety-

2-1 LTVN_ISP

INSTRUMENT TO THE CUSTOMER OR
BEFORE CONNECTING THE ANTENNA OR
ACCESSORIES.

related notes on or inside the receiver cabinet, on
the receiver chassis, or on the Liquid Crystal
Panel.

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV
receiver. Design alterations and additions,
including, but not limited to circuit modifications
and the addition of items such as auxiliary audio
and/or video output connections, might alter the
safety characteristics of this receiver and create a
hazard to the user. Any design alterations or
additions will void the manufacturer's warranty and
may make you, the servicer, responsible for
personal injury or property damage resulting
therefrom.

4. Hot Chassis Warning ­a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC
power cord and maybe safety-serviced without
an isolation transformer only if the AC power
plug is inserted so that the chassis is
connected to the ground side of the AC power
source. To confirm that the AC power plug is
inserted correctly, with an AC voltmeter,
measure between the chassis and a known
earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC
power plug in the opposite polarity and again
measure the voltage potential between the
chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground
regardless of the AC plug polarity. This chassis
can be safety-serviced only with an isolation
transformer inserted in the power line between
the receiver and the AC power source, for both
personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulation material that must not be defeated or
altered.

5. Observe original lead dress. Take extra care to
assure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch
thermally hot parts, c. the AC supply, d. high
voltage, and, e. antenna wiring. Always inspect in
all areas for pinched, out of place, or frayed wiring.
Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and
mechanical parts have special safety-related
characteristics which are often not evident from
visual inspection, nor can the protection they give
necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are
identified by a # on schematics and in parts lists.
Use of a substitute replacement that does not
have the same safety characteristics as the
recommended replacement part might create
shock, fire, and/or other hazards. The product's
safety is under review continuously and new
instructions are issued whenever appropriate.
Prior to shipment from the factory, our products
are strictly inspected to confirm they comply with
the recognized product safety and electrical codes
of the countries in which they are to be sold.
However, in order to maintain such compliance, it
is equally important to implement the following
precautions when a set is being serviced.

2-2 LTVN_ISP

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

11~13 lb (5~6 kg) of force in any direction will not
loosen it.

I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and
tighten certainly.

2-3 LTVN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and
wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified
values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across both terminals of load Z.
See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

Z

AC Voltmeter
(High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 μF CAP. & 1.5 kΩ RES.
Connected in parallel

2-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Top View

Out

In

Bottom View

Input

5

10

Pin 1

Pin 1

Fig. S-1-1

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

3. The 1st pin of every male connector is indicated as
shown.

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb
free solder. (Refer to figure.) For PCBs with Pb free
mark, be sure to use Pb free solder. For PCBs
without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

3-1 TVN_SN

3. The flat pack-IC on the CBA is affixed with glue, so

Hot-air
Flat Pack-IC
Desoldering
Machine

CBA

Flat Pack-IC

Tweezers

Masking
Tape

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

Fine Tip
Soldering Iron

Sharp
Pin

Fig. S-1-4

be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

3-2 TVN_SN

With Iron Wire:

To Solid
Mounting Point

Soldering Iron

Iron Wire

or

Hot Air Blower

Fig. S-1-5

Fine Tip
Soldering Iron

CBA

Flat Pack-IC

Tweezers

Fig. S-1-6

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the
pin 1 on the PCB when positioning for installation.
Then presolder the four corners of the flat pack-IC.
(See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

3-3 TVN_SN

Instructions for Handling Semi-

<Incorrect>

CBA

Grounding Band

Conductive Sheet or
Copper Plate

1MΩ

1MΩ

<Correct>

CBA

conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

3-4 TVN_SN

CABINET DISASSEMBLY INSTRUCTIONS

[1] Rear Cover

[2] Stand

Assembly

[5] Power Supply
CBA

[3] Speaker

[4] Bottom Cover

[8] Front Cabinet

[6] Digital Main
CBA Unit

[7] LCD Panel
Assembly

[9] Function CBA
Unit

Screw Torque Specification

Ref.

No.

L4 GBHP3080

L24 GBHS3060

SSK1 1ESA34670

* For reference

Part

Number

Part Name

SCREW P-TIGHT
(M3X8 BIND HEAD+
BLK)

SCREW S-TIGHT
(M3X6 BIND HEAD+)

S-TIGHT SCREW
(M3X6 BIND HEAD+
BLACK)

STAND SCREW KIT
(SCREW P-TIGHT
M4X14 BIND
HEAD+BLK)

Tightening

Torq ue

5.2±0.9lb·inL23 GBJS3060

(approx.

8.7±0.9lb·in

*

)

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts and the CBA in order to gain access to
items to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

Step/

Loc.

Part

No.

Power

[5]

Supply
CBA

Digital Main

[6]

CBA UnitD3D5

LCD Panel

[7]

Assembly
Front

[8]

Cabinet
Function

[9]

CBA Unit

↓

(1)

↓

(2)

*1: TYPE A models

*2: TYPE B models

Fig.

No.

Removal Note

D3D54(S-5), CN501,

CN601, CN1001

*1

4(S-6), CN3013
CN3006

*2

CN3101,

,

Jack Holder

D3 ---------------- ---

8(S-7), Decoration

D4

D4

↓

(3)

3

Plate*
Sensor Lens, Shield

Plate, Control Plate

↓

(4)

---

---

2

2

↓

(5)

2. Disassembly Method

Step/

Loc.

Part

No.

[1] Rear Cover D1 7(S-1), 5(S-2) ---

Stand

[2]

Assembly

[3] Speaker

Bottom

[4]

Cover

Fig.

No.

Removal Note

D1 3(S-3) ---

D2

CN3801 ---

D5

D2 4(S-4) 1

*3: 32PFL3508 models

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.

(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
H = Hex Screw, CN = Connector
e.g. 2(S-2) = two Screws of (S-2),
2(L-2) = two Locking Tabs of (L-2)

(5) Refer to the following "Reference Notes in the

Ta bl e ."

Important Precautions concerning the
LCD Panel Assembly:

1. When you disassemble/re-assemble the
Bottom Cover for 32PFL3508/F8 (Serial No.:
XA2) model.

• The CBA which is connected to the Digital Main

CBA Unit with CL3006 cannot be replaced alone.
This CBA can only be supplied as LCD Panel

4-1 PL13.8_DC

Assembly. Be careful not to touch this CBA

(S-3)

[2] Stand Assembly

(S-1)

(S-2)

[1] Rear Cover

(S-1)

Fig. D1

unnecessarily.

2. When you disassemble/re-assemble the Front
Cabinet or Function CBA Unit

• Be careful not to break the hooks. If you pull with too

much force, the hooks may be damaged.

• Be careful not to scratch the display panel when

assembling.

• Be careful not to scratch the rear frame when

disassembling/re-assembling or when tightening the
screws.

• Make sure the Shield Plate is placed properly.

• The Function CBA Unit and Sensor Lens are fixed in
place by the hooks. Make sure these hooks are not
damaged. Make sure the Function CBA Unit and
Sensor Lens are securely in place when re­assembling.

• The screw tightening torque must be 5.2lb·in
(6kgf·cm).

• Make sure the tact switches operate normally after
replacing the Front Cabinet, Function CBA Unit,
Sensor Lens, or Shield Plate.

• Make sure to replace the Control Plate and
Decoration Plate to a new one when replacing the
Front Cabinet.

4-2 PL13.8_DC

[4] Bottom Cover

*1: For 32PFL3508/F8 (Serial No.:XA2) model, make sure to read the precautions on pages 4-1 and

4-2 when you disassemble/re-assemble the Bottom Cover.

Jack Holder

[5] Power Supply CBA

(S-5)

(S-6)

[6] Digital Main CBA Unit

[7] LCD Panel Assembly

Fig. D3

(S-4)

(S-4)

1

*

(S-4)

[3] Speaker

Fig. D2

4-3 PL13.8_DC

*2: Make sure to read all the precautions on page 4-2 when you disassemble/re-assemble the Front

Cabinet or Function CBA Unit.

2

Decoration Plate

*

(for 32PFL3508 models)

2

Control Plate

*

[9] Function CBA Unit

2

*

Hook

Shield Plate

Sensor Lens

2

[8] Front Cabinet

2

*

2

*

2

*

*

(S-7)

(S-7)

Fig. D4

4-4 PL13.8_DC

TV Cable Wiring Diagram

*1: TYPE A

*2: TYPE B

To LCD Panel
Assembly

Power Supply CBA

CN1001

To LCD Panel
Assembly

Digital Main
CBA Unit

*1

CN3013

*2

CN3006

CN601

To AC Cord

CN501

Function CBA Unit

CN4052

CN3701

CN3101

To Speaker

CN3801

Fig. D5

4-5 PL13.8_DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

Code:
Pic code:
Panel-Option code:
MIPS:

Press "POWER" key to exit.

*******-**-**-****-**
***-*****-***-***-*-**
**-***-***-***-***

Push 0 key

Safety:
HDMI EDID:
HDMI UART:
Touch Sensor Ver:

Safety_Non
**
OFF

-.-- / ---

Total Watch Time:
Lightsensor:

*****
**

"*" differs depending on the models.

How to set up the service mode:

General Note: “CBA” is abbreviation for
“Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain
mechanical parts. It is important to perform
these adjustments only after all repairs and
replacements have been completed.
Also, do not attempt these adjustments unless
the proper equipment is available.

Test Equipment Required

1. Remote control unit

2. Color Analyzer,
CA-310 (KONICA MINOLTA Luminance meter) or
measuring instrument as good as CA-310.

Service mode:

1. Turn the power on.

2. Press [MENU] button to display Setup menu.

3. Select “Features”.

4. Select “Software Upgrade”.

5. Select “Current Software Info”.

6. Press [0], [6], [2], [5], [9], [6] and [INFO] buttons on
the remote control unit in this order. The following
screen appears.

5-1 PL13.8EA

1. Purity Check Mode

[7] button

Note:

When entering this mode, the default setting is White mode.

Purity Check Mode

[7] button

White 50% mode

Red, Green, Blue mode

V-ramp mode

Black mode

[7] button

White mode

[7] button

[7] button

White 20% mode

[7] button

Color Analyzer

To avoid interference from ambient
light, this adjustment should be
performed in a dark room.

Perpendicularity

This mode cycles through full-screen displays of red,
green, blue, and white to check for non-active pixels.

1. Enter the service mode.

2. Each time the [7] button on the remote control unit
is pressed, the display changes as follows.

The VCOM Adjustment should be
performed when replacing the Digital
Main CBA for 32PFL1508/F8 (Serial No.:
DS1).

2. VCOM Adjustment

Test Point Adj. Point

Screen

M. EQ. Spec.

Color analyzer See below

[CHANNEL UP/DOWN]

buttons

Figure

1. Operate the unit for more than 60 minutes.

2. Set the color analyzer at the zero point calibration
and bring the optical receptor pointing at the
center of the LCD-Panel.
Note: The optical receptor must be set
perpendicular to the LCD Panel surface.

3. Enter the service mode.

4. Press [2] button on the remote control unit.

5. Press [CHANNEL UP/DOWN] buttons on the
remote control unit so that the color analyzer value
becomes minimum.

6. To cancel or to exit from the VCOM Adjustment,
press [CH RETURN] or [PREV CH] button.

3. To cancel or to exit from the Purity Check Mode,
press [CH RETURN] or [PREV CH] button.

5-2 PL13.8EA

The White Balance Adjustment should be

Color Analyzer

Perpendicularity

To avoid interference from ambient
light, this adjustment should be
performed in a dark room.

Internal (Single)

HDB 0

Internal (Single)

LDB 0

performed when replacing the LCD Panel
or Digital Main CBA.

3. White Balance Adjustment

Purpose: To mix red and blue beams correctly for

pure white.
Symptom of Misadjustment: White becomes bluish

or reddish.

6. Press [MENU] button. The internal Raster signal
appears in the screen. (“Internal (Single)” appears
in the upper right of the screen as shown below.)

ITEM

Color temperature

Input Signal

SPECIFICATION

x= 0.272 ± 0.003
y= 0.278 ± 0.003

Internal pattern
(40/80% raster)

Measurement point Screen center

CA-310 (KONICA MINOLTA

M. EQ.

Luminance meter) or
measuring instrument as
good as CA-310.

60min.

Aging time

(Retail MODE/100IRE Raster
HDMI 1080i@60)

MODE setting of TV

Ambient
temperature

Shipment setting/
Retail MODE

25°C ± 5°C

1. Operate the unit for more than 60 minutes.

2. Enter the service mode.

3. Press [VOLUME DOWN] button three times on the
remote control unit to select “Drive setting” mode.
“Drive” appears in the screen.

4. Set the color analyzer at the CHROMA mode and
zero point calibration. Bring the optical receptor
pointing at the center of the LCD-Panel.

Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

5. Press [3] button to select the “HDB” for High Drive
Blue adjustment. (“HDB” appears in the screen.)

7. Press [CHANNEL UP/DOWN] buttons to adjust
the color temperature becomes 12000°K
(x

=

0.272 / y= 0.278 ± 0.003).

8. Press [1] button to select the “HDR” for High Drive
Red adjustment (“HDR” appears in the screen.)
and press [CHANNEL UP/DOWN] buttons to
adjust the color temperature.

9. If necessary, adjust the “HDB” or “HDR” again.

10. Press [6] button to select the “LDB” for Low Drive
Blue adjustment (“LDB” appears in the screen.)
and press [CHANNEL UP/DOWN] buttons to
adjust the color temperature.

11. Press [4] button to select the “LDR” for Low Drive
Red adjustment (“LDR” appears in the screen.)
and press [CHANNEL UP/DOWN] buttons to
adjust the color temperature.

12. If necessary, adjust the “LDB” or “LDR” again.

13. Press [VOLUME DOWN] button to shift to the
“Debugging Message” mode.
If there is no message under “[WB]” section, this
adjustment completes.
If “Drive settings are NG. Retry again.” is
displayed, repeat above steps from 5. to 12. Then
check “Debugging Message” again. If “Drive
settings are NG. Retry again.” is displayed, replace
the LCD Panel or Digital Main CBA.

14. To cancel or to exit from the White Balance
Adjustment, press [CH RETURN] or [PREV CH]
button.

5-3 PL13.8EA

HOW TO INITIALIZE THE LCD TV

The purpose of initialization is to place the set in a new out of box condition. The customer will be prompted to
select a language and program channels after the set has been initialized.
To put the program back at the factory-default, initialize the LCD TV using the following procedure.

NOTE: Disconnect any device from the USB Port

before you conduct on this procedure.

1. Turn the power on.

2. Enter the service mode.

- To cancel the service mode, press [ ] button on
the remote control unit.

3. Press [BACK] button to enter the Panel Key
Confirmation Menu.

4. Press any button on the control panel.

5. Press [INFO] button to proceed with the self check
mode.

6. Make sure to confirm the “INITIALIZED FINISH”
appears in the green screen.

7. Unplug the AC Cord and plug it back on again.

6-1 PL13.8_INT

FIRMWARE RENEWAL MODE

USB port

USB storage
device

Rear Cabinet

Software upgrade in progress. Please wait.
Do not remove the USB storage device or
turn the TV off while upgrade is in progress.

Software Upgrade

Downloading...

Current Version:

New Version:

*******-***-*-***-****
*******-***-*-***-****

0%

*1

"*" differs depending on the models.

Software Upgrade

The software upgrade is completed.
Remove USB storage device, turn TV off then on again.

Equipment Required

a. USB storage device
b. Remote Control Unit

Firmware Update Procedure

User Upgrade (Filename example: TVNB012_00_PF_XX91_AC.ecc)

Upgrade the firmware only. The setting values will not be initialized.
The User Upgrade and the Firmware Upgrade (Factory Upgrade) will be done by the same file. If you want to
upgrade the firmware and initialize the setting values also, add “FACT_” at the beginning of the filename.
If you want to upgrade the firmware only and leave the setting values as they are, eliminate the “FACT_” from the
filename.

Update procedure

1. Turn the power on.

2. Press [MENU] button to display Menu.

3. Select “Features”.

4. Select “Software Upgrade”.

5. Select “Upgrade” to display Upgrade screen.

6. Press [OK] button to display Software Upgrade
screen.

7. Select “USB” and press [OK] button.

8. Insert the USB storage device to the USB port as
shown below.

11. The update will start and the following will appear
in the screen.

9. Select “Check” and press [OK] button.

10. Select “Upgrade” and press [OK] button to start
software upgrade.

Note: If the above screen isn’t displayed, repeat from

step 1.

The appearance shown in *1 is described as follows.

Appearance State

Downloading...

Writing...

Downloading the firmware from
the USB storage device.

Writing the downloaded firmware
in flash memory.

Checking... Checking the new firmware.

12. When the firmware update is completed, the
following will appear in the screen.

Remove the USB storage device from the USB
port.
Turn the power off and turn the power on again.

7-1 PL13.8FW

Factory Upgrade (Firmware Upgrade/Flash Upgrade)

USB port

USB storage
device

Rear Cabinet

Software upgrade in progress. Please wait.
Do not remove the USB storage device or
turn the TV off while upgrade is in progress.

Software Upgrade

Downloading...

Current Version:

New Version:

*******-***-*-***-****
*******-***-*-***-****

0%

*1

"*" differs depending on the models.

Software Upgrade

The software upgrade is completed.
Remove USB storage device, turn TV off then on again.

Firmware Upgrade (Filename example: FACT_TVNB012_00_PF_XX91_AC.ecc)

Upgrade the firmware and initialize the setting values.
The User Upgrade and the Firmware Upgrade (Factory Upgrade) will be done by the same file. If you want to
upgrade the firmware and initialize the setting values also, add “FACT_” at the beginning of the filename.
If you want to upgrade the firmware only and leave the setting values as they are, eliminate the “FACT_” from the
filename.

Flash Upgrade (Filename example: ALL_TVNB012_00_PF_XX91_AC.ecc)
Upgrade the firmware and initialize the setting values along with the factory default such as White Balance, etc.
Before the upgrade, you will need to make a note of all the factory default so you will be able to set it back on the
TV after the initialization.
The Flash Upgrade will be done by it's unique file.
The User Upgrade/Firmware Upgrade (Factory Upgrade) file cannot be used for this upgrade.

Update procedure

1. Turn the power off.

2. Insert the USB storage device to the USB port as
shown below.

The appearance shown in *1 is described as follows.

Appearance State

Downloading...

Writing...

Downloading the firmware from
the USB storage device.

Writing the downloaded firmware
in flash memory.

Checking... Checking the new firmware.

5. When the firmware update is completed, the
following will appear in the screen.

3. Turn the power on.

4. The update will start and the following will appear
in the screen.

Remove the USB storage device from the USB
port.
Turn the power off and turn the power on again.
Service mode initial screen with a word
“INITIALIZED” will appear in the screen. The color
of the word “INITIALIZED” will change from red to
green when initialization is completed.

Note: If the above screen isn’t displayed, repeat from

step 1.

7-2 PL13.8FW

TROUBLESHOOTING

Note:

This Troubleshooting section covers the entire PL13.8 chassis models. Thus some Reference number of
parts shown below may not be used depending on the model. Please refer to the parts list for each model.

[Power Supply Section]

FLOW CHART NO.1

The power cannot be turned on.

Is the fuse (F602) normal?

Ye s

Is normal state restored when once unplugged
power cord is plugged again after several seconds?

Ye s

Is the P-ON+21V line voltage normal?

Ye s

Check each rectifying circuit of the secondary
circuit and repair it if defective.

FLOW CHART NO.2

The fuse blows out.

No

No

No

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuit on the
primary circuit component and repair it if defective.
(C607, D601, D602, D603, D604, D605, D607A,
D608, D609A, D621, D623, Q601, Q602, Q621,
R611, T601)

Check if there is any leak or short-circuit on the
primary circuit component and repair it if defective.

Make sure to repair the pr

FLOW CHART NO.3

When the output voltage fluctuates.

Does the photocoupler circuit on the secondary side
operate normally?

Check IC602, D605, D607A, D608, D609A, D610, D621,
D623, Q601, Q602, Q621 and their per
Repair it if defective.

FLOW CHART NO.4

When buzz sound can be heard in the periphery of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit
Repair it if defective. (D650, D651, D653, D

imary circuit component before replacing the fuse

No

Ye s

iphery circuit.

655, Q656, Q658)

Check if there is any leak or short-circuit on the
each rectifying circuit component of se
and repair it if defective.

(F602).

Check IC602, D660, D661, Q653 and their periphery
circuit. Repair it if defective.

in each rectifying circuit of the secondary side.

condary side

8-1 PL13.8ATR

FLOW CHART NO.5

P-ON+21V is not output.

Is approximately +21V voltage supplied to the cathode
of D650(D651)?

Ye s

Check if there is any leak or short-circuit on the load
circuit. Repair it if defective.

FLOW CHART NO.6

AMP+13V is not output.

Is approximately +13V voltage supplied to the cathode
of D653(D655)?

Ye s

Check if there is any leak or short-circuit on the load
circuit. Repair it if defective.

FLOW CHART NO.7

AL+3.3V is not output.

No

No

Check D650, D651, C651, C652, C653 and their
periphery circuit. Repair it if defective.

Check D653, D654, D655, C654, C655 and their
periphery circuit. Repair it if defective.

Is approximately +13V voltage supplied to the
collector of Q656?

Ye s Ye s

Is approximately +4V voltage supplied to the base of
Q656?

Ye s

Replace Q656.

No

No

Is approximately +13V voltage supplied to the
emitter of Q658?

No

Replace Q658.

Check D662 and their periphery circuit. Repair it if
defective.

Check D653, D654, D655, C654,
C655 and their periphery circuit.
Repair it if defective.

8-2 PL13.8ATR

[Video Signal Section]

FLOW CHART NO.1

The key operation is not functioning.

When touching each buttons, does the Pin(6) voltage
of CN4052 decrease?

Ye s

Replace the Digital Main CBA Unit.

FLOW CHART NO.2

No operation is possible from the remote control unit. (Operation is possible from the unit.)

Is approximately +3.3V voltage supplied to Pin(1) of
CN4052?

Ye s

Is the "L" pulse supplied to Pin(5) of CN4052?

Ye s

Replace the Digital Main CBA Unit.

No

No

No

Replace the Function CBA Unit.

Check AL+3.3V line and repair it if defective.

Replace the Function CBA Unit.

FLOW CHART NO.3

Picture does not appear normally.

Is approximately +21V voltage supplied to
Pin(20, 21, 22, 23) of CN501?

Ye s

Is

approximately +

CN501?

Digital Main CBA Unit or LCD Panel Assembly may
be defective.
Check and replace these parts.

3.3V voltage supplied to Pin(8) of

Ye s

No

No

See FLOW CHART NO.5 <P-ON+21V is not output.
[Power Supply Section]>

See FLOW CHART NO.7 <AL+3.3V is not output.
[Power Supply Section]>

8-3 PL13.8ATR

[Audio Signal Section]

FLOW CHART NO.1

Audio is not output normally.

Is approximately +13V voltage supplied to
Pin(15, 16, 17, 18) of CN501?

Ye s

approximately +

Is
CN501?

Are the audio signals output to Pin(1, 2, 3, 4) of CN3801?

SP3801, SP3802 or CL3801 may be defective.
Check and replace these parts.

3.3V voltage supplied to Pin(8) of

Ye s

Ye s

No

No

No

See FLOW CHART NO.6 <AMP+13V is not output.
[Power Supply Section]>

See FLOW CHART NO.7 <AL+3.3V is not output.
[Power Supply Section]>

Replace the Digital Main CBA Unit.

8-4 PL13.8ATR

BLOCK DIAGRAMS

1. System Control Block Diagram

P-ON+5V

REMOTE

RS4051

SENSOR

KEY SWITCH

D4051

POWER

FUNCTION CBA UNIT

[TYPE B]

TO

POWER SUPPLY

BLOCK DIAGRAM

RESET

P-ON-H2

TO

LED BACKLIGHT DRIVE

BLOCK DIAGRAM

PROTECT3

BACKLIGHT-SW

BACKLIGHT-ADJ

POWER SUPPLY CBA

IC3005

(MAIN MICRO CONTROLLER)

6

KEY-IN1
445 5

CN3101 CN4052

A15

KEY-IN1

USBDP

R10

REMOTE

LED1
6

LED DRIVE

D14

C14

LED1

REMOTE

USBDN

T10

Q3501, Q3502

LCD PANEL ASSEMBLY

VCOM-PWM27

CN3006Q3007

VCOM DRIVE

F2

VCOM-PWM

AUDIO-MUTE

COMP-DET

HP-MUTE

C1

N12

G13

TU3901 (TUNER UNIT)

HP-DET

K16

SCL

4

R12

SCL

SDA

3

T12

SDA

AL+3.3V

Q3006

B16

P-ON-H2

SCK

SIN

T11

P11

Q3005

SOUT

CS

P12

R11

CN501

P-ON-H2

6 6

CN3701

4

RESET

4

IC3009

RESET

J15

RESET

357

CN501

PROTECT3

357

CN3701

B13

PROTECT3

BACKLIGHT-SW

E2

BACKLIGHT-SW

XIN25

H15

BACKLIGHT-ADJ

F3

BACKLIGHT-ADJ

XOUT25

H16

TO

VIDEO/AUDIO

BLOCK DIAGRAM

BACKLIGHT-SW

DIGITAL MAIN CBA UNIT

USBDP

CN3009

USBDN

USB JACK

AUDIO-MUTE

COMP-DET

HP-MUTE

TO VIDEO/AUDIO

BLOCK DIAGRAM

HP-DET

9-1

25MHz

OSC

X3001

652

1

SI

CS

SO

SCK

IC3006 (MEMORY)

PL13.8BLS

2. Video/Audio Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

TO SYSTEM CONTROL

BLOCK DIAGRAM

VIDEO SIGNAL

DIGITAL MAIN CBA UNIT

VGA-R-IN

VGA-G-IN

VGA-B-IN

VGA-HSYNC

VGA-SCL

VGA-SDA

VGA-VSYNC

IF-AGC

DIF-OUT1

DIF-OUT2

6

7

DIF-OUT1

DIF-OUT2

(TUNER UNIT)

TU3901

COM-VIDEO-Pb-IN

COM-VIDEO-Y/VIDEO-IN

5

IF-AGC

COM-VIDEO-Pr-IN

AUDIO(L)-IN

AUDIO(R)-IN

SPDIF

3

5

6dB

6dB

(HEADPHONE AMP)

IC3851

1

7

Q3861

2

MUTE

AMP(L)-OUT

3

PWM

DRIVE

IC3801 (AUDIO AMP)

25,26

LOGIC

22,23

HP-DET

AMP(R)-OUT

12

PWM

LOGIC

DRIVE

20,21

17,18

HP-MUTE

COMP-DET

AUDIO-MUTE

BACKLIGHT-SW

Q3801

Q3802

P-ON+5V

Q3803

1

2

CONTROL LOGIC

123

BUFFER GATE

IC3013

131415

JK3001

PC-RGB

-IN

BUFFER GATE

IC3014

BUFFER

Q3301

BUFFER

Q3302

12

JK3702

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

JK3701

COMPONENT

-Pr-IN

AUDIO(L)-IN

9-2

BUFFER

Q3701

DIGITAL

AUDIO(R)-IN

AUDIO-OUT

(COAXIAL)

JK3703

HEADPHONE

JACK

1

CN3801

SP(L)+

SP3801

SP(L)-

SP(R)-

SPEAKER

L-CH

432

SP(R)+

SP3802

SPEAKER

R-CH

PL13.8BLVA

3. Digital Signal Process Block Diagram [TYPE A]

LCD PANEL

ASSEMBLY

RX0(-)

RX0(+)

RX1(-)

RX1(+)

RX2(-)

RX2(+)

RXCLK(-)

RXCLK(+)

RX3(-)

P15

R16

19

R15

24

R14

RX3(+)

21

25

T16

T14

22

T15

AUDIO SIGNAL

VIDEO SIGNAL

1213151618

CN3013

N15

N16

P16

IC3002

(DDR2 SDRAM)

B1,B9,C2,C8,

D1,D3,D7,D9,

N4,N7,N8,P3,P4,

DATA(0-15)

ADDRESS(0-12)

H1,H3,H7,H9

F1,F9,G2,G8,

M2,M3,M7,M8,

N2,N3,N7,N8,

P2,P3,P7,P8,R2

P6-P8,R3,R4,R6,

R8,T2-T5

H1,H2,J1,J2,J4,K1,

K3,L1,L2,M1-M3,N1

DIGITAL MAIN CBA UNIT

HSYNC

IC3005 (DIGITAL SIGNAL PROCESS)

A14

VGA-HSYNC

VSYNC

B14

C11

VGA-R-IN

VGA-G-IN

VGA-VSYNC

LVDS TX

A/D

CONVERTER

SW

A9

C7

D8

C9

B11

C10

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Y/VIDEO-IN

VGA-B-IN

DEMODULATOR

/MPEG DECODER

IF-AGC

A12

A16

B12

DIF-OUT1

DIF-OUT2

IF-AGC

B8

A8

SPDIF

AUDIO(R)-IN

AUDIO(L)-IN

AUDIO I/F

B7

N10

AMP(R)-OUT

AMP(L)-OUT

DIGITAL

SIGNAL

PROCESS

HDMI

AUDI O

DECODER

A7

IC3018 (HDMI SW)

414544484739383637

I/F

B4A4B3A3B2A2B1

26272324202117

A1

18

VIDEO

DECODER

79461

HDMI-IN3

JK3003

TMDS-D0(-)

TMDS-D0(+)

TMDS-D1(+)

575660596362545351

HDMI

SW

8

7

111014

3

TMDS-D1(-)

TMDS-D2(-)

TMDS-D2(+)

13

101216

15

HDMI-DATA

HDMI-CLOCK

TMDS-CLOCK(-)

TMDS-CLOCK(+)

52

541

2

IC3011

(HDMI SERIAL EEPROM)

15

SCL2

SCL1

2

HDMI-SCL

G14

7

14

SCL0

SDA2

SDA1

SCL3

3

10

HDMI-SDA

6

SDA0

SDA3

11

F14

VGA-SDA

VGA-SCL

TO

VIDEO/AUDIO

TO

VIDEO/AUDIO

BLOCK DIAGRAM

HDMI-IN1

JK3004

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

7 42

94613

9-3

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

HDMI-DATA

HDMI-CLOCK

101216

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

HDMI-DATA

JK3002

HDMI-IN2

79461

15

3

101216

HDMI-CLOCK

15

PL13.8ABLD

BLOCK DIAGRAM

3. Digital Signal Process Block Diagram [TYPE B]

LCD PANEL

ASSEMBLY

ML1(+)

ML1(-)

ML2(+)

AUDIO SIGNAL

VIDEO SIGNAL

212019

CN3006

N16

N15

P16

ML2(-)

18

P15

ML4(+)

ML4(-)

10

T14

R14

ML3(+)

ML3(-)

131211

T16

T15

MLCLK(+)

MLCLK(-)

16

15

R16

R15

IC3002

(DDR2 SDRAM)

B1,B9,C2,C8,

D1,D3,D7,D9,

N4,N7,N8,P3,P4,

DATA(0-15)

ADDRESS(0-12)

H1,H3,H7,H9

F1,F9,G2,G8,

M2,M3,M7,M8,

N2,N3,N7,N8,

P2,P3,P7,P8,R2

P6-P8,R3,R4,R6,

R8,T2-T5

H1,H2,J1,J2,J4,K1,

K3,L1,L2,M1-M3,N1

DIGITAL MAIN CBA UNIT

HSYNC

IC3005 (DIGITAL SIGNAL PROCESS)

A14

VGA-HSYNC

VSYNC

B14

C11

VGA-R-IN

VGA-G-IN

VGA-VSYNC

LVDS TX

A/D

CONVERTER

SW

A9

C7

D8

C9

B11

C10

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Y/VIDEO-IN

VGA-B-IN

DEMODULATOR

/MPEG DECODER

IF-AGC

A12

A16

B12

DIF-OUT1

DIF-OUT2

IF-AGC

B8

A8

SPDIF

AUDIO(R)-IN

AUDIO(L)-IN

AUDIO I/F

B7

N10

AMP(R)-OUT

AMP(L)-OUT

DIGITAL

SIGNAL

PROCESS

HDMI

AUDI O

DECODER

A7

IC3018 (HDMI SW)

414544484739383637

I/F

B4A4B3A3B2A2B1

26272324202117

A1

18

VIDEO

DECODER

79461

HDMI-IN3

JK3003

TMDS-D0(-)

TMDS-D0(+)

TMDS-D1(+)

575660596362545351

HDMI

SW

8

7

111014

3

TMDS-D1(-)

TMDS-D2(-)

TMDS-D2(+)

13

101216

15

HDMI-DATA

HDMI-CLOCK

TMDS-CLOCK(-)

TMDS-CLOCK(+)

52

541

2

IC3011

(HDMI SERIAL EEPROM)

15

SCL2

SCL1

2

HDMI-SCL

G14

7

14

SCL0

SDA2

SDA1

SCL3

3

10

HDMI-SDA

F14

6

SDA0

SDA3

11

VGA-SDA

VGA-SCL

TO

VIDEO/AUDIO

TO

VIDEO/AUDIO

BLOCK DIAGRAM

HDMI-IN1

JK3004

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

7 42

94613

9-4

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

HDMI-DATA

HDMI-CLOCK

101216

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

HDMI-DATA

JK3002

HDMI-IN2

79461

15

3

101216

HDMI-CLOCK

15

PL13.8BBLD

BLOCK DIAGRAM

4. LED Backlight Drive Block Diagram

LCD PANEL

ASSEMBLY

VLED1

ILED2

CN1001

Q1001

Q1003

1

OVP

IC1001

(LED BACKLIGHT DRIVER)

12

DRIVE

VREG

567

13

CONTROL

LOGIC

111715

DRIVE

FAIL

DETECT

POWER SUPPLY CBA

P-ON+21V

BACKLIGHT-ADJ

BACKLIGHT-SW

PROTECT3

TO

SYSTEM CONTROL

BLOCK DIAGRAM

9-5

PL13.8BLBD

5. Power Supply Block Diagram

P-ON+21V

AL+3.3V

AMP+13V

DIGITAL MAIN CBA UNIT

8

CN3701

20-23

15-18

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

P-ON+21V20-23

AL+3.3V8

AMP+13V15-18

CN501

P-ON+21V

TO

SYSTEM CONTROL

RESET

P-ON-H2

BLOCKDIAGRAM

POWER SUPPLY CBA

For continued protection against risk of fire,

replace only with same type 2.5A, 250V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 2.5A, 250V.

2.5A 250V

8

7

T601

6

BRIDGE

RECTIFIER

D601- D604

LINE

FILTER

L602

LINE

FILTER

L601

5

+3.3V REG.

Q656, Q658

Q653

RESET

Q650

9

10

4

2

12

11

1

IC602

ERROR

VOLTAGE DET

1

2

4

3

HOT COLD

OVER

VOLTAGE

PROTECT

Q621

CONTROL

Q602

SWITCHING

F602

2.5A/250V

AC601

CN601

AC CORD

B

HOT CIRCUIT. BE CAREFUL.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F602) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

2.5A 250V

W

9-6

SWITCHING

Q601

PL13.8BLP

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.

2. All resistance values are indicated in ohms
(K = 10

3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.

4. All capacitance values are indicated in μF
(P = 10

5. All voltages are DC voltages unless otherwise
specified.

6.

This schematic diagrams are masterized version
that should cover the entire PL13.8 chassis models.
Thus some parts in detail illustrated on this
schematic diagrams may vary depend on the
model within the PL13.8 chassis.
Please refer to the parts lists for each models.

7. The Circuit Board layout illustrated on this service
manual is the latest version for this chassis at the
moment of making this service manual.
Depend on the mass production date of each
model, the actual layout of each Board may differ
slightly from this version.

3

, M = 106).

-6

μF).

10-1 PL13.8SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

2

3

1

5.0 5.0

Voltage

Indicates that the voltage
is not consistent here.

Power on mode

(Unit: Volt)

1-D3

Distinction Area

Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number
"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".

: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.

THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F602) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

5. How to read converged lines

6. Test Point Information

The reference number of parts on Schematic Diagrams/CBA can be retrieved by
application search function.

3

AREA D3

2

1

ABCD

10-2 PL13.8SC

AREA B1

1-D3

1-B1

Power Supply Schematic Diagram [TYPE A]

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F602) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

2.5A 250V

CAUTION ! :

For continued protection against risk of fire,
replace only with same type 2.5A, 250V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 2.5A, 250V.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

4

3

2

1

HOT CIRCUIT. BE CAREFUL.

AC601

CN601

AC CORD

W

B

2.5A250V

C611
OPEN

R611

0.36
/2W

Q601

D

TK7P60W

(SWITCHING)

G

2.6

S

C607
1800P

D607A
TFZVTR27B

D608
1ZB36BB

R601

1.2M/1/2W

SA601
VARISTOR

C604

0.22/275V

L601
LINE FILTER

C614

0.22/275V

L602
LINE FILTER

2.6

0

D607
OPEN

D609A
RB520SM-30

R615
OPEN

R616
OPEN

R617
OPEN

R618
OPEN

R619
OPEN

JS602
OPEN

JS606
OPEN

R614
470K

R603
470K

R604
470K

Q602
2SC5344SY

SWITCHING
CONTROL

0.4

0.4

R609
100

Q621
KTC3875S

-Y-RTK/P

0

C609

0.068

D601
1N5406BH

D602
1N5406BH

C605
330
/200V

OVER
VOLTAGE
PROTECT

0

R622
0

R623
10K

R612

5.6K

C608

0.022

R608

1.5K

R621
560

C622
10

D604
1N5406BH

D603
1N5406BH

R606
330

D605
MM5Z4V3B

D621
HSC119

D623
MM5Z30B

C623

4.7

C621
OPEN

R607
330

C610
100P

JS603

JS604

R602
OPEN

BC604
BEAD

BC601
BEAD

C624
OPEN

R613

F602

2.5A/250V

JS601
OPEN

JS605
OPEN

192.0

0.1

C606 180
820P
/2KV

D608A
OPEN

BC602
BEAD

BC603
BEAD

HOT COLD

D610
HSC119

13.0

0.4

C603
1000P/250V

C602
1000P/250V

C616
1000P/250V

SA602

GT601

OPEN

OPEN

100P/250VC617

T601
POWER TRANS

6

5

4

2

1

IC602
TLP781F

ERROR
VOLTAGE DET

4

32

IC601
OPEN

4

32

10

11

12

1

1

7

8

9

POWER SUPPLY CBA

D655
SB3A0BH

D655A
OPEN

D653
SB3A0BH

D653A
OPEN

C656
1/50V

C655
470/16V

R693
OPEN

C651
470/25V

R654
180

R658

2.7K

20.4

19.0

R651 D656
1

RS1BJTD

C650
OPEN

D651
SB3150BH

D651A
OPEN

D650
SB3150BH

D650A
OPEN

C666

0.22

C660

0.22

19.0

2.5

D660

0

SL431A-AT

C654
470/16V

R655
180

R657

3.9K

D654A

D654

OPEN

1ZB20BB

D657

R652

MM5Z11B

56K

-3.1

D658

R691

OPEN

OPEN

R653
33K

C653

C652

470/25V

470/25V OPEN

R659

R675

27K

68K

R660

R674

3.9K

0

D661

R661

3.3K

HSC119

Q653
KTC3875S-Y-RTK/P

(SWITCHING)

3.3

0

R663
OPEN

Q650
KTC3875S

-Y-RTK/P
(RESET)

R692
OPEN

D652

R664
OPEN

R666
0

R667

8.2K

0

0

D652A
OPEN

0.6

R665
OPEN

Q659
OPEN

R668
47K

R669
10K

C1001
470/25V

R1027
22K

R676
OPEN

C1002
470/25V

D1006
TFZVTR30B

R1023

3.9K

R1024

1.5K

C1014
OPEN

R1028

9.1K
R1029

9.1K

D1005
HSC119

R679

R678

OPEN

OPEN

Q658A
OPEN

R690

1.5

R673
OPEN

R670
270

C1004

C1003

1

1

C1009

C1010

1/100V

1/100V

R1020
240K

R1021
0

IC1001

R1022
10K

C1015

0.047

R1012
56K

R1003
1K

R1013
240K

BD9488F-GE2

LED BACKLIGHT
DRIVER

2.2
1

3.5
2

UVLO

4.1
3

SS

1.3
4

RT

2.7
514

2.7
6

3.3

FAIL

712

DETECT

0.7
8

ADIM

5.4 0
9

ADIM-P

R1014
3K

R1011
33K

R688

R689

OPEN

OPEN

Q657A
OPEN

R684

R683

OPEN

OPEN

Q658
2SA950-O

(+3.3V REG.)

13.4 3.4

12.8

12.8

3.9

R672

R671

270

270

3.9

2.5

D662

0

SL431A-AT

C665

0.1

VREG

DRIVE

DRIVE

Q657
OPEN

C1011
1/100V

VCC

GND

C662
OPEN

R682
0

L1001
100uH

5.4

18OVP

0

17

3.9

16

0.7

15

12.6

2.9

13

8.1

12.6

11

10

R685
OPEN

IC651
OPEN

C664
OPEN

C1005
OPEN

CONTROL
LOGIC

3.4
Q656

KTC3875S-Y-RTK/P
(+3.3V REG.)

C1007

C1006

47/100V

47/100V

C1019
1

R1030
1K

R1025
1K

R1007
100K

R686

R687

OPEN

OPEN

GND

OUT

IN

123

R662

3.3K

R680
100

R681
10K

C1017

0.022

2200PC1016

C1012
1

D1007
MM5Z11B

R1005
100K

D1001
SK210TD

C1018
100P/1KV

D1002
OPEN

R1001
470

R1006
10K

R1004
10K

D663
OPEN

18.8

0.1

12.5

R1026
51

C1020
2200P

C663
100/10V

Q1001
AP18T10AGH-HF

(SWITCHING)

D

G

8.2

S

R1016
OPEN

R1017
OPEN

R1018
OPEN

0.7

D

G

0.7

S

R1009
1

R1010
1

D405
OPEN

D406
OPEN

C661
OPEN

D1004
HSC119

R1031
10

R1019
200

C1013

R1015

1000P

0.18/1W

Q1003
AP18T10AGH-HF

(SWITCHING)

C633
OPEN

D664
TFZVTR4.7B

R677
10K

C631
OPEN

C630
OPEN

C635
OPEN

GP001
EARTH PLATE

GP002
EARTH PLATE

GP003
EARTH PLATE

C632
OPEN

C638
OPEN

C639
OPEN

TO LCD PANEL

CN1001

ASSEMBLY

56.6
1 VLED

0.7
2 ILED

TO DIGITAL MAIN

CN501

CBA UNIT CN3701

0

1 LED-CONT

0

2 PROTECT1

3.3

3 PROTECT3

3.3

4 RESET

3.3

5 BACKLIGHT-SW

3.3

P-ON-H26

3.3

7 BACKLIGHT-ADJ

3.4

8 AL+3.3V

0

9 GND

0

10 GND

0

11 GND

0

12 GND

0

13 GND

0

14 GND

13.4
15 AMP+13V

13.4
16 AMP+13V

13.4
17 AMP+13V

13.4
18 AMP+13V

0

19 GND

20.7
20 P-ON+21V

20.7
21 P-ON+21V

20.7
22 P-ON+21V

20.7
23 P-ON+21V

UNLESS OTHERWISE SPECIFIED:
DIODES ARE HSS4148TE-E.

A FBCDE G

10-3

PL13.8ASCP

Power Supply Schematic Diagram [TYPE B]

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F602) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

2.5A 250V

CAUTION ! :

For continued protection against risk of fire,
replace only with same type 2.5A, 250V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 2.5A, 250V.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

4

3

2

1

HOT CIRCUIT. BE CAREFUL.

AC601

CN601

AC CORD

W

B

2.5A250V

C611
OPEN

R611

0.36
/2W

Q601

D

TK7P60W

(SWITCHING)

G

2.6

S

C607
1800P

D607A
TFZVTR27B

D608
1ZB36BB

R601

1.2M/1/2W

SA601
VARISTOR

C604

0.22/275V

L601
LINE FILTER

C614

0.22/275V

L602
LINE FILTER

2.6

0

D607
OPEN

D609A
RB520SM-30

R615
OPEN

R616
OPEN

R617
OPEN

R618
OPEN

R619
OPEN

JS602
OPEN

JS606
OPEN

R614
470K

R603
470K

R604
470K

Q602
2SC5344SY

SWITCHING
CONTROL

0.4

0.4

R609
100

C609

0.068

Q621
KTC3875S

-Y-RTK/P
OVER

VOLTAGE
PROTECT

0

0

D601
1N5406BH

D602
1N5406BH

C605
330
/200V

C608

0.022

R608

1.5K

R622
0

R623
10K

R612

5.6K

R621
560

C622
10

D604
1N5406BH

D603
1N5406BH

R606
330

D605
MM5Z4V3B

D621
HSC119

D623
MM5Z30B

C623

4.7

C621
OPEN

R607
330

C610
100P

JS603

JS604

R602
OPEN

BC604
BEAD

BC601
BEAD

C624
OPEN

R613

F602

2.5A/250V

JS601
OPEN

JS605
OPEN

192.0

0.1

C606 180
820P
/2KV

D608A
OPEN

BC602
BEAD

BC603
BEAD

HOT COLD

D610
HSC119

13.0

0.4

C603
1000P/250V

C602
1000P/250V

C616
1000P/250V

SA602

GT601

OPEN

OPEN

100P/250VC617

T601
POWER TRANS

6

5

4

2

1

IC602
TLP781F

ERROR
VOLTAGE DET

4

32

IC601
OPEN

4

32

10

11

12

1

1

7

8

9

POWER SUPPLY CBA

D655
SB3A0BH

D655A
OPEN

D653
SB3A0BH

D653A
OPEN

20.4

19.0

R651
1

19.0

0

D656
RS1BJTD

C650
OPEN

D651
SB3150BH

D651A
OPEN

D650
SB3150BH

D650A
OPEN

R655
180

R657

3.9K

C666

0.22

C660

0.22

2.5

D660
SL431A-AT

C654
470/16V

C656
1/50V

C655
470/16V

R693
OPEN

C651
470/25V

R654
180

R658

2.7K

D654

D654A

1ZB20BB

OPEN

D657

R652

MM5Z11B

56K

-3.1

R691

D658

OPEN

OPEN

R653
33K

C652

C653

470/25V OPEN

470/25V

R659

R675

27K

68K

R660

R674

3.9K

0

D661

R661

3.3K

HSC119

Q653
KTC3875S-Y-RTK/P

(SWITCHING)

3.3

0

R663
OPEN

Q650
KTC3875S

-Y-RTK/P
(RESET)

R692
OPEN

D652

R664
OPEN

R666
0

R667

8.2K

0

0

D652A
OPEN

0.6

R665
OPEN

Q659
OPEN

R668
47K

R669
10K

C1001
470/25V

R1027
22K

R676
OPEN

C1002
470/25V

D1006

TFZVTR30B

R1023

3.9K

R1024

1.5K

C1014
OPEN

R1028

9.1K
R1029

9.1K

D1005
HSC119

R679

R678

OPEN

OPEN

Q658A
OPEN

R690

1.5

R673
OPEN

R670
270

C1003

C1004

1

1

C1009

C1010

1/100V

1/100V

R1020
240K

R1021
0

IC1001

R1022
10K

C1015

0.047

R1012
56K

R1003
1K

R1013
240K

BD9488F-GE2

LED BACKLIGHT
DRIVER

2.2
1

3.5
2

UVLO

4.1
3

SS

1.3
4

RT

2.7
514

2.7
6

3.3

FAIL

712

DETECT

0.7
8

ADIM

5.4 0
9

ADIM-P

R1014

5.6K

R1011
33K

R689

R688

OPEN

OPEN

Q657A
OPEN

R683

R684

OPEN

OPEN

Q658
2SA950-O

(+3.3V REG.)

13.4 3.4

12.8

12.8

3.9

R672

R671

270

270

3.9

D662

0

SL431A-AT

C665

0.1

C1011
1/100V

VREG

DRIVE

DRIVE

Q657
OPEN

R682
0

VCC

GND

C662
OPEN

L1001
100uH

5.4

18OVP

0

17

3.9

16

0.7

15

12.6

2.9

13

8.1

12.6

11

10

R685
OPEN

IC651
OPEN

C664
OPEN

C1005
OPEN

CONTROL
LOGIC

3.4
Q656

KTC3875S-Y-RTK/P
(+3.3V REG.)

2.5

C1007

C1006

47/100V

47/100V

C1019
1

R1030
1K

R1025
1K

R1007
100K

R686

R687

OPEN

OPEN

OUT

IN

GND

123

R662

3.3K

R680
100

R681
10K

C1017

0.022

2200PC1016

C1012
1

D1007
MM5Z11B

R1005
100K

D1001
SK210TD

C1018
100P/1KV

D1002
OPEN

R1001
470

R1006
10K

R1004
10K

D663
OPEN

18.8

0.1

12.5

R1026
51

C1020
2200P

C663
100/10V

Q1001
AP18T10AGH-HF

(SWITCHING)

D

G

8.2

S

R1016
OPEN

R1017
OPEN

R1018
OPEN

0.7

D

Q1003
AP18T10AGH-HF

G

(SWITCHING)

0.7

S

R1009
1

R1010
1

D405
OPEN

D406
OPEN

C661
OPEN

R1019
200

R1015

0.12/1W

C633
OPEN

D664
TFZVTR4.7B

R677
10K

D1004
HSC119

R1031
10

C1013
1000P

C631
OPEN

C635
OPEN

C630
OPEN

GP001
EARTH PLATE

GP002
EARTH PLATE

GP003
EARTH PLATE

C632
OPEN

C638
OPEN

C639
OPEN

TO LCD PANEL

CN1001

ASSEMBLY

56.6
1 VLED

0.7
2 ILED

TO DIGITAL MAIN

CN501

CBA UNIT CN3701

0

1 LED-CONT(NU)

0

2 PROTECT1

3.3

3 PROTECT3

3.3

4 RESET

3.3

5 BACKLIGHT-SW

3.3

P-ON-H26

3.3

7 BACKLIGHT-ADJ

3.4

8 AL+3.3V

0

9 GND

0

10 GND

0

11 GND

0

12 GND

0

13 GND

0

14 GND

13.4
15 AMP+13V

13.4
16 AMP+13V

13.4
17 AMP+13V

13.4
18 AMP+13V

0

19 GND

20.7
20 P-ON+21V

20.7
21 P-ON+21V

20.7
22 P-ON+21V

20.7
23 P-ON+21V

UNLESS OTHERWISE SPECIFIED:
DIODES ARE HSS4148TE-E.

A FBCDE G

10-4

PL13.8BSCP

Function Schematic Diagram

FUNCTION CBA UNIT

2

RS4051
RS-272

(REMOTE SENSOR)

VCC

R4051
56

C4051
10

C4056
10

VOUT

GND
231

R4052

6.8K

R4054
1K

C4052
1000P

R4060
OPEN

D4051

SMLE12WBC7W1HR

POWER

C4053

0.1

C4055
OPEN

R4053
1K

R4057
OPEN

R4055
OPEN

IC4051
OPEN

OUT

1

2

34

C4057
OPEN

NU

GND

NU

VCC NU

6

5

R4058
OPEN

C4054

0.1

R4059
OPEN

R4056
OPEN

CN4052

1 AL+3.3V

2 P-ON+5V

3 LIGHT

4 LED1

5 REMOTE

6 KEY-IN1

7 GND

8 SCL(NU)

9 SDA(NU)

CN4053

1 AL+3.3V

2 P-ON+5V

3 LIGHT

4 LED1

5 REMOTE

6 KEY-IN1

7 GND

8 SCL(NU)

9 SDA(NU)

TO DIGITAL MAIN
CBA UNIT CN3101

(NO CONNECTION)

1

D4002
OPEN

R4001
18K

SW4001

VOL
DOWN

R4002

8.2K

SW4002

VOL
UP

R4003

4.7K

SW4003

CH
DOWN

R4004

2.7K

SW4004

CH UP

R4005

2.2K

SW4005

R4006

2.2K

SW4006

SOURCE POWERMENU

SW4007

10-5

D4001
MM5Z5V6B

UNLESS OTHERWISE SPECIFIED:
SWITCHES ARE SKRMABE010.

C4002

0.1

CAB

FL13.8SCF

Digital Main 1 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

DIGITAL MAIN CBA UNIT

C3166

C3167

OPEN

OPEN

R3135
0

R3162
OPEN

R3161
OPEN

R3129
OPEN

R3130
OPEN

*1

IC3005(1/6)
R8A05011BG-U0
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

LVDS
TX

TO DIGITAL
MAIN 2
IC3005(2/6)

R3131

C3161

0

OPEN

R16

R15

P14

P13

N16

N15

P16

P15

T16

T15

R14

T14

R13

T13

M16NU

M13NU

N14NU

N13NU

L13TP

M15POL

L16CPV

L15OE

L14OE2

M14STV

K15NU

4

3

2

1

TO LCD PANEL
ASSEMBLY

(NO CONNECTION)

(NO CONNECTION)

(NO CONNECTION)

CN3013
1LCD+12V

2LCD+12V

3LCD+12V

4LCD+12V

5GND

6GND

7GND

8NU

9SELLVDS

10NU

11GND

12RX0(-)

13RX0(+)

14GND

15RX1(-)

16RX1(+)

17GND

18RX2(-)

19RX2(+)

20GND

21RXCLK(-)

22RXCLK(+)

23GND

24RX3(-)

25RX3(+)

26GND

27BIST

28NU

29NU

30GND

CN3014

30LCD+12V

29LCD+12V

28LCD+12V

27LCD+12V

26GND

25GND

24GND

23NU

22SELLVDS

21NU

20GND

19RX0(-)

18RX0(+)

17GND

16RX1(-)

15RX1(+)

14GND

13RX2(-)

12RX2(+)

11GND

10RXCLK(-)

9RXCLK(+)

8GND

7RX3(-)

6RX3(+)

5GND

4BIST

3NU

2NU

1GND

CN3601
1GND

2NU

3NU

4NU

CN3602
1GND

2NU

3NU

4NU

R3088

9.1K

R3630
OPEN

R3632
OPEN

D3624
OPEN

R3622
100

C3628

R3621

OPEN

10K

BST

IN

SW

C3635

OPENC3647

D3623
OPEN

8

7

6

C3634

4.7

OPENR3644

OPENR3645

OPENR3641

OPENR3642

OPENR3643

OPENR3646

IC3621
MP1472GJC452Z

(SW+12V)

C3627

0.047
1

SS

2

R3623

C3629

24K

1000P

R3624

R3625

1K

120K

R3631 C3631

R3629

OPEN

OPENC3641

OPEN 4.7

10K

OPENC3642

OPENC3643

OPENC3644

EN

3

COMP

45

FB GND

R3626
10K

D3621

C3636D3622

OPEN 4.7

OPEN

OPENC3645

OPENC3646

C3625
OPEN

C3626

0.1

C3630
OPEN

R3628
OPEN

C3633

R3045
OPEN

C3624

0.1

3PC3655

3PC3654

Q3007
OPEN

C3623
OPEN

R3627
OPEN

C3632

OPENC3648

OPENC3662

OPENC3666

R3044
OPEN

L3621
33uH

OPEN4.7

OPENC3649

OPENC3663

3PC3651

3PC3650

OPENC3664

R3047
OPEN

C3622
OPEN

3PC3652

OPENC3665

OPENC3667

C3621

4.7

3PC3656

3PC3653

OPENR3041

R3046
OPEN

R3048
OPEN

C3000
OPEN

3PC3657

OPENR3117

OPENR3118

C3057
OPEN

R3035
OPEN

R3524 OPEN
OPEN

3PC3658

OPENC3661

OPENC3660

3PC3659

OPENR3119

OPENR3120

OPENR3132

C3058
OPEN

R3039
OPEN

R3028
OPEN

C3512

R3037
OPEN

R3038
OPEN

C3514
OPEN

R3085
OPEN

D3008
OPEN

CONTINUE
DIGITAL 4

P-ON+5V

P-ON+21V

P-ON+3.3V

PROTECT3

CONTINUE
DIGITAL 3

CELL-PWR-CTRL

VCOM-PWM

(NO CONNECTION)

CN3006

30 LCD+21V

29 LCD+21V

28 GND

27 VCOM-PWM

26 PWR-CTRL

25 P-ON+3.3V

24 GND

23 ML0(+)

22 ML0(-)

21 ML1(+)

20 ML1(-)

19 ML2(+)

18 ML2(-)

17 GND

16 MLCLK(+)

15 MLCLK(-)

14 GND

13 ML3(+)

12 ML3(-)

11 ML4(+)

10 ML4(-)

9 ML5(+)

8 ML5(-)

7GND

6TP

5POL

4CPV

3OE1

2OE2

1STV

(NO CONNECTION)

CN3001

31 LCD+21V

30 LCD+21V

29 LCD+21V

28 GND

27 VCOM-PWM

26 PWR-CTRL

25 P-ON+3.3V

24 GND

23 ML0(+)

22 ML0(-)

21 ML1(+)

20 ML1(-)

19 ML2(+)

18 ML2(-)

17 GND

16 MLCLK(+)

15 MLCLK(-)

14 GND

13 ML3(+)

12 ML3(-)

11 ML4(+)

10 ML4(-)

9 ML5(+)

8 ML5(-)

7GND

6TP

5POL

4CPV

3OE1

2OE2

1STV

A

10-6

DCB

E

F

PL13.8SCD1

Digital Main 2 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

TU3901 (TUNER UNIT)

+3.3V2GND3SDA4SCL5IF-AGC6DIF-OUT17DIF-OUT2

1

A/D
CONVERTER

DIGITAL
SIGNAL
PROCESS

TO DIGITAL
MAIN 1
IC3005(1/6)

D3901
MM5Z5V6B

C3905

C3901

10

220/6.3V

*1

IC3005(2/6)
R8A05011BG-U0

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

TO DIGITAL
MAIN 5
IC3005(5/6)

TO DIGITAL
MAIN 6
IC3005(6/6)

L3913

2.2uH

C3910 D3904
1000P

DEMODULATOR
/MPEG
DECODER

SW

TO DIGITAL
MAIN 3
IC3005(3/6)

TO DIGITAL
MAIN 3
IC3005(3/6)

C3934
OPEN

MM5Z5V6B

SCL R12

SDA T12

B12

A12

A16IF-AGC

A14HSYNC

B14VSYNC

A9

C7

C11

C10

C9

D8

B11

A10NU

C8NU

B9NU

D9NU

B10NU

A11NU

D10NU

C3909
OPEN

D3902
MM5Z5V6B

MM5Z5V6B

R3202

2.7K

C3335

47R3206

47R3207

R3205
18K

0.1C3194

0.1C3195

0.1C3196

0.01C3198

0.1C3199

0.1C3200

0.1C3201

C3175
33P

C3178

0.1

0.1C32852.2

0.1C3286

1C3336

C3176
33P

C3291
33P

C3289
33P

R3194
1K

C3177
1

R3204

2.7K

R3203D3903

2.7K

C3292
33P

C3288
33P

0.1C3903

0.1C3902

C3173
33P

C3172
33P

C3293
33P

C3287
33P

R3251
10

R3250
10

R3285

R3286

R3284

DIGITAL MAIN CBA UNIT

IC3013
74LVC1G126GW
(BUFFER GATE)

1

VCC

5

2

34

GND

IC3014
74LVC1G126GW
(BUFFER GATE)

1

VCC

5

2

34

GND

R3331
10

R3343
OPEN

R3333
10

R3334
10

R3339
OPEN

47

47

47

R3377

R3356
75

10R3327

10R3328

10R3329

R330275R330375R3301
75

R3364

75

75

R3711
10K

C3707
1

R3298
OPEN

R3710
100

R3712
10K

C3214

0.1

R3332
10

R3296
OPEN

Q3701
2SC4081UBTLQ

(BUFFER)

C3708

0.1

R3709
220

R3326

4.7K

D3041
OPEN

R3358
10K

R3347
10K

R3708
110

R3321

4.7K

D3054
OPEN

D3050
OPEN

D3045
OPEN

D3049
OPEN

D3053
OPEN

D3055
OPEN

C3706
1

Q3301
RU1L002SNTL

(BUFFER)

R3701
OPEN

R3702
OPEN

R3703
OPEN

C3709
100P

R3704
100K

R3705
100K

Q3302
RU1L002SNTL

JK3001

PC-RGB-IN

11156

12

7

13

8

14

9

10

JK3702

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

JK3701

DIGITAL
AUDIO-OUT
(COAXIAL)

AUDIO(L)-IN

AUDIO(R)-IN

CONTINUE
DIGITAL 6(BUFFER)

VGA-SDA

VGA-SCL

CONTINUE
DIGITAL 4

P-ON+3.3V

P-ON+5V

1

2

3

4

5

CONTINUE
DIGITAL 3

COMP-DET

CONTINUE
DIGITAL 5

SCL

SDA

AUDIO(L)-IN

AUDIO(R)-IN

CONTINUE
DIGITAL 5

SPDIF

GH K

JI

L

10-7

PL13.8SCD2

Digital Main 3 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

CN3009(USB JACK)
1BUS-POWER

2USBDN

3USBDP

4GND

0.1C3029

0.1C3030

0.1C3031

0.1C3032

0.1C3033

0.1C3034

0.1C3035

0.1C3037

0.1C3038

0.1C3039

0.1C3040

0.1C3041

0.1C3140

L3025
EXC24CG900U

IC3002
K4T51163QJ-BCE7

(DDR2 SDRAM)

*A VDD

E2 NU

A2 NU

R8 NU

R7 NU

R3 NU

1-O3

2-O3

3-O3

SD-DQ15

SD-DQ12

SD-DQ10

SD-DQ9

SD-DQ14

SD-DQ13

SD-DQ11

SD-DQ8

4-O3

5-O3

6-O3

SD-DQ3

SD-DQ2

SD-DQ7

SD-DQ6

SD-DQ4

SD-DQ1

SD-DQ5

SD-DQ0

IC3006

W25Q32FVSSIG

(MEMORY)

1

CS

2

SO

3

WP

45

GND SI

C3246

C3348

1

220/6.3V

B7 UDQS

A8 UDQS/NU

B3 UDM

B9 DQ15

B1 DQ12

D9 DQ10

D1 DQ9

D3 DQ14

D7 DQ13

C2 DQ11

C8 DQ8

F7 LDQS

E8 LDQS/NU

F3 LDM

F9 DQ3

F1 DQ2

H9 DQ7

H1 DQ6

H3 DQ4

H7 DQ1

G2 DQ5

G8 DQ0

8

VCC

7

NU

6

SCK

J2VREF

K2CKE

J8CK

K8CK

L8CS

K7RAS

L7CAS

K3WE

L1BA2/NU

L3BA1

L2BA0

R2A12

P7A11

M2A10/AP

P3A9

P8A8

P2A7

N7A6

N3A5

N8A4

N2A3

M7A2

M3A1

M8A0

K9ODT

*BVSS

*A:A1,A9,C1,C3,C7,C9,E1,E9,
G1,G3,G7,G9,J1,J9,M9,R1

*B:A3,A7,B2,B8,D2,D8,E3,E7,
F2,F8,H2,H8,J3,J7,N1,P9

R3102
10K

R3107

C3073

10K

0.1

R3479
10K

IC3019
AP2151WG-7

(HIGH SIDE SW)

1

2

34

OUT

GND

/FLAG RN

5

IN

C3327
1

R3480
10K

C3009
OPEN

C3010

0.1

R3082
100

R3083
100

R3049
150

SD-DQ15

SD-DQ14

SD-DQ13

SD-DQ12

SD-DQ11

SD-DQ10

SD-DQ9

SD-DQ8

SD-DQ7

SD-DQ6

SD-DQ5

SD-DQ4

SD-DQ3

SD-DQ2

SD-DQ1

SD-DQ0

R3064
100

R3065
100

3-M3

6-M3

2-M3

1-M3

5-M3

4-M3

R3030 33x4

R3031 33x4

R3032 33x4

R3033 33x4

R3034 33x4

5.6KR3099

C3050

0.1

C3051

0.1

33R3016

10R3084

10R3087

150R3070

47R3089

47R3092

47R3093

47R3094

22R3095

*1

IC3005(3/6)
R8A05011BG-U0
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

M5 SD-VREF0

N3 GND

R8 SD-DQ15

N8 SD-DQ14

P7 SD-DQ13

R6 SD-DQ12

P6 SD-DQ11

N7 SD-DQ10

T5 SD-DQ9

P8 SD-DQ8

P4 SD-DQ7

T3 SD-DQ6

R4 SD-DQ5

T2 SD-DQ4

P3 SD-DQ3

T4 SD-DQ2

R3 SD-DQ1

N4 SD-DQ0

T6 SD-UDM

R5 SD-LDM

T7 SD-UDQSN

R7 SD-UDQS

N5 SD-LDQSN

P5 SD-LDQS

H1 SD-A4

H3 SD-CAS

J2 SD-A11

J1 SD-A0

J4 SD-A10

L1 SD-A1

K4 SD-BA1

L2 SD-A9

L4 SD-WE

N2 SD-BA0

P1 SD-BA2

M3 SD-A3

M1 SD-A5

M2 SD-A12

L3 SD-CKE

N1 SD-A7

J3 SD-RAS

K3 SD-A6

K1 SD-A2

K2 SD-ODT

H2 SD-A8

R2 SD-CLK

R1 SD-CLKN

H4 NU

P12 CS

R11 SOUT

P11 SIN

T11 SCK

T9 VBUS-EN

R9 VBUS-ST

R10 USBDP

T10 USBDN

P10 NU

TO DIGITAL
MAIN 2
IC3005(2/6)

TO DIGITAL
MAIN 2
IC3005(2/6)

H15XIN25

R3223
1K

H16XOUT25

F15ASEBRKAK-N

F16ASEMD0

E16TRST-N

E15TCK

D16TDI

D15TDO

E14TMS

R3522
10K

G15TXD0

G16RXD0

F3BACKLIGHT-ADJ

F2VCOM-PWM

J14GND

D1CELL-PWR-CTRL

E13GPY10

B16P-ON-H2

G13HP-MUTE

E2BACKLIGHT-SW

R3503
10K

D14LED1

C14REMOTE

C1AUDIO-MUTE

R3234
OPEN

N12COMP-DET

H14NU

10C3072

DIGITAL MAIN CBA UNIT

C3184
18P

X3001
25MHz

C3183
20P

OPENR3527

OPENR3525

OPENR3526

100R3468

100R3469

C3255

C3254

OPEN

OPEN

100R3516

OPENR3517

22R3511

100R3211

22R3233

22R3188

22KR3510

4.7KR3515

22R3213

22R3217

22R3215 33K

R3201

R3395

4.7K

R3396

4.7K

C3253
OPEN

(NO CONNECTION)

CN3012

AL+3.3V1

2 GND

3 ASEBRKAK-N

4 ASEMD0

5 TRST-N

6 TCK

7 TDI

8 TDO

9 TMS

10 CPU-RESET-N

(NO CONNECTION)

CN3010

1 P-ON+5V

2 UART0-TX

3 UART0-RX

4 GND

CONTINUE
DIGITAL 2

COMP-DET

CONTINUE
DIGITAL 5

CPU-RESET-N

CONTINUE
DIGITAL 4

GPY10

CPU-RESET-N

P-ON-H2

BACKLIGHT-ADJ

BACKLIGHT-SW

CONTINUE
DIGITAL 1

CELL-PWR-CTRL

VCOM-PWM

CONTINUE
DIGITAL 5

LED1

REMOTE

CONTINUE
DIGITAL 4

P-ON+1.8V

P-ON+3.3V

AL+3.3V

P-ON+5V

CONTINUE
DIGITAL 5

HP-MUTE

AUDIO-MUTE

BACKLIGHT-SW

MP

NO

10-8

QR

PL13.8SCD3

Digital Main 4 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

*1

4

3

2

1

IC3005(4/6)
R8A05011BG-U0

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

F12

VCC33STB

G12VCC33STB

E12VDD12STB

*CVDD12

M10AVDD12

E8AVDD12

F8AVDD12

F9AVDD12

G11VDDCLK

H5VCCQ18

J5VCCQ18

M4VCCQ18

T1VCCQ18

M6VCCQ18

N6VCCQ18

M7VCCQ18

M8VCCQ18

E10AVDD33

C2AVDD33

C3AVDD33

E11AVDD33

D6AVDD33

L3006
BEAD

E6AVDD33

G4VCCQ33

F5VCCQ33

L12VCCQ33

K13VCCQ33

J12VCCQ33

N11AVDD33

*DVSS

*C:G5,G6,H6,J7,J11,J13,K6,K7,
K11,L8,L9,M9,M11,N9,P9.

*D:D2~D5,D12,E3~E5,E7,E9,F4,F6,
F7,F10,F11,G7~G10,H7~H13,J6,
J8~J10,K5,K8~K10,K12,L5~L7,
L10,L11,P2,T8

C3160

0.1

L3030
0

C3181

0.1

C3123

C3124

1

1

C3128

C3127

1

1

C3135

0.1

C313610C3114

C3118

1

10

C3139

0.1

C3325

C3326

OPEN

10

C3322

C3321

10

OPEN

C3142

C3141

1

1

C3149

C3148

10

1

C3151
1

C31551C3156
1

C3158

C3157

1

1

G

DS

Q3013
SSM3K309T

(SW+12V)

C3125
1

C3129
1

C3324
OPEN

C3320
10

C3143
1

C3150
1

C3152
1

C3159
1

R3221
100

R3222
10K

C313210C3133

C3126

10

1

C31301C3134
1

C3115
10

C3343

C3264

10

OPEN

C3318

C3319

10

10

C3144

C3145

1

1

D3113
MM5Z5V6B

L3026
BEAD

C3154

D3114

1

MM5Z5V6B

R3098
0

C3121
OPEN

L3027
BEAD

L3021
BEAD

C3043
4700P

R3012
33K

R3007
12K

R3006
10K

L3019
OPEN

C3028

0.047

R3005

4.3K

C3022

4.7

1

2

3

45

C305610C3074
10

Q3006
2SA1576UBTLQ

(SWITCHING)

R3228
OPEN

R3608

4.7K

C3080

4.7

R3133
10K

C3090
1

C3099

R3142

OPEN

OPEN

D3006
PTZTE255.1B

C3001

C3105

0.1

OPEN

IC3003
MP1472GJC452Z
(+5V REG.)

BST

IN

SW

8

7

6

C3053
OPEN

SS

EN

COMP

FB GND

C3237
OPEN

R3605
0

C3611
OPEN

C3103
OPEN

R3106
47K

R3105
10K

Q3005
2SC4081UBTLQ

(SWITCHING)

D3101
HSC119

D3102
HSC119

R3227
OPEN

C3609
1

R3609
OPEN

C3007

0.1

C3083

0.015

C3088

R3137

4700P

2.7K

R3149

3.9K
R3145

1.2K

R3143
15K

C3095
OPEN

R3054
OPEN

R3603
OPEN

C3607
OPEN

R3100
22K

Q3011
OPEN

IC3601
AP2121AK-3.3TRE1
(+3.3V REG.)

1 VIN

2 GND

3CE 4NU

1

2

3

45

330/4V 10

C3042

0.1

L3005
22uH

5VOUT

R3606
OPEN

R3607
OPEN

IC3008
MP1472GJC452Z

SS

EN

COMP

FB GND

8

BST

7

IN

6

SW

C3096C3094

C3065

10

R3108
47K

R3112
10K

Q3102
2SC4081UBTLQ

(SWITCHING)

R3115
OPEN

R3114
47K

D3007
OPEN

C3097
OPEN

D3106
HSC119

C3091
OPEN

R3141
OPEN

L3009
10uH

Q3103
2SA1576UBTLQ

(SWITCHING)

R3113
10K

Q3101
2SC4081UBTLQ

(SWITCHING)

C3265

R3138

10

OPEN

R3097

1.5K

D3104
HSC119

C3610
1

C3085

0.1

R3602
OPEN

C3606
OPEN

D3112
MM5Z12B

R3101
1K

C3107

R3104

1

1K

D3105
OPEN

R3423
47K

R3086

4.7K

R3077
10K

R3079
10K

D3103
HSC119

R3424
100

D3115
HSC119

Q3003
2SC4081UBTLQ

(SWITCHING)

Q3004
2SC4081UBTLQ

(SWITCHING)

R3110

R3111

10K

10K

R3109

3.3K

C3079
220/6.3V

C3003

C3102

0.1

4.7

R3091
0

C3119
OPEN

D3005
PTZTE255.1B

D3107
HSC119

R3140
18K

C3238
OPEN

R3051
100

R3061
10K

C3075

0.022

R3103

1.8K

C3087
10

C3002
OPEN

C3017
2200P

R3004
33K

R3003

6.2K

R3002
15K

R3139
1K

R3060

C3019

2.7K

0.022

R3059

R3062

2.7K

1.8K

C3086

R3043

10

180

C3131
1

IC3007
BD00IC0WEFJ
(+1.8V REG.)

1

VOUT

2

FB

3

GND

45

NU EN

IC3001
MP1472GJC452Z
(+3.3V REG.)(+1.2V REG.)

C3013

0.047
1

SS

2

EN

R3001

8.2K
3

COMP

45

FB GND

C3020
330/4V 10

Q3009
2SC4081UBTLQ

(SWITCHING)

IC3004
BD00IA5WEFJ-E2
(+1.2V REG.)

1

VOUT

2

FB

3

GND

45

NU EN

8

VCC

7

NU

6

NU

8

BST

7

IN

6

SW

C302110C3059

R3014
270

C3063
OPEN

C3604
10

DIGITAL MAIN CBA UNIT

VCC

NU

NU

C3069
10

C3092
OPEN

R3057
OPEN

L3002
33uH

8

7

6

C3068
OPEN

C3014

0.1

R3601
OPEN

C3605
OPEN

D3994 OPEN

D3995 OPEN

C3994
OPEN

C3603
1

C3024
10

R3008
1

L3003
OPEN

D3602
MM5Z5V6B

220R3013

OPENC3008

OPENC3062

OPENR3011

100R3009

OPENC3006

OPENC3004

100R3072

100R3068

OPENC3055

OPENC3048

C3995
OPEN

C3996
OPEN

CONTINUE
DIGITAL 3

P-ON+1.8V

P-ON+3.3V

AL+3.3V

P-ON+5V

R3036
100

CONTINUE
DIGITAL 6

P-ON+3.3V

AL+3.3V

P-ON+3.3V(1)

P-ON+5V

CONTINUE
DIGITAL 2

P-ON+3.3V

P-ON+5V

CONTINUE
DIGITAL 1

P-ON+5V

P-ON+21V

P-ON+3.3V

PROTECT3

CONTINUE
DIGITAL 5

RESET

PROTECT1

PROTECT3

CONTINUE
DIGITAL 5

P-ON+3.3V

CHECK+1.8V

AL+3.3V

P-ON+5V

P-ON+3.3V(1)

AMP+13V

CONTINUE
DIGITAL 3

GPY10

CPU-RESET-N

P-ON-H2

BACKLIGHT-ADJ

BACKLIGHT-SW

TO POWER SUPPLY

CN3701

CBA CN501

1NU

2 PROTECT1

3 PROTECT3

4 RESET

5 BACKLIGHT-SW

6 P-ON-H2

7 BACKLIGHT-ADJ

8 AL+3.3V

9 GND

10 GND

11 GND

12 GND

13 GND

14 GND

15 AMP+13V

16 AMP+13V

17 AMP+13V

18 AMP+13V

19 GND

20 P-ON+21V

21 P-ON+21V

22 P-ON+21V

23 P-ON+21V

10-9

WSVT

XU

PL13.8SCD4

Digital Main 5 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

CONTINUE
DIGITAL 4

P-ON+3.3V

CHECK+1.8V

AL+3.3V

P-ON+5V

P-ON+3.3V(1)

AMP+13V

CONTINUE
DIGITAL 3

4

3

2

1

TO FUNCTION CBA
UNIT CN4052

LED1

REMOTE

CONTINUE
DIGITAL 4

RESET

PROTECT1

PROTECT3

CONTINUE
DIGITAL 2

SCL

SDA

AUDIO(L)-IN

AUDIO(R)-IN

CONTINUE
DIGITAL 3

HP-MUTE

AUDIO-MUTE

BACKLIGHT-SW

CN3101
1SDA(NU)

2SCL(NU)

3GND

4KEY-IN1

5REMOTE

6LED1

7LIGHT

8P-ON+5V

9AL+3.3V

R3556
10

C3554
1

R3557
10

C3560
220

/6.3V
33PC3551

33PC3552

R3995
10K

R3818
10K

R3805
10K

R3812

R3561
10

R3814
OPEN

Q3803
2SA1576UBTLQ

(SWITCHING)

R3816

1.8K

R3815
47K

Q380110K
2SC4081UBTLQ

(SWITCHING)

R3552
100

C3553
OPEN

R3862
10K

R3817
10K

Q3802
2SC4081UBTLQ

(SWITCHING)

Q3804
OPEN

C3559
OPEN

C3556
OPEN

R3551
100

R3553
100

18KR3335

18KR3336

R3870
220

C3993

0.1

C3870
2200P

R3823
OPEN

R3555
OPEN

Q3501
2SC4081UBTLQ

(LED DRIVE)

D3501
MM5Z5V6B

R3813
OPEN

C3815
1

R3871
220

R3819
100K

C3871
2200P

R3809
OPEN

R3822
10

1C3808

1C3992

0R3811

0R3806

OPENR3807

1C3816

1C3817

1C3819

1C3809

R3558
OPEN

C3555
OPEN

Q3502
2SA1576UBTLQ

(LED DRIVE)

R3559
10K

R3560
100K

R3183

R3810
OPEN

R3808
10K

C3558
OPEN

10

11

12

13

14

OPEN

IC3801
TPA3110D2PWPR
(AUDIO AMP)

1

2

3

4

5

6

7

8

9

Q3010
OPEN

R3185
OPEN

R3184

R3186

OPEN

OPEN

CONTROL
LOGIC

POWER
LIMIT

GAIN
CONTROL

AVCC

GND

GVDD

POWER
LIMIT

NU

PBTL PVCCR

OPENC3229

OPENR3502

PWM
LOGIC

PWM
LOGIC

22KR3318

10KR3317

OPENC3227

OPENR3501

C3825
1

10KR3319

1000PC3232

1000PC3233

PVCCL

PVCCL

DRIVE

GND

DRIVE

DRIVE

GND

DRIVE

PVCCR

C3824
1000P

28

27

26

25

24

23

22

21

20

19

18

17

16

15

C3328
OPEN

0.01C3329

22R3314

OPENR3315

22R3316

0.22C3231

2.2C3217

2.2C3218

1C3223

1C3224

C38321C3828
10

C3827
1000P

C3831
100/16V

10KR3312

R3320
OPEN

0.22C3801

0.22C3802

0.22C3803

0.22C3804

C3826
100/16V

*1

IC3005(5/6)
R8A05011BG-U0
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

D13 CHECK+1.8V

A15 KEY-IN1

B13 PROTECT3

A13 LIGHT-SENS

C13 PROTECT1

C12 LPF

R3861
10K

C3833
OPEN

A8

B8

B7

A7

C3829
100/16V

TO DIGITAL
MAIN 2
IC3005(2/6)

R3864
1K

Q3861
2SC4081UBTLQ

(SWITCHING)

R3863
OPEN

R3869
OPEN

Q3862
OPEN

R3801
OPEN

C3807
OPEN

R3802
OPEN

C3805
OPEN

R3803
OPEN

C3806
OPEN

R3804
OPEN

C3810
OPEN

TO DIGITAL
MAIN 6
IC3005(6/6)

AUDIO
I/F

L3801
10uH

L3802
10uH

L3803
10uH

L3804
10uH

R3867
0

R3851
15K

R3852
15K

C3811
1000P

C3812
1000P

C3813
1000P

C3814
1000P

R3868
OPEN

C3851
1

R3853
OPEN

C3852
1

R3854
OPEN

G1NU

E1NU

G2NU

K14HPD-SINK

J16PWR

K16HP-DET

J15RESET

D11NU

D7NU

C6NU

C5NU

B6NU

A6NU

N10

C3859

0.1

C3820
1

C3821
1

C3822
1

C3823
1

R3210
100

R3216
100

R3219
22

D3201
MM5Z5V6B

10KR3340

10C3219

10C3220

10C3216

R3865
10K

3

4

2

GND5MUTE

BIAS

6

7

C3857
47/25V

D3801
OPEN

D3802
OPEN

D3803
OPEN

D3804
OPEN

R3402
0

R3401
0

R3220
33K

C3860

R3866

0.1

100K

C3853
220/6.3V

1

IC3851
BH3547F

(HEADPHONE AMP)

VCC

8

C3854
220/6.3V

C3858
100/16V

D3108
OPEN

C3862
OPEN

C3856
1000P

C3855
1000P

D3111
MM5Z5V6B

IC3009

R3178

PST8429UR

220

(RESET)

GND OUT

14

CDVDD

R3209
100

C3861

0.1

CN3801

R3856
10K

R3855
10K

C3106
1

R3191
100

32

1 SP(L)+

2 SP(L)-

3 SP(R)-

4 SP(R)+

C3113

0.033

R3182
56K

C3116
1000P

JK3703
HEADPHONE

JACK

CONTINUE
DIGITAL 6

HPD-SINK

PWR

CONTINUE
DIGITAL 3

CPU-RESET-N

CONTINUE
DIGITAL 2

SPDIF

SP3801
SPEAKER

L-CH

SP3802
SPEAKER

R-CH

DIGITAL MAIN CBA UNIT

YCCBBAAZDD

10-10

PL13.8SCD5

Digital Main 6 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

CONTINUE
DIGITAL 4

P-ON+3.3V

AL+3.3V

P-ON+3.3V(1)

P-ON+5V

CONTINUE
DIGITAL 5

HPD-SINK

PWR

CONTINUE
DIGITAL 2

VGA-SDA

VGA-SCL

D3993
OPEN

*1

IC3005(6/6)
R8A05011BG-U0
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

VIDEO
DECODER

TO DIGITAL

MAIN 5

IC3005(5/6)

AUDIO
DECODER

HDMI
I/F

HDMI-CEC B15

B1

A1

B2

A2

B3

A3

B4

A4

C16SCL-SINK

C15SDA-SINK

F13HPD-SINK

G3HDMI-SEL0

F1HDMI-SEL1

C4EXT-RES

B5PLL-XFC-A

A5PLL-XFC-P

M12PWR

G14HDMI-SCL

F14HDMI-SDA

R3236
560

TO DIGITAL
MAIN 2
IC3005(2/6)

DIGITAL MAIN CBA UNIT

R3237
27K

R3514
100

R3508
22

R3509
22

C3185

0.01

Q3014

RU1L002SNTL

(BUFFER)

C3989
OPEN

C3987
OPEN

C3985
OPEN

C3990
1P

R3497

4.7K

C3187

R3270

2.2

2.2K

C3186
4700P

C3188

R3271

2200P

3K

R3405
100

R3415
82K

D3057
RB751S-40

C3988
OPEN

C3986
OPEN

C3984
OPEN

R3193

4.7K

R3192

4.7K

R3488

4.7K

R3994
OPEN

R3451
10K

R3452
10K

R3489
10K

C3316
10

R3487

4.7K

R3496

4.7K

R3453

1.5K

Q3451
2SC4081UBTLQ

(SWITCHING)

C3421
1

C3420
OPEN

C34231C3425
1

C3422

C3424

OPEN

OPEN

17

18

19 VCC

20

21

22 GND

23

24

25 VCC

26

27

28 GND

29 SCL-SINK

30 SDA-SINK

HOT-PLUG-

31

DETECT-SINK
HDMI-

32

SEL0

C3426
1

C3427
OPEN

R3486

3.9K

16

NU

HDMI-

SEL134NU35HOT-PLUG-

33

R3990
OPEN

R3991
10K

GND

R3281
100

131415

DETECT1

36 37 38

C3191

0.1

VCC

R3282
100

VCC

GND

VCC2

SCL2

SDA2

NU

GND

SDA3

SCL3

4

56

44 45 46

16

15

14

13

12

11

10

GND

VCC

10

1112

39 40

0.1C3192

789

GND

HDMI SW

VCC

41 42 43

IC3011
BU9883FV-WE2
(HDMI SERIAL EEPROM)

VCC1

1

SCL1

2

SDA1

3

WPB

4

VCC-OUT

5

SDA0

6

SCL0

7

VCC0 VCC3

89

123

HOT-PLUG­DETECT3

HOT-PLUG­DETECT2

47 48

IC3018
TMDS351PAGR
(HDMI SW)

64

63

62

61VCC

60

59

58GND

57

56

55VCC

54

53

52

51

50

49NU

C3206
OPEN

C3207
OPEN

R3992
0

C3202
OPEN

C3204
OPEN

C3203
OPEN

C3205
OPEN

D3003
RB751S-40

R3022
10K

R3024
10K

R3023
22K

R3275
47K

R3214
47K

D3001
RB751S-40

D3002
RB751S-40

R3278
47K

C3023

0.1

R3212
47K

C3005

0.1

R3066

2.7K

R3063
1K

R3019

2.7K

R3018
1K

R3273
47K

R3073
0

R3074
0

R3075
0

R3076
0

R3081
0

R3055
1K

Q3008
2SC4081UBTLQ

(SWITCHING)

R3058
10K

R3010
1K

R3017
10K

R3276
47K

C3018

0.1

R3029
1K

Q3001
2SC4081UBTLQ

(SWITCHING)

R3025

R3040

1K

2.7K

Q3002
2SC4081UBTLQ

(SWITCHING)

R3027
10K

R3078
OPEN

R3080
OPEN

C3208
OPEN

JK3002

JK3003

JK3004

HDMI­CONNECTOR-2

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-)

10 TMDS-CLOCK(+)

11 C-SHIELD0

12 TMDS-CLOCK(-)

13 HDMI-CEC

14 NU

15 HDMI-CLOCK

16 HDMI-DATA

17 GND

18 +5V

19 HOT PLUG DETECT

HDMI­CONNECTOR-3

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-)

10 TMDS-CLOCK(+)

11 C-SHIELD0

12 TMDS-CLOCK(-)

13 HDMI-CEC

14 NU

15 HDMI-CLOCK

16 HDMI-DATA

17 GND

18 +5V

19 HOT PLUG DETECT

HDMI­CONNECTOR-1

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-)

10 TMDS-CLOCK(+)

11 C-SHIELD0

12 TMDS-CLOCK(-)

13 HDMI-CEC

14 NU

15 HDMI-CLOCK

16 HDMI-DATA

17 GND

18 +5V

19 HOT PLUG DETECT

EE FF GG HH II JJ

10-11

FL13.8SACD6

Digital Main 1 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

DIGITAL MAIN CBA UNIT

(NO CONNECTION)

4

3

(NO CONNECTION)

2

(NO CONNECTION)

1

(NO CONNECTION)

CN3013
1LCD+12V

2LCD+12V

3LCD+12V

4LCD+12V

5GND

6GND

7GND

8NU

9SELLVDS

10NU

11GND

12RX0(-)

13RX0(+)

14GND

15RX1(-)

16RX1(+)

17GND

18RX2(-)

19RX2(+)

20GND

21RXCLK(-)

22RXCLK(+)

23GND

24RX3(-)

25RX3(+)

26GND

27BIST

28NU

29NU

30GND

CN3014

30LCD+12V

29LCD+12V

28LCD+12V

27LCD+12V

26GND

25GND

24GND

23NU

22SELLVDS

21NU

20GND

19RX0(-)

18RX0(+)

17GND

16RX1(-)

15RX1(+)

14GND

13RX2(-)

12RX2(+)

11GND

10RXCLK(-)

9RXCLK(+)

8GND

7RX3(-)

6RX3(+)

5GND

4BIST

3NU

2NU

1GND

CN3601
1GND

2NU

3NU

4NU

CN3602
1GND

2NU

3NU

4NU

C3166
OPEN

C3167
OPEN

R3135
OPEN

R3131
OPEN

C3161
OPEN

R3162
OPEN

R3161
OPEN

R3129
OPEN

R3130
OPEN

*1

IC3005(1/6)
R8A05011BG-U0
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

LVDS
TX

TO DIGITAL
MAIN 2
IC3005(2/6)

R16

R15

P14

P13

N16

N15

P16

P15

T16

T15

R14

T14

R13

T13

M16NU

M13NU

N14NU

N13NU

L13TP

M15POL

L16CPV

L15OE

L14OE2

M14STV

K15NU

R3088

4.3K

R3630

7.5

R3632
OPEN

D3624
OPEN

R3622
OPEN

C3628

R3621

OPEN

OPEN

D3623

BST

IN

SW

C3635

OPENC3647

OPEN

8

7

6

100R3644

100R3645

100R3641

100R3642

100R3643

100R3646

C3634
OPEN

IC3621
OPEN

C3627
OPEN

1

SS

2

R3623

C3629

OPEN

OPEN

R3624

R3625

OPEN

OPEN

R3631 C3631

R3629

OPEN

OPENC3641

OPEN 4.7

OPEN

OPENC3642

OPENC3643

EN

3

COMP

45

FB GND

R3626
OPEN

D3621

C3636D3622

OPEN 4.7

OPEN

OPENC3644

OPENC3645

OPENC3646

C3625
OPEN

C3626
OPEN

C3630
OPEN

R3628
OPEN

C3633

C3624
OPEN

R3045
18K

R3044
11K

Q3007
2SC4081UBTLQ

(SWITCHING)

C3623
OPEN

R3627
OPEN

L3621
OPEN

C3632

OPENOPEN

OPEN

OPEN

OPEN

OPEN

OPEN

C3655

C3648

C3650

C3649

C3654

100PC3662

OPENC3663

OPENC3664

OPENC3666

C3622
OPEN

OPEN

C3651

R3047

3.9K

OPEN

C3652

OPENC3665

OPENC3667

C3621
OPEN

OPEN

OPEN

C3656

C3653

R3041 100K

R3046
12K

R3048
1K

C3000
OPEN

OPEN

C3657

100KR3117

100KR3118

C3057
47/25V

R3035
0

R3524 OPEN
10K

OPENC3661

OPEN

OPEN

OPEN

C3658

C3660

C3659

100KR3119

100KR3120

100KR3132

C3058

0.1

R3028
0

R3039
OPEN

C3512

R3037
OPEN

R3038
OPEN

C3514
1000P

R3085
OPEN

D3008
OPEN

CONTINUE
DIGITAL 4

P-ON+5V

P-ON+21V

P-ON+3.3V

PROTECT3

CONTINUE
DIGITAL 3

CELL-PWR-CTRL

VCOM-PWM

TO LCD PANEL

CN3006

ASSEMBLY

30 LCD+21V

29 LCD+21V

28 GND

27 VCOM-PWM

26 PWR-CTRL

25 P-ON+3.3V

24 GND

23 ML0(+)

22 ML0(-)

21 ML1(+)

20 ML1(-)

19 ML2(+)

18 ML2(-)

17 GND

16 MLCLK(+)

15 MLCLK(-)

14 GND

13 ML3(+)

12 ML3(-)

11 ML4(+)

10 ML4(-)

9 ML5(+)

8 ML5(-)

7 GND

6TP

5 POL

4 CPV

3 OE1

2 OE2

1 STV

(NO CONNECTION)

CN3001

31 LCD+21V

30 LCD+21V

29 LCD+21V

28 GND

27 VCOM-PWM

26 PWR-CTRL

25 P-ON+3.3V

24 GND

23 ML0(+)

22 ML0(-)

21 ML1(+)

20 ML1(-)

19 ML2(+)

18 ML2(-)

17 GND

16 MLCLK(+)

15 MLCLK(-)

14 GND

13 ML3(+)

12 ML3(-)

11 ML4(+)

10 ML4(-)

9 ML5(+)

8 ML5(-)

7 GND

6TP

5 POL

4 CPV

3 OE1

2 OE2

1 STV

A

10-12

DCB

E

F

PL13.8BSCD1

Digital Main 2 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

TU3901 (TUNER UNIT)

+3.3V2GND3SDA4SCL5IF-AGC6DIF-OUT17DIF-OUT2

1

A/D
CONVERTER

DIGITAL
SIGNAL
PROCESS

TO DIGITAL
MAIN 1
IC3005(1/6)

D3901
MM5Z5V6B

C3905

C3901

10

220/6.3V

*1

IC3005(2/6)
R8A05011BG-U0

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

TO DIGITAL
MAIN 5
IC3005(5/6)

TO DIGITAL
MAIN 6
IC3005(6/6)

L3913

2.2uH

C3910 D3904
1000P

DEMODULATOR
/MPEG
DECODER

SW

TO DIGITAL
MAIN 3
IC3005(3/6)

TO DIGITAL
MAIN 3
IC3005(3/6)

C3934
OPEN

MM5Z5V6B

SCL R12

SDA T12

B12

A12

A16IF-AGC

A14HSYNC

B14VSYNC

A9

C7

C11

C10

C9

D8

B11

A10NU

C8NU

B9NU

D9NU

B10NU

A11NU

D10NU

C3909
OPEN

D3902
MM5Z5V6B

MM5Z5V6B

R3202

2.7K

C3335

47R3206

47R3207

R3205
18K

0.1C3194

0.1C3195

0.1C3196

0.01C3198

0.1C3199

0.1C3200

0.1C3201

C3175
33P

C3178

0.1

0.1C32852.2

0.1C3286

1C3336

C3176
33P

C3291
33P

C3289
33P

R3194
1K

C3177
1

R3204

2.7K

R3203D3903

2.7K

C3292
33P

C3288
33P

0.1C3903

0.1C3902

C3173
33P

C3172
33P

C3293
33P

C3287
33P

R3251
10

R3250
10

R3285

R3286

R3284

DIGITAL MAIN CBA UNIT

IC3013
74LVC1G126GW
(BUFFER GATE)

1

VCC

5

2

34

GND

IC3014
74LVC1G126GW
(BUFFER GATE)

1

VCC

5

2

34

GND

R3331
10

R3343
OPEN

R3333
10

R3334
10

R3339
OPEN

47

47

47

R3377

R3356
75

10R3327

10R3328

10R3329

R330275R330375R3301
75

R3364

75

75

R3711
10K

C3707
1

R3298
OPEN

R3712
10K

R3332
10

R3296
OPEN

R3710
100

C3214

0.1

C3708

0.1

Q3701
2SC4081UBTLQ

(BUFFER)

R3709
220

R3358
10K

R3347
10K

R3708
110

R3326

4.7K

D3041
OPEN

R3321

4.7K

D3054
OPEN

D3050
OPEN

D3045
OPEN

D3049
OPEN

D3053
OPEN

D3055
OPEN

C3706
1

Q3301
RU1L002SNTL

(BUFFER)

R3701
OPEN

R3702
OPEN

R3703
OPEN

C3709
100P

R3704
100K

R3705
100K

Q3302
RU1L002SNTL

JK3001

PC-RGB-IN

11156

12

7

13

8

14

9

10

JK3702

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

JK3701

DIGITAL
AUDIO-OUT
(COAXIAL)

AUDIO(L)-IN

AUDIO(R)-IN

CONTINUE
DIGITAL 6(BUFFER)

VGA-SDA

VGA-SCL

CONTINUE
DIGITAL 4

P-ON+3.3V

P-ON+5V

1

2

3

4

5

CONTINUE
DIGITAL 3

COMP-DET

CONTINUE
DIGITAL 5

SCL

SDA

AUDIO(L)-IN

AUDIO(R)-IN

CONTINUE
DIGITAL 5

SPDIF

GH K

JI

L

10-13

PL13.8BSCD2

Digital Main 3 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

CN3009(USB JACK)
1BUS-POWER

2USBDN

3USBDP

4GND

0.1C3029

0.1C3030

0.1C3031

0.1C3032

0.1C3033

0.1C3034

0.1C3035

0.1C3037

0.1C3038

0.1C3039

0.1C3040

0.1C3041

0.1C3140

L3025
EXC24CG900U

IC3002
K4T51163QJ-BCE7

(DDR2 SDRAM)

*A VDD

E2 NU

A2 NU

R8 NU

R7 NU

R3 NU

1-O3

2-O3

3-O3

SD-DQ15

SD-DQ12

SD-DQ10

SD-DQ9

SD-DQ14

SD-DQ13

SD-DQ11

SD-DQ8

4-O3

5-O3

6-O3

SD-DQ3

SD-DQ2

SD-DQ7

SD-DQ6

SD-DQ4

SD-DQ1

SD-DQ5

SD-DQ0

IC3006
F25L32QA-1009AG2S
(MEMORY)

1

2

3

45

C3348

C3246

220/6.3V

1

CS

VCC

SO

WP

SCK

GND SI

B7 UDQS

A8 UDQS/NU

B3 UDM

B9 DQ15

B1 DQ12

D9 DQ10

D1 DQ9

D3 DQ14

D7 DQ13

C2 DQ11

C8 DQ8

F7 LDQS

E8 LDQS/NU

F3 LDM

F9 DQ3

F1 DQ2

H9 DQ7

H1 DQ6

H3 DQ4

H7 DQ1

G2 DQ5

G8 DQ0

8

7

NU

6

J2VREF

K2CKE

J8CK

K8CK

L8CS

K7RAS

L7CAS

K3WE

L1BA2/NU

L3BA1

L2BA0

R2A12

P7A11

M2A10/AP

P3A9

P8A8

P2A7

N7A6

N3A5

N8A4

N2A3

M7A2

M3A1

M8A0

K9ODT

*BVSS

*A:A1,A9,C1,C3,C7,C9,E1,E9,
G1,G3,G7,G9,J1,J9,M9,R1

*B:A3,A7,B2,B8,D2,D8,E3,E7,
F2,F8,H2,H8,J3,J7,N1,P9

R3102
10K

R3107

C3073

10K

0.1

R3479
10K

IC3019
AP2151WG-7

(HIGH SIDE SW)

1

2

34

OUT

GND

/FLAG RN

5

IN

C3327
1

R3480
10K

C3009
OPEN

C3010

0.1

R3082
100

R3083
100

R3049
150

SD-DQ15

SD-DQ14

SD-DQ13

SD-DQ12

SD-DQ11

SD-DQ10

SD-DQ9

SD-DQ8

SD-DQ7

SD-DQ6

SD-DQ5

SD-DQ4

SD-DQ3

SD-DQ2

SD-DQ1

SD-DQ0

R3064
100

R3065
100

3-M3

6-M3

2-M3

1-M3

5-M3

4-M3

R3030 33x4

R3031 33x4

R3032 33x4

R3033 33x4

R3034 33x4

5.6KR3099

C3050

0.1

C3051

0.1

33R3016

10R3084

10R3087

150R3070

47R3089

47R3092

47R3093

47R3094

22R3095

*1

IC3005(3/6)
R8A05011BG-U0
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

M5 SD-VREF0

N3 GND

R8 SD-DQ15

N8 SD-DQ14

P7 SD-DQ13

R6 SD-DQ12

P6 SD-DQ11

N7 SD-DQ10

T5 SD-DQ9

P8 SD-DQ8

P4 SD-DQ7

T3 SD-DQ6

R4 SD-DQ5

T2 SD-DQ4

P3 SD-DQ3

T4 SD-DQ2

R3 SD-DQ1

N4 SD-DQ0

T6 SD-UDM

R5 SD-LDM

T7 SD-UDQSN

R7 SD-UDQS

N5 SD-LDQSN

P5 SD-LDQS

H1 SD-A4

H3 SD-CAS

J2 SD-A11

J1 SD-A0

J4 SD-A10

L1 SD-A1

K4 SD-BA1

L2 SD-A9

L4 SD-WE

N2 SD-BA0

P1 SD-BA2

M3 SD-A3

M1 SD-A5

M2 SD-A12

L3 SD-CKE

N1 SD-A7

J3 SD-RAS

K3 SD-A6

K1 SD-A2

K2 SD-ODT

H2 SD-A8

R2 SD-CLK

R1 SD-CLKN

H4 NU

P12 CS

R11 SOUT

P11 SIN

T11 SCK

T9 VBUS-EN

R9 VBUS-ST

R10 USBDP

T10 USBDN

P10 NU

TO DIGITAL
MAIN 2
IC3005(2/6)

TO DIGITAL
MAIN 2
IC3005(2/6)

R3223

H15XIN25

1K

H16XOUT25

F15ASEBRKAK-N

F16ASEMD0

E16TRST-N

E15TCK

D16TDI

D15TDO

E14TMS

R3522
10K

G15TXD0

G16RXD0

F3BACKLIGHT-ADJ

F2VCOM-PWM

J14GND

D1CELL-PWR-CTRL

E13GPY10

B16P-ON-H2

G13HP-MUTE

E2BACKLIGHT-SW

R3503
10K

D14LED1

C14REMOTE

C1AUDIO-MUTE

R3234
OPEN

N12COMP-DET

H14NU

10C3072

DIGITAL MAIN CBA UNIT

C3184
18P

X3001
25MHz

C3183
20P

OPENR3527

OPENR3525

OPENR3526

100R3468

100R3469

C3255

C3254

OPEN

OPEN

100R3516

100R3517

22R3511

100R3211

22R3233

22R3188

22KR3510

4.7KR3515

22R3213

22R3217

22R3215 33K

R3201

R3395

4.7K

R3396

4.7K

C3253
OPEN

CN3012

(NO CONNECTION)

AL+3.3V1

2 GND

3 ASEBRKAK-N

4 ASEMD0

5 TRST-N

6 TCK

7 TDI

8 TDO

9 TMS

10 CPU-RESET-N

CN3010

(NO CONNECTION)

1 P-ON+5V

2 UART0-TX

3 UART0-RX

4 GND

CONTINUE
DIGITAL 2

COMP-DET

CONTINUE
DIGITAL 5

CPU-RESET-N

CONTINUE
DIGITAL 4

GPY10

CPU-RESET-N

P-ON-H2

BACKLIGHT-ADJ

BACKLIGHT-SW

CONTINUE
DIGITAL 1

CELL-PWR-CTRL

VCOM-PWM

CONTINUE
DIGITAL 5

LED1

REMOTE

CONTINUE
DIGITAL 4

P-ON+1.8V

P-ON+3.3V

AL+3.3V

P-ON+5V

CONTINUE
DIGITAL 5

HP-MUTE

AUDIO-MUTE

BACKLIGHT-SW

MP

NO

10-14

QR

PL13.8BSCD3

Digital Main 4 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

*1

4

3

2

1

IC3005(4/6)
R8A05011BG-U0

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

F12

VCC33STB

G12VCC33STB

E12VDD12STB

*CVDD12

M10AVDD12

E8AVDD12

F8AVDD12

F9AVDD12

G11VDDCLK

H5VCCQ18

J5VCCQ18

M4VCCQ18

T1VCCQ18

M6VCCQ18

N6VCCQ18

M7VCCQ18

M8VCCQ18

E10AVDD33

C2AVDD33

C3AVDD33

E11AVDD33

D6AVDD33

L3006
BEAD

E6AVDD33

G4VCCQ33

F5VCCQ33

L12VCCQ33

K13VCCQ33

J12VCCQ33

N11AVDD33

*DVSS

*C:G5,G6,H6,J7,J11,J13,K6,K7,
K11,L8,L9,M9,M11,N9,P9.

*D:D2~D5,D12,E3~E5,E7,E9,F4,F6,
F7,F10,F11,G7~G10,H7~H13,J6,
J8~J10,K5,K8~K10,K12,L5~L7,
L10,L11,P2,T8

C3160

0.1

L3030
0

C3181

0.1

C3124

C3123

1

1

C3127

C3128

1

1

C3135

0.1

C3118

C313610C3114

10

1

C3139

0.1

C3326

C3325

10

OPEN

C3321

C3322

OPEN

10

C3141

C3142

1

1

C3148

C3149

1

10

C3151
1

C31551C3156
1

C3157

C3158

1

1

G

DS

Q3013
SSM3K309T

(SW+12V)

C3125
1

C3129
1

C3324
OPEN

C3320
10

C3143
1

C3150
1

C3152
1

C3159
1

R3221
100

R3222
10K

C3126

C313210C3133

1

10

C31301C3134
1

C3115
10

C3264

C3343

OPEN

10

C3319

C3318

10

10

C3145

C3144

1

1

D3113
MM5Z5V6B

L3026
BEAD

C3154

D3114

1

MM5Z5V6B

R3098
0

C3121
OPEN

L3027
BEAD

L3021
BEAD

C3043
4700P

R3012
33K

R3007
12K

R3006
10K

L3019
OPEN

C3028

0.047

R3005

4.3K

C3022

4.7

C305610C3074
10

R3106
47K

C3237
OPEN

R3605
0

C3611
OPEN

C3103
OPEN

R3105
10K

Q3005
2SC4081UBTLQ

(SWITCHING)

D3101
HSC119

D3102
HSC119

R3227
OPEN

C3609
1

R3609
OPEN

C3007

0.1

C3083

0.015

C3088

R3137

4700P

2.7K

R3149

3.9K
R3145

1.2K

R3143
15K

C3095
OPEN

R3054
OPEN

R3603
OPEN

C3607
OPEN

1 VIN

2 GND

3CE 4NU

330/4V 10

C3042

0.1

L3005
22uH

Q3006
2SA1576UBTLQ

(SWITCHING)

R3228
OPEN

R3608

4.7K

C3080

4.7

R3133
10K

C3090
1

C3099

R3142

OPEN

OPEN

D3006
PTZTE255.1B

C3001

C3105

0.1

OPEN

IC3003
MP1472GJC452Z
(+5V REG.)

1

SS

2

EN

3

COMP

45

FB GND

BST

IN

SW

8

7

6

C3053
OPEN

R3100
22K

Q3011
OPEN

IC3601
AP2121AK-3.3TRE1
(+3.3V REG.)

5VOUT

R3606
OPEN

R3607
OPEN

IC3008
MP1472GJC452Z

SS

BST

1

EN

2

COMP

3

FB GND

45

8

IN

7

SW

6

C3096C3094

C3065

10

R3108
47K

R3112
10K

Q3102
2SC4081UBTLQ

(SWITCHING)

D3007
OPEN

D3106
HSC119

C3091
OPEN

R3141
OPEN

L3009
10uH

C3097
OPEN

Q3103

R3115

2SA1576UBTLQ

OPEN

(SWITCHING)

R3113
10K

R3114
47K

Q3101
2SC4081UBTLQ

(SWITCHING)

C3265
10

R3097

1.5K

D3104
HSC119

C3610
1

C3085

0.1

R3602
OPEN

C3606
OPEN

D3112
MM5Z12B

C3107
1

R3138
OPEN

R3086

4.7K

R3077
10K

R3079
10K

R3101
1K

R3104
1K

D3105
OPEN

R3423
47K

D3103
HSC119

R3424
100

D3115
HSC119

Q3003
2SC4081UBTLQ

(SWITCHING)

Q3004
2SC4081UBTLQ

(SWITCHING)

R3110

R3111

10K

10K

R3109

3.3K

C3079
220/6.3V

C3003

C3102

0.1

4.7

R3091
0

C3119
OPEN

D3005
PTZTE255.1B

D3107
HSC119

R3140
18K

C3238
OPEN

R3051
100

R3061
10K

C3075

0.022

R3103

1.8K

C3087
10

C3002
OPEN

C3017
2200P

R3004
33K

R3003

6.2K

R3002
15K

R3139
1K

C3019

R3060

0.022

2.7K
R3062

R3059

1.8K

2.7K

C3086

R3043

10

180

C3131
1

IC3007
BD00IC0WEFJ
(+1.8V REG.)

VOUT

1

FB

2

GND

3

NU EN

45

IC3001
MP1472GJC452Z
(+3.3V REG.)(+1.2V REG.)

C3013

0.047
SS

1

EN

2

R3001

8.2K
COMP

3

FB GND

45

C3020
330/4V 10

Q3009
2SC4081UBTLQ

(SWITCHING)

IC3004
BD00IA5WEFJ-E2
(+1.2V REG.)

VOUT

1

FB

2

GND

3

NU EN

45

VCC

8

NU

7

NU

6

BST

8

IN

7

SW

6

C302110C3059

R3014
270

C3063
OPEN

C3604
10

DIGITAL MAIN CBA UNIT

VCC

NU

NU

C3069
10

C3092
OPEN

R3057
OPEN

L3002
33uH

8

7

6

C3068
OPEN

C3014

0.1

R3601
OPEN

C3605
OPEN

D3994 OPEN

D3995 OPEN

C3994
OPEN

C3603
1

C3024
10

R3008
1

L3003
OPEN

D3602
MM5Z5V6B

220R3013

OPENC3008

OPENC3062

OPENR3011

100R3009

OPENC3006

OPENC3004

100R3072

100R3068

OPENC3055

OPENC3048

C3995
OPEN

C3996
OPEN

CONTINUE
DIGITAL 3

P-ON+1.8V

P-ON+3.3V

AL+3.3V

P-ON+5V

R3036
100

CONTINUE
DIGITAL 6

P-ON+3.3V

AL+3.3V

P-ON+3.3V(1)

P-ON+5V

CONTINUE
DIGITAL 2

P-ON+3.3V

P-ON+5V

CONTINUE
DIGITAL 1

P-ON+5V

P-ON+21V

P-ON+3.3V

PROTECT3

CONTINUE
DIGITAL 5

RESET

PROTECT1

PROTECT3

CONTINUE
DIGITAL 5

P-ON+3.3V

CHECK+1.8V

AL+3.3V

P-ON+5V

P-ON+3.3V(1)

AMP+13V

CONTINUE
DIGITAL 3

GPY10

CPU-RESET-N

P-ON-H2

BACKLIGHT-ADJ

BACKLIGHT-SW

TO POWER SUPPLY

CN3701

CBA CN501

1 LED-CONT(NU)

2 PROTECT1

3 PROTECT3

4 RESET

5 BACKLIGHT-SW

6 P-ON-H2

7 BACKLIGHT-ADJ

8 AL+3.3V

9GND

10 GND

11 GND

12 GND

13 GND

14 GND

15 AMP+13V

16 AMP+13V

17 AMP+13V

18 AMP+13V

19 GND

20 P-ON+21V

21 P-ON+21V

22 P-ON+21V

23 P-ON+21V

10-15

WSVT

XU

PL13.8BSCD4

Digital Main 5 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

CONTINUE
DIGITAL 4

P-ON+3.3V

CHECK+1.8V

AL+3.3V

P-ON+5V

P-ON+3.3V(1)

AMP+13V

CONTINUE
DIGITAL 3

4

3

2

1

TO FUNCTION CBA
UNIT CN4052

LED1

REMOTE

CONTINUE
DIGITAL 4

RESET

PROTECT1

PROTECT3

CONTINUE
DIGITAL 2

SCL

SDA

AUDIO(L)-IN

AUDIO(R)-IN

CONTINUE
DIGITAL 3

HP-MUTE

AUDIO-MUTE

BACKLIGHT-SW

CN3101
1SDA(NU)

2SCL(NU)

3GND

4KEY-IN1

5REMOTE

6LED1

7LIGHT

8P-ON+5V

9AL+3.3V

R3556
10

C3554
1

R3557
10

C3560
OPEN

33PC3551

33PC3552

R3995
10K

R3818
10K

R3805
10K

R3812

R3561
10

R3814
OPEN

Q3803
2SA1576UBTLQ

(SWITCHING)

R3816

1.8K

R3815
47K

Q380110K
2SC4081UBTLQ

(SWITCHING)

R3552
100

C3553
OPEN

R3862
10K

R3817
10K

Q3802
2SC4081UBTLQ

(SWITCHING)

Q3804
OPEN

C3559
OPEN

C3556
OPEN

R3551
100

R3553
100

18KR3335

18KR3336

R3870
220

C3993

0.1

C3870
2200P

R3823
OPEN

R3555
OPEN

Q3501
2SC4081UBTLQ

(LED DRIVE)

D3501
MM5Z5V6B

R3813
OPEN

C3815
1

R3871
220

R3819
100K

C3871
2200P

R3809
OPEN

R3822
10

1C3808

1C3992

0R3811

0R3806

OPENR3807

1C3816

1C3817

1C3819

1C3809

R3558
OPEN

C3555
OPEN

Q3502
2SA1576UBTLQ

(LED DRIVE)

R3559
10K

R3560
100K

R3183

R3810
OPEN

R3808
10K

C3558
OPEN

OPEN

IC3801
TPA3110D2PWPR
(AUDIO AMP)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

Q3010
OPEN

R3185
OPEN

R3184

R3186

OPEN

OPEN

CONTROL
LOGIC

POWER
LIMIT

GAIN
CONTROL

AVCC

GND

GVDD

POWER
LIMIT

NU

PBTL PVCCR

OPENC3229

OPENR3502

PWM
LOGIC

PWM
LOGIC

22KR3318

10KR3317

OPENC3227

OPENR3501

C3825
1

10KR3319

1000PC3232

1000PC3233

PVCCL

PVCCL

DRIVE

GND

DRIVE

DRIVE

GND

DRIVE

PVCCR

C3824
1000P

28

27

26

25

24

23

22

21

20

19

18

17

16

15

C3328
OPEN

0.01C3329

22R3314

OPENR3315

22R3316

0.22C3231

2.2C3217

2.2C3218

1C3223

1C3224

C3832
10

C3827
1000P

C3831
100/16V

10KR3312

R3320
OPEN

0.22C3801

0.22C3802

0.22C3803

0.22C3804

C3826
100/16V

*1

IC3005(5/6)
R8A05011BG-U0
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

D13 CHECK+1.8V

A15 KEY-IN1

B13 PROTECT3

A13 LIGHT-SENS

C13 PROTECT1

C12 LPF

R3861
10K

C3828
1

C3833
OPEN

A8

B8

B7

A7

C3829
100/16V

TO DIGITAL
MAIN 2
IC3005(2/6)

R3864
1K

Q3861
2SC4081UBTLQ

(SWITCHING)

R3863
OPEN

R3869
OPEN

Q3862
OPEN

R3801
OPEN

C3807
OPEN

R3802
OPEN

C3805
OPEN

R3803
OPEN

C3806
OPEN

R3804
OPEN

C3810
OPEN

TO DIGITAL
MAIN 6
IC3005(6/6)

AUDIO
I/F

L3801
10uH

L3802
10uH

L3803
10uH

L3804
10uH

R3867
0

R3851
15K

R3852
15K

C3811
1000P

C3812
1000P

C3813
1000P

C3814
1000P

R3868
OPEN

C3851
1

R3853
OPEN

C3852
1

R3854
OPEN

G1NU

E1NU

G2NU

K14HPD-SINK

J16PWR

K16HP-DET

J15RESET

D11NU

D7NU

C6NU

C5NU

B6NU

A6NU

N10

C3859

0.1

C3820
1

C3821
1

C3822
1

C3823
1

R3210
100

R3216
100

R3219
22

D3201
MM5Z5V6B

10KR3340

10C3219

10C3220

10C3216

R3865
10K

3

4

2

GND5MUTE

BIAS

6

7

C3857
47/25V

D3801
OPEN

D3802
OPEN

D3803
OPEN

D3804
OPEN

R3402
0

R3401
0

R3220
33K

C3860

R3866

0.1

100K

C3853
220/6.3V

1

IC3851
BH3547F

(HEADPHONE AMP)

VCC

8

C3854
220/6.3V

C3858
100/16V

D3108
OPEN

C3862
OPEN

C3856
1000P

C3855
1000P

D3111
MM5Z5V6B

IC3009
PST8429UR

R3178
220

(RESET)

14

GND OUT

CDVDD

R3209
100

C3861

0.1

CN3801

R3856
10K

R3855
10K

C3106
1

R3191
100

32

1 SP(L)+

2 SP(L)-

3 SP(R)-

4 SP(R)+

C3113

0.033

R3182
56K

C3116
1000P

JK3703
HEADPHONE

JACK

CONTINUE
DIGITAL 6

HPD-SINK

PWR

CONTINUE
DIGITAL 3

CPU-RESET-N

CONTINUE
DIGITAL 2

SPDIF

SP3801
SPEAKER

L-CH

SP3802
SPEAKER

R-CH

DIGITAL MAIN CBA UNIT

YCCBBAAZDD

10-16

PL13.8BSCD5

Digital Main 6 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

CONTINUE
DIGITAL 4

P-ON+3.3V

AL+3.3V

P-ON+3.3V(1)

P-ON+5V

CONTINUE
DIGITAL 5

HPD-SINK

PWR

CONTINUE
DIGITAL 2

VGA-SDA

VGA-SCL

D3993
OPEN

*1

IC3005(6/6)
R8A05011BG-U0
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

VIDEO
DECODER

TO DIGITAL
MAIN 5
IC3005(5/6)

AUDIO
DECODER

HDMI
I/F

HDMI-CEC B15

B1

A1

B2

A2

B3

A3

B4

A4

C16SCL-SINK

C15SDA-SINK

F13HPD-SINK

G3HDMI-SEL0

F1HDMI-SEL1

C4EXT-RES

B5PLL-XFC-A

A5PLL-XFC-P

M12PWR

G14HDMI-SCL

F14HDMI-SDA

R3236
560

TO DIGITAL
MAIN 2
IC3005(2/6)

DIGITAL MAIN CBA UNIT

R3237
27K

R3514
100

R3508
22

R3509
22

C3185

0.01

Q3014
2SK3018

RU1L002SNTL

(BUFFER)

C3989
OPEN

C3987
OPEN

C3985
OPEN

C3990
1P

R3497

4.7K

R3270

2.2K

R3271
3K

R3405
100

R3415
82K

D3057
RB751S-40

C3988
OPEN

C3986
OPEN

C3984
OPEN

C3187

2.2

C3186
4700P

C3188
2200P

R3193

4.7K

R3192

4.7K

R3994
OPEN

R3451
10K

R3452
10K

R3489
10K

R3488

4.7K

C3316
10

R3487

4.7K

R3496

4.7K

R3453

1.5K

Q3451
2SC4081UBTLQ

(SWITCHING)

C3421
1

C3420
OPEN

C34231C3425
1

C3424

C3422

OPEN

OPEN

17

18

19 VCC

20

21

22 GND

23

24

25 VCC

26

27

28 GND

29 SCL-SINK

30 SDA-SINK

HOT-PLUG-

31

DETECT-SINK
HDMI-

32

SEL0

C3426
1

C3427
OPEN

R3486

3.9K

16

NU

HDMI-

SEL134NU35HOT-PLUG-

33

R3990
OPEN

R3991
10K

GND

R3281
100

131415

DETECT1

36 37 38

C3191

0.1

VCC

R3282
100

10

1112

39 40

0.1C3192

789

44 45 46

16

15

14

13

12

11

10

GND

VCC

GND

HDMI SW

VCC

1

2

3

4

5

6

7

89

VCC

GND

41 42 43

IC3011
BU9883FV-WE2
(HDMI SERIAL EEPROM)

VCC2

VCC1

SCL2

SCL1

SDA1

SDA2

WPB

NU

VCC-OUT

GND

SDA0

SDA3

SCL0

SCL3

VCC0 VCC3

4

56

123

HOT-PLUG­DETECT3

HOT-PLUG­DETECT2

47 48

IC3018
TMDS351PAGR

(HDMI SW)

64

63

62

61VCC

60

59

58GND

57

56

55VCC

54

53

52

51

50

49NU

C3206
OPEN

C3207
OPEN

R3992
0

C3202
OPEN

C3204
OPEN

C3203
OPEN

C3205
OPEN

D3003
RB751S-40

R3022
10K

R3024
10K

R3023
22K

R3275
47K

R3214
47K

D3001
RB751S-40

D3002
RB751S-40

R3278
47K

C3023

0.1

R3212
47K

C3005

0.1

R3066

2.7K

R3063
1K

R3019

2.7K

R3018
1K

R3273
47K

R3073
0

R3074
0

R3075
0

R3076
0

R3081
0

R3055
1K

Q3008
2SC4081UBTLQ

(SWITCHING)

R3058
10K

R3010
1K

Q3001
2SC4081UBTLQ

(SWITCHING)

R3017
10K

R3276
47K

C3018

0.1

R3029
1K

R3040

2.7K

Q3002
2SC4081UBTLQ

(SWITCHING)

R3078
OPEN

R3080
OPEN

R3025
1K

R3027
10K

C3208
OPEN

HDMI-

JK3002

CONNECTOR-2

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-)

10 TMDS-CLOCK(+)

11 C-SHIELD0

12 TMDS-CLOCK(-)

13 HDMI-CEC

14 NU

15 HDMI-CLOCK

16 HDMI-DATA

17 GND

18 +5V

19 HOT PLUG DETECT

HDMI-

JK3003

CONNECTOR-3

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-)

10 TMDS-CLOCK(+)

11 C-SHIELD0

12 TMDS-CLOCK(-)

13 HDMI-CEC

14 NU

15 HDMI-CLOCK

16 HDMI-DATA

17 GND

18 +5V

19 HOT PLUG DETECT

HDMI-

JK3004

CONNECTOR-1

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-)

10 TMDS-CLOCK(+)

11 C-SHIELD0

12 TMDS-CLOCK(-)

13 HDMI-CEC

14 NU

15 HDMI-CLOCK

16 HDMI-DATA

17 GND

18 +5V

19 HOT PLUG DETECT

EE FF GG HH II JJ

10-17

PL13.8BSCD6

Power Supply CBA Top View [TYPE A]

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F602) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

J138

LED-CONT

SA602

GT601

J163

GND

GP001

J184

D660

IC601
IC602

FG

J142

FG

J147

GND

J191

J143

P-ON+21V

GND

GND

J195

C602

J146

GND

C656

J145

J144

C603

J151

ALL+3.3V

P-ON-H2

RESET

AMP+13V

D652

D651

J150

C651

T601

C1001

C652

J196

D653

C650

D650

GND

C1002

J188

P-ON+21V

P-ON+21V

P-ON+21V

J135

J139

P-ON+21V

D655

C655

C654

J134

AMP+13V

J181

AMP+13V

COLD

J141

2.5A 250V

C653

J140

J137

GND

CAUTION ! :

For continued protection against risk of fire,
replace only with same type 2.5A, 250V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 2.5A, 250V.

CN1001

R1015

P-ON+21V

PROTECT3

J154

J185

1

C1006

PROTECT1

J186

P-ON+21V

J187

2

L1001

C1018

AMP+13v

Q658

C1007

R676

OVP

J173

J190

D662

OVP

J136

J153

CS

R678

J189

ILED

J175

CS

AMP+13V

J178

GND

R679

D654

J176

J174

GND

Q657

GND

J177

ADIM-P

GND

J152

C662

J179

J170

C663

GND

GP002

J172

P-ON+21V

J180

ALL+3.3V

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

J194

GND

J171

J169

BL-SW

PROTECT3

P-ON+21V

CN501

R611

BC603

C606

SOURCE

GATE

J183

J182

D607

D608

BC602

A B C D E F G H I J

DRAIN

DRAIN

J165

J166

TOOL NO.

DRAIN

DRAIN

J156

BLACK
LIVE

BC601

J164

HOT

BC604

C605

RISK OF FIRE-

JS604

JS603

R602

+B

REPLACE FUSE AS MARKED

T 2.5A L/250V

F602

WHITE
NEUTRAL

CN601

BA3AF0F0102 3

C616

L602

D603

+B

D604

SA601

R601

D602

D601

C604

JS605

C614

JS606

JS602

L601

JS601

10-18

C617

GP003

GND

J162

No.2

BA3AF0F01023

Power Supply CBA Bottom View [TYPE A]

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F602) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CN1001

C1007

C1018

2

C1009

C1010

C1011

D1001

D1002

Q658

R671

L1001

R673

R670

AMP+13v

J194

GND

J171

J169

PROTECT3

BL-SW

GND

J162

GP002

C1015
R1012
R1004

C632

P-ON+21V

J180

C631

CN501

C639

P-ON+21V

J172

R1006

C630

ALL+3.3V

C633

C662

C664

J170

C661

C663

C638

GND

J174

J152

D664

J179

J176ADIM-P

GND

GND

R1027

R1005

R1003

R1013

C635

Q657

GND

J177

R1028

R1014

R689

R683R684

IC651

Q1003

R1029

C1014

R1011

R688

GND

Q657A

R679

D654

C1019

R1007

R685

R687
Q656

R662

IC1001

R1031

D1005

R686

C665
R682
R680
R681

J189

ILED

J175

CS

C1013

C1020

C1017

D1007

D1004

R1001

J178

R1022

J136

AMP+13V

J173

OVP

J153

CS

R1020

R1019

R678

R1026R1025

R1021

C1016

R1030
C1012

J190

D662

R1009
R1010

OVP

R676

R672

BA3AF0F0102 3

L602

C617

C614

JS605

JS606

1

C1006

Q1001

Q658A

R690

J187

P-ON+21V

D1006

D406

J186

D602

R1023
R1024
R1018

J154

R1017

PROTECT1

J185

D405

2.5A 250V

R1015

R1016

CAUTION ! :

For continued protection against risk of fire,
replace only with same type 2.5A, 250V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 2.5A, 250V.

P-ON-H2

AMP+13V

D652

R692

R691

D651

R651

DRAIN

J164

R614

J151

R652

D657

J156DRAIN

J138

J145RESET

D656

C624

C623

J165

J144

R653

D610

D621

R603

Q659

D663

C603

D623

Q601

J166

C653

J140

P-ON+21V

R664

P-ON+21V

J137

R665

R663

AMP+13V

AMP+13V

J134

J181

GND

D603

C1002

J188GND

J141

P-ON+21V

C655

C654

D654A

C616

D604

P-ON+21V

J135

J139

D655

D655A

C652

P-ON+21V

J196

D653A

R602

+B

C1001

D653

JS604+B

JS603

C650

C1005
C1004

C1003

D651A

D650A

C605

LED-CONT

ALL+3.3V

J150

C651

D652A

D650

T601

BC601

BC604

GND

Q653

D658

C656

J146

P-ON+21V

R677

Q650

R607

C608

R621

C606

R604

R668

R669

R693

R606

GATE

J182

D607

J143

R667

R666

R675

GND

R613

D605

GND

J191

J147

GND

D661

R660

J195

C602

C607

R609

D609A

SOURCE

R608

J183

R615

D607A

R654

IC601
IC602

C610

D608A

D608

R659

R622

BC603

GP001

D660

R661

J142FG

Q602

J184FG

R674

R655

R611

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

R658

C666

C660

R657

GT601

J163

GND

SA602

C609

R612

Q621

R623

C622

C621

R616

R617

R618

R619

GP003

JS602

JS601

L601

D601

C604

T 2.5A L/250V

SA601

F602

R601

10-19

CN601

BC602

BA3AF0F01023

Power Supply CBA Top View [TYPE B]

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F602) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

J138

LED-CONT

GT601

SA602

J163

GND

GP001

IC601
IC602

J184 FG

D660

J142 FG

J147

GND

J191

J143

P-ON+21V

GND

GND

J195

C602

J146

GND

C656

ALL+3.3V

J151

P-ON-H2

J145 RESET

AMP+13V

J144

C603

D652

D651

J150

C651

T601

C1001

C652

J196

D653

C650

D650

2.5A 250V

C1002

J188 GND

P-ON+21V

P-ON+21V

P-ON+21V

J135

J139

P-ON+21V

D655

C655

C654

J134

AMP+13V

J181

AMP+13V

COLD

J141

GND

J140

CAUTION ! :

For continued protection against risk of fire,
replace only with same type 2.5A, 250V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 2.5A, 250V.

CN1001

C653

J137

R1015

P-ON+21V

PROTECT3

J154

J185

PROTECT1

J186

1

C1006

J187

AMP+13v

P-ON+21V

2

L1001

C1018

Q658

C1007

OVP

R676

D662

J173

OVP

J190

J153

J136

CS

R678

J189

ILED

J175

CS

AMP+13V

J178

GND

R679

D654

J176 ADIM-P

J174
GND

GND

J152

Q657

C662

C663

GND

J177

GND

J179

GP002

J172

P-ON+21V

J180

ALL+3.3V

J170

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

J194

GND

J171

J169BL-SW

PROTECT3

P-ON+21V

CN501

R611

BC603

D608

SOURCE

GATE

J183

J182

D607

C606

J166

BC602

DRAIN

J165

DRAIN

DRAIN

J156 DRAIN

BLACK
LIVE

BC601

J164

HOT

BC604

C605

RISK OF FIRE-

R602

JS604 +B

+B

JS603

REPLACE FUSE AS MARKED

T 2.5A L/250V

F602

WHITE
NEUTRAL

CN601

C616

D604

D603

SA601

R601

D602

C604

BA3AFCF0102 3

L602

JS605

C614

JS606

D601

JS602

L601

JS601

10-20

GND

J162

C617

No.1

GP003

BA3AFCF01023

Power Supply CBA Bottom View [TYPE B]

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F602) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CN1001

C1007

C1018

2

C1009

C1010

C1011

D1001

D1002

Q658

R671

L1001

R673

R670

AMP+13v

J194

GND

J171 PROTECT3

J169 BL-SW

CN501

GND

J162

GP002

C1015
R1012
R1004

P-ON+21V

J172

C632

C630

P-ON+21V

J180

ALL+3.3V

C662

C631

C663

C638

C639

C633

C664

J170

C661

J174

GND

J152

R1006

D664

J179

GND

J176ADIM-P

GND

R1027

R1005

R1003

R1013

C635

Q657

GND

J177

R1028

R1014

R689

R1029

R688

R683R684

IC651

Q1003

C1014

R1011

GND

Q657A

R679

D654

C1019

R1007

R685

R687
Q656

R662

IC1001

R1031

D1005

R686

C665
R682
R680
R681

J189

ILED

J175

CS

C1013

C1020

C1017

D1007

D1004

R1001

J178

R1022

J136

AMP+13V

J173

OVP

J153

CS

R1020

R1019

R678

R1009
R1010

R1026R1025

R1021

C1016

R1030
C1012

J190

D662

OVP

R676

R672

BA3AFCF0102 3

L602

C617

C614

JS605

JS606

1

D1006

C1006

Q1001

Q658A

R690

J187

P-ON+21V

PROTECT1

D405

D406

J186

D602

J154

J185

R1023
R1024
R1018

R1017

R1016

2.5A 250V

R1015

C653

P-ON+21V

CAUTION ! :

For continued protection against risk of fire,
replace only with same type 2.5A, 250V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 2.5A, 250V.

P-ON-H2

AMP+13V

D652

R692

R691

D651

R651

BC601

DRAIN

J164

R614

J138

J151

R652

D657

C624

C623

J156DRAIN

J145RESET

J144

D656

J165

Q659

D663

R653

C603

D610

D621

D623

J166

R603

GND

Q653

D658

C656

Q601

J146

Q650

R607

C608

R621

C606

R604

J140

P-ON+21V

R664

R665

J137

R663

J134

AMP+13V

J181

AMP+13V

D603

GND

C1002

J188GND

C655

C654

J141

D604

P-ON+21V

P-ON+21V

J139

D655

D654A

C616

P-ON+21V

J135

D655A

C652

J196

D653A

R602

+B

C1001

D653

C650

JS604+B

JS603

C1005
C1004

C1003

D651A

D650A

C605

LED-CONT

ALL+3.3V

J150

C651

D652A

D650

T601

BC604

J143

P-ON+21V

R668

GND

R669

R677

R667

R666

R675

R693

GND

C602

R613

R606

D605

SOURCE

GATE

J183

J182

D607

GND

J191

J147

D661

R660

J195

R654

C607

R609

D609A

R608

R615

D607A

R659

IC601
IC602

C610

D608A

D608

BC603

GP001

D660

R661

J142FG

Q602

R622

R655

J184FG

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

R674

R658

C666

C660

R657

GT601

J163

GND

SA602

C609

R612

Q621

R623

C622

C621

R616

R617

R618

R619

R611

GP003

JS602

JS601

L601

D601

C604

T 2.5A L/250V

SA601

F602

R601

10-21

CN601

BC602

BA3AFCF01023

WIRING DIAGRAM

9

CN4052

1

CN3101

FUNCTION CBA UNIT

CL3101

1

9

AC CORD

CN601

BW

CN501

CN3701

1

1

POWER SUPPLY CBA

CL3701

CN1001

12

LCD PANEL ASSEMBLY

23

CL3006

CN3013

CN3006

1

30

23

SP3802

SPEAKER

SP3801

SPEAKER

R-CH

L-CH

CL3801

CN3801

14

TUNER UNIT

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

AUDIO(L)-IN

AUDIO(R)-IN

DIGITAL

DIGITAL MAIN CBA UNIT

AUDIO-OUT

(COAXIAL)

HDMI-

CONNECTOR-1

HDMI-

CONNECTOR-2

HDMI-

CONNECTOR-3

[TYPE A]

[TYPE B]

PC-RGB-IN

USB JACK

HEADPHONE

JACK

REAR

SIDE

PL13.8WI11-1

A1

A16

A6

B12

A9

Function CBA Unit

A13

B23

S7

L4

L4

L4

L23

L23

L23

A4

L4

L4

L4

SP3801

SP3802

A3

L24

L4

L24

L4

L4

B18

B17

B18

B17

L24

L24

A15

S7

X6

SSK1

SA1

Digital Main CBA Unit

Power Supply CBA

W01

See Electrical Parts List
for parts with this mark.

CL3101

CL3801

CL3701

AC601

CL3006

LCD1

GP001

GP002

GP003

L23

A5

CL3006

W02

L23

[32PFL3508/F8(Serial No.:XA2),
32PFL1508/F8(Serial No.:XA1)]

[All 32PFL3508 models]

B23

B23

[32PFL1508/F8(Serial No.:DS1)]

A17

[32PFL3508/F7(Serial No.:ME1)]

EXPLODED VIEWS

12-1 PL13.8_A CEX

Packing

S6

S3

SA1

Tape

[32PFL3508/F7
(Serial No.:ME1)]

X7

S7

S3

X2

X3

SSK1

X4

Tape

Tape

X1

S4

FRONT

Some Ref. Numbers are
not in sequence.

S4

[All models except for
32PFL3508/F7
(Serial No.:ME1)]

S12

S7

S1

Packing Tape

Packing Tape

FRONT

12-2 PL13.8PEX

TYPE A

PARTS LIST [32PFL3508/F8 (Serial No.: XA1)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Ref. No. Description Part No.

A3 REAR COVER A3AF0UT 1EM030166
A4 BOTTOM COVER A3AF0UT 1EM030167A
A13 JACK HOLDER A31M0UT 1EM334000
A15# RATING LABEL A3AFEMA ---------­A16 LOGO LABEL A3AFEMA ---------­AC601# AC CORD UL/CSA/1680/NO/BLACK WAC162LTE002
B17 WALL MOUNT BRACKET A11N0UH 1EM434637
B18 WALL MOUNT COVER A2170UT 1EM332137
B23 WIRE LABEL A3AF0UT ---------­CL3101 FFC WIRE ASSEMBLY 9PIN 9PIN/WHITE/

CL3701 FFC WIRE ASSEMBLY 23PIN 23PIN/WHITE/

CL3801 WIRE ASSEMBLY 4PIN 4PIN/320MM&30MM WX1A3AF0C311
L4 SCREW P-TIGHT M3X8 BIND HEAD+ BLK GBHP3080
L23 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060
L24 S-TIGHT SCREW M3X6 BIND HEAD+BLACK GBHS3060
SA1 STAND ASSEMBLY A20F0PT 1ESA32345
SP3801 SPEAKER MAGNETIC 8Ω/8W S0310F14 DS08110XQ002
SP3802 SPEAKER MAGNETIC 8Ω/8W S0310F14 DS08110XQ002
SSK1 STAND SCREW KIT A31M0UT(SCREW P-

S1 CARTON A3AFEMA 2EMC00096
S3 STYROFOAM TOP A3AF0UT 1EM030285
S4 STYROFOAM BOTTOM A3AF0UT 1EM030286
S6 SET BAG A31F0UT 2EMC00088
S7 SERIAL NO. LABEL A01PBUH ---------­S12 CARTON LABEL A3AFEMA ----------

X1 POLYETHYLENE BAG HDPE 180X340XT0.03 1EM435579
X2# OWNERS MANUAL A3AFEMA 2EMN00031A
X3 REMOTE CONTROL UNIT YKF335-001 URMT39JHG001
X4 BATTERY R03-B500/01S XB0M451CZB01
X6 QUICK START GUIDE A3AFEMA 2EMN00032A

184MM

130MM

TIGHT M4X14 BIND HEAD+BLK)

PAC K IN G

ACCESSORIES

WX1A3AF0S102

WX1A3AF0S121

1ESA34004

LCD PANEL ASSEMBLY

Ref. No. Description Part No.

LCD1# LCD PANEL ASSEMBLY U3FF2PA

Consists of the following
A1 FRONT CABINET A3AFEMA 2EMM00125
A5 DECORATION PLATE A3UFZZT 2EMH00095
A6 CONTROL PLATE A3UFZZT 2EMH00096
A9 SENSOR LENS A3UFZZT 2EMM00095
B12 SHIELD PLATE A3UFZZT 2EMS00072
CL3006 FFC WIRE ASSEMBLY 30PIN(W/SHIELD) 30P/

L4 SCREW P-TIGHT M3X8 BIND HEAD+ BLK GBHP3080

W01 WIRE ASSEMBLY 2PIN 2PIN/70MM/1PIN-RED WX1U3FF2-W01

FFC/SHIELD/500MM

LCD MODULE ----------

WX1A3AF0P401

2013/06/12 13-1 A3AFECA.fm

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A3AFEMMA-001
IC3001 IC DC-DC CONVERTER MP1472GJC452Z NSCA0T09M021
IC3002 IC 512MB DDR2 SDRAM K4T51163QJ-BCE7 NSCA0R0SM048
IC3003 IC DC-DC CONVERTER MP1472GJC452Z NSCA0T09M021
IC3004 IC REGULATOR BD00IA5WEFJ-E2 QSCA0T0RM233
IC3005 IC DTV-C7V R8A05011BG-U0/256FHP QSAA0R0HT057
IC3006 IC 32M-BIT SERIAL FLASH MEMORY

IC3007 IC LDO REGULATOR BD00IC0WEFJ/HTSOP-J8 QSCA0T0RM397
IC3008 IC DC-DC CONVERTER MP1472GJC452Z NSCA0T09M021
IC3009 IC RESET IC-PST8429UR QSCA0T0MM075
IC3011 IC EEPROM BU9883FV-WE2 QSCA0T0RM105
IC3013 IC SINGLE BUS BUFFER 74LVC1G126GW NSCA0TNXP004
IC3014 IC SINGLE BUS BUFFER 74LVC1G126GW NSCA0TNXP004
IC3018 IC HDMI SW TMDS351PAGR /PAG-64 NSCA0T0TY068
IC3019 IC USB HIGH-SIDE SW AP2151WG-7/SOT25/

IC3601 IC REGULATOR AP2121AK-3.3TRE1 NSCA0TBCD026
IC3621 IC DC-DC CONVERTER MP1472GJC452Z NSCA0T09M021
IC3801 IC D-CLASS AUDIO POWER AMPLIFI

IC3851 IC HEADPHONE AMP BH3547F SOP 8PIN QSZBA0TRM119
TU3901 TUNER UNIT U9001UT U9001UT

W25Q32FVSSIG

5PI

TPA3110D2PWPR

NSCA0R0ZM018

NSCA0TDES015

NSCA0T0TY073

FUNCTION CBA UNIT

Ref. No. Description Part No.

FUNCTION CBA UNIT A3AFEMSW-001

POWER SUPPLY CBA

Ref. No. Description Part No.

POWER SUPPLY CBA

Consists fo the following

CAPACITORS

C602# SAFTY CAP. 1000pF/250V KX CA2E102MR101
C603# SAFTY CAP. 1000pF/250V KX CA2E102MR101
C604# CAP METALLIZED FILM 0.22µF/275V/K CTA224PKR001

A3AF0MPW-001

Ref. No. Description Part No.

C605 CAP ELE 330µF/200V/M/87 CEB3310S6016
C606 CERAMIC CAP. 820pF/2kV CA3D821PAN04
C607 CHIP CERAMIC CAP. B K 1800pF/50V CHD1JK30B182
C608 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223
C609 CHIP CERAMIC CAP. B K 0.068µF/50V CHD1JK30B683
C610 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C614# CAP METALLIZED FILM 0.22µF/275V/K CTA224PKR001
C616# SAFTY CAP. 1000pF/250V KX CA2E102MR101
C617# CAP CERAMIC 100pF/250V KX CA2E101MR100
C622 CHIP CERAMIC CAP.(2125) B K 10µF/6.3V CHE0KK30B106
C623 CHIP CERAMIC CAP.(1608) B K 4.7µF/6.3V CHD0KK30B475
C651 CAP ELE 470µF/25V/M/85 CED4710V8006
C652 CAP ELE 470µF/25V/M/85 CED4710V8006
C653 CAP ELE 470µF/25V/M/85 CED4710V8006
C654 CAP ELE 470µF/16V/M/85 CEC4710V8006
C655 CAP ELE 470µF/16V/M/85 CEC4710V8006
C656 CAP ELE 1µF/50V/M/85 CEF1R00V8006
C660 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224
C663 CAP ELE 100µF/10V/M/85 CEB1010V8006
C665 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C666 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224
C1001 CAP ELE 470µF/25V/M/85 CED4710V8006
C1002 CAP ELE 470µF/25V/M/85 CED4710V8006
C1003 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C1004 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C1006 CAP ELE 47µF/100V/M/85 CEH4700V8006
C1007 CAP ELE 47µF/100V/M/85 CEH4700V8006
C1009 CHIP CERAMIC CAP.(3216) X7R K 1.0µF/100V CA2A105MR080
C1010 CHIP CERAMIC CAP.(3216) X7R K 1.0µF/100V CA2A105MR080
C1011 CHIP CERAMIC CAP.(3216) X7R K 1.0µF/100V CA2A105MR080
C1012 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C1013 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1015 CHIP CERAMIC CAP.(1608) B K 0.047µF/25V CHD1EK30B473
C1016 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C1017 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223
C1018 CERAMIC CAP. B K 100pF/1kV CCD3AKN0B101
C1019 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C1020 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222

CONNECTORS

CN501 FFC CONNECTOR IMSA-9615S-23A-PP-A JC96J23ER007
CN601# CONNECTOR S2P3-VH (LF)(SN) JCVHC02JG002
CN1001 PH CONNECTOR TOP 2P B2B-PH-K-S

(LF)(SN)

J3PHC02JG029

DIODES

D601 DIODE 1N5406BH NDL1001N5406
D602 DIODE 1N5406BH NDL1001N5406
D603 DIODE 1N5406BH NDL1001N5406
D604 DIODE 1N5406BH NDL1001N5406
D605 ZENER DIODE MM5Z4V3B ND1BMM5Z4V3B
D607A# ZENER DIODE SMD TFZVTR27B QD1B00TFZV27
D608# DIODE ZENER 1ZB36BB NDWZ0001ZB36
D609A# DIODE SCHOTTKY SMD RB520SM-30 T2R QD1ZRB520SM3
D610 DIODE SWITCHING HSC119 TRF -E QD1Z00HSC119
D621 DIODE SWITCHING HSC119 TRF -E QD1Z00HSC119
D623 ZENER DIODE MM5Z30B ND1B0MM5Z30B
D650 DIODE SCHOTTKY SB3150BH NDWZ00SB3150
D651 DIODE SCHOTTKY SB3150BH NDWZ00SB3150
D653 DIODE SCHOTTKY SB3A0BH NDWZ000SB3A0
D654# DIODE ZENER 1ZB20BB NDWZ0001ZB20
D655 DIODE SCHOTTKY SB3A0BH NDWZ000SB3A0

2013/06/12 13-2 A3AFEEL.fm

Ref. No. Description Part No.

D656 DIODE FAST RECOVERY RS1BJTD ND1Z0RS1BJTD
D657 ZENER DIODE MM5Z11B ND1B0MM5Z11B
D660 IC SHUNT REGULATOR SL431A-AT NSZBA0TAUK01
D661 DIODE SWITCHING HSC119 TRF -E QD1Z00HSC119
D662 IC SHUNT REGULATOR SL431A-AT NSZBA0TAUK01
D664 ZENER DIODE SMD TFZVTR4.7B QD1B0TFZV4R7
D1001 DIODE SCHOTTKY SMD SK210TD ND1Z0SK210TD
D1004 DIODE SWITCHING HSC119 TRF -E QD1Z00HSC119
D1005 DIODE SWITCHING HSC119 TRF -E QD1Z00HSC119
D1006 ZENER DIODE SMD TFZVTR30B QD1B00TFZV30
D1007 ZENER DIODE MM5Z11B ND1B0MM5Z11B

ICS

IC602# IC PHOTOCOUPLER TLP781F(D4-FUNBLL F) QPEL781FBLLF
IC1001 IC LED BACKLIGHT CONTROLLER BD9488F-

GE2/SOP/18P

QSCA0T0RM418

COILS

L601# COIL LINE FILTER JLB20154/18MH LLEG0Z0XB022
L602# COIL LINE FILTER JLB20154/18MH LLEG0Z0XB022
L1001 COIL POWER INDUCTORS DIP RP1315BNP-

101M/100µH

LLF1010SF013

TRANSISTORS

Q601# FET MOS TK7P60W.RVQ(S QF2Z0TK7P60W
Q602# NPN TRANSISTOR SMD 2SC5344SY NQZY2SC5344S
Q621 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q650 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q653 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q656 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q658 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F
Q1001 FET MOS SMD AP18T10AGH-HF NF2Z18T10AGH
Q1003 FET MOS SMD AP18T10AGH-HF NF2Z18T10AGH

RESISTORS

R601# RES. CARBON FILM J 1/2W J 1.2M Ω RCX2125T1003
R603 RES CHIP 3216 1/4W J 470k Ω RRX4474HH034
R604 RES CHIP 3216 1/4W J 470k Ω RRX4474HH034
R606 RES CHIP 3216 1/4W J 330 Ω RRX4331HH034
R607 RES CHIP 3216 1/4W J 330 Ω RRX4331HH034
R608 RES CHIP 3216 1/4W J 1.5k Ω RRX4152HH034
R609 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013
R611# METAL OXIDE RES. 2W J 0.36 Ω RN02R36ZU001
R612 RES CHIP 3216 1/4W J 5.6k Ω RRX4562HH034
R613 RES CHIP 3216 1/4W J 180 Ω RRX4181HH034
R614 RES CHIP 3216 1/4W J 470k Ω RRX4474HH034
R621 RES CHIP 1608 1/10W J 560 Ω RRXA561HH013
R622 RES CHIP 1608 1/10W 0 Ω RRXA000HH014
R623 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R651# RES CHIP 1608 1/10W J 1.0 Ω RRXA1R0HH013
R652 RES CHIP 1608 1/10W F 56.0k Ω RTW5602HH008
R653 RES CHIP 1608 1/10W F 33.0k Ω RTW3302HH008
R654 RES CHIP 3216 1/4W J 180 Ω RRX4181HH034
R655 RES CHIP 3216 1/4W J 180 Ω RRX4181HH034
R657 RES CHIP 3216 1/4W J 3.9k Ω RRX4392HH034
R658 RES CHIP 1608 1/10W J 2.7k Ω RRXA272HH013
R659 RES CHIP 1608 1/10W F 27.0k Ω RTW2702HH008
R660 RES CHIP 1608 1/10W F 3.90k Ω RTW3901HH008
R661 RES CHIP 1608 1/10W F 3.30k Ω RTW3301HH008
R662 RES CHIP 1608 1/10W F 3.30k Ω RTW3301HH008
R666 RES CHIP 1608 1/10W 0 Ω RRXA000HH014
R667 RES CHIP 1608 1/10W J 8.2k Ω RRXA822HH013
R668 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R669 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R670 RES CHIP 1608 1/10W J 270 Ω RRXA271HH013
R671 RES CHIP 1608 1/10W J 270 Ω RRXA271HH013
R672 RES CHIP 1608 1/10W J 270 Ω

RRXA271HH013

Ref. No. Description Part No.

R674 RES CHIP 1608 1/10W 0 Ω RRXA000HH014
R675 RES CHIP 1608 1/10W F 68.0k Ω RTW6802HH008
R677 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R680 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013
R681 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008
R682 RES CHIP 1608 1/10W 0 Ω RRXA000HH014
R690# RES CHIP 1608 1/10W J 1.5 Ω RRXA1R5HH013
R1001 RES CHIP 1608 1/10W J 470 Ω RRXA471HH013
R1003 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013
R1004 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1005 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013
R1006 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1007 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013
R1009 RES CHIP 3216 1/4W F 1.00 Ω RT1R00RYL007
R1010 RES CHIP 3216 1/4W F 1.00 Ω RT1R00RYL007
R1011 RES CHIP 1608 1/10W F 33.0k Ω RTW3302HH008
R1012 RES CHIP 1608 1/10W F 56.0k Ω RTW5602HH008
R1013 RES CHIP 1608 1/10W F 240k Ω RTW2403HH008
R1014 RES CHIP 1608 1/10W F 3.00k Ω RTW3001HH008
R1015 METAL OXIDE RES. 1W J 0.18 Ω RN01R18ZU001
R1019 RES CHIP 1608 1/10W J 200 Ω RRXA201HH013
R1020 RES CHIP 1608 1/10W F 240k Ω RTW2403HH008
R1021 RES CHIP 1608 1/10W 0 Ω RRXA000HH014
R1022 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008
R1023 RES CHIP 3216 1/4W J 3.9k Ω RRX4392HH034
R1024 RES CHIP 3216 1/4W J 1.5k Ω RRX4152HH034
R1025 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013
R1026 RES CHIP 1608 1/10W J 51 Ω RRXA510HH013
R1027 RES CHIP 1608 1/10W F 22.0k Ω RTW2202HH008
R1028 RES CHIP 1608 1/10W F 9.10k Ω RTW9101HH008
R1029 RES CHIP 1608 1/10W F 9.10k Ω RTW9101HH008
R1030 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013
R1031 RES CHIP 1608 1/10W J 10 Ω RRXA100HH013

MISCELLANEOUS

BC601 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC602 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC603 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC604 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
F602# FUSE TIME RAG SLT250V2.5A PDGSLB0NG252
GP001 EARTH PLATE A31FBUT 1EM440258
GP002 EARTH PLATE A31FBUT 1EM440258
GP003 EARTH PLATE A31FBUT 1EM440258
JS603 WIRE CP STP-S-0.50 XZ40F0REN001
JS604 WIRE CP STP-S-0.50 XZ40F0REN001
SA601# VARISTOR 10D 471K SVR NVQZVR10D471
T601# TRANS POWER SRW26LEC-T11H016 LTT2PC0TE005

2013/06/12 13-3 A3AFEEL.fm

TYPE A

PARTS LIST [32PFL3508/F8 (Serial No.: XA2)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Different parts from the original model
32PFL3508/F8 (Serial No. : XA1)

Ref. No. Description Part No.

LCD1# LCD PANEL ASSEMBLY U3DF0PA
CL3006 FFC WIRE ASSEMBLY 30PIN(W/SHIELD) 30P/

L23 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060
W02 WIRE ASSEMBLY 50PIN FFC SF250-

FFC/SHIELD/415MM

0080XWY00

WX1A3AFBP401

WX1U3DF0-F01

2013/06/28 13-4 A3AFLCA.fm

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model
32PFL3508/F8 (Serial No. : XA1)

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A3AFLMMA-001

POWER SUPPLY CBA A3AFBMPW-001

R1015 METALOXIDE RES 2W J 0.12Ω RNJR12PAK002

2013/06/28 13-5 A3AFLEL.fm

TYPE A

PARTS LIST [32PFL3508/F7 (Serial No.: ME1)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Different parts from the original model
32PFL3508/F8 (Serial No. : XA1)

Ref. No. Description Part No.

A15# RATING LABEL A3AF2UT ---------­A16 LOGO LABEL A3AF2UT ---------­A17 ENERGY GUIDE LABEL A3AF2UT ---------­S1 CARTON A3AF2UT 2EMC00230
S12 Not used
X2# OWNERS MANUAL A31M2UT 2EMN00083A
X6 QUICK START GUIDE A3AF2UT 2EMN00111
X7 REGISTRATION CARD (PHILIPS) A2176UT 1EMN29339

2013/09/12 13-6 A3AF2CA.fm

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model
32PFL3508/F8 (Serial No. : XA1)

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A3AF2MMA-002

2013/09/12 13-7 A3AF2EL.fm

TYPE A

PARTS LIST [32PFL1508/F8 (Serial No.: XA1)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Different parts from the original model
32PFL3508/F8 (Serial No. : XA1)

Ref. No. Description Part No.

A15# RATING LABEL A3AFRMA ---------­A16 LOGO LABEL A3AQZUH ---------­S1 CARTON A3AFRMA 2EMC00204
S12 CARTON LABEL A3AFRMA ---------­LCD1# LCD PANEL ASSEMBLY U3DF0PB
A1 FRONT CABINET A3AFRMA 2EMM00211
A5 Not used
A6 CONTROL PLATE A31F0UT 1EM334317
A9 SENSOR LENS A3AF0UT 1EM334258
B12 SHIELD PLATE A3AF0UT 1EM334260
CL3006 FFC WIRE ASSEMBLY 30PIN(W/SHIELD) 30P/

L23 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060
W02 WIRE ASSEMBLY 50PIN FFC SF250-

FFC/SHIELD/415MM

0080XWY00

WX1A3AFBP401

WX1U3DF0-F01

2013/08/19 13-8 A3AFRCA.fm

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model
32PFL3508/F8 (Serial No. : XA1)

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A3AFRMMA-001

POWER SUPPLY CBA A3AFBMPW-001

R1015 METALOXIDE RES 2W J 0.12Ω RNJR12PAK002

2013/08/19 13-9 A3AFREL.fm

TYPE B

PARTS LIST [32PFL1508/F8 (Serial No.: DS1)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Different parts from the original model
32PFL3508/F8 (Serial No. : XA1)

Ref. No. Description Part No.

A4 BOTTOM COVER A3AFCUH 1EM031005
A15# RATING LABEL A3AFVMH ---------­A16 LOGO LABEL A3AQZUH ---------­SA1 STAND ASSEMBLY A21F0UH 1EM029048A
SSK1 STAND SCREW KIT A3AFCUH(SCREW P-

S1 CARTON A3AFVMH 2EMC00248
S6 SET BAG A21F0UH 1EM335137
S12 CARTON LABEL A3AFVMH ---------­X2# OWNERS MANUAL A3ATAMA 2EMN00033A
X6 QUICK START GUIDE A3ATAMA 2EMN00034A
LCD1# LCD PANEL ASSEMBLY U34F7P0
A1 FRONT CABINET A3AFVMH 2EMM00224
A5 Not used
A6 CONTROL PLATE A31F0UT 1EM334317
A9 SENSOR LENS A3AF0UT 1EM334258
B12 SHIELD PLATE A3AF0UT 1EM334260
CL3006 FFC WIRE ASSEMBLY 30PIN(W/SHIELD) 30P/

TIGHT M4X14 BIND HEAD+BLK)

FFC/SHIELD/600MM

1ESA35205

WX1A3AFCP411

2013/08/19 13-10 A3AFVCA.fm

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model
32PFL3508/F8 (Serial No. : XA1)

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A3AFVMMA-001

IC3006 32MBIT C-MOS SERIAL FLASH F25L32QA-

IC3621 Not used
TU3901 TUNER UNIT U9001UH U9001UH

100PAG2S

NSCA0R0E1019

FUNCTION CBA UNIT A3AFVMSW-001

POWER SUPPLY CBA A3AFNMPW-001
R1014 RES CHIP 1608 1/10W F 5.60k Ω RTW5601HH008
R1015 RES METAL OXIDE 1W J 0.12 Ω RNJR120HH013

2013/08/19 13-11 A3AFVEL.fm

REVISION HISTORY

Chassis PL13.8

• 2013/6/18 32PFL3508/F8 (Serial No.: XA1) Added

• 2013/7/9 32PFL3508/F8 (Serial No.: XA2) Added

• 2013/8/22 32PFL1508/F8 (Serial No.: XA1) Added

• 2013/8/22 32PFL1508/F8 (Serial No.: DS1) Added

• 2013/9/26 32PFL3508/F7 (Serial No.: ME1) 1st draft added

14-1 PL13.8REV

COMPARISON LIST OF MODEL NAMES

Chassis PL13.8

32PFL3508/F7 (ME1) A3AF2UT TYPE A

32PFL3508/F8 (XA1) A3AFEMA TYPE A

(XA2) A3AFLMA TYPE A

32PFL1508/F8 (XA1) A3AFRMA TYPE A

(DS1) A3AFVMH TYPE B

PL13.8COM
