Contents
1 Notice 2
2 Important
3
8 Product information 22
9 Troubleshooting 24
10 Index 26
3 Your TV
TV overview 5
5
4 Use your TV 7
Switch your TV on/off or to standby 7
Switch channels 7
Watch connected devices 8
Adjust TV volume 8
5 Use more of your TV 9
Access TV menus 9
Change picture and sound settings 9
Create and use lists of favorite channels 11
Use timers 12
Use child control and rating locks 13
Use the TV clock 14
Update the TV software 14
Change TV preferences 15
Start a TV demo 15
Reset the TV to factory settings 15
6 Install channels 16
Automatically install channels 16
Manually install channels 16
Rename channels 17
Rearrange channels 17
English
7 Connect devices 18
Back connectors 18
Side connectors 18
Connect a computer 19
Use dual view 19
Assign devices 20
Use Philips EasyLink 20
Use a Kensington lock 21
EN
1
Page 4
1 Notice
2009 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifi cations are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
The material in this manual is believed
adequate for the intended use of the system.
If the product, or its individual modules or
procedures, are used for purposes other than
those specifi ed herein, confi rmation of their
validity and suitability must be obtained. Philips
warrants that the material itself does not
infringe any United States patents. No further
warranty is expressed or implied.
Philips cannot be held responsible either for any
errors in the content of this document or for
any problems as a result of the content in this
document. Errors reported to Philips will be
corrected and published on the Philips support
website as soon as possible.
Pixel characteristics
This LCD product has a high number of
color pixels. Although it has effective pixels of
99.999% or more, black dots or bright points of
light (red, green or blue) may appear constantly
on the screen. This is a structural property of
the display (within common industry standards)
and is not a malfunction.
Warranty
No components are user serviceable. Do not
open or remove covers to the inside of the
product. Repairs may only be done by Philips
Service Centres and offi cial repair shops. Failure
to do so shall void any warranty, stated or
implied.
Any operation expressly prohibited in
this manual, any adjustments, or assembly
procedures not recommended or authorised in
this manual, shall void the warranty.
Compliance with EMF
Koninklijke Philips Electronics N.V. manufactures
and sells many products targeted at consumers,
which, like any electronic apparatus, in
general have the ability to emit and receive
electromagnetic signals.
One of Philips’ leading Business Principles is to
take all necessary health and safety measures
for our products, to comply with all applicable
legal requirements and to stay well within
the EMF standards applicable at the time of
producing the products.
Philips is committed to develop, produce and
market products that cause no adverse health
effects. Philips confi rms that if its products are
handled properly for their intended use, they
are safe to use according to scientifi c evidence
available today.
Philips plays an active role in the development
of international EMF and safety standards,
enabling Philips to anticipate further
developments in standardisation for early
integration in its products.
Copyright
All other registered and unregistered
trademarks are the proper ty of their respective
owners.
® Kensington and Micro Saver are registered
US trademarks of ACCO World corporation
with issued registrations and pending
applications in other countries throughout the
world.
VESA, FDMI and the VESA Mounting Compliant
logo are trademarks of the Video Electronics
Standards Association.
Portions of this software are copyright © The
FreeType Project (www.freetype.org).
2
EN
Page 5
2 Important
Read and understand all instructions before you
use your TV. If damage is caused by failure to
follow instructions, the warranty does not apply.
Safety
•
Risk of electric shock or fi re!
•
Never expose the TV to rain or
water. Never place liquid containers,
such as vases, near the TV. If
liquids are spilt on or into the TV,
disconnect the T V from the power
outlet immediately. Contact Philips
Consumer Care to have the TV
checked before use.
•
Never place the TV, remote control
or batteries near naked fl ames or
other heat sources, including direct
sunlight.
To prevent the spread of fi re, keep
candles or other fl ames away from
the TV, remote control and batteries
at all times.
•
Never insert objects into the
ventilation slots or other openings on
the TV.
•
When the TV is swiveled ensure that
no strain is exerted on the power
cord. Strain on the power cord can
loosen connections and cause arcing.
•
Risk of short circuit or fi re!
•
Never expose the remote control or
batteries to rain, water or excessive
heat.
Avoid force coming onto power
•
plugs. Loose power plugs can cause
arcing or fi re.
•
Risk of injury or damage to the TV!
•
Two people are required to lift and
carry a TV that weighs more than
55 lbs.
•
When stand mounting the T V, use
only the supplied stand. Secure the
stand to the TV tightly. Place the
TV on a fl at, level surface that can
support the combined weight of the
TV and the stand.
•
When wall mounting the TV, use
only a wall mount that can support
the weight of the TV. Secure the wall
mount to a wall that can suppor t the
combined weight of the TV and wall
mount. Koninklijke Philips Electronics
N.V. bears no responsibility for
improper wall mounting that results
in accident, injury or damage.
•
Risk of injury to children!Follow these
precautions to prevent the TV from
toppling over and causing injury to
children:
•
Never place the TV on a surface
covered by a cloth or other material
that can be pulled away.
•
Ensure that no par t of the TV hangs
over the edge of the surface.
•
Never place the TV on tall furniture
(such as a bookcase) without
anchoring both the furniture and TV
to the wall or a suitable support.
•
Educate children about the dangers
of climbing on furniture to reach the
TV.
•
Risk of overheating! Never install the
TV in a confi ned space. Always leave a
space of at least 4 inches around the TV
for ventilation. Ensure curtains or other
objects never cover the ventilation slots
on the TV.
•
Risk of damage to the TV! Before you
connect the TV to the power outlet,
ensure that the power voltage matches
the value printed on the back of the TV.
Never connect the TV to the power
outlet if the voltage is different.
English
EN
3
Page 6
•
Risk of injury, fi re or power cord damage!
Never place the TV or any objects on the
power cord.
•
To easily disconnect the TV power cord
from the power outlet, ensure that you
have full access to the power cord at all
times.
•
When you disconnect the power cord,
always pull the plug, never the cable.
•
Disconnect the T V from the power
outlet and antenna before lightning
storms. During lightning storms, never
touch any part of the TV, power cord or
antenna cable.
Risk of hearing damage! Avoid using
•
earphones or headphones at high
volumes or for prolonged periods of time.
If the TV is transported in temperatures
•
below 5°C, unpack the TV and wait
until the TV temperature matches room
temperature before connecting the TV to
the power outlet.
Screen care
•
Avoid stationary images as much as
possible. Stationary images are images
that remain on-screen for extended
periods of time. Examples include:
on-screen menus, black bars and time
displays. If you must use stationary
images, reduce screen contrast and
brightness to avoid screen damage.
•
Unplug the TV before cleaning.
•
Clean the TV and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the TV.
•
Risk of damage to the TV screen! Never
touch, push, rub or strike the screen with
any object.
•
To avoid deformations and color fading,
wipe off water drops as soon as possible.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheeled bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences for the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules
on the separate collection of batteries. The
correct disposal of batteries helps prevent
potentially negative consequences for the
environment and human health.
4
EN
Page 7
3 Your TV
Congratulations on your purchase, and
welcome to Philips! To fully benefi t from the
support that Philips offers, register your product
at www.philips.com/welcome.
TV overview
This section gives you an overview of
commonly used TV controls and functions.
Side controls and indicators
4
4
3
3
2
2
1
1
Remote control
21
21
20
20
19
19
18
18
17
17
16
16
15
15
10
10
11
11
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
English
a POWER : Switches the TV on or off.
The TV is not powered off completely
unless it is physically unplugged.
b P/CH +/- : Switches to the next or
previous channel.
c
SOURCE : Selects connected devices.
d VOLUME +/- : Increases or decreases
volume.
14
14
a ( Standby-On )
•
Switches the TV to standby if the TV
is on.
•
Switches the TV on if the TV is in
standby.
EN
12
12
13
13
5
Page 8
b
Toggles the main menu on or off.
c
( )
Toggles teletext on or off.
d
( )
Selects connected devices.
e
Sets a delay after which the T V switches
to standby.
f
( )
Accesses options relating to the current
activity or selection.
g
Confi rms an entry or selection and
displays the channel grid, when watching
TV.
h
( Navigation buttons )
Navigates through the menus.
i
( )
Displays programme information, if
available.
j
( )
Mutes or restores audio output.
k
Switches to the next or previous channel.
l 0-9 ( Numeric buttons )
Selects a channel or setting.
m
( )
Launches the picture menu.
n
( )
Launches the sound menu.
o
Increases or decreases volume.
p
( / )
•
Returns to a previous screen.
•
Returns to the previously viewed
channel.
q
( )
Switches between channel grid and
program list.
r
Switches Stereo and Nicam Stereo to
Mono. Selects fi rst language (Dual I)
or second language (Dual II) in bilingual
programmes.
s
Toggles the demonstration menu on or
off.
t
( )
Selects a picture format.
u
( )
Enables Incredible Surround for stereo
sources. Enables spatial mode for mono
sources.
6
EN
Page 9
4 Use your TV
This section helps you perform basic TV
operations.
Note
If you cannot locate your remote control and
•
want to switch on the TV from standby, press
P/CH +/- at the side of the TV.
Switch your TV on/off or to
standby
To switch on
If the standby indicator is off, press
•
POWER at the side of the TV.
•
If the standby indicator is red, press
( Standby-On ) on the remote control.
To switch to standby
Press
•
To switch off
•
Though your TV consumes ver y little power
•
when in standby, energy continues to be
consumed. When not in use for an extended
period of time, disconnect the TV power cable
from the power outlet.
( Standby-On ) on the remote
control.
»
The standby indicator switches to red.
Press
POWER at the side of the TV.
»
The standby indicator switches off.
Tip
Switch channels
English
•
Press ( / ) on the remote
control to return to the previously
viewed channel.
Press
•
P/CH +/- on the side of the TV.
•
Press
•
Enter a channel number using the
Numeric buttons .
on the remote control or
to use the channel grid.
EN
7
Page 10
Note
When you use a favourite list, you can only
•
selec t those channels in the list (see ‘Select a
favorite list’ on page 11 ) .
Watch connected devices
Use the source button
1 Press ( ).
»
The source list appears.
2 Press or to select the connected
device.
3 Press to confi rm selection.
Adjust TV volume
To increase or decrease volume
Press
•
•
Press VOLUME +/- on the side of the TV.
To mute or unmute sound
•
Press
•
Press
8
EN
.
( ) to mute audio.
( ) again to restore audio.
Page 11

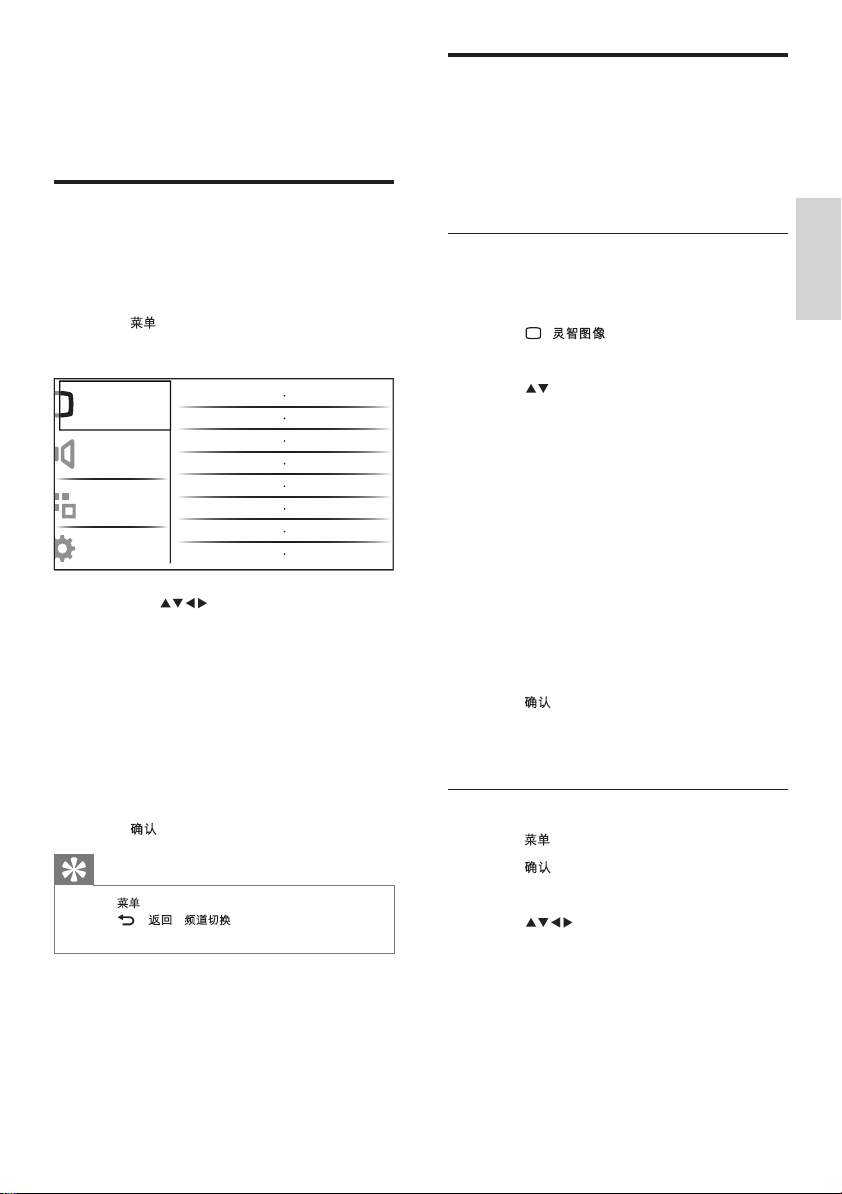

5 Use more of
your TV
Access TV menus
Change picture and sound
settings
Change picture and sound settings to suit your
preferences. You can apply pre-defi ned settings
or change settings manually.
Menus help you to install channels, change
picture and sound settings and access other
features.
1 Press .
The menu screen appears.
»
Smart picture
Sound
Sound
Features
Features
Installation
Installation
Smart picture
Contrast
Contrast
Brightness
Brightness
Colour
Colour
Hue
Hue
Sharpness
Sharpness
Noise reduction
Noise reduction
Colour temperature
Colour temperature
2 Press the to select and navigate
through one of the following menus.
[Picture] Adjusts the picture setting
•
for optimal viewing.
[Sound] Adjusts the sound setting.
•
[Features] Accesses different features
•
like timer, TV lock, and demo.
[Installation] Selects channel
•
installation menu, adjusts preferences
and resets the TV to factory settings.
3 Press to confi rm your choice.
Tip
Press at any time to exit the menu.
•
Press
•
( / ) to move back one
screen.
Use smart picture
Use smart picture to apply pre-defi ned
picture settings.
1 Press ( ).
»
The [Smart picture] menu appears.
2 Press to select one of the following
smar t picture settings.
•
[Personal] Lists customized personal
picture settings.
•
[Vivid] Maximizes picture settings.
•
[Standard] Adjusts picture settings
to suit most environments and types
of video.
[Movie] Applies picture settings
•
ideally suited for movie viewing.
[Game] Applies picture settings
•
maximized for fast-moving games.
[Energy saving] Applies low-energy
•
picture settings.
3 Press to confi rm your choice.
The selected smart picture setting is
»
applied.
Manually adjust picture settings
1 Press .
2 Press to select [Picture] .
The [Picture] menu appears.
»
3 Press to select one of the
following picture settings.
[Smart picture] Accesses pre-defi ned
•
smar t picture settings.
[Contrast] Adjusts the intensity of bright
•
areas, keeping dark areas unchanged.
[Brightness] Adjusts the intensity and
•
details of dark areas.
[Colour] Adjusts color saturation.
•
English
EN
9
Page 12
•
[Hue] Compensates color variations in
NTSC encoded transmissions.
•
[Sharpness] Adjusts the level of sharpness
in image details.
•
[Noise reduction] Filters and reduces
noise in an image.
•
[Colour temperature] Adjusts colour
temperature.
•
[Dig.CrystalClear] Digitally adjusts picture
quality to optimal contrast, color and
sharpness.
[Dynamic contrast] Automatically
•
enhances contrast in an image. A
[Medium] setting is recommended.
[Dynamic backlight] Adjusts the
•
brightness of the TV backlight to
match lighting conditions.
[MPEG artifact re.] Smooths out
•
transitions on digital pictures. You
can switch this feature on or off.
[Colour enhancement] Makes
•
colors more vivid and improves the
resolution of details in bright colors.
You can switch this feature on or off.
[PC mode] Adjusts the picture when a PC
•
is connected to the TV via HDMI/DVI/
VGA.
[Picture format] Changes the picture
•
format.
[Horizontal shift] Adjusts the picture
•
horizontally for PC-VGA or CVI input.
[Vertical shift] Adjusts the picture
•
vertically for PC-VGA or CVI input.

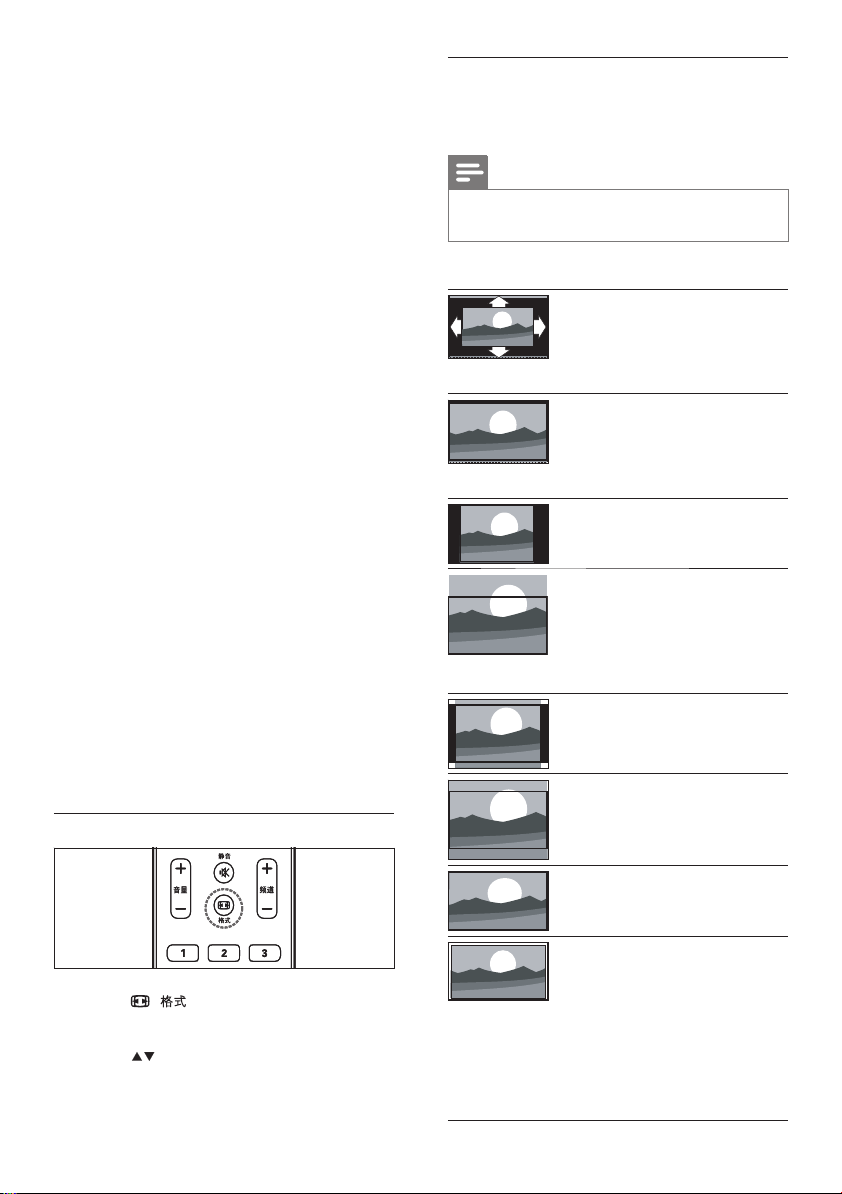

Change picture format
1 Press ( ).
»
A picture format bar appears.
2 Press to select a picture format.
»
The selected picture format is
previewed.
10
EN
Summary of picture formats
The following picture settings can be
confi gured.
Note
Depending on the format of the picture
•
source, some pic ture settings are not available.
[Auto format] (Not for
PC mode.) Enlarges the
picture automatically to
best fi t the screen. The
subtitles remain visible.
[Super zoom] (Not for HD
and PC mode.) Removes
the black bars on the side
of 4:3 broadcasts. There is
minimal distortion.
[4:3] Shows the classic 4:3
format.
[Subtitle zoom] Displays
4:3 pictures over the full
area of the screen, with
sub-titles visible. Part of
the top of the picture is
clipped off.
[Movie exp.14:9] (Not for
HD and PC mode.) Scales
4:3 format to 14:9.
[Movie exp.16:9] (Not for
HD and PC mode.) Scales
4:3 format to 16:9.
[Wide screen] Stretches
the classic 4:3 format to
16:9.
[Unscaled] For HD and PC
mode only, and in selected
models only. Allows
maximum sharpness. Some
distortion may be present
due to the broadcaster’s
systems. Set your PC
resolution to wide screen
mode for best results.
Page 13

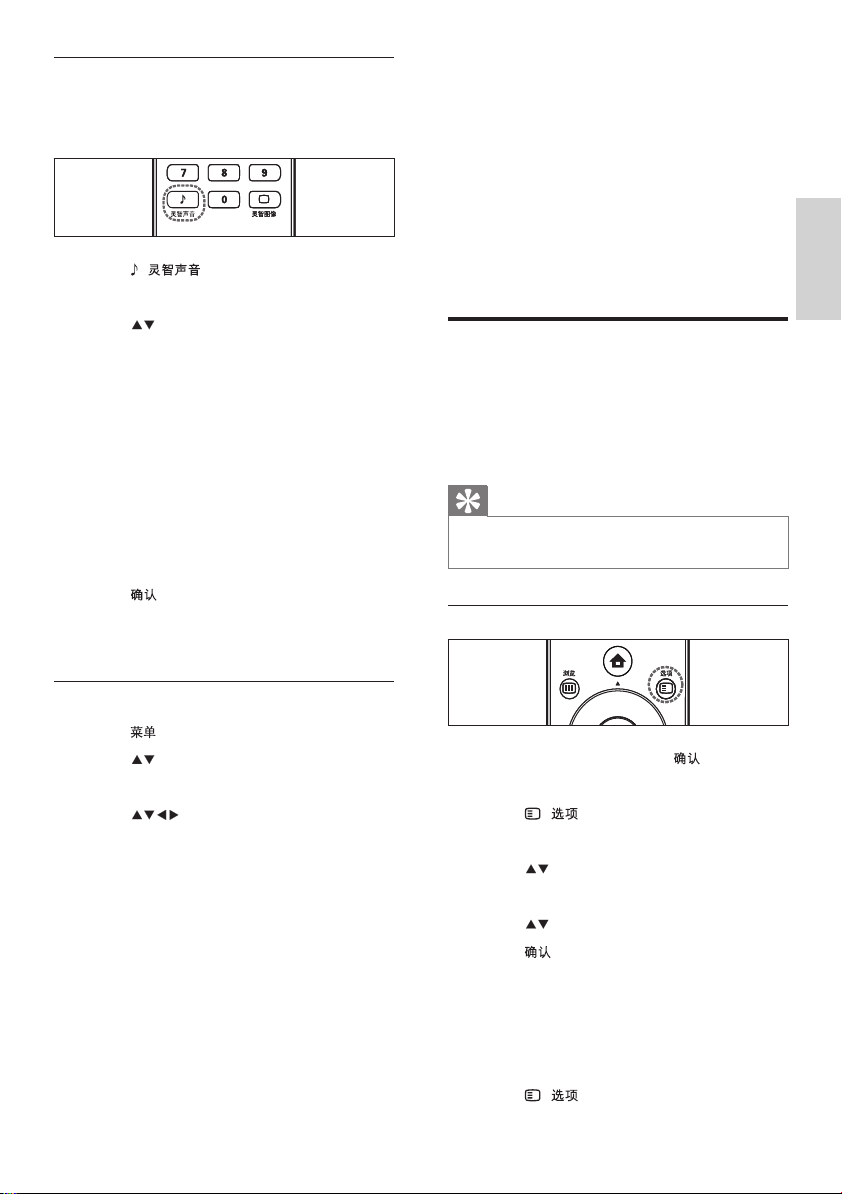

Use smart sound
Use smart sound to apply pre-defi ned sound
settings.
1 Press ( ).
»
The [Smart sound] menu appears.
2 Press to select one of the following
smar t sound settings.
•
[Standard] Adjusts sound settings to
suit most environments and types of
audio.
•
[News] Applies sound settings ideally
suited for spoken audio, such as the
news.
[Movie] Applies sound settings ideally
•
suited for movies.
[Personal] Applies the settings that
•
were customized in the sound menu.
3 Press to confi rm your choice.
»
The selected smart sound setting is
applied.
•
[Auto volume] Automatically
reduces sudden volume changes, for
example, when switching channels.
When enabled, this produces a more
consistent audio volume.
[Delta volume] Levels out volume
•
differences between channels or
connected devices. Switch to the
connected device before you change
the delta volume.
Create and use lists of
favorite channels
You can create lists of your preferred TV
channels and radio stations so that you can fi nd
those channels easily.
Tip
You can create and store up to four favorite
•
lists on your TV.
Select a favorite list
English
Adjust sound settings
1 Press .
2 Press to select [Sound] .
»
The [Sound] menu appears.
3 Press to select and adjust:
•
[Smart sound] Accesses pre-defi ned
smar t sound settings.
•
[Bass] Adjusts the bass level.
•
[Treble] Adjusts the treble level.
•
[Volume] Adjusts the volume.
•
[Balance] Adjusts the balance of the
right and left speakers to best suit
your listening position.
•
[Dual I-II] Selects between audio
languages if dual sound is broadcast.
•
[Mono/Stereo] Selects between
mono or stereo if stereo is
broadcast.
[Surround] Enables spatial sound.
•
1 When watching TV, press .
»
The channel grid appears.
2 Press ( ).
»
The options menu appears.
3 Press to select [Show favourite ch.] .
»
The favourite lists appear.
4 Press to select a favourite list or [All] .
5 Press .
»
If you selected a favourite list, only
channels in the list appear in the
channel grid; if you selected [All] ,
all installed channels appear in the
channel grid.
6 Press ( ) to exit the options menu.
EN
11
Page 14
Add a channel to a favorite list
Use timers
Tip
View all channels before adding a channel to a
•
favorite list.
1 When watching TV, switch to the channel
you want to add to a favourite list (see
‘Switch channels’ on page 7 ) .
2 Press ( ).
»
The channel options menu appears.
3 Press to select [Mark as favourite] .
4 Press .
5 Select a favourite list to add the channel
to.
6 Press .
»
The channel is added to the favourite
list.
7 Press ( / ) to exit the
channel options menu.
»
The channel grid appears.
Remove a channel from a favorite list
Note
You can set timers to switch the TV on or
switch to standby at a specifi ed time.
Automatically switch the TV to
standby (sleeptimer)
Sleeptimer switches the TV to standby after a
pre-defi ned period of time.
Tip
You can always switch off your TV earlier or
•
reset the sleeptimer during the countdown.
1 Press .
2 Select [Features] > [Sleeptimer] .
The [Sleeptimer] menu appears.
»
3 Press to set the sleep time.
»
The sleep timer can be up to 180
minutes in steps of fi ve minutes. If set
to zero minutes, the sleep timer is
switched off.
4 Press to activate the sleeptimer.
»
The TV switches to standby after the
pre-defi ned period of time.
Select the favorite list to edit, before removing
•
a channel .
1 When watching TV, press .
»
The channel grid appears.
2 Press to select a channel.
3 Press ( ).
The channel options menu appears.
»
4 Press to select [Unmark as fav.] .
5 Press .
The channel is removed from the
»
favourite list.
6 Press ( / ) to exit the
channel options menu.
The updated channel grid appears,
»
displaying the current channels in the
favourite list.
12
EN
Automatically switch the TV on (on
timer)
You can switch the TV to a specifi ed channel
at a specifi ed time, from standby.
1 Press .
2 Select [Features] > [On timer] .
3 Press to enter the [On timer] menu.
4 Press to select [Activate] and set
a day of the week or frequency.
5 Press to confi rm.
6 Press to select [Time] and set the
starting time.
7 Press [Done] to confi rm.
8 Press to select [Programme no.]
and set the channel.
9 Press to confi rm.
Page 15
10 Press to exit.
Tip
Select [Off] to switch off [On timer] .
•
When [On timer] is switched off, only
•
[Activate] option is available.
Set the TV clock before you activate [On
•
timer] feature .
Use child control and rating
locks
You can prevent your children from watching
certain programs or certain channels by locking
the TV controls and by using ratings.
Set or change your PIN code
1 Press .
2 Press to select [Features] > [Set
code] .
3 Press to enter the code setup.
4 Enter your code with the Numeric
buttons .
5 Re-enter the same code in the new
dialogue box for confi rmation.
»
If the code is set successfully, the
dialogue box will disappear. However, if
the code cannot be set, a new dialogue
box will prompt you to re-enter the
code.
6 If you want to change the code, select
[Features] > [Change code] .
7 Enter your current code using the
Numeric buttons .
If the code is validated, a new dialogue
»
box will prompt you to enter your
new code.
8 Enter the new code using the Numeric
buttons.
A message appears prompting you
»
to enter the new code again for
confi rmation.
Tip
If you forget your code, enter ‘0711’ to
•
override any existing codes.
Lock or unlock all channels and
connected devices
1 Press .
2 Press to select [Features] > [TV
lock] .
3 Press to enter [TV lock] .
A screen prompting you to enter code
»
appears.
4 Enter your code.
5 Press to select [Lock] or [Unlock] .
6 Press .
All channels and connected devices are
»
locked or unlocked.
7 Press to exit.
Lock or unlock one or more channels
1 When watching TV, press to display
the channel grid.
2 Press to select a channel to lock
or unlock.
3 Press ( ).
4 Press to select [Lock/Unlock chan.] .
5 For each selection, press to lock or
unlock the channel.
English
EN
13
Page 16
Use the TV clock
You can display a clock on the TV screen. The
clock displays the current time using time data
received from your TV service operator.
Check the current software version
1 Press .
2 Select [Software update] > [Current
software] .
3 Press .
Set the TV clock
1 Press .
2 Select [Features] > [Clock] .
»
The [Clock] menu appears.
1 Press or Numeric buttons to
enter time.
2 Press [Done] to confi rm.
3 Press to exit.
Note
The clock is disabled automatically after three
•
seconds.
Display the TV clock
1 When watching TV, press ( ).
»
The TV options menu appears.
2 Select [Clock] .
3 Press .
The clock is displayed.
»
Note
The clock is disabled automatically after ten
•
minutes. To disable the clock before that,
repeat this procedure.
Update the TV software
Philips continuously tries to improve its
products and we recommend that you update
the TV software when updates are available.
Check www.philips.com/support for availability.
Download the software
1 On your PC, open a web browser and go
to www.philips.com/support.
2 Find information and software related
to your TV and download the latest
software upgrade fi le to your PC.
3 Decompress the ZIP-fi le.
4 Copy the autorun.upg fi le to the root
directory of the USB device.
Update software (analogue
broadcasts)
Before performing this procedure be sure to:
Set aside some time to complete the
•
entire update.
Have available a USB storage device with
•
at least 64MB of storage space.
Have access to a computer with a USB
•
port and internet access.
1 Press ( Home ).
2 Select [Setup] > [Software update] >
[Update assistant] .
3 Select [Start] .
4 Connect the USB storage device to your
computer.
5 Follow the on-screen instructions to
complete the update.
1 Press .
2 Select [Software update] > [Local
updates] .
3 Press .
4 Connect the USB storage device to your
computer.
5 Follow the on-screen instructions to
complete the update.
14
EN
Page 17

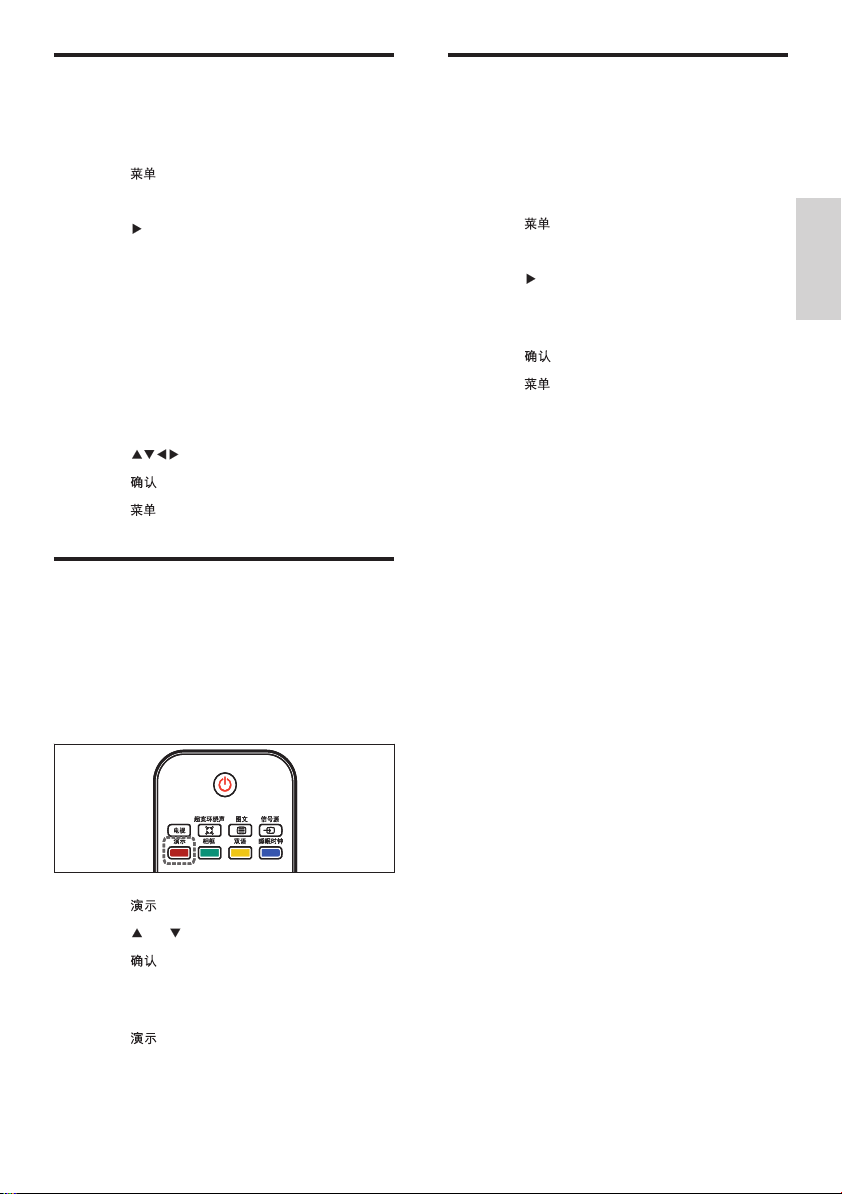

Change TV preferences
The [Preferences] menu allows you to
customise various features and functions.
1 Press .
2 Select [Installation] > [Preferences] .
3 Press to enter [Preferences] .
[Location] Optimizes TV settings for
•
your location - home or shop.
[Volume bar] Displays the volume
•
bar when adjusting the volume.
[EasyLink] Enables one-touch play
•
and one-touch standby between
EasyLink-compliant devices.
[E-sticker] For shop mode only. Sets
•
the location of the e-sticker.
4 Press to select your preference.
5 Press .
6 Press to exit.
Start a TV demo
You can use demonstrations to better
understand the features of your TV. Some
demos are not available on cer tain models.
When a demo is available, it is displayed in the
menu list.
Reset the TV to factory
settings
You can restore the default picture and sound
settings of your TV. Channel installation settings
remain the same.
1 Press .
2 Select [Installation] > [Factory settings] .
3 Press to enter the [Factory settings]
menu.
[Reset] is highlighted.
»
4 Press to reset to factory settings.
5 Press to exit.
English
1 Press .
2 Press or to select a demo.
3 Press to star t the demo.
4 Follow on-screen instructions to view the
demo.
5 Press to exit.
EN
15
Page 18
6 Install channels
The fi rst time you setup your TV, you are
prompted to select a menu language and to
install TV and digital radio channels (if available).
This chapter provides instructions on how to
reinstall and fi ne tune channels.
5 Press to select [Stop] or [Continue] .
6 Press to confi rm your choice.
7 When done, press to exit.
Manually install channels
This section describes how to search and store
analog TV channels manually.
Automatically install channels
This section describes how to search and store
channels automatically.
Step 1 Select your menu language
Note
Skip this step if your language settings are
•
correct.
1 Press .
2 Select [Installation] > [Menu language] .
3 Press to enter [Menu language] .
4 Press to select a language setting.
5 Press to confi rm.
6 Press to exit.
Step 2 Install Channels
1 Press .
2 Select [Installation] > [Channel install.]
> [Channel assistant] .
3 Select [Start] and press to re-install
channels.
As the system searches for channels, you
have the option to [Stop] the process.
4 If you want to stop searching, select
[Stop] and press
A dialogue box appears asking
»
you if you really want to [Stop] or
[Continue] with the process.
.
Step 1 Select your system
Note
Skip this step if your system settings are
•
correct.
1 Press .
2 Select [Installation] > [Channel install.]
> [Manual install]
The [Manual install] menu appears.
»
3 Press to select and enter [Colour
system] .
4 Press to confi rm.
5 Press to select and enter [Sound
system] .
6 Press to confi rm.
7 Press to exit.
Step 2 Search and store new TV
channels
1 Press .
2 Select [Installation] > [Channel install.]
> [Manual install] .
The [Manual install] menu appears.
»
3 Press to select and enter [Search] .
4 Press or use Numeric buttons to
manually enter the three digit frequency.
5 Press to begin search.
6 Press when the new channel is found.
16
EN
Page 19
7 Press to select [Store new
channel] to store the new channel under
a new channel number.
8 Press to select [Yes] and press to
store new channel.
9 Press to exit.
Fine tune analog channels
1 Press .
2 Select [Installation] > [Channel install.]
> [Manual install] .
The » [Manual install] menu appears.
3 Press to select and enter [Fine-
tune] .
4 Press to adjust frequency.
5 Press when done.
6 Press to select and enter [Store
cur. chan.] to store the channel number.
7 Press to select [Yes] and press to
store current channel.
8 Press to exit.
5 Press to select a character. Press to
add another character.
6 Select [Done] .
7 Press .
Rearrange channels
After you install channels, you can rearrange the
order in which they appear.
1 Press ( ).
2 Press to highlight a channel in the
channel grid.
3 Press ( ).
4 Select [Reorder] and press .
5 Press to highlight a channel and
press
.
6 Press to move the channel in the
channel grid.
7 Press .
8 Press ( ).
9 Press .
English
Rename channels
Channels can be renamed so that a name of
your choice appears whenever the channel is
selected.
1 Press ( ).
2 Press to highlight a channel in the
channel grid.
3 Press ( ).
4 Press or to select [Rename chan.] .
EN
17
Page 20
7 Connect devices
This section describes how to connect
various devices with different connectors and
supplements examples provided in the Quick
Start.
Note
Different types of connec tors may be used to
•
connec t a device to your TV, depending on
availability and your needs.

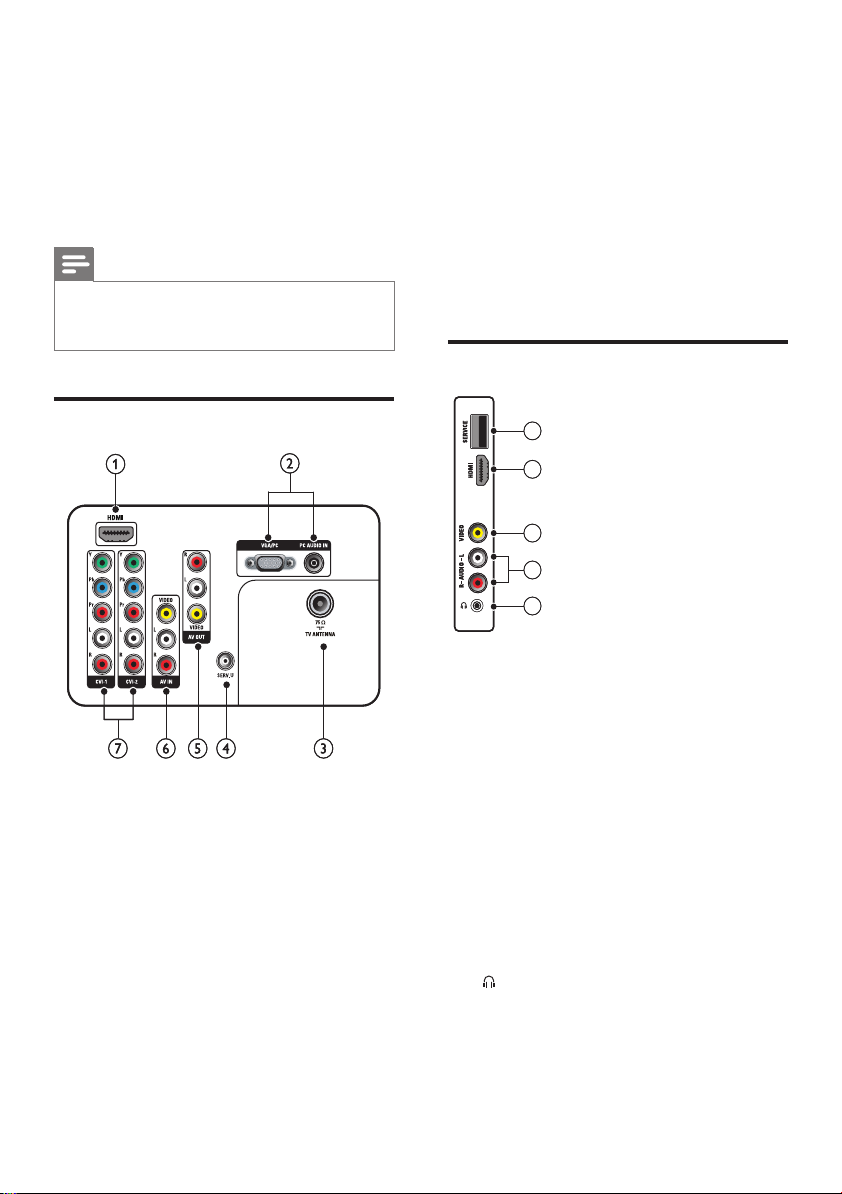

Audio and video output to analog devices
such as another TV or a recording device.
f AV IN ( VIDEO and AUDIO L/R )
Analogue audio and video input from
analogue or digital devices such as DVD
players, satellite receivers and VCRs.
g CVI 1/2 ( Y Pb Pr and AUDIO L/R )
Analog audio and video input from analog
or digital devices such as DVD players or
game consoles.
Side connectors
Back connectors
a HDMI
Digital audio and video input from high-
defi nition digital devices such as Blu-ray
players.
b VGA /PC and PC AUDIO IN
Audio and video input from a computer.
c TV ANTENNA
Signal input from an antenna, cable or
satellite.
d SERV. U
For use by service personnel only.
e AV OUT ( VIDEO and AUDIO L/R )
1
1
2
2
3
3
4
4
5
5
a SERVICE
For software update.
b HDMI
Digital audio and video input from highdefi nition digital devices such as Blu-ray
players.
c VIDEO
Composite video input from analog
devices such as VCRs.
d AUDIO L/R
Audio input from analog devices
connected to VIDEO .
e
Stereo audio output to headphones or
earphones.
18
EN
Page 21

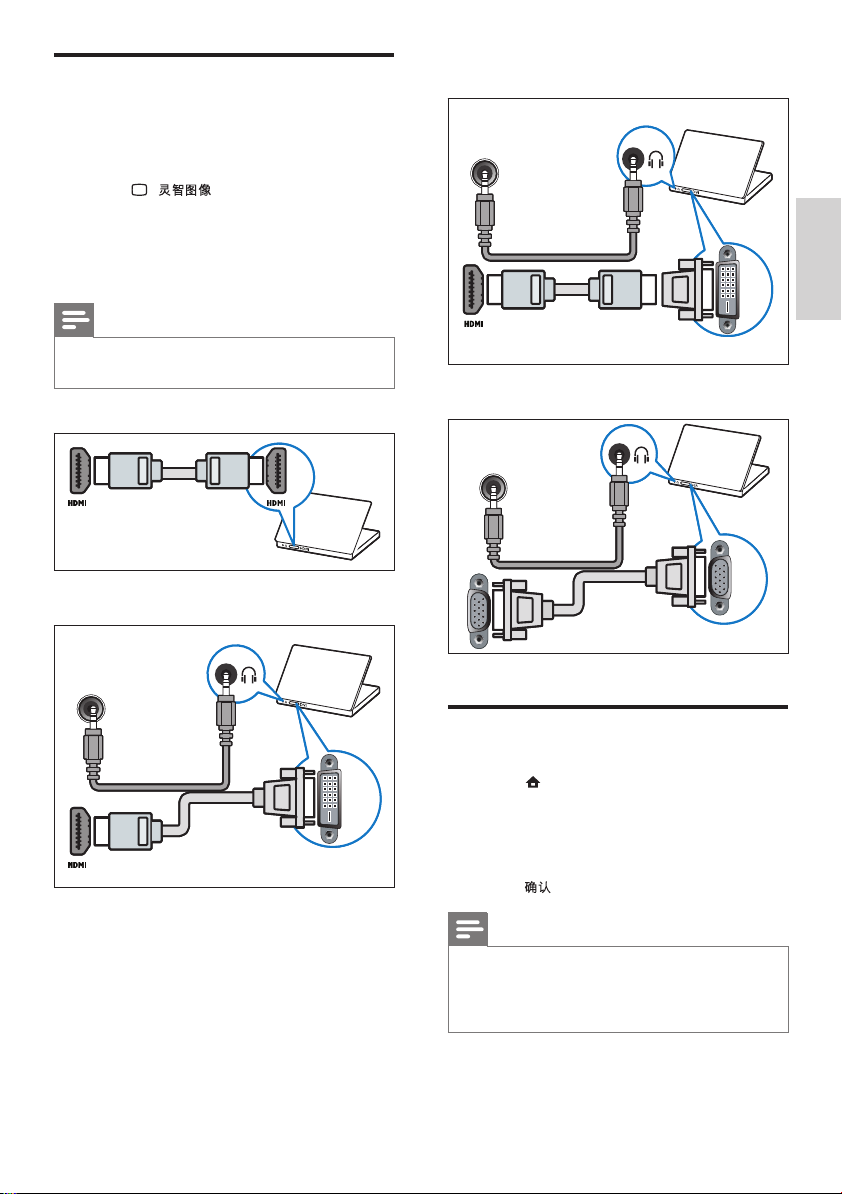

Connect a computer
Before connecting a computer to the TV
Set the monitor refresh rate on your
•
computer to 60Hz.
Press
•
( ) and change the T V
picture format to [Unscaled] .
HDMI cable and HDMI-DVI adaptor
•
PC AUDIO IN/ PC IN(AUDIO)
PC AUDIO IN/ PC IN(AUDIO)
Connect a computer with one of the
following connectors:
Note
Connections via DVI or VGA require an
•
additional audio cable.
•
HDMI cable
•
DVI-HDMI cable
PC AUDIO IN/ PC IN(AUDIO)
PC AUDIO IN/ PC IN(AUDIO)
DVI
DVI
VGA cable
•
PC AUDIO IN/ PC IN(AUDIO)
PC AUDIO IN/ PC IN(AUDIO)
Use dual view
1
Press ( Home ).
2 Select [Setup] > [Features] > [Dual
View] .
3 Select [On] .
4 Press .
VGA
VGA
DVI
DVI
English
Note
When the dual view mode is turned on, a
•
small window for T V input appears on the
upper right-hand corner of the TV screen. The
audio output is still from the VGA input.
EN
19
Page 22
Assign devices
After connecting devices, assign the device
attached to each connector. This allows you to
easily identify devices connected to your TV.
1 Press ( Home ).
2 Press or .
3 Press or to select a device. Press .
4 Press or to select the conector your
device is connected to. Press
.
5 If available, press or to select the
audio connector your device is connected
to. Press
.
6 Switch on your device and check for
video and audio output.
7 If there is video and audio output, press
.
Repeat the procedure until all devices are
correctly assigned to connectors.
For example, when you press Play on your
DVD remote control, your TV automatically
switches to the correct channel to show the
DVD content.
One-touch standby
When you connect your TV to devices that
support standby, you can use your TV remote
control to put your TV and all connected
HDMI devices in standby mode.
Tip
Press to switch back to the aerial source
•
from EasyLink mode.
Enable or disable EasyLink
Note
Do not enable Philips EasyLink if you do not
•
intend to use it.
Use Philips EasyLink
Your TV suppor ts Philips EasyLink, which
uses the HDMI CEC (Consumer Electronics
Control) protocol. EasyLink-compliant devices
that are connected through HDMI connectors
can be controlled by a single remote control.
Note
Philips does not guarantee 100%
•
interoperability with all HDMI CEC devices.
Note
The EasyLink-compliant device mus t be
•
switched on and selected as the source.
EasyLink features
One-touch play
When you connect your TV to devices that
support one-touch play, you can control your
TV and the devices with one remote control.
20
EN
1 Press ( Home ).
2 Select [Installation] > [Preferences] >
[EasyLink] .
3 Select [ON] or [OFF] .
Set TV speakers to EasyLink mode
When enabled, this feature automatically
turns off TV speakers when content from an
EasyLink-compliant home theatre system is
played. Audio is played only from the home
theatre system’s speakers.
1 Press ( Home ).
2 Press to select [Setup] > [Sound] .
»
The [Sound] menu appears.
3 Select [TV speakers] .
»
The [TV speakers] menu appears.
4 Select [Auto (EasyLink)] .
»
TV speakers are set to EasyLink mode.
Page 23

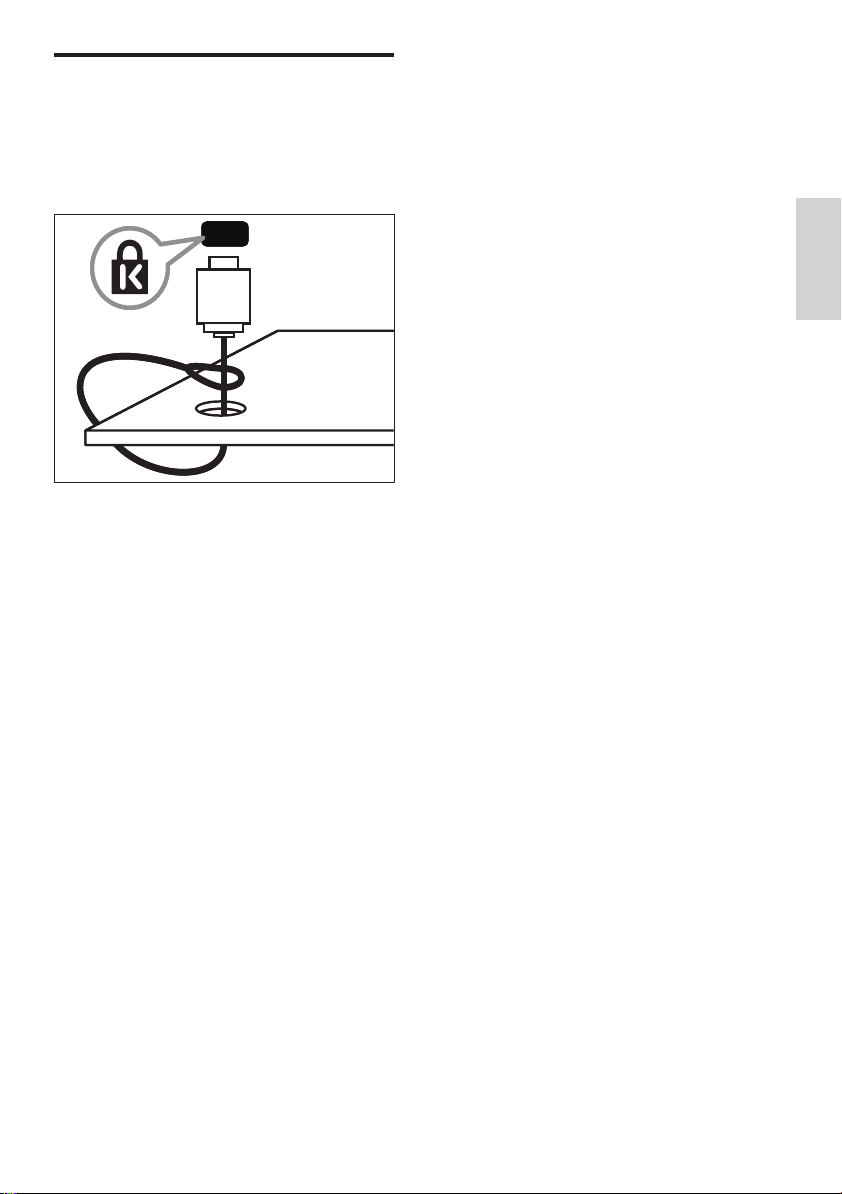

Use a Kensington lock
There is a Kensington security slot at the back
of the TV. Prevent theft by looping a Kensington
lock between the slot and a permanent object,
such as a heavy table.
English
EN
21
Page 24
8 Product
information
Product information is subject to change
without notice. For detailed product
information, go to www.philips.com/support.
Supported display resolutions
Computer formats
HDMI :
Tuner/Reception/
Transmission
•
Antenna input: 75ohm coaxial (IEC75)
•
TV system: PAL
•
Video playback: NTSC, SECAM, PAL
Multimedia
•
Connection: USB
•
Playback formats: MP4, M4V, RM, JPEG,
MP3
Resolution Refresh rate (Hz)
720x400
640x480
800x600
1024x768
128 0x768
128 0x1024
136 0 x76 8
168 0x1050
1920x1200
VGA :
Resolution Refresh rate (Hz)
640x480
720x400
800x600
1024x768
128 0x768
128 0x1024
136 0 x76 8
Video formats
Resolution Refresh rate (Hz)
720 x 480p
720(1440) x 480i
720 x 576p
720(1440) x 576i
1280 x 720p
1280 x 720p
1920 x 1080i
1920x 1080p
70,
60, 72, 75, 85
60, 72, 75, 85
60, 70, 75, 85
60
60
60
60
60
60, 72, 75, 85
70, 85
60, 72, 75, 85
60, 70, 75, 85
60
60
60
60
60
50
50
60
50
50, 60
24, 25, 30, 50, 60
Remote control
•
Batteries: 2 x AAA (R03 type)
Connections
•
Headphone out (stereo mini-jack)
•
TV aerial
•
S-Video
•
CVBS in
•
CVBS out
•
YPbPr: Component video (CVI in)
•
VGA in
•
HDMI
•
VGA Audio in
•
USB (for software update only)
•
Service connector
Power
•
Mains power: AC 220-240 (50-60Hz)
•
Standby power: < 0.15W
•
Ambient temperature: 5 to 35 degrees
Celsius
22
EN
Page 25
Supported TV mounts
To mount the TV, purchase a Philips TV mount
or a VESA-compatible TV mount. To prevent
damage to cables and connectors, be sure to
leave a clearance of at least 2.2 inches from the
back of the TV.
Warning
Follow all instructions provided with the TV
•
mount. Koninklijke Philips Electronics N.V.
bears no responsibility for improper TV
mounting that results in accident, injur y or
damage.
English
TV
screen
size
VESA-compatible wall
bracket type
32”-37” 200 x 200 mm M6
42”-47” 400 x 400 mm M6 (42”),
M8 (47”)
EN
23
Page 26
9 Troubleshooting
This section describes commonly encountered
issues and accompanying solutions.
General TV issues
The TV does not switch on:
•
Disconnect the power cable from the
power outlet. Wait for one minute then
reconnect it.
•
Check that the power cable is securely
connected.
The remote control is not working properly:
•
Check that the remote control batteries
are correctly inser ted according to the
+/- or ientation.
•
Replace the remote control batteries if
they are fl at or weak.
•
Clean the remote control and TV sensor
lens.
The standby light on the TV blinks red:
•
Disconnect the power cable from the
power outlet. Wait until the T V cools
down before reconnecting the power
cable. If the blinking reoccurs, contact
Philips Consumer Care.
You forgot the code to unlock the child lock
feature
•
Enter ‘0711’.
The TV menu is in the wrong language
•
Change the TV menu to your preferred
language.
When turning the TV on/off/to standby, you
hear a creaking sound from the TV chassis:
No action is required. The creaking sound
•
is normal expansion and contraction of
the TV as it cools and warms up. This
does not impact performance.
TV channel issues
Previously installed channels do not appear in
the channel list:
•
Check that the correct channel list is
selected.
No digital channels were found during the
installation:
•
Check that the TV suppor ts DVB-T or
DVB-C in your country. See the listed
countries on the back of the TV.
Picture issues
The TV is on, but there is no picture:
•
Check that the antenna is properly
connected to the T V.
•
Check that the correct device is selected
as the T V source.
There is sound but no picture:
•
Check that the picture settings are
correctly set.
There is poor TV reception from an antenna
connection:
•
Check that the antenna is properly
connected to the T V.
•
Loud speakers, unearthed audio devices,
neon lights, high buildings and other large
objects can infl uence reception quality.
If possible, try to improve the reception
quality by changing the antenna direction
or moving devices away from the TV.
•
If reception on only one channel is poor,
fi ne tune this channel.
There is poor picture quality from connected
devices:
•
Check that the devices are connected
properly.
•
Check that the picture settings are
correctly set.
The TV did not save your picture settings:
•
Check that the TV location is set to the
home setting. This mode offers you the
fl exibility to change and save settings.
24
EN
Page 27
The picture does not fi t the screen; it is too
big or too small:
•
Try using a different picture format.
The picture position is incorrect:
•
Picture signals from some devices may
not fi t the screen correctly. Check the
signal output of the device.
Sound issues
There is picture but no sound from the TV:
Note
If no audio signal is detected, the TV
•
automatically switches the audio output off
— this does not indicate malfunction.
•
Check that all cables are properly
connected.
•
Check that the volume is not set to 0.
•
Check that the sound is not muted.
There is picture but sound quality is poor:
•
Check that the sound settings are
correctly set.
There is picture but sound comes from one
speaker only:
•
Verify that sound balance is set to the
center.
HDMI connection issues
audio cable is connected to AUDIO L/R
or AUDIO IN (mini- jack only).
Computer connection issues
The computer display on the TV is not stable:
Check that a suppor ted resolution and
•
refresh rate is selected on the computer.
Set the TV picture format to unscaled.
•
Contact us
If you cannot resolve your problem, refer to
the FAQs for this T V at www.philips.com/
support.
If the problem remains unresolved, contact
Philips Consumer Care in your country as
listed in this User Manual.
Warning
Do not attempt to repair the T V yourself. This
•
may cause severe injury, irrepar able damage to
your TV or void your warranty.
Note
Make a note of your TV model and serial
•
number before you contact Philips. These
numbers are printed on the back of the TV
and on the packaging.
English
There are problems with HDMI devices:
•
Note that HDCP support can delay the
time taken for a TV to display content
from a HDMI device.
•
If the TV does not recognize the HDMI
device and no picture is displayed, try
switching the source from one device to
another and back again.
•
If there are intermittent sound
disruptions, check that output settings
from the HDMI device are correct.
If a HDMI-to-DVI adaptor or HDMI to
•
DVI cable is used, check that an additional
EN
25
Page 28
10 Index
A
Analogue channel
fi ne-tune 17
B
Batteries 6 , 24
Bracket 23
E
EasyLink
disable 20
enable 20
Environmental care 4
F
Factory settings 15
Favourite list
select 11
set up 11
C
Channel list
favourite 11
troubleshooting 24
update 12
Channels
favourite list 11
install
automatic 16
manual 16
rearrange 17
rename 17
tune 17
Child lock
TV lock 13
Clock 14
Computer format
technical specifi cations 22
Connections
HDMI
troubleshooting 25
technical specifi cations 22
troubleshooting 25
Connectors
assign devices 20
D
Demo 15
Devices
assign 20
Display
resolution 22
H
HDMI cable
troubleshooting 25
Home mode 15
I
Installation
automatic 16
manual 16
K
Kensington lock 21
L
Language
troubleshooting 24
Location 15
Lock
Kensington 21
TV 13
M
Menu
child lock 13
language 24
main menu 9
troubleshooting 24
Multimedia
technical specifi cations 22
26
EN
Page 29
P
Picture format
troubleshooting 24
Picture settings 9
PIN code 24
Power 24
R
Reception 17 , 26
Remote control
overview 5
technical specifi cations 22
troubleshooting 24
S
Safety 3
Sleep timer 12
Smart settings 9 , 11
Software
update
analogue 14
version 14
Sound settings 11
Standby
troubleshooting 24
switch channels 7
switch off 7
switch on 7
transporting 3
troubleshooting 24
tuner technical specifi cations 22
TV overview 5
wall mount 3 , 23
TV lock
lock channels 13
lock connected devices 13
PIN code 24
V
Video format
technical specifi cations 22
Volume
adjust 8
English
T
Technical specifi cations 22
Timer
on timer 12
sleeptimer 12
standby 12
Tran smis sio n
troubleshooting 24
Tro uble shootin g 24
Tune channels 17
TV
adjust volume 8
disconnect from mains 18
menu 9
position 21
safety 3
screen care 4
software 14
standby 7
EN
27
Page 30
Page 31
Page 32
© 2008 Koninklijke Philips Electronics N.V.
All rights reserved.
Document order number: 72-CLICK0-X931D
Loading...
