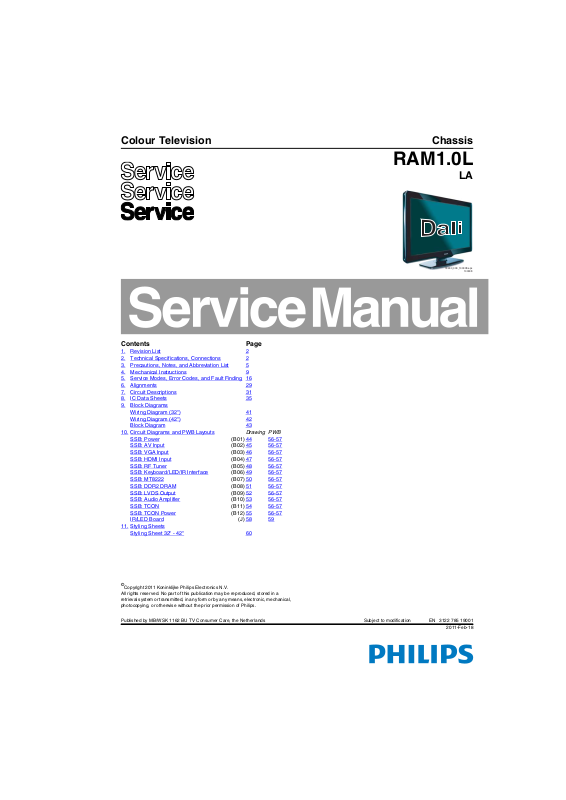

Philips 32PFL3405/77 Schematic

Colour Television Chassis

18930_000_100308.eps

100308

RAM1.0L

Contents Page

1. Revision List 2

2. Technical Specifications, Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9

5. Service Modes, Error Codes, and Fault Finding 16

6. Alignments 29

7. Circuit Descriptions 31

8. IC Data Sheets 35

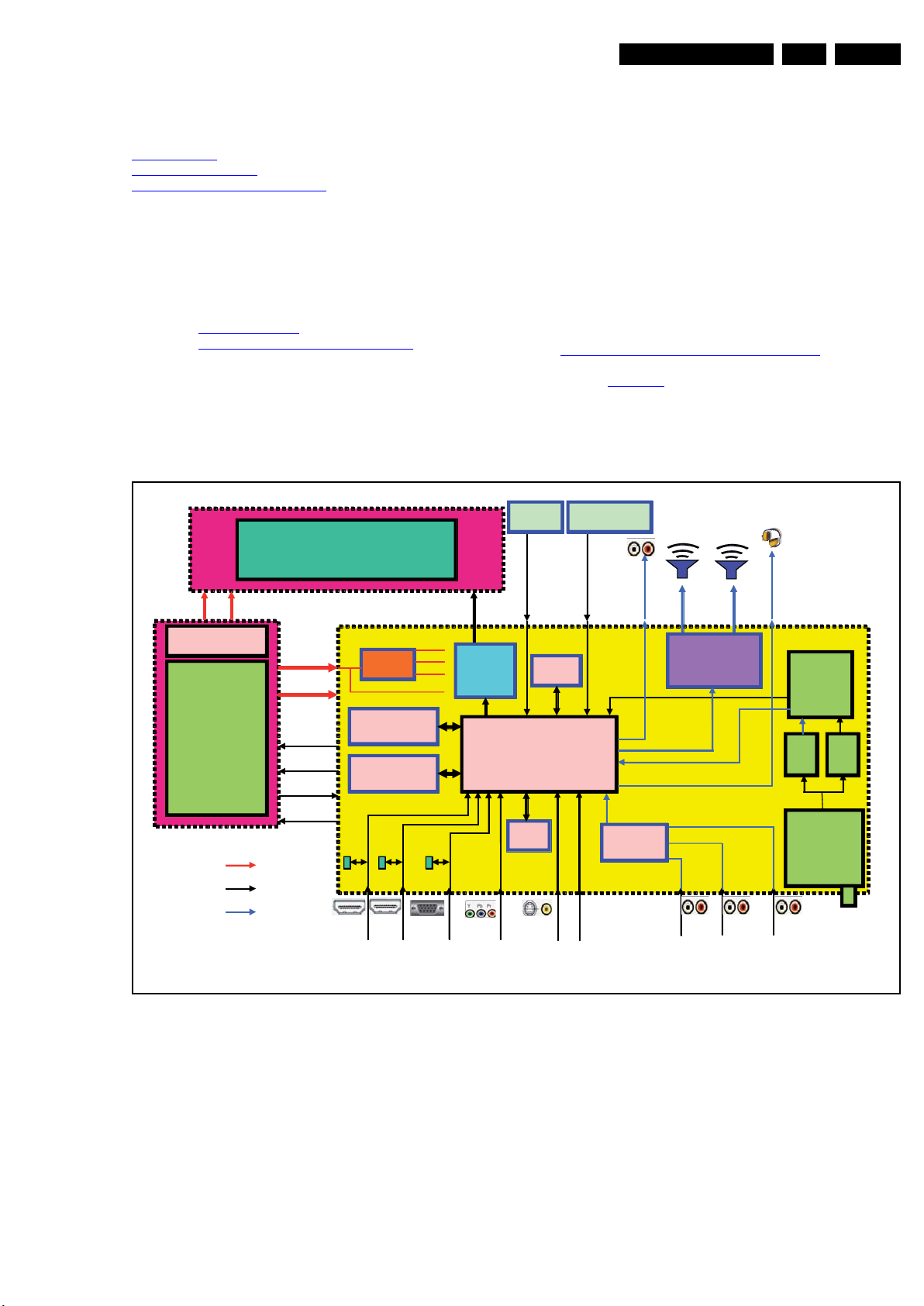

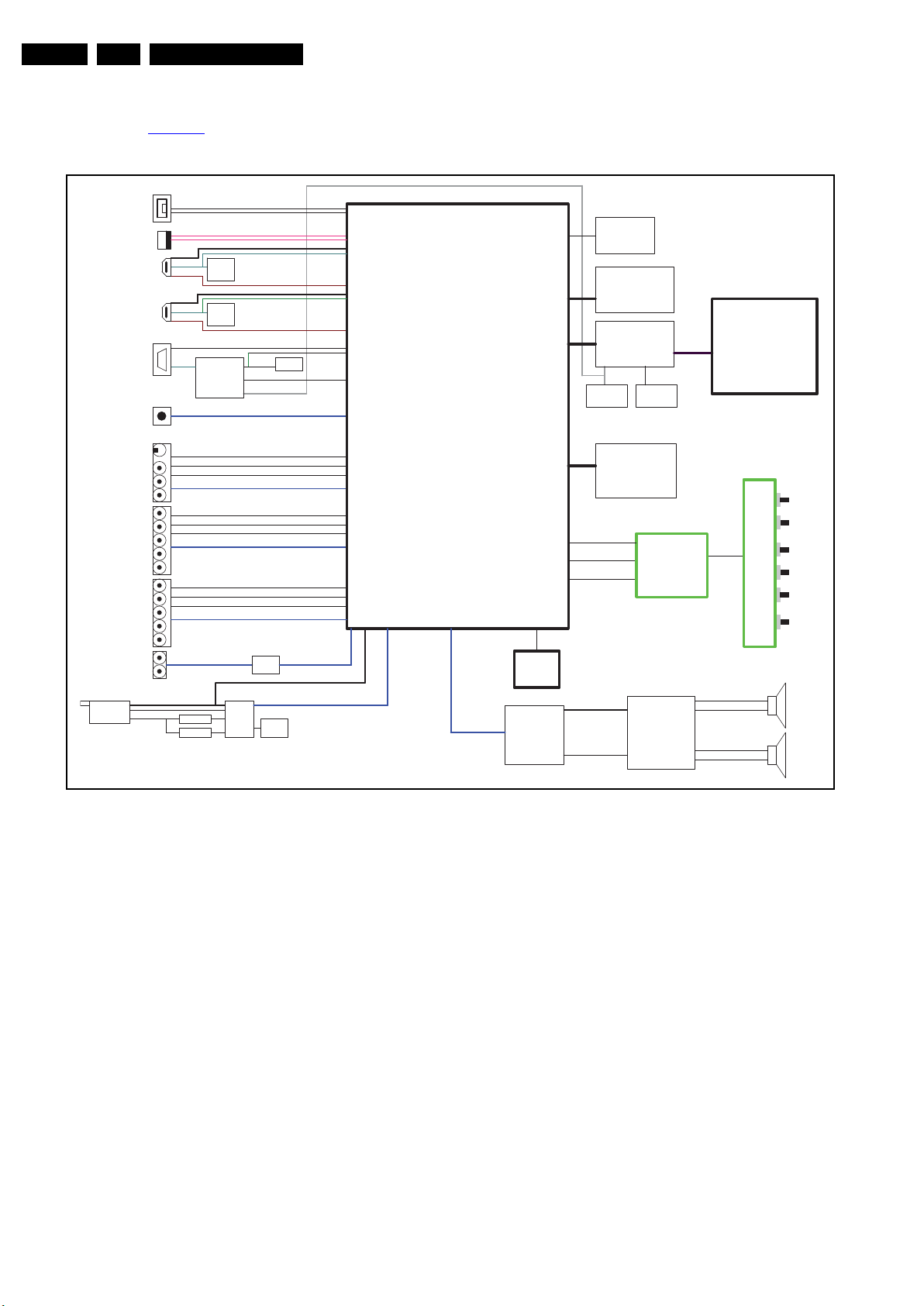

9. Block Diagrams Wiring Diagram (32") 41 Wiring Diagram (42") 42 Block Diagram 43

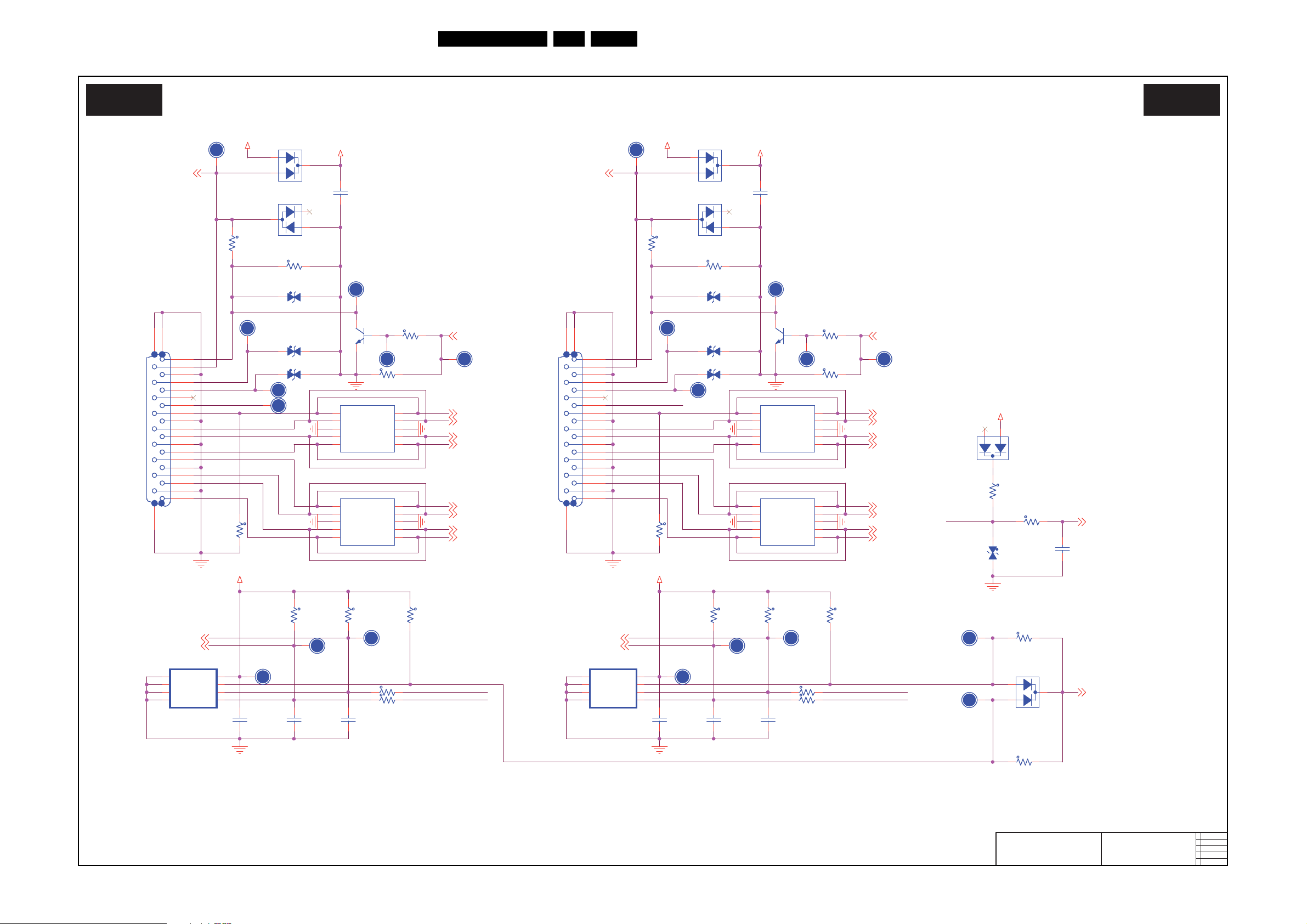

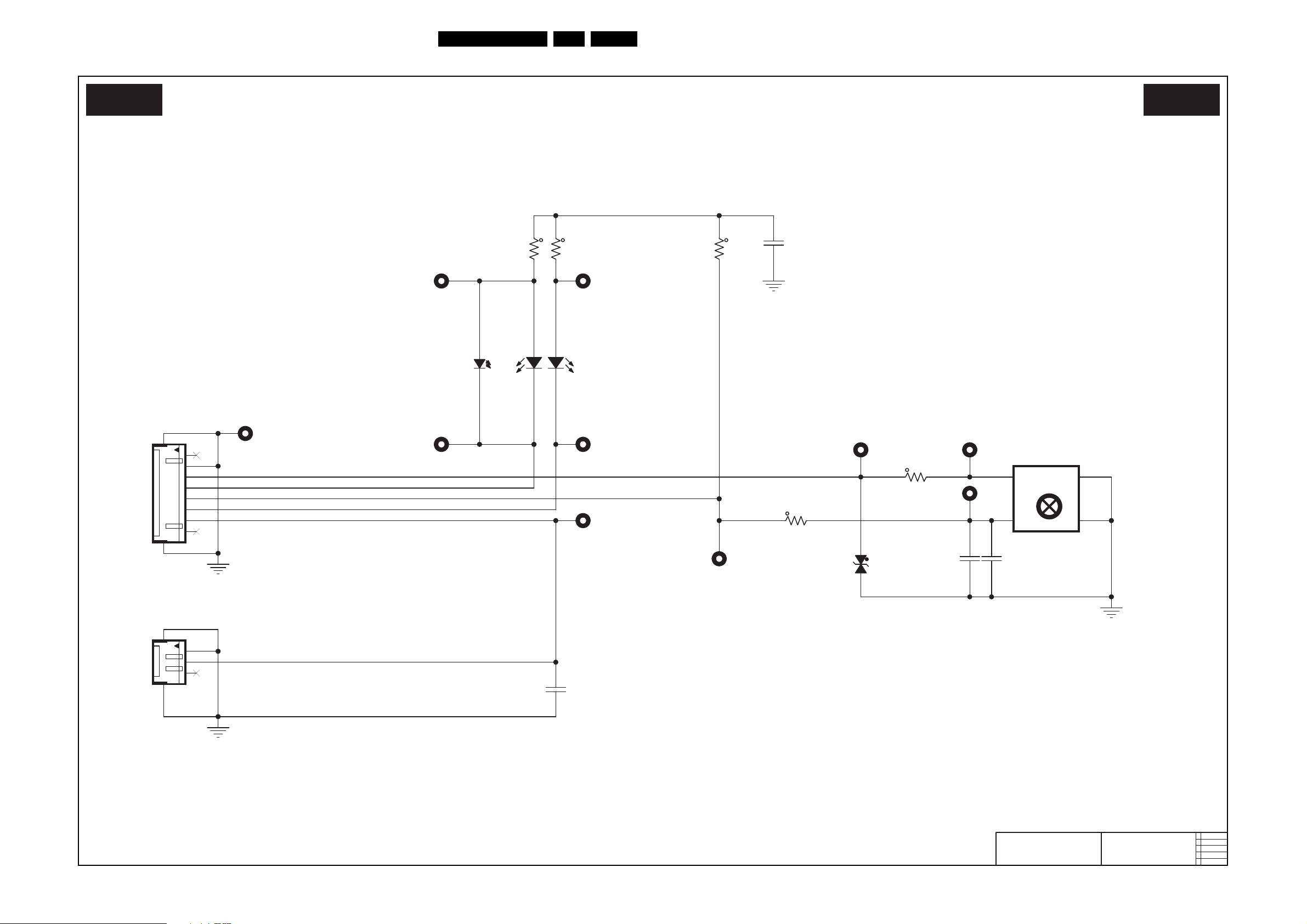

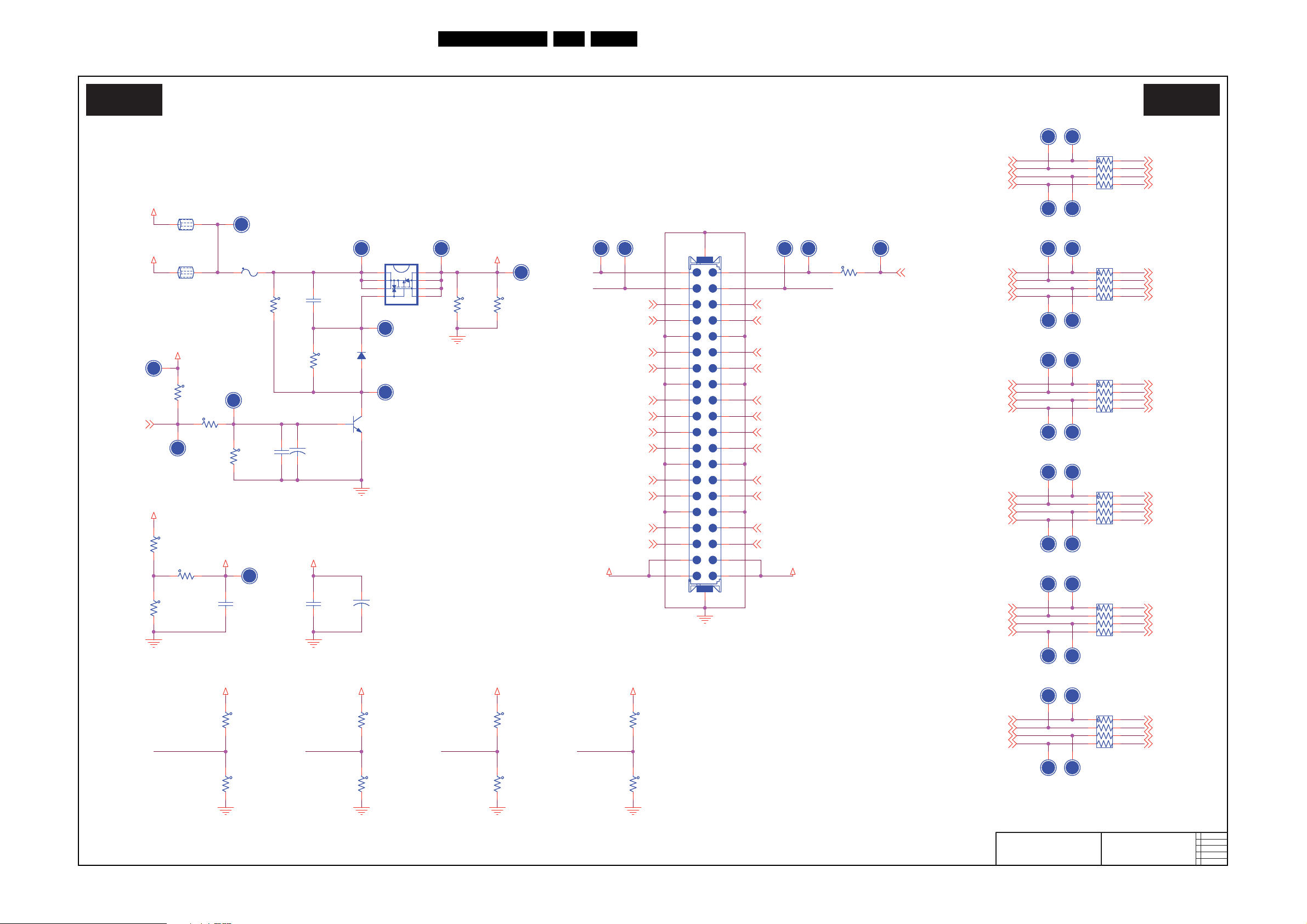

10. Circuit Diagrams and PWB Layouts Drawing PWB SSB: Power SSB: AV Input (B02) 45 56-57 SSB: VGA Input (B03) 46 56-57 SSB: HDMI Input (B04) 47 56-57 SSB: RF Tuner (B05) 48 56-57 SSB: Keyboard/LED/IR Interface (B06) 49 56-57 SSB: MT8222 (B07) 50 56-57 SSB: DDR2 DRAM (B08) 51 56-57 SSB: LVDS Output (B09) 52 56-57 SSB: Audio Amplifier (B10) 53 56-57 SSB: TCON (B11) 54 56-57 SSB: TCON Power (B12) 55 56-57 IR/LED Board (J) 58 59

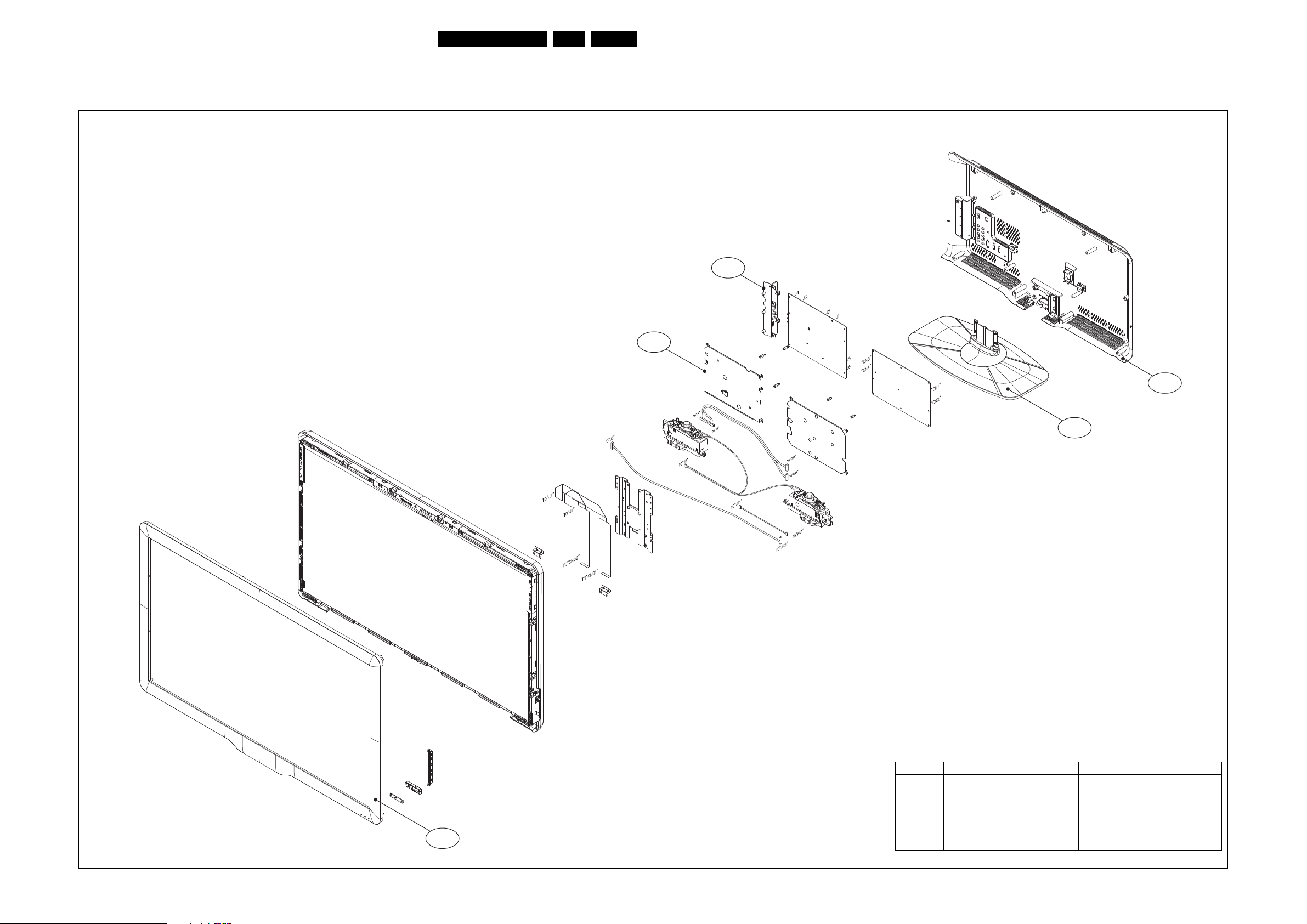

11. Styling Sheets Styling Sheet 32" - 42" 60

(B01) 44 56-57

Copyright 2011 Koninklijke Philips Electronics N.V. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.

Published by MB/WSK 1162 BU TV Consumer Care, the Netherlands Subject to modification EN 3122 785 19001

2011-Feb-18

EN 2 RAM1.0L LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Added the following sets to the manual: 32PFL3405/77, 32PFL3415/77, 32PFL3425/77, 32PFL3625/77, and 42PFL3625/77.

2. Technical Specifications, Connections

Index of this chapter:

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1. Here is product information available, as well as getting started, user manuals, frequently asked questions and software & drivers.

Table 2-1 Described model numbers

Model Number Styling Published in

32PFL3405/77

32PFL3415/77

32PFL3425/77

32PFL3605/77

32PFL3615/77

32PFL3625/77

42PFL3605/77

42PFL3615/77

42PFL3625/77

Dali 3122 785 19001

Dali 3122 785 19000

Dali 3122 785 19001

Dali 3122 785 19000

Dali 3122 785 19001

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

2011-Feb-18

2.3 Connections

78910

18930_001_100309.eps

100312

1 2 3 4

10000_022_090121.eps

090121

Technical Specifications, Connections

EN 3RAM1.0L LA 2.

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

2.3.1 Side Connections

Figure 2-1 Connection overview

4 - USB2.0

1, 2 - Cinch: Video CVBS - In, Audio - In

Ye - Video CVBS 1 V Wh - Audio L 0.5 V Rd - Audio R 0.5 V

3 - S-Video (Hosiden): Video Y/C - In

1 -Ground Y Gnd H 2 -Ground C Gnd H 3 - Video Y 1 V 4 - Video C 0.3 V

/ 75 ohm jq

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

/ 75 ohm j

Figure 2-2 USB (type A)

1-+5V k 2 - Data (-) jk 3 - Data (+) jk 4 - Ground Gnd H

2011-Feb-18

EN 4 RAM1.0L LA2.

10000_002_090121.eps

090127

10000_017_090121.eps

090428

18 2

Technical Specifications, Connections

2.3.2 Rear Connections

5 - Aerial - In

- - IEC-type (EU) Coax, 75 ohm D

6 - Cinch: Audio - Out

Rd - Audio - R 0.5 V Wh - Audio - L 0.5 V

/ 10 kohm kq

RMS

/ 10 kohm kq

RMS

7 - Cinch: Video YPbPr - In, Audio - In

Gn - Video Y 1 V Bu - Video Pb 0.7 V Rd - Video Pr 0.7 V Rd - Audio - R 0.5 V Wh - Audio - L 0.5 V

/ 75 ohm jq

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

8 - VGA: Video RGB - In, Mini Jack: Audio - In

Figure 2-3 VGA Connector

1 - Video Red 0.7 V 2 - Video Green 0.7 V 3 - Video Blue 0.7 V

/ 75 ohm j

4-n.c. 5 - Ground Gnd H 6 - Ground Red Gnd H 7 - Ground Green Gnd H 8 - Ground Blue Gnd H 9-+5V

+5 V j

10 - Ground Sync Gnd H 11 - n.c. 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j

9 - HDMI 1, 2: Digital Video, Digital Audio - In

Figure 2-4 HDMI (type A) connector

1 - D2+ Data channel j 2 - Shield Gnd H 3 - D2- Data channel j 4 - D1+ Data channel j 5 - Shield Gnd H 6 - D1- Data channel j 7 - D0+ Data channel j 8 - Shield Gnd H 9 - D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

10 - Service Connector (UART)

1 - Ground Gnd H 2 - UART_TX Transmit k 3 - UART_RX Receive j

Wh - Audio L 0.5 V Rd - Audio R 0.5 V

/ 10 kohm jo

RMS

/ 10 kohm jo

RMS

2011-Feb-18

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

EN 5RAM1.0L LA 3.

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

• Where necessary, measure the waveforms and voltages

with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

-9

), or pico-farads (p 10

. Select

-12

-6

3.2 Warnings

• All ICs and many other semiconductors are susceptible to

electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

2011-Feb-18

EN 6 RAM1.0L LA3.

Precautions, Notes, and Abbreviation List

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. AG is Bruges), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2006 week 17). The 6 last digits contain the serial number.

MODEL :

PROD.NO:

32PF9968/10

AG 1A0617 000001

MADE IN BELGIUM

220-240V 50/60Hz

VHF+S+H+UHF

10000_024_090121.eps

BJ3.0E LA

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

128W

100105

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV), 6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion

2011-Feb-18

Precautions, Notes, and Abbreviation List

EN 7RAM1.0L LA 3.

DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

C Inter IC bus

D Inter IC Data bus

S Inter IC Sound bus

carrier distance is 6.0 MHz

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used for broadcast grade video. Uncompressed digital component or digital composite signals can be used. The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

ITV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

18930_101_100303.eps

100303

Mechanical Instructions

EN 9RAM1.0L LA 4.

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.4 Set Re-assembly.

4.1 Cable Dressing

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

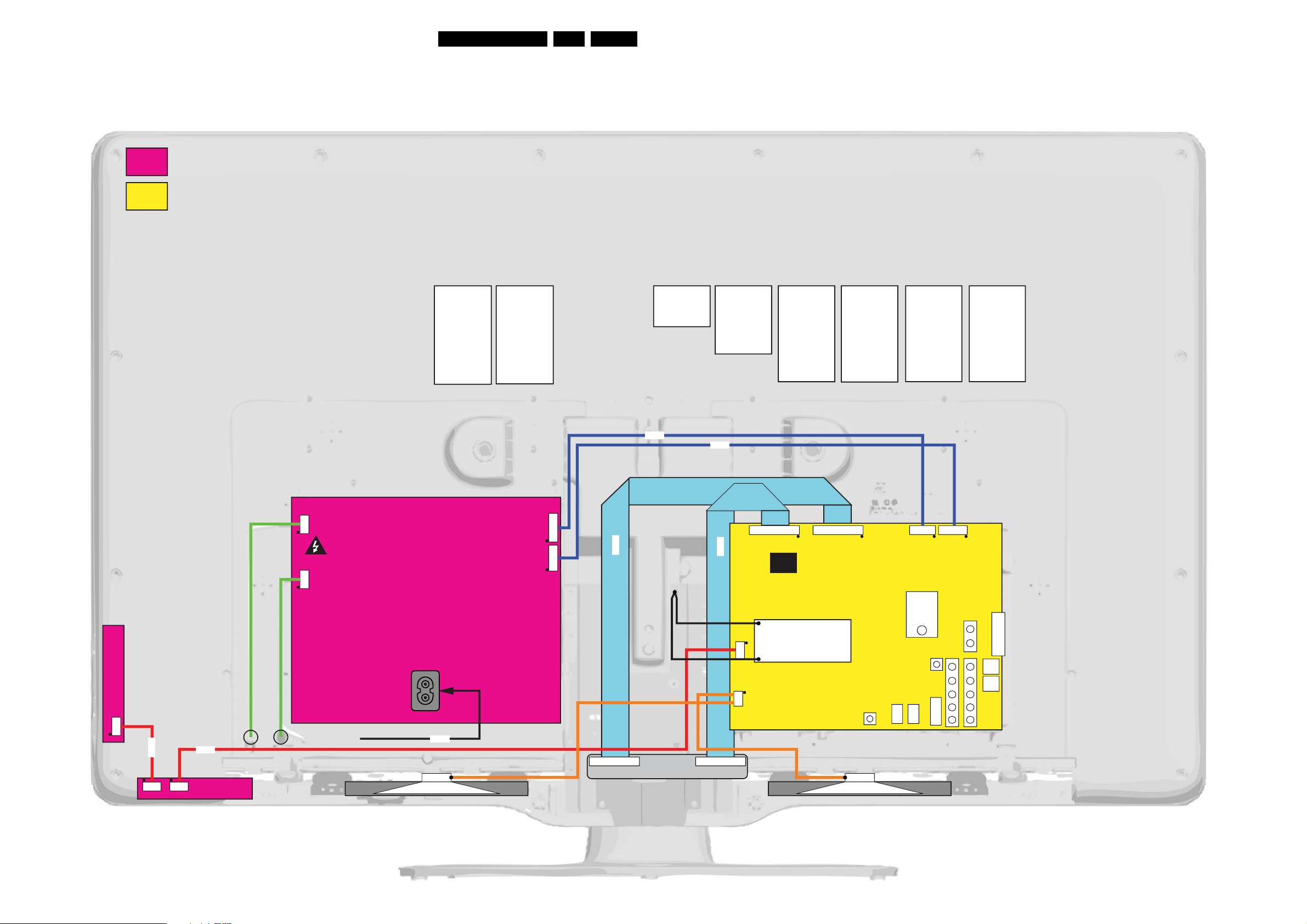

Figure 4-1 Cable dressing (32")

2011-Feb-18

EN 10 RAM1.0L LA4.

18930_120_100303.eps

100303

Mechanical Instructions

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

Figure 4-2 Cable dressing (42")

2011-Feb-18

4.3 Assembly/Panel Removal

18930_100_100302.eps

100305

18930_121_100303.eps

100303

4 4

4.3.1 Rear Cover

Mechanical Instructions

EN 11RAM1.0L LA 4.

Figure 4-3 Rear cover removal (32")

Figure 4-4 Rear cover removal (42")

2011-Feb-18

EN 12 RAM1.0L LA4.

18930_106_100305.eps

100305

2 2

18930_122_100304.eps

100305

2 2

Warning: Disconnect the mains power cord before removing

the rear cover. See Figure 4-3

1. Remove the 3 different kind of fixation screws that secure the rear cover.

2. Lift the rear cover from the TV. Make sure that wires and flat foils are not damaged while lifting the rear cover from the set.

4.3.2 Speakers

and Figure 4-4.

Mechanical Instructions

Figure 4-5 Speakers, PSU & SSB removal (32")

Figure 4-6 Speakers, PSU & SSB removal (42")

2011-Feb-18

Mechanical Instructions

18930_105_100304.eps

100304

18930_124_100305.eps

100305

EN 13RAM1.0L LA 4.

See Figure 4-5 and Figure 4-6.

1. Unplug the speaker connector [1] from the SSB and remove the wire wrap from this cable.

4.3.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU. See Figure 4-5

1. Unplug all connectors [3] from the PSU.

2. Remove all fixation screws [4] from the PSU.

3. The PSU can now be taken out of the set.

When defective, replace the whole unit.

4.3.4 Small Signal Board (SSB)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the SSB. See Figure 4-5

1. Release the clips from both the LVDS Flat Foil connectors [5]. Caution: be careful, as these are very fragile connectors! Take the flat foils out of their connectors.

2. Unplug all other connectors [1] and [6].

3. Remove grounding screws [7] from the stand support.

4. Remove all other fixation screws [8] from the SSB.

5. The SSB can now be lifted upwards away from the bottom shield cover. Caution: be careful not to damage the bottom shielding between the SSB and the plastic stand-off.

and Figure 4-6.

2. Remove the fixation screws from the speakers [2].

3. Take the speakers out. When defective, replace the whole unit.

4.3.5 Stand support plate Figure 4-8 Stand support plate (42")

See Figure 4-7

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove shielding fixation screws [1]. See Figure 4-7

4. Remove stand support plate fixation screws [2].

5. Lift up the support plate together with the stand.

and Figure 4-8.

Figure 4-7 Stand support plate (32")

2011-Feb-18

EN 14 RAM1.0L LA4.

18930_102_100303.eps

100716

18930_123_100305.eps

100716

3 3 3 3

2 2

4.3.6 Bezel removal

Mechanical Instructions

Figure 4-9 Bezel removal (32")

See Figure 4-9

1. Remove the speakers as described earlier.

2. Remove the panel holders [3] (42" version only).

3. Remove the other fixation screws [1] and [2].

4. Lift up the LCD panel.

2011-Feb-18

and Figure 4-10.

Figure 4-10 Bezel removal (42")

Mechanical Instructions

18930_103_100304.eps

100304

18930_107_100315.eps

100315

18931_100_100510.eps

100510

EN 15RAM1.0L LA 4.

4.3.7 IR/LED Board

Figure 4-11 IR/LED Board

1. Remove the bezel as described earlier.

2. Unplug the connectors from the IR/LED board.

3. Release the clips that hold the board and take it from the bezel, see Figure 4-11

When defective, replace the whole unit.

4.3.8 Keyboard Control Board

1. Remove the bezel as described earlier.

2. Unplug the connector from the Keyboard Control Board.

3. Remove the fixation screws from the Keyboard Control Board and take unit out.

When defective, replace the whole unit.

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the stand support plate as described earlier.

4. Remove the bezel as described earlier.

5. Remove the Vesa spacer as shown in Figure 4-12

by using

a 10 m.m. wrench. Note it has been secured with

Loctite 2440.

6. Lift the LCD Panel from the bezel.

Returning a defect LCD panel

To return a defect LCD panel to the factory, all boards, cabling, mechanical supports, shieldings, clamps, spacers, the bezel and tapes have to be removed from the panel, see Figure 4-13 Be sure to carefully pack the area’s of the panel that are visible during normal use.

4.3.9 LCD removal

Figure 4-12 Vesa spacer

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-1

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

and Figure 4-2.

Figure 4-13 LCD panel

2011-Feb-18

EN 16 RAM1.0L LA5.

18930_200_100309.eps

100309

8930_201_100309.eps

100309

8930_202_100309.eps

100309

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Service Modes

5.2 Service Tools

5.3 Software Upgrading

5.4 Error Codes

5.5 Fault Finding and Repair Tips

5.1 Service Modes

The Customer Service Mode (CSM) is used for communication between the call centre and the customer, while the Service Alignment Mode (SAM) offers several features for the service technician. The Standard Default Mode (SDM) creates a predefined setting.

This chassis also offers the option of using ComPair, a hardware interface between a computer and the TV chassis. It offers the abilities of structured troubleshooting, error code reading, and software version read-out for all chassis.

5.1.1 Service Default Mode (SDM)

Purpose

• To create a pre-defined setting, to get the same measurement results as given in this manual

• To start the blinking LED procedure where only Layer 2 errors are displayed (see also Table 5-1

Figure 5-1 CSM Menu [1/3]

How to Activate

Use the standard RC transmitter and key in the code “062596”, directly followed by the “MENU” button.

How to Exit

Switch the set to STANDBY.

5.1.2 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TV's operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

How to Activate CSM

Key in the code “123654” via the standard RC transmitter.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

Figure 5-2 CSM Menu [2/3]

Figure 5-3 CSM Menu [3/3]

2011-Feb-18

How to Navigate

Toggling between menus CSM1, -2 and -3 can be done by means of the “CURSOR-DOWN/UP” knob.

CSM1

• Set Type Philips Model type number (16 characters maximum)

• Production code Displays the production serial number of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM. ComPair will foresee a in possibility to do this.

Service Modes, Error Codes, and Fault Finding

10000_036_090121.eps

091118

UART SERVICE

CONNECTOR

UART SERVICE

CONNECTOR

TO I2C SERVICE CONNECTOR

TO TV

HDMI I

C only

Optional power

5V DC

ComPair II Developed by Philips Brugge

RC out

RC in

Optional

Switch

Power ModeLink/

Activity

ComPair II

Multi

function

RS232 /UART

EN 17RAM1.0L LA 5.

• Installation date Installation date.

• Option code Displays the option code.

• Codes Displays the latest 5 error codes status. Refer to 5-1 Error codes

• SSB Displays the 12NC of the SSB (Small Signal Board).

• Display Displays the 12NC of the display (LCD Panel).

• PSU Displays the 12NC of PSU (Power Supply Unit).

CSM2

• Current Main SW Main software version.

• Standby SW Standby software version.

• SW version of other uP Other uP software version if applicable.

• NVM-version NVM version.

CSM3

• Signal Quality/Present Digital percentage and analog Yes/No.

• Child lock Child lock active/non-active.

• HDCP keys Detect and display HDCP keys: Valid/Nonvalid.

• HDMI audio format input stream Indication of HDMI audio input stream format e.g. Dolby TrueHD, DTS-HD Master Audio, MPCM.

• HDMI video format input stream Indication of HDMI video input stream format e.g. 576i50Hz, 576p50Hz, 720p50Hz, 1080i50Hz, 1080p50Hz.

How to Exit CSM

Press “MENU” on the RC-transmitter.

5.1.3 Service Alignment Mode (SAM)

How to enter

To enter the factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “INFO” button.

After entering the service alignment mode, the following screen is visible (refer to Figure 5-4

5.2 Service Tools

5.2.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore capable of accurately indicating problem areas. No knowledge on I because ComPair takes care of this.

3. ComPair speeds up the repair time since it can automatically communicate with the chassis (when the uP is working) and all repair information is directly available.

4. ComPair features TV software upgrade possibilities.

Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s). The ComPair fault finding program is able to determine the problem of the defective television, by a combination of automatic diagnostics and an interactive question/answer procedure.

How to Connect

This is described in the chassis fault finding database in ComPair.

C or UART commands is necessary,

18930_203_100310.eps

Figure 5-4 Example of SAM

How to Navigate

The up/down cursor keys can be used to navigate through the menu, while with the Left/Right cursor the values can be changed.

How to Store

Choose “DO”, and press the “OK” button.

How to go one level up in the menu

Press the MENU button.

How to Exit

Go up in the menu to the root and switch the set to STANDBY.

100310

Figure 5-5 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs will be damaged!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Programming software can be downloaded from the Philips Service portal.

• ComPair UART interface cable for RAM1.1x xx. 3138 188 75051.

Note: While having problems, contact the local support desk.

2011-Feb-18

EN 18 RAM1.0L LA5.

18930_204_100310.eps

100310

18930_205_100310.eps

100310

18930_206_100310.eps

100310

18870_206_100209.eps

100209

5.3 Software Upgrading

5.3.1 Introduction

Philips continuously tries to improve its products, and we recommend that you update the TV software when updates are available. Software update files can be obtained from your dealer or can be downloaded from the following website:

http://www.philips.com/support

Preparing a portable memory for software upgrade

You require the following:

1. A personal computer connected to the Internet.

2. An archive utility that supports the ZIP-format (e.g. “WinZip” for Windows or “Stufflt” for Mac OS).

3. A USB flash drive (preferably empty).

Note:

1. Only FAT/DOS-formatted flash drives are supported.

2. Only use software update files that can be found on the Philips Service Portal.

5.3.2 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check the current TV software version:

1. Press the “Menu” button on your remote control.

2. Select “Setup” and press “OK”, then select [Software update] > [Current software].

If the current software version of your TV is the same as the latest update file found on the Philips Service Portal, it is not necessary to update the TV software.

Service Modes, Error Codes, and Fault Finding

Figure 5-6 Update the TV software 1

5.3.3 Download the latest software

1. Point your web browser to the Philips Service Portal.

2. Find information and software related to your TV.

3. Select the latest software update file and download it to your PC.

4. Insert a USB flash drive into one of the USB ports of your PC.

5. Decompress the downloaded ZIP file and copy the “autorun.upg” to the root directory of the USB flash drive.

5.3.4 Update the TV software

1. Power off your TV and disconnect all memory devices.

2. Insert the USB flash drive that contains the software update file.

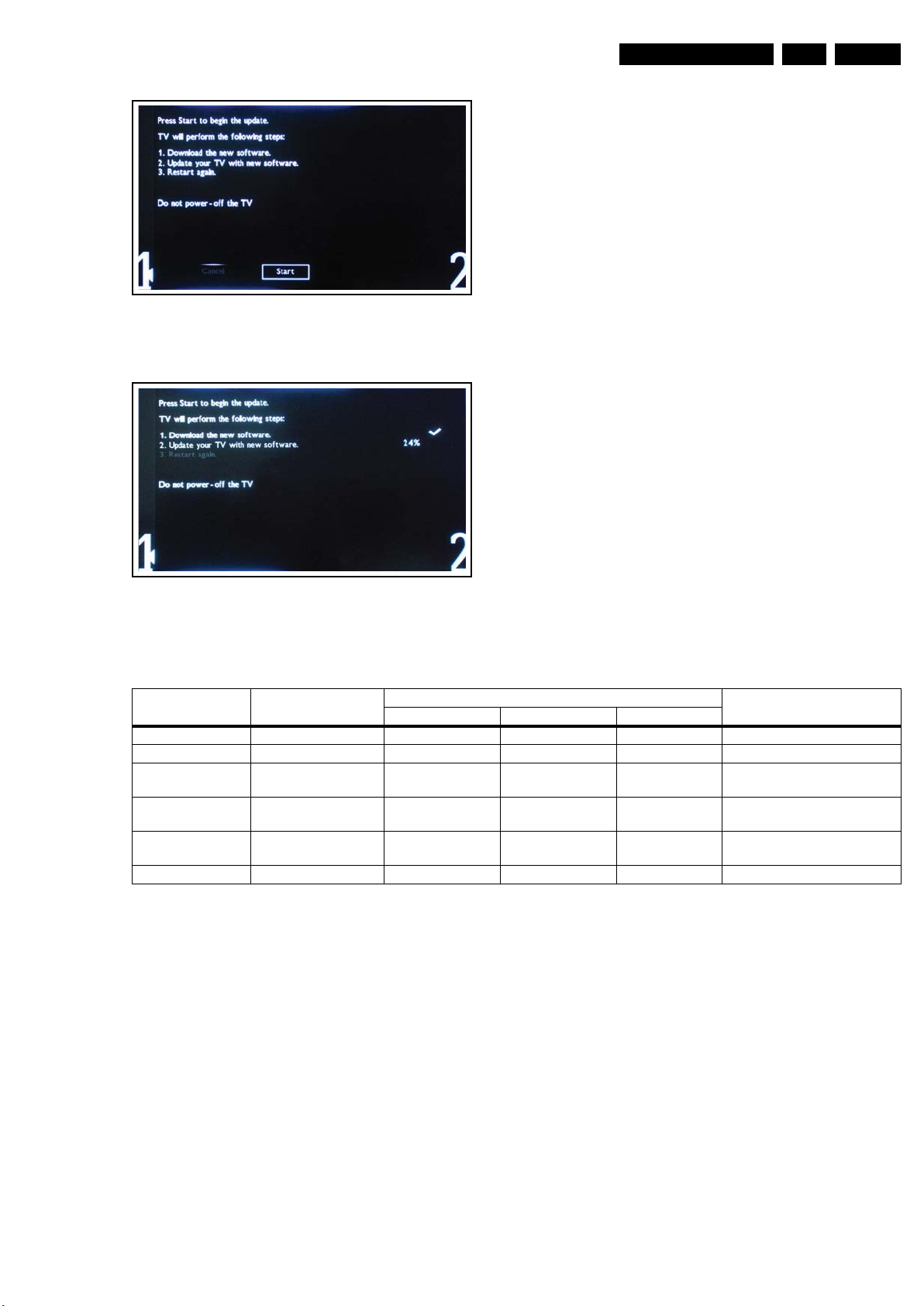

3. Switch on your TV, and TV will display the Main Menu upon detection of USB portable.

4. Select [Setup] and press OK. See Figure 5-6 Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

5. Select [Software update] > [Local updates] and press OK. See Figure 5-7

and Figure 5-8.

6. When prompted, select [Cancel] or [OK] and press OK. See Figure 5-9

7. To proceed, In next menu select [Start] and press OK to start software updates. See Figure 5-10

8. Upgrading will now begins and the status of the updating progress will be displayed. See Figure 5-11

9. When the TV software is updated, the TV automatically restarts and the TV starts up with the new software.

Figure 5-7 Update the TV software 2

Figure 5-8 Update the TV software 3

2011-Feb-18

Figure 5-9 Update the TV software 4

+ 42 hidden pages
