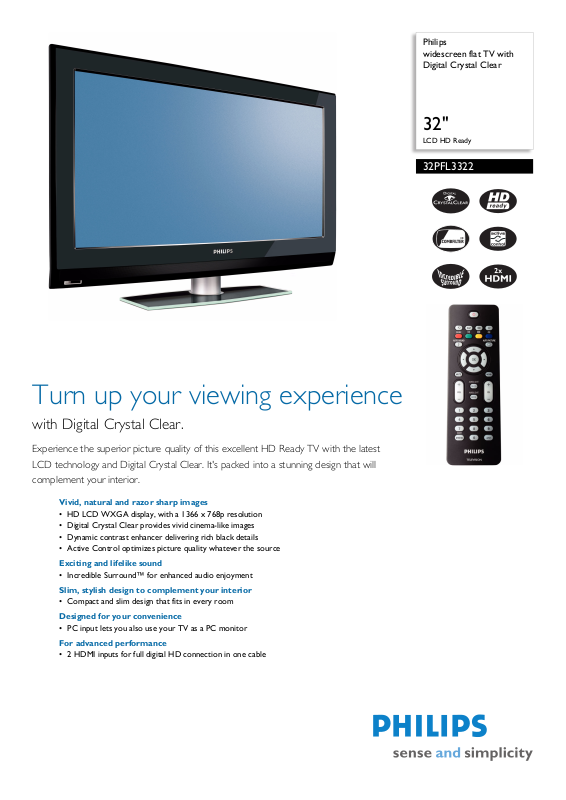

Philips
widescreen flat TV with
Digital Crystal Clear

32"

LCD HD Ready

32PFL3322

Turn up your viewing experience

with Digital Crystal Clear.

Experience the superior picture quality of this excellent HD Ready TV with the latest
LCD technology and Digital Crystal Clear. It's packed into a stunning design that will
complement your interior.

Vivid, natural and razor sharp images

• HD LCD WXGA display, with a 1366 x 768p resolution

• Digital Crystal Clear provides vivid cinema-like images

• Dynamic contrast enhancer delivering rich black details

• Active Control optimizes picture quality whatever the source

Exciting and lifelike sound

• Incredible Surround™ for enhanced audio enjoyment

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Designed for your convenience

• PC input lets you also use your TV as a PC monitor

For advanced performance

• 2 HDMI inputs for full digital HD connection in one cable

Widescreen flat TV with Digital Crystal Clear

32" LCD HD Ready

32PFL3322/78

Specifications Product highlights

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 4000:1

• Response time (typical): 8 ms

• Viewing angle (H / V): 178 / 178 degree

• Diagonal screen size: 32 inch / 81 cm

• Display screen type: LCD WXGA Active Matrix
TFT

• Panel resolution: 1366 x 768p

• Picture enhancement: Digital Crystal Clear,
Luminance Transient Improver, Dynamic contrast
enhancement, Contrast Plus, 3/2 - 2/2 motion pull
down, 3D Combfilter, Active Control, Jagged Line
Suppression, Progressive Scan

• Screen enhancement: Anti-Reflection coated
screen

Supported Display Resolution

• Computer formats
Resolution Refresh rate
640 x 480 60, 72, 75, 85Hz
720 x 400 70Hz
1024 x 768 60, 70, 75, 85Hz

• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz

Sound

• Equalizer: 7-bands

• Output power (RMS): 2 x 10W

• Sound Enhancement: Auto Volume Leveller,
Incredible Surround

• Sound System: Stereo, SAP

Loudspeakers

• Built-in speakers: 2

• Loudspeaker types: Front Speakers, Dome
tweeter

Convenience

• Child Protection: Child Lock

• Clock: On main display, Sleep Timer, Wake up
Clock

• Ease of Installation: Auto Program Naming,
Autostore, Fine Tuning, Program Name, Sorting

• Ease of Use: 8 channel smart surf list, Auto

Volume Leveller (AVL), AutoPicture, AutoSound,
Program List, Side Control, Closed Captioning
Full Text

• On-Screen Display languages: English, Portuguese,
Spanish

• Remote Control: TV

• Remote control type: RC2023606/01

• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: NTSC, PAL N, PAL M

• Video Playback: NTSC, PAL (all versions)

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Preset Channels: 125

• Tuner Display: PLL

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: Audio L/R in, CVBS in, S-Video in

• AV 4: HDMI

• AV 5: HDMI

• Other connections: Monitor out, CVBS, L/R
(cinch), PC Audio in, PC-In VGA

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 100-240V, 50/60Hz

• Power consumption: 150 W

• Standby power consumption: <1W

Accessories

• Included Accessories: Power cord, Quick start
guide, User Manual, Remote Control, Batteries
for remote control

Dimensions

• Color cabinet: Silver Cabinet with Black Hi Gloss
Deco Frame

• Set dimensions (W x H x D):
805

x 547 x 116 mm

• Set dimensions with stand (W x H x D):
805

x 609 x 212 mm

• Product weight: 14.2 kg

• Product weight (+stand): 17 kg

• Box dimensions (W x H x D):
870

x 630 x 290 mm

• Weight incl. Packaging: 23 kg

• VESA wall mount compatible: 200 x 100 mm

•

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of 1366
x 768p pixels. It produces brilliant flicker-free progressive
scan pictures with optimum brightness and superb colors.
This vibrant and sharp image will provide you with an
enhanced viewing experience.

Digital Crystal Clear

Digital Crystal Clear is a package of picture innovations
that digitally adjusts and optimizes picture quality to
optimal contrast, color and sharpness levels. It's like
watching vivid cinema-like images.

Dynamic contrast enhancer

You want the LCD flat display with the highest contrast
and mos t vibr ant im ages even at wide v iewin g angl e. The
Philips dynamic contrast enhancer uses video processing
and unique dimming backlight technology. This delivers
deep rich black levels with increased detail. The dimming
backlight increases the contrast up to 5 times*, and at
the same time improves the viewing angle. It gives a
bright, lifelike picture with high contrast and vibrant
colors, (* factor between 2 and 5, screen type and picture
content dependant).

Active Control

Active Control ensure that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture setting
over 3,000 times per minute, Active Control Plus ensures
that the viewing experience is optimized.

Incredible Surround™

Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.

2 HDMI inputs

HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an analog signal, it delivers an unblemished image. The
non-degraded signal reduces flicker and leads to a clearer
picture. HDMI intelligently communicates the highest
ou tp ut resol ut ion with t he source de vi ce. The HD MI input
is fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy protection.
With 2 HDMI inputs you can connect multiple HD
sources, for instance an HD settop box, and a Blu-ray
player. Your TV is fully prepared for the HD future.

PC input

With PC input you can connect your TV to a computer
and use the TV as a PC monitor.

Issue date 2008-02-16

Version: 1.0.4

12 NC: 8670 000 38903
EAN: 87 12581 41168 8

© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
