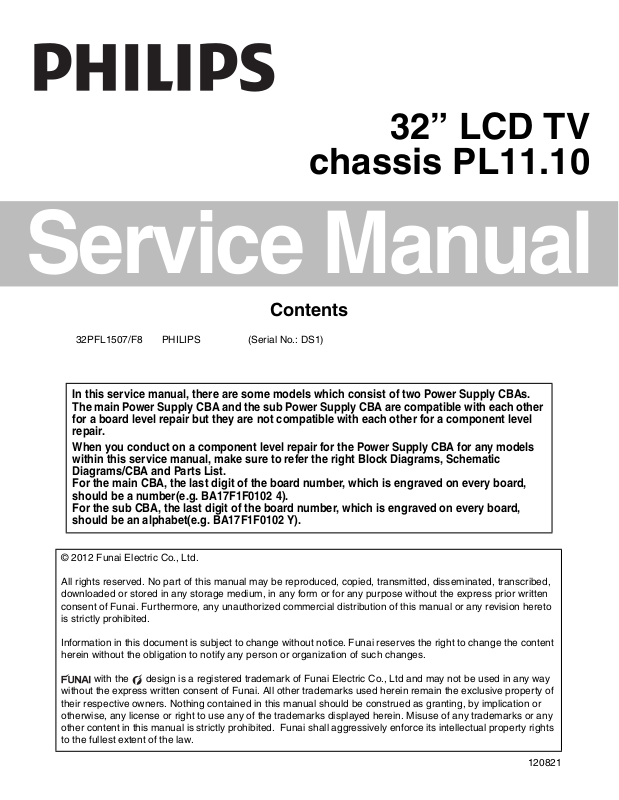

Service Manual

32” LCD TV

chassis PL11.10

Contents

32PFL1507/F8 PHILIPS (Serial No.: DS1)

In this service manual, there are some models which consist of two Power Supply CBAs.
The main Power Supply CBA and the sub Power Supply CBA are compatible with each other
for a board level repair but they are not compatible with each other for a component level
repair.

When you conduct on a component level repair for the Power Supply CBA for any models
within this service manual, make sure to refer the right Block Diagrams, Schematic
Diagrams/CBA and Parts List.
For the main CBA, the last digit of the board number, which is engraved on every board,
should be a number(e.g. BA17F1F0102 4).
For the sub CBA, the last digit of the board number, which is engraved on every board,
should be an alphabet(e.g. BA17F1F0102 Y).

© 2012 Funai Electric Co., Ltd.

This service manual contains information of different types of models.
Make sure to refer to the section describing your model.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed,
downloaded or stored in any storage medium, in any form or for any purpose without the express prior written
consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto
is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content
herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way
without the express written consent of Funai. All other trademarks used herein remain the exclusive property of
their respective owners. Nothing contained in this manual should be construed as granting, by implication or
otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any
other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights
to the fullest extent of the law.

120821

IMPORTANT SAFETY NOTICE

The LCD panel is manufactured to provide many years of useful life.
Occasionally a few non active pixels may appear as a tiny spec of color.
This is not to be considered a defect in the LCD screen.

Proper service and repair is important to the safe, reliable operation of all
P&F Equipment. The service procedures recommended by P&F and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
P&F could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, P&F has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by P&F must first use
all precautions thoroughly so that neither his safety nor the safe operation
of the equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to Initialize the LCD TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

Comparison List of Model Names. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-1

SPECIFICATIONS

< TUNER / NTSC >

ANT. Input ---------------------- 75 Ω Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-In Range --- MHz ±2.3 ±2.1

18
18
18

2. Synchronizing Sens.

TV.ch.4
CA.ch.31
CA.ch.87

dBμ
dBμ
dBμ

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

---

---

---

2. ATSC Dynamic Range (min / max)

ch.4
ch.10
ch.41

dBm
dBm
dBm

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolution

2. Brightness (w / filter) ---

3. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

pixels
pixels

cd/m

°
°

1366

768

2

300 ---

-88 to 88

-88 to 88

20
20
23

-76/0

-76/0

-76/+4

---

---

---

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Vert ical

--­x
y

<Measurement condition>
Input signal: Internal pattern (40/70% raster)
Measurement point: Screen center
Measuring instrument:
Aging time: 60min. (Retail MODE / 100IRE Raster HDMI

MODE setting of TV: Shipment setting / Retail MODE
Ambient temperature: 25°C ±5°C

Horizontal

Vert ical

%
%

°K 12000

Made of KONICA MINOLTA Luminance meter CA-310

1080i@60)

line
line

5
5

0.272

0.278

400
350

5±5
5±5

--­±2%
±2%

---

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1.

Audio MAX Output (ATSC 0dBfs)

2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

3. Audio Freq. Response (NTSC)

Lch/Rch W 5.0/5.0 4.0/4.0

-

6dB: Lch

-

6dB: Rch

Hz
Hz

70 to 10 k
70 to 10 k

100 to 8 k
100 to 8 k

1-1 PL11.10SP

IMPORTANT SAFETY PRECAUTIONS

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

TEST ALL EXPOSED
METAL SURFACES

READING SHOULD
NOT BE ABOVE 0.5 mA

EARTH
GROUND

_

DEVICE

LEAKAGE

CURRENT

TESTER

+

BEING

TESTED

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV
Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the
following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during
servicing. (1) Protective shields are provided
on this chassis to protect both the technician
and the customer. Correctly replace all missing
protective shields, including any removed for
servicing convenience. (2) When reinstalling
the chassis and/or other assembly in the
cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating
fishpapers, adjustment and compartment
covers/shields, and isolation resistor/capacitor
networks. Do not operate this instrument or

permit it to be operated without all
protective devices correctly installed and
functioning. Servicers who defeat safety
features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to
insert their fingers and contact a hazardous
voltage. Such openings include, but are not
limited to, (1) spacing between the Liquid
Crystal Panel and the cabinet mask, (2)
excessively wide cabinet ventilation slots, and
(3) an improperly fitted and/or incorrectly
secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug
prongs. Place the instrument AC switch in the
on position. Connect one lead of an ohmmeter
to the AC plug prongs tied together and touch
the other ohmmeter lead in turn to each tuner
antenna input exposed terminal screw and, if
applicable, to the coaxial connector. If the
measured resistance is less than 1.0 megohm
or greater than 5.2 megohm, an abnormality
exists that must be corrected before the
instrument is returned to the customer. Repeat
this test with the instrument AC switch in the off
position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the
AC line cord directly into a 120 V AC outlet. (Do
not use an isolation transformer during this
test.) Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI) C101.1
Leakage Current for Appliances and
Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on
position and then in the off position, measure
from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal
cabinet, screw heads, metallic overlays, control
shafts, etc.), especially any exposed metal
parts that offer an electrical return path to the
chassis. Any current measured must not
exceed 0.5 milli-ampere. Reverse the
instrument power cord plug in the outlet and
repeat the test.

ANY MEASUREMENTS NOT WITHIN THE
LIMITS SPECIFIED HEREIN INDICATE A
POTENTIAL SHOCK HAZARD THAT MUST
BE ELIMINATED BEFORE RETURNING THE

2. Read and comply with all caution and safety-

2-1 LTVN_ISP

INSTRUMENT TO THE CUSTOMER OR
BEFORE CONNECTING THE ANTENNA OR
ACCESSORIES.

related notes on or inside the receiver cabinet, on
the receiver chassis, or on the Liquid Crystal
Panel.

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV
receiver. Design alterations and additions,
including, but not limited to circuit modifications
and the addition of items such as auxiliary audio
and/or video output connections, might alter the
safety characteristics of this receiver and create a
hazard to the user. Any design alterations or
additions will void the manufacturer's warranty and
may make you, the servicer, responsible for
personal injury or property damage resulting
therefrom.

4. Hot Chassis Warning ­a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC
power cord and maybe safety-serviced without
an isolation transformer only if the AC power
plug is inserted so that the chassis is
connected to the ground side of the AC power
source. To confirm that the AC power plug is
inserted correctly, with an AC voltmeter,
measure between the chassis and a known
earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC
power plug in the opposite polarity and again
measure the voltage potential between the
chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground
regardless of the AC plug polarity. This chassis
can be safety-serviced only with an isolation
transformer inserted in the power line between
the receiver and the AC power source, for both
personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulation material that must not be defeated or
altered.

5. Observe original lead dress. Take extra care to
assure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch
thermally hot parts, c. the AC supply, d. high
voltage, and, e. antenna wiring. Always inspect in
all areas for pinched, out of place, or frayed wiring.
Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and
mechanical parts have special safety-related
characteristics which are often not evident from
visual inspection, nor can the protection they give
necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are
identified by a # on schematics and in parts lists.
Use of a substitute replacement that does not
have the same safety characteristics as the
recommended replacement part might create
shock, fire, and/or other hazards. The product's
safety is under review continuously and new
instructions are issued whenever appropriate.
Prior to shipment from the factory, our products
are strictly inspected to confirm they comply with
the recognized product safety and electrical codes
of the countries in which they are to be sold.
However, in order to maintain such compliance, it
is equally important to implement the following
precautions when a set is being serviced.

2-2 LTVN_ISP

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

11~13 lb (5~6 kg) of force in any direction will not
loosen it.

I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and
tighten certainly.

2-3 LTVN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and
wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified
values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across both terminals of load Z.
See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

Z

AC Voltmeter
(High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 μF CAP. & 1.5 kΩ

RES. Connected in parallel

2-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Top View

Out

In

Bottom View

Input

5

10

Pin 1

Pin 1

Fig. S-1-1

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

3. The 1st pin of every male connector is indicated as
shown.

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb
free solder. (Refer to figure.) For PCBs with Pb free
mark, be sure to use Pb free solder. For PCBs
without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

3-1 TVN_SN

3. The flat pack-IC on the CBA is affixed with glue, so

Hot-air
Flat Pack-IC
Desoldering
Machine

CBA

Flat Pack-IC

Tweezers

Masking
Tape

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

Fine Tip
Soldering Iron

Sharp
Pin

Fig. S-1-4

be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

3-2 TVN_SN

With Iron Wire:

To Solid
Mounting Point

Soldering Iron

Iron Wire

or

Hot Air Blower

Fig. S-1-5

Fine Tip
Soldering Iron

CBA

Flat Pack-IC

Tweezers

Fig. S-1-6

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the
pin 1 on the PCB when positioning for installation.
Then presolder the four corners of the flat pack-IC.
(See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

3-3 TVN_SN

Instructions for Handling Semi-

<Incorrect>

CBA

Grounding Band

Conductive Sheet or
Copper Plate

1MΩ

1MΩ

<Correct>

CBA

conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

3-4 TVN_SN

CABINET DISASSEMBLY INSTRUCTIONS

[1] Stand

Assembly

[2] Rear Cabinet

[4] Power Supply
CBA

[6] Speaker

[5] Stand Bracket

[3] Digital Main
CBA Unit

[9] Function
CBA Unit

[8] IR Sensor
CBA Unit

[7] LCD Module
Assembly

[10] Front
Cabinet

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts and the CBA in order to gain access to
items to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

2. Disassembly Method

Step/

Loc.

No.

Part

Fig.

No.

Removal Note

Step/

Loc.

No.

[10]

↓

(1)

Part

Front
Cabinet

↓

(2)

Fig.

No.

Removal Note

D2 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.

(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
H = Hex Screw, CN = Connector
e.g. 2(S-2) = two Screws of (S-2),
2(L-2) = two Locking Tabs of (L-2)

(5) Refer to the following "Reference Notes in the

Ta bl e ."

Stand

[1]

Assembly
Rear

[2]

Cabinet

Digital Main

[3]

CBA UnitD2D3

Power

[4]

Supply
CBA

Stand

[5]

Bracket

D1 3(S-1) ---

D1

D2
D3

D2 (S-7) ---

[6] Speaker D2

LCD

[7]

Module
Assembly

IR Sensor

[8]

CBA UnitD2D3
Function

[9]

CBA UnitD2D3

D2 --------------- ---

10(S-2), 3(S-3),
2(S-4), 13(L-1)

4(S-5), CN3005,
CN3101, CN3102,
CN3701, CN3801,
CN3802, Jack Holder

5(S-6), CN200,
CN601, CN1100,
CN1101, CN1102,

4(S-8),
Speaker Holder

Sensor Lens ---

Function Knob ---

---

---

---

---

4-1 PL11.10-A_DC

[2] Rear Cabinet

(S-1)

[1] Stand Assembly

(S-2)

(S-4)

(S-3)

(S-2)

(L-1)

(L-1)

(L-1)

(S-3)

(S-2)

(S-2)

(L-1)

Fig. D1

4-2 PL11.10-A_DC

[3] Digital Main
CBA Unit

[5] Stand Bracket

[4] Power Supply CBA

[7] LCD Module
Assembly

[9] Function
CBA Unit

[10] Front Cabinet

[8] IR Sensor
CBA Unit

Speaker
Holder

Function
Knob

Sensor Lens

[6] Speaker

Jack Holder

(S-5)

(S-8)

(S-8)

(S-7)

(S-6)

Speaker
Holder

(S-6)

(S-6)

Fig. D2

4-3 PL11.10-A_DC

TV Cable Wiring Diagram

CN200

CN1102

CN1101

CN1100

CN3005

CN632 CN3701

CN4001

CN601

To AC Cord

To Speaker

To LCD Module
Assembly

CN3802

CN3102

CN3801

CN3101

CN4052

To LCD Module
Assembly

Power Supply CBA

IR Sensor CBA Unit

Function CBA Unit

Digital Main
CBA Unit

Fig. D3

4-4 PL11.10-A_DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for
“Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain
mechanical parts. It is important to perform
these adjustments only after all repairs and
replacements have been completed.
Also, do not attempt these adjustments unless
the proper equipment is available.

Test Equipment Required

1. Remote control unit

2. Color Analyzer,
CA-310 (KONICA MINOLTA Luminance meter) or
measuring instrument as good as CA-310.

How to set up the service mode:

Service mode:

1. Turn the power on.

2. Press [MENU] button to display Setup menu.

3. Select “Features”.

4. Select “Current Software Info”.

5. Press [0], [6], [2], [5], [9], [6] and [INFO] buttons on
the remote control unit in this order. The following
screen appears.

"*" differs depending on the models.

Code:
Pic code:
Panel-Option code:
MIPS:

Tuner:
Safety:
HDMI EDID:
PC EDID:

****-*****-****
Safety_Non

**
**

*******-**-**-****-**
**********-***-*-**
**-***-***-***-***

Push 0 key

Press "POWER" key to exit.

Total Watch Time:
Lightsensor:

*****
****

5-1 PL11.10(LC9)EA

1. Purity Check Mode

[7] button

Note:

When entering this mode, the default setting is White mode.

Purity Check Mode

[7] button

Red mode

Green mode

Blue mode

Black mode

[7] button

White mode

[7] button

[7] button

White 20% mode

[7] button

Color Analyzer

To avoid interference from ambient
light, this adjustment should be
performed in a dark room.

Perpendicularity

2. VCOM Adjustment

This mode cycles through full-screen displays of red,
green, blue, and white to check for non-active pixels.

1. Enter the service mode.

2. Each time the [7] button on the remote control unit
is pressed, the display changes as follows.

Test Point Adj. Point

Screen

[CHANNEL UP/DOWN]

buttons

M. EQ. Spec.

Color analyzer See below

Figure

1. Operate the unit for more than 60 minutes.

2. Set the color analyzer at the zero point calibration
and bring the optical receptor pointing at the
center of the LCD-Panel.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

3. Enter the service mode.

4. Press [3] button on the remote control unit.

5. Press [CHANNEL UP/DOWN] buttons on the
remote control unit so that the color analyzer value
becomes minimum.

6. To cancel or to exit from the VCOM Adjustment,
press [CH RETURN] or [PREV CH] button.

3. To cancel or to exit from the Purity Check Mode,
press [CH RETURN] or [PREV CH] button.

5-2 PL11.10(LC9)EA

The White Balance Adjustment should be

Color Analyzer

Perpendicularity

To avoid interference from ambient
light, this adjustment should be
performed in a dark room.

Internal (Single)

HDB 0

Internal (Single)

LDB 0

performed when replacing the LCD Panel
or Digital Main CBA.

3. White Balance Adjustment

Purpose: To mix red and blue beams correctly for

pure white.
Symptom of Misadjustment: White becomes bluish

or reddish.

6. Press [MENU] button. The internal Raster signal
appears in the screen. (“Internal (Single)” appears
in the upper right of the screen as shown below.)

ITEM

Color temperature

Input Signal

SPECIFICATION

x= 0.272 ± 0.002
y= 0.278 ± 0.002

Internal pattern
(40/70% raster)

Measurement point Screen center

CA-310 (KONICA MINOLTA

M. EQ.

Luminance meter) or
measuring instrument as
good as CA-310.

60min.

Aging time

(Retail MODE/100IRE Raster
HDMI 1080i@60)

MODE setting of TV

Ambient
temperature

Shipment setting/
Retail MODE

25°C ± 5°C

1. Operate the unit for more than 60 minutes.

2. Enter the service mode.

3. Press [VOLUME DOWN] button three times on the
remote control unit to select “Drive setting” mode.
“Drive” appears in the screen.

4. Set the color analyzer at the CHROMA mode and
zero point calibration. Bring the optical receptor
pointing at the center of the LCD-Panel.

Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

5. Press [3] button to select the “HDB” for High Drive
Blue adjustment. (“HDB” appears in the screen.)

7. Press [CHANNEL UP/DOWN] buttons to adjust
the color temperature becomes 12000°K

=

0.272 / y= 0.278 ±0.002).

(x

8. Press [1] button to select the “HDR” for High Drive
Red adjustment (“HDR” appears in the screen.)
and press [CHANNEL UP/DOWN] buttons to
adjust the color temperature.

9. If necessary, adjust the “HDB” or “HDR” again.

10. Press [6] button to select the “LDB” for Low Drive
Blue adjustment (“LDB” appears in the screen.)
and press [CHANNEL UP/DOWN] buttons to
adjust the color temperature.

11. Press [4] button to select the “LDR” for Low Drive
Red adjustment (“LDR” appears in the screen.)
and press [CHANNEL UP/DOWN] buttons to
adjust the color temperature.

12. If necessary, adjust the “LDB” or “LDR” again.

13. Press [VOLUME DOWN] button to shift to the
“Debugging Message” mode.
If there is no message under “[WB]” section, this
adjustment completes.
If “Drive settings are NG. Retry.” is displayed,
repeat above steps from 5. to 12. Then check
“Debugging Message” again. If “Drive settings are
NG. Retry.” is displayed, replace the LCD Panel or
Digital Main CBA.

14. To cancel or to exit from the White Balance
Adjustment, press [CH RETURN] or [PREV CH]
button.

5-3 PL11.10(type C)EA

HOW TO INITIALIZE THE LCD TV

The purpose of initialization is to place the set in a new out of box condition. The customer will be prompted to
select a language and program channels after the set has been initialized.
To put the program back at the factory-default, initialize the LCD TV using the following procedure.

1. Turn the power on.

2. Enter the service mode.

- To cancel the service mode, press [POWER]
button on the remote control unit.

3. Press [FREEZE] button on the remote control unit
to initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the
screen. "INITIALIZED" color will change to green
from red when initialization is completed.

6-1 LC9_INT

FIRMWARE RENEWAL MODE

Rear Cabinet

USB port

USB storage
device

Software upgrade in progress. Please wait.
Do not remove the USB storage device or
turn the TV off while upgrade is in progress.

Software Upgrade

Downloading...

Current Version:

New Version:

*******-***-*-***-****
*******-***-*-***-****

0%

*1

"*" differs depending on the models.

Software Upgrade

The software upgrade is completed.
Remove USB storage device, turn TV off then on again.

Equipment Required

a. USB storage device
b. Remote Control Unit

Firmware Update Procedure

Note: There are two states (the User Upgrade and

the Factory Upgrade) in firmware update.

User Upgrade Upgrade the firmware only.

The setting values are not
initialized.

Factory Upgrade
(Firmware
upgrade)

Factory Upgrade
(Flash upgrade)

The identification of User Upgrade and Factory
Upgrade are done by the filename.

1. Turn the power off and unplug the AC Cord.

2. Insert the USB storage device to the USB port as
shown below.

Upgrade the firmware and
initialize the setting values.

Upgrade the firmware and
initialize the setting values
along with the setting data
adjusted at the factory such as
White Balance, etc.

4. The update will start and the following will appear
in the screen.

Note: If the above screen isn’t displayed, repeat from

step 1.

The appearance shown in *1 is described as follows.

Appearance State

Downloading...

Writing...

Downloading the firmware from
the USB storage device.

Writing the downloaded firmware
in flash memory.

Checking... Checking the new firmware.

5. When the firmware update is completed, the
following will appear in the screen.

3. Plug the AC cord in the wall outlet and turn the
power on.

Remove the USB storage device from the USB
port.
Turn the power off and turn the power on again.

Note:

When the Factory Upgrade is used, after
restarting TV, shift to initial screen menu in service
mode. "INITIALIZED" will appear in the upper right
of the screen. "INITIALIZED" color will change to
green from red when initialization is completed.

7-1 PL11.10FW

[Power Supply Section]

FLOW CHART NO.1

The power cannot be turned on.

TROUBLESHOOTING

Is the fuse (F601) normal?

Ye s

Is normal state restored when once unplugged
power cord is plugged again after several seconds?

Ye s

Is the P-ON+24V line voltage normal?

Ye s

Check each rectifying circuit of the secondary
circuit and service it if defective.

FLOW CHART NO.2

The fuse blows out.

Check the presence that the primary component
is leaking or shorted and service it if defective.

After servicing, replace the fuse (F601).

FLOW CHART NO.3

When the output voltage fluctuates.

No

No

No

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuiting on the
primary circuit component, and service it if defective.
(D600, D601, D602, D603, Q600, Q601, T600)

Check the presence that the rectifying diode or circuit
is shorted in each rectifying circuit of secondary side,
and service it if defective.

Does the photocoupler circuit on the
secondary side operate normally?

Ye s

Check IC601, D607, D609 and their periphery circuit,
and service it if defective.

FLOW CHART NO.4

When buzz sound can be heard in the vicinity of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit
and service it if defective. (IC202, Q212, Q213, Q221, Q222, Q636, D634, D63

No

Check IC601, D648, Q631, Q634 and their periphery
circuit, and service it if defective.

in each rectifying circuit of the secondary side,

7, D642, D643, D644, D646, D660)

8-1 PL11.10ATR

FLOW CHART NO.5

P-ON+24V is not output.

Is approximately +24V voltage supplied to the
cathode of D637?

Ye s

Check for short-circuiting or leak on the load circuit,
and service it if defective.

FLOW CHART NO.6

LCD+24.5V is not output.

Is approximately +35V voltage supp
of Q212?

Is approximately +25V voltage supplied to the base
of Q212?

Replace Q212.

FLOW CHART NO.7

PANEL+15.8V is not output.

lied to the collector

Ye s

Ye s

No

No

No

Check C648A, D637, D644, D646, D648 and their
periphery circuit, and service it if defective.

Check C647, D660 and their periphery circuit,
and service it if defective.

Check Q210, Q211, D207(A), P-ON-H1 line and
their periphery circuit, and service it if defective.

Is approximately +22V voltage supplied to the
collector of Q221?

Ye s

Is approximately +16V voltage supplied to the
base of Q221?

Ye s

Replace Q221.

FLOW CHART NO.8

AMP+24V is not output.

Is approximately +24V voltage supplied to the cathode
of D634?

Ye s

Check for short-circuiting or leak on the load circuit,
and service it if defective.

No

No

No

Check C637, D640, D645 and their periphery circuit,
and service it if defective.

Check Q210, Q211, D202(A), D221, D2
line and their periphery circuit, and service it if defective.

Check C631, D634 and their periphery circuit,
and service it if defective.

22(A), P-ON-H1

8-2 PL11.10ATR

FLOW CHART NO.9

AL+5V is not output.

Is approximately +24V voltage supplied to the
collector of Q636?

Ye s

Is approximately +5.6V voltage supplied to the
base of Q636?

Ye s

Replace Q636.

FLOW CHART NO.10

P-ON+3.3V is not output.

Is approximately +8.5V voltage supplied to Pin(1) of
IC202?

Ye s

Is approximately +7.5V voltage supplied to Pin(2) of
IC202?

Ye s

Replace IC202.

No

No

No

No

See FLOW CHART No.5 <P-ON+24V is not output.>

Check D656A and their periphery circuit, and service
it if defective.

Check C639, D643 and their periphery circuit, and
service it if defective.

Check Q207, Q208 P-ON-H2 line and their periphery
circuit, and service it if defective.

FLOW CHART NO.11

LCD-6V is not output.

Is approximately -9.5V voltage supplied to the anode
of D642?

Ye s

Is approximately -9V voltage supplied to the base of
Q213?

Ye s

Replace Q213.

No

No

Check C638, D642 and their periphery
circuit, and service it if defective.

, P-ON-H1 line and their

Check Q210, Q211, D208
periphery circuit, and service it if defective.

(A)

8-3 PL11.10ATR

[Video Signal Section]

FLOW CHART NO.1

The key operation is not functioning.

When pressing each switches (SW4001~SW4007)
do the voltage of Pin(2) of CN4001 decrease?

Ye s

Replace Digital Main CBA Unit.

FLOW CHART NO.2

No operation is possible from the remote control unit.

Operation is possible from the unit.

Is approximately +3.3V voltage supplied to Pin(3)
terminal of the remote control receiver (RS4051)?

Ye s

Is the "L" pulse sent out Pin(1) terminal of remote
control receiver (RS4051) when the infrared remote

control is activated?

Ye s

Is the "L" pulse supplied to Pin(2) of CN4052?

Ye s

No

No

No

No

Replace the Function CBA Unit.

Check AL+3.3V line and service it if defective.

Replace the IR Sensor CBA Unit
or the remote control unit.

Replace the IR Sensor CBA Unit.

Replace Digital Main CBA Unit.

FLOW CHART NO.3

Picture does not appear normally.

Is approximately +5.7V voltage supplied to Pin(11) of
CN632?

Ye s

Is approximately +24V voltage supplied to Pin(13, 14)
of CN632?

Ye s

approximately +

Is
CN632?

CL3005, Digital Main CBA Unit or LCD Module
Assembly may be defective.
Check and replace these parts.

24V voltage supplied to Pin(16, 17) of

Ye s

No

No

No

See FLOW CHART NO.9 <AL+5V is not output.
[Power Supply Section]>

See FLOW CHART NO.8 <AMP+24V is not output.
[Power Supply Section]>

See FLOW CHART NO.5 <P-ON+24V is not output.
[Power Supply Section]>

8-4 PL11.10ATR

[Audio Signal Section]

FLOW CHART NO.1

Audio is not outputted normally.

Is approximately +5.7V voltage supplied to Pin(11) of
CN632?

Ye s

Is approximately +24V voltage supplied to Pin(13, 14)
of CN632?

Ye s

approximately +

Is
CN632?

Are the audio signals outputted to Pin(1) of CN3801
and Pin(1) of CN3802?

SP3801, SP3802, CL3801 or CL3802 may be
defective. Check and replace these parts.

24V voltage supplied to Pin(16, 17) of

Ye s

Ye s

No

No

No

No

See FLOW CHART NO.9 <AL+5V is not output.
[Power Supply Section]>

See FLOW CHART NO.8 <AMP+24V is not output.
[Power Supply Section]>

See FLOW CHART NO.5 <P-ON+24V is not output.
[Power Supply Section]>

Replace Digital Main CBA Unit.

8-5 PL11.10ATR

BLOCK DIAGRAMS

1. System Control Block Diagram

P-ON+5V

D4051

STANDBY

KEY SWITCH

FUNCTION CBA UNIT

CN4001

KEY-IN122

CN3101

Q3501

LED DRIVE

REMOTE

RS4051

SENSOR

REMOTE22

LED155

CN3102 CN4052

IR SENSOR CBA UNIT

TO

POWER SUPPLY

BLOCK DIAGRAM

RESET

P-ON-H2

P-ON-H1

PROTECT1

VCOM-PWM

DRIVE

CN632

P-ON-H2

RESET

P-ON-H1

PROTECT1

VCOM-PWM

77

88

66

55

11

CN3701

TO INVERTER

BLOCK DIAGRAM

PROTECT3

PROTECT3

BACKLIGHT-SW

BACKLIGHT-ADJ

IC200, Q202,

Q203, Q204

CN632

PROTECT3

BACKLIGHT-SW

44

22

CN3701

TO VIDEO/AUDIO

BLOCK DIAGRAM

POWER SUPPLY CBA

BACKLIGHT-ADJ
33

IC3005

(MAIN MICRO CONTROLLER)

A15

KEY-IN1

C14

REMOTE

J16

LED1

AL+3.3V

IC3009

RESET

J15

RESET

AL+3.3V

COMP-DET

AUDIO-MUTE

N12

G13

COMP-DET

AUDIO-MUTE

Q3006

B16

P-ON-H2

Q3005

C1

C13

P-ON-H1

PROTECT1

BACKLIGHT-SW

F2

VCOM-PWM

SFCX

T11

652

SCK

IC3006 (MEMORY)

B13

PROTECT3

SFTX

P11

SI

E2

BACKLIGHT-SW

SFRX

R11

SO

F3

BACKLIGHT-ADJ

SFCS-N

P12

1

CS

SCL

SDA

TU3401 (TUNER UNIT)

4

3

T12

R12

SCL

SDA

X3001

XOUT25

XIN25

H15

H16

25MHz

OSC

DIGITAL MAIN CBA UNIT

TO

VIDEO/AUDIO

BLOCK DIAGRAM

9-1

PL11.10BLS

2. Video/Audio Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

TO SYSTEM CONTROL

BLOCK DIAGRAM

VIDEO SIGNAL

VGA-R-IN

VGA-B-IN

VGA-G-IN

PC-SCL

VGA-VSYNC

VGA-HSYNC

PC-SDA

(TUNER UNIT)

IF-AGC

DIF-OUT2

DIF-OUT1

6

7

DIF-OUT1

DIF-OUT2

COM-VIDEO-Y/VIDEO-IN

5

IF-AGC

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

AUDIO(L)

AUDIO(R)

SPDIF

AMP(L)-OUT

19

AMP(R)-OUT

AUDIO-MUTE

Q3802

34

32

COMP-DET

BACKLIGHT-SW

Q3803

P-ON+5V

DIGITAL MAIN CBA UNIT

Q3804

17

123

IC3013

JK3001

PC-RGB

TU3401

BUFFER GATE

BUFFER GATE

IC3014

131415

IN

CONTROL LOGIC

DRIVE PWM

DRIVE PWM

IC3801 (AUDIO AMP)

39,40

11,12

BUFFER

Q3701

2

2

1

BUFFER

BUFFER

Q3702

Q3703

WF1

WF2

WF3

JK3701

12

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

WF4

JK3701

AUDIO(L)-IN

AUDIO(R)-IN

DIGITAL

JK3702

AUDIO-OUT

(COAXIAL)

CN3801

SP(L)

SP3801

SP-GND

SPEAKER

L-CH

9-2

1

CN3802

SP(R)

SP-GND

SP3802

SPEAKER

R-CH

PL11.10BLV

3. Digital Signal Process Block Diagram

LCD MODULE

ASSEMBLY

LLV0(-)22

LLV0(+)23

LLV1(+)21

LLV2(+)19

LLV2(-)18

LLV3(+)13

LLV3(-)12

LLV4(+)11

LLV5(+)9

LLV5(-)8

LLVCLK(+)16

LLVCLK(-)15

TP6

POL5

CPV4

R15

L13

TP

M15

POL

L16

CPV

OE13

L15

OE

STV1

M14

STV

AUDIO SIGNAL

VIDEO SIGNAL

CN3005

P14

P13

N16

LLV1(-)20

N15

P16

P15

T16

T15

R14

LLV4(-)10

T14

R13

T13

R16

IC3002

(DDR2 SDRAM)

B1,B9,C2,C8,

D1,D3,D7,D9,

N4,N7,N8,P3,P4,

DATA(0-15)

ADDRESS(0-12)

H1,H3,H7,H9

F1,F9,G2,G8,

M2,M3,M7,M8,

N2,N3,N7,N8,

P2,P3,P7,P8,R2

P6-P8,R3,R4,R6,

R8,T2-T5

H1,H2,J1,J2,J4,K1,

K3,L1,L2,M1-M3,N1

HSIN

IC3005 (DIGITAL SIGNAL PROCESS)

A14

VSIN

B14

C11

LVD S T X

DIGITAL

SIGNAL

PROCESS

DIGITAL MAIN CBA UNIT

HDMI

AUDIO I/F

A/D

CONVERTER

DEMODULATOR

B11

C10

/MPEG DECODER

IF-AGC

A12

A16

B12

B8

A8

A7

B7

N10

SW

A9

D8

C9

C7

AUDI O

DECODER

IC3018 (HDMI SW)

414544484739383637

B4A4B3

26272324202117

I/F

A3B2A2B1A1

HDMI

SW

8

18

7

111014

VIDEO

DECODER

541

13

HDMI-SCL

HDMI-SDA

F14

G14

6

7

SCL0

SDA0

SCL1

SDA1

SCL3

SDA3

SCL2

3

101115

SDA2

14

IC3011

(HDMI SERIAL EEPROM)

2

2

VGA-HSYNC

VGA-VSYNC

COM-VIDEO-Y/VIDEO-IN

VGA-R-IN

VGA-G-IN

VGA-B-IN

DIF-OUT1

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

TO

VIDEO/AUDIO

BLOCK DIAGRAM

DIF-OUT2

IF-AGC

AUDIO(L)

SPDIF

AUDIO(R)

(R)-OUT

(L)-OUT

AMP

AMP

HDMI-IN1

JK3003

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

7 42

94613

9-3

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

15

JK3002

HDMI-IN2

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

3

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

15

PC-SDA

PC-SCL

TO

VIDEO/AUDIO

BLOCK DIAGRAM

PL11.10BLD

4. Inverter Block Diagram (main Power Supply CBA)

BACK

1

CN1100

LIGHT

2

768

5

BACK

1

CN1101

LIGHT

2

BACK

LIGHT

1

2

CN1102

768

768

5

5

LCD MODULE

ASSEMBLY

T1100

STB

7

SWITCHING

Q1700

21

T1101

2

Q1701

24

Q1301

3

4

2

1

+24V

IC1200

(PWM CONTROL)

Q1303

4

SWITCHING

OUTPUT

LOGIC

DUTY

12

Q1201

1

Q1702

3

SWITCHING

4

2

PWM

FEED

BACK

16

17

Q1703

T1102

SWITCHING

PROTECT

3

4

2

1

18

13

POWER SUPPLY CBA

Q1202

+12V REG.

Q1300

BACKLIGHT-ADJ

BACKLIGHT-SW

PROTECT3

When you conduct on a component level repair for the Power Supply CBA for any models within this service manual,

make sure to refer the right Block Diagram/Schematic Diagram/CBA and Parts List.

For the main CBA, the last digit of the board number, which is engraved on every board, should be a number (e.g. BA17F1F0102 4).

For the sub CBA, the last digit of the board number, which is engraved on every board, should be an alphabet (e.g. BA17F1F0102 Y).

+24V

TO SYSTEM CONTROL

BLOCK DIAGRAM

9-4

PL11.10BLINV

4. Inverter Block Diagram (sub Power Supply CBA)

BACK

1

CN1100

LIGHT

2

768

5

BACK

1

CN1101

LIGHT

2

BACK

LIGHT

1

2

CN1102

768

768

5

5

LCD MODULE

ASSEMBLY

T1100

/BIAS

8

SWITCHING

Q1700

22

T1101

2

6

DRIVE 2

Q1701

Q1301

3

4

2

1

+24V

REF

IC1200

(PWM CONTROL)

Q1303

4

SWITCHING

PWM

LFOSC

10

1

Q1702

Q1201

3

SWITCHING

3

DRIVE 1

5

HFOSC

17

SWITCHING

Q1703

T1102

16

PROTECT

3

4

2

1

20

POWER SUPPLY CBA

Q1205

Q1202

+12V REG.

Q1300

BACKLIGHT-ADJ

BACKLIGHT-SW

PROTECT3

When you conduct on a component level repair for the Power Supply CBA for any models within this service manual,

make sure to refer the right Block Diagram/Schematic Diagram/CBA and Parts List.

For the main CBA, the last digit of the board number, which is engraved on every board, should be a number (e.g. BA17F1F0102 4).

For the sub CBA, the last digit of the board number, which is engraved on every board, should be an alphabet (e.g. BA17F1F0102 Y).

+24V

TO SYSTEM CONTROL

BLOCK DIAGRAM

9-5

PL11.10BLINV2

5. Power Supply Block Diagram

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

AMP+24V

AL+5V

P-ON+24V

DIGITAL MAIN CBA UNIT

11

13,14

LCD MODULE ASSEMBLY

16,17

TO SYSTEM

RESET

P-ON-H1

VCOM-PWM

CONTROL

BLOCK

P-ON-H2

DIAGRAM

PROTECT3

PROTECT1

+24V

LCD-6V8

CN200

SW-9.5V

Q213

P-ON+3.3V6,7

VGH4

PANEL+15.8V2,3

SW

Q200, Q201,

Q206

SW+24V

Q212

9

AMP+24V13,14

AL+5V11

CN632 CN3701

SWITCHING

Q210,Q211

P-ON+24V16,17

11

Q633

RESET

+3.3V REG.

IC202

Q214

+5V REG.

Q636

SWITCHING

Q207,Q208

SW+15.8V

Q221, Q222,

D221

FEED

BACK

12

13

14

15

Q634

14

Q632

Q635

Q631

VCOM10

10

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

HOT CIRCUIT. BE CAREFUL.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

AC600

3

T600

BRIDGE

RECTIFIER

D600- D603

LINE

FILTER

L601

LINE

FILTER

L600

F601

4A/125V

CN601

1

2

AC CORD

4

4A/125V

5

8

7

IC601

ERROR

VOLTAGE DET

3 2

HOT COLD

CONTROL

Q601

SWITCHING

POWER SUPPLY CBA

SWITCHING

Q600

9-6

PL11.10BLP

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.

2. All resistance values are indicated in ohms
(K = 10

3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.

4. All capacitance values are indicated in μF
(P = 10

5. All voltages are DC voltages unless otherwise
specified.

This schematic diagrams are masterized version

6.
that should cover the entire PL11.10 chassis
models.
Thus some parts in detail illustrated on this
schematic diagrams may vary depend on the
model within the PL11.10 chassis.
Please refer to the parts lists for each models.

7. The Circuit Board layout illustrated on this service
manual is the latest version for this chassis at the
moment of making this service manual.
Depend on the mass production date of each
model, the actual layout of each Board may differ
slightly from this version.

3

, M = 106).

-6

μF).

10-1 PL11.10SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

2

3

1

5.0 5.0

Voltage

Indicates that the voltage
is not consistent here.

Power on mode

(Unit: Volt)

1-D3

Distinction Area

Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number
"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".

: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.

THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

5. How to read converged lines

6. Test Point Information

The reference number of parts on Schematic Diagrams/CBA can be retrieved by
application search function.

3

AREA D3

2

1

ABCD

10-2 PL11.10SC

AREA B1

1-D3

1-B1

Power Supply 1 Schematic Diagram

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

4

3

2

1

AC600
AC CORD

D612
OPEN

C607
820P
/2KV

R608

0.18
/2W

HOT CIRCUIT. BE CAREFUL.

165.8

0.1

CN600
OPEN

2
1

CN601
2

1

C603
OPEN

D

G

3.7

S

D610
1ZB36BB

D606A
OPEN

F601
4A/125V

R601

1.2M/1/2W

SA601
SURGE
ABSORBER

LINE FILTER

C601

0.47/250V

L601
LINE
FILTER

C604

C602
390

OPEN

/200V

Q600
TK10A50D

(SWITCHING)

C606
1200P

3.7

0

D604

D604A

OPEN

TFZGTR27B

D610A
OPEN

D606

D606B

OPEN

OPEN

C600

0.47/250V

D607A
OPEN

L600

R603
220K

R604
220K

R600
220K

C605

0.1

0.4

Q601
2SC2120-Y

SWITCHING
CONTROL

D607

D601
1N5406-BU

D600
1N5406-BU

R613
68K
/1W

R606A
OPEN

R606
120

TFZGTR4.3B

R607A
OPEN

R607

1.2K

D604B
OPEN

R609A
OPEN

HOT

4A 125V

D611A
OPEN

D611B
OPEN

D611
OPEN

R612
68K
/1W

BC602
BEAD

BC601
BEAD

R605A
OPEN

R605
120

D605A

D605B
OPEN

D605
OPEN

R610A
OPEN

C609
1500P

R609

3.9K

C608

0.068

R611

2.2/5W

R602

2.2/5W

D602
1N5406-BU

D603
1N5406-BU

C613
2200P
/1KV

D613
FR155-B/P

D609

R610
270

C610
1000P/250V

C611
1000P/250V

C612
1000P/250V

T600
POWER TRANS

3

C614
OPEN

4

5

7

8

D609A
OPEN

IC601
TLP781F
(D4-FUNBLL F)

ERROR
VOLTAGE DET

14.0
4

0.4
32

IC202A
OPEN
(+3.3V REG.)

VCVOVIN

123 54

8.5 7.4 3.3 1.3 0

COLD

NU

15

14

13

12

11

10

9

23.7

1

22.7

19.3

IC202
PQ200WNA1ZPH
(+3.3V REG.)

GND

D640
SK2B-TR

C637
470/25V

D649

R650

SK16-T/R

1

C641
2200P/1KV

D637
SB3150BH

D646
SB3150BH

D644
SB3150BH

D634
SB3150BH

D642
SK16-T/R

D643
SK16-T/R

D660
RS1GJTB

R636A
OPEN

R636
120

R637
10K

D631A

D631

TFZGTR

OPEN

5.6B

Q631
KTC3875S-Y-RTK/P

(SWITCHING)

0.1

0

VCVOVIN

123 54

8.5

7.4

3.3

C223
1

C216

0.1

C225

0.1

ADJ

1.3 0

R635A
OPEN

R635
120

C217
10/50V

R227
47K

R233

D662

8.2/1/2W

RS1GJTB

D661
RS1GJTB

JS660

D645
1ZB22BB

R275
OPEN

C644
1/50V

C648A
1000/35V

C648
OPEN

C631
1000/35V

C638
100/25V

C647
100/50V

D631B
OPEN

R632
47K

GND

R228

4.7K

OPEN

R269
12K

D645A
OPEN

D650
OPEN

D650A
TFZGTR5.6B

D650B
OPEN

C649
OPEN

R631
15K

C639
100/10V

R663
39K

R644
18K

R649A
OPEN

D654B
OPEN

0.1

0.6

Q635

0

KTC3875S-Y-RTK/P
(SWITCHING)

8.6 8.6

*2

R226
330

R243
240

*2

R244

C224

2.2K

OPEN

R235

5.6
/1/2W

R273
OPEN

R274
OPEN

Q216
OPEN

R642
75K

C649A
1000/35V

D648
1ZB30BB

D648A
OPEN

22.7

R649

3.9K

5.6

D654A
TFZGTR

5.6B

C230

R245A

100/10V

OPEN

Q207
2SA1576UBTLQ
(SWITCHING)

7.9

POWER SUPPLY CBA

21.9

Q222
2SA950-O

(SW+15.8V)

R234

5.6
/1/2W

R272
OPEN

Q215
OPEN

Q634
KTC3875S-Y-RTK/P

(FEED BACK)

6.2

D654
OPEN

R655
47K

R245
OPEN

R229
22K

15.8

21.9

21.9 15.8

R271

16.0

OPEN

R247
100K

R246

3.9K

C633
OPEN

-3.5

Q633
KTC3875S-Y-RTK/P

(RESET)

31.9

37.8
Q210

2SA1576

37.1
UBTLQ

(SWITCHING)

R252

R251

39K

22k

Q211
KTC3875S

-Y-RTK/P

0.1
(SWITCHING)

0.7

0

D639A
1SS400

D639

C645
2200P

R654
10K

R230
10K

0.1

0

R239

8.2/1W

Q221
2SC2120-Y

(SW+15.8V)

D222A

D222

0

R240

C219

3.9K

OPEN

2.6

Q213
KTC3875S-Y-RTK/P

0

(SW-9.5V)

D208

D208A

1SS400

R276
OPEN

R253
22K

R254
22K

R262
12K

C632

R645
27K

R647
27K

R651
820

R652
18K

1000/35V

0.7

Q208
KTC3875S-Y-RTK/P

(SWITCHING)

C220

C222

470/25V

OPEN

R236

9.1K
Q214

R237

R238

2.2K

D207

R258
680

R258A
OPEN

R259
OPEN

R259A
OPEN

R658
220

R658A
OPEN

2.2

0

R266A
OPEN

R263
270

R263A
OPEN

D207A
1SS400

24.0

R659
220

R659A
OPEN

KTC3875S-Y-RTK/P
(SWITCHING)

0.7

R266
47K

C228

2.2/50V

R257
47K

5.6

D636 D658
OPEN

R267
47K

R264
15K

R255
150

R255A
OPEN

R257A
OPEN

D205A
TFZGTR33B

C231

0.1

6.4

Q636
KTC3199-GR-AT/P

(+5V REG.)

D656
OPEN

D658A
0

R270 0

C221

1.5K

0.01

D221
KIA431-AT/P 39K

D202

D202A
1SS400

R643
47K

-9.6

-8.9

R260
47K

-9.6

R261
22K

OPENR657A

15R657

D655
OPEN

D655A
TFZGTR3.3B

OPEND655B

R656

R662

220

220

R656A

R662A

OPEN

OPEN

R232
10K

R231

C226

47K

3.3/50V

R268A
OPEN

R268

D210

D210B

OPEN

OPEN

Q212
KTC3875S-Y-RTK/P

(SW+24V)

35.2

24.2

24.8
R256

WIRE

C227
22/50V

D205

D205B

OPEN

OPEN

D206A

D206

OPEN

C634

0.1

1SS400D657A

D657 OPEN

JS656

D656B
OPEN

D635

D659

OPEN

OPEN

R248
56K

R241

6.8K
R249

6.8K

R242

2.7K

D210A
TFZGTR5.1B

D638

D638A
TFZGTR10B

D638B
OPEN

D656A
TFZGTR5.6B

D635A
OPEN

1.6

0

D632B
OPEN

D212A
0

D212

D211

D211A
OPEN

D641A
0

D641

C646
100/10V

D651

D651A
0

0.1

Q632

(SWITCHING)

C229
OPEN

D652A
OPEN

D652

D663A
1SS400

D632
OPEN

D632A
TFZGTR

5.6B

R641
22K

R638KTC3875S-Y-RTK/P
22K

D663

R265

8.2K

C635

0.1

C636

0.1

10KR664

D633B
OPEN

R265A
OPEN

24.0

24.0

24.4

24.4

5.7

0.6

2.6

3.4

3.3

3.1

3.1

0.7

0.9

1.6

D633
OPEN

D633A
TFZGTR5.6B

CONTINUE
POWER 2

PANEL+15.8V
P-ON+3.3V
LCD-6V
LCD+24.5V

CONTINUE
POWER 3

+24V

TO DIGITAL MAIN
CBA UNIT CN3701

CN632

0

19 GND

0

18 GND
17 P-ON+24V
16 P-ON+24V

0

15 GND
14 AMP+24V
13 AMP+24V

0

12 GND
11 AL+5V

0

10 GND

9 OE2
8 RESET
7 P-ON-H2
6 P-ON-H1
5 PROTECT1
4 PROTECT3
3 BACKLIGHT-ADJ
2 BACKLIGHT-SW
1 VCOM-PWM

CONTINUE

POWER 2
PROTECT3
VCOM-PWM
OE2
P-ON-H1
P-ON-H1-1

CONTINUE
POWER 3

BACKLIGHT-SW
BACKLIGHT-ADJ
PROTECT3

A

B

UNLESS OTHERWISE SPECIFIED:
DIODES ARE 1SS133.

CE

10-3

D

F

PL11.10SCM1

Power Supply 2 Schematic Diagram

CONTINUE
POWER 1

4

PANEL+15.8V

P-ON+3.3V

LCD-6V

LCD+24.5V

C200

0.1

R225
10K

R209A
OPEN

D201A
OPEN

D201
1SS133

R209
10

C212

0.1

R217
10K

POWER SUPPLY CBA

CONTINUE
POWER 1

PROTECT3
VCOM-PWM
OE2
P-ON-H1
P-ON-H1-1

3

2

TO LCD MODULE
ASSEMBLY

GND 1
LCD+15.8V 2
LCD+15.8V 3

VGH 4

GND 5
P-ON+3.3V 6
P-ON+3.3V 7

LCD-6V 8

GND 9

VCOM 10

GND 11

CN200

0

15.8

15.8

20.0
0

3.3

3.3

-6.1
0

7.0
0

C201

0.1

C202

0.1

C675
OPEN

C218
OPEN

R224
47K

IC200
TL3472CDR

(COMPARATOR)

C207
OPEN

C206
OPEN

C211
1000P

Q202
KTC3875S-Y-RTK/P

R212
100K

R214
OPEN

R213
OPEN

7.0

7.0

7.4

15.8

VCC

1234

R204
OPEN

5678

VEE

0

0

0

0

R208
OPEN

R203
1K

Q201
KTC3875S-Y-RTK/P

18.4

(SWITCHING)

0.4

0

R203A
OPEN

7.3

(V-COM DRIVE)

7.3

Q203
2SA1576UBTLQ

(V-COM DRIVE)

C213
1

Q200
2SA1576UBTLQ
(SWITCHING)

R205 0.1
1K

R206
100K

15.7

7.0

7.0

0

19.9

R211
10

C214
47/25V

R202
OPEN

23.5

R201
1K

C205

23.9

R211A
OPEN

R215
10K

R200
100K

R210
OPEN

R220
OPEN

C204
OPEN

J200
OPEN

D200
1SS133

R207
1

R216

1.5K

D200A
1SS400

R218
10K

7.0

0.2

Q204

0

KTC3875S-Y-RTK/P
(V-COM DRIVE)

C203

2.2/50V

R223
OPEN

0.6

0.6

C208
22/50V

R221
OPEN

C209
OPEN

C215
OPEN

R219
1K

JS200
OPEN

R222

1.2

Q206
KTC3875S-Y-RTK/P

(SWITCHING)

10K

C210
OPEN

Q205
OPEN

1

G

H

I

10-4

J

K

L

PL11.10SCM2

Power Supply 3 Schematic Diagram (main Power Supply CBA)

When you conduct on a component level repair for the Power Supply CBA for any models within this service manual,
make sure to refer the right Block Diagram/Schematic Diagram/CBA and Parts List.
For the main CBA, the last digit of the board number, which is engraved on every board, should be a number (e.g. BA17F1F0102 4).
For the sub CBA, the last digit of the board number, which is engraved on every board, should be an alphabet (e.g. BA17F1F0102 Y).

4

3

2

1

CONTINUE
POWER 1

+24V

CONTINUE
POWER 1

BACKLIGHT-SW

BACKLIGHT-ADJ

PROTECT3

POWER SUPPLY CBA

C1700A

R1306
10K

C1311
1000P

R1307
1K

C1206
10/50V

R1305
510/2W

R1310
22K

R1215
10K

12.0

0.7

R1202
130K

R1203

8.2K

C1700
2200/35V

C1304
220/35V

Q1303
2SA1576UBTLQ

(SW+12V)

11.9

11.2

R1308

4.7K

0.1
Q1301

KTC3875S

-Y-RTK/P

0

(SWITCHING)

R1220
OPEN

D1201A

D1201

OPEN

1SS133

C1208

0.47

C1201

0.1
R1205

R1204

560K

75K

R1213

4.7K

R1209

4.7K

R1212
10K

C1211
OPEN

3.1

-0.2

Q1202

0

KTC3875S-Y-RTK/P
(SWITCHING)

C1305

0.1

R1304

4.7K

R1303

4.7K

R1208
22K

OPEN

R1309
10K

D1300B
OPEN

D1301B
OPEN

C1213

0.01

R1214
OPEN

C1207
1000P

0.1

12.0

3.1

0

Q1300
2SA1576UBTLQ

(+12V REG.)

C1301
1000P

1.8

23.8

21.8

17.8

11.9

5.9

2.0

3.1

Q1201
KTC3875S-Y-RTK/P

(SWITCHING)

12.0

11.2

D1300
OPEN

D1301
OPEN

IC1200
BD9244AFV

(PWM CONTROL)

0

1

2

3

4

5

VCC

6

STB

7

8

OSC

9

0

GND

10

0

11

DUTY

12

R1207

C1200

33K

OPEN

C1709
2200/35V

C1302

C1303

10/50V

0.1

D1300A
TFZGTR5.6B

D1301A
TFZGTR5.6B

OUTPUT

LOGIC

PWM

R1206
10K

FEED
BACK

PROTECT

D1203A
OPEN

D1203
1SS133

C1212

0.47

C1709A
OPEN

24

REG

23

22

21

20

19

VLO

18

17

16

15

14

13

R1300
10K

C1300

0.1

1.8

7.6

24.1

21.2

16.9

2.2

0.2

0.8

1.2

1.1

0

0

R1201
68K

R1200
68K

R1301
47K

R1302
51K

D1701B
OPEN

D1703B
OPEN

D1200A
1SS400

C1214
OPEN

C1701
OPEN

D1701A
TFZGTR15B

D1705B
OPEN

D1707B
OPEN

C1209

0.47

C1203
6800P

C1202
6800P

C1210

0.47

R1700
100

D1701
OPEN

R1222
10

D1703A
TFZGTR15B

D1705A
TFZGTR15B

D1707A
TFZGTR15B

D1202A
1SS400

R1221

R1216

1

100

C1204

0.1

Q1203
OPEN

(SWITCHING)

D1700A
OPEN

D1700
1SS133

R1702

D1703
OPEN

C1205

2.2

C1703
1000P

OPEND1702A

D1702
1SS133

C1704
1000P

D1705
OPEN

D1707
OPEN

7.6

5.1

0

R1225
OPEN

R1226
OPEN

21.2

R1701
10K

1.6

R1703
10K

R1705
100

R1223
10

R1707
100

JS1200
OPEN

24.0
D

G

S

17.5

17.5

D

G

S

0

OPEND1704A

D1704
1SS133

C1706
1000P

OPEND1706A

D1706
1SS133

C1707
1000P

R1227
OPEN

R1228
OPEN

5.1

0.2

Q1204

0

OPEN
(SWITCHING)

Q1700

TK40P04M1

(SWITCHING)

Q1701

TK40P04M1

(SWITCHING)

24.0

21.2

G

R1706

17.5

10K

17.5

G

1.6

R1708
10K

C1500

0.01

C1702
1

R1704

4.7/1W

C1705

0.022

Q1702

D

TK40P04M1

(SWITCHING)

S

Q1703

D

TK40P04M1

(SWITCHING)

S

0

R1229
OPEN

R1500
1M

C1710
1

D1500
DAN202U

D1501
DAN202U

D1502
DAN202U

2.2C1100

2.2C1101

2.2C1102

2.2C1103100

2.2C1116

2.2C1117

R1709

4.7/1W

C1708

0.022

CN1100

1

C1104
10P/6.3KV

T1100
INVERTER
TRANS

2

8

4

7

1

6

5

3

T1101
INVERTER
TRANS

2

8

4

7

1

6

5

100KR1501

100KR1502

100KR1503

100KR1504

100KR1505

100KR1506

100KR1507

100KR1508

100KR1509

100KR1510

100KR1511

100KR1512

3

T1102
INVERTER
TRANS

2

8

4

7

1

6

5

3

OPENR1103A

OPENR1143

470R1103

OPENR1106A

OPENR1146

470R1106

C1106
10P/6.3KV

C1108
10P/6.3KV

OPENR1115A

OPENR1145

470R1115

OPENR1118A

OPENR1148

470R1118

C1110
10P/6.3KV

C1112
10P/6.3KV

OPENR1127A

OPENR1147

470R1127

OPENR1130A

OPENR1150

470R1130

C1114
10P/6.3KV

C1105
330P

C1107
330P

C1109
330P

C1111
330P

C1113
330P

C1115
330P

C1118
330P

R1104
100

R1107
100

C1119
330P

C1120
330P

R1116
100

R1119
100

C1121
330P

C1122
330P

R1128
100

R1131
100

C1123
330P

R1515
27K

R1100
39K

R1105
13

R1108
13

R1109
39K

R1112
39K

R1117
13

R1120
13

R1121
39K

R1124
39K

R1129
13

R1132
13

R1133
39K

R1101
OPEN

R1110
OPEN

R1113
OPEN

R1122
OPEN

R1125
OPEN

R1134
OPEN

C1501
1000P

C1502
3300P

R1102

2.2K

R1111

2.2K

R1114

2.2K

R1123

2.2K

R1126

2.2K

R1135

2.2K

R1513
1M

R1514
39K

D1503
DAN202U

D1506
DAN202U

D1504
DAN202U

D1507
DAN202U

D1505
DAN202U

D1508
DAN202U

R1516

6.8K

2

CN1101

1
2

CN1102

1
2

LCD
MODULE
ASSEMBLY

BACK
LIGHT

BACK
LIGHT

BACK
LIGHT

M RNPQ

O

10-5

PL11.10SCM3

Power Supply 3 Schematic Diagram (sub Power Supply CBA)

When you conduct on a component level repair for the Power Supply CBA for any models within this service manual,
make sure to refer the right Block Diagram/Schematic Diagram/CBA and Parts List.
For the main CBA, the last digit of the board number, which is engraved on every board, should be a number (e.g. BA17F1F0102 4).
For the sub CBA, the last digit of the board number, which is engraved on every board, should be an alphabet (e.g. BA17F1F0102 Y).

4

3

2

1

CONTINUE
POWER 1

+24V

CONTINUE
POWER 1

BACKLIGHT-SW

BACKLIGHT-ADJ

PROTECT3

POWER SUPPLY CBA

C1700A

C1700

OPEN

2200/35V

R1305
510/2W

C1304

C1305

220/35V

0.1

Q1303
2SA1576UBTLQ

(SW+12V)

11.9

R1307
1K

R1306
10K

C1311

R1310

1000P

22K

C1206
10/50V

Q1202
KTC3875S-Y-RTK/P

0.1
(SWITCHING)

3.2

0

R1207
33K

0.7

D1201A
OPEN

C1201

0.1

R1201
680K

R1215
10K

12.0

0.1

R1212
10K

R1206
10K

C1200
OPEN

C1211
OPEN

11.2

R1308

4.7K

Q1301
KTC3875S

-Y-RTK/P

0

(SWITCHING)

D1201

C1208

0.47

C1205

2.2

R1213

4.7K

R1209
10K

R1208
22K

D1203

C1212

0.47

R1304

4.7K

R1303

4.7K

C1204

0.1

C1207
1000P

3.3

0.3

0

R1200
680K

Q1300
2SA1576UBTLQ

(+12V REG.)

12.0

12.0

11.2

R1309
10K

D1300B

D1300

OPEN

OPEN

D1301B

D1301

OPEN

OPEN

C1301
1000P

IC1200
OZ9972A

(PWM CONTROL)

14.9
1

11.8
2

14.2
3

0

4

GND

4.8
5

4.8
6

5.5
7

6.0
8

12.2
9

VCC

10

C1215

0.01

1.5
11

0 1.2

GND

12

Q1201
KTC3875S-Y-RTK/P

(SWITCHING)

0.3

0.5

0

Q1205
KTC3875S-Y-RTK/P
(SWITCHING)

C1709
2200/35V

C1303

0.1

D1300A
TFZGTR5.6B

D1301A
TFZGTR5.6B

PWM

DRIVE 1

REF
/BIAS

LFOSC

R1235
24K

R1234
56K

C1302
10/50V

PROTECT

HFOSC

C1709A
OPEN

24

23

DRIVE 2

22

21

20

19

18

17

16

15

14

13

R1300
10K

C1300

0.1

14.5

11.4

13.6

2.2

0.3

0

2.1

1.3

1.4

0.13.3

2.0

R1301
47K

R1302
51K

C1217

0.047

C1216
150P

D1701B
OPEN

D1703B
OPEN

D1200A
OPEN

R1230
150K

C1701
OPEN

D1701A
TFZGTR15B

D1703A
TFZGTR15B

D1705B
OPEN

D1707B
OPEN

D1200

C1209

0.47

R1231
560K

D1700

R1700

1SS133

100

D1701
OPEN

R1222
10

R1702

D1703
OPEN

D1705A
TFZGTR15B

D1707A
TFZGTR15B

R1233
560K

R1232
1M

(SWITCHING)

C1218

2.2

C1703
1000P

D1702
1SS133

C1704
1000P

Q1203
OPEN

R1701
10K

R1705
100

D1705
OPEN

R1707
100

D1707
OPEN

R1225
OPEN

R1226
OPEN

11.7

4.7

R1703
10K

R1223
10

24.2

G

11.8

11.8

G

0

D1704
1SS133

D1706
1SS133

0

Q1700

D

TK40P04M1

(SWITCHING)

S

Q1701

D

TK40P04M1

(SWITCHING)

S

11.9

R1706

C1706

10K

1000P

R1708

C1707

10K

1000P

R1227
OPEN

R1228
OPEN

Q1204
OPEN

4.7

C1500
1000P

24.2

G

11.9

11.9

G

0

R1229
0

R1500
1M

C1702
1

R1704

4.7/1W

C1705

0.022

D

Q1702

TK40P04M1

(SWITCHING)

S

Q1703

D

TK40P04M1

(SWITCHING)

S

D1500
DAN202U

D1501
DAN202U

D1502
DAN202U

C1710
1

2.2C1100

2.2C1101

2.2C1102

2.2C1103100

2.2C1116

2.2C1117

R1709

4.7/1W

C1708

0.022

CN1100

1

C1104
10P/6.3KV

T1100
INVERTER
TRANS

2

8

4

7

1

6

5

3

T1101
INVERTER
TRANS

2

8

4

7

1

6

5

100KR1501

100KR1502

100KR1503

100KR1504

100KR1505

100KR1506

100KR1507

100KR1508

100KR1509

100KR1510

100KR1511

100KR1512

3

T1102
INVERTER
TRANS

8

2

4

7

1

6

5

3

OPENR1103A

OPENR1143

470R1103

OPENR1106A

OPENR1146

470R1106

C1106
10P/6.3KV

C1108
10P/6.3KV

OPENR1115A

OPENR1145

470R1115

OPENR1118A

OPENR1148

470R1118

C1110
10P/6.3KV

C1112
10P/6.3KV

OPENR1127A

OPENR1147

470R1127

OPENR1130A

OPENR1150

470R1130

C1114
10P/6.3KV

C1105
330P

C1107
330P

C1109
330P

C1111
330P

C1113
330P

C1115
330P

C1118
330P

R1104
100

R1107
100

C1119
330P

C1120
330P

R1116
100

R1119
100

C1121
330P

C1122
330P

R1128
100

R1131
100

C1123
330P

R1515
27K

R1100
36K

R1105
13

R1108
13

R1109
36K

R1112
36K

R1117
13

R1120
13

R1121
36K

R1124
36K

R1129
13

R1132
13

R1133
36K

C1501
1000P

C1502
3300P

R1102

4.7K

R1111

4.7K

R1114

4.7K

R1123

4.7K

R1126

4.7K

R1135

4.7K

R1513
1M

R1514
47K

D1503
DAN202U

D1506
DAN202U

D1504
DAN202U

D1507
DAN202U

D1505
DAN202U

D1508
DAN202U

R1517
0

R1516

2.4K

2

CN1101

1
2

CN1102

1
2

LCD
MODULE
ASSEMBLY

BACK
LIGHT

BACK
LIGHT

BACK
LIGHT

M RNPQ

O

10-6

PL11.10SCM3-2

Function Schematic Diagram

2

1

(NO CONNECTION)

TO DIGITAL MAIN
CBA UNIT CN3101

CN4002
1GND

2KEY-IN1

CN4001
1GND

2KEY-IN1

C4004
OPEN

C4002

0.1

D4001
EDZTE615.6B

R4007

2.2K

SW4006

POWER CH UP

R4005

2.2K

R4004

2.7K

SW4005 SW4004

CH
DOWN

R4003

4.7K

MENU

R4002

8.2K

SW4003 SW4002 SW4001SW4007

SOURCE

R4001
18K

VOL
UP

VOL
DOWN

D4002
OPEN

FUNCTION CBA UNIT

UNLESS OTHERWISE SPECIFIED:
SWITCHES ARE SKRMABE010.

ABC

10-7

PL11.10SCF

IR Sensor Schematic Diagram

2

1

R4051
56

RS4051
GP1USC32XP

(REMOTE SENSOR)

GND

VCC

231

C405110C4056
10

VOUT

R4052

6.8K

R4054
1K

C4052
1000P

C4055
OPEN

R4060
OPEN

R4061
OPEN

D4051
SMLE12WBC7W1HR

STANDBY

R4053
16K

C4053

0.1

R4062
0

R4057
OPEN

D4052
OPEN

C4057
OPEN

IC4051
OPEN

(LIGHT SENSOR)

1

AMP

2

GND 5

34VCC

LOGIC

NU

C4054

0.1

CN4052

R4055
OPEN

6

R4058
OPEN

R4059
OPEN

R4056
OPEN

CN4051

TO DIGITAL MAIN
CBA UNIT CN3102

1 GND
2 REMOTE
3 AL+3.3V
4 P-ON+5V
5 LED1
6 KEY-IN1
7 LIGHT

(NO CONNECTION)

1 GND
2 KEY-IN1

IR SENSOR CBA UNIT

AB

10-8

C

PL11.10SCIR

Digital Main 1 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

CONTINUE
DIGITAL 4

VCOM-PWM

OE2

4

3

(NO CONNECTION)

CN3011

31LCD+12V
30LCD+12V
29LCD+12V
28GND
27GND
26LCD+12V
25LCD+12V
24GND
23NU
22NU
21D0(-)
20D0(+)
19D1(-)
18D1(+)
17GND
16D2(-)
15D2(+)
14GND
13CK(-)
12CK(+)
11D3(-)
10D3(+)

9NU
8NU
7GND
6GND
5GND
4GND
3NU
2NU
1NU

R3048
OPEN

*1

IC3005(1/6)
R8A05011BG-U0
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

R3045
OPEN

R3047
OPEN

R3044
OPEN

Q3007
OPEN

R3046
OPEN

C3058
OPEN

C3057
OPEN

R3023
OPEN

R3026
OPEN

C3077
OPEN

R3022
OPEN

R3021
OPEN

R3034
OPEN

D3004
OPEN

Q3001
OPEN

C3054
OPEN

R3039
OPEN

Q3002
OPEN

1

2

36

45

R3035
OPEN

8

7

R3025
OPEN

R3027
OPEN

C3047
OPEN

C3751
OPEN

C3061
OPEN

C3752
OPEN

C3045
OPEN

C3753
OPEN

R3028
OPEN

R3038
OPEN

R3037
OPEN

CONTINUE
DIGITAL 4

P-ON+24V
P-ON+3.3V

CN3006

(NO CONNECTION)

30 LCD+21V
29 LCD+21V
28 GND
27 VCOM-PWM
26 PWR-CTRL
25 P-ON+3.3V
24 GND
23 LLV0(+)
22 LLV0(-)
21 LLV1(+)
20 LLV1(-)
19 LLV2(+)
18 LLV2(-)
17 GND
16 LLVCNK(+)
15 LLVCLK(-)
14 GND
13 LLV3(+)
12 LLV3(-)
11 LLV4(+)
10 LLV4(-)

9 LLV5(+)
8 LLV5(-)
7 GND
6TP
5 POL
4 CPV
3 OE1
2 XA0
1 STV

2

1

LVDS
TX

TO DIGITAL
MAIN 2
IC3005(2/6)

R16
R15
P14
P13
N16
N15
P16
P15
T16
T15
R14
T14
R13
T13

L13TP
M15POL
L16CPV
L15OE
M14STV
L14OE2
M16NU
M13NU
N14CELL-PWR-CTRL
N13NU
K15NU

R3511
22

R3088

7.5K

0.5PC3352

0.5PC3349

0.5PC3350

0.5PC3351

0.5PC3353

0.5PC3354

0.5PC3355

1KR3152

100PC3161

47PC3164

47PC3162

47PC3163

47PC3165

100KR3041

100KR3161

100KR3162

100KR3163

100KR3164

TO LCD MODULE

CN3005

ASSEMBLY

24 GND
23 LLV0(+)
22 LLV0(-)
21 LLV1(+)
20 LLV1(-)
19 LLV2(+)
18 LLV2(-)
17 GND
16 LLVCNK(+)
15 LLVCLK(-)
14 GND
13 LLV3(+)
12 LLV3(-)
11 LLV4(+)
10 LLV4(-)

9 LLV5(+)
8 LLV5(-)
7 GND
6TP
5 POL
4 CPV
3 OE1
2 XA0
1 STV

(NO CONNECTION)

CN3702

1 LCD+21V
2 LCD+21V
3 GND
4 GND

DIGITAL MAIN CBA UNIT

A

10-9

DCB

E

F

PL11.10SCD1

Digital Main 2 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

TU3401 TUNER UNIT

+3.3V2GND3SDA4SCL5IF-AGC6DIF-OUT17DIF-OUT2

1

C3408 D3401
OPEN

EDZTE615.6B

L3401
BLM21PG221SN1D

C3401

C3407

C3410
10P

*1

IC3005(2/6)
R8A05011BG-U0

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

10

0.1

TO DIGITAL
MAIN 5
IC3005(5/6)

DIGITAL
SIGNAL
PROCESS

TO DIGITAL
MAIN 6
IC3005(6/6)

A/D
CONVERTER

TO DIGITAL
MAIN 1
IC3005(1/6)

R3409
OPEN

C3411
10P

DEMODULATOR
/MPEG
DECODER

SW

C3409

0.1

SCL R12
SDA T12

C3406
33P

EDZTE615.6B

C3404

R3417

1000P

OPEN

B12

A12

A16IF-AGC

D1NU

A14HSIN
B14VSIN

A9
C7

C11

C10

C9

D8
B11
A10NU

C8NU

D9NU

B9NU

C3197

0.1

B10NU
A11NU
D10NU

D3402
EDZTE615.6B

D3404
EDZTE615.6B

22R3206
22R3207

R3202

2.7K

R3205
18K

0.1C3194

0.1C3195

0.1C3196

0.01C3198

0.1C3199

0.1C3200

0.1C3201

C3335

C3175
OPEN

C3226
OPEN

C3225
OPEN

C3178

0.1

L3022
OPEN

R3194
1K

C3177
OPEN

33PC3288

33PC3287

0.1C32852.2

0.1C3286
1C3336

C3176
OPEN

C3405
33P

33PC3289

33PC3291

33PC3292

R3204

4.7K

R3203D3403

4.7K

L3024
OPEN

C3235
OPEN

L3023
OPEN

33PC3293

0.1C3402

0.1C3403

C3243
OPEN

R3361
OPEN

R3360
OPEN

C3242
OPEN

R3369
OPEN

R3368
OPEN

10R3327
10R3328
10R3329

IC3013
74LVC1G126GW
(BUFFER GATE)

1

VCC

5

2

34

GND

IC3014
74LVC1G126GW
(BUFFER GATE)

1

VCC

5

2

34

GND

R3298
100

R3296
100

C3214

0.1

Q3702
2SC4081UBTLQ

(BUFFER)

R3719
OPEN

R3717

2.2K

R3713
75K

C3710
100P

DIGITAL MAIN CBA UNIT

D3027
1SS400

R3326

R3714
100K

D3040
1SS400

R3343
100

R3339
100

R3284
47

R3285
47

R3286
47

4.7K

D3041
OPEN

R3376
100

R3358
10K

R3347
10K

R3356
75

R3364
75

R3377
75

R3706
51K

R3707
51K

R3321

4.7K

D3054
OPEN

D3050
OPEN

D3045
OPEN

D3049
OPEN

D3053
OPEN

D3055
OPEN

C3701
39P

C3702
39P

C3703
39P

C3704
1

C3705
1

R3701
75

R3702
75

R3703
75

R3704
100K

R3705
100K

WF1

WF2

WF3

WF4

JK3001(REAR)

11156

12

13

14

JK3701(REAR)

PC-RGB-IN

1

2

7

3

8

4

9

5

10

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

AUDIO(L)-IN

AUDIO(R)-IN

CONTINUE
DIGITAL 6

HDMI-33V

CONTINUE
DIGITAL 6

PC-SDA
PC-SCL
PC+5V

CONTINUE
DIGITAL 4

P-ON+3.3V
P-ON+5V

CONTINUE
DIGITAL 3

COMP-DET

1

JK3702(REAR)

DIGITAL
AUDIO-OUT
(COAXIAL)

GH K

C3709
100P

C3706
1

C3715
OPEN

R3709
220

R3708
110

9.2

4.3

Q3701

3.8
2SC4081UBTLQ

(BUFFER)

C3714
10

C3708

0.1

R3710
100

R3711

7.5K

R3712
10K

C3707
1

L3701
BK1608HS601-T

C3716
OPEN

C3713

0.1

R3715
75K

C3712

0.1

10-10

Q3703
2SC4081UBTLQ

(BUFFER)

R3720
OPEN

R3718

2.2K

JI

C3711
100P

R3716
100K

CONTINUE
DIGITAL 5

AUDIO(L)-IN
AUDIO(R)-IN

CONTINUE
DIGITAL 5

SPDIF

L

PL11.10SCD2

Digital Main 3 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

(USB JACK)

CN3009
1BUS-POWER

2USBDN
3USBDP
4GND

OPENC3029

0.1C3030
OPENC3031

0.1C3032
OPENC3033

0.1C3034
OPENC3035

0.1C3036
OPENC3037

0.1C3038
OPENC3039

0.1C3040
OPENC3041

C3246
1

L3025
EXC24CG900U

IC3002
K4T51163QI-HCF7

(DDR2 SDRAM)

*A VDD

E2 NU
A2 NU
R8 NU
R7 NU
R3 NU

1-O3
2-O3
3-O3

SD-DQ15
SD-DQ14
SD-DQ13
SD-DQ12
SD-DQ11
SD-DQ10
SD-DQ9

SD-DQ8
4-O3
5-O3
6-O3

SD-DQ7

SD-DQ6

SD-DQ5

SD-DQ4

SD-DQ3

SD-DQ2

SD-DQ1

SD-DQ0

IC3006

MX25L3205DM2I-12G

(MEMORY)

1

2

3

45

D3052
OPEN

CS

VCC

SO

NU

WP

SCK

GND SI

C3348
100/16V

B7 UDQS
A8 UDQS/NU
B3 UDM
B9 DQ15
B1 DQ14
D9 DQ13
D1 DQ12
D3 DQ11
D7 DQ10
C2 DQ9
C8 DQ8
F7 LDQS
E8 LDQS/NU
F3 LDM
F9 DQ7
F1 DQ6
H9 DQ5
H1 DQ4
H3 DQ3
H7 DQ2

*A:A1,A9,C1,C3,C7,C9,E1,E9,
G1,G3,G7,G9,J1,J9,M9,R1

G2 DQ1

*B:A3,A7,B2,B8,D2,D8,E3,E7,

G8 DQ0

F2,F8,H2,H8,J3,J7,N1,P9

R3102
10K

8

R3107
10K

7

6

C3327

0.1

R3480
10K

C3009

0.1

J2VREF

C3010

0.1

K2CKE
J8CK
K8CK
L8CS
K7RAS
L7CAS
K3WE
L1BA2/NU
L3BA1
L2BA0
R2A12
P7A11
M2A10/AP
P3A9
P8A8
P2A7
N7A6
N3A5
N8A4
N2A3
M7A2
M3A1
M8A0
K9ODT

*BVSS

C3073

0.1

R3479
10K

IC3019
BD2224G-TR

(EEPROM)

1

2

34

VIN

VOUT

GND

/EN /OC

5

L3041
BLM21PG221SN1D

SD-DQ15
SD-DQ14
SD-DQ13
SD-DQ12
SD-DQ11
SD-DQ10
SD-DQ9
SD-DQ8
SD-DQ7
SD-DQ6
SD-DQ5
SD-DQ4
SD-DQ3
SD-DQ2
SD-DQ1
SD-DQ0

R3049
100

R3064
100

R3065
100

3-M3
6-M3
2-M3
1-M3
5-M3
4-M3

15R3050

6.8R3024

6.8R3015
15R3016
15R3040
15R3029
15R3020
150R3070

R3030 15x4

R3031 15x4

R3032 15x4

R3033 15x4

47R3089
47R3092
47R3093
47R3094
22R3095

5.6KR3099

C3050

0.1

C3051

0.1

*1

IC3005(3/6)
R8A05011BG-U0
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

M5 SD-VREF0
N3 GND

R8 SD-DQ15
N8 SD-DQ14
P7 SD-DQ13
R6 SD-DQ12
P6 SD-DQ11
N7 SD-DQ10
T5 SD-DQ9
P8 SD-DQ8
P4 SD-DQ7
T3 SD-DQ6
R4 SD-DQ5
T2 SD-DQ4
P3 SD-DQ3
T4 SD-DQ2
R3 SD-DQ1
N4 SD-DQ0
T6 SD-UDM
R5 SD-LDM
T7 SD-UDQSN
R7 SD-UDQS
N5 SD-LDQSN
P5 SD-LDQS

L4 SD-WE
R1 SD-CLKN
R2 SD-CLK
L3 SD-CKE
H2 SD-A8
H1 SD-A4
N2 SD-BA0
H4 NU
M2 SD-A12
N1 SD-A7
M3 SD-A3
P1 SD-BA2
K2 SD-ODT
L2 SD-A9
M1 SD-A5
L1 SD-A1
J2 SD-A11
K3 SD-A6
K1 SD-A2
J1 SD-A0
J3 SD-RAS
H3 SD-CAS
J4 SD-A10
K4 SD-BA1

P12 SFCS-N
R11 SFRX
P11 SFTX
T11 SFCX

T9 VBUS-EN

R9 VBUS-ST
R10 USBDP
T10 USBDN
P10 NU

C3184

H15XIN25
H16XOUT25

F15ASEBRKAK-N
F16ASEMD0
E16TRST-N
E15TCK
D16TDI
D15TDO
E14TMS

G15TXD0
G16RXD0 3 UART0-RX

G1NU

G2NU

F3BACKLIGHT-ADJ
F2VCOM-PWM

J14GND

F13NU
E13GPY10 GPY10

K14DTV-ON-H2
K16DTV-ON-H1

C1P-ON-H1

E2BACKLIGHT-SW

J16LED1 LED1
G13AUDIO-MUTE

N12SFWP-N

H14NU

16P

X3001
25MHz

R3223

C3183

1K

16P

R3522
10K

100R3468
100R3469

100R3516
100R3517

100R3211
100R3514
100R3210

22R3188

R3503
10K

4.7KR3515
22R3233

22R3213

R3234
OPEN

22R3215 33K

10C3072

0.1C3071

CN3012

(NO CONNECTION)

AL+3.3V1
2 GND
3 ASEBRKAK-N
4 ASEMD0
5 TRST-N
6 TCK
7 TDI
8 TDO
9 TMS

10 CPU-RESET-N

CN3010

4.7KR3395

4.7KR3396

R3201

C3253
OPEN

(NO CONNECTION)

1 P-ON+5V
2 UART0-TX

4 GND

CONTINUE
DIGITAL 2

COMP-DET

CONTINUE
DIGITAL 5

CPU-RESET-N
BACKLIGHT-SW

CONTINUE
DIGITAL 4

CPU-RESET-N
P-ON-H2B16P-ON-H2
DTV-ON-H2
DTV-ON-H1
P-ON-H1
BACKLIGHT-ADJ
BACKLIGHT-SW
VCOM-PWM

CONTINUE
DIGITAL 5

AUDIO-MUTE
REMOTEC14REMOTE

CONTINUE
DIGITAL 4

P-ON+1.8V
P-ON+3.3V
AL+3.3V
P-ON+5V

DIGITAL MAIN CBA UNIT

MP

NO

10-11

QR

PL11.10SCD3

Digital Main 4 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

*1

IC3005(4/6)
R8A05011BG-U0

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

4

3

2

*A:G5,G6,H6,J7,J11,J13,K6,K7,
K11,L8,L9,M9,N9,P9,M11.

*B:D2~D5,D12,E3~E5,E7,E9,F4,F6,
F7,F10,F11,G7~G10,H7~H13,J6,
J8~10,K5,K8~K10,K12,L5~L7,
L10,L11,P2,T8

VCC33STB

F12
G12VCC33STB
E12VDD12STB

*AVDD12

M10AVDD12

E8AVDD12
F8AVDD12
F9AVDD12

G11VDDCLK

H5VCCQ18
J5VCCQ18
M4VCCQ18
T1VCCQ18
M6VCCQ18
N6VCCQ18
M7VCCQ18
M8VCCQ18

E10AVDD33

C2AVDD33
C3AVDD33

E11AVDD33

D6AVDD33

E6AVDD33

G4VCCQ33

F5VCCQ33
L12VCCQ33
K13VCCQ33
J12VCCQ33
N11AVDD33

*BVSS

C3160

0.1

L3030
BEAD

C3181

0.1

C3121
OPEN

C3127
OPEN

C3135

0.1

C3136

0.1

C3139

0.1

C3326
OPEN

C3322
10

C3140
1

C3147

0.1

C3151

0.1

C3157

0.1

C3122
OPEN

C3128

0.1

C3137
1

C3325
10

C3321
10

C3141

0.1

C3148

0.1

L3029
BEAD

C3152

0.1

C3158
OPEN

C3182

0.1

(SW+12V)

C3124

C3123

0.1

0.1

C3134

C3129

10

OPEN

L3020
BLM21PG221SN1D

L3021
BLM21PG221SN1D

C31551C3156
1

L3028
BLM21PG221SN1D

C3343

C3324

10

10

C3320

C3319

10

10

C3142

C3143

1

0.1

C3150

C3149

0.1

1

C3154

0.1

C3159

0.1

DS

Q3013
SSM3K309T

1

R3221
100

R3222
10K

G

L3017
BLM21PG221SN1D

L3015
BLM21PG221SN1D

C3126

C3125

0.1

OPEN

C313210C3133
10

L3014
BLM21PG221SN1D

C3264

C3266

0.01

100/4V

C3114

C3318

10

10

C3145

C3144

0.1

1

L3019
BLM21PG221SN1D

C3117

0.1

L3026
BLM21PG221SN1D

L3016
BLM21PG221SN1D

C3026

C3025

0.1

1

C3095
1000P

R3054

C3042

10

0.1

L3005
22uH

C3098
OPEN

OPEN

R3055
OPEN

L3027
MPZ1608S221AT

R3464
OPEN

Q3006
2SA1576UBTLQ

(SWITCHING)

C3082

C3081

0.1

1

C3091
1000P

R3141
10

D3001

C3089

OPEN 10

OPEN

R3056
OPEN

IC3003
MP2303ADNLFZ
(DC-DC CONVERTER)

1

BST

2

VIN

3

SW

45

GND FB

C3053
220/6.3V

IC3008
MP2303ADNLFZ
(DC-DC CONVERTER) (DC-DC CONVERTER)

BST

1

VIN

2

C3085

0.1

L3009
22uH

SW

COMP

3

GND FB

45

C3067

C3094

330/4V

330/4V 300

C3105

C3022

4.7

4.7

C3028

0.047

8

SS

7

EN

6

COMP

R3005

6.8K

C3043

0.015

C3056

C3074D3003

10

10

SS

EN

8

7

6

C3097

C3170
OPEN

R3012
51K

R3007

2.4K

R3006
10K

C3083

0.015

R3134
10K

R3137

6.8K

C3171
OPEN

C3080

4.7

C3088

0.015

C3096
10

C3104
10

R3106

R3100

22K

22K

R3105
1K

Q3005
2SC4081UBTLQ

(SWITCHING)

D3101
1SS400

D3102
1SS400

C3103

4.7

C3090
1

R3149

R3145

8.2K

R3143
16K

R3018
47K

R3019
10K

Q3009
2SC4081UBTLQ

(SWITCHING)

D3007
EDZTE616.8B

D3106
1SS400

C3166
OPEN

C309910C3065
10

D3006
EDZTE615.6B

Q3008

R3063

2SA1576UBTLQ

2.2K
(SWITCHING)

R3010
10K

R3017
47K

D3105
OPEN

Q3101
2SC4081UBTLQ

(SWITCHING)

R3423
47K

R3097

2.2K

D3104
1SS400

C3167
OPEN

D3008
EDZTE6115B

R3066
1K

C3018

R3067

OPEN

1K

D3103

R3424

1SS400

100

C3265
10

L3001
BLM21PG221SN1D

R3084

2.2K

R3077
10K

R3079
10K

C3012

0.1

R3133
10K

C3092
1000P

R3057
10

C3093
OPEN

R3058
OPEN

IC3601
AKP2121AK
(+3.3V REG.)

R3072
100

IC3004
BD7820FP-E2
(+1.2V REG.)

CTL

VCC

12345

C3024

C3108
100/16V

Q3003
2SC4081UBTLQ

(SWITCHING)

Q3004
2SC4081UBTLQ
(SWITCHING)

L3003
BLM21PG221SN1D

C3076
10

C3007
1

C3014

0.1

L3002
22uH

D3002
OPEN 47K

GND

VIN

123 54

C3601 C3602

0.1

C3023

10

OPEN

R3043

R3086

180

2.2K

C3131
1

C3066
220/6.3V

IC3001
MP2303ADNLFZ

BST

VIN

SW

COMP

GND FB

VOUT

100/4V 1

SS

EN

1

2

3

45

C3020
220/6.3V

CE

NU

C3027

0.1

IC3007
BD7820FP-E2
(+1.8V REG.)

CTL

12345

C3069

C3068

10

OPEN

R3042
OPEN

C3102

C3002

4.7

4.7

C3013

0.047

8

7

6

R3001
39K

C3017

0.015

C3021

C3101

10

10

C3603

C3015
10

C3049
100/4V 2.2

DIGITAL MAIN CBA UNIT

GND

OUT

C

R3060

R3061
33K

C

R3110

R3111

56K

42.2K

R3109

4.7K

C3087
10

C3169

C3001

OPEN

100/35V

C3109
10

C311110C3112
OPEN

C3060
10

D3005
EDZTE615.6B

C3138

C3153

1

1

C3019

0.022

R3062

1.8K

C3084

2.2

C3110
OPEN

R3014
180

C3075

0.022

R3103

1.8K

1000PC3055

5.6KR3052

100R3051

1000PC3063

1000PC3062

100R3068

100R3013

1000PC3048

100PC3008

100R3009

100R3011

1000PC3004

1000PC3006

20K
R3059

1K

C326310C3086

VCC

GND

OUT

C3070

0.1

C3079
100/4V

C3168
OPEN

R300410C3059

R3003
620

R3002
15K

C3016

0.1

C30441C30111C3046

0.1

C3146

0.1

100R3008

100PC3003

100R3053

1000PC3064

CONTINUE
DIGITAL 3

P-ON+1.8V
P-ON+3.3V
AL+3.3V
P-ON+5V

CONTINUE
DIGITAL 6

P-ON+3.3V
AL+3.3V
P-ON+3.3V(1)

CONTINUE
DIGITAL 2

P-ON+3.3V
P-ON+5V

CONTINUE

DIGITAL 1
P-ON+24V
P-ON+3.3V

CONTINUE

DIGITAL 5
RESET

PROTECT1
PROTECT3

CONTINUE

DIGITAL 1
VCOM-PWM

OE2

CONTINUE

DIGITAL 5
AL+3.3V

P-ON+5V
P-ON+3.3V(1)
AMP+24V

CONTINUE

DIGITAL 3
GPY10

CPU-RESET-N
P-ON-H2
DTV-ON-H2
DTV-ON-H1
P-ON-H1
BACKLIGHT-ADJ
BACKLIGHT-SW
VCOM-PWM

TO POWER SUPPLY

CN3701

CBA CN632

1 VCOM-PWM
2 BACKLIGHT-SW
3 BACKLIGHT-ADJ
4 PROTECT3
5 PROTECT1
6 P-ON-H1
7 P-ON-H2
8 RESET

9OE2
10 GND
11 AL+5V
12 GND
13 AMP+24V
14 AMP+24V
15 GND
16 P-ON+24V
17 P-ON+24V
18 GND
19 GND

10-12

WSVT

XU

PL11.10SCD4

Digital Main 5 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

C3555
1000P

CONTINUE
DIGITAL 3

LED1

AUDIO-MUTE

4

3

TO IR SENSOR
CBA UNIT CN4052

REMOTE

CN3102
1GND

2REMOTE
3AL+3.3V
4P-ON+5V
5LED1
6KEY-IN1
7LIGHT

(NO CONNECTION)

TO FUNCTION
CBA UNIT CN4001

CONTINUE
DIGITAL 4

CONTINUE
DIGITAL 2

AUDIO(L)-IN
AUDIO(R)-IN

RESET
PROTECT1
PROTECT3

CN3103
1P-ON+5V

2GND

CN3101
1GND

2KEY-IN1

R3832
10

C3553
100P

C3556
100P

C3552
1000P

R3552
100

R3551
100

R3553
OPEN

C3559
OPEN

D3107
1SS400

R3555
OPEN

Q3501
2SC4081UBTLQ

(LED DRIVE)

100R3335
100R3336

C3557
OPEN

C3558
OPEN

OPENC3221

OPENC3222

R3183

1000PC3233

OPENR3500

R3184
OPEN

C3554

0.1

OPENR3499

1000PC3232

Q3010OPEN
OPEN

R3185
OPEN

R3186
OPEN

10KR3317

10KR3318

10KR3319

AUDIO SIGNAL

DIGITAL MAIN CBA UNIT

*1

IC3005(5/6)
R8A05011BG-U0

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

10KR3312

D13 NU

1000PC3323

100R3313
22R3314
OPENR3315

0.22C3231

C3328
OPEN

22R3316

10C3217
10C3218
1C3223
1C3224

A15 KEY-IN1
B13 PROTECT3
A13 LIGHT-SENS
C13 PROTECT1
C12 LPF

A8
B8
B7
A7

AUDIO
I/F

D11NU

D7NU
C6NU
C5NU
B6NU
A6NU

N10

10KR3340
10C3219
10C3220
10C3216

CONTINUE

100R3209

DIGITAL 2

SPDIF

2

1

CONTINUE
DIGITAL 4

AL+3.3V
P-ON+5V

P-ON+3.3V(1)

AMP+24V

R3826
10K

R3811
10K

R3830
0

R3810
10K

R3325

R3502

2.7K

100K

R3812

R3805

33K

39K

C3823

C3829

100/35V

OPEN

Q3802
2SC4081UBTLQ

(AUDIO-MUTE)

C3805
1

C3229
2200P

C3817

0.1

R3817
OPEN

GND

31

32

33

34

GND

35

GND

36

VDD

37

VDD

38

39

40

IC3801
R2A15122FP
(AUDIO AMP)

R3322

2.7K

R3501
100K

1C3814

1C3813

C3810

0.1

C3804

C3227

1

2200P

NU

VREFF

PWM
GENE.

HB2

DVDD1

C3825
10

GND

GND

PROT

GND

12345678910

GND

CONTROL
LOGIC

GND GND

GND

C3824
100/35V

GND

PWM
GENE.

GND

C3812

0.1

GND

GND

21222324252627282930

ROSC

AVCC

CBIAS

GND

HB1

C3826
100/35V

GND

GND

VDD

VDD

20

19

18

17

16

15

14

13

12

11

C3809

0.1

C3811

0.1

1C3815

27KR3809

C3816
1

R3806
OPEN

R3808
OPEN

C3832

0.1

TO DIGITAL
MAIN 2
IC3005(2/6)

R3822
100K

R3821
10K

Q3805
OPEN

TO DIGITAL
MAIN 6
IC3005(6/6)

Q3804
2SA1576UBTLQ
(SWITCHING)

R3820
22K

R3819
10K

Q3803
2SC4081UBTLQ
(SWITCHING)

D3801
CRZ33

D3802
CRZ33

R3803
22

C3802
1000P

R3802
22

C3801
1000P

D3108
EDZTE615.6B

L3801
22uH

C3807

0.1

L3802
22uH

C3808

0.1

D3111
OPEN

R3818
22K

C3822

0.1

C3821

0.1

C3833
OPEN

100R3191

C3106

0.1

C3819
100/35V

C3830
100/35V

C3818
100/35V

C3806
100/35V

C3252
OPEN

R3825
OPEN

R3178
10K

R3804
22K

R3824
OPEN

R3823
OPEN

IC3009
BU4221F
(RESET)

14

GND OUT

32

CDVDD

C3113

0.033

CN3801

R3828
OPEN

R3827
OPEN

C3828
1000P

C3803
1000P

1 SP(L)
2 SP-GND

CN3802

1 SP(R)
2 SP-GND

C3116
OPEN

R3182

4.7K

C3120

0.01

D3109
1SS400

D3110
1SS400

SP3801
SPEAKER

L-CH

SP3802
SPEAKER

R-CH

CONTINUE
DIGITAL 3

CPU-RESET-NJ15CPU-RESET-N
BACKLIGHT-SW

YCCBBAAZDD

10-13

PL11.10SCD5

Digital Main 6 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

CONTINUE
DIGITAL 4

P-ON+3.3V

AL+3.3V

P-ON+3.3V(1)

4

*1

IC3005(6/6)
R8A05011BG-U0
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

VIDEO
DECODER

TO DIGITAL
MAIN 5
IC3005(5/6)

AUDIO
DECODER

HDMI
I/F

TO DIGITAL
MAIN 2
IC3005(2/6)

HDMI-CEC B15

B1
A1
B2
A2
B3
A3
B4
A4

3

C16HDMI1-SCL

C15HDMI1-SDA

D14HDMI1-HPD

G3HDMI-SEL0

F1HDMI-SEL1

R3237
27K

R3508
22

R3509
22

L3046
BLM21PG221SN1D

Q3014
2SK3018T106

(BUFFER)

R3497

4.7K

R3405
100

R3415
82K

D3057
RB751S-40

R3489
10K

R3488

4.7K

C3316
10

C3300

0.1

C3305
OPEN

C3310

0.1

C3315
OPEN

R3496

4.7K

C3301
OPEN

C3306

0.1

C3311
OPEN

C3331

0.1

R3487

4.7K

C3302

0.1

C3307
OPEN

C3312

0.1

C3332
OPEN

C3304

C3303

0.1

OPEN

C3309

C3308

OPEN

0.1

C3313

C3314

OPEN

0.1

C3334

C3333

OPEN

0.1

R3486

4.64K

16

17

18

19 VCC

20

21

22 GND

23

24

25 VCC

26

27

28 GND

29 SCL-SINK

30 SDA-SINK

HOT-PLUG-

31

DETECT-SINK
HDMI-

32

SEL0

HDMI-

33

131415

NU

GND

SEL134NU35HOT-PLUG-

DETECT1

36 37 38 39 40

VCC

VIDEO SIGNAL AUDIO SIGNAL

HDMI­CONNECTOR-2

JK3002

1 TMDS-D2(+)
2 D-SHIELD0
3 TMDS-D2(-)
4 TMDS-D1(+)
5 D-SHIELD1
6 TMDS-D1(-)
7 TMDS-D0(+)
8 D-SHIELD2

9 TMDS-D0(-)
10 TMDS-CLOCK(+)
11 C-SHIELD0
12 TMDS-CLOCK(-)
13 HDMI-CEC
14 NU
15 HDMI-CLOCK

R3278

IC3018

56

VCC

GND

44 45 46

4

GND

VCC

47 48

GND

HDMI SW

VCC

41 42 43

789

10

1112

123

HOT-PLUG­DETECT3

HOT-PLUG­DETECT2

BU16029KV-E2

(HDMI SW)

64

63

62

61VCC

60

59

58GND

57

56

55VCC

54

53

52

51

50

49NU

R3275
47K

D3067
1SS400

47K

C3262
1

R3411

2.7K

R3412
OPEN

R3408
1K

R3370
1K

R3371
OPEN

R3386
10K

Q3030
2SC4081UBTLQ
(SWITCHING)

16 HDMI-DATA
17 GND
18 +5V
19 HOT PLUG DETECT

2

1

CONTINUE
DIGITAL 2

HDMI-33V

HDMI­CONNECTOR-1

C3185

R3236
560

C4EXT-RES
B5PLL-XFC-A
A5PLL-XFC-P

M12PWR

E1M32-TCK

F14HDMI-SDA
G14HDMI-SCL

0.01

22R3510

R3270

2.2K

R3271
3K

C3187

2.2

C3186

4700P

C3188

2200P

R3192

4.7K

C3272
OPEN

R3193

4.7K

C3271
OPEN

R3523
10K

R3282
100

R3281
100

C3191

0.1

IC3011
BU9883FV-WE2
(HDMI SERIAL EEPROM)

1

VCC1

2

SCL1

3

SDA1

4

0.1C3192

WPB

5

VCC-OUT

6

SDA0

7

SCL0

89

VCC0 VCC3

VCC2

SCL2

SDA2

NU

GND

SDA3

SCL3

16

15

14

13

12

11

10

C3190

0.1

C3212

0.1

R3293
10K

R3302
10K

R3301
33K

C3213

0.1

D3066
1SS400

R3273
47K

47K

C3261

R3413
OPEN

R3407
1K

R3410

2.7K1

R3276

DIGITAL MAIN CBA UNIT

R3372
1K

R3373
OPEN

Q3031
2SC4081UBTLQ

(SWITCHING)

R3383
10K

JK3003

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-)
10 TMDS-CLOCK(+)
11 C-SHIELD0
12 TMDS-CLOCK(-)
13 HDMI-CEC
14 NU
15 HDMI-CLOCK
16 HDMI-DATA
17 GND
18 +5V
19 HOT PLUG DETECT

CONTINUE
DIGITAL 2

PC-SDA
PC-SCL
PC+5V

EE FF GG HH II JJ

10-14

PL11.10SCD6

Power Supply CBA Top View (main Power Supply CBA)

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

When you conduct on a component level repair for the Power Supply CBA for any models within this service manual,

*

make sure to refer the right Block Diagram/Schematic Diagram/CBA and Parts List.
For the main CBA, the last digit of the board number, which is engraved on every board, should be a number (e.g. BA17F1F0102 4).
For the sub CBA, the last digit of the board number, which is engraved on every board, should be an alphabet (e.g. BA17F1F0102 Y).

4A/125V

CAUTION ! :

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

4

3

2

CN600

1

C1106

J1169

GND

J1157

GND

GND

J1132

A17F1MPW

E234498

C612

D603

CN601

CN1100

T1100

IS2

J1009

R1106

R1146

J

J1022

VS2

R1143

COLD

C611

D601

D611

FH602

D611A

SA601

C603

R608

D604B

D611B

R601

HOT

D602

D600

R611

L601

C601

L600

C600

F601
4A/125V

FH601

RISK OF FIRE­REPLACE FUSE AS MARKED

A

D604

R1103

R609

Q601

C1104

*

BA17F1F0102 5

C7A3 A3

IS1

PROT1

J1162

R602

J1077 START

J1100

R605

R610

D610

DRIVE

J1091

R606

J1103

J1161

FB

IS1J1018

Q600-S

D607

D609

D605

PROT1J1012

D605B

R636

D606

D606B

Q600

R607

C602

BC602

J1142

R1704

BC601

IC601

GND

R635

D1703B

D1703

C607

D613

HOT

D654

R649

BC D E

J1007

J1008

R612

R613

D654B

C604

C614

D631B

C613

D631

C641

J1163

PROT4J1015

GND

J1078

PROT4

CN1101

J1149

INV+24V

J1166

INV+24V

OVL

J1130

INV+24V

INV+24V

J1165

INV+24V

INV+24V

C649

D646

ISEN

J1053

GND

J1116

VSEN

J1054

J1150

REG-7.5V

GNDJ1117

SW2

J1003

C1709A

HN1J1039

C638

AMP24V

J1109

IS4

J1164

C1700

IS4

J1017

R1148

R1118

VSEN

J1028

D644

D648

24V

D645

C639

D650B

C647

J1030

J1135

C649A

D650

R1115

C648A

J1126

C1700A

R1145

D637

C644

GND

P-ON-H2

J1141

J1144

19

18

D634

C637

J1122

J1047

J1168

C631

J1171

T1101

J1070

INV+24V

J1167

INV+24V

C648

OVL

J1131

GND

GND

GND

C632

J1004

PROT4

J1040

AMP24V

J1108

1

CN632
2

SW2

C1709

JS1200

PROT

J1104

P-ON+24V

J1113

D655B

D638B

D638

J1085

PROT3

J1035

IS3

J1033

J1001

GND

J1086

AMP24V

J1114

J1143
ALL5V

C1108

PROT3

IS3

J1013

PROT1

J1151

GND

JS660

GND

J1110

P-ON+24V

R657

Q636

P-ON-H2

D656

J1014

J1067

J1101

D655

PROT3

J1152

J1029

PROT

+36V

LN1

J1052

J1057

R659

PROT

GND

J1074

J1096

R662

R658

D656B

JS656

for D656A

D1707

J1062

PROT5

P-ON+24V

J1137

TOOL NO.

1 2 3 4 5 6 7 8 9 10

R1709

SW2

PROT2

P-ON+24V

J1097

J1112

D658

R656

J1139

P-ON-H2

P-ON+24VJ1081

P-ON+24V

J1082

J1099

GND

C646

-7.5V

J1118

J1010

D1706

J1056

GND

J1087

D641

Q207-B

D635

D1707B

J1043
VSEN

LN2

J1037

D651

SW2

J1011

D1705B

D1705

SW2

HN2

J1036

J1038

J1050

NH1

D1201

DC-12V

SW1

J1051

C229

R235

R233

J1102

+17V

C217

GND

C226

J1129

J1136ALL5V

ALL5V

NH1

J1055

R234

J1145

C1701

D1704

J1046

J1061

REG-7.5V

GND

J1066

R255

Q222

J1133
PANEL+3.3V

GND

SW2

J1041

J1158

C1114

LN1

GND

J1107

R245

C230

J1031

R256

R258

GND

INV-GND

J1042

LN1

J1060

J1073

R265

J1098
Q213-C

PROT6

J1153

INV-GND

VLO

C203

R257

R259

C227

C228

J1146

VCOM-PWM

IS6

J1154

PROT6

J1016

J1032

J1045

STB

J1105

PROTECT1

C675

J1147

PROT6

J1005

D205B

BL-SW

D205

J1106

+16V

SW2

R263

PANEL-6V

R266

D632B

J1148

BL-ADJ

SW2

J1006

D206

J1115

PROTECT1

D212

R268

D632

J1019

VS6

J1026

C1206

J1063

PANEL24V

J1080

J1089

R246

Q221

R239

PROTECT1

D210

J1121

D652

J1138

PROTECT1

R1130

R1150

J1071
DUTY

GND

GND

J1068

R240

D222

ALL5V

JS200

OE2

C1110

SW2

SW2

D1701B

D1702

J1027

D1701

HN1

D612

C610

T600

D1700

J1092

J1025

LN1

GND

J1094

GND

GND

GND

J1023

J1058

J1159

COLD

GND

J1127

GND

J1140

P-ON-H2

J1134

T1102

R1147

J1064
DUTY

J1093

D210B

J1173

C1302

J1125

R1127

DC-12VJ1059

R203

P-ON-H1

C219

J1123

PANEL+3.3V

J1128

PROTECT3

J1075

C208

D221

C220

PANEL15.8V

J1111

J1172

J1119

GND

PANEL-6V

CN1102

J1021

IS5

BL-ADJ

PANEL+15.8V

J1090

R209

D211

J1076

J1156

J1155

J1024

PROT5

D1203

R1305

Q1202-B

J1088

J1044

J1124

D1300B

C1304

J1084

P-ON-H1

J1095

GND

F

GND

GND

GND

D633

R211

GND

D1301B

D1300

D633B

D201

J200

J1072

J1049

D1301

C1112

1

2

GND

J1002

CN200

11

10

J1020

GND

GND

J1048

GND

BL-SW

J1034

J1069

GND

GND

J1170

GND

J1079

PROTECT3

J1083

BL-ADJ

J1065

GND

C215

C214

VCOM2

J1120

VCOM-PWM

10-15

BA17F1F01025

Power Supply CBA Bottom View (main Power Supply CBA)

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

When you conduct on a component level repair for the Power Supply CBA for any models within this service manual,

*

make sure to refer the right Block Diagram/Schematic Diagram/CBA and Parts List.
For the main CBA, the last digit of the board number, which is engraved on every board, should be a number (e.g. BA17F1F0102 4).
For the sub CBA, the last digit of the board number, which is engraved on every board, should be an alphabet (e.g. BA17F1F0102 Y).

4A/125V

CAUTION ! :

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

C202

J1069

J1020

J1048
BL-SW

GND

C201

GND

J1065

GND

C218

2

11

10

J1170

J1079

PROTECT3
J1083

BL-ADJ

C215

C214

C1112

1

J1034

GND

VCOM2

CN200

GND

D201A

Q205

C213

J1002

GND

J1072

GND

J1049

GND

R224

D201

R221

R219

VCOM-PWM

J1120

J200

R225

R220

R215

5

IC200

C200

GND

GND

GND

D1301B

D1301

D1300

D633B

Q1202

P-ON-H1

4

R216

F

R211

D633

GND

J1124

J1088

1

Q204

D1300B

J1084

8

R217

D633A

Q203

J1095

R218

C1304

GND

J1156

J1155

J1024

PROT5

C1305

C1200

R1309

R1305

R208

C211

R241

R242

J1044

D1301A

D1300A

Q1300

D1203

R1207

R207

R210

R214

C212

R271

CN1102

R1126

J1021

IS5

C1303

R1206

Q1202-B

J1076

C209

R212

R213

PANEL15.8V

PANEL-6V

D211A

C1116

C1117

C1122

C1113

R1125

R1200

D1203A

C1211

C1212

J1075

BL-ADJ

PANEL+15.8V

J1090

C208

C210

R209

Q202

R270

D221

R238

C220

J1111

J1172

J1119

GND

Q215

R272

PANEL+3.3V

R273

D211

J1128

PROTECT3

R1129

R1124

DC-12V

R1208

R1215

R222

R253

R276

R1132

R1128

R1127

R1201

R1212

R206

J1125

R274

C207

C219

J1123

T1102

C1302

J1064

Q1201

R237

D210B

J1173

R1131

J1059

DUTY

R204

R203

P-ON-H1

C221

R236

Q216

D1508

R1147

J1093

ALL5V

R1150

D1505

J1071

DUTY

GND

J1068

C206

Q206

D222A

R247

C222

JS200

OE2

R1130

C1206

R1209

J1063
GND

PANEL24V

J1080

Q201

R205

R240

D222

Q221

R239

D210

R264

D652

R275

C1214

J1019

VS6

J1026

C1207

C1202

Q200

C205

R246

D212

PROTECT1

R1135

C1115

R1134

R1203

R1214

12

C1210

13

C1203

C1502

PROTECT1

R223

J1089

D206A

D212A

PROTECT1

J1115

D210A

J1121

R268

D652A

J1138

D632

SW2

J1006

R1202

R249

D206

J1106

SW2

C1123

PROT6

C1201

R1515

C1501

R1513

R248

R202

R201

R263

PROTECT1

+16V

PANEL-6V

R266

D632B

J1148

BL-ADJ

J1032

D205

J1005

R1133

J1045
STB

R1205

R1514

C204

D205B

Q214

BL-SW

C1114

H.V. CAUTION

*

BA17F1F0102 5

PROT6

IS6

J1154

J1153

C1701

PROT6

24

J1105

C1213

1

D205A

R200

C228

C675

J1147

J1016

R1204

IC1200

R1213

C1204

C203

D200A

J1098

Q213-C

INV-GND

C1300

VLO

R257

C227

D632A

J1146

INV-GND

J1042

J1060

LN1

C1205

J1073

R265

D202A

R259

R267

C230

VCOM-PWM

J1041

LN1

J1031

R1221

R1216

J1158

GND

R1516

R256

D207A

R258

Q213

J1107

GND

C224

R245

PANEL+3.3V

D1704A

SW2

C1208

Q212

R243

J1046

REG-7.5V

J1061

J1066

GND

R260

Q222

R226

C223

J1133

D1704

D1200A

R255

R244

GND

NH1

J1055

D208A

R261

IC202

R1705

R1223

Q1702

D1201A

D1202A

R234

J1145

R1706

R1222

Q211

R254

R227

J1129

C1706

DC-12V

SW1

C1209

C225

C216

J1136

ALL5V

D1201

J1051

C229

+17V

GND

R228

D1705

J1050

NH1

R252

R233

J1102

C217

SW2

J1036

C1301

Q210

R235

Q207

C226

J1011

D1705B

HN2

J1038

J1056

R1304

Q1303

R1303

R251

D651A

Q207-B

SW2

D1705A

LN2

J1037

C1311

D651

J1118

D635

J1010

R1707

D1706

R1220

GND

J1087

J1099

-7.5V

R231

R232

SW2

R1306

D635A

D641

R1307

R1310

R229

R230

C646

Q1703

D1706A

R1504

PROT2

D1501

R1308

D641A

P-ON-H2

R1708

C1707

J1043

VSEN

R1506

R1505

R1508

J1062

PROT5

Q1301

P-ON+24V

P-ON+24V

J1082

J1081

P-ON+24V

J1112

GND

Q208

J1139

J1137
ALL5V

D656B

D656A

for D656A

R1709

R1509

D662

D658

JS656

D1707B

R1507

PROT

R1510

J1097

R656

C1708

D1707

D1707A

J1029

R1512

J1052

D1500

J1057

R1511

GND

D661

P-ON+24V

J1096

D658A

R662

R658

R262

LN1

R1501

J1074

D655

C1108

R1502

R659

C636

J1152PROT3

C1710

D1502

PROT

+36V

R657

D656

J1014

J1101

PROT3

R1503

J1067

JS660

GND

Q636

D657A

IS3

GND

J1143
ALL5V

J1013

PROT1

J1151

Q1203

R1228

PROT

R1229

GND

J1110

P-ON+24V

D655B

D638A

J1033IS3

J1001

J1085P-ON-H2

C1709

R1500

J1086

AMP24V

J1114

CN632

PROT3

J1035

C1500

R269

D655A

D638B

D638

R638

J1004

SW2

C1709A

R1114

PROT4

J1040

Q1204

R1300

J1104

P-ON+24V

AMP24V

J1108

J1113

R641

D663A

Q632

1

2

C632

SW2

J1003

HN1

J1039

R1225

R1227

AMP24V

J1109

C1109

R1113

R1226

VSEN

REG-7.5V

R1302

C638

C633

D639A

C1120

R1112

J1054

J1150

GND

J1117

R664

C649

ISEN

GND

J1116

INV+24V

J1130

INV+24V

J1165

J1053

R1301

D646

D645A

Q633

R643

T1101

INV+24V

INV+24V

C635

J1131

OVL

INV+24V

J1149

INV+24V

J1166

C648

D650A

C231

J1171

GND

GND

C1700A

INV+24V

J1070

INV+24V

J1167

R631

OVL

R642

P-ON-H2

J1141GND

D634

C631

J1144

J1047

J1168

C637

J1122

C634

C648A

R663

R1117

R1145

D637

GND

19

18

C644

D650

C1103

C649A

R1116

R1115

J1126

J1135

C1102

D650B

CN1101

D1507

J1030

D642

C639

D649

R1118

R1119

D648A

C647

R1148

D648

VSEN

C1700

R1120

J1028

D645

D643

J1164

PROT4

IS4

IS4

J1017

R1123

R1122

D1504

D644

J1078

24V

D640

R650

D660

COLD

J1163

PROT4

J1015

GND

C641

C1121

J1023

C1110

C1104

CN1100

4

C1106

R1109

R1110

C1107

C600

D600

C1119

R1111

GND

CN601

J1169

GND

J1157
GND

J1132

3

C612

D603

2

CN600

1

IS1

PROT1

J1162

PROT1

J1012

J1161

IS1

J1018

C1118

C1105

R1100

R1102

R1101

D1503

C1101

R1103

C1100

R1143

R1104

T1100

VS2

R1105

R1108

J1022

D1506

R1107

R1106

R1146

IS2

J1009

R1121

C1111

J1025

R1702

R1703

C1704

R1704

C1705

D1703B

D1703A

D1703

J1007

SW2

SW2

D1701B

D1701

D1701A

HN1

D1702

J1027

J1008

Q1701

D1702A

Q1700

C1702

D1700

R1701

C1703

R1700

D1700A

LN1

COLD

J1058

J1094

J1159

J1092

GND

GND

GND

GND

C611

C605

J1100

D607A

D609A

R600

Q601

C609

C608

D604A

R609

R608

D604

C603

D604B

SA601

R601

HOT

D601

R611

D611

D611A

D611B

L600

F601

4A/125V

FH602

D602

L601

C601

FH601

A

C604

R603

C607

D654B

Q634

R645

D654A

D613

D654

R649

BC601

GND

R635

D606A

IC601

C602

J1142

BC602

R637

Q600

R607

D606

D606B

D605B

R636

R604

D605

D610A

Q600-S

D607

D609

FB

D605A

J1091

R606

J1103

R602

D610

DRIVE

J1077START

C606

R605

R610

D612

C610

T600

R612

R613

C613

C614

HOT

J1127

GND

R644

R654

Q635

J1140

P-ON-H2

R632

D631

R655

R652

C645

R651

D631A

D631B

R647

Q631

J1134

GND

BCDE

10-16

BA17F1F01025

Power Supply CBA Top View (sub Power Supply CBA)

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

When you conduct on a component level repair for the Power Supply CBA for any models within this service manual,

*

make sure to refer the right Block Diagram/Schematic Diagram/CBA and Parts List.
For the main CBA, the last digit of the board number, which is engraved on every board, should be a number (e.g. BA17F1F0102 4).
For the sub CBA, the last digit of the board number, which is engraved on every board, should be an alphabet (e.g. BA17F1F0102 Y).

4A/125V

CAUTION ! :

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

4

3

2

1

J1169

GND

J1157

GND

J1132

A17F1MPW

E234498

C612

D603

CN600

CN601

CN1100

C1106

J

IS2

J1009

R1146

R1106

J1022

GND

COLD

HOT

D602

D600

C600

RISK OF FIRE­REPLACE FUSE AS MARKED

D601

R611

L601

C601

L600

F601
4A/125V

FH601

D611

FH602

A

T1100

D611A

VS2

D611B

SA601

R601

C611

C603

R608

R1143

D604B

D604

R1103

C1104

*

BA17F1F0102 X 5

C7A3 A3

IS1

PROT1

J1162

R609

Q601

R602

START

J1077

J1100

R605

R610

D610

DRIVE

J1091

R606

J1103

J1161

FB

IS1J1018

Q600-S

D607

D609

PROT1J1012

C602

D606

D606B

Q600

BC602

D605B

R607

D605

R636

J1142

R1704

IC601

GND

R635

D1703B

D1703

D613

BC601

HOT

D654

R649

J1007

J1008

R612

R613

C607

D654B

BC D E

C604

C614

D631

D631B

C613

J1023

C641

J1163

PROT4J1015

GND

PROT4

J1078

CN1101

J1149

INV+24V

J1166

INV+24V

OVL

J1130

INV+24V

J1165

INV+24V

C649

D646

INV+24V

INV+24V

ISEN

J1053

GND

J1116

VSEN

J1054

J1150

REG-7.5V

GNDJ1117

SW2J1003

C1709A

HDR2J1039

C638

AMP24V

J1109

IS4

J1164

C1700

IS4

J1017

R1148

R1118

VSEN

J1028

D644

D648

24V

D645

C639

D650B

C647

J1030

J1135

C649A

D650

C648A

J1126

R1115

D637

P-ON-H2

19

18

C1700A

R1145

C644

GND

J1141

J1144

D634

J1047

J1168

C637

C631

J1122

T1101

INV+24V

INV+24V

C648

OVL

J1171

J1070

J1167

J1131

GND

GND

GND

C632

J1004

PROT4

J1040

AMP24V

J1108

1

CN632
2

SW2

C1709

JS1200

J1104

P-ON+24V

J1113

D655B

J1085

PROT3

J1035

PROT

D638B

D638

IS3

J1033

J1001

GND

J1086

AMP24V

J1114

J1143
ALL5V

PROT3

IS3

J1013

PROT1

J1151

GND

JS660

GND

J1110

P-ON+24V

R657

Q636

P-ON-H2

D656

C1108

J1014

J1067

PROT

J1101

D655

PROT3

J1152

J1029

LDR2

+36V

J1057

R659

PROT

GND

J1074

P-ON+24V

J1096

R662

R658

D656B

JS656

for D656A

D1707

J1043

J1137

TOOL NO.
1 2 3 4 5 6 7 8 9 10

R1709

SW2

J1010

D1707B

D1706

LDR1

VSEN

J1062
PROT5

J1097

R656

J1139

P-ON-H2

P-ON+24VJ1081

P-ON+24V

J1112

D658

P-ON+24V

J1082

GND

C646

J1052

PROT2

J1099

-7.5V

J1118

J1050

HDR2

D641

Q207-B

D635

J1037

GND

J1087

D651

SW2

J1011

D1705B

D1705

HDR1

SW2

J1036

J1038

J1051

D1201

J1056
DC-12V

C229

R235

R233

J1102

+17V

C217

GND

C226

J1129

J1136ALL5V

ALL5V

SW1

J1145

J1055HDR2

R255

R234

Q222

J1133
PANEL+3.3V

GND

D1704

D1200

J1061

J1066

J1046

GND

C1701

J1041

LX1

REG-7.5V

C1114

LDR2

TMRSTAT

R258

J1107

R245

C230

J1031

INV-GND

J1060

R256

R259

GND

J1042

J1073

OUVLS

R265

R257

J1098
Q213-C

VCOM-PWM

PROT6

J1153

INV-GND

C203

C227

C228

J1146

IS6

J1154

PROT6

J1016

J1032

J1105

PROTECT1

R239

C675

J1147

PROT6

J1005

D205B

BL-SW

SW2

IC1200

D205

J1106

+16V

SW2

D206

R263

PANEL-6V

R266

D632B

J1148

BL-ADJ

J1006

J1115

R268

D632

J1019

J1026

C1206

J1175

ISEN

PANEL24V

J1080

PROTECT1

J1089

D212

PROTECT1

J1121

D652

J1138

PROTECT1

IS6

VS6

J1063

R246

Q221

D210

GND

R1130

J1071
PDIM

D222

ALL5V

JS200

R240

OE2

J1174

J1059

R1150

J1068

C1110

SW2

SW2

D1701B

D1702

J1027

HDR2

D1701

D612

C610

T600

D1700

J1092

J1025

LDR2

GND

J1094

GND

GND

GND

J1058

J1159

COLD

GND

J1127

GND

J1140

P-ON-H2

J1134

T1102

R1147

J1064

GND

J1093

D210B

J1173

SW12V

DC-12V

C1302

PDIM

R203

P-ON-H1

C219

J1125

PANEL+3.3V

R1127

C220

J1119

PANEL-6VJ1123

J1128

PROTECT3

CN1102

J1075

BL-ADJ

C208

J1090

R209

D221

PANEL15.8V

J1111

J1172

GND

D211

J1156

J1155

J1024

PROT5

J1021

IS5

D1203

R1305

J1076

Q1202-B

PANEL+15.8V

J1088

J1044

D1300B

C1304

P-ON-H1

J1095

GND

J1124

J1084

F

GND

GND

GND

D633

R211

GND

D1301B

D633B

D201

J200

J1072

J1049

D1301

D1300

C1112

1

2

GND

J1002

CN200

11

10

J1020

GND

GND

J1048

GND

BL-SW

J1034

J1069

GND

GND

J1170

GND

J1079

PROTECT3

J1083

BL-ADJ

J1065

GND

C215

C214

VCOM2

J1120

VCOM-PWM

10-17

BA17F1F0102X

Power Supply CBA Bottom View (sub Power Supply CBA)

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

When you conduct on a component level repair for the Power Supply CBA for any models within this service manual,

*

make sure to refer the right Block Diagram/Schematic Diagram/CBA and Parts List.
For the main CBA, the last digit of the board number, which is engraved on every board, should be a number (e.g. BA17F1F0102 4).
For the sub CBA, the last digit of the board number, which is engraved on every board, should be an alphabet (e.g. BA17F1F0102 Y).

4A/125V

CAUTION ! :

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

C202

J1069

GND

C201

J1020

GND

J1048
BL-SW

J1065

GND

C1112

C218

2

11

10

J1034

J1170

J1079

PROTECT3

J1083

BL-ADJ

C215

C214

1

CN200

GND

GND

D201A

Q205

VCOM2

R224

C213

VCOM-PWM

C1700A

INV+24V

J1070

INV+24V

J1167

R631

OVL

R642

P-ON-H2

J1141

J1144

J1047

J1168

D634

C631

C634

C637

J1122

R1145

C648A

D637

R663

R1117

GND

19

18

C644

D650

C1103

C649A

R1116

R1115

J1126

J1135

C1102

D650B

D642

C639

CN1101

D1507

J1030

D649

R1118

R1119

D648A

C647

R1148

D648

VSEN

C1700

R1120

J1028

D645

D643

J1164

PROT4

IS4

IS4

J1017

R1123

R1122

D1504

D644

J1078

24V

D640

R650

D660

COLD

J1163

PROT4

J1015

GND

C641

C1121

J1023

C1110

C1104

CN1100

4

C1106

R1109

R1110

C1107

C600

D600

C1119

R1111

GND

CN601

J1169
GND

J1157

GND

J1132

3

C612

D603

2

CN600

1

IS1

PROT1

J1162

PROT1

J1012

IS1

J1018

J1161

C1118

C1105

R1100

R1102

R1101

D1503

C1101

R1103

C1100

R1143

R1104

T1100

VS2

R1105

R1108

J1022

D1506

R1107

R1106

R1146

IS2

J1009

R1121

C1111

J1025

LDR2

C1702

D1700

Q1700

D1700A

R1700

R1701

C1703

D1701B

D1701

HDR2

D1701A

SW2

SW2

D1702

J1027

J1007

J1008

Q1701

D1702A

R1702

R1703

C1704

R1704

C1705

D1703B

D1703A

D1703

COLD

J1094

J1058

J1159

J1092

GND

GND

GND

GND

C611

C605

J1100

R600

D607A

D609A

Q601

C609

D604A

C608

R609

R608

D604

C603

D604B

SA601

R601

HOT

D601

R611

D611

D611A

D611B

L600

F601

4A/125V

FH602

D602

L601

C601

FH601

A

C604

R603

C607

D654B

Q634

R645

D654A

D613

R649

D654

BC601

GND

R635

C602

D606A

IC601

J1142

BC602

R637

Q600

R607

D606

D606B

R636

D605B

R604

D605

D610A

D607

D609

Q600-S

FB

D605A

J1091

R606

J1103

R602

D610

DRIVE

R610

J1077START

C606

R605

D612

C610

T600

R612

R613

C613

C614

HOT

J1127

GND

R632

R644

R654

Q635

J1140

P-ON-H2

D631

R655

R652

C645

R651

D631A

D631B

R647

Q631

J1134

GND

BCDE

CN1102

C1114

C1108

H.V. CAUTION

*

BA17F1F0102 X5

PROT6

IS6

J1005

J1154

SW2

J1153

R1150

D1505

J1071

PDIM

GND

J1068

C206

Q206

D222A

C222

JS200

OE2

R1130

C1206

R1209

J1063
GND

PANEL24V

J1080

Q201

R205

R240

D222

Q221

D210

R264

D652

R275

D212

IS6

VS6

C1207

C1216

R1230

J1175
ISEN

Q200

R246

J1019

R1135

R1134

J1026

C1215

IC1200

13

R1231

PROTECT1

C205

J1089

D206A

D212A

PROTECT1

D210A

J1121

PROTECT1

J1138

12

C1115

C1502

R223

J1115

R268

D632

SW2

J1006

R249

D206

J1106

C1123

R1515

C1501

R202

R201

R263

PROTECT1

+16V

PANEL-6V

R266

D652A

D632B

J1148

BL-ADJ

J1032

PROT6

R1513

R248

C1201

R239

C204

D205

R1133

24

R1514

D205B

J1105

Q214

BL-SW

1

PROT6

C1205

R200

D205A

C228

C675

J1147

J1002

GND

C200

J1156

GND

J1155

J1072

J1049

J1120

GND

GND

R219

R221

J200

D201

R215

D1301

R225

P-ON-H1

R220

5

IC200

GND

D1300

4

GND

D633B

Q1202

D1301B

R211

R216

D633

GND

J1124

J1084

J1088

1

R217

Q204

D1300B

8

C1304

D633A

Q203

J1095

R218

GND

J1024

PROT5

R1309

D1203A

R1305

C1200

R208

C211

J1044

D1301A

D1300A

C1305

R1207

R207

R214

C212

R271

R241

R242

R1126

J1021

IS5

Q1300

Q1202-B

C209

R210

PANEL15.8V

D211A

C1116

C1122

R1125

C1303

D1203

Q1205

R1235

R1206

C1212

J1076

PANEL+15.8V

J1090

C210

R209

Q202

R212

R213

D221

J1111

J1172

J1119

PANEL-6V

Q215

R272

D211

C1117

R1129

C1113

R1128

R1124

R1127

SW12V

DC-12V

R1201

R1234

R1215

J1075

BL-ADJ

C208

R222

R253

R270

R238

C220

GND

PANEL+3.3V

R273

R276

J1128

PROTECT3

R1132

C1302

R1200

R1212

C207

R206

C219

J1123

J1125

R274

T1102

R1131

J1064

PDIM

C1211

R204

P-ON-H1

C221

R237

D210B

J1173

Q216

J1174

Q1201

R203

R236

D1508

R1147

J1059

R1208

J1093

R247

ALL5V

J1016

R1233

R1213

C203

D200A

J1098

Q213-C

INV-GND

C1300

OUVLS

D202A

R257

C227

D632A

R267

VCOM-PWM

J1146

J1042

C1204

C1218

J1073

R265

INV-GND

J1031

R1232

J1060

R1516

Q212

R256

R259

GND

C230

PANEL+3.3V

J1041

LDR2

REG-7.5V

C1217

TMRSTAT

D1200

R1517

D207A

R258

Q213

J1107

C224

R245

C1701

D1704A

LX1

GND

R243

R226

J1133

R260

Q222

J1046

J1066

C223

D1704

J1061

R244

J1055

HDR2

D1200A

R255

D208A

R261

IC202

GND

R1223

Q1702

R1705

D1201A

R234

J1145

SW1

Q210

R227

R1706

C1208

R1222

Q211

R254

J1129

J1051

C1209

C1706

D1201

J1056

DC-12V

+17V

C225

C216

GND

J1136

ALL5V

C229

R228

D1705

R252

R233

J1102

C217

SW2

J1036

C1301

R235

Q207

C226

D1705B

HDR1

J1038

J1050

R1304

Q1303

R1303

R251

D651A

Q207-B

J1011

HDR2

SW2

D1705A

LDR1

J1037

C1311

D651

J1118

D635

J1010

R1707

D1706

J1052
PROT2

GND

J1087

J1099

-7.5V

R231

R232

SW2

R1306

D641

D635A

R1307

R1310

R230

C646

Q1703

D1706A

R1504

R1308

D641A

R229

P-ON-H2

R1708

C1707

J1043

R1505

R1508

J1062
PROT5

Q1301

P-ON+24V

P-ON+24V

J1082

J1081

GND

Q208

J1139

J1137
ALL5V

D656A

for D656A

R1709

VSEN

R1506

R1509

D662

P-ON+24V

J1097

J1112

D658

R656

D656B

JS656

D1707B

R1507

D1501

R1510

C1708

D1707

D1707A

J1029

LDR2

R1512

J1057

PROT

R1511

GND

D661

R262

P-ON+24V

J1096

D658A

R662

R658

R1501

J1074

D655

C1710

R1502

D1502

R659

P-ON-H2

C636

J1152PROT3

+36V

R657

D656

J1014

R1503

PROTJ1067

J1101

PROT3

D1500

JS660

GND

Q636

D657A

IS3

GND

J1143
ALL5V

J1013

R1229

J1110

J1033IS3

C1709

PROT1

J1151

Q1203

R1228

PROT

R1500

J1001

J1086

GND

AMP24V

P-ON+24V

J1114

D655B

D638A

J1085

PROT3

J1035

R638

CN632

SW2

C1709A

C1500

Q1204

R269

J1104

P-ON+24V

J1113

D655A

R641

D638B

D638

2

R1114

PROT4

J1040

R1300

Q632

1

J1004

C632

AMP24V

J1108

D663A

HDR2

J1039

R1225

R1227

AMP24V

J1109

SW2

J1003

C1109

R1113

R1226

R1302

C638

C633

D639A

R664

C1120

R1112

VSEN

J1054

REG-7.5V

J1150

GND

J1117

R643

C649

ISEN

J1053

R1301

GND

J1116

INV+24V

J1130

INV+24V

J1165

D646

D645A

Q633

T1101

INV+24V

J1149

INV+24V

J1166

C648

C231

C635

J1131

OVL

J1171

GND

GND

INV+24V

INV+24V

D650A

GND

F

10-18

BA17F1F0102X

WAVEFORMS

WF1 ~ WF4 = Waveforms to be observed at

Waveform check points.
(Shown in Schematic Diagram.)

Input: Component Color Bar Signal (480i, 480p, 720p or 1080i)
(with 1kHz Audio Signal)

WF1

WF2

JK3701(Y-IN)

VIDEO-Y 0.2V 20µs

JK3701(Pb-IN)

VIDEO-Pb 0.2V 20µs

WF3

JK3701(Pr-IN)

VIDEO-Pr 0.2V 20µs

JK3701(AUDIO(L)-IN)

WF4

AUDIO 0.1V 0.5ms

PL11.10WF11-1

HDMI-

CONNECTOR-1

WIRING DIAGRAM

HDMI-

CONNECTOR-2

PC-RGB-IN

USB JACK

DIGITAL MAIN CBA UNIT

CN3005

1

STV

CL3005

CN1100

BACK

1

2

XAO

3

OE1

LIGHT

2

4

CPV

POL

7

6TP5

GND

BACK

1

CN1101

8

LLV5(-)

LIGHT

2

9

LLV5(+)

10

LLV4(-)

12

11

LLV3(-)

LLV4(+)

BACK

1

CN1102

13

LLV3(+)

LIGHT

2

14

GND

16

15

LLVCLK(-)

LLVCLK(+)

CL200

GND

1

CN200

19

18

17

GND

LLV2(-)

LLN2(+)

LCD+15.8V

2

20

LLV1(-)

21

LLV1(+)

GND4VGH3LCD+15.8V

5

24

23

22

GND

LLV0(-)

LLV0(+)

P-ON+3.3V

P-ON+3.3V

7

6

GND8LCD-6V

9

LCD MODULE

GND10VCOM

11

ASSEMBLY

AC600

AC CORD

2

1

CN601

POWER SUPPLY CBA

SP3801

SPEAKER

5

8

4

6

7

2

3

1

9

11

10

16

12

15

13

14

17

18

19

L-CH

SP3802

SPEAKER

R-CH

TUNER UNIT

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

CL632

BACKLIGHT-SW

BACKLIGHT-ADJ

VCOM-PWM

2

3

1

CN3701 CN632

COMPONENT

-Pr-IN

PROTECT1

PROTECT3

P-ON-H1

5

6

4

AUDIO(L)-IN

AUDIO(R)-IN

RESET

P-ON-H2

8

7

AL+5V

GND

OE2

9

11

10

DIGITAL

AUDIO-OUT

(COAXIAL)

GND

AMP+24V

12

13

P-ON+24V

GND

AMP+24V

15

16

14

P-ON+24V

GND

GND

17

18

19

1

CN3102

CL3102

GND

1

CN4052

2

REMOTE

2

3

4

AL+3.3V

P-ON+5V

3

4

5

LED1

5

6

KEY-IN1

6

7

LIGHT

7

IR SENSOR CBA UNIT

CL3801

1

SP(L)

CN3801

2

SP-GND

1

CN3101

CL3101

GND

1

CN4001

CN3802

2

KEY-IN1

2

CL3802

1

SP(R)

2

SP-GND

FUNCTION CBA UNIT

PL11.10WI12-1

See Electrical Parts List
for parts with this mark.

Digital Main CBA Unit

Function CBA Unit

IR Sensor CBA Unit

Power Supply CBA

L17

B41

LCD1

A6

A1

A4

A8

A11

A12

B11

SP3801

CL200

SP3802

CL3801

CL3802

B5

AC600

B18

L25

L15

L14

L14

L14

L42

L42

CL632

L14

A2

B22

B22

L27

SSK1

L27

L27

L25

L27

L27

S6

L1

CL3101

CL3102

CL3005

B11

X6

L1

S6

EXPLODED VIEWS

13-1 PL11.10-A_CEX

Packing

S6

S1

Packing Tape

Packing Tape

X1

Some Ref. Numbers are
not in sequence.

SSK1

X2

S4

S3

X3

X4

FRONT

FRONT

A6

Tape

S5

Ta pe

Stand Assembly

S3

S4

S17

13-2 PL11.10_PEX

PARTS LIST [32PFL1507/F8 (Serial No.: DS1)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Ref. No. Description Part No.

A1 FRONT CABINET A1AFMZA 1EM227943
A2 REAR CABINET A1AFMZA 1EM127673
A4 FUNCTION KNOB A17F1UH 1EM226223A
A6 STAND COVER ASSEMBLY A17F1UH 1EM029945
A8 JACK HOLDER A17F1UH 1EM333718
A11 SENSOR LENS A17N1UH 1EM329957
A12# RATING LABEL A1AFRZH ---------­AC600# AC CORD W/O A GND WIRE UL/CSA/1730/NO/

B5 STAND BRACKET A17F1UH 1EM225385
B11 SPEAKER HOLDER A17F1UH 1EM333717
B18 GASKET A8AF0UH 1EM425861
B22 WALL MOUNT BRACKET A84N0UH 1EM323797
CL200 FFC WIRE ASSEMBLY 11PIN 11PIN/110MM WX1A17F1-101
CL632 FFC WIRE ASSEMBLY 19PIN 19PIN/295MM WX1A17F1-102
CL3005 FFC WIRE ASSEMBLY 24PIN 24PIN/213MM WX1A17F1-104
CL3101 WIRE ASSEMBLY 2PIN 2PIN/260MM/BLACK

CL3102 WIRE ASSEMBLY 7PIN 7PIN/600MM/BLACK

CL3801 WIRE ASSEMBLY 2PIN 2PIN/150MM/BLACK

CL3802 WIRE ASSEMBLY 2PIN 2PIN/480MM/BLACK

L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100
L14 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060
L15 DOUBLE SEMS SCREW M4X10 + BLK FPH34100
L25 S-TIGHT SCREW M3X6 BIND HEAD+BLACK GBHS3060
L27 SCREW P-TIGHT M4X14 BIND HEAD+BLK GBHP4140
L42 SHOULDER SCREW A01Q0UF 1EM328277
LCD1 LCD MODULE UK32AXG
SP3801 SPEAKER MAGNETIC S0412F28C DS08130XQ003
SP3802 SPEAKER MAGNETIC S0412F28C DS08130XQ003
SSK1 STAND SCREW KIT A17F1UH(DOUBLE SEMS

BLACK

RED

RED

RED

RED

SCREW M4X14 + BLK)

PAC K IN G

S1 CARTON A1AFMZA 1EM439377
S3 STYROFOAM TOP A1AFDUH 1EM030050
S4 STYROFOAM BOTTOM A1AFDUH 1EM030051
S5 SET BAG A1AFDUH 1EM333990
S6 SERIAL NO. LABEL A01PBUH ---------­S17 CARTON LABEL A1AFRZH ----------

ACCESSORIES

X1 POLYETHYLENE BAG HDPE 180X340XT0.03 1EM435579

WAC1720LW006

WX1A17F1T227

WX1A17F1T216

WX1A17F1L301

WX1A17F1R302

1ESA27587

Ref. No. Description Part No.

X2# OWNERS MANUAL A1AFRZH 1EMN30161
X3 REMOTE CONTROL TRANSMITTER YKF259-

X4 BATTERY R03-B500/01S XB0M451CZB01
X6 QUICK START GUIDE A1AFMZA 1EMN30080

001

URMT34JHG001

2012/08/23 14-1 A1AFRCA.fm

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DIGITAL ASSEMBLY

Ref. No. Description Part No.

DIGITAL ASSEMBLY
Consists of the following

DIGITAL MAIN CBA UNIT
FUNCTION CBA UNIT A1AFMMMA-001-FN
IR SENSOR CBA UNIT A1AFMMMA-001-IR

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT
Consists of the following

ICS

IC3001 IC DCDC CONVERTER MP2303ADNLFZ/

IC3002 IC DDR2-SDRAM K4T51163QI-HCF7 NSCA0R0SM022
IC3003 IC DCDC CONVERTER MP2303ADNLFZ/

IC3004 IC REGULATOR BD7820FP-E2 QSZBA0TRM109
IC3005 IC DTV-C7V R8A05011BG-U0/256FHP QSAA0R0HT057
IC3006 32MBIT C-MOS SERIAL FLASH

IC3007 IC REGULATOR BD7820FP-E2 QSZBA0TRM109
IC3008 IC DCDC CONVERTER MP2303ADNLFZ/

IC3009 IC RESET BU4221F QSCA0T0RM246
IC3011 IC EEPROM BU9883FV-WE2 QSCA0T0RM105
IC3013 IC SINGLE BUS BUFFER 74LVC1G126GW NSCA0TNXP004
IC3014 IC SINGLE BUS BUFFER 74LVC1G126GW NSCA0TNXP004
IC3018 IC HDMI SW BU16029kV-E2 QSCA0T0RM223
IC3019 HIGH-SIDE SWITCH IC BD2224G-TR/SSOP5/ 5PQSCA0T0RM011

IC3601 IC REGULATOR AP2121AK-3.3TRE1 NSCA0TBCD026
IC3801 IC D-CLASS POWER AMPLIFER

TU3401 TUNER UNIT ATSC/NTSC/QAM 115EF030AF--FUTNATS0SP007

SOIC8N/

SOIC8N/

MX25L3205DM2I-12G

SOIC8N/

R2A15122FP-W00R/HQFP

TUNER

A1AFMMMA-001

A1AFMMMA-001-DM

----------

NSCA0T09M004

NSCA0T09M004

NSZBA0RM0023

NSCA0T09M004

QSCA0T0HT005

POWER SUPPLY CBA (main CBA)

Ref. No. Description Part No.

POWER SUPPLY CBA (main CBA)
Consists of the following:

CAPACITORS

C200 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C201 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C202 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C203 ELECTROLYTIC CAP. 2.2µF50V M CE1JMASDL2R2
C205 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C208 ELECTROLYTIC CAP. 22µF50V M CE1JMASDL220
C211 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C212 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C213 CHIP CERAMIC CAP.(1608) B K 1µF25V CHD1EK30B105
C214 ELECTROLYTIC CAP. 47µF25V M CE1EMASDL470
C216 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C217 ELECTROLYTIC CAP. 10µF50V M CE1JMASDL100
C220 ELECTROLYTIC CAP. 470µF25V M CE1EMASDL471
C221 CHIP CERAMIC CAP.(1608) B K 0.01µF50V CHD1JK30B103
C223 CHIP CERAMIC CAP.(1608) B K 1µF25V CHD1EK30B105
C225 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C226 ELECTROLYTIC CAP. 3.3µF50V M CE1JMASDL3R3
C227 ELECTROLYTIC CAP. 22µF50V M CE1JMASDL220
C228 ELECTROLYTIC CAP. 2.2µF50V M CE1JMASDL2R2
C230 ELECTROLYTIC CAP. 100µF10V M CE1AMASDL101
C231 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C600# CAP METALLIZED FILM 0.47µF250V/K/MPX CTA474EUR001
C601# CAP METALLIZED FILM 0.47µF250V/K/MPX CTA474EUR001
C602 CAP ELECTROLYTIC 390µF200V CEB391DYG006
C605 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C606 CHIP CERAMIC CAP. B K 1200pF/50V CHD1JK30B122
C607 CERAMIC CAP. 820pF/2kV CA3D821PAN04
C608 CHIP CERAMIC CAP. B K 0.068µF50V CHD1JK30B683
C609 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C610# SAFTY CAP. 1000pF/250V KX CA2E102MR101
C611# SAFTY CAP. 1000pF/250V KX CA2E102MR101
C612# SAFTY CAP. 1000pF/250V KX CA2E102MR101
C613 CERAMIC CAP. 2200pF/1kV CCD3AKA0R222
C631 ELECTROLYTIC CAP. 1000µF35V M CE1GMZADL102
C632 ELECTROLYTIC CAP. 1000µF35V M CE1GMZADL102
C634 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C635 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C636 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C637 ELECTROLYTIC CAP. 470µF25V M CE1EMASDL471
C638 ELECTROLYTIC CAP. 100µF25V M CE1EMASDL101
C639 ELECTROLYTIC CAP. 100µF10V M CE1AMASDL101
C641 CERAMIC CAP. 2200pF/1kV CCD3AKA0R222
C644 ELECTROLYTIC CAP. 1µF50V M CE1JMASDL1R0
C645 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C646 ELECTROLYTIC CAP. 100µF10V M CE1AMASDL101
C647 ELECTROLYTIC CAP. 100µF50V M CE1JMASDL101
C648A ELECTROLYTIC CAP. 1000µF35V M CE1GMZADL102
C649A ELECTROLYTIC CAP. 1000µF35V M CE1GMZADL102
C1100 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1101 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1102 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1103 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1104 CAP CERAMIC HV 10pF/6.3kV/SL/J CCC1000MR007
C1105 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1106 CAP CERAMIC HV 10pF/6.3kV/SL/J CCC1000MR007

A17F7MPW-001

2012/09/13 14-2 A1AFREL.fm

Ref. No. Description Part No.

C1107 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1108 CAP CERAMIC HV 10pF/6.3kV/SL/J CCC1000MR007
C1109 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1110 CAP CERAMIC HV 10pF/6.3kV/SL/J CCC1000MR007
C1111 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1112 CAP CERAMIC HV 10pF/6.3kV/SL/J CCC1000MR007
C1113 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1114 CAP CERAMIC HV 10pF/6.3kV/SL/J CCC1000MR007
C1115 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1116 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1117 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1118 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1119 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1120 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1121 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1122 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1123 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1201 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C1202 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682
C1203 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682
C1204 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C1205 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1206 ELECTROLYTIC CAP. 10µF50V M CE1JMASDL100
C1207 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1208 CAP CHIP 3216 B K 0.47µF50V CA1J474TE142
C1209 CAP CHIP 3216 B K 0.47µF50V CA1J474TE142
C1210 CHIP CERAMIC CAP.(1608) B K 0.47µF16V CHD1CK30B474
C1212 CHIP CERAMIC CAP.(1608) B K 0.47µF16V CHD1CK30B474
C1213 CHIP CERAMIC CAP.(1608) B K 0.01µF50V CHD1JK30B103
C1300 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C1301 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1302 ELECTROLYTIC CAP. 10µF50V M CE1JMASDL100
C1303 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C1304 ELECTROLYTIC CAP. 220µF35V M CE1GMASDL221
C1305 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C1311 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1500 CHIP CERAMIC CAP.(1608) B K 0.01µF50V CHD1JK30B103
C1501 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1502 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332
C1700 ELECTROLYTIC CAP. 2200µF35V M CE1GMZNDL222
C1702 CAP CHIP 3216 B K 1µF50V CA1J105TE142
C1703 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1704 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1705 CHIP CERAMIC CAP.(1608) B K 0.022µF50V CHD1JK30B223
C1706 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1707 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1708 CHIP CERAMIC CAP.(1608) B K 0.022µF50V CHD1JK30B223
C1709 ELECTROLYTIC CAP. 2200µF35V M CE1GMZNDL222
C1710 CAP CHIP 3216 B K 1µF50V CA1J105TE142

CONNECTORS

CN200 FFC CONNECTOR IMSA-9615S-11A-PP-A JC96J11ER007
CN601# CONNECTOR B2P3-VH(LF)(SN) J3VH020JG001
CN632 FMN CONNECTOR TOP 19P IMSA-9615S-19A-

CN1100# CONNECTOR/JACK 1747386-1 JB17J02AP002
CN1101# CONNECTOR/JACK 1747386-1 JB17J02AP002
CN1102# CONNECTOR/JACK 1747386-1 JB17J02AP002

PP-A

JC96J19ER007

DIODES

D200A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D201 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D202A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D205A ZENER DIODE SMD TFZGTR33B QD1B000TFZ33
D206 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

Ref. No. Description Part No.

D207A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D208A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D210A ZENER DIODE SMD TFZGTR5.1B QD1B00TFZ5R1
D211 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D212 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D212A RES CHIP 1608 1/10W 0 Ω RRXA000HH014
D221 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036
D222 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D222A RES CHIP 1608 1/10W 0 Ω RRXA000HH014
D600# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU
D601# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU
D602# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU
D603# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU
D604A# ZENER DIODE SMD TFZGTR27B QD1B000TFZ27
D605A ZENER DIODE SMD TFZGTR4.3B QD1B00TFZ4R3
D607# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D609 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D610# DIODE ZENER 1ZB36BB NDWZ0001ZB36
D613 DIODE FAST RECOVERY FR155-B/P NDWZ0FR155BP
D631A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D632A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D633A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D634 DIODE SCHOTTKY SB3150BH NDWZ00SB3150
D637 DIODE SCHOTTKY SB3150BH NDWZ00SB3150
D638A ZENER DIODE SMD TFZGTR10B QD1B000TFZ10
D639A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D640 DIODE SCHOTTKY SMD SK2B-TR ND1Z00SK2BTR
D641 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D641A RES CHIP 1608 1/10W 0 Ω RRXA000HH014
D642 DIODE SK16-T/R ND1Z0000SK16
D643 DIODE SK16-T/R ND1Z0000SK16
D644 DIODE SCHOTTKY SB3150BH NDWZ00SB3150
D645# DIODE ZENER 1ZB22BB NDWZ0001ZB22
D646 DIODE SCHOTTKY SB3150BH NDWZ00SB3150
D648# DIODE ZENER 1ZB30BB NDWZ0001ZB30
D649 DIODE SK16-T/R ND1Z0000SK16
D650A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D651 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D651A RES CHIP 1608 1/10W 0 Ω RRXA000HH014
D652 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D654A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D655A ZENER DIODE SMD TFZGTR3.3B QD1B00TFZ3R3
D656A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D657A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D658 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D658A RES CHIP 1608 1/10W 0 Ω RRXA000HH014
D660 DIODE FAST RECOVERY RS1GJTB ND1Z0RS1GJTB
D661 DIODE FAST RECOVERY RS1GJTB ND1Z0RS1GJTB
D662 DIODE FAST RECOVERY RS1GJTB ND1Z0RS1GJTB
D663A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D1200A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D1201 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1202A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D1203 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1300A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D1301A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D1500 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1501 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1502 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1503 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1504 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1505 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1506 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U

2012/09/13 14-3 A1AFREL.fm

Ref. No. Description Part No.

D1507 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1508 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1700 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1701A ZENER DIODE SMD TFZGTR15B QD1B000TFZ15
D1702 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1703A ZENER DIODE SMD TFZGTR15B QD1B000TFZ15
D1704 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1705A ZENER DIODE SMD TFZGTR15B QD1B000TFZ15
D1706 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1707A ZENER DIODE SMD TFZGTR15B QD1B000TFZ15

ICS

IC200 IC TL3472CDR NSZBA0TTY115
IC202 IC(REGULATOR) PQ200WNA1ZPH QSZBA0TSH072
IC601# IC PHOTOCOUPLER TLP781F(D4-FUNBLL F) QPEL781FBLLF
IC1200 IC INVERTER CONTROL BD9244AFV/SSOP/

L17 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

24PIN

QSCA0T0RM222

COILS

L600# COIL LINE FILTER ST0807ET28-009 10MH LLEG0Z0Y2029
L601# COIL LINE FILTER ST0807ET28-009 10MH LLEG0Z0Y2029

TRANSISTORS

Q200 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U
Q201 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q202 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q203 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U
Q204 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q206 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q207 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U
Q208 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q210 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U
Q211 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q212 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q213 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q214 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q221 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q222 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F
Q600# FET MOS TK10A50D QFWZTK10A50D
Q601# TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q631 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q632 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q633 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q634 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q635 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q636 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1201 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q1202 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q1300 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U
Q1301 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q1303 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U
Q1700# FET MOS SMD TK40P04M1(T6RSS-Q) QF1ZK40P04M1
Q1701# FET MOS SMD TK40P04M1(T6RSS-Q) QF1ZK40P04M1
Q1702# FET MOS SMD TK40P04M1(T6RSS-Q) QF1ZK40P04M1
Q1703# FET MOS SMD TK40P04M1(T6RSS-Q) QF1ZK40P04M1

RESISTORS

R200 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013
R201 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013
R203 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001
R205 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013
R206 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013
R207 RES CHIP 1608 1/10W J 1.0 Ω RRXA1R0HH013
R209 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R211 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R212 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013

Ref. No. Description Part No.

R215 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008
R216 RES CHIP 1608 1/10W F 1.50k Ω RTW1501HH008
R217 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008
R218 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008
R219 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013
R222 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R224 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R225 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R226 RES CHIP 1608 1/10W F 330 Ω RTW3300HH008
R227 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R228 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013
R229 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R230 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R231 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R232 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R233 RES. CARBON FILM J 1/2W J 8.2 Ω RCX28R2T1003
R234 RES. CARBON FILM J 1/2W J 5.6 Ω RCX25R6T1003
R235 RES. CARBON FILM J 1/2W J 5.6 Ω RCX25R6T1003
R236 RES CHIP 1608 1/10W F 9.10k Ω RTW9101HH008
R237 RES CHIP 1608 1/10W 0 Ω RRXA000HH014
R238 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008
R239 METAL OXIDE FILM RES. 1W J 8.2 Ω RN018R2ZU001
R240 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001
R241 RES CHIP 1608 1/10W J 6.8k Ω RRXA682HH013
R242 RES CHIP 1608 1/10W J 2.7k Ω RRXA272HH013
R243 RES CHIP 1608 1/10W F 240 Ω RTW2400HH008
R244 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008
R246 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001
R247 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013
R248 RES CHIP 1608 1/10W J 56k Ω RRXA563HH013
R249 RES CHIP 1608 1/10W J 6.8k Ω RRXA682HH013
R251 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R252 RES CHIP 1608 1/10W J 39k Ω RRXA393HH013
R253 RES CHIP 1608 1/10W J 22k Ω
R254 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R255 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001
R256 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R257 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001
R258 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001
R260 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R261 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R262 RES CHIP 1608 1/10W J 12k Ω RRXA123HH013
R263 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001
R264 RES CHIP 1608 1/10W J 15k Ω RRXA153HH013
R265 RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001
R266 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001
R267 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R268 RES CARBON FILM 1/4W J 39k Ω RCX4393FS002
R269 RES CHIP 1608 1/10W J 12k Ω RRXA123HH013
R270 RES CHIP 1608 1/10W J 1.5k Ω RRXA152HH013
R600 RES CHIP 3216 1/4W J 220k Ω RRX4224HH034
R601# RES. CARBON FILM J 1/2W J 1.2M Ω RCX2125T1003
R602# CEMENT RESISTOR 5W J 2.2 Ω H 10MM RW052R2PAK10
R603 RES CHIP 3216 1/4W J 220k Ω RRX4224HH034
R604 RES CHIP 3216 1/4W J 220k Ω RRX4224HH034
R605 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001
R606 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001
R607 RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001
R608# METAL OXIDE FILM RES. 2W J 0.18 Ω RN02R18ZU001
R609 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001
R610 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001
R611# CEMENT RESISTOR 5W J 2.2 Ω H 10MM RW052R2PAK10
R612 METAL OXIDE FILM RES. 1W J 68k Ω RN01683ZU001

RRXA223HH013

2012/09/13 14-4 A1AFREL.fm

Ref. No. Description Part No.

R613 METAL OXIDE FILM RES. 1W J 68k Ω RN01683ZU001
R631 RES CHIP 1608 1/10W J 15k Ω RRXA153HH013
R632 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R635 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001
R636 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001
R637 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R638 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R641 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R642 RES CHIP 1608 1/10W F 75.0k Ω RTW7502HH008
R643 RES CHIP 1608 1/10W F 47.0k Ω RTW4702HH008
R644 RES CHIP 1608 1/10W J 18k Ω RRXA183HH013
R645 RES CHIP 1608 1/10W F 27.0k Ω RTW2702HH008
R647 RES CHIP 1608 1/10W F 27.0k Ω RTW2702HH008
R649 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001
R650 RES CHIP 1608 1/10W J 1.0 Ω RRXA1R0HH013
R651 RES CHIP 1608 1/10W F 820 Ω RTW8200HH008
R652 RES CHIP 1608 1/10W F 18.0k Ω RTW1802HH008
R654 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R655 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R656 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R657 RES CARBON FILM T 1/4W J 15 Ω RCX4150T1001
R658 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R659 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R662 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R663 RES CHIP 1608 1/10W J 39k Ω RRXA393HH013
R664 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1100 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008
R1102 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008
R1103 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002
R1104 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008
R1105 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008
R1106 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002
R1107 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008
R1108 RES CHIP 1608 1/10W F 13.0 Ω
R1109 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008
R1111 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008
R1112 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008
R1114 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008
R1115 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002
R1116 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008
R1117 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008
R1118 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002
R1119 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008
R1120 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008
R1121 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008
R1123 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008
R1124 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008
R1126 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008
R1127 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002
R1128 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008
R1129 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008
R1130 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002
R1131 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008
R1132 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008
R1133 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008
R1135 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008
R1200 RES CHIP 1608 1/10W J 68k Ω RRXA683HH013
R1201 RES CHIP 1608 1/10W J 68k Ω RRXA683HH013
R1202 RES CHIP 1608 1/10W F 130k Ω RTW1303HH008
R1203 RES CHIP 1608 1/10W F 8.20k Ω RTW8201HH008
R1204 RES CHIP 1608 1/10W F 75.0k Ω RTW7502HH008
R1205 RES CHIP 1608 1/10W F 560k Ω RTW5603HH008
R1206 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013

RTW13R0HH008

Ref. No. Description Part No.

R1207 RES CHIP 1608 1/10W J 33k Ω RRXA333HH013
R1208 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R1209 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013
R1212 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1213 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013
R1215 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1216 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013
R1221 RES CHIP 1608 1/10W J 1.0 Ω RRXA1R0HH013
R1222 RES CHIP 1608 1/10W J 10 Ω RRXA100HH013
R1223 RES CHIP 1608 1/10W J 10 Ω RRXA100HH013
R1300 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008
R1301 RES CHIP 1608 1/10W F 47.0k Ω RTW4702HH008
R1302 RES CHIP 1608 1/10W F 51.0k Ω RTW5102HH008
R1303 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013
R1304 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013
R1305 METAL OXIDE RES. 2W J 510 Ω RN02511ZU001
R1306 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1307 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013
R1308 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013
R1309 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1310 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R1500 RES CHIP 1608 1/10W F 1.00M Ω RTW1004HH008
R1501 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1502 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1503 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1504 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1505 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1506 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1507 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1508 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1509 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1510 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1511 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1512 RES CHIP 1608 1/10W F 100k Ω
R1513 RES CHIP 1608 1/10W F 1.00M Ω RTW1004HH008
R1514 RES CHIP 1608 1/10W F 39.0k Ω RTW3902HH008
R1515 RES CHIP 1608 1/10W F 27.0k Ω RTW2702HH008
R1516 RES CHIP 1608 1/10W F 6.80k Ω RTW6801HH008
R1700 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013
R1701 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1702 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013
R1703 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1704 METAL OXIDE FILM RES. 1W J 4.7 Ω RN014R7ZU001
R1705 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013
R1706 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1707 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013
R1708 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1709 METAL OXIDE FILM RES. 1W J 4.7 Ω RN014R7ZU001

RTW1003HH008

MISCELLANEOUS

B41 HEAT SINK PNB ASSEMBLY A94F0µH 1EM428123
BC601 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC602 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
F601# FUSE STC4A125V U/CT PAGE20CW3402
FH601 FUSE HOLDER MSF-015-RS-SN (B110) XH001Z0LY001
FH602 FUSE HOLDER MSF-015-RS-SN (B110) XH001Z0LY001
JS656 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
SA601# SURGE ABSORBER 470V+-10PER NVQZ10D471KB
T600# TRANS POWER 11714 LTT3PC0KT069

When you replace one of the below Trans Inverters on this CBA, please
replace with the one that has same parts number.
Do not mix different parts number’s Trans Inverter.

T1100# TRANS INV HVT-325 LTZ3PZ0XB018
T1101# TRANS INV HVT-325 LTZ3PZ0XB018

2012/09/13 14-5 A1AFREL.fm

Ref. No. Description Part No.

T1102# TRANS INV HVT-325 LTZ3PZ0XB018

or
T1100# TRANS INV TZ.7617A.101 LTZ3PZDAR014
T1101# TRANS INV TZ.7617A.101 LTZ3PZDAR014
T1102# TRANS INV TZ.7617A.101 LTZ3PZDAR014

POWER SUPPLY CBA (sub CBA)

Ref. No. Description Part No.

POWER SUPPLY CBA (sub CBA)
Consists of the following:

CAPACITORS

C200 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C201 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C202 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C203 ELECTROLYTIC CAP. 2.2µF50V M CE1JMASDL2R2
C205 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C208 ELECTROLYTIC CAP. 22µF50V M CE1JMASDL220
C211 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C212 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C213 CHIP CERAMIC CAP.(1608) B K 1µF25V CHD1EK30B105
C214 ELECTROLYTIC CAP. 47µF25V M CE1EMASDL470
C216 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C217 ELECTROLYTIC CAP. 10µF50V M CE1JMASDL100
C220 ELECTROLYTIC CAP. 470µF25V M CE1EMASDL471
C221 CHIP CERAMIC CAP.(1608) B K 0.01µF50V CHD1JK30B103
C223 CHIP CERAMIC CAP.(1608) B K 1µF25V CHD1EK30B105
C225 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C226 ELECTROLYTIC CAP. 3.3µF50V M CE1JMASDL3R3
C227 ELECTROLYTIC CAP. 22µF50V M CE1JMASDL220
C228 ELECTROLYTIC CAP. 2.2µF50V M CE1JMASDL2R2
C230 ELECTROLYTIC CAP. 100µF10V M CE1AMASDL101
C231 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C600# CAP METALLIZED FILM 0.47µF250V/K/MPX CTA474EUR001
C601# CAP METALLIZED FILM 0.47µF250V/K/MPX CTA474EUR001
C602 CAP ELECTROLYTIC 390µF200V CEB391DYG006
C605 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C606 CHIP CERAMIC CAP. B K 1200pF/50V CHD1JK30B122
C607 CERAMIC CAP. 820pF/2kV CA3D821PAN04
C608 CHIP CERAMIC CAP. B K 0.068µF50V CHD1JK30B683
C609 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C610# SAFTY CAP. 1000pF/250V KX CA2E102MR101
C611# SAFTY CAP. 1000pF/250V KX CA2E102MR101
C612# SAFTY CAP. 1000pF/250V KX CA2E102MR101
C613 CERAMIC CAP. 2200pF/1kV CCD3AKA0R222
C631 ELECTROLYTIC CAP. 1000µF35V M CE1GMZADL102
C632 ELECTROLYTIC CAP. 1000µF35V M CE1GMZADL102
C634 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C635 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C636 CHIP CERAMIC CAP.(1608) F Z 0.1µF50V CHD1JZ30F104
C637 ELECTROLYTIC CAP. 470µF25V M CE1EMASDL471
C638 ELECTROLYTIC CAP. 100µF25V M CE1EMASDL101
C639 ELECTROLYTIC CAP. 100µF10V M CE1AMASDL101
C641 CERAMIC CAP. 2200pF/1kV CCD3AKA0R222
C644 ELECTROLYTIC CAP. 1µF50V M CE1JMASDL1R0
C645 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C646 ELECTROLYTIC CAP. 100µF10V M CE1AMASDL101
C647 ELECTROLYTIC CAP. 100µF50V M CE1JMASDL101
C648A ELECTROLYTIC CAP. 1000µF35V M CE1GMZADL102
C649A ELECTROLYTIC CAP. 1000µF35V M CE1GMZADL102
C1100 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1101 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1102 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225

A17F7MPZ-001

Ref. No. Description Part No.

C1103 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1104 CAP CERAMIC HV 10pF/6.3kV/SL/J CCC1000MR007
C1105 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1106 CAP CERAMIC HV 10pF/6.3kV/SL/J CCC1000MR007
C1107 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1108 CAP CERAMIC HV 10pF/6.3kV/SL/J CCC1000MR007
C1109 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1110 CAP CERAMIC HV 10pF/6.3kV/SL/J CCC1000MR007
C1111 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1112 CAP CERAMIC HV 10pF/6.3kV/SL/J CCC1000MR007
C1113 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1114 CAP CERAMIC HV 10pF/6.3kV/SL/J CCC1000MR007
C1115 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1116 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1117 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1118 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1119 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1120 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1121 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1122 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1123 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1201 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C1204 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C1205 CHIP CERAMIC CAP. F Z 2.2µF50V CHF1JZ30F225
C1206 ELECTROLYTIC CAP. 10µF50V M CE1JMASDL100
C1207 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1208 CAP CHIP 3216 B K 0.47µF50V CA1J474TE142
C1209 CAP CHIP 3216 B K 0.47µF50V CA1J474TE142
C1212 CHIP CERAMIC CAP.(1608) B K 0.47µF16V CHD1CK30B474
C1215 CHIP CERAMIC CAP.(1608) B K 0.01µF50V CHD1JK30B103
C1216 CHIP CERAMIC CAP. CH J 150pF/50V CHD1JJ3CH151
C1217 CHIP CERAMIC CAP.(1608) B K 0.047µF50V CHD1JK30B473
C1218 CHIP CERAMIC CAP.(3216) B K 2.2µF50V CA1J225MR082
C1300 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C1301 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1302 ELECTROLYTIC CAP. 10µF50V M CE1JMASDL100
C1303 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C1304 ELECTROLYTIC CAP. 220µF35V M CE1GMASDL221
C1305 CHIP CERAMIC CAP.(1608) B K 0.1µF50V CHD1JK30B104
C1311 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1500 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1501 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1502 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332
C1700 ELECTROLYTIC CAP. 2200µF35V M CE1GMZNDL222
C1702 CAP CHIP 3216 B K 1µF50V CA1J105TE142
C1703 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1704 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1705 CHIP CERAMIC CAP.(1608) B K 0.022µF50V CHD1JK30B223
C1706 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1707 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1708 CHIP CERAMIC CAP.(1608) B K 0.022µF50V CHD1JK30B223
C1709 ELECTROLYTIC CAP. 2200µF35V M CE1GMZNDL222
C1710 CAP CHIP 3216 B K 1µF50V CA1J105TE142

CONNECTORS

CN200 FFC CONNECTOR IMSA-9615S-11A-PP-A JC96J11ER007
CN601# CONNECTOR B2P3-VH(LF)(SN) J3VH020JG001
CN632 FMN CONNECTOR TOP 19P IMSA-9615S-19A-

CN1100# CONNECTOR/JACK 1747386-1 JB17J02AP002
CN1101# CONNECTOR/JACK 1747386-1 JB17J02AP002
CN1102# CONNECTOR/JACK 1747386-1 JB17J02AP002

PP-A

JC96J19ER007

DIODES

D200A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400

2012/09/13 14-6 A1AFREL.fm

Ref. No. Description Part No.

D201 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D202A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D205A ZENER DIODE SMD TFZGTR33B QD1B000TFZ33
D206 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D207A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D208A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D210A ZENER DIODE SMD TFZGTR5.1B QD1B00TFZ5R1
D211 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D212 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D212A RES CHIP 1608 1/10W 0 Ω RRXA000HH014
D221 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036
D222 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D222A RES CHIP 1608 1/10W 0 Ω RRXA000HH014
D600# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU
D601# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU
D602# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU
D603# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU
D604A# ZENER DIODE SMD TFZGTR27B QD1B000TFZ27
D605A ZENER DIODE SMD TFZGTR4.3B QD1B00TFZ4R3
D607# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D609 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D610# DIODE ZENER 1ZB36BB NDWZ0001ZB36
D613 DIODE FAST RECOVERY FR155-B/P NDWZ0FR155BP
D631A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D632A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D633A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D634 DIODE SCHOTTKY SB3150BH NDWZ00SB3150
D637 DIODE SCHOTTKY SB3150BH NDWZ00SB3150
D638A ZENER DIODE SMD TFZGTR10B QD1B000TFZ10
D639A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D640 DIODE SCHOTTKY SMD SK2B-TR ND1Z00SK2BTR
D641 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D641A RES CHIP 1608 1/10W 0 Ω RRXA000HH014
D642 DIODE SK16-T/R ND1Z0000SK16
D643 DIODE SK16-T/R ND1Z0000SK16
D644 DIODE SCHOTTKY SB3150BH NDWZ00SB3150
D645# DIODE ZENER 1ZB22BB NDWZ0001ZB22
D646 DIODE SCHOTTKY SB3150BH NDWZ00SB3150
D648# DIODE ZENER 1ZB30BB NDWZ0001ZB30
D649 DIODE SK16-T/R ND1Z0000SK16
D650A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D651 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D651A RES CHIP 1608 1/10W 0 Ω RRXA000HH014
D652 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D654A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D655A ZENER DIODE SMD TFZGTR3.3B QD1B00TFZ3R3
D656A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D657A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D658 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D658A RES CHIP 1608 1/10W 0 Ω RRXA000HH014
D660 DIODE FAST RECOVERY RS1GJTB ND1Z0RS1GJTB
D661 DIODE FAST RECOVERY RS1GJTB ND1Z0RS1GJTB
D662 DIODE FAST RECOVERY RS1GJTB ND1Z0RS1GJTB
D663A SWITCHING DIODE 1SS400 TE61 QD1Z001SS400
D1200 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1201 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1203 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1300A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D1301A ZENER DIODE SMD TFZGTR5.6B QD1B00TFZ5R6
D1500 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1501 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1502 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1503 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U

Ref. No. Description Part No.

D1504 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1505 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1506 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1507 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1508 SWITCHING DIODE DAN202U T106 QD1Z0DAN202U
D1700 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1701A ZENER DIODE SMD TFZGTR15B QD1B000TFZ15
D1702 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1703A ZENER DIODE SMD TFZGTR15B QD1B000TFZ15
D1704 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1705A ZENER DIODE SMD TFZGTR15B QD1B000TFZ15
D1706 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1707A ZENER DIODE SMD TFZGTR15B QD1B000TFZ15

ICS

IC200 IC TL3472CDR NSZBA0TTY115
IC202 IC(REGULATOR) PQ200WNA1ZPH QSZBA0TSH072
IC601# IC PHOTOCOUPLER TLP781F(D4-FUNBLL F) QPEL781FBLLF
IC1200 IC INVERTER CONTROLLER OZ9972A/24PIN/

SOP

NSCA0TTMC005

COILS

L600# COIL LINE FILTER ST0807ET28-009 10MH LLEG0Z0Y2029
L601# COIL LINE FILTER ST0807ET28-009 10MH LLEG0Z0Y2029

TRANSISTORS

Q200 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U
Q201 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q202 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q203 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U
Q204 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q206 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q207 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U
Q208 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q210 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U
Q211 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q212 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q213 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q214 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q221 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q222 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F
Q600# FET MOS TK10A50D QFWZTK10A50D
Q601# TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q631 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q632 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q633 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q634 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q635 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q636 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1201 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q1202 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q1205 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q1300 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U
Q1301 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S
Q1303 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U
Q1700# FET MOS SMD TK40P04M1(T6RSS-Q) QF1ZK40P04M1
Q1701# FET MOS SMD TK40P04M1(T6RSS-Q) QF1ZK40P04M1
Q1702# FET MOS SMD TK40P04M1(T6RSS-Q) QF1ZK40P04M1
Q1703# FET MOS SMD TK40P04M1(T6RSS-Q) QF1ZK40P04M1

RESISTORS

R200 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013
R201 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013
R203 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001
R205 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013
R206 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013
R207 RES CHIP 1608 1/10W J 1.0 Ω RRXA1R0HH013

2012/09/13 14-7 A1AFREL.fm

Ref. No. Description Part No.

R209 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R211 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R212 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013
R215 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008
R216 RES CHIP 1608 1/10W F 1.50k Ω RTW1501HH008
R217 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008
R218 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008
R219 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013
R222 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R224 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R225 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R226 RES CHIP 1608 1/10W F 330 Ω RTW3300HH008
R227 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R228 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013
R229 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R230 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R231 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R232 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R233 RES. CARBON FILM J 1/2W J 8.2 Ω RCX28R2T1003
R234 RES. CARBON FILM J 1/2W J 5.6 Ω RCX25R6T1003
R235 RES. CARBON FILM J 1/2W J 5.6 Ω RCX25R6T1003
R236 RES CHIP 1608 1/10W F 9.10k Ω RTW9101HH008
R237 RES CHIP 1608 1/10W 0 Ω RRXA000HH014
R238 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008
R239 METAL OXIDE FILM RES. 1W J 8.2 Ω RN018R2ZU001
R240 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001
R241 RES CHIP 1608 1/10W J 6.8k Ω RRXA682HH013
R242 RES CHIP 1608 1/10W J 2.7k Ω RRXA272HH013
R243 RES CHIP 1608 1/10W F 240 Ω RTW2400HH008
R244 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008
R246 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001
R247 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013
R248 RES CHIP 1608 1/10W J 56k Ω RRXA563HH013
R249 RES CHIP 1608 1/10W J 6.8k Ω
R251 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R252 RES CHIP 1608 1/10W J 39k Ω RRXA393HH013
R253 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R254 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R255 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001
R256 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R257 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001
R258 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001
R260 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R261 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R262 RES CHIP 1608 1/10W J 12k Ω RRXA123HH013
R263 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001
R264 RES CHIP 1608 1/10W J 15k Ω RRXA153HH013
R265 RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001
R266 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001
R267 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R268 RES CARBON FILM 1/4W J 39k Ω RCX4393FS002
R269 RES CHIP 1608 1/10W J 12k Ω RRXA123HH013
R270 RES CHIP 1608 1/10W J 1.5k Ω RRXA152HH013
R600 RES CHIP 3216 1/4W J 220k Ω RRX4224HH034
R601# RES. CARBON FILM J 1/2W J 1.2M Ω RCX2125T1003
R602# CEMENT RESISTOR 5W J 2.2 Ω H 10MM RW052R2PAK10
R603 RES CHIP 3216 1/4W J 220k Ω RRX4224HH034
R604 RES CHIP 3216 1/4W J 220k Ω RRX4224HH034
R605 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001
R606 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001
R607 RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001
R608# METAL OXIDE FILM RES. 2W J 0.18 Ω RN02R18ZU001
R609 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001

RRXA682HH013

Ref. No. Description Part No.

R610 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001
R611# CEMENT RESISTOR 5W J 2.2 Ω H 10MM RW052R2PAK10
R612 METAL OXIDE FILM RES. 1W J 68k Ω RN01683ZU001
R613 METAL OXIDE FILM RES. 1W J 68k Ω RN01683ZU001
R631 RES CHIP 1608 1/10W J 15k Ω RRXA153HH013
R632 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R635 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001
R636 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001
R637 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R638 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R641 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R642 RES CHIP 1608 1/10W F 75.0k Ω RTW7502HH008
R643 RES CHIP 1608 1/10W F 47.0k Ω RTW4702HH008
R644 RES CHIP 1608 1/10W J 18k Ω RRXA183HH013
R645 RES CHIP 1608 1/10W F 27.0k Ω RTW2702HH008
R647 RES CHIP 1608 1/10W F 27.0k Ω RTW2702HH008
R649 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001
R650 RES CHIP 1608 1/10W J 1.0 Ω RRXA1R0HH013
R651 RES CHIP 1608 1/10W F 820 Ω RTW8200HH008
R652 RES CHIP 1608 1/10W F 18.0k Ω RTW1802HH008
R654 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R655 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013
R656 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R657 RES CARBON FILM T 1/4W J 15 Ω RCX4150T1001
R658 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R659 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R662 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R663 RES CHIP 1608 1/10W J 39k Ω RRXA393HH013
R664 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1100 RES CHIP 1608 1/10W F 36.0k Ω RTW3602HH008
R1102 RES CHIP 1608 1/10W F 4.70k Ω RTW4701HH008
R1103 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002
R1104 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008
R1105 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008
R1106 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002
R1107 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008
R1108 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008
R1109 RES CHIP 1608 1/10W F 36.0k Ω RTW3602HH008
R1111 RES CHIP 1608 1/10W F 4.70k Ω RTW4701HH008
R1112 RES CHIP 1608 1/10W F 36.0k Ω RTW3602HH008
R1114 RES CHIP 1608 1/10W F 4.70k Ω RTW4701HH008
R1115 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002
R1116 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008
R1117 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008
R1118 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002
R1119 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008
R1120 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008
R1121 RES CHIP 1608 1/10W F 36.0k Ω RTW3602HH008
R1123 RES CHIP 1608 1/10W F 4.70k Ω RTW4701HH008
R1124 RES CHIP 1608 1/10W F 36.0k Ω RTW3602HH008
R1126 RES CHIP 1608 1/10W F 4.70k Ω RTW4701HH008
R1127 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002
R1128 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008
R1129 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008
R1130 RES CARBON FILM T 1/4W G 470 Ω RCX4471T1002
R1131 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008
R1132 RES CHIP 1608 1/10W F 13.0 Ω RTW13R0HH008
R1133 RES CHIP 1608 1/10W F 36.0k Ω RTW3602HH008
R1135 RES CHIP 1608 1/10W F 4.70k Ω RTW4701HH008
R1200 RES CHIP 1608 1/10W J 680k Ω RRXA684HH013
R1201 RES CHIP 1608 1/10W J 680k Ω RRXA684HH013
R1206 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1207 RES CHIP 1608 1/10W J 33k Ω RRXA333HH013

2012/09/13 14-8 A1AFREL.fm

Ref. No. Description Part No.

R1208 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R1209 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1212 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1213 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013
R1215 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1222 RES CHIP 1608 1/10W J 10 Ω RRXA100HH013
R1223 RES CHIP 1608 1/10W J 10 Ω RRXA100HH013
R1229 RES CHIP 1608 1/10W 0 Ω RRXA000HH014
R1230 RES CHIP 1608 1/10W F 150k Ω RTW1503HH008
R1231 RES CHIP 1608 1/10W F 560k Ω RTW5603HH008
R1232 RES CHIP 1608 1/10W J 1.0M Ω RRXA105HH013
R1233 RES CHIP 1608 1/10W J 560k Ω RRXA564HH013
R1234 RES CHIP 1608 1/10W F 56.0k Ω RTW5602HH008
R1235 RES CHIP 1608 1/10W F 24.0k Ω RTW2402HH008
R1300 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008
R1301 RES CHIP 1608 1/10W F 47.0k Ω RTW4702HH008
R1302 RES CHIP 1608 1/10W F 51.0k Ω RTW5102HH008
R1303 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013
R1304 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013
R1305 METAL OXIDE RES. 2W J 510 Ω RN02511ZU001
R1306 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1307 RES CHIP 1608 1/10W J 1.0k Ω RRXA102HH013
R1308 RES CHIP 1608 1/10W J 4.7k Ω RRXA472HH013
R1309 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1310 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013
R1500 RES CHIP 1608 1/10W F 1.00M Ω RTW1004HH008
R1501 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1502 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1503 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1504 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1505 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1506 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1507 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1508 RES CHIP 1608 1/10W F 100k Ω
R1509 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1510 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1511 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1512 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1513 RES CHIP 1608 1/10W F 1.00M Ω RTW1004HH008
R1514 RES CHIP 1608 1/10W F 47.0k Ω RTW4702HH008
R1515 RES CHIP 1608 1/10W F 27.0k Ω RTW2702HH008
R1516 RES CHIP 1608 1/10W F 2.40k Ω RTW2401HH008
R1517 RES CHIP 1608 1/10W 0 Ω RRXA000HH014
R1700 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013
R1701 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1702 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013
R1703 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1704 METAL OXIDE FILM RES. 1W J 4.7 Ω RN014R7ZU001
R1705 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013
R1706 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1707 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013
R1708 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013
R1709 METAL OXIDE FILM RES. 1W J 4.7 Ω RN014R7ZU001

RTW1003HH008

MISCELLANEOUS

B41 HEAT SINK PNB ASSEMBLY A94F0µH 1EM428123
BC601 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC602 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
F601# FUSE STC4A125V U/CT PAGE20CW3402
FH601 FUSE HOLDER MSF-015-RS-SN (B110) XH001Z0LY001
FH602 FUSE HOLDER MSF-015-RS-SN (B110) XH001Z0LY001
JS656 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
L17 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

Ref. No. Description Part No.

SA601# SURGE ABSORBER 470V+-10PER NVQZ10D471KB
T600# TRANS POWER 11714 LTT3PC0KT069

When you replace one of the below Trans Inverters on this CBA, please
replace with the one that has same parts number.
Do not mix different parts number’s Trans Inverter.

T1100# TRANS INV HVT-325 LTZ3PZ0XB018
T1101# TRANS INV HVT-325 LTZ3PZ0XB018
T1102# TRANS INV HVT-325 LTZ3PZ0XB018

or
T1100# TRANS INV TZ.7617A.101 LTZ3PZDAR014
T1101# TRANS INV TZ.7617A.101 LTZ3PZDAR014
T1102# TRANS INV TZ.7617A.101 LTZ3PZDAR014

2012/09/13 14-9 A1AFREL.fm

REVISION HISTORY

Chassis PL11.10

• 2012-08-21 32PFL1507/F8 (Serial No. : DS1) added

15-1 PL11.10REV

COMPARISON LIST OF MODEL NAMES

Chassis PL11.10

32PFL1507/F8 (DS1) A1AFRZH TYPE A

16-1 PL11.10COM
