Philips 32PF9830 User Manual

Download

Contents

Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

First time installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

To operate the motorised swivel . . . . . . . . . . . . . . . . . . . . . . . . . 3

Keys at the top of the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Use of the remote control RC4310 . . . . . . . . . . . . . . . . . . . . . . . 4

Browse screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

To use the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

How to navigate through the Settings menus . . . . . . . . . . . . . . . . . . . 7

Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation

Select the menu language and country . . . . . . . . . . . . . . . . . . . . . . . . 8

Store TV channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Software upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Setup menu

Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

TV menu

Picture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Sound menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Features menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Ambilight menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Multimedia Browser

Viewing content from a Memory card / USB device . . . . . . . . . . . . . 19

Multimedia Browser menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Teletext menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Equipment to connect to the side connections . . . . . . . . . . . . . 22

Connect Peripheral Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 23

Recorder (vcr-dvd+rw) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Recorder and other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

DVD Player or other peripheral digital source equipment . . . . . . . . . 26

MultiChannel Surround receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Devices to connect to a HDMI connector . . . . . . . . . . . . . . . . . . . . 28

Devices to connect to a DVI connector . . . . . . . . . . . . . . . . . . . . . . 29

Record with your recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

To select connected equipment . . . . . . . . . . . . . . . . . . . . . . . . . 30

Audio- and video equipment keys . . . . . . . . . . . . . . . . . . . . . . . 31

Setting the remote control to work peripheral equipment

Code setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

To cancel the selected mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Learnable remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Annex 1 - Philips TV software upgrade with portable memory . 37 Annex 2 - Philips TV Slideshow Format with background music. 39

Annex 3 - Philips TV - Portable Memory and USB . . . . . . . . . . 41

R End of life directives

Philips is paying a lot of attention to producing environmentally-friendly in green focal areas.Your new TV contains materials which can be recycled and reused. At the end of its life specialised companies can dismantle the discarded TV to concentrate the reusable materials and to minimise the amount of materials to be disposed of. Please ensure you dispose of your old TV according to local regulations.

Help?

If this instruction manual does not give an answer or if ‘Tips’ does not solve your TV problem, you can call your Local Philips Customer or Service Centre. See the supplied World-wide guarantee booklet. Please, have the Model and Product number which you can find at the back of your television set or on the packaging, ready, before calling the Philips helpline.

Model: 32PF9830/10

37PF9830/10

Product No: ...........................................

Care of the screen

See p. 3.

English

EasyLink features are based on the “one touch operation” approach.This means that a sequence of actions are executed at the same time in both the television and the recorder, provided both are fitted with the EasyLink function and connected with the eurocable supplied with your recorder.

NXT®is a trademark of New Transducers Limited

The first time (and only the first time) you switch on your set, you see an installation introduction screen. The installation procedure consists of a series of screens that guide you through the process.

& After an introduction screen, you are asked to select a language of the TV’s on-screen-menus. (The text of the header and the info on screen

continuously change language.)

é Press the cursor up/down to highlight your language. “ Press the OK key. ‘ Follow the instructions on screen to proceed.

Note: Once you completed the initial installation procedure, you may access the screens from the Settings menu. See p. 8.

Do not insert the power plug in a wall socket or hang the TV to the wall before all connections are made.

& Wall mounting instructions/Table stand/Motorised swivel

How to mount the supplied stand and/or wall mount bracket and the swivel, see the supplied separate Quick Start Guide.

Caution: Installing the TV requires special skills that should only be

performed by qualified personnel.You should not attempt to do the work yourself. Philips bears no responsibility for improper mounting or mounting that results in accident or injury.

Using the supplied bracket to mount the TV:

-You can ask a qualified service personnel about using the bracket to mount the display on the wall.

-Follow the instructions that come with the bracket before beginning work.

- Make sure that the wall mount is being fixed securely enough so that it meets safety standards.The weight of the TV (excl. packaging) is about 20 kg (32PF9830); 27 kg (37PF9830).

é Place or hang the TV wherever you want, but make sure that air can

circulate freely through the ventilation slots. Do not install the TV in a confined space such as a book case or a similar unit. To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed in the vicinity. Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing.

“ Insert the aerial plug firmly into the aerial socket x at the bottom of the

TV. For best picture quality use the suppressor-aerial cable supplied.

‘ Before installing your TV, connect all your peripheral equipment.

( Insert the mains cord supplied into the mains at the bottom of the TV and

in the wall socket having a mains voltage of 198-264V. To prevent damaging the power (AC) cord which could cause a fire or electric shock, do not place the TV on the cord.

§ Remote control: Insert the 2 batteries supplied (Type R6-1,5V).

The batteries supplied do not contain the heavy metals mercury and cadmium. Please check on how to dispose of exhausted batteries according to local regulations.

è Switch the TV on :Press the power switch B at the top of the TV.

An indicator on the front of the TV lights up and the screen comes on. If the TV is in standby mode, press the

-P+ keys or the B key on the remote

control.

UK - EIRE

First time installation

Preparation

DVD/R TV VCR AUX

SELECT

DEMO

ABC DEF

SAT

BROWSE

MOT

Should your remote be lost or broken you can still change some of the basic settings with the keys on the top of your TV. Press the power switch B to switch the TV on.

Press:

• the V - or + keys to adjust the volume;

• the

P/CH - or + keys to select the TV channels or sources.

The

MENU key can be used to summon the Settings menu without the remote

control.

Use:

• the V - and + keys and the

P/CH- and P/CH+ keys to select menu items;

• the

MENU key to confirm your selection.

Note: When activated via the

MENU key on top of the TV, only Exit lets you dismiss the

menu. Navigate to

Exit, press the cursor right and then press the MENU key.

The motorised swivel can turn + and - 30 degrees and can be operated with the remote control of your TV. Manual rotation remains possible too.

Preparation

& Insert the DC cable of the swivel transformer into the DC input of the

swivel.

é Insert the power cord to the swivel transformer. “ Insert the mains plug of the swivel transformer in the wall socket.

Operation

First press the

SWIVEL MOT key at the side of your remote control and

keep it pressed. Then simultaneously:

-press the cursor left/right to rotate the swivel in the direction of the

command;

-press the the cursor down to bring the swivel in a central position;

-press the cursor up to return the swivel to the last selected position.

Note: After a power drop or a power cord plug out, adjust the swivel position with the cursor left/right.

Automatic positioning to central position

Press the B key for at least 5 seconds to switch off your TV and to turn the swivel to its central position.

MENU P/CHV

Care of the screen

Do not touch, push or rub or strike the screen with anything hard as this may scratch, mar or damage the screen permanently. And please do not rub with dust clothes with chemical treatment. Do not touch the surface with bare hands or greasy cloth (some cosmetics are detrimental to the screen). Unplug the TV before cleaning the screen. When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks. Do not use acetone, toluene and alcohol because they cause chemical damage. Do not use liquid cleaners or aerosol cleaners. Wipe off saliva or water drops as soon as possible.Their long time contact with the screen causes deformations and colour fading.

Keys at the top of the TV

To operate the motorised swivel

Note: For most keys pressing a key once will activate the function. Pressing a second time will de-activate it. When a key enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list.The list will be removed automatically after 6 seconds or press

OK to remove immediately.

TUVPQRS WXYZ

JKLGHI MNO

ABC DEF

✓

MODEON/OFF

Ambilight

DVD/R SAT TV VCR AUX

123

456

789

‡

†

VIEW

- FAVORITES -

SELECT

DEMO

BROWSE

MOT

B Standby

Press to switch the TV on or off from or to standby mode. When switched to standby, a red indicator on the TV lights up.

Note: the TV is never powered off completely unless it is physically unplugged.

DVD/R SAT TV VCR AUX

Press the SELECT key repeatedly to select one of the system modes in which the remote control can be used. If no action is being undertaken within 60 seconds, the remote control returns to TV mode. After an action in the selected system mode the remote control will remain in this mode for 60 seconds and will then return to TV mode.

v Select connected equipment

Press and hold this key until the source indication appears, then press repeatedly to select

EXT1, EXT2,

EXT3, EXT4, DV I, HDMI, Side or TV,

according to where you connected your peripheral equipment.

= BROWSE On/Off

Press to display the Browse menu On or Off. See p. 6.

OK • to activate a setting

• to display the channel list

• starts playing content in the Multimedia Browser application, p. 20.

(MOT) SWIVEL key

To control the motorised swivel in combination with the cursor keys. See p. 3.

Settings menu on/off

See p. 8.

V Volume

Press + or - to adjust the volume.

¬ Interrupt the sound or restore it.

Alphanumeric keys

To select a TV channel. See p. 6.

i Display information

Press to display (when available) information about the selected TV channel and programme.

®Ò‡†ºπ

• Audio and Video equipment keys. See p. 31.

• Multimedia browser functional keys. See p. 20.

DEMO Demo on/off See p. 7

Colour keys

When functions are attached to the colour keys, the colour keys show on screen.

k Teletext index page See p. 21.

b Teletext On/Off See p. 21.

Cursor keys

Press the cursor keys up/down, left/right to navigate through the menus.

+P- Channel selection

To browse through the TV channels and sources stored in the preferred channels list.

0 Previous programme

Press to alternate between the currently viewed and the previously viewed TV channel.

AMBILIGHT

• ON/OFF Press to switch Ambilight On or Off. For the Ambilight settings, see TV menus,Ambilight, p. 18.

•

MODE

Press this key repeatedly to toggle through the Ambilight modes.

® Instant record

See Record with your recorder with EasyLink, p. 30.

FAVORITES

• VIEW To display a list of all channels marked as favourite.

• ✓ To add or remove a channel in the favourite list of TV channels.

Use of the remote control RC4310

✓

MODEON/OFF

Ambilight

DVD/R TV VCR AUX

123

456

789

‡

†

VIEW

- FAVORITES -

SELECT

DEMO

SAT

BROWSE

MOT

TUVPQRS WXYZ

JKLGHI MNO

ABC

DEF

q Picture format

Press this key repeatedly to select another picture format:Auto format, Super zoom, 4:3, Movie Expand 14:9, Movie Expand 16:9, Subtitle zoom or Wide screen.

Auto format makes the picture fill the screen as much as possible. In case of subtitles in the bottom black bar, Auto format makes the subtitles visible. In case of a broadcaster logo in the corner of the top black bar, the logo disappears from the screen.

Super zoom removes the black bars on the sides of 4:3 programmes with minimal distortion.

When in Movie Expand 14:9, Movie Expand 16:9, Super zoom or Subtitle zoom picture format, you can make subtitles visible with the cursor up/down.

Note: With HD sources not all screen formats will be available.

Auto format Super zoom 4:3 Movie expand 14:9

Movie expand 16:9 Subtitle zoom Wide screen

b Dual screen/PIP

Press the b key to switch on or off Dual screen or PIP, according to the format selection made in the

PIP format list in the Setup, Preferences/Picture/sound

preferences menu, p. 11. PIP allows you to call up a subscreen within the main screen enabling you to watch two TV channels or a TV channel and pictures from a peripheral at the same time. Dual screen allows you to divide the main screen into two subscreens enabling two TV channels or a TV channel and an external source or a combination of one of them with Teletext (see p. 21) to be watched simultaneously.

Note: Not all combinations might be possible. In such a case a message appears on the screen.

& Press the cursor left/right to highlight the PIP window or the left/right screen

in Dual screen

é Press the -P+ key or the v key or the digit keys in order to change TV

channels, external sources or teletext pages in the highlighted screen.

Note: on screen information, which appears when changing channels, always refers to the highlighted screen.

“ Press the b key again to return to a full main screen picture.The TV tunes

to the picture which was highlighted in the Dual screen or PIP mode.

Notes:

- Audio only plays from the main, when PIPhas been selected, or from the left screen, when Dual screen has been selected.

- When in Dual screen, two display formats are supported: full screen or squeezed. Multimedia browser content will always be displayed full screen.

- When PIP or Dual screen mode is activated, and a TV channel or source is locked, the picture is grayed out.

Define the position of the PIP screen

& Press the cursor right to highlight the PIP screen. é Press the red colour key on the remote control to select Position.

Note: If no action has been undertaken, the function bar at the bottom of the screen will disappear after a few seconds. Press any colour key to make it re-appear.

“ Use the cursor keys to define the position of the PIP screen.

The Browse screen (and the underlying Multimedia content browser) is intended to contain all content, services, applications you are interested to consume.

& Press the = key to activate. é Press the cursor up/down to move the highlight up and down in the list of

menu items.

“ Press the cursor right to go deeper into the structure.

•Television:

TV channels leading to the list of TV channels.

•Multimedia:

Contains the locally connected devices on which content (pictures and audio files) is stored. See Multimedia browser, p. 20.

Alphanumeric keys on the remote control

The alphanumeric keys on the remote control can be used to enter digits and text. Multi-tap entry can be used to enter alphanumeric information when necessary.The characters displayed are dependent on the language selected in the Installation menu. See p. 8. Text is entered similar to the method used for entering text messages on a cellular phone. When a letter or number has been entered, the cursor automatically advances to the next character position after the specified time out or by pressing the cursor right.

Also the cursor up/down can be used to enter alphanumeric information. When finished, press the

OK key to confirm the entry.

Move to the left panel.

✓

MODEON/OFF

Ambilight

DVD/R TV VCR AUX

123

456

789

‡

†

VIEW

- FAVORITES -

SELECT

DEMO

SAT

BROWSE

MOT

TUVPQRS WXYZ

JKLGHI MNO

ABC

DEF

1 <space> Ò- 1 <space> Ò - 1 (etc.) 2abcAB C2 abc(etc.) 3def DE F3def (etc.) 4ghi GHI4ghi (etc.) 5jkl JKL5jkl(etc.) 6mnoMNO6mno(etc.) 7 pqrs PQRS7pqrs (etc.) 8tuvTUV8tuv(etc.) 9wxyzWXYZ9 wx yz(etc.)

0.@0.@ 0(etc.)

RC key Default Multi-tap Alphanumeric entry order

RC_CURSOR_UP a b c d . ..A B C D ... 1 2 3 ... 0 <space> _ - . @ RC_CURSOR_DOWN @ . - _ <space> 0 9 8 7 ... Z Y X ... z y x ... c b a

Key Default

RC_CURSOR_UP/RC_CURSOR_DOWN

Alphanumeric

Entry Order

Browse screen

Television

Multimedia

TV channels

USBDevice

Memory Card

The Demo menu allows the user to get an idea of the features that are part of the television.

& Select Demo in the Settings menu and press the cursor right. é Highlight a desired demo with cursor up/down. “ Press OK to start playing the highlighted demo.

Note:The selected demo is played once.

Press the red colour key to exit the demo and to return to TV mode.

Note:The demos require no user interaction except for starting the demo.

Demo

How to navigate through the Settings menus

The Settings menu allows you to access and change settings and preferences.

•Press the

MENU key on the remote control to summon the Settings menu.

- On the left panel the highlight can be set on a menu item with the cursor up/down. The right panel shows the content of the highlighted menu item in the left panel.

Note: Sometimes not all the menu items are visible on the screen. Use the cursor down to reveal all items.

- Use the cursor right to enter the right panel. The content of the right panel is moved to the left panel and the right panel shows the content of the newly highlighted item in the left panel.

Note: In some cases it is important that the picture can be watched while adjusting the settings. This means that when the highlight is on the right side panel, the other menu items hide away. When cursor left is pressed again, the hidden menu items re-appear and the highlight moves to the left panel.

•Press the cursor left to go one menu level up again.

-Press the

OK key on the highlighted item to activate and to dismiss the

menu.

-Press the

MENU key again to exit the Settings menu.

Note:The menu is also dismissed by pressing one of the colour keys (if present) referring to certain actions which may be executed.

Introduction

A lot of guiding instructions, help texts and messages will be displayed on your TV when using the menus or when trying to execute an action. Please, follow the instructions and read the help text which are being displayed on the specific item highlighted. The colour keys refer to different actions which may be executed depending on the activated peripheral equipment. Press the corresponding colour key on the remote control to perform the required action.

To use the menus

Settings

Setup

Installation

Demo

Exit


Sound

Ambilight

Features

Info

Settings


Sound

Ambilight

Features


Personalisation tool

Smart picture

Contrast

Brightness

Colour

Sharpness

Tint

......

Info

Settings

Setup

Installation

Demo

Exit

Demo

Ambilight

Personalisation tool

Pixel Plus 2

Active Control

Info

It is possible that the cable company or the TV channel displays a broadcast selection menu. Layout and items are defined by the cable company or the TV channel. Make your choice with the cursor and press the

key.

Searching for and storing TV channels is done channel by channel. You must go through every step of the Manual Installation menu.

Store TV channels

After language and country are set correctly, you can now search for and store the TV channels in two different ways: using Automatic Installation or Manual Installation (tuning-in channel by channel, see further).

Automatic installation

& Select Automatic installation in the Installation menu.

Note: All channels must be unlocked in order to autoprogram. If requested, enter your code to unlock all channels. (See TV, Features menu, Childlock, p. 17.)

é Press the cursor right to enter the Automatic installation.

The autoprogramming option label

Start now appears.

“ Press the OK key. ‘ Press the green key Start to start autoprogramming.

The menu screen disappears and the progress of autoprogramming is displayed.

If a cable system or a TV channel which broadcasts ACI (Automatic Channel Installation) is detected, a programme list appears.Without ACI broadcast, the channels are numbered according your language and country selection. You can use Reshuffle to renumber them. See p. 9.

Manual installation

& Select Manual installation in the Installation menu. é Use the cursor right to enter the Manual installation menu. “ Select Selection mode.

Select either the frequency band, the C-channel option for aerial channels or the S-channel option for cable channels.

‘ Press the cursor down to select System.

Select your country or part of the world where you are now located.

( Press the cursor down to select Channel.

Enter or select the number where you would like to store the TV channel.

§ Press the cursor down to select Search.

The frequency or the C- or S-channel number increases until the TV channel is found.

Note: If you know the frequency, the C- or S-channel number, enter the 3 or 2 digits of the frequency or the channel number directly with the digit keys 0 to 9 (e.g. 048).

è Press the cursor down to select Fine tune.

Adjust the frequency with the cursor up/down in case of poor reception of the channel found.

! Press the cursor down to select Store.

Press the cursor right and store the channel found with the OK key.

Repeat steps

( to ! to search for another TV channel.

Select the menu language and country

& Press the MENU key on the remote control. é Use the cursor down to select Installation in the Settings menu. “ Use the cursor right to enter the Installation menu. ‘ Select Language and enter the list of available languages with the cursor

right.

( Select your language with cursor up/down and press the OK key to confirm

your selection.

§ Select Country with the cursor up/down and enter the list with the cursor

right. Select the country where you are now located and press the

OK key.

è Proceed with the Installation menu.

Installation

Settings

Setup

Installation

Demo

Exit

Installation

Language

Country

Automatic installation

Manual installation

Reshuffle/Rename channels

Preferred channels

Software upgrade

Info

Manual installation

Selection mode

System

Channel

Fine tune

Store

Info

Settings

Installation

Language

Country

Automatic installation

Manual installation

Reshuffle/Rename chan

Preferred channels

Software upgrade

Reshuffle/Rename channels

You can change the order of the stored TV channels. It is also possible to change the name stored in the memory or to assign a name to a TV channel or external for which a name has not yet been entered.A name with up to 5 letters or numbers can be given to the programme number 0 to 99 and to the externals.

& Select Reshuffle/Rename channels in the Installation menu. é Press the cursor right.A channel list appears. “ Select the TV channel you want to reshuffle or to rename with the cursor

up/down.

Reshuffle

& Press the green colour key on your remote control.The highlight is on the

selected TV channel you want to exchange.

é Select the new number you want to exchange the channel with the cursor

up/down.

“ Press the green colour key on your remote control to swap the reshuffled

channel with the currently highlighted channel.

Note: Press the red colour key to cancel the reshuffling action.

‘ Repeat to reshuffle other TV channels.

Rename

& Press the red colour key on your remote control.The highlight is on the

selected TV channel you want to rename.

é Select the characters with the cursor up/down or with the alphanumeric

keys on the remote control.

“ Select the following position with the cursor right. ‘ Enter a new character. ( Press the green colour key or the OK key when finished.

Notes:

- Press the yellow colour key to delete all characters. The cursor will be positioned at the beginning.

- Press the blue colour key to delete the character the cursor is positioned. Enter a new character with the cursor up/down.

-Space, numbers and other special characters are located between Z and A.

§ Select another channel number and repeat steps é to ( to do another

renaming.

Preferred channels

After leaving the Installation, you can browse through the TV channels with the

-P+ key. Only those channels which are in the preferred list, will be

displayed. In this menu you can select which channels will be part of the preferred list.

& Select Preferred channels in the Installation menu. é Press the cursor right to display the list of stored TV channels. “ Press the cursor up/down to select a TV channel you want to skip from the

preferred list.

‘ Press the OK key to confirm. ( Repeat for every channel you want to make non-preferred.

Reshuffle channels

Channel name

...............

Channel name

Info

Settings

Installation

Language

Country

Automatic installation

Manual installation

Reshuffle/rename channels

Preferred channels

Software upgrade

Preferred channels

Channel name

...............

Channel name

Info

Settings

Installation

Language

Country

Automatic installation

Manual installation

Reshuffle/rename channels

Preferred channels

Software upgrade

This menu allows you to upgrade your TV software using a USB device or Memory Card device.

USB device/Memory Card upgrade

It is possible to initiate an upgrade procedure from a USB device or Memory card device before starting up the TV.The memory device must be filled with the appropriate upgrade image (and structure) which can be found on the www.philips.com/support website. How to upload a new software version on your memory device, see Annex 1, p. 37.

It is also possible to select and execute additional applications stored on your USB device or Memory card. E.g. games or any application that cannot be integrated in the TV software.

Software upgrade

Current software info

Local upgrades/applications

Info

Settings

Installation

Language

Country

Automatic installation

Manual installation

Reshuffle/rename channels

Preferred channels

Software upgrade

This menu is used to control the settings of special TV functions, features and peripheral equipment.

The

Preferences menu allows you to change settings that will typically be

accessed only occasionally. The

Source menu allows you to select a source.

The

Decoder menu allows you to define one or more programme numbers as

decoder programme numbers.

Preferences

& Press the MENU key. é Select Setup with the cursor down and press the cursor right to select the

Preferences menu.

“ Press the cursor right again to select Picture/sound preferences. ‘ Press the cursor right once more to enter the Picture/sound preferences

menu.

Picture/sound preferences

PIP format

This menu allows you to select the preferred format (PIP or Dual screen) which can then be displayed toggling the b key on the remote control

On or Off.

& Select PIP format. é Press the cursor right. “ Select PIP or Dual screen with the cursor up/down.

See Use of the remote control, p. 5.

Auto surround

Sometimes the broadcaster transmits special signals for Surround sound encoded programmes.The TV automatically switches to the best surround sound mode when

Auto surround is switched On.

Features preferences

Teletext 2.5

Some broadcasters offer the opportunity to see more colours, other background colours and nicer pictures in the teletext pages.

& Select Teletext 2.5 in the Features preferences menu. é Press the cursor right to select Teletext 2.5 On or Off. “ Select Teletext 2.5 On to take advantage of this feature.

Select Teletext 2.5 Off if you like the more neutral teletext layout. The selection made is valid for all channels which broadcast Teletext 2.5.

Note: It may take a few seconds before teletext broadcast switches over to Teletext 2.5.

Setup menu

Settings

Setup

Installation

Demo

Exit

Setup

Preferences

Source

Decoder

Info

Settings

Setup

Preferences

Source

Decoder

Preferences

Picture/sound preferences

Features preferences

Menu preferences

Factory settings

Info

Settings/Setup

Preferences

Picture/sound preferences

Features preferences

Menu preferences

Factory settings

Picture/sound preferences

PIP format

Auto surround

Info

Settings/Setup

Preferences

Picture/sound preferences

Features preferences

Menu preferences

Factory settings

Features preferences

Teletext 2.5

Info

Menu preferences

OSD

& Select OSD. é Press the cursor right to select Normal or Minimum.

Normal to activate the continuous display of the channel number (for 10

minutes) and extended display of TV channel and programme information on screen. E.g. information on the main or auxiliary programme, input signal quality of connected peripheral equipment, the display format and sound mode.

Minimum to activate the display of reduced channel information.

See Use of the remote control, p. 4, i Display information.

Programme title

& Select Programme title. é Press the cursor right to select Programme title Yes or No.

When selected

Ye s , after the selection of a TV programme or after pressing

the i key on the remote control, a TV channel may transmit the name of the TV channel or the programme title. When selected

No, the programme title will only appear after pressing the

i key and not after the selection of a TV channel.

Set/Change code

& Select Set or Change code with the cursor down. é If no PIN-code exists yet, the menu item is set to Set code.Follow the

instructions on screen. If a PIN-code has previously been entered, the menu item is set to

Change

code

.Follow the instructions on screen.

All number combinations from 0000 tot 9999 are valid numbers.

“ The Menu preferences menu reappears with a message confirming that

the PIN has been created.

Factory settings

This function allows you to reset most of the picture and sound settings to their predefined factory states.

& Select Factory settings with the cursor down. é Press the cursor right. “ Press the OK key to erase settings and reset them to their default values.

Important:You have forgotten your code !

& Select Change code in the Menu preferences menu and press OK. é Press the cursor right and enter the overriding code 8-8-8-8. “ Press the cursor again and enter a new personal 4-digit code.The previous

code is erased and the new code is stored.

Settings/Setup

Preferences

Picture/sound preferences

Features preferences

Menu preferences

Factory settings

Menu preferences

OSD

Programme title

Set/Change code

Info

Decoder

If a decoder or a descrambler is connected, see p. 24, you can define one or more channel numbers as decoder channel numbers.

& Select Decoder in the Setup menu. é Press the cursor right to select Channel. “ Select the channel number under which you have stored the programme

coming from your decoder.

‘ Select Status.

• Select the input used to connect your decoder:

None, EXT1 or EXT2.

• Select

None if you do not want the selected channel number being

activated as a decoder channel number.

Note: Select

EXT2 when the decoder is connected to your EasyLink recorder.

Source

This menu allows you to select the peripheral equipment you have connected to the external inputs/outputs.

& Select Source in the Setup menu. é Press the cursor right. “ Select the input to which the peripheral equipment is connected. ‘ Press the cursor right again to enter the list of types of peripherals

connected to the selected input.

( Select the peripheral equipment with the cursor up/down.

When you select

EXT1, EXT2, EXT3, EXT4, DVI, HDMI or Side,a list

appears allowing you to identify which type of peripheral equipment is attached to this input.The TV detects the presence of the connected peripheral equipment and the signal is routed appropriately.

Digital Audio

Select

Digital Audio In 1 or 2 when the TV expects digital audio for a

connected peripheral equipment to come from a Digital audio input. Make your selection of the source to which the peripheral equipment with digital audio input has been connected.

In addition to accepting audio input via Digital Audio In, the TV can output encoded Dolby Digital audio via the

DIGITAL AUDIO OUT connector to

an external amplifier or receiver. If your amplifier or receiver has a matching connector for Digital Audio In, you can connect it with a single cable to the TV’s

DIGITAL AUDIO OUT.

See Connect Peripheral Equipment, Digital MultiChannel Surround Receiver, p. 27.

Settings

Setup

Preferences

Source

Decoder

Source

EXT1

EXT2

EXT3

EXT4

DVI

HDMI

Side

Digital Audio In 1

Digital Audio In 2

Info

Settings

Setup

Preferences

Source

Decoder

Channel

Status

Info

Press the MENU key on the remote control to summon the Settings menu. The TV menu gives you an overview of the menus you can select.

Note: Depending on the input signal, one or more menu items may not be selectable.

Picture menu

Note: Some menu items are not available in case of HD sources.

& Press the cursor right to select Picture. é Press the cursor right again to enter the Picture menu. “ Select the menu items with cursor up/down. ‘ Press the cursor right again. ( Adjust the settings with the cursor left/right. Select a submenu item with

the cursor up/down.

Personalisation tool

The

Personalisation tool helps you to come to a personal picture setting.

This is done by presenting a series of several adjustment screens each having split screens. Each time you have to select the most preferred side of the screen. Finally a full screen appears with all the settings selected.

Note:The Personalisation tool will not alter the presence of behaviour of other picture setting options, except that it overwrites the Personal settings of Smart picture.

& Select Personalisation tool and press the cursor right. é A welcome screen appears followed by several adjustment screens. “ With the colour keys, each time select your preferred setting on the left or

right screen side.

‘ Finally press the green colour key to store your selected settings.

Smart picture

Select

Smart picture to display a list of predefined picture settings, each

corresponding with specific factory settings.

Personal refers to the personal preference settings of picture in the

picture menu.

Note:This Philips TV has been set at the factory to look best in bright shop environments which typically use fluorescent lighting. As your home will likely not be as well lit as a shop, we recommend that you cycle through the various smart picture modes to find the one that best suits your own viewing conditions. Most consumers will find that

Natural is the correct choice.

Contrast

This will adjust the intensity of bright parts in the picture but keep the dark parts unchanged.

Brightness

This will adjust the light output of the complete picture, which will mainly affect the darker areas of the picture.

Colour

This will adjust the saturation level of the colours to suit your personal preference.

Sharpness

This will adjust the sharpness of fine details in the picture.

Tint

This will increase or decrease

Warm (red) and Cool (blue) colours to suit

personal preferences. Select

Cool to give the white colours a blue, Normal to give the white

colours a neutral,

Warm to give the white colours a red tint.

TV menu

Settings

Setup

Installation

Demo

Exit


Sound

Ambilight

Features

Info

Settings


Sound

Ambilight

Features


Personalisation tool

Smart picture

Contrast

Brightness

Colour

Sharpness

Tint

.....

Info

Digital options

Pixel Plus 2 is the most ideal setting, as it fully processes the image to

make every single pixel the best it can be, improving contrast, sharpness, picture depth, and colour reproduction and brilliance from every source, including High Definition. For the most optimum motion reproduction of all source materials, select the

Movie Plus setting.

Standard mode is recommended only for very noisy or poorly mastered

sources or for those who find the smoothness of Pixel Plus 2 unsettling.

Dynamic contrast

Automatically makes the contrast in the darker and the brighter picture areas more noticeable as the image on the screen changes. Normally select

Medium. It may be preferred to select Minimum,

Maximum or Off.

& Press the cursor right to enter the list. é Select one of the settings with cursor up/down. “ Press the cursor left to return to the picture menu.

DNR (Digital Noise Reduction)

Automatically filters out and reduces the image noise and improves picture quality when receiving weak video signals.

& Press the cursor right to enter the list. é Select Off, Minimum, Medium or Maximum according to the image

noise.

“ Press the cursor left to return to the picture menu.

Colour enhancement

When activated, this feature automatically controls green enhancement and blue stretch. It makes the colours more vivid.

& Press the cursor right. é Select On or Off in order to activate/de-activate Colour enhancement with

the cursor right.

Hue

This compensates for the colour variations in NTSC encoded transmissions.

Picture format

This menu item performs the same as the q key on the remote control. See Use of the remote control, p. 5.

Active Control

The TV continuously measures and corrects all incoming signals in order to provide the best picture possible. It also uses a sensor which monitors the ambient light conditions in the room and adjusts key picture settings for best viewing. When Active Control is set to Maximum, the brightness, the contrast and the colour of the Ambilight shall be influenced by the light sensor. When Active Control is set to Medium, only the colour of the Ambilight shall be influenced.

& Select Active Control. é Press the cursor right to enter the list of Active Control values. “ Press the cursor up/down to select the Active Control values Off,

Minimum, Medium or Maximum.

The picture settings are being optimised continuously. Those menu items can not be selected.

‘ Press the OK key or wait for the time out to dismiss the Active Control

display.

Settings


Sound

Ambilight

Features


.....

Digital options

Dynamic contrast

DNR

Colour enhancement

Hue

Picture format

Active Control

Info

Sound menu

& Select Sound in the TV Settings menu. é Press the cursor right to enter the sound menu. “ Select the menu items with cursor up/down. ‘ Press the cursor right. ( Adjust the settings with cursor keys.

Remember, control settings are at normal mid-range levels when the bar scale is entered.

Smart sound

Select

Smart sound to display a list of predefined sound settings, each

corresponding with specific factory settings of Treble and Bass. Press the cursor right to enter the list. Press the cursor up/down to select a predefined sound setting.

Personal refers to the personal preference settings of sound in the sound

menu.

Note:The moment you are in a predefined Smart sound setting and you modify a setting in the Sound menu, all values of the menu will overwrite the previously made personal setting.

Volume

This will adjust the sound output level.

Balance

This will adjust the output of the right and left speakers to obtain the best stereo reproduction for your listening position.

Headphone volume

This controls the level of sound through the headphones.

Surround mode

This selects the modes for more spatial or surround sound reproduction dependent on the broadcast signals or signals from external inputs received.

Dual I/II

This will select, per channel,

Language I or Language II, when dual sound

transmission is available.

Mono/Stereo

This selects, per TV channel, Mono or Stereo sound when analog stereo broadcasts are available.

AVL (Automatic Volume Leveler)

This automatically reduces the volume differences between channels and programmes, providing a more constant overall level.This will also reduce the dynamics of sound.

Delta volume

This allows you to correct for any permanent volume differences between TV channels or external sources.

Settings


Sound

Ambilight

Features

Sound

Smart sound

Volume

Balance

Headphone volume

Surround mode

Dual I-II

Mono/Stereo

AVL

Delta volume

Info

Features menu

& Select Features in the TV Settings menu. é Press the cursor right to enter the Features menu. “ Select the menu items with cursor up/down. ‘ Press the cursor right. ( Adjust the settings with the cursor up/down.

Select subtitles

The subtitle page must be stored for each TV channel. Switch on teletext and select the proper subtitle page from the index. Switch off teletext.

Subtitle On will automatically display them on the selected TV channels if

subtitles are in the transmission.A symbol will indicate that the mode is on. Select

On during mute when you want to have the subtitles automatically

displayed only when the sound has been muted with the ¬ key on the remote control.

Sleeptimer

This sets a time period after which the TV automatically switches to standby.

& Select Sleeptimer. é Press the cursor right. “ Select a value with the cursor up/down.The list will have values from 0 to

180 minutes.

You can always switch off your TV earlier or select another time set.

Child lock

& Select Child lock in the Features menu. é Press the cursor right to enter the Child lock menu.You’re summoned to

enter your code.

Note:You have to re-enter your code each time you enter the child lock menu.

Important:You have forgotten your code ! See p. 12.

“ Select one of the menu items of the Child lock menu:

•

Lock to lock all channels and externals.

•

Custom lock and press the cursor right.

Select:

Lock after to lock all programmes from a certain time onwards.

Press the cursor right and enter the time with the cursor up/down and right. Select

On with the cursor right to set the lock.

Channel lock to lock a certain TV channel or external.

• Select

Unlock to disable all locks you have set.

On timer

From standby, this automatically switches the TV to the specified programme number, at the specified time.

& Select On timer in the Features menu. é Press the cursor right to enter the On timer menu. “ Select Timer and press the cursor right. ‘ Select On. ( Select Channel and then the TV channel you want your TV to switch to on

a selected time and day.

§ Select Day and then a day of the week or select Daily. è Select Time and enter the time with the digit keys or with the cursor

up/down.

! Press the OK key to activate.

ç Press the MENU key to switch off the menu.

Notes:

- To check your timer settings, press the i key.

- Only one On timer can be set.

Settings


Sound

Ambilight

Features

Subtitle

Sleeptimer

Childlock

On timer

Info

Settings

Features

Subtitle

Sleeptimer

Childlock

On timer

Childlock

Lock

Custom lock

Unlock

Info

Settings

Childlock

Lock

Custom lock

Unlock

Custom lock

Lock after

Channel lock

Info

Settings

Features

Subtitle

Sleeptimer

Childlock

On timer

Timer

Channel

Day

Time

Info

Smart colour modes:

•

Personal: Select any colour or hue to match to

your personal taste, e.g. your interior, the programme content (sports, movie, etc.), the mood you are in, etc.

•

Warm white:The colour is matched to that of

most normal lightbulbs. Select this setting if you want the Ambilight to fit best with normal living room lighting.

•

Cool white:The colour is matched to that of

normal daylight (6500K). Select this setting if you prefer more cool lighting.

Note: the 6500 K is the SMPTE recommended setting for ambient backlighting of displays.

•

Blue:The blue colour is preferred by most

consumers to create a cool, modern and /or mystical atmosphere. Select this setting according to your personal taste or mood.

Ambilight menu

Ambilight is an innovative lighting concept using light with fully adjustable colours at the back of the TV to enhance the viewing experience.Analysis of the picture content adapts the colours continuously, or the lights can be set to any fixed colour and many shades of white.Ambilight creates the ideal viewing environment for your TV resulting in improved relaxed viewing, improved perceived picture detail, contrast and colour. In standby mode the lights can be set/operated to any colour and create a unique ambiance in the room.

& Select Ambilight in the TV menu. é Press the cursor right to enter the Ambilight menu. “ Select Ambilight and press the cursor right to select Off or On.

•

Off: will switch off the ambient lights and downlight all other ambilight

menu items.

•

On: the ambient lights will be on. Refine the light settings in the menus

below.

‘ Select Brightness to adjust the light output of the ambient lights. ( Select Mode and press the cursor right to select Colour, Ambience,

Relaxed, Movie or Action.

•

Colour: this will show constant light according to the settings in the

Ambilight colour menu. See below.

• The options

Ambience, Relaxed, Movie and Action will dynamically

match brightness and colour to the screen content. The mode selection made will effect the speed and/or saturation and/or intensity which determines the viewing impression. E.g. in

Relaxed mode, the rate of brightness and colour change is

smoothly and soft which gives you a more immersive yet relaxed viewing.

Ambience is the rate of brightness and colour change as predefined in

the factory.

Movie will influence the perception of a movie whereas Action mode will

influence the dynamic impression.

Notes:

- The rate of change is limited, as not to cause uncomfortable sensations.

- According to the selection made, some Ambilight menu items will be downlighted and can not be selected.

§ In case Colour has been selected in the Mode menu:

• Select

Colour in the Ambilight menu and press the cursor right.

• Select

Smart colour and then select Personal, Warm white, Cool

white

or Blue.

• Select

Palette to select the general colour of the light output.

• Select

Saturation to adjust the colourfulness of the light.

Notes:

- Adjusting the Palette and/or Saturation settings will set the colour mode to Personal.

- The selected colour mode will be the one used when turning on the ambient lights from standby mode.

è In case Ambience, Relaxed, Movie or Action has been selected in the

Mode menu:

• Select

Separation in the Ambilight menu and press the cursor right.

• Select

Off for a mono behaviour which means that all lamps will behave

equally.

• Select

Minimum, Medium or Maximum to define the Ambilight stereo

effect over the available lamps.

! Select Balance and use the cursor left/right to adjust and generate any

colour and level of light intensity on the left and right side of the picture to perfectly match your room setup.

Note: Infrared interference

To avoid bad infrared remote control reception, place your peripheral equipments out of sight of the ambient lights of your TV.

Note: Ambilight does not function well when the room temperature is less than 59°F/15°C.

Settings


Sound

Ambilight

Features

Ambilight

Brightness

Mode

Colour

Separation

Balance

Info

Settings

Ambilight

Brightness

Mode

Colour

Separation

Balance

Mode

Colour

Ambience

Relaxed

Movie

Action

Info

Settings

Ambilight

Brightness

Mode

Colour

Separation

Balance

Colour

Smart colour

Palette

Saturation

Info

The Multimedia browser lets you display pictures or play audio files stored on a USB device or a memory card. The Multimedia browser application is invoked from the Browse menu (press the = key) by selecting a device and pressing the cursor right.

Notes:

- Following types of memory cards can be read: Compact Flash I & II, Memor y stick, Memory stick PRO, SD Card/Mini SD Card, Smart Media, Micro Drive, MultiMedia Card.

- Following file formats can be reproduced:

• For pictures: JPEG

• For audio: MP3, MP3 Pro

- Only FAT/DOS-formatted memory devices are supported.

- If your digital camera is not supported, try one of the following solutions:

• Make sure your camera is switched on and verify if its configuration settings are

correct (see the manual of your camera).

• Remove the memory card from your camera and insert it in the memory card

slot. Refer to www.philips.com/support for more information.

-Philips cannot be responsible if your USB device or memory card is not supported.

Card data protection

• Do not remove the card/USB device when the content is being read or when browsing. Such action may damage the memory card/USB device.

• Do not touch the terminals on the back of the card.

•Always insert a card in the correct direction. Failure to do so may result in damage to the card and the unit.

• Do not subject the card to excessive pressure or strong impacts.

• Malfunctions of the unit or card may result in data loss or damage to the card.

• Philips shall not accept any liability for damage or loss of stored data.

Warning:

Memory cards can be swallowed by young children. Do not allow children to handle memory cards. Please, remove the memory card immediately after use.

Compact Flash I & II /

Micro Drive

Memory Stick

Smart Media

Card

MultiMedia Card /

SD Card

Viewing content from a Memory card / USB device

Inserting a memory card / USB device

Note: Memor y cards or USB devices are not supplied with this TV.

Insert a memory card in one of the cardslots at the right side of the TV. Insert it to be clicked in. In case of a memory stick or a digital camera, connect it to one of the USB2.0 connectors. When a memory card or a USB device is inserted, the Multimedia menu is displayed automatically, see further.

Removing the memory card / USB device

& First switch off the Browse menu.To do so, navigate to the Multimedia

browser menu and press the = key on the remote control.

é Remove the memory card/USB device.

Multimedia Browser

Television

Multimedia

TV channels

USBDevice

Memory Card

Following icons may appear:

folder

pictures

music

self made playlist/album

Function keys at the bottom of the screen

Details to display a description of the selected file or

directory;

Transitions to select if a transition during a slide show should

be applied;

Slide time to select the duration a picture will be displayed in

a slide show;

Rotate to rotate a picture; Repeat one/all to repeat the playback of a music file; Shuffle to shuffle music collections in a random way; Zoom to select one of the zoom magnifications (x1, x2,

x4) with the cursor keys up/down. Additionally you can shift the selected zoom window over the screen with the cursor keys left/right.

Other function keys on the remote control

‡ to stop displaying content; º to pause displaying content; π to play a single file, start a slide show, playback of a

folder or other collection.

Notes:

•Your TV supports slide shows with

background music. See Annex 2, p. 39.

• The playback will continue to play even if temporarily switched to browser screens. The audio will be stopped when another song starts playing, or when the end has been reached.

• Progressive JPEG files are not supported.

• The length of the files should not exceed 128 characters.

• Do not use a dot “.” in folder naming.

•More technical remarks can be found in Annex 3, p. 41.

Multimedia Browser menu

& Insert a USB device or memory card. é Select the USB device or memory card under Multimedia with the cursor

up/down. The Multimedia browser will allow the user to browse content stored on the inserted USB device or memory card. Press the cursor right.

“ The 2-panel browser will be shown with the left panel containing the

content types (Music, Picture). The right panel will display the content that is available of the selected content type.

‘ Press the cursor up/down to select a content type and press the cursor

right to enter the content.

( Press the cursor up/down to select a file or a directory.

Note: Press the green colour key to display all the image files in the current directory as thumbnails when browsing pictures. Press the green key again to display the image files in a list.

§In case a file is selected, press the OK key to display a picture file or to

play an audio file. In case a directory, album or playlist is selected, press the cursor right to enter the content or press the

OK key to start a slide show or a loop

playback of the files present in the directory, album or playlist.

èPress the cursor left to keep music playing and switch back to the

Multimedia menu.

!Press one of the colour keys on the remote control to perform the

corresponding function mentioned at the bottom of the screen.

Note:The blue colour key can, if necessar y, be used to let the colour keys re-appear.

ç To stop playing content, press the ‡ key on the remote control.


London2005

The Beatles

Xmas2004.alb



USBDevice1 Music







USBDevice1


London2005

The Beatles

Xmas2004.alb



USBDevice1/Picture/London2005

London2005






USBDevice1/Picture/London2005

London2005

Press OK to play.


1024:768

List

Pre

Most TV channels broadcast information via teletext.This TV has a 1200 pages memory that will store most broadcasted pages and subpages to reduce waiting time. After each programme change, the memory is refreshed.

Switch Teletext on and off

Press b to switch the teletext on.

Select a Teletext page

- Enter the desired page number with the digit keys or with the

-P+ key.

- Select the options at the bottom of the screen with the colour keys.

Previously selected teletext page

Press the 0 key.

Select the index teletext page

Press the grey colour key k to display the main index (usually p.100).

Only for T.O.P teletext broadcasts:

Press i.A T. O.P. overview of the teletext subjects available is displayed. Select with the cursor up/down, left/right the desired subject and press the

OK key.

Not all TV channels broadcast T.O.P. teletext.

Select subpages

When a selected teletext page consists of different subpages, a list of available subpages appears on the screen. Press the cursor left or right to select the next or previous subpage.

Picture/Teletext

& Press the b key. Press the b key to show Teletext on the right of the

screen.

é Press the b key to return to a full teletext picture.

“Press the b key to return to a full screen picture.

Enlarge a Teletext page

Press q repeatedly to display the upper teletext part, the lower teletext part and then to return to the normal teletext page size.When the teletext page is enlarged, you can scroll the text, line by line using the cursor up/down.

Hold

Press the ‡ key to stop the pagecounter from seeking when you have entered a wrong pagenumber or when the page is not available. Enter another page number.

Hypertext

With hypertext you can quickly jump to a pagenumber or search for a specific word shown on the current teletext page.

& Press the OK key to highlight the first word or a number on the page. é Use the cursor up/down, left/right to select any other word or number you

want to search for.

“ Press the OK key to confirm.The search starts.

A message appears at the bottom of the screen to indicate the searching, or that the word or page is not found.

‘ Use the cursor up to exit hypertext.

LIONS RECORD ANOTHER WIN 430

Index 100 News 300 BBC Info 110 Headlines 305 Children 120 Weather 400 Cookery 150 Sports 415 Education 200 Radio 500 Lottery 230 Travel 550 Finance 240 Subtitling 888 Music 280 TV Listings 600

102 p03 04 05 06 07 08 09 10 11 12

BBC CEEFAX 102 Mon 05 Feb 16.35.22

BBC CEEFAX

✓

MODEON/OFF

Ambilight

DVD/R TV VCR AUX

123

456

789

‡

†

VIEW

- FAVORITES -

SELECT

DEMO

SAT

BROWSE

MOT

TUVPQRS WXYZ

JKLGHI MNO

ABC

DEF

Teletext

Camera, Camcorder, Game

& Connect your camera, camcorder or game as shown. é Connect to VIDEO 2 and AUDIO L 3 for mono equipment.

For stereo equipment also connect

AUDIO R 3.

S-VHS quality with an S-VHS camcorder is obtained by connecting the SVHS cables with the

S-VIDEO input 1 and AUDIO inputs 3.

Do not connect cable 1 and 2 at the same time. This may cause picture distortion !

Headphone

& Insert the plug into the headphone socket L as shown. é Press ¬ on the remote control to switch off the internal loudspeakers of

the TV.

The headphone impedance must be between 8 and 4000 Ohm.The headphone socket has a 3.5 mm jack.

In the Sound menu select

Headphone volume to adjust the headphone

volume.

Equipment to connect to the side connections

Teletext menu

The Teletext menu offers various functions to control teletext.

& Switch teletext on and press the MENU key to activate the menu. é Press the cursor up/down to select the menu items. “ Press the cursor right or the OK key to activate. ‘ Press the MENU key to leave the teletext menu.

Reveal

Reveals/conceals hidden information on a page, such as solutions to riddles and puzzles.

Cycle subpages (if subpages are available)

Makes the subpages cycle automatically. Press the cursor right or the

OK key to activate and to deactivate again.

Language

If the displayed characters on screen do not correspond with the characters used by the teletext broadcaster, you can change the language group here. Select

Group 1 or Group 2 with the cursor right.

Teletext menu

Reveal Off

Cycle subpages Off

Language Group II

There is a wide range of audio and video equipment that can be connected to your TV. The following connection diagrams show you how to connect them.

Note:

EXT1 can handle CVBS, RGB and Audio L/R; EXT2 CVBS, S-VIDEO, RGB and Audio L/R; EXT3 CVBS and Audio L/R; EXT4 YPbPr ; DVI (analogue and digital) and HDMI (digital);

Side S-VIDEO or CVBS and Audio L/R.

It is preferable to connect peripherals with RGB output to

EXT1 or EXT2 as RGB provides a better picture quality.

Note: If your recorder is provided with the EasyLink function, it should be connected to

EXT2 to benefit from the EasyLink functionality.

AUDIO

OUT

EXT 3EXT 2

EXT 1DVIHDMI

EXT 4

DIGITAL AUDIO

ANTENNA

AUDIO

Pr Pb Y

IN1 IN2 OUT

AUDIO

OUT

EXT 3EXT 2

EXT 1DVIHDMI

EXT 4

DIGITAL AUDIOANTENNA

ANTENNA HDMI DVI DIGITAL AUDIO

EXT 4 (YPbPr)

EXT 1 EXT 2 EXT 3 AUDIO OUT

AUDIO

Pr Pb Y

IN1 IN2 OUT

Connect Peripheral Equipment

Note: Do not place your recorder too close to the screen as some recorders may be susceptible for signals from the display. Keep a minimum distance of 0,5 m from the screen.

Connect the aerial cables 1, 2 and, to obtain the optimum picture quality, eurocable 3 as shown.

If your recorder does not have a euroconnector, the only possible connection is via the aerial cable.You will therefore need to tune in your recorder’s test signal and store the test signal under a programme number between 90 and 99, see Manual installation, p. 8. See the handbook of your recorder.

Decoder and Recorder

Connect a eurocable 4 to your decoder and to the special euroconnector of your recorder. See also the recorder handbook. See Decoder, p. 13. You can also connect your decoder directly to

EXT1 or 2 with a eurocable.

HDMI DVI

IN1IN2

DIGITAL AUDIO

OUT

PbPr

EXT 4 EXT 1 EXT 2 EXT 3

AUDIO

OUT

AUDIO

EXTERNAL

RECORDER DECODER

CABLE

1/2

Recorder (VCR-DVD +RW)

HDMI DVI

IN1IN2

DIGITAL AUDIOAUDIO

OUT

EXT 4 EXT 1 EXT 2 EXT 3 OUT

AUDIO

CABLE

RECORDERSAT/STB

EXTERNAL 1/2/3

& Connect the aerial cables 1, 2 and 3 as shown (only if your peripheral has TV aerial in-/output).

Connect your recorder to

EXTERNAL 2 with a eurocable 5.

Connect the other equipment with a eurocable 4 to one of the euroconnectors

EXTERNAL 1 or EXTERNAL 3 to obtain a

better picture quality. If your recorder does not have a euroconnector, the only possible connection is via the aerial cable.You will therefore need to tune

in your recorder’s test signal and store the test signal under a programme number between 90 and 99, see Manual installation, p. 8. See the handbook of your recorder.

é Make a selection in the Setup, Source menu, p. 13.

Recorder and other equipment

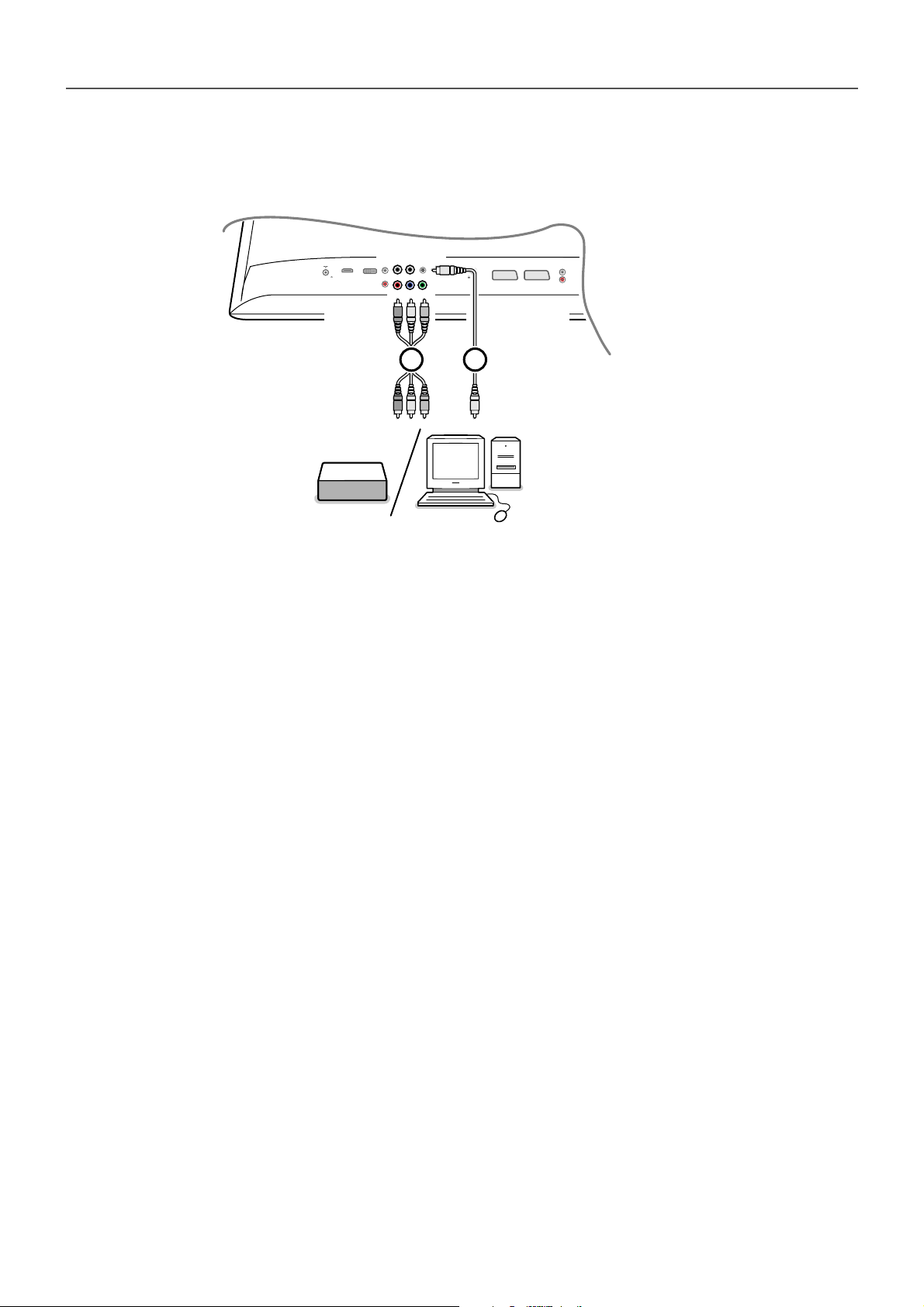

& Connect the three separate component video cables 1 to the peripheral equipment having component video outputs (YPbPr), such

as DVD-players, laser-disc players, videogame players, satellite receivers or other equipment, and to the

Y, Pb and Pr jacks of EXT4

on the TV.

Note:

EXT4 should always be used together with digital audio.

é Connect the audio cable 2 to the DIGITAL AUDIO OUT of the peripheral equipment and to one of the DIGITAL AUDIO IN

connectors of the TV.

Notes

- If necessary, you can adjust the picture position to the centre of the screen with the cursor keys.

- The labels for the component video sockets may differ depending on the DVD player or the peripheral equipment connected. Although the abbreviations may vary, the letters B and R stand for the blue and red component signals, respectively, and Y indicates the luminance signal. Refer to the DVD player’s or peripheral equipment instructions for use for definitions and connection details.

- This television is designed to accept high definition signal standards 480p, 576p, 720p and 1080i as specified by the Electronic Industries Association standard EIA770.3. Digital peripheral equipments from different manufacturers have the possibility of differing output standards which may cause difficulties for the television to properly display.

Warning: in case you notice scrolling images, wrong colours or no colour, no picture, or even combinations of these on your screen, check if the

connections are done in the correct way or move your digital equipment further away from your TV.

EXT 1 EXT 2 EXT 3 OUT

AUDIO

ANTENNA

DVIHDMI

NETWORK

DIGITAL AUDIO

IN2 IN1

Pr Pb Y

OUT

AUDIO

DIGITALEXT 4

YPbPr

IN 1/2

AUDIO

....

1 2

Equipment with Component Video Output Connectors (YPbPr)

DVD Player or other peripheral digital source equipment

• Digital MultiChannel Surround receiver

Connect a digital MultiChannel Surround receiver to the

DIGITAL AUDIO OUT connector at the bottom of the TV.

• Analogue MultiChannel Surround receiver

Connect an analogue MultiChannel Surround receiver to the

AUDIO OUT L and R connectors at the bottom of the TV.

The volume has to be controlled via the MultiChannel Surround receiver.

Note: No sound will be heard when a TV channel or external source is locked via the Features/Child lock menu (see p. 17).

DVI

IN1

IN2

OUT

EXT 1EXT 4 EXT 2 EXT 3

HDMI

DIGITAL AUDIO

AUDIO

OUT

AUDIO

ANTENNA

DIGITAL AUDIO OUT

DVI

IN1

IN2

OUT

EXT 1EXT 4 EXT 2 EXT 3

HDMI

ANTENNA

DIGITAL AUDIO

AUDIO

OUT

AUDIO

AUDIO OUT

MultiChannel Surround receiver

Equipment to connect to a HDMI (High Definition Multimedia Interface) connector

HDMI is the leading new standard for Digital video and audio interconnection. To the

HDMI connector you can connect HDMI peripheral equipments such as compatible DVD-R or DVD player with HDMI.

So you can display high-definition pictures on this TV in the digital form.

& Connect your HDMI equipment with the HDMI connector. é Select the connected digital peripheral equipment in the Setup, Source menu, p. 13.

The

HDMI IN connector allows the following TV and monitor display modes:

HD Standard Definition TV (SDTV) 640x480i

720x480i 720x576i

Enhanced Definition TV (EDTV) 640x480p

720x480p 720x576p

High Definition TV (HDTV) 1920x1080i

1280x720p

PC VGA 640x480

SVGA 800x600 XGA 1024x768

Notes:

- If necessary, you can adjust the picture position to the centre of the screen with the cursor keys.

- Due to legal requirements, it is possible that with certain copy protected PCM audio qualities from a peripheral equipment connected to the

HDMI

input, the Digital audio output signal is muted.

-Your TV supports HDCP (High-bandwidth Digital Content Protection).This is a system for protecting DVD content outputted via DVI from being copied. It provides a secure digital link between a video source (DVD, PC, etc.) and your TV. Content is encr ypted at the source peripheral equipment to prevent unauthorised copies from being made.

-Proper working is only guaranteed with HDMI compliant consumer products.

-Digital peripheral equipments from different manufacturers have the possibility of differing output standards which may cause difficulties for the television to properly display.

- In case no signal is detected from your HDMI equipment, switch off the HDMI equipment and then on again. To get an optimal viewing, it is advised to switch your DVD player to one of the following TV display standards: 1920x1080i, 1280x720p, 720x576i, 720x576p, 720x480i, 720x480p.

HDMI

ANTENNA

DIGITAL AUDIO

IN2

IN1

OUT

DVI

EXT 4

EXT 1

EXT 2 EXT 3 CL Out

HDMI

DVI

OUT

Pb Y

EXT 1EXT 4 EXT 2 EXT 3

HDMI

ANTENNA

LRIN2 IN1

....

DV I

AUDIO

DIGITAL AUDI O

DVI

VGA

Equipment to connect to a DVI connector

The DVI connector allows the following TV and monitor display modes, via the

v key on the remote control, for High Definition (HD) and computer (PC)

equipment:

Standard Definition TV (SDTV) 640x480i

720x480i 720x576i

Enhanced Definition TV (EDTV) 640x480p

720x480p 720x576p

High Definition TV (HDTV) 1920x1080i

1280x720p

PC VGA 640x480

SVGA 800x600 XGA 1024x768

Note: If necessar y, you can adjust the picture position to the centre of the screen with the cursor keys.

& Connect your equipment to the DVI connector of your TV 1.

According to the type of connector of your equipment, you may have to use an appropriate adapter.

DVD

Connect the DVI to DVI cable to the DVI connector of your TV 1.

Computer (PC):

- with a DVI connector: connect the DVI to DVI cable to the DVI

connector of your TV 1.

- with a VGA connector: connect the VGA cable to a VGA to DVI adapter

4 and connect to the

DVI connector of your TV 1.

é Connect the audio cable 2 to the DV IAUDIO R (right) and L (left)

inputs of the TV when the TV expects analogue audio for a connected peripheral equipment to come from an analogue audio input

Connect the audio cable 3 to one of the DIGITAL AUDIO IN connectors of the TV when the TV expects digital audio for a connected peripheral equipment to come from a digital audio input. Then also make your selection of the source to which the peripheral equipment with digital audio input has been connected in the Setup, Source menu. See Digital audio, p. 13.

• Record a TV programme with your recorder without EasyLink

You can record a TV programme using your recorders tuner without affecting your TV.

& Select the channel number on your recorder. é Set your recorder to record.

See the handbook for your recorder.

Switching channel numbers on your TV does not disturb recording !

• Record a TV programme with your recorder with EasyLink

In TV mode, it is possible to start a direct recording of the programme which is being displayed on the TV screen. Continue to press the ® key on the remote control for more than 2 seconds.

Notes:

-Switching programme numbers on your TV does not disturb recording.

-When recording a programme from a peripheral connected to

EXT1, EXT3,

EXT4 or Side, you can not select another TV programme on the screen without

disturbing the recording.

- If your EasyLink recorder has the system standby function, when you press the

B key for 3 seconds, both the TV and the recorder are switched to standby.

- If you have connected an S-VHS recorder provided with the EasyLink function, you can record S-VHS quality from an S-VHS peripheral connected to the left side of the TV. (E.g. from an S-VHS camcorder.)

& Press the v key and then press this key repeatedly or select Source in

the Settings menu (see p. 13) to select

EXT1, EXT2, EXT3, EXT4, DVI,

HDMI, Side or TV, according to where you connected your peripheral

equipments.

é Press the cursor up/down. “ Press OK.

DVD/R TV VCR AUX

SELECT

DEMO

SAT

BROWSE

MOT

✓

MODEON/OFF

Ambilight

789

‡

†

- FAVORITES -

VIEW

TUVPQRS WXYZ

To select connected equipment

Record with your recorder

✓

MODEON/OFF

Ambilight

DVD/R TV VCR AUX

123

456

789

‡

†

- FAVORITES -

VIEW

SELECT

DEMO

SAT

BROWSE

MOT

TUVPQRS WXYZ

JKLGHI MNO

ABC DEF

B to switch to standby º for pause, ® for record, Ò for rewind (

VCR, CD);

search down (

DVD )

‡ for stop, π for play, † for fast forward (

VCR, CD);

search up (

DVD )

i to display information

MENU to switch the menu on or off

- P + for chapter, channel, track

selection

0 to 9 digit entry,

cursor up/down

to select the next or the previous disc (CD)

cursor left/right

to select the previous or following track (

CD)

0 to select a DVD title/chapter;

index (

AUX)

b to select your choice of

subtitle language (

DVD )

Expert mode

When you do not want the remote to go back to TV mode, and to stay in the mode selected, proceed as follows:

& Select TV mode with the SELECT key. é Press the SELECT key again simultaneously with the OK key for at least 2

seconds.

“ Select the desired mode with the SELECT key.

The remote will not go back to TV mode from now on and will remain in the mode selected.To go back to the default setting of the remote (TV mode) repeat what is explained above, selecting the TV mode.

Note: LED behaviour

- If the LED blinks

once after pressing the SELECT key simultaneously with the OK

key for at least 2 seconds, the remote control is in Expert mode and the remote control remains in the mode selected.

- If the LED blinks

4 times after pressing the SELECT key with the OK key for at

least 2 seconds, the remote control is in

Normal mode and the remote control

returns to TV mode after 60 seconds.

Direct selection of a connected peripheral equipment

When the remote is in

TV Expert mode you may directly select a connected

equipment in the following way: Press:
