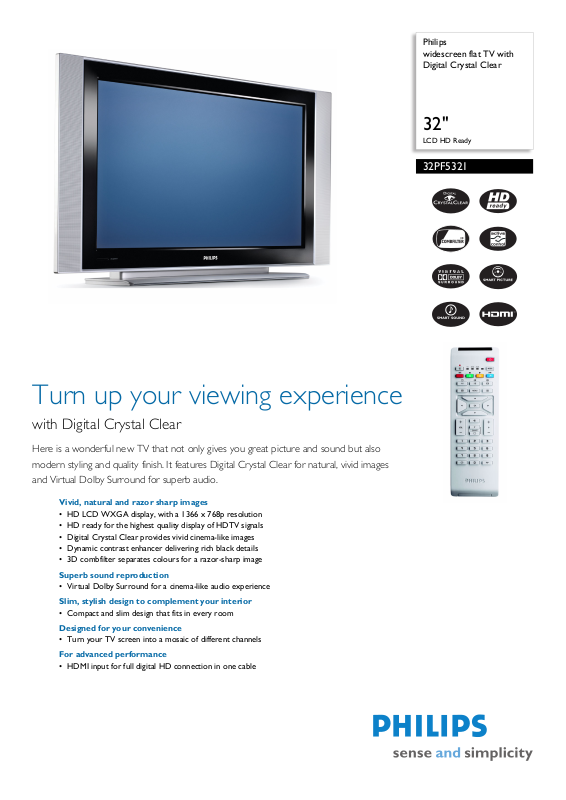

Page 1

Philips widescreen flat TV with Digital Crystal Clear

32"

LCD HD Ready

32PF5321

Turn up your viewing experience

with Digital Crystal Clear

Here is a wonderful new TV that not only gives you great picture and sound but also modern styling and quality finish. It features Digital Crystal Clear for natural, vivid images and Virtual Dolby Surround for superb audio.

Vivid, natural and razor sharp images

• HD LCD WXGA display, with a 1366 x 768p resolution

• HD ready for the highest quality display of HDTV signals

• Digital Crystal Clear provides vivid cinema-like images

• Dynamic contrast enhancer delivering rich black details

• 3D combfilter separates colours for a razor-sharp image

Superb sound reproduction

• Virtual Dolby Surround for a cinema-like audio experience

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Designed for your convenience

• Turn your TV screen into a mosaic of different channels

For advanced performance

• HDMI input for full digital HD connection in one cable

Page 2

Widescreen flat TV with Digital Crystal Clear

32" LCD HD Ready

Specifications

32PF5321/10

Picture/Display

• Aspect ratio: 16:9, Widescreen

• Brightness: 500 cd/m²

• Diagonal screen size: 32 inch / 80 cm

• Display screen type: LCD WXGA Active Matrix TFT

• Picture enhancement: Digital Crystal Clear, Progressive Scan, 3D Combfilter, 3/2 - 2/2 motion pull down, Digital Noise Reduction, Jagged Line Suppression, Active Control, Contrast Plus

• Screen enhancement: Anti-Reflection coated screen

• Viewing Angle (H / V): 178 / 178 degree

• Panel resolution: 1366 x 768p

• Response time (typical): 8 ms

• Dynamic screen contrast: 1600:1

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60, 70, 75Hz

• Video Formats Resolution Refresh rate 640 x 480p 2Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Sound Enhancement: Dynamic Bass Enhancement, Auto Volume Leveller

• Sound System: Virtual Dolby Surround, Stereo

• Output power (RMS): 2 x 15 W

• Equalizer: 5-bands

Convenience

• Ease of Installation: Auto Program Naming, Automatic Channel Install(ACI), Automatic Tuning System (ATS), Autostore, Fine Tuning, Plug & Play, Program Name, Sorting

• Ease of Use: Auto Volume Leveller (AVL), Program List, Smart Picture Control, Smart Sound Control, Side Control

• Remote control type: RCFE06SPS00

• Teletext enhancements: Program information Line, 4 favourite pages

• Picture in Picture: Twin page text

• Remote Control: DVD, TV, Multi-functional

• Screen Format Adjustments: 4:3, Movie expand

14:9, Movie expand 16:9, Subtitle Zoom, Super Zoom, Widescreen

• Clock: Sleep Timer, Wake up Clock

• VESA Mount: 200 x 100 mm

• Teletext: Smart Text

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: PAL, SECAM

• Video Playback: NTSC, PAL, SECAM

• Aerial Input: 75 ohm coaxial (IEC75)

• Tuner Display: PLL

• Number of Preset Channels: 100

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: CVBS in/out, S-video in, Audio L/R

• Other connections: Antenna IEC75

• Front / Side connections: CVBS in, Headphone out, S-video in, Audio L/R in

• Number of Scarts: 2

• Ext 4: YPbPr

• Ext 5: HDMI

• Ext 6: HDMI

Power

• Power consumption: 120 W Normal Operation

• Standby power consumption: 1 W <

• Ambient temperature: +5 -/+ 40 C

• Mains power: 110 - 240V, 50/60Hz

Dimensions

• Product weight: 18.9 kg

• Weight incl. Packaging: 22 kg

• Dimensions (with base) (W x H x D): 924

x 550 x 222 mm

• Colour cabinet: Bicolour Black and Silver Frost

• Box dimensions (W x H x D): 1000

x 690 x 240 mm

• Dimensions (without base) (W x H x D): 924

x 507 x 119 mm

Accessories

• Included Accessories: Power cord, Quick start guide, Registration card, Remote Control, User Manual, Batteries for remote control, Table top stand, Warranty certificate

• Optional accessories: Floor stand

Loudspeakers

• Built-in speakers: 2

•

Page 3

Widescreen flat TV with Digital Crystal Clear

32" LCD HD Ready

32PF5321/10

Product highlights

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD screen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colours. This vibrant and sharp image will provide you with an enhanced viewing experience.

HD Ready

Enjoy the exceptional picture quality of a true High De fin iti on TV sig nal a nd b e fully p rep are d for HD sourc es like HDTV broadcast, Blu-ray DVD or HD-DVD. HD ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that disp lays t he b enefits o f resolution and picture quality of a Hig h De fin iti on T V s igna l. It h as a uni ve rsal con ne cti on for both analogue YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p and 1080i signals at 50 and 60Hz.

Digital Crystal Clear

Digital Crystal Clear is a package of picture innovations that digitally adjusts and optimizes picture quality to optimal contrast, colour and sharpness levels. It's like watching vivid cinema-like images.

Dynamic contrast enhancer

You want the LCD flat display with the highest contrast and most vibra nt images even at wi de v iewin g an gle. The Philips dynamic contrast enhancer uses video processing and unique dimming backlight technology. This delivers deep rich black levels with increased detail. The dimming backlight increases the contrast up to 5 times* and at the same time improves the viewing angle. It gives a bright, lifelike picture with high contrast and vibrant colours, (* factor between 2 and 5, screen type and picture content dependant).

3D Combfilter

The 3D comb filter separates brightness and colour signals better in 3D domain to eliminate cross-colour, cross-luminance and dot-crawl distortion - all of which detract from your viewing pleasure. The 3D digital comb filter performs field-by-field comparisons of the television image to accurately separate the colour from the blackand-white information and remove both horizontally and vertically hanging dots, as well as dot crawl. The result is a razor sharp image.

Issue date 2007-12-01

Version: 4.0

12 NC: 8670 000 23114 EAN: 87 10895 94042 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

Virtual Dolby Surround

Virtual Dolby Surround is a processing technology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

Compact and slim design

This design style emphasizes a slim, compact look that saves space and fits in anywhere.

Multiple PiP Modes

Multiple Picture-in-Picture modes allow you to simultaneously watch two video sources either picture-inpicture, side by side, or in a mosaic-view with still images.

HDMI input

HDMI makes an uncompressed digital RGB connection from the source to the screen. By eliminating conversion to an analogue signal, it delivers an unblemished image. The non-degraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.
