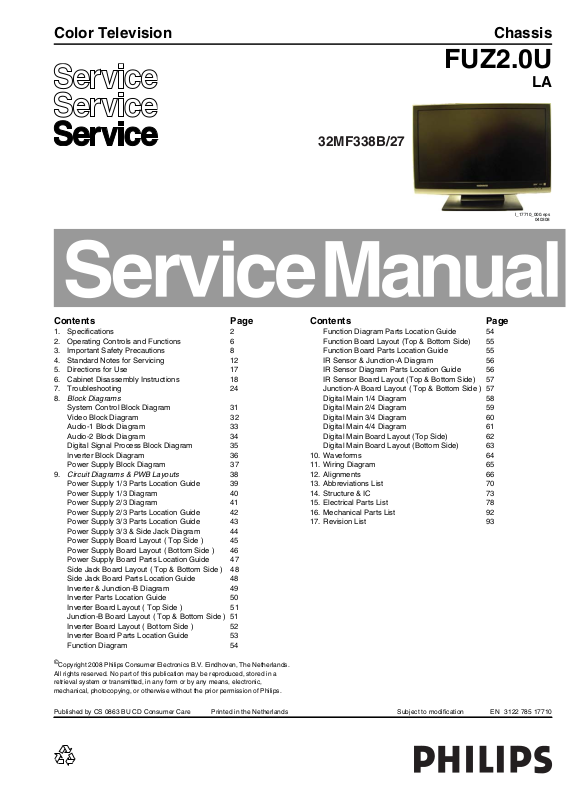

Philips 32MF338B/27 Schematic

Color Television Chassis

FUZ2.0U

LA

32MF338B/27

I_17710_000.eps

040308

Contents Page Contents Page

1. Specifications 2

2. Operating Controls and Functions 6

3. Important Safety Precautions 8

4. Standard Notes for Servicing 12

5. Directions for Use 17

6. Cabinet Disassembly Instructions 18

7. Troubleshooting 24

8. Block Diagrams
System Control Block Diagram 31
Video Block Diagram 32

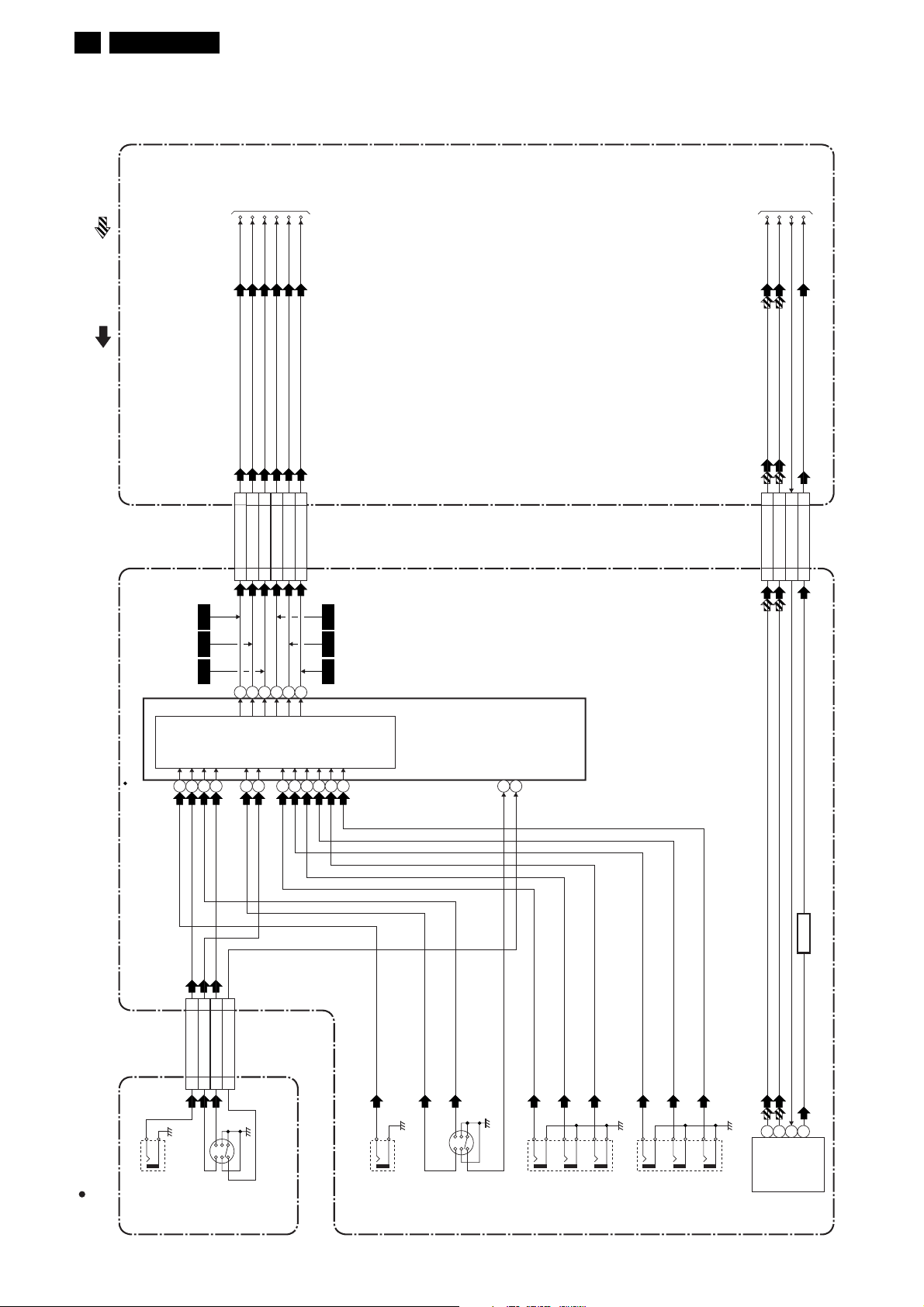

Audio-1 Block Diagram 33

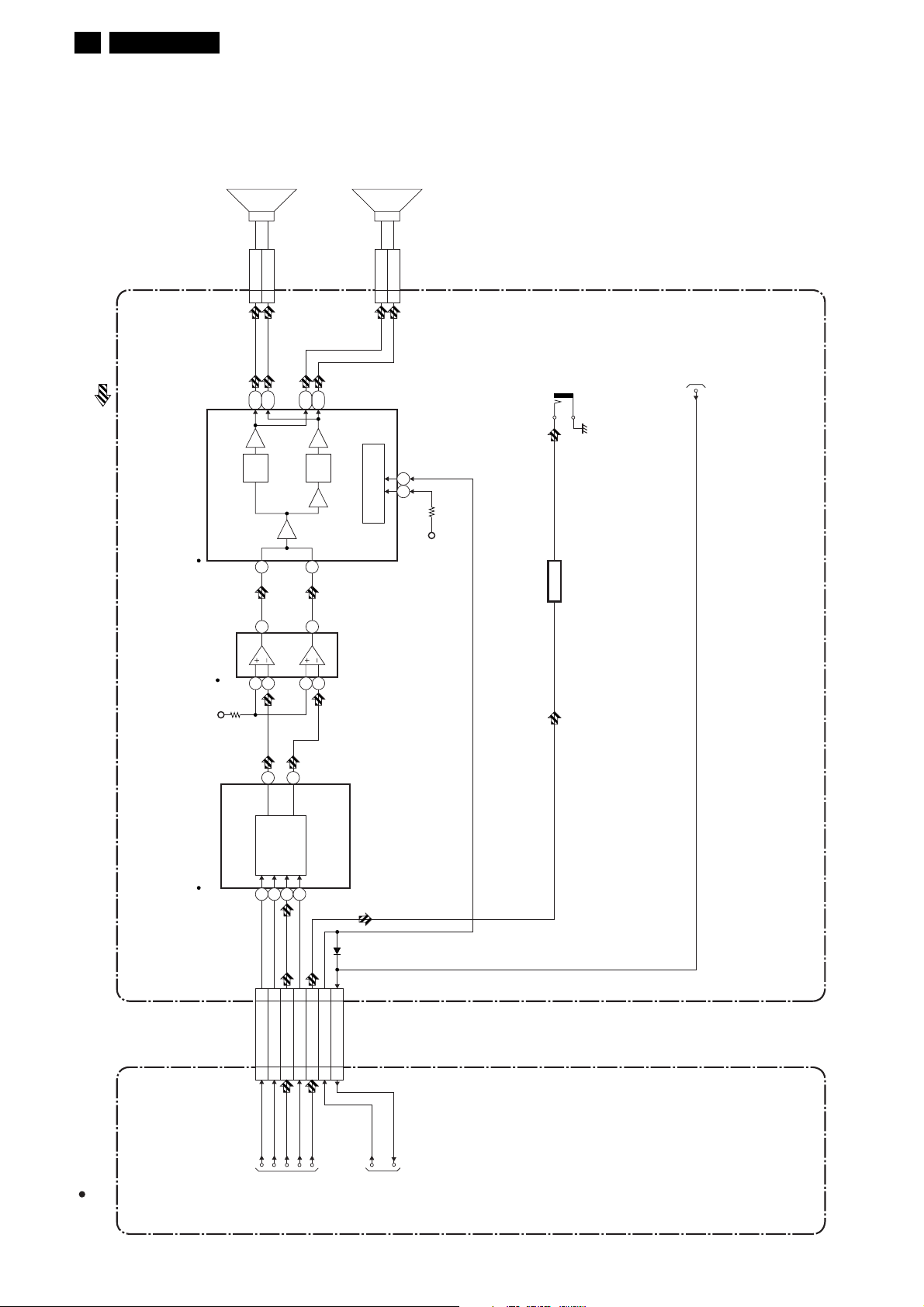

Audio-2 Block Diagram 34
Digital Signal Process Block Diagram 35
Inverter Block Diagram 36
Power Supply Block Diagram 37

9. Circuit Diagrams & PWB Layouts 38
Power Supply 1/3 Parts Location Guide 39

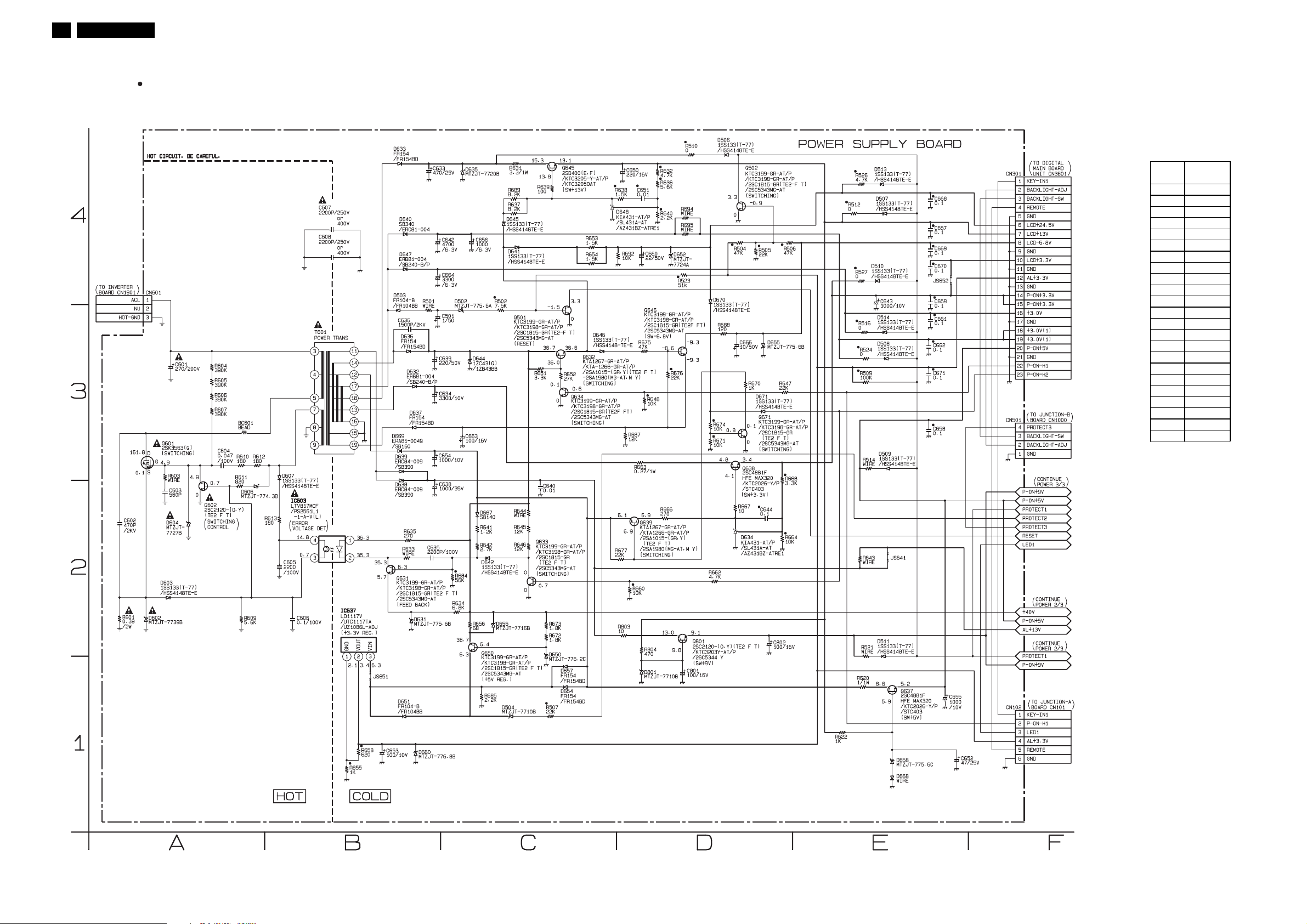

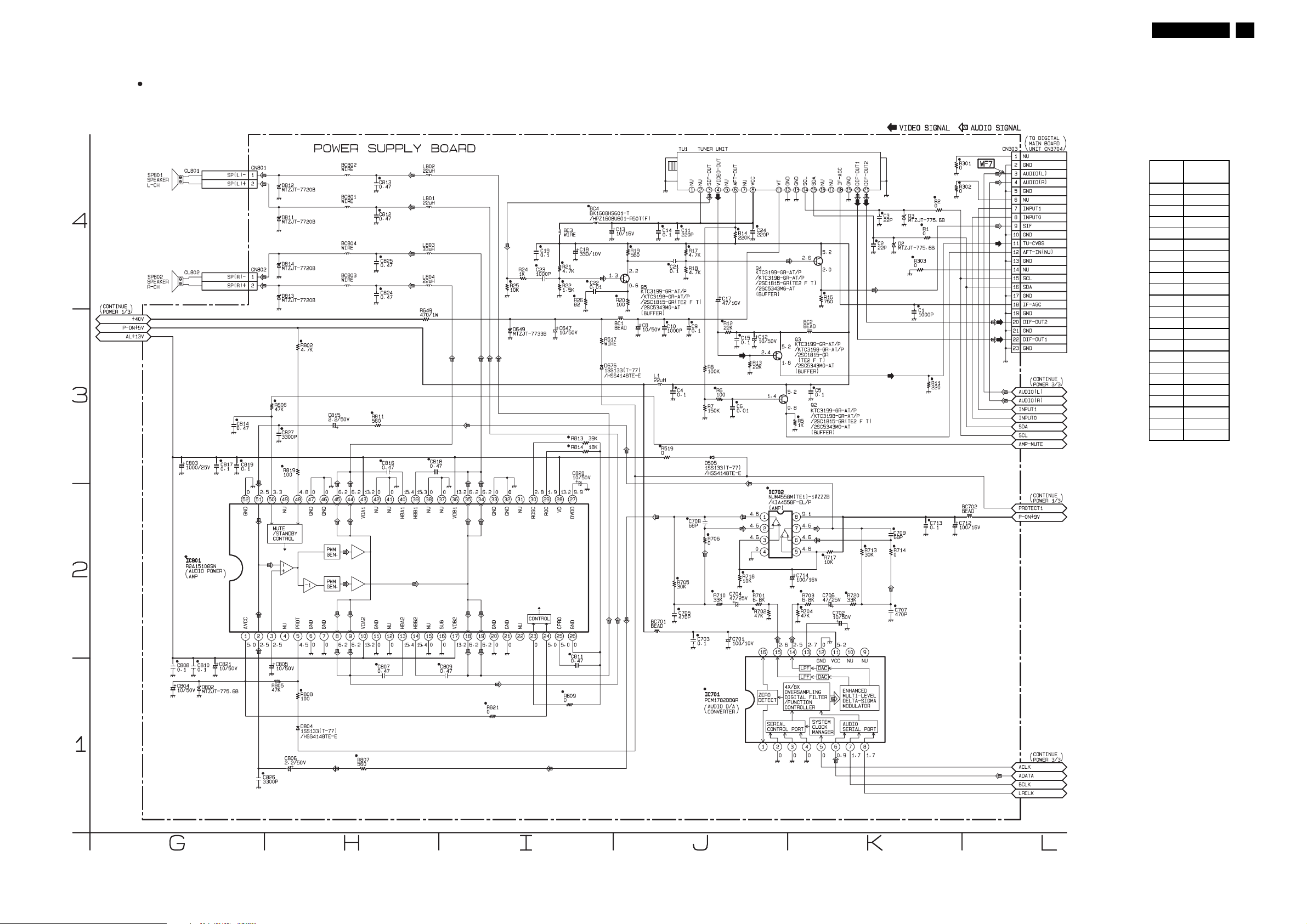

Power Supply 1/3 Diagram 40
Power Supply 2/3 Diagram 41
Power Supply 2/3 Parts Location Guide 42
Power Supply 3/3 Parts Location Guide 43

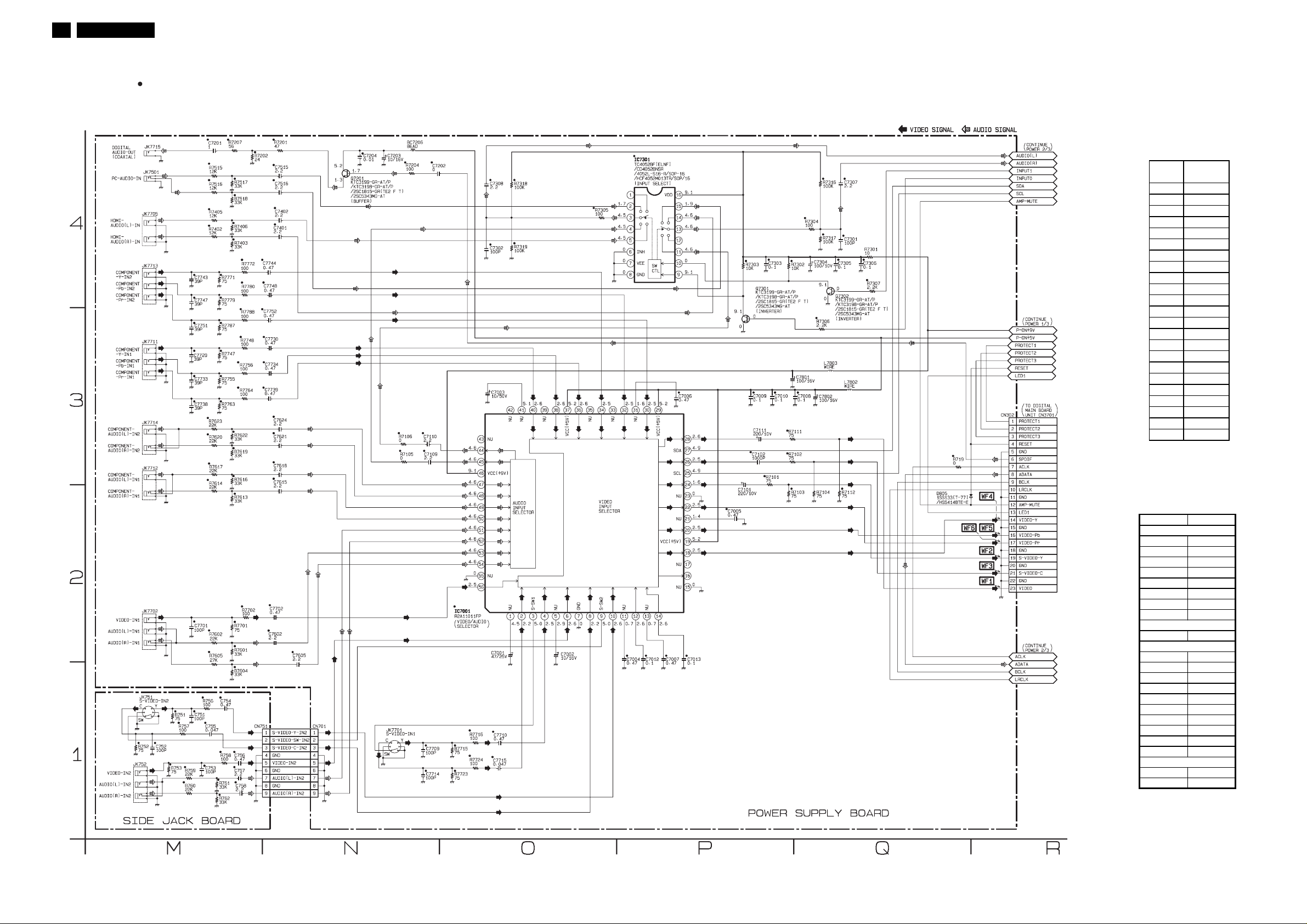

Power Supply 3/3 & Side Jack Diagram 44

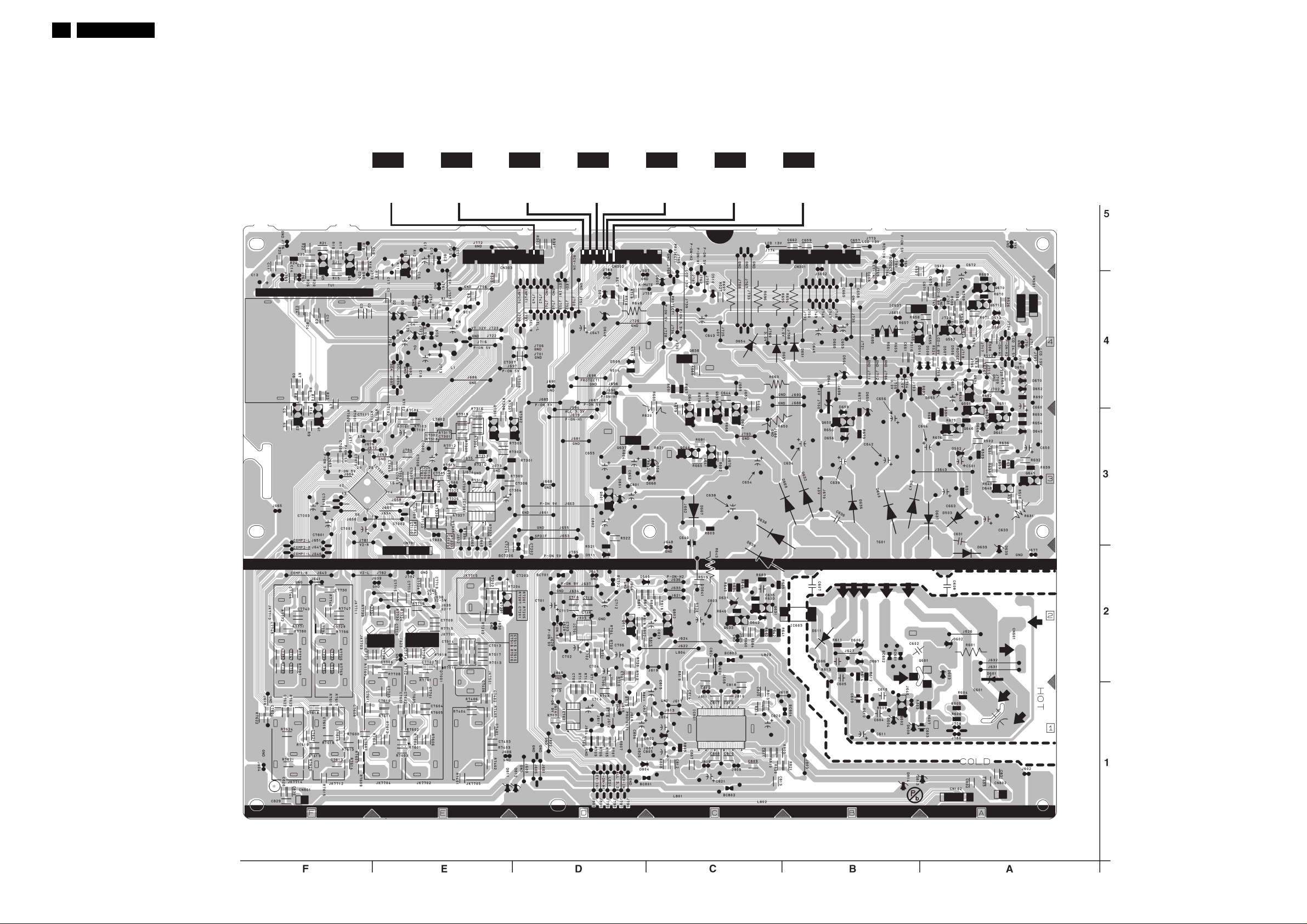

Power Supply Board Layout ( Top Side ) 45
Power Supply Board Layout ( Bottom Side ) 46
Power Supply Board Parts Location Guide 47

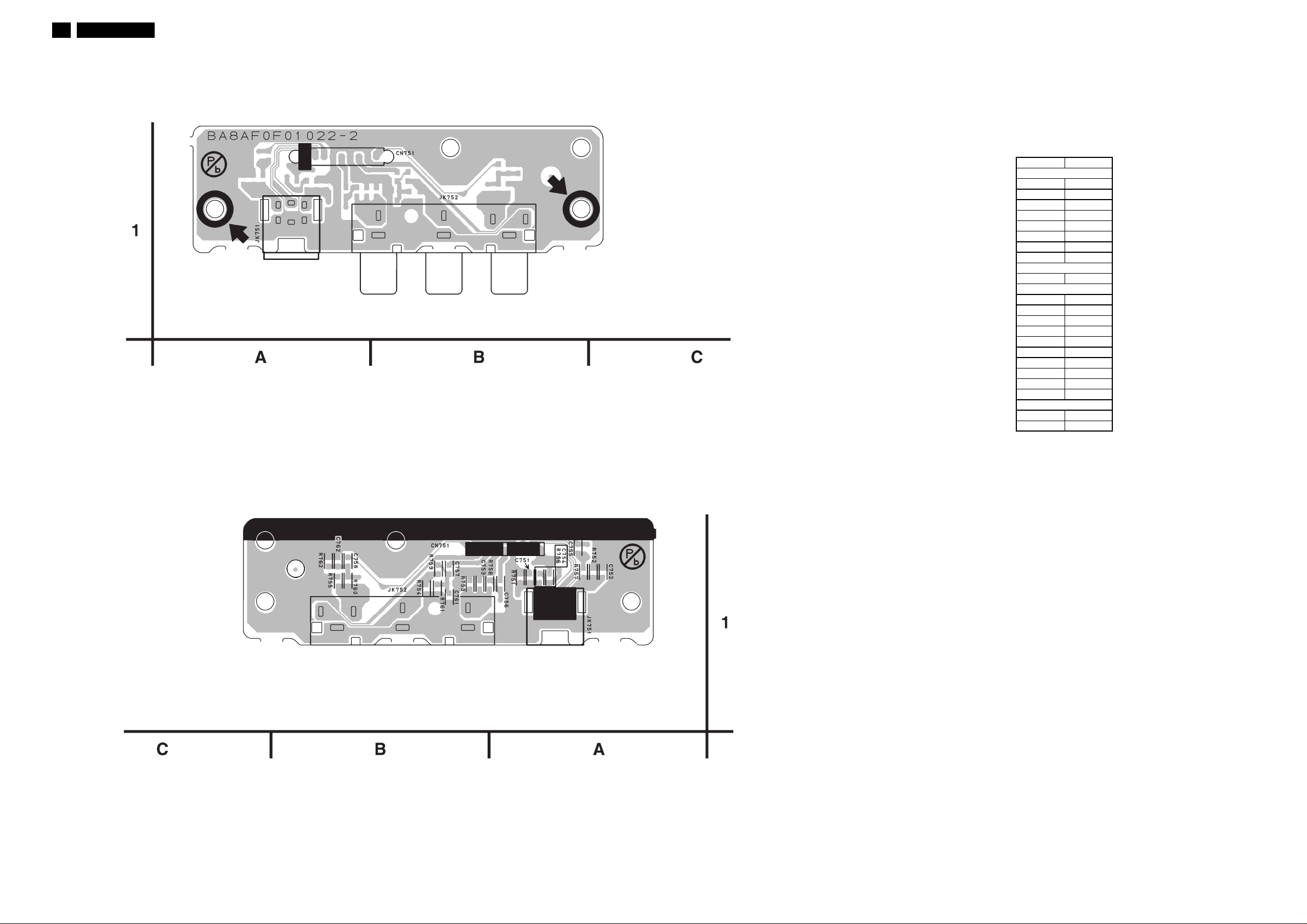

Side Jack Board Layout ( Top & Bottom Side ) 48
Side Jack Board Parts Location Guide 48

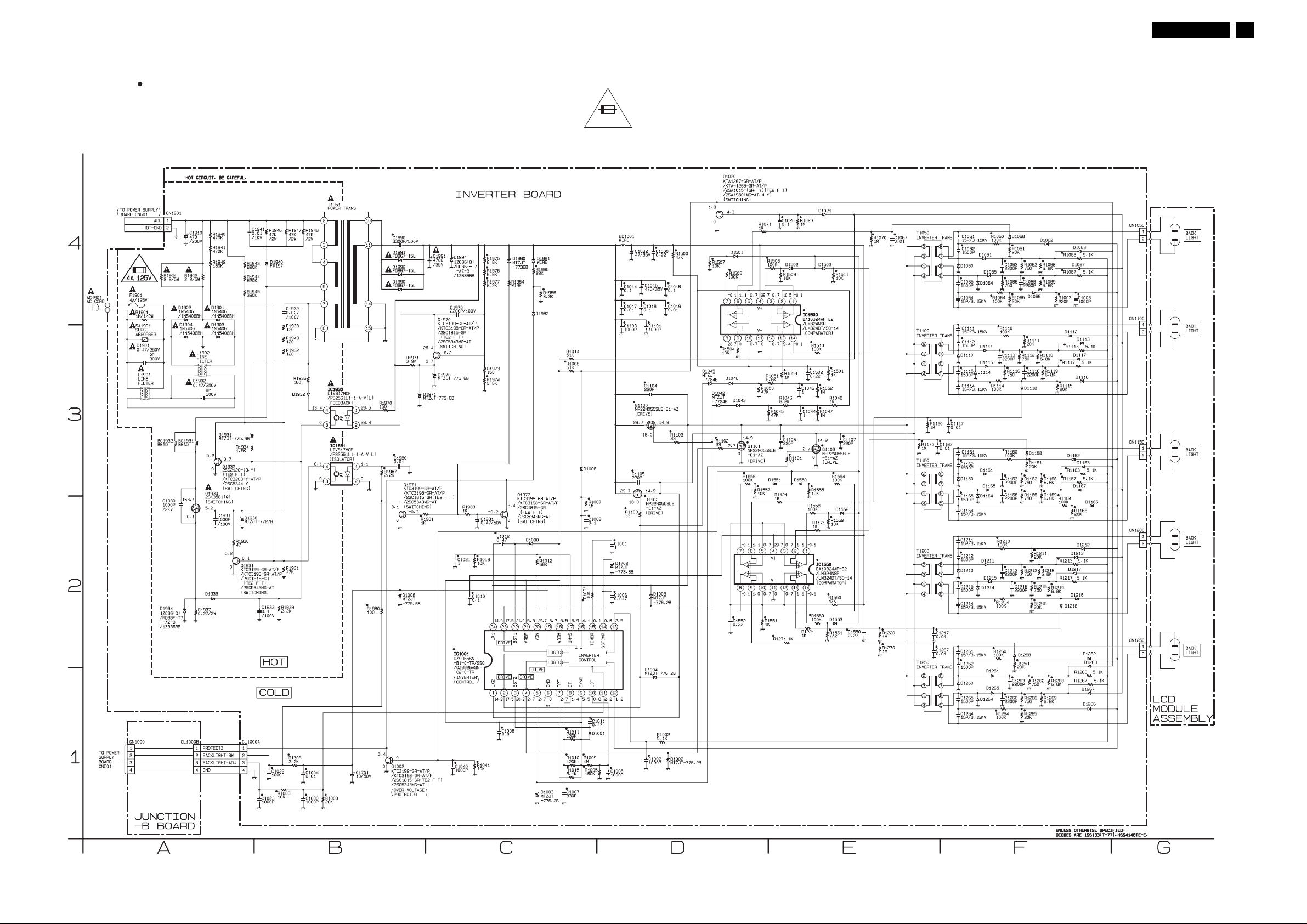

Inverter & Junction-B Diagram 49
Inverter Parts Location Guide 50
Inverter Board Layout ( Top Side ) 51
Junction-B Board Layout ( Top & Bottom Side ) 51
Inverter Board Layout ( Bottom Side ) 52
Inverter Board Parts Location Guide 53
Function Diagram 54

©

Copyright 2008 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.

Function Diagram Parts Location Guide 54
Function Board Layout (Top & Bottom Side) 55
Function Board Parts Location Guide 55

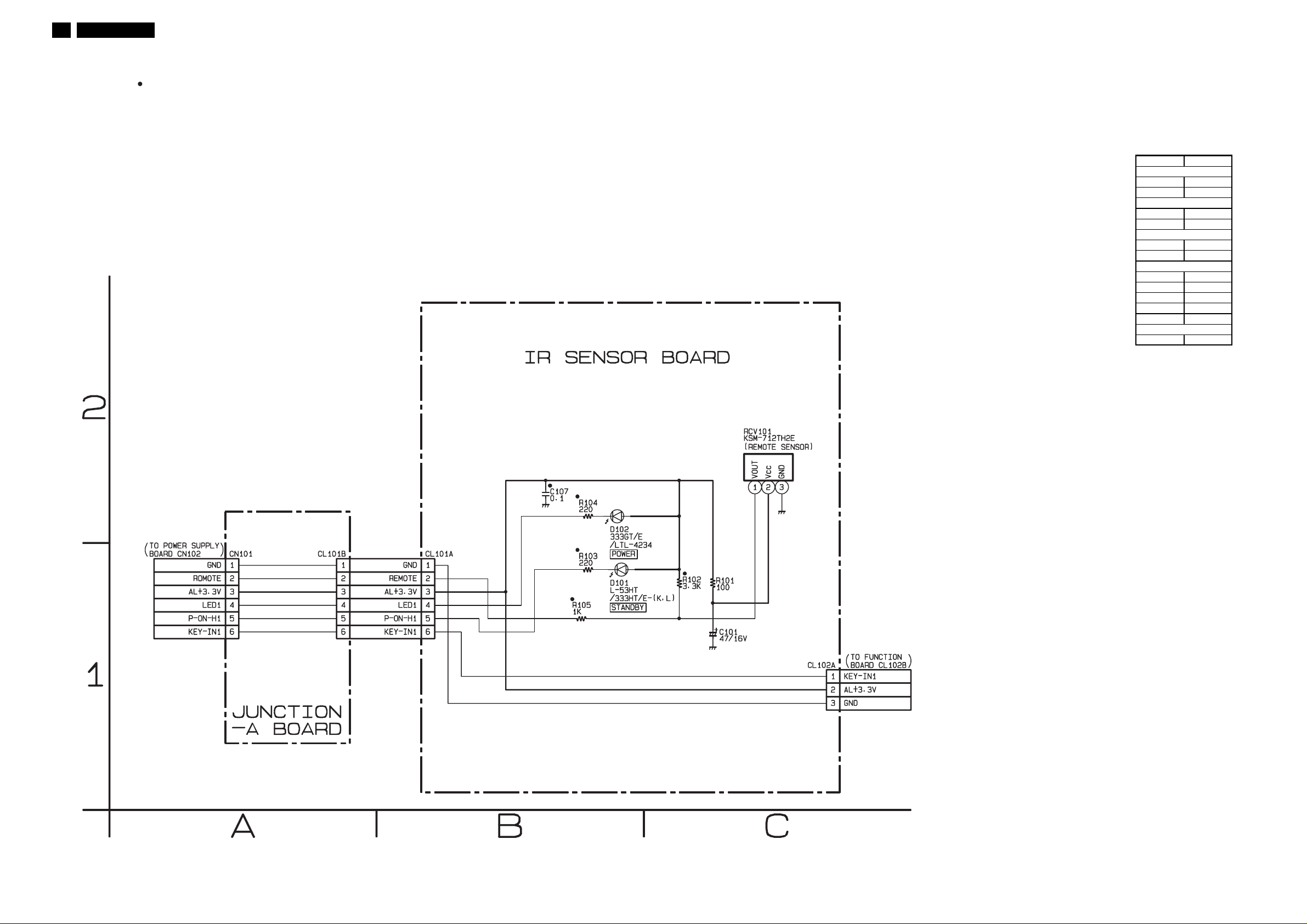

IR Sensor & Junction-A Diagram 56
IR Sensor Diagram Parts Location Guide 56

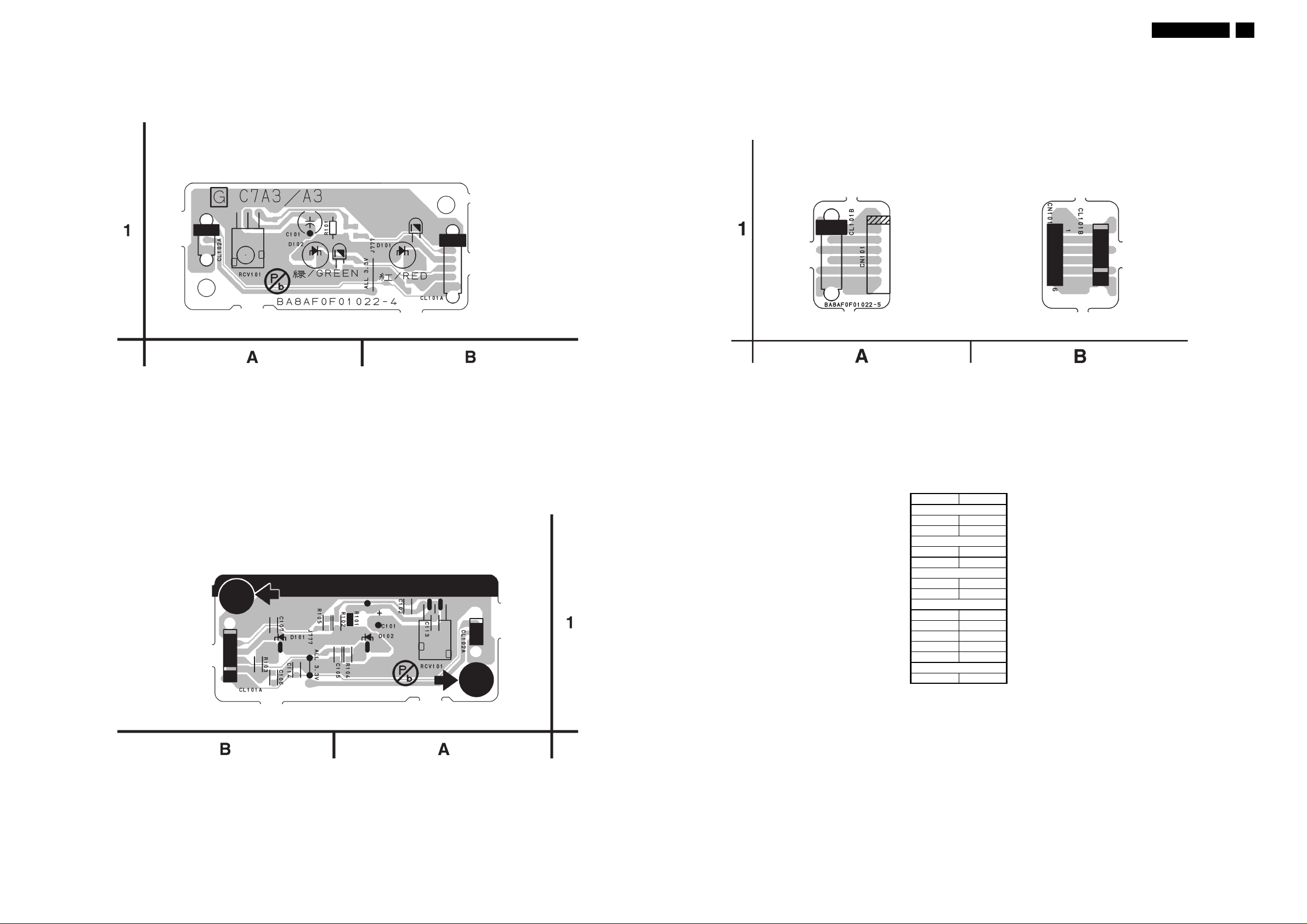

IR Sensor Board Layout (Top & Bottom Side) 57
Junction-A Board Layout ( Top & Bottom Side ) 57

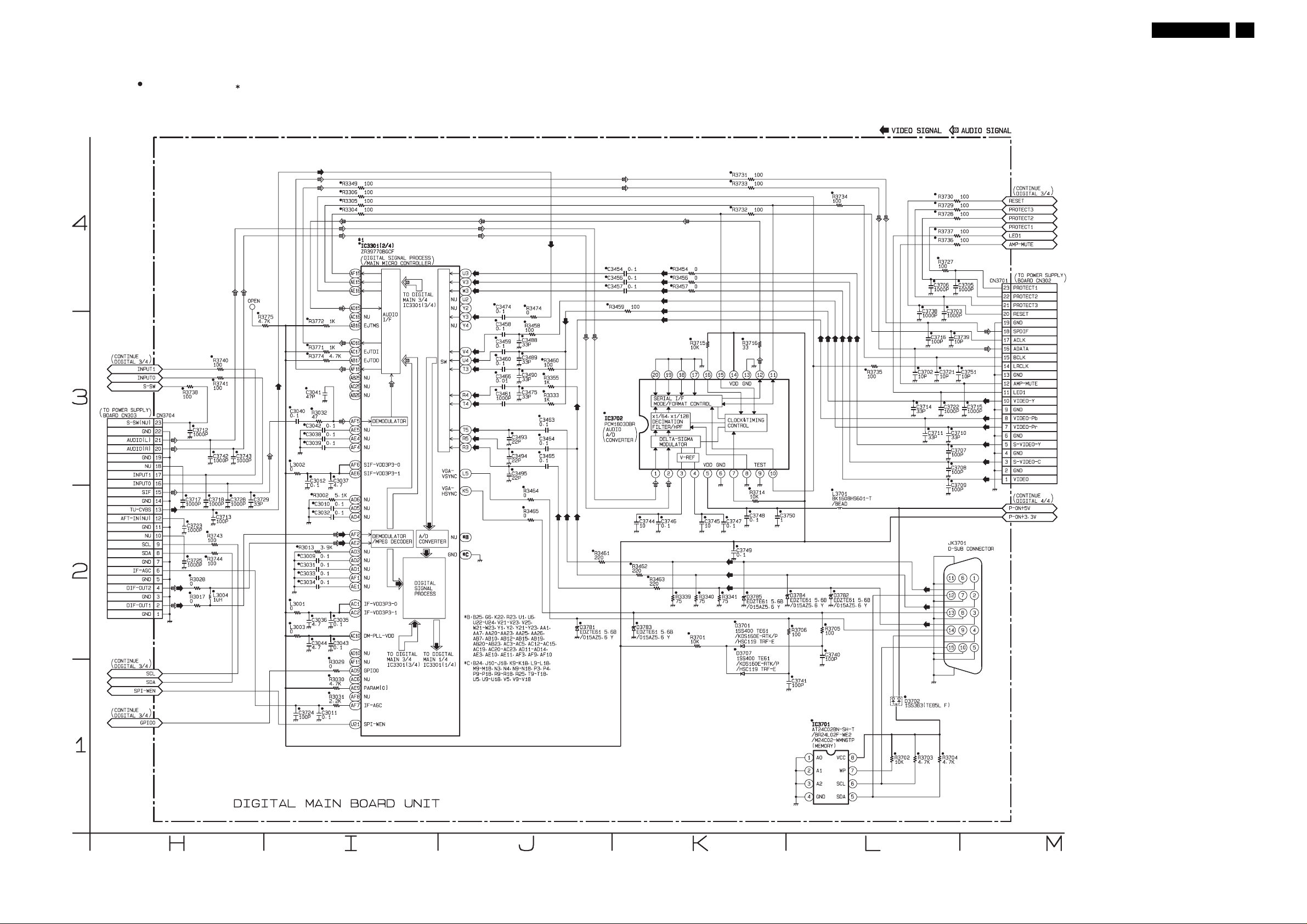

Digital Main 1/4 Diagram 58
Digital Main 2/4 Diagram 59
Digital Main 3/4 Diagram 60
Digital Main 4/4 Diagram 61

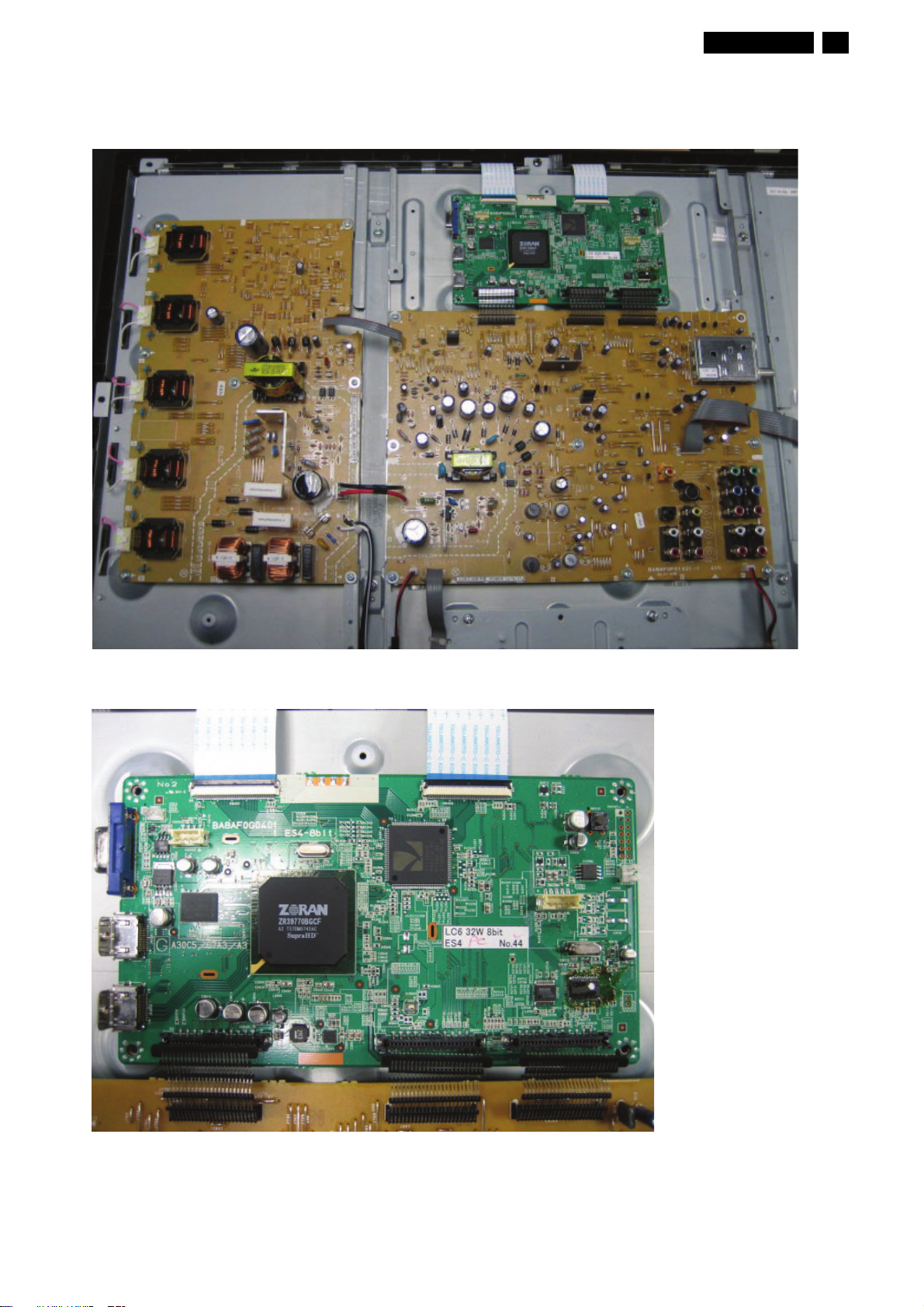

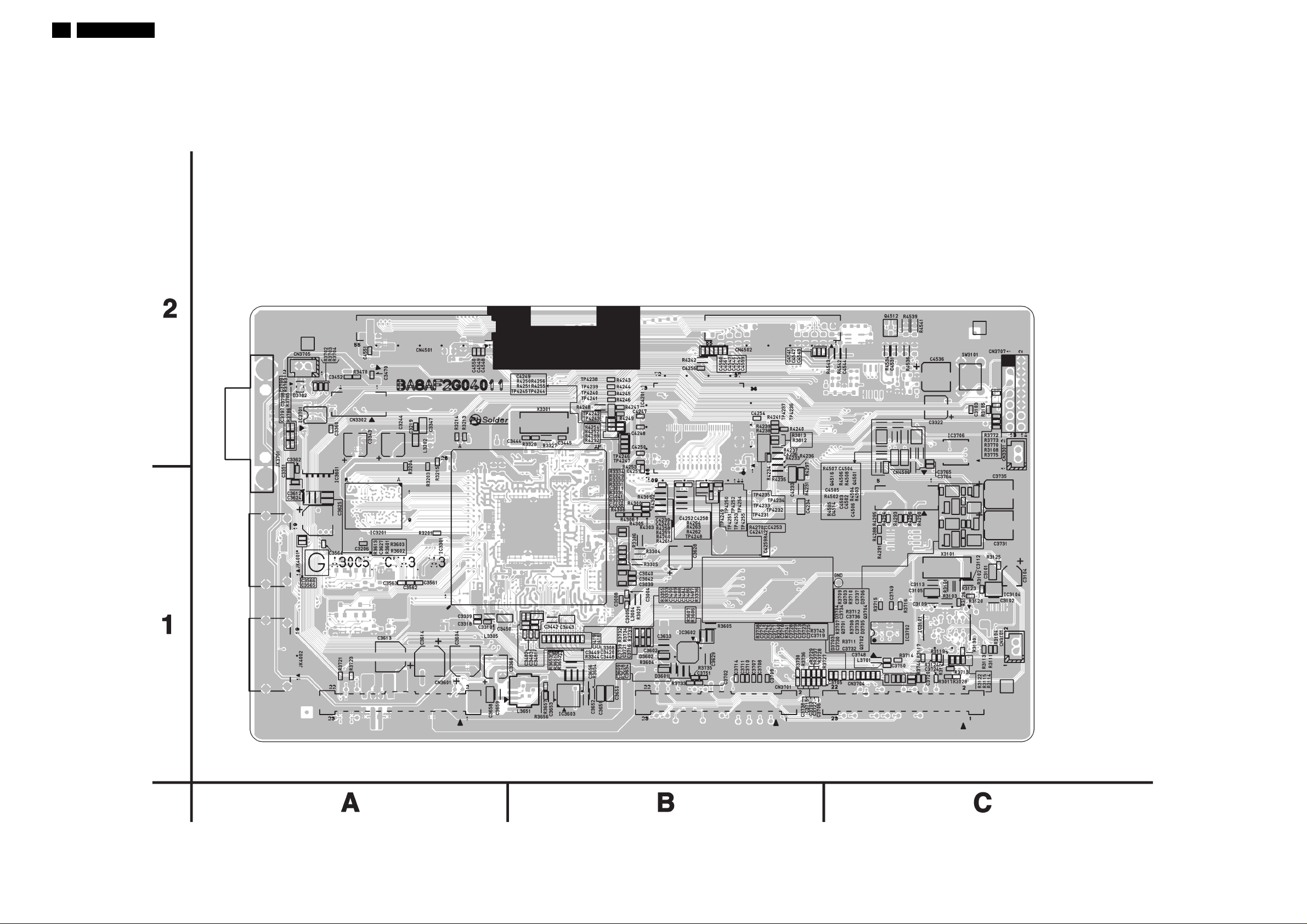

Digital Main Board Layout (Top Side) 62
Digital Main Board Layout (Bottom Side) 63

10. Waveforms 64

11. Wiring Diagram 65

12. Alignments 66

13. Abbreviations List 70

14. Structure & IC 73

15. Electrical Parts List 78

16. Mechanical Parts List 92

17. Revision List 93

Published by CS 0863 BU CD Consumer Care Printed in the Netherlands Subject to modification EN 3122 785 17710

2 FUZ2.0U LA

1. SPECIFICATIONS

1.1 Specifications

< TUNER / NTSC >

ANT. Input -----------------------75 Ω Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-in Range --- MHz ±2.3 ±2.1

20
20
23

2. Syncronizing Sens.

TV.ch.4
CA.ch.31
CA.ch.87

dBµ
dBµ
dBµ

---

---

---

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

-76/0

-76/0

-74/+4

2. ATSC Dynamic Range (min / max)

ch.4
ch.10
ch.41

dBm
dBm
dBm

---

---

---

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolusion

2. Brightness --- cd/m

3. Viewing Angle

Horizontal

Ver ti ca l

Horizontal

Ver ti ca l

pixels
pixels

°
°

1366

768

2

320 ---

-88 to +88

-88 to +88

---

---

---

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Ver ti ca l

--­x
y

Horizontal

Ver ti ca l

%
%

°K

---

---

line
line

5
5

12000

0.272

0.278

400
350

5±5
5±5

--­±3%
±3%

---

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1. Audio Output Max Power
(ATSC 0dBfs)

2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

3. Audio Freq. Response (NTSC)

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent
the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet
limit specifications.

Lch/Rch W 10.0/10.0 9.0/9.0

-

6dB: Lch

-

6dB: Rch

Hz
Hz

70 to 10 k
70 to 10 k

---

---

< PICTURE / DISPLAY >

Description Specification

FUZ2.0U LA 3

1. Aspect ratio

2. Picture Enhancement

SOUND >

<

Description Specification

1. Output Power (RMS)

2. Sound Enhancement

3. Sound Mode

CONVENIENCE >

<

Description Specification

ON SCREEN DISPLAY LANGUAGE >

<

Description Specification

<

CONNECTIVITY >

Description Specification

Widescreen
Progressive Scan, 3D comb filter,
Smart Picture (4 models): Nature, Rich, Movie, Soft

2 x 10W
Mono, Stereo
Tr e bl e, B a s s

Auto Program, Closed Captioning Full Text, Sleeptimer

English, French, Spanish

1. Rear 75Ω / RF

COMPONENT 1- Component Video (YPbPr), Audio L/R input
COMPONENT 2- Component Video (YPbPr), Audio L/R input
VIDEO 1- Composite Video (Video In), S-Video, Audio L/R input
Coaxial digital audio output (Digital Only)
PC-VGA, Audio
HDMI 1, HDMI 2

2. Side Video 2- Composite Video (Video In), S-Video, Audio L/R input

<

WEIGHT & DIMENSIONS >

Description Specification

1. Weight (incl. Packaging):

2. Weight (excl. Packaging):

3. Carton Dimension
(W x H x D):

4. Product Dimension
(W x H x D):

<

POWER >

Description Specification

1. Power Consumption:

2. Standby Power Consumption:

3. Mains Power:

13.9 kg / 30.7 lbs
11 kg / 24.3 lbs
904 x 665 x 228 mm

35.6″ x 26.2″ x 9.0″
776 x 562 x 272 mm

30.6″ x 22.2″ x 10.7″

155W (Maximum)
< 1W
120V, 60Hz

4 FUZ2.0U LA

1.2 Technical Specifications

1.2.1 Technical Specifications

Panel : CMO
Active Area : 697.685mm(H) x

392.256mm(V)

Outline Dimension : 776.0mm(H) x 562.0mm(V) x

272.0mm(D)

Pixel Pitch : 0.17025mm(H) x

0.51075mm(V)
Pixel Format : 1366 x 768 (WXGA)
Color Depth : 8-bit, 16.7M colors
Luminance : 430 cd/m
Backlight : CCFL
Response Time : 8 msec.
Viewing Angle : 176/176 (L/R,U/D)
Contrast Ratio : 1500:1
Tuning system : PLL
CCFL MTBF : 40,000 hrs (min.)

Formats for PC : 800 x 600p 60Hz
(D-SUB 15pin) 1024 x 768p 60Hz

1280 x 768p 60Hz
1360 x 768p 60Hz

Formats for HDMI : 640 x 480p 60Hz

720 x 480i 30Hz (29.97Hz)
720 x 480p 60Hz (59.94Hz)
1920 x 1080i 30Hz (29.97Hz)
1280 x 720p 60Hz (59.94Hz)

Formats for : 720 x 480i 30Hz (29.97Hz)
Component 720 x 480p 60Hz (59.94Hz)

1920 x 1080i 30Hz (29.97Hz)
1280 x 720p 60Hz (59.94Hz)

Formats for S-in, : 720 x 480i 60Hz (59.94Hz)
NTSC & Video

Formats for ATSC : 640 x 480i 30Hz (29.97Hz)

640 x 480p 24Hz (23.976Hz)
640 x 480p 30Hz (29.97Hz)
640 x 480p 60Hz (59.94Hz)
704 x 480i 30Hz (29.97Hz)
704 x 480p 24Hz (23.976Hz)
704 x 480p 30Hz (29.97Hz)
704 x 480p 60Hz (59.94Hz)
1280 x 720p 24Hz (23.976Hz)
1280 x 720p
1280 x 720p
1920 x 1080i 30Hz (29.97Hz)
1920 x 1080p 24Hz (23.976Hz)
1920 x 1080p

1.2.2 Sound

Sound systems : Mono / Stereo / Sap
Maximum power : 2 x 10W

2

30Hz (29.97Hz)
60Hz (59.94Hz)

30Hz (29.97Hz)

1.2.3 Miscellaneous

Power supply

AC-input : 120V AC, 60Hz
Normal Operation
Power Consumption : < 155W
Standby power : < 1W
Power cord length : 1545 mm (min.)
Power cord type : NISPT-2
Power indicator : LED (On: Green, Standby:

Red)

Ambient conditions

Temperature : 0 to 50 °C
Humidity :
Power consumption
Normal Operation : < 155W
Standby power : < 1W

≦80%RH

1.3 Connections

1.3.1 Signal Connector

(1)Tuner : NTSC / ATSC.
(2)D-SUB : VGA input (D-SUB 15 pins).
(3)HDMI 1 : HDMI 1 input with HDMI-IN audio

R/L.
(4)HDMI 2 : HDMI 2 input.
(5)DIGITAL AUDIO OUT :RCA jack.
(6)PC-IN Audio : Mini-jack.
(7)HDMI-IN Audio : Audio R/L (RCA jack) for

HDMI(DVI).
(8)VIDEO 1 : Video 1 (CVBS, RCA jack) and S-

Video 1 share with same audio R/

L (RCA jack).
(9)VIDEO 2 : Video 2 (CVBS, RCA jack) and S-

Video 2 share with same audio R/

L (RCA jack).
(10)COMPONENT 1 : Y/Pb/Pr component video1

(RCA jack) with audio R/L (RCA
jack).

(11)COMPONENT 2 : Y/Pb/Pr component video2

(RCA jack) with audio R/L (RCA
jack).

1

TUNER

TU1

2

D-SUB

3

HDMI 1

4

HDMI 2

9 10 11

VIDEO 2

AUDIO-R

AUDIO-L

VIDEO

S-VIDEO

JK3701

JK4001

JK4002

JK752

JK751

DIGITAL
AUDIO OUT
(COAXIAL)

6

PC-IN

AUDIO

HDMI-IN

AUDIO-L

AUDIO-R

Y

Pb

Pr

AUDIO-L

AUDIO-R

5

JK7515

JK7501

7

JK7705

JK7711

JK7712

VIDEO 1

COMPONENT 2COMPONENT 1

8

S-VIDEO

VIDEO

AUDIO-L

AUDIO-R

Y

Pb

Pr

AUDIO-L

AUDIO-R

JK7701

JK7702

JK7713

JK7714

FUZ2.0U LA 5

0

1.3.2 Input Signal

TV Signal type

RF Signal : Aerial input / 10mV(80dBuV)
Video signal : Video (RCA CVBS input) / 1Vpp

(300mV-sync, 700mV-video.)
S video input / 1VppY-signal,
300mVpp C-signal
COMPONENT Video (Y/Pb/Pr
input) / 1Vpp Y signal, 350mVpp Pb,
Pr signal

HDMI : Digital interface with 4 channels

TMDS signal

Audio signal :

Audio R/L for COMPONET 1.
Level :- Nominal : 0.5 V rms.

- Maximum : 1.5 V rms.

- Impedance > 10 k Ω.

Audio R/L for COMPONET 2.
Level :- Nominal : 0.5 V rms.

- Maximum : 1.5 V rms.

- Impedance > 10 k Ω.

Audio R/L for VIDEO 1.
Level :- Nominal : 0.5 V rms.

- Maximum : 1.5 V rms.

- Impedance > 10 k Ω.

Audio R/L for VIDEO 2.
Level :- Nominal : 0.5 V rms.

- Maximum : 1.5 V rms.

- Impedance > 10 k Ω.

Audio R/L for HDMI-IN.
Level :- Nominal : 0.5 V rms.

- Maximum : 1.5 V rms.

- Impedance > 10 k Ω.

PC Signal type

Analog Video : 0.7 Vp-p linear, positive polarity
Separate Sync.: TTL level, separate, positive or

negative polarity

Audio signal : Mini-jack audio input,

Level: - Nominal : 0.5 V rms.

- Maximum : 1.5 V rms.

- Impedance > 10 k Ω.

Digital Audio output : 0.5 V ~ 1 V Square Wave.

1.3.3 HDMI Pin assignment

Type A Connector

No.1

No.19

PIN No. SIGNAL

8 TMDS Data0 shield

9 TMDS Data0-

10 TMDS Clock+

11 TMDS Clock shield

12 TMDS Clock-

13 CEC

14 Reserved (N.C. on device)

15 SCL

16 SDA

17 DDC/CEC Ground

18 +5V Power

19 Hot Plug Detect

1.3.4 VGA Pin assignmentnput

1
6

11

PIN No. SIGNAL

1Red

2Green

3Blue

4GND

5Self test

6 Red GND

7 Green GND

8 Blue GND

9 +5V (Supply from PC)

10 Sync GND

11 GND

12 Bi-directional data (SDA)

5
1
15

No.18No.2

PIN No. SIGNAL

1TMDS Data2+

2TMDS Data2 shield

3TMDS Data2-

4TMDS Data1+

5TMDS Data1 shield

6TMDS Data1-

7TMDS Data0+

13 H-sync

14 V-sync

15 Data clock (SCL)

6 FUZ2.0U LA

2. OPERATING CONTROLS AND FUNCTIONS

FUZ2.0U LA 7

8 FUZ2.0U LA

3. IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV
Circuit

1. Before returning an instrument to the
customer, always make a safety check of the

entire instrument, including, but not limited to, the
following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during
servicing. (1) Protective shields are provided
on this chassis to protect both the technician
and the customer. Correctly replace all missing
protective shields, including any removed for
servicing convenience. (2) When reinstalling
the chassis and/or other assembly in the
cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating
fishpapers, adjustment and compartment
covers/shields, and isolation resistor/capacitor
networks. Do not operate this instrument or

permit it to be operated without all
protective devices correctly installed and
functioning. Servicers who defeat safety
features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to
insert their fingers and contact a hazardous
voltage. Such openings include, but are not
limited to, (1) spacing between the Liquid
Crystal Panel and the cabinet mask, (2)
excessively wide cabinet ventilation slots, and
(3) an improperly fitted and/or incorrectly
secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug
prongs. Place the instrument AC switch in the
on position. Connect one lead of an ohmmeter
to the AC plug prongs tied together and touch
the other ohmmeter lead in turn to each tuner
antenna input exposed terminal screw and, if
applicable, to the coaxial connector. If the
measured resistance is less than 1.0 megohm
or greater than 5.2 megohm, an abnormality
exists that must be corrected before the
instrument is returned to the customer. Repeat
this test with the instrument AC switch in the off
position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the
AC line cord directly into a 120 V AC outlet. (Do
not use an isolation transformer during this
test.) Use a leakage current tester or a

metering system that complies with American
National Standards Institute (ANSI) C101.1
Leakage Current for Appliances and
Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on
position and then in the off position, measure
from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal
cabinet, screw heads, metallic overlays, control
shafts, etc.), especially any exposed metal
parts that offer an electrical return path to the
chassis. Any current measured must not
exceed 0.5 milli-ampere. Reverse the
instrument power cord plug in the outlet and
repeat the test.

READING SHOULD
NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED
METAL SURFACES

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE
LIMITS SPECIFIED HEREIN INDICATE A
POTENTIAL SHOCK HAZARD THAT MUST
BE ELIMINATED BEFORE RETURNING THE
INSTRUMENT TO THE CUSTOMER OR
BEFORE CONNECTING THE ANTENNA OR
ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on
the receiver chassis, or on the Liquid Crystal
Panel.

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV
receiver. Design alterations and additions,
including, but not limited to circuit modifications
and the addition of items such as auxiliary audio
and/or video output connections, might alter the
safety characteristics of this receiver and create a
hazard to the user. Any design alterations or
additions will void the manufacturer's warranty and
may make you, the servicer, responsible for

CURRENT

TESTER

+

EARTH
GROUND

_

FUZ2.0U LA 9

personal injury or property damage resulting
therefrom.

4. Hot Chassis Warning -

a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC
power cord and maybe safety-serviced without
an isolation transformer only if the AC power
plug is inserted so that the chassis is
connected to the ground side of the AC power
source. To confirm that the AC power plug is
inserted correctly, with an AC voltmeter,
measure between the chassis and a known
earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC
power plug in the opposite polarity and again
measure the voltage potential between the
chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground
regardless of the AC plug polarity. This chassis
can be safety-serviced only with an isolation
transformer inserted in the power line between
the receiver and the AC power source, for both
personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulation material that must not be defeated or
altered.

5. Observe original lead dress. Take extra care to
assure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch
thermally hot parts, c. the AC supply, d. high
voltage, and, e. antenna wiring. Always inspect in
all areas for pinched, out of place, or frayed wiring.
Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and
mechanical parts have special safety-related
characteristics which are often not evident from
visual inspection, nor can the protection they give
necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are
identified by a # on schematics and in parts lists.
Use of a substitute replacement that does not
have the same safety characteristics as the
recommended replacement part might create
shock, fire, and/or other hazards. The product's
safety is under review continuously and new
instructions are issued whenever appropriate.
Prior to shipment from the factory, our products

are strictly inspected to confirm they comply with
the recognized product safety and electrical codes
of the countries in which they are to be sold.
However, in order to maintain such compliance, it
is equally important to implement the following
precautions when a set is being serviced.

10 FUZ2.0U LA

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.

J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and
tighten certainly.

FUZ2.0U LA 11

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and
wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified
values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across both terminals of load Z.
See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

Z

AC Voltmeter
(High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

i ≤ 0.5 mA rms

Exposed accessible

parts

12 FUZ2.0U LA

4. STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as
shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

When soldering, be sure to use the Pb free solder.

Information about lead-free soldering

Philips CE is producing lead-free sets from 1.1.2005
onwards.

IDENTIFICATION

Regardless of special logo (not always
indicated)

One must treat all sets from
onwards, according to the next rule:
Serial Number gives a 14-digit. Digit 5&6 shows the
YEAR, and digit 7&8 shows the WEEK.

So from onwards=from 1 Jan 2005 onwards

Important note

must be treated in this way as long as you avoid
mixing solder-alloys (leaded/ lead-free). So best to
always use SAC305 and the higher temperatures
belong to this.

Due to lead-free technology some rules have to be
respected by the workshop during a repair:

• Use only lead-free solder alloy Philips SAC305 with

order code 0622 149 00106. If lead-free solder­paste is required, please contact the manufacturer
of your solder-equipment. In general use of solder­paste within workshops should be avoided because
paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-

free solder alloy. The solder tool must be able

• To reach at least a solder-temperature of 400°C,

• To stabilize the adjusted temperature at the solder-

• To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature around

360°C
solder joint. Heating-time of the solder-joint should
not exceed ~ 4 sec. Avoid temperatures above
400°C otherwise wear-out of tips will rise drastically
and flux-fluid will be destroyed. To avoid wear-out of
tips switch off un-used equipment, or reduce heat.

0501

: In fact also products of year 2004

tip

- 380°C is reached and stabilized at the

1 Jan 2005

FUZ2.0U LA 13

• Mix of lead-free solder alloy / parts with leaded

solder alloy / parts is possible but PHILIPS
recommends strongly to avoid mixed solder alloy
types (leaded and lead-free).
If one cannot avoid or does not know whether
product is lead-free, clean carefully the solder-joint
from old solder alloy and re-solder with new solder
alloy (SAC305).

• Use only original spare-parts listed in the Service-

Manuals. Not listed standard-material (commodities)
has to be purchased at external companies.

• Special information for BGA-ICs:

- always use the 12nc-recognizable soldering
temperature profile of the specific BGA (for de­soldering always use the lead-free temperature
profile, in case of doubt)

- lead free BGA-ICs will be delivered in so-called
'dry-packaging' (sealed pack including a silica gel
pack) to protect the IC against moisture. After
opening, dependent of MSL-level seen on indicator­label in the bag, the BGA-IC possibly still has to be
baked dry. (MSL=Moisture Sensitivity Level). This
will be communicated via AYS-website.
Do not re-use BGAs at all.

• For sets produced before 1.1.2005 (except products

of 2004), containing leaded solder-alloy and
components, all needed spare-parts will be available
till the end of the service-period. For repair of such
sets nothing changes.

Alternative BOM Identification

In September 2003, Philips CE introduced a change in
the way the serial number is composed. from this data
on, the third digit in the serial number (example:
AG2B0335000001) indicates the number of the
alternative BOM (Bill of Materials used for producing
the specific model of TV set). It is possible that the
same TV model on the market is produced with e.g.
two different types of displays, coming from two
different O.E.M.s. By looking at the third digit of the
serial number, the service technician can see if there
is more than one type of B.O.M. used in the production
of the TV set he is working with. He can then consult
the At Your Service Web site, where he can type in the
Commercial Type Version Number of the TV set (e.g.
28PW9515/12), after which a screen will appear that
gives infomation about the number of alternative
B.O.M.s used. If the third digit of the serial number
contains the number 1 (example: AG1B033500001),
then there is only one B.O.M. version of the TV set on
the market. If the third digit is a 2 (example:
AG2B0335000001), then there are two different
B.O.M.s. Information about this is important for
ordering the correct spare parts! For the third digit, the
numbers 1...9 and the characters A...Z can be used,
so in total: 9 plus 26 = 35 different B.O.M.s can be
indicated by the third digit of the serial number.

For additional questions please contact your local
repair-helpdesk.

14 FUZ2.0U LA

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.

Hot-air
Flat Pack-IC
Desoldering

CBA

Masking
Tape

Tweezers

Machine

Flat Pack-IC

Fig. S-1-2

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

FUZ2.0U LA 15

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

With Iron Wire:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

Sharp
Pin

Fine Tip
Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Fig. S-1-4

To Solid
Mounting Point

CBA

Hot Air Blower

or

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip
Soldering Iron

Tweezers

Flat Pack-IC

Fig. S-1-6

16 FUZ2.0U LA

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

Instructions for Handling Semi­conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

<Incorrect>

CBA

Presolder

Flat Pack-IC

Fig. S-1-8

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

5. Directions for Use

You can download this infomation from the following website:
http://www.philips.com/support
http://www.p4c.philips.com

OSD Menu list

Menu Label

EXIT

Setup

Features

Language English

Smart Picture

Reset Picture Setting

Color temperature Cool

Energy Saving slider

Reset Sound Setting

Channel List
Manual Register
Antenna
Closed Caption

PC Settings

HDMI1 Audio Auto

Español
Français

Live TV Label

Picture Mode

Movie expand Movie expand

Nature
Rich
Movie
Soft

redilsssenthgirB
redilstsartnoC
redilsroloC
redilstniT

redilsssenprahS
Off
Reset to default

Normal
Warm

redilselberTdnuoS

redilsssaB
Off

Reset to default

kcaBmargorpotuA
Air
Analog Cable
Auto

Conventional CC Off

Auto Adjustment slider
Horizontal Position slider
Vertical Position slider

Digital
Analog

langis 9:61 roflangis 3:4 rof

lamroNlamroN

mooZ9:61

ediWediW

FUZ2.0U LA 17

reyaL ht5reyaL ht4reyaL dr3reyaL dn2reyaL ts1

CC-1
CC-2
CC-3
CC-4
T-1
T-2
T-3
T-4

ffOCC VTD
CS-1
CS-2
CS-3
CS-4
CS-5
CS-6

nOgnitteS resUelytS CC

Off
Font Style
Font Size
Font Color
Font Opacity
Back Color
Back Opacity
Edge Color
Edge Type

kcol sgnitar eivoM SUniP retnElortnoC latneraP
US TV ratings lock
Canadian English Rating
Canadian French Rating
Region ratings lock
Clear Regions lock
Change Pin

redilskcolC
redilsesahP

reyaL ht5reyaL ht4reyaL dr3reyaL dn2reyaL ts1

18 FUZ2.0U LA

6. CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts, and the Board in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

[18] Function Board

[19] Speaker
Holder (L,R)

[20] Speaker(s)

[16] Junction-A
Board

[17] IR Sensor
Board

[14] Stand Holder

[4] Rear Cabinet

[7] Shield (T)

[8] Shield Box

[9] Digital Main
Board Unit

[10] Power Supply
Board

[11] Inverter Board

[13] PCB Holder
(L,R)

[15] LCD Module
Assembly

[21] Front Cabinet

[6] Side Jack Board

[5] Jack Holder (A)

Stand Assembly

[1] Stand Base
Plate

[2] Stand Cover

[3] Stand Hinge

[12] Junction-B
Board

2. Disassembly Method

Removal

Step/

Loc.

Part

No.

Stand Base

[1]

Plate

Stand

[2]

Cover

Stand

[3]

Hinge

Rear

[4]

Cabinet

Jack Holder

[5]

(A)

Side Jack

[6]

Board

[7] Shield (T) D2 (S-9), (S-10), (N-1) ---

[8] Shield Box D2

Digital Main

[9]

Board UnitD2D5

Power

[10]

Supply
Board

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

D1 4(S-1), 3(S-2), 4(S-3) ---

D1 --------------- ---

D1 --------------- ---

D1 12(S-4), (S-5), 2(S-6) ---

D2 (S-7) ---

D2

2(S-8), *CN751 ---

D5

2(S-11), 2(S-12),
3(S-13), 4(S-14)

*CN3601, *CN3701,
*CN3704, *CN4501,
*CN4502

7(S-15), *CN102,

D2

*CN501, *CN801,

D5

*CN802, *CN1901

---

---

---

Removal

Step/

Loc.

No.

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

7(S-16), *CN1050,

D3

*CN1100, *CN1150,

D5

*CN1200, *CN1250

D3

Desolder ---

D5

---

D3 4(S-17) ---

D3 2(S-18), 2(S-19) ---

[11]

[12]

[13]

[14]

Inverter
Board

Junction-B
Board

PCB Holder
(L,R)

Stand
Holder

LCD

[15]

Module

D4 4(S-20) ---

Assembly

[16]

[17]

[18]

Junction-A
Board

IR Sensor
Board

Function
Board

D4

Desolder ---

D5

D4

2(S-21), *CL102A ---

D5

D4

2(S-22) ---

D5

Speaker

[19]

Holder

D4 4(S-23) ---

(L,R)

[20] Speaker(s) D4 --------------- ---

Front

[21]

↓

(1)

Cabinet

↓

(2)

D4 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.

(2) Parts to be removed or installed.

(3) Fig. No. showing procedure of part location

(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
N = Nut, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Ta b le . "

[4] Rear Cabinet

FUZ2.0U LA 19

Stand Assembly

[2] Stand Cover

(S-4)

(S-4)

[3] Stand Hinge

(S-4)

(S-6)

(S-4)

(S-5)

(S-6)

(S-1)

(S-4)

[1] Stand Base Plate

(S-3)

(S-3)

(S-2)

Fig. D1

20 FUZ2.0U LA

[9] Digital Main
Board Unit

[8] Shield Box

(S-13)

(S-11)

[10] Power Supply Board

(S-12)

(S-13)

(S-7)

(S-15)

(S-14)

(S-14)

[6] Side Jack
Board

(N-1)

(S-15)

(S-15)

[5] Jack Holder (A)

(S-7)

(S-8)

[7] Shield (T)

(S-10)

(S-9)

Fig. D2

(S-19)

[14] Stand Holder

(S-18)

(S-16)

FUZ2.0U LA 21

(S-17)

(S-17)

(S-17)

[13] PCB Holder (L,R)

[11] Inverter Board

(S-16)

Desolder

(S-17)

[12] Junction-B Board

(S-16)

Fig. D3

22 FUZ2.0U LA

[21] Front Cabinet

[20] Speaker

(S-22)

[18] Function
Board

[20] Speaker

(S-23)

(S-23)

Desolder

[16] Junction-A
Board

(S-21)

[17] IR Sensor
Board

(S-23)

[19] Speaker
Holder (L,R)

[15] LCD Module Assembly

(S-23)

[19] Speaker
Holder (L,R)

(S-20)

Fig. D4

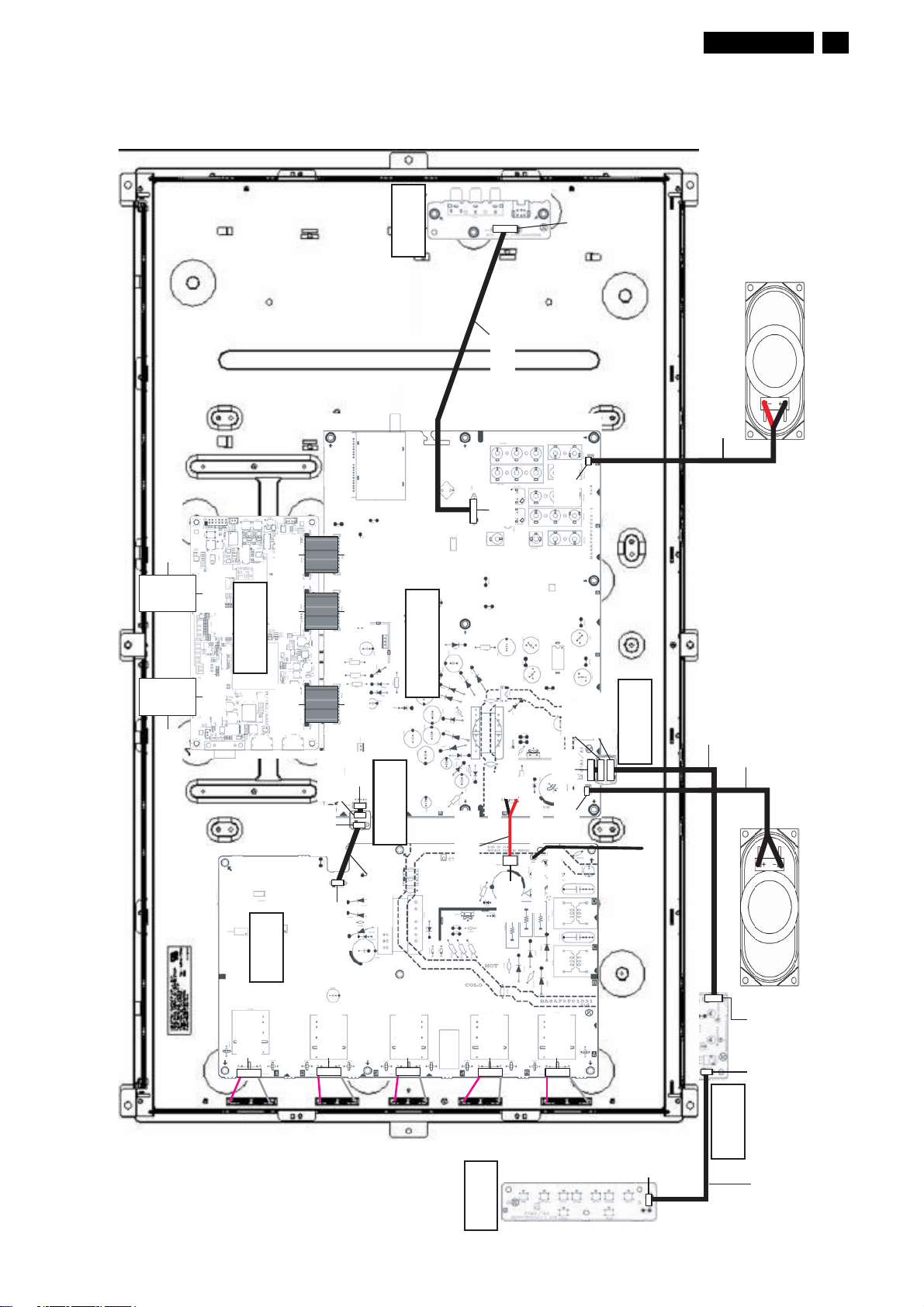

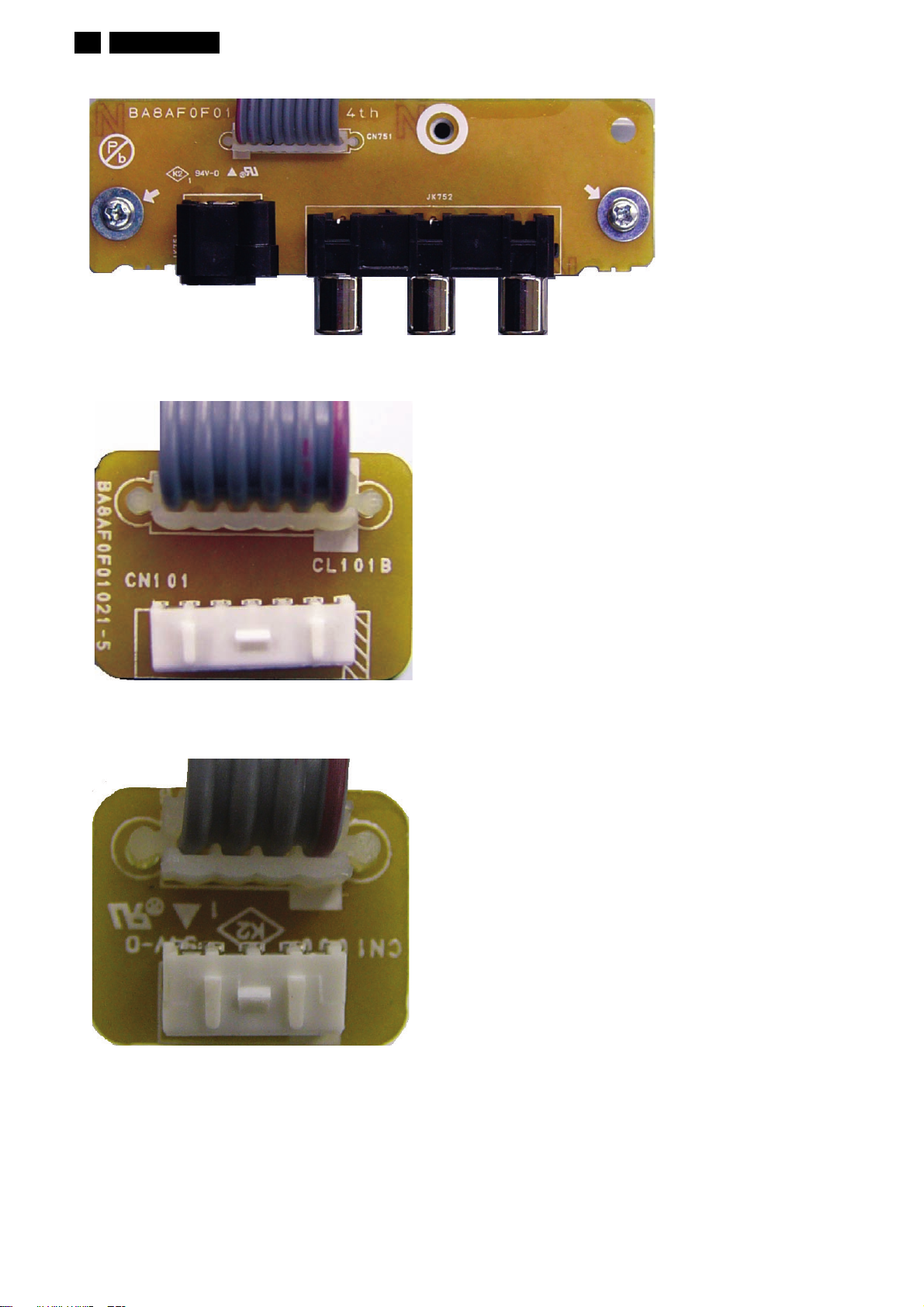

TV Cable Wiring Diagram

To LCD
Module
Assembly

Inverter Board

CN1050

CN1100

Junction-B
Board

CL1000A

FUZ2.0U LA 23

To LCD Module
Assembly

Digital Main
Board Unit

CN1000CL1000B

CN4501 CN4502

CN3601 CN3701

CN3704

Side Jack
Board

CN751

Power Supply
Board

CN301 CN302 CN303

CN501

CN1150

CN1200

CN1250

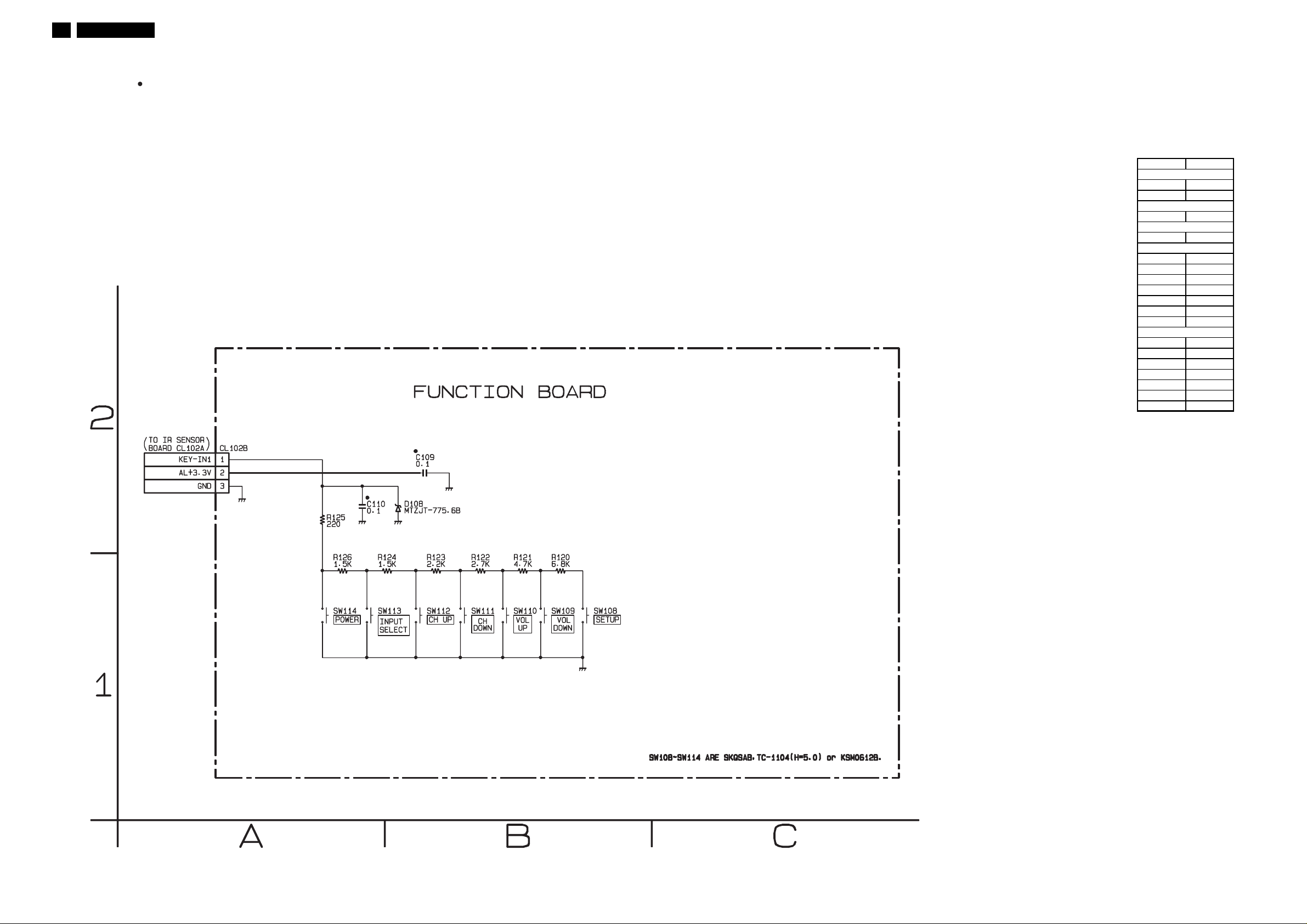

Function Board

CL102B

CN1901

AC CORD

Junction-A
Board

IR Sensor Board

CL101A

CL102A

CN601

CN802

CN102

CN101
CL101B

CN701

CN801

To Speaker

Fig. D5

24 FUZ2.0U LA

7. TROUBLESHOOTING

7.1 Power Supply Section

FLOW CHART NO.1

The power cannot be turned on.

Is the fuse (F1901) normal?

Ye s

Is normal state restored when once unplugged
power cord is plugged again several seconds?

Ye s

Is the AL +13V line voltage normal?

Ye s

Check each rectifying circuit of the secondary
circuit and service it if defective.

FLOW CHART NO.2

The fuse blows out.

Check the presence that the primary component
is leaking or shorted and service it if defective.

After servicing, replace the fuse.

FLOW CHART NO.3

When the output voltage fluctuates.

No

No

No

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuiting on the
primary circuit component, and service it if defective.
(C601, D1901, D1902, D1903, D1904, Q601, Q603,
T601)

Check the presence that the rectifying diode or circuit
is shorted in each rectifying circuit of secondary side,
and service it if defective.

Does the photocoupler circuit on the
secondary side operate normally?

Ye s

Check IC603, D603, D607 and their periphery,
and service it if defective.

FLOW CHART NO.4

When buzz sound can be heard in the vicinity of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit in each rectifying circuit of the secondary side,
and service it if defective. (IC637, D503, D632, D633, D636, D637, D638, D639, D640, D647, D669)

FLOW CHART NO.5

+40V is not output.

Is approximately 40V voltage supplied to the
cathode of D636?

Ye s

Check if there is any leak or short-circuit on
the loaded circuit, and service it if defective.

No

No

Check IC603, D631, Q631 and their periphery,
and service it if defective.

Check C639, D636 and their periphery circuit, and
service it defective.

FLOW CHART NO.6

AL+13V is not output.

FUZ2.0U LA 25

Is approximately 13V voltage supplied to the
cathode of D638?

Ye s

Check if there is any leak or short-circuit on
the loaded circuit, and service it if defective.

FLOW CHART NO.7

AL+3.3V is not output.

Is approximately 6.6V voltage supplied to the
cathode of D669?

Ye s

Check IC637, D654, D657 and their periphery circuit,
and service it if defective.

FLOW CHART NO.8

P-ON+5V is not output.

Is approximately 6.6V voltage supplied to the
collector of Q637?

Ye s

Is approximately 6V voltage supplied to the
base of Q637?

Ye s

Replace Q637.

No

No

No

No

Check C638, D638, D639 and their periphery circuit,
andservice it defective.

Check C654, D669 and their periphery circuit, and
service it if defective.

See FLOW CHART No.7

See FLOW CHART No.10

FLOW CHART NO.9

LCD+24.5V is not output.

Is approximately 36V voltage supplied to the
cathode of D636?

Ye s

Is approximately 36V voltage supplied to the
collector of Q632?

No

Is the voltage of base on Q632 lower than the
voltage of emitter on Q632 when turning the
power on?

Ye s

Replace Q632.

No

Ye s

No

Check C639, D636 and their periphery circuit, and
service it if defective.

Check D641, D652 and their periphery circuit, and
service it if defective.

Check Q634 and P-ON-H1 line, and
service it if defective.

26 FUZ2.0U LA

FLOW CHART NO.10

LCD+13V is not output.

Is approximately 15V voltage supplied to the
cathode of D633?

Ye s

Is approximately 14V voltage supplied to the
base of Q645?

Ye s

Replace Q645.

FLOW CHART NO.11

LCD-6.8V is not output.

Is approximately -9V voltage supplied to the
anode of D637?

Ye s

Is approximately -9V voltage supplied to the
base of Q646?

Ye s

Replace Q646.

No

No

No

No

Check C633, D633 and their periphery circuit, and
service it if defective.

See FLOW CHART No.9

Check C663, D637 and their periphery circuit, and
service it if defective.

See FLOW CHART No.9

FLOW CHART NO.12

P-ON+3.3V (LCD+3.3V) is not output.

Is approximately 5V voltage supplied to the
cathode of D632?

Ye s

Is approximately 4V voltage supplied to the
base of Q638?

Ye s

Replace Q638.

FLOW CHART NO.13

+3.0V is not output.

Is approximately 3V voltage supplied to the
cathode of D647?

Ye s

Check if there is any leak or short-circuit on
the loaded circuit, and service it if defective.

No

No

No

Check C634, D632 and their periphery circuit, and
service it if defective.

Check Q639, Q671 and their periphery circuit, and
service it if defective.

Check C664, D647 and their periphery circuit, and
service it if defective.

FLOW CHART NO.14

+3.0V(1) is not output.

FUZ2.0U LA 27

Is approximately 3V voltage supplied to the
cathode of D640?

Ye s

Check if there is any leak or short-circuit on
the loaded circuit, and service it if defective..

FLOW CHART NO.15

P-ON+9V is not output.

Is approximately 13V voltage supplied to the
collector of Q801?

Ye s

Is approximately 10V voltage supplied to the
base of Q801?

Ye s

Replace Q801.

FLOW CHART NO.16

The key operation is not functioning.

No

No

No

Check C642, D640 and their periphery circuit, and
service it if defective.

See FLOW CHART No.6

See FLOW CHART No.10

Are the contact point and installation state of the key
switches (SW108, SW109, SW110, SW111,
SW112, SW113, SW114) normal?

Ye s

When pressing each switches (SW108, SW109,
SW110, SW111, SW112, SW113, SW114) do the
voltage of Pin(1) on CN301 increase?

Ye s

Replace Digital Main Board Unit.

No

No

Re-install the switches (SW108, SW109, SW110,
SW111, SW112, SW113, SW114) correctly or
replace the poor switch.

Check the switches (SW108, SW109, SW110,
SW111, SW112, SW113, SW114) and their
periphery, and service it if defective.

28 FUZ2.0U LA

FLOW CHART NO.17

No operation is possible from the remote control unit.

Operation is possible from the remote control unit.

Is 3.3V voltage supplied to Pin(2) terminal of the
infrared remote control receiver (RCV101)?

Ye s

Is the "L" pulse sent out Pin(1) terminal of receiver
(RCV101) when the infrared remote control is
activated?

Ye s

Is the "L" pulse supplied to the Pin(4) of CN301?

Ye s

Replace Digital Main Board Unit.

No

No

No

7.2 Video Signal Section

FLOW CHART NO.18

Picture does not appear normally. (Video input/S-Video input/Y/Pb/Pr input)

Are the video signals outputted to the specific
terminal?

Are the video signals outputted to the
Pin(23) of CN302?

Are the luminance signals outputted to the
Pin(19) of CN302?

Are the chrominance signals outputted to the
Pin(21) of CN302?

Are the component video(Y/Pb/Pr) signals outputted
to the Pin(14, 16, 17) of CN302?

Ye s

No

No

No

No

Check AL+3.3V line and service it if defective.

Replace the infrared remote control receiver
(RCV101) or the remote control unit.

Check the line between Pin(1) terminal of receiver
(RCV101) and Pin(4) of CN301 , and service
it if defective.

Check the line between each pin of CN302 and input
terminal and service it if defective.

Check the video signal line and IC7001,
and service it if defective.

Check the luminance signal line and IC7001,
and service it if defective.

Check the chrominance signal line and IC7001,
and service it if defective.

Check the component video(Y/Pb/Pr) signal line
and IC7001, and service it if defective.

Replace Digital Main Board Unit or LCD Module
Assembly.

FLOW CHART NO.19

Picture does not appear normally. (Tuner input (Digital))

Are the DIF signals outputted to the Pin(20, 22) of CN303?

Ye s

Replace Digital Main Board Unit or LCD Module
Assembly.

FLOW CHART NO.20

Picture does not appear normally. (Tuner input(Analog))

Are the video signal outputted to Pin(11) of CN303?

Ye s

Replace Digital Main Board Unit or LCD Module
Assembly.

No

No

Check the line between Pin(20, 22) of CN303 and
Pin(20, 21) of TU1 and TU1(Tuner Unit),
and service it if defective.

Check the line between Pin(11) of CN303 and
Pin(4) of TU1 and TU1(Tuner Unit),
and service it if defective.

7.3 Audio Signal Section

FLOW CHART NO.21

Audio is not outputted normally. (Tuner input)

FUZ2.0U LA 29

Are the SIF signal inputted to the Pin(9) of CN303?

Ye s

Are the audio data signal outputted to the Pin(6) of
CN302?

Ye s

Are the audio(L/R) signals outputted to the Pin(14,15)
of IC701?

Ye s

Are the audio(L/R) signals outputted to the Pin(1,7)
of IC702?

Ye s

Are the audio(L/R) signals outputted to the Pin(1,2)
of CN801 and CN802?

Ye s

Check SP801,SP802, and their periphery circuit,
and service it if defective.

FLOW CHART NO.22

Audio is not outputted normally. (Tuner input (Digital))

No

No

No

No

No

Check TU1, Q4, Q5 and their periphery circuit,
and service it if defective.

Replace Digital Main Board Unit.

Check IC701 and the periphery circuit,
and service it if defective.

Check IC702 and the periphery circuit,
and service it if defective.

Check IC801 and the periphery circuit,
and service it if defective.

Are the DIF signals outputted to the Pin(20, 22)
of CN303?

Ye s

Are the audio data signal outputted to the Pin(6) of
CN302?

Ye s

Are the audio(L/R) signals outputted to the Pin(14,15)
of IC701?

Ye s

Are the audio(L/R) signals outputted to the Pin(1,7)
of IC702?

Ye s

Are the audio(L/R) signals outputted to the Pin(1,2)
of CN801 and CN802?

Ye s

Check SP801,SP802, and their periphery circuit,
and service it if defective.

No

No

No

No

No

Check the line between Pin(20, 22) of CN303 and
Pin(20, 21) of TU1 and TU1(Tuner Unit),
and service it if defective.

Replace Digital Main Board Unit.

Check IC701 and the periphery circuit,
and service it if defective.

Check IC702 and the periphery circuit,
and service it if defective.

Check IC801 and the periphery circuit,
and service it if defective.

30 FUZ2.0U LA

FLOW CHART NO.23

Audio is not outputted normally. (Audio input terminals)

Are the audio (L/R) signals outputted to the
Pin(3, 4) of CN303?

Ye s

Are the audio data signal outputted to the Pin(6) of
CN302?

Ye s

Are the audio(L/R) signals outputted to the Pin(14,15)
of IC701?

Ye s

Are the audio(L/R) signals outputted to the Pin(1,7)
of IC702?

Ye s

Are the audio(L/R) signals outputted to the Pin(1,2)
of CN801 and CN802?

Ye s

Check SP801,SP802, and their periphery circuit,
and service it if defective.

No

No

No

No

No

Check the line between Pin(3, 4) of CN303 and
each Audio input terminal(JK752, JK7501, JK7702,
JK7705, JK7712, JK7714), IC7001 and IC7301, and
service it if defective.

Replace Digital Main Board Unit.

Check IC701 and the periphery circuit,
and service it if defective.

Check IC702 and the periphery circuit,
and service it if defective.

Check IC801 and the periphery circuit,
and service it if defective.

8. BLOCK DIAGRAM

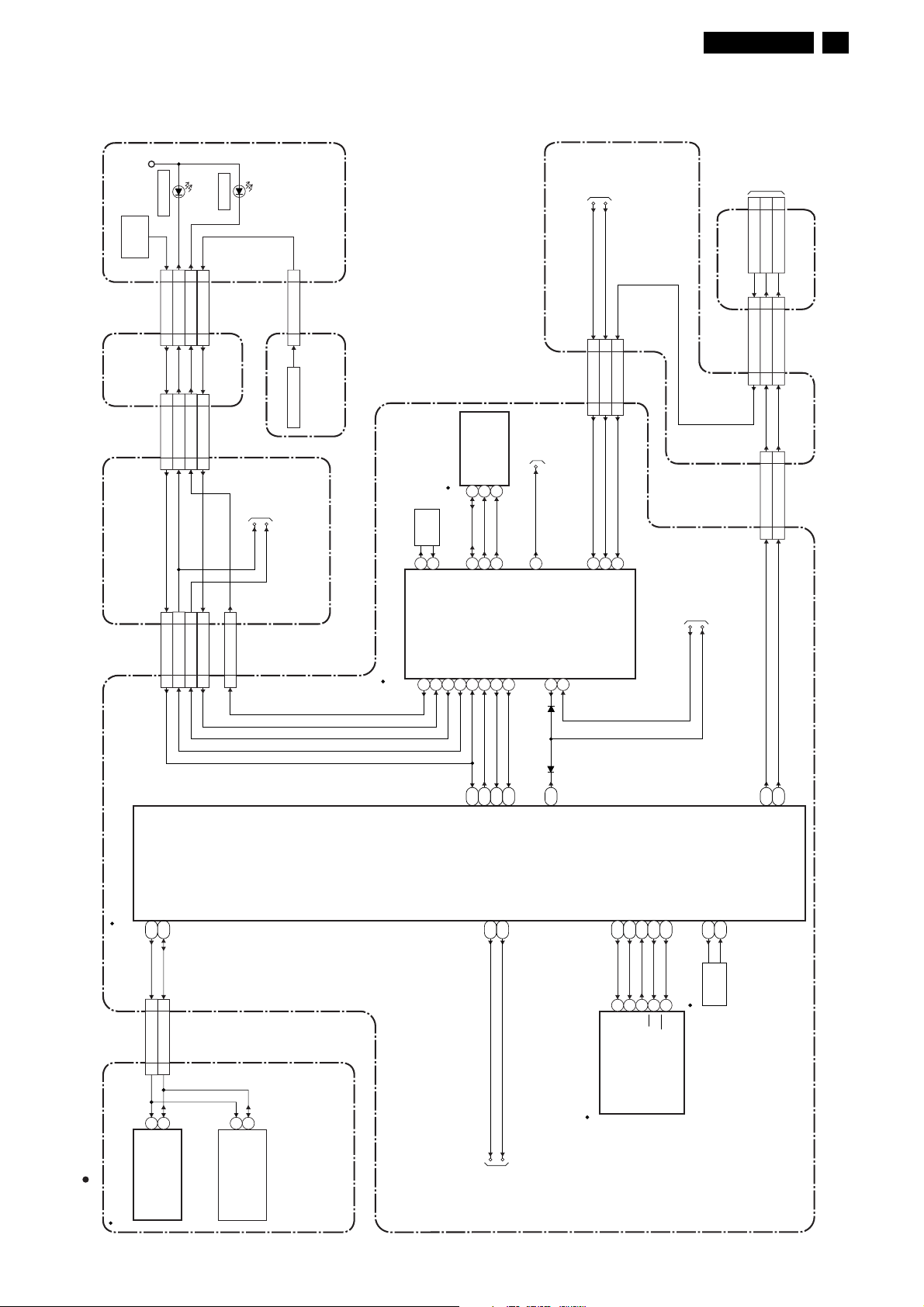

8.1 System Control Block Diagram

FUZ2.0U LA 31

REMOTE

RCV101

AL+3.3V

D102

STANDBY

D101

SENSOR

CL101A

REMOTE22

CL101B

CN101

REMOTE52

CN102

CN301CN3601

POWER

LED144

P-ON-H155

KEY-IN166KEY-IN116

JUNCTION-A

BOARD

LED134

P-ON-H125

CN302

CL102A

KEY-IN111

CL102B

KEY SWITCH

TO POWER

SUPPLY

BLOCK

DIAGRAM

P-ON-H1

P-ON-H2

POWER SUPPLY BOARD

IR SENSOR BOARDFUNCTION BOARD

X3101

6

XOUT

4MHz

OSC

8

XIN

TO

INVERTER

BLOCK

DIAGRAM

PROTECT3 1

CN1000 CL1000B

PROTECT3
41233

CN501

CN301CN3601

2

BACKLIGHT-SW

2

BACKLIGHT-SW

3

BACKLIGHT-SW

3

BACKLIGHT-ADJ

BACKLIGHT-ADJ

BACKLIGHT-ADJ

22221

(CL1000A)

JUNCTION-B

BOARD

TO POWER

SUPPLY

BLOCK

DIAGRAM

PROTECT1

PROTECT2

POWER SUPPLY BOARD

CN302CN3701

PROTECT222 2

PROTECT321 3

PROTECT123 1

TO DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

SDA

SCL

IC3102 (MEMORY)

5

6

7 WP

VCOM-PWM

2

WP

21

VCOM-PWM

PROTECT1 22

PROTECT2 23

PROTECT3 4

TO AUDIO-2

BLOCK

DIAGRAM

19

20

SCL

SDA

IC3301

(MAIN MICRO CONTROLLER)

SCL

AE13

CN3704CN303

SCL15 9

REMOTE20 4

P-ON-H1222

P-ON-H2123

SDA

AF13

SDA16 8

KEY-IN123 1

LED111 13

CN3701

IC3101

(SUB MICRO CONTROLLER)

LED1

12

RESET

KEY-IN124

REMOTE

RXD

P-ON-H114

P-ON-H213

11

R22

REMOTE

15

P22

TXD1

INPUT0

A11

TXD

16RXD1

N22

INPUT1

E12

RESET-MAIN

5RESET-MAIN

V24

AMP-MUTE-SUB

3 RESET

18

C12

AMP-MUTE-MAIN

SPI-CLK

SPI-DO

Y25

Y24

652

SI

SCL

SPI-DI

SPI-SEL0

W25

W24

1

CS

SO

SPI-SEL1

W26

3

WP

AMP-MUTE

CLKOUT

CLKIN

U25

U26

25MHz

OSC

X3301

B3

BACKLIGHT-SW

AC24

BACKLIGHT-ADJ

“ “ = SMD

IC7001

(VIDEO/AUDIO SELECTOR)

25

SCL

27

SDA

14

15

SCL

SDA

TU1 (TUNER UNIT)

POWER SUPPLY BOARD

INPUT0

INPUT1

TO AUDIO-1

BLOCK

DIAGRAM

IC3706 (MEMORY)

DIGITAL MAIN BOARD UNIT

32 FUZ2.0U LA

8.2 Video Block Diagram

TO DIGITAL

SIGNAL

PROCESS

BLOCK

AUDIO SIGNAL

DIAGRAM

TO DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

VIDEO SIGNAL

DIGITAL MAIN BOARD UNIT

WF1WF2WF3

VIDEO

S-VIDEO-Y

S-VIDEO-C

153108

S-VIDEO-Y19

S-VIDEO-C21

VIDEO23

CN302 CN3701

2824261820

VIDEO-Y

VIDEO-Pb

VIDEO-Pb16

VIDEO-Y14

VIDEO-Pr

7

VIDEO-Pr17

22

WF4WF5WF6

DIF-OUT1

DIF-OUT2

DIF-OUT122 2

CN303 CN3704

DIF-OUT220 4

IF-AGC

TU-CVBS

IF-AGC18 6

TU-CVBS11 13

“ “ = SMD

IC7001

(VIDEO SELECTOR)

POWER SUPPLY BOARD

JK752

56

CN701CN751

VIDEO-IN2

4

6

VIDEO-IN2 5

S-VIDEO-C-IN2 3

531

10

22

S-VIDEO-Y-IN2 1

S-VIDEO-SW-IN2

CY

JK751

S-VIDEO

-IN2

2

VIDEO

SELECTOR

8

4034383236

SIDE JACK BOARD

S-SW1

3

-IN1

9 S-SW2

JK7711

COMPONENT

-Y-IN1

COMPONENT

-Pb-IN1

COMPONENT

-Pr-IN1

JK7713

COMPONENT

-Y-IN2

COMPONENT

-Pb-IN2

COMPONENT

-Pr-IN2

20

DIF-OUT1

TU1

(TUNER UNIT)

BUFFER

Q3

4

21

18

IF-AGC

DIF-OUT2

VIDEO-OUT

30

JK7702

VIDEO-IN1

CY

JK7701

S-VIDEO

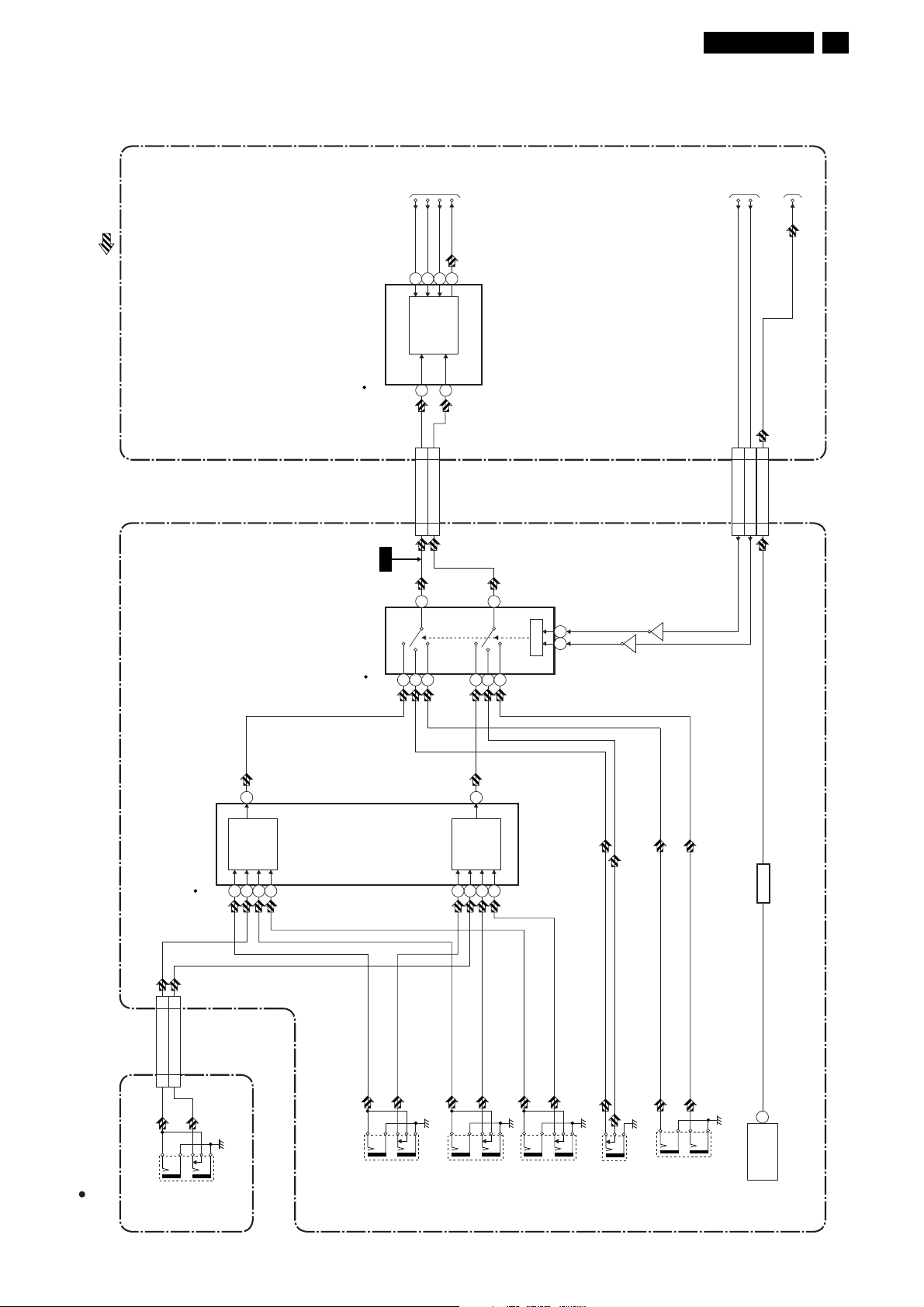

8.3 Audio-1 Block Diagram

TO

DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

FUZ2.0U LA 33

TO

SYSTEM

CONTROL

BLOCK

DIAGRAM

TO

DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

AUDIO SIGNAL

DIGITAL MAIN BOARD UNIT

BCLK

111015

(L-CH)

IC3702

(AUDIO A/D CONVERTER)

CN3704CN303

WF7

IC7301

(INPUT SELECT)

425

ACLK

LRCLK

AUX-ADATA

12

A/D

CONVERTER

(R-CH)

1

2

AUDIO(L)321

AUDIO(R)420

3

111514

INPUT1

CN3704CN303

INPUT1717

13

Q7302

109

SW CTL

Q7301

SIF

INPUT0

INPUT0816

SIF915

“ “ = SMD

POWER SUPPLY BOARD

CN701CN751

AUDIO(L)-IN2 7
7

JK752

AUDIO(R)-IN2 9
9

AUDIO(L)

-IN2

IC7001

(AUDIO SELECTOR)

AUDIO(R)

-IN2

53

SIDE JACK BOARD

45

AUDIO

51

SELECTOR

44

AUDIO

SELECTOR

49

47

JK7702

AUDIO(L)

-IN1

AUDIO(R)

-IN1

545250

JK7712

COMPONENT

AUDIO(L)

-IN1

48

JK7714

COMPONENT

AUDIO(R)

-IN1

COMPONENT

AUDIO(L)

-IN2

JK7501

COMPONENT

AUDIO(R)

-IN2

PC-AUDIO

BUFFER

Q4,Q5

3

JK7705

-IN

HDMI

AUDIO(L)-IN

HDMI

AUDIO(R)-IN

SIF-OUT

TU1

(TUNER UNIT)

34 FUZ2.0U LA

8.4 Audio-2 Block Diagram

SP801

SPEAKER

L-CH

SP802

SPEAKER

R-CH

AUDIO SIGNAL

IC801 (AUDIO POWER AMP)

IC702

(AMP)

CL801

SP(L)+2

CN801

8,9

PWM

3

SP(L)-1

18,19

GEN.

2

1

2

44,45

PWM

51

7

5

34,35

GEN.

-1

6

CL802

SP(R)-1

SP(R)+2

CN802

48 50

MUTE/STANDBY

CONTROL

P-ON+5V

DIGITAL

JK7715

BUFFER

Q7201

AUDIO-OUT

(COAXIAL)

TO POWER

SUPPLY

RESET

BLOCK

DIAGRAM

P-ON+9V

IC701

(AUDIO D/A CONVERTER)

15

(L-CH)

8

CN302CN3701

LRCLK14 10

BCLK

LRCLK

D/A

BCLK15 9

(R-CH)

CONVERTER

A DATA16 8

A DATA

14

ACLK

567

ACLK17 7

SPDIF

RESET20 4

AMP-MUTE12 12

SPDIF18 6

RESET

AMP-MUTE

“ “ = SMD

TO

DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

DIGITAL MAIN BOARD UNIT POWER SUPPLY BOARD

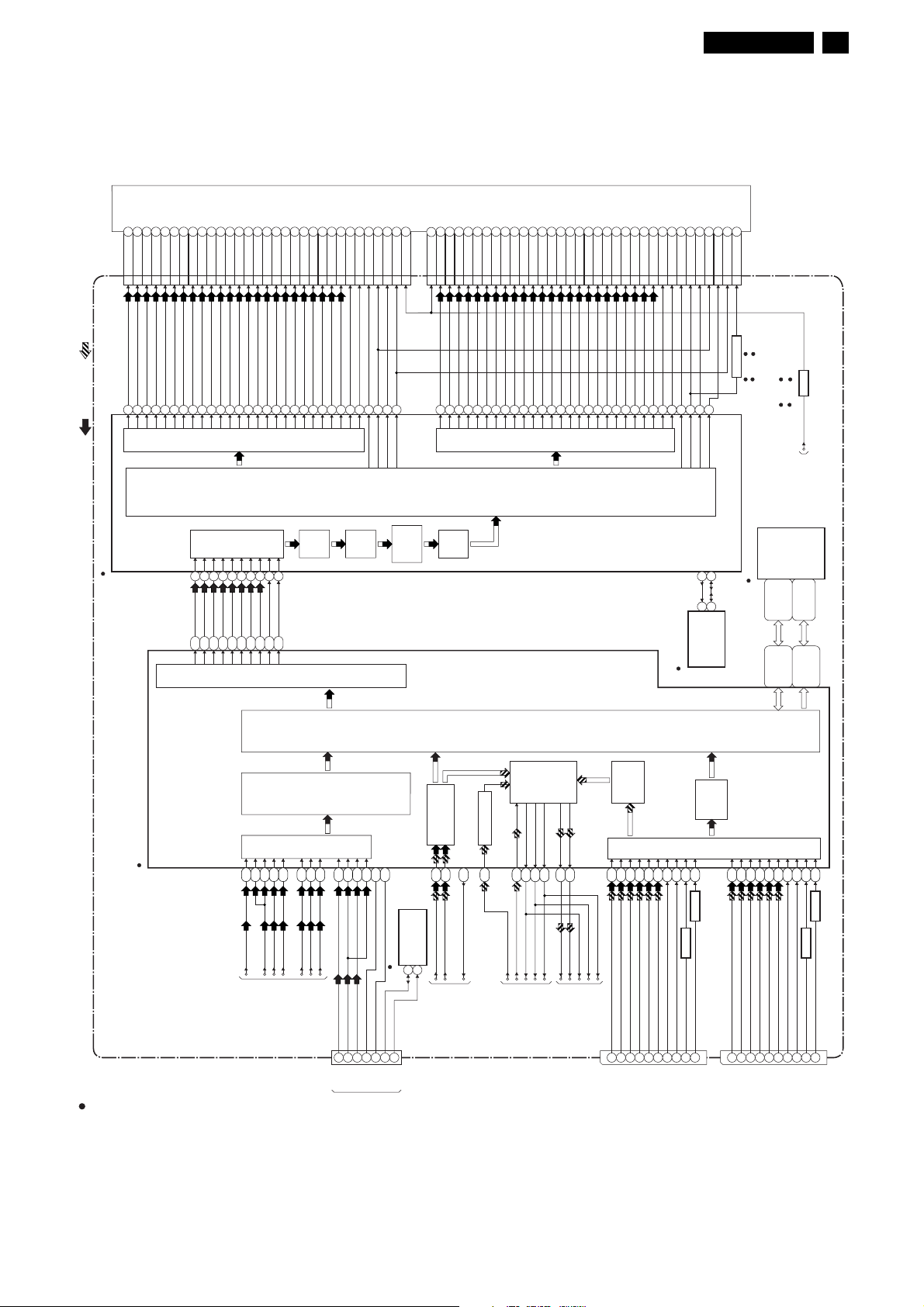

8.5 Digital Signal Process Block Diagram

LCD MODULE

ASSEMBLY

FUZ2.0U LA 35

CN4501

AUDIO SIGNAL

VIDEO SIGNAL

IC4201(LCD DRIVE)

B2(+)38

B2(-)37

B1(+)36

B1(-)35

B0(+)34

B3(+)40

B3(-)39

83

82

B0(-)33

818079787776717069

123

AD25

G3(+)32

74

122

AD26

G2(+)30

G2(-)29

G1(+)28

G1(-)27

G0(+)26

G0(-)25

R3(+)20

G3(-)31

73

125

AE25

124

AF25

RSDS

LVDS

127

AF24

R3(-)19

68

67666059585756556463878889

62

61

I/F

RX

126

131

130

129

128

AF26

AE24

AE26

AD24

AD23

LVD S

TX

R2(+)18

R2(-)17

R1(+)16

R1(-)15

R0(+)14

R0(-)13

SCLK(+)23

FAIL

SAFE

MODE

COLOR

V-COM1

SCLK(-)22

STH4

LP2

POL3

PROOF

STV53

94

LCD

ADVANCE

OVER

CN4502

TIMING

CONTROLLER

DRIVE

V-COM55

B3(+)43

B3(-)42

51

50

FRC

B2(+)41

B2(-)40

B1(+)39

B1(-)38

4948474645

B0(+)37

B0(-)36

G2(+)33

G2(-)32

G1(+)31

G1(-)30

G0(+)29

G3(+)35

G3(-)34

44

42

41

G0(-)28

40393837363529282726252433

RSDS

I/F

R2(+)21

R2(-)20

R1(+)19

R1(-)18

R0(+)17

R0(-)16

CLK(+)26

CLK(-)25

STH52

CPV5

GOE4

229293

IC4202 (MEMORY)

SCL

99

6

SCL

STV6

LP54

POL53

VGH1

SWITCHING

Q4501, Q4516,

Q4551, Q4552

DRIVE

IC4511, Q4511,

(SDRAM)

IC3201

Q4512, Q4513

TO SYSTEM

DATA(0-15)

H1,H3,H7,H9

B1,B9,C2,C8,

F1,F9,G2,G8,

D1,D3,D7,D9,

A13-15,A18,

A21-23,B13-15,

B17,B19-23

VCOM-PWM

CONTROL

BLOCK

DIAGRAM

ADDESS(0-12)

M2,M3,M7,M8,

N2,N3,N7,N8,

P2,P3,P7,P8,R2

C15,C17-19,

C23,C24,D14,

D15,D17-19,

D22,D23

19

SDA

100

5

SDA

R3(+)23

R3(-)22

31

30

132

“ “ = SMD

DIGITAL MAIN BOARD UNIT

IC3301 (DIGITAL SIGNAL PROCESS)

T4

Y3

TU-CVBS

T3

U4

VIDEO-Y

VIDEO-Pb

V4

VIDEO-Pr

TO VIDEO

BLOCK

DIAGRAM

W3

VIDEO

S-VIDEO-Y

A/D

V3

U3

S-VIDEO-C

CONVERTER

SW

JK3701

T5

1

RED

R4R3R5

3

2

BLUE

GREEN

VGA-HSYNC

K5

14

13

VSYNC

HSYNC

D-SUB

VGA-VSYNC

L5

IC3701 (MEMORY)

12

15

DATA

CLOCK

SDA

5

SCL

6

DIF-OUT1

DEMODULATOR

/MPEG DECODER

IF-AGC

AF2

AF7

AE2

DIF-OUT2

IF-AGC

TO VIDEO

BLOCK

DIAGRAM

DIGITAL

SIGNAL

PROCESS

AUDIO I/F

DEMODULATOR

AF5

AF15

AF16

AE15

AE16

AD15

SIF

AUX-ADATA

BCLK

TO AUDIO-1

LRCLK

BLOCK

DIAGRAM

ACLK

SPDIF

AD ATA

AD16

BCLK

TO AUDIO-2

LRCLK

BLOCK

DIAGRAM

ACLK

JK4001

AUDIO

DECODER

A9

B9

C8

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

B8

A8

C9

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

3

HDMI-IN1

E9

B10

A10

C10

BUFFER

Q4002

BUFFER

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

15

VIDEO

HDMI

Q4001

DECODER

I/F

A5

TMDS-D0(+)

JK4002

79461

B5

C4

C5

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

B4A4B6

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

3

101216

HDMI-IN2

A6D7B7

Q4003

BUFFER

Q4004

BUFFER

TMDS-CLOCK(-)

SDA

SCL

15

36 FUZ2.0U LA

8.6 Inverter Block Diagram

BACK

LIGHT

BACK

LIGHT

BACK

LIGHT

BACK

LIGHT

BACK

LIGHT

LCD MODULE

ASSEMBLY

CN1050

T1050

Q1100,

Q1101

1

2

786

3

2

DRIVE

1

2

CN1100

5

4

1

T1100

Q1102,

Q1103

786

3

2

DRIVE

4

1

5

23

1

2

CN1150

5

4

2

T1150

2

786

3

1

1

2

CN1200

5

4

T1200

2

13

786

3

12

16

1

1

2

CN1250

IS

VS

OVP

5

4

T1250

2

786

3

5

4

1

Q1020

T1951

ACL

“ “ = SMD

TO

POWER

HOT CIRCUIT. BE CAREFUL.

IC1001

10

11

23457

HOT-GND

SUPPLY

BLOCK

DIAGRAM

DRIVE

DRIVE

DRIVE

(INVERTER CONTROL)

15

8

Q1930

14

IC1930

SWITCHING

14

DRIVE

3 2

Q1932

Q1970

14

IC1931

LOGICLOGIC

Q1931

213

CONTROL

INVERTER

19

3 2

HOT

COLD

4

VCC

11

IC1500 (COMPARATOR)

Q1971

6

5

13

12

7

14

Q1972

4

VCC

IC1550 (COMPARATOR)

Q1002

9

10

8

CL1000A

PROTECT31

2

TO SYSTEM

CONTROL

BLOCK

5

7

BACKLIGHT-ADJ3BACKLIGHT-SW

DIAGRAM

(CL1000B)

13

12

INVERTER BOARD

14

213

6

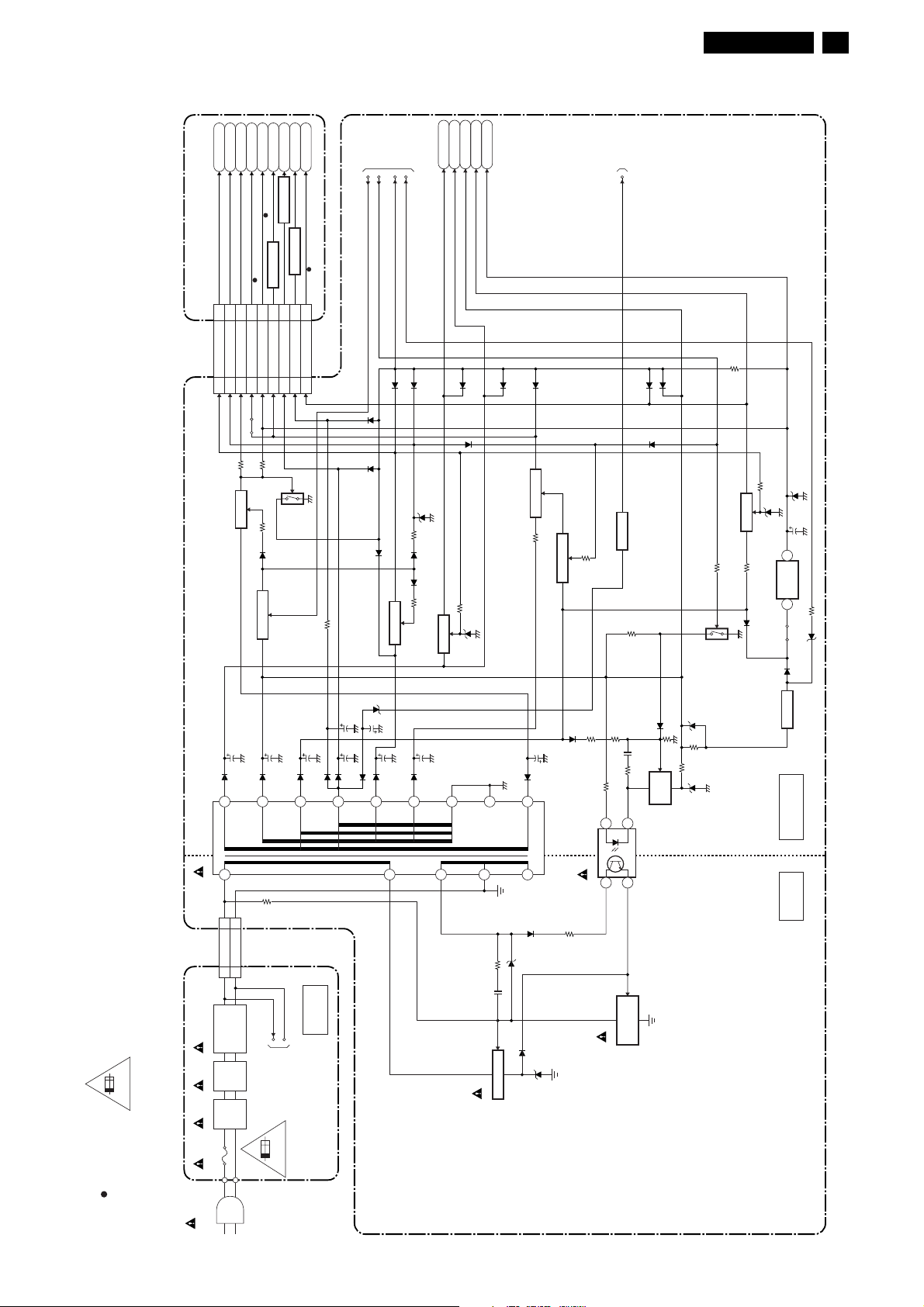

8.7 Power Supply Block Diagram

TO SYSTEM

CONTROL

LCD+13V

LCD+24.5V

LCD-6.8V

LCD+3.3V

AL+3.3V

P-ON+2.0V

+1.8V

+1.1V

P-ON+5V

BLOCK

DIAGRAM

AL+13V

P-ON+9V

+40V

P-ON+5V

AL+3.3V

TO AUDIO-2

BLOCK

FUZ2.0U LA 37

DIAGRAM

IC3601

DIGITAL MAIN BOARD UNIT

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CN301 CN3601

IC3302

+2.0V REG.

16

14

18

17

12

9,10

LCD-6.8V8

P-ON+3.3V

LCD+3.3V10

LCD+24.5V6

LCD+13V7

AL+3.3V12

14,15

JS652

SW-6.8V

Q646

SWITCHING

Q632,Q634

+1.8V REG.

IC3603

+1.1V REG.

8

4

5,6

+3.0V(1)

+3.0V16

P-ON+5V20

18,19

Q502

P-ON-H1

P-ON-H2

PROTECT2

PROTECT1

SW+13V

Q645,D648

Q801

SW+9V

SW+3.3V

Q638,D634

SWITCHING

Q639,Q671

RESET

Q501

RESET

Q633

Q637

SW+5V

IC637

23

+3.3V

JS651

REG.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1901) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

11

14

12

17

18

3

T601

CN601

HOT-GND 3

ACL 1

2

1

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

CN1901

BRIDGE

RECTIFIER

D1901 - D1904

LINE

FILTER

L1902

LINE

FILTER

L1901

F1901

4A/125V

HOT CIRCUIT. BE CAREFUL.

ACL

HOT-GND

TO INVERTER

BLOCK DIAGRAM

4A/125V

HOT

INVERTER BOARD

5

“ “ = SMD

Q650

+5V REG.

FEED

13

16

7

19

15

14

9

8

IC603

BACK

Q631

COLD

3 2

HOT

CONTROL

Q602

SWITCHING

SWITCHING

Q601

POWER SUPPLY BOARD

AC1901

AC CORD

38 FUZ2.0U LA

9. CIRCUIT DIAGRAMS & PWB LAYOUTS

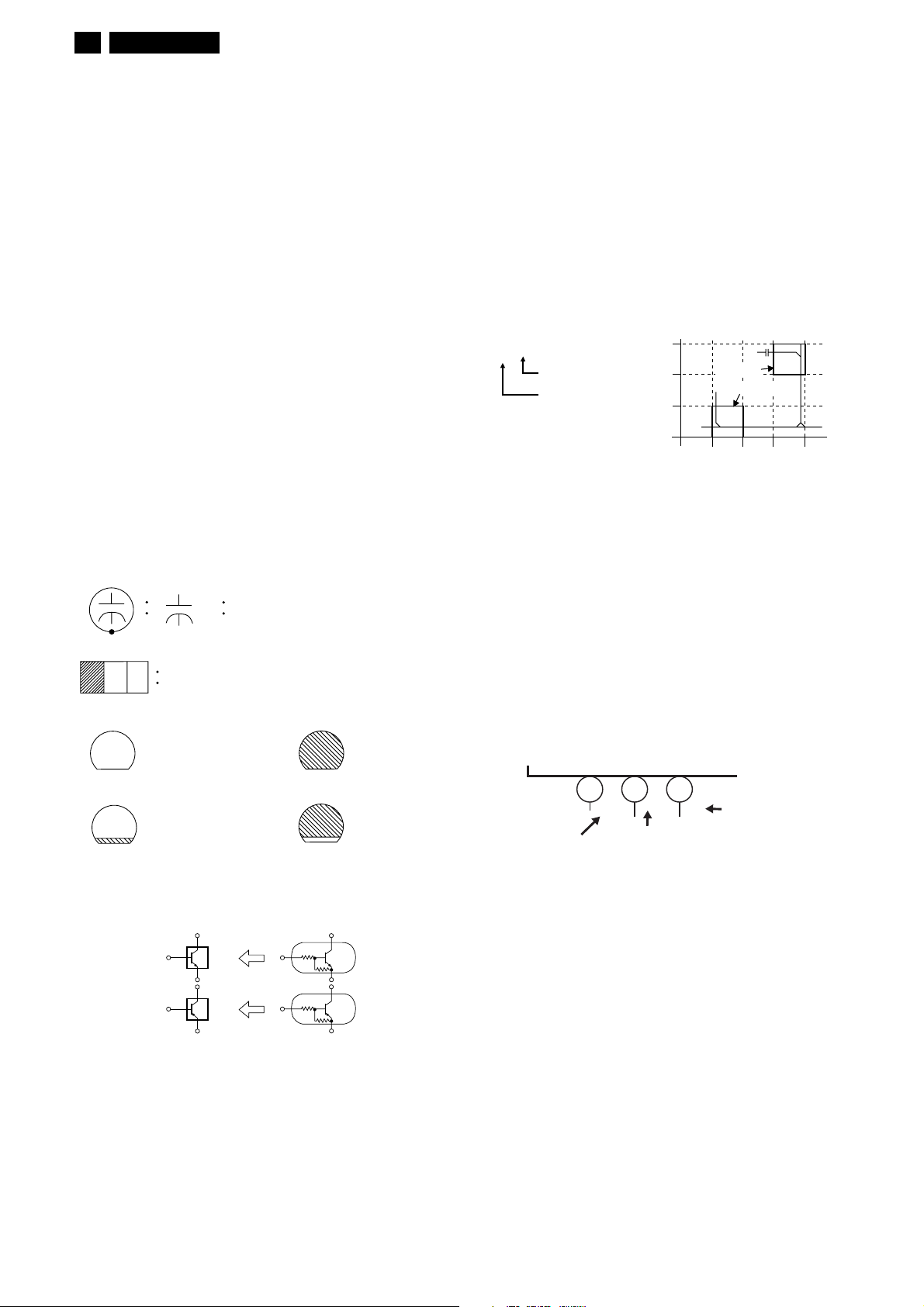

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.

Capacitors and transistors are represented by the
following symbols.

< PWB Symbols >

(Top Side) (Bottom Side)

+

Electrolytic Capacitor

(Bottom Side)

Transistor or Digital Transistor

E C B

(Top

Side

)

NPN Transistor

(Top

Side

)

PNP Transistor

Notes:

1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.

2. To maintain original function and reliability of
repaired units, use only original replacement parts
which are listed with their part numbers in the
parts list section of the service manual.

3. How to read converged lines.

1-D3

Distinction Area
Line Number
(1 to 3 digits)

Examples:

(1). "1-D3" means that line number "1" goes to the

line number "1" of the area "D3".

(2). "1-B1" means that line number "1" goes to the

line number"1" of the area "B1".

4. All resistance values are indicated in ohms

3

(K = 10

, M = 106).

5. Resistor wattages are 1/6W unless otherwise
specified.

6. All capacitance values are indicated in µF

-6

(P = 10

µF).

7. All voltages are DC voltages unless otherwise
specified.

8. Voltage indications on the schematics are as
shown below.

3

AREA D3

2

1

AREA B1

1-D3

ABCD

1-B1

E C B

(Top

E C B

Side

)

NPN Digital Transistor

< Circuit Diagram Symbols >

Digital Transistor

E C B

(Top

E C B

Side

)

PNP Digital
Transistor

(Unit: Volt)

1 2 3

5.0 2.5

Voltage

~

Indicates that the voltage
is not consistent here.

Power on mode

FUZ2.0U LA 39

9.1 Power Supply 1/3 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position Ref No. Position

CAPACITORS TRANSISTORSDIODES
C501 B-3 D507 E-4 Q602 A-2 R639 C-4
C601 A-3 D508 E-3 Q631 B-2 R640 D-4
C602 A-2 D509 E-3 Q632 C-3 R641 C-2
C603 A-2 D510 E-4 Q633 C-2 R642 C-2
C604 A-3 D511 E-2 Q634 C-3 R643 E-2
C605 B-2 D513 E-4 Q637 E-1 R644 C-2
C606 B-2 D514 E-3 Q638 D-3 R645 C-2
C607 B-4 D602 A-2 Q639 D-2 R646 C-2
C608 B-4 D603 A-2 Q645 C-4 R647 D-3
C633 B-4 D604 A-2 Q646 D-3 R648 D-3
C634 B-3 D606 A-2 Q650 C-2 R651 C-3
C635 B-2 D607 B-3 Q671 D-3 R652 C-3
C636 B-3 D631 B-2 Q801 D-2 R653 C-4
C638 B-2 D632 B-3 R654 C-4
C639 B-3 D633 B-4 R501 B-3 R655 B-1
C640 C-2 D634 D-2 R502 C-3 R656 C-2
C642 B-4 D635 C-4 R504 D-4 R658 B-1
C643 E-4 D636 B-3 R505 D-4 R660 D-2
C644 D-2 D637 B-3 R506 D-4 R662 D-2
C650 D-4 D638 B-2 R507 C-1 R663 D-3
C651 D-4 D639 B-3 R509 E-4 R664 D-2
C652 E-1 D640 B-4 R510 D-4 R666 D-2
C653 B-1 D641 C-4 R512 E-4 R667 D-2
C654 B-3 D642 C-2 R514 E-3 R668 D-3
C655 E-1 D644 C-3 R516 E-3 R670 D-3
C656 C-4 D645 C-4 R521 E-2 R671 D-3
C657 E-4 D646 C-3 R523 D-4 R672 C-2
C658 E-3 D647 B-4 R524 E-3 R673 C-2
C659 E-4 D648 C-4 R526 E-4 R674 D-3
C660 D-4 D650 C-2 R527 E-4 R675 D-3
C661 E-3 D651 B-1 R601 A-2 R676 D-3
C662 E-3 D652 D-4 R603 A-3 R677 D-2
C663 C-3 D654 C-1 R604 A-3 R684 C-2
C664 B-4 D655 D-3 R605 A-3 R685 C-1
C666 D-3 D656 C-2 R606 A-3 R687 D-3
C668 E-4 D657 C-1 R607 A-3 R688 D-3
C669 E-4 D658 E-1 R609 A-2 R689 C-4
C670 E-4 D660 B-1 R610 A-3 R692 D-4
C671 E-3 D667 C-2 R611 A-2 R694 D-4
C801 D-1 D668 E-1 R612 A-3 R695 D-4
C802 D-2 D669 B-3 R613 B-2 R803 D-2

CONNECTORS
CN102 F-1 D671 D-3 R622 E-1
CN301 F-4 D801 D-1 R631 C-4 BC601 A-3
CN501 F-3 R632 D-4 JS641 E-2
CN601 A-4 IC603 B-2 R633 B-2 JS651 B-1

DIODES
D502 C-3 R635 B-2 T601 B-3
D503 B-3 Q501 C-3 R636 D-4
D504 C-1 Q502 D-4 R637 C-4
D506 D-4 Q601 A-3 R638 D-4

D670 D-4 R620 E-1 R804 D-2

ICS

IC637 B-2 R634 C-2 JS652 E-4

TRANSISTORS

RESISTORS

RESISTORS

MISCELLANEOUS

40 FUZ2.0U LA

9.2 Power Supply 1/3 Schematic Diagram

“ “ = SMD

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

VOLTAGE CHART

CN301

Pin No. Voltage

13.3

23.2

33.2

43.3
50
6 23.5
7 13.1
8-6.9

90
10 3.4
11 0
12 3.4
13 0
14 3.4
15 3.4
16 3.3
17 0
18 3.4
19 3.4
20 5.2
21 0
22 3.3
23 3.2

9.3 Power Supply 2/3 Schematic Diagram

“ “ = SMD

FUZ2.0U LA 41

VOLTAGE CHART

CN303

Pin No. Voltage

10
20

32.6

42.6
50
60
70
80

92.0
10 0
11 1.7
12 0.8
13 0
14 0
15 4.9
16 4.9
17 0
18 3.3
19 0
20 1.6
21 0
22 1.6
23 0

42 FUZ2.0U LA

9.4 Power Supply 2/3 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position

CAPACITORS RESISTORS
C1 K-3 C819 G-3 R17 J-4
C2 K-4 C820 I-3 R18 J-4
C3 K-4 C821 G-1 R19 J-4
C4 J-3 C824 H-4 R20 J-4
C5 K-3 C825 H-4 R21 I-4
C6 J-3 C826 G-1 R22 I-4
C8 J-3 C827 H-3 R24 I-4
C9 J-3 R25 I-4

C10 J-3 CN303 L-4 R26 I-4
C11 J-4 CN801 G-4 R301 K-4
C12 J-3 CN802 G-4 R302 K-4
C13 I-4 R303 K-4
C14 J-4 D2 K-4 R517 I-3
C15 J-3 D3 K-4 R519 J-3
C17 J-4 D505 J-3 R649 H-3
C18 I-4 D649 I-3 R701 J-2
C19 I-4 D676 I-3 R702 J-2
C21 J-4 D802 G-1 R703 K-2
C22 I-4 D804 H-1 R704 K-2
C23 I-4 D811 H-4 R705 J-2

C24 J-4 D812 H-4 R706 J-2
C647 I-3 D813 H-4 R710 J-2
C701 J-2 D814 H-4 R713 K-2
C702 K-2 R714 K-2
C703 J-2 IC701 J-1 R717 K-2
C704 J-2 IC702 J-2 R718 J-2
C705 J-2 IC801 G-2 R720 K-2
C706 K-2 R802 H-3
C707 K-2 L1 J-3 R805 H-1
C708 J-2 L801 H-4 R806 H-3
C709 K-2 L802 H-4 R807 H-1
C712 K-2 L803 H-4 R808 H-1
C713 K-2 L804 H-4 R809 I-1
C714 K-2 R811 H-3
C803 G-3 Q2 J-3 R813 I-3
C804 G-1 Q3 J-3 R814 I-3
C805 H-1 Q4 K-4 R819 H-3
C806 H-1 Q5 J-4 R821 I-1
C807 H-1
C808 G-1 R1 K-4 BC1 J-3
C809 I-1 R2 K-4 BC2 K-3
C810 G-1 R5 K-3 BC3 I-4
C811 I-1 R6 J-3 BC4 I-4
C812 H-4 R7 J-3 BC701 J-2
C813 H-4 R8 J-3 BC702 L-4
C814 G-3 R11 K-3 BC801 H-4
C815 H-3 R12 J-3 BC802 H-4
C816 H-3 R13 J-3 BC803 H-4
C817 G-3 R14 J-4 BC804 H-4
C818 H-3 R16 K-4 TU1 J-4

CAPACITORS

CONNECTORS

DIODES

ICS

COILS

TRANSISTORS

RESISTORS

MISCELLANEOUS

FUZ2.0U LA 43

9.5 Power Supply 3/3 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position

CAPACITORS
C7001 O-2 C7739 N-3 R7403 M-4
C7002 O-2 C7743 M-4 R7405 M-4
C7003 O-3 C7744 N-4 R7406 M-4
C7004 P-2 C7747 M-4 R7515 M-4
C7005 P-2 C7748 N-4 R7516 M-4
C7006 P-3 C7751 M-3 R7517 M-4
C7007 P-2 C7752 N-3 R7518 M-4
C7008 Q-3 C7801 P-3 R7601 M-2
C7009 P-3 C7802 Q-3 R7602 M-2
C7010 P-3 R7604 M-1
C7012 P-2 CN302 R-3 R7605 M-1
C7013 P-2 CN701 N-1 R7613 M-2
C7101 P-2 R7614 M-2
C7102 P-3 D805 Q-2 R7616 M-3
C7109 N-3 R7617 M-3
C7110 N-3 IC7001 O-2 R7619 M-3
C7111 P-3 IC7301 P-4 R7620 M-3
C7201 M-4 R7622 M-3
C7202 N-4 L7802 Q-3 R7623 M-3
C7203 N-4 L7803 Q-3 R7701 M-2
C7204 N-4 R7702 M-2
C7301 Q-4 Q7201 N-4 R7715 O-1
C7302 O-4 Q7301 P-3 R7716 O-1
C7303 P-4 Q7302 Q-4 R7723 O-1
C7304 Q-4 R7724 O-1
C7305 Q-4 R719 Q-3 R7747 M-3
C7306 Q-4 R7101 P-3 R7748 M-3
C7307 Q-4 R7102 P-3 R7755 M-3
C7308 O-4 R7103 P-2 R7756 M-3
C7401 N-4 R7104 Q-2 R7763 M-3
C7402 N-4 R7105 N-3 R7764 M-3
C7515 N-4 R7106 N-3 R7771 M-4
C7516 N-4 R7111 P-3 R7772 M-4
C7602 N-2 R7112 Q-2 R7779 M-4
C7605 N-1 R7201 N-4 R7780 M-4
C7615 N-2 R7202 M-4 R7787 M-3
C7618 N-3 R7204 N-4 R7788 M-3
C7621 N-3 R7207 M-4
C7624 N-3 R7301 Q-4 BC7206 N-4
C7701 M-2 R7302 P-4 JK7501 M-4
C7702 N-2 R7303 P-4 JK7701 N-1
C7709 N-1 R7304 Q-4 JK7702 M-2
C7710 O-1 R7305 O-4 JK7705 M-4
C7714 N-1 R7306 Q-3 JK7711 M-3
C7715 O-1 R7307 Q-4 JK7712 M-3
C7729 M-3 R7316 Q-4 JK7713 M-4
C7730 N-3 R7317 Q-4 JK7714 M-3
C7733 M-3 R7318 O-4 JK7715 M-4
C7734 N-3 R7319 O-4
C7738 M-3 R7402 M-4

CAPACITORS

CONNECTORS

DIODE

ICS

COILS

TRANSISTORS

RESISTORS

RESISTORS

MISCELLANEOUS

44 FUZ2.0U LA

9.6 Power Supply 3/3 & Side Jack Schematic Diagram

“ “ = SMD

VOLTAGE CHART

CN302

Pin No. Voltage

13.4
20

33.4

43.3
50

61.7

71.6

81.3

91.7
10 1.7
11 0
12 3.4
13 0.6
14 2.5
15 0
16 2.6
17 2.5
18 0
19 0
20 0
21 0
22 0
23 0

Side Jack Schematic Diagram
Parts Location Guide

Ref No. Position

CAPACITORS

C751 M-1
C752 M-1
C753 M-1
C754 M-1
C755 M-1
C756 M-1
C757 M-1
C758 M-1

CONNECTOR

CN751 N-1

RESISTORS
R751 M-1
R752 M-1
R753 M-1
R756 M-1
R757 M-1
R758 M-1
R759 M-1
R760 M-1
R761 M-1
R762 M-1

MISCELLANEOUS

JK751 M-1
JK752 M-1

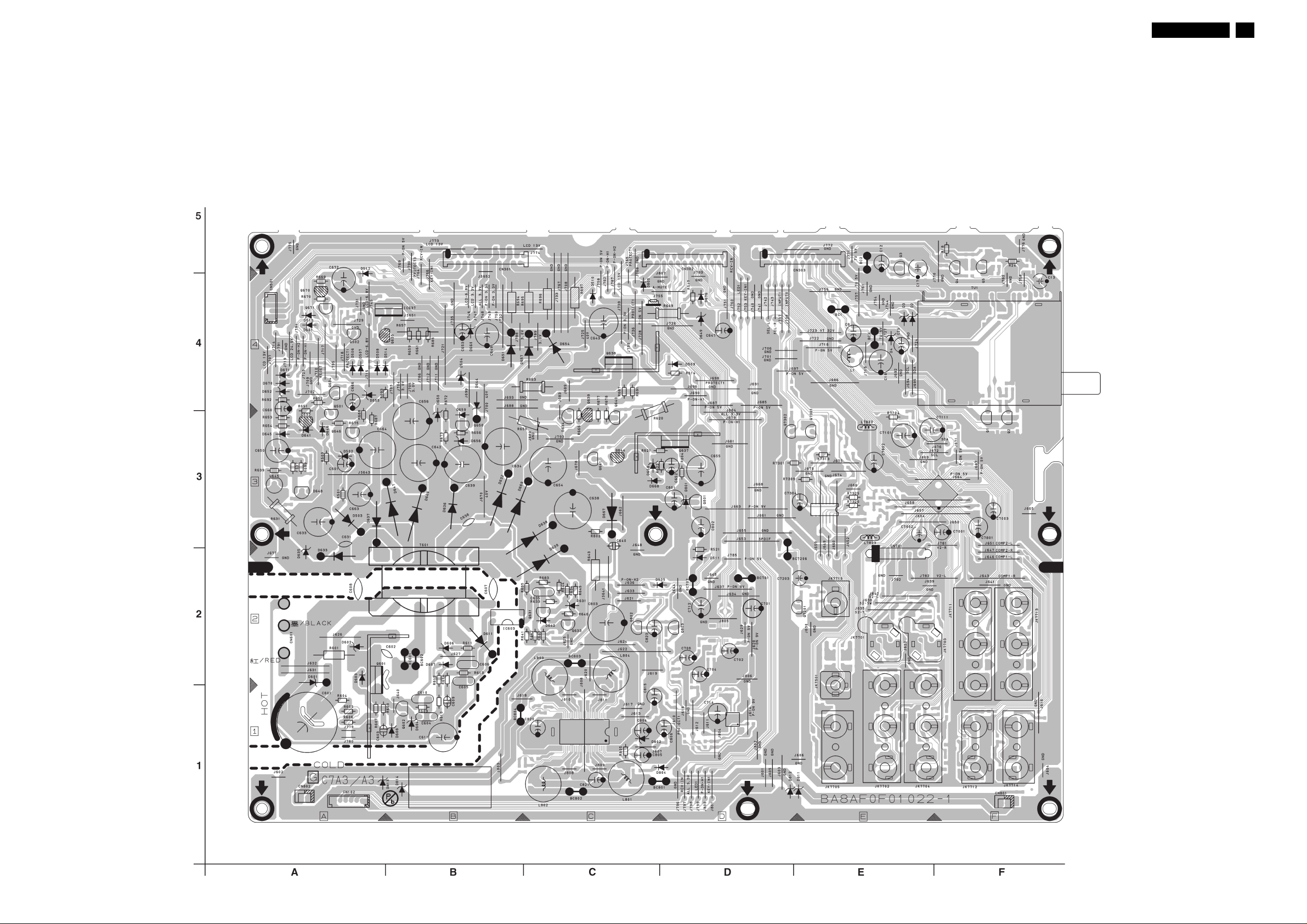

9.7 Power Supply Board Layout ( Top Side )

FUZ2.0U LA 45

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power
supply circut, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly, when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

BA8AF0F01022-1

46 FUZ2.0U LA

9.8 Power Supply Board Layout ( Bottom Side )

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

WF7

PIN 3 OF
CN303

Because a hot chassis ground is present in the power
supply circut, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly, when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

WF1

PIN 23 OF
CN302

WF3

PIN 21 OF
CN302

WF2

PIN 19 OF
CN302

WF6

PIN 17 OF
CN302

WF5

PIN 16 OF
CN302

WF4

PIN 14 OF
CN302

BA8AF0F01022-1

9.9 Power Supply Board Parts Location Guide

FUZ2.0U LA 47

Ref No. Position Ref No. Position Ref No. Position Ref No. Position Ref No. Position

CAPACITORS CAPACITORS CAPACITORS CONNECTORS DIODES
C1 E-4 C664 A-3 C7101 E-3 CN801 F-1 D801 D-3
C2 F-4 C666 A-4 C7102 E-3 CN802 A-1 D802 C-1
C3 F-4 C668 B-4 C7109 E-3 D804 D-1
C4 E-4 C669 B-4 C7110 E-3 D2 E-4 D805 C-4
C5 F-3 C670 A-4 C7111 F-3 D3 E-4 D811 E-1
C6 F-4 C671 A-4 C7201 D-2 D502 A-3 D812 D-1
C8 E-4 C701 D-2 C7202 D-2 D503 A-3 D813 B-1
C9 F-4 C702 C-2 C7203 D-2 D504 B-4 D814 B-1

C10 F-4 C703 C-2 C7204 E-2 D505 D-2
C11 F-5 C704 D-2 C7301 E-3 D506 A-4 IC603 B-2
C12 E-5 C705 C-2 C7302 E-3 D507 A-4 IC637 B-4
C13 F-4 C706 C-2 C7303 E-3 D508 A-4 IC701 D-2
C14 F-5 C707 C-2 C7304 D-3 D509 D-4 IC702 D-1
C15 E-5 C708 D-1 C7305 E-3 D510 C-4 IC801 C-1
C17 E-4 C709 D-2 C7306 D-3 D511 D-2 IC7001 E-3
C18 E-4 C712 A-3 C7307 D-4 D513 A-4 IC7301 E-3
C19 E-4 C713 C-1 C7308 D-4 D514 B-4
C21 F-5 C714 D-1 C7401 E-1 D602 A-2 L1 E-4
C22 F-5 C801 D-3 C7402 E-1 D603 A-2 L801 C-1
C23 F-5 C802 D-3 C7515 D-2 D604 B-2 L802 C-1

C24 F-4 C803 C-2 C7516 D-2 D606 B-2 L803 C-2
C501 A-3 C804 C-1 C7602 E-1 D607 B-2 L804 C-2
C601 A-1 C805 C-1 C7605 E-1 D631 C-2 L7802 E-3
C602 B-2 C806 D-1 C7615 F-1 D632 B-3 L7803 E-3
C603 A-1 C807 C-1 C7618 F-1 D633 A-2
C604 B-1 C808 C-1 C7621 F-1 D634 C-3 Q2 F-3
C605 B-1 C809 C-1 C7624 F-1 D635 A-2 Q3 E-5
C606 B-2 C810 C-1 C7701 E-1 D636 B-3 Q4 F-4
C607 B-2 C811 C-1 C7702 E-2 D637 A-3 Q5 F-4
C608 A-2 C812 C-1 C7709 E-2 D638 C-3 Q501 A-4
C633 A-3 C813 C-1 C7710 E-2 D639 C-3 Q502 A-4
C634 B-3 C814 C-1 C7714 E-2 D640 B-3 Q601 A-2
C635 C-2 C815 C-1 C7715 E-2 D641 A-3 Q602 B-1
C636 B-3 C816 C-1 C7729 F-2 D642 C-2 Q631 C-2
C638 C-3 C817 C-1 C7730 F-2 D644 B-4 Q632 A-3
C639 B-3 C818 C-1 C7733 F-2 D645 A-3 Q633 C-2
C640 C-3 C819 C-1 C7734 F-2 D646 A-3 Q634 A-4
C642 B-3 C820 C-1 C7738 F-2 D647 B-3 Q637 D-3
C643 C-4 C821 C-1 C7739 F-2 D648 A-3 Q638 C-4
C644 C-4 C824 C-2 C7743 F-2 D649 D-4 Q639 C-4
C647 D-4 C825 C-1 C7744 F-2 D650 B-4 Q645 A-3
C650 A-3 C826 D-1 C7747 F-2 D651 B-4 Q646 A-3
C651 A-3 C827 D-1 C7748 F-2 D652 A-4 Q650 B-3
C652 D-3 C7001 F-3 C7751 F-2 D654 D-4 Q671 A-4
C653 B-4 C7002 E-3 C7752 F-2 D655 A-4 Q801 D-3
C654 C-3 C7003 F-3 C7801 F-3 D656 B-3 Q7201 E-2
C655 D-3 C7004 E-3 C7802 E-3 D657 B-4 Q7301 E-3
C656 B-4 C7005 E-3 D658 C-4 Q7302 D-3
C657 B-5 C7006 F-3 CN102 A-1 D660 B-4
C658 B-4 C7007 E-3 CN301 B-5 D667 C-3 R1 E-4
C659 B-5 C7008 E-3 CN302 D-5 D668 C-3 R2 E-4
C660 A-4 C7009 E-3 CN303 E-5 D669 B-3 R5 F-3
C661 B-4 C7010 F-3 CN501 A-4 D670 A-4 R6 F-4
C662 B-5 C7012 E-3 CN601 A-2 D671 A-4 R7 F-4
C663 A-3 C7013 E-3 CN701 E-3 D676 D-4 R8 F-4

CONNECTORS

DIODES

ICS

COILS

TRANSISTORS

RESISTORS

Ref No. Position Ref No. Position Ref No. Position Ref No. Position

RESISTORS RESISTORS RESISTORSRESISTORS
R11 E-5 R638 A-3 R802 D-2 R7623 F-1
R12 E-5 R639 A-3 R803 C-3 R7701 E-2
R13 E-4 R640 A-3 R804 D-3 R7702 E-2
R14 F-3 R641 C-2 R805 C-1 R7715 E-2
R16 F-5 R642 C-2 R806 C-2 R7716 E-2
R17 F-5 R643 C-2 R807 D-1 R7723 E-2
R18 F-5 R644 C-2 R808 C-1 R7724 E-2
R19 F-5 R645 C-2 R809 B-1 R7747 F-2
R20 F-4 R646 C-2 R811 C-1 R7748 F-2
R21 F-5 R647 A-4 R813 C-1 R7755 F-2
R22 F-5 R648 A-4 R814 C-1 R7756 F-2
R24 F-4 R649 D-4 R819 C-2 R7763 F-2
R25 F-5 R651 A-4 R821 B-1 R7764 F-2
R26 F-4 R652 A-4 R7101 E-3 R7771 F-2

R301 D-5 R653 A-3 R7102 E-4 R7772 F-2
R302 D-5 R654 A-3 R7103 E-3 R7779 F-2
R303 E-4 R655 A-4 R7104 E-3 R7780 F-2
R501 A-3 R656 B-3 R7105 E-3 R7787 F-2
R502 A-3 R658 B-4 R7106 E-3 R7788 F-2
R504 A-4 R660 C-2 R7111 E-3
R505 A-4 R662 C-2 R7112 E-3 BC1 E-4
R506 A-4 R663 C-4 R7201 D-2 BC2 E-5
R507 B-5 R664 C-4 R7202 E-2 BC3 E-4
R509 A-4 R666 C-3 R7204 D-2 BC4 F-4
R510 A-3 R667 C-4 R7207 D-2 BC601 B-2
R512 A-4 R668 C-4 R7301 D-3 BC701 D-2
R514 D-4 R670 A-4 R7302 D-3 BC702 D-2
R516 B-4 R671 A-4 R7303 D-3 BC801 D-1
R517 D-4 R672 B-4 R7304 E-3 BC802 C-1
R519 C-2 R673 B-3 R7305 E-3 BC803 C-2
R521 D-2 R674 A-4 R7306 E-4 BC804 B-1
R523 A-4 R675 A-3 R7307 D-4 BC7206 E-2
R524 A-4 R676 A-3 R7316 E-3 JK7501 E-2
R526 A-4 R677 C-4 R7317 E-3 JK7701 E-2
R527 C-4 R684 C-2 R7318 E-3 JK7702 E-1
R601 A-2 R685 B-4 R7319 E-3 JK7705 E-1
R603 B-1 R687 A-3 R7402 E-1 JK7711 F-2
R604 A-1 R688 A-3 R7403 E-1 JK7712 F-1
R605 A-1 R689 A-3 R7405 E-1 JK7713 F-2
R606 A-1 R692 A-4 R7406 E-1 JK7714 F-1
R607 A-1 R694 B-4 R7515 E-2 JK7715 E-2
R609 B-1 R695 C-4 R7516 D-2 JS641 C-2
R610 B-1 R701 D-2 R7517 E-2 JS651 B-4
R611 B-2 R702 D-2 R7518 E-2 JS652 B-4
R612 B-2 R703 D-2 R7601 E-1 T601 B-3
R613 B-2 R704 D-2 R7602 E-1 TU1 F-4
R620 C-3 R705 D-1 R7604 E-1
R622 C-3 R706 D-1 R7605 E-1
R631 A-3 R710 D-2 R7613 F-1
R632 A-3 R713 D-1 R7614 F-1
R633 A-3 R714 D-2 R7616 F-1
R634 C-2 R717 D-1 R7617 F-1
R635 C-2 R718 D-2 R7619 F-1
R636 A-3 R719 D-4 R7620 F-1
R637 A-3 R720 D-2 R7622 F-1

MISCELLANEOUS

48 FUZ2.0U LA

9.10 Side Jack Board Layout ( Top Side )

Side Jack Board
Parts Location Guide

Ref No. Position

CAPACITORS
C751 A-1
C752 A-1
C753 B-1
C754 A-1
C755 A-1
C756 A-1
C757 B-1
C758 B-1

CONNECTOR

CN751 B-1

RESISTORS
R751 A-1
R752 A-1
R753 B-1
R756 A-1
R757 A-1
R758 B-1
R759 B-1
R760 B-1
R761 B-1
R762 B-1

MISCELLANEOUS

JK751 A-1
JK752 B-1

Side Jack Board Layout ( Bottom Side )

BA8AF0F01022-2

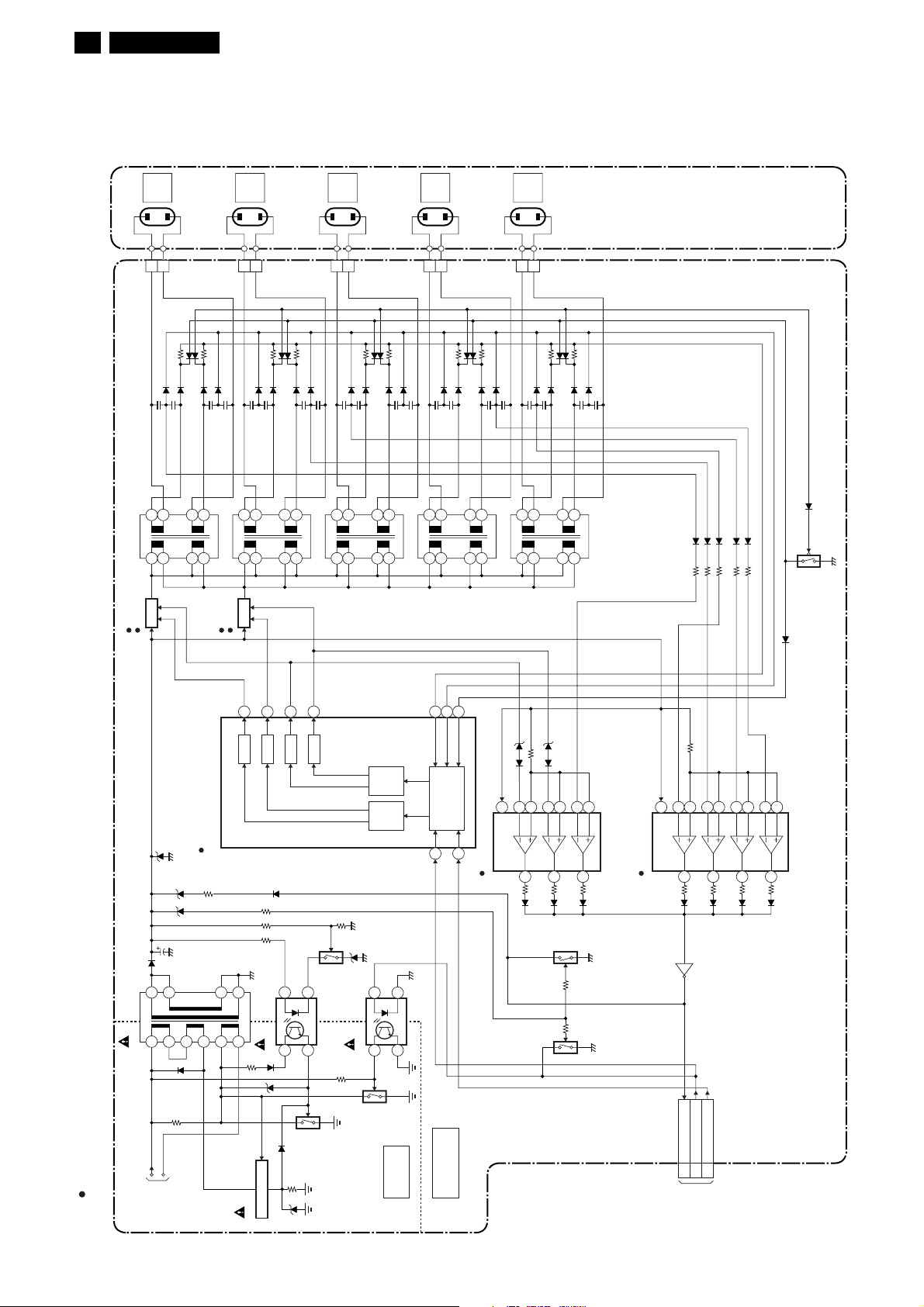

9.11 Inverter & Junction-B Schematic Diagram

FUZ2.0U LA 49

“ “ = SMD

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1901) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

50 FUZ2.0U LA

9.12 Inverter Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position Ref No. Position

CAPACITORSCAPACITORS

C1000 B-1 C1117 F-3 CN1250 G-2 D1213 F-2
C1001 D-2 C1161 F-3 CN1901 A-4 D1214 F-2
C1002 D-1 C1162 F-3 D1215 F-2
C1003 F-4 C1163 F-3 D1000 C-2 D1216 F-2
C1004 B-1 C1164 F-2 D1001 C-1 D1217 F-2
C1005 D-1 C1165 F-2 D1002 D-1 D1218 F-2
C1006 D-2 C1166 F-3 D1003 C-1 D1260 F-1
C1007 C-1 C1167 E-3 D1004 D-1 D1261 F-1
C1008 C-1 C1211 F-2 D1005 D-2 D1262 F-2
C1009 C-2 C1212 F-2 D1006 C-3 D1263 F-2
C1010 C-2 C1213 F-2 D1008 B-2 D1264 F-1
C1011 C-1 C1214 F-2 D1021 E-4 D1265 F-1
C1012 C-2 C1215 F-2 D1042 D-3 D1266 F-1
C1014 D-4 C1216 F-2 D1043 D-3 D1267 F-1
C1015 D-4 C1217 E-2 D1045 D-3 D1268 F-2
C1016 D-4 C1261 F-2 D1046 D-3 D1501 D-4
C1017 D-4 C1262 F-2 D1060 F-4 D1502 E-4
C1018 D-4 C1263 F-1 D1061 F-4 D1503 E-4
C1019 D-4 C1264 F-1 D1062 F-4 D1550 E-3
C1020 E-4 C1265 F-1 D1063 F-4 D1551 E-3
C1021 C-2 C1266 F-1 D1064 F-4 D1552 E-2
C1022 B-1 C1267 E-2 D1065 F-4 D1553 E-2
C1023 B-1 C1500 D-4 D1066 F-4 D1702 D-2
C1032 D-4 C1502 E-3 D1067 F-4 D1901 A-4
C1040 C-1 C1550 E-2 D1068 F-4 D1902 A-4
C1044 E-3 C1552 D-2 D1110 F-3 D1903 A-3
C1046 E-3 C1701 B-1 D1111 F-3 D1904 A-3
C1061 F-4 C1901 A-3 D1112 F-3 D1930 A-2
C1062 F-4 C1902 A-3 D1113 F-3 D1931 A-3
C1063 F-4 C1910 A-4 D1114 F-3 D1932 B-3
C1064 F-4 C1930 A-2 D1115 F-3 D1933 A-2
C1065 F-4 C1931 A-2 D1116 F-3 D1934 A-2
C1066 F-4 C1932 B-4 D1117 F-3 D1940 B-4
C1067 E-4 C1933 B-2 D1118 F-3 D1970 C-3
C1101 D-3 C1941 A-4 D1160 F-3 D1971 B-3
C1103 D-3 C1970 C-4 D1161 F-3 D1980 C-4
C1104 D-3 C1980 B-3 D1162 F-3 D1981 C-4
C1105 D-3 C1981 C-2 D1163 F-3 D1982 C-4
C1106 E-3 C1990 B-4 D1164 F-3 D1990 B-4
C1107 E-3 C1991 C-4 D1165 F-3 D1991 B-4
C1111 F-3 D1166 F-2 D1992 B-4
C1112 F-3 CL1000A A-1 D1167 F-3 D1994 C-4
C1113 F-3 CN1050 G-4 D1168 F-3
C1114 F-3 CN1100 G-4 D1210 F-2 IC1001 C-2
C1115 F-3 CN1150 G-3 D1211 F-2 IC1500 E-4
C1116 F-3 CN1200 G-2 D1212 F-2 IC1550 E-2

CONNECTORS

CONNECTORS DIODES

DIODES

ICS

Ref No. Position Ref No. Position Ref No. Position Ref No. Position

RESISTORSICS RESISTORS

IC1930 B-3 R1062 F-4 R1218 F-2 R1939 B-2
IC1931 B-3 R1063 F-4 R1219 F-2 R1940 A-4

COILS

L1901 A-3 R1065 F-4 R1221 E-2 R1942 A-4
L1902 A-3 R1066 F-4 R1260 F-2 R1943 A-4

TRANSISTORS
Q1002 B-1 R1068 F-4 R1262 F-1 R1945 A-4
Q1020 D-4 R1069 F-4 R1263 F-1 R1946 B-4
Q1100 D-3 R1070 E-4 R1264 F-1 R1947 B-4
Q1101 D-3 R1071 D-4 R1265 F-1 R1948 B-4
Q1102 D-3 R1100 D-2 R1266 F-1 R1949 B-3
Q1103 E-3 R1101 E-3 R1267 F-1 R1970 B-3
Q1930 A-2 R1102 D-3 R1268 F-1 R1971 B-3
Q1931 A-2 R1103 D-3 R1269 F-1 R1973 C-3
Q1932 A-3 R1110 F-3 R1270 E-2 R1974 C-3
Q1970 C-3 R1111 F-3 R1271 E-2 R1975 C-4
Q1971 B-2 R1112 F-3 R1500 D-4 R1976 C-4
Q1972 C-2 R1113 F-3 R1501 E-3 R1977 C-4

RESISTORS
R1000 B-1 R1115 F-3 R1506 D-4 R1981 C-2
R1001 C-2 R1116 F-3 R1507 D-4 R1983 C-2
R1002 D-1 R1117 F-3 R1508 E-4 R1984 C-4
R1003 F-4 R1118 F-3 R1509 E-4 R1985 C-4
R1005 D-1 R1119 F-3 R1510 E-3 R1986 C-4
R1006 B-1 R1120 E-3 R1511 E-4 R1987 B-3
R1007 C-2 R1121 E-2 R1550 E-2
R1008 C-3 R1160 F-3 R1551 D-2 AC1901 A-4
R1009 C-1 R1161 F-3 R1554 E-3 BC1001 D-4
R1010 C-1 R1162 F-3 R1555 E-3 BC1931 A-3
R1011 C-1 R1163 F-3 R1556 D-3 BC1932 A-3
R1012 C-2 R1164 F-2 R1557 D-3 F1901 A-4
R1013 C-2 R1165 F-2 R1558 E-2 SA1901 A-3
R1014 C-3 R1166 F-3 R1559 E-2 T1050 E-4
R1015 C-1 R1167 F-3 R1560 E-2 T1100 E-3
R1020 E-4 R1168 F-3 R1561 E-2 T1150 E-3
R1041 C-1 R1169 F-3 R1703 B-1 T1200 E-2
R1045 E-3 R1170 E-3 R1901 A-4 T1250 E-1
R1046 E-3 R1171 E-2 R1902 A-4 T1951 B-4
R1047 E-3 R1210 F-2 R1904 A-4
R1048 E-3 R1211 F-2 R1930 A-2
R1050 D-3 R1212 F-2 R1931 B-2
R1051 E-3 R1213 F-2 R1932 B-3
R1052 E-3 R1214 F-2 R1933 B-3
R1053 E-3 R1215 F-2 R1934 A-3
R1060 F-4 R1216 F-2 R1936 B-3
R1061 F-4 R1217 F-2 R1937 A-2

R1064 F-4 R1220 E-2 R1941 A-4

R1067 F-4 R1261 F-2 R1944 A-4

R1114 F-3 R1504 D-3 R1980 B-2

RESISTORS

MISCELLANEOUS

FUZ2.0U LA 51

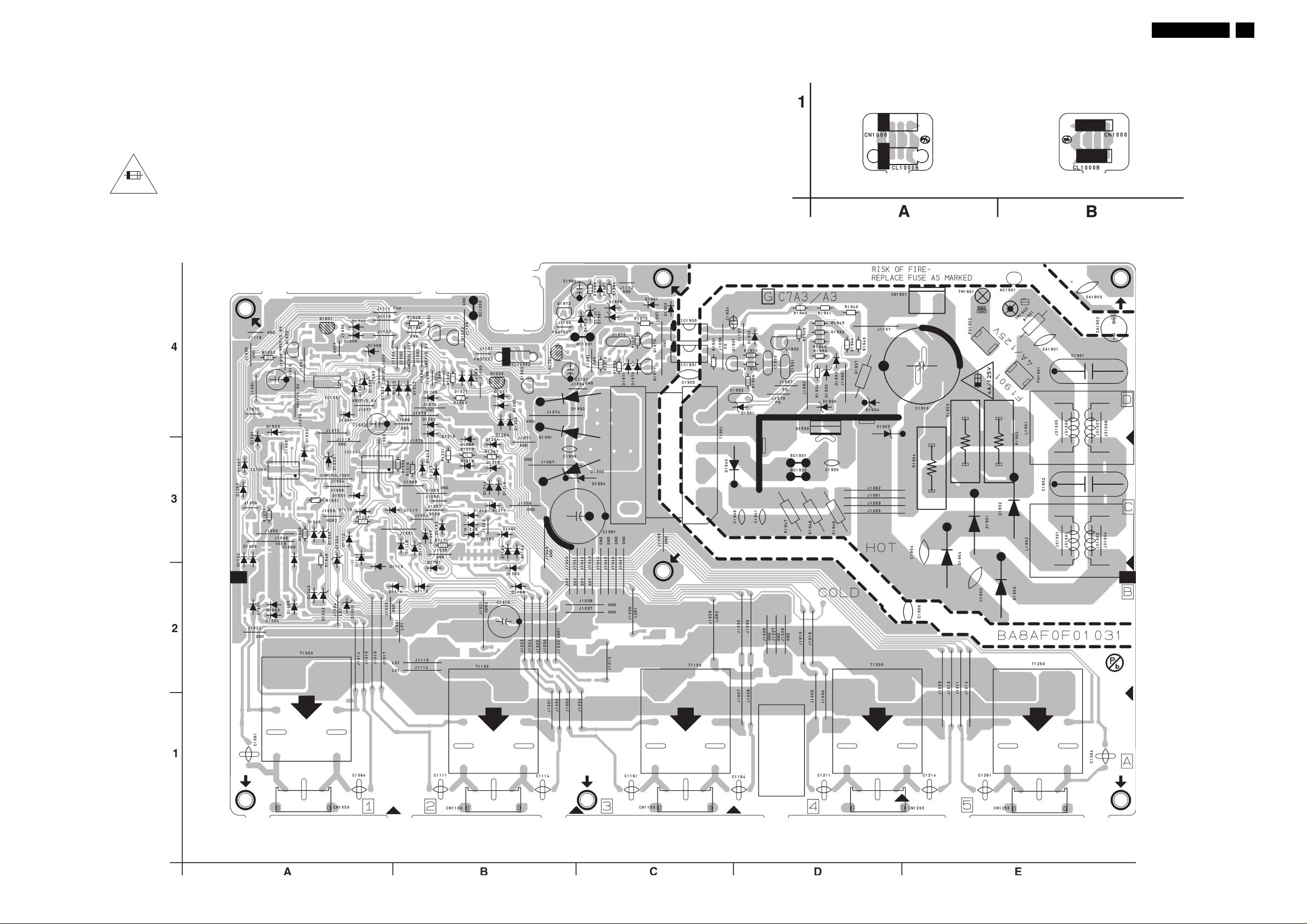

9.13 Inverter Board Layout ( Top Side ) Junction-B Board Layout ( Top & Bottom Side )

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1901) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

Because a hot chassis ground is present in the power
supply circut, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly, when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

BA8AF0F01031

BA8AF0F01031

52 FUZ2.0U LA

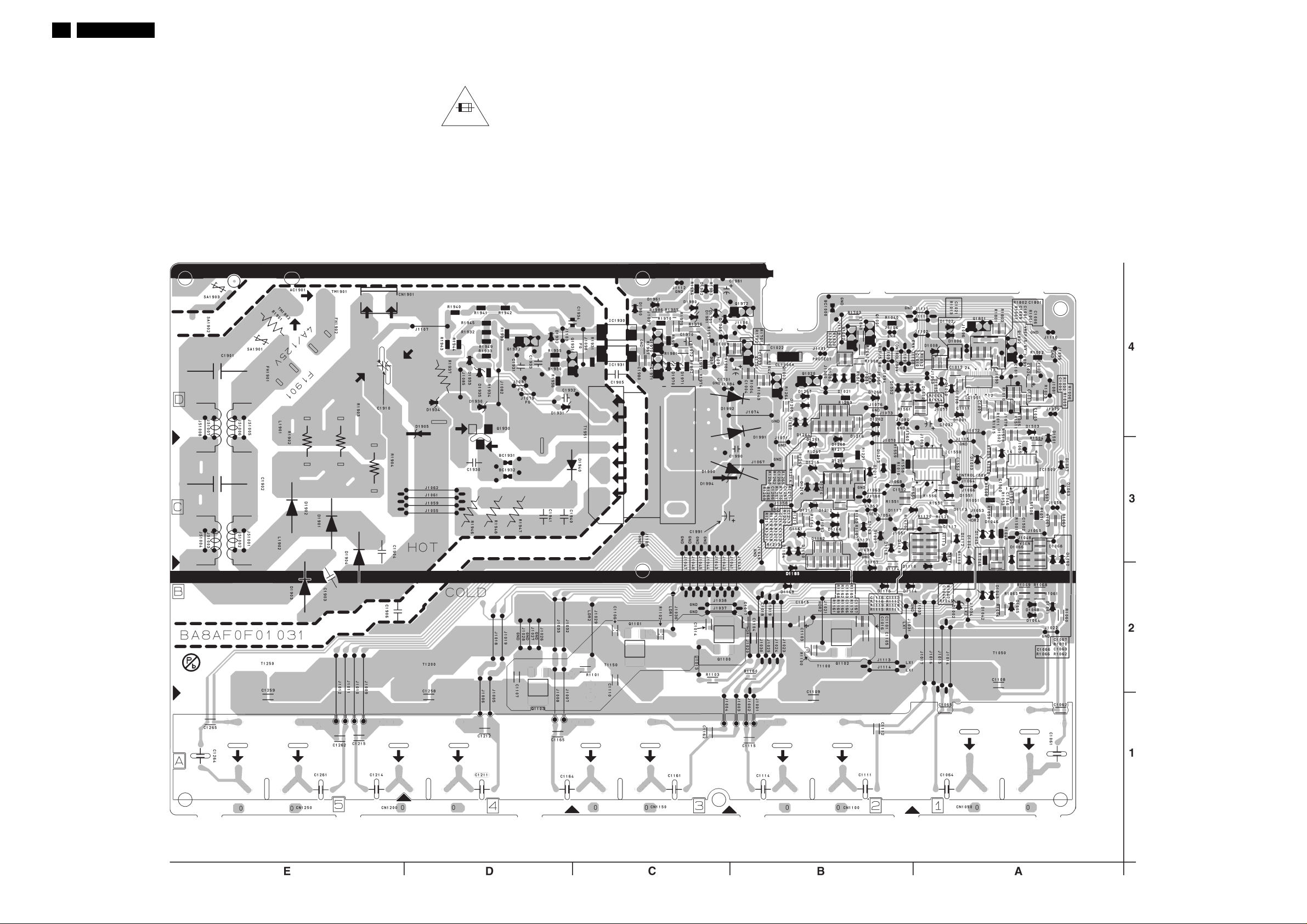

9.14 Inverter Board Layout ( Bottom Side )

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1901) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

Because a hot chassis ground is present in the power
supply circut, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly, when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

BA8AF0F01031

9.15 Inverter Board Parts Location Guide

FUZ2.0U LA 53

Ref No. Position Ref No. Position Ref No. Position Ref No. Position

CONNECTORSCAPACITORS DIODESCAPACITORS
C1000 A-4 C1117 A-3 CN1250 E-1 D1213 B-3
C1001 A-4 C1161 C-1 CN1901 E-4 D1214 B-3
C1002 A-4 C1162 D-1 D1215 B-3
C1003 A-4 C1163 B-2 D1000 A-4 D1216 B-3
C1004 B-4 C1164 D-1 D1001 A-4 D1217 B-3
C1005 A-4 C1165 D-1 D1002 A-2 D1218 B-3
C1006 A-4 C1166 B-2 D1003 A-3 D1260 B-4
C1007 A-4 C1167 B-2 D1004 A-3 D1261 B-3
C1008 A-4 C1211 D-4 D1005 A-4 D1262 B-4
C1009 A-4 C1212 D-1 D1006 A-4 D1263 B-4
C1010 A-4 C1213 B-3 D1008 A-4 D1264 B-4
C1011 A-4 C1214 E-1 D1021 B-4 D1265 B-4
C1012 A-4 C1215 E-1 D1042 A-2 D1266 B-4
C1014 C-2 C1216 B-3 D1043 A-2 D1267 B-4
C1015 B-2 C1217 B-3 D1045 A-3 D1268 B-3
C1016 B-2 C1261 E-1 D1046 A-3 D1501 A-3
C1017 B-2 C1262 E-1 D1060 A-2 D1502 A-4
C1018 B-2 C1263 B-3 D1061 A-2 D1503 A-4
C1019 B-2 C1264 E-1 D1062 A-3 D1550 A-4
C1020 B-4 C1265 E-1 D1063 A-3 D1551 A-3
C1021 A-4 C1266 B-3 D1064 A-2 D1552 B-4
C1022 B-4 C1267 B-3 D1065 A-2 D1553 B-4
C1023 B-4 C1500 A-3 D1066 A-3 D1702 A-4
C1032 A-4 C1502 A-3 D1067 A-3 D1901 E-3
C1040 B-4 C1550 A-3 D1068 A-3 D1902 E-3
C1044 A-2 C1552 B-3 D1110 B-2 D1903 E-2
C1046 A-3 C1701 C-4 D1111 A-3 D1904 E-3
C1061 A-1 C1901 E-4 D1112 A-3 D1930 D-4
C1062 A-1 C1902 E-3 D1113 A-3 D1931 D-4
C1063 A-2 C1910 E-4 D1114 B-2 D1932 D-4
C1064 A-1 C1930 D-3 D1115 B-2 D1933 D-4
C1065 A-1 C1931 D-4 D1116 B-3 D1934 D-4
C1066 A-2 C1932 D-4 D1117 B-3 D1940 C-3
C1067 A-2 C1933 D-4 D1118 B-3 D1970 C-4
C1101 B-2 C1941 D-3 D1160 B-3 D1971 C-4
C1103 B-2 C1970 C-4 D1161 B-3 D1980 C-4
C1104 B-2 C1980 C-4 D1162 B-3 D1981 C-4
C1105 B-2 C1981 B-4 D1163 B-3 D1982 C-4
C1106 C-2 C1990 B-3 D1164 B-3 D1990 C-3
C1107 D-2 C1991 C-3 D1165 B-2 D1991 B-3
C1111 B-1 D1166 B-3 D1992 C-4
C1112 B-1 CL1000A B-4 D1167 B-3 D1994 C-3
C1113 B-2 CN1050 A-1 D1168 B-2
C1114 B-1 CN1100 B-1 D1210 B-3 IC1001 A-4
C1115 B-1 CN1150 C-1 D1211 B-3 IC1500 A-3
C1116 B-2 CN1200 E-1 D1212 B-3 IC1550 A-3

CONNECTORS

DIODES

ICS

Ref No. Position Ref No. Position Ref No. Position Ref No. Position

RESISTORS
IC1930 C-4 R1062 A-2 R1218 B-3 R1939 D-4
IC1931 C-4 R1063 A-3 R1219 B-3 R1940 D-4

COILS
L1901 E-4 R1065 A-2 R1221 B-3 R1942 D-4
L1902 E-3 R1066 A-2 R1260 B-3 R1943 D-4

TRANSISTORS
Q1002 B-4 R1068 A-2 R1262 B-3 R1945 D-4
Q1020 B-4 R1069 A-2 R1263 B-4 R1946 D-3
Q1100 C-2 R1070 A-2 R1264 B-4 R1947 D-3
Q1101 C-2 R1071 A-3 R1265 B-3 R1948 D-3
Q1102 B-2 R1100 B-2 R1266 B-3 R1949 D-4
Q1103 D-1 R1101 C-2 R1267 B-3 R1970 C-4
Q1930 D-4 R1102 C-2 R1268 B-3 R1971 C-4
Q1931 C-4 R1103 C-2 R1269 B-3 R1973 C-4
Q1932 D-4 R1110 A-3 R1270 B-3 R1974 C-4
Q1970 C-4 R1111 B-2 R1271 B-3 R1975 C-4
Q1971 C-4 R1112 B-2 R1500 A-3 R1976 C-4
Q1972 B-4 R1113 A-3 R1501 A-3 R1977 C-4

RESISTORS
R1000 A-4 R1115 B-2 R1506 A-3 R1981 C-4
R1001 A-4 R1116 B-2 R1507 A-3 R1983 C-4
R1002 A-4 R1117 B-3 R1508 A-3 R1984 C-4
R1003 A-4 R1118 B-2 R1509 A-3 R1985 C-4
R1005 A-4 R1119 B-2 R1510 A-4 R1986 C-4
R1006 A-4 R1120 A-3 R1511 A-4 R1987 C-4
R1007 A-4 R1121 A-3 R1550 A-3
R1008 B-4 R1160 B-2 R1551 B-3 AC1901 E-4
R1009 A-4 R1161 B-2 R1554 A-4 BC1001 C-4
R1010 A-4 R1162 B-2 R1555 A-4 BC1931 D-3
R1011 A-4 R1163 B-3 R1556 A-3 BC1932 D-3
R1012 A-4 R1164 B-3 R1557 A-3 F1901 E-4
R1013 A-4 R1165 B-2 R1558 B-3 SA1901 E-4
R1014 B-4 R1166 B-2 R1559 B-3 T1050 A-2
R1015 A-4 R1167 B-3 R1560 B-4 T1100 B-2
R1020 B-4 R1168 B-2 R1561 B-4 T1150 C-2
R1041 B-4 R1169 B-2 R1703 B-4 T1200 D-2
R1045 A-2 R1170 B-2 R1901 E-4 T1250 E-2
R1046 A-3 R1171 B-3 R1902 E-3 T1951 C-4
R1047 A-2 R1210 B-3 R1904 E-3
R1048 A-3 R1211 B-3 R1930 D-4
R1050 A-3 R1212 B-3 R1931 C-4
R1051 A-3 R1213 B-3 R1932 D-4
R1052 A-3 R1214 B-3 R1933 D-4
R1053 A-3 R1215 B-3 R1934 D-4
R1060 A-2 R1216 B-3 R1936 D-4
R1061 A-2 R1217 B-3 R1937 D-4

R1064 A-2 R1220 B-3 R1941 D-4

R1067 A-3 R1261 B-3 R1944 D-4

R1114 B-2 R1504 A-3 R1980 C-4

RESISTORSICS

RESISTORS

MISCELLANEOUS

54 FUZ2.0U LA

9.16 Function Schematic Diagram

“ “ = SMD

Function Schematic Diagram
Parts Location Guid

Ref No. Position

CAPACITORS
C109 B-2
C110 A-2

CONNECTOR

CL102B A-2

DIODE

D108 B-2

RESISTORS
R120 B-1
R121 B-1
R122 B-1
R123 B-1
R124 B-1
R125 A-2
R126 A-1

SWITCHES
SW108 B-1
SW109 B-1
SW110 B-1
SW111 B-1
SW112 B-1
SW113 A-1
SW114 A-1

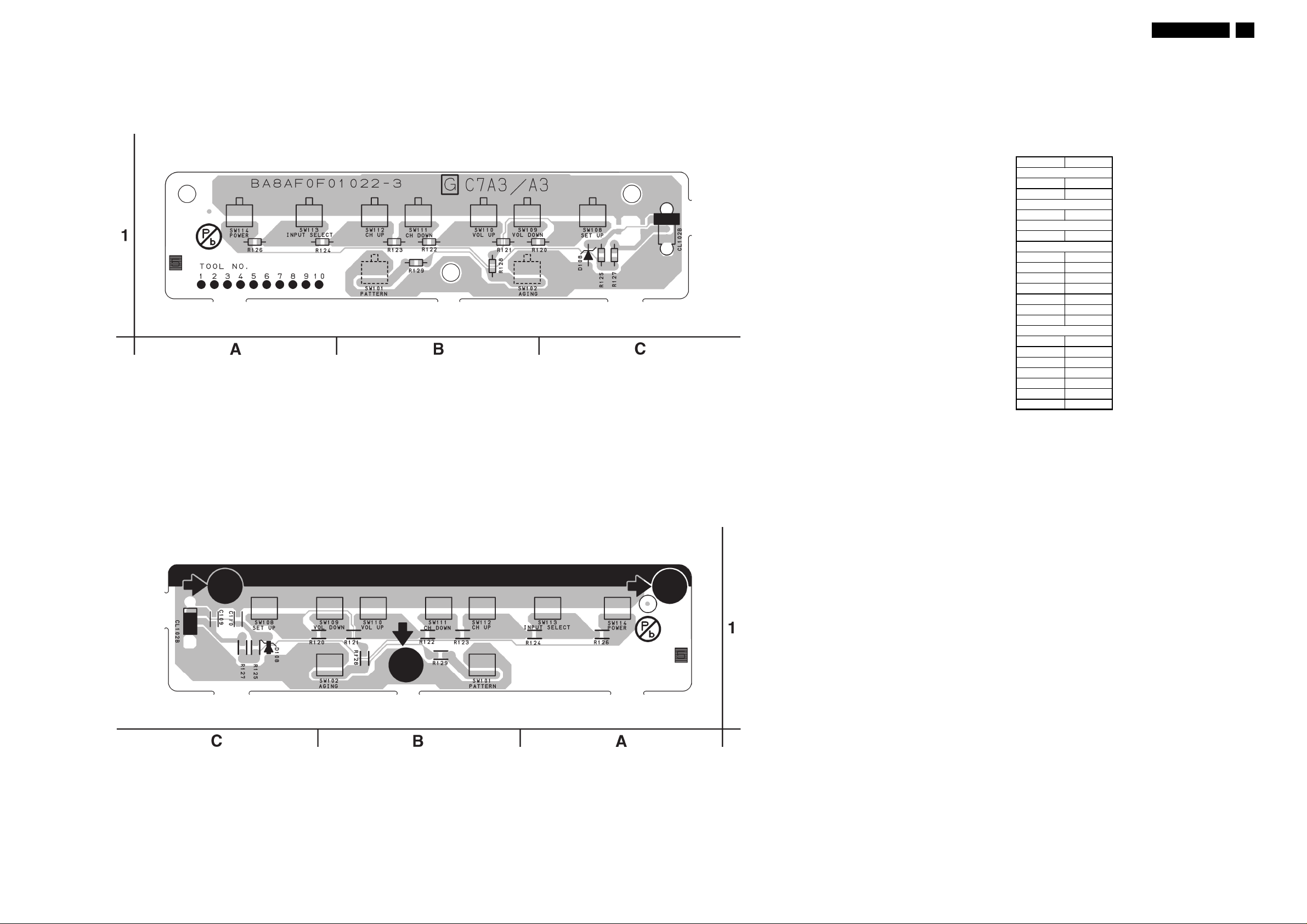

9.17 Function Board Layout ( Top Side )

FUZ2.0U LA 55

Function Board
Parts Location Guide

Ref No. Position

CAPACITORS
C109 C-1
C110 C-1

CONNECTOR

CL102B C-1

DIODE

D108 C-1

RESISTORS
R120 B-1
R121 B-1
R122 B-1
R123 B-1
R124 A-1
R125 C-1
R126 A-1

SWITCHES
SW108 C-1
SW109 B-1
SW110 B-1
SW111 B-1
SW112 B-1
SW113 A-1
SW114 A-1

Function Board Layout ( Bottom Side )

BA8AF0F01022-3

56 FUZ2.0U LA

9.18 IR Sensor & Junction-A Schematic Diagram

“ “ = SMD

IR Sensor Schematic Diagram
Parts Location Guid

Ref No. Position

CAPACITORS
C101 C-1
C107 B-2

CONNECTORS
CL101A B-1
CL102A C-1

DIODES
D101 B-1
D102 B-2

RESISTORS
R101 C-1
R102 C-1
R103 B-1
R104 B-2
R105 B-1

MISCELLANEOUS

RCV101 C-2

FUZ2.0U LA 57

9.19 IR Sensor Board Layout ( Top Side )

Junction-A Board Layout ( Top & Bottom Side )

IR Sensor Board Layout ( Bottom Side )

BA8AF0F01022-5

IR Sensor Board
Parts Location Guide

Ref No. Position

CAPACITORS
C101 A-1
C107 B-1

CONNECTORS
CL101A B-1
CL102A A-1

DIODES
D101 B-1
D102 A-1

RESISTORS
R101 A-1
R102 A-1
R103 B-1
R104 A-1
R105 B-1

MISCELLANEOUS

RCV101 A-1

BA8AF0F01022-4

58 FUZ2.0U LA

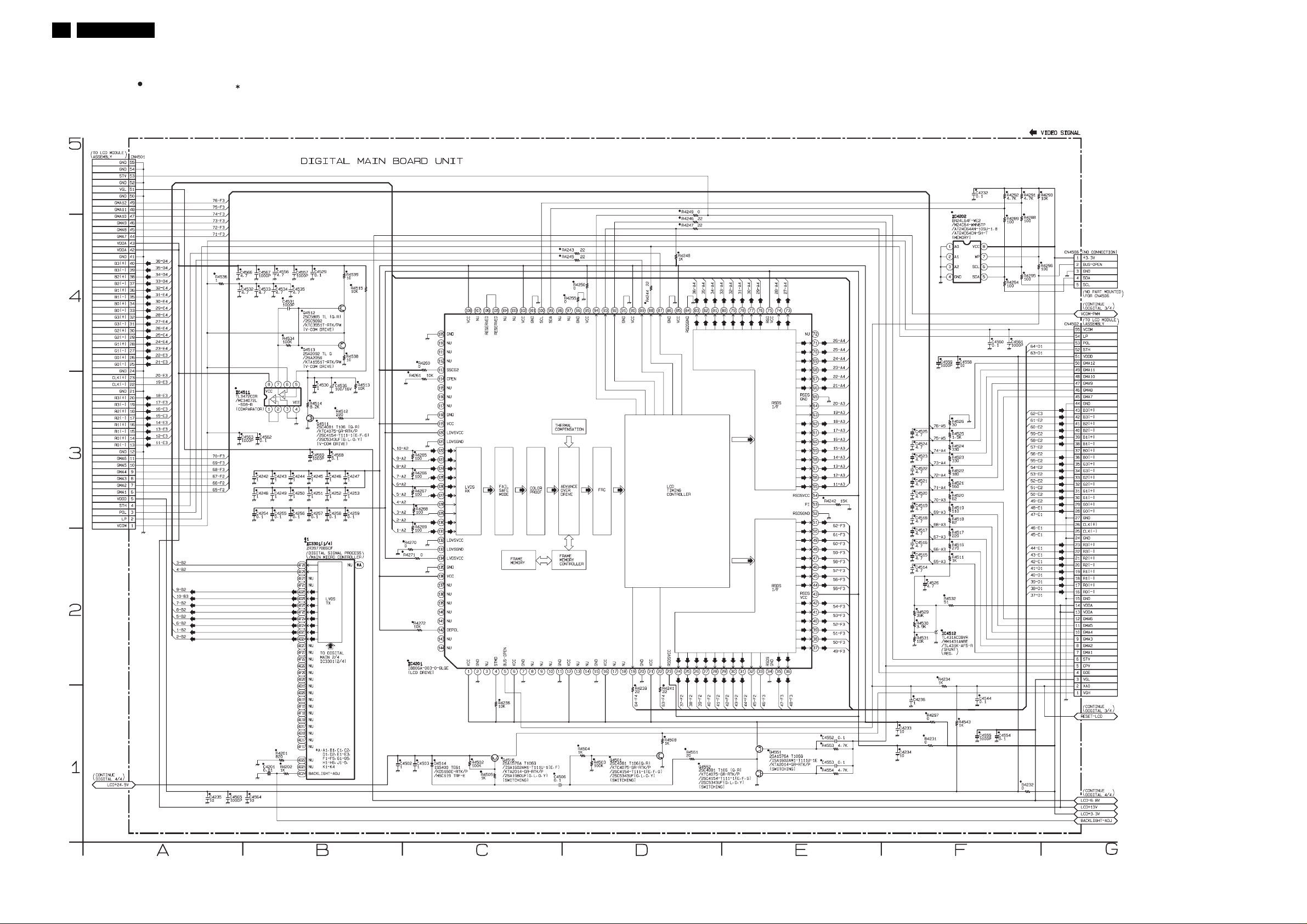

9.20 Digital Main 1/4 Schematic Diagram

“ “ = SMD

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into four and shown as IC3301 (1/4) ~ IC3301 (4/4) in this Digital Main Schematic Diagram Section.

9.21 Digital Main 2/4 Schematic Diagram

FUZ2.0U LA 59

“ “ = SMD

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into four and shown as IC3301 (1/4) ~ IC3301 (4/4) in this Digital Main Schematic Diagram Section.

60 FUZ2.0U LA

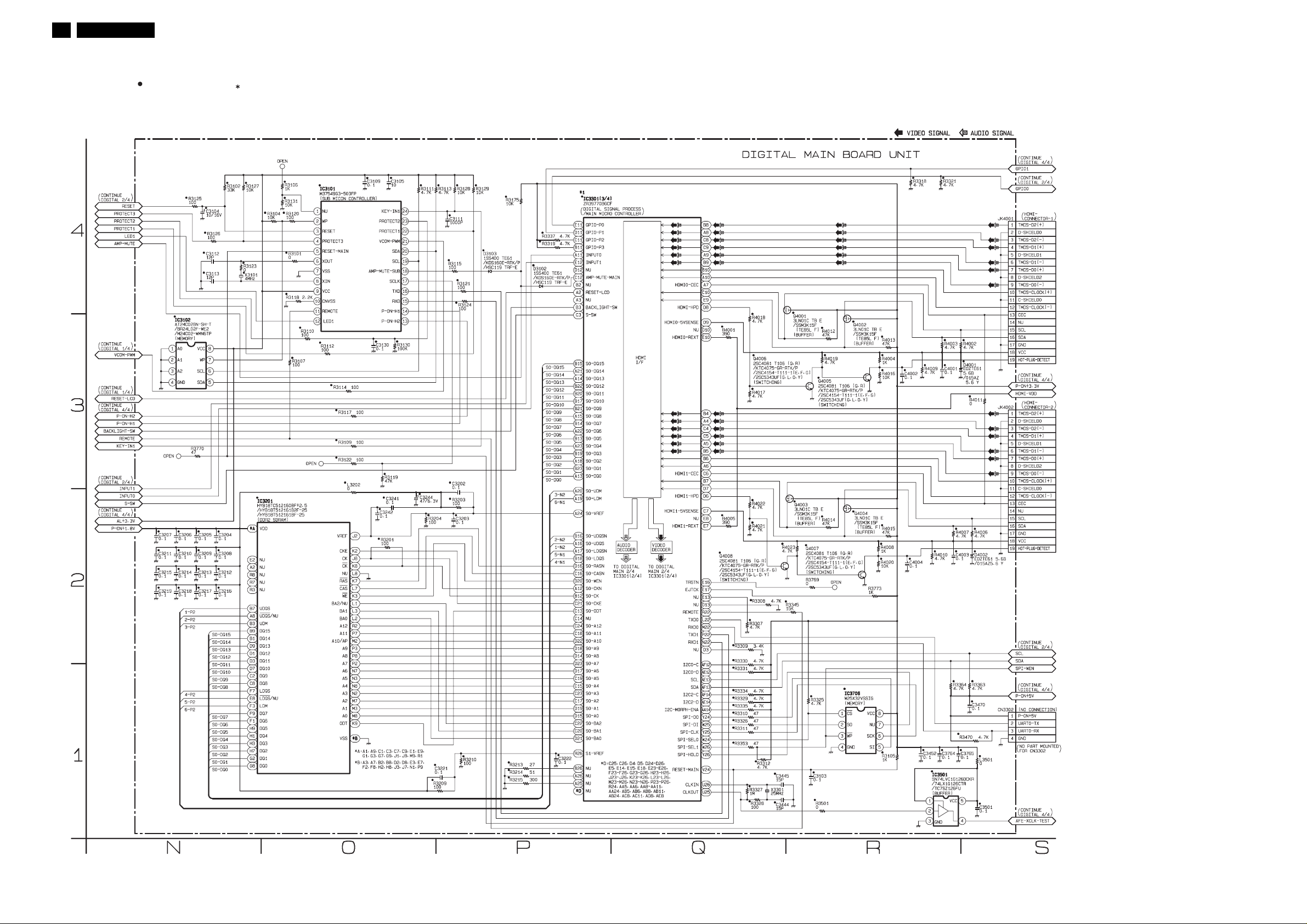

9.22 Digital Main 3/4 Schematic Diagram

“ “ = SMD

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into four and shown as IC3301 (1/4) ~ IC3301 (4/4) in this Digital Main Schematic Diagram Section.

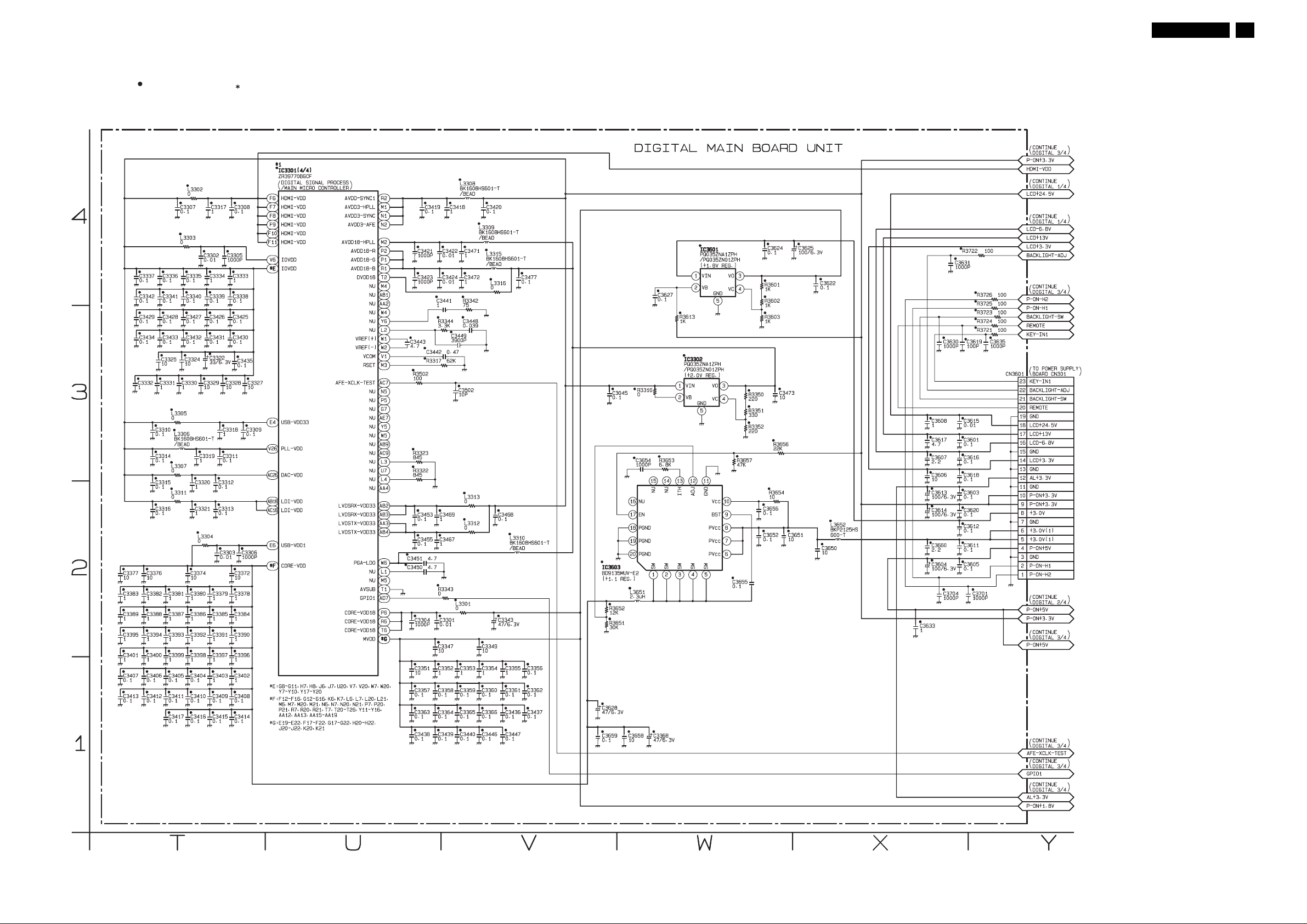

9.23 Digital Main 4/4 Schematic Diagram

FUZ2.0U LA 61

“ “ = SMD

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into four and shown as IC3301 (1/4) ~ IC3301 (4/4) in this Digital Main Schematic Diagram Section.

62 FUZ2.0U LA

9.24 Digital Main Board Layout ( Top Side )

BA8AF2G04011

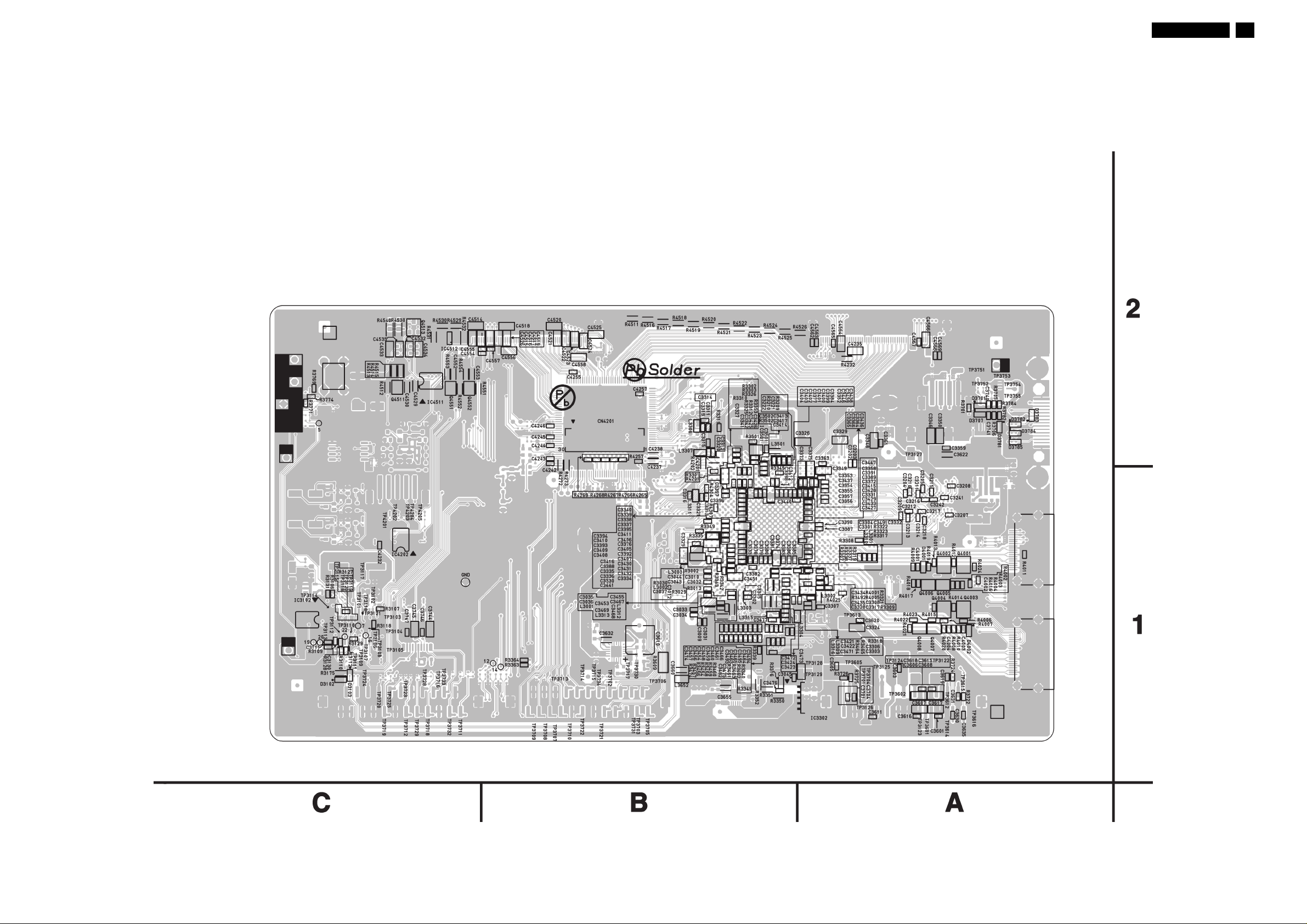

9.25 Digital Main Board Layout ( Bottom Side )

FUZ2.0U LA 63

BA8AF2G04011

64 FUZ2.0U LA

WF1 ~ WF7 = Waveforms to be observed at

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

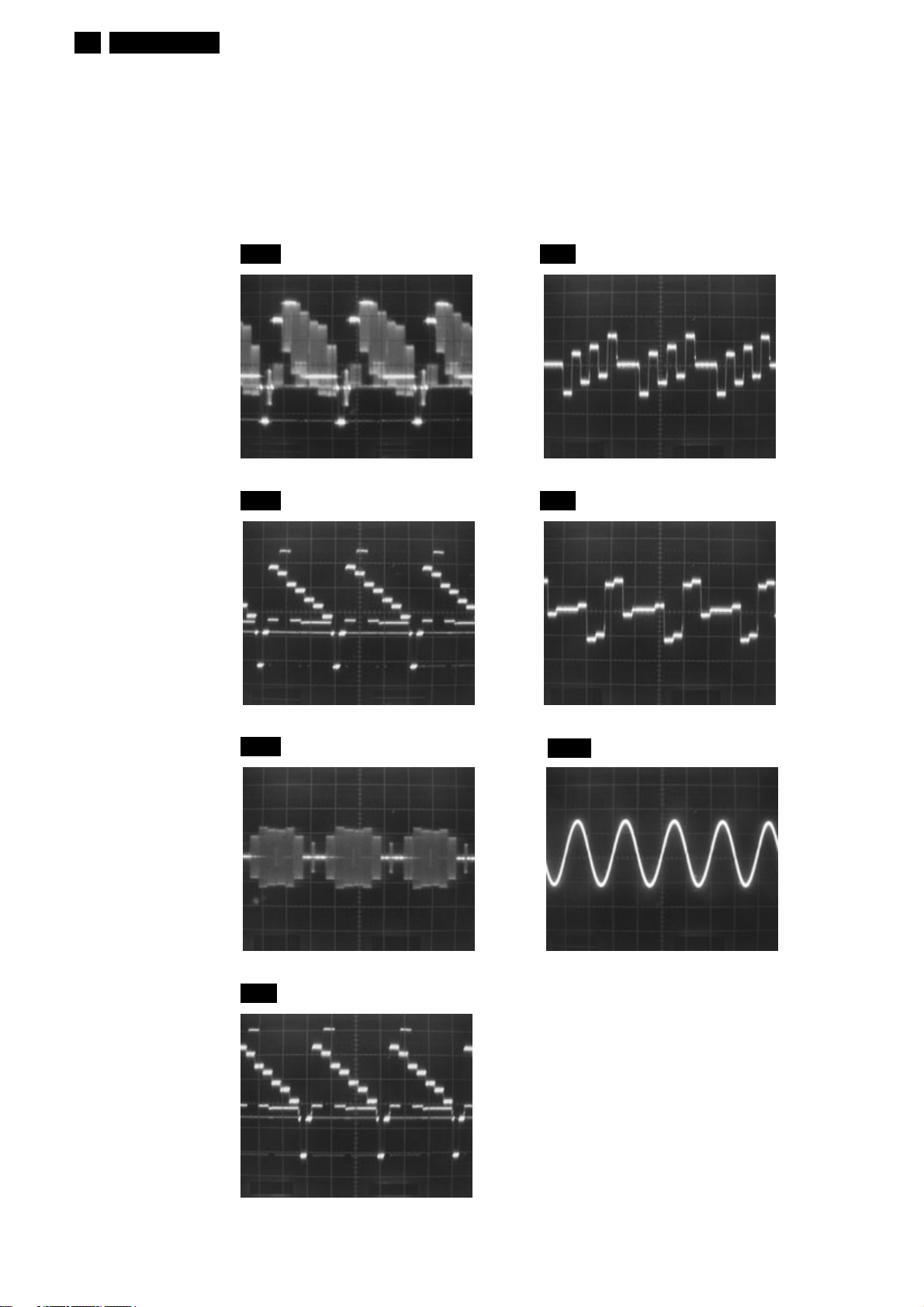

10. WAVEFORMS

Waveform check points.
(Shown in Schematic Diagram.)

WF1

WF2

Pin 23 of CN302

CVBS 0.2V 20µs

Pin 19 of CN302

S-VIDEO-Y 0.2V

20µs

WF5

WF6

Pin 16 of CN302

VIDEO-Pb 0.2V 20µs

Pin 17 of CN302

VIDEO-Pr 0.2V 20µs

WF3

WF4

Pin 21 of CN302

S-VIDEO-C 0.2V

Pin 14 of CN302

VIDEO-Y 0.2V 20µs

20µs

WF7

Pin 3 of CN303

AUDIO 1V 0.5ms

11. WIRING DIAGRAM

R

CN751

9pin

SIDE JACK

BOARD

CL701 :

WX1A8AF0-006

FUZ2.0U LA 65

LEFT-channel SPEAKE

CL801 :

WX1A8AF0-005

CL4502 :

WX1A8AF0-010

CN4502

CN4501

CL4501 :

WX1A8AF0-010

55pin

DIGITAL MAIN

BOARD UNIT

55pin

CN3704

23pin

CN3701

23pin

CN3601

23pin

CN1000

4pin

CL1000A

4pin

CL1000A

4pin

CN303

23pin

CN302

23pin

CN301

23pin

CN501

4pin

CL1000 :

POWER SUPPLY

BOARD

JUNCTION-B

BOARD

WX1A8AF0-001

CN701

9pin

BLACK

CN601 :

WX1A8AF0-004

CN1901

CN601

RED

BLACK

2pin

CN801

CN101

CN102

6pin

CN802

WHITE

AC1901

2pin

6pin

2pin

CL101B

6pin

JUNCTION-A

BOARD

AC-CORD

CL101 :

WX1A8AF0-002

CL802 :

WX1A8AF0-005

INVERTER

BOARD

CN1050

2pin

CN1100

2pin

CN1150

2pin

CN1200

2pin

FUNCTION

BOARD

CN1250

2pin

CL102B

3pin

CL101A

6pin

CL102A

3pin

IR SENSOR

BOARD

CL102 :

WX1A8AF0-003

RIGHT-channel SPEAKER

66 FUZ2.0U LA

12. ALIGNMENTS

12.1 Electrical Adjustment Instructions

General Note: “CBA” is abbreviation for
“Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain
mechanical parts. It is important to perform
these adjustments only after all repairs and
replacements have been completed.
Also, do not attempt these adjustments unless
the proper equipment is available.

Test Equipment Required

1. DC Voltmeter

2. NTSC Pattern Generator (Color Bar W/White

Window, Red Color, Dot Pattern, Gray Scale,
Monoscope, Multi-Burst)

3. Remote control unit

4. Color Analyzer

How to make the Service remote
control unit:

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on.

3. Press the service button on the service remote
control unit. The following screen appears.

"*" differs depending on the models.

Code :
Boot :
System :
SubCPU :
Pic code :
Picture :

Panel :
Other :
Safety :
Tuner :
HDMI1 Block0 :
Block1 :
HDMI2 Block1 :

**********-***
**** * ***
**** * ***
****
**-***-**-*****-***
**** * ***

***
**
******-***
*****-*******
**
**
**

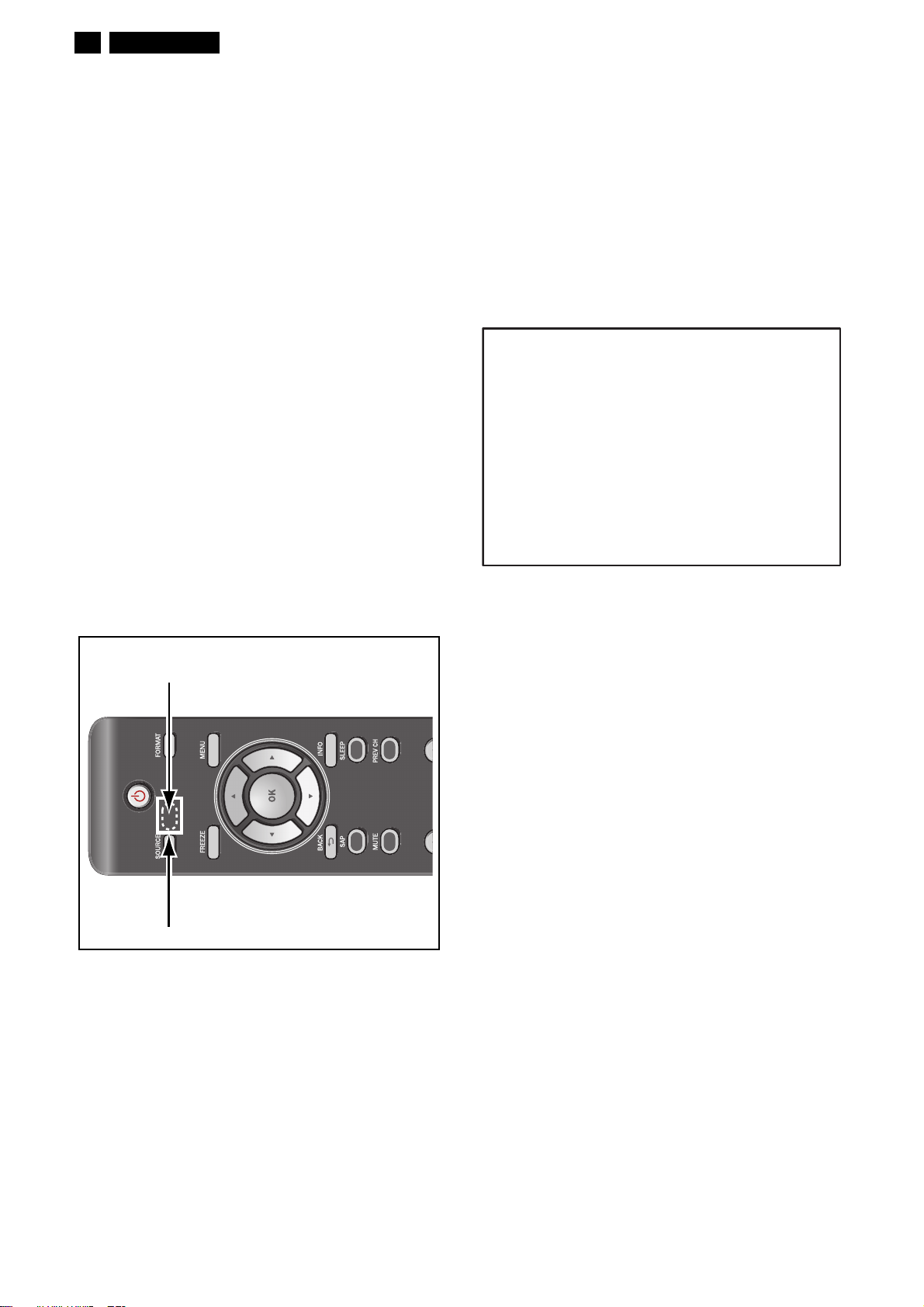

Cut “A” portion of the attached remote control unit as
shown in Fig. 1.

service button
(There is a button under the plastic housing.)

A

Fig. 1

FUZ2.0U LA 67

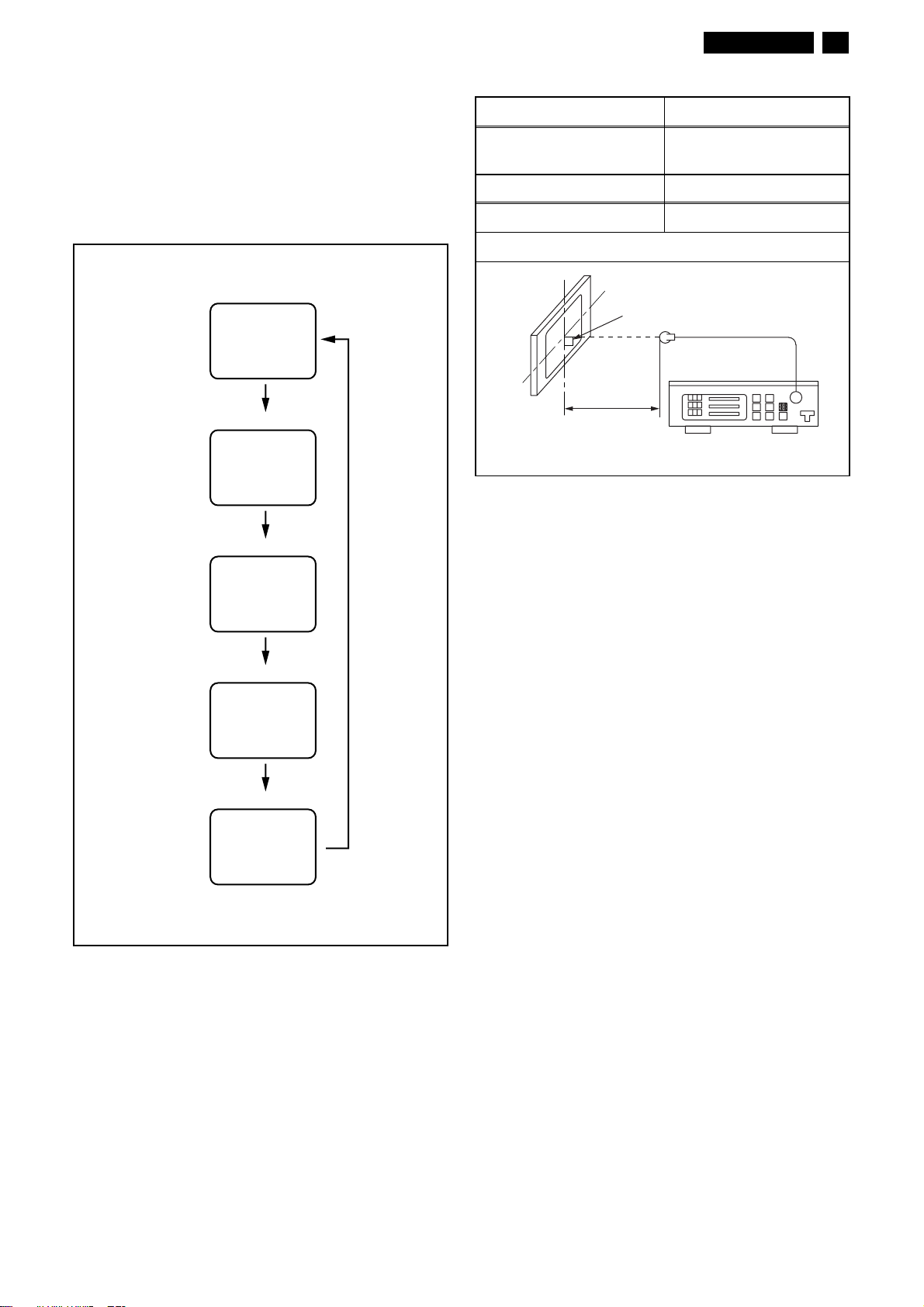

1. Purity Check Mode

This mode cycles through full-screen displays of red,
green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time pressing [7] button on the service
remote control unit, the display changes as
follows.

Purity Check Mode

White mode

[7] button

[7] button

Black mode

[7] button

Red mode

[7] button

Green mode

2. VCOM Adjustment.

Test Point

Screen

M. EQ. Spec.

Color analyzer

Figure

It carries out in a darkroom.

Perpendicularity

L = 3 cm

1. Operate the unit for more than 20 minutes.

2. Set the color analyzer and bring the optical
receptor to the center on the LCD-Panel surface
after zero point calibration as shown above.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

3. Enter the Service mode.

4. Press [2] button on the service remote control unit.

5. Press [CH. + / - ] buttons on the service remote
control unit so that the color analyzer value
becomes minimum.

Adj. Point

[CH. + / - ]

buttons

See below

Color Analyzer

[7] button

Blue mode

Note:

When entering this mode, the default setting is White mode.

68 FUZ2.0U LA

The following adjustment normally are not attempted in
the field. Only when replacing the LCD Panel then adjust
as a preparation.

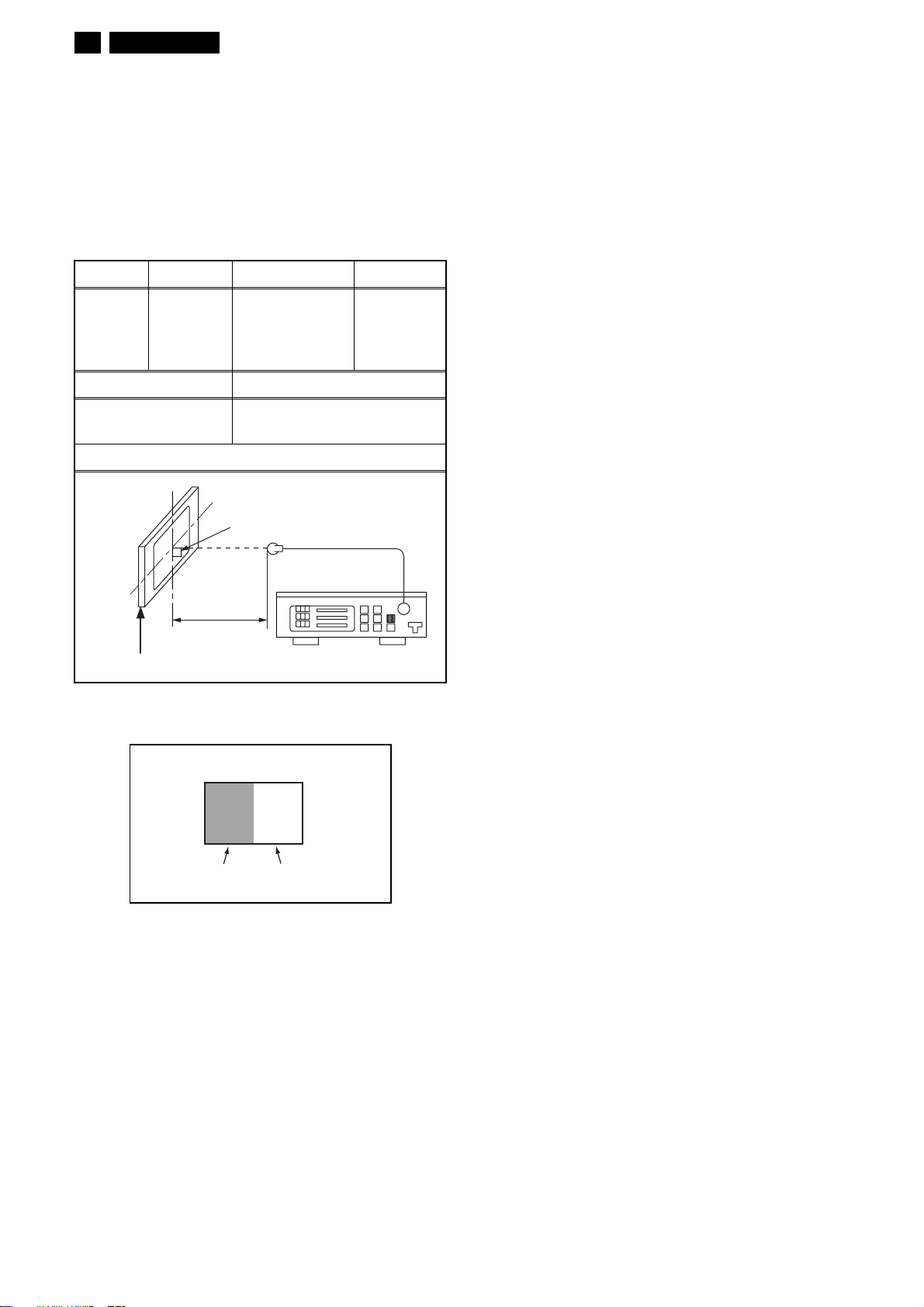

3. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white.

Symptom of Misadjustment: White becomes bluish
or reddish.

Tes t Po i nt

Screen

Pattern Generator,

Color analyzer

Adj. Point Mode Input

[CH. + / - ]

buttons

[VIDEO1]

C/D

M. EQ. Spec.

x= 0.272 ± 0.005
y= 0.278 ± 0.005

Figure

It carries out in a darkroom.

White Raster

(APL 70%)

or

(APL 25%)

5. [CUTOFF]
Press [3] button to select “COB” for Blue Cutoff
adjustment. Press [1] button to select “COR” for
Red Cutoff adjustment.

[DRIVE]

Press [6] button to select “DB” for Blue Drive
adjustment. Press [4] button to select “DR” for Red
Drive adjustment.

6. In each color mode, press [CH. + / - ] buttons to
adjust the values of color.

7. Adjust Cutoff and Drive so that the color
temperature becomes 12000°K (x

0.272 / y

=

=

0.278 ±0.005).

Perpendicularity

L = 3 cm

INPUT: WHITE 70%, 25%

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Input the White Raster(70%=70IRE, 25%=25IRE).

INPUT SIGNAL

25%=25IRE

70%=70IRE

3. Set the color analyzer to the CHROMA mode and
bring the optical receptor to the center on the
LCD-Panel surface after zero point calibration as
shown above.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [VOL. - ] button on the
service remote control unit and select “C/D” mode.

FUZ2.0U LA 69

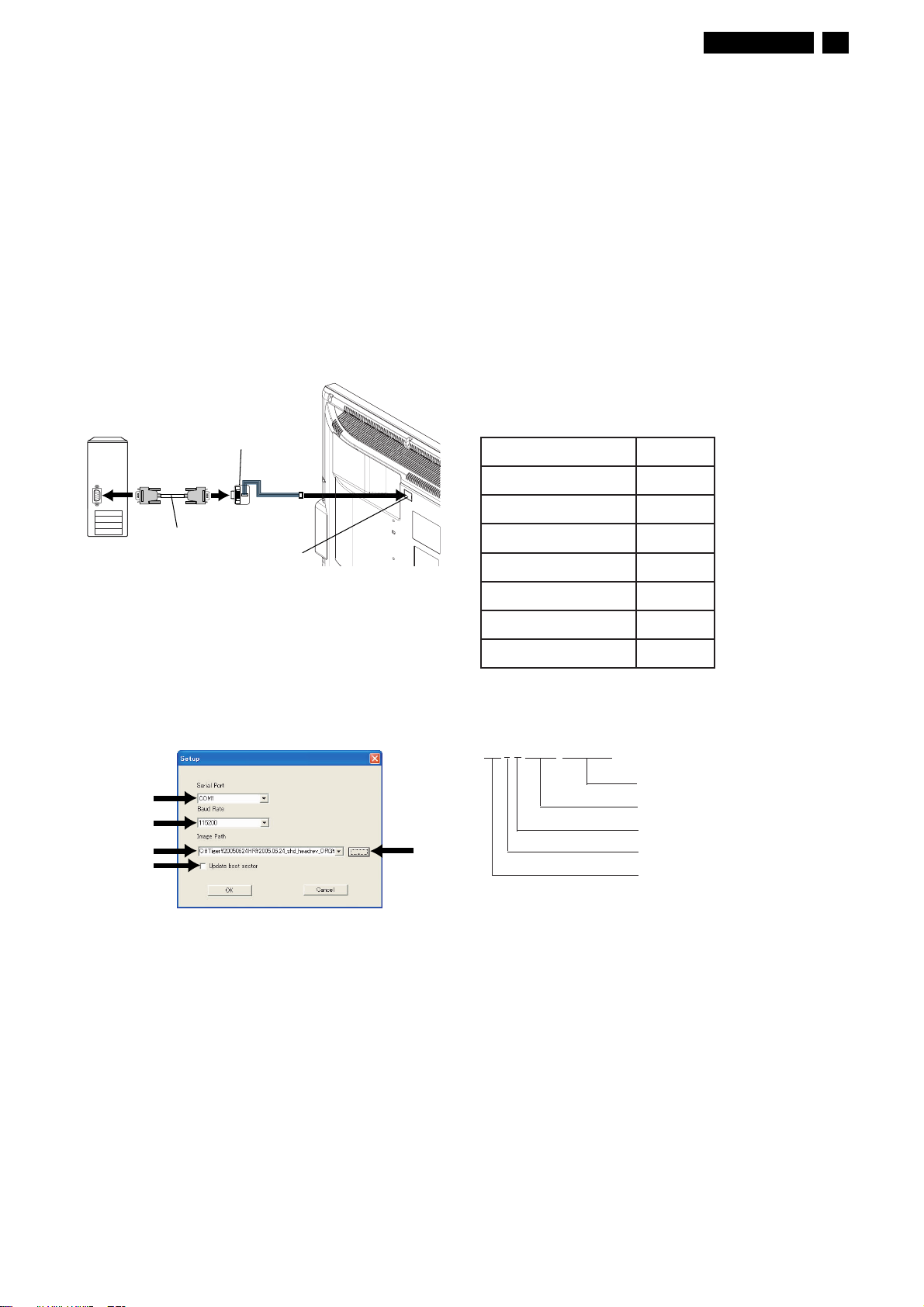

12.2 Firmware Renewal Mode

Equipment Required

a. Serial 4pin Cable

b. RS232C Cable

c. "iDev .exe" file

d. "*** .ecc" file

1. Remove the Cover for Serial Connector on the
rear cabinet.

2. Connect the Serial 4pin Cable to the Serial
Connector, the Serial 4pin Cable to the RS232C
Cable, and the RS232C Cable to the PC.

Rear Cabinet

Serial 4pin Cable

PC

RS232C Cable

Cover for Serial Connector

3. Plug in the AC Cord and turn LCD TV power on.

4. Execute the "iDev .exe" file.

5. Click "setup" menu.

5-1 Set Serial Port. Comform it to the PC’s Serial

Port. (generally "COM1")

5-2 Set Baud Rate to "115200".

5-3 Select "*** .ecc" file for Image Path.

12.3 How to initialize the LCD TV

1. Turn the power on.

2. To enter the service mode, press the service
button on the service remote control unit.

- To cancel the service mode, press [POWER]

button on the remote control unit.

3. Press [INFO] button on the service remote control
unit to initialize the LCD TV.

4. "INITIALIZED" will appear in the upper right of the
screen. "INITIALIZED" color will change to green
from red when initializing is complete.

12.4 Serial Number Definition

BOM Code:

PANEL SUPPLIER CODE

AU 1

CPT 2

LPL(LG) 3

QDI 4

CMO 5

HSD 6

SVA 7

BZ2A0651000001

Set

Set

Select

No Check
needed

Click

5-4 Click "OK" and turn the LCD TV power off.

6. Click "down" and when "waiting for ping..." is
displayed, turn the LCD TV power on.

7. Wait for updating. When "Finished, Please reset
the HDTV" is displayed, unplug the AC Cord.

8. Updating is complete.

Serial number (6 digits)

Production year/week code

Service version change code

BOM (bill of Material) code

Site code (Production center)
BZ CODE ( AR---CZECH REPUBLIC,
VN--HUNGARY(SZR), BZ--SUZHOU,
DS--DONG GUAN, CG---POLAND)

70 FUZ2.0U LA

13. ABBREVIATIONS LIST

CSM Customer Service Mode

ATSC Advanced Television Systems Committee, the digital TV standard in the USA

DVD Digital Versatile Disc

EEPROM Electrically Erasable and Programmable Read Only Memory

3DNR Temporal (3D) Noise Reduction

AGC Automatic Gain Control: algorithm that controls the video input of the feature box

FM Field Memory or Frequency Modulation

AM Amplitude Modulation

AP Asia Pacific

ASF

AT V Se e Au t o T V

Auto TV

AV External Audio Video

AVIP Audio Video Input Processor

B/G

CP Connected Planet / Copy Protection

CSS

CVBS Composite Video Blanking and Synchronization

DFU Directions For Use: owner's manual

DNR Digital Noise Reduction: noise reduction feature of the set

DSP Digital Signal Processing

DST Dealer Service Tool: special remote control designed for service technicians

DTCP

Auto Screen Fit: algorithm that adapts aspect ratio to remove horizontal black bars
without discarding video information

A hardware and software control system that measures picture content, and adapts
image parameters in a dynamic way

Monochrome TV system. Sound carrier distance is 5.5 MHz ComPair Computer aided
rePair

Content Scrambling System; An encryption method for MPEG-2 video on DVDs. The
algorithm and keys required to decode the disc are stored on the DVD-player

Digital Transmission Content Protection; A protocol for protecting digital audio/video
content that is traversing a high speed serial bus, such as IEEE-1394

DVI(-d) Digital Visual Interface (d= digital only)

EAS

E-DDC

EDID Extended Display Identification Data (VESA standard)

EMI Electro Magnetic Interference

EMM Entitlement Management Message

EPLD Erasable Programmable Logic Device

EU Europe

FBL Fast BLanking: DC signal accompanying RGB signals

FDS Full Dual Screen (same as FDW)

FDW Full Dual Window (same as FDS)

FLASH FLASH memory

FTV Flat TeleVision

Emergency Alert Signalling; A cable TV standard (SCTE18) to signal emergency
information to digital terminal devices

Enhanced Display Data Channel (VESA standard for communication channel and
display). Using E-DDC, the video source can read the EDID information form the display.

H H_sync to the module

HD High Definition

HDD Hard Disk Drive

National Television Standard Committee. Color system mainly used in North America and

NTSC

NVM Non-Volatile Memory: IC containing TV related data such as alignments

OSD On Screen Display

PLL Phase Locked Loop. Used for e.g.

LVDS Low Voltage Differential Signalling

PA L

PCB Printed Circuit Board (same as PWB)

PCM Pulse Code Modulation

PWB Printed Wiring Board (same as "PCB")

PWM Pulse Width Modulation

Japan. Color carrier NTSC M/N= 3.579545 MHz, NTSC 4.43= 4.433619 MHz (this is a
VCR norm, it is not transmitted off-air)

Phase Alternating Line. Color system mainly used in West Europe (color carrier=

4.433619 MHz) and South America (color carrier PAL M= 3.575612 MHz and PAL N=

3.582056MHz)

FUZ2.0U LA 71

QAM Quadrature Amplitude Modulation;modulation method

RAM Random Access Memory

RGB

RC Remote Control RC5 / RC6 Signal protocol from the remote control receiver

RESET RESET signal

ROM Read Only Memory

SAM Service Alignment Mode

SCART Syndicat des Constructeurs d'Appareils Radiorecepteurs et Televisieurs

SCL Serial Clock I2C

SCL-F CLock Signal on Fast I2C bus

SD Standard Definition

SDA Serial Data I2C

SDA-F DAta Signal on Fast I2C bus

SDI Serial Digital Interface, see “ITU-656”

SDRAM Synchronous DRAM

SECAM

Red, Green, and Blue. The primary color signals for TV. By mixing levels of R, G, and B,
all colors (Y/C) are reproduced.

SEequence Couleur Avec Memoire. Color system mainly used in France and East
Europe. Color carriers= 4.406250 MHz and 4.250000 MHz

SIF Sound Intermediate Frequency

SMPS Switched Mode Power Supply

SOG Sync On Green

SOPS Self Oscillating Power Supply

I2C Integrated IC bus

I2D Integrated IC Data bus

I2S Integrated IC Sound bus

IB In Band channel

IF Intermediate Frequency

72 FUZ2.0U LA

Interlaced

IR Infra Red

IRQ Interrupt Request

LATAM Latin America

LCD Liquid Crystal Display

LED Light Emitting Diode

LPL LG.Philips LCD (supplier)

MUTE MUTE Line

TFT Thin Film Transistor

SRAM Static RAM

STBY STandBY

SOG Sync On Green

SVGA 800x600 (4:3)

SVHS Super Video Home System

SW Software

SWAN Spatial temporal Weighted Averaging Noise reduction

Scan mode where two fields are used to form one frame. Each field contains half the
number of the total amount of lines. The fields are written in "pairs", causing line flicker.

SXGA 1280x1024

TMDS Transmission Minimized Differential Signalling

UXGA 1600x1200 (4:3)

V V-sync to the module

VCR Video Cassette Recorder

VESA Video Electronics Standards Association

VGA 640x480 (4:3)

VL Variable Level out: processed audio output toward external amplifier

VSB Vestigial Side Band; modulation method

WYSIWYR What You See Is What You Record: record selection that follows main picture and sound

WXGA 1280x768 (15:9)

XGA 1024x768 (4:3)

Y Luminance signal

YPbPr Component video. Luminance and scaled color difference signals (B-Y and R-Y)

1)Overview

FUZ2.0U LA 73

14. STRUCTURE & IC

2)Digital Main Board Unit Layout (Top Side)

74 FUZ2.0U LA

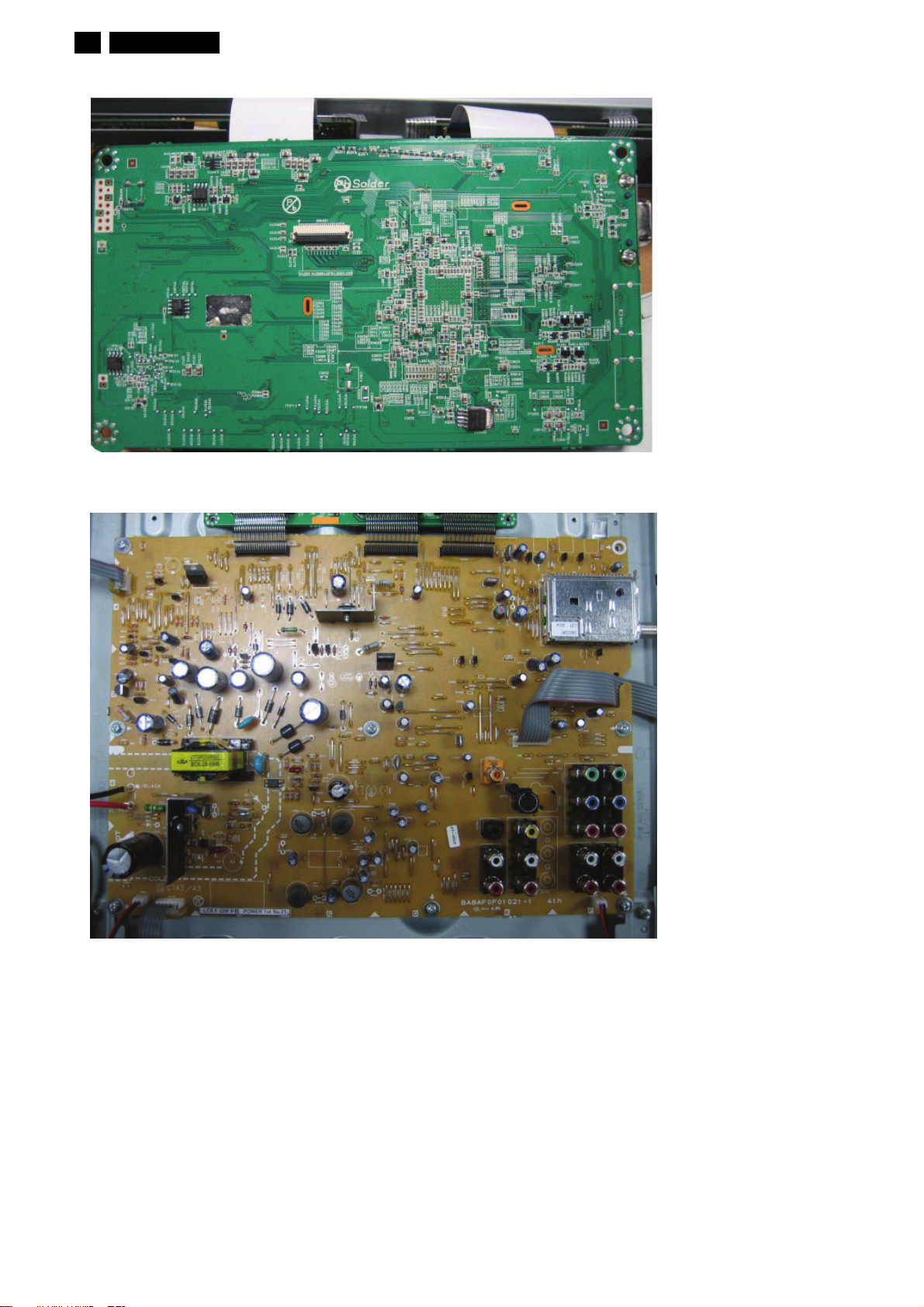

3)Digital Main Board Unit Layout (Bottom Side)

4)Power Supply Board Layout

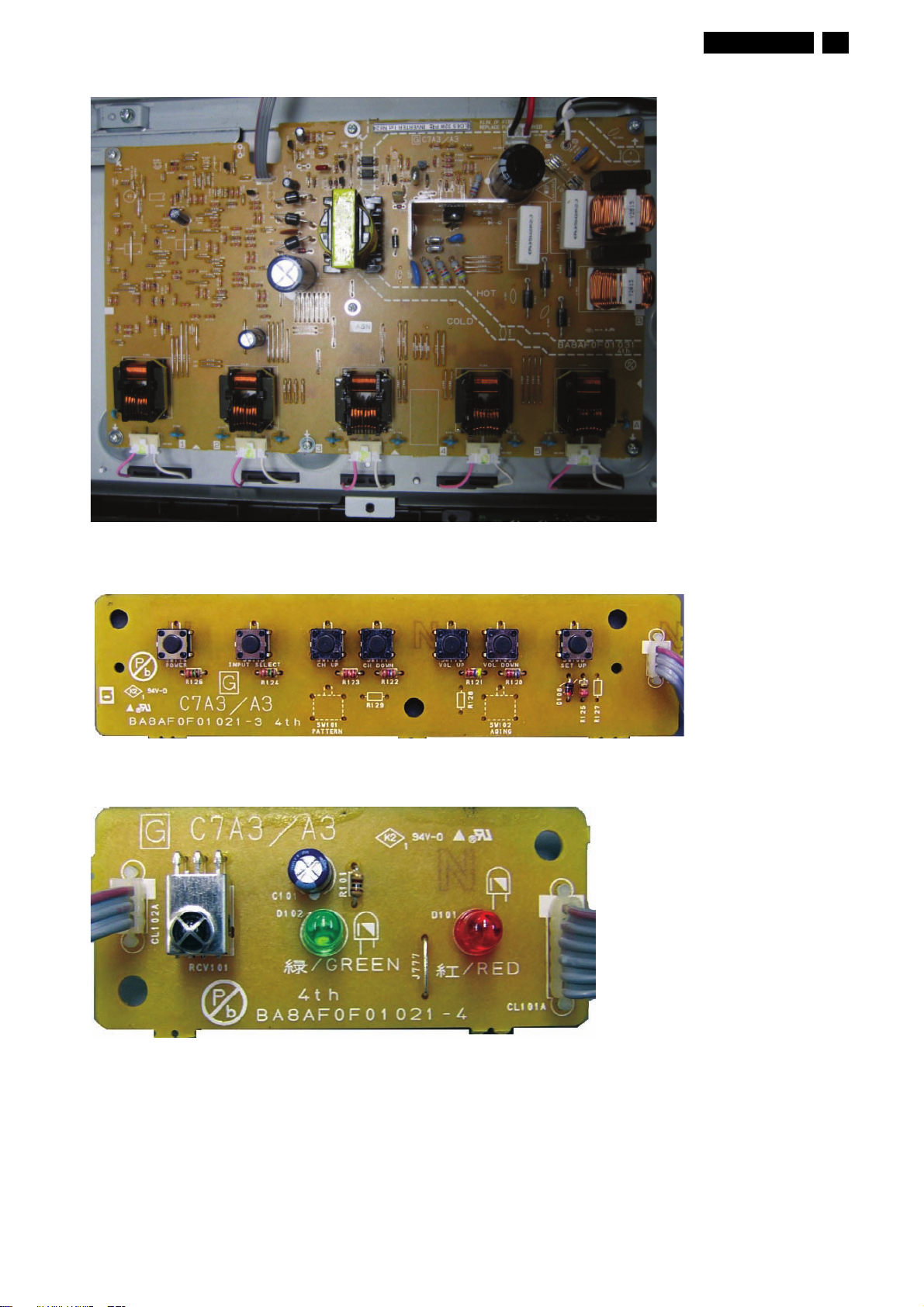

5)Inverter Board Layout

FUZ2.0U LA 75

6)Function Board Layout

7)IR Sensor Board Layout

76 FUZ2.0U LA

7)Side Jack Board Layout

8)Junction-A Board Layout

9)Junction-B Board Layout

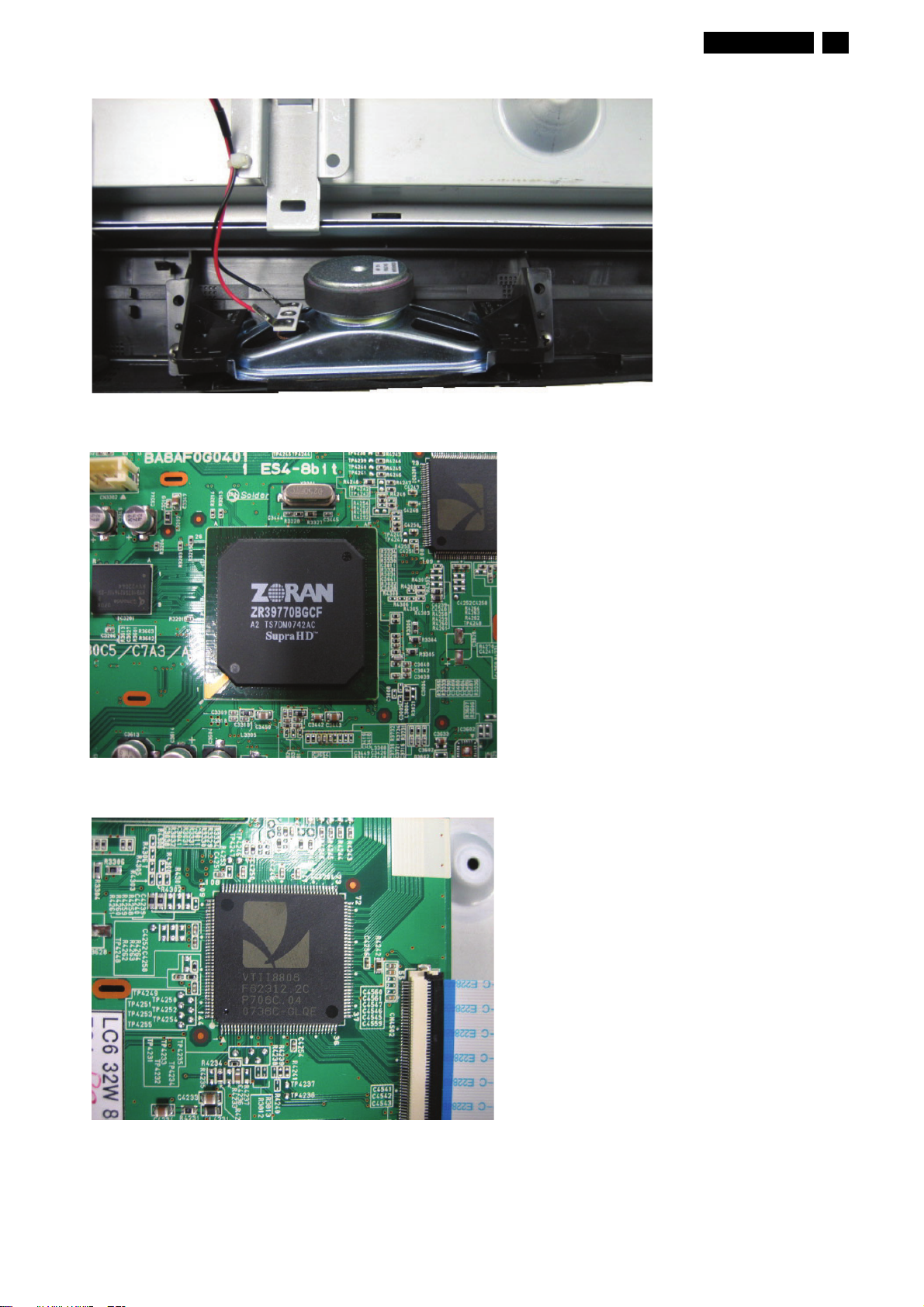

10)Speaker Layout

11)IC3301 Layout

FUZ2.0U LA 77

12)IC4201 Layout

78 FUZ2.0U LA

15. ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:
Parts that are not assigned part numbers (---------) are
not available.
Tolerance of Capacitors and Resistors are noted with
the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

ASSY1 MPS BOARD

Consists of the following:
ASSY1a POWER SUPPLY BOARD(MPS-1)
ASSY1b SIDE JACK BOARD(MPS-2)
ASSY1c FUNCTION BOARD(MPS-3)
ASSY1d IR SENSOR BOARD(MPS-4)
ASSY1e JUNCTION-A BOARD(MPS-5)

POWER SUPPLY BOARD(MPS-1)

B16 POW HEAT SINK A7120UH
B17 MODULE HEAT SINK PMC P7150UT

BC1

BC2

BC3 PCB JUMPER D0.6-P5.0
BC4 CHIP INDUCTOR BK1608HS601-T

BC4

BC601

BC701

BC702

BC801 PCB JUMPER D0.6-P5.0
BC802 PCB JUMPER D0.6-P5.0
BC803 PCB JUMPER D0.6-P5.0
BC804 PCB JUMPER D0.6-P5.0

BC7206

CL701

JK7501 JACK HPEP SML PCB S PJ-358H

JK7501

JK7701

JK7701

JK7701 Y/C JACK YKF51-5646N

JK7702

JK7702

JK7705 JACK RCA PCB S RCA-228H(NI)-01

BEADS INDUCTOR FBR07HA121SB-

00

BEADS INDUCTOR FBR07HA121SB-

00

COIL CHIP BEADS HPZ1608U601-

R50T(F)

BEADS INDUCTOR FBR07HA121SB-

00

BEADS INDUCTOR FBR07HA121SB-

00

BEADS INDUCTOR FBR07HA121SB-

00

BEADS INDUCTOR FBR07HA121SB-

00

WIRE ASSEMBLY 006 9PIN / 300MM /

AWG 26

JACK HPEP SML PCB S 02 MSJ-035-

29D (ABS)

JACK SW DIN PCB S 04/DIN-417HA-

01

JACK SW DIN PCB S 04 MDC-076H-

A LF

JACK SW RCA PCB S RCA-347HDT-

02

JACK SW RCA PCB S 03 MTJ-032-

45BBA-432

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

JK7711 JACK RCA PCB S 03 RCA-347HT-03

JK7711

JK7712

JK7712

JK7713 JACK RCA PCB S 03 RCA-347HT-03

JK7713

JK7714

JK7714

JK7715

JK7715

JK7715 JACK RCA PCB S AV-4B-70HH
JS641 PCB JUMPER D0.6-P15.0
JS651 PCB JUMPER D0.6-P5.0
JS652 PCB JUMPER D0.6-P5.0
L7 SCREW B-TIGHT D3X8 BIND HEAD+
T601 # TRANS POWER 8709
T601 # TRANS POWER BCK-28-9946
TU1 TUNER UNIT UA023AF

CAPACITORS

C1

C2

C3

C4

C5

C6

C8 ELECTROLYTIC CAP. 10UF/50V M

C9

C10

C11

C12 ELECTROLYTIC CAP. 10UF/50V M
C13 ELECTROLYTIC CAP. 10UF/16V M H7

C14

C15

C17 ELECTROLYTIC CAP. 47UF/16V M H7
C18 ELECTROLYTIC CAP. 330UF/10V M

C19

C21

C22

C23

C24

C501 ELECTROLYTIC CAP. 1UF/50V M

C601 #

JACK RCA PCB S MTJ-032-45BBB-25
FEL

JACK SW RCA PCB S RCA­228H(2)NI-01

JACK SW RCA PCB S 02 MTJ-032­31BA-32

JACK RCA PCB S MTJ-032-45BBB-25
FEL

JACK SW RCA PCB S RCA­228H(2)NI-01

JACK SW RCA PCB S 02 MTJ-032­31BA-32

JACK RCA PCB S ORANGE 01/RCA­101H(OR)

JACK RCA PCB S(ORANGE) 01 MTJ­032-04B-76 FE

CHIP CERAMIC CAP.(1608) CH J
1000PF/50V

CHIP CERAMIC CAP.(1608) CH J
22PF/50V

CHIP CERAMIC CAP.(1608) CH J
22PF/50V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V
CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V
CHIP CERAMIC CAP.(1608) B K

0.01UF/50V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/50V
CHIP CERAMIC CAP.(1608) CH J

1000PF/50V
CHIP CERAMIC CAP. CH J 220PF/

50V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V
CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V
CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V
CHIP CERAMIC CAP.(1608) B K

0.01UF/50V
CHIP CERAMIC CAP.(1608) CH J

1000PF/50V
CHIP CERAMIC CAP. CH J 220PF/

50V

ELECTROLYTIC CAPACITOR 270UF/
200V

FUZ2.0U LA 79

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

C601 # CAP ELE LT 270UF/200V/M/85
C601 # CAP ELE LS 270UF/200V/M/85
C602 CERAMIC CAP. HR 470PF/2KV
C602 CERAMIC CAP. 470PF/2KV
C602 CERAMIC CAP. RB 470PF/2KV
C602 CERAMIC CAP. BL 470PF/2KV
C603 CAP CERAMIC (AX) 560PF/50V/B/K

C604

C604

C605

C605

C606

C606 CAP POLYESTER FILM 0.1UF/100V J
C607 # SAFTY CAP. 2200PF/250V KX
C607 # SAFTY CAP. 2200PF/250V

C607 #

C608 SAFTY CAP. 2200PF/250V KX
C608 SAFTY CAP. 2200PF/250V

C608

C633 ELECTROLYTIC CAP. 470UF/25V M
C634 ELECTROLYTIC CAP 3300UF/10V
C634 ELECTROLYTIC CAP. 3300UF/10V M

C635

C635

C636 CERAMIC CAP. R K 1500PF/2KV(HR)
C636 CERAMIC CAP. 1500PF/2KV
C636 CERAMIC CAP RB 1500PF/2KV
C636 CERAMIC CAP. BL 1500PF/2KV
C638 ELECTROLYTIC CAP. 1000UF/35V M
C638 ELECTROLYTIC CAP. 1000UF/35V M
C639 ELECTROLYTIC CAP. 220UF/50V M
C640 CAP CERAMIC (AX) 0.01UF/50V/B/K
C642 CAP ELE STD-85 4700UF 6.3V SL

C642

C643 ELECTROLYTIC CAP. 1000UF/10V M

C644

C647 ELECTROLYTIC CAP. 10UF/50V M
C650 ELECTROLYTIC CAP. 220UF/16V M

C651

C652 ELECTROLYTIC CAP. 47UF/25V M
C653 ELECTROLYTIC CAP. 100UF/10V M
C654 ELECTROLYTIC CAP. 1000UF/10V M
C655 ELECTROLYTIC CAP. 1000UF/10V M
C656 ELECTROLYTIC CAP. 1000UF/6.3V M

C657

C658

C659

C660 ELECTROLYTIC CAP. 22UF/50V M

C661

C662

C663 ELECTROLYTIC CAP. 100UF/16V M

POLYESTER FILM CAP. (PB FREE)

0.047UF/100V J

CAP POLYESTER FILM 0.047UF/

100V J

POLYESTER FILM CAP. (PB FREE)

0.0022UF/100V J

CAP POLYESTER FILM 0.0022UF/

100V J

POLYESTER FILM CAP. (PB FREE)

0.1UF/100V J

CAP CERAMIC Y1 2200PF/AC400V/

E/M

CAP CERAMIC Y1 2200PF/AC400V/

E/M

POLYESTER FILM CAP. (PB FREE)

0.0022UF/100V J

CAP POLYESTER FILM 0.0022UF/

100V J

ELECTROLYTIC CAP. 4700UF/6.3V

SM

CHIP CERAMIC CAP.(1608) B K

0.1UF/50V

CHIP CERAMIC CAP.(1608) B K

0.01UF/50V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

C664 ELECTROLYTIC CAP 3300UF/6.3V M

C664

C666 ELECTROLYTIC CAP. 10UF/50V M

C668

C669

C670

C671

C701 ELECTROLYTIC CAP. 100UF/10V M
C702 ELECTROLYTIC CAP. 10UF/50V M

C703

C704 ELECTROLYTIC CAP. 47UF/25V M
C705 CHIP CERAMIC CAP. B K 470PF/50V
C706 ELECTROLYTIC CAP. 47UF/25V M
C707 CHIP CERAMIC CAP. B K 470PF/50V

C708

C709

C712 ELECTROLYTIC CAP. 100UF/16V M

C713

C714 ELECTROLYTIC CAP. 100UF/16V M
C801 ELECTROLYTIC CAP. 100UF/16V M
C802 ELECTROLYTIC CAP. 100UF/16V M
C803 ELECTROLYTIC CAP. 1000UF/25V M
C803 ELECTROLYTIC CAP. 1000UF/25V M
C804 ELECTROLYTIC CAP. 10UF/50V M
C805 ELECTROLYTIC CAP. 10UF/50V M
C806 ELECTROLYTIC CAP. 2.2UF/50V M

C807

C808

C809

C810

C811

C812

C813

C814 CHIP CERAMIC CAP. F Z 0.47UF/16V
C815 ELECTROLYTIC CAP. 2.2UF/50V M

C816

C817

C818

C819

C820 ELECTROLYTIC CAP. 10UF/50V M
C821 ELECTROLYTIC CAP. 10UF/50V M

C824

C825

C826

C827

C7001 ELECTROLYTIC CAP. 47UF/25V M

ELECTROLYTIC CAP. 3300UF/6.3V
SM

CHIP CERAMIC CAP.(1608) F Z

0.1UF/50V
CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V
CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V
CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) CH J
68PF/50V

CHIP CERAMIC CAP.(1608) CH J
68PF/50V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) B K

0.47UF/16V
CHIP CERAMIC CAP.(1608) B K

0.1UF/50V
CHIP CERAMIC CAP.(1608) B K

0.47UF/16V
CHIP CERAMIC CAP.(1608) B K

0.1UF/50V
CHIP CERAMIC CAP.(1608) B K

0.47UF/10V
CHIP CERAMIC CAP.(1608) B K

0.47UF/10V
CHIP CERAMIC CAP.(1608) B K

0.47UF/10V

CHIP CERAMIC CAP.(1608) B K

0.47UF/16V
CHIP CERAMIC CAP.(1608) B K

0.1UF/50V
CHIP CERAMIC CAP.(1608) B K

0.47UF/16V
CHIP CERAMIC CAP.(1608) B K

0.1UF/50V

CHIP CERAMIC CAP.(1608) B K

0.47UF/10V
CHIP CERAMIC CAP.(1608) B K

0.47UF/10V
CHIP CERAMIC CAP.(1608) B K

3300PF/50V
CHIP CERAMIC CAP.(1608) B K

3300PF/50V

80 FUZ2.0U LA

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

C7002 ELECTROLYTIC CAP. 10UF/16V M H7
C7003 ELECTROLYTIC CAP. 10UF/50V M
C7004 CHIP CERAMIC CAP. F Z 0.47UF/16V
C7005 CHIP CERAMIC CAP. F Z 0.47UF/16V
C7006 CHIP CERAMIC CAP. F Z 0.47UF/16V
C7007 CHIP CERAMIC CAP. F Z 0.47UF/16V

C7008

C7009

C7010

C7012

C7013

C7101 ELECTROLYTIC CAP. 220UF/10V M

C7102

C7109 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7110 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7111 ELECTROLYTIC CAP. 220UF/10V M
C7201 CHIP CERAMIC CAP. F Z 1UF/10V
C7202 CHIP RES.(1608) 1/10W 0 OHM
C7202 RES CHIP 1608 1/10W J 0 OHM
C7203 ELECTROLYTIC CAP. 10UF/16V M H7

C7204

C7301

C7302

C7303

C7304 ELECTROLYTIC CAP. 100UF/10V M

C7305

C7306

C7307 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7308 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7401 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7402 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7515 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7516 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7602 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7605 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7615 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7618 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7621 CHIP CERAMIC CAP. F Z 2.2UF/10V
C7624 CHIP CERAMIC CAP. F Z 2.2UF/10V

C7701

C7702 CHIP CERAMIC CAP. F Z 0.47UF/16V

C7709

C7710 CHIP CERAMIC CAP. F Z 0.47UF/16V

C7714

C7715

C7729 CHIP CERAMIC CAP. CH J 39PF/50V
C7730 CHIP CERAMIC CAP. F Z 0.47UF/16V
C7733 CHIP CERAMIC CAP. CH J 39PF/50V
C7734 CHIP CERAMIC CAP. F Z 0.47UF/16V
C7738 CHIP CERAMIC CAP. CH J 39PF/50V
C7739 CHIP CERAMIC CAP. F Z 0.47UF/16V
C7743 CHIP CERAMIC CAP. CH J 39PF/50V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) CH J

1000PF/50V

CHIP CERAMIC CAP.(1608) B K

0.01UF/50V

CHIP CERAMIC CAP.(1608) CH J

100PF/50V

CHIP CERAMIC CAP.(1608) CH J

100PF/50V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) F Z

0.1UF/25V

CHIP CERAMIC CAP.(1608) CH J

100PF/50V

CHIP CERAMIC CAP.(1608) CH J

100PF/50V

CHIP CERAMIC CAP.(1608) CH J

100PF/50V

CHIP CERAMIC CAP.(1608) B K

0.047UF/50V

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

C7744 CHIP CERAMIC CAP. F Z 0.47UF/16V
C7747 CHIP CERAMIC CAP. CH J 39PF/50V
C7748 CHIP CERAMIC CAP. F Z 0.47UF/16V
C7751 CHIP CERAMIC CAP. CH J 39PF/50V
C7752 CHIP CERAMIC CAP. F Z 0.47UF/16V
C7801 ELECTROLYTIC CAP. 100UF/16V M
C7802 ELECTROLYTIC CAP. 100UF/16V M

CONNECTORS

CN102

CN301

CN302

CN303

CN501

CN601

CN801

CN801

CN802

CN802

DIODES

D2 ZENER DIODE MTZJT-775.6B
D3 ZENER DIODE MTZJT-775.6B
D502 ZENER DIODE MTZJT-775.6A
D503 DIODE FR104-B
D503 DIODE FR104BB
D504 ZENER DIODE MTZJT-7710B
D505 SWITCHING DIODE 1SS133(T-77)
D505 DIODE SWITCHING HSS4148TE-E
D506 SWITCHING DIODE 1SS133(T-77)
D506 DIODE SWITCHING HSS4148TE-E
D507 SWITCHING DIODE 1SS133(T-77)
D507 DIODE SWITCHING HSS4148TE-E
D508 SWITCHING DIODE 1SS133(T-77)
D508 DIODE SWITCHING HSS4148TE-E
D509 SWITCHING DIODE 1SS133(T-77)
D509 DIODE SWITCHING HSS4148TE-E
D510 SWITCHING DIODE 1SS133(T-77)
D510 DIODE SWITCHING HSS4148TE-E
D511 SWITCHING DIODE 1SS133(T-77)
D511 DIODE SWITCHING HSS4148TE-E
D513 SWITCHING DIODE 1SS133(T-77)
D513 DIODE SWITCHING HSS4148TE-E
D514 SWITCHING DIODE 1SS133(T-77)
D514 DIODE SWITCHING HSS4148TE-E
D602 # ZENER DIODE MTZJT-7739B
D603 SWITCHING DIODE 1SS133(T-77)
D603 DIODE SWITCHING HSS4148TE-E
D604 # ZENER DIODE MTZJT-7727B
D606 ZENER DIODE MTZJT-774.3B
D607 SWITCHING DIODE 1SS133(T-77)
D607 DIODE SWITCHING HSS4148TE-E
D631 ZENER DIODE MTZJT-775.6B

D632

D632

D632

242 SERIES CONNECTOR
224202106W1

TWG CONNECTOR 23P TWG-P23P­A1

TWG CONNECTOR 23P TWG-P23P­A1

TWG CONNECTOR 23P TWG-P23P­A1

242 SERIES CONNECTOR
224202104W1

WIRE ASSEMBLY 004 3PIN / 100MM /
AWG18

PH CONNECTOR TOP 2P B2B-PH-K­S (LF)(SN)

CONNECTOR PRINT OSU TOP 2P
440054-2

PH CONNECTOR TOP 2P B2B-PH-K­S (LF)(SN)

CONNECTOR PRINT OSU TOP 2P
440054-2

SCHOTTKY BARRIER DIODE
ERB81-004

SCHOTTKY BARRIER DIODE
SB240-B/P

SCHOTTKY BARRIER DIODE
SB240-B/P

FUZ2.0U LA 81

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

D633 DIODE FR154
D633 DIODE FR154BD
D634 IC SHUNT REGULATOR KIA431-AT/P
D634 IC SHUNT REGULATOR SL431A-AT

D634

D635 ZENER DIODE MTZJT-7720B
D636 DIODE FR154
D636 DIODE FR154BD
D637 DIODE FR154
D637 DIODE FR154BD

D638

D638 SCHOTTKY BARRIER DIODE SB390
D638 SCHOTTKY BARRIER DIODE SB390

D639

D639 SCHOTTKY BARRIER DIODE SB390
D639 SCHOTTKY BARRIER DIODE SB390
D640 SCHOTTKY BARRIER DIODE SB340
D640 SCHOTTKY BARRIER DIODE SB340

D640

D641 SWITCHING DIODE 1SS133(T-77)
D641 DIODE SWITCHING HSS4148TE-E
D642 SWITCHING DIODE 1SS133(T-77)
D642 DIODE SWITCHING HSS4148TE-E
D644 DIODE 1ZC43(Q)
D644 DIODE ZENER 1ZB43BB
D645 SWITCHING DIODE 1SS133(T-77)
D645 DIODE SWITCHING HSS4148TE-E
D646 SWITCHING DIODE 1SS133(T-77)
D646 DIODE SWITCHING HSS4148TE-E

D647

D647

D647

D648 IC SHUNT REGULATOR KIA431-AT/P
D648 IC SHUNT REGULATOR SL431A-AT

D648

D649 ZENER DIODE MTZJT-7733B
D650 ZENER DIODE MTZJT-776.2C
D651 DIODE FR104-B
D651 DIODE FR104BB
D652 ZENER DIODE MTZJT-7724A
D654 DIODE FR154
D654 DIODE FR154BD
D655 ZENER DIODE MTZJT-775.6B
D656 ZENER DIODE MTZJT-7716B
D657 DIODE FR154
D657 DIODE FR154BD
D658 ZENER DIODE MTZJT-775.6C
D660 ZENER DIODE MTZJT-776.8B
D667 SCHOTTKY BARRIER DIODE SB140
D667 SCHOTTKY BARRIER DIODE SB140
D668 PCB JUMPER D0.6-P5.0

D669

D669 SCHOTTKY BARRIER DIODE SB160
D669 SCHOTTKY BARRIER DIODE SB160
D670 SWITCHING DIODE 1SS133(T-77)
D670 DIODE SWITCHING HSS4148TE-E
D671 SWITCHING DIODE 1SS133(T-77)

IC SHUNT REGULATOR AZ431BZ-

AT R E 1

SCHOTTKY BARRIER DIODE

ERC84-009

SCHOTTKY BARRIER DIODE

ERC84-009

SCHOTTKY BARRIER DIODE

ERC81-004

SCHOTTKY BARRIER DIODE

ERB81-004

SCHOTTKY BARRIER DIODE

SB240-B/P

SCHOTTKY BARRIER DIODE

SB240-B/P

IC SHUNT REGULATOR AZ431BZ-

AT R E 1

SCHOTTKY BARRIER DIODE

ERA81-004Q

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

D671 DIODE SWITCHING HSS4148TE-E
D676 SWITCHING DIODE 1SS133(T-77)
D676 DIODE SWITCHING HSS4148TE-E
D801 ZENER DIODE MTZJT-7710B
D802 ZENER DIODE MTZJT-775.6B
D804 SWITCHING DIODE 1SS133(T-77)
D804 DIODE SWITCHING HSS4148TE-E
D805 SWITCHING DIODE 1SS133(T-77)
D805 DIODE SWITCHING HSS4148TE-E
D811 ZENER DIODE MTZJT-7720B
D812 ZENER DIODE MTZJT-7720B
D813 ZENER DIODE MTZJT-7720B
D814 ZENER DIODE MTZJT-7720B

ICS

IC603 # PHOTO COUPLER LTV817MCF

IC603 #

IC637 IC LD1117V
IC637 IC REGULATOR UTC1117TA

IC637

IC701 IC(AUDIO D/A) PCM1782DBQR
IC702 IC OP AMP NJM4558M(TE1)-#ZZZB
IC702 IC OPAMP KIA4558F-EL/P FLP 8P
IC801 IC POWER AMP R2A15108SN

IC7001

IC7301 IC SWITCHING TC4052BF(ELNF)
IC7301 IC SWITCHING CD4052BNSR
IC7301 IC SWITCH 4052L-S16-R/SOP-16

IC7301

COILS

L1 CHOKE COIL 22UH-K

L1

L1 CHOKE COIL 22UH-K
L801 COIL RADIAL LHLP10NB220M 22UH
L802 COIL RADIAL LHLP10NB220M 22UH
L803 COIL RADIAL LHLP10NB220M 22UH
L804 COIL RADIAL LHLP10NB220M 22UH
L7802 PCB JUMPER D0.6-P5.0
L7803 PCB JUMPER D0.6-P5.0

TRANSISTORS

Q2 TRANSISTOR KTC3199-GR-AT/P
Q2 TRANSISTOR KTC3198-GR-AT/P
Q2 TRANSISTOR 2SC1815-GR(TE2 F T)
Q2 NPN TRANSISTOR 2SC5343MG-AT
Q3 TRANSISTOR KTC3199-GR-AT/P
Q3 TRANSISTOR KTC3198-GR-AT/P
Q3 TRANSISTOR 2SC1815-GR(TE2 F T)
Q3 NPN TRANSISTOR 2SC5343MG-AT
Q4 TRANSISTOR KTC3199-GR-AT/P
Q4 TRANSISTOR KTC3198-GR-AT/P
Q4 TRANSISTOR 2SC1815-GR(TE2 F T)
Q4 NPN TRANSISTOR 2SC5343MG-AT
Q5 TRANSISTOR KTC3199-GR-AT/P
Q5 TRANSISTOR KTC3198-GR-AT/P
Q5 TRANSISTOR 2SC1815-GR(TE2 F T)
Q5 NPN TRANSISTOR 2SC5343MG-AT
Q501 TRANSISTOR KTC3199-GR-AT/P
Q501 TRANSISTOR KTC3198-GR-AT/P
Q501 TRANSISTOR 2SC1815-GR(TE2 F T)
Q501 NPN TRANSISTOR 2SC5343MG-AT

PHOTO COUPLER PS2561L1-1-A­V(L)

VOLTAGE REGULATOR UZ1086L­ADJ

IC VIDEO ANALOG INTERFACE
R2A11011FP QFP 56PIN

IC SWITCH HCF4052M013TR/SOP/
16

FIXED INDUCTOR(PB FREE)
LGB0810TLF-220K

82 FUZ2.0U LA

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

Q502 TRANSISTOR KTC3199-GR-AT/P
Q502 TRANSISTOR KTC3198-GR-AT/P
Q502 TRANSISTOR 2SC1815-GR(TE2 F T)
Q502 NPN TRANSISTOR 2SC5343MG-AT
Q601 # FET MOS 2SK3563(Q)
Q602 # TRANSISTOR 2SC2120-O(TE2 F T)
Q602 # TRANSISTOR 2SC2120-Y(TE2 F T)
Q631 TRANSISTOR KTC3199-GR-AT/P
Q631 TRANSISTOR KTC3198-GR-AT/P
Q631 TRANSISTOR 2SC1815-GR(TE2 F T)
Q631 NPN TRANSISTOR 2SC5343MG-AT
Q632 TRANSISTOR KTA1267-GR-AT/P
Q632 TRANSISTOR KTA-1266-GR-AT/P
Q632 TRANSISTOR 2SA1015-GR(TE2 F T)
Q632 TRANSISTOR 2SA1015-Y(TE2 F T)
Q632 PNP TRANSISTOR 2SA1980MG-AT
Q632 PNP TRANSISTOR 2SA1980M Y
Q633 TRANSISTOR KTC3199-GR-AT/P
Q633 TRANSISTOR KTC3198-GR-AT/P
Q633 TRANSISTOR 2SC1815-GR(TE2 F T)
Q633 NPN TRANSISTOR 2SC5343MG-AT
Q634 TRANSISTOR KTC3199-GR-AT/P
Q634 TRANSISTOR KTC3198-GR-AT/P
Q634 TRANSISTOR 2SC1815-GR(TE2 F T)
Q634 NPN TRANSISTOR 2SC5343MG-AT

Q637

Q637

Q637 NPN TRANSISTOR STC403

Q638

Q638

Q638 NPN TRANSISTOR STC403
Q639 TRANSISTOR KTA1267-GR-AT/P
Q639 TRANSISTOR KTA-1266-GR-AT/P
Q639 TRANSISTOR 2SA1015-GR(TE2 F T)
Q639 TRANSISTOR 2SA1015-Y(TE2 F T)
Q639 PNP TRANSISTOR 2SA1980MG-AT
Q639 PNP TRANSISTOR 2SA1980M Y
Q645 TRANSISTOR 2SD400(E)
Q645 TRANSISTOR 2SD400(F)
Q645 TRANSISTOR KTC3205-Y-AT/P
Q645 TRANSISTOR KTC3205OAT
Q646 TRANSISTOR KTC3199-GR-AT/P
Q646 TRANSISTOR KTC3198-GR-AT/P
Q646 TRANSISTOR 2SC1815-GR(TE2 F T)
Q646 NPN TRANSISTOR 2SC5343MG-AT
Q650 TRANSISTOR KTC3199-GR-AT/P
Q650 TRANSISTOR KTC3198-GR-AT/P
Q650 TRANSISTOR 2SC1815-GR(TE2 F T)
Q650 NPN TRANSISTOR 2SC5343MG-AT
Q671 TRANSISTOR KTC3199-GR-AT/P
Q671 TRANSISTOR KTC3198-GR-AT/P
Q671 TRANSISTOR 2SC1815-GR(TE2 F T)
Q671 NPN TRANSISTOR 2SC5343MG-AT
Q801 TRANSISTOR 2SC2120-Y(TE2 F T)
Q801 TRANSISTOR 2SC2120-O(TE2 F T)
Q801 TRANSISTOR KTC3203-Y-AT/P
Q801 NPN TRANSISTOR 2SC5344 Y
Q7201 TRANSISTOR KTC3199-GR-AT/P
Q7201 TRANSISTOR KTC3198-GR-AT/P
Q7201 TRANSISTOR 2SC1815-GR(TE2 F T)

NPN TRANSISTOR POWER

2SC4881F HFE MAX320

TRANSISTOR(PB FREE) KTC2026-Y/

P

NPN TRANSISTOR POWER

2SC4881F HFE MAX320

TRANSISTOR(PB FREE) KTC2026-Y/

P

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

Q7201 NPN TRANSISTOR 2SC5343MG-AT
Q7301 TRANSISTOR KTC3199-GR-AT/P
Q7301 TRANSISTOR KTC3198-GR-AT/P
Q7301 TRANSISTOR 2SC1815-GR(TE2 F T)
Q7301 NPN TRANSISTOR 2SC5343MG-AT
Q7302 TRANSISTOR KTC3199-GR-AT/P
Q7302 TRANSISTOR KTC3198-GR-AT/P
Q7302 TRANSISTOR 2SC1815-GR(TE2 F T)
Q7302 NPN TRANSISTOR 2SC5343MG-AT

RESISTORS

R1 CHIP RES.(1608) 1/10W 0 OHM
R1 RES CHIP 1608 1/10W J 0 OHM
R2 CHIP RES.(1608) 1/10W 0 OHM
R2 RES CHIP 1608 1/10W J 0 OHM
R5 CHIP RES. 1/10W J 1K OHM
R5 RES CHIP 1608 1/10W J 1.0K OHM
R6 CHIP RES. 1/10W J 100 OHM
R6 RES CHIP 1608 1/10W J 100 OHM
R7 CHIP RES. 1/10W J 150K OHM
R7 RES CHIP 1608 1/10W J 150K OHM
R8 CHIP RES. 1/10W J 100K OHM
R8 RES CHIP 1608 1/10W J 100K OHM
R11 CHIP RES. 1/10W J 220 OHM
R11 RES CHIP 1608 1/10W J 220 OHM
R12 CHIP RES. 1/10W J 22K OHM
R12 RES CHIP 1608 1/10W J 22K OHM
R13 CHIP RES. 1/10W J 22K OHM
R13 RES CHIP 1608 1/10W J 22K OHM
R14 CHIP RES. 1/10W J 220K OHM
R14 RES CHIP 1608 1/10W J 220K OHM
R16 CHIP RES. 1/10W J 750 OHM
R16 RES CHIP 1608 1/10W J 750 OHM
R17 CHIP RES. 1/10W J 4.7K OHM
R17 RES CHIP 1608 1/10W J 4.7K OHM
R18 CARBON RES. 1/4W J 4.7K OHM
R19 CHIP RES. 1/10W J 560 OHM
R19 RES CHIP 1608 1/10W J 560 OHM
R20 CHIP RES. 1/10W J 100 OHM
R20 RES CHIP 1608 1/10W J 100 OHM
R21 CHIP RES. 1/10W J 4.7K OHM
R21 RES CHIP 1608 1/10W J 4.7K OHM
R22 CHIP RES. 1/10W J 1.5K OHM
R22 RES CHIP 1608 1/10W J 1.5K OHM
R24 CARBON RES. 1/4W J 1K OHM
R25 CHIP RES. 1/10W J 10K OHM
R25 RES CHIP 1608 1/10W J 10K OHM
R26 CHIP RES. 1/10W J 82 OHM
R26 RES CHIP 1608 1/10W J 82 OHM
R301 CHIP RES.(1608) 1/10W 0 OHM
R301 RES CHIP 1608 1/10W J 0 OHM
R302 CHIP RES.(1608) 1/10W 0 OHM
R302 RES CHIP 1608 1/10W J 0 OHM
R303 CHIP RES.(1608) 1/10W 0 OHM
R303 RES CHIP 1608 1/10W J 0 OHM
R501 PCB JUMPER D0.6-P5.0
R502 CHIP RES. 1/10W F 7.50 K OHM
R502 CHIP RES. 1/10W F 7.5K OHM
R502 RES CHIP 1608 1/10W F 7.50K OHM
R504 CHIP RES. 1/10W J 47K OHM
R504 RES CHIP 1608 1/10W J 47K OHM
R505 CHIP RES. 1/10W J 22K OHM
R505 RES CHIP 1608 1/10W J 22K OHM
R506 CHIP RES. 1/10W J 47K OHM

FUZ2.0U LA 83

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

R506 RES CHIP 1608 1/10W J 47K OHM
R507 CHIP RES. 1/10W J 22K OHM
R507 RES CHIP 1608 1/10W J 22K OHM
R509 CHIP RES. 1/10W J 100K OHM
R509 RES CHIP 1608 1/10W J 100K OHM
R510 CHIP RES.(1608) 1/10W 0 OHM
R510 RES CHIP 1608 1/10W J 0 OHM
R512 CHIP RES.(1608) 1/10W 0 OHM
R512 RES CHIP 1608 1/10W J 0 OHM
R514 PCB JUMPER D0.6-P5.0
R516 CHIP RES.(1608) 1/10W 0 OHM
R516 RES CHIP 1608 1/10W J 0 OHM
R517 PCB JUMPER D0.6-P5.0
R519 CHIP RES.(1608) 1/10W 0 OHM
R519 RES CHIP 1608 1/10W J 0 OHM
R521 PCB JUMPER D0.6-P5.0
R523 CHIP RES. 1/10W J 51K OHM
R523 RES CHIP 1608 1/10W J 51K OHM
R524 CHIP RES.(1608) 1/10W 0 OHM
R524 RES CHIP 1608 1/10W J 0 OHM
R526 CHIP RES. 1/10W J 4.7K OHM
R526 RES CHIP 1608 1/10W J 4.7K OHM
R527 CHIP RES.(1608) 1/10W 0 OHM
R527 RES CHIP 1608 1/10W J 0 OHM
R601 # METAL RES. 2W J 0.39 OHM

R601 #

R603 PCB JUMPER D0.6-P5.0
R604 CARBON RES. 1/4W J 390K OHM
R605 CARBON RES. 1/4W J 390K OHM
R606 CARBON RES. 1/4W J 390K OHM
R607 CARBON RES. 1/4W J 390K OHM
R609 CARBON RES. 1/4W J 5.6K OHM
R610 CARBON RES. 1/4W J 180 OHM
R611 CARBON RES. 1/4W J 820 OHM
R612 CARBON RES. 1/4W J 180 OHM
R613 CARBON RES. 1/4W J 180 OHM

R620

R620

R622 CARBON RES. 1/4W J 1K OHM

R631

R631

R632 CHIP RES. 1/10W F 4.7K OHM
R632 CHIP RES.(1608) 1/10W F 4.7K OHM
R632 RES CHIP 1608 1/10W F 4.70K OHM
R633 PCB JUMPER D0.6-P5.0
R634 CARBON RES. 1/4W J 6.8K OHM
R635 CARBON RES. 1/4W J 270 OHM
R636 CHIP RES. 1/10W F 5.6K OHM
R636 CHIP RES. 1/10W F 5.6K OHM
R636 RES CHIP 1608 1/10W F 5.60K OHM
R637 CARBON RES. 1/4W J 8.2K OHM
R638 CHIP RES. 1/10W J 1.5K OHM
R638 RES CHIP 1608 1/10W J 1.5K OHM
R639 CARBON RES. 1/4W J 100 OHM
R640 CHIP RES. 1/10W F 2.2K OHM
R640 CHIP RES.(1608) 1/10W F 2.2K OHM
R640 RES CHIP 1608 1/10W F 2.20K OHM
R641 CARBON RES. 1/4W J 1.2K OHM
R642 CARBON RES. 1/4W J 2.7K OHM
R643 PCB JUMPER D0.6-P15.0

METAL OXIDE FILM RES. 2W J 0.39

OHM

METAL OXIDE FILM RES. 1W J 1

OHM

METAL OXIDE FILM RES. 1W J 1

OHM

METAL OXIDE FILM RES. 1W J 3.3

OHM

METAL OXIDE FILM RES. 1W J 3.3

OHM

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

R644 PCB JUMPER D0.6-P5.0
R645 CARBON RES. 1/4W J 12K OHM
R646 CARBON RES. 1/4W J 12K OHM
R647 CHIP RES. 1/10W J 22K OHM
R647 RES CHIP 1608 1/10W J 22K OHM
R648 CHIP RES. 1/10W J 10K OHM
R648 RES CHIP 1608 1/10W J 10K OHM

R649

R649

R651 CARBON RES. 1/4W J 3.3K OHM
R652 CARBON RES. 1/4W J 27K OHM
R653 CARBON RES. 1/4W J 1.5K OHM
R654 CARBON RES. 1/4W J 1.5K OHM
R655 CHIP RES. 1/10W F 1.0K OHM
R655 CHIP RES. 1/10W F 1K OHM
R655 RES CHIP 1608 1/10W F 1.00K OHM
R656 CARBON RES. 1/4W J 68 OHM
R658 CHIP RES. 1/10W F 620 OHM
R658 CHIP RES. 1/10W F 620 OHM
R658 RES CHIP 1608 1/10W F 620 OHM
R660 CHIP RES. 1/10W J 10K OHM
R660 RES CHIP 1608 1/10W J 10K OHM
R662 CARBON RES. 1/4W J 4.7K OHM

R663

R663

R664 CHIP RES. 1/10W F 10K OHM
R664 CHIP RES. 1/10W F 10K OHM
R664 RES CHIP 1608 1/10W F 10.0K OHM
R666 CARBON RES. 1/4W J 270 OHM
R667 CARBON RES. 1/4W J 10 OHM
R668 CHIP RES. 1/10W F 3.3K OHM
R668 CHIP RES.(1608) 1/10W F 3.3K OHM
R668 RES CHIP 1608 1/10W F 3.30K OHM
R670 CARBON RES. 1/4W J 1K OHM
R671 CHIP RES. 1/10W J 10K OHM
R671 RES CHIP 1608 1/10W J 10K OHM
R672 CARBON RES. 1/4W J 1.8K OHM
R673 CARBON RES. 1/4W J 1.8K OHM
R674 CHIP RES. 1/10W J 10K OHM
R674 RES CHIP 1608 1/10W J 10K OHM
R675 CARBON RES. 1/4W J 47K OHM
R676 CHIP RES. 1/10W J 22K OHM
R676 RES CHIP 1608 1/10W J 22K OHM
R677 CARBON RES. 1/4W J 22K OHM
R684 CHIP RES. 1/10W J 56K OHM
R684 RES CHIP 1608 1/10W J 56K OHM
R685 CARBON RES. 1/4W J 2.2K OHM
R687 CARBON RES. 1/4W J 12K OHM
R688 CARBON RES. 1/4W J 120 OHM
R689 CARBON RES. 1/4W J 8.2K OHM
R692 CARBON RES. 1/4W J 10K OHM
R694 PCB JUMPER D0.6-P15.0
R695 PCB JUMPER D0.6-P15.0
R701 CHIP RES. 1/10W J 6.8K OHM
R701 RES CHIP 1608 1/10W J 6.8K OHM
R702 CHIP RES. 1/10W J 47K OHM
R702 RES CHIP 1608 1/10W J 47K OHM
R703 CHIP RES. 1/10W J 6.8K OHM
R703 RES CHIP 1608 1/10W J 6.8K OHM
R704 CHIP RES. 1/10W J 47K OHM

METAL OXIDE FILM RES. 1W 470
OHM

METAL OXIDE FILM RES. 1W J 470
OHM

METAL OXIDE FILM RES. 1W J 0.27
OHM

METAL OXIDE FILM RES. 1W J 0.27
OHM

84 FUZ2.0U LA

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

R704 RES CHIP 1608 1/10W J 47K OHM
R705 CHIP RES. 1/10W J 30K OHM
R705 RES CHIP 1608 1/10W J 30K OHM
R706 CHIP RES.(1608) 1/10W 0 OHM
R706 RES CHIP 1608 1/10W J 0 OHM
R710 CHIP RES. 1/10W J 33K OHM
R710 RES CHIP 1608 1/10W J 33K OHM
R713 CHIP RES. 1/10W J 30K OHM
R713 RES CHIP 1608 1/10W J 30K OHM
R714 CHIP RES.(1608) 1/10W 0 OHM
R714 RES CHIP 1608 1/10W J 0 OHM
R717 CHIP RES. 1/10W J 10K OHM
R717 RES CHIP 1608 1/10W J 10K OHM
R718 CHIP RES. 1/10W J 10K OHM
R718 RES CHIP 1608 1/10W J 10K OHM
R719 CHIP RES.(1608) 1/10W 0 OHM
R719 RES CHIP 1608 1/10W J 0 OHM
R720 CHIP RES. 1/10W J 33K OHM
R720 RES CHIP 1608 1/10W J 33K OHM
R802 CHIP RES. 1/10W J 4.7K OHM
R802 RES CHIP 1608 1/10W J 4.7K OHM
R803 CARBON RES. 1/4W J 10 OHM
R804 CARBON RES. 1/4W J 470 OHM
R805 CARBON RES. 1/4W J 47K OHM
R806 CHIP RES. 1/10W J 47K OHM
R806 RES CHIP 1608 1/10W J 47K OHM
R807 CHIP RES. 1/10W J 560 OHM
R807 RES CHIP 1608 1/10W J 560 OHM
R808 CHIP RES. 1/10W J 100 OHM
R808 RES CHIP 1608 1/10W J 100 OHM
R809 CHIP RES.(1608) 1/10W 0 OHM
R809 RES CHIP 1608 1/10W J 0 OHM
R811 CHIP RES. 1/10W J 560 OHM
R811 RES CHIP 1608 1/10W J 560 OHM
R813 CHIP RES. 1/10W J 39K OHM
R813 RES CHIP 1608 1/10W J 39K OHM
R814 CHIP RES. 1/10W J 18K OHM
R814 RES CHIP 1608 1/10W J 18K OHM
R819 CHIP RES. 1/10W J 100 OHM
R819 RES CHIP 1608 1/10W J 100 OHM
R821 CHIP RES.(1608) 1/10W 0 OHM
R821 RES CHIP 1608 1/10W J 0 OHM
R7101 CHIP RES. 1/10W J 75 OHM
R7101 RES CHIP 1608 1/10W J 75 OHM
R7102 CHIP RES. 1/10W J 75 OHM
R7102 RES CHIP 1608 1/10W J 75 OHM
R7103 CHIP RES. 1/10W J 75 OHM
R7103 RES CHIP 1608 1/10W J 75 OHM
R7104 CARBON RES. 1/4W J 75 OHM
R7105 CHIP RES.(1608) 1/10W 0 OHM
R7105 RES CHIP 1608 1/10W J 0 OHM
R7106 CHIP RES.(1608) 1/10W 0 OHM
R7106 RES CHIP 1608 1/10W J 0 OHM
R7111 CHIP RES. 1/10W J 75 OHM
R7111 RES CHIP 1608 1/10W J 75 OHM
R7112 CHIP RES. 1/10W J 75 OHM
R7112 RES CHIP 1608 1/10W J 75 OHM
R7201 CHIP RES. 1/10W J 47 OHM
R7201 RES CHIP 1608 1/10W J 47 OHM
R7202 CHIP RES. 1/10W J 24 OHM
R7202 RES CHIP 1608 1/10W J 24 OHM
R7204 CHIP RES. 1/10W J 100 OHM
R7204 RES CHIP 1608 1/10W J 100 OHM

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

R7207 CHIP RES. 1/10W J 56 OHM
R7207 RES CHIP 1608 1/10W J 56 OHM
R7301 CARBON RES. 1/4W J 10 OHM
R7302 CHIP RES. 1/10W J 10K OHM
R7302 RES CHIP 1608 1/10W J 10K OHM
R7303 CHIP RES. 1/10W J 10K OHM
R7303 RES CHIP 1608 1/10W J 10K OHM
R7304 CHIP RES. 1/10W J 100 OHM
R7304 RES CHIP 1608 1/10W J 100 OHM
R7305 CHIP RES. 1/10W J 100 OHM
R7305 RES CHIP 1608 1/10W J 100 OHM
R7306 CHIP RES. 1/10W J 2.2K OHM
R7306 RES CHIP 1608 1/10W J 2.2K OHM
R7307 CHIP RES. 1/10W J 2.2K OHM
R7307 RES CHIP 1608 1/10W J 2.2K OHM
R7316 CHIP RES. 1/10W J 100K OHM
R7316 RES CHIP 1608 1/10W J 100K OHM
R7317 CHIP RES. 1/10W J 100K OHM
R7317 RES CHIP 1608 1/10W J 100K OHM
R7318 CHIP RES. 1/10W J 100K OHM
R7318 RES CHIP 1608 1/10W J 100K OHM
R7319 CHIP RES. 1/10W J 100K OHM
R7319 RES CHIP 1608 1/10W J 100K OHM
R7402 CHIP RES. 1/10W J 12K OHM
R7402 RES CHIP 1608 1/10W J 12K OHM
R7403 CHIP RES. 1/10W J 33K OHM
R7403 RES CHIP 1608 1/10W J 33K OHM
R7405 CHIP RES. 1/10W J 12K OHM
R7405 RES CHIP 1608 1/10W J 12K OHM
R7406 CHIP RES. 1/10W J 33K OHM
R7406 RES CHIP 1608 1/10W J 33K OHM
R7515 CHIP RES. 1/10W J 12K OHM
R7515 RES CHIP 1608 1/10W J 12K OHM
R7516 CHIP RES. 1/10W J 12K OHM
R7516 RES CHIP 1608 1/10W J 12K OHM
R7517 CHIP RES. 1/10W J 33K OHM
R7517 RES CHIP 1608 1/10W J 33K OHM
R7518 CHIP RES. 1/10W J 33K OHM
R7518 RES CHIP 1608 1/10W J 33K OHM
R7601 CHIP RES. 1/10W J 33K OHM
R7601 RES CHIP 1608 1/10W J 33K OHM
R7602 CHIP RES. 1/10W J 22K OHM
R7602 RES CHIP 1608 1/10W J 22K OHM
R7604 CHIP RES. 1/10W J 33K OHM
R7604 RES CHIP 1608 1/10W J 33K OHM
R7605 CHIP RES. 1/10W J 22K OHM
R7605 RES CHIP 1608 1/10W J 22K OHM
R7613 CHIP RES. 1/10W J 33K OHM
R7613 RES CHIP 1608 1/10W J 33K OHM
R7614 CHIP RES. 1/10W J 22K OHM
R7614 RES CHIP 1608 1/10W J 22K OHM
R7616 CHIP RES. 1/10W J 33K OHM
R7616 RES CHIP 1608 1/10W J 33K OHM
R7617 CHIP RES. 1/10W J 22K OHM
R7617 RES CHIP 1608 1/10W J 22K OHM
R7619 CHIP RES. 1/10W J 33K OHM
R7619 RES CHIP 1608 1/10W J 33K OHM
R7620 CHIP RES. 1/10W J 22K OHM
R7620 RES CHIP 1608 1/10W J 22K OHM
R7622 CHIP RES. 1/10W J 33K OHM
R7622 RES CHIP 1608 1/10W J 33K OHM
R7623 CHIP RES. 1/10W J 22K OHM
R7623 RES CHIP 1608 1/10W J 22K OHM

FUZ2.0U LA 85

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

R7701 CHIP RES. 1/10W J 75 OHM
R7701 RES CHIP 1608 1/10W J 75 OHM
R7702 CHIP RES. 1/10W J 100 OHM
R7702 RES CHIP 1608 1/10W J 100 OHM
R7715 CHIP RES. 1/10W J 75 OHM
R7715 RES CHIP 1608 1/10W J 75 OHM
R7716 CHIP RES. 1/10W J 100 OHM
R7716 RES CHIP 1608 1/10W J 100 OHM
R7723 CHIP RES. 1/10W J 75 OHM
R7723 RES CHIP 1608 1/10W J 75 OHM
R7724 CHIP RES. 1/10W J 100 OHM
R7724 RES CHIP 1608 1/10W J 100 OHM
R7747 CHIP RES. 1/10W J 75 OHM
R7747 RES CHIP 1608 1/10W J 75 OHM
R7748 CHIP RES. 1/10W J 100 OHM
R7748 RES CHIP 1608 1/10W J 100 OHM
R7755 CHIP RES. 1/10W J 75 OHM
R7755 RES CHIP 1608 1/10W J 75 OHM
R7756 CHIP RES. 1/10W J 100 OHM
R7756 RES CHIP 1608 1/10W J 100 OHM
R7763 CHIP RES. 1/10W J 75 OHM
R7763 RES CHIP 1608 1/10W J 75 OHM
R7764 CHIP RES. 1/10W J 100 OHM
R7764 RES CHIP 1608 1/10W J 100 OHM
R7771 CHIP RES. 1/10W J 75 OHM
R7771 RES CHIP 1608 1/10W J 75 OHM
R7772 CHIP RES. 1/10W J 100 OHM
R7772 RES CHIP 1608 1/10W J 100 OHM
R7779 CHIP RES. 1/10W J 75 OHM
R7779 RES CHIP 1608 1/10W J 75 OHM
R7780 CHIP RES. 1/10W J 100 OHM
R7780 RES CHIP 1608 1/10W J 100 OHM
R7787 CHIP RES. 1/10W J 75 OHM
R7787 RES CHIP 1608 1/10W J 75 OHM
R7788 CHIP RES. 1/10W J 100 OHM
R7788 RES CHIP 1608 1/10W J 100 OHM

SIDE JACK BOARD(MPS-2)

JK751 JACK SW DIN PCB L DIN-435C(777D)

JK751

JK752

JK752

CAPACITORS

C751

C752

C753

C754 CHIP CERAMIC CAP. F Z 0.47UF/16V

C755

C756 CHIP CERAMIC CAP. F Z 0.47UF/16V
C757 CHIP CERAMIC CAP. F Z 2.2UF/10V
C758 CHIP CERAMIC CAP. F Z 2.2UF/10V

RESISTORS

R751 CHIP RES. 1/10W J 75 OHM
R751 RES CHIP 1608 1/10W J 75 OHM
R752 CHIP RES. 1/10W J 75 OHM
R752 RES CHIP 1608 1/10W J 75 OHM
R753 CHIP RES. 1/10W J 75 OHM
R753 RES CHIP 1608 1/10W J 75 OHM
R756 CHIP RES. 1/10W J 100 OHM

JACK SW DIN PCB L 04 MDC-070V1-

A LF

JACK SW RCA PCB L 05 RCA-340NI-

01

JACK SW RCA PCB L MSP-293V3-

324 NI LF

CHIP CERAMIC CAP.(1608) CH J

100PF/50V

CHIP CERAMIC CAP.(1608) CH J

100PF/50V

CHIP CERAMIC CAP.(1608) CH J

100PF/50V

CHIP CERAMIC CAP.(1608) B K

0.047UF/50V

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

R756 RES CHIP 1608 1/10W J 100 OHM
R757 CHIP RES. 1/10W J 100 OHM
R757 RES CHIP 1608 1/10W J 100 OHM
R758 CHIP RES. 1/10W J 100 OHM
R758 RES CHIP 1608 1/10W J 100 OHM
R759 CHIP RES. 1/10W J 22K OHM
R759 RES CHIP 1608 1/10W J 22K OHM
R760 CHIP RES. 1/10W J 22K OHM
R760 RES CHIP 1608 1/10W J 22K OHM
R761 CHIP RES. 1/10W J 33K OHM
R761 RES CHIP 1608 1/10W J 33K OHM
R762 CHIP RES. 1/10W J 33K OHM
R762 RES CHIP 1608 1/10W J 33K OHM

FUNCTION BOARD(MPS-3)

CAPACITORS

C109

C110

DIODE

D108 ZENER DIODE MTZJT-775.6B

RESISTORS

R120 CARBON RES. 1/4W G 6.8K OHM
R121 CARBON RES. 1/4W G 4.7K OHM
R122 CARBON RES. 1/4W G 2.7K OHM
R123 CARBON RES. 1/4W G 2.2K OHM
R124 CARBON RES. 1/4W G 1.5K OHM
R125 CARBON RES. 1/4W J 220 OHM
R126 CARBON RES. 1/4W G 1.5K OHM

SWITCHES

SW108 TACT SWITCH SKQSAB
SW108 TACT SWITCH TC-1104(H=5.0)
SW108 TACT SWITCH KSM0612B
SW109 TACT SWITCH SKQSAB
SW109 TACT SWITCH TC-1104(H=5.0)
SW109 TACT SWITCH KSM0612B
SW110 TACT SWITCH SKQSAB
SW110 TACT SWITCH TC-1104(H=5.0)
SW110 TACT SWITCH KSM0612B
SW111 TACT SWITCH SKQSAB
SW111 TACT SWITCH TC-1104(H=5.0)
SW111 TACT SWITCH KSM0612B
SW112 TACT SWITCH SKQSAB
SW112 TACT SWITCH TC-1104(H=5.0)
SW112 TACT SWITCH KSM0612B
SW113 TACT SWITCH SKQSAB
SW113 TACT SWITCH TC-1104(H=5.0)
SW113 TACT SWITCH KSM0612B
SW114 TACT SWITCH SKQSAB
SW114 TACT SWITCH TC-1104(H=5.0)
SW114 TACT SWITCH KSM0612B

RCV101

CAPACITORS

C101 ELECTROLYTIC CAP. 47UF/16V M H7

C107

DIODES

D101 LED L-53HT
D101 LED 333HT/E-L
D101 LED 333HT/E-K
D102 LED 333GT/E
D102 LED(GREEN) LTL-4234

CHIP CERAMIC CAP.(1608) F Z

0.1UF/50V
CHIP CERAMIC CAP.(1608) F Z

0.1UF/50V

IR SENSOR BOARD(MPS-4)

PHOTO LINK MODULE KSM­712TH2E

CHIP CERAMIC CAP.(1608) F Z

0.1UF/50V

86 FUZ2.0U LA

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

RESISTORS

R101 CARBON RES. 1/4W J 100 OHM
R102 CHIP RES. 1/10W J 3.3K OHM
R102 RES CHIP 1608 1/10W J 3.3K OHM
R103 CHIP RES. 1/10W J 220 OHM
R103 RES CHIP 1608 1/10W J 220 OHM
R104 CHIP RES. 1/10W J 220 OHM
R104 RES CHIP 1608 1/10W J 220 OHM
R105 CHIP RES. 1/10W J 1K OHM
R105 RES CHIP 1608 1/10W J 1.0K OHM

JUNCTION-A BOARD(MPS-5)

CONNECTOR

CN101

ASSY2 MUT BOARD

ASSY2a INVERTER BOARD
ASSY2b JUNCTION-B BOARD

AC1901 # AC CORD LP-11W&PT218P-K90A&S
AC1901 # AC CORD (PB FREE) A0A0280-015

B18

BC1001 PCB JUMPER D0.6-P5.0

BC1931

BC1932

CL1000

F1901 # FUSE STC4A125V U/CT
F1901 # FUSE 4.00A/125V
FH1901 FUSE HOLDER MSF-015 LF (B110)
FH1902 FUSE HOLDER MSF-015 LF (B110)
L7 SCREW B-TIGHT D3X8 BIND HEAD+
SA1901 # SURGE ABSORBER 470V+-10PER
SA1901 # VARISTOR 10D 471K SVR
T1050 TRANS INVERTER HVT-133
T1100 TRANS INVERTER HVT-133
T1150 TRANS INVERTER HVT-133
T1200 TRANS INVERTER HVT-133
T1250 TRANS INVERTER HVT-133
TM1901 EYELET TYPE D-1
TM1902 EYELET TYPE D-1
T1951 # TRANS POWER 8708
T1951 # TRANS POWER BCK-35-0519

CAPACITORS

C1000

C1001

C1002

C1003

C1004

C1005

C1006

C1007

C1008

242 SERIES CONNECTOR TUC-

P06X-B1 WHT ST

Consists of the following:

INVERTER BOARD

HEAT SINK PMP ASSEMBLY

A8AF0UH A8AF0UH

BEADS INDUCTOR FBR07HA121SB-

00

BEADS INDUCTOR FBR07HA121SB-

00

WIRE ASSEMBLY 4PIN / 90MM /

AWG 26

CHIP CERAMIC CAP.(1608) B K

1000PF/50V

CHIP CERAMIC CAP.(1608) B K 1UF/

25V

CHIP CERAMIC CAP.(1608) B K

1000PF/50V

CHIP CERAMIC CAP.(1608) B K

1000PF/50V

CHIP CERAMIC CAP.(1608) B K

0.01UF/50V

CHIP CERAMIC CAP.(1608) CH J

1000PF/50V

CHIP CERAMIC CAP.(1608) B K

0.047UF/50V

CHIP CERAMIC CAP. CH J 330PF/

50V

CHIP CERAMIC CAP.(1608) B K

2.2UF/10V

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

C1009

C1010

C1011

C1012

C1014

C1015 ELECTROLYTIC CAP. 470UF/35V M
C1015 ELECTROLYTIC CAP. 470UF/35V M

C1016

C1017

C1018

C1019

C1020

C1021 CHIP CERAMIC CAP. F Z 1UF/10V

C1022

C1023

C1032 ELECTROLYTIC CAP. 47UF/35V M

C1040

C1044

C1046

C1061 CAP CERAMIC HV 15PF/3.15KV/SL/J

C1062

C1063

C1064 CAP CERAMIC HV 15PF/3.15KV/SL/J

C1065

C1066

C1067

C1101

C1103

C1104

C1105

C1106

C1107

C1111 CAP CERAMIC HV 15PF/3.15KV/SL/J

C1112

C1113

C1114 CAP CERAMIC HV 15PF/3.15KV/SL/J

C1115

C1116

C1117

C1161 CAP CERAMIC HV 15PF/3.15KV/SL/J

CHIP CERAMIC CAP.(1608) B K

0.1UF/50V
CHIP CERAMIC CAP.(1608) B K

0.1UF/50V
CHIP CERAMIC CAP.(1608) B K

0.47UF/10V
CHIP CERAMIC CAP.(1608) B K

0.47UF/10V
CHIP CERAMIC CAP.(1608) B K

0.1UF/50V

CHIP CERAMIC CAP.(1608) B K

0.1UF/50V
CHIP CERAMIC CAP.(1608) B K

0.01UF/50V
CHIP CERAMIC CAP.(1608) B K

0.1UF/50V
CHIP CERAMIC CAP.(1608) B K

0.01UF/50V
CHIP CERAMIC CAP.(1608) B K

0.1UF/50V

CHIP CERAMIC CAP.(1608) CH J
1000PF/50V

CHIP CERAMIC CAP.(1608) CH J
1000PF/50V

CHIP CERAMIC CAP.(1608) B K
1000PF/50V

CHIP CERAMIC CAP.(1608) B K 1UF/
25V

CHIP CERAMIC CAP.(1608) B K 1UF/
25V

CHIP CERAMIC CAP. B K 1500PF/
50V

CHIP CERAMIC CAP. B K 2200PF/
50V

CHIP CERAMIC CAP. B K 1500PF/
50V

CHIP CERAMIC CAP. B K 2200PF/
50V

CHIP CERAMIC CAP.(1608) B K

0.01UF/50V
CHIP CERAMIC CAP.(1608) B K

1000PF/50V
CHIP CERAMIC CAP.(1608) B K

1000PF/50V
CHIP CERAMIC CAP. CH J 220PF/

50V
CHIP CERAMIC CAP. CH J 220PF/

50V
CHIP CERAMIC CAP. CH J 220PF/

50V
CHIP CERAMIC CAP. CH J 220PF/

50V

CHIP CERAMIC CAP. B K 1500PF/
50V

CHIP CERAMIC CAP. B K 2200PF/
50V

CHIP CERAMIC CAP. B K 1500PF/
50V

CHIP CERAMIC CAP. B K 2200PF/
50V

CHIP CERAMIC CAP.(1608) B K

0.01UF/50V

FUZ2.0U LA 87

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

C1162

C1163

C1164 CAP CERAMIC HV 15PF/3.15KV/SL/J

C1165

C1166

C1167

C1211 CAP CERAMIC HV 15PF/3.15KV/SL/J

C1212

C1213

C1214 CAP CERAMIC HV 15PF/3.15KV/SL/J

C1215

C1216

C1217

C1261 CAP CERAMIC HV 15PF/3.15KV/SL/J

C1262

C1263

C1264 CAP CERAMIC HV 15PF/3.15KV/SL/J

C1265

C1266

C1267

C1500

C1502

C1550

C1552

C1701 ELECTROLYTIC CAP. 10UF/50V M
C1901 # METALIZED FILM CAP. 0.47UF/250V

C1901 #

C1902 # METALIZED FILM CAP. 0.47UF/250V

C1902 #

C1910 CAP ELE LS 470UF/200V/M/85
C1910 ELECTROLYTIC CAP. 470UF/200V LX
C1930 CERAMIC CAP. BN 1000PF/2KV
C1930 CERAMIC CAP. 1000PF/2KV
C1930 CERAMIC CAP RB 1000PF/2KV
C1930 CERAMIC CAP. BL 1000PF/2KV

C1931

C1931

C1932

C1932

C1933

C1933 CAP POLYESTER FILM 0.1UF/100V J
C1941 CERAMIC CAP. B K 0.01UF/1KV

C1970

CHIP CERAMIC CAP. B K 1500PF/

50V

CHIP CERAMIC CAP. B K 2200PF/

50V

CHIP CERAMIC CAP. B K 1500PF/

50V

CHIP CERAMIC CAP. B K 2200PF/

50V

CHIP CERAMIC CAP.(1608) B K

0.01UF/50V

CHIP CERAMIC CAP. B K 1500PF/

50V

CHIP CERAMIC CAP. B K 2200PF/

50V

CHIP CERAMIC CAP. B K 1500PF/

50V

CHIP CERAMIC CAP. B K 2200PF/

50V

CHIP CERAMIC CAP.(1608) B K

0.01UF/50V

CHIP CERAMIC CAP. B K 1500PF/

50V

CHIP CERAMIC CAP. B K 2200PF/

50V

CHIP CERAMIC CAP. B K 1500PF/

50V

CHIP CERAMIC CAP. B K 2200PF/

50V

CHIP CERAMIC CAP.(1608) B K

0.01UF/50V

CHIP CERAMIC CAP.(1608) F Z

0.22UF/50V

CHIP CERAMIC CAP.(1608) F Z

0.22UF/50V

CHIP CERAMIC CAP.(1608) F Z

0.22UF/50V

CHIP CERAMIC CAP.(1608) F Z

0.22UF/50V

CAP METALIZED FILM 0.47UF/300V

K 3.5MM

CAP METALIZED FILM 0.47UF/300V

K 3.5MM

POLYESTER FILM CAP. (PB FREE)

0.001UF/100V J

CAP POLYESTER FILM 0.001UF/

100V J

POLYESTER FILM CAP. (PB FREE)

0.027UF/100V J

CAP POLYESTER FILM 0.027UF/

100V J

POLYESTER FILM CAP. (PB FREE)

0.1UF/100V J

POLYESTER FILM CAP. (PB FREE)

0.0022UF/100V J

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

C1970

C1980 CHIP CERAMIC CAP. F Z 0.01UF/50V
C1981 ELECTROLYTIC CAP. 0.47UF/50V M
C1990 CERAMIC CAP. B K 3300PF/500V
C1991 # CAP ELE STD-85 4700UF/35V SL
C1991 # CAP ELE STD-85 4700UF/35V SL

CONNECTORS

CN1050

CN1100

CN1150

CN1200

CN1250

CN1901 CONNECTOR B2P3-VH(LF)(SN)

DIODES

D1000 SWITCHING DIODE 1SS133(T-77)
D1000 DIODE SWITCHING HSS4148TE-E
D1001 SWITCHING DIODE 1SS133(T-77)
D1001 DIODE SWITCHING HSS4148TE-E
D1002 ZENER DIODE MTZJT-776.2B
D1003 ZENER DIODE MTZJT-776.2B
D1004 ZENER DIODE MTZJT-776.2B
D1005 ZENER DIODE MTZJT-776.2B
D1006 SWITCHING DIODE 1SS133(T-77)
D1006 DIODE SWITCHING HSS4148TE-E
D1008 ZENER DIODE MTZJT-775.6B
D1021 SWITCHING DIODE 1SS133(T-77)
D1021 DIODE SWITCHING HSS4148TE-E
D1042 ZENER DIODE MTZJT-7724B
D1043 SWITCHING DIODE 1SS133(T-77)
D1043 DIODE SWITCHING HSS4148TE-E
D1045 ZENER DIODE MTZJT-7724B
D1046 SWITCHING DIODE 1SS133(T-77)
D1046 DIODE SWITCHING HSS4148TE-E
D1060 SWITCHING DIODE 1SS133(T-77)
D1060 DIODE SWITCHING HSS4148TE-E
D1061 SWITCHING DIODE 1SS133(T-77)
D1061 DIODE SWITCHING HSS4148TE-E
D1062 SWITCHING DIODE 1SS133(T-77)
D1062 DIODE SWITCHING HSS4148TE-E
D1063 SWITCHING DIODE 1SS133(T-77)
D1063 DIODE SWITCHING HSS4148TE-E
D1064 SWITCHING DIODE 1SS133(T-77)
D1064 DIODE SWITCHING HSS4148TE-E
D1065 SWITCHING DIODE 1SS133(T-77)
D1065 DIODE SWITCHING HSS4148TE-E
D1066 SWITCHING DIODE 1SS133(T-77)
D1066 DIODE SWITCHING HSS4148TE-E
D1067 SWITCHING DIODE 1SS133(T-77)
D1067 DIODE SWITCHING HSS4148TE-E
D1068 SWITCHING DIODE 1SS133(T-77)
D1068 DIODE SWITCHING HSS4148TE-E
D1110 SWITCHING DIODE 1SS133(T-77)
D1110 DIODE SWITCHING HSS4148TE-E
D1111 SWITCHING DIODE 1SS133(T-77)
D1111 DIODE SWITCHING HSS4148TE-E
D1112 SWITCHING DIODE 1SS133(T-77)
D1112 DIODE SWITCHING HSS4148TE-E
D1113 SWITCHING DIODE 1SS133(T-77)
D1113 DIODE SWITCHING HSS4148TE-E

CAP POLYESTER FILM 0.0022UF/
100V J

CONNECTOR PRINT OSU KW05­120-02-00

CONNECTOR PRINT OSU KW05­120-02-00

CONNECTOR PRINT OSU KW05­120-02-00

CONNECTOR PRINT OSU KW05­120-02-00

CONNECTOR PRINT OSU KW05­120-02-00

88 FUZ2.0U LA

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

D1114 SWITCHING DIODE 1SS133(T-77)
D1114 DIODE SWITCHING HSS4148TE-E
D1115 SWITCHING DIODE 1SS133(T-77)
D1115 DIODE SWITCHING HSS4148TE-E
D1116 SWITCHING DIODE 1SS133(T-77)
D1116 DIODE SWITCHING HSS4148TE-E
D1117 SWITCHING DIODE 1SS133(T-77)
D1117 DIODE SWITCHING HSS4148TE-E
D1118 SWITCHING DIODE 1SS133(T-77)
D1118 DIODE SWITCHING HSS4148TE-E
D1160 SWITCHING DIODE 1SS133(T-77)
D1160 DIODE SWITCHING HSS4148TE-E
D1161 SWITCHING DIODE 1SS133(T-77)
D1161 DIODE SWITCHING HSS4148TE-E
D1162 SWITCHING DIODE 1SS133(T-77)
D1162 DIODE SWITCHING HSS4148TE-E
D1163 SWITCHING DIODE 1SS133(T-77)
D1163 DIODE SWITCHING HSS4148TE-E
D1164 SWITCHING DIODE 1SS133(T-77)
D1164 DIODE SWITCHING HSS4148TE-E
D1165 SWITCHING DIODE 1SS133(T-77)
D1165 DIODE SWITCHING HSS4148TE-E
D1166 SWITCHING DIODE 1SS133(T-77)
D1166 DIODE SWITCHING HSS4148TE-E
D1167 SWITCHING DIODE 1SS133(T-77)
D1167 DIODE SWITCHING HSS4148TE-E
D1168 SWITCHING DIODE 1SS133(T-77)
D1168 DIODE SWITCHING HSS4148TE-E
D1210 SWITCHING DIODE 1SS133(T-77)
D1210 DIODE SWITCHING HSS4148TE-E
D1211 SWITCHING DIODE 1SS133(T-77)
D1211 DIODE SWITCHING HSS4148TE-E
D1212 SWITCHING DIODE 1SS133(T-77)
D1212 DIODE SWITCHING HSS4148TE-E
D1213 SWITCHING DIODE 1SS133(T-77)
D1213 DIODE SWITCHING HSS4148TE-E
D1214 SWITCHING DIODE 1SS133(T-77)
D1214 DIODE SWITCHING HSS4148TE-E
D1215 SWITCHING DIODE 1SS133(T-77)
D1215 DIODE SWITCHING HSS4148TE-E
D1216 SWITCHING DIODE 1SS133(T-77)
D1216 DIODE SWITCHING HSS4148TE-E
D1217 SWITCHING DIODE 1SS133(T-77)
D1217 DIODE SWITCHING HSS4148TE-E
D1218 SWITCHING DIODE 1SS133(T-77)
D1218 DIODE SWITCHING HSS4148TE-E
D1260 SWITCHING DIODE 1SS133(T-77)
D1260 DIODE SWITCHING HSS4148TE-E
D1261 SWITCHING DIODE 1SS133(T-77)
D1261 DIODE SWITCHING HSS4148TE-E
D1262 SWITCHING DIODE 1SS133(T-77)
D1262 DIODE SWITCHING HSS4148TE-E
D1263 SWITCHING DIODE 1SS133(T-77)
D1263 DIODE SWITCHING HSS4148TE-E
D1264 SWITCHING DIODE 1SS133(T-77)
D1264 DIODE SWITCHING HSS4148TE-E
D1265 SWITCHING DIODE 1SS133(T-77)
D1265 DIODE SWITCHING HSS4148TE-E
D1266 SWITCHING DIODE 1SS133(T-77)
D1266 DIODE SWITCHING HSS4148TE-E
D1267 SWITCHING DIODE 1SS133(T-77)
D1267 DIODE SWITCHING HSS4148TE-E
D1268 SWITCHING DIODE 1SS133(T-77)

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

D1268 DIODE SWITCHING HSS4148TE-E
D1501 SWITCHING DIODE 1SS133(T-77)
D1501 DIODE SWITCHING HSS4148TE-E
D1502 SWITCHING DIODE 1SS133(T-77)
D1502 DIODE SWITCHING HSS4148TE-E
D1503 SWITCHING DIODE 1SS133(T-77)
D1503 DIODE SWITCHING HSS4148TE-E
D1550 SWITCHING DIODE 1SS133(T-77)
D1550 DIODE SWITCHING HSS4148TE-E
D1551 SWITCHING DIODE 1SS133(T-77)
D1551 DIODE SWITCHING HSS4148TE-E
D1552 SWITCHING DIODE 1SS133(T-77)
D1552 DIODE SWITCHING HSS4148TE-E
D1553 SWITCHING DIODE 1SS133(T-77)
D1553 DIODE SWITCHING HSS4148TE-E
D1702 ZENER DIODE MTZJT-773.3B
D1901 # DIODE 1N5406
D1901 # DIODE 1N5406BH
D1902 # DIODE 1N5406
D1902 # DIODE 1N5406BH
D1903 # DIODE 1N5406
D1903 # DIODE 1N5406BH
D1904 # DIODE 1N5406
D1904 # DIODE 1N5406BH
D1930 ZENER DIODE MTZJT-7727B
D1931 ZENER DIODE MTZJT-775.6B
D1932 SWITCHING DIODE 1SS133(T-77)
D1932 DIODE SWITCHING HSS4148TE-E
D1933 SWITCHING DIODE 1SS133(T-77)
D1933 DIODE SWITCHING HSS4148TE-E
D1934 DIODE 1ZC36(Q)
D1934 DIODE ZENER RD36F-T7-AZ-B
D1934 DIODE ZENER 1ZB36BB
D1940 DIODE FAST RECOVERY FR157
D1970 ZENER DIODE MTZJT-775.6B
D1971 ZENER DIODE MTZJT-775.6B
D1980 ZENER DIODE MTZJT-7736B
D1981 PCB JUMPER D0.6-P5.0
D1982 SWITCHING DIODE 1SS133(T-77)
D1982 DIODE SWITCHING HSS4148TE-E
D1990 # DIODE SCHOTTKY FD867-15L
D1991 # DIODE SCHOTTKY FD867-15L
D1992 # DIODE SCHOTTKY FD867-15L
D1994 DIODE 1ZC36(Q)
D1994 DIODE ZENER RD36F-T7-AZ-B
D1994 DIODE ZENER 1ZB36BB

ICS

IC1001

IC1001

IC1500 IC BA10324AF-E2
IC1500 IC(OPAMP) LM324NSR
IC1500 IC OP.AMP. LM324DT/SO-14/14PIN
IC1550 IC BA10324AF-E2
IC1550 IC(OPAMP) LM324NSR
IC1550 IC OP.AMP. LM324DT/SO-14/14PIN
IC1930 # PHOTO COUPLER LTV817MCF

IC1930 #

IC1931 # PHOTO COUPLER LTV817MCF

IC1931 #

COILS

IC INVERTER CONTROLLER
OZ9966SN-B1-0-TR/SSO

IC INVERTER CONTROLLER
OZ9926ASN-C2-0-TR

PHOTO COUPLER PS2561L1-1-A­V(L)

PHOTO COUPLER PS2561L1-1-A­V(L)

FUZ2.0U LA 89

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

L1901 # FILTER LLBG00ZY2015
L1902 # FILTER LLBG00ZY2015

TRANSISTORS

Q1002 TRANSISTOR KTC3199-GR-AT/P
Q1002 TRANSISTOR KTC3198-GR-AT/P
Q1002 TRANSISTOR 2SC1815-GR(TE2 F T)
Q1002 NPN TRANSISTOR 2SC5343MG-AT
Q1020 TRANSISTOR KTA1267-GR-AT/P
Q1020 TRANSISTOR KTA-1266-GR-AT/P
Q1020 TRANSISTOR 2SA1015-Y(TE2 F T)
Q1020 TRANSISTOR 2SA1015-GR(TE2 F T)
Q1020 PNP TRANSISTOR 2SA1980MG-AT
Q1020 PNP TRANSISTOR 2SA1980M Y

Q1100

Q1101

Q1102

Q1103

Q1930 # FET MOS 2SK3561(Q) IDSS100UA
Q1931 TRANSISTOR KTC3199-GR-AT/P
Q1931 TRANSISTOR KTC3198-GR-AT/P
Q1931 TRANSISTOR 2SC1815-GR(TE2 F T)
Q1931 NPN TRANSISTOR 2SC5343MG-AT
Q1932 TRANSISTOR 2SC2120-Y(TE2 F T)
Q1932 TRANSISTOR 2SC2120-O(TE2 F T)
Q1932 TRANSISTOR KTC3203-Y-AT/P
Q1932 NPN TRANSISTOR 2SC5344 Y
Q1970 TRANSISTOR KTC3199-GR-AT/P
Q1970 TRANSISTOR KTC3198-GR-AT/P
Q1970 TRANSISTOR 2SC1815-GR(TE2 F T)
Q1970 NPN TRANSISTOR 2SC5343MG-AT
Q1971 TRANSISTOR KTC3199-GR-AT/P
Q1971 TRANSISTOR KTC3198-GR-AT/P
Q1971 TRANSISTOR 2SC1815-GR(TE2 F T)
Q1971 NPN TRANSISTOR 2SC5343MG-AT
Q1972 TRANSISTOR KTC3199-GR-AT/P
Q1972 TRANSISTOR KTC3198-GR-AT/P
Q1972 TRANSISTOR 2SC1815-GR(TE2 F T)
Q1972 NPN TRANSISTOR 2SC5343MG-AT

RESISTORS

R1000 CHIP RES. 1/10W J 20K OHM
R1000 RES CHIP 1608 1/10W J 20K OHM
R1001 CHIP RES. 1/10W J 10K OHM
R1001 RES CHIP 1608 1/10W J 10K OHM
R1002 CARBON RES. 1/4W J 5.1K OHM
R1003 CHIP RES. 1/10W J 220K OHM
R1003 RES CHIP 1608 1/10W J 220K OHM
R1005 CHIP RES. 1/10W F 160 K OHM
R1005 CHIP RES.(1608) 1/10W F 160K OHM
R1005 RES CHIP 1608 1/10W F 160K OHM
R1006 CHIP RES. 1/10W J 10K OHM
R1006 RES CHIP 1608 1/10W J 10K OHM
R1007 CHIP RES. 1/10W J 1M OHM
R1007 RES CHIP 1608 1/10W J 1.0M OHM
R1008 CHIP RES. 1/10W J 51K OHM
R1008 RES CHIP 1608 1/10W J 51K OHM
R1009 CHIP RES. 1/10W F 1M OHM
R1009 CHIP RES. 1/10W F 1M OHM
R1009 RES CHIP 1608 1/10W F 1.00M OHM
R1010 CHIP RES. 1/10W F 120 K OHM
R1010 CHIP RES. 1/10W F 120K OHM

FET POWER MOS SMD

NP22N055SLE-E1-AZ

FET POWER MOS SMD

NP22N055SLE-E1-AZ

FET POWER MOS SMD

NP22N055SLE-E1-AZ

FET POWER MOS SMD

NP22N055SLE-E1-AZ

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

R1010 RES CHIP 1608 1/10W F 120K OHM
R1011 CHIP RES. 1/10W F 130K OHM
R1011 CHIP RES. 1/10W F 130K OHM
R1011 RES CHIP 1608 1/10W F 130K OHM
R1012 CHIP RES. 1/10W J 68K OHM
R1012 RES CHIP 1608 1/10W J 68K OHM
R1013 CHIP RES. 1/10W J 10K OHM
R1013 RES CHIP 1608 1/10W J 10K OHM
R1014 CARBON RES. 1/4W J 51K OHM
R1015 CHIP RES.(1608) 1/10W F 5.1K OHM
R1015 CHIP RES. 1/10W F 5.1K OHM
R1015 RES CHIP 1608 1/10W F 5.10K OHM
R1020 CHIP RES. 1/10W J 1M OHM
R1020 RES CHIP 1608 1/10W J 1.0M OHM
R1041 CHIP RES. 1/10W J 10K OHM
R1041 RES CHIP 1608 1/10W J 10K OHM
R1045 CHIP RES. 1/10W J 47K OHM
R1045 RES CHIP 1608 1/10W J 47K OHM
R1046 CARBON RES. 1/4W J 6.8K OHM
R1047 CHIP RES. 1/10W J 1M OHM
R1047 RES CHIP 1608 1/10W J 1.0M OHM
R1048 CARBON RES. 1/4W J 1K OHM
R1050 CHIP RES. 1/10W J 47K OHM
R1050 RES CHIP 1608 1/10W J 47K OHM
R1051 CARBON RES. 1/4W J 6.8K OHM
R1052 CHIP RES. 1/10W J 1M OHM
R1052 RES CHIP 1608 1/10W J 1.0M OHM
R1053 CHIP RES. 1/10W J 1K OHM
R1053 RES CHIP 1608 1/10W J 1.0K OHM
R1060 CHIP RES. 1/10W J 100K OHM
R1060 RES CHIP 1608 1/10W J 100K OHM
R1061 CHIP RES. 1/10W J 20K OHM
R1061 RES CHIP 1608 1/10W J 20K OHM
R1062 CHIP RES. 1/10W F 750 OHM
R1062 CHIP RES. RMC1/067500FTP
R1062 RES CHIP 1608 1/10W F 750 OHM
R1063 CHIP RES. 1/10W J 5.1K OHM
R1063 RES CHIP 1608 1/10W J 5.1K OHM
R1064 CHIP RES. 1/10W J 100K OHM
R1064 RES CHIP 1608 1/10W J 100K OHM
R1065 CHIP RES. 1/10W J 20K OHM
R1065 RES CHIP 1608 1/10W J 20K OHM
R1066 CHIP RES. 1/10W F 750 OHM
R1066 CHIP RES. RMC1/067500FTP
R1066 RES CHIP 1608 1/10W F 750 OHM
R1067 CHIP RES. 1/10W J 5.1K OHM
R1067 RES CHIP 1608 1/10W J 5.1K OHM
R1068 CHIP RES. 1/10W F 6.8K OHM
R1068 CHIP RES. 1/10W F 6.8K OHM
R1068 RES CHIP 1608 1/10W F 6.80K OHM
R1069 CHIP RES. 1/10W F 6.8K OHM
R1069 CHIP RES. 1/10W F 6.8K OHM
R1069 RES CHIP 1608 1/10W F 6.80K OHM
R1070 CHIP RES. 1/10W J 1M OHM
R1070 RES CHIP 1608 1/10W J 1.0M OHM
R1071 CARBON RES. 1/4W J 1K OHM
R1100 CHIP RES. 1/10W J 33 OHM
R1100 RES CHIP 1608 1/10W J 33 OHM
R1101 CHIP RES. 1/10W J 33 OHM
R1101 RES CHIP 1608 1/10W J 33 OHM
R1102 CHIP RES. 1/10W J 33 OHM
R1102 RES CHIP 1608 1/10W J 33 OHM
R1103 CHIP RES. 1/10W J 33 OHM

90 FUZ2.0U LA

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

R1103 RES CHIP 1608 1/10W J 33 OHM
R1110 CHIP RES. 1/10W J 100K OHM
R1110 RES CHIP 1608 1/10W J 100K OHM
R1111 CHIP RES. 1/10W J 20K OHM
R1111 RES CHIP 1608 1/10W J 20K OHM
R1112 CHIP RES. 1/10W F 750 OHM
R1112 CHIP RES. RMC1/067500FTP
R1112 RES CHIP 1608 1/10W F 750 OHM
R1113 CHIP RES. 1/10W J 5.1K OHM
R1113 RES CHIP 1608 1/10W J 5.1K OHM
R1114 CHIP RES. 1/10W J 100K OHM
R1114 RES CHIP 1608 1/10W J 100K OHM
R1115 CHIP RES. 1/10W J 20K OHM
R1115 RES CHIP 1608 1/10W J 20K OHM
R1116 CHIP RES. 1/10W F 750 OHM
R1116 CHIP RES. RMC1/067500FTP
R1116 RES CHIP 1608 1/10W F 750 OHM
R1117 CHIP RES. 1/10W J 5.1K OHM
R1117 RES CHIP 1608 1/10W J 5.1K OHM
R1118 CHIP RES. 1/10W F 6.8K OHM
R1118 CHIP RES. 1/10W F 6.8K OHM
R1118 RES CHIP 1608 1/10W F 6.80K OHM
R1119 CHIP RES. 1/10W F 6.8K OHM
R1119 CHIP RES. 1/10W F 6.8K OHM
R1119 RES CHIP 1608 1/10W F 6.80K OHM
R1120 CHIP RES. 1/10W J 1M OHM
R1120 RES CHIP 1608 1/10W J 1.0M OHM
R1121 CARBON RES. 1/4W J 1K OHM
R1160 CHIP RES. 1/10W J 100K OHM
R1160 RES CHIP 1608 1/10W J 100K OHM
R1161 CHIP RES. 1/10W J 20K OHM
R1161 RES CHIP 1608 1/10W J 20K OHM
R1162 CHIP RES. 1/10W F 750 OHM
R1162 CHIP RES. RMC1/067500FTP
R1162 RES CHIP 1608 1/10W F 750 OHM
R1163 CHIP RES. 1/10W J 5.1K OHM
R1163 RES CHIP 1608 1/10W J 5.1K OHM
R1164 CHIP RES. 1/10W J 100K OHM
R1164 RES CHIP 1608 1/10W J 100K OHM
R1165 CHIP RES. 1/10W J 20K OHM
R1165 RES CHIP 1608 1/10W J 20K OHM
R1166 CHIP RES. 1/10W F 750 OHM
R1166 CHIP RES. RMC1/067500FTP
R1166 RES CHIP 1608 1/10W F 750 OHM
R1167 CHIP RES. 1/10W J 5.1K OHM
R1167 RES CHIP 1608 1/10W J 5.1K OHM
R1168 CHIP RES. 1/10W F 6.8K OHM
R1168 CHIP RES. 1/10W F 6.8K OHM
R1168 RES CHIP 1608 1/10W F 6.80K OHM
R1169 CHIP RES. 1/10W F 6.8K OHM
R1169 CHIP RES. 1/10W F 6.8K OHM
R1169 RES CHIP 1608 1/10W F 6.80K OHM
R1170 CHIP RES. 1/10W J 1M OHM
R1170 RES CHIP 1608 1/10W J 1.0M OHM
R1171 CARBON RES. 1/4W J 1K OHM
R1210 CHIP RES. 1/10W J 100K OHM
R1210 RES CHIP 1608 1/10W J 100K OHM
R1211 CHIP RES. 1/10W J 20K OHM
R1211 RES CHIP 1608 1/10W J 20K OHM
R1212 CHIP RES. 1/10W F 750 OHM
R1212 CHIP RES. RMC1/067500FTP
R1212 RES CHIP 1608 1/10W F 750 OHM
R1213 CHIP RES. 1/10W J 5.1K OHM

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

R1213 RES CHIP 1608 1/10W J 5.1K OHM
R1214 CHIP RES. 1/10W J 100K OHM
R1214 RES CHIP 1608 1/10W J 100K OHM
R1215 CHIP RES. 1/10W J 20K OHM
R1215 RES CHIP 1608 1/10W J 20K OHM
R1216 CHIP RES. 1/10W F 750 OHM
R1216 CHIP RES. RMC1/067500FTP
R1216 RES CHIP 1608 1/10W F 750 OHM
R1217 CARBON RES. 1/4W J 5.1K OHM
R1218 CHIP RES. 1/10W F 6.8K OHM
R1218 CHIP RES. 1/10W F 6.8K OHM
R1218 RES CHIP 1608 1/10W F 6.80K OHM
R1219 CHIP RES. 1/10W F 6.8K OHM
R1219 CHIP RES. 1/10W F 6.8K OHM
R1219 RES CHIP 1608 1/10W F 6.80K OHM
R1220 CHIP RES. 1/10W J 1M OHM
R1220 RES CHIP 1608 1/10W J 1.0M OHM
R1221 CARBON RES. 1/4W J 1K OHM
R1260 CHIP RES. 1/10W J 100K OHM
R1260 RES CHIP 1608 1/10W J 100K OHM
R1261 CHIP RES. 1/10W J 20K OHM
R1261 RES CHIP 1608 1/10W J 20K OHM
R1262 CHIP RES. 1/10W F 750 OHM
R1262 CHIP RES. RMC1/067500FTP
R1262 RES CHIP 1608 1/10W F 750 OHM
R1263 CARBON RES. 1/4W J 5.1K OHM
R1264 CHIP RES. 1/10W J 100K OHM
R1264 RES CHIP 1608 1/10W J 100K OHM
R1265 CHIP RES. 1/10W J 20K OHM
R1265 RES CHIP 1608 1/10W J 20K OHM
R1266 CHIP RES. 1/10W F 750 OHM
R1266 CHIP RES. RMC1/067500FTP
R1266 RES CHIP 1608 1/10W F 750 OHM
R1267 CARBON RES. 1/4W J 5.1K OHM
R1268 CHIP RES. 1/10W F 6.8K OHM
R1268 CHIP RES. 1/10W F 6.8K OHM
R1268 RES CHIP 1608 1/10W F 6.80K OHM
R1269 CHIP RES. 1/10W F 6.8K OHM
R1269 CHIP RES. 1/10W F 6.8K OHM
R1269 RES CHIP 1608 1/10W F 6.80K OHM
R1270 CHIP RES. 1/10W J 1M OHM
R1270 RES CHIP 1608 1/10W J 1.0M OHM
R1271 CHIP RES. 1/10W J 1K OHM
R1271 RES CHIP 1608 1/10W J 1.0K OHM
R1500 CHIP RES. 1/10W F 47.0 K OHM
R1500 CHIP RES.(1608) 1/10W F 47K OHM
R1500 RES CHIP 1608 1/10W F 47.0K OHM
R1501 CHIP RES. 1/10W F 1.0K OHM
R1501 CHIP RES. 1/10W F 1K OHM
R1501 RES CHIP 1608 1/10W F 1.00K OHM
R1504 CHIP RES. 1/10W J 10K OHM
R1504 RES CHIP 1608 1/10W J 10K OHM
R1506 CHIP RES. 1/10W J 100K OHM
R1506 RES CHIP 1608 1/10W J 100K OHM
R1507 CHIP RES. 1/10W J 10K OHM
R1507 RES CHIP 1608 1/10W J 10K OHM
R1508 CHIP RES. 1/10W J 100K OHM
R1508 RES CHIP 1608 1/10W J 100K OHM
R1509 CHIP RES. 1/10W J 10K OHM
R1509 RES CHIP 1608 1/10W J 10K OHM
R1510 CHIP RES. 1/10W J 100K OHM
R1510 RES CHIP 1608 1/10W J 100K OHM
R1511 CHIP RES. 1/10W J 10K OHM

FUZ2.0U LA 91

ELECTRICAL PARTS LIST

Pos.No. # 12 NC Description

R1511 RES CHIP 1608 1/10W J 10K OHM
R1550 CHIP RES. 1/10W F 47.0 K OHM
R1550 CHIP RES.(1608) 1/10W F 47K OHM
R1550 RES CHIP 1608 1/10W F 47.0K OHM
R1551 CHIP RES. 1/10W F 1.0K OHM
R1551 CHIP RES. 1/10W F 1K OHM
R1551 RES CHIP 1608 1/10W F 1.00K OHM
R1554 CHIP RES. 1/10W J 100K OHM
R1554 RES CHIP 1608 1/10W J 100K OHM
R1555 CHIP RES. 1/10W J 10K OHM
R1555 RES CHIP 1608 1/10W J 10K OHM
R1556 CHIP RES. 1/10W J 100K OHM
R1556 RES CHIP 1608 1/10W J 100K OHM
R1557 CHIP RES. 1/10W J 10K OHM
R1557 RES CHIP 1608 1/10W J 10K OHM
R1558 CARBON RES. 1/4W J 100K OHM
R1559 CHIP RES. 1/10W J 10K OHM
R1559 RES CHIP 1608 1/10W J 10K OHM
R1560 CHIP RES. 1/10W J 100K OHM
R1560 RES CHIP 1608 1/10W J 100K OHM
R1561 CHIP RES. 1/10W J 10K OHM
R1561 RES CHIP 1608 1/10W J 10K OHM
R1703 CHIP RES. 1/10W J 2.2K OHM
R1703 RES CHIP 1608 1/10W J 2.2K OHM
R1901 # RES CARBON 1/2W J 1M OHM
R1901 # GLASS GLAZE RES. 1/2W J 1M OHM
R1902 # CEMENT RESISTOR 5W K 2.2 OHM
R1902 # CEMENT RES. 5W K 2.2 OHM
R1904 # CEMENT RESISTOR 5W K 2.2 OHM
R1904 # CEMENT RES. 5W K 2.2 OHM
R1930 CARBON RES. 1/4W J 47 OHM
R1931 CARBON RES. 1/4W J 47K OHM
R1932 CARBON RES. 1/4W J 120 OHM
R1933 CARBON RES. 1/4W J 120 OHM
R1934 CARBON RES. 1/4W J 1.5K OHM
R1936 CARBON RES. 1/4W J 180 OHM

R1937

R1937

R1939 CARBON RES. 1/4W J 2.2K OHM
R1940 CARBON RES. 1/4W J 470K OHM
R1941 CARBON RES. 1/4W J 470K OHM
R1942 CARBON RES. 1/4W J 180K OHM
R1943 CARBON RES. 1/4W J 820K OHM
R1944 CARBON RES. 1/4W J 820K OHM
R1945 CARBON RES. 1/4W J 390K OHM

R1946

R1946

R1947

R1947

R1948

R1948

R1949 CARBON RES. 1/4W J 120 OHM
R1970 CARBON RES. 1/4W J 150 OHM
R1971 CARBON RES. 1/4W J 3.9K OHM
R1973 CARBON RES. 1/4W G 150 OHM
R1974 CHIP RES. 1/10W F 5.6K OHM
R1974 CHIP RES. 1/10W F 5.6K OHM
R1974 RES CHIP 1608 1/10W F 5.60K OHM

METAL OXIDE FILM RES. 2W J 0.27

OHM

METAL OXIDE FILM RES. 2W J 0.27

OHM

METAL OXIDE FILM RES. 2W J 47K

OHM

METAL OXIDE FILM RES. 2W J 47K

OHM

METAL OXIDE FILM RES. 2W J 47K

OHM

METAL OXIDE FILM RES. 2W J 47K

OHM

METAL OXIDE FILM RES. 2W J 47K

OHM

METAL OXIDE FILM RES. 2W J 47K

OHM

ELECTRICAL PARTS LIST

Pos.N o. # 12 NC Description

R1975 CHIP RES. 1/10W F 6.8K OHM
R1975 CHIP RES. 1/10W F 6.8K OHM
R1975 RES CHIP 1608 1/10W F 6.80K OHM
R1976 CHIP RES. 1/10W F 6.8K OHM
R1976 CHIP RES. 1/10W F 6.8K OHM
R1976 RES CHIP 1608 1/10W F 6.80K OHM
R1977 CHIP RES. 1/10W F 8.2K OHM
R1977 CHIP RES.(1608) 1/10W F 8.2K OHM
R1977 RES CHIP 1608 1/10W F 8.20K OHM
R1980 CHIP RES. 1/10W J 100 OHM
R1980 RES CHIP 1608 1/10W J 100 OHM
R1981 CHIP RES. 1/10W J 1K OHM
R1981 RES CHIP 1608 1/10W J 1.0K OHM
R1983 CARBON RES. 1/4W J 1K OHM
R1984 PCB JUMPER D0.6-P5.0
R1985 CHIP RES. 1/10W J 22K OHM
R1985 RES CHIP 1608 1/10W J 22K OHM
R1986 CHIP RES. 1/10W J 3.3K OHM
R1986 RES CHIP 1608 1/10W J 3.3K OHM
R1987 CHIP RES. 1/10W J 2.2K OHM
R1987 RES CHIP 1608 1/10W J 2.2K OHM

JUNCTION-B BOARD

CONNECTOR

CN1000

ASSY3 DIGITAL MAIN BOARD UNIT

242 SERIES CONNECTOR TUC­P04X-B1 WHT ST

92 FUZ2.0U LA

16. MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

MECHANICAL PARTS LIST

Pos.No. # 12 NC Description

A1 FRONT CABINET A8AF2UH
A3 CONTROL PLATE A8AF2UH
A4 REAR CABINET A8AF0UH
A6 # RATING LABEL A8AF2UH
A7 FUNCTION KNOB A8AF0UH
A10 REAR COVER A8AF0UH
A11 LED LENS A8AF2UH
A25 AC CORD HOLDER A8AF2UH
B1 PCB HOLDER (L) A8AF0UH
B2 PCB HOLDER (R) A8AF0UH
B3 SHIELD BOX A8AF0UH
B4 SHIELD (T) A8AF0UH
B5 JACK HOLDER(A) A8AF0UH
B8 STAND HINGE A8AF0UH
B9 STAND HOLDER 32V A8AF0UH
B10 STAND HOLDER A81N0UH
B11 SPEAKER HOLDER (L) A8AF0UH
B12 SPEAKER HOLDER (R) A8AF0UH
B22 CLOTH(10X180XT0.5) L0336JG
B30 GASKET A8AF0UH
B40 WASHER(D17) A73F2FP

CL101

CL102

CL801

CL802

CL4501

CL4502

L2

L6

L9

L10

L13

L15

L17

L18 NUT 3/8-32UNEF
L19 HEX SCREW #4-40 7MM

LCD1

SP801

SP802

WIRE ASSEMBLY 002 6PIN /
350MM / AWG26

WIRE ASSEMBLY 003 3PIN /
140MM / AWG26

WIRE ASSEMBLY 005 2PIN /
150MM / AWG24

WIRE ASSEMBLY 005 2PIN /
150MM / AWG24

WIRE ASSEMBLY 010 55PIN /
60MM

WIRE ASSEMBLY 010 55PIN /
60MM

SCREW P-TIGHT M4X14 BIND
HEAD+BLK

SCREW P-TIGHT 3X10 BIND
HEAD+

SCREW S-TIGHT M3X4 BIND
HEAD+BLK

SCREW S-TIGHT M3X6 BIND
HEAD+

DOUBLE SEMS SCREW M4X6
M4X6

DOUBLE SEMS SCREW M4X10 +
BLK

ASSEMBLED SCREW ( D9 M3X6
) A71F0UH

LCD MODULE CMO 8BIT A
GRADE

SPEAKER MAGNETIC
S0412F06A

SPEAKER MAGNETIC
S0412F06A

MECHANICAL PARTS LIST

Pos.N o. # 12 NC Description

S1 CARTON A8AF2UH
S2 STYROFOAM TOP A8AF2UH

S3

S4 SET BAG A71FCUH
S5 SERIAL NO. LABEL TD812HC
S16 STAND BAG A71FCUH

X1

X2 # OWNERS MANUAL A8AF2UH

X3 996510011417

X4 DRY BATTERY R03/2S
X4 BATTERY GR03M
X4 BATTERY R03-B500/01S
X13 CONNECTION GUIDE A8AF2UH
X14 CHILD SAFETY SHEET A8AF2UH

X16

STAND
ASSY

A9 STAND COVER A8AF2UH
A12 STAND RUBBER FOOT L5001CB
B7 STAND BASE PLATE A8AF0UH

L20

SSK STAND SCREW KIT A8AF2UH

L15

X5 SCREW BAG A81N0UH

996510012240 STAND ASSEMBLY A8AF2UH

STYROFOAM BOTTOM
A8AF2UH

BAG POLYETHYLENE
235X365XT0.03

REMOTE CONTROL NF800UD
170/ECNLC6.501/NF800

REGISTRATION CARD(MAG­NAVOX) HJ4PPUD

Consists of the following:

SCREW P-TIGHT M3X8 DISH
HEAD+

Consists of the following:
DOUBLE SEMS SCREW M4X10 +

BLK

Version 1.0

* Initial release

FUZ2.0U LA 93

17. REVISION LIST
