Philips 32HF7445 User Manual

中文 English

User Manual Quick Start Guide Inside !

用戶手冊內附快速使用指南!

32HF7445

Model No.:

Serial No.:

P41TJ020813 1C

How to make the optimal connection?

如何進行最佳連接?

Good S-Video Supplies a better picture than RF and Composite connections. Used with red/white audio cables.

好 S 視頻提供比 RF 和复合連接更好的画面質量。配合紅色/白色音頻線使用。

Basic Composite Audio/Video Separate video (yellow) and audio (red/white) cables that provide a basic connection from the cable box and other devices. Note: The color of audio inputs may differ, e.g. red/ white or red/ black.

基本复合音頻/視頻分离視頻（黃色）和音頻（紅色/白色）線，通過有線盒和其它設備提供基本連接。注意：音頻輸入的顏色可能不同，如紅色/白色或紅色/黑色。

RF Provides a basic connection for antenna or cable. Provides both audio and video.

RF 為天線或有線提供基本連接。提供音頻和視頻。

Better Component Video input Provides superior picture quality by separating the green, blue and red luminance signals. Typically used with red/white audio cables.

Best HDMI High-Definition Multimedia Interface provides an uncompressed, all-digital audio/video connection. HDMI provides the ultimated connection (Please use a certified HDMI cable.)

很好分量視頻輸入通過將綠色、藍色和紅色亮度信號分离，提供卓越的画面質量。通常配合紅色/白色音頻線使用。

最好 HDMI 高清晰多媒体接口提供無壓縮的全數字音頻/視頻連接。 HDMI 提供的是終极的連接（請使用通過認證的 HDMI 線纜。）

Cover & Connection 1

SIDE AV

S-VIDEO R - AUDIO - L VIDEO IN

32HF7445

DATA 1

DATA 2

8 

AUDIO

CVI 1

CVI 2

AC IN

D-SUB

PC IN

AUDIO

VIDEO

S-VIDEO

AUDIO

SPDIF

OUT

HDMI 1

8 

HDMI 2

AC IN HDMI 1 / HDMI 2 PC IN - Audio input, D-SUB CVI - Component (YPbPr), Audio L/R input CV2 - Component (YPbPr), Audio L/R input AV - Video input, S-video, Audio L/R input SPDIF output 8 Mono Audio out 75 /RF Side AV - S-video, Audio L/R, Video input Earphone DATA 1 / DATA 2

AC IN HDMI 1 / HDMI 2 PC IN - 音

頻輸入、D-SUB

CVI – 分量 (YPbPr)、左/右音

頻輸入

CV2 – 分量 (YPbPr)、左/右音

頻輸入

AV –

視頻輸入、S 視頻、左/右音頻輸入

SPDIF 輸出

8 音頻輸出 75 /RF Side AV – S

視頻、左/右音頻、視頻輸入耳机 DATA1 / DATA 2

DATA 1

(RJ12)

DATA 2

(RJ45)

Cover & Connection 2

CABLE

TO TV

VIDEO

OUT

S VIDEO

AUDIO

OUT

3 4

OUTPUT

Cable Box

Cable TV Signal

分線盒

有線電視信號

The Cable TV signal

from Cable Company

來自有線電視公司

的有線電視信號

分線盒

CABLE

TO TV

3 4

OUTPUT

75 coaxial cable

電視

Cable Box

75 同軸線

Outdoor or Indoor Antenna

(Combination VHF/UHF)

Twin-lead wire to 300-75

� adapter

接300-75

�

適配器的扁平雙線

Antenna with 75

� cable

天線(75�電纜)

or 或者

或者

*After setting up, please run the Auto store function to set up the TV for the broadcast or cable channels available in your area. (please go to page10 for detail)

*在設置之後，請進行自動搜尋功能在電視上設置您所在區域的廣播或有線頻道。 (詳細信息，請參見第10頁。)

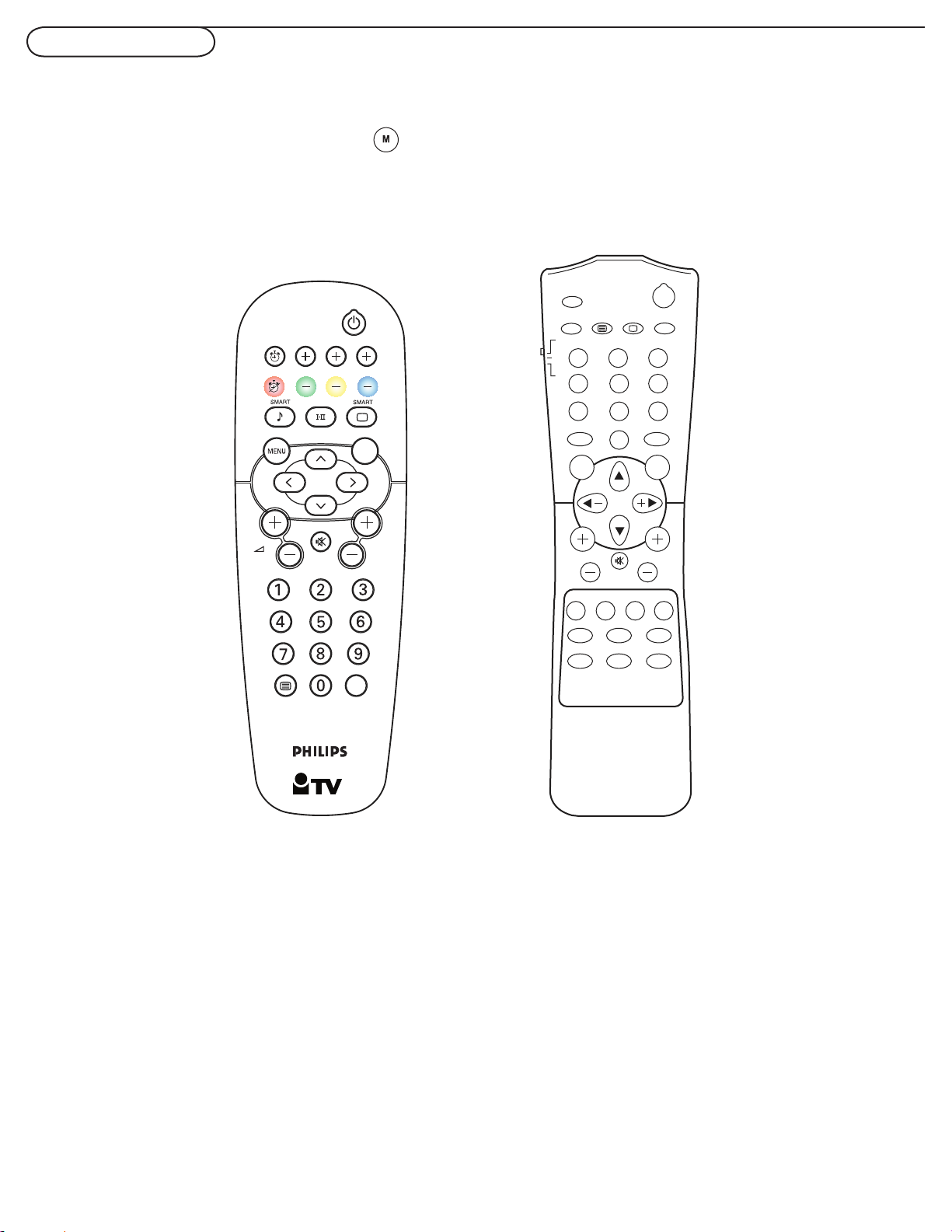

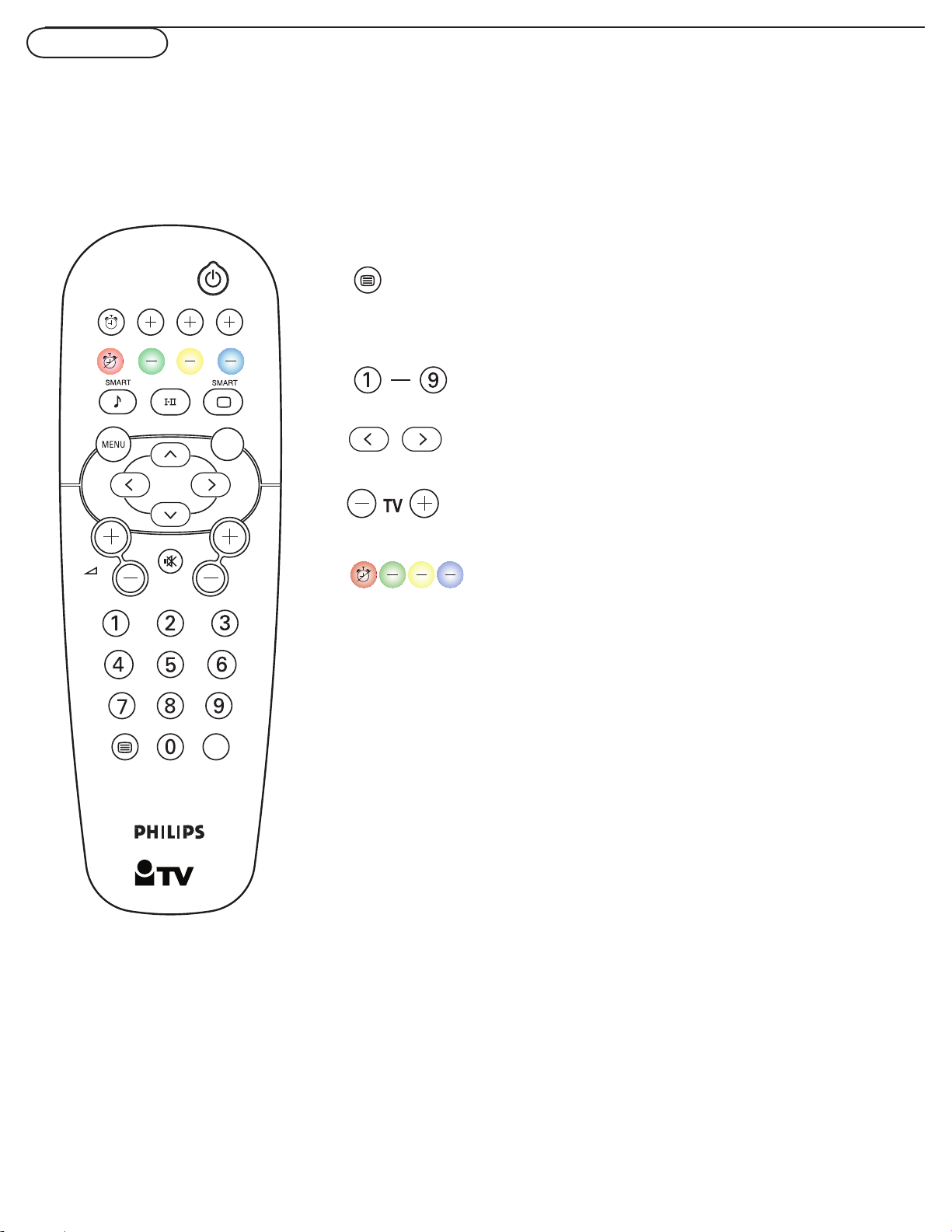

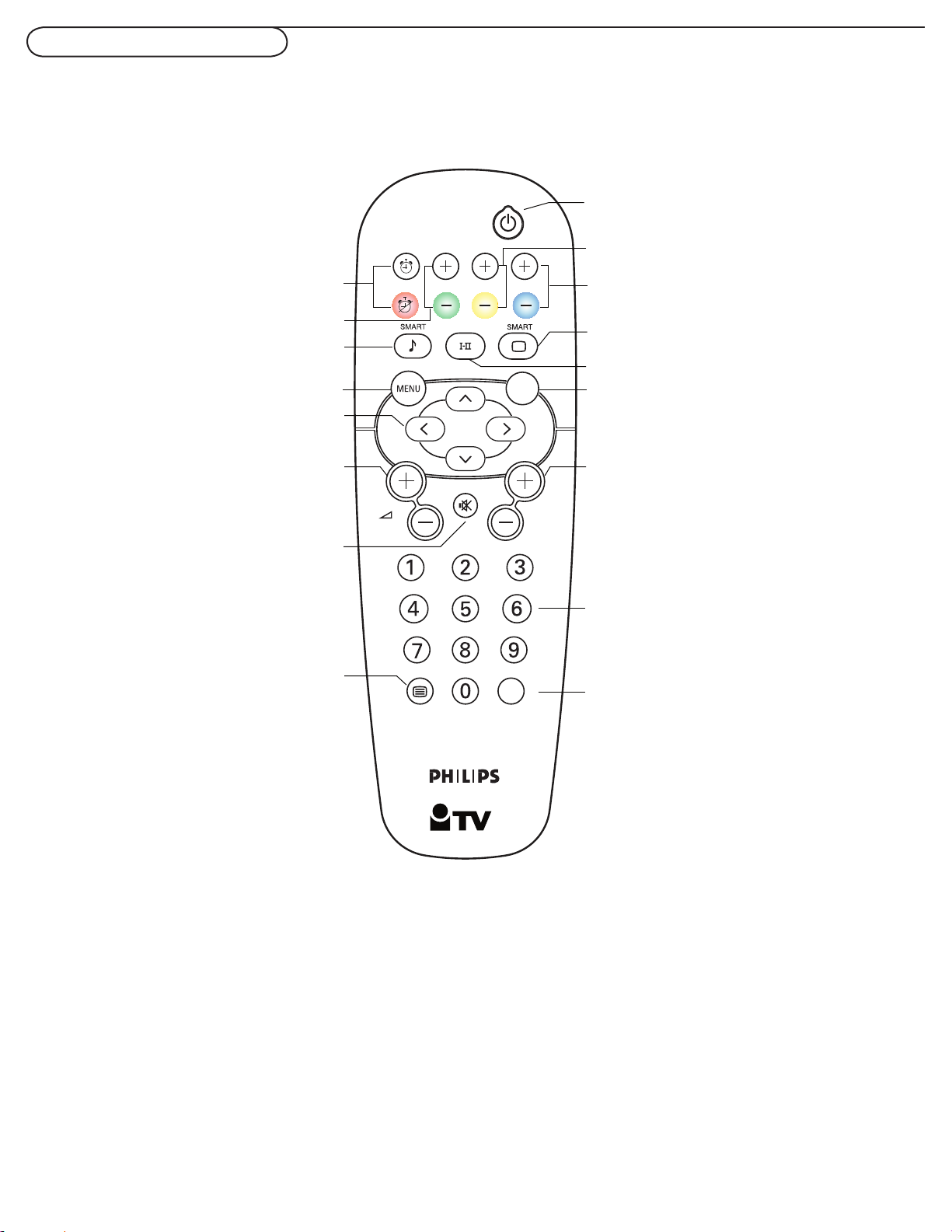

*Use the AV button on the remote control to tune to the AV channel for the cable box signal. Once tuned, change channels at the cable box, not the television.

*使用遙控器上的AV按鈕調到分線盒信號的AV頻道。調整後，在分線盒(而不是電視)上更換頻道。

室內或室外天線 (VHF/UHF組合)

VIDEO

S-VIDEO

AUDIO

SPDIF

OUT

8 

電視

分線盒 (帶有RF輸入/輸出) 天線電視

Cable Box With RF In / Outputs Antenna TV

分線盒 (帶有聲音/視頻輸出)

Cable Box With Audio / Video Outputs

S-Video

Composite Audio/Video Input

AV按鍵

AV Button

Quick start quide

Cover & Connection 3

AV Player with A/V connectors

Accessory device equipped with

component video outputs

帶有A/V接口的AV播放機

帶有Component視頻輸出的附屬設備

*Use AV button on the remote control to select AV or Side AV if you use the different jacks for the hookup to watch VCR.

*Use AV button on the remote control to select CVI1 or CVI 2 to watch DVD. Note: The Y, Pb, Pr jacks do not provide audio, so audio cables must be connected to provide sound.

AV按鍵

AV Button

AV按鍵

AV Button

*使用遙控器上的AV按鈕選擇AV(如果此連接方式使用不同的插孔)，還可選擇Side AV以觀看VCR內容。

*使用遙控器上的AV按鈕選擇CVI1或者 CVI2以觀看DVD。注意:Y，Pb，Pr插孔不提供音頻，必須連接音頻線才能提供聲音。

AUDIO

CVI 1

CVI 2

DVD Player Or Other Video Devices With Component Video Connectors

Component Video Input

DVD播放機或其它帶有 Component視頻連接器的視頻設備

電視

VIDEO

S-VIDEO

AUDIO

SPDIF

OUT

8 

VCR, DVD Player, Or Other Devices With RCA Connectors

S-Video

VCR, DVD播放機或帶有 RCA 連接器的其它設備

電視

Composite Audio/Video Input

Cover & Connection 4

Computer

電視

計算機

*Use AV button on the remote control to select PC to use your LCD TV as a PC monitor.

AV按鍵

AV Button

*使用遙控器上的AV按鈕選擇PC，以將液晶電視用作PC顯示器。

DVD player

AV按鍵

AV Button

*Use AV button on the remote control to select HDMI 1 or HDMI 2 to watch DVD.

*使用遙控器上的AV按鈕選HDMI1或者HDMI2以觀看DVD。

AUDIO

CVI 1

CVI 2

D-SUB

PC IN

AUDIO

PC (Monitor) Connections

PC (顯示器)連接

CVI 1

CVI 2

D-SUB

PC IN

AUDIO

HDMI 1HDMI 2

電視

DVD Player With HDMI Connector

HDMI

帶有HDMI 連接器的 DVD播放機

Cover & Connection 5

Congratulations on your purchase, and welcome to the “family!”

Welcome

Know these

safety symbols

Dear PHILIPS product owner:

Thank you for your conﬁdence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. We’ll do everything in our power to keep you happy with your purchase for many years to come.

This “bolt of lightning” indicates uninsulated material within your unit

may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to

features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: To reduce the risk of ﬁre or electric shock, this apparatus should not be exposed to rain or moisture and objects ﬁlled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

Read these instructions.

1. Keep these instructions.

2. Heed all warnings.

3. Follow all instructions.

4. Do not use this apparatus near water.

5. Clean only with a dry cloth.

6. Do not block any of the ventilation openings.

7. Install in accordance with the manufacturers instructions. Do not install near any heat sources such as radiators,

8. heat registers, stoves, or other apparatus (including ampli ﬁers) that produce heat. Do not defeat the safety purpose of the polarized or

9. grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched

10. particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories speciﬁed by the

11. manufacturer.

13.

14.

Use only with a cart, stand, tripod, bracket, or table

speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Tilt/Stability - All televisions must comply with

15. recommended international global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and

cause product damage and/or personal injury. Wall or Ceiling Mounting - The appliance should be

16. mounted to a wall or ceiling only as recommended by the manufacturer. Power Lines - An outdoor antenna should be located away

17. from power lines.

Outdoor Antenna

18. connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Object and Liquid Entry - Care should be taken so that

19. objects do not fall and liquids are not spilled into the enclosure through openings. Battery Usage CAUTION - To prevent battery leakage that

20. may result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, with + and - aligned as marked on the unit.

• Do not mix batteries (old and new or carbon and alkaline, etc.).

• Remove batteries when the unit is not used for a long time. For ventilation, leave at least 4” to 6” free all around the TV.

21. Do not place the TV on a carpet. The equipment shall not be exposed to dripping or splashing.

22. The equipment shall not be exposed to rain or moisture and

23. objects ﬁlled with liquids, such as vases, shall be placed on the apparatus. The apparatus must be connected to a mains socket outlet

24. with a protected earthed connection. The appliance coupler is used as the disconnect device of this

25. apparatus, the disconnect device shall remain readily operable.

Grounding - If an outside antenna is

Precaution

ADDITIONAL SAFETY PRECAUTIONS

• ENSURE that LCD TV stand is tightened properly to the set on the right way of tightening of the screw of the stand to the set. Improper tightening of screw may render the set unsafe.

• If LCD TV is installed on the wall, installation should be carried out by qualiﬁed servicemen. Improper or incorrect installation may render the set unsafe.

• Disconnect main plug when : — cleaning the TV screen, never use abrasive cleaning agents. — there is a lightning storm. — the set is left unattended for a prolonged period of time.

• Do not shift or move the LCD TV around when it is powered on.

• Do not touch, push or rub the surface of the LCD screen with any sharp or hard objects.

• When the surface of the LCD screen becomes dusty, wipe it gently with an absorbent cotton cloth or other soft material like chamois. DO NOT USE acetone, toluene or alcohol to clean the surface of the screen. These chemicals will cause damage to the surface.

• Wipe off water or saliva as soon as possible. These liquids can cause deformation and color fading of the LCD screen when left exposed for some time.

• Be careful of condensation when temperature changes occur. Condensation can cause damage to the LCD screen and electrically parts. After condensation fades, spots or blemishes will be present on the LCD screen.

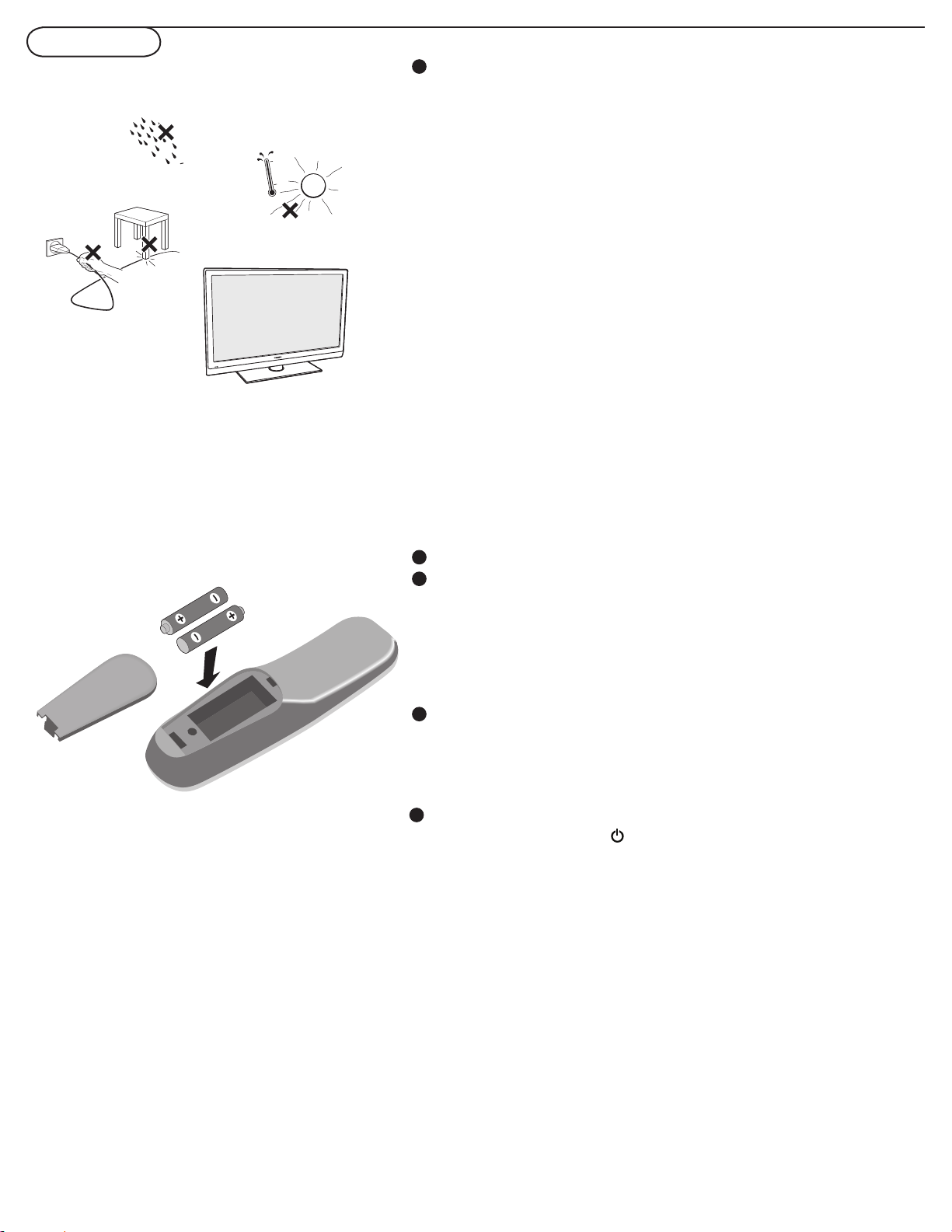

POSITIONING THE LCD TELEVISION

• Place the LCD TV on a solid, sturdy base or stand. Be sure the stand is strong enough to handle the weight of the LCD TV.

• Try to leave at least 6” of space around each side of the LCD TV cabinet to allow for proper ventilation.

• Do not place the LCD TV near a radiator or other sources of heat.

• Do not place the LCD TV where it can be exposed to rain or excessive moisture.

RECYCLING PROCEDURE/END OF LIFE DISPOSAL

• To minimize harm to the environment, the batteries supplied with the LCD TV do not contain mercury or nickel cadmium. If possible, when disposing of batteries, use recycling means available in your area.

• The LCD TV uses materials that can be recycled. To minimize the amount of waste in the environment, check your area for companies that will recover used televisions for dismantling and collection of reusable materials, or contact your dealer for TV recycling tips.

• Please dispose of the carton and packing material through the proper waste disposal management in your area.
