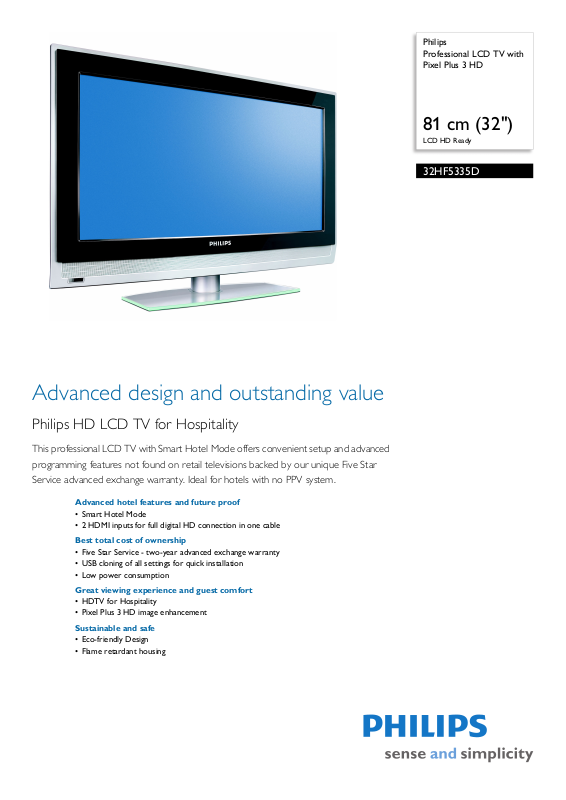

Philips 32HF5335D/27 Leaflet

Philips
Professional LCD TV with
Pixel Plus 3 HD

81 cm (32")

LCD HD Ready

32HF5335D

Advanced design and outstanding value

Philips HD LCD TV for Hospitality

This professional LCD TV with Smart Hotel Mode offers convenient setup and advanced
programming features not found on retail televisions backed by our unique Five Star
Service advanced exchange warranty. Ideal for hotels with no PPV system.

Advanced hotel features and future proof

•Smart Hotel Mode

• 2 HDMI inputs for full digital HD connection in one cable

Best total cost of ownership

• Five Star Service - two-year advanced exchange warranty

• USB cloning of all settings for quick installation

• Low power consumption

Great viewing experience and guest comfort

• HDTV for Hospitality

• Pixel Plus 3 HD image enhancement

Sustainable and safe

• Eco-friendly Design

• Flame retardant housing

Professional LCD TV with Pixel Plus 3 HD

81 cm (32") LCD HD Ready

Highlights

32HF5335D/27

Smart Hotel Mode

Allows configuration of the TV for limited
ac

cess, ideal for hotel use. Access to the user
menu can be blocked, which enables you to
specify channel, picture, and sound settings
which your guest will be unable to modify.
Picture and sound preferences may be selected
from presets on the remote, offering guest
selection, but never overwriting your defined
settings. Switch on and maximum volume can
also be specified so the set always turns on and
operates at a comfortable volume. Channels
can be blanked to prevent access to premium
or adult content. Includes a forced power on
mode.

2 HDMI inputs

HDMI makes an uncompressed digital RGB
connection
eliminating conversion to an analog signal, it
delivers an unblemished image. The non­degraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection. With 2 HDMI inputs you can
connect multiple HD sources, for instance an

from the source to the screen. By

HD settop box, and a Blu-ray player. Your TV
is fully prepared for the HD future.

HDTV for Hospitality

There are many ways you may choose to offer
HDTV to
source, Philips Hospitality televisions will
always deliver the best viewing experience
possible to your guests by utilizing the most
advanced FlatTV displays and award winning
technologies such as Pixel Plus 3 HD.

Pixel Plus 3 HD

Pixel Plus 3 HD offers an optimal combination
o
smooth natural motion on any video source,
including high definition.

Five Star Service

Philips offers unmatched commitment to
k
Our products are so reliable that we offer a
two-year advanced exchange warranty. In the
event that something does go wrong, we
guarantee to ship a replacement set to you,
within 72 hours during the first year.

your guests, but regardless of the

f sharpness, natural detail, vivid colors, and

eeping your guest rooms in working order.

USB Cloning

Provides the ability to easily copy all
p

rogramming and channel programming
settings from one TV into other TV sets in less
than a minute. The feature ensures uniformity
between TV sets and significantly reduces
installation time and costs.

Low power consumption

Philips TVs are desgined to minimize power
consumpti
environmental impact but also lower operating
costs.

Eco-friendly Design

Philips TVs are designed and produced
according to our
minimizing overall environmental impact,
through lower power consumption, removal
of hazardous substances, lower weight, more
efficient packaging and better recyclability.

Flame retardant housing

Philips TVs have a special housing of flame
retardant material.
out by emergency fire services have shown
that whereas TVs can sometimes intensify fires
caused by external sources, Philips TVs will not
contribute to the fire.

on. This will not only reduce

EcoDesign principles aimed at

Independent tests carried

Professional LCD TV with Pixel Plus 3 HD

81 cm (32") LCD HD Ready

Specifications

32HF5335D/27

Picture/Display

• Aspect ratio: 16:9, Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 3200:1

• Diagonal screen size: 32 inch / 80 cm

• Picture enhancement: Pixel Plus 3 HD, Progressive
c

an, 3/2 - 2/2 motion pull down, Active Control,

s
3D Combfilter, Dynamic contrast enhancement

• Screen enhancement: Anti-Reflection coated

re

en

sc

• Display screen type: LCD WXGA Active Matrix

TFT
Panel resolution: 1366 x 768p

•

• Response time (typical): 8 ms

• Viewing angle (H / V): 176 / 176 degree

Supported Display Resolution

• Video formats

Resolution Refresh rate
480i 60
480p 60Hz
720p 60Hz
1080i 60Hz

Hz

Sound

• Sound System: Dolby Digital (AC-3), Virtual Dolby

Surround

• Output power (RMS): 2 x 10W

• Equalizer: 5-bands

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Installation: Autostore, PLL Digital Tuning,

Plug & Play

• Ease of Use: On Screen Display, Side Control

• Remote control type: RC2033601

• Screen Format Adjustments

Auto Format

• Child Protection: Child Lock+Parental Control

:

7 Widescreen Modes,

Multimedia Applications

• Digital Content Management: Digital Media Reader

• Multimedia connections: USB memory class device

• Playback Formats: JPEG Still pictures, MP3,
eshow files (.alb)

Slid

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: ATSC, NTSC

•Video Playback: NTSC

• Aerial Input: 75 ohm F-type

• Cable: Unscrambled Digital Cable -QAM

Connectivity

• AV 1: Audio L/R in, CVBS in, YPbPr

• AV 2: Audio L/R in, YPbPr

•AV 3: HDMI

•Front / Side connections: Audio

Headphone Out, S-video in, USB

• Audio Output - Digital: Coaxial (cinch)

• Other connections: HDMI

L/R

in, CVBS in,

Power

• Power consumption: 140 W

• Standby power consumption: < 1 W

• Mains power: 100-250V, 50-60Hz

• Ambient temperature: 5 °C to 40 °C

Dimensions

• Box dimensions in inch (W x H x D):

34.2 x 24.8 x 11.4 inch

•Set dimensions with stand in inch (W

31.7 x 24 x 8.3 inch

• Set dimensions in inch (W x H x D):

x 21.5 x 4.6 inch

31.6

• Product weight (lb): 38.5 (with stand), 32.1

hout stand)

(wit

• Weight incl. Packaging (lb): 51.8

• VESA wall mount compatible: 200 x 100 mm

x H x D):

Accessories

• Included accessories: User Manual, Remote

Control, Quick start guide, Power cord, Tabletop
swivel stand, Warranty Leaflet

•

Issue date 2012-01-20

Version: 3.0.17

12 NC: 8670 000 30272
UPC: 6 09585 13373 0

© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

* Five Star Advanced Exchange warranty is valid in the United States

only. Local warranties govern sales in other countries.
