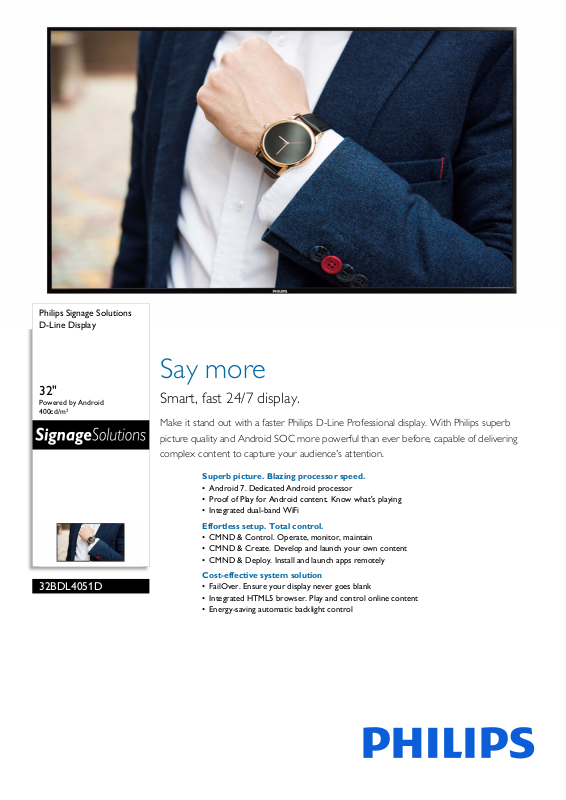

Page 1

Philips Signage Solutions D-Line Display

Say more

32"

32BDL4051D

Smart, fast 24/7 display.

Make it stand out with a faster Philips D-Line Professional display. With Philips superb picture quality and Android SOC more powerful than ever before, capable of delivering complex content to capture your audience's attention.

Superb picture. Blazing processor speed.

• Android 7. Dedicated Android processor

• Proof of Play for Android content. Know what's playing

• Integrated dual-band WiFi

Effortless setup. Total control.

• CMND & Control. Operate, monitor, maintain

• CMND & Create. Develop and launch your own content

• CMND & Deploy. Install and launch apps remotely

Cost-effective system solution

• FailOver. Ensure your display never goes blank

• Integrated HTML5 browser. Play and control online content

• Energy-saving automatic backlight control

Page 2

32BDL4051D/00

D-Line Display

32" Powered by Android, 400cd/m²

Highlights

Control your Philips professional display via an in

ternet connection. The integrated Android OS (SoC) lets you install web and native Android apps directly to the display. A built-in scheduler makes it easy to launch apps and content based on time of day, or user. Autoorientation ensures your content displays properly.

CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs

and monitoring display status. Whether you're in charge of one screen or 100.

CMND & Create

Take control of your content with CMND & Create

. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

CMND & Deploy

Quickly install and launch any app-even when y

ou're off-site and working remotely. CMND & Deploy lets you add and update your own apps, as well as apps from the Philips Professional Display App Store. Simply scan

the QR code, log in to the store, and click on the app you want to install. The app is automatically downloaded and launched.

FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

Page 3

32BDL4051D/00

D-Line Display

32" Powered by Android, 400cd/m²

Specifications

Picture/Display

• Diagonal screen size: 31.5 inch / 80 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60Hz

• Brightness: 400 cd/m²

• Contrast ratio (typical): 1100:1

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Response time (typical): 10 ms

• Pixel pitch: 0.55926 x 0.55926 mm

• Display colors: 16.7 million

• Viewing angle (H / V): 178 / 178 degree

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co MA deinterlacing, Progressive scan

• Operating system: Android 7.1.2

• Panel technology: IPS

• Placement: Landscape, Portrait

lter, Motion compens. deinterlacing, 3D

Connectivity

• Video input: Display Port1.2x1, DVI-I x 1, HDMI

(x2)

• Video output: DisplayPort1.2x1, DVI-I x1

• Audio input: 3.5 mm jack

• Audio output: 3.5mm jack

• External control: RJ45, RS232C (in/out) 2.5 mm

k, IR (in/out) 3.5 mm jack

• Other connections: micro USB, USB 3.0, USB 2.0,

micro SD

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 1920 x 1200 60Hz 1920 x 1080 60Hz 1680 x 1050 60Hz 1600 x 1200 60Hz 1600 x 900 60Hz 1440 x 900 60, 75Hz 1400 x 1050

40 x 1050 60Hz

14 1360 x 768 60Hz 1366 x 768 60Hz 1280x1024 60,67,75Hz 1152 x 864 60, 70, 75Hz 1152 x 900 66Hz 1280 x 720 60,70Hz 1280 x 768 60Hz, 75Hz 1280 x 800 60,75Hz

60, 75Hz

1280 x 960 60Hz 1024x768 60,70Hz 960x720 75Hz 848 x 480 60Hz 832 x 624 75Hz 800 x 600 56, 60, 72, 75Hz 720 x 400 70Hz 640 x 480 60, 67, 72, 75Hz 640 x 350 70Hz

deo formats

• Vi Re

solution Refresh rate 1080p 50, 60Hz 1080i 50, 60Hz 720p 50, 60Hz 576i 50Hz 576p 50Hz 480p 60Hz 480i 60Hz

Dimensions

•Set dimensions (W x H x D):

724.8 x 424.3 x 64.1 mm

• Set dimensions in inch (W x H x D): 4 x 16.7 x 2.52 inch

28.5

• Bezel width: 10.8 mm (T/L/R), 15.7 mm (B)

Product weight (lb): 13.56 lb

•

• Product weight: 6.15 kg

• VESA Mount: 200 x 200 mm, M6

Convenience

• Tiled Matrix: Up to 15 x 15

• Keyboard control: Hidden, Lockable

• Signal Loop Through: IR Loopthrough, DisplayPort,

DVI, RS23

• Network controllable: RJ45, RS232

• Screen saving functions: Pixel Shift

• Picture in picture: PIP

Power

• Standby power consumption: <0.5 W

• Mains power: AC (100 ~ 240 V) , 2.5A

• Consumption (Typical): 65 W

• Consumption (On mode): 110W (max)

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -10 ~ 50 °C

• Altitude: 0 ~ 3000 m

• MTBF: 50,000 hour(s)

•

Humidity range (operation)[RH]: 10 ~ 80%

hout condensation)

• Humidity range (storage) [RH]: 0 ~ 90% (without densation)

con

Sound

• Built-in speakers: 2 x 10W RMS

Accessories

• Included accessories: Remote Control, Batteries

for remote control, Quick start guide, RS232 cable, AC Power Cord

• Stand: Universal Stand-S (BM05911)(Optional)

• Included Accessories: Edge Alignment Kit (1 )s

, Edge Alignment Kit (2)-1pcs, M2 Screw x2,

2pc M3 screw x 1, Philips logo, RS232 daisy-chain cable, SD card cover x 1, Thumb Screw x8

Multimedia Applications

• USB Playback Audio: AAC, M4A, MP3, WMA

• USB Playback Picture: BMP, JPEG, JPG, PNG

• USB Playback Video: MKV, MP4, MPEG, MPG, TS,

WMV, ASF, AVI, DAT, FLV

VOB,

Miscellaneous

• On-Screen Display Languages: English, French,

German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish

• Regulatory approvals: CE, BSMI, CB, EAC,

• Warranty: 3 year warranty

EnergySt EPA

ar 7.0,

FCC, Class A, PSB, UL/cUL, CECP,

Internal Player

• CPU: Dual-Core Cortex-A72 @2GHz, Quad-

Core Cortex-A53 @ 1.5GHz, RK3399

• GPU: ARM Mali-T860 MP4

• Memory: 4GB DDR3

• Storage: 16GB EMMC

• Wifi: 2T2R, 802.11 ac/a/b/g/n, WCT07R2201

•

Issue date 2019-10-08

Version: 1.0.1

12 NC: 8670 001 56719 EAN: 87 12581 75382 5
