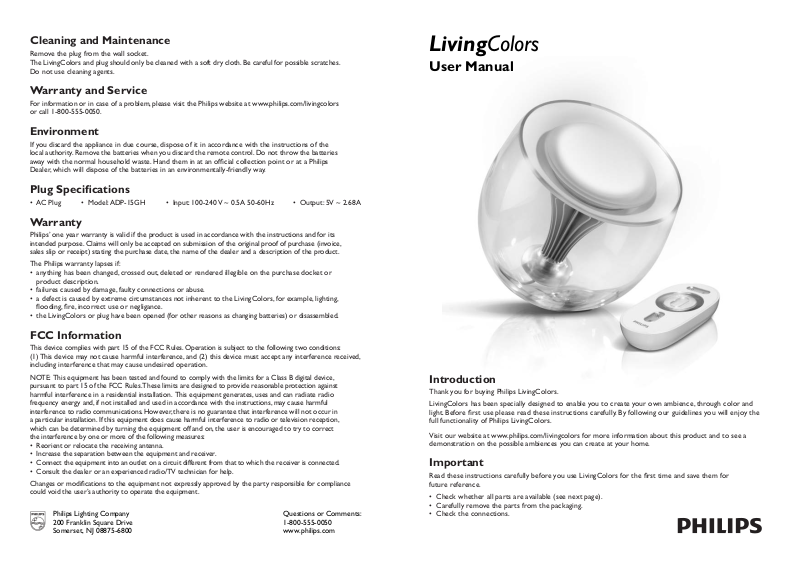

Philips 322202192201, 322202192004, 322202192062, 322202190511 User Manual

Cleaning and Maintenance

Remove the plug from the wall socket.

The LivingColors and plug should only be cleaned with a soft dry cloth. Be careful for possible scratches. Do not use cleaning agents.

Warranty and Service

For information or in case of a problem, please visit the Philips website at www.philips.com/livingcolors or call 1-800-555-0050.

Environment

If you discard the appliance in due course, dispose of it in accordance with the instructions of the local authority. Remove the batteries when you discard the remote control. Do not throw the batteries away with the normal household waste. Hand them in at an official collection point or at a Philips Dealer, which will dispose of the batteries in an environmentally-friendly way.

Plug Specifications

• AC Plug

• Model:ADP-15GH

• Input: 100-240 V ~ 0.5A 50-60Hz

• Output: 5V ~ 2.68A

Warranty

Philips’ one year warranty is valid if the product is used in accordance with the instructions and for its intended purpose. Claims will only be accepted on submission of the original proof of purchase (invoice, sales slip or receipt) stating the purchase date, the name of the dealer and a description of the product.

The Philips warranty lapses if:

•anything has been changed, crossed out, deleted or rendered illegible on the purchase docket or product description.

•failures caused by damage, faulty connections or abuse.

•a defect is caused by extreme circumstances not inherent to the LivingColors, for example, lighting, flooding, fire, incorrect use or negligance.

•the LivingColors or plug have been opened (for other reasons as changing batteries) or disassembled.

FCC Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Philips Lighting Company	Questions or Comments:
200 Franklin Square Drive	1-800-555-0050
Somerset, NJ 08875-6800	www.philips.com

LivingColors

User Manual

Introduction

Thank you for buying Philips LivingColors.

LivingColors has been specially designed to enable you to create your own ambience, through color and light. Before first use please read these instructions carefully. By following our guidelines you will enjoy the full functionality of Philips LivingColors.

Visit our website at www.philips.com/livingcolors for more information about this product and to see a demonstration on the possible ambiences you can create at your home.

Important

Read these instructions carefully before you use LivingColors for the first time and save them for future reference.

•Check whether all parts are available (see next page).

•Carefully remove the parts from the packaging.

•Check the connections.

Unpack LivingColors

			Top Side
	AAA
Remote	3 AAA	Support	Plug with cord
Control	Batteries		(is packed at the bottom)

LivingColors

0 1

On/off

Color tuning	LivingColors
White balance
Dimming	Remote control

Safety Instructions

Keep the plug and LivingColors away from liquids and humidity.

• LivingColors is for indoor use only. Do not use in wet locations, e.g. bathrooms or outdoors.

•LivingColors is not a toy designed to be played with by children.

•Do not place on hot surfaces.

•For safety reasons and under the terms of the warranty the LivingColors and plug must not be opened.

•Only use the plug supplied with the charger: using an plug with the wrong polarity or current can damage your LivingColors.

Getting Started

0 1

A

Open the battery compartment of the Remote Control by sliding the button at the back.

Insert the 3 AAA batteries (+ and – as indicated).

Place LivingColors at a selected location on a level, stable surface. Depending on the surface, you could consider using the support (A) especially designed for LivingColors.

Direct LivingColors towards the wall, and insert the plug into the wall socket.

		LivingColors will show a short introduction to the color possibilities
		(this is normal).
0	1	Switch LivingColors on by pushing the 1 (on) on the on/off button.
		Create your own ambience by:

1. Touching the desired color on the touch ring,

Move a finger over the touch ring for refining the color.

	A	2. Deep full color through to white
		Push the white balance button, for a shorter or longer time, on A ( )
	B
		for a deep color or on B ( ) for more pastel through to white.

3.Dimming

Increase () or decrease () the amount of light via the Dimming Button.

	0	1	Switch off LivingColors by pushing the 0 (off) on the on/off button.
			LivingColors will remember the last setting.

Extend the LivingColors Possibilities

Up to 6 LivingColors can be connected.

Independently:

1) Use more LivingColors independently with it’s own remote control. They will show different colors each.

Together

2)Operate 2 (or more) LivingColors with one remote control. They will show similar colors.

•Hold the remote control with a finger on the “on” button, close to the front of LivingColors.

•LivingColors will flash 3 times, as a confirmation for being connected.

Fault Tracing

The LivingColors will bring you a colorful world of opportunities.

1.If, however, you face one of the exceptional situations where : LivingColors is not providing light,

•check your batteries in the Remote Control

•check the connections

•check the plug

2.Is LivingColors still not working up to standards, please call 1-800-555-0050 (also see Warranty and Service).
