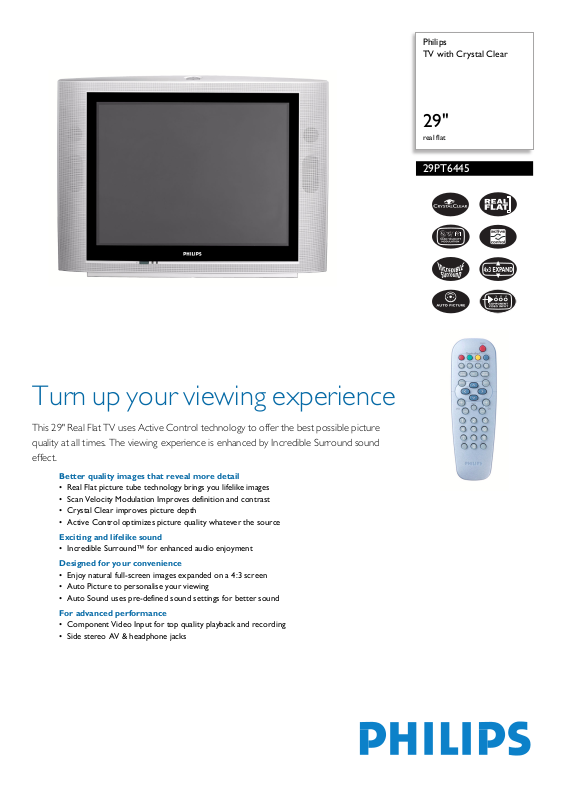

Philips 29PT6445 User Manual
For preview purpose only
Philips
TV with Crystal Clear
29"
real flat
29PT6445
Turn up your viewing experience
This 29" Real Flat TV uses Active Control technology to offer t he best possible picture
quality at all times. The viewing experience is enhanced by Incredible Surround sound
effect.
Better quality images that reveal more detail
• Real Flat picture tube technology brings you lifelike images
• Scan Velocity Modulation Improves definition and contrast
• Crystal Clear improves picture depth
• Active Control optimizes picture quality whatever the source
Exciting and lifelike sound
• Incredible Surround™ for enhanced audio enjoyment
Designed for your convenience
• Enjoy natural full-screen images expanded on a 4:3 screen
• Auto Picture to personalise your viewing
• Auto Sound uses pre-defined sound settings for better sound
For advanced performance
• Component Video Input for top quality playback and recording
• Side stereo AV & headphone jacks
For preview purpose only
TV with Crystal Clear
29" real flat
Technical specifications Product highlights
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 29 inch / 74 cm
• Visible diagonal screen size: 68 cm
• Display screen type: Real Flat picture tube
• Picture enhancement: Scavem, Dynamic Noise
Reduction, Color Temperature Adjustment,
Active Control, Tint
• Picture processing: 60Hz Analog, 50 Hz
Sound
• Output power (RMS): 2 x 5W
• Sound Enhancement: Ultra Bass
• Sound System: Incredible Surround, Stereo, SAP
Loudspeakers
• Built-in speakers: 2
Tuner/Reception/Transmission
• TV system: NTSC
• Aerial Input: 75 ohm F-type
• Tuner Display: PLL
Connectivity
• Other connections: AV out
• AV 1: AV In, CVI
• AV 2: S-Video, AV in
• Front / Side connections: Headphone out, AV
input
Power
• Power consumption: 120 W
• Standby power consumption: <1W
• Mains power: AC 90-140V, 60Hz
Dimensions
Convenience
• Ease of Use: Auto Volume Leveller (AVL),
AutoPicture, AutoSound, Top Controls
• Remote control type: RCLU011
• Teletext: Closed Captioning
• Screen Format Adjustments: 4:3 expand, 4:3
• Clock: On/Off event timer, Sleep Timer
• Child Protection: Child Lock, Parental Control
• Ease To Experience: Demo Mode
• Set dimensions (W x H x D):
755x578x493mm
• Set weight: 44 kg
• Weight incl. Packaging: 49 kg
• Box dimensions (W x H x D):
824x659x573mm
• Color cabinet: Silver Shadow (10811) with Dark
Grey (10762) inner frame
•
29PT6445/85
Real Flat picture tube
The flatter tube provides a wider viewing angle while
minimizing reflections for the best picture possible. The
special alloy invar shadow mask helps maintain sharper
focus and eliminates 'color blooming' compared to
standard tubes.
Scavem
Scan velocity modulation varies the speed of the
electron beam for a more finely rendered picture with
improved sharpness and contrast.
Crystal Clear
Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture
depth.
Active Control
Active Control ensure that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture
setting over 3,000 times per minute, Active Control Plus
ensures that the viewing experience is optimized.
Incredible Surround™
Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.
4x3 Expand
4x3 Expand enables widescreen movies to be viewed on
a 4:3 aspect ratio TV screen by removing the black bars
at the top and bottom of the image. You are able to
watch full-screen movies without compromizing on
picture quality and resolution.
Auto Picture
Auto Picture button on the remote control enables onetouch selection of various preset optimized image
settings to suit different TV program. Do refer to the
DFU for the various Smart Picture modes.
Auto Sound
Auto Sound provides pre-defined sound settings for ultra
bass, bass, treble and balance for the optimum
entertainment experience.
Component Video Input (YPbPr)
Component Video is the highest quality interconnection
standard for analog video. It is sharper than S-video and
composite video. Philips DVD recorders can record
directly from component video (such as YPbPr) sources
including satellite receivers
Side Stereo AV & headphone
Side stere o A V & headphone make s i t more convenient
to connect external devices like audio equipment,
games and video cameras. It's the easy way to enjoy an
extra audio sensation or a totally immersive gaming
experience.
Date of issue 2006-08-16
Version: 6.0
12 NC: 8670 000 23006
UPC: 6 09585 10895 0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
