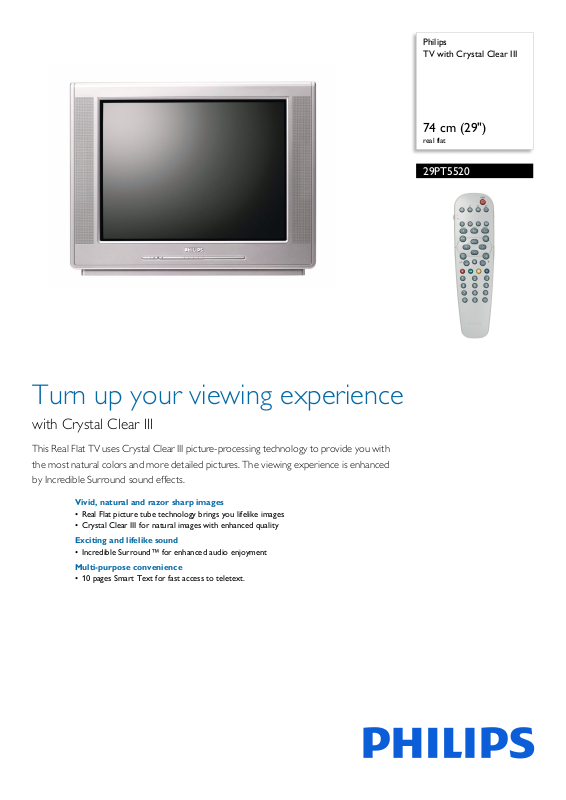

Page 1
Philips
TV with Crystal Clear III
74 cm (29")
real flat
29PT5520
Turn up your viewing experience
with Crystal Clear III
This Real Flat TV uses Crystal Clear III picture-processing technology to provide you with
the most natural colors and more detailed pictures. The viewing experience is enhanced
by Incredible Surround sound effects.
Vivid, natural and razor sharp images
• Real Flat picture tube technology brings you lifelike images
• Crystal Clear III for natural images with enhanced quality
Exciting and lifelike sound
• Incredible Surround™ for enhanced audio enjoyment
Multi-purpose convenience
• 10 pages Smart Text for fast access to teletext.
Page 2
29PT5520/01
TV
74 cm (29") real flat
Specifications
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 29 inch / 72 cm
• Color cabinet: Silver Frost (11027)
• Visible diagonal screen size: 68 cm
• Display screen type: Re
• Picture enhancement: Crystal Clear
Combfilter
• Picture processing: 50 Hz
• Screen enhancement: Anti-Reflection
Sound
• Sound Enhancement: Ultra Bass, Digital Sound
Processing
• Sound System: Incredible Surround
• Output power (RMS): 2x10W
• Music Power: 40 W
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Automatic Channel
Install(ACI), Automatic Tuning System (ATS),
Autostore, Fine Tuning, PLL Digital Tuning, Plug &
Play, Sorting
• Ease of Use: Auto Volume Leveller (AVL
Picture, Smart Sound
• Remote control type: RCLE011
• Teletext: 10 page Smart Text
• Teletext enhancements: 4 favourite pages,
gram information Line
Pro
al Flat picture tube
III, Scavem, 2D
), Smart
• Remote Control: TV
• Screen Format Adjustments: 16:9 compress, 4:3,
xpand
4:3 e
• Clock: Sleep Timer, Smart Clock
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL
SECAM D/K, SECAM L/L'
•Video Playback: NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 100
I, SECAM B/G,
Connectivity
•Number of Scarts: 2
• Ext 1 Scart: CVBS in/out, RGB
• Ext 2 Scart: CVBS in/out, S-video in
•Front / Side connections: Audio
Headphone Out, S-video in
• Headphone: 3.5 mm
L/R in, CVBS in,
Power
• Power consumption: 90 W
• Standby power consumption: < 1 w
• Mains power: AC 220 - 240 V +/- 10%
Dimensions
• Product weight: 45 tbc kg
• Weight incl. Packaging: 50 tbc kg
•Box dimensions (W x H x D):
3 x 708 x 603 mm
83
• Set dimensions (W x H x D): 736 x 580 x 490 mm
•
Highlights
Real Flat picture tube
The flatter tube provides a wider viewing angle while
minimizing reflections for the best picture possible.
Crystal Clear III
Crystal Clear III combines a whole range of
enhancements to provide a better picture. They
include a 2D Comb filter, Dynamic contrast, Blue
stretch and Green enhancement so that you always
get the most natural looking colors.
Incredible Surround™
Incredible Surround is an audio technology from
Philips that dramatically magnifies the sound field to
immerse you in the audio. Using state-of-the-art
electronic phase shifting, Incredible Surround mixes
sounds from left and right in such a way that it
expands the virtual distance between the two
speakers. This wider spread greatly enhances the
stereo effect and creates a more natural sound
dimension. Incredible Surround allows you to
experience total surround with greater depth and
width of sound, without the use of additional
speakers.
10 page Smart Text
The teletext is a common system transmitted by
most broadcasters. The 10 page smart text feature
gives you fast access to information when changing
pages.
Issue date 2019-06-28
Version: 20.0.21
12 NC: 8670 000 21476
EAN: 87 10895 85195 4
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
