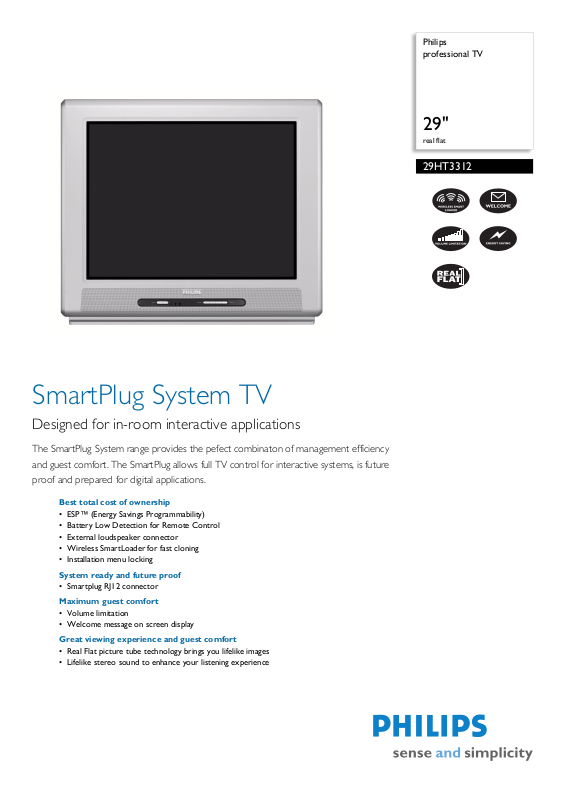

Philips 29HT3312 User Manual

Philips
professional TV

29"

real flat

29HT3312

SmartPlug System TV

Designed for in-room interactive applications

The SmartPlug System range provides the pefect combinaton of management efficiency
and guest comfort. The SmartPlug allows full TV control for interactive systems, is future
proof and prepared for digital applications.

Best total cost of ownership

• ESP™ (Energy Savings Programmability)

• Battery Low Detection for Remote Control

• External loudspeaker connector

• Wireless SmartLoader for fast cloning

• Installation menu locking

System ready and future proof

• Smartplug RJ12 connector

Maximum guest comfort

• Volume limitation

• Welcome message on screen display

Great viewing experience and guest comfort

• Real Flat picture tube technology brings you lifelike images

• Lifelike stereo sound to enhance your listening experience

Professional TV

29HT3312/93R

29" real flat

Specifications Product highlights

Picture/Display

• Picture enhancement: Scavem, Comb Filter Digital

• Aspect ratio: 4:3

• Display screen type: Real Flat picture tube

• Picture processing: 50 Hz

• Diagonal screen size: 29 inch / 72 cm

Sound

• Sound Enhancement: Auto Volume Leveller,
Dynamic Bass Enhancement, Incredible Surround

• Output power (RMS): 2 x 5 W

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• Tuner Display: PLL

• Tuner bands: UVSH

• TV system: NTSC, PAL B/G, PAL D/K, PAL I,
SECAM B/G, SECAM D/K

• Video Playback: NTSC, PAL, SECAM

• Stereo System: Nicam BG/DK/I, 2CS BG/DK

• Number of Preset Channels: 125

Connectivity

• AV 2: Audio L/R in, CVBS, Y/C

• Connectivity Enhancements: External
Loudspeaker connector, RJ12 SmartPlug
connector

• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in

• Other connections: Monitor out

Convenience

• Remote control type: RC2887

• Comfort: Hotel Guest features

• Ease of Installation: Advanced Hotel Mode,
Automatic Tuning System (ATS), Cloning of TV
settings, Fine Tuning, Program Name

• Ease of Use: Smart Sound Control

• On-Screen Display languages: Chinese, English,
Malay

• Remote Control: TV

• Clock: On main display, Sleep Timer

Accessories

• Included Accessories: Batteries for remote
control, Remote Control

• Optional accessories: Set up Remote RC2573GR,
Wireless SmartLoader 22AV1120

Loudspeakers

• Built-in speakers: 2

Power

• Mains power: AC 150-276V, 50/60Hz

• Power consumption: Normal Operation 81 W

Dimensions

• Color cabinet: Silver Frost

• Set weight: 43 kg

• Carton dimensions (WxDxH) inch: 872 x 764 x
634

• Product dimensions (WxDxH): 702 x 598 x 501

• Weight incl. Packaging: 47.5 kg

•

Volume limitation

This feature predefines the volume range with which the
TV set is allowed to operate, preventing excessive volume
adjustments and avoiding disturbance of next door
guests.

Welcome message

A welcome greeting is displayed each time the TV set is
switched on.

ESP™

Feature can be selected in the set-up menu. The TV can
be switched off automatically after a specified period of
use saving energy and provide extended product life time.
The selectable range is from 0 to 99 hours.

Battery Low Detection

This feature informs of the need to replace the remote
control batteries preventing nuisance calls and
unneccessary replacement of batteries.

External loudspeaker connector

Amplified audio connector for ea sy installation of e xt ernal
speakers (like for bathrooms), eliminating the need for
investments in external equipment

Wireless SmartLoader

Provides the ability to copy easy and wireless all
programmming settings from one TV set into other TV
sets in less then a minute. The feature ensures uniformity
between TV sets and significantly reduces installation
time and costs.

Smartplug RJ12 connector

The Smartplug RJ12 connector permits OEM or 3rd
party decoders and controllers to interface with the TV.

Real Flat picture tube

The flatter tube provides a wider viewing angle while
minimizing reflections for the best picture possible.

Installation menu locking

Prevents unauthorized access to installation and
configuration settings, to ensure maximum guest
convenience and avoid unnecessary reprogramming
costs.

Issue date 2007-08-24

Version: 1.0

12 NC: 8670 000 20701
EAN: 87 10895 82784 3

© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
