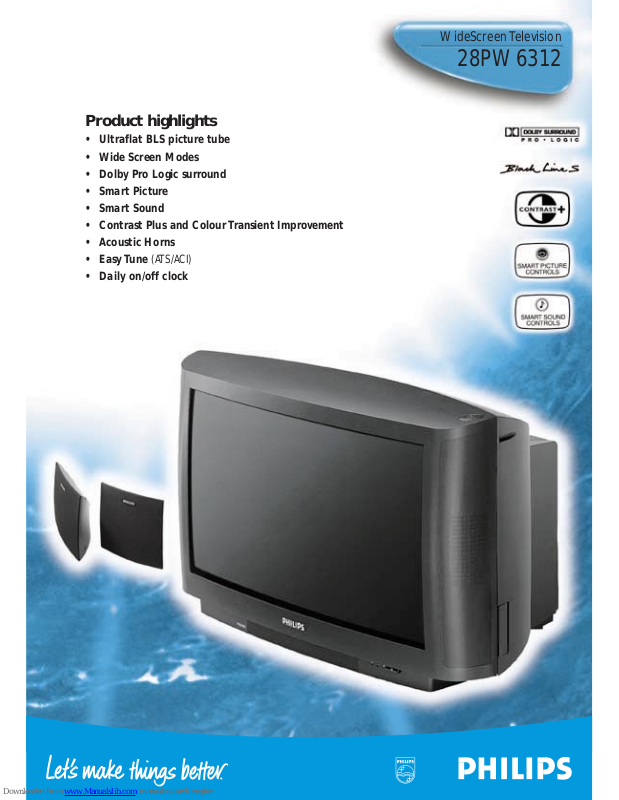

Page 1
WideScreen Television
28PW6312
Product highlights
• Ultraflat BLS picture tube
• Wide Screen Modes
• Dolby Pro Logic surround
• Smart Picture
• Smart Sound
• Contrast Plus and Colour Transient Improvement
• Acoustic Horns
• Easy T une (ATS/ACI)
• Daily on/off clock
Page 2
WideScreen Television
28PW6312
Technical specifications
Chassis
• Type: FL6b MID1.2
• Screen diameter: 28"/70cm
• Visible screen size:66cm
• Picture tube:Blackline-S Ultra Flat
16:9
• Image stability:50Hz
• S-Video display
• Scavem
• Blackstretch
• Tint,adjustable white colour
• Smart Picture control (4 modes)
• Brightness,contrast,tint,sharpness,
noise reduction,colour control
• Game and Digital optimal settings
Sound
• Sound system:
5LS,2 with acoustic horn
• Output (total):24+12+6W
• Frequency response:
60Hz-20Hz,+1/-3dB (ampl.)
• Smart Sound control (4 modes)
• Bi-langual switch on remote
control
• Graphic equalizer
• Bass,treble,balance, Incredible surround,headphone volume and
dolby control
• Surround speakers included
Operation
• Easy menu-driven installation and
operation
• Multi-language selection of menu
• 100 preselections
• Easy Logic remote control with
VCR functions
• Personal Preference setting per
programme
• Learning knob for direct access to
menu functions
• Sleeptimer up to 180 minutes
• Daily on/off clock,to program
automatic switch on and off
• Electronic lock for parental control
• Programme title display
(transmitted by TXT)
• Message mode
Reception
• Tuning system: 100 fold PLL
• Colour transmission systems
Off-air:
/00,/11 PAL B/G
/01 PALB/G/L/I +
SECAM B/G/L/L’
/58 PAL B/G/D/K+
SECAM B/G/D/K
• NTSC playback:4,43MHz
• Channel selections:
VHF, UHF, S-Channels,
Hyperband
• Frequency range:(47.25-
855.25MHz)
• Aerial input:75 Ohm (Coax)
Teletext
• Recept.standards:WST/TOP/FLOF
• Page memory: 8 pages
• Teletext time with one button on
the remote control
• Favourite page
Remote Control
• RC type:RC 7535
Connections
• Side
- S-Video in
- video CVBS-in (cinch)
- audio L/R-in (cinch) with
automatic mono switching
- headphone jack 3.5mm
• Rear
- Euro A/V connector
(RGB-in;CVBS-in/out)
- Euro A/V connector blue
(Y/C-in;CVBS-in/out)
- 2 audio-out (cinch) Constant
level
- Front & Surround loudspeaker
connections (8 click fits)
Miscellaneous
• Ambient temperature :+5/+55°C
• Mains : AC 220-240V ± 10%
• Power consumption:
<110W;Stand by: 3W
• Weight :34.7kg (excl. packaging)
• Dimensions (wxhxd):
75.2x46.7x49.2cm (excl.
connections)
• Cabinet Painting:Mid Grey 10763
Product highlights
• Ultra Flat BLS picture tube
The flat screen offers an improved viewing angle
and less disturbing reflections.The BLS offers high
contrast and reduced reflections,for natural colours
and improved daytime viewing.
• Contrast Plus and Colour Transient
Improvement
For a picture with more contrast and nicer colours.
• Dolby Pro Logic surround
For lifelike sound experience.
• Acoustic horns
Which allows the sound to be projected to the front
of the cabinet.
• Easy Tune
Easy way of channel installation thanks to ACI
(Automatic Channel Installation) by means of special
teletext transmission of local cable operator.
• Viewing modes
- Conventional 4:3
- Zoom 14:9
- Zoom 16:9
- Subtitle Zoom
- Super Zoom
- Wide screen
• Additional 16:9 features
- Subtitle shift
- Continuous zoom
- WideScreen Signalling Bit
Supporting Features
• Ease of use
• Daily on/off clock
• Information Line
• Low power standby (TV)
• Side connectors
• Integrated centre speakers
• Independent headphone volume control
Release date : March ‘97
Predecessor(s) : Date of issue : March ‘98
Subject to modification without notice
1
2 3
4 5 6
7 8 9
0
MENU
P
h ei
u
c Ufg
qs
yÚ
B
o
p
œ
π
®
Ò
†
‡
π
F
V
- +
- +
◊
0
¬
a
M
+
-
b
X
SMART CONTROLS
RC 7535
Dolby Pro Logic Hall
Surround sound modes
Dolby 3 Off (Stereo)
4:3 signal Super Zoom
Automatic setting
without visible distortion
Super Zoom viewing mode
